Users Manual

GT-S8000Cuser manualDraft version
iiusing thismanualThank you for purchasing this Samsung mobilephone. This phone will provide you with high qualitymobile communication and entertainment based onSamsung's high technology and standards.This user manual has been specially designed toguide you through the functions and features of yourmobile phone. To get started quickly,refer to “introducing your mobile phone,”“assembling and preparing your mobile phone,”and “using basic functions.”Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or othersCaution—situations that could cause damage to your phone or other equipmentNote—notes, usage tips, or additional information • Please read this manual carefully before using your phone to ensure safe and correct use. • The descriptions in this manuals are based on the default settings of your phone.
using this manualiiiCopyright informationRights to all technologies and products that comprise this device are the property of their respective owners:• Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide: Bluetooth QD ID: B0xxxxx.• Java™ is a trademark of Sun Microsystems, Inc.• Windows Media Player® is registered trademark of Microsoft Corporation. XRefer to—pages with related information; for example: X p.12 (represents “see page 12”)→Followed by—the order of options or menus you must select to perform a step; for example: In menu mode, select Messages → Create new message (represents Messages, followed by Create new message)[ ]Square brackets—phone keys; for example: [ ] (represents the Power/ Menu exit key)< >Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey)
ivcontentssafety and usage information .................. 2Safety warnings .......................................... 2Safety precautions ...................................... 4Important usage information .......................6introducing your mobile phone ............. 10Unpack .....................................................10Phone layout .............................................11Keys .........................................................12Display ......................................................13Icons .........................................................13assembling and preparing your mobile phone ...................................................... 15Install the SIM card and battery .................15Charge the battery .................................... 17Insert a memory card (optional) .................18
contentsvusing basic functions ............................ 19Turn your phone on and off ....................... 19Access menus .......................................... 20Customise your phone .............................. 20Use basic call functions ............................ 22Send and view messages ......................... 23Add and find contacts ............................... 25Use basic camera functions ......................26Listen to music .........................................27Browse the WAP ...................................... 29using advanced functions ..................... 30Use advanced call functions ..................... 30Use advanced phonebook functions ......... 32Use advanced messaging functions .......... 33Use advanced music functions .................34using tools and applications ................. 38Use China Mobile In services ....................38Use the Bluetooth wireless feature ............ 39Activate and send an SOS message ......... 40Record and play voice memos .................. 41Edit images ............................................... 42Use Java-powered games and applications .............................................. 44Create and view world clocks ................... 45Set and use alarms ................................... 46Use the calculator ..................................... 46Convert currencies or measurements ....... 47Set a countdown timer ............................. 47Use the stopwatch .................................... 47Create a text memo .................................. 47Manage your calendar .............................. 48overview of menu functions .................... atroubleshooting ........................................ b
2safety andusageinformation Comply with the following precautions to avoiddangerous or illegal situations and ensure peakperformance of your mobile phone.Keep your phone away from small children and petsKeep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.Protect your hearingSafety warningsListening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music.

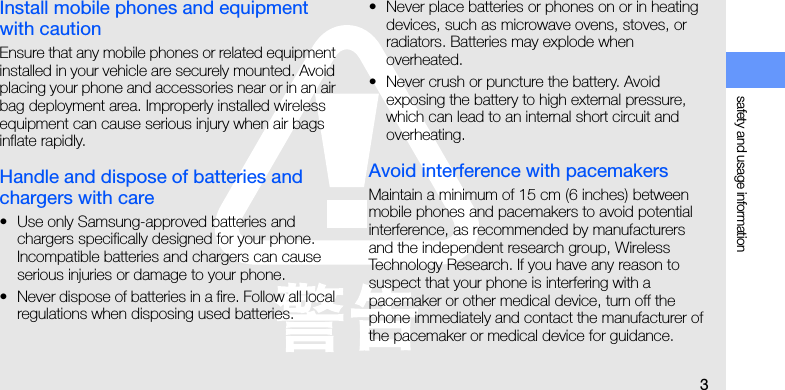

safety and usage information3Install mobile phones and equipment with cautionEnsure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.Handle and dispose of batteries and chargers with care• Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.• Never dispose of batteries in a fire. Follow all local regulations when disposing used batteries.• Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.• Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating.Avoid interference with pacemakersMaintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance.

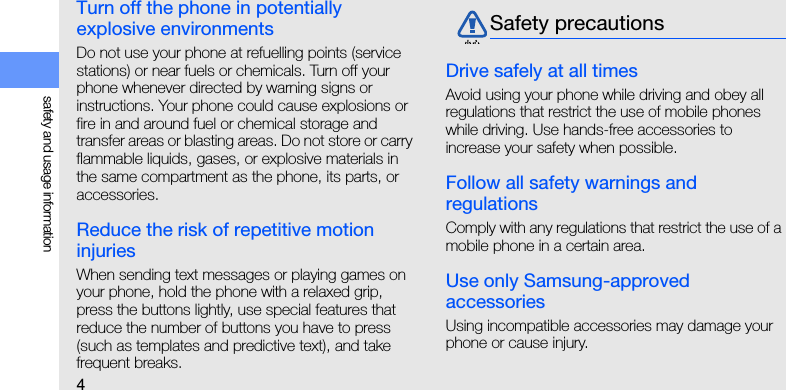

4safety and usage informationTurn off the phone in potentially explosive environmentsDo not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories.Reduce the risk of repetitive motion injuriesWhen sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the buttons lightly, use special features that reduce the number of buttons you have to press (such as templates and predictive text), and take frequent breaks.Drive safely at all timesAvoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible.Follow all safety warnings and regulationsComply with any regulations that restrict the use of a mobile phone in a certain area.Use only Samsung-approved accessoriesUsing incompatible accessories may damage your phone or cause injury.Safety precautions
safety and usage information5Turn off the phone near medical equipmentYour phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.Turn off the phone or disable the wireless functions when in an aircraftYour phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel.Protect batteries and chargers from damage• Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/115° F). Extreme temperatures can reduce the charging capacity and life of your batteries.• Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage.• Never use a damaged charger or battery.• Risk of explosion if a battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.Handle your phone carefully and sensibly
6safety and usage information• Do not allow your phone to get wet—liquids can cause serious damage. Do not handle your phone with wet hands. Water damage to your phone can void your manufacturer’s warranty.• Avoid using or storing your phone in dusty, dirty areas to prevent damage to moving parts.• Your phone is a complex electronic device—protect it from impacts and rough handling to avoid serious damage.• Do not paint your phone, as paint can clog moving parts and prevent proper operation.• Avoid using the phone’s camera flash or light close to the eyes of children or animals.• Your phone and memory cards may be damaged by exposure to magnetic fields. Do not use carrying cases or accessories with magnetic closures or allow your phone to come in contact with magnetic fields for extended periods of time.Avoid interference with other electronic devicesYour phone emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience.
safety and usage information7Use your phone in the normal positionAvoid contact with your phone’s internal antenna.Allow only qualified personnel to service your phoneAllowing unqualified personnel to service your phone may result in damage to your phone and will void your warranty.Ensure maximum battery and charger life• Avoid charging batteries for more than a week, as overcharging may shorten battery life.• Over time, unused batteries will discharge and must be recharged before use.• Disconnect chargers from power sources when not in use.• Use batteries only for their intended purpose.Handle SIM cards and memory cards with care• Do not remove a card while the phone is transferring or accessing information, as this could result in loss of data and/or damage to the card or phone.• Protect cards from strong shocks, static electricity, and electrical noise from other devices.• Frequent writing and erasing will shorten the life span of memory cards.• Do not touch gold-coloured contacts or terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth.Important usage information
8safety and usage informationEnsure access to emergency servicesEmergency calls from your phone may not be possible in some areas or circumstances. Before travelling in remote or undeveloped areas, plan an alternate method of contacting emergency services personnel.Specific Absorption Rate (SAR) certification informationYour wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.
safety and usage information9SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC.The highest SAR values for this model phone as reported to the FCC are:GSM 850 Mode•Head: 0.113 W/Kg.•Body-worn: 0.275 W/Kg.GSM 1900 Mode(Part 24)•Head: 0.470 W/Kg.•Body-worn: 0.539 W/Kg.For body worn operation, this model phonehas been tested and meets the FCC RF exposure guidelines whenused with a Samsung accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body.Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.
10safety and usage informationSAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number, A3LGTS8000C. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar.Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called “cell,” “mobile,” or “PCS” phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a
safety and usage information11base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged

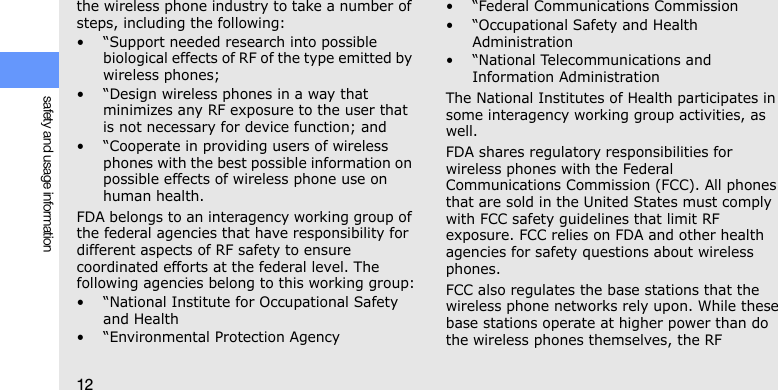

12safety and usage informationthe wireless phone industry to take a number of steps, including the following:• “Support needed research into possible biological effects of RF of the type emitted by wireless phones;• “Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and• “Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• “National Institute for Occupational Safety and Health• “Environmental Protection Agency• “Federal Communications Commission• “Occupational Safety and Health Administration• “National Telecommunications and Information AdministrationThe National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF
safety and usage information13exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.
14safety and usage informationWhat research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).
safety and usage information15FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.• “If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a
16safety and usage informationheadset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists. Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in
safety and usage information17the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike “hand-free” kits, these so-called “shields” may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from
18safety and usage informationwireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:• FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/• Environmental Protection Agency (EPA):http://www.epa.gov/radiation/• Occupational Safety and Health Administration's (OSHA): http://www.osha.gov/SLTC/radiofrequencyradiation/index.html• National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/emfpg.html • World health Organization (WHO):http://www.who.int/peh-emf/
safety and usage information19• International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de• National Radiation Protection Board (UK):http://www.nrpb.org.uk• Updated 4/3/2002: US food and Drug Administrationhttp://www.fda.gov/cellphonesRoad SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.

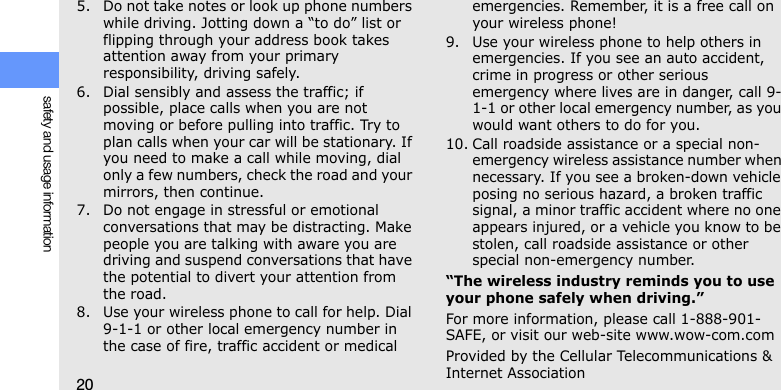

20safety and usage information5. Do not take notes or look up phone numbers while driving. Jotting down a “to do” list or flipping through your address book takes attention away from your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10. Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number.“The wireless industry reminds you to use your phone safely when driving.”For more information, please call 1-888-901-SAFE, or visit our web-site www.wow-com.comProvided by the Cellular Telecommunications & Internet Association

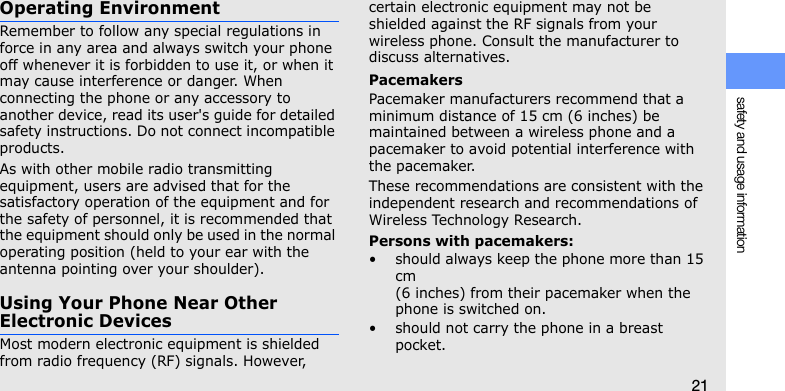

safety and usage information21Operating EnvironmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment and for the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder).Using Your Phone Near Other Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker.These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.• should not carry the phone in a breast pocket.
22safety and usage information• should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing AidsSome digital wireless phones may interfere with some hearing aids. In the event of such interference, you may wish to consult your hearing aid manufacturer to discuss alternatives.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel
safety and usage information23storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press .If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately
24safety and usage informationas possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Restricting Children's access to your PhoneYour phone is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the phone or make calls that increase your phone bill.FCC Notice and CautionsFCC Notice• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
safety and usage information25The phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsChanges or modifications made in the radio phone, not expressly approved by Samsung, will void the user’s authority to operate the equipment. Only use approved batteries, antennas andchargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is conected.-Consult the dealer or an experienced radio/TV technician for help
26safety and usage informationOther Important Safety Information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Product PerformanceGetting the Most Out of Your Signal ReceptionThe quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.If you're inside a building, being near a window may give you better reception.
safety and usage information27Understanding the Power Save FeatureIf your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.Understanding How Your Phone OperatesYour phone is basically a radio transmitter and receiver. When it's turned on, it receives and transmits radio frequency (RF) signals. When you use your phone, the system handling your call controls the power level. This power can range from 0.006 watts to 0.2 watts in digital mode.Maintaining Your Phone's Peak PerformanceFor the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty.There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.• Hold the phone with the antenna raised, fully-extended and over your shoulder.• Try not to hold, bend or twist the phone's antenna.• Don't use the phone if the antenna is damaged.• Speak directly into the phone's receiver.• Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.
28safety and usage informationAvailability of Various Features/Ring TonesMany services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Downloadable Ring Tones may be available at an additional cost. Other conditions and restrictions may apply. See your service provider for additional information.Battery Standby and Talk TimeStandby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns. Battery Precautions• Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.

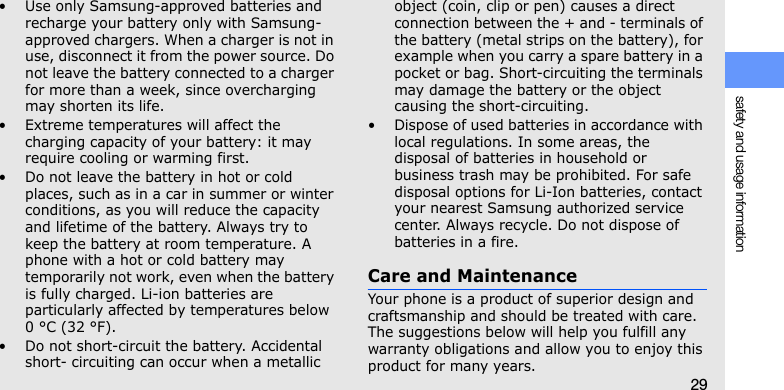

safety and usage information29• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short- circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years.
30safety and usage information• Keep the phone and all its parts and accessories out of the reach of small children.• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.• When the phone or battery gets wet, the label indicating water damage inside the phone changes color. In this case, phone repairs are no longer guaranteed by the manufacturer's warranty, even if the warranty for your phone has not expired.
safety and usage information31• If your phone has a flash or light, do not use it too close to the eyes of people or animals. This may cause damage to their eyes.• Use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.
12introducing yourmobile phone In this section, learn about your mobile phone’slayout, keys, and icons.UnpackCheck your product box for the following items:• Mobile phone• Battery• Travel adapter (charger)• User manual • The items supplied with your phone may vary depending on the software and accessories available in your region or offered by your service provider. • You can obtain additional accessories from your local Samsung dealer.• Use only Samsung-approved software. Pirated or illegal software may cause damage or malfunctions that are not covered by manufacturer's warranty.
introducing your mobile phone13Phone layoutThe front of your phone includes the following keys and features:The rear of your phone includes the following keys and features:Proximity sensorPower/Menu exit keyDial keyTouch screenEarpieceMouthpieceVolume keyMneu keyYou can lock the touch screen and keys to prevent any unwanted phone operations. To lock, press the Hold key.Battery coverRear camera lensCamera keyInternal antennaCube keyMultifunctionjackFlashbulbHold keyHeadset/TV-out cable jack
14introducing your mobile phoneKeysKey FunctionDialMake or answer a call; In Idle mode, retrieve recently dialled, missed, or received numbersMenu Access Menu mode; Shows all active applications (press and hold)Power/Menu exitTurn the phone on and off (press and hold); End a call; In Menu mode, return to the main menu or return to Idle modeVolume Adjust the phone’s volumeHold Lock or unlock the touch screen and keysCube Open the cube screen to access entertainment applicationsCameraIn Idle mode, turn on the camera; In Camera mode, take a photo or record a videoKey Function

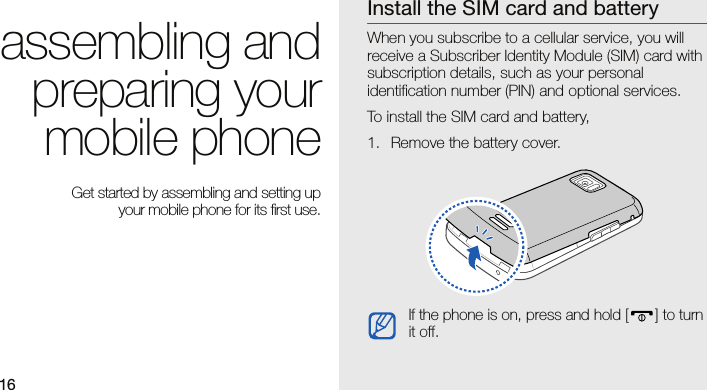

16assembling andpreparing yourmobile phone Get started by assembling and setting up your mobile phone for its first use.Install the SIM card and batteryWhen you subscribe to a cellular service, you will receive a Subscriber Identity Module (SIM) card with subscription details, such as your personal identification number (PIN) and optional services.To install the SIM card and battery,1. Remove the battery cover.If the phone is on, press and hold [ ] to turn it off.
assembling and preparing your mobile phone172. Insert the SIM card. 3. Insert the battery.4. Replace the battery cover.• Place the SIM card in the phone with the gold-coloured contacts facing down.• Without inserting a SIM card, you can use your phone’s non-network services and some menus.
18assembling and preparing your mobile phoneCharge the batteryBefore using the phone for the first time, you must charge the battery.1. Open the cover to the multifunction jack on the top of the phone.2. Plug the small end of the travel adapter into the multifunction jack.3. Plug the large end of the travel adapter into a power outlet.4. When the battery is fully charged (the icon is no longer moving), unplug the travel adapter from the power outlet.With the triangle facing upImproperly connecting the travel adapter can cause serious damage to the phone. Any damages by misuse are not covered by the warranty.To ensure peak performance of your battery, fully charge and discharge (use until empty) the battery the first two or three times.小心

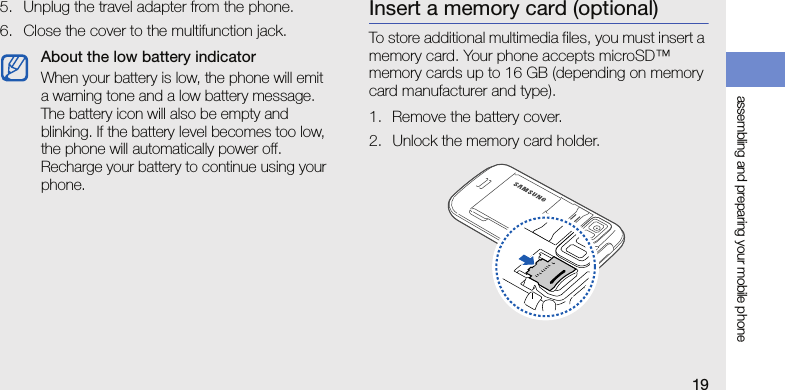

assembling and preparing your mobile phone195. Unplug the travel adapter from the phone.6. Close the cover to the multifunction jack.Insert a memory card (optional)To store additional multimedia files, you must insert a memory card. Your phone accepts microSD™ memory cards up to 16 GB (depending on memory card manufacturer and type).1. Remove the battery cover.2. Unlock the memory card holder.About the low battery indicatorWhen your battery is low, the phone will emit a warning tone and a low battery message. The battery icon will also be empty and blinking. If the battery level becomes too low, the phone will automatically power off. Recharge your battery to continue using your phone.
20assembling and preparing your mobile phone3. Lift the memory card holder and insert a memory card as shown.4. Close the memory card holder.5. Lock the memory card holder.6. Replace the battery cover.To remove the memory card, remove the battery cover, unlock and lift the memory card holder, and remove the memory card.
assembling and preparing your mobile phone21Attach a hand strap (optional)1. Remove the battery cover.2. Slide a hand strap through the slot and hook it over the small projection.
22using basicfunctions Learn how to perform basic operations and use themain features of your mobile phone.Turn your phone on and offTo turn your phone on,1. Press and hold [ ].2. Enter your PIN and select Confirm (if necessary).To turn your phone off, repeat step 1 above.Switch to the offline profileBy switching to the offline profile, you can use your phone’s non-network services in areas where wireless devices are prohibited, such as aeroplanes and hospitals.To switch to the offline profile, in Menu mode, select Settings → Phone profiles → Offline.Follow all posted warnings and directions from official personnel when in areas where wireless devices are prohibited.
23using basic functionsUse the touch screenYour phone’s touch screen lets you easily select items or perform functions. Learn basic actions to use the touch screen.• Touch an icon to open a menu or launch an application.• Drag your finger up or down to scroll through vertical lists.• Drag your finger left or right to scroll through horizontal lists.For the optimal use of the touch screen, remove the screen protection film before using your phone.
24using basic functionsAccess menusTo access your phone’s menus,1. In Idle mode, select Menu or press the Menu key to access Menu mode.2. Scroll left or right to a Menu mode screen.3. Select a menu or option.4. Select to move up one level; Press [ ] to return to Idle mode.Use the motion sensorYour phone features a built-in motion sensor that switches the display from portrait to landscape mode. The following applications support landscape mode: Camera, Video player, Music player, and Photo browser.Switch applicationsYour phone allows you to multi-task by running multiple applications at the same time.Switch from one active application to another1. Press and hold the Menu key to open a list of active applications.2. Scroll to an application and select it.To change the view mode, select Grid view.Close applicationsTo close the current application, press [ ].To close an application that is running in the background,1. Press and hold the Menu key to open a list of active applications.2. Scroll to an application and select .

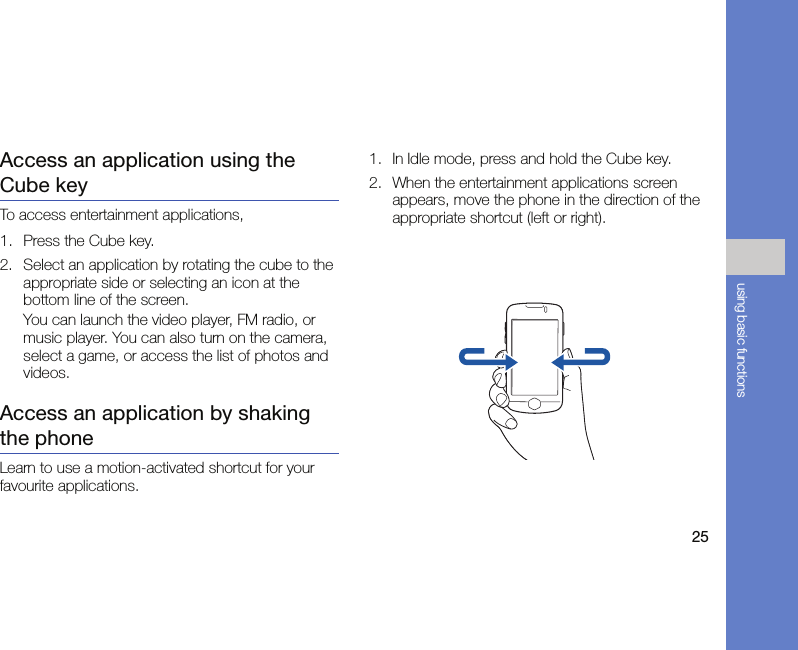

25using basic functionsAccess an application using the Cube keyTo access entertainment applications,1. Press the Cube key.2. Select an application by rotating the cube to the appropriate side or selecting an icon at the bottom line of the screen.You can launch the video player, FM radio, or music player. You can also turn on the camera, select a game, or access the list of photos and videos.Access an application by shaking the phoneLearn to use a motion-activated shortcut for your favourite applications.1. In Idle mode, press and hold the Cube key.2. When the entertainment applications screen appears, move the phone in the direction of the appropriate shortcut (left or right).
26using basic functionsTo change an entertainment application assigned to a motion direction, 1. In Menu mode, select Settings → Motion settings → Motion gate settings.2. Select an application to be changed.3. Select a menu to assign to the direction and select Save.4. Select Save.Use widgetsLearn to use widgets on the widget toolbar.Open the widget toolbarIn Idle mode, select the arrow at the bottom left of the screen to open the widget toolbar. You can rearrange widgets on the widget toolbar or move them to the idle screen.Move the widgets to the idle screen1. Open the widget toolbar.2. Drag a widget from the widget toolbar to the idle screen. You can position the widget anywhere on the screen.Change the widgets1. In Menu mode, select Settings → Display and light → Widget.2. Select the widgets you want to include to the widget toolbar and select Save.• Some of your widgets connect to web services. Selecting a web-based widget may incur additional charges.• Available widgets may vary depending on your region or service provider.

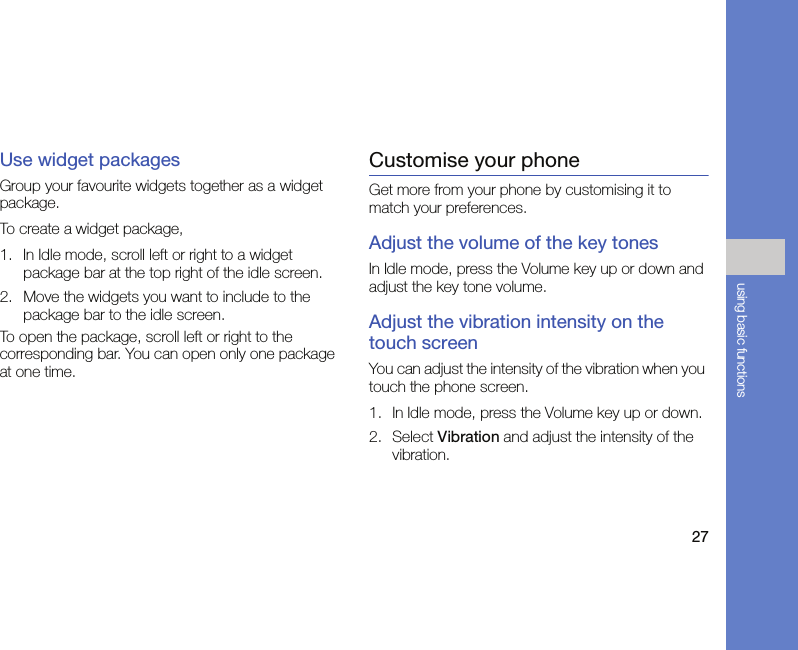

27using basic functionsUse widget packagesGroup your favourite widgets together as a widget package.To create a widget package,1. In Idle mode, scroll left or right to a widget package bar at the top right of the idle screen.2. Move the widgets you want to include to the package bar to the idle screen.To open the package, scroll left or right to the corresponding bar. You can open only one package at one time.Customise your phoneGet more from your phone by customising it to match your preferences.Adjust the volume of the key tonesIn Idle mode, press the Volume key up or down and adjust the key tone volume.Adjust the vibration intensity on the touch screenYou can adjust the intensity of the vibration when you touch the phone screen.1. In Idle mode, press the Volume key up or down.2. Select Vibration and adjust the intensity of the vibration.
28using basic functionsSwitch to or from the silent profileIn Idle mode, select Keypad and touch and hold to silence or unsilence your phone.Calibrate the screenYou can calibrate the screen so that your phone recognises the input better.1. In Menu mode, select Settings → Phone settings → Calibration.2. Touch the target on the screen.3. Select OK.Change your ringtone1. In Menu mode, select Settings → Phone profiles.2. Select next to the profile you are using.3. Select Voice call ringtone.4. Select a ringtone from the list and select Save.5. Select Save.To switch to another profile, select it from the list.Activate Etiquette pauseYou can temporarily mute all phone sounds by placing the phone face down when Etiquette pause is activated.1. In Menu mode, select Settings → Motion settings → Etiquette pause → On.2. Select Save.Select a wallpaper (Idle mode)1. In Menu mode, select Settings → Display and light → Wallpaper.2. Scroll left or right to an image.3. Select Set.
29using basic functionsLock your phone1. In Menu mode, select Settings → Security.2. Select On under Phone lock.3. Enter a new 4- to 8-digit password and select Confirm.4. Enter the new password again and select Confirm.Unlock the touch screen with smart unlockBy drawing a specified character on the locked touch screen, you can unlock the screen only, unlock and then make a call to a speed dial number, or unlock and then launch an application. To set a smart unlock character,1. In Menu mode, select Settings → Smart unlock.2. Select On under Gesture unlock.3. Select an unlock option.4. Select a speed dial number to dial or select an application to launch (if necessary).5. Select a character for the smart unlock feature.6. Select Save.• The first time you access a menu that requires a password, you will be prompted to create and confirm a password.• Samsung is not responsible for any loss of passwords or private information or other damages caused by illegal software.
30using basic functionsUse basic call functionsLearn to make or answer calls and use basic call functions.Make a call1. In Idle mode, select Keypad and enter an area code and a phone number.2. Select → Voice call or press [ ] to dial the number.3. To end the call, press [ ].Answer a call1. When a call comes in, press [ ].2. To end the call, press [ ].Adjust the volumeTo adjust the volume during a call, press the Volume key up or down.Use the speakerphone feature1. During a call, select Speaker → Yes to activate the speaker.2. To switch back to the earpiece, select Speaker.You can set the phone to activate the speaker automatically.1. In Menu mode, select Settings → Motion settings → Speaker call → On.During a call, your phone automatically locks the touch screen to prevent accidental inputs. To unlock, press the Hold key.

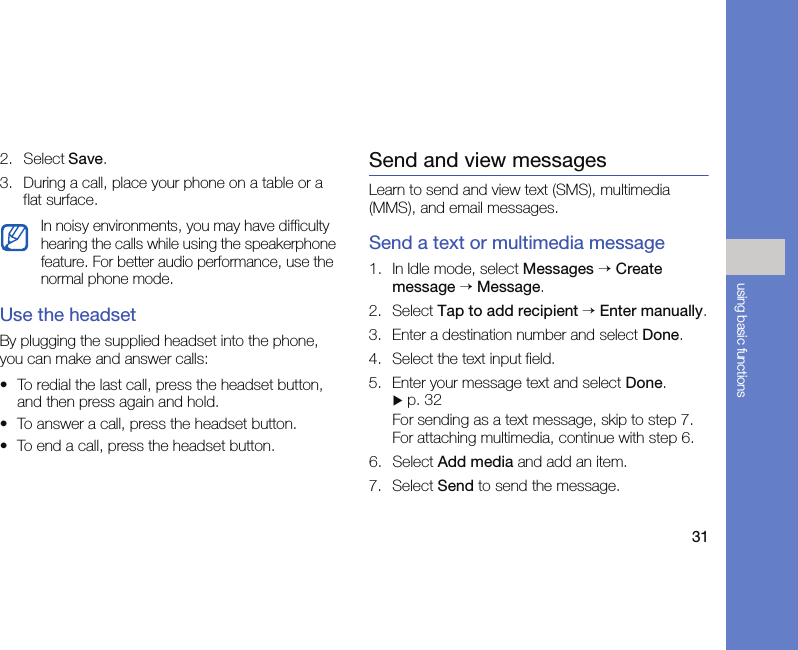

31using basic functions2. Select Save.3. During a call, place your phone on a table or a flat surface.Use the headset By plugging the supplied headset into the phone, you can make and answer calls:• To redial the last call, press the headset button, and then press again and hold.• To answer a call, press the headset button.• To end a call, press the headset button.Send and view messagesLearn to send and view text (SMS), multimedia (MMS), and email messages.Send a text or multimedia message1. In Idle mode, select Messages → Create message → Message.2. Select Tap to add recipient → Enter manually.3. Enter a destination number and select Done.4. Select the text input field.5. Enter your message text and select Done. X p. 32For sending as a text message, skip to step 7. For attaching multimedia, continue with step 6.6. Select Add media and add an item.7. Select Send to send the message.In noisy environments, you may have difficulty hearing the calls while using the speakerphone feature. For better audio performance, use the normal phone mode.

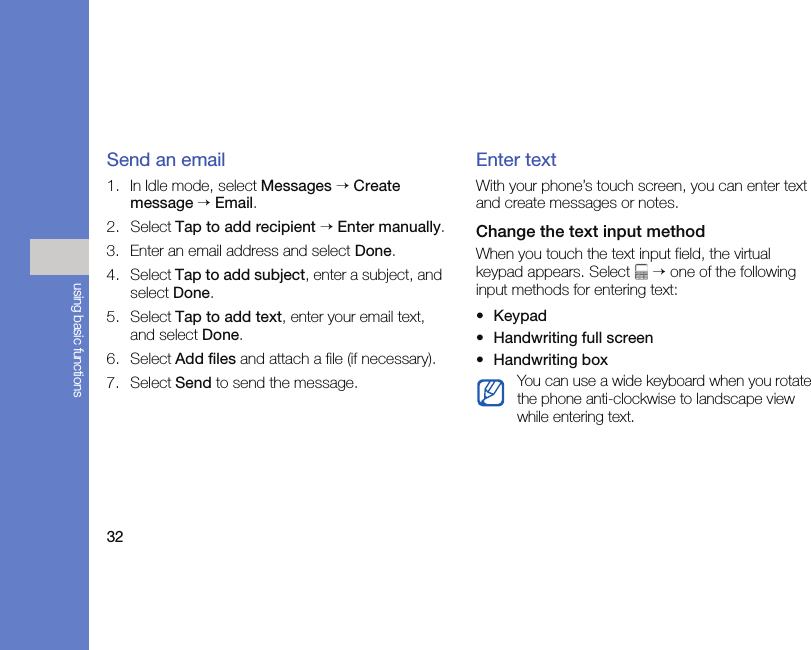

32using basic functionsSend an email1. In Idle mode, select Messages → Create message → Email.2. Select Tap to add recipient → Enter manually.3. Enter an email address and select Done.4. Select Tap to add subject, enter a subject, and select Done.5. Select Tap to add text, enter your email text, and select Done.6. Select Add files and attach a file (if necessary).7. Select Send to send the message.Enter textWith your phone’s touch screen, you can enter text and create messages or notes.Change the text input methodWhen you touch the text input field, the virtual keypad appears. Select → one of the following input methods for entering text:•Keypad•Handwriting full screen•Handwriting boxYou can use a wide keyboard when you rotate the phone anti-clockwise to landscape view while entering text.
33using basic functionsEnter text using the virtual keypadChange the text input method to Keypad. Touch the text input mode icon (PY by default) and select an text input mode. You can use the following text input modes for each language:Available text input modes vary depending on the selected text input language. To change the text input language, touch the text input language at the bottom right of the screen.Mode FunctionPinyin1. Touch the text input mode icon to select Pinyin.2. Touch the appropriate alphanumeric virtual keys to enter pinyins.3. Enter a pinyin.4. Select 0. A number appears by each character.5. Scroll left or right to a character.6. Select the character you want.S Stroke1. Touch the text input mode icon to select S Stroke.2. Select 1 through 5 to enter strokes. Select 6 when you are unsure which stroke to enter. This will insert a placeholder.3. Scroll left or right to a character.4. Select the character you want.ABC1. Touch the text input mode icon to select Abc.2. Select the appropriate virtual key until the character you want appears on the screen.Mode Function
34using basic functionsEnter text using the handwriting full screen1. Change the text input method to Handwriting full screen.2. Change the text input mode as you would when using the keyboard.3. Write each character anywhere on the screen.4. If you are entering Chinese, select the character you want.Enter text using the handwriting box1. Change the text input method to Handwriting box.2. Change the text input mode as you would when using the keyboard.3. Write each character in the black writing area.4. If you are entering Chinese, select the character you want.T9 AB1. Touch T9. 2. Select the appropriate virtual keys to enter an entire word.3. When the word displays correctly, select to insert a space. If the correct word does not display, select an alternate word from the list that appears.Numeric1. Select the text input mode to select Numeric.2. Select the appropriate virtual key to enter a number.Symbols1. Touch the text input mode to select Symbols.2. Select the appropriate virtual key to select a symbol.Mode Function
35using basic functionsView text or multimedia messages1. In Idle mode, select Messages → Inbox.2. Select a text or multimedia message.View an email1. In Idle mode, select Messages → Email inbox.2. Select an account.3. Select Download.4. Select an email or a header.5. If you selected a header, select Retrieve to view the body of the email.Add and find contactsLearn the basics of using the phonebook feature.Add a new contact1. In Idle mode, select Keypad and enter a phone number.2. Select → Add to Phonebook → New.3. Select Phone or SIM.4. Enter contact information.5. Select Save to add the contact to memory.Find a contact1. In Idle mode, select Phonebook.2. Select the search field, enter the letter of the name you want to find, and select Done. You can also drag to select the first letter of the name.
36using basic functions3. Select the contact’s name from the search list.Use basic camera functionsLearn the basics to capture and view photos and videos.Capture photos1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Aim the lens at the subject and make any adjustments.• To turn the flash on or off, select .• To set the exposure value, select .4. Press the Camera key to take a photo. The photo is saved automatically.After capturing photos, select to view photos.View photosIn Menu mode, select My files → Images → My photos → a photo file.• Rotate the phone anti-clockwise to landscape view. Tilt the phone to the left or right, photos will scroll left or right automatically.• Touch and hold the screen and drag to zoom in. Double-touch the screen to exit the zoom screen.To categorise and view photos in a wide view,1. In Menu mode, select Photo browser.2. Rotate the phone anti-clockwise to landscape view.Once you have found a contact, you can:• call the contact by selecting • edit the contact information by selecting Edit
37using basic functions3. Select → a category to categories the photos.4. Select a photo file.5. Scroll left or right to view photos.Tilt the phone to the left or right, photos will scroll left or right automatically.Capture videos1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Select to switch to Recording mode.4. Aim the lens at the subject and make any adjustments.• To change the recording mode, select .• To turn the flash on or off, select .• To set the exposure value, select .5. Press the Camera key to start recording.6. Select or press the Camera key to stop recording. The video is saved automatically.After capturing videos, select to view videos.View videosUse one of the following methods to view videos.• In Menu mode, select My files → Videos → My video clips → a video file. Rotate the phone anti-clockwise to landscape view.• In Menu mode, select Video player → a video file. Rotate the phone anti-clockwise to landscape view.
38using basic functionsListen to musicLearn how to listen to music via the music player or FM radio.Listen to the FM radio1. Plug the supplied headset into the phone.2. In Menu mode, select FM radio.3. Select Yes to start automatic tuning.The radio scans and saves available stations automatically.4. Control the FM radio using the following icons: If you want to get information about the song you hear, select More → Find music. X p. 55• The first time you access the FM radio, you will be prompted to start automatic tuning.• Automatic tuning will only locate stations with an adequate signal.Icon FunctionSet your phone to re-tune frequencies for stationsChange the sound output Tune a radio station; Select a saved radio station (touch and hold)Start the FM radioTurn off the FM radio
39using basic functionsListen to music filesStart by transferring files to your phone or memory card:• Download from the wireless web. X p. 40• Download from a PC with the optional Samsung PC Studio. X p. 51• Receive via Bluetooth. X p. 57• Copy to your memory card. X p. 52• Synchronise with Windows Media Player 11. X p. 52After transferring music files to your phone or memory card,1. In Menu mode, select Music → Music player.2. Select a music category → a music file.3. Control playback using the following icons:Icon FunctionPause playbackPlay or resume playbackSkip backward; Scan backward in a file (touch and hold)Skip forward; Scan forward in a file (touch and hold)Activate the 5.1 channel surround sound systemChange the sound effectChange the repeat modeActivate Shuffle mode
40using basic functionsBrowse the WAPLearn to access and bookmark your favourite WAP pages.Browse WAP pages1. In Menu mode, select Browser to launch your service provider’s homepage.2. Navigate WAP pages using the following icons:Bookmark your favourite WAP pages1. In Menu mode, select Browser → Bookmarks.2. Select Add.3. Enter a page title and a WAP address (URL).4. Select Save.• You may incur additional charges for accessing the WAP and downloading media.• The browser menu may be labelled differently depending on your service provider.• Available icons may vary depending on your region or service provider.Icon Function Move backward or forward on a WAP pageRefresh the current WAP pageOpen a list of activated WAP pagesZoom in the current WAP pageOpen a list of saved bookmarksAdjust the brightness of the screenAccess a list of browser optionsIcon Function

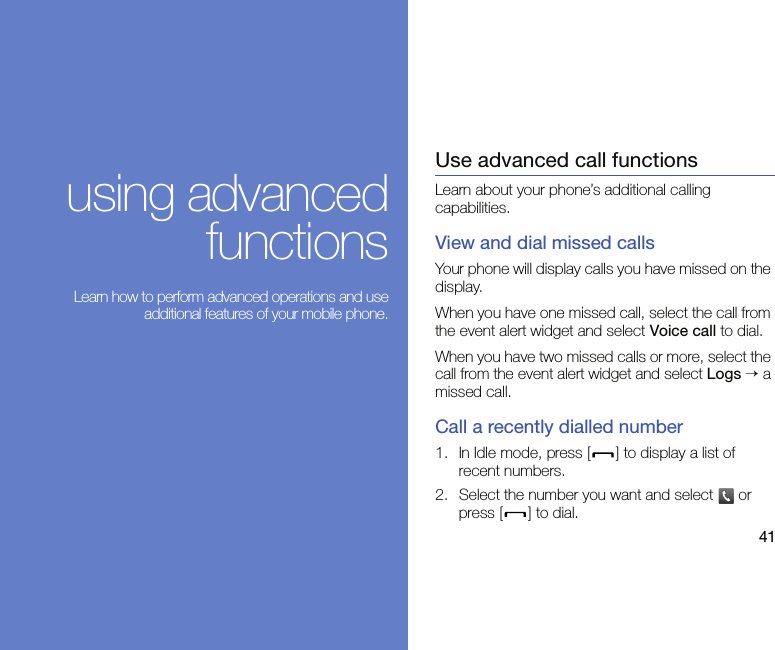

41using advancedfunctions Learn how to perform advanced operations and useadditional features of your mobile phone.Use advanced call functionsLearn about your phone’s additional calling capabilities. View and dial missed callsYour phone will display calls you have missed on the display.When you have one missed call, select the call from the event alert widget and select Voice call to dial.When you have two missed calls or more, select the call from the event alert widget and select Logs → a missed call.Call a recently dialled number1. In Idle mode, press [ ] to display a list of recent numbers.2. Select the number you want and select or press [ ] to dial.

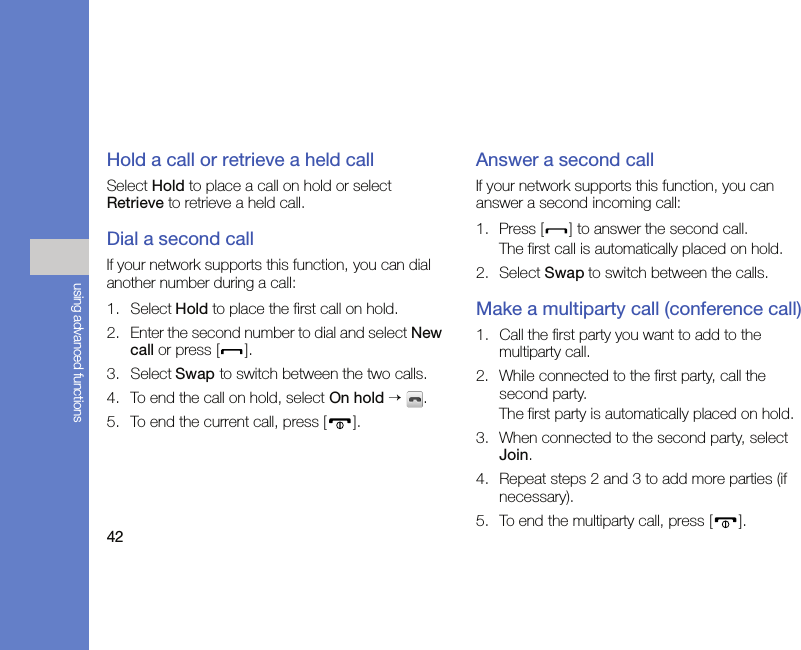

42using advanced functionsHold a call or retrieve a held callSelect Hold to place a call on hold or select Retrieve to retrieve a held call.Dial a second callIf your network supports this function, you can dial another number during a call:1. Select Hold to place the first call on hold.2. Enter the second number to dial and select New call or press [ ].3. Select Swap to switch between the two calls.4. To end the call on hold, select On hold → .5. To end the current call, press [ ].Answer a second callIf your network supports this function, you can answer a second incoming call:1. Press [ ] to answer the second call.The first call is automatically placed on hold.2. Select Swap to switch between the calls.Make a multiparty call (conference call)1. Call the first party you want to add to the multiparty call.2. While connected to the first party, call the second party.The first party is automatically placed on hold.3. When connected to the second party, select Join.4. Repeat steps 2 and 3 to add more parties (if necessary).5. To end the multiparty call, press [ ].
43using advanced functionsCall an international number1. In Idle mode, select Keypad and touch and hold 0 to insert the + character.2. Enter the complete number you want to dial (country code, area code, and phone number), and then select → Voice call or press [ ] to dial.Call a contact from the phonebookYou can call numbers directly from the phonebook using stored contacts. X p. 351. In Idle mode, select Phonebook.2. Select the contact you want.3. Select next to the number you want to dial → .Reject a callTo reject an incoming call, press [ ]. The caller will hear a busy tone.To reject calls from certain numbers automatically, use the auto rejection. To activate the auto rejection and set up the reject list,1. In Menu mode, select Settings → Application settings → Call → All calls → Auto reject.2. Select On under Activation.3. Select Add number.4. Select the number input field.5. Enter a number to reject and select Done → Save.6. Select the check box next to the number.7. Select Save.

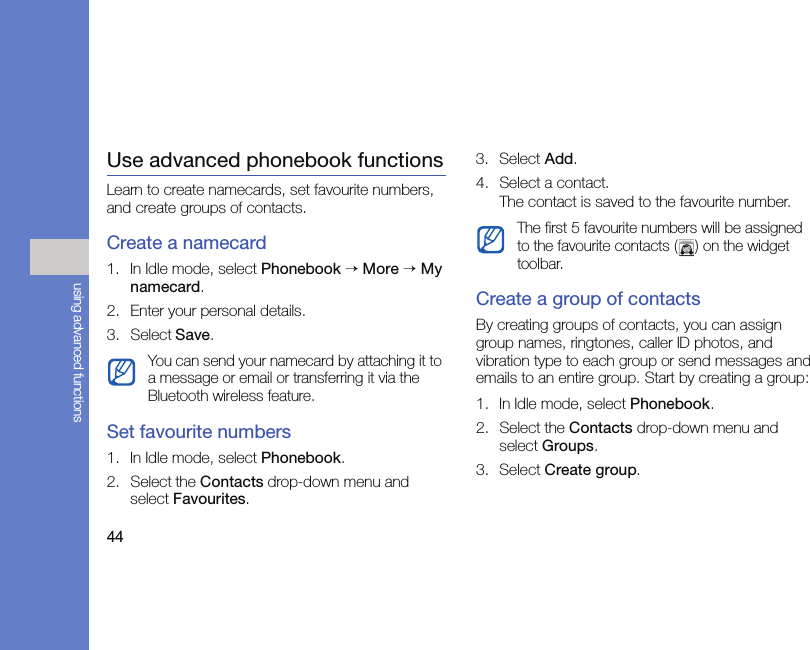

44using advanced functionsUse advanced phonebook functionsLearn to create namecards, set favourite numbers, and create groups of contacts.Create a namecard1. In Idle mode, select Phonebook → More → My namecard.2. Enter your personal details.3. Select Save.Set favourite numbers1. In Idle mode, select Phonebook.2. Select the Contacts drop-down menu and select Favourites.3. Select Add.4. Select a contact.The contact is saved to the favourite number.Create a group of contactsBy creating groups of contacts, you can assign group names, ringtones, caller ID photos, and vibration type to each group or send messages and emails to an entire group. Start by creating a group:1. In Idle mode, select Phonebook.2. Select the Contacts drop-down menu and select Groups.3. Select Create group.You can send your namecard by attaching it to a message or email or transferring it via the Bluetooth wireless feature.The first 5 favourite numbers will be assigned to the favourite contacts ( ) on the widget toolbar.
45using advanced functions4. Set a group name, the caller ID photo, a group ringtone, and vibration type.5. Select Save.Link your photos to contactsLearn to tag faces in your photos to make calls or send messages from photos.To link your photos to contacts,1. In Menu mode, scroll to the right to access the photo contact screen.2. Select Add → a photo.3. Select Edit to add a tag to a person’s face.4. Select Add tag, move or resize the rectangle on a face, and select Done (if necessary).5. Select the face tag → Link to Phonebook → a contact. The selected contact is linked to the photo.6. Select to add more photo contacts (step 2).Make calls or send messages from photos1. In Menu mode, scroll to the right to access the photo contact screen.2. Scroll up or down to a photo.The face tag appears with the name.3. Select the face tag → Voice call or Message.Use advanced messaging functionsLearn to create and use templates to create new messages, and create message folders.Create a text template1. In Idle mode, select Messages → Templates → Text templates.2. Select Create to open a new template window.
46using advanced functions3. Select the text input field, enter your text, and select Done.4. Select Save.Create a multimedia template1. In Idle mode, select Messages → Templates → Multimedia templates.2. Select Create to open a new template window.3. Create a multimedia message, with a subject and desired attachments, to use as your template. X p. 314. Select Save.Insert text templates in new messages1. To start a new message, in Idle mode, select Messages → Create message → a message type.2. Select More → Insert → Text template → a template.Create a message from a multimedia template1. In Idle mode, select Messages → Templates → Multimedia templates.2. Select next to template you want.Your template opens as a new multimedia message.Create a folder to manage messages1. In Idle mode, select Messages → My folders.2. Select Create folder.3. Enter a new folder name and select Done.Move messages from the Inbox to your folders to manage them as your preferences.

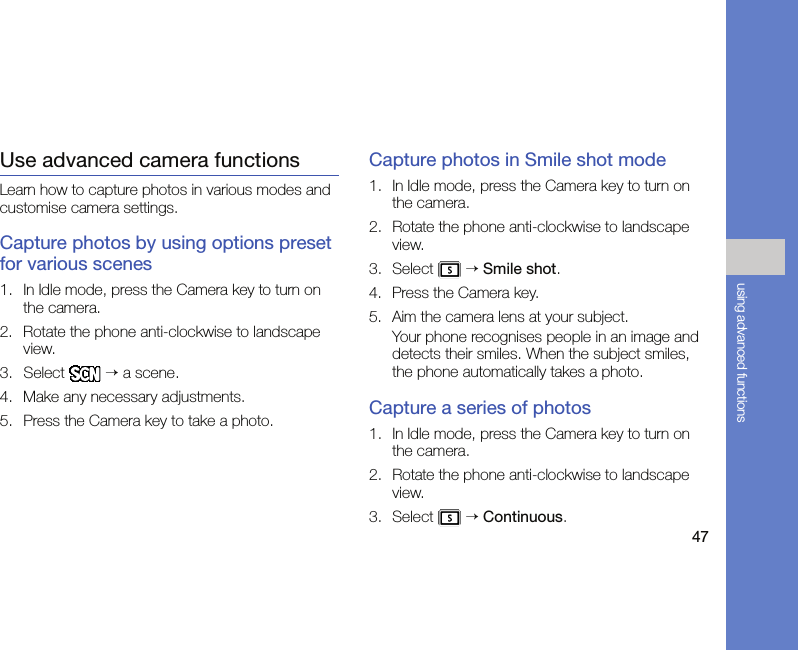

47using advanced functionsUse advanced camera functionsLearn how to capture photos in various modes and customise camera settings.Capture photos by using options preset for various scenes1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Select → a scene.4. Make any necessary adjustments.5. Press the Camera key to take a photo.Capture photos in Smile shot mode1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Select → Smile shot.4. Press the Camera key.5. Aim the camera lens at your subject.Your phone recognises people in an image and detects their smiles. When the subject smiles, the phone automatically takes a photo.Capture a series of photos1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Select → Continuous.
48using advanced functions4. Make any necessary adjustments.5. Press and hold the Camera key to take a series of photos.Capture panoramic photos1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Select → Panorama.4. Select a direction.5. Make any necessary adjustments.6. Press the Camera key to take the first photo.7. Slowly move the phone to the direction you selected. The phone captures the next photo automatically.8. Repeat step 7 to complete the panoramic photo.9. Select to save the panoramic photo.Capture divided photos1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Select → Mosaic.4. Select an image layout.5. Make any necessary adjustments.6. Press the Camera key to take photos for each segment.Capture photos with decorative frames1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.
49using advanced functions3. Select → Frame.4. Select a frame.5. Make any necessary adjustments.6. Press the Camera key to take a photo with the frame.Capture videos in slow motion1. In Idle mode, press the Camera key to turn on the camera.2. Rotate the phone anti-clockwise to landscape view.3. Select to switch to Recording mode.4. Select → Slow motion.5. Press the Camera key to start recording.6. Select or press the Camera key to stop recording. Use camera optionsBefore capturing a photo, select to access the following options:Option FunctionTimerSelect the time delayResolutionChange the resolution optionWhite balanceAdjust the colour balance of the photoEffectsApply a special effectISOAdjust the sensitivity of camera imaging sensorExposuremeterSelect a type of exposure metringFocus modeChange the camera focusAnti-ShakeReduce blur caused by vibration or movement
50using advanced functionsBefore capturing a video, select to access the following options:Customise camera settingsBefore capturing a photo, select → to access the following settings:WDRAdjust the camera’s sensitivity to a wide range of available lightBlink detectionSet the camera to capture a photo again automatically when people close eyesImage qualitySet the quality of your digital photosAdjustAdjust contrast, saturation, and sharpnessOption FunctionTimerSelect the time delayResolutionChange the resolution optionWhite balanceAdjust the colour balance of the video clipOption FunctionEffectsApply a special effectWDRAdjust the camera’s sensitivity to a wide range of available lightVideo qualityAdjust the quality of your video clipsAdjustAdjust contrast, saturation, and sharpnessSetting FunctionGuidelinesDisplay the guidelinesReviewSet the camera to switch to the preview screen after capturing photosOption Function
51using advanced functionsBefore capturing a video, select → to access the following settings:Use advanced music functionsLearn to prepare music files, create playlists, and store radio stations.Copy music files via Samsung PC Studio1. In Menu mode, select Settings → Phone settings → PC connections → Samsung PC studio or Mass storage → Save.2. Press [ ] to return to Idle mode.3. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.4. Run Samsung PC Studio and copy files from the PC to the phone.Refer to the Samsung PC Studio help for more information.GPS connectionSet the camera to record GPS information to photosShutter soundSelect a sound to accompany the shutter actionStorageSelect a memory location to store new photosSetting FunctionGuidelinesDisplay the guidelinesAudio recordingTurn the audio on or offStorageSelect a memory location to store new video clipsSetting Function
52using advanced functionsCopy music files to a memory card1. Insert a memory card.2. In Menu mode, select Settings → Phone settings → PC connections → Mass storage → Save.3. Press [ ] to return to Idle mode.4. Using an optional PC data cable, connect the multifunction jack on your phone to a PC.When connected, a pop-up window will appear on the PC.5. Open the folder to view files.6. Copy files from the PC to the memory card.Synchronise your phone with Windows Media Player1. Insert a memory card.2. In Menu mode, select Settings → Phone settings → PC connections → Media player → Save.3. Press [ ] to return to Idle mode.4. Using an optional PC data cable, connect the multifunction jack on your phone to a PC with Windows Media Player installed.When connected, a pop-up window will appear on the PC.5. Open Windows Media Player to synchronise music files.6. Edit or enter your phone’s name in the pop-up window (if necessary).

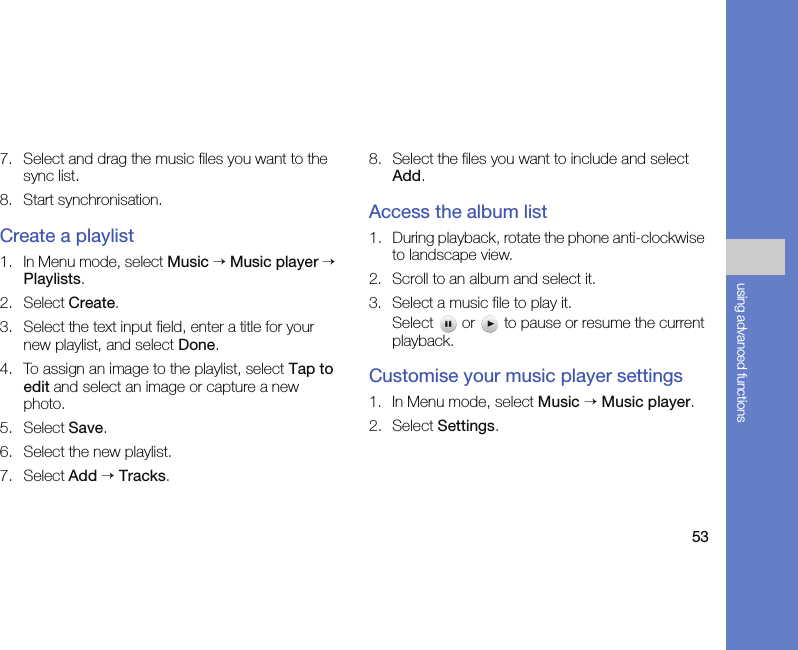

53using advanced functions7. Select and drag the music files you want to the sync list.8. Start synchronisation.Create a playlist1. In Menu mode, select Music → Music player → Playlists.2. Select Create.3. Select the text input field, enter a title for your new playlist, and select Done.4. To assign an image to the playlist, select Tap to edit and select an image or capture a new photo.5. Select Save.6. Select the new playlist.7. Select Add → Tracks.8. Select the files you want to include and select Add.Access the album list1. During playback, rotate the phone anti-clockwise to landscape view.2. Scroll to an album and select it.3. Select a music file to play it.Select or to pause or resume the current playback.Customise your music player settings1. In Menu mode, select Music → Music player.2. Select Settings.

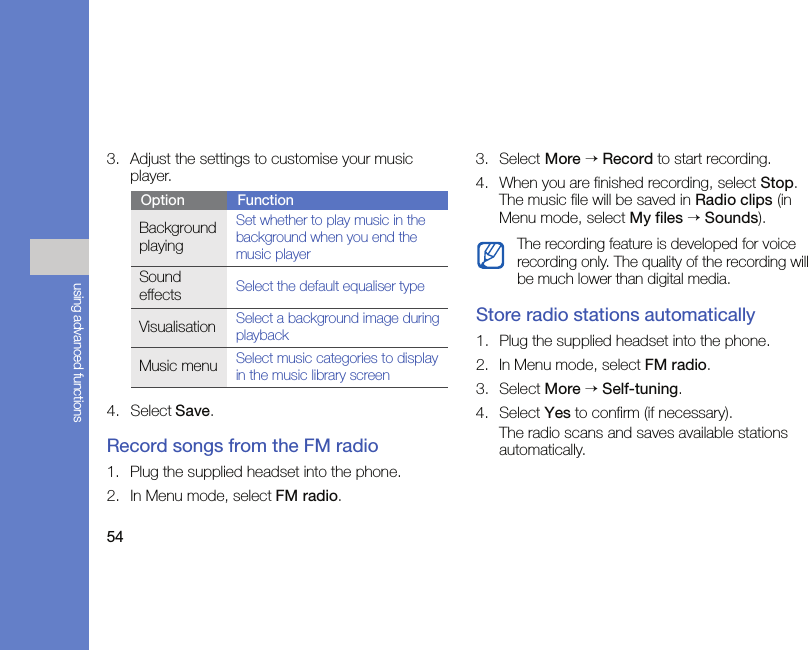

54using advanced functions3. Adjust the settings to customise your music player.4. Select Save.Record songs from the FM radio1. Plug the supplied headset into the phone.2. In Menu mode, select FM radio.3. Select More → Record to start recording.4. When you are finished recording, select Stop. The music file will be saved in Radio clips (in Menu mode, select My files → Sounds).Store radio stations automatically1. Plug the supplied headset into the phone.2. In Menu mode, select FM radio.3. Select More → Self-tuning.4. Select Yes to confirm (if necessary).The radio scans and saves available stations automatically.Option FunctionBackground playingSet whether to play music in the background when you end the music playerSound effectsSelect the default equaliser typeVisualisationSelect a background image during playbackMusic menuSelect music categories to display in the music library screenThe recording feature is developed for voice recording only. The quality of the recording will be much lower than digital media.
55using advanced functionsFind information of musicLearn to access an online music service and get information about the songs you hear while on the move.1. In Menu mode, select Music → Find music.2. Select Find music to connect to the server.3. When your phone is successfully registered, select to record a part of music you want to find.Some service providers may not support this service and the database may not have information for all songs.

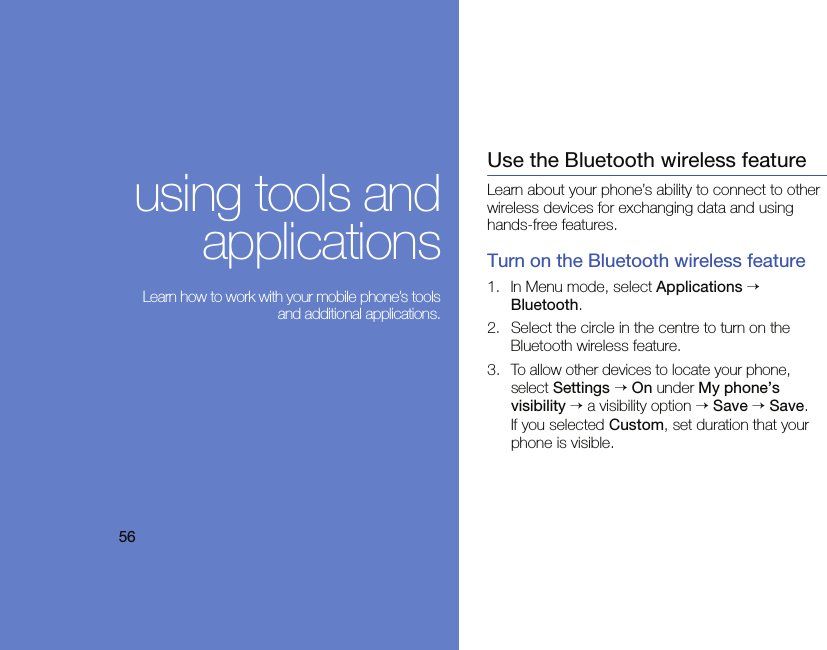

56using tools andapplications Learn how to work with your mobile phone’s toolsand additional applications.Use the Bluetooth wireless featureLearn about your phone’s ability to connect to other wireless devices for exchanging data and using hands-free features.Turn on the Bluetooth wireless feature1. In Menu mode, select Applications → Bluetooth.2. Select the circle in the centre to turn on the Bluetooth wireless feature. 3.To allow other devices to locate your phone, select Settings → On under My phone’s visibility → a visibility option → Save → Save.If you selected Custom, set duration that your phone is visible.
57using tools and applicationsFind and pair with other Bluetooth-enabled devices1. In Menu mode, select Applications → Bluetooth → Search.2. Select and drag a device icon into the centre.3. Enter a PIN for the Bluetooth wireless feature or the other device’s Bluetooth PIN, if it has one, and select Done.When the owner of the other device enters the same PIN or accepts the connection, pairing is complete.Send data using the Bluetooth wireless feature1. Select the file or item from one of your phone’s applications that you want to send.2. Select Send via or Send URL via → Bluetooth.Receive data using the Bluetooth wireless feature1. Enter the PIN for the Bluetooth wireless feature and select OK (if necessary).2. Select Yes to confirm that you are willing to receive data from the device (if necessary).You may not need to enter a PIN depending on the device.

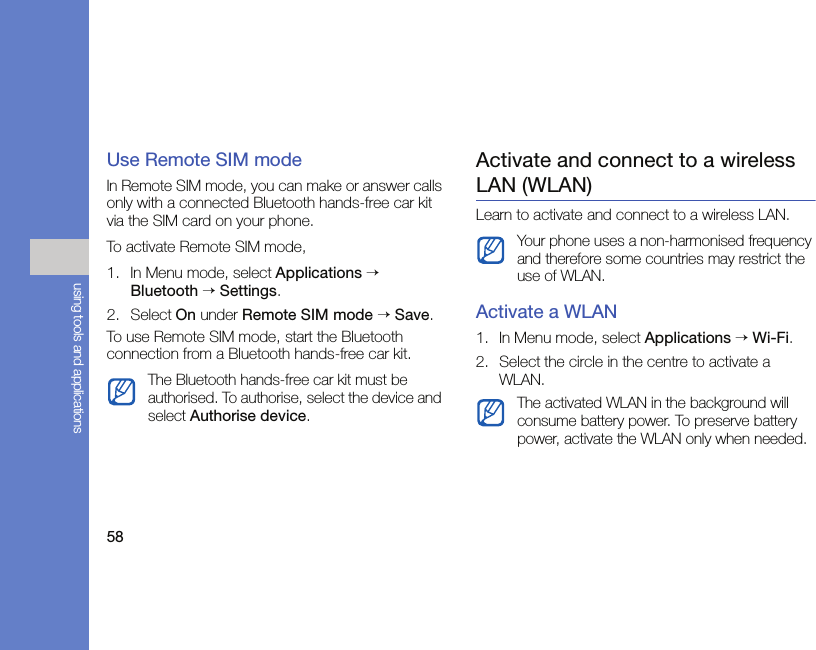

58using tools and applicationsUse Remote SIM modeIn Remote SIM mode, you can make or answer calls only with a connected Bluetooth hands-free car kit via the SIM card on your phone.To activate Remote SIM mode,1. In Menu mode, select Applications → Bluetooth → Settings.2. Select On under Remote SIM mode → Save.To use Remote SIM mode, start the Bluetooth connection from a Bluetooth hands-free car kit.Activate and connect to a wireless LAN (WLAN)Learn to activate and connect to a wireless LAN.Activate a WLAN1. In Menu mode, select Applications → Wi-Fi.2. Select the circle in the centre to activate a WLAN.The Bluetooth hands-free car kit must be authorised. To authorise, select the device and select Authorise device.Your phone uses a non-harmonised frequency and therefore some countries may restrict the use of WLAN.The activated WLAN in the background will consume battery power. To preserve battery power, activate the WLAN only when needed.
59using tools and applicationsSearch for and connect to a WLAN1. In Menu mode, select Applications → Wi-Fi → Search.2. Select a network icon and add a connection profile using the network.3. Select a web-based menu and change the connection profile to the WLAN profile.Activate and send an SOS messageIn case of an emergency, you can send an SOS message asking for help.1. In Idle mode, select Messages → SOS messages → Sending options.2. Select On to turn on the SOS messaging feature.3. Select the recipient field to open the recipient list.4. Select to open your contact list.5. Select the contacts you want and select Add.6. Select a phone number (if necessary).7. Select OK to save the recipients.• If the network you want needs an IP address, subnet mask, DNS, or gateway information, select Advanced settings.• Wi-Fi security should be set as the selected network configuration and 802.1x is not supported.To access the internet via another method, change the connection profile to the desired method.This feature may be unavailable depending on your region or service provider.
60using tools and applications8. Select the Once drop-down menu and select the number of times to repeat the SOS message.9. Select Save → Yes.To send an SOS message, the touch screen and keys must be locked. Press the Volume key four times.Activate the mobile trackerWhen someone inserts a new SIM card in your phone, the mobile tracker feature will automatically send the contact number to two recipients to help you locate and recover your phone. To activate the mobile tracker,1. In Menu mode, select Settings → Security → Mobile tracker.2. Enter your password and select Confirm.3. Select On to turn on the mobile tracker.4. Select the recipient field to open the recipient list.5. Select the recipient input field.6. Enter a phone number and select Done.7. Select OK to save the recipients.8. Select the sender input field. 9. Enter the sender’s name and select Done.10.Select Save → Accept.Once you send an SOS message, all phone functions will be suspended until you press the Hold key. If you press [ ], phone functions will be available, but the keys will remain locked.

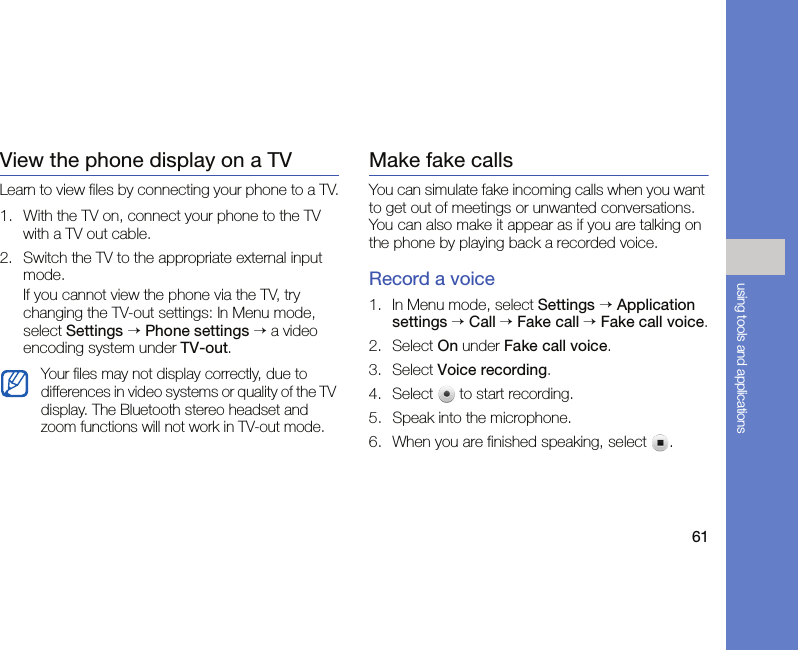

61using tools and applicationsView the phone display on a TVLearn to view files by connecting your phone to a TV.1. With the TV on, connect your phone to the TV with a TV out cable.2. Switch the TV to the appropriate external input mode.If you cannot view the phone via the TV, try changing the TV-out settings: In Menu mode, select Settings → Phone settings → a video encoding system under TV-out.Make fake callsYou can simulate fake incoming calls when you want to get out of meetings or unwanted conversations. You can also make it appear as if you are talking on the phone by playing back a recorded voice.Record a voice1. In Menu mode, select Settings → Application settings → Call → Fake call → Fake call voice.2. Select On under Fake call voice.3. Select Voice recording.4. Select to start recording.5. Speak into the microphone.6. When you are finished speaking, select .Your files may not display correctly, due to differences in video systems or quality of the TV display. The Bluetooth stereo headset and zoom functions will not work in TV-out mode.

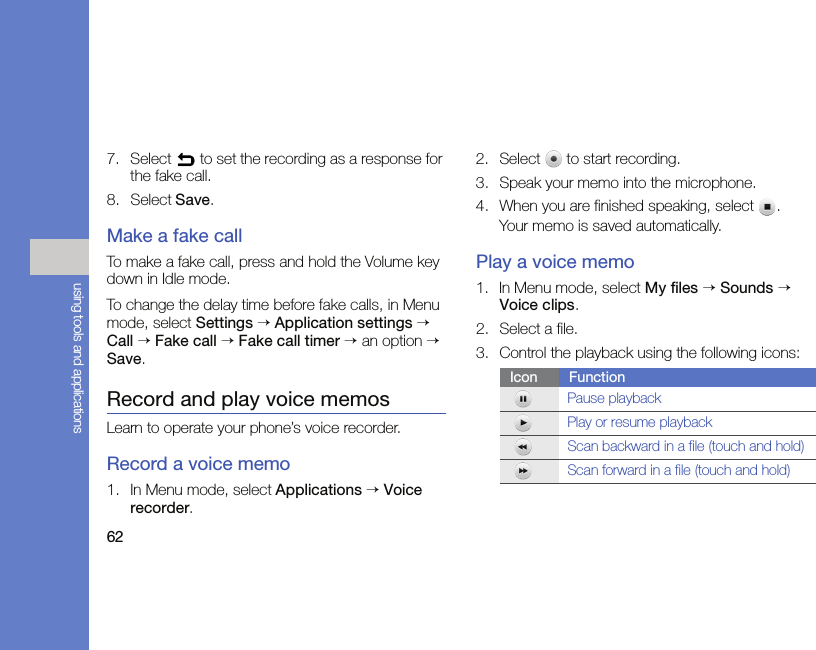

62using tools and applications7. Select to set the recording as a response for the fake call.8. Select Save.Make a fake callTo make a fake call, press and hold the Volume key down in Idle mode.To change the delay time before fake calls, in Menu mode, select Settings → Application settings → Call → Fake call → Fake call timer → an option → Save. Record and play voice memosLearn to operate your phone’s voice recorder.Record a voice memo1. In Menu mode, select Applications → Voice recorder.2. Select to start recording.3. Speak your memo into the microphone.4. When you are finished speaking, select .Your memo is saved automatically.Play a voice memo1. In Menu mode, select My files → Sounds → Voice clips.2. Select a file.3. Control the playback using the following icons:Icon FunctionPause playbackPlay or resume playbackScan backward in a file (touch and hold)Scan forward in a file (touch and hold)
63using tools and applicationsEdit imagesLearn to edit images and apply fun effects.Apply effects to images1. In Menu mode, select My files → Images → My photos → a photo file.2. Select .3. Select Edit → Effects → an effect option (filter, style, warp, or partial blur).4. Select a variation of the effect to apply and select Done.To apply a blur effect to a specific area of an image, draw the rectangle and select Blur → Done.5. When you are finished with applying effects, select Files → Save as.6. Select a memory location (if necessary).7. Enter a new file name for the image and select Done.Adjust an image1. Open an image to be edited. Refer to steps 1-2 in “Apply effects to images.”2. Select Edit → Adjust → an adjustment option (brightness, contrast, or colour).To adjust the image automatically, select Auto level.3. Adjust the image as desired and select Done.4. Save the edited image with a new file name. Refer to steps 5-7 in “Apply effects to images.”Transform an image1. Open an image to be edited. Refer to steps 1-2 in “Apply effects to images.”2. Select Edit → Transform → Resize, Rotate, or Flip.
64using tools and applications3. Rotate or flip the image as desired and select Done.To resize the image, select a size and select Done → Done.4. Save the edited image with a new file name. Refer to steps 5-7 in “Apply effects to images.”Crop an image1. Open an image to be edited. Refer to steps 1-2 in “Apply effects to images.”2. Select Edit → Crop.3. Draw the rectangle over the area you want to crop and select Crop → Done.4. Save the edited image with a new file name. Refer to steps 5-7 in “Apply effects to images.”Insert a visual feature1. Open an image to be edited. Refer to steps 1-2 in “Apply effects to images.”2. Select Edit → Insert → a visual feature (frame, image, clip art, emoticon, or text).3. Select a visual feature, or enter text and select Done.4. Move or resize the visual feature or text and select Done.5. Save the edited image with a new file name. Refer to steps 5-7 in “Apply effects to images.”Add a memo by handwriting1. Open an image to be edited. Refer to steps 1-2 in “Apply effects to images.”2. Select Edit → Memo on screen.3. Select a colour, write a memo on the screen, and select Done.4. Save the edited image with a new file name. Refer to steps 5-7 in “Apply effects to images.”

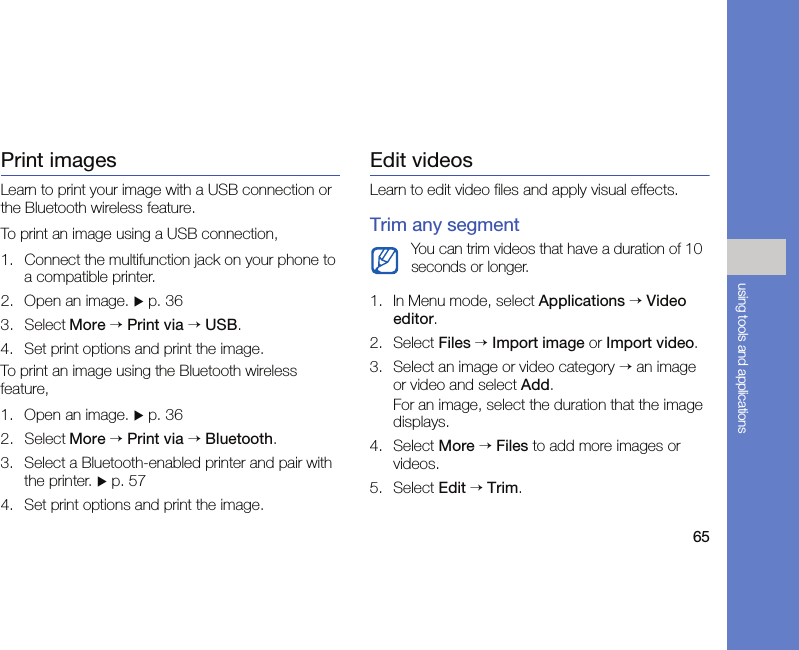

65using tools and applicationsPrint imagesLearn to print your image with a USB connection or the Bluetooth wireless feature.To print an image using a USB connection,1. Connect the multifunction jack on your phone to a compatible printer.2. Open an image. X p. 363. Select More → Print via → USB.4. Set print options and print the image.To print an image using the Bluetooth wireless feature,1. Open an image. X p. 362. Select More → Print via → Bluetooth.3. Select a Bluetooth-enabled printer and pair with the printer. X p. 574. Set print options and print the image.Edit videosLearn to edit video files and apply visual effects.Trim any segment1. In Menu mode, select Applications → Video editor.2. Select Files → Import image or Import video.3. Select an image or video category → an image or video and select Add.For an image, select the duration that the image displays.4. Select More → Files to add more images or videos.5. Select Edit → Trim.You can trim videos that have a duration of 10 seconds or longer.
66using tools and applications6. Select to play the video and select Start mark at the point where you want the new video to begin.7. Select End mark at the point where you want the new video to end.8. Select Trim.9. When you are finished, select More → Export → Video → Yes.To save the project for future use, select More → Files → Save project. The project will be saved in Other files.10. Enter a new file name and select Done.11. To check the file, select Yes (if necessary).Split videos1. Open images and videos to be edited. Refer to steps 1-4 in “Trim any segment.”2. Select Edit → Split.3. Select to play the video and select Split point → Split to divide the file into two clips. 4. Insert an image or video as desired between the clips.5. Save the edited video with a new file name. Refer to steps 9-11 in “Apply effects to images.”Insert text1. Open images and videos to be edited. Refer to steps 1-4 in “Trim any segment.”2. Select Edit → Insert → Text.3. Select to play the video and select Start mark at the point where you want the text to be displayed.• Inserting text to a video may be unavailable depending on your service provider.• You can insert text in videos or images that have a duration of 10 seconds or longer.
67using tools and applications4. Select End mark at the point where you want the text to be disappeared.5. Select Insert.6. Enter text and select Done.7. Move or resize the text and select Done.To change the text colour, select Colour.8. Save the edited video with a new file name. Refer to steps 9-11 in “Apply effects to images.”Add sound track1. Open images and videos to be edited. Refer to steps 1-4 in “Trim any segment.”2. Select Additional audio track → Import sound.3. Select Sounds → a sound category → a sound.4. Save the edited video with a new file name. Refer to steps 9-11 in “Apply effects to images.”Use Java-powered games and applicationsLearn to use games and applications powered by award-winning Java technology.Download games or applications1. In Menu mode, select Applications → Games and more → More games.Your phone connects to the website preset by your service provider.2. Search for a game or application and download it to the phone.The download of java files may not be supported depending on the software of the phone.
68using tools and applicationsPlay games1. In Menu mode, select Applications → Games and more.2. Select a game from the list and follow the on-screen instructions.Launch applications1. In Menu mode, select Applications → Games and more → an application.2. Select More to access a list of various options and settings for your application.Synchronise dataLearn to synchronise the contacts, calendar events, tasks, and emails with the Microsoft Exchange server. To set a Microsoft exchange server and synchronisation profile,1. In Menu mode, select Applications → ActiveSync.2. Specify Microsoft exchange server settings.3. Select Save.4. Specify an email connection profile by following the email setup wizard.5. When you are finished, select Save.6. Select a synchronisation profile.Available games may vary depending on your region or service provider. Game controls and options may vary.
69using tools and applicationsSynchronise with the Microsoft Exchange server you have specified starts.To synchronise all items,1. In Menu mode, select Applications → ActiveSync.2. Select Sync.To synchronise emails only,1. In Menu mode, select Applications → ActiveSync.2. Select Email → Inbox → Sync → Email.View your current positionLearn to determine the latitude, longitude, and altitude of your current position using the global navigation satellite system. You must be in outdoors for using the satellite.In Menu mode, select Settings → Phone settings → GPS settings → GPS position.Update the GPS functionalityLearn to enhance the GPS functionality by downloading GPS data files. You can improve the speed and accuracy of positioning capability and expand your navigation to areas where cellular networks are not accessible.1. In Menu mode, select Settings → Phone settings → GPS settings → GPS+ settings → Download data.You may incur additional charges for accessing the server.If you synchronise all item, you may incur charges for updating unnecessary items.
70using tools and applications2. Select Yes to connect to a server and download GPS data files.Create and view world clocksLearn to view the time in another region and set world clocks to appear on your display.View a world clock1. In Menu mode, select Organiser → World clock. 2. Scroll through the world map and select a time zone you want.Create a world clock1. In Menu mode, select Organiser → World clock.2. Select → Add. 3. Select a time zone.4. To set daylight saving time, select .5. Select OK to create your world clock.The world clock is set as the second clock.6. Select Add to add more world clocks (step 3).Add a world clock to your displayWith the dual clock widget, you can view clocks with two different time zones on your display.After you have created a world clock,1. In Menu mode, select Organiser → World clock.To use a Bluetooth-enabled GPS device, change the connection type. In Menu node, select Settings → Phone settings → GPS settings → GPS navigation via → Bluetooth GPS.
71using tools and applications2. Select → Set as 2nd clock.3. Select the world clock you want to add.4. Select Set.Set and use alarmsLearn to set and control alarms for important events.Set a new alarm1. In Menu mode, select Alarms.2. Select Create alarm.3. Set alarm details. 4. Select Save.Stop an alarmWhen the alarm sounds,• Drag the slider to Stop to stop the alarm without snooze.• Drag the slider to Stop to stop the alarm with snooze or drag the slider to Snooze to silence the alarm for the snooze period.Deactivate an alarm1. In Menu mode, select Alarms.2. Select Off next to the alarm you want to deactivate.The auto power-up feature sets the phone to automatically turn on and sound the alarm at the designated time if the phone is turned off.

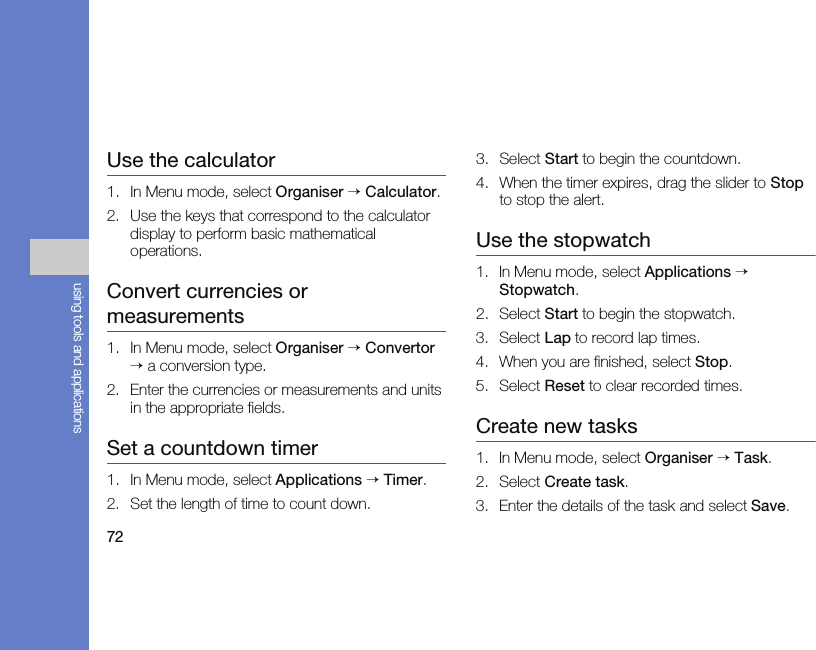

72using tools and applicationsUse the calculator1. In Menu mode, select Organiser → Calculator.2. Use the keys that correspond to the calculator display to perform basic mathematical operations.Convert currencies or measurements1. In Menu mode, select Organiser → Convertor → a conversion type.2. Enter the currencies or measurements and units in the appropriate fields.Set a countdown timer1. In Menu mode, select Applications → Timer.2. Set the length of time to count down.3. Select Start to begin the countdown.4. When the timer expires, drag the slider to Stop to stop the alert.Use the stopwatch1. In Menu mode, select Applications → Stopwatch.2. Select Start to begin the stopwatch.3. Select Lap to record lap times. 4. When you are finished, select Stop.5. Select Reset to clear recorded times.Create new tasks1. In Menu mode, select Organiser → Task.2. Select Create task.3. Enter the details of the task and select Save.
73using tools and applicationsCreate text memos1. In Menu mode, select Organiser → Memo.2. Select Create memo.3. Enter your memo text and select Done.Create sketchesLearn to create sketches with various sketch tools.Create a new sketch1. In Menu mode, select Applications → Live pix.2. From the sketch toolbar, select to change the tool type. You have the following tools:3. Using the tools, make a sketch.4. To delete text, stamps, or image stamps that you added, select an item → More → Delete.5. When you are finished, select File → Save as Image.6. Enter a new file name and select Done.Tool FunctionAdd a line; You can select the line type, line thickness, and colourAdd a circle or rectangle; You can select the line thickness, line colour, and colour to fill the figureEnter text to insert; You can change the font size, attribute, and text colourInsert a stamp or an image stampTool Function

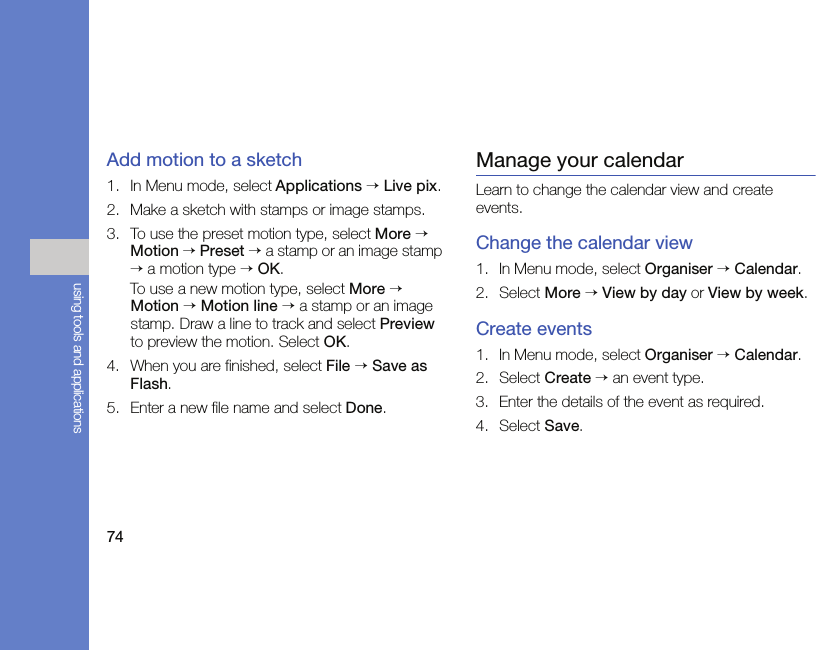

74using tools and applicationsAdd motion to a sketch1. In Menu mode, select Applications → Live pix.2. Make a sketch with stamps or image stamps.3. To use the preset motion type, select More → Motion → Preset → a stamp or an image stamp → a motion type → OK.To use a new motion type, select More → Motion → Motion line → a stamp or an image stamp. Draw a line to track and select Preview to preview the motion. Select OK.4. When you are finished, select File → Save as Flash.5. Enter a new file name and select Done.Manage your calendarLearn to change the calendar view and create events.Change the calendar view1. In Menu mode, select Organiser → Calendar.2. Select More → View by day or View by week.Create events1. In Menu mode, select Organiser → Calendar.2. Select Create → an event type.3. Enter the details of the event as required.4. Select Save.
75using tools and applicationsView eventsTo view events of a specific date,1. In Menu mode, select Organiser → Calendar.2. Select a date on the calendar.3. Select an event to view its details.To view events by event types,1. In Menu mode, select Organiser → Calendar.2. Select Event list → an event type.3. Select an event to view its details.
aoverview of menu functions1 Call log2 FM radio3 Music1 Music player2 Find music4 BrowserHomeEnter URLBookmarksSettings5 Video player6 My files1ImagesVideosSoundsOther filesMemory status7 Organiser1 Calendar2 Memo3 Task4 World clock5 Calculator6 Convertor8 Camera9 Photo browser10 Applications1 Live pix2 ActiveSync3 Video editor4 Games and more5 Voice recorder6 Bluetooth7 Timer8 Stopwatch9 Wi-Fi11 Alarms12 Settings1 Phone profiles2 Display and light3 Time and date4 Phone settings5 Motion settings6 Application settings7 Security8 Network settings9 Memory settings10 Reset settings1. Additional folders will be available if you insert a memory card.
btroubleshootingIf you are having trouble with your mobile phone, try these troubleshooting procedures before contacting a service professional.While using your phone, the following messages may appear:Message Try this to solve the problem:Insert SIM card to access network servicesEnsure that the SIM card is installed correctly.Phone lockWhen the phone lock feature is enabled, you must enter the password you set for the phone.PIN codeWhen using the phone for the first time or when the PIN requirement is enabled, you must enter the PIN supplied with the SIM card. You can disable this feature by using the PIN lock menu.PIN2 lockWhen you access a menu requiring the PIN2, you must enter the PIN2 supplied by the SIM card. For details, contact your service provider.Message Try this to solve the problem:
ctroubleshootingYour phone displays “Service unavailable” or “Network error.”• When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again.• You cannot access some options without a subscription. Contact your service provider for more details.You enter a number, but the call is not dialled.• Ensure that you have pressed the Dial key: [ ].• Ensure that you have accessed the right cellular network.• Ensure that you have not set call barring for the phone number.Another caller cannot reach you.• Ensure that your phone is turned on.• Ensure that you have accessed the right cellular network.• Ensure that you have not set call barring for the phone number.Another caller cannot hear you speaking.• Ensure that you are not covering the built-in microphone.• Ensure that the microphone is close to your mouth.• If using a headset, ensure that it is properly connected.PUK codeYour SIM card is blocked, usually as a result of entering your PIN incorrectly several times. You must enter the PUK supplied by your service provider. Message Try this to solve the problem:
dtroubleshootingThe phone beeps and the battery icon flashes.Your battery is low. Recharge or replace the battery to continue using the phone.The audio quality of the call is poor.• Ensure that you are not blocking the phone’s internal antenna.• When you are in areas with weak signals or poor reception, you may lose reception. Move to another area and try again.You select a contact to call, but the call is not dialled.• Ensure that the correct number is stored in the contact list.• Re-enter and save the number, if necessary.The battery does not charge properly or sometimes the phone turns itself off.• The battery terminals may be dirty. Wipe both gold-coloured contacts with a clean, soft cloth and try charging the battery again.• If the battery will no longer charge completely, dispose of the old battery properly and replace it with a new battery.Your phone is hot to the touch.When you use several applications at once, your phone requires more power and may heat up. This is normal and should not affect your phone’s lifespan or performance.
