Samsung Electronics Co HEG-110 DR Gateway User Manual

Samsung Electronics Co Ltd DR Gateway

User manual

DRGWUser’s Manual

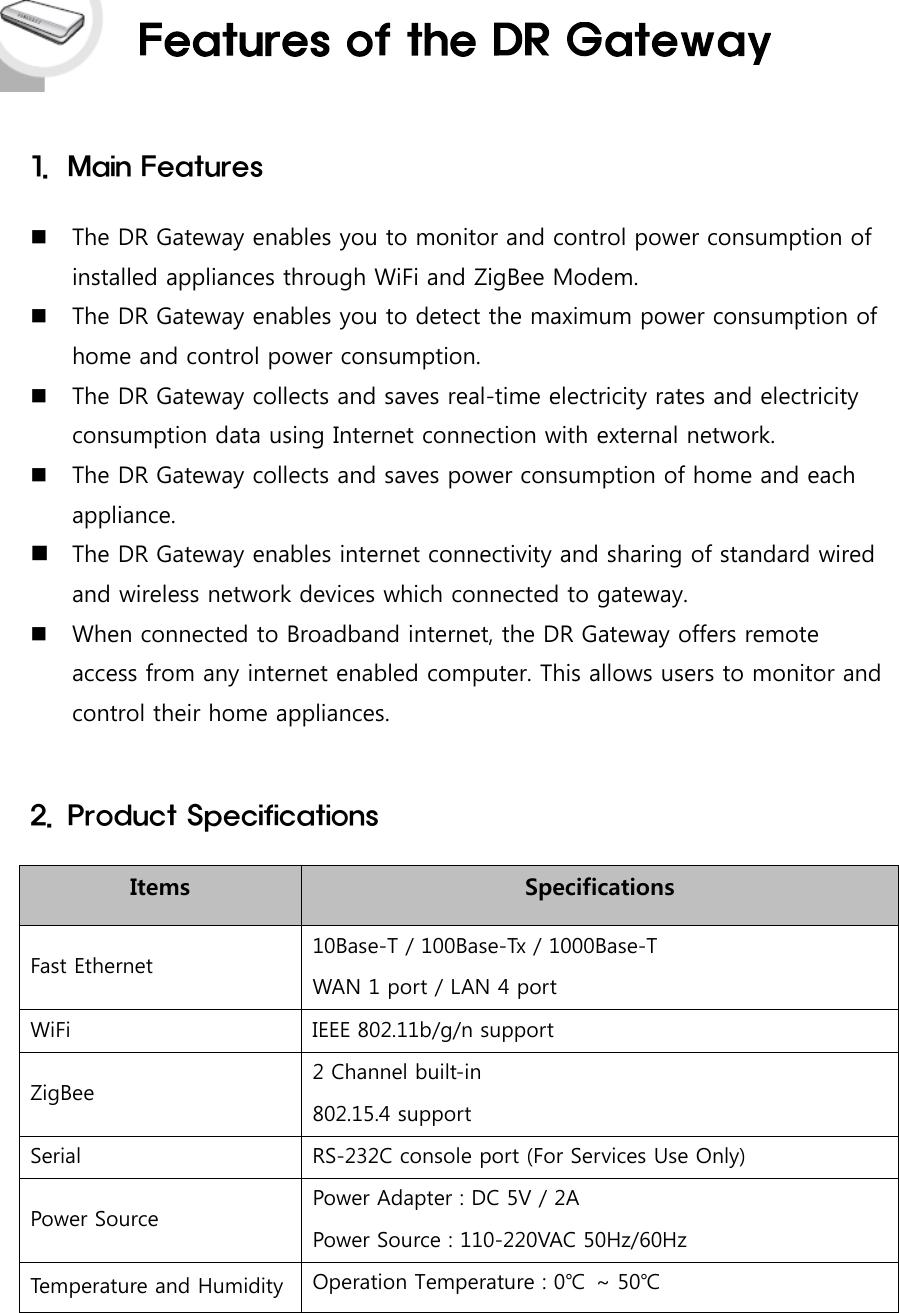

1. Main FeaturesThe DR Gateway enables you to monitor and control power consumption ofinstalled appliances through WiFi and ZigBee Modem.The DR Gateway enables you to detect the maximum power consumption ofhome and control power consumption.The DR Gateway collects and saves real-time electricity rates and electricityconsumption data using Internet connection with external network.The DR Gateway collects and saves power consumption of home and eachappliance.The DR Gateway enables internet connectivity and sharing of standard wiredand wireless network devices which connected to gateway.When connected to Broadband internet, the DR Gateway offers remoteaccess from any internet enabled computer. This allows users to monitor andcontrol their home appliances.2. Product SpecificationsItems SpecificationsFast Ethernet 10Base-T / 100Base-Tx / 1000Base-TWAN 1 port / LAN 4 portWiFi IEEE 802.11b/g/n supportZigBee 2 Channel built-in802.15.4 supportSerial RS-232C console port (For Services Use Only)Power Source Power Adapter : DC 5V / 2APower Source : 110-220VAC 50Hz/60HzTemperature and Humidity Operation Temperature : 0℃ ~ 50℃
Humidity : 10% ~ 90%Size (L x W x H) 230 x 120 x 45 mmFunctions of LEDLED State Color FunctionsRUN ON Blue Normal OperationOFF None No Power, or Abnormal StateWANON Blue Normal linked state (1G bps network)Yellow-Green Data transmission (1G bps network)BLINK Blue Normal linked state (100M/10M bps network)Yellow-Green Data transmission (100M/10M bps network)OFF None Not connected stateLAN 1 2 3 4ON Blue Normal linked state (1G bps network)Yellow-Green Data transmission (1G bps network)BLINK Blue Normal linked state (100M/10M bps network)Yellow-Green Data transmission (100M/10M bps network)OFF None Not connected statePLC BLINK Blue Data transmission of ZigBee Modem AIndicates ON and OFF state of the DR GatewayIndicates the Internet connection andCommunicationstateZigBee Modem B communication stateIndicates LAN connection andcommunication stateZigBee Modem A communication state
OFF None Initial power on state of ZigBee Modem ARF BLINK Blue Data transmission of ZigBee Modem BOFF None Initial power on state of ZigBee Modem BAccessories- AC Adapter 1 EA- LAN Cable 1 EA- User’s ManualFor Service Use OnlyJack forconnectingthe power source cableRJ-45 jack for connectingUTP cable for WAN connectivityRJ-45 jacks for connectingUTP cables for LAN connectivity
-Please make sure that you read and follow all safety instructions described in thismanual.Instructions for connecting the power sourceOnly use the AC adapter provided with the product.Do not touch the power source plug with wet hands.When using multi-outlet extension cord, do not exceed the rating specifications(voltage/current) of the extension cord.If exceeding the rating of the extension cord, it may result in a risk of fire.Do not bend the power cord and ensure it is not placed under a heavy object.If the power source is left plugged in when the cord is damaged, it may result in a risk of electric shock andfire.If water or other substances get inside the power source or the system, unplug thepower source and contact your dealer.It may result in a risk of fire.If the power source plug/outlet are covered with dust, clean them.It may result in a risk of fire.Plug the power source to an outlet with a grounding terminal.Not using an outlet with a grounding terminal may result in a risk of electric shock.Instructions when InstallingCut off the power sources of all the peripheral devices connected to the product.Unplug the power cord to turn the power off.Do not attempt to repair any part of the power supply on your own. Contact yourdealer if you believe that it requires repair or maintenance.
The system power cord must be plugged into a properly grounded outlet to preventelectric shock. Ensure that it is plugged into a grounded outlet.Do not install the product in locations with high humidity. It may result in a risk ofelectric shock. Use the product within the operational humidity range specified in the manual.Keep plastic packaging away from children.If they wear the plastic package on their heads, they can suffocate.Do not block any of the product's ports or vents. Do not put any object inside theproduct.If ports or vents are blocked with any material, internal parts of the product can be damaged and result in arisk of fire or electric shock.When installing the product, check the following before selecting the location.Air is clean.Proper ventilation is provided.Not in direct sunlight, or near heat sources.There is no vibration or physical shock.Well away from electric devices causing strong electromagnetic radiation.Outlet is properly grounded.Enough space to reach power cords.In areas where severe thunderstorm might occur, connect the system to a circuit breaker and separate thecommunication lines from the modem.Connect power source directly to the outlet.Otherwise it may result in a risk of fire.If there is any noise from the power source plug or the outlet, unplug the power sourceand contact your dealer.If the power source is left plugged in, it may result in a risk of electric shock and fire.Instructions when using DR GatewayWhen cleaning the product, make sure that you unplug all the power source cablesbefore cleaning.It may result in a risk of electric shock.Do not place cup or any container filled with chemical or water on or near the product.If chemical or other substances leak inside of the product, it can cause parts to be damaged and result in a riskof electric shock and fire.Do not expose the product to direct sunlight.In particular, if the product is exposed to direct sunlight in an airtight space such as in a car, the insidetemperature of the product increases and it can cause its shape to be deformed or it may result in a risk of fire.If the product is dropped or broken due to any other reasons, disconnect the powerand have it checked by your dealer.

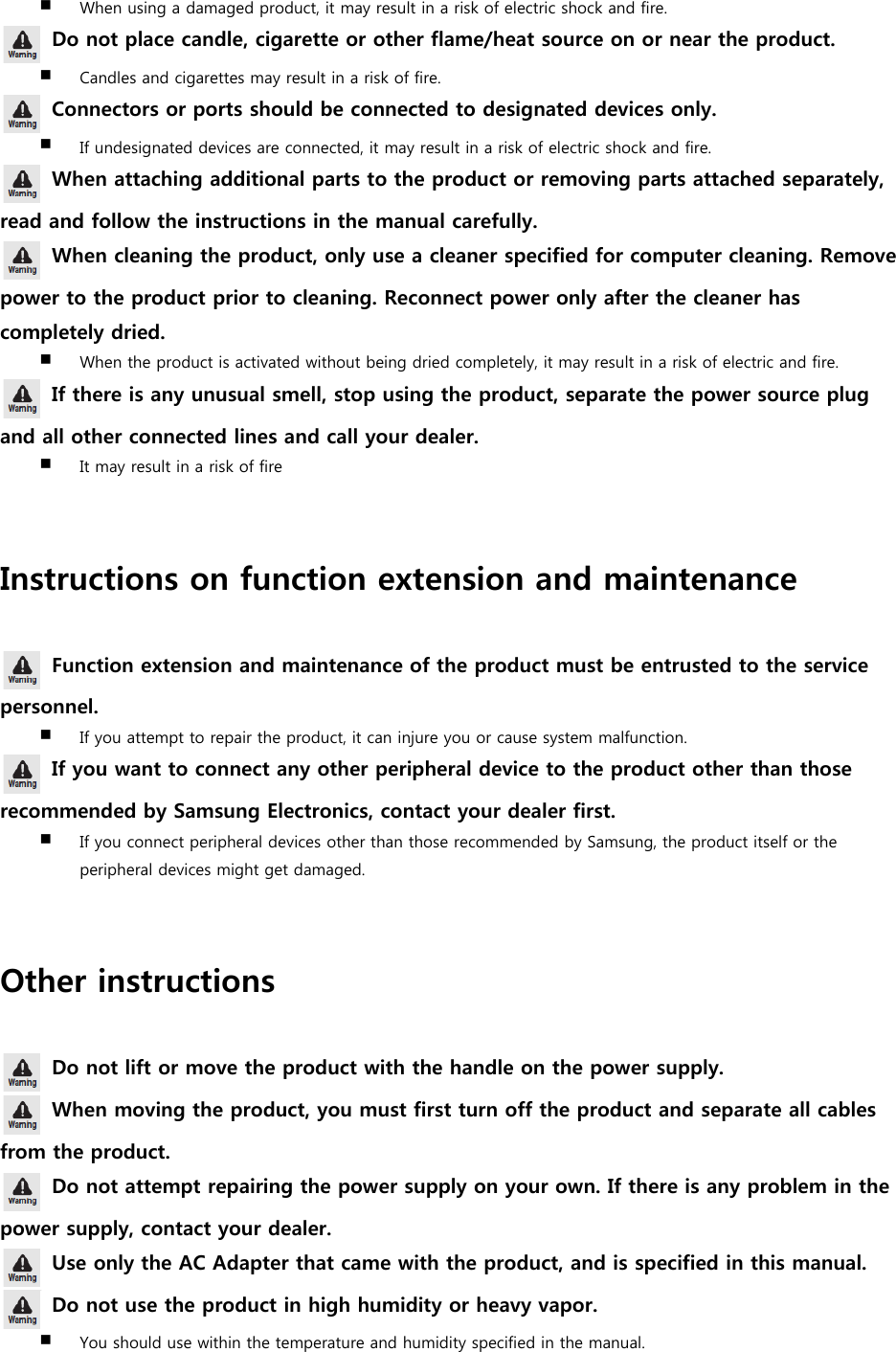

When using a damaged product, it may result in a risk of electric shock and fire.Do not place candle, cigarette or other flame/heat source on or near the product.Candles and cigarettes may result in a risk of fire.Connectors or ports should be connected to designated devices only.If undesignated devices are connected, it may result in a risk of electric shock and fire.When attaching additional parts to the product or removing parts attached separately,read and follow the instructions in the manual carefully.When cleaning the product, only use a cleaner specified for computer cleaning. Removepower to the product prior to cleaning. Reconnect power only after the cleaner hascompletely dried.When the product is activated without being dried completely, it may result in a risk of electric and fire.If there is any unusual smell, stop using the product, separate the power source plugand all other connected lines and call your dealer.It may result in a risk of fireInstructions on function extension and maintenanceFunction extension and maintenance of the product must be entrusted to the servicepersonnel.If you attempt to repair the product, it can injure you or cause system malfunction.If you want to connect any other peripheral device to the product other than thoserecommended by Samsung Electronics, contact your dealer first.If you connect peripheral devices other than those recommended by Samsung, the product itself or theperipheral devices might get damaged.Other instructionsDo not lift or move the product with the handle on the power supply.When moving the product, you must first turn off the product and separate all cablesfrom the product.Do not attempt repairing the power supply on your own. If there is any problem in thepower supply, contact your dealer.Use only the AC Adapter that came with the product, and is specified in this manual.Do not use the product in high humidity or heavy vapor.You should use within the temperature and humidity specified in the manual.
Before removing power from the product, unplug power from each of the devicesconnected to the product.Note that electric current flowing from the power source, telephone andcommunication cable is dangerous.Do not connect, release or install cable to the product during a fire, flood orthunderstorm.
1. Connecting Cable1) Connecting Internet LineConnect Internet Line to the WAN port on the right of the DR Gateway back side.2) Connecting PC or NotebookConnect your PC network line to the LAN port on the DR Gateway back sideusing enclosed LAN cable or other UTP-5 cables.3) Supply PowerConnect power adapter to POWER port with enclosed power adapter and waitabout 3 minutes.Picture 1. DR Gateway Cable Conections

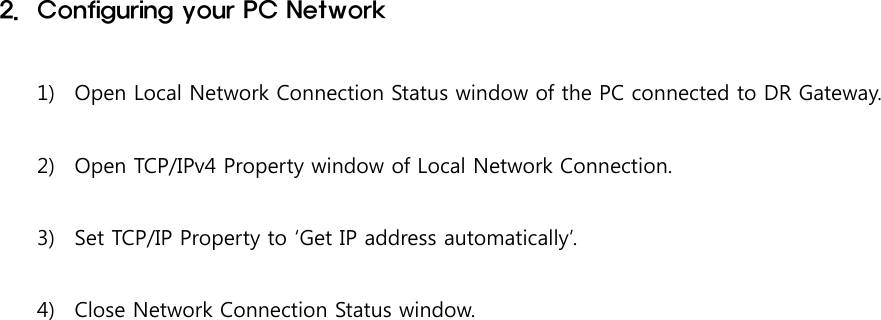

2. Configuring your PC Network1) Open Local Network Connection Status window of the PC connected to DR Gateway.2) Open TCP/IPv4 Property window of Local Network Connection.3) Set TCP/IP Property to ‘Get IP address automatically’.4) Close Network Connection Status window.
Please Note below configuration changes. Wrong configuration value disables you toconnect to DR GatewayChange only when using static IP address of Internet connection.Normally do not need to change configurations.3. Network Configuring through Web browser1) Open your web browser and navigate to http://192.168.1.1.2) Input ‘000000’ as your default Login password.3) Click the ‘Setup’ button on the top of the first web page and click ‘NetworkConfiguration’ tab. Then New Network Configuration Page will be shown.
4. Configuring Wireless Network ConnectionOpen Network Configuration Web page with above 3rd instruction.1) Click ‘Network’ and ‘Wireless’ tab and move to Wireless configuration page.
2) Configure SSIDA. Input your Wireless SSID in ‘SSID’ box.B. Click ‘Save Changes’ button on the right bottom.3) Configure AuthenticationA. Input your Authentication way and password for Wireless connection in the boxof ‘Network Authentication’, ‘Data Encryption Technique’, ‘Password(PSK)’B. Click ‘Save Changes’ button on the right bottom.

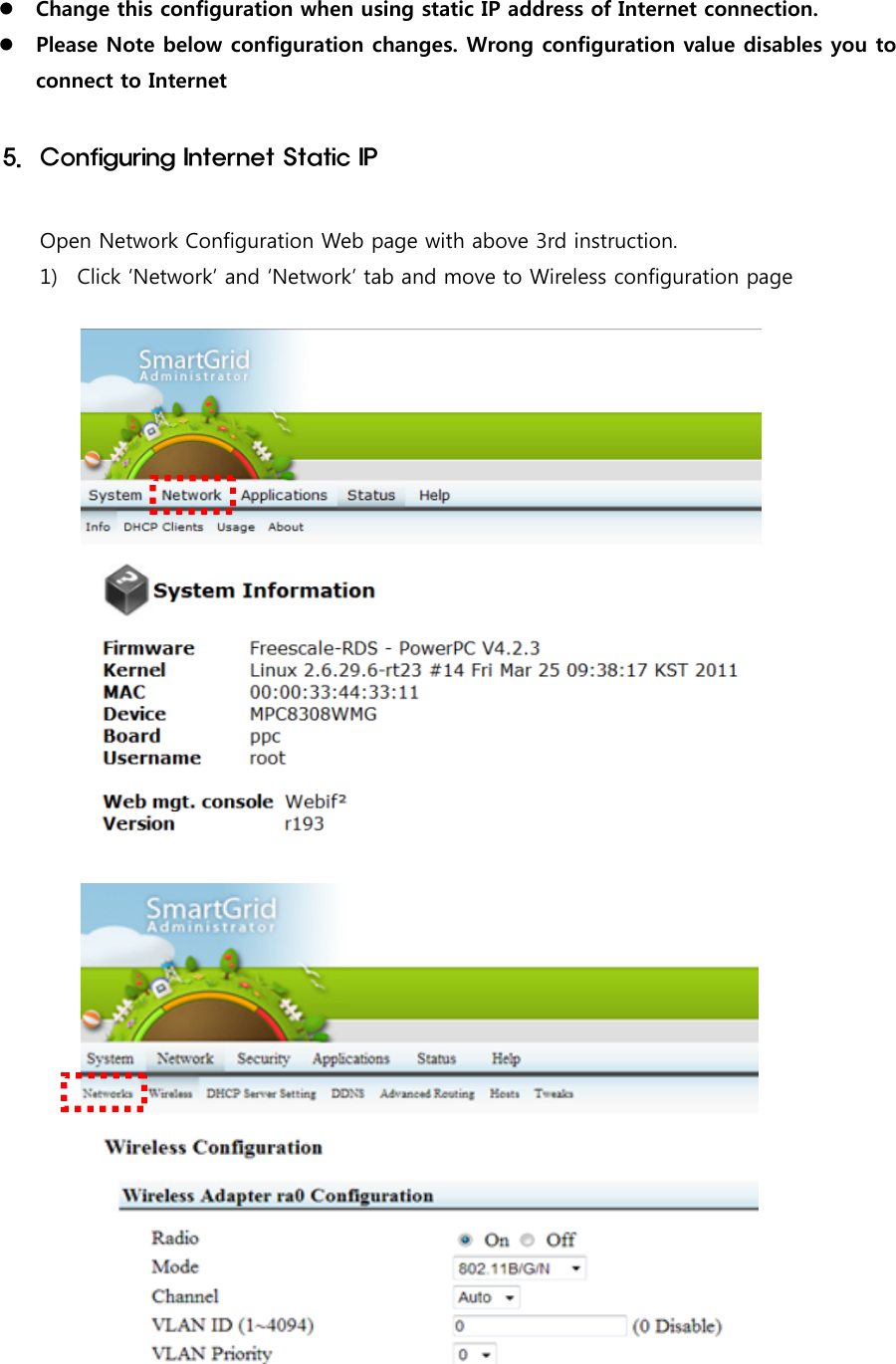

Change this configuration when using static IP address of Internet connection.Please Note below configuration changes. Wrong configuration value disables you toconnect to Internet5. Configuring Internet Static IPOpen Network Configuration Web page with above 3rd instruction.1) Click ‘Network’ and ‘Network’ tab and move to Wireless configuration page
2) Change WAN Configuration section’s ‘Connection Type’ as Static IP.3) Input IP Address / Mask / Default Gateway.4) Click ‘Save Changes’ button on the right bottom.

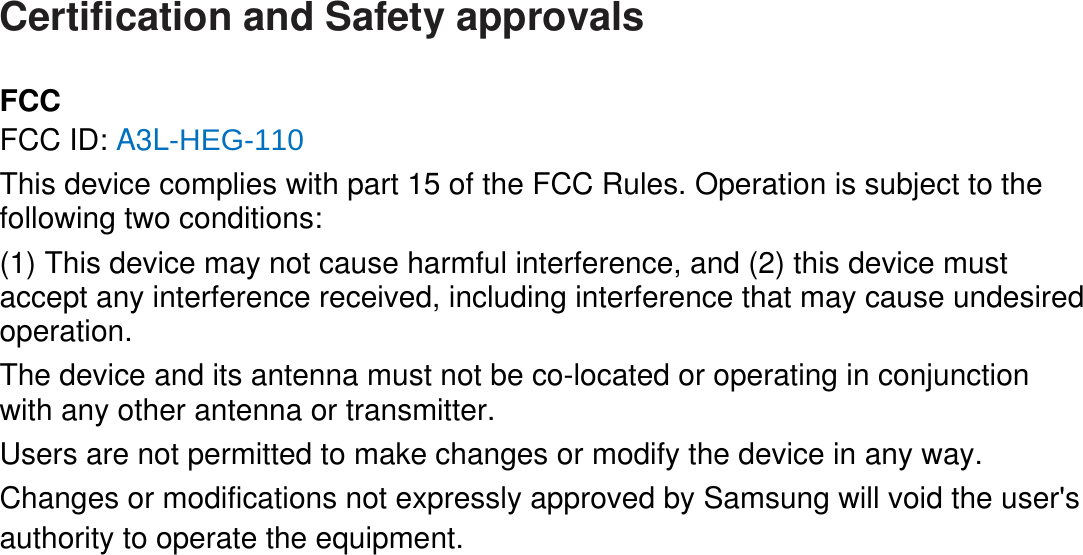

Certification and Safety approvalsFCCFCC ID: A3LHEG110This device complies with part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesiredoperation.The device and its antenna must not be co-located or operating in conjunctionwith any other antenna or transmitter.Users are not permitted to make changes or modify the device in any way.Changes or modifications not expressly approved by Samsung will void the user'sauthority to operate the equipment.
Part 15.105 (B) Note : This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user’s authority tooperated the equipment under FCC rules. RF Exposure Statement (2.1091) FCC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiationexposure limits set forth for an uncontrolled environment. This device and its antenna mustnot be colocated or operating in conjunction with any other antenna or transmitter.This equipment should be installed and operated with a minimum distance of 20 centimetersbetween the radiator and your body.
