The user manual of A3LHG32ND470S_part1

To register this product please visit
www.samsung.com/register.

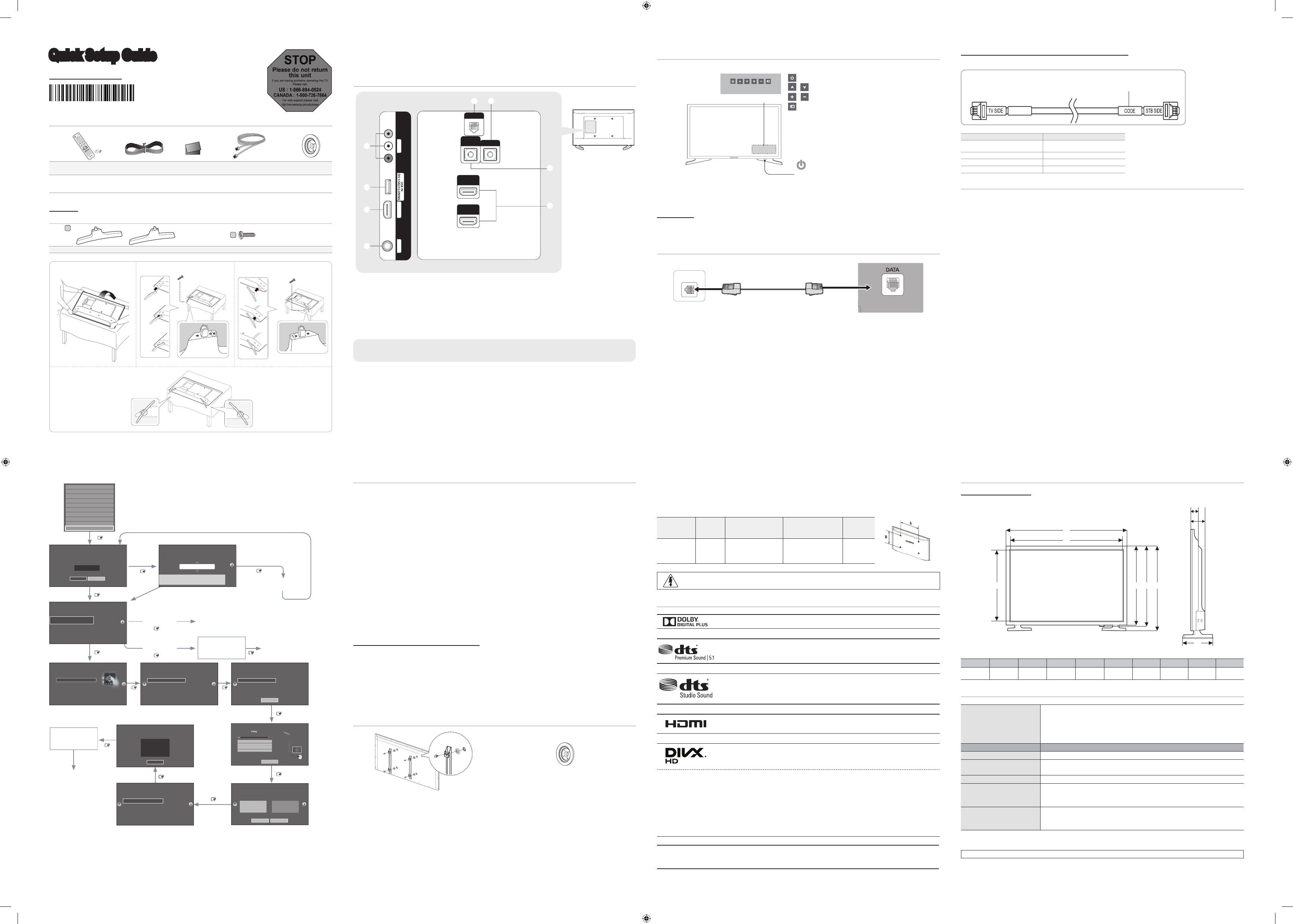

Quick Setup Guide
Sound Bar
♦Samsung Sound-Bars and Hotel TVs in 2015
1. Samsung Sound-Bars and hospitality TVs support the ARC feature in HDMI 1.4. If you connect a compatible Samsung
Sound-Bar to a compatible Samsung hospitality TV using a single HDMI cable, guests can listen to the TV’s sound through
the Sound-Bar.
2. The item of Sound bar Out in Hospitality Option Menu makes you control to where the TV sound is outputted when the TV
is turned on.
– If Sound bar Out is On, the TV sound is automatically outputted in the Sound Bar device only whenever TV is turned on.
– If Sound bar Out is Off, the TV sound is automatically outputted in the TV speaker only whenever TV is turned on.
3. Models supporting the ARC function are listed below:
– Sound-Bars: HW-E350/E450/E550
HW-F350/F355/FM35/F450/FM45/FM45C/ F550/F551/FM55/FM55C/F750/F75
♦Setting the Sound-Bar to Hotel Mode.
4. Set the following Hotel menu options:
– Hotel option > System > Sound Bar Out = On.
– Hotel option > Power On > Power On Volume = User Defined.
– Hotel option > Power On > Power On Volume Num > Set greater than 0.
– Hotel option > Power On > Max Volume > Set greater than 0.
5. Connect an HDMI cable from the HDMI OUT jack at the back of the Sound-Bar to the HDMI3 port (supporting ARC) on the
hospitality TV.
6. After the Sound-Bar is connected to the hospitality TV, when the TV turns on, the Sound-Bar automatically detects the TV,
and then automatically switches to Hotel Mode.
Sound Bar Hotel mode functional characteristics:
– Power On/Off is synchronized with the TV
– HDMI_CEC defaults to On
– Functions through the “HDMI OUT” port only
– Disables the “Input mode” key on the VFD to prevent unexpected audio-source changes.
– Acquires adjustable Power On and Max Volume settings from the TV’s Hotel option menu. The Sound-Bar’s Power On
Volume and Max Volume values, however, are ½ of the Power On Volume and Max Volume settings in the TV’s Hotel
options menu.
– Example: If the TV’s Power On Volume=20 and Max Volume=90, then the Sound Bar’s Power On Volume=10 and Max
Volume=45.
Wall Mount Kit Specications (VESA)
Wall mount Adapter
(Depending on the Model)
Before installing any other wall mounting kit, assemble the wall mount adapter provided separately with the TV.
Install your wall mount on a solid wall perpendicular to the oor. If you are attaching the wall mount to building materials other
than plaster board, contact your nearest dealer. If installed on a ceiling or slanted wall, the TV may fall and cause severe
personal injury.
➣Standard dimensions for wall mount kits are shown in the table below.
➣Samsung wall mount kits contain a detailed installation manual. All parts necessary for assembly are provided.
➣Do not use screws that do not comply with the VESA standard screw specications.
➣Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw
specications. Screws that are too long may cause damage to the inside of the TV set.
➣For wall mounts that do not comply with the VESA standard screw specications, the length of the screws may differ
depending on the wall mount specications.
➣Do not fasten the screws too rmly. This may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
➣Samsung is not liable for product damage or personal injury when a non-VESA or non-specied wall mount is used or the
consumer fails to follow the product installation instructions.
➣Do not mount the TV at more than a 15 degree tilt.
➣Always have two people mount the TV onto a wall.
Product Family TV size in
inches
VESA screw hole
specs (A * B) in
millimeters
Standard Screw
(Length*
Pitch in mm)
Quantity
LED-TV 32 200 × 200 M8 4
Do not install your Wall Mount Kit while your TV is turned on. This may result in personal injury due to electric shock.
Licence
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
Manufactured under a license from U.S. Patent No’s: 5,956,674, 5,974,380, 5,978,762, 6,487,535,
6,226,616, 7,212,872, 7,003,467, 7,272,567, 7,668,723, 7,392,195, 7,930,184, 7,333,929 and
7,548,853. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS
Premium Sound is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.
Manufactured under a license from U.S. Patent No’s: 6,285,767, 8,027,477, 5,319,713, 5,333,201,
5,638,452, 5,771,295, 5,970,152, 5,912,976, 7,200,236, 7,492,907, 8,050,434, 7,720,240,
7,031,474, 7,907,736 and 7,764,802. DTS, the Symbol, and DTS and the Symbol together are
registered trademarks & DTS Studio Sound is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights
Reserved.
The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
DivX Certied® to play DivX® video up to HD 1080p, including premium content.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofcial
DivX Certied® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information
and software tools to convert your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to play purchased DivX Video-on-
Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under
license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274
Open Source License Notice
Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com)
Open Source License Notice is written only English.
Dimensions
HG32ND470S/HG32ND477S
1
2
3 4 5 6
8
7
9
(unit: mm)
1 2 3 4 5 6 7 8 9
HG32ND470S
HG32ND477S 745.4 699.7 394.3 433.9 442.2 466.6 37.3 69.0 150.5
Specications
Environmental onsiderations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
50°F to 104°F (10°C to 40°C)
10% to 80%, non-condensing
-4°F to 113°F (-20°C to 45°C)
5% to 95%, non-condensing
Model Name HG32ND470S / HG32ND477S
Display Resolution 1366 x 768
Screen Size
(Diagonal)
32” Class
(31.5” measured diagonally)
Sound (Output) 5W x 2
Dimensions (WxDxH)
Body
With stand
745.4 x 69.0 x 442.2 mm
745.4 x 150.5 x 466.6 mm
Weight
Without Stand
With Stand
3.97 kg
4.06 kg
➣Design and specications are subject to change without prior notice.
➣This device is a Class B digital apparatus.
WARNING: This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.
List of Vendors and Compatible Data Cables Supplied with the TV
♦Refer to the code label on the data cable.
Note the
labeled end.
Conrm the code on
the Code Label Note the labeled end.
Vendor Cable code
Samsung OCC
Enseo Guest-Tek BN39-00865B
NXTV BN39-01011B
nStreams BN39-01110A
MTI BN39-01011C
Hotel Plug & Play
The Hospital Plug & Play function, which automatically performs the Hospital Mode selection, Country Setup, Clock Setup, and
Picture Mode Setup, runs once when power is rst turned ON. Setup also runs automatically after you have executed a Service
Reset.
♦Local Set
– Initially highlighted: US
– If you press the Enter key after selecting Change,
youcan change the country.
– If the country is changed, the TV automatically turns
offand on.
– If you select the incorrect country, execute TV
Resetagain after entering the Service section of the
HospitalMenu.
♦Easy Set up OSD
– Initially highlighted: Interactive
– If you select the Standalone Only button,
Standalonehospital mode is set by default and the
“Standalonemode has been set” OSD appears for 3
seconds.
– TV enters into RF mode automatically after
displayingthe “Standalone mode has been set” OSD for
3 seconds.
– If you select Interactive mode, the Interactive
SetupMenu is displayed. Press the power off key to exit
theInteractive menu.
– If you select Standalone setup mode, the “Select
yourLanguage” OSD appears.
♦Select your Language OSD
– If you select Standalone setup from the “Select
HospitalTV Mode” OSD, the “Select Menu Language”
OSD appears.
– Initially highlighted: English
– Display time: OSD time out and operation are the
sameas Samsung’s consumer TV models.
– If you press the Enter key, the “Configure your TV”
OSDappears
♦Congure your TV OSD
– Initially highlighted: Standard.
– The TV displays the Picture Mode OSD where you
canchoose Dynamic or Standard Picture mode.
♦Auto Program OSD
– If you press the Enter key, the TV automatically
searches for channels.
– After the automatically searches for channels
complete,press the next button to continue.
♦Set Clock Mode, DST(Daylight saving time), and
TimeZone OSD
– Initially highlighted: Clock Mode : Auto, DST : Off,
TimeZone : Eastern
– If the TV will be tuned to digital broadcast channels,
andthese channels transmit date and time information,
setthe Clock Mode to Auto. The TV will set the date
andtime automatically.
– If the TV will not be tuned to digital broadcast
channels,set the Clock Mode to Manual, and then set
the dateand time on the TV manually.
– Set DST On or Off to apply or not apply daylight
savingtime to the TV.
– Select your time zone on the map appears.
♦UI Scenario
List of Parts
12345
Remote Control (AA59-00817A)
& Batteries (AAA x 2)
Power Cord Owner’s Instructions
Safety Guide Data Cable
(BN39-00865B,BN39-01011E) Wall mount Adapter
(Depending on the Model)
Installing the LED TV Stand
♦HG32ND470S/HG32ND477S
Components
When installing the stand, use the provided components and parts.
A
B
X 4 (M4 X L12)
Stand Screws
1
4
2 3
(M4 X L12) (2EA) (M4 X L12) (2EA)
✎Make sure that at least two people lift and move the LED TV.
✎When connecting the stand, lay the product down on a soft surface, with the screen facing down, and then fasten the screws.
✎The number of screws may differ depending on the model.
Viewing the Connection Panel
65
7
3
2
3
AUDIO
OUT EX-LINK
AV IN HDMI IN 1
4
ANT IN
HDMI IN 2
(DVI)
HDMI IN 3
(ARC)
DATA
1
➣The product color and shape may vary depending on the model.
1 AV IN
2 USB (5V 0.5A)/CLONING
3 HDMI IN 1, 2(DVI), 3(ARC)
4 ANT IN
5 DATA
6 EX-LINK
7 AUDIO OUT
When in Hotel mode (Interactive or Standalone), all Channel menu items in the Menu OSD except for the
Channel List are deactivated. If you need to change the channel line up, use the Channel Setup item in the Hotel
options menu.
Notice
BN68-07044V-X0
STOP
Please do not return
this unit
If you are having problems operating this TV,
Please call;
US : 1-866-894-0524
CANADA : 1-800-726-7864
For web support please visit
http://www.samsung.com/us/business
Auto Program
Auto Program is incomplete.
0 channels are memorized
Change Settings Scan Again
DTV Air0
Air
DTV Cable
Cable
0
0
0
If you select
Change
If you select
Standalone Only
If you select Interactive
TV will enter the RF mode.
Press Power OFF to exit.
Interactive
Hospitality Option Menu
appears.
If you don’t change the country of the Current Location
If you select Skip
If you select
Standalone Setup
Select your language
Press Power OFF to exit.
Select Picture mode
Select Clock Mode, DST, and your Time Zone
Select the channel
band to use for Auto
Program
After Searching
channels.
If you select TV Reset, the TV resets all values to their factory defaults
and then displays the Hospital Plug & Play menu. Go to the first Hospital
Plug & Play screen below.
The TV is automatically
turned off and on.
If you change the country of
the Current Location
Local Set
Change Locat Set if Located in North America, Latin America and Europe.
In other regions, Please press SKIP button move to the next step.
Current Localset : US
Change Skip
Local Set
Change Locat Set if Located in North America, Latin America and Europe.
In other regions, Please press SKIP button move to the next step.
Current Localset : US
Change Skip
Easy Set up
Intertactive
(Hotel Menu)
Standalone Setup
(Continue Setup)
Standalone Only
(End Setup)
If you select this, the
setup process will be
completed and go to
hotel menu
c
Select your Language
Select your language to start the on screen setup.
The Language Setting will be applied to Main Menu and not Plug and Play.
Press the arrow buttons
to move around the
screen.
Press the Enter button to
select.
English
Español
Français
age
Pressth
earrow
buttons
c
Configure your TV
Picture Mode Standard
Choose a picture mode
that best suits your
viewing enviroment.
Select your information in all of the categories
below.
TV Setup Complete!
Your TV is now ready to use
OK
Auto Program
Antenna Both
Digital Cable System STD
Analog Cable System STD
Select current connected
antenna.
To get channels, set the options below then select
Scan.
Scan
Auto Program
Auto Program is channels for you...
Air 21
6%
Stop
DTV Air0
Air
DTV Cable
Cable
0
0
0
Clock
-- : -- --
You can adjust your time to set DST, Time Zone and
clock mode Set current date and time
Clock Mode Auto
Date
-- / -- / ----
Time
-- : -- --
DST Off
Time Zone Eastern
Local Set
Warning! TV might not function if local set is not correctly configured.
When Local set is changed, TV will turn off automatically to apply it.
US
Countries List
USA
Standalone
Hospitality Option Menu
appears.
Self Diagnosis for TV
Self Diagnosis for HTV
SW Update
Service Pattern
ATV cable AGC Gain
OFF
DTV OpenCable AGC Gain
Sound Bar OutOFF
Contact Samsung
Standby LEDON
Default
Default
TV Reset
P
w
TV Controller
The TV’s Controller on the bottom right side of the TV, lets you control the TV without the remote control.
: Turns the TV on or off.
/ : Changes channels.
/ : Adjusts the volume.
: Switchs the available video sources.
Control Menu
Remote control sensor/TV Controller
✎If you press it rst, the control menu appears. You can select the function by pressing and holding the TV’s controller.
✎The product color and shape may vary depending on the model.
✎With the TV’s Controller, you cannot perform other operations except for turning the TV on or off, changing the channel,
adjusting the volume, and switching the input source.
Standby mode
Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to
decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation,
for example). It is best to unplug the power cord.
Connecting the TV with an SBB or STB
K
K
ETH MODEM
1. Connect the [DATA] jack of the TV to the [ETH MODEM] jack of the STB (SBB) with the data cable.
✎The “ETH MODEM” jack name that you connect the Data Cable to may differ depending on the SBB or STB type.
[HD470S-ZC-QSG]BN68-07044V-X0L02.indd 1 2015-03-26  2:20:57

Navigation menu
