LED TVInstallation manual imagine the possibilitiesThank you for purchasing this Samsung product. To receive more complete service, please register your product atwww.samsung.com/registerModel Serial No. 460/465[HC460-465-EU]Install-Guide-X0ENG.indd 1 2014-05-21  3:08:20

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.InstructionThis TV is provided with interactive functionality through a set-back box (SBB/STB) connected to the TV, and with other TVs in a computer controlled system for hotels and other hospitality businesses.Interactive: When the TV is powered-up initially, it sends a command to identify the SBB/STB. If identified, the TV switches to ONLINE mode and full control is through the SBB/STB.If the TV is in ONLINE mode, it stops receiving IR (Samsung remote) commands and acts according to the interface protocol.Stand-Alone: If SBB/STB is not identified, the TV should be switched to STAND-ALONE mode with restricted operations.Operational ModesWhen this TV (in Hotel mode) is operated with a SBB/STB, it is in one of two states:• ONLINE or STAND-ALONE. In the STAND-ALONE state, the TV will act as a Hotel TV, but without active communication. This prevents guests from trying to cheat the system by disconnecting the SBB/STB.PowerONHotel TVOnline ModePoll Rate 20/secStand-alone ModeHotel Mode On SBB/STB Online if one success within 10 attemptsSBB/STB Online-10 consecutive failsSBB/STB Status-Attempt every 2secsTo set the details for Stand-alone or interactive mode, refer to pages 19-24(Setting the hotel option data : Stand-alone mode and Interactive mode)• Some operations may be restricted to prevents guests from "cheating" the TV system.• No main menu (Interactive mode) or Channel Menu, Plug & Play in Main Menu (Stand-Alone mode)• Limited Volume and Panel key lock or unlockStill image warningAvoid displaying still images (like jpeg picture files) or still image elements (like TV Programme such as TV Programmeme logos, the panorama or 4:3 image format, stock or news bars at the bottom of the screen etc.) on the screen. Constantly displaying still pictures can cause uneven wear of the screen phosphor, which will affect the image quality. To reduce risk of this effect, please follow the recommendations below:• Avoid displaying the same TV channel for long periods.• Always try do display any image over the full screen, use the TV set picture format menu for the best possible match.• Reduce the brightness and contrast values to the minimum require values to achieve the desired picture quality. Exceeding these values may speed up the burnout process.• Frequently use all TV features designed to reduce image retention and screen burnout, refer to the appropriate user manual section for more details.Securing the Installation SpaceKeep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product. ✎When using a stand or wall-mount, use parts provided by Samsung Electronics only.• If you use parts provided by other manufacturers, it may result in a problem with the product or an injury due to the product falling. ✎The appearance may differ depending on the product.Installation with a stand. Installation with a wall-mount.10 cm10 cm10 cm10 cm10 cm10 cm10 cm[HC460-465-EU]Install-Guide-X0ENG.indd 2 2014-05-21  3:08:20

3ContentsENGLISHEnglish yInstruction ................................................................................................................................................... 2 yOperational Modes ...................................................................................................................................... 2 yStill image warning ....................................................................................................................................... 2 ySecuring the Installation Space .................................................................................................................... 2 yAccessories ................................................................................................................................................. 4 yInstalling the LED TV Stand.......................................................................................................................... 4 yUsing the TV's Controller ........................................................................................................................... 10 yViewing the Remote Control ...................................................................................................................... 11 yConnecting the MediaHub HD ................................................................................................................... 13 yConnecting the RJP (Remote Jack Pack) .................................................................................................. 14 ySetting the Hotel Option Data .................................................................................................................... 16 yInstalling the Wall Mount ............................................................................................................................ 41 ySecuring the TV to the Wall ........................................................................................................................ 42 yAnti-theft Kensington Lock ........................................................................................................................ 42 ySpeciﬁcations ............................................................................................................................................ 43Correct Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems.)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.[HC460-465-EU]Install-Guide-X0ENG.indd 3 2014-05-21  3:08:20

4EnglishAccessories ✎Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer. ✎The items’ colours and shapes may vary depending on the model.• Remote Control & Batteries (AAA x 2)• Power Cord• Safety Guide (Not available in some locations)• Quick Setup Guide• Guide Stand• Screws• Stand ✎The stand and stand screws may not be included depending on the model. ✎The Data Cable may not be included depending on the SI Vendor.Installing the LED TV StandThe 32” and larger LED TVs have swivel stands. You can set these stands so that the TVs swivel 20 degrees left and right or 60 degrees and right or 90 degrees left and right.Stand ComponentsWhen installing the stand, use the provided components and parts.A1 EAB1 EACx 4 (M4 X L12)x 4 (M4 X L14)Stand Guide Stand Screws[HC460-465-EU]Install-Guide-X0ENG.indd 4 2014-05-21  3:08:21

5EnglishHG**EC670,HG**AC670,HG**EC675Cx 4(M4 X L12, for 40” and above models)12BCx4(M4 X L14)AFrontDO NOT USECHEMICALSDO NOT USEGREASEDO NOT USEOILATTENTION ✎Place a soft cloth over a table to protect the TV, and then place the TV on the cloth screen side down. ✎Insert the Stand Guide into the slot on the bottom of the TV. (Stand differ depending on the model)Top View(Stand differ depending on the model)3 ✎Make sure to distinguish between the front and back of the Stand and Stand Guide when assembling them. ✎Make sure that at least two people lift and move the TV.[HC460-465-EU]Install-Guide-X0ENG.indd 5 2014-05-21  3:08:22

6EnglishViewing the Connection Panel- SIDE -(5V 0.5A)/ CLONINGPC / DVIAUDIO IN12 3ANT INPC IN5467HDMI IN(DVI)RJPAV INAUDIOVIDEOHG**AC46*- SIDE -(5V 0.5A)/ CLONINGPC / DVI䷈书䕨ܺ12 3PC 䕨ܺ5467HDMI 䕨ܺ(DVI)RJPAV 䕨ܺ䷈书㾛书ᎻৈANT 䕨ܺHG**AC46*<China>[HC460-465-EU]Install-Guide-X0ENG.indd 6 2014-05-21  3:08:22

7English367254PC / DVIAUDIO INRJPAV INAUDIOVIDEOPC INUSB (5V 0.5A)/CLONINGCOMMONINTERFACEANT INHDMI IN (DVI)18HG**EC460 ✎Whenever you connect an external device to your TV, make sure that power on the unit is turned off. ✎When connecting an external device, match the colour of the connection terminal to the cable.1 USB (5V 0.5A) / CLONING – Connector for software upgrades and Media Play, etc. – Service connection.2 PC/ DVI AUDIO IN: Connects to the audio input jacks on an Ampliﬁer/Home Theater.3 PC IN: Connect to the video output jack on your computer.4 ANT IN (SATELLITE), (AIR/CABLE) – To view television channels correctly, the TV must receive a signal from one of the following sources: – An outdoor antenna / A cable television system5 HDMI IN: Connects to the HDMI jack of a device with an HDMI output. ✎No sound connection is needed for an HDMI-HDMI connection. HDMI connections carry both audio and video. ✎Use the HDMI IN (DVI) jack for a DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for the video connection and the PC/DVI AUDIO IN jacks for audio.6 AV IN / COMPONENT IN – Connects the Component video / audio. – Connect the component video cables (optional) to the component jacks ("PR", "PB", "Y") at the back of your TV and the other ends to the corresponding component video out jacks on the DVD. – If you wish to connect both the Set-Top Box and the DVD player, you should connect the Set-Top Box to the DVD Player and connect the DVD Player to the component jacks ("PR", "PB", "Y") on your TV. – The PR, PB and Y jacks on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. – Connect the RCA audio cables (optional) to [R - AUDIO - L] at the back of the TV set and the other ends to the corresponding audio out jacks on the DVD Player.7 RJP: This port is an RJP (Remote Jack Pack) communication port that enables connecting different devices to additional modules to improve device use and convenience.8 COMMON INTERFACE[HC460-465-EU]Install-Guide-X0ENG.indd 7 2014-05-21  3:08:22

8EnglishDisplay ModesYou can also select one of the standard resolutions listed in the Resolution column. The TV will automatically adjust to the resolution you choose.After connecting a computer to the TV, set the screen resolution for the TV on the computer. The optimal resolution is 1920 x 1080 @ 60 Hz. If it is set to any other than in the table below, the TV may display nothing. Set the resolution properly, referring to the user guide of the computer or its graphic card.The resolutions in the table are recommended. ✎Optimal resolution is 1366 X 768 @ 60 Hz.Mode Resolution Horizontal Frequency (KHz)Vertical Frequency (Hz)Pixel Clock Frequency(MHz)Sync Polarity (H / V)IBM 720 x 400 31.469 70.087 28.322 -/+MAC640 x 480832 x 6241152 x 87035.00049.72668,68166.66774.55175,06230.24057.284100,000-/--/--/-VESA CVT/DMT640 x 480640 x 480640 x 480800 x 600800 x 600800 x 6001024 x 7681024 x 7681024 x 7681152 x 8641280 x 7201280 x 8001280 x 10241280 x 10241366 x 76831,46937,86137,50037,87948,07746,87548,36356,47660,02367,50045,00049,70263,98179,97647,71259,94072,80975,00060,31772,18875,00060,00470,06975,02975,00060,00059,81060,02075,02559,79025,17531,50031,50040,00050,00049,50065,00075,00078,750108,00074,25083,500108,000135,00085,500-/--/--/-+/++/++/+-/--/-+/++/++/+-/++/++/++/+[HC460-465-EU]Install-Guide-X0ENG.indd 8 2014-05-21  3:08:23

9English ✎Optimal resolution is 1920 X 1080 @ 60 Hz.Mode Resolution Horizontal Frequency (KHz)Vertical Frequency (Hz)Pixel Clock Frequency(MHz)Sync Polarity (H / V)IBM 720 x 400 31.469 70.087 28.322 -/+MAC640 x 480832 x 6241152 x 87035.00049.72668.681 66.66774.55175.06230.24057.284100.000-/--/--/-VESA CVT720 x 5761152 x 8641280 x 7201280 x 96035,91053,78356,45675,23159,95059,95974,77774,85732,75081,75095,750130,000-/+-/+-/+-/+VESA DMT640 x 480640 x 480640 x 480800 x 600800 x 600800 x 6001024 x 7681024 x 7681024 x 7681152 x 8641280 x 10241280 x 10241280 x 7201280 x 8001280 x 8001360 x 7681440 x 9001440 x 9001680 x 105031,46937,86137,50037,87948,07746,87548,36356,47660,02367,50063,98179,97645,00049,70262,79547,71255,93570,63565,29059,94072,80975,00060,31772,18875,00060,00470,06975,02975,00060,02075,02560,00059,81074,93460,01559,88774,98459,95425,17531,50031,50040,00050,00049,50065,00075,00078,750108,000108,000135,00074,25083,500106,50085,500106,500136,750146,250-/--/--/-+/++/++/+-/--/-+/++/++/++/++/+-/+-/++/+-/+-/+-/+VESA GTF 1280 x 7201280 x 102452,50074,62070,00070,00089,040128,943-/+-/-VESA DMT / DTV CEA 1920 x 1080p 67,500 60,000 148,500 +/+ ✎When using an HDMI/DVI cable connection, you must use the HDMI IN (DVI) jack. (The HC470 is not support) ✎The interlace mode is not supported. ✎The set might operate abnormally if a non-standard video format is selected. ✎Separate and Composite modes are supported. SOG is not supported.[HC460-465-EU]Install-Guide-X0ENG.indd 9 2014-05-21  3:08:23

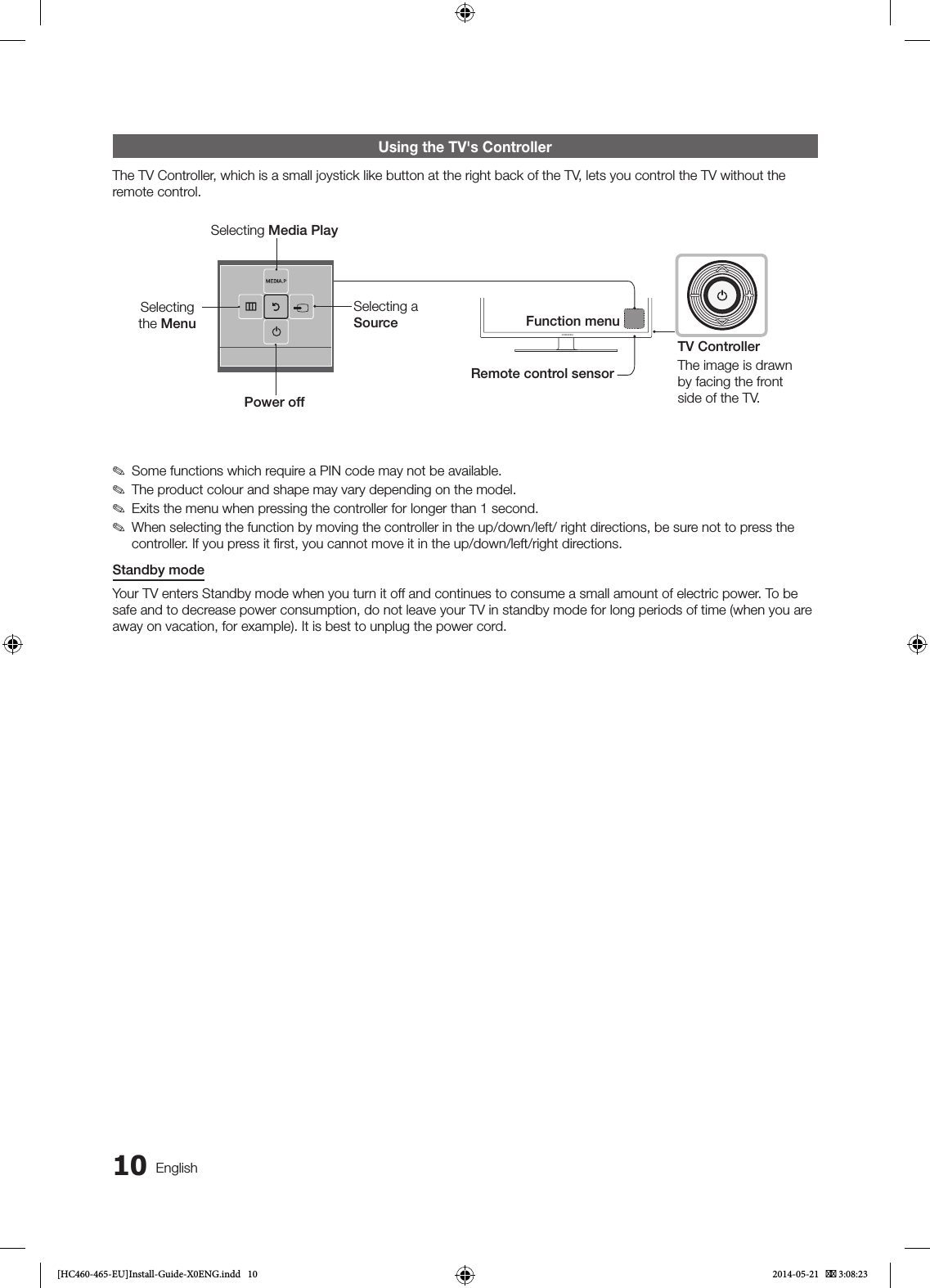

10 EnglishUsing the TV's ControllerThe TV Controller, which is a small joystick like button at the right back of the TV, lets you control the TV without the remote control.Selecting Media PlayPower offSelecting a SourceSelecting the Menu Function menuTV ControllerThe image is drawn by facing the front side of the TV.Remote control sensor ✎Some functions which require a PIN code may not be available. ✎The product colour and shape may vary depending on the model. ✎Exits the menu when pressing the controller for longer than 1 second. ✎When selecting the function by moving the controller in the up/down/left/ right directions, be sure not to press the controller. If you press it ﬁrst, you cannot move it in the up/down/left/right directions.Standby modeYour TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.[HC460-465-EU]Install-Guide-X0ENG.indd 10 2014-05-21  3:08:23

11EnglishViewing the Remote Control ✎This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.Installing batteries (Battery size: AAA)Rear of the Remote ✎After you have intalled the batteries, use a screwdriver to screw in the screw that holds the battey cover closed. ✎NOTE• Use the remote control within 23 feet of the TV.• Bright light may affect the performance of the remote control. Avoid using nearby special ﬂuorescent light or neon signs.• The colour and shape may vary depending on the model.• Remote control button 'HOME' & '3D' are not supported. When pressing these buttons, the TV unit does not respond.GUIDECONTENTCLOCKALARMABCDALARMSUBT.CLOCKGUIDECONTENTHOMECH LISTTTX/MIXTurns the TV on and off.Have direct access to channelsAlternately selects Teletext, Double or Mix.Adjust the volume.Display channel list on the screen.Display the main on-screen menu.Quickly select frequently used functions. Select on-screen menu items and change menu values.Return to the previous menu.Buttons in the Channel list, Contents Home menu, etc.Use these buttons in the Contents Home.Display and select available video sources.Electronic Programme Guide (EPG) display.Cut off the sound temporarily.Change channels.Swich to the HOME Screen.View the Contents Home.Press to display information on the TV screen. CLOCK: When you press INFO key in standby mode, TV screen displays the time.Exit the menu.ALARM: Enter the hour you want the TV to turn on.W: Turns the 3D image on or off. ( Not available )SUBT.: Displays digital subtitles.[HC460-465-EU]Install-Guide-X0ENG.indd 11 2014-05-21  3:08:23

12 EnglishUsing the Football ModeFootball Mode t ✎MENU m → Applications → Football Mode → ENTER EThis mode provides optimized condition for watching sports games.• a (Zoom): Pause playback and divide the picture into 9 parts. Select a part to zoom it in. Press this button again to resume. ✎When the Football Mode is on, the picture and sound modes are set to Stadium automatically. ✎If you turn the TV off while watching Football Mode, the Football Mode will be disable. ✎When the Data Service is running, the Zoom is not available.[HC460-465-EU]Install-Guide-X0ENG.indd 12 2014-05-21  3:08:23

13EnglishConnecting the MediaHub HDOutput to any external source connected to MediaHub HD on the hotel desk.1. Connect the RJP port of the TV and the RS/232 port of the MediaHub HD.2. Connect the HDMI IN port of the TV and the HDMI port of the MediaHub HD.• MediaHub HD – The MediaHub HD is a hardware module that has different Audio Video inputs (A/V, Audio, PC, HDMI and USB) and corresponding outputs. The corresponding output sources connect from MediaHub to the TV. MediaHub communicates with the TV via RS232. Hot Plug & Play is a function that allows hotel guests to connect an external source to the MediaHub. MediaHub communicates with the TV by sending messages regarding Active/Inactive sources. The TV switches to the Active external source. – You have to connect the HDMI of the MediaHub to the HDMI IN port of the TV. – When the TV is on, connect the TV and the RJP within 10 seconds.• Special features – PIP – Auto DetectionHDMI USBRS/232PC / DVIAUDIO INAV INAUDIOVIDEOPC INANT INPC / DVIAUDIO INAV INAUDIOVIDEOPC INANT INRJPHDMI IN (DVI)TV Rear PanelMediaHub HD Rear2 HDMI cable1 RS-232 Data Cable[HC460-465-EU]Install-Guide-X0ENG.indd 13 2014-05-21  3:08:23

14 EnglishConnecting the RJP (Remote Jack Pack)Output to any external source connected to RJP on the hotel desk.PC / DVIAUDIO INANT INPC / DVIAUDIO INANT INRJPHDMI IN (DVI)USB HDMI VIDEO AUDIO AUDIO/PCRS/232AV INAUDIOVIDEOPC INTV Rear PanelRJP Rear51 D-sub / PC Audio cable2 Audio Cable3 Video Cable4 HDMI cable1. Connect the PC IN / PC/DVI AUDIO IN port of the TV to the PC/AUDIO port of the RJP.2. Connect the AV IN [VIDEO]/[L-AUDIO-R] port of the TV to the VIDEO port of the RJP.3. Connect the AV IN [VIDEO] port of the TV to the VIDEO port of the RJP.4. Connect the HDMI IN port of the TV and the HDMI port of the RJP.5. Connect the RJP port of the TV and the RS/232 port of the RJP. ✎The RJP (Remote Jack Pack) compatible with this Samsung TV is TeleAdapt TA-7610, TA-7650 (HD) and TA-7660 (HD Plus).• RJP (Remote Jack Pack): RJP stands for Remote Jack Pack. The RJP is a hardware module that has different Audio Video inputs (A/V, Audio, PC and HDMI) and corresponding outputs. The corresponding output sources are connected from the RJP to the TV. The RJP communicates with the TV via RS232. The Hot Plug & Play function allows hotel guests to connect an external source to the RJP. The RJP communicates with the TV by sending mes-sages regarding Active/ Inactive sources. The TV will switch to the Active external source according to the priority set by the User. ✎You can select HDMI IN and AV IN for connecting the RJP. ✎When the TV is on, connect the TV and the RJP within 10 seconds.[HC460-465-EU]Install-Guide-X0ENG.indd 14 2014-05-21  3:08:24

15English• The RJP can be returned to the factory default settings by pressing the A/V and HDMI buttons simultaneously for 10 seconds. All LEDs blink 5 times to acknowledge that this has been ﬁnished.• The RJP will automatically turn off any LEDs after 5 minutes to avoid unnecessary light pollution in the hotel room. The LEDs that were turned off will turn on again if the guest touches any of the buttons and the 5 minute timer will restart. If the guest then touches another source button, the TV will change to the selected source and the corre-sponding LED will be lit.• After an RJP Reset or a TV Power OFF/ON, it takes approx. 10 seconds to establish communications between the TV and the RJP.• The following table shows the approximate time in seconds to switch from the TV to the input source, based on the priority. ✎Scenario 1: When no inputs are connected. Source To ConnectAV 2 SecPC 0.7 SecHDMI 3.9 Sec ✎Scenario 2: When two or more inputs are connected and an Input source is disconnected and then reconnected. Source Disconnect To Connect TotalAV 4.5 Sec 2 Sec 6.5 SecPC 0.7 Sec 0.7 Sec 1.4 SecHDMI 3.9 Sec 3.9 Sec 7.8 Sec ✎E.g. If the RJP has all its live sources AV, PC and HDMI connected, AV is viewed as the highest priority. If the RJP is in HDMI mode, and a guest removes and reconnects the AV, the minimum time required to switch to the AV is 6.5 seconds.• To connect audio (Ipod or Mp3), Music mode should be ON and Jack Ident detect should be OFF.• A/V, PC and HDMI input sources are supported.[HC460-465-EU]Install-Guide-X0ENG.indd 15 2014-05-21  3:08:24

16 EnglishSetting the Hotel Option DataTo Enter: Press the MUTE → 1 → 1 → 9 → ENTERE buttons in order. (From the Hospitality mode, the Standalone mode is set.)To Exit from this menu : power off and turn on again.No Hotel TV Function DescriptionCategory Item initial value1Hospitality Mode Hospitality Mode StandaloneSelect Hospitality mode.• Interactive mode : TV works with an SI STB or SBB.• Stand-alone mode : TV works alone, without an SI STB or SBB.2 SI Vendor SI Vendor OFF• Interactive mode : Samsung /2M/ Locatel / VDA / VDA-S / Acentic /Sutrinere-lone mode : OFF /Movielink/Swisscom/ Smoovie3 Power OnPower On Channel Last SavedSet the default values that will be applied when the TV is turned on.• User Deﬁned : Lets you set Power On Channel and Channel Type manually. See Power On Channel and Channel Type below.• Last Saved : If you select this item, when the TV is turned on, it displays the channel it was displaying when it was turned off.Power On Channel Num …When the TV is turned on, it switches automatically to this channel.Power On Channel Type …• Select channel band : AIR (analog air band), DTV (digital air band), CATV (analog cable band), CDTV (digital cable band)Power On Volume Last Saved• User Deﬁned : Lets you set the Power On Volume manually. See Power On Volume below.• Last Saved : When the TV is turned on, it returns to the volume that had been set when the power had been turned off.Power On Volume Num …The TV turns on with this Volume Level in Stand Alone Hospitality mode.Min Volume 0The minimum Volume Level the user can set in Stand Alone Hospitality mode.Max Volume 100The maximum Volume Level the user can set in Stand Alone Hospitality mode.Power On Source TVSelect the input source the TV displays when turns on.Power On Option Last OptionDetermines the TV's state when power returns after a power failure or after you have unplugged the TV and then plugged it in again.• LAST OPTION : Returns to its last Power state. If it was in Stand-by, it returns to Stand-by. If it was on, it turns on.• Power On : When the power returns, the TV turns on.• Standby : When the power returns, the TV enters the Standby mode.4 ChannelChannel Setup …Gives you direct, immediate access to some of the Channel menu functions on the user Channel menu such as Auto Program, Antenna selection, etc.Channel Editor …The Channel Editor lets you edit the channels stored in the TV's memory. Using Channel Editor you can:• Change the channel numbers and names, and sort the channels in your desired channel number order.• Apply the video mute to channels you select. The video mute blanks out the video from a channel and outputs only the sound while displaying a speaker icon on the screen.The Channel Editor also lets you view information about each channel easily, without your having to display each channel directly.Mixed Channel Map ONThis Feature enables showing/browsing all antenna type (Air/Cable or Satellite) channels at the same time.• On: When ON, guests can access the complete Channel Map irrespective of the selected antenna type. The Channel list will also populate Air as well Cable type channels.• Off: When OFF, guest can access the Channel Map corresponding to the selected antenna type [AIR/CABLE or Satellite] only. The Channel list/Editor will only show the selected antenna type channels.Dynamic SI OFF• On : Check the DTV Programme channel number. (the DTV channel editor is inaccessible)• Off: Do not check the DTV Programme channel number. (the DTV channel editor is accessible, but additional channel Programme number update is not supported)[HC460-465-EU]Install-Guide-X0ENG.indd 16 2014-05-21  3:08:24

17EnglishNo Hotel TV Function DescriptionCategory Item initial value4 ChannelChannel Rescan Message ONWhen there is a mismatch between the data in the channel map and the transmitted data , the TV autotunes the channels to restore the data/parameters in the channel map.• On: When Channel Rescan Message is ON, The OSD showing that the chan-nels are being rescanned will be displayed to Hotel Guests.• Off: A Hotel Admin can turn the Channel Rescan Message OFF, if the rescan message OSD should not to be displayed to Hotel Guests.My Channel OFFEnable or disable the Mychannel feature.Genre Editor …Edit the genre for channels. (Available when Mychannel is On)Subtitle Auto On OFFThis function turns the function On/Off that automatically turns on the subtitles in a speciﬁc country.This function is supported for Hotel TVs that are ready to receive DVB broadcasts that is heading to Europe.This function is related to France’s subtitle speciﬁcation. The rest of the countries’ subtitles function according to the appropriate country speciﬁcations regardless of the Subtitle Auto On function.• On: When the Subtitle Auto On function is ON, it follows France’s subtitle speciﬁcations.• Off: When the Subtitle Auto On function is OFF, it does not follow France’s subtitle speciﬁcations.TTX Widescreen Mode OFF• On : The TTX Widescreen Mode is displayed.• Off :The TTX Widescreen Mode is not displayed.5 Menu OSDPicture Menu Lock OFFEnable or disable the Picture Menu.Menu Display ON• On : The Main Menu is displayed.• Off : The Main Menu is not displayed.Panel Button Lock UnlockTurning the front panel (local key) operations on/off.• Unlock : Unlocks all panel keys.• Lock : Locks all panel keys.• OnlyPower : Locks all panel keys except the Power panel key.• Menu/Source : Locks the Menu and Source panel keys.Home Menu Display ON• OFF:The Home Menu is not displayed.• ON:The Home Menu is displayed.Home Menu EditorEdit Home Menu .Home Menu Auto Start ON• ON:The Home Menu is Auto Start.• OFF:The Home Menu is not Auto Start.6 ClockLocal Time ManualSelection of the way to update clock data• Manual: Use clock data from DVB channel or manual clock setting When the TV is in the stand-alone mode.• TTX: manual clock setting (with updating from TTX data).Tiime Channel Type …Time Channel Num …7 Music ModeMusic Mode AV OFFTo get music output from an mp3/audio player through an AV Input Source. When on, you can hear sound from the player through the TV even there is no video signal. The TV’s backlight, however, remains on. And add a video signal,it works normally.Music Mode Backlight OFFBacklight On/Off option in Music mode to save energy8Remote Jack PackPriority AV 1If the jack priority is set, the corresponding source is automatically set when a jack is inserted according to the jack priorityPriority PC 2If the jack priority is set, the corresponding source is automatically set when a jack is inserted according to the jack priority.AV Option AVSelect RJP AV Source (Source selection depends on Model).HDMI Option HDMISelect which HDMI source of the TV is connected to the RJP jack.[HC460-465-EU]Install-Guide-X0ENG.indd 17 2014-05-21  3:08:24

19EnglishNo Hotel TV Function DescriptionCategory Item initial value15 SecurityPassword Input …Input Password 00000000.Password Setting …Set new Password.Password Reset …Reset Password to 00000000.Security Mode …Security Mode ON or OFF.USB …USB Disable or Enable.HDMI …HDMI Disable or Enable.TTX Security … TTX function Enable or disabl16 SystemSelf Diagnosis for TV …Enter Self Diagnosis Menu.• Picture Test: Use to check for picture problems. If the problem appears in the test picture, select Yes and follow the directions on the screen.• Sound Test: Use the built-in melody sound to check for sound problems. If the problem occurs during the test, select Yes and follow the directions on the screen.SW Update …SW USB Update functionService Pattern OFFSame function with SVC Service PatternContact SamsungContact SamsungTV reset …Factory reset ✎REACH (Remote Enhanced Active Control for Hospitality) is a professional and interactive remote controller that lets you deliver TV ﬁrmware updates, cloning data, channel mapping changes, S-LYNK REACH contents, and TICKER contents through RF DTV to several hundred hospitality TVs simultaneously. The REACH functions are only avail-able in standalone mode. The REACH Server is sold separately. Refer to the REACH server manual enclosed in the REACH server product for more information on operating it.[HC460-465-EU]Install-Guide-X0ENG.indd 19 2014-05-21  3:08:24
