BN68-00327A-00(ENG)Owner’s InstructionsHPM5027
Thank you for choosing Samsung! Your new Samsung product represents the latest in television technol-ogy. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making itone of the best products in its class. We are proud to offer you a product that will provide convenient,dependable service and enjoyment for years to come.Important Safety InformationAlways be careful when using your Monitor. To reduce the risk of fire, electrical shock, and otherinjuries, keep these safety precautions in mind when installing, using, and maintaining your machine.• Read all safety and operating instructions before operating your Monitor.• Keep the safety and operating instructions for future reference.• Heed all warnings on the Monitor and in the operating instructions.• Follow all operating and use instructions.• Unplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid oraerosol cleaners.• Never add any attachments and/or equipment without approval of the manufacturer. Such additionscan increase the risk of fire, electric shock, or other personal injury.• Do not use the Monitor where contact with or immersion in water is a possibility, such as near bathtubs, sinks, washing machines, swimming pools, etc.• Do not place the Monitor on an unstable cart, stand, tripod, bracket,table, or floor where it can fall. A falling Monitor can cause seriousinjury to a child or adult, and serious damage to the appliance. Useonly with a cart, stand, tripod, bracket, or table recommended by themanufacturer or sold with the Monitor. Follow the manufacturer'sinstructions when mounting the unit, and use a mounting accessoryrecommended by the manufacturer. Move the Monitor and cart withcare. Quick stops, excessive force, and uneven surfaces can make theunit and cart unsteady and likely to overturn.• Provide ventilation for the Monitor. The unit is designed with slots in the cabinet for ventilation to pro-tect it from overheating. Do not block these openings with any object, and do not place the Monitoron a bed, sofa, rug, or other similar surface. Do not place it near a radiator or heat register. If youplace the Monitor on a rack or bookcase, ensure that there is adequate ventilation and that you'vefollowed the manufacturer's instructions for mounting.• Operate your Monitor only from the type of power source indicated on the marking label. If you arenot sure of the type of power supplied to your home, consult your appliance dealer or local powercompany.• Use only a grounded or polarized outlet. For your safety, this Monitor is equipped with a polarizedalternating current line plug having one blade wider than the other. This plug will fit into the poweroutlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. Ifthe plug still does not fit, contact your electrician to replace your outlet. Warning! Important Safety Instructions32CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol indicates high voltage is present inside. It is dangerous to make any kind of contactwith any inside part of this product.This symbol alerts you that important literature concerning operation and maintenance has beenincluded with this product.Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Arti-cle 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that providesguidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to thegrounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment mayvoid the user's authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne corre-spondante de la prise et pousser jusqu'au fond.Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is aninfringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in partmay be in violation of these rights. TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR MOISTURE.Thank You for Choosing Samsung

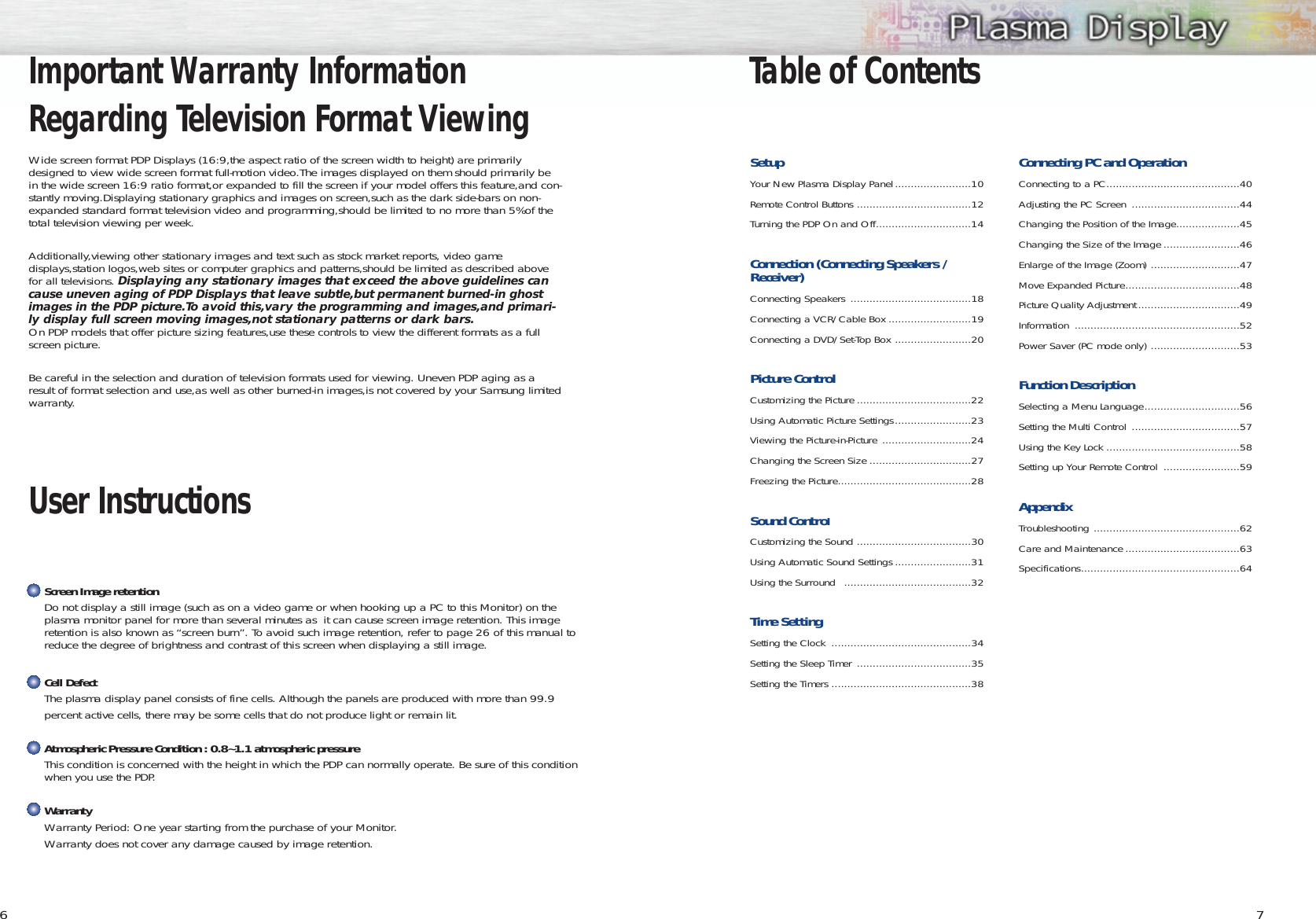

User InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes the fol-lowing warning:NOTE: This equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonableprotection against harmful interference in a resi-dential installation.This equipment generates, uses and can radiateradio frequency energy and, if not installedand used in accordance with the instructions, maycause harmful interference to radio communica-tions. However, there is no guarantee that interfer-ence will not occur in a particular installation. Ifthis equipment does cause harmful interference toradio or television reception, which can be deter-mined by turning the equipment off and on, theuser is encouraged to try to correct the interfer-ence by one or more of the following measures.User InformationChanges or modifications not expressly approvedby the party responsible for compliance couldvoid the user’s authority to operate the equipment.If necessary, consult your dealer or an experi-enced radio/television technician for additionalsuggestions. You may find the booklet called Howto Identify and Resolve Radio/TV InterferenceProblems helpful. This booklet was prepared bythe Federal Communications Commission. It isavailable from the U.S. Government PrintingOffice, Washington, DC 20402, Stock Number004-000-00345-4 .WarningThis is a Class B product. In a domestic environ-ment this product may cause radio interference inwhich case the user may be required to take ade-quate measures.User must use shielded signal interface cables tomaintain FCC compliance for the product.Declaration of conformity for products markedwith FCC Logo. This device complies with Part 15of the FCC Rules. Operation is subject to the fol-lowing two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that maycause undesired operation.The party responsible for product compliance:SAMSUNG ELECTRONICS CO., LTDAmerica QA Lab of Samsung3351 Michelson Drive, Suite #290,Irvine, CA 92612, U.S.ATel) 949-975-7310Fax) 949-975-7328Provided with this monitor is a detachable powersupply cord with IEC320 style terminations. It may be suitable for connection to any UL Listedpersonal computer with similar configuration.Before making the connection, make sure the volt-age rating of the computer convenience outlet isthe same as the monitor and that the ampere rat-ing of the computer convenience outlet is equal toor exceeds the monitor voltage rating.For 110 Volt applications, use only UL Listeddetachable power cord with NEMA configuration5-15P type (parallel blades) plug cap. For 230Volt applications use only UL Listed Detachablepower supply cord with NEMA configuration6015P type (tandem blades) plug cap.IC Compliance NoticeThis Class B digital apparatus meets all require-ments of the Canadian Interference-CausingEquipment Regulations of ICES-003.Notice de Conformité ICCet appareil numérique de Classe B respectetoutes les exigences du Règlement ICES-003 surles équipements produisant des interférences auCanada.5• Protect the power cord. Power supply cords should be routed so that they won’t be walked on or pinchedby objects placed on or against them. Pay particular attention to cords at plugs, convenience recepta-cles, and the point where they exit from the unit.• Unplug the Monitor from the wall outlet and disconnect the antenna or cable system during a lightningstorm or when left unattended and unused for long periods of time. This will prevent damage to the unitdue to lightning and power-line surges.• Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overheadpower lines or other electric light or power circuits or where it can fall into such power lines or circuits.When installing an outside antenna system, be extremely careful to keep from touching the power linesor circuits. Contact with such lines can be fatal.• Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.• Do not insert anything through the openings in the unit, where they can touch dangerous voltage pointsor damage parts. Never spill liquid of any kind on the Monitor.• Ground outdoor antennas. If an outside antenna or cable system is connected to the Monitor, be sure theantenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides infor-mation about proper grounding of the mast and supporting structure, grounding of the lead-in wire to anantenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection togrounding electrodes, and requirements for the grounding electrode.• Do not attempt to service the Monitor yourself. Refer all servicing to qualified service personnel. Unplugthe unit from the wall outlet and refer servicing to qualified service personnel under the following condi-tions:- when the power-supply cord or plug is damaged- if liquid has been spilled on the unit or if objects have fallen into the unit- if the Monitor has been exposed to rain or water- if the Monitor does not operate normally by following the operating instructions- if the Monitor has been dropped or the cabinet has been damaged- when the Monitor exhibits a distinct change in performance• If you make adjustments yourself, adjust only those controls that are covered by the operating instruc-tions. Adjusting other controls may result in damage and will often require extensive work by a qualifiedtechnician to restore the Monitor to normal.• When replacement parts are required, be sure the service technician uses replacement parts specified bythe manufacturer or those that have the same characteristics as the original part. Unauthorized substitu-tions may result in additional damage to the unit.• Upon completion of any service or repairs to this Monitor, ask the service technician to perform safetychecks to determine that the Monitor is in a safe operating condition.• The PDP can properly operate in less than temperature 0~40˚C and humidity 80%. Do not use in a hot and humid place.4FCC Information
SetupYour New Plasma Display Panel........................10Remote Control Buttons ....................................12Turning the PDP On and Off..............................14Connection (Connecting Speakers /Receiver) Connecting Speakers ......................................18Connecting a VCR/Cable Box ..........................19Connecting a DVD/Set-Top Box ........................20Picture ControlCustomizing the Picture ....................................22Using Automatic Picture Settings........................23Viewing the Picture-in-Picture ............................24Changing the Screen Size ................................27Freezing the Picture..........................................28Sound ControlCustomizing the Sound ....................................30Using Automatic Sound Settings ........................31Using the Surround ........................................32Time SettingSetting the Clock ............................................34Setting the Sleep Timer ....................................35Setting the Timers ............................................38Connecting PC and OperationConnecting to a PC..........................................40Adjusting the PC Screen ..................................44Changing the Position of the Image....................45Changing the Size of the Image ........................46Enlarge of the Image (Zoom) ............................47Move Expanded Picture....................................48Picture Quality Adjustment................................49Information ....................................................52Power Saver (PC mode only) ............................53Function DescriptionSelecting a Menu Language..............................56Setting the Multi Control ..................................57Using the Key Lock ..........................................58Setting up Your Remote Control ........................59AppendixTroubleshooting ..............................................62Care and Maintenance ....................................63Specifications..................................................647Important Warranty InformationRegarding Television Format ViewingWide screen format PDP Displays (16:9,the aspect ratio of the screen width to height) are primarilydesigned to view wide screen format full-motion video.The images displayed on them should primarily bein the wide screen 16:9 ratio format,or expanded to fill the screen if your model offers this feature,and con-stantly moving.Displaying stationary graphics and images on screen,such as the dark side-bars on non-expanded standard format television video and programming,should be limited to no more than 5%of thetotal television viewing per week.Additionally,viewing other stationary images and text such as stock market reports, video gamedisplays,station logos,web sites or computer graphics and patterns,should be limited as described abovefor all televisions. Displaying any stationary images that exceed the above guidelines cancause uneven aging of PDP Displays that leave subtle,but permanent burned-in ghostimages in the PDP picture.To avoid this,vary the programming and images,and primari-ly display full screen moving images,not stationary patterns or dark bars.On PDP models that offer picture sizing features,use these controls to view the different formats as a fullscreen picture.Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as aresult of format selection and use,as well as other burned-in images,is not covered by your Samsung limitedwarranty.6Table of ContentsUser Instructions Screen Image retentionDo not display a still image (such as on a video game or when hooking up a PC to this Monitor) on theplasma monitor panel for more than several minutes as it can cause screen image retention. This imageretention is also known as “screen burn”. To avoid such image retention, refer to page 26 of this manual toreduce the degree of brightness and contrast of this screen when displaying a still image.Cell DefectThe plasma display panel consists of fine cells. Although the panels are produced with more than 99.9 percent active cells, there may be some cells that do not produce light or remain lit.Atmospheric Pressure Condition : 0.8~1.1 atmospheric pressureThis condition is concerned with the height in which the PDP can normally operate. Be sure of this conditionwhen you use the PDP.WarrantyWarranty Period: One year starting from the purchase of your Monitor.Warranty does not cover any damage caused by image retention.
PLASMA DISPLAY PANELSetupYour New Plasma Display Panel ....................................................10Remote Control Buttons ................................................................12Turning the PDP On and Off ..........................................................14
Remote Control Signal Receiver Aim the remote control towards this spot on the Monitor.• SOURCE buttonPress to display all of the available video sources (ie., Video, S-Video, Component1, Component2, PC ).• MENU buttonDisplays the main on-screen menu.• VOL(+,-) buttonPress to increase or decrease the volume. Also used toadjust items on the on-screen menu.• SELECT(▲,▼) buttonUsed to adjust items on the on-screen menu.• POWER buttonPress to turn the PDP on and off.Swivel StandThis stand can turn left, rightup to 25 degrees respectively.So you can adjust the set'sangle while viewing.Front Panel11Your New Plasma Display Panel10Rear PanelŒExternal Speaker Out jacksConnect external speakers.´RGB Input 1 jack (15pin)Connect to the video output jack on your PC.ˇRGB Input 2/Component Video Input jacks(H/V/R/G/B, Y/Pb/Pr)RGB input2/Component video input jacks areBNC connectors.¨Video Input jackConnect a video signal from external sourceslike VCRs or DVD players.ˆS-Video Input jackConnect a S-Video signal from an S-VHS VCRsor DVD players.ØAudio Input (Video/Component/PC) jacksConnect a audio signal from external sourceslike VCRs, PC or DVD players.∏RS-232C Input jackConnect the input jack on RS-232C to yourPC.”Power Input jackConnect the included power cord.SpeakersChecking PartsRemote Control/AAA BatteriesOwner’sInstructionsS-Video Cable PC CablePower Cord Ferrite Cores (7EA)Video/AudioCable
ıVCR control buttonsControls VCR tape functions: Stop, Rewind,Play/Pause, Fast Forward.˜SET buttonUse during setting up of this remote control, so that itwill work compatibly with other devices (VCR, cablebox, DVD, etc.)¯Clock set buttonPress to clock setting.˘PIP control buttonsSource : Press to select one of the available signalsources for the PIP window.S.Sel : Press to select the Audio (PIP or Main).Locate : Press to move the PIP window to any of thescreen.¿PC control buttonsAuto AdjustScalingZoom/Pan¸S.Mode buttonAdjust the PDP sound by selecting one of the presetfactory settings (or select your personal, customizedsound settings.)˛Sleep buttonPress to select a preset time interval for automatic shutoff.S.Sel13Remote Control ButtonsŒPower buttonTurns the PDP on and off.´Number buttonsˇDisplay buttonPress to display information on the PDP screen.¨Menu buttonDisplays the main on-screen menu.ˆCH (Channel) and VOL (Volume) buttonsChannel and Volume buttons are used for selectingmenu item in menu mode.ØMute buttonPress to mute the PDP sound.∏P.Mode buttonAdjust the PDP picture by selecting on of the preset fac-tory settings (or select your personal, customized pic-ture settings.)”Aspect buttonPress to change the screen size.’Mode buttonSelects a target device to be controlled by the samsungremote control (ie., VCR, Cable, or DVD players).˝Clock Display buttonPress to display clock on the PDP screen.ÔSource buttonPress to display all of the available video sources (ie., Video, S-Video, Component1, Component2, PC ).Joystick buttonUse to highlight on-screen menu items and changemenu values.ÒStill buttonPress to pause the current screen.ÚPIP buttonActivates picture in picture.ÆSource selection buttonsPress to directly select Video, S-Video, Component1,Component2 or PC. 12Remote ControlFlip the cover openin the arrow direction.Installing the Batteries in Your Remote Control1Slide the back coverto open the batterycompartment of theremote control3Slide the cover back intoplace.2Install two AAA size batter-ies. Make sure to match the“+” and “-” ends of the bat-teries with the diagraminside the compartment.Remote Control Operation Range.You can use your remote control within a distance of 23 feet and an angle of 30 degreesfrom the left and right sides of the remote control receiver of the monitor.
Displaying Status InformationPress the Display button on the remote control. The PDP willdisplay the Screen size, Resolution, Current time, and screenmode.Displaying ClockPress the Clock Display button on the remote control. The Current time will be displayed on the screen.15Turning the Monitor(PDP) On and OffTurning the Monitor(PDP) On and OffPress the Power button on the remote control.The PDP will be turned on and you will be ready to use it’s features.You can also use the Power button on the front of the PDP.Notes: •If your Monitor isn’t turned on when the power button ispressed: Press the MODE button to check if the Monitormode has been chosen ( ). Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes it con-venient and fast to use features on the PDP. Your PDP also lets you display the status of many of your PDP’sfeatures.Viewing the Menus1 With the power on, press the Menu button on theremote control. The main menu appears on the screen. The Video menu is selected.2 Use the joystick (up, down) button to move items in themenu. Use the joystick (left, right) button to display, change, or use the selected items.Use the joystick ( ) button to enter items in the menu. On screen menus disappear from the screen automatically after about thirty seconds, or you can press the Menu button on your remote control to exit the menu.14VIDEO SelectContrastBrightnessSharpnessColorTint R 50Move Enter ExitCustom 100 50 50 50 G 50Main : VideoSUB : Not AvailableP.MODE : CustomScaling : WideS.MODE : CustomResolution : 720 X 480 60HzDISPLAY10 : 30 AM

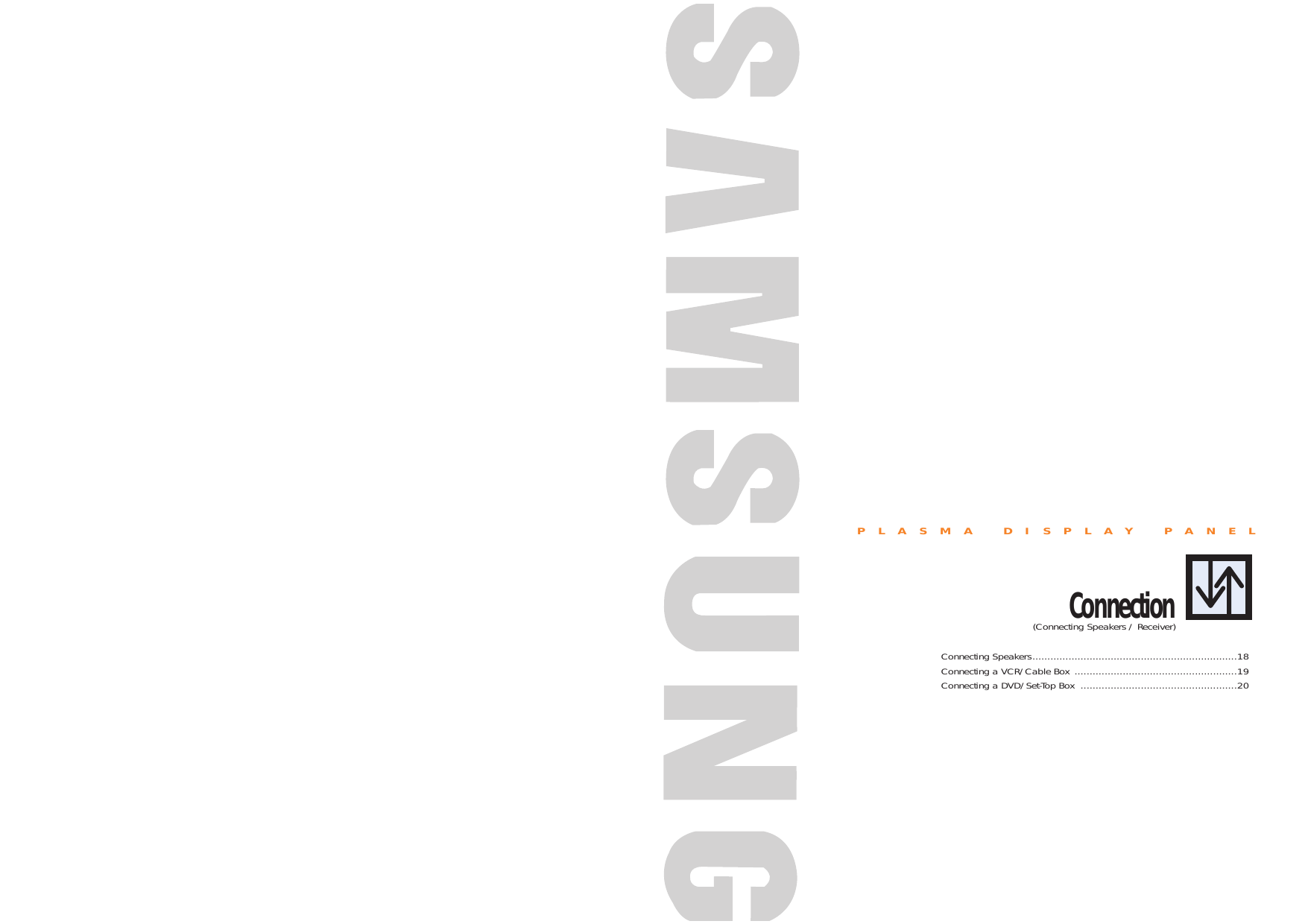

PLASMA DISPLAY PANELConnection(Connecting Speakers / Receiver)Connecting Speakers....................................................................18Connecting a VCR/Cable Box ......................................................19Connecting a DVD/Set-Top Box ....................................................20

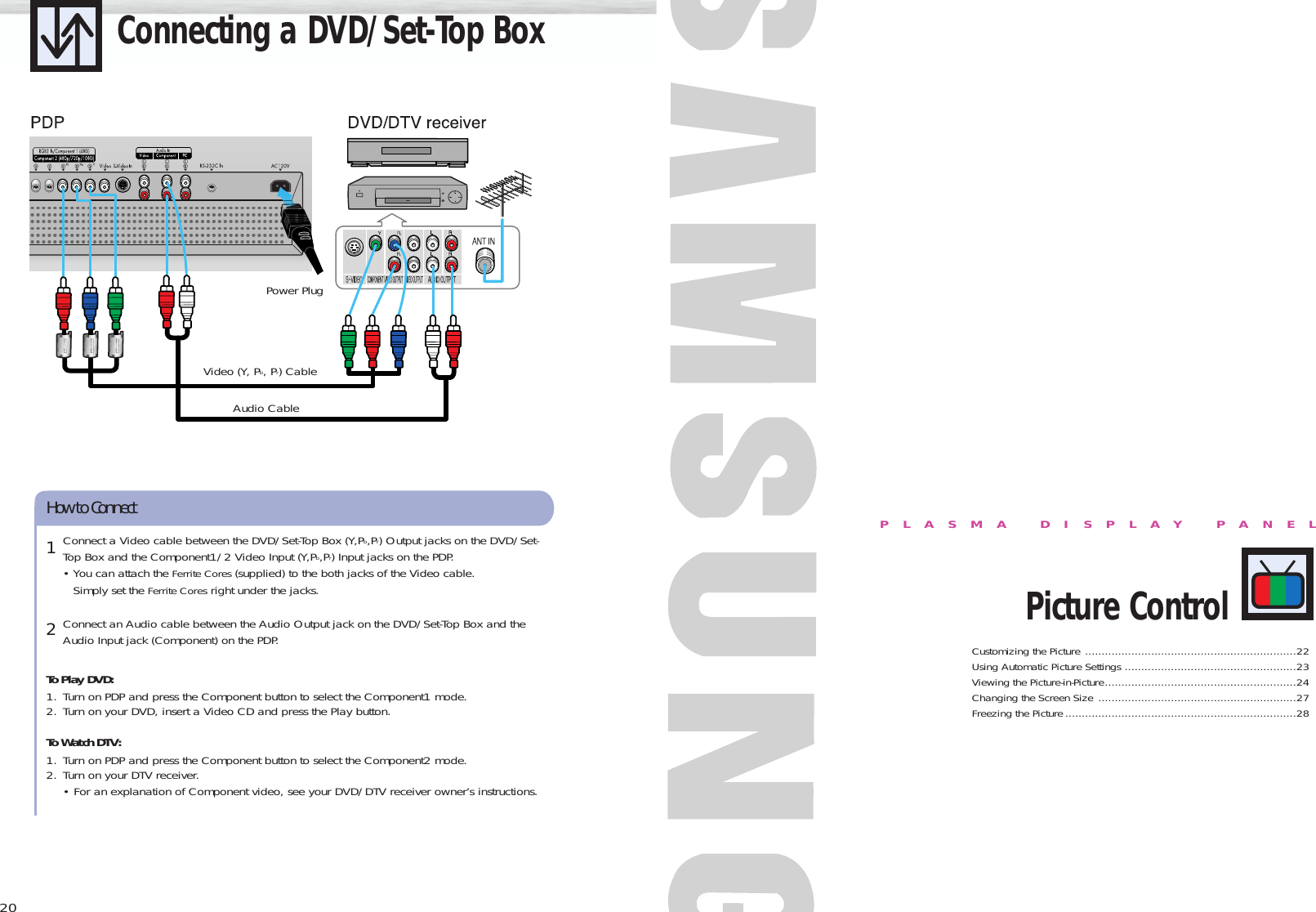

19Connecting Speakers18Speaker Audio CableConnect the speaker audio cable to the external speaker output jack on the rear of the PDPmatching the “+” and “-” ends of the cable with the diagram on the PDP. • You can attach the Ferrite Cores(supplied) to the both jacks of the Speaker audio cable. How to ConnectConnecting a VCR/Cable BoxS-Video CableAudio CableVideo CableConnect Video/S-Video cable between the Video/S-Video Output jack on the VCR/Cablebox and the Video Input jack on the PDP. • For better video, you can use a S-Video cable.• You can attach the Ferrite Cores(supplied) to the both jacks of the Video cable. Simply set the Ferrite Cores right under the jacks.Connect an Audio cable between the Audio Output jack on the VCR/Cable box and theAudio Input jack (Video) on the PDP. Videotape Playback:1. Turn on PDP and press the Video or S-Video(if S-Video jack is connected.) button on yourremote control.2. Turn on your VCR, insert a videotape and press the Play button.• For an explanation of Component video, see your VCR/Cable Box owner’s instruction.How to ConnectPower Plug12
PLASMA DISPLAY PANELPicture ControlCustomizing the Picture ................................................................22Using Automatic Picture Settings ....................................................23Viewing the Picture-in-Picture..........................................................24Changing the Screen Size ............................................................27Freezing the Picture ......................................................................28Connecting a DVD/Set-Top Box20Audio CableVideo (Y, Pb, Pr) CablePower PlugConnect a Video cable between the DVD/Set-Top Box (Y,Pb,Pr) Output jacks on the DVD/Set-Top Box and the Component1/2 Video Input (Y,Pb,Pr) Input jacks on the PDP. • You can attach the Ferrite Cores (supplied) to the both jacks of the Video cable. Simply set the Ferrite Cores right under the jacks.Connect an Audio cable between the Audio Output jack on the DVD/Set-Top Box and theAudio Input jack (Component) on the PDP. To Play DVD:1. Turn on PDP and press the Component button to select the Component1 mode.2. Turn on your DVD, insert a Video CD and press the Play button.To Watch DTV:1. Turn on PDP and press the Component button to select the Component2 mode.2. Turn on your DTV receiver.• For an explanation of Component video, see your DVD/DTV receiver owner’s instructions.How to Connect12

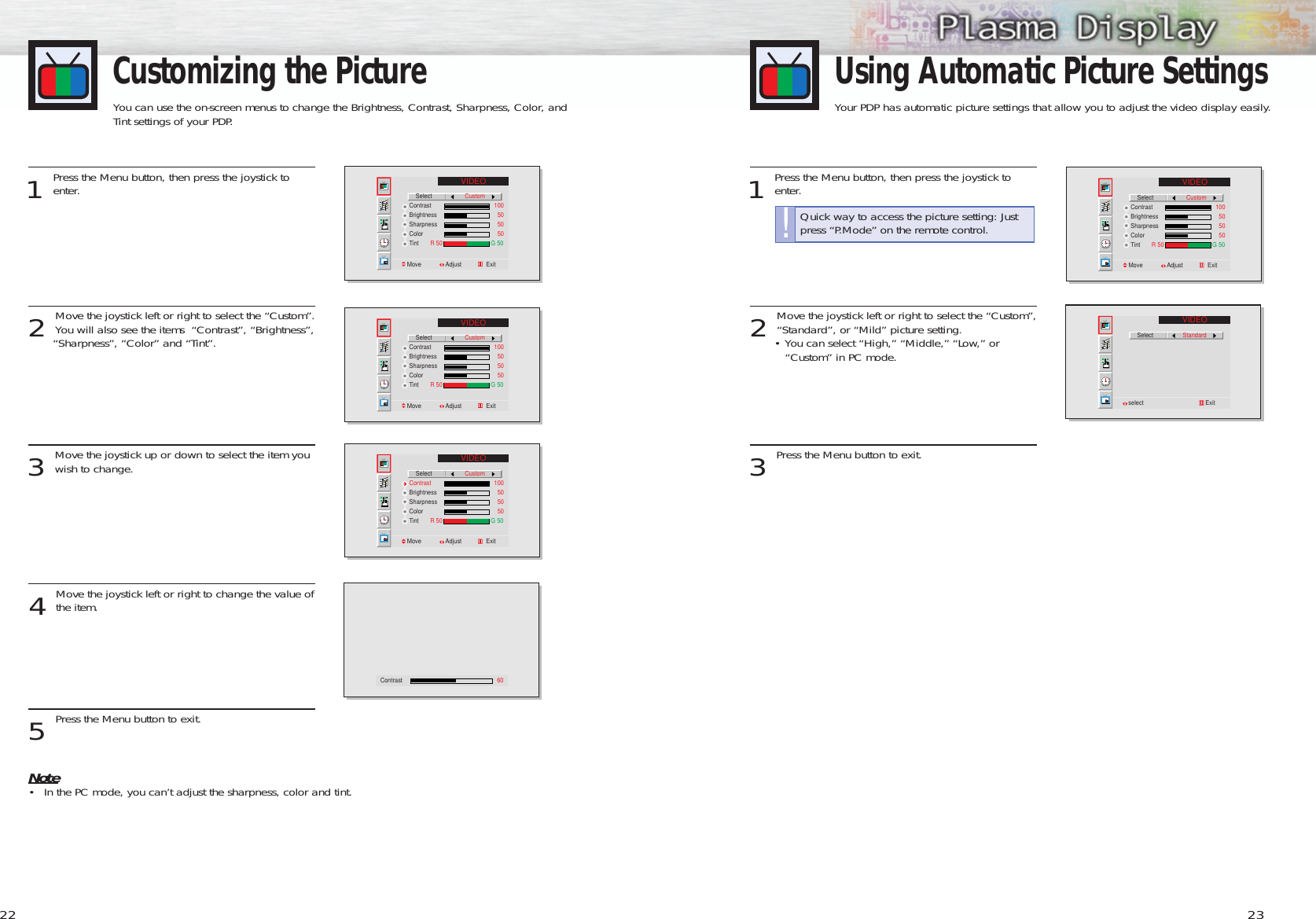

Customizing the PictureYou can use the on-screen menus to change the Brightness, Contrast, Sharpness, Color, andTint settings of your PDP. 231 Press the Menu button, then press the joystick toenter.2 Move the joystick left or right to select the “Custom”,“Standard”, or “Mild” picture setting.• You can select “High,” “Middle,” “Low,” or “Custom” in PC mode.3 Press the Menu button to exit.Using Automatic Picture SettingsYour PDP has automatic picture settings that allow you to adjust the video display easily.VIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitVIDEO Select Standardselect Exit221 Press the Menu button, then press the joystick toenter.2 Move the joystick left or right to select the “Custom”.You will also see the items “Contrast”, “Brightness”,“Sharpness”, “Color” and “Tint”.3 Move the joystick up or down to select the item youwish to change.4 Move the joystick left or right to change the value ofthe item.5 Press the Menu button to exit.Note• In the PC mode, you can’t adjust the sharpness, color and tint.VIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitVIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitVIDEO SelectContrastBrightnessSharpnessColorTint R 50Custom 100 50 50 50 G 50Move Adjust ExitContrast 60Quick way to access the picture setting: Justpress “P.Mode” on the remote control.!
Viewing the Picture-in-Picture25Selecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR. 1 Press the Menu button. Move the joystick up ordown to select the “PIP”, then press the joystick to enter.2 Move the joystick up or down to select the“Source”, then move the joystick left or right to enter.3 Move the joystick up or down to select an externalsignal, then move the joystick left or right. The signal from these inputs will not appear if you have not connected any equipment to the PDP’s input jacks.4 Press the Menu button to exit.PIPSelect OnLocateSourceMove Adjust ExitPIPSelect OnLocateSourceMove Adjust ExitPIPVIDEOS-VIDEOCOMPONENT 1Move Exit24Selecting the PIP Screen1 Press the Menu button. Move the joystick up or down toselect the “PIP”, then press the joystick to enter.2 Move the joystick left or right to select the “On”. The PIP image will appear in the corner of the screen.3 Press the Menu button to exit.Note• The PIP function operates in only PC mode or Component2 mode.PIPSelect OffMove Enter ExitPIPSelect OnLocateSourceMove Adjust ExitQuick way to access the PIP: Just press “PIP”on the remote control.!Quick way to access the PIP source: Just press“Source” in the cover on the remote control.!
27WideSets the picture to 16:9 wide mode.PanoramaUse this mode for the wide aspect ratio of apanoramic picture.Zoom1Magnify the size of the picture vertically onscreen.Zoom2Magnify the size of the picture more thanZoom1.StretchMoves the Zoom2 picture up a little to fullyshow the bottom. Use this picture size if youwant to view Zoom2 picture along with cap-tions when watching movies.4:3Sets the picture to 4:3 normal mode. This is astandard PDP screen size.Changing the Screen Size(When entering the Video mode) CaptionNote• In VIDEO, S-VIDEO, Component1 mode, all screen modes can be selected.(Wide ➝ Panorama ➝ Zoom1 ➝ Zoom2 ➝ Stretch ➝ 4:3).When you press the Aspect button on the remote control, the PDP’s screen mode should appear insequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Stretch, 4:3.Note• If you watch a still image or the 4:3 mode for a long time, image may be burned onto the screen,view the monitor in wide mode or panorama mode as possible.26Changing the Location of the PIP Image1 Press the Menu button. Move the joystick up ordown to select the “PIP”, then press the joystick to enter.2 Move the joystick up or down to select the “Locate”.3 Move the joystick to move the PIP screen where youwant. 4 Press the Menu button to exit.PIPSelect OnLocateSourceMove Adjust ExitPIPSelect OnLocateSourceMove Adjust ExitAdjust ExitPIPQuick way to access the PIP location: Justpress “Locate” on the remote control.!
Freezing the Picture28StillPress the Still button on the remote control to freeze a mov-ing picture into a still one. Press again to cancel.PLASMA DISPLAY PANELSound ControlCustomizing the Sound ................................................................30Using Automatic Sound Settings ....................................................31Using the Surround ......................................................................32

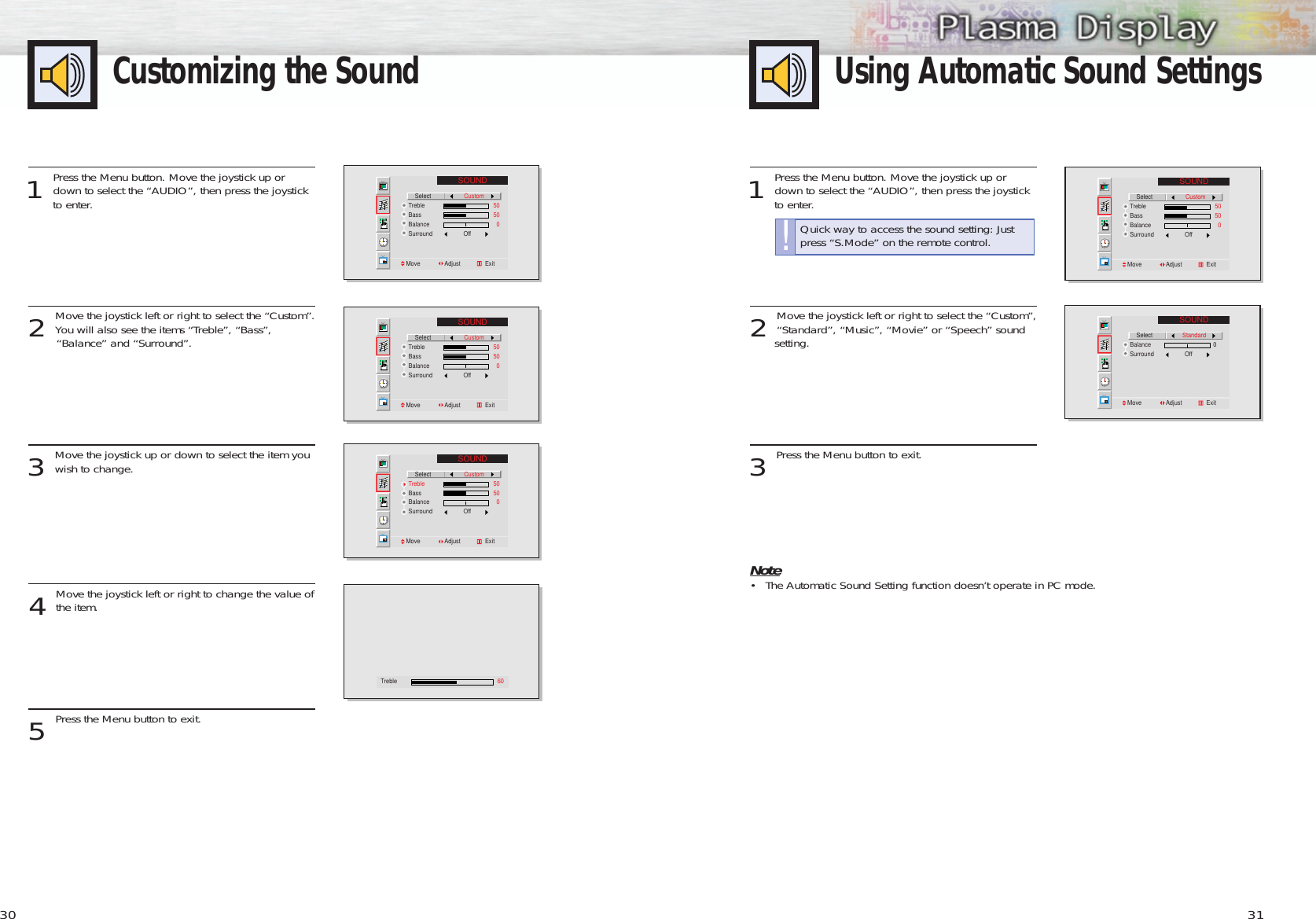

31Customizing the Sound301 Press the Menu button. Move the joystick up ordown to select the “AUDIO”, then press the joystick to enter. 2 Move the joystick left or right to select the “Custom”,“Standard”, “Music”, “Movie” or “Speech” sound setting.3 Press the Menu button to exit.Note•The Automatic Sound Setting function doesn’t operate in PC mode.Using Automatic Sound SettingsSOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectBalanceSurround OffMove Adjust ExitStandard 01 Press the Menu button. Move the joystick up ordown to select the “AUDIO”, then press the joystick to enter. 2 Move the joystick left or right to select the “Custom”.You will also see the items “Treble”, “Bass”, “Balance” and “Surround”.3 Move the joystick up or down to select the item youwish to change.4 Move the joystick left or right to change the value ofthe item.5 Press the Menu button to exit.SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0Treble 60Quick way to access the sound setting: Justpress “S.Mode” on the remote control.!
PLASMA DISPLAY PANELTime SettingSetting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35Setting the Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36Using the Surround 321 Press the Menu button. Move the joystick up ordown to select the “AUDIO”, then press the joystick to enter. 2 Move the joystick up or down to select the“Surround”, then move the joystick left or rightto select the “Concert”, “Hall” or “Stadium”. 3 Press the Menu button to exit.SOUND SelectTrebleBassBalanceSurround OffMove Adjust ExitCustom 50 50 0SOUND SelectTrebleBassBalanceSurround ConcertMove Adjust ExitCustom 50 50 0
Setting the Clock35You can set your PDP to automatically turn off after a preset interval.1 Press the Menu button. Move the joystick up ordown to select “TIME”, then press the joystick to enter. 2 Move the joystick up or down to select the “Sleep”,then move the joystick left or right.3 Move the joystick up or down to select the time inter-val for the PDP to stay on. The interval ranges from 10 to 360 minutes.4 Press the Menu button to exit.Setting the Sleep TimerTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display12 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 10 Min.34This PDP has a built-in clock that will appear on screen when you press the Clock Display button on theremote control. Setting this clock also allows you to use it to automatically turn the PDP On or Off.1 Press the Menu button. Move the joystick up ordown to select the “TIME”, then press the joystick to enter. 2 Move the joystick left or right to select hour, thenmove the joystick up or down to select the correct hour.3 Move the joystick left or right to select minute, thenmove the joystick up or down to select the correct minute.4 Move the joystick left or right to select “AM, thenMove the joystick up or down to select “AM” or “PM”.•If you want to display the Clock on screen, movethe joystick down to select “Clock Display”, thenmove the joystick right.5 Press the Menu button to exit.TIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display12 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffQuick way to access the sleep timer: Just press“Sleep” on the remote control.!Quick way to access the clock display: Justpress “Clock Display” on the remote control.!

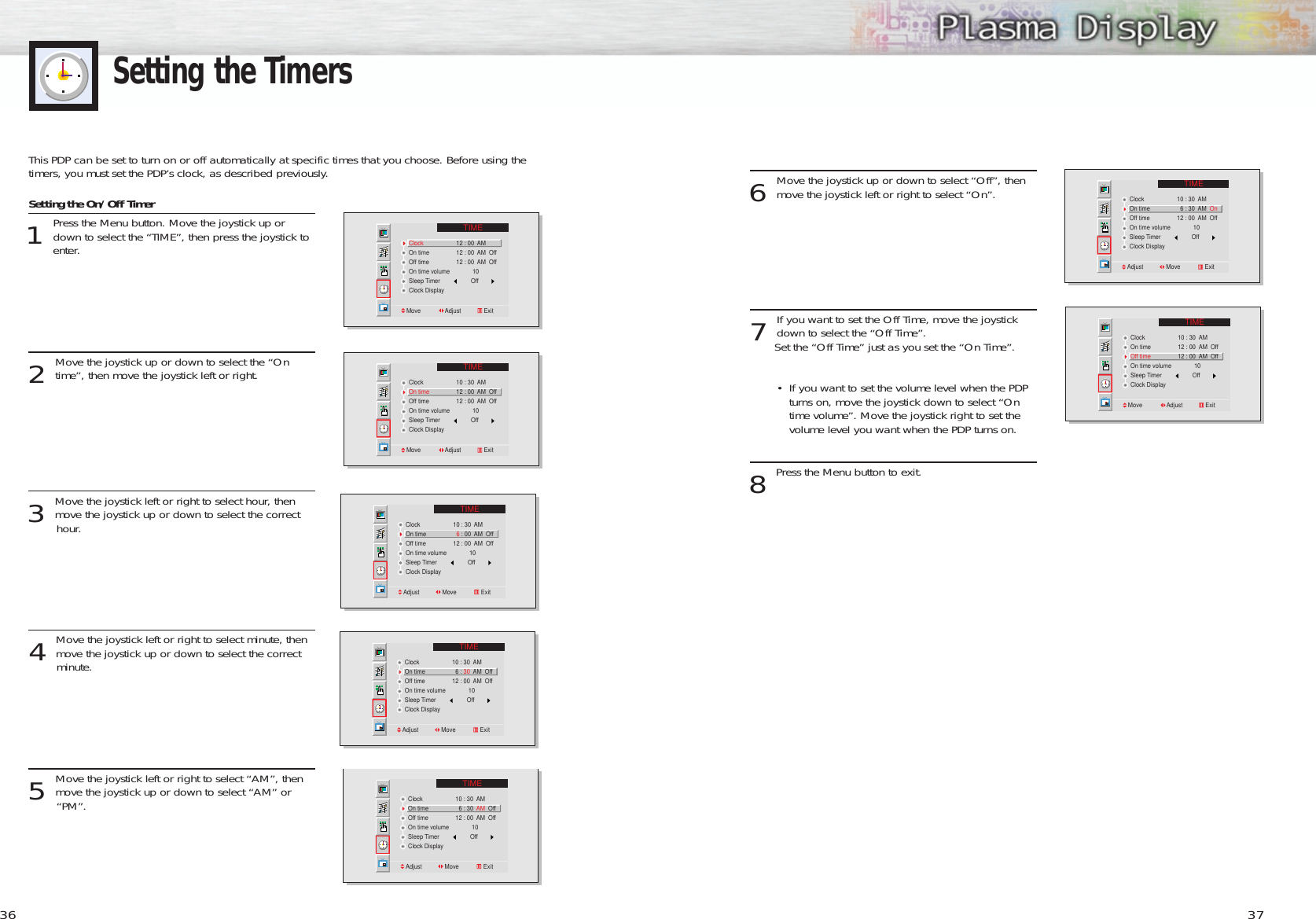

Setting the Timers376 Move the joystick up or down to select “Off”, thenmove the joystick left or right to select “On”.7 If you want to set the Off Time, move the joystickdown to select the “Off Time”.Set the “Off Time” just as you set the “On Time”.•If you want to set the volume level when the PDPturns on, move the joystick down to select “Ontime volume”. Move the joystick right to set thevolume level you want when the PDP turns on.8 Press the Menu button to exit.TIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 30 AM On12 : 00 AM Off 10 OffTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 Off36This PDP can be set to turn on or off automatically at specific times that you choose. Before using thetimers, you must set the PDP’s clock, as described previously.Setting the On/Off Timer1 Press the Menu button. Move the joystick up ordown to select the “TIME”, then press the joystick to enter. 2 Move the joystick up or down to select the “Ontime”, then move the joystick left or right.3 Move the joystick left or right to select hour, thenmove the joystick up or down to select the correct hour.4 Move the joystick left or right to select minute, thenmove the joystick up or down to select the correct minute.5 Move the joystick left or right to select “AM”, thenmove the joystick up or down to select “AM” or “PM”.TIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display12 : 00 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEMove Adjust ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM12 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 00 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 30 AM Off12 : 00 AM Off 10 OffTIMEAdjust Move ExitClockOn timeOff timeOn time volumeSleep TimerClock Display10 : 30 AM 6 : 30 AM Off12 : 00 AM Off 10 Off
PLASMA DISPLAY PANELConnecting PC and OperationConnecting to a PC ......................................................................40Adjusting the PC Screen................................................................44Changing the Position of the Image ................................................45Changing the Size of the Image ....................................................46Enlarge of the Image (Zoom)..........................................................47Move Expanded Picture ................................................................48Picture Quality Adjustment ............................................................49Information..................................................................................52Power Saver (PC mode only)..........................................................53
Pin Configuration• 15Pin Signal Cable (based on protruded pin)Setting up Your Monitor Plug and PlayOur adoption of the new VESAPlug and Play solution eliminates complicated and time consumingsetup. It allows you to install your monitor in a Plug and Play compatible system without the usual hassles and confusion. Your PC system can easily identify and configure itself for use with your display.This monitor automatically tells the PC system its Extended Display Identification data (EDID) using Display Data Channel (DDC) protocols so the PC system can automatically configure itself to use the flatpanel display. Connecting to a PCThis PDP set is not compatible with Macintosh PC.4140Connect a PC (15pin) or BNC cable between the Video Output jack on the PC andthe RGB1 (15p D-SUB) or RGB2 on the PDP. • You can attach the Ferrite Cores to each jack of the BNC cable. • For an explanation of Component video, see your PC owner’s instruction.Connect a Audio cable between the Audio Output jack on the PC and the Audio Input (PC)on the PDP. To watch the PC screen:1. Turn on PDP and press the RGB button to select the PC mode.2. Turn on PC and check for PC system requirements.(Refer to pages 42 and 43 for PC system requirements.)3. Adjust the PC screen. (Refer to page 44.)Connecting a PC to the PDPPC (15pin) Cable BNC CableAudio CablePower Plug12
4342How to Set up Your Display Setting (Windows only)Notes: The plasma panel of this monitor is composed 1366 pixels & 768 lines. That is, the best resolution ofthis monitor is 1366 X 768.Thus, select 1366 X 768 resolution in same way as below when you control the display setting, If yourvideo card does not support 1366 X 768 resoution, the resolution of 1024 X 768 is recommended. Ifyou select one of resolutions above, you can use this monitor in best condition.The Windows display-settings for a typical computer are shown below. But the actual screens on yourPC will probably be different, depending upon your particular version of Windows and your particularvideo card. But even if your actual screens look different, the same, basic set-up information will applyin almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.On the windows screen, select in the followingsequence : Start ➝ Settings ➝ Control Panel.When the control panel screen appears, click on“Display” and a display dialog-box will appear.Select the “Settings” tab in the display dialog-box.The two key variables that apply the PDP-PC inter-face are “resolution” and “colors.” The correct set-tings for these two variables are:• Size (sometimes called “resolution”): 1024 x 768 pixels.• Color: “24-bit” color (might also be expressedas “16 million colors”)Shown at left is a typicalscreen for “Display” dialog box. If a vertical-frequency option exists on your dis-play settings dialog box, the correct value is “60”or “60 Hz.” Otherwise, just click “OK” and exitthe dialog box.Continued...Notes: Both screen position and size will vary, depending on the type of PC monitor and its resolution.The table below shows all of the display modes that are supported:(N: Negative / P: Positive)• The PDP might operate abnormally if a non-standard video format is selected.• When this PDP is used as a PC display, 24-bit color is supported (over 16 million colors).• Your PC display screen might appear different depending on the manufacturer (and your particularversion of Windows). Check your PC instruction book for information about connecting your PC to a PDP.• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).• In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power isturned off (or if the PC is disconnected). If so, press the Source button to enter the VIDEO mode. Also, make sure that the PC is connected.• Connect only a PC monitor to the monitor output port while viewing the PC screen.(Otherwise, random signals might appear).*This mode is only supported by a particular video card(PIXEL PERFECT made by IMAGINE GRAPHICS Ltd.).Video signal Dot X Line640 X 350640 X 400720 X 400640 X 480848 X 480800 X 6001024 X 7681152 X 8641280 X 768(W-XGA)1280 X 10241366 X 768*70.08685.080 85.080 70.08785.03959.94072.80975.00085.00860.00072.00075.00085.00056.25060.31772.18875.00085.06160.00470.06975.02984.99775.00060.00075.00060.02075.02560.00031.46937.86137.86131.46937.92731.46937.86137.50043.26929.83835.15636.07237.65042.92537.87948.07746.87553.67448.36356.47660.02368.67767.50047.70060.15063.98179.97648.200NNPPPNNNNPPPPN/PPPPPNNPPPPPPPNPPNNNNNNNNNNNN/PPPPPNNPPPNNPPNVertical Frequency (Hz) Horizontal Frequency (kHz) Verticalpolarity HorizontalpolarityIBM PC / AT Compatibler
45After connecting the PDP to your PC, adjust the position of screen if it is not well-aligned.Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the “SETUP”, then press the joystick to enter. 2 Move the joystick left or right to select the “Posi-tion”, then adjust the position of screen by using thejoystick button. 3 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAdjust Exit44Adjusting the R.G.BPreset: •Press the RGB button to select the PC mode. 1 Press the Menu button, then press the joystick toenter.2 Move the joystick up or down to select the “ColorControl”, then move the joystick left or right to enter.3 Move the joystick up or down to select the item youwant to change.4 Move the joystick right or left to change the value ofthe item, using the on-screen gauge as your guide.5 Press the Menu button to exit.Adjusting the PC ScreenVIDEO SelectContrastBrightnessColor ControlMove Adjust ExitCustom 100 50VIDEO SelectContrastBrightnessColor ControlMove Adjust ExitCustom 100 50VIDEORGB505050Move Adjust ExitVIDEORGB705050Move Adjust ExitChanging the Position of the Image

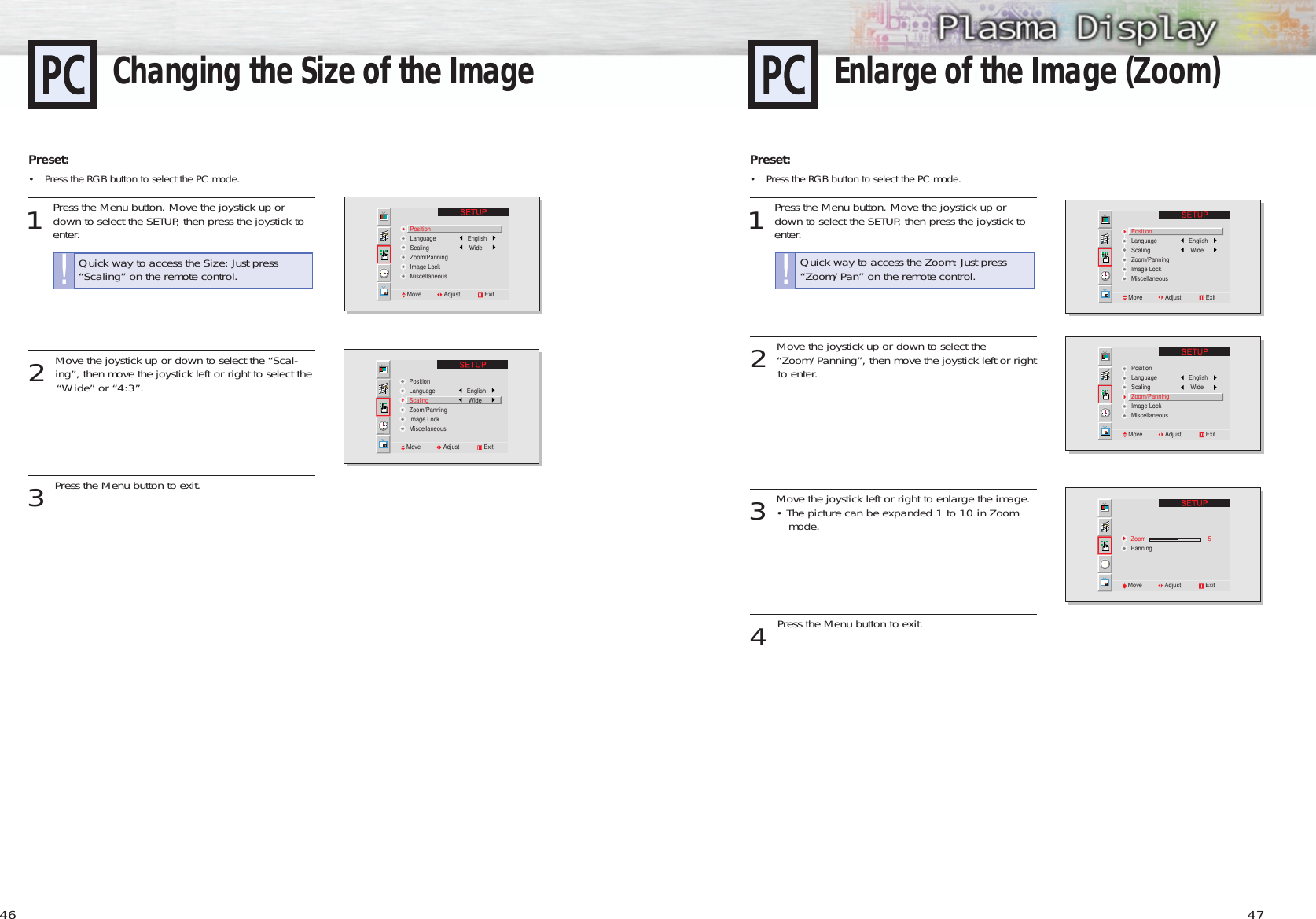

47Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the SETUP, then press the joystick to enter. 2 Move the joystick up or down to select the“Zoom/Panning”, then move the joystick left or rightto enter.3 Move the joystick left or right to enlarge the image.• The picture can be expanded 1 to 10 in Zoom mode.4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitZoom 5PanningMove Adjust Exit46Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the SETUP, then press the joystick to enter. 2 Move the joystick up or down to select the “Scal-ing”, then move the joystick left or right to select the“Wide” or “4:3”. 3 Press the Menu button to exit.Changing the Size of the ImagePositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitEnlarge of the Image (Zoom)Quick way to access the Zoom: Just press “Zoom/Pan” on the remote control.!Quick way to access the Size: Just press “Scaling” on the remote control.!
49Picture Automatic Adjustment On/OffPreset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the SETUP, then press the joystick to enter. 2 Move the joystick up or down to select the “ImageLock”, then move the joystick left or right to enter.3 Move the joystick up or down to select “AutoAdjust”, then move the joystick left or right. The message “Auto in progress” shows on the screen and the picture adjustments are automaticallyactivated. 4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAuto AdjustmentFrequency 0Phase 0Move Adjust Exit48Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the SETUP, then press the joystick to enter. 2 Move the joystick up or down to select the“Zoom/Panning”, then move the joystick left or rightto enter.3 Move the joystick up or down to select the “Pan-ning”, then move the joystick left or right to enter.Adjust the position of screen by using the joystick button. • The Panning feature operates only when the picture is expanded.4 Press the Menu button to exit.Move Expanded PicturePositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitZoom 5PanningMove Adjust ExitAdjust ExitPicture Quality AdjustmentQuick way to access the Zoom: Just press “Zoom/Pan” on the remote control.!Quick way to access the Auto Adjust: Justpress “Auto Adjust.” on the remote control.!
51Fine Tuning (Phase)Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the SETUP, then press the joystick to enter. 2 Move the joystick up or down to select the “ImageLock”, then move the joystick left or right to enter.3 Move the joystick up or down to select the “Phase”.Remove picture noise (vertical stripes) on the screen by moving the joystick left or right. (If phase is not set properly, the picture may be blurry.)4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAuto AdjustmentFrequency 0Phase 0 Move Adjust ExitPhase 5050Frequency AdjustmentPreset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the SETUP, then press the joystick to enter. 2 Move the joystick up or down to select the “ImageLock”, then move the joystick left or right to enter.3 Move the joystick up or down to select the “Frequen-cy”.Remove picture noise (vertical stripes) on the screen by moving the joystick left or right. (If frequency is not set properly, the vertical stripes will appear on the screen.)4 Press the Menu button to exit.PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitAuto AdjustmentFrequency 0Phase 0 Move Adjust ExitFrequency 50
5352Preset: •Press the RGB button to select the PC mode. 1 Press the Menu button. Move the joystick up ordown to select the SETUP, then press the joystick to enter. 2 Move the joystick up or down to select the “Miscel-laneous”, then move the joystick left or right to enter.3 Move the joystick up or down to select the “Informa-tion”, then move the joystick left or right to enter.4 Press the Menu button to exit.Information Power Saver (PC mode only)PositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitPositionLanguage EnglishScaling WideZoom/PanningImage LockMiscellaneousMove Adjust ExitInformationMulti ControlKey Lock OffMove Adjust ExitResolutionFrequencyHorizontal Vertical 1024 76848.3KHz 60HzExitThis monitor has a built-in power management system called Power Saver. This power management system saves energy by switching your monitor into a low-power mode when it has not been used for acertain amount of time. This power management system operates with a VESA DPMS compliant videocard installed in your computer. You use a software utility installed on your computer to set up this fea-ture. See the table below for details.Table 1. Power-saving modesNotes: •This monitor automatically returns to normal operation when horizontal and vertical sync return.•This occurs when moving the computer’s mouse or pressing a key on the keyboard.•For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattend-ed for long periods.State NormalOperationPower-saving Function ModeInactiveActiveBlankedAmber Blinking(1 sec Interval)ActiveInactiveBlankedAmber Blinking(1 sec Interval)InactiveInactiveBlankedAmber Blinking(1 sec Interval)Horizontal SyncVertical SyncVideoPowerIndicatorActiveActiveActiveGreenStandby Mode Suspend ModePosition A1 Power-off ModePosition A2

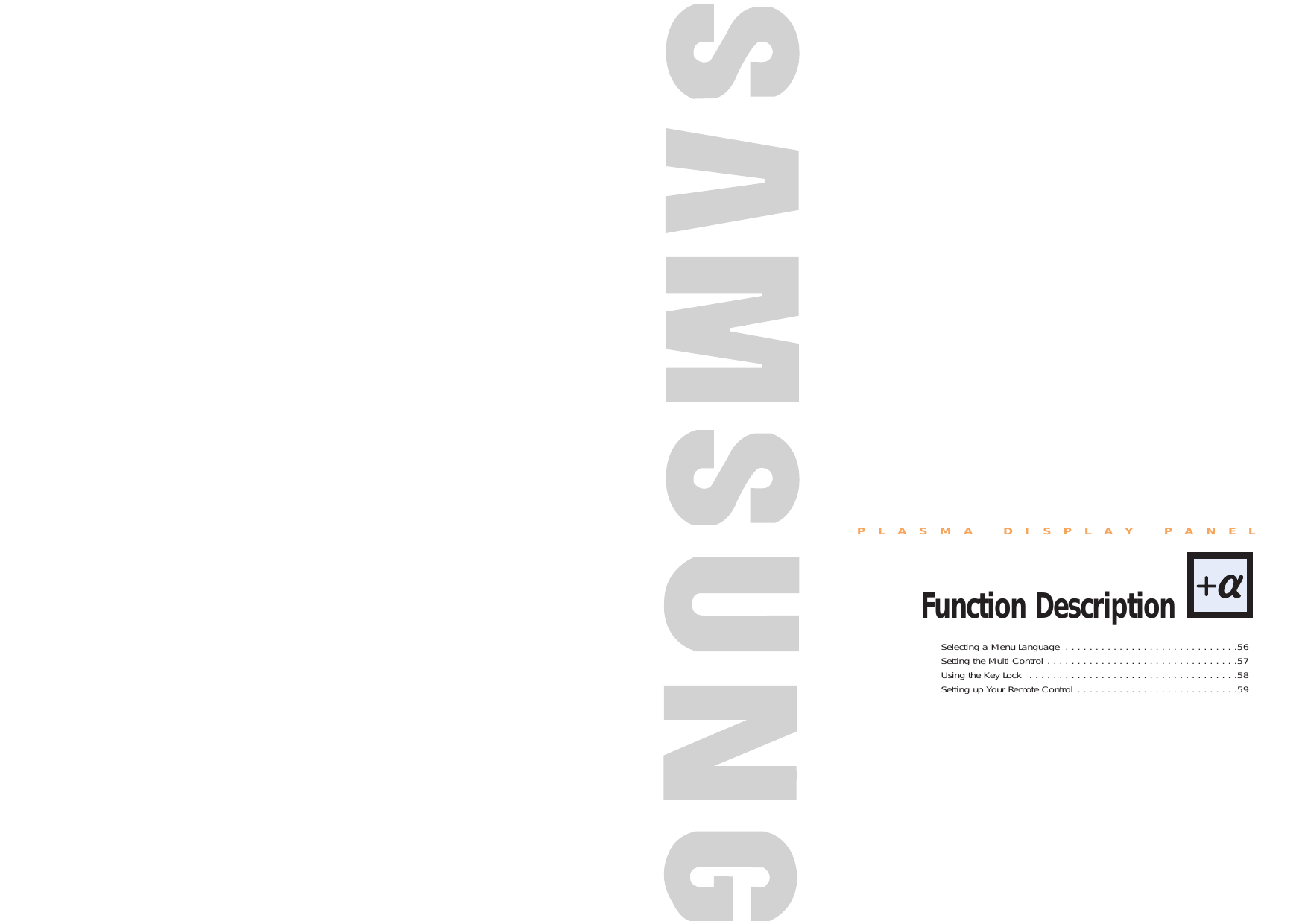

Selecting a Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56Setting the Multi Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57Using the Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58Setting up Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . .59PLASMA DISPLAY PANELFunction Description
Selecting a Menu Language5756Setting the Multi Control1 Press the Menu button. Move the joystick up ordown to select the “SETUP”, then press the joystick to enter.2 Move the joystick left or right to select the appropri-ate language: English, Spanish, or French. 3 Press the Menu button to exit.SETUPMove Adjust ExitLanguage EnglishMulti Control Key Lock Off1Press the Menu button. Move the joystick up ordown to select the “SETUP”, then press the joystick to enter.2Move the joystick up or down to select the “MultiControl”, then move the joystick left or right to enter.3Enter ID setup number. The ID Setup operates byusing only the joystick or channel up/down buttons.4Move the joystick up or down to select the “IDInput”, The ID Input operates by using only the numeric buttons.5Enter ID Input and the screen with the set ID numberwill be switched to the Menu screen. Note• To operate the multi control function, PDP1 and PDP2 should be set in the ID Setup mode. Whenentering the ID Input number of PDP1 while the PDP is set in the ID Input mode, only PDP1 isswitched to the Menu screen and you can operate the remocon. At this time, PDP2 doesn't operatewith the remocon and displays the standby mode of ID Input. (See the figure of step 4.) SETUPMove Adjust ExitLanguage EnglishMulti Control Key Lock OffSETUPMove Adjust ExitLanguage EnglishMulti Control Key Lock OffSETUPMove Adjust ExitID Setup 0 1 ID Input _ _SETUPMove Adjust ExitID Setup 0 1 ID Input 0 1

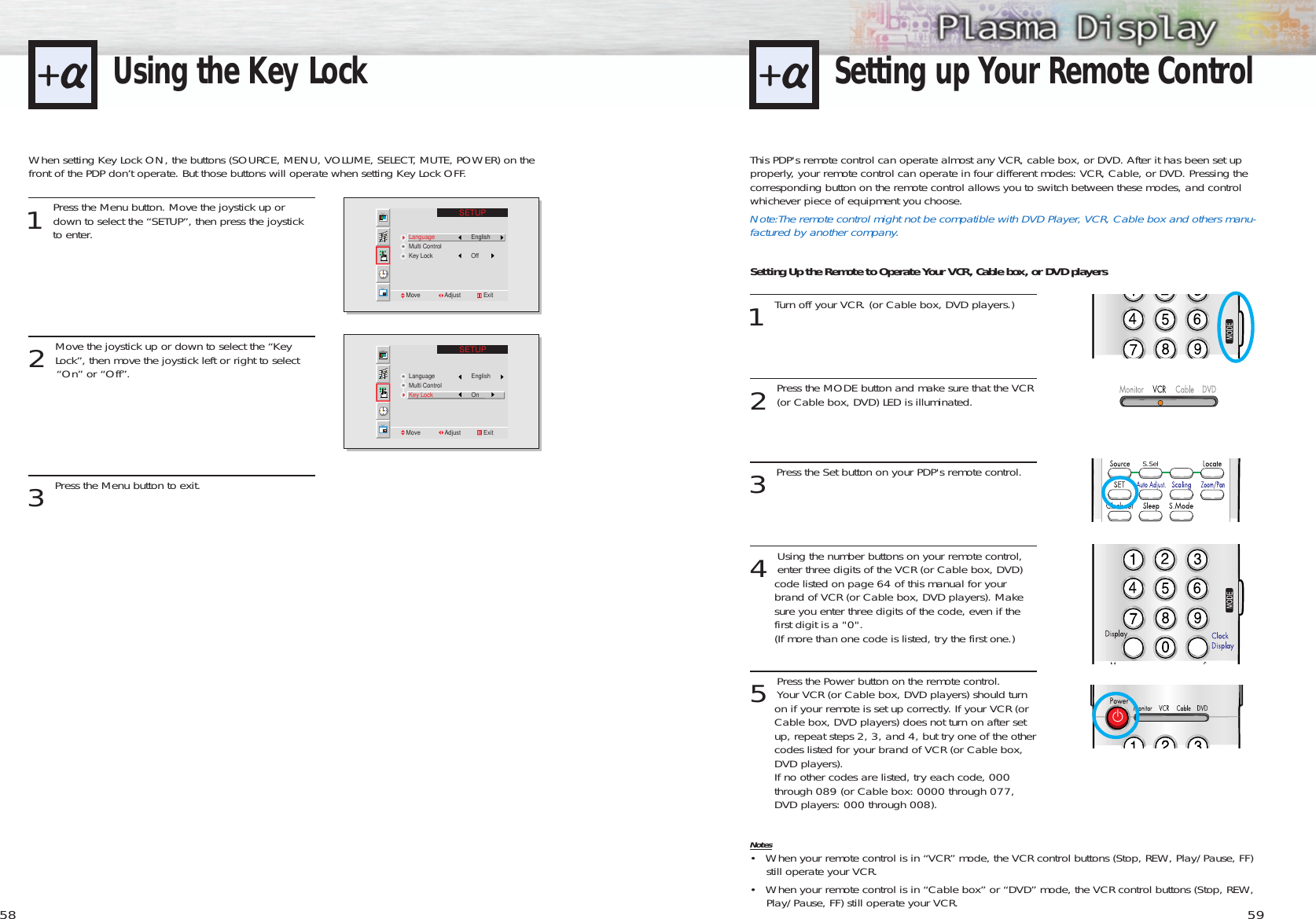

This PDP's remote control can operate almost any VCR, cable box, or DVD. After it has been set upproperly, your remote control can operate in four different modes: VCR, Cable, or DVD. Pressing thecorresponding button on the remote control allows you to switch between these modes, and controlwhichever piece of equipment you choose.Note:The remote control might not be compatible with DVD Player, VCR, Cable box and others manu-factured by another company.Setting Up the Remote to Operate Your VCR, Cable box, or DVD players1 Turn off your VCR. (or Cable box, DVD players.)2 Press the MODE button and make sure that the VCR(or Cable box, DVD) LED is illuminated.3 Press the Set button on your PDP's remote control.4 Using the number buttons on your remote control,enter three digits of the VCR (or Cable box, DVD) code listed on page 64 of this manual for your brand of VCR (or Cable box, DVD players). Make sure you enter three digits of the code, even if the first digit is a "0". (If more than one code is listed, try the first one.)5 Press the Power button on the remote control. Your VCR (or Cable box, DVD players) should turn on if your remote is set up correctly. If your VCR (or Cable box, DVD players) does not turn on after set up, repeat steps 2, 3, and 4, but try one of the othercodes listed for your brand of VCR (or Cable box, DVD players). If no other codes are listed, try each code, 000 through 089 (or Cable box: 0000 through 077, DVD players: 000 through 008).Notes• When your remote control is in “VCR” mode, the VCR control buttons (Stop, REW, Play/Pause, FF)still operate your VCR.• When your remote control is in “Cable box” or “DVD” mode, the VCR control buttons (Stop, REW,Play/Pause, FF) still operate your VCR. 5958Using the Key LockWhen setting Key Lock ON, the buttons (SOURCE, MENU, VOLUME, SELECT, MUTE, POWER) on thefront of the PDP don’t operate. But those buttons will operate when setting Key Lock OFF. 1 Press the Menu button. Move the joystick up ordown to select the “SETUP”, then press the joystick to enter.2 Move the joystick up or down to select the “KeyLock”, then move the joystick left or right to select “On” or “Off”.3 Press the Menu button to exit.SETUPMove Adjust ExitLanguage EnglishMulti Control Key Lock OffSETUPMove Adjust ExitLanguage EnglishMulti Control Key Lock OnSetting up Your Remote ControlS.Sel
PLASMA DISPLAY PANELAppendixTroubleshooting............................................................................62Care and Maintenance ................................................................63Specifications ..............................................................................6460Remote Control CodesVCR CodesCable Box CodesDVD Codes
6362TroubleshootingProblemPoor picture.The power indicator is amberblinking.Your Remote control does notoperate the monitor.The monitor won’t turn on.There is no screen image.The image is too light or too dark. The image is too large or too small.Only the message "CheckTemp" blinks on the screenand then the picture switchesOFF.Only the message "Check Fanblinks on the screen and thenthe picture switches OFF.Before you call a service technician, please scan this list of problems and possible solutions. It may save youtime and money.Possible SolutionCheck all wire connections.The monitor is using its power management system. Check the power management utility on your computer.Press the “Mode” button to put your remote control in the“Monitor” mode.Make sure the wall outlet is working.Check to see that both the monitor and the source are pluggedin and turned on.Adjust the Brightness or Contrast settings.Adjust the Size settings.The PDP is overheated. Power off the PDP and cool it for awhile.The cooling fan of the PDP may have a problem. Contact anauthorized service center.With proper care, your PDP will give you many years of service. Please follow these guidelines to getthe maximum performance from your PDP.Identifying Problems•Do not put the PDP near extremely hot, cold, humid or dusty places.•Do not put the PDP near appliances that create magnetic fields.•Keep the ventilation openings clear.•Do not place the PDP on a rough and slanted surface, such as cloth or paper.Liquids•Do not handle liquids near or on the PDP.Cabinet•Never open the cabinet or touch the parts inside.•Wipe your PDP with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.•Do not put heavy objects on top of the cabinet.Temperature•If your PDP is suddenly moved from a cold to a warm place, unplug the power cord for at least twohours so that moisture that may have formed inside the unit can dry completely.Care and Maintenance

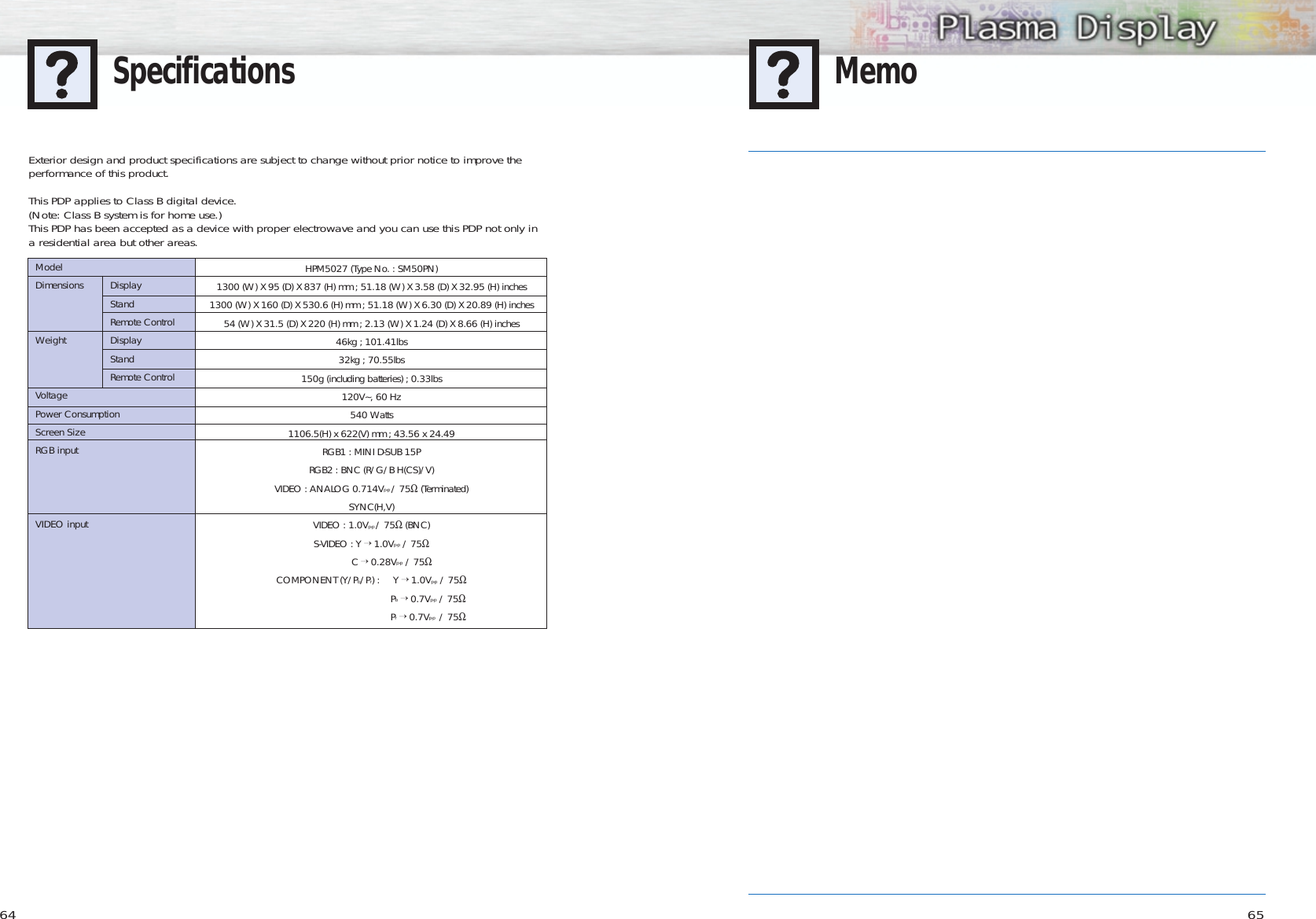

6564SpecificationsExterior design and product specifications are subject to change without prior notice to improve theperformance of this product.This PDP applies to Class B digital device.(Note: Class B system is for home use.)This PDP has been accepted as a device with proper electrowave and you can use this PDP not only ina residential area but other areas.HPM5027 (Type No. : SM50PN)1300 (W) X 95 (D) X 837 (H) mm ; 51.18 (W) X 3.58 (D) X 32.95 (H) inches1300 (W) X 160 (D) X 530.6 (H) mm ; 51.18 (W) X 6.30 (D) X 20.89 (H) inches54 (W) X 31.5 (D) X 220 (H) mm ; 2.13 (W) X 1.24 (D) X 8.66 (H) inches46kg ; 101.41lbs32kg ; 70.55lbs150g (including batteries) ; 0.33lbs120V~, 60 Hz540 Watts1106.5(H) x 622(V) mm ; 43.56 x 24.49RGB1 : MINI D-SUB 15PRGB2 : BNC (R/G/B H(CS)/V)VIDEO : ANALOG 0.714Vp-p / 75Ω(Terminated) SYNC(H,V)VIDEO : 1.0Vp-p / 75Ω(BNC)S-VIDEO : Y → 1.0Vp-p / 75ΩC → 0.28Vp-p / 75ΩCOMPONENT (Y/Pb/Pr) : Y → 1.0Vp-p / 75ΩPb→ 0.7Vp-p / 75ΩPr→ 0.7Vp-p / 75ΩModelDimensions DisplayStandRemote ControlWeight DisplayStandRemote ControlVoltagePower ConsumptionScreen SizeRGB inputVIDEO inputMemo
Memo6766Memo
