Samsung Electronics Co HPP4261 PDP TV Monitor User Manual BN68 00678A 00 cover

Samsung Electronics Co Ltd PDP TV Monitor BN68 00678A 00 cover

Contents

Users Manual 1

Owner’s InstructionsHP-P4261This device is a Class B digital apparatus.

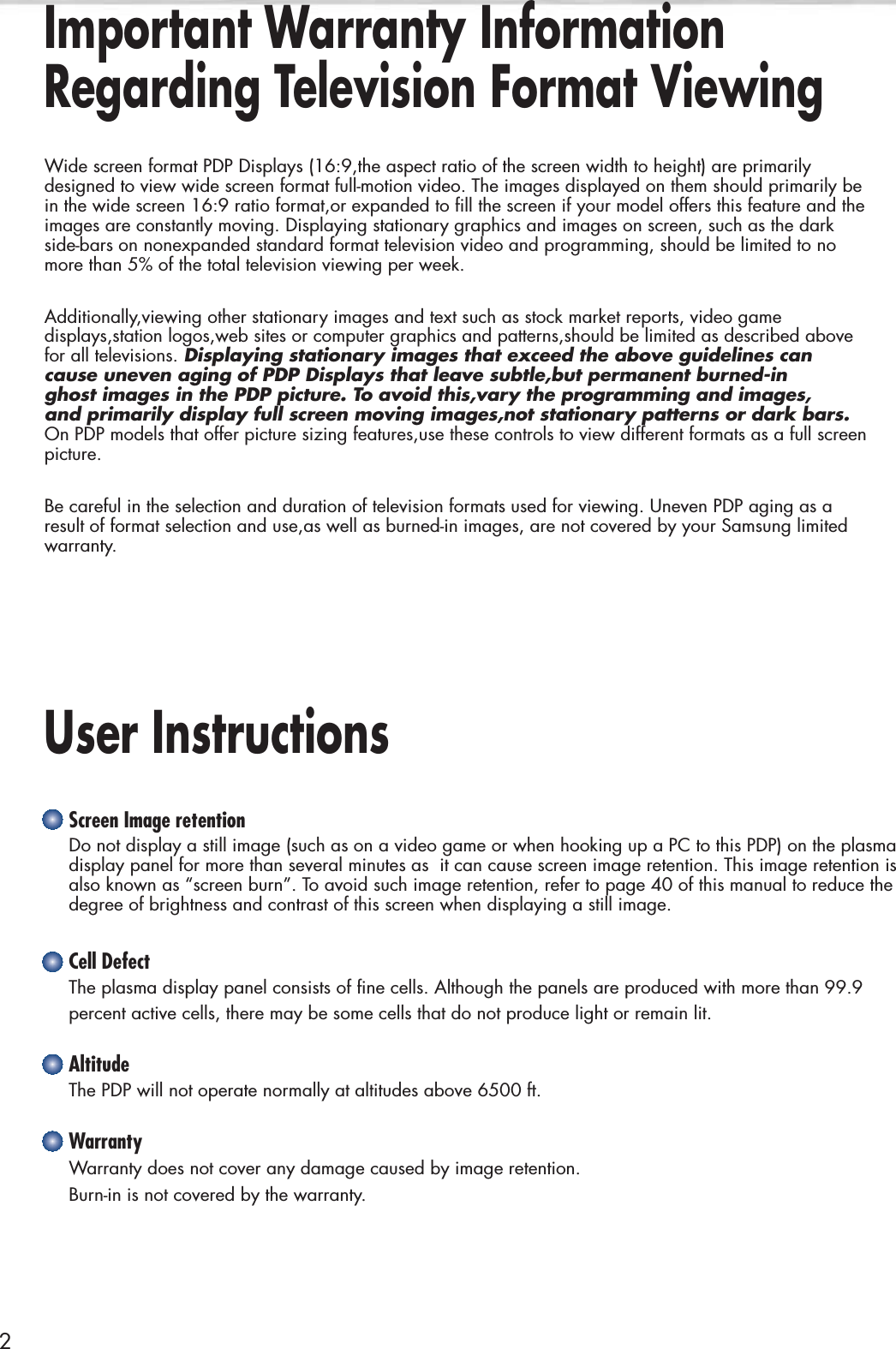

2Important Warranty InformationRegarding Television Format ViewingUser Instructions Wide screen format PDP Displays (16:9,the aspect ratio of the screen width to height) are primarilydesigned to view wide screen format full-motion video. The images displayed on them should primarily bein the wide screen 16:9 ratio format,or expanded to fill the screen if your model offers this feature and theimages are constantly moving. Displaying stationary graphics and images on screen, such as the darkside-bars on nonexpanded standard format television video and programming, should be limited to nomore than 5% of the total television viewing per week.Additionally,viewing other stationary images and text such as stock market reports, video gamedisplays,station logos,web sites or computer graphics and patterns,should be limited as described abovefor all televisions. Displaying stationary images that exceed the above guidelines cancause uneven aging of PDP Displays that leave subtle,but permanent burned-in ghost images in the PDP picture. To avoid this,vary the programming and images, and primarily display full screen moving images,not stationary patterns or dark bars.On PDP models that offer picture sizing features,use these controls to view different formats as a full screenpicture.Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as aresult of format selection and use,as well as burned-in images, are not covered by your Samsung limitedwarranty.Screen Image retentionDo not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasmadisplay panel for more than several minutes as it can cause screen image retention. This image retention isalso known as “screen burn”. To avoid such image retention, refer to page 40 of this manual to reduce thedegree of brightness and contrast of this screen when displaying a still image.Cell DefectThe plasma display panel consists of fine cells. Although the panels are produced with more than 99.9 percent active cells, there may be some cells that do not produce light or remain lit.AltitudeThe PDP will not operate normally at altitudes above 6500 ft.WarrantyWarranty does not cover any damage caused by image retention.Burn-in is not covered by the warranty.
3General InformationYour New Plasma Display Panel ......................6Remote Control Buttons ..................................8Wall Installation Instructions ..........................10How to assemble the Stand-Base ..................14ConnectionsConnecting VHF and UHF Antennas ..............16Connecting Cable TV ..................................17Connecting a VCR ......................................19Connecting a Camcorder ............................20Connecting a DVD Player ............................21Connecting a DTV Receiver ..........................22OperationTurning the PDP On and Off ........................28Plug & Play Feature......................................30Memorizing the Channels ............................33Setting Up Your Remote Control ....................38Viewing an External Signal Source ..............40Picture ControlCustomizing the Picture ..............................44Using Automatic Picture Settings ..................45Selecting the Color Tone ..............................46DNIe (Digital Natural Image engine) ............47Changing the Screen Size ..........................48Freezing the Picture ...................................50Viewing the Picture-in-Picture .......................51Selecting a Signal Source (Antenna or Cable) for PIP.....56Setting the MCC(My Control Color) Mode .....58Sound ControlCustomizing the Sound ................................64Using Automatic Sound Settings ...................65Choosing a Multi-Channel Sound (MTS)Soundtrack......66Using the Auto Volume ................................67Setting the TruSurround XT ............................68Listening to the Sound of the Sub(PIP) Picture ..69Selecting the Internal Mute............................70Channel ControlFine Tuning Channels ..................................72LNA (Low Noise Amplifier) ..........................73Connecting a PC and OperationConnecting a PC ........................................76Adjusting the PC Screen ..............................80Changing the Position of the Image................81Picture Quality Adjustment ..........................82Information ................................................85Time SettingSetting the Clock ........................................88Setting the Sleep Timer ................................89Setting the Timers ........................................90Function DescriptionSelecting a Menu Language ........................94Digital Noise Reduction ..............................95Selecting the Film Mode ..............................96Using the Color Weaknees Enhancement Option..97Setting the Melody Sound ............................98Setting the Blue Screen ................................99Setting the Fan ..........................................100Viewing Closed Captions ..........................101Using the V-Chip........................................102AppendixTroubleshooting ........................................110Care and Maintenance ..............................111Specifications............................................112Table of Contents

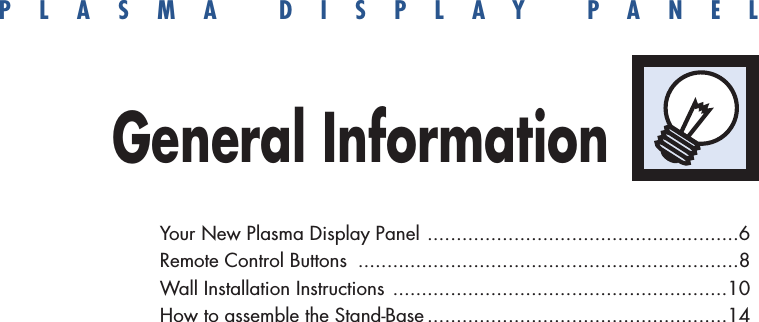

PLASMA DISPLAY PANELGeneral InformationYour New Plasma Display Panel ......................................................6Remote Control Buttons ..................................................................8Wall Installation Instructions ..........................................................10How to assemble the Stand-Base ....................................................14
Front PanelYour New Plasma Display Panel6Checking AccessoriesOwner’s Instructions(BN68-00645A)Once you have unpacked your PDP, check to make sure that you have all the parts shown here.If any piece is missing or broken, call your dealer. Remote Control/AAA Batteries(BN59-00377D)Power Cord (3903-000085) Antenna Cable (BN39-00333A)S-VIDEO CablePC CableDVI CableComponent Cables (RCA)PC Audio CableSold SeparatelySOURCE buttonPress to display all of the available video sources (TV, AV1, AV2, AV3, S-VIDEO1, S-VIDEO2, COMPONENT1,COMPONENT2, PC, DVI).MENU buttonDisplays the main on-screen menu.VOL(+,-) buttonPress to increase or decrease the volume. Also used toselect or adjust items on the on-screen menu. CH( , ) buttonPress CH or CH to change Channels. Also used to move up or down in the On-screen menu.ENTER( ) buttonPress to confirm a selection. I/Press to turn the PDP on and off.Power Indicator- Power Off: Blue- Power On: OffRemote Control Signal ReceiverAim the remote control towardsthis spot on the PDP.Speakers
7Rear PanelSide of the TVŒDVI INPUT (DVI-D / L-AUDIO-R)Connect to the digital video and audio output jack for device with DVI output.´MONITOR OUT (VIDEO / L-AUDIO-R)Outputs for external devices.ˇPC INPUT (RGB IN / AUDIO)Connect to the video and audio output jack on your PC. ¨FOR SERVICE ONLYConnector for service only.ˆS-VIDEO1, S-VIDEO2 (S-VIDEO1 or S-VIDEO2 / L-AUDIO-R)Video and audio inputs for external devices with an S-Video output, such as a camcorder or VCR.ØAV1, AV2, AV3 (VIDEO / L-AUDIO-R )Video and audio inputs for externaldevices, such as a camcorder or VCR.∏COMPONENT1, COMPONENT2 Video (Y/Pb/Pr) and audio (L-AUDIO-R) inputs for Component.”ANT IN VHF/UHF (75Ω)75ΩCoaxial connector for Antenna/Cable Network.’ POWER INConnect the supplied power cord.Audio Input (L, R)Video InputS-Video Input

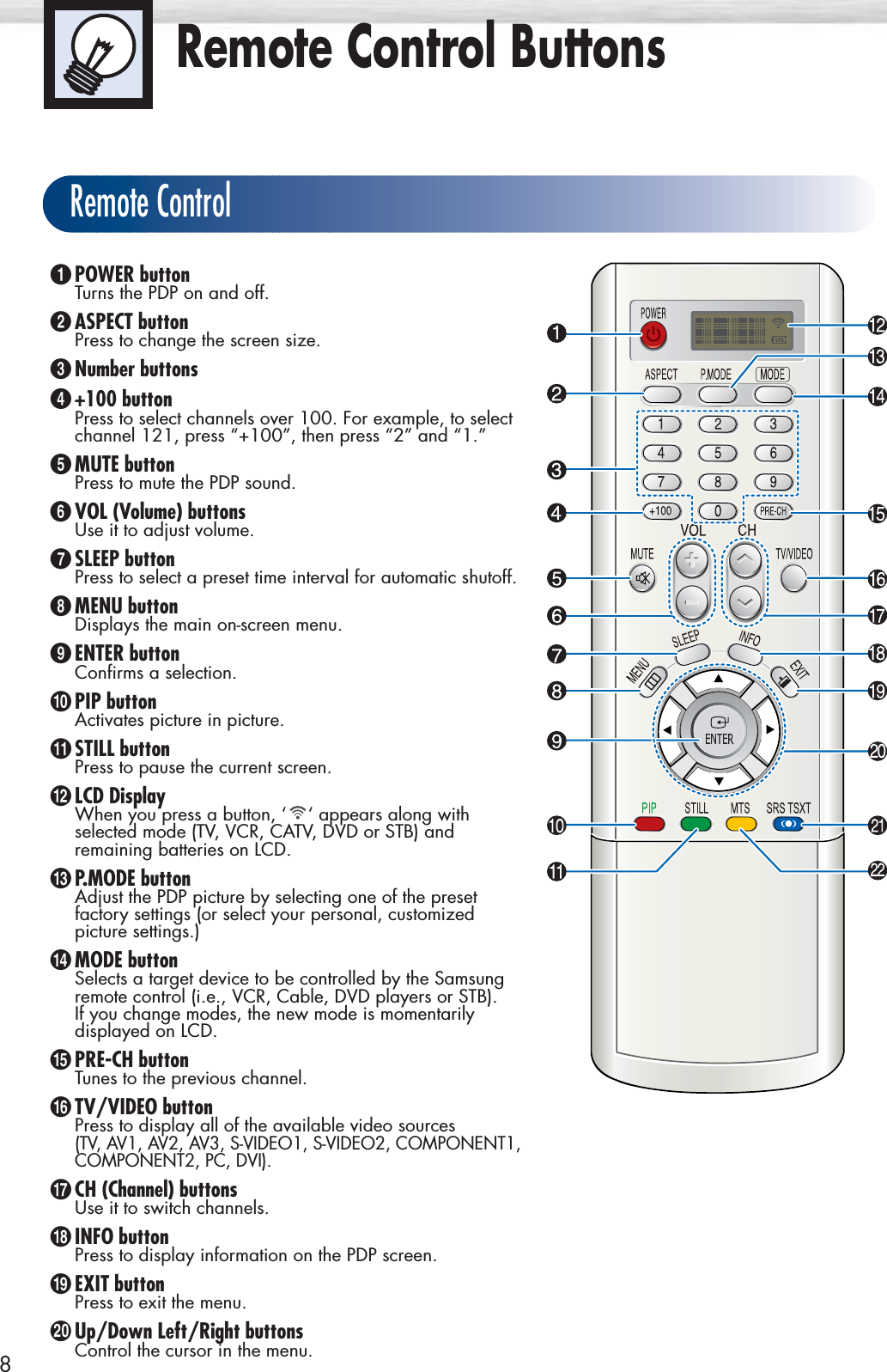

Remote Control ButtonsŒPOWER buttonTurns the PDP on and off.´ASPECT buttonPress to change the screen size.ˇNumber buttons¨+100 buttonPress to select channels over 100. For example, to selectchannel 121, press “+100”, then press “2” and “1.”ˆMUTE buttonPress to mute the PDP sound.ØVOL (Volume) buttonsUse it to adjust volume.∏SLEEP buttonPress to select a preset time interval for automatic shutoff.”MENU buttonDisplays the main on-screen menu.’ENTER buttonConfirms a selection. ˝PIP buttonActivates picture in picture.ÔSTILL buttonPress to pause the current screen.LCD DisplayWhen you press a button, ‘ ‘ appears along with selected mode (TV, VCR, CATV, DVD or STB) and remaining batteries on LCD.ÒP.MODE buttonAdjust the PDP picture by selecting one of the preset factory settings (or select your personal, customized picture settings.)ÚMODE buttonSelects a target device to be controlled by the Samsungremote control (i.e., VCR, Cable, DVD players or STB).If you change modes, the new mode is momentarily displayed on LCD.ÆPRE-CH buttonTunes to the previous channel.ıTV/VIDEO buttonPress to display all of the available video sources (TV, AV1, AV2, AV3, S-VIDEO1, S-VIDEO2, COMPONENT1,COMPONENT2, PC, DVI).˜CH (Channel) buttonsUse it to switch channels.¯INFO buttonPress to display information on the PDP screen.˘EXIT button Press to exit the menu.¿Up/Down Left/Right buttonsControl the cursor in the menu.8Remote Control
¸SRS TSXT buttonSelects Trusurround XT mode.˛MTS buttonPress to choose stereo, mono or Separate Audio Pro-gram (SAP broadcast).◊AUTO PROG. buttonThe TV automatically cycles through all of the avail-able channels and stores them in memory. ±ADD/DEL buttonPress to add or delete channels in the TV’s memory.≠DNIe buttonActivates DNIe (Digital Natural Image engine).–CAPTION buttonControls the caption decoder.—SET buttonUsed during set up of this Samsung remote control, so that it will work compatibly with other devices(VCR, cable box, DVD) ÷PIP control buttonsSWAP : Exchanges the video signal that is currently displayed on the main screen with the signal in the PIP window.SIZE : Press to make the PIP window Large, Small or Double. CH,:Displays the available channels insequence. (These buttons change channelsin the PIP window only).®VCR, DVD control buttonsControls VCR tape or DVD disc functions: Stop,Rewind, Play/Pause, Fast Forward.∑RESET button If your remote control is not functioning properly, takeout the batteries and press the reset button for about2~3 seconds. Re-insert the batteries and try using theremote control again. 9Installing the Batteries in Your Remote Control1Slide the back coverto open the batterycompartment of theremote control.3Slide the cover back intoplace.2Install two AAA size batter-ies. Make sure to match the“+” and “-” ends of the bat-teries with the diagraminside the compartment.Remote Control Operation Range.You can use your remote control within a distance of 23 feet and an angle of 30 degreesfrom the left and right sides of the PDP’s remote control receiver.

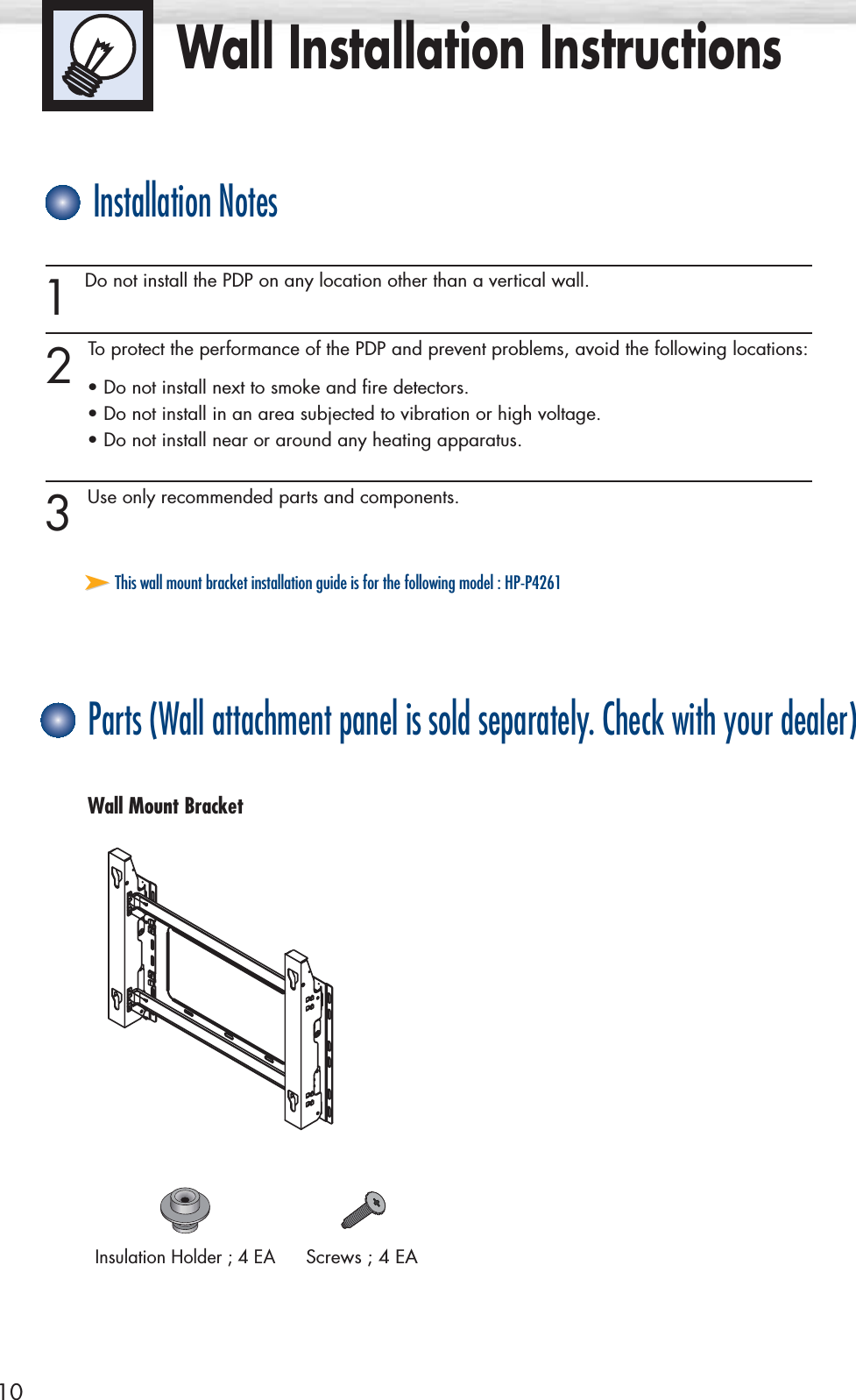

Wall Installation Instructions10Screws ; 4 EAInsulation Holder ; 4 EA1 Do not install the PDP on any location other than a vertical wall.2 To protect the performance of the PDP and prevent problems, avoid the following locations:• Do not install next to smoke and fire detectors.• Do not install in an area subjected to vibration or high voltage.• Do not install near or around any heating apparatus.3 Use only recommended parts and components.Installation NotesParts (Wall attachment panel is sold separately. Check with your dealer)Wall Mount Bracket➤➤This wall mount bracket installation guide is for the following model : HP-P4261
1 Remove the screws from the back of the PDP.2 Connect insulation holders to screws (see the illustration below).• If you are uncertain about installation, hire a specialist to install the wall mount bracket.• Be sure to check that the insulation holders are completely secured on both the leftand right side after hanging the PDP on the wall mount bracket.• Be careful to avoid getting your fingers caught during installation.• Make sure the wall attachment panels are tightened. Otherwise the PDP may fall.3 Tighten the screws of the insulation holders to the back of the PDP.Note•A 5 inch gap is needed between the back of the Plasma TV and the wall.Fixing the PDP panel to the wall attachment panel bracket
Wall Installation Instructions124Put the 4 insulation holders on the PDP in the grooves of the wall mount bracket andpull down on the PDP (Œ) to secure it to the wall mount bracket (´). Tighten the screws as shown (ˇ) so that the PDP cannot be separated from wall mount bracket.PDP panelWall attachment panel bracketWallConnecting External Devices to the PDPTo connect external devices such as a DVD or a Home Theater System to the PDP, please refer to following instructions:1 Be sure to remove the safety pins underneath the PDP.• If the safety pins are not removed, the angle cannot be adjusted. Any attempt to do so may cause damage to the PDP.2 Pull out the bottom of the PDP (which has been attached to the Wall Mount Bracket)in the direction indicated by the arrows (refer to the illustration) until it clicks.• Using the PDP After Connecting External Devices.Be sure to secure the PDP by inserting the 2 locking pins after readjusting theangle of the PDP to 0°.• For safety, be sure to secure the PDP using the locking pins. If the safety pins are not used, the PDP may fall, causing serious injury.
13How to Adjust Mounting AngleFactory defaultThe wall mount bracket is delivered separately. Please tighten the captive screw in thedirection of the arrow after assembling the bracket.1Secure the PDP to the wall mount bracket. (Please refer to the following instructions.)2Set the angle by pulling the upper end of the PDP attached to bracket in the directionof the arrow.3The angle can be adjusted from 0° to 15°by ±2°.Changing the angle

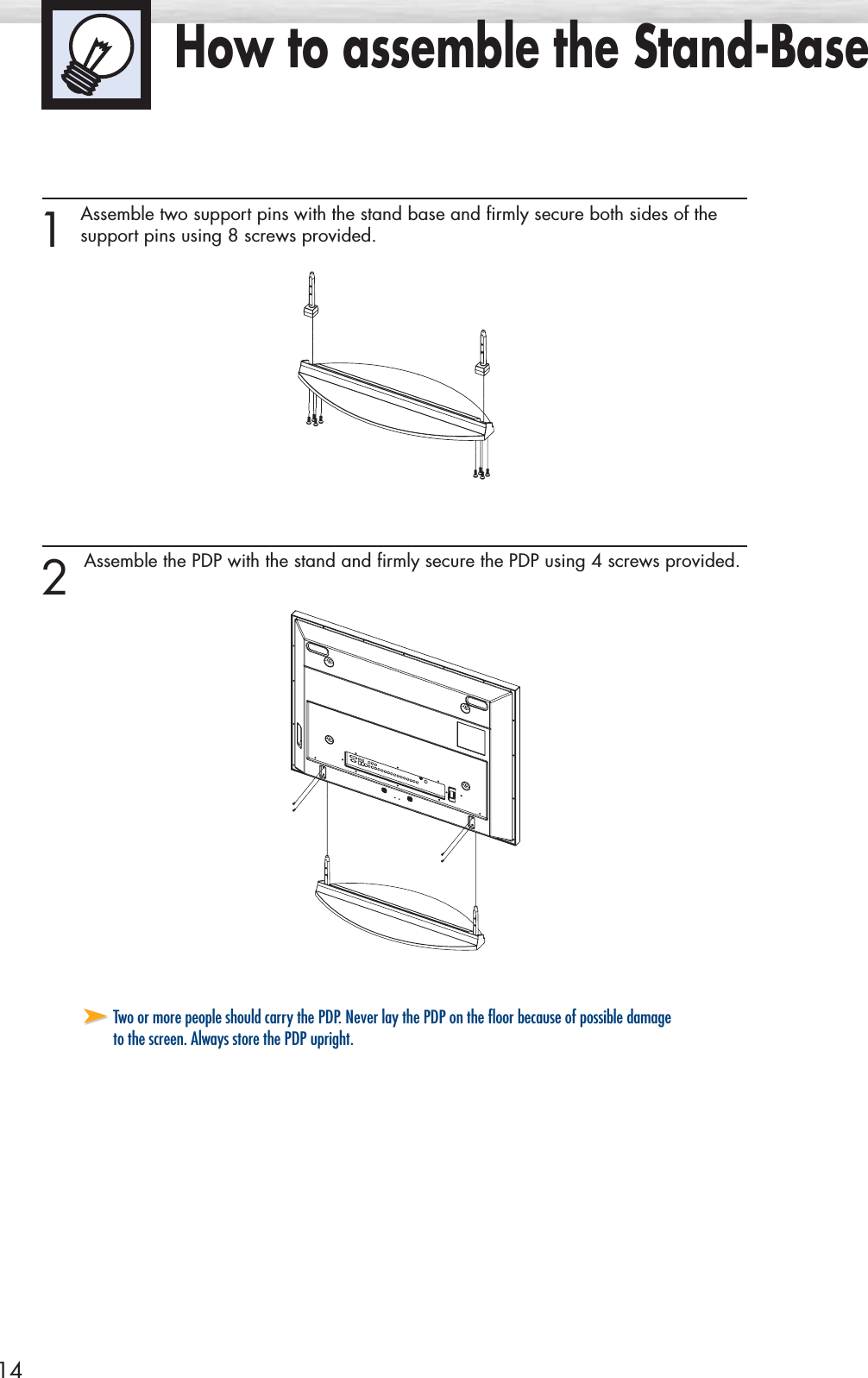

14How to assemble the Stand-Base1 Assemble two support pins with the stand base and firmly secure both sides of the support pins using 8 screws provided.2 Assemble the PDP with the stand and firmly secure the PDP using 4 screws provided.➤➤Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damageto the screen. Always store the PDP upright.

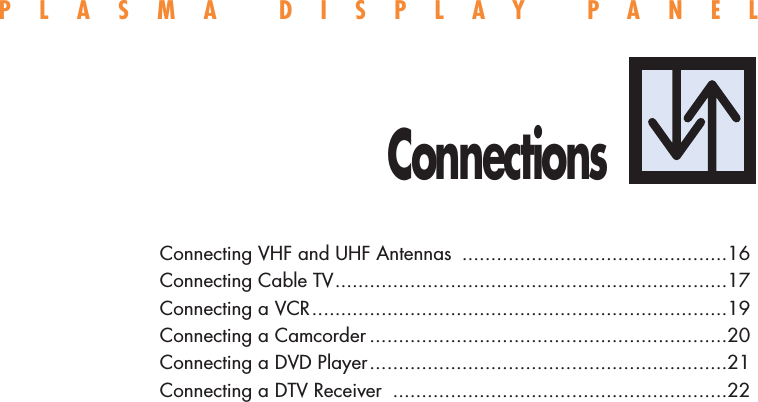

PLASMA DISPLAY PANELConnectionsConnecting VHF and UHF Antennas ..............................................16Connecting Cable TV....................................................................17Connecting a VCR........................................................................19Connecting a Camcorder ..............................................................20Connecting a DVD Player..............................................................21Connecting a DTV Receiver ..........................................................22
Connecting VHF and UHF Antennas16Antennas with 75-ohm Round LeadsIf your antenna looks like this: it has 75-ohm round leads. 1Plug the antenna lead into the VHF/UHF terminal on the PDP.Use the Antenna Cable, an accessory included in the product package.

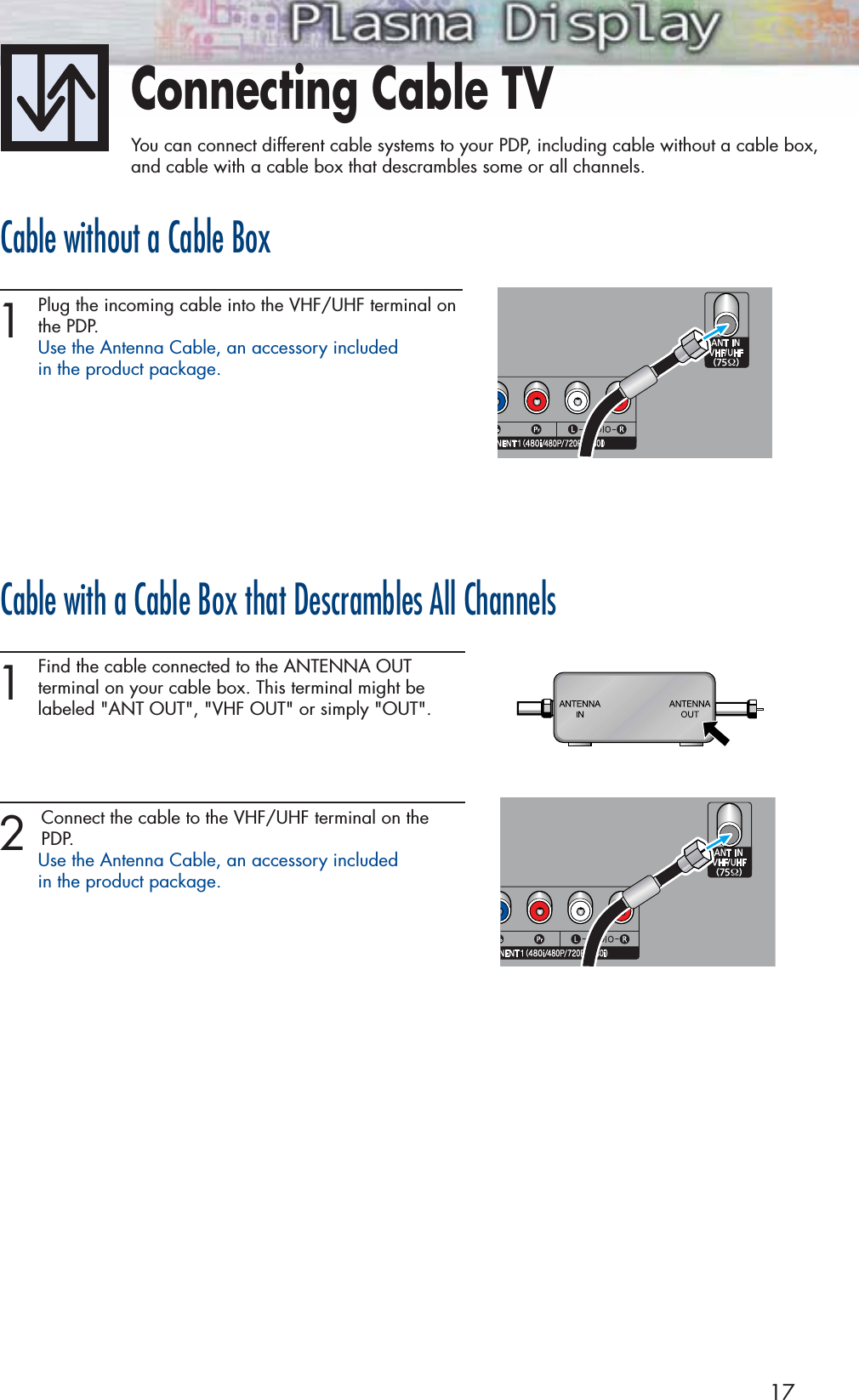

17Connecting Cable TVYou can connect different cable systems to your PDP, including cable without a cable box, and cable with a cable box that descrambles some or all channels.Cable without a Cable Box1 Plug the incoming cable into the VHF/UHF terminal onthe PDP.Use the Antenna Cable, an accessory included in the product package. Cable with a Cable Box that Descrambles All Channels1 Find the cable connected to the ANTENNA OUT terminal on your cable box. This terminal might be labeled "ANT OUT", "VHF OUT" or simply "OUT".2 Connect the cable to the VHF/UHF terminal on thePDP. Use the Antenna Cable, an accessory included in the product package.
18Cable with a Cable Box that Descrambles Some (But Not All) ChannelsTo complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxialcables (which you can buy from your Samsung dealer or any electronics store).1Find and disconnect the cable that is connected to the ANTENNA IN terminal ofyour cable box. This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN". Connect this cable to a two-way splitter.2Connect a coaxial cable between an OUTPUT terminal of the splitter and the IN terminal of the cable box.3Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch.4Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch.5Connect the last coaxial cable between theOUT terminal of the RF (A/B) switch and the VHF/UHF terminal on the PDP.After you've made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your Set-Top Box to the cable box's output channel, which is usuallychannel 3 or 4.)
19Connecting a VCR Connecting a VCR to the Video or S-Video/Audio jackS-Video CableAudio CableVideo CablePower PlugConnect the Video/Audio cables between the AUDIO(L/R)/VIDEO jacks on the PDP andAUDIO/VIDEO OUT jacks on the VCR. (Note: For better video, you can use an S-Video cable.)Videotape Playback:1. Turn on your PDP.2. Press the TV/VIDEO button to select “Video” or “S-Video”.3. Turn on your VCR, insert a videotape and press the play button.How to ConnectPDP VCR
20Connecting a CamcorderAudio CableVideo CablePower PlugConnect a Video/Audio cable between the AUDIO(L/R)/VIDEO jacks on the PDP and theVIDEO/AUDIO OUTPUT jacks on the camcorder.Viewing Tapes1. Turn on your PDP.2. Press the TV/VIDEO button to select “Video”.3. Turn on your camcorder and set it to Video Mode. (For details, refer to your camcorder Owner’s instructions.)4. Set the IN/OUT switch on your camcorder to OUT.5. Insert the tape into the camcorder and press the Play button.How to ConnectViewing camcorder tapesPDPCamcorder
21Connecting a DVD Player (480i, 480p)This PDP displays the optimum picture in 720p mode.Playing DVDAudio CableVideo CablePower PlugConnect a Video Cable between the Y, Pb, Pr(COMPONENT1, 2) input jacks on the PDP and Y/PB/PRoutput jacks on the DVD player.Connect a Audio Cable between the AUDIO L/R(COMPONENT1, 2) input jacks on the PDPand the AUDIO OUT jacks on the DVD player.To Play DVD:1. Turn on your PDP.2. Press the TV/VIDEO button to select “COMPONENT1” or “COMPONENT2”.3. Turn on your DVD player, insert a DVD disc and press the Play button.• For an explanation of Component video, see your DVD owner’s instructions.How to Connect12PDP DVD Player
Connecting a DTV Receiver(480p, 720p, 1080i)This PDP displays the optimum picture in 720p mode.22Watching DTVVideo CableAudio CableDVI CableorPower PlugConnect the cable or antenna to the antenna input jack on the DTV.Connect a Video cable between the Y, Pb, Pr(COMPONENT 1, 2) or DVI jack on the PDPand the Y, PB, PR(VIDEO OUTPUT JACKS) on the DTV receiver.Connect an Audio cable between the COMPONENT 1, 2 (L/R AUDIO) or DVI jacks on the PDP and the AUDIO OUTPUT jacks on the DTV receiver.To Watch DTV:1. Turn on your PDP.2. Press the TV/VIDEO button to select “COMPONENT1”, “COMPONENT2” or “DVI”.3. Turn on your DTV receiver.• For an explanation of Component video, see your DTV receiver owner’s instructions.How to Connect123Use a DVI-D connection cable. (sold separately)PDPDTV Receiver
PLASMA DISPLAY PANELOperationTurning the PDP On and Off ..........................................................24Plug & Play Feature ......................................................................26Memorizing the Channels..............................................................29Setting Up Your Remote Control ....................................................34Viewing an External Signal Source ................................................36

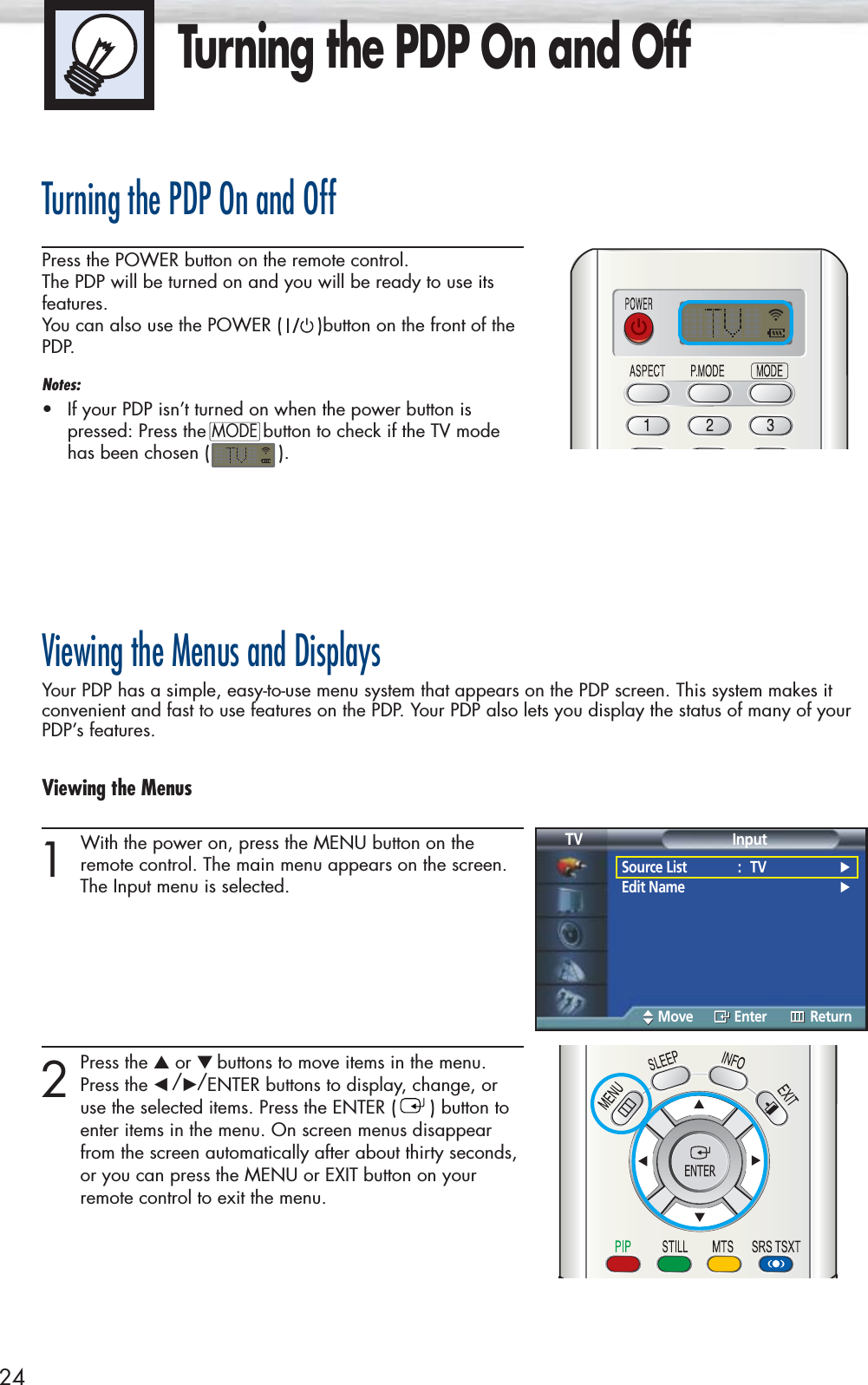

Turning the PDP On and Off24Turning the PDP On and OffPress the POWER button on the remote control.The PDP will be turned on and you will be ready to use itsfeatures.You can also use the POWER ( )button on the front of thePDP.Notes: •If your PDP isn’t turned on when the power button ispressed: Press the MODEbutton to check if the TV modehas been chosen ( ). Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes it convenient and fast to use features on the PDP. Your PDP also lets you display the status of many of yourPDP’s features.Viewing the Menus1 With the power on, press the MENU button on theremote control. The main menu appears on the screen.The Input menu is selected.2Press the ▲or ▼buttons to move items in the menu.Press the œ/√/ENTER buttons to display, change, or use the selected items. Press the ENTER ( ) button to enter items in the menu. On screen menus disappear from the screen automatically after about thirty seconds, or you can press the MENU or EXIT button on your remote control to exit the menu.Source List : TV √Edit Name √InputTVMove Enter Return
25Displaying Status InformationPress the INFO button on the remote control. The PDP will display the Picture mode, Sound mode, MTS,Caption, and Clock.Air 4MonoV-ChipPicture : CustomSound : CustomMTS : StereoClock : 12 : 00 amCC
26Plug & Play FeatureWhen the television is initially powered ON, several basic customer settings proceed automatically and subsequently. The following settings are available.1 If the television is in Standby mode, press thePOWER button on the remote control.2 Select the appropriate language by pressing the ▲or ▼button.3 Press the ENTER button to confirm your choice.4 Press the ENTER button.➤➤The message Start Plug & Play is displayed. It flickers for a littlewhile, and then the Language menu is automatically displayed.➤➤The message Check antenna input is displayed.LanguageMove Enter SkipEnglishFrançaisEspañolPlug & PlayEnter SkipCheck antenna input.Start Plug & PlayStartPlug & PlayEnter Exit
5 Select the correct signal source (Air, STD, HRC andIRC), then press the ENTER button.6 To start the search, press the ENTER button.7Press the ENTER button. Press the œor √button to move to the Hour, Minute,or am/pm.Set the Hour, Minute, or am/pm by pressing the ▲or ▼button.8When it has finished, the message Enjoy yourwatching is displayed, and the channels which have been stored can be viewed.27➤➤The search will end automatically. Channels are sorted and stored inan order which reflects their position in the frequency range (withlowest first and highest last).When it has finished, the Clock Set menu is displayed.➤➤To stop the search before it has finished or return to normalviewing, press the MENU button.Air/CATVAirSTDHRCIRCAuto ProgramEnter SkipStartAuto ProgramEnter SkipAir 10StopMove Enter SkipEnjoy your watching.ClockSkipHour Minute am/pmMove Adjust12 00am
28Plug & Play Feature (continued)If you want to reset this feature...1 Press the MENU button. Press the ▲or ▼button toselect “Setup”, then press the ENTER button. 2 Press the ▲or ▼button to select “Miscellaneous”,then press the ENTER button.3 Press the ▲or ▼button to select “Plug & Play”.Press the ENTER button.4 For further details on how to set, refer to the previous page.Language : English√Time√Caption√Digital NR : On√V-Chip√Miscellaneous√PC√Color Weakness : Off√SetupTVMove Enter ReturnMelody : On√Plug & Play√Blue Screen : On√Fan : On√MiscellaneousTVMove Enter ReturnStart Plug & Play.StartPlug & PlayReturnEnter
29Selecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify the type of signalsource that is connected to the PDP (i.e., an antenna or a cable system).1 Press the MENU button. Press the ▲or ▼button toselect “Channel”, then press the ENTER button.2 Press the ENTER button to select “Air/CATV”.3 Press the ▲or ▼button to select “Air”, “STD”,“HRC” or “IRC”.• If you are connected to an antenna, leave “Air” displayed. If you connected cable, press the ▲or ▼button to the display the type of cable system: “STD”, “HRC” or “IRC”.(If you are not sure which type of cable system you have, contact your cable company).4 Press the MENU button to exit.Note•STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company toidentify the type of cable system that exists in your particular area. At this point the signal sourcehas been selected. Proceed to “Storing Channels in Memory” (Next page).Memorizing the ChannelsYour PDP can memorize and store all of the available channels for both “off-air”(antenna) and cable channels. After the available channels are memorized, use theCH and CH buttons to scan through the channels. This eliminates the need tochange channels by entering the channel digits. There are three steps for memorizingchannels: selecting a broadcast source, memorizing the channels (automatic) andadding and deleting channels (manual).Air/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Scan√ChannelTVMove Enter ReturnAir/CATV : AirAuto ProgramAdd/DeleteFine TuneLNA : OnScanChannelTVMove Enter ReturnAirSTDHRCIRCAir/CATV : AirAuto ProgramAdd/DeleteFine TuneLNA : OnScanChannelTVMove Enter ReturnAirSTDHRCIRC

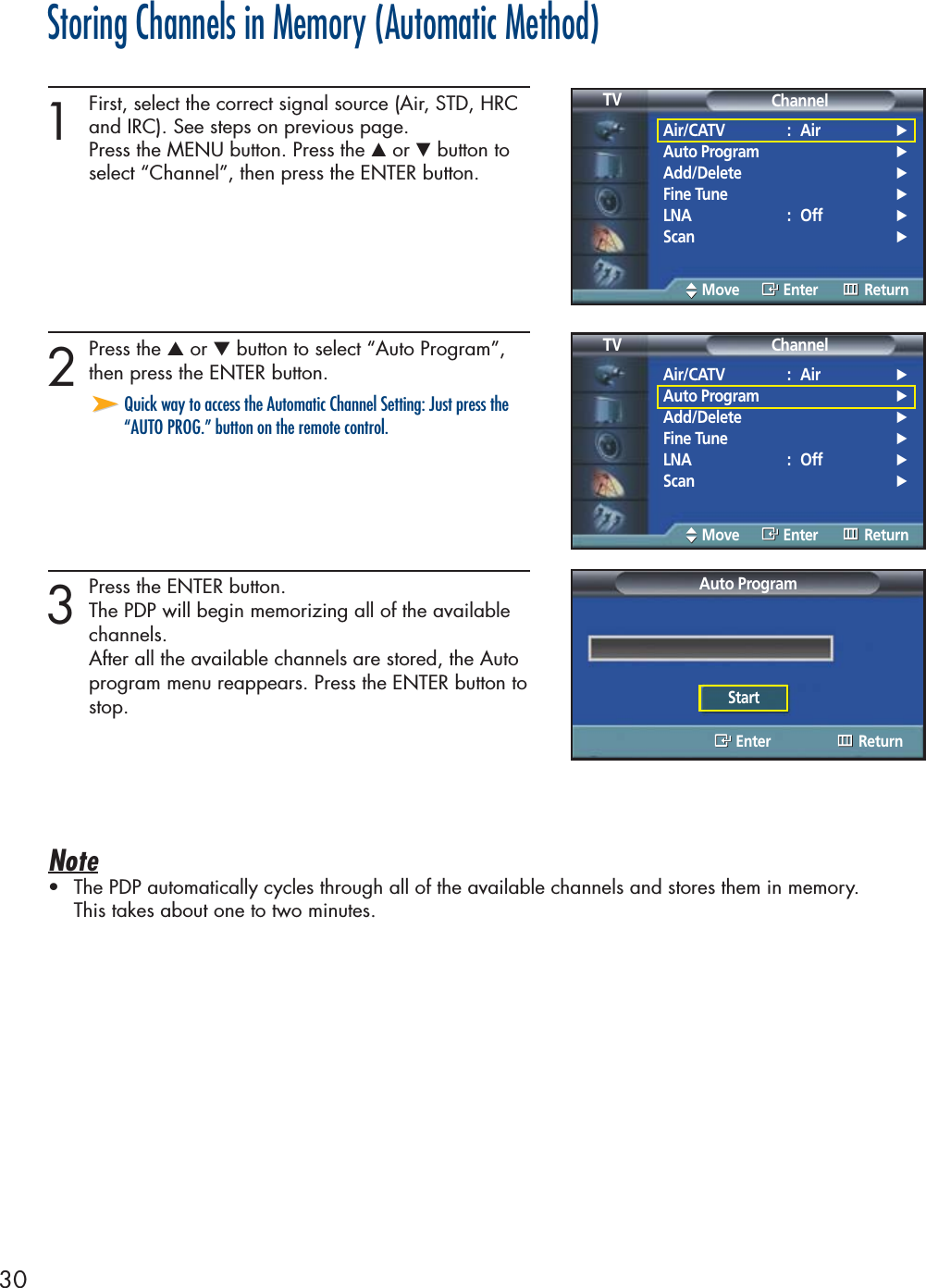

30Storing Channels in Memory (Automatic Method)1First, select the correct signal source (Air, STD, HRC and IRC). See steps on previous page.Press the MENU button. Press the ▲or ▼button to select “Channel”, then press the ENTER button. 2Press the ▲or ▼button to select “Auto Program”,then press the ENTER button.3Press the ENTER button. The PDP will begin memorizing all of the available channels. After all the available channels are stored, the Autoprogram menu reappears. Press the ENTER button tostop.Note•The PDP automatically cycles through all of the available channels and stores them in memory.This takes about one to two minutes.➤➤Quick way to access the Automatic Channel Setting: Just press the“AUTO PROG.” button on the remote control.Air/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Scan√ChannelTVMove Enter ReturnAir/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Scan√ChannelTVMove Enter ReturnAuto ProgramEnter ReturnStart
31Adding and Erasing Channels (Manual Method)1 Use the number buttons to directly select the channelthat will be added or deleted.Ex) Channel “4”2 Press the ADD/DEL button, then press the ENTER button. Repeatedly pressing this button will alternatebetween “Add” and “Delete”.3 Press the MENU button to exit.Note•You can view any channel (including an erased channel) by using the number buttons on the remote control.Add/DeleteEnter ExitAir 4 DeletedAddAir 4Change

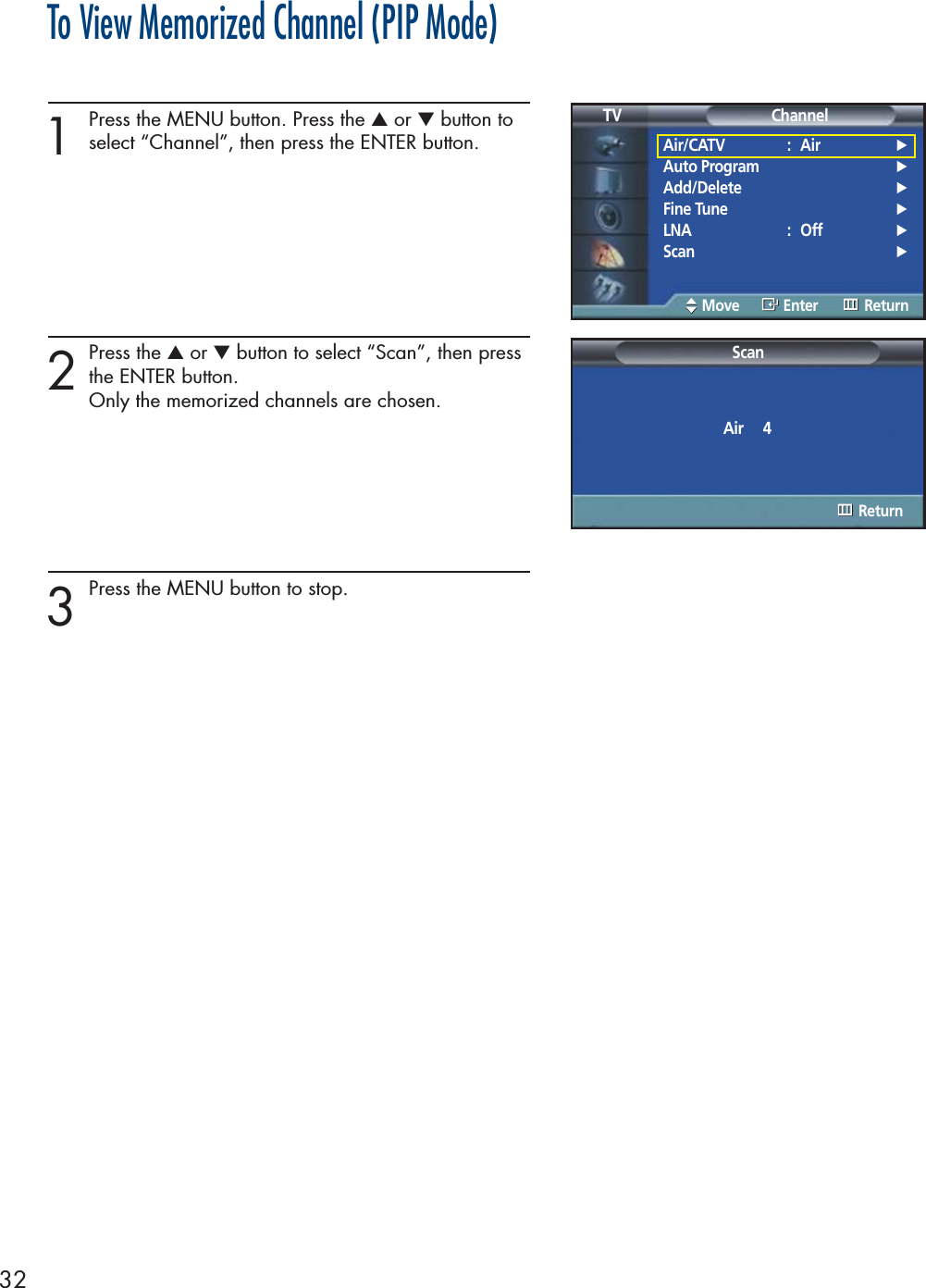

32To View Memorized Channel (PIP Mode)1Press the MENU button. Press the ▲or ▼button toselect “Channel”, then press the ENTER button.2Press the ▲or ▼button to select “Scan”, then pressthe ENTER button.Only the memorized channels are chosen. 3Press the MENU button to stop.Air/CATV : Air√Auto Program√Add/Delete√Fine Tune√LNA : Off√Scan√ChannelTVMove Enter ReturnScanReturnAir 4

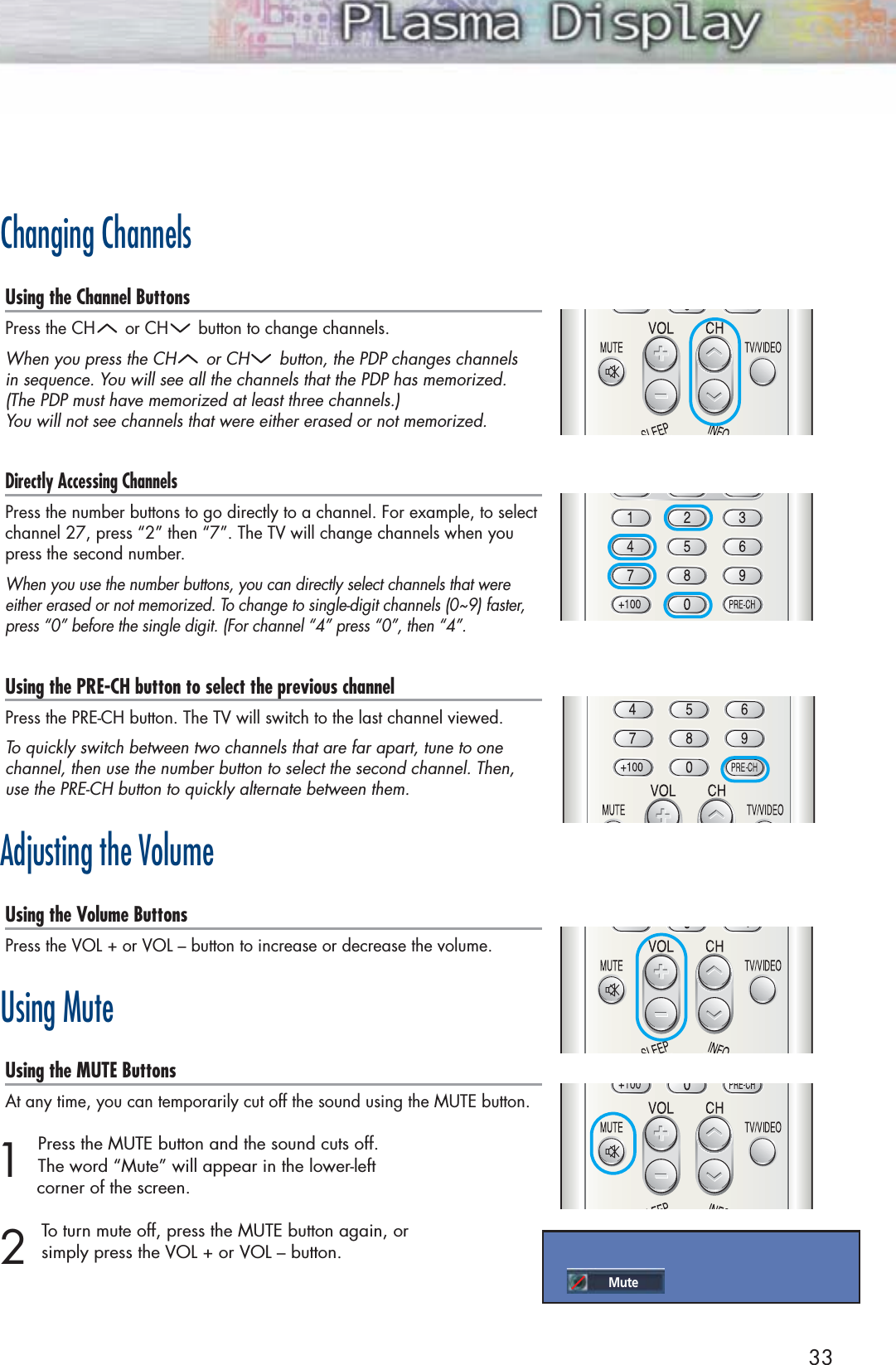

33Changing ChannelsUsing the Channel ButtonsPress the CH or CH button to change channels.When you press the CH or CH button, the PDP changes channels in sequence. You will see all the channels that the PDP has memorized.(The PDP must have memorized at least three channels.) You will not see channels that were either erased or not memorized.Directly Accessing ChannelsPress the number buttons to go directly to a channel. For example, to selectchannel 27, press “2” then “7”. The TV will change channels when youpress the second number.When you use the number buttons, you can directly select channels that wereeither erased or not memorized. To change to single-digit channels (0~9) faster,press “0” before the single digit. (For channel “4” press “0”, then “4”. Using the PRE-CH button to select the previous channelPress the PRE-CH button. The TV will switch to the last channel viewed.To quickly switch between two channels that are far apart, tune to onechannel, then use the number button to select the second channel. Then,use the PRE-CH button to quickly alternate between them.Adjusting the VolumeUsing the Volume ButtonsPress the VOL + or VOL – button to increase or decrease the volume. Using MuteUsing the MUTE ButtonsAt any time, you can temporarily cut off the sound using the MUTE button.1 Press the MUTE button and the sound cuts off. The word “Mute” will appear in the lower-left corner of the screen.2 To turn mute off, press the MUTE button again, orsimply press the VOL + or VOL – button.Mute
