User manual

Bluetooth

This product includes certain free/open source software.The exact terms of the licenses, disclaimers, acknowledgements and notices are availableon the Samsung’s website opensource.samsung.com.Please read all Safety precautions before using your headset to ensure safe andproper use.Safety precautions•• When using your headset while driving, follow local regulations in the region you arein.•• Never disassemble or modify your headset for any reason. Doing this may cause theheadset to malfunction or become combustible. Bring the headset to an authorisedservice centre to repair it.•• Keep your device and all accessories out of the reach of small children or animals.Small parts may cause choking or serious injury if swallowed.•• Avoid exposing your device to very cold or very hot temperatures (below 0 °C orabove45 °C).Extreme temperatures can cause the deformation of the device and reduce thecharging capacity and life of your device.•• Do not allow your device to get wet — liquids can cause serious damage. Do nothandle your device with wet hands. Water damage to your device can void yourmanufacturer’swarranty.•• Avoid using your device’s light close to the eyes of children or animals.

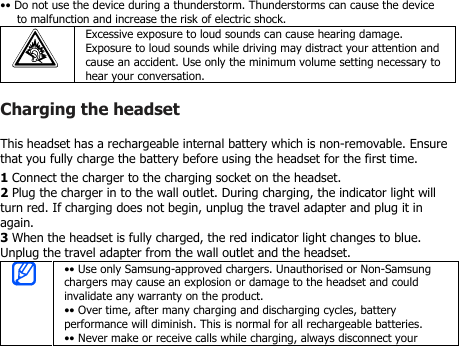

•• Do not use the device during a thunderstorm. Thunderstorms can cause the deviceto malfunction and increase the risk of electric shock.Excessive exposure to loud sounds can cause hearing damage.Exposure to loud sounds while driving may distract your attention andcause an accident. Use only the minimum volume setting necessary tohear your conversation.Charging the headsetThis headset has a rechargeable internal battery which is non-removable. Ensurethat you fully charge the battery before using the headset for the first time.1Connect the charger to the charging socket on the headset.2Plug the charger in to the wall outlet. During charging, the indicator light willturn red. If charging does not begin, unplug the travel adapter and plug it inagain.3When the headset is fully charged, the red indicator light changes to blue.Unplug the travel adapter from the wall outlet and the headset.•• Use only Samsung-approved chargers. Unauthorised or Non-Samsungchargers may cause an explosion or damage to the headset and couldinvalidate any warranty on the product.•• Over time, after many charging and discharging cycles, batteryperformance will diminish. This is normal for all rechargeable batteries.•• Never make or receive calls while charging, always disconnect your

headset from the charger and answer the call.Checking the battery levelTo check the battery level, press and hold the Volume down button and the Talkbutton at the same time. Depending on the battery level, the indicator lightflashes 5 times in one of the following colors:Battery level Indicator lightcolorAbove 80% Blue80 ~20% VioletBelow 20% RedWhen the battery power is lowThe headset beeps and the indicator light flashes red. If the headset powers offduring a call, the call will be automatically transferred to the phone.Wearing the headsetPlace the headset on your ear. Be sure to put the correct (Left, Right) earpiece

You can adjust the length of headset to stretch it up and down suitably on yourhead.Using your headsetThis section explains how to turn the headset on, pair and connect to the phone,and use various functions.•• Activated functions and features may differ depending on the phone type.•• Some devices, especially those that are not tested or approved byBluetooth SIG, may be incompatible with your headset.To ensure you get the best performance from your headset.•• Keep the distance between your headset and device as small as possibleand avoid placing your body or other objects in the signals path.•• If you usually use your mobile phone with your right hand, wear theheadset on your right ear.•• Covering your headset or device could effect its performance so keepcontact to a minimum.Turning the headset on or off

To turn the headset onSlide up the power switch. The blue indicator light flashes 4 times.To turn the headset offSlide down the power switch. The indicator light flashes blue and red then turnsoff.Pairing and connecting the headsetPairing means unique and encrypted wireless connection between two Bluetoothdevices when they agree to communicate with each other.In Pairing mode, two devices should be placed close enough to each other.Pairing and connecting the headset with a phone1Enter Pairing mode.• With the headset turned on, press and hold the Talk button for 3 seconds.• If the headset is turned on for the first time, it will go into Pairing modeimmediately and the Pairing mode stays for 3 minutes.2Activate the Bluetooth feature on your phone and search for the headset (seeyour phone’s user manual).3Select the headset (HS6000) from the list of devices found by your phone.4If requested, enter the Bluetooth PIN (0000, 4 zeros) to pair and connect theheadset to your phone.

•• When the headset connects to two Bluetooth phones, some phones maynot connect to the headset as the second Bluetooth phone.To turn Multi-point feature on or off•• In Pairing mode, press and hold the Volume up button to turn the Multi-point feature on or the Volume down button to turn the Multi-point featureoff.Connecting the headset with a music deviceYou can also pair and connect your headset with a music device such as an MP3player. The process of connecting to a music device is the same as for connectingwith a phone. When connected to both devices (phone and music device) you canmake or receive a call on the phone while listening to music from the musicdevice.Disconnecting the headsetTo disconnect the headset from your phone,Turn off the headset or use the Bluetooth menu on your phone.Reconnecting the headsetTo reconnect to the paired phone•• Press the Talk button on the headset or use the Bluetooth menu on yourphone.

To reconnect to the paired music device•• Press button <Play>button on the headset or use the Bluetooth menu on yourmusicdevice.Your headset will attempt to automatically reconnect each time youturn it on. If the Multi-point feature is activated, your headset willattempt to reconnect to the two most recently connected devices.This feature may be unavailable on some devices.Pairing via the Active pairing featureWith the Active pairing feature, your headset automatically looks for a Bluetoothdevice within range and tries to make a connection with it.1The phone’s Bluetooth visibility option must be set to on.2Place the headset and phone close to each other to avoid pairing with otherdevices.3In Pairing mode (solid blue indicator light), press and hold the Talk button onthe headset. The indicator light color changes to violet. The headset will attemptactive pairing for up to 20 seconds. To enter Pairing mode, see page 16.•• The Bluetooth phone you want to connect with must not bepaired with other devices. If the phone is already connected toanother device, end the connection and restart the Active pairingfeature.

•• When two calls from the two connected phones come in, you cananswerthe call of the first phone.•• When you are listening to music, the music stops during a call.Ending a callPress the Talk button to end a call.Rejecting a call*Press and hold the Talk button to reject a call when a call comes in.Using options during a callYou can use the following functions during the call.Adjusting the volumePress the Volume up or down button to adjust the volume.Muting the microphonePress and hold the Volume up or down button to turn the microphone off so thatthe person with whom you are speaking cannot hear you. When the microphoneis turned off, the headset beeps at regular intervals. Press and hold the Volumeup or down button again to turn the microphone back on.Transferring a call from the phone to the headset

Press the Talk button to transfer a call from the phone to the headset.Placing a call on hold*Press and hold the Talk button to place the current call on hold.When the headset is connected with two Bluetooth phones, you cannotanswer a second call from the same phone.Answering a second call*•• Press the Talk button to end the first call and answer a second callwhen you hear call waiting tones.•• Press and hold the Talk button to place the first call on hold and answer asecond call when you hear call waiting tones.•• To switch between the current call and the held call, press and hold the Talkbutton.Using music control functionsListening to musicControl playback with the buttons. (Play/Pause, REW, FF )When your headset is connected to two Bluetooth devices and musicis being played in one device, you should stop playing it to controlthe other device.

Applying a sound effect (SoundAlive)You can apply appropriate sound effects for music during listening to music.To apply a sound mode, such as Normal, Vocal, or Instrument, press the modebutton while listening to music. You can also switch between the sound modespressing the mode button.Using it as the music headsetUsing the line out cable supplied with the headset during power off, allow you touse it as a normal one.1Plug line out cable into the headset.2Play your music device and use it as a normal music headset.

AppendixFrequently asked questionsWill my headsetwork with laptops,PCs, and PDAs?Your headset will work with Bluetooth devicesthat support same headset’s Bluetooth profiles.Why do I hearstatic orinterference whileon a call?Appliances such as cordless phones and wirelessnetworking equipment may cause interference,which usually sounds like static. To reduce anyinterference, keep the headset away from otherdevices that use or produce radio waves.Will my headsetinterfere with mycar’s electronics,radio, orcomputer?Your headset emits signals that are incompliance with the international Bluetoothstandard. Therefore, you should not expect anyinterference with standard, consumer-gradeelectronic equipment.Can otherBluetooth phoneusers hear myWhen you pair your headset to your Bluetoothphone, you are creating a private link betweenonly these two Bluetooth devices. The wirelessBluetooth technology used in your headset is not

conversation? easily monitored by third parties becauseBluetooth wireless signals are significantly lowerin radio frequency power than those produced bya typical mobile phone.Why do I hear anecho while on acall?Adjust the headset volume, or move to anotherarea and try again.How do I clean myheadset?Wipe it with a soft dry cloth.The headset doesnot fully charge.The headset and the travel adapter may nothave been connected properly.Separate theheadset from the travel adapter, reconnect, andcharge the headset.I cannot use all thefeatures describedin the manual.Available features may vary depending on theconnected device. If your headset is connectedto two devices at once, some features may beunavailable.

Certification and Safety approvalsFCCFCC ID: A3LHS6000This device complies with part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesiredoperation.The device and its antenna must not be co-located or operating in conjunctionwith any other antenna or transmitter.Users are not permitted to make changes or modify the device in any way.Changes or modifications not expressly approved by Samsung will void the user'sauthority to operate the equipment.

The term “IC:” before the certification/registration number only signifies thatregistration was performed based on a Declaration of Conformity indicating thatIndustry Canada technical specifications were met. It does not imply that IndustryCanada approved the equipment.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Industry CanadaIC ID: 649E-HS6000Operation is subject to the following two conditions: (1) This device may not causeinterference and (2) This device must accept any interference, includinginterference that may cause undesired operation of the device.

UL certified travel adapterThe travel adapter for this headset has met applicable UL safety requirements.Please adhere to the following safety instructions per UL guidelines.FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TOSERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS.DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,CAREFULLY FOLLOW THESE INSTRUCTIONS.FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE ANATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FORTHE POWER OUTLET.THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTATED IN AVERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.

STANDARD LIMITED WARRANTYWhat is Covered and For How Long?SAMSUNG TELECOMMUNICATIONS AMERICA, LLC (“SAMSUNG”)warrants to the original purchaser (“Purchaser”) that SAMSUNG’s phones andaccessories (“Products”) are free from defects in material and workmanship undernormal use and service for the period commencing upon the date of purchase andcontinuing for the following specified period of time after that date:Phone 1 YearBatteries 1 YearCase/Pouch/Holster 90 DaysOther Phone Accessories 1 YearWhat is Not Covered?This Limited Warranty is conditioned upon proper use of Product by Purchaser.This Limited Warranty does not cover: (a) defects or damage resulting fromaccident, misuse, abnormal use, abnormal conditions, improper storage, exposureto moisture or dampness, neglect, unusual physical, electrical orelectromechanical stress, or defects in appearance, cosmetic, decorative orstructural items, including framing, and any nonoperative parts unless caused bySAMSUNG; (b) defects or damage resulting from excessive force or use of ametallic object when pressing on a touch screen; (c) equipment that has the

serial number or the enhancement data code removed, defaced,damaged, alteredor made illegible; Some of the contents in this manual may differ from yourphone depending on the software of the phone or your service provider.(d) any plastic surfaces or other externally exposed parts that are scratched ordamaged due to normal use; (e) malfunctions resulting from the use of Productin conjunction or connection with accessories, products, or ancillary/peripheralequipment not furnished or approved by SAMSUNG; (f) defects or damage fromimproper testing, operation, maintenance, installation, service, or adjustmentnot furnished or approved by SAMSUNG; (g) defects or damage from externalcauses such as collision with an object, or from fire, flooding, sand, dirt,windstorm,lightning, earthquake, or from exposure to weather conditions, or battery leakage,theft, blown fuse, or improper use of any electrical source; (h) defects or damagecaused by cellular signal reception or transmission, or viruses or other softwareproblems introduced into the Product; (i) any other acts which are not thefault of SAMSUNG; or (j) Product used or purchased outside the United States.This Limited Warranty covers batteries only if battery capacity falls below 80% ofrated capacity or the battery leaks, and this Limited Warranty does not cover anybattery if (i) the battery has been charged by a battery charger not specified orapproved by SAMSUNG for charging the battery, (ii) any of the seals on thebattery are broken or show evidence of tampering, or (iii) the battery has beenused in equipment other than the SAMSUNG phone for which it is specified.

What are SAMSUNG’s Obligations?During the applicable warranty period, SAMSUNG will repair or replace, atSAMSUNG’s sole option, without charge to Purchaser, any defective componentpart of Product. To obtain service under this Limited Warranty, Purchaser mustreturn Product to an authorized phone service facility in an adequate container forshipping, accompanied by Purchaser’s sales receipt or comparable substituteproof of sale showing the original date of purchase, the serial number of Productand the sellers’ name and address. To obtain assistance on where to deliver theProduct, call Samsung Customer Care at 1-888-987-4357. Upon receipt,SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may,at SAMSUNG’s sole option, use rebuilt, reconditioned, or new parts or componentswhen repairing any Product or replace Product with a rebuilt, reconditioned ornew Product.Repaired/replaced cases, pouches and holsters will be warranted for a period ofninety (90) days. All other repaired/replaced Product will be warranted for aperiodequal to the remainder of the original Limited Warranty on the original Productor for 90 days, whichever is longer. All replaced parts, components, boards andequipment shall become the property of SAMSUNG. If SAMSUNG determines thatany Product is not covered by this Limited Warranty, Purchaser must pay all parts,shipping, and labor charges for the repair or return of such Product.What are the Limits On SAMSUNG’s Liability?EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN,

PURCHASER TAKES THE PRODUCT “AS IS,” AND SAMSUNG MAKES NO WARRANTY ORREPRESENTATION AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED,STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO THEPRODUCT, INCLUDING BUT NOT LIMITED TO:• THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANYPARTICULAR PURPOSE OR USE;• WARRANTIES OF TITLE OR NON-INFRINGEMENT;• DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;• THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINEDTHEREIN; OR• COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE,SPECIFICATION OR CONTRACT PERTAINING THERETO.NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TOCREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECTTO THE PRODUCT. ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BYOPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OFMERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITEDTO THE SAME DURATION OF TIME AS THE EXPRESS WRITTEN WARRANTY STATEDHEREIN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIEDWARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KINDRESULTING FROM THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USETHE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSSOF USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS WARRANTY,

INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES,OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISINGFROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULTCOMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACHOF CONTRACT OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANYOTHER PARTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATIONOF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OREXCLUSION MAY NOT APPLY TO YOU.THIS WARRANTY GIVES YOU SPECIFICLEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROMSTATE TO STATE.THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THEORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER’S EXCLUSIVEREMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGALORUNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY ORUNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDEROF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGESIS AND WILLALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAWPERMITS. THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTYSOFTWARE OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKESNO WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESSOR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES,OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRD-PARTY SOFTWARE OREQUIPMENT, WHETHER SUCH THIRD-PARTYSOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY

SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY SUCHSOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE QUALITY, CAPABILITIES,OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRDPARTYSOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THEDIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OREQUIPMENT, AS THE CASE MAY BE.This Limited Warranty allocates risk of Product failure between Purchaser andSAMSUNG, and SAMSUNG’s Product pricing reflects this allocation of risk and thelimitations of liability contained in this Limited Warranty. The agents, employees,distributors, and dealers of SAMSUNG are not authorized to make modifications tothis Limited Warranty, or make additional warranties binding on SAMSUNG.Accordingly, additional statements such as dealer advertising or presentation,whether oral or written, do not constitute warranties by SAMSUNG and should notbe relied upon.Samsung Telecommunications America, LLC1301 E. Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2010 Samsung Telecommunications America, LLC. All rights reserved.No reproduction in whole or in part allowed without prior written approval.Specifications and availability subject to change without notice.

www.samsung.com/accessoriesPrinted in U.S.AGH68-XXXXXANA. 06/2011. Draft.01
