2.1CH Blu-rayHome Theater Systemuser manualimagine the possibilitiesThank you for purchasing this Samsung product.To receive more complete service, please register your product atwww.samsung.com/registerHT-BD8200HT-BD8200_XAA_0530-1.indd Sec1:1HT-BD8200_XAA_0530-1.indd Sec1:1 2009-05-30  2:01:162009-05-30  2:01:16

3ENGBLU-RAY DISC FEATURESBlu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.* The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will also vary from disc to disc. Not all discs will have the features described below.Video highlightsThe BD-ROM format for movie distribution supports three highly advanced video codecs, including AVC, VC-1, and MPEG-2. HD video resolutions are also available:1920 x 1080 HD1280 x 720 HDFor High-Deﬁ nition PlaybackTo view high-deﬁ nition contents on a Blu-ray disc, an HDTV (High Deﬁ nition Television) is required. Some discs may require using the player's HDMI OUT to view high-deﬁ nition content. The ability to view high-deﬁ nition content on Blu-ray disc may be limited depending on the resolution of your TV.SubtitlesDepending on what is contained on the Blu-ray Disc, you may be able to select different font styles, sizes and colors for the subtitles, Subtitles may also be animated, scrolled or faded in and out.BD-LIVEYou can use a Blu-ray Disc supporting BD-LIVE through network connection to enjoy various contents provided by the disc manufacturer.NETFLIXThis Blu-ray Home Theater enables you to enjoy movies on-demand provided by Netﬂ ix through a network connection.PANDORAThis Blu-ray Home Theater enables you to enjoy Internet Radio provided by Pandora through a network connection.© 2005-2009 Pandora Media, Inc., All Rights Reserved Pandora and the Music Genome Project are registered trademarks of Pandora Media, Inc.••3 4 5 6 7 8 9 10 11 12 13 14 15▼PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS3 4 5 6 7 8 9 10 11 12 13 14 15▼PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWSHD VideoGraphic PlanesHT-BD8200_XAA_0530-1.indd 3HT-BD8200_XAA_0530-1.indd 3 2009-05-30  2:01:392009-05-30  2:01:39

4Key features of your new Blu-ray Home TheaterWHAT’S INCLUDEDCheck for the supplied accessories below.Video Cable (AH39-40001V)FM Antenna (AH42-00017A)iPod Dock(AH96-00051A)Cradle Stand(AH96-00074A)Remote Control (AH59-02195C)/ Batteries (AAA size)(4301-000116)User's Manual (AH68-02196R)Bracket Wall Mount (2EA)(AH61-02985A)/Bracket Wall Mount (2EA)(AH61-02984A)Sheet Wall (AH61-02985A)HT-BD8200_XAA_0530-1.indd 4HT-BD8200_XAA_0530-1.indd 4 2009-05-30  2:01:432009-05-30  2:01:43

5ENGSafety informationSAFETY WARNINGSTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENThe lighting ﬂ ash and Arrowhead within Triangle Is a warning sign alerting you of dangerous voltage Inside the productCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.WARNINGTo reduce the risk of ﬁ re or electric shock, do not expose this appliance to rain or moisture.To prevent injury, this apparatus must be securely attached to the ﬂ oor/wall in accordance with the installation instructions. CAUTIONApparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time.This product satisﬁ es FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.FCC NOTE (for U.S.A):This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.Caution : FCC regulations state that any unauthorized changes or modiﬁ cations to this equipment may void the user's authority to operate it.Important Safety InstructionsRead these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.•••••••• CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION : TO REDINVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.••CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKTLUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LASER CLASE 11) Read these instructions.2) Keep these Instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in zaccordance with the manufacturer? instructions.8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.9) Do not defeat the safety purpose of the polarized or grounding-typeplug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use attachment/accessories speciﬁ ed by the manufacturer.12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13) Unplug this apparatus during lightning storms or when unused for long periods of time.14) Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.HT-BD8200_XAA_0530-1.indd 5HT-BD8200_XAA_0530-1.indd 5 2009-05-30  2:01:442009-05-30  2:01:44

6PRECAUTIONSEnsure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot. Before moving the player, ensure the Disc Insert slot is empty. This player is designed for continuous use. Switching off the Blu-ray Home Theater to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.Protect the player from moisture (i.e. vases) , and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.Do not expose the unit to direct sunlight or other heat sources.This could lead to overheating and malfunction of the unit. The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.This product is covered by one or more of the following U.S. patents:5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,4746,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327 7,099,566 7,123,564 7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891 7,177,250 7,194,1877,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,1067,280,460 7,283,729 7,286,454 7,304,938This device is protected by U.S. Patent Nos.6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.This product is covered by the following U.S. patents:US4,930,158 US4,930,160HT-BD8200_XAA_0530-1.indd 6HT-BD8200_XAA_0530-1.indd 6 2009-05-30  2:01:442009-05-30  2:01:44

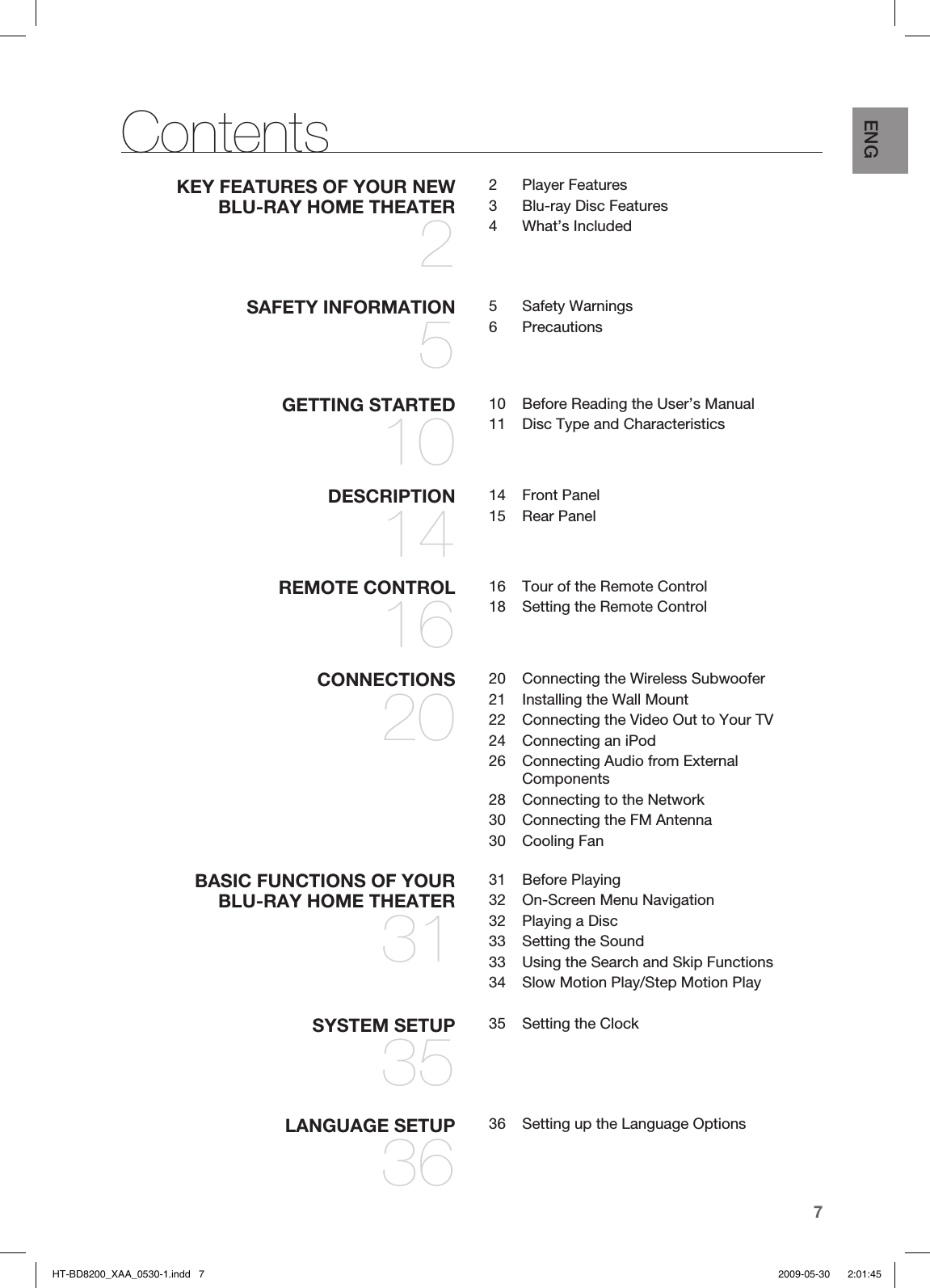

7ENGContentsKEY FEATURES OF YOUR NEW BLU-RAY HOME THEATER22 Player Features3 Blu-ray Disc Features4 What’s IncludedSAFETY INFORMATION55 Safety Warnings6 PrecautionsGETTING STARTED1010 Before Reading the User’s Manual11 Disc Type and CharacteristicsDESCRIPTION1414 Front Panel15 Rear PanelREMOTE CONTROL1616 Tour of the Remote Control18 Setting the Remote ControlCONNECTIONS2020 Connecting the Wireless Subwoofer21 Installing the Wall Mount22 Connecting the Video Out to Your TV24 Connecting an iPod26 Connecting Audio from External Components28 Connecting to the Network30 Connecting the FM Antenna30 Cooling FanBASIC FUNCTIONS OF YOUR BLU-RAY HOME THEATER3131 Before Playing32 On-Screen Menu Navigation32 Playing a Disc33 Setting the Sound33 Using the Search and Skip Functions34 Slow Motion Play/Step Motion PlaySYSTEM SETUP3535 Setting the ClockLANGUAGE SETUP3636 Setting up the Language OptionsHT-BD8200_XAA_0530-1.indd 7HT-BD8200_XAA_0530-1.indd 7 2009-05-30  2:01:452009-05-30  2:01:45

8DISPLAY SETUP4040 Setting up the Display Options42 Setting up the Video Display/Output OptionsHDMI SETUP4444 Setting up the HDMI Setup OptionsAUDIO SETUP3737 Setting up the Speaker OptionsPARENTAL SETUP4747 Setting up the Parental LockNETWORK SETUP4949 Setting up the Network Setup OptionsBD DATA MANAGEMENT5454 System Device ManagementSYSTEM UPGRADE5555 Firmware Upgrade57 System Information57 Firmware Upgrade Notiﬁ cation57 DivX(R) Registration57 DivX(R) DeactivationWATCHING A MOVIE5858 Using the Display Function59 Using the Disc Menu & Popup/Title Menu60 Repeat Play61 Selecting the Audio Language61 Selecting the Subtitle Language62 Changing the Camera Angle63 PIP (Picture In Picture) Settings63 BD-LIVE™64 Using the Instant Streaming Feature Provided by Netﬂ ix66 DivX PlaybackContentsHT-BD8200_XAA_0530-1.indd 8HT-BD8200_XAA_0530-1.indd 8 2009-05-30  2:01:452009-05-30  2:01:45

9ENGUSING THE USB FUNCTION7575 Playing Media Files Using the USB Host FeatureRADIO7777 Listening to Radio77 Presetting StationsCONVENIENT FUNCTION8383 Sleep Timer Function83 Adjusting Display Brightness83 Mute FunctionTROUBLESHOOTING84APPENDIX8686 Cautions on Handling and Storing Discs87 Speciﬁ cationsLISTENING TO MUSIC 6868 Buttons on the Remote Control Used for Audio CD(CD-DA)/ MP3 Disc Playback68 Repeat Audio CD(CD-DA) & MP369 Playing an Audio CD(CD-DA)/MP371 Using the Internet Radio Feature Provided by PandoraVIEWING A PICTURE7373 Viewing a Picture73 Slide Show/Speed73 Rotate74 Zoom74 Go To Photo ListUSING AN iPod7878 Listening to Music80 Watching a MoviePC STREAMING FUNCTION8181 Connecting to a PC and Playing MP3, JPEG or DivX Content HT-BD8200_XAA_0530-1.indd 9HT-BD8200_XAA_0530-1.indd 9 2009-05-30  2:01:452009-05-30  2:01:45

Getting started10BEFORE READING THE USER’S MANUALMake sure to check the following terms before reading the user manual.Icons that will be used in manualIcon Term Deﬁ nitionhBD-ROM This involves a function available on a BD-ROM.gBD-RE This involves a function available on the BD-RE.fBD-R This involves a function available on the BD-R.ZDVD-VIDEO This involves a function available on DVD-Video or DVD-RW/-R discs that have been recorded and ﬁ nalized in Video Mode.CDVD-RW This involves a function available on DVD-RW. (V mode and ﬁ nalized only)VDVD-R This involves a function available on DVD-R. (V mode and ﬁ nalized only)Audio CD This involves a function available on an audio CD-RW/CD-R (CD-DA format).AMP3This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.GJPEGThis involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.DDivX This involves a function available with MPEG4 discs. (DVD-R/RW, CD-R/RW)FUSB storage device This involves a function available on USB storage device.Caution This involves a case where a function does not operate or settings may be cancelled.MNote This involves tips or instructions on the page that help each function operate.About the use of this user’s manualBe sure to be familiar with Safety Information before using this product. (See pages 5~6)If a problem occurs, check the Troubleshooting. (See pages 84 ~85)Copyright©2009 Samsung Electronics Co.,Ltd.All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.1)2)HT-BD8200_XAA_0530-1.indd 10HT-BD8200_XAA_0530-1.indd 10 2009-05-30  2:01:452009-05-30  2:01:45

Getting started12Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No disc.” or “Please check the regional code of the disc.” will be displayed. If a DVD-R/-RW disc has not been recorded properly in DVD video format, it will not be playable.Region code Both the Blu-ray Home Theater and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this Blu-ray Home Theater is described on the rear panel of the Blu-ray Home Theater.BD Region Code AreaANorth America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.C India, China, Russia, Central and South Asia.DVD-Video Region Code Area DVD-Video Region Code Area1USA, Canada6China2Japan, Europe, South Africa, Middle East, Greenland 7 Unspeciﬁ ed Special Use3Korea, Taiwan, Hong Kong, parts of South East Asia 8 Airlines/Cruise Ships (including Mexico)4Australia, New Zealand, Latin America (including Mexico) 9 Region free5 Eastern Europe, Russia, India, AfricaBlu-ray Disc CompatibilityBlu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility Notice section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care center at 1-800 SAMSUNG. Playback may not work for some types of discs, or when speciﬁ c operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary.Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.Discs with PAL programs recorded on them cannot be played using this product.When a BD-Java title is played, loading may take longer than a normal title, or some functions may perform slowly.MMHD DVD DiscDVD-RAM3.9 GB DVD-R Disc for Authoring.DVD-RW(VR mode)••••DVD-ROM/PD/MV-Disc, etcCVD/CD-ROM/CDV/CD-G/CD-I/LD3 1/2 inch MD (mini disc)•••Discs that cannot be playedHT-BD8200_XAA_0530-1.indd 12HT-BD8200_XAA_0530-1.indd 12 2009-05-30  2:01:472009-05-30  2:01:47

13ENG ● GETTING STARTEDDisc TypesBD-RE/BD-RBlu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups, or recording personal video.BD-ROMBlu-ray Disc Read Only Memory. A BD-ROM disc contains pre-recorded data. Although a BD-ROM may contain any form of data, most BD-ROM discs will contain movies in High Deﬁ nition format, for playback on Blu-ray Home Theaters. This unit can play back pre-recorded commercial BD-ROM discs.DVD-VideoA digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround, allowing you to enjoy vivid and clear theatre quality images. When switching from the ﬁ rst layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.Once a DVD-RW/-R recorded in Video Mode is ﬁ nalized, it becomes DVD-Video. Pre-recorded (pre-stamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can play back pre-recorded commercial DVD discs (DVD-Video discs) with movies.Audio CDAn audio disc on which 44.1kHz PCM Audio is recorded. This unit can play back CD-DA format audio CD-R and CD-RW discs. The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording. CD-R/-RWUse a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.If the CD-R/-RW disc was not recorded as a closed session, you may experience delays when playing back the beginning of the disc or all recorded ﬁ les may not play.Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.DVD-R Disc PlaybackOnce a DVD-R recorded in Video Mode is ﬁ nalized, it becomes DVD-Video.This unit can play back DVD-R discs recorded and ﬁ nalized with a Samsung DVD video recorder. It may not be able to play some DVD-R discs depending on the disc and the condition of the recording.DVD-RW Disc PlaybackPlayback can be performed with DVD-RW discs in the Video Mode and ﬁ nalized only.Once a DVD-RW recorded in Video Mode is ﬁ nalized, it becomes DVD-Video. Ability to play back may depend on recording conditions.Disc FormatUsing MP3 discCD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.Only MP3 ﬁ les with the “.mp3” or “.MP3” extension can be played.Playable bit-rate range is from 56 Kbps to 320 Kbps.Playable sample-rate is 32KHz to 48KHz.The unit can handle a maximum of 1500 ﬁ les and folders under a parent folder. For MP3 ﬁ les recorded with a VBR(Variable Bit Rates), the sound may cut in and out.Using JPEG discCD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.Only JPEG ﬁ les with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed.Progressive JPEG is supported.DVD-RW/-R (V)This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by this Blu-ray Home Theater once it has been ﬁ nalized.If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been ﬁ nalized, it cannot be played by this Blu-ray Home Theater.❖❖❖•••❖•••❖•••❖••❖••❖•••••❖•••❖••HT-BD8200_XAA_0530-1.indd 13HT-BD8200_XAA_0530-1.indd 13 2009-05-30  2:01:472009-05-30  2:01:47

14DescriptionFRONT PANELPOWER BUTTON Turns the Blu-ray Home Theater on and off. FUNCTION BUTTON The mode switches as follows : BD/DVD ➞ DIGITAL ➞ AUX ➞ TUNER.TUNING DOWN & SKIP ( ) BUTTONGoes back to the previous title/chapter/track.Tunes down the FM frequency band.STOP BUTTON Stops disc playback.PLAY/PAUSE BUTTON Plays a disc or pauses playback.TUNING UP & SKIP( ) BUTTONGoes to the next title/chapter/track.Tunes up the FM frequency band.EJECT BUTTON Eject a disc. DISC SLOT Accept a disc.Volume Control BUTTON Volume adjustment.8654321 7 9HT-BD8200_XAA_0530-1.indd 14HT-BD8200_XAA_0530-1.indd 14 2009-05-30  2:01:472009-05-30  2:01:47

15ENG ● DESCRIPTIONREAR PANELFM 75Ω COAXIAL JACK Connect the FM antenna.EXTERNAL DIGITAL OPTICAL INPUT JACKUse this to connect external equipment capable of digital output. LAN TERMINAL Can be used for connection to BD-LIVE, Netﬂ ix and Pandora.It can be also used for ﬁ rmware upgrades.WIRELESS LAN JACKA USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for ﬁ rmware upgrades and MP3/JPEG playback, as well as for connecting to BD-Live with a wireless LAN adapter.HDMI OUT JACK Use the HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.VIDEO OUTPUT JACK Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this unit. USB HOSTA USB storage device can be connected here and used as storage when connected to BD-LIVE. It can also be used for ﬁ rmware upgrades and MP3/JPEG playback. AUX IN JACKS Connect to the 2CH analog output of an external device (such as a VCR)HEADPHONE JACKConnect a headphone.10iPod JACK Connect the iPod dock connector here.11COOLING FAN The fan always revolves when the power is on. Ensure a minimum of 4 inches of clear space on all sides of the fan when installing the product.Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.You must use the USB HOST on the rear panel of the Blu-ray Home Theater to connect a wireless LAN Adapter.M2135648791011HT-BD8200_XAA_0530-1.indd 15HT-BD8200_XAA_0530-1.indd 15 2009-05-30  2:01:482009-05-30  2:01:48

16Remote controlTOUR OF THE REMOTE CONTROL213635343332313029282523222117161514131211109876543261918202427HT-BD8200_XAA_0530-1.indd 16HT-BD8200_XAA_0530-1.indd 16 2009-05-30  2:01:492009-05-30  2:01:49

17ENG ● REMOTE CONTROLInstalling batteries in the Remote Control1. Lift the cover at the back of the remote control upward as shown.2. Install two AAA size batteries.Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.3. Replace the cover.Assuming typical TV usage, the batteries last for about one year. 19MO/ST button20DISC MENU button21EJECT button22DIMMER button23BD buttonTUNER buttonAUX button24SOURCE button25SUBTITLE button26PAUSE button27MUTE button28TUNING/CH button29RETURN button30EXIT button31ZOOM button (JPEG Only)32PIP button33REPEAT button34DSP button35REPEAT A-B button36SLOW buttonPOWER buttonBD RECEIVER buttonTV buttonNumber (0~9) buttonsAUDIO buttonSTEP buttonTuning Preset/CD Skip buttons8 PLAY button STOP buttonSEARCH buttons9VOLUME button10V-SOUND button11MENU button12Cursor/ENTER button13INFO button14COLOR Buttons : RED(A), GREEN (B), YELLOW(C), BLUE(D)15POPUP MENU, TITLE MENU button16TUNER MEMORY button17CANCEL button18SLEEP button7654321HT-BD8200_XAA_0530-1.indd 17HT-BD8200_XAA_0530-1.indd 17 2009-05-30  2:46:542009-05-30  2:46:54

20ConnectionsThis section involves various methods of connecting the Blu-ray Home Theater to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.CONNECTING THE WIRELESS SUBWOOFERThe Subwoofer's linking ID is preset at the factory and the main unit and sub should link (connect wirelessly) automatically when turned on. If the link indicator does not light when main unit and subwoofer are turned on, please set the ID by following the process below. 1. Plug the power cords of the main unit and subwoofer into the AC power supply.2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 3 seconds.The STANDBY indicator is turned off and the LINK indicator (blue LED) blinks quickly.3. In stand-by mode while the main unit is off, press 0, 1, 3, 5 buttons in order.The red stand-by LED of main unit ﬂ ashes white and turns in red again.4. Press the POWER button to turn on the main unit.The main unit and the subwoofer are now linked (connected).The Link indicator (blue LED) on the subwoofer is turned on.Before moving or installing the product, be sure to turn off the power and disconnect the power cord.If the main unit is powered off, the wireless subwoofer will be in the standby mode and the STANDBY LED on the upper side will blink.If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.The transmission distance of the wireless signal between the main unit and sub is about 33 ft., but may vary depending on your operating environment. If a steel-concrete or metallic wall is between main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.If the main unit doesn't make wireless connection, follow steps 1-4 above to retry the connection between the main unit and wireless subwoofer.••••M▪▪▪▪▪The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.▪▪HT-BD8200_XAA_0530-1.indd 20HT-BD8200_XAA_0530-1.indd 20 2009-05-30  2:01:512009-05-30  2:01:51

21ENG ● CONNECTIONSINSTALLING THE WALL MOUNT1. Disconnect the cradle stand from the unit.2. Peel off the ﬁ lm from the double-sided adhesive sheet for the wall mount and attach it on a clean wall.3. Secure the wall mount bracket using 3 screws (provided separately) while aligning holes marked on the sheet.The red stand-by LED of main unit ﬂ ashes white and turns in red again.4. Assemble the back unit bracket with the Home Theater unit by fastening provided 2 screws.5. Fully insert the back bracket’s clasp into the wall mount bracket’s receptacle and ﬁ x it by fully slide to the right.Installation completed.Do not hang onto the installed unit and avoid any impact to the unit.Secure the unit ﬁ rmly to the wall so that it does not fall off. If the unit falls off, it may result in an injury or damage to the product.When the unit is installed on a wall, please make sure that a child does not pull any of connecting cables, as it ma y cause it to fall.For the optimal performance in a wall mount installation, keep the speaker system at least 2 inches (5 cm) distant from the TV.••M▪▪▪▪Do not install on a place other than vertical wall.For the installation, avoid high temperature or humidity, or a wall cannot sustain the weight of the set.Check the strength of the wall. If the strength of the wall is insufﬁ cient for the product installation, make sure to reinforce the wall before the installation.Check the material of the wall. If the wall is made of plaster board, marble, or iron board, purchase and use the appropriate ﬁ xing screws.Cables connecting to external devices are to be connected to the set before installing.Be sure to turn off the set before installation. Otherwise, it may cause electric shock.INSTALLING THE CRADLE STANDYou can use the cradle stand to install this unit on a shelf. Make sure you place the unit on a ﬂ at surface.ConnectingFit the cradle stand into the corresponding hole of the unit.HT-BD8200_XAA_0530-1.indd 21HT-BD8200_XAA_0530-1.indd 21 2009-05-30  2:01:522009-05-30  2:01:52

22ConnectionsCONNECTING THE VIDEO OUT TO YOUR TVChoose one of the three methods for connecting to a TV. METHOD 1 : HDMI (BEST)Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the Blu-ray Home Theater to the HDMI IN jack on your TV.Depending on your TV, certain HDMI output resolutions may not work.If an HDMI cable is connected from the player to a TV, the Blu-ray Home Theater’s output is set to HDMI automatically within 10 seconds.When you connect the player to the TV using the HDMI cable for the ﬁ rst time or to a new TV, the HDMI output resolution will automatically be set to the highest provided by the TV.If you connect a Samsung TV to the Blu-ray Home Theater using an HDMI cable, the player can be easily operated using the TV remote control. (This is only available with Samsung TVs that support the Anynet+ feature.) (See page 44)After making the video connection, set the Video input source on your TV to match thecorresponding Video output (HDMI or Composite) on your Blu-ray Home Theater.See your TV owner's manual for more information on how to select the TV's Video Input source.MMETHOD2(supplied)METHOD1HT-BD8200_XAA_0530-1.indd 22HT-BD8200_XAA_0530-1.indd 22 2009-05-30  2:01:542009-05-30  2:01:54

24ConnectionsCONNECTING AN iPodYou can enjoy music, video ﬁ les from an iPod through the main unit. For iPod operation with this Blu-ray home theater, see pages 25 and 78 ~ 80. Connect the iPod Dock to the iPod Jack on the rear side of the main unit. Place the iPod in the dock. “iPod Connected” message appears on the TV screen. You must have the VIDEO output connected to your TV to view iPod video (See page 25).As the cable ports are close together, be sure to remove the USB memory drive before disconnecting the ipod docking cable.Adjust the volume to a moderate level before you connect your iPod and Blu-ray home theater.When the unit is powered on and you connect an iPod, the unit will charge your iPod's battery.Make sure to connect the dock connector so that the label “SAMSUNG” faces backword.“Made for iPod” means that an electronic accessory has been designed to connect speciﬁ cally to iPod and has been certiﬁ ed by the developer to meet Apple performance standards.1.2.•M(supplied)HT-BD8200_XAA_0530-1.indd 24HT-BD8200_XAA_0530-1.indd 24 2009-05-30  2:01:552009-05-30  2:01:55

25ENG ● CONNECTIONSiPod models that can be used with the HT-BD8200“Made for iPod” means that an electronic accessory has been designed to connect speciﬁcally to iPod and has been certiﬁed by the developer to meet Apple performance standards.“Works with iPhone” means that an electronic accessory has been designed to connect speciﬁcally to an iPhone and has been certiﬁed by the developer to meet Apple performance standards.Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.MHT-BD8200_XAA_0530-1.indd 25HT-BD8200_XAA_0530-1.indd 25 2009-05-30  2:01:562009-05-30  2:01:56

26ConnectionsCONNECTING AUDIO FROM EXTERNAL COMPONENTSOPTICAL : Connecting an External Digital ComponentDigital signal components such as a Cable Box/Satellite receiver (Set-Top Box). Connect the Digital Input (OPTICAL) on the main unit to the Digital Output of the external digital component. Press the FUNCTION button on the main unit to select D.IN input.The mode switches as follows : BD/DVD ➞ DIGITAL ➞ AUX ➞ TUNER.To see video from your Cable Box/Satellite receiver, you must connect it's video output to a TV.This system supports Digital sampling frequencies of 32 kHz of higher from external digital This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.components.This system supports only DTS and Dolby digital audio, MPEG audio which is bitstream This system supports only DTS and Dolby digital audio, MPEG audio which is bitstream cannot be supported.cannot be supported.1.2.•MOptical Cable (not supplied)HT-BD8200_XAA_0530-1.indd 26HT-BD8200_XAA_0530-1.indd 26 2009-05-30  2:01:572009-05-30  2:01:57

27ENG ● CONNECTIONSAUX : Connecting an External Analog ComponentAnalog signal components such as a VCR. Connect AUX IN (Audio) on the main unit to the Audio Out of the external analog component. Be sure to match connector colors. Press the AUX button on the remote control to select AUX input. You can also use the FUNCTION button on the main unit.The mode switches as follows : BD/DVD ➞ DIGITAL ➞ AUX ➞ TUNER. You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.1.•2.•MAudio Cable (not supplied)If the external analog component has only one Audio Out, connect either left or right.HT-BD8200_XAA_0530-1.indd 27HT-BD8200_XAA_0530-1.indd 27 2009-05-30  2:01:582009-05-30  2:01:58
