Samsung Electronics Co HTDS690 DVD Receiver User Manual A3LHTDS690

Samsung Electronics Co Ltd DVD Receiver A3LHTDS690

Contents

User Manual 1

DIGITAL HOME THEATER SYSTEMHT-DS690Instruction ManualSAMSUNG ELECTRONICS AMERICA, INC.SERVICE DIVISION400 Valley Road, Suite 201Mount Arlington, NJ 078561-800-SAMSUNG (1-800-726-7864)www.samsungusa.comCOMPACTDIGITAL AUDIO
12Safety Warnings PrecautionsEnsure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install yourplayer horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slotsare not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may becomehot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player tothe stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply,remove the main plug from the wall outlet, especially when left unused for a long period of time.Protect the player from moisture(i.e. vases) , and excessheat(e.g.fireplace) or equipment creating strong magnetic or electricfields (i.e.speakers...). Disconnect the power cable from the AC supply ifthe player malfunctions. Your player is not intended for industrial use.Use of this product is for personal use only.Condensation may occur if your player or disc have been stored in coldtemperatures.If transporting the player during the winter, wait approximately 2 hoursuntil the unit has reached room temperature before using.During thunderstorms, disconnect AC main plug from thewall outlet.Voltage peaks due to lightning could damage the unit.Do not expose the unit to direct sunlight or other heatsources.This could lead to overheating and malfunction of the unit.The battery used with this product contain chemicals thatare harmful to the environment. Do not dispose of batteries in the general household trash.PREPARATIONCLASS 1 LASER PRODUCTThis Compact Disc player is classified as a CLASS 1LASER product.Use of controls, adjustments or performance of procedures other than those specified herein may resultin hazardous radiation exposure.CAUTION-INVISIBLE LASER RADIATION WHEN OPENAND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.This symbol indicates that dangerous voltage which can cause electric shock is present insidethis unit.This symbol alerts you to important operating and maintenance instructions accompanying the unit.WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLYINSERT.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKTLUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LASER CLASE 1RISK OF ELECTRIC SHOCK. DO NOT OPENCAUTION:TO REDUCE THE RISK OF ELECTRICSHOCK, DO NOT REMOVE REAR COVER.NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTIONNote to CATV system installer :This reminder is provided to call the CATV systeminstaller’s attention to Section 820~40 of the NECwhich provides guidelines for proper grounding and,in particular, specifies that the cable ground shall beconnected to the grounding system of the building,as close to the point of cable entry as practical

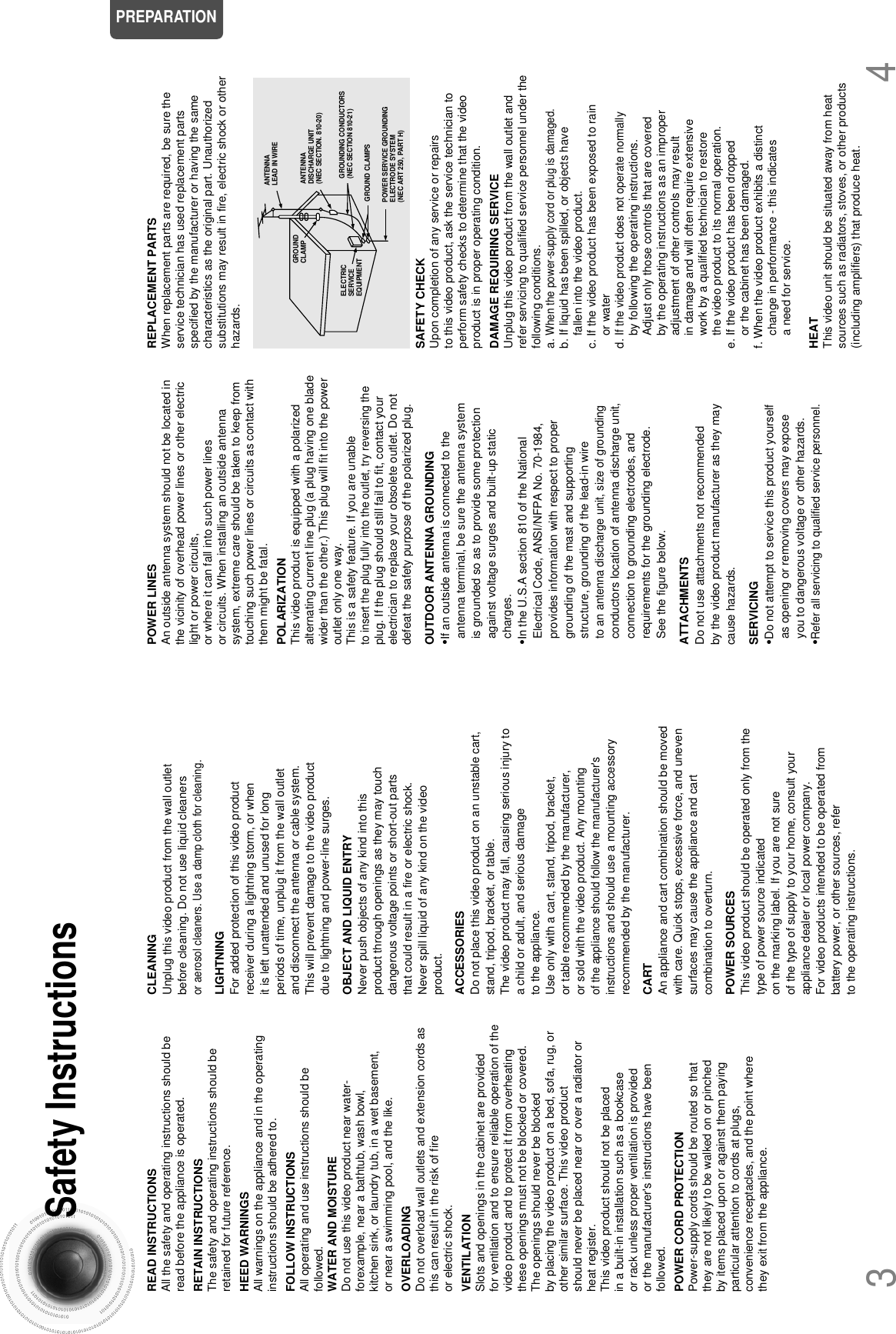

4Safety Instructions3READ INSTRUCTIONSAll the safety and operating instructions should beread before the appliance is operated.RETAIN INSTRUCTIONSThe safety and operating instructions should beretained for future reference.HEED WARNINGSAll warnings on the appliance and in the operatinginstructions should be adhered to.FOLLOW INSTRUCTIONSAll operating and use instructions should be followed.WATER AND MOISTUREDo not use this video product near water-forexample, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.OVERLOADINGDo not overload wall outlets and extension cords asthis can result in the risk of fire or electric shock.VENTILATIONSlots and openings in the cabinet are provided for ventilation and to ensure reliable operation of thevideo product and to protect it from overheatingthese openings must not be blocked or covered.The openings should never be blocked by placing the video product on a bed, sofa, rug, orother similar surface. This video product should never be placed near or over a radiator orheat register.This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have beenfollowed.POWER CORD PROTECTIONPower-supply cords should be routed so thatthey are not likely to be walked on or pinchedby items placed upon or against them payingparticular attention to cords at plugs,convenience receptacles, and the point wherethey exit from the appliance.CLEANINGUnplug this video product from the wall outletbefore cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.LIGHTNINGFor added protection of this video productreceiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outletand disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.OBJECT AND LIQUID ENTRYNever push objects of any kind into this product through openings as they may touchdangerous voltage points or short-out partsthat could result in a fire or electric shock.Never spill liquid of any kind on the videoproduct.ACCESSORIESDo not place this video product on an unstable cart,stand, tripod, bracket, or table. The video product may fall, causing serious injury toa child or adult, and serious damage to the appliance.Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer'sinstructions and should use a mounting accessoryrecommended by the manufacturer.CARTAn appliance and cart combination should be movedwith care. Quick stops, excessive force, and unevensurfaces may cause the appliance and cartcombination to overturn.POWER SOURCESThis video product should be operated only from thetype of power source indicated on the marking label. If you are not sure of the type of supply to your home, consult yourappliance dealer or local power company. For video products intended to be operated frombattery power, or other sources, refer to the operating instructions.POWER LINESAn outside antenna system should not be located inthe vicinity of overhead power lines or other electriclight or power circuits, or where it can fall into such power lines or circuits. When installing an outside antennasystem, extreme care should be taken to keep fromtouching such power lines or circuits as contact withthem might be fatal.POLARIZATIONThis video product is equipped with a polarized alternating current line plug (a plug having one bladewider than the other.) This plug will fit into the poweroutlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversingtheplug. If the plug should still fail to fit, contact yourelectrician to replace your obsolete outlet. Do notdefeat the safety purpose of the polarized plug.OUTDOOR ANTENNA GROUNDING•If an outside antenna is connected to the antenna terminal, be sure the antenna system is grounded so as to provide some protectionagainst voltage surges and built-up static charges.•In the U.S.A section 810 of the NationalElectrical Code, ANSI/NFPA No. 70-1984, provides information with respect to propergrounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See the figure below.ATTACHMENTSDo not use attachments not recommended by the video product manufacturer as they maycause hazards.SERVICING•Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards.•Refer all servicing to qualified service personnel.REPLACEMENT PARTSWhen replacement parts are required, be sure theservice technician has used replacement partsspecified by the manufacturer or having the samecharacteristics as the original part. Unauthorizedsubstitutions may result in fire, electric shock or otherhazards.SAFETY CHECKUpon completion of any service or repairs to this video product, ask the service technician toperform safety checks to determine that the videoproduct is in proper operating condition.DAMAGE REQUIRING SERVICEUnplug this video product from the wall outlet andrefer servicing to qualified service personnelunder thefollowing conditions.a.When the power-supply cord or plug is damaged.b. If liquid has been spilled, or objects have fallen into the video product.c. If the video product has been exposed to rain or waterd.If the video product does not operate normallyby following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.e. If the video product has been dropped or the cabinet has been damaged.f. When the video product exhibits a distinct change in performance - this indicates a need for service.HEATThis video unit should be situated away from heatsources such as radiators, stoves, or other products(including amplifiers) that produce heat.ANTENNALEAD IN WIREANTENNADISCHARGE UNIT(NEC SECTION. 810-20)GROUNDING CONDUCTORS(NEC SECTION 810-21)GROUND CLAMPSPOWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H)GROUNDCLAMPELECTRICSERVICEEQUIPMENTPREPARATION
6Features5Multi-Disc Playback & AM/FM TunerThe HT-DS690 combines the convenience of multi-disc playback capability, including DVD-AUDIO,DVD-VIDEO, CD, MP3-CD, CD-R/RW, and DVD-R/RW, with a sophisticated AM/FM tuner, all in asingle player.Super Digital Sound MasterEquipped with a new digital audio technology (auto sound calibration, magic soundfield, and magic headphone) developed in cooperation with DiMagic Co., Ltd. in Japan, you'll enjoy a more lively and sensitive sound.Sound LogoWhen power is turned on, a sound logo is output from the speakers to notify the user that the unitis optimized for disc playback.Power Saving FunctionThe HT-DS690 automatically shuts itself off after 20 minutes in the stop mode.TV Screen Saver FunctionThe HT-DS690 automatically brightens and darkens the brightness of the TV screen after 3minutes in the stop mode.The HT-DS690 automatically switches itself into the power saving mode after 20 minutes in thescreen saver mode.P.SCAN(Progressive Scan) FunctionUnlike regular Interlace Scan, in which two fields of picture information alternate to create theentire picture (odd scan lines, then even scan lines), Progressive Scan uses one field ofinformation (all lines displayed in one pass) to create a clear and detailed picture without visiblescan lines. Customized TV Screen DisplayThe HT-DS690 allows you to select your favorite image during JPEG, DVD playback and set it asyour background wallpaper.PREPARATIONContentsPREPARATIONSafety Warnings..................................................................................................................................................................1Precautions.........................................................................................................................................................................2Safety Instructions ..............................................................................................................................................................3Features..............................................................................................................................................................................5Notes on Discs....................................................................................................................................................................7Description..........................................................................................................................................................................9CONNECTIONSConnecting the Speakers....................................................................................................................................................13Connecting the Video Out to TV .........................................................................................................................................17P.SCAN(Progressive Scan) Function .................................................................................................................................18Connecting External Components ......................................................................................................................................19How to Connect to Anynet ..................................................................................................................................................21Connecting the FM and AM Antennas................................................................................................................................22Before Using Your DVD Player...........................................................................................................................................23OPERATIONDisc Playback .....................................................................................................................................................................25Selecting a Disc in the Disc changer ..................................................................................................................................26MP3-CD Playback...............................................................................................................................................................27JPEG Disc Playback...........................................................................................................................................................28Displaying Disc Information ................................................................................................................................................29Checking the Remaining Time............................................................................................................................................30Fast/Slow Playback.............................................................................................................................................................31Skipping Scenes/Songs......................................................................................................................................................32Repeat Playback.................................................................................................................................................................33A-B Repeat Playback..........................................................................................................................................................35Angle Function....................................................................................................................................................................36Zoom Function....................................................................................................................................................................37Bonus Group / Navigating Pages........................................................................................................................................38Selecting Audio/Subtitle Language.....................................................................................................................................39Moving Directly to a Scene/Song........................................................................................................................................40Using Disc Menu.................................................................................................................................................................41Using the Title Menu...........................................................................................................................................................42SETUPSetting the Language..........................................................................................................................................................43Setting TV Screen type.......................................................................................................................................................45Setting Parental Controls (Rating Level).............................................................................................................................47Setting the Password..........................................................................................................................................................49Setting the Wallpaper..........................................................................................................................................................51DVD Playback Mode...........................................................................................................................................................53Setting the Speaker Mode ..................................................................................................................................................55Setting the Test Tone..........................................................................................................................................................56Setting the Delay Time........................................................................................................................................................57Setting the Audio Quality ....................................................................................................................................................59Setting the DRC (Dynamic Range Compression)...............................................................................................................61Auto Sound Calibration Setup.............................................................................................................................................63Live Surround Mode............................................................................................................................................................65Dolby Pro Logic II Mode......................................................................................................................................................67Dolby Pro Logic II Effect .....................................................................................................................................................68RADIO OPERATIONListening to Radio ...............................................................................................................................................................69Presetting Stations..............................................................................................................................................................70MISCELLANEOUSConvenient Functions .........................................................................................................................................................71Operating a TV with the Remote Control............................................................................................................................73Before Calling for Service ...................................................................................................................................................75Cautions on Handling and Storing Discs ............................................................................................................................77Specifications......................................................................................................................................................................78Notes on Terminology.........................................................................................................................................................79Warranty .............................................................................................................................................................................80DVD-Audio compatibleExperience the super high-quality audio performance of DVD-Audio.The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in termsof dynamic range, low-level resolution and high-frequency detail.Wireless Rear Speakers and AmpThe HT-DB690 has a rear surround wireless amp that removes the need for long speaker cablesbetween the main unit and rear speakers.Samsung AV Device Operation using AnynetYou can conveniently operate Samsung DVD and other Samsung AV devices with one remotecontroller of Samsung TV, using Anynet.

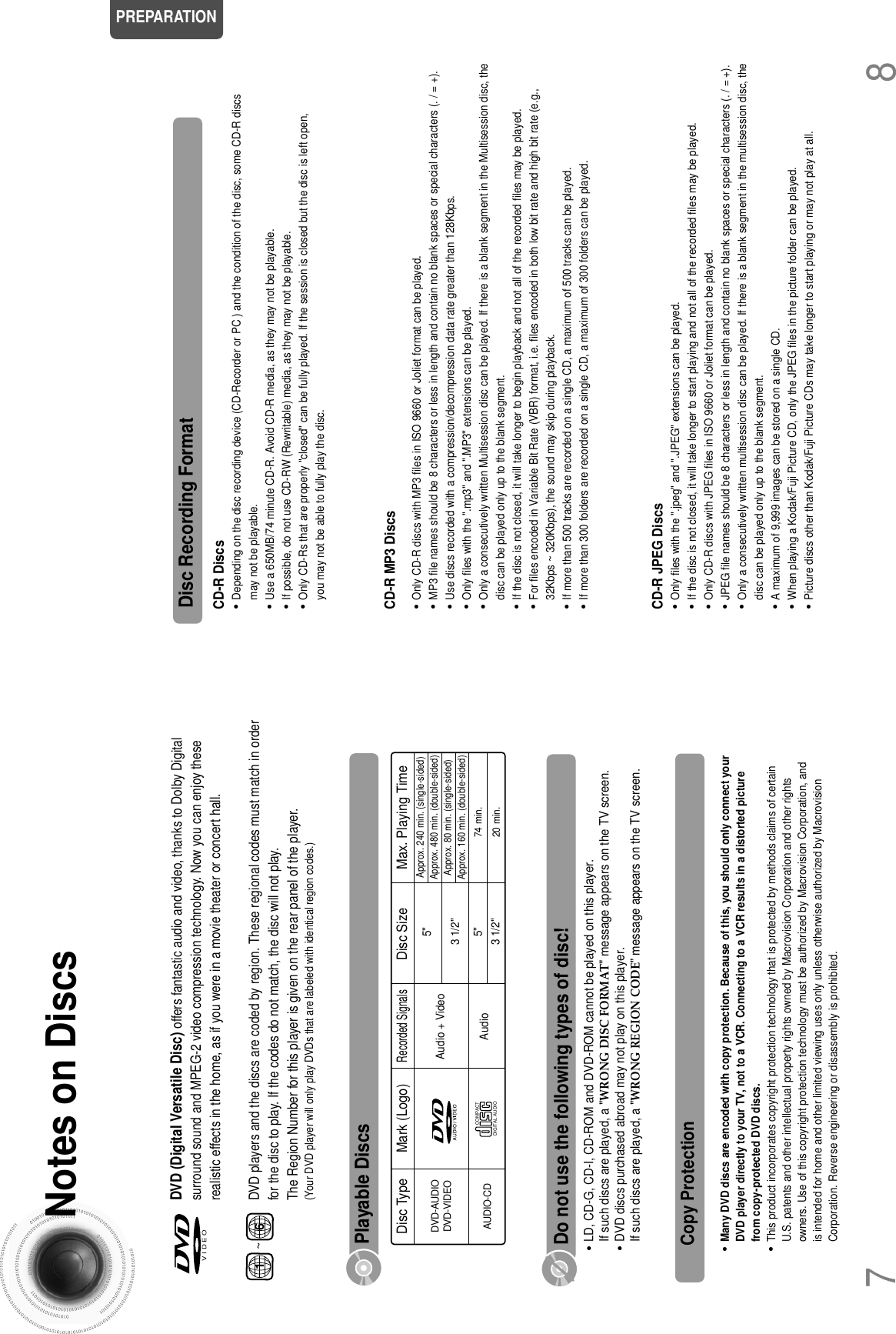

CD-R Discs•Depending on the disc recording device (CD-Recorder or PC ) and the condition of the disc, some CD-R discsmay not be playable.•Use a 650MB/74 minute CD-R. Avoid CD-R media, as they may not be playable.•If possible, do not use CD-RW (Rewritable) media, as they may not be playable.•Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.CD-R JPEG Discs•Only files with the ".jpeg" and ".JPEG" extensions can be played.•If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.•Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.•JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).•Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, thedisc can be played only up to the blank segment.•A maximum of 9,999 images can be stored on a single CD.•When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.•Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.Disc Recording Format8CD-R MP3 Discs•Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.•MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).•Use discs recorded with a compression/decompression data rate greater than 128Kbps.•Only files with the ".mp3" and ".MP3" extensions can be played.•Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc, thedisc can be played only up to the blank segment.•If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.•For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g.,32Kbps ~ 320Kbps), the sound may skip during playback.•If more than 500 tracks are recorded on a single CD, a maximum of 500 tracks can be played.•If more than 300 folders are recorded on a single CD, a maximum of 300 folders can be played.DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digitalsurround sound and MPEG-2 video compression technology. Now you can enjoy theserealistic effects in the home, as if you were in a movie theater or concert hall.V I D E ODVD players and the discs are coded by region. These regional codes must match in orderfor the disc to play. If the codes do not match, the disc will not play.The Region Number for this player is given on the rear panel of the player.(Your DVD player will only play DVDs that are labeled with identical region codes.)1 6~•LD, CD-G, CD-I, CD-ROM and DVD-ROM cannot be played on this player.If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.•DVD discs purchased abroad may not play on this player.If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.7Notes on DiscsDo not use the following types of disc!•Many DVD discs are encoded with copy protection. Because of this, you should only connect yourDVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picturefrom copy-protected DVD discs.•This product incorporates copyright protection technology that is protected by methods claims of certainU.S. patents and other intellectual property rights owned by Macrovision Corporation and other rightsowners. Use of this copyright protection technology must be authorized by Macrovision Corporation, andis intended for home and other limited viewing uses only unless otherwise authorized by MacrovisionCorporation. Reverse engineering or disassembly is prohibited.Copy ProtectionPREPARATIONCOMPACTDIGITAL AUDIOMark (Logo)Audio + Video DVD-AUDIODVD-VIDEOAUDIO-CD5"Approx. 240 min. (single-sided)Approx. 480 min. (double-sided)Approx. 80 min. (single-sided)Approx. 160 min. (double-sided)74 min.20 min.3 1/2"5"3 1/2"AudioRecorded Signals Disc Type Disc Size Max. Playing TimePlayable Discs

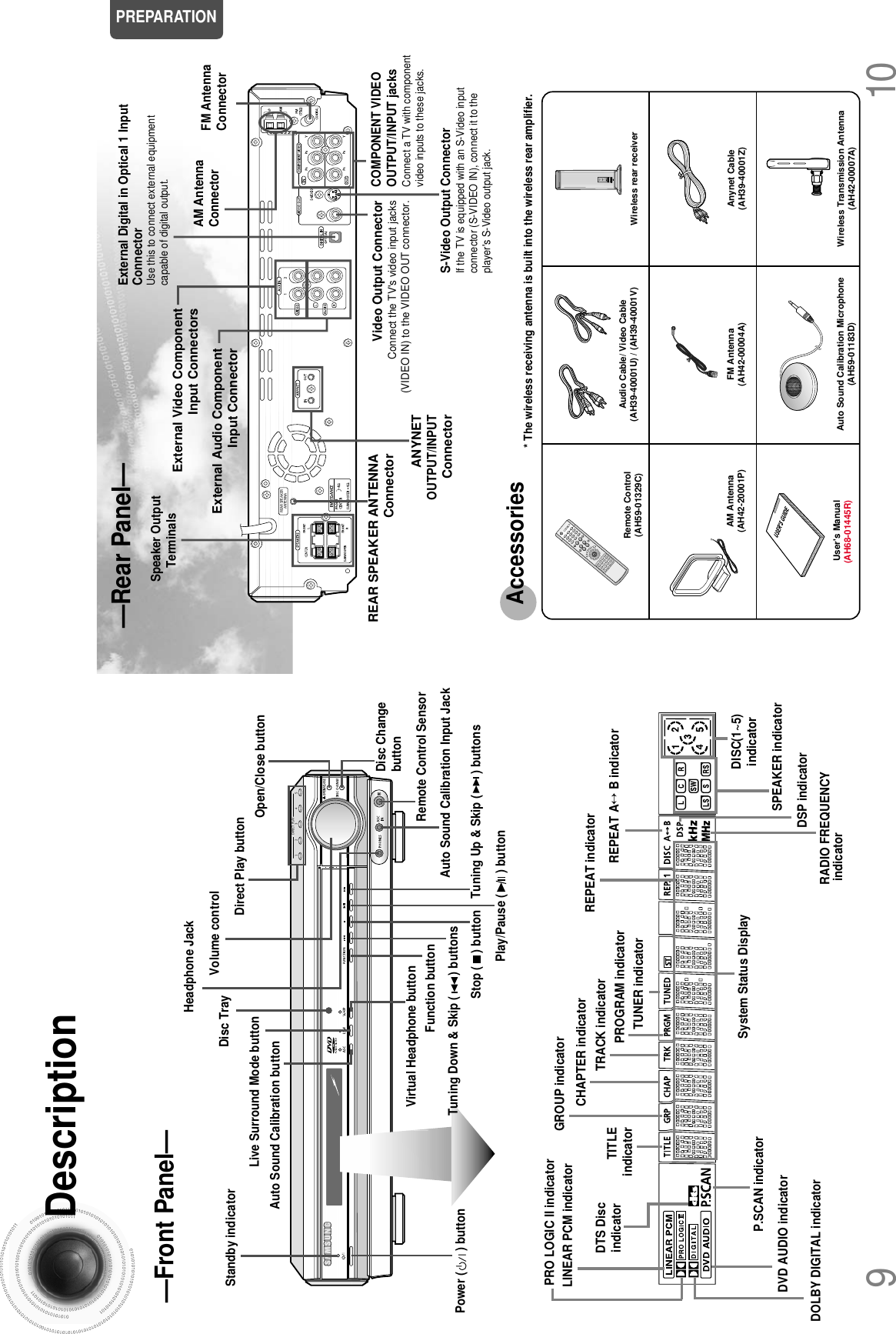

Audio Cable/ Video Cable(AH39-40001U) / (AH39-40001V) Wireless rear receiverRemote Control (AH59-01329C)FM Antenna (AH42-00004A)User's Manual (AH68-01445R)AM Antenna(AH42-20001P)Auto Sound Calibration Microphone(AH59-01183D)Anynet Cable (AH39-40001Z)Wireless Transmission Antenna(AH42-00007A)109AccessoriesPREPARATION* The wireless receiving antenna is built into the wireless rear amplifier.DIRECT PLAY12 345—Front Panel—DescriptionPower ( ) buttonStandby indicator Function buttonVirtual Headphone buttonHeadphone JackDisc TrayLive Surround Mode buttonAuto Sound Calibration button Open/Close buttonDirect Play buttonVolume controlDisc ChangebuttonAuto Sound Calibration Input JackRemote Control SensorPRO LOGIC II indicatorLINEAR PCM indicatorDOLBY DIGITAL indicator DVD AUDIO indicator P.SCAN indicator TITLEindicatorGROUP indicator REPEAT A↔ B indicator PROGRAM indicator CHAPTER indicator DISC(1~5)indicatorREPEAT indicator TRACK indicator TUNER indicator DSP indicator RADIO FREQUENCYindicatorSystem Status DisplaySPEAKER indicatorDTS DiscindicatorTuning Down & Skip ( ) buttonsStop ( ) button Play/Pause ( ) button Tuning Up & Skip ( ) buttonsREAR SPEAKERANTENNA—Rear Panel—AM AntennaConnector FM AntennaConnectorExternal Video ComponentInput Connectors ANYNETOUTPUT/INPUTConnectorREAR SPEAKER ANTENNAConnectorExternal Audio ComponentInput Connector Speaker OutputTerminalsCOMPONENT VIDEOOUTPUT/INPUT jacksConnect a TV with componentvideo inputs to these jacks.S-Video Output ConnectorIf the TV is equipped with an S-Video inputconnector (S-VIDEO IN), connect it to theplayer's S-Video output jack.Video Output ConnectorConnect the TV's video input jacks (VIDEO IN) to the VIDEO OUT connector.External Digital in Optical 1 InputConnectorUse this to connect external equipment capable of digital output.
To open the remote control cover, push thetop of the cover, then slide downward.12Insert Remote BatteriesThe remote control can be used up to approximately 23feet/7 meters in a straight line. It can also be operated ata horizontal angle of up to 30° from the remote controlsensor.Range of Operation of the Remote Control Remove the batterycover on the back ofthe remote bypressing down andsliding the cover inthe direction of thearrow.1Insert two 1.5V AAAbatteries, payingattention to the correctpolarities (+ and –).2Replace the batterycover.3Follow these precautions to avoid leaking or cracking cells:•Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).•Use the correct type of batteries.Batteries that look similar may differ in voltage.•Always replace both batteries at the same time.•Do not expose batteries to heat or flame.11DescriptionCautionPREPARATIONTV DVD RECEIVEROPEN/CLOSEDVD TUNER AUXEZ VIEWSLOW DISC SKIPASCTUNING/CHPL IIRETURNMENUINFOMUTEMODEENTERSOUND EDITTEST TONESLEEPLOGO REPEATCANCEL ZOOMREMAINTUNERMEMORYP. SCANPL IIEFFECTVOLUMELSMV-H/PMOVIEMUSICSUPER5.1BANDMO/STTV/VIDEO MODEDIMMERPL II MODE buttonVOLUME buttonMENU buttonTV, DVD POWER buttonOPEN/CLOSE buttonSUPER 5.1 buttonLive Surround Mode button/Virtual Headphone buttonAuto Sound Calibration buttonRETURN buttonNumber(0~9) buttons SLEEP buttonEZ VIEW buttonLOGO COPY buttonTV indicator DVD RECEIVER indicator TV/VIDEO, DIMMER button MODE buttonDirection/Enter button REPEAT buttonREMAIN buttonCANCEL buttonZOOM buttonTUNER MEMORY, P.SCAN buttonSOUND EDIT buttonTEST TONE buttonMUTE buttonINFO buttonTUNING/CH buttonMOVIE buttonSLOW, MO/ST buttonDISC SKIP buttonPL II EFFECT button—Remote Control—DVD button Play/Pause buttonTuning Preset/CD Skip buttonStop button AUX button TUNER BAND button

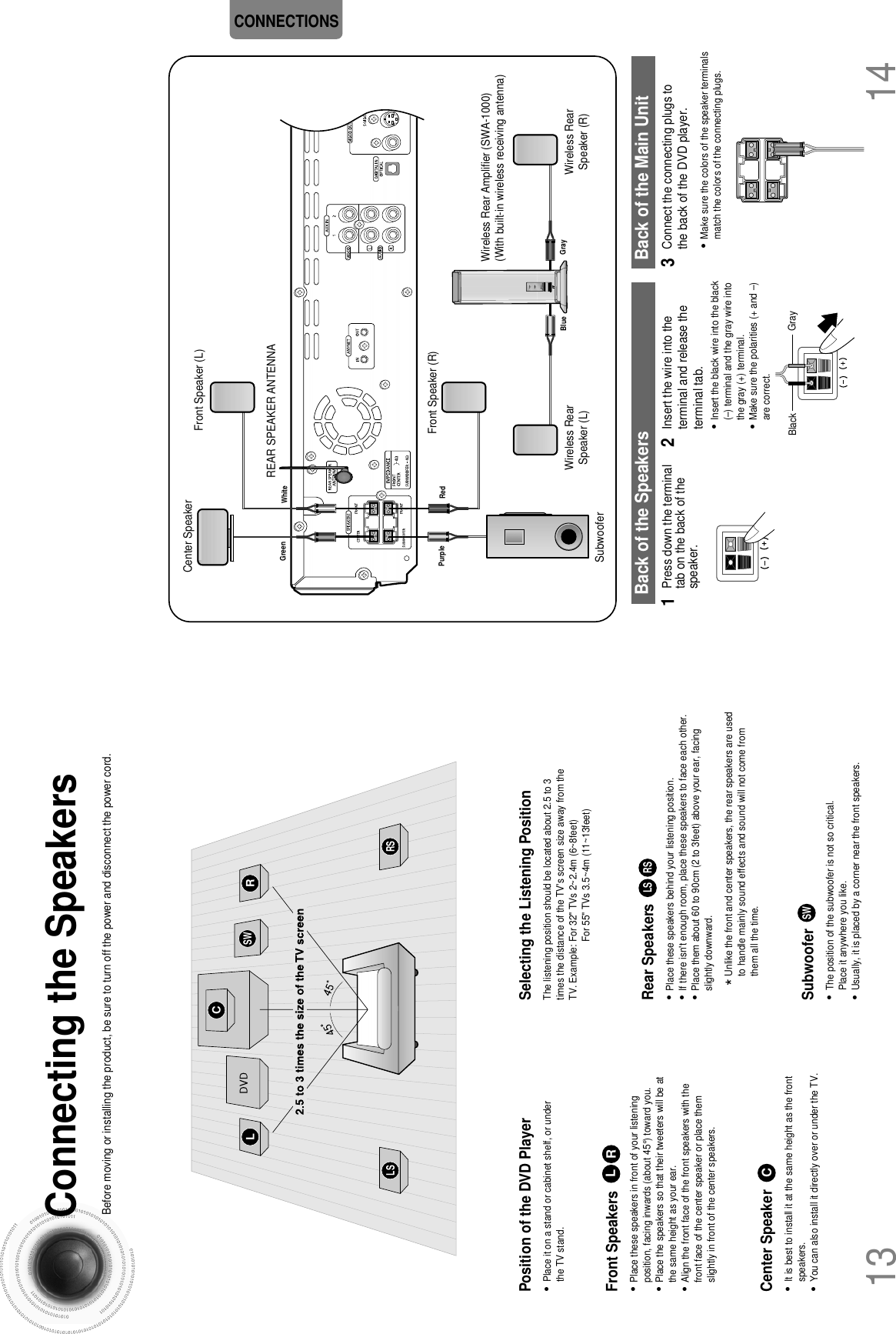

RSLSCLSWR•Make sure the colors of the speaker terminalsmatch the colors of the connecting plugs.•Insert the black wire into the black(–) terminal and the gray wire intothe gray (+) terminal.•Make sure the polarities (+ and –)are correct.BlackPress down the terminaltab on the back of thespeaker.1Insert the wire into theterminal and release theterminal tab. 2Connect the connecting plugs tothe back of the DVD player.3Gray14Back of the Speakers Back of the Main UnitRear Speakers•Place these speakers behind your listening position.•If there isn't enough room, place these speakers to face each other.•Place them about 60 to 90cm (2 to 3feet) above your ear, facingslightly downward.*Unlike the front and center speakers, the rear speakers are usedto handle mainly sound effects and sound will not come fromthem all the time.Subwoofer•The position of the subwoofer is not so critical. Place it anywhere you like.•Usually, it is placed by a corner near the front speakers.Front Speakers •Place these speakers in front of your listeningposition, facing inwards (about 45°) toward you.•Place the speakers so that their tweeters will be atthe same height as your ear.•Align the front face of the front speakers with thefront face of the center speaker or place themslightly in front of the center speakers.Center Speaker•It is best to install it at the same height as the frontspeakers.•You can also install it directly over or under the TV.Position of the DVD Player•Place it on a stand or cabinet shelf, or underthe TV stand.Selecting the Listening PositionThe listening position should be located about 2.5 to 3times the distance of the TV's screen size away from theTV. Example: For 32" TVs 2~2.4m (6~8feet)For 55" TVs 3.5~4m (11~13feet)13Connecting the SpeakersBefore moving or installing the product, be sure to turn off the power and disconnect the power cord.CONNECTIONSRLCRSLSSWWireless RearSpeaker (L) Wireless RearSpeaker (R)Wireless Rear Amplifier (SWA-1000)(With built-in wireless receiving antenna)SubwooferCenter SpeakerREAR SPEAKER ANTENNAFront Speaker (L)Front Speaker (R)PurpleBlueWhiteRedGrayGreen
Connect your pair ofwireless rear speakers,(L) and (R), to thewireless rear amplifier.1Insert the power plug into an outlet,and then press the POWER buttonon the front panel.•The Power Standby indicator will light up.•To turn off the wireless rear amplifier, press the POWER button in Standby mode.2•Do not connect the wireless rear speakersto the speaker outputs on the back of themain unit. Malfunction may result.•The wireless receiving antenna is built intothe wireless rear amplifier. Keep the unit away from water andmoisture.•For optimal listening performance, makesure that the area around the proposedwireless rear amplifier location is clear ofany obstructions.Connect the wirelesstransmission antenna tothe back of the main unitand tighten the nut byhand.1Raise the wirelesstransmission antenna afull 90 degrees.2Connecting the Wireless Transmission Antenna to the Main Unit•Do not apply a strong shock to thewireless transmission antenna.Breakage may result.•Do not touch the wirelesstransmission antenna duringoperation. Noise or interference tocommunications may result.•Sound will be heard from the wireless rear speakers inDVD 5.1-CH or Dolby Pro Logic II mode only.•In 2-CH mode, no sound will be heard from the wirelessrear speakers.REAR SPEAKERANTENNA•Place the wireless rear amplifier at the rear of the listening position. If the wireless rearamplifier is too close to the main unit, some sound interruption may be heard due tointerference.•If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment,or any other device that uses the same frequency (2.4GHz) near the system, some soundinterruption may be heard due to interference.•The transmission distance of radio wave is about 33 feet, but may vary depending on youroperating environment. If a steel-concrete wall or metallic wall is between the main unitand the wireless rear amplifier, the system may not operate at all because the radio wavecannot penetrate metal.Reset the system if a communication failure occurs, or if the synchronizing signal indicator does not lightup and the "REAR CHK" message blinks on the main unit's display.Reset the system while the main unit and the wireless rear amplifier (SWA-1000) are in Power Standbymode.Resetting Wireless CommunicationWith the main unit turned off, press andhold the remote control's REMAIN buttonfor 4 seconds.•Press the button until the volume control indicatorlights up blue. (The indicator will turn off in 1 second.)With the wireless rear amplifier turnedon, use a ball point pen or a pair oftweezers to press the RESET buttonon the back of the unit 2 to 3 times.21You can turn the mood light on the wireless rear amplifier on or off, as well as change the light to one of 7 differentcolors according to your preference.Turning On the Mood LightPress the POWER on thewireless amplifier.•The Power Standby indicator on thewireless amp panel will light up andthe mood light will turn on.1Press the COLOR MODE button.•Each time the button is pressed, the color changes asfollows: Blue ➞Light Green ➞Red ➞Sky Blue ➞Yellow ➞Pink ➞White.2Turn on the main unit.•The wireless rear amplifier's synchronizing signalindicator will light up.•If Power Standby mode continues, repeat Steps 1to 3 above.3RESET Button•Press the POWER button on the wireless amp.The wireless rear amplifier and the mood light will turn off. When the wireless amp is powered on again, the mood light will be blue.•In Power Standby mode, press the ON/OFF button on the Wireless amp.The mood light will light up or turn off with the last color selected.Turning Off the Mood LightTurning off the Wireless Amp and Mood LightBack of Wireless Rear AmplifierBack of Wireless Rear AmplifierWireless Rear Speaker (R) Wireless Rear Speaker (L)1615CONNECTIONSCautionCautionCautionNoteConnecting Wireless Rear Speakers
1817CONNECTIONSP.SCAN(Progressive Scan) FunctionUnlike regular Interlace Scan, in which two fields of picture information alternate to create theentire picture (odd scan lines, then even scan lines), Progressive Scan uses one field ofinformation (all lines displayed in one pass) to create a clear and detailed picture without visiblescan lines. Press and hold P.SCAN button on the remote controller for over 5 seconds in stopmode.•Pressing and holding the button for over 5 seconds will select "Progressive Scan" and "Interlace Scan"repetitively.In interlaced-scan video, a frame consists of twointerlaced fields (odd and even), where each fieldcontains every other horizontal line in the frame. The odd field of alternating lines is displayed first, andthen the even field is displayed to fill in the alternatinggaps left by the odd field to form a single frame. One frame, displayed every 1/30th of a second, containstwo interfaced fields, thus a total of 60 fields aredisplayed every 1/60th of a second.The interlaced scanning method is intended for capturinga still object. Interlaced Scan (1 FRAME = 2 FIELDS)The progressive scanning method scans one full frame ofvideo consecutively down the screen, line by line.An entire image is drawn at one time, as opposed to theinterlaced scanning process by which a video image isdrawn in a series of passes.The progressive scanning method is desirable for dealingwith moving objects.Progressive Scan (FULL FRAME)What is Progressive (or Non-Interlaced) Scanning?•This function works only on TVs equipped with component video inputs (Y, Pr, Pb) that supportProgressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive scan TVs.)•Depending on the brand and model of your TV, this function may not work.NoteConnecting the Video Out to TVComposite Video (Good Quality)Connect the supplied video cable from the VIDEO OUT jack on the back panel of the systemto the VIDEO IN jack on your television.S-Video (Better Quality)If you television is equipped with an S-Video input, connect an S-Video cable (not supplied)from the S-VIDEO OUT jack on the back panel of the system to the S-VIDEO IN jack onyour television.Component Video (Best Quality)If your television is equipped with Component Video inputs, connect a component videocable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to thecorresponding jacks on your television.CompositeVideo ComponentVideoS-VideoTV•When the Progressive scan mode is selected, the VIDEO and S-VIDEO outputs do not feedany signal. See page 18 to select Progressive Scan.*Depending on your TV, Component Video input jacks may be marked as DVD Video input.Note •This device is designed to work with the NTSC video format. •For normal playback, the video format a DVD disc is recorded inmust coincide with your TV's video format.TV Broadcast System

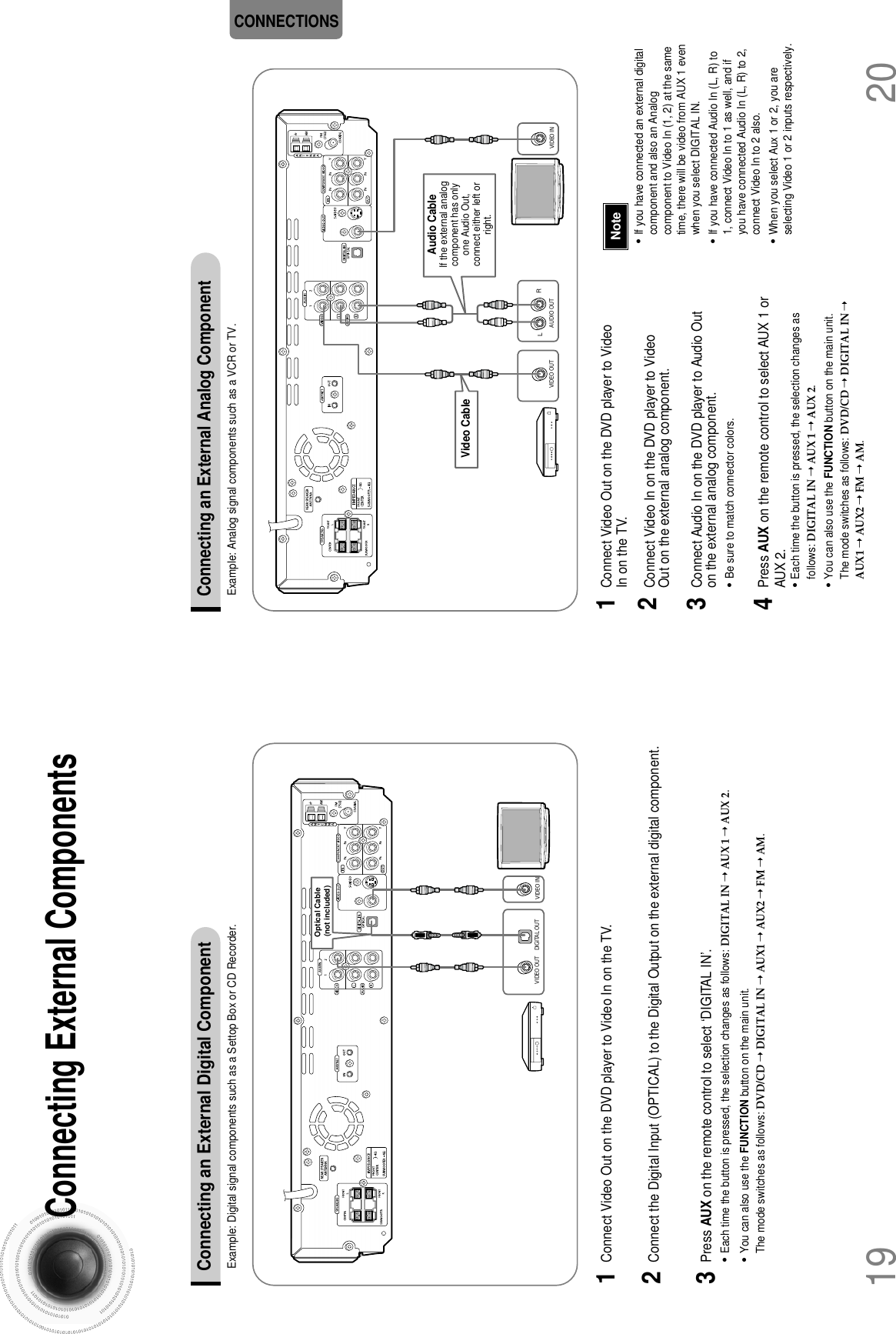

Press AUX on the remote control to select AUX 1 orAUX 2.•Each time the button is pressed, the selection changes asfollows: DIGITAL IN ➝AUX 1 ➝AUX 2.•You can also use the FUNCTION button on the main unit.The mode switches as follows: DVD/CD ➝DIGITAL IN ➝AUX1 ➝AUX2 ➝FM ➝AM.•If you have connected an external digitalcomponent and also an Analogcomponent to Video In (1, 2) at the sametime, there will be video from AUX 1 evenwhen you select DIGITAL IN.•If you have connected Audio In (L, R) to1, connect Video In to 1 as well, and ifyou have connected Audio In (L, R) to 2,connect Video In to 2 also.•When you select Aux 1 or 2, you areselecting Video 1 or 2 inputs respectively.Connect Audio In on the DVD player to Audio Outon the external analog component.•Be sure to match connector colors.Connect Video Out on the DVD player to VideoIn on the TV.1Connect Video In on the DVD player to VideoOut on the external analog component.234VIDEO OUT AUDIO OUT VIDEO INLR20Example: Analog signal components such as a VCR or TV.Connecting an External Analog ComponentVideo CableAudio CableIf the external analogcomponent has onlyone Audio Out,connect either left orright.Press AUX on the remote control to select ‘DIGITAL IN’.•Each time the button is pressed, the selection changes as follows: DIGITAL IN ➝AUX 1 ➝AUX 2.•You can also use the FUNCTION button on the main unit.The mode switches as follows: DVD/CD ➝DIGITAL IN ➝AUX1 ➝AUX2 ➝FM ➝AM.Connecting External ComponentsConnect Video Out on the DVD player to Video In on the TV.1Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.23DIGITAL OUTVIDEO OUT VIDEO IN19Example: Digital signal components such as a Settop Box or CD Recorder.Connecting an External Digital ComponentOptical Cable(not included)NoteCONNECTIONS

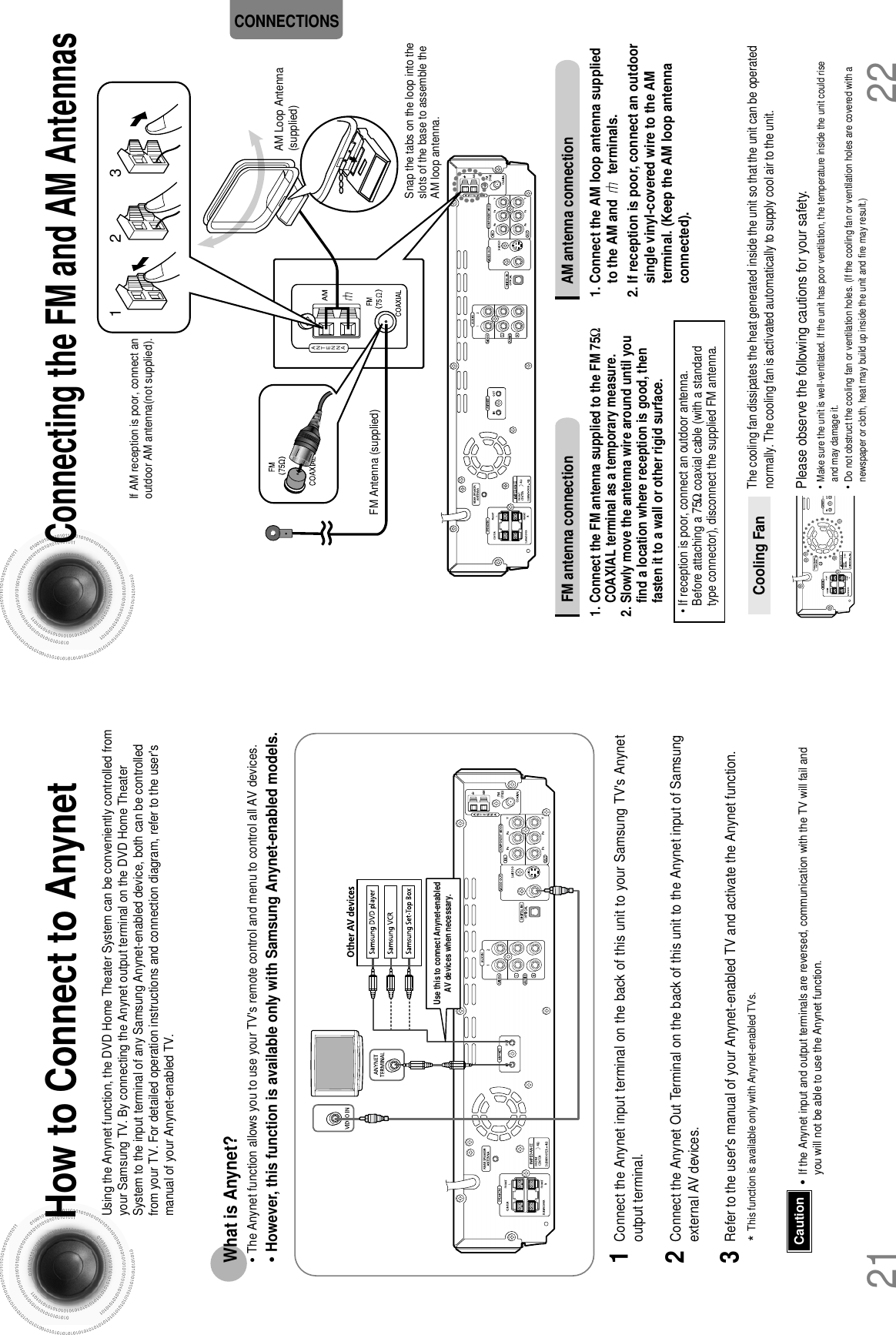

2221CONNECTIONSConnect the Anynet input terminal on the back of this unit to your Samsung TV's Anynetoutput terminal.1Connect the Anynet Out Terminal on the back of this unit to the Anynet input of Samsungexternal AV devices.2Use this to connect Anynet-enabledAV devices when necessary.How to Connect to AnynetUsing the Anynet function, the DVD Home Theater System can be conveniently controlled fromyour Samsung TV. By connecting the Anynet output terminal on the DVD Home TheaterSystem to the input terminal of any Samsung Anynet-enabled device, both can be controlledfrom your TV. For detailed operation instructions and connection diagram, refer to the user'smanual of your Anynet-enabled TV.What is Anynet?•The Anynet function allows you to use your TV's remote control and menu to control all AV devices.•However, this function is available only with Samsung Anynet-enabled models.Refer to the user's manual of your Anynet-enabled TV and activate the Anynet function.3*This function is available only with Anynet-enabled TVs.•If the Anynet input and output terminals are reversed, communication with the TV will fail andyou will not be able to use the Anynet function.CautionThe cooling fan dissipates the heat generated inside the unit so that the unit can be operatednormally. The cooling fan is activated automatically to supply cool air to the unit.Please observe the following cautions for your safety.•Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could riseand may damage it.•Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with anewspaper or cloth, heat may build up inside the unit and fire may result.)Cooling FanConnecting the FM and AM AntennasFM antenna connection AM antenna connection1. Connect the FM antenna supplied to the FM 75ΩCOAXIAL terminal as a temporary measure.2. Slowly move the antenna wire around until youfind a location where reception is good, thenfasten it to a wall or other rigid surface.•If reception is poor, connect an outdoor antenna. Before attaching a 75Ωcoaxial cable (with a standardtype connector), disconnect the supplied FM antenna.1. Connect the AM loop antenna suppliedto the AM and terminals.2. If reception is poor, connect an outdoorsingle vinyl-covered wire to the AMterminal. (Keep the AM loop antennaconnected).Snap the tabs on the loop into theslots of the base to assemble theAM loop antenna.ANTENNA123FM Antenna (supplied)AM Loop Antenna (supplied)If AM reception is poor, connect anoutdoor AM antenna(not supplied).

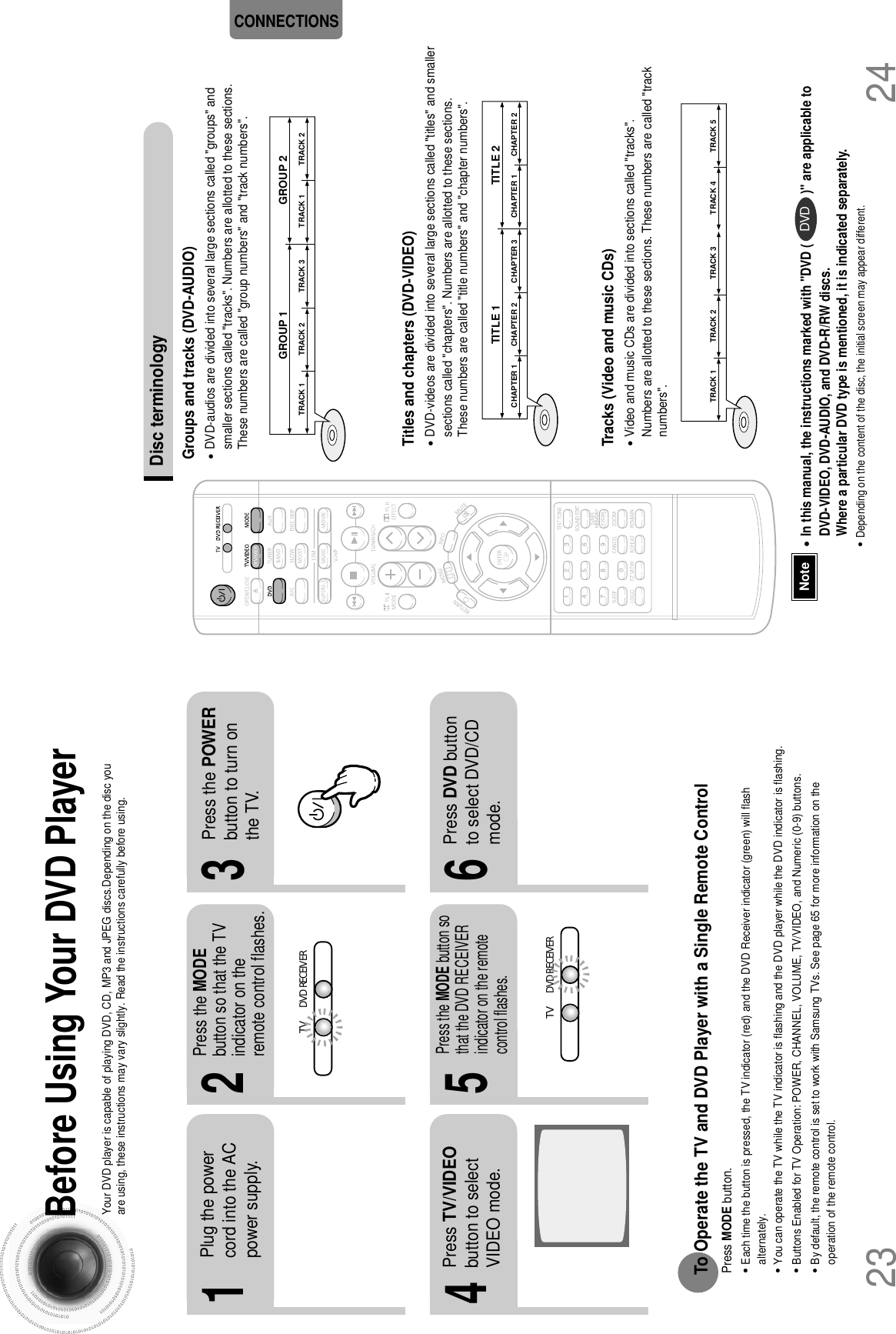

24•Each time the button is pressed, the TV indicator (red) and the DVD Receiver indicator (green) will flashalternately.•You can operate the TV while the TV indicator is flashing and the DVD player while the DVD indicator is flashing.•Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.•By default, the remote control is set to work with Samsung TVs. See page 65 for more information on theoperation of the remote control.Press MODE button.To Operate the TV and DVD Player with a Single Remote Control23Press the MODEbutton so that the TVindicator on theremote control flashes.TVDVD RECEIVERTVDVD RECEIVERPress the POWERbutton to turn onthe TV.56Press the MODE button sothat the DVD RECEIVERindicator on the remotecontrol flashes.Press DVD buttonto select DVD/CDmode.23CONNECTIONSBefore Using Your DVD PlayerYour DVD player is capable of playing DVD, CD, MP3 and JPEG discs.Depending on the disc youare using, these instructions may vary slightly. Read the instructions carefully before using.1Plug the powercord into the ACpower supply.4Press TV/VIDEObutton to selectVIDEO mode.•In this manual, the instructions marked with "DVD ( )" are applicable toDVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.Where a particular DVD type is mentioned, it is indicated separately.•Depending on the content of the disc, the initial screen may appear different.DVDNoteGroups and tracks (DVD-AUDIO)•DVD-audios are divided into several large sections called "groups" andsmaller sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers".GROUP 1 GROUP 2TRACK 1 TRACK 2 TRACK 1 TRACK 2TRACK 3Titles and chapters (DVD-VIDEO)•DVD-videos are divided into several large sections called "titles" and smallersections called "chapters". Numbers are allotted to these sections. These numbers are called "title numbers" and "chapter numbers".TITLE 1 TITLE 2CHAPTER 1 CHAPTER 2 CHAPTER 1 CHAPTER 2CHAPTER 3Tracks (Video and music CDs)•Video and music CDs are divided into sections called "tracks". Numbers are allotted to these sections. These numbers are called "tracknumbers".TRACK 1 TRACK 2 TRACK 4 TRACK 5TRACK 3Disc terminology
2625CONNECTIONSDisc Playback21Press OPEN/CLOSE button to open thedisc tray.3Press DISC SKIP button.•Rotate the carousel tray so you can load the third, fourth, andfifth discs .4Close the compartment by pressing theOPEN/CLOSE button again.DVD CD•Playback starts automatically.Load one or more discs.•Place a disc gently into the tray with the disc’s labelfacing up.•To resume playback, press PLAY/PAUSE ( )button again.To temporarily pause playback, press PLAY/PAUSE during playback.•If pressed once, “PRESS PLAY” is displayed and thestop position will be stored in memory. If PLAY/PAUSE ( ) button or ENTER button ispressed, playback resumes from the stop position.(This function works only with DVDs.)•If pressed twice, “STOP” is displayed, and ifPLAY/PAUSE ( ) button is pressed, playbackstarts from the beginning.To stop playback, press STOP during playback.Selecting a Disc in the Disc changerTo select a specific disc, press the corresponding DIRECT PLAY(1, 2, 3, 4, 5) buttons on the front panel or DISC SKIP on theremote control, until the required disc indicator flashes. The DVD/CD function is automatically selected when Disc Skip is pushed.If you wish to play the current disc only, press REPEAT on the remote controlone or more times, until REPEAT : DISC is displayed.If the disc selected is not loaded, the next disc is played automatically.•All the discs will be played in turn, starting with the one selected.
