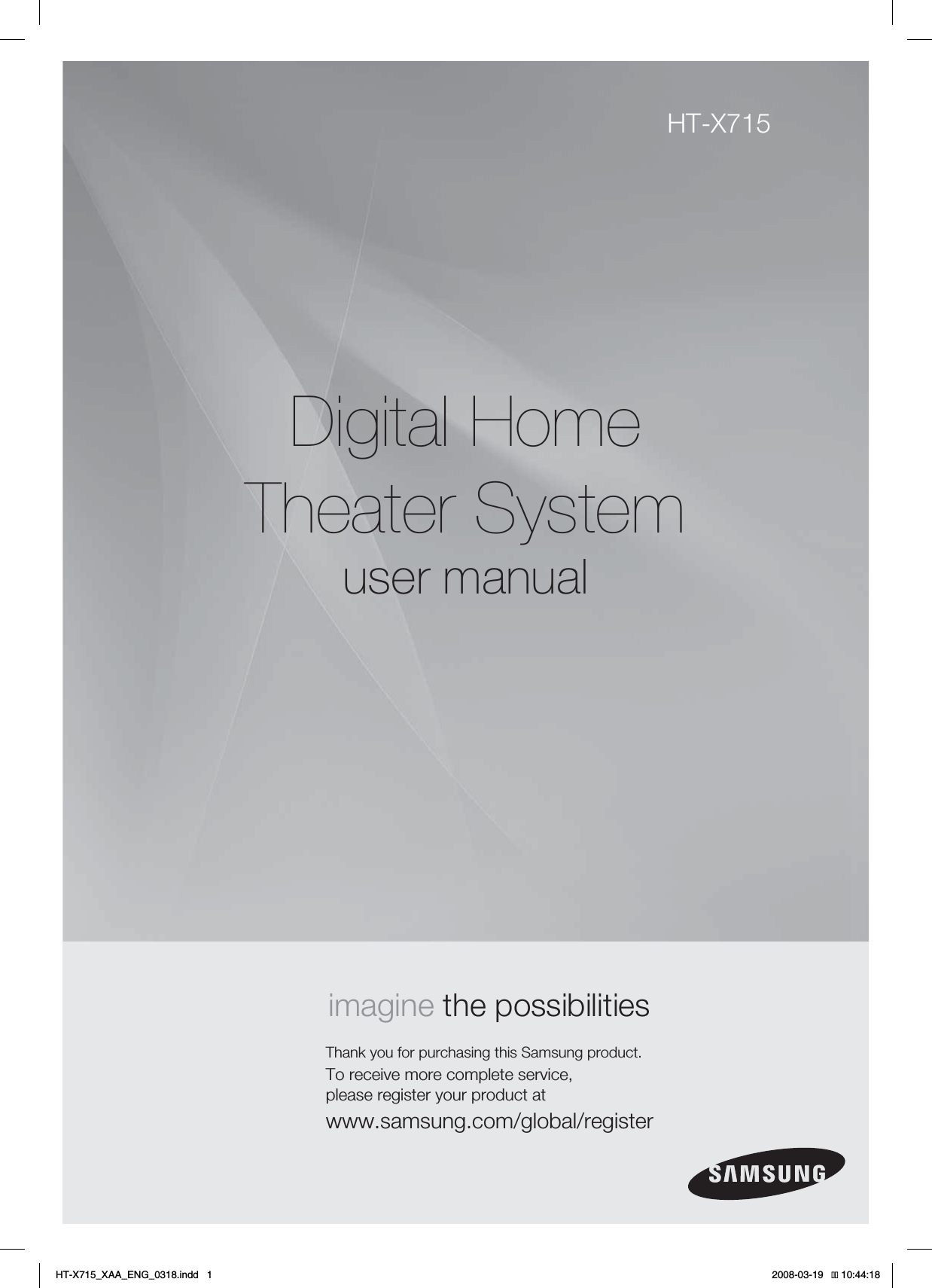

Digital HomeTheater Systemuser manualimagine the possibilitiesThank you for purchasing this Samsung product.To receive more complete service, please register your product atwww.samsung.com/global/registerHT-X715HT-X715_XAA_ENG_0318.indd 1 
2featuresVarious CDs playback This Home Cinema System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD±R/RW.DVD-Audio compatibleExperience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.USB Host supportYou can connect and play fi les from external USB storage devices such as MP3 players, USB fl ash memory, etc. using the Home Theater's USB HOST function.Dolby Pro Logic IIDolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.DTS (Digital Theater Systems)DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.TV Screen Saver FunctionIf the main unit remains in Stop mode for 3 minutes, Samsung logo appears on TV screen.The HT-X715 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.Power Saving FunctionThe HT-X715automatically shuts itself off after 20 minutes in Stop mode.Customized TV Screen DisplayThe HT-X715 allows you to select your favorite image during JPEG, DVD playback and set it as your background wallpaper.HDMIHDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.AV SYNC FunctionVideo may lag behind the audio if the unit is connected to a digital TV.To compensate for this, you can adjust the audio delay time to sync up with the video.Anynet+(HDMI-CEC) FunctionAnynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)iPod supportYou can enjoy music fi les by your connecting iPod to the home theater with the supplied iPod dock.Bluetooth FunctionYou can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!WHAT’S INCLUDEDCheck for the supplied accessories below.Video Cable (AH39-40001V)FM Antenna ( AH42-00017A )iPod Dock Package( AH97-02650A )User's Manual ( AH68-02047C ) Remote Control( AH59-01907E )/ Batteries (AAA size)( 4301-000116 )ASC microphone( AH30-00099A )HT-X715_XAA_ENG_0318.indd 2 
3ENGsafety informationSAFETY WARNINGSTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENThis symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.This symbol indicates important instructions accompanying the product.CLASS 1 LASER PRODUCTThis Compact Disc player is classified as a CLASS 1 LASER product.Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.WARNINGTo reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. If this power supply is used at 240V ac, a suitable plug adapter should be used.CAUTIONApparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time.This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.FCC NOTE (for U.S.A):This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.•••••••••CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKTLUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LASER CLASE 1HT-X715_XAA_ENG_0318.indd 3 
4safety informationIMPORTANT SAFETY INSTRUCTIONSThis device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.IMPORTANT NOTE:FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth an uncontrolled environment.This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Canadian Department of Communications Radio Interference RegulationsThis digital apparatus (Wireless Internet Radio) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.1) Read these instructions.2) Keep these Instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use attachment/accessories specified by the manufacturer.12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13) Unplug this apparatus during lightning storms or when unused for long periods of time.14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.*6:A:##A'0)AKPFF 

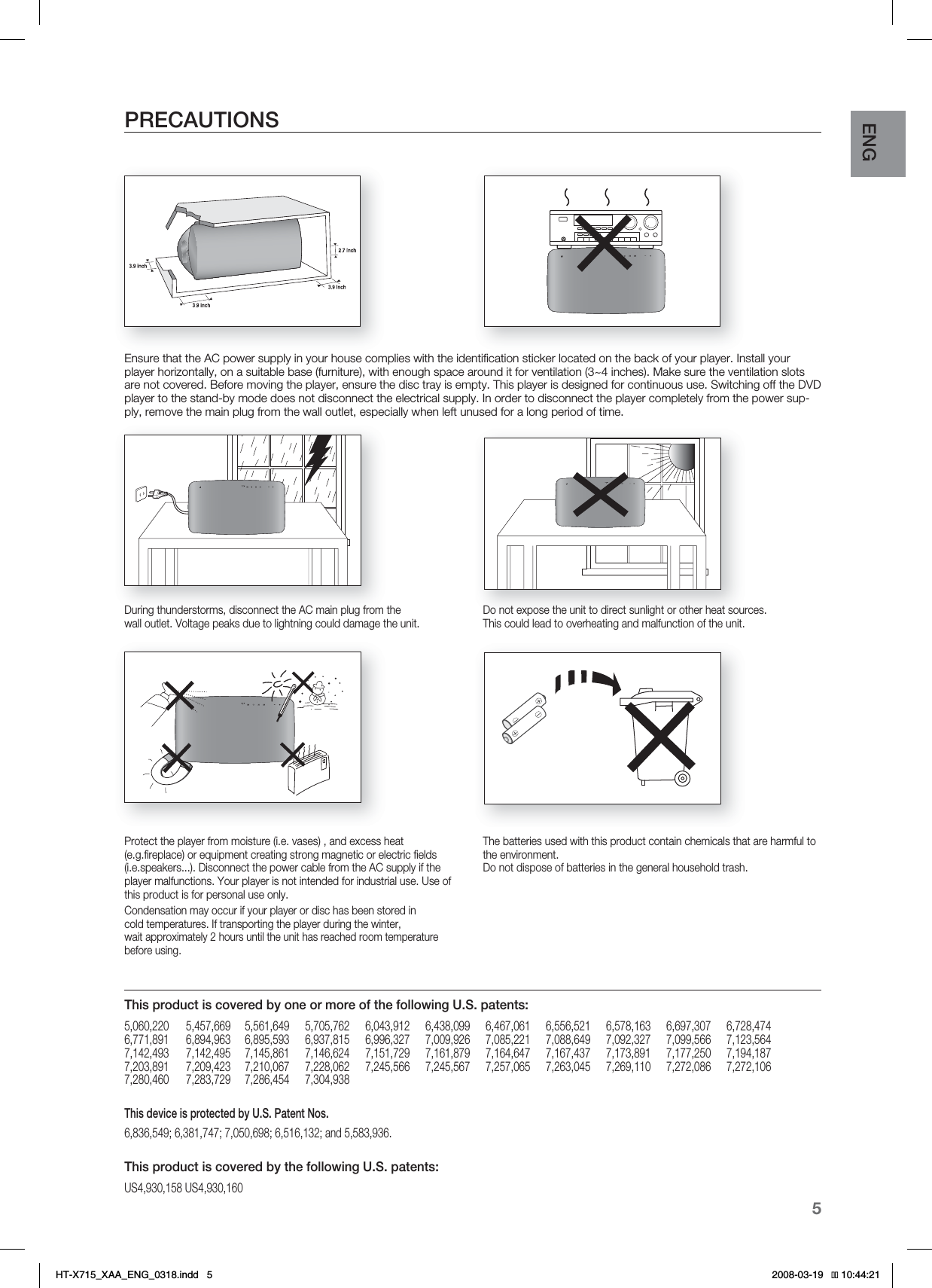

5ENGPRECAUTIONSEnsure that the AC power supply in your house complies with the identifi cation sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power sup-ply, remove the main plug from the wall outlet, especially when left unused for a long period of time.During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.Protect the player from moisture (i.e. vases) , and excess heat (e.g.fi replace) or equipment creating strong magnetic or electric fi elds (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.Do not expose the unit to direct sunlight or other heat sources.This could lead to overheating and malfunction of the unit. The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.This product is covered by one or more of the following U.S. patents:5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,4746,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327 7,099,566 7,123,5647,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891 7,177,250 7,194,1877,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,1067,280,460 7,283,729 7,286,454 7,304,938This device is protected by U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.This product is covered by the following U.S. patents:US4,930,158 US4,930,160HT-X715_XAA_ENG_0318.indd 5 
6contentsFEATURES22 What’s includedSAFETY INFORMATION33 Safety Warnings4 Important Safety Instructions5 PrecautionsGETTING STARTED88 Before Reading the User’s Manual9 Playable Discs9 Do not use the following types of disc!9 Copy Protection10 Disc Type and CharacteristicsDESCRIPTION1111 Front Panel12 Rear PanelREMOTE CONTROL1313 Setting the Remote Control14 Tour of the Remote ControlCONNECTIONS1717 Connecting the Speakers19 Connecting the Optional Wireless ReceivingAmplifier21 Connecting the Video Out to your TV23 HDMI Function24 Connecting Audio from External Components26 Connecting iPod28 Connecting the FM AntennaBEFORE USING YOUR HOME THEATER29PLAYBACK3030 Disc Playback31 MP3/WMA-CD Playback32 JPEG File Playback33 DivX Playback35 Using the Playback Function43 Using the iPod44 Using the BLUETOOTH46 Playing Media Files using the USB HostFeatureHT-X715_XAA_ENG_0318.indd 6 
7ENGSYSTEM SETUP4848 Setting the Language49 Setting TV Screen Type50 Setting Parental Controls (Rating Level)50 Setting the Password51 Setting the Wallpaper51 To Select One of the 3 Wallpaper SettingsYou've Made52 DVD Playback Mode52 Setting the SPEAKER MODE53 Setting the Delay Time54 Setting the Test Tone54 Setting the Audio55 Setting the DRC (Dynamic RangeCompression)56 Setting the AV SYNC56 Setting the HDMI Audio57 Sound Field (DSP)/EQ Function58 Dolby Pro Logic II Mode58 Dolby Pro Logic II Effect58 P.BASSRADIO5959 Listening to Radio59 Presetting StationsCONVENIENT FUNCTION6060 Sleep Timer Function60 Adjusting Display Brightness60 Mute Function60 P.BASS61 ASC (Auto Sound Calibration) Setup61 S.VOL (Smart Volume)61 Audio UpscalingTROUBLESHOOTING62USB HOST FEATURE SUPPORTED PRODUCTS6565 Digital Camera65 USB Flash Disc65 MP3 PlayerAPPENDIX6666 Cautions on Handling and Storing Discs67 SpecificationsLANGUAGE CODE LIST64HT-X715_XAA_ENG_0318.indd 7 
8getting startedBEFORE READING THE USER’S MANUALMake sure to check the following terms before reading the user manual.Icons that will be used in manualIcon Term DefinitionDVD This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode.BCD This involves a function available with a data CD (CD-R or CD-RW).AMP3 This involves a function available with CD-R/-RW discs.GJPEG This involves a function available with CD-R/-RW discs.DDivX This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW)Caution This involves a case where a function does not operate or settings may be cancelled.MNote This involves tips or instructions on the page that help each function operate.In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is mentioned, it is indicated separately.If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.About the use of this user’s manualBe sure to be familiar with Safety Instructions before using this product. (See pages 3~4)If a problem occurs, check the Troubleshooting. (See pages 62~63)Copyright© 2008 Samsung Electronics Co.,Ltd.All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.M1)2)HT-X715_XAA_ENG_0318.indd 8 
9ENG ●GETTING STARTEDPLAYABLE DISCSDisc Type Mark (Logo) Recorded Signals Disc Size Max. Playing TimeDVD-AUDIODVD-VIDEO AUDIO + VIDEO 5 inchesApprox. 240 min. (single-sided)Approx. 480 min. (double-sided)3 1/2 inchesApprox. 80 min. (single-sided)Approx. 160 min. (double-sided)AUDIO-CDCOMPACTDIGITAL AUDIOAUDIO5 inches 74 min.3 1/2 inches 20 min.DivX AUDIO + VIDEO5 inches 74 min.3 1/2 inches 20 min.DO NOT USE THE FOLLOWING TYPES OF DISC!LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player.If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.DVD discs purchased abroad may not play on this player.If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the TV screen. COPY PROTECTIONMany DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.••••DVD (Digital Versatile Disc)offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.The Region Number for this player is given on the rear panel of the player.(Your DVD player will only play DVDs that are labeled with identical region codes.)1 6~HT-X715_XAA_ENG_0318.indd 9 
10getting startedDISC TYPE AND CHARACTERISTICSThis product does not support Secure (DRM) Media files. CD-R DiscsSome CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minute as they may not be played back.Some CD-RW (Rewritable) media, may not be playable. Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.CD-R MP3 DiscsOnly CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).Use discs recorded with a compression/decompression data rate greater than 128Kbps.Only files with the ".mp3" and ".MP3" extensions can be played.Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.A maximum of 500 tracks can be played per CD. A maximum of 300 folders can be played per CD.CD-R JPEG DiscsOnly files with the "jpg" extensions can be played.If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.A maximum of 9,999 images can be stored on a single CD.When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.DVD±R/RW, CD-R/RW DivX DiscsSince this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.Software updates for incompatible formats are not supported.(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)Sections with a high frame rate might not be played while playing a DivX file.For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".❖••••❖•••••••••❖••••••••❖••••HT-X715_XAA_ENG_0318.indd 10 
11ENG ●DESCRIPTIONdescriptionFRONT PANELPOWER( ) BUTTON PLAY/PAUSE ( ) BUTTON AUX IN 1 JackFUNCTION BUTTON TUNING UP & SKIP ( ) BUTTON10Headphone JackTUNING DOWN & SKIP ( )BUTTON Volume Control11iPod JackSTOP (¦) BUTTON DISC TRAY12USB Port91011128HT-X715_XAA_ENG_0318.indd 11 
12descriptionREAR PANEL5.1 CHANNEL SPEAKER OUTPUT CONNECTORS Connect the front, center, rear, subwoofer speakers.COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.AUX IN 2 JACKS Connect to the 2CH analog output of an external device (such as a VCR)VIDEO OUTPUT JACK Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.External Digital Optical Input Jack Use this to connect external equipment capable of digital output.TX CARD CONNECTION (WIRELESS) The TX card enables communication between the main unit and the optional wireless receiver amplifi er.FM 75š COAXIAL JACK Connect the FM antenna.COOLING FANThe fan always revolves when the power is on. Ensure a minimum of 4 inches of clear space on all sides of the fan when installing the product.HDMI OUT JACK Use the HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.192 3 4 5 687HT-X715_XAA_ENG_0318.indd 12 

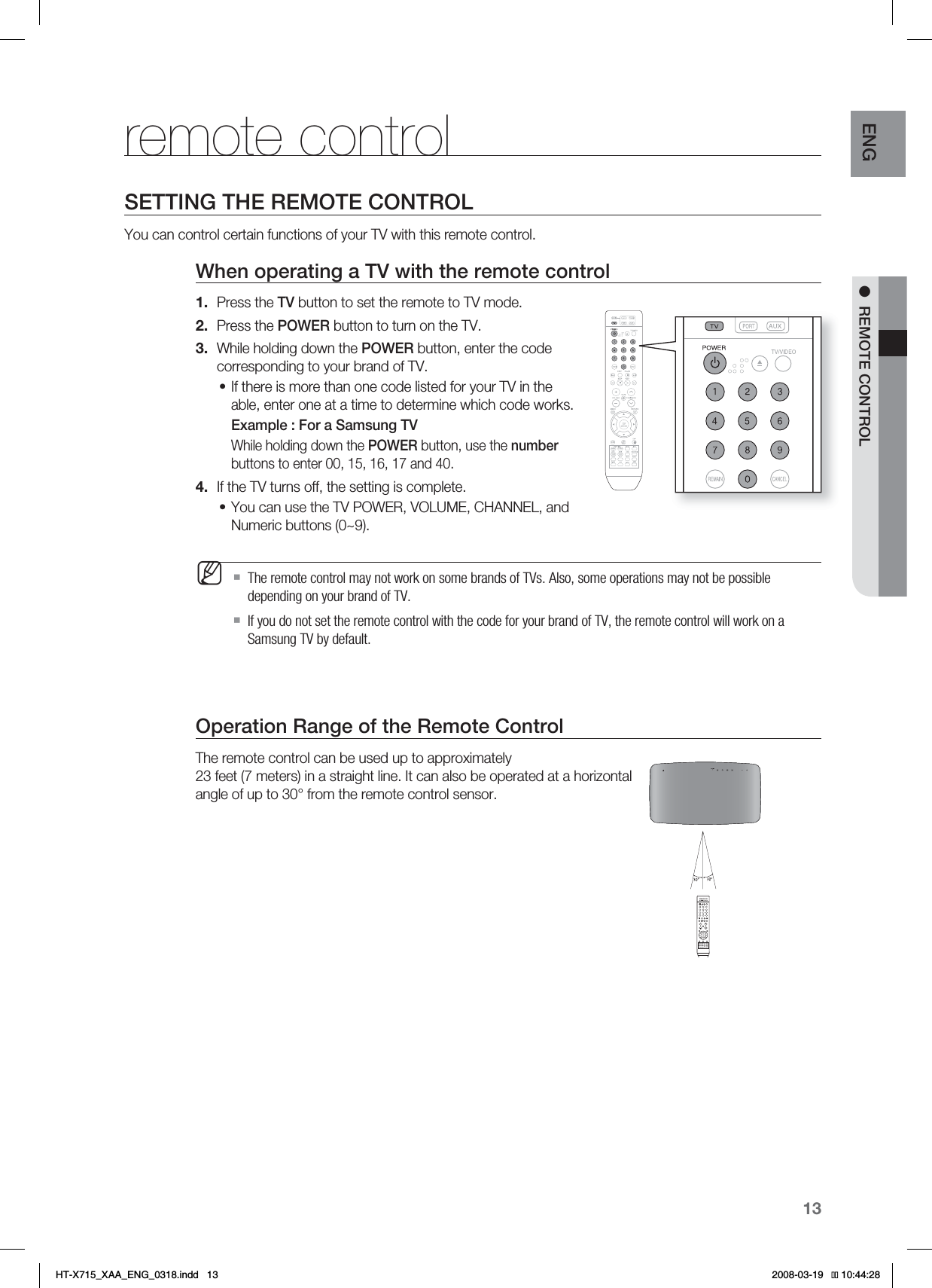

13ENG ●REMOTE CONTROLremote controlSETTING THE REMOTE CONTROLYou can control certain functions of your TV with this remote control.When operating a TV with the remote controlPress the TV button to set the remote to TV mode. Press the POWER button to turn on the TV.While holding down the POWER button, enter the code corresponding to your brand of TV.If there is more than one code listed for your TV in the able, enter one at a time to determine which code works.Example : For a Samsung TVWhile holding down the POWER button, use the numberbuttons to enter 00, 15, 16, 17 and 40.If the TV turns off, the setting is complete.You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).The remote control may not work on some brands of TVs. Also, some operations may not be possible depending on your brand of TV. If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.Operation Range of the Remote ControlThe remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.1.2.3.•4.•MHT-X715_XAA_ENG_0318.indd 13 
14remote controlTOUR OF THE REMOTE CONTROL211514131211109876543191716363534333231302928272625242322212037383918*6:A:##A'0)AKPFF 
15ENG ●REMOTE CONTROLPORT button21TV/VIDEO button22EJECT button23CANCEL button24PAUSE button25 PLAY button STOP buttonSEARCH buttons26TUNING/CH buttonMUTE buttonRETURN buttonCursor/ENTER buttonSUBTITLE buttonEXIT buttonINFO buttonSOUND EDIT buttonREPEAT buttonAUDIO UPSCALE buttonDSP/EQ buttonLOGO buttonDIMMER buttonS.VOL buttonDVD RECEIVER buttonTV buttonPOWER buttonNumber (0~9) buttonsREMAIN buttonSTEP buttonTuning Preset/CD Skip buttonsVOLUME buttonMENU buttonAUDIO buttonPL II MODE buttonTUNER MEMORY, SD(Standard Definition)/HD(High Definition) buttonZOOM buttonP.BASS buttonSLEEP buttonASC buttonSLOW, MO/ST buttonPL II EFFECT buttonDVD DVD buttonTUNER button AUX button37363534333231302928271716151413121110987654321Insert Remote Batteries1. Remove the battery cover in the direction of the arrow.2. Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).3. Replace the battery cover.Follow these precautions to avoid leaking or cracking cells:Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–). Use the correct type of batteries. Batteries that look similar may differ in voltage.Always replace both batteries at the same time.Do not expose the batteries to heat or a flame.M182019 3839HT-X715_XAA_ENG_0318.indd 15 
16remote controlTV Brand Code ListNo. Brand Code No. Brand Code1 Admiral (M.Wards) 56, 57, 58 44 MTC 182 A Mark 01, 15 45 NEC 18, 19, 20, 40, 59, 603 Anam01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 46 Nikei 0312, 13, 14 47 Onking 034 AOC 01, 18, 40, 48 48 Onwa 035Bell & Howell (M.Wards)57, 58, 81 49 Panasonic 06, 07, 08, 09, 54, 66, 67, 73, 746 Brocsonic 59, 60 50 Penney 187 Candle 18 51 Philco03, 15, 17, 18, 48, 54, 59, 62, 69, 908 Cetronic 03 52 Philips 15, 17, 18, 40, 48, 54, 62, 729 Citizen 03, 18, 25 53 Pioneer 63, 66, 80, 9110 Cinema 97 54 Portland 15, 18, 5911 Classic 03 55 Proton 4012 Concerto 18 56 Quasar 06, 66, 6713 Contec 46 57 Radio Shack 17, 48, 56, 60, 61, 7514 Coronado 15 58 RCA/Proscan 18, 59, 67, 76, 77, 78, 92, 93, 9415 Craig 03, 05, 61, 82, 83, 84 59 Realistic 03, 1916 Croslex 62 60 Sampo 4017 Crown 03 61 Samsung00, 15, 16, 17, 40, 43, 46, 47, 48, 49,18 Curtis Mates 59, 61, 63 59, 60, 9819 CXC 03 62 Sanyo 19, 61, 6520 Daewoo02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,63 Scott 03, 40, 60, 6125, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 9064 Sears 15, 18, 1921 Daytron 40 65 Sharp 15, 57, 6422 Dynasty 03 66Signature 2000 (M.Wards)57, 5823 Emerson03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 8567 Sony 50, 51, 52, 53, 5524 Fisher 19, 65 68 Soundesign 03, 4025 Funai 03 69 Spectricon 0126 Futuretech 03 70 SSS 1827 General Electric (GE) 06, 40, 56, 59, 66, 67, 68 71 Sylvania 18, 40, 48, 54, 59, 60, 6228 Hall Mark 40 72 Symphonic 61, 95, 9629 Hitachi 15, 18, 50, 59, 69 73 Tatung 0630 Inkel 45 74 Techwood 1831 JC Penny 56, 59, 67, 86 75 Teknika 03, 15, 18, 2532 JVC 70 76 TMK 18, 4033 KTV 59, 61, 87, 88 77 Toshiba 19, 57, 63, 7134 KEC 03, 15, 40 78 Vidtech 1835 KMC 15 79 Videch 59, 60, 6936 LG (Goldstar)01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 4480 Wards 15, 17, 18, 40, 48, 54, 60, 6437 Luxman 18 81 Yamaha 1838 LXI (Sears) 19, 54, 56, 59, 60, 62, 63, 65, 71 82 York 4039 Magnavox15, 17, 18, 48, 54, 59, 60, 62, 72, 8983 Yupiteru 0340 Marantz 40, 54 84 Zenith 58, 7941 Matsui 54 85 Zonda 0142 MGA 18, 40 86 Dongyang 03, 5443 Mitsubishi/MGA 18, 40, 59, 60, 75HT-X715_XAA_ENG_0318.indd 16 
17ENG ●CONNECTIONSconnectionsThis section involves various methods of connecting the Digital Home Theater to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.CONNECTING THE SPEAKERSPosition of Digital Home TheaterPlace it on a stand or cabinet shelf, or under the TV stand.Selecting the Listening PositionThe listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TVs 2~2.4m (6~8feet)For 55" TVs 3.5~4m (11~13feet)Front Speakers Place these speakers in front of your listening position, facing inwards (about 45°) toward you.Place the speakers so that their tweeters will be at the same height as your ear.Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.Subwoofer The position of the subwoofer is not so critical. Place it anywhere you like.Center Speaker It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.Rear Speakers Place these speakers behind your listening position. If there isn't enough room, place these speakers such that they face each other. Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.* Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.HT-X715_XAA_ENG_0318.indd 17 
18connectionsConnecting The SpeakersPress down the terminal tab on the back of the speaker. Insert the black wire into the black terminal (–) and the red wire into the red (+) terminal, and then release the tab.Connect the connecting plugs to the back of the Home Theater.Make sure the colors of the speaker terminals match the colors of the connecting plugs.1.2.3.•Black RedSubwooferRear Speaker (R)Center SpeakerFront Speaker (R)Rear Speaker (L)Front Speaker (L)Do not let children play with or near the speakers. They could get hurt if a speaker falls.When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or other objects into the duct (hole) of the subwoofer speaker.Do not hang the subwoofer on the wall through the duct (hole). If you place a speaker near your TV set, screen color may be distorted because of the magnetic fi eld generated by the speaker. If this occurs, place the speaker away from your TV set.JMHT-X715_XAA_ENG_0318.indd 18 
19ENG ●CONNECTIONSCONNECTING THE OPTIONAL WIRELESS RECEIVING AMPLIFIERTo connect the rear speakers by wireless, you have to purchase the wireless receiving module and TX card from your Samsung retailer.When you have Purchased the Wireless Receiving Module (SWA-4000)Connect the front, center and Subwoofer speakers to the DVD Player. Please refer to Page 18.With the DVD Player turned off, insert the TX card into the TX Card Connection(WIRELESS) on the back of the main unit.Hold the TX card so that the slanted side faces downward and insert the card into the port. The TX card enables communication between the main unit and the wireless receiver. Connect the left and right rear speakers to the wireless receiving module. Plug the power cord of the wireless receiving module into the wall outlet and turn the module ON.1.2.••3.4.5.1CH SPEAKERSAUX IN 2 WIRELESSRADIO ANENNAHDMI OUTVIDEO OUTCOMPONENTOUTDIGITAL AUDIO OUTOPTICALFRONTREARCENTERFRONTVIDEOAUDIOREARSUBWOOFERY5.1CH SPEAKERSAUX IN 2 WIRELEVIDEO OUTCOMPONENTOUTDIGITAL AUDOPTICAFRONTREARCENTERFRONTVIDEOAUDIOREARSUBWOOFERYFront Speaker (R)Rear Speaker (L)SubwooferCenter SpeakerRear Speaker (R)WIRELESS RECEIVER MODULEFront Speaker (L)TX cardSlanted side faces downHT-X715_XAA_ENG_0318.indd 19 
20connectionsPlace the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference.If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (5.8GHz) near the system, some sound interruption may be heard due to interference.The transmission distance of a radio wave is about 10m, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.This product(HT-X715) is compatible with the wireless receiver module SWA-3000.Do not insert any other card except the TX card dedicated to the product. The product might be damaged or the card may not be removed easily.Do not insert the TX card upside down or in the reverse direction.Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned on may cause a problem.If the TX Card is inserted, sound is not output from the Rear Speaker connectors on the main unit.The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and moisture.For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions.If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1 channel or Dolby ProLogic II.In 2-CH mode, no sound will be heard from the wireless rear speakers.JMHT-X715_XAA_ENG_0318.indd 20 
