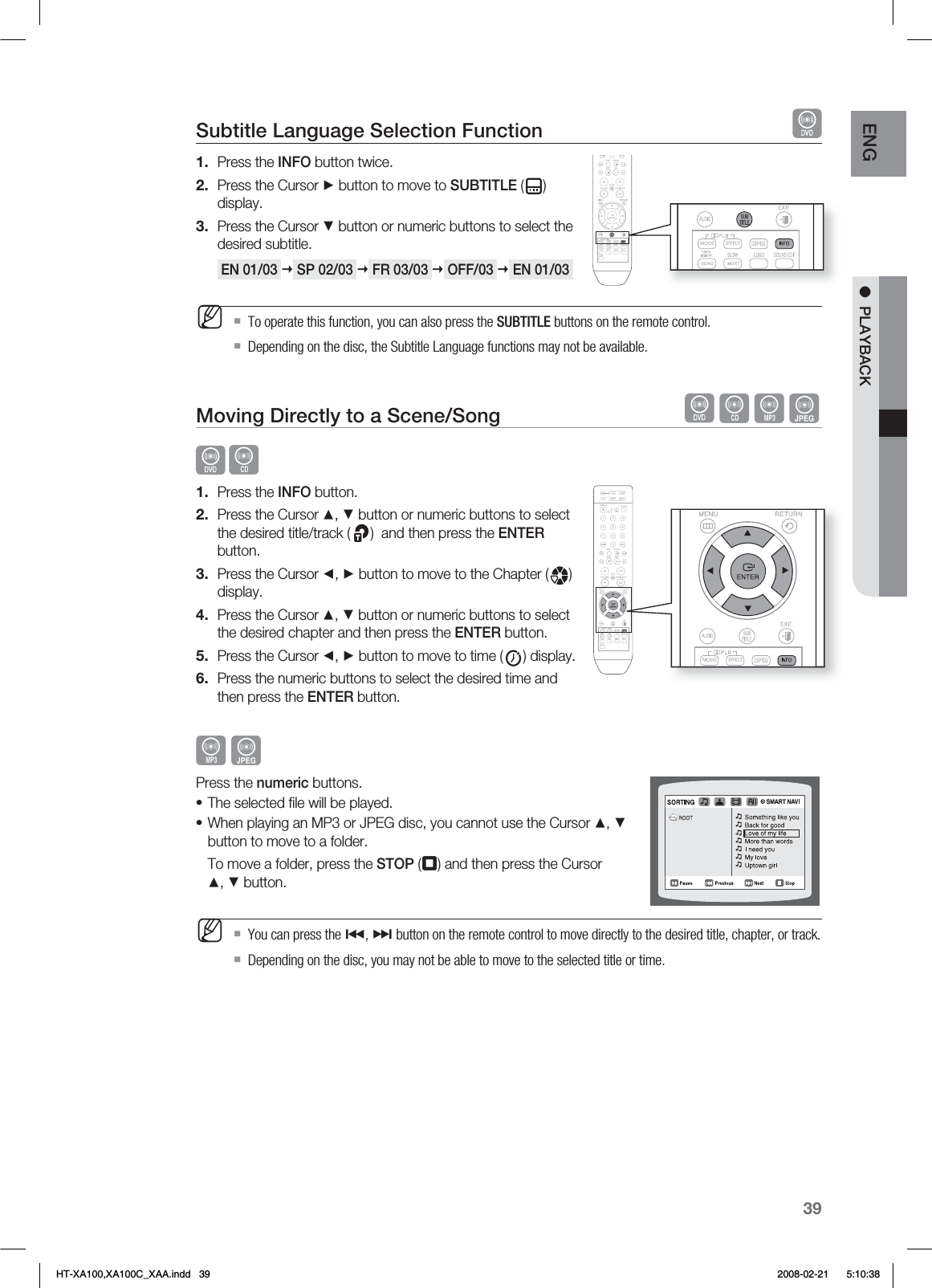

39ENG ● PLAYBACKSubtitle Language Selection Function Press the INFO button twice.Press the Cursor ► button to move to SUBTITLE ( ) display.Press the Cursor ▼ button or numeric buttons to select the desired subtitle. EN 01/03  SP 02/03  FR 03/03  OFF/03  EN 01/03 To operate this function, you can also press the SUBTITLE buttons on the remote control.Depending on the disc, the Subtitle Language functions may not be available.Moving Directly to a Scene/Song BAG BPress the INFO button.Press the Cursor ▲, ▼ button or numeric buttons to select the desired title/track ( ) and then press the ENTER button.Press the Cursor ◄, ► button to move to the Chapter ( ) display.Press the Cursor ▲, ▼ button or numeric buttons to select the desired chapter and then press the ENTER button.Press the Cursor ◄, ► button to move to time ( ) display.Press the numeric buttons to select the desired time and then press the ENTER button.AGPress the numeric buttons.The selected ﬁ le will be played.When playing an MP3 or JPEG disc, you cannot use the Cursor ▲, ▼ button to move to a folder. To move a folder, press the STOP (¦) and then press the Cursor ▲, ▼ button.You can press the #, $ button on the remote control to move directly to the desired title, chapter, or track.Depending on the disc, you may not be able to move to the selected title or time.1.2.3.M1.2.3.4.5.6.••MHT-XA100,XA100C_XAA.indd 39 2008-02-21 5:10:38

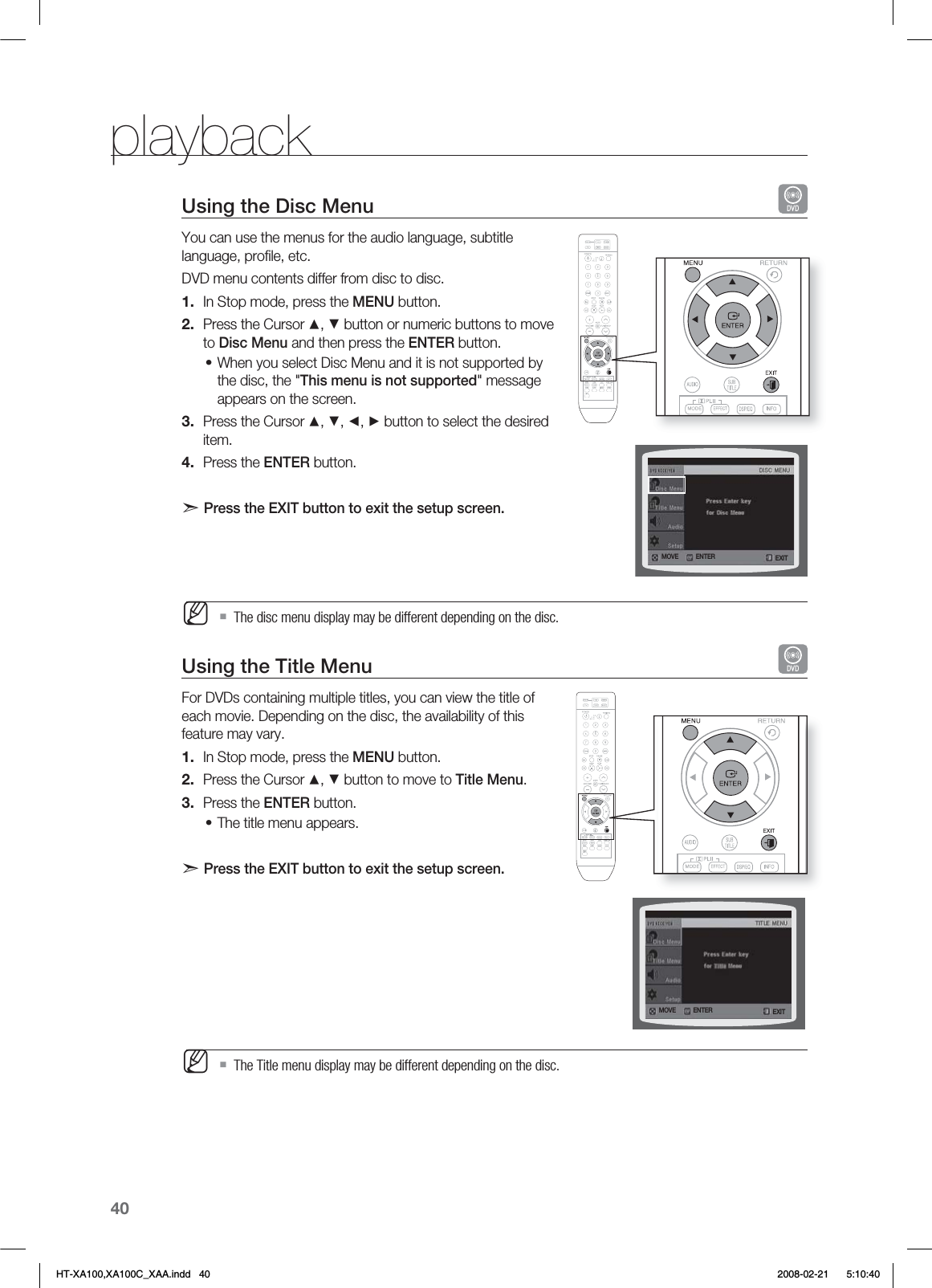

40playbackUsing the Disc Menu You can use the menus for the audio language, subtitle language, proﬁ le, etc. DVD menu contents differ from disc to disc.In Stop mode, press the MENU button.Press the Cursor ▲, ▼ button or numeric buttons to move to Disc Menu and then press the ENTER button.When you select Disc Menu and it is not supported by the disc, the "This menu is not supported" message appears on the screen.Press the Cursor ▲, ▼, ◄, ► button to select the desired item.Press the ENTER button.d Press the EXIT button to exit the setup screen.The disc menu display may be different depending on the disc.Using the Title Menu For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.In Stop mode, press the MENU button.Press the Cursor ▲, ▼ button to move to Title Menu.Press the ENTER button.The title menu appears.d Press the EXIT button to exit the setup screen.The Title menu display may be different depending on the disc.1.2.•3.4.M1.2.3.•M&/5&3.07& &9*5&/5&3.07& &9*5HT-XA100,XA100C_XAA.indd 40 2008-02-21 5:10:40

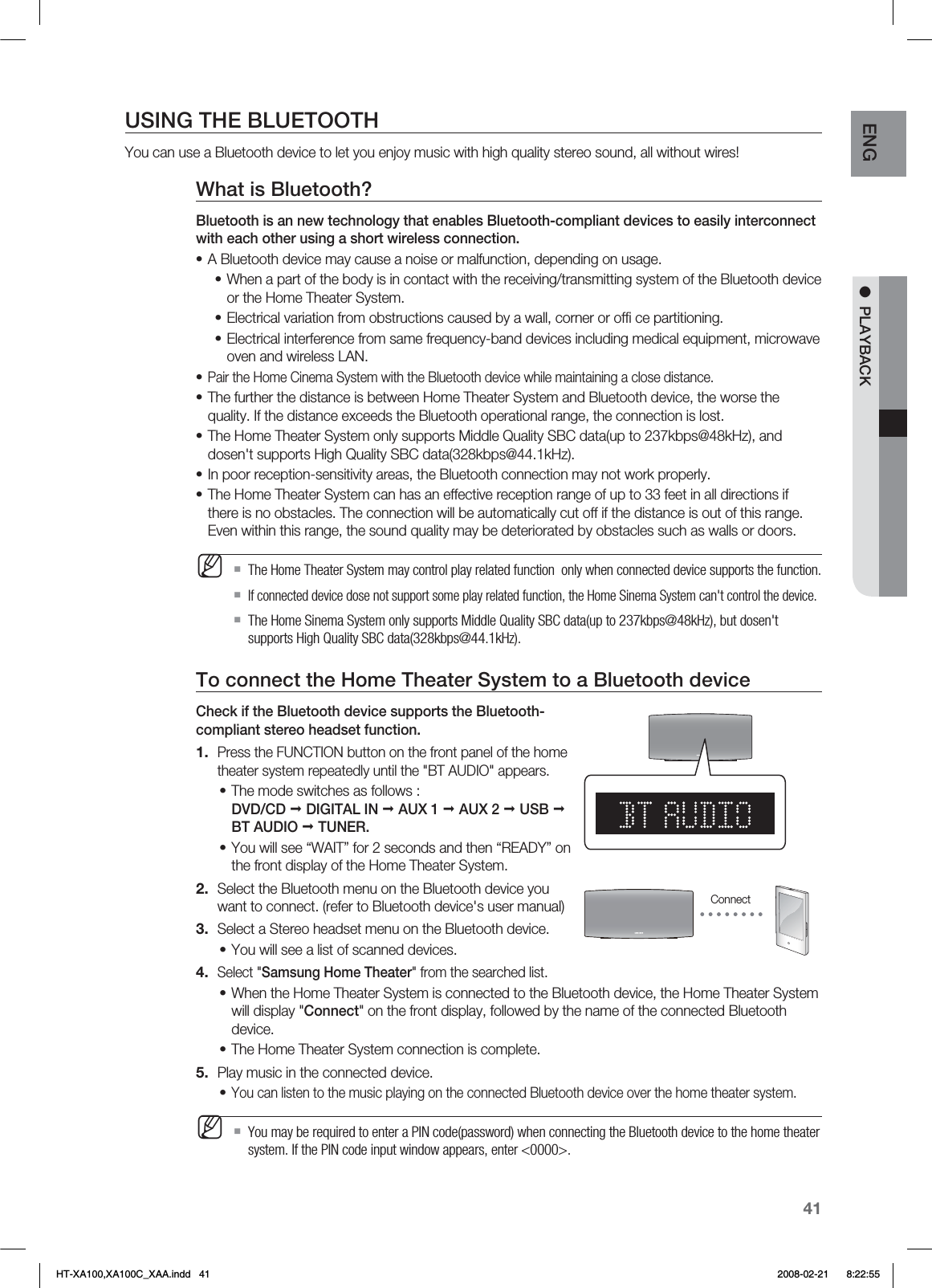

41ENG ● PLAYBACKUSING THE BLUETOOTHYou can use a Bluetooth device to let you enjoy music with high quality stereo sound, all without wires!What is Bluetooth? Bluetooth is an new technology that enables Bluetooth-compliant devices to easily interconnect with each other using a short wireless connection.A Bluetooth device may cause a noise or malfunction, depending on usage.When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device or the Home Theater System.Electrical variation from obstructions caused by a wall, corner or ofﬁ ce partitioning.Electrical interference from same frequency-band devices including medical equipment, microwave oven and wireless LAN.Pair the Home Cinema System with the Bluetooth device while maintaining a close distance.The further the distance is between Home Theater System and Bluetooth device, the worse the quality. If the distance exceeds the Bluetooth operational range, the connection is lost.The Home Theater System only supports Middle Quality SBC data(up to 237kbps@48kHz), and dosen't supports High Quality SBC data(328kbps@44.1kHz).In poor reception-sensitivity areas, the Bluetooth connection may not work properly.The Home Theater System can has an effective reception range of up to 33 feet in all directions if there is no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be deteriorated by obstacles such as walls or doors.The Home Theater System may control play related function only when connected device supports the function.If connected device dose not support some play related function, the Home Sinema System can't control the device.The Home Sinema System only supports Middle Quality SBC data(up to 237kbps@48kHz), but dosen't supports High Quality SBC data(328kbps@44.1kHz).To connect the Home Theater System to a Bluetooth device Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function. Press the FUNCTION button on the front panel of the home theater system repeatedly until the "BT AUDIO" appears.The mode switches as follows : DVD/CD  DIGITAL IN  AUX 1  AUX 2  USB  BT AUDIO  TUNER.You will see “WAIT” for 2 seconds and then “READY” on the front display of the Home Theater System.Select the Bluetooth menu on the Bluetooth device you want to connect. (refer to Bluetooth device's user manual)Select a Stereo headset menu on the Bluetooth device.You will see a list of scanned devices.Select "Samsung Home Theater" from the searched list.When the Home Theater System is connected to the Bluetooth device, the Home Theater System will display "Connect" on the front display, followed by the name of the connected Bluetooth device.The Home Theater System connection is complete.Play music in the connected device.You can listen to the music playing on the connected Bluetooth device over the home theater system.You may be required to enter a PIN code(password) when connecting the Bluetooth device to the home theater system. If the PIN code input window appears, enter <0000>.•••••••••M1.••2.3.•4.••5.•MConnectHT-XA100,XA100C_XAA.indd 41 2008-02-21 8:22:55

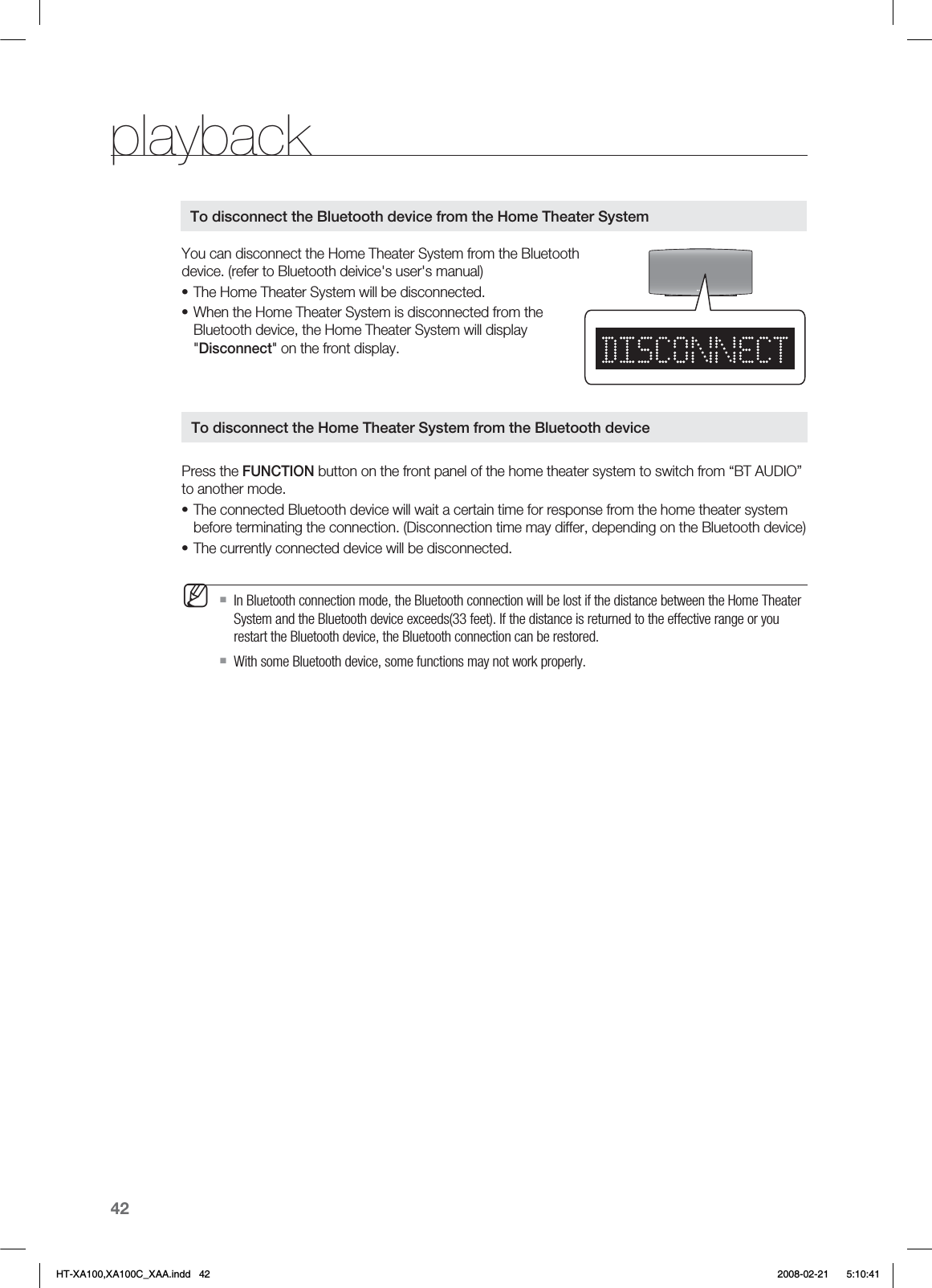

42playbackYou can disconnect the Home Theater System from the Bluetooth device. (refer to Bluetooth deivice's user's manual)The Home Theater System will be disconnected.When the Home Theater System is disconnected from the Bluetooth device, the Home Theater System will display "Disconnect" on the front display.Press the FUNCTION button on the front panel of the home theater system to switch from “BT AUDIO” to another mode.The connected Bluetooth device will wait a certain time for response from the home theater system before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)The currently connected device will be disconnected.In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Home Theater System and the Bluetooth device exceeds(33 feet). If the distance is returned to the effective range or you restart the Bluetooth device, the Bluetooth connection can be restored.With some Bluetooth device, some functions may not work properly.••••MTo disconnect the Bluetooth device from the Home Theater SystemTo disconnect the Home Theater System from the Bluetooth deviceHT-XA100,XA100C_XAA.indd 42 2008-02-21 5:10:41

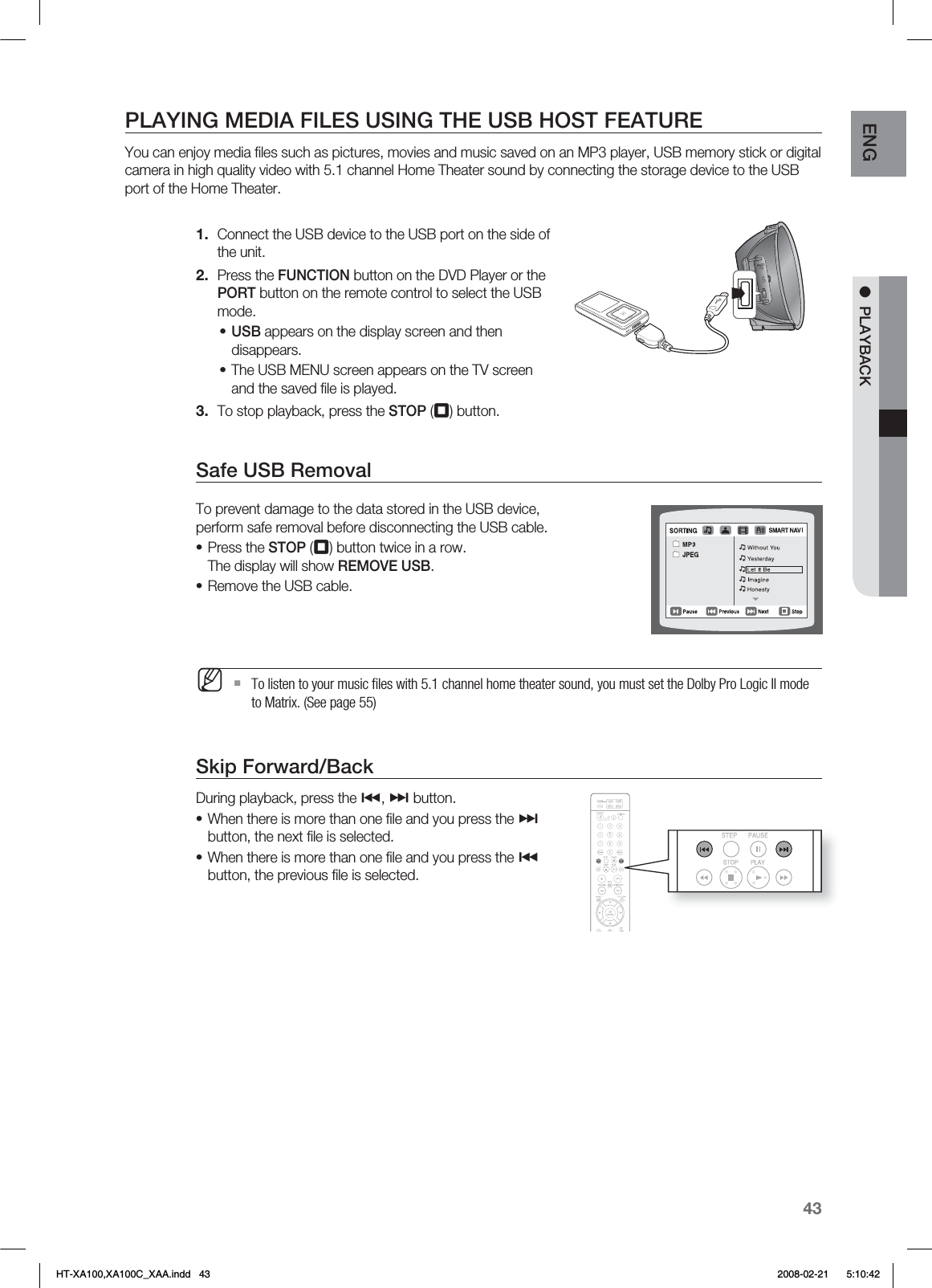

43ENG ● PLAYBACKPLAYING MEDIA FILES USING THE USB HOST FEATUREYou can enjoy media ﬁ les such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel Home Theater sound by connecting the storage device to the USB port of the Home Theater.Connect the USB device to the USB port on the side of the unit.Press the FUNCTION button on the DVD Player or the PORT button on the remote control to select the USB mode.USB appears on the display screen and then disappears.The USB MENU screen appears on the TV screen and the saved ﬁ le is played.To stop playback, press the STOP (¦) button.Safe USB RemovalTo prevent damage to the data stored in the USB device, perform safe removal before disconnecting the USB cable.Press the STOP (¦) button twice in a row.The display will show REMOVE USB.Remove the USB cable. To listen to your music ﬁ les with 5.1 channel home theater sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 55)Skip Forward/Back During playback, press the #, $ button.When there is more than one ﬁ le and you press the $ button, the next ﬁ le is selected.When there is more than one ﬁ le and you press the # button, the previous ﬁ le is selected.1.2.••3.••M••HT-XA100,XA100C_XAA.indd 43 2008-02-21 5:10:42

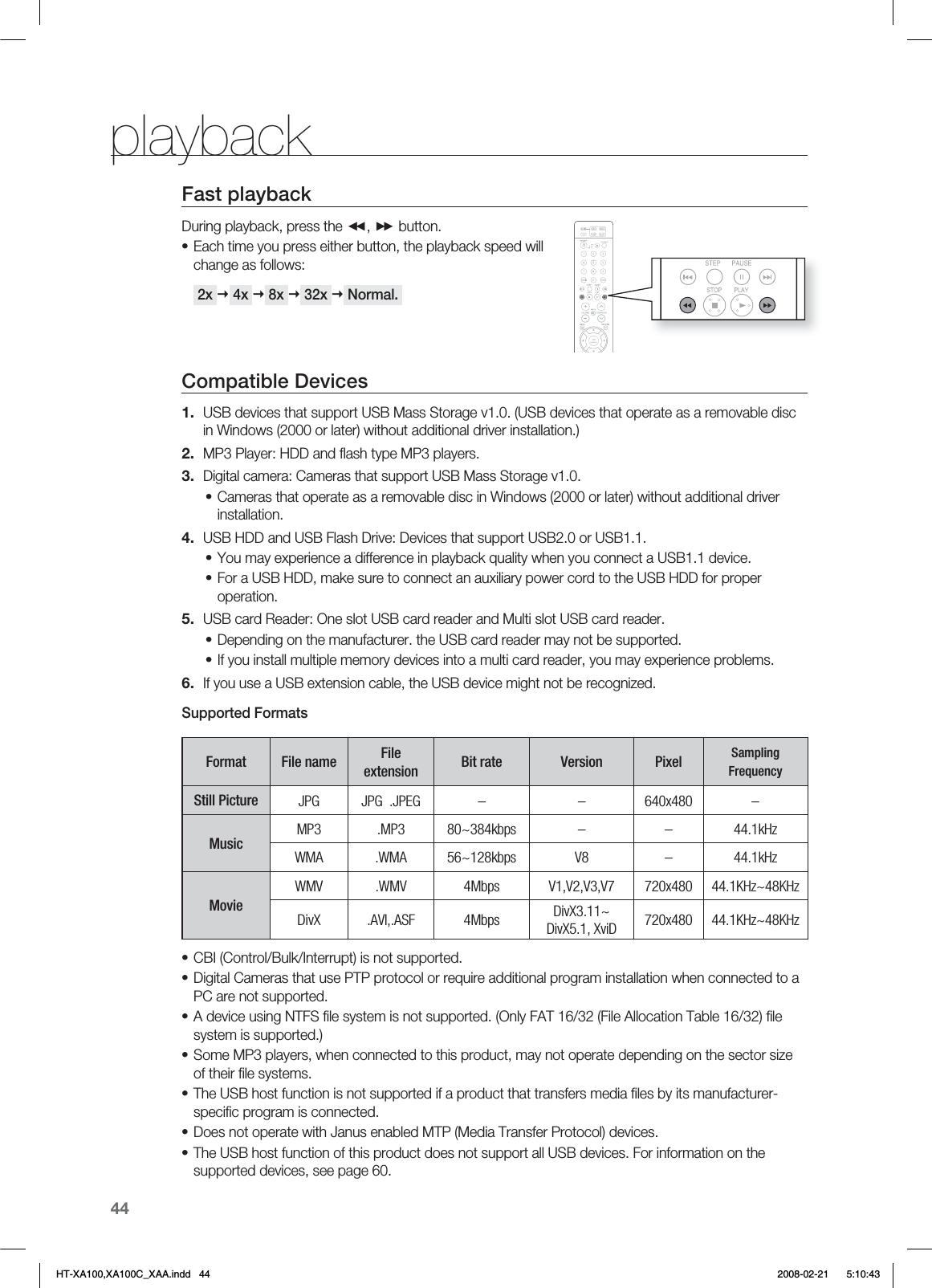

44playbackFast playback During playback, press the ,  button.Each time you press either button, the playback speed will change as follows: 2x  4x  8x  32x  Normal. Compatible Devices USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.)MP3 Player: HDD and ﬂ ash type MP3 players.Digital camera: Cameras that support USB Mass Storage v1.0.Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation.USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.You may experience a difference in playback quality when you connect a USB1.1 device.For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.USB card Reader: One slot USB card reader and Multi slot USB card reader.Depending on the manufacturer. the USB card reader may not be supported.If you install multiple memory devices into a multi card reader, you may experience problems.If you use a USB extension cable, the USB device might not be recognized.Supported FormatsFormat File name File extension Bit rate Version Pixel Sampling FrequencyStill Picture JPG JPG .JPEG – – 640x480 –MusicMP3 .MP3 80~384kbps – – 44.1kHzWMA .WMA 56~128kbps V8 – 44.1kHzMovieWMV .WMV 4Mbps V1,V2,V3,V7 720x480 44.1KHz~48KHzDivX .AVI,.ASF 4Mbps DivX3.11~DivX5.1, XviD 720x480 44.1KHz~48KHzCBI (Control/Bulk/Interrupt) is not supported.Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported. A device using NTFS ﬁ le system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) ﬁ le system is supported.)Some MP3 players, when connected to this product, may not operate depending on the sector size of their ﬁ le systems.The USB host function is not supported if a product that transfers media ﬁ les by its manufacturer-speciﬁ c program is connected. Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.The USB host function of this product does not support all USB devices. For information on the supported devices, see page 60.•1.2.3.•4.••5.••6.•••••••HT-XA100,XA100C_XAA.indd 44 2008-02-21 5:10:43

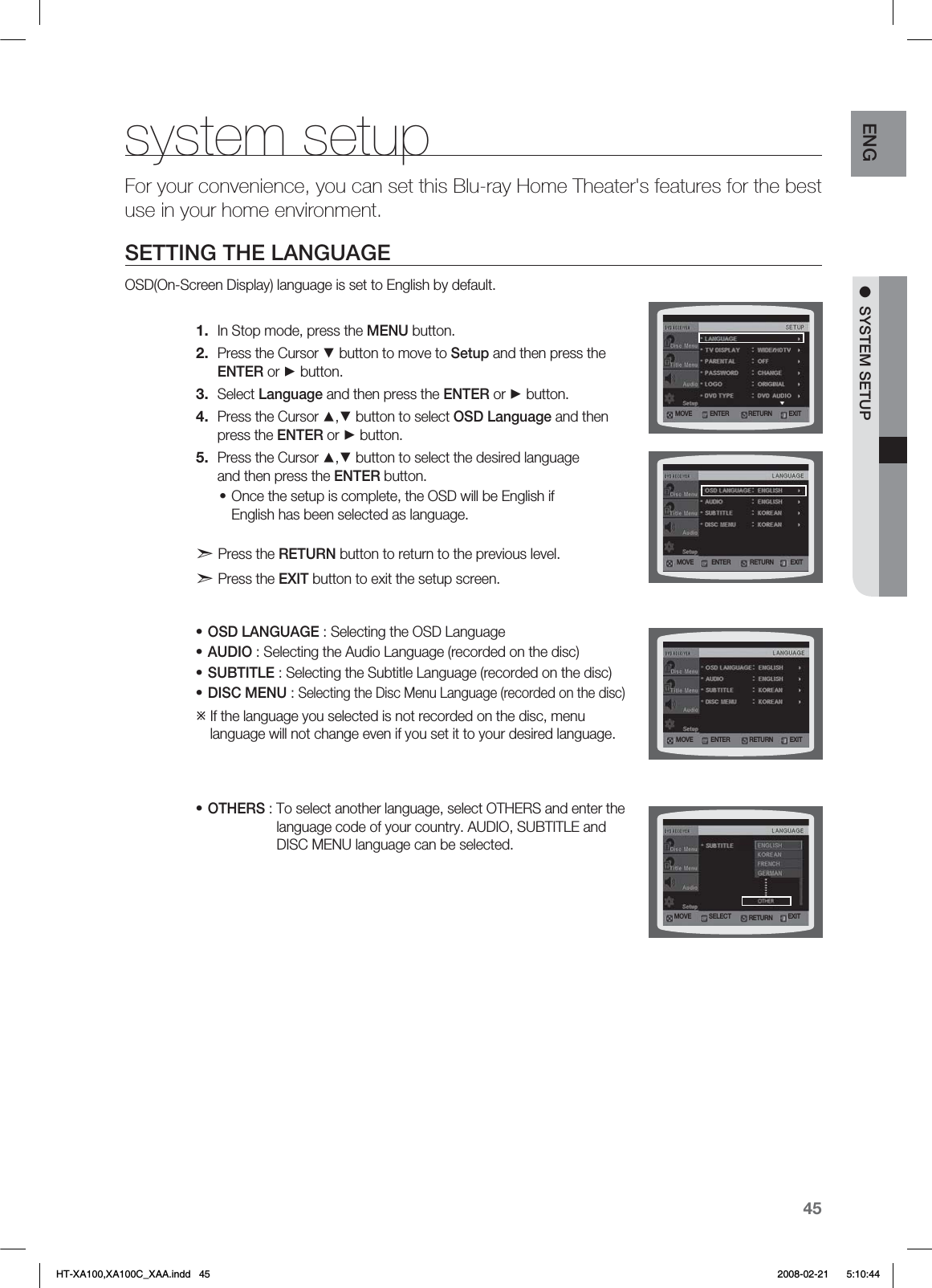

45ENG ● SYSTEM SETUPsystem setupFor your convenience, you can set this Blu-ray Home Theater's features for the best use in your home environment.SETTING THE LANGUAGEOSD(On-Screen Display) language is set to English by default.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button.Select Language and then press the ENTER or ► button.Press the Cursor ▲,▼ button to select OSD Language and then press the ENTER or ► button.Press the Cursor ▲,▼ button to select the desired language and then press the ENTER button.Once the setup is complete, the OSD will be English if English has been selected as language.d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen.OSD LANGUAGE : Selecting the OSD LanguageAUDIO : Selecting the Audio Language (recorded on the disc)SUBTITLE : Selecting the Subtitle Language (recorded on the disc)DISC MENU : Selecting the Disc Menu Language (recorded on the disc) If the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language. OTHERS : To select another language, select OTHERS and enter the language code of your country. AUDIO, SUBTITLE and DISC MENU language can be selected. 1.2.3.4.5.••••••.07& &/5&3&9*53&563/.07& &/5&3 &9*53&563/.07& &/5&3 &9*53&563/.07& 4&-&$5 &9*53&563/HT-XA100,XA100C_XAA.indd 45 2008-02-21 5:10:44

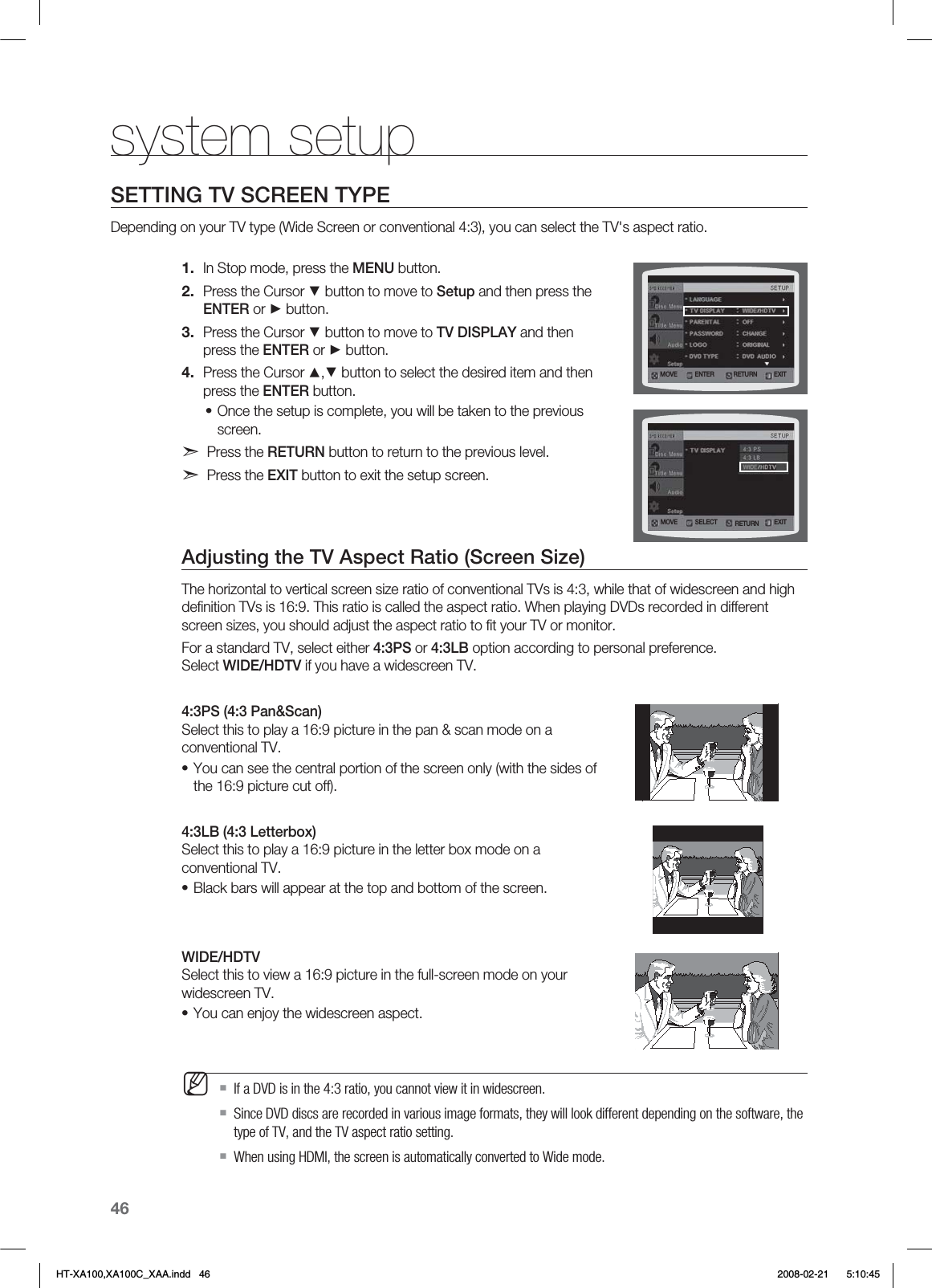

46system setupSETTING TV SCREEN TYPE Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button.Press the Cursor ▼ button to move to TV DISPLAY and then press the ENTER or ► button.Press the Cursor ▲,▼ button to select the desired item and then press the ENTER button.Once the setup is complete, you will be taken to the previous screen.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen.Adjusting the TV Aspect Ratio (Screen Size)The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high deﬁnition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to ﬁt your TV or monitor.For a standard TV, select either 4:3PS or 4:3LB option according to personal preference. Select WIDE/HDTV if you have a widescreen TV.4:3PS (4:3 Pan&Scan) Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).4:3LB (4:3 Letterbox) Select this to play a 16:9 picture in the letter box mode on a conventional TV.Black bars will appear at the top and bottom of the screen.WIDE/HDTV Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.You can enjoy the widescreen aspect.If a DVD is in the 4:3 ratio, you cannot view it in widescreen.Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.When using HDMI, the screen is automatically converted to Wide mode.1.2.3.4.••••M.07& &/5&3 &9*53&563/.07& 4&-&$5 &9*53&563/HT-XA100,XA100C_XAA.indd 46 2008-02-21 5:10:45

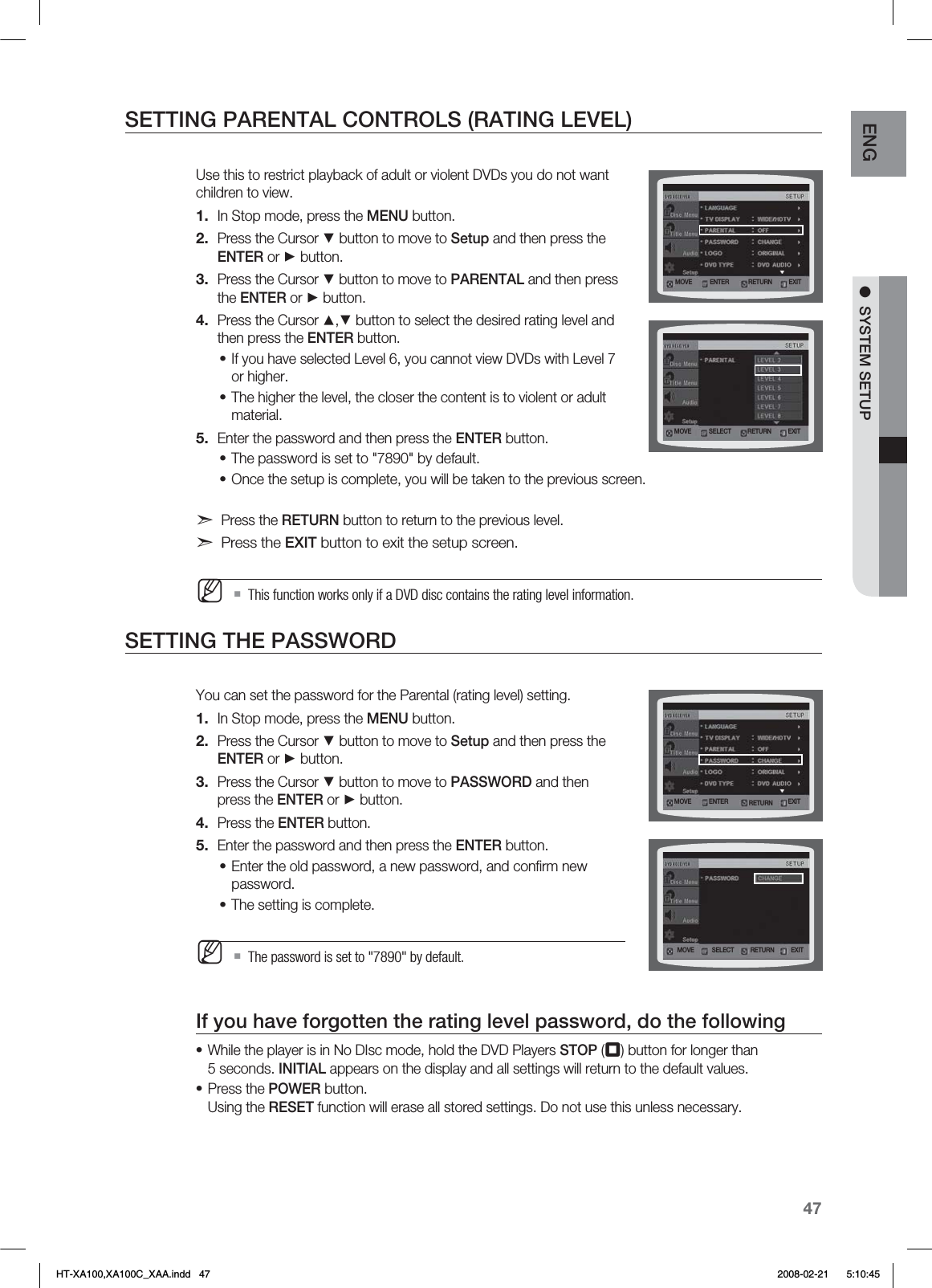

47ENG ● SYSTEM SETUPSETTING PARENTAL CONTROLS (RATING LEVEL)Use this to restrict playback of adult or violent DVDs you do not want children to view.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button.Press the Cursor ▼ button to move to PARENTAL and then press the ENTER or ► button.Press the Cursor ▲,▼ button to select the desired rating level and then press the ENTER button.If you have selected Level 6, you cannot view DVDs with Level 7 or higher.The higher the level, the closer the content is to violent or adult material.Enter the password and then press the ENTER button.The password is set to "7890" by default.Once the setup is complete, you will be taken to the previous screen. d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen.This function works only if a DVD disc contains the rating level information.SETTING THE PASSWORDYou can set the password for the Parental (rating level) setting.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button.Press the Cursor ▼ button to move to PASSWORD and then press the ENTER or ► button.Press the ENTER button.Enter the password and then press the ENTER button.Enter the old password, a new password, and conﬁrm new password.The setting is complete.The password is set to "7890" by default.If you have forgotten the rating level password, do the followingWhile the player is in No DIsc mode, hold the DVD Players STOP (¦) button for longer than 5 seconds. INITIAL appears on the display and all settings will return to the default values.Press the POWER button. Using the RESET function will erase all stored settings. Do not use this unless necessary.1.2.3.4.••5.••M1.2.3.4.5.••M••.07& &/5&3 &9*53&563/.07& 4&-&$5 &9*53&563/.07& 4&-&$5 &9*53&563/.07& &/5&3 &9*53&563/HT-XA100,XA100C_XAA.indd 47 2008-02-21 5:10:45

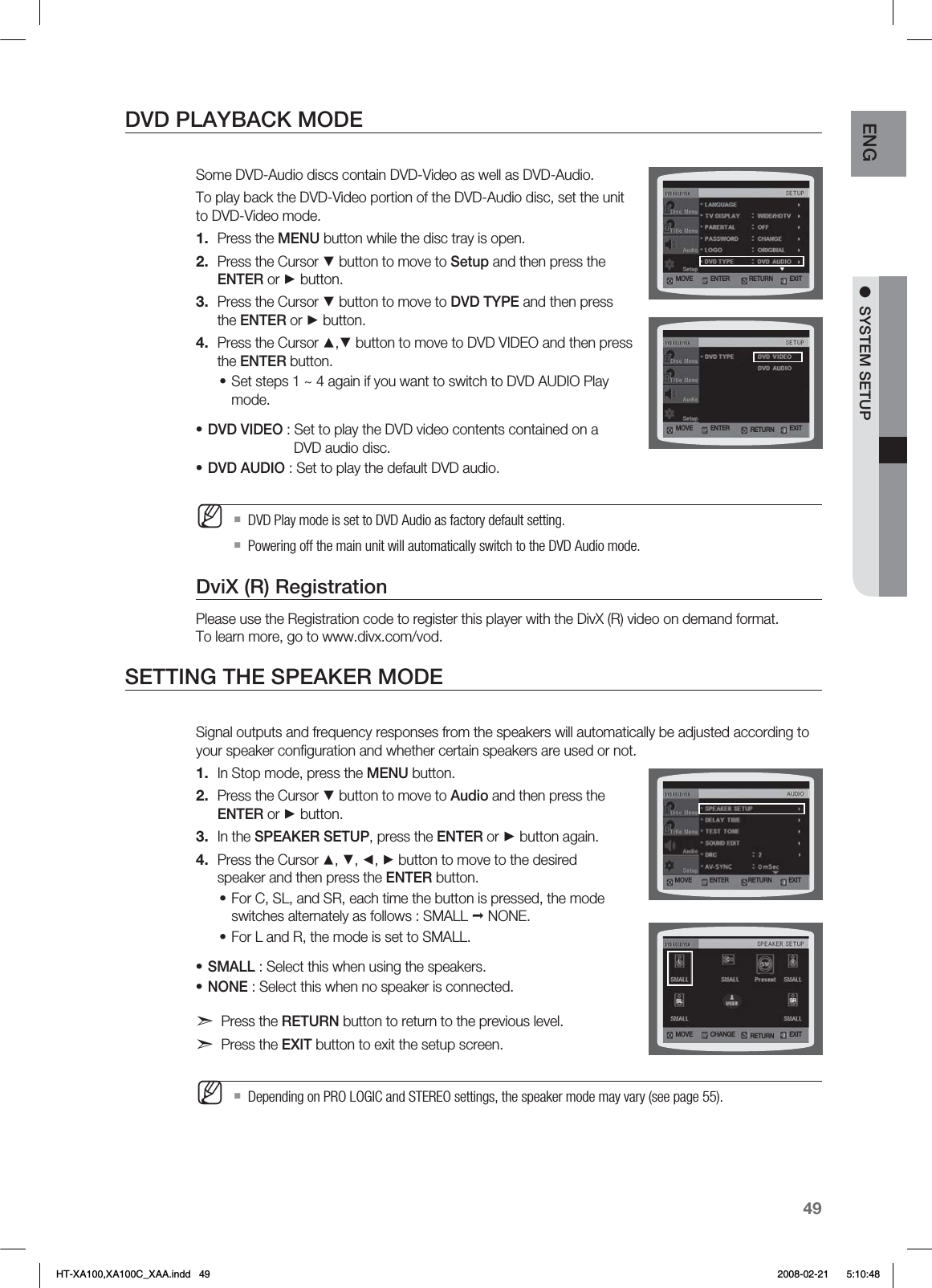

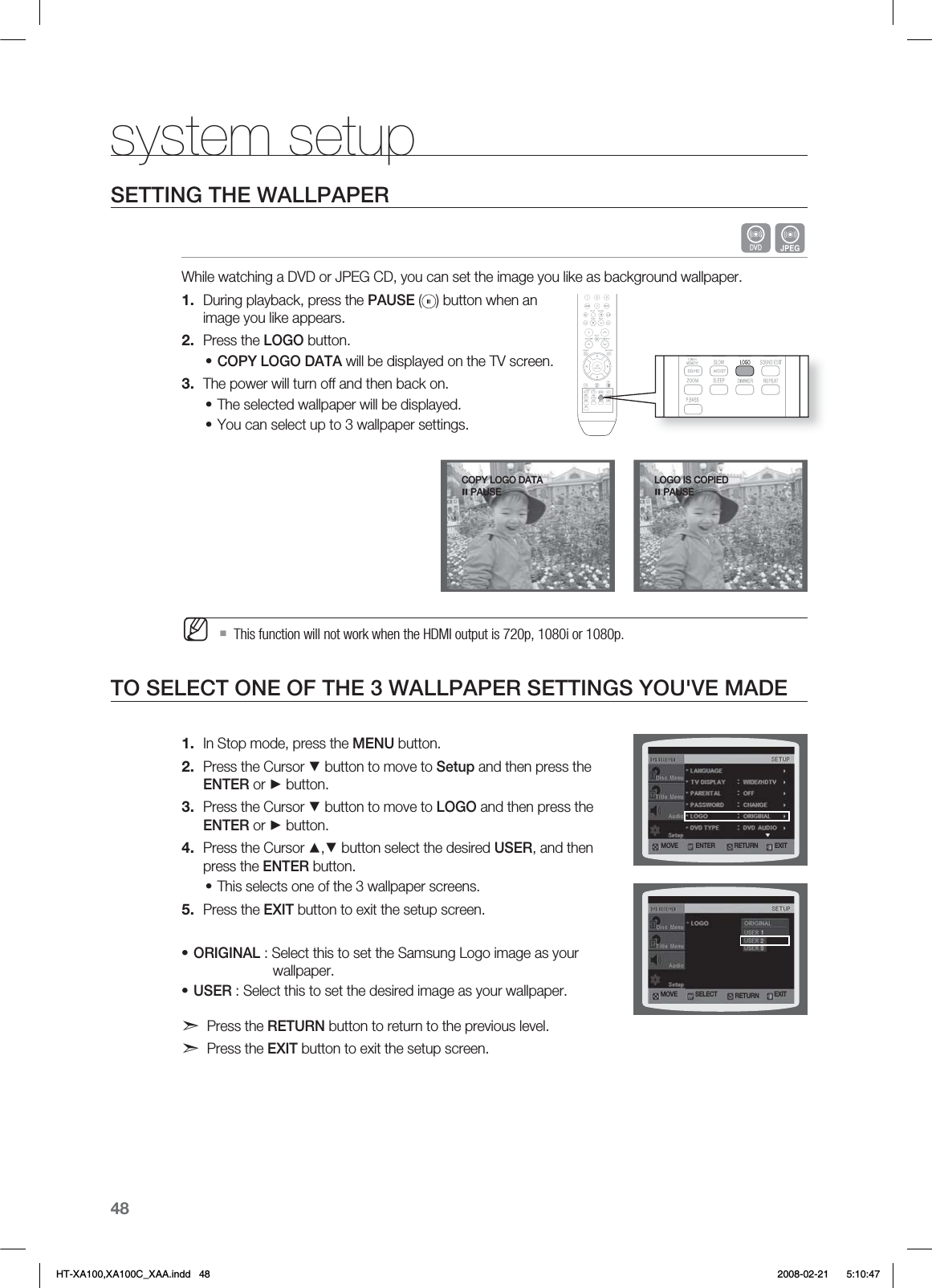

49ENG ● SYSTEM SETUPDVD PLAYBACK MODESome DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.Press the MENU button while the disc tray is open.Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button.Press the Cursor ▼ button to move to DVD TYPE and then press the ENTER or ► button.Press the Cursor ▲,▼ button to move to DVD VIDEO and then press the ENTER button.Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.DVD VIDEO : Set to play the DVD video contents contained on a DVD audio disc.DVD AUDIO : Set to play the default DVD audio.DVD Play mode is set to DVD Audio as factory default setting.Powering off the main unit will automatically switch to the DVD Audio mode.DviX (R) RegistrationPlease use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod.SETTING THE SPEAKER MODESignal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker conﬁguration and whether certain speakers are used or not.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button.In the SPEAKER SETUP, press the ENTER or ► button again.Press the Cursor ▲, ▼, ◄, ► button to move to the desired speaker and then press the ENTER button.For C, SL, and SR, each time the button is pressed, the mode switches alternately as follows : SMALL  NONE.For L and R, the mode is set to SMALL.SMALL : Select this when using the speakers.NONE : Select this when no speaker is connected.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen.Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 55).1.2.3.4.•••M1.2.3.4.••••M.07& &/5&3 &9*53&563/.07& &/5&3 &9*53&563/.07& &/5&3 &9*53&563/.07& $)"/(& &9*53&563/HT-XA100,XA100C_XAA.indd 49 2008-02-21 5:10:48

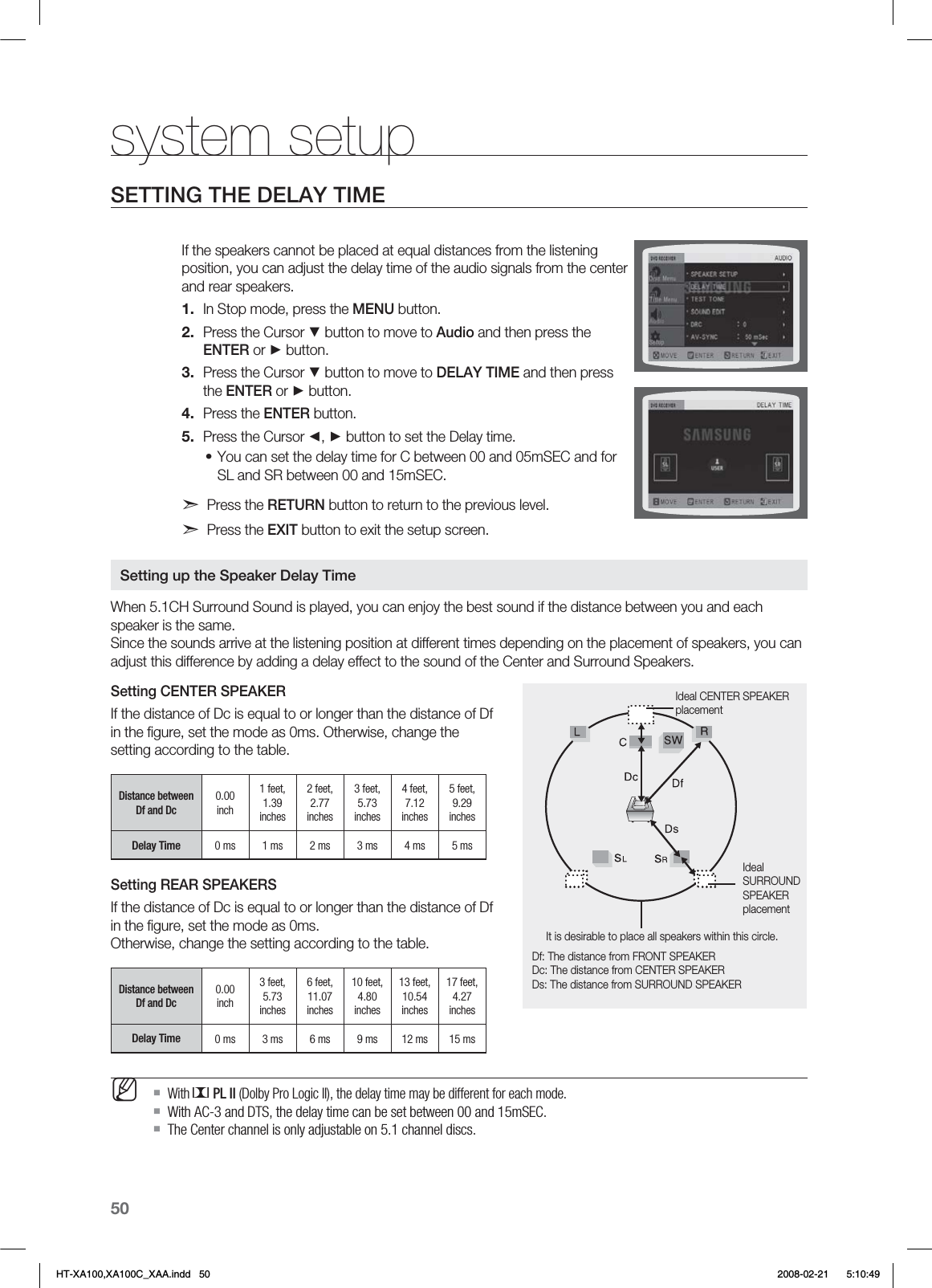

50system setupSETTING THE DELAY TIMEIf the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button.Press the Cursor ▼ button to move to DELAY TIME and then press the ENTER or ► button.Press the ENTER button.Press the Cursor ◄, ► button to set the Delay time.You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen.When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.Setting CENTER SPEAKERIf the distance of Dc is equal to or longer than the distance of Df in the ﬁgure, set the mode as 0ms. Otherwise, change the setting according to the table.Distance between Df and Dc 0.00 inch1 feet, 1.39 inches2 feet, 2.77 inches3 feet, 5.73 inches4 feet, 7.12 inches5 feet, 9.29 inchesDelay Time 0 ms 1 ms 2 ms 3 ms 4 ms 5 msSetting REAR SPEAKERSIf the distance of Dc is equal to or longer than the distance of Df in the ﬁgure, set the mode as 0ms. Otherwise, change the setting according to the table.Distance between Df and Dc 0.00 inch3 feet, 5.73 inches6 feet, 11.07 inches10 feet, 4.80 inches13 feet, 10.54 inches17 feet, 4.27 inchesDelay Time 0 ms 3 ms 6 ms 9 ms 12 ms 15 msWith PL II (Dolby Pro Logic II), the delay time may be different for each mode.With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.The Center channel is only adjustable on 5.1 channel discs.1.2.3.4.5.•MIdeal CENTER SPEAKER placementDf: The distance from FRONT SPEAKERDc: The distance from CENTER SPEAKERDs: The distance from SURROUND SPEAKERIt is desirable to place all speakers within this circle.Ideal SURROUND SPEAKER placementSetting up the Speaker Delay TimeHT-XA100,XA100C_XAA.indd 50 2008-02-21 5:10:49

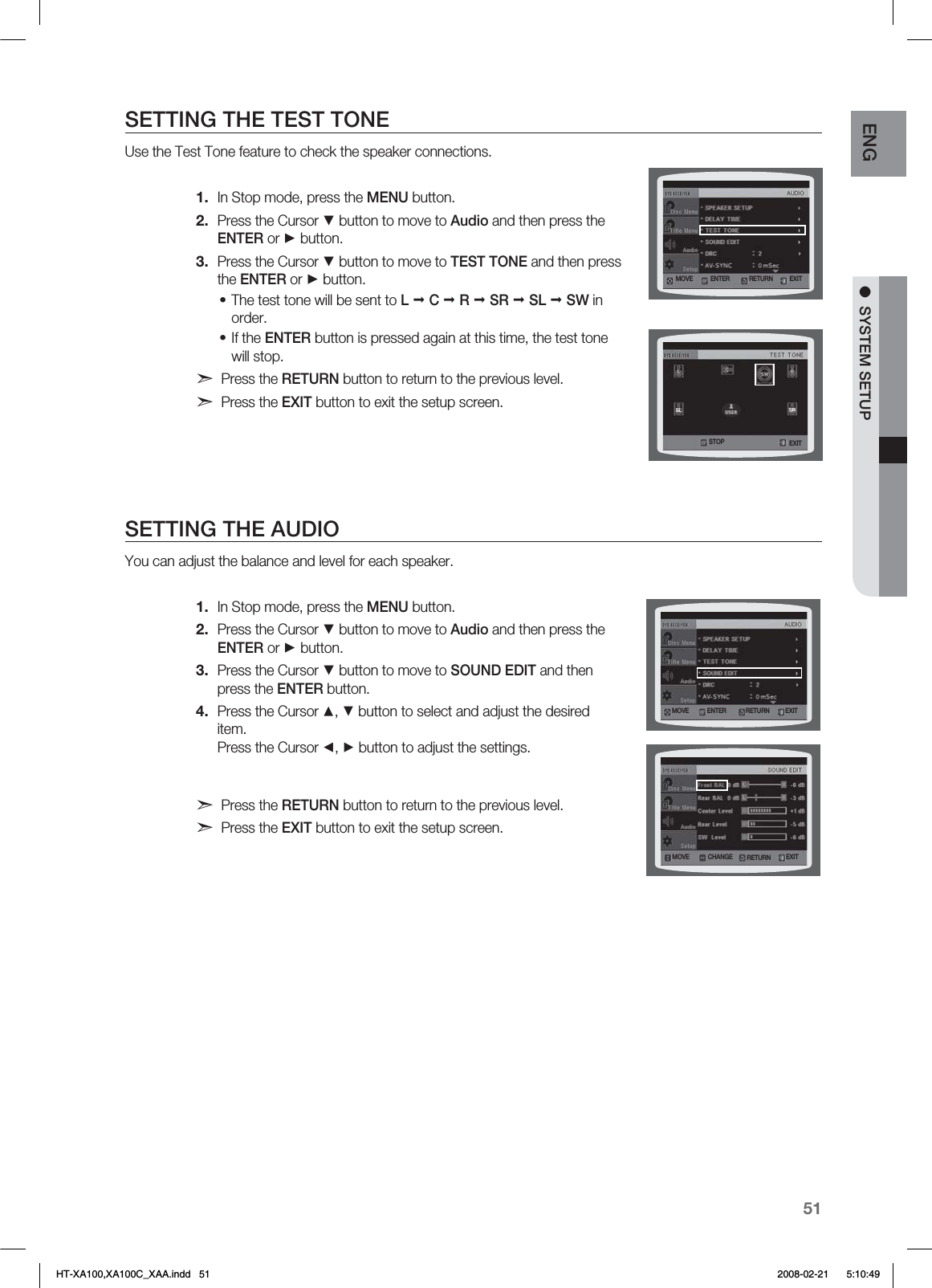

51ENG ● SYSTEM SETUPSETTING THE TEST TONEUse the Test Tone feature to check the speaker connections.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button.Press the Cursor ▼ button to move to TEST TONE and then press the ENTER or ► button.The test tone will be sent to L  C  R  SR  SL  SW in order. If the ENTER button is pressed again at this time, the test tone will stop.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen. SETTING THE AUDIOYou can adjust the balance and level for each speaker.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button.Press the Cursor ▼ button to move to SOUND EDIT and then press the ENTER button.Press the Cursor ▲, ▼ button to select and adjust the desired item. Press the Cursor ◄, ► button to adjust the settings.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen.1.2.3.••1.2.3.4..07& &/5&3 &9*53&563/4501 &9*5.07& &/5&3 &9*53&563/.07& $)"/(& &9*53&563/HT-XA100,XA100C_XAA.indd 51 2008-02-21 5:10:49

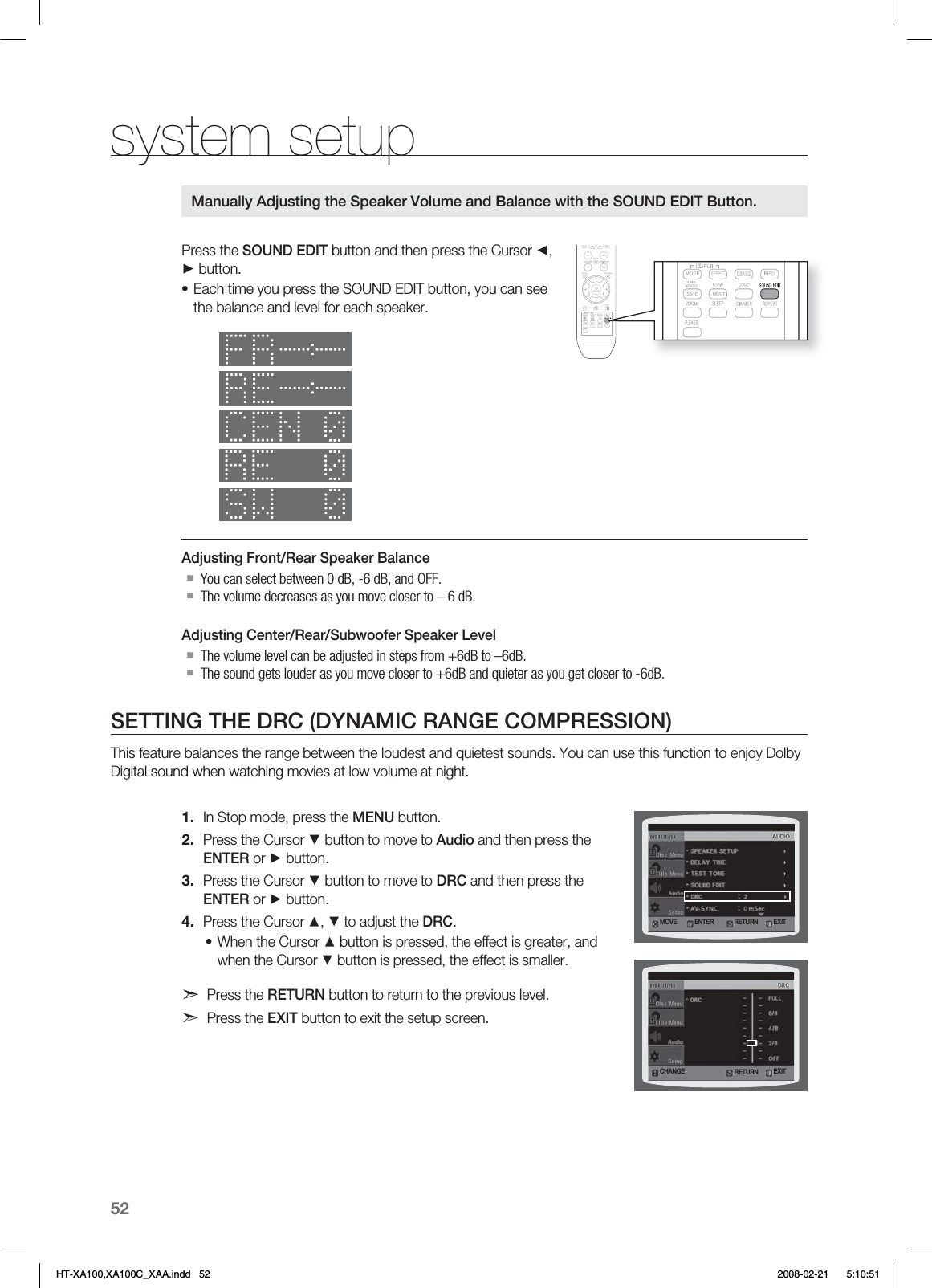

52system setupPress the SOUND EDIT button and then press the Cursor ◄, ► button.Each time you press the SOUND EDIT button, you can see the balance and level for each speaker.Adjusting Front/Rear Speaker BalanceYou can select between 0 dB, -6 dB, and OFF.The volume decreases as you move closer to – 6 dB.Adjusting Center/Rear/Subwoofer Speaker LevelThe volume level can be adjusted in steps from +6dB to –6dB.The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.SETTING THE DRC (DYNAMIC RANGE COMPRESSION)This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button.Press the Cursor ▼ button to move to DRC and then press the ENTER or ► button.Press the Cursor ▲, ▼ to adjust the DRC.When the Cursor ▲ button is pressed, the effect is greater, and when the Cursor ▼ button is pressed, the effect is smaller.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen.•1.2.3.4.•Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.3&563/.07& &/5&3 &9*5$)"/(& &9*53&563/HT-XA100,XA100C_XAA.indd 52 2008-02-21 5:10:51

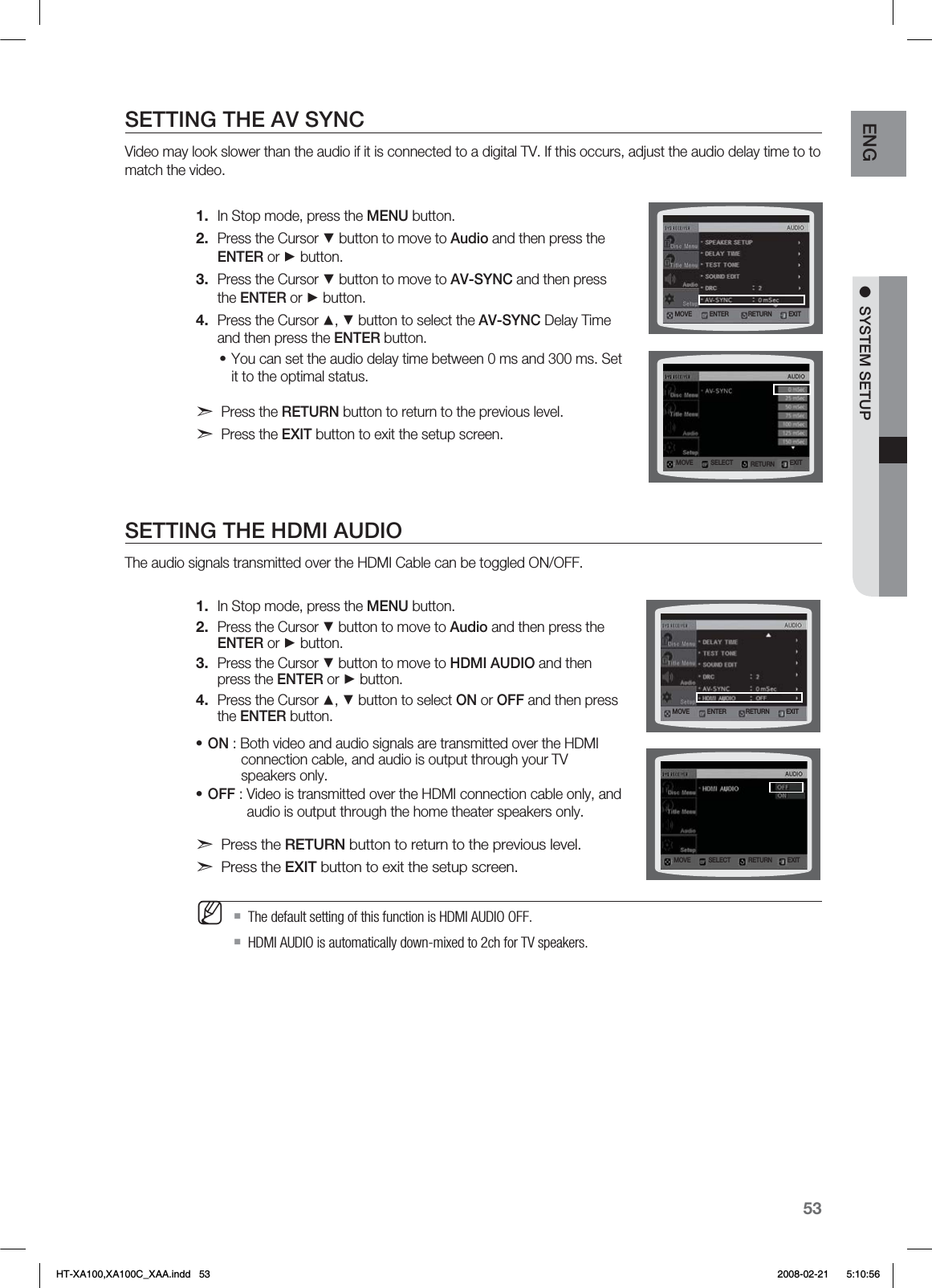

53ENG ● SYSTEM SETUPSETTING THE AV SYNCVideo may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button.Press the Cursor ▼ button to move to AV-SYNC and then press the ENTER or ► button.Press the Cursor ▲, ▼ button to select the AV-SYNC Delay Time and then press the ENTER button.You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen.SETTING THE HDMI AUDIOThe audio signals transmitted over the HDMI Cable can be toggled ON/OFF.In Stop mode, press the MENU button.Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button.Press the Cursor ▼ button to move to HDMI AUDIO and then press the ENTER or ► button.Press the Cursor ▲, ▼ button to select ON or OFF and then press the ENTER button.ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only.OFF : Video is transmitted over the HDMI connection cable only, and audio is output through the home theater speakers only.d Press the RETURN button to return to the previous level.d Press the EXIT button to exit the setup screen. The default setting of this function is HDMI AUDIO OFF.HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.1.2.3.4.•1.2.3.4.••M.07& &/5&3 &9*53&563/.07& 4&-&$5 &9*53&563/.07& &/5&3 &9*53&563/.07& 4&-&$5 &9*53&563/HT-XA100,XA100C_XAA.indd 53 2008-02-21 5:10:56

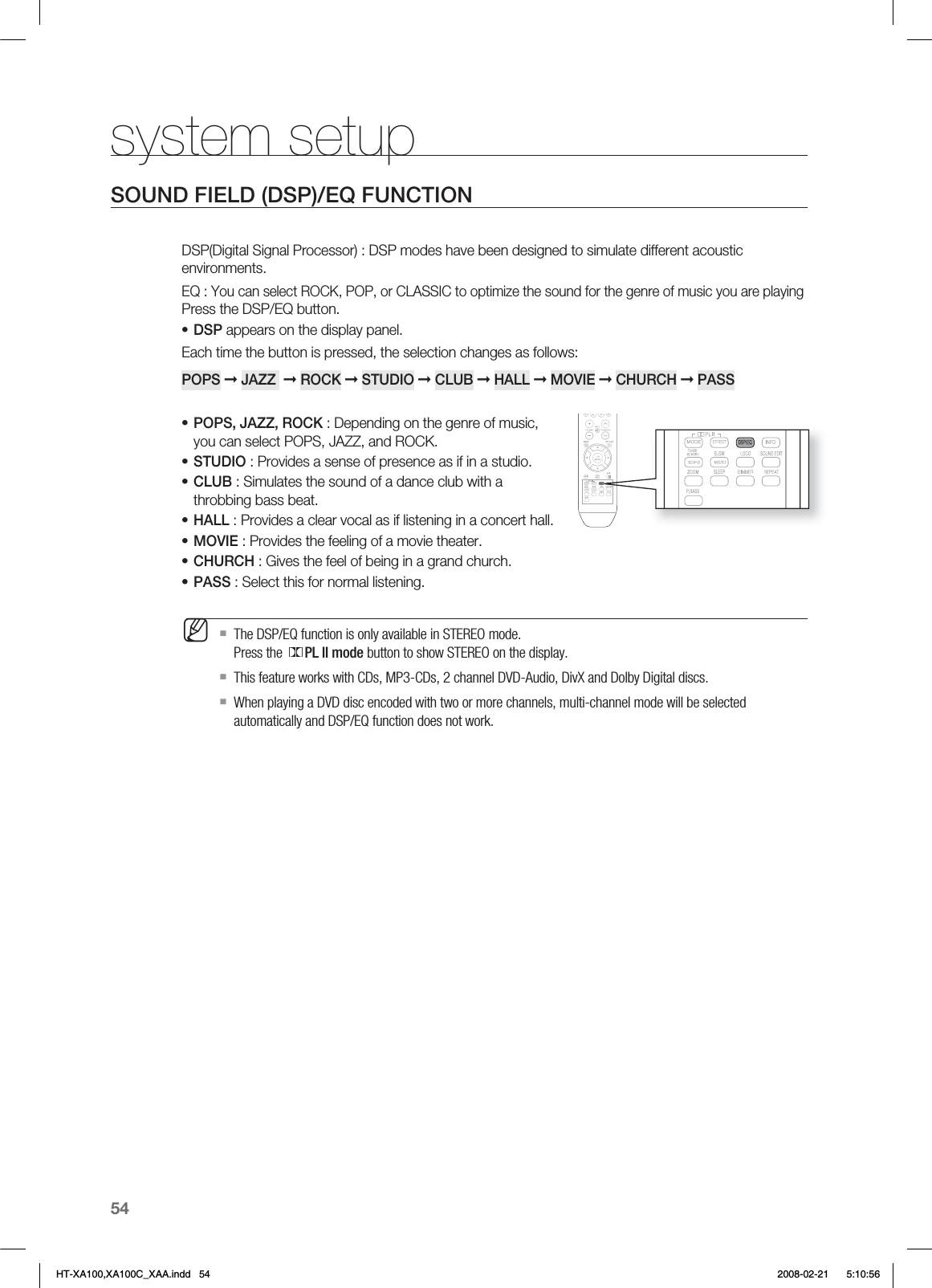

54system setupSOUND FIELD (DSP)/EQ FUNCTIONDSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments. EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playingPress the DSP/EQ button.DSP appears on the display panel.Each time the button is pressed, the selection changes as follows:POPS ➞ JAZZ ➞ ROCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHURCH ➞ PASSPOPS, JAZZ, ROCK : Depending on the genre of music, you can select POPS, JAZZ, and ROCK.STUDIO : Provides a sense of presence as if in a studio.CLUB : Simulates the sound of a dance club with a throbbing bass beat.HALL : Provides a clear vocal as if listening in a concert hall.MOVIE : Provides the feeling of a movie theater.CHURCH : Gives the feel of being in a grand church. PASS : Select this for normal listening.The DSP/EQ function is only available in STEREO mode.Press the PL II mode button to show STEREO on the display.This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby Digital discs.When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and DSP/EQ function does not work.••••••••MHT-XA100,XA100C_XAA.indd 54 2008-02-21 5:10:56

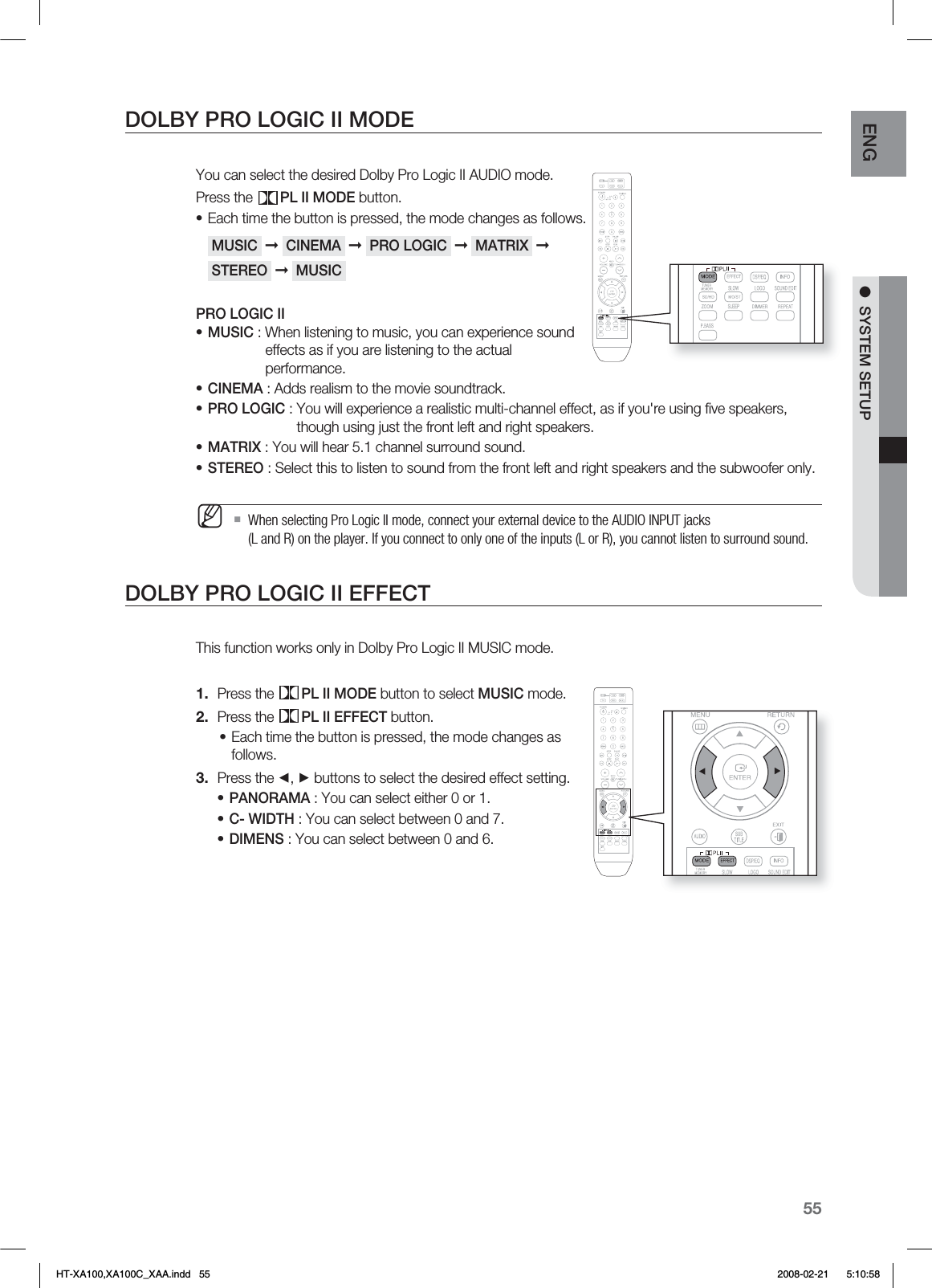

55ENG ● SYSTEM SETUPDOLBY PRO LOGIC II MODEYou can select the desired Dolby Pro Logic II AUDIO mode.Press the PL II MODE button.Each time the button is pressed, the mode changes as follows. MUSIC ➞ CINEMA ➞ PRO LOGIC ➞ MATRIX ➞ STEREO ➞ MUSIC PRO LOGIC IIMUSIC : When listening to music, you can experience sound effects as if you are listening to the actual performance.CINEMA : Adds realism to the movie soundtrack.PRO LOGIC : You will experience a realistic multi-channel effect, as if you're using ﬁ ve speakers, though using just the front left and right speakers.MATRIX : You will hear 5.1 channel surround sound.STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.DOLBY PRO LOGIC II EFFECTThis function works only in Dolby Pro Logic II MUSIC mode.Press the PL II MODE button to select MUSIC mode.Press the PL II EFFECT button.Each time the button is pressed, the mode changes as follows.Press the ◄, ► buttons to select the desired effect setting.PANORAMA : You can select either 0 or 1.C- WIDTH : You can select between 0 and 7.DIMENS : You can select between 0 and 6.••••••M1.2.•3.•••HT-XA100,XA100C_XAA.indd 55 2008-02-21 5:10:58

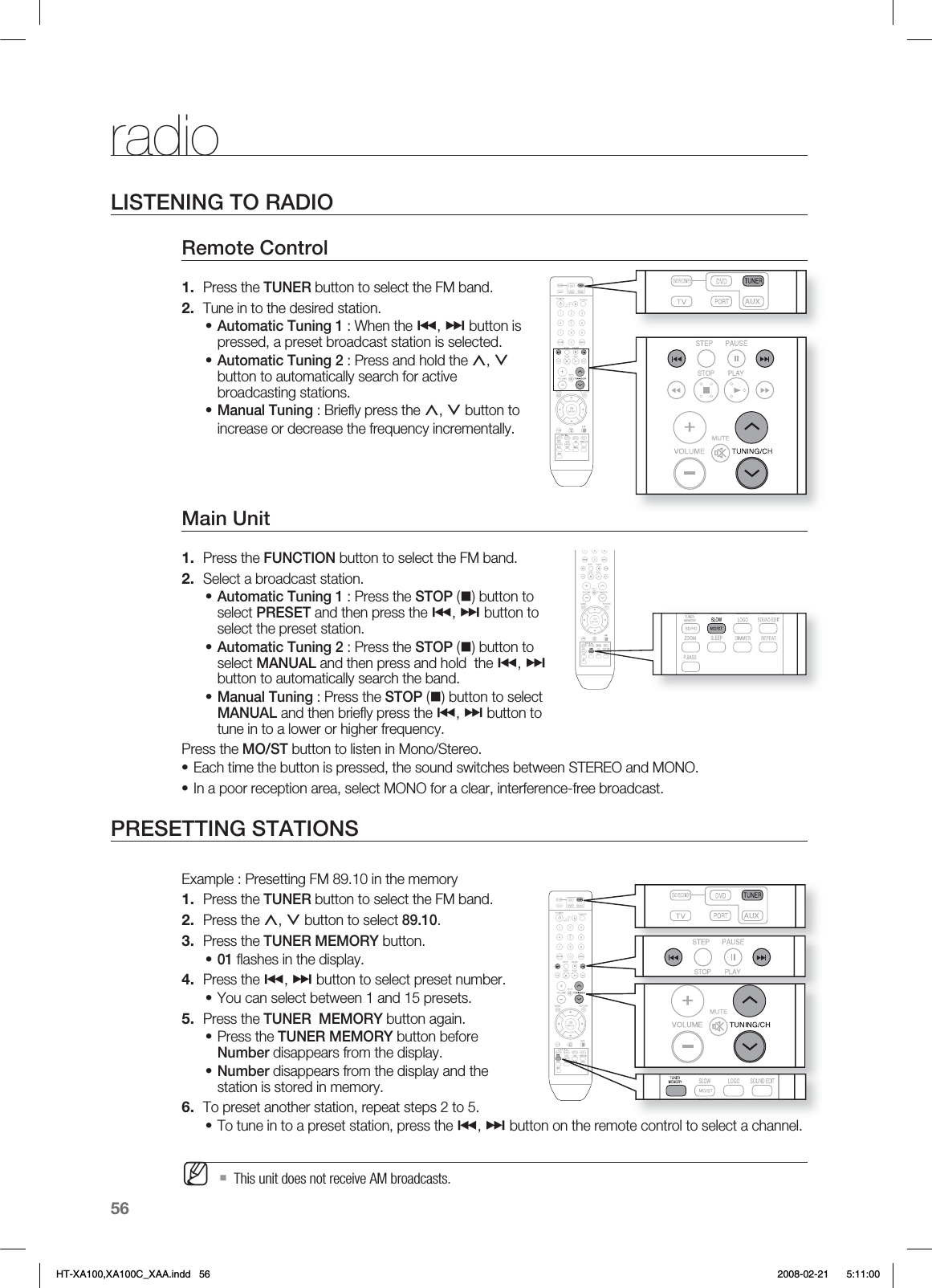

56radioLISTENING TO RADIORemote Control Press the TUNER button to select the FM band.Tune in to the desired station.Automatic Tuning 1 : When the #, $ button is pressed, a preset broadcast station is selected.Automatic Tuning 2 : Press and hold the ,, . button to automatically search for active broadcasting stations.Manual Tuning : Brieﬂ y press the ,, . button to increase or decrease the frequency incrementally.Main Unit Press the FUNCTION button to select the FM band.Select a broadcast station.Automatic Tuning 1 : Press the STOP () button to select PRESET and then press the #, $ button to select the preset station.Automatic Tuning 2 : Press the STOP () button to select MANUAL and then press and hold the #, $ button to automatically search the band.Manual Tuning : Press the STOP () button to select MANUAL and then brieﬂ y press the #, $ button to tune in to a lower or higher frequency.Press the MO/ST button to listen in Mono/Stereo.Each time the button is pressed, the sound switches between STEREO and MONO.In a poor reception area, select MONO for a clear, interference-free broadcast.PRESETTING STATIONSExample : Presetting FM 89.10 in the memory Press the TUNER button to select the FM band.Press the ,, . button to select 89.10.Press the TUNER MEMORY button.01 ﬂ ashes in the display.Press the #, $ button to select preset number.You can select between 1 and 15 presets.Press the TUNER MEMORY button again.Press the TUNER MEMORY button before Number disappears from the display.Number disappears from the display and the station is stored in memory.To preset another station, repeat steps 2 to 5.To tune in to a preset station, press the #, $ button on the remote control to select a channel.This unit does not receive AM broadcasts.1.2.•••1.2.•••••1.2.3.•4.•5.••6.•MHT-XA100,XA100C_XAA.indd 56 2008-02-21 5:11:00

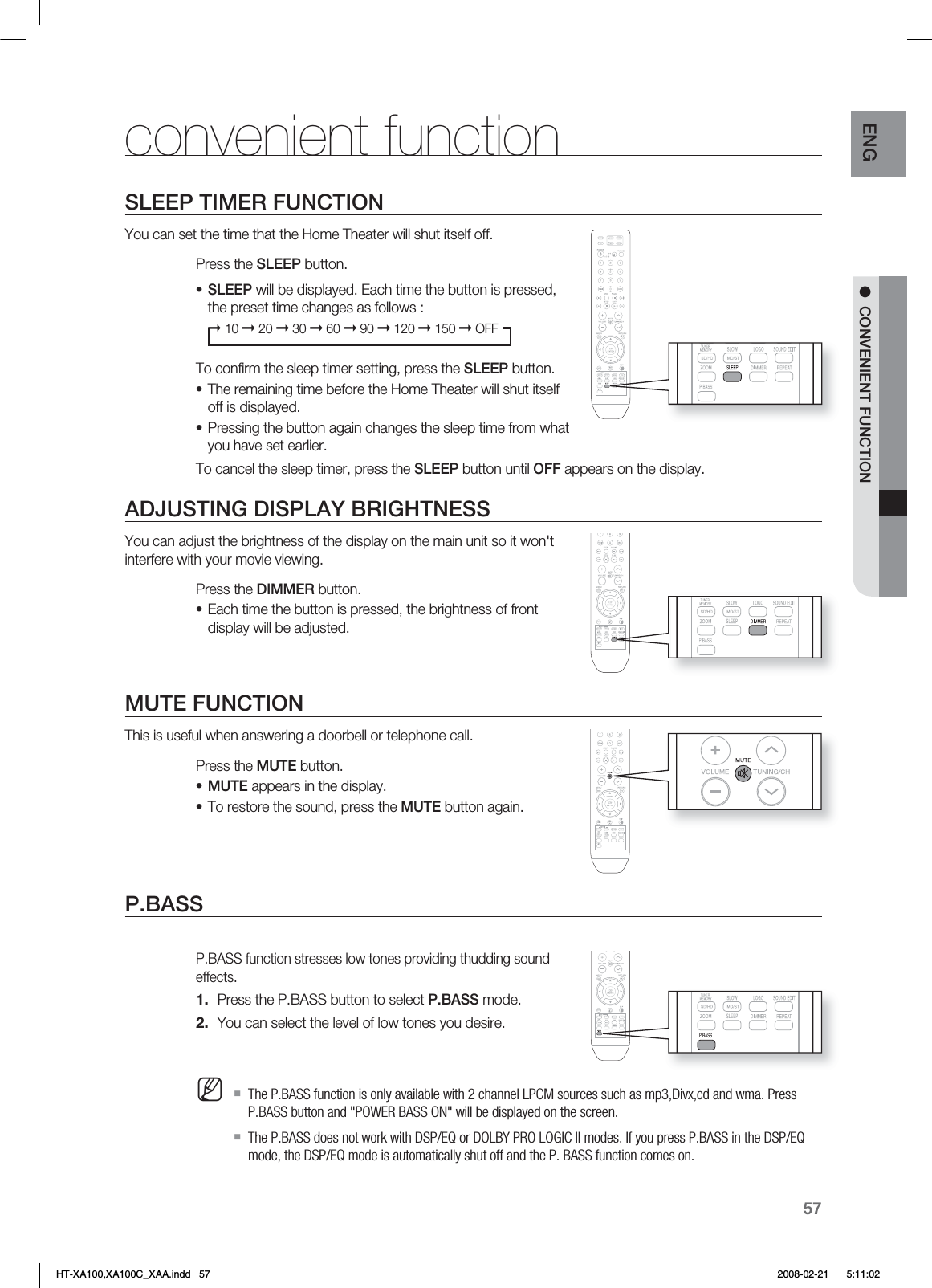

57ENG ● CONVENIENT FUNCTIONconvenient functionSLEEP TIMER FUNCTIONYou can set the time that the Home Theater will shut itself off.Press the SLEEP button.SLEEP will be displayed. Each time the button is pressed, the preset time changes as follows :➞ 10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFFTo conﬁ rm the sleep timer setting, press the SLEEP button.The remaining time before the Home Theater will shut itself off is displayed.Pressing the button again changes the sleep time from what you have set earlier. To cancel the sleep timer, press the SLEEP button until OFF appears on the display.ADJUSTING DISPLAY BRIGHTNESSYou can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.Press the DIMMER button.Each time the button is pressed, the brightness of front display will be adjusted.MUTE FUNCTIONThis is useful when answering a doorbell or telephone call.Press the MUTE button.MUTE appears in the display.To restore the sound, press the MUTE button again.P.BASS P.BASS function stresses low tones providing thudding sound effects.Press the P.BASS button to select P.BASS mode.You can select the level of low tones you desire.The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd and wma. Press P.BASS button and "POWER BASS ON" will be displayed on the screen.The P.BASS does not work with DSP/EQ or DOLBY PRO LOGIC ll modes. If you press P.BASS in the DSP/EQ mode, the DSP/EQ mode is automatically shut off and the P. BASS function comes on.••••••1.2.MHT-XA100,XA100C_XAA.indd 57 2008-02-21 5:11:02

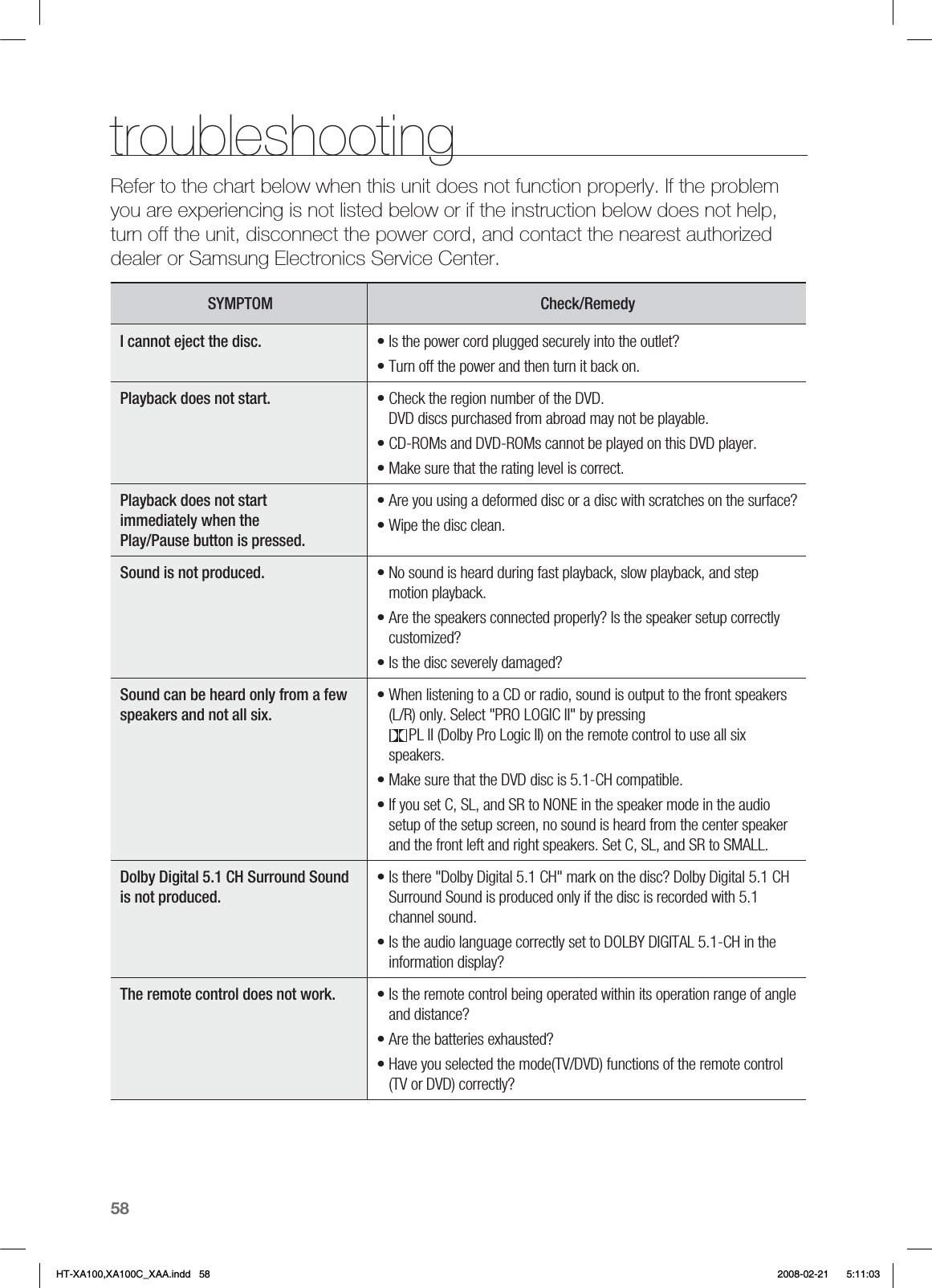

58troubleshootingRefer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.SYMPTOM Check/RemedyI cannot eject the disc. • Is the power cord plugged securely into the outlet?• Turn off the power and then turn it back on.Playback does not start. • Check the region number of the DVD. DVD discs purchased from abroad may not be playable.• CD-ROMs and DVD-ROMs cannot be played on this DVD player.• Make sure that the rating level is correct.Playback does not start immediately when the Play/Pause button is pressed.• Are you using a deformed disc or a disc with scratches on the surface?• Wipe the disc clean.Sound is not produced. • No sound is heard during fast playback, slow playback, and step motion playback.• Are the speakers connected properly? Is the speaker setup correctly customized?• Is the disc severely damaged?Sound can be heard only from a few speakers and not all six.• When listening to a CD or radio, sound is output to the front speakers (L/R) only. Select "PRO LOGIC II" by pressing PL II (Dolby Pro Logic II) on the remote control to use all six speakers.• Make sure that the DVD disc is 5.1-CH compatible.• If you set C, SL, and SR to NONE in the speaker mode in the audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.Dolby Digital 5.1 CH Surround Sound is not produced.• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?The remote control does not work. • Is the remote control being operated within its operation range of angle and distance?• Are the batteries exhausted?• Have you selected the mode(TV/DVD) functions of the remote control (TV or DVD) correctly?HT-XA100,XA100C_XAA.indd 58 2008-02-21 5:11:03

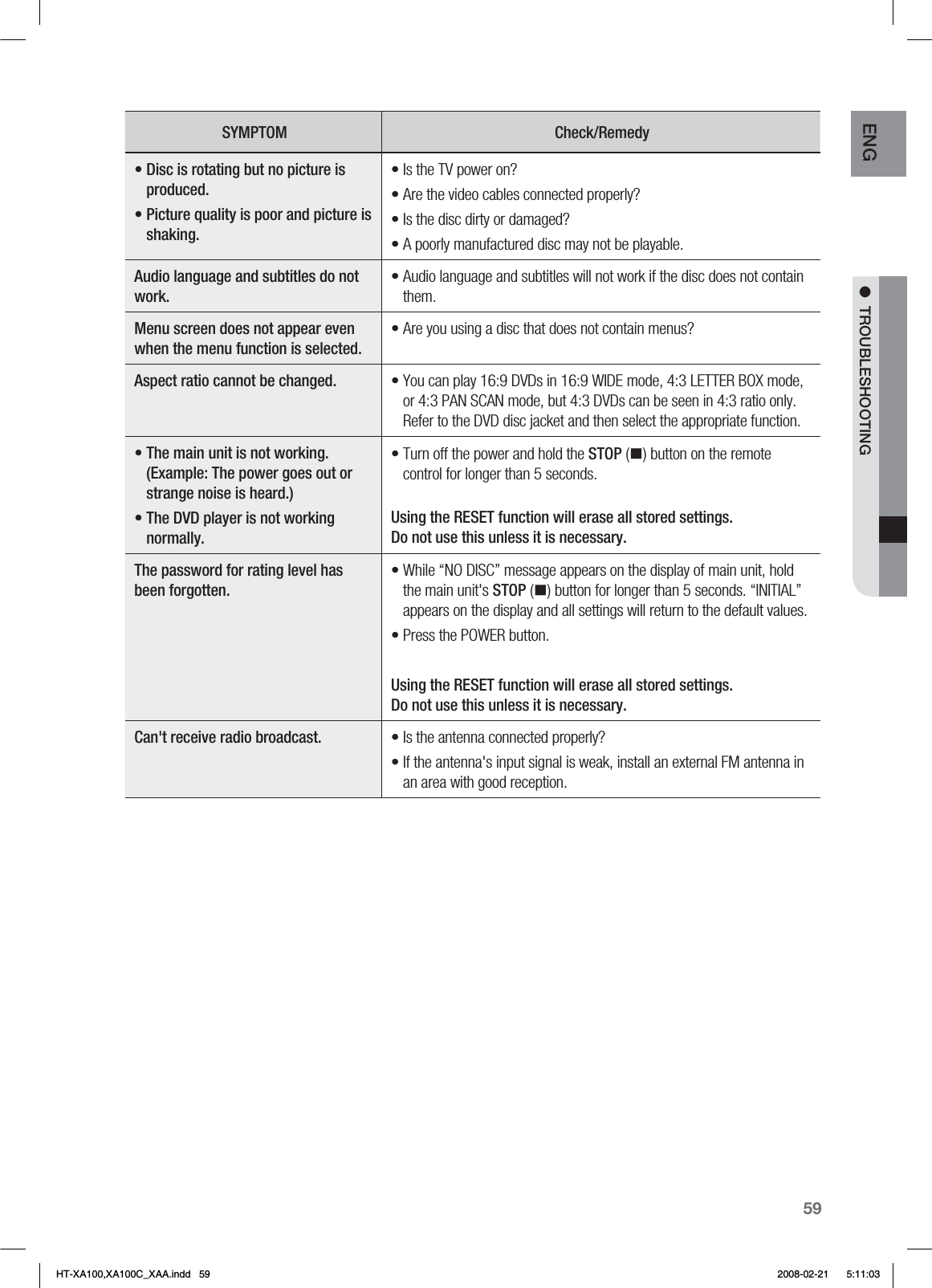

59ENG ● TROUBLESHOOTINGSYMPTOM Check/Remedy• Disc is rotating but no picture is produced.• Picture quality is poor and picture is shaking.• Is the TV power on?• Are the video cables connected properly?• Is the disc dirty or damaged?• A poorly manufactured disc may not be playable.Audio language and subtitles do not work.• Audio language and subtitles will not work if the disc does not contain them.Menu screen does not appear even when the menu function is selected.• Are you using a disc that does not contain menus?Aspect ratio cannot be changed. • You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.• The main unit is not working. (Example: The power goes out or strange noise is heard.)• The DVD player is not working normally.• Turn off the power and hold the STOP () button on the remote control for longer than 5 seconds.Using the RESET function will erase all stored settings. Do not use this unless it is necessary.The password for rating level has been forgotten.• While “NO DISC” message appears on the display of main unit, hold the main unit's STOP () button for longer than 5 seconds. “INITIAL” appears on the display and all settings will return to the default values.• Press the POWER button.Using the RESET function will erase all stored settings. Do not use this unless it is necessary.Can't receive radio broadcast. • Is the antenna connected properly?• If the antenna's input signal is weak, install an external FM antenna in an area with good reception.HT-XA100,XA100C_XAA.indd 59 2008-02-21 5:11:03

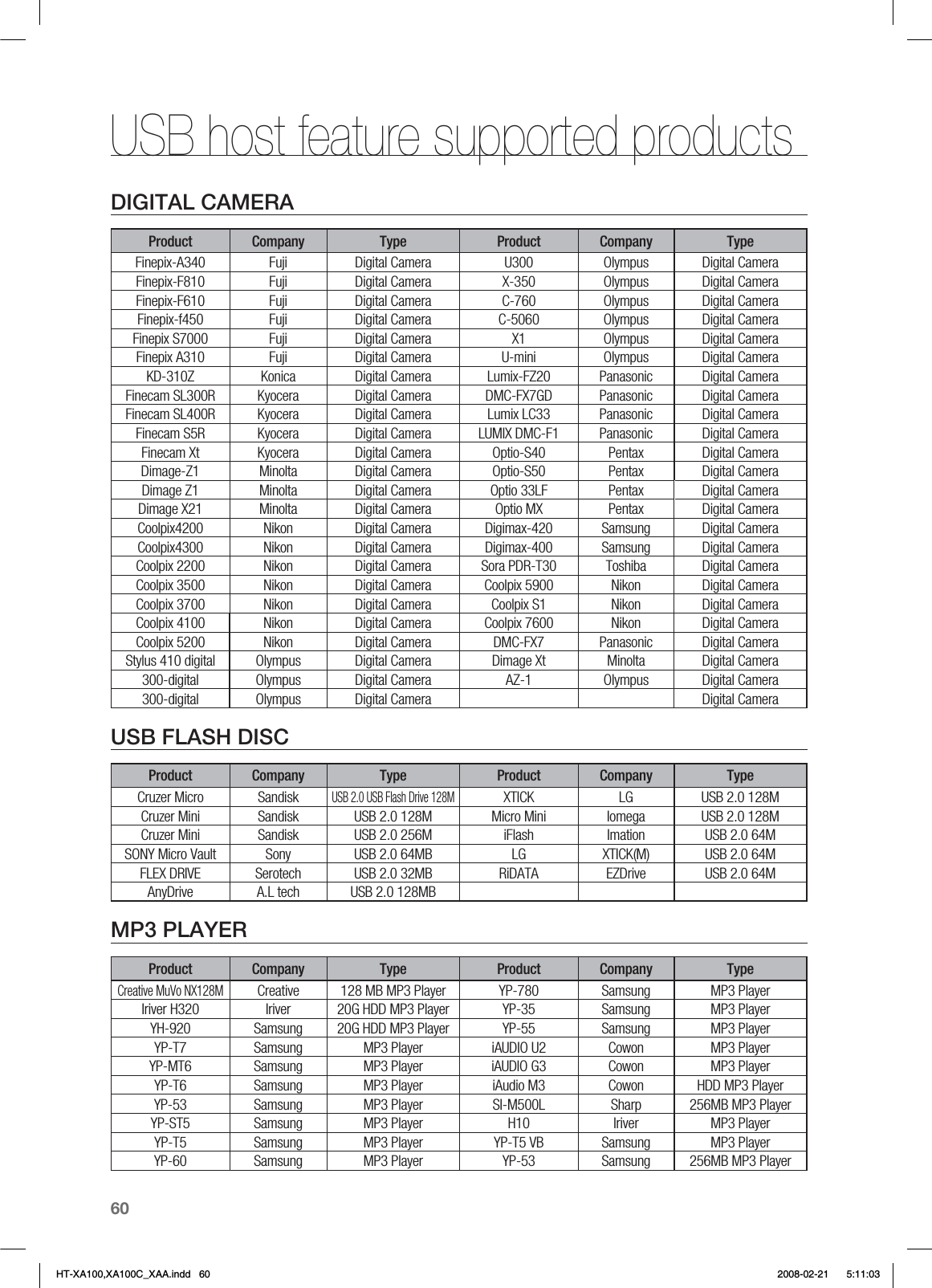

60USB host feature supported productsDIGITAL CAMERAProduct Company Type Product Company TypeFinepix-A340 Fuji Digital Camera U300 Olympus Digital CameraFinepix-F810 Fuji Digital Camera X-350 Olympus Digital CameraFinepix-F610 Fuji Digital Camera C-760 Olympus Digital CameraFinepix-f450 Fuji Digital Camera C-5060 Olympus Digital CameraFinepix S7000 Fuji Digital Camera X1 Olympus Digital CameraFinepix A310 Fuji Digital Camera U-mini Olympus Digital CameraKD-310Z Konica Digital Camera Lumix-FZ20 Panasonic Digital CameraFinecam SL300R Kyocera Digital Camera DMC-FX7GD Panasonic Digital CameraFinecam SL400R Kyocera Digital Camera Lumix LC33 Panasonic Digital CameraFinecam S5R Kyocera Digital Camera LUMIX DMC-F1 Panasonic Digital CameraFinecam Xt Kyocera Digital Camera Optio-S40 Pentax Digital CameraDimage-Z1 Minolta Digital Camera Optio-S50 Pentax Digital CameraDimage Z1 Minolta Digital Camera Optio 33LF Pentax Digital CameraDimage X21 Minolta Digital Camera Optio MX Pentax Digital CameraCoolpix4200 Nikon Digital Camera Digimax-420 Samsung Digital CameraCoolpix4300 Nikon Digital Camera Digimax-400 Samsung Digital CameraCoolpix 2200 Nikon Digital Camera Sora PDR-T30 Toshiba Digital CameraCoolpix 3500 Nikon Digital Camera Coolpix 5900 Nikon Digital CameraCoolpix 3700 Nikon Digital Camera Coolpix S1 Nikon Digital CameraCoolpix 4100 Nikon Digital Camera Coolpix 7600 Nikon Digital CameraCoolpix 5200 Nikon Digital Camera DMC-FX7 Panasonic Digital CameraStylus 410 digital Olympus Digital Camera Dimage Xt Minolta Digital Camera300-digital Olympus Digital Camera AZ-1 Olympus Digital Camera300-digital Olympus Digital Camera Digital CameraUSB FLASH DISCProduct Company Type Product Company TypeCruzer Micro SandiskUSB 2.0 USB Flash Drive 128MXTICK LG USB 2.0 128MCruzer Mini Sandisk USB 2.0 128M Micro Mini Iomega USB 2.0 128MCruzer Mini Sandisk USB 2.0 256M iFlash Imation USB 2.0 64MSONY Micro Vault Sony USB 2.0 64MB LG XTICK(M) USB 2.0 64MFLEX DRIVE Serotech USB 2.0 32MB RiDATA EZDrive USB 2.0 64MAnyDrive A.L tech USB 2.0 128MBMP3 PLAYERProduct Company Type Product Company TypeCreative MuVo NX128MCreative 128 MB MP3 Player YP-780 Samsung MP3 PlayerIriver H320 Iriver 20G HDD MP3 Player YP-35 Samsung MP3 PlayerYH-920 Samsung 20G HDD MP3 Player YP-55 Samsung MP3 PlayerYP-T7 Samsung MP3 Player iAUDIO U2 Cowon MP3 PlayerYP-MT6 Samsung MP3 Player iAUDIO G3 Cowon MP3 PlayerYP-T6 Samsung MP3 Player iAudio M3 Cowon HDD MP3 PlayerYP-53 Samsung MP3 Player SI-M500L Sharp 256MB MP3 PlayerYP-ST5 Samsung MP3 Player H10 Iriver MP3 PlayerYP-T5 Samsung MP3 Player YP-T5 VB Samsung MP3 PlayerYP-60 Samsung MP3 Player YP-53 Samsung 256MB MP3 PlayerHT-XA100,XA100C_XAA.indd 60 2008-02-21 5:11:03

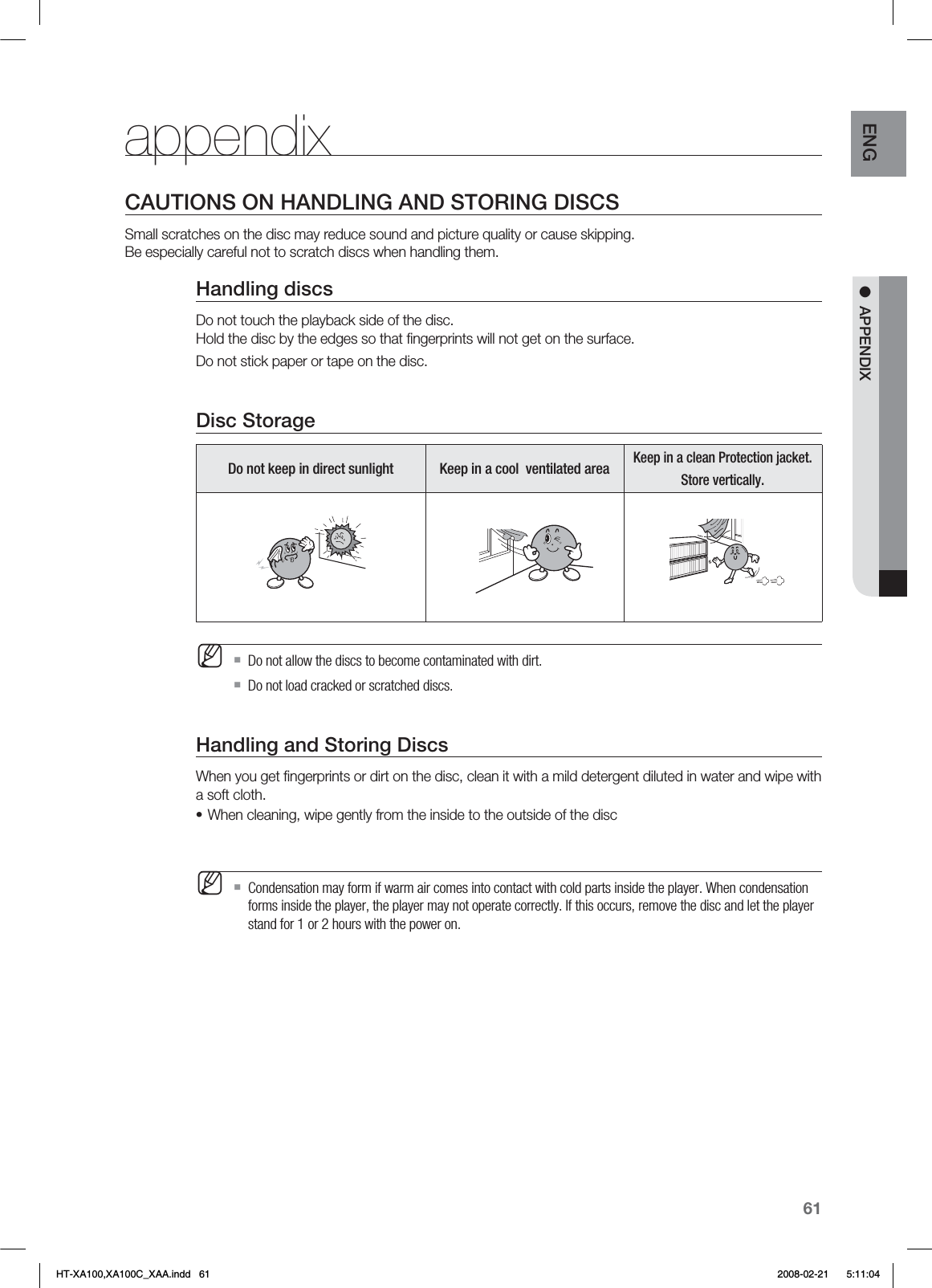

61ENG ● APPENDIXappendixCAUTIONS ON HANDLING AND STORING DISCSSmall scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them.Handling discsDo not touch the playback side of the disc. Hold the disc by the edges so that ﬁngerprints will not get on the surface.Do not stick paper or tape on the disc. Disc StorageDo not keep in direct sunlight Keep in a cool ventilated areaKeep in a clean Protection jacket.Store vertically.Do not allow the discs to become contaminated with dirt.Do not load cracked or scratched discs. Handling and Storing DiscsWhen you get ﬁngerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.When cleaning, wipe gently from the inside to the outside of the discCondensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.M•MHT-XA100,XA100C_XAA.indd 61 2008-02-21 5:11:04

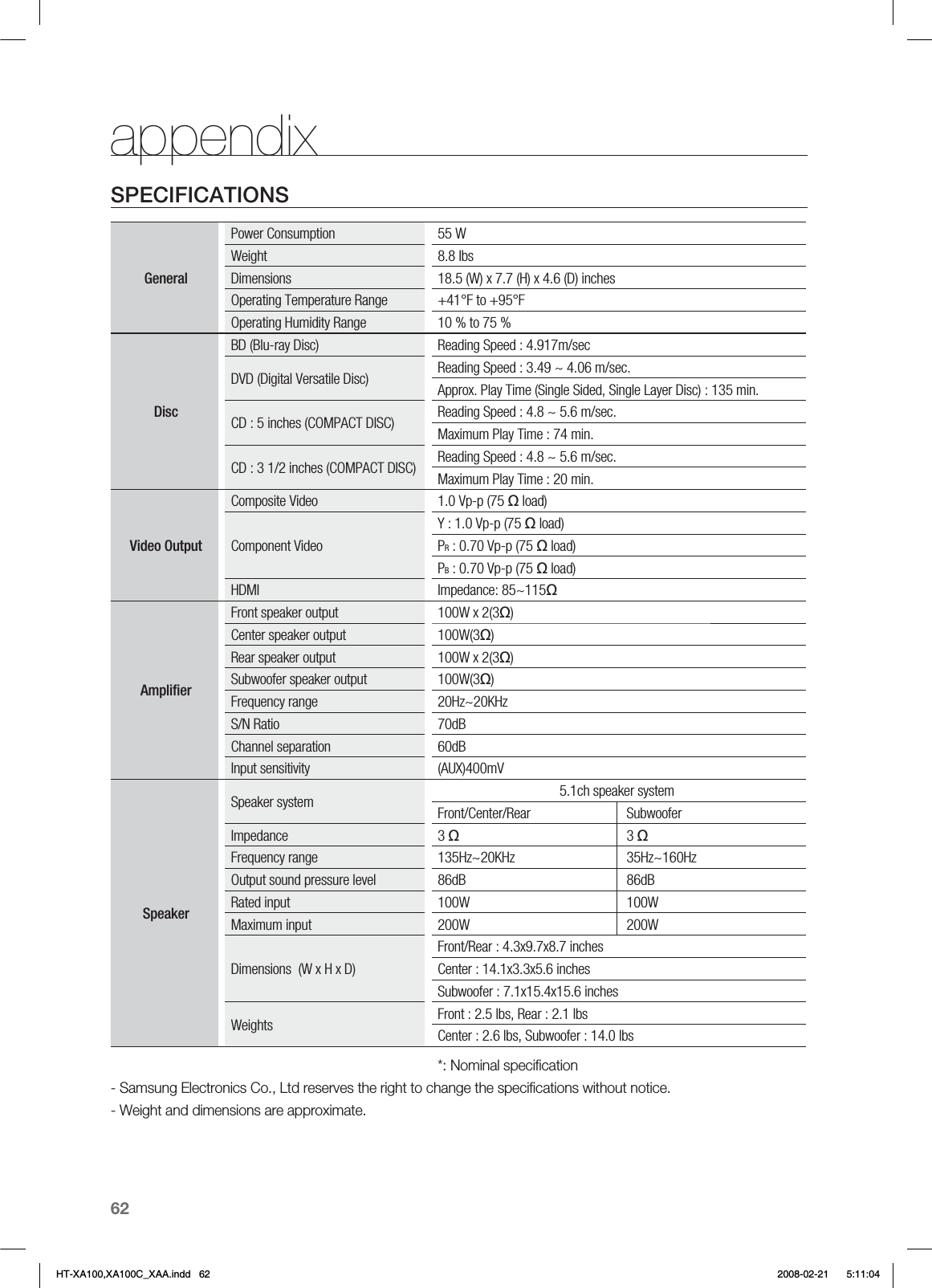

62appendixSPECIFICATIONSGeneralPower Consumption 55 WWeight 8.8 IbsDimensions 18.5 (W) x 7.7 (H) x 4.6 (D) inchesOperating Temperature Range +41°F to +95°FOperating Humidity Range 10 % to 75 %DiscBD (Blu-ray Disc) Reading Speed : 4.917m/secDVD (Digital Versatile Disc) Reading Speed : 3.49 ~ 4.06 m/sec.Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.CD : 5 inches (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 74 min.CD : 3 1/2 inches (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 20 min.Video OutputComposite Video 1.0 Vp-p (75 Ω load)Component VideoY : 1.0 Vp-p (75 Ω load)PR : 0.70 Vp-p (75 Ω load)PB : 0.70 Vp-p (75 Ω load)HDMI Impedance: 85~115ΩAmpliﬁerFront speaker output 100W x 2(3Ω)Center speaker output 100W(3Ω)Rear speaker output 100W x 2(3Ω)Subwoofer speaker output 100W(3Ω)Frequency range 20Hz~20KHzS/N Ratio 70dBChannel separation 60dBInput sensitivity (AUX)400mVSpeakerSpeaker system 5.1ch speaker systemFront/Center/Rear SubwooferImpedance 3 Ω3 ΩFrequency range 135Hz~20KHz 35Hz~160HzOutput sound pressure level 86dB 86dBRated input 100W 100WMaximum input 200W 200WDimensions (W x H x D)Front/Rear : 4.3x9.7x8.7 inchesCenter : 14.1x3.3x5.6 inchesSubwoofer : 7.1x15.4x15.6 inchesWeights Front : 2.5 lbs, Rear : 2.1 lbsCenter : 2.6 lbs, Subwoofer : 14.0 lbs*: Nominal speciﬁcation- Samsung Electronics Co., Ltd reserves the right to change the speciﬁcations without notice.- Weight and dimensions are approximate.HT-XA100,XA100C_XAA.indd 62 2008-02-21 5:11:04

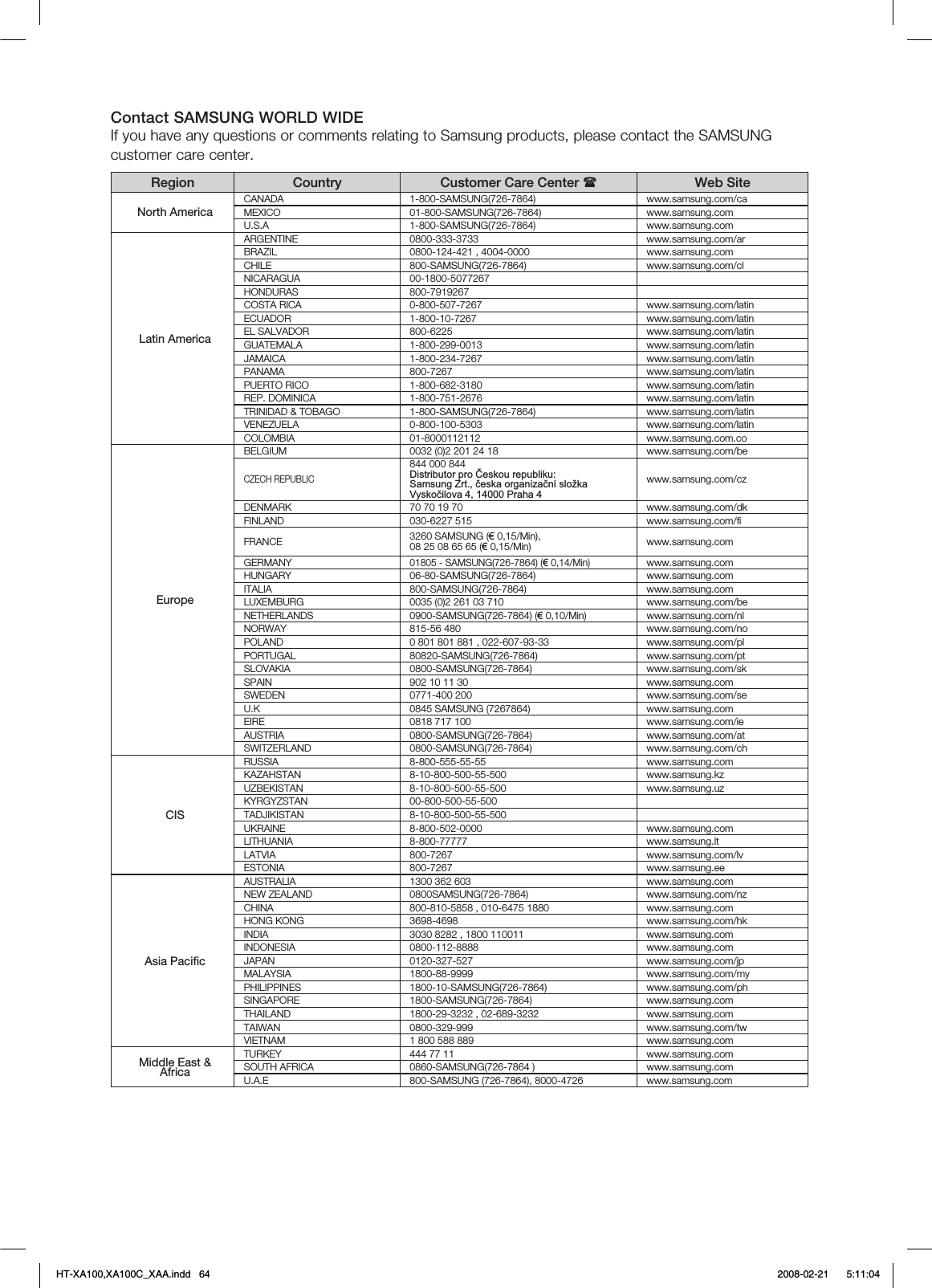

Contact SAMSUNG WORLD WIDEIf you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.Region Country Customer Care Center Web SiteNorth AmericaCANADA 1-800-SAMSUNG(726-7864) www.samsung.com/caMEXICO 01-800-SAMSUNG(726-7864) www.samsung.comU.S.A 1-800-SAMSUNG(726-7864) www.samsung.comLatin AmericaARGENTINE 0800-333-3733 www.samsung.com/arBRAZIL 0800-124-421 , 4004-0000 www.samsung.comCHILE 800-SAMSUNG(726-7864) www.samsung.com/clNICARAGUA 00-1800-5077267HONDURAS 800-7919267COSTA RICA 0-800-507-7267 www.samsung.com/latinECUADOR 1-800-10-7267 www.samsung.com/latinEL SALVADOR 800-6225 www.samsung.com/latinGUATEMALA 1-800-299-0013 www.samsung.com/latinJAMAICA 1-800-234-7267 www.samsung.com/latinPANAMA 800-7267 www.samsung.com/latinPUERTO RICO 1-800-682-3180 www.samsung.com/latinREP. DOMINICA 1-800-751-2676 www.samsung.com/latinTRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latinVENEZUELA 0-800-100-5303 www.samsung.com/latinCOLOMBIA 01-8000112112 www.samsung.com.coEuropeBELGIUM 0032 (0)2 201 24 18 www.samsung.com/beCZECH REPUBLIC844 000 844 Distributor pro Českou republiku: Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4www.samsung.com/czDENMARK 70 70 19 70 www.samsung.com/dkFINLAND 030-6227 515 www.samsung.com/ﬁFRANCE 3260 SAMSUNG (€ 0,15/Min), 08 25 08 65 65 (€ 0,15/Min) www.samsung.comGERMANY01805 - SAMSUNG(726-7864) (€ 0,14/Min)www.samsung.comHUNGARY 06-80-SAMSUNG(726-7864) www.samsung.comITALIA 800-SAMSUNG(726-7864) www.samsung.comLUXEMBURG 0035 (0)2 261 03 710 www.samsung.com/beNETHERLANDS0900-SAMSUNG(726-7864) (€ 0,10/Min) www.samsung.com/nlNORWAY 815-56 480 www.samsung.com/noPOLAND 0 801 801 881 , 022-607-93-33 www.samsung.com/plPORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/ptSLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/skSPAIN 902 10 11 30 www.samsung.comSWEDEN 0771-400 200 www.samsung.com/seU.K 0845 SAMSUNG (7267864) www.samsung.comEIRE 0818 717 100 www.samsung.com/ieAUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/atSWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/chCISRUSSIA 8-800-555-55-55 www.samsung.comKAZAHSTAN 8-10-800-500-55-500 www.samsung.kzUZBEKISTAN 8-10-800-500-55-500 www.samsung.uzKYRGYZSTAN 00-800-500-55-500TADJIKISTAN 8-10-800-500-55-500UKRAINE 8-800-502-0000 www.samsung.comLITHUANIA 8-800-77777 www.samsung.ltLATVIA 800-7267 www.samsung.com/lvESTONIA 800-7267 www.samsung.eeAsia PaciﬁcAUSTRALIA 1300 362 603 www.samsung.comNEW ZEALAND 0800SAMSUNG(726-7864) www.samsung.com/nzCHINA 800-810-5858 , 010-6475 1880 www.samsung.comHONG KONG 3698-4698 www.samsung.com/hkINDIA 3030 8282 , 1800 110011 www.samsung.comINDONESIA 0800-112-8888 www.samsung.comJAPAN 0120-327-527 www.samsung.com/jpMALAYSIA 1800-88-9999 www.samsung.com/myPHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/phSINGAPORE 1800-SAMSUNG(726-7864) www.samsung.comTHAILAND 1800-29-3232 , 02-689-3232 www.samsung.comTAIWAN 0800-329-999 www.samsung.com/twVIETNAM 1 800 588 889 www.samsung.comMiddle East & AfricaTURKEY 444 77 11 www.samsung.comSOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.comU.A.E 800-SAMSUNG (726-7864), 8000-4726www.samsung.comHT-XA100,XA100C_XAA.indd 64 2008-02-21 5:11:04
