Manual

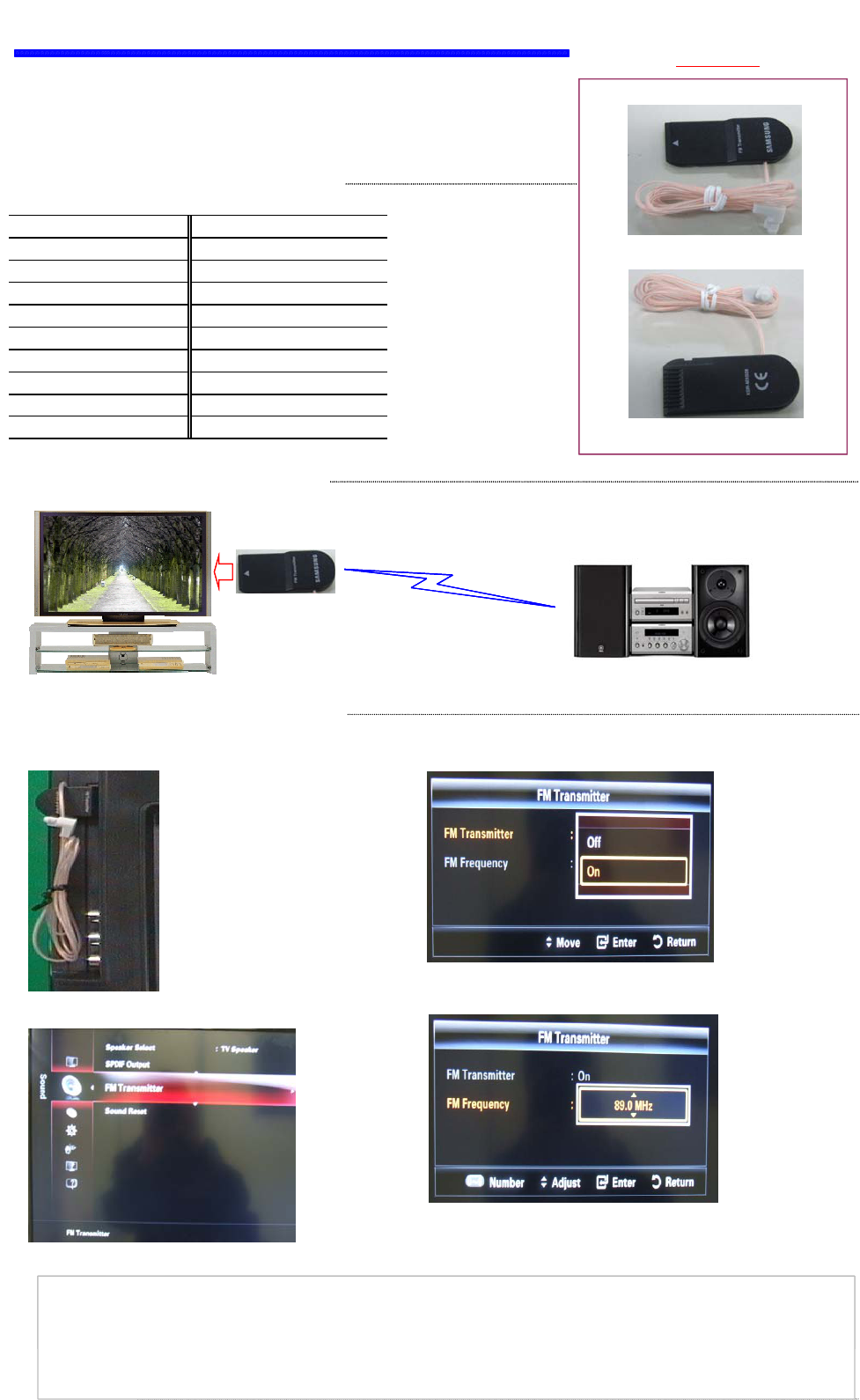

FM Transmitter Module for TV
■
FM Transmitter is for LCD & PDP TV to listen to TV sound through home audio
■
The model name of FM Transmitter is KSR-MX028 and it consists of 3 parts;
Circuit Board, Plastic Case and Wire antemna
Product Specifications
Power Requirements DC 3.3V
Current Consumption 30mA
Dimension(W*H*D) 53.0*5.0*21.5 mm
Operating Temperature -10℃ ~ 50℃
Operating Humidity 10% ~ 75%
Frequency Range 88.1MHz ~ 107.9MHz
FM Deviation 75KHz (100% MOD)
Input Audio Level 500mV (RMS)
Transmitting Distance 5m ~ 10m
Antenna Length 900mm
Application Case
FM-Transmitter (KSR-MX028)
PRODUCT
Top View
Bottom View
Set up Guide
FM-Transmitter (KSR-MX028)
PRODUCT
Top View
Bottom View
1. Insert FM Transmitter Module into the Socket which is
located at the back side of TV
2. Push the menu button on Remote controller for TV
and select FM Transmiiter on Sound Menu
3. Make FM Transmiiter Active
5. Listen to TV sound through FM Radio after tuning FM Radio with the same
Frequency as FM Transmitter's
4. Tune the Frequency to what you wnat(Frequency Range:
8.1MHz~107.9MHz)
WARNING:Thisequipmentmaygenerateoruseradiofrequencyenergy.Changesormodificationstothisequipmentmaycause
harmfulinterferenceunlessthemodificationsareexpresslyapprovedintheinstructionmanual.Theusercouldlosetheauthorityto
operatethisequipmentifanunauthorizedchangeormodificationismade.
This device complies with Part 15 of the FCC
`
sRules Operation is subject to the following two Conditions:
FM-Transmitter (KSR-MX028)
PRODUCT
Top View
Bottom View
1. Insert FM Transmitter Module into the Socket which is
located at the back side of TV
2. Push the menu button on Remote controller for TV
and select FM Transmiiter on Sound Menu
3. Make FM Transmiiter Active
5. Listen to TV sound through FM Radio after tuning FM Radio with the same
Frequency as FM Transmitter's
4. Tune the Frequency to what you wnat(Frequency Range:
8.1MHz~107.9MHz)
WARNING:Thisequipmentmaygenerateoruseradiofrequencyenergy.Changesormodificationstothisequipmentmaycause
harmfulinterferenceunlessthemodificationsareexpresslyapprovedintheinstructionmanual.Theusercouldlosetheauthorityto
operatethisequipmentifanunauthorizedchangeormodificationismade.
ThisdevicecomplieswithPart15oftheFCC`sRules.OperationissubjecttothefollowingtwoConditions:
1.Thisdevicemaynotcauseharmfulinterference,and
2.Thisdevicemustacceptantinterferencereceived,includinginterferencethatmaycauseundesirableoperation.
