Maintenance 159The Phonebook TabClick the Phonebook tab to create and edit Phonebook entries.The Scan Settings TabClick the Scan Settings tab to configure the scan destination list that appears on the operator panel display when you press <Select Software> on the operator panel. Using the destination list, you can select a software program that an image can be scanned to.Reads the Phonebook entries from the machine to the Printer Settings Utility.Downloads thePhonebook entriesfrom the PrinterSettings Utility to themachine. Phonebook entriesDeletes all Phonebook entries.Allows you to edita selectedPhonebook entryin a separate Editwindow.Deletes a selected Phonebook entry.Select the program you want from the Available Scan Destinations and click to add it to the Front Panel Destination List. To delete the selected program, click .Click to send the list you add to the machine.Click to restorethe defaultsettings.

160 MaintenanceThe Fax Cover Sheet TabClick the Fax Cover Sheet tab to create a fax cover page. When you send a fax, you can send a cover page together. For details, see page 139. The fax cover page contains the date, the sender’s fax number and machine ID, the recipient’s fax number and machine ID and the total number of pages you sent.The Firmware Update TabClick the Firmware Update tab to update the firmware of your machine. This feature should be used by an authorized technician. Please consult with the purchase point.Enter your fax number.Enter the machine ID you set. Click to send this cover page to the machine.

Installing OptionsPrecautions When Installing Machine OptionsInstalling Printer MemoryInstalling an Optional Tray2

186 Installing OptionsPrecautions When Installing Machine OptionsDISCONNECTING THE POWER CORD: Never remove the control board while the printer is plugged in.To avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external printer option.DISCHARGE OF STATIC ELECTRICITY: The control board and internal printer memory are sensitive to static electricity. Before installing or removing an internal printer memory, discharge static electricity from your body by touching something metal on any device plugged into a grounded power source. If you walk around before finishing installation, discharge any static electricity once again.Installing Printer MemoryAdditional printer memory option is provided on Dual In-line Memory Module (DIMM). This procedure is applicable to either option.1Turn the printer off and unplug all cables from the printer.2To remove the control board cover, pull out gently, as shown.

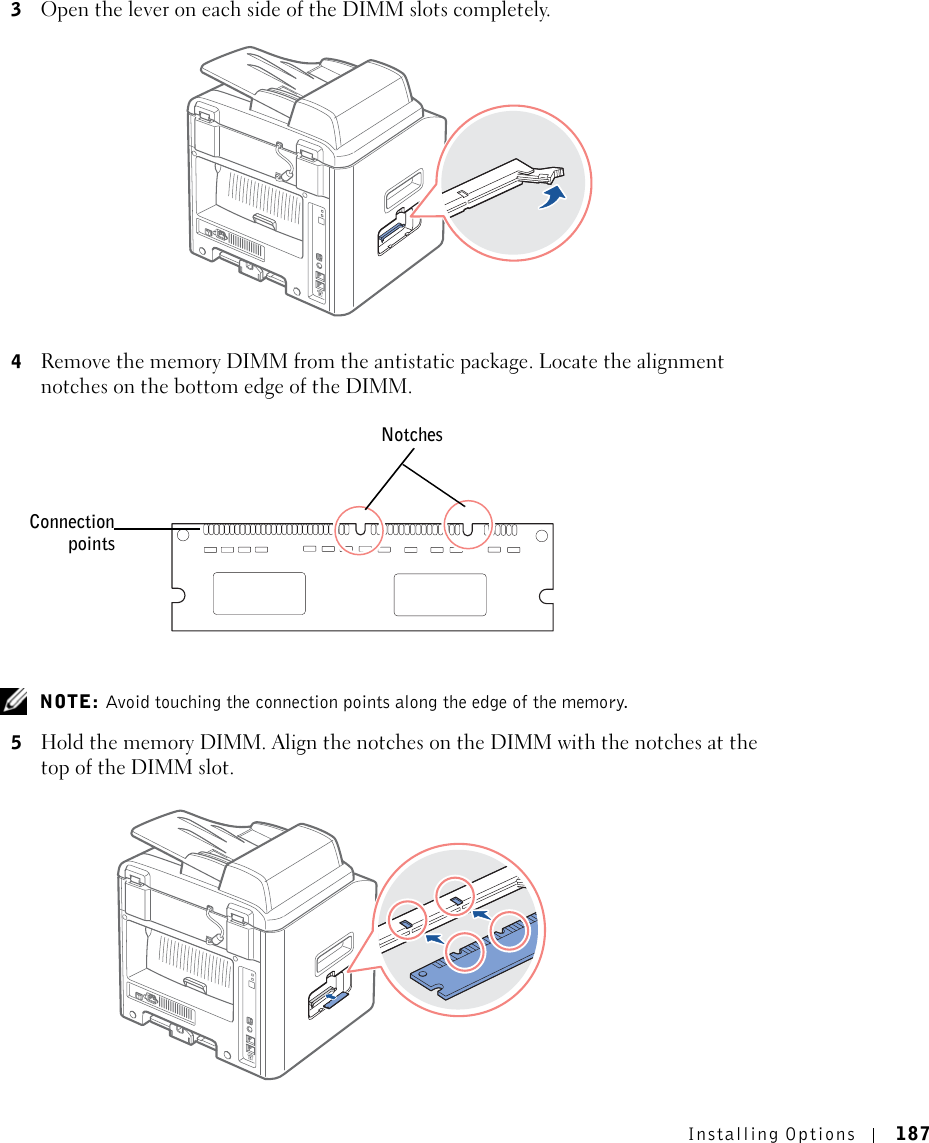

Installing Options 1873Open the lever on each side of the DIMM slots completely.4Remove the memory DIMM from the antistatic package. Locate the alignment notches on the bottom edge of the DIMM. NOTE: Avoid touching the connection points along the edge of the memory.5Hold the memory DIMM. Align the notches on the DIMM with the notches at the top of the DIMM slot.NotchesConnectionpoints

188 Installing Options6Insert the ends of the memory DIMM into the slot on the levers.7Push the memory DIMM firmly in to make sure you fully insert it into the slot.8Replace the control board cover, as shown.9Reconnect the power cord and printer cable, and turn the printer on.

Installing Options 189Removing the Memory1Follow steps 1 and 2 on page 186 to access the control board.2Push the levers at both ends of the DIMM slot away from the DIMM.3Place the DIMM in its original packaging or wrap it with paper and store it in a box.4Follow from step 8 on page 188.Installing an Optional Tray2You can increase the paper handling capacity of your machine by installing an optional Tray2. This tray holds 250 sheets of paper. 1Turn the machine off and unplug all cables from the machine.2Remove the packing tape and the tape fastening the interface cable from the bottom of the optional Tray2.

190 Installing Options3Find the location of the connector and the optional tray positioners.4Place the machine over the tray, aligning the feet on the machine with the positioners in the optional Tray2.

Installing Options 1915Plug the cable into the connector on the back of the machine.6Load paper in the optional Tray 2. For information about loading paper in this tray, see page 17.7Reconnect the power cord and cables and then turn the machine on.When you print a document on paper loaded in the optional Tray 2, you must configure the properties of the printer driver. To access the properties of the printer driver:1Click the Windows Start button.2For Windows 98/Me/NT 4.0/2000, click Settings and point to Printers.For Windows XP, click Printers and Faxes.3Click the Dell Laser MFP 1600n printer.4Right-click the printer icon and: In Windows 98/Me, click Properties.In Windows 2000, click Print Setup or click Properties and then point to Printing Preferences.In Windows NT 4.0, click Document Default.

192 Installing Options5Click the Printer tab, and select Tray 2 from the Optional Tray drop-down list.6Click OK and print the document.

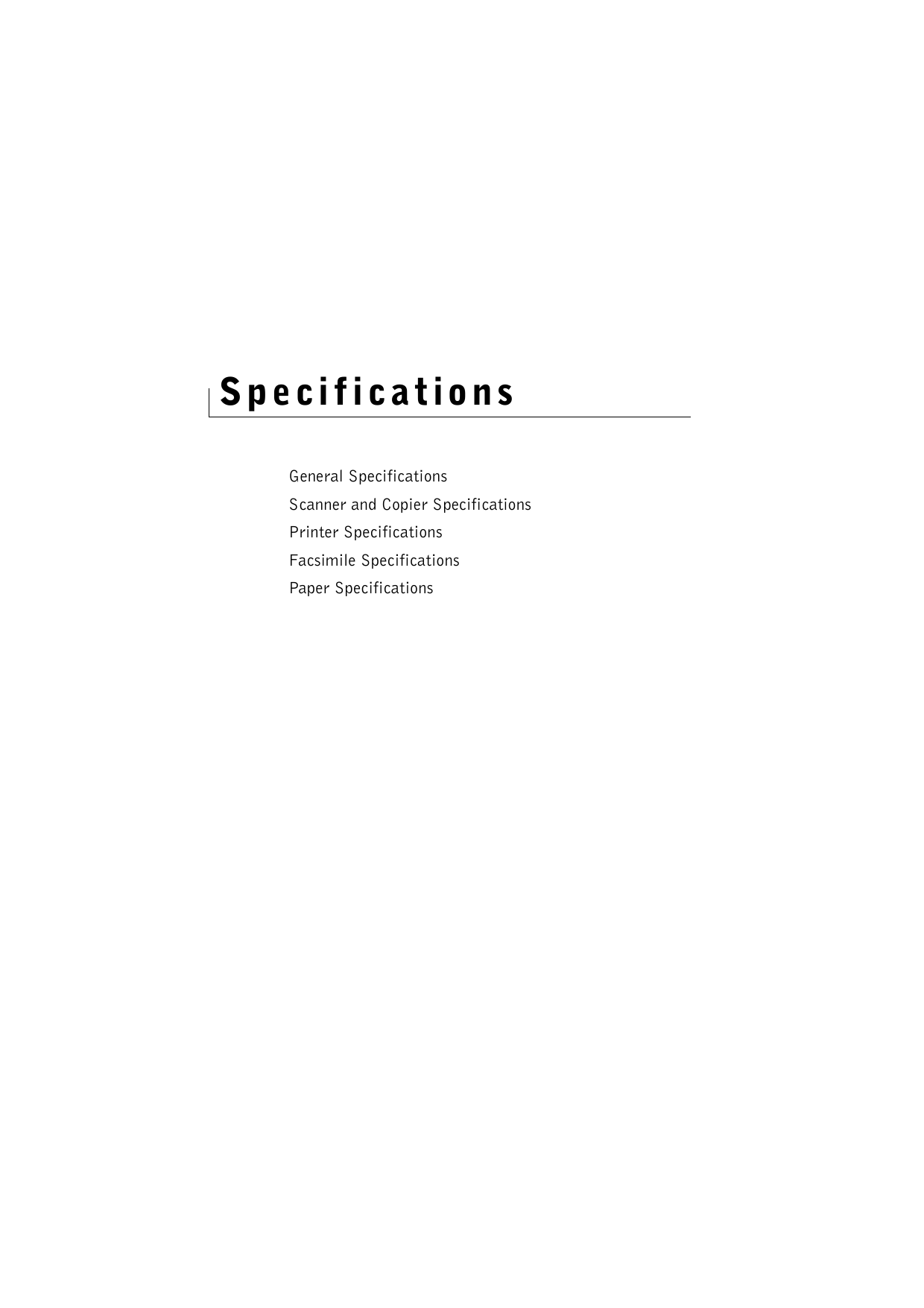

SpecificationsGeneral SpecificationsScanner and Copier SpecificationsPrinter SpecificationsFacsimile SpecificationsPaper Specifications

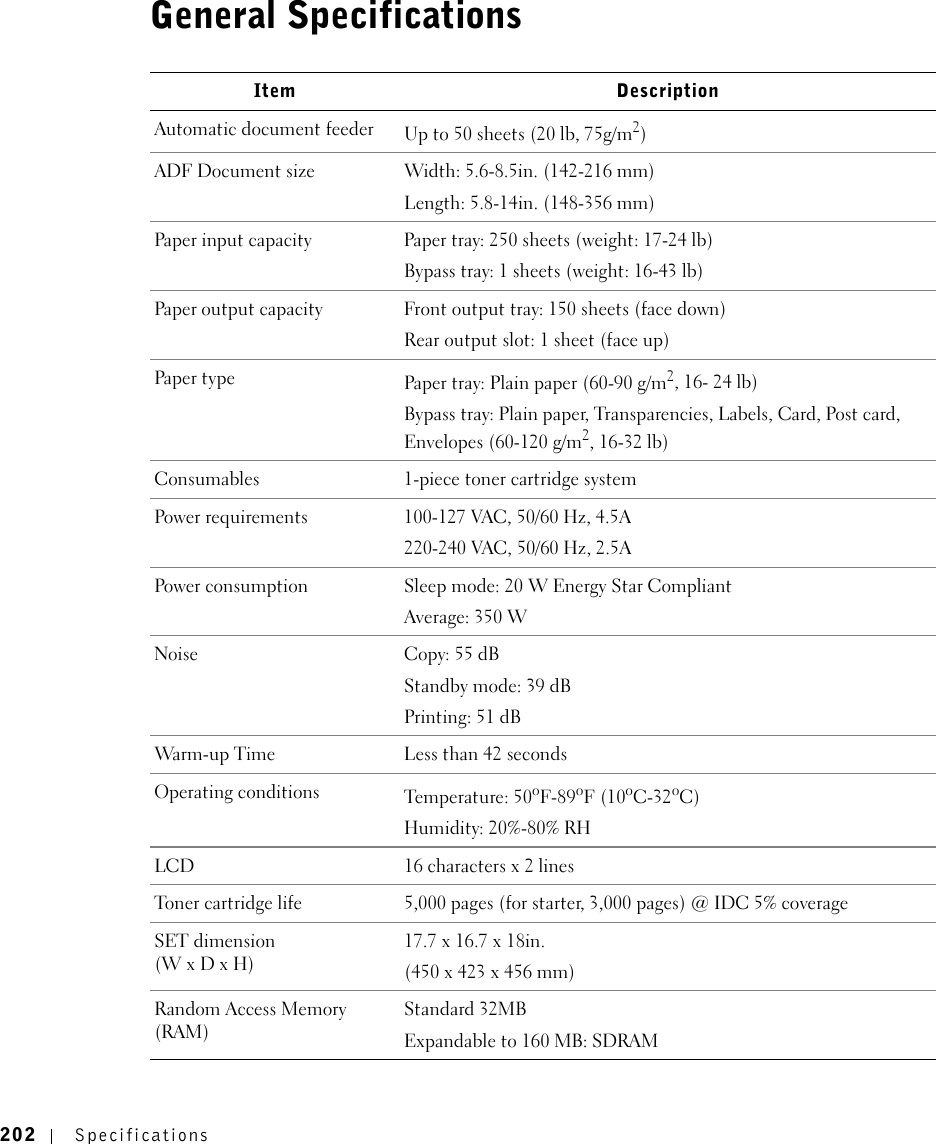

202 SpecificationsGeneral SpecificationsItem DescriptionAutomatic document feeder Up to 50 sheets (20 lb, 75g/m2)ADF Document size Width: 5.6-8.5in. (142-216 mm)Length: 5.8-14in. (148-356 mm)Paper input capacity Paper tray: 250 sheets (weight: 17-24 lb)Bypass tray: 1 sheets (weight: 16-43 lb)Paper output capacity Front output tray: 150 sheets (face down)Rear output slot: 1 sheet (face up)Paper type Paper tray: Plain paper (60-90 g/m2, 16- 24 lb)Bypass tray: Plain paper, Transparencies, Labels, Card, Post card, Envelopes (60-120 g/m2, 16-32 lb)Consumables 1-piece toner cartridge systemPower requirements 100-127 VAC, 50/60 Hz, 4.5A220-240 VAC, 50/60 Hz, 2.5APower consumption Sleep mode: 20 W Energy Star CompliantAverage: 350 WNoise Copy: 55 dBStandby mode: 39 dBPrinting: 51 dBWarm-up Time Less than 42 secondsOperating conditions Temperature: 50oF-89oF (10oC-32oC)Humidity: 20%-80% RHLCD 16 characters x 2 linesToner cartridge life 5,000 pages (for starter, 3,000 pages) @ IDC 5% coverageSET dimension (W x D x H)17.7 x 16.7 x 18in. (450 x 423 x 456 mm)Random Access Memory (RAM)Standard 32MBExpandable to 160 MB: SDRAM

Specifications 203Scanner and Copier SpecificationsWeight Net: 15.6Kg (including toner cartridge), 14.8Kg (except toner cartridge)Gross: 20.4Kg(including consumables, accessories and package)Package Weight Paper: 2.7KgPlastic: 0.7KgItem DescriptionCompatibility TWAIN standardScanning method Color CCD (Charge Coupled Device) module Resolution Optical: 600 x 1200 dpiEnhanced: 4,800 x 4800 dpi Effective scanning length Platen: 11.5 in. (293 mm)ADF: 14in. (356 mm)Effective scanning width 8.2 in. (208mm)Color bit depth 24 bitMono bit depth 1bit for Lineart8bit for Gray scaleScan speed (Text mode) Platen: 20 (Linearity), 64 (Gray), 64 seconds (Color)ADF: 18 (Linearity), 62 (Gray), 62 seconds (Color) Copy speed SDMC (Single Document Multiple Copy): 22 cpm (copies per minute for letter), 20cpm for A4MDMC (Multi-document Multiple Copy) at Text and Mixed: 14cpmMDMC at Photo mode: 8cpmPaper size Letter, A4, Legal, Folio, Executive, A5, A6, B5Zoom rate Platen: 25%-400%ADF: 25%-100%Multiple copies 1-99 pagesCopy mode(=Original Type) Text, Text&Photo, PhotoItem Description

204 SpecificationsPrinter SpecificationsItem DescriptionPrinting method Laser Beam PrintingPrinting speed Letter: 22 ppm (pages per minute)A4: 20 pages per minutePaper size Paper tray: Letter, A4, Legal, Folio, A5, A6 Bypass tray: Letter, Legal, A4, Folio, Executive, A5, A6, A6 card, Post Card 4x6, HagaKi, Envelope 7-3/4, Envelope 9, Envelope 10, Envelope COM-10, Envelope DL, Envelope C5, Envelope C6, Envelope B5, JIS B5, ISO B5* Min.: 3 x 5in. (76 x 127 mm) Max.: 8.5 x 14 in. (216 x 356 mm)Print resolution 600 x 600 dpi (1200 x 600 dpi)Emulation GDI, PC6, PCL5e, PostScript Level3PC Interface USB 2.0 (option)Network Interface 10/100 Base TXCompatibility Windows 98/2000/NT 4.0/Me/XPFirst printing time Standby mode: 12 secondsPower save mode: 54 seconds

Specifications 205Facsimile Specifications Item DescriptionCompatibility ITU-T Group 3Applicable line Public Switched Telephone Network (PSTN) or behind PABXData coding MH/MR/MMR (ECM Mode) and JPEG for color fax transmissionModem speed 33.6 KbpsTransmission speed Approx. 3 seconds/page* Transmission time applies to memory transmission of text data with ECM compression using only ITU-T No.1 Chart.Scanning speed Platen: approx. 6 seconds/A4 (at standard fax resolution mode)ADF: approx. 2 seconds/Letter (at standard fax resolution mode), 2.5 seconds/Letter (at fine fax resolution mode)Maximum document length Platen: 297 mmADF: 1.5 mmPaper size Letter, A4, LegalResolution Standard: 203 x 98 dpiFine: 203 x 196 dpiSuper Fine: 300 x 300 dpi User Memory 4 MB (320 pages)Halftone 256 levels

206 SpecificationsPaper SpecificationsOverviewYour machine accepts a variety of print materials, such as cut-sheet paper (including up to 100 percent recycled fiber content paper), envelopes, labels, transparencies and custom-size paper. Properties, such as weight, composition, grain and moisture content, are important factors affecting the machine’s performance and the output quality. Paper that does not meet the guidelines outlined in this User’s Guide can cause the following problems:• Poor print quality•Increased paper jams• Premature wear on the machine. NOTE: Some paper may meet all of the guidelines in this guide and still not produce satisfactory results. This may be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Dell has no control. NOTE: Before purchasing large quantities of paper, insure the paper meets the requirements specified in this User’s Guide. CAUTION: Using paper that does not meet these specifications may cause problems, requiring repairs. These repairs are not covered by the Dell warranty or service agreements.Supported Sizes of PaperPaper DimensionsaWeight CapacitybLetter 8.5 X 11in. (216 X 279 mm) • 60-105 g/m2 bond (16-28 lb) for the paper tray• 60-120 g/m2 bond (16-32 lb) for the Bypass tray• 250 sheets of 75 g/m2 bond (20 lb) paper for the paper tray• 1 sheet of paper for the Bypass trayA4 8.3 X 11.7 in.(210 X 297 mm) Executive 7.25 X 10.5in.(191 X 267 mm)Legal 8.5 X 14in. (216 X 356 mm)Folio 8.5 X 13 in.(216 X 330 mm)

Specifications 207 NOTE: You may experience jams when using print materials with a length of less than 127 mm (5inches). For optimum performance, ensure that you are storing and handling the paper correctly. Please refer to page 209.Guidelines for Using PaperFor the best result, use conventional 75 g/m2 (20 lb) paper. Ensure that the paper is of good quality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curled or bent edges.If you are unsure of what type of paper you are loading, such as bond or recycled paper, check the label on the package.The following problems may cause print quality deviations, jamming or even damage to the machine:Minimum size (custom)3 x 5in.(76 x 127 mm) 60-120g/m2bond (16-32 lb)1 sheet of paper for the Bypass trayMaximum size (Legal) 8.5 x 14 in.(216 x 356 mm)Transparency Same minimum and maximum paper sizes as listed above.138-146 g/m2Labels 120-150 g/m2Cards 90-163 g/m2Envelopes 75-90 g/m2a. The machine supports a wide range of media sizes. b. Capacity may vary depending on print materials’ weight and thickness, and environmental conditions.Symptom Problem with paper SolutionPoor print quality or toner adhesion, problems with feedingToo moist, too rough, too smooth or embossed; faulty paper lotTry another kind of paper, between 100-400 Sheffied, 4%-5% moisture content.Dropout, jamming, curl Stored improperly Store paper flat in its moisture-proof wrapping.Increased gray background shading/printer wearToo heavy Use lighter paper, use the rear output slot.Paper DimensionsaWeight Capacityb

208 Specifications NOTE: Do not use letterhead paper printed with low-temperature inks, such as those used in some types of thermography. NOTE: Do not use raised or embossed letterhead. NOTE: The machine uses heat and pressure to fuse toner to the paper. Insure that any colored paper or preprinted forms use inks that are compatible with this fusing temperature (200 °C or 392 °F for 0.1 second).Paper SpecificationsPaper Output CapacityExcessive curl problems with feedingToo moist, wrong grain direction or short-grain construction• Use the rear output slot.• Use long-grain paper.Jamming, damage to machine Cutouts or perforations Do not use paper with cutouts or perforations.Problems with feeding Ragged edges Use good quality paper.Category SpecificationsAcid Content 5.5 pH or lowerCaliper 0.094-0.18 mm (3.0-7.0 mils)Curl in Ream Flat within 0.02 in. (5 mm)Cut Edge Conditions Cut with sharp blades with no visible fray.Fusing Compatibility Must not scorch, melt, offset or release hazardous emissions when heated to 200°C (392°F) for 0.1 second.Grain Long GrainMoisture Content 4%-6% by weightSmoothness 100-400 SheffiedOutput Location CapacityFrint Output Tray (Face Down) 150 sheets of 75 g/m2 bond (20 lb) paper Rear Output Slot (Face Up) 1 sheet of 75 g/m2 bond (20 lb) paperSymptom Problem with paper Solution

Specifications 209Printer and Paper Storage EnvironmentPaper storage environmental conditions directly affect the feed operation.Ideally, the machine and paper storage environment should be at or near room temperature, and not too dry or humid. Remember that paper is hygroscopic; it absorbs and loses moisture rapidly.Heat works with humidity to damage paper. Heat causes the moisture in paper to evaporate, while cold causes it to condense on the sheets. Heating systems and air conditioners remove most of the humidity from a room. As paper is opened and used, it loses moisture, causing streaks and smudging. Humid weather or water coolers can cause the humidity to increase in a room. As paper is opened and used it absorbs any excess moisture, causing light print and dropouts. Also, as paper loses and gains moisture it can become distorted. This can cause paper jams.Care should be taken not to purchase more paper than can be used in a short time (about 3 months). Paper stored for long periods may experience heat and moisture extremes, which can cause damage. Planning is important to prevent damage to large supplies of paper.Unopened paper in sealed reams can remain stable for several months before use. Opened packages of paper have more potential for environment damage, especially if they are not wrapped with a moisture-proof barrier.The paper storage environment should be properly maintained to ensure optimum performance. The required condition is 20°C to 24°C (68°F to 75°F), with a relative humidity of 4 percent to 55percent. The following guidelines should be considered when evaluating the paper’s storage environment:• Paper should be stored at or near room temperature.• The air should not be too dry or too humid.• The best way to store an opened ream of paper is to rewrap it tightly in its moisture-proof wrapping. If the machine environment is subject to extremes, unwrap only the amount of paper to be used during the day’s operation to prevent unwanted moisture changes.

210 Specifications

211Regulatory NoticesCOMMENT: This is an all-inclusive boilerplate. Check with your EMC regulatory and safety contacts to verify that all of these statements apply to your product. Remove any statements that do not apply, as directed by your EMC regulatory and safety contacts. COMMENT: Trademarks used in this boilerplate: Dell and ENERGY STARCOMMENT: CLIENT WRITERS: The only regulatory notices required in English paper documents are the first three paragraphs of the following introduction (including the paragraph that starts with "If necessary ... ") and the NOM section. After the third paragraph, include the following two sentences, ensuring that you verify the cross-reference and update the XXX: "For additional regulatory information, see the Tell Me How help file that accompanied your computer. To access the help file, see XXX." The reference will generally be either to the Tell Me How help file (Inspiron and Dimension) or an online User’s Guide (Latitude, Precision, and OptiPlex). Or if the computer only comes with one operating system, you could instruct the user what to click. Electromagnetic Interference (EMI) is any signal or emission, radiated in free space or conducted along power or signal leads, that endangers the functioning of a radio navigation or other safety service or seriously degrades, obstructs, or repeatedly interrupts a licensed radio communications service. Radio communications services include but are not limited to AM/FM commercial broadcast, television, cellular services, radar, air-traffic control, pager, and Personal Communication Services (PCS). These licensed services, along with unintentional radiators such as digital devices, including computers, contribute to the electromagnetic environment.Electromagnetic Compatibility (EMC) is the ability of items of electronic equipment to function properly together in the electronic environment. While this computer has been designed and determined to be compliant with regulatory agency limits for EMI, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference with radio communications services, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:• Reorient the receiving antenna.• Relocate the computer with respect to the receiver.• Move the computer away from the receiver.• Plug the computer into a different outlet so that the computer and the receiver are on different branch circuits.If necessary, consult a Dell Technical Support representative or an experienced radio/television technician for additional suggestions. Dell™ computers are designed, tested, and classified for their intended electromagnetic environment. These electromagnetic environment classifications generally refer to the following harmonized definitions:COMMENT: CLIENT WRITERS: Always verify with your Regulatory engineer whether your platform is Class A or Class B. If your Regulatory engineer confirms that your platform is Class B only, you can delete all references to Class A in this boilerplate.• Class A is typically for business or industrial environments.• Class B is typically for residential environments.

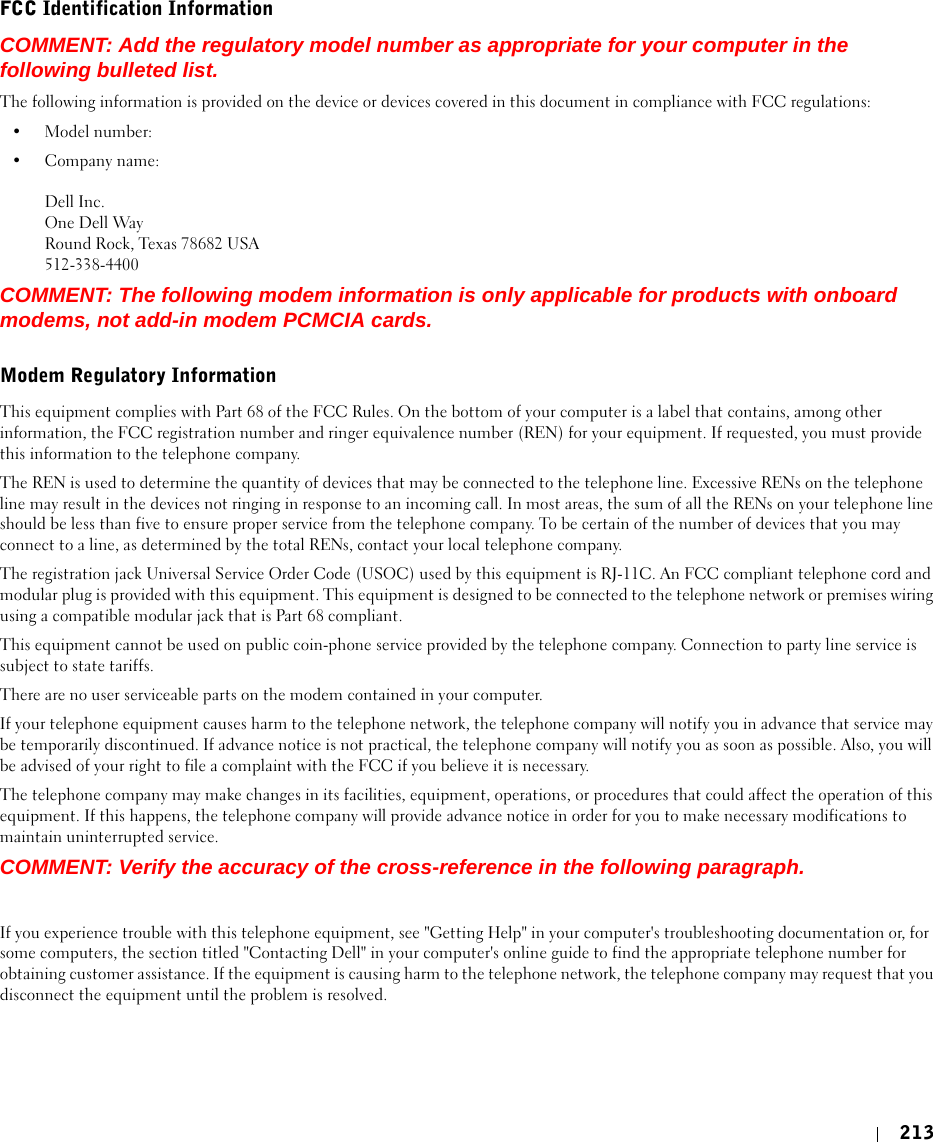

213FCC Identification InformationCOMMENT: Add the regulatory model number as appropriate for your computer in the following bulleted list.The following information is provided on the device or devices covered in this document in compliance with FCC regulations: • Model number: • Company name: Dell Inc.One Dell WayRound Rock, Texas 78682 USA512-338-4400COMMENT: The following modem information is only applicable for products with onboard modems, not add-in modem PCMCIA cards.Modem Regulatory InformationThis equipment complies with Part 68 of the FCC Rules. On the bottom of your computer is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for your equipment. If requested, you must provide this information to the telephone company.The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most areas, the sum of all the RENs on your telephone line should be less than five to ensure proper service from the telephone company. To be certain of the number of devices that you may connect to a line, as determined by the total RENs, contact your local telephone company.The registration jack Universal Service Order Code (USOC) used by this equipment is RJ-11C. An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant. This equipment cannot be used on public coin-phone service provided by the telephone company. Connection to party line service is subject to state tariffs.There are no user serviceable parts on the modem contained in your computer.If your telephone equipment causes harm to the telephone network, the telephone company will notify you in advance that service may be temporarily discontinued. If advance notice is not practical, the telephone company will notify you as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of this equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.COMMENT: Verify the accuracy of the cross-reference in the following paragraph.If you experience trouble with this telephone equipment, see "Getting Help" in your computer's troubleshooting documentation or, for some computers, the section titled "Contacting Dell" in your computer's online guide to find the appropriate telephone number for obtaining customer assistance. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

214Fax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent, identification of the business, other entity, or individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual. The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.IC Notice (Canada Only)Most Dell computers (and other Dell digital apparatus) are classified by the Industry Canada (IC) Interference-Causing Equipment Standard #3 (ICES-003) as Class B digital devices. To determine which classification (Class A or B) applies to your computer (or other Dell digital apparatus), examine all registration labels located on the bottom, side, or the back panel of your computer (or other digital apparatus). A statement in the form of "IC Class A ICES-003" or "IC Class B ICES-003" will be located on one of these labels. Note that Industry Canada regulations provide that changes or modifications not expressly approved by Dell could void your authority to operate this equipment.COMMENT: The following modem information is only applicable for products with onboard modems, not add-in modem PCMCIA cards.Modem Regulatory InformationThe IC label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational, and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The IC label does not guarantee that the equipment will operate to the user's satisfaction.Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alteration made by a user to this equipment, or equipment malfunctions, may give the telephone communications company cause to request the user to disconnect the equipment.Users should ensure for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water-pipe system, if present, are connected together. This precaution may be particularly important in rural areas. NOTICE: Users should not attempt to make such connections themselves. Contact the appropriate electric inspection authority, or electrician, as appropriate. NOTE: The REN assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed the number five.This Class B (or Class A, if so indicated on the registration label) digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numérique de la Classe B (ou Classe A, si ainsi indiqué sur l’étiquette d’enregistration) respecte toutes les exigences du Reglement sur le Materiel Brouilleur du Canada.

215COMMENT: WRITERS: Verify the "0.6 B" measurement in the following clause with your Regulatory modem contacts.The REN for the internal modem as stated on the IC regulatory label located on the bottom of the computer is 0.6 B.The following information is provided in compliance with IC regulations:Dell Inc.One Dell WayRound Rock, TX 78682 USA512-338-4400CE Notice (European Union)Marking by the symbol indicates compliance of this Dell computer to the EMC Directive and the Low Voltage Directive of the European Union. Such marking is indicative that this Dell system meets the following technical standards:• EN 55022 — "Information Technology Equipment — Radio Disturbance Characteristics — Limits and Methods of Measurement."• EN 55024 — "Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement."• EN 61000-3-2 — "Electromagnetic Compatibility (EMC) - Part 3: Limits - Section 2: Limits for Harmonic Current Emissions (Equipment Input Current Up to and Including 16 A Per Phase)."• EN 61000-3-3 — "Electromagnetic Compatibility (EMC) - Part 3: Limits - Section 3: Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment With Rated Current Up to and Including 16 A."• EN 60950 — "Safety of Information Technology Equipment."NOTE: EN 55022 emissions requirements provide for two classifications:• Class A is for typical commercial areas.• Class B is for typical domestic areas.COMMENT: Include the following warning ONLY for Class A computers/products. Do not precede it with an icon, and do not change it to a caution.RF INTERFERENCE WARNING: This is a Class A product. In a domestic environment this product may cause radio frequency (RF) interference, in which case the user may be required to take adequate measures.COMMENT: Include the following sentence ONLY for Class B computers/products:This Dell device is classified for use in a typical Class B domestic environment.COMMENT: In rare cases, the regulatory engineer may instruct you to keep both the warning (Class A) and the sentence (Class B) in the same document. When that occurs, precede the RF INTERFERENCE WARNING for Class A with the following sentence (Enterprise writers, delete "system information" from the following paragraph): To determine which classification applies to your computer, examine the FCC or ICES information on the regulatory label located on the back, side, or bottom panel of the computer. If the FCC or ICES information on the label indicates a Class A rating, the following Class A warning applies to your computer:COMMENT: Then precede the Class B statement with the following sentence: If the FCC or ICES information on the label indicates a Class B rating, the following Class B statement applies to your computer:COMMENT: Include the following paragraph, regardless of Class A or Class B certification.A "Declaration of Conformity" in accordance with the preceding directives and standards has been made and is on file at Dell Inc. Products Europe BV, Limerick, Ireland.

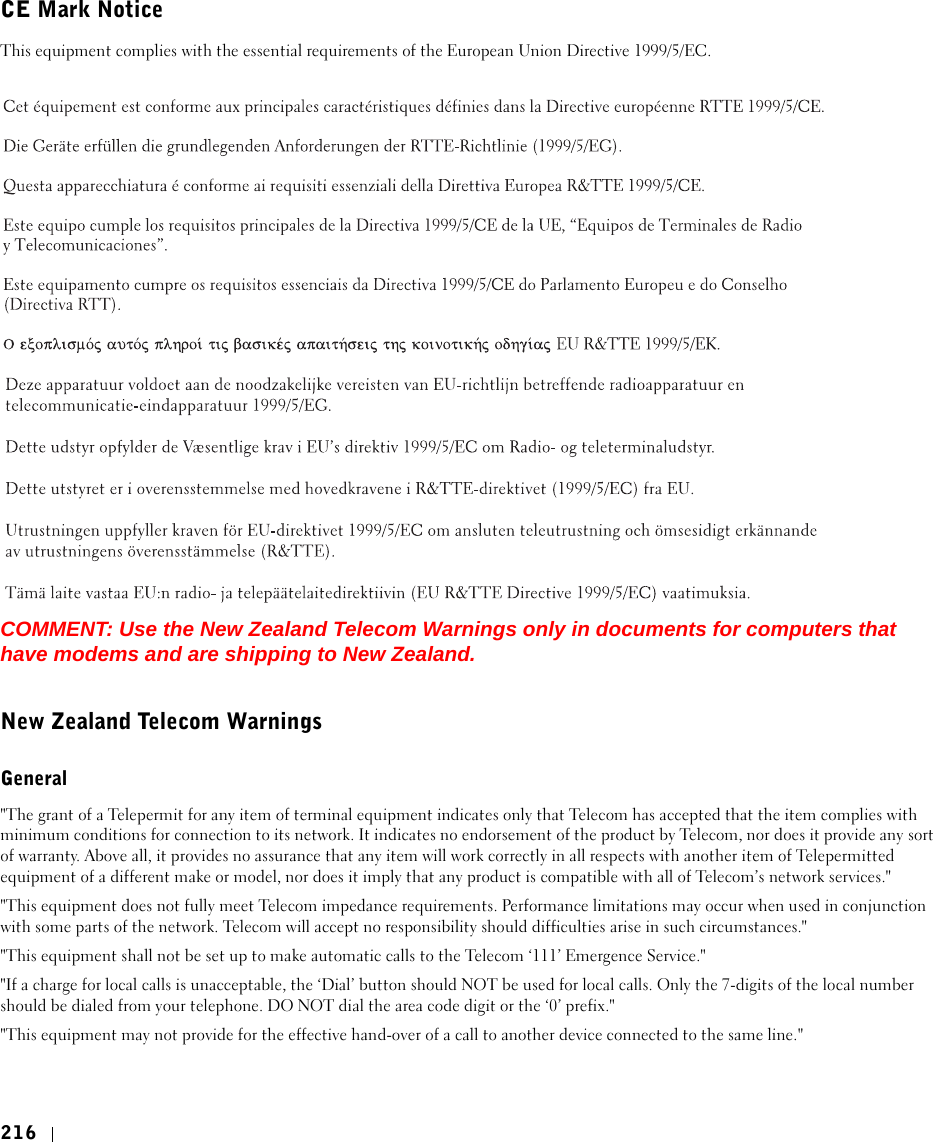

216CE Mark NoticeThis equipment complies with the essential requirements of the European Union Directive 1999/5/EC.COMMENT: Use the New Zealand Telecom Warnings only in documents for computers that have modems and are shipping to New Zealand.New Zealand Telecom WarningsGeneral"The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom’s network services.""This equipment does not fully meet Telecom impedance requirements. Performance limitations may occur when used in conjunction with some parts of the network. Telecom will accept no responsibility should difficulties arise in such circumstances.""This equipment shall not be set up to make automatic calls to the Telecom ‘111’ Emergence Service.""If a charge for local calls is unacceptable, the ‘Dial’ button should NOT be used for local calls. Only the 7-digits of the local number should be dialed from your telephone. DO NOT dial the area code digit or the ‘0’ prefix.""This equipment may not provide for the effective hand-over of a call to another device connected to the same line."

217Important Notice"Under power failure conditions, this telephone may not operate. Please ensure that a separate telephone, not dependent on local power, is available for emergency use.""Some parameters required for compliance with Telecom’s Telepermit requirements are dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecom’s Specification:1There shall be no more than 10 call attempts to the same number within any 30-minute period for any single manual call initiation, and the equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the beginning of the next attempt.2Where automatic calls are made to different numbers, the equipment shall go on-line for a period of not less than 5 seconds between the end of one attempt and the beginning of the next attempt. 3The equipment shall be set to ensure that calls are answered between 3 and 30 seconds of receipt of ringing.""All persons using this device for recording telephone conversations shall comply with New Zealand law. This requires that at least one party to the conversation is to be aware that it is being recorded. In addition, the Principles enumerated in the Privacy Act of 1993 shall be complied with in respect to the nature of the personal information collected, the purpose for its collection, how it is used and what is disclosed to any other party."COMMENT: Do not change the warning in the Simplified Chinese Class A Warning Notice (China Only) to a caution.Simplified Chinese Class A Warning Notice (China Only)On Class A systems, the following warning will appear near the regulatory label:Warning: This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.EN 55022 Compliance (Czech Republic Only)This device belongs to Class B devices as described in EN 55022, unless it is specifically stated that it is a Class A device on the specification label. The following applies to devices in Class A of EN 55022 (radius of protection up to 30 meters). The user of the device is obliged to take all steps necessary to remove sources of interference to telecommunication or other devices.

218VCCI Notice (Japan Only)Most Dell computers are classified by the Voluntary Control Council for Interference (VCCI) as Class B information technology equipment (ITE). However, the inclusion of certain options can change the rating of some configurations to Class A. ITE, including devices, expansion cards, printers, input/output (I/O) devices, monitors, and so on, integrated into or connected to the computer should match the electromagnetic environment classification (Class A or B) of the computer.To determine which classification applies to your computer, examine the regulatory labels/markings located on the bottom, side, or back panel of your computer. Once you have determined your computer’s VCCI classification, read the appropriate VCCI notice (see "VCCI Class A ITE Regulatory Mark" or "VCCI Class B ITE Regulatory Mark").Class A ITEThis is a Class A product based on the standard of the Voluntary Control Council for Interference (VCCI) for information technology equipment. If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.VCCI Class A ITE Regulatory Mark If the regulatory label includes the following marking, your computer is a Class A product: Class B ITEThis is a Class B product based on the standard of the Voluntary Control Council for Interference (VCCI) for information technology equipment. If this equipment is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.VCCI Class B ITE Regulatory MarkIf the regulatory label includes the following marking, your computer is a Class B product: VCCI

219MIC notice (Republic of Korea Only)To determine which classification (Class A or B) applies to your computer (or other Dell digital device), examine the Republic of Korean Ministry of Information and Communications (MIC) registration labels located on your computer (or other Dell digital device). The MIC label may be located separately from the other regulatory marking applied to your product. Line two of the label identifies the emissions class for the product—"(A)" for Class A products or "(B)" for Class B products.NOTE: MIC emissions requirements provide for two classifications:• Class A devices are for business purposes.• Class B devices are for nonbusiness purposes.Class A DevicePlease note that this device has been approved for business purposes with regard to electromagnetic interference. If you find that this device is not suitable for your use, you may exchange it for a nonbusiness-purpose device.MIC Class A Regulatory LabelIf the regulatory label includes the following marking, your computer is a Class A product:Class B DevicePlease note that this device has been approved for nonbusiness purposes and may be used in any environment, including residential areas.COMMENT: The following MIC Class B Regulatory label requires system-specific changes, so ensure that you check with your EMC engineer about modifying it for your system. (If your system was manufactured at a Compal or Quanta facility, you can use the graphic in the "Graphic for MIC Class B" folder for line 5 of the following MIC Class B Regulatory label.) The regulatory model and marketing name/model will change with every system.

220MIC Class B Regulatory LabelIf the regulatory label includes the following marking, your computer is a Class B product:Polish Center For Testing And Certification NoticeThe equipment should draw power from a socket with an attached protection circuit (a 3-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source.The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standard PN-EN 55022.

221BSMI Notice (Taiwan Only)If you find a or mark on the regulatory label on the bottom, side, or back panel of your computer, the following section is applicable:

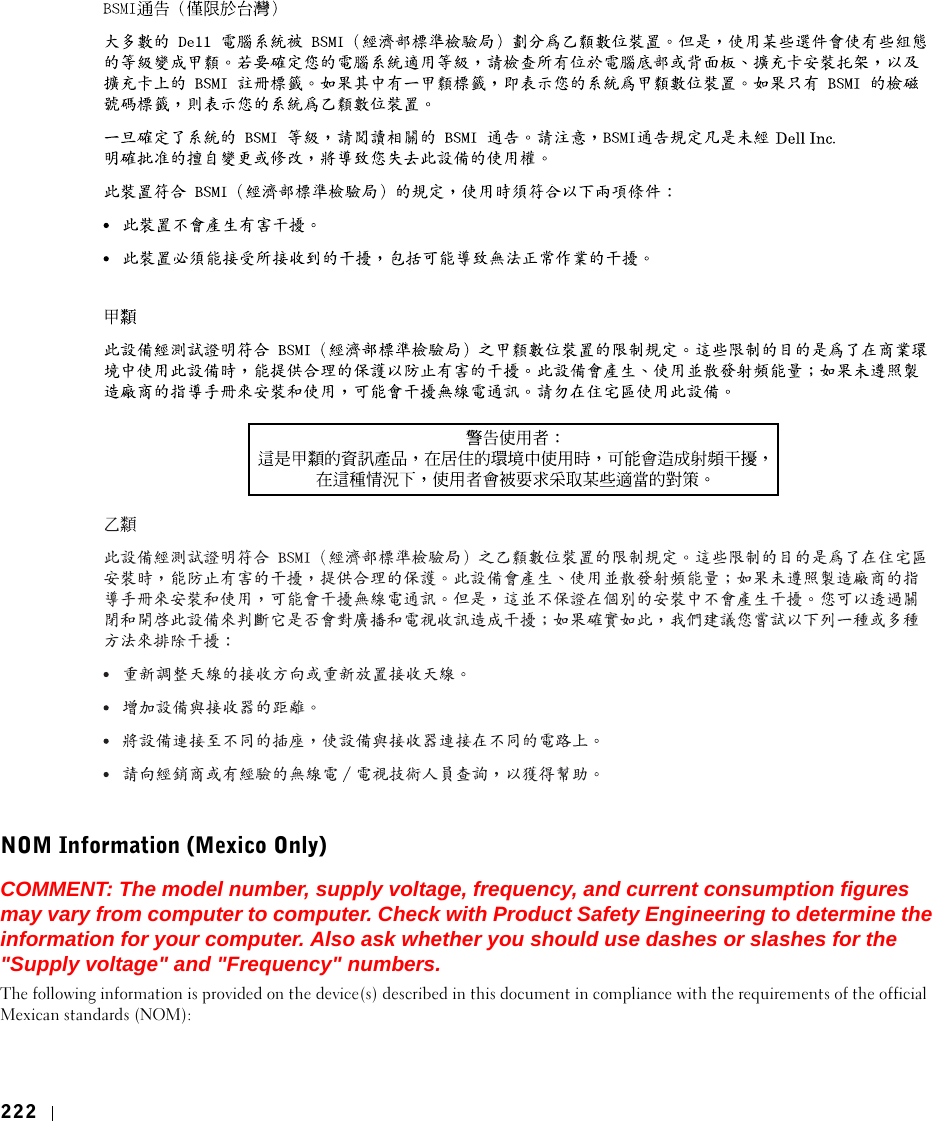

222NOM Information (Mexico Only)COMMENT: The model number, supply voltage, frequency, and current consumption figures may vary from computer to computer. Check with Product Safety Engineering to determine the information for your computer. Also ask whether you should use dashes or slashes for the "Supply voltage" and "Frequency" numbers.The following information is provided on the device(s) described in this document in compliance with the requirements of the official Mexican standards (NOM):
