Samsung Electronics Co LS22E390 LCD monitor User Manual

Samsung Electronics Co Ltd LCD monitor

Contents

user manual

User manual
S22E360H
S22E390H
S24E360HL
S24E390HL
S27E360H
S27E390H
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
BN46-00384A-00
S27E360F
Table Of Contents 2
Table Of Contents
BEFORE USING THE
PRODUCT
6 Copyright
6 Icons used in this manual
7 Cleaning
8 Securing the Installation Space
8 Precautions for storage
9 Safety Precautions
9Symbols
10 Electricity and Safety
11 Installation and Safety
13 Operation and Safety
17 Correct posture to use the product
PREPARATIONS 18 Checking the Contents

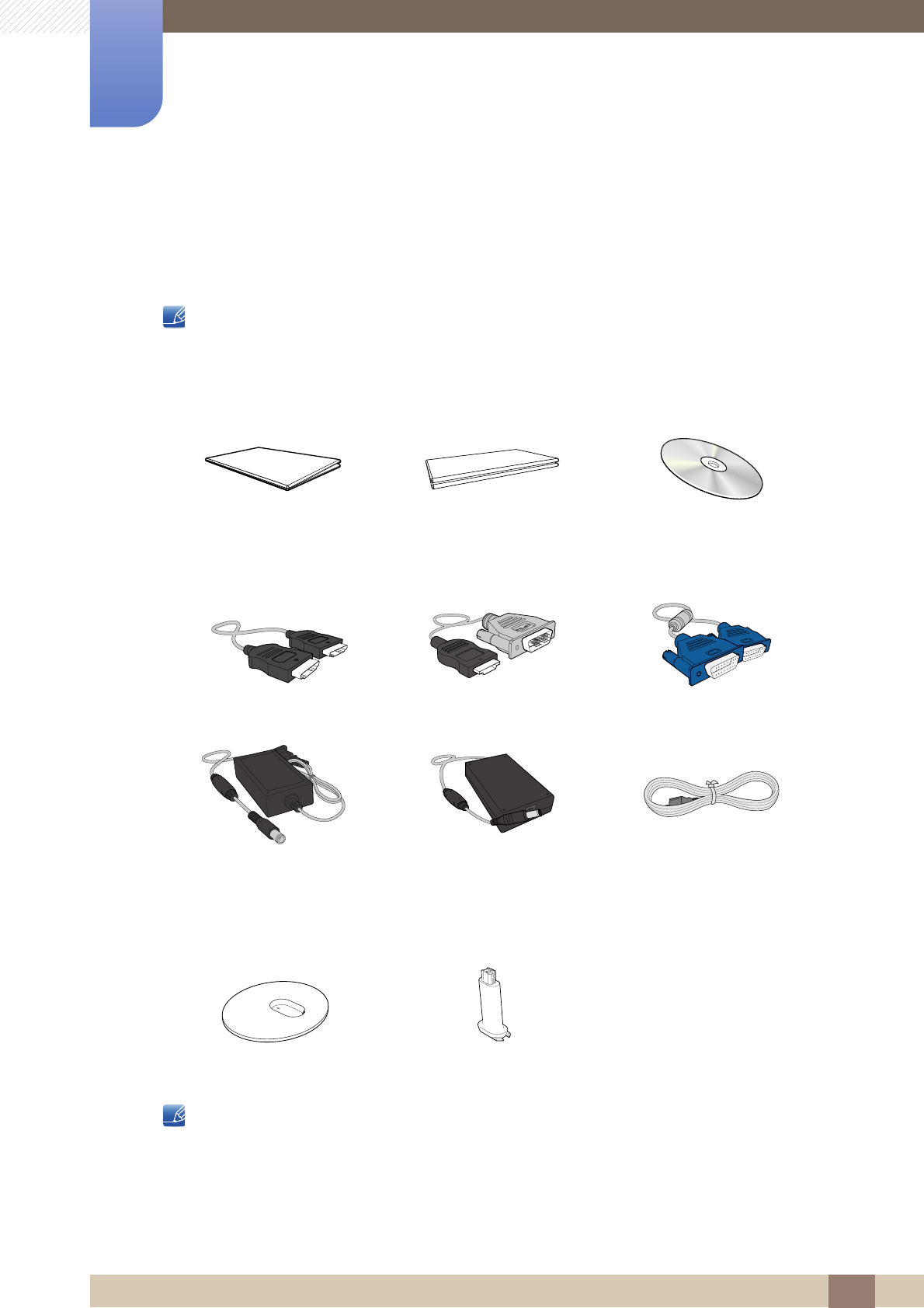

18 Checking the Components
19 Parts

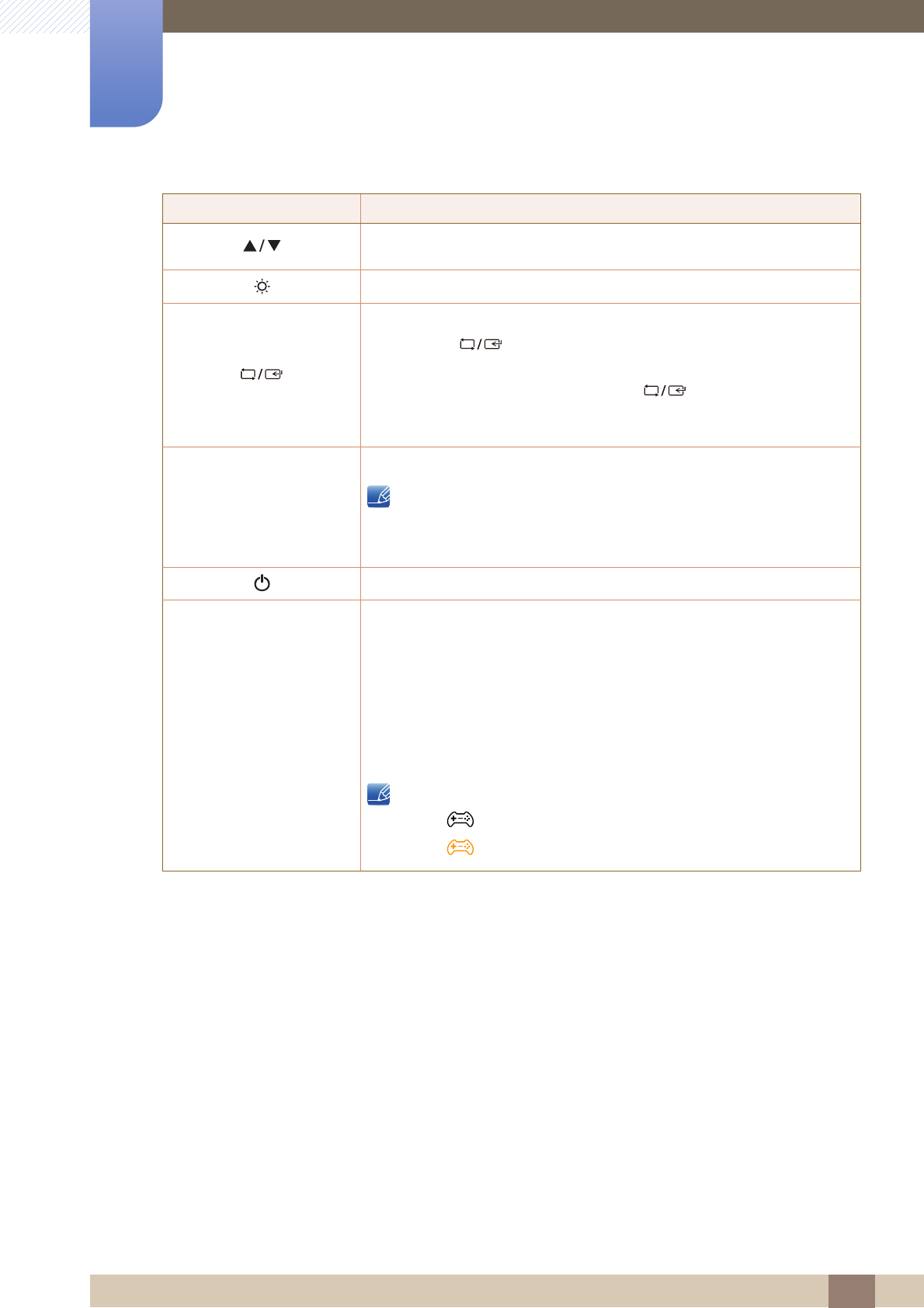

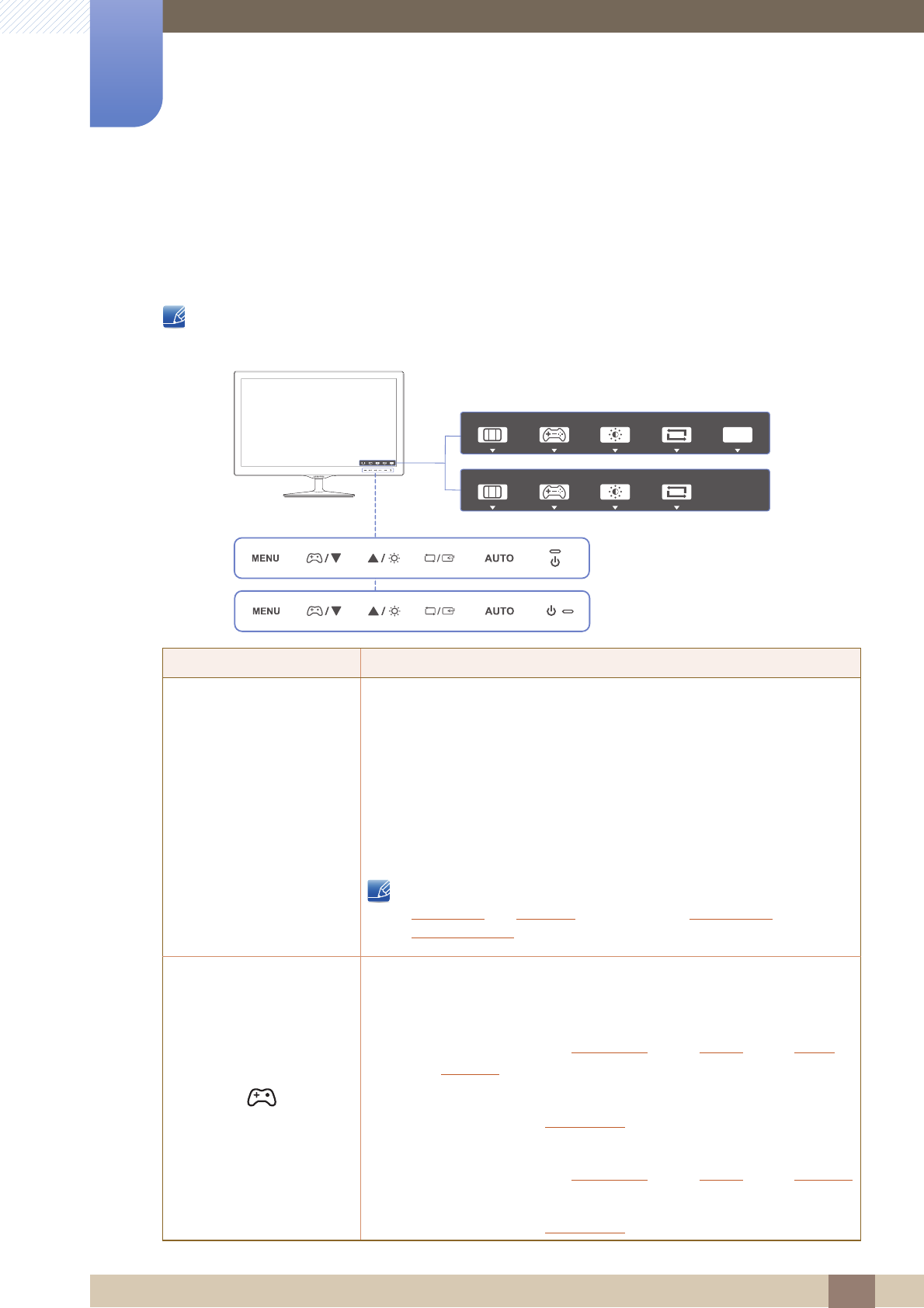

19 Frontal Buttons
21 Reverse Side
22 Installation
22 Attaching the Stand
23 Removing the Stand
24 Adjusting the Product Tilt
25 Anti-theft Lock
CONNECTING AND USING
A SOURCE DEVICE
26 Before Connecting
26 Pre-connection Checkpoints
26 Connecting and Using a PC

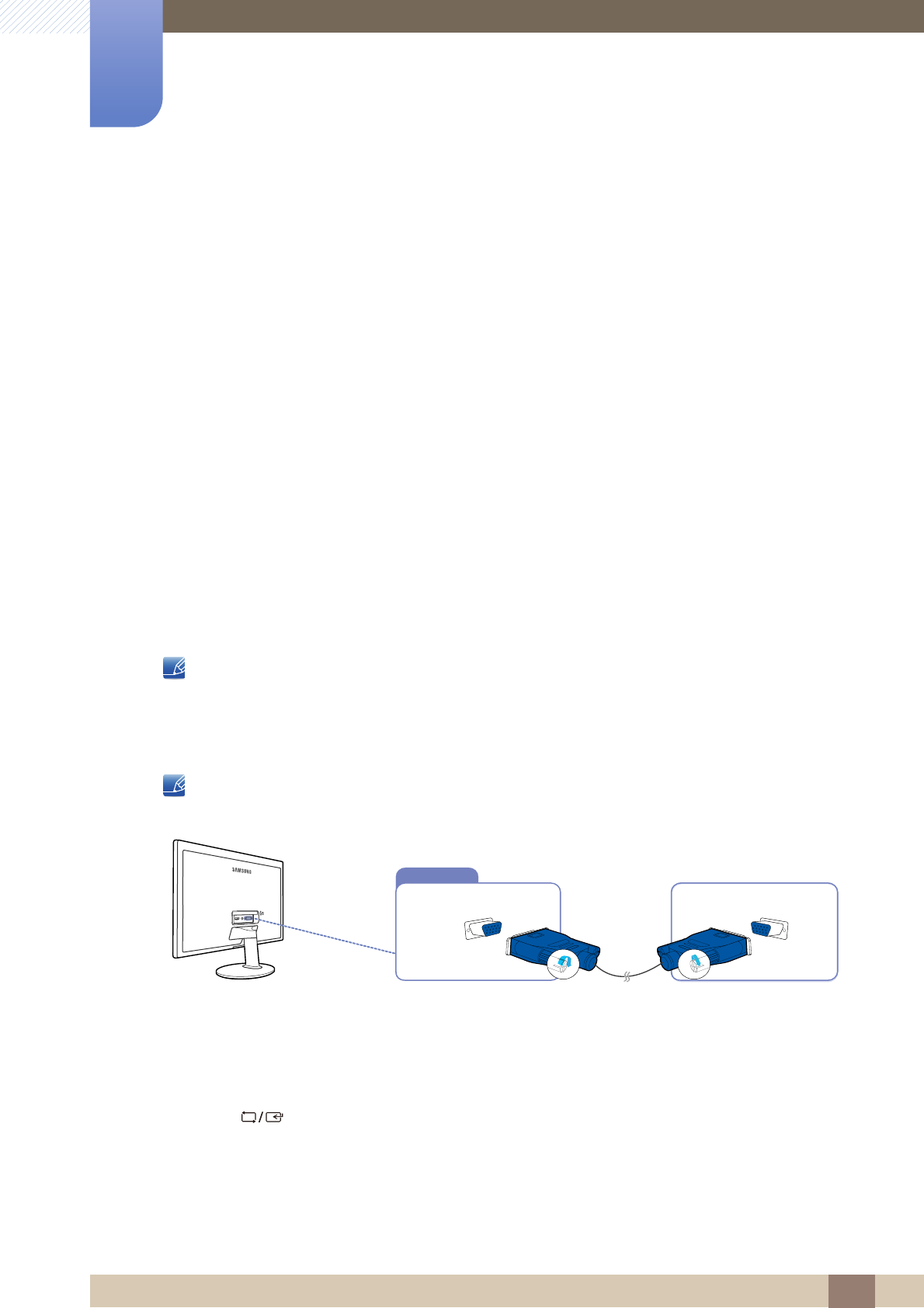

26 Connecting to a PC
28 Connecting the Power
29 Driver Installation
30 Setting Optimum Resolution
SCREEN SETUP 31 Brightness
31 Configuring Brightness
Table Of Contents
Table Of Contents 3
32 Contrast
32 Configuring Contrast
33 Sharpness
33 Configuring Sharpness
34 Game Mode
34 Configuring Game Mode
35 SAMSUNG MAGIC Bright
35 Configuring SAMSUNG MAGIC Bright
37 SAMSUNG MAGIC Angle
(S22E360H / S22E391H)
37 Configuring SAMSUNG MAGIC Angle
39 SAMSUNG MAGIC Upscale
39 Configuring SAMSUNG MAGIC Upscale
40 Image Size
40 Changing the Image Size
42 HDMI Black Level
42 Configuring the HDMI Black Level Settings
43 Response Time (S24E360HL /
S24E391HL / S27E 360H / S27E391H)
43 Configuring the Response Time
44 H-Position & V-Position
44 Configuring H-Position & V-Position
46 Coarse
46 Adjusting Coarse
47 Fine
47 Adjusting Fine
CONFIGURING TINT 48 Red
48 Configuring Red
49 Green
49 Configuring Green
Table Of Contents
Table Of Contents 4
50 Blue
50 Configuring Blue
51 Color Tone
51 Configuring the Color Tone Settings
52 Gamma
52 Configuring Gamma
COORDINATING OSD 53 Language
53 Configuring Language
54 Menu H-Position & Menu V-Position
54 Configuring Menu H-Position &
Menu V-Position
55 Display Time
55 Configuring Display Time
56 Transparency
56 Changing Transparency
SETUP AND RESET 57 Reset All
57 Initializing Settings (Reset All)
58 Eco Saving
58 Configuring Eco Saving
59 Off Timer
59 Configuring Off Timer
60 Configuring Turn Off After
61 PC/AV Mode
61 Configuring PC/AV Mode
62 Key Repeat Time
62 Configuring Key Repeat Time
63 Source Detection
63 Configuring Source Detection
Table Of Contents
Table Of Contents 5
INFORMATION MENU AND
OTHERS
64 INFORMATION
64 Displaying INFORMATION
65 Configuring Brightness and Contrast in
the Initial Screen
INSTALLING THE
SOFTWARE
66 Easy Setting Box
66 Installing the Software
67 Removing the Software
TROUBLESHOOTING
GUIDE
68 Requirements Before Contacting
Samsung Customer Service Center
68 Testing the Product
68 Checking the Resolution and Frequency
68 Check the following.
71 Q & A
SPECIFICATIONS 73 General
75 PowerSaver
76 Standard Signal Mode Table
APPENDIX 78 Contact SAMSUNG WORLD WIDE
84 Responsibility for the Pay Service
(Cost to Customers)
84 Not a product defect
84 A Product damage caused by customer's fault
84 Others
86 Correct Disposal
86 Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
87 Terminology
INDEX
6
Before Using the Product
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2014 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Icons used in this manual
An administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
(b) you bring the unit to a repair centre and there is no defect in the product
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is
carried out.
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
7
Before Using the Product
Before Using the Product

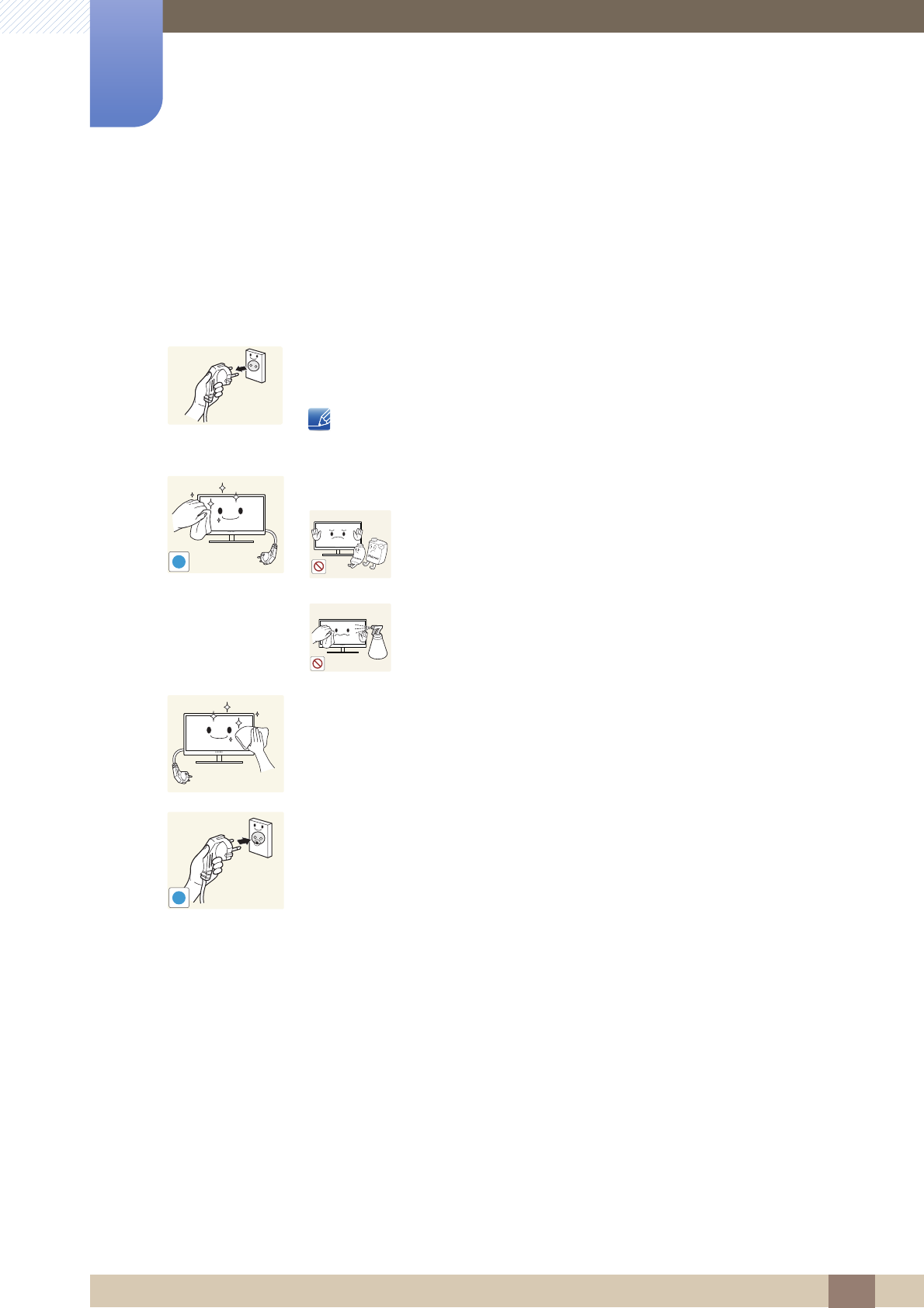

Cleaning
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cable from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor screen using a clean, soft and dry cloth.
Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cable to the product after cleaning the product.
6. Power on the monitor and computer.
!
!
8
Before Using the Product
Before Using the Product

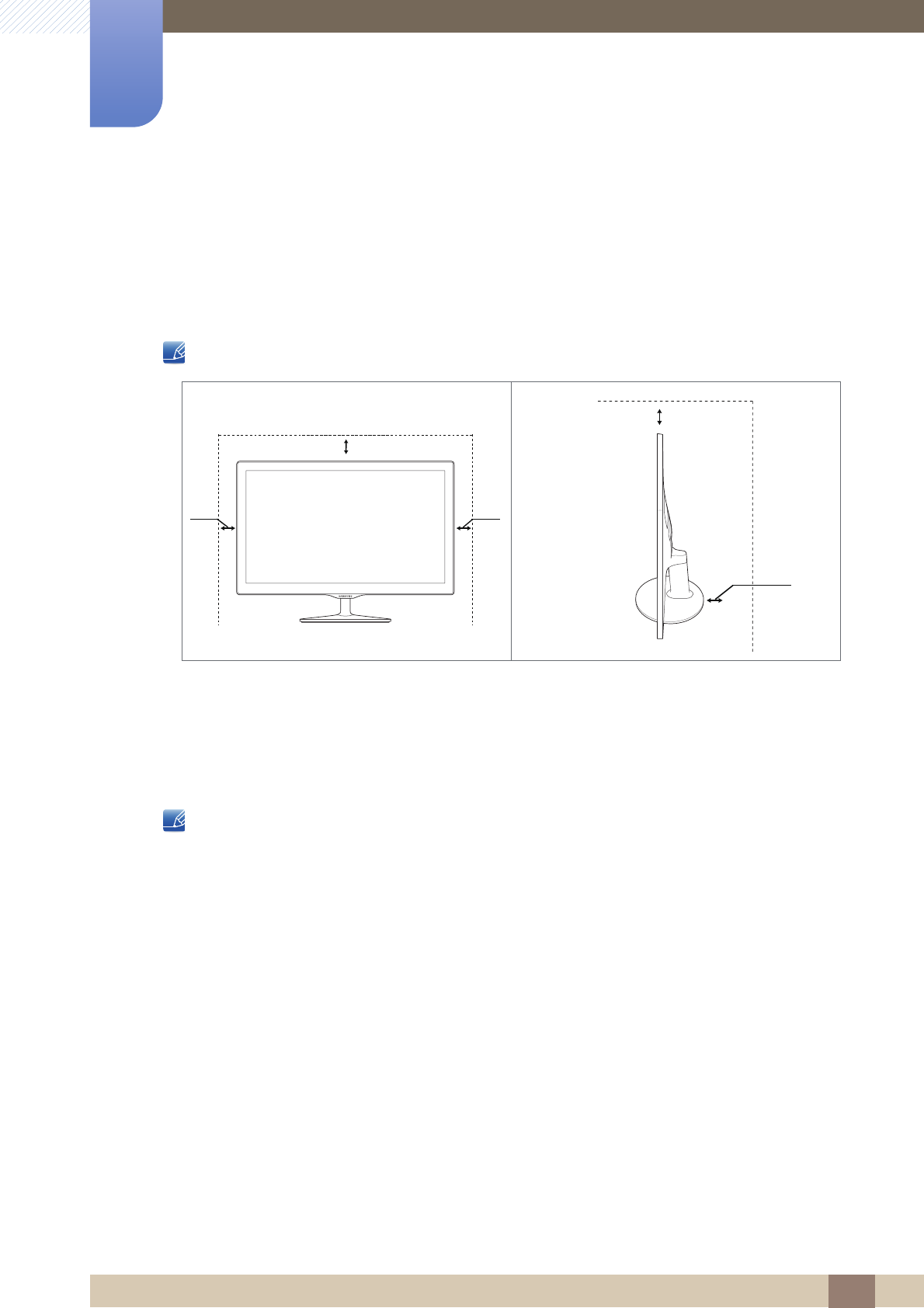

Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire
and damage the product. Be sure to allow the amount of space as shown below or greater when
installing the product.
The exterior may differ depending on the product.
Precautions for storage
Be sure to contact Samsung Customer Service Center (page 78) if the inside of the monitor needs
cleaning. (A service fee will be charged.)
(10 cm)3.93inches
(10 cm)
3.93
inches
(10 cm)
(10 cm)
3.93
inches
3.93inches
(10 cm)
3.93
inches
9
Before Using the Product
Before Using the Product
Safety Precautions
Symbols
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside. It is dangerous to
make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and
maintenance has been included with this product.
Warning A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
10
Before Using the Product
Before Using the Product

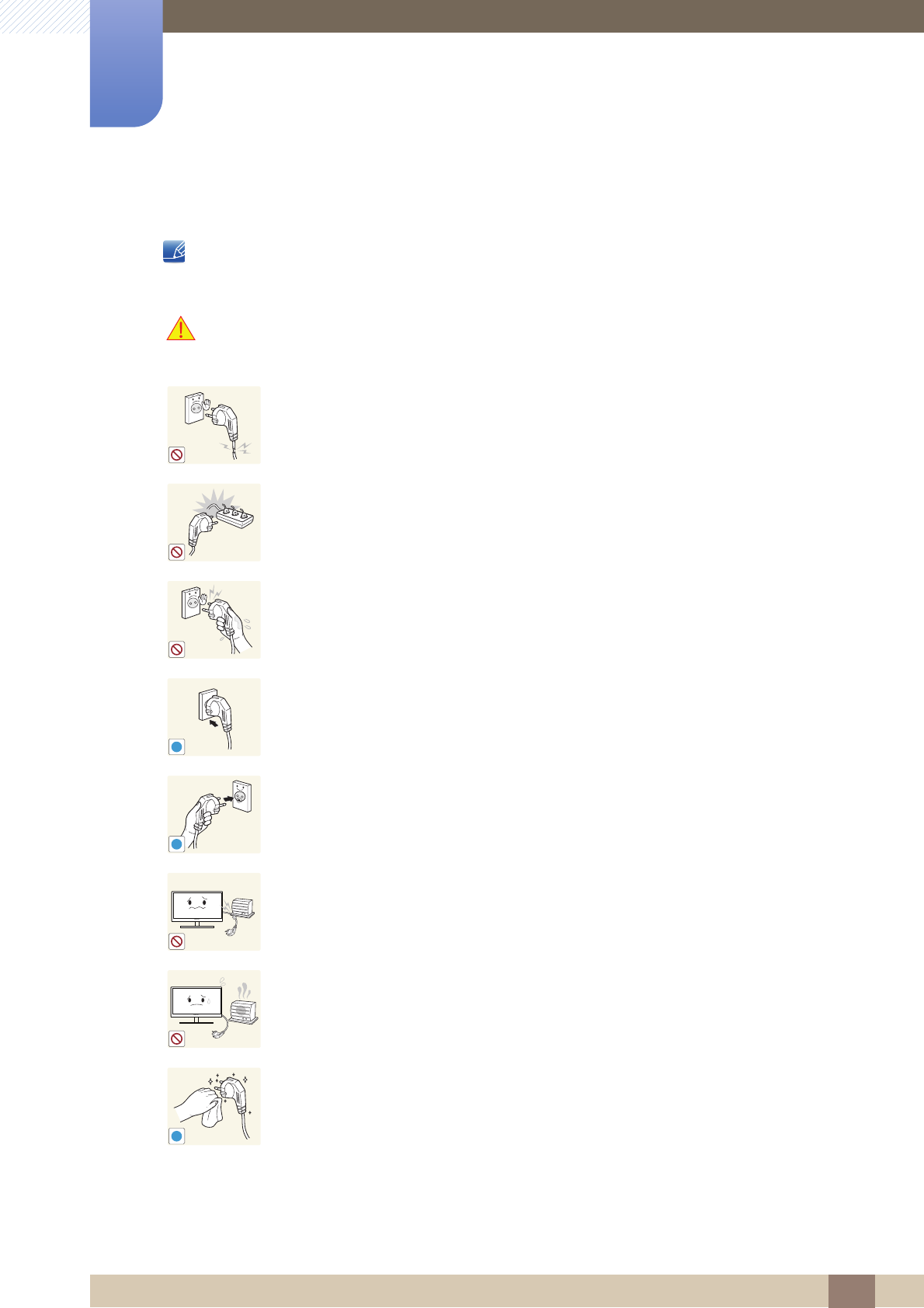

Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cable or plug, or a loose power socket.
An electric shock or fire may result.
Do not plug many products into the same power socket.
Otherwise, the socket may overheat and cause a fire.
Do not touch the power plug with wet hands.
Otherwise, an electric shock may result.
Insert the power plug all the way in so it is not loose.
An unstable connection may cause a fire.
Ensure you connect the power plug to a grounded power socket
(type 1 insulated devices only).
An electric shock or injury may result.
Do not bend or pull the power cable with force. Do not weigh the power cable
down with a heavy object.
A damaged power cable may cause an electric shock or fire.
Do not place the power cable or product near heat sources.
An electric shock or fire may result.
Remove foreign substances such as dust around the plug pins and power socket
with a dry cloth.
Otherwise, a fire may result.
!
!
!

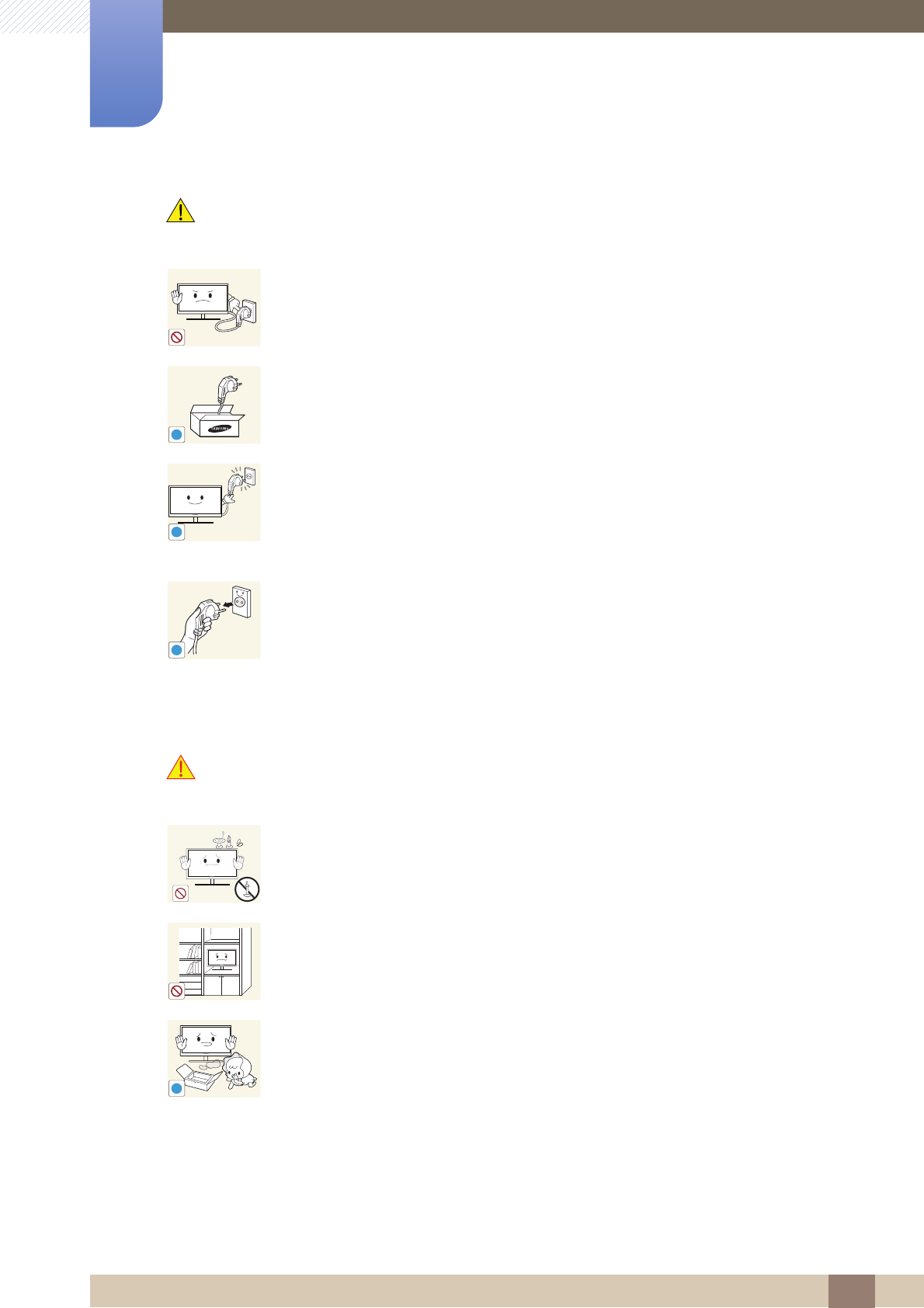

11
Before Using the Product
Before Using the Product

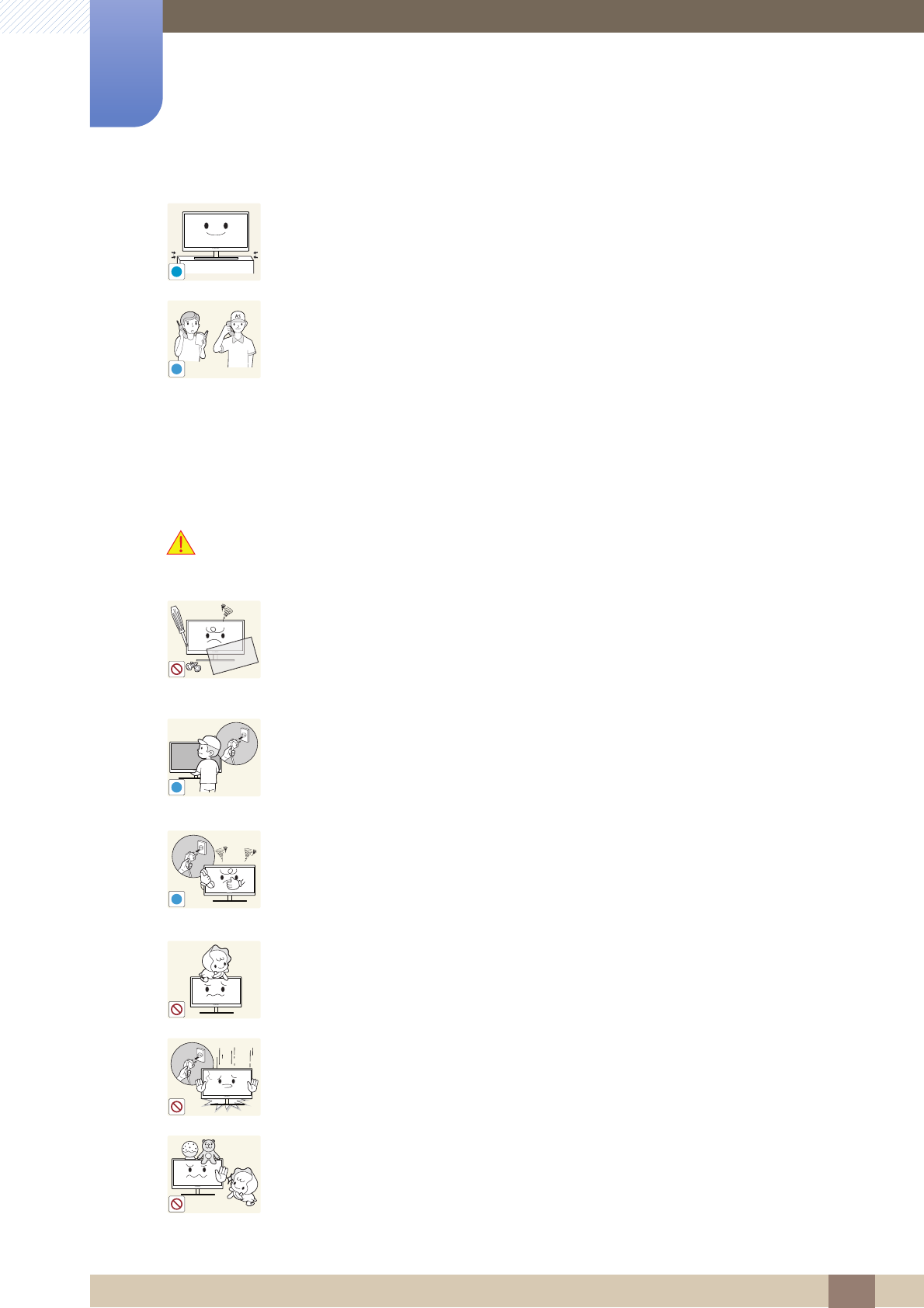

Caution
Installation and Safety
Warning
Do not unplug the power cable when the product is in use.
The product may become damaged by an electric shock.
Do not use the power cable for products other than authorized products supplied
by Samsung.
An electric shock or fire may result.
Keep the power socket where the power cable is connected unobstructed.
If any problem occurs in the product, unplug the power cable to completely
cut the power to the product.
Power to the product cannot be completely cut off with the power button.
Hold the plug when disconnecting the power cable from the power socket.
An electric shock or fire may result.
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
Otherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
Otherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
Children may suffocate.
!
!
!
!
12
Before Using the Product
Before Using the Product

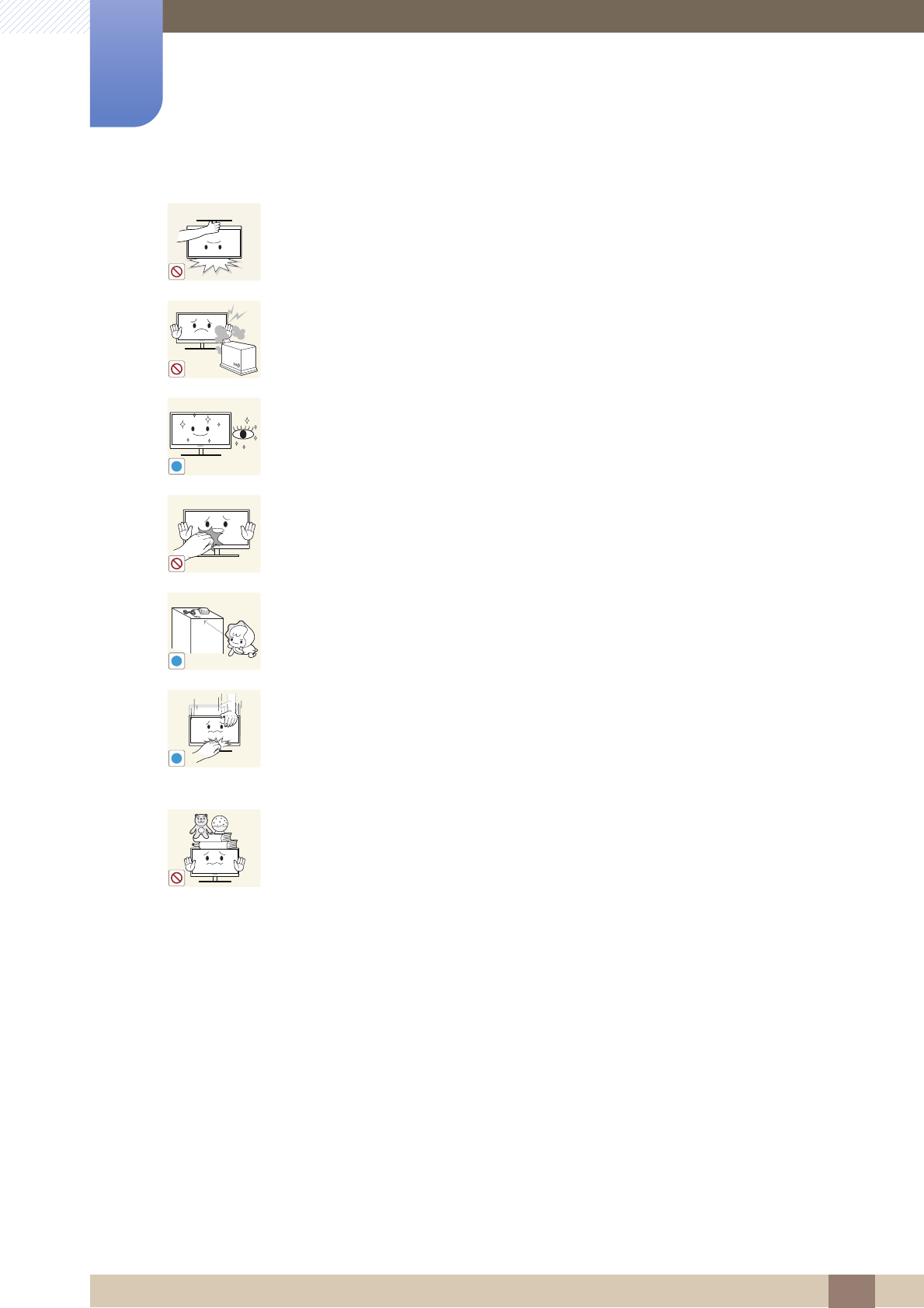

Caution
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
The product may fall and break or cause a personal injury.
Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
An electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
Otherwise, the product lifespan may be reduced, or a fire may result.
Do not install the product within the reach of young children.
The product may fall and injure children.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Take care not to drop the product when moving it.
Otherwise, product failure or personal injury may result.
Do not set down the product on its front.
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
The product may fall and break or cause a personal injury.
Install the product only on cabinets or shelves of the right size.
!
!
13
Before Using the Product
Before Using the Product
Operation and Safety
Warning
Put down the product carefully.
The product may fall and break or cause a personal injury.
Installing the product in an unusual place (a place exposed to a lot of fine dust,
chemical substances, extreme temperatures or a significant presence of
moisture, or a place where the product will operate continuously for an extended
period of time) may seriously affect its performance.
Be sure to consult Samsung Customer Service Center (page 78) before
installation if you want to install the product at such a place.
High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
An electric shock or fire may result.
Contact Samsung Customer Service Center (page 78) for repair.
Before moving the product, turn off the power switch and disconnect the power
cable and all other connected cables.
Otherwise, the power cable may be damaged and a fire or electric shock
may result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cable immediately and contact Samsung Customer Service Center
(page 78).
An electric shock or fire may result.

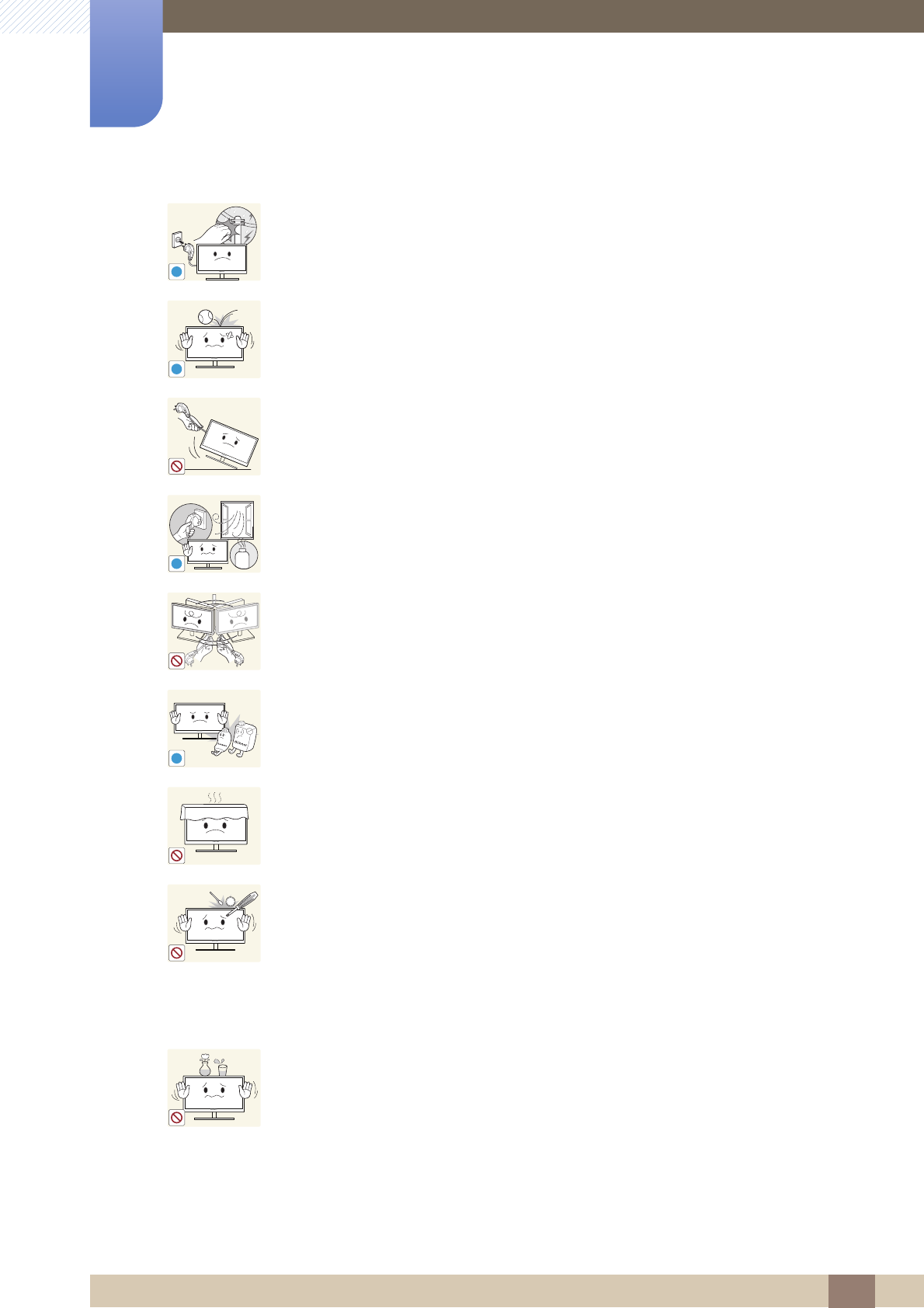

Do not let children hang from the product or climb on top of it.
The product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cable, and contact Samsung Customer Service Center (page 78).
Otherwise, an electric shock or fire may result.
Do not put a heavy object, toy, or sweets on top of the product.
The product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
!
SAMSUNG
!
!
!
14
Before Using the Product
Before Using the Product
If there is a thunderstorm or lightning strike, turn off the power and disconnect the
power cable.
An electric shock or fire may result.
Do not drop objects on the product or apply impact.
An electric shock or fire may result.
Do not move the product by pulling the power cable or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cable or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
An explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
Otherwise, a fire may result from an increased internal temperature.
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cable, and contact Samsung Customer Service
Center (page 78).
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cable, and contact Samsung Customer Service
Center (page 78).
Product failure, an electric shock or fire may result.
!
!
!
GAS
!
10 0
15
Before Using the Product
Before Using the Product

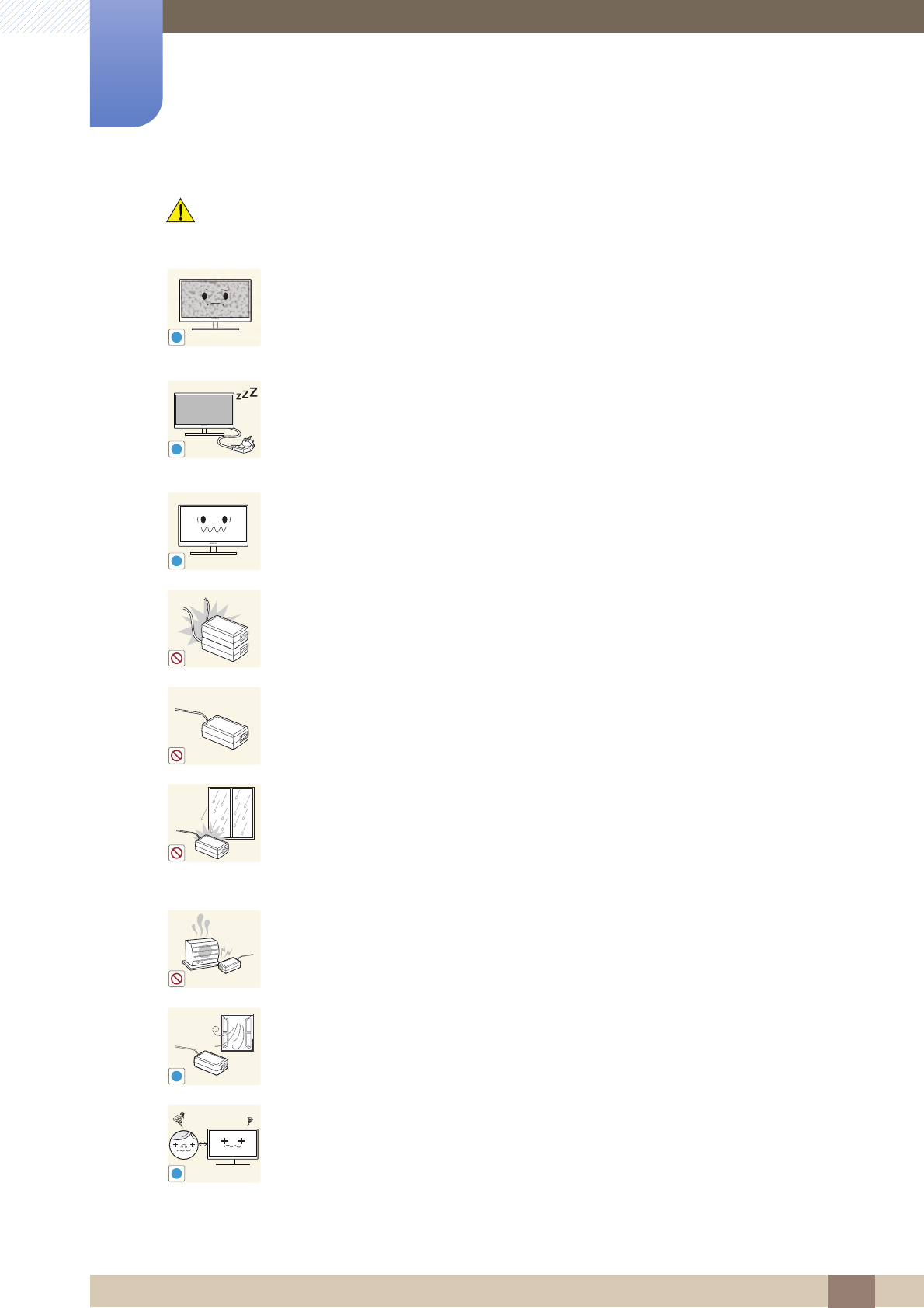

Caution
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
If you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cable from the power socket if you do not plan on using
the product for an extended period of time (vacation, etc.).
Otherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
Otherwise,Your eyesight may deteriorate.
Do not put DC power adapters together.
Otherwise, a fire may result.
Remove the plastic bag from the DC power adapter before you use it.
Otherwise, a fire may result.
Do not let water enter the DC power device or get the device wet.
An electric shock or fire may result.
Avoid using the product outdoors where it can be exposed to rain or snow.
Be careful not to get the DC power adapter wet when you wash the floor.
Do not put the DC power adapter near to any heating apparatus.
Otherwise, a fire may result.
Keep the DC power adapter in a well-ventilated area.
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
!
!
-_-
!
!
!
!
16
Before Using the Product
Before Using the Product
Do not hold the monitor upside-down or move it by holding the stand.
The product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
An electric shock or fire may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
Otherwise, children's fingers or hands may become stuck and injured.
Tilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
Product failure or personal injure may result.
!
!
!
17
Before Using the Product
Before Using the Product
Correct posture to use the product
Use the product in the correct posture as follows:
Straighten your back.
Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
Adjust the angle so light does not reflect on the screen.
Keep your forearms perpendicular to your upper arms and level with the back of
your hands.
Keep your elbows at about a right angle.
Adjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.
18
1 Preparations
1 Preparations
1.1 Checking the Contents
1.1.1 Checking the Components
Contact the dealer from whom you purchased the product if any item is missing.
The appearance of the components and items sold separately may differ from the image shown.
Components
Components may vary depending on the country.
Quick setup guide Warranty card
(Not available in some
locations)
User manual (optional)
HDMI cable (optional) HDMI-DVI cable (optional) D-SUB cable (optional)
DC power adapter
(Integrated)
(optional)
DC power adapter
(Detachable)
(optional)
Power cable
(Only provided with the
detachable DC power
adapter.)
Stand base Stand neck
19
Preparations
1
1 Preparations
1.2 Parts
1.2.1 Frontal Buttons
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent
menu.
OSD control lock: Maintain the current settings, or lock the OSD
control to prevent unintended changes to settings.
Enable: To lock the OSD control, press and hold the [ ] button
for 10 seconds.
Disable: To unlock the OSD control, press and hold the [ ]
button for more than 10 seconds.
If the OSD control is locked,
Brightness and Contrast can be adjusted. Game Mode is available.
INFORMATION can be viewed.
Press to enable or disable Game Mode.
The items below are not available if the Game Mode function is enable.
S22E360H / S22E391H
PICTURE Contrast, Sharpness, Bright, Angle,
Upscale
COLOR
SETUP&RESET Eco Saving
S24E360HL / S24E391HL / S27E360H / S27E391H
PICTURE Contrast, Sharpness, Bright, Upscale
COLOR
SETUP&RESET Eco Saving
Function Key Guide
S
AM
SU
N
G
MENU
GAME
MODE
SOURCE
AU
AUTO
MENU SOURCE
GAME
MODE
MENU SOURCE
GAME
MODE
AU
TO
MENU
MENU
M
ENU
→
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGIC
→
→
SAMSUNG
MAGIC
SAMSUNG
MAGIC
→
20
Preparations
1
1 Preparations
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Use this button to control the brightness and contrast of the screen.
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/HDMI). If you power on the product or
change the input source by pressing the [ ] button, a message that
shows the changed input source will appear at the top left corner of the
screen.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
Available only in Analog mode.
Turn the screen on or off.
Function Key Guide
When a control button on the product is pressed, the Function Key Guide
will be displayed before the onscreen menu opens.
(The guide shows the function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
Function Key Guide may vary depending on the function or product
model. Refer to the actual product.
The function buttons page shows if Game Mode is enabled.
[]: Off
[]: On
Icons Description
AUTO
AUTO
21
Preparations
1
1 Preparations
1.2.2 Reverse Side
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connects to the DC power adapter.
Connect to a source device using an HDMI cable.
Connect to a PC using the D-SUB cable.
26
2 Connecting and Using a Source Device
2 Connecting and Using a Source Device
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
Check the types of ports at the back of the product you want to connect.
2.2 Connecting and Using a PC
2.2.1 Connecting to a PC
Select a connection method suitable for your PC.
Connecting parts may differ in different products.
The exterior may differ depending on the product.
Connection Using the D-SUB Cable (Analog Type)
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the
PC.
2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
3Press [ ] to change the input source to Analog.
RGB IN
27
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
Connection Using the HDMI Cable
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the
PC.
2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
3Press [ ] to change the input source to HDMI.
Connection Using the HDMI-DVI Cable
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on
the PC.
2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
3Press [ ] to change the input source to HDMI.
HDMI IN
HDMI IN
28
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.2 Connecting the Power
Connecting parts may differ in different products.
The exterior may differ depending on the product.
Power connection using integrated DC power adapter
Connect the power adapter to [DC14V] jack on the rear of the product. Plug in the power cable to
the power socket.
The input voltage is switched automatically.
Power connection using detachable DC power adapter
Connect the power adapter to [DC14V] jack on the rear of the product. Connect the power cable to
the DC power adapter. Next, connect the DC power adapter to the product. Plug in the power cable
to the power socket.
The input voltage is switched automatically.
DC14V
DC14V
29
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.3 Driver Installation
You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
An installation driver is contained on the CD supplied with the product.
If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and
download the file.
1Insert the user manual CD provided with the product into the CD-ROM drive.
2Click "Windows Driver".
3Follow the instructions given on the screen to proceed with installation.
4Select your product model from the list of models.
5Go to Display Properties and check that the resolution and refresh rate are appropriate.
Refer to your Windows OS manual for further details.
30
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.4 Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for the
first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
1Press [ ] to move to the language you want and press [ ].
2To hide the information message, press [ ] or [ ].
If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
The optimum resolution can also be selected in Control Panel on your PC.
5HWXUQ
(QJOLVK
7KHRSWLPDOUHVROXWLRQIRUWKLV
PRQLWRULVDVIROORZV
****x**** **Hz
8VHWKHDERYHVHWWLQJVWRVHW
WKHUHVROXWLRQRQ\RXU3&
6HWXS*XLGH
M
ENU
31
3 Screen Setup
3 Screen Setup
Configure the screen settings such as brightness.
A detailed description of each function is provided. Refer to your product for details.
3.1 Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

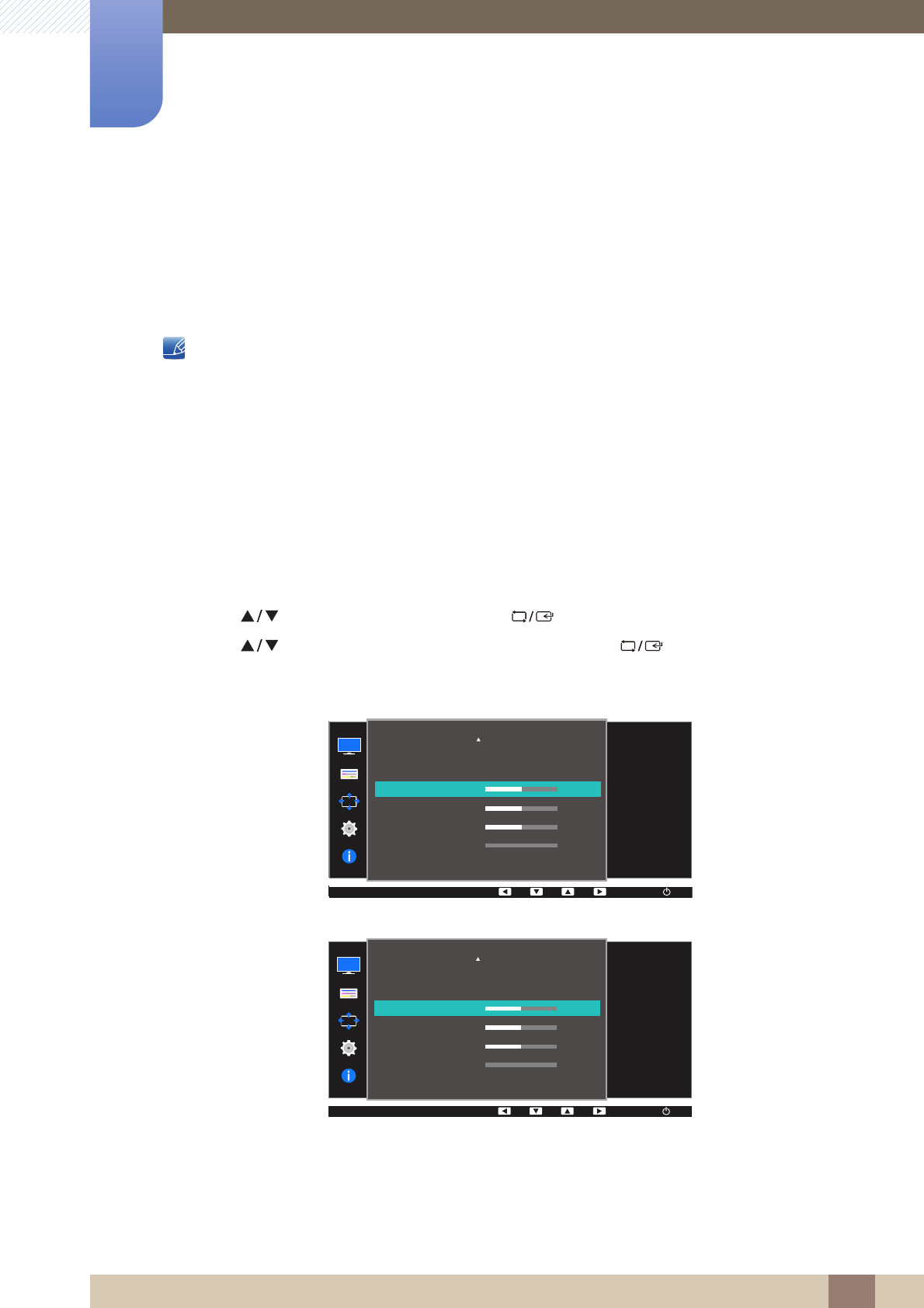

3.1.1 Configuring Brightness
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Brightness and press [ ] on the product.
The following screen will appear.
4Adjust the Brightness using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
100
75
60
Off
Custom
Off
Off
AUTO
Adjust the brightness
level. Values closer to
100 mean a brighter
screen.
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
100
75
60
Off
Custom
Off
Wide
AUTO
Adjust the brightness
level. Values closer to
100 mean a brighter
screen.
32
Screen Setup
3
3 Screen Setup

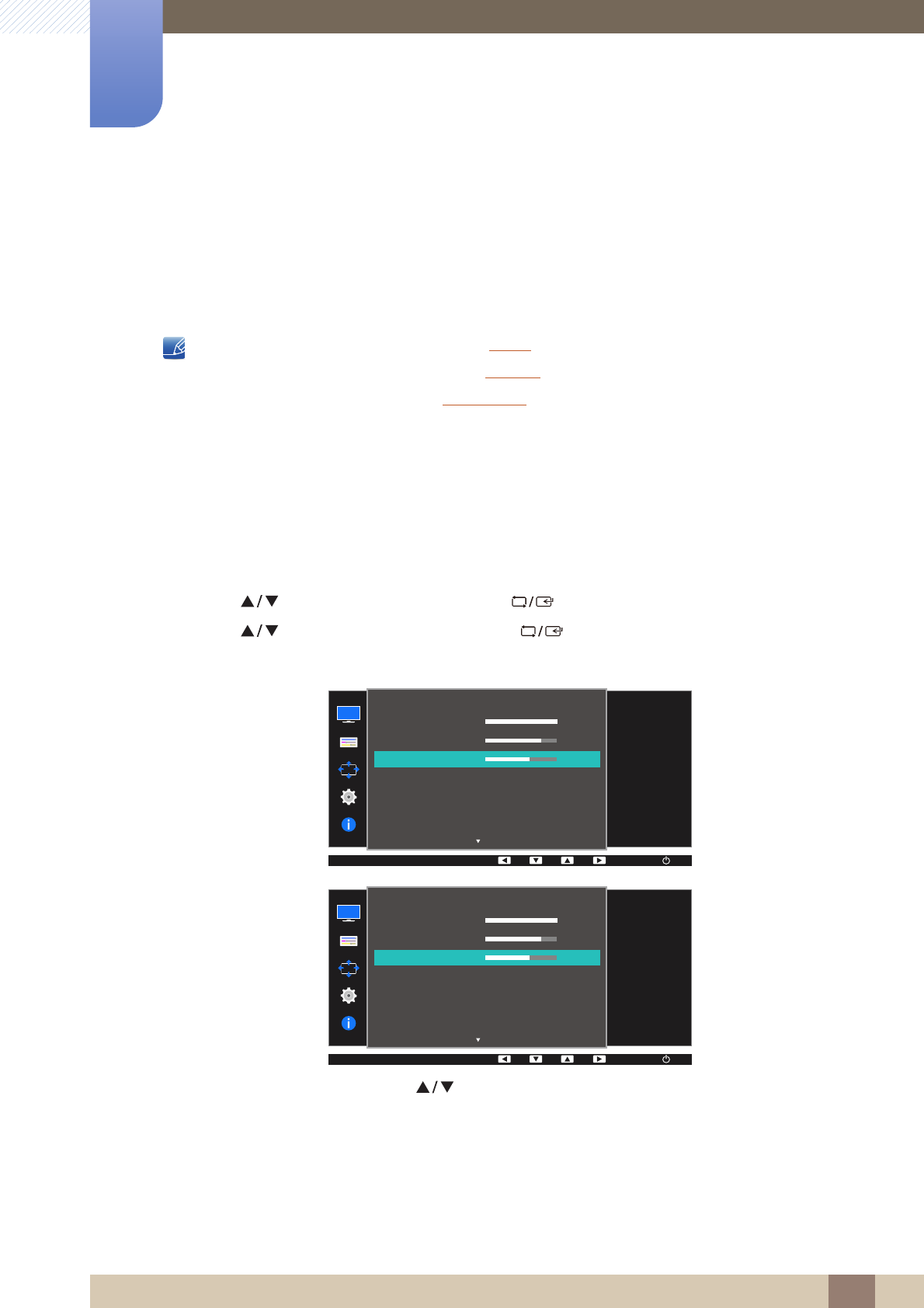

3.2 Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.2.1 Configuring Contrast
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Contrast and press [ ] on the product.
The following screen will appear.
4Adjust the Contrast using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
100
75
60
Off
Custom
Off
Off
AUTO
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Brightness
Contrast
Sharpness
Game Mode
Image Size
100
75
60
Off
Custom
Off
Wide
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
33
Screen Setup
3
3 Screen Setup
3.3 Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Upscale is in Mode1 or Mode2.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

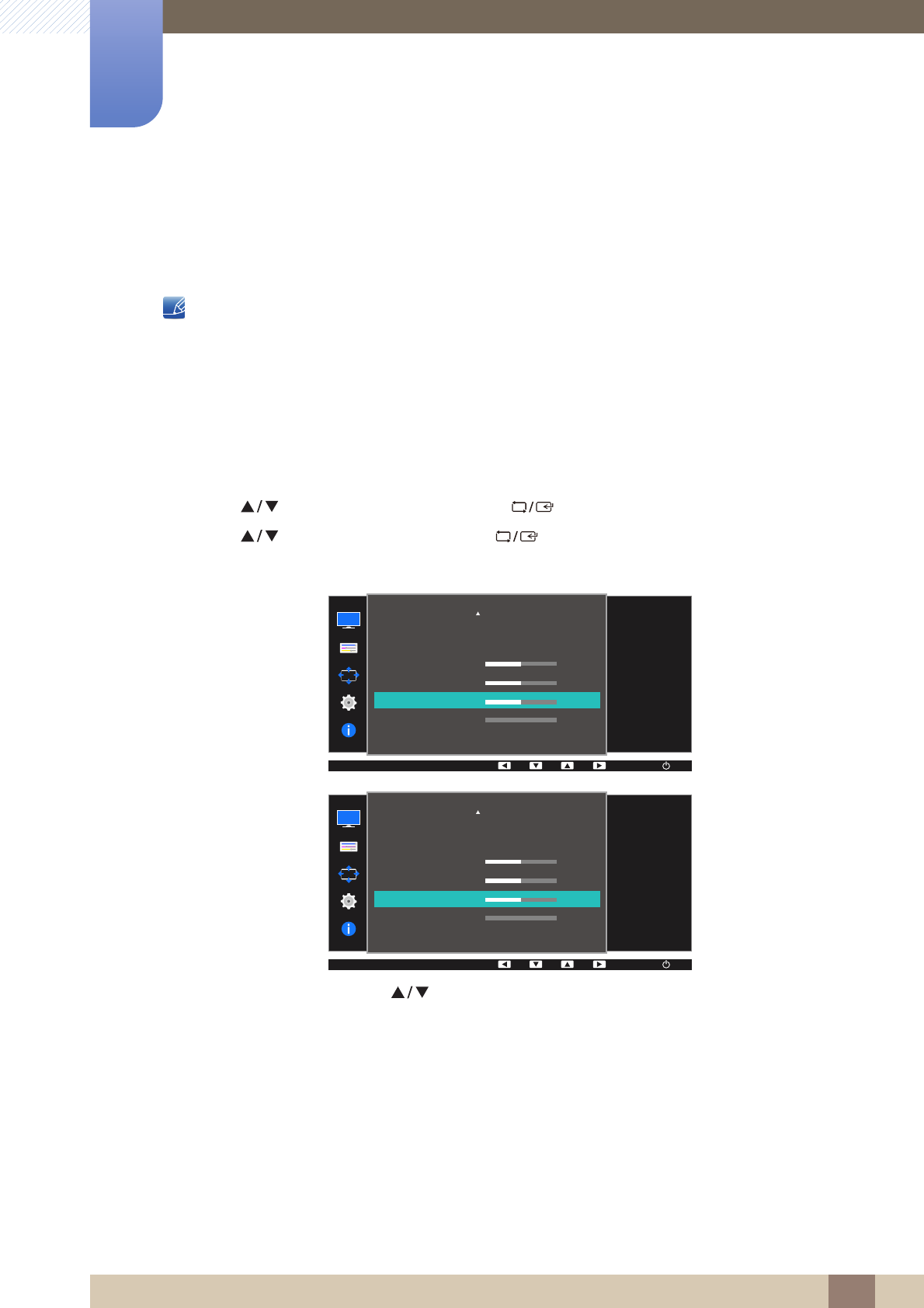

3.3.1 Configuring Sharpness
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Sharpness and press [ ] on the product.
The following screen will appear.
4Adjust the Sharpness using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
100
75
60
Off
Custom
Off
Off
AUTO
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
Adjust the sharpness
of the picture.
Values closer to 100
mean a sharper image.
100
75
60
Off
Custom
Off
Wide
AUTO
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the sharpness
of the picture.
Values closer to 100
mean a sharper image.
34
Screen Setup
3
3 Screen Setup
3.4 Game Mode
Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™
is connected.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
3.4.1 Configuring Game Mode
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Game Mode and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
When the monitor turns off, enters power-saving mode or changes input sources, Game Mode
turns Off even if it is set to On.
If you want to keep Game Mode enabled all the time, select Always On.
MENU
100
75
60
Off
Custom
Off
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
Off
On
Always On
AUTO
Optimizes image
settings for playing
games.
100
75
60
Off
Custom
Off
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Off
On
Always On
AUTO
Optimizes image
settings for playing
games.
35
Screen Setup
3
3 Screen Setup
3.5 SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
This menu is not available when Eco Saving is enabled.
This menu is not available when Angle is enabled.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
You can customize the brightness to suit your preferences.
3.5.1 Configuring SAMSUNG MAGIC Bright
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Bright and press [ ] on the product.
The following screen will appear.
Custom: Customize the contrast and brightness as required.
Standard: Obtain a picture quality suitable for editing documents or using Internet.
Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD
content.
Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Custom
Standard
Cinema
Dynamic Contrast
AUTO
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
Set to an optimum
picture quality suitable
for the working
environment.
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Custom
Standard
Cinema
Dynamic Contrast
AUTO
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Set to an optimum
picture quality suitable
for the working
environment.
36
Screen Setup
3
3 Screen Setup
When the external input is connected through HDMI and PC/AV Mode is set to AV, Bright
has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the
factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom
which automatically recalls your personalized picture settings.
Dynamic: Select this mode to view a sharper image than in Standard mode.
Standard: Select this mode when the surroundings are bright. This also provides a sharp
image.
Movie: Select this mode when the surroundings are dark. This will save power and reduce eye
fatigue.
Custom: Select this mode when you want to adjust the image according to your preferences.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
100
75
60
Custom
Off
Off
Wide
Dynamic
Standard
Movie
Custom
AUTO
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
Set to an optimum
picture quality suitable
for the working
environment.
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Dynamic
Standard
Movie
Custom
AUTO
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Set to an optimum
picture quality suitable
for the working
environment.
SAMSUNG
MAGIC
37
Screen Setup
3
3 Screen Setup

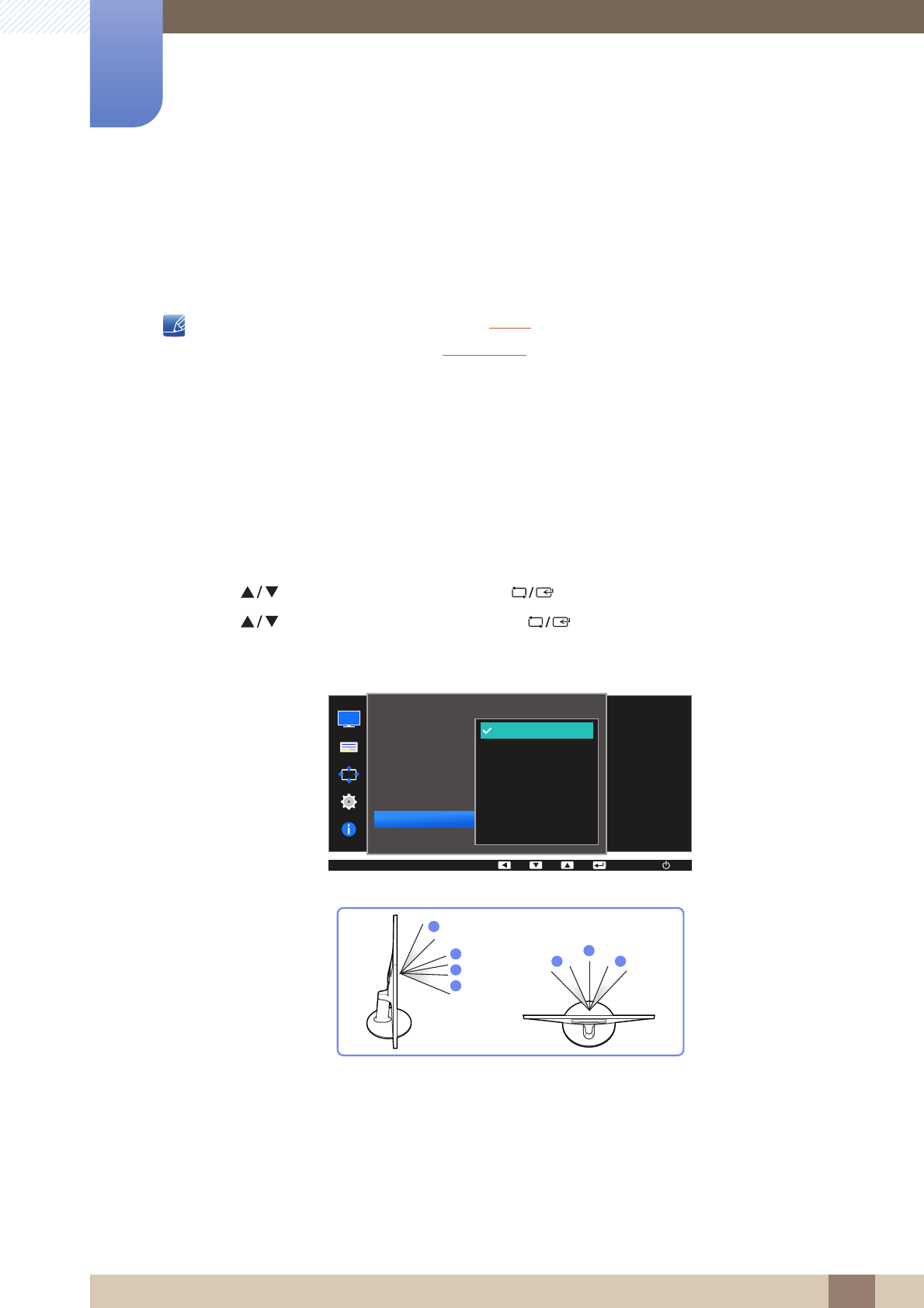

3.6 SAMSUNG MAGIC Angle (S22E390H / S22E391H)
Angle allows you to configure the settings to obtain the optimum picture quality according to your
viewing angle.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
This feature provides the viewing angle, brightness, and tint to suit your preferences.
3.6.1 Configuring SAMSUNG MAGIC Angle
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Angle and press [ ] on the product.
The following screen will appear.
Off : Select this option to view directly in front of the product.
Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.
Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.
Standing Mode : Select this option to view from a place higher than the product.
Side Mode : Select this option to view from either side of the product.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
Custom
Off
Off
Wide
AUTO
Off
Lean Back Mode 1
Lean Back Mode 2
Standing Mode
Side Mode
Group View
Custom
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
Select an angle that
best suits your viewing
position.
4
2
3
11
5 5
①
②
③
④
⑤
38
Screen Setup
3
3 Screen Setup
Group View: Select this option for more than one viewer to view from places , and .
Custom: Lean Back Mode 1 will be applied by default if Custom is selected.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
① ④
⑤
39
Screen Setup
3
3 Screen Setup
3.7 SAMSUNG MAGIC Upscale
Upscale function can enhance the layers of the picture details and the vividness of the picture.
The function has more obvious effects on low-resolution pictures.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

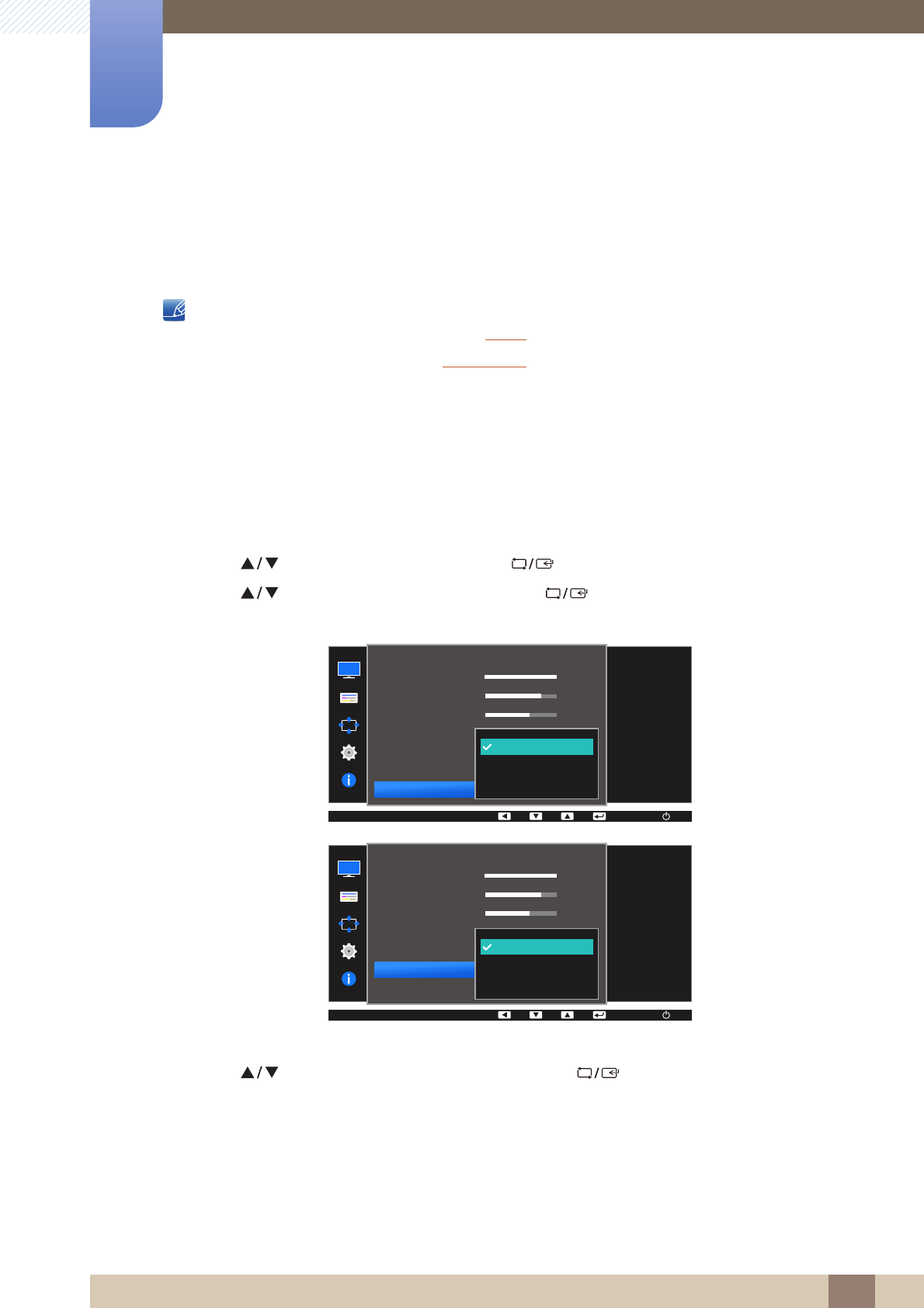

3.7.1 Configuring SAMSUNG MAGIC Upscale
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Upscale and press [ ] on the product.
The following screen will appear.
Comparing with Mode1, Mode2 has a stronger effect.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
Custom
Off
Off
Wide
AUTO
Off
Mode1
Mode2
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
Enhance picture detail
and vividness.
100
75
60
Custom
Off
Off
Wide
AUTO
Off
Mode1
Mode2
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Enhance picture detail
and vividness.
40
Screen Setup
3
3 Screen Setup
3.8 Image Size
Change the picture size.
The functions available on the monitor may vary depending on the model. Refer to the actual product.

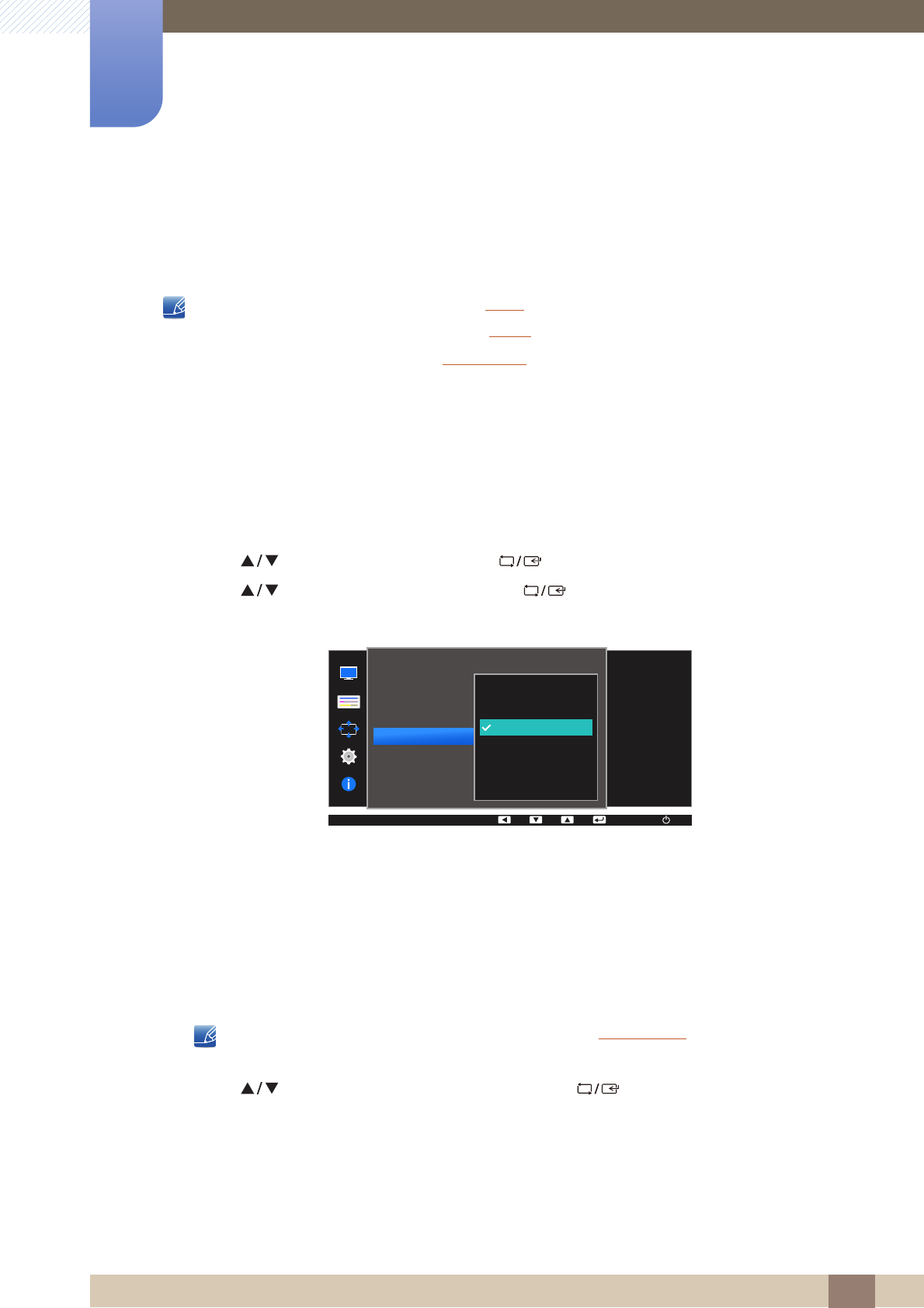

3.8.1 Changing the Image Size
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Image Size and press [ ] on the product.
The following screen will appear.
In PC mode
Auto: Display the picture according to the aspect ratio of the input source.
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
MENU
100
75
50
50
2200
0
AUTO
Auto
Wide
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Choose the size and
aspect ratio of the
picture displayed on
screen.
100
75
60
Off
AUTO
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
41
Screen Setup
3
3 Screen Setup
4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
16:9: Display the picture with an aspect ratio of 16:9.
Screen Fit: Display the picture with the original aspect ratio without cutting off.
Changing the screen size is available when the following conditions are satisfied.
The function may not be supported depending on the ports provided with the product.
A digital output device is connected using the HDMI cable.
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally
(Not every model can support all of these signals.).
This can only be set when the external input is connected through HDMI and
PC/AV Mode is set to AV.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
In AV mode
AUTO
100
75
50
50
2200
0
4:3
16:9
Screen Fit
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Choose the size and
aspect ratio of the
picture displayed on
screen.
100
75
60
Off
Wide
AUTO
Brightness
Contrast
Sharpness
Game Mode
Image Size
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Auto
Wide
4:3
16:9
Screen Fit
Choose the size and
aspect ratio of the
picture displayed on
screen.
42
Screen Setup
3
3 Screen Setup
3.9 HDMI Black Level
If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/
color degradation, black level, etc.) may occur, depending on the connected source device. In such
case, HDMI Black Level can be used to adjust the image quality. If this is the case, correct the degraded
picture quality using HDMI Black Level.
This function is only available in HDMI mode.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

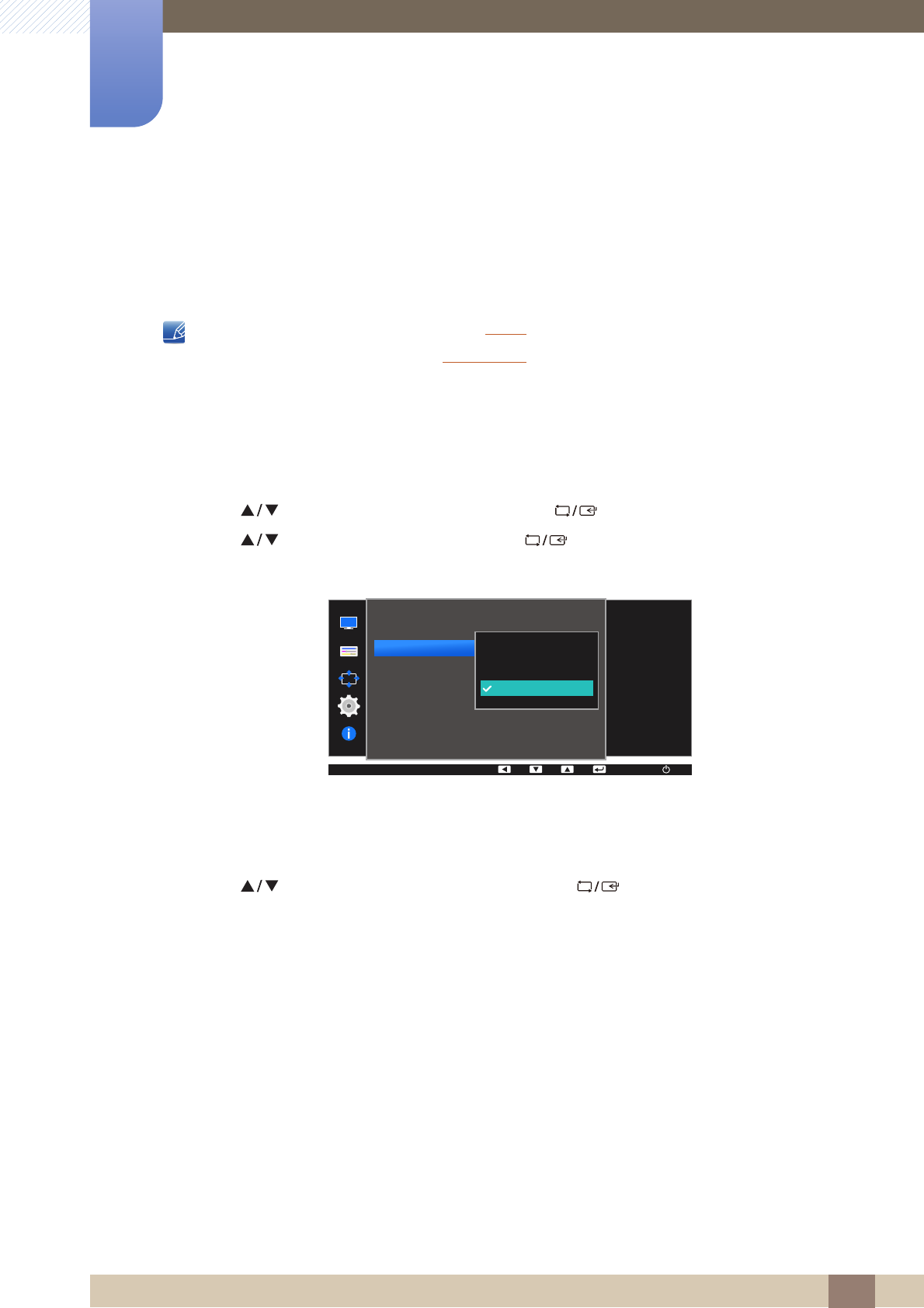

3.9.1 Configuring the HDMI Black Level Settings
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to HDMI Black Level and press [ ] on the product.
The following screen will appear.
Normal: Select this mode when there is no contrast ratio degradation.
Low: Select this mode to reduce the black level and increase the white level when there is a
contrast ratio degradation.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
HDMI Black Level may not be compatible with some source devices.
MENU
AUTO
Normal
Low
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Optimize HDMI picture
brightness and contrast
by adjusting the black
level of the video signal.
AUTO
Normal
Low
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Optimize HDMI picture
brightness and contrast
by adjusting the black
level of the video signal.
43
Screen Setup
3
3 Screen Setup
3.10 Response Time (S24E390H L / S24E391HL / S27E390H /
S27E391H /
Accelerate the panel response rate to make video appear more vivid and natural.
It is best to set Response Time to Standard or Faster when you are not viewing a movie.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

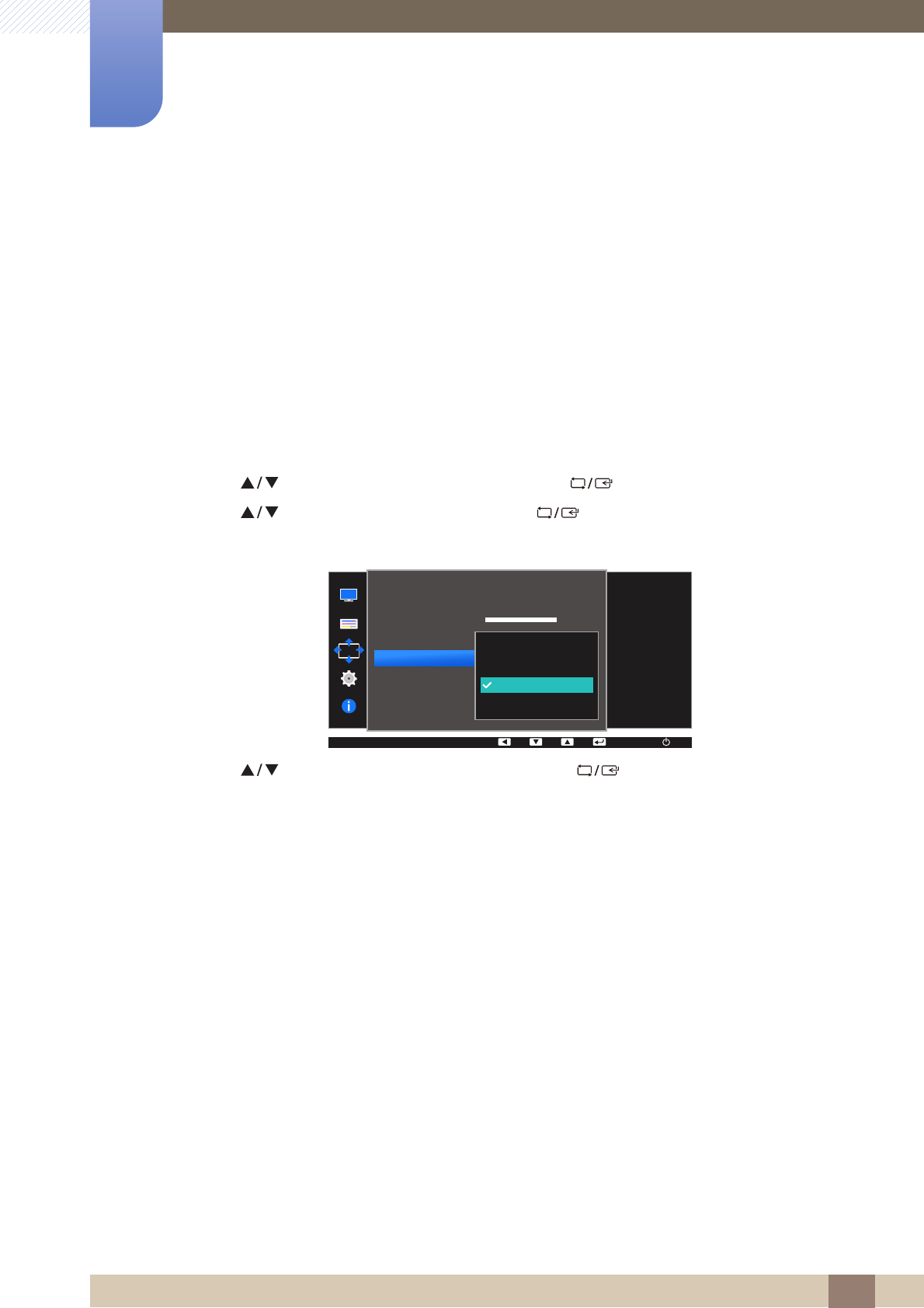

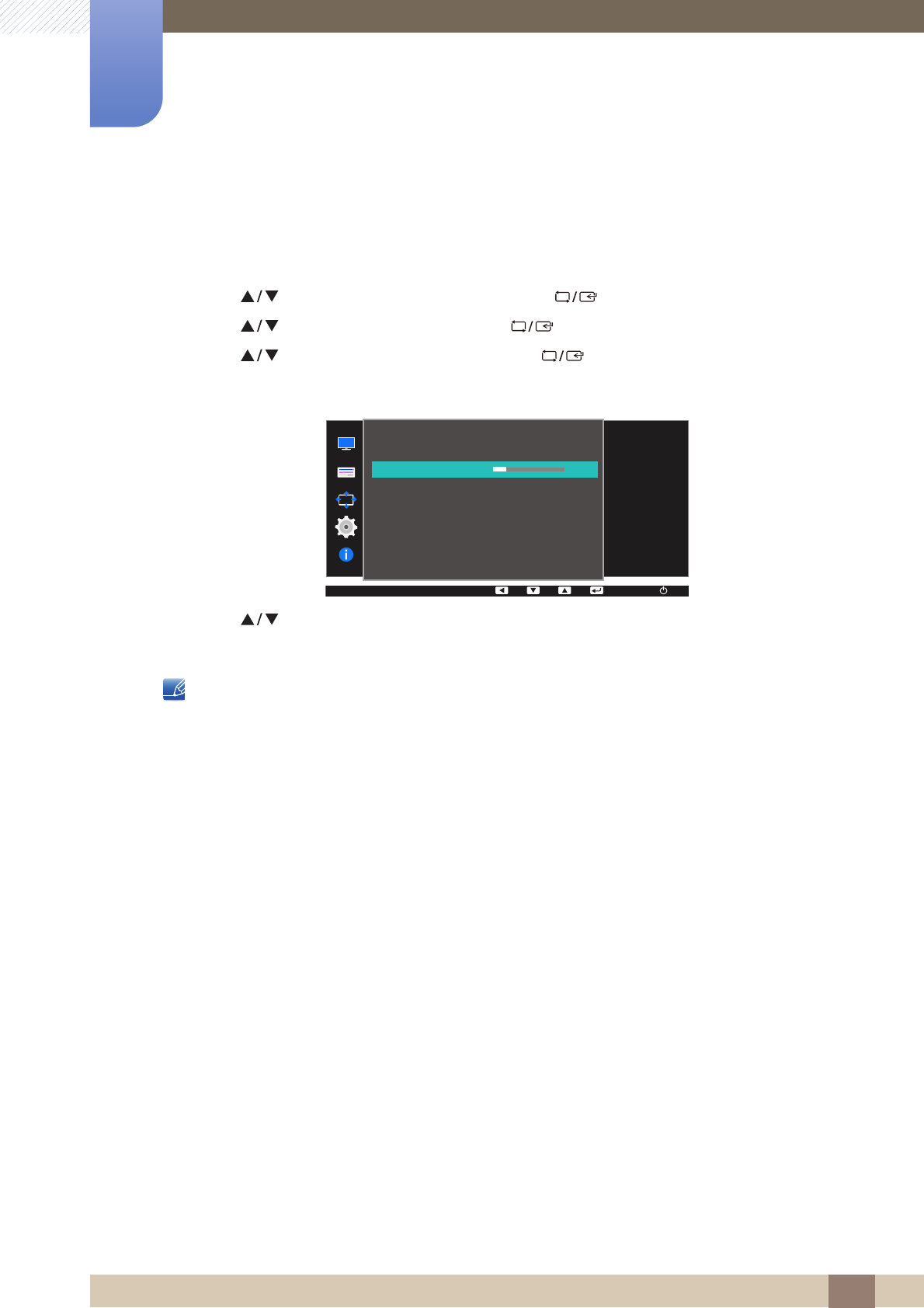

3.10.1 Configuring the Response Time
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Response Time and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
AUTO
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Standard
Faster
Fastest
Accelerate the panel
response rate to make
video appear more
vivid and natural.
0
S27E391H)
44
Screen Setup
3
3 Screen Setup
3.11 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
This menu is available in Analog mode only.
This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select
Screen Fit to adjust horizontal position in 0-6 levels.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

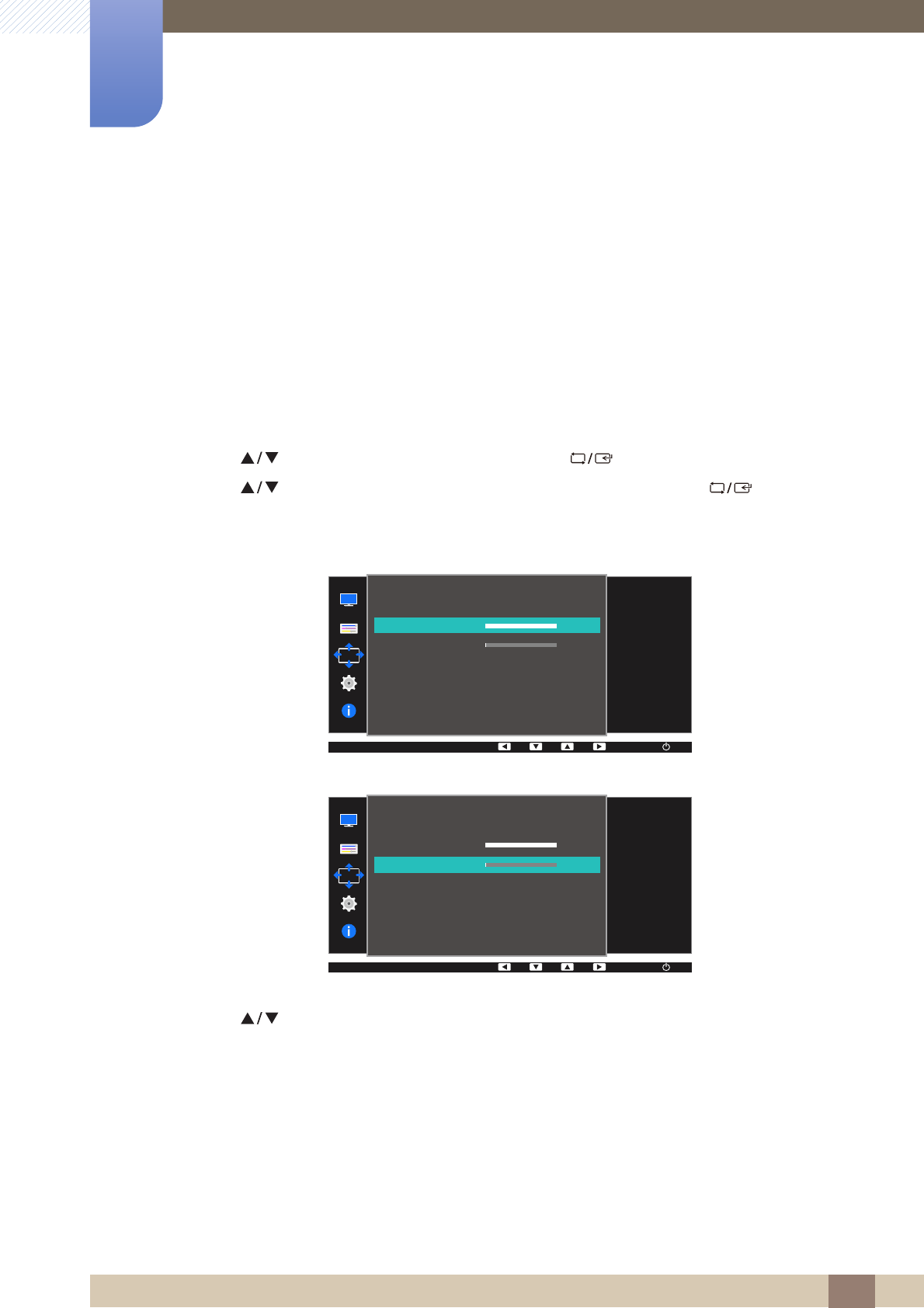

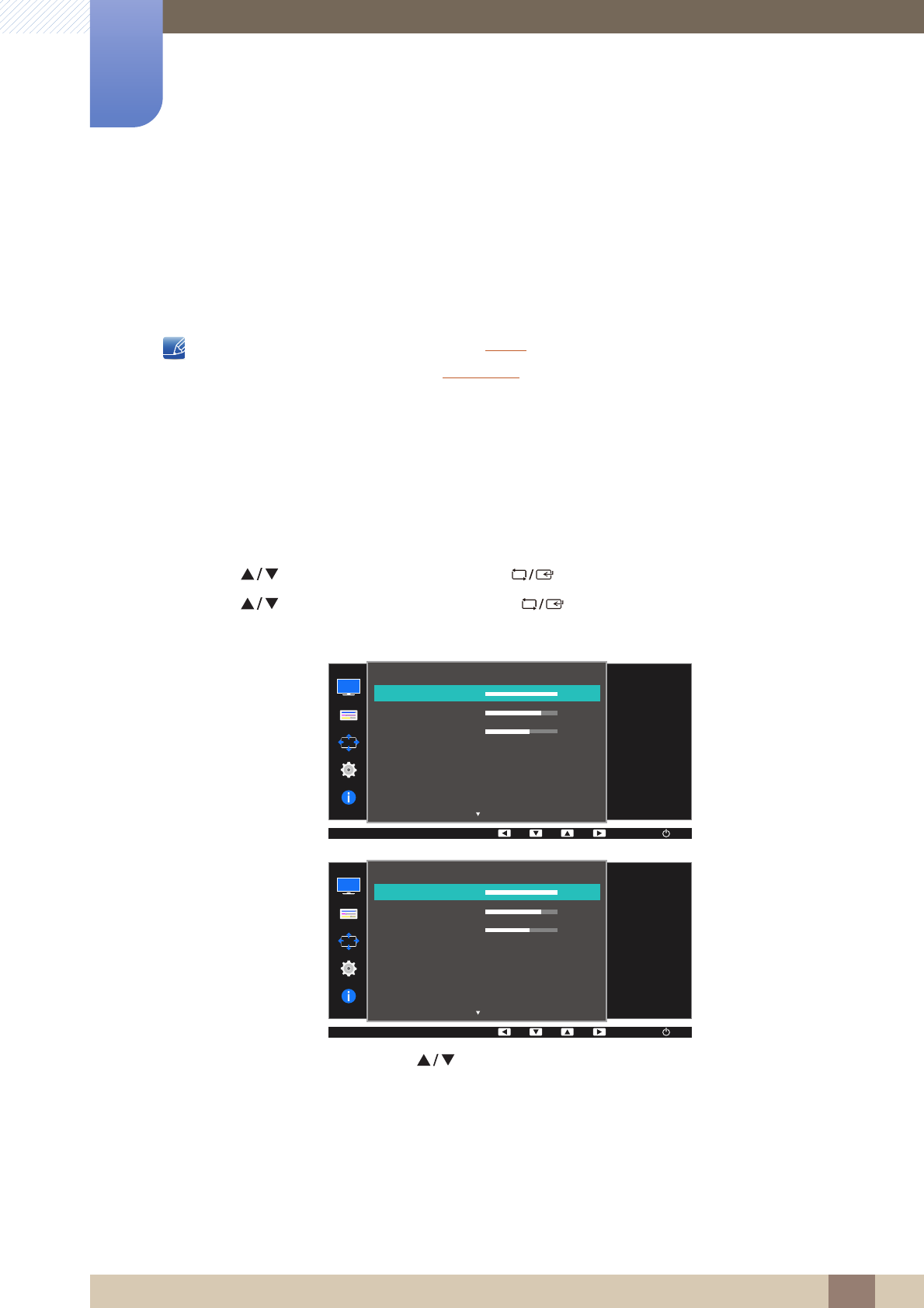

3.11.1 Configuring H-Position & V-Position
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to H-Position or V-Position, and press [ ].
The following screen will appear.
MENU
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
100
75
60
Off
Custom
Off
Off
AUTO
Adjust the brightness
level. Values closer to
100 mean a brighter
screen.
AUTO
Wide
50
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Move the image
displayed on the
screen to the left or
right.
AUTO
Faster
50
50
2200
0
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Move the image
displayed on the
screen to the left or
right.
45
Screen Setup
3
3 Screen Setup
4Press [ ] to configure H-Position or V-Position.
5The selected option will be applied.
Brightness
Contrast
Sharpness
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Upscale
SAMSUNG
MAGIC
100
75
60
Off
Custom
Off
Off
AUTO
Adjust the brightness
level. Values closer to
100 mean a brighter
screen.
AUTO
Wide
50
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Move the image
displayed on the
screen up or down.
AUTO
Faster
50
50
2200
0
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Move the image
displayed on the
screen up or down.
46
Screen Setup
3
3 Screen Setup
3.12 Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.12.1 Adjusting Coarse
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Coarse and press [ ] on the product.
The following screen will appear.
4Adjust the Coarse using the [ ] buttons.
5The selected option will be applied.
MENU
AUTO
Wide
50
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Adjust the screen
frequency.
AUTO
Faster
50
50
2200
0
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Adjust the screen
frequency.
47
Screen Setup
3
3 Screen Setup
3.13 Fine
Fine-adjust the screen to obtain a vivid picture.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.13.1 Adjusting Fine
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Fine and press [ ] on the product.
The following screen will appear.
4Adjust the Fine using the [ ] buttons.
5The selected option will be applied.
MENU
AUTO
Wide
50
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Fine-tune the screen
to get a vivid picture.
AUTO
Faster
50
50
2200
0
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Fine-tune the screen
to get a vivid picture.
48
4 Configuring Tint
4 Configuring Tint
A detailed description of each function is provided. Refer to your product for details.
Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or
Dynamic Contrast mode. This menu is not available when Game Mode is enabled.
SAMSUNG
MAGIC

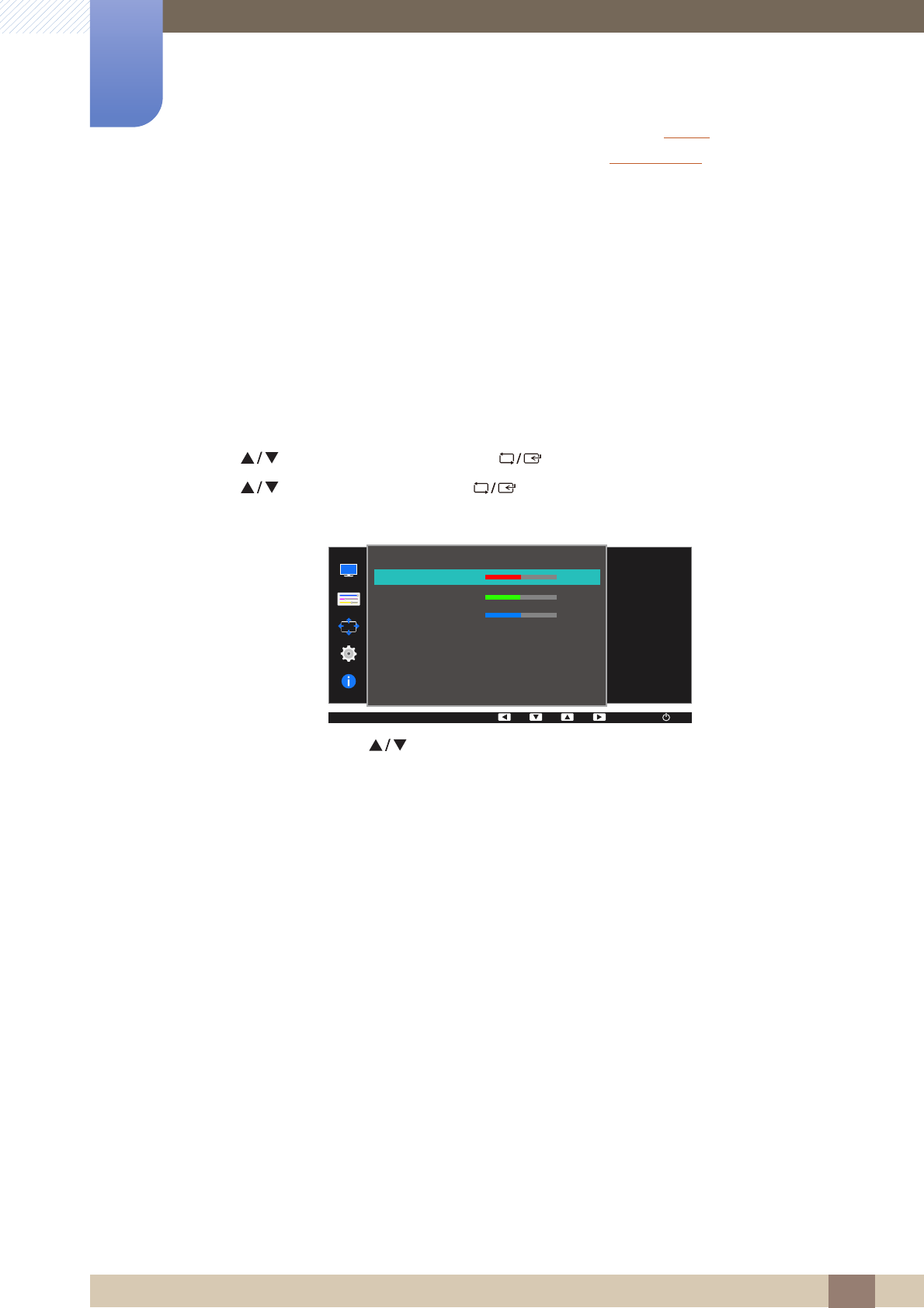

4.1 Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.1.1 Configuring Red
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Red and press [ ] on the product.
The following screen will appear.
4Adjust the Red using the [ ] buttons.
5The selected option will be applied.
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
Adjust the red
saturation level.
Values closer to 100
mean greater
intensity for the color.
50
50
50
Normal
Mode1
AUTO
49
Configuring Tint
4
4 Configuring Tint

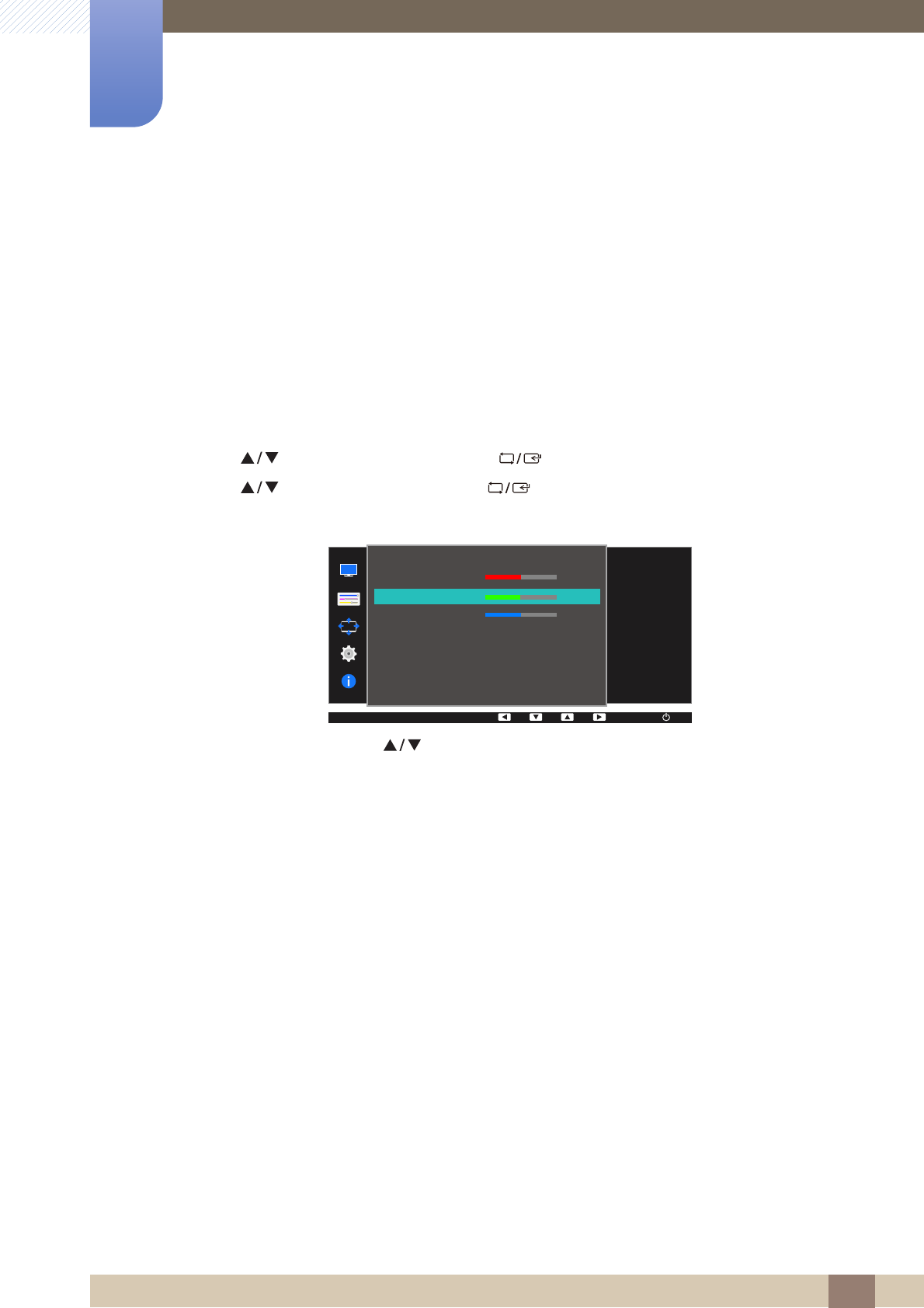

4.2 Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.2.1 Configuring Green
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Green and press [ ] on the product.
The following screen will appear.
4Adjust the Green using the [ ] buttons.
5The selected option will be applied.
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
AUTO
Adjust the green
saturation level.
Values closer to 100
mean greater
intensity for the color.
50
Configuring Tint
4
4 Configuring Tint
4.3 Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.3.1 Configuring Blue
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Blue and press [ ] on the product.
The following screen will appear.
4Adjust the Blue using the [ ] buttons.
5The selected option will be applied.
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
AUTO
Adjust the blue
saturation level.
Values closer to 100
mean greater
intensity for the color.
51
Configuring Tint
4
4 Configuring Tint
4.4 Color Tone
Adjust the general color tone of the picture.
This menu is not available when Angle is enabled.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
4.4.1 Configuring the Color Tone Settings
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Color Tone and press [ ] on the product.
The following screen will appear.
Cool 2: Set the color temperature to be cooler than Cool 1.
Cool 1: Set the color temperature to be cooler than Normal mode.
Normal: Display the standard color tone.
Warm 1: Set the color temperature to be warmer than Normal mode.
Warm 2: Set the color temperature to be warmer than Warm 1.
Custom: Customize the color tone.
When the external input is connected through HDMI and PC/AV Mode is set to AV, Color Tone
has four color temperature settings (Cool, Normal, Warm and Custom).
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
COLOR
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
Cool 2
Cool 1
Normal
Warm 1
Warm 2
Custom
AUTO
Select a color tone
that best suits your
viewing needs.
52
Configuring Tint
4
4 Configuring Tint

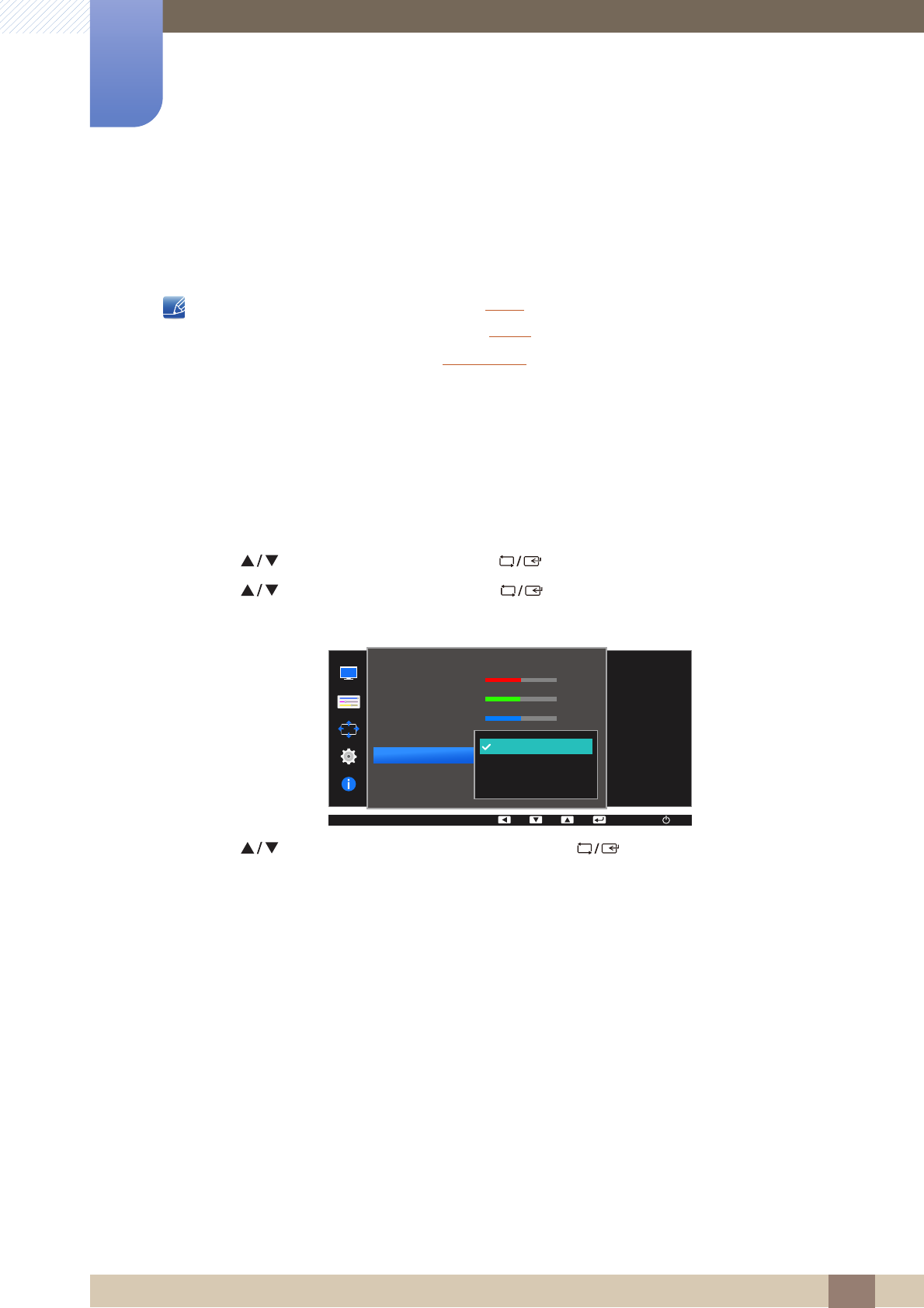

4.5 Gamma
Adjust the mid-range brightness (Gamma) of the picture.
This menu is not available when Angle is enabled.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
4.5.1 Configuring Gamma
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Gamma and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
COLOR
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
AUTO
Mode1
Mode2
Mode3
Adjust the middle level
of luminance.
53
5 Coordinating OSD
5 Coordinating OSD
A detailed description of each function is provided. Refer to your product for details.

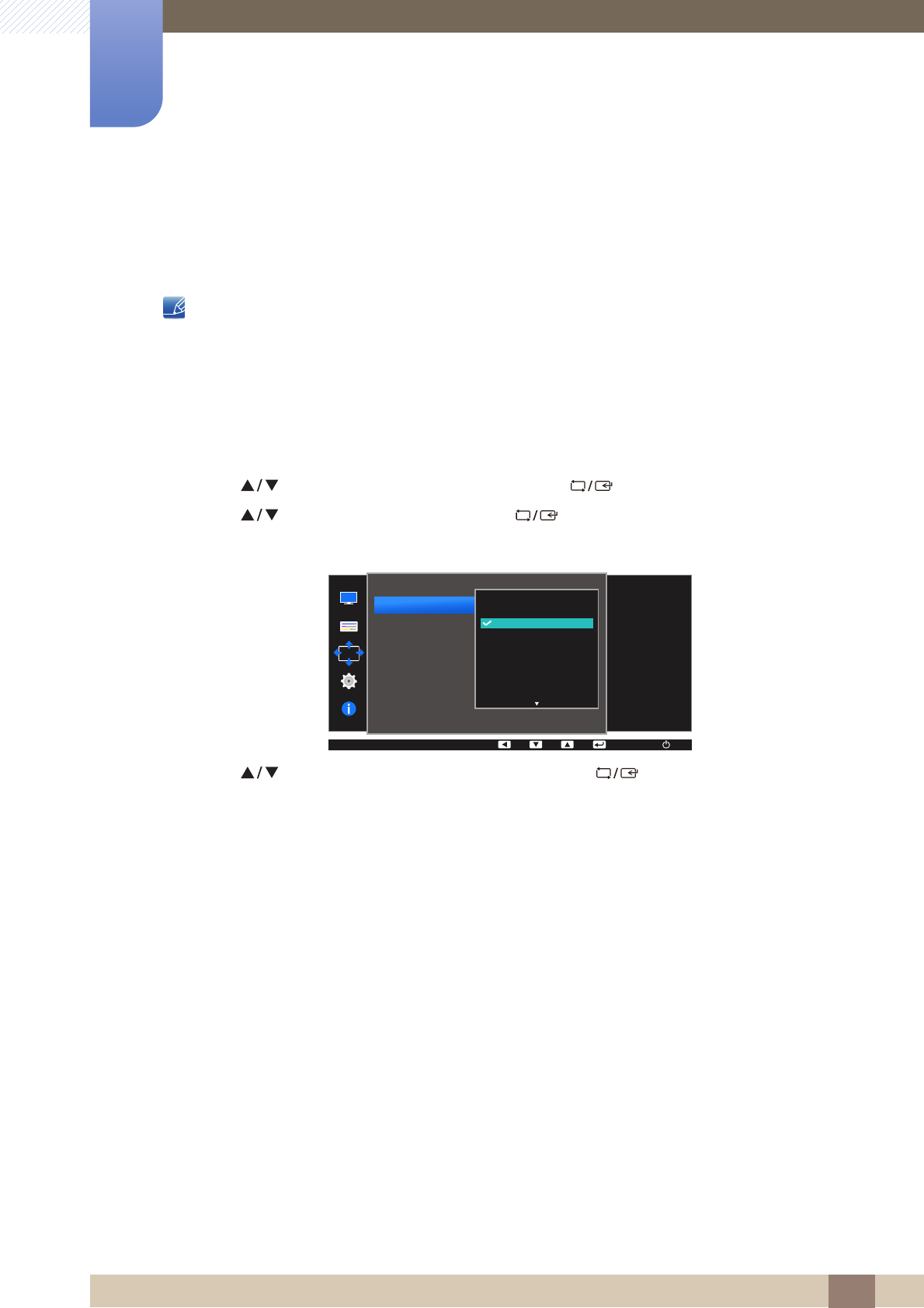

5.1 Language
Set the menu language.
A change to the language setting will only be applied to the onscreen menu display.
It will not be applied to other functions on your PC.
5.1.1 Configuring Language
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Language and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the language you want and press [ ].
5The selected option will be applied.
MENU
MENU SETTINGS
AUTO
Deutsch
English
Español
Français
Italiano
Magyar
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Set the menu
language.
54
Coordinating OSD
5
5 Coordinating OSD
5.2 Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
5.2.1 Configuring Menu H-Position & Menu V-Position
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ] on the
product.
The following screen will appear.
4Press [ ] to configure Menu H-Position or Menu V-Position.
5The selected option will be applied.
MENU
MENU SETTINGS
AUTO
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
2
20 sec
On
Move the menu
position to the left or
right.
MENU SETTINGS
AUTO
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
2
20 sec
On
Move the menu
position up or down.
55
Coordinating OSD
5
5 Coordinating OSD
5.3 Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
5.3.1 Configuring Display Time
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Display Time and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
MENU SETTINGS
English
100
2
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
5 sec
10 sec
20 sec
200 sec
AUTO
Set how long the menu
window will remain on
screen for when it is
not in use.
56
Coordinating OSD
5
5 Coordinating OSD
5.4 Transparency
Set the transparency for the menu windows.
5.4.1 Changing Transparency
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Transparency and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
MENU SETTINGS
English
100
2
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Off
On
AUTO
Configure the
transparency of the
menu windows.
57
6 Setup and Reset
6 Setup and Reset
A detailed description of each function is provided. Refer to your product for details.

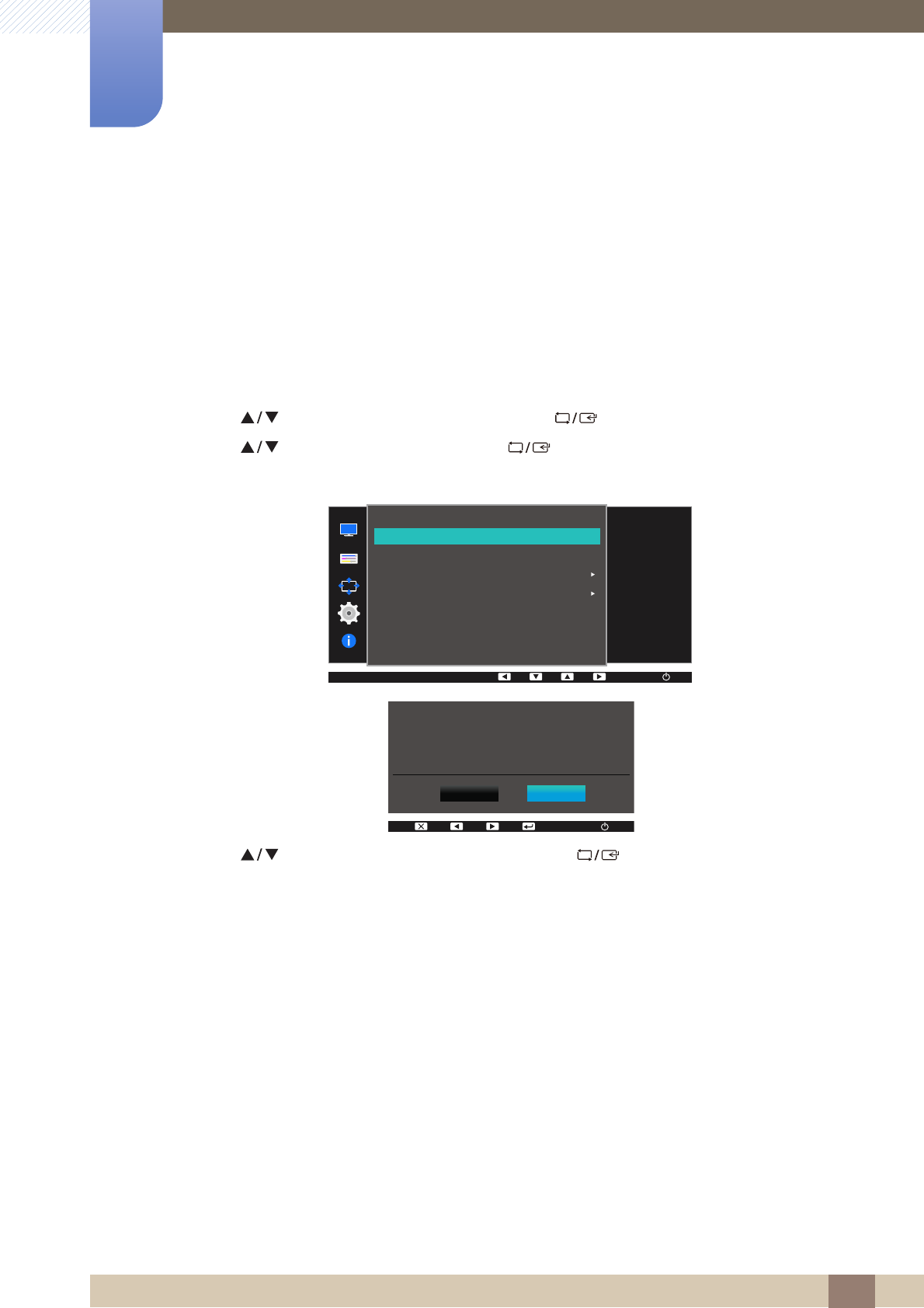

6.1 Reset All
Return all the settings for the product to the default factory settings.
6.1.1 Initializing Settings (Reset All)
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Reset All and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
SETUP&RESET
AUTO
Off
Acceleration
Auto
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Return all the settings
for the product to the
default factory settings.
$OOWKHPHQXVHWWLQJVZLOOEHUHVHW
WRGHIDXOW
$UH\RXVXUH\RXZDQWWRUHVHW"
<HV 1R
AUTO
58
Setup and Reset
6
6 Setup and Reset
6.2 Eco Saving
The Eco Saving function reduces power consumption by controlling the electric current used by the
monitor panel.
This menu is not available when Bright is in Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
6.2.1 Configuring Eco Saving
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Eco Saving and press [ ] on the product.
The following screen will appear.
75%: Change the monitor power consumption to 75% of the default level.
50%: Change the monitor power consumption to 50% of the default level.
Off: Deactivate the Eco Saving function.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
SETUP&RESET
Acceleration
Auto
AUTO
75%
50%
Off
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Adjust the power
consumption of the
product to save energy.
59
Setup and Reset
6
6 Setup and Reset
6.3 Off Timer
You can set the product to automatically turn off.
6.3.1 Configuring Off Timer
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer and press [ ] on the product.
4Press [ ] to move to Off Timer and press [ ] on the product.
The following screen will appear.
Off: Deactivate the off timer so that the product does not power off automatically.
On: Activate the off timer so that the product powers off automatically.
5Press [ ] to move to the option you want and press [ ].
6The selected option will be applied.
MENU
SETUP&RESET
Off
Acceleration
Auto
AUTO
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Enable or disable the
Off Timer.
AUTO
Off Timer
Off Timer
Turn Off After
Off
On
Enable or disable the
Off Timer.
60
Setup and Reset
6
6 Setup and Reset
6.3.2 Configuring Turn Off After
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer and press [ ] on the product.
4Press [ ] to move to Turn Off After and press [ ] on the product.
The following screen will appear.
5Press [ ] to configure Turn Off After.
6The selected option will be applied.
The off timer can be set within a range of 1 to 23 hours. The product will automatically power off
after the specified number of hours.
This option is only available when Off Timer is set to On.
For products for the market in Europe, the Off Timer is set to automatically activate 4 hours after
the product powers on. This is done in accordance with power supply regulations. If you do not
want the timer to activate, go to MENU SETUP&RESET and set Off Timer to Off.
MENU
AUTO
Off Timer
Off Timer
Turn Off After
On
4h
Set the monitor to
automatically turn off
after a certain time
period.
→
61
Setup and Reset
6
6 Setup and Reset
6.4 PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
This function does not support Analog mode.
Supplied for the wide models only such as 16:9 or 16:10.
If the monitor (when set to HDMI) is in power saving mode or is displaying the message
Check Signal Cable, press the MENU button to display the On Screen Display(OSD).
You can select PC or AV.
6.4.1 Configuring PC/AV Mode
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to PC/AV Mode and press [ ] on the product.
4Press [ ] to move to HDMI and press [ ] on the product. And press [ ] again.
The following screen will appear.
5Press [ ] to move to the option you want and press [ ].
6The selected option will be applied.
MENU
SETUP&RESET
AUTO
Off
Acceleration
Auto
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Set to AV to enlarge
the picture.
PC/AV Mode
AUTO
HDMI
PC
AV
Select the PC/AV mode
for the HDMI source.
62
Setup and Reset
6
6 Setup and Reset

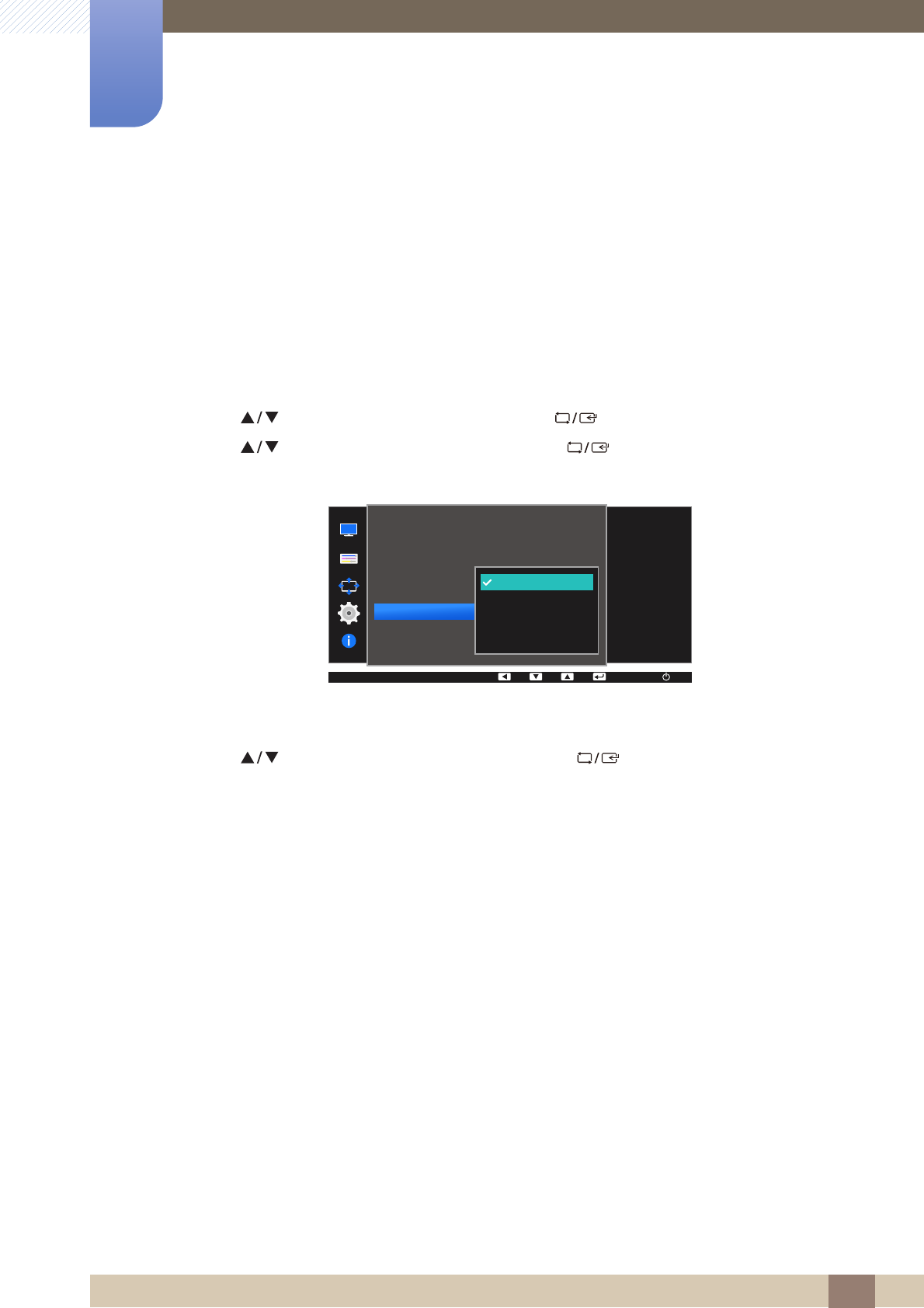

6.5 Key Repeat Time
Control the response rate of a button when the button is pressed.
6.5.1 Configuring Key Repeat Time
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Key Repeat Time and press [ ] on the product.
The following screen will appear.
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds
only once when a button is pressed.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
SETUP&RESET
AUTO
Off
Acceleration
Auto
Acceleration
1 sec
2 sec
No Repeat
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Configure the
response rate of a
button when the button
is pressed.
63
Setup and Reset
6
6 Setup and Reset

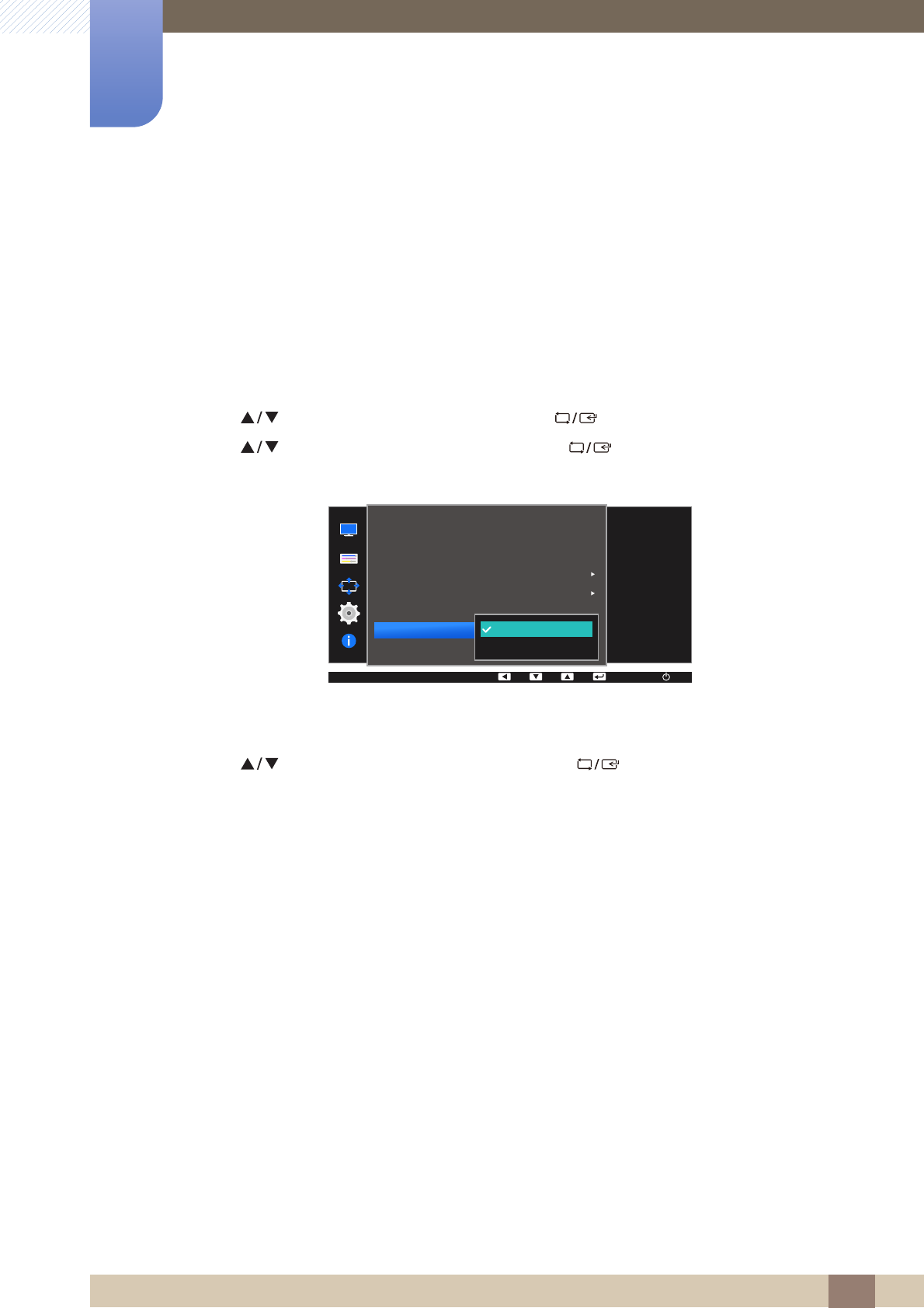

6.6 Source Detection
You can activate Source Detection.
6.6.1 Configuring Source Detection
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Source Detection and press [ ] on the product.
The following screen will appear.
Auto: The input source is automatically recognized.
Manual: Manually select an input source.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
SETUP&RESET
AUTO
Off
Auto
Auto
Manual
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Decide how input
sources will be
detected.
64
7 INFORMATION Menu and Others
7 INFORMATION Menu and Others
A detailed description of each function is provided. Refer to your product for details.
7.1 INFORMATION
View the current input source, frequency and resolution.
7.1.1 Displaying INFORMATION
1Press any button on the front of the product to display the Function Key Guide. Next, press [ ] to
display the corresponding menu screen.
2Press [ ] to move to INFORMATION. The current input source, frequency and resolution will
appear.
The displayed menu items may vary depending on the model.
MENU
INFORMATION
Analog
**kHz **Hz PP
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
AUTO
65
INFORMATION Menu and Others
7
7 INFORMATION Menu and Others
7.2 Configuring Brightness and Contrast in the Initial Screen
Adjust the Brightness, Contrast using the [ ] buttons when the initial screen (that displays no menu
screen) is displayed.
Brightness :
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving is enabled.
Contrast :
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
1Press any button on the front of the product (when no menu screen is displayed) to display the
Function Key Guide. Next, press [ ]. The following screen will appear.
2Press the [ ] button to alternate between the Brightness and Contrast settings.
3Adjust the Brightness, Contrast using the [ ] buttons.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
Brightness
Contrast
75
100
66
8 Installing the Software
8 Installing the Software
8.1 Easy Setting Box
"Easy Setting Box" enables users to use the monitor by partitioning multiple sections.
8.1.1 Installing the Software
1Insert the installation CD into the CD-ROM drive.
2Select the "Easy Setting Box" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "Easy Setting Box" setup file on the CD-ROM.
3When the Installation Wizard appears, click Next.
4Follow the instructions given on the screen to proceed with installation.
The software may not work properly if you do not restart the computer after the installation.
The "Easy Setting Box" icon may not appear depending on the computer system and the
product specifications.
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation ("Easy Setting Box")
The "Easy Setting Box" installation may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS
Windows XP 32Bit/64Bit
Windows Vista 32Bit/64Bit
Windows 7 32Bit/64Bit
Windows 8 32Bit/64Bit
Hardware
At least 32MB of memory
At least 60MB of free space on the hard disk drive
Easy Setting Box
67
Installing the Software
8
8 Installing the Software
8.1.2 Removing the Software
Click Start, select Settings/Control Panel, and then double-click Add or Remove Programs.
Select "Easy Setting Box" from the program list and click the Add/Delete button.
68
9 Troubleshooting Guide
9 Troubleshooting Guide
9.1 Requirements Before Contacting Samsung Customer
Service Center
9.1.1 Testing the Product
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1Power off both the PC and product.
2Disconnect the cables from the product.
3Power on the product.
4If the message Check Signal Cable appears, the product is working normally.
If the screen remains blank, check the PC system, video controller and cable.
9.1.2 Checking the Resolution and Frequency
For a mode that exceeds the supported resolution (refer to "10.3 Standard Signal Mode Table"), the
message Not Optimum Mode will appear for a short time.
9.1.3 Check the following.
Installation issue (PC mode)
Issues Solutions
The screen keeps switching on and off. Check the cable connection between the product
and PC, and ensure the connectors are locked.
(Refer to "2.2 Connecting and Using a PC")
69
Troubleshooting Guide
9
9 Troubleshooting Guide
Screen issue
Issues Solutions
The power LED is off. The screen will not switch
on.
Check that the power cable is connected
properly.
(Refer to "2.2 Connecting and Using a PC")
The message Check Signal Cable appears. Check that the cable is properly connected to the
product.
(Refer to "2.2 Connecting and Using a PC")
Check that the device connected to the product is
powered on.
Not Optimum Mode is displayed. This message appears when the signal from the
graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to
suit the product performance, referring to
Standard Signal Mode Table (page 76).
The images on the screen look distorted. Check the cable connection to the product.
(Refer to "2.2 Connecting and Using a PC")
The screen is not clear. The screen is blurry. Adjust Coarse and Fine.
Remove any accessories (video extension cable,
etc.) and try again.
Set the resolution and frequency to the
recommended level. (Refer to "10.1 General")
The screen appears unstable and shaky. Check that the resolution and frequency for the
PC are within the range of resolution and
frequency compatible with the product.
Next, if required, change the settings, referring to
Standard Signal Mode Table (page 76) in this
manual and the INFORMATION menu on the
product.
There are shadows or ghost images left on the
screen.
The screen is too bright. The screen is too dark. Adjust Brightness and Contrast.
Screen color is inconsistent. Change the COLOR settings.
The colors on the screen have a shadow and are
distorted.
Change the COLOR settings.
White does not really look white. Change the COLOR settings.
There is no image on the screen and the power
LED blinks every 0.5 to 1 second.
The product is operating in power-saving mode.
Press any key on the keyboard or move the
mouse to return to normal operating mode.
70
Troubleshooting Guide
9
9 Troubleshooting Guide
Source device issue
The LED lights on the frame of the product may be seen depending on the user's viewing angle.
The light is harmless to people and has no bearing on product features and performance. The product
is safe to use.
Issues Solutions
A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is
booting, have your PC serviced.
71
Troubleshooting Guide
9
9 Troubleshooting Guide
9.2 Q & A
Question Answer
How can I change the
frequency?
Set the frequency on your graphics card.
Windows XP: Go to Control Panel Appearance and
Themes Display Settings Advanced Monitor,
and adjust Refresh rate under Monitor settings.
Windows ME/2000: Go to Control Panel Display
Settings Advanced Monitor, and adjust Refresh rate
under Monitor settings.
Windows Vista: Go to Control Panel Appearance and
Personalization Personalization Display Settings
Advanced Settings Monitor, and adjust Refresh rate
under Monitor settings.
Windows 7: Go to Control Panel Appearance and
Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
Windows 8: Go to Settings Control Panel Appearance
and Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
72
Troubleshooting Guide
9
9 Troubleshooting Guide
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
How can I change the
resolution?
Windows XP: Go to Control Panel Appearance and
Themes Display Settings, and adjust the resolution.
Windows ME/2000: Go to Control Panel Display
Settings, and adjust the resolution.
Windows Vista: Go to Control Panel Appearance and
Personalization Personalize Display Settings, and
adjust the resolution.
Windows 7: Go to Control Panel Appearance and
Personalization Display Adjust Resolution, and adjust
the resolution.
Windows 8: Go to Settings Control Panel Appearance
and Personalization Display Adjust Resolution, and
adjust the resolution.
How do I set power-saving
mode?
Windows XP: Set power-saving mode in Control Panel
Appearance and Themes Display Screen Saver
Settings or BIOS SETUP on the PC.
Windows ME/2000: Set power-saving mode in Control Panel
Display Screen Saver Settings or BIOS SETUP on the
PC.
Windows Vista: Set power-saving mode in Control Panel
Appearance and Personalization Personalize Screen
Saver Settings or BIOS SETUP on the PC.
Windows 7: Set power-saving mode in Control Panel
Appearance and Personalization Personalize Screen
Saver Settings or BIOS SETUP on the PC.
Windows 8: Set power-saving mode in Settings Control
Panel Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Question Answer
73
10 Specifications
10 Specifications
10.1 General
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be
brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
Model Name S22E390H /
S22E391H
S24E390HL /
S24E391HL
S27E390H /
S27E391H
Panel
Size
21.5 Inches (54 cm) 23.6 Inches (59 cm) 27 Inches (68 cm)
Display area
476.64 mm (H) x
268.11 mm (V)
18.77 Inches (H) x
10.56 Inches (V)
521.28 mm (H) x
293.22 mm (V)
20.52 Inches (H) x
11.54 Inches (V)
597.89 mm (H) x
336.31 mm (V)
23.54 Inches (H) x
13.24 Inches (V)
Pixel Pitch
0.24825 mm (H) x
0.24825 mm (V)
0.00977 Inches (H) x
0.00977 Inches (V)
0.2715 mm (H) x
0.2715 mm (V)
0.0107 Inches (H)
x 0.0107 Inches (V)
0.3114 mm (H) x
0.3114 mm (V)
0.0123 Inches (H) x
0.0123 Inches (V)
Power Supply This product supports 100-240 V. Since the standard voltage may
differ from
country to country, please check the label on the back
of the product.
Dimensions
(W x H x D) /
Weight
Without Stand
513.7 x 322.8 x
81.7 mm
20.2 x 12.7 x
3.2 Inches
547.3 x 332 x
80.1 mm
21.5 x 13.1 x
3.2 Inches
624.7 x 375.8 x
79.6 mm
24.6 x 14.8 x
3.1 Inches
With Stand
513.7 x 389.4 x
209 mm / 3.15 kg
20.2 x 15.3 x
8.2 Inches / 6.9 lbs
547.3 x 400.9 x
243.4 mm / 3.7 Kg
21.5 x 15.8 x
9.6 Inches / 8.2 lbs
624.7 x 444.7 x
243.4 mm / 4.7 kg
24.6 x 17.5 x
9.6 Inches / 10.4 lbs
Environmental
Consideration
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % – 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % – 95 %, non-condensing
S27E360F
74
Specifications
10
10 Specifications
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
75
Specifications
10
10 Specifications
10.2 PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and
controlling the power LED status if the product is not used for a specified period of time. The power is not
turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move
the mouse. Power-saving mode functions only when the product is connected to a PC that has a
power-saving function.
The power consumption level can vary in different operating conditions or when settings are
changed. ( Power saving mode : Max 0.45 W)
ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
Energy Star power is measured with the test method in the current Energy Star® Standard.
To reduce the power consumption to 0 watts, turn off the power switch on the back of the product
or disconnect the power cable. Be sure to disconnect the power cable when you will not be using
the product for an extended period of time. To reduce the power consumption to 0 watts when the
power switch is not available, disconnect the power cable.
PowerSaver Energy Star
Power Consumption Power saving mode Power off
(Power button)
Power Indicator On Blinking Off
Power Consumption
(
)
21 W Typical 0.3 W Less than 0.3 W
Power Consumption
(
)
21 W Typical 0.3 W Less than 0.3 W
Power Consumption
(
)
22 W Typical 0.3 W Less than 0.3 W
S22E360H /
S22E360H
S24E360HL /
S24E391HL
S27E360H /
S27E391H
S27E360F
76
Specifications
10
10 Specifications
10.3 Standard Signal Mode Table
This product can be set to only one resolution for each screen size to obtain the optimum picture
quality due to the nature of the panel. Therefore, a resolution other than the specified resolution
may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for the screen size of your product.
Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.
If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT
monitor before you exchange it with the LCD monitor.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will
automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the
settings according to the following table by referring to the graphics card user manual.
Synchronization Horizontal Frequency 30 ~ 81 kHz
Vertical Frequency 56 ~ 75 Hz
Resolution Optimum Resolution 1920 x 1080 @ 60 Hz
Maximum Resolution 1920 x 1080 @ 60 Hz
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
77
Specifications
10
10 Specifications
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a
horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.
Horizontal frequency is measured in kHz.
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The
repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900RB 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
78
Appendix
Appendix
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
NORTH AMERICA
U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us
CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca
(English)
http://www.samsung.com/ca_fr
(French)
LATIN AMERICA
ARGENTINE 0800 333 3733 http://www.samsung.com.ar
BOLIVIA 800-10-7260 http://www.samsung.com
BRAZIL 0800-124-421 (Demais cidades e
regiões)
4004-0000 (Capitais e grandes
centros)
http://www.samsung.com.br
CHILE 800-SAMSUNG (726-7864) http://www.samsung.com/cl
COLOMBIA http://www.samsung.com/co
COSTA RICA 0-800-507-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
DOMINICA 1-800-751-2676 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
ECUADOR 1-800-10-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
EL SALVADOR 800-6225 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
01 8000 112 112
Bogotá 600 12 72
79
Appendix
Appendix
GUATEMALA 1-800-299-0013 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
HONDURAS 800-27919267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
JAMAICA 1-800-234-7267 http://www.samsung.com
NICARAGUA 001-800-5077267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com
PANAMA 800-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
PARAGUAY 009 800 542 0001 http://www.samsung.com.py
PERU 0-800-777-08 http://www.samsung.com/pe
PUERTO RICO 1-800-682-3180 http://www.samsung.com
TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com
URUGUAY 000 405 437 33 http://www.samsung.com
VENEZUELA 0-800-100-5303 http://www.samsung.com/ve
EUROPE
AUSTRIA 0810 - SAMSUNG
(7267864, € 0.07/min)
http://www.samsung.com
BELGIUM 02-201-24-18 http://www.samsung.com/be
(Dutch)
http://www.samsung.com/be_fr
(French)
BOSNIA 051 331 999 http://www.samsung.com
BULGARIA 07001 33 11, share cost tariff http://www.samsung.com/bg
CROATIA 062 SAMSUNG (062 726 786) http://www.samsung.com/hr
CYPRUS 8009 4000 only from landline http://www.samsung.com/gr
LATIN AMERICA
80
Appendix
Appendix
CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com
Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24,
148 00 - Praha 4
DENMARK 70 70 19 70 http://www.samsung.com
EIRE 0818 717100 http://www.samsung.com
ESTONIA 800-7267 http://www.samsung.com/ee
FINLAND 030-6227 515 http://www.samsung.com
FRANCE 01 48 63 00 00 http://www.samsung.com/fr
GERMANY 0180 6 SAMSUNG bzw. http://www.samsung.com
0180 6 7267864*
(*0,20 €/Anruf aus dem dt. Festnetz, aus dem
Mobilfunk max. 0,60 €/Anruf)
GREECE 80111-SAMSUNG (80111 726
7864) only from land line
(+30) 210 6897691 from mobile
and land line
http://www.samsung.com/gr
HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com/hu
ITALIA 800-SAMSUNG (726-7864) http://www.samsung.com
LATVIA 8000-7267 http://www.samsung.com/lv
LITHUANIA 8-800-77777 http://www.samsung.com/lt
LUXEMBURG 261 03 710 http://www.samsung.com
MONTENEGRO 020 405 888 http://www.samsung.com
NETHERLANDS 0900 - SAMSUNG
(0900-7267864) (€ 0,10/Min)
http://www.samsung.com
NORWAY 815 56480 http://www.samsung.com
POLAND http://www.samsung.com/pl
PORTUGAL 808 20 - SAMSUNG (808 20 7267) http://www.samsung.com
ROMANIA 08008 SAMSUNG (08008 726
7864) TOLL FREE No.
http://www.samsung.com/ro
SERBIA 011 321 6899 http://www.samsung.com/rs
EUROPE
0 801-172-678*
lub +48 22 607-93-33 **





81
Appendix
Appendix
SLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com
SPAIN 902172678 http://www.samsung.com
SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com
SWITZERLAND 0848-SAMSUNG
(7267864, CHF 0.08/min)
http://www.samsung.com/ch
(German)
http://www.samsung.com/ch_fr
(French)
U.K 0330 SAMSUNG (7267864) http://www.samsung.com
CIS
ARMENIA 0-800-05-555 http://www.samsung.com
AZERBAIJAN 088-55-55-555 http://www.samsung.com
BELARUS 810-800-500-55-500 http://www.samsung.com
GEORGIA 0-800-555-555 http://www.samsung.com
KAZAKHSTAN 8-10-800-500-55-500
(GSM: 7799)
http://www.samsung.com
KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com
MOLDOVA 0-800-614-40 http://www.samsung.com
MONGOLIA +7-800-555-55-55 http://www.samsung.com
RUSSIA 8-800-555-55-55 http://www.samsung.com
TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com
UKRAINE 0-800-502-000 http://www.samsung.com/ua
(Ukrainian)
http://www.samsung.com/ua_ru
(Russian)
UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com
ASIA PACIFIC
AUSTRALIA 1300 362 603 http://www.samsung.com/au
CHINA 400-810-5858 http://www.samsung.com
HONG KONG (852) 3698 4698 http://www.samsung.com/hk
(Chinese)
http://www.samsung.com/hk_en
(English)
EUROPE
82
Appendix
Appendix
INDIA 1800 3000 8282
1800 266 8282
http://www.samsung.com/in
INDONESIA 0800-112-8888 (Toll Free)
(021) 56997777
http://www.samsung.com/id
JAPAN 0120-327-527 http://www.samsung.com
MALAYSIA 1800-88-9999 http://www.samsung.com/my
NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com/nz
PHILIPPINES 1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline
and Mobile]
02-4222111 [Other landline]
http://www.samsung.com/ph
SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg
TAIWAN 0800-32-9999 http://www.samsung.com/tw
THAILAND 0-2689-3232,
1800-29-3232
http://www.samsung.com/th
VIETNAM 1800 588 889 http://www.samsung.com
MENA
ALGERIA 0800 100 100 http://www.samsung.com/n_africa
BAHRAIN 8000-4726 http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
EGYPT 08000-726786 http://www.samsung.com
IRAN 021-8255 http://www.samsung.com
JORDAN 0800-22273
06 5777444
http://www.samsung.com/Levant
(English)
KUWAIT 183-2255 (183-CALL) http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
MOROCCO 080 100 2255 http://www.samsung.com
OMAN 800-SAMSUNG (726-7864) http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
ASIA PACIFIC
83
Appendix
Appendix
PAKISTAN 0800-Samsung (72678) http://www.samsung.com/pk/
QATAR 800-2255 (800-CALL) http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
SAUDI ARABIA 920021230 http://www.samsung.com/sa
SYRIA 18252273 http://www.samsung.com/Levant
(English)
TUNISIA 80-1000-12 http://www.samsung.com/n_africa
TURKEY 444 77 11 http://www.samsung.com
U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com
AFRICA
BOTSWANA 8007260000 http://www.samsung.com
BURUNDI 200 http://www.samsung.com
CAMEROON 7095-0077 http://www.samsung.com/africa_fr
COTE D’ IVOIRE 8000 0077 http://www.samsung.com/africa_fr
DRC 499999 http://www.samsung.com
GHANA 0800-10077
0302-200077
http://www.samsung.com/africa_en
KENYA 0800 545 545 http://www.samsung.com
NAMIBIA 08 197 267 864 http://www.samsung.com
NIGERIA 0800-726-7864 http://www.samsung.com/africa_en
MOZAMBIQUE 847267864 / 827267864 http://www.samsung.com
RWANDA 9999 http://www.samsung.com
SENEGAL 800-00-0077 http://www.samsung.com/africa_fr
SOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com
SUDAN 1969 http://www.samsung.com
TANZANIA 0685 88 99 00 http://www.samsung.com
UGANDA 0800 300 300 http://www.samsung.com
ZAMBIA 0211 350370 http://www.samsung.com
MENA
84
Appendix
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)
If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first time.
If a product is reinstalled to move to a different spot or to move to a different house.
If customer requests instructions on how to use because of another company's product.
If customer requests instructions on how to use the network or another company's program.
If customer requests software installation and setup for the product.
If a service technician removes/cleans dusts or foreign materials inside of the product.
If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
external impact or drop.
use of supplies or separately sold product unspecified by Samsung.
repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
remodeling or repairing the product by customer.
using it with incorrect voltage or non-authorised electrical connections.
not following the "cautions" in User Manual.
Others
If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
85
Appendix
Appendix
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
86
Appendix
Appendix
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
87
Appendix
Appendix
Terminology
OSD (On Screen Display)
On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as
required. You can change the screen brightness, tint, size and many other settings using menus
displayed on the screen.
Gamma
The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the
brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.
Grey scale
Scale refers to levels of color intensity that show variations of color change from darker areas to
brighter areas on the screen. Changes to the screen brightness are expressed with black and white
variation, and grey scale refers to the medium area between black and white. Changing the grey scale
through Gamma adjustment will change the medium brightness on the screen.
Scanning rate
Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted
as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of
screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that
the screen refreshes 60 times per second. The screen scanning rate depends on the performance of
the graphics cards in your PC and monitor.
Horizontal Frequency
Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are
transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal
frequency is measured in kHz and represents how many times horizontal lines per second are
transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the
horizontal lines that make up an image are transmitted 85000 times per second. The horizontal
frequency is indicated in 85kHz.
Vertical Frequency
One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and
represents how many images can be created per second by those horizontal lines. A vertical
frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is
also called "refresh rate" and affects screen flicker.
88
Appendix
Appendix
Resolution
Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the
level of display detail.
A higher resolution displays a greater amount of information on the screen and is suitable for
performing multiple tasks at the same time.
E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080
vertical lines (vertical resolution).
E.g. A resolution of 1920 x 1200 consists of 1920 horizontal pixels (horizontal resolution) and 1200
vertical lines (vertical resolution).
Plug & Play
The Plug & Play feature allows the automatic exchange of information between a monitor and PC to
produce an optimum display environment.
The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 89
Index
B
Before Connecting 26
Blue 50
Brightness 31
C
Checking the Contents 18
Cleaning 7
Coarse 46
Color Tone 51
Connecting and Using a PC 26
Contact SAMSUNG WORLD WIDE 78
Contrast 32
Copyright 6
Correct Disposal 86
Correct posture to use the product 17
D
Display Time 55
E
Easy Setting Box 66
Eco Saving 58
F
Fine 47
G
Game Mode 34
Gamma 52
General 73
Green 49
H
HDMI Black Level 42
I
Image Size 40
INFORMATION 64
Installation 22
K
Key Repeat Time 62
L
Language 53
O
Off Timer 59
P
Parts 19
PC/AV Mode 61
PowerSaver 75
Q
Q & A 71
R
Red 48
Requirements Before Contacting Samsung
Customer Service Center 68
Reset All 57
Response Time 43
Responsibility for the Pay Service (Cost to
Customers) 84
Index
Index 90
S
Safety Precautions 9
SAMSUNG MAGIC Angle 37
SAMSUNG MAGIC Bright 35
SAMSUNG MAGIC Upscale 39
Sharpness 33
Source Detection 63
Standard Signal Mode Table 76
T
Terminology 87
Transparency 56

Navigation menu
