Samsung Electronics Co LS24E310 LCD monitor User Manual
Samsung Electronics Co Ltd LCD monitor
Contents
- 1. user manual
- 2. users manual
user manual
User manual
S19E310HY
S22E310HY
S22E310H
S24E310HL
S27E310H
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
BN46-00452A-00
Table Of Contents 2
Table Of Contents
BEFORE USING THE
PRODUCT
7 Copyright
7 Icons used in this manual
8 Cleaning
9 Securing the Installation Space
9 Precautions for storage
10 Safety Precautions
10 Symbols
11 Electricity and Safety
12 Installation and Safety
14 Operation and Safety
18 Correct posture to use the product
PREPARATIONS 19 Checking the Contents
19 Checking the Components
20 Parts

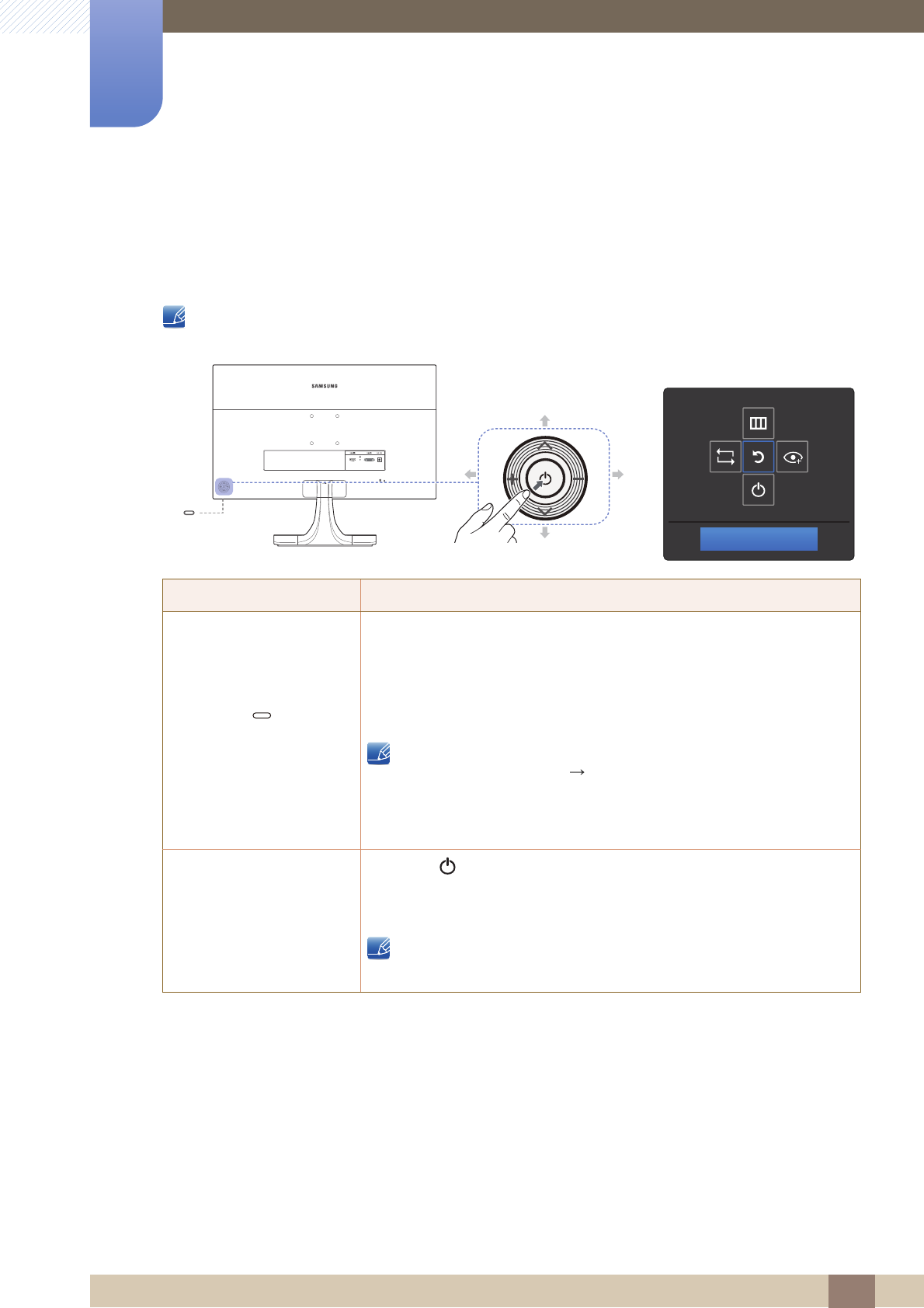

20 Control Panel

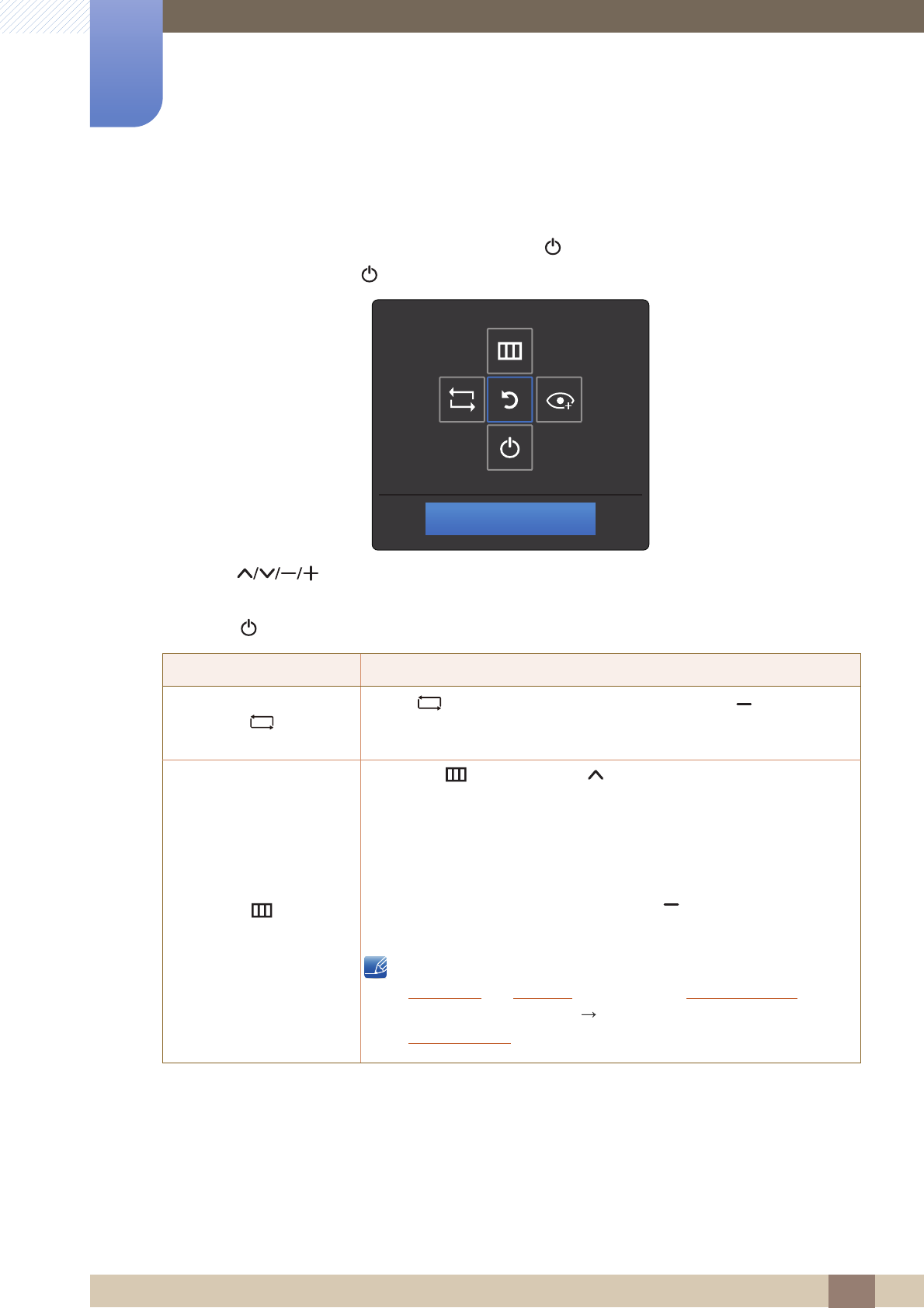

21 Direct Key guide

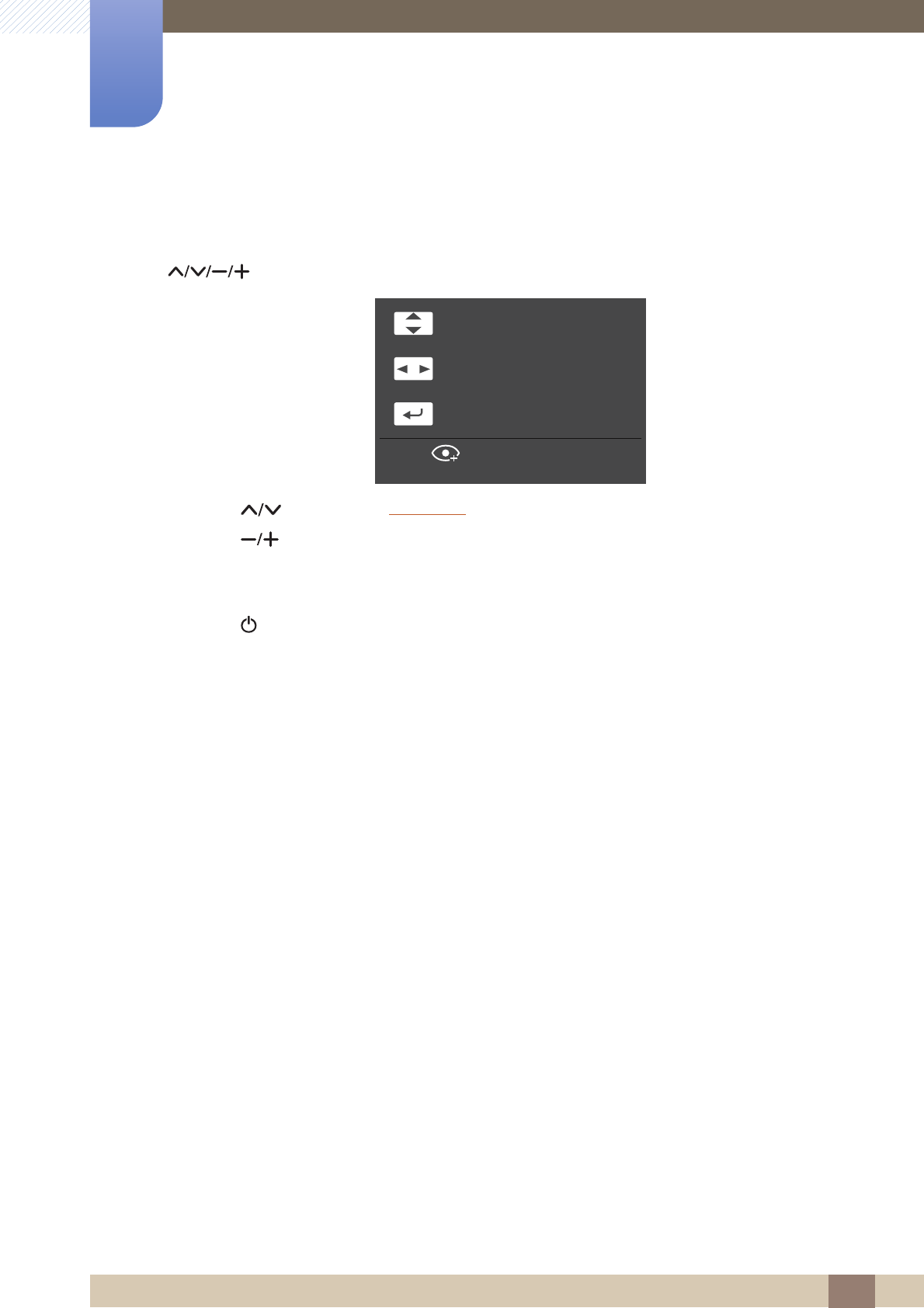

22 Function Key Guide

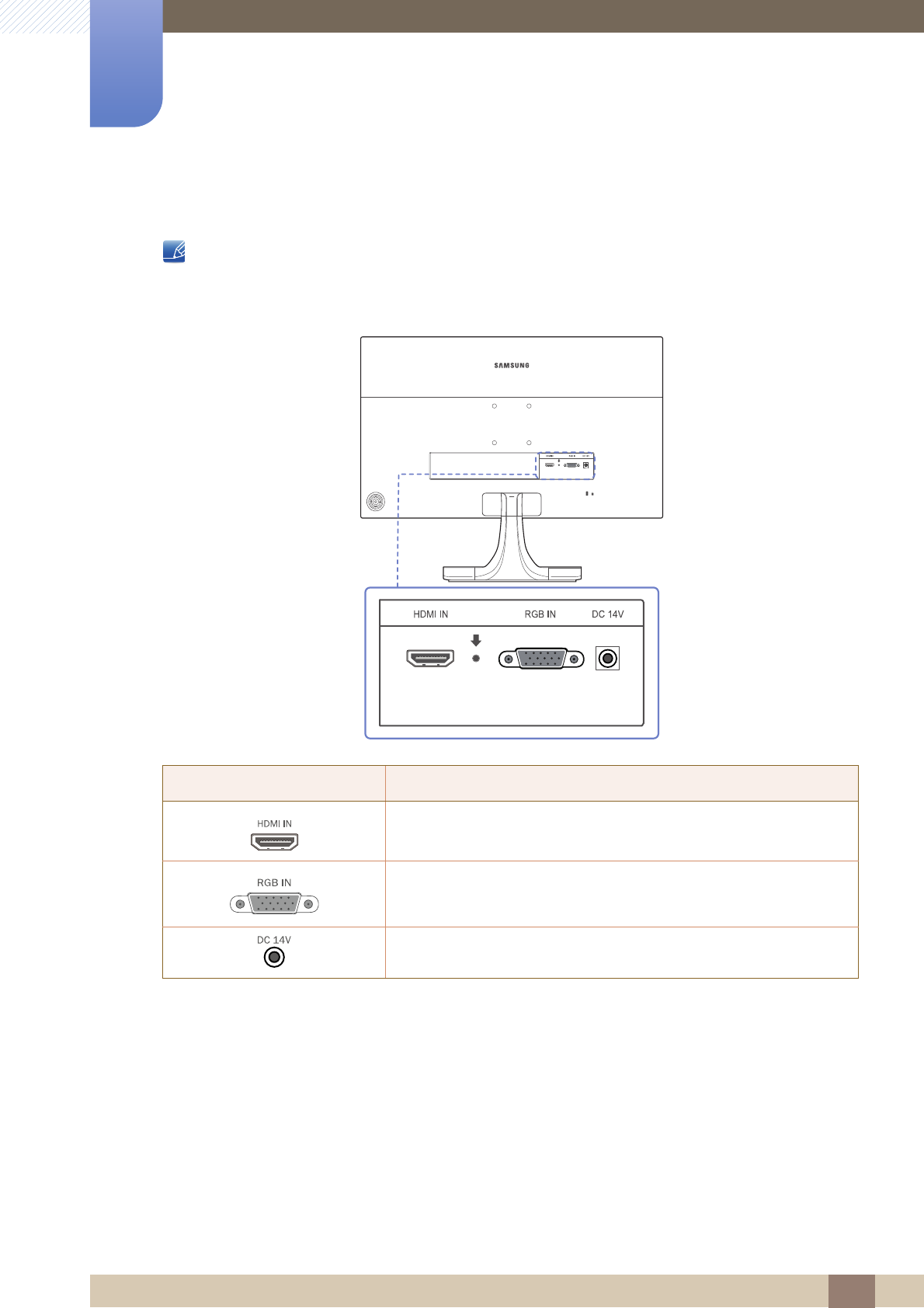

24 Reverse Side
25 Installation

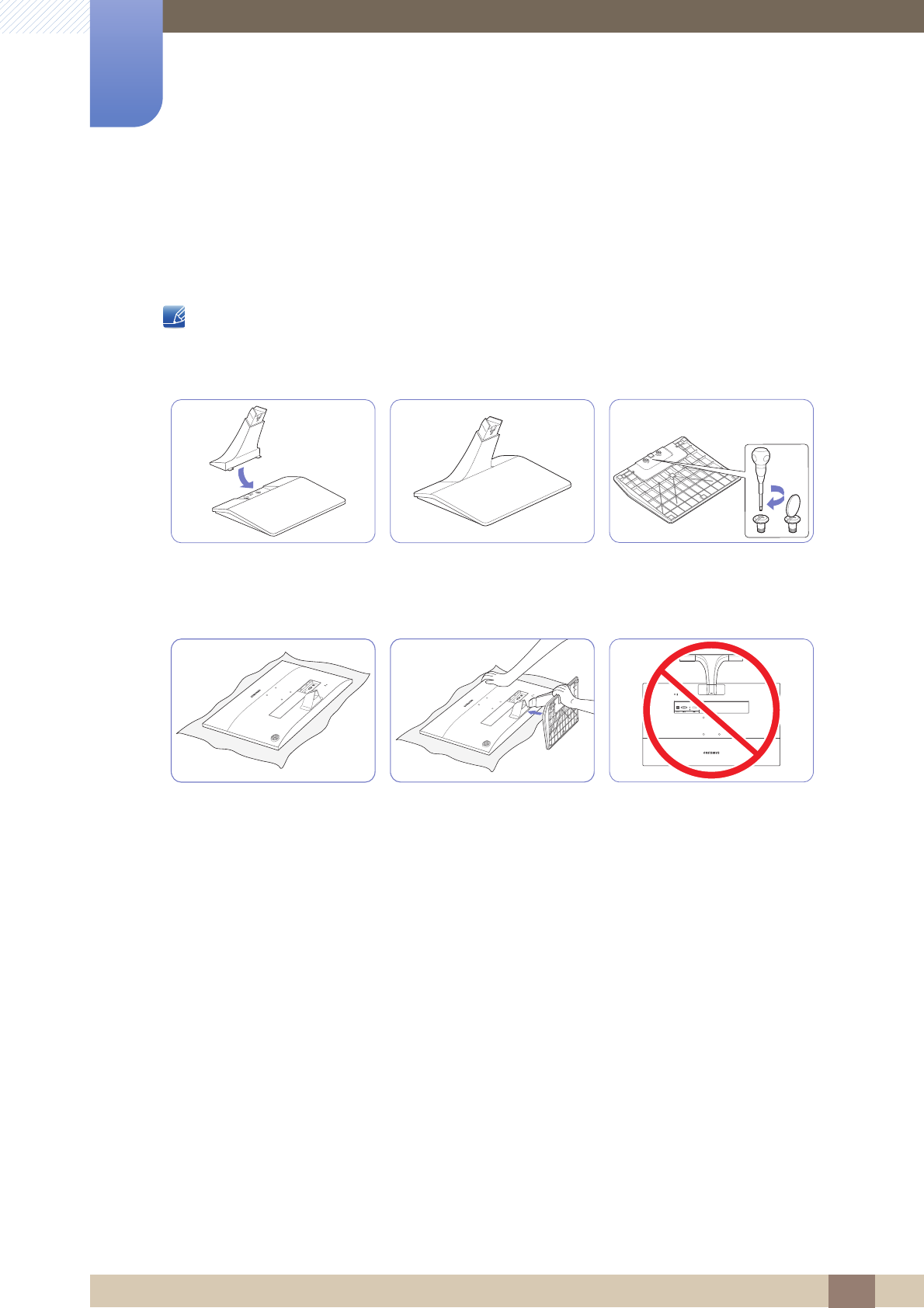

25 Attaching the Stand
26 Removing the Stand
27 Adjusting the Product Tilt
28 Installing a Wall-mount Kit or Desktop Stand
29 Anti-theft Lock
CONNECTING AND USING
A SOURCE DEVICE
30 Before Connecting
30 Pre-connection Checkpoints
30 Connecting and Using a PC
30 Connecting to a PC
32 Connecting the Power
33 Driver Installation
34 Setting Optimum Resolution
Table Of Contents
Table Of Contents 3
SCREEN SETUP 35 Brightness
35 Configuring Brightness
36 Contrast
36 Configuring Contrast
37 Sharpness
37 Configuring Sharpness
38 Eye Saver Mode
38 Configuring Eye Saver Mode
39 Game Mode
39 Configuring Game Mode
40 SAMSUNG MAGIC Bright
40 Configuring SAMSUNG MAGIC Bright
42 SAMSUNG MAGIC Angle (S19E310HY /
S22E310HY / S22E310H / S27E310H)
42 Configuring SAMSUNG MAGIC Angle
44 SAMSUNG MAGIC Upscale
44 Configuring SAMSUNG MAGIC Upscale
46 Image Size
46 Changing the Image Size
48 HDMI Black Level
48 Configuring the HDMI Black Level Settings
50 Response Time (S24E310HL /
S27E310H)
50 Configuring the Response Time
51 H-Position & V-Position
51 Configuring H-Position & V-Position
53 Coarse
53 Adjusting Coarse
54 Fine
54 Adjusting Fine
Table Of Contents
Table Of Contents 4
CONFIGURING TINT 55 Red
55 Configuring Red
56 Green
56 Configuring Green
57 Blue
57 Configuring Blue
58 Color Tone
58 Configuring the Color Tone Settings
59 Gamma
59 Configuring Gamma
COORDINATING OSD 60 Language
60 Configuring Language
61 Menu H-Position & Menu V-Position
61 Configuring Menu H-Position & Menu V-
Position
62 Display Time
62 Configuring Display Time
63 Transparency
63 Changing Transparency
SETUP AND RESET 64 Reset All
64 Initializing Settings (Reset All)
65 Eco Saving Plus
65 Configuring Eco Saving Plus
66 Off Timer
66 Configuring Off Timer
67 Configuring Turn Off After
68 PC/AV Mode
68 Configuring PC/AV Mode
Table Of Contents
Table Of Contents 5
69 Key Repeat Time
69 Configuring Key Repeat Time
70 Source Detection
70 Configuring Source Detection
71 Power LED On
71 Configuring Power LED On
INFORMATION MENU AND
OTHERS
72 INFORMATION
72 Displaying INFORMATION
73 Configuring Brightness, Contrast and
Sharpness from the Initial Screen
INSTALLING THE
SOFTWARE
74 Easy Setting Box
74 Installing the Software
75 Removing the Software
TROUBLESHOOTING
GUIDE
76 Requirements Before Contacting
Samsung Customer Service Center
76 Testing the Product
76 Checking the Resolution and Frequency
76 Check the following.
79 Q & A
SPECIFICATIONS 81 General (S19E310HY)
82 General (S22E310HY / S22E310H)
83 General (S24E310HL)
84 General (S27E310H)
85 PowerSaver
86 Standard Signal Mode Table
APPENDIX 89 Contact SAMSUNG WORLD WIDE
7
Before Using the Product
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2015 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Icons used in this manual
An administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
(b) you bring the unit to a repair center and there is no defect in the product
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is
carried out.
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
8
Before Using the Product
Before Using the Product

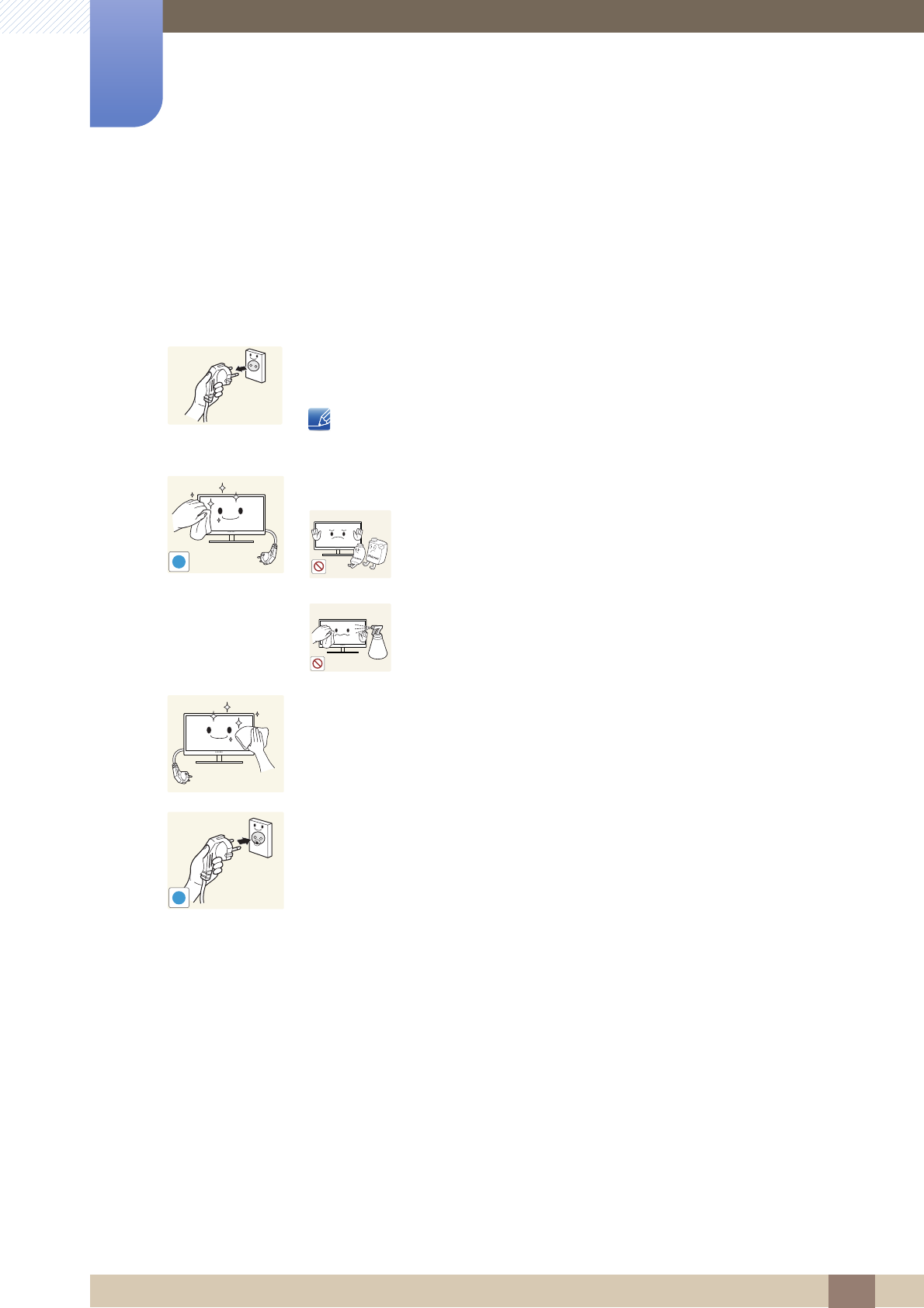

Cleaning
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cord from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor screen using a clean, soft and dry cloth.
Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cord to the product after cleaning the product.
6. Power on the monitor and computer.
!
!
9
Before Using the Product
Before Using the Product

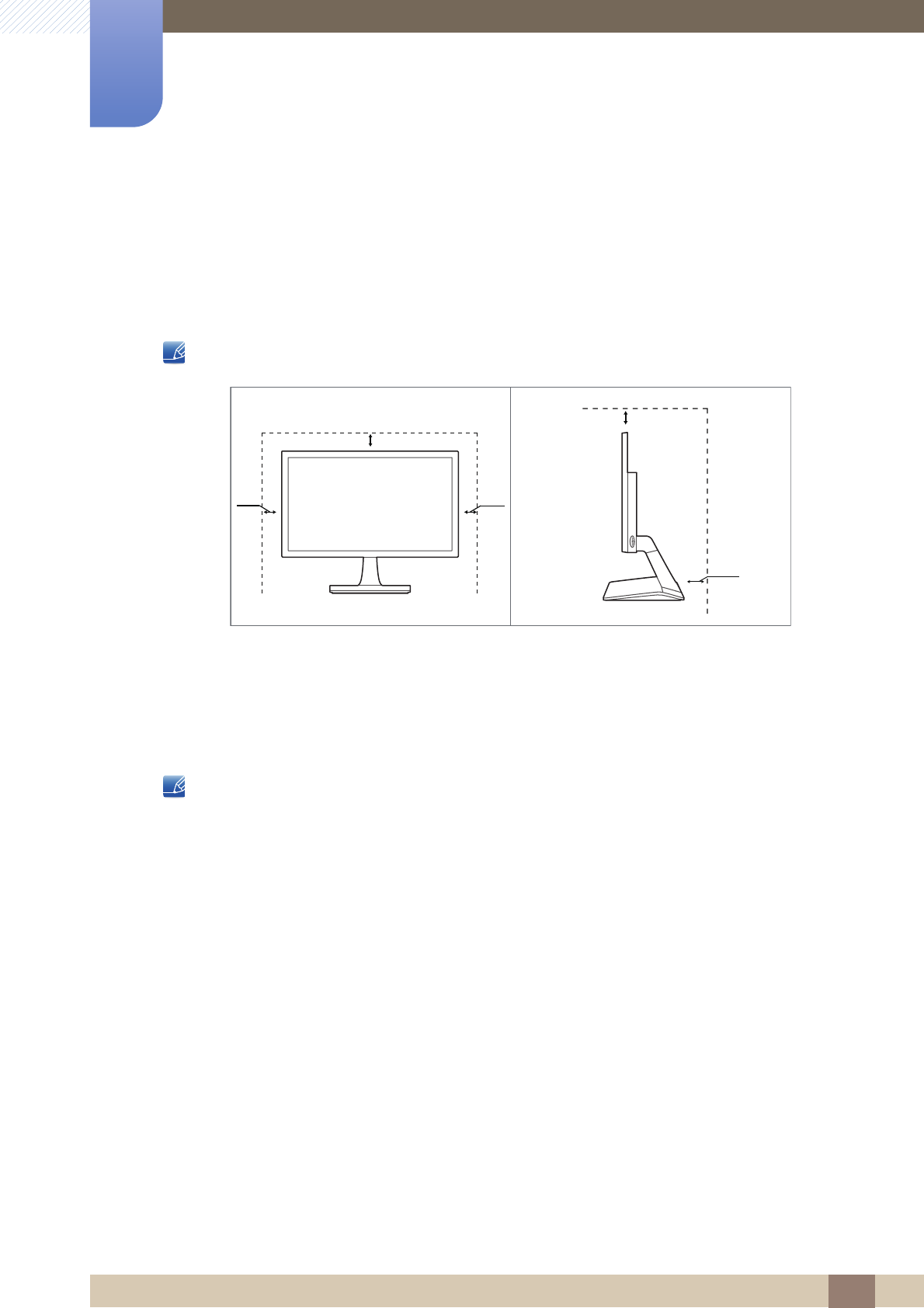

Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire
and damage the product. Be sure to allow the amount of space as shown below or greater when
installing the product.
The exterior may differ depending on the product.
Precautions for storage
Be sure to contact Samsung Customer Service Center (page 89) if the inside of the monitor needs
cleaning. (A service fee will be charged.)
10 cm
(3.93
inches)
10 cm
(3.93
inches)
10 cm (3.93 inches)
10 cm (3.93 inches)
10 cm
(3.93 inches)
10
Before Using the Product
Before Using the Product
Safety Precautions
Symbols
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside. It is dangerous to
make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and
maintenance has been included with this product.
Warning A serious or fatal injury may result if instructions are not followed.
Caution Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
11
Before Using the Product
Before Using the Product
Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
An electric shock or fire may result.
Do not plug many products into the same power socket.
Otherwise, the socket may overheat and cause a fire.
Do not touch the power plug with wet hands.
Otherwise, an electric shock may result.
Insert the power plug all the way in so it is not loose.
An unstable connection may cause a fire.
Ensure you connect the power plug to a grounded power socket. (type 1
insulated devices only).
An electric shock or injury may result.
Do not bend or pull the power cord with force. Do not weigh the power cord
down with a heavy object.
A damaged power cord may cause an electric shock or fire.
Do not place the power cord or product near heat sources.
An electric shock or fire may result.
Remove foreign substances such as dust around the plug pins and power socket
with a dry cloth.
Otherwise, a fire may result.
!
!
!
12
Before Using the Product
Before Using the Product

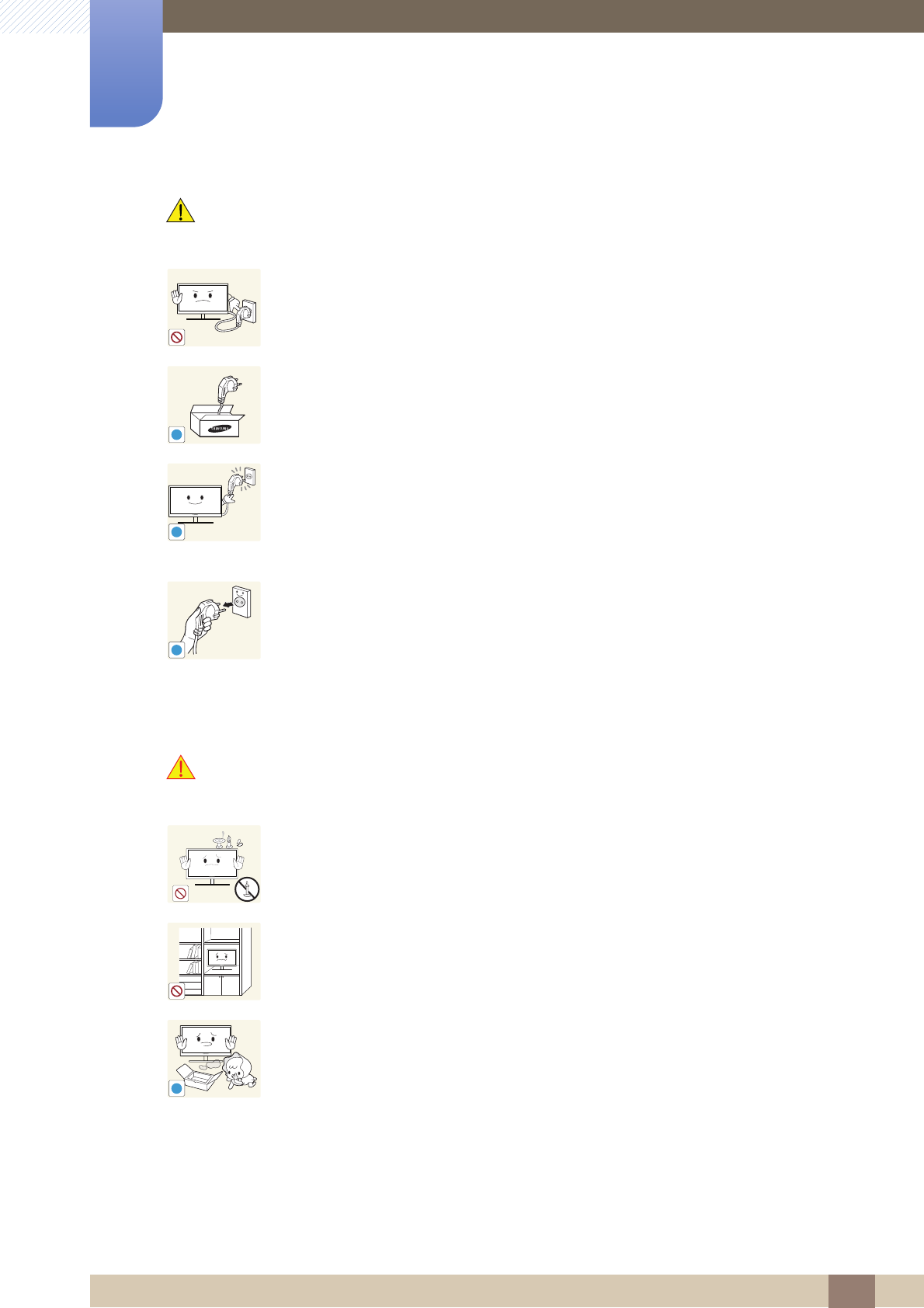

Caution
Installation and Safety
Warning
Do not unplug the power cord when the product is in use.
The product may become damaged by an electric shock.
Do not use the power cord for products other than authorized products supplied
by Samsung.
An electric shock or fire may result.
Keep the power socket where the power cord is connected unobstructed.
If any problem occurs in the product, unplug the power cable to completely
cut the power to the product.
Power to the product cannot be completely cut off with the power button.
Hold the plug when disconnecting the power cord from the power socket.
An electric shock or fire may result.
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
Otherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
Otherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
Children may suffocate.
!
!
!
!
13
Before Using the Product
Before Using the Product

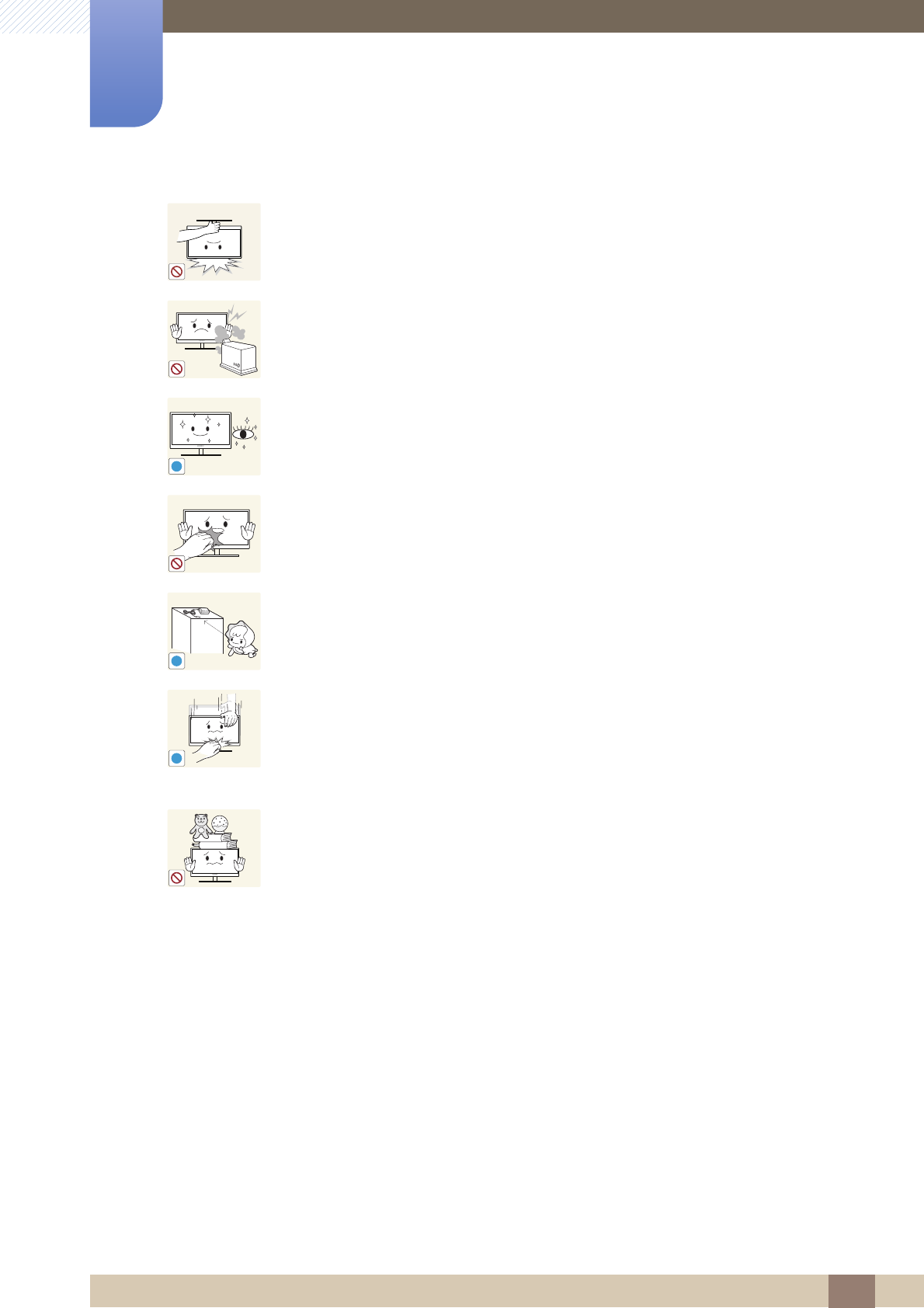

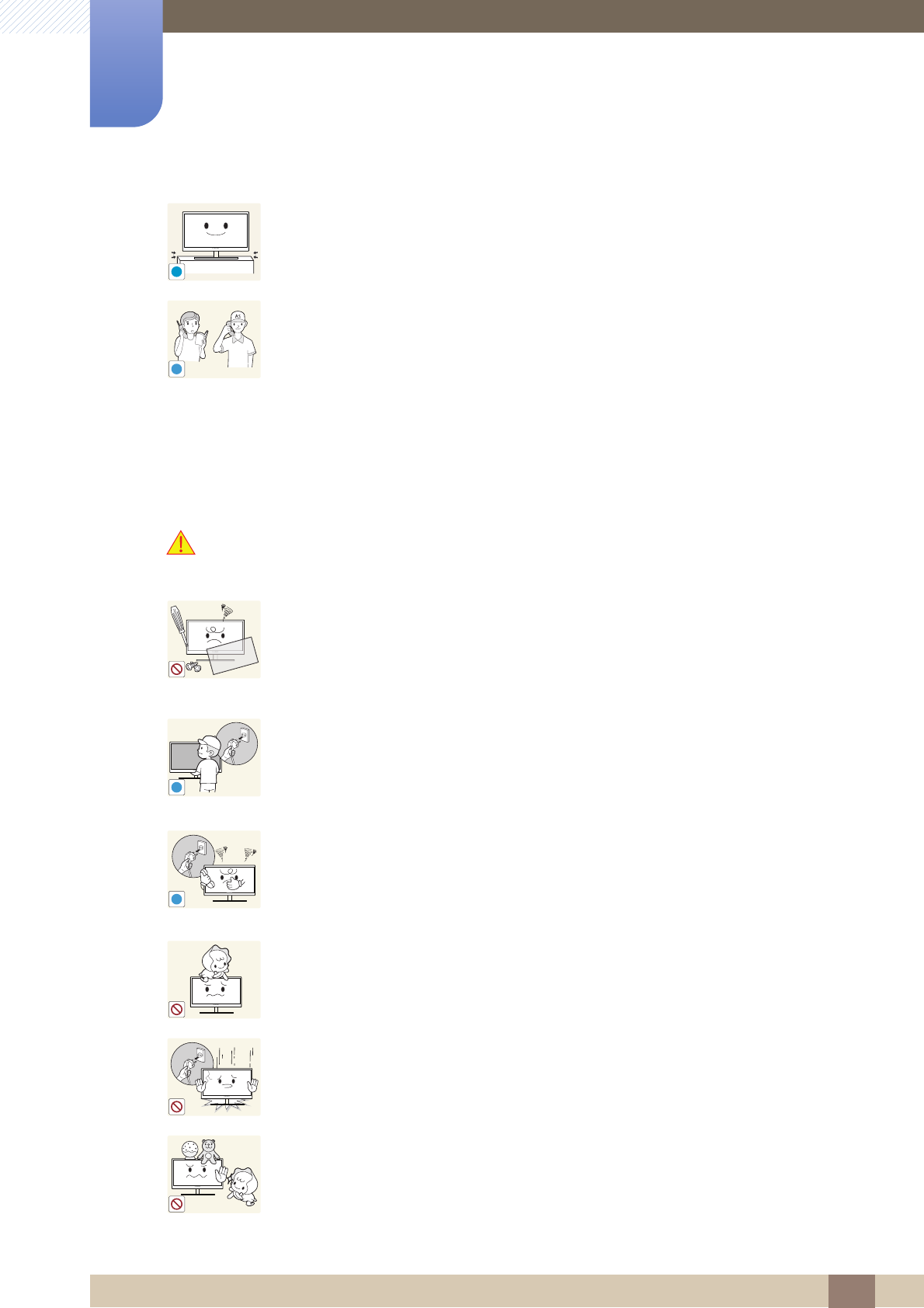

Caution
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
The product may fall and break or cause a personal injury.
Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
An electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
Otherwise, the product lifespan may be reduced, or a fire may result.
Do not install the product within the reach of young children.
The product may fall and injure children.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Take care not to drop the product when moving it.
Otherwise, product failure or personal injury may result.
Do not set down the product on its front.
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
The product may fall and break or cause a personal injury.
Install the product only on cabinets or shelves of the right size.
!
!
14
Before Using the Product
Before Using the Product
Operation and Safety
Warning
Put down the product carefully.
The product may fall and break or cause a personal injury.
Installing the product in an unusual place (a place exposed to a lot of fine dust,
chemical substances, extreme temperatures or a significant presence of
moisture, or a place where the product will operate continuously for an extended
period of time) may seriously affect its performance.
Be sure to consult Samsung Customer Service Center (page 89) before
installation if you want to install the product at such a place.
High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
An electric shock or fire may result.
Contact Samsung Customer Service Center (page 89) for repair.
To move the product, first disconnect all the cables from it, including the power
cable.
Otherwise, the power cord may be damaged and a fire or electric shock may
result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cord immediately and contact Samsung Customer Service Center (page
89).
An electric shock or fire may result.

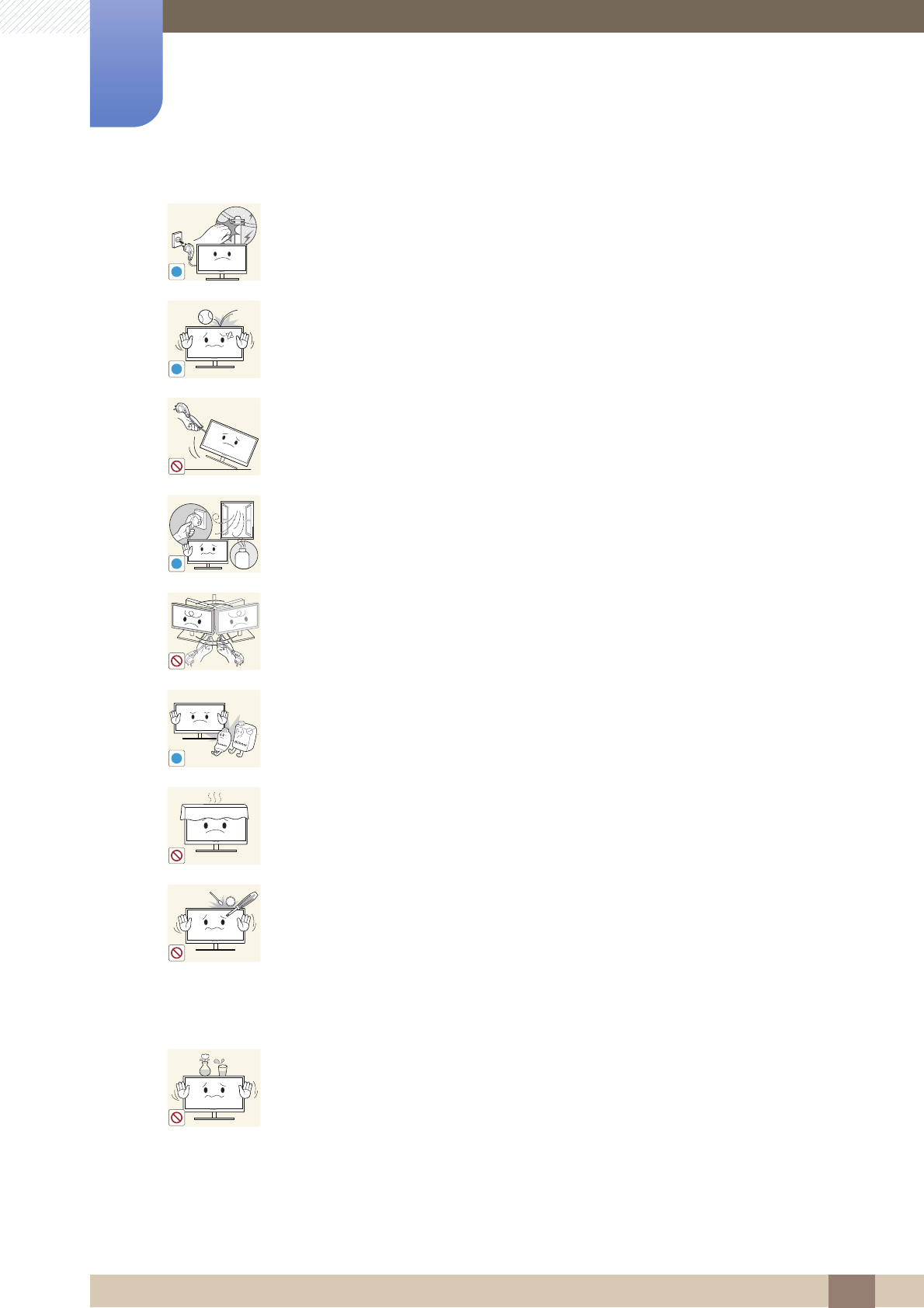

Do not let children hang from the product or climb on top of it.
The product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cord, and contact Samsung Customer Service Center (page 89).
Otherwise, an electric shock or fire may result.
Do not put a heavy object, toy, or sweets on top of the product.
The product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
!
SAMSUNG
!
!
!
15
Before Using the Product
Before Using the Product
If there is a thunderstorm or lightning strike, turn off the power and disconnect the
power cable.
An electric shock or fire may result.
Do not drop objects on the product or apply impact.
An electric shock or fire may result.
Do not move the product by pulling the power cord or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
An explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
Otherwise, a fire may result from an increased internal temperature.
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 89).
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 89).
Product failure, an electric shock or fire may result.
!
!
!
GAS
!
10 0
16
Before Using the Product
Before Using the Product

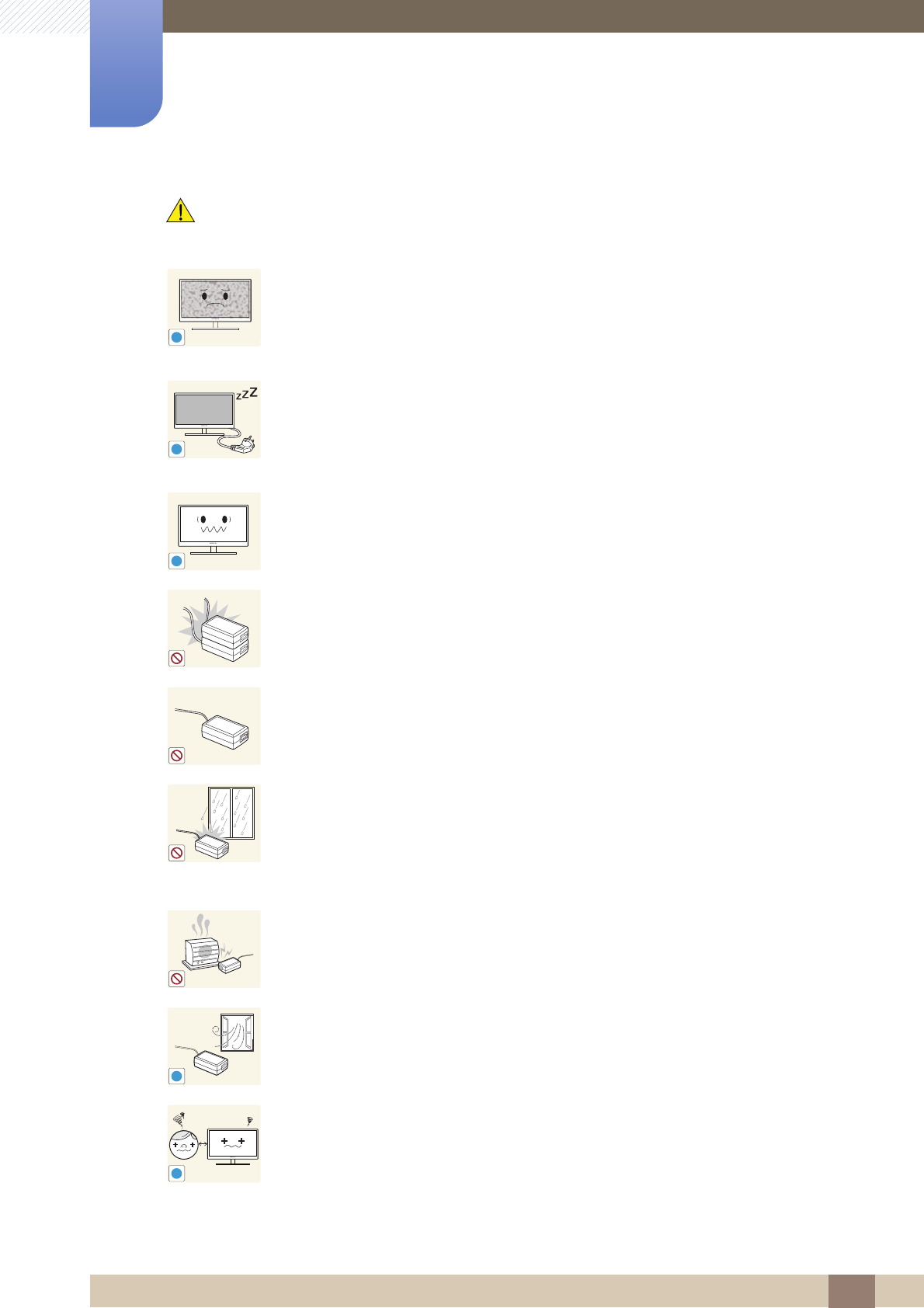

Caution
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
If you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc.).
Otherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
Otherwise,Your eyesight may deteriorate.
Do not put DC power adapters together.
Otherwise, a fire may result.
Remove the plastic bag from the DC power adapter before you use it.
Otherwise, a fire may result.
Do not let water enter the DC power device or get the device wet.
An electric shock or fire may result.
Avoid using the product outdoors where it can be exposed to rain or snow.
Be careful not to get the DC power adapter wet when you wash the floor.
Do not put the DC power adapter near to any heating apparatus.
Otherwise, a fire may result.
Keep the DC power adapter in a well-ventilated area.
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
!
!
-_-
!
!
!
!
17
Before Using the Product
Before Using the Product
Do not hold the monitor upside-down or move it by holding the stand.
The product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
An electric shock or fire may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
Otherwise, children's fingers or hands may become stuck and injured.
Tilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
Product failure or personal injure may result.
!
!
!
18
Before Using the Product
Before Using the Product
Correct posture to use the product
Use the product in the correct posture as follows:
Straighten your back.
Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
Adjust the angle so light does not reflect on the screen.
Keep your forearms perpendicular to your upper arms and level with the back of
your hands.
Keep your elbows at about a right angle.
Adjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.
19
1 Preparations
1 Preparations
1.1 Checking the Contents
1.1.1 Checking the Components
Contact the dealer from whom you purchased the product if any item is missing.
The appearance of the components and items sold separately may differ from the image shown.
Components
Components may vary depending on the country.
Quick Setup Guide Warranty card
(Not available in some
locations)
Regulatory guide
User manual (optional) DC power adapter
(Integrated)
(optional)
DC power adapter
(Detachable)
(optional)
Power cable
(Only provided with the
detachable DC power
adapter.)
D-SUB cable (optional) HDMI cable (optional)
HDMI-DVI cable (optional) Stand base Stand neck
20
Preparations
1
1 Preparations
1.2 Parts
1.2.1 Control Panel
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Icons Description
Power LED
This LED is power status indicator and works as
Power on (Power button): Off
Power saving mode: Blinking
Power Off (Power button): On
The power Indicator operation can be swapped by changing in the
menu. (SETUP&RESET Power LED On)
Actual models because of functional variation maybe haven’t this
function.
Function Key Guide
Press the [ ] button when the screen is turned on. The Function Key
Guide will appear. To access the onscreen menu when the guide is
displayed, press the corresponding direction button again.
Function Key Guide may vary depending on the function or product
model. Please refer to the actual product.
DOME Type JOG Button
LEFT
Function Key Guide
UP
RIGHT
DOWN
Return
PRESS(ENTER)
Power LED
21
Preparations
1
1 Preparations
1.2.2 Direct Key guide
For guidance on shortcut keys, the OSD (On Screen Display) will appear if you press any button of
[].
Press [ ] button: Adjust Brightness.
Press [ ] button: Adjust the screen settings automatically.
Changing the resolution in Display Properties will activate the Auto Adjustment function.
This function is only available in Analog mode.
Press [ ] button: Display Function Key Guide.
Brightness
Auto Adjustment
Features
Eye Saver Mode Off
22
Preparations
1
1 Preparations
1.2.3 Function Key Guide
To enter the main menu or to use other items, press the [ ] button to display the Function Key Guide.
You can exit by pressing the [ ] button again.
Press button: Move to the item you want. The description for each item will appear
when the focus changes.
Press [ ] button: The selected item will be applied.
Icons Description
Select [ ] to change the input signal by pressing the [ ] button on the
Function Key Guide screen. A message will appear on the top left corner
of the screen if the input signal has been changed.
Select [ ] by pressing the [ ] button on the function key guide
screen.
The OSD (On Screen Display) of your Monitor’s feature appears.
OSD control lock: Maintain the current settings, or lock the OSD
control to prevent unintended changes to settings. Enable/Disable: To
lock/unlock the OSD control, press the [ ] button for 10 seconds
when the main menu displayed.
If the OSD control is locked,
Brightness and Contrast can be adjusted. Eye Saver Mode is
available. SETUP&RESET Power LED On is available.
INFORMATION can be viewed.
Return
23
Preparations
1
1 Preparations
Actual models because of functional variation, Function key guide options will be different.
Please run the corresponding function based on the actual icon and description.
When the monitor displays nothing (i.e. Power saving mode or Non-signal mode), 2 direct keys for
control source and power could be used as below.
When the monitor displays the Main menu the DOME Type JOG Button could be used as below.
Select [ ] by pressing the [ ] button on the function key guide
screen.
Press to enable or disable Eye Saver Mode.
The items below are not available if the Eye Saver Mode function is
enable.
PICTURE Brightness, Game Mode, Bright
COLOR Red, Green, Blue, Color Tone
SETUP&RESET Eco Saving Plus
Select [ ] to turn the Monitor off by pressing the [ ] button on the
function key guide screen.
DOME Type JOG Button Power saving/Non-signal mode
Source Change
PRESS [ ] button for 2 seconds Power Off
DOME Type JOG Button Action
- Move the option
- Exit the Main menu.
- Close Sublist without saving value.
- Value decreases in the slider.
- Move to next depth.
- Value increases in the slider.
- Move to next depth.
- Save the value and close Sublist.
Icons Description
SAMSUNG
MAGIC
24
Preparations
1
1 Preparations
1.2.4 Reverse Side
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
The exterior may differ depending on the product.
Port About ports
Connect to a source device using an HDMI cable.
Connect to a PC using the D-SUB cable.
Connects to the DC power adapter.
25
Preparations
1
1 Preparations
1.3 Installation
1.3.1 Attaching the Stand
Before assembling the product, place the product down on a flat and stable surface so that the
screen is facing downwards.
The exterior may differ depending on the product.
Insert the stand neck into the
stand base in the direction
shown in the figure.
Check that the stand neck is
firmly connected.
Tightly fasten the connecting
screw at the bottom of the
stand base.
Place a soft cloth over the table
to protect the product and
place the product onto the
cloth so that the front of the
product is facing downwards.
Hold the main body of the
product with your hand as
shown by the figure.
Push the assembled stand into
the main body in the direction
of the arrow as shown in the
figure.
- Caution
Do not hold the product upside
down only by the stand.
26
Preparations
1
1 Preparations

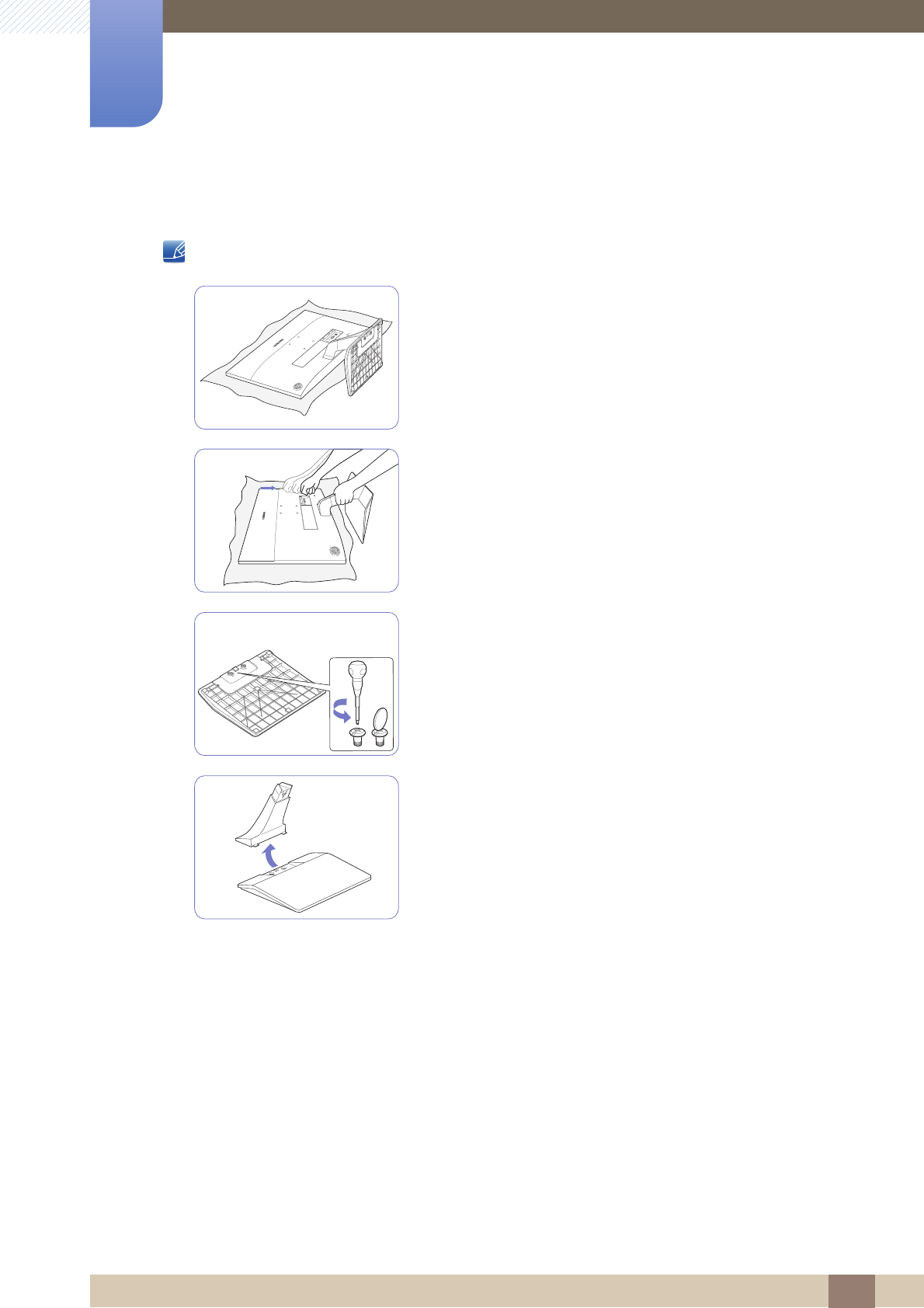

1.3.2 Removing the Stand
The exterior may differ depending on the product.
Place a soft cloth over the table to protect the product and
place the product onto the cloth so that the front of the product
faces downwards.
While holding the stand neck with one hand, pound the other
fisted hand down onto the top of the stand base in the direction
of the arrow to detach the stand base.
Turn the connecting screw at the bottom of the stand base to
separate it.
Remove the stand neck from the stand base by pulling it in the
direction of the arrow as shown in the figure.
27
Preparations
1
1 Preparations

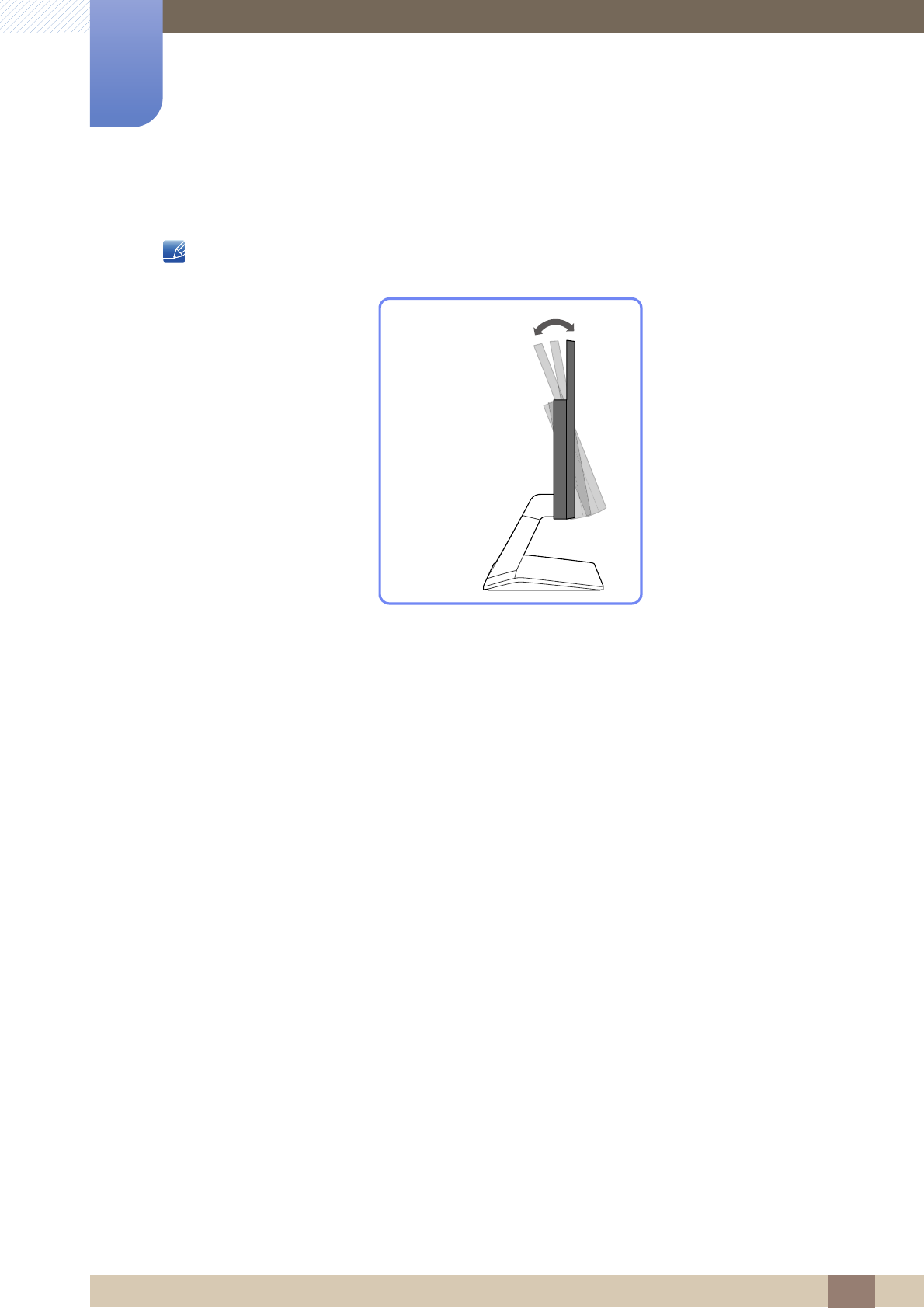

1.3.3 Adjusting the Product Tilt
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
You can adjust the tilt of your monitor.
Hold the lower part of the product and adjust the tilt carefully.
-2° (±2.0°) - 20° (±2.0°)
28
Preparations
1
1 Preparations
1.3.4 Installing a Wall-mount Kit or Desktop Stand
Power the product off and remove the power cable from the power socket.
Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding
parts on the wall-mount kit or desktop stand you want to attach.
Notes
Using a screw longer than the standard length can damage the internal components of the
product.
The length of screws required for a wall mount that does not comply with the VESA standards may
vary depending on the specifications.
Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit
or desktop stand using excessive force. The product may get damaged or fall and cause personal
injury. Samsung shall not be held liable for any damage or injury caused by using improper screws
or attaching the wall-mount kit or desktop stand using excessive force.
Samsung shall not be held liable for any product damage or personal injury caused by using a wall-
mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm
or farther away from the wall.
Be sure to use a wall-mount kit that complies with the standards.
To install the monitor using a wall mount, disconnect the stand base from the monitor.
Attach the wall-mount kit or desktop stand here
Bracket (sold separately)
2
4
1
A
3
B
A
B
29
Preparations
1
1 Preparations
1.3.5 Anti-theft Lock
An anti-theft lock allows you to use the product securely even in public places. The locking device shape
and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft
locking device for details. The lock device is sold separately.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To lock an anti-theft locking device:
1Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2Put one end of the cable through the loop on the other end.
3Insert the locking device into the anti-theft lock slot at the back of the product.
4Lock the locking device.
An anti-theft locking device can be purchased separately.
Refer to the user guide provided with your anti-theft locking device for details.
Anti-theft locking devices can be purchased at electronics retailers or online.
30
2 Connecting and Using a Source Device
2 Connecting and Using a Source Device
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
Check the types of ports at the back of the product you want to connect.
2.2 Connecting and Using a PC
2.2.1 Connecting to a PC
Select a connection method suitable for your PC.
Connecting parts may differ in different products.
The exterior may differ depending on the product.

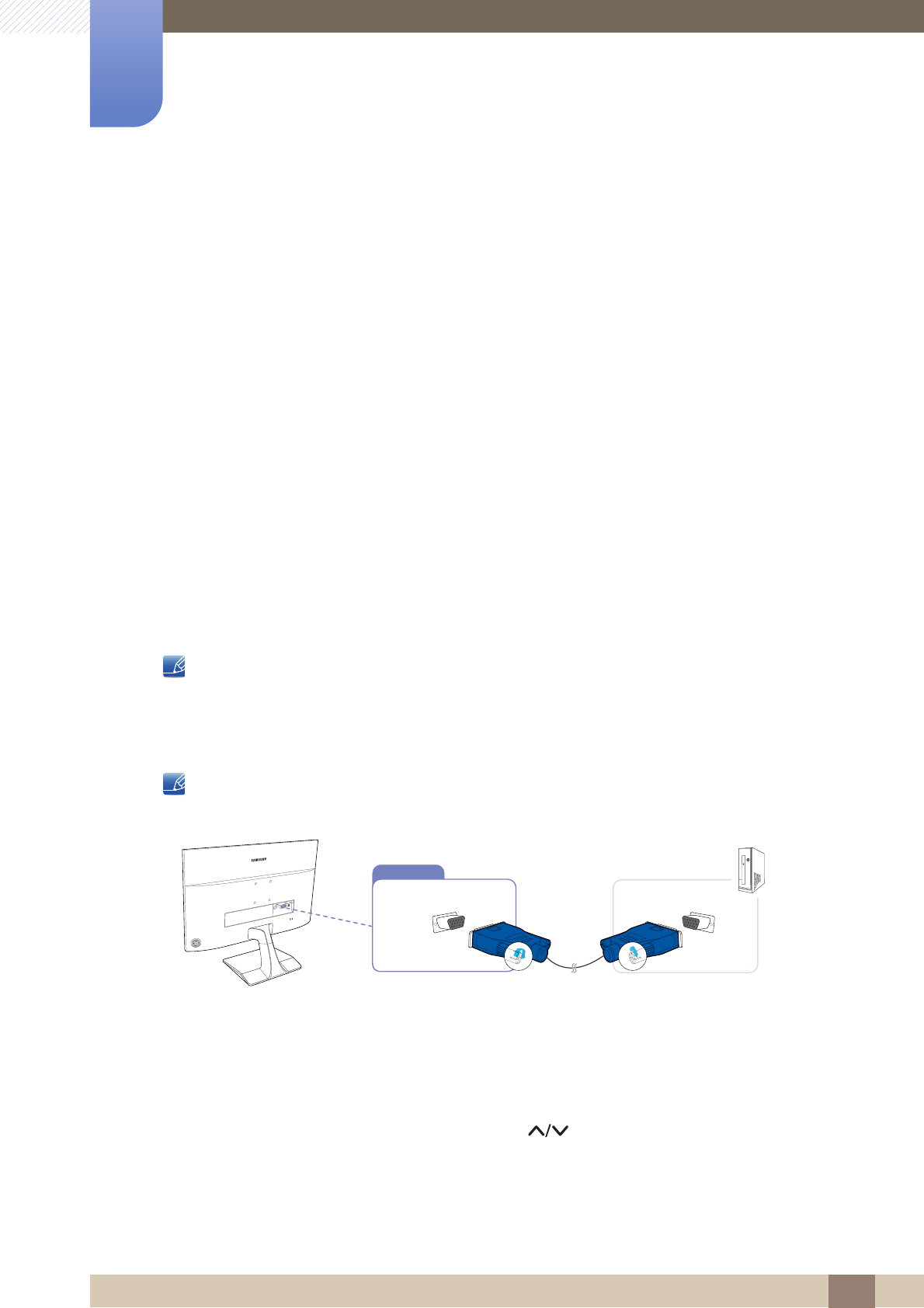

Connection Using the D-SUB Cable (Analog Type)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the
PC.
2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
When the input source is not connected, use the [ ] button to change the input source to
Analog.
RGB IN
31
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

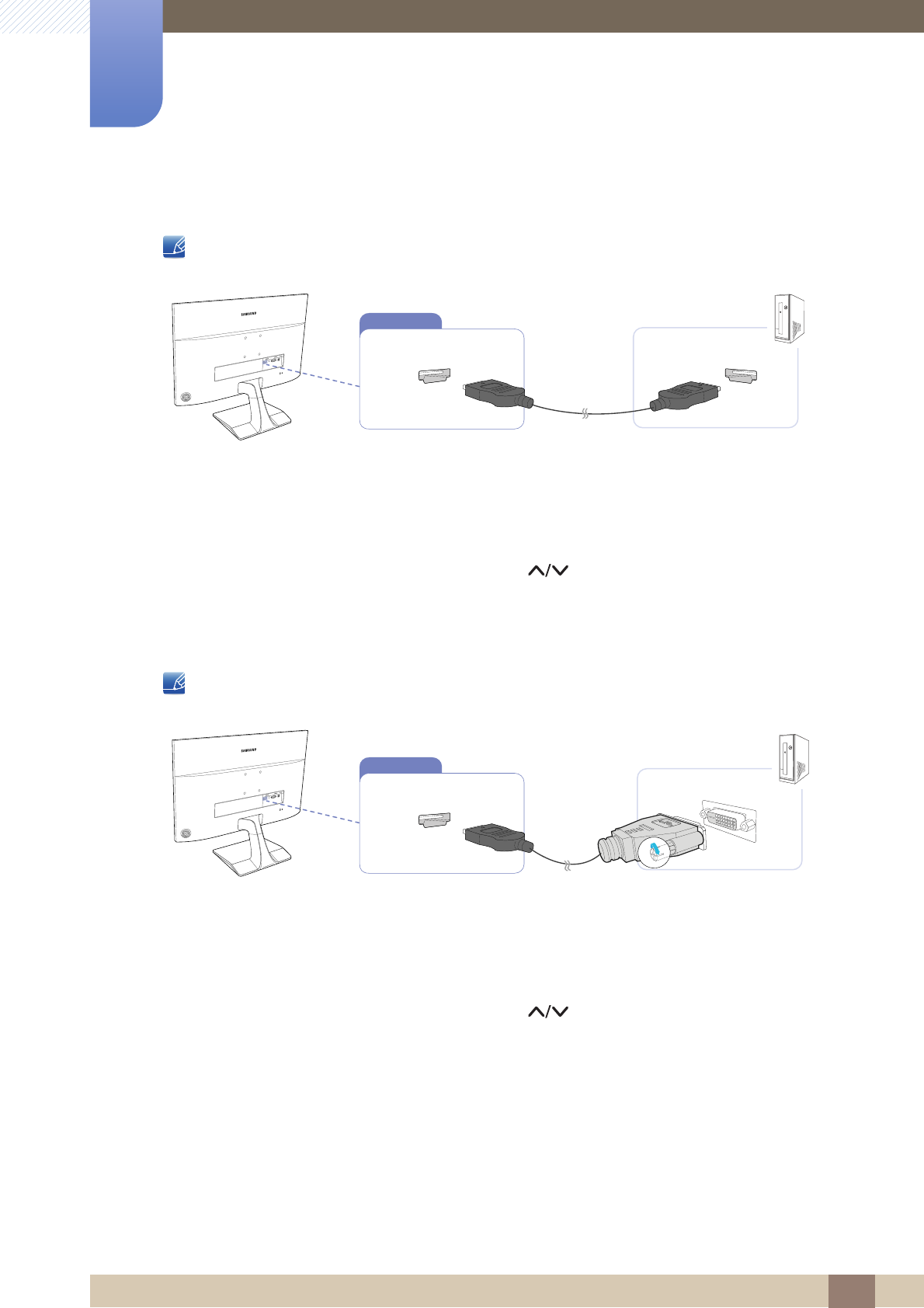

Connection Using the HDMI Cable
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the
PC.
2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
3When the input source is not connected, use the [ ] button to change the input source to
HDMI.
Connection Using an HDMI-DVI Cable
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on
the PC.
2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch
on the PC. (For details, refer to "2.2.2 Connecting the Power".)
3When the input source is not connected, use the [ ] button to change the input source to
HDMI.
HDMI IN
HDMI IN
32
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.2 Connecting the Power
Connecting parts may differ in different products.
The exterior may differ depending on the product.
Power connection using integrated DC power adapter
Connect the DC power adapter to [DC 14V] port on the back of the product and to the power outlet.
The input voltage is switched automatically.
Power connection using detachable DC power adapter
Connect the power cable to the DC power adapter.
Then, connect the DC power adapter to the [DC 14V] port on the back of the product.
Next, connect the power cable to the power outlet.
The input voltage is switched automatically.
DC 14V
DC 14V
33
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

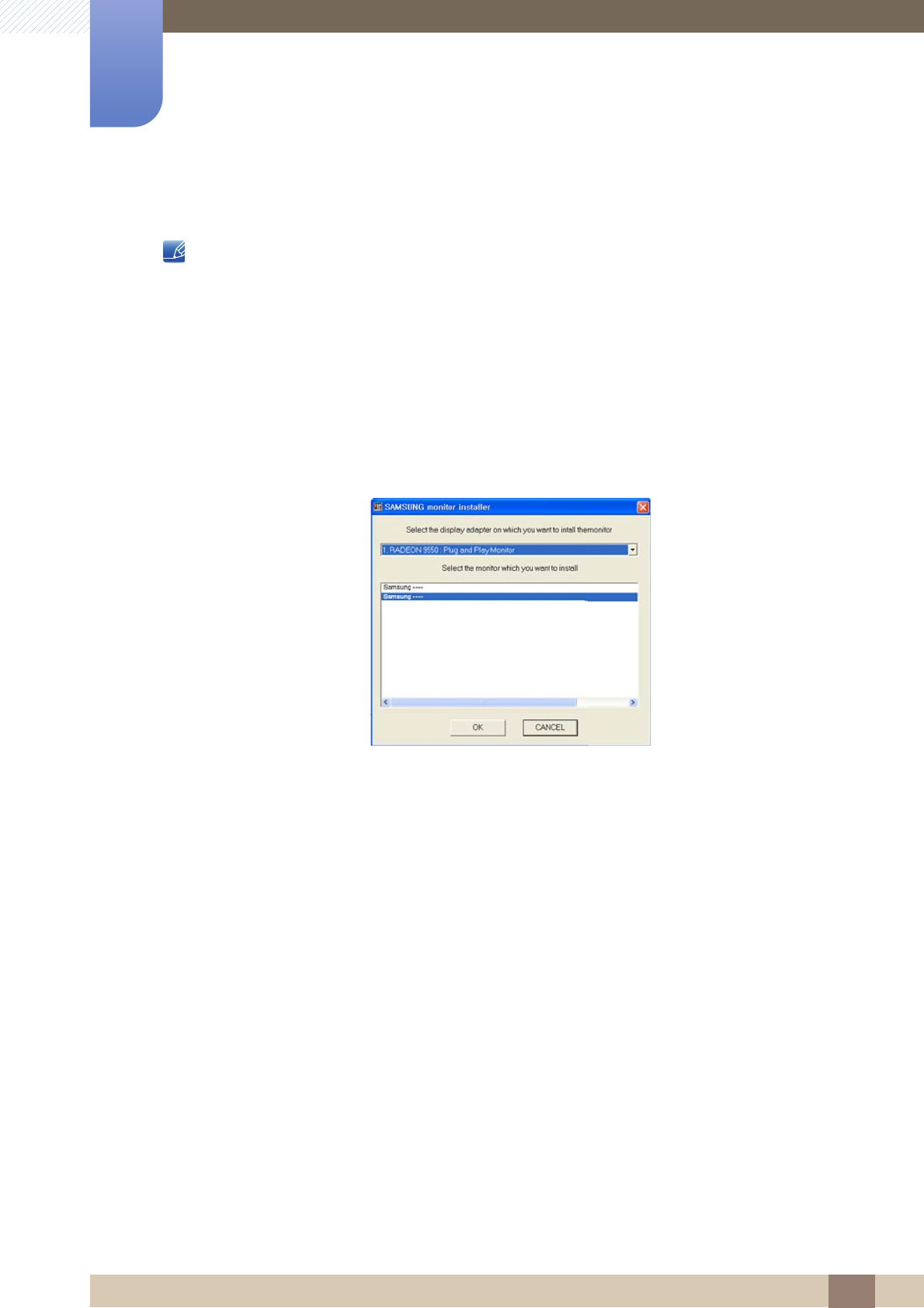

2.2.3 Driver Installation
You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
An installation driver is contained on the CD supplied with the product.
If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and
download the file.
1Insert the user manual CD provided with the product into the CD-ROM drive.
2Click "Windows Driver".
3Follow the instructions given on the screen to proceed with installation.
4Select your product model from the list of models.
5Go to Display Properties and check that the resolution and refresh rate are appropriate.
Refer to your Windows OS manual for further details.
34
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.4 Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for the
first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
1Select a language by pressing the [ ] button. Next, press the [ ] button.
2To hide the information message, press the [ ] button.
If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
The optimum resolution can also be selected in Control Panel on your PC.
5HWXUQ
(QJOLVK
7KHRSWLPDOUHVROXWLRQIRUWKLV
PRQLWRULVDVIROORZV
****x**** **Hz
8VHWKHDERYHVHWWLQJVWRVHW
WKHUHVROXWLRQRQ\RXU3&
6HWXS*XLGH
35
3 Screen Setup
3 Screen Setup
Configure the screen settings such as brightness.
A detailed description of each function is provided. Refer to your product for details.
3.1 Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving Plus is enabled.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

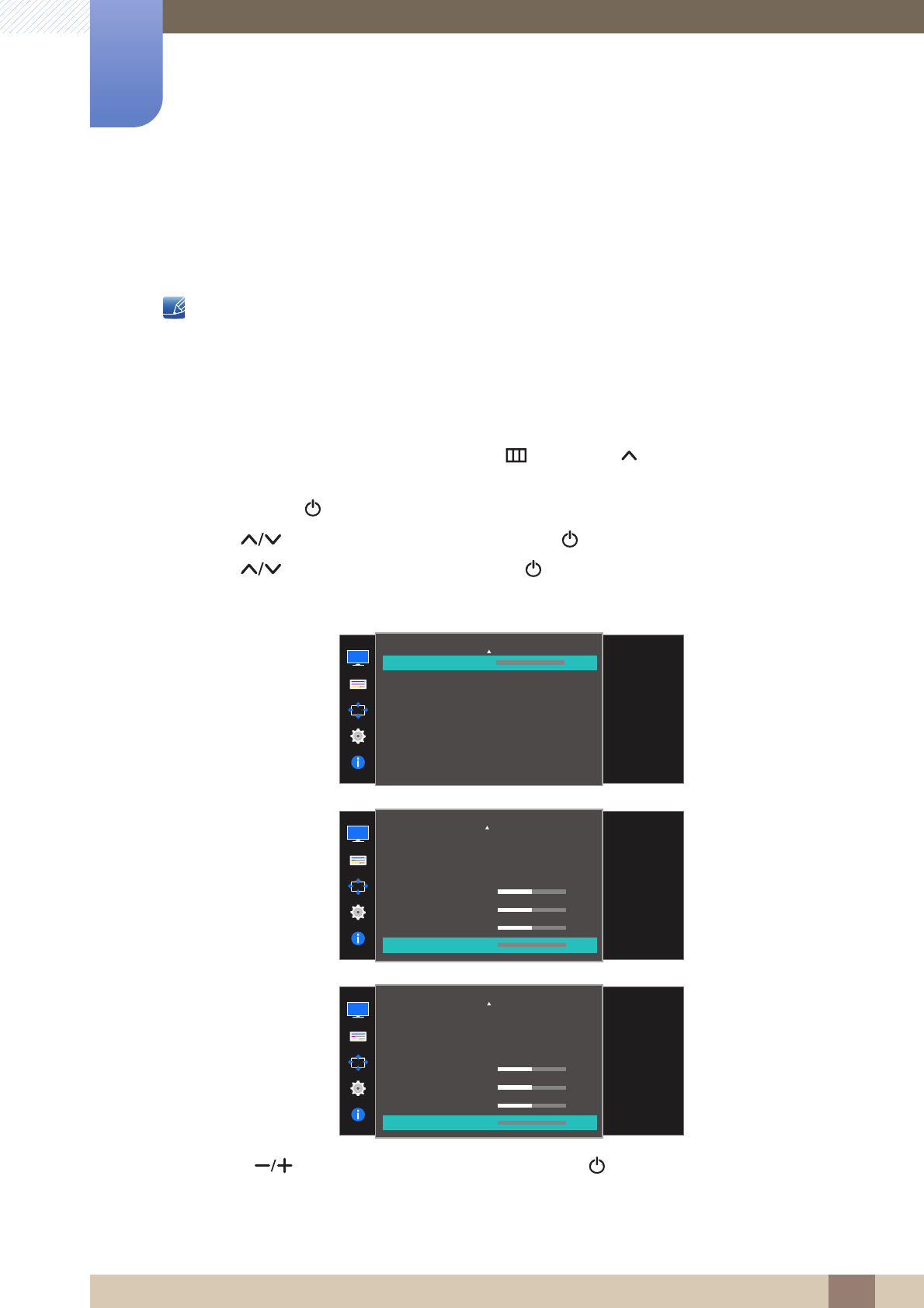

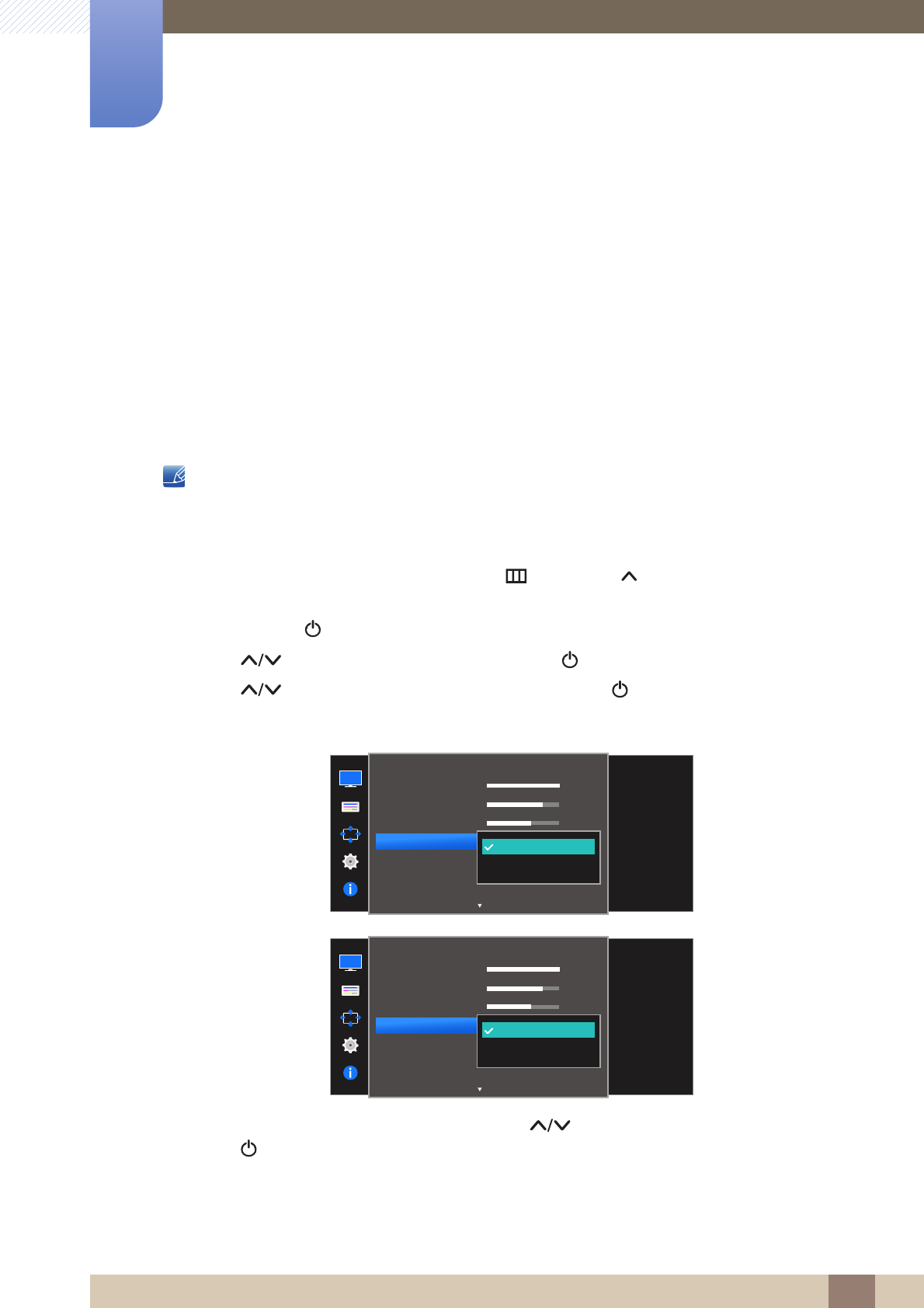

3.1.1 Configuring Brightness
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Brightness and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Brightness, then press the [ ] button on the monitor.
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the brightness
level. Values closer
to 100 mean a
brighter screen.
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the brightness
level. Values closer
to 100 mean a
brighter screen.
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
36
Screen Setup
3
3 Screen Setup

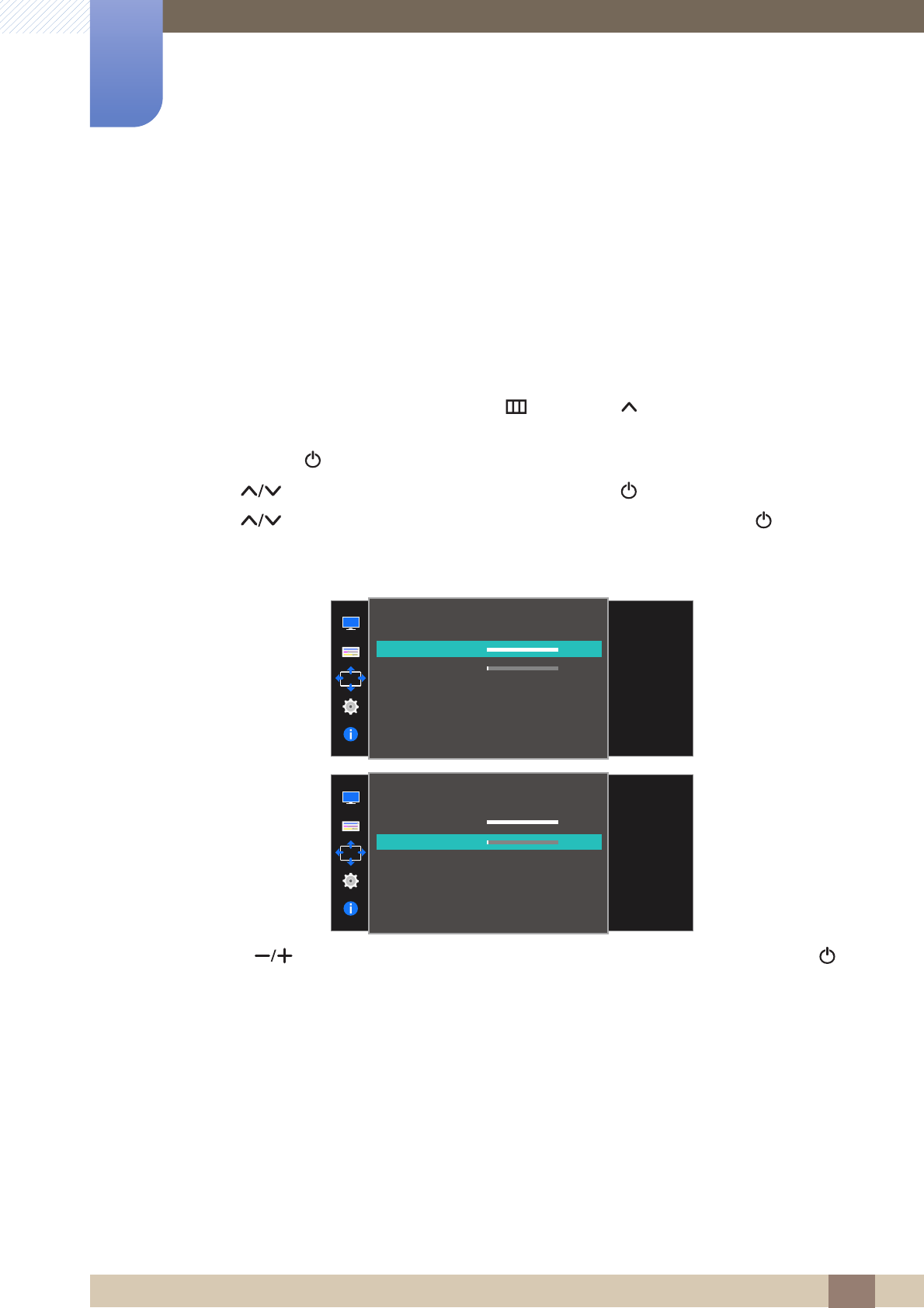

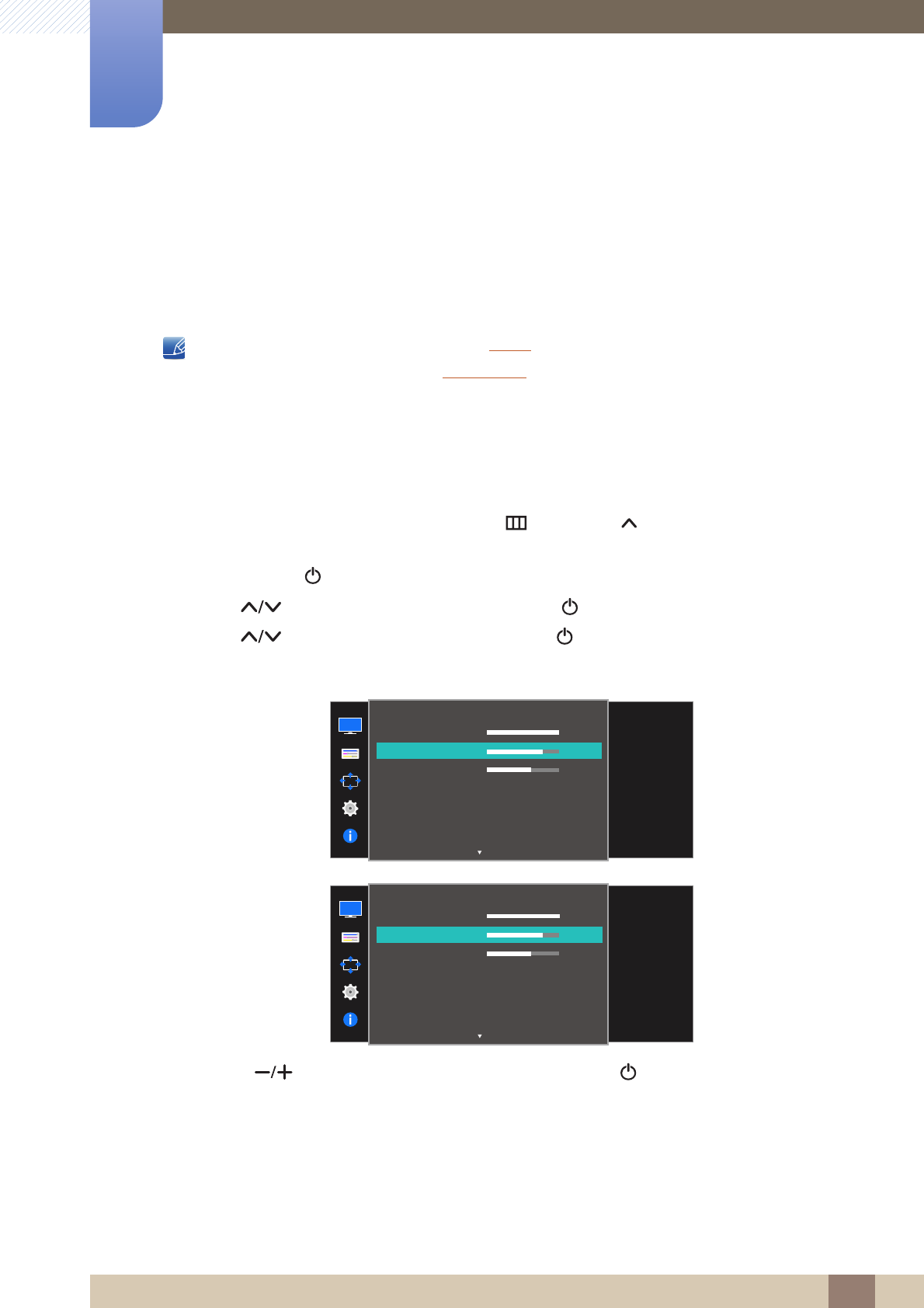

3.2 Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.2.1 Configuring Contrast
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Contrast and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Contrast, then press the [ ] button on the monitor.
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
37
Screen Setup
3
3 Screen Setup
3.3 Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Upscale is in Mode1 or Mode2.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.3.1 Configuring Sharpness
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Sharpness and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Sharpness, then press the [ ] button on the monitor.
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the sharpness
of the picture. Values
closer to 100 mean a
sharper image.
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the sharpness
of the picture. Values
closer to 100 mean a
sharper image.
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
38
Screen Setup
3
3 Screen Setup
3.4 Eye Saver Mode
Set to an optimum picture quality suitable for eye relaxation.
TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower
blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will
become lower and lower, and one hour later it will approach the optimum picture quality suitable for eye
relaxation. When Eye Saver Mode is 'On', the blue light level is lower than in the default settings, as
tested by TÜV Rheinland and certified to meet the requirements of TÜV Rheinland's “Low Blue Light
Content” standards.
The functions available on the monitor may vary depending on the model. Refer to the actual product.

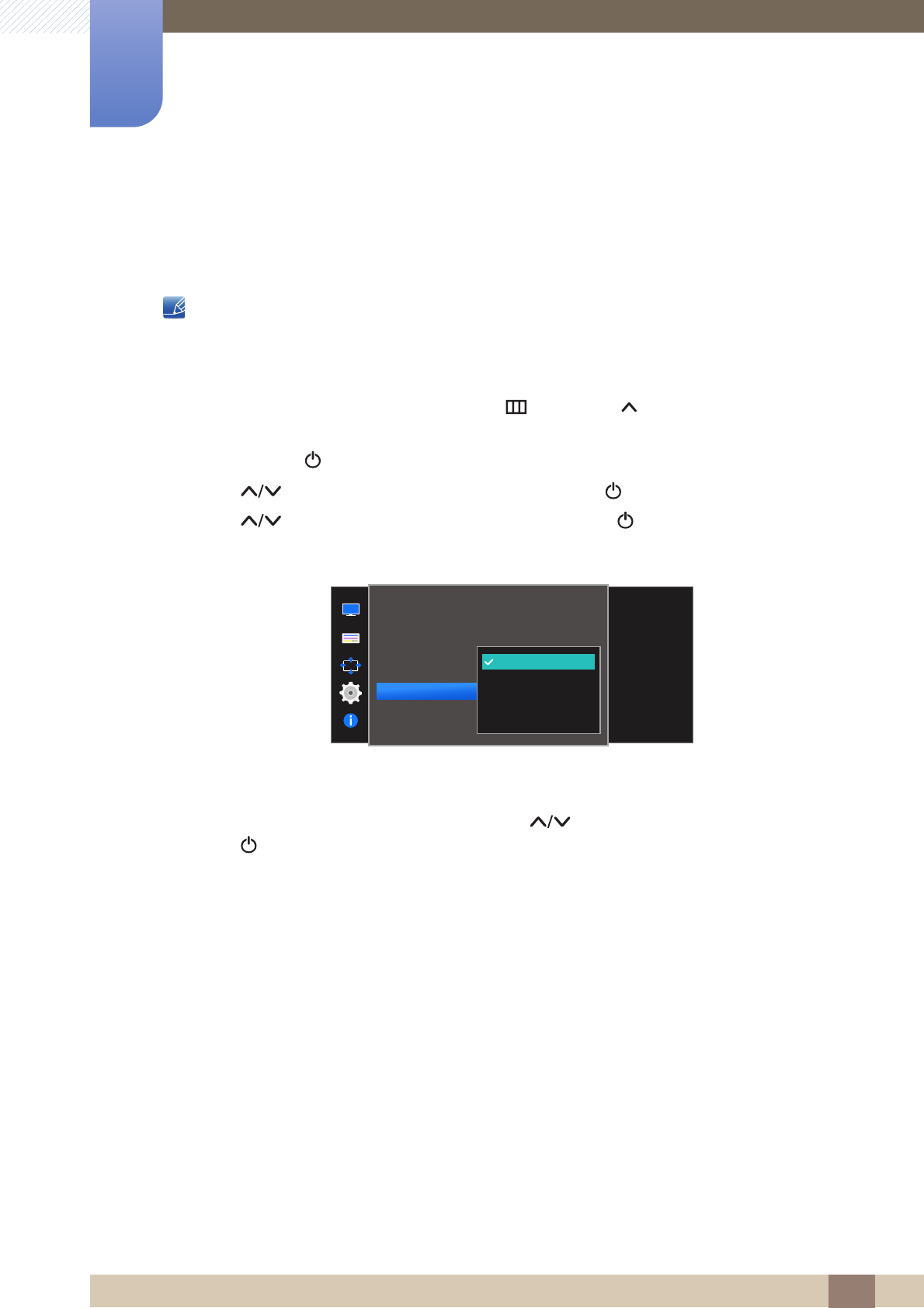

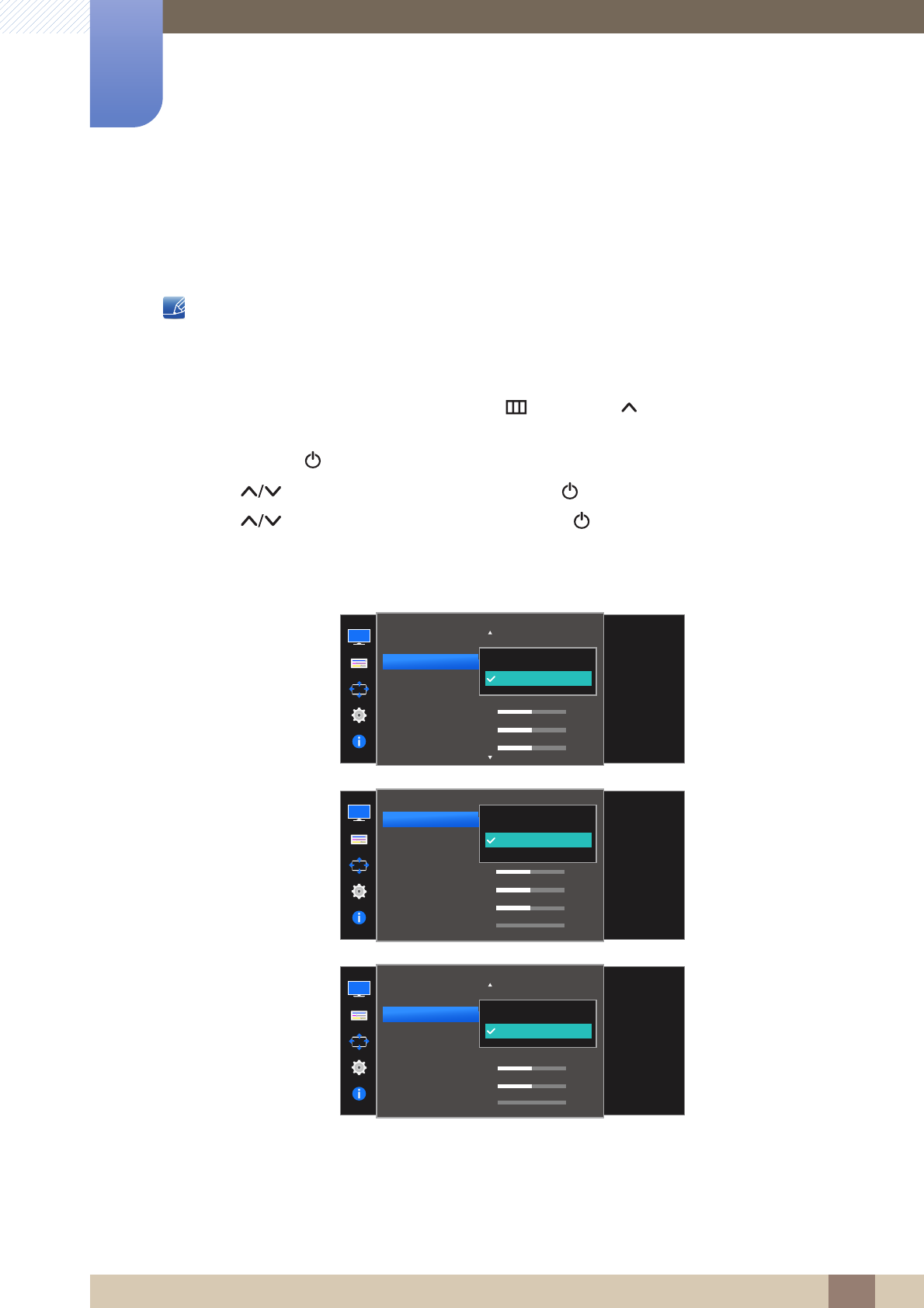

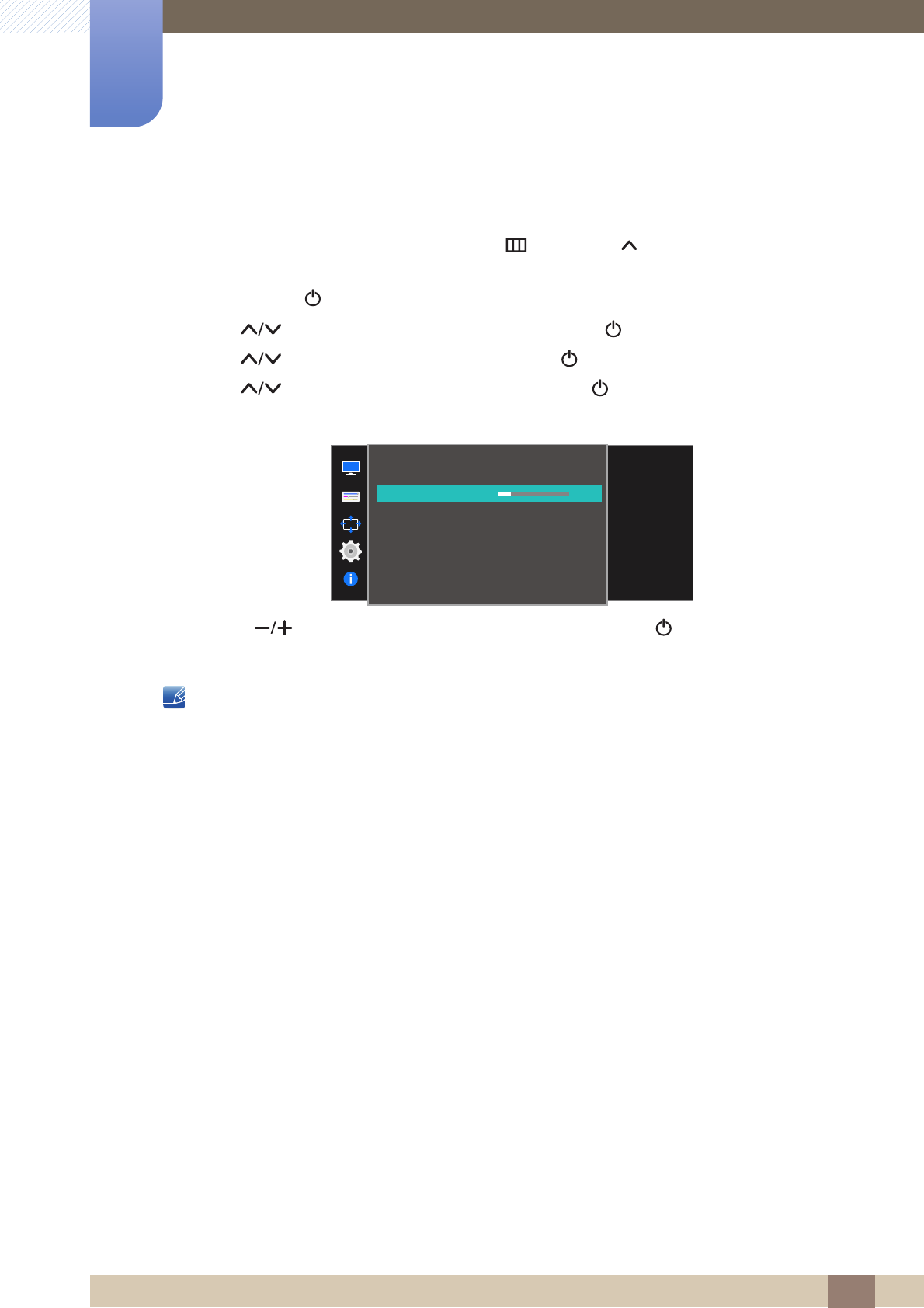

3.4.1 Configuring Eye Saver Mode
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Eye Saver Mode and press [ ] button on the monitor.

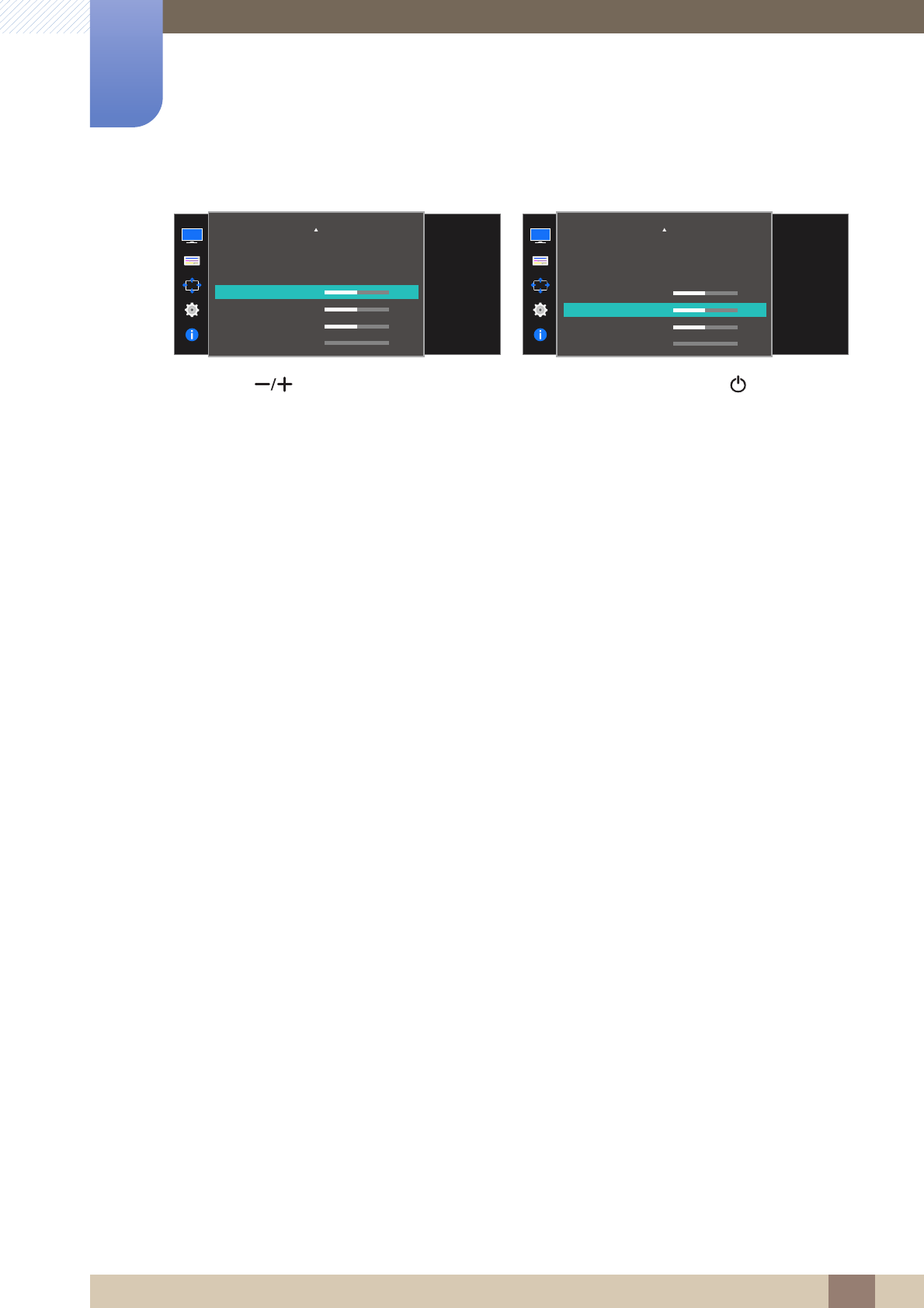

The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Set to an optimum
picture quality suitable
for eye relaxation.
100
75
60
Off
Off
Custom
Off
Off
On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Set to an optimum
picture quality suitable
for eye relaxation.
100
75
60
Off
Off
Custom
Off
Off
On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
39
Screen Setup
3
3 Screen Setup

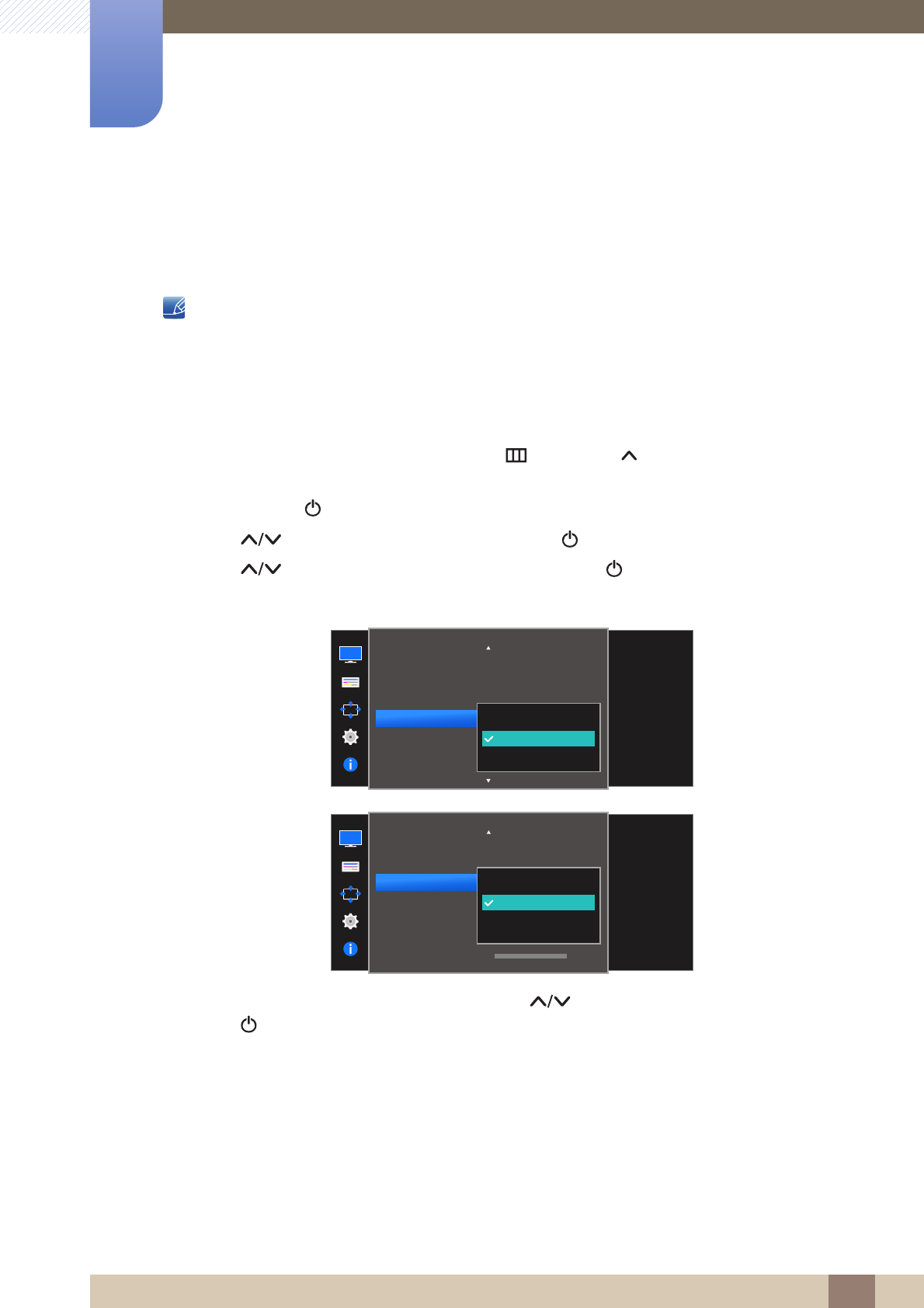

3.5 Game Mode
Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™
is connected.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

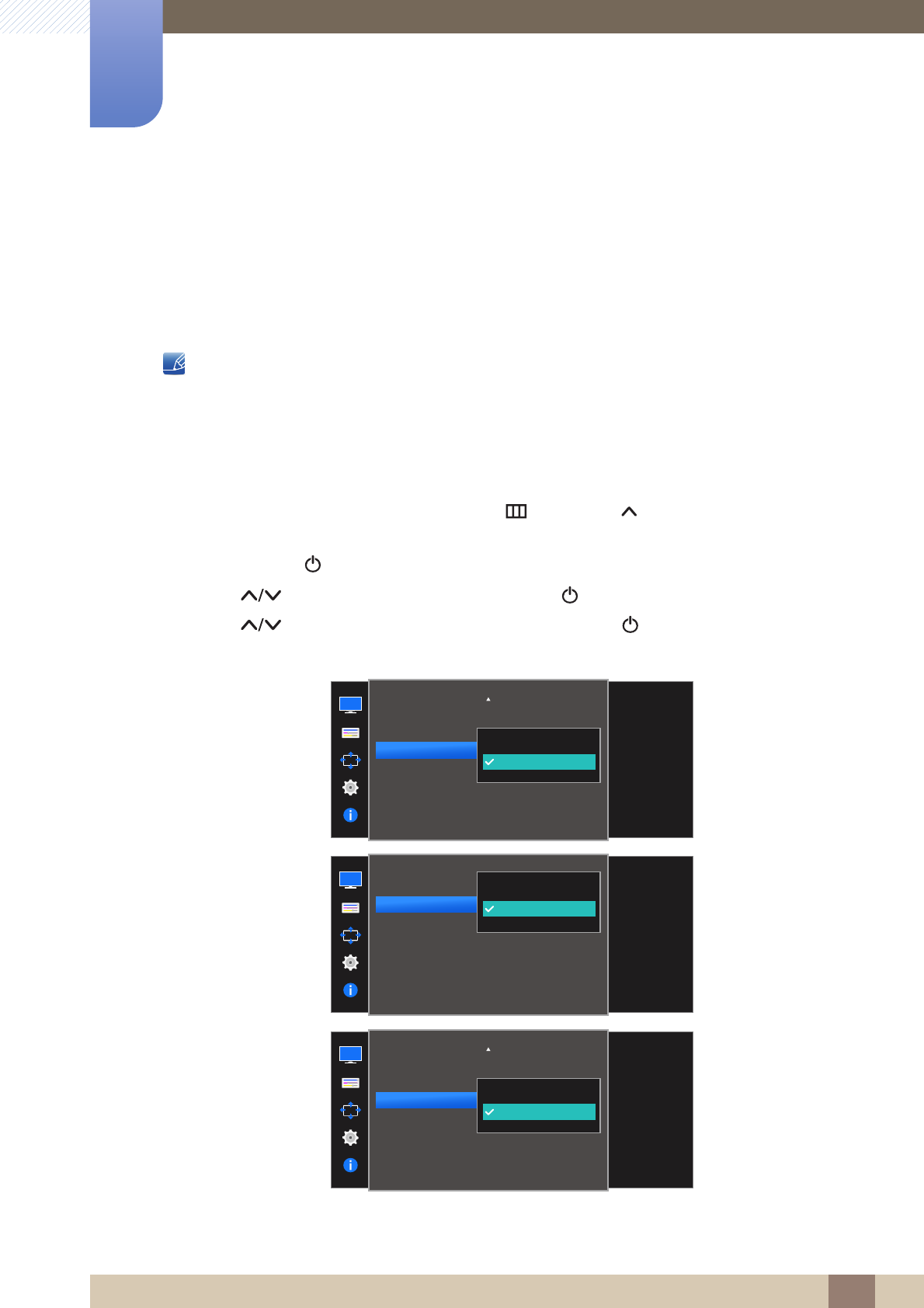

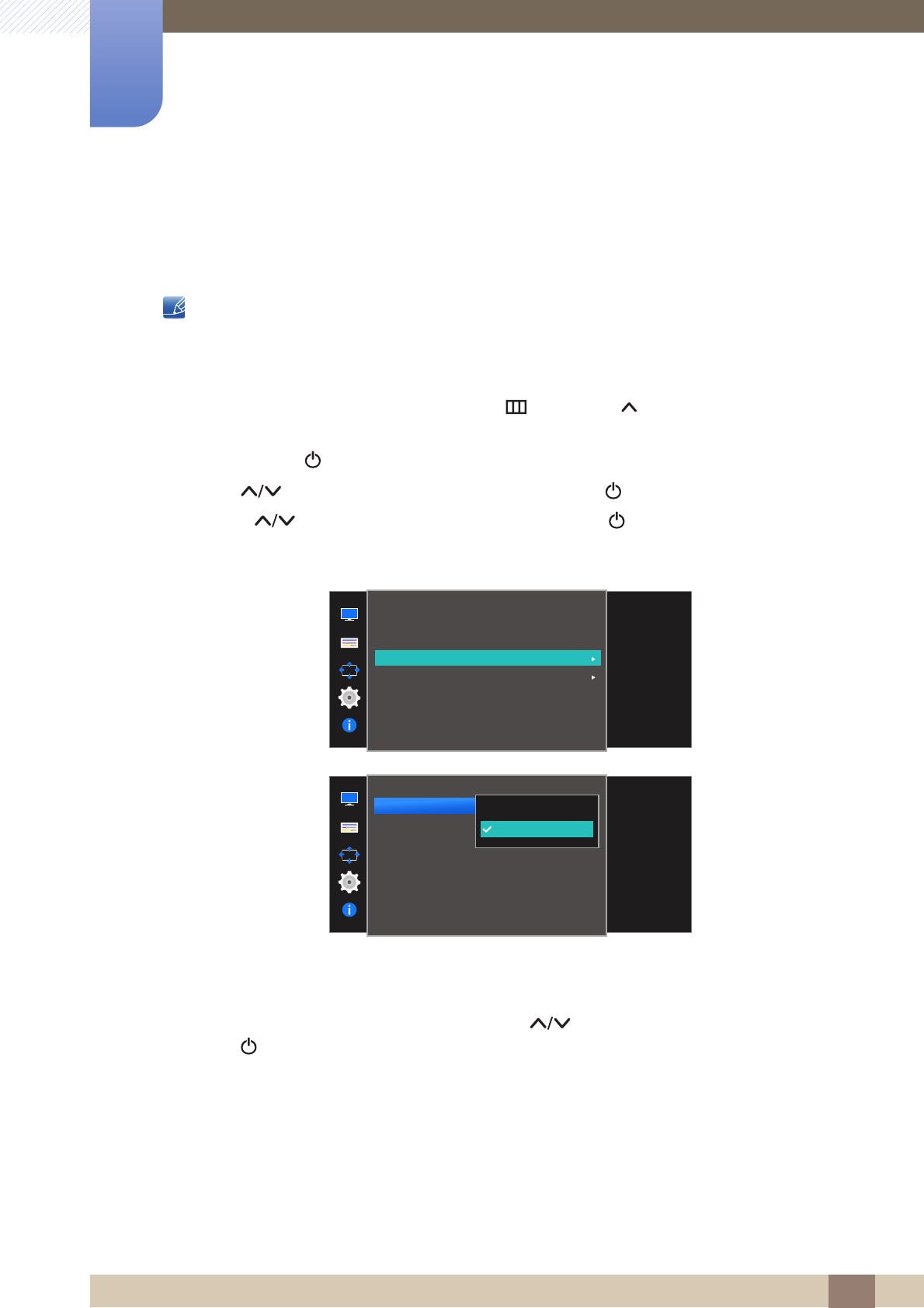

3.5.1 Configuring Game Mode
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Game Mode and press [ ] button on the monitor.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
When the monitor turns off, enters power-saving mode or changes input sources, Game Mode
turns Off even if it is set to On.
If you want to keep Game Mode enabled all the time, select Always On.
100
75
60
Off
Custom
Off
Optimizes image
settings for playing
games.
Off
On
Always On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
100
75
60
Off
Custom
Off
Optimizes image
settings for playing
games.
Off
On
Always On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
40
Screen Setup
3
3 Screen Setup

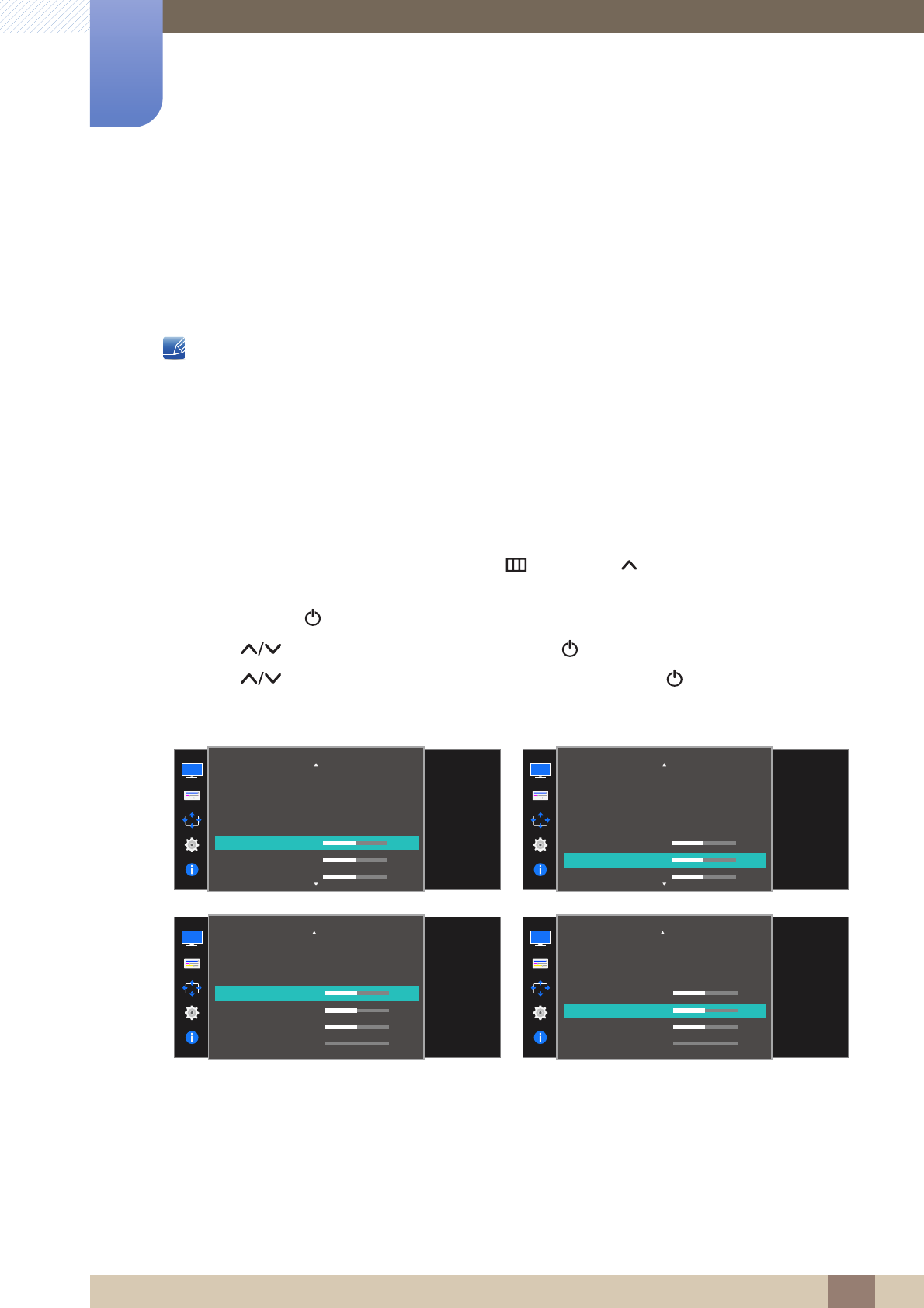

3.6 SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
This menu is not available when Eco Saving Plus is enabled.
This menu is not available when Game Mode is enabled.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
You can customize the brightness to suit your preferences.

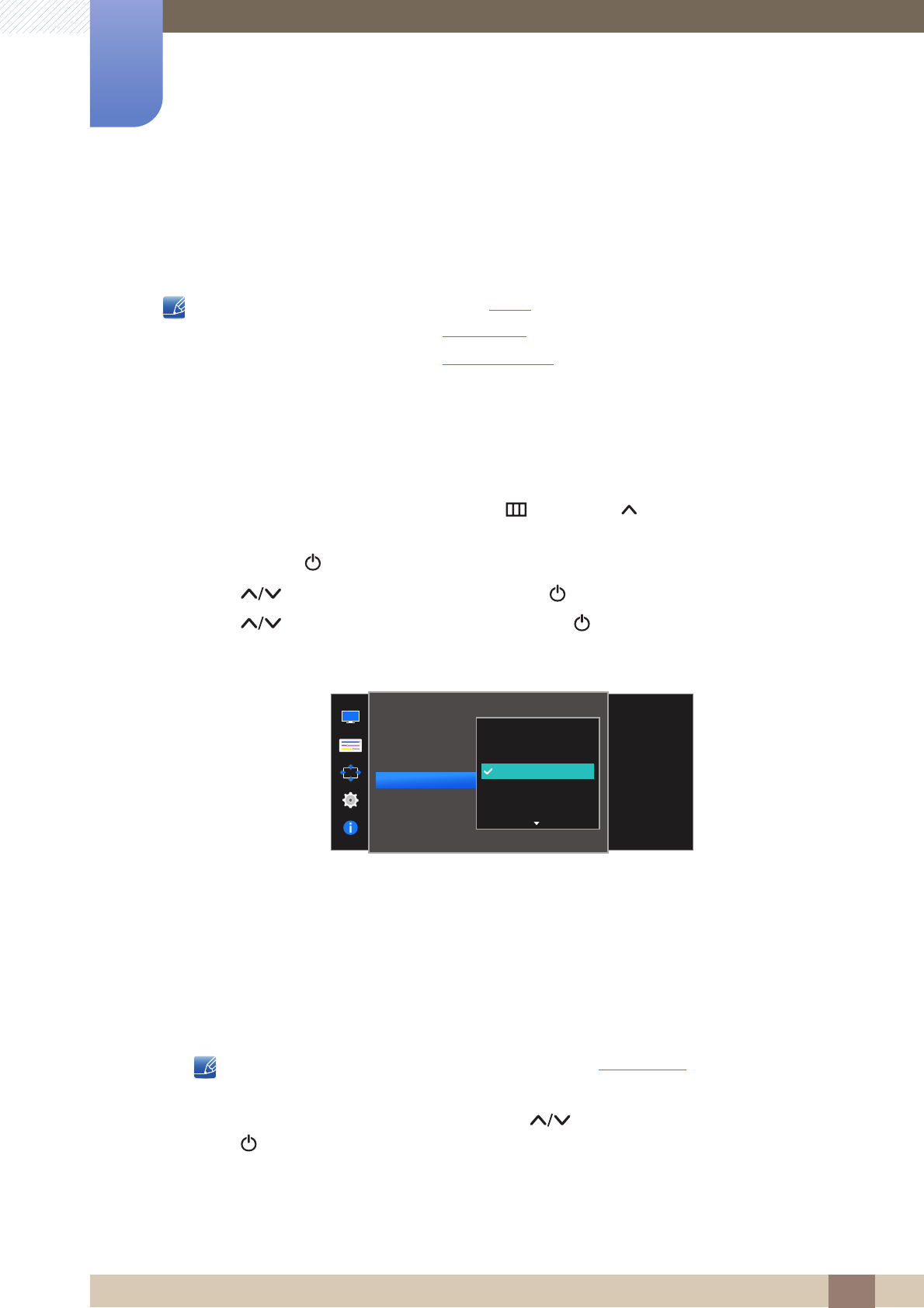

3.6.1 Configuring SAMSUNG MAGIC Bright
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Bright and press [ ] button on the monitor.
The following screen will appear.
Custom: Customize the contrast and brightness as required.
Standard: Obtain a picture quality suitable for editing documents or using Internet.
Cinema
: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.
Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Set to an optimum
picture quality suitable
for the working
environment.
Custom
Standard
Cinema
Dynamic Contrast
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Set to an optimum
picture quality suitable
for the working
environment.
Custom
Standard
Cinema
Dynamic Contrast
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
41
Screen Setup
3
3 Screen Setup
When the external input is connected through HDMI and PC/AV Mode is set to AV, Bright
has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the
factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom
which automatically recalls your personalized picture settings.
Dynamic: Select this mode to view a sharper image than in Standard mode.
Standard: Select this mode when the surroundings are bright. This also provides a sharp
image.
Movie: Select this mode when the surroundings are dark. This will save power and reduce eye
fatigue.
Custom: Select this mode when you want to adjust the image according to your preferences.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Set to an optimum
picture quality suitable
for the working
environment.
Dynamic
Standard
Movie
Custom
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Set to an optimum
picture quality suitable
for the working
environment.
Dynamic
Standard
Movie
Custom
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
SAMSUNG
MAGIC
42
Screen Setup
3
3 Screen Setup
3.7 SAMSUNG MAGIC Angle (S19E310HY / S22E310HY /
S22E310H / S27E310H)
Angle allows you to configure the settings to obtain the optimum picture quality according to your
viewing angle.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
This feature provides the viewing angle, brightness, and tint to suit your preferences.
3.7.1 Configuring SAMSUNG MAGIC Angle
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Angle and press [ ] button on the monitor.
The following screen will appear.
Off : Select this option to view directly in front of the product.
Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.
Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.
Standing Mode : Select this option to view from a place higher than the product.
Side Mode : Select this option to view from either side of the product.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
off
Lean Back Mode 1
Lean Back Mode 2
Standing Mode
Side Mode
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Select an angle that
best suits your
viewing position.
4
2
3
11
5 5
①
②
③
④
⑤
43
Screen Setup
3
3 Screen Setup
Group View: Select this option for more than one viewer to view from places , and .
Custom: Lean Back Mode 1 will be applied by default if Custom is selected.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
①
④
⑤
44
Screen Setup
3
3 Screen Setup

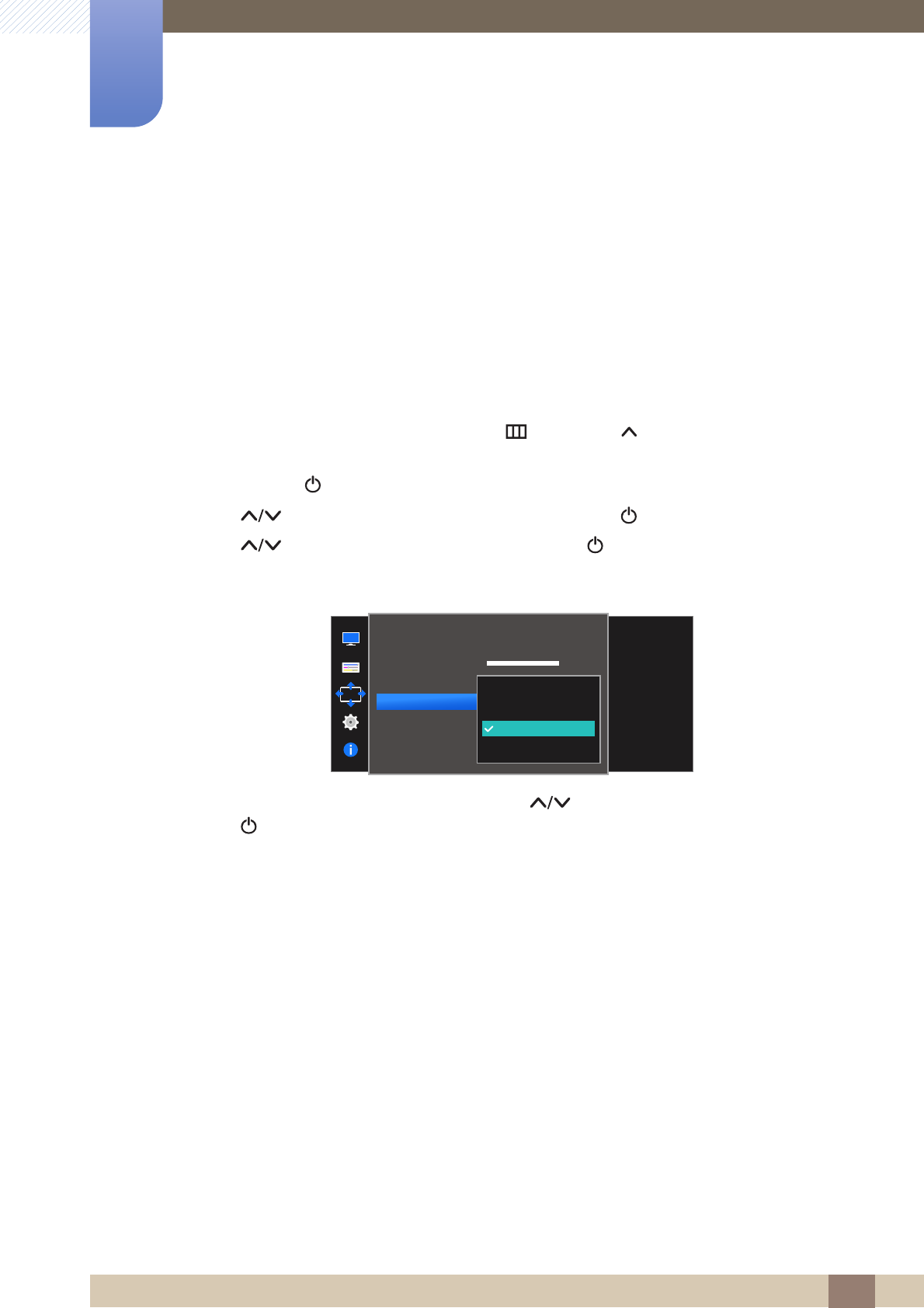

3.8 SAMSUNG MAGIC Upscale
Upscale function can enhance the layers of the picture details and the vividness of the picture.
The function has more obvious effects on low-resolution pictures.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.8.1 Configuring SAMSUNG MAGIC Upscale
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Upscale and press [ ] button on the monitor.
The following screen will appear.
Comparing with Mode1, Mode2 has a stronger effect.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGIC
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale
50
50
2200
off
Mode1
Mode2
Enhance picture
detail and vividness.
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Enhance picture
detail and vividness.
off
Mode1
Mode2
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
off
Mode1
Mode2
Enhance picture
detail and vividness.
50
2200
0
45
Screen Setup
3
3 Screen Setup
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
46
Screen Setup
3
3 Screen Setup
3.9 Image Size
Change the picture size.
The functions available on the monitor may vary depending on the model. Refer to the actual product.

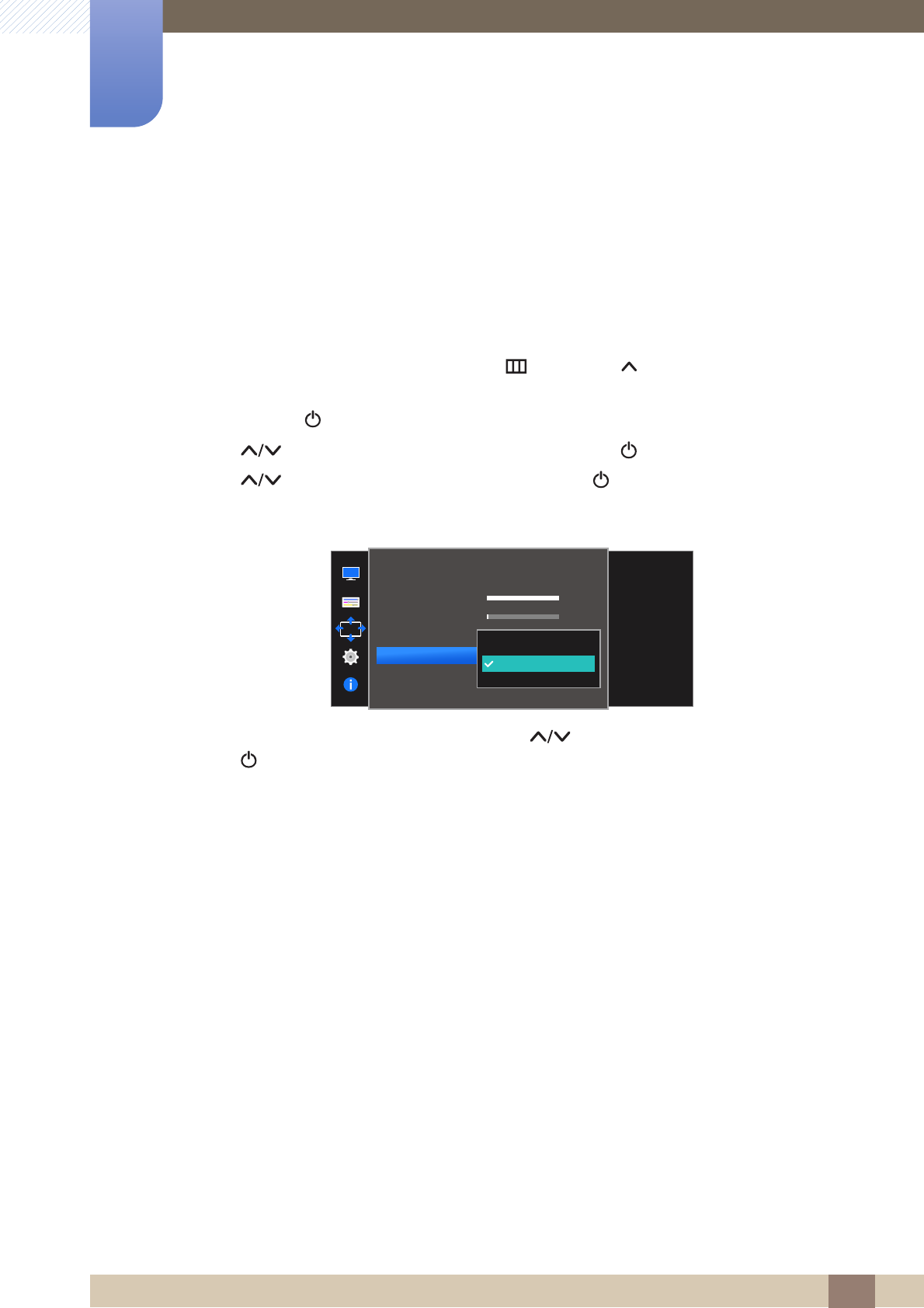

3.9.1 Changing the Image Size
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Image Size and press [ ] button on the monitor.
The following screen will appear.
Auto: Display the picture according to the aspect ratio of the input source.
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
In PC mode
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale
50
50
2200
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
50
50
2200
0
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
50
2200
0
47
Screen Setup
3
3 Screen Setup
4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
16:9: Display the picture with an aspect ratio of 16:9.
Screen Fit: Display the picture with the original aspect ratio without cutting off.
Changing the screen size is available when the following conditions are satisfied.
The function may not be supported depending on the ports provided with the product.
A digital output device is connected using the HDMI cable.
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally
(Not every model can support all of these signals.).
This can only be set when the external input is connected through HDMI and
PC/AV Mode is set to AV.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
In AV mode
Choose the size and
aspect ratio of the
picture displayed on
screen.
4:3
16:9
Screen Fit
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale
Choose the size and
aspect ratio of the
picture displayed on
screen.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
4:3
16:9
Screen Fit
Choose the size and
aspect ratio of the
picture displayed on
screen.
4:3
16:9
Screen Fit
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
48
Screen Setup
3
3 Screen Setup
3.10 HDMI Black Level
If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/
color degradation, black level, etc.) may occur, depending on the connected source device. In such
case, HDMI Black Level can be used to adjust the image quality. If this is the case, correct the degraded
picture quality using HDMI Black Level.
This function is only available in HDMI mode.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.10.1 Configuring the HDMI Black Level Settings
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to HDMI Black Level and press [ ] button on the monitor.
The following screen will appear.
Normal
Low
Optimize HDMI picture
brightness and contrast
by adjusting the black
level of the video signal.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale Off
Normal
Low
Optimize HDMI picture
brightness and contrast
by adjusting the black
level of the video signal.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Normal
Low
Optimize HDMI picture
brightness and contrast
by adjusting the black
level of the video signal.
SAMSUNG
MAGICUpscale Off
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
49
Screen Setup
3
3 Screen Setup
Normal: Select this mode when there is no contrast ratio degradation.
Low: Select this mode to reduce the black level and increase the white level when there is a
contrast ratio degradation.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
HDMI Black Level may not be compatible with some source devices.
50
Screen Setup
3
3 Screen Setup
3.11 Response Time (S24E310HL / S27E310H)
Accelerate the panel response rate to make video appear more vivid and natural.
It is best to set Response Time to Standard or Faster when you are not viewing a movie.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.11.1 Configuring the Response Time
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Response Time and press [ ] button on the monitor.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
Standard
Faster
Fastest
Accelerate the panel
response rate to make
video appear more
vivid and natural.
Off
Wide
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale
Standard
Faster
Fastest
Accelerate the panel
response rate to make
video appear more
vivid and natural.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine 0
Wide
51
Screen Setup
3
3 Screen Setup
3.12 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
This menu is available in Analog mode only.
This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select
Screen Fit to adjust horizontal position in 0-6 levels.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.12.1 Configuring H-Position & V-Position
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to H-Position or V-Position and press [ ] button on the monitor.
The following screen will appear.
Faster
50
50
2200
Move the image
displayed on the
screen to the
left or right.
Off
Wide
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale
Move the image
displayed on the
screen up or down.
Faster
50
50
2200
Off
Wide
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale
Faster
50
50
2200
0
Move the image
displayed on the
screen to the
left or right.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Wide
Faster
50
50
2200
0
Move the image
displayed on the
screen up or down.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Wide
52
Screen Setup
3
3 Screen Setup
4Use the [ ] buttons to adjust the H-Position or V-Position, then press the [ ] button on the
monitor.
5The selected option will be applied.
50
50
2200
0
Move the image
displayed on the
screen to the
left or right.
Off
Wide
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
Move the image
displayed on the
screen up or down.
50
50
2200
0
Off
Wide
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
53
Screen Setup
3
3 Screen Setup
3.13 Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.13.1 Adjusting Coarse
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Coarse and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Coarse, then press the [ ] button on the monitor.
5The selected option will be applied.
Adjust the screen
frequency.
Faster
50
50
2200
Off
Wide
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
SAMSUNG
MAGICUpscale
Adjust the screen
frequency.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Wide
Faster
50
50
2200
0
Adjust the screen
frequency.
Off
Wide
SAMSUNG
MAGICUpscale
50
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
54
Screen Setup
3
3 Screen Setup
3.14 Fine
Fine-adjust the screen to obtain a vivid picture.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.14.1 Adjusting Fine
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to PICTURE and press [ ] button on the monitor.
3Press [ ] button to move to Fine and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Fine, then press the [ ] button on the monitor.
5The selected option will be applied.
Fine-tune the screen
to get a vivid picture.
Fine 0
Fine-tune the screen
to get a vivid picture.
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Wide
Faster
50
50
2200
0
Off
Wide
SAMSUNG
MAGICUpscale
50
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Fine-tune the screen
to get a vivid picture.
55
4 Configuring Tint
4 Configuring Tint
A detailed description of each function is provided. Refer to your product for details.
Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or
Dynamic Contrast mode. This menu is not available when Game Mode is enabled.
SAMSUNG
MAGIC
4.1 Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
This menu is not available when Eye Saver Mode is enabled.
4.1.1 Configuring Red
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to COLOR and press [ ] button on the monitor.
3Press [ ] button to move to Red and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Red, then press the [ ] button on the monitor.
5The selected option will be applied.
Red
Green
Blue
Color Tone
Gamma
Adjust the red
saturation level.
Values closer to 100
mean greater
intensity for the color.
50
50
50
Normal
Mode1
COLOR
56
Configuring Tint
4
4 Configuring Tint
4.2 Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
This menu is not available when Eye Saver Mode is enabled.
4.2.1 Configuring Green
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to COLOR and press [ ] button on the monitor.
3Press [ ] button to move to Green and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Green, then press the [ ] button on the monitor.
5The selected option will be applied.
COLOR
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
Adjust the green
saturation level.
Values closer to 100
mean greater
intensity for the color.
57
Configuring Tint
4
4 Configuring Tint
4.3 Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
This menu is not available when Eye Saver Mode is enabled.
4.3.1 Configuring Blue
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to COLOR and press [ ] button on the monitor.
3Press [ ] button to move to Blue and press [ ] button on the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Blue, then press the [ ] button on the monitor.
5The selected option will be applied.
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
Adjust the blue
saturation level.
Values closer to 100
mean greater
intensity for the color.
COLOR
58
Configuring Tint
4
4 Configuring Tint
4.4 Color Tone
Adjust the general color tone of the picture.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
4.4.1 Configuring the Color Tone Settings
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to COLOR and press [ ] button on the monitor.
3Press [ ] button to move to Color Tone and press [ ] button on the monitor.
The following screen will appear.
Cool 2: Set the color temperature to be cooler than Cool 1.
Cool 1: Set the color temperature to be cooler than Normal mode.
Normal: Display the standard color tone.
Warm 1: Set the color temperature to be warmer than Normal mode.
Warm 2: Set the color temperature to be warmer than Warm 1.
Custom: Customize the color tone.
When the external input is connected through HDMI and PC/AV Mode is set to AV, Color Tone
has four color temperature settings (Cool, Normal, Warm and Custom).
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
SAMSUNG
MAGIC
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
Cool 2
Cool 1
Normal
Warm 1
Warm 2
Select a color tone
that best suits your
viewing needs.
COLOR
59
Configuring Tint
4
4 Configuring Tint
4.5 Gamma
Adjust the mid-range brightness (Gamma) of the picture.
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
4.5.1 Configuring Gamma
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to COLOR and press [ ] button on the monitor.
3Press [ ] button to move to Gamma and press [ ] button on the monitor.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
SAMSUNG
MAGIC
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
Mode1
Mode2
Mode3
Adjust the middle level
of luminance.
COLOR
60
5 Coordinating OSD
5 Coordinating OSD
A detailed description of each function is provided. Refer to your product for details.
5.1 Language
Set the menu language.
A change to the language setting will only be applied to the onscreen menu display.
It will not be applied to other functions on your PC.
5.1.1 Configuring Language
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.
3Press [ ] button to move to Language and press [ ] button on the monitor.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
MENU SETTINGS
Deutsch
English
Español
Français
Italiano
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Set the menu
language.
61
Coordinating OSD
5
5 Coordinating OSD
5.2 Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
5.2.1 Configuring Menu H-Position & Menu V-Position
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.
3Press [ ] button to move to Menu H-Position or Menu V-Position and press [ ] button on
the monitor.
The following screen will appear.
4Use the [ ] buttons to adjust the Menu H-Position or Menu V-Position, then press the [ ]
button on the monitor.
5The selected option will be applied.
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
2
20 sec
On
Move the menu
position to the left or
right.
MENU SETTINGS
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
2
20 sec
On
Move the menu
position up or down.
MENU SETTINGS
62
Coordinating OSD
5
5 Coordinating OSD
5.3 Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
5.3.1 Configuring Display Time
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.
3Press [ ] button to move to Display Time and press [ ] button on the monitor.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
English
100
2
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
5 sec
10 sec
20 sec
200 sec
Set how long the menu
window will remain on
screen for when it is
not in use.
MENU SETTINGS
63
Coordinating OSD
5
5 Coordinating OSD
5.4 Transparency
Set the transparency for the menu windows.
5.4.1 Changing Transparency
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.
3Press [ ] button to move to Transparency and press [ ] button on the monitor.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
MENU SETTINGS
English
100
2
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Off
On
Configure the
transparency of the
menu windows.
64
6 Setup and Reset
6 Setup and Reset
A detailed description of each function is provided. Refer to your product for details.
6.1 Reset All
Return all the settings for the product to the default factory settings.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.1.1 Initializing Settings (Reset All)
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Press [ ] button to move to Reset All and press [ ] button on the monitor.
The following screen will appear.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
SETUP&RESET
Off
Acceleration
Auto
Stand-by
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Power LED On
Return all the settings
for the product to the
default factory settings.
$OOWKHPHQXVHWWLQJVZLOOEHUHVHW
WRGHIDXOW
$UH\RXVXUH\RXZDQWWRUHVHW"
<HV 1R
65
Setup and Reset
6
6 Setup and Reset
6.2 Eco Saving Plus
The Eco Saving Plus function reduces power consumption by controlling the electric current used by
the monitor panel.
This menu is not available when Bright is in Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
6.2.1 Configuring Eco Saving Plus
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Press [ ] button to move to Eco Saving Plus and press [ ] button on the monitor.
The following screen will appear.
Off: Deactivate the Eco Saving Plus function.
Auto: The power consumption will automatically be reduced by about 10% over the default
setting.
(The reduction of power consumption depends on the customer screen brightness condition.)
Low: The power consumption will be reduced by 25% over the default setting.
High: The power consumption will be reduced by 50% over the default setting.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
SAMSUNG
MAGIC
Acceleration
Auto
Stand-by
Off
Auto
Low
High
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Power LED On
Adjust the power
consumption of the
product to save energy.
SETUP&RESET
66
Setup and Reset
6
6 Setup and Reset
6.3 Off Timer
You can set the product to automatically turn off.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.3.1 Configuring Off Timer
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Use the [ ] button to move to Off Timer, then press the [ ] button on the monitor twice.
The following screen will appear.
Off: Deactivate the off timer so that the product does not power off automatically.
On: Activate the off timer so that the product powers off automatically.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
Off
Acceleration
Auto
Stand-by
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Power LED On
Enable or disable the
Off Timer.
SETUP&RESET
Off Timer
Off Timer
Turn Off After
Off
On
Enable or disable the
Off Timer.
67
Setup and Reset
6
6 Setup and Reset
6.3.2 Configuring Turn Off After
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Press [ ] button to move to Off Timer and press [ ] button on the monitor.
4Press [ ] button to move to Turn Off After and press [ ] button on the monitor.
The following screen will appear.
5Use the [ ] buttons to adjust the Turn Off After, then press the [ ] button on the monitor.
6The selected option will be applied.
The off timer can be set within a range of 1 to 23 hours. The product will automatically power off
after the specified number of hours.
This option is only available when Off Timer is set to On.
For products for the market in some regions, the Off Timer is set to automatically activate 4 hours
after the product powers on. This is done in accordance with power supply regulations. If you do
not want the timer to activate, go to MENU SETUP&RESET and set Off Timer to Off.
Off Timer
Off Timer
Turn Off After
On
4h
Set the monitor to
automatically turn off
after a certain time
period.
→
68
Setup and Reset
6
6 Setup and Reset
6.4 PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
This function does not support Analog mode.
Supplied for the wide models only such as 16:9 or 16:10.
If the monitor (when set to HDMI) is in power saving mode or is displaying the message
Check Signal Cable, press the MENU button to display the On Screen Display(OSD).
You can select PC or AV.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
6.4.1 Configuring PC/AV Mode
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Press [ ] button to move to PC/AV Mode and press [ ] button on the monitor.
4Press [ ] button to move to HDMI and press [ ] button on the monitor.
The following screen will appear.
5Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
6The selected option will be applied.
Off
Acceleration
Auto
Stand-by
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Power LED On
Set to AV to enlarge
the picture.
SETUP&RESET
HDMI
PC
AV
Select the PC/AV mode
for the HDMI source.
SETUP&RESET
69
Setup and Reset
6
6 Setup and Reset
6.5 Key Repeat Time
Control the response rate of a button when the button is pressed.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.5.1 Configuring Key Repeat Time
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Press [ ] button to move to Key Repeat Time and press [ ] button on the monitor.
The following screen will appear.
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds
only once when a button is pressed.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
Off
Acceleration
Auto
Acceleration
1 sec
2 sec
No Repeat
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Power LED On
Configure the
response rate of a
button when the button
is pressed.
SETUP&RESET
70
Setup and Reset
6
6 Setup and Reset
6.6 Source Detection
You can activate Source Detection.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.6.1 Configuring Source Detection
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Press [ ] button to move to Source Detection and press [ ] button on the monitor.
The following screen will appear.
Auto: The input source is automatically recognized.
Manual: Manually select an input source.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
SETUP&RESET
Off
Auto
Auto
Manual
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Power LED On
Decide how input
sources will be
detected.
71
Setup and Reset
6
6 Setup and Reset
6.7 Power LED On
Configure the settings to enable or disable the power LED located at the lower part of the product.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.7.1 Configuring Power LED On
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.
3Press [ ] button to move to Power LED On and press [ ] button on the monitor.
The following screen will appear.
Working: The power LED is on when the product is turned on.
Stand-by: The power LED is on when the product is turned off.
4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button.
Press [ ] button.
5The selected option will be applied.
SETUP&RESET
Off
Auto
Working
Stand-by
Reset All
Eco Saving Plus
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Power LED On
Set the status of the
power LED.
72
7 INFORMATION Menu and Others
7 INFORMATION Menu and Others
A detailed description of each function is provided. Refer to your product for details.
7.1 INFORMATION
View the current input source, frequency and resolution.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
7.1.1 Displaying INFORMATION
1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG
Button.
Next, press the [ ] button.
2Press [ ] button to move to INFORMATION and press [ ] button on the monitor.
The following screen will appear.
The displayed menu items may vary depending on the model.
INFORMATION
Model : ********** / **
S / N : ***************
Analog
**kHz **Hz NN
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
73
INFORMATION Menu and Others
7
7 INFORMATION Menu and Others
7.2 Configuring Brightness, Contrast and Sharpness from the
Initial Screen
When the shortcut button page is displayed, adjust the Brightness, Contrast and Sharpness settings
from the initial screen using the DOME Type JOG Button.
Brightness :
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving Plus is enabled.
This menu is not available when Eye Saver Mode is enabled.
Contrast :
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
Sharpness :
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
1Using the [ ] button displays the following screen.
2Use the [ ] button to navigate to Brightness Contrast Sharpness.
3Use the [ ] button to adjust the Brightness, Contrast or Sharpness.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGIC
Contrast
Sharpness
100
Brightness
74
8 Installing the Software
8 Installing the Software
8.1 Easy Setting Box
"Easy Setting Box" enables users to use the monitor by partitioning multiple sections.
8.1.1 Installing the Software
1Insert the installation CD into the CD-ROM drive.
2Select the "Easy Setting Box" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "Easy Setting Box" setup file on the CD-ROM.
3When the Installation Wizard appears, click Next.
4Follow the instructions given on the screen to proceed with installation.
The software may not work properly if you do not restart the computer after the installation.
The "Easy Setting Box" icon may not appear depending on the computer system and the
product specifications.
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation ("Easy Setting Box")
The "Easy Setting Box" installation may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS
Windows XP 32Bit/64Bit
Windows Vista 32Bit/64Bit
Windows 7 32Bit/64Bit
Windows 8 32Bit/64Bit
Hardware
At least 32MB of memory
At least 60MB of free space on the hard disk drive
Easy Setting Box
75
Installing the Software
8
8 Installing the Software
8.1.2 Removing the Software
Click Start, select Settings/Control Panel, and then double-click Add or Remove Programs.
Select "Easy Setting Box" from the program list and click the Add/Delete button.
76
9 Troubleshooting Guide
9 Troubleshooting Guide
9.1 Requirements Before Contacting Samsung Customer
Service Center
9.1.1 Testing the Product
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1Power off both the PC and product.
2Disconnect the cables from the product.
3Power on the product.
4If the message Check Signal Cable appears, the product is working normally.
If the screen remains blank, check the PC system, video controller and cable.
9.1.2 Checking the Resolution and Frequency
For a mode that exceeds the supported resolution (refer to "10.6 Standard Signal Mode Table"), the
message Not Optimum Mode will appear for a short time.
9.1.3 Check the following.
Installation issue (PC mode)
Issues Solutions
The screen keeps switching on and off. Check the cable connection between the product
and PC, and ensure the connectors are locked.
(Refer to "2.2 Connecting and Using a PC")
77
Troubleshooting Guide
9
9 Troubleshooting Guide
Screen issue
Issues Solutions
The power LED is off. The screen will not switch
on.
Check that the power cable is connected
properly. (Refer to "2.2 Connecting and Using a
PC")
The message Check Signal Cable appears. Check that the cable is properly connected to the
product. (Refer to "2.2 Connecting and Using a
PC")
Check that the device connected to the product is
powered on.
Not Optimum Mode is displayed. This message appears when the signal from the
graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to
suit the product performance, referring to
Standard Signal Mode Table (page 86).
The images on the screen look distorted. Check the cable connection to the product (Refer
to "2.2 Connecting and Using a PC")
The screen is not clear. The screen is blurry. Adjust Coarse (page 53) and Fine (page 54).
Remove any accessories (video extension cable,
etc.) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears unstable and shaky. Check that the resolution and frequency for the
PC are within the range of resolution and
frequency compatible with the product. Next, if
required, change the settings, referring to
Standard Signal Mode Table (page 86) in this
manual and the INFORMATION menu on the
product.
There are shadows or ghost images left on the
screen.
The screen is too bright. The screen is too dark. Adjust Brightness (page 35) and Contrast (page
36).
Screen color is inconsistent. Change the COLOR settings. (Refer to "
Configuring Tint")
The colors on the screen have a shadow and are
distorted.
Change the COLOR settings.
(Refer to " Configuring Tint")
White does not really look white. Change the COLOR settings.
(Refer to " Configuring Tint")
78
Troubleshooting Guide
9
9 Troubleshooting Guide
Source device issue
The LED lights on the frame of the product may be seen depending on the user's viewing angle. The
light is harmless to people and has no bearing on product features and performance. The product is
safe to use.
There is no image on the screen and the power
LED blinks every 0.5 to 1 second.
The product is operating in power-saving mode.
Press any key on the keyboard or move the
mouse to return to normal operating mode.
Issues Solutions
A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is
booting, have your PC serviced.
Issues Solutions
79
Troubleshooting Guide
9
9 Troubleshooting Guide
9.2 Q & A
Question Answer
How can I change the
frequency?
Set the frequency on your graphics card.
Windows XP: Go to Control Panel
Appearance and Themes Display Settings
Advanced Monitor, and adjust Refresh rate under
Monitor settings.
Windows ME/2000: Go to Control Panel Display
Settings Advanced Monitor, and adjust Refresh rate
under Monitor settings.
Windows Vista: Go to Control Panel Appearance and
Personalization Personalization Display Settings
Advanced Settings Monitor, and adjust Refresh rate
under Monitor settings.
Windows 7: Go to Control Panel Appearance and
Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
Windows 8: Go to Settings Control Panel
Appearance and Personalization Display
Screen Resolution Advanced settings Monitor, and
adjust Refresh rate under Monitor settings.
80
Troubleshooting Guide
9
9 Troubleshooting Guide
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
How can I change the
resolution?
Windows XP: Go to Control Panel
Appearance and Themes Display Settings, and adjust
the resolution.
Windows ME/2000: Go to Control Panel Display
Settings, and adjust the resolution.
Windows Vista: Go to Control Panel
Appearance and Personalization Personalize
Display Settings, and adjust the resolution.
Windows 7: Go to Control Panel
Appearance and Personalization Display
Adjust Resolution, and adjust the resolution.
Windows 8: Go to Settings Control Panel
Appearance and Personalization Display
Adjust Resolution, and adjust the resolution.
How do I set power-saving
mode?
Windows XP: Set power-saving mode in Control Panel
Appearance and Themes Display
Screen Saver Settings or BIOS SETUP on the PC.
Windows ME/2000: Set power-saving mode in Control Panel
Display Screen Saver Settings or BIOS SETUP on the
PC.
Windows Vista: Set power-saving mode in Control Panel
Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Windows 7: Set power-saving mode in Control Panel
Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Windows 8: Set power-saving mode in Settings
Control Panel Appearance and Personalization
Personalize Screen Saver Settings or BIOS SETUP on the
PC.
Question Answer
81
10 Specifications
10 Specifications
10.1 General (S19E310HY)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S19E310HY
Panel Size 18.5 Inches (47 cm)
Display area 409.8 mm (H) x 230.4 mm (V)
16.1 Inches (H) x 9.1 Inches (V)
Pixel Pitch 0.300 mm (H) x 0.300 mm (V)
0.011811 Inches (H) x 0.011811 Inches (V)
Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 Hz
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 447.1 x 271.2 x 89.8 mm
17.6 x 10.7 x 3.5
Inches
With Stand 447.1 × 352.8 × 198.7 mm / 2.40 kg
17.6 x 13.9 x 7.8
Inches / 5.3
lbs
VESA Mounting Interface 75 x 75 mm
3.0 x 3.0 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50°F – 104°F (10°C – 40°C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4°F – 113°F (-20°C – 45°C)
Humidity : 5% – 95%, non-condensing
82
Specifications
10
10 Specifications
10.2 General (S22E310HY / S22E310H)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S22E310HY / S22E310H
Panel Size 21.5 Inches (54 cm)
Display area 476.64 mm (H) x 268.11 mm (V)
18.8 Inches (H) x 10.6 Inches (V)
Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)
0.009774 Inches (H) x 0.009774 Inches (V)
Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 Hz
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 513.7 x 308.6 × 90.4 mm
20.2 x 12.1 x 3.6
Inches
With Stand 513.7 × 390.5 × 189.7 mm / 3.00 Kg
20.2 x 15.4 x 7.5
Inches /
6.6
lbs
VESA Mounting Interface 75 x 75 mm
3.0 x 3.0 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50°F – 104°F (10°C – 40°C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4°F – 113°F (-20°C – 45°C)
Humidity : 5% – 95%, non-condensing
83
Specifications
10
10 Specifications
10.3 General (S24E310HL)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S24E310HL
Panel Size 23.6 Inches (59 cm)
Display area 521.28 mm (H) x 293.22 mm (V)
20.5 Inches (H) x 11.5 Inches (V)
Pixel Pitch 0.2715 mm (H) x 0.2715 mm (V)
0.010689 Inches (H) x 0.010689 Inches (V)
Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 Hz
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 561.6 × 335.7 × 93.3 mm
22.1 x 13.2 x 3.7
Inches
With Stand 561.6 x 417.5 x 200.7 mm / 3.7 Kg
22.1 x 16.4 x 7.9
Inches /
8.2
lbs
VESA Mounting Interface 75 x 75 mm
3.0 x 3.0 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50°F – 104°F (10°C – 40°C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4°F – 113°F (-20°C – 45°C)
Humidity : 5% – 95%, non-condensing
84
Specifications
10
10 Specifications
10.4 General (S27E310H)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
Model Name S27E310H
Panel Size 27 Inches (68 cm)
Display area 597.6 mm (H) x 336.15 mm (V)
23.5 Inches (H) x 13.2 Inches (V)
Pixel Pitch 0.31125 mm (H) x 0.31125 mm (V)
0.012254 Inches (H) x 0.012254 Inches (V)
Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 Hz
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 643.4 x 385.3 x 95.1 mm
25.3 x 15.2 x 3.7
Inches
With Stand 643.4 x 463.1 x 200.7 mm / 4.5 Kg
25.3 x 18.2 x 7.9
Inches /
9.9
lbs
VESA Mounting Interface 75 x 75 mm
3.0 x 3.0 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50°F – 104°F (10°C – 40°C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4°F – 113°F (-20°C – 45°C)
Humidity : 5% – 95%, non-condensing
85
Specifications
10
10 Specifications
10.5 PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and
making the Power LED blink if the product is not used for a specified period of time. The power is not
turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move
the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-
saving function.
The power consumption level can vary in different operating conditions or when settings are
changed.
ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
Energy Star power is measured with the test method in the current Energy Star® Standard.
To reduce the power consumption to 0, disconnect the power cord. Be sure to disconnect the
power cable when you will not be using the product for an extended period of time. To reduce the
power consumption to 0 W when the power switch is not available, disconnect the power cable.
PowerSaver Energy Star
Power Consumption Power saving mode Power off
(Power button)
Power Indicator Off Blinking On
Power Consumption
(S19E310HY) Typical TBD W Typical TBD W
Max TBD W Less than TBD W
Power Consumption
(S22E310HY) Typical TBD W Typical TBD W
Max TBD W Less than TBD W
Power Consumption
(S22E310H) Typical TBD W Typical TBD W
Max TBD W Less than TBD W
Power Consumption
(S24E310HL) Typical TBD W Typical TBD W
Max TBD W Less than TBD W
Power Consumption
(S27E310H) Typical TBD W Typical TBD W
Max TBD W Less than TBD W
86
Specifications
10
10 Specifications
10.6 Standard Signal Mode Table
This product can be set to only one resolution for each screen size to obtain the optimum picture
quality due to the nature of the panel. Therefore, a resolution other than the specified resolution
may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for the screen size of your product.
Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.
If the LCD monitor does not support 85 Hz, change the vertical frequency to 60 Hz using the CDT
monitor before you exchange it with the LCD monitor.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will
automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the
settings according to the following table by referring to the graphics card user manual.
S19E310HY
Model Name
S22E310HY /
S22E310H /
S24E310HL /
S27E310H
S19E310HY
Synchronization Horizontal Frequency 30 – 81 kHz
Vertical Frequency 56 – 75 Hz
Resolution Optimum Resolution 1920 x 1080 @ 60 Hz 1366 x 768 @ 60 Hz
Maximum Resolution 1920 x 1080 @ 60 Hz 1366 x 768 @ 60 Hz
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
VESA, 640 x 480 31.469 59.940 25.175 -/-
MAC, 640 x 480 35.000 66.667 30.240 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
MAC, 832 x 624 49.726 74.551 57.284 -/-
87
Specifications
10
10 Specifications
S22E310HY / S22E310H / S24E310HL / S27E310H
VESA, 1024 x 768 48.363 60.004 65
.000
-/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 (RB) 60.000 60.000 108.000 +/+
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
88
Specifications
10
10 Specifications
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a
horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.
Horizontal frequency is measured in kHz.
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures.
The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
89
Appendix
Appendix
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
NORTH AMERICA
U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us/
support
CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca/
support (English)
http://www.samsung.com/ca_fr/
support (French)
LATIN AMERICA
ARGENTINE 0800-333-3733 http://www.samsung.com/ar/
support
BOLIVIA 800-10-7260 http://www.samsung.com/cl/
support
BRAZIL 0800-124-421
(Demais cidades e regiões)
4004-0000
(Capitais e grandes centros)
http://www.samsung.com/br/
support
CHILE 800-SAMSUNG (726-7864) http://www.samsung.com/cl/
support
COLOMBIA Bogotá 600 12 72
Gratis desde cualquier parte del
país 01 8000 112 112 ó desde su
celular #SAM(726)
http://www.samsung.com/co/
support
COSTA RICA 0-800-507-7267
00-800-1-SAMSUNG (726-7864)
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
DOMINICA 1-800-751-2676 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
ECUADOR 1-800-10-72670
1-800-SAMSUNG (72-6786)
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
90
Appendix
Appendix
EL SALVADOR 800-6225 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
GUATEMALA 1-800-299-0013
1-800-299-0033
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
HONDURAS 800-27919267
800-2791-9111
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
JAMAICA 1-800-234-7267
1-800-SAMSUNG (726-7864)
http://www.samsung.com/latin_en/
support (English)
MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com/mx/
support
NICARAGUA 001-800-5077267 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
PANAMA 800-7267
800-0101
http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
PARAGUAY 009-800-542-0001 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
PERU 0-800-777-08 http://www.samsung.com/pe/
support
PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
LATIN AMERICA
91
Appendix
Appendix
URUGUAY 000-405-437-33 http://www.samsung.com/latin/
support (Spanish)
http://www.samsung.com/latin_en/
support (English)
VENEZUELA 0-800-SAMSUNG (726-7864) http://www.samsung.com/ve/
support
EUROPE
AUSTRIA 0800 - SAMSUNG
(0800 - 7267864)
http://www.samsung.com/at/
support
BELGIUM 02-201-24-18 http://www.samsung.com/be/
support (Dutch)
http://www.samsung.com/be_fr/
support (French)
BOSNIA 051 331 999 http://www.samsung.com/support
BULGARIA http://www.samsung.com/bg/
support
CROATIA 072 726 786 http://www.samsung.com/hr/
support
CYPRUS 8009 4000 only from landline,
toll free
http://www.samsung.com/gr/
support
CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com/cz/
support
Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 -
Praha 4
DENMARK 70 70 19 70 http://www.samsung.com/dk/
support
EIRE 0818 717100 http://www.samsung.com/ie/
support
ESTONIA 800-7267 http://www.samsung.com/ee/
support
FINLAND 030-6227 515 http://www.samsung.com/fi/
support
FRANCE 01 48 63 00 00 http://www.samsung.com/fr/
support
LATIN AMERICA
800 111 31,
92
Appendix
Appendix
GERMANY 0180 6 SAMSUNG bzw.
0180 6 7267864*
(*0,20 €/Anruf aus dem dt.
Festnetz, aus dem Mobilfunk max.
0,60 €/Anruf)
http://www.samsung.com/de/
support
GREECE 80111-SAMSUNG (80111 726
7864) only from land line
(+30) 210 6897691 from mobile
and land line
http://www.samsung.com/gr/
support
HUNGARY 0680SAMSUNG (0680-726-786)
0680PREMIUM (0680-773-648)
http://www.samsung.com/hu/
support
ITALIA 800-SAMSUNG (800.7267864) http://www.samsung.com/it/
support
LATVIA 8000-7267 http://www.samsung.com/lv/
support
LITHUANIA 8-800-77777 http://www.samsung.com/lt/
support
LUXEMBURG 261 03 710 http://www.samsung.com/support
MONTENEGRO 020 405 888 http://www.samsung.com/support
NETHERLANDS 0900-SAMSUNG
(0900-7267864) (€ 0,10/Min)
http://www.samsung.com/nl/
support
NORWAY 815 56480 http://www.samsung.com/no/
support
POLAND http://www.samsung.com/pl/
support
PORTUGAL 808 20 7267 http://www.samsung.com/pt/
support
ROMANIA 08008 726 78 64 (08008
SAMSUNG) Apel GRATUIT
http://www.samsung.com/ro/
support
SERBIA 011 321 6899 http://www.samsung.com/rs/
support
SLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com/sk/
support
SLOVENIA 080 697 267
090 726 786
http://www.samsung.com/si
EUROPE
0 801-172-678*
lub +48 22 607-93-33 *
!"
#$%$##'
93
Appendix
Appendix
SPAIN 0034902172678 http://www.samsung.com/es/
support
SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com/se/
support
SWITZERLAND 0800 726 78 64 (0800-SAMSUNG) http://www.samsung.com/ch/
support (German)
http://www.samsung.com/ch_fr/
support (French)
UK 0330 SAMSUNG (7267864) http://www.samsung.com/uk/
support
CIS
ARMENIA 0-800-05-555 http://www.samsung.com/support
AZERBAIJAN 0-88-555-55-55 http://www.samsung.com/support
BELARUS 810-800-500-55-500 http://www.samsung.com/support
GEORGIA 0-800-555-555 http://www.samsung.com/support
KAZAKHSTAN 8-10-800-500-55-500
(GSM: 7799, VIP care 7700)
http://www.samsung.com/support
KYRGYZSTAN 8-10-800-500-55-500 http://www.samsung.com/kz_ru/
support
MOLDOVA 0-800-614-40 http://www.samsung.com/support
MONGOLIA 7-495-363-17-00 http://www.samsung.com/support
RUSSIA 8-800-555-55-55 http://www.samsung.com/ru/
support
TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com/support
UKRAINE 0-800-502-000 http://www.samsung.com/ua/
support (Ukrainian)
http://www.samsung.com/ua_ru/
support (Russian)
UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com/support
EUROPE
94
Appendix
Appendix
CHINA
CHINA 400-810-5858 http://www.samsung.com/cn/
support
HONG KONG (852) 3698 4698 http://www.samsung.com/hk/
support (Chinese)
http://www.samsung.com/hk_en/
support (English)
MACAU 0800 333 http://www.samsung.com/support
S.E.A
AUSTRALIA 1300 362 603 http://www.samsung.com/au/
support
INDONESIA 021-56997777
08001128888
http://www.samsung.com/id/
support
JAPAN 0120-363-905 http://www.samsung.com/jp/
support
MALAYSIA 1800-88-9999
603-77137477 (Overseas contact)
http://www.samsung.com/my/
support
MYANMAR 01-2399888 http://www.samsung.com/support
NEW ZEALAND 0800 726 786 http://www.samsung.com/nz/
support
PHILIPPINES 1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline
and Mobile]
02-4222111 [Other landline]
http://www.samsung.com/ph/
support
SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg/
support
TAIWAN 0800-329999 http://www.samsung.com/tw/
support
THAILAND 0-2689-3232,
1800-29-3232
http://www.samsung.com/th/
support
VIETNAM 1800 588 889 http://www.samsung.com/vn/
support
S.W.A
BANGLADESH 09612300300 http://www.samsung.com/in/
support
95
Appendix
Appendix
INDIA 1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
http://www.samsung.com/in/
support
SRI LANKA 0094117540540
0094115900000
http://www.samsung.com/support
MENA
ALGERIA 021 36 11 00 http://www.samsung.com/n_africa/
support
BAHRAIN 8000-GSAM (8000-4726) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
EGYPT 08000-726786
16580
http://www.samsung.com/eg/
support
IRAN 021-8255 http://www.samsung.com/iran/
support
JORDAN 0800-22273
06 5777444
http://www.samsung.com/Levant/
support (English)
KUWAIT 183-CALL (183-2255) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
MOROCCO 080 100 22 55 http://www.samsung.com/n_africa/
support
OMAN 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
PAKISTAN 0800-Samsung (72678) http://www.samsung.com/pk/
support
QATAR 800-CALL (800-2255) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
SAUDI ARABIA 920021230 http://www.samsung.com/sa/
support
http://www.samsung.com/sa_en/
support (English)
S.W.A
96
Appendix
Appendix
SYRIA 18252273 http://www.samsung.com/Levant/
support (English)
TUNISIA 80-1000-12 http://www.samsung.com/n_africa/
support
TURKEY 444 77 11 http://www.samsung.com/tr/
support
U.A.E 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/
support (English)
http://www.samsung.com/ae_ar/
support (Arabic)
AFRICA
BOTSWANA 8007260000 http://www.samsung.com/support
BURUNDI 200 http://www.samsung.com/support
CAMEROON 7095-0077 http://www.samsung.com/africa_fr/
support
COTE D’ IVOIRE 8000 0077 http://www.samsung.com/africa_fr/
support
DRC 499999 http://www.samsung.com/support
GHANA 0800-10077
0302-200077
http://www.samsung.com/
africa_en/support
KENYA 0800 545 545 http://www.samsung.com/support
MOZAMBIQUE 847267864 / 827267864 http://www.samsung.com/support
NAMIBIA 08 197 267864 http://www.samsung.com/support
NIGERIA 0800-726-7864 http://www.samsung.com/
africa_en/support
RWANDA 9999 http://www.samsung.com/support
SENEGAL 800-00-0077 http://www.samsung.com/africa_fr/
support
SOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com/support
SUDAN 1969 http://www.samsung.com/support
TANZANIA 0800 755 755 http://www.samsung.com/support
UGANDA 0800 300 300 http://www.samsung.com/support
ZAMBIA 0211 350370 http://www.samsung.com/support
MENA
97
Appendix
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)
If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first time.
If a product is reinstalled to move to a different spot or to move to a different house.
If customer requests instructions on how to use because of another company's product.
If customer requests instructions on how to use the network or another company's program.
If customer requests software installation and setup for the product.
If a service technician removes/cleans dusts or foreign materials inside of the product.
If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
external impact or drop.
use of supplies or separately sold product unspecified by Samsung.
repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
remodeling or repairing the product by customer.
using it with incorrect voltage or non-authorised electrical connections.
not following the "cautions" in User Manual.
Others
If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
98
Appendix
Appendix
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
99
Appendix
Appendix
Terminology
OSD (On Screen Display)
On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as
required. You can change the screen brightness, tint, size and many other settings using menus
displayed on the screen.
Gamma
The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the
brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.
Grey scale
Scale refers to levels of color intensity that show variations of color change from darker areas to
brighter areas on the screen. Changes to the screen brightness are expressed with black and white
variation, and grey scale refers to the medium area between black and white. Changing the grey scale
through Gamma adjustment will change the medium brightness on the screen.
Scanning rate
Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted
as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of
screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that
the screen refreshes 60 times per second. The screen scanning rate depends on the performance of
the graphics cards in your PC and monitor.
Horizontal Frequency
Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are
transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal
frequency is measured in kHz and represents how many times horizontal lines per second are
transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the
horizontal lines that make up an image are transmitted 85000 times per second. The horizontal
frequency is indicated in 85kHz.
Vertical Frequency
One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and
represents how many images can be created per second by those horizontal lines. A vertical
frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is
also called "refresh rate" and affects screen flicker.
100
Appendix
Appendix
Resolution
Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the
level of display detail.
A higher resolution displays a greater amount of information on the screen and is suitable for
performing multiple tasks at the same time.
E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080
vertical lines (vertical resolution).
Plug & Play
The Plug & Play feature allows the automatic exchange of information between a monitor and PC to
produce an optimum display environment.
The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 101
Index
B
Before Connecting 30
Blue 57
Brightness 35
C
Checking the Contents 19
Cleaning 8
Coarse 53
Color Tone 58
Connecting and Using a PC 30
Contact SAMSUNG WORLD WIDE 89
Contrast 36
Copyright 7
Correct Disposal 98
Correct posture to use the product 18
D
Display Time 62
E
Easy Setting Box 74
Eco Saving Plus 65
Eye Saver Mode 38
F
Fine 54
G
Game Mode 39
Gamma 59
General 81, 82, 83, 84
Green 56
H
HDMI Black Level 48
I
Image Size 46
INFORMATION 72
Installation 25
K
Key Repeat Time 69
L
Language 60
O
Off Timer 66
P
Parts 20
PC/AV Mode 68
Power LED On 71
PowerSaver 85
Q
Q & A 79
R
Red 55
Requirements Before Contacting Samsung
Customer Service Center 76
Reset All 64
Response Time 50
Responsibility for the Pay Service (Cost to
Customers) 97
