User manualS19E310HYS22E310HYS22E310HS24E310HLS27E310HThe color and the appearance may differ depending onthe product, and the specifications are subject tochange without prior notice to improve the performance.BN46-00452A-00
Table Of Contents 2Table Of ContentsBEFORE USING THEPRODUCT7 Copyright7 Icons used in this manual8 Cleaning9 Securing the Installation Space9 Precautions for storage10 Safety Precautions10 Symbols11 Electricity and Safety12 Installation and Safety 14 Operation and Safety18 Correct posture to use the product PREPARATIONS 19 Checking the Contents19 Checking the Components20 Parts20 Control Panel21 Direct Key guide22 Function Key Guide24 Reverse Side25 Installation25 Attaching the Stand26 Removing the Stand27 Adjusting the Product Tilt28 Installing a Wall-mount Kit or Desktop Stand29 Anti-theft LockCONNECTING AND USINGA SOURCE DEVICE30 Before Connecting30 Pre-connection Checkpoints30 Connecting and Using a PC30 Connecting to a PC32 Connecting the Power33 Driver Installation34 Setting Optimum Resolution
Table Of ContentsTable Of Contents 3SCREEN SETUP 35 Brightness35 Configuring Brightness36 Contrast36 Configuring Contrast37 Sharpness37 Configuring Sharpness38 Eye Saver Mode38 Configuring Eye Saver Mode39 Game Mode39 Configuring Game Mode40 SAMSUNG MAGIC Bright40 Configuring SAMSUNG MAGIC Bright42 SAMSUNG MAGIC Angle (S19E310HY / S22E310HY / S22E310H / S27E310H)42 Configuring SAMSUNG MAGIC Angle44 SAMSUNG MAGIC Upscale44 Configuring SAMSUNG MAGIC Upscale46 Image Size46 Changing the Image Size48 HDMI Black Level48 Configuring the HDMI Black Level Settings50 Response Time (S24E310HL / S27E310H)50 Configuring the Response Time51 H-Position & V-Position51 Configuring H-Position & V-Position53 Coarse53 Adjusting Coarse54 Fine54 Adjusting Fine
Table Of ContentsTable Of Contents 4CONFIGURING TINT 55 Red55 Configuring Red56 Green56 Configuring Green57 Blue57 Configuring Blue58 Color Tone58 Configuring the Color Tone Settings59 Gamma59 Configuring GammaCOORDINATING OSD 60 Language60 Configuring Language61 Menu H-Position & Menu V-Position61 Configuring Menu H-Position & Menu V-Position62 Display Time62 Configuring Display Time63 Transparency63 Changing TransparencySETUP AND RESET 64 Reset All 64 Initializing Settings (Reset All)65 Eco Saving Plus 65 Configuring Eco Saving Plus66 Off Timer66 Configuring Off Timer67 Configuring Turn Off After68 PC/AV Mode68 Configuring PC/AV Mode
Table Of ContentsTable Of Contents 569 Key Repeat Time69 Configuring Key Repeat Time70 Source Detection70 Configuring Source Detection71 Power LED On71 Configuring Power LED OnINFORMATION MENU ANDOTHERS72 INFORMATION72 Displaying INFORMATION73 Configuring Brightness, Contrast and Sharpness from the Initial Screen INSTALLING THESOFTWARE74 Easy Setting Box74 Installing the Software75 Removing the SoftwareTROUBLESHOOTINGGUIDE76 Requirements Before Contacting Samsung Customer Service Center76 Testing the Product76 Checking the Resolution and Frequency76 Check the following.79 Q & ASPECIFICATIONS 81 General (S19E310HY)82 General (S22E310HY / S22E310H)83 General (S24E310HL)84 General (S27E310H)85 PowerSaver86 Standard Signal Mode TableAPPENDIX 89 Contact SAMSUNG WORLD WIDE
Table Of ContentsTable Of Contents 697 Responsibility for the Pay Service (Cost to Customers)97 Not a product defect97 A Product damage caused by customer's fault97 Others98 Correct Disposal98 Correct Disposal of This Product (Waste Electrical & Electronic Equipment)99 TerminologyINDEX
7 Before Using the Product Before Using the ProductCopyrightThe contents of this manual are subject to change without notice to improve quality.© 2015 Samsung ElectronicsSamsung Electronics owns the copyright for this manual.Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.Icons used in this manualAn administration fee may be charged if either(a) an engineer is called out at your request and there is no defect in the product(i.e. where you have failed to read this user manual).(b) you bring the unit to a repair center and there is no defect in the product (i.e. where you have failed to read this user manual).The amount of such administration charge will be advised to you before any work or home visit is carried out.The following images are for reference only. Real-life situations may differ from what is shown in the images.
8Before Using the Product Before Using the ProductCleaningExercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning. 1. Power off the monitor and computer.2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result. 3. Wipe the monitor screen using a clean, soft and dry cloth.Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.Do not spray water or detergent directly on the product.4. Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the monitor.5. Connect the power cord to the product after cleaning the product.6. Power on the monitor and computer.!!
9Before Using the Product Before Using the ProductSecuring the Installation SpaceEnsure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product. The exterior may differ depending on the product. Precautions for storage Be sure to contact Samsung Customer Service Center (page 89) if the inside of the monitor needs cleaning. (A service fee will be charged.) 10 cm(3.93inches)10 cm(3.93inches)10 cm (3.93 inches)10 cm (3.93 inches)10 cm(3.93 inches)
10Before Using the Product Before Using the ProductSafety PrecautionsSymbolsCautionRISK OF ELECTRIC SHOCK DO NOT OPENCaution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.This symbol alerts you that important literature concerning operation and maintenance has been included with this product. Warning A serious or fatal injury may result if instructions are not followed. Caution Personal injury or damage to properties may result if instructions are not followed.Activities marked by this symbol are prohibited.Instructions marked by this symbol must be followed.
11Before Using the Product Before Using the ProductElectricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images. WarningDo not use a damaged power cord or plug, or a loose power socket.An electric shock or fire may result.Do not plug many products into the same power socket.Otherwise, the socket may overheat and cause a fire.Do not touch the power plug with wet hands.Otherwise, an electric shock may result.Insert the power plug all the way in so it is not loose.An unstable connection may cause a fire.Ensure you connect the power plug to a grounded power socket. (type 1 insulated devices only). An electric shock or injury may result.Do not bend or pull the power cord with force. Do not weigh the power cord down with a heavy object.A damaged power cord may cause an electric shock or fire.Do not place the power cord or product near heat sources. An electric shock or fire may result.Remove foreign substances such as dust around the plug pins and power socket with a dry cloth. Otherwise, a fire may result.!!!
12Before Using the Product Before Using the Product CautionInstallation and Safety WarningDo not unplug the power cord when the product is in use.The product may become damaged by an electric shock.Do not use the power cord for products other than authorized products supplied by Samsung. An electric shock or fire may result.Keep the power socket where the power cord is connected unobstructed. If any problem occurs in the product, unplug the power cable to completely cut the power to the product. Power to the product cannot be completely cut off with the power button. Hold the plug when disconnecting the power cord from the power socket. An electric shock or fire may result.DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.Otherwise, a fire may result.Avoid installing the product in a narrow space with bad ventilation, such as a bookshelf or wall closet.Otherwise, a fire may result due to an increased internal temperature.Keep the plastic packaging bag for the product in a place that cannot be reached by children.Children may suffocate.!!!!

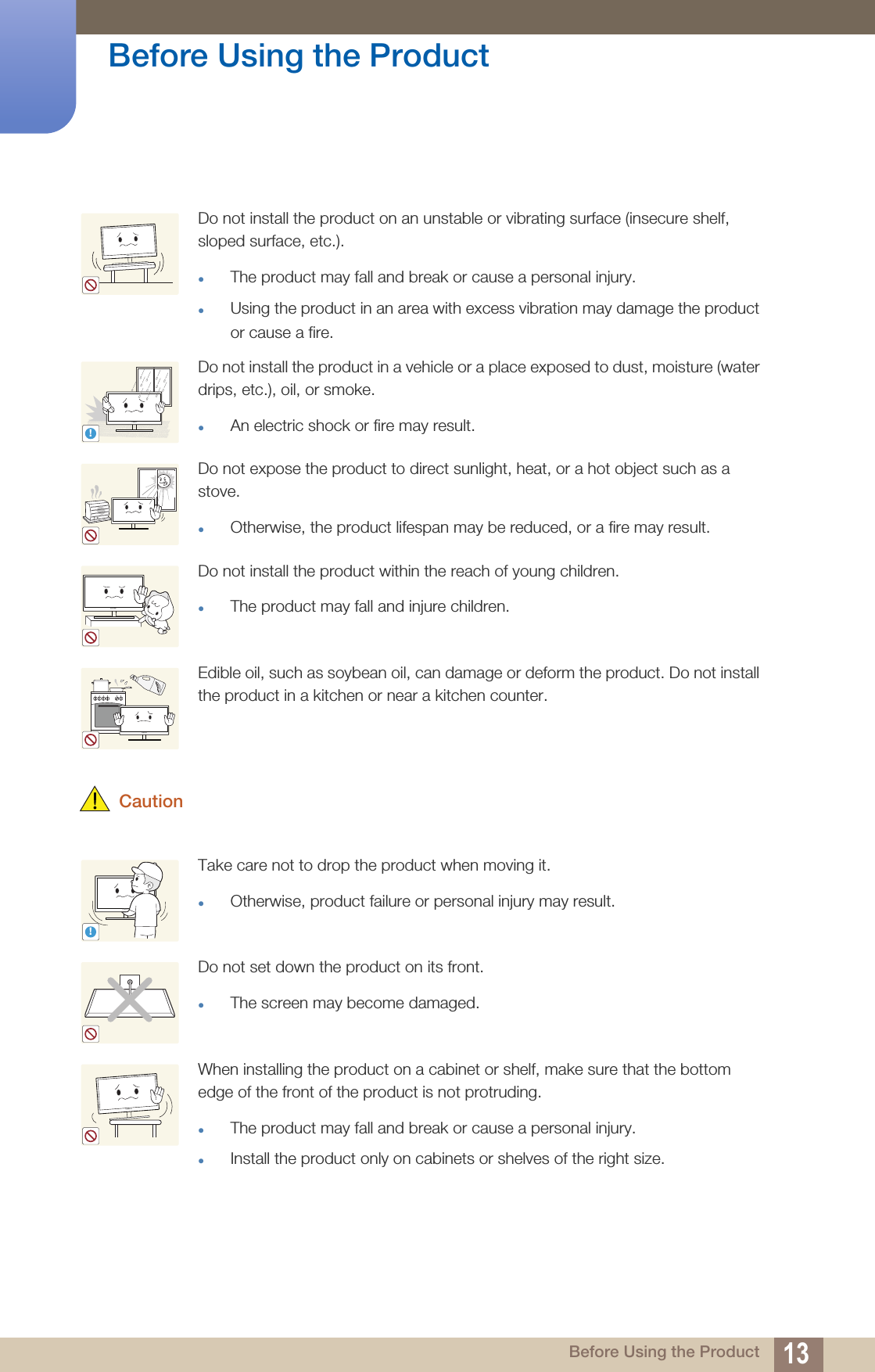

13Before Using the Product Before Using the Product CautionDo not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). The product may fall and break or cause a personal injury.Using the product in an area with excess vibration may damage the product or cause a fire.Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke. An electric shock or fire may result.Do not expose the product to direct sunlight, heat, or a hot object such as a stove.Otherwise, the product lifespan may be reduced, or a fire may result.Do not install the product within the reach of young children.The product may fall and injure children. Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.Take care not to drop the product when moving it. Otherwise, product failure or personal injury may result.Do not set down the product on its front.The screen may become damaged.When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.The product may fall and break or cause a personal injury.Install the product only on cabinets or shelves of the right size.!!
14Before Using the Product Before Using the ProductOperation and Safety WarningPut down the product carefully.The product may fall and break or cause a personal injury.Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.Be sure to consult Samsung Customer Service Center (page 89) before installation if you want to install the product at such a place.High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product on your own.An electric shock or fire may result.Contact Samsung Customer Service Center (page 89) for repair.To move the product, first disconnect all the cables from it, including the power cable.Otherwise, the power cord may be damaged and a fire or electric shock may result.If the product generates a strange noise, a burning smell, or smoke, remove the power cord immediately and contact Samsung Customer Service Center (page 89).An electric shock or fire may result.Do not let children hang from the product or climb on top of it.The product may fall, and your child may become injured or seriously harmed.If the product falls or the exterior is damaged, power off the product, remove the power cord, and contact Samsung Customer Service Center (page 89).Otherwise, an electric shock or fire may result. Do not put a heavy object, toy, or sweets on top of the product.The product or heavy objects may fall as children try to reach for the toy or sweets resulting in a serious injury.!SAMSUNG!!!
15Before Using the Product Before Using the ProductIf there is a thunderstorm or lightning strike, turn off the power and disconnect the power cable.An electric shock or fire may result.Do not drop objects on the product or apply impact.An electric shock or fire may result.Do not move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.Sparks can cause an explosion or fire.Do not lift or move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.Do not use or keep combustible spray or an inflammable substance near the product.An explosion or fire may result.Ensure the vents are not blocked by tablecloths or curtains.Otherwise, a fire may result from an increased internal temperature.Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable object (paper, match, etc.) into the vent or ports of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 89).Product failure, an electric shock or fire may result. Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 89). Product failure, an electric shock or fire may result.!!!GAS!10 0
16Before Using the Product Before Using the Product CautionLeaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.If you are not going to use the product for an extended period of time, activate power-saving mode or a moving-picture screen saver.Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc.).Otherwise, a fire may result from accumulated dust, overheating, an electric shock, or electric leakage. Use the product at the recommended resolution and frequency.Otherwise,Your eyesight may deteriorate.Do not put DC power adapters together.Otherwise, a fire may result.Remove the plastic bag from the DC power adapter before you use it.Otherwise, a fire may result.Do not let water enter the DC power device or get the device wet.An electric shock or fire may result. Avoid using the product outdoors where it can be exposed to rain or snow.Be careful not to get the DC power adapter wet when you wash the floor.Do not put the DC power adapter near to any heating apparatus.Otherwise, a fire may result.Keep the DC power adapter in a well-ventilated area.Looking at the screen too close for an extended period of time can deteriorate your eyesight.!!-_-!!!!
17Before Using the Product Before Using the ProductDo not hold the monitor upside-down or move it by holding the stand.The product may fall and break or cause a personal injury.Do not use humidifiers or stoves around the product.An electric shock or fire may result.Rest your eyes for more than 5 minutes for every 1 hour of product use.Eye fatigue will be relieved.Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.Store the small accessories used with the product out of reach of children.Exercise caution when adjusting the product angle or stand height.Otherwise, children's fingers or hands may become stuck and injured.Tilting the product excessively may cause it to fall and result in personal injury. Do not place heavy objects on the product.Product failure or personal injure may result.!!!
18Before Using the Product Before Using the ProductCorrect posture to use the product Use the product in the correct posture as follows:Straighten your back.Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly downward at the screen. Keep your eyes directly in front of the screen. Adjust the angle so light does not reflect on the screen.Keep your forearms perpendicular to your upper arms and level with the back of your hands.Keep your elbows at about a right angle.Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.
191 Preparations1 Preparations1.1 Checking the Contents1.1.1 Checking the Components Contact the dealer from whom you purchased the product if any item is missing.The appearance of the components and items sold separately may differ from the image shown. Components Components may vary depending on the country. Quick Setup Guide Warranty card(Not available in some locations)Regulatory guideUser manual (optional) DC power adapter(Integrated)(optional)DC power adapter(Detachable)(optional)Power cable(Only provided with the detachable DC power adapter.)D-SUB cable (optional) HDMI cable (optional)HDMI-DVI cable (optional) Stand base Stand neck
20Preparations11 Preparations1.2 Parts1.2.1 Control Panel The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Icons DescriptionPower LEDThis LED is power status indicator and works asPower on (Power button): OffPower saving mode: BlinkingPower Off (Power button): On The power Indicator operation can be swapped by changing in themenu. (SETUP&RESET Power LED On)Actual models because of functional variation maybe haven’t thisfunction. Function Key GuidePress the [ ] button when the screen is turned on. The Function Key Guide will appear. To access the onscreen menu when the guide is displayed, press the corresponding direction button again. Function Key Guide may vary depending on the function or productmodel. Please refer to the actual product. DOME Type JOG ButtonLEFTFunction Key GuideUPRIGHTDOWNReturnPRESS(ENTER)Power LED
21Preparations11 Preparations1.2.2 Direct Key guideFor guidance on shortcut keys, the OSD (On Screen Display) will appear if you press any button of [].Press [ ] button: Adjust Brightness.Press [ ] button: Adjust the screen settings automatically.Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode.Press [ ] button: Display Function Key Guide.BrightnessAuto AdjustmentFeaturesEye Saver Mode Off
22Preparations11 Preparations1.2.3 Function Key GuideTo enter the main menu or to use other items, press the [ ] button to display the Function Key Guide. You can exit by pressing the [ ] button again.Press button: Move to the item you want. The description for each item will appear when the focus changes.Press [ ] button: The selected item will be applied.Icons DescriptionSelect [ ] to change the input signal by pressing the [ ] button on the Function Key Guide screen. A message will appear on the top left corner of the screen if the input signal has been changed.Select [ ] by pressing the [ ] button on the function key guide screen.The OSD (On Screen Display) of your Monitor’s feature appears.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable/Disable: To lock/unlock the OSD control, press the [ ] button for 10 seconds when the main menu displayed. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. SETUP&RESET Power LED On is available. INFORMATION can be viewed. Return
23Preparations11 Preparations Actual models because of functional variation, Function key guide options will be different.Please run the corresponding function based on the actual icon and description. When the monitor displays nothing (i.e. Power saving mode or Non-signal mode), 2 direct keys for control source and power could be used as below. When the monitor displays the Main menu the DOME Type JOG Button could be used as below. Select [ ] by pressing the [ ] button on the function key guide screen.Press to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE Brightness, Game Mode, BrightCOLOR Red, Green, Blue, Color ToneSETUP&RESET Eco Saving PlusSelect [ ] to turn the Monitor off by pressing the [ ] button on the function key guide screen.DOME Type JOG Button Power saving/Non-signal modeSource ChangePRESS [ ] button for 2 seconds Power OffDOME Type JOG Button Action- Move the option- Exit the Main menu.- Close Sublist without saving value.- Value decreases in the slider.- Move to next depth.- Value increases in the slider.- Move to next depth.- Save the value and close Sublist.Icons DescriptionSAMSUNGMAGIC
24Preparations11 Preparations1.2.4 Reverse Side The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.The exterior may differ depending on the product. Port About portsConnect to a source device using an HDMI cable.Connect to a PC using the D-SUB cable.Connects to the DC power adapter.
25Preparations11 Preparations1.3 Installation1.3.1 Attaching the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.The exterior may differ depending on the product. Insert the stand neck into the stand base in the direction shown in the figure.Check that the stand neck is firmly connected.Tightly fasten the connecting screw at the bottom of the stand base.Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product is facing downwards.Hold the main body of the product with your hand as shown by the figure.Push the assembled stand into the main body in the direction of the arrow as shown in the figure.- CautionDo not hold the product upside down only by the stand.
26Preparations11 Preparations1.3.2 Removing the Stand The exterior may differ depending on the product. Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product faces downwards.While holding the stand neck with one hand, pound the other fisted hand down onto the top of the stand base in the direction of the arrow to detach the stand base.Turn the connecting screw at the bottom of the stand base to separate it.Remove the stand neck from the stand base by pulling it in the direction of the arrow as shown in the figure.
27Preparations11 Preparations1.3.3 Adjusting the Product Tilt The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. You can adjust the tilt of your monitor.Hold the lower part of the product and adjust the tilt carefully.-2° (±2.0°) - 20° (±2.0°)
28Preparations11 Preparations1.3.4 Installing a Wall-mount Kit or Desktop Stand Power the product off and remove the power cable from the power socket. Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding parts on the wall-mount kit or desktop stand you want to attach. NotesUsing a screw longer than the standard length can damage the internal components of the product.The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications.Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm or farther away from the wall.Be sure to use a wall-mount kit that complies with the standards.To install the monitor using a wall mount, disconnect the stand base from the monitor. Attach the wall-mount kit or desktop stand here Bracket (sold separately)241A3BAB
29Preparations11 Preparations1.3.5 Anti-theft LockAn anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. The lock device is sold separately. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. To lock an anti-theft locking device: 1Fix the cable of your anti-theft locking device to a heavy object such as a desk.2Put one end of the cable through the loop on the other end.3Insert the locking device into the anti-theft lock slot at the back of the product.4Lock the locking device. An anti-theft locking device can be purchased separately.Refer to the user guide provided with your anti-theft locking device for details.Anti-theft locking devices can be purchased at electronics retailers or online.
302 Connecting and Using a Source Device2 Connecting and Using a Source Device2.1 Before Connecting2.1.1 Pre-connection CheckpointsBefore connecting a source device, read the user manual provided with it.The number and locations of ports on source devices may differ from device to device.Do not connect the power cable until all connections are completed.Connecting the power cable during connection may damage the product.Check the types of ports at the back of the product you want to connect.2.2 Connecting and Using a PC2.2.1 Connecting to a PCSelect a connection method suitable for your PC. Connecting parts may differ in different products.The exterior may differ depending on the product. Connection Using the D-SUB Cable (Analog Type) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "2.2.2 Connecting the Power".)When the input source is not connected, use the [ ] button to change the input source to Analog.RGB IN
31Connecting and Using a Source Device22 Connecting and Using a Source DeviceConnection Using the HDMI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the PC.2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "2.2.2 Connecting the Power".)3When the input source is not connected, use the [ ] button to change the input source to HDMI.Connection Using an HDMI-DVI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on the PC.2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "2.2.2 Connecting the Power".)3When the input source is not connected, use the [ ] button to change the input source to HDMI.HDMI INHDMI IN
32Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.2 Connecting the Power Connecting parts may differ in different products.The exterior may differ depending on the product. Power connection using integrated DC power adapterConnect the DC power adapter to [DC 14V] port on the back of the product and to the power outlet. The input voltage is switched automatically. Power connection using detachable DC power adapterConnect the power cable to the DC power adapter.Then, connect the DC power adapter to the [DC 14V] port on the back of the product.Next, connect the power cable to the power outlet. The input voltage is switched automatically. DC 14V DC 14V
33Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.3 Driver Installation You can set the optimum resolution and frequency for this product by installing the corresponding drivers.An installation driver is contained on the CD supplied with the product.If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and download the file. 1Insert the user manual CD provided with the product into the CD-ROM drive.2Click "Windows Driver".3Follow the instructions given on the screen to proceed with installation.4Select your product model from the list of models.5Go to Display Properties and check that the resolution and refresh rate are appropriate.Refer to your Windows OS manual for further details.
34Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.4 Setting Optimum ResolutionAn information message about setting optimum resolution will appear if you power on the product for the first time after purchase.Select a language on the product and change the resolution on your PC to the optimum setting.1Select a language by pressing the [ ] button. Next, press the [ ] button.2To hide the information message, press the [ ] button. If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again.The optimum resolution can also be selected in Control Panel on your PC. 5HWXUQ(QJOLVK7KHRSWLPDOUHVROXWLRQIRUWKLVPRQLWRULVDVIROORZV****x**** **Hz8VHWKHDERYHVHWWLQJVWRVHWWKHUHVROXWLRQRQ\RXU3&6HWXS*XLGH
353 Screen Setup3 Screen SetupConfigure the screen settings such as brightness.A detailed description of each function is provided. Refer to your product for details.3.1 BrightnessYou can adjust the general brightness of the picture. (Range: 0~100)A higher value will make the picture appear brighter. This menu is not available when Bright is set to Dynamic Contrast mode.This menu is not available when Eco Saving Plus is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.1.1 Configuring Brightness1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Brightness and press [ ] button on the monitor.The following screen will appear. 4Use the [ ] buttons to adjust the Brightness, then press the [ ] button on the monitor.5The selected option will be applied.SAMSUNGMAGICPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the brightness level. Values closer to 100 mean a brighter screen.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the brightness level. Values closer to 100 mean a brighter screen.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOff
36Screen Setup33 Screen Setup3.2 ContrastAdjust the contrast between the objects and background. (Range: 0~100)A higher value will increase the contrast to make the object appear clearer. This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.2.1 Configuring Contrast1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Contrast and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Contrast, then press the [ ] button on the monitor.5The selected option will be applied.SAMSUNGMAGIC SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffPICTUREPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOff
37Screen Setup33 Screen Setup3.3 SharpnessMake the outline of objects more clear or blurry. (Range: 0~100)A higher value will make the outline of objects clearer. This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Upscale is in Mode1 or Mode2.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.3.1 Configuring Sharpness1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Sharpness and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Sharpness, then press the [ ] button on the monitor.5The selected option will be applied.SAMSUNGMAGICSAMSUNGMAGIC SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffPICTUREPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOff
38Screen Setup33 Screen Setup3.4 Eye Saver ModeSet to an optimum picture quality suitable for eye relaxation.TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will become lower and lower, and one hour later it will approach the optimum picture quality suitable for eye relaxation. When Eye Saver Mode is 'On', the blue light level is lower than in the default settings, as tested by TÜV Rheinland and certified to meet the requirements of TÜV Rheinland's “Low Blue Light Content” standards. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.4.1 Configuring Eye Saver Mode1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Eye Saver Mode and press [ ] button on the monitor.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. SAMSUNGMAGICBrightSAMSUNGMAGICAngleSet to an optimum picture quality suitable for eye relaxation.1007560OffOffCustomOffOffOnBrightnessContrastSharpnessEye Saver ModeGame ModePICTUREPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleSet to an optimum picture quality suitable for eye relaxation.1007560OffOffCustomOffOffOnBrightnessContrastSharpnessEye Saver ModeGame Mode
39Screen Setup33 Screen Setup3.5 Game ModeConfigure the product screen settings for game mode.Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™ is connected. This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.5.1 Configuring Game Mode1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Game Mode and press [ ] button on the monitor. The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off even if it is set to On.If you want to keep Game Mode enabled all the time, select Always On. 1007560OffCustomOffOptimizes image settings for playing games.OffOnAlways OnBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAnglePICTUREPICTURE 1007560OffCustomOffOptimizes image settings for playing games.OffOnAlways OnBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscale
40Screen Setup33 Screen Setup3.6 SAMSUNG MAGIC BrightThis menu provides an optimum picture quality suitable for the environment where the product will be used. This menu is not available when Eco Saving Plus is enabled.This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. You can customize the brightness to suit your preferences.3.6.1 Configuring SAMSUNG MAGIC Bright1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Bright and press [ ] button on the monitor.The following screen will appear.Custom: Customize the contrast and brightness as required.Standard: Obtain a picture quality suitable for editing documents or using Internet.Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.SAMSUNGMAGIC1007560505022000 1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.CustomStandardCinemaDynamic ContrastBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAnglePICTURE1007560505022000PICTURE 1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.CustomStandardCinemaDynamic ContrastBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscale
41Screen Setup33 Screen SetupWhen the external input is connected through HDMI and PC/AV Mode is set to AV, Bright has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.Dynamic: Select this mode to view a sharper image than in Standard mode.Standard: Select this mode when the surroundings are bright. This also provides a sharp image.Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.Custom: Select this mode when you want to adjust the image according to your preferences.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.1007560505022000 1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.DynamicStandardMovieCustomBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAnglePICTURE1007560505022000PICTURE 1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.DynamicStandardMovieCustomBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleSAMSUNGMAGIC
42Screen Setup33 Screen Setup3.7 SAMSUNG MAGIC Angle (S19E310HY / S22E310HY / S22E310H / S27E310H)Angle allows you to configure the settings to obtain the optimum picture quality according to your viewing angle. This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. This feature provides the viewing angle, brightness, and tint to suit your preferences.3.7.1 Configuring SAMSUNG MAGIC Angle1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Angle and press [ ] button on the monitor.The following screen will appear.Off : Select this option to view directly in front of the product.Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.Standing Mode : Select this option to view from a place higher than the product.Side Mode : Select this option to view from either side of the product.SAMSUNGMAGICSAMSUNGMAGICSAMSUNGMAGIC1007560505022000 1007560CustomOffOffWideoffLean Back Mode 1Lean Back Mode 2Standing ModeSide ModeBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAngleSelect an angle that best suits your viewing position.PICTURE423115 5①② ③④⑤
43Screen Setup33 Screen SetupGroup View: Select this option for more than one viewer to view from places , and .Custom: Lean Back Mode 1 will be applied by default if Custom is selected.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.①④⑤
44Screen Setup33 Screen Setup3.8 SAMSUNG MAGIC UpscaleUpscale function can enhance the layers of the picture details and the vividness of the picture. The function has more obvious effects on low-resolution pictures.This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.8.1 Configuring SAMSUNG MAGIC Upscale1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Upscale and press [ ] button on the monitor.The following screen will appear.Comparing with Mode1, Mode2 has a stronger effect.SAMSUNGMAGICSAMSUNGMAGICSAMSUNGMAGIC Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscale50502200offMode1Mode2Enhance picture detail and vividness.PICTURE1007560505022000PICTURE 1007560CustomOffOffWideEnhance picture detail and vividness.offMode1Mode2BrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscale Image SizeHDMI Black LevelH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscaleoffMode1Mode2Enhance picture detail and vividness.PICTURE5022000
45Screen Setup33 Screen Setup4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.
46Screen Setup33 Screen Setup3.9 Image SizeChange the picture size. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.9.1 Changing the Image Size1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Image Size and press [ ] button on the monitor.The following screen will appear.Auto: Display the picture according to the aspect ratio of the input source.Wide: Display the picture in full screen regardless of the aspect ratio of the input source.In PC mode AutoWideChoose the size and aspect ratio of the picture displayed on screen.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscale50502200PICTUREPICTURE AutoWideChoose the size and aspect ratio of the picture displayed on screen.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine505022000 AutoWideChoose the size and aspect ratio of the picture displayed on screen.SAMSUNGMAGICUpscalePICTUREImage SizeHDMI Black LevelH-PositionV-PositionCoarseFine5022000
47Screen Setup33 Screen Setup4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.16:9: Display the picture with an aspect ratio of 16:9.Screen Fit: Display the picture with the original aspect ratio without cutting off. Changing the screen size is available when the following conditions are satisfied.The function may not be supported depending on the ports provided with the product.A digital output device is connected using the HDMI cable.The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of these signals.).This can only be set when the external input is connected through HDMI and PC/AV Mode is set to AV. 4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.In AV mode Choose the size and aspect ratio of the picture displayed on screen.4:316:9Screen FitImage SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscalePICTUREPICTURE Choose the size and aspect ratio of the picture displayed on screen.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine4:316:9Screen Fit Choose the size and aspect ratio of the picture displayed on screen.4:316:9Screen FitSAMSUNGMAGICUpscalePICTUREImage SizeHDMI Black LevelH-PositionV-PositionCoarseFine
48Screen Setup33 Screen Setup3.10 HDMI Black LevelIf a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/color degradation, black level, etc.) may occur, depending on the connected source device. In such case, HDMI Black Level can be used to adjust the image quality. If this is the case, correct the degraded picture quality using HDMI Black Level. This function is only available in HDMI mode.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.10.1 Configuring the HDMI Black Level Settings1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to HDMI Black Level and press [ ] button on the monitor.The following screen will appear. NormalLowOptimize HDMI picture brightness and contrast by adjusting the black level of the video signal.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscale OffPICTUREPICTURE NormalLowOptimize HDMI picture brightness and contrast by adjusting the black level of the video signal.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine NormalLowOptimize HDMI picture brightness and contrast by adjusting the black level of the video signal.SAMSUNGMAGICUpscale OffPICTUREImage SizeHDMI Black LevelH-PositionV-PositionCoarseFine
49Screen Setup33 Screen SetupNormal: Select this mode when there is no contrast ratio degradation.Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. HDMI Black Level may not be compatible with some source devices.
50Screen Setup33 Screen Setup3.11 Response Time (S24E310HL / S27E310H)Accelerate the panel response rate to make video appear more vivid and natural. It is best to set Response Time to Standard or Faster when you are not viewing a movie.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.11.1 Configuring the Response Time1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Response Time and press [ ] button on the monitor.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. StandardFasterFastestAccelerate the panel response rate to make video appear more vivid and natural.OffWideImage SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscalePICTUREPICTURE StandardFasterFastestAccelerate the panel response rate to make video appear more vivid and natural.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine 0Wide
51Screen Setup33 Screen Setup3.12 H-Position & V-PositionH-Position: Move the screen to the left or right.V-Position: Move the screen up or down. This menu is available in Analog mode only. This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select Screen Fit to adjust horizontal position in 0-6 levels.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.12.1 Configuring H-Position & V-Position1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to H-Position or V-Position and press [ ] button on the monitor.The following screen will appear. Faster50502200Move the image displayed on the screen to the left or right.OffWideImage SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscalePICTURE Move the image displayed on the screen up or down.Faster50502200OffWideImage SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscalePICTUREPICTURE Faster505022000Move the image displayed on the screen to the left or right.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWidePICTURE Faster505022000Move the image displayed on the screen up or down.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWide
52Screen Setup33 Screen Setup4Use the [ ] buttons to adjust the H-Position or V-Position, then press the [ ] button on the monitor.5The selected option will be applied. 505022000Move the image displayed on the screen to the left or right.OffWideImage SizeHDMI Black LevelH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTURE Move the image displayed on the screen up or down.505022000OffWideImage SizeHDMI Black LevelH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTURE
53Screen Setup33 Screen Setup3.13 CoarseAdjust the screen frequency. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.13.1 Adjusting Coarse1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Coarse and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Coarse, then press the [ ] button on the monitor.5The selected option will be applied.PICTURE Adjust the screen frequency.Faster50502200OffWideImage SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseSAMSUNGMAGICUpscalePICTURE Adjust the screen frequency.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWideFaster505022000PICTURE Adjust the screen frequency.OffWideSAMSUNGMAGICUpscale505022000Image SizeHDMI Black LevelH-PositionV-PositionCoarseFine
54Screen Setup33 Screen Setup3.14 FineFine-adjust the screen to obtain a vivid picture. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.14.1 Adjusting Fine1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to PICTURE and press [ ] button on the monitor.3Press [ ] button to move to Fine and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Fine, then press the [ ] button on the monitor.5The selected option will be applied.PICTURE Fine-tune the screen to get a vivid picture.Fine 0PICTURE Fine-tune the screen to get a vivid picture.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWideFaster505022000PICTURE OffWideSAMSUNGMAGICUpscale505022000Image SizeHDMI Black LevelH-PositionV-PositionCoarseFineFine-tune the screen to get a vivid picture.
554 Configuring Tint4 Configuring Tint A detailed description of each function is provided. Refer to your product for details.Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or Dynamic Contrast mode. This menu is not available when Game Mode is enabled.SAMSUNGMAGIC4.1 RedAdjust the value of the color red in the picture. (Range: 0~100)A higher value will increase the intensity of the color. This menu is not available when Eye Saver Mode is enabled. 4.1.1 Configuring Red1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to COLOR and press [ ] button on the monitor.3Press [ ] button to move to Red and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Red, then press the [ ] button on the monitor.5The selected option will be applied. RedGreenBlueColor ToneGammaAdjust the red saturation level. Values closer to 100 mean greater intensity for the color.505050NormalMode1COLOR
56Configuring Tint44 Configuring Tint4.2 GreenAdjust the value of the color green in the picture. (Range: 0~100)A higher value will increase the intensity of the color. This menu is not available when Eye Saver Mode is enabled. 4.2.1 Configuring Green1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to COLOR and press [ ] button on the monitor.3Press [ ] button to move to Green and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Green, then press the [ ] button on the monitor.5The selected option will be applied.COLOR RedGreenBlueColor ToneGamma505050NormalMode1Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.
57Configuring Tint44 Configuring Tint4.3 BlueAdjust the value of the color blue in the picture. (Range: 0~100)A higher value will increase the intensity of the color. This menu is not available when Eye Saver Mode is enabled. 4.3.1 Configuring Blue1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to COLOR and press [ ] button on the monitor.3Press [ ] button to move to Blue and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Blue, then press the [ ] button on the monitor.5The selected option will be applied. RedGreenBlueColor ToneGamma505050NormalMode1Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color.COLOR
58Configuring Tint44 Configuring Tint4.4 Color ToneAdjust the general color tone of the picture. This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 4.4.1 Configuring the Color Tone Settings1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to COLOR and press [ ] button on the monitor.3Press [ ] button to move to Color Tone and press [ ] button on the monitor.The following screen will appear.Cool 2: Set the color temperature to be cooler than Cool 1.Cool 1: Set the color temperature to be cooler than Normal mode.Normal: Display the standard color tone.Warm 1: Set the color temperature to be warmer than Normal mode.Warm 2: Set the color temperature to be warmer than Warm 1.Custom: Customize the color tone. When the external input is connected through HDMI and PC/AV Mode is set to AV, Color Tone has four color temperature settings (Cool, Normal, Warm and Custom). 4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.SAMSUNGMAGIC 505050NormalMode1RedGreenBlueColor ToneGammaCool 2 Cool 1 NormalWarm 1 Warm 2Select a color tone that best suits your viewing needs.COLOR
59Configuring Tint44 Configuring Tint4.5 GammaAdjust the mid-range brightness (Gamma) of the picture. This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 4.5.1 Configuring Gamma1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to COLOR and press [ ] button on the monitor.3Press [ ] button to move to Gamma and press [ ] button on the monitor.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.SAMSUNGMAGIC 505050NormalMode1RedGreenBlueColor ToneGammaMode1 Mode2Mode3Adjust the middle level of luminance.COLOR
605 Coordinating OSD5 Coordinating OSDA detailed description of each function is provided. Refer to your product for details.5.1 LanguageSet the menu language. A change to the language setting will only be applied to the onscreen menu display.It will not be applied to other functions on your PC. 5.1.1 Configuring Language1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.3Press [ ] button to move to Language and press [ ] button on the monitor.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.MENU SETTINGS DeutschEnglishEspañolFrançaisItalianoLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency Set the menu language.
61Coordinating OSD55 Coordinating OSD5.2 Menu H-Position & Menu V-PositionMenu H-Position: Move the menu position to the left or right. Menu V-Position: Move the menu position up or down. 5.2.1 Configuring Menu H-Position & Menu V-Position1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.3Press [ ] button to move to Menu H-Position or Menu V-Position and press [ ] button on the monitor.The following screen will appear.4Use the [ ] buttons to adjust the Menu H-Position or Menu V-Position, then press the [ ] button on the monitor.5The selected option will be applied. LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency English100220 secOnMove the menu position to the left or right.MENU SETTINGS LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency English100220 secOnMove the menu position up or down.MENU SETTINGS
62Coordinating OSD55 Coordinating OSD5.3 Display TimeSet the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time.Display Time can be used to specify the time after which you want the OSD menu to disappear.5.3.1 Configuring Display Time1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.3Press [ ] button to move to Display Time and press [ ] button on the monitor.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. English100220 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency 5 sec10 sec20 sec200 secSet how long the menu window will remain on screen for when it is not in use.MENU SETTINGS
63Coordinating OSD55 Coordinating OSD5.4 TransparencySet the transparency for the menu windows.5.4.1 Changing Transparency1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to MENU SETTINGS and press [ ] button on the monitor.3Press [ ] button to move to Transparency and press [ ] button on the monitor. The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.MENU SETTINGS English100220 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency OffOnConfigure the transparency of the menu windows.
646 Setup and Reset6 Setup and Reset A detailed description of each function is provided. Refer to your product for details.6.1 Reset All Return all the settings for the product to the default factory settings. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.1.1 Initializing Settings (Reset All)1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Press [ ] button to move to Reset All and press [ ] button on the monitor.The following screen will appear.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.SETUP&RESET OffAccelerationAutoStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnReturn all the settings for the product to the default factory settings. $OOWKHPHQXVHWWLQJVZLOOEHUHVHWWRGHIDXOW$UH\RXVXUH\RXZDQWWRUHVHW"<HV 1R
65Setup and Reset66 Setup and Reset6.2 Eco Saving Plus The Eco Saving Plus function reduces power consumption by controlling the electric current used by the monitor panel. This menu is not available when Bright is in Dynamic Contrast mode.This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.2.1 Configuring Eco Saving Plus1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Press [ ] button to move to Eco Saving Plus and press [ ] button on the monitor.The following screen will appear.Off: Deactivate the Eco Saving Plus function.Auto: The power consumption will automatically be reduced by about 10% over the default setting.(The reduction of power consumption depends on the customer screen brightness condition.)Low: The power consumption will be reduced by 25% over the default setting.High: The power consumption will be reduced by 50% over the default setting.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.SAMSUNGMAGIC AccelerationAutoStand-byOffAutoLowHighReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnAdjust the power consumption of the product to save energy.SETUP&RESET
66Setup and Reset66 Setup and Reset6.3 Off TimerYou can set the product to automatically turn off. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.3.1 Configuring Off Timer1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Use the [ ] button to move to Off Timer, then press the [ ] button on the monitor twice.The following screen will appear.Off: Deactivate the off timer so that the product does not power off automatically.On: Activate the off timer so that the product powers off automatically.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. OffAccelerationAutoStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnEnable or disable the Off Timer.SETUP&RESET Off TimerOff TimerTurn Off After OffOnEnable or disable the Off Timer.
67Setup and Reset66 Setup and Reset6.3.2 Configuring Turn Off After1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Press [ ] button to move to Off Timer and press [ ] button on the monitor.4Press [ ] button to move to Turn Off After and press [ ] button on the monitor.The following screen will appear. 5Use the [ ] buttons to adjust the Turn Off After, then press the [ ] button on the monitor.6The selected option will be applied. The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours.This option is only available when Off Timer is set to On.For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU SETUP&RESET and set Off Timer to Off. Off TimerOff TimerTurn Off After On4hSet the monitor to automatically turn off after a certain time period.→
68Setup and Reset66 Setup and Reset6.4 PC/AV ModeSet PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. This function does not support Analog mode.Supplied for the wide models only such as 16:9 or 16:10.If the monitor (when set to HDMI) is in power saving mode or is displaying the message Check Signal Cable, press the MENU button to display the On Screen Display(OSD). You can select PC or AV.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.4.1 Configuring PC/AV Mode1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Press [ ] button to move to PC/AV Mode and press [ ] button on the monitor.4Press [ ] button to move to HDMI and press [ ] button on the monitor.The following screen will appear.5Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.6The selected option will be applied. OffAccelerationAutoStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnSet to AV to enlarge the picture.SETUP&RESET HDMI PCAVSelect the PC/AV mode for the HDMI source.SETUP&RESET
69Setup and Reset66 Setup and Reset6.5 Key Repeat TimeControl the response rate of a button when the button is pressed. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.5.1 Configuring Key Repeat Time1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Press [ ] button to move to Key Repeat Time and press [ ] button on the monitor.The following screen will appear.Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied. OffAccelerationAutoAcceleration1 sec2 secNo RepeatReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnConfigure the response rate of a button when the button is pressed.SETUP&RESET
70Setup and Reset66 Setup and Reset6.6 Source DetectionYou can activate Source Detection. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.6.1 Configuring Source Detection1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Press [ ] button to move to Source Detection and press [ ] button on the monitor.The following screen will appear.Auto: The input source is automatically recognized.Manual: Manually select an input source.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.SETUP&RESET OffAutoAutoManualReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnDecide how input sources will be detected.
71Setup and Reset66 Setup and Reset6.7 Power LED OnConfigure the settings to enable or disable the power LED located at the lower part of the product. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.7.1 Configuring Power LED On1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to SETUP&RESET and press [ ] button on the monitor.3Press [ ] button to move to Power LED On and press [ ] button on the monitor.The following screen will appear.Working: The power LED is on when the product is turned on.Stand-by: The power LED is on when the product is turned off.4Move the focus to the desired option by pressing [ ] button on the DOME Type JOG Button. Press [ ] button.5The selected option will be applied.SETUP&RESET OffAutoWorkingStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnSet the status of the power LED.
727 INFORMATION Menu and Others7 INFORMATION Menu and OthersA detailed description of each function is provided. Refer to your product for details.7.1 INFORMATIONView the current input source, frequency and resolution. The functions available on the monitor may vary depending on the model. Refer to the actual product. 7.1.1 Displaying INFORMATION1When the Function Key Guide appears, select [ ] by pressing [ ] button on the DOME Type JOG Button. Next, press the [ ] button.2Press [ ] button to move to INFORMATION and press [ ] button on the monitor.The following screen will appear. The displayed menu items may vary depending on the model. INFORMATION Model : ********** / ** S / N : ***************Analog**kHz **Hz NN**** x ****Optimal Mode**** x **** **HzPICTURECOLORMENU SETTINGSSETUP&RESETINFORMATION
73INFORMATION Menu and Others77 INFORMATION Menu and Others7.2 Configuring Brightness, Contrast and Sharpness from the Initial Screen When the shortcut button page is displayed, adjust the Brightness, Contrast and Sharpness settings from the initial screen using the DOME Type JOG Button. Brightness :This menu is not available when Bright is set to Dynamic Contrast mode.This menu is not available when Eco Saving Plus is enabled.This menu is not available when Eye Saver Mode is enabled. Contrast :This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled. Sharpness :This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled. 1Using the [ ] button displays the following screen.2Use the [ ] button to navigate to Brightness Contrast Sharpness.3Use the [ ] button to adjust the Brightness, Contrast or Sharpness.SAMSUNGMAGICSAMSUNGMAGICSAMSUNGMAGICContrastSharpness100Brightness
748 Installing the Software8 Installing the Software8.1 Easy Setting Box"Easy Setting Box" enables users to use the monitor by partitioning multiple sections.8.1.1 Installing the Software1Insert the installation CD into the CD-ROM drive.2Select the "Easy Setting Box" setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the "Easy Setting Box" setup file on the CD-ROM. 3When the Installation Wizard appears, click Next.4Follow the instructions given on the screen to proceed with installation. The software may not work properly if you do not restart the computer after the installation.The "Easy Setting Box" icon may not appear depending on the computer system and the product specifications.If the shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation ("Easy Setting Box")The "Easy Setting Box" installation may be affected by the Graphics Card, Motherboard and the Networking Environment.System RequirementsOSWindows XP 32Bit/64BitWindows Vista 32Bit/64BitWindows 7 32Bit/64BitWindows 8 32Bit/64BitHardwareAt least 32MB of memoryAt least 60MB of free space on the hard disk driveEasy Setting Box
75Installing the Software88 Installing the Software8.1.2 Removing the SoftwareClick Start, select Settings/Control Panel, and then double-click Add or Remove Programs.Select "Easy Setting Box" from the program list and click the Add/Delete button.
769 Troubleshooting Guide9 Troubleshooting Guide9.1 Requirements Before Contacting Samsung Customer Service Center9.1.1 Testing the Product Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function.If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.1Power off both the PC and product.2Disconnect the cables from the product.3Power on the product.4If the message Check Signal Cable appears, the product is working normally. If the screen remains blank, check the PC system, video controller and cable. 9.1.2 Checking the Resolution and FrequencyFor a mode that exceeds the supported resolution (refer to "10.6 Standard Signal Mode Table"), the message Not Optimum Mode will appear for a short time.9.1.3 Check the following.Installation issue (PC mode)Issues SolutionsThe screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connectors are locked. (Refer to "2.2 Connecting and Using a PC")
77Troubleshooting Guide99 Troubleshooting GuideScreen issueIssues SolutionsThe power LED is off. The screen will not switch on.Check that the power cable is connected properly. (Refer to "2.2 Connecting and Using a PC")The message Check Signal Cable appears. Check that the cable is properly connected to the product. (Refer to "2.2 Connecting and Using a PC")Check that the device connected to the product is powered on.Not Optimum Mode is displayed. This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (page 86).The images on the screen look distorted. Check the cable connection to the product (Refer to "2.2 Connecting and Using a PC")The screen is not clear. The screen is blurry. Adjust Coarse (page 53) and Fine (page 54).Remove any accessories (video extension cable, etc.) and try again.Set the resolution and frequency to the recommended level.The screen appears unstable and shaky. Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (page 86) in this manual and the INFORMATION menu on the product.There are shadows or ghost images left on the screen.The screen is too bright. The screen is too dark. Adjust Brightness (page 35) and Contrast (page 36).Screen color is inconsistent. Change the COLOR settings. (Refer to " Configuring Tint")The colors on the screen have a shadow and are distorted.Change the COLOR settings. (Refer to " Configuring Tint")White does not really look white. Change the COLOR settings. (Refer to " Configuring Tint")
78Troubleshooting Guide99 Troubleshooting GuideSource device issue The LED lights on the frame of the product may be seen depending on the user's viewing angle. The light is harmless to people and has no bearing on product features and performance. The product is safe to use. There is no image on the screen and the power LED blinks every 0.5 to 1 second.The product is operating in power-saving mode.Press any key on the keyboard or move the mouse to return to normal operating mode.Issues SolutionsA beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is booting, have your PC serviced.Issues Solutions
79Troubleshooting Guide99 Troubleshooting Guide9.2 Q & AQuestion AnswerHow can I change the frequency?Set the frequency on your graphics card.Windows XP: Go to Control Panel Appearance and Themes Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings.Windows ME/2000: Go to Control Panel Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings.Windows Vista: Go to Control Panel Appearance and Personalization Personalization Display Settings Advanced Settings Monitor, and adjust Refresh rate under Monitor settings.Windows 7: Go to Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings.Windows 8: Go to Settings Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings.
80Troubleshooting Guide99 Troubleshooting Guide Refer to the user manual for your PC or graphics card for further instructions on adjustment. How can I change the resolution?Windows XP: Go to Control Panel Appearance and Themes Display Settings, and adjust the resolution.Windows ME/2000: Go to Control Panel Display Settings, and adjust the resolution.Windows Vista: Go to Control Panel Appearance and Personalization Personalize Display Settings, and adjust the resolution.Windows 7: Go to Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution.Windows 8: Go to Settings Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution.How do I set power-saving mode?Windows XP: Set power-saving mode in Control Panel Appearance and Themes Display Screen Saver Settings or BIOS SETUP on the PC. Windows ME/2000: Set power-saving mode in Control Panel Display Screen Saver Settings or BIOS SETUP on the PC.Windows Vista: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Windows 7: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Windows 8: Set power-saving mode in Settings Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Question Answer
8110 Specifications10 Specifications10.1 General (S19E310HY) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S19E310HYPanel Size 18.5 Inches (47 cm)Display area 409.8 mm (H) x 230.4 mm (V)16.1 Inches (H) x 9.1 Inches (V)Pixel Pitch 0.300 mm (H) x 0.300 mm (V)0.011811 Inches (H) x 0.011811 Inches (V)Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 447.1 x 271.2 x 89.8 mm17.6 x 10.7 x 3.5 InchesWith Stand 447.1 × 352.8 × 198.7 mm / 2.40 kg17.6 x 13.9 x 7.8 Inches / 5.3 lbsVESA Mounting Interface 75 x 75 mm3.0 x 3.0 Inches(For use with Specialty(Arm) Mounting hardware.)Environmental considerationsOperating Temperature : 50°F – 104°F (10°C – 40°C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4°F – 113°F (-20°C – 45°C)Humidity : 5% – 95%, non-condensing
82Specifications1010 Specifications10.2 General (S22E310HY / S22E310H) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S22E310HY / S22E310HPanel Size 21.5 Inches (54 cm)Display area 476.64 mm (H) x 268.11 mm (V)18.8 Inches (H) x 10.6 Inches (V)Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)0.009774 Inches (H) x 0.009774 Inches (V)Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 513.7 x 308.6 × 90.4 mm20.2 x 12.1 x 3.6 InchesWith Stand 513.7 × 390.5 × 189.7 mm / 3.00 Kg20.2 x 15.4 x 7.5 Inches / 6.6 lbsVESA Mounting Interface 75 x 75 mm3.0 x 3.0 Inches(For use with Specialty(Arm) Mounting hardware.)Environmental considerationsOperating Temperature : 50°F – 104°F (10°C – 40°C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4°F – 113°F (-20°C – 45°C)Humidity : 5% – 95%, non-condensing
83Specifications1010 Specifications10.3 General (S24E310HL) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S24E310HLPanel Size 23.6 Inches (59 cm)Display area 521.28 mm (H) x 293.22 mm (V)20.5 Inches (H) x 11.5 Inches (V)Pixel Pitch 0.2715 mm (H) x 0.2715 mm (V)0.010689 Inches (H) x 0.010689 Inches (V)Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions(W x H x D) / WeightWithout Stand 561.6 × 335.7 × 93.3 mm22.1 x 13.2 x 3.7 InchesWith Stand 561.6 x 417.5 x 200.7 mm / 3.7 Kg22.1 x 16.4 x 7.9 Inches / 8.2 lbsVESA Mounting Interface 75 x 75 mm3.0 x 3.0 Inches(For use with Specialty(Arm) Mounting hardware.)Environmental considerationsOperating Temperature : 50°F – 104°F (10°C – 40°C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4°F – 113°F (-20°C – 45°C)Humidity : 5% – 95%, non-condensing
84Specifications1010 Specifications10.4 General (S27E310H) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S27E310HPanel Size 27 Inches (68 cm)Display area 597.6 mm (H) x 336.15 mm (V)23.5 Inches (H) x 13.2 Inches (V)Pixel Pitch 0.31125 mm (H) x 0.31125 mm (V)0.012254 Inches (H) x 0.012254 Inches (V)Power Supply AC 100 - 240 V ~ (+/- 10%), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions(W x H x D) / WeightWithout Stand 643.4 x 385.3 x 95.1 mm25.3 x 15.2 x 3.7 InchesWith Stand 643.4 x 463.1 x 200.7 mm / 4.5 Kg25.3 x 18.2 x 7.9 Inches / 9.9 lbsVESA Mounting Interface 75 x 75 mm3.0 x 3.0 Inches(For use with Specialty(Arm) Mounting hardware.)Environmental considerationsOperating Temperature : 50°F – 104°F (10°C – 40°C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4°F – 113°F (-20°C – 45°C)Humidity : 5% – 95%, non-condensing
85Specifications1010 Specifications10.5 PowerSaverThe power-saving function of this product reduces power consumption by switching off the screen and making the Power LED blink if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-saving function. The power consumption level can vary in different operating conditions or when settings are changed.ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.Energy Star power is measured with the test method in the current Energy Star® Standard.To reduce the power consumption to 0, disconnect the power cord. Be sure to disconnect the power cable when you will not be using the product for an extended period of time. To reduce the power consumption to 0 W when the power switch is not available, disconnect the power cable. PowerSaver Energy Star Power Consumption Power saving mode Power off (Power button)Power Indicator Off Blinking OnPower Consumption(S19E310HY) Typical TBD W Typical TBD WMax TBD W Less than TBD WPower Consumption(S22E310HY) Typical TBD W Typical TBD WMax TBD W Less than TBD WPower Consumption(S22E310H) Typical TBD W Typical TBD WMax TBD W Less than TBD WPower Consumption(S24E310HL) Typical TBD W Typical TBD WMax TBD W Less than TBD WPower Consumption(S27E310H) Typical TBD W Typical TBD WMax TBD W Less than TBD W
86Specifications1010 Specifications10.6 Standard Signal Mode Table This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for the screen size of your product.Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor. If the LCD monitor does not support 85 Hz, change the vertical frequency to 60 Hz using the CDT monitor before you exchange it with the LCD monitor. If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.S19E310HYModel NameS22E310HY /S22E310H / S24E310HL / S27E310HS19E310HYSynchronization Horizontal Frequency 30 – 81 kHzVertical Frequency 56 – 75 HzResolution Optimum Resolution 1920 x 1080 @ 60 Hz 1366 x 768 @ 60 HzMaximum Resolution 1920 x 1080 @ 60 Hz 1366 x 768 @ 60 HzResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+VESA, 640 x 480 31.469 59.940 25.175 -/-MAC, 640 x 480 35.000 66.667 30.240 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+ VESA, 800 x 600 46.875 75.000 49.500 +/+MAC, 832 x 624 49.726 74.551 57.284 -/-
87Specifications1010 SpecificationsS22E310HY / S22E310H / S24E310HL / S27E310HVESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1366 x 768 47.712 59.790 85.500 +/+ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+ VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+ VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+ VESA, 1600 x 900 (RB) 60.000 60.000 108.000 +/+ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)
88Specifications1010 Specifications Horizontal FrequencyThe time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.Vertical FrequencyRepeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz. VESA, 1680 x 1050 65.290 59.954 146.250 -/+ VESA, 1920 x 1080 67.500 60.000 148.500 +/+ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)
89 Appendix AppendixContact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. NORTH AMERICAU.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us/supportCANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca/support (English)http://www.samsung.com/ca_fr/support (French)LATIN AMERICAARGENTINE 0800-333-3733 http://www.samsung.com/ar/supportBOLIVIA 800-10-7260 http://www.samsung.com/cl/supportBRAZIL 0800-124-421 (Demais cidades e regiões)4004-0000 (Capitais e grandes centros)http://www.samsung.com/br/supportCHILE 800-SAMSUNG (726-7864) http://www.samsung.com/cl/supportCOLOMBIA Bogotá 600 12 72Gratis desde cualquier parte del país 01 8000 112 112 ó desde su celular #SAM(726)http://www.samsung.com/co/supportCOSTA RICA 0-800-507-726700-800-1-SAMSUNG (726-7864)http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)DOMINICA 1-800-751-2676 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)ECUADOR 1-800-10-726701-800-SAMSUNG (72-6786)http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)
90Appendix AppendixEL SALVADOR 800-6225 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)GUATEMALA 1-800-299-00131-800-299-0033http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)HONDURAS 800-27919267 800-2791-9111http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)JAMAICA 1-800-234-72671-800-SAMSUNG (726-7864)http://www.samsung.com/latin_en/support (English)MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com/mx/supportNICARAGUA 001-800-5077267 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)PANAMA 800-7267800-0101http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)PARAGUAY 009-800-542-0001 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)PERU 0-800-777-08 http://www.samsung.com/pe/supportPUERTO RICO 1-800-682-3180 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)LATIN AMERICA
91Appendix AppendixURUGUAY 000-405-437-33 http://www.samsung.com/latin/support (Spanish)http://www.samsung.com/latin_en/support (English)VENEZUELA 0-800-SAMSUNG (726-7864) http://www.samsung.com/ve/supportEUROPEAUSTRIA 0800 - SAMSUNG (0800 - 7267864)http://www.samsung.com/at/supportBELGIUM 02-201-24-18 http://www.samsung.com/be/support (Dutch)http://www.samsung.com/be_fr/support (French)BOSNIA 051 331 999 http://www.samsung.com/supportBULGARIA http://www.samsung.com/bg/supportCROATIA 072 726 786 http://www.samsung.com/hr/supportCYPRUS 8009 4000 only from landline, toll freehttp://www.samsung.com/gr/supportCZECH 800 - SAMSUNG (800-726786) http://www.samsung.com/cz/supportSamsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 - Praha 4DENMARK 70 70 19 70 http://www.samsung.com/dk/supportEIRE 0818 717100 http://www.samsung.com/ie/supportESTONIA 800-7267 http://www.samsung.com/ee/supportFINLAND 030-6227 515 http://www.samsung.com/fi/supportFRANCE 01 48 63 00 00 http://www.samsung.com/fr/supportLATIN AMERICA800 111 31, 
92Appendix AppendixGERMANY 0180 6 SAMSUNG bzw.0180 6 7267864*(*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)http://www.samsung.com/de/supportGREECE 80111-SAMSUNG (80111 7267864) only from land line(+30) 210 6897691 from mobileand land linehttp://www.samsung.com/gr/supportHUNGARY 0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)http://www.samsung.com/hu/supportITALIA 800-SAMSUNG (800.7267864) http://www.samsung.com/it/supportLATVIA 8000-7267 http://www.samsung.com/lv/supportLITHUANIA 8-800-77777 http://www.samsung.com/lt/supportLUXEMBURG 261 03 710 http://www.samsung.com/supportMONTENEGRO 020 405 888 http://www.samsung.com/supportNETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min)http://www.samsung.com/nl/supportNORWAY 815 56480 http://www.samsung.com/no/supportPOLAND http://www.samsung.com/pl/support PORTUGAL 808 20 7267 http://www.samsung.com/pt/supportROMANIA 08008 726 78 64 (08008 SAMSUNG) Apel GRATUIThttp://www.samsung.com/ro/supportSERBIA 011 321 6899 http://www.samsung.com/rs/supportSLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com/sk/supportSLOVENIA 080 697 267090 726 786http://www.samsung.com/siEUROPE0 801-172-678* lub +48 22 607-93-33 *
93Appendix AppendixSPAIN 0034902172678 http://www.samsung.com/es/supportSWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com/se/supportSWITZERLAND 0800 726 78 64 (0800-SAMSUNG) http://www.samsung.com/ch/support (German)http://www.samsung.com/ch_fr/support (French)UK 0330 SAMSUNG (7267864) http://www.samsung.com/uk/supportCISARMENIA 0-800-05-555 http://www.samsung.com/supportAZERBAIJAN 0-88-555-55-55 http://www.samsung.com/supportBELARUS 810-800-500-55-500 http://www.samsung.com/supportGEORGIA 0-800-555-555 http://www.samsung.com/supportKAZAKHSTAN 8-10-800-500-55-500(GSM: 7799, VIP care 7700)http://www.samsung.com/supportKYRGYZSTAN 8-10-800-500-55-500 http://www.samsung.com/kz_ru/supportMOLDOVA 0-800-614-40 http://www.samsung.com/supportMONGOLIA 7-495-363-17-00 http://www.samsung.com/supportRUSSIA 8-800-555-55-55 http://www.samsung.com/ru/supportTADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com/supportUKRAINE 0-800-502-000 http://www.samsung.com/ua/support (Ukrainian)http://www.samsung.com/ua_ru/support (Russian)UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com/supportEUROPE
94Appendix AppendixCHINACHINA 400-810-5858 http://www.samsung.com/cn/supportHONG KONG (852) 3698 4698 http://www.samsung.com/hk/support (Chinese)http://www.samsung.com/hk_en/support (English)MACAU 0800 333 http://www.samsung.com/supportS.E.AAUSTRALIA 1300 362 603 http://www.samsung.com/au/supportINDONESIA 021-5699777708001128888http://www.samsung.com/id/supportJAPAN 0120-363-905 http://www.samsung.com/jp/supportMALAYSIA 1800-88-9999603-77137477 (Overseas contact)http://www.samsung.com/my/supportMYANMAR 01-2399888 http://www.samsung.com/supportNEW ZEALAND 0800 726 786 http://www.samsung.com/nz/supportPHILIPPINES 1-800-10-7267864 [PLDT]1-800-8-7267864 [Globe landlineand Mobile]02-4222111 [Other landline]http://www.samsung.com/ph/supportSINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg/supportTAIWAN 0800-329999 http://www.samsung.com/tw/supportTHAILAND 0-2689-3232,1800-29-3232http://www.samsung.com/th/supportVIETNAM 1800 588 889 http://www.samsung.com/vn/supportS.W.ABANGLADESH 09612300300 http://www.samsung.com/in/support
95Appendix AppendixINDIA 1800 3000 8282 - Toll Free1800 266 8282 - Toll Freehttp://www.samsung.com/in/supportSRI LANKA 00941175405400094115900000http://www.samsung.com/supportMENAALGERIA 021 36 11 00 http://www.samsung.com/n_africa/supportBAHRAIN 8000-GSAM (8000-4726) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)EGYPT 08000-72678616580http://www.samsung.com/eg/supportIRAN 021-8255 http://www.samsung.com/iran/supportJORDAN 0800-2227306 5777444http://www.samsung.com/Levant/support (English)KUWAIT 183-CALL (183-2255) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)MOROCCO 080 100 22 55 http://www.samsung.com/n_africa/supportOMAN 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)PAKISTAN 0800-Samsung (72678) http://www.samsung.com/pk/supportQATAR 800-CALL (800-2255) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)SAUDI ARABIA 920021230 http://www.samsung.com/sa/supporthttp://www.samsung.com/sa_en/support (English)S.W.A
96Appendix AppendixSYRIA 18252273 http://www.samsung.com/Levant/support (English)TUNISIA 80-1000-12 http://www.samsung.com/n_africa/supportTURKEY 444 77 11 http://www.samsung.com/tr/supportU.A.E 800-SAMSUNG (800 - 726 7864) http://www.samsung.com/ae/support (English)http://www.samsung.com/ae_ar/support (Arabic)AFRICABOTSWANA 8007260000 http://www.samsung.com/supportBURUNDI 200 http://www.samsung.com/supportCAMEROON 7095-0077 http://www.samsung.com/africa_fr/supportCOTE D’ IVOIRE 8000 0077 http://www.samsung.com/africa_fr/supportDRC 499999 http://www.samsung.com/supportGHANA 0800-100770302-200077http://www.samsung.com/africa_en/supportKENYA 0800 545 545 http://www.samsung.com/supportMOZAMBIQUE 847267864 / 827267864 http://www.samsung.com/supportNAMIBIA 08 197 267864 http://www.samsung.com/supportNIGERIA 0800-726-7864 http://www.samsung.com/africa_en/supportRWANDA 9999 http://www.samsung.com/supportSENEGAL 800-00-0077 http://www.samsung.com/africa_fr/supportSOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com/supportSUDAN 1969 http://www.samsung.com/supportTANZANIA 0800 755 755 http://www.samsung.com/supportUGANDA 0800 300 300 http://www.samsung.com/supportZAMBIA 0211 350370 http://www.samsung.com/supportMENA
97Appendix AppendixResponsibility for the Pay Service (Cost to Customers) When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases. Not a product defectCleaning of the product, Adjustment, Explanation, Re-installation and etc.If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.If a product is reinstalled to move to a different spot or to move to a different house.If customer requests instructions on how to use because of another company's product.If customer requests instructions on how to use the network or another company's program.If customer requests software installation and setup for the product.If a service technician removes/cleans dusts or foreign materials inside of the product.If customer requests an installation additionally after purchasing a product through home-shopping or online.A Product damage caused by customer's faultProduct damage caused by customer's mishandling or wrong repair If a product damage is caused by;external impact or drop.use of supplies or separately sold product unspecified by Samsung.repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.remodeling or repairing the product by customer.using it with incorrect voltage or non-authorised electrical connections.not following the "cautions" in User Manual.OthersIf product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.) If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.
98Appendix AppendixCorrect DisposalCorrect Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
99Appendix AppendixTerminologyOSD (On Screen Display)On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as required. You can change the screen brightness, tint, size and many other settings using menus displayed on the screen.GammaThe Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.Grey scaleScale refers to levels of color intensity that show variations of color change from darker areas to brighter areas on the screen. Changes to the screen brightness are expressed with black and white variation, and grey scale refers to the medium area between black and white. Changing the grey scale through Gamma adjustment will change the medium brightness on the screen.Scanning rateScanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that the screen refreshes 60 times per second. The screen scanning rate depends on the performance of the graphics cards in your PC and monitor. Horizontal FrequencyCharacters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal frequency is measured in kHz and represents how many times horizontal lines per second are transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the horizontal lines that make up an image are transmitted 85000 times per second. The horizontal frequency is indicated in 85kHz.Vertical FrequencyOne image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. A vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called "refresh rate" and affects screen flicker.
100Appendix AppendixResolutionResolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time.E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080 vertical lines (vertical resolution).Plug & PlayThe Plug & Play feature allows the automatic exchange of information between a monitor and PC to produce an optimum display environment. The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 101IndexBBefore Connecting 30Blue 57Brightness 35CChecking the Contents 19Cleaning 8Coarse 53Color Tone 58Connecting and Using a PC 30Contact SAMSUNG WORLD WIDE 89Contrast 36Copyright 7Correct Disposal 98Correct posture to use the product 18DDisplay Time 62EEasy Setting Box 74Eco Saving Plus 65Eye Saver Mode 38FFine 54GGame Mode 39Gamma 59General 81, 82, 83, 84Green 56HHDMI Black Level 48IImage Size 46INFORMATION 72Installation 25KKey Repeat Time 69LLanguage 60OOff Timer 66PParts 20PC/AV Mode 68Power LED On 71PowerSaver 85QQ & A 79RRed 55Requirements Before Contacting Samsung Customer Service Center 76Reset All 64Response Time 50Responsibility for the Pay Service (Cost to Customers) 97
IndexIndex 102SSafety Precautions 10SAMSUNG MAGIC Angle 42SAMSUNG MAGIC Bright 40SAMSUNG MAGIC Upscale 44Sharpness 37Source Detection 70Standard Signal Mode Table 86TTerminology 99Transparency 63
