Samsung Electronics Co ML-NWA65L 2.4 GHz WLAN Module User Manual

Samsung Electronics Co Ltd 2.4 GHz WLAN Module Users Manual

Users Manual

User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 1/21
User Manual
ML-NWA65L(ML-NWA65L/XRX)
802.11b/g/n WLAN Module
July, 2010
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 2/21
Revision History
Revision Date Descriptions
0.1 2010-07-30 Created
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 3/21
Table of Contents
REVISION HISTORY .................................................................................................................. 2
1 GENERAL DESCRIPTION ..................................................................................................... 4
1.1 FUNCTIONAL DESCRIPTION .......................................................................................................... 4
1.2 FEATURES ............................................................................................................................... 4
1.3 APPLICATIONS .......................................................................................................................... 4
1.4 DIMENSION AND PIN ASSIGNMENTS ............................................................................................... 5
2 OPERATING CONDITIONS .................................................................................................. 7
2.1 MAXIMUM POWER SUPPLY RATING ................................................................................................ 7
2.2 CONNECTION TO HOST ............................................................................................................. 7
2.3 GROUND CONNECTION ............................................................................................................... 7
2.4 STORAGE CONDITION ................................................................................................................ 7
2.5 ABSOLUTE MAXIMUM RATINGS ..................................................................................................... 8
2.6 CURRENT CONSUMPTION ............................................................................................................ 8
3 RF SPECIFICATION ............................................................................................................ 9
3.1 SUPPORTABLE MODULATION SCHEME & DATA RATES ......................................................................... 9
3.2 CHANNEL & CENTER FREQUENCY ................................................................................................ 10
3.3 ANTENNA SPECIFICATIONS ...................................................................................................... 11
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 4/21
1 General Description
1.1 Functional Description
ML-NWA65L(ML-NWA65L/XRX) is the low power USB 2.0 module for 802.11b/g/n wireless LAN (WLAN)
aimed at embedded applications. ML-NWA65L(ML-NWA65L/XRX) is the USB 2.0 module that adopts a
single-chip wireless local area network (WLAN) medium-access controller (MAC) spread-spectrum
baseband processor and 2.4 GHz RF radio.
ML-NWA65L(ML-NWA65L/XRX) supports IEEE 802.11b, 802.11g and 802.11n standards.
ML-NWA65L(ML-NWA65L/XRX) provides crucial power management functionality and requires only a
single 3.3V or 5.0 V supply voltage.

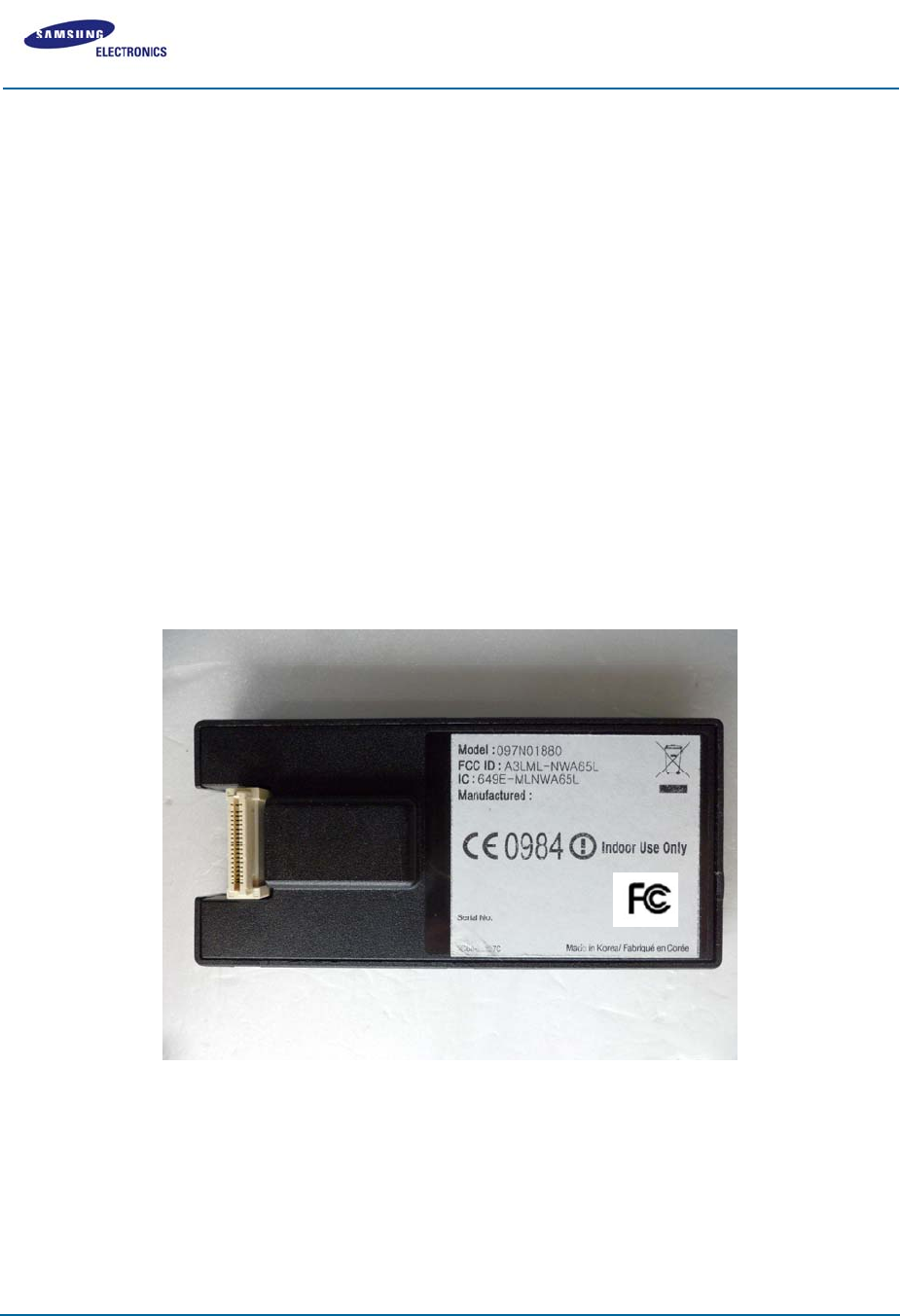

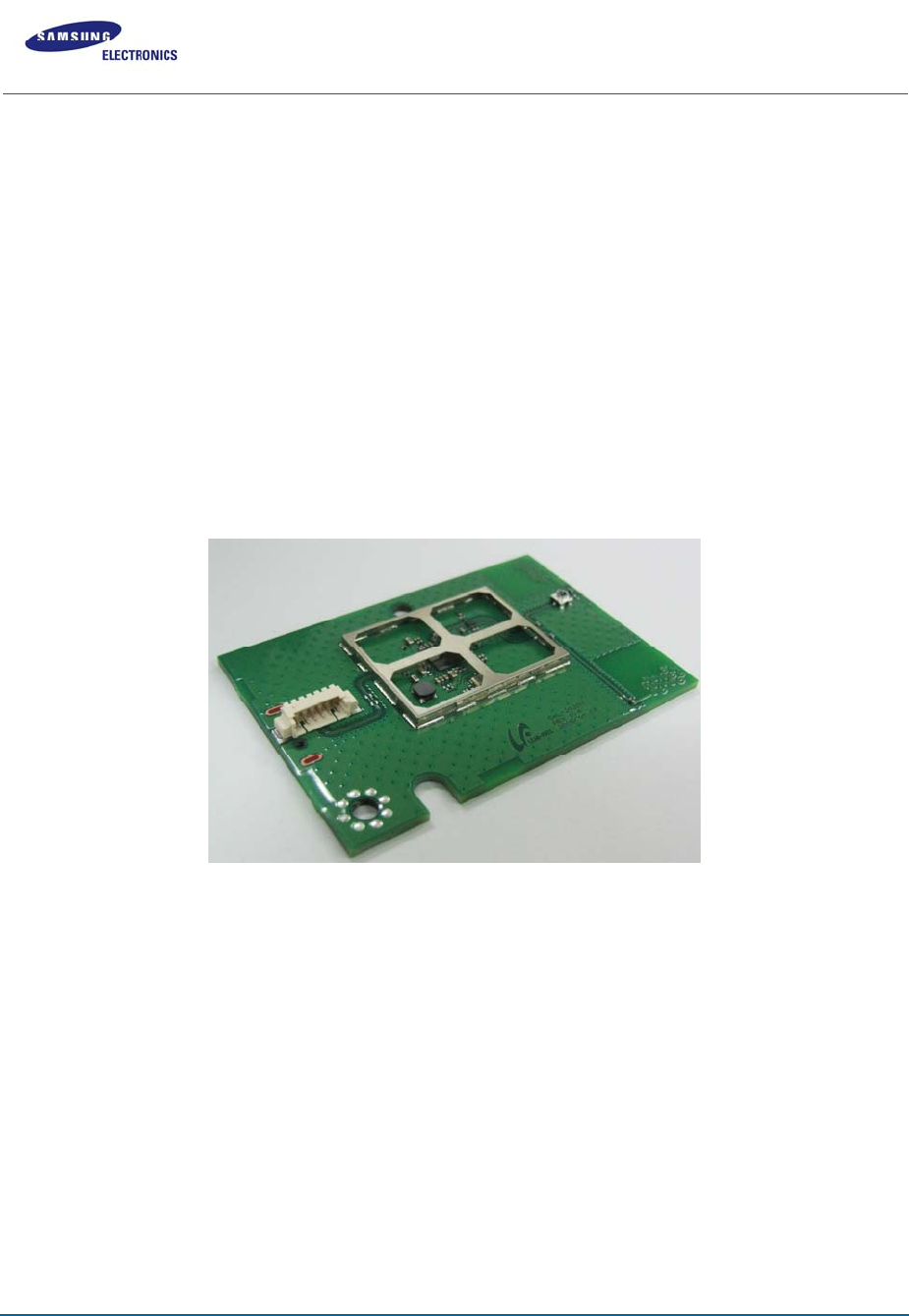

Figure 1-1 ML-NWA65L(ML-NWA65L/XRX) Picture
1.2 Features
Wi-Fi compliant
Security: WEP, WPA-PSK, WPA2-PSK, WMM, WMM-PS, TKIP, and AES hardware acceleration
Host interface: USB 2.0
Low power consumption
Single 3.3V or 5.0 V external supply voltage required
1.3 Applications
Network printer servers with WLAN connectivity
Set-top boxes that need WLAN connectivity
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 5/21
1.4 Dimension and Pin Assignments
1.4.1 Mechanical Dimension
W X L X H = 45mm X 65mm X 5.1mm

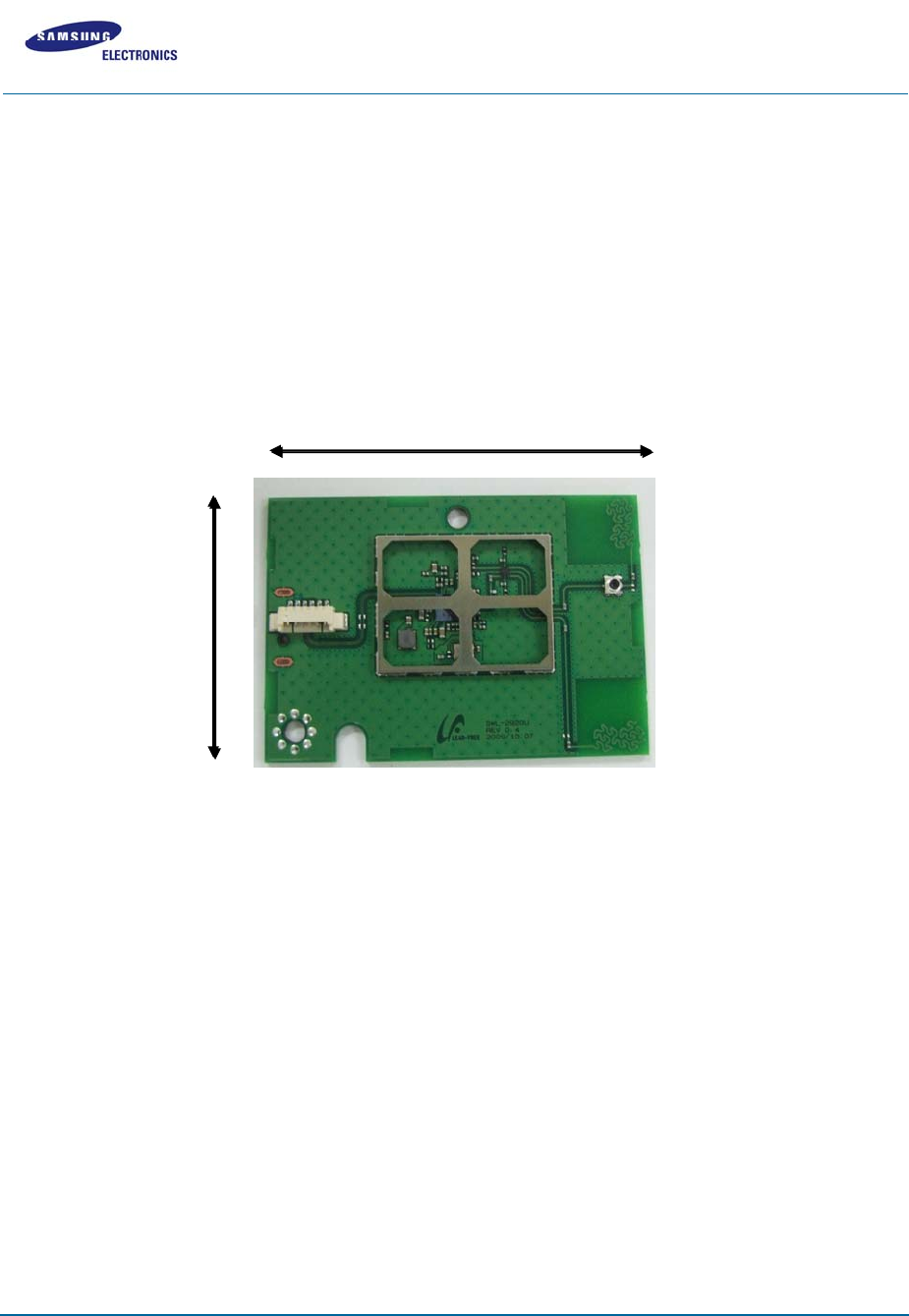

Figure 1-2 ML-NWA65L(ML-NWA65L/XRX) Top
45mm
65mm
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 6/21

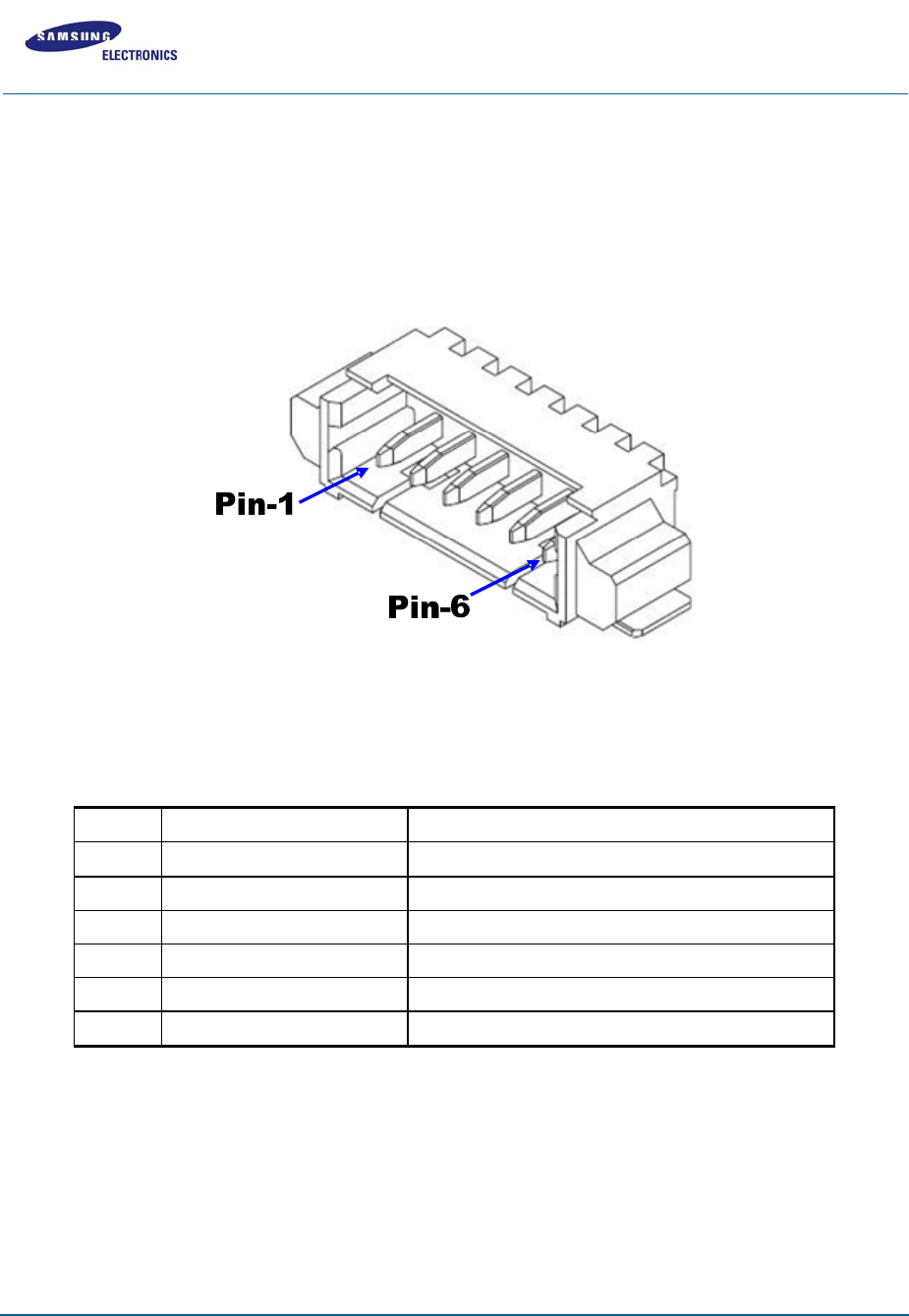

1.4.2 HOST Interface
USB Interface : Molex 53261-0671, 6pin, Right Angle, SMT
* SIZE : 5.2 x 12.65 x 3.4 mm
Figure 1-3 ML-NWA65L(ML-NWA65L/XRX) CON1 Connector PIN Assignment
Table 1-1 CON1 PIN Description
No. Pin Name Description
1 Shell Drain wire, to GND
2 VBUS RED, 5V from HOST
3 D- White, USB data Negative
4 D+ Green, USB data Positive
5 GND Black, signal ground
6 Shell Drain wire, to GND
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 7/21
2 Operating Conditions
2.1 Maximum Power Supply Rating
The supply Voltage of ML-NWA65L(ML-NWA65L/XRX) is 5V , do follow the Maximum Rating in 3.1.
2.2 Connection to HOST
ML-NWA65L(ML-NWA65L/XRX) will work properly only if connecting to USB2.0 Interface as defined at
1.5.2 .
2.3 Ground Connection
ML-NWA65L(ML-NWA65L/XRX) does not need special ground, but uses the ground wire in HOST
Interface.
2.4 Storage Condition
It needs proper condition for protecting the rust.
- Temperature : 0 ~ +50 °C
- Humidity : lower level recommended , 25% ~ 65%RH
- Max Storage Limit : Within 6 Month from Production
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 8/21
2.5 Absolute Maximum Ratings
Symbol Parameter Conditions Min. Nom. Max. Unit
DC supply DC supply voltage from HOST 3.3V applied +3.1 +3.3 +3.5 V
5V applied +4.85 +5.0 +5.25 V
DC for I/O USB2.0 Compliant - - - -
ESD* Electro-static discharge voltage
IEC1000-4~2
POINT: CON1, CON12
AIR 5K V
Contact
1K V
TS Storage temperature -20 - +85 °C
TO Operating temperature 0 - +60 °C
* Final specification will be fixed later.
2.6 Current Consumption
Symbol Parameter Min. Nom. Max. Unit
Current
consumption * Transmit current value 11b 290 <500 mA
11g/n 230 <500 mA
* It can be different to test condition.
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 9/21
3 RF Specification
All measurements are made under nominal power supply and room temperature 25 °C unless specified.
RF specification of ML-NWA65L(ML-NWA65L/XRX) was defined according to 802.11b/g mandatory
3.1 Supportable Modulation Scheme & Data Rates
Spacing Rate
Data rates
(Mbps) Remark
802.11n
OFDM 20MHz
MCS0 6.5
Mandatory
MCS1 13
MCS2 19.5
MCS3 26
MCS4 39
MCS5 52
MCS6 58.5
MCS7 65
Modulation Coding rate
Data rates
(Mbps) Remark
802.11g
OFDM
BPSK 1/2 6
BPSK 3/4 9
QPSK 1/2 12
QPSK 3/4 18
16-QAM 1/2 24
16-QAM 3/4 36
64-QAM 1/2 48
64-QAM 3/4 54
802.11b
DBPSK NA 1
DQPSK NA 2
CCK NA 5.5
NA 11
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 10/21
3.2 Channel & Center Frequency
Channel No Center Frequency
[Mbps] FCC, IC ETSI
Korea
1 2412 O O
2 2417 O O
3 2422 O O
4 2427 O O
5 2432 O O
6 2437 O O
7 2442 O O
8 2447 O O
9 2452 O O
10 2457 O O
11 2462 O O
12 2467 - O
13 2472 - O
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 11/21

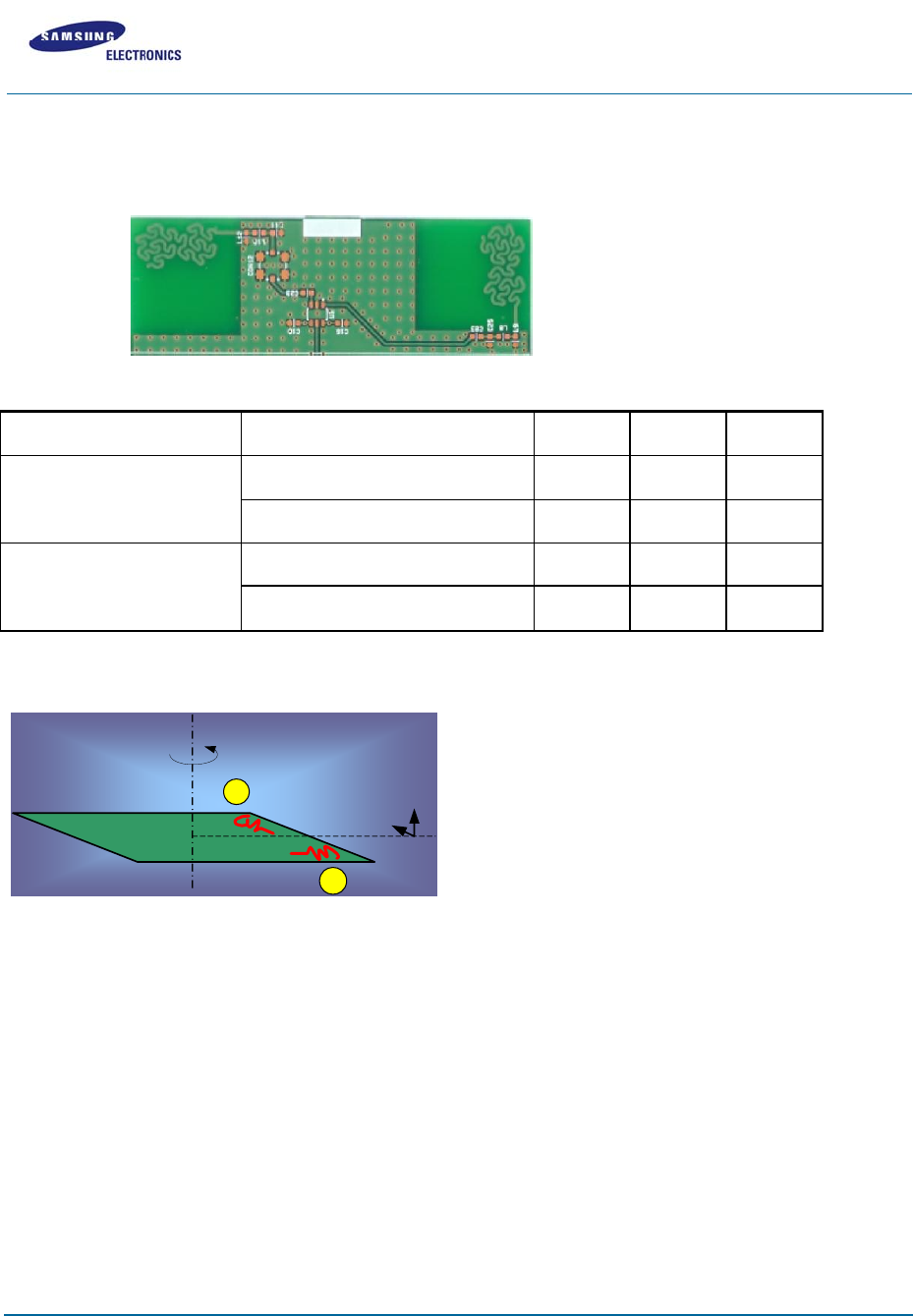

3.3 ANTENNA Specifications
2 Fractal Antennas on PCB that support Diversity
ANTENNA Polarization AVG Max. Unit
ANT1 Horizontal -1.57 2.46 dBi
Vertical - - dBi
ANT2 Horizontal -1.66 2.66 dBi
Vertical - - dBi
All measurement is done with bare PCB.
It can be different to ANTENNA direction & measurement set-up.
For better performance, the Antennas should be apart more than 5mm from other material.
A
NT1
A
NT2
A1
A2
V
H
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 12/21
FCC Compliance
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Test
Mode Frequency Test Results
dBm W
802.11b
Lowest 13.50 0.0224
Middle 13.83 0.0242
Highest 13.06 0.0202
802.11g
Lowest 13.16 0.0207
Middle 13.74 0.0237
Highest 12.84 0.0192
802.11n
HT20
Lowest 10.11 0.0103
Middle 10.26 0.0106
Highest 10.66 0.0116
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in
accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
▪ Reorient or relocate the receiving antenna.
▪ Increase the separation between the equipment and receiver
▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 13/21
Caution
Any changes or modifications NOT explicitly APPROVED by Samsung Electronics Co.,
Ltd. could cause the ML-NWA65L(ML-NWA65L/XRX) module to cease to comply with
FCC rules part 15, and thus void the user's authority to operate the equipment.
RF-exposure statement
These modular transmitters, ML-NWA65L(ML-NWA65L/XRX), comply with FCC
radiation exposure limits set forth for an uncontrolled environment. The ML-
NWA65L(ML-NWA65L/XRX) should be installed and operated with minimum distance
20cm between the antenna and the body of the user or nearby persons. The OEM
integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the users manual of the end product which integrate
this module.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and 2) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as the 2 conditions above are met, further transmitter testing will not be required.
However, the OEM integrator is still responsible for testing their end product for any
additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions cannot be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID cannot be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-
evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
Antenna
These modular transmitters are for OEM integrations only. The end-user product will be
installed in such a manner that only the authorized antennas are used.
Label and manual requirements for the End Product
For an end product using the ML-NWA65L(ML-NWA65L/XRX) there must be a label
containing, at least, the following information:
FCC ID for model ML-NWA65L(ML-NWA65L/XRX)
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 14/21
The label must be affixed on an exterior surface of the end product such that it will be
visible upon inspection in compliance with the modular approval guidelines developed
by the FCC.
Where the ML-NWA65L(ML-NWA65L/XRX) will be installed in final products larger than
8cm x 10cm following statements has to be placed ONTO the device.
"This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation."
In case where the final product will be installed in locations where the end consumer is
not able to see the FCC ID and/or this statement, the FCC ID and the statement shall
also be included in the end-product manual.
The users manual for end users must include the following information in a prominent
location "IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter."
This device contains
FCC ID : A3LML-NWA65L
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 15/21

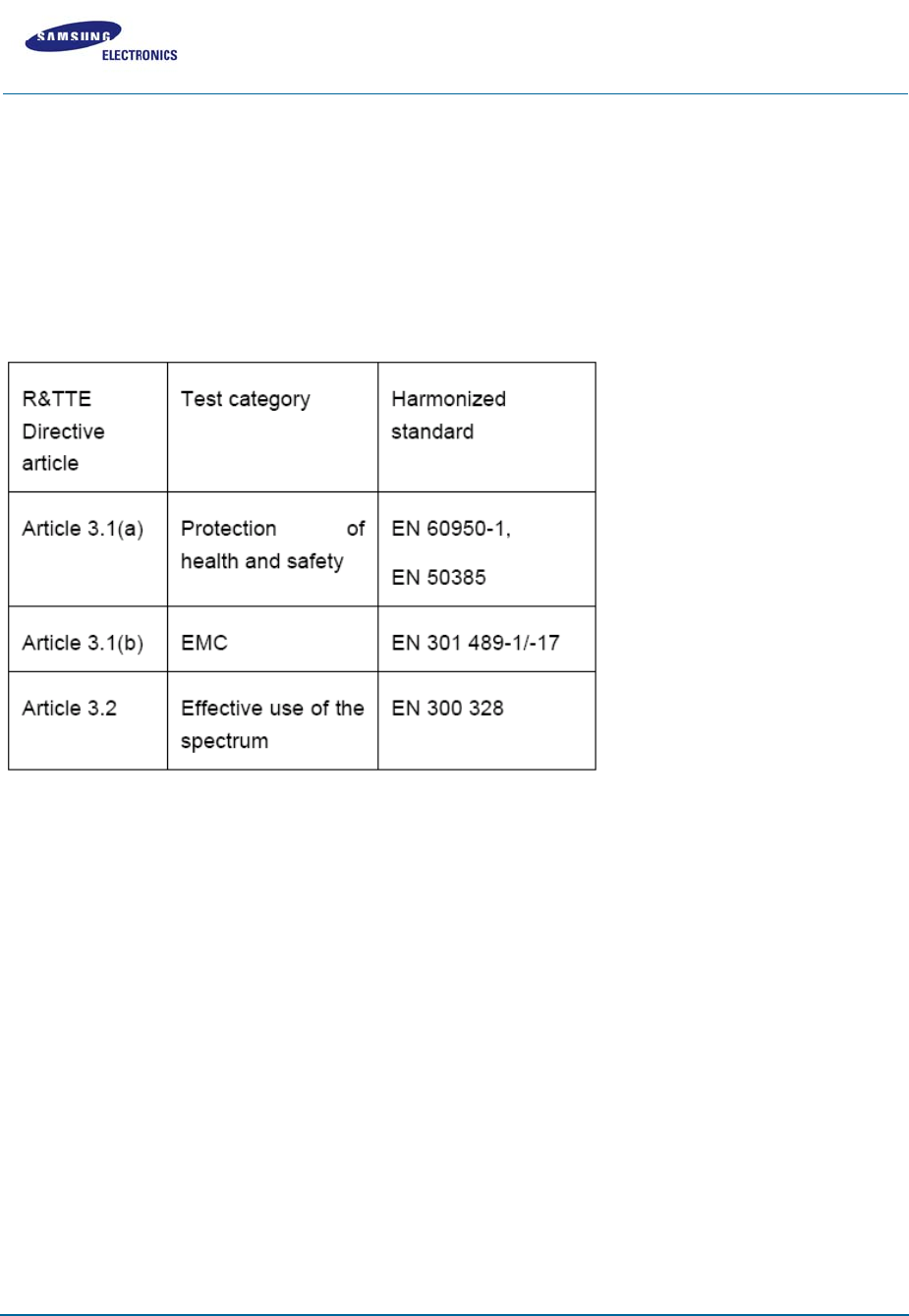

EU Compliance
Regulatory compliance of the ML-NWA65L(ML-NWA65L/XRX)
The ML-NWA65L(ML-NWA65L/XRX) are made for OEM integrations only. The
European regulations applying to the ML-NWA65L(ML-NWA65L/XRX) is the R&TTE
Directive 1999/5/EC.
ML-NWA65L(ML-NWA65L/XRX) meets the following requirements of the R&TTE
Directive.
The conformity assessment for the ML-NWA65L(ML-NWA65L/XRX) were completed in
accordance with the R&TTE Directive Annex IV procedures, and the EC Declaration of
Conformity is attached to this manual.
Cautions regarding regulatory compliance when integrating the ML-
NWA65L(ML-NWA65L/XRX)
The person integrating the ML-NWA65L(ML-NWA65L/XRX) becomes the manufacturer
of the final product and is therefore responsible for demonstrating compliance of the
product with the essential requirements of the R&TTE Directive.
In all cases assessment of the final product must be made against the Essential
requirements of the R&TTE Directive Article 3.1(a) and (b), safety and EMC respectively,
and any relevant Article
3.3 requirements
This device is intended only for OEM integrators under the following conditions:
1. This appliance and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 16/21
2. A minimum separation distance of 20 cm must be maintained between the antenna
and the person for this appliance to satisfy the RF exposure requirements of the Council
recommendation 1999/519/EC of 12 July 1999.
As long as the 2 conditions above are met, no further evaluation under Article 3.2 of the
R&TTE Directive and do not require further involvement of an R&TTE Directive Notified
Body for the final product. In all other cases, or if the manufacturer of the final product is
in doubt then the equipment integrating the radio module must be assessed against
Article 3.2 of the R&TTE Directive.
Please note that this product, ML-NWA65L(ML-NWA65L/XRX), uses radio frequency
bands not harmonized throughout the Community. This product is classified as Class 2
radio equipment for which some Member States apply restrictions on placing on the
market and in use. Any parties putting Class 2 radio equipment on the market must
notify the relevant national spectrum management authority of their intention, and the
radio equipment must be given a Class Identifier (alert symbol).
Antenna
This product, ML-NWA65L(ML-NWA65L/XRX), is for OEM integrations only. The end-
user product will be installed in such a manner that only the authorized antennas are
used.
Enclosure
This product, ML-NWA65L(ML-NWA65L/XRX), is made for integrating in another final
product. For this reason, there are some parts of the final product on which the ML-
NWA65L(ML-NWA65L/XRX) depends for regulatory compliance regarding EMC and
safety. The ML-NWA65L(ML-NWA65L/XRX) is mounted on the circuit board of the final
product, and must be contained inside the case of the final product. Integrated the ML-
NWA65L(ML-NWA65L/XRX) in the final product so that its surfaces are not in contact
with the outside.
Documentation
In the documentation for the conformity assessment of the final product, state clearly
that the ML-NWA65L(ML-NWA65L/XRX) is integrated in the system.
Conformity Assessment of the Products integrating the ML-NWA65L(ML-
NWA65L/XRX)
The following is a supplementary explanation of conformity assessments for final
products integrating the radio modules such as the ML-NWA65L(ML-NWA65L/XRX),
that have passed conformity assessments in accordance with the R&TTE Directive. The
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 17/21
procedures for conformity assessment in accordance with the R&TTE Directive are the
responsibility of the manufacturer of the final product. With final products integrating
radio modules, the person who integrates the module in the system becomes the
manufacturer of the final
product, and it is their responsibility to certify that the requirements of the R&TTE
Directive and met.
Exemption from conformity assessment
However, if radio modules that meet the requirements of the R&TTE Directive and that
have passed the conformity assessment are integrated in a final product that follows the
cautions concerning integrating radio modules, they are exempted from the conformity

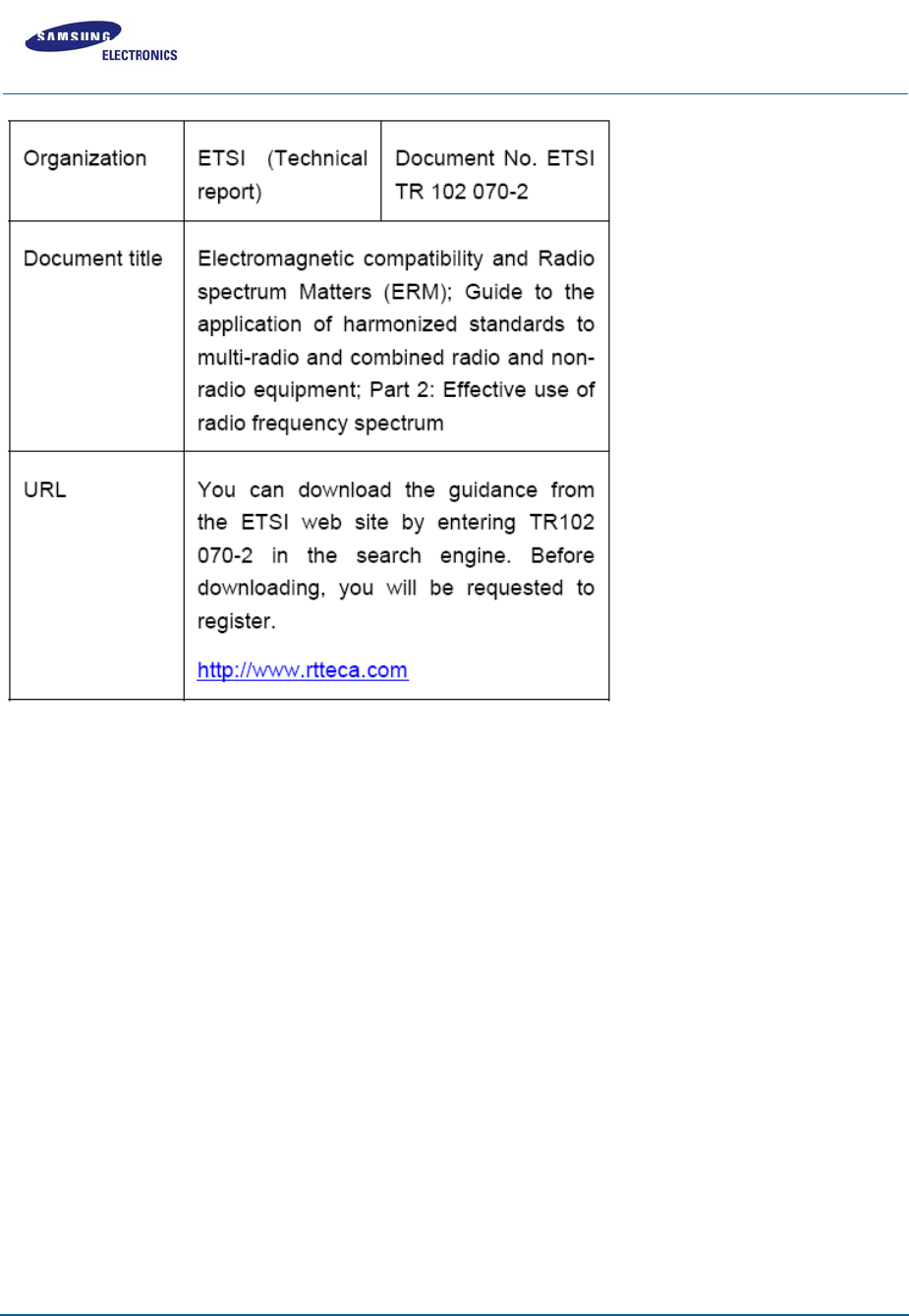

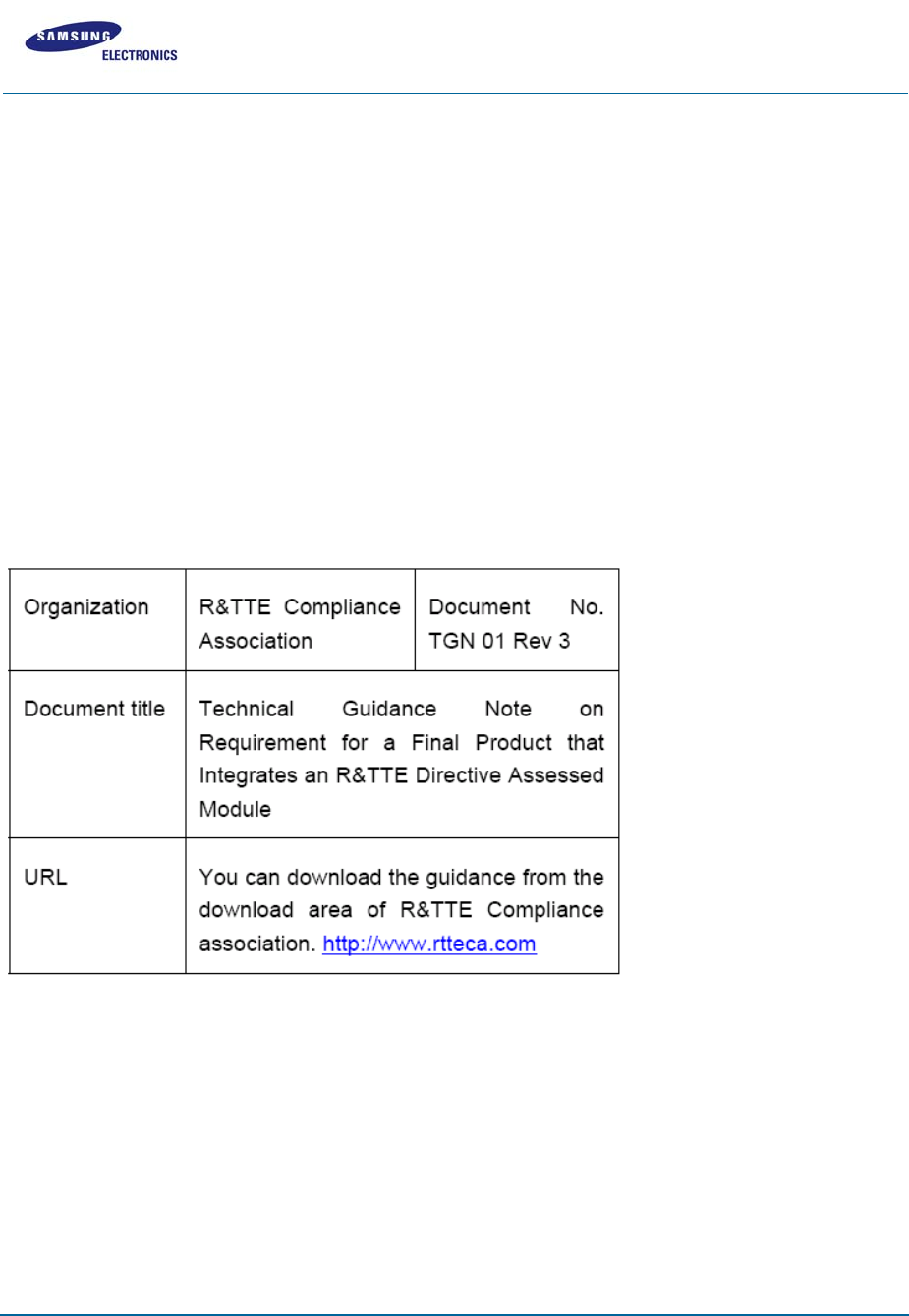

assessment for R&TTE Directive Article 3.2 (efficient use of the radio spectrum). For
details, refer to the following Guidance and ETSI Technical Report from the R&TTE
Compliance Association, and check whether your case applies.
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 18/21
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 19/21
Conformity assessment procedures for final products exempted from R&TTE
Directive Article 3.2
In every case, the manufacturer of a final product must follow the procedures for
conformity assessment of the final product with the requirements of R&TTE Directive
Article 3.1(a) and (b), for safety and EMC. The conformity assessment for Article 3.2
is carried out in accordance with the following:
1) Attach the EN 300 328 test report of the assessed radio module and the EC
Declaration of Conformity to the conformity assessment of the final product (The
Declaration of Conformity is attached to the manual).
2) Specify on the conformity assessment of the end product that the assessed radio
module was integrated in the system without any changes, in accordance with the
installation directions of the manufacturer.
Notification of the final product
Please note that this product, ML-NWA65L(ML-NWA65L/XRX), uses radio frequency
bands not harmonized throughout the Community. The notification required by R&TTE
Directive Article 6(4) is necessary. It is the responsibility of the manufacturer of the final
product to notify the relevant national spectrum management authority of the intention to
place the final product on the market.
CE marking
It is necessary to attach the CE mark to the final product to indicate that it conforms with
all the directives that apply to the final product. It must be given a Class Identifier (alert
symbol) in addition to the CE mark.
Exemption clause
Samsung Electronics Co., Ltd. does not guarantee the accuracy of the information
above. In case of doubt or uncertainty, we recommend that you check with the
authorities or official certification organizations of the relevant countries.
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 20/21
EC Declaration of Conformity
We, Samsung Electronics Co., Ltd.
of Samsung Electronics Co., Ltd.
#259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea
of Samsung Electronics(Shandong) Digital Printing Co., Ltd.
264209, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, China
declare under our sole responsibility that the product
WLAN Module
model " ML-NWA65L(ML-NWA65L/XRX) "
to which this declaration relates is in conformity
with
R&TTE Directive 1999/5/EC
By application of the following standards
▪ Article.3.1.(a) Safety EN 60950-1:2006+A11:2009
EN 50385
▪ Article.3.1.(b) EMC ETSI EN 301 489-01 V1.8.1 (2008-04)
ETSI EN 301 489-17 V2.1.1 (2009-05)
▪ Article.3.2 RF ETSI EN 300 328 V1.7.1(2006-10)
Notified UL CCS
Body 47173 Benicia Street, Fremont, CA 94538, USA.
EU Identification Number: 0984
User Manual
REV 0.1 Samsung Electronics Proprietary and Confidential 21/21
Documentary evidence to demonstrate conformity
Description Report or
Certificate No. Issue Data Issued By
Manufacturer
Samsung Electronics Co., Ltd.
#259, Gongdan-Dong, Gumi-City Gyungbuk, Korea 730-030
____________________________________
(Sang youp Hyoun) / 30th ,July ,2010

Navigation menu
