Special Features ––––––––––––––––––––––––––––––––––––––––––––1.1Printer Components–––––––––––––––––––––––––––––––––––––––––1.4Control Panel Buttons ––––––––––––––––––––––––––––––––––––––– 3.1Control Panel Lights ––––––––––––––––––––––––––––––––––––––––– 3.4ContentsSTEP 1:Unpack Your Printer –––––––––––––––––––––––––––––––––– 2.1STEP 2:Install the Toner Cartridge ––––––––––––––––––––––––––– 2.3STEP 3:Load Paper –––––––––––––––––––––––––––––––––––––––––– 2.5STEP 4:Connect to the Computer with a Parallel Cable ––––––– 2.8STEP 5:Turn on the Printer ––––––––––––––––––––––––––––––––––– 2.9STEP 6:Print a Demo Page! –––––––––––––––––––––––––––––––––– 2.9STEP 7:Install the Printer Software ––––––––––––––––––––––––– 2.10Installing USB Driver –––––––––––––––––––––––––––––––––––––– 2.17Choosing Paper and Other Media –––––––––––––––––––––––––––– 4.1Selecting the Output Tray ––––––––––––––––––––––––––––––––––– 4.4Loading Paper ––––––––––––––––––––––––––––––––––––––––––––––– 4.6Printing on Envelopes –––––––––––––––––––––––––––––––––––––– 4.12Printing on Labels –––––––––––––––––––––––––––––––––––––––––– 4.14Printing on Transparencies –––––––––––––––––––––––––––––––––– 4.15Printing on Preprinted Paper –––––––––––––––––––––––––––––––– 4.16Printing on Card Stock or Custom-sized Media –––––––––––––– 4.1712Setting Up Your Printer3Using the Control Panel4Print Media2Introduction

3Printing a Document ––––––––––––––––––––––––––––––––––––––– 5.1Using Toner Save Mode –––––––––––––––––––––––––––––––––––– 5.6Printing on Both Sides of the Paper (Manual Duplexing) –––––––––– 5.7Printing Multiple Pages on One Sheet of Paper (N-Up Printing) –5.10Scaling Your Document ––––––––––––––––––––––––––––––––––– 5.11Fitting Your Document To a Selected Paper Size –––––––––– 5.12Printing Booklets ––––––––––––––––––––––––––––––––––––––––– 5.13Printing Posters –––––––––––––––––––––––––––––––––––––––––– 5.16Setting Graphic Properties ––––––––––––––––––––––––––––––– 5.18Printing Watermarks ––––––––––––––––––––––––––––––––––––– 5.21Using Page Overlay –––––––––––––––––––––––––––––––––––––– 5.24Printing on Different Paper for the First Page ––––––––––––– 5.28Reprinting the Last Page ––––––––––––––––––––––––––––––––– 5.29Printing Tasks5Maintaining Toner Cartridge ––––––––––––––––––––––––––––––– 6.1Cleaning the Printer ––––––––––––––––––––––––––––––––––––––– 6.46Troubleshooting Checklist –––––––––––––––––––––––––––––––––– 7.1Solving General Printing Problems ––––––––––––––––––––––––– 7.2Printing Special Pages ––––––––––––––––––––––––––––––––––––– 7.6Clearing Paper Jams ––––––––––––––––––––––––––––––––––––––– 7.7Solving Print Quality Problems –––––––––––––––––––––––––––– 7.16Troubleshooting Error Messages ––––––––––––––––––––––––––– 7.22Common Windows Problems –––––––––––––––––––––––––––––– 7.25Common Macintosh Problems ––––––––––––––––––––––––––––– 7.26Troubleshooting PS Errors –––––––––––––––––––––––––––––––– 7.28Problem Solving7Maintaining Your Printer

4Contents (continued)Printer Specifications –––––––––––––––––––––––––––––––– A.1Paper Specifications ––––––––––––––––––––––––––––––––– A.2ASpecificationsMacintosh Installation ––––––––––––––––––––––––––––––– B.1Using QPDL Driver ––––––––––––––––––––––––––––––––––– B.5Using PS Driver –––––––––––––––––––––––––––––––––––– B.11About Remote Control Panel for DOS –––––––––––––––– C.1Installing the Remote Control Panel for DOS Users ––––––––––––––––––––––––––––––––––––––– C.2Selecting Print Settings –––––––––––––––––––––––––––––– C.5BUsing Your Printer with a MacintoshCPrinting from DOS ApplicationsSetting Your Printer with the PS Option –––––––––––––– D.1Installing PPD Files –––––––––––––––––––––––––––––––––– D.1Accessing the PS Printer Driver Features ––––––––––––– D.9DUsing Windows PostScript Driver

5EUsing Your Printer on a NetworkAbout Sharing the Printer on a Network –––––––––––––– E.1Setting Up a Locally Shared Printer ––––––––––––––––––E.2Setting Up a Network-Connected Printer ––––––––––––– E.5Precautions –––––––––––––––––––––––––––––––––––––––––– F.1Memory and PostScript SIMMs ––––––––––––––––––––––– F.2Network Interface Card –––––––––––––––––––––––––––––– F.5Paper Tray 2 ––––––––––––––––––––––––––––––––––––––––– F. 7Linux Driver Installation ––––––––––––––––––––––––––––– G.1FPrinter OptionsGUsing Your Printer in LinuxINDEX

6Environmental and Safety ConsiderationLaser Safety StatementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1Subchapter J for Class I(1) laser products, and elsewhere, is certified as a Class I laserproduct conforming to the requirements of IEC 825.Class I laser products are not considered to be hazardous. The laser system and printer aredesigned so there is never any human access to laser radiation above a Class I level duringnormal operation, user maintenance, or prescribed service condition.WARNINGNever operate or service the printer with the protective cover removed from Laser/Scanner assembly.The reflected beam, although invisible, can damage your eyes.CAUTION - INVISIBLE LASER RADIATION WHEN THIS COVER OPEN. DONOT OPEN THIS COVER.VORSICHT - UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNGGEÖFFNET. NICHT DEM STRAHL AUSSETZEN.ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS D’OUVERTURE.EXPOSITION DANGEREUSE AU FAISCEAU.ATTENZIONE -RADIAZIONE LASER INVISIBILE IN CASO DI APERTURA.EVITARE L’ESPOSIZIONE AL FASCIO.PRECAUCION -RADIACION LASER IVISIBLE CUANDO SE ABRE. EVITAR EXPONERSE ALRAYO.ADVARSEL. - USYNLIG LASERSTRÅLNING VED ÅBNING NÅR SIKKERHEDSBRYDERE ERUDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLNING.ADVARSEL. - USYNLIG LASERSTRÅLNING NÅR DEKSEL ÅPNES. STIRR IKKE INN ISTRÅLEN. UNNGÅ EKSPONERING FOR STRÅLEN.VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPAND OCH SPÄRREN ÄRURKOPPLAD. BETRAKTA EJ STRÅLEN. STRÅLEN ÄR FARLIG.VARO! - AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINANÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ KATSO SÄTEESEEN.

7Ozone SafetyDuring normal operation, the ML-1450 Series printer producesozone. The ozone produced does not present a hazard to theoperator. However, it is advisable that the machine be operated ina well ventilated area.If you need additional information about ozone, please contactyour nearest Samsung dealer.OZONEPower SaverEnvironmental and Safety ConsiderationThis printer contains advanced energy conservation technologythat reduces power consumption when it is not in active use.When the printer does not receive data for an extended period oftime, power consumption is automatically lowered. The energy star emblem does not represent EPA endorsement ofany product or service.

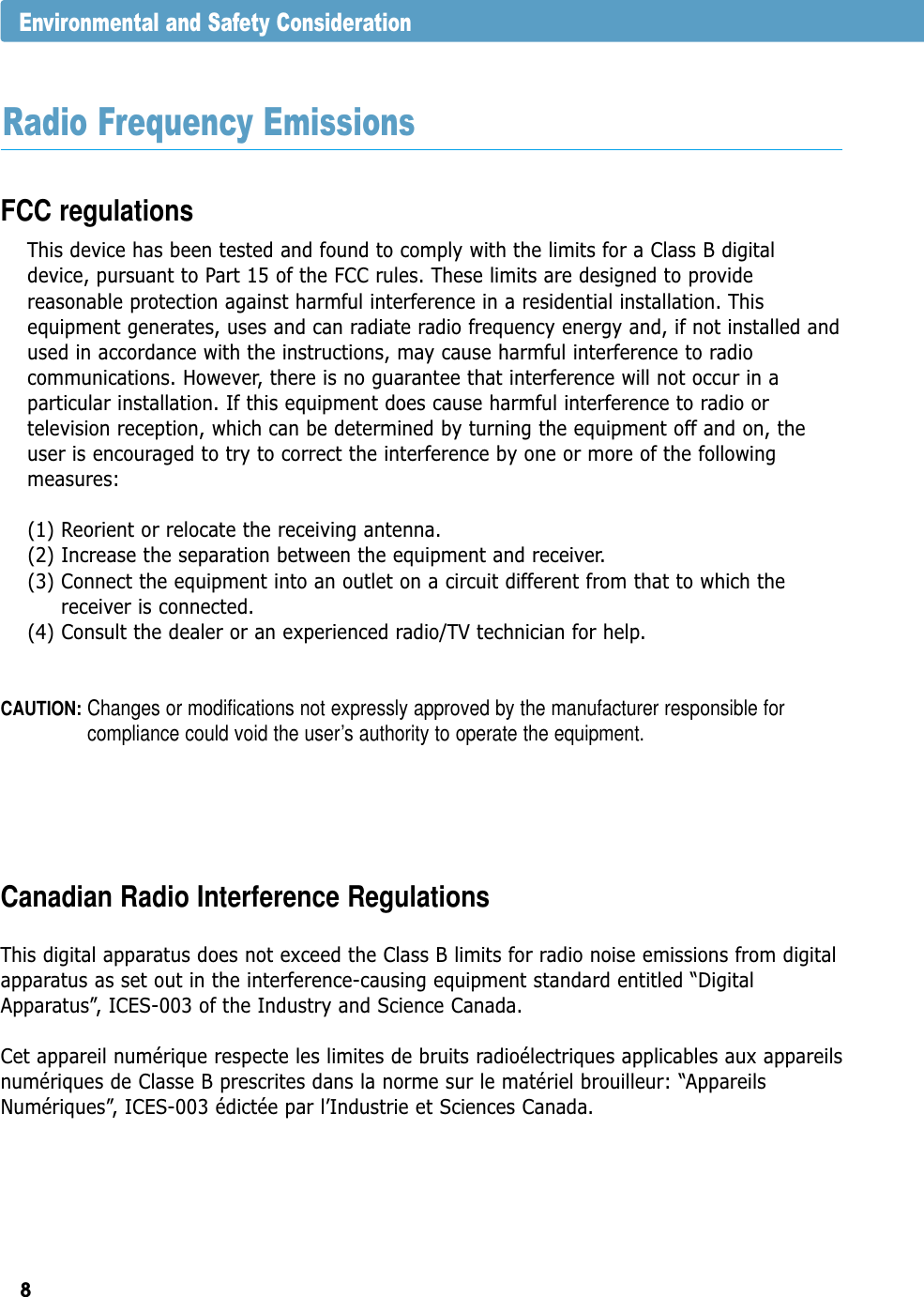

8FCC regulationsThis device has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:(1) Reorient or relocate the receiving antenna.(2) Increase the separation between the equipment and receiver.(3) Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.(4) Consult the dealer or an experienced radio/TV technician for help.CAUTION: Changes or modifications not expressly approved by the manufacturer responsible forcompliance could void the user’s authority to operate the equipment.Environmental and Safety ConsiderationCanadian Radio Interference RegulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digitalapparatus as set out in the interference-causing equipment standard entitled “DigitalApparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareilsnumériques de Classe B prescrites dans la norme sur le matériel brouilleur: “AppareilsNumériques”, ICES-003 édictée par l’Industrie et Sciences Canada.Radio Frequency Emissions

9Declaration of Conformity (European Countries)Approvals and CertificationsThe CE marking applied to this product symbolises Samsung Electronics Co., Ltd. Declaration ofConformity with the following applicable 93/68/EEC Directives of the European Union as of the datesindicated:January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the member statesrelated to low voltage equipment.January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the laws of theMember States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminalequipment and the mutual recognition of their conformity.A full declaration, defining the relevant Directives and referenced standards can be obtained fromyour Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications TerminalEquipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminalconnection to the analogue public switched telephone network (PSTN) in accordance with Directive1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs ofthe European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. inthe first instance.The product has been tested against TBR21 and TBR 38. To assist in the use and application ofterminal equipment which complies with this standard, the European Telecommunication StandardsInstitute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additionalrequirements to ensure network compatibility of TBR21 terminals. The product has been designedagainst, and is fully compliant with, all of the relevant advisory notes contained in this document.Environmental and Safety Consideration

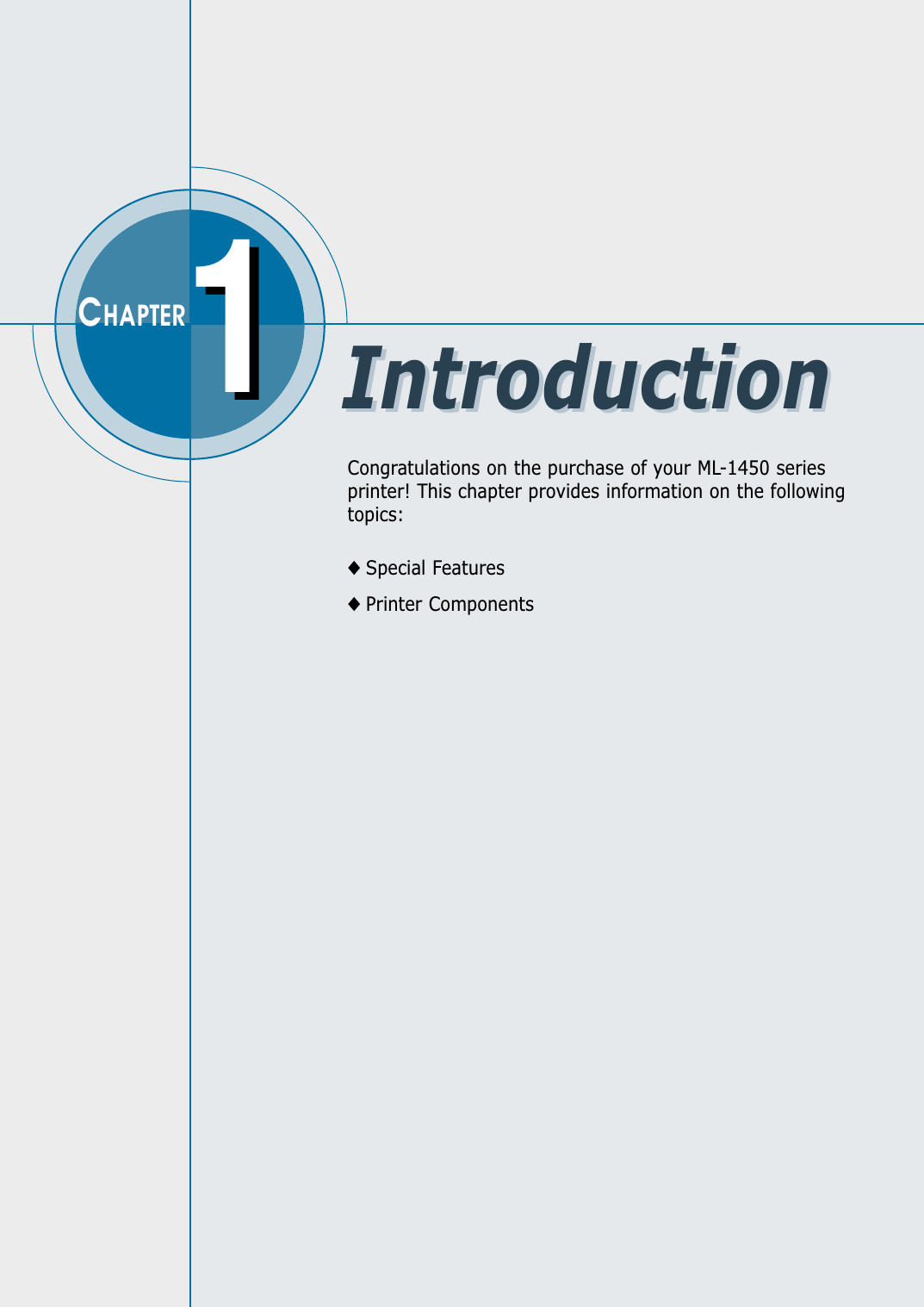

Congratulations on the purchase of your ML-1450 seriesprinter! This chapter provides information on the followingtopics:◆ Special Features◆ Printer Components11CHAPTERIntroductionIntroduction

1.1INTRODUCTIONSpecial FeaturesYour new Samsung ML-1450 series printer is equipped withspecial features that improve print quality, giving you acompetitive edge. You can:• Prints at 1200 dots per inch (dpi). See page 5.18.• Prints 14 pages-per-minute(A4 size), 15 pages-per-minute(Letter size).• Customizes your documents by using Watermarks such as“Confidential.”• Prints Booklets. This feature enables you to easily print thepages required to create books. Once printed, all you have todo is fold and staple the pages.• Prints Posters. The text and pictures of each page of yourdocument are magnified and printed across the selectedsheet of paper. After the document has printed, trim off thewhite edges of each sheet. Tape the sheets together to forma poster. Create professional documentsPrint with excellent quality and high speed98• A 100-sheet Multi-Purpose Tray supports letterheads,envelopes, labels, transparencies, custom-sized media,postcards, and heavy paper.• Standard 550-sheet input tray (Tray 1) and optional 550-sheet input tray (Tray 2) supports all standard sizes ofpaper.• Two output tray: Select either the top face-down output orthe rear face-up output tray for the most convenientaccess.• Straight-through paper path capability from the Multi-Purpose Tray to the rear output tray.Flexible paper handling

1.2INTRODUCTIONSpecial Features• Allows you to use the Toner Save mode to save toner. Seepage 5.6.• Allows you to print on both sides of the paper to save paper(Manual Duplexing). See page 5.7.• Allows you to print multiple pages on one single sheet ofpaper to save paper (N-Up printing). See page 5.10.• Preprinted forms and letterheads can be printed on plainpaper. See ‘Using Page Overlay’ on page 5.24.• One-touch last page printing is available when the printeris in ready mode. • This printer automatically conserves electricity bysubstantially reducing power consumption when not printing.• This printer meets Energy Star guidelines for energyefficiency. • The ML-1450 printer has 4 MB of memory (16 MB on ML-1451N)which can be expanded to 68 MB (80 MB on ML-1451N). • PostScript 3 Emulation* (PS) SIMM adds PS printing. • Optional network interface enables network printing.(ML-1451N comes with a built-in network interface.)Expand the printer capacitySave time and money*PostScript 3 EmulationIPS-PRINT_Printer language Emulation© Copyright 1995-2001, Oak Technology, Inc., All rights reserved

1.3INTRODUCTIONSpecial Features• Prints in Windows, DOS, and Macintosh.• Supports Linux.• ML-1450 series printer comes with Parallel and USB. Youcan install an optional network interface (ML-1451N have abuilt-in network interface).Print in various environmentsTable below lists a general overview of features supported bythe ML-1450 series printer.Printer FeaturesML-1450ML-1451NNNYNNetwork Card PostScript SIMM

1.4INTRODUCTIONPrinter ComponentsFront ViewControl panelTop output trayControl board cover(needed to access the control board to install printer options)Paper levelindicators(Inside)(Face down output )Top coverTray 1 (550-sheet paper feeder)Multi-Purpose TrayTray 2 (Optional 550-sheet paper feeder)Toner cartridge

1.5INTRODUCTION(Face up output)Rear ViewPower switchRear output tray doorPower receptacleParallel portUSB portNetwork port(ML-1450: OptionML-1451N: Standard) Printer Components

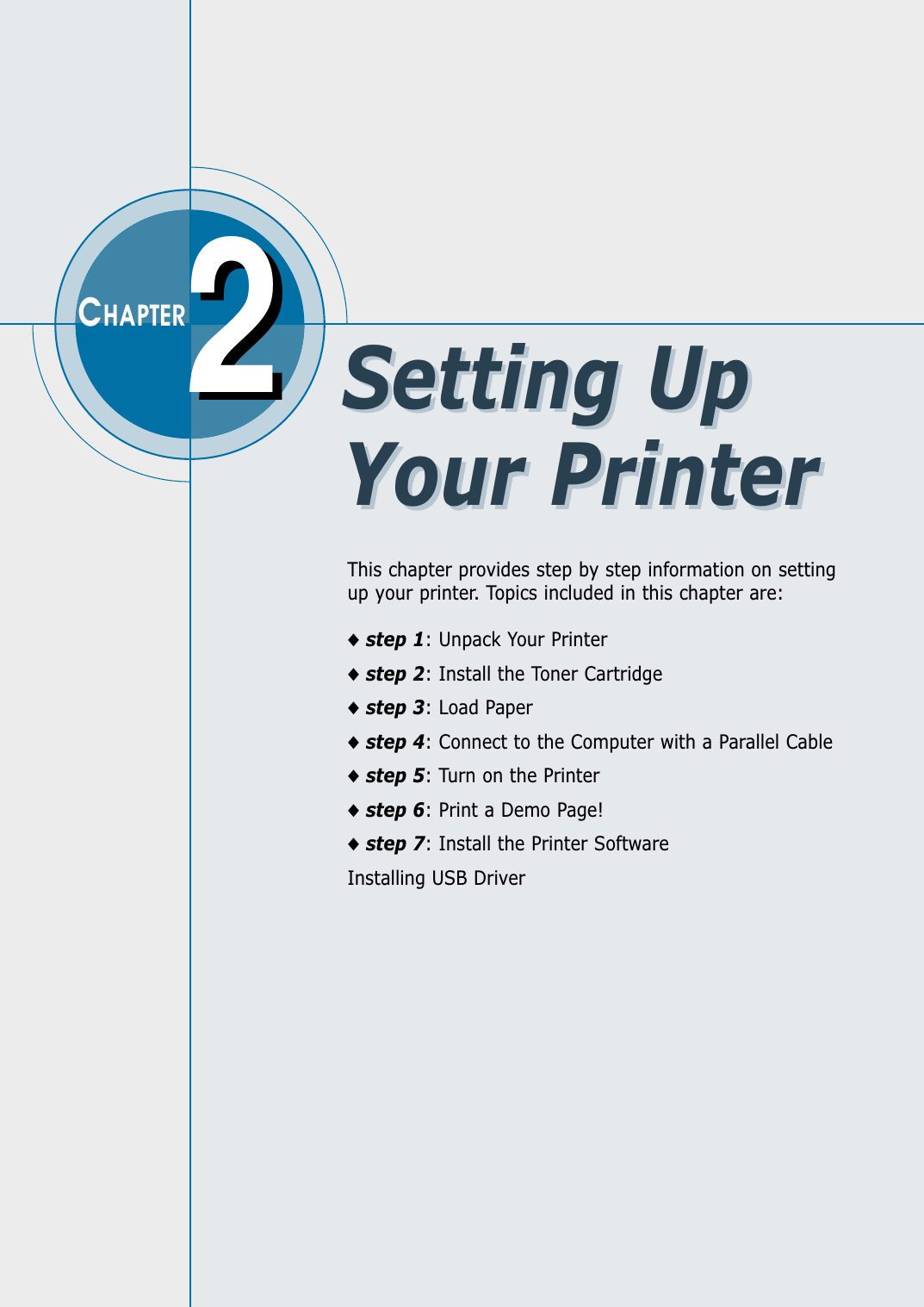

This chapter provides step by step information on settingup your printer. Topics included in this chapter are:◆step 1: Unpack Your Printer◆step 2: Install the Toner Cartridge◆step 3: Load Paper◆step 4: Connect to the Computer with a Parallel Cable◆step 5: Turn on the Printer◆step 6: Print a Demo Page!◆step 7: Install the Printer SoftwareInstalling USB Driver22CHAPTERSetting UpYour PrinterSetting UpYour Printer

2.1SETTING UP YOUR PRINTERUnpack Your Printer1Remove the printer and all accessoriesfrom the packing carton. Make sure thatyour printer has been packed with thefollowing items:Notes: • If any items are missing or damaged, notifyyour dealer immediately.• Components may differ from one countryto another.• The CD-ROM contains the printer driver, theUser’s Guide, the Adobe Acrobat Readerprogram and the Make Your Own Diskettesetup software.Toner cartridge Power cordQuick GuideCD-ROM2Carefully remove all packing tapes fromthe printer.

2.2SETTING UP YOUR PRINTERUnpack Your PrinterSelecting a LocationSelect a level, stable place with adequate space for air circulation. Allow extra space foropening covers and trays. The area should be well-ventilated and away from directsunlight or sources of heat, cold, and humidity. See the image below for clearance space.Do not set the printer close to the edge of your desk or table!Clearance SpaceFront: 482.6 mm(enough space so thattrays can be removed)Back: 320 mm(enough space to allowopening of the Back Cover)Right: 100 mmLeft: 100 mm(enough space forventilation)561 mm(22 in.)320 mm(12.6 in.)1211.6 mm(47.7 in.)482.6 mm(19 in.)100 mm(3.9 in.)100 mm(3.9 in.)

2.3SETTING UP YOUR PRINTER1Open the top cover lid. Pull up on thehandle to open the lid.2Carefully tear one end of the plastic bag. Don’t use a knife or other sharp objectsas they might scratch the drum of thecartridge.3Locate the sealing tape at the end of thetoner cartridge. Carefully pull the tapecompletely out of the cartridge. Discardthe tape.4Gently shake the cartridge from side toside to distribute the toner evenly insidethe cartridge.CAUTION:To prevent damage, do not expose the tonercartridge to light for more than a few minutes.Cover it with a piece of paper if left exposedfor more than a few minutes.If toner gets on your clothing, wipe it off witha dry cloth and wash clothing in cold water.Hot water sets toner into fabric.Install the Toner CartridgeHandle

2.4SETTING UP YOUR PRINTERNote: When printing text at 5% coverage, you can expect a toner cartridge life of approximately6,000 pages (3,000 pages for the toner cartridge that is shipped with the printer).6Grasp the handle and insert thecartridge in the printer until it drops intoplace.7Close the top cover. Make sure that thecover is securely closed.5Locate the cartridge slots inside theprinter, one on each side.Install the Toner Cartridge

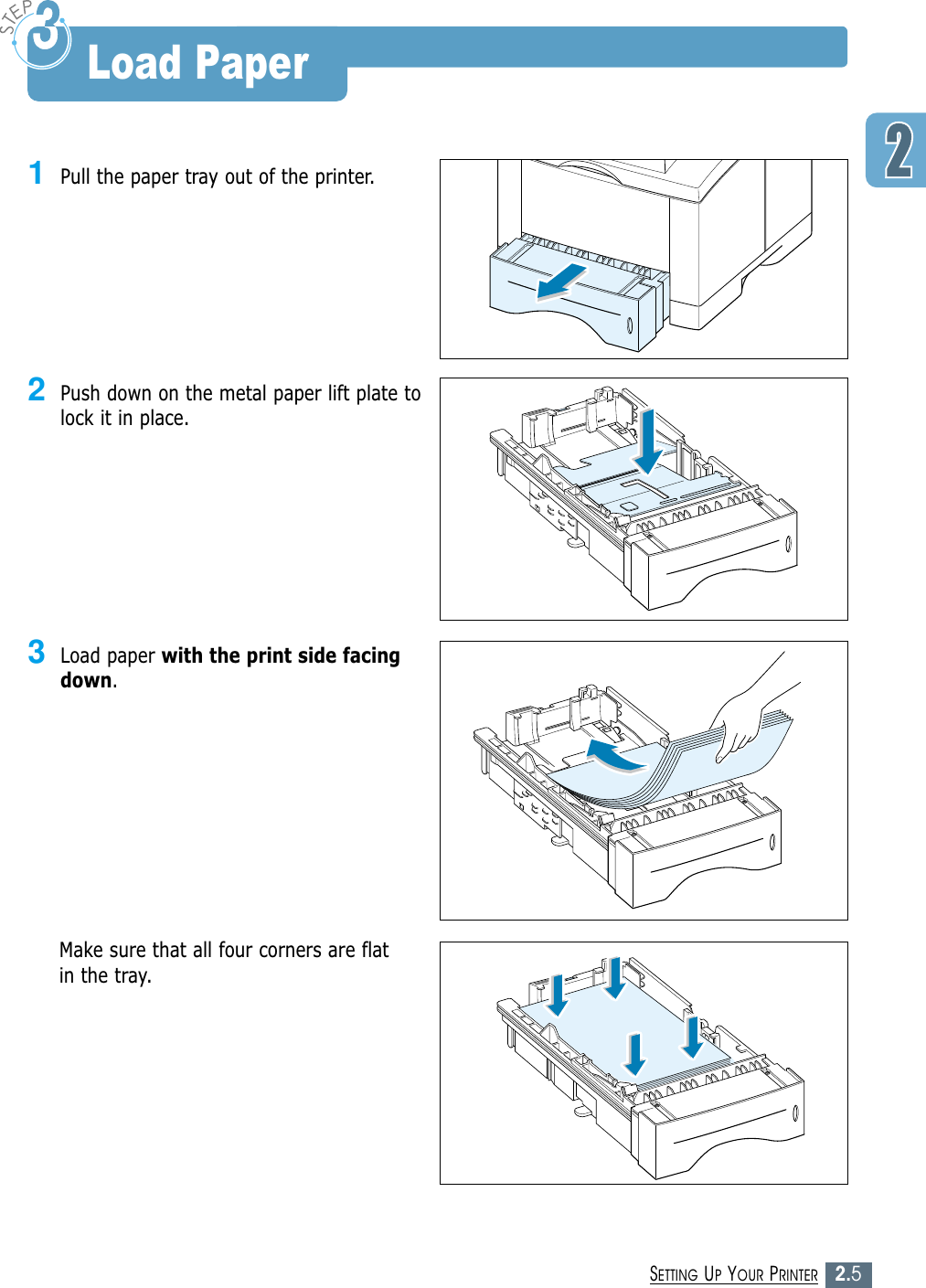

2.5SETTING UP YOUR PRINTER1Pull the paper tray out of the printer.3Load paper with the print side facingdown.Make sure that all four corners are flatin the tray.2Push down on the metal paper lift plate tolock it in place.Load Paper

2.6SETTING UP YOUR PRINTER5Slide the tray back into the printer.Note: If you want to change the paper sizein the tray, refer to: “To Change Paper Sizein Tray”1Squeeze the metal tab on the rearpaper guide to adjust for the paperlength.To Change Paper Size in Tray4Make sure that the stack goes under themetal retaining clip and the plastictabs on the end guides. Pay attention to the paper limit make onthe left inside wall of the tray.Paper overloading may cause paperjams.AALoad Paper

2.7SETTING UP YOUR PRINTER3After loading paper, squeeze the sideguide as shown and slide it to the leftflush against the paper.Notes: • Do not push the width guide far enough to cause the media to warp. • If you do not adjust the width guide, it may cause a paper jam.4If necessary, use the rear width guide.Squeeze the rear width guide as shownand slide it to the left.Load Paper2Adjust the paper length guide so thepointer matches the desired paper size.LGLFOLIOA4LTREXECJIS B5Pointer

2.8SETTING UP YOUR PRINTER1Make sure that both the printer andthe computer are turned off.2Plug the parallel printer cable into theconnector on the back of the printer. Push the metal clips down to fit insidethe notches on the cable plug.3Connect the other end of the cable tothe parallel interface port on yourcomputer, and tighten the screws. See your computer documentation ifyou need help.Connect to the Computer with a Parallel Cable➞To the parallelport on PCIf you are using a USB interfaceGo to page 2.17, “Installing USB Driver.” Note: USB cable shorter than 3m is recommended.If you are using a network interfaceGo to page F.5, “Network Interface Card.”Notes: • ML-1451N comes with a built-in network interface.• Shielded cables must be used with this equipment to maintain compliance with the EMC Directive (89/336/EEC).Note: To connect the printer to the parallel port of the computer requires a certified parallel cable.You will need to buy the IEEE1284 compliant cable.

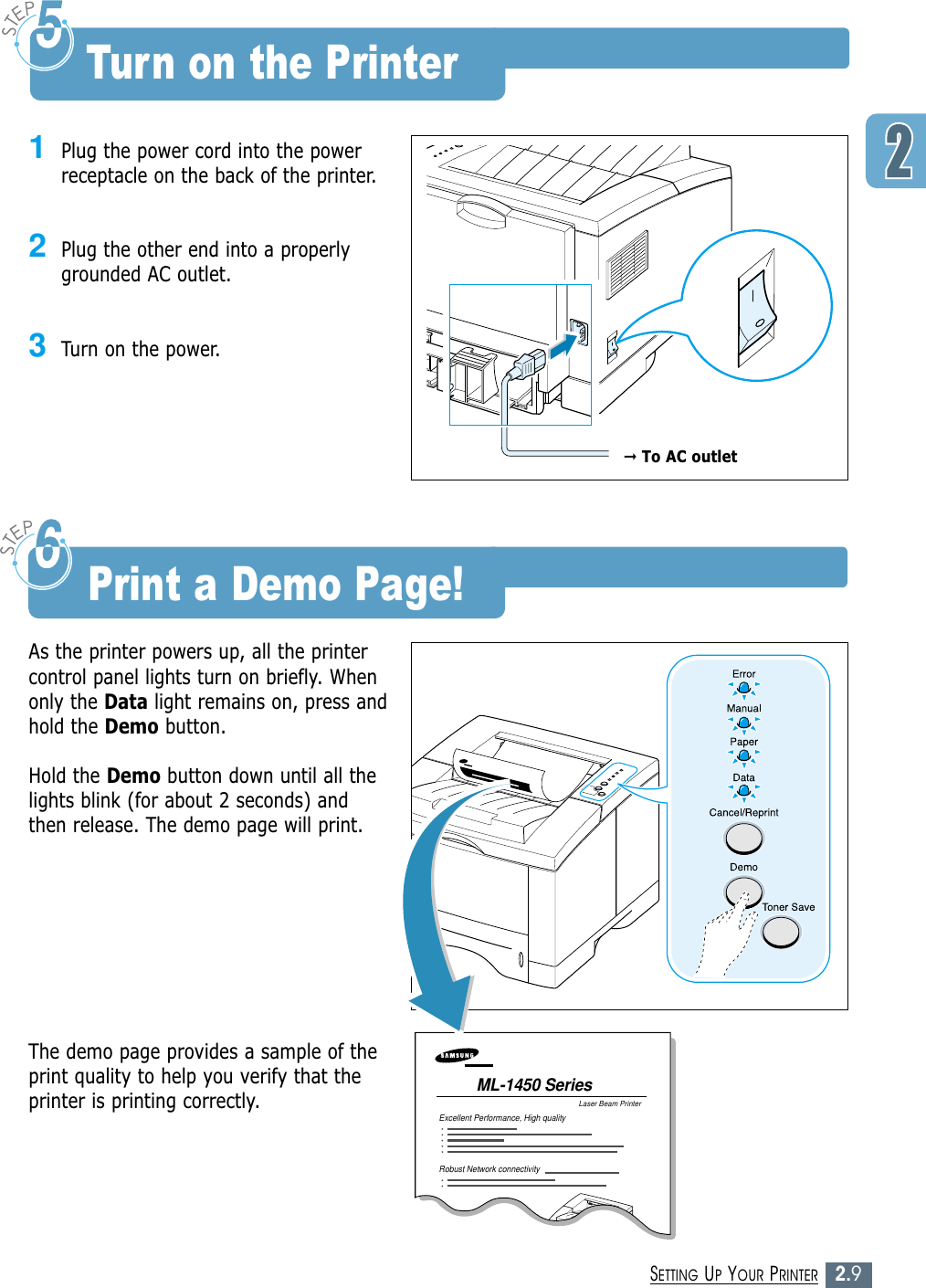

2.9SETTING UP YOUR PRINTER1Plug the power cord into the powerreceptacle on the back of the printer.2Plug the other end into a properlygrounded AC outlet.3Turn on the power.Turn on the Printer➞To AC outletAs the printer powers up, all the printercontrol panel lights turn on briefly. Whenonly the Data light remains on, press andhold the Demo button.Hold the Demo button down until all thelights blink (for about 2 seconds) andthen release. The demo page will print.Laser Beam PrinterExcellent Performance, High qualityRobust Network connectivityML-1450 Series The demo page provides a sample of theprint quality to help you verify that theprinter is printing correctly.Print a Demo Page!

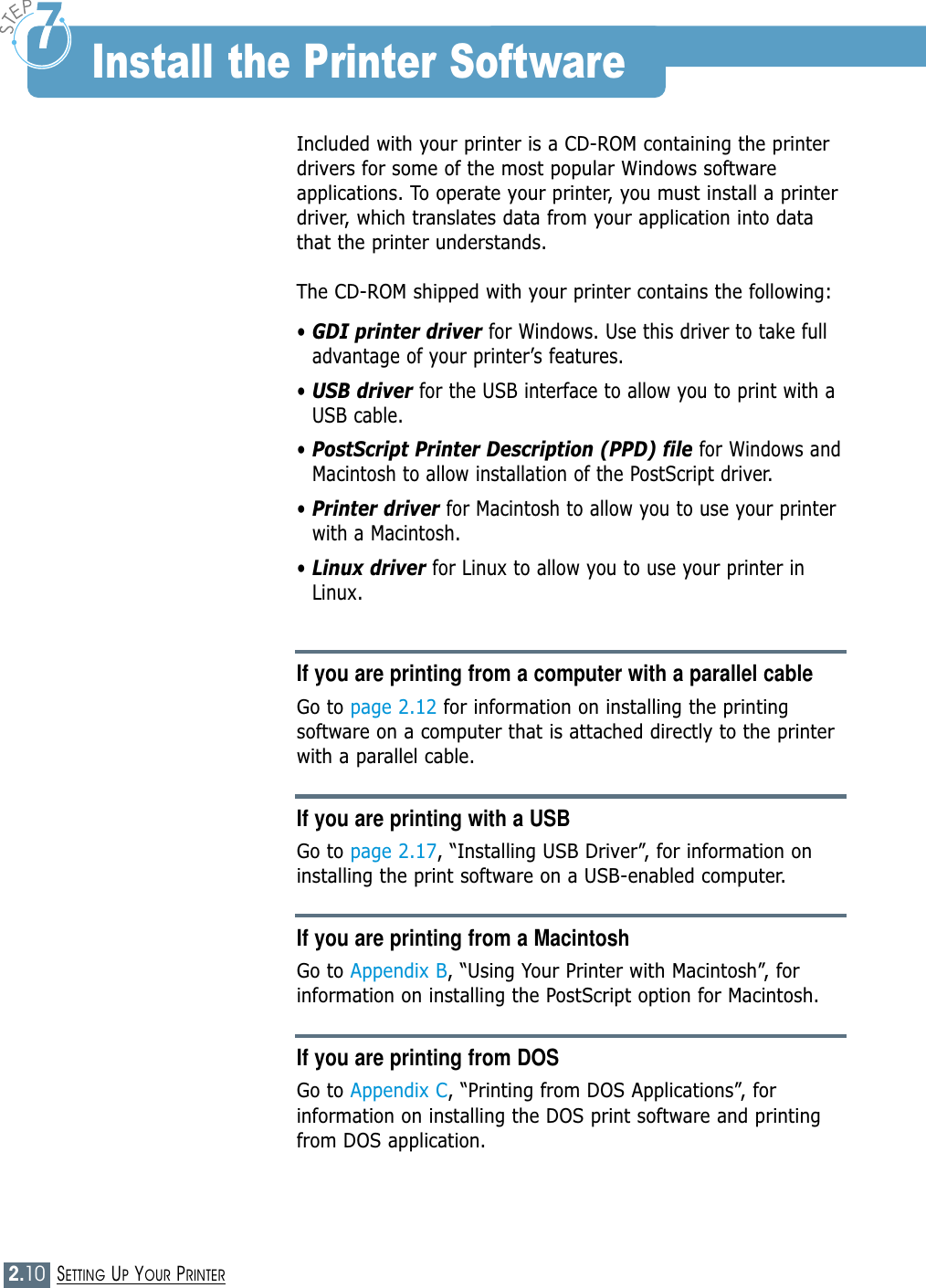

2.10SETTING UP YOUR PRINTERIncluded with your printer is a CD-ROM containing the printerdrivers for some of the most popular Windows softwareapplications. To operate your printer, you must install a printerdriver, which translates data from your application into datathat the printer understands.The CD-ROM shipped with your printer contains the following:• GDI printer driver for Windows. Use this driver to take fulladvantage of your printer’s features. • USB driver for the USB interface to allow you to print with aUSB cable.• PostScript Printer Description (PPD) file for Windows andMacintosh to allow installation of the PostScript driver.• Printer driver for Macintosh to allow you to use your printerwith a Macintosh.• Linux driver for Linux to allow you to use your printer inLinux.If you are printing from a computer with a parallel cableGo to page 2.12 for information on installing the printingsoftware on a computer that is attached directly to the printerwith a parallel cable.If you are printing with a USBGo to page 2.17, “Installing USB Driver”, for information oninstalling the print software on a USB-enabled computer.If you are printing from a MacintoshGo to Appendix B, “Using Your Printer with Macintosh”, forinformation on installing the PostScript option for Macintosh.If you are printing from DOSGo to Appendix C, “Printing from DOS Applications”, forinformation on installing the DOS print software and printingfrom DOS application.Install the Printer Software

2.11SETTING UP YOUR PRINTERVerify the following:• At least 32 MB or more of RAM is installed on your PC. • There is at least 200 MB of free disk space on your PC.• All applications are closed on your PC before beginninginstallation.• Windows 95, Windows 98, Windows Me, Windows NT 4.0,Windows 2000 or Windows XP.Before Installing the Printer SoftwareInstall the Printer SoftwareIf you are printing with PostScript driverGo to Appendix D, “Using Windows PostScript Driver”, forinformation on installing the PPD file.If you are using LinuxGo to Appendix G, “Using Your Printer in Linux”, for informationon installing the Linux driver.

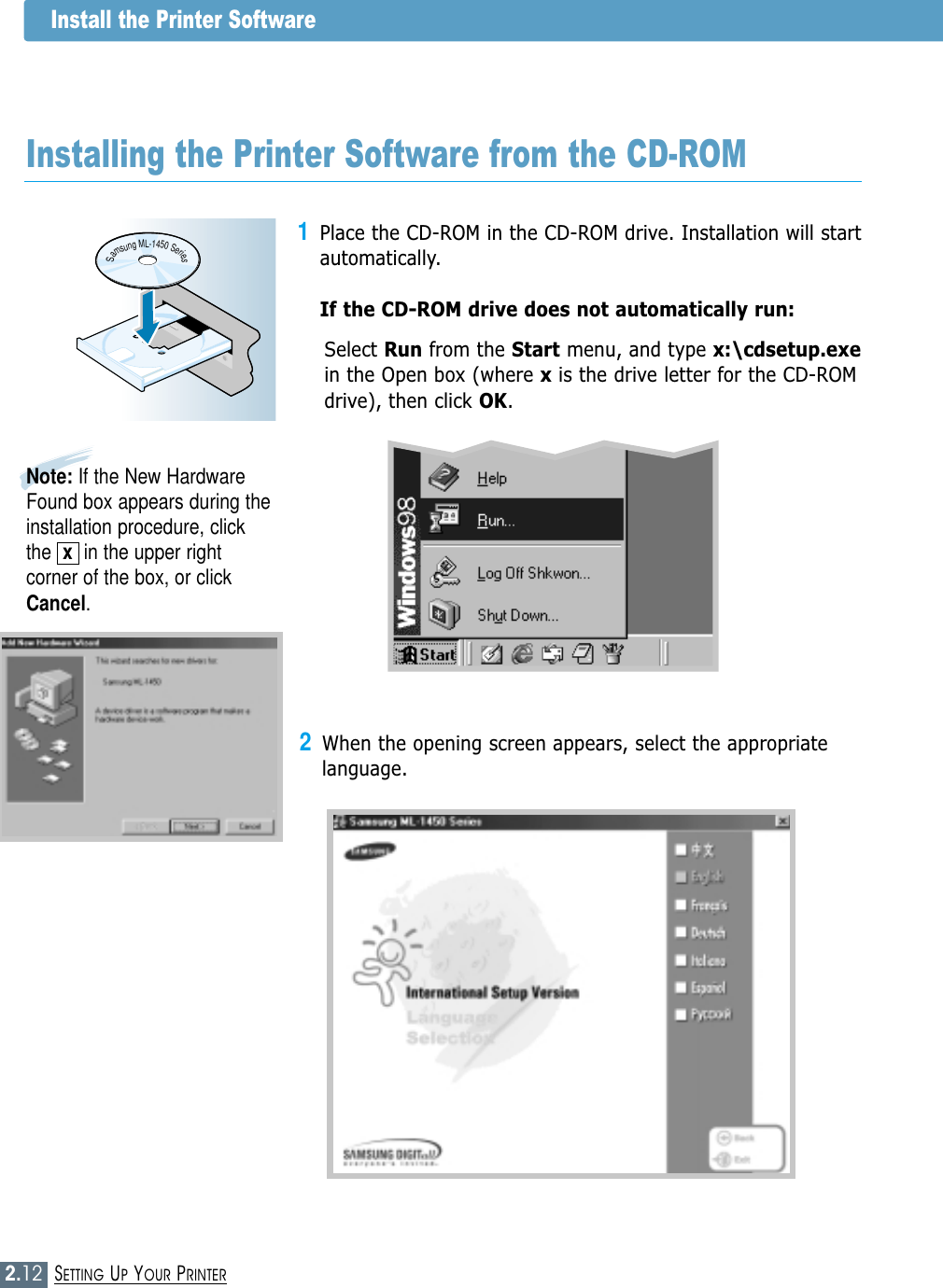

$2.12SETTING UP YOUR PRINTERInstall the Printer Software2When the opening screen appears, select the appropriatelanguage. 1Place the CD-ROM in the CD-ROM drive. Installation will startautomatically.If the CD-ROM drive does not automatically run:Select Run from the Start menu, and type x:\cdsetup.exein the Open box (where xis the drive letter for the CD-ROMdrive), then click OK.Installing the Printer Software from the CD-ROMNote: If the New HardwareFound box appears during theinstallation procedure, clickthe xin the upper rightcorner of the box, or clickCancel.SamsungML-1450Series$

2.13SETTING UP YOUR PRINTERInstall the Printer Software3Click Install the Samsung Software on your PC.4The Welcome window opens. Click Next.

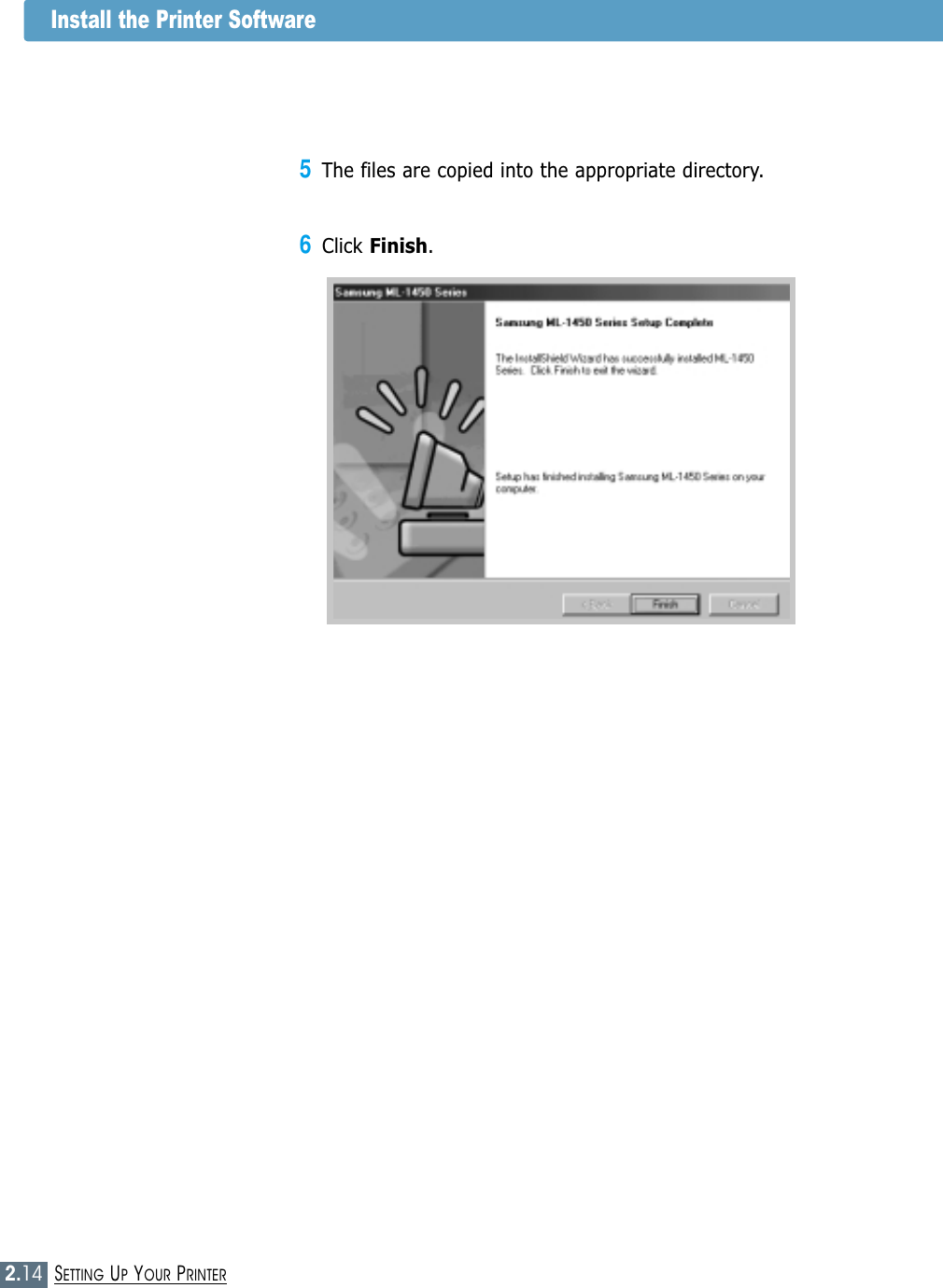

2.14SETTING UP YOUR PRINTERInstall the Printer Software5The files are copied into the appropriate directory.6Click Finish.

2.15SETTING UP YOUR PRINTERInstall the Printer SoftwareML-1450 series printer drivers will support the followingstandard features:• Input tray selection• paper size, orientation and media type• number of copiesTable below lists a general overview of features supported bythe ML-1450 series printer drivers.Printer Driver FeaturesFeaturesDriver PostScriptSPLWin2000/XP Win9x NT4.0 Macintosh Win2000/XP Win9x NT4.0 MacintoshToner save Y Y Y N Y Y Y NPrint quality option Y Y Y Y Y Y Y YHalftoning Y Y Y N N Y Y NManual duplex Y Y Y N N N N NBooklet printing Y Y Y N N N N NPoster printing Y Y Y N N N N NMultiple pages per sheet (N-up) Y Y Y Y Y Y N YFit to page printing Y Y Y Y N N N NDifferent source for first page Y Y Y N N N N NWatermark Y Y Y Y N N N NOverlay Y Y Y N N N N NTrueType fonts option N N N N Y Y Y YError reporting N N N N Y Y Y Y

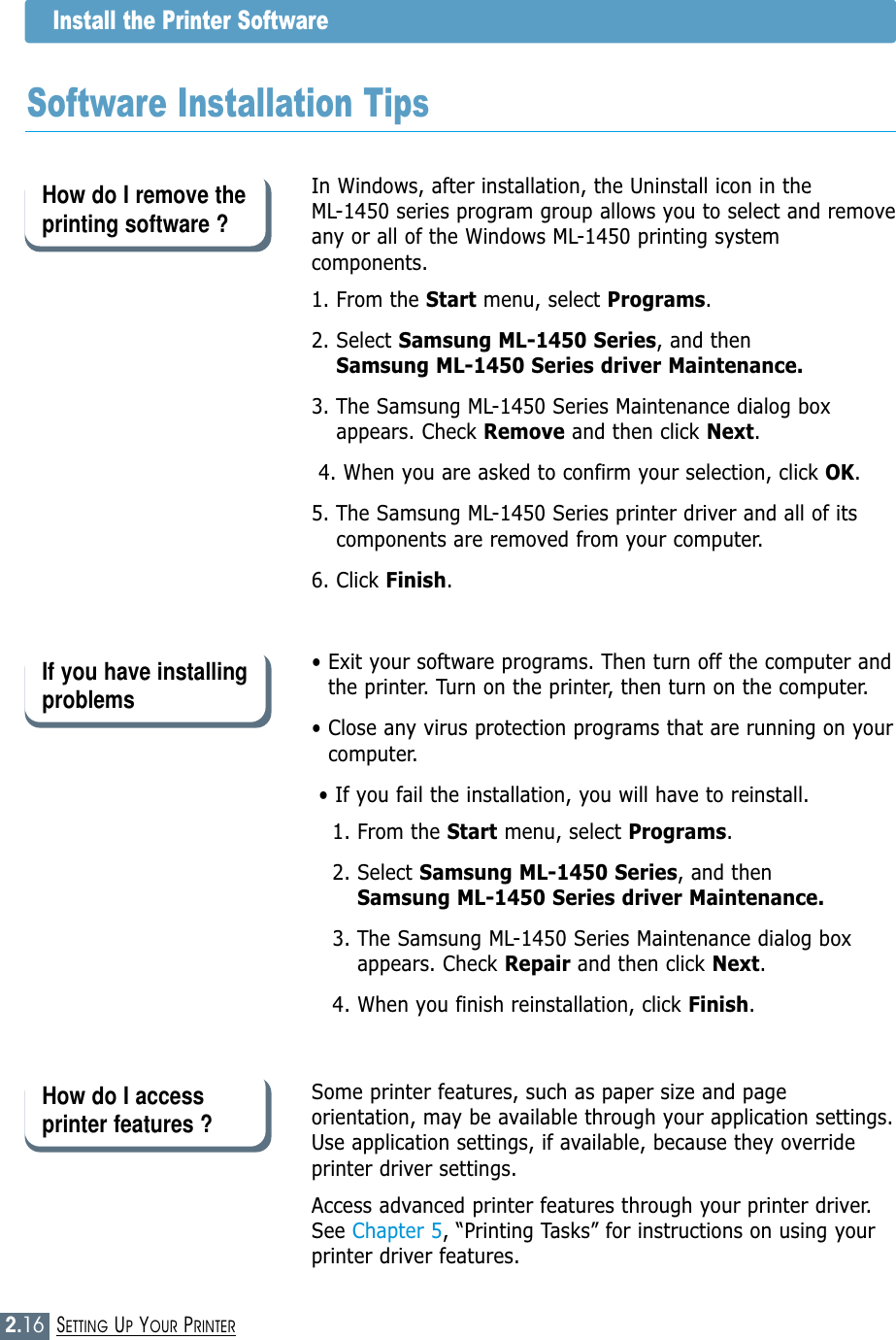

2.16SETTING UP YOUR PRINTERInstall the Printer SoftwareIn Windows, after installation, the Uninstall icon in the ML-1450 series program group allows you to select and removeany or all of the Windows ML-1450 printing systemcomponents.1. From the Start menu, select Programs.2. Select Samsung ML-1450 Series, and then Samsung ML-1450 Series driver Maintenance.3. The Samsung ML-1450 Series Maintenance dialog boxappears. Check Remove and then click Next.4. When you are asked to confirm your selection, click OK.5. The Samsung ML-1450 Series printer driver and all of itscomponents are removed from your computer.6. Click Finish.• Exit your software programs. Then turn off the computer andthe printer. Turn on the printer, then turn on the computer.• Close any virus protection programs that are running on yourcomputer. • If you fail the installation, you will have to reinstall.1. From the Start menu, select Programs.2. Select Samsung ML-1450 Series, and then Samsung ML-1450 Series driver Maintenance.3. The Samsung ML-1450 Series Maintenance dialog boxappears. Check Repair and then click Next.4. When you finish reinstallation, click Finish.Software Installation TipsSome printer features, such as paper size and pageorientation, may be available through your application settings.Use application settings, if available, because they overrideprinter driver settings.Access advanced printer features through your printer driver.See Chapter 5, “Printing Tasks” for instructions on using yourprinter driver features.How do I remove theprinting software ?If you have installingproblemsHow do I accessprinter features ?

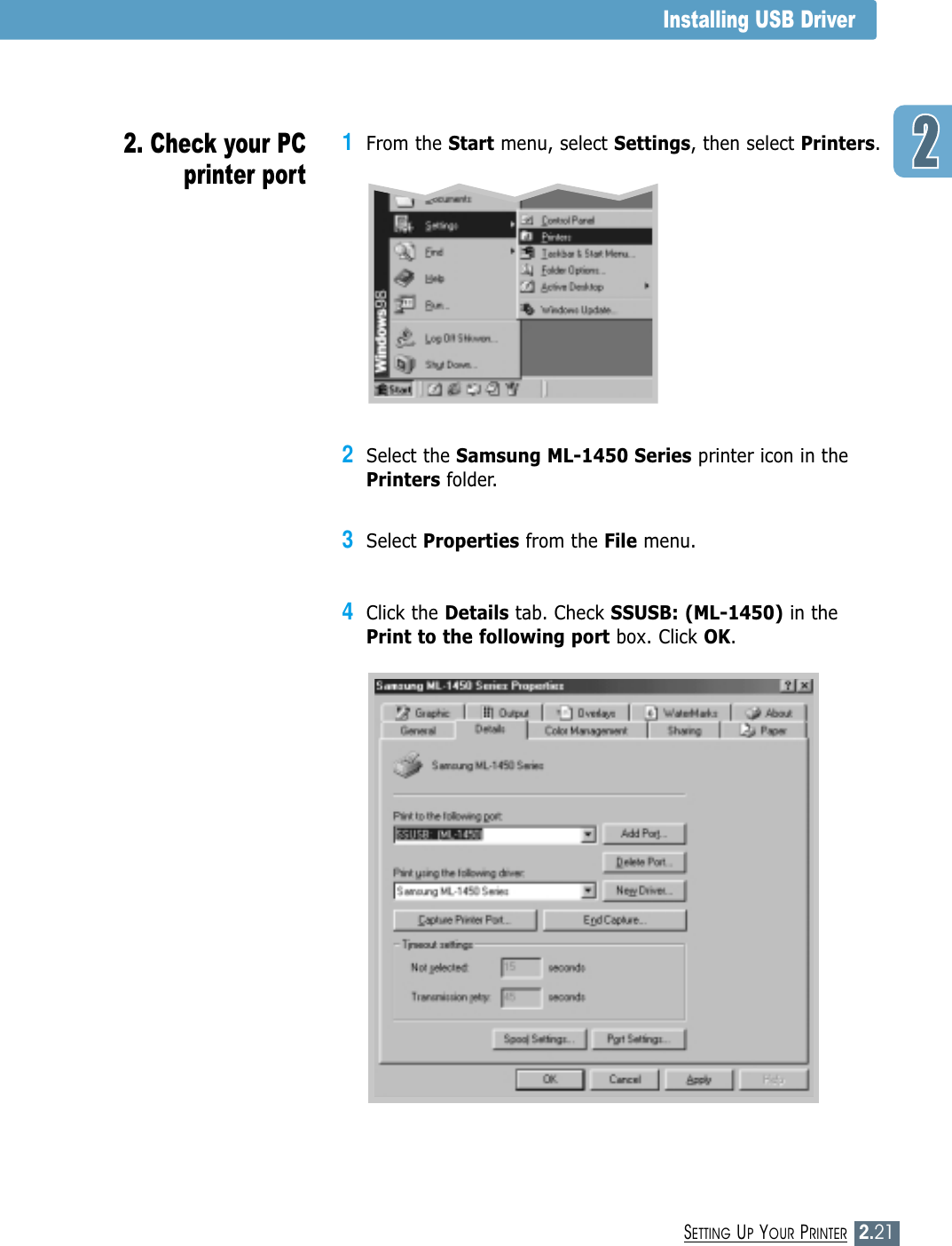

2.17SETTING UP YOUR PRINTERIf you have a USB (Universal Serial Bus) port enabled on your computer, and ifyour computer is running Windows 98/Me/2000/XP, you can connect your ML-1450 series printer to the USB chain of devices.Note: Connecting the printer to the USB port of the computer requires a certifiedUSB cable. You will need to buy the USB 1.0 or 1.1 compliant cable.Installing USB DriverInstalling USB driver in Windows 98/Me3Plug the other end into the USB port on the computer.4The Add New Hardware Wizard dialog box appears. ClickNext.➝To PC1Make sure that both the printer and computer are turned ON.2Plug one end of the USB cable into the USB port on the printer.1. Connect printer withUSB cable andinstall USB driver

$2.18SETTING UP YOUR PRINTERInstalling USB Driver5Check Search for the best driver for your device and clickNext.6Check CD-ROM drive and click Browse, then choose x:\USB(where xis the drive letter for the CD-ROM drive).7Click Next. The USB driver will be installed.$

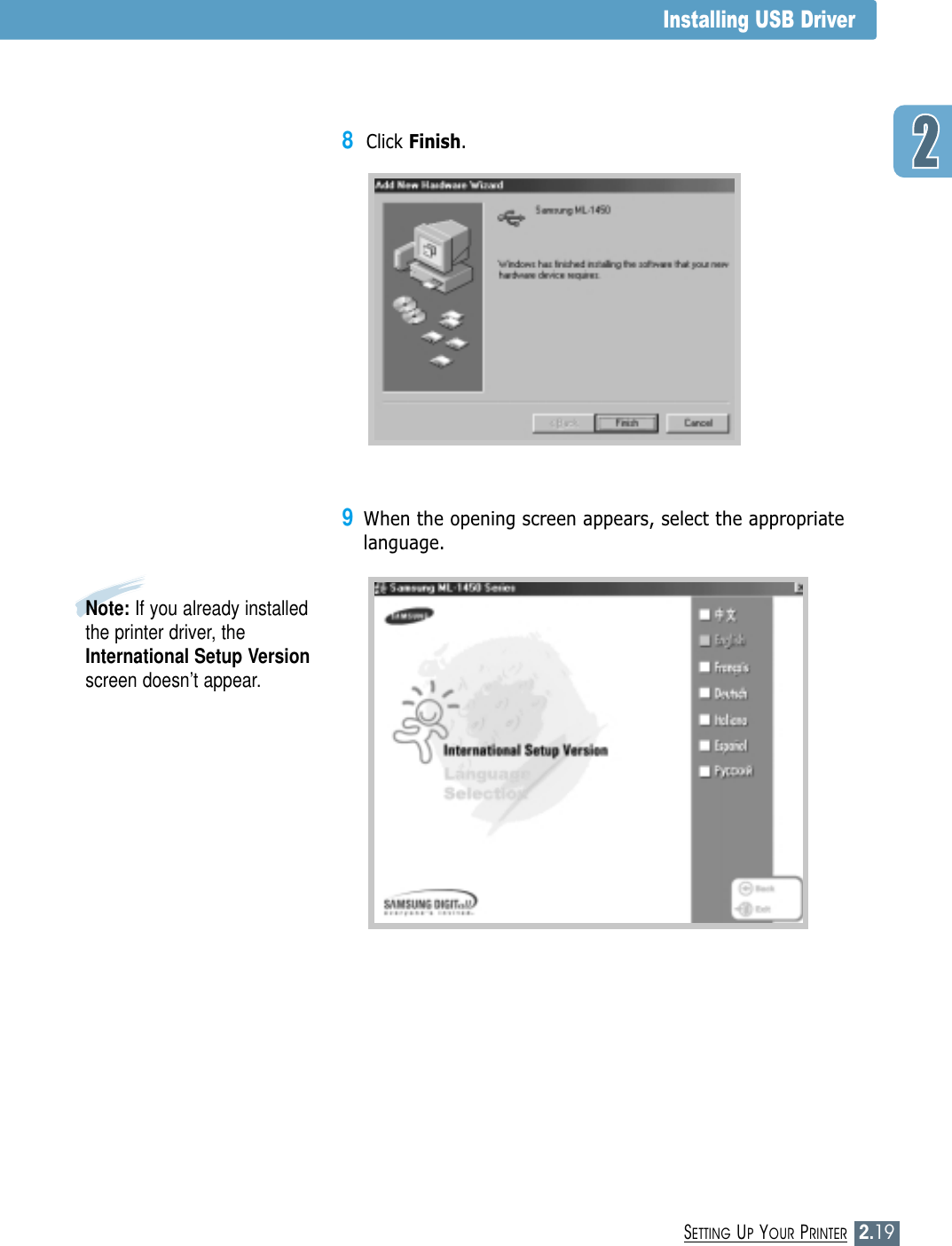

2.19SETTING UP YOUR PRINTERInstalling USB Driver8Click Finish.9When the opening screen appears, select the appropriatelanguage. Note: If you already installedthe printer driver, theInternational Setup Versionscreen doesn’t appear.

2.20SETTING UP YOUR PRINTERInstalling USB Driver10Click Install the Samsung Software on your PC.11Follow the instructions on the screen to complete theinstallation. For more details, see page 2.12.

2.21SETTING UP YOUR PRINTERInstalling USB Driver2Select the Samsung ML-1450 Series printer icon in thePrinters folder.3Select Properties from the File menu.4Click the Details tab. Check SSUSB: (ML-1450) in thePrint to the following port box. Click OK.1From the Start menu, select Settings, then select Printers.2. Check your PCprinter port

2.22SETTING UP YOUR PRINTERInstalling USB DriverInstalling USB driver in Windows 2000/XP3Plug the other end into the USB port on the computer.➝To PC1Make sure that both the printer and computer are turned ON.2Plug one end of the USB cable into the USB port on the printer.1. Connect printerwith USB cable

$2.23SETTING UP YOUR PRINTERInstalling USB Driver2When the opening screen appears, select the appropriatelanguage. 2. Install USB driver 1Place the CD-ROM in the CD-ROM drive. Installation willstart automatically.If the CD-ROM drive does not automatically run:Select Run from the Start menu, and typex:\cdsetup.exe in the Open box (where xis the driveletter for the CD-ROM drive), then click OK.Note: If the New HardwareFound box appears during theinstallation procedure, clickthe xin the upper rightcorner of the box, or clickCancel.SamsungML-1450Series$

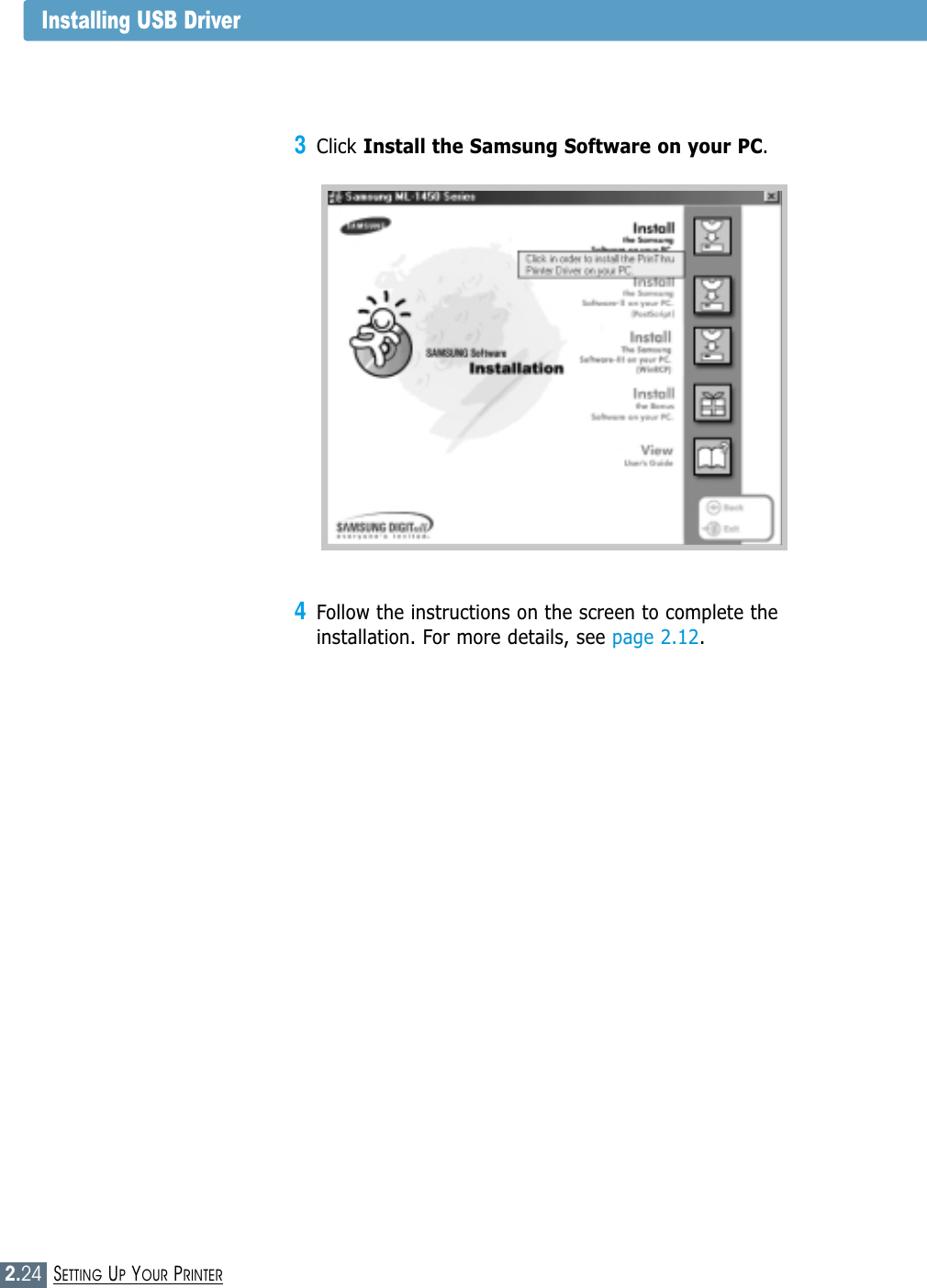

2.24SETTING UP YOUR PRINTERInstalling USB Driver3Click Install the Samsung Software on your PC.4Follow the instructions on the screen to complete theinstallation. For more details, see page 2.12.

2.25SETTING UP YOUR PRINTER1From the Start menu, select Settings, then Printers.(Windows 2000)From the Start menu, select Printers and Faxes.(Windows XP)2Select the Samsung ML-1450 Series printer icon in thePrinters folder.3Select Properties from the File menu.4Click the Port tab. Check the port and the printer.Click OK.• Samsung ML-1450 Series is connected to the USB Port• The printer prints using the USB cable. 3. Check your PCprinter portNote: If your printer stop theconnecting with USB cable,the printer driver icon isfaded. Installing USB DriverNotes:• If you want to use your printer with the Parallel cable, remove theUSB cable and connect the Parallel cable. Then reinstall the printerdriver.• If your printer doesn’t work properly, reinstall the printer driver.

2.26SETTING UP YOUR PRINTERInstalling USB DriverQQQQWhat is USB?How can I determine if my computer’s USB port is enabled?AAUniversal Serial Bus (USB) makes it easy to connect devices toyour computer without having to open your PC. USB uses astandard port and plug combination for connecting devices likeprinters, modems, scanners, and digital cameras. It also offersthe benefit of being able to easily add, remove, and movedevices.Because USB is a relatively new technology, we recommendedusing a parallel printing connection. However, USB is an optionto customers who want to print from Windows 98/Me/2000/XP,Macintosh using a USB cable. If your computer’s USB port isenabled and properly setup, you can connect your printer to itor to a chain of USB devices via a USB cable.1In Windows 98/Me, select Start ➝ Settings ➝ Control Panel.2Double-click the System icon.3Click the Device Manager tab.4Click the plus (+) icon before the Universal Serial BusController item.If you see a USB host controller and a USB root hub listed, USB isproperly enabled. If you have multiple hubs on the USB chain, tryconnecting your printer to a different hub or to another USBdevice. Also, make sure the cable connections are firm. (USB hubsare hardware devices into which you can plug multiple USBcables.)If you do not see these devices listed, refer to your computer’sdocumentation or contact the manufacturer for more informationon enabling and setting up USB. Remember, you can always use aparallel cable to connect your printer’s parallel port to yourcomputer. (If you decide to switch to a parallel cable connection,you may need to remove and reinstall the printer software. )AAFrequently Asked Questions About USB

2.27SETTING UP YOUR PRINTERInstalling USB DriverQQQQQQCan other users on my USB chain print to my ML-1450 printer?Yes. Windows 98/Me/2000/XP allows you to “share” yourprinter using software settings on your computer. After otherson the USB chain have installed the printer software for yourspecific printer, they can print to your shared printer. After I install my printer, why isn’t my ML-1450 printer assigned toan LPT printer port in the Print dialog box of my softwareapplication?USB uses a different naming convention for USB devices. Afterthe printer has been installed, you see SSUSB:(your printername) instead of LPT.How can I increase printing speed and quality?When operated on a USB chain, your printer may becomeslower if other USB devices are being used while you’reprinting. For optimal print performance, avoid using otherdevices in the USB chain while printing.AAAAAA

This chapter describes how to use the printer’s controlpanel. It provides information on the following topics:◆Control Panel Buttons◆Control Panel Lights33CHAPTERUsing theControl PanelUsing theControl Panel

3.1USING THE CONTROL PANELControl Panel ButtonsThe printer has three buttons: Cancel/Reprint, Demo and Toner Save.Reprint last page of the jobPress Cancel/Reprint and hold until the control panellights blink to cancel a job the printer is currentlyprinting. The Error light will blink while the print job iscleared from both the printer and the computer, and theprinter will then return to the ready mode. This maytake some time, depending on the size of the print job.Note: If the Cancel/Reprint button is accidentally pushed, thejob must be reprinted. There is no undo function.If you press Cancel/Reprint in the ready mode, theprinter prints the last page of the last print job. Forfurther information, see page 5.29.Cancel job

3.2USING THE CONTROL PANELControl Panel ButtonsCleaning the inside of the printerPress and hold Demo for about 2 seconds until thecontrol panel lights blink slowly to print a demo page.The printer must be in the ready mode.Press and hold Demo for about 6 seconds until thecontrol panel lights blink rapidly to print a configurationsheet. The printer must be in the ready mode. Forfurther information, see page 7.6.Press and hold Demo for about 10 seconds until thecontrol panel lights remain illuminated to automaticallyclean the inside of the printer. After cleaning the printer,one cleaning sheet prints. For further information, see page 7.6.Print demo page and configuration sheetStart manual feedingWhen you select Manual Feed for Paper Source fromyour software application, you should press Demo eachtime you feed a sheet of paper manually. For furtherinformation, see page 4.10.Press Toner Save to turn the toner save mode on or off.The printer must be in the ready mode.• If the button backlight is on, toner save modeactivates and the printer uses less toner to print adocument.• If the button backlight is off, toner save mode isdisabled and you will print in normal quality. Forfurther information on Toner Save mode, see page 5.6.(on)(off)Toner Save

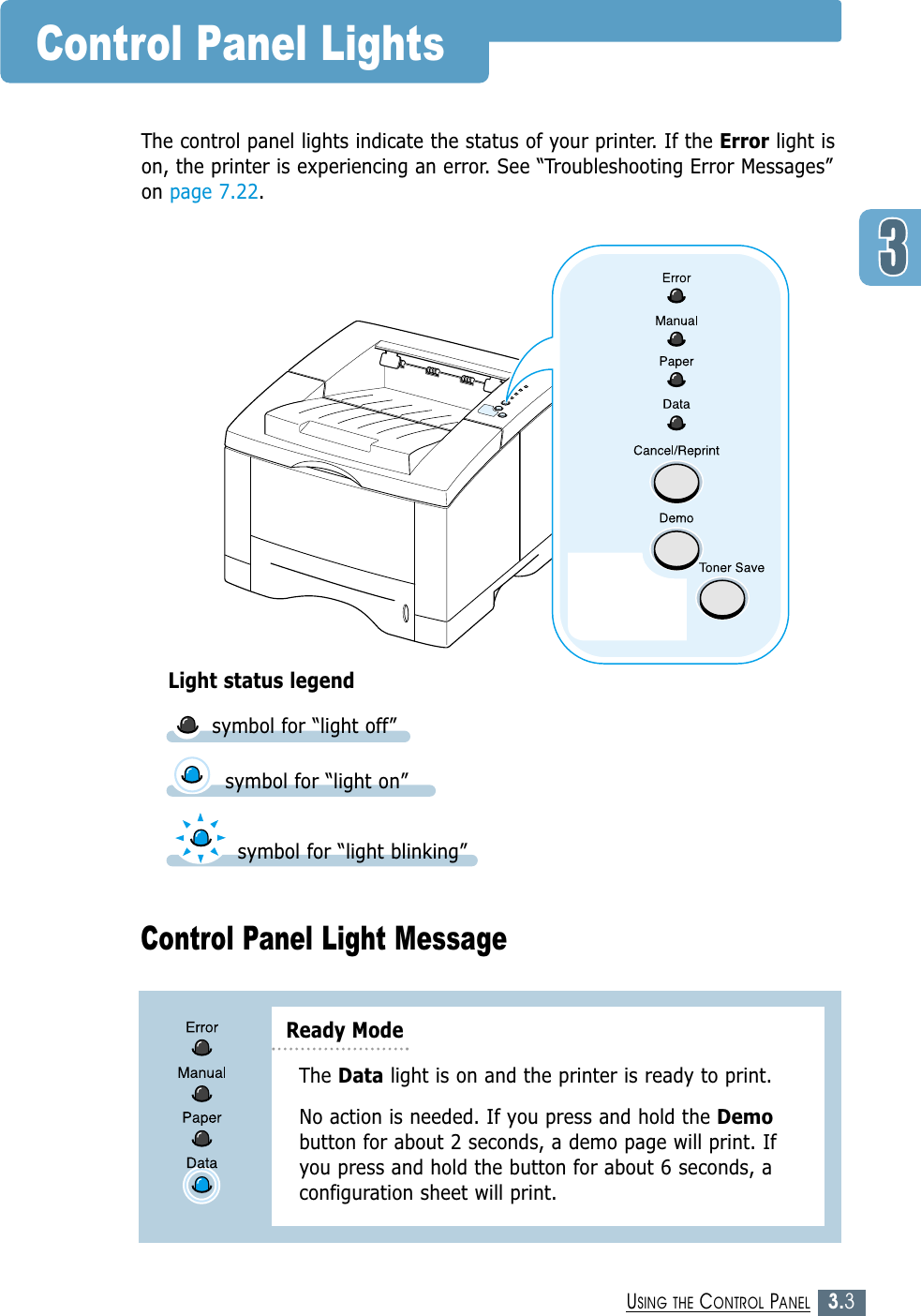

3.3USING THE CONTROL PANELControl Panel Light MessageThe Data light is on and the printer is ready to print. No action is needed. If you press and hold the Demobutton for about 2 seconds, a demo page will print. Ifyou press and hold the button for about 6 seconds, aconfiguration sheet will print.Ready ModeControl Panel LightsThe control panel lights indicate the status of your printer. If the Error light ison, the printer is experiencing an error. See “Troubleshooting Error Messages”on page 7.22.symbol for “light on”symbol for “light blinking”symbol for “light off”Light status legend

3.4USING THE CONTROL PANELThe printer is receiving or processing data. Wait for thejob to print. Pressing the Cancel/Reprint button cancels the currentjob. One or two pages may print as the printer clearsthe print job. The printer will return to the ready modeafter the job has been canceled.ProcessingThe Data light blinks rapidly. Data is in the printermemory waiting to be printed. Pressing the Cancel/Reprint button cancels the currentjob and the printer returns to the ready mode.DataControl Panel LightsThe printer is out of paper. The Paper light blinks untilpaper is added. Load paper into the printer. There is no need to pressany button to reset. Paper outThe printer is set to Manual Feed mode. You have tofeed paper manually through the Multi-Purpose Tray. Ifyou do not want to be in the Manual Feed mode, changethe setting from your printer properties. For details onthe Manual Feed mode, see page 4.10.Manual feed mode

3.5USING THE CONTROL PANELControl Panel LightsThe printer is processing data in the Manual Feed mode.Wait for the job to print.Printing in the manual feed modeIn the Manual Feed mode, the printer picks up paperfrom the Multi-Purpose Tray, one sheet at a time.Feed the correct paper in the Multi-Purpose Tray, andpress the Demo button to start printing.Paper out in the manual feed mode

This chapter will help you understand what kind of paperyou can use with the ML-1450 series printer and how toproperly load paper in the different paper trays for thebest print quality.Topics included in this chapter are:◆ Choosing Paper and Other Media◆ Selecting the Output Tray◆ Loading Paper◆ Printing on Envelopes◆ Printing on Labels◆ Printing on Transparencies◆ Printing on Preprinted Paper◆ Printing on Card Stock or Custom-sized Media44CHAPTERPrint MediaPrint Media

4.1PRINT MEDIAChoosing Paper and Other MediaYou can print on a variety of print media, such as plain paper,envelopes, labels, transparencies, card stocks and so on. See“Paper Specifications” on page A.2. To get the best possibleprint quality, use only high-quality copier-grade paper.When you choose print media, consider the following:• Desired outcome: The paper you choose should beappropriate for the project.• Size: You can use any size paper that fits easily within thepaper adjusters of the paper tray.• Weight : Your printer supports paper weight as follows:• 16~28 lbs bond for Tray 1 or optional Tray 2• 16~43 lbs bond for Multi-Purpose Tray• Brightness: Some papers are whiter than others andproduce sharper, more vibrant images. • Surface smoothness: The smoothness of the paper affectshow crisp the printing looks on the paper.• Opacity: Opacity refers to the degree to which printing onone side of the paper shows through the other side. Usepaper high in opacity (or thicker paper) for two-sided(duplex) printing.Always test a sample of paper before purchasing largequantities.CAUTION: Using media that does not confirm to the specificationlisted in the paper specification can cause problems that mayrequire service. This service is not covered by the warranty orservice agreements.

4.2PRINT MEDIAChoosing Paper and Other MediaPlain PaperLetter (8.5 x 11 in.)Legal (8.5 x 14 in.)Executive (7.25 x 10.5 in.)Folio (8.5 x 13 in.)A4 (210 x 297 mm)B5 (182 x 257 mm)A5 (148 x 210 mm)EnvelopesNo. 10 (4.12 x 9.5 in.)Monarch (3.87 x 7.5 in.)C5 (162 x 229 mm)DL (110 x 220 mm)B5 (176 x 250 mm)Labels*2Letter (8.5 x 11 in.)A4 (210 x 297 mm)Transparency films*2Letter (8.5 x 11 in.)A4 (210 x 297 mm)Card stocks*2Bond*2Tray 1 or Optional Tray 2550550550550550550–40 (Tray 2 only)40 (Tray 2 only)40 (Tray 2 only)40 (Tray 2 only)40 (Tray 2 only)–––––Multi-Purpose Tray10010010010010010010010101010102525202010Manual Feed111111111111111111Media Sizes and CapacitiesInput Source/Capacity*1Media Size*1Depending on paper thickness, maximum capacity may be reduced.*2If you are experiencing excessive jamming, feed one sheet at a timethrough the Multi-Purpose Tray.

When selecting or loading paper, envelopes, or other specialmedia, keep these guidelines in mind:• Attempting to print on damp, curled, wrinkled, or torn papercan cause paper jams and poor print quality.• Use cut-sheet paper only. You cannot use multi-part paper.• Use only high-quality, copier grade paper. • Do not use paper that has been already printed on or thathas been fed through a photocopier.• Do not use paper with irregularities, such as tabs orstaples.• Do not attempt to load any tray during printing and neveroverfill the tray. This could cause a paper jam.• Avoid paper with embossed lettering, perforations, ortexture that is too smooth or too rough.• Colored paper should be of the same high quality as whitephotocopy paper. The pigments must withstand the printer’sfusing temperature of 400°F (205°C) for 0.1 second withoutdeterioration. Do not use paper with a colored coating thatwas added after the paper was produced.• Preprinted forms must be printed with nonflammable, heat-resistant ink that will not melt, vaporize, or releasehazardous emissions when subjected to the printer’sapproximately 400°F (205°C) fusing temperature for 0.1second.• Store paper in its ream wrapper until it is ready to use.Place cartons on pallets or shelves, not on the floor. • Do not place heavy objects on top of the paper, whether itis packaged or unpackaged. • Keep paper away from moisture, direct sunlight or otherconditions that can cause it to wrinkle or curl.4.3PRINT MEDIAChoosing Paper and Other MediaPaper Guidelines

4.4PRINT MEDIASelecting the Output TrayThe printer has two output locations: the rear output tray and the top output tray. To use the top output tray, be sure the rear output tray is closed. To use the rear output tray,open it.• If paper coming out of the top output tray has problems, such as excessive curl, tryprinting to the rear output tray.• To avoid paper jams, do not open or close the rear output tray while the printer isprinting.The top output tray collects paper face-down, incorrect order. The top output tray should be usedfor most print jobs and is recommended for printingthe following:• over 250 sheets of paper, continuously➐➐➐➐Top output trayThe printer always prints to the rear output tray if itis open. Paper comes out of the printer face-up,with the last page on top.Printing from the Multi-Purpose Tray to the rearoutput tray provides the straight paper path.Opening the rear output tray might improve outputquality with the following:• over 100 sheets of paper, continuously• envelopes• labels• small custom-size paper• postcards• paper lighter than 16 lb (60 g/m2) or heavier than 28 lb (105 g/m2)• transparencies:Note: Some special transparencies may have stackingproblem by curl. In that case, please use the face down tray.SamsungPrinterLASER PRINTERML-1650Printing to the Top Output Tray (Face down)Printing to the Rear Output Tray (Face up)➐➐➐➐Rear output tray

4.5PRINT MEDIASelecting the Output Tray1Open the rear door by pulling it down.The cover functions as the output tray.To open the rear output tray:2Pull the extender to extend the outputtray to its full-length position.This will allow the tray to hold longerpaper.3If you do not want to stack the printedpages on the rear output tray, slide theextender back into place and close thetray. The pages will then stack on thetop output tray. Note: The capacity of the rear output tray isthe same as that of the Multi-Purpose Tray. Ifthe tray is overloaded with printed pages, itmay fall from the printer. Remove the pagesso that the tray is not overloaded.

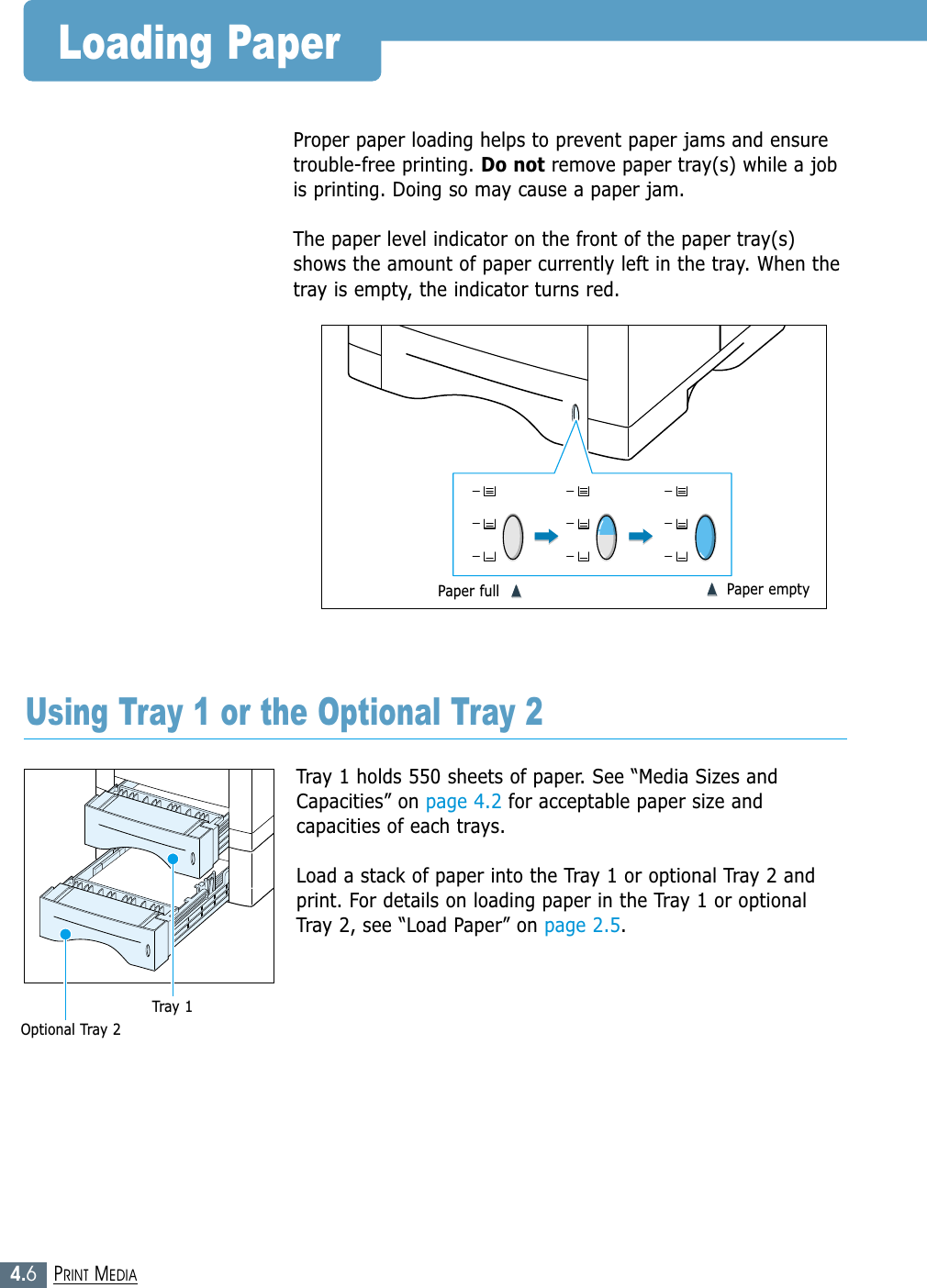

4.6PRINT MEDIALoading PaperTray 1 holds 550 sheets of paper. See “Media Sizes andCapacities” on page 4.2 for acceptable paper size andcapacities of each trays.Load a stack of paper into the Tray 1 or optional Tray 2 andprint. For details on loading paper in the Tray 1 or optionalTray 2, see “Load Paper” on page 2.5.Proper paper loading helps to prevent paper jams and ensuretrouble-free printing. Do not remove paper tray(s) while a jobis printing. Doing so may cause a paper jam. The paper level indicator on the front of the paper tray(s)shows the amount of paper currently left in the tray. When thetray is empty, the indicator turns red.Using Tray 1 or the Optional Tray 2Paper full ➐➐➐➐➐➐☎☎☎☎➐➐☎☎☎☎Paper emptyOptional Tray 2Tray 1

4.7PRINT MEDIALoading PaperThe Multi-Purpose Tray is located in the front of your printer. It can be closed when you are not using it, making the printermore compact. The Multi-Purpose Tray can hold several sizesand types of paper, such as transparencies, cards, andenvelopes. You may also want to use the Multi-Purpose Trayfor single page print jobs on letterheads, colored paper for useas separator sheets, or other special paper that you do notnormally keep in the paper tray. You can load approximately 100 sheets of paper, 10 envelopes,20 transparencies, 10 card stocks or 25 labels at a time. When you print from the Multi-Purpose Tray, you must selectMulti-Purpose Tray for Paper Source from your softwareapplication, and then select the paper size and type from thesoftware application for the paper you have loaded. See page 5.3.• Load only one size of print media at a time in the Multi-Purpose Tray.• To prevent paper jams, do not add paper when there is stillpaper in the Multi-Purpose Tray. This also applies to othertypes of print materials.• Print media should be loaded face up with the top of theprint media going into the Multi-Purpose Tray first andbeplaced against the left edge of the tray.• Do not place objects on the Multi-Purpose Tray. Also avoidpressing down or applying excessive force on it.Using the Multi-Purpose Tray➐➐➐➐Multi-Purpose Tray

4.8PRINT MEDIA1Pull the Multi-Purpose Tray down towardsyou. To load paper in the Multi-Purpose Tray:2Slide the extender to extend the tray toits full-length position to hold longerpaper.3Prepare a stack of paper for loading byflexing or fanning them back and forth.Straighten the edges on a level surface.Loading Paper

Note: Make sure that you have notloaded too much print media. The stackshould be under the stack height limitmark. The print media buckles if you loada stack that is too deep, or push it in toofar.4.9PRINT MEDIALoading Paper4Place paper with the print side faceup, and against the left edge of thetray.5Slide the paper width guide to the leftflush against the stack of print materialwithout bending.Stack height limit mark6After printing, push the extender backto its place and close the Multi-PurposeTray.

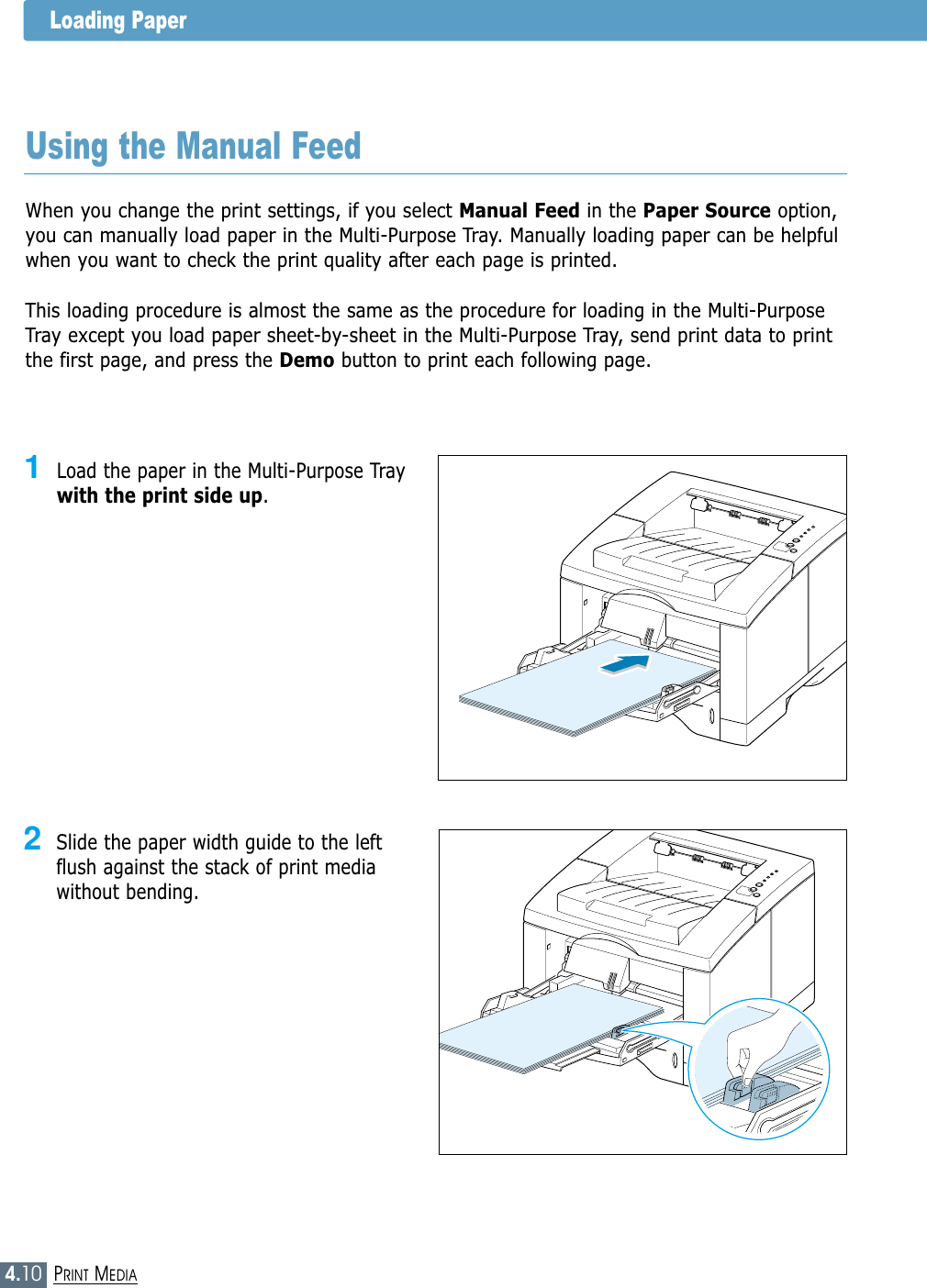

4.10PRINT MEDIALoading PaperWhen you change the print settings, if you select Manual Feed in the Paper Source option,you can manually load paper in the Multi-Purpose Tray. Manually loading paper can be helpfulwhen you want to check the print quality after each page is printed. This loading procedure is almost the same as the procedure for loading in the Multi-PurposeTray except you load paper sheet-by-sheet in the Multi-Purpose Tray, send print data to printthe first page, and press the Demo button to print each following page.Using the Manual Feed1Load the paper in the Multi-Purpose Traywith the print side up.2Slide the paper width guide to the leftflush against the stack of print mediawithout bending.

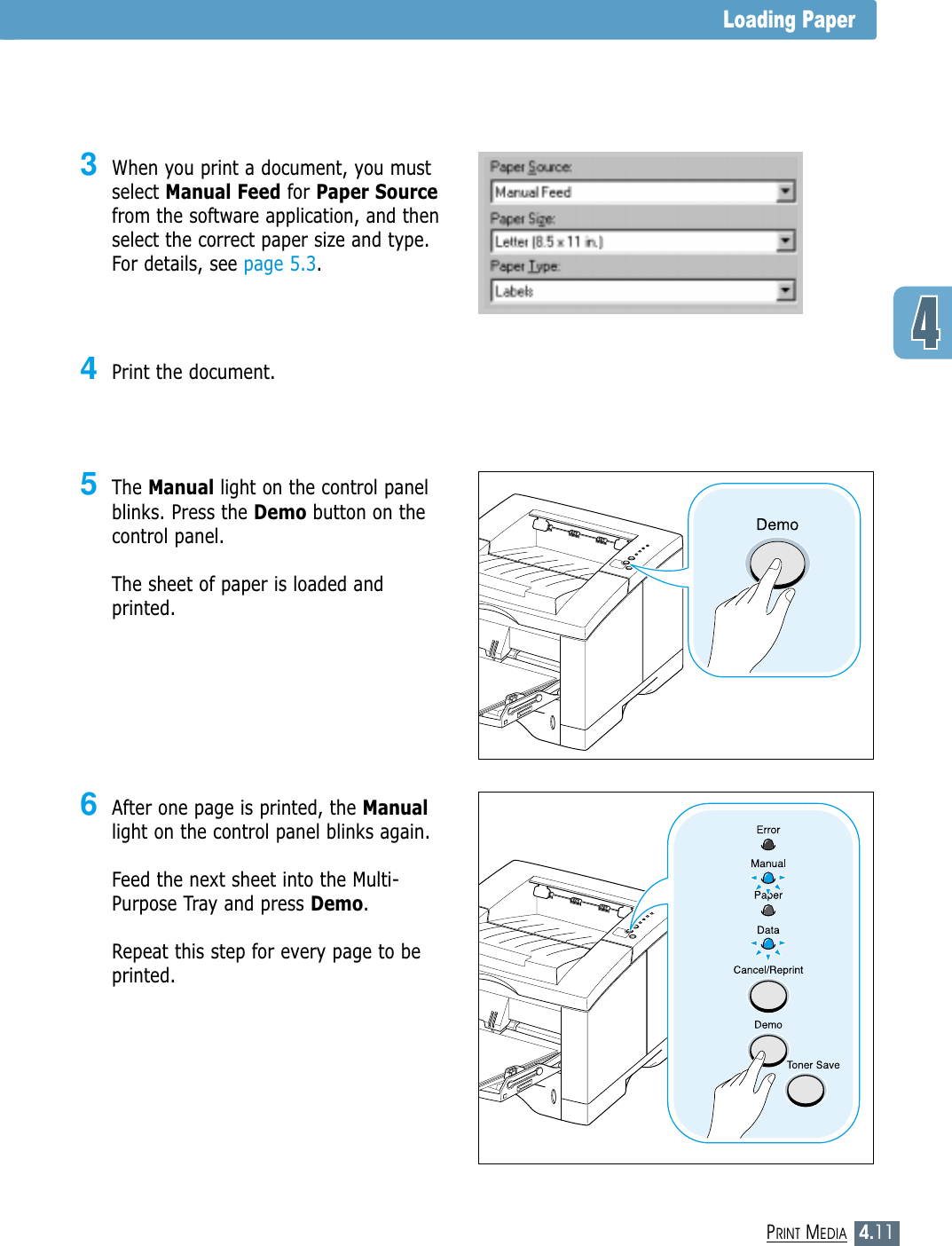

4.11PRINT MEDIALoading Paper4Print the document.5The Manual light on the control panelblinks. Press the Demo button on thecontrol panel. The sheet of paper is loaded andprinted.6After one page is printed, the Manuallight on the control panel blinks again. Feed the next sheet into the Multi-Purpose Tray and press Demo.Repeat this step for every page to beprinted.3When you print a document, you mustselect Manual Feed for Paper Sourcefrom the software application, and thenselect the correct paper size and type.For details, see page 5.3.

4.12PRINT MEDIAPrinting on EnvelopesGuidelines• Only use envelopes recommended for laser printers. Before you load envelopes in theMulti-Purpose Tray, make sure that they are undamaged and are not stuck together. • Do not load more than 10 envelopes into the Multi-Purpose Tray.• Do not feed stamped envelopes.• Never use envelopes with clasps, snaps, windows, coated lining, or self-stick adhesives.These envelopes may severely damage the printer.1Open the Multi-Purpose Tray and slidethe extender to its full-length position.2Open the rear output tray and pull theextender.

4.13PRINT MEDIAPrinting on Envelopes4Load the envelopes with the flap sidedown, and against the left edge of the tray. The stamp area is on the left side and theend of the envelope with the stamp areaenters the Multi-Purpose Tray first.5Adjust the guide to the left edge of theenvelope stack.3Flex or fanthe envelopes to supply airthrough them for loading.6When you print on envelopes, configurethe paper source, type and size properlyin the software application. For details,see page 5.3.7After printing, close the Multi-PurposeTray and the rear output tray.

4.14PRINT MEDIAPrinting on LabelsGuidelines• Only use labels recommended for laser printers.• Do not load more than 25 labels into the Multi-Purpose Tray at a time.• Verify that the labels’ adhesive material can tolerate fusing temperature of 200°C(392°F) for 0.1 second.• Make sure that there is no exposed adhesive material between the labels. Exposed areascan cause labels to peel off during printing, which can cause paper jams. Exposedadhesive can also cause damage to printer components.• Do not feed a sheet of labels through the printer more than once. The adhesive backingis designed for one pass through the printer.• Do not use labels that are wrinkled, bubbled, separated from the backing sheet, ordamaged in any way.1Open the Multi-Purpose Tray and therear output tray.2Load labels with print side up, andagainst the left edge of the tray. Adjustthe guide to fit the width of the labels.3When you print on labels, configure thepaper source, type and size in thesoftware application. For details, seepage 5.3.Note: To prevent them from stickingtogether, remove label sheet from theoutput tray as they are printed out.

4.15PRINT MEDIAPrinting on TransparenciesGuidelines• Only use transparencies recommended for use in laser printers.• Do not load more than 20 transparencies into the Multi-Purpose Tray at a time.• Make sure that the transparencies are not wrinkled or curled, and that they do not haveany torn edge.• Hold the transparencies by the edges and avoid touching the print side. Oils from yourfingers that are deposited on the transparency can cause print quality problems.• Be careful not to scratch or leave fingerprints on the print side.1Open the Multi-Purpose Tray and pullthe extender out of its full-lengthposition.2Load transparencies with print sideup, and the top with the adhesivestrip entering the printer first.Adjust the guide to fit the width of thetransparencies.3When you print on transparencies,configure the paper source, type andsize in the software application. Fordetails, see page 5.3.Notes: • To prevent transparencies from stickingtogether, remove them from the outputtray as they are printed.• Place transparencies on a flat surfaceafter removing them from the printer.

4.17PRINT MEDIAPrinting on Card Stock or Custom-sized Media1Open the Multi-Purpose Tray and therear output tray and pull the extenderout to its full-length position.2Load print media with print side up,short edge first and against the leftedge of the tray. Adjust the guide to fit the width of themedia.3Configure the paper source, type andsize in the printer driver’s properties(see page 5.3) and print.Postcards, 3.5 by 5.83 in.(index) cards and other custom-sized media can be printed with theML-1450 series printer. The minimum size is 90 by 148 mm (3.5 by 5.83 in.) and themaximum size is 216 by 356 mm (8.5 by 14 in.).Guidelines• Always insert the short-edge into the Multi-Purpose Tray first. If you want to print inlandscape mode, make this selection through your software. Inserting paper long-edgefirst may cause a paper jam.• Do not load more than 10 cards into the Multi-Purpose Tray at a time.• Do not print on media smaller than 90 mm (3.5 in.) wide or 148 mm(5.83 in.) long.• Set margins at least 6.4 mm (0.25 in.) away from the edges of the media in the softwareapplication.Note: If the size of your print media isnot listed in the Paper Size box in thePaper tab of the printer driverproperties, select Custom Size and setthe paper size manually.

This chapter explains your printing options and coverscommon printing tasks.Topics included in this chapter are:◆ Printing a Document◆ Using Toner Save Mode◆ Printing on Both Sides of the Paper (Manual Duplexing)◆ Printing Multiple Pages on One Sheet of Paper (N-UpPrinting)◆ Scaling Your Document◆ Fitting Your Document To a Selected Paper Size ◆ Printing Booklets◆ Printing Posters◆ Setting Graphic Properties◆ Printing Watermarks◆ Using Page Overlay◆ Printing on Different Paper for the First Page◆ Reprinting the Last Page55CHAPTERPrinting TasksPrinting Tasks

5.1PRINTING TASKSPrinting a DocumentThe following procedure describes the general steps requiredfor printing from various Windows applications. The exactsteps for printing a document may vary depending on theapplication program you are using. Refer to your softwareapplication’s documentation for the exact printing procedure.1Open the document you want to print.2Select Print from the File menu. The Print dialog box foryour application will be displayed (the Print dialog box foryour application may look slightly different). The basic print settings you will need are usually selectedwithin this Print dialog box. These settings include thenumber of copies, paper size, and page orientation.Make sure your printer is selected here.If you see a Properties button, click it.If you see Setup, Printer, or Options, click that button instead; then click Propertiesin the next screen.

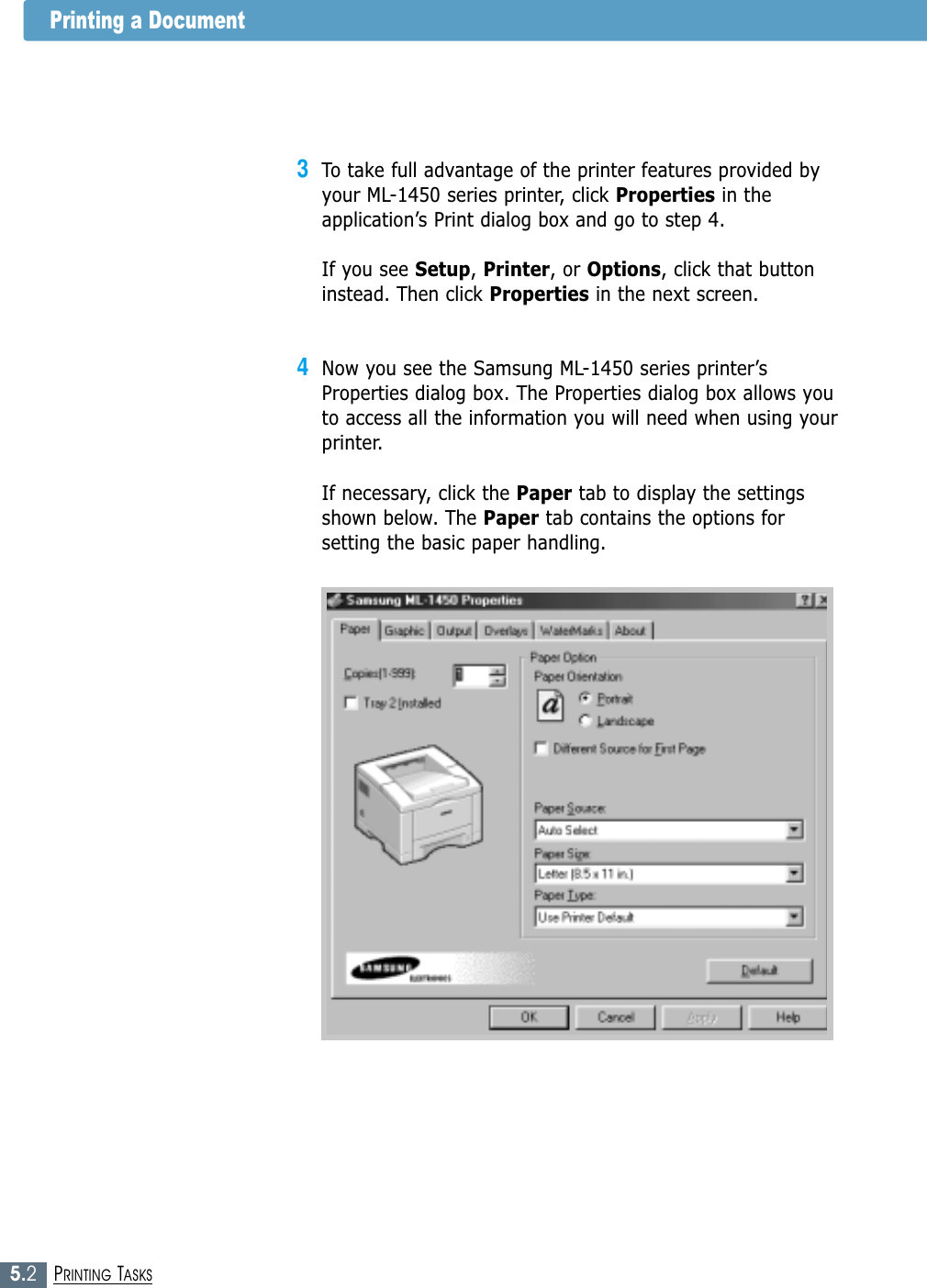

5.2PRINTING TASKSPrinting a Document3To take full advantage of the printer features provided byyour ML-1450 series printer, click Properties in theapplication’s Print dialog box and go to step 4. If you see Setup, Printer, or Options, click that buttoninstead. Then click Properties in the next screen.4Now you see the Samsung ML-1450 series printer’sProperties dialog box. The Properties dialog box allows youto access all the information you will need when using yourprinter.If necessary, click the Paper tab to display the settingsshown below. The Paper tab contains the options forsetting the basic paper handling.

5.3PRINTING TASKSPrinting a DocumentMake sure the Paper Source is set to Tray1. If you usepaper in the Multi-Purpose Tray or optional Tray2, select thecorresponding paper source. Manual Feed source is used when printing to specialmedia. You have to feed one sheet at a time into the printer.See page 4.10.If the paper source is set to Auto Select, the printerautomatically selects the print media according to thefollowing order: Multi-Purpose Tray, Tray1, Tray2 (option).Make sure the Paper Type is set to Use Printer Default.If you load a different type of print media, select thecorresponding paper type. For further information on printmedia, refer to chapter 4 ‘Print Media’. Also, select the paper size you have loaded in your printer.The Paper Orientation option allows you to select thedirection in which information is printed on a page. Portraitprints across the width of the page, letter style. Landscapeprints across the length of the page, spreadsheet style.You can also see the printable area.➐➐➐➐Landscape➐➐➐➐Portrait

5.4PRINTING TASKS5Click other tabs on the top of the Properties dialog box toaccess other features, if needed.6When you complete the print settings, click OK until thePrint dialog box is displayed.7Click OK to start printing. • Most Windows applications will override settings you specify in theprinter driver. Change all print settings available in the softwareapplication first, and change any remaining settings using the printerdriver.• The settings you change remain in effect only while you are using thecurrent program. To make your changes permanent, make them inthe Printers folder. Follows this procedure:1. Click the Windows Start button. 2. Select Settings, then Printers to open the Printers window.Notes: 3. Select the Samsung ML-1450 Series. 4. Click the right mouse button and select Properties to open theproperties window.Printing a Document

5.5PRINTING TASKSThere are two ways to stop a print job.To stop a print job from the ML-1450 series printerPress the Cancel/Reprint button on the control panel. The printer will finish printing the page that is moving throughthe printer and delete the rest of the print job. PressingCancel/Reprint cancels only the current job in the printer. Ifmore than one print job is in printer memory, Cancel/Reprintmust be pressed once for each job.To stop a print job from the Printers folder1. From the Start menu, select Settings.2. Select Printers to open the Printers window, then double-click the Samsung ML-1450 Series. 3. From the Document menu, select Cancel Printing(Windows 9x/Me) or Cancel (Windows 2000/XP/NT 4.0).The Samsung ML-1450 series printer has a help screen that canbe activated by the Help button in the printer Properties dialogbox. These help screens give detailed information about theprinter features provided by the ML-1450 series printer driver. From the upper right hand corner, click ? then click on asetting for more information. If you want to restore the default printer properties settingswhen you change the print settings, click Defaults in theProperties dialog box.Printing a DocumentCanceling a Print JobPrinting Help

5.6PRINTING TASKSUsing Toner Save ModeToner Save mode allows the printer to use less toner on eachpage. Selecting this option will extend the life of your tonercartridge and reduce your cost per page, but will reduce printquality. This setting is not available with 1200 dpi settings.There are two ways to enable the Toner Save mode.To enable this feature from the ML-1450 seriesprinterPress the Toner Save button on the control panel. The printermust be in the ready mode (Data light is on).• If the button backlight is on, toner save mode activates andthe printer uses less toner to print a page.• If the button backlight is off, toner save mode is disabledand the printer prints in the normal mode.To enable this feature from the software application1. When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.2. Click the Graphic tab, and select the Toner Save Modeoption. You can select from: • Printer Setting: If you select this option, this feature isdetermined by the setting you’ve made on the controlpanel of the printer.• Standard: If you don’t need to save toner to print adocument, select this option.• Save: Select this option to allow the printer to use lesstoner on each page.3. Click OK.

5.7PRINTING TASKSPrinting on Both Sides of the Paper (Manual Duplexing)To print on both sides of the paper (manual duplexing), youmust run the paper through the printer twice. You can printusing the top output tray (face down tray) or the rear outputtray (face up tray). Samsung recommends using the topoutput tray for light-weight paper. Use the rear output tray forany heavy media or media that tends to curl when printed,such as envelopes and card stock.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.From the Paper tab, select the paper orientation, source,size and type.2Click the Output tab, then choose Flip on Long Edge orFlip on Short Edge from the Type drop-down list in theDuplex section. Note: To print on both sides of the paper, you must use theMulti-Purpose Tray for the paper input source. Load paper in theMulti-Purpose Tray.Note: If you can not see LongEdge in the Type drop-downlist, set the Type box in theOutput Mode section toMultiple Pages per Side,Scaling Printing or Fit toPage.

5.8PRINTING TASKS3Select Face Down Tray (top output tray) or Face Up Tray(rear output tray) in which the printed media is to bestacked. According to this option, the printer will determinethe print page order when the second sides are printed.If you select Face Up Tray, open the face up tray.4If you want to print the instruction page which tells youhow to load the paper, click Print Instruction sheet. Ifthe box is checked, the printer prints the instruction pagebefore the duplexing job is printed. If the box is empty, thisfeature is disabled. 5Start printing. The printer automatically prints only the odd-numbered pages. Choosing Flip on Long Edge lets you place the bindingorientation along the long edge of the paper, as in amagazine. Choosing Flip on Short Edge lets you place the bindingorientation along the short edge of the paper, as in acalendar. Printing on Both Sides of the Paper (Manual Duplexing)253253253253➐➐➐➐Flip on Long Edge in theLandscape orientation➐➐➐➐Flip on Long Edge in the Portrait orientation➛➛☎☎☎☎➛➛☎☎☎☎Flip on ShortEdge in thePortraitorientation ➐➐➐➐Flip on Short Edge in the Landscape orientation

8You are prompted to reinsert the paper into the Multi-Purpose Tray. Click OK on the screen to start printing thesecond side. The printer automatically prints only the even-numbered pages.5.9PRINTING TASKS6After the first side has been printed, remove the remainingpaper from the Multi-Purpose Tray and set it aside untilafter you finish your manual duplexing job.7Gather up the printed pages, flip the stack, and thenstraighten the stack before placing it back in the Multi-Purpose Tray. The following illustrations show you how to put the printedpages back into the printer.Printing on Both Sides of the Paper (Manual Duplexing)Flip on Long Edge in theLandscape orientationFlip on Long Edge in the Portrait orientationFlip on Short Edge in theLandscape orientationFlip on Short Edge in the Portrait orientationNote: If you have selected the Face Up Tray option in Step 3,the last page is placed on the top of the stack. Do notrearrange the pages before reloading them to print the secondside. Your printer knows the stacked page order and will printthe corresponding second side for each page.(left edge towardthe printer)(top edge towardthe printer)(right edge towardthe printer)(bottom edgetoward the printer) Remove the printedpages, and reload theminto the Multi-PurposeTray with the printedside face down.Note: Manual duplexing cancause the printer to becomedirty more quickly and cantherefore reduce print quality.See “Cleaning the Printer” onpage 6.4 if the printerbecomes dirty.

5.10PRINTING TASKS1 23 4You can select the number of pages that you want to print ona single sheet of paper. If you choose to print more than onepage per sheet, the pages will appear decreased in size andarranged on the sheet. You can specify up to 16 pages.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.From the Paper tab, select the paper orientation, source,size and type.2Click the Output tab, and choose Multiple Pages perSide in the Type drop-down list. Then select the number ofpages you want to print per sheet (1, 2, 4, 9 or 16) in thePages per Sheet drop-down list.3Click Print Page Borders if you want to print a borderaround each page on the sheet. Print Page Borders isenabled only if Pages per Sheet is 2, 4, 9, or 16.➐☎➐☎4 pages per sheetPrinting Multiple Pages on One Sheet of Paper (N-Up Printing)4Click OK, then start printing.

5.11PRINTING TASKS4Click OK, then start printing.Scaling Your Document This printer feature allows you to scale your print job on apage. 1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.2Click the Output tab, and select Scale Printing in theType drop-down list. 3Enter the desired scaling rate in the Scales input field.You can also click the ➐or ❷buttons.

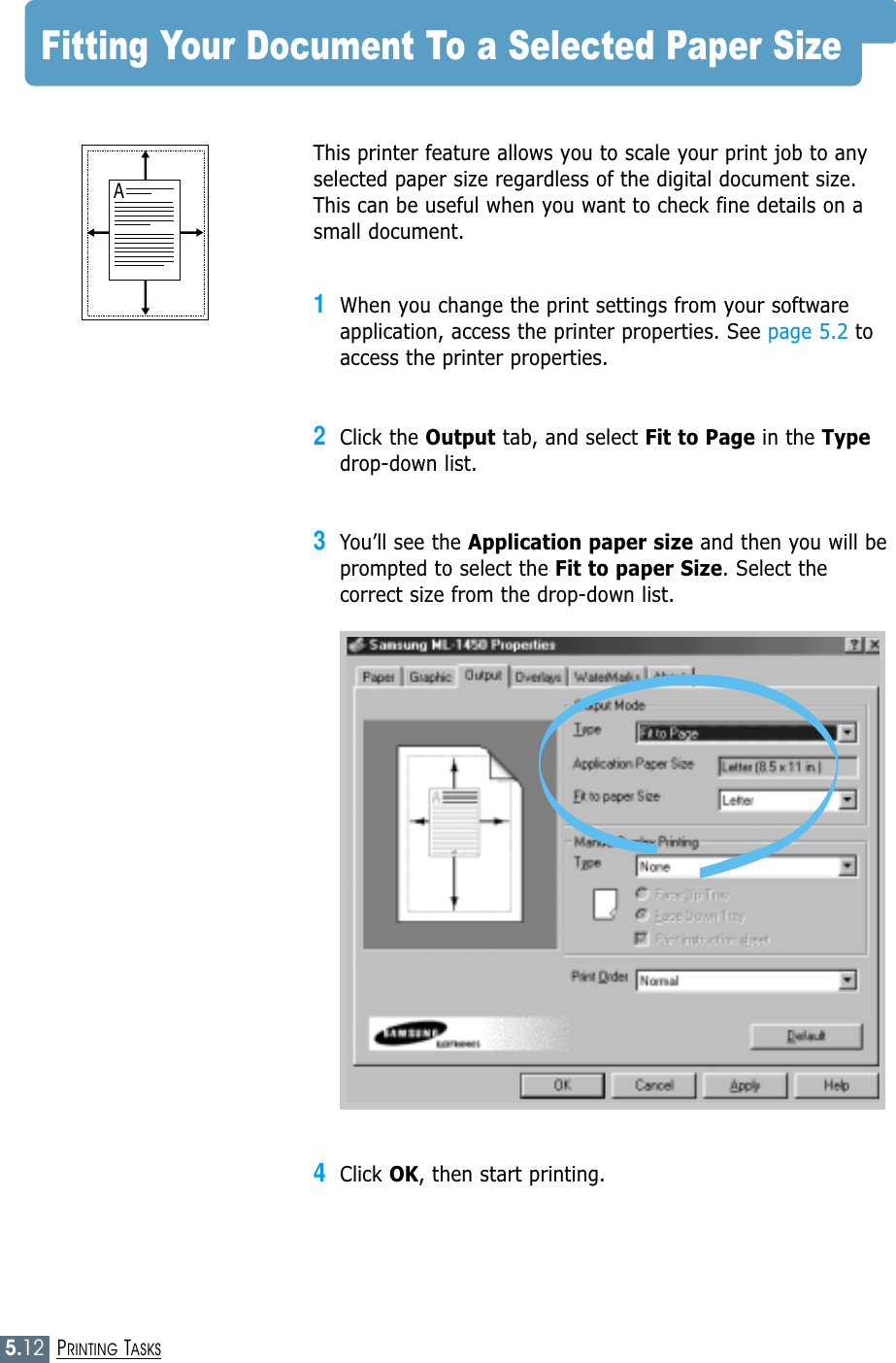

5.12PRINTING TASKSFitting Your Document To a Selected Paper Size This printer feature allows you to scale your print job to anyselected paper size regardless of the digital document size.This can be useful when you want to check fine details on asmall document. 1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.2Click the Output tab, and select Fit to Page in the Typedrop-down list. 3You’ll see the Application paper size and then you will beprompted to select the Fit to paper Size. Select thecorrect size from the drop-down list.4Click OK, then start printing.A

5.13PRINTING TASKS➐➐➐➐Portrait orientationPrinting Booklets89➐➐➐➐Landscape orientation719The Booklet printing feature allows you to print your documentas a 2-sided (duplex) job and to arrange the pages so that thepaper can be folded in half after printing to produce a booklet. 1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.From the Paper tab, select the paper orientation, source,size and type.2Click the Output tab, then choose Booklet Printing fromthe Type drop-down list. Then select the paper size you are using from the Bookletdrop-down list.Note: For booklet printing, only four paper sizes are supported:Letter, A4, Legal, and Executive.Note: To print booklet, you must use the Multi-Purpose Tray forthe paper input source. Load paper in the Multi-Purpose Tray.

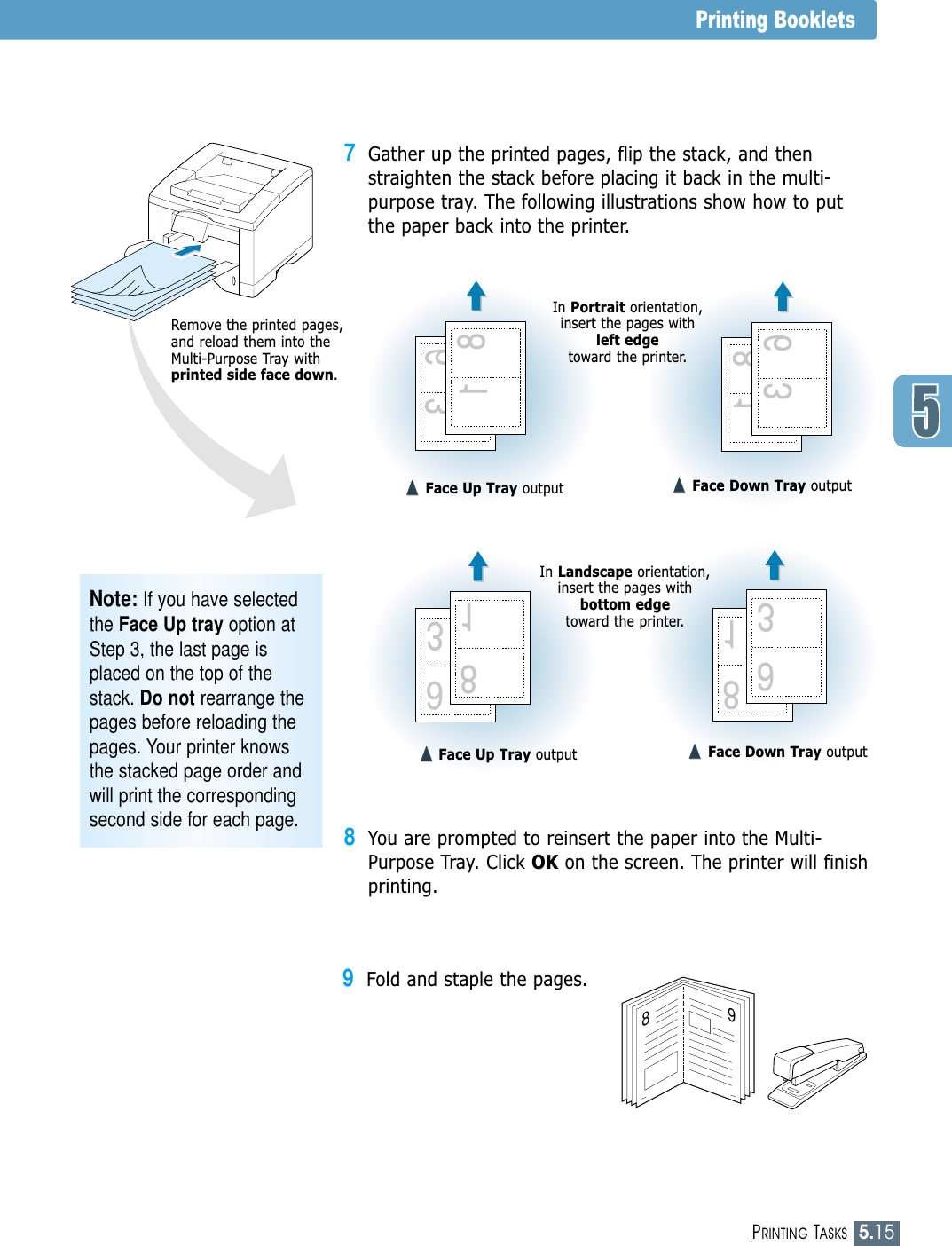

5.14PRINTING TASKS3Select Face Down Tray (top output tray) or Face Up Tray(rear output tray) in which the printed media is stacked.According to this option, the printer will determine the printpage order when the second sides are printed.If you select Face Up Tray, open the face up tray.4If you want the instruction page which tells you how to loadthe paper, click Print Instruction sheet. If the box ischecked, the printer prints the instruction page before theduplexing job is printed. If the box is empty, this feature isdisabled. 5Print the document. 6After side one has been printed, remove the remainingpaper from the Multi-Purpose Tray and set it aside untilyour booklet job is complete.The printer prints side one as shown below for an 8-pagedocument.➐➐☎☎➐➐☎☎8 page document6381Printing Booklets

5.15PRINTING TASKSPrinting Booklets7Gather up the printed pages, flip the stack, and thenstraighten the stack before placing it back in the multi-purpose tray. The following illustrations show how to putthe paper back into the printer.Note: If you have selectedthe Face Up tray option atStep 3, the last page isplaced on the top of thestack. Do not rearrange thepages before reloading thepages. Your printer knowsthe stacked page order andwill print the correspondingsecond side for each page.898You are prompted to reinsert the paper into the Multi-Purpose Tray. Click OK on the screen. The printer will finishprinting.9Fold and staple the pages.➐➐➐➐Face Up Tray output ➐➐☎☎➐➐☎☎Face Down Tray outputIn Landscape orientation,insert the pages withbottom edge toward the printer.In Portrait orientation,insert the pages with left edge toward the printer.➐➐➐➐Face Up Tray output ➐➐➐➐Face Down Tray outputRemove the printed pages,and reload them into theMulti-Purpose Tray withprinted side face down.

5.16PRINTING TASKSPrinting PostersThis feature allows you to print a single-page document onto4, 9, 16, 25, or 36 sheets of paper, for the purpose of pastingthe sheets together to form one poster-size document.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 formore information on accessing printer properties.From the Paper tab, select the paper orientation, source,size and type.2Click the Output tab, and select Poster Printing in theType drop-down list.➐➐➐➐Poster printingwith 2x2 style

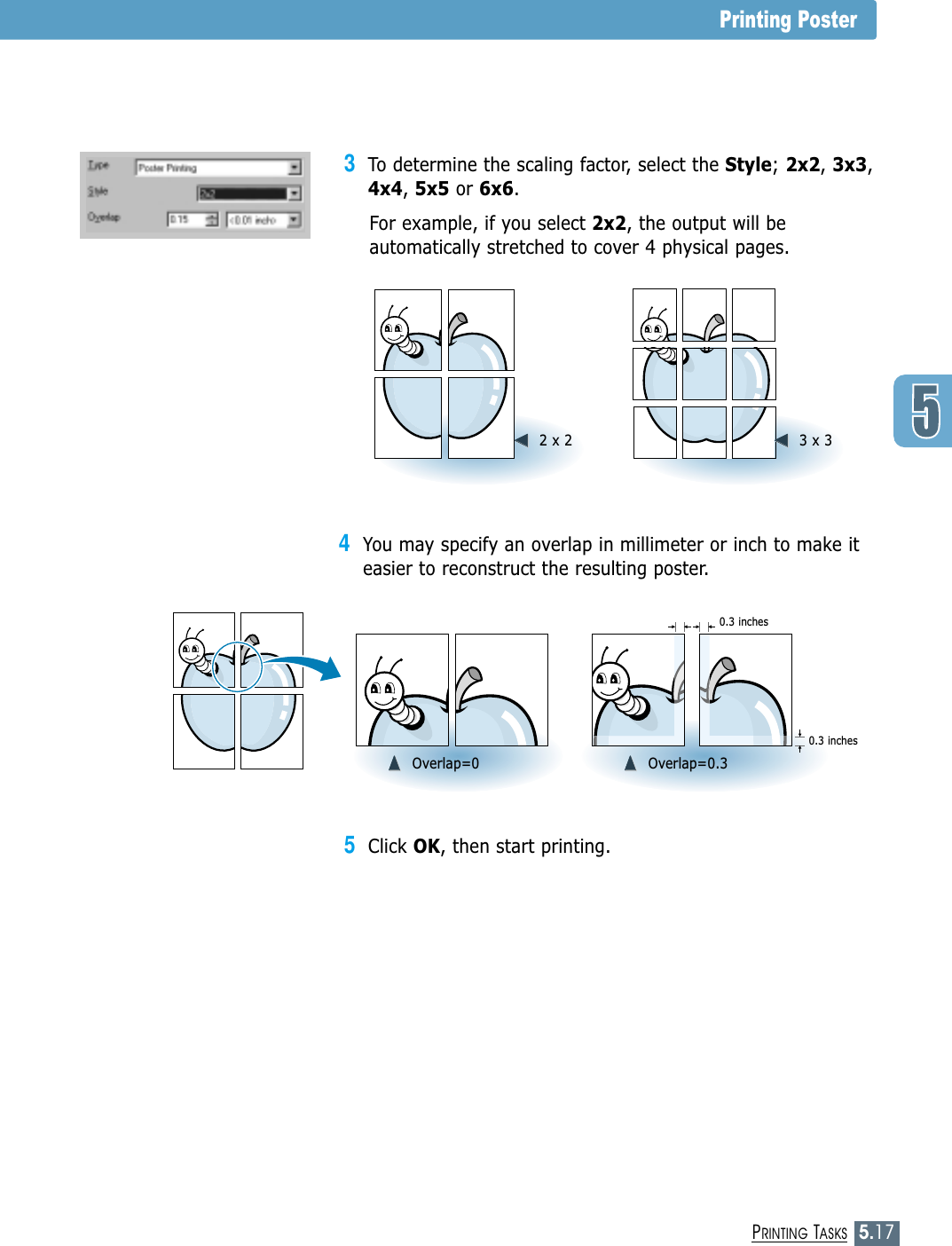

5.17PRINTING TASKSPrinting Poster5Click OK, then start printing. 3To determine the scaling factor, select the Style; 2x2, 3x3,4x4, 5x5 or 6x6.For example, if you select 2x2, the output will beautomatically stretched to cover 4 physical pages.4You may specify an overlap in millimeter or inch to make iteasier to reconstruct the resulting poster.➛➛☎☎☎☎➛➛☎☎☎☎2 x 2 ➛➛☎☎☎☎➛➛☎☎☎☎3 x 3➐➐☎☎☎☎➐➐☎☎☎☎Overlap=0 ➐➐☎☎☎☎➐➐☎☎☎☎Overlap=0.30.3 inches0.3 inches

5.18PRINTING TASKSSetting Graphic PropertiesYou can select the printing resolution by choosing either 1200 DPI (Class), 600 DPI, 300 DPI. The higher thesetting, the sharper the clarity of printed characters andgraphics. Higher settings may increase the time it takes toprint a document.ResolutionUse the following options to adjust the print quality for yourspecific printing needs when you access the printer properties.See page 5.2 for more information on accessing printerproperties. If necessary, click the Graphic tab to display the settings shownbelow.

5.19PRINTING TASKSSetting Graphic PropertiesSome printed characters or images appear to have jagged oruneven edges. Set this Samsung Resolution enhancementTechnology (SRT) option to improve the print quality of yourtext and image and make the characters and images appearsmoother.• Text Enhance - This setting refines the print quality ofcharacters by smoothing out jagged edgesthat can occur on the angles and curves ofeach character.• Image Enhance - This setting refines the print quality ofphoto images using SRT.Note:Text Enhance and Image Enhance are disabled when the 600dpi, 300 dpi setting is selected.SRT ModeUse this option to lighten or darken the image appearance inyour print jobs.• Normal – This setting is for normal documents.• Light – This setting is for bolder line widths or darker gray-scale images.• Dark – This setting is for finer line width, higher definition ingraphics, and lighter gray-scale images.DarknessWhen the Dark Text is checked, all text in your document isallowed to print darker than normal document. Dark TextWhen the All Text To Black is checked, all text in yourdocument is allowed to print solid black, regardless of the colorit appears on the screen. When it is not checked, colored text is allowed to print inshades of gray.All Text to Black

5.20PRINTING TASKSSetting Graphic PropertiesWith this option ON, the printer keeps the image for a printedpage until the printer signals that the page has successfullyexited the printer. If a paper jam occurs, the printer willautomatically reprint all jammed pages after the jam iscleared.Reprint When JamYou can set the printer not to print the last page of the last jobwhen the Cancel/Reprint button is pressed. For details, see‘Reprinting the Last Page’ on page 5.29.ReprintTo conserve power when a printer is idle, you can set theprinter to enter a reduced power state after completing a printjob, according to a time specified by you in the Power saveMode box.Select the desired length of time from the drop-down list.If your printer is constantly used, select OFF to keep theprinter ready to print with the minimum warm-up time. Thisuses more energy to keep the printer warm and ready to print.Power Save Mode

5.21PRINTING TASKSPrinting WatermarksThe Watermark option allows you to print text over an existingdocument. For example, you may want to have large grayletters reading “DRAFT” or “CONFIDENTIAL” printed diagonallyacross the first page or all pages of a document.There are several predefined watermarks that come with theML-1450 series printer, and they can be modified or you canadd new ones to the list.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 formore information on accessing printer properties.2Click the Watermark tab, and select the desiredwatermark in the Message drop-down list. You will see theselected watermark in the preview window.3Click OK, then start printing.To use an existingwatermarkpreviewwindow

5.22PRINTING TASKSPrinting Watermarks1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 formore information on accessing the printer properties.2Click the Watermark tab, and enter the desired textmessage in the Text field. This will be displayed in thepreview window. The preview window is provided so that youcan see how the watermark will appear on the printed page.3Select the desired watermark options. You can select thefont type and size, color and angle. There are threecheckboxes at the bottom of the dialog box:• Transparent Text – Allows the document to showthrough the watermark.• As Outline Only – Prints the text outline of thewatermark. This setting globally effectsall watermarks in the list.• On First Page Only – Prints the watermark only on the first page.To create or edit awatermarkUse these scrollbars to adjustthe position.

5.23PRINTING TASKSPrinting Watermarks4If you have created a new or edited an existing watermark,the Add and Update button is enabled.To add a new watermark to the list, click Add.5If you want to edit, select the desired watermark from thelist, edit, then click Update. 6When you complete the edit, click OK, then start printing.To stop printing the watermark, select None in the Messagedrop-down list.1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 formore information on accessing the printer properties.2From the Watermark tab, select the watermark you wantto delete in the Messages drop-down list. 3Click Delete.4Click OK.To delete awatermark

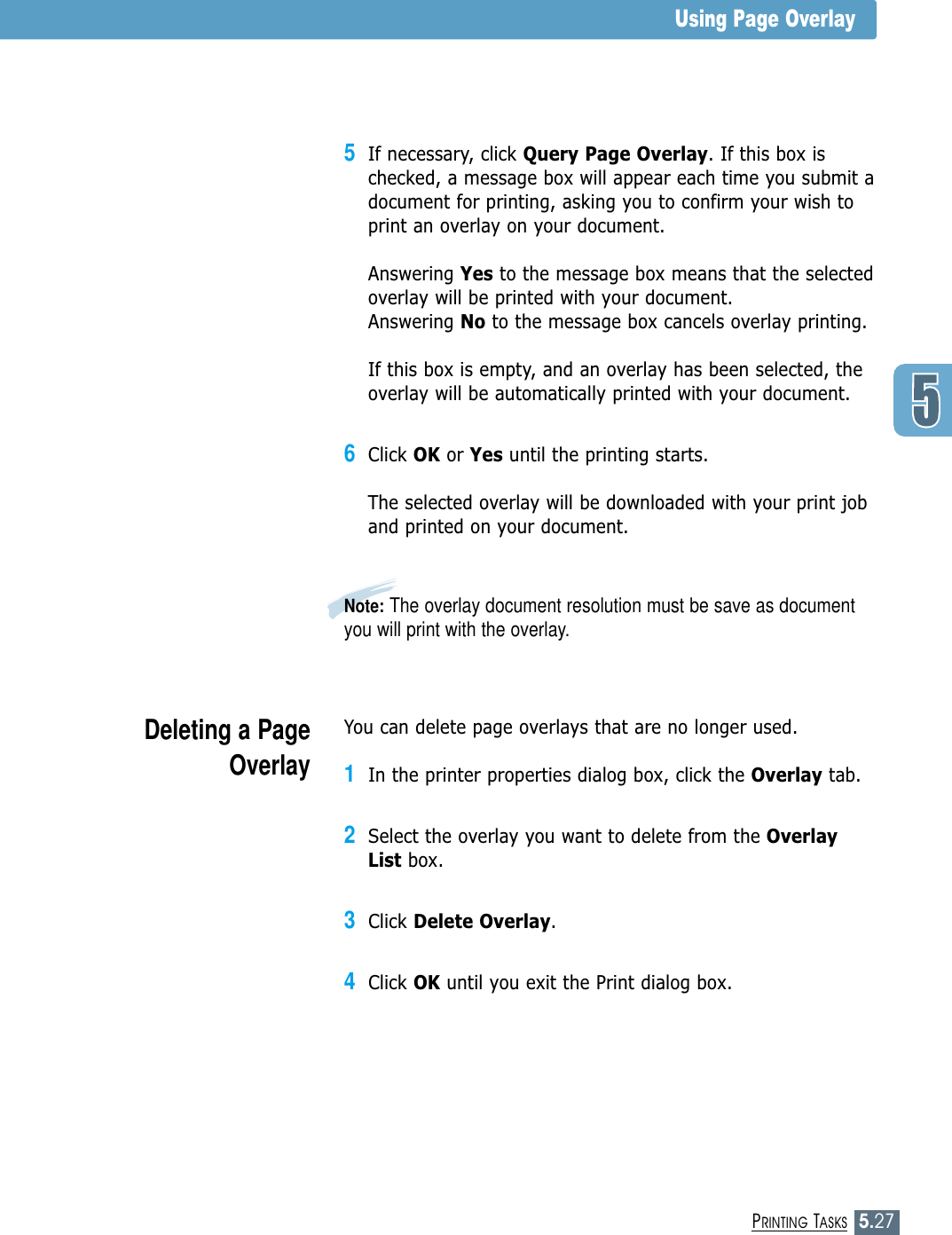

$5.25PRINTING TASKS4In the Create Overlay dialog box, type a name of up toeight characters in the File name box. Select thedestination path if necessary. (The default isC:\FORMOVER).5Click OK. You will see the name in the Overlay List box.6Click OK or Yes until you complete the creation. The file is not printed out. Instead it will be stored on yourcomputer HDD disk. Note: The overlay document size must be the same as documentsyou will print with the overlay. Do not create overlay with thewatermark.Using Page OverlayUsing Page OverlayAfter an overlay has been created, it is ready to be printedwith your document. To print an overlay with a document:1Create or open the document you want to print. 2When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.3Click the Overlays tab, and select the desired overlay fromthe Overlay List box.$
