Users Manual
ML-1865W Series
Mono Laser Printer
User’s Guide
imagine the possibilities
Thank you for purchasing a Samsung product.
Copyright_ 2
copyright
© 2010 Samsung Electronics Co., Ltd. All rights reserved.
This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.
Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.
•Samsung and Samsung logo are trademarks of Electronics Co., Ltd.
•PCL and PCL 6 are trademarks of Hewlett-Packard Company.
•Microsoft, Internet Explore, Windows, Windows Vista, Windows 7 and Windows 2008 Server R2 either registered trademarks or trademarks of Microsoft
Corporation.
•PostScript 3 is a trademark of Adobe System, Inc.
•UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc.
•TrueType, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries.
•LaserWriter is a trademark of Apple Inc.
•All other brand or product names are trademarks of their respective companies or organizations.
Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.
REV. 1.04
Safety information_ 3
safety information
These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to
your machine. Be sure to read and understand all of these instructions before using the machine.
Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and
instructions marked on the machine and in the accompanying literature. After reading this section, keep it in a safe place
for future reference.
IMPORTANT SAFETY SYMBOLS
This section explains the meanings of all icons and signs in the user's guide. These safety symbols are in order, according to the degree of
danger.
Explanation of all icons and signs used in the user’s guide:
Warning Hazards or unsafe practices that may result in severe personal injury or death.
Caution Hazards or unsafe practices that may result in minor personal injury or property damage.
Do not attempt.
Do not disassemble.
Do not touch.
Unplug the power cord from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Follow directions explicitly.
OPERATING ENVIRONMENT
Warning
Do not use if the power cord is damaged or if the
electrical outlet is not grounded.
ŹThis could result in electric shock or fire.
Do not bend, or place heavy objects on the power
cord.
ŹStepping on or allowing the power cord to be
crushed by a heavy object could result in electric
shock or fire.
Do not place anything on top of the machine (water,
small metal or heavy objects, candles, lit cigarettes,
etc.).
ŹThis could result in electric shock or fire.
Do not remove the plug by pulling on the cord; do not
handle the plug with wet hands.
ŹThis could result in electric shock or fire.
Safety information_ 4
Caution
During an electrical storm or for a period of
non-operation, remove the power plug from the
electrical outlet.
ŹThis could result in electric shock or fire.
If the plug does not easily enter the electrical outlet, do not
attempt to force it in.
ŹCall an electrician to change the electrical outlet, or this
could result in electric shock.
Be careful, the paper output area is hot.
ŹBurns could occur.
Do not allow pets to chew on the AC power, telephone or PC
interface cords.
ŹThis could result in electric shock or fire and/or injury to your
pet.
If the machine has been dropped, or if the cabinet appears
damaged, unplug the machine from all interface connections
and request assistance from qualified service personnel.
ŹOtherwise, this could result in electric shock or fire.
If the machine does not operate properly after these
instructions have been followed, unplug the machine from all
interface connections and request assistance from qualified
service personnel.
ŹOtherwise, this could result in electric shock or fire.
If the machine exhibits a sudden and distinct change in
performance, unplug the machine from all interface
connections and request assistance from qualified service
personnel.
ŹOtherwise, this could result in electric shock or fire.
OPERATING METHOD
Caution
Do not forcefully pull the paper out during printing.
ŹIt can cause damage to the machine.
When printing large quantities, the bottom part of the
paper output area may get hot. Do not allow children
to touch.
ŹBurns can occur.
Be careful not to put your hand between the machine
and paper tray.
ŹYou may get injured.
When removing jammed paper, do not use tweezers
or sharp metal objects.
ŹIt can damage the machine.
Do not block or push objects into the ventilation opening.
ŹThis could result in elevated component temperatures which
can cause damage or fire.
Do not allow too many papers to stack up in the paper output
tray.
ŹIt can damage the machine.
Be care when replacing paper or removing jammed paper.
ŹNew paper has sharp edges and can cause painful cuts.
This machine's power interception device is the power cord.
ŹTo switch off the power supply, remove the power cord from
the electrical outlet.
If the machine gets overheated, it releases smoke,
makes strange noises, or generates an odd odor,
immediately turn off the power switch and unplug the
machine.
ŹThis could result in electric shock or fire.
Safety information_ 5
INSTALLATION / MOVING
Warning
Do not place the machine in an area with dust,
humidity or water leaks.
ŹThis could result in electric shock or fire.
Caution
Before moving the machine, turn the power off and
disconnect all cords.
Then lift the machine:
•If the machine weighs under 20 kg (44.09lb), lift with
1 person.
• If the machine weighs 20 kg (44.09lb) - 40kg
(88.18lb), lift with 2 people.
• If the machine weighs more than 40 kg (88.18lb), lift
with 4 or more people.
ŹThe machine could fall, causing injury or machine damage.
Do not put a cover over the machine or place it in an airtight
location, such as a closet.
ŹIf the machine is not well-ventilated, this could result in fire.
Do not place the machine on an unstable surface.
ŹThe machine could fall, causing injury or machine damage.
Make sure you plug the power cord into a grounded electrical
outlet.
ŹOtherwise, this could result in electric shock or fire.
The machine should be connected to
the power level which is specified on the label.
ŹIf you are unsure and want to check the power level you are
using, contact the electrical utility company.
Do not overload wall outlets and extension cords.
ŹThis can diminish performance, and could result in electric
shock or fire.
Use only No.26 AWGa
a. AWG: American Wire Gauge
or larger, telephone line cord, if
necessary.
ŹOtherwise, it can cause damage to the machine.
Use the power cord supplied with your machine for safe
operation. If you are using a cord which is longer than 2 meters
(6 feet) with a 140V machine, then the gauge should be 16
AWG or larger.
Ź Otherwise, it can cause damage to the machine, and could
result in electric shock or fire.
MAINTENANCE / CHECKING
Caution
Unplug this product from the wall outlet before
cleaning the inside of the machine. Do not clean the
machine with benzene, paint thinner or alcohol; do
not spray water directly into the machine.
ŹThis could result in electric shock or fire.
Keep cleaning supplies away from children.
ŹChildren could get hurt.
Safety information_ 6
SUPPLY USAGE
Caution
Do not disassemble the toner cartridge.
ŹToner dust can be dangerous if inhaled or
ingested.
When storing supplies such as toner cartridges, keep
them away from children.
ŹToner dust can be dangerous if inhaled or
ingested.
Do not burn any of the supplies such as toner
cartridge or fuser unit.
ŹThis could cause an explosion or uncontrollable
fire.
Using recycled supplies, such as toner, can cause damage to
the machine.
ŹIn case of damage due to the use of recycled supplies, a
service fee will be charged.
When changing the toner cartridge or removing jammed paper,
be careful not to let toner dust touch your body or clothes.
ŹToner dust can be dangerous if inhaled or ingested.
When toner gets on your clothing, do not use hot water to wash
it.
ŹHot water sets toner into fabric. Use cold water.
When you are working inside the machine replacing
supplies or cleaning the inside, do not operate the
machine.
ŹYou could get injured.
Do not disassemble, repair or rebuild the machine by
yourself.
ŹIt can damage the machine. Call a certified
technician when the machine needs repair.
Keep the power cable and the contact surface of the plug clean
from dust or water.
ŹOtherwise, this could result in electric shock or fire.
To clean and operate the machine, strictly follow the user's
guide provided with the machine.
ŹOtherwise, you could damage the machine.
Do not remove any covers or guards that are fastened with
screws.
ŹThe machine should only be repaired by a Samsung service
technician.
Regulatory information_ 7
regulatory information
This machine is designed for a normal work environment and certified with several regulatory statements.
LASER SAFETY STATEMENT
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and
elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1.
Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to
laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.
•Wavelength: 800 nm
•Beam divergence
- Paraller: 11 degrees
- Perpendicular: 35 degrees
•Maximum power of energy output: 12 mW
WARNING
Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible,
can damage your eyes.
When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:
OZONE SAFETY
During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is
advisable that the machine be operated in a well ventilated area.
If you need additional information about ozone, contact your local Samsung dealer.
Regulatory information_ 8
POWER SAVE
This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.
When the printer does not receive data for an extended period of time, power consumption is automatically lowered.
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.
For more information on the ENERGY STAR program see http://www.energystar.gov.
RECYCLING
Recycle or dispose of the packaging material for this product in an environmentally responsible manner.
CHINA ONLY
CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset,
USB cable) should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and
how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
RADIO FREQUENCY EMISSIONS
FCC Information to the User
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Regulatory information_ 9
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or experienced radio TV technician for help.
Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to
operate the equipment.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la
norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.
RUSSIA ONLY
YALNIZCA TÜRKIYE
GERMANY ONLY
REPLACING THE FITTED PLUG (FOR UK ONLY)
Important
The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the
fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until
you have another fuse cover.
Contact the people from you purchased the machine.
The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal
13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.
If you cut off the moulded plug, get rid of it straight away.
You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.
Regulatory information_ 10
Important warning:
You must earth this machine.
The wires in the mains lead have the following color code:
•Green and Yellow: Earth
•Blue: Neutral
•Brown: Live
If the wires in the mains lead do not match the colors marked in your plug, do the following:
You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or
green.
You must connect the blue wire to the pin which is marked with the letter “N” or colored black.
You must connect the brown wire to the pin which is marked with the letter “L” or colored red.
You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
DECLARATION OF CONFORMITY (EUROPEAN COUNTRIES)
Approvals and Certifications
The CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable
93/68/EEC Directives of the European Union as of the dates indicated:
ML-1865W :R&TTE Directive (1999/5/EC)
The declaration of conformity may be consulted at www.samsung.com/printer, go to Support > Download center and enter your printer (MFP)
name to browse the EuDoC.
January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.
January 1, 1996: Council Directive 2004/108/EC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic
compatibility.
March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of
their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics
Co., Ltd. representative.
European Radio Approval Information (for products fitted with EU-approved radio devices)
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be
present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present.
Refer to the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark
with a Notified Body Registration Number and the Alert Symbol is on the system label.
The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the
European Commission through the R&TTE directive.
European States qualified under wireless approvals:
EU
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France (with frequency restrictions), Germany, Greece, Hungary,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden and the U.K.
EEA/EFTA countries
Iceland, Liechtenstein, Norway and Switzerland
European States with restrictions on use:
EU
In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless
EEA/EFTA countries
No limitations at this time
Regulatory information_ 11
REGULATORY COMPLIANCE STATEMENTS
Wireless Guidance
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be
present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.
Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The
wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If
the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices
are closely regulated and use may not be allowed.
The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this
time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety
standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken
to minimize human contact during normal operation.
As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body
(this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are
on and transmitting.
This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.
Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:
Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless
devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices
are examples of devices that provide wireless communication.
In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless
device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use
of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices,
ask the applicable authority for authorization prior to use or turning on the wireless device.
Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling
between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of
a wireless device in the destination country.
If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are
in place and the system is fully assembled.
Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it.
Contact manufacturer for service.
Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact
manufacturer Technical Support for additional information.
OPENSSL LICENSE
Copyright (c) 1998-2001 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes
software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without
Prior written permission. For written permission, please contact openssl-core@openssl.org.
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written
permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
Regulatory information_ 12
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim
Hudson (tjh@cryptsoft.com).
ORIGINAL SSLEAY LICENSE
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with
Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to
all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this
distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young's,
and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given
attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation
(online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes
cryptographic software written by Eric Young (eay@cryptsoft.com)" The word 'cryptographic' can be left out if the routines from the library
being used are not cryptographic related.
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an
acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft.com)".
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply
be copied and put under another distribution licence [including the GNU Public Licence.
Regulatory information_ 13
CHINA ONLY
About this user’s guide_ 14
about this user’s guide
This user’s guide provides information about basic understanding of the machine as well as detailed explanation on each
step during actual usage. It is a valuable resource for both novice and professional users for the proper installation and
use of the machine.
•Read the safety information before using the machine.
•If you have a problem using the machine, refer to the troubleshooting chapter. (See "Troubleshooting" on page 57.)
•Terms used in this user’s guide are explained in the glossary chapter. (See "Glossary" on page 73.)
•Illustrations in this user’s guide may differ from your machine depending on its options or models.
•The procedures in this user’s guide are mainly based on Windows XP.
CONVENTION
Some terms in this guide are used interchangeably, as below:
•Document is synonymous with original.
•Paper is synonymous with media, or print media.
•Machine refers to printer or MFP.
The following table offers the conventions of this guide:
CONVENTION DESCRIPTION EXAMPLE
Bold For texts on the display or button names on the machine. Cancel
Note Provides additional information or details for the machine function and feature. The date format may differ from country
to country.
Caution Contains information you can use to protect the machine from possible
mechanical damage or malfunction.
Do not touch the surface of the drum
located in the toner cartridge or imaging
unit.
Footnote Provides additional information on certain words or a phrases. a. pages per minute
(“Cross-reference”) Refers you to additional detailed information. (See "Finding more information" on
page 15.)
About this user’s guide_ 15
FINDING MORE INFORMATION
You can find information about setting up and using your machine in the following resources, either as a print-out or on screen.
MATERIAL NAME DESCRIPTION
Quick Install Guide This guide provides information on setting up your machine. This guide is provided in the box with the printer.
User’s Guide This guide provides you with step-by-step instructions for using your machine’s full features, maintaining your machine,
troubleshooting, and replacing supplies.
Machine Driver Help This help provides you with information about the printer driver and instructions for setting up the options for printing. (See "Using help"
on page 44.)
Samsung website If you have Internet access, you can get help, support, machine drivers, manuals, and order information from the Samsung website,
www.samsung.com/printer.
Downloadable
software
You can download useful software programs from the Samsung website.
•Samsung AnyWeb Print: helps personal users to screen-capture the website screen in Windows Internet Explorer easily.
(http://solution.samsungprinter.com/personal/anywebprint)
Features of your new product_ 16
features of your new product
Your new machine is equipped with a number of special features that improve the quality of the documents you print.
SPECIAL FEATURES
Print with excellent quality and speed
•You can print with a resolution of up to 1,200 x 1200 dpi
effective output.
•Your machine prints A4-sized paper at up to 18 ppm and
letter-sized paper at up to 19 ppm.
Handle many different types of printable material
•The 150-sheet tray supports plain paper in various sizes.
Create professional documents

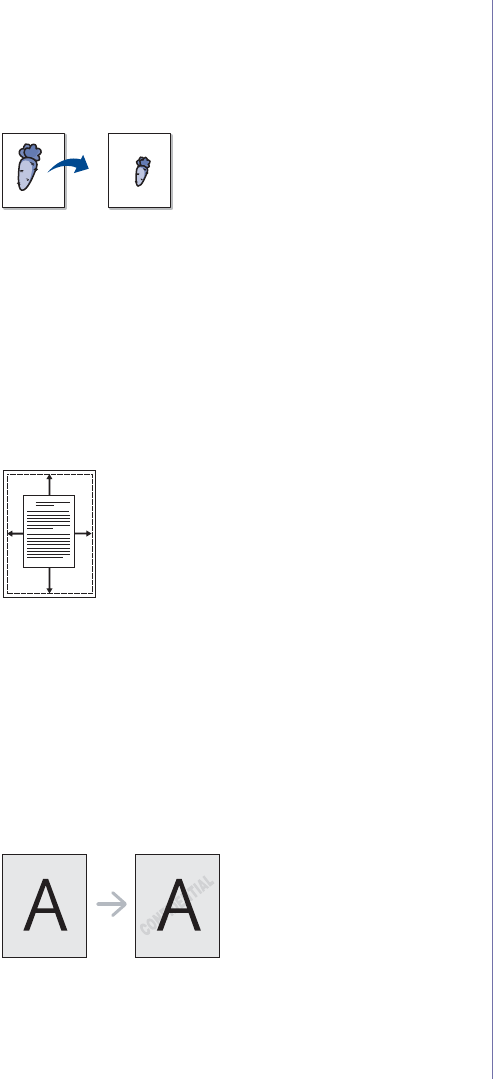

•Print Watermarks. You can customize your documents with
words, such as “Confidential”. (See "Using watermarks" on
page 46.)
•Print Posters. The text and pictures of each page of your
document are magnified and printed across the sheet of
paper and can then be taped together to form a poster. (See
"Printing posters" on page 45.)
•You can use preprinted forms and letterhead with plain
paper. (See "Using overlays" on page 46.)
Save time and money
•To save paper, you can print multiple pages on one single
sheet of paper. (See "Printing multiple pages on one sheet of
paper" on page 45.)
•This machine automatically conserves electricity by
substantially reducing power consumption when not in use.
•To save paper, you can print on both sides of the paper
(Manual). (See "Printing on both sides of the paper (Manual)"
on page 45.)
Print in various environments
•You can print with Windows as well as Linux and Macintosh
OS systems.
•Your machine is equipped with a USB interface.
DLNA
This Machine supports DLNA Printing as a DMPr (Digital Media
Printer). You can easily print by the DLNA Device including
Printing Control Capability on the home network.
Features of your new product_ 17
FEATURES BY MODELS
The machine is designed to support all of your document needs from printing to more advanced networking solutions for your business.
Features by models include:
FEATURES ML-1865W SERIES
High Speed USB 2.0 Ɣ
Duplex (2-sided) printing (Manual) Ɣ
Network Interface 802.11 b/g/n wireless LAN1
1.Depending on your country, wireless LAN cards may not be available. Contact
your local Samsung dealer or the retailer where you bought your printer.
Ɣ
(Ɣ: Included)
Introduction_ 18
1.introduction
This chapter gives you an overview of your machine:
This chapter includes:
•Machine overview
•Control panel overview
•Understanding the status LED
MACHINE OVERVIEW
Front view
This illustration may differ from your machine depending on its model.
1Control panel 6Paper width guides
2Top cover 7Output support
3Toner cartridge 8Output tray (face down)
4Tray
5Paper length guide
Introduction_ 19
Rear view
This illustration may differ from your machine depending on its model.
1USB port
2Power cord receptacle
Introduction_ 20
CONTROL PANEL OVERVIEW
This control panel may differ from your machine depending on the model.
1Jam & Online/Error Shows the status of paper jams in your machine and the status of your machine. (See "Understanding the status LED" on
page 21.)
2Wireless Shows the status of wireless network. When the LED on, the machine is ready. (See "Wireless LED" on page 21.)
3WPS If your wireless access point supports WPS (Wi-Fi Protected Setup™), you can configure the wireless network connection
easily without a computer. (See "Setting a wireless network with the WPS button" on page 29.)
4Power You can turn the power on and off with this button. (See "(Power) button" on page 21.)
Introduction_ 21
UNDERSTANDING THE STATUS LED
Status LEDs
The color of the LEDs indicates the machine's current status.
STATUS LED DESCRIPTION
Off •The machine is off-line.
•The machine is in sleep mode.
Green On •The machine is in ready mode or warming up.
Blinking •When the LED blinks, the machine is receiving
data from the computer or printing documents.
•When the LED blinks rapidly, the machine is
operating special functions.
Red On •The cover is opened. Close the cover
completely.
•There is no paper in the tray. Load paper in the
tray.
•The machine has stopped due to a major error.
•Your system has some problems. If this
problem occurs, contact a service
representative.
•A toner cartridge has almost reached its
estimated cartridge lifea
a.Estimated cartridge life means the expected or estimated toner
cartridge life, which indicates the average capacity of print-outs and is
designed pursuant to ISO/IEC 19752. The number of pages may be
affected by operating environment, percentage of image area, printing
interval, media type, and media size. Some amount of toner may
remain in the cartridge even when red LED is on and the printer stops
printing.
. It is recommended to
replace the toner cartridge (See "Replacing the
toner cartridge" on page 66).
Blinking •When the LED blinks slowly, a small amount of
toner is left in the cartridge. The estimated
cartridge lifea of toner is close. Prepare a new
cartridge for replacement. You may temporarily
increase the printing quality by redistributing the
toner (See "Redistributing toner" on page 57).
•The machine is printing in manual feed mode or
in manual duplex mode.
Orange On •Apaper jam has occurred (See "Clearing paper
jams" on page 57).
Blinking •Upgrading Firmware. Please wait.
Samsung does not recommend using a non-genuine Samsung toner
cartridge such as one that is refilled or remanufactured. Samsung
cannot guarantee a non-genuine Samsung toner cartridge's quality.
Service or repair required as a result of using non-genuine Samsung
toner cartridges will not be covered under the machine warranty.
All printing errors will appear in the Smart Panel program window. If
the problem persists, contact a service representative.
Wireless LED
WIRELESS LED STATUS DESCRIPTION
Blue Off ( )Wireless network is disconnected.
On ( )Wireless network is connectedU
Slowly blinks
()
The machine starts connecting to a
wireless network.
Quickly blinks
()
•The machine is connecting to
access point (or wireless router).
•Wireless network connection is
being disconnected.
INTRODUCING THE USEFUL BUTTONS
(WPS) button
This feature automatically detects which WPS (Wi-Fi Protected Setup™)
mode your access point uses. By pushing a button on the wireless LAN
router / access point and the machine, you can setup the wireless network
and security settingsGOSee "Setting a wireless network with the WPS button"
on page 29).
FUNCTION DESCRIPTION
To print a demo page
In the ready mode, press and hold for
about 10 seconds until the green LED blinks
slowly, and release.
To print a machine
report In the ready mode, press and hold for
about 15 seconds and release.
To print on a special
paper Print one sheet at a time using the . (See
"Manual feeding in the tray" on page 41.)
To use the duplex
feature Print one sheet at a time using the . (See
"Printing on both sides of the paper (Manual)"
on page 48.)
(Power) button
By pressing the , you can:
FUNCTION DESCRIPTION
Power On/Off Press this button to turn the power on or off.
Cancel print job During printing, press this button once. The
print job is cleared from both the machine and
the computer and then the machine returns to
the ready mode. This may take some time
depending on the size of the print job.
If you press this button for more than 3
seconds, the power goes off.
Introduction_ 22
Turning on the machine
1. Plug in the power cord.
2. Press on the control panel.
If you want to turn the power off, press and hold this button for
about 3 seconds.
Getting started_ 23
2.getting started
This chapter gives you step-by-step instructions for setting up the USB connected machine and software.
This chapter includes:
•Setting up the hardware
•Supplied software
•System requirements
•Installing USB connected machine’s driver
SETTING UP THE HARDWARE
This section shows the steps to set up the hardware, as is explained in the
Quick Install Guide. Make sure you read the Quick Install Guide first and
follow the steps below:
Location
1. Select a stable location.
Select a level, stable place with adequate space for air circulation. Allow
extra space for opening cover(s) and tray(s).
The area should be well ventilated and away from direct sunlight or
sources of heat, cold, and humidity. Do not set the machine close to the
edge of your desk or table.
Printing is suitable for altitudes under 1,000 m (3,281 ft).
Place the machine on a flat, stable surface so that there is no incline
greater than 2 mm (0.08 inch). Otherwise, printing quality may be
affected.
2. Unpack the machine and check all the enclosed items.
3. Remove tape holding the machine securely.

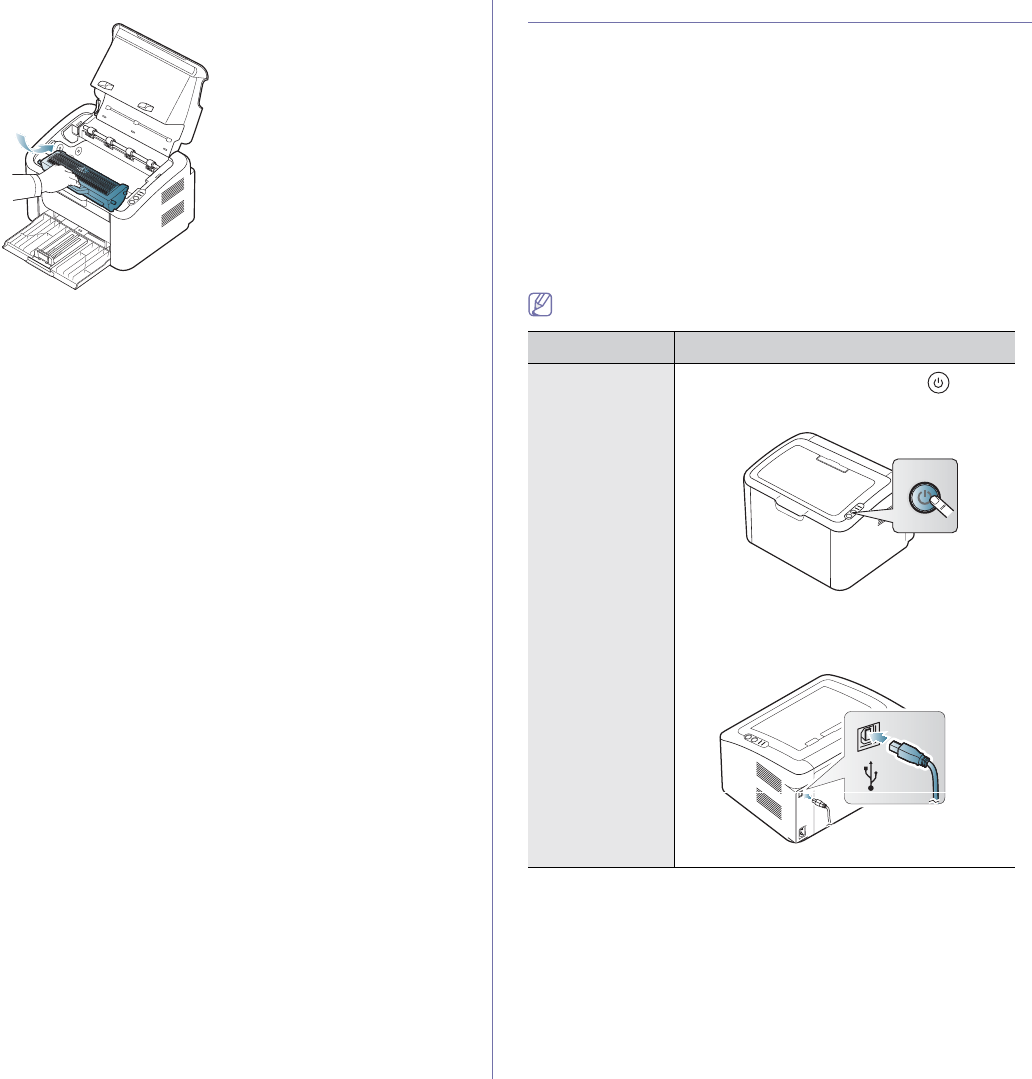

4. Install the toner cartridge.

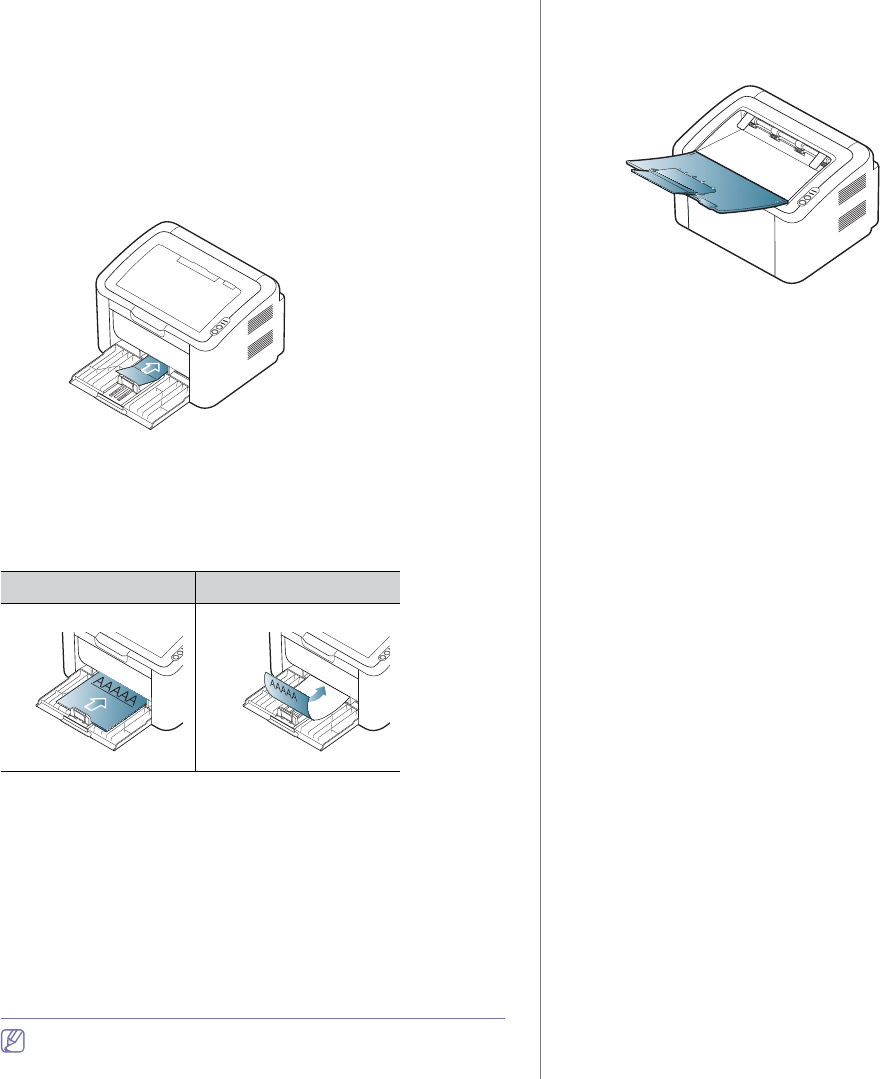

5. Load paper. (See "Loading paper in the tray" on page 39.)
6. Make sure that all cables are connected to the machine.
7. Turn the machine on. (See "Turning on the machine" on page 22.)
This machine will not operate when the power main fails.
SUPPLIED SOFTWARE
After you have set up your machine and connected it to your computer, you
must install the printer software. If you are a Windows or Macintosh OS
user, install the software from the supplied CD and if you are a Linux OS
user, download the software from the Samsung website
(www.samsung.com/printer) and install.
Machine software is occasionally updated for reasons like the release
of new operating system and etc. If needed, download the latest
version from the Samsung website (www.samsung.com/printer).
OS CONTENTS
Windows •Printer driver: Use this driver to take full advantage of
your machine’s features.
•Smart Panel:This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing.
•Printer Settings Utility:This program allows you to set up
printer’s other options from your computer.
Macintosh •Printer Driver: Use this driver to take full advantage of
your machine’s features.
•Smart Panel:This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing.
•Printer Settings Utility:This program allows you to set up
printer’s other options from your computer.
Linux •Unified Linux Driver: Use this driver to take full
advantage of your machine’s features.
•Smart Panel:This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing.
•Printer Settings Utility:This program allows you to set up
printer’s other options from your computer.
SYSTEM REQUIREMENTS
Before you begin, ensure that your system meets the following
requirements:
Windows
Your machine supports the following Windows operating systems.
OPERATING
SYSTEM
REQUIREMENT (RECOMMENDED)
CPU RAM
FREE
HDD
SPACE
Windows®
2000Intel® Pentium® II 400
MHz (Pentium III 933
MHz)
64 MB
(128 MB)
600 MB
Windows® XP Intel® Pentium® III 933
MHz (Pentium IV 1 GHz)
128 MB
(256 MB)
1.5 GB
Windows
Server® 2003
Intel® Pentium® III 933
MHz (Pentium IV 1 GHz)
128 MB
(512 MB)
1.25 GB to
2 GB
Windows
Server®
G
2008
Intel® Pentium® IV 1 GHz
(Pentium IV 2 GHz)
512 MB
(2048 MB)
10 GB
Windows
Vista® Intel® Pentium® IV 3 GHz 512 MB
(1024 MB)
15 GB
Windows® 7 Intel® Pentium® IV 1 GHz
32-bit or 64-bit processor
or higher
1 GB (2
GB)
16 GB
•Support for DirectX® 9 graphics with 128 MB
memory (to enable the Aero theme).
•DVD-R/W Drive
Windows
Server® 2008
R2
Intel® Pentium® IV 1 GHz
(x86) or 1.4 GHz (x64)
processors (2 GHz or
faster)
512 MB
(2048 MB)
10 GB
Getting started_ 24
•Internet Explorer 5.0 or higher is the minimum requirement for all
Windows operating systems.
•Windows Terminal Services is compatible with this machine.
Macintosh
OPERATING
SYSTEM
REQUIREMENTS (RECOMMENDED)
CPU RAM FREE
HDD
SPACE
Mac OS X
10.3 ~ 10.4
•Intel®
Processors
•PowerPC G4/ G5
•128 MB for a
PowerPC based
Mac (512 MB)
•512 MB for a
Intel-based Mac
(1 GB)
1 GB
Mac OS X
10.5
•Intel®
Processors
•867 MHz or
faster Power PC
G4/ G5
512 MB (1 GB) 1 GB
Mac OS X
10.6
•Intel®
Processors
1 GB (2 GB) 1 GB
Linux
ITEM REQUIREMENTS
Operating
system RedHat Enterprise Linux WS 4, 5 (32/64bit)
Fedora 4, 5, 6, 7, 8, 9, 10, 11, 12 (32/64bit)
SuSE Linux 10.0, 10.1 (32bit)
OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32/64bit)
Mandriva 2005, 2006, 2007, 2008, 2009, 2009.1
(32/64bit)
Ubuntu 5.04, 5.10, 6.06, 6.10, 7.04, 7.10, 8.04,
8.10, 9.04, 9.10 (32/64bit)
SuSE Linux Enterprise Desktop 10, 11 (32/64bit)
Debian 4.0, 5.0 (32/64bit)
CPU Pentium IV 2.4 GHz (Intel Core™2)
RAM 512 MB (1024 MB)
Free HDD space 1 GB (2 GB)
INSTALLING USB CONNECTED MACHINE’S
DRIVER
A locally connected machine is a machine directly connected to your
computer by a USB cable.
Only use a USB cable no longer then 3 m (10 ft.).
Windows
You can install the machine software using the typical or custom method.
The following steps are recommended for most users who use a machine
directly connected to your computer. All components necessary for machine
operations will be installed.
1. Make sure that the machine is connected to the computer and powered
on.
If the “Found New Hardware Wizard” window appears during the
installation procedure, click Cancel to close the window.
2. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation window
will appear.
•If the installation window does not appear, click Start and then Run.
Type X:\Setup.exe, replacing “X” with the letter which represents
your CD-ROM Drive. Click OK.
•If you use Windows Vista, Windows 7 and Windows 2008 Server R2
click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your CD-ROM Drive and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7 and
Windows 2008 Server R2, click Run Setup.exe in Install or run
program field, and click Continue or Yes in the User Account
Control windows.
Getting started_ 25

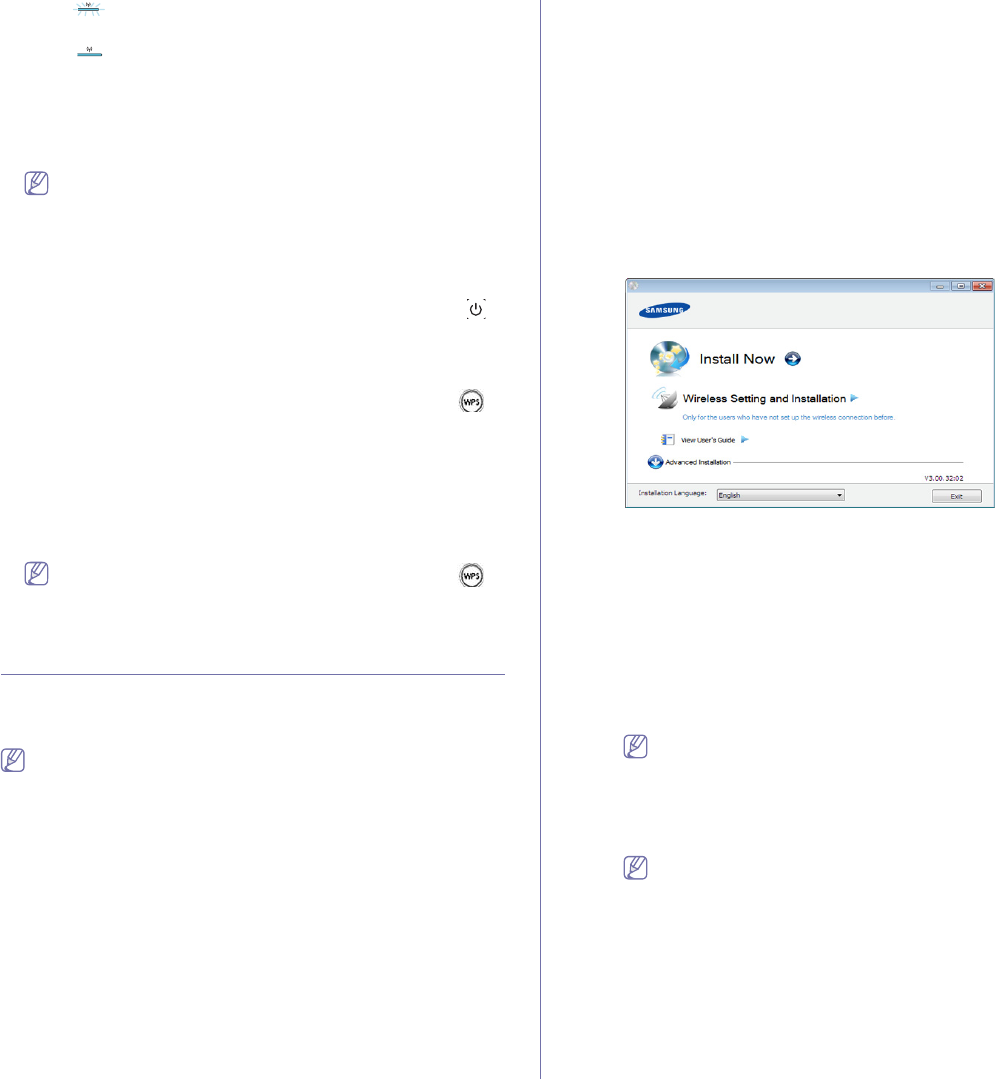

3. Select Install now.
If necessary, select a language from the drop-down list.
The Advanced Installation has an option, Custom Installation.
The Custom Installation allows you to select the machine’s
connection and choose individual component to install. Follow the
instruction on the window.
4. Read the License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
The software searches for the machine.
If your machine is not found in the network or locally, a window
with below information appears.
•Check if you want to install the software without
connecting the printer to the network or locally.
-Check this option to install the software without a machine
connected. In this case, the print a test page window will be
skipped.
•Search again
When you click this button, the firewall notice window appears;
-Turn off the firewall and Search again. For Window
operating system, click Start > Control Panel > Windows
Firewall, and inactivate this option. For other operating
systems, refer to their guide.
-Turn off the firewall from the third party's program beside
the operating system. Refer to the manual provided by
individual programs.
•Direct Input
The Direct Input allows you to search for a specific machine
on the newtwork.
-Search by IP address: Enter the IP address or the host
name. Then click Next.
To verify your machine’s IP address, print a network
configuration report (See "(WPS) button" on page 21).
-Search by network path: To find a shared machine (UNC
Path), enter the shared name manually or find a shared
printer by clicking the Browse button. Then click Next.
•Help
If your machine is not connected to the computer or network,
This help button gives detailed information about the how to
connect the machine.
5. The searched machines will be shown on the screen. Select the one you
wish to use and click Next.
If the software searched only one machine, the confirmation
window appears.
6. After the installation is finished, a window asking you to print a test page
appears. If you want to print a test page, click Print a test page.
Otherwise, just click Next and skip to step 8.
7. If the test page prints out correctly, click Yes.
If not, click No to reprint it.
8. If you want to register your machine on Samsung web site, click On-line
Registration.
9. Click Finish.
If the printer driver does not work properly, follow the steps below to
repair or reinstall the driver.
a)Make sure that the machine is connected to your machine and
powered on.
b)From the Start menu, select Programs or All Programs >
Samsung Printers > your printer driver name > Maintenance.
c)Select the option you wish to execute, then follow the instruction on
the window.
Macintosh
The software CD that came with your machine provides you with the PPD
file that allows you to use the CUPS driver or Apple LaserWriter driver (only
available when you use a machine which supports the PostScript driver) for
printing on a Macintosh computer.
1. Make sure that the machine is connected to your computer and powered
on.
2. Insert the supplied software CD into your CD-ROM drive.
3. Double-click the CD-ROM icon that appears on your Macintosh desktop.
4. Double-click the MAC_Installer folder.
5. Double-click the Installer OS X icon.
6. Enter the password and click OK.
7. The Samsung Installer window opens. Click Continue.
8. Read the license agreement and click Continue.
9. Click Agree to agree to the license agreement.
10. Select Easy Install and click Install.Easy Install is recommended for
most users. All components necessary for machine operations will be
installed.
If you select Custom Install, you can choose individual components to
install.
11. When the message which warns that all applications will close on your
computer appears, click Continue.
12. After the installation is finished, click Quit.
13. Open the Applications folder > Utilities > Print Setup Utility.
•For Mac OS X 10.5~10.6, open the Applications folder > System
Preferences and click Print & Fax.
14. Click Add on the Printer List.
•For Mac OS X 10.5~10.6, click the “+” icon; a display window will pop
up.
15. For Mac OS X 10.3, select the USB tab.
•For Mac OS X10.4, click Default Browser and find the USB
connection.
•For Mac OS X 10.5~10.6, click Default and find the USB connection.
16. For Mac OS X 10.3, if Auto Select does not work properly, select
Samsung in Printer Model and your machine name in Model Name.
•For Mac OS X 10.4, if Auto Select does not work properly, select
Samsung in Print Using and your machine name in Model.
•For Mac OS X 10.5~10.6, if Auto Select does not work properly, select
Select a driver to use... and your machine name in Print Using.
Your machine appears on the Printer List, and is set as the default
Getting started_ 26
machine.
17. Click Add.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow steps below to uninstall the driver for Macintosh.
a)Make sure that the machine is connected to your computer and
powered on.
b)Insert the supplied software CD into your CD-ROM drive.
c)Double-click CD-ROM icon that appears on your Macintosh desktop.
d)Double-click the MAC_Installer folder.
e)Double-click the Installer OS X icon.
f)Enter the password and click OK.
g)The Samsung Installer window opens. Click Continue.
h)Select Uninstall and click Uninstall.
i)When the message which warns that all applications will close on
your computer appears, Click Continue.
j)When the uninstall is done, click Quit.
Linux
You need to download Linux software packages from the Samsung website
to install the printer software.
Follow the steps below to install the software.
Installing the Unified Linux Driver
1.Make sure that the machine is connected to your computer and
powered on.
2.When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3.From the Samsung website, download the Unified Linux Driver
package to your computer.
4.Right click the Unified Linux Driver package and extract the package.
5.Double click cdroot > autorun.

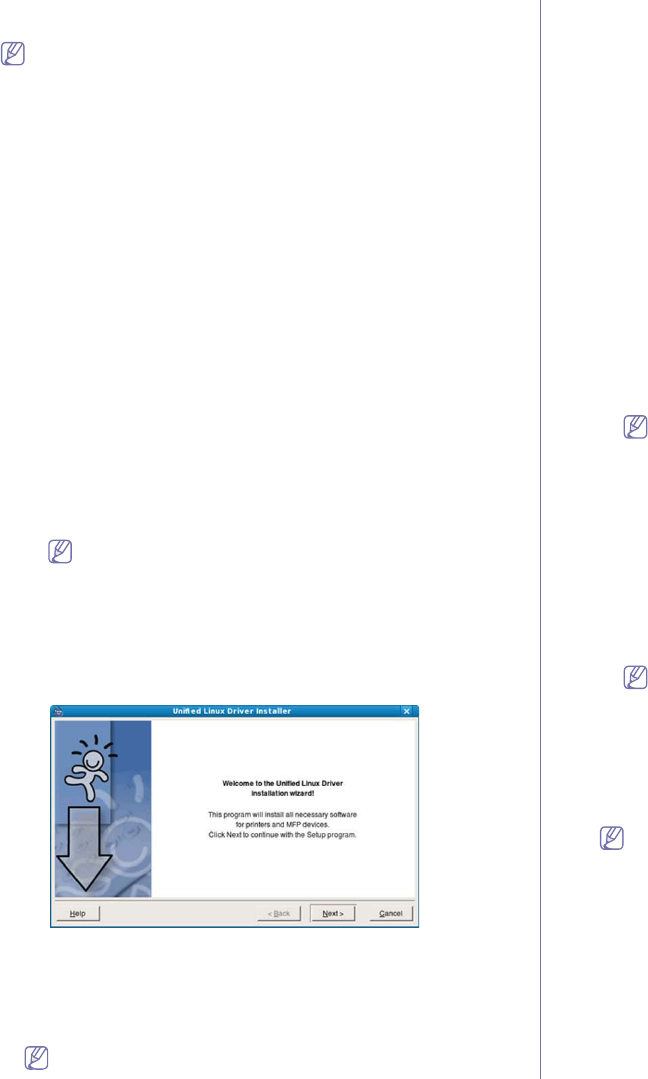

6.When the welcome screen appears, click Next.
7.When the installation is complete, click Finish.
The installation program added the Unified Driver Configurator desktop
icon and the Unified Driver group to the system menu for your
convenience. If you have any difficulties, consult the on screen help that
is available through your system menu or from the driver package
Windows applications, such as Unified Driver Configurator.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow the steps below steps to uninstall the driver for Linux.
a)Make sure that the machine is connected to your computer and
powered on.
b)When the Administrator Login window appears, type in “root”
in the Login field and enter the system password.
You must log in as a super user (root) to uninstall the printer
driver. If you are not a super user, ask your system
administrator.
c)Click the icon at the bottom of the desktop. When the Terminal
screen appears, type in:
[root@localhost root]#cd /opt/Samsung/mfp/uninstall/
[root@localhost uninstall]#./uninstall.sh
d)Click Uninstall.
e)Click Next.
f)Click Finish.
Installing the SmartPanel
1.Make sure that the machine is connected to your computer and
powered on.
2.When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3.From the Samsung website, download the Smart Panel package to
your computer.
4.Right click the Smart Panel package and extract the package.
5.Double click cdroot > Linux > smartpanel >install.sh.
Installing the Printer Settings Utility
1. Make sure that the machine is connected to your computer and
powered on.
2. When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3. From the Samsung website, download the Printer Settings Utility
package to your computer.
4. Right-click the Printer Settings Utility package and extract the
package.
5. Double click cdroot > Linux > psu >install.sh.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow the steps below to uninstall the driver for Linux.
a) Make sure that the machine is connected to your computer and
powered on.
b) When the Administrator Login window appears, type in “root”
in the Login field and enter the system password.
You must log in as a super user (root) to uninstall the printer
driver. If you are not a super user, ask your system
administrator.
c) Click the icon at the bottom of the desktop. When the Terminal
screen appears, type in:
[root@localhost root]#cd /opt/Samsung/mfp/uninstall/
Getting started_ 27
[root@localhost uninstall]#./uninstall.sh
d) Click Uninstall.
e) Click Next.
f) Click Finish.
Wireless network setup_ 28
3.wireless network setup
This chapter gives you step-by-step instructions for setting up the wireless network connected machine and software.
This chapter includes:
•Network environment
•Introducing useful network programs
•Getting started
•Choosing the wireless network installation type
•Setting a wireless network with the WPS button
•Setting a wireless network from the computer
•Completing the installation
•Troubleshooting
For more information about the network environmentS network
programs, and installing a network connected machine’s driver, refer
to the following chapters:
•See "Network environment" on page 28.
•See "Introducing useful network programs" on page 28.

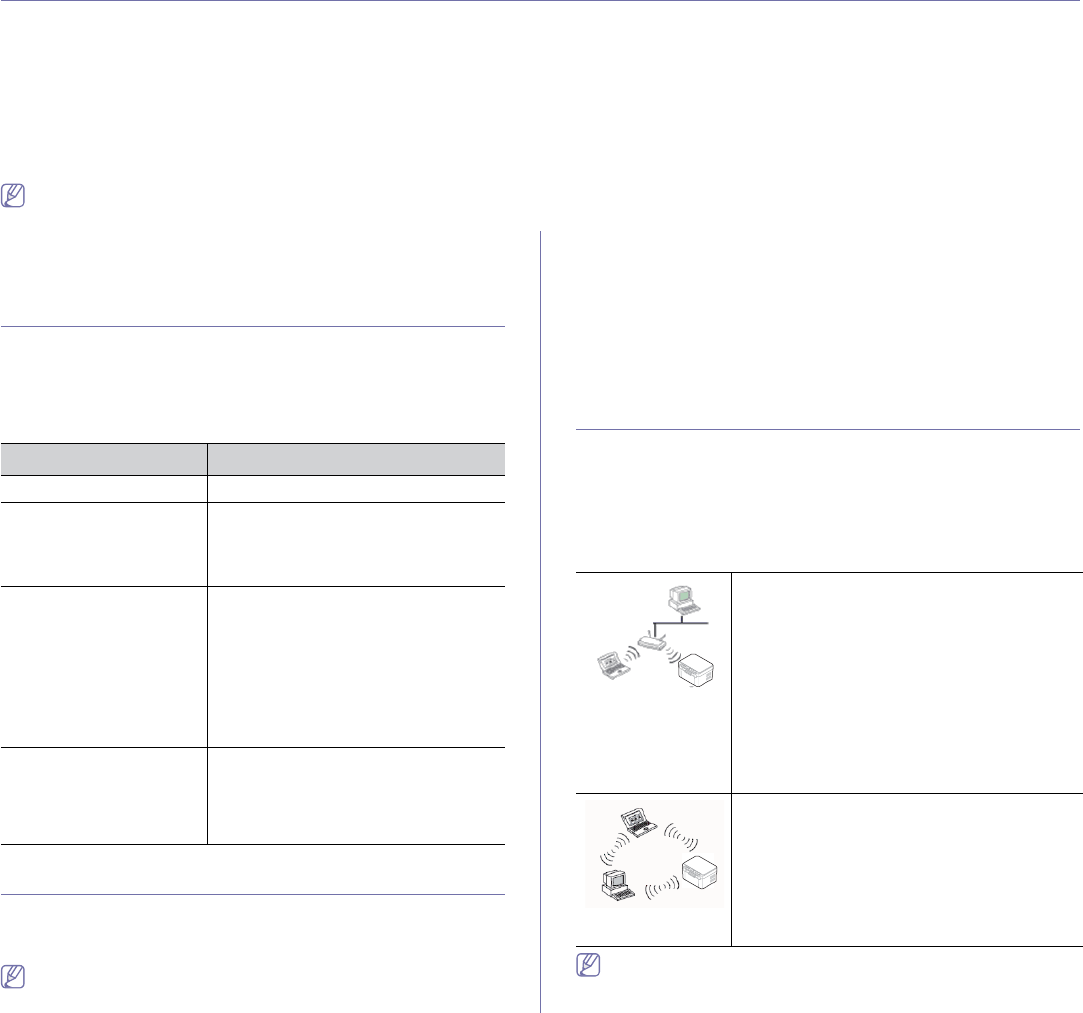

Network environment
You need to set up the network protocols on the machine to use it as your
network machine. You can set up the basic network settings through the
machine's control panel or network setting programs.
The following table shows the network environments supported by the
machine:
Item Requirements
Network interface •802.11 b/g/n wireless LAN
Network operating system •Windows 2000/Server 2003 /Server
2008/XP/Vista/7/Server 2008 R2
•Various Linux OS
•Mac OS X 10.3 ~ 10.6
Network protocols •TCP/IPv4
•DHCP, BOOTP
•DNS, WINS, Bonjour, SLP, UPnP
•Standard TCP/IP Printing (RAW), LPR,
IPP
•SNMPv 1/2/3, HTTP, IPSec
•TCP/IPv6 (DHCP, DNS, RAW, LPR,
SNMPv 1/2/3, HTTP, IPSec)
Wireless security •Authentication: Open System, Shared
Key, WPA Personal, WPA2 Personal
(PSK)
•Encryption: WEP64, WEP128, TKIP,
AES
Introducing useful network programs
There are several programs available to setup the network settings easily in
network environment. For the network administrator especially, managing
several machines on the network is possible.
Before using the programs below, set the IP address first.
SyncThru™ Web Service
Web server embedded on your network machine, which allows you to:
•Configure the network parameters necessary for the machine to connect
to various network environments.
•Customize machine settings.
See "Using SyncThru™ Web Service" on page 53.
SyncThru™ Web Admin Service
A web-based machine management solution for network administrators.
SyncThru™ Web Admin Service provides you with an efficient way of
managing network devices and lets you remotely monitor and troubleshoot
network machines from any site with corporate internet access. Download
this program from http://solution.samsungprinter.com.
Getting started
Choosing your network connection
Typically, you can only have one connection between your computer and
the machine at a time. There are two types of network connections to
consider:
•Wireless network without access Point (Ad-Hoc mode)
•Wireless network with an access Point (Infrastructure mode)
Infrastructure mode
This is an environment generally used for homes
and SOHOs (Small Office/ Home Office). This
mode uses an access point to communicate with
the wireless machine.
•See "Installing the machine on a wireless
network with an access point (Windows)" on
page 30.
•See "Installing the machine on a wireless
network with an access point (Macintosh)" on
page 33.
Ad-Hoc mode
This mode does not use an access point. The
wireless computer and wireless machine
communicates directly.
•See "Installing the machine on an Ad-Hoc
wireless network (Windows)" on page 31.
•See "Installing the machine on an Ad-Hoc
wireless network (Macintosh)" on page 34.
After choosing your configuration, follow the simple directions for your
computer’s operating system, but first locate the software CD supplied
with the machine before proceeding.
Wireless network setup_ 29
Wireless network name and network key
Wireless networks require higher security, so when an access point is first
set up, a network name (SSID), the type of security used, and a Network
Key are created for the network. Locate this information before proceeding
with the machine installation.
Printing network configuration report
In ready mode, press and hold the (WPS button) for about 15 seconds.
You can find your machine’s MAC address and IP address.
For example:
•MAC Address: 00:15:99:41:A2:78
•IP Address: 192.0.0.192
Choosing the wireless network installation type
There are various ways to install the wireless network to connect to the
machine. You can install a wireless network from the machine’s control
panel or the computer.GFor most users, we recommend using the WPS
() button to configure the wireless network settings.
From the control panel
•WPS ( ) : If your machine and an access point (or wireless router)
support Wi-Fi Protected Setup™(WPS), you can easily configure the
wireless network settings by pressing the WPS () button on the
control panel. (See "Setting a wireless network with the WPS button" on
page 29).
From the computer
From the compurter, we recommend using a USB cable with the
program provided in the supplied software CD.
•With a USB cable: You can simply set up a wireless network using the
program on the supplied software CD. Only Windows and Macintosh
operating system are supported (See "Setting a wireless network with
USB cable" on page 30).
You can also install a wireless network in Printer Settings Utility
with a USB cable after installing the driver (Windows and
Macintosh operating systems are supported).
Setting a wireless network with the WPS button
You can install a wireless network with the WPS () button.
After compleleting the wireless network connection, you need to install
a machine driver to print from an application.
Setting a wireless network with the WPS button
If your machine and an access point (or wireless router) support Wi-Fi
Protected Setup™(WPS), you can easily configure the wireless network
settings by pressing the WPS () button on the control panel.
Items to prepare
You need to ensure you have the following items ready to use:
•Check if the access point (or wireless router) supports Wi-Fi
Protected Setup™ (WPS).
•Check if your machine supports Wi-Fi Protected Setup™ (WPS).
•Networked computer (PIN mode only)
Choosing your network connection
There are two methods to connect your machine to a wireless network
using the WPS () button on the control panel.
The Push Button Configuration (PBC) method allows you to connect
your machine to a wireless network by pressing both the WPS ()
button on the control panel of your machine and the WPS (PBC) button
on a Wi-Fi Protected Setup™(WPS)-enabled access point (or wireless
router) respectively.
The Personal Identification Number (PIN) method helps you connect
your machine to a wireless network by entering the supplied PIN
information on a Wi-Fi Protected Setup™(WPS)-enabled access point
(or wireless router).
Factory default in your machine is PBCmode, which is recommended
for a typical wireless network environment.
Connecting to a wireless network in PBC mode
To connect your machine to the wireless network in PBC mode, follow
the following steps:
You need to check the status of the wireless LED.
1. Press and hold the WPS ( ) button on the control panel for about
2 - 4 seconds until the status LED blinks quickly.
•:The light blinks slowly on wireless LED. The machine
starts connecting to the wireless network. The LED blinks slowly
for up to two minutes until you press the PBC button on access
point (or wireless router).
2. : Press the WPS (PBC) button on the access point (or wireless
router).
The wireless LED blinks in the order below:
a) : The light blinks fast on the wireless LED. The machine is
connecting to the access point (or wireless router).
b) : When the machine is successfully connected to the
wireless network, the wireless LED light stays on.
Connecting to the wireless network in PIN mode
To connect your machine to the wireless network, follow the following
steps:
You need to check the status of the wireless LED.
1. Print the network configuration report including PIN number must be
printed.
In ready mode, press and hold the WPS ( ) button on the control
panel for about 15 seconds. You can find you machine’s PIN
number.
2. Press and hold the WPS ڃڄٻbutton on the control panel for
more than 4 seconds until the status LED on.
•:The light blinks slowly on the wireless LED. The machine
starts connecting to access point (or wireless router).
3. You need to enter eight-digit PIN number within two minutes to the
computer which is connected to the access point (or wireless router).
The LED blinks slowly for up to two minutes until you enter the
eight-digit PIN number
The wireless LED blinks in the order below:
Wireless network setup_ 30
a) : The light blinks fast on the wireless LED. The machine is
connecting to the access point (or wireless router).
b) : When the machine is successfully connected to the
wireless network, the wireless LED light stays on.
Re-connecting to the wireless network
When the wireless function is off, the machine automatically tries to
re-connect to the access point (or wireless router) with the previously
used wireless connection settings and address.
In the following cases, the machine automatically re-connects to
the wireless network:
•The machine is turned off and on again.
•The access point (or wireless router) is turned off and on again.
Canceling a wireless network connection process
To cancel the wireless network connection function when the machine is
connecting to the wireless network, press and release the Power ( )
button on the control panel. You need to wait 2 minuites to re-connect
the wireless network.
Disconnecting a wireless network connection
To disconnect the wireless network connection, press the WPS ( )
button on the control panel for more than two seconds.
•When the Wi-Fi Network is in idle mode: The machine is
immediately disconnected from the wireless network, and the
wireless LED is off.
•When the Wi-Fi Network is being used: While the machine waits
until the current job is finished, the light blinks fast on the wireless
LED. Then, the wireless network connection is automatically
disconnected. The wireless LED is off.
When the Wi-Fi NetworkGis disconnected, press the WPS ( )
button on the control panel. The Wi-Fi network is on and the
setting a wireless network begins.
Setting a wireless network
G
from the computer
You can install a wireless network with a USB cable from the computer.
Setting a wireless network with USB cable
See your network administrator, or the person that set up your
wireless network, for information about your network configuration.
Installing the machine on a wireless network with an
access point (Windows)
Items to prepare
Ensure you have the following items ready.
•Access point
•Network-connected computer
•Software CD that was provided with your machine
•The machine installed with a wireless network interface
•USB cable
Creating the infrastructure network in Windows
When the items are ready, follow the steps below:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer, access point, and machine.
3. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation
window appear.
•If the installation window does not appear, click on Start and then
Run. Type X:\Setup.exe, replacing “X” with the letter which
represents your drive. Click on OK.
•If you use Windows Vista, Windows 7, or Windows Server 2008
R2 click on Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter that represents
your drive and click on OK.
•If the AutoPlay window appears in Windows Vista, Windows 7,
or Windows Server 2008 R2, click on Run Setup.exe in Install
or run program field, and click on Continue or Yes in the User
Account Control window.
4. Select the Wireless Setting and Installation option.
•Install Now: If you have already set up the wireless network,
click on this button to install the machine driver to use the
wireless network machine. If you have not set up the wireless
network, click on the Wireless Setting and Installation button to
set up the wireless network before you click on this button.
•Wireless Setting and Installation: Configure the wireless
network settings of your machine with a USB cable then install
the machine driver. Only for the users who have not set up the
wireless connection before.
5. Read the License Agreement, and select I accept the terms of the
License Agreement. Then, click on Next.
6. The software searches the wireless network.
If the search has failed, you may check if the USB cable is
properly connected between the computer and machine, and
follow the instructions on the window.
7. After searching, the window shows the wireless network devices.
Select the name (SSID) of the access point you are using and click
on Next.
If you cannot find out the network name you want to choose, or
if you want to set the wireless configuration manually, click on
Advanced Setting.
•Enter the wireless Network Name: Enter the SSID of
access point you want (SSID is case-sensitive).
•Operation Mode: Select Infrastructure.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key can access the network.
Wireless network setup_ 31
WPA Personal or WPA2 Personal: Select this option to
authenticate the print server based on WPA Pre-Shared
Key. This uses a shared secret key (generally called Pre-
Shared Key pass phrase) which is manually configured on
the access point and each of its clients.
•Encryption: Select the encryption (None, WEP64,
WEP128, TKIP, AES, TKIP AES).
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: If you are using WEP Encryption, select
the appropriate WEP Key Index.
The wireless network security window appears when the
access point has security setting.
The wireless network security window appears. The window
may differ according to its security mode, WEP, or WPA.
•In case of WEP
Select Open System or Shared Key for the authentication
and enter WEP security key. Click on Next.
WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
•In case of WPA
Enter the WPA shared key and click on Next.
WPA authorizes and identifies users based on a secret key
that changes automatically at regular intervals. WPA also
uses TKIP (Temporal Key Integrity Protocol) and AES
(Advanced Encryption Standard) for data encryption.
8. The window shows the wireless network settings and check if the
settings are right. Click on Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click on
Change TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click on
Change TCP/IP to enter the IP address and other network
configuration values for the machine. Before entering the IP
address for the machine, you must know the computer’s network
configuration information. If the computer is set to DHCP, you
must contact the network administrator to get the static IP
address.
For example:
If computer’s network information is as shown below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Then, the machine’s network information should be as below:
-IP address: 169.254.133. 43
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1
9. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine. Click on Next.
10. The Wireless Network Setting Complete window appears.
Select Yes if you accept the current settings and continue the setup
procedure.
Select No if you want to return to the beginning screen.
Then, click on Next.
11. Click on Next when the Confirm Printer Connection window
appears.
12. Select the components to be installed. Click on Next.
After selecting the components, you can also change the machine
name, set the machine to be shared on the network, set the machine
as the default machine, and change the port name of each machine.
Click on Next.
13. After the installation is finished, a window asking you to print a test
page appears. If you want to print a test page, click on Print a test
page.
Otherwise, just click on Next and go to step 15.
14. If the test page prints out correctly, click on Yes.
If not, click on No to reprint it.
15. To register as a user of the machine in order to receive information
from Samsung, click on On-line Registration.
16. Click on Finish.
Installing the machine on an Ad-Hoc wireless network
(Windows)
If you do not have an access point (AP), you may still connect the
machine wirelessly to your computer by setting up an Ad-Hoc wireless
network by following the simple steps below.
Items to prepare
Ensure you have the following items ready:
•Network-connected computer
•Software CD that was provided with your machine
•The machine installed with a wireless network interface
•USB cable
Creating the Ad-Hoc network in Windows
When the items are ready, follow the steps below:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer and the wireless network machine.
3. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation
window appear.
•If the installation window does not appear, click on Start and then
Run. Type X:\Setup.exe, replacing “X” with the letter which
represents your drive. Click on OK.
•If you use Windows Vista, Windows 7, or Windows Server 2008
R2 click on Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter that represents
your drive and click on OK.
•If the AutoPlay window appears in Windows Vista, Windows 7,
or Windows Server 2008 R2, click on Run Setup.exe in Install
or run program field, and click on Continue or Yes in the User
Account Control window.
Wireless network setup_ 32
4. Select the Wireless Setting and Installation option.
•Install Now: If you have set the wireless network, click on this
button to install the machine driver to use the wireless network
machine. If you have not set the wireless network, click on
Wireless Setting and Installation button to set the wireless
network before you click on this button.
•Wireless Setting and Installation: Configure the wireless
network settings of your machine with a USB cable then install
the machine driver. Only for users who have not set up the
wireless connection before.
5. Read the License Agreement, and select I accept the terms of the
License Agreement. Then, click on Next.
6. The software searches the wireless network.
If the software has failed to search the network, check if the
USB cable is connected properly between the computer and
machine, and follow the instruction on the window.
7. After searching the wireless networks,Ga list of wireless networks
your machine has searched appears.
If you want to use the Samsung default ad-hoc setting, select the last
wireless network on the list, Network Name(SSID) is portthru and
Signal is Printer Self Network.
Then, click on Next.
If you want to use other ad-hoc settings, select another wireless
network from the list.
If you want to change ad-hoc settings click on the Advanced
Setting buttonU
•Enter the wireless Network Name: Enter the SSID name
you want (SSID is case-sensitive).
•Operation Mode: Select Ad-hoc.
•Channel: Select the channel. (Auto Setting or 2412 MHz
to 2467 MHz).
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP keyGcan access the network.
•Encryption: Select the encryption (None, WEP64,
WEP128).
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: If you are using the WEP Encryption,
select the appropriate WEP Key Index.
The wireless network security window appears when the
ad-hoc network has security setting.
The wireless network security window appears. Select Open
System or Shared Key for the authentication and click on
Next.
•WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
8. The window showing the wireless network setting appears. Check
the settings and click on Next.
Before entering the IP address for the machine, you must know
the computer’s network configuration information.GIf the
computer’s network configuration is set to DHCP, the wireless
network setting should also be DHCP. Likewise, if the
computer’s network configuration is set to Static, the wireless
network setting should also be Static.
If your computer is set to DHCP and you want to use the Static
wireless network setting, you must contact the network
administrator to get the static IP address.
•For the DHCP method
If the IP address assignment method is DHCP, check if
DHCP is shown in the Wireless Network Setting Confirm
window. However, if it shows Static, click on Change
TCP/IP to change the assignment method to Receive IP
address automatically (DHCP).
•For the Static method
If the IP address assignment method is Static, check if
Static is shown in the Wireless Network Setting Confirm
window. However, if it shows DHCP, click on Change
TCP/IP to enter the IP address and other network
configuration values for the machine.
For example:
If computer’s network information is as shown below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Then, the machine’s network information should be as
below:
-IP address: 169.254.133. 43
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1
9. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine. Click on Next.
If the Change PC Network Setting window appears, follow
the steps on the window.
Click on Next if you are finished the computer’s wireless
network settings.
If you set the computer’s wireless network on DHCP, it will take
several minutes to receive the IP address.
10. The Wireless Network Setting Complete window appears.
Select Yes if you accept the current settings and continue the setup
procedure.
Select No if you want to return to the beginning screen.
Then, click on Next.
Wireless network setup_ 33
11. Click on Next when the Confirm Printer Connection window
appears.
12. Select the components to be installed. Click on Next.
After selecting the components, you can also change the machine
name, set the machine to be shared on the network, set the machine
as the default machine, and change the port name of each machine.
Click on Next.
13. After the installation is finished, a window asking you to print a test
page appears. If you want to print a test page, click on Print a test
page.
Otherwise, just click on Next and go to step 15.
14. If the test page prints out correctly, click on Yes.
If not, click on No to reprint it.
15. To register as a user of the machine in order to receive information
from Samsung, click on On-line Registration.
16. Click on Finish.
Installing the machine on a wireless network with an
access point (Macintosh)
Items to prepare
Ensure you have the following items ready:
•Access point
•Network-connected computer
•Software CD that was provided with your machine
•The machine installed with a wireless network interface
•USB cable
Creating the infrastructure network in Macintosh
When the items are ready, follow the steps below:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer, access point, and machine.
3. Insert the supplied software CD into your CD-ROM drive.
4. Double-click the CD-ROM icon that appears on your Macintosh
desktop.
5. Double-click the MAC_Installer folder.
6. Double-click the Installer OS X icon.
7. Enter the password and click on OK.
8. The Samsung Installer window opens. Click on Continue.
9. Read the license agreement and click on Continue.
10. Click on Agree to agree to the license agreement.
11. The Samsung Installer window opens. Click on Continue.
12. Select Easy Install and click on Install.Easy Install is
recommended for most users. All compoenets necessary for
machine operations will be installed.
If you select Custom Install, you can choose individual operations
will be installed.
13. Select the Wireless Setting and Installation option.
14. The software searches the wireless network.
If the search has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instructions in the window.
15. After searching, the window shows the wireless network devices.
Select the name (SSID) of the access point you are using and click
on Next.
When you set the wireless configuration manually, click on
Advanced Setting.
•Enter the wireless Network Name: Enter the SSID of
access point you want (SSID is case-sensitive).
•Operation Mode: Select Infrastructure.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key can access the network.
WPA Personal or WPA2 Personal: Select this option to
authenticate the print server based on WPA Pre-Shared
Key. This uses a shared secret key (generally called Pre-
Shared Key pass phrase) that is manually configured on
the access point and each of its clients.
•Encryption: Select the encryption. (None, WEP64,
WEP128, TKIP, AES, TKIP AES)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: If you are using the WEP Encryption,
select the appropriate WEP Key Index.
The wireless network security window appears when the
access point has security setting.
The wireless network security window appears. The window
may differ according to its security mode: WEP or WPA.
•In case of WEP
Select Open System or Shared Key for the authentication
and enter WEP security key. Click on Next.
WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
•In case of WPA
Enter the WPA shared key and click on Next.
WPA authorizes and identifies users based on a secret key
that changes automatically at regular intervals. WPA also
uses TKIP (Temporal Key Integrity Protocol) and AES
(Advanced Encryption Standard) for data encryption.
16. The window shows the wireless network setting and check if settings
are right. Click on Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click on
Change TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click Change
TCP/IP to enter the IP address and other network configuration
values for the machine. Before entering the IP address for the
machine, you must know the computer’s network configuration
information. If the computer is set to DHCP, you must contact the
network administrator to get the static IP address.
For example:
If computer’s network information is as shown below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Then, the machine’s network information should be as below:
Wireless network setup_ 34
-IP address: 169.254.133. 43
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1
17. The wireless network connects according to the network
configuration.
18. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
19. Follow the instructions on the screen to complete the installation.
After the installation is finished, click on Quit or Restart.
Installing the machine on an Ad-Hoc wireless network
(Macintosh)
If you do not have a access point (AP), you may still connect the
machine wirelessly to your computer by setting up an Ad-Hoc wireless
network by following these simple directions.
Items to prepare
Ensure you have following items ready:
•Network-connected computer
•Software CD that provided with your machine
•The machine installed with a wireless network interface
•USB cable
Creating the Ad-Hoc network in Macintosh
When the items are ready, follow these steps:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer and machine.
3. Insert the supplied software CD into your CD-ROM drive.
4. Double-click the CD-ROM icon that appears on your Macintosh
desktop.
5. Double-click the MAC_Installer folder.
6. Double-click the Installer OS X icon.
7. Enter the password and click on OK.
8. The Samsung Installer window opens. Click on Continue.
9. Read the license agreement and click on Continue.
10. Click on Agree to agree to the license agreement.
11. Select Easy Install and click on Install.Easy Install is
recommended for most users. All components necessary for
machine operations will be installed.
If you select Custom Install, you can choose individual operations
will be installed.
12. Click on Wireless Setting and Installation.
13. The software searches the wireless network devices.
If the search has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
14. After searching the wireless networks,Ga list of wireless networks
your machine has searched appears.
If you want to use the Samsung default ad-hoc setting, select the last
wireless network on the list, which Network Name(SSID) is portthru
and Signal is Printer Self Network.
Then, click on Next.
If you want to use other ad-hoc settings, select another wireless
network from the list.
If you want to change ad-hoc settings click the Advanced
Setting buttonU
•Enter the wireless Network Name: Enter the SSID name
you want (SSID is case-sensitive).
•Operation Mode: Select Ad-hoc.
•Channel: Select the channel (Auto Setting or 2412 MHz
to 2467 MHz).
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP keyGcan access the network.
•Encryption: Select the encryption (None, WEP64,
WEP128).
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: If you are using the WEP Encryption,
select the appropriate WEP Key Index.
The wireless network security window appears when the
ad-hoc network has security setting.
The wireless network security window appears. Select Open
System or Shared Key for the authentication and click on
Next.
•WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
15. The window showing the wireless network setting appears. Check
the settings and click on Next.
Before entering the IP address for the machine, you must know
the computer’s network configuration information.GIf the
computer’s network configuration is set to DHCP, the wireless
network setting should also be DHCP. Likewise, if the
computer’s network configuration is set to Static, the wireless
network setting should also be Static.
If your computer is set to DHCP and you want to use Static
wireless network setting, you must contact the network
administrator to get the static IP address.
•For the DHCP method
If the IP address assignment method is DHCP, check if
DHCP is shown in the Wireless Network Setting Confirm
window. However, if it shows Static, click on Change
TCP/IP to change the assignment method to Receive IP
address automatically (DHCP).
•For the Static method
If the IP address assignment method is Static, check if
Static is shown in the Wireless Network Setting Confirm
window. However, if it shows DHCP, click on Change
TCP/IP to enter the IP address and other network
configuration values for the machine.
For example:
If computer’s network information is as shown below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Then, the machine’s network information should be as
below:
-IP address: 169.254.133. 43
Wireless network setup_ 35
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1
16. The wireless network connects according to the network
configuration.
17. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
18. Follow the instructions on the screen to complete the installation.
After the installation is finished, click on Quit or Restart.
Completing the installation
After you have installed your Samsung wireless network printer, print
another copy of the Network Configuration Report and keep it for future
reference. You are now ready to use your new Samsung wireless printer on
your network.
If the wireless network seems to not be working, set all the network
setting to the factory defaults and try again (See "Restoring factory
default settings using SyncThru™ Web Service" on page 35).
Restoring factory default settings using
SyncThru™ Web Service
1. Start a web browser such as Internet Explorer, Safari or Firefox and
enter your machine’s new IP address in the browser window.
For example,
2. Click Go to access the SyncThru™ Web Service.
3. Click Login on the upper right of the SyncThru™ Web Service website.
A log-in page appears.
4. Type in the ID and Password then click Login.
If it’s your first time logging into SyncThru™ Web Service, type in the
below default ID and password.
•ID: admin
•Password: sec00000
5. When the SyncThru™ Web Service window opens, click Settings >
Network Settings > Restore Default.
6. Click Clear for network.
7. Turn off and restart machine to apply settings.
Troubleshooting
Solving problems that might occur during setting up
the wireless setting and installing the machine driver
Printers Not Found
•Your machine may not be turned on. Turn on your computer and the
machine.
•USB cable is not connected between your computer and machine.
Connect machine to your computer using the USB cable.
•The machine does not support a wireless network. Check the
machine's user's guide included on the software CD supplied with
your machine and prepare a wireless network machine.
Connecting Failure - Not Found SSID
•The machine is unable to search the network name (SSID) you have
selected or entered. Check the network name (SSID) on your access
point and try connecting again.
•Your access point is not turned on. Turn on your access point.
Connecting Failure - Invalid Security
•You configured security incorrectly. Check the configured security on
your access point and machine.
Connecting Failure - General Connection Error
•Your computer is not receiving a signal from your machine. Check
the USB cable and your machine’s power.
PC Connection Error
•The configured network address is unable to connect between your
computer and machine.
-For a DHCP network environment
The print receives the IP address automatically (DHCP) when
computer is configured to DHCP.
-For a Static network environment
The machine uses the static address when the computer is
configured to static address.
For example:
If computer’s network information is as shown below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Then, the machine’s network information should be as below:
-IP address: 169.254.133. 43
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1
Solving other problems
If problems occur while using the machine on a network, check the
following:
For information on the access point (or wireless router), refer to its
own user's guide.
•Your computer, access point (or wireless router), or machine may not be
turned on.
•Check the wireless reception around the machine. If the reception is far
from the machine or there is an obstacle, you might have difficulty
receiving the signal.
•Cycle the power for the access point (or wireless router), machine, and
computer. Sometimes cycling the power can recover network
communication.
•Check whether firewall software (V3 or Norton) is blocking the
communication.
If the computer and the machine is connected on the same network and
it cannot be searched, firewall software might be blocking the
communication. Refer to the user's guide for the software to turn it off
and try searching for the machine again.
•Check whether the machine's IP address is allocated correctly. You can
check the IP address by printing the network configuration report.
•Check whether the access point (or wireless router) has a configured
security (password). If it has a password, refer to the access point (or
wireless router) administrator.
•Check whether the machine's IP address. Reinstall the machine driver
and change the settings to connect to the machine on the network. Due
to the characteristics of DHCP, the allocated IP address could change if
Wireless network setup_ 36
the machine is not used for a long time or if the access point has been
reset.
•Check the wireless environment. You might not be able to connect to the
network in the infrastructure environment where you need to type in a
user's information before connecting to access point (or wireless router).
•This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless
communication (Bluetooth) is not supported.
•When using the Ad-hoc mode, for operating systems such as Windows
Vista, you might need to set the wireless connection setting every time
you use the wireless machine.
•You cannot use infrastructure mode and Ad-hoc mode at the same time
for Samsung wireless network machines.
•The machine is within the range of the wireless network.
•The machine is located away from obstacles that could block the
wireless signal.
Remove any large metal objects between the access point (or wireless
router) and the machine.
Make sure the machine and wireless access point (or wireless router)
are not separated by poles, walls, or support columns containing metal
or concrete.
•The machine is located away from other electronic devices that may
interfere with the wireless signal.
Many devices can interfere with the wireless signal, including a
microwave oven and some Bluetooth devices.
Basic setup_ 37
4.basic setup
After installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would like
to set or change values. This chapter gives you step-by-step instructions for setting up the machine.
This chapter includes:
•Setting the default tray and paper •Altitude adjustment
SETTING THE DEFAULT TRAY AND PAPER
You can select the tray and paper you would like to keep using for printing
job.
From your computer
Windows
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printer and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware
>Devices and Printers.
3.Right-click on your machine.
4. For Windows XP/2003/2008/Vista, press Printing Preferences.
For Windows 7 and Windows Server 2008 R2, from context menus,
select the Printing Preferences.
If Printing Preferences item has a Ź mark, you can select
other printer drivers connected with the selected printer.
5. Click Paper tab.
6.Select tray and its options, such as paper size and type.
7. Press OK.
If you want to use special-sized paper such as a billing paper,
select Edit... in the Paper tab in the Printing Preferences. (See
"Opening printing preferences" on page 44.)
Macintosh
Macintosh does not support this function. Macintosh users need to
change the default setting manually each time they want to print using
other settings.
1.Open a Macintosh application and select the file you want to print.
2. Open the File menu and click Print.
3. Go to Paper Feed pane.
4.Set appropriate tray from which you want to print.
5. Go to Paper pane.
6.Set paper type to correspond to the paper loaded in the tray from
which you want to print.
7. Click Print to print.
Linux
1. Open Terminal Program.
2. When the Terminal screen appears, type in the following:
[root@localhost root]# lpr <FileName>
3. Select Printer and click Properties…
4. Click on the Advanced tab.
5.Select the tray (source) and its options, such as paper size and type.
6. Press OK.
ALTITUDE ADJUSTMENT
The print quality is affected by atmospheric pressure, which is determined
by the height of the machine above sea level. The following information will
guide you on how to set your machine to the best print quality or best quality
of print.
Before you set the altitude value, determine the altitude where you are.
0
4,000 m
(13,123 ft)
3,000 m
(9,842 ft)
2,000 m
(6,561 ft)
1,000 m
(3,280 ft)
4
3
2
1
1High 1
2High 2
3High 3
4Normal
You can altitude adjustment in Printer Settings Utility.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X (See "Using the Smart Panel program" on page 51).
Or, if you are a Windows user, you can launch it from the Start menu,
select Programs or All Programs > Samsung Printers > your printer
driver name > Smart Panel.
2. Click Printer Setting.
3. Select necessary options in the Altitude Adjustment drop-down list.
4. Click the Apply button.
If your machine is connected to a network, SyncThru™ Web Service
screen appears automatically. This can also be adjusted via SyncThru™
Web Service.
Media and tray_ 38
5.media and tray
This chapter provides information on how to load print media into your machine.
This chapter includes:
•Selecting print media
•Changing the tray size
•Loading paper in the tray
•Printing on special media
•Changing the tray size
SELECTING PRINT MEDIA
You can print on a variety of print media, such as plain paper, envelopes,
labels, and transparencies. Always use print media that meets the
guidelines for use with your machine and from the appropriate tray.
Guidelines for selecting the print media
Print media that does not meet the guidelines outlined in this user’s guide
may cause the following problems:
•Poor print quality
•Increased paper jams
•Premature wear on the machine.
•Permanent fuser damage, not covered under warranty.
Properties, such as weight, composition, grain, and moisture content, are
important factors that affect the machine’s performance and the output
quality. When you choose print materials, consider the following:
•The type, size and weight of the print media for your machine are
described in print media specifications. (See "Print media specifications"
on page 70.)
•Desired outcome: The print media you choose should be appropriate for
your project.
•Brightness: Some print media are whiter than others and produce
sharper, more vibrant images.
•Surface smoothness: The smoothness of the print media affects how
crisp the printing looks on the paper.
•Some print media may meet all of the guidelines in this section and
still not produce satisfactory results. This may be the result of the
sheets characteristics, improper handling, unacceptable
temperature and humidity levels, or other variables over which
cannot be controlled.
•Before purchasing large quantities of print media, ensure that it
meets the specifications in this user’s guide and that it meets your
output requirements.
•Using print media that does not meet these specifications may
cause problems, requiring repairs. Such repairs are not covered by
the warranty or service agreements.
The amount of paper put into the tray may differ according to
media type used. (See "Print media specifications" on page 70.)
•Using inflammable print media can cause a fire.
•Use designated print media (See "Print media specifications" on
page 70).
The use of inflammable media or foreign materials left in the printer
may lead to overheating of the unit and, in rare cases may cause a
fire.
Media sizes supported in each mode
MODE SIZE TYPE SOURCE
Simplex
printing
For details about
paper size, see
"Print media
specifications"
on page 70.
For details about
paper type, see
"Print media
specifications"
on page 70.
Tray
Duplex
printing
(Manual)a
a.75 to 90 g/m2 (20~24 lbs bond) only (See "Print media specifications"
on page 70).
Letter, A4,
Legal, US Folio,
Oficio
Plain, Color,
Preprinted,
Recycled, Bond,
Archive
Manual feeding
in the tray
CHANGING THE TRAY SIZE
The tray is preset to Letter or A4 size, depending on your country. To
change the size, you need to adjust the paper guides.
1Paper width guide
2Tray
3Paper length guide
Media and tray_ 39
1. Open front cover and pinch the paper length guide and pull it out to
extend the tray.
Because the machine is very light, it can move when you open and
close the tray or install and remove the toner cartridge. Be careful
not to move the machine when performing these tasks.
2. Flex or fan the edge of the paper stack to separate the pages before
loading the paper. Insert the paper into the tray.
3. Load paper with the print side facing up. Make sure that all four corners
are flat in the tray.
Do not overload the tray with paper. Otherwise, it may cause paper
jams.
4. Pinch the paper length guide to adjust the guide so that it is flush up
against the rear edge of the paper; then pinch the paper width guides so
they are flush against the sides of the paper.
•Do not push the paper width guide too far causing the media to
warp.
•Do not use a paper with more than 6 mm (0.24 inch.) curl.
•If you do not adjust the paper width guide, it may cause paper
jams.
LOADING PAPER IN THE TRAY
Tray
1. Open the front cover, pinch the paper length guide and pull it out to
extend the tray. Then, adjust the tray size to the media size you are
loading. (See "Changing the tray size" on page 38.)
2. Flex or fan the edge of the paper stack to separate the pages before
loading papers.
3. Place the paper with the side you want to print facing up.
When you print a document, set the paper type and size for the tray.
For information about setting the paper type and size on the control
panel (See "Setting the default tray and paper" on page 37).
•If you experience problems with paper feeding, check whether the
paper meets the media specifications. Then, try placing one
sheet at a time in tray (See "Print media specifications" on
page 70, "Printing on special media" on page 40).
•The settings made from the machine driver override the settings
on the control panel.
Manual feeding in the tray
The tray can hold special sizes and types of print material, such as
postcards, note cards, and envelopes. It is useful for single page printing on
letterhead or colored paper.
Tips on using the manual feeding method
•If you select Paper > Source > Manual Feeder from your printer driver,
you need to press each time you print a page.
Load only one type, size and weight of print media at a time in the
tray.
•To prevent paper jams, do not add media while printing.
•Print media should be loaded face up with the top edge going into the
tray first and be placed in the center of the tray.
Media and tray_ 40
•Always load the use recommended print media to avoid paper jams and
print quality problems. (See "Print media specifications" on page 70.)
•Flatten any curl on postcards, envelopes, and labels before loading
them into the tray.
1.Load the paper in the tray.
•When printing on special media, you must follow the loading
guideline. (See "Printing on special media" on page 40.)
•When paper does not feed well while printing, gently push the
paper in manually until it starts feeding automatically.
2.Squeeze the tray paper width guides and adjust them to the width of
the paper. Do not force them too much, or the paper will bend
resulting in a paper jam or skew.
3.Open the output support.
4.To print from an application, open the application and open the print
menu.
5.Open Printing Preferences. (See "Opening printing preferences" on
page 44.)
6.Click on the Paper tab in Printing Preferences, and select an
appropriate paper type.
For example, if you want to use a label, set the paper type to
Label.
7.Select Manual Feeder in paper source, then press OK.
8.Start printing.
If you are printing multiple pages, load the next sheet after the first
page prints out, and press the . Repeat this step for every page
to be printed.
PRINTING ON SPECIAL MEDIA
The table below shows the available special media for printing.
When printing on a special media, we recommend you feed one paper
at a time. Check the maximum input number of media for tray. (See
"Print media specifications" on page 70.)
TYPES TRAY
MANUAL
FEEDING IN
TRAYa
Plain ƔƔ
Thick ƔƔ
Thin ƔƔ
Cotton Ɣ
Color Ɣ
Preprinted Ɣ
Recycled ƔƔ
Envelope Ɣ
Transparency Ɣ
Labels Ɣ
CardStock Ɣ
Bond Ɣ
Archive ƔƔ
(Ɣ: supported, Blank: Not supported)
The following media types are shown in the Printing Preferences. This
paper type option allows you to set the type of paper to be loaded in the
tray. Selecting the appropriate media will let you get the best printout
quality. Selecting inappropriate media can result in poor print quality.
•Plain: Normal plain paper. Select this type if your printing on 60 to 120
g/m2 (16 to 32 lbs).
•Thick: 90 to 163 g/m2 (24 to 43 lbs) thick paper.
•Thin: 60 to 70 g/m2 (16 to 19 lbs) thin paper.
•Cotton: 75 to 90 g/m2 (20 to 24 lbs) cotton paper.
•Color: 75 to 90 g/m2 (20 to 24 lbs) color-back grounded paper.
•Preprinted: 75 to 90 g/m2 (20 to 24 lbs) preprinted/letterhead paper.
•Recycled: 60 to 90 g/m2 (16 to 24 lbs) recycled paper.
When you use recycled paper, printouts might be wrinkled and/or
jamming may occur due to excessive curl.
•CardStock: 105 to 163 g/m2 (28 to 43 lbs) cardstock.
•Envelope: 75 to 90 g/m2 (20 to 24 lbs) envelope.
•Transparency: 138 to 146 g/m2 (37 to 39 lbs) transparency paper.
•Labels: 120 to 150 g/m2 (32 to 40 lbs) labels.
•Bond: 105 to 120 g/m2 (28 to 32 lbs) bond.
•Archive: 70 to 90 g/m2 (19 to 24 lbs) If you need to keep the print-out
for a long time, such as for archives.
a.Load one paper at a time.
TYPES TRAY
MANUAL
FEEDING IN
TRAYa
Media and tray_ 41
Envelopes
Successful printing on envelopes depends upon the quality of the
envelopes.
To print on an envelope, the stamp area should be on the left side and the
end of the envelope with the stamp area should enter the printer first in the
center of the tray.
•When selecting envelopes, consider the following factors:
-Weight: The weight of the envelope paper should not exceed 90 g/m2
otherwise, jams may occur.
-Construction: Prior to printing, envelopes should lie flat with less than
6 mm ( 0.24 inch.) of curl, and should not contain air.
-Condition: Envelopes should not be wrinkled, nicked, nor damaged.
-Temperature: Use envelopes that are compatible with the heat and
pressure of the machine during operation.
•Use only well-constructed envelopes with sharp-and well-creased folds.
•Do not use stamped envelopes.
•Do not use envelopes with clasps, snaps, windows, coated lining,
self-adhesive seals, or other synthetic materials.
•Do not use damaged or poorly made envelopes.
•Be sure the seam at both ends of the envelope extends all the way to
the corner of the envelope.
1 Acceptable
2 Unacceptable
•Envelopes with a peel-off adhesive strip or with more than one flap that
folds over to seal must use adhesives compatible with the machine’s
fusing temperature about 170°C (338 °F) for 0.1 second. The extra flaps
and strips might cause wrinkling, creasing, or jams, and may even
damage the fuser.
•For the best print quality, position margins no closer than 15 mm ( 0.59
inch.) from the edges of the envelope.
•Avoid printing over the area where the envelope’s seams meet.
Transparencies
To avoid damaging the machine, use only transparencies designed for laser
printers.
•Transparencies used in the machine must be able to withstand
machine’s fusing temperature.
•Place them on a flat surface after removing them from the machine.
•Do not leave unused transparencies on the paper tray for long periods of
time. Dust and dirt may accumulate on them, resulting in spotty printing.
•To avoid smudging caused by fingerprints, handle transparencies
carefully.
•To avoid fading, do not expose printed transparencies to prolonged
sunlight.
•Ensure that transparencies are not wrinkled, curled, or have any torn
edges.
•Do not use transparencies that separate from the backing sheet.
•To prevent transparencies from sticking to each other, do not let the
printed sheets stack up as they are begin printed out.
Labels
To avoid damaging the machine, use only labels designed for laser
machines.
•When selecting labels, consider the following factors:
-Adhesives: The adhesive material should be stable at your machine’s
fusing temperature (about 170°C (338 °F)).
-Arrangement: Only use labels with no exposed backing between
them. Labels can peel off sheets that have spaces between the
labels, causing serious jams.
-Curl: Prior to printing, labels must lie flat with no more than 13 mm
(0.51 inch.) of curl in any direction.
-Condition: Do not use labels with wrinkles, bubbles, or other
indications of separation.
•Make sure that there is no exposed adhesive material between labels.
Media and tray_ 42
Exposed areas can cause labels to peel off during printing, which can
cause paper jams. Exposed adhesive can also cause damage to
machine components.
•Do not run a sheet of labels through the machine more than once. The
adhesive backing is designed for only a single pass through the
machine.
•Do not use labels that are separating from the backing sheet or are
wrinkled, bubbled, or otherwise damaged.
Card stock/Custom-sized paper
Postcards, cards and other custom-sized materials can be printed with this
machine.
•Do not print on media smaller than 76 mm (3.00 inches) wide or 183 mm
(7.20 inches) long.
•In software applications, set the margins at least 6.4 mm (0.25 inches)
away from the edges of the material.
Letterhead/Preprinted paper
SINGLE-SIDED DOUBLE-SIDED
Face up Face down
•Letterhead/ Preprinted paper must be printed with heat-resistant ink that
will not melt, vaporize, or release hazardous emissions when subjected
to the machine’s fusing temperature (about 170°C(338 °F) for 0.1
second.
•Letterhead/ Preprinted paper ink must be non-flammable and should not
adversely affect machine rollers.
•Forms and letterhead should be sealed in a moisture-proof wrapping to
prevent changes during storage.
•Before you load letterhead/preprinted paper, verify that the ink on the
paper is dry. During the fusing process, wet ink can come off preprinted
paper, reducing print quality.
USING THE OUTPUT SUPPORT
The surface of the output tray may become hot if you print a large
number of pages at once. Make sure that you do not touch the
surface, and do not allow children near it.
The printed pages stack on the output support, and the output support will
help the printed pages to align. The printer sends printouts to the output tray
by default.
Printing_ 43
6.printing
This chapter explains common printing tasks.
This chapter includes:
•Printer driver features
•Basic printing
•Opening printing preferences
•Using help
•Using special print features
•Changing the default print settings
•Setting your machine as a default machine
•Printing to a file (PRN)
•Macintosh printing
•Linux printing
The procedures in this chapter are mainly based on Windows XP.
PRINTER DRIVER FEATURES
Your printer drivers support the following standard features:
•Paper orientation, size, source, and media type selection
•Number of copies
In addition, you can use various special printing features. The following
table shows a general overview of features supported by your printer driver:
Some models or operating systems may not support some of the
feature(s) in the following table.
Printer driver
FEATURE WINDOWS
Print quality option Ɣ
Poster printing Ɣ
Multiple pages per sheet Ɣ
Booklet printing (manual) Ɣ
Fit to page printing Ɣ
Reduce and enlarge printing Ɣ
Different source for first page Ɣ
Watermark Ɣ
Overlay Ɣ
Double-sided printing (manual) Ɣ
(Ɣ: supported)
BASIC PRINTING
Your machine allows you to print from various Windows, Macintosh, or
Linux applications. The exact steps for printing a document may vary
depending on the application you use.
•Your Printing Preferences window that appears in this user’s guide
may differ depending on the machine in use. However, the
composition of the Printing Preferences window is similar. Check
the operating system(s) that are compatible with your machine.
Refer to the OS compatibility section of Printer Specifications.
(See "System requirements" on page 23.)
•When you select an option in Printing Preferences, you may see a
warning mark, , or . An exclamation mark ( ) means you
can select that certain option but it is not recommended, and ( )
mark means you cannot select that option due to the machine’s
settings or environment.
The following procedure describes the general steps required for printing
from various Windows applications.
•Macintosh basic printing. (See "Macintosh printing" on page 48.)
•Linux basic printing. (See "Linux printing" on page 49.)

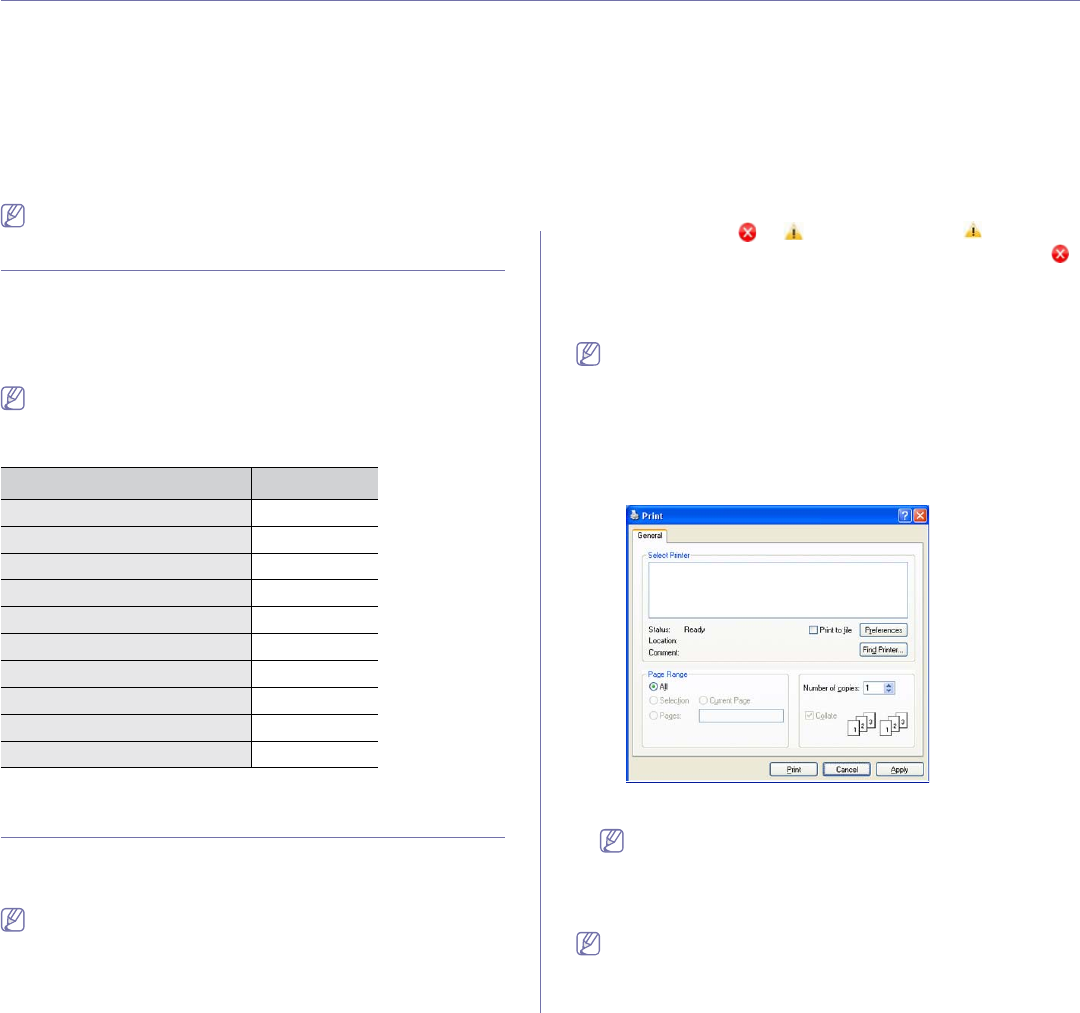

The following Printing Preferences window is for Notepad in Windows XP.
Your Printing Preferences window may differ, depending on your
operating system or the application you are using.
1. Open the document you want to print.
2. Select Print from the File menu. The Print window appears.
3. Select your machine from the Select Printer list.
You can select the basic print settings, including the number of copies
and the print range from within the Print window.
To take advantage of the printer features provided by your printer
driver, click Properties or Preferences in the application’s Print
window to change the print setting. (See "Opening printing
preferences" on page 44.)
4. To start the print job, click OK or Print in the Print window.
If you are using Windows Internet Explorer, the Samsung AnyWeb
Print too will save your time for screen-captured images or printing
the image. Click Start > All programs > Samsung Printers >
Samsung AnyWeb Print to link the website where the tool is
available for the download.
Printing_ 44
Canceling a print job
If the print job is waiting in a print queue or print spooler, cancel the job as
follows:
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printer and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. For Windows 2000, XP, 2003, 2008 and Vista, double-click your
machine.
For Windows 7 and Windows Server 2008 R2, right click your printer
icon > context menus > See what’s printing.
If See what’s printing item has a Ź mark, you can select other
printer drivers connected with selected printer.
4. From the Document menu, select Cancel.
You can also access this window by simply double-clicking the
machine icon ( ) in the Windows task bar.
You can also cancel the current job by pressing on the control
panel.

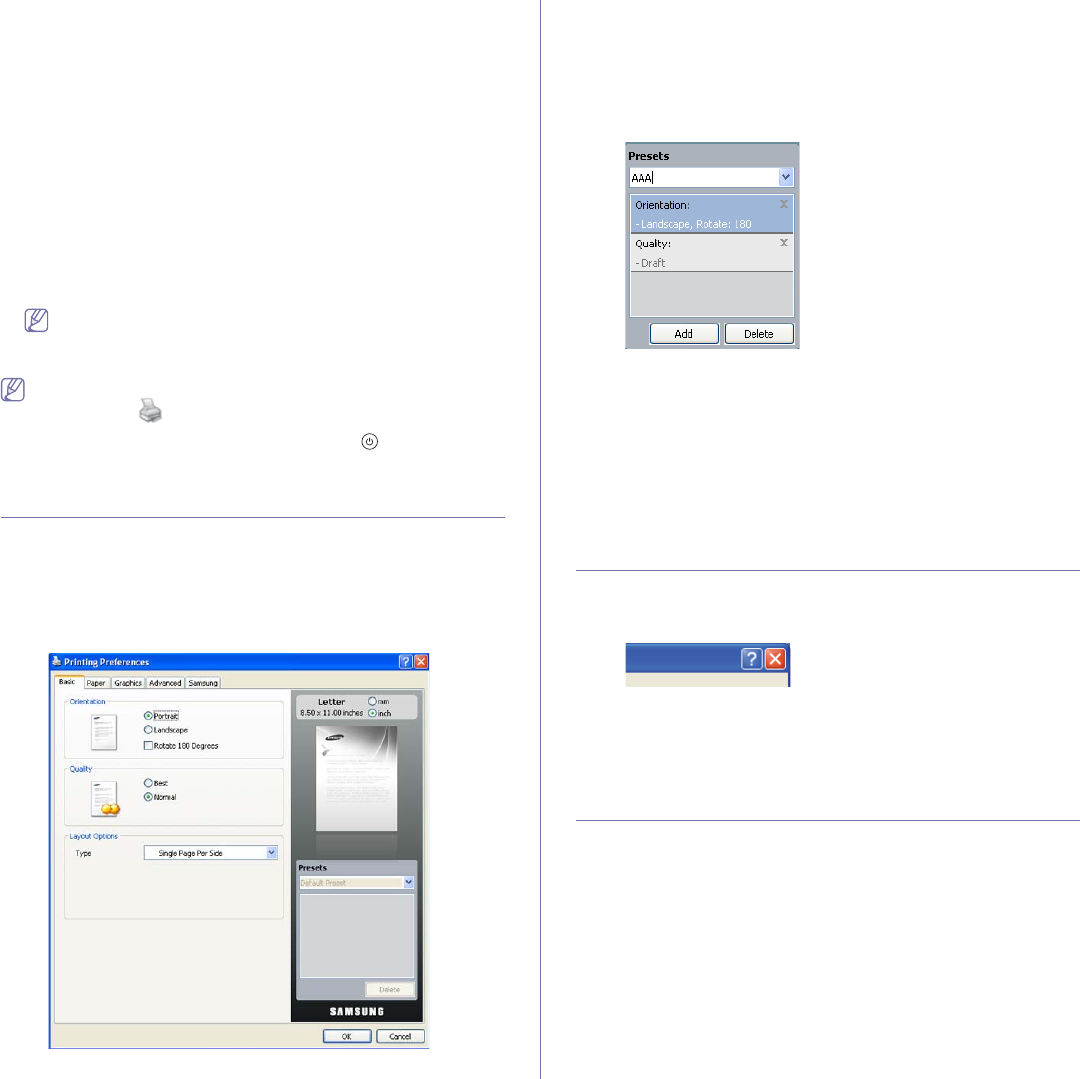

OPENING PRINTING PREFERENCES
You can preview the settings you selected on the upper right of the Printing
Preferences.
1. Open the document you want to print.
2. Select Print from the file menu. The Print window appears.
3. Select your machine from the Select Printer.
4. Click Properties or Preferences.
Using a favorite setting
The Presets option, which is visible on each of the preferences tab except
for the Samsung tab, allows you to save the current preferences for future
use.
To save a Presets item:
1. Change the settings as needed on each tab.
2. Enter a name for the item in the Presets input box.
3. Click Add. When you save Presets, all current driver settings are saved.
If you click Add, the Add button changes to the Update button. Select more
options and click Update, settings will be added to the Presets you made.
To use a saved setting, select it from the Presets drop-down list. The
machine is now set to print according to the settings you have selected.
To delete saved settings, select it from the Presets drop-down list and click
Delete.
You can also restore the printer driver’s default settings by selecting Default
Preset from the Presets drop-down list.
USING HELP
Click the question mark on the upper-right corner of the window and click on
the topic you want to know about. Then a pop up window appears with
information about that option's feature which is provided from the driver.
If you want to search information via a keyword, click the Samsung tab in
the Printing Preferences window, and enter a keyword in the input line of
the Help option. To get information about supplies, driver updates or
registration and so on, click appropriate buttons.
USING SPECIAL PRINT FEATURES
Special print features include:
•"Printing multiple pages on one sheet of paper" on page 45.
•"Printing posters" on page 45.
•"Printing booklets (Manual)" on page 45.
•"Printing on both sides of the paper (Manual)" on page 45.
•"Change percentage of your document" on page 46.
•"Fitting your document to a selected paper size" on page 46.
•"Using watermarks" on page 46.
•"Using overlays" on page 46.
•"Print quality options" on page 47.
Printing_ 45
Printing multiple pages on one sheet of paper
You can select the number of pages to print on a single sheet of paper. To
print more than one page per sheet, the pages will be reduced in size and
arranged in the order you specify. You can print up to 16 pages on one
sheet.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Basic tab, select Multiple Pages Per Side in the Type
drop-down list.
3. Select the number of pages you want to print per sheet (2, 4, 6, 9, or 16)
in the Pages per Side drop-down list.
4. Select the page order from the Page Order drop-down list, if necessary.
5. Check Print Page Border to print a border around each page on the
sheet.
6. Click the Paper tab, select the Size,Source, and Type.
7. Click OK or Print until you exit the Print window.
Printing posters
This feature allows you to print a single-page document onto 4, 9, or 16
sheets of paper, for the purpose of pasting the sheets together to form one
poster-size document.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Basic tab, select Poster Printing in the Type drop-down list.
3. Select the page layout you want.
Available layouts:
•Poster 2x2: Document will be enlarged and be divided into 4 pages.
•Poster 3x3: Document will be enlarged and be divided into 9 pages.
•Poster 4x4: Document will be enlarged and be divided into 16 pages.
4. Select the Poster Overlap value. Specify Poster Overlap in millimeters
or inches by selecting the radio button on the upper right of Basic tab to
make it easier to paste the sheets together.
5. Click the Paper tab, select the Size,Source, and Type.
6. Click OK or Print until you exit the Print window.
7. You can complete the poster by pasting the sheets together.
Printing booklets (Manual)
This feature prints your document on both sides of a paper and arranges the
pages so that the paper can be folded in half after printing to produce a
booklet.
If you want to make a booklet, you need to print on Letter, Legal, A4,
US Folio, or Oficio sized print media.
8
9
1. To change the print settings from your software application, access the
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Basic tab, select Booklet Printing from the Type drop-down
list.
3. Click the Paper tab, select the Size,Source, and Type.
The Booklet Printing option is not available for all paper sizes. In
order to find out the available paper size for this feature, select the
available paper size in the Size option on the Paper tab.
If you select an unavailable paper size, this option can be
automatically canceled. Select only available paper. (paper without
or mark).
4. Click OK or Print until you exit thePrint window.
5. After printing, fold and staple the pages.
Printing on both sides of the paper (Manual)
You can print on both sides of a paper (duplex). Before printing, decide how
you want your document oriented. You can use this feature with Letter,
Legal, A4, US Folio, or Oficio sized paper. (See "Print media specifications"
on page 70.)
We recommend not to print on both sides of special media, such as
labels, envelopesS or thick paper. It may cause a paper jam or damage
the machine.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Advanced tab.
3. From the Double-Sided Printing (Manual) section, select the binding
option you want.
•None
•Long Edge: This option is the conventional layout used in
bookbinding.
•Short Edge: This option is the conventional layout used in calendars.
4. Click the Paper tab, select the Size,Source, and Type.
5. Click OK or Print until you exit thePrint windowU
If your machine does not have a duplex unit, you should complete the
Printing_ 46
printing job manually. The machine prints every other page of the
document first. AfterGthat, a message appears on your computer.
Follow the on-screen instructions to complete the printing job.
Change percentage of your document
You can change the size of a document to appear larger or smaller on the
printed page by typing in a percentage you want.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Paper tab.
3. Enter the scaling rate in the Percentage input box.
You can also click the up/down arrows to select the scaling rate.
4. Select the Size,Source, and Type in Paper Options.
5. Click OK or Print until you exit the Print windowU
Fitting your document to a selected paper size
This feature allows you to scale your print job to any selected paper size
regardless of the document size. This can be useful when you want to
check fine details on a small document.
A
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Paper tab.
3. Select the paper size you want from the Fit to Page.
4. Select the Size,Source, and Type in Paper Options.
5. Click OK or Print until you exit the Print windowU
Using watermarks
The watermark option allows you to print text over an existing document.
For example, you use it when you want to have large gray letters reading
“DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all
pages of a document.
There are several predefined watermarks that come with the machine. They
can be modified, or you can add new ones to the list.
Using an existing watermark
1.To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2.Click the Advanced tab, and select the desired watermark from the
Watermark drop-down list. You will see the selected watermark in
the preview image.
3.Click OK or Print until you exit the print window.
Creating a watermark
1.To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2.From the Advanced tab, select Edit from the Watermark drop-down
list. The Edit Watermarks window appears.
3.Enter a text message in the Watermark Message box. You can enter
up to 256 characters. The message displays in the preview window.
When the First Page Only box is checked, the watermark prints on
the first page only.
4.Select watermark options.
You can select the font name, style, size, and shade from the Font
Attributes section, as well as set the angle of the watermark from
the Message Angle section.
5.Click Add to add a new watermark to the Current Watermarks list.
6.When you have finished, click OK or Print until you exit the Print
window.
To stop printing the watermark, select None from the Watermark
drop-down list.
Editing a watermark
1.To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2.Click the Advanced tab, select Edit from the Watermark drop-down
list. The Edit Watermarks window appears.
3.Select the watermark you want to edit from the Current Watermarks
list and change the watermark message and options.
4.Click Update to save the changes.
5.Click OK or Print until you exit the Print window.
Deleting a watermark
1.To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Advanced tab, select Edit from the Watermark drop-down
list. The Edit Watermarks window appears.
3.Select the watermark you want to delete from the Current
Watermarks list and click Delete.
4.Click OK or Print until you exit the Print window.
Using overlays
An overlay is content you store on your hard disk drive that can be
superimposed over any document you print. An overlay is often used to take
the place of letterhead paper. Rather than using preprinted letterhead, you
can create an overlay containing exactly the same information that is
currently on your letterhead. To print a letter with your company’s
Printing_ 47
letterhead, you do not need to load preprinted letterhead paper in the
machine, instead you can just print the letterhead overlay on your
document.
Creating a new overlay
To use a page overlay, you must create a new page overlay file
containing your content.
1.Create or open a document containing the content you want to use in
a new page overlay. Position the items exactly where you want them
to appear when they are added to the original.
2.To save the document as an overlay, access Printing Preferences.
(See "Opening printing preferences" on page 44.)
3.Click the Advanced tab, and select Edit from the Text drop-down list.
The Edit Overlay window appears.
4.In the Edit Overlay window, click Create.
5.In the Save As window, type a name of up to eight characters in the
File name box. Select the destination path, if necessary. (The
default is C:\Formover.)
6.Click Save. The name appears on the Overlay List.
7.Click OK or Print until you exit the Print window.
8.The file is not printed. Instead, it is stored on your computer hard disk
drive.
The overlay document size must match same as the document
you print. Do not create an overlay with a watermark.
Using an overlay
After an overlay has been created, it is ready to be printed with your
document. To print an overlay on your document:
1.Create or open the document you want to print.
2.To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
3.Click the Advanced tab.
4.Select the desired overlay from the Text drop-down list.
5.If the overlay file you want does not appear in the Text drop-down list,
select Edit from the list and click Load. Select the overlay file you
want to use.
If you have stored the overlay file you want to use in an external
source, you can also load the file when you access the Open
window.
After you select the file, click Open. The file appears in the Overlay
List box and is available for printing. Select the overlay from the
Overlay List box.
6. If necessary, check Confirm Page Overlay When Printing box. If
this box is checked, a message window appears each time you
submit a document for printing, asking you to confirm that you wish
to print an overlay over your document.
If this box is not checked and an overlay has been selected, the
overlay automatically prints with your document.
7.Click OK or Print until you exit the Print window.
The selected overlay prints over your document.
The resolution of the overlay document must match the resolution
of the original print job.
Deleting an overlay
You can delete page overlays that you no longer use.
1.In the Printing Preferences window, click the Advanced tab.
2.Select Edit in the Overlay drop down list.
3.Select the overlay you want to delete from the Overlay List box.
4.Click Delete.
5.When the confirmation message window appears, click Yes.
6.Click OK or Print until you exit the Print window.
Print quality options
Use the following Graphics options to adjust the print quality for your
specific printing needs.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 44.)
2. Click the Graphics tab.
•The options you can select may vary depending on your printer
model.
•Refer to the help for each option’s information provided from the
Printing Preferences.
•Font/Text: Select Darken Text to print text darker than on a normal
document. Use All Text Black to print solid black, regardless of the
color it appears on the screen.
•Graphic Controller: Fine Edge allows you to emphasize edges of
texts and fine lines for improving readability.
•Toner Save: Selecting this option extends the life of your toner
cartridge and reduces your cost per page without a significant
reduction in print quality.
-Printer Setting: If you select this option, this feature is determined
by the setting you’ve made from the machine (For some models,
you cannot change the setting from the machine. In this case, the
default setting is Off).
-On: Select this option to allow the printer to use less toner on each
page.
-Off:Select this option if you do not want to save toner when printing
a document.
•Darkness: The option adjusts the toner density on print outputs. The
values are Normal,Light, and Dark.
3. Click OK or Print until you exit the Print window.
CHANGING THE DEFAULT PRINT SETTINGS
Most Windows applications will override settings you specify in the
printer driver. Change all print settings available in the software
application first, and change any remaining settings using the printer
driver.
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printers and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Printing_ 48
Devices and Printers.
3. Right-click your machine.
4. For Windows XP/2003/2008/Vista, press Printing Preferences.
For Windows 7 and Windows Server 2008 R2, from context menus,
select the Printing preferences.
If Printing preferences item has a Ź mark, you can select other
printer drivers connected with the selected printer.
5. Change the settings on each tab.
6. Click OK.
If you want to change the settings for each print job, change it in
Printing Preferences.
SETTING YOUR MACHINE AS A DEFAULT
MACHINE
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printers and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. Select your machine.
4. Right-click your machine and select Set as Default Printer.
For Windows 7 and Windows Server 2008 R2
If Set as default printer item has a Ź mark, you can select other
printer drivers connected with the selected printer.
PRINTING TO A FILE (PRN)
You will sometimes need to save the print data as a file.
To save a print job as a file:
1. Check thePrint to file box at the Print window.
2. Click Print.
3. Type in the destination path and the file name, and then click OK.
For example c:\Temp\file name.
If you type in only the file name, the file is automatically saved in
My Documents.
MACINTOSH PRINTING
This chapter explains how to print using a Macintosh. You need to set the
print environment before printing.
•USB connected (See "Macintosh" on page 25.)
Printing a document
When you print with a Macintosh, you need to check the printer driver
setting in each application you use. Follow the steps below to print from a
Macintosh:
1. Open an application and select the file you want to print.
2. Open the File menu and click Page Setup (Document Setup in some
applications).
3. Choose your paper size, orientation, scaling, other options, and make
sure that your machine is selected. Click OK.
4. Open the File menu and click Print.
5. Choose the number of copies you want and indicate which pages you
want to print.
6. Click Print.
Changing printer settings
You can use advanced printing features provided by your machine.
Open an application and select Print from the File menu. The machine
name, which appears in the printer properties window may differ depending
on the machine in use. Except for the name, the composition of the printer
properties pane is similar to the following.
•The setting options may differ depending on models and Macintosh
OS versions.
•The following panes may differ, depending on your operating system
Printing_ 49
or the application you are using.
The following pane is the first pane you will see when you open the printer
properties pane. Select other advanced features from the drop down list.
Layout
The Layout dialog provides options to adjust how the document
appears on the printed page. You can print multiple pages on one sheet
of paper. Select Layout from the drop-down list under Orientation to
access the following features.
•Pages per Sheet: This option determines how many pages to be
printed on one page. (See "Printing multiple pages on one sheet of
paper" on page 49.)
•Layout Direction: This option allows you to select the printing
direction on a page similar to the examples on UI.
•Border: This option allows you to print a border around each page on
the sheet.
•Reverse Page Orientation: This option allows you to rotate paper 180
degrees.
Graphics
The Graphics dialog provides options for selecting Resolution. Select
Graphics from the drop-down list under Orientation to access the
graphic features.
•Resolution (Quality): This option allows you to select the printing
resolution. The higher the setting, the sharper the clarity of printed
characters and graphics. A higher setting will also increase the time
it takes to print a document.
•Darkness: This option allows you to enhance the darkness of the
printouts. The available options are Normal,Light, and Dark.
Printer Features
Set paper type to correspond to the paper loaded in the tray from which
you want to print. This will let you get the best quality printout. If you load
a different type of print material, select the corresponding paper type.
Printer Settings
The Printer Settings dialog provides Toner Save Mode,Reprint When
Jammed, and Power Save options. Select Printer Settings from the
drop-down list under Orientation to access the following features:
•Toner Save Mode: Selecting this option extends the life of your toner
cartridge and reduces your cost per page without a significant
reduction in print quality.
-Printer Setting:If you select this option, this feature is determined
by the setting you’ve made from the machine (For some models,
you cannot change the setting from the machine. In this case, the
default setting is Off).
-On: Select this option to allow the printer to use less toner on each
page.
-Off: Set this option if you do not need to save toner when printing a
document.
Printing multiple pages on one sheet of paper
You can print more than one page on a single sheet of paper. This feature
provides a cost-effective way to print draft pages.
1. Open an application, and select Print from the File menu.
2. Select Layout from the drop-down list under Orientation. In the Pages
per Sheet drop-down list, select the number of pages you want to print
on one sheet of paper.
3. Select the other options you want to use.
4. Click Print, then the machine prints the selected the number of pages
you want to print on one sheet of paper.
LINUX PRINTING
Printing from applications
There are several Linux applications that allow you to print using the
Common UNIX Printing System (CUPS). You can print using any of these
applications.
1. Open an application, and select Print from the File menu.
2. Select Print directly using LPR.
Printing_ 50
3. From the LPR GUI window, select the model name of your machine from
the printer list and click Properties.
4. Change the print job properties using the following four tabs displayed at
the top of the window.
•General: This option allows you to change the paper size, the paper
type, and the orientation of the documents. It enables the duplex
feature, adds start and end banners, and changes the number of
pages per sheet.
•Text: This option allows you to specify the page margins and set the
text options, such as spacing or columns.
•Graphics: This option allows you to set image options that are used
when printing images/files, such as color options, image size, or
image position.
•Advanced: This option allows you to set the print resolution, paper
source and special print features.
If an option is grayed out, it means that the grayed out option is not
supported by your machine.
5. Click Apply to apply the changes and close the Properties window.
6. Click OK in the LPR GUI window to start printing.
7. The Printing window appears, allowing you to monitor the status of your
print job.
To abort the current job, click Cancel.
Printing files
You can print many different types of files on your machine using the
standard CUPS way, directly from the command line interface. The CUPS
LPR utility allows you to do that. But the drivers package replaces the
standard LPR tool by a much more user-friendly LPR GUI program.
To print any document file:
1. Type lpr <file_name> from the Linux shell command line and press
Enter. The LPR GUI window appears.
When you type only lpr and press Enter, the Select file(s) to print
window appears first. Just select any files you want to print and click
Open.
2. From the LPR GUI window, select your machine from the list, and
change the print job properties.
3. Click OK to start printing.
Configuring printer properties
Using the Printer Properties window provided by the Printers
configuration, you can change the various properties for your printer.
1. Open the Unified Driver Configurator.
If necessary, switch to Printers configuration.
2. Select your machine from the available printers list and click Properties.
3. The Printer Properties window opens.
The following five tabs display at the top of the window:
•General: This option allows you to change the printer location and
name. The name entered in this tab displays on the printer list in
Printers configuration.
•Connection: This option allows you to view or select another port. If
you change the machine port from USB to parallel or vice versa
while in use, you must re-configure the machine port in this tab.
•Driver:Allows you to view or select another printer driver. By clicking
Options, you can set the default device options.
•Jobs: This option shows the list of print jobs. Click Cancel job to
cancel the selected job and select the Show completed jobs check
box to see previous jobs on the job list.
•Classes: This option shows the class that your machine is in. Click
Add to Class to add your machine to a specific class or click
Remove from Class to remove the machine from the selected
class.
4. Click OK to apply the changes and close the Printer Properties
window.
Management tools_ 51
7.management tools
This chapter introduces management tools provided to help you make full use of your machine.
This chapter includes:
•Introducing useful management tools
•Using the Smart Panel program
•Using the Unified Linux Driver Configurator
INTRODUCING USEFUL MANAGEMENT TOOLS
The programs below help you to use your machine conveniently.
•"Using the Smart Panel program" on page 51.
•"Using the Unified Linux Driver Configurator" on page 52.
•"Using SyncThru™ Web Service" on page 53
USING THE SMART PANEL PROGRAM
Smart Panel is a program that monitors and informs you of the machine
status, and allows you to customize the machine’s driver settings. For
Windows and Macintosh, Smart Panel is installed automatically when you
install the machine software. For Linux, you can download the Smart Panel
from the Samsung website (See "Installing the SmartPanel" on page 26).
To use this program, your computer has to meet the following system
requirements:
•Windows. Check that your computers CPU, RAM, and HDD meet or
exceed spec. (See "System requirements" on page 23.)
•Mac OS X 10.3 or higher. Check that your computers CPU, RAM,
and HDD meet or exceed spec. (See "System requirements" on
page 23.)
•Linux. Check that your computers CPU, RAM, and HDD meet or
exceed spec.
e. (See "System requirements" on page 23.)
•Internet Explorer version 5.0 or higher for flash animation in HTML
Help.
If you need to know the exact model number of your machine, you can
check the supplied software CD.
Understanding Smart Panel
If an error occurs while printing, you can check the error from the Smart
Panel.
You can also launch Smart Panel manually. Double-click the Smart Panel
icon on the Windows task bar (in Windows), or Notification Area (in Linux).
Windows Double-click this icon in Windows.
Linux Click this icon in Linux.
Or, if you are a Windows user, you can launch it from the Start menu, select
Programs or All Programs > Samsung Printers > your printer driver
name > Smart Panel.
•If you have already installed more than one Samsung machine,
first select the correct machine model you want in order to access
the corresponding Smart Panel.
Right-click (in Windows or Linux) the Smart Panel icon and select
your machine.
•The Smart Panel window and its contents shown in this user’s
guide may differ depending on the machine or operating system in
use.
In case of Mac OS 10.3
1. Click ‘Print & Fax’ in System Preferences
2. Click ‘Set up Printers...’.
3. Select printer in list and double click it.
4. Click ‘Utility’.
In case of Mac OS 10.4
1. Click ‘Print & Fax’ in System Preferences
2. Select printer in list and click ‘Printer Queue…’.
3. Click ‘Utility’.
In case of Mac OS 10.5
1. Click ‘Print & Fax’ in System Preferences
2. Select printer in list and click ‘Open Printer Queue...’.
3. Click ‘Utility’.
In case of Mac OS 10.6
1. Click ‘Print & Fax’ in System Preferences
2. Select printer in list and click ‘Open Printer Queue...’.
3. Click ‘Printer Setup’.
4. Click ‘Utility ’ tab.
5. Click ‘Open Printer Utility’.
The Smart Panel program displays the current status of the machine, the
level of toner remaining in the toner cartridge(s), and various other types of
information. You can also change settings.
1
Toner Level View the level of toner remaining in the toner
cartridge(s). The machine and the number of toner
cartridge(s) shown in the above window may differ
depending on the machine in use. Some machines
do not have this feature.
2Buy Now Order replacement toner cartridge(s) online.
3
User’s Guide View the User’s Guide.
This button changes to Troubleshooting
Guide when error occurs. You can directly
open the troubleshooting section in the
user’s guide.
4
Printer
Setting
Configure various machine settings in the Printer
Settings Utility window. Some machines do not
have this feature.
If you connect your machine to a network,
the SyncThru™ Web Service window
appears instead of the Printer Settings Utility
window.
5
Driver Setting Set all of the machine options you need in the
Printer Preferenceswindow. This feature is
available only for Windows (See Opening printing
preferences).
Management tools_ 52
Opening the Troubleshooting Guide
Find solutions for problems by using the Troubleshooting Guide.
Right-click (in Windows or Linux) the Smart Panel icon and select
Troubleshooting Guide.
Changing the Smart Panel Program Settings
Right-click (in Windows or Linux) the Smart Panel icon and select Options.
Select the settings you want from the Options window.
USING THE UNIFIED LINUX DRIVER
CONFIGURATOR
The Unified Driver Configurator is a tool primarily intended for configuring
machine devices. You need to install Unified Linux Driver to use Unified
Driver Configurator (See "Installing the Unified Linux Driver" on page 26).
After the driver is installed on your Linux system, the Unified Driver
Configurator icon will automatically be created on your desktopU
Opening the Unified Driver Configurator
1. Double-click the Unified Driver Configurator on the desktop.
You can also click the Startup Menu icon and select Samsung Unified
Driver > Unified Driver Configurator.
2. Click each button on the left to switch to the corresponding configuration
window.
1Printers
Configuration
2Ports
Configuration
To use the on screen help, click Help.
3. After changing the configurations, click Exit to close the Unified Driver
Configurator.
Printers configuration window
Printers configuration has the two tabs: Printers and Classes.
Printers tab
View the current system’s printer configuration by clicking on the
machine icon button on the left side of the Unified Driver Configurator
window.
1Switches to Printers configuration.
2Shows all of the installed machine.
3Shows the status, model name and URI of your machine.
The printer control buttons are, as follows:
•Refresh: Renews the available machines list.
•Add Printer:Allows you to add a new machines.
Management tools_ 53
•Remove Printer: Removes the selected machine.
•Set as Default: Sets the current selected machine as a default
machine.
•Stop/Start: Stops/starts the machine.
•Test: Allows you to print a test page to ensure the machine is working
properly.
•Properties: Allows you to view and change the printer properties.
Classes tab
The Classes tab shows a list of available machine classes.
1Shows all of the machine classes.
2Shows the status of the class and the number of machines in the
class.
•Refresh: Renews the classes list.
•Add Class:Allows you to add a new machine class.
•Remove Class: Removes the selected machine class.
Ports configuration
In this window, you can view the list of available ports, check the status of
each port, and release a port that is stalled in a busy state when its owner
has terminated the job for any reason.
1Switches to Ports configuration.
2Shows all of the available ports.
3Shows the port type, device connected to the port, and status.
•Refresh: Renews the available ports list.
•Release port: Releases the selected port.
USING SYNCTHRU™ WEB SERVICE
Internet Explorer 6.0 or higher is the minimum requirement for
SyncThru™ Web Service.
If you have connected your machine to a network and set up TCP/IP
network parameters correctly, you can manage the machine via SyncThru™
Web Service, an embedded web server. Use SyncThru™ Web Service to:
•View the machine’s device information and check its current status.
•Change TCP/IP parameters and set up other network parameters.
•Change printer preference.
•Set the email notifications advising of the machine’s status.
•Get support for using the machine.
To access SyncThru™ Web Service
1. Access a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address
field and press the Enter key or click Go.
2. Your machine’s embedded website opens.
Logging into SyncThru™ Web Service
Before configuring options in SyncThru™ Web Service, you need to
log-in as an administrator. You can still use SyncThru™ Web Service
without logging in but you won’t have access to Settings tab and
Security tab.
Management tools_ 54
1. Click Login on the upper right of the SyncThru™ Web Service
website.
A log-in page appears.
2. Type in the ID and Password then click Login.
If it’s your first time logging into SyncThru™ Web Service, type in the
below default ID and password.
•ID: admin
•Password: sec00000
SyncThru™ Web Service overview
Some tabs may not appear depending on your model.
Information tab
This tab gives you general information about your machine. You can
check things, such as remaining amount of toner. You can also print
reports such as an error report and so on.
•Active Alerts:This item allows you to check the alerts occurred in
the machine and their severity.
•Supplies: This item allows you to check how many pages are
printed and amount of toner left in the cartridge.
•Usage Counters: This item allows you to check the usage count by
print types: simplex, duplexU
•Current Settings: This item allows you to check the machine and
network information.
•Print information: This item allows you to print reports such as
system related reports, e-mail address and font reports.
Settings tab
This tab allows you to set configurations provided by your machine and
network. You need to log-in as an administrator to view this tab.
•Machine Settings tab: This tab allows you to set options provided
by your machine.
-System: You can set settings related to your machine.
-Printer: You can set settings related to printing jobs.
•Network Settings tab: This tab allows you to view and change the
network environment. You can set things, such as TCP/IP, network
protocols and so on.
-SNMP: You can exchange of management information between
network devices using SNMPU
Security tab
This tab allows you to set system and network security information. You
need to log-in as an administrator to view this tab.
•System Security: You can set the systemGadministrator’s
information and also enable or disable machine featuresU
•Network Security: You can set settings for SNMPv3, IPv4/IPv6
filtering, and MAC filtering.
Maintenance tab
This tab allows you to maintain your machine by upgrading firmware and
setting contact information for sending emails. You can also connect to
Samsung website or download drivers by selecting the Link menu.
•Firmware Upgrade: You can upgrade your machine’s firmware.
•Contact Information: You can view the contact information.
•Link: You can view the links to useful sites where you can download
or check information.
Setting the system administrator information
Set the system administrator information. This setting is necessary for using
the e-mail notification option.
1. Start a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address
field and press the Enter key or click Go.
2. Your machine’s embedded website opens.
3. Click Login on the upper right of the SyncThru™ Web Service website.
A log-in page appears.
4. Type in the ID and Password then click Login.
If it’s your first time logging into SyncThru™ Web Service, type in the
below default ID and password.
•ID: admin
•Password: sec00000
5. From the Security tab, select System Security > System
Administrator
6. Enter the name of the administrator, phone number, location and E-mail
address.
7. Click Apply.
Maintenance_ 55
8.maintenance
This chapter provides information about maintaining your machine and the toner cartridge.
This chapter includes:
•Printing a machine report
•Cleaning a machine
•Storing the toner cartridge
•Tips for moving & storing your machine
PRINTING A MACHINE REPORT
You can print a configuration page to view current printer settings, or to help
troubleshoot printer problems.
(See "(WPS) button" on page 21.)
CLEANING A MACHINE
If printing quality problems occur or if you use your machine in a dusty
environment, you need to clean your machine regularly to keep the the most
optimum print quality.
•Cleaning the outside of the machine with cleaning materials
containing large amounts of alcohol, solvent, or other strong
substances can discolor or distort the cabinet.
•If your machine or the surrounding area is contaminated with toner,
we recommend that you use a cloth or tissue dampened with water
to clean it. If you use a vacuum cleaner, toner blows in the air and
might be harmful if inhaled.
Cleaning the outside
Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth
slightly with water, but be careful not to let any water drip onto or into the
machine.
Cleaning the inside
During the printing process, paper dust, toner, and dust particles in the air
can accumulate inside the machine. This buildup can cause print quality
problems, such as toner specks or smearing. Cleaning the inside of the
machine clears and reduces these problems.
1. Turn the machine offGand unplug the power cord. Wait for the machine to
cool down.
2. Open the top cover and pull the toner cartridge out. Set it on a clean flat
surface.
•To prevent damage to the toner cartridge, do not expose it to light
for more than few minutes. Cover it with a piece of paper, if
necessary.
•Do not touch the green surface of the drum located in the toner
cartridge or imaging unit. Use the handle on the cartridge to
avoid touching this area.
3. With a dry, lint-free cloth, wipe away any dust and spilled toner from the
toner cartridge area.
While cleaning the inside of the machine, be careful not to damage
the transfer roller or any other inside parts. Do not use solvents
Maintenance_ 56
such as benzene or thinner to clean. Printing quality problems can
occur and cause damage to the machine.
4. Reinsert the toner cartridge and close the top cover.
5. Plug in the power cord and turn the machine on.
STORING THE TONER CARTRIDGE
Toner cartridges contain components that are sensitive to light,
temperature, and humidity. Samsung suggests users follow the
recommendations below to ensure the optimum performance, highest
quality, and longest life from your new Samsung toner cartridge.
Store this cartridge in the same environment as the printer it will be used in;
this should be in controlled office temperature and humidity conditions. The
toner cartridge should remain in its original, unopened package until
installation – If original packaging is not available, cover the top opening of
the cartridge with paper and store it in a dark cabinet.
Opening the cartridge package prior to use dramatically shortens its useful
shelf and operating life. Do not store on the floor. If the toner cartridge is
removed from the printer, always store the cartridge according to the
following guidelines:
•Inside the protective bag from the original package.
•Store lying flat (not standing on end) with the same side facing up as if it
was installed in the machine.
•Do not store consumable in any of the following conditions:
-Temperature greater than 40°C (104°F).
-Humidity range less than 20% and not greater than 80%.
-An environment with extreme changes in humidity or temperature.
-Direct sunlight or room light.
-Dusty places.
-A car for a long period of time.
-An environment where corrosive gases are present.
-An environment with salty air.
Handling instructions
•Do not touch the surface of the photoconductive drum in the cartridge.
•Do not expose the cartridge to unnecessary vibrations or shock.
•Never manually rotate the drum, especially in the reverse direction; this
can cause internal damage and toner spillage.
Use of non-Samsung and refilled toner cartridge
Samsung Electronics does not recommend or approve the use of
non-Samsung brand toner cartridges in your printer including generic, store
brand, refilled, or remanufactured toner cartridges.
Samsung’s printer warranty does not cover damage to the machine
caused by the use of a refilled, remanufactured, or non-Samsung
brand toner cartridge.
Estimated cartridge life
Estimated cartridge life (the life of the toner cartridge yield) depends on the
amount of toner that print jobs require. The actual print yield may vary
depending on the print density of the pages you print on, operating
environment, printing interval, media type, and/or media size. For example,
if you print a lot of graphics, the consumption of the toner is high and you
may need to change the cartridge more often.
TIPS FOR MOVING & STORING YOUR MACHINE
When moving the machine, do not tilt or turn it upside down. Otherwise, the
inside of the machine may be contaminated by toner, which can cause
damage to the machine or reduce print quality.
Troubleshooting_ 57
9.troubleshooting
This chapter gives helpful information for what to do if you encounter an error.
This chapter includes:
•Redistributing toner
•Tips for avoiding paper jams
•Clearing paper jams
•Solving other problems
REDISTRIBUTING TONER
When the toner cartridge is near the end of its life:
•White streaks or light printing occurs.
•The LED blinks red.
If this happens, you can temporarily improve print quality by redistributing
the remaining toner in the cartridge. In some cases, white streaks or light
printing will still occur even after you have redistributed the toner.
1. Open the top cover.
When you open the top cover, make sure that the output tray is
closed.
2. Pull the toner cartridge out.
3. Thoroughly roll the cartridge five or six times to distribute the toner
evenly inside the cartridge.
If toner gets on your clothing, wipe it off with a dry cloth and wash
clothing in cold water. Hot water sets toner into fabric.
Do not touch the drum in the the toner cartridge or imaging unit.
Use the handle on the cartridge to avoid touching this area.
4. Hold the toner cartridge by the handle and slowly insert the cartridge into
the opening in the machine.
The tabs on the sides of the cartridge and corresponding grooves within
the machine will guide the cartridge into the correct position until it locks
into place completely.
5. Close the top cover. Ensure that the cover is securely closed.
TIPS FOR AVOIDING PAPER JAMS
By selecting the correct media types, most paper jams can be avoided.
When a paper jam occurs, refer to the guidelines below:
•Ensure that the adjustable guides are positioned correctly. (See
"Loading paper in the tray" on page 39.)
•Do not overload the tray. Ensure that the paper level is below the paper
capacity mark on the inside of the tray.
•Do not remove paper from the tray while your machine is printing.
•Flex, fan, and straighten paper before loading.
•Do not use creased, damp, or highly curled paper.
•Do not mix paper types in a tray.
•Use only recommended print media.
•Ensure that the recommended side of the print media is facing the right
side. (See "Loading paper in the tray" on page 39.)
CLEARING PAPER JAMS
If a paper jam occurs, the LED on the control panel lights orange. Find and
remove the jammed paper.
To resume printing after clearing paper jams, you must open and close the
top cover.
To avoid tearing the paper, pull the jammed paper out slowly and
carefully. Follow the instructions in the following sections to clear the
jam.
Troubleshooting_ 58

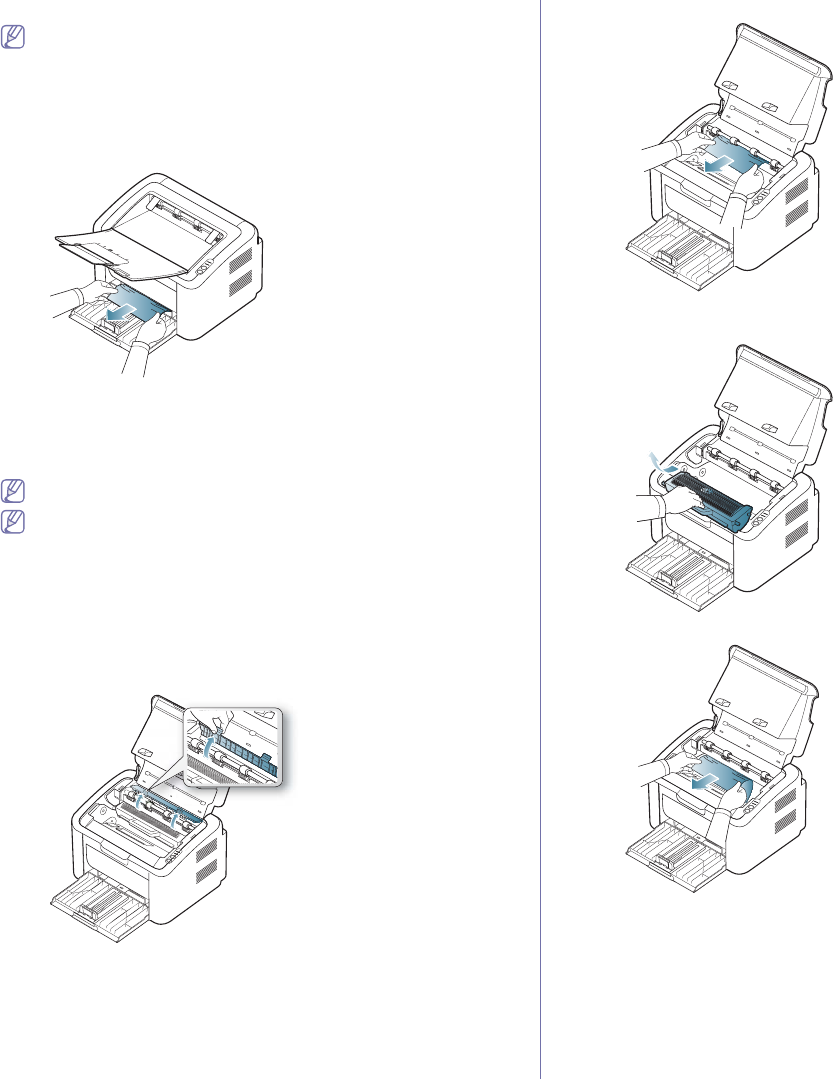

In tray
Click this link to open an animation about clearing a jam.
1. If the output tray is opened, close the output tray first.
2. Open and close the top cover. The jammed paper is automatically
ejected from the machine. Make sure to open the output tray before
paper ejects from the machine.
If the paper does not eject, go to the next step.
3. Remove the jammed paper by gently pulling it straight out.
If the paper does not move when you pull, or if you do not see the paper
in this area, check inside the machine. (See "Inside the machine" on
page 58.)
Inside the machine
Click this link to open an animation about clearing a jam.
The fuser area is hot. Be careful when removing paper from this area
to prevent getting your fingers burnt.
1. If the output tray is opened, close the output tray first.
2. Open and close the top cover. The jammed paper is automatically
ejected from the machine. Make sure to open the output tray before
paper ejects from the machine.
If the paper does not eject, go to the next step.
3. Close the output tray and open the top cover.
4. Open the fuser unit cover.
.
5. Remove the jammed paper by gently pulling it straight out.
If you do not see the jammed paper, go to the next step.
6. Pull the toner cartridge out.
7. Remove the jammed paper by gently pulling it straight out.
Troubleshooting_ 59
8. Insert the toner cartridge back into the machine.
9. Close the fuser unit cover.
10. Close the top cover and open the output tray. Printing automatically
resumes.
SOLVING OTHER PROBLEMS
The following chart lists some trouble conditions that may occur and the
recommended solutions. Follow the suggested solutions until the problem is
corrected. If the problem persists, contact a service representative.
Other problems include:
•See "Power problems" on page 59.
•See "Paper feeding problems" on page 60.
•See "Printing problems" on page 60.
•See "Printing quality problems" on page 62.
•See "Common Windows problems" on page 64.
•See "Common Linux problems" on page 64.
•See "Common Macintosh problems" on page 65.
Power problems
Click this link to open an animation about solving power problems.
CONDITION SUGGESTED SOLUTIONS
The machine is
not receiving
power,
or the connection
cable between the
computer and the
machine is not
connected
properly.
•Plug in the power cord and press (power)
on the control panel.
•Disconnect the machine cable and reconnect
it.
Troubleshooting_ 60
Paper feeding problems
CONDITION SUGGESTED SOLUTIONS
Paper jams during
printing.
Clear the paper jam. (See "Clearing paper jams"
on page 57.)
Paper sticks
together. •Check the maximum paper capacity of the
tray. (See "Print media specifications" on
page 70.)
•Make sure that you are using the correct type
of paper. (See "Print media specifications" on
page 70.)
•Remove paper from the tray and flex or fan
the paper.
•Humid conditions may cause some paper to
stick together, replace with a new stack.
Multiple sheets of
paper do not feed.
Different types of paper may be stacked in the
tray. Load paper of only one type, size, and
weight.
Paper does not feed
into the machine.
•Remove any obstructions from inside the
machine.
•Paper has not been loaded correctly. Remove
paper from the tray and reload it correctly.
•There is too much paper in the tray. Remove
excess paper from the tray.
•The paper is too thick. Use only paper that
meets the specifications required by the
machine. (See "Print media specifications" on
page 70.)
The paper keeps
jamming.
•There is too much paper in the tray. Remove
excess paper from the tray. If you are printing
on special materials, use the manual feeder.
•An incorrect type of paper is being used. Use
only paper that meets the specifications
required by the machine. (See "Print media
specifications" on page 70.)
•There may be debris inside the machine.
Open the top cover and remove any debris.
Transparencies stick
together in the paper
exit.
Use only transparencies specifically designed
for laser printers. Remove each transparency as
it exits from the machine.
Envelopes skew or
fail to feed correctly.
Ensure that the paper guides are against both
sides of the envelopes.
Printing problems
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
The machine
does not print.
The machine is
not receiving
power.
Check the power cord
connections.
The machine is
not selected as
the default
machine.
Select your machine as your
default machine in your Windows.
Check the machine for the following:
•The top cover is not closed. Close the top cover.
•Paper is jammed. Clear the paper jam. (See
"Clearing paper jams" on page 57.)
•No paper is loaded. Load paper. (See "Loading
paper in the tray" on page 39.)
•The toner cartridge is not installed. Install the toner
cartridge.
If a system error occurs, contact a service
representative.
The connection
cable between
the computer and
the machine is
not connected
properly.
Disconnect the machine cable and
reconnect it.
The connection
cable between
the computer and
the machine is
defective.
If possible, attach the cable to
another computer that is working
properly and print a job. You can
also try using a different machine
cable.
The port setting
is incorrect.
Check the Windows printer
settings to make sure that the print
job is sent to the correct port. If the
computer has more than one port,
make sure that the machine is
attached to the correct one.
The machine
may be
configured
incorrectly.
Check the Printing Preferences
to ensure that all of the print
settings are correct. (See
"Opening printing preferences" on
page 44.)
The printer driver
may be
incorrectly
installed.
Repair the machine software (See
"Installing USB connected
machine’s driver" on page 24).
The machine is
malfunctioning.
•Check the LEDs on the control
panel to see if the machine is
indicating a system error. If the
error cannot be cleared, contact
a service representative.
•Checking an error message is
also possible from the Smart
Panel on your computer.
Troubleshooting_ 61
The machine
does not print. The document
size is so big that
the hard disk
space of the
computer is
insufficient to
access the print
job.
Allocate more hard disk space on
your computer for spooling, and try
printing.
The output tray is
full.
It can hold up to 100 sheets of
plain paper. Once the paper is
removed from the output tray, the
machine resumes printing.
The machine
selects print
materials from
the wrong
paper source.
The paper option
that was selected
in the Printing
Preferences
may be incorrect.
For many software applications,
the paper source selection is
found under the Paper tab within
the Printing Preferences. Select
the correct paper source. See the
printer driver help screen. (See
"Opening printing preferences" on
page 44.)
A print job is
extremely slow.
The job may be
very complex.
Reduce the complexity of the page
or try adjusting the print quality
settings.
Half the page is
blank.
The page
orientation
setting may be
incorrect.
Change the page orientation in
your application. See the printer
driver help screen.
The paper size
and the paper
size settings do
not match.
Ensure that the paper size in the
printer driver settings matches the
paper in the tray.
Or, ensure that the paper size in
the printer driver settings matches
the paper selection in the software
application settings you use.
The machine
prints, but the
text is wrong,
garbled, or
incomplete.
The machine
cable is loose or
defective.
Disconnect the machine cable and
reconnect. Try a print job that you
have already printed successfully.
If possible, attach the cable and
the machine to another computer
that you know works and try a print
job. Finally, try a new machine
cable.
The wrong
printer driver was
selected.
Check the application’s printer
selection menu to ensure that your
machine is selected.
The software
application is
malfunctioning.
Try printing a job from another
application.
The operating
system is
malfunctioning.
Exit Windows and reboot the
computer. Turn the machine off
and back on again.
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
Pages print, but
they are blank. The toner
cartridge is
defective or out
of toner.
Redistribute the toner, if
necessary.
If necessary, replace the toner
cartridge.
The file may
have blank
pages.
Check the file to ensure that it
does not contain blank pages.
Some parts, such
as the controller
or the board,
may be
defective.
Contact a service representative.
The machine
does not print
PDF files
correctly. Some
graphics, text,
or illustrations
are missing.
Incompatibility
between the PDF
file and the
Acrobat
products.
Printing the PDF file as an image
may enable the file to print. Turn
on Print As Image from the
Acrobat printing options.
It will take longer to print
when you print a PDF file as
an image.
The print
quality of
photos is not
good. Images
are not clear.
The resolution of
the photo is very
low.
Reduce the photo size. If you
increase the photo size in the
software application, the resolution
will be reduced.
Before printing,
the machine
emits vapor
near the output
tray.
Using damp
paper can cause
vapor during
printing.
This is not a problem. Just keep
printing.
The machine
does not print
special- sized
paper, such as
billing paper.
Paper size and
paper size
setting do not
match.
Set the correct paper size in the
Edit... in the Paper tab in the
Printing Preferences. (See
"Opening printing preferences" on
page 44.)
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
Troubleshooting_ 62

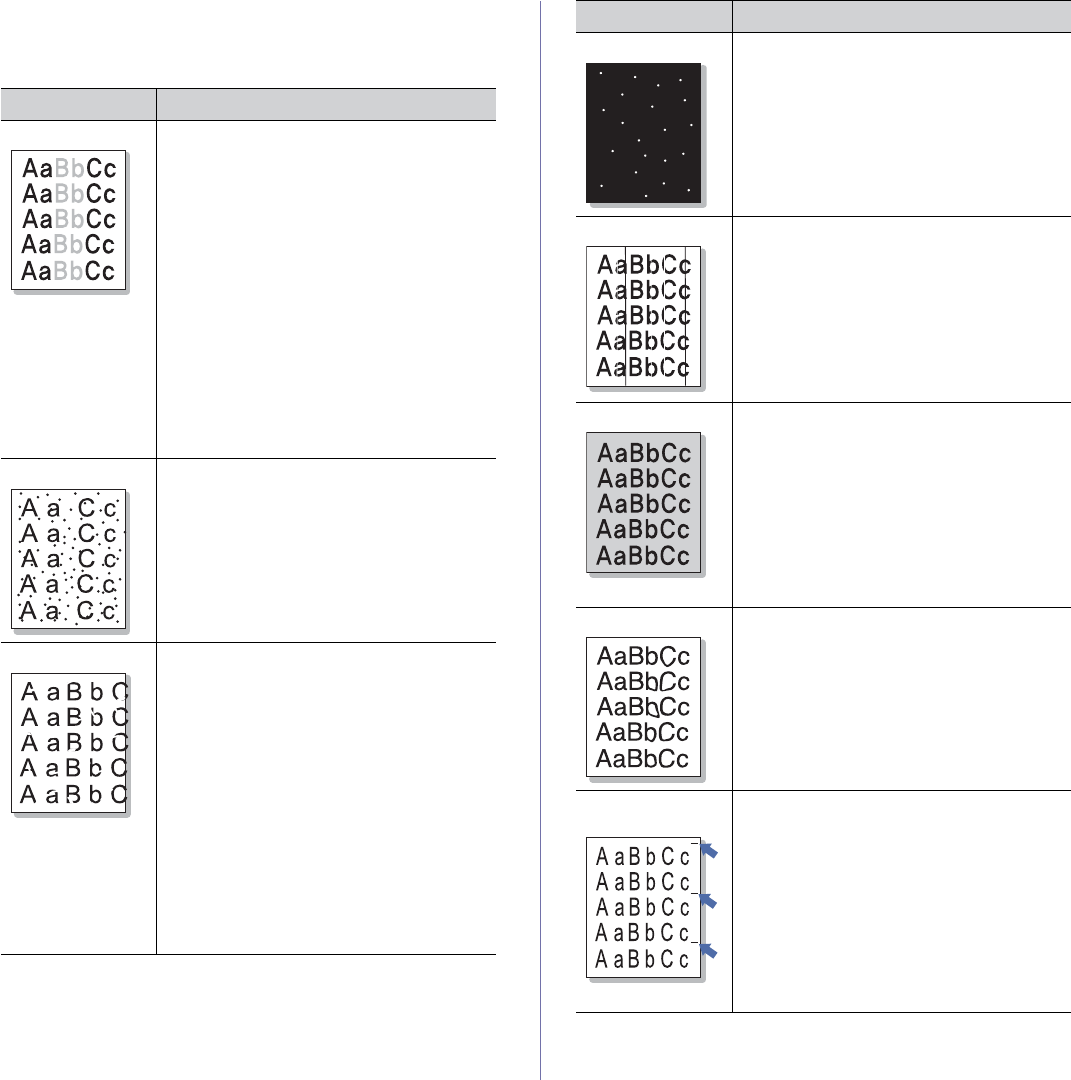

Printing quality problems
If the inside of the machine is dirty or paper has been loaded improperly,
there might be a reduction in print quality. See the table below to clear the
problem.
CONDITION SUGGESTED SOLUTIONS
Light or faded print •If a vertical white streak or faded area
appears on the page, the toner supply is low.
You may be able to temporarily extend the
toner cartridge life. (See "Redistributing toner"
on page 57.) If this does not improve the print
quality, install a new toner cartridge.
•The paper may not meet paper specification;
for example, the paper may be too moist or
rough. (See "Print media specifications" on
page 70.)
•If the entire page is light, the print resolution
setting is too low or the toner save mode is
on. Adjust the print resolution and turn the
toner save mode off. See the help screen of
the printer driver.
•A combination of faded or smeared defects
may indicate that the toner cartridge needs
cleaning. (See "Cleaning the inside" on
page 55.)
Toner specks •The paper may not meet specification; for
example, the paper may be too moist or
rough. (See "Print media specifications" on
page 70.)
•The transfer roller may be dirty. Clean the
inside of your machine. Contact a service
representative.
•The paper path may need cleaning. Contact a
service representative.
Dropouts If faded areas, generally rounded, occur
randomly on the page:
•A single sheet of paper may be defective.
Try reprinting the job.
•The moisture content of the paper is uneven
or the paper has moist spots on its surface.
Try a different brand of paper. (See "Print
media specifications" on page 70.)
•The paper lot is bad. The manufacturing
processes can cause some areas to reject
toner. Try a different kind or brand of paper.
•Change the printer option and try again. Go
to Printing Preferences, click the Paper
tab, and set type to Thick. (See "Opening
printing preferences" on page 44.)
•If these steps do not correct the problem,
contact a service representative.
White Spots If white spots appear on the page:
•The paper is too rough and a lot of dirt from a
paper falls to the inner devices within the
machine, so the transfer roller may be dirty.
Clean the inside of your machine. (See
"Cleaning the inside" on page 55.)
•The paper path may need cleaning. (See
"Cleaning the inside" on page 55.)
Vertical lines
G
If black vertical streaks appear on the page:
•The surface (drum part) of the toner
cartridge inside the machine has probably
been scratched. Remove the toner cartridge
and install a new one. (See "Replacing the
toner cartridge" on page 66.)
If white vertical streaks appear on the page:
•The surface of the LSU part inside the
machine may be dirty. (See "Cleaning the
inside" on page 55.)
Black background If the amount of background shading becomes
unacceptable:
•Change to a lighter weight paper. (See "Print
media specifications" on page 70.)
•Check the environmental conditions: very
dry conditions or a high level of humidity
(higher than 80% RH) can increase the
amount of background shading.
•Remove the old toner cartridge and, install a
new one. (See "Replacing the toner
cartridge" on page 66.)
Toner smear If toner smears on the page:
•Clean the inside of the machine. (See
"Cleaning the inside" on page 55.)
•Check the paper type and quality. (See "Print
media specifications" on page 70.)
•Remove the toner cartridge and then, install
a new one. (See "Replacing the toner
cartridge" on page 66.)
Vertical repetitive
defects
If marks repeatedly appear on the printed side of
the page at even intervals:
•The toner cartridge may be damaged. If you
still have the same problem, remove the
toner cartridge and, install a new one. (See
"Replacing the toner cartridge" on page 66.)
•Parts of the machine may have toner on
them. If the defects occur on the back of the
page, the problem will likely correct itself
after a few more pages.
•The fusing assembly may be damaged.
Contact a service representative.
CONDITION SUGGESTED SOLUTIONS
Troubleshooting_ 63

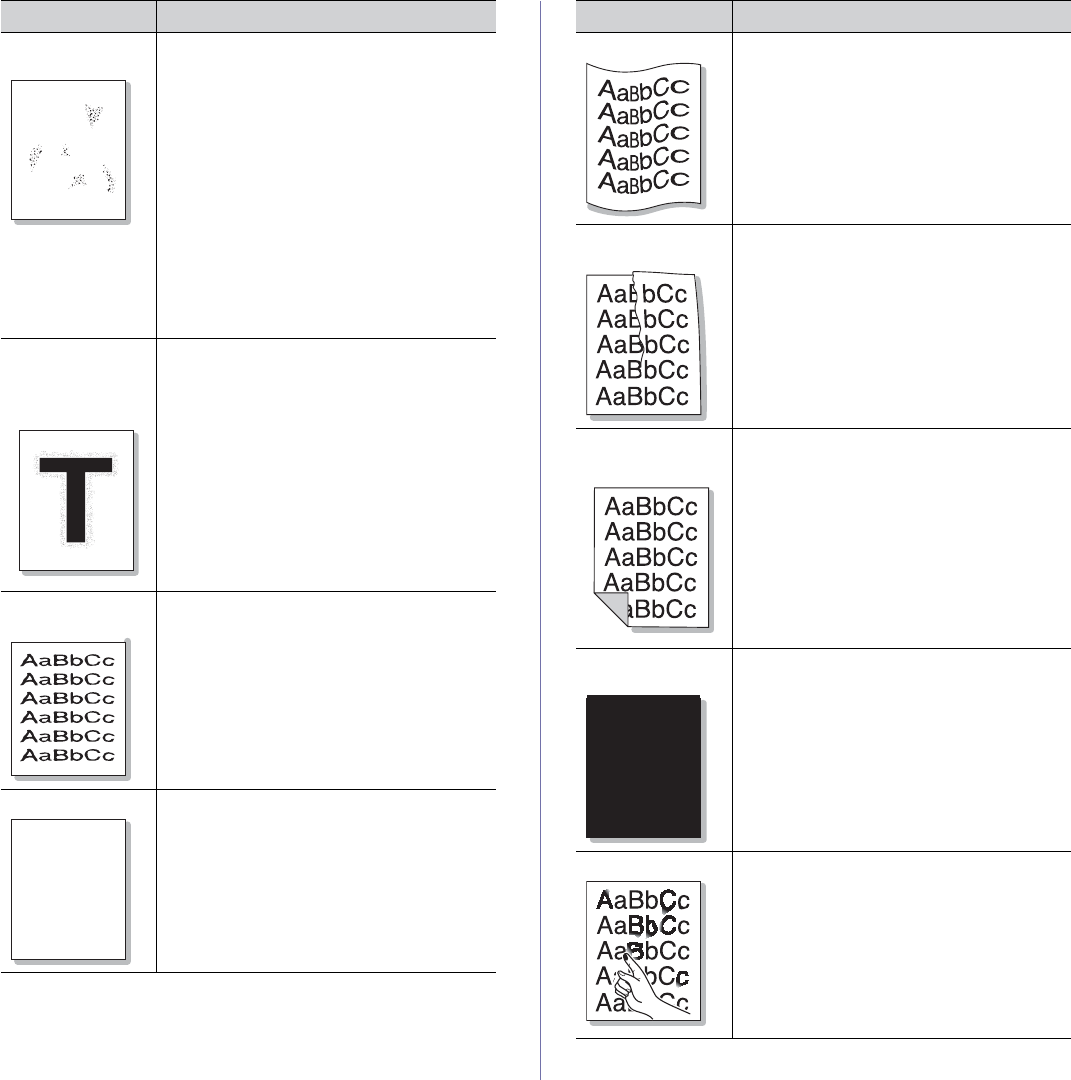

Background
scatter
A
Background scatter results from bits of toner
randomly distributed on the printed page.
•The paper may be too damp. Try printing
with a fresh ream of paper. Do not open
packages of paper until necessary so that
the paper does not absorb too much
moisture.
•If background scatter occurs on an envelope,
change the printing layout to avoid printing
over areas that have overlapping seams on
the reverse side. Printing on seams can
cause problems.
•If background scatter covers the entire
surface area of a printed page, adjust the
print quality through your software
application or in Printing Preferences. (See
"Opening printing preferences" on page 44.)
Toner particles are
around bold
characters or
pictures
The toner might not adhere properly to this type
of paper.
•Change the printer option and try again.
Go to the Printing Preferences, click the
Paper tab, and set the paper type to
Recycled.
Misformed
characters
•If characters are improperly formed and
producing hollow images, the paper stock
may be too slick. Try different paper. (See
"Print media specifications" on page 70.)
Page skew
A
aBb
C
AaBb
C
AaBb
C
AaBb
Cc
A
aBbC
c
•Ensure that the paper is loaded properly.
•Check the paper type and quality. (See "Print
media specifications" on page 70.)
•Ensure that the guides are not too tight or too
loose against the paper stack.
CONDITION SUGGESTED SOLUTIONS
Curl or wave •Ensure that the paper is loaded properly.
•Check the paper type and quality. Both high
temperature and humidity can cause paper
curl. (See "Print media specifications" on
page 70.)
•Turn the stack of paper over in the tray. Also
try rotating the paper 180° in the tray.
Wrinkles or
creases
•Ensure that the paper is loaded properly.
•Check the paper type and quality. (See "Print
media specifications" on page 70.)
•Turn the stack of paper over in the tray. Also
try rotating the paper 180° in the tray.
Back of printouts
are dirty Check for leaking toner. Clean the inside of the
machine. (See "Cleaning the inside" on
page 55.)
Solid Color or
Black pages
A
•The toner cartridge may not be installed
properly. Remove the cartridge and reinsert it.
•The toner cartridge may be defective.
Remove the toner cartridge and install a new
one. (See "Replacing the toner cartridge" on
page 66.)
•The machine may require repair. Contact a
service representative.
Loose toner •Clean the inside of the machine. (See
"Cleaning the inside" on page 55.)
•Check the paper type and quality. (See "Print
media specifications" on page 70.)
•Remove the toner cartridge and then, install a
new one. (See "Replacing the toner cartridge"
on page 66.)
•If the problem persists, the machine may
require repair. Contact a service
representative.
CONDITION SUGGESTED SOLUTIONS
Troubleshooting_ 64
Common Windows problems
CONDITION SUGGESTED SOLUTIONS
“File in Use”
message appears
during installation.
Exit all software applications. Remove all
software from the startup group, then restart
Windows. Reinstall the printer driver.
“General Protection
Fault”, “Exception
OE”, “Spool 32”, or
“Illegal Operation”
messages appear.
Close all other applications, reboot Windows
and try printing again.
“Fail To Print”, “A
printer timeout error
occurred” messages
appear.
These messages may appear during printing.
Just keep waiting until the machine finishes
printing. If the message appears in ready mode
or after printing has been completed, check the
connection and/or whether an error has
occurred.
Refer to the Microsoft Windows User’s Guide that came with your
computer for further information on Windows error messages.
Common Linux problems
CONDITION SUGGESTED SOLUTIONS
The machine does
not print.
•Check if the printer driver is installed in your
system. Open the Unified Driver Configurator
and switch to the Printers tab in Printers
configuration window to look at the list of
available machines. Make sure that your
machine is displayed on the list. If not, open
Add new printer wizard to set up your
device.
•Check if the machine is started. Open
Printers configuration and select your
machine on the printers list. Look at the
description in the Selected printer pane. If its
status contains Stopped string, press the
Start button. After that normal operation of
the machine should be restored. The
“stopped” status might be activated when
some problems in printing occur.
•Check if your application is not using a special
print option such as “-oraw”. If “-oraw” is
specified in the command line parameter,
then remove it to print properly. For Gimp
front-end, select “print” -> “Setup printer” and
edit the command line parameter.
The machine does
not print whole
pages, and output is
printed on half the
page.
It is a known problem that occurs when a color
machine is used on version 8.51 or earlier of
Ghostscript, 64-bit Linux OS, and has been
reported to bugs.ghostscript.com as Ghostscript
Bug 688252. The problem is solved in AFPL
Ghostscript v. 8.52 or above. Download the
latest version of AFPL Ghostscript from
http://sourceforge.net/projects/ghostscript/ and
install it to solve this problem.
I encounter the
“Cannot open port
device file” error
when printing a
document.
Avoid changing print job parameters (via LPR
GUI, for example) while a print job is in progress.
Known versions of CUPS server break the print
job whenever print options are changed and
then try to restart the job from the beginning.
Since Unified Linux Driver locks the port while
printing, the abrupt termination of the driver
keeps the port locked and unavailable for
subsequent print jobs. If this situation occurs, try
to release the port by selecting Release port in
Port configuration window.
Refer to the Linux User’s Guide that came with your computer for
further information on Linux error messages.
Character Voids
A
Character voids are white areas within parts of
characters that should be solid black:
•If you are using transparencies, try another
type of transparency. Because of the
composition of transparencies, some
character voids are normal.
•You may be printing on the wrong surface of
the paper. Remove the paper and turn it
over.
•The paper may not meet paper
specifications. (See "Print media
specifications" on page 70.)
Horizontal stripes
AaBbC
AaBbC
AaBbC
AaBbC
AaBbC
If horizontally aligned black streaks or smears
appear:
•The toner cartridge may be installed
improperly. Remove the cartridge and
reinsert it.
•The toner cartridge may be defective.
Remove the toner cartridge and install a new
one. (See "Replacing the toner cartridge" on
page 66.)
•If the problem persists, the machine may
require repair. Contact a service
representative.
Curl If the printed paper is curled or paper does not
feed into the machine:
•Turn the stack of paper over in the tray. Also
try rotating the paper 180° in the tray.
•Change the printer option and try again. Go
to Printing Preferences, click Paper tab,
and set type to Thin. (See "Opening printing
preferences" on page 44.)
CONDITION SUGGESTED SOLUTIONS
Troubleshooting_ 65
Common Macintosh problems
CONDITION SUGGESTED SOLUTIONS
The machine does
not print PDF files
correctly. Some
parts of graphics,
text, or illustrations
are missing.
Printing the PDF file as an image may enable
the file to print. Turn on Print As Image from the
Acrobat printing options.
It will take longer to print when you print a
PDF file as an image.
The document has
printed, but the print
job has not
disappeared from
the spooler in Mac
OS X 10.3.2.
Update your Mac OS to Mac OS X 10.3.3. or
higher.
Some letters are not
displayed normally
during the Cover
page printing.
Mac OS cannot create the font during the Cover
page printing. The English alphabet and
numbers are displayed normally on the Cover
page.
When printing a
document in
Macintosh with
Acrobat Reader 6.0
or higher, colors
print incorrectly.
Make sure that the resolution setting in your
machine driver matches the one in Acrobat
Reader.
Refer to the Macintosh User’s Guide that came with your computer for
further information on Macintosh error messages.
Supplies_ 66
10.supplies
This chapter provides information about purchasing supplies and maintenance parts available for your machine.
This chapter includes:
•How to purchase
•Available supplies
•Available maintenance parts
•Replacing the toner cartridge
Available accessories may differ from country to country. Contact your
sales representatives to obtain the list of available accessories.
HOW TO PURCHASE
To order Samsung-authorized supplies, accessories and, maintenance
parts, contact your local Samsung dealer or the retailer where you
purchased your machine. You can also visit www.samsung.com/supplies,
select your country/region, and obtain information on calling for service.
AVAILABLE SUPPLIES
When supplies reach their lifespan, you can order the following types of
supplies for your machine:
MODEL NUMBER
•104 (MLT-D104S): Available in all regions except those listed in
Region A and B.
•1042 (MLT-D1042S): Region Aa
a.Region A: Albania, Austria, Belgium, Bosnia, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Italy, Latvia, Lithuania, Macedonia,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia,
Slovenia, Spain, Sweden, Switzerland, UK.
•1043 (MLT-D1043S): Region Bb:
b.Region B: China, Bangladesh, India, Nepal, Ukraine, Vietnam.
•104 (MLT-D104X): Not available in all regions.
*Refer to your local Samsung website for availability.
To replace a toner cartridge see "Replacing the toner cartridge" on page 66.
Depending on the options and job mode used, the toner cartridge’s
lifespan may differ.
You must purchase supplies, including toner cartridges, in the same
country where you purchased your machine. Otherwise, supplies will
be incompatible with your machine since the system configuration of
these vary from country to country.
Samsung does not recommend using non-genuine Samsung toner
cartridge such as refilled or remanufactured. Samsung cannot
guarantee non-genuine Samsung toner cartridge's quality. Service or
repair required as a result of using non-genuine Samsung toner
cartridges will not be covered under the machine warranty.
AVAILABLE MAINTENANCE PARTS
To avoid print quality and paper feed problems resulting from worn parts
and to maintain your machine in top working condition, the following parts
will need to be replaced after printing the specified number of pages or
when the life span of each item has expired.
PARTS AVERAGE YIELDa
a.Yield is affected by operating system used, computing performance,
application software, connecting method, media type, media size and
job complexity.
Transfer roller Approx. 30,000 pages ROLLER-TRANSF
ER
Fuser unit Approx. 30,000 pages FUSER
Pickup roller Approx. 30,000 pages ROLLER-PICK UP
To purchase maintenance parts, contact the source where you bought the
machine.
Replacing maintenance parts can be performed only by an authorized
service provider, dealer, or the retailer where you bought the machine.
The warranty does not cover the replacement of any maintenance
parts once they have reached their “Average yield”.
REPLACING THE TONER CARTRIDGE
Click this link to open an animation about replacing a toner cartridge.
When the toner cartridge reaches its estimated cartridge life,
•The Smart Panel program window appears on the computer telling you
the toner cartridge needs to be replaced.
•The machine stops printing.
At this stage, the toner cartridge needs to be replaced. Check the model
number for the toner cartridge used in your machine. (See "Available
supplies" on page 66.)
1. Open the top cover.
When you open the top cover, make sure that the output tray is
closed.
PART NAME
Supplies_ 67
2. Pull the toner cartridge out.
3. Take a new toner cartridge out of its package.
4. Remove the cap protecting the toner cartridge.
5. Slowly shake the cartridge side to side five or six times to distribute the
toner evenly inside the cartridge. It will assure maximum copies per
cartridge.
If toner gets on your clothing, wipe it off with a dry cloth and wash
clothing in cold water. Hot water sets toner into fabric.
Do not touch the drum located in the toner cartridge or imaging
unit. Use the handle on the cartridge to avoid touching this area.
6. Hold the toner cartridge by the handle and slowly insert the cartridge into
the opening in the machine.
Tabs on the sides of the cartridge and corresponding grooves within the
machine will guide the cartridge into the correct position until it locks into
place completely.
7. Close the top cover. Make sure that the cover is securely closed.
Specifications_ 68
11.specifications
This chapter covers the machines primary specifications.
This chapter includes:
•Hardware specifications
•Environmental specifications
•Electrical specifications
•Print media specifications
The specification values are listed below: specifications are subject to change without notice: See www.samsung.com/printer for possible changes in
information.
HARDWARE SPECIFICATIONS
ITEM DESCRIPTION
Dimension Height 184 mm (7.24 inches)
Depth 224 mm (8.82 inches)
Width 341 mm (13.43 inches)
Weight 4.04 kg (8.9 lbs)
Package weight Paper 0.68 kg (1.5 lbs)
Plastic 0.09 kg (0.19 lbs)
ENVIRONMENTAL SPECIFICATIONS
ITEM DESCRIPTION
Noise Levela
a.Sound Pressure Level, ISO 7779. Configuration tested: machine basic installation, A4 paper, simplex printing.
Ready mode 26 dB(A)
Printing mode 49 dB(A)
Temperature Operation 10 to 32 °C (50 to 90 °F)
Storage (unpacked) 0 to 40 °C (32 to 104 °F)
Humidity Operation XW to 80% RH
Storage (unpacked) Y0 to 80% RH
ELECTRICAL SPECIFICATIONS
Power requirements are based on the country/region where the device is sold. Do not convert operating voltages. Doing so might damage the device and
void the product warranty.
ITEM DESCRIPTION
Power ratinga110 volt models AC 110 - 127 V
220 volt models AC 220 - 240 V
Specifications_ 69
Power consumption Average operating mode Less than 270 W
Ready mode Less than 45 W
Power save mode Less than 3.9 W
Power off mode Less than 0.45 W
a.See the rating label on the machine for the correct voltage(V), frequency (hertz) and type of current (A) for your machine.
ITEM DESCRIPTION
Specifications_ 70
PRINT MEDIA SPECIFICATIONS
TYPE SIZE DIMENSIONS
PRINT MEDIA WEIGHT ba
a.If media weight is over 120 g/m2 (32 lbs), load a paper into the tray one by one.
/CAPACITY
Plain paper Letter 216 x 279 mm (8.50 x 11.00 inches) 60 to 120 g/m2 (16 to 32 lbs bond)
•150 sheets of 80 g/m2 (20 lbs
bond)
60 to 163 g/m2 (16 to 43 lbs
bond)
•1 sheet for manual feeding in
the tray
Legal 216 x 356 mm (8.50 x 14.00 inches)
US Folio 216 x 330 mm (8.50 x 13.00 inches)
A4 210 x 297 mm (8.27 x 11.69 inches)
Oficio 216 x 343 mm (8.50 x 13.50 inches)
JIS B5 182 x 257 mm (7.17 x 10.12 inches)
ISO B5 176 x 250 mm (6.93 x 9.84 inches)
Executive 184 x 267 mm (7.25 x 0 inches)
A5 148 x 210 mm (5.83 x 8.27 inches)
Envelope Envelope Monarch 98 x 191 mm (3.87 x 7.50 inches) 75 to 90 g/m2 (20 to 24 lbs bond)
•1sheet for manual feeding in the tray
Envelope No. 10 105 x 241 mm (4.12 x 9.50 inches)
Envelope DL 110 x 220 mm (4.33 x 8.66 inches)
Envelope C5 162 x 229 mm (6.38 x 9.02 inches)
Thick paper Refer to the Plain
paper section
Refer to the Plain paper section 90 g/m2 (24 lbs bond)
•140 sheets
90 to 163 g/m2 (24 to 43 lbs
bond)
•1 sheet for manual feeding in
the tray
Thin paper Refer to the Plain
paper section
Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)
•1sheet for manual feeding in the tray
Transparency Letter, A4 Refer to the Plain paper section 138 to 146 g/m2 (37 to 39 lbs bond)
•1sheet for manual feeding in the tray
Labelsc
c. Smoothness: 100 to 250 (sheffield).
Letter, Legal, US
Folio, A4, JIS B5, ISO
B5, Executive, A5
Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)
•1sheet for manual feeding in the tray
Card stock Letter, Legal, US
Folio, A4, JIS B5, ISO
B5, Executive, A5
Refer to the Plain paper section 105 to 163 g/m2 (28 to 43 lbs bond)
•1sheet for manual feeding in the tray
Minimum size (custom) 76 x 183 mm (3.00 x 7.20 inches) 60 to 163 g/m2 (16 to 43 lbs bond)
Maximum size (custom) 216 x 356 mm (8.50 x 14.02 inches)
b.Maximum capacity may differ depending on media weight, thickness and environmental conditions.
TRAY MANUAL FEEDING IN THE
TRAY
Contact SAMSUNG worldwide_ 71
contact samsung worldwide
If you have any comments or questions regarding Samsung products, contact the Samsung customer care center.
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
ARGENTINE 0800-333-3733 www.samsung.com
ARMENIA 0-800-05-555
AUSTRALIA 1300 362 603 www.samsung.com
AUSTRIA 0810-SAMSUNG (7267864,
€ 0.07/min)
www.samsung.com
AZERBAIJAN 088-55-55-555
BAHRAIN 8000-4726
BELARUS 810-800-500-55-500 www.samsung.ua
www.samsung.com/ua_ru
BELGIUM 02-201-24-18 www.samsung.com/be
(Dutch)
www.samsung.com/be_fr
(French)
BRAZIL 0800-124-421
4004-0000
www.samsung.com
CANADA 1-800-SAMSUNG
(726-7864)
www.samsung.com
CHILE 800-SAMSUNG (726-7864) www.samsung.com
CHINA 400-810-5858
010-6475 1880
www.samsung.com
COLOMBIA 01-8000112112 www.samsung.com
COSTA RICA 0-800-507-7267 www.samsung.com
CZECH
REPUBLIC
800-SAMSUNG
(800-726786)
www.samsung.com
Samsung Zrt., þeská organizaþní složka, Oasis Florenc,
Sokolovská394/17, 180 00, Praha 8
DENMARK 70 70 19 70 www.samsung.com
ECUADOR 1-800-10-7267 www.samsung.com
EGYPT 0800-726786
EIRE 0818 717100 www.samsung.com
EL SALVADOR 800-6225 www.samsung.com
ESTONIA 800-7267 www.samsung.com
KAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
KYRGYZSTAN 00-800-500-55-500
FINLAND 030-6227 515 www.samsung.com
FRANCE 01 48 63 00 00 www.samsung.com
GERMANY 01805 - SAMSUNG
(726-7864 € 0,14/min)
www.samsung.com
GEORGIA 8-800-555-555
GUATEMALA 1-800-299-0013 www.samsung.com
HONDURAS 800-7919267 www.samsung.com
HONG KONG (852) 3698-4698 www.samsung.com/hk
www.samsung.com/hk_en/
HUNGARY 06-80-SAMSUNG
(726-7864)
www.samsung.com
INDIA 3030 8282
1800 110011
1800 3000 8282
1800 266 8282
www.samsung.com
INDONESIA 0800-112-8888
021-5699-7777
www.samsung.com
ITALIA 800-SAMSUNG (726-7864) www.samsung.com
JAMAICA 1-800-234-7267 www.samsung.com
JAPAN 0120-327-527 www.samsung.com
JORDAN 800-22273
KSA 9200-21230 www.samsung.com
BAHRAIN 8000-4726
LATVIA 8000-7267 www.samsung.com
LITHUANIA 8-800-77777 www.samsung.com
LUXEMBURG 261 03 710 www.samsung.com
MALAYSIA 1800-88-9999 www.samsung.com
MEXICO 01-800-SAMSUNG
(726-7864)
www.samsung.com
MOLDOVA 00-800-500-55-500 www.samsung.ua
www.samsung.com/ua_ru
NETHERLANDS 0900-SAMSUNG
(0900-7267864) (€
0,10/min)
www.samsung.com
NEW ZEALAND 0800 SAMSUNG (0800 726
786)
www.samsung.com
NICARAGUA 00-1800-5077267 www.samsung.com
NORWAY 815-56 480 www.samsung.com
PANAMA 800-7267 www.samsung.com
COUNTRY/REG
ION CUSTOMER CARE
CENTER WEB SITE
Contact SAMSUNG worldwide_ 72
PHILIPPINES 1800-10-SAMSUNG
(726-7864)
1-800-3-SAMSUNG
(726-7864)
1-800-8-SAMSUNG
(726-7864)
02-5805777
www.samsung.com
POLAND 0 801 1SAMSUNG
(172678)
022-607-93-33
www.samsung.com
PORTUGAL 80820-SAMSUNG
(726-7864)
www.samsung.com
PUERTO RICO 1-800-682-3180 www.samsung.com
QATAR 800-2255
REP. DOMINICA 1-800-751-2676 www.samsung.com
RUSSIA 8-800-555-55-55 www.samsung.ru
SINGAPORE 1800-SAMSUNG
(726-7864)
www.samsung.com
SLOVAKIA 0800-SAMSUNG
(726-7864)
www.samsung.com
SOUTH AFRICA 0860 SAMSUNG
(726-7864)
www.samsung.com
SPAIN 902-1-SAMSUNG(902 172
678)
www.samsung.com
SWEDEN 0771 726 7864
(SAMSUNG)
www.samsung.com
SWITZERLAND 0848-SAMSUNG (7267864,
CHF 0.08/min)
www.samsung.com
SYRIA 1825-22-73
TADJIKISTAN 8-10-800-500-55-500
TAIWAN 0800-329-999 www.samsung.com
THAILAND 1800-29-3232
02-689-3232
www.samsung.com
TRINIDAD &
TOBAGO
1-800-SAMSUNG
(726-7864)
www.samsung.com
TURKEY 444 77 11 www.samsung.com
U.A.E 800-SAMSUNG (726-7864) www.samsung.com
U.K 0845 SAMSUNG
(726-7864)
www.samsung.com
U.S.A 1-800-SAMSUNG
(726-7864)
www.samsung.com
UKRAINE 8-800-502-000 www.samsung.ua
www.samsung.com/ua_ru
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
VENEZUELA 0-800-100-5303 www.samsung.com
VIETNAM 1 800 588 889 www.samsung.com
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
Glossary_ 73
glossary
The following glossary helps you get familiar with the product by
understanding the terminologies commonly used with printing as well
as mentioned in this user’s guide.
802.11
802.11 is a set of standards for wireless local area network (WLAN)
communication, developed by the IEEE LAN/MAN Standards
Committee (IEEE 802).
802.11b/g/n
802.11b/g/n can share same hardware and use the 2.4 GHz band.
802.11b supports bandwidth up to 11 Mbps, 802.11n supports
bandwidth up to 150 Mbps. 802.11b/g/n devices may occasionally suffer
interference from microwave ovens, cordless telephones, and Bluetooth
devices.
Access point
Access Point or Wireless Access Point (AP or WAP) is a device that
connects wireless communication devices together on wireless local
area networks (WLAN), and acts as a central transmitter and receiver of
WLAN radio signals.
ADF
An Automatic Document Feeder (ADF) is a scanning unit that will
automatically feed an original sheet of paper so that the machine can
scan some amount of the paper at once.
AppleTalk
AppleTalk is a proprietary suite of protocols developed by Apple, Inc for
computer networking. It was included in the original Macintosh (1984)
and is now deprecated by Apple in favor of TCP/IP networking.
BIT Depth
A computer graphics term describing the number of bits used to
represent the color of a single pixel in a bitmapped image. Higher color
depth gives a broader range of distinct colors. As the number of bits
increases, the number of possible colors becomes impractically large for
a color map. 1-bit color is commonly called as monochrome or black and
white.
BMP
A bitmapped graphics format used internally by the Microsoft Windows
graphics subsystem (GDI), and used commonly as a simple graphics file
format on that platform.
BOOTP
Bootstrap Protocol. A network protocol used by a network client to
obtain its IP address automatically. This is usually done in the bootstrap
process of computers or operating systems running on them. The
BOOTP servers assign the IP address from a pool of addresses to each
client. BOOTP enables 'diskless workstation' computers to obtain an IP
address prior to loading any advanced operating system.
CCD
Charge Coupled Device (CCD) is a hardware which enables the scan
job. CCD Locking mechanism is also used to hold the CCD module to
prevent any damage when you move the machine.
Collation
Collation is a process of printing a multiple-copy job in sets. When
collation is selected, the device prints an entire set before printing
additional copies.
Control Panel
A control panel is a flat, typically vertical, area where control or
monitoring instruments are displayed. They are typically found in front of
the machine.
Coverage
It is the printing term used for a toner usage measurement on printing.
For example, 5% coverage means that an A4 sided paper has about 5%
image or text on it. So, if the paper or original has complicated images or
lots of text on it, the coverage will be higher and at the same time, a
toner usage will be as much as the coverage.
CSV
Comma Separated Values (CSV). A type of file format, CSV is used to
exchange data between disparate applications. The file format, as it is
used in Microsoft Excel, has become a de facto standard throughout the
industry, even among non-Microsoft platforms.
DADF
A Duplex Automatic Document Feeder (DADF) is a scanning unit that
will automatically feed and turn over an original sheet of paper so that
the machine can scan on both sides of the paper.
Default
The value or setting that is in effect when taking a printer out of its box
state, reset, or initialized.
DHCP
A Dynamic Host Configuration Protocol (DHCP) is a client-server
networking protocol. A DHCP server provides configuration parameters
specific to the DHCP client host requesting, generally, information
required by the client host to participate on an IP network. DHCP also
provides a mechanism for allocation of IP addresses to client hosts.
Glossary_ 74
DIMM
Dual Inline Memory Module (DIMM), a small circuit board that holds
memory. DIMM stores all the data within the machine like printing data,
received fax data.
DLNA
The Digital Living Network Alliance (DLNA) is a standard that allows
devices on a home network to share information with each other across
the network.
DMPr
The Digital Media Printer (DMPr) is a device that allows printing in DLNA
home network. The DMPr prints a page by combining images with an
Extensible HyperText Markup Language (XHTML) template.
DNS
The Domain Name Server (DNS) is a system that stores information
associated with domain names in a distributed database on networks,
such as the Internet.
Dot Matrix Printer
A dot matrix printer refers to a type of computer printer with a print head
that runs back and forth on the page and prints by impact, striking an
ink-soaked cloth ribbon against the paper, much like a typewriter.
DPI
Dots Per Inch (DPI) is a measurement of resolution that is used for
scanning and printing. Generally, higher DPI results in a higher
resolution, more visible detail in the image, and a larger file size.
DRPD
Distinctive Ring Pattern Detection. Distinctive Ring is a telephone
company service which enables a user to use a single telephone line to
answer several different telephone numbers.
Duplex
A mechanism that will automatically turn over a sheet of paper so that
the machine can print (or scan) on both sides of the paper. A printer
equipped with a Duplex Unit can print on both sides of paper during one
print cycle.
Duty Cycle
Duty cycle is the page quantity which does not affect printer
performance for a month. Generally the printer has the lifespan limitation
such as pages per year. The lifespan means the average capacity of
print-outs, usually within the warranty period. For example, if the duty
cycle is 48,000 pages per month assuming 20 working days, a printer
limits 2,400 pages a day.
ECM
Error Correction Mode (ECM) is an optional transmission mode built into
Class 1 fax machines or fax modems. It automatically detects and
corrects errors in the fax transmission process that are sometimes
caused by telephone line noise.
Emulation
Emulation is a technique of one machine obtaining the same results as
another.
An emulator duplicates the functions of one system with a different
system, so that the second system behaves like the first system.
Emulation focuses on exact reproduction of external behavior, which is
in contrast to simulation, which concerns an abstract model of the
system being simulated, often considering its internal state.
Ethernet
Ethernet is a frame-based computer networking technology for local
area networks (LANs). It defines wiring and signaling for the physical
layer, and frame formats and protocols for the media access control
(MAC)/data link layer of the OSI model. Ethernet is mostly standardized
as IEEE 802.3. It has become the most widespread LAN technology in
use during the 1990s to the present.
EtherTalk
A suite of protocols developed by Apple Computer for computer
networking. It was included in the original Macintosh (1984) and is now
deprecated by Apple in favor of TCP/IP networking.
FDI
Foreign Device Interface (FDI) is a card installed inside the machine to
allow a third party device such as a coin operated device or a card
reader. Those devices allow the pay-for-print service on your machine.
FTP
A File Transfer Protocol (FTP) is a commonly used protocol for
exchanging files over any network that supports the TCP/IP protocol
(such as the Internet or an intranet).
Fuser Unit
The part of a laser printer that fuses the toner onto the print media. It
consists of a heat roller and a pressure roller. After toner is transferred
onto the paper, the fuser unit applies heat and pressure to ensure that
the toner stays on the paper permanently, which is why paper is warm
when it comes out of a laser printer.
Gateway
A connection between computer networks, or between a computer
network and a telephone line. It is very popular, as it is a computer or a
network that allows access to another computer or network.
Grayscale
A shades of gray that represent light and dark portions of an image
when color images are converted to grayscale; colors are represented
by various shades of gray.
Halftone
An image type that simulates grayscale by varying the number of dots.
Highly colored areas consist of a large number of dots, while lighter
areas consist of a smaller number of dots.
Glossary_ 75
HDD
Hard Disk Drive (HDD), commonly referred to as a hard drive or hard
disk, is a non-volatile storage device which stores digitally-encoded data
on rapidly rotating platters with magnetic surfaces.
IEEE
The Institute of Electrical and Electronics Engineers (IEEE) is an
international non-profit, professional organization for the advancement
of technology related to electricity.
IEEE 1284
The 1284 parallel port standard was developed by the Institute of
Electrical and Electronics Engineers (IEEE). The term "1284-B" refers to
a specific connector type on the end of the parallel cable that attaches to
the peripheral (for example, a printer).
Intranet
A private network that uses Internet Protocols, network connectivity, and
possibly the public telecommunication system to securely share part of
an organization's information or operations with its employees.
Sometimes the term refers only to the most visible service, the internal
website.
IP address
An Internet Protocol (IP) address is a unique number that devices use in
order to identify and communicate with each other on a network utilizing
the Internet Protocol standard.
IPM
The Images Per Minute (IPM) is a way of measuring the speed of a
printer. An IPM rate indicates the number of single-sided sheets a printer
can complete within one minute.
IPP
The Internet Printing Protocol (IPP) defines a standard protocol for
printing as well as managing print jobs, media size, resolution, and so
forth. IPP can be used locally or over the Internet to hundreds of
printers, and also supports access control, authentication, and
encryption, making it a much more capable and secure printing solution
than older ones.
IPX/SPX
IPX/SPX stands for Internet Packet Exchange/Sequenced Packet
Exchange. It is a networking protocol used by the Novell NetWare
operating systems. IPX and SPX both provide connection services
similar to TCP/IP, with the IPX protocol having similarities to IP, and
SPX having similarities to TCP. IPX/SPX was primarily designed for
local area networks (LANs), and is a very efficient protocol for this
purpose (typically its performance exceeds that of TCP/IP on a LAN).
ISO
The International Organization for Standardization (ISO) is an
international standard-setting body composed of representatives from
national standards bodies. It produces world-wide industrial and
commercial standards.
ITU-T
The International Telecommunication Union is an international
organization established to standardize and regulate international radio
and telecommunications. Its main tasks include standardization,
allocation of the radio spectrum, and organizing interconnection
arrangements between different countries to allow international phone
calls. A -T out of ITU-T indicates telecommunication.
ITU-T No. 1 chart
Standardized test chart published by ITU-T for document facsimile
transmissions.
JBIG
Joint Bi-level Image Experts Group (JBIG) is an image compression
standard with no loss of accuracy or quality, which was designed for
compression of binary images, particularly for faxes, but can also be
used on other images.
JPEG
Joint Photographic Experts Group (JPEG) is a most commonly used
standard method of lossy compression for photographic images. It is the
format used for storing and transmitting photographs on the World Wide
Web.
LDAP
The Lightweight Directory Access Protocol (LDAP) is a networking
protocol for querying and modifying directory services running over
TCP/IP.
LED
A Light-Emitting Diode (LED) is a semiconductor device that indicates
the status of a machine.
MAC address
Media Access Control (MAC) address is a unique identifier associated
with a network adapter. MAC address is a unique 48-bit identifier usually
written as 12 hexadecimal characters grouped in pairs (e. g.,
00-00-0c-34-11-4e). This address is usually hard-coded into a Network
Interface Card (NIC) by its manufacturer, and used as an aid for routers
trying to locate machines on large networks.
MFP
Multi Function Peripheral (MFP) is an office machine that includes the
following functionality in one physical body, so as to have a printer, a
copier, a fax, a scanner and etc.
MH
Modified Huffman (MH) is a compression method for decreasing the
amount of data that needs to be transmitted between the fax machines
to transfer the image recommended by ITU-T T.4. MH is a
codebook-based run-length encoding scheme optimized to efficiently
compress white space. As most faxes consist mostly of white space, this
minimizes the transmission time of most faxes.
Glossary_ 76
MMR
Modified Modified READ (MMR) is a compression method
recommended by ITU-T T.6.
Modem
A device that modulates a carrier signal to encode digital information,
and also demodulates such a carrier signal to decode transmitted
information.
MR
Modified Read (MR) is a compression method recommended by ITU-T
T.4. MR encodes the first scanned line using MH. The next line is
compared to the first, the differences determined, and then the
differences are encoded and transmitted.
NetWare
A network operating system developed by Novell, Inc. It initially used
cooperative multitasking to run various services on a PC, and the
network protocols were based on the archetypal Xerox XNS stack.
Today NetWare supports TCP/IP as well as IPX/SPX.
OPC
Organic Photo Conductor (OPC) is a mechanism that makes a virtual
image for print using a laser beam emitted from a laser printer, and it is
usually green or rust colored and has a cylinder shape.
An imaging unit containing a drum slowly wears the drum surface by its
usage in the printer, and it should be replaced appropriately since it gets
worn from contact with the cartridge development brush, cleaning
mechanism, and paper.
Originals
The first example of something, such as a document, photograph or text,
etc, which is copied, reproduced or translated to produce others, but
which is not itself copied or derived from something else.
OSI
Open Systems Interconnection (OSI) is a model developed by the
International Organization for Standardization (ISO) for communications.
OSI offers a standard, modular approach to network design that divides
the required set of complex functions into manageable, self-contained,
functional layers. The layers are, from top to bottom, Application,
Presentation, Session, Transport, Network, Data Link and Physical.
PABX
A private automatic branch exchange (PABX) is an automatic telephone
switching system within a private enterprise.
PCL
Printer Command Language (PCL) is a Page Description Language
(PDL) developed by HP as a printer protocol and has become an
industry standard. Originally developed for early inkjet printers, PCL has
been released in varying levels for thermal, dot matrix printer, and laser
printers.
PDF
Portable Document Format (PDF) is a proprietary file format developed
by Adobe Systems for representing two dimensional documents in a
device independent and resolution independent format.
PostScript
PostScript (PS) is a page description language and programming
language used primarily in the electronic and desktop publishing areas. -
that is run in an interpreter to generate an image.
Printer Driver
A program used to send commands and transfer data from the computer
to the printer.
Print Media
The media like paper, envelopes, labels, and transparencies which can
be used in a printer, a scanner, a fax or, a copier.
PPM
Pages Per Minute (PPM) is a method of measurement for determining
how fast a printer works, meaning the number of pages a printer can
produce in one minute.
PRN file
An interface for a device driver, this allows software to interact with the
device driver using standard input/output system calls, which simplifies
many tasks.
Protocol
A convention or standard that controls or enables the connection,
communication, and data transfer between two computing endpoints.
PS
See PostScript.
PSTN
The Public-Switched Telephone Network (PSTN) is the network of the
world's public circuit-switched telephone networks which, on industrial
premises, is usually routed through the switchboard.
RADIUS
Remote Authentication Dial In User Service (RADIUS) is a protocol for
remote user authentication and accounting. RADIUS enables
centralized management of authentication data such as usernames and
passwords using an AAA (authentication, authorization, and accounting)
concept to manage network access.
Resolution
The sharpness of an image, measured in Dots Per Inch (DPI). The
higher the dpi, the greater the resolution.
SMB
Server Message Block (SMB) is a network protocol mainly applied to
share files, printers, serial ports, and miscellaneous communications
Glossary_ 77
between nodes on a network. It also provides an authenticated
Inter-process communication mechanism.
SMTP
Simple Mail Transfer Protocol (SMTP) is the standard for e-mail
transmissions across the Internet. SMTP is a relatively simple,
text-based protocol, where one or more recipients of a message are
specified, and then the message text is transferred. It is a client-server
protocol, where the client transmits an email message to the server.
SSID
Service Set Identifier (SSID) is a name of a wireless local area network
(WLAN). All wireless devices in a WLAN use the same SSID in order to
communicate with each other. The SSIDs are case-sensitive and have a
maximum length of 32 characters.
Subnet Mask
The subnet mask is used in conjunction with the network address to
determine which part of the address is the network address and which
part is the host address.
TCP/IP
The Transmission Control Protocol (TCP) and the Internet Protocol (IP);
the set of communications protocols that implement the protocol stack
on which the Internet and most commercial networks run.
TCR
Transmission Confirmation Report (TCR) provides details of each
transmission such as job status, transmission result and number of
pages sent. This report can be set to print after each job or only after
failed transmissions.
TIFF
Tagged Image File Format (TIFF) is a variable-resolution bitmapped
image format. TIFF describes image data that typically come from
scanners. TIFF images make use of tags, keywords defining the
characteristics of the image that is included in the file. This flexible and
platform-independent format can be used for pictures that have been
made by various image processing applications.
Toner Cartridge
A kind of bottle or container used in a machine like a printer which
contains toner. Toner is a powder used in laser printers and
photocopiers, which forms the text and images on the printed paper.
Toner can be fused by by a combination of heat/pressure from the fuser,
causing it to bind to the fibers in the paper.
TWAIN
An industry standard for scanners and software. By using a
TWAIN-compliant scanner with a TWAIN-compliant program, a scan can
be initiated from within the program. It is an image capture API for
Microsoft Windows and Apple Macintosh operating systems.
UNC Path
Uniform Naming Convention (UNC) is a standard way to access network
shares in Window NT and other Microsoft products. The format of a
UNC path is: \\<servername>\<sharename>\<Additional directory>
URL
Uniform Resource Locator (URL) is the global address of documents
and resources on the Internet. The first part of the address indicates
what protocol to use, the second part specifies the IP address or the
domain name where the resource is located.
USB
Universal Serial Bus (USB) is a standard that was developed by the
USB Implementers Forum, Inc., to connect computers and peripherals.
Unlike the parallel port, USB is designed to concurrently connect a
single computer USB port to multiple peripherals.
Watermark
A watermark is a recognizable image or pattern in paper that appears
lighter when viewed by transmitted light. Watermarks were first
introduced in Bologna, Italy in 1282; they have been used by
papermakers to identify their product, and also on postage stamps,
currency, and other government documents to discourage
counterfeiting.
WEP
Wired Equivalent Privacy (WEP) is a security protocol specified in IEEE
802.11 to provide the same level of security as that of a wired LAN. WEP
provides security by encrypting data over radio so that it is protected as
it is transmitted from one end point to another.
WIA
Windows Imaging Architecture (WIA) is an imaging architecture that is
originally introduced in Windows Me and Windows XP. A scan can be
initiated from within these operating systems by using a WIA-compliant
scanner.
WPA
Wi-Fi Protected Access (WPA) is a class of systems to secure wireless
(Wi-Fi) computer networks, which was created to improve upon the
security features of WEP.
WPA-PSK
WPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small
business or home users. A shared key, or password, is configured in the
wireless access point (WAP) and any wireless laptop or desktop
devices. WPA-PSK generates a unique key for each session between a
wireless client and the associated WAP for more advanced security.
WPS
The Wi-Fi Protected Setup (WPS) is a standard for establishing a
wireless home network. If your wireless access point supports WPS, you
can configure the wireless network connection easily without a
computer.
Glossary_ 78
XPS
XML Paper Specification (XPS) is a specification for a Page Description
Language (PDL) and a new document format, which has benefits for
portable document and electronic document, developed by Microsoft. It
is an XML-based specification, based on a new print path and a
vector-based device-independent document format.
