BASICUser’s GuideML-216x SeriesML-216xW SeriesBASICUser’s GuideThis guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.
2BASIC1. IntroductionKey benefits 4Features by models 6Useful to know 8About this user’s guide 9Safety information 10Machine overview 15Control panel overview 18Turning on the machine 20Installing the driver locally 21Reinstalling the driver 222. Menu overview and basic setupPrinting a demo page 24Media and tray 25Basic printing 343. MaintenanceOrdering supplies and accessories 38Available supplies 39Available maintenance parts 40Storing the toner cartridge 41Redistributing toner 43Replacing the toner cartridge 44Cleaning the machine 46Tips for moving & storing your machine 494. TroubleshootingTips for avoiding paper jams 51Clearing paper jams 52Understanding the status LED 555. AppendixSpecifications 59Regulatory information 68Copyright 78
1. IntroductionThis chapter provides information you need to know before using the machine.• Key benefits 4• Features by models 6• Useful to know 8• About this user’s guide 9• Safety information 10• Machine overview 15• Control panel overview 18• Turning on the machine 20• Installing the driver locally 21• Reinstalling the driver 22
Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports the Eco feature (see "Easy Eco Driver" on page 158).• To save paper, you can print multiple pages on a single sheet of paper (see "Using advanced print features" on page 140).• To save paper, you can print on both sides of the paper (manual double-sided printing) (see "Using advanced print features" on page 140).• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.Print with excellent quality and speed• You can print with a resolution of up to 1,200 x 1,200 dpi effective output.• Fast, on-demand printing.- For single-side printing, 20 ppm (A4) or 21 ppm (Letter).Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboardG(see "Understanding Easy Capture Manager" on page 159).• Samsung Easy Printer Manager and Samsung Printer Status (or Smart Panel) are a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 163).• AnyWeb Print helps you screen-capture, preview, scrap, and print the screen more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 157).• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows OS users.• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 61).• Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 140).• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 140).• You can print in various operating systems (see "System requirements" on page 64).• Your machine is equipped with a USB interface.Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router).• Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable.• Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 105.
Features by modelsSome features and optional goods may not be available depending on model or country.Operating System Software Operating System ML-216x Series ML-216xW Series Windows Ɣ ƔMacintosh Ɣ ƔLinux Ɣ ƔUnixSoftware ML-216x Series ML-216xW Series PCL printer driverSPL printer driver Ɣ ƔPS printer driverXPS printer driver Ɣ ƔSamsung Easy Printer Manager Ɣ ƔSyncThru™ Web Service Ɣ
Features by modelsVariety feature (Ɣ: Included, Blank: Not available) Features ML-216x Series ML-216xW Series Hi-Speed USB 2.0 Ɣ ƔNetwork Interface Ethernet 10/100 Base TX wired LANNetwork Interface 802.11b/g/n wireless LAN ƔIPv6 ƔEco printing(Easy Eco Driver)aa. Setting the ECO settings is available from the windows driver.Ɣ ƔWi-Fi Protected Setup™ (WPS) ƔManual duplex (2-sided) printing Ɣ Ɣ
Useful to knowWhere can I download the machine’s driver?• Visit www.samsung.com/printer to download the latest machine’s driver, and install it on your system.Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/region to view product service information.The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 55).A paper jam has occurred.• Open and close the top cover (see "Front view" on page 16).• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 52).Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge.• Try a different print resolution setting.• Replace the toner cartridge.The machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 35).• Remove the driver and install it again (see "Installing the driver locally" on page 21).• Select your machine as your default machine in your Windows.
91. IntroductionAbout this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine.• If you have a problem using the machine, refer to the troubleshooting chapter.• Terms used in this user’s guide are explained in the glossary chapter.• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.• The screenshots in this user's guide may differ from your machine depending on the machine’s firmware/driver version.• The procedures in this user’s guide are mainly based on Windows 7.1 ConventionsSome terms in this guide are used interchangeably, as below:• Document is synonymous with original.• Paper is synonymous with media, or print media.• Machine refers to printer or MFP.2 General iconsIcon Text DescriptionCaution Gives users information to protect the machine from possible mechanical damage or malfunction.Note Provides additional information or detailed specification of the machine function and feature.
101. IntroductionSafety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.3 Important safety symbolsExplanation of all icons and signs used in this chapter4 Operating environment WarningWarning Hazards or unsafe practices that may result in severe personal injury or death.Caution Hazards or unsafe practices that may result in minor personal injury or property damage.Do not attempt.Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire. • If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine. • The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out. This could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. This could result in electric shock or fire.
Safety information111. Introduction Caution5 Operating method CautionDuring an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. This could result in electric shock or fire. Be careful, the paper output area is hot. Burns could occur. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the plug does not easily enter the electrical outlet, do not attempt to force it in. Call an electrician to change the electrical outlet, or this could result in electric shock.Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet. Do not forcefully pull the paper out during printing. It can cause damage to the machine.Be careful not to put your hand between the machine and paper tray.You may get injured.This machine's power reception device is the power cord. To switch off the power supply, remove the power cord from the electrical outlet. Be care when replacing paper or removing jammed paper. New paper has sharp edges and can cause painful cuts.When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. Burns can occur.When removing jammed paper, do not use tweezers or sharp metal objects. It can damage the machine.

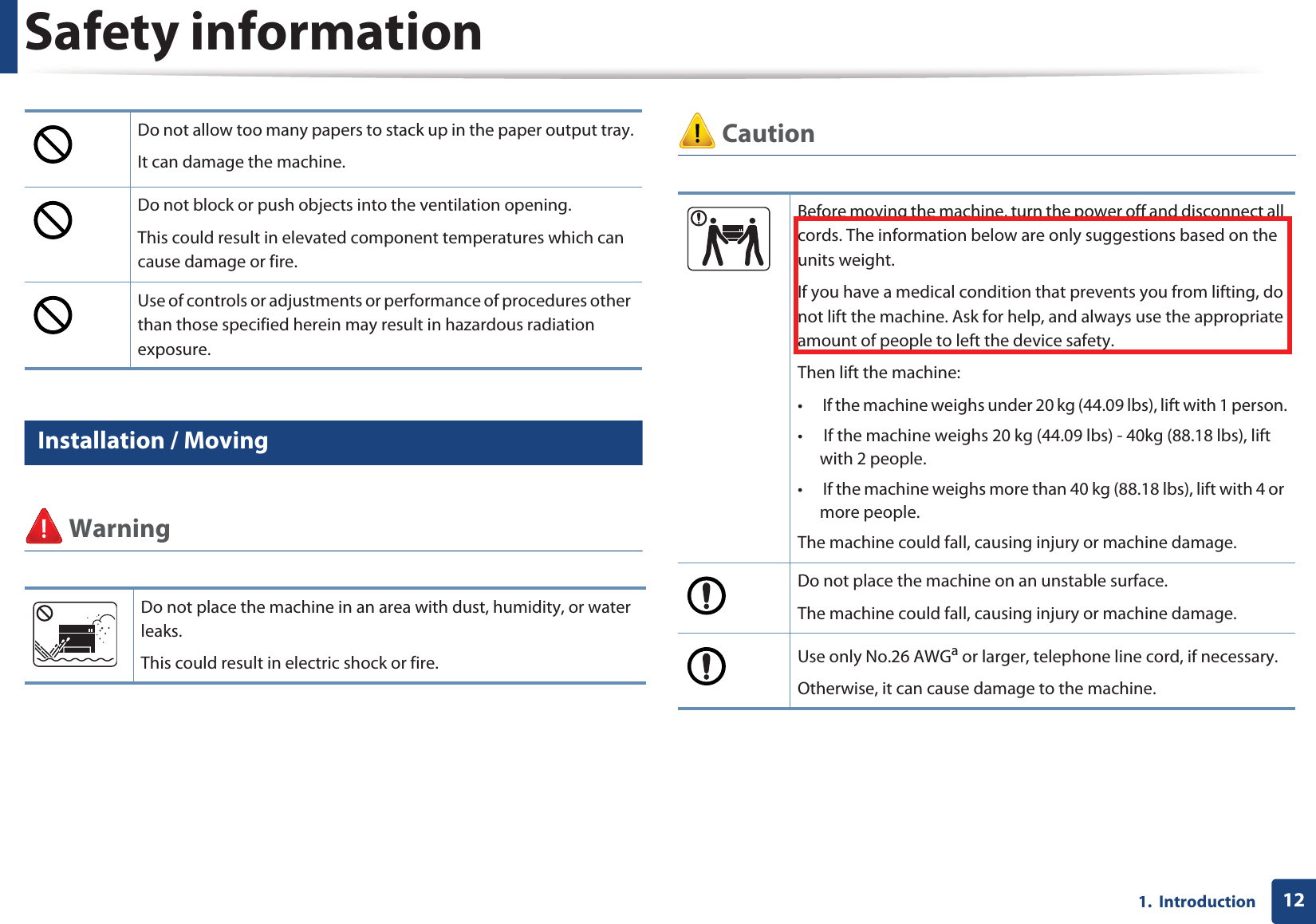

Safety information121. Introduction6 Installation / Moving Warning CautionDo not allow too many papers to stack up in the paper output tray.It can damage the machine. Do not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.Do not place the machine in an area with dust, humidity, or water leaks. This could result in electric shock or fire. Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to left the device safety.Then lift the machine:• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.The machine could fall, causing injury or machine damage.Do not place the machine on an unstable surface.The machine could fall, causing injury or machine damage.Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.

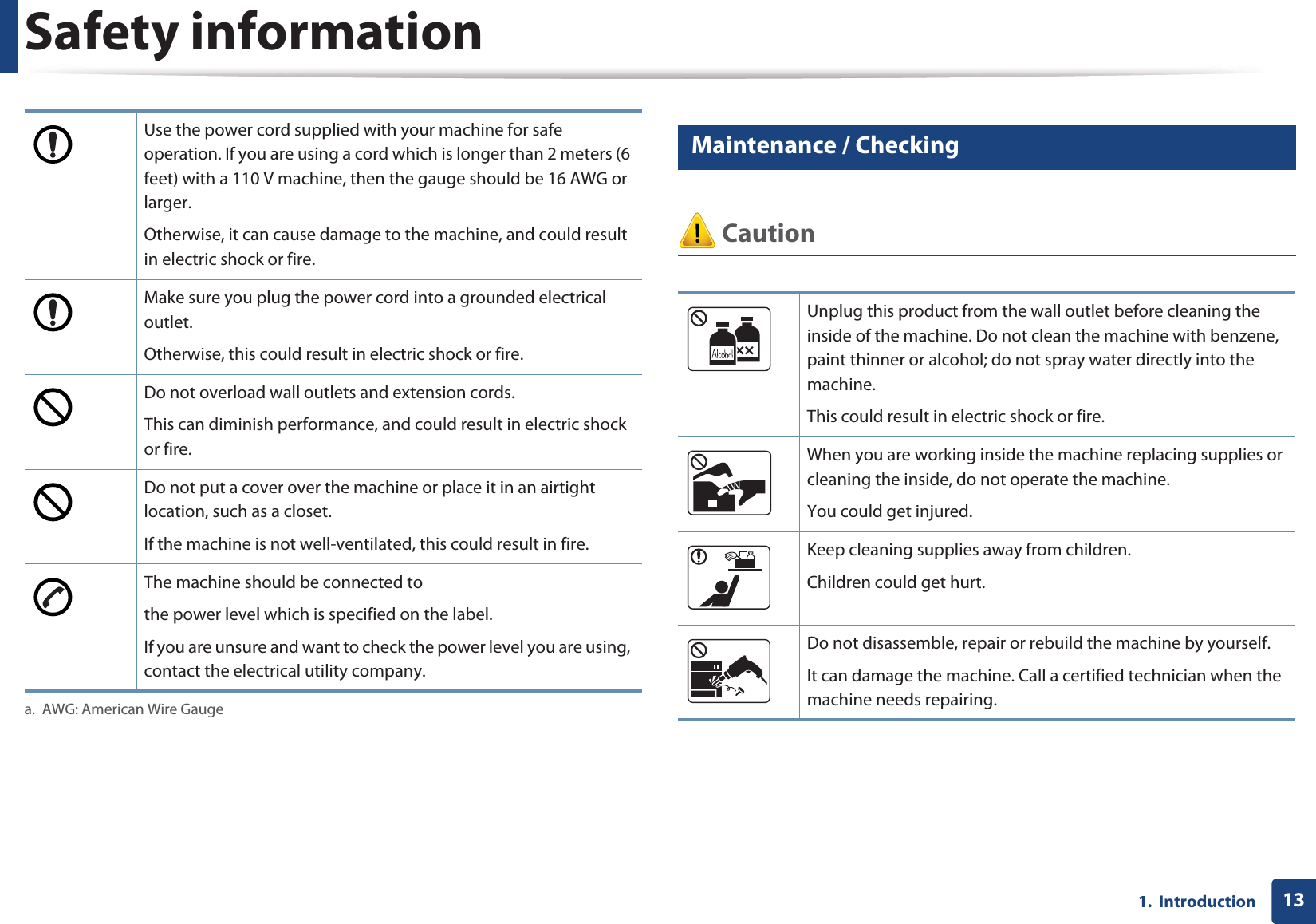

Safety information131. Introduction7 Maintenance / Checking CautionUse the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110 V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.a. AWG: American Wire GaugeUnplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine. This could result in electric shock or fire. When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.You could get injured.Keep cleaning supplies away from children. Children could get hurt.Do not disassemble, repair or rebuild the machine by yourself. It can damage the machine. Call a certified technician when the machine needs repairing.
Safety information141. Introduction8 Supply usage Caution• Do not remove any covers or guards that are fastened with screws. • Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.• The machine should only be repaired by a Samsung service technician.To clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.Keep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire. Do not disassemble the toner cartridge.Toner dust can be dangerous if inhaled or ingested.Do not burn any of the supplies such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.When storing supplies such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.Using recycled supplies, such as toner, can cause damage to the machine.In case of damage due to the use of recycled supplies, a service fee will be charged.
151. IntroductionMachine overview9 Accessories Power cord Quick installation guide Output stackeraa. Refer to the Quick Install Guide to attach the output stacker to the machine.Software CDbb. The software CD contains the printer drivers and software applications.Misc. accessoriescc. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.
Machine overview161. Introduction10 Front view • This illustration may differ from your machine depending on its model.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 6). 1Control panel 3 Tray 5 Output support 7 Toner cartridge2Tray handle 4 Output tray 6 Top cover2435
Machine overview171. Introduction11 Rear view • This illustration may differ from your machine depending on its model.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 6). 1USB port 2 Power receptacle12
181. IntroductionControl panel overview This control panel may differ from your machine depending on its model. There are various types of control panels. 1Toner LED Shows the status of the toner (see "Status LED" on page 56).2 (Status LED)Shows the status of your machine (see "Status LED" on page 56).12343(WPS)Configures the wireless network connection easily without a computer (see "Wireless network setup" on page 104).•configuration sheet- Press and hold this button for about 10 seconds until the green LED blinks slowly, and release.•Prints supplies info report / error report - Press and hold this button for about 15 seconds until the green LED on, and release.•Manual print- Press this button each time you load a sheet of paper in the tray if you have selected Manual Feeder for Source in your printer driver.
Control panel overview191. Introduction3(Print screen)•Prints the screen- Press this button and the green LED will start blinking. If you want to print only the active screen, release the button when the green LED stops blinking. If you want to print the whole screen, release the button while it’s blinking. •Print Screen can only be used in the Windows and Macintosh operating systems.• You can only use this function with USB-connected machine.• When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed.• You can only use this function if the machine’s Easy Printer Manager program is installed if you are a macintosh OS user, you need to enable Screen Print Settings from the Easy Printer Manager to use the Print Screen feature. •configuration sheet- Press and hold this button for about 10 seconds until the green LED blinks slowly, and release.•Prints supplies info report / error report - Press and hold this button for about 15 seconds until the green LED on, and release.•Manual print- Press this button each time you load a sheet of paper in the tray if you have selected Manual Feeder for Source in your printer driver.4 (Power)You can turn the power off or wake the machine up from the sleep mode with this button.
201. IntroductionTurning on the machine1Connect the machine to the electricity supply first.2 press (power) on the control panel. If you want to turn the power off, press (power) on the control panel. 12
211. IntroductionInstalling the driver locallyA locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see Advanced Guide). • If you are a Macintosh or Linux OS user, refer to the "Software installation" on page 82. • The installation window in this User’s Guide may differ depending on the machine and interface in use.• Selecting Custom Installation allows you to choose which programs to install. • Only use a USB cable no longer than 3 meters (118 inches). 12 Windows1Make sure that the machine is connected to your computer and powered on. If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window. 2 Insert the supplied software CD into your CD-ROM drive.The software CD should automatically run and an installation window will appear.3 Select Install Now.4 Read License Agreement, and select I accept the terms of the License Agreement. Then, click Next.5 Follow the instructions in the installation window.
221. IntroductionReinstalling the driverIf the printer driver does not work properly, follow the steps below to reinstall the driver.13 Windows1Make sure that the machine is connected to your computer and powered on.2 From the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Uninstall.3 Follow the instructions in the installation window.4 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 21).

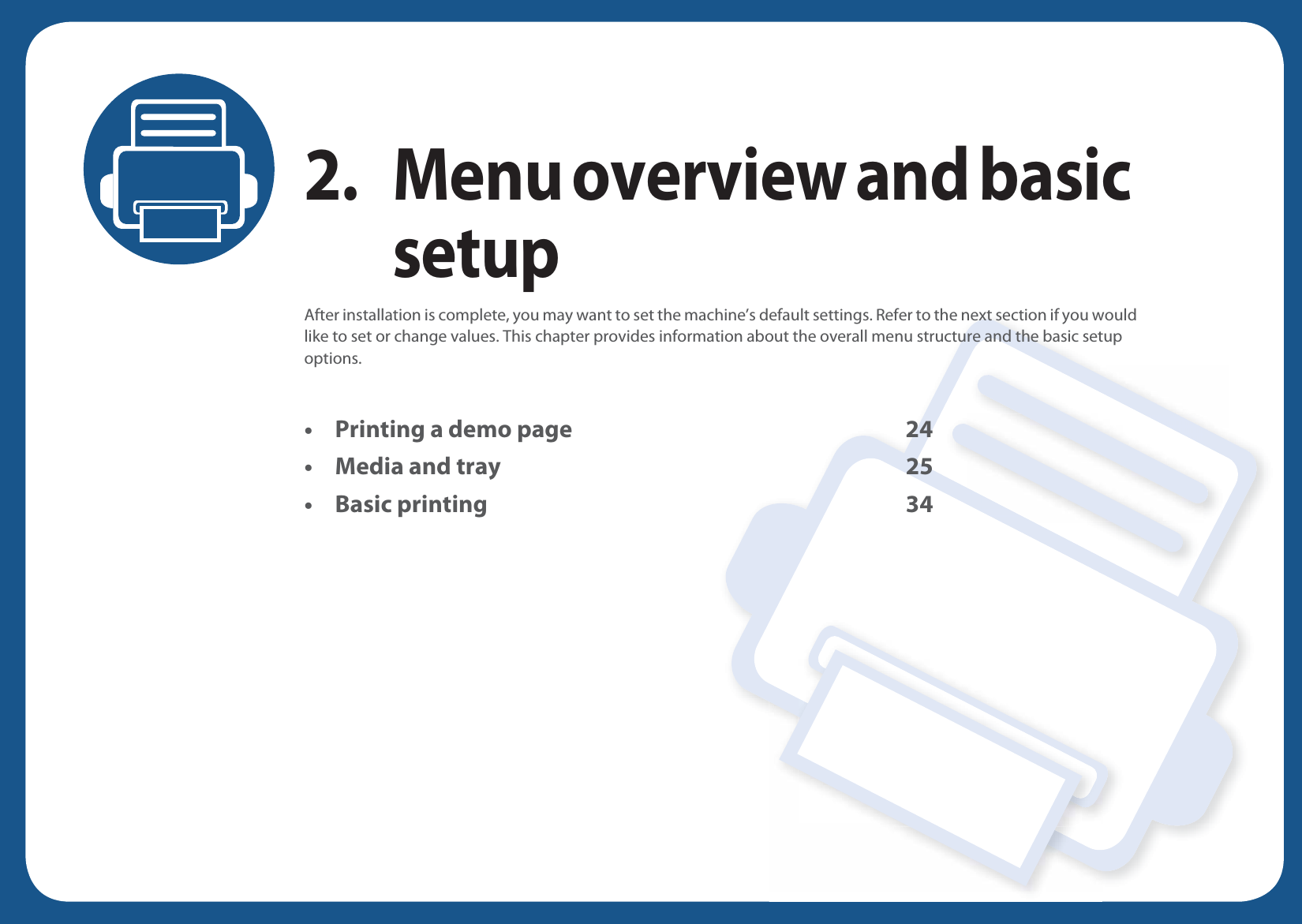

2. Menu overview and basic setupAfter installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would like to set or change values. This chapter provides information about the overall menu structure and the basic setup options.• Printing a demo page 24• Media and tray 25• Basic printing 34

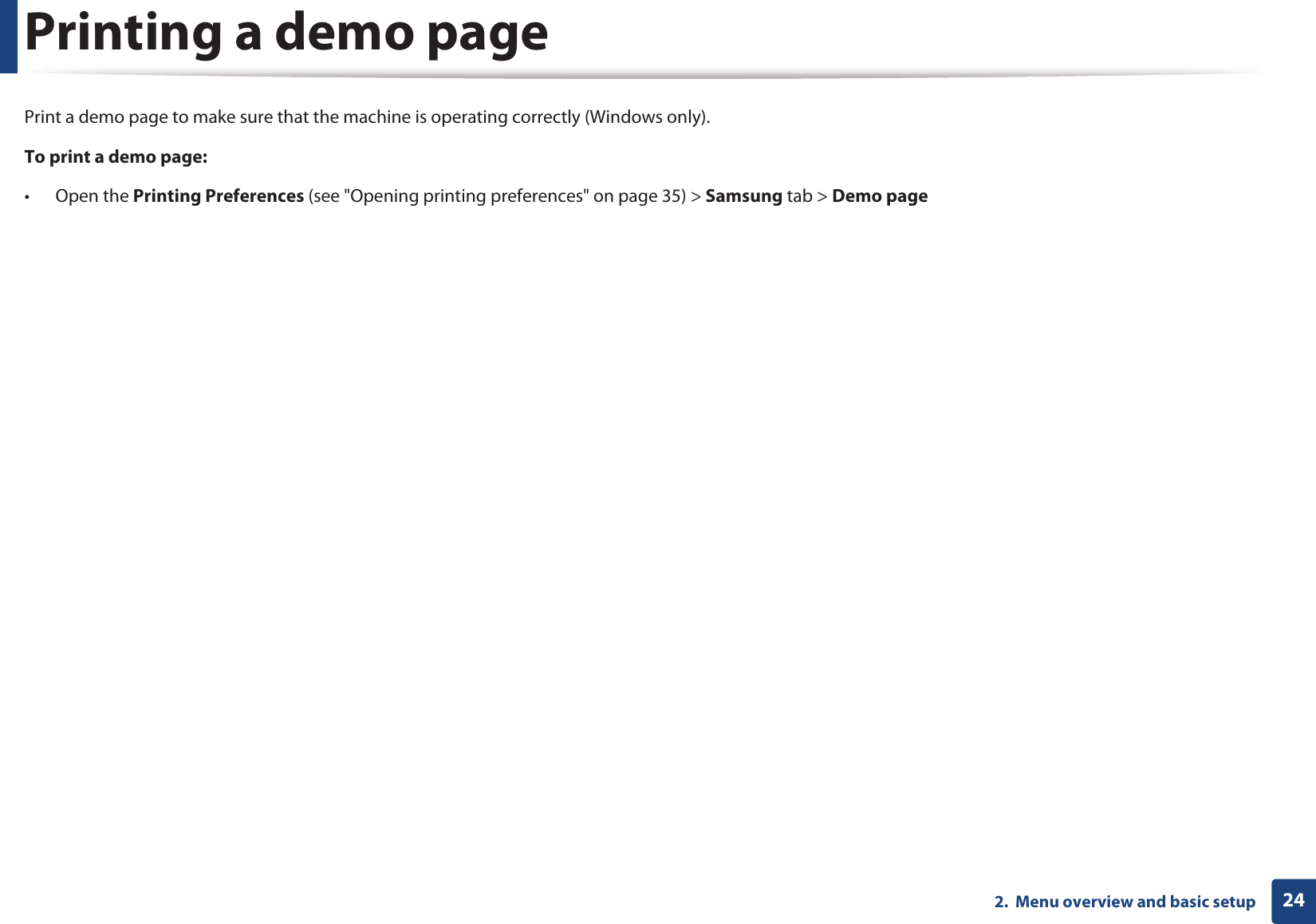

242. Menu overview and basic setupPrinting a demo pagePrint a demo page to make sure that the machine is operating correctly (Windows only).To print a demo page:• Open the Printing Preferences (see "Opening printing preferences" on page 35) > Samsung tab > Demo page
252. Menu overview and basic setupMedia and trayThis chapter provides information on how to load print media into your machine. • Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements.• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine. • Using inflammable print media can cause a fire.• Use designated print mediaG(see "Print media specifications" on page 61). The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit andS in rare cases may cause a fire. 1 Tray overviewTo change the size, you need to adjust the paper guide. If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper. 1Paper width guide2Tray21
Media and tray2 Loading paper in the tray1Open the tray. Then, adjust the tray size to the media size you are loading (see "Tray overview" on page 25).2 Flex or fan the edge of the paper stack to separate the pages before loading papers.3 Place the paper with the side you want to print facing up andopen the output tray.211 2
Media and tray4 Squeeze the paper width guide and slide it to the edge of the paper stack without causing it to bend. • Do not push the paper width guide too far causing the media to warp.• Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled.• If you do not adjust the paper width guide, it may cause paper jams. 5 When you print a document, set the paper type and size for the tray (see "Setting the paper size and type" on page 33). The settings made from the machine driver override the settings on the control panel.a To print in application, open an application and start the print menu.b Open Printing Preferences (see "Opening printing preferences" on page 35).c Press the Paper tab in Printing Preferences, and select an appropriate paper type. For example, if you want to use a label, set the paper type to Label.d Select Manual Feeder in paper source, then press OK.e Start printing in application.
Media and tray3 Manual feeding in the trayThe manual feeder can hold special sizes and types of print material, such as postcards, note cards, and envelopes (see "Print media specifications" on page 61). Tips on using the manual feeder• Load only one type, size and weight of print media at time in the manual feeder.• If you select Paper > Source > Manual Feeder for the paper source in your software application, you need to press (Print screen) or (WPS) button each time you print a page and load only one type, size and weight of print media at a time on the manual tray.• To prevent paper jams, do not add paper while printing when there is still paper in the manual feeder.• Print media should be loaded face up with the top edge going into the manual feeder first and be placed in the center of the tray.• To ensure printing quality and to prevent paper jams, only load the available paper (see "Print media specifications" on page 61).• Flatten any curl on postcards, envelopes, and labels before loading them into the manual feeder.• When printing on special media, you must follow the loading guidelines (see "Printing on special media" on page 28).• When the machine is in a power save mode, the machine does not feed paper from the manual feeder. Wake up the machine by pressing the power button before using the manual feeder. 4 Printing on special mediaThe table below shows the special media usable in each tray.
Media and tray292. Menu overview and basic setupThe media types are shown in the Printing Preferences. To get the higest printing quality, select the proper media type from the Printing Preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 35).For example, if you want to print on labels, select Labels for Paper Type. When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 61). To see for paper weights for each sheet, refer to "Print media specifications" on page 61.(Ɣ: Included, Blank: Not available) EnvelopePrinting successfully on envelopes depends upon the quality of the envelopes.Types TrayaPlain ƔThick ƔThin ƔBond ƔColor ƔCardStock ƔLabels ƔEnvelope ƔPreprinted ƔCotton ƔRecycled ƔArchive Ɣa. The paper types available manual feeding in tray.Types Traya
Media and tray302. Menu overview and basic setupTo print an envelope, place it as shown in the following figure.If you select Envelope from the Printing Preferences window, but the printed images get easily erased, select Thick Envelope and try printing again. However, this might cause some noise when printing.• When selecting envelopes, consider the following factors:-Weight: should not exceed 90 g/m2 otherwise; jams may occur.-Construction: should lie flat with less than 6 mm curl and should not contain air.-Condition: should not be wrinkled, nicked, nor damaged.-Temperature: should resist the heat and pressure of the machine during operation.• Use only well-constructed envelopes with sharp and well-creased folds.• Do not use stamped envelopes.• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.• Do not use damaged or poorly made envelopes.• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.1 Acceptable2 Unacceptable• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second (about 170°C (338 °F)). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.• Avoid printing over the area where the envelope’s seams meet.1 2
Media and tray312. Menu overview and basic setupLabelsTo avoid damaging the machine, use only labels designed for use in laser printers.• When selecting labels, consider the following factors:-Adhesives: Should be stable at your machine’s fusing temperature. Check your machine’s specifications to view the fusing temperature (about 170°C (338°F)).-Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.-Curl: Must lie flat with no more than 13 mm of curl in any direction.-Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.
Media and tray322. Menu overview and basic setupCard stock/ Custom-sized paper• In the software application, set margins at least 6.4 mm (0.25 inches) away from the edges of the material.Preprinted paperWhen loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature for 0.1 second (about 170°C (338°F)).• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.
Media and tray332. Menu overview and basic setup5 Setting the paper size and typeAfter loading paper in the paper tray, set the paper size and type.Open the Printing Preferences (see "Opening printing preferences" on page 35) and set the paper size and type in the Paper tab. If you want to use special-sized paper such as billing paper, select Custom in the Paper tab in the Printing Preferences (see "Opening printing preferences" on page 35).

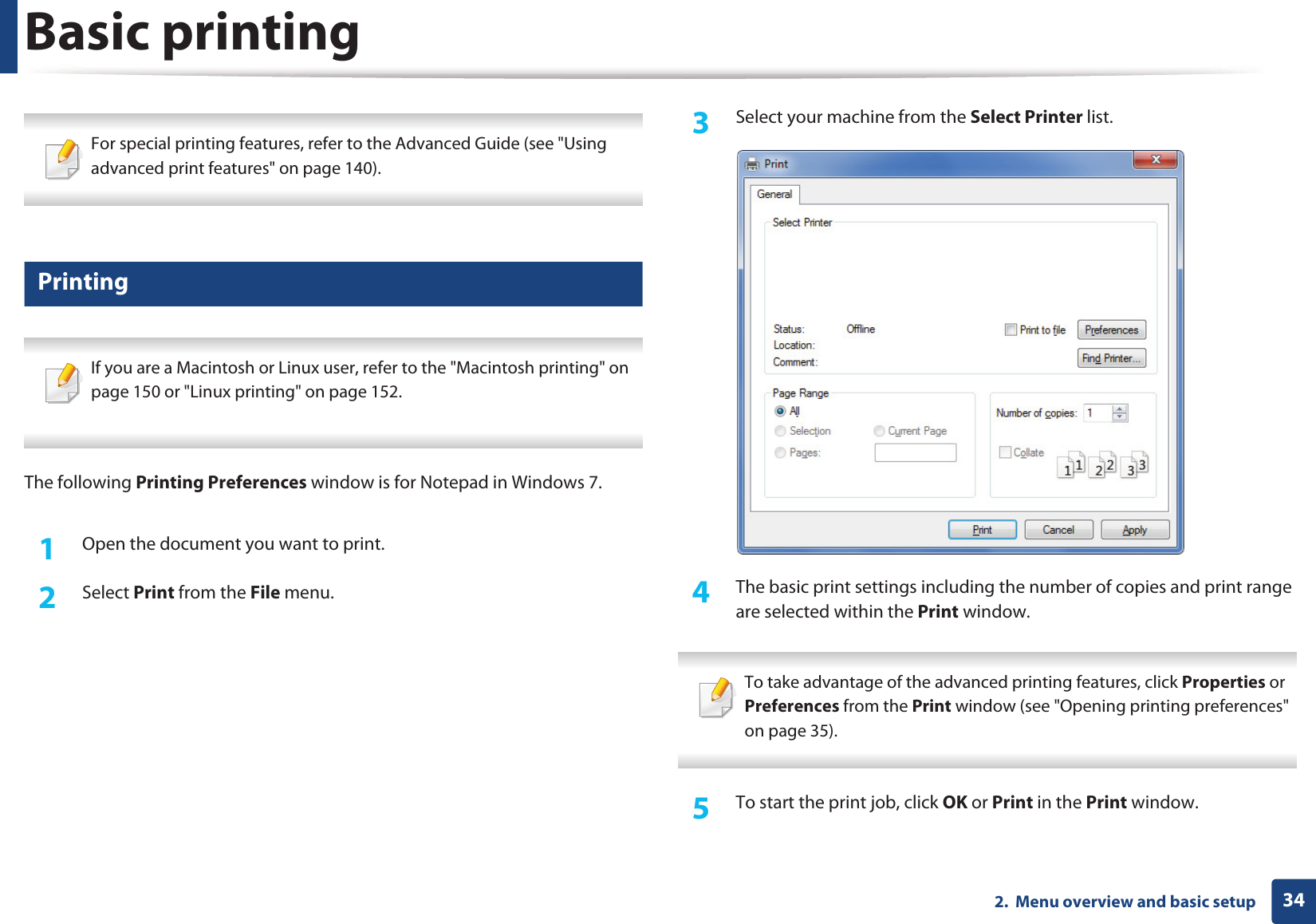

342. Menu overview and basic setupBasic printing For special printing features, refer to the Advanced Guide (see "Using advanced print features" on page 140). 6 Printing If you are a Macintosh or Linux user, refer to the "Macintosh printing" on page 150 or "Linux printing" on page 152. The following Printing Preferences window is for Notepad in Windows 7.1Open the document you want to print.2 Select Print from the File menu.3 Select your machine from the Select Printer list.4 The basic print settings including the number of copies and print range are selected within the Print window. To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 35). 5 To start the print job, click OK or Print in the Print window.
Basic printing352. Menu overview and basic setup7 Canceling a print jobIf the print job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar. 8 Opening printing preferences • The Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. However, the composition of the Printing Preferences window is similar.• When you select an option in Printing Preferences, you may see a warning mark or . An mark means you can select that certain option but it is not recommended, and an mark means you cannot select that option due to the machine’s setting or environment. 1Open the document you want to print.2 Select Print from the file menu.3 Select your machine from the Select Printer. 4 Click Properties or Preferences. You can check the machine's current status using the Printer Status button (see "Using Samsung Printer Status" on page 166).
Basic printing362. Menu overview and basic setupUsing a favorite settingThe Presets option, which is visible on each preferences tab except for the Samsung tab, allows you to save the current preferences for future use.To save a Presets item, follow these steps:1Change the settings as needed on each tab. 2 Enter a name for the item in the Presets input box.3 Click (Add). When you save Presets, all current driver settings are saved. Select more options and click (Update), settings will be added to the Presets you made. To use a saved setting, select it from the Presets drop-down list. The machine is now set to print according to the settings you have selected. To delete saved settings, select it from the Presets drop-down list and click (Delete). You can also restore the printer driver’s default settings by selecting Default Preset from the Presets drop-down list. 9 Using helpClick the option you want to know on the Printing Preferences window and press F1 on your keyboard.10 Eco printingThe Eco function cuts toner consumption and paper usage. The Eco function allows you to save print resources and lead you to eco-friendly printing.To Eco Printing, click the below: See "Easy Eco Driver" on page 158.
3. MaintenanceThis chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.• Ordering supplies and accessories 38• Available supplies 39• Available maintenance parts 40• Storing the toner cartridge 41• Redistributing toner 43• Replacing the toner cartridge 44• Cleaning the machine 46• Tips for moving & storing your machine 49
383. MaintenanceOrdering supplies and accessories Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts. To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.
393. MaintenanceAvailable suppliesWhen supplies reach the end of their life spans, you can order the following types of supplies for your machine: Depending on the options, percentage of image area, and job mode used, the toner cartridge’s lifespan may differ. When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and other supplies according to the specific country conditions. Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s warranty. Type Average yieldaa. Declared yield value in accordance with ISO/IEC 19752.Part nameToner cartridge Approx. 1,500 pages MLT-D101S
403. MaintenanceAvailable maintenance partsTo purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its “Average yield”.Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.Parts Average yieldaa. It will be affected by the operating system used, computing performance, application software, connecting method, media type, media size and job complexity.Fuser unit Approx. 30,000 pagesTransfer roller Approx. 30,000 pages Feed roller Approx. 30,000 pages Pickup roller Approx. 30,000 pages
413. MaintenanceStoring the toner cartridgeToner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optimal performance, highest quality, and longest life from your new Samsung toner cartridge.Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.• Store the cartridge inside the protective bag from the original package. • Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.• Do not store consumables in any of the following conditions:- Temperature greater than 40°C (104°F).- Humidity range less than 20% and greater than 80%.- An environment with extreme changes in humidity or temperature.- Direct sunlight or room light.- Dusty places.- A car for a long period of time.- An environment where corrosive gases are present.- An environment with salty air.

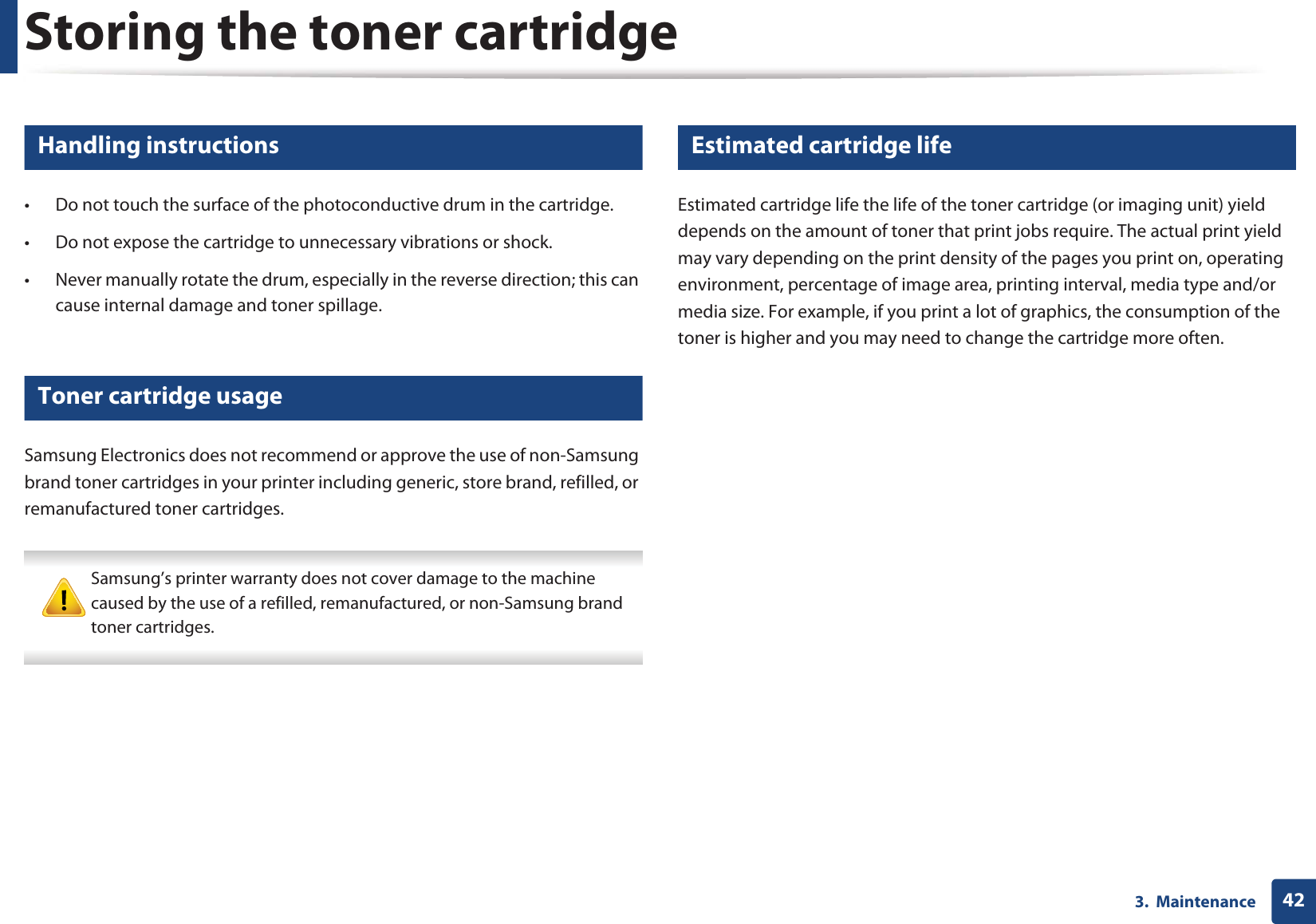

Storing the toner cartridge423. Maintenance1 Handling instructions• Do not touch the surface of the photoconductive drum in the cartridge.• Do not expose the cartridge to unnecessary vibrations or shock.• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.2 Toner cartridge usageSamsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges. Samsung’s printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges. 3 Estimated cartridge lifeEstimated cartridge life the life of the toner cartridge (or imaging unit) yield depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.
433. MaintenanceRedistributing tonerWhen the toner cartridge is near the end of its life:• White streaks or light printing occurs and/or density variation side to side.• The Toner LED blinks yellow. If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner. • Before opening the top cover, close the output support first.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric. 1 2

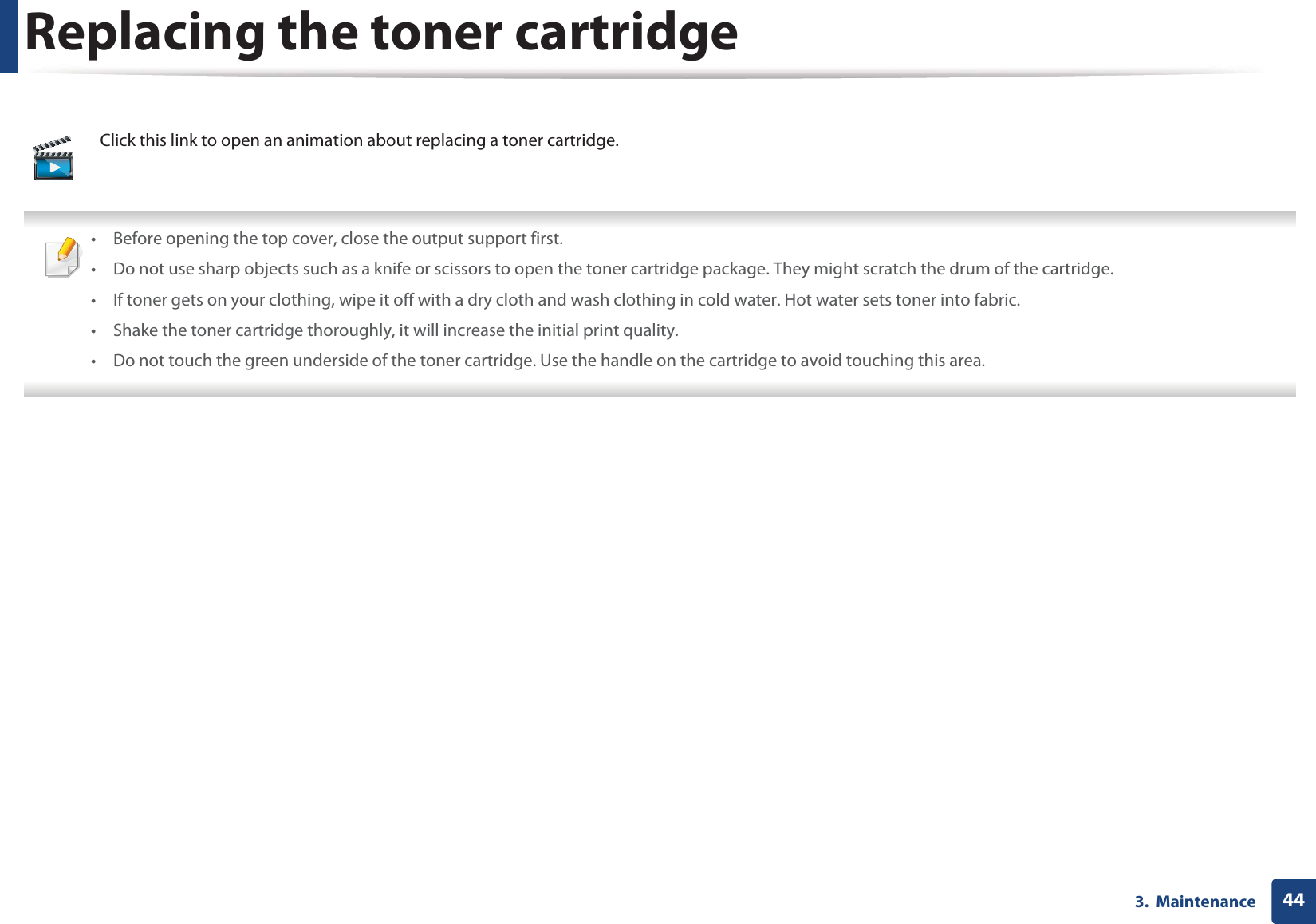

443. MaintenanceReplacing the toner cartridge • Before opening the top cover, close the output support first.• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.• Shake the toner cartridge thoroughly, it will increase the initial print quality.• Do not touch the green underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area. Click this link to open an animation about replacing a toner cartridge.
Replacing the toner cartridge453. MaintenanceWhen a toner cartridge has reached the end of life, the machine will stop printing.

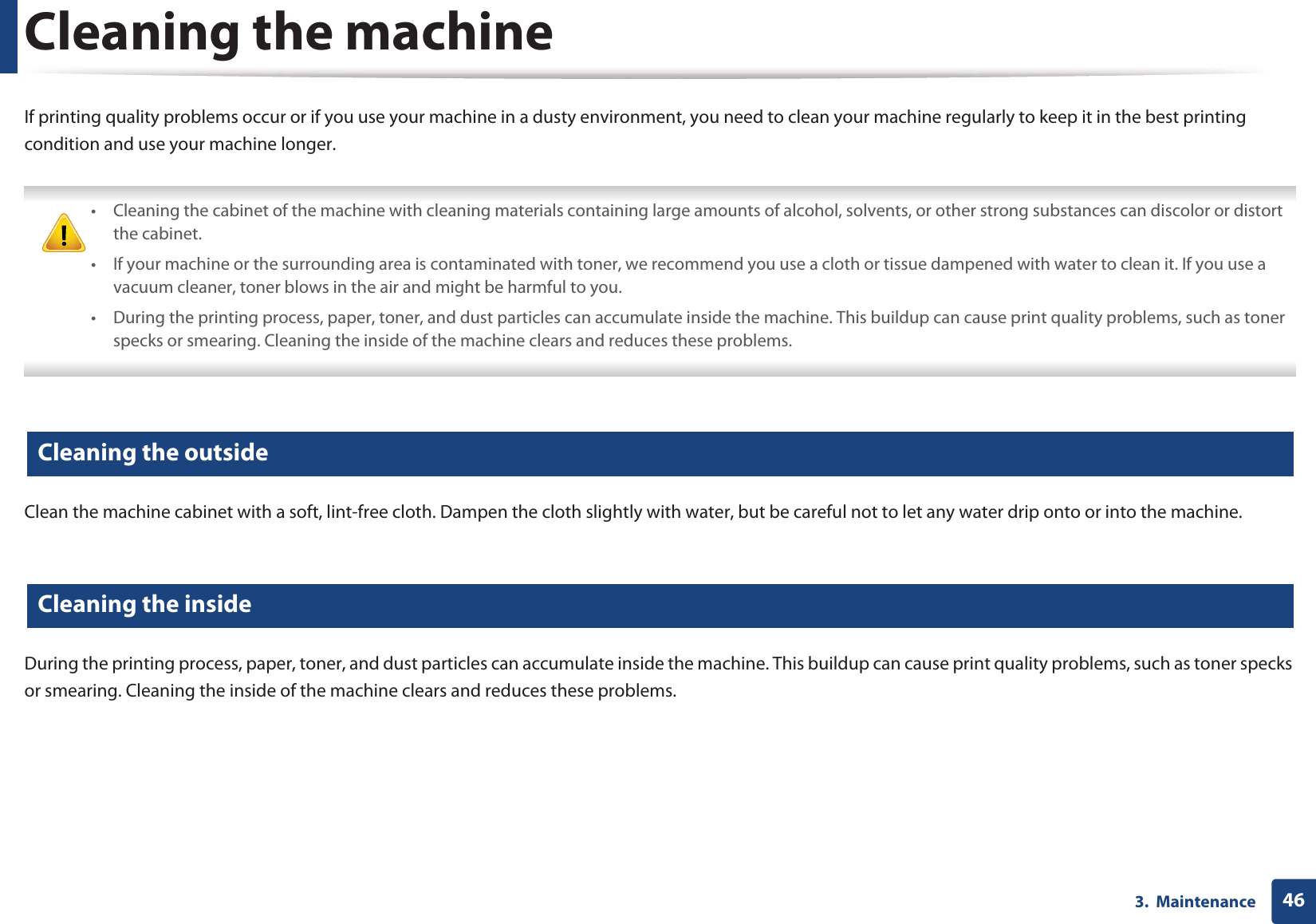

463. MaintenanceCleaning the machineIf printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer. • Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet. • If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you.• During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems. 4 Cleaning the outsideClean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.5 Cleaning the insideDuring the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems.
Cleaning the machine473. Maintenance • Use a dry lint-free cloth to clean the machine.• If your machine has a power switch, turn the power switch off before cleaning the machine.• Before opening the top cover, close the output support first. 1 2
Cleaning the machine483. Maintenance6 Cleaning the pickup roller • Use a dry lint-free cloth to clean the machine.• If your machine has a power switch, turn the power switch off before cleaning the machine.

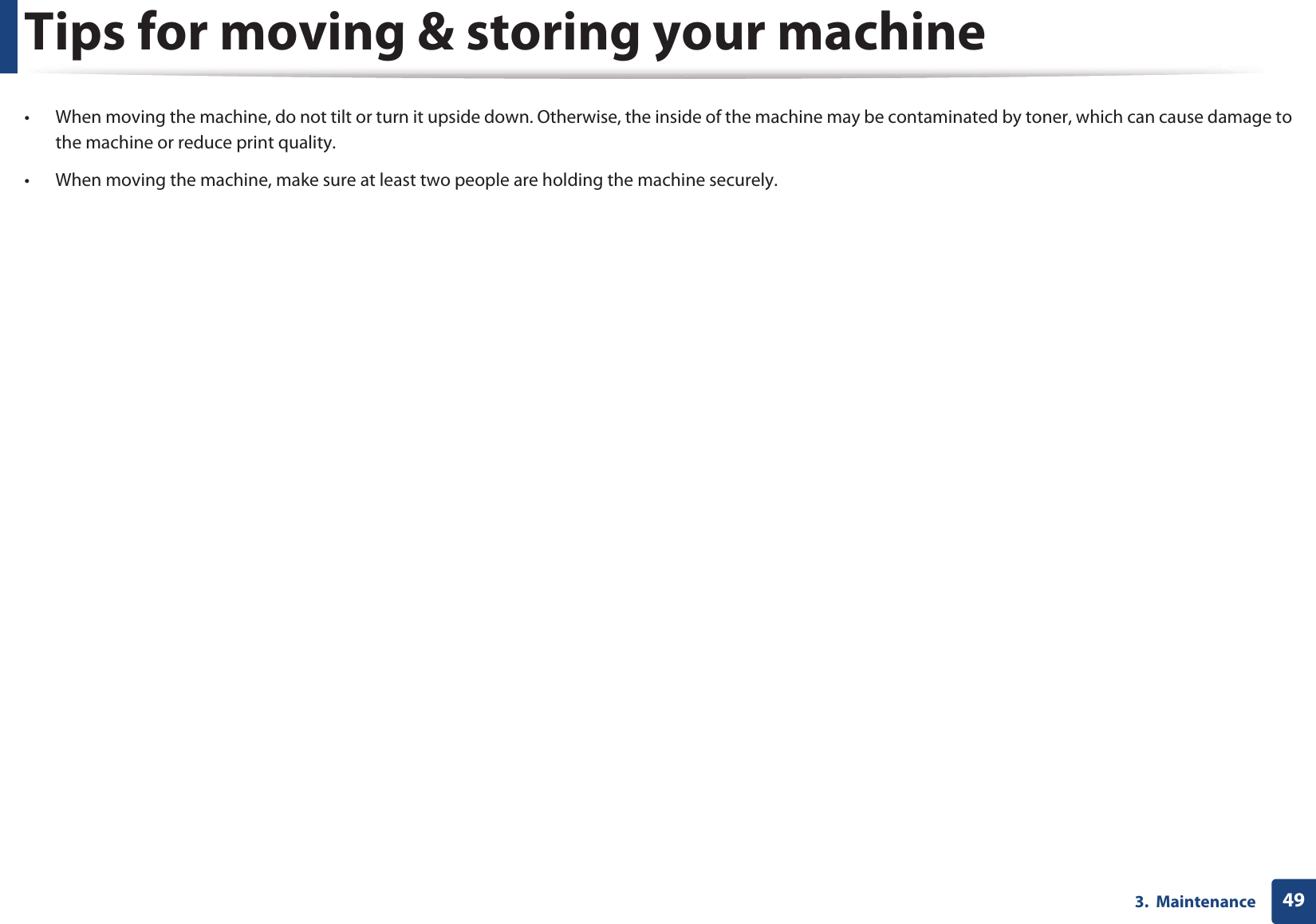

493. MaintenanceTips for moving & storing your machine• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.• When moving the machine, make sure at least two people are holding the machine securely.
4. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Tips for avoiding paper jams 51• Clearing paper jams 52• Understanding the status LED 55 This chapter gives helpful information for what to do if you encounter an error.If your machine has a display screen, check the message on the display screen first to solve the error. If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced User's Guide (see "Troubleshooting" on page 173).If you cannot find a solution in the User's Guide or the problem persists, call for service.

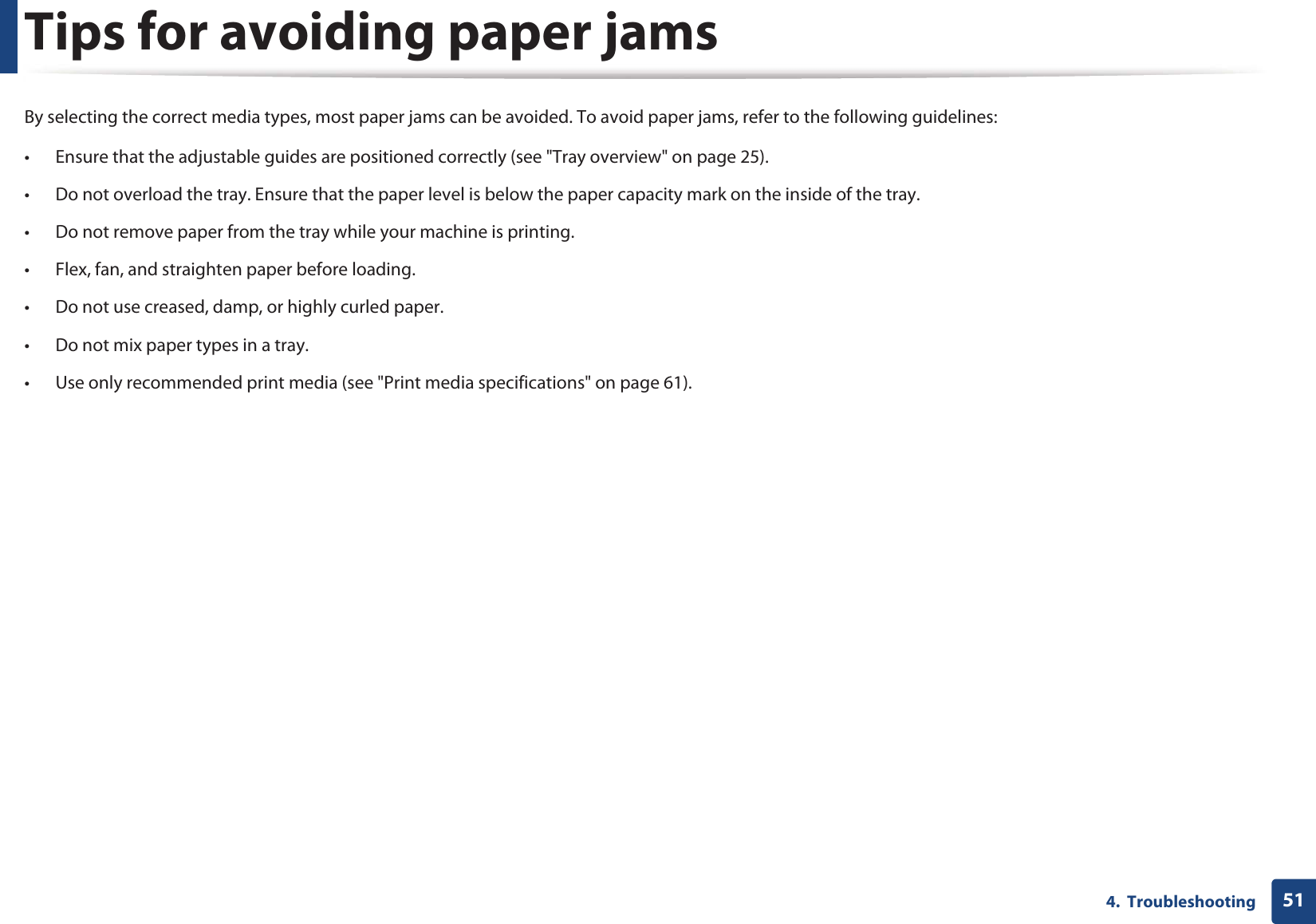

514. TroubleshootingTips for avoiding paper jamsBy selecting the correct media types, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 25).• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside of the tray.• Do not remove paper from the tray while your machine is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix paper types in a tray.• Use only recommended print media (see "Print media specifications" on page 61).

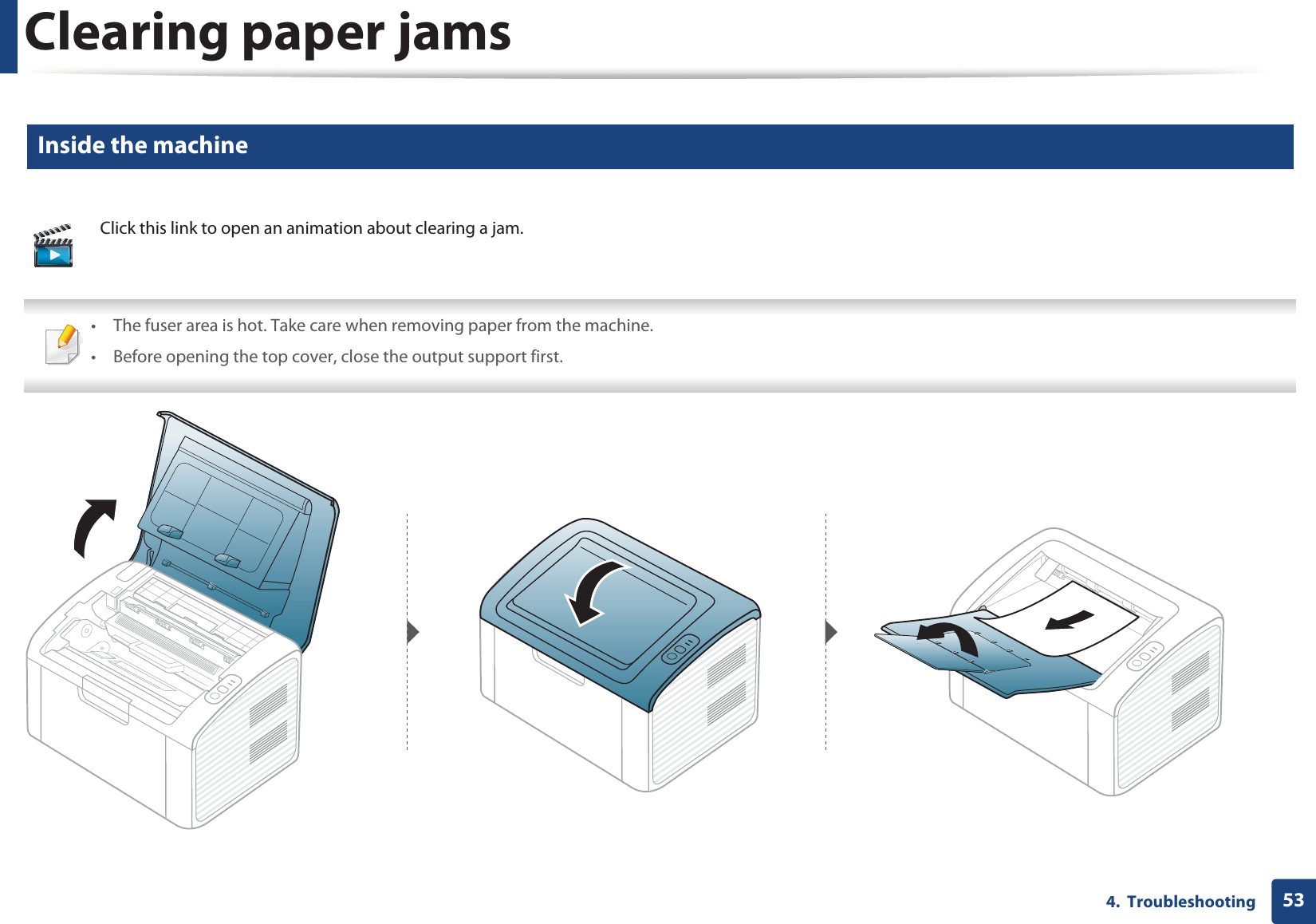

524. TroubleshootingClearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 1 In trayClick this link to open an animation about clearing a jam.
Clearing paper jams534. Troubleshooting2 Inside the machine • The fuser area is hot. Take care when removing paper from the machine.• Before opening the top cover, close the output support first. Click this link to open an animation about clearing a jam.
Clearing paper jams544. TroubleshootingIf you do not see the paper in this area, stop and go to next step:
554. TroubleshootingUnderstanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country.• To resolve the error, look at the error message and its instructions from the troubleshooting part. • You can also resolve the error with the guidelines from the Samsung Printer Status window or Smart Panel program window. • If the problem persists, call a service representative.
Understanding the status LED564. Troubleshooting3 Status LED Status Description (Status LED)Off The machine is off-line or save mode.GreenBlinking • When the backlight slowly blinks, the machine is receiving data from the computer.• When the backlight blinks rapidly, the machine is printing data. On The machine is on-line and can be used.RedBlinking Waiting for a (Print screen) button to be pressed for manual printing.On• The cover is opened. Close the cover.• There is no paper in the tray. Load paper in the tray ("Loading paper in the tray" on page 26).• The machine has stopped due to a major error. OrangeBlinking Upgrading firmware.On A paper jam has occurred (see "Clearing paper jams" on page 52).
Understanding the status LED574. Troubleshooting4 Toner LED/ WPS LEDStatus Description (Toner LED) YellowBlinkingSmall amount of toner is left in the cartridge. The estimated cartridge life of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 43).On A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 44).a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.Off All toner cartridges are at normal capacity. (WPS LED)bb. Wireless model only (see "Features by models" on page 6).BlueBlinking The machine is connecting to a wireless network.On The machine is connected to a wireless networkGOsee "Using the WPS button" on page 107).Off The machine is disconnected from a wireless network. (Power LED) BlueOn The machine is in power save mode.Off The machine is in ready modeGor the machine’s power is off.
5. AppendixThis chapter provides product specifications and information concerning applicable regulations.• Specifications 59• Regulatory information 68• Copyright 78
595. AppendixSpecifications1 General specifications The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information. Items DescriptionDimension Width x Length x Height 332 x 215 x 178 mm (13.07 x 8.46 x 7.01 inches) Weight Machine with consumables 4.95 kg (10.91 lbs)Noise LevelaReady mode Less than 26 dB (A)Print mode Less than 50 dB (A)Temperature Operation 10 to 32°C (50 to 90°F)Storage (packed) -20 to 40°C (-4 to 104°F)Humidity Operation 10 to 80% RHStorage (packed) 20 to 95% RHPower ratingb110 volt models AC 110 - 127 V220 volt models AC 220 - 240 V
Specifications605. Appendix Power consumption Average operating mode Less than 310WReady mode Less than 30 WPower save mode Less than 0.9 W (ML-216x Series), Less than 1.2 W (ML-216xW Series)Power off mode Less than 0.45 W (0.1 Wc)Wireless dModule T77H262a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and type of current (A) for your machine.c. For the machine that has a power switch.d. Wireless model only (see "Features by models" on page 6).Items Description
Specifications615. Appendix2 Print media specifications Type Size DimensionsPrint media weight/CapacityaTray Manual feeding in traybPlain paperLetter 216 x 279 mm (8.5 x 11 inches) 71 to 85 g/m2 (19 to 23 lbs bond) • 150 sheets of 80 g/m2 (21 lbs bond)71 to 85 g/m2 (19 to 23 lbs bond) • 1 sheetLegal 216 x 356 mm (8.5 x 14 inches)US Folio 216 x 330 mm (8.5 x 13 inches)A4 210 x 297 mm (8.27 x 11.69 inches)Oficio 216 x 343 mm (8.5 x 13.5 inches)JIS B5 182 x 257 mm (7.17 x 10.12 inches)ISO B5 176 x 250 mm (6.93 x 9.84 inches) Executive 184 x 267 mm (7.25 x 10.5 inches)A5 148 x 210 mm (5.83 x 8.27 inches)EnvelopeEnvelope Monarch 98 x 191 mm (3.87 x 7.5 inches) 75 to 90 g/m2 (20 to 24 lbs bond)• 10 sheets75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetEnvelope No. 10 105 x 241 mm (4.12 x 9.5 inches)Envelope DL 110 x 220 mm (4.33 x 8.66 inches)Envelope C5 162 x 229 mm (6.38 x 9.02 inches)
Specifications625. AppendixThick paper Refer to the Plain paper section Refer to the Plain paper section 86 to 120 g/m2 (23 to 32 lbs bond)• 50 sheets of 120 g/m2 (32 lbs bond)86 to 120 g/m2 (23 to 32 lbs bond)• 1 sheetThin paper Refer to the Plain paper section Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)• 160 sheets of 60 g/m2 (16 lbs bond)60 to 70 g/m2 (16 to 19 lbs bond)• 1 sheetCotton Refer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetColored Refer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetPre-printed Refer to the Plain paper section Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)• 1 sheetRecycled Refer to the Plain paper section Refer to the Plain paper section 60 to 90 g/m2 (16 to 24 lbs bond)• 150 sheets of 80 g/m2 (21 lbs bond)60 to 90 g/m2 (16 to 24 lbs bond)• 1 sheetType Size DimensionsPrint media weight/CapacityaTray Manual feeding in trayb
Specifications635. Appendix LabelscLetter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)• 10 sheets 120 to 150 g/m2 (32 to 40 lbs bond)• 1 sheetCard stockLetter, Legal, Oficio, US Folio, A4, JIS B5, ISO B5, Executive, A5,Postcard 4x6Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs bond)• 10 sheets121 to 163 g/m2 (32 to 43 lbs bond)• 1 sheetBond paper Refer to the Plain paper section Refer to the Plain paper section • 10 sheets • 1 sheetArchive Refer to the Plain paper section Refer to the Plain paper section • 100 sheets • 1 sheetMinimum size (custom) 76 x 127 mm (3 x 5 inches) 60 to 163 g/m2 (16 to 43 lbs bond)Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. Feed one sheet at a time.c. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.Type Size DimensionsPrint media weight/CapacityaTray Manual feeding in trayb
Specifications645. Appendix3 System requirementsMicrosoft® Windows® Operating systemRequirement (recommended)CPU RAM free HDD spaceWindows® 2000 Intel® Pentium® II 400 MHz (Pentium III 933 MHz) 64 MB (128 MB) 600 MBWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GBWindows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista® Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).• DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GB
Specifications655. Appendix • Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.•Windows Terminal Services is compatible with your machine.• For Windows 2000, Services Pack 4 or higher is required. Macintosh Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.4• Intel® processors• PowerPC G4/ G5• 128 MB for a powerPC based Mac (512 MB)• 512 MB for an Intel-based Mac (1 GB)1 GBMac OS X 10.5• Intel® processors• 867 MHz or faster Power PC G4/ G5512 MB (1 GB) 1 GBMac OS X 10.6 • Intel® processors 1 GB (2 GB) 1 GBMac OS X 10.7 • Intel® processors 2 GB 4 GB
Specifications665. AppendixLinux Items RequirementsOperating systemFedora 5~13 (32/ 64 bit)OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit)SuSE 10.1 (32 bit)Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit)Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)Debian 4.0, 5.0 (32/64 bit)Redhat® Enterprise Linux WS 4, 5 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)
Specifications675. Appendix4 Network environment Network and wireless models only (see "Features by models" on page 6). You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine.Items SpecificationsNetwork interface • 802.11b/g/n Wireless LANNetwork operating system• Windows 2000/Server 2003 /Server 2008/XP/Vista/7/Server 2008 R2• Various Linux OS• Mac OS X 10.4 ~ 10.7• UnixNetwork protocols• TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD• SNMPv 1/2/3, HTTP, IPSec• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)• Encryption: WEP64, WEP128, TKIP, AES
685. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1 : 2007.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.Warning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:6 Ozone safetyThis product's ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.
Regulatory information695. Appendix7 Power saver8 Recycling9 China onlyThis printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENERGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

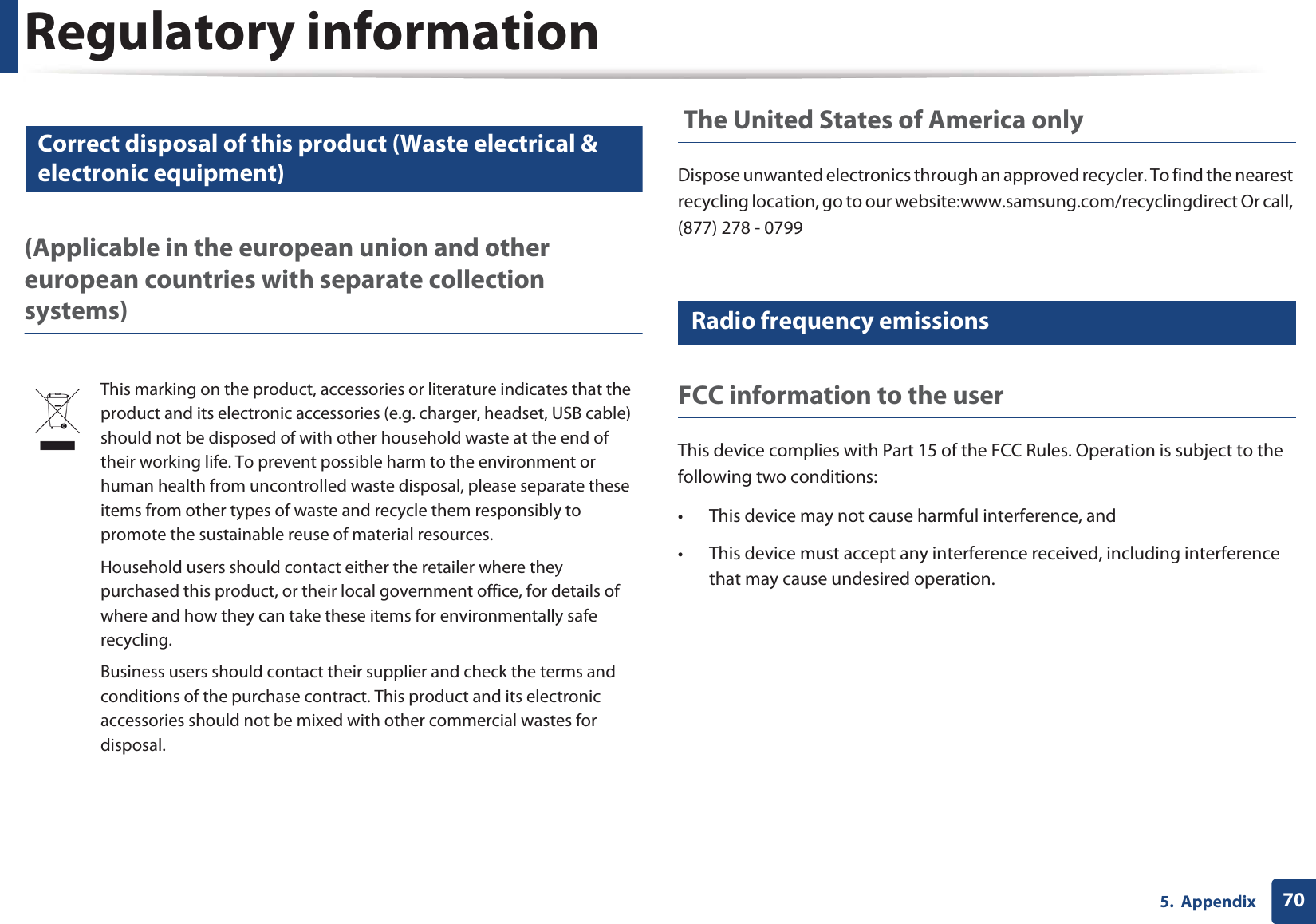

Regulatory information705. Appendix10 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in the european union and other european countries with separate collection systems) The United States of America onlyDispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect Or call, (877) 278 - 079911 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Regulatory information715. AppendixThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.12 United states of americaFederal communications commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.
Regulatory information725. AppendixThe FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service. FCC statement for wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna. 13 Russia only14 Germany only
Regulatory information735. Appendix15 Turkey only16 Replacing the fitted plug (for UK only)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: Live
Regulatory information745. Appendix17 Declaration of conformity (European countries)Approvals and CertificationsJanuary 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.• Hereby, Samsung Electronics, declares that this [ML-216x Series] is in compliance with the essential requirements and other relevant provisions of Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC).• Hereby, Samsung Electronics, declares that this [ML-216xW Series] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.
Regulatory information755. AppendixEuropean radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European states qualified under wireless approvals:EU countriesEuropean states with restrictions on use:EUIn France, the frequency range is restricted to 2454-2483.5 MHz for devices above 10 mW transmitting power such as wirelessEEA/EFTA countriesNo limitations at this time18 Regulatory compliance statementsWireless guidanceLow power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.
Regulatory information765. AppendixAs a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:19 Israel only Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.
Regulatory information775. Appendix20 China only
785. AppendixCopyright© 2011 Samsung Electronics Co., Ltd. All rights reserved.This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.• Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.• TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.• All other brand or product names are trademarks of their respective companies or organizations.Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.REV. 0.98
ADVANCEDUser’s GuideML-216x SeriesML-216xW SeriesADVANCEDUser’s GuideThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.BASICThis guide provides information concerning installation, basic operation and troubleshooting on windows.
80ADVANCED1. Software installationInstallation for Macintosh 83Reinstallation for Macintosh 84Installation for Linux 85Reinstallation for Linux 872. Using a network-connected machineUseful network programs 89Wired network setup 90Installing driver over the network 93IPv6 configuration 101Wireless network setup 1043. Special featuresAltitude adjustment 137Changing the default print settings 138Setting your machine as a default machine 139Using advanced print features 140Using Direct Printing Utility (Windows only) 148Using memory/hard drive features 149Macintosh printing 150Linux printing 152Unix printing 1544. Useful management toolsSamsung AnyWeb Print 157Easy Eco Driver 158Understanding Easy Capture Manager 159Using SyncThru™ Web Service 160Using Samsung Easy Printer Manager 163Using Samsung Printer Status 166Using Smart Panel 168Using the Linux Unified Driver Configurator 1705. TroubleshootingPaper feeding problems 174Power and cable connecting problems 175Printing problems 176Printing quality problems 180
81ADVANCEDOperating system problems 188
1. Software installationThis chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see Installing driver over the network93).• Installation for Macintosh 83• Reinstallation for Macintosh 84• Installation for Linux 85• Reinstallation for Linux 87 • If you are a Windows OS user, refer to the "Installing the driver locally" on page 21 for installing the machine’s driver.• Only use a USB cable no longer then 3 meter (118 inches).
831. Software installationInstallation for Macintosh1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message that warns that all applications will close on your computer appears, click Continue.9 Click Continue on the User Options Pane.10 Click Install. All components necessary for machine operations will be installed.If you click Customize, you can choose individual components to install.11 Enter the password and click OK.12 Installing software requires you to restart your computer. Click Continue Installation.13 After the installation is finished, click Close.14 Open the Applications folder > Utilities > Print Setup Utility.• For Mac OS X 10.5 -10.6, open the Applications folder > System Preferences and click Print & Fax.15 Click Add on the Printer List.• For Mac OS X 10.5 -10.6, click the “+” folder icon; a display window will pop up.16 Click Default Browser and find the USB connection.• For Mac OS X 10.5-10.6, click Default and find the USB connection.17 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model.• For Mac OS X 10.5-10.6, if Auto Select does not work properly, select Select a driver to use... and your machine name in Print Using. Your machine appears on the Printer List, and is set as the default machine.18 Click Add.

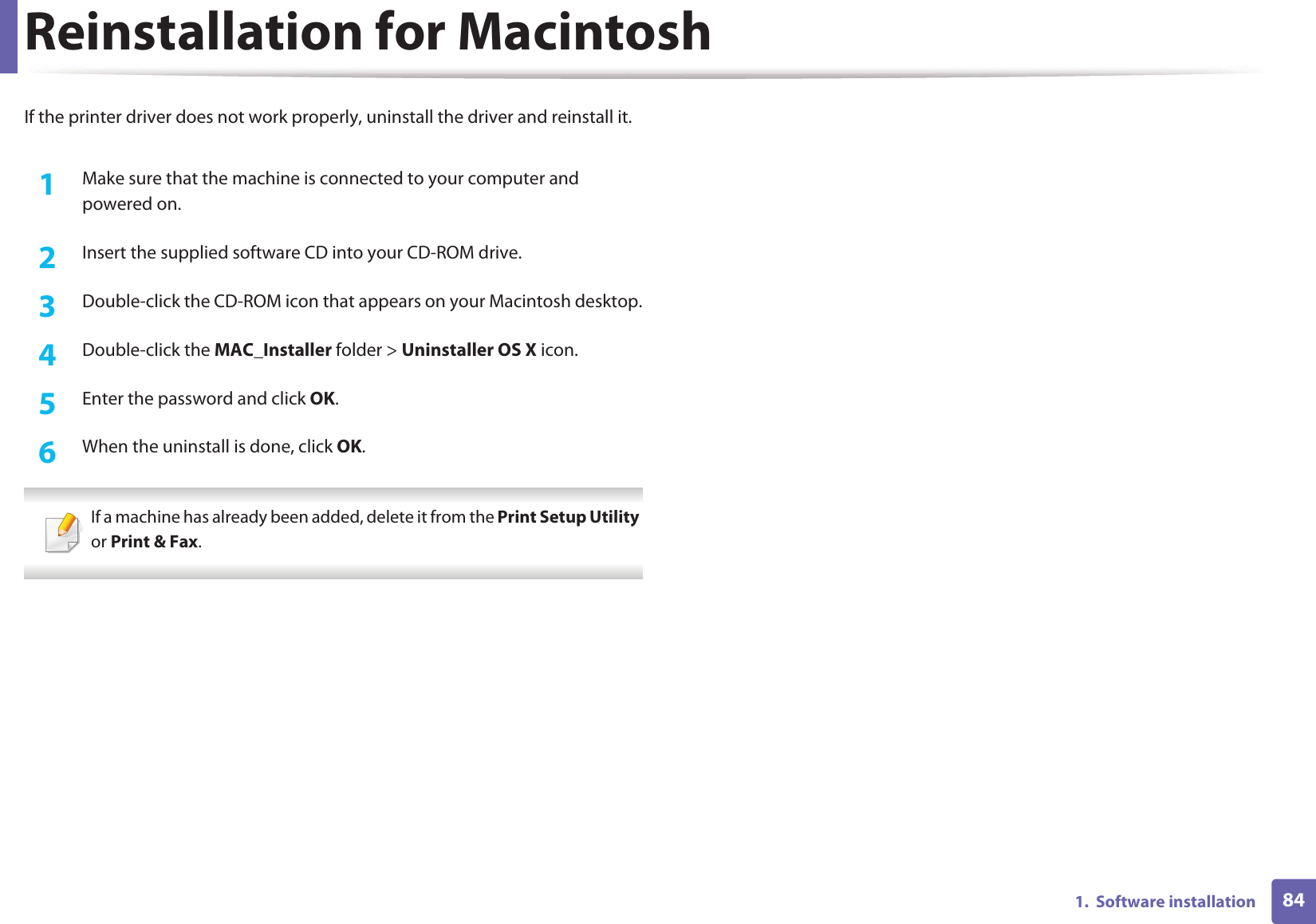

841. Software installationReinstallation for MacintoshIf the printer driver does not work properly, uninstall the driver and reinstall it.1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Uninstaller OS X icon.5 Enter the password and click OK.6 When the uninstall is done, click OK. If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.
851. Software installationInstallation for LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).1 Installing the Unified Linux Driver1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Unified Linux Driver package to your computer.4 Right-click the Unified Linux Driver package and extract the package.5 Double click cdroot > autorun.6 When the welcome screen appears, click Next.7 When the installation is complete, click Finish.The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator or Image Manager.2 Installing the Smart Panel1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type in root in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Smart Panel package to your computer.4 Right-click the Smart Panel package and extract the package. 5 Double click cdroot > Linux > smartpanel > install.sh.

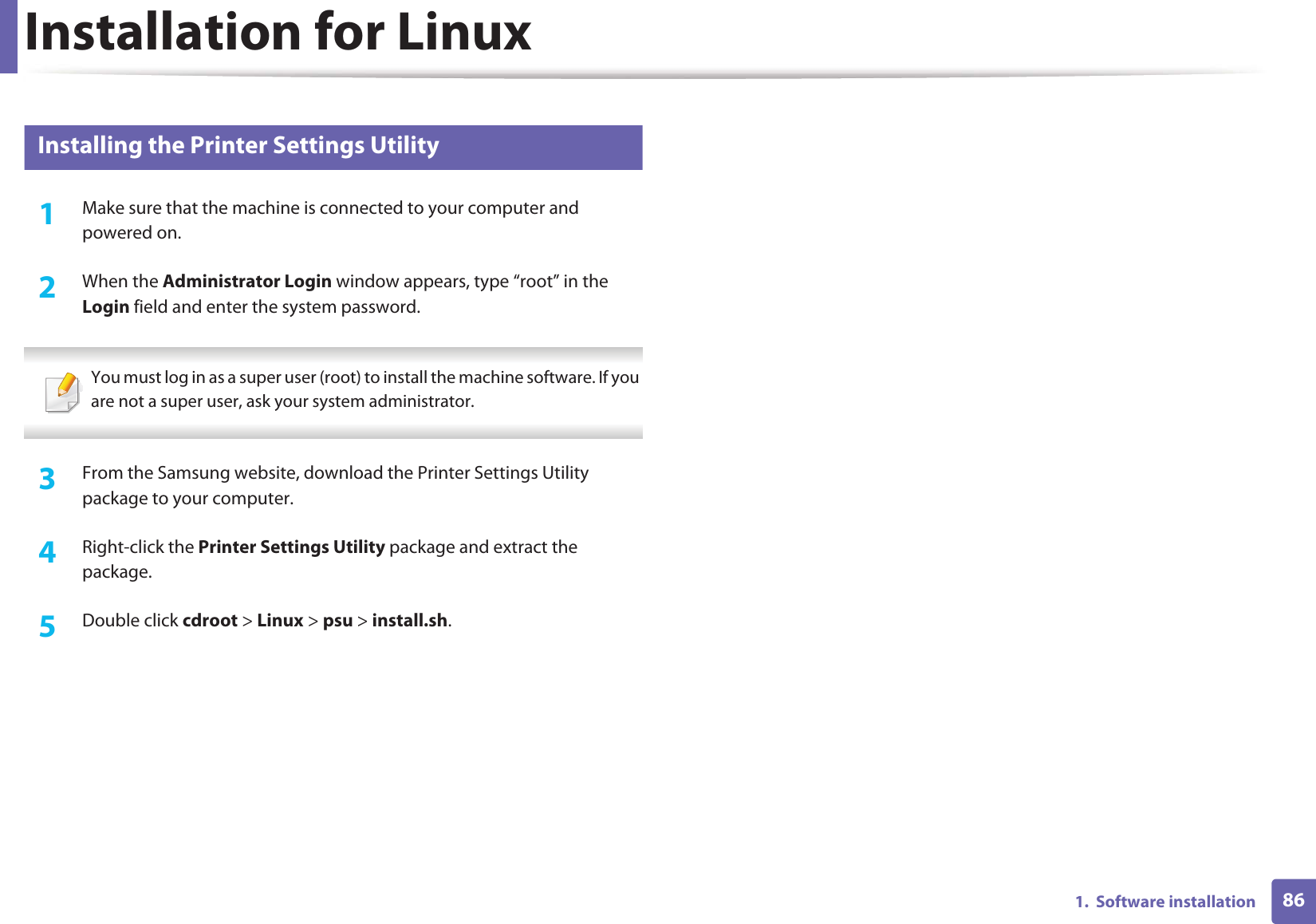

Installation for Linux861. Software installation3 Installing the Printer Settings Utility1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password. You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 3 From the Samsung website, download the Printer Settings Utility package to your computer.4 Right-click the Printer Settings Utility package and extract the package.5 Double click cdroot > Linux > psu > install.sh.

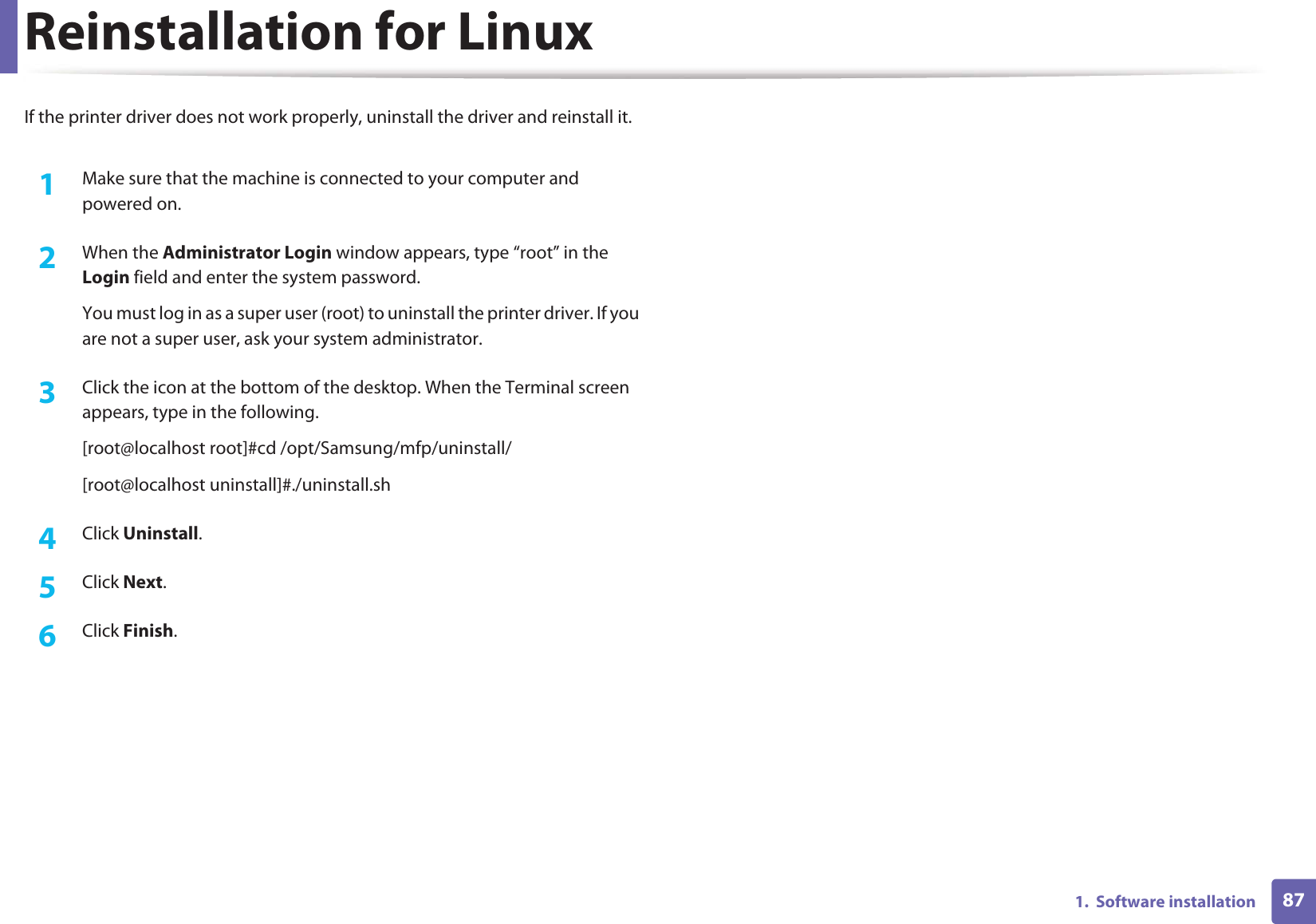

871. Software installationReinstallation for LinuxIf the printer driver does not work properly, uninstall the driver and reinstall it.1Make sure that the machine is connected to your computer and powered on.2 When the Administrator Login window appears, type “root” in the Login field and enter the system password.You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator.3 Click the icon at the bottom of the desktop. When the Terminal screen appears, type in the following.[root@localhost root]#cd /opt/Samsung/mfp/uninstall/[root@localhost uninstall]#./uninstall.sh4 Click Uninstall.5 Click Next.6 Click Finish.
2. Using a network-connected machineThis chapter gives you step-by-step instructions for setting up a network connected machine and software.• Useful network programs 89• Wired network setup 90• Installing driver over the network 93• IPv6 configuration 101• Wireless network setup 104 Supported optional devices and features may differ according to your model (see "Features by models" on page 6).

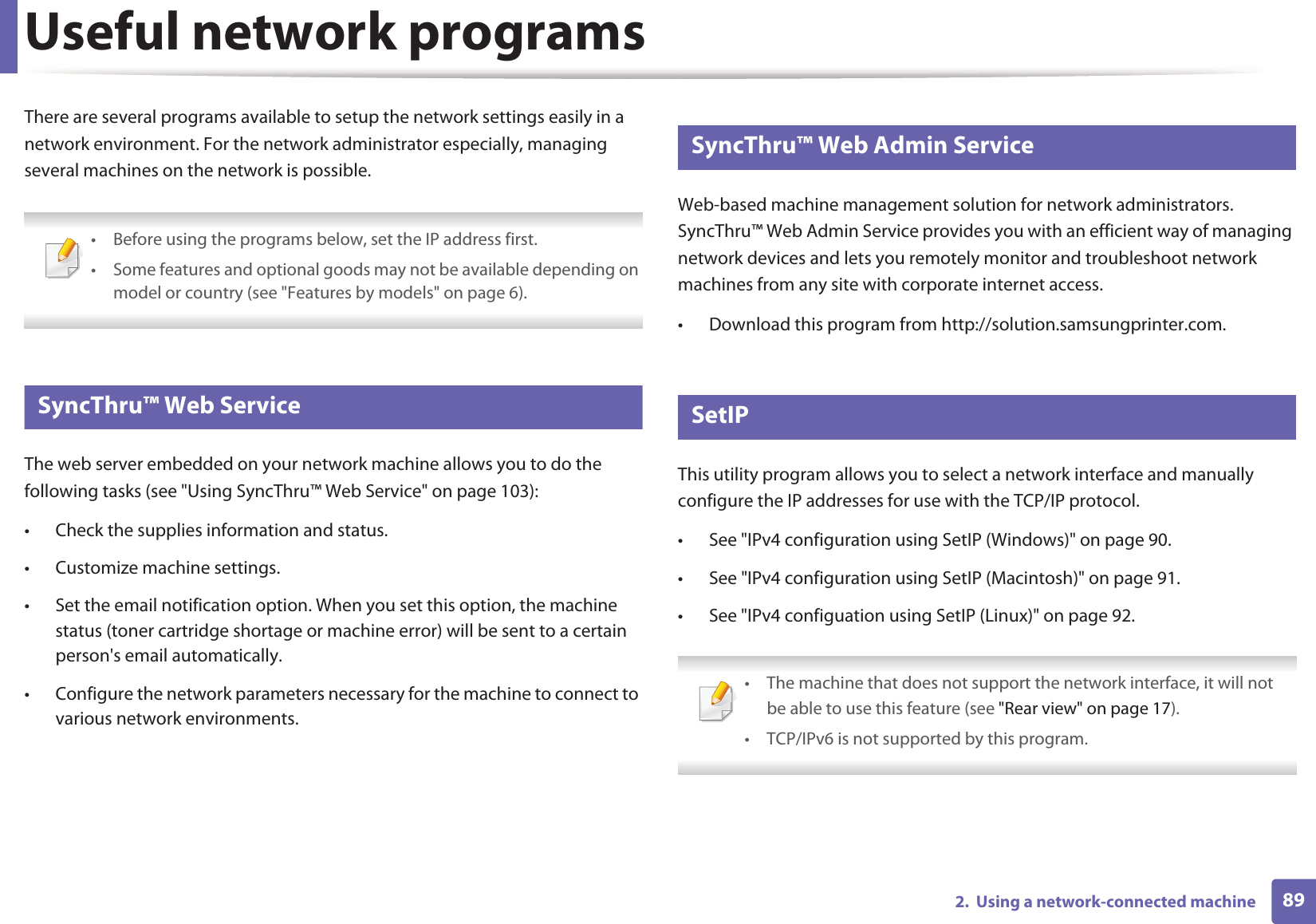

892. Using a network-connected machineUseful network programsThere are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible. • Before using the programs below, set the IP address first. • Some features and optional goods may not be available depending on model or country (see "Features by models" on page 6). 1 SyncThru™ Web ServiceThe web server embedded on your network machine allows you to do the following tasks (see "Using SyncThru™ Web Service" on page 103):• Check the supplies information and status.• Customize machine settings.• Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically.• Configure the network parameters necessary for the machine to connect to various network environments.2 SyncThru™ Web Admin ServiceWeb-based machine management solution for network administrators. SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access. • Download this program from http://solution.samsungprinter.com.3 SetIPThis utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.• See "IPv4 configuration using SetIP (Windows)" on page 90.• See "IPv4 configuration using SetIP (Macintosh)" on page 91.• See "IPv4 configuation using SetIP (Linux)" on page 92. • The machine that does not support the network interface, it will notbe able to use this feature (see "Rear view" on page 17).• TCP/IPv6 is not supported by this program.

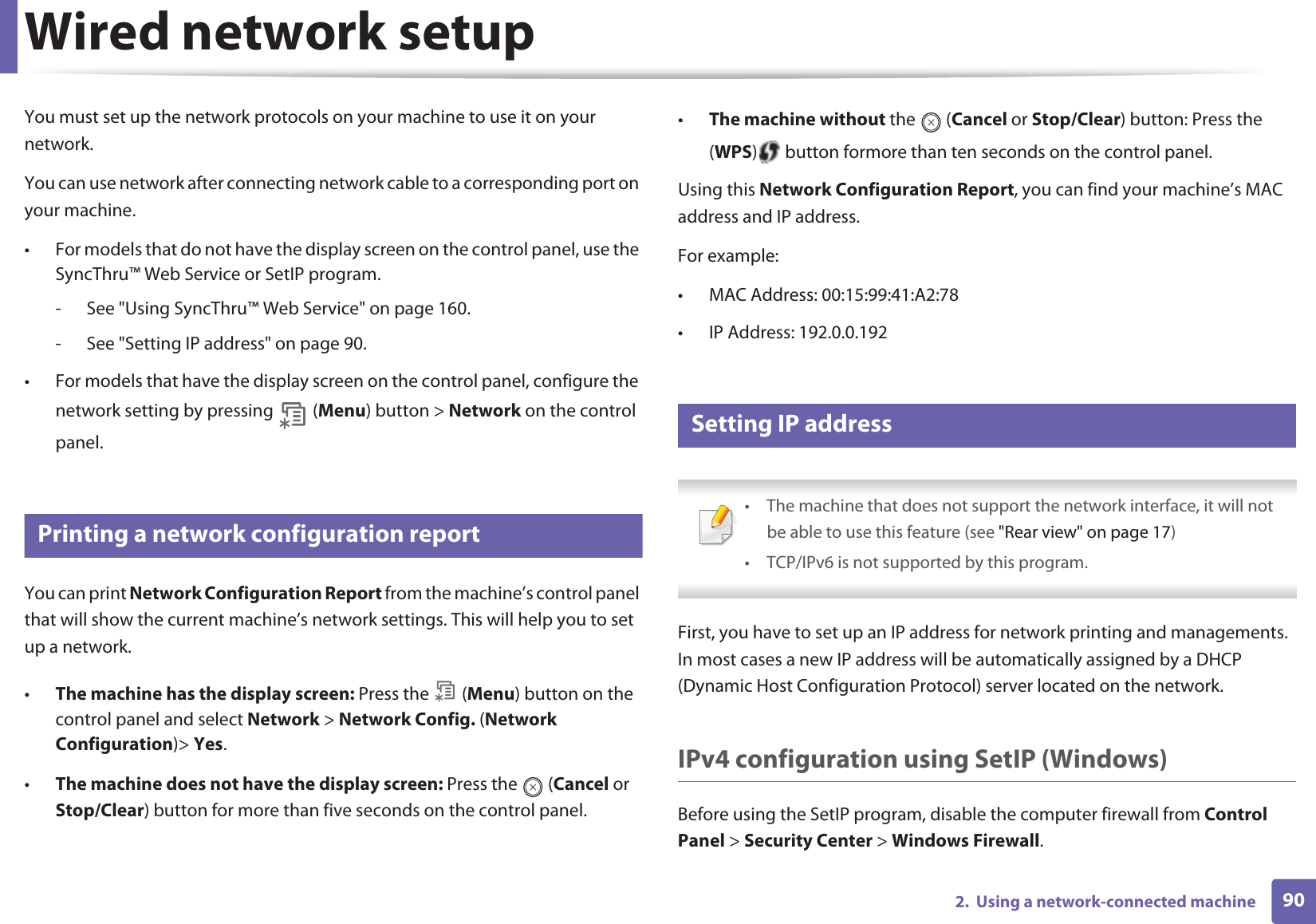

902. Using a network-connected machineWired network setupYou must set up the network protocols on your machine to use it on your network.You can use network after connecting network cable to a corresponding port on your machine. • For models that do not have the display screen on the control panel, use the SyncThru™ Web Service or SetIP program.- See "Using SyncThru™ Web Service" on page 160.- See "Setting IP address" on page 90.• For models that have the display screen on the control panel, configure the network setting by pressing (Menu) button > Network on the control panel.4 Printing a network configuration reportYou can print Network Configuration Report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network.•The machine has the display screen: Press the (Menu) button on the control panel and select Network > Network Config. (Network Configuration)> Yes.•The machine does not have the display screen: Press the (Cancel or Stop/Clear) button for more than five seconds on the control panel.•The machine without the (Cancel or Stop/Clear) button: Press the (WPS) button formore than ten seconds on the control panel. Using this Network Configuration Report, you can find your machine’s MAC address and IP address.For example:• MAC Address: 00:15:99:41:A2:78• IP Address: 192.0.0.1925 Setting IP address • The machine that does not support the network interface, it will notbe able to use this feature (see "Rear view" on page 17)• TCP/IPv6 is not supported by this program. First, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.IPv4 configuration using SetIP (Windows)Before using the SetIP program, disable the computer firewall from Control Panel > Security Center > Windows Firewall.
Wired network setup912. Using a network-connected machine1Install this program from the supplied CD-ROM by double-click Application > SetIP > Setup.exe.2 Follow the instructions in the installation window.3 Connect your machine to the network with a network cable.4 Turn on the machine.5 From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.6 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.7 Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 90) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 8 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.IPv4 configuration using SetIP (Macintosh)Before using the SetIP program, disable the computer firewall from System Preferences > Security > Firewall. The following instructions may differ for your model. 1Connect your machine to the network with a network cable.2 Insert the Installation CD-ROM, and open the disk window, select MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html.3 Double-click the file and Safari will automatically open, then select Trust. The browser will open the SetIPapplet.html page that shows the printer’s name and IP address information.
Wired network setup922. Using a network-connected machine4 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.5 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 90) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 6 Select Apply, then OK, and OK again.7 Quit Safari.IPv4 configuation using SetIP (Linux)Before using the SetIP program, disable the computer firewall from System Preferences or Administrator. The following instructions may vary from your model or operating systems. 1Open /opt/Samsung/mfp/share/utils/.2 Double-click the SetIPApplet.html file. 3 Click to open the TCP/IP configuration window. 4 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 90) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 5 The machine will automatically print the Network Configuration Report.
932. Using a network-connected machineInstalling driver over the network • The machine that does not support the network interface, it will notbe able to use this feature (see "Rear view" on page 17).• Some features and optional goods may not be available dependingon model or country (see "Features by models" on page 6). 6 Windows1Make sure that the machine is connected to the network and powered on. Also, your machine’s IP address should have been set (see "Setting IP address" on page 90). If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window. 2 Insert the supplied software CD into your CD-ROM drive.The software CD should automatically run and an installation window will appear.3 Select Install Now. The Custom Installation allows you to select the machine’s connection and choose individual components to install. Follow the instructions on the window. 4 Read License Agreement, and select I accept the terms of the License Agreement. Then, click Next.The program searches for the machine.
Installing driver over the network942. Using a network-connected machine If your machine is not found on the network or locally, an error message appears. Select the option you want and click Next. 5 The searched machines will be shown on the screen. Select the one you wish to use and click OK. If the driver searched only one machine, the confirmation window appears. 6 Follow the instructions in the installation window.Silent installation ModeSilent installation mode is an installation method that does not require any user intervention. Once you start the installation, the machine driver and software are automatically installed on you computer. You can start the silent installation by typing /s or /S in the command window.Command-line ParametersFollowing table shows commands that can be used in the command window. Following command-line are effective and operated when command is used with /s or /S. But /h, /H or /? are exceptional commands that can be operated solely. Command- line Definition Description/s or/SStarts silent installation. Installs machine drivers without prompting any UIs or user intervention./p”<port name>” or/P”<port name>”Specifies printer port. Network Port will be created by use of Standard TCP/IP Port monitor. For local port, this port must exist on system before being specified by command. Printer port name can be specified as IP address, hostname, USB local port name or IEEE1284 port name.For example• /p”xxx.xxx.xxx.xxx” in where, “xxx.xxx.xxx.xxx” means IP address for network printer. /p”USB001”, /P”LPT1:”, /p”hostname”• When installing the driver silently in Korean, type in-Setup.exe /s /L"0x0012”.
Installing driver over the network952. Using a network-connected machine/a”<dest_path>” or/A”<dest_path>”Specifies destination path for installation. The destination path should be a fully qualified path. Since machine drivers should be installed on the OS specific location, this command applies to only application software./i”<script filename>” or/I”<script filename>”Specifies customized install script file for custom operation. The script filename should be a fully qualified filename. Customized script file can be assigned for customized silent installation. This script file can be created or modified through provided installer customizing utility or by text editor.Note: This customized script file is prior than default installer setting in setup package but not prior than command-line parameters./n”<Printer name>” or/N”<Printer name>”Specifies printer name. Printer instance shall be created as specified printer name.With this parameter, you can add printer instances as your wishes.Command- line Definition Description/nd or/NDCommands not to set the installed driver as a default machine driver.It indicates installed machine driver will not be the default machine driver on your system if there are one or more printer drivers installed. If there is no installed machine driver on your system, then this option won’t be applied because Windows OS will set installed printer driver as a default machine driver./x or/XUses existing machine driver files to create printer instance if it is already installed.This command provides a way to install a printer instance that uses installed printer driver files without installing an additional driver./up”<printer name>” or/UP”<printer name>”Removes only specified printer instance and not the driver files.This command provides a way to remove only specified printer instance from your system without effecting other printer drivers. It will not remove printer driver files from your system. Command- line Definition Description
Installing driver over the network962. Using a network-connected machine7 Macintosh1Make sure that the machine is connected to your network and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message which warns that all applications will close on your computer appears, click Continue.9 Click Continue on the User Options Pane. If you have not set the IP address yet, click Set IP address and refer to "IPv4 configuration using SetIP (Macintosh)" on page 91. If you want to set the wireless setting, refer to "Setup using Macintosh" on page 120. /d or/DUninstalls all device drivers and applications from your system.This command will remove all installed device drivers and application software from your system./v”<share name>” or/V”<share name>”Shares installed machine and add other available platform drivers for Point & Print.It will install all supported Windows OS platform’s machine drivers to system and share it with specified <share name> for point and print./o or /OOpens Printers and Faxes folder after installation.This command will open Printers and Faxes folder after the silent installation./f”<log filename>” or/F”<log filename>”Specifies log filename.The default log file is created in the system temp folder if not specified.It will create a log file to a specified folder./h, /H or /? Shows Command-line Usage.Command- line Definition Description

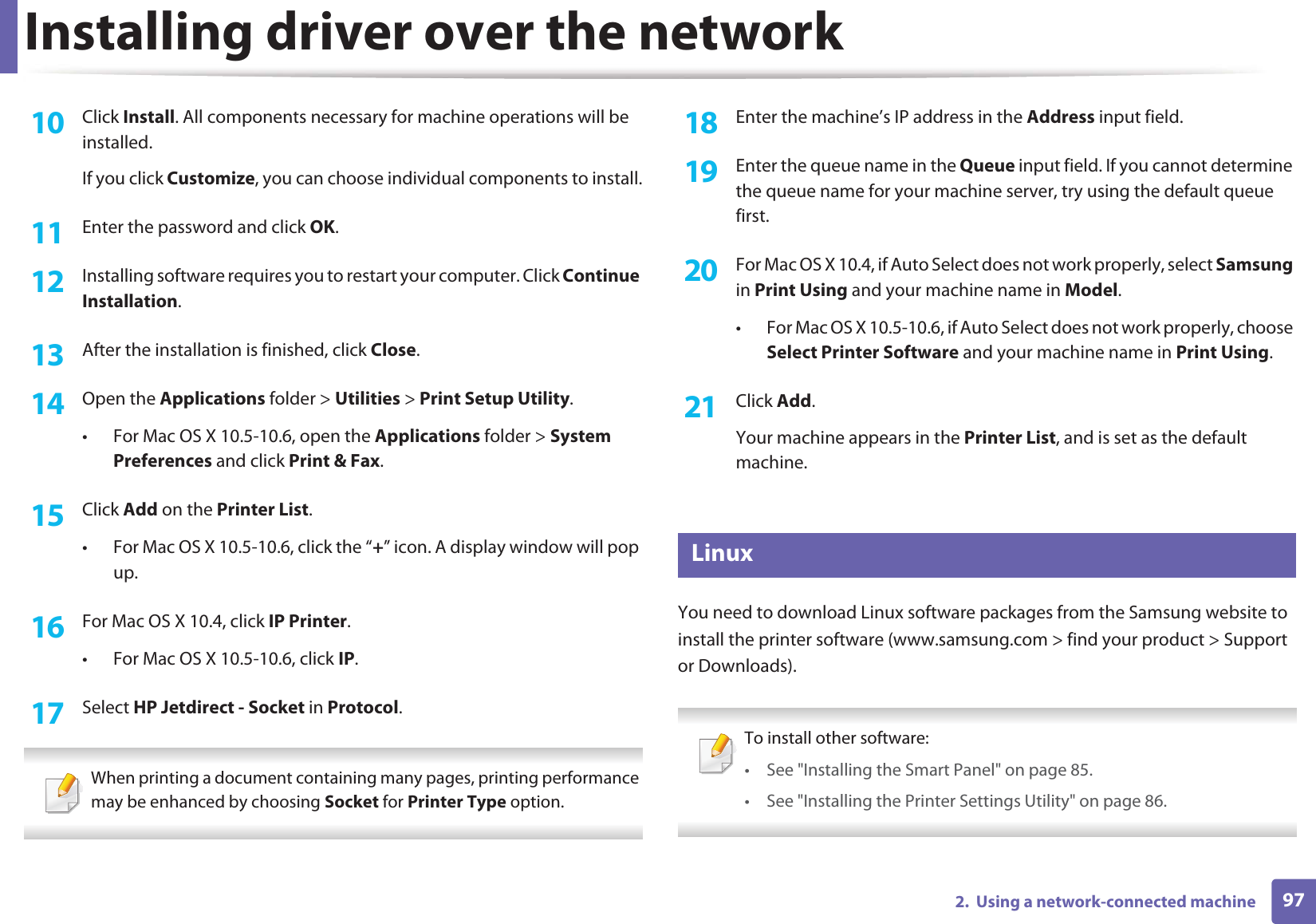

Installing driver over the network972. Using a network-connected machine10 Click Install. All components necessary for machine operations will be installed.If you click Customize, you can choose individual components to install.11 Enter the password and click OK.12 Installing software requires you to restart your computer. Click Continue Installation.13 After the installation is finished, click Close.14 Open the Applications folder > Utilities > Print Setup Utility.• For Mac OS X 10.5-10.6, open the Applications folder > System Preferences and click Print & Fax.15 Click Add on the Printer List.• For Mac OS X 10.5-10.6, click the “+” icon. A display window will pop up. 16 For Mac OS X 10.4, click IP Printer.• For Mac OS X 10.5-10.6, click IP.17 Select HP Jetdirect - Socket in Protocol. When printing a document containing many pages, printing performance may be enhanced by choosing Socket for Printer Type option. 18 Enter the machine’s IP address in the Address input field.19 Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.20 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model. • For Mac OS X 10.5-10.6, if Auto Select does not work properly, choose Select Printer Software and your machine name in Print Using.21 Click Add.Your machine appears in the Printer List, and is set as the default machine.8 LinuxYou need to download Linux software packages from the Samsung website to install the printer software (www.samsung.com > find your product > Support or Downloads). To install other software:• See "Installing the Smart Panel" on page 85.• See "Installing the Printer Settings Utility" on page 86.
Installing driver over the network982. Using a network-connected machineInstall the Linux driver and add network printer1Make sure that the machine is connected to your network and powered on. Also, your machine’s IP address should have been set. 2 Download the Unified Linux Driver package from the Samsung website.3 Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.4 Double-click the Linux folder > install.sh icon.5 The Samsung installer window opens. Click Continue.6 The add printer wizard window opens. Click Next.7 Select network printer and click Search button.8 The machine’s IP address and model name appears on list field.9 Select your machine and click Next.10 Input the printer description and Next.11 After the machine is added, click Finish.12 When installation is done, click Finish.Add a network printer1Double-click the Unified Driver Configurator.2 Click Add Printer.3 The Add printer wizard window opens. Click Next.4 Select Network printer and click the Search button.5 The printer’s IP address and model name appears on list field.6 Select your machine and click Next.7 Enter the printer description and click Next.8 After the machine is added, click Finish.9 UNIX • Make sure your machine supports the UNIX operating system before installing the UNIX printer driver (see "Features by models" on page 6)• The commands are marked with “”, when typing the commands, do not type “”.
Installing driver over the network992. Using a network-connected machineTo use the UNIX printer driver, you have to install the UNIX printer driver package first, then setup the printer. You can download the UNIX printer driver package from the Samsung website (www.samsung.com > find your product > Support or Downloads).Installing the UNIX printer driver packageThe installation procedure is common for all variants of UNIX OS mentioned.1From the Samsung website, download and unpack the UNIX Printer Driver package to your computer. 2 Acquire root privileges.“su -”3 Copy the appropriate driver archive to the target UNIX computer. See administration guide of your UNIX OS for details. 4 Unpack the UNIX printer driver package.For example, on IBM AIX, use the following commands.“gzip -d < enter the package name | tar xf -”5 Go to the unpacked directory.6 Run the install script.“./install”install is the installer script file which is used to install or uninstall the UNIX Printer Driver package.Use “chmod 755 install” command to give the permission to the installer script.7 Execute the “. /install –c” command to verify installation results.8 Run “installprinter” from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window referring to the following procedures. On some UNIX OS, for example on Solaris 10, just added printers may not be enabled and/or may not accept jobs. In this case run the following two commands on the root terminal:“accept <printer_name>”“enable <printer_name>”
Installing driver over the network1002. Using a network-connected machineUninstalling the printer driver package The utility should be used to delete the printer installed in the system.a Run “uninstallprinter” command from the terminal.It will open the Uninstall Printer Wizard.The installed printers are listed in the drop-down list.b Select the printer to be deleted.c Click Delete to delete the printer from the system.d Execute the “. /install –d” command to uninstall the whole package.e To verify removal results, execute the “. /install –c” command. To re-install it, use the command “. /install” to reinstall the binaries.Setting up the printerTo add the printer to your UNIX system, run ‘installprinter’ from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window according to the following steps:1Type the name of the printer.2 Select the appropriate printer model from the model list.3 Enter any description corresponding to the type of the printer in the Type field. This is optional.4 Specify any printer description in the Description field. This is optional.5 Specify the printer location in the Location field.6 Type the IP address or DNS name of the printer in the Device textbox for network-connected printers. On IBM AIX with jetdirect Queue type, only the DNS name is possible-numeric IP address is not allowed.7 Queue type shows the connection as lpd or jetdirect in the corresponding list box. Additionally, usb type is available on Sun Solaris OS.8 Select Copies to set the number of copies.9 Check the Collate option to receive copies already sorted.10 Check the Reverse Order option to receive copies in the reverse order.11 Check the Make Default option to set this printer as default.12 Click OK to add the printer.
1012. Using a network-connected machineIPv6 configuration IPv6 is supported properly only in Windows Vista or higher. If the IPv6 network seems to not be working, set all the network setting to the factory defaults and try again using Clear Setting. In the IPv6 network environment, follow the next procedure to use the IPv6 address.10 From the control panel1Connect your machine to the network with a network cable.2 Turn on the machine.3 Print a Network Configuration Report that will check IPv6 addresses (see "Printing a network configuration report" on page 90).4 Select Start > Control Panel > Printers and Faxes.5 Click Add a printer in the left pane of the Printers and Faxes windows.6 Click Add a local printer in the Add Printer windows.7 The Add Printer Wizard window appears. Follow the instructions in the window. If the machine does not work in the network environment, activate IPv6. Refer to the next section followed by. Activating IPv61Press the (Menu) button on the control panel.2 Press Network > TCP/IP (IPv6) > IPv6 Activate.3 Select On and press OK.4 Turn the machine off and turn it on again.5 Reinstall your printer driver.
IPv6 configuration1022. Using a network-connected machineSetting IPv6 addressesThe machine supports the following IPv6 addresses for network printing and managements.•Link-local Address: Self-configured local IPv6 address (Address starts with FE80).•Stateless Address: Automatically configured IPv6 address by a network router.•Stateful Address: IPv6 address configured by a DHCPv6 server.•Manual Address: Manually configured IPv6 address by a user.DHCPv6 address configuration (Stateful)If you have a DHCPv6 server on your network, you can set one of the following options for default dynamic host configuration.1Press the (Menu) button on the control panel.2 Press Network > TCP/IP (IPv6) > DHCPv6 Config.3 Press OK to select the required value you want.•DHCPv6 Addr.: Always use DHCPv6 regardless of router request.•DHCPv6 Off: Never use DHCPv6 regardless of router request.•Router: Use DHCPv6 only when requested by a router.11 From the SyncThru™ Web Service For models that do not have the display screen on the control panel, you need to access SyncThru™ Web Service first using the IPv4 address and follow the below procedure to use IPv6. 1Access a web browser, such as Internet Explorer, from Windows.GEnter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 If it’s your first time logging into SyncThru™ Web Service you need to log-in as an administrator.GType in the below default ID and passwordU•ID: admin•Password: sec00000 3 When the SyncThru™ Web Service window opens, move the mouse cursor over the Settings of the top menu bar and then click Network Settings.4 Click TCP/IPv6 on the left pane of the website.5 Check the IPv6 Protocol check box to activate IPv6.6 Check the Manual Address check box. Then, the Address/Prefix text box is activated.
IPv6 configuration1032. Using a network-connected machine7 Enter the rest of the address (e.g.,:3FFE:10:88:194::AAAA. “A” is the hexadecimal 0 through 9, A through F).8 Choose the DHCPv6 configuration.9 Click the Apply button.Using SyncThru™ Web Service1Start a web browser, such as Internet Explorer, that supports IPv6 addressing as a URL.2 Select one of the IPv6 addresses (Link-local Address, Stateless Address, Stateful Address, Manual Address) from Network Configuration Report (see "Printing a network configuration report" on page 90).3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]). Address must be enclosed in '[ ]' brackets.
1042. Using a network-connected machineWireless network setup • Make sure your machine supports wireless networking. Wireless networking may not be available depending on the model (see "Features by models" on page 6).• If the IPv6 network seems to not be working, set all the network settings to the factory defaults and try again using Clear Setting. 12 Getting startedUnderstanding your network typeTypically, you can only have one connection between your computer and the machine at a time.Wireless network name and network keyWireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Key are created for the network. Ask your network administrator about this information before proceeding with the machine installation.Infrastructure modeThis is an environment generally used for homes and SOHOs (Small Office/ Home Office). This mode uses an access point to communicate with the wireless machine.Ad hoc modeThis mode does not use an access point. The wireless computer and wireless machine communicate directly.
Wireless network setup1052. Using a network-connected machine13 Introducing wireless set up methodsYou can set wireless settings either from the machine or the computer. Choose the setting method from the below table. Some wireless network installation types may not be available depending on the model or country. Set up method Connecting method Description & ReferenceFrom the machine’s control panelUsing the WPS (recommended)()• See "Machines with a display screen" on page 108.• See "Machines without a display screen" on page 109.Using the menu button()• See "Using the menu button" on page 110.
Wireless network setup1062. Using a network-connected machine If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see "Troubleshooting" on page 133). From the computerAccess point via USB cable (recommended)()• Windows user, see "Access point via USB cable" on page 111.• Macintosh user, see "Access point via USB cable" on page 120.Access point via WPS button (without a USB cable connection)( , )• Windows user, see "Access point via WPS button (without a USB cable connection)" on page 115.• Macintosh user, see "Setting the access point using the WPS button" on page 124.Ad hoc via USB cable()• Windows user, see "Ad hoc via USB cable" on page 117.• Macintosh user, see "Ad hoc via USB cable" on page 126.Using a network cable • See "Using a network cable" on page 128.Other set up methods Setting the Wi-Fi Direct for mobile printing • See "Setting up Wi-Fi Direct" on page 132.Set up method Connecting method Description & Reference
Wireless network setup1072. Using a network-connected machine14 Using the WPS button If your machine and an access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), you can easily configure the wireless network settings by pressing the (WPS) button on the control panel without a computer. • If you want to use the wireless network using the infrastructure mode, make sure that the network cable is disconnected from the machine. Using the WPS (PBC) button or entering the PIN from the computer to connect to the access point (or wireless router) varies depending on the access point (or wireless router) you are using. Refer to the user's guide of the access point (or wireless router) you are using.•When using the WPS button to set the wireless network, security settings may change. To prevent this, lock the WPS option for the current wireless security settings. The option name may differ depending on the access point (or wireless router) you are using. Items to prepare• Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).• Check if your machine supports Wi-Fi Protected Setup™ (WPS).• Networked computer (PIN mode only)Choosing your typeThere are two methods available to connect your machine to a wireless network using the (WPS) button on the control panel.The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by pressing both the (WPS) button on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router) respectively.The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router).Factory default in your machine is PBC mode, which is recommended for a typical wireless network environment. You can change the WPS mode in control panel ( (Menu) > NetworkG>GWireless > OK > WPS Setting).
Wireless network setup1082. Using a network-connected machineMachines with a display screenConnecting in PBC mode1Press and hold the (WPS) button on the control panel for more than 2 seconds.The machine starts waiting for up to two minutes until you press the WPS (PBC) button on the access point (or wireless router).2 Press the WPS (PBC) button on the access point (or wireless router).The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the access point (or wireless router).b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.c AP SSID: After completing the wireless network connection process, the AP’s SSID information appears on the display.Connecting in PIN mode1Press and hold the (WPS) button on the control panel for more than 2 seconds.2 The eight-digit PIN appears on the display. You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the wireless network.b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.c SSID Type: After completing the wireless network connection process, the AP’s SSID information is displayed on the LCD display.
Wireless network setup1092. Using a network-connected machineMachines without a display screenConnecting in PBC mode1Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).2 Press the WPS (PBC) button on the access point (or wireless router).a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router). b When the machine is successfully connected to the wireless network, the WPS LED light stays on.Connecting in PIN mode1The network configuration report, including PIN, must be printed (see "Printing a network configuration report" on page 90).In ready mode, Press the (Cancel or Stop/Clear) button for more than five seconds on the control panel. The machine without the (Cancel or Stop/Clear) button: Press the (WPS) button formore than ten seconds on the control panel. You can find your machine’s PIN.2 Press and hold the (WPS) button on the control panel for more than 4 seconds until the status LED stays on.The machine starts connecting to the access point (or wireless router).3 You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The LED blinks slowly for up to two minutes until you enter the eight-digit PIN.The WPS LED blinks in the order below:a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).b When the machine is successfully connected to the wireless network, the WPS LED light stays on.
Wireless network setup1102. Using a network-connected machineRe-connecting to a networkWhen the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address. In the following cases, the machine automatically re-connects to the wireless network:• The machine is turned off and on again.• The access point (or wireless router) is turned off and on again. Canceling the connection processTo cancel the wireless network connection when the machine is connecting to the wireless network, press and release the (Cancel or Stop/Clear) or (Power)button on the control panel. You need to wait 2 minutes to re-connect to the wireless network.Disconnecting from a networkTo disconnect the wireless network connection, press the (WPS) button on the control panel for more than two seconds.•When the Wi-Fi network is in idle mode: The machine is immediately disconnected from the wireless network and the WPS LED turns off.•When the Wi-Fi network is being used: While the machine waits until the current job is finished, the light blinks fast on the WPS LED. Then, the wireless network connection is automatically disconnected and the WPS LED turns off.15 Using the menu button Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine Before starting, you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.
Wireless network setup1112. Using a network-connected machine After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 93). 1Press the (Menu) button on the control panel.2 Press Network > Wireless > WLAN Settings.3 Press the OK to select the setup method you want.•Wizard (recommended): In this mode, the setup is automatic. The machine will display a list of available networks from which to choose. After a network is chosen then printer will prompt for the corresponding security key.•Custom: In this mode, users can give or edit manually their own SSID , or choose the security option in detail. 16 Setup using Windows Shortcut to the Wireless Setting program without the CD: If you have installed the printer driver once, you can access the Wireless Setting program without the CD. From the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Wireless Setting Program. Access point via USB cableItems to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableCreating the infrastructure network1Check whether the USB cable is connected to the machine.2 Turn on your computer, access point, and machine.3 Insert the supplied software CD into your CD-ROM drive.4 Select the Wireless Setting and Installation option.5 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.6 The software searches the wireless network.If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instructions in the window.
Wireless network setup1122. Using a network-connected machine • If wireless network set up has been set before, the Wireless Network Setting Information window appears.If you want to reset the wireless settings, check the check box and click Next.• For models that support the WPS button (without a USB cable connection), the window shown below will appear.-With a USB Cable: Connect the USB cable and click Next, then go to step 7.-Using the WPS Button: See "Access point via WPS button (without a USB cable connection)" on page 115. 7 Select the method to use from the wireless set up method window.•Configure the wireless settings manually.: Go to step 8.•Configure the wireless settings by pressing the WPS button on the access point.: Connect to the wireless network by press the WPS button on the access point (or wireless router).- Follow the instructions in the window. When you are done configuring the wireless network settings, go to step 11. 8 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you are using and click Next.
Wireless network setup1132. Using a network-connected machine If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).•Operation Mode: Select Infrastructure.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on a WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase), which is manually configured on the access point and each of its clients.•Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES, TKIP AES).•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index. The wireless network security window appears when the access point has security settings.The wireless network security window appears. The window may differ according to its security mode: WEP or WPA.•WEPSelect Open System or Shared Key for authentication and enter the WEP security key. Click Next.WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.•WPAEnter the WPA shared key and click Next.WPA authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.
Wireless network setup1142. Using a network-connected machine9 The window shows the wireless network settings and checks if the settings are correct. Click Next.• For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the window. If it shows Static, click Change TCP/IP to change the assignment method to DHCP.• For the Static methodIf the IP address assignment method is Static, check if Static is shown in the window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine. Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer is set to DHCP, you must contact the network administrator to get the static IP address.For example,If the computer’s network information is as shown below,- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as follows:- IP address: 169.254.133.43 - Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.110 When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next.If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.11 Wireless network setting is completed. To print from a Wi-Fi Direct supported mobile device, set the Wi-Fi Direct Option (see "Setting up Wi-Fi Direct" on page 132). Wi-Fi Direct Option: • Wi-Fi Direct option appears on the screen only if your printer supports this feature.• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 132).
Wireless network setup1152. Using a network-connected machine•Network Name(SSID): The default Network Name is the model name and the maximum length is 22 characters (not including "Direct-xx-").•Network Key is the numeric string, and the size is 8 ~ 64 characters. 12 When the wireless network set up is completed, disconnect the USB cable between the computer and machine. Click Next.13 Click Next when the Confirm Printer Connection window appears.14 Select the components to be installed. Click Next.15 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.16 After installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and go to step 18.17 If the test page prints out correctly, click Yes.If not, click No to reprint it.18 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.Access point via WPS button (without a USB cable connection)For models that have a WPS button, you can set the wireless network using the WPS button (without a USB connection) and access point (or a router) WPS button.Items to prepare• Access point (or wireless router)• Network-connected computer• Software CD that was provided with your machine• The machine installed with a wireless network interfaceCreating the infrastructure network1Turn on your computer, access point, and machine.2 Insert the supplied software CD into your CD-ROM drive.3 Select the Wireless Setting and Installation option.4 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.

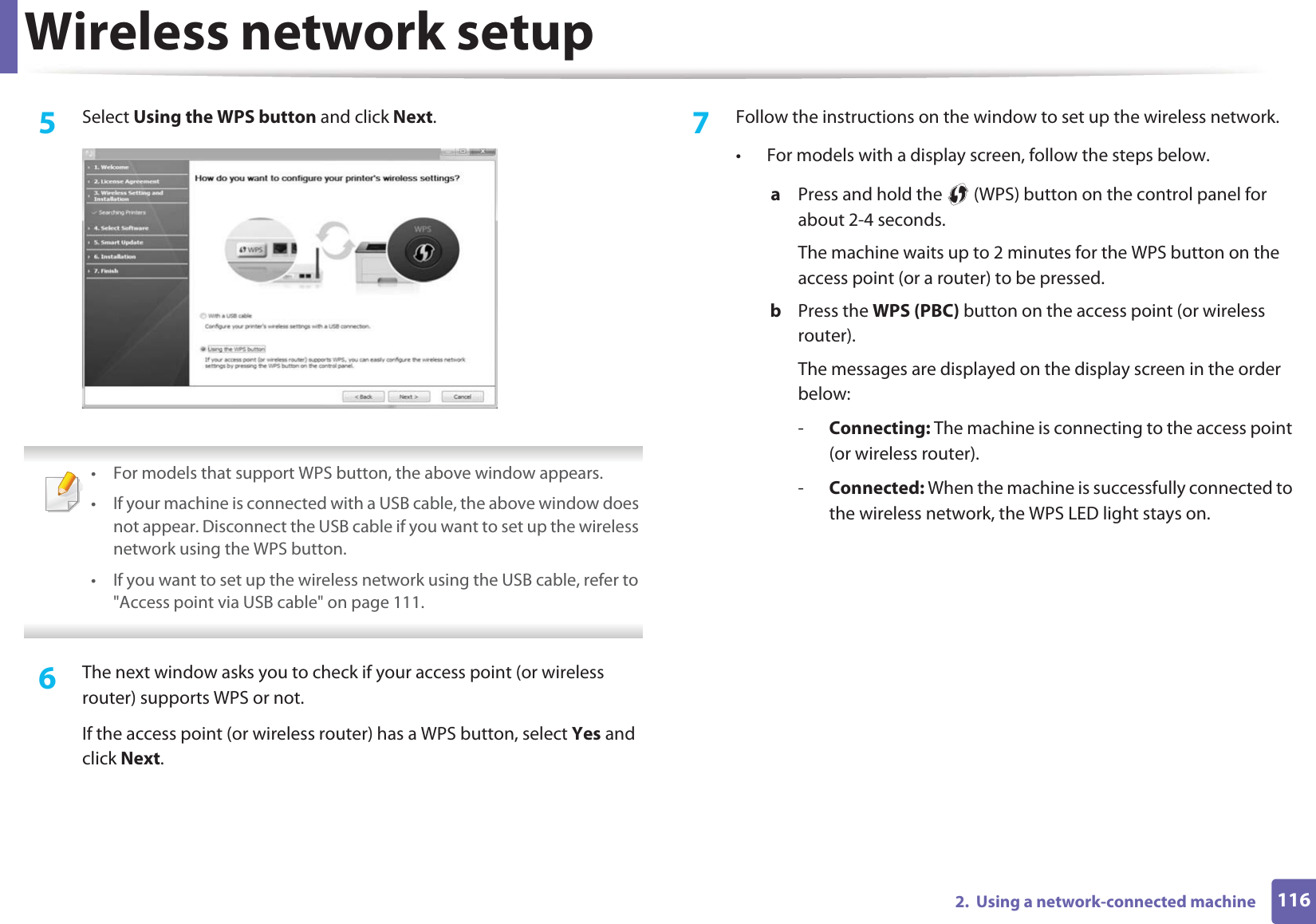

Wireless network setup1162. Using a network-connected machine5 Select Using the WPS button and click Next. • For models that support WPS button, the above window appears.• If your machine is connected with a USB cable, the above window does not appear. Disconnect the USB cable if you want to set up the wireless network using the WPS button. • If you want to set up the wireless network using the USB cable, refer to "Access point via USB cable" on page 111. 6 The next window asks you to check if your access point (or wireless router) supports WPS or not.If the access point (or wireless router) has a WPS button, select Yes and click Next.7 Follow the instructions on the window to set up the wireless network.• For models with a display screen, follow the steps below.a Press and hold the (WPS) button on the control panel for about 2-4 seconds.The machine waits up to 2 minutes for the WPS button on the access point (or a router) to be pressed.b Press the WPS (PBC) button on the access point (or wireless router). The messages are displayed on the display screen in the order below:-Connecting: The machine is connecting to the access point (or wireless router).-Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.
Wireless network setup1172. Using a network-connected machine-SSID Type: After completing the wireless network connection process, the AP’s SSID information appears on the display.• For models without a display screen, follow the steps below.a Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).b Press the WPS (PBC) button on the access point (or wireless router).- The light blinks fast on the WPS LED while it is connecting to the access point (or wireless router).- When the machine is successfully connected to the wireless network, the WPS LED light stays on.8 The Wireless Network Setting Complete window appears. Click Next.9 Click Next when the Confirm Printer Connection window appears.10 Select the components to be installed. Click Next.11 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.12 After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and go to step 14.13 If the test page prints out correctly, click Yes.If not, click No to reprint it.14 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.Ad hoc via USB cableIf you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad-hoc wireless network by following the simple steps below.Items to prepare• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cable
Wireless network setup1182. Using a network-connected machineCreating the ad hoc network in Windows1Check whether the USB cable is connected to the machine.2 Turn on your computer and the wireless network machine.3 Insert the supplied software CD into your CD-ROM drive.4 Select the Wireless Setting and Installation option.5 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.6 The software searches the wireless network. If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instructions in the window. 7 After searching the wireless networks, a list of wireless networks your machine has searched appears.If you want to use the Samsung default ad hoc setting, select the last wireless network on the list, Network Name(SSID) is Portthru and Signal is Printer Self Network.Then, click Next.If you want to use other ad hoc settings, select another wireless network from the list. If you want to change the ad hoc settings, click the Advanced Setting button.•Enter the wireless Network Name: Enter the SSID name you want (SSID is case-sensitive).•Operation Mode: Select ad hoc.•Channel: Select the channel. (Auto Setting or 2412 MHz to 2467 MHz).•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.•Encryption: Select the encryption (None, WEP64, WEP128).•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the ad hoc network has security enabled.Select Open System or Shared Key for the authentication and click Next.• WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key. 8 The window showing the wireless network setting appears. Check the settings and click Next.
Wireless network setup1192. Using a network-connected machine Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.If your computer is set to DHCP and you want to use the Static wireless network setting, you must contact the network administrator to get the static IP address.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.For example,If the computer’s network information is as shown follows:- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as below:- IP address: 169.254.133.43- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.1 9 The Wireless Network Setting Complete window appears. Click Next.10 When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click Next. If the Change PC Network Setting window appears, follow the steps in the window.Click Next if you are finished with the computer’s wireless network settings.If you set the computer’s wireless network to DHCP, it will take several minutes to receive the IP address. 11 Click Next when the Confirm Printer Connection window appears.12 Select the components to be installed. Click Next.13 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.14 After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and go to step 16.15 If the test page prints out correctly, click Yes.If not, click No to reprint it.
Wireless network setup1202. Using a network-connected machine16 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.17 Setup using MacintoshItems to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableAccess point via USB cable1Check whether the USB cable is connected to the machine.2 Turn on your computer, access point, and machine.3 Insert the supplied software CD into your CD-ROM drive.4 Double-click the CD-ROM icon that appears on your Macintosh desktop.5 Double-click the MAC_Installer folder > Installer OS X icon.6 Click Continue.7 Read the license agreement and click Continue.8 Click Agree to agree to the license agreement.9 When the message that warns that all applications will close on your computer appears, click Continue.10 Click Wireless Network Setting button on the User Options Pane.11 The software searches the wireless network.If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instructions in the window.

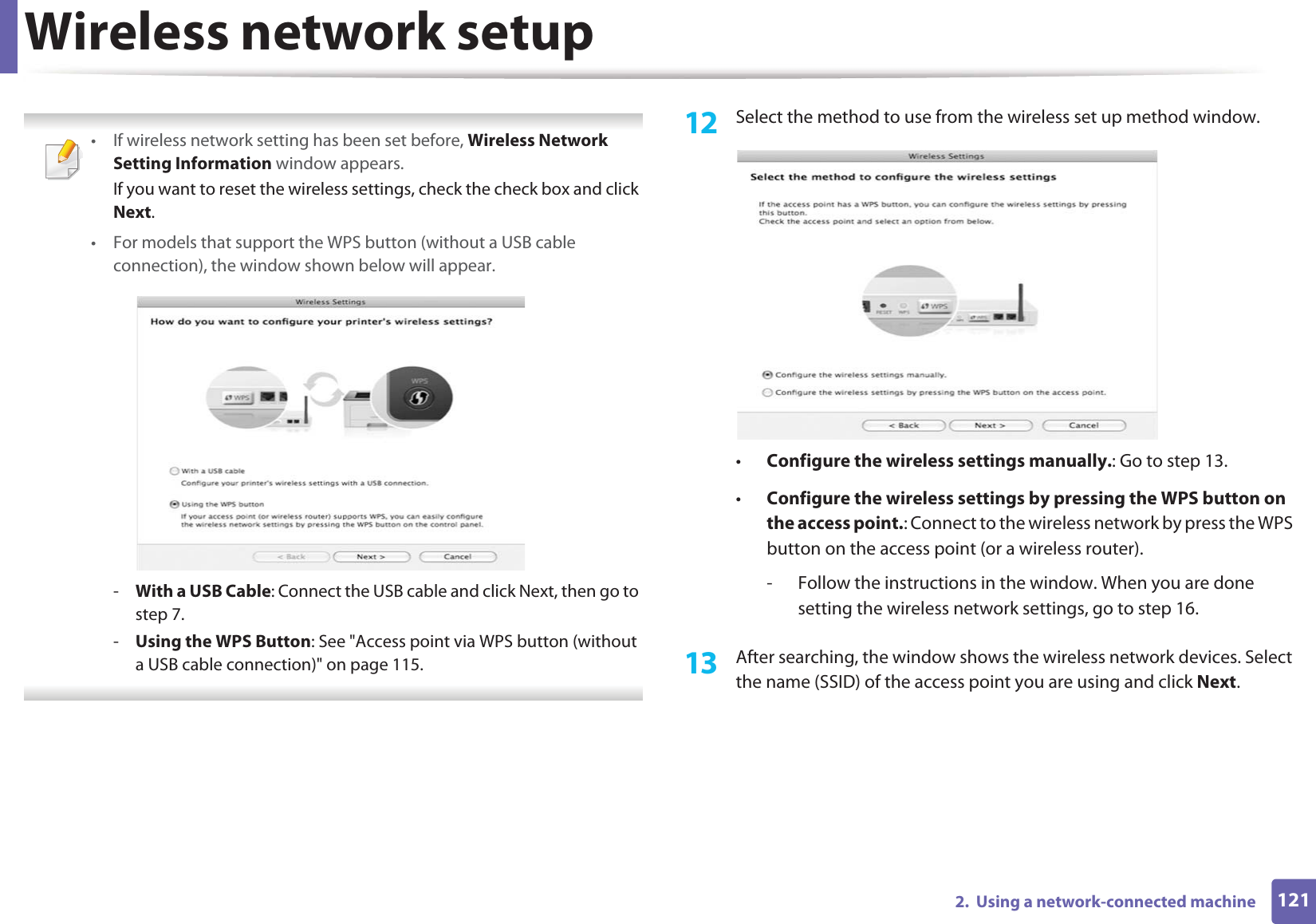

Wireless network setup1212. Using a network-connected machine • If wireless network setting has been set before, Wireless Network Setting Information window appears.If you want to reset the wireless settings, check the check box and click Next.• For models that support the WPS button (without a USB cable connection), the window shown below will appear.-With a USB Cable: Connect the USB cable and click Next, then go to step 7.-Using the WPS Button: See "Access point via WPS button (without a USB cable connection)" on page 115. 12 Select the method to use from the wireless set up method window.•Configure the wireless settings manually.: Go to step 13.•Configure the wireless settings by pressing the WPS button on the access point.: Connect to the wireless network by press the WPS button on the access point (or a wireless router).- Follow the instructions in the window. When you are done setting the wireless network settings, go to step 16. 13 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you are using and click Next.
Wireless network setup1222. Using a network-connected machine When you set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).•Operation Mode: Select Infrastructure.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on the WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) that is manually configured on the access point and each of its clients.•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES, TKIP, AES)•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the access point has security enabled.The wireless network security window appears. The window may differ according to its security mode: WEP or WPA.•WEPSelect Open System or Shared Key for the authentication and enter the WEP security key. Click Next.WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.•WPAEnter the WPA shared key and click Next.WPA authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.

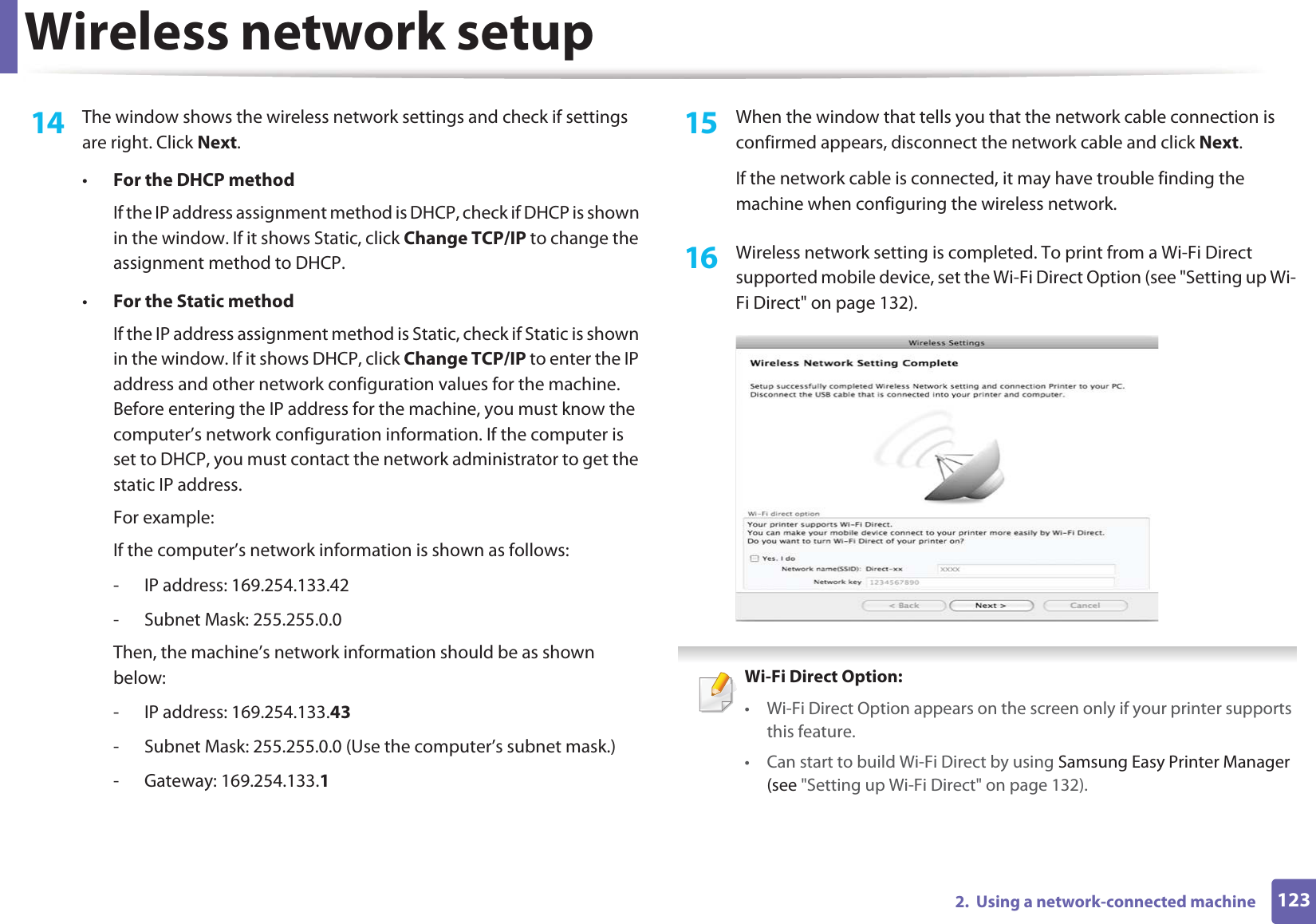

Wireless network setup1232. Using a network-connected machine14 The window shows the wireless network settings and check if settings are right. Click Next.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the window. If it shows Static, click Change TCP/IP to change the assignment method to DHCP.•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine. Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer is set to DHCP, you must contact the network administrator to get the static IP address.For example:If the computer’s network information is shown as follows:- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as shown below:- IP address: 169.254.133.43- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.115 When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next.If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.16 Wireless network setting is completed. To print from a Wi-Fi Direct supported mobile device, set the Wi-Fi Direct Option (see "Setting up Wi-Fi Direct" on page 132). Wi-Fi Direct Option: • Wi-Fi Direct Option appears on the screen only if your printer supports this feature.• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 132).

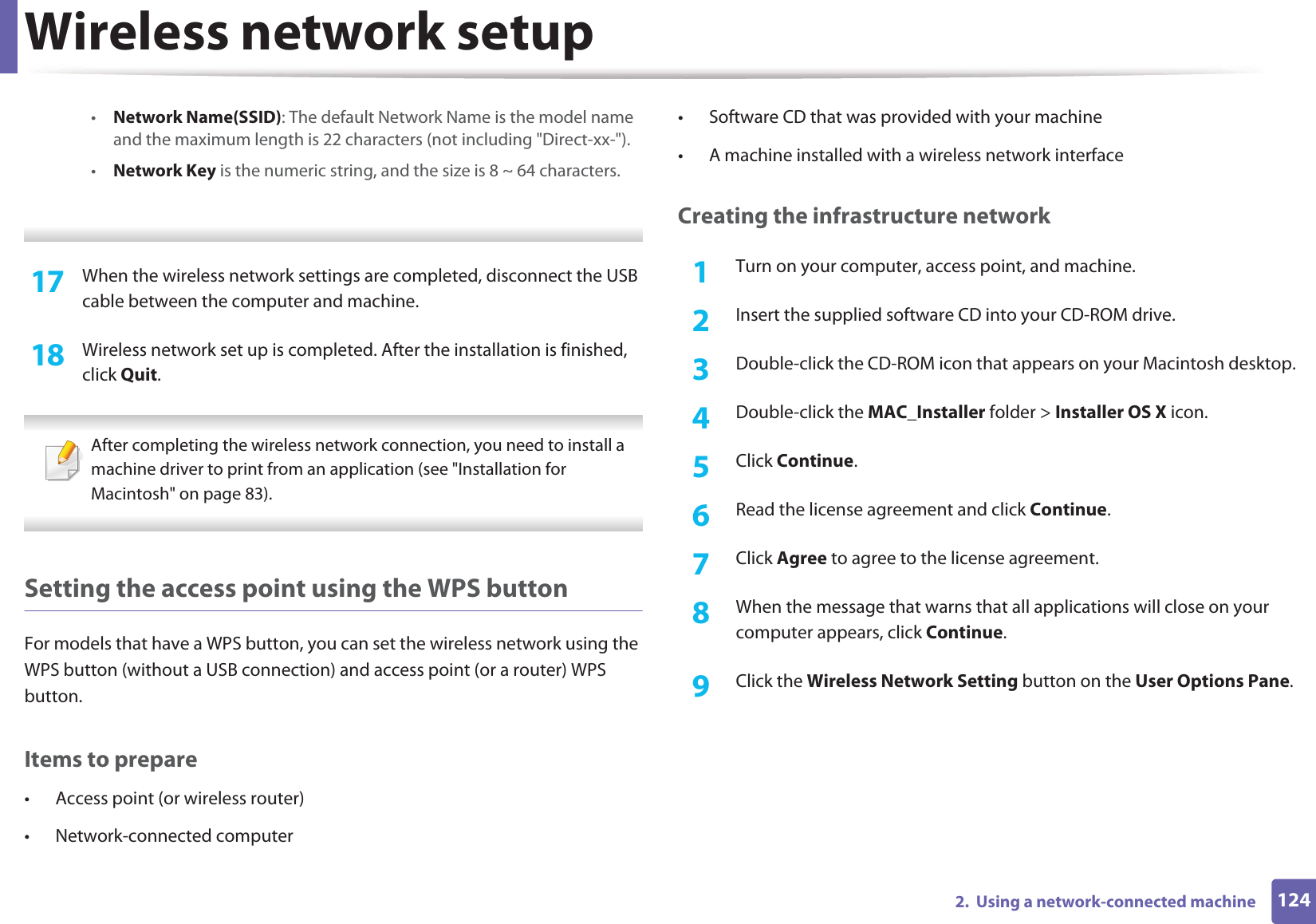

Wireless network setup1242. Using a network-connected machine•Network Name(SSID): The default Network Name is the model name and the maximum length is 22 characters (not including "Direct-xx-").•Network Key is the numeric string, and the size is 8 ~ 64 characters. 17 When the wireless network settings are completed, disconnect the USB cable between the computer and machine.18 Wireless network set up is completed. After the installation is finished, click Quit. After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installation for Macintosh" on page 83). Setting the access point using the WPS buttonFor models that have a WPS button, you can set the wireless network using the WPS button (without a USB connection) and access point (or a router) WPS button.Items to prepare• Access point (or wireless router)• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interfaceCreating the infrastructure network1Turn on your computer, access point, and machine.2 Insert the supplied software CD into your CD-ROM drive.3 Double-click the CD-ROM icon that appears on your Macintosh desktop.4 Double-click the MAC_Installer folder > Installer OS X icon.5 Click Continue.6 Read the license agreement and click Continue.7 Click Agree to agree to the license agreement.8 When the message that warns that all applications will close on your computer appears, click Continue.9 Click the Wireless Network Setting button on the User Options Pane.
Wireless network setup1252. Using a network-connected machine10 Select Using the WPS button and click Next. • For models that support the WPS button, the above window appears.• If your machine is connected with a USB cable, the above window does not appear. Disconnect the USB cable if you want to set up the wireless network using the WPS button. • If you want to set up the wireless network using the USB cable, refer to "Access point via USB cable" on page 120. 11 The next window asks you to check if your access point (or wireless router) supports WPS or not.If the access point (or wireless router) has a WPS button, select Yes and click Next.12 Follow the instructions in the window to set up the wireless network.• For models with a display screen, follow the steps below:a Press and hold the (WPS) button on the control panel for about 2-4 seconds.The machine waits up to 2 minutes for the WPS button on the access point (or a router) to be pressed.b Press the WPS (PBC) button on the access point (or wireless router). The messages are displayed on the display screen in the order below:-Connecting: The machine is connecting to the access point (or wireless router).-Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.
Wireless network setup1262. Using a network-connected machine-SSID Type: After completing the wireless network connection process, the AP’s SSID information appears on the display.• For models without a display screen, follow the steps below:a Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).b Press the WPS (PBC) button on the access point (or wireless router).- The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).- When the machine is successfully connected to the wireless network, the WPS LED light stays on.13 Wireless network set up is completed. After installation is finished, click Quit. After completing the wireless network connection, you need to install a machine driver to print from an application (see "Setup using Macintosh" on page 120). Ad hoc via USB cableIf you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad hoc wireless network by following these simple directions.Items to prepare• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableCreating the ad hoc network in Macintosh1Check whether the USB cable is connected to the machine.2 Turn on your computer and the wireless network machine.3 Insert the supplied software CD into your CD-ROM drive.4 Double-click the CD-ROM icon that appears on your Macintosh desktop.5 Double-click the MAC_Installer folder > Installer OS X icon.6 Click Continue.7 Read the license agreement and click Continue.
Wireless network setup1272. Using a network-connected machine8 Click Agree to agree to the license agreement.9 When the message that warns that all applications will close on your computer appears, click Continue.10 Click Wireless Network Setting button on the User Options Pane.11 The software searches for wireless network devices. If the search has failed, check if the USB cable is connected between the computer and machine properly, and follow the instructions in the window. 12 After searching the wireless networks, a list of wireless networks your machine has searched appears.If you want to use the Samsung default ad hoc setting, select the last wireless network on the list, which Network Name(SSID) is Portthru and Signal is Printer Self Network.Then, click Next.If you want to use other ad hoc settings, select another wireless network from the list. If you want to change ad hoc settings, click the Advanced Setting button.•Enter the wireless Network Name: Enter the SSID name (SSID is case-sensitive).•Operation Mode: Select ad hoc.•Channel: Select the channel (Auto Setting or 2412 MHz to 2467 MHz).•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.•Encryption: Select the encryption (None, WEP64, WEP128).•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the ad hoc network has security setting.Select Open System or Shared Key for the authentication and click Next.• WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key. 13 The window showing the wireless network settings appears. Check the settings and click Next.
Wireless network setup1282. Using a network-connected machine Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.If your computer is set to DHCP and you want to use Static wireless network setting, you must contact the network administrator to get the static IP address.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.For example,If the computer’s network information is shown as follows:- IP address: 169.254.133.42- Subnet Mask: 255.255.0.0Then, the machine’s network information should be as shown below:- IP address: 169.254.133.43- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)- Gateway: 169.254.133.1 14 When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next.If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.15 The wireless network connects according to the network configuration.16 Wireless network set up is completed. After installation is finished, click Quit. After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installation for Macintosh" on page 83). 18 Using a network cable Machines that do not support the network interface will not be able to use this feature (see "Rear view" on page 17). Your machine is a network compatible machine. To enable your machine to work with your network, you will need to perform some configuration procedures.

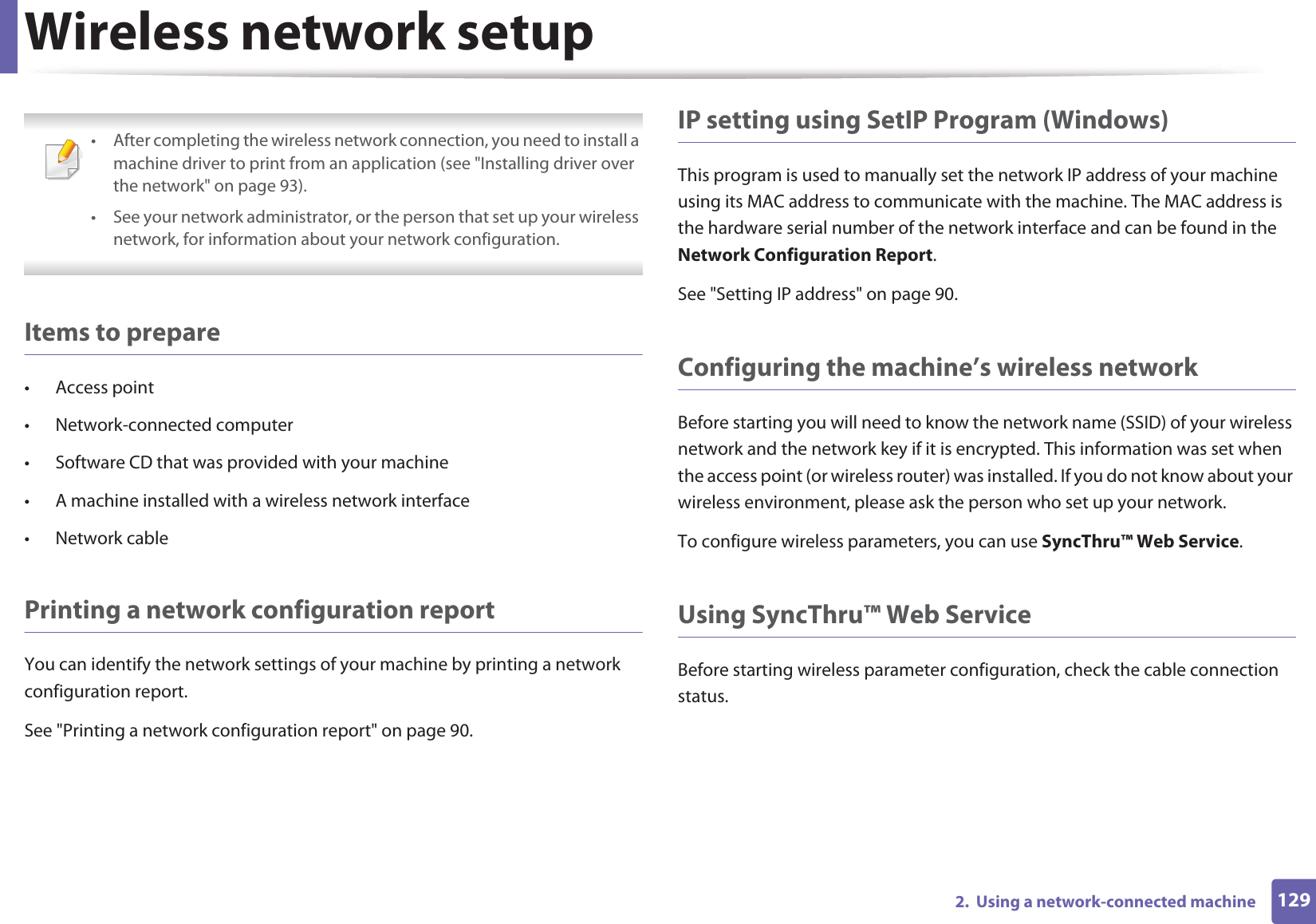

Wireless network setup1292. Using a network-connected machine • After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 93).• See your network administrator, or the person that set up your wireless network, for information about your network configuration. Items to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• Network cablePrinting a network configuration reportYou can identify the network settings of your machine by printing a network configuration report.See "Printing a network configuration report" on page 90.IP setting using SetIP Program (Windows)This program is used to manually set the network IP address of your machine using its MAC address to communicate with the machine. The MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report. See "Setting IP address" on page 90.Configuring the machine’s wireless networkBefore starting you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.To configure wireless parameters, you can use SyncThru™ Web Service.Using SyncThru™ Web ServiceBefore starting wireless parameter configuration, check the cable connection status.
Wireless network setup1302. Using a network-connected machine1Check whether or not the network cable is connected to the machine. If not, connect the machine with a standard network cable.2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.For example,3 Click Login on the upper right of the SyncThru™ Web Service website.4 Type in the ID and Password then click Login.•ID: admin •Password: sec000005 When the SyncThru™ Web Service window opens, click Network Settings.6 Click Wireless > Wizard. Wizard will help you setup the wireless network configuration. However, if you want to set the wireless network directly, select Custom. 7 Select the one Network Name(SSID) in the list.•SSID: SSID (Service Set Identifier) is a name that identifies a wireless network, access points, and wireless devices attempting to connect to a specific wireless network must use the same SSID. The SSID is case sensitive.•Operation Mode: Operation Mode refers to the type of wireless connections (see "Wireless network name and network key" on page 104).-Ad-hoc: Allows wireless devices to communicate directly with each other in a peer-to-peer environment.-Infrastructure: Allows wireless devices to communicate with each other through an access point. If your network’s Operation Mode is Infrastructure, select the SSID of the access point. If the Operation Mode is Ad-hoc, select the machine’s SSID. Note that “portthru” is the default SSID of your machine. 8 Click Next.If the wireless security setting window appears, enter the registered password (network key) and click Next.9 The confirmation window appears, please check your wireless setup. If the setup is right, click Apply.
Wireless network setup1312. Using a network-connected machine Disconnect the network cable (standard or network). Your machine should then start communicating wirelessly with the network. In case of Ad-hoc mode, you can use a wireless LAN and wired LAN simultaneously. 19 Turning the Wi-Fi network on/off If your machine has a display, you can also turn on/off the Wi-Fi from the machine’s control panel using the Network menu. 1Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.For example,3 Click Login on the upper right of the SyncThru™ Web Service website.4 Type in the ID and Password, then click Login.•ID: admin •Password: sec00000 5 When the SyncThru™ Web Service window opens, click Network Settings.6 Click Wireless > Custom.You can also turn the Wi-Fi network on/off.20 Setting the Wi-Fi Direct for mobile printingWi-Fi Direct is an easy-to-setup peer-to-peer connecting between method for your printer and a mobile device that provides a secure connection and better throughput than ad hoc mode.With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point, You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network. • You cannot connect to the internet through the printer’s Wi-Fi Direct.• The supported protocol list may differ from your model, Wi-Fi Direct networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP services.
Wireless network setup1322. Using a network-connected machineSetting up Wi-Fi DirectYou can enable Wi-Fi Direct feature by one of the following methods.From the USB cable-connected computer(recommended)• When setting from the supplied software CD, see the access point via USB cable.- Windows user, see "Access point via USB cable" on page 111.- Macintosh user, see "Access point via USB cable" on page 120.• After the driver installation is complete, Samsung Easy Printer Manager can be set and changes in the Wi-Fi Direct can be made. Samsung Easy Printer Manager is Available for Windowsand Macintosh OS users only. - From the Start menu, select Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Device Settings > Network.ƒWi-Fi Direct On/Off: Select On to enable.ƒDevice Name: Enter the printer’s name for searching for your printer on a wireless network. By default, the device name is the model name.ƒIP Address: Enter the IP address of the printer. This IP address is used only for the local network and not for the infrastructure wired or wireless network. We recommend using the default local IP address (the default local IP address of the printer for Wi-Fi Direct is 192.168.3.1 )ƒGroup Owner: Activate this option to assign the printer the Wi-Fi Direct group’s owner. The Group Owner acts similar to a wireless access point. We recommend activating this option.ƒNetwork Key: If your printer is a Group Owner, a Network Key is required for other mobile devices to connect to your printer. You can configure a network key yourself, or can remember the given Network Key that is randomly generated by default.From the machine (Machines with a display screen)• Select Network > Wireless > Wi-Fi Direct from the control panel.•Enable Wi-Fi Direct.From the network-connected computerIf your printer is using a network cable or a wireless access point, you can enable and configure Wi-Fi Direct from SyncThru™ Web Service.• Access SyncThru™ Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.• Enable or disable Wi-Fi Direct and set other options.
Wireless network setup1332. Using a network-connected machine • For Linux OS users,- Print an IP network configuration report to check the output (see "Printing a network configuration report" on page 90).- Access SyncThru Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.- Enable or disable Wi-Fi Direct. Setting up the mobile device• After setting up Wi-Fi Direct from the printer, refer to the user manual of the mobile device you are using to set its Wi-Fi Direct.• After setting up Wi-Fi Direct, you need to download the mobile printing application (For example: Samsung Mobile printer) to print from your smartphone. • When you have found the printer you want to connect to from your mobile device, select the printer and the printer's LED will blink. Press the WPS button on the printer and it will be connected to your mobile device.• If your mobile device does not support WPS, you need to enter the "Network Key" of a printer instead of pushing the WPS button. 21 TroubleshootingProblems during setup or driver installationPrinters Not Found• Your machine may not be turned on. Turn on your computer and the machine.• USB cable is not connected between your computer and machine. Connect the machine to your computer using the USB cable.• The machine does not support wireless networking. Check the machine's user's guide included on the software CD supplied with your machine and prepare a wireless network machine.Connecting Failure - SSID Not Found• The machine is unable to find the network name (SSID) you have selected or entered. Check the network name (SSID) on your access point and try connecting again. • Your access point is not turned on. Turn on your access point.

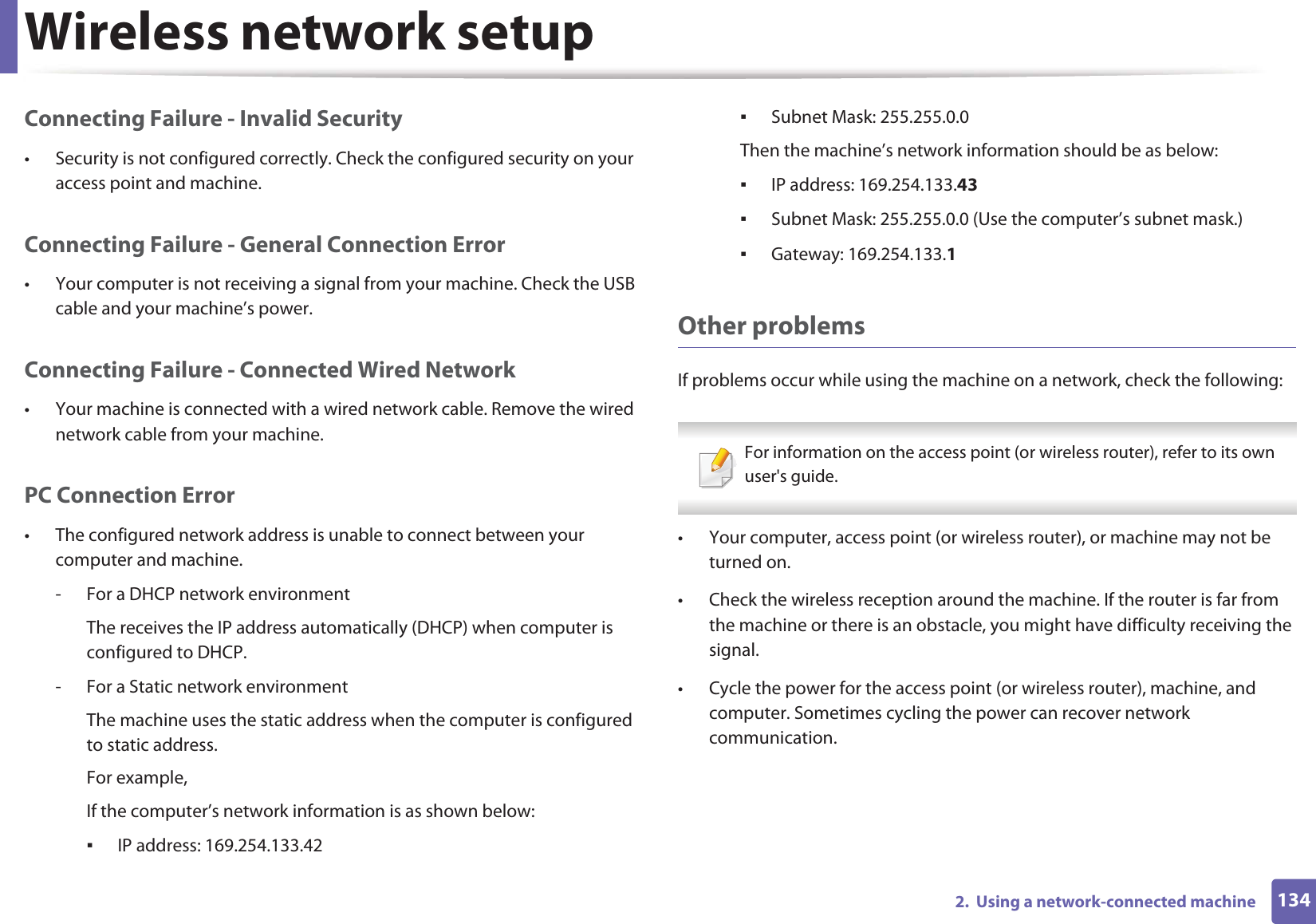

Wireless network setup1342. Using a network-connected machineConnecting Failure - Invalid Security• Security is not configured correctly. Check the configured security on your access point and machine.Connecting Failure - General Connection Error• Your computer is not receiving a signal from your machine. Check the USB cable and your machine’s power.Connecting Failure - Connected Wired Network• Your machine is connected with a wired network cable. Remove the wired network cable from your machine.PC Connection Error• The configured network address is unable to connect between your computer and machine.- For a DHCP network environmentThe receives the IP address automatically (DHCP) when computer is configured to DHCP.- For a Static network environmentThe machine uses the static address when the computer is configured to static address.For example,If the computer’s network information is as shown below:ƒIP address: 169.254.133.42ƒSubnet Mask: 255.255.0.0Then the machine’s network information should be as below:ƒIP address: 169.254.133.43ƒSubnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)ƒGateway: 169.254.133.1Other problemsIf problems occur while using the machine on a network, check the following: For information on the access point (or wireless router), refer to its own user's guide. • Your computer, access point (or wireless router), or machine may not be turned on.• Check the wireless reception around the machine. If the router is far from the machine or there is an obstacle, you might have difficulty receiving the signal. • Cycle the power for the access point (or wireless router), machine, and computer. Sometimes cycling the power can recover network communication.

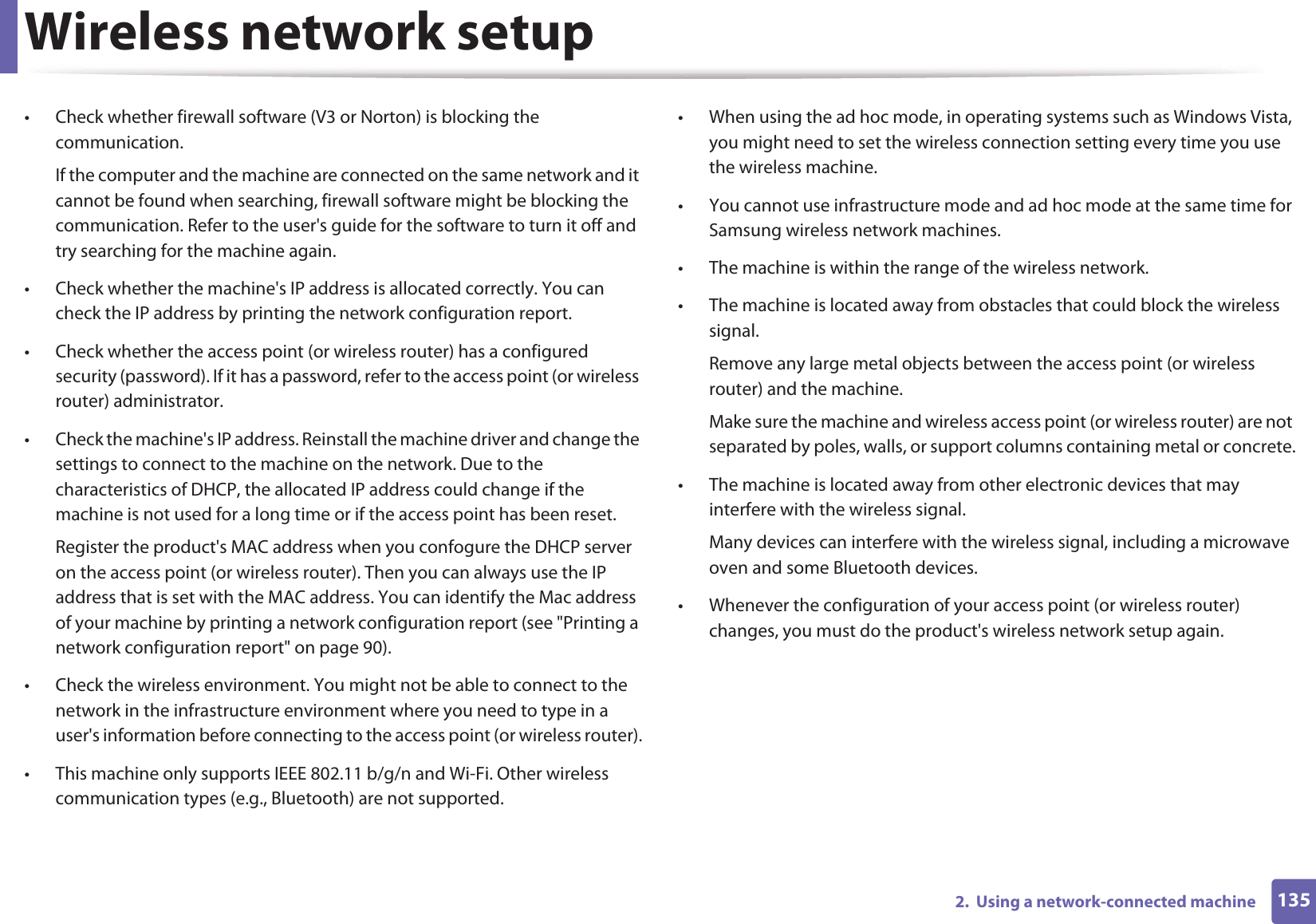

Wireless network setup1352. Using a network-connected machine• Check whether firewall software (V3 or Norton) is blocking the communication. If the computer and the machine are connected on the same network and it cannot be found when searching, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching for the machine again.• Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.• Check whether the access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.• Check the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.Register the product's MAC address when you confogure the DHCP server on the access point (or wireless router). Then you can always use the IP address that is set with the MAC address. You can identify the Mac address of your machine by printing a network configuration report (see "Printing a network configuration report" on page 90).• Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to the access point (or wireless router).• This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication types (e.g., Bluetooth) are not supported.• When using the ad hoc mode, in operating systems such as Windows Vista, you might need to set the wireless connection setting every time you use the wireless machine. • You cannot use infrastructure mode and ad hoc mode at the same time for Samsung wireless network machines.• The machine is within the range of the wireless network.• The machine is located away from obstacles that could block the wireless signal.Remove any large metal objects between the access point (or wireless router) and the machine.Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.• The machine is located away from other electronic devices that may interfere with the wireless signal.Many devices can interfere with the wireless signal, including a microwave oven and some Bluetooth devices.• Whenever the configuration of your access point (or wireless router) changes, you must do the product's wireless network setup again.
3. Special featuresThis chapter explains special printing features.• Altitude adjustment 137• Changing the default print settings 138• Setting your machine as a default machine 139• Using advanced print features 140• Using Direct Printing Utility (Windows only) 148• Using memory/hard drive features 149• Macintosh printing 150• Linux printing 152• Unix printing 154 The procedures in this chapter are mainly based on Windows 7.

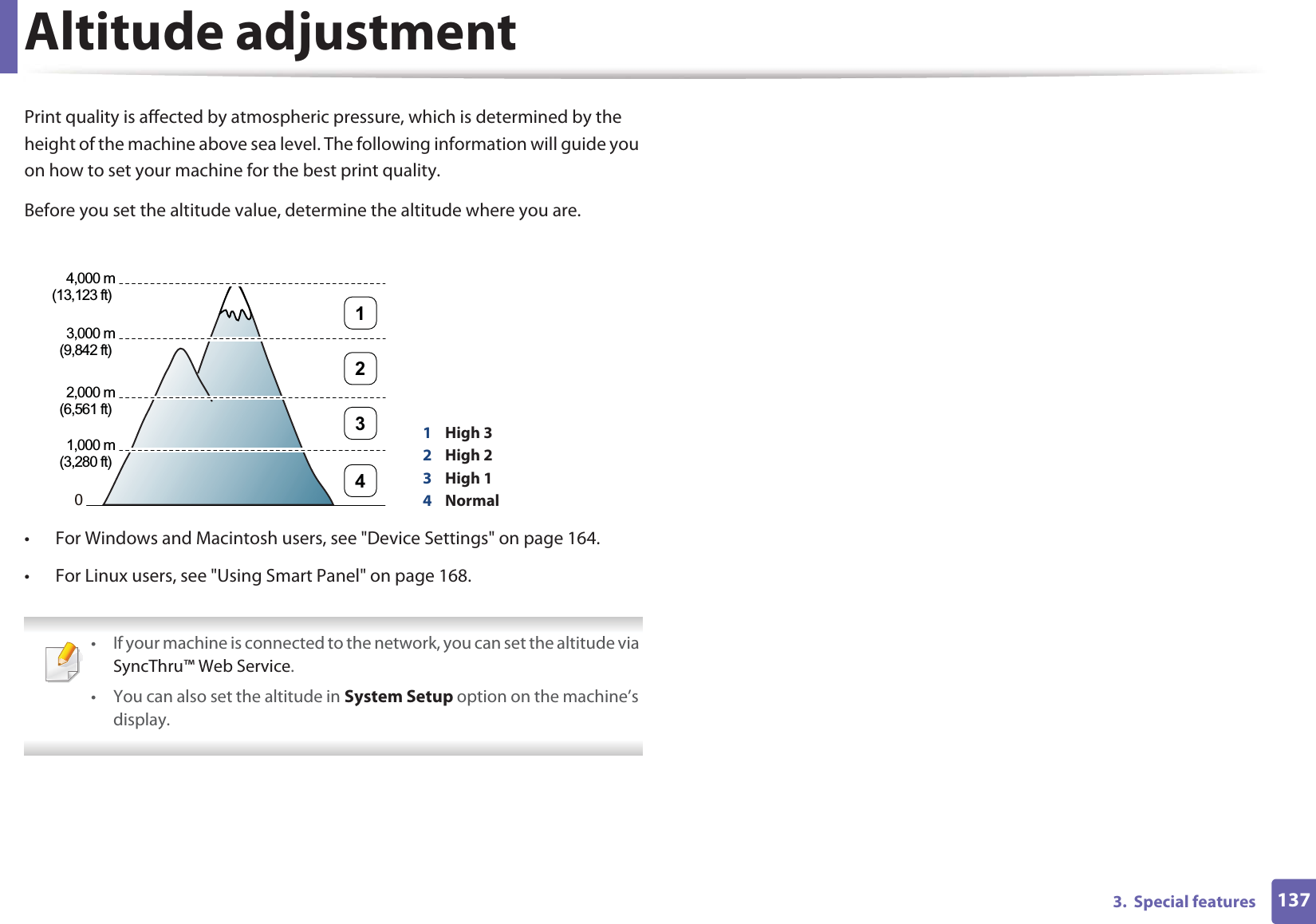

1373. Special featuresAltitude adjustmentPrint quality is affected by atmospheric pressure, which is determined by the height of the machine above sea level. The following information will guide you on how to set your machine for the best print quality.Before you set the altitude value, determine the altitude where you are.• For Windows and Macintosh users, see "Device Settings" on page 164.• For Linux users, see "Using Smart Panel" on page 168. • If your machine is connected to the network, you can set the altitude via SyncThru™ Web Service.• You can also set the altitude in System Setup option on the machine’s display. 1High 32High 23High 14Normal04,000 m(13,123 ft) 3,000 m(9,842 ft) 2,000 m(6,561 ft) 1,000 m(3,280 ft) 4321

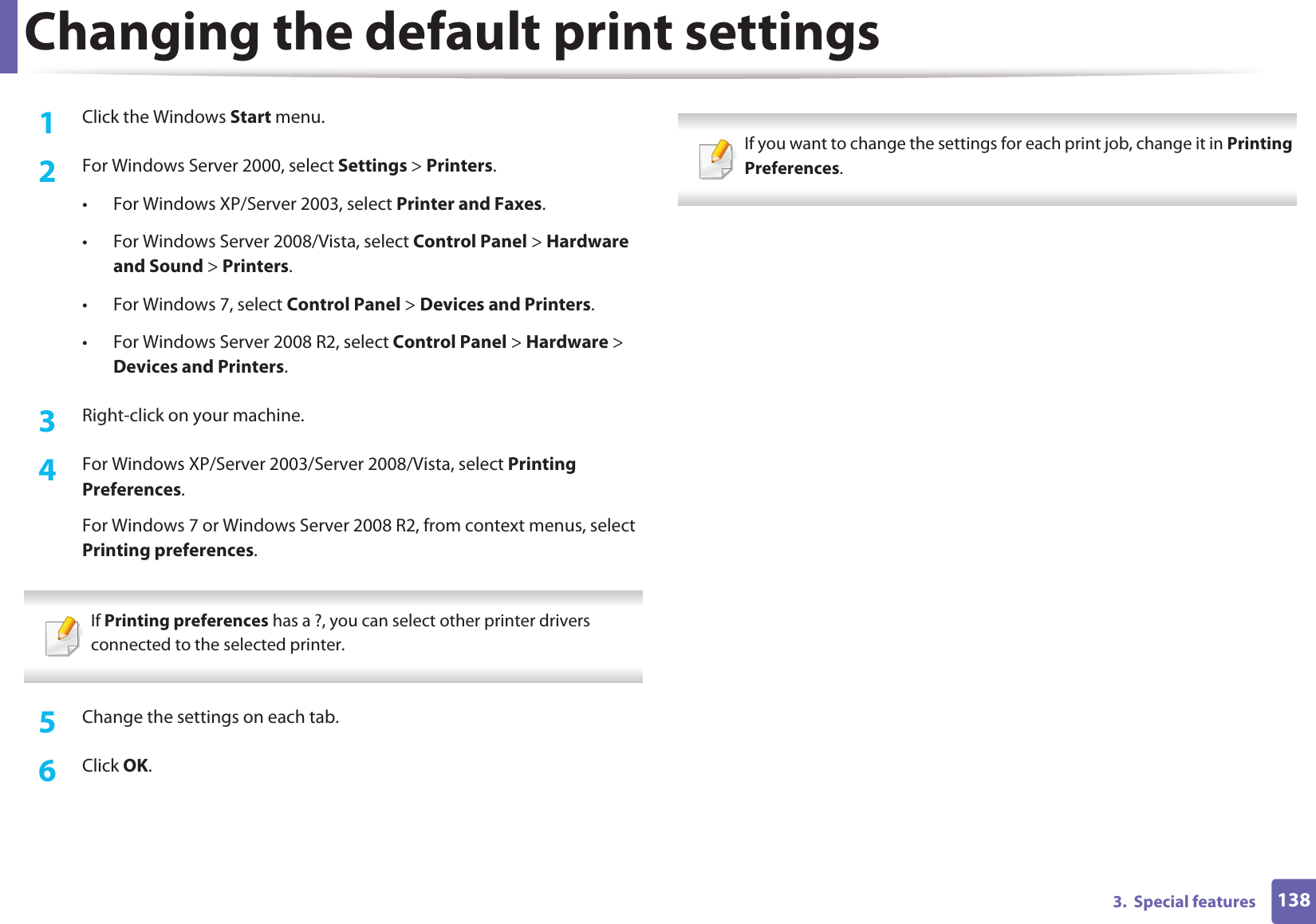

1383. Special featuresChanging the default print settings1Click the Windows Start menu. 2 For Windows Server 2000, select Settings > Printers.• For Windows XP/Server 2003, select Printer and Faxes. • For Windows Server 2008/Vista, select Control Panel > Hardware and Sound > Printers. • For Windows 7, select Control Panel > Devices and Printers. • For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers. 3 Right-click on your machine.4 For Windows XP/Server 2003/Server 2008/Vista, select Printing Preferences.For Windows 7 or Windows Server 2008 R2, from context menus, select Printing preferences. If Printing preferences has a ?, you can select other printer drivers connected to the selected printer. 5 Change the settings on each tab. 6 Click OK. If you want to change the settings for each print job, change it in Printing Preferences.

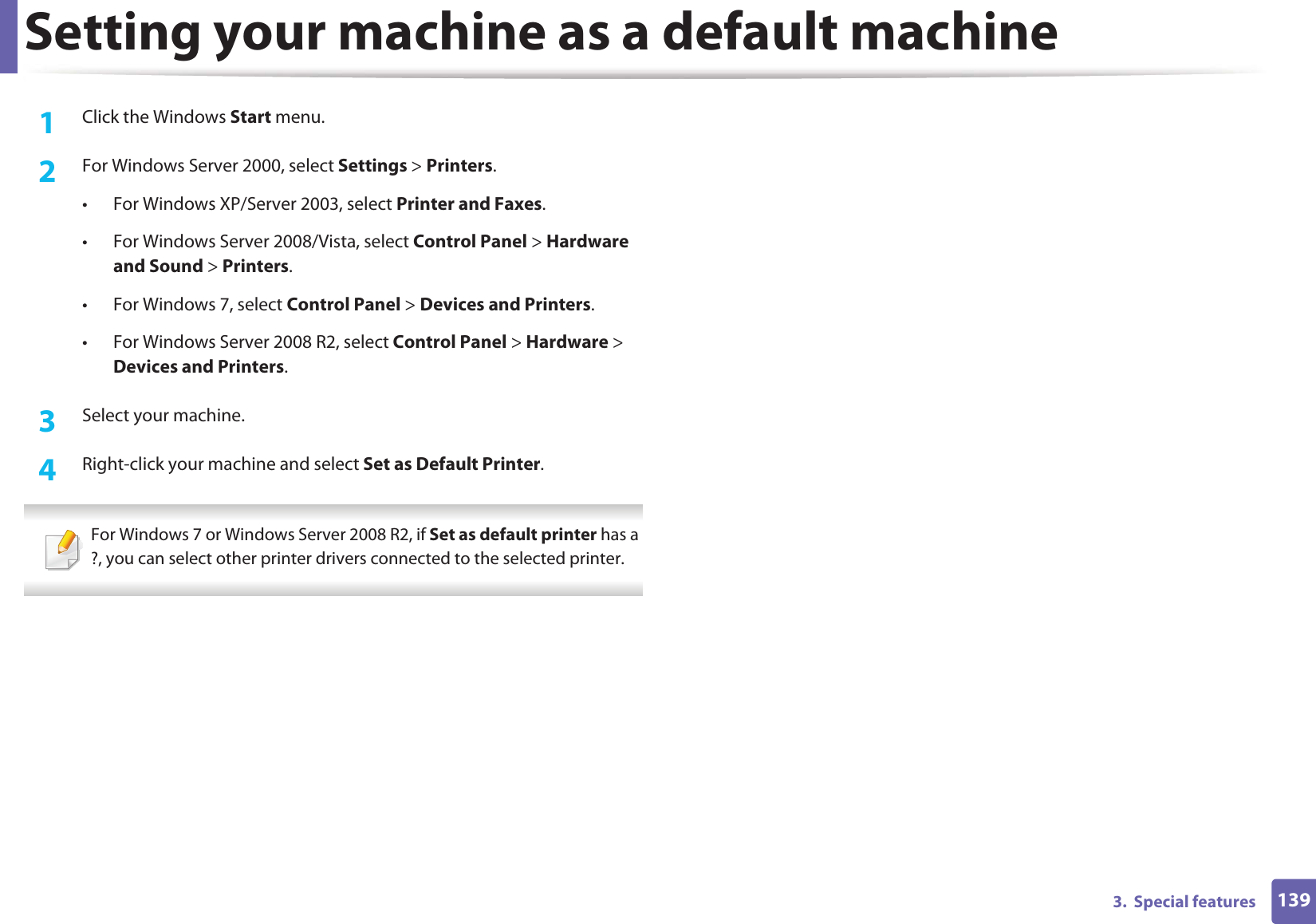

1393. Special featuresSetting your machine as a default machine1Click the Windows Start menu.2 For Windows Server 2000, select Settings > Printers.• For Windows XP/Server 2003, select Printer and Faxes. • For Windows Server 2008/Vista, select Control Panel > Hardware and Sound > Printers. • For Windows 7, select Control Panel > Devices and Printers. • For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers. 3 Select your machine.4 Right-click your machine and select Set as Default Printer. For Windows 7 or Windows Server 2008 R2, if Set as default printer has a ?, you can select other printer drivers connected to the selected printer.
1403. Special featuresUsing advanced print features XPS printer driver: used to print XPS file format. • See "Features by models" on page 6.• The XPS printer driver can be installed only on Windows Vista OS or higher.• Install optional memory when an XPS job does not print because the printer is out of memory.• For models that provide XPS driver from the Samsung website, www.samsung.com > find your product > Support or Downloads. 1 Printing to a file (PRN)You will sometimes need to save the print data as a file. 1Check the Print to file box in the Print window.2 Click Print.3 Type in the destination path and the file name, and then click OK.For example, c:\Temp\file name. If you type in only the file name, the file is automatically saved in My Documents, Documents and Settings, or Users. The saved folder may differ, depending on your operating system or the application you are using.
Using advanced print features1413. Special features2 Understanding special printer featuresYou can use advanced printing features when using your machine.To take advantage of the printer features provided by your printer driver, click Properties or Preferences in the application’s Print window to change the print settings. The machine name, that appears in the printer properties window may differ depending on the machine in use. • Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.• Select the Help or click the button from the window or press F1 on your keyboard and click on any option you want to know about (see "Using help" on page 36). Item DescriptionMultiple Pages per Side Selects the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will be reduced in size and arranged in the order you specify. You can print up to 16 pages on one sheet.
Using advanced print features1423. Special featuresPoster PrintingPrints a single-page document onto 4 (Poster 2x2), 9 (Poster 3x3), or 16 (Poster 4x4) sheets of paper, for the purpose of pasting the sheets together to form one poster-size document.Select the Poster Overlap value. Specify Poster Overlap in millimeters or inches by selecting the radio button on the upper right of Basic tab to make it easier to paste the sheets together.Booklet PrintingaPrints your document on both sides of a sheet of paper and arranges the pages so that the paper can be folded in half after printing to produce a booklet.If you want to make a booklet, you need to print on Letter, Legal, A4, US Folio, or Oficio sized print media. The Booklet Printing option is not available for all paper sizes. Select the available paper Size option under the Paper tab to see what paper sizes are available.If you select an unavailable paper size, this option can be automatically canceled. Select only available paper (paper without or mark). Item Description89
Using advanced print features1433. Special features•Double-sided Printinga•Double-sided Printing (Manual)aPrint on both sides of a sheet of paper (duplex). Before printing, decide how you want your document oriented. • You can use this feature with Letter, Legal, A4, US Folio or Oficio sized paper • If your machine does not have a duplex unit, you should complete the printing job manually. The machine prints every other page of the document first. After that, a message appears on your computer.•Skip Blank Pages feature does not work when you select the duplex option.• We recommend not to print on both sides of the special media, such as labels, envelopes, or thick paper. It may cause a paper jam or damage the machine. •Printer Default: If you select this option, this feature is determined by the settings you have selected on the control panel of the machine. This option is available only when you use the PCL / XPS printer driver (see "Features by models" on page 6).•None: Disables this feature.•Long Edge: This option is the conventional layout used in bookbinding.•Short Edge: This option is the conventional layout used in calendars.•Reverse Double-Sided Printing: Check this option to reverse the print order when duplex printing. This option isnot available when you use the Reverse Double-Sided Printing (Manual).Item Description
Using advanced print features1443. Special featuresPaper Options Changes the size of a document to appear larger or smaller on the printed page by entering in a percentage by which to enlarge or decrease the document.Watermark The watermark option allows you to print text over an existing document. For example, you use it when you want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document. Watermark(Creating a watermark)a To change the print settings from your software application, access Printing Preferences.b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears.c Enter a text message in the Watermark Message box. You can enter up to 256 characters. The message displays in the preview window.Watermark(Editing a watermark)a To change the print settings from your software application, access Printing Preferences.b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears. c Select the watermark you want to edit from the Current Watermarks list and change the watermark message and options. d Click Update to save the changes.e Click OK or Print until you exit the Print window. Watermark(Deleting a watermark)a To change the print settings from your software application, access Printing Preferences.b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears. c Select the watermark you want to delete from the Current Watermarks list and click Delete. d Click OK or Print until you exit the Print window.Item Description
Using advanced print features1453. Special featuresOverlayaThis option is available only when you use the PCL/SPL printer driver (see "Software" on page 6).An overlay is text and/or images stored in the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing exactly the same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not need to load preprinted letterhead paper in the machine: just print the letterhead overlay on your document.To use a page overlay, you must create a new page overlay containing your logo or image. • The overlay document size must be the same as the document you print with the overlay. Do not create an overlay with a watermark.• The resolution of the overlay document must be the same as that of the document you will print with the overlay. Overlay(Creating a new page overlay)a To save the document as an overlay, access Printing Preferences.b Click the Advanced tab, and select Edit from the Text drop-down list. Edit Overlay window appears.c In the Edit Overlay window, click Create. d In the Save As window, type a name up to eight characters in the File name box. Select the destination path, if necessary (The default is C:\Formover).e Click Save. The name appears on the Overlay List. f Click OK or Print until you exit the Print window.The file is not printed. Instead, it is stored on your computer hard disk drive.Item Description

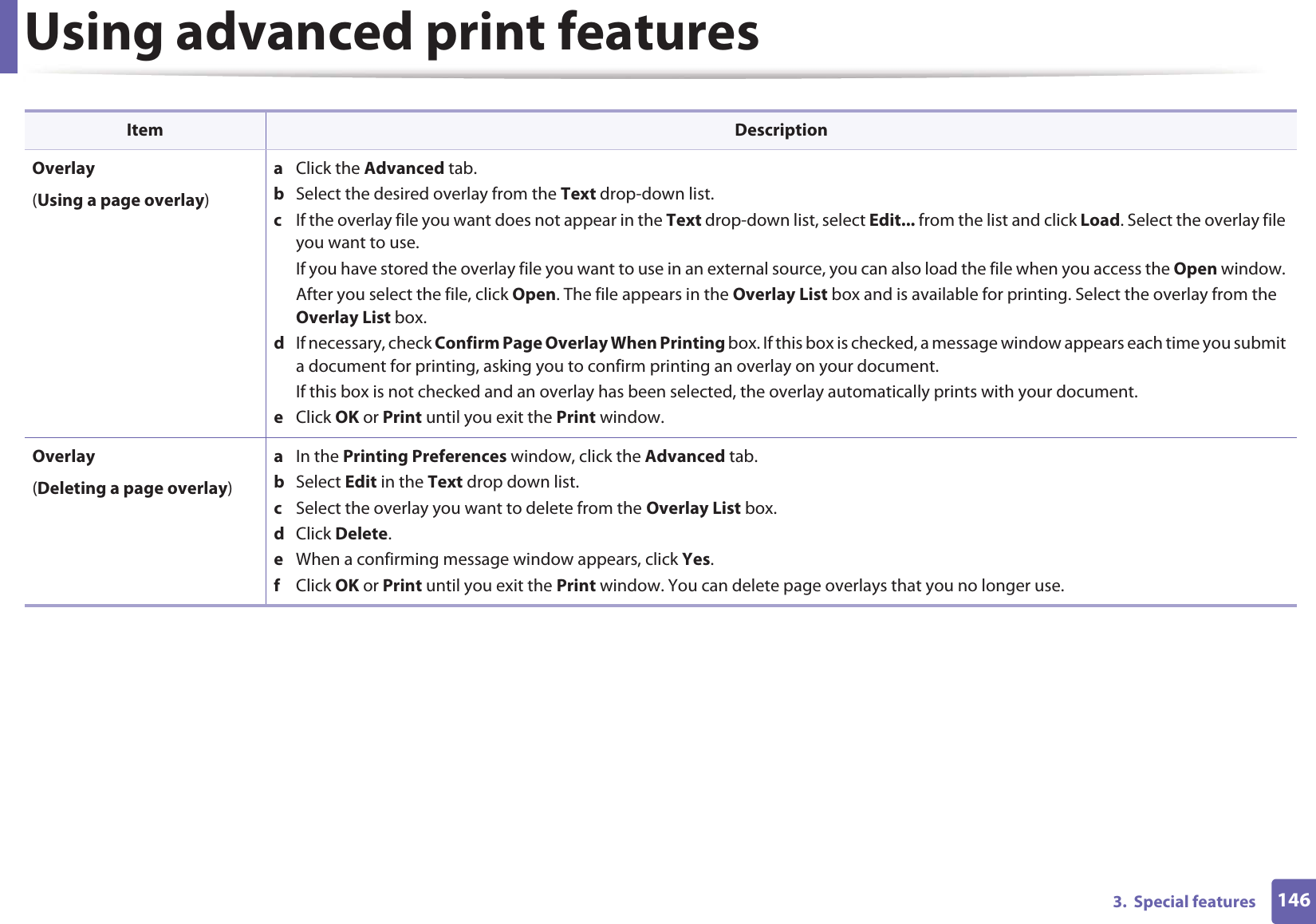

Using advanced print features1463. Special featuresOverlay(Using a page overlay)a Click the Advanced tab. b Select the desired overlay from the Text drop-down list. c If the overlay file you want does not appear in the Text drop-down list, select Edit... from the list and click Load. Select the overlay file you want to use. If you have stored the overlay file you want to use in an external source, you can also load the file when you access the Open window. After you select the file, click Open. The file appears in the Overlay List box and is available for printing. Select the overlay from the Overlay List box. d If necessary, check Confirm Page Overlay When Printing box. If this box is checked, a message window appears each time you submit a document for printing, asking you to confirm printing an overlay on your document. If this box is not checked and an overlay has been selected, the overlay automatically prints with your document. e Click OK or Print until you exit the Print window. Overlay(Deleting a page overlay)a In the Printing Preferences window, click the Advanced tab. b Select Edit in the Text drop down list. c Select the overlay you want to delete from the Overlay List box. d Click Delete. e When a confirming message window appears, click Yes.f Click OK or Print until you exit the Print window. You can delete page overlays that you no longer use.Item Description

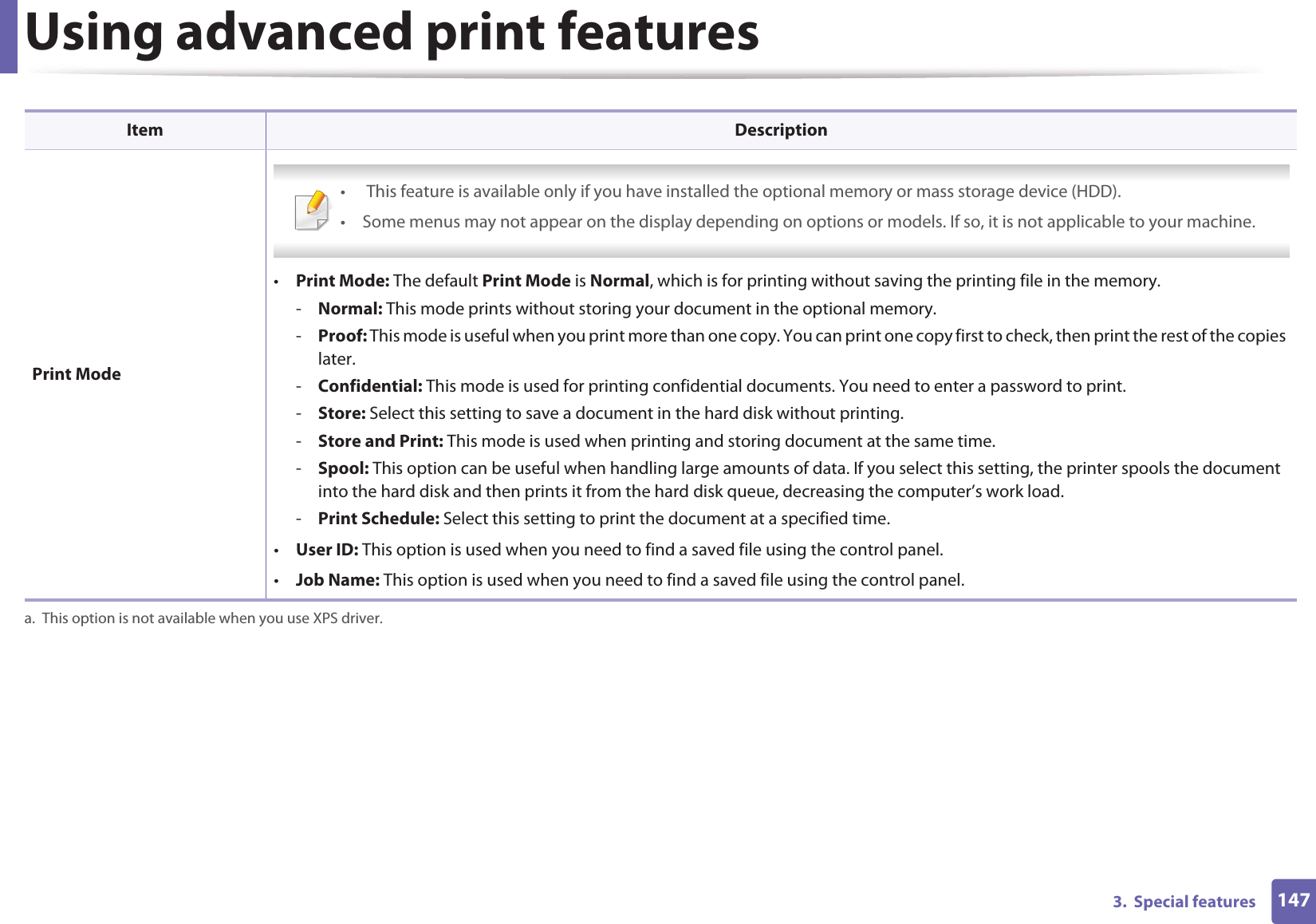

Using advanced print features1473. Special features Print Mode • This feature is available only if you have installed the optional memory or mass storage device (HDD).• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine. •Print Mode: The default Print Mode is Normal, which is for printing without saving the printing file in the memory. -Normal: This mode prints without storing your document in the optional memory. -Proof: This mode is useful when you print more than one copy. You can print one copy first to check, then print the rest of the copies later. -Confidential: This mode is used for printing confidential documents. You need to enter a password to print. -Store: Select this setting to save a document in the hard disk without printing. -Store and Print: This mode is used when printing and storing document at the same time.-Spool: This option can be useful when handling large amounts of data. If you select this setting, the printer spools the document into the hard disk and then prints it from the hard disk queue, decreasing the computer’s work load.-Print Schedule: Select this setting to print the document at a specified time.•User ID: This option is used when you need to find a saved file using the control panel. •Job Name: This option is used when you need to find a saved file using the control panel. a. This option is not available when you use XPS driver.Item Description

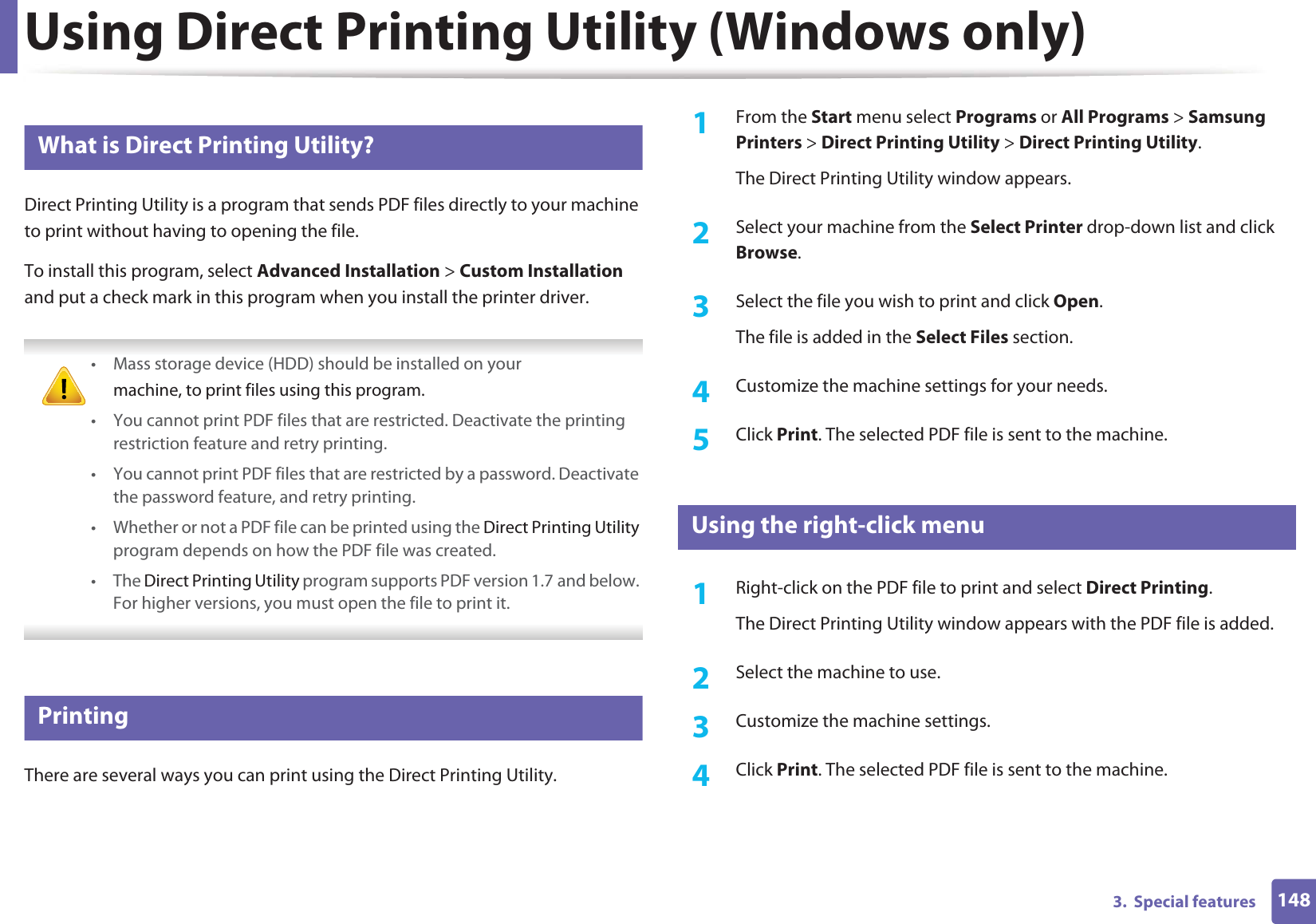

1483. Special featuresUsing Direct Printing Utility (Windows only)3 What is Direct Printing Utility?Direct Printing Utility is a program that sends PDF files directly to your machine to print without having to opening the file.To install this program, select Advanced Installation > Custom Installation and put a check mark in this program when you install the printer driver. • Mass storage device (HDD) should be installed on yourmachine, to print files using this program.• You cannot print PDF files that are restricted. Deactivate the printing restriction feature and retry printing.• You cannot print PDF files that are restricted by a password. Deactivate the password feature, and retry printing.• Whether or not a PDF file can be printed using the Direct Printing Utility program depends on how the PDF file was created.• The Direct Printing Utility program supports PDF version 1.7 and below. For higher versions, you must open the file to print it. 4 PrintingThere are several ways you can print using the Direct Printing Utility.1From the Start menu select Programs or All Programs > Samsung Printers > Direct Printing Utility > Direct Printing Utility.The Direct Printing Utility window appears.2 Select your machine from the Select Printer drop-down list and click Browse.3 Select the file you wish to print and click Open.The file is added in the Select Files section.4 Customize the machine settings for your needs. 5 Click Print. The selected PDF file is sent to the machine.5 Using the right-click menu1Right-click on the PDF file to print and select Direct Printing.The Direct Printing Utility window appears with the PDF file is added.2 Select the machine to use.3 Customize the machine settings. 4 Click Print. The selected PDF file is sent to the machine.
1493. Special featuresUsing memory/hard drive features Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine. 6 From the printer driverAfter installing the optional memory, you can use advanced printing features, such as proofing a job and specifying of printing a private job in the Print window. Select PropertiesorPreference, and configure the printing mode.7 From the control panelIf your machine has optional memory or an optional hard drive, you can use these features from the Job ManagementGmenu.•Active JobAll of the print jobs waiting to be printed are listed in the active job queue in the order you sent them to the printer. You can delete a job from the queue before printing, or promote a job to print sooner.•File PolicyYou can choose the file policy for generating file name before you proceed with the job through optional memory. If the optional memory already has the same name when you entered a new file name, you can rename or overwrite it.•Stored Job: You can print or delete a stored job.•Held Job Timeout: The machine can automatically delete a stored job after a certain period of time. You can set the time the machine will wait before deleting the stored job.•Image Overwrite: Image Overwrite is a security measure for customers who are concerned about unauthorized access and duplication of classified or private document. After installing the hard drive, you can also print the predefined document templates from the Form Menu.
1503. Special featuresMacintosh printing Some features may not be available depending on models or options. It means that the features are not supported. 8 Printing a documentWhen you print with a Macintosh, you need to check the printer driver settings in each application you use. Follow the steps below to print from a Macintosh:1Open the document to print.2 Open the File menu and click Page Setup (Document Setup in some applications).3 Choose your paper size, orientation, scaling, other options, and make sure that your machine is selected. Click OK.4 Open the File menu and click Print. 5 Choose the number of copies and indicate which pages to print. 6 Click Print.9 Changing printer settingsYou can use advanced printing features when using your machine.Open an application and select Print from the File menu. The machine name, which appears in the printer properties window, may differ depending on the machine in use. Except for the name, the composition of the printer properties window is similar to the following.10 Printing multiple pages on one sheet You can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft copies.1Open an application, and select Print from the File menu.2 Select Layout from the drop-down list under Orientation. In the Pages per Sheet drop-down list, select the number of pages you want to print on one sheet of paper.3 Select the other options to use.4 Click Print. The machine prints the selected number of pages to print on one sheet of paper.
Macintosh printing1513. Special features11 Printing on both sides of the paper Some features may not be available depending on models or options. It means that the features are not supported. Before printing in the duplex mode, decide on which edge you will be binding your finished document. The binding options are, as follows:•Long-Edge Binding: This option is the conventional layout used in book binding.•Short-Edge Binding: This option is the type often used with calendars.1From your Macintosh application, select Print from the File menu.2 Select Layout from the drop-down list under Orientation. 3 Select a binding orientation from the Two-Sided option.4 Select the other options to use.5 Click Print and the machine prints on both sides of the paper. If you print more than 2 copies, the first copy and the second copy might print on the same sheet of paper. Avoid printing on both sides of paper when you are printing more than 1 copy. 12 Using helpClick the question mark on the bottom-left corner of the window and click on the topic you want to know about. A pop-up window appears with information about that option's feature, which is provided from the driver.
1523. Special featuresLinux printing Some features may not be available depending on models or options. It means that the features are not supported. 13 Printing from applicationsThere are a lot of Linux applications that allow you to print using Common UNIX Printing System (CUPS). You can print on your machine from any such application.1Open an application, and select Print from the File menu2 Select Print directly using lpr.3 In the LPR GUI window, select the model name of your machine from the printer list and click Properties.4 Change the print job properties using the following four tabs displayed at the top of the window.•General: Changes the paper size, the paper type, and the orientation of the documents. It enables the duplex feature, adds start and end banners, and changes the number of pages per sheet. Automatic/manual duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing. •Text: Specifies the page margins and set the text options, such as spacing or columns.•Graphics: Sets image options that are used when printing image files, such as color options, image size, or image position.•Advanced: Sets the print resolution, paper source, and destination.5 Click Apply to apply the changes and close the Properties window.6 Click OK in the LPR GUI window to start printing.7 The Printing window appears, allowing you to monitor the status of your print job.To abort the current job, click Cancel.

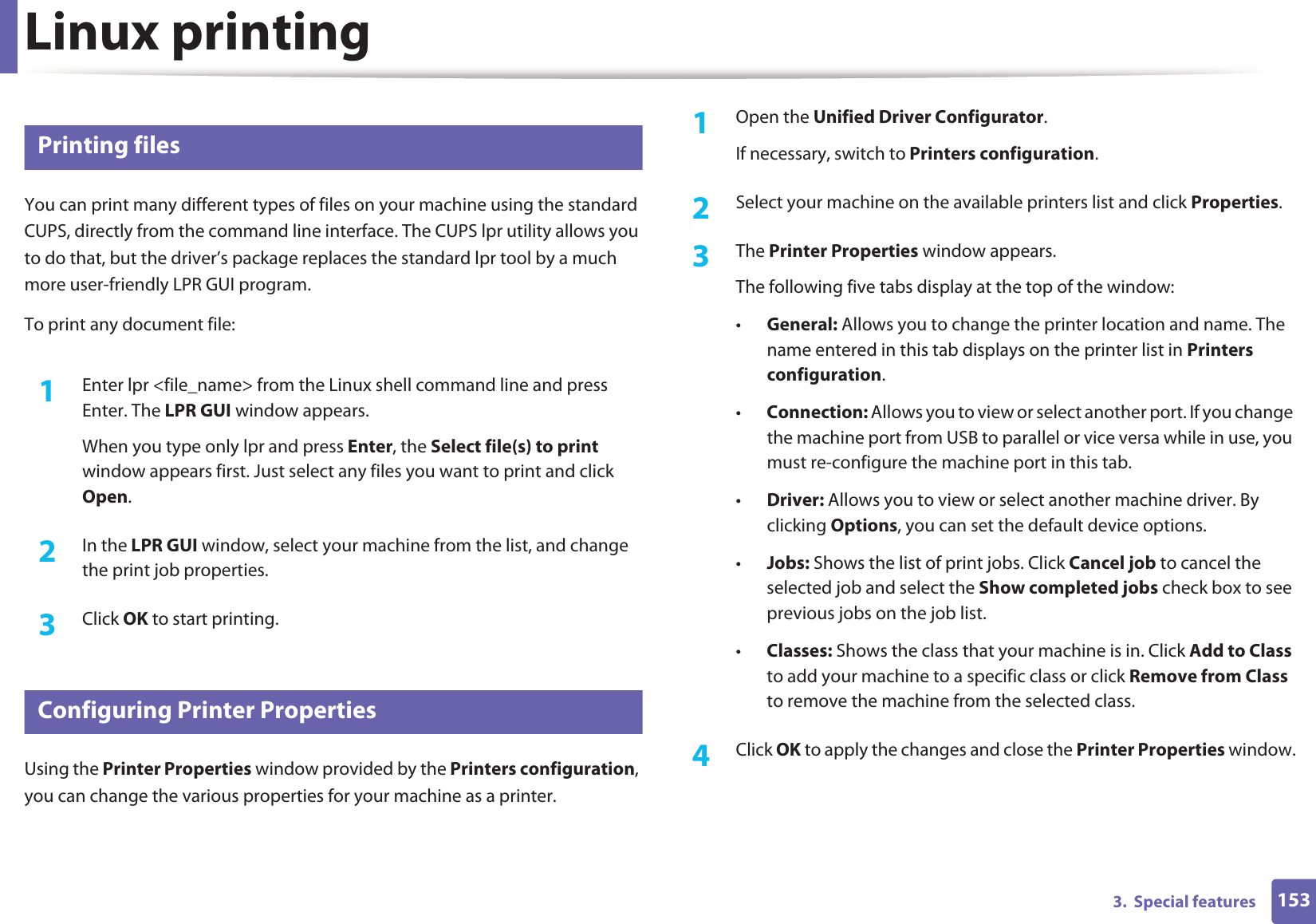

Linux printing1533. Special features14 Printing filesYou can print many different types of files on your machine using the standard CUPS, directly from the command line interface. The CUPS lpr utility allows you to do that, but the driver’s package replaces the standard lpr tool by a much more user-friendly LPR GUI program.To print any document file:1Enter lpr <file_name> from the Linux shell command line and press Enter. The LPR GUI window appears.When you type only lpr and press Enter, the Select file(s) to print window appears first. Just select any files you want to print and click Open.2 In the LPR GUI window, select your machine from the list, and change the print job properties.3 Click OK to start printing.15 Configuring Printer PropertiesUsing the Printer Properties window provided by the Printers configuration, you can change the various properties for your machine as a printer.1Open the Unified Driver Configurator.If necessary, switch to Printers configuration.2 Select your machine on the available printers list and click Properties.3 The Printer Properties window appears.The following five tabs display at the top of the window:•General: Allows you to change the printer location and name. The name entered in this tab displays on the printer list in Printers configuration.•Connection: Allows you to view or select another port. If you change the machine port from USB to parallel or vice versa while in use, you must re-configure the machine port in this tab.•Driver: Allows you to view or select another machine driver. By clicking Options, you can set the default device options.•Jobs: Shows the list of print jobs. Click Cancel job to cancel the selected job and select the Show completed jobs check box to see previous jobs on the job list.•Classes: Shows the class that your machine is in. Click Add to Class to add your machine to a specific class or click Remove from Class to remove the machine from the selected class.4 Click OK to apply the changes and close the Printer Properties window.
1543. Special featuresUnix printing Some features may not be available depending on models or options. It means that the features are not supported. 16 Proceeding the print jobAfter installing the printer, choose any of the image, text, PS or HPGL files to print.1Execute “printui <file_name_to_print>” command.For example, if you are printing “document1”printui document1This will open the UNIX Printer Driver Print Job Manager in which the user can select various print options.2 Select a printer that has been already added.3 Select the printing options from the window such as Page Selection.4 Select how many copies are needed in Number of Copies. To take advantage of the printer features provided by your printer driver, press Properties (see "Changing printer settings" on page 150). 5 Press OK to start the print job.17 Changing the machine settingsThe UNIX printer driver Print Job Manager in which the user can select various print options in printer Properties.The following hot keys may also be used: “H” for Help, “O” for OK, “A” for Apply, and “C” for Cancel.General tab•Paper Size: Set the paper size as A4, Letter, or other paper sizes, according to your requirements.•Paper Type: Choose the type of the paper. Options available in the list box are Printer Default, Plain, and Thick.•Paper Source: Select from which tray the paper is used. By default, it is Auto Selection.•Orientation: Select the direction in which information is printed on a page.•Duplex: Print on both sides of paper to save paper.
Unix printing1553. Special features Automatic/manual duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing. •Multiple pages: Print several pages on one side of the paper.•Page Border: Choose any of the border styles (e.g., Single-line hairline, Double-line hairline)Image tabIn this tab, you can change the brightness, resolution, or image position of your document.Text tabSet the character margin, line space, or the columns of the actual print output.HPGL/2 tab•Use only black pen: To print all graphics in black.•Fit plot to page: Fit the entire graphic into a single page.Margins tab•Use Margins: Set the margins for the document. By default, margins are not enabled. The user can change the margin settings by changing the values in the respective fields. Set by default, these values depend on the page size selected.•Unit: Change the units to points, inches, or centimeters.Printer-Specific Settings tabSelect various options in the JCL and General frames to customize various settings. These options are specific to the printer and depend on the PPD file.
4. Useful management toolsThis chapter introduces management tools provided to help you make full use of your machine. • Samsung AnyWeb Print 157• Easy Eco Driver 158• Using SyncThru™ Web Service 160• Using Samsung Easy Printer Manager 163 • Using Samsung Printer Status 166• Using Smart Panel 168• Using the Linux Unified Driver Configurator 170
1574. Useful management toolsSamsung AnyWeb Print Available for Windows and Macintosh OS users only. This tool helps you screen-capture, preview, scrap, and print pages more easily, than when you use an ordinary program.To open the Program: •For Windows: Select Start > All Programs > Samsung Printers > Samsung AnyWeb Print > Download the latest version.•For Macintosh: Open the Applications folder > Samsung folder > Samsung AnyWeb Print.

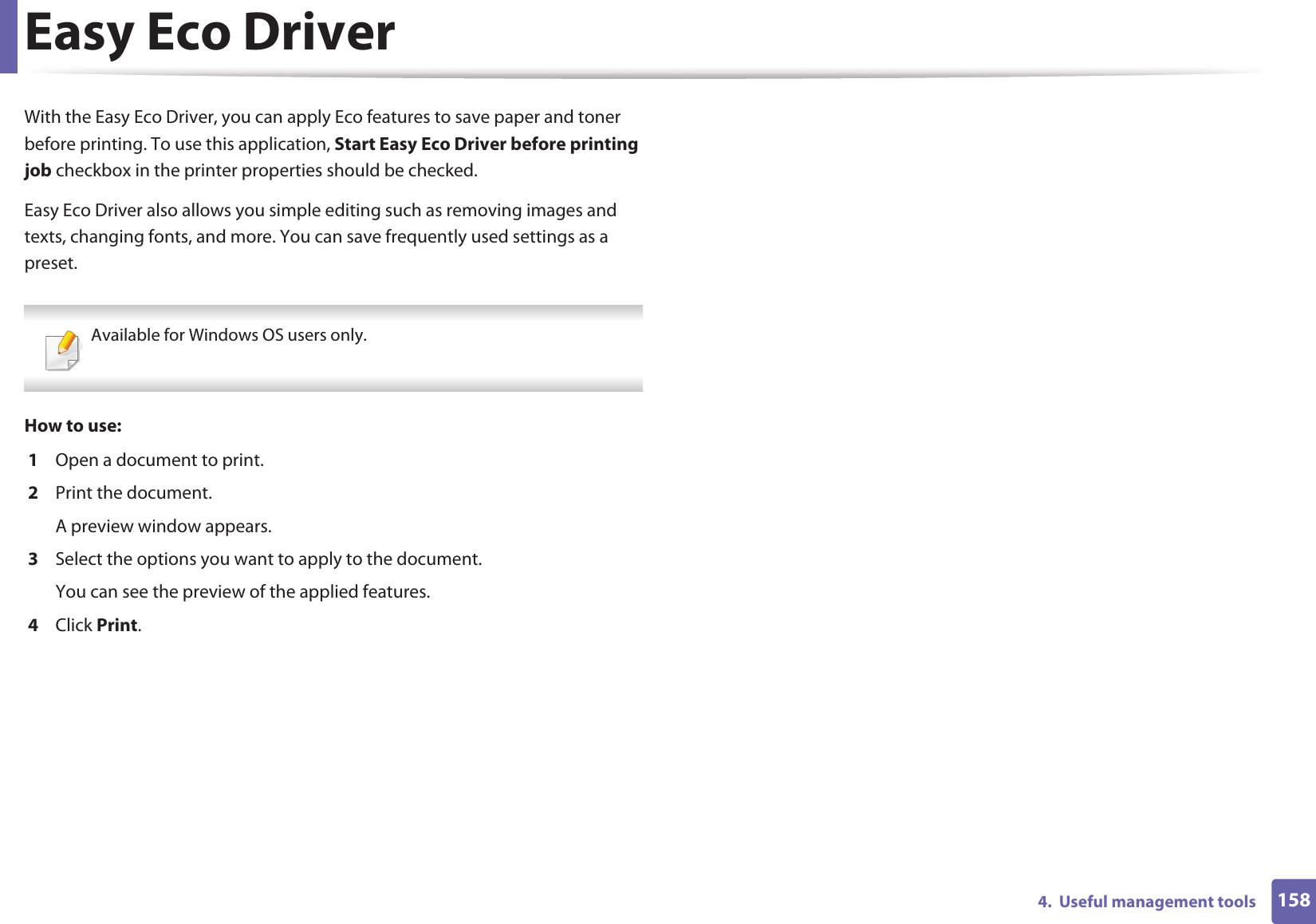

1584. Useful management toolsEasy Eco DriverWith the Easy Eco Driver, you can apply Eco features to save paper and toner before printing. To use this application, Start Easy Eco Driver before printing job checkbox in the printer properties should be checked. Easy Eco Driver also allows you simple editing such as removing images and texts, changing fonts, and more. You can save frequently used settings as a preset. Available for Windows OS users only. How to use: 1 Open a document to print.2 Print the document.A preview window appears.3 Select the options you want to apply to the document.You can see the preview of the applied features.4 Click Print.
1594. Useful management toolsUnderstanding Easy Capture ManagerCapture your screen and launch Easy Capture Manager by simply pressing the Print Screen key on the keyboard. Now you can easily print your captured screen as captured or edited.
1604. Useful management toolsUsing SyncThru™ Web Service • Internet Explorer 6.0 or higher is the minimum requirement for SyncThru™ Web Service.•SyncThru™ Web Service explanation in this user’s guide may differ from your machine depending on its options or models.• Network model only. 1 Accessing SyncThru™ Web Service1Access a web browser, such as Internet Explorer, from Windows.Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.Logging into SyncThru™ Web ServiceBefore configuring options in SyncThru™ Web Service, you need to log-in as an administrator. You can still use SyncThru™ Web Service without logging in but you won’t have access to Settings tab and Security tab. 1Click Login on the upper right of the SyncThru™ Web Service website.2 Type in the ID and Password then click Login.•ID: admin •Password: sec000002 SyncThru™ Web Service overview Some tabs may not appear depending on your model. Information tabThis tab gives you general information about your machine. You can check things, such as remaining amount of toner. You can also print reports, such as an error report.•Active Alerts: Shows the alerts that have occurred in the machine and their severity.•Supplies: Shows how many pages are printed and amount of toner left in the cartridge.
Using SyncThru™ Web Service1614. Useful management tools•Usage Counters: Shows the usage count by print types: simplex and duplex.•Current Settings: Shows the machine’s and network’s information. •Print information: Prints reports such as system related reports and font reports.Settings tabThis tab allows you to set configurations provided by your machine and network. You need to log-in as an administrator to view this tab. •Machine Settings tab: Sets options provided by your machine. •Network Settings tab: Shows options for the network environment. Sets options such as TCP/IP and network protocols. Security tabThis tab allows you to set system and network security information. You need to log-in as an administrator to view this tab.•System Security: Sets the system administrator’s information and also enables or disables machine features.•Network Security: Sets settings for HTTPs, IPSec, IPv4/IPv6 filtering, and 802.1x.Maintenance tabThis tab allows you to maintain your machine by upgrading firmware and setting contact information for sending emails. You can also connect to Samsung website or download drivers by selecting the Link menu.•Firmware Upgrade: Upgrade your machine’s firmware.•Contact Information: Shows the contact information.•Link: Shows links to useful sites where you can download or check information.3 E-mail notification setupYou can receive emails about your machine’s status by setting this option. By setting information such as IP address, host name, e-mail address and SMTP server information, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's e-mail automatically. This option may be used more frequently by a machine administrator. 1Start a web browser, such as Internet Explorer, from Windows.Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.3 From the Settings tab, select Machine Settings > E-mail Notification.

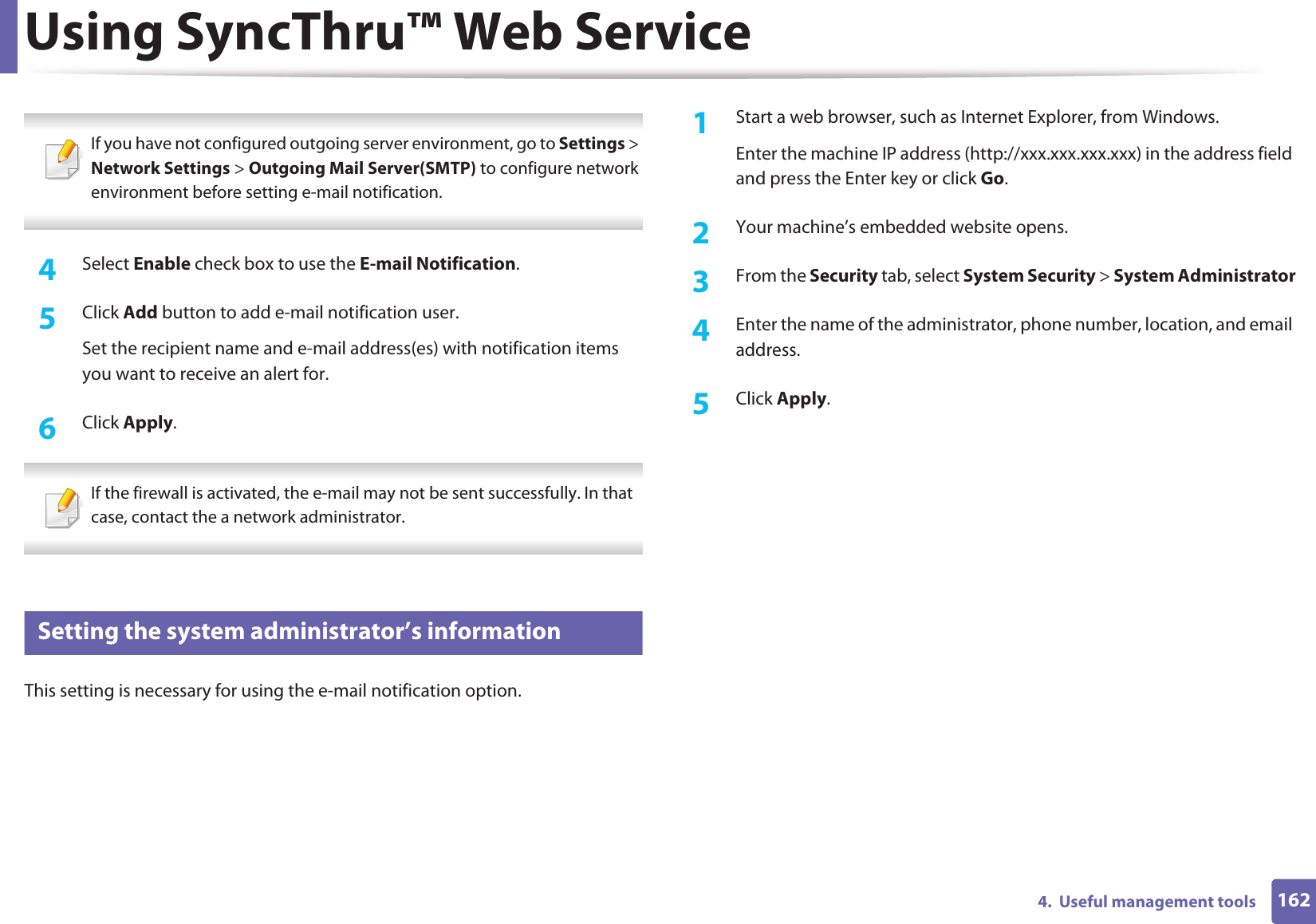

Using SyncThru™ Web Service1624. Useful management tools If you have not configured outgoing server environment, go to Settings > Network Settings > Outgoing Mail Server(SMTP) to configure network environment before setting e-mail notification. 4 Select Enable check box to use the E-mail Notification.5 Click Add button to add e-mail notification user. Set the recipient name and e-mail address(es) with notification items you want to receive an alert for.6 Click Apply. If the firewall is activated, the e-mail may not be sent successfully. In that case, contact the a network administrator. 4 Setting the system administrator’s informationThis setting is necessary for using the e-mail notification option.1Start a web browser, such as Internet Explorer, from Windows.Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.3 From the Security tab, select System Security > System Administrator4 Enter the name of the administrator, phone number, location, and email address. 5 Click Apply.
1634. Useful management toolsUsing Samsung Easy Printer ManagerSamsung Easy Printer Manager is an application that combines Samsung machine settings into one location. Samsung Easy Printer Manager combines device settings as well as printing environments, settings/actions and launching. All of these features provide a gateway to conveniently use your Samsung machine. Samsung Easy Printer Manager provides two different user interfaces for the user to choose from: the basic user interface and the advanced user interface. Switching between the two interfaces is easy: just click button. • Availabe for Windows or Macintosh OS users only.• For Windows, Internet Explorer 6.0 or higher is the minimum requirement for Samsung Easy Printer Manager. 5 Understanding Samsung Easy Printer ManagerTo open the program: For Windows,Select Start > Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Samsung Easy Printer Manager.For Macintosh,Open the Applications folder > Samsung folder > Samsung Easy Printer Manager.The Samsung Easy Printer Manager interface is comprised of various basic sections as described in the table that follows: The screenshot may differ depending on operating system you are using. 1Printer List The printer list displays the installed printer icons on your computer.
Using Samsung Easy Printer Manager1644. Useful management tools Click the Help ( ) button from the upper-right corner of the window and click on any option you want to know about. 6 Advanced settings user interface overviewThe advanced user interface is intended to be used by the person responsible for managing the network and machines.Device SettingsYou can configure various machine settings such as machine setup, paper, layout, emulation, network, and print information.2Printer InformationThis area gives you general information about your machine. You can check information, such as the machine’s model name, IP address (or Port name), and machine status. User’s Guide button: This button opens Troubleshooting Guide when an error occurs. You can directly open the necessary section in the user’s guide. 3Application informationIncludes links for changing to the advanced settings, preference, help, and about. The button is used to change the user interface to the advanced settings user interface. 4Quick links Displays Quick links to machine specific functions. This section also includes links to applications in the advanced settings. If you connect your machine to a networt, the SyncThru™ Web Service icon is enabled. 5Contents Area Displays information about the selected machine, remaining toner level, and paper. The information will vary based on the machine selected. Some machines do not have this feature.6Order Supplies Click on the Order button from the supply ordering window. You can order replacement toner cartridge(s) from online.
Using Samsung Easy Printer Manager1654. Useful management toolsAlert Settings (Windows only)This is menu includes settings related to error alerting. •Printer Alert: Provides settings related to when alerts will be received.•Email Alert: Povides options relating to receiving alerts via email.•History Alert: Provides a history of device and toner related alerts.Job AccountingProvides querying of quota information of the specified job accounting user. This quota information can be created and applied to devices by job accounting software such as SyncThru™ or CounThru™ admin software.
1664. Useful management toolsUsing Samsung Printer StatusThe Samsung Printer Status is a program that monitors and informs you of the machine status. • Available for Windows users.• The Samsung Printer Status window and its contents shown in this user’s guide may differ depending on the machine or operating system in use.• Check the operating system(s) that are compatible with your machine (see "System requirements" on page 64). 7 Samsung Printer Status overviewIf an error occurs while operating, you can check the error from the Samsung Printer Status. Samsung Printer Status is installed automatically when you install the machine software. You can also launch Samsung Printer Status manually. Go to the Printing Preferences , click the Basic tab > Printer Status button.These icons appear on the Windows task bar:Icon Mean DescriptionNormal The machine is in ready mode and experiencing no errors or warnings.Warning The machine is in a state where an error might occur in the future. For example, it might be in toner low status, which may lead to toner empty status. Error The machine has at least one error.1Toner Level You can view the level of toner remaining in each toner cartridge. The machine and the number of toner cartridge(s) shown in the above window may differ depending on the machine in use. Some machines do not have this feature.2Option You can set Printing Job Alert related settings.
Using Samsung Printer Status1674. Useful management tools3Order Supplies You can order replacement toner cartridge(s) from online.4Troubleshooting You can directly open the troubleshooting section in the user’s guide.5Close Close the window.
1684. Useful management toolsUsing Smart PanelSmart Panel is a program that monitors and informs you of the machine’s status, and allows you to customize the machine’s settings. You can download Smart Panel from the Samsung website (see "Installing the Smart Panel" on page 85). • Available for Linux OS users only.• The Smart Panel window and its contents shown in this user’s guide may differ depending on the machine or operating system in use.• Check the operating system(s) that are compatible with your machine (see "Installing the driver locally" on page 21). 8 Smart Panel overviewIf an error occurs while operating, you can check the error from the Smart Panel. You can also launch Smart Panel manually.Double-click the Smart Panel icon( ) in the Notification Area.1 2341Toner Level You can view the level of toner remaining in each toner cartridge. The machine and the number of toner cartridge(s) shown in the above window may differ depending on the machine in use. If you cannot see this feature, it is not applicable to your machine.2Buy Now You can order replacement toner cartridge(s) from online.3User’s Guide You can view the online User’s Guide. This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user’s guide. 4Printer Setting You can configure various machine settings in the Printer Settings Utility window. Some machines do not have this feature. If you connect your machine to a networt, the SyncThru™ Web Service icon is enabled.

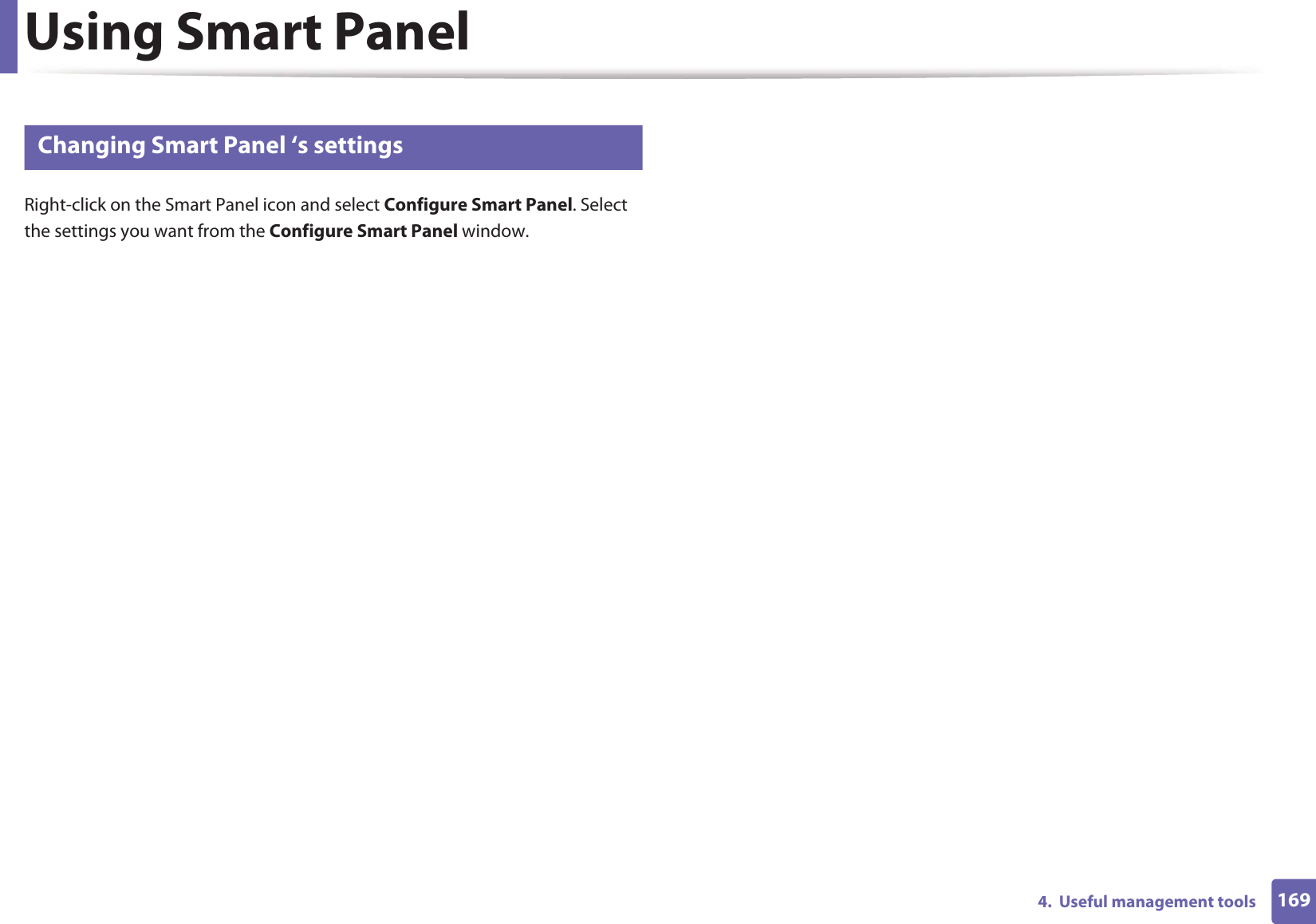

Using Smart Panel1694. Useful management tools9 Changing Smart Panel ‘s settingsRight-click on the Smart Panel icon and select Configure Smart Panel. Select the settings you want from the Configure Smart Panel window.

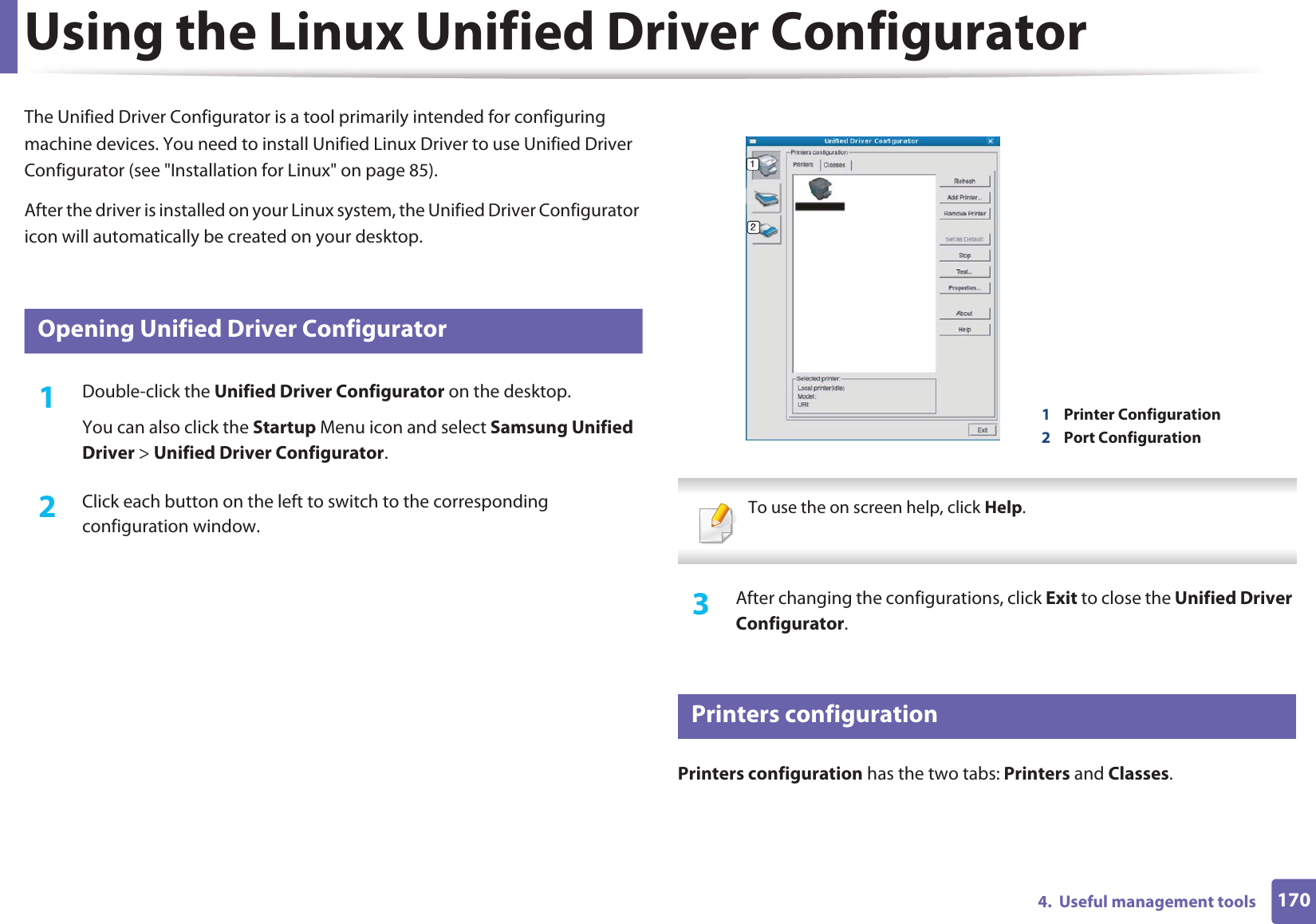

1704. Useful management toolsUsing the Linux Unified Driver ConfiguratorThe Unified Driver Configurator is a tool primarily intended for configuring machine devices. You need to install Unified Linux Driver to use Unified Driver Configurator (see "Installation for Linux" on page 85).After the driver is installed on your Linux system, the Unified Driver Configurator icon will automatically be created on your desktop.10 Opening Unified Driver Configurator1Double-click the Unified Driver Configurator on the desktop.You can also click the Startup Menu icon and select Samsung Unified Driver > Unified Driver Configurator.2 Click each button on the left to switch to the corresponding configuration window. To use the on screen help, click Help. 3 After changing the configurations, click Exit to close the Unified Driver Configurator.11 Printers configurationPrinters configuration has the two tabs: Printers and Classes.1Printer Configuration 2Port Configuration

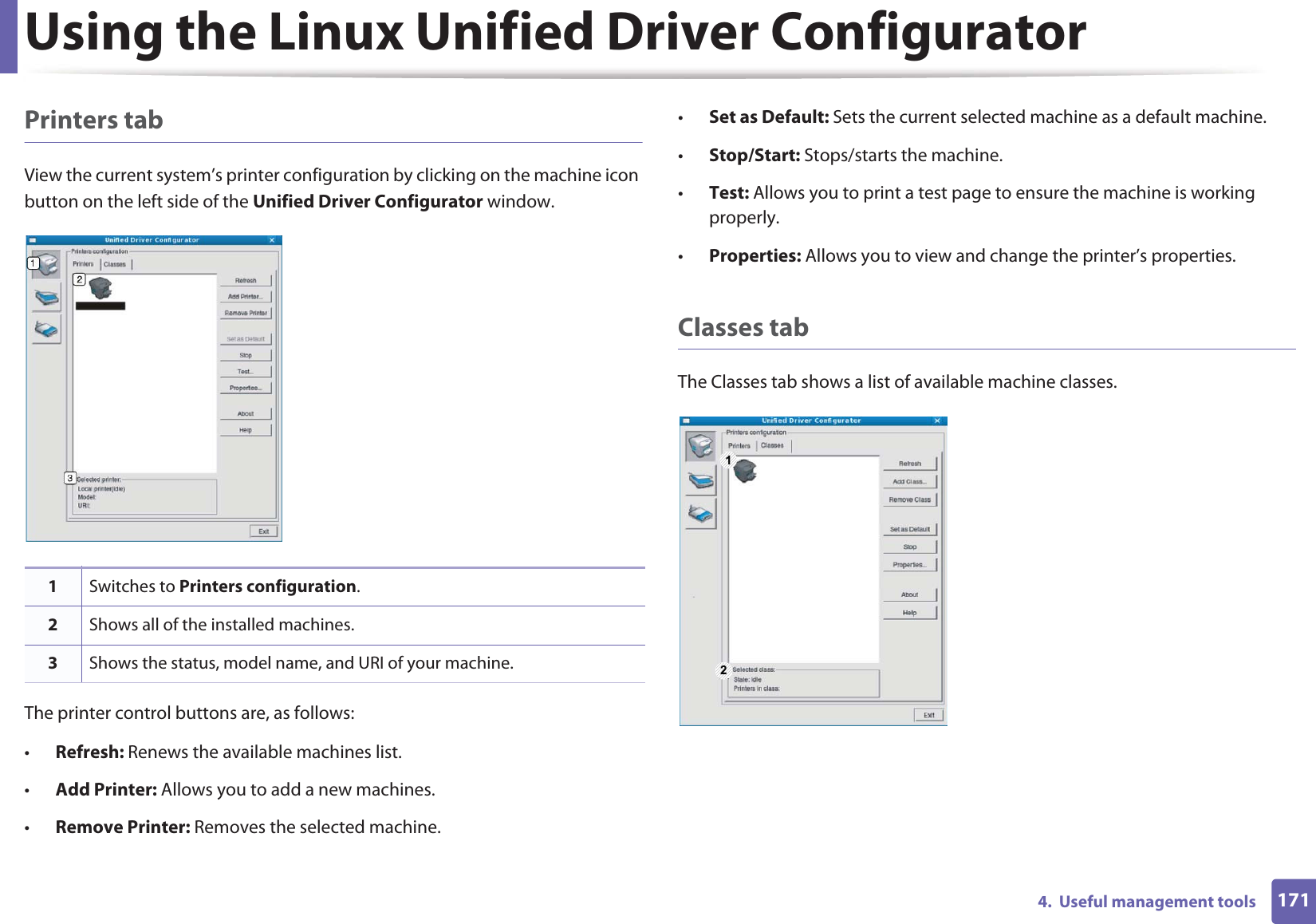

Using the Linux Unified Driver Configurator1714. Useful management toolsPrinters tabView the current system’s printer configuration by clicking on the machine icon button on the left side of the Unified Driver Configurator window.The printer control buttons are, as follows:•Refresh: Renews the available machines list.•Add Printer: Allows you to add a new machines.•Remove Printer: Removes the selected machine.•Set as Default: Sets the current selected machine as a default machine.•Stop/Start: Stops/starts the machine.•Test: Allows you to print a test page to ensure the machine is working properly.•Properties: Allows you to view and change the printer’s properties. Classes tabThe Classes tab shows a list of available machine classes.1Switches to Printers configuration.2Shows all of the installed machines.3Shows the status, model name, and URI of your machine.1 2

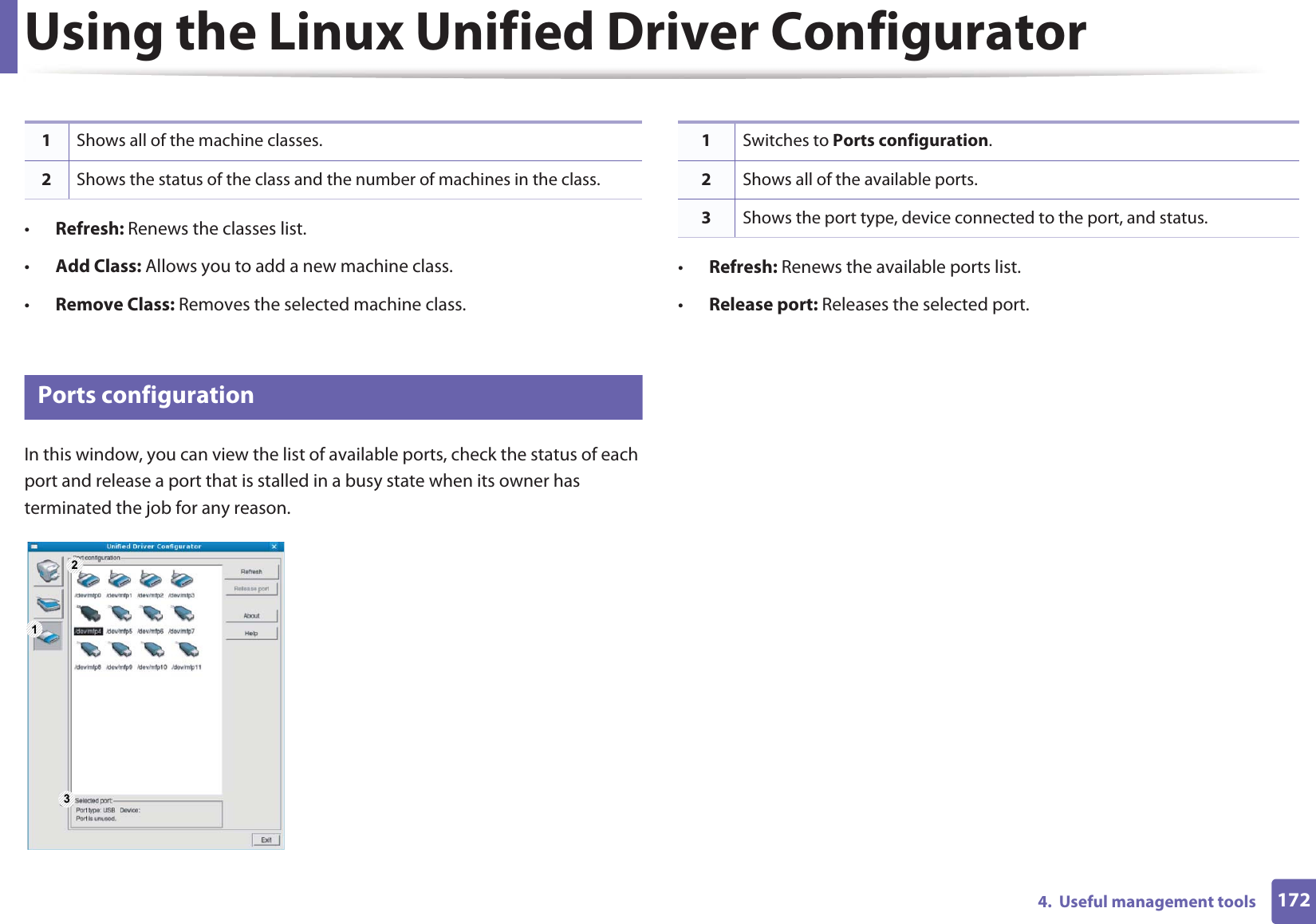

Using the Linux Unified Driver Configurator1724. Useful management tools•Refresh: Renews the classes list.•Add Class: Allows you to add a new machine class.•Remove Class: Removes the selected machine class.12 Ports configurationIn this window, you can view the list of available ports, check the status of each port and release a port that is stalled in a busy state when its owner has terminated the job for any reason.•Refresh: Renews the available ports list.•Release port: Releases the selected port.1Shows all of the machine classes.2Shows the status of the class and the number of machines in the class.1 231Switches to Ports configuration.2Shows all of the available ports.3Shows the port type, device connected to the port, and status.
5. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Paper feeding problems 174• Power and cable connecting problems 175• Printing problems 176• Printing quality problems 180• Operating system problems 188
1745. TroubleshootingPaper feeding problemsCondition Suggested solutionsPaper jams during printing. Clear the paper jam.Paper sticks together. • Check the maximum paper capacity of the tray .• Make sure that you are using the correct type of paper.• Remove paper from the tray and flex or fan the paper.• Humid conditions may cause some paper to stick together.Multiple sheets of paper do not feed. Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.Paper does not feed into the machine. • Remove any obstructions from inside the machine.• Paper has not been loaded correctly. Remove paper from the tray and reload it correctly.• There is too much paper in the tray. Remove excess paper from the tray.• The paper is too thick. Use only paper that meets the specifications required by the machine.The paper keeps jamming. • There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, feed manually in the tray.• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine.• There may be debris inside the machine. Open the top cover and remove any debris.Envelopes skew or fail to feed correctly. Ensure that the paper guides are against both sides of the envelopes.
1755. TroubleshootingPower and cable connecting problems Click this link to open an animation about solving power problems.Condition Suggested solutionsThe machine is not receiving power, or the connection cable between the computer and the machine is not connected properly.• Connect the machine to the electricity supply first and press the (Power) button on the control panel.• Disconnect the machine’s cable and reconnect it.
1765. TroubleshootingPrinting problemsCondition Possible cause Suggested solutionsThe machine does not print.The machine is not receiving power. Check the power cord connections. Check the power switch and the power source.The machine is not selected as the default machine.Select your machine as your default machine in Windows.Check the machine for the following:• The top cover is not closed. Close the top cover.• Paper is jammed. Clear the paper jam (see "Clearing paper jams" on page 52).• No paper is loaded. Load paper (see"Loading paper in the tray" on page 26).• The toner cartridge is not installed. Install the toner cartridge (see "Replacing the toner cartridge" on page 44).• Make sure the protect cover and sheets are removed from the toner cartridge (see "Replacing the toner cartridge" on page 44).If a system error occurs, contact your service representative.The connection cable between the computer and the machine is not connected properly.Disconnect the machine cable and reconnect it (see "Rear view" on page 17).The connection cable between the computer and the machine is defective.If possible, attach the cable to another computer that is working properly and print a job. You can also try using a different machine cable.The port setting is incorrect. Check the Windows printer settings to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the machine is attached to the correct one.The machine may be configured incorrectly. Check the Printing Preferences to ensure that all of the print settings are correct.
Printing problems1775. TroubleshootingThe machine does not print.The printer driver may be incorrectly installed. Uninstall and reinstall the machine’s driver.The machine is malfunctioning. Check the display message on the control panel to see if the machine is indicating a system error. Contact a service representative.The document size is so big that the hard disk space of the computer is insufficient to access the print job.Get more hard disk space and print the document again.The output tray is full. Once the paper is removed from the output tray, the machine resumes printing.The machine selects print materials from the wrong paper source.The paper option that was selected in the Printing Preferences may be incorrect.For many software applications, the paper source selection is found under the Paper tab within the Printing Preferences (see "Opening printing preferences" on page 35). Select the correct paper source. See the printer driver help screen (see "Using help" on page 36).A print job is extremely slow.The job may be very complex. Reduce the complexity of the page or try adjusting the print quality settings.Half the page is blank. The page orientation setting may be incorrect. Change the page orientation in your application (see "Opening printing preferences" on page 35). See the printer driver help screen (see "Using help" on page 36).The paper size and the paper size settings do not match.Ensure that the paper size in the printer driver settings matches the paper in the tray.Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use (see "Opening printing preferences" on page 35).Condition Possible cause Suggested solutions

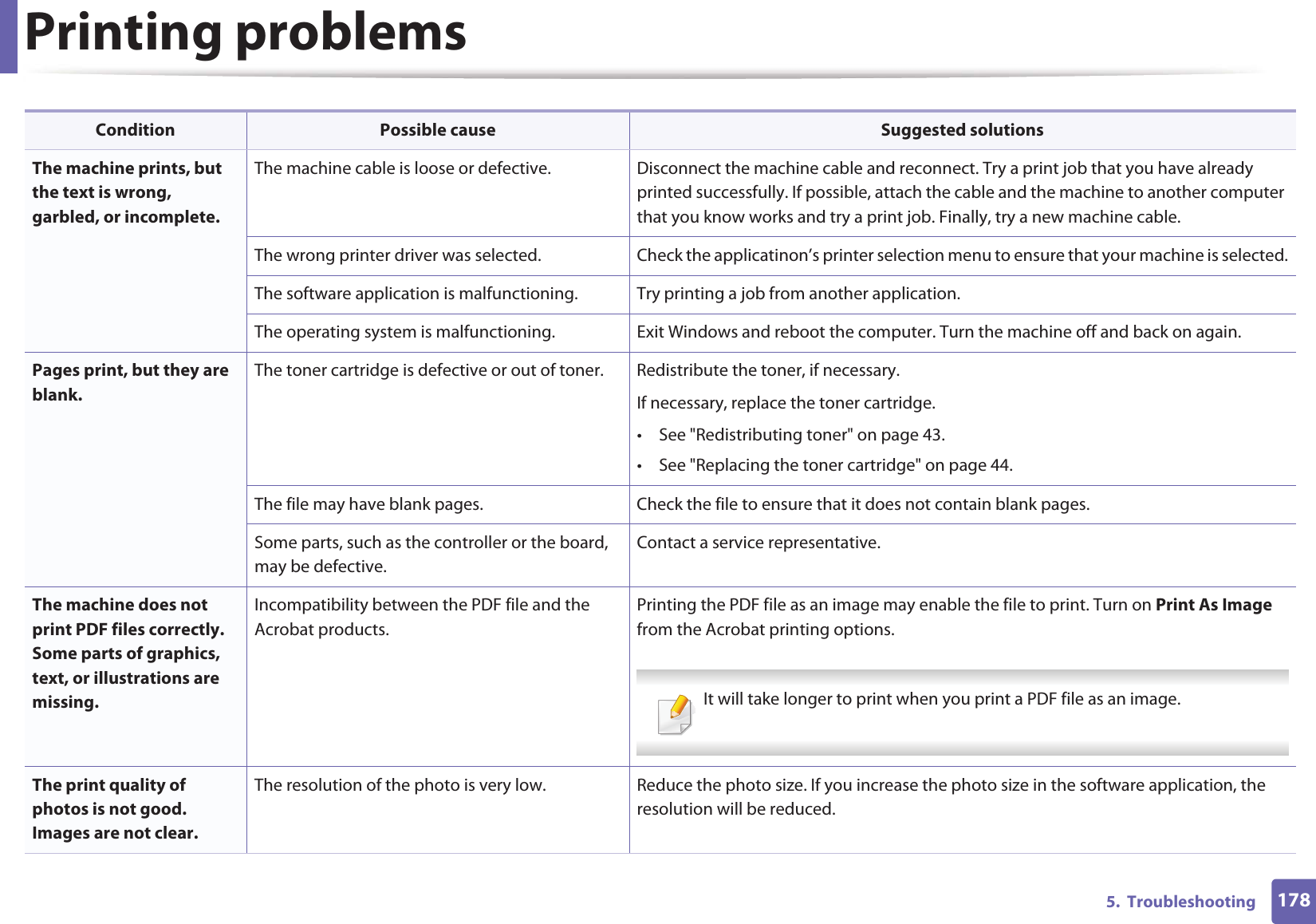

Printing problems1785. TroubleshootingThe machine prints, but the text is wrong, garbled, or incomplete.The machine cable is loose or defective. Disconnect the machine cable and reconnect. Try a print job that you have already printed successfully. If possible, attach the cable and the machine to another computer that you know works and try a print job. Finally, try a new machine cable.The wrong printer driver was selected. Check the applicatinon’s printer selection menu to ensure that your machine is selected.The software application is malfunctioning. Try printing a job from another application.The operating system is malfunctioning. Exit Windows and reboot the computer. Turn the machine off and back on again.Pages print, but they are blank.The toner cartridge is defective or out of toner. Redistribute the toner, if necessary. If necessary, replace the toner cartridge.• See "Redistributing toner" on page 43.• See "Replacing the toner cartridge" on page 44.The file may have blank pages. Check the file to ensure that it does not contain blank pages.Some parts, such as the controller or the board, may be defective.Contact a service representative.The machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.Incompatibility between the PDF file and the Acrobat products.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image. The print quality of photos is not good. Images are not clear.The resolution of the photo is very low. Reduce the photo size. If you increase the photo size in the software application, the resolution will be reduced. Condition Possible cause Suggested solutions
Printing problems1795. TroubleshootingBefore printing, the machine emits vapor near the output tray.Using damp paper can cause vapor during printing.This is not a problem. Just keep printing.The machine does not print special-sized paper, such as billing paper.Paper size and paper size setting do not match. Set the correct paper size in the Custom in Paper tab in Printing Preferences (see "Opening printing preferences" on page 35).The printed billing paper is curled.The paper type setting does not match. Change the printer option and try again. Go to Printing Preferences , click Paper tab, and set type to Thick (see "Opening printing preferences" on page 35).Condition Possible cause Suggested solutions
1805. TroubleshootingPrinting quality problemsIf the inside of the machine is dirty or paper has been loaded improperly, there might be a reduction in print quality. See the table below to clear the problem. Condition Suggested SolutionsLight or faded print • If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge (see "Replacing the toner cartridge" on page 44).• The paper may not meet paper specifications; for example, the paper may be too moist or rough.• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn the toner save mode off. See the help screen of the printer driver.• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 46).• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 46). If these steps do not correct the problem, contact a service representative.The top half of the paper is printed lighter than the rest of the paperThe toner might not adhere properly to this type of paper.• Change the printer option and try again. Go to Printing Preferences , click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 35).
Printing quality problems1815. TroubleshootingToner specks • The paper may not meet specifications; for example, the paper may be too moist or rough.• The transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 46).• The paper path may need cleaning. Contact a service representative (see "Cleaning the machine" on page 46).Dropouts If faded areas, generally rounded, occur randomly on the page:• A single sheet of paper may be defective. Try reprinting the job.• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to ThickGor Thicker (see "Opening printing preferences" on page 35).If these steps do not correct the problem, contact a service representative.White Spots If white spots appear on the page:• The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 46).• The paper path may need cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 46).If these steps do not correct the problem, contact a service representative.Condition Suggested SolutionsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCAaBbCAaBbCAaBbCAaBbC
Printing quality problems1825. TroubleshootingVertical lines If black vertical streaks appear on the page:• The surface (drum part) of the toner cartridge inside the machine has probably been scratched. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 44).If white vertical streaks appear on the page:• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 46). If these steps do not correct the problem, contact a service representative.Black background If the amount of background shading becomes unacceptable:• Change to a lighter weight paper.• Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount of background shading.• Remove the old toner cartridge and install a new one (see "Replacing the toner cartridge" on page 44).• Thoroughly redistribute the toner (see "Redistributing toner" on page 43).Toner smear • Clean the inside of the machine (see "Replacing the toner cartridge" on page 44).• Check the paper type and quality.• Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 44).Condition Suggested Solutions

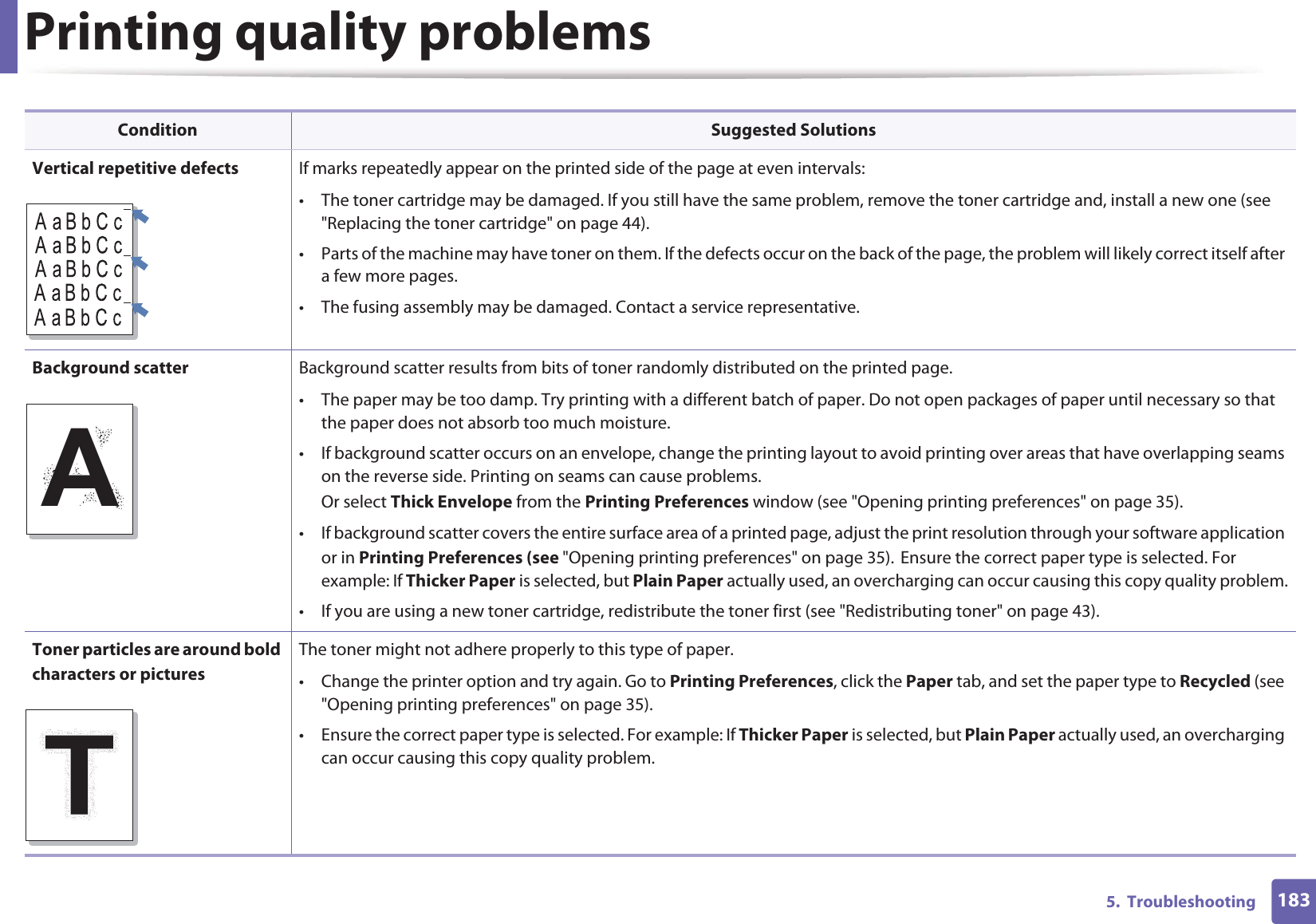

Printing quality problems1835. TroubleshootingVertical repetitive defects If marks repeatedly appear on the printed side of the page at even intervals:• The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one (see "Replacing the toner cartridge" on page 44).• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.• The fusing assembly may be damaged. Contact a service representative.Background scatter Background scatter results from bits of toner randomly distributed on the printed page. • The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.Or select Thick Envelope from the Printing Preferences window (see "Opening printing preferences" on page 35).• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or in Printing Preferences (see "Opening printing preferences" on page 35).GEnsure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.• If you are using a new toner cartridge, redistribute the toner first (see "Redistributing toner" on page 43). Toner particles are around bold characters or picturesThe toner might not adhere properly to this type of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 35).• Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.Condition Suggested SolutionsA
Printing quality problems1845. TroubleshootingMisformed characters • If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.Page skew • Ensure that the paper is loaded properly.• Check the paper type and quality.• Ensure that the guides are not too tight or too loose against the paper stack.Curl or wave • Ensure that the paper is loaded properly.• Check the paper type and quality. Both high temperature and humidity can cause paper curl.• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Condition Suggested Solutions

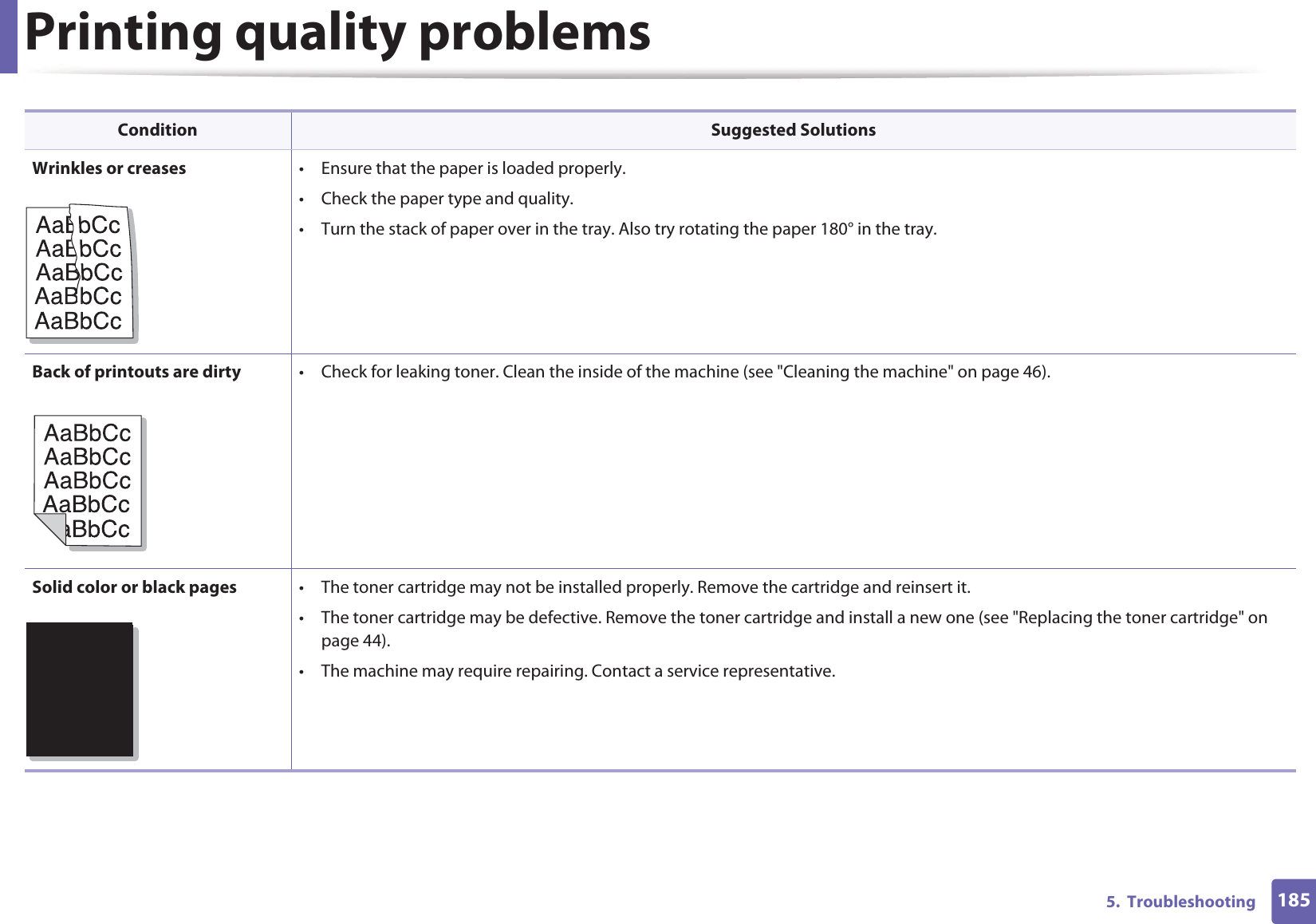

Printing quality problems1855. TroubleshootingWrinkles or creases • Ensure that the paper is loaded properly.• Check the paper type and quality.• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Back of printouts are dirty • Check for leaking toner. Clean the inside of the machine (see "Cleaning the machine" on page 46).Solid color or black pages • The toner cartridge may not be installed properly. Remove the cartridge and reinsert it.• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 44).• The machine may require repairing. Contact a service representative.Condition Suggested SolutionsA

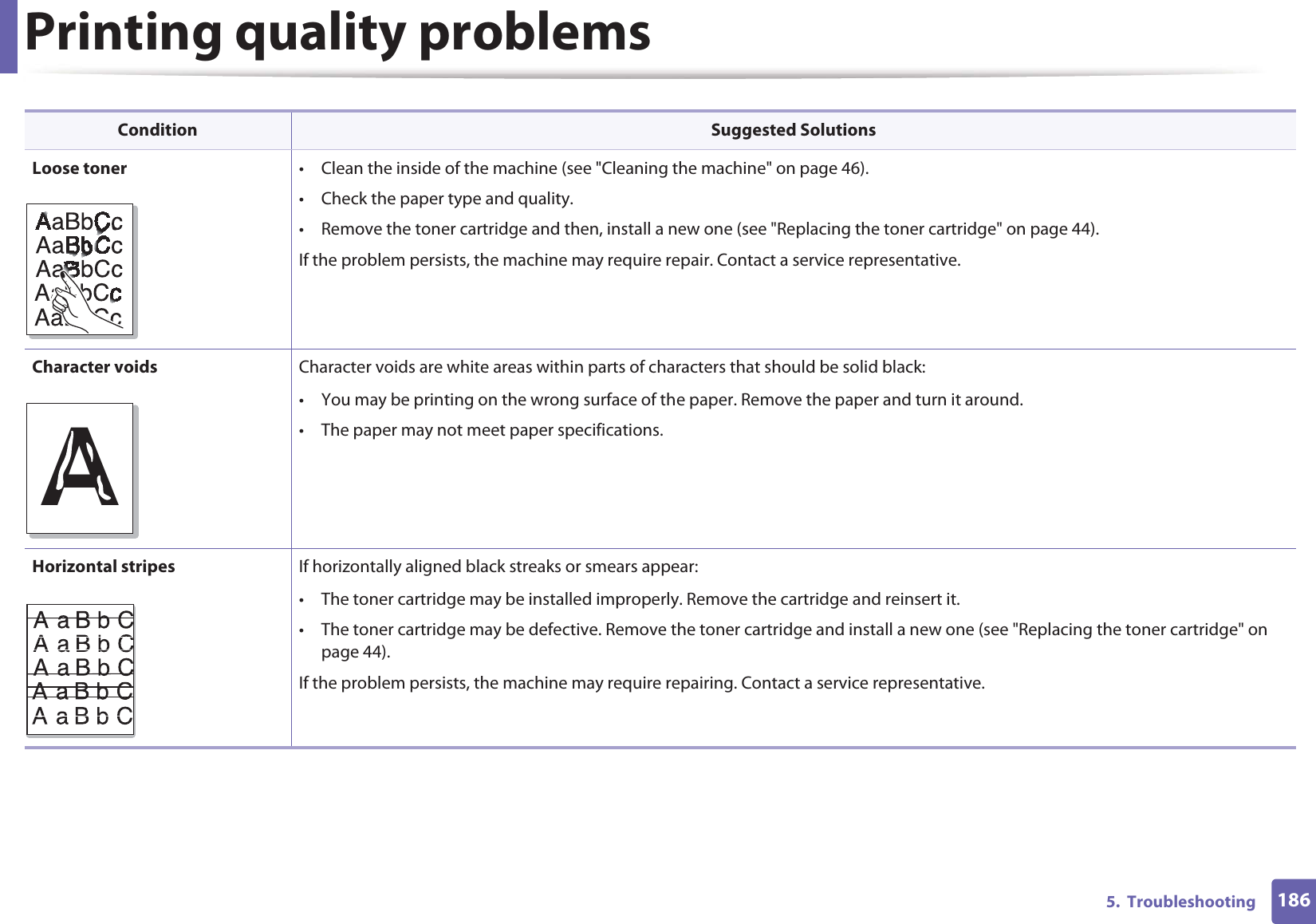

Printing quality problems1865. TroubleshootingLoose toner • Clean the inside of the machine (see "Cleaning the machine" on page 46).• Check the paper type and quality.• Remove the toner cartridge and then, install a new one (see "Replacing the toner cartridge" on page 44).If the problem persists, the machine may require repair. Contact a service representative.Character voids Character voids are white areas within parts of characters that should be solid black:• You may be printing on the wrong surface of the paper. Remove the paper and turn it around. • The paper may not meet paper specifications.Horizontal stripes If horizontally aligned black streaks or smears appear:• The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 44).If the problem persists, the machine may require repairing. Contact a service representative.Condition Suggested SolutionsA

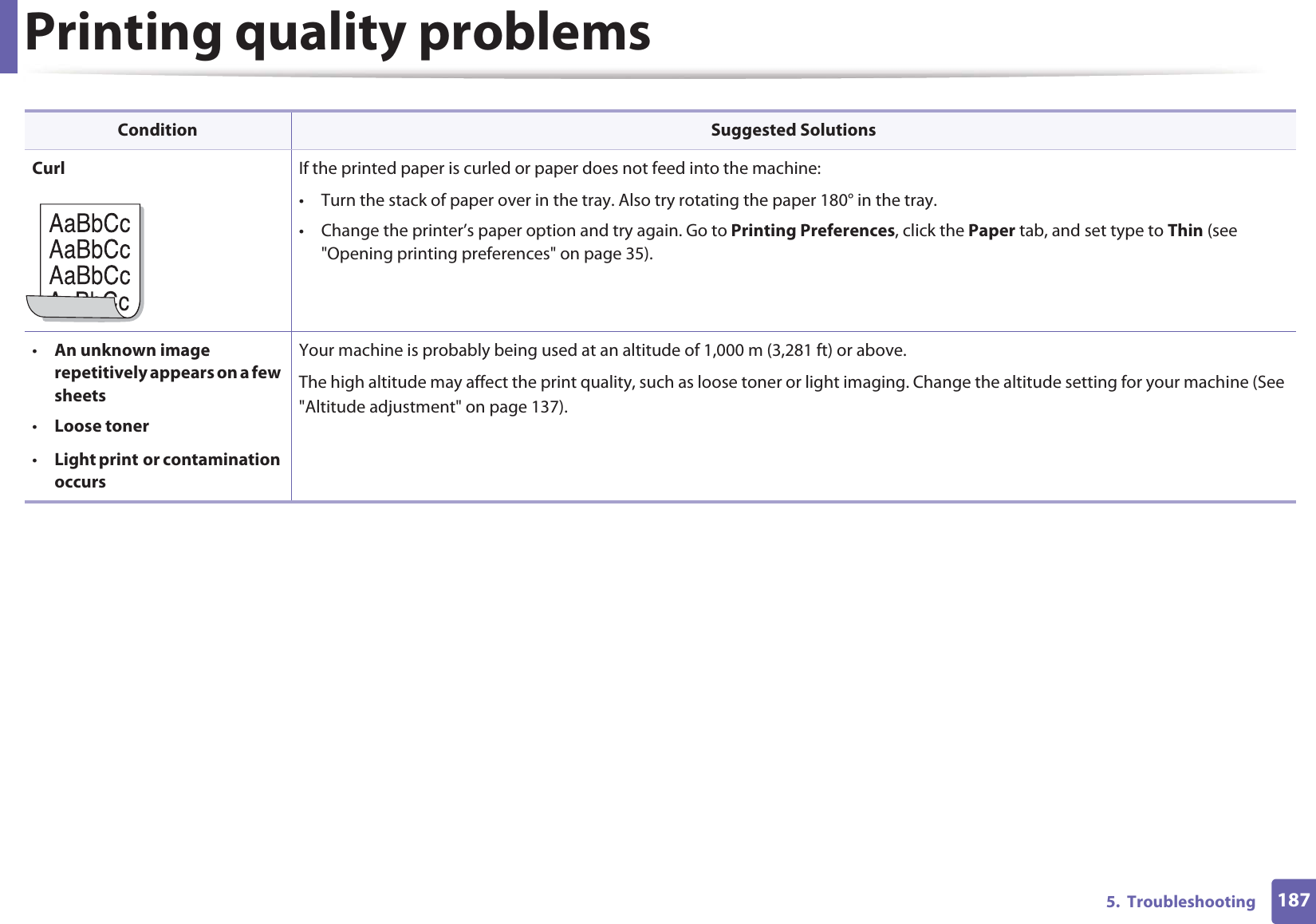

Printing quality problems1875. Troubleshooting Curl If the printed paper is curled or paper does not feed into the machine:• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray. • Change the printer’s paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin (see "Opening printing preferences" on page 35).•An unknown image repetitively appears on a few sheets•Loose toner•Light printGor contamination occursYour machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (See "Altitude adjustment" on page 137).Condition Suggested Solutions

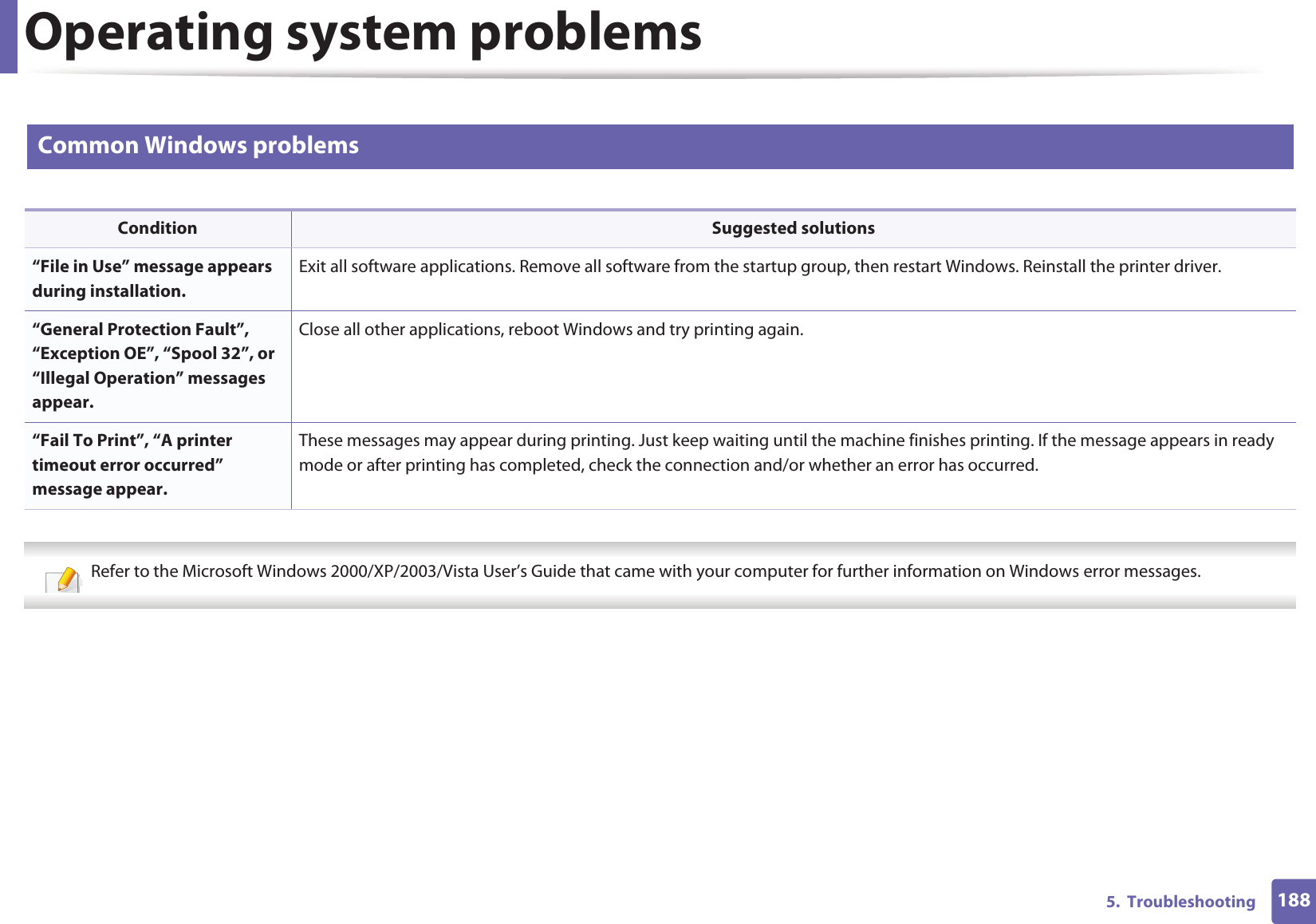

1885. TroubleshootingOperating system problems1 Common Windows problems Refer to the Microsoft Windows 2000/XP/2003/Vista User’s Guide that came with your computer for further information on Windows error messages. Condition Suggested solutions“File in Use” message appears during installation.Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.“General Protection Fault”, “Exception OE”, “Spool 32”, or “Illegal Operation” messages appear.Close all other applications, reboot Windows and try printing again.“Fail To Print”, “A printer timeout error occurred” message appear.These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready mode or after printing has completed, check the connection and/or whether an error has occurred.
Operating system problems1895. Troubleshooting2 Common Macintosh problems Refer to the Macintosh User’s Guide that came with your computer for further information on Macintosh error messages. Condition Suggested solutionsThe machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image. Some letters are not displayed normally during cover page printing.Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on the cover page.When printing a document in Macintosh with Acrobat Reader 6.0 or higher, colors print incorrectly.Make sure that the resolution setting in your machine driver matches the one in Acrobat Reader.
Operating system problems1905. Troubleshooting3 Common Linux problems Refer to the Linux User’s Guide that came with your computer for further information on Linux error messages. Condition Suggested solutionsThe machine does not print. • Check if the printer driver is installed in your system. Open Unified Driver Configurator and switch to the Printers tab in the Printers configuration window to look at the list of available machines. Make sure that your machine is displayed on the list. If not, open Add new printer wizard to set up your device.• Check if the machine is started. Open Printers configuration and select your machine from the printers list. Look at the description in the Selected printer pane. If its status contains Stopped, press the Start button. Normal operation of the machine should be restored. The “stopped” status might be activated when some problems in printing occur. • Check if your application has special print options such as “-oraw”. If “-oraw” is specified in the command line parameter, then remove it to print properly. For Gimp front-end, select “print” -> “Setup printer” and edit the command line parameter in the command item.The machine does not print whole pages, and output is printed on half the page.It is a known problem that occurs when a color machine is used on version 8.51 or earlier of Ghostscript, 64-bit Linux OS, and has been reported to bugs.ghostscript.com as Ghostscript Bug 688252.The problem is solved in AFPL Ghostscript v. 8.52 or above. Download the latest version of AFPL Ghostscript from http://sourceforge.net/projects/ghostscript/ and install it to solve this problem.“Cannot open port device file” error message appears when printing a document.Avoid changing print job parameters (e.q., via LPR GUI) while a print job is in progress. Known versions of CUPS server break the print job whenever print options are changed and then try to restart the job from the beginning. Since Unified Linux Driver locks the port while printing, the abrupt termination of the driver keeps the port locked and unavailable for subsequent print jobs. If this situation occurs, try to release the port by selecting Release port in the Port configuration window.
Operating system problems1915. Troubleshooting4 Common PostScript problemsThe following situations are PS language specific and may occur when several printer languages are used. Problem Possible cause SolutionThe PostScript file cannot be printed.The PostScript driver may not be installed correctly.• Install the PostScript driver (see "Software installation" on page 82).• Print a configuration page and verify that the PS version is available for printing.• If the problem persists, contact a service representative.Limit Check Error report prints. The print job was too complex. You might need to reduce the complexity of the page or install more memory.A PostScript error page prints. The print job may not be PostScript. Make sure that the print job is a PostScript job. Check to see whether the software application expected a setup or PostScript header file to be sent to the machine.The optional tray is not selected in the driver.The printer driver has not been configured to recognize the optional tray.Open the PostScript driver properties, select the Device Options tab, and set the tray option.
192.Contact SAMSUNG worldwideIf you have any comments or questions regarding Samsung products, contact the Samsung customer care center.Country/Region Customer Care Center Web SiteALBANIA 42 27 5755ARGENTINE 0800-333-3733 www.samsung.comARMENIA 0-800-05-555AUSTRALIA 1300 362 603 www.samsung.comAUSTRIA 0810-SAMSUNG (7267864, € 0.07/min)www.samsung.comAZERBAIJAN 088-55-55-555BAHRAIN 8000-4726 www.samsung.comBELARUS 810-800-500-55-500BELGIUM02-201-24-18 www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)BOSNIA 05 133 1999BRAZIL 0800-124-4214004-0000www.samsung.comBULGARIA 07001 33 11 www.samsung.comCANADA 1-800-SAMSUNG (726-7864) www.samsung.comCHILE 800-SAMSUNG (726-7864) www.samsung.comCHINA 400-810-5858 www.samsung.comCOLOMBIA 01-8000112112 www.samsung.comCOSTA RICA 0-800-507-7267 www.samsung.comCROATIA 062 SAMSUNG (062 726 7864) www.samsung.comCZECH REPUBLIC800-SAMSUNG (800-726786) www.samsung.comSamsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8DENMARK 70 70 19 70 www.samsung.comDOMINICA 1-800-751-2676 www.samsung.comECUADOR 1-800-10-7267 www.samsung.comEGYPT 0800-726786 www.samsung.comEIRE 0818 717100 www.samsung.comEL SALVADOR 800-6225 www.samsung.comESTONIA 800-7267 www.samsung.comFINLAND 030-6227 515 www.samsung.comFRANCE 01 48 63 00 00 www.samsung.comGERMANY 01805 - SAMSUNG (726-7864 € 0,14/min)www.samsung.comCountry/Region Customer Care Center Web Site
Contact SAMSUNG worldwide193.GEORGIA 8-800-555-555GREECEIT and Mobile : 80111-SAMSUNG (80111 7267864) from land line, local charge/ from mobile, 210 6897691 Cameras, Camcorders, Televisions and Household AppliancesFrom mobile and fixed 2106293100www.samsung.comGUATEMALA 1-800-299-0013 www.samsung.comHONDURAS 800-27919267 www.samsung.comHONG KONG(852) 3698-4698 www.samsung.com/hkwww.samsung.com/hk_en/HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.comINDIA 3030 82821800 3000 8282 www.samsung.comINDONESIA 0800-112-8888021-5699-7777www.samsung.comIRAN 021-8255 www.samsung.comITALY 800-SAMSUNG (726-7864) www.samsung.comCountry/Region Customer Care Center Web SiteJAMAICA 1-800-234-7267 www.samsung.comJAPAN 0120-327-527 www.samsung.comJORDAN 800-22273 www.samsung.comKAZAKHSTAN 8-10-800-500-55-500 (GSM:7799) www.samsung.comKOSOVO +381 0113216899KUWAIT 183-2255 www.samsung.comKYRGYZSTAN 00-800-500-55-500 www.samsung.comLATVIA 8000-7267 www.samsung.comLITHUANIA 8-800-77777 www.samsung.comLUXEMBURG 261 03 710 www.samsung.comMALAYSIA 1800-88-9999 www.samsung.comMACEDONIA 023 207 777MEXICO 01-800-SAMSUNG (726-7864) www.samsung.comMOLDOVA 00-800-500-55-500MONTENEGRO 020 405 888MOROCCO 080 100 2255 www.samsung.comNIGERIA 080-SAMSUNG(726-7864) www.samsung.comNETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/min)www.samsung.comCountry/Region Customer Care Center Web Site
Contact SAMSUNG worldwide194.NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.comNICARAGUA 00-1800-5077267 www.samsung.comNORWAY 815-56 480 www.samsung.comOMAN 800-SAMSUNG (726-7864) www.samsung.comPANAMA 800-7267 www.samsung.comPERU 0-800-777-08 www.samsung.comPHILIPPINES1800-10-SAMSUNG (726-7864)1-800-3-SAMSUNG (726-7864)1-800-8-SAMSUNG (726-7864)02-5805777www.samsung.comPOLAND 0 801 1SAMSUNG (172678)022-607-93-33www.samsung.comPORTUGAL 80820-SAMSUNG (726-7864) www.samsung.comPUERTO RICO 1-800-682-3180 www.samsung.comRUMANIA08010 SAMSUNG (08010 726 7864) only from landline, local network Romtelecom - local tariff /021 206 01 10 for landline and mobile, normal tariff.www.samsung.comCountry/Region Customer Care Center Web SiteRUSSIA 8-800-555-55-55 www.samsung.comSAUDI ARABIA 9200-21230 www.samsung.comSERBIA 0700 SAMSUNG (0700 726 7864) www.samsung.comSINGAPORE 1800-SAMSUNG (726-7864) www.samsung.comSLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.comSOUTH AFRICA 0860 SAMSUNG (726-7864) www.samsung.comSPAIN 902-1-SAMSUNG(902 172 678) www.samsung.comSWEDEN 0771 726 7864 (SAMSUNG) www.samsung.comSWITZERLAND0848-SAMSUNG (7267864, CHF 0.08/min)www.samsung.com/chwww.samsung.com/ch_fr/TADJIKISTAN 8-10-800-500-55-500 www.samsung.comTAIWAN 0800-329-999 www.samsung.comTHAILAND 1800-29-323202-689-3232www.samsung.comTRINIDAD & TOBAGO1-800-SAMSUNG (726-7864) www.samsung.comTURKEY 444 77 11 www.samsung.comU.A.E 800-SAMSUNG (726-7864) www.samsung.comCountry/Region Customer Care Center Web Site
Contact SAMSUNG worldwide195.U.K 0330 SAMSUNG (726-7864) www.samsung.comU.S.A 1-800-SAMSUNG (726-7864) www.samsung.comUKRAINE0-800-502-000 www.samsung.com/uawww.samsung.com/ua_ruUZBEKISTAN 8-10-800-500-55-500 www.samsung.comVENEZUELA 0-800-100-5303 www.samsung.comVIETNAM 1 800 588 889 www.samsung.comCountry/Region Customer Care Center Web Site

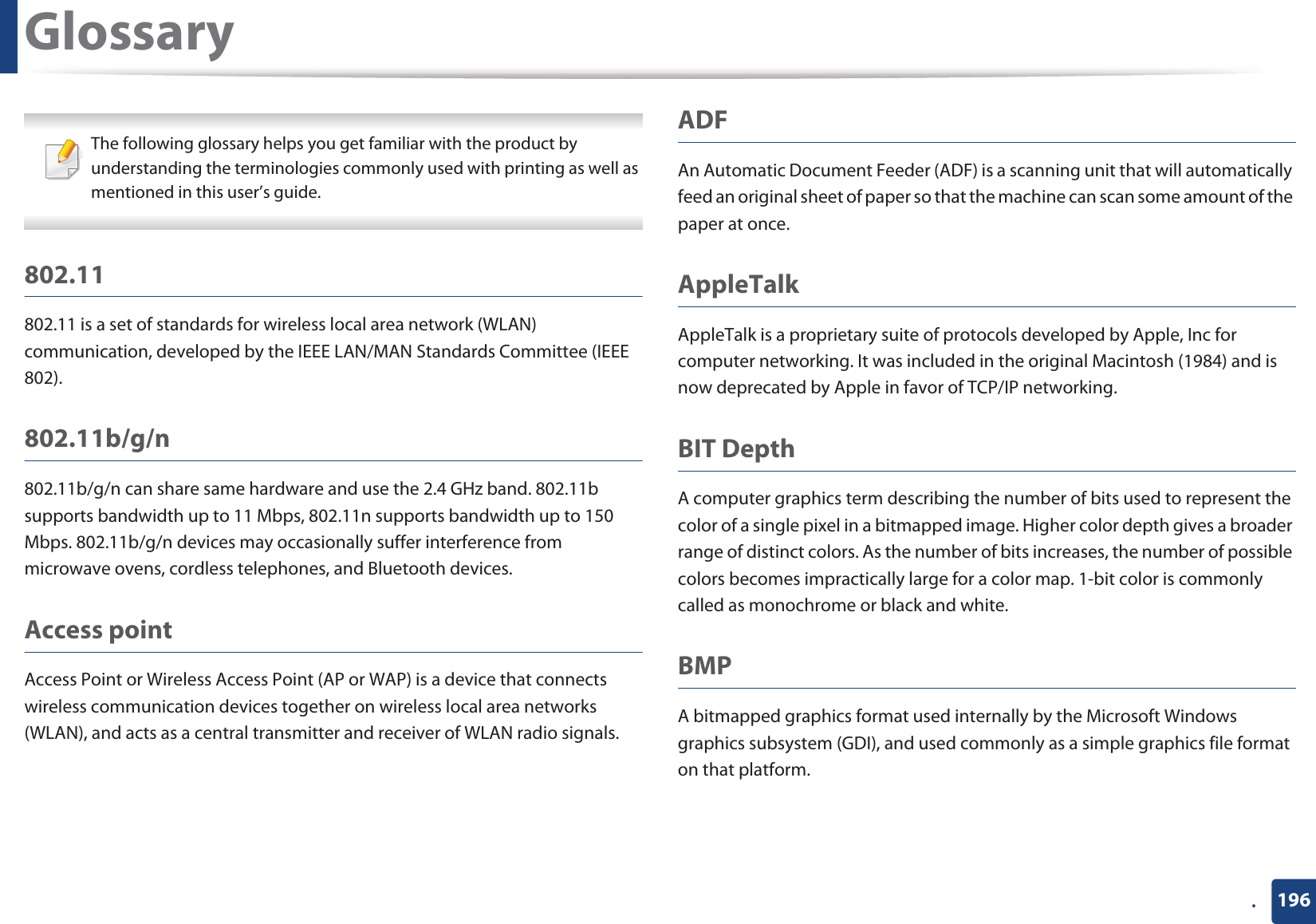

196.Glossary The following glossary helps you get familiar with the product by understanding the terminologies commonly used with printing as well as mentioned in this user’s guide. 802.11802.11 is a set of standards for wireless local area network (WLAN) communication, developed by the IEEE LAN/MAN Standards Committee (IEEE 802). 802.11b/g/n802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150 Mbps. 802.11b/g/n devices may occasionally suffer interference from microwave ovens, cordless telephones, and Bluetooth devices.Access pointAccess Point or Wireless Access Point (AP or WAP) is a device that connects wireless communication devices together on wireless local area networks (WLAN), and acts as a central transmitter and receiver of WLAN radio signals. ADFAn Automatic Document Feeder (ADF) is a scanning unit that will automatically feed an original sheet of paper so that the machine can scan some amount of the paper at once. AppleTalkAppleTalk is a proprietary suite of protocols developed by Apple, Inc for computer networking. It was included in the original Macintosh (1984) and is now deprecated by Apple in favor of TCP/IP networking.BIT DepthA computer graphics term describing the number of bits used to represent the color of a single pixel in a bitmapped image. Higher color depth gives a broader range of distinct colors. As the number of bits increases, the number of possible colors becomes impractically large for a color map. 1-bit color is commonly called as monochrome or black and white.BMPA bitmapped graphics format used internally by the Microsoft Windows graphics subsystem (GDI), and used commonly as a simple graphics file format on that platform.
Glossary197.BOOTPBootstrap Protocol. A network protocol used by a network client to obtain its IP address automatically. This is usually done in the bootstrap process of computers or operating systems running on them. The BOOTP servers assign the IP address from a pool of addresses to each client. BOOTP enables 'diskless workstation' computers to obtain an IP address prior to loading any advanced operating system.CCDCharge Coupled Device (CCD) is a hardware which enables the scan job. CCD Locking mechanism is also used to hold the CCD module to prevent any damage when you move the machine.CollationCollation is a process of printing a multiple-copy job in sets. When collation is selected, the device prints an entire set before printing additional copies.Control PanelA control panel is a flat, typically vertical, area where control or monitoring instruments are displayed. They are typically found in front of the machine. CoverageIt is the printing term used for a toner usage measurement on printing. For example, 5% coverage means that an A4 sided paper has about 5% image or text on it. So, if the paper or original has complicated images or lots of text on it, the coverage will be higher and at the same time, a toner usage will be as much as the coverage.CSVComma Separated Values (CSV). A type of file format, CSV is used to exchange data between disparate applications. The file format, as it is used in Microsoft Excel, has become a de facto standard throughout the industry, even among non-Microsoft platforms.DADFA Duplex Automatic Document Feeder (DADF) is a scanning unit that will automatically feed and turn over an original sheet of paper so that the machine can scan on both sides of the paper.DefaultThe value or setting that is in effect when taking a printer out of its box state, reset, or initialized.
Glossary198.DHCPA Dynamic Host Configuration Protocol (DHCP) is a client-server networking protocol. A DHCP server provides configuration parameters specific to the DHCP client host requesting, generally, information required by the client host to participate on an IP network. DHCP also provides a mechanism for allocation of IP addresses to client hosts.DIMMDual Inline Memory Module (DIMM), a small circuit board that holds memory. DIMM stores all the data within the machine like printing data, received fax data.DLNAThe Digital Living Network Alliance (DLNA) is a standard that allows devices on a home network to share information with each other across the network.DNSThe Domain Name Server (DNS) is a system that stores information associated with domain names in a distributed database on networks, such as the Internet.Dot Matrix PrinterA dot matrix printer refers to a type of computer printer with a print head that runs back and forth on the page and prints by impact, striking an ink-soaked cloth ribbon against the paper, much like a typewriter.DPIDots Per Inch (DPI) is a measurement of resolution that is used for scanning and printing. Generally, higher DPI results in a higher resolution, more visible detail in the image, and a larger file size.DRPD Distinctive Ring Pattern Detection. Distinctive Ring is a telephone company service which enables a user to use a single telephone line to answer several different telephone numbers.DuplexA mechanism that will automatically turn over a sheet of paper so that the machine can print (or scan) on both sides of the paper. A printer equipped with a Duplex Unit can print on both sides of paper during one print cycle.Duty CycleDuty cycle is the page quantity which does not affect printer performance for a month. Generally the printer has the lifespan limitation such as pages per year. The lifespan means the average capacity of print-outs, usually within the warranty period. For example, if the duty cycle is 48,000 pages per month assuming 20 working days, a printer limits 2,400 pages a day.
Glossary199.ECMError Correction Mode (ECM) is an optional transmission mode built into Class 1 fax machines or fax modems. It automatically detects and corrects errors in the fax transmission process that are sometimes caused by telephone line noise.EmulationEmulation is a technique of one machine obtaining the same results as another.An emulator duplicates the functions of one system with a different system, so that the second system behaves like the first system. Emulation focuses on exact reproduction of external behavior, which is in contrast to simulation, which concerns an abstract model of the system being simulated, often considering its internal state.EthernetEthernet is a frame-based computer networking technology for local area networks (LANs). It defines wiring and signaling for the physical layer, and frame formats and protocols for the media access control (MAC)/data link layer of the OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most widespread LAN technology in use during the 1990s to the present.EtherTalkA suite of protocols developed by Apple Computer for computer networking. It was included in the original Macintosh (1984) and is now deprecated by Apple in favor of TCP/IP networking. FDIForeign Device Interface (FDI) is a card installed inside the machine to allow a third party device such as a coin operated device or a card reader. Those devices allow the pay-for-print service on your machine.FTPA File Transfer Protocol (FTP) is a commonly used protocol for exchanging files over any network that supports the TCP/IP protocol (such as the Internet or an intranet).Fuser Unit The part of a laser printer that fuses the toner onto the print media. It consists of a heat roller and a pressure roller. After toner is transferred onto the paper, the fuser unit applies heat and pressure to ensure that the toner stays on the paper permanently, which is why paper is warm when it comes out of a laser printer.
Glossary200.GatewayA connection between computer networks, or between a computer network and a telephone line. It is very popular, as it is a computer or a network that allows access to another computer or network.GrayscaleA shades of gray that represent light and dark portions of an image when color images are converted to grayscale; colors are represented by various shades of gray.HalftoneAn image type that simulates grayscale by varying the number of dots. Highly colored areas consist of a large number of dots, while lighter areas consist of a smaller number of dots.HDDHard Disk Drive (HDD), commonly referred to as a hard drive or hard disk, is a non-volatile storage device which stores digitally-encoded data on rapidly rotating platters with magnetic surfaces.IEEEThe Institute of Electrical and Electronics Engineers (IEEE) is an international non-profit, professional organization for the advancement of technology related to electricity.IEEE 1284The 1284 parallel port standard was developed by the Institute of Electrical and Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector type on the end of the parallel cable that attaches to the peripheral (for example, a printer). IntranetA private network that uses Internet Protocols, network connectivity, and possibly the public telecommunication system to securely share part of an organization's information or operations with its employees. Sometimes the term refers only to the most visible service, the internal website.IP addressAn Internet Protocol (IP) address is a unique number that devices use in order to identify and communicate with each other on a network utilizing the Internet Protocol standard.
Glossary201.IPMThe Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM rate indicates the number of single-sided sheets a printer can complete within one minute.IPPThe Internet Printing Protocol (IPP) defines a standard protocol for printing as well as managing print jobs, media size, resolution, and so forth. IPP can be used locally or over the Internet to hundreds of printers, and also supports access control, authentication, and encryption, making it a much more capable and secure printing solution than older ones.IPX/SPXIPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a networking protocol used by the Novell NetWare operating systems. IPX and SPX both provide connection services similar to TCP/IP, with the IPX protocol having similarities to IP, and SPX having similarities to TCP. IPX/SPX was primarily designed for local area networks (LANs), and is a very efficient protocol for this purpose (typically its performance exceeds that of TCP/IP on a LAN).ISOThe International Organization for Standardization (ISO) is an international standard-setting body composed of representatives from national standards bodies. It produces world-wide industrial and commercial standards.ITU-TThe International Telecommunication Union is an international organization established to standardize and regulate international radio and telecommunications. Its main tasks include standardization, allocation of the radio spectrum, and organizing interconnection arrangements between different countries to allow international phone calls. A -T out of ITU-T indicates telecommunication.ITU-T No. 1 chartStandardized test chart published by ITU-T for document facsimile transmissions.JBIGJoint Bi-level Image Experts Group (JBIG) is an image compression standard with no loss of accuracy or quality, which was designed for compression of binary images, particularly for faxes, but can also be used on other images.JPEGJoint Photographic Experts Group (JPEG) is a most commonly used standard method of lossy compression for photographic images. It is the format used for storing and transmitting photographs on the World Wide Web.
Glossary202.LDAPThe Lightweight Directory Access Protocol (LDAP) is a networking protocol for querying and modifying directory services running over TCP/IP.LEDA Light-Emitting Diode (LED) is a semiconductor device that indicates the status of a machine.MAC addressMedia Access Control (MAC) address is a unique identifier associated with a network adapter. MAC address is a unique 48-bit identifier usually written as 12 hexadecimal characters grouped in pairs (e. g., 00-00-0c-34-11-4e). This address is usually hard-coded into a Network Interface Card (NIC) by its manufacturer, and used as an aid for routers trying to locate machines on large networks.MFPMulti Function Peripheral (MFP) is an office machine that includes the following functionality in one physical body, so as to have a printer, a copier, a fax, a scanner and etc.MHModified Huffman (MH) is a compression method for decreasing the amount of data that needs to be transmitted between the fax machines to transfer the image recommended by ITU-T T.4. MH is a codebook-based run-length encoding scheme optimized to efficiently compress white space. As most faxes consist mostly of white space, this minimizes the transmission time of most faxes. MMRModified Modified READ (MMR) is a compression method recommended by ITU-T T.6.ModemA device that modulates a carrier signal to encode digital information, and also demodulates such a carrier signal to decode transmitted information.MRModified Read (MR) is a compression method recommended by ITU-T T.4. MR encodes the first scanned line using MH. The next line is compared to the first, the differences determined, and then the differences are encoded and transmitted.
Glossary203.NetWareA network operating system developed by Novell, Inc. It initially used cooperative multitasking to run various services on a PC, and the network protocols were based on the archetypal Xerox XNS stack. Today NetWare supports TCP/IP as well as IPX/SPX.OPCOrganic Photo Conductor (OPC) is a mechanism that makes a virtual image for print using a laser beam emitted from a laser printer, and it is usually green or rust colored and has a cylinder shape. An imaging unit containing a drum slowly wears the drum surface by its usage in the printer, and it should be replaced appropriately since it gets worn from contact with the cartridge development brush, cleaning mechanism, and paper.OriginalsThe first example of something, such as a document, photograph or text, etc, which is copied, reproduced or translated to produce others, but which is not itself copied or derived from something else.OSIOpen Systems Interconnection (OSI) is a model developed by the International Organization for Standardization (ISO) for communications. OSI offers a standard, modular approach to network design that divides the required set of complex functions into manageable, self-contained, functional layers. The layers are, from top to bottom, Application, Presentation, Session, Transport, Network, Data Link and Physical.PABX A private automatic branch exchange (PABX) is an automatic telephone switching system within a private enterprise.PCLPrinter Command Language (PCL) is a Page Description Language (PDL) developed by HP as a printer protocol and has become an industry standard. Originally developed for early inkjet printers, PCL has been released in varying levels for thermal, dot matrix printer, and laser printers.PDFPortable Document Format (PDF) is a proprietary file format developed by Adobe Systems for representing two dimensional documents in a device independent and resolution independent format.

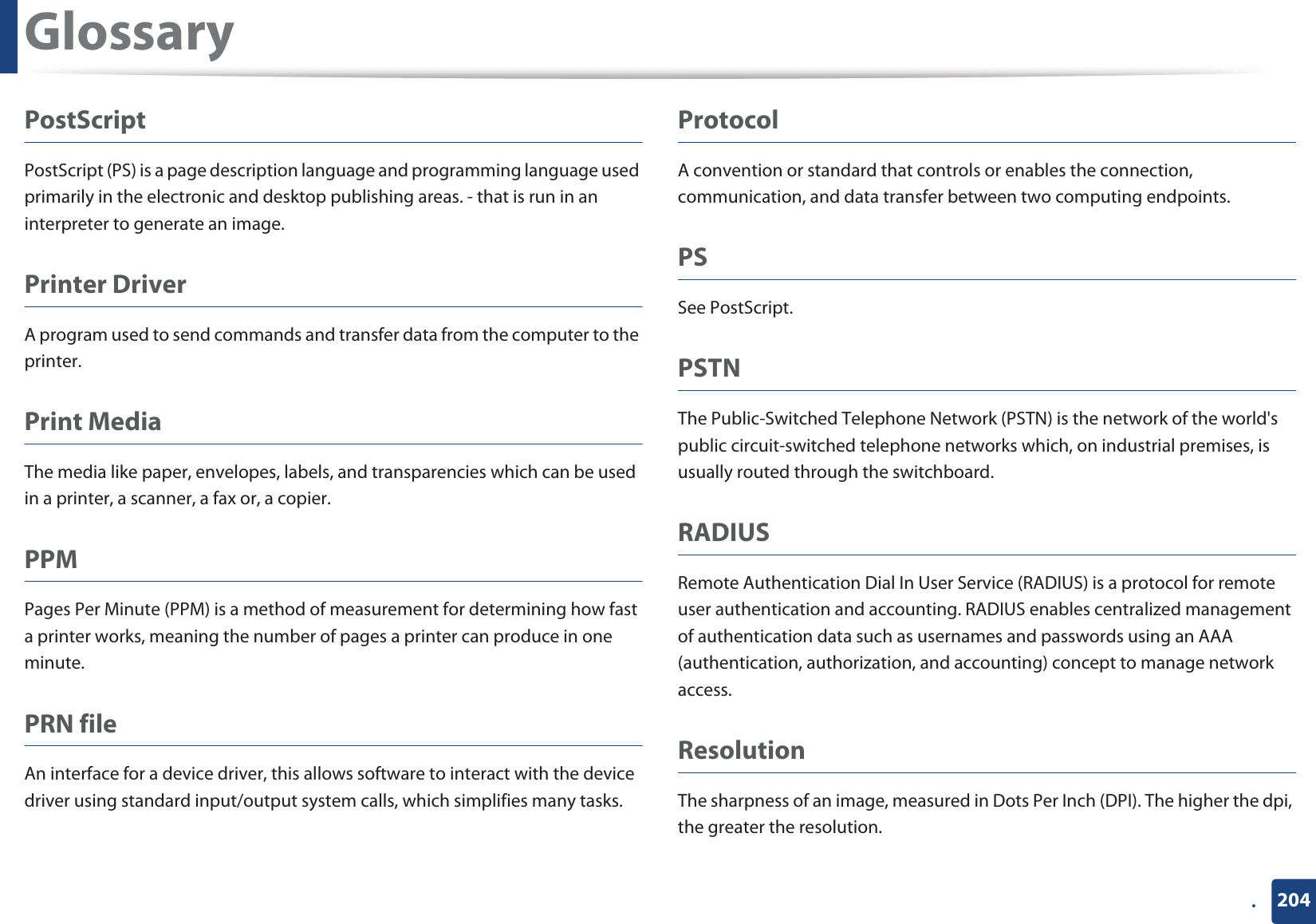

Glossary204.PostScriptPostScript (PS) is a page description language and programming language used primarily in the electronic and desktop publishing areas. - that is run in an interpreter to generate an image.Printer DriverA program used to send commands and transfer data from the computer to the printer.Print MediaThe media like paper, envelopes, labels, and transparencies which can be used in a printer, a scanner, a fax or, a copier.PPMPages Per Minute (PPM) is a method of measurement for determining how fast a printer works, meaning the number of pages a printer can produce in one minute.PRN fileAn interface for a device driver, this allows software to interact with the device driver using standard input/output system calls, which simplifies many tasks. ProtocolA convention or standard that controls or enables the connection, communication, and data transfer between two computing endpoints.PSSee PostScript.PSTNThe Public-Switched Telephone Network (PSTN) is the network of the world's public circuit-switched telephone networks which, on industrial premises, is usually routed through the switchboard.RADIUSRemote Authentication Dial In User Service (RADIUS) is a protocol for remote user authentication and accounting. RADIUS enables centralized management of authentication data such as usernames and passwords using an AAA (authentication, authorization, and accounting) concept to manage network access.ResolutionThe sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi, the greater the resolution.
Glossary205.SMBServer Message Block (SMB) is a network protocol mainly applied to share files, printers, serial ports, and miscellaneous communications between nodes on a network. It also provides an authenticated Inter-process communication mechanism.SMTPSimple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions across the Internet. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified, and then the message text is transferred. It is a client-server protocol, where the client transmits an email message to the server.SSIDService Set Identifier (SSID) is a name of a wireless local area network (WLAN). All wireless devices in a WLAN use the same SSID in order to communicate with each other. The SSIDs are case-sensitive and have a maximum length of 32 characters.Subnet Mask The subnet mask is used in conjunction with the network address to determine which part of the address is the network address and which part is the host address.TCP/IPThe Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of communications protocols that implement the protocol stack on which the Internet and most commercial networks run.TCRTransmission Confirmation Report (TCR) provides details of each transmission such as job status, transmission result and number of pages sent. This report can be set to print after each job or only after failed transmissions.TIFFTagged Image File Format (TIFF) is a variable-resolution bitmapped image format. TIFF describes image data that typically come from scanners. TIFF images make use of tags, keywords defining the characteristics of the image that is included in the file. This flexible and platform-independent format can be used for pictures that have been made by various image processing applications.Toner CartridgeA kind of bottle or container used in a machine like a printer which contains toner. Toner is a powder used in laser printers and photocopiers, which forms the text and images on the printed paper. Toner can be fused by by a combination of heat/pressure from the fuser, causing it to bind to the fibers in the paper.
Glossary206.TWAINAn industry standard for scanners and software. By using a TWAIN-compliant scanner with a TWAIN-compliant program, a scan can be initiated from within the program. It is an image capture API for Microsoft Windows and Apple Macintosh operating systems.UNC PathUniform Naming Convention (UNC) is a standard way to access network shares in Window NT and other Microsoft products. The format of a UNC path is: \\<servername>\<sharename>\<Additional directory>URLUniform Resource Locator (URL) is the global address of documents and resources on the Internet. The first part of the address indicates what protocol to use, the second part specifies the IP address or the domain name where the resource is located.USBUniversal Serial Bus (USB) is a standard that was developed by the USB Implementers Forum, Inc., to connect computers and peripherals. Unlike the parallel port, USB is designed to concurrently connect a single computer USB port to multiple peripherals.WatermarkA watermark is a recognizable image or pattern in paper that appears lighter when viewed by transmitted light. Watermarks were first introduced in Bologna, Italy in 1282; they have been used by papermakers to identify their product, and also on postage stamps, currency, and other government documents to discourage counterfeiting.WEPWired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to provide the same level of security as that of a wired LAN. WEP provides security by encrypting data over radio so that it is protected as it is transmitted from one end point to another.WIAWindows Imaging Architecture (WIA) is an imaging architecture that is originally introduced in Windows Me and Windows XP. A scan can be initiated from within these operating systems by using a WIA-compliant scanner.WPAWi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks, which was created to improve upon the security features of WEP.
Glossary207.WPA-PSKWPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or home users. A shared key, or password, is configured in the wireless access point (WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique key for each session between a wireless client and the associated WAP for more advanced security.WPSThe Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home network. If your wireless access point supports WPS, you can configure the wireless network connection easily without a computer.XPSXML Paper Specification (XPS) is a specification for a Page Description Language (PDL) and a new document format, which has benefits for portable document and electronic document, developed by Microsoft. It is an XML-based specification, based on a new print path and a vector-based device-independent document format.
208IndexCcleaninginsideG46outsideG46pickup rollerG48cleaning a machineG46control panelG18conventionG9Ddirect printing utilityG148driver installationUnixG98Eeco printingG36Ffavorites settings, for printingG36featuresG4print media featureG61front viewG16Ggeneral iconsG9glossaryG196Jjamclearing paperG52tips for avoiding paper jamsG51LLinuxcommon Linux problemsG190driver installation for network connectedG97driver installation for USB cable connectedG85driver reinstallation for USB cable connectedG87printer propertiesG153printingG152unifled driver configuratorG170using SetIPG92loadingpaper in manual feeder/multi-purpose trayG28paper in the tray1G26special mediaG28localdriver installationG21driver reinstallingG22MMacintoshcommon Macintosh problemsG189driver installation for network connectedG96driver installation for USB cable connectedG83driver reinstallation for USB cable connectedG84printingG150system requirementsG65using SetIPG91maintenance partsG40manual feeder/multi-purpose traytips on usingG28using special mediaG28Nnetworkdriver installation
Index209LinuxG97MacintoshG96UNIXG98WindowsG93installing environmentG67introducing network programsG89IPv6 configurationG101SetIP programG90SG91SG92SG129wireless network setupG104N-up printingMacintoshG150Ooverlay printingcreateG145deleteG146printG146Pplacing a machineadjusting the altitudeG137PostScript drivertroubleshootingG191print mediacard stockG32envelopeG29labelsG31output supportG61preprinted paperG32special mediaG28print resolution setLinuxG152printer preferencesLinuxG153Printer Statusgeneral informationG166SG168PrintingG34printingchanging the default print settingsG138LinuxG152MacintoshG150multiple pages on one sheet of paperMacintoshG150printing a documentWindowsG34printing on both sides of paperMacintoshG151printing to a fileG140UNIXG154using direct printing utilityG148printing a documentLinuxG152MacintoshG150UNIXG154problemspaper feeding problemsG174power problemsG175printing problemsG176printing quality problemsG180Rrear viewG17regulatiory informationG68SsafetyinformationG10symbolsG10service contact numbersG192SetIP programG90SG129special print featuresG136specificationsG59
Index210print mediaG61stop buttonG19suppliesavailable suppliesG39estimated toner cartridge lifeG42orderingG39replacing toner cartridgeG44SyncThru Web Servicegeneral informationG160Ttoner cartridgeestimated lifeG42handling instructionsG42non-Samsung and refilledG42redistributing tonerG43replacing the cartridgeG44storingG41trayadjusting the width and lengthG25changing the tray sizeG25loading paper in manual feeder/multi-purpose trayG28Uunderstanding the status LEDG55UNIXdriver installation for network connectedG98printingG154Unixsystem requirementsG66USB cabledriver installationG83SG85driver reinstallationG84SG87using helpG36SG151WwatermarkcreateG144deleteG144editG144Windowscommon Windows problemsG188driver installation for network connectedG93driver installation for USB cable connectedG21SG 22system requirementsG64using SetIPG90SG129wirelessad hoc modeG104Infrastructure modeG104USB cableG111SG115SG124WPSdisconnectiongG108PBC modeG108WPS (the machine does not have a display screen)PBCG109PING109wireless networknetwork cableG128

Navigation menu
