Users Manual
ML-2525W Series
Mono Laser Printer
User’s Guide
imagine the possibilities
Thank you for purchasing a Samsung product.
Copyright_2
copyright
© 2009 Samsung Electronics Co., Ltd. All rights reserved.
This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.
Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.
•Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd.
•Microsoft, Windows, Windows Vista, Windows 7 and Windows 2008 Server R2 are either registered trademarks or trademarks of Microsoft Corporation.
•TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc.
•All other brand or product names are trademarks of their respective companies or organizations.
Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.
REV. 1.00
Contents_ 3
contents
COPYRIGHT
2
CONTENTS
3
7 Safety information
11 Regulatory information
18 About this user’s guide
20 Features of your new product
INTRODUCTION
22
22 Machine overview

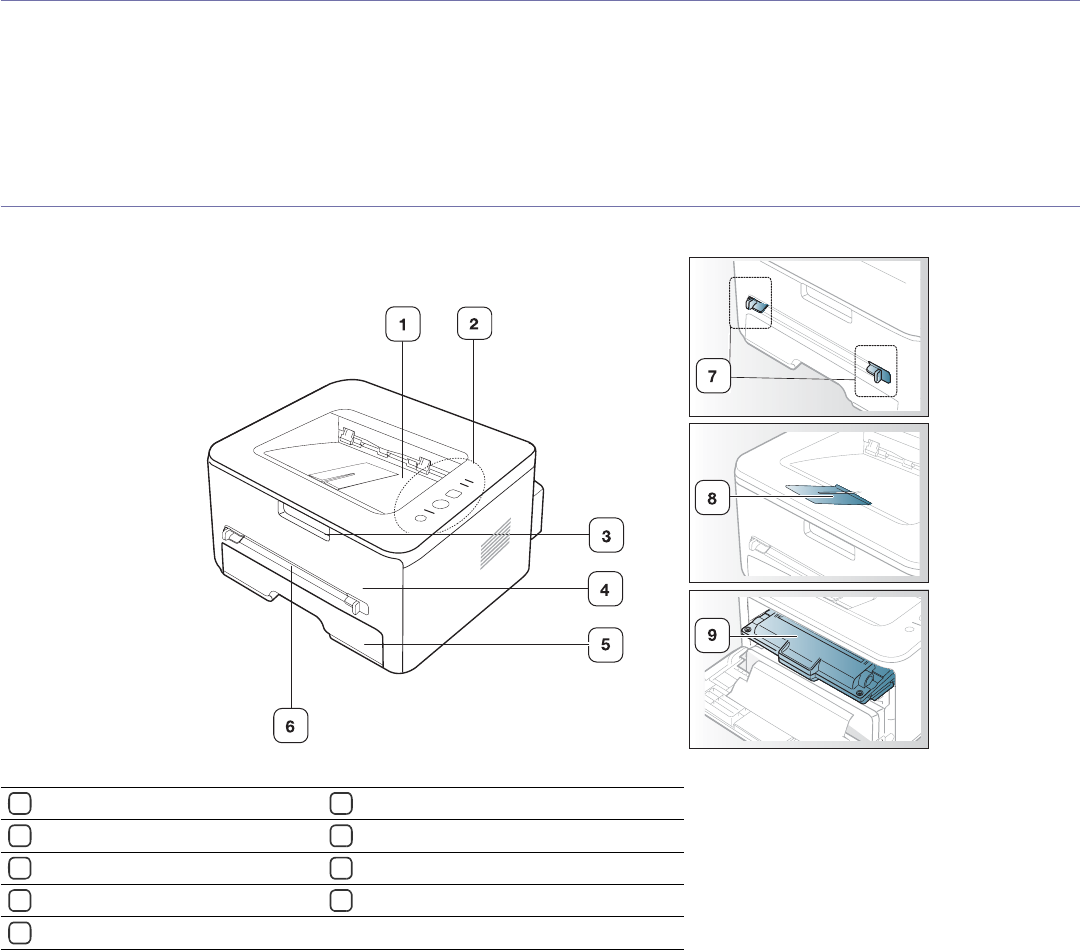

Front view
Rear view

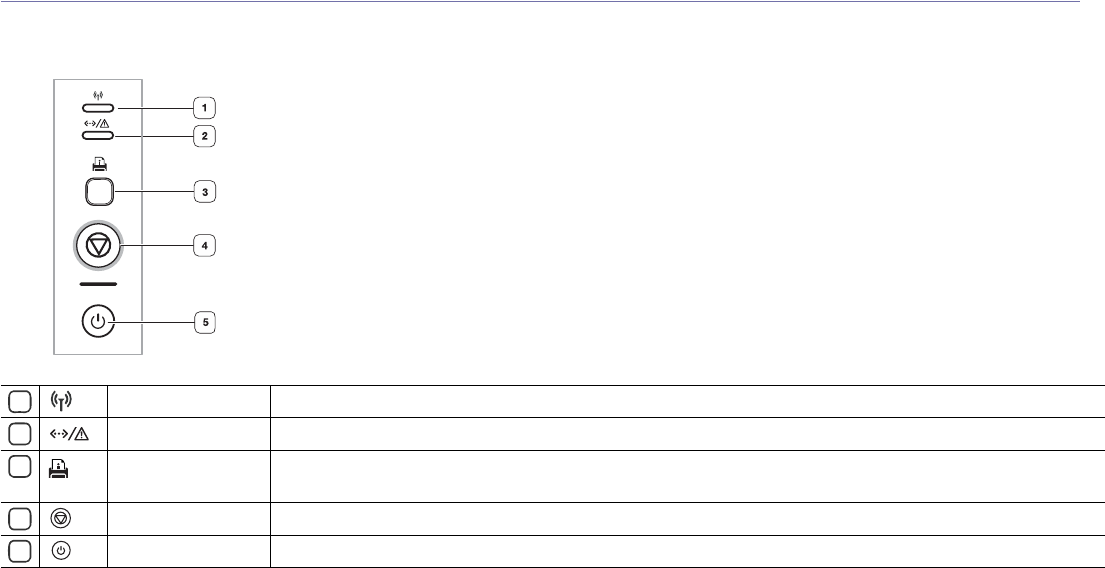

24 Control panel overview
25 Understanding the control panel
LEDs
Buttons
GETTING STARTED
27
27 Setting up the hardware
Location
27 Printing a demo page
27 Supplied software
28 System requirements
Windows
Macintosh
Linux
28 Installing USB connected machine’s driver
Windows
Macintosh
Linux

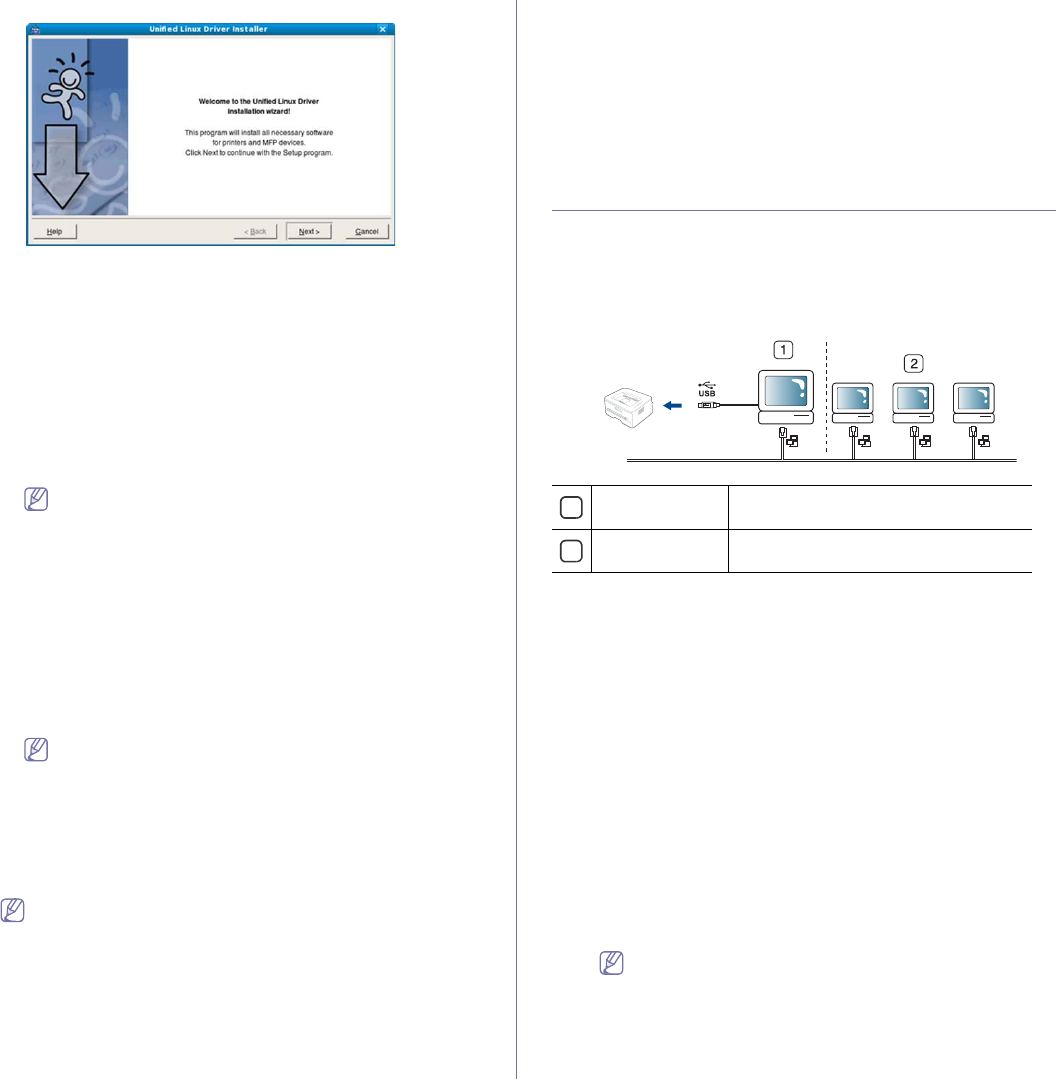

31 Sharing your machine locally
Windows
Macintosh
NETWORK SETUP
33
33 Network environment
33 Introducing useful network programs
SyncThru™ Web Service
SyncThru™ Web Admin Service
SetIP
33 Using a wired network
Printing network configuration report

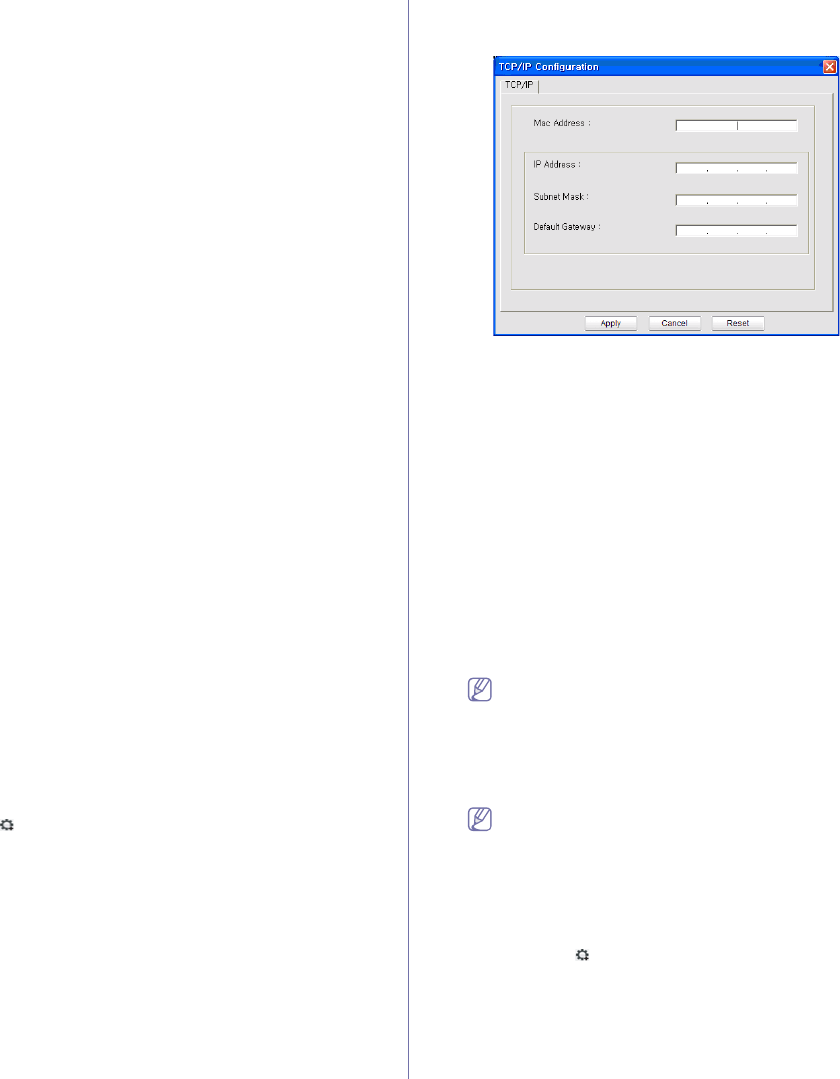

Setting IP address
Network parameter setting
Restoring factory default settings

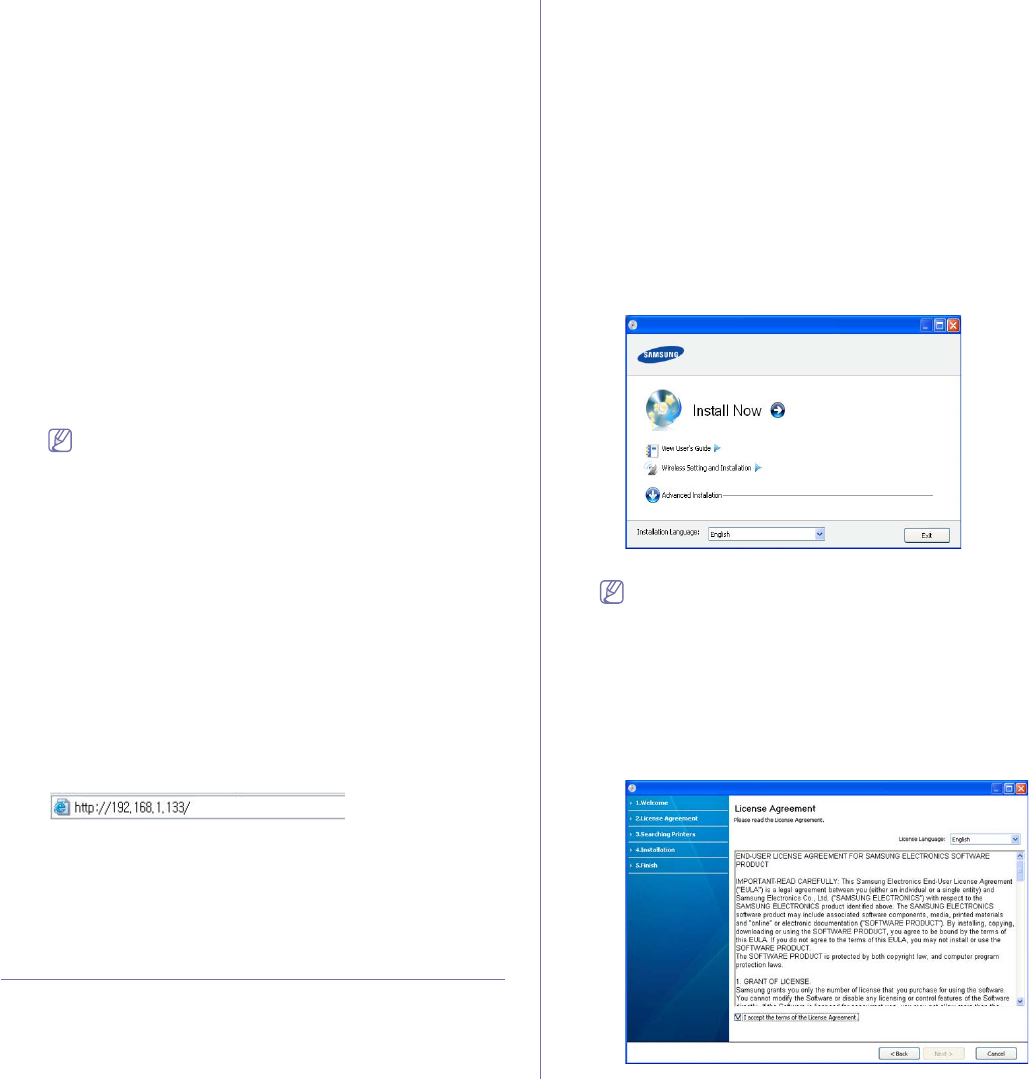

35 Installing network connected machine’s driver
Windows
Macintosh
Linux
37 IPv6 Configuration
Printing network configuration report
Setting IPv6 addresses
Manual address configuration
Installing printer driver
contents
Contents_ 4
Using SyncThru Web Service
WIRELESS NETWORK SETUP
39
39 Using a wireless network
Choosing your network connection
How to print a network configuration report
IP addresses
Wireless network name and Network Key
Installing a wireless network with cables.
40 Setting a wireless network with usb cable
Installing the machine on an Ad-Hoc wireless network (Windows)
Installing the machine on a wireless network with an Access Point (Win-
dows)
Installing the machine on an Ad-Hoc wireless network (Macintosh)
Installing the machine on a wireless network with an Access Point (Macin-
tosh)
Troubleshooting
44 Setting a wireless network with network cable
Preparing items

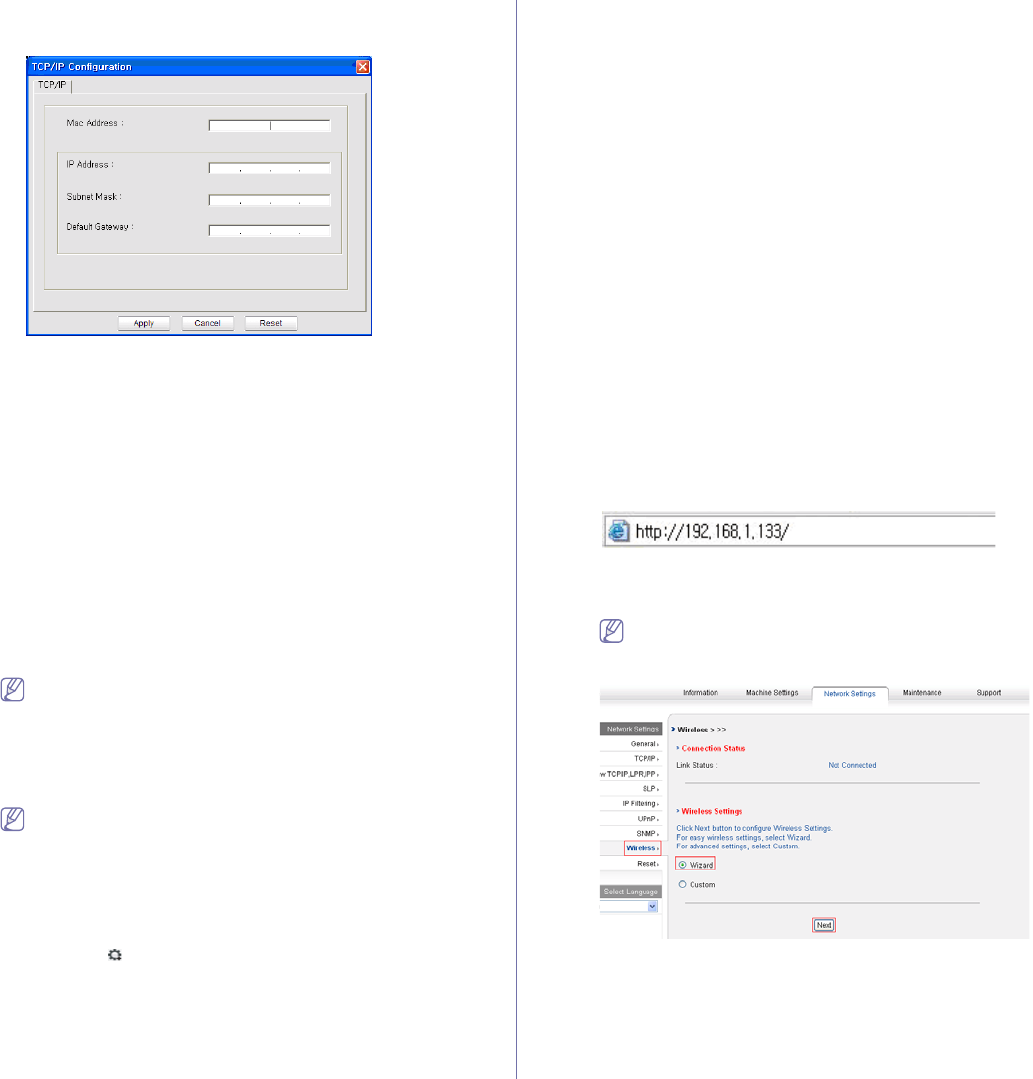

Setting IP address
Configuring the machine’s wireless network
46 Resetting factory default values
Resetting the printer to factory default settings (Windows)
Resetting the printer to factory default settings (Macintosh)
Network parameter setting
46 Completing the Installation
BASIC SETUP
47
47 Altitude adjustment
47 Setting the default tray and paper
In the computer

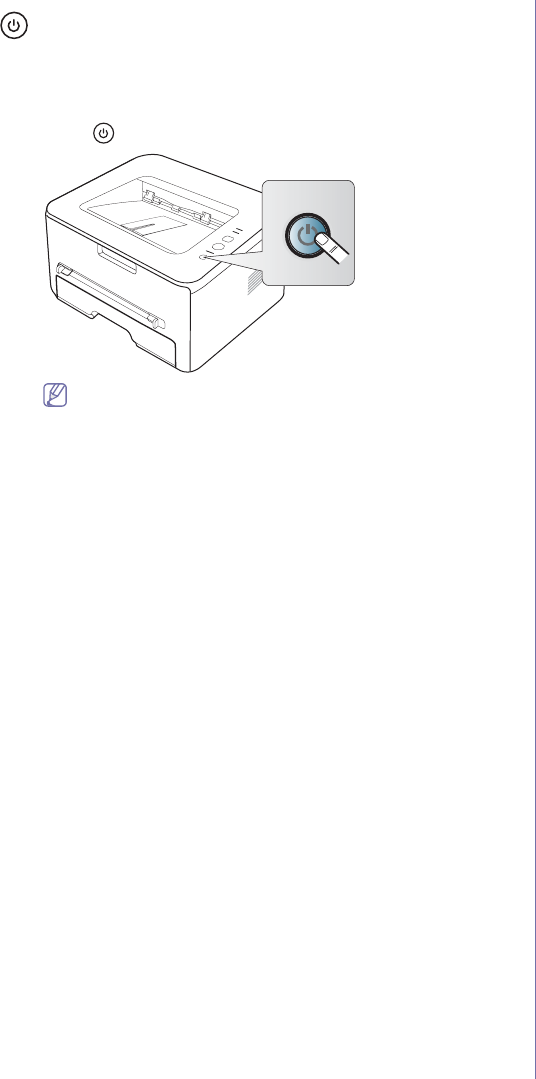

47 Using power saving feature
48 Changing font setting
MEDIA AND TRAY
49
49 Selecting print media
Guidelines to select the print media
Media sizes supported in each mode
49 Changing the tray size

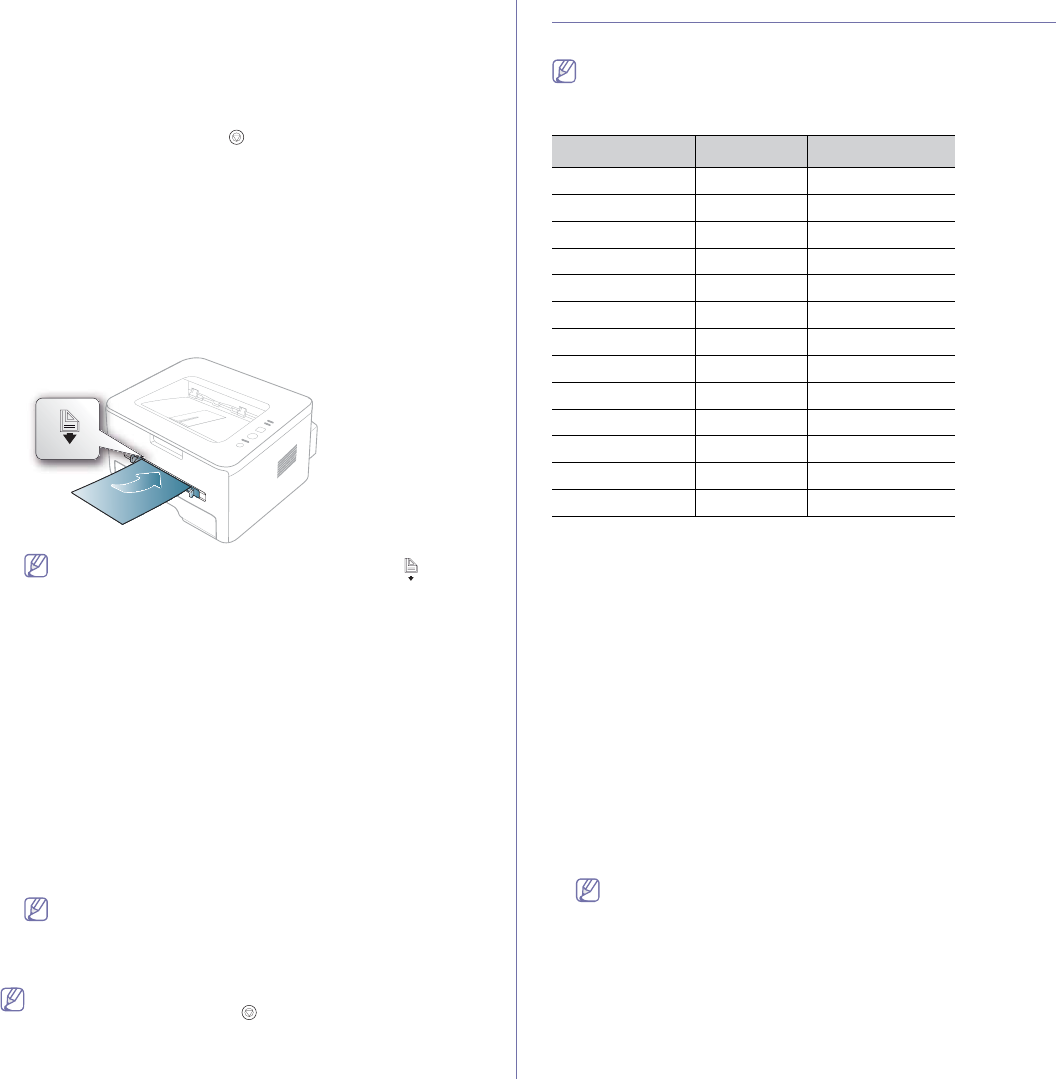

50 Loading paper in the tray
Tray 1
Manual tray

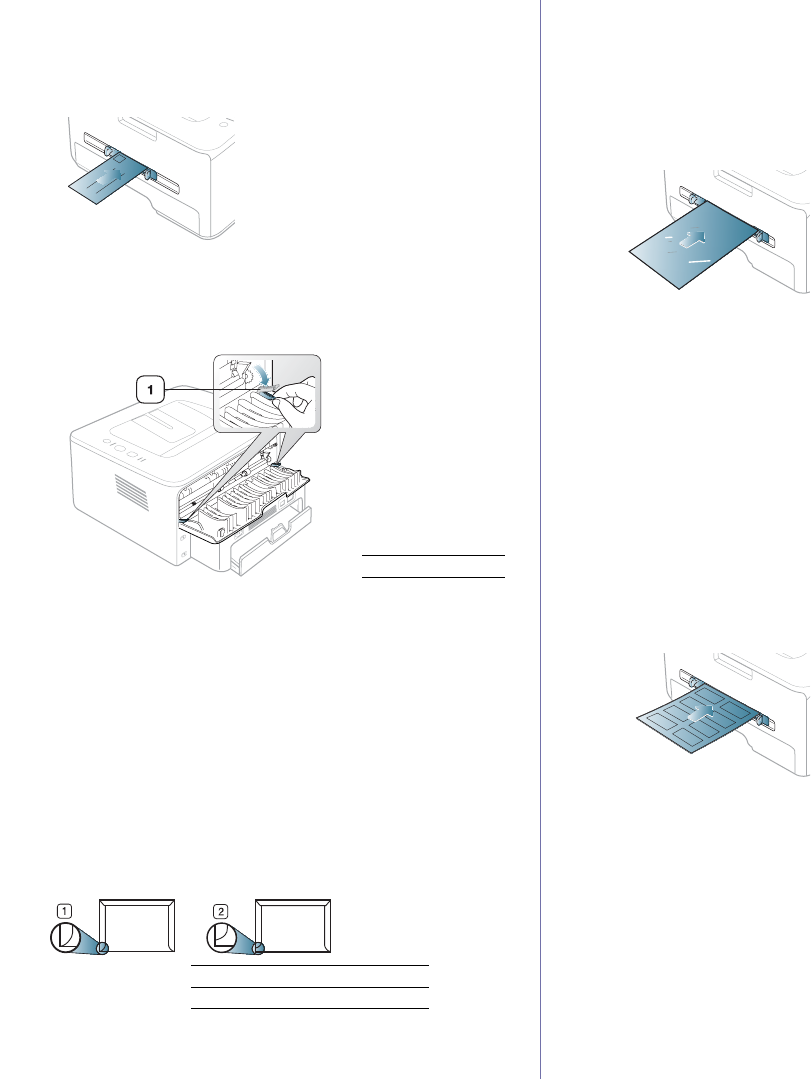

51 Printing on special media
Envelope
Transparency
Labels
Card stock/Custom-sized paper
Letterhead/Preprinted paper
Glossy
53 Using the output support
PRINTING
54
54 Introducing useful software program
Samsung AnyWeb Print
54 Printer driver features
Printer driver
54 Basic printing
contents
Contents_ 5
Canceling a print job
55 Opening printing preferences
Using a favorite setting
56 Using help
56 Using special print features
Printing multiple pages on one sheet of paper
Printing posters
Printing booklets (Manual)
Printing on both sides of paper (Manual)
Change percentage of your document
Fitting your document to a selected paper size
Using watermarks
Using overlay
Advanced Options
59 Changing the default print settings
59 Setting your machine as a default machine
59 Printing to a file (PRN)

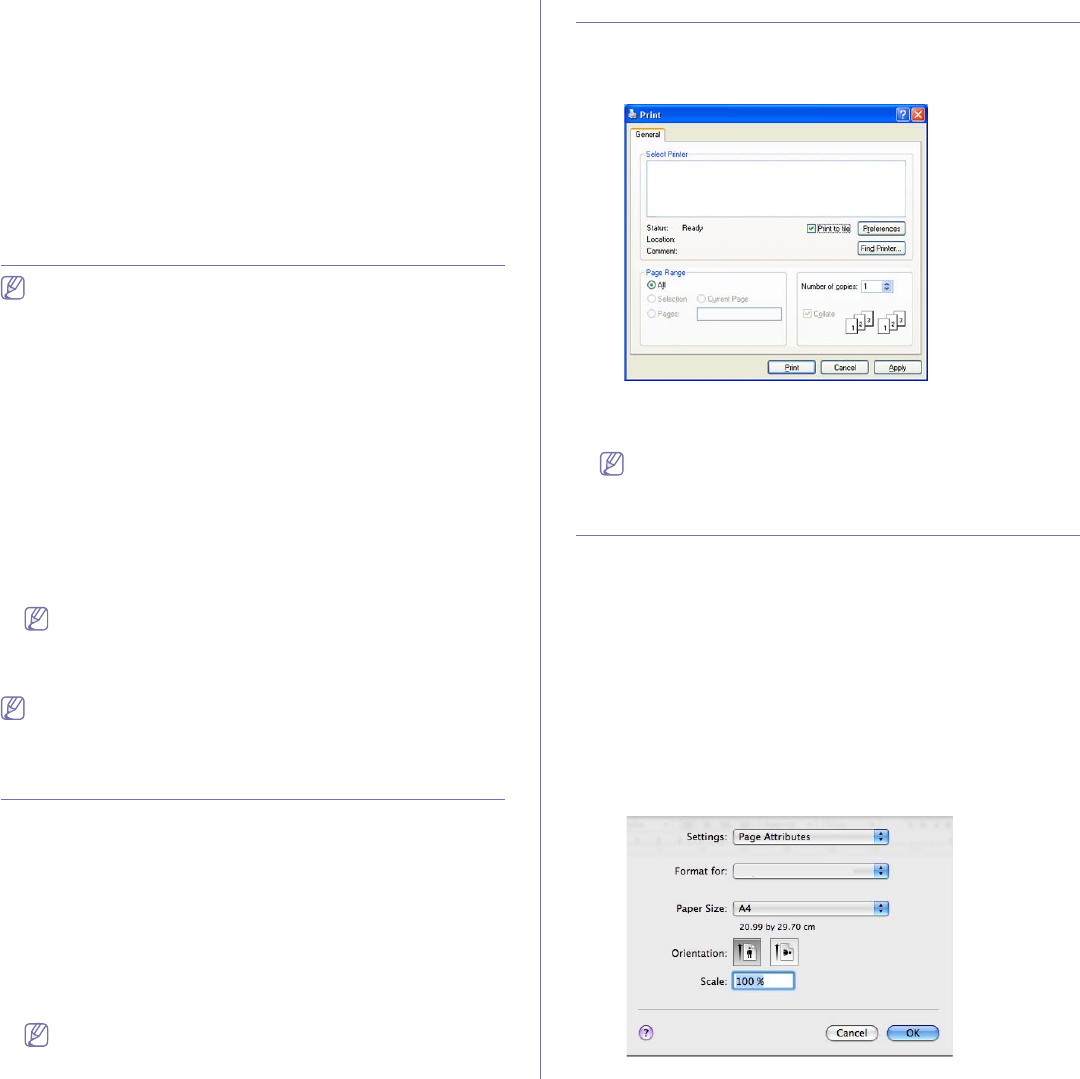

59 Macintosh printing
Printing a document
Changing printer settings
Printing multiple pages on one sheet of paper
60 Linux printing
Printing from applications
Printing files
Configuring printer properties
MANAGEMENT TOOLS
62
62 Introducing useful management tools
62 Using SyncThru™ Web Service
To access SyncThru™ Web Service:
SyncThru™ Web Service overview
E-mail notification setup
Setting the contact information
63 Using the Smart Panel program
Understanding Smart Panel
Changing the Smart Panel Program Settings

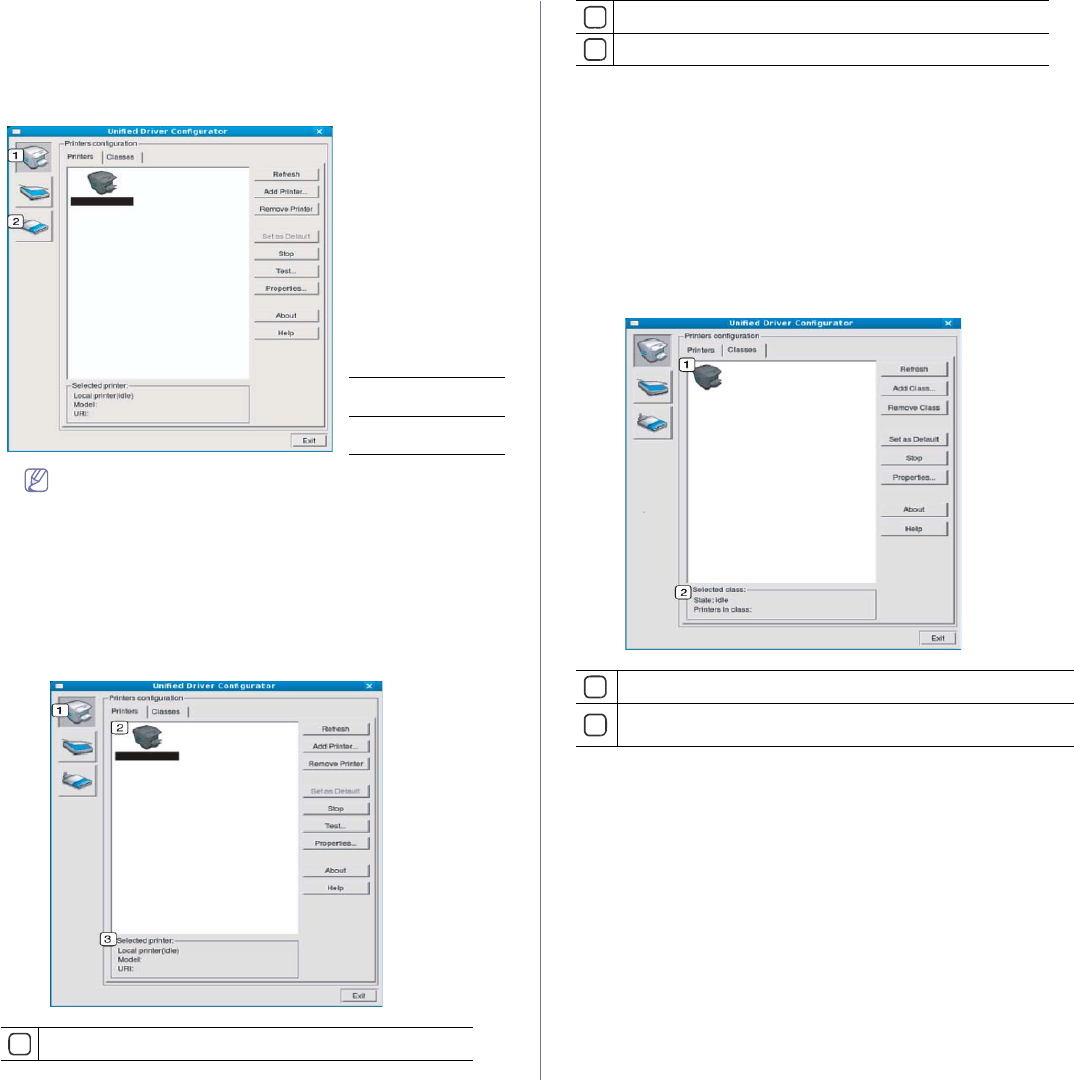

63 Using the Unified Linux Driver Configurator
Opening the Unified Driver Configurator
Printers configuration

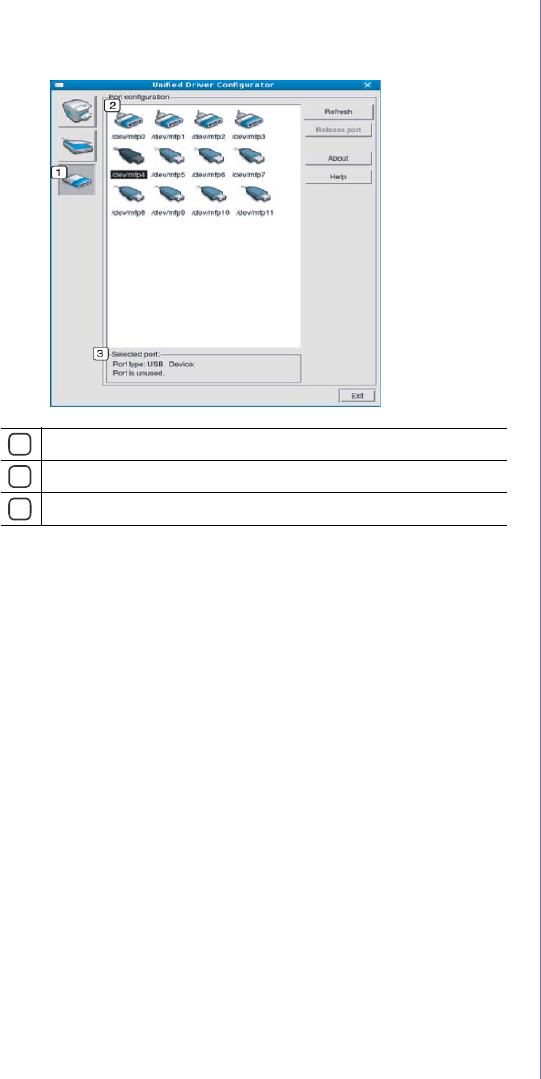

Ports configuration
MAINTENANCE
66
66 Printing a machine report
66 Using toner low alert
66 Cleaning a machine
Cleaning the outside
Printing a cleaning sheet
Cleaning the inside
67 Storing the toner cartridge
Handling instructions
Use of non-Samsung and refilled toner cartridge
Estimated cartridge life
67 Tips for moving & storing your machine
contents
Contents_ 6
TROUBLESHOOTING
68
68 Redistributing toner
68 Tips for avoiding paper curls
69 Tips for avoiding paper jams
69 Clearing paper jams
In tray
In the manual tray
Inside the machine
In exit area
71 Solving other problems
Power problems
Paper feeding problems
Printing problems

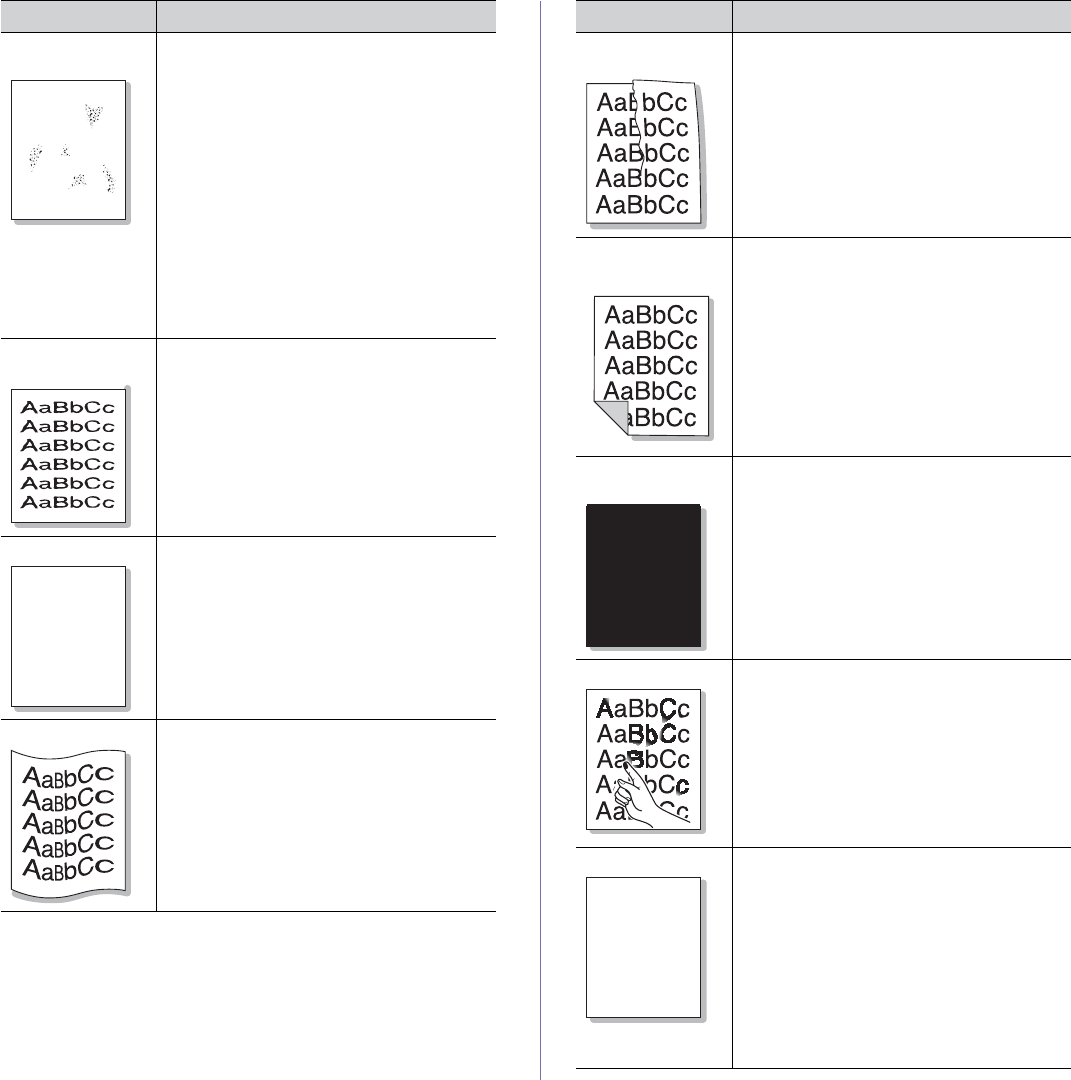

Printing quality problems
Common Windows problems
Common Linux problems
Common Macintosh problems
SUPPLIES
78
78 How to purchase
78 Available supplies
78 Available maintenance parts
78 Replacing the toner cartridge
SPECIFICATIONS
80
80 Hardware specifications
80 Environmental specifications
81 Electrical specifications
82 Print media specifications
CONTACT SAMSUNG WORLDWIDE
83
GLOSSARY
85
Safety information_3
safety information
These warnings and precautions are included in order to prevent injury to you and others, as well as preventing any
potential damage to your machine. Be sure to read and understand all of these instructions before using the machine.
Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and
instructions marked on the machine and in the accompanying literature. After reading this section, keep it in a safe place
for future reference.

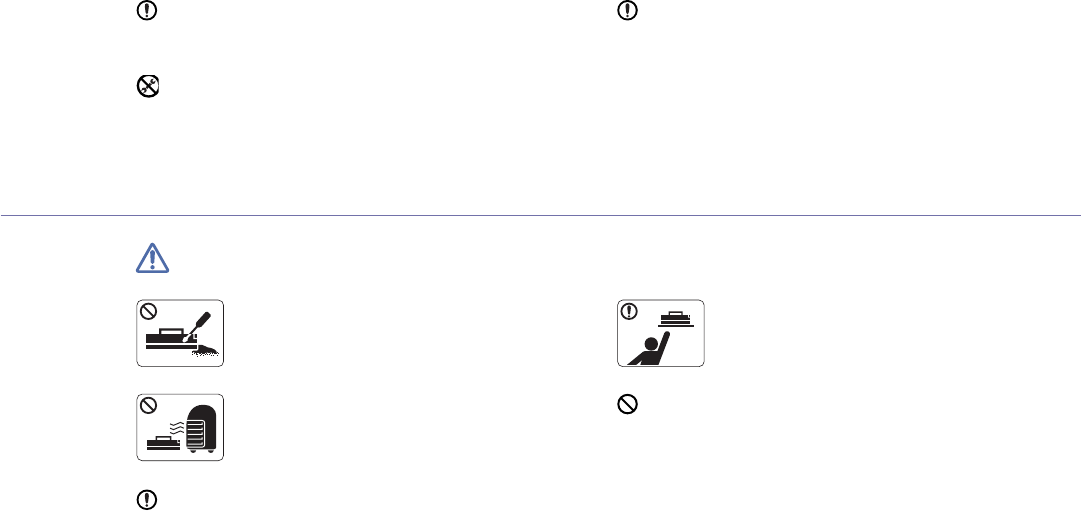

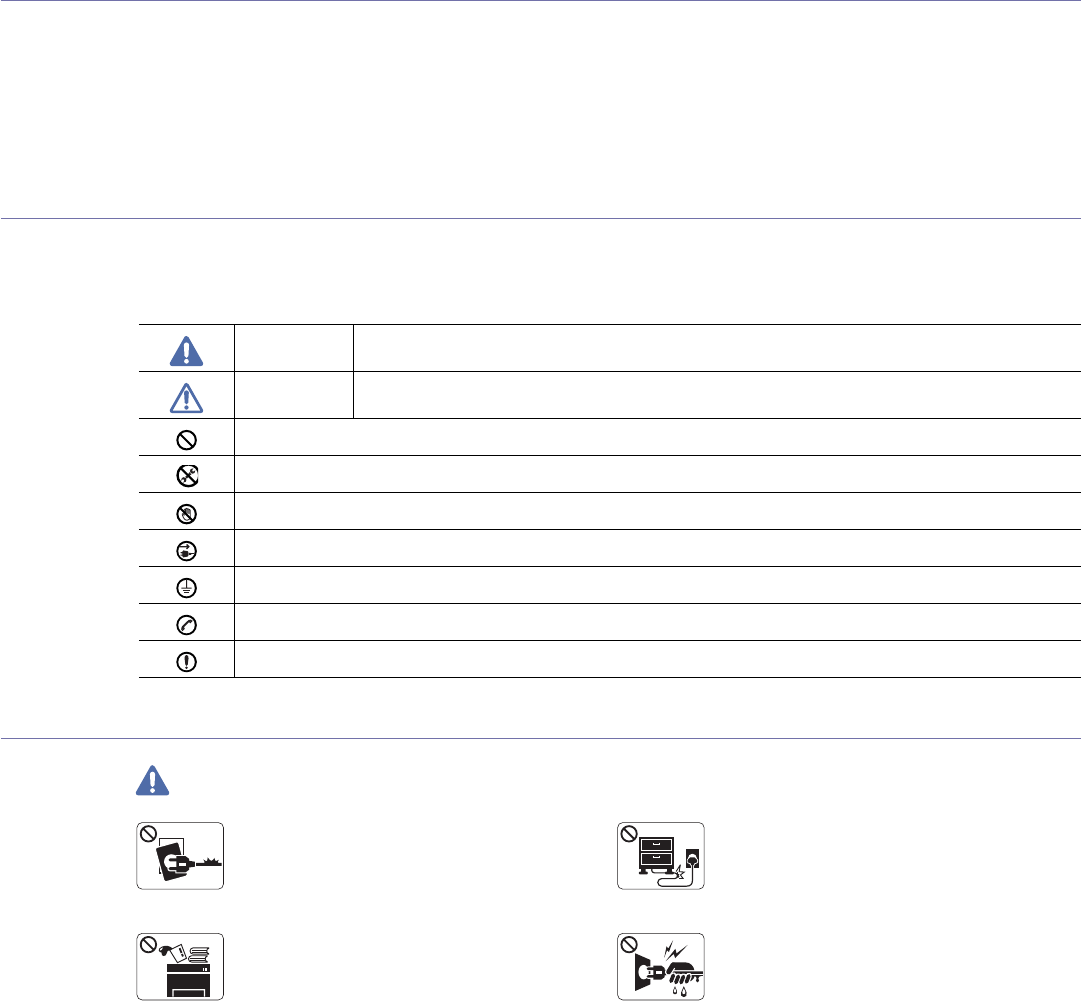

IMPORTANT SAFETY SYMBOLS
This section explains the meanings of all icons and signs in the user's guide. These safety symbols are in order, according to the degree of
danger.
Explanation of all icons and signs used in the user’s guide:
OPERATING ENVIRONMENT
Warning
Warning Hazards or unsafe practices that may result in severe personal injury or death.
Caution Hazards or unsafe practices that may result in minor personal injury or property damage.
Do not attempt.
Do not disassemble.
Do not touch.
Unplug the power cord from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Follow directions explicitly.
Do not use if the power cord is damaged or if the
electrical outlet is not grounded.
ŹThis could result in electric shock or fire.
Do not bend, or place heavy objects on the power
cord.
ŹStepping on or allowing the power cord to be
crushed by a heavy object could result in electric
shock or fire.
Do not place anything on top of the machine (water,
small metal or heavy objects, candles, lit cigarettes,
etc.).
ŹThis could result in electric shock or fire.
Do not remove the plug by pulling on the cord; do not
handle the plug with wet hands.
ŹThis could result in electric shock or fire.
Safety information_4
Caution

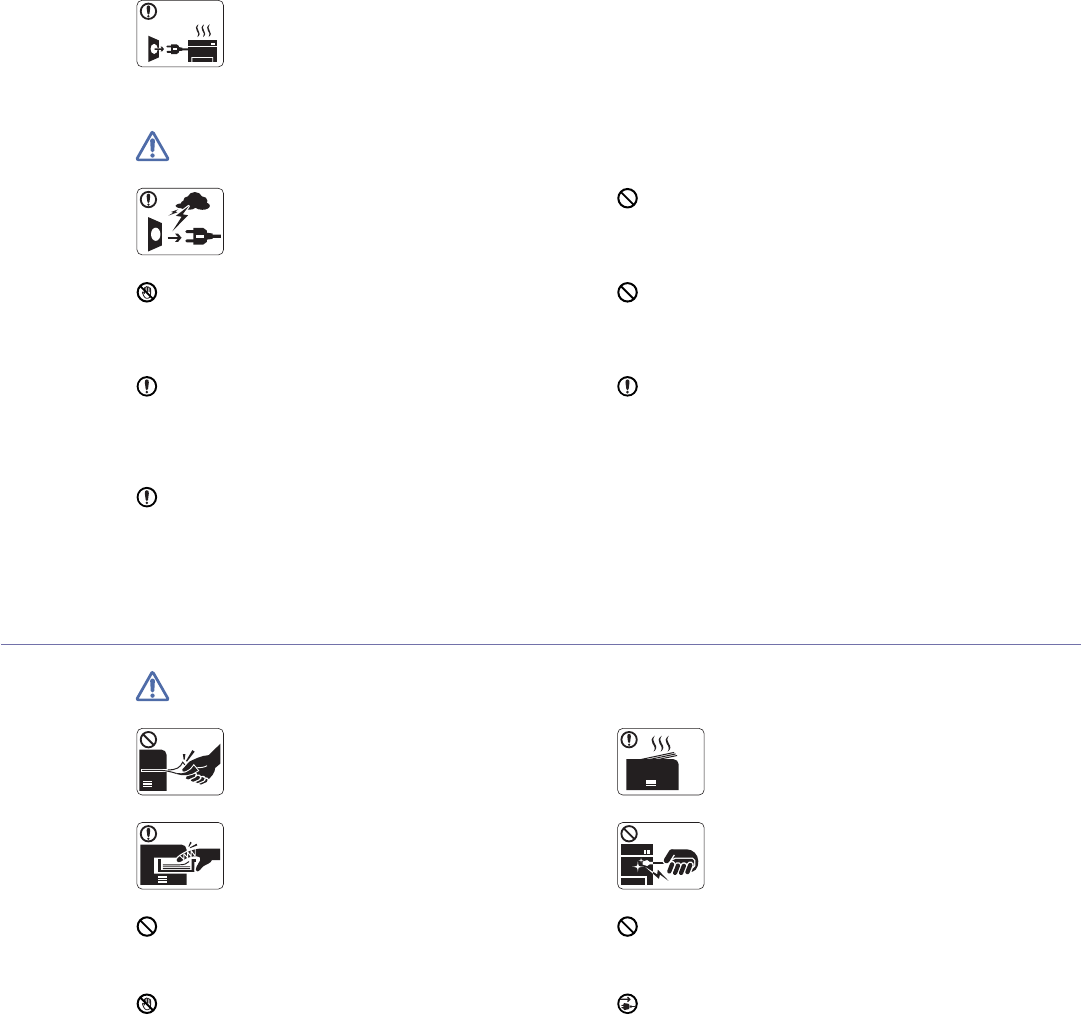

OPERATING METHOD
Caution
If the machine gets overheated, it releases smoke,
makes strange noises, or generates an odd odor,
immediately turn off the power switch and unplug the
machine.
ŹThis could result in electric shock or fire.
During an electrical storm or for a period of
non-operation, remove the power plug from the
electrical outlet.
ŹThis could result in electric shock or fire.
If the plug does not easily enter the electrical outlet, do not
attempt to force it in.
ŹCall an electrician to change the electrical outlet, or this
could result in electric shock.
Be careful, the paper output area is hot.
ŹBurns could occur.
Do not allow pets to chew on the AC power, telephone or PC
interface cords.
ŹThis could result in electric shock or fire and/or injury to your
pet.
If the machine has been dropped, or if the cabinet appears
damaged, unplug the machine from all interface connections
and request assistance from qualified service personnel.
ŹOtherwise, this could result in electric shock or fire.
If the machine does not operate properly after these
instructions have been followed, unplug the machine from all
interface connections and request assistance from qualified
service personnel.
ŹOtherwise, this could result in electric shock or fire.
If the machine exhibits a sudden and distinct change in
performance, unplug the machine from all interface
connections and request assistance from qualified service
personnel.
ŹOtherwise, this could result in electric shock or fire.
Do not forcefully pull the paper out during printing.
ŹIt can cause damage to the machine.
When printing large quantities, the bottom part of the
paper output area may get hot. Do not allow children
to touch.
ŹChildren may be burned.
Be careful not to put your hand between the machine
and paper tray.
ŹYou may get injured.
When removing jammed paper, do not use tweezers
or sharp metal objects.
ŹIt can cause damage to the machine.
Do not block or push objects into the ventilation opening.
ŹThis could result in elevated component temperatures which
can cause damage or fire.
Do not allow too many papers to stack up in the paper output
tray.
ŹIt could cause damage to the machine.
Use care to avoid paper cuts when replacing paper or removing
jammed paper.
ŹYou may get hurt.
This machine's power interception device is the power cord.
ŹTo switch off the power supply, remove the power cord from
the electrical outlet.
Safety information_5

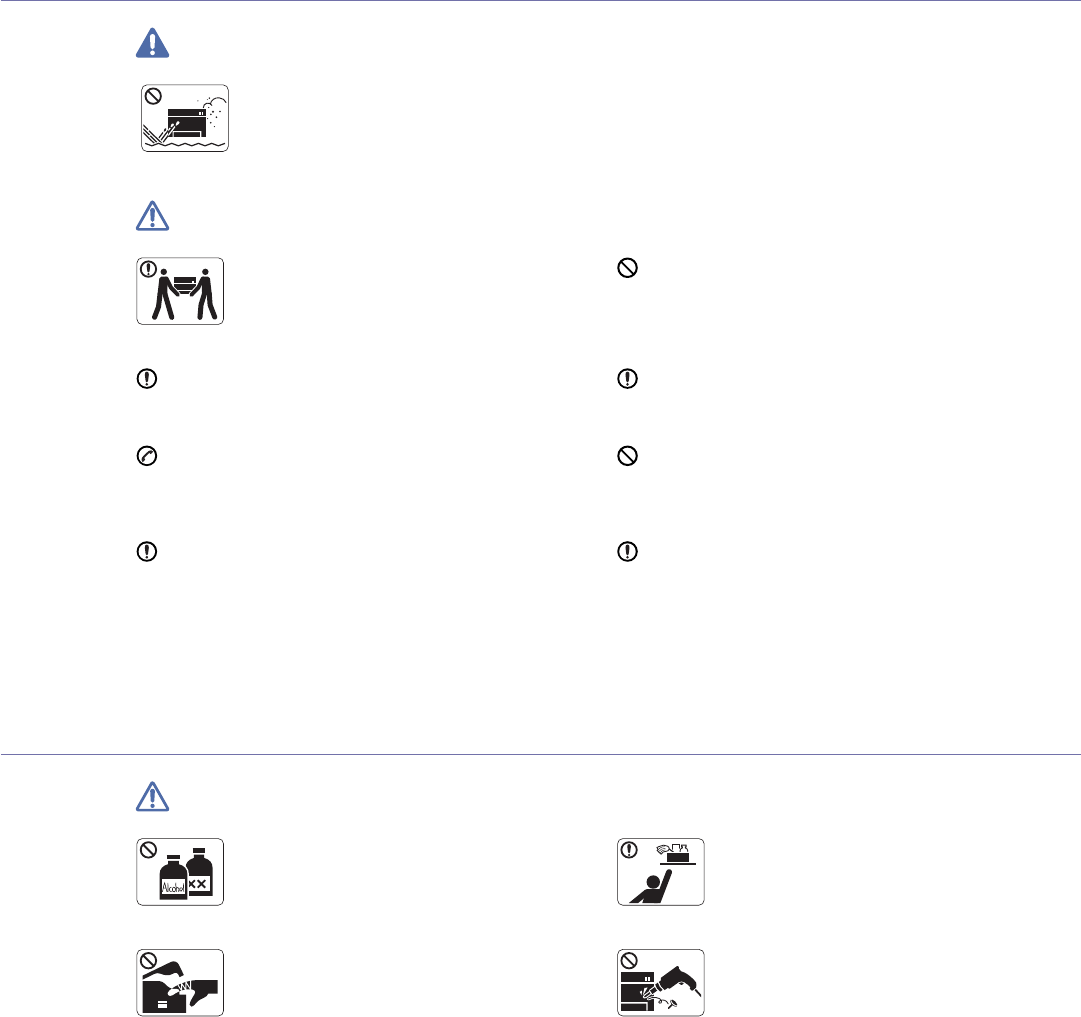

INSTALLATION / MOVING
Warning
Caution
MAINTENANCE / CHECKING
Caution
Do not place the machine in an area with dust,
humidity or water leaks.
ŹThis could result in electric shock or fire.
When moving the machine, turn the power off and
disconnect all cords; then lift the machine with at
least two people.
ŹThe machine could fall, causing human injury or
machine damage.
Do not put a cover over the machine or place it in an airtight
location, such as a closet.
ŹIf the machine is not well-ventilated, this could result in fire.
Do not place the machine on an unstable surface.
ŹThe machine could fall, causing human injury or machine
damage.
Make sure you plug the power cord into a grounded electrical
outlet.
ŹOtherwise, this could result in electric shock or fire.
The machine should be connected to
the power level which is specified on the label.
ŹIf you are unsure and want to check the power level you are
using, contact the electrical utility company.
Do not overload wall outlets and extension cords.
ŹThis can diminish performance, and could result in electric
shock or fire.
Use only No.26 AWGa or larger, telephone line cord, if
necessary.
ŹOtherwise, it can cause damage to the machine.
a. AWG: American Wire Gauge
Use the power cord supplied with your machine for safe
operation. If you are using a cord which is longer than 2 meters
(79”) with a 140V machine, then the gauge should be 16 AWG
or larger.
Ź Otherwise, it can cause damage to the machine, and could
result in electric shock or fire.
Unplug this product from the wall outlet before
cleaning the inside of the machine. Do not clean the
machine with benzene, paint thinner or alcohol; do
not spray water directly into the machine.
ŹThis could result in electric shock or fire.
Keep cleaning supplies away from children.
ŹChildren may get hurt.
When you are working inside the machine replacing
supplies or cleaning the inside, do not operate the
machine.
ŹYou may get injured.
Do not disassemble, repair or rebuild the machine by
yourself.
ŹIt can cause damage to the machine. Call a
certified technician when the machine needs repair.
Safety information_6
SUPPLY USAGE
Caution
Keep the power cable and the contact surface of the plug clean
from dust or water.
ŹThis could result in electric shock or fire.
To clean and operate the machine, strictly follow the user's
guide provided with the machine.
ŹOtherwise, it can cause damage to the machine.
Do not remove any covers or guards that are fastened with
screws.
ŹThe machine should only be repaired by Samsung service
technician.
Do not disassemble the toner cartridge.
ŹToner dust can be dangerous to humans.
When storing supplies such as toner cartridges, keep
them away from children.
ŹToner dust can be dangerous to humans.
Do not burn any of the supplies such as toner
cartridge or fuser unit.
ŹIt can cause an explosion or fire.
Using recycled supplies, such as toner, can cause damage to
the machine.
ŹIn case of damage due to the use of recycled supplies, a
service fee will be charged.
When changing the toner cartridge or removing jammed paper,
be careful not to let toner dust touch your body or clothes.
ŹToner dust can be dangerous to humans.
Regulatory information_7
regulatory information
This machine is certified with several regulatory statements.

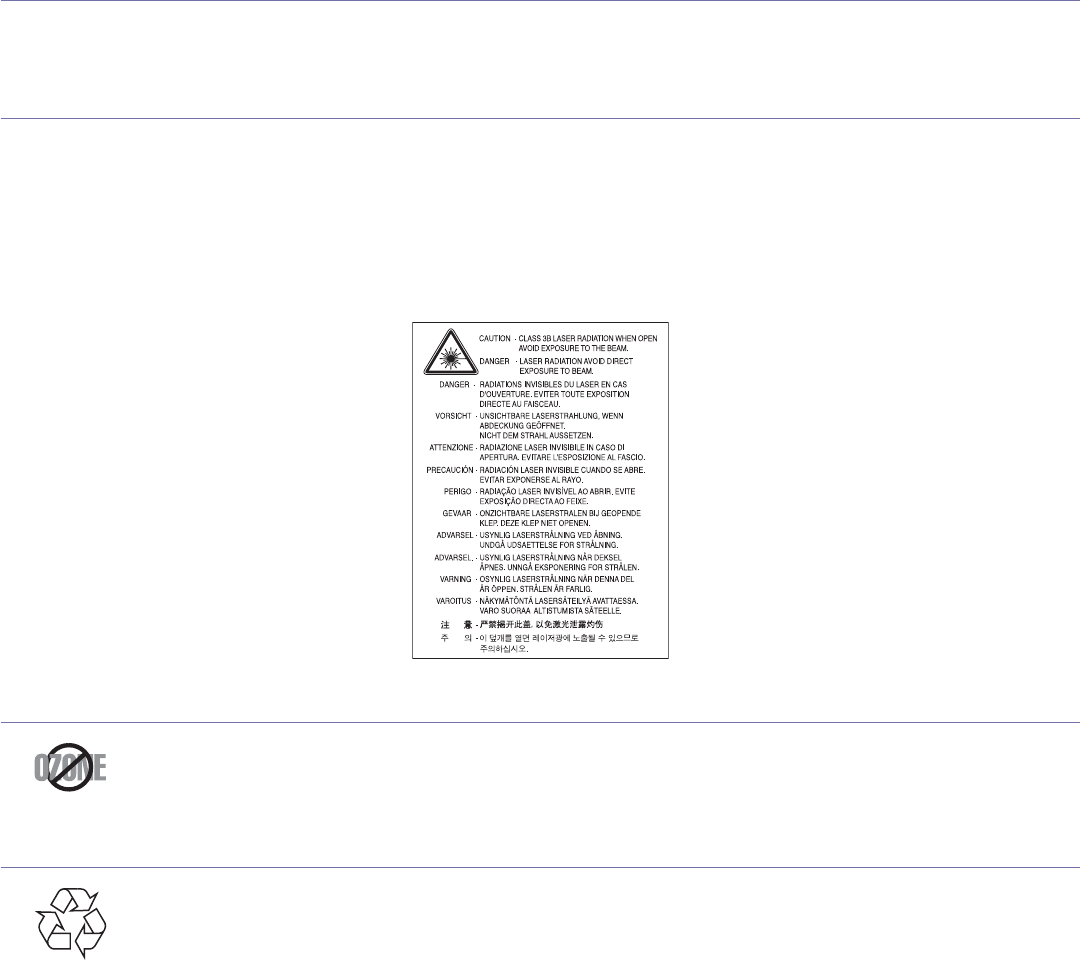

LASER SAFETY STATEMENT
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and
elsewhere is certified as a Class I laser product conforming to the requirements of IEC 825.
Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to
laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.
WARNING
Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible,
can damage your eyes.
When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:
OZONE SAFETY
RECYCLING
During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is
advisable that the machine be operated in a well ventilated area.
If you need additional information about ozone, request your nearest Samsung dealer.
Recycle or dispose of the packaging material for this product in an environmentally responsible manner.
Regulatory information_8

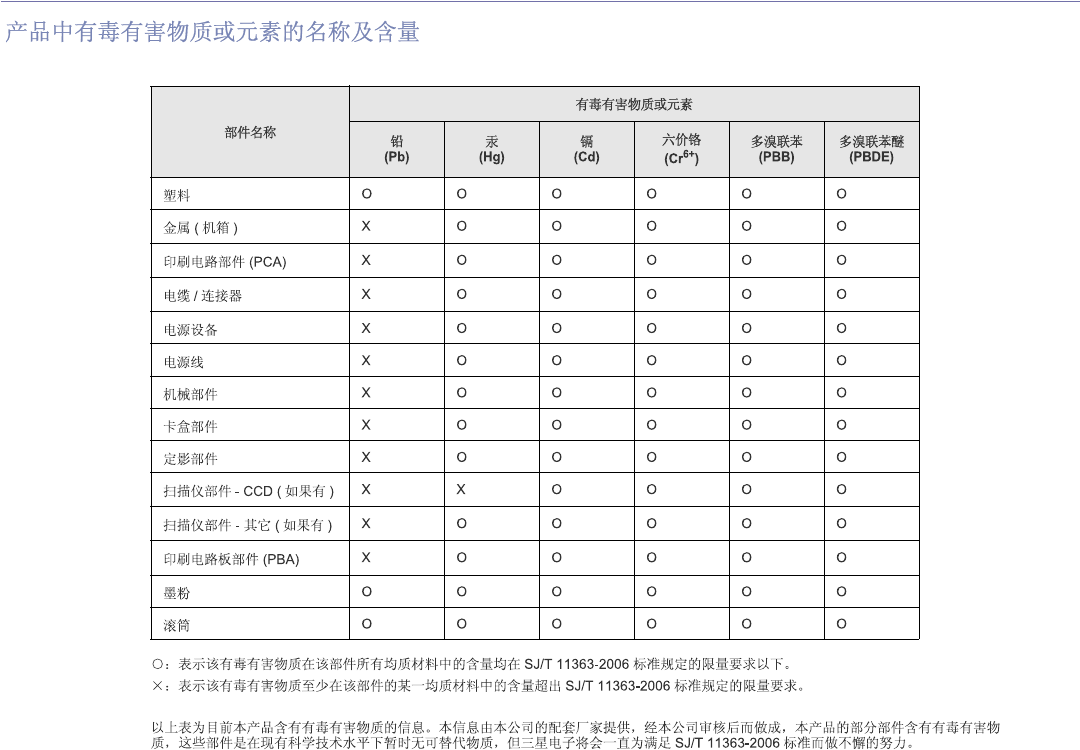

CHINA ONLY
CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in the European Union and other European countries with separate collection systems)
RADIO FREQUENCY EMISSIONS
FCC Information to the User
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or experienced radio TV technician for help.
Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to
operate the equipment.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la
norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.
This marking shown on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset,
USB cable) should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and
how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
Regulatory information_9
UNITED STATES OF AMERICA
Federal Communications Commission (FCC)
Intentional emitter per FCC Part 15
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be
present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the
presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system
label.
The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the
body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on.
The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by
the FCC.
This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.
Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to
use it. Contact manufacturer for service.
FCC Statement for Wireless LAN use:
While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be
exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at
all times. This device cannot be colocated with another transmitter and transmitting antenna.
RUSSIA ONLY
GERMANY ONLY
REPLACING THE FITTED PLUG (FOR UK ONLY)
Important
The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the
fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until
you have another fuse cover.
Contact the people from you purchased the machine.
The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal
13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.
If you cut off the moulded plug, get rid of it straight away.
You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.
AE95
AE95
Regulatory information_10
Important warning:
If the wires in the mains lead do not match the colors marked in your plug, do the following:
You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or
green.
You must connect the blue wire to the pin which is marked with the letter “N” or colored black.
You must connect the brown wire to the pin which is marked with the letter “L” or colored red.
You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
DECLARATION OF CONFORMITY (EUROPEAN COUNTRIES)
Approvals and Certifications
Hereby, Samsung Electronics declare that this product is in compliance with the essential requirements and other relevant provisions of:
R&TTE Directive (1999/5/EC)
The declaration of conformity may be consulted at www.samsung.com/printer, go to Support > Download center and enter your printer (MFP)
name to browse the EuDoC.
January 1, 1995 : Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.
January 1, 1996 : Council Directive 2004/108/EC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic
compatibility.
March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of
their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics
Co., Ltd. representative.
EC Certification
Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)
This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched
telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and
compatible PBXs of the European countries:
In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.
The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the
European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional
requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the
relevant advisory notes contained in this document.
European Radio Approval Information (for products fitted with EU-approved radio devices)
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be
present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present.
Refer to the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark
with a Notified Body Registration Number and the Alert Symbol is on the system label.
The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the
European Commission through the R&TTE directive.
European States qualified under wireless approvals:
•EU : Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France (with frequency restrictions), Germany, Greece,
Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden and the
You must earth this machine.
The wires in the mains lead have the following color code:
•Green and Yellow: Earth
•Blue: Neutral
•Brown: Live
The CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable
93/68/EEC Directives of the European Union as of the dates indicated:
Regulatory information_11
U.K.
•EEA/EFTA countries : Iceland, Liechtenstein, Norway and Switzerland
European States with restrictions on use:
•EU : In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless
•EEA/EFTA countries : No limitations at this time
REGULATORY COMPLIANCE STATEMENTS
Wireless Guidance
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be
present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.
Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The
wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If
the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices
are closely regulated and use may not be allowed.
The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this
time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety
standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken
to minimize human contact during normal operation.
As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body
(this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are
on and transmitting.
This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.
Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:
Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless
devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices
are examples of devices that provide wireless communication.
In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless
device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use
of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask
the applicable authority for authorization prior to use or turning on the wireless device.
Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling
between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of
a wireless device in the destination country.
If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are
in place and the system is fully assembled.
Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it.
Contact manufacturer for service.
Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact
manufacturer Technical Support for additional information.
OPENSSL LICENSE
Copyright (c) 1998-2001 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes
software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without
Prior written permission. For written permission, please contact openssl-core@openssl.org.
Regulatory information_12
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written
permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim
Hudson (tjh@cryptsoft.com).
ORIGINAL SSLEAY LICENSE
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with
Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to
all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this
distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young's,
and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given
attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation
(online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes
cryptographic software written by Eric Young (eay@cryptsoft.com)" The word 'cryptographic' can be left out if the rouines from the library
being used are not cryptographic related.
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an
acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft.com)".
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply
be copied and put under another distribution licence [including the GNU Public Licence.
Regulatory information_13
CHINA ONLY
About this user’s guide_14
about this user’s guide
This user’s guide provides information about how to use the machine. Both novice and professional users can refer to this
as a guide for installing and using the machine.
• Read the safety information before using the machine.
• If you have a problem using the machine, refer to the troubleshooting chapter. (See "Troubleshooting" on page 30.)
• Terms used in this user’s guide are explained in the glossary chapter. (See "Glossary" on page 47.)
• All illustrations in this user’s guide may differ from your machine depending on its options or models.
• The procedures in this user’s guide are mainly based on Windows XP.
CONVENTION
Some terms in this guide are used interchangeably, as below:
•Document is synonymous with original.
•Paper is synonymous with media, or print media.
•Machine refers to printer or MFP.
The following table offers the conventions of this guide:
CONVENTION DESCRIPTION EXAMPLE
Bold For texts on the display or button names on the machine. Cancel
Note Provides additional information or detailed specification of the machine function
and feature.
The date format may differ from country
to country.
Caution Gives users information to protect the machine from possible mechanical
damage or malfunction.
Do not touch the green underside of the
toner cartridge.
Footnote Provides additional more detailed information on certain words or a phrase. a. pages per minute
(“Cross-reference”) Guides users to a reference page for the additional detailed information. (See "Finding more information" on
page 15.)
About this user’s guide_15
FINDING MORE INFORMATION
You can find information for setting up and using your machine from the following resources, either as a print-out or on screen.
MATERIAL NAME DESCRIPTION
Quick Install Guide This guide provides information on setting up your machine and this requires that you follow the instructions in the guide to prepare the
machine.
User’s Guide This guide provides you with step-by-step instructions for using your machine’s full features, and contains information for maintaining
your machine, troubleshooting and replacing supplies.
Network Website If you have network model, you can set the network environment from your computer using network-managing programs, such as
SetIP, SyncThru™ Web Admin Service, etc. This Website will be convenient for network administrators who need to manage many
machines simultaneously. You can download the SyncThru™ Web Admin Service on http://solution.samsungprinter.com. SetIP
program is provided in the software CD.
Machine Driver Help This help provides you with help information on printer driver and instructions for setting up the options for printing. (See "Using help"
on page 18.)
Samsung website If you have Internet access, you can get help, support, machine drivers, manuals, and order information from the Samsung website,
www.samsung.com/printer.
Features of your new product_16
features of your new product
Your new machine is equipped with a number of special features that improve the quality of the documents you print.
SPECIAL FEATURES
Print with excellent quality and speed
Handle many different types of printable material
Create professional documents
Save time and money
Print in various environments
•You can print with a resolution of up to 1,200 x 1,200 dpi
effective output.
•Your machine prints A4-sized paper at up to 24 ppm and
letter-sized paper at 24 ppm.
•Manual tray supports plain paper in various sizes, letterhead,
envelopes, labels, custom-sized media, postcards, and
heavy paper.
•The 250-sheet tray supports plain paper.
•Print Watermarks. You can customize your documents with
words, such as “Confidential”. (See "Using watermarks" on
page 19.)

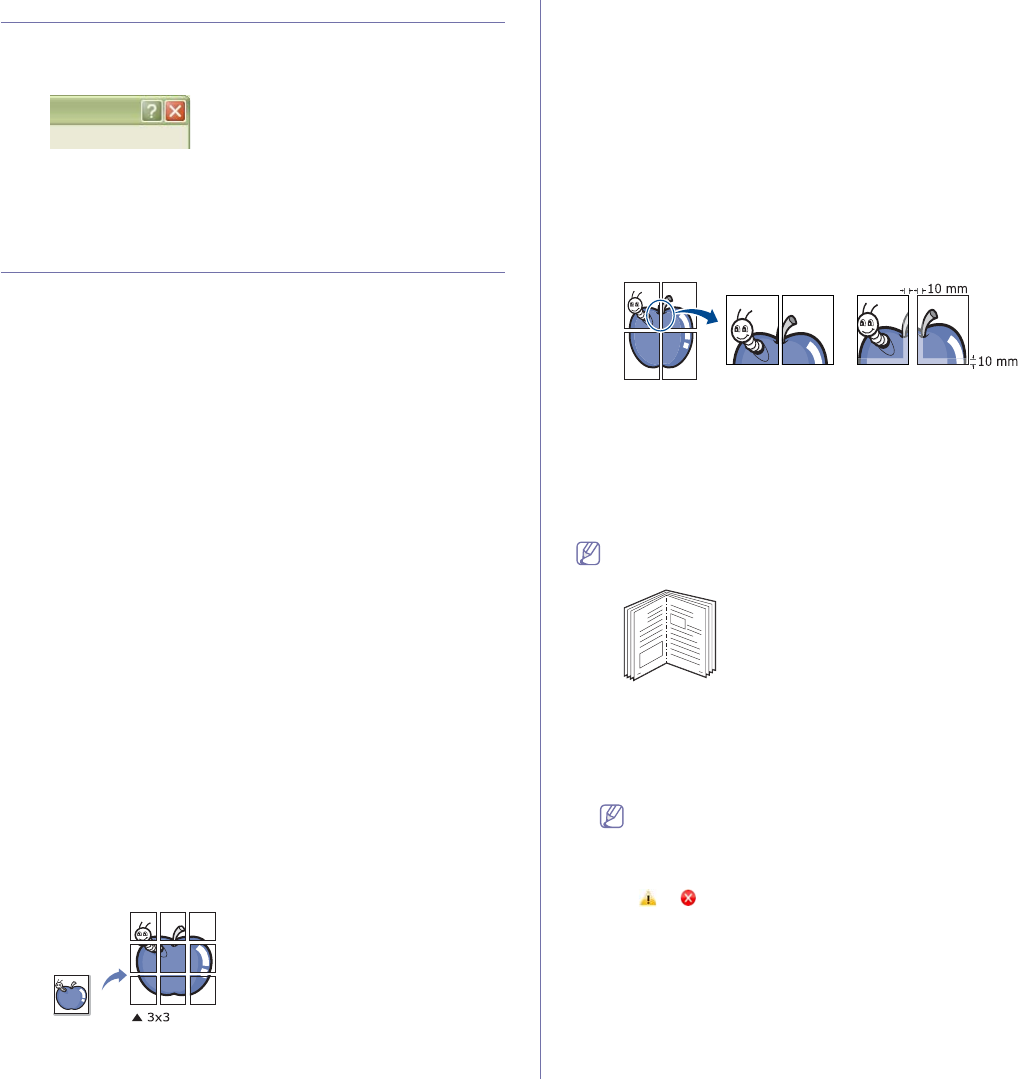

•Print Posters. The text and pictures of each page of your
document are magnified and printed across the sheet of
paper and can then be taped together to form a poster. (See
"Printing posters" on page 18.)
•You can use preprinted forms and letterhead with plain
paper. (See "Using overlay" on page 20.)
•To save paper, you can print multiple pages on one single
sheet of paper. (See "Printing multiple pages on one sheet of
paper" on page 18.)
•This machine automatically conserves electricity by
substantially reducing power consumption when not in use.
•To save paper, you can print on both sides of the paper
(Manual). (See "Printing on both sides of paper (Manual)" on
page 18.)
•You can print with Windows as well as Linux and Macintosh
systems.
•Your machine is equipped with a USB interface.
•Your machine comes with a built-in network interface, 10/100
BaseTX.
IPv6
This machine supports IPv6.
Features of your new product_17
FEATURES BY MODEL
The machine is designed to support all of your document needs from printing to more advanced networking solutions for your business.
Features by model include:
(Ɣ: Included)
FEATURES ML-2525W SERIES
Hi-Speed USB 2.0 Ɣ
Network Interface Ethernet 10/100 BaseTX wired LAN Ɣ
Network Interface 802.11b/g wireeless LAN Ɣ
Duplex (2-sided) printing (Manual) Ɣ
Introduction_18
1.introduction
This chapter gives you an overview of your machine:
This chapter includes:
•Machine overview
•Control panel overview
•Understanding the control panel
MACHINE OVERVIEW
Front view
This illustration may differ from your machine depending on its model.
1Document output tray 6Manual feeder
2Control panel 7Manual feeder guide
3Front cover handle 8Output support
4Front cover 9Toner cartridge
5Tray 1
Introduction_19
Rear view
1Rear cover 3USB port
2Network Port 4Power receptacle
Introduction_20
CONTROL PANEL OVERVIEW
1Wireless Shows the status of wireless network. When the LED on, the machine is ready. (See "LEDs" on page 21.)
2Online/Error Shows the status of your machine. (See "LEDs" on page 21.)
3Demo print Prints a demo page. (See "Buttons" on page 21.)
4Cancel Stops an operation at any time and there are more functions. (See "Understanding the control panel" on page 21.)
5Power You can turn the power on and off with this button. (See "Understanding the control panel" on page 21.)
Introduction_21
UNDERSTANDING THE CONTROL PANEL
LEDs
The color of the LEDs indicates the machine's current status.
Samsung does not recommend using non-genuine Samsung toner
cartridge such as one that is refilled or remanufactured. Samsung
cannot guarantee a non-genuine Samsung toner cartridge's quality.
Service or repair required as a result of using non-genuine Samsung
toner cartridges will not be covered under the machine warranty.
All printing errors will be appear in the Smart Panel program window. If
the problem persists, call for service.

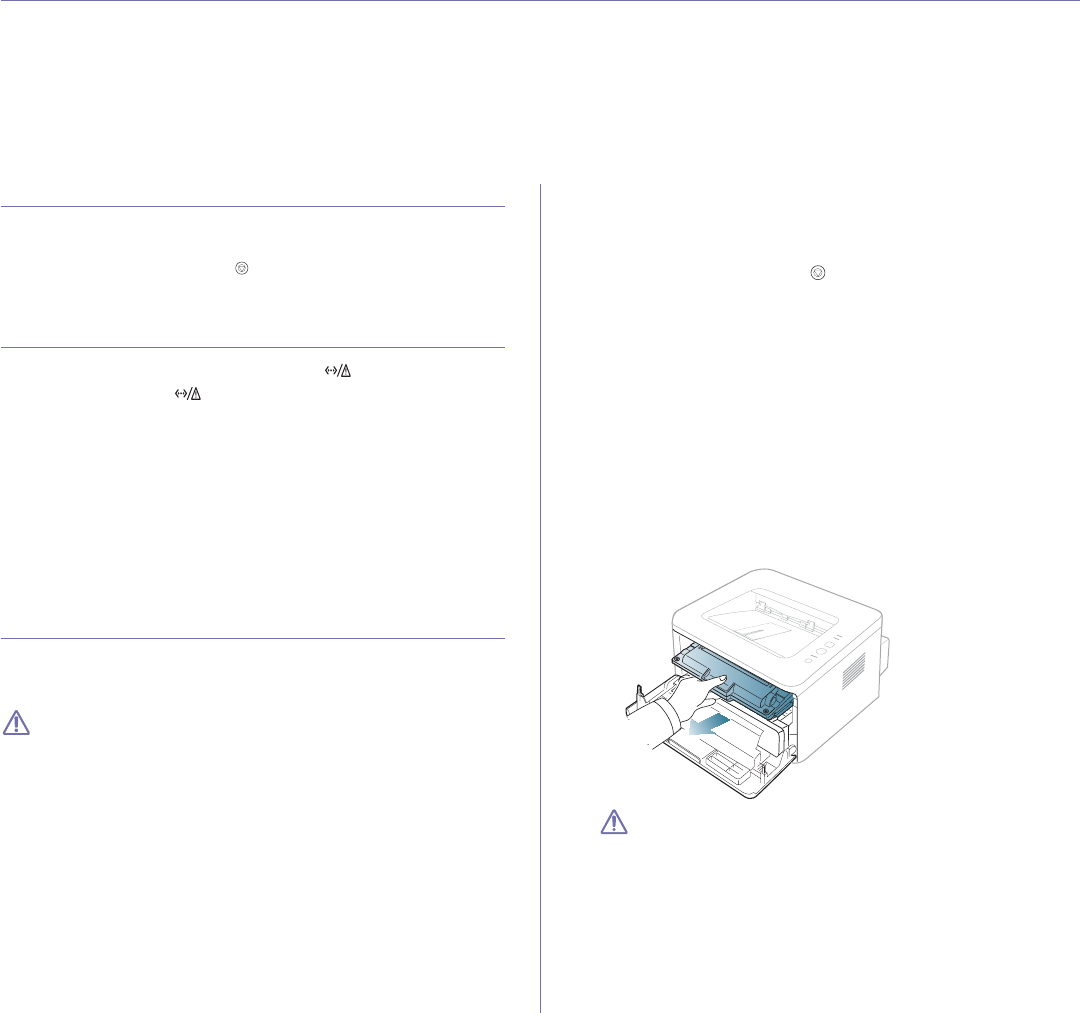

Buttons
(Demo print button)
It prints a demo page by pressing this button only.
(Cancel button)
By pressing the (cancel button), you can:
LED STATUS DESCRIPTION
Wireless ( ) Blue On Wireless function can be used.
Status ( ) Off The machine is off-line.
Green On The machine is on-line and can
receive data from the computer.
Blinking •When the LED slowly bilnks,
the machine is receiving data
from the computer.
•When the LED rapidly blinks,
the machine is printing data.
Red On •The cover is opened. Close
the cover.
•There is no paper in the tray.
Load paper in the tray.
•The machine has stopped
due to a major error.
•Your system has some
problems. If this problem
occurs, contact your service
representative.
•A toner cartridge has almost
reached its estimated
estimated cartridge lifea. It is
recommended to replace the
toner cartridge. (See
"Replacing the toner
cartridge" on page 40.)
a.Estimated cartridge life means the expected or estimated toner
cartridge life, which indicates the average capacity of print-outs and is
designed pursuant to ISO/IEC 19752. The number of pages may be
affected by operating environment, printing interval, graphics, media
type and media size. Some amount of toner may remain in the cartridge
even when red LED turned on and the printer stops printing.
Blinking •A minor error has occurred
and the machine is waiting for
the error to be cleared. When
the problem is cleared, the
machine resumes.
•Small amount of toner is left
in the cartridge. The
estimated cartridge lifea of
toner is close. Prepare a new
cartridge for replacement.
You may temporarily increase
the printing quality by
redistributing the toner. (See
"Redistributing toner" on
page 30.)

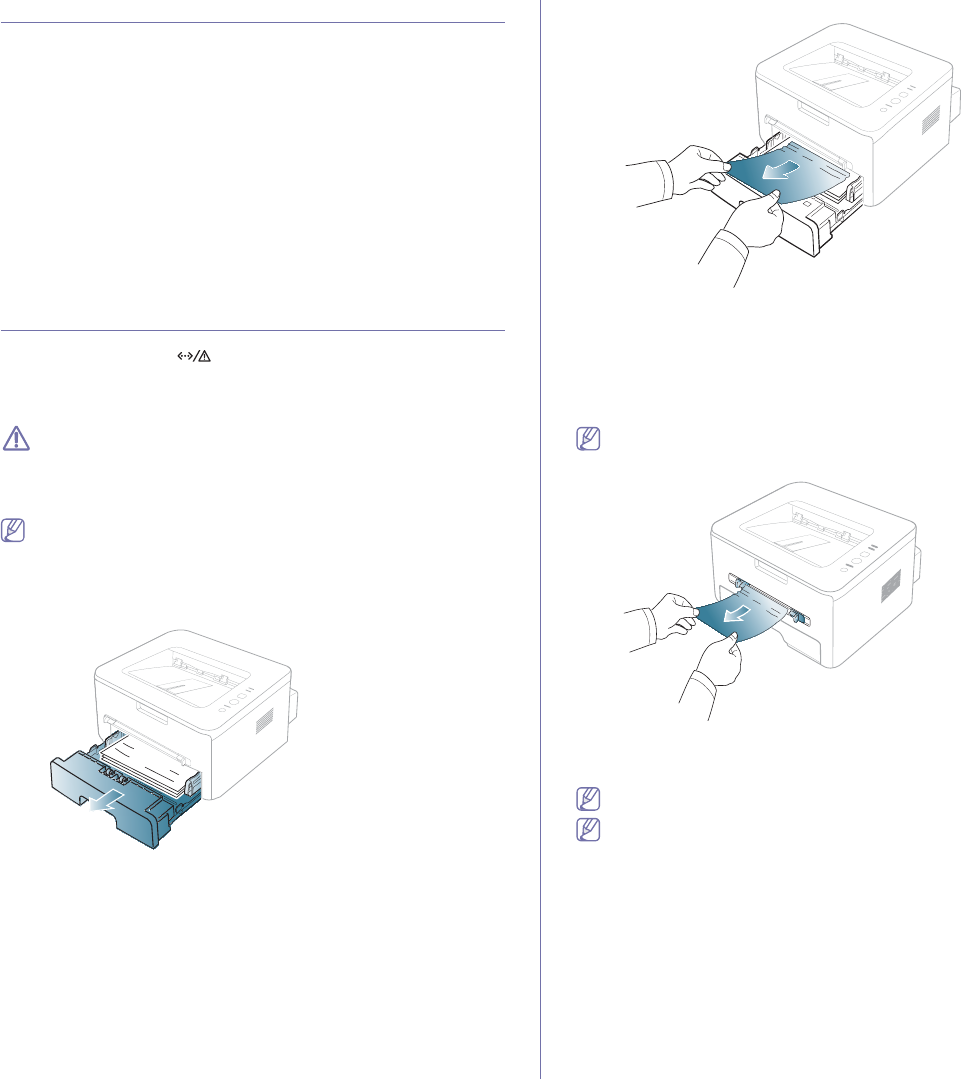

Orange On A paper jam has occurred.
(See "Clearing paper jams" on
page 31.)
FUNCTION DESCRIPTION
Printing demo page In Ready mode, press and hold this button for
about 2 seconds until the status LED blinks
slowly, and release. (See "Printing a demo
page" on page 23.)
Printing configuration
sheet
In Ready mode, press and hold this button for
about 5 seconds until the status LED blinks
fast, and release. (See "Printing a machine
report" on page 28.)
Printing a cleaning
sheet
In Ready mode, press and hold this button for
about 10 seconds until the status LED blinks
slowly, and release. (See "Cleaning the inside"
on page 28.)
Cancel print job Press (cancel button) during printing. The
red LED blinks while the print job is cleared
from both the machine and the computer and
then the machine returns to ready mode. This
may take some time depending on the size of
the print job.
Manual print Press (cancel button) each time you load a
sheet of paper in the
manual tray when you select Manual Feeder
for Source from your software application.
Introduction_22
(Power button)
This button must be used to turn the machine on/off.
Turning on the machine
1. Plug in the power cord.
2. Press (power) on the control panel.
If you want to turn the power off, press and hold this button for
1 second.
Getting started_23
2.getting started
This chapter gives you step-by-step instructions for setting up the USB connected machine and software.
This chapter includes:
•Setting up the hardware
•Printing a demo page
•Supplied software
•System requirements
•Installing USB connected machine’s driver
•Sharing your machine locally
SETTING UP THE HARDWARE
This section shows the steps to set up the hardware, as is explained in the
Quick Install Guide. Make sure you read the Quick Install Guide first and
follow the steps below:
Location
1. Select a stable location.
Select a level, stable place with adequate space for air circulation. Allow
extra space to open covers and trays.
The area should be well ventilated and away from direct sunlight or
sources of heat, cold, and humidity. Do not set the machine close to the
edge of your desk or table.

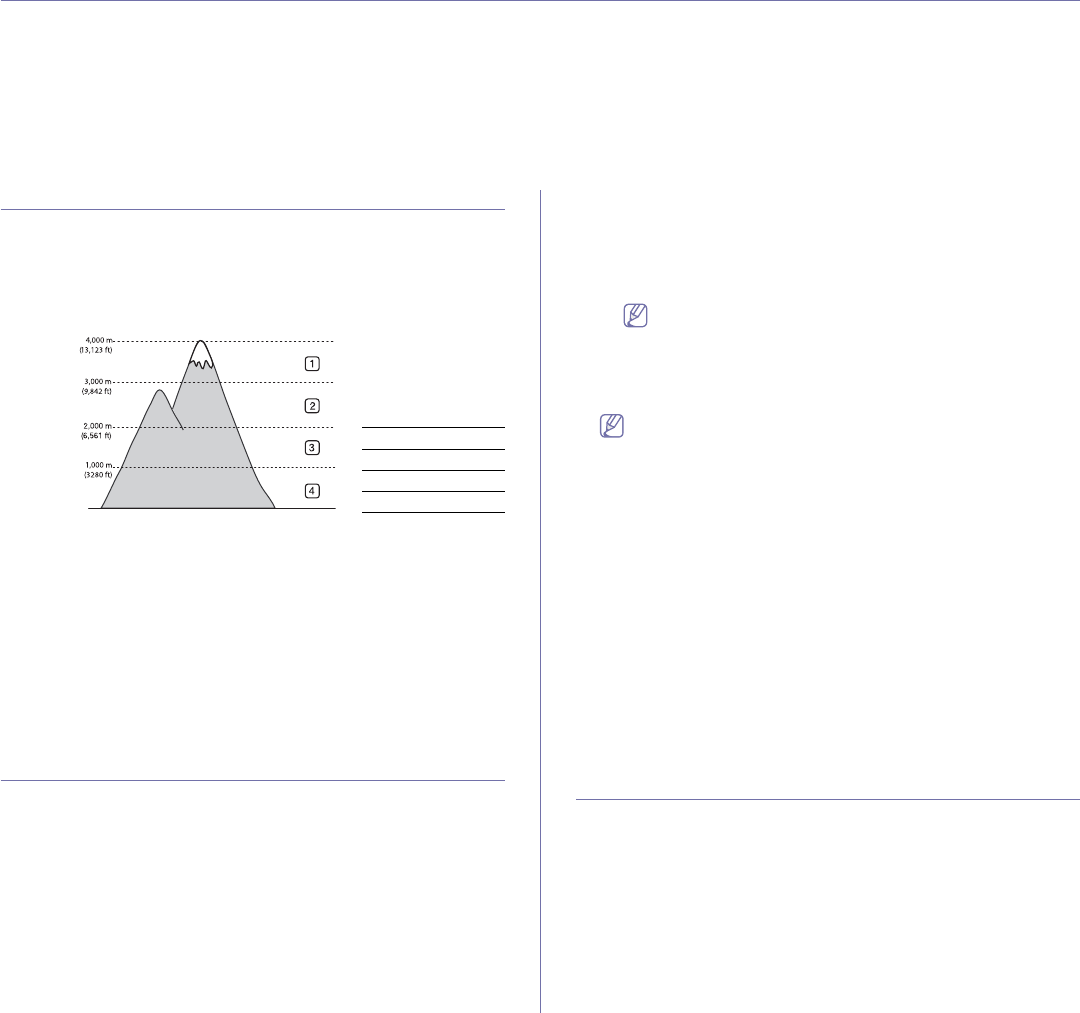

Printing is suitable for altitudes under 1,000 m (3,281 ft). Refer to the
altitude setting to optimize your printing. (See "Altitude adjustment" on
page 9.)
Place the machine on a flat, stable surface so that there is no incline
greater than 2 mm (0.08 inch). Otherwise, printing quality may be
affected.
2. Unpack the machine and check all the enclosed items.
3. Remove tape holding the machine securely.

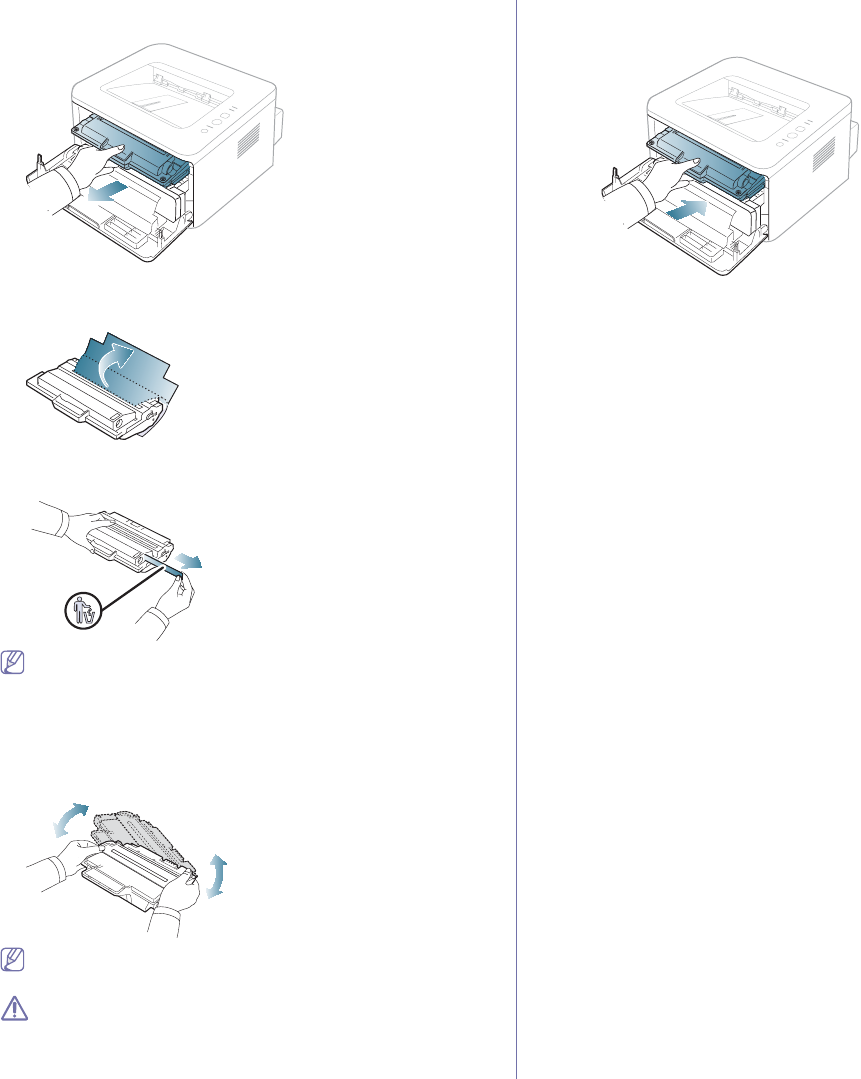

4. Install the toner cartridge.
5. Load paper. (See "Loading paper in the tray" on page 12.)
6. Make sure that all cables are connected to the machine.
7. Turn the machine on. (See "Turning on the machine" on page 22.)
This equipment will be inoperable when mains power fails.
PRINTING A DEMO PAGE
Print a demo page to make sure that the machine is operating correctly.
To print a demo page:
In ready mode, press and hold the (cancel button) for about 2 seconds.
And, you also can use the (demo print button) for printing a demo page.
SUPPLIED SOFTWARE
After you have set up your machine and connected it to your computer, you
must install the printer software. If you are a Windows, Macintosh or Unix
OS user, install the software from the supplied CD and if you are a Linux OS
user, download the software from the Samsung website
(www.samsung.com/printer) and install.
Machine software are occasionally updated due to release of new
operating system and etc. If needed, download the latest version from
the Samsung website. (www.samsung.com/printer)
OS CONTENTS
Windows •Printer driver: Use this driver to take full advantage of
your machine’s features.
•Smart Panel: This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing.
•Printer Settings Utility:
This program allows you to set
up printer’s other options from your computer desktop.
•SetIP: Use this program to set your machine’s TCP/IP
addresses.
Getting started_24
SYSTEM REQUIREMENTS
Before you begin, ensure that your system meets the following
requirements:
Windows
Your machine supports the following Windows operating systems.
• Internet Explorer 5.0 or higher is the minimum requirement for all
Windows operating systems.
• Users who have an administrator right can install the software.
•Windows Terminal Services is compatible with this machine.
Macintosh
Linux
INSTALLING USB CONNECTED MACHINE’S
DRIVER
A locally connected machine is a machine directly attached to your
computer using the USB cable. If your machine is attached to a network,
skip the following steps below and go on to installing network connected
machine’s driver. (See "Installing network connected machine’s driver" on
page 31.)
Only use an USB cable no longer then 3 m (10 ft.).
Macintosh •Printer Driver: Use this driver to take full advantage of
your machine’s features.
•Smart Panel: This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing.
•Printer Settings Utility:
This program allows you to set
up printer’s other options from your computer desktop.
•SetIP: Use this program to set your machine’s TCP/IP
addresses.
Linux •Unified Linux Driver: Use this driver to take full
advantage of your machine’s features.
•Smart Panel: This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing.
•Printer Settings Utility:
This program allows you to set
up printer’s other options from your computer desktop.
•SetIP: Use this program to set your machine’s TCP/IP
addresses.
OPERATING
SYSTEM
REQUIREMENT (RECOMMENDED)
CPU RAM FREE HDD
SPACE
Windows 2000 Pentium II 400 MHz
(Pentium III 933 MHz)
64 MB
(128 MB)
600 MB
Windows XP Pentium III 933 MHz
(Pentium IV 1 GHz)
128 MB
(256 MB)
1.5 GB
Windows
Server 2003
Pentium III 933 MHz
(Pentium IV 1 GHz)
128 MB
(512 MB)
1.25 GB to
2 GB
Windows
Server 2008
Pentium IV 1 GHz
(Pentium IV 2 GHz)
512 MB
(2048 MB)
10 GB
Windows Vista Pentium IV 3 GHz 512 MB
(1024 MB)
15 GB
Windows 7 Pentium IV 1 GHz 32-bit
or 64-bit processor or
higher
1 GB (2
GB)
16 GB
•Support for DirectX 9 graphics with 128 MB memory
(to enable the Aero theme).
•DVD-R/W Drive
Windows
Server 2008 R2
Pentium IV 1 GHz (x86)
or 1.4 GHz (x64)
processors (2 GHz or
faster)
512 MB
(2048 MB)
10 GB
OS CONTENTS
OPERATING
SYSTEM
REQUIREMENTS (RECOMMENDED)
CPU RAM FREE HDD
SPACE
Mac OS X
10.3 ~ 10.4
•Intel Processors
•PowerPC G4/ G5
•128 MB for a
PowerPC based
Mac (512 MB)
•512 MB for a
Intel-based Mac
(1 GB)
1 GB
Mac OS X
10.5
•Intel Processors
•867 MHz or
faster Power PC
G4/ G5
512 MB (1 GB) 1 GB
Mac OS X
10.6
•Intel Processors 1 GB (2 GB) 1 GB
ITEM REQUIREMENTS
Operating
system
RedHat Enterprise Linux WS 4, 5 (32/64 bit)
Fedora Core 2~10 (32/64 bit)
SuSE Linux 9.1 (32 bit)
OpenSuSE 9.2, 9.3, 10.0, 10.1, 10.2S 10.3, 11.0SG
11.1 (32/64 bit)
Mandrake 10.0, 10.1 (32/64 bit)
Mandriva 2005, 2006, 2007, 2008, 2009 (32/64 bit)
Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04S 8.10 (32/64 bit)
SuSE Linux Enterprise Desktop 9, 10 (32/64 bit)
Debian 3.1, 4.0, 5.0 (32/64 bit)
CPU Pentium IV 2.4 GHz (IntelCore2)
RAM 512 MB (1024 MB)
Free HDD space 1 GB (2 GB)
Getting started_25
Windows
You can install the machine software using the typical or custom method.
The following steps below are recommended for most users who use a
machine directly connected to your computer. All components necessary for
machine operations will be installed.
1. Make sure that the machine is connected to the computer and powered
on.
If the “Found New Hardware Wizard” window appears during the
installation procedure, click Cancel in close the window.
2. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation window
appears.
•If the installation window does not appear, click Start and then Run.
Type X:\Setup.exe, replacing “X” with the letter which represents
your drive. Click OK.
•If you use Windows Vista, Windows 7 and Windows 2008 Server R2
click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your drive and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7 and
Windows 2008 Server R2, click Run Setup.exe in Install or run
program field, and click Continue or Yes in the User Account
Control windows.

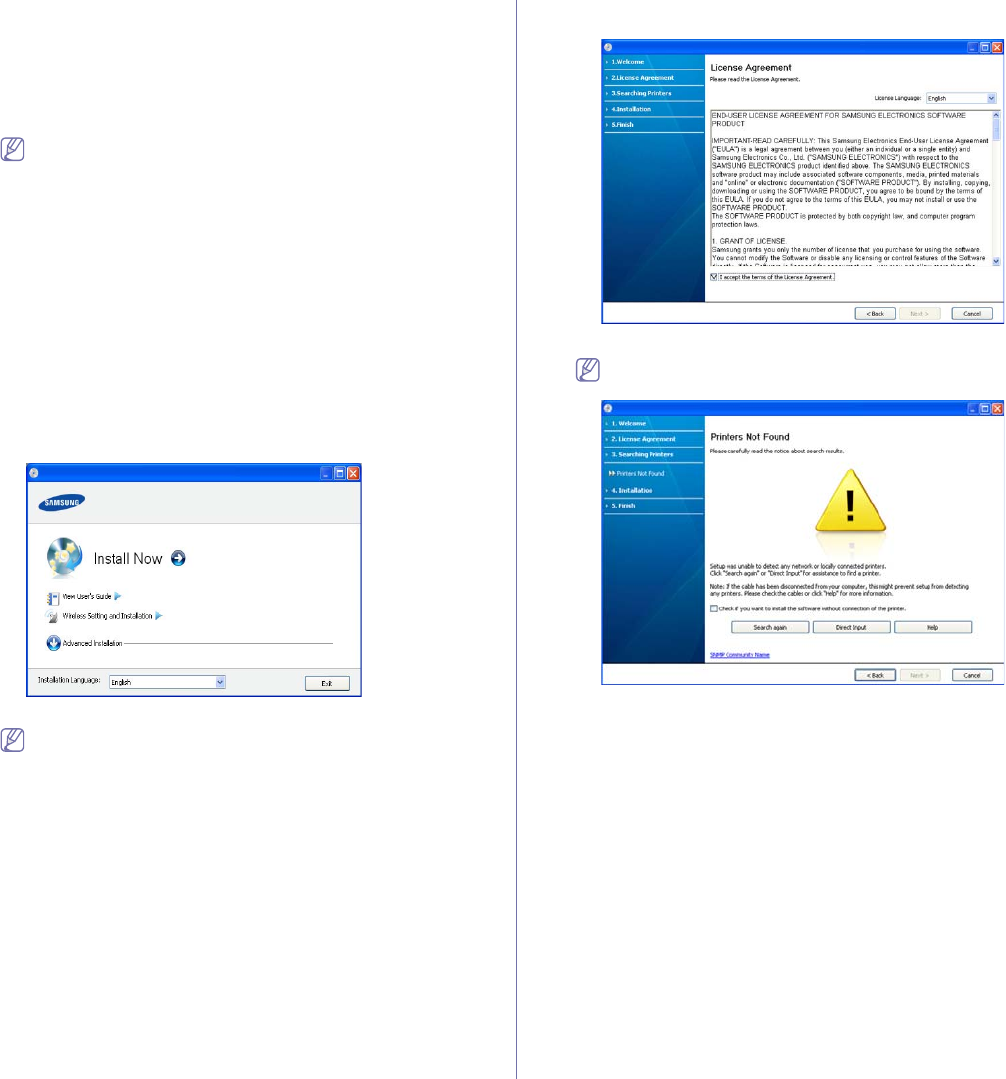

3. Select Install now.
If necessary, select a language from the drop-down list.
•The Wireless Setting and Installation allows you to install a
wireless network to connect to the machine with USB cable.
(See "Setting a wireless network with USB cable" on page 2.)
•The Advanced Installation has two options, Custom
Installation and Install Software Only. The Custom
Installation allows you to select the machine’s connection and
choose individual component to install. The Install Software
Only allows you to install the supplied softwares, such as
Smart Panel. Follow the guide on the window.
4. Read License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
The program searches the machine.

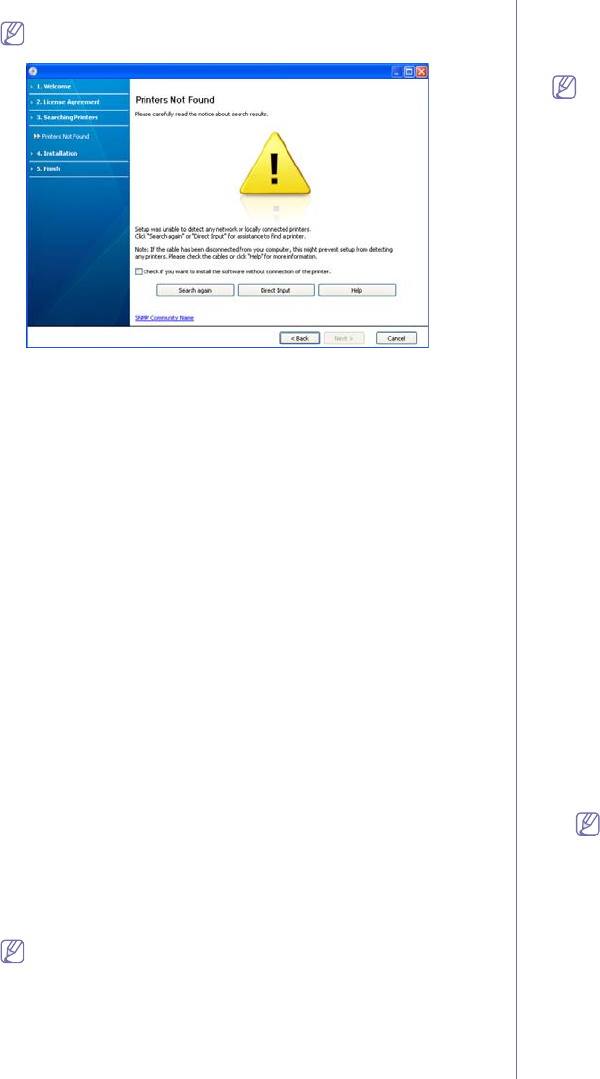

If your machine is not found in the network or locally, the following
window will appear.
•Check if you want to install the software without
connecting the printer to the network or locally.
- Check this option to install this program without a machine
connected. In this case, the print a test page window will be
skipped, and completes the installation.
•Search again
When you press this button, the firewall notice window
appears;
- Turn off the firewall and Search again. For Window
operating system, click Start > Control Panel > Windows
Firewall, and inactivate this option. For other operating
system, refer to its on-line guide.
- Turn off the firewall from the third party's program beside
the operating system. Refer to the manual provided by
individual programs.
•Direct Input
The Direct Input allows you to search a specific machine on
the network.

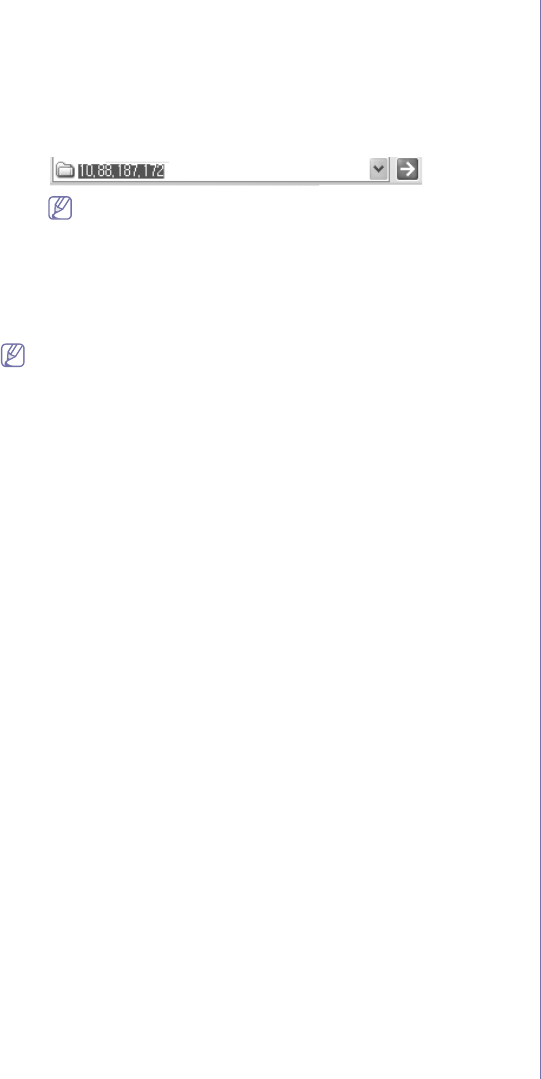

-Search by IP address: Enter the IP address or the host
name. Then click Next.
Getting started_26
To verify your machine’s IP address, print a network
configuration report. (See "Printing a machine report" on
page 28.)
-Search by network path: To find a shared machine (UNC
Path), enter the shared name manually or find a shared
printer by clicking the Browse button. Then click Next.
•Help
If your machine is not connected to the computer or network,
This help button gives detailed information about the how to
connect the machine.
5. The searched machines will be shown on the screen. Select the one you
wish to use and click Next.
If the driver searched only one machine, the confirmation window
appears.
6. After the installation is finished, a window asking you to print a test page
appears. If you want to print a test page, click Print a test page.
Otherwise, just click Next and skip to step 7.
7. If the test page prints out correctly, click Yes.
If not, click No to reprint it.
8. To register as a user of the machine in order to receive information from
Samsung, click On-line Registration.
9. Click Finish.
If the printer driver does not work properly, follow the steps below to
repair or reinstall the driver.
a) Make sure that the machine is connected to your machine and
powered on.
b) From the Start menu, select Programs or All Programs >
Samsung Printers > your printer driver name > Maintenance.
c) Select the option as you wish, follow the instruction on the window.
Macintosh
The software CD that came with your machine provides you with the PPD
file that allows you to use the CUPS driver or Apple LaserWriter driver (only
available when you use a machine which supports the PostScript driver) for
printing on a Macintosh computer.
1. Make sure that the machine is connected to your computer and powered
on.
2. Insert the supplied software CD into your CD-ROM drive.
3. Double-click the CD-ROM icon that appears on your Macintosh desktop.
4. Double-click the MAC_Installer folder.
5. Double-click the Installer OS X icon.
6. Enter the password and click OK.
7. The Samsung Installer window opens. Click Continue.
8. Select Easy Install and click Install.Easy Install is recommended for
most users. All components necessary for machine operations will be
installed.
If you select Custom Install, you can choose individual components to
install.
9. When the message which warns that all applications will close on your
computer appears, click Continue.
10. After the installation is finished, click Quit.
11. Open the Applications folder > Utilities > Print Setup Utility.
•For Mac OS X 10.5~10.6, open the Applications folder > System
Preferences and click Print & Fax.
12. Click Add on the Printer List.
•For Mac OS X 10.5~10.6, click the “+” icon; a display window will pop
up.
13. For Mac OS X 10.3, select the USB tab.
•For Mac OS X10.4, click Default Browser and find the USB
connection.
•For Mac OS X 10.5~10.6, click Default and find the USB connection.
14. For Mac OS X 10.3, if Auto Select does not work properly, select
Samsung in Printer Model and your machine name in Model Name.
•For Mac OS X 10.4, if Auto Select does not work properly, select
Samsung in Print Using and your machine name in Model.
•For Mac OS X 10.5~10.6, if Auto Select does not work properly,
select Select a driver to use... and your machine name in Print
Using.
Your machine appears on the Printer List, and is set as the default
machine.
15. Click Add.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow steps below to uninstall the driver for Macintosh.
a) Make sure that the machine is connected to your computer and
powered on.
b) Insert the supplied software CD into your CD-ROM drive.
c) Double-click CD-ROM icon that appears on your Macintosh
desktop.
d) Double-click the MAC_Installer folder.
e) Double-click the Installer OS X icon.
f) Enter the password and click OK.
g) The Samsung Installer window opens. Click Continue.
h) Select Uninstall and click Uninstall.
i) When the message which warns that all applications will close on
your computer appears, Click Continue.
j) When the uninstall is done, click Quit.
Linux
You need to download Linux software packages from the Samsung website
to install the printer software.
Follow the steps below to install the software.
Installing the Unified Linux Driver
1. Make sure that the machine is connected to your computer and
powered on.
2. When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3. From the Samsung website, download the Unified Linux Driver
package to your computer.
4. Right click the Unified Linux Driver package and extract the
package.
5. Double click cdroot > autorun.
Getting started_27
6. When the welcome screen appears, click Next.
7. When the installation is complete, click Finish.
The installation program has added the Unified Driver Configurator
desktop icon and the Unified Driver group to the system menu for your
convenience. If you have any difficulties, consult the on screen help that
is available through your system menu or can otherwise be called from
the driver package Windows applications, such as Unified Driver
Configurator or Image Manager.
Installing the SmartPanel
1. Make sure that the machine is connected to your computer and
powered on.
2. When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3. From the Samsung website, download the Smart Panel package to
your computer.
4. Right click the Smart Panel package and extract the package.
5. Double click cdroot > Linux > smartpanel > install.sh.
Installing the Printer Settings Utility
1. Make sure that the machine is connected to your computer and
powered on.
2. When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3. From the Samsung website, download the Printer Settings Utility
package to your computer.
4. Right click the Printer Settings Utility package and extract the
package.
5. Double click cdroot > Linux > psu > install.sh.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow the steps below steps to uninstall the driver for Linux.
a) Make sure that the machine is connected to your computer and
powered on.
b) When the Administrator Login window appears, type in “root”
in the Login field and enter the system password.
You must log in as a super user (root) to uninstall the printer
driver. If you are not a super user, ask your system
administrator.
c) Click the icon at the bottom of the desktop. When the Terminal
screen appears, type in:
[root@localhost root]#cd /opt/Samsung/mfp/uninstall/
[root@localhost uninstall]#./uninstall.sh
d) Click Uninstall.
e) Click Next.
f) Click Finish.
SHARING YOUR MACHINE LOCALLY
Follow the steps below to set up the computers to share your machine
locally.
If the Host computer is directly connected to the machine with USB a cable
and is also connected to the local network environment, the client computer
connected to the local network can use the shared machine through the
host computer to print.
Windows
Setting up a host computer
1. Install your printer driver. (See "Installing USB connected machine’s
driver" on page 24, "Installing network connected machine’s driver"
on page 31.)
2. Click the Windows Start menu.
3. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printers and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware
>Devices and Printers.
4. Right click your printer icon.
5. For Windows XP/2003/2008/Vista, press Properties.
For Windows 7 and Windows Server 2008 R2, from context menus,
select the Printer properties.
If Printer properties item has Ź mark, you can select other
printer drivers connected with selected printer.
6. Select the Sharing tab.
7. Check the Change Sharing Options.
8. Check the Share this printer.
9. Fill in the Share Name field. Click OK.
1Host computer A computer which is directly connected to
the machine by USB cable.
2Client computers Computers which use the machine shared
through the host computer.
Getting started_28
Setting up a client computer
1. Install your printer driver. (See "Installing USB connected machine’s
driver" on page 24, "Installing network connected machine’s driver"
on page 31.)
2. Click the Windows Start menu.
3. Select All programs > Accessories >Windows Explorer.
4. Enter the IP address of the host computer in the address bar and
press Enter in your keyboard.
In case host computer requires User name and Password, fill
in User ID and password of the host computer account.
5. Right click the printer icon you want to share and select Connect.
6. If a set up complete message appears, click OK.
7. Open the file you want to print and start printing.
Macintosh
The following steps are for Mac OS X 10.5~10.6. Refer to Mac Help
for other OS versions.
Setting up a host computer
1. Install your printer driver. (See "Macintosh" on page 26.)
2. Open the Applications folder > System Preferences and click
Print & Fax.
3. Select the printer to share in the Printers list.
4. Select Share this printer.
Setting up a client computer
1. Install your printer driver. (See "Macintosh" on page 26.)
2. Open the Applications folder > System Preferences and click
Print & Fax.
3. Click the “+” icon.
A display window showing the name of your shared printer appears.
4. Select your machine and click Add.
Network setup_29
3.network setup
This chapter gives you step-by-step instructions for setting up the wired network connected machine and software.
This chapter includes:
•Network environment
•Introducing useful network programs
•Using a wired network
•Installing network connected machine’s driver
•IPv6 Configuration

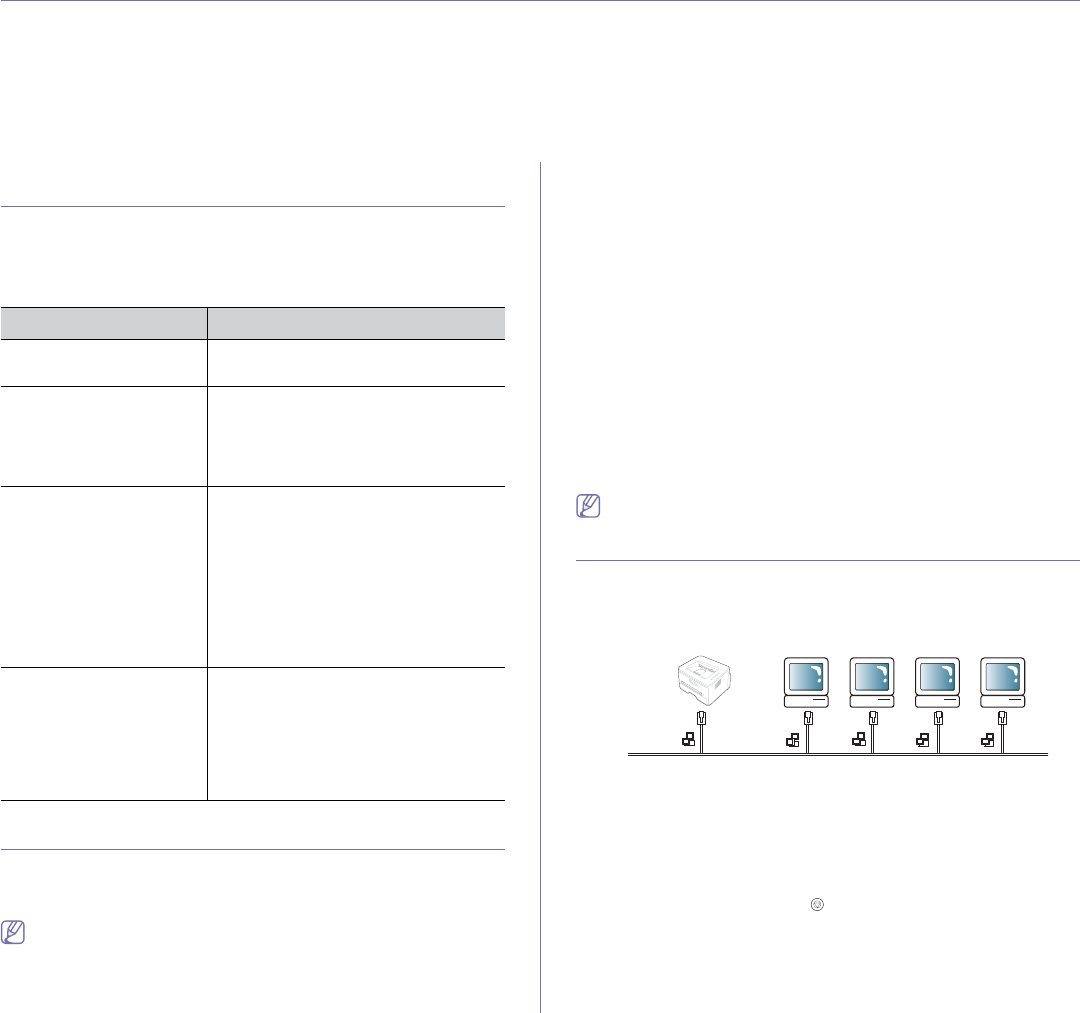

NETWORK ENVIRONMENT
You need to set up the network protocols on the machine to use it as your
network machine.
The following table shows the network environments supported by the
machine:
INTRODUCING USEFUL NETWORK PROGRAMS
There are several programs available to setup the network settings easily in
network environment. For the network administrator especially, managing
several machines on the network is possible.
Before using the programs below, set the IP adress first.

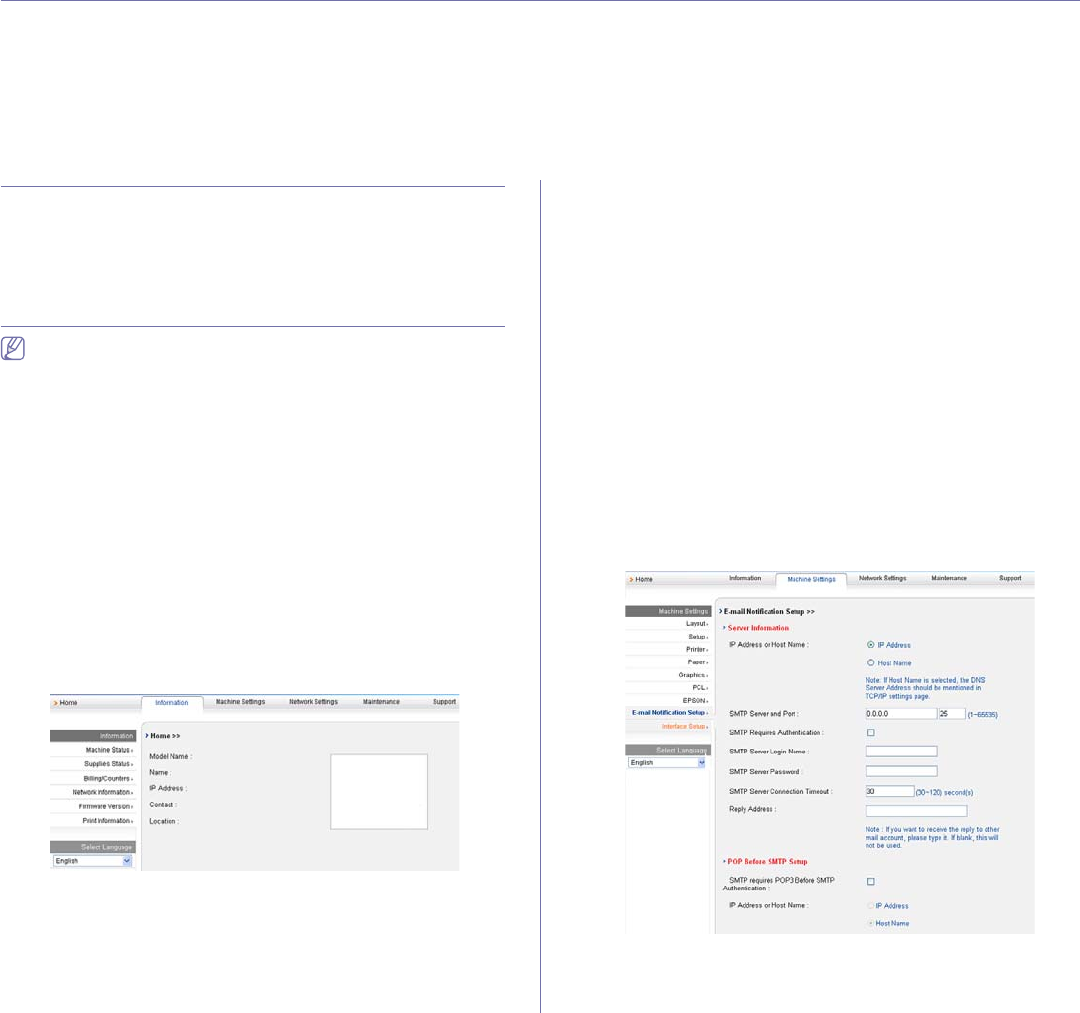

SyncThru™ Web Service
Web server embedded on your network machine, which allows you to:
•Configure the network parameters necessary for the machine to connect
to various network environments.
•Customize machine settings.
(See "Using SyncThru™ Web Service" on page 24.)
SyncThru™ Web Admin Service
Web-based machine management solution for network administrators.
SyncThru™ Web Admin Service provides you with an efficient way of
managing network devices and lets you remotely monitor and troubleshoot
network machines from any site with corporate internet access. Download
this program from http://solution.samsungprinter.com.
SetIP
This utility program allows you to select a network interface and manually
configure the IP addresses for use with the TCP/IP protocol. (See "IP setting
using SetIP Program (Windows)" on page 30, "IP setting using SetIP
Program (Macintosh)" on page 30 or "IP setting using SetIP Program
(Linux)" on page 31.)
TCP/IPv6 is not supported by this program.
USING A WIRED NETWORK
You must set up the network protocols on your machine to use it on your
network. This chapter will show you how this is easily accomplished.
You can use network after connecting network cable to a corresponding
port on your machine.
Printing network configuration report
You can print a Network Configuration Report from the machine's control
panel that will show the current machine’s network settings. This will help
you to set up a network and troubleshoot problems.
To print the report:
In ready mode, press and hold the (cancel button) for about 5 seconds.
You can find your machine’s MAC address and IP address.
For example:
•MAC Address : 00:15:99:41:A2:78
•IP Address : 192.0.0.192
ITEM REQUIREMENTS
Network interface •Ethernet 10/100 Base-TX
•802.11 b/g Wireless LAN
Network operating system •Windows
2000/XP/2003/2008/Vista/7/2008
Server R2
•Various Linux OS
•Mac OS X 10.3 ~ 10.6
Network protocols •TCP/IPv4
•DHCP, BOOTP
•DNS, WINS, Bonjour, SLP, UPnP
•Standard TCP/IP Printing (RAW), LPR,
IPP
•SNMPv 1/2/3, HTTP, IPSec
•TCP/IPv6 (DHCP, DNS, RAW, LPR,
SNMPv 1/2/3, HTTP, IPSec
(See "IPv6 Configuration" on page 33.)
Wireless Security •Authentication: Open System, Shared
Key, WPA Personal, WPA2 Personal
(PSK)
•Encryption: WEP64, WEP128, TKIP,
AES
(See "Using a wireless network" on
page 1.)
Network setup_30
Setting IP address
Firstly, you have to set up an IP address for network printing and
managements. In most cases a new IP address will be automatically
assigned by a DHCP (Dynamic Host Configuration Protocol) server located
on the network.
In a few situations the IP address must be set manually. This is called a
static IP and is often required in corporate Intranets for security reasons.
•DHCP IP assignment: Connect your machine to the network, and wait a
few minutes for the DHCP server to assign an IP address to the
machine. Then, print the Network Configuration Report as explained
above. If the report shows that the IP address has changed, the
assignment was successful. You will see the new IP address in the
report.
•Static IP assignment: Use SetIP program to change the IP address
from your computer.
In an office environment, we recommend that you contact a network
administrator to set this address for you.
IP setting using SetIP Program (Windows)
This program is for manually setting the network IP address of your
machine using its MAC address to communicate with the machine. A
MAC address is the hardware serial number of the network interface and
can be found in the Network Configuration Report.
For using SetIP program, disable the computer firewall before continuing
by performing the following:
1. Open Start > All programs > Control Panel.
2. Double click Security Center.
3. Click Windows Firewall.
4. Disable the firewall.
Installing the program
1. Insert the Printer Software CD-ROM provided with your machine.
When the driver CD runs automatically, close that window.
2. Start Windows Explorer and open the X drive. (X represents your
CD-ROM drive.)
3. Double-click Application > SetIP.
4. Double-click Setup.exe to install this program.
5. Click OK. If necessary, select a language from the drop-down list.
6. Follow the instructions in the window and complete the installation.
Starting the program
1. Connect your machine to the network with a network cable.
2. Turned on the machine.
3. From the Windows Start menu, select All Programs > Samsung
Printers > SetIP > SetIP.
4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address : Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X. (X is number between 1 and 254 other than
the computer’s address.)
•Subnet Mask: Enter a Subnet Mask.
•Default Gateway: Enter a Default Gateway.
6. Click Apply, and then click OK. The machine will automatically print
the Network Configuration Report. Confirm that all the settings are
correct.
7. Click Exit to close the SetIP program.
8. If necessary, restart the computer’s firewall.
IP setting using SetIP Program (Macintosh)
For using SetIP program, disable the computer firewall before continuing
by performing the following:
The path and UIs may differ by Mac OS version. Refer to the Mac
OS manual.
1. Open System Preferences.
2. Click Security.
3. Click the Firewall menu.
4. Turn firewall off.
The following instructions may vary for your model.
1. Connect your machine to the network with a network cable.
2. Insert the Installation CD-ROM, and open the disk window, select
MAC_Installer > MAC_Printer > SetIP > SetIPApplet.html.
3. Double click the file and Safari will automatically open, then select
Trust. The browser will open the SetIPApplet.html page that shows
the printer’s name and IP address information.
4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address : Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
Network setup_31
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X. (X is number between 1 and 254 other than
the computer’s address.)
•Subnet Mask: Enter a Subnet Mask.
•Default Gateway: Enter a Default Gateway.
6. Select Apply, then OK, and OK again. The printer will automatically
print the configuration report. Confirm that all the settings are correct.
Quit Safari. You may close and eject the installation CD-ROM. If
necessary, restart the computer’s firewall. You have successfully
changed the IP address, subnet mask, and gateway.
IP setting using SetIP Program (Linux)
SetIP program should be automatically installed during the printer driver
installation.
1. Print the machine’s network configuration report to find your
machine’s MAC address.
2. Open the /opt/Samsung/mfp/share/utils/.
3. Double click the SetIPApplet.html file.
4. Click to open the TCP/IP configuration window.
5. Enter the network card’s MAC address, IP address, subnet mask,
default gateway, and then click Apply.
When you enter the MAC address, enter it without a colon(:).
6. The machine prints the network configuration report. Confirm all the
settings are correct.
7. Close the SetIP program.
Network parameter setting
You can also set up the various network settings through the network
administration programs such as SyncThru™ Web Admin Service and
SyncThru™ Web Service.
Restoring factory default settings
You may need to reset the machine to the factory default settings when
machine that you are using is connected to new network environment.
Restoring factory default settings using SyncThru™
Web Service
1. Start a web browser such as Internet Explorer, Safari or Firefox and
enter your machine’s new IP address in the browser window.
For example,
2. When the SyncThru™ Web Service window opens, click Network
Settings.
3. Click Reset. Then, click Clear for network.
4. Turn off and restart machine to apply settings.
INSTALLING NETWORK CONNECTED
MACHINE’S DRIVER
Windows
You can set up the machine driver, follow the steps below.
This is recommended for most users. All components necessary for
machine operations will be installed.
1. Make sure that the machine is connected to the network and powered
on.
2. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation window
appear.
•If the installation window does not appear, click Start and then Run.
Type X:\Setup.exe, replacing “X” with the letter which represents
your drive. Click OK.
•If you use Windows Vista, Windows 7 and Windows 2008 Server R2
click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your drive and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7 and
Windows 2008 Server R2, click Run Setup.exe in Install or run
program field, and click Continue or Yes in the User Account
Control windows.
3. Select Install now.
If necessary, select a language from the drop-down list.
•The Wireless Setting and Installation allows you to install a
wireless network to connect to the machine with USB cable.
(See "Setting a wireless network with USB cable" on page 2.)
•The Advanced Installation has two options, Custom
Installation and Install Software Only. The Custom
Installation allows you to select the machine’s connection and
choose individual component to install. The Install Software
Only allows you to install the supplied softwares, such as
Smart Panel. Follow the guide on the window.
4. Read License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
Network setup_32
The program searches the machine.
If your machine is not found in the network or locally, the following
window will appear.
•Check if you want to install the software without
connecting the printer to the network or locally.
- Check this option to install this program without a machine
connected. In this case, the print a test page window will be
skipped, and completes the installation.
•Search again
When you press this button, the firewall notice window
appears;
- Turn off the firewall and Search again. For Window
operating system, click Start > Control Panel > Windows
Firewall, and inactivate this option. For other operating
system, refer to its on-line guide.
- Turn off the firewall from the third party's program beside
the operating system. Refer to the manual provided by
individual programs.
•Direct Input
The Direct Input allows you to search a specific machine on
the network.
-Search by IP address: Enter the IP address or the host
name. Then click Next.
To verify your machine’s IP address, print a network
configuration report. (See "Printing a machine report" on
page 28.)
-Search by network path: To find a shared machine (UNC
Path), enter the shared name manually or find a shared
printer by clicking the Browse button. Then click Next.
•Help
If your machine is not connected to the computer or network,
This help button gives detailed information about the how to
connect the machine.
5. The searched machines will be shown on the screen. Select the one you
wish to use and click Next.
If the driver searched only one machine, the confirmation window
appears.
6. After the installation is finished, a window asking you to print a test page
appears. If you want to print a test page, click Print a test page.
Otherwise, just click Next and skip to step 7.
7. If the test page prints out correctly, click Yes.
If not, click No to reprint it.
8. To register as a user of the machine in order to receive information from
Samsung, click On-line Registration. You are now registered to the
Samsung web site.
9. Click Finish.
• After the driver setup, you may enable firewall.
• If the printer driver does not work properly, follow the steps below
to repair or reinstall the driver.
a) Make sure that the machine is connected to your machine and
powered on.
b) From the Start menu, select Programs or All Programs >
Samsung Printers > your printer driver name >
Maintenance.
c) Select the option as you wish, follow the instruction on the
window.
Macintosh
1. Make sure that the machine is connected to your network and powered
on. Also, your machine’s IP address should have been set.
2. Insert the supplied software CD into your CD-ROM drive.
3. Double-click the CD-ROM icon that appears on your Macintosh desktop.
4. Double-click the MAC_Installer folder.
5. Double-click the Installer OS X icon.
6. Enter the password and click OK.
7. The Samsung Installer window opens. Click Continue.
8. Select Easy Install and click Install.Easy Install is recommended for
most users. All components necessary for machine operations will be
installed.
•If you select Custom Install, you can choose individual components
to install.
9. The message which warns that all applications will close on your
computer appears. Click Continue.
10. After the installation is finished, click Quit.
11. Open the Applications folder > Utilities > Print Setup Utility.
•For Mac OS X 10.5~10.6, open the Applications folder > System
Preferences and click Print & Fax.
12. Click Add on the Printer List.
•For Mac OS X 10.5~10.6, click the “+” icon; a display window will pop
up.
13. For Mac OS X 10.3, select the IP Printing tab.
•For Mac OS X10.4, click IP Printer.
•For Mac OS X 10.5~10.6, click IP.
14. Select Socket/HP Jet Direct in Printer Type.
When printing a document containing many pages, printing
performance may be enhanced by choosing Socket for Printer
Type option.
15. Enter the machine’s IP address in the Printer Address field.
16. Enter the queue name in the Queue Name field. If you cannot determine
the queue name for your machine server, try using the default queue
first.
17. For Mac OS X 10.3, if Auto Select does not work properly, select
Samsung in Printer Model and your machine name in Model Name.
•For Mac OS X 10.4, if Auto Select does not work properly, select
Samsung in Print Using and your machine name in Model.
•For Mac OS X 10.5~10.6, if Auto Select does not work properly,
select Select a driver to use... and your machine name in Print
Using.
Network setup_33
Your machine appears on the Printer List, and is set as the default
machine.
18. Click Add.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow steps below to uninstall the driver for Macintosh.
a) Make sure that the machine is connected to your computer and
powered on.
b) Insert the supplied software CD into your CD-ROM drive.
c) Double-click CD-ROM icon that appears on your Macintosh
desktop.
d) Double-click the MAC_Installer folder.
e) Double-click the Installer OS X icon.
f) Enter the password and click OK.
g) The Samsung Installer window opens. Click Continue.
h) Select Uninstall and click Uninstall.
i) When the message which warns that all applications will close
on your computer appears, Click Continue.
j) When the uninstall is done, click Quit.
Linux
Install Linux Driver
1. Make sure that the machine is connected to your network and
powered on. Also, your machine’s IP address should have been set.
2. From the Samsung website, download the Unified Linux Driver
package to your computer.
3. Right click the Unified Linux Driver package and extract the
package.
4. Double click cdroot > autorun.
5. The Samsung Installer window opens. Click Continue.
6. The Add printer wizard window opens. Click Next.
7. Select Network printer and click Search button.
8. The Printer’s IP address and model name appears on list field.
9. Select your machine and click Next.
10. Input the printer description and Next
11. When the add printer is done, click Finish
12. When the install is done, click Finish
Add network Printer
1. Double-click the Unified Driver Configurator.
2. Click Add Printer…
3. The Add printer wizard window opens. Click Next.
4. Select Network printer and click the Search button.
5. The printer’s IP address and model name appears on list field.
6. Select your machine and click Next.
7. Input the printer description and Next
8. When the add printer is done, click Finish.
IPV6 CONFIGURATION
TCP/IPv6 is supported properly only in Windows Vista or higher.
If the IPv6 network seems to not be working, set all the network setting
to the factory defaults and try again. (See "Restoring factory default
settings" on page 31.)
To use the IPv6 network environment, follow the next procedure to use the
IPv6 address:
The machine is provided with IPv6 feature on.
1. Connect your machine to the network with a network cable.
2. Turn on the machine.
3. Print a Network Configuration Report from the machine’s control
panel that will check IPv6 addresses.
4. Select Start > Control Panel > Hardware and Sound >Printers > Add
Printer.
5. Click Add a local printer on the Add Printer windows.
6. Follow the instruction on the window.
If the machine does not work in the network environment, activate
IPv6. Refer to the next section followed by.
Printing network configuration report
You can print a Network Configuration Report from the machine's control
panel that will show the current machine’s network settings. This will help
you to set up a network and troubleshooting problems.
To print the report:
In ready mode, press and hold the (cancel button) for about 5 seconds.
You can find your machine’s MAC address and IP address.
For example:
•MAC Address : 00:15:99:41:A2:78
•IP Address : 192.0.0.192
Setting IPv6 addresses
Machine supports following IPv6 addresses for network printing and
managements.
•Link-local Address: Self-configured local IPv6 address. (Address starts
with FE80.)
•Stateless Address: Automatically configured IPv6 address by a
network router.
•Stateful Address: IPv6 address configured by a DHCPv6 server.
•Manual Address: Manually configured IPv6 address by a user.
Manual address configuration
1. Start a web browser such as Internet Explorer that supports IPv6
addressing as a URL. (See "Using SyncThru™ Web Service" on
page 24.)
For IPv4, enter the IPv4 address (http://xxx.xxx.xxx.xxx) in the
address field and press the Enter key or click Go.
2. When the SyncThru™ Web Service window opens, click Network
Settings.
3. Click TCP/IP.
4. Enable the Manual Address In the TCP/IPv6 section.
5. Select the Router Prefix and click the Add button, then the router prefix
will automatically be entered into the address field.
Enter the rest of address. (ex: 3FFE:10:88:194::AAAA. “A” is the
hexadecimal 0 through 9, A through F.)
6. Click the Apply button.
Network setup_34
Installing printer driver
Driver installation for network printer in IPv6 network environment is same
as TCP/IPv4. (See "Installing network connected machine’s driver" on
page 31.)
Select TCP/IP Port and when the list of machines are displayed, simply
select your machine's IPv6 address.
Using SyncThru Web Service
1. Start a web browser such as Internet Explorer that supports IPv6
addressing as a URL .
2. Select one of the IPv6 addresses (Link-local Address,Stateless
Address,Stateful Address,Manual Address) from Network
Configuration Report.
3. Enter the IPv6 addresses. (ex: http://[FE80::215:99FF:FE66:7701])
Address must be enclosed in '[]' brackets.
Wireless network setup_1
4.wireless network setup
This chapter gives you step-by-step instructions for setting up the wireless network connected machine and software.
This chapter includes:
•Using a wireless network
•Setting a wireless network with USB cable
•Setting a wireless network with network cable
•Resetting factory default values
•Completing the Installation
For more information about network environment
S
network programs and
Installing network connected machine’s driver, refer to following chapters.
• See "Network environment" on page 29.
• See "Introducing useful network programs" on page 29.
• See "Installing network connected machine’s driver" on page 31.

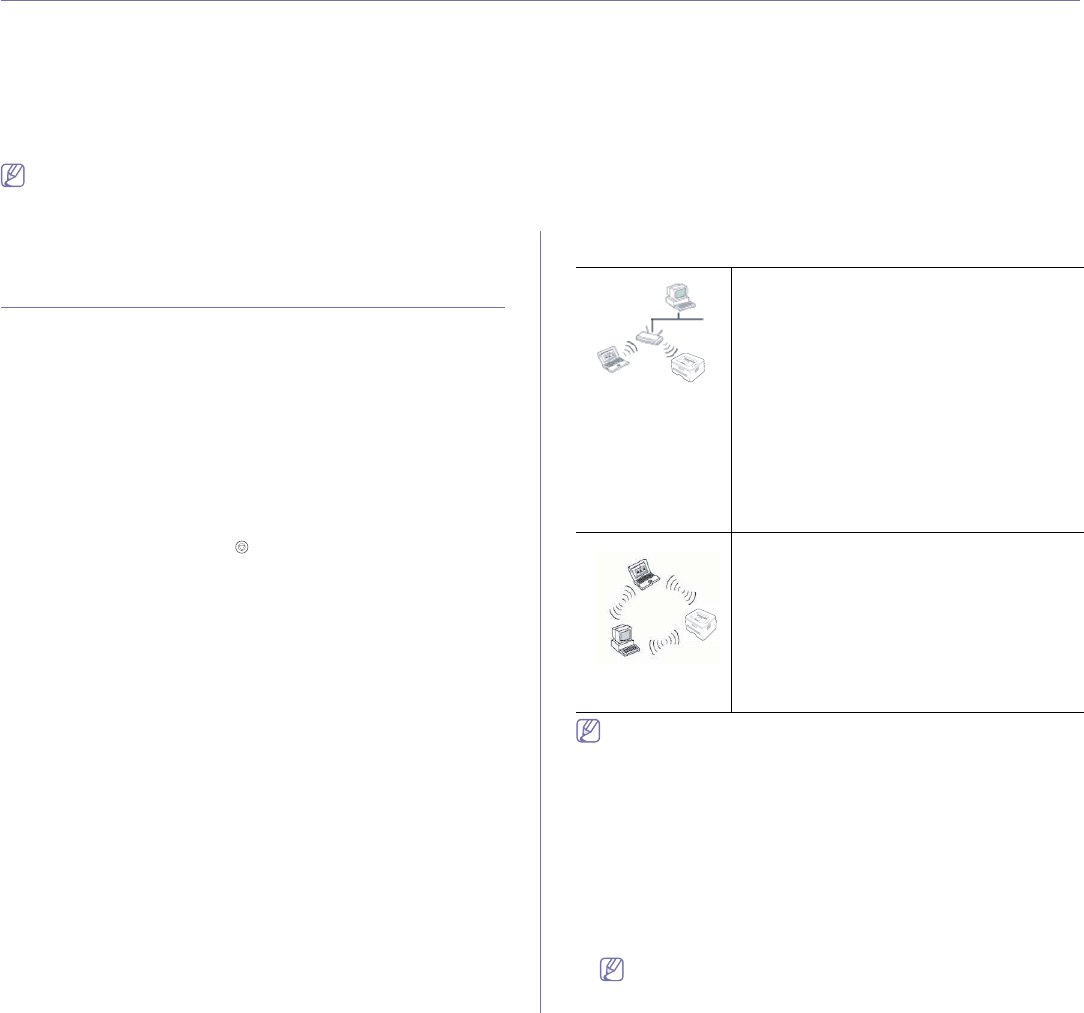

USING A WIRELESS NETWORK
Choosing your network connection
Typically, you can only have one connection between your computer and
the machine at a time. There are three types of network connections to
consider.
•Wireless network without Access Point (Ad-Hoc mode)
•Wireless network with an Access Point (Infrastructure mode)
How to print a network configuration report
You can identify the network settings of your machine by printing a network
configuraltion report.
To print the report:
In ready mode, press and hold the (cancel button) for about 5 seconds.
You can find your machine’s MAC address and IP address.
For example:
•MAC Address : 00:15:99:41:A2:78
•IP Address : 192.0.0.192
IP addresses
Every device in a network has a unique numerical address called an IP
Address. Your machine came with a Default IP address of 192.0.0.192,
which you can verify by printing out a Network Configuration Report or
Configuration Report.
•DHCP IP assignment: Connect your machine to the network, and wait a
few minutes for the DHCP server to assign an IP address to the
machine. Then, print the Network Configuration Report as explained
above. If the report shows that the IP address has changed, the
assignment was successful. You will see the new IP address in the
report.
•Static IP assignment: Use SetIP program to change the IP address
from your computer. (See "Setting IP address" on page 30.)
In an office environment, we recommend that you contact a network
administrator to set this address for you.
Wireless network name and Network Key
Wireless networks require higher security, so when an Access Point is first
set up, a network name (SSID), the type of security used, and a Network
Key are created for the network. Locate this information before proceeding
with the machine installation.
After choosing your configuration, follow the simple directions for your
computer operating system, but first locate the Printer Software
installation CD-ROM supplied with the machine before proceeding.
Installing a wireless network cables
You can install a wireless network to connect to the machine with either a
USB cable or a network cable. For most users, we recommend using a
USB cable with the program provided in the supplied software CD.
The following are two ways to install a wireless network with cables.
• With a USB cable: You can simply set up a wireless network using the
program in the supplied software CD. Only Windows and Macintosh
operating system are supported. (See "Setting a wireless network with
USB cable" on page 2.)
You can also install a wireless network in Printer Settings Utility
with USB cable after installing driver. (Windows and Macintosh
operating system are supported.)
Infrastructure mode wireless networks
The most common network configurations include
the use of a network hub, router, or wireless
Access Point as shown. You may connect directly
to one of these devices using a standard network
cable or wirelessly to the Access Point.
Most Infrastructure mode networks use a Dynamic
Host Configuration Protocol Server (DHCP) to
automatically assign an IP address and set other
network parameters. In home wireless networks,
the Access Point performs this function.
(See "Installing the machine on a wireless network
with an Access Point (Windows)" on page 3 or
"Installing the machine on a wireless network with
an Access Point (Macintosh)" on page 4.)
Ad-Hoc mode wireless networks
Alternately, if you do not have a standard network
as above you can still use the machine wirelessly
from a computer with wireless capabilities by
setting up a simple Ad-Hoc, of peer-to-peer,
network as shown here.
(See "Installing the machine on an Ad-Hoc
wireless network (Windows)" on page 2 or
"Installing the machine on a wireless network with
an Access Point (Macintosh)" on page 4.)
Wireless network setup_2

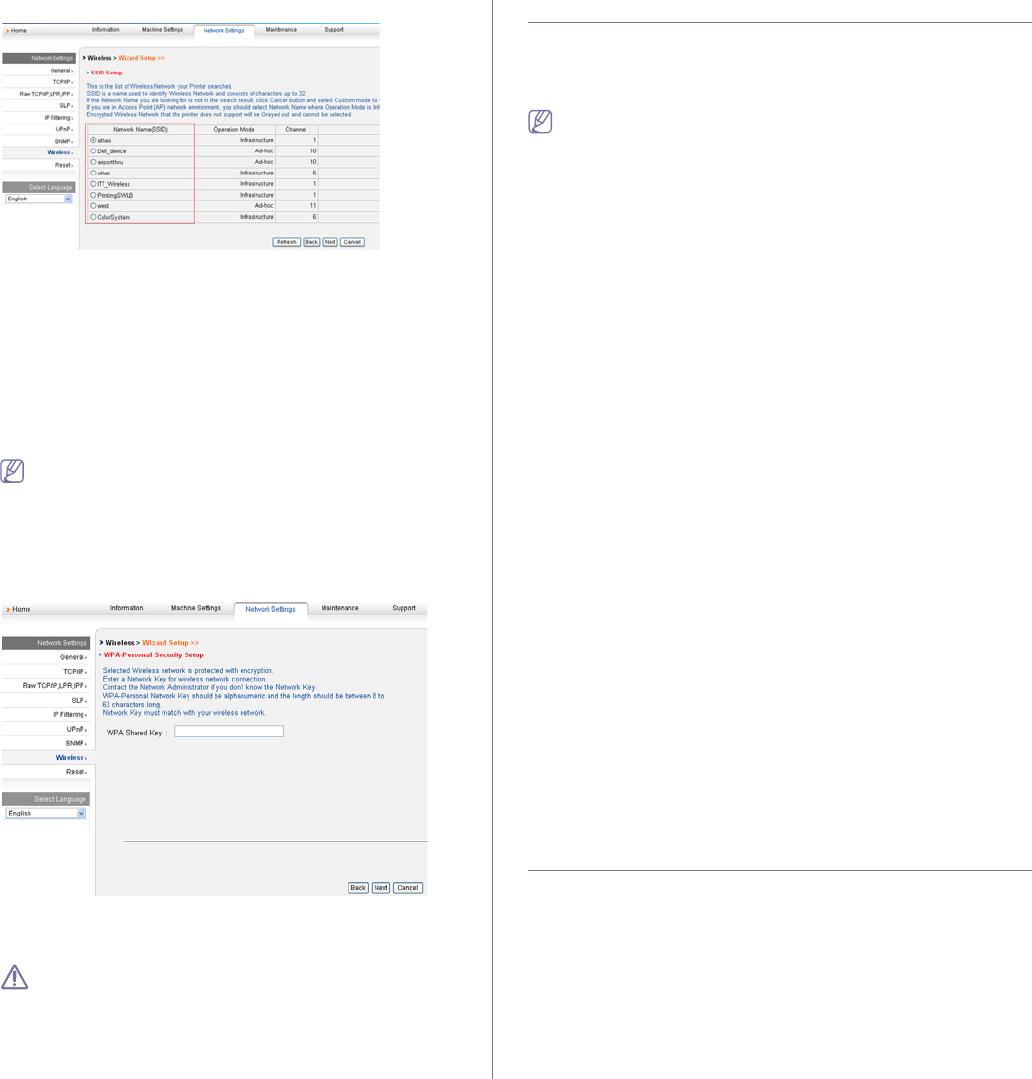

• With a network cable: You can set up a wireless network using the
SyncThru™ Web Service program. (See "Setting a wireless network
with network cable" on page 6.)
SETTING A WIRELESS NETWORK WITH USB
CABLE
Refer to your network administrator, or the person that set up your
wireless network, for information about your network configuration.
Installing the machine on an Ad-Hoc wireless
network (Windows)
If you do not have a Access Point (AP), you may still connect the machine
wirelessly to your computer by setting up an Ad-Hoc wireless network by
following these simple directions.
Preparing items
Ensure you have next items ready.
•Wireless network computer
•Printer Software CD-ROM that provided with your machine
•Wireless network printer (your machine)
•USB cable
Creating the Ad-Hoc network in Windows
When items are ready, follow the next procedure:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer and machine.
3. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation
window appear.
•If the installation window does not appear, click Start and then
Run. Type X:\Setup.exe, replacing “X” with the letter which
represents your drive. Click OK.
•If you use Windows Vista, Windows 7 and Windows 2008 Server
R2 click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your drive and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7
and Windows 2008 Server R2, click Run Setup.exe in Install or
run program field, and click Continue or Yes in the User
Account Control windows.
4. Select the Wireless Setting and Installation option.
5. Read License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
6. The software searches the wireless network devices.
If the searching has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
7. After searching, the window shows the wireless network devices.
Select the name (SSID) of your wireless computer and click Next.
When you set the wireless configuration manually, click
Advanced Setting.
•Enter the wireless Network Name: Type the SSID of
wireless computer, the SSID is case-sensitive.
•Operation Mode: Select Ad-hoc.
•Channel: Select the channel. (Auto Setting or 2412 MHz
to 2467 MHz).
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key which can access the network.
•Encryption: Select the encryption. (None, WEP64,
WEP128)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: It is enabled when WEP is set for
Encryption after selecting Open System or Shared Key.
Enter the WEP key.
After setting in Advanced Setting, go to the step 9.
8. The wireless network security window appears. Select Open
System or Shared Key for the authentication and click Next.
•WEP (Wired Equivalent Privacy) is a security protocol preventing
unauthorized access to your wireless network. WEP encrypts the
data portion of each packet exchanged on a wireless network
using a 64-bit or 128-bit WEP encryption key.
The wireless network security window does not appear when
the Ad-hoc network has no security setting.
9. The window shows the wireless network setting and check if settings
are right. Click Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click Change
TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click Change
TCP/IP to enter the IP address and other network configuration
values for the machine. Before entering the IP address for the
machine, you must know the computer’s network configuration
information. If the wireless computer is set to DHCP, you must
contact the network administrator to get the static IP address.
Example)
If computer’s network information is as below:
- IP address: 169.254.133.42
- Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
- IP address: 169.254.133. 43 (Use computer’s IP address,
with changed last three digits.)
- Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
- Gateway: 169.254.133.1 (Change the last three digits from IP
address of your machine to 1.)
10. The wireless network is connecting according to the network
configuration.
11. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
12. Select the components to be installed.
After selecting the components, you can also change the machine
name, set the machine to be shared on the network, set the machine
as the default machine, and change the port name of each machine.
Click Next.
Wireless network setup_3
13. After the installation is finished, a window appears asking you to print
a test page and to register yourself as a user of Samsung Printers in
order to receive information from Samsung. If you desire, select the
corresponding checkbox(es) and click Finish.
Installing the machine on a wireless network with an
Access Point (Windows)
Preparing items
Ensure you have next items ready.
•Access point
•Networked computer
•Printer Software CD-ROM that provided with your machine
•Wireless network printer (your machine)
•USB cable
Creating the infrastructure network in Windows
When items are ready, follow the next procedure:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer, access point and machine.
3. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation
window appears.
•If the installation window does not appear, click Start and then
Run. Type X:\Setup.exe, replacing “X” with the letter which
represents your drive. Click OK.
•If you use Windows Vista, Windows 7 and Windows 2008 Server
R2 click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your drive and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7
and Windows 2008 Server R2, click Run Setup.exe in Install or
run program field, and click Continue or Yes in the User
Account Control windows.
4. Select the Wireless Setting and Installation option.
5. Read License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
6. The software searches the wireless network devices.
If the searching has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
7. After searching, the window shows the wireless network devices.
Select the name (SSID) of access point you are using and click
Next.
When you set the wireless configuration manually, click
Advanced Setting.
•Enter the wireless Network Name: Type the SSID of
access point, the SSID is case-sensitive.
•Operation Mode: Select Infrastructure.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key can access the network.
WPA Personal or WPA2 Personal: Select this option to
authenticate the print server based on WPA Pre-Shared
Key. This uses a shared secret key (generally called Pre
Shared Key passphrase) which is manually configured on
the access point and each of its clients.
•Encryption: Select the encryption. (None, WEP64,
WEP128, TKIP, AES, TKIP AES)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: It is enabled when WEP is set for
Encryption after selecting Open System or Shared Key.
Enter the WEP key.
After setting in Advanced Setting, go to the step 9.
8. The wireless network security window appears. The window may
differ according to its security mode, WEP or WPA.
•In case of WEP
Select Open System or Shared Key for the authentication and
enter WEP security key. Click Next.
WEP (Wired Equivalent Privacy) is a security protocol preventing
unauthorized access to your wireless network. WEP encrypts the
data portion of each packet exchanged on a wireless network
using a 64-bit or 128-bit WEP encryption key.
•In case of WPA
Enter the WPA shared key and click Next.
WPA authorizes and identifies users based on a secret key that
changes automatically at regular intervals. WPA also uses TKIP
(Temporal Key Integrity Protocol) and AES (Advanced
Encryption Standard) for data encryption.
The wireless network security window does not appear
when the access point has no security setting.
9. The window shows the wireless network setting and check if settings
are right. Click Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click Change
TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click Change
TCP/IP to enter the IP address and other network configuration
values for the machine. Before entering the IP address for the
machine, you must know the computer’s network configuration
information. If the computer is set to DHCP, you must contact the
network administrator to get the static IP address.
Example)
If computer’s network information is as below:
- IP address: 169.254.133.42
- Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
- IP address: 169.254.133. 43 (Use computer’s IP address,
with changed last three digits.)
- Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
- Gateway: 169.254.133.1 (Change the last three digits from IP
address of your machine to 1.)
10. The wireless network is connecting according to the network
configuration.
11. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
Wireless network setup_4
12. Select the components to be installed. After selecting the
components, you can also change the machine name, set the
machine to be shared on the network, set the machine as the default
machine, and change the port name of each machine. Click Next.
13. After the installation is finished, a window appears asking you to print
a test page and to register yourself as a user of Samsung Printers in
order to receive information from Samsung. If you desire, select the
corresponding checkbox(es) and click Finish.
Installing the machine on an Ad-Hoc wireless
network (Macintosh)
If you do not have a Access Point (AP), you may still connect the machine
wirelessly to your computer by setting up an Ad-Hoc wireless network by
following these simple directions.
Preparing items
Ensure you have next items ready.
•Wireless network computer
•Printer Software CD-ROM that provided with your machine
•Wireless network printer (your machine)
•USB cable
Creating the Ad-Hoc network in Macintosh
When items are ready, follow the next procedure:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer and machine.
3. Insert the supplied software CD into your CD-ROM drive.
4. Double-click the CD-ROM icon that appears on your Macintosh
desktop.
5. Double-click the MAC_Installer folder.
6. Double-click the Installer OS X icon.
7. Enter the password and click OK.
8. The Samsung Installer window opens. Click Continue.
9. Read the license agreement and click Continue.
10. Click Agree to agree to the license agreement.
11. The Samsung Installer window opens. Click Continue.
12. Select Easy Install and click Install.
13. Click Wireless Setting and Installation.
14. The software searches the wireless network devices.
If the searching has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
15. After searching, the window shows the wireless network devices.
Select the name (SSID) of your wireless computer and click Next.
When you set the wireless configuration manually, click
Advanced Setting.
•Enter the wireless Network Name: Type the SSID of
wireless computer, the SSID is case-sensitive.
•Operation Mode: Select Ad-hoc.
•Channel: Select the channel. (Auto Setting or 2412 MHz
to 2467 MHz).
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key which can access the network.
•Encryption: Select the encryption. (None, WEP64,
WEP128)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: It is enabled when WEP is set for
Encryption after selecting Open System or Shared Key.
Enter the WEP key.
After setting in Advanced Setting, go to the step 9.
16. The wireless network security window appears. Select Open
System or Shared Key for the authentication and click Next.
•WEP (Wired Equivalent Privacy) is a security protocol preventing
unauthorized access to your wireless network. WEP encrypts the
data portion of each packet exchanged on a wireless network
using a 64-bit or 128-bit WEP encryption key.
The wireless network security window does not appear when
the Ad-hoc network has no security setting.
17. The window shows the wireless network setting and check if settings
are right. Click Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click Change
TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click Change
TCP/IP to enter the IP address and other network configuration
values for the machine. Before entering the IP address for the
machine, you must know the computer’s network configuration
information. If the wireless computer is set to DHCP, you must
contact the network administrator to get the static IP address.
Example)
If computer’s network information is as below:
- IP address: 169.254.133.42
- Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
- IP address: 169.254.133. 43 (Use computer’s IP address,
with changed last three digits.)
- Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
- Gateway: 169.254.133.1 (Change the last three digits from IP
address of your machine to 1.)
18. The wireless network is connecting according to the network
configuration.
19. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
20. After the installation is finished, click Quit.
Installing the machine on a wireless network with an
Access Point (Macintosh)
Preparing items
Ensure you have next items ready.
•Access point
•Networked computer
•Printer Software CD-ROM that provided with your machine
Wireless network setup_5
•Wireless network printer (your machine)
•USB cable
Creating the infrastructure network in Macintosh
When items are ready, follow the next procedure:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer, access point and machine.
3. Insert the supplied software CD into your CD-ROM drive.
4. Double-click the CD-ROM icon that appears on your Macintosh
desktop.
5. Double-click the MAC_Installer folder.
6. Double-click the Installer OS X icon.
7. Enter the password and click OK.
8. The Samsung Installer window opens. Click Continue.
9. Read the license agreement and click Continue.
10. Click Agree to agree to the license agreement.
11. The Samsung Installer window opens. Click Continue.
12. Select Easy Install and click Install.
13. Click Wireless Setting and Installation.
14. The software searches the wireless network devices.
If the searching has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
15. After searching, the window shows the wireless network devices.
Select the name (SSID) of access point you are using and click
Next.
When you set the wireless configuration manually, click
Advanced Setting.
•Enter the wireless Network Name: Type the SSID of
access point, the SSID is case-sensitive.
•Operation Mode: Select Infrastructure.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key can access the network.
WPA Personal or WPA2 Personal: Select this option to
authenticate the print server based on WPA Pre-Shared
Key. This uses a shared secret key (generally called Pre
Shared Key passphrase) which is manually configured on
the access point and each of its clients.
•Encryption: Select the encryption. (None, WEP64,
WEP128, TKIP, AES, TKIP AES)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: It is enabled when WEP is set for
Encryption after selecting Open System or Shared Key.
Enter the WEP key.
After setting in Advanced Setting, go to the step 9.
16. The wireless network security window appears. The window may
differ according to its security mode, WEP or WPA.
•In case of WEP
Select Open System or Shared Key for the authentication and
enter WEP security key. Click Next.
WEP (Wired Equivalent Privacy) is a security protocol preventing
unauthorized access to your wireless network. WEP encrypts the
data portion of each packet exchanged on a wireless network
using a 64-bit or 128-bit WEP encryption key.
•In case of WPA
Enter the WPA shared key and click Next.
WPA authorizes and identifies users based on a secret key that
changes automatically at regular intervals. WPA also uses TKIP
(Temporal Key Integrity Protocol) and AES (Advanced
Encryption Standard) for data encryption.
The wireless network security window does not appear
when the access point has no security setting.
17. The window shows the wireless network setting and check if settings
are right. Click Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click Change
TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click Change
TCP/IP to enter the IP address and other network configuration
values for the machine. Before entering the IP address for the
machine, you must know the computer’s network configuration
information. If the computer is set to DHCP, you must contact the
network administrator to get the static IP address.
Example)
If computer’s network information is as below:
- IP address: 169.254.133.42
- Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
- IP address: 169.254.133. 43 (Use computer’s IP address,
with changed last three digits.)
- Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
- Gateway: 169.254.133.1 (Change the last three digits from IP
address of your machine to 1.)
18. The wireless network is connecting according to the network
configuration.
19. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
20. After the installation is finished, click Quit.
Wireless network setup_6
Troubleshooting
Printer Not Found
•Your computer or machine may not turned on. Turn on your
computer or machine.
•USB cable is not connected between your computer and machine.
Connect machine to your computer using USB cable.
•The machine does not support wireless network. Check the machine
manual and prepare wireless network machine.
Connecting Failure - Not Found SSID
•The machine is unable to search network name (SSID) which is
selected or entered name form you. Check the network name (SSID)
on your access point and retry to connect.
•Your access point is not turned on. Turn on your access point.
Connecting Failure - Invalid Security
•You configured security incorrectly. Check the configured security on
your access point and machine.
Connection Failure - General Connection Error
•Your computer is not receiving a signal form your machine. Check
the USB cable and your machine power.
Connection Failure - Connected Wired Network
•Your machine is connected wired network cable. Remove the wired
network cable form your machine.
PC Connecting Error
•The configured network address is unable to connect between your
computer and machine.
-For DHCP network environment
The print receives the IP address automatically (DHCP) when
computer is configured DHCP.
-For Static network environment
The machine uses the static address when computer is
configured static address.
If computer is configured IP address as 192.168.1.100, Subnet
address as 255.255.255.0 and Gateway address as
192.168.1.1, input IP address as 192.168.1.101, Subnet address
as 255.255.255.0 and Gateway address as 192.168.1.1 on your
machine.
SETTING A WIRELESS NETWORK WITH
NETWORK CABLE
Your machine is a network compatible machine. To enable your machine to
work with your network you will need to perform some configuration
procedures.
Refer to your network administrator, or the person that set up your
wireless network, for information about your network configuration.
Preparing items
Ensure you have next items ready.
•Access point
•Networked computer
•Printer Software CD-ROM that provided with your machine
•Wireless network printer (your machine)
•Network cable
Setting IP address
Firstly, you have to set up an IP address for network printing and
managements. In most cases a new IP address will be automatically
assigned by a DHCP (Dynamic Host Configuration Protocol) server located
on the network.
In a few situations the IP address must be set manually. This is called a
static IP and is often required in corporate Intranets for security reasons.
•DHCP IP assignment: Connect your machine to the network, and wait a
few minutes for the DHCP server to assign an IP address to the
machine. Then, print the Network Configuration Report as explained
above. If the report shows that the IP address has changed, the
assignment was successful. You will see the new IP address in the
report.G(See "How to print a network configuration report" on page 1.)
•Static IP assignment: Use SetIP program to change the IP address
from your computer.
In an office environment, we recommend that you contact a network
administrator to set this address for you.
IP setting using SetIP Program (Windows)
This program is for manually setting the network IP address of your
machine using its MAC address to communicate with the machine. A
MAC address is the hardware serial number of the network interface and
can be found in the Network Configuration Report.
For using SetIP program, disable the computer firewall before continuing
by performing the following:
1. Open Start > All programs > Control Panel.
2. Double click Security Center.
3. Click Windows Firewall.
4. Disable the firewall.
Installing the program
1. Insert the Printer Software CD-ROM provided with your machine.
When the driver CD runs automatically, close that window.
2. Start Windows Explorer and open the X drive. (X represents your
CD-ROM drive.)
3. Double-click Application > SetIP.
4. Double-click Setup.exe to install this program.
5. Click OK. If necessary, select a language from the drop-down list.
6. Follow the instructions in the window and complete the installation.
Starting the program
1. Connect your machine to the network with a network cable.
2. Turned on the machine.
3. From the Windows Start menu, select All Programs > Samsung
Printers > SetIP > SetIP.
4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
Wireless network setup_7
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address : Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X. (X is number between 1 and 254 other than
the computer’s address.)
•Subnet Mask: Enter a Subnet Mask.
•Default Gateway: Enter a Default Gateway.
6. Click Apply, and then click OK. The machine will automatically print
the Network Configuration Report. Confirm that all the settings are
correct.
7. Click Exit to close the SetIP program.
8. If necessary, restart the computer’s firewall.
IP setting using SetIP Program (Macintosh)
For using SetIP program, disable the computer firewall before continuing
by performing the following:
The path and UIs may differ by Mac OS version. Refer to the Mac
OS manual.
1. Open System Preferences.
2. Click Security.
3. Click the Firewall menu.
4. Turn firewall off.
The following instructions may vary for your model.
1. Connect your machine to the network with a network cable.
2. Insert the Installation CD-ROM, and open the disk window, select
MAC_Installer > MAC_Printer > SetIP > SetIPApplet.html.
3. Double click the file and Safari will automatically open, then select
Trust. The browser will open the SetIPApplet.html page that shows
the printer’s name and IP address information.
4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address : Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X. (X is number between 1 and 254 other than
the computer’s address.)
•Subnet Mask: Enter a Subnet Mask.
•Default Gateway: Enter a Default Gateway.
6. Select Apply, then OK, and OK again. The printer will automatically
print the configuration report. Confirm that all the settings are correct.
Quit Safari. You may close and eject the installation CD-ROM. If
necessary, restart the computer’s firewall. You have successfully
changed the IP address, subnet mask, and gateway.
Configuring the machine’s wireless network
Before starting you will need to know the network name(SSID) of your
wireless network and the network key if it is encrypted. This information was
set when the wireless router(access point) was installed. If you do not know
about your wireless environment, please ask the person who has set up
your network.
To configure wireless parameters, you can use SyncThru™ Web Service.
Using SyncThru™ Web Service
Before starting wireless parameter configuration, make sure cable
connection status.
1. Check whether the network cable is connected to the machine. If not,
connect the manchine with a standard network cable.
2. Start a web browser such as Internet Explorer, Safari or Firefox and
enter your machine’s new IP address in the browser window.
For example,
3. When the SyncThru™ Web Service window opens, click Network
Settings.
4. Click Wireless and select Wizard. Then, click Next.
Wizard will help you setup the wireless network configuration.
However, if you want to set the wireless network directly, select
Custom.
Wireless network setup_8
5. Select the one Network Name(SSID) in the list.
•SSID: SSID (Service Set Identifier) is a name that identifies a
wireless network. Access points and wireless devices attempting
to connect to a specific wireless network must use the same
SSID. The SSID is case-sensitive.
•Operation Mode:Operation Mode refers to the type of wireless
connections. (See "Wireless network name and Network Key" on
page 1.)
-Ad-hoc: allows wireless devices to communicate directly
with each other in a peer-to-peer environment.
-Infrastructure: allows wireless devices to communicate with
each other through an access point.
If your network’s Operation Mode is Infrastructure, select the
SSID of the access point. If the Operation Mode is Ad-hoc,
select the machine’s SSID. Note that “airportthru” is the default
SSID of your machine.
6. Click Next.
If wireless security setting window appears, enter the registered
password (network key) and click Next.
7. The confirmation window appears, please check your wireless setup.
If the setup is right, click Apply.
8. Click OK.
Disconnect the network cable (standard or crossover). Your
machine should then start communicating wirelessly with the
network. In case of Ad-hoc mode, you can use a wireless LAN
and wired LAN simultaneously.
Now go to "Installing network connected machine’s driver" on
page 31.
RESETTING FACTORY DEFAULT VALUES
Should it become necessary to reset the Samsung printer to its factory
default settings please use the following steps. Connect the printer to your
network, or you may connect the printer directly to a computer using the
special network cable.
If you cannot connect the printer to a computer from its former network
it must be temporarily assigned to a new Ad-Hoc network to access
the SyncThru web page. After you have established a direct link to the
printer, using the special network cable, follow these instructions to
reset the printer to the factory defaults.
Resetting the printer to factory default settings
(Windows)
1. Connect the special network cable between the printer and the PC.
2. Open a browser such as Internet Explorer and enter the IP address of
the printer. The printer’s SyncThru™ Web Service page will open.
3. Select Network Settings in the top menu bar.
4. Select Reset in the left side bar, and select the Clear button next to
Factory Default (or Network). Click OK in each of the following three
windows that pop up.
5. Disconnect the printer from the network, recycle the power, and print a
Network Configuration Report to confirm the reset. This will reset all the
parameters and the printer will no longer be on the network.
Resetting the printer to factory default settings
(Macintosh)
1. Connect the special network cable between the printer and the
Macintosh.
2. Open System Preferences and select Print & Fax settings. Select the
printer you want to reset, opening the Print Queue, and select the
Utility icon in the top menu bar. Safari will open the printer’s
SyncThru™ Web Service page.
3. Select Network Settings in the top menu bar.
4. Select Reset in the left side bar, and select the Clear button next to
Factory Default (or Netowrk). Click OK in each of the following three
windows that pop up.
5. Disconnect the printer from the network, recycle the power, and print a
Network Configuration Report to confirm the reset. This will reset all the
parameters and the printer will no longer be on the network.
Network parameter setting
You can also set up the various network settings through the network
administration programs such as SyncThru™ Web Admin Service and
SyncThru™ Web Service.
COMPLETING THE INSTALLATION
After you have installed your Samsung wireless network printer, print
another copy of the Network Configuration Report and keep it for future
reference. You are now ready to use your new Samsung wireless printer on
your network.
Basic setup_9
5.basic setup
After installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would like
to set or change values. This chapter gives you step-by-step instructions for setting up the machine.
This chapter includes:
•Altitude adjustment
•Setting the default tray and paper
•Changing font setting
ALTITUDE ADJUSTMENT
The print quality is affected by atmospheric pressure, which is determined
by the height of the machine above sea level. The following information will
guide you on how to set your machine to the best print quality or best quality
of print.
Before you set the altitude value, determine the altitude where you are.
You can altitude adjustment in Printer Settings Utility.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X.
Or, if you are a Windows user, you can launch it from the Start menu,
select Programs or All Programs > Samsung Printers > your printer
driver name > Smart Panel.
2. Click Printer Setting.
3. Select necessary options in the Altitude Adjustment drop-down list.
4. Click the Apply button.
This can also be adjusted via SyncThru™ Web Service.
SETTING THE DEFAULT TRAY AND PAPER
You can select the tray and paper you would like to keep using for printing
job.
In the computer
Windows
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printers and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware
>Devices and Printers.
3. Right-click your machine.
4. For Windows XP/2003/2008/Vista, press Printing Preferences.
For Windows 7 and Windows Server 2008 R2, from context menus,
select the Printing Preferences.
If Printing Preferences item has Ź mark, you can select other
printer drivers connected with selected printer.
5. Click Paper tab.
6. Select tray and its options, such as paper size and type.
7. Press OK.
If you want to use special-sized paper-such as a billing paper,
select Edit... in the Paper tab in the Printing Preferences. (See
"Opening printing preferences" on page 17.)
Macintosh
Macintosh does not support this function. Macintosh users need to
change the default setting manually each time they want to print using
other settings.
1. Open a Macintosh application and select the file you want to print.
2. Open the File menu and click Print.
3. Go to Paper Feed pane.
4. Open the File menu and click Print.
5. Go to Paper Feed.
6. Set appropriate tray from which you want to print.
7. Go to Paper pane.
8. Set paper type to correspond to the paper loaded in the tray from
which you want to print.
9. Click Print to print.
USING POWER SAVING FEATURE
When you are not using the machine for a while, use this feature to save
power.
You change power save in Printer Settings Utility.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X.
Or, if you are a Windows user, you can launch it from the Start menu,
select Programs or All Programs > Samsung Printers > your printer
driver name > Smart Panel.
2. Click Printer Setting.
1High 1
2High 2
3High 3
4Normal
0
Basic setup_10
3. Click Setting > Power Save. Select the appropriate value from the
dropdown list, and then click Apply.
CHANGING FONT SETTING
Your machine has preset font setting depending on your region or country.
If you want to change the font or set the font for special condition, such as
the DOS environment, you can change the font setting as follows:
1. Ensure that you have installed the printer driver with the provided
Printer Software CD. For Linux, you can download Smart Panel from
Samsung website and install (See "Installing the SmartPanel" on
page 27).
2. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X.
Or, if you are a Windows user, you can launch it from the Start menu,
select Programs or All Programs > Samsung Printers > your printer
driver name > Smart Panel.
3. Click Printer Setting.
4. Click Emulation.
5. Confirm if PCL is selected in Emulation Setting.
6. Click Setting.
7. Select your preferred font in the Symbol set list.
8. Click Apply.
Following information shows the proper font list for corresponding
languages.
•Russian: CP866, ISO 8859/5 Latin Cyrillic
•Hebrew: Hebrew 15Q, Hebrew-8, Hebrew-7 (Israel only)
•Greek: ISO 8859/7 Latin Greek, PC-8 Latin/Greek
•Arabic & Farsi: HP Arabic-8, Windows Arabic, Code Page 864,
Farsi, ISO 8859/6 Latin Arabic
•OCR: OCR-A, OCR-B
Media and tray_11
6.media and tray
This chapter provides information on how to load print media into your machine.
This chapter includes:
•Selecting print media
•Changing the tray size
•Loading paper in the tray
•Printing on special media
•Using the output support
SELECTING PRINT MEDIA
You can print on a variety of print media, such as plain paper, envelopes,
labels, and transparencies. Always use print media that meet the guidelines
for use with your machine.
Guidelines to select the print media
Print media that does not meet the guidelines outlined in this user’s guide
may cause the following problems:
•Poor print quality
•Increased paper jams
•Premature wear on the machine.
Properties, such as weight, composition, grain, and moisture content, are
important factors that affect the machine’s performance and the output
quality. When you choose print materials, consider the following:
•The type, size and weight of the print media for your machine are
described in print media specifications. (See "Print media specifications"
on page 44.)
•Desired outcome: The print media you choose should be appropriate for
your project.
•Brightness: Some print media are whiter than others and produce
sharper, more vibrant images.
•Surface smoothness: The smoothness of the print media affects how
crisp the printing looks on the paper.
• Some print media may meet all of the guidelines in this section and
still not produce satisfactory results. This may be the result of
improper handling, unacceptable temperature and humidity levels,
or other variables over which cannot be controlled.
• Before purchasing large quantities of print media, ensure that it
meets the requirements specified in this user’s guide.
Using print media that does not meet these specifications may cause
problems, requiring repairs. Such repairs are not covered by the
warranty or service agreements.
The amount of paper put into the tray may differ according to media
type used. (See "Print media specifications" on page 44.)
Media sizes supported in each mode

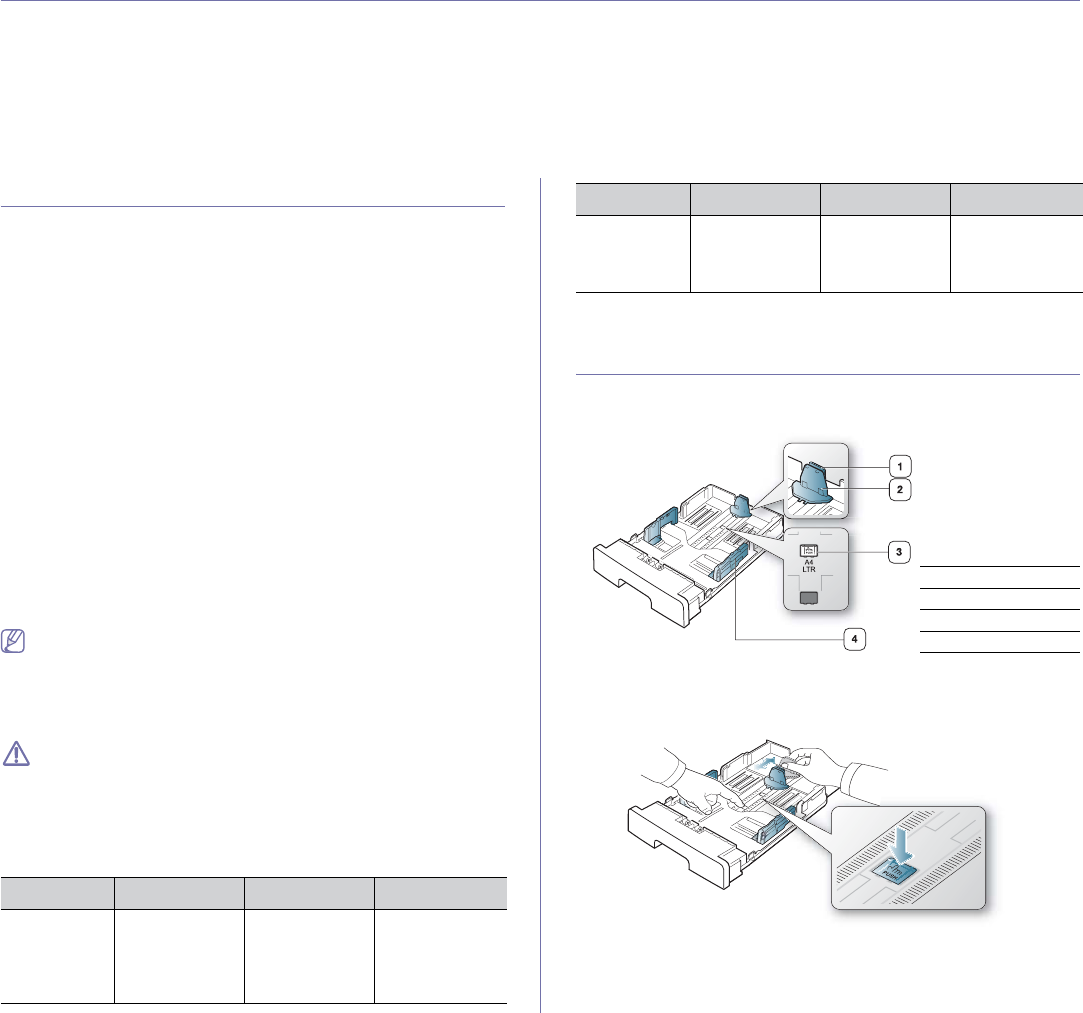

CHANGING THE TRAY SIZE
The tray is preset to Letter or A4 size, depending on your country. To
change the size, you need to adjust the paper guides.
1. With one hand press and hold the guide lock, and with the other hand,
hold the paper length guide and support guide together. Slide the paper
length guide and support guide to locate them in the correct paper size
slot.
MODE SIZE TYPE SOURCE
Simplex
printing
For details about
paper size, see
"Print media
specifications"
on page 44.
For details about
paper type, see
"Print media
specifications"
on page 44.
•tray 1
•manual tray
Duplex
printing
(Manual)a
Letter, A4,
Legal, US Folio,
Oficio
Plain, Color,
Preprinted,
Recycled, Bond,
Archive
•tray 1
a. 75 to 90 g/m2 (20~24 lb bond) only
1Support guide
2Paper length guide
3Guide lock
4Paper width guide
MODE SIZE TYPE SOURCE
Media and tray_12

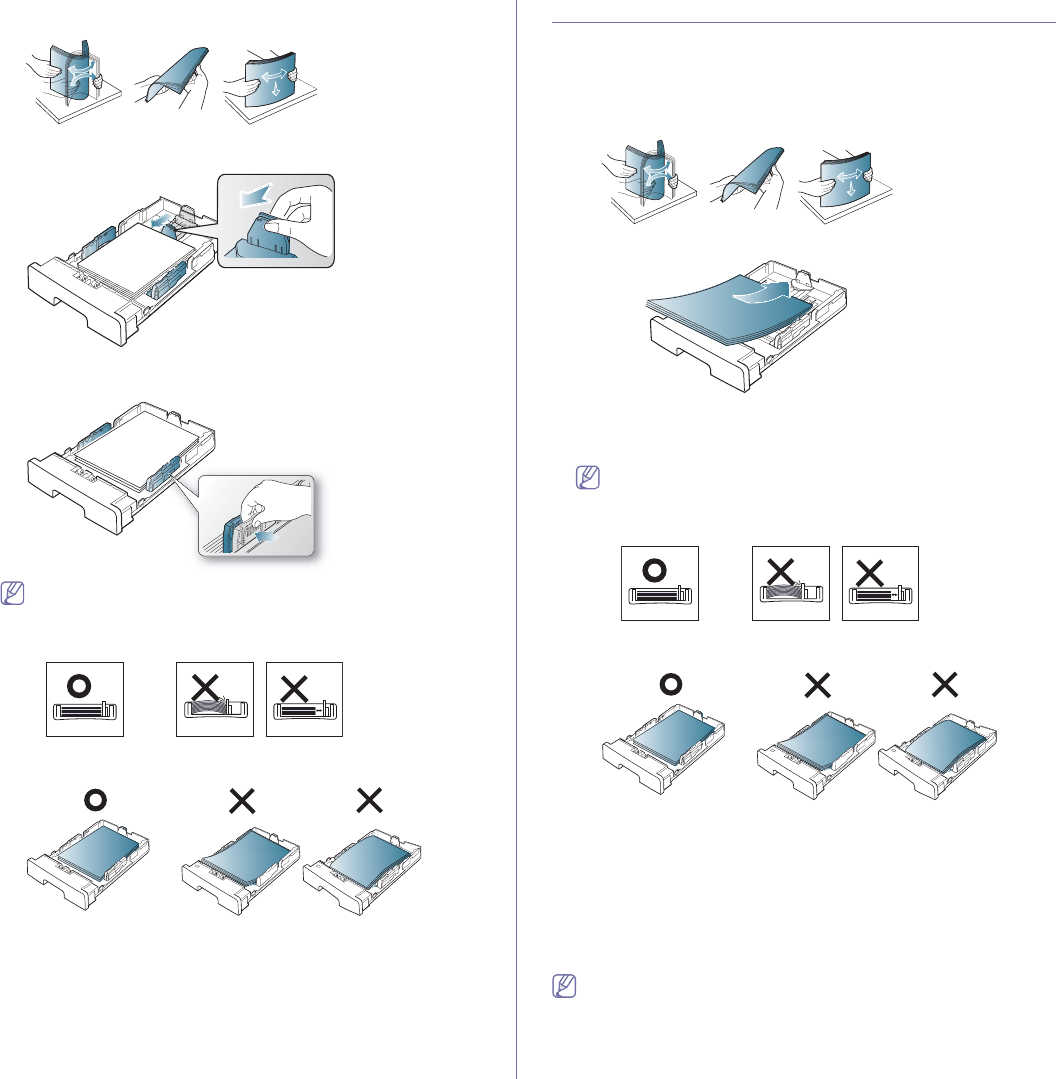

2. Flex or fan the edge of the paper stack to separate the pages before
loading papers. Insert the paper into the tray.
3. After inserting paper into the tray, adjust the support guide so that it
lightly touches the paper stack.
4. Squeeze the paper width guides and slide them to the desired paper
size marked at the bottom of the tray.
• Do not push the paper width guide too far causing the media to
warp.
• If you do not adjust the paper width guide, it may cause paper
jams.
• Do not use a paper with more than 6 mm curl.

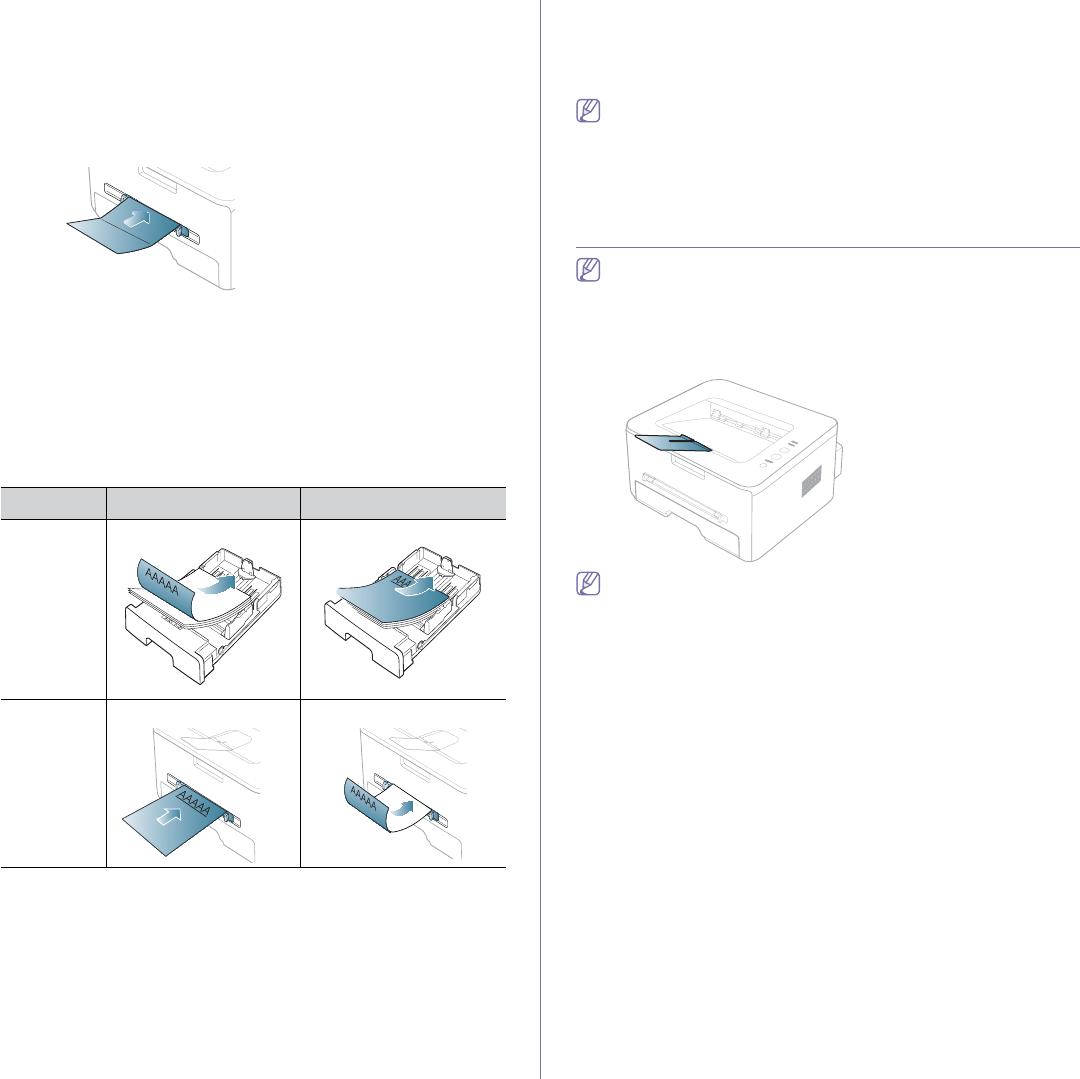

LOADING PAPER IN THE TRAY
Tray 1
1. Pull out the paper tray . And adjust the tray size to the media size you
are loading. (See "Changing the tray size" on page 11.)
2. Flex or fan the edge of the paper stack to separate the pages before
loading papers.
3. And place paper with the side you want to print facing down.
4. Squeeze the manual tray paper guides and adjust them to the width of
the paper. Do not force them too much, or the paper will bent resulting in
a paper jam or skew.
• Do not push the paper width guide too far causing the media to
warp.
• If you do not adjust the paper width guide, it may cause paper
jams.
• Do not use a paper with more than 6 mm curl.
5. Insert the tray back into the machine.
6. To print in application, open an application and start the print menu.
7. Open Printing Preferences. (See "Opening printing preferences" on
page 17.)
8. Press the Paper tab in Printing Preferences, and select an appropriate
paper type, size, and source.
9. Press OK.
10. Start printing in application.
If you experience problems with paper feeding, check whether the
paper meets the media specification. Then, try placing one sheet at a
time in the manual tray. (See "Print media specifications" on page 44.)
Media and tray_13
Manual tray
The manual tray can hold special sizes and types of print material, such as
postcards, note cards, and envelopes. It is useful for single page printing on
letterhead or colored paper.
Tips on using the manual tray
•If you select Manual Feeder for Source from your software
application, you need to press (cancel button) each time you print
a page and load only one type, size and weight of print media at a
time in the manual tray.
•To prevent paper jams, do not add paper while printing. This also
applies to other types of print media.
•Print media should be loaded face up with the top edge going into
the manual tray first and be placed in the center of the tray.
•Always load the specified print media only to avoid paper jams and
print quality problems. (See "Print media specifications" on page 44.)
•Flatten any curl on postcards, envelopes, and labels before loading
them into the manual tray.
1. Load the paper in the manual tray.
• Do not force the paper beyond the surface with mark
when loading.
• When printing the special media, you must follow the
loading guideline. (See "Printing on special media" on
page 13.)
• When papers overlap when printing using manual tray,
open tray 1 and remove overlapping papers then try
printing again.
• When paper does not feed well while printing, push the
paper in manually until it starts feeding automatically.
2. Squeeze the manual tray paper guides and adjust them to the width
of the paper. Do not force them too much, or the paper will bent
resulting in a paper jam or skew.
3. To print in application, open an application and start the print menu.

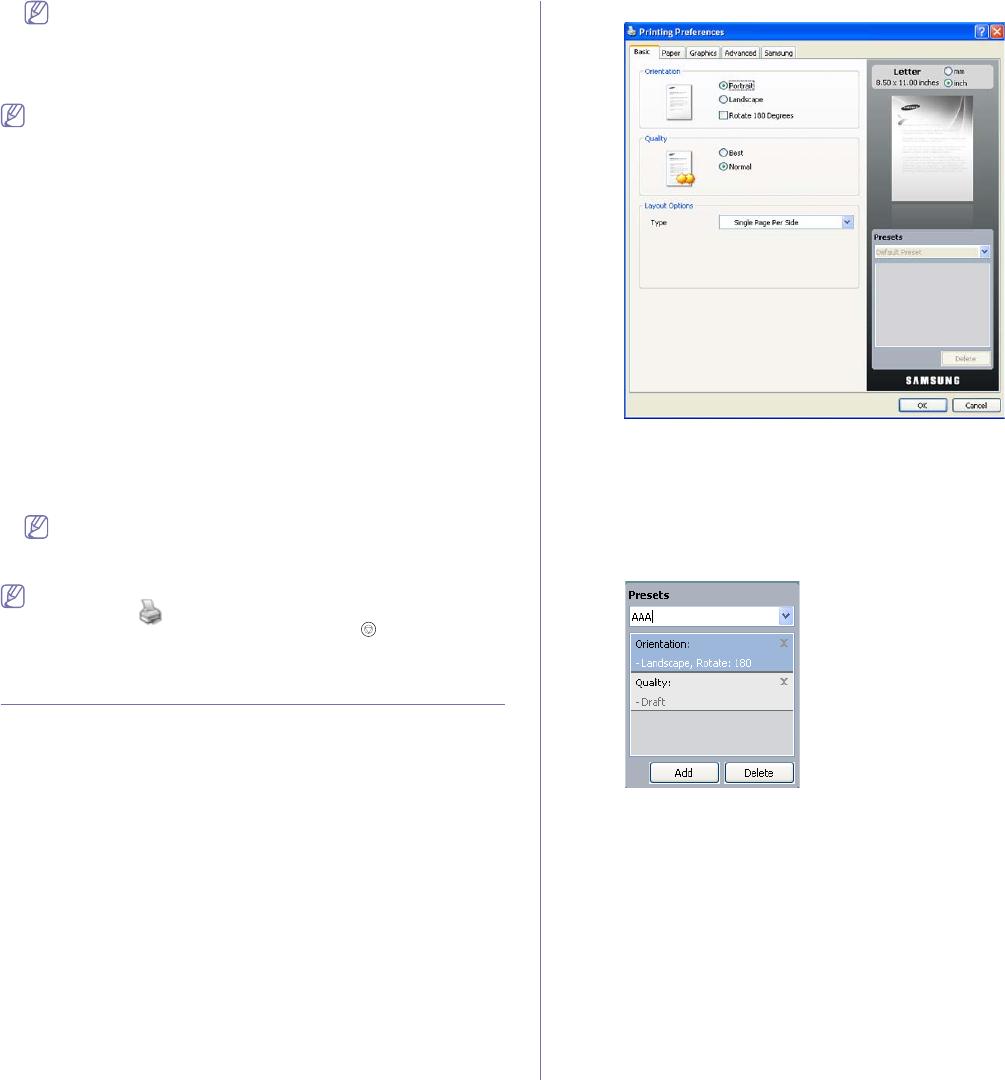

4. Open Printing Preferences. (See "Opening printing preferences" on
page 17.)
5. Press the Paper tab in Printing Preferences, and select an
appropriate paper type.
For example, if you want to use a label, set the paper type to
Label.
6. Select Manual Feeder in paper source, then press OK.
7. Start printing in application.
If you are printing multiple pages, load the next sheet after the first
page prints out, and press the (cancel button). Repeat this step
for every page to be printed.
PRINTING ON SPECIAL MEDIA
The table below shows the available special media for each tray.
When using special media, we recommend you feed one paper at a
time. Check the maximum input number of media for each tray. (See
"Print media specifications" on page 44.)
(Ɣ: Supported, Blank: Not supported)
The media types are shown in the Printing Preferences. This paper type
option allows you to set the type of paper to be loaded in the tray. This
setting appears in the list, so that you can select it. This will let you get the
best quality printout. If not, the desired print quality may not be achieved.
•Plain: Normal plain paper. Select this type if your machine is
monochrome and printing on the 60 to 90 g/m2 (16 to 24 lb).
•Thick: 90 to 105 g/m2 (24 to 28 lb) thick paper.
•Thin: 60 to 70 g/m2 (16 to 19 lb) thin paper.
•Bond: 105 to 120 g/m2 (28 to 32 lb) bond.
•Color: 75 to 90 g/m2 (20 to 24 lb) color-backgrounded paper.
•CardStock: 90 to 163 g/m2 (24 to 43 lb) cardstock.
•Labels: 120 to 150 g/m2 (32 to 40 lb) labels.
•Transparency: 138 to 146 g/m2 (37 to 39 lb) transparency paper.
•Envelope: 75 to 90 g/m2 (20 to 24 lb) envelope.
•Preprinted: 75 to 90 g/m2 (20 to 24 lb) preprinted/letterhead paper.
•Cotton: 75 to 90 g/m2 (20 to 24 lb) cotton paper.
•Recycled: 75 to 90 g/m2 (20 to 24 lb) recycled paper.
When you use recycled paper as a used paper, printouts might be
wrinkled.
•Archive: 70 to 90 g/m2 (19 to 24 lb) If you need to keep the print-out for
a long period time, such as archives, select this option.
TYPES TRAY 1 MANUAL TRAY
Plain ƔƔ
Thick ƔƔ
Thin ƔƔ
Bond Ɣ
Color Ɣ
CardStock Ɣ
Labels Ɣ
Transparency Ɣ
Envelope Ɣ
Preprinted Ɣ
Cotton Ɣ
Recycled ƔƔ
Archive ƔƔ
Media and tray_14
Envelope
Successful printing on envelopes depends upon the quality of the
envelopes.
To print an envelope, the stamp area is on the left side and the end of the
envelope with the stamp area enters the printer first and center of the
manual tray.
If envelopes are printed out with wrinkles, crease or black bold lines, open
the rear cover and pull down the pressure lever and try printing again. Keep
the rear cover opened during printing.
•When selecting envelopes, consider the following factors:
-Weight: The weight of the envelope paper should not exceed
90 g/m2 otherwise, jam may occur.
-Construction: Prior to printing, envelopes should lie flat with less
than 6 mm curl, and should not contain air.
-Condition: Envelopes should not be wrinkled, nicked, nor
damaged.
-Temperature: Use envelopes that are compatible with the heat and
pressure of the machine during operation.
•Use only well-constructed envelopes with sharp-and well-creased folds.
•Do not use stamped envelopes.
•Do not use envelopes with clasps, snaps, windows, coated lining,
self-adhesive seals, or other synthetic materials.
•Do not use damaged or poorly made envelopes.
•Be sure the seam at both ends of the envelope extends all the way to
the corner of the envelope.
1 Acceptable
2 Unacceptable
•Envelopes with a peel-off adhesive strip or with more than one flap that
folds over to seal must use adhesives compatible with the machine’s
fusing temperature (about 170°C(338 °F) for 0.1 second. The extra flaps
and strips might cause wrinkling, creasing, or jams, and may even
damage the fuser.
•For the best print quality, position margins no closer than 15 mm from
the edges of the envelope.
•Avoid printing over the area where the envelope’s seams meet.
Transparency
To avoid damaging the machine, use only transparencies designed for use
in laser printers.
•Transparencies used in the machine must be able to withstand
machine’s fusing temperature.
•Place them on a flat surface after removing them from the machine.
•Do not leave unused transparencies in the paper tray for long periods of
time. Dust and dirt may accumulate on them, resulting in spotty printing.
•To avoid smudging caused by fingerprints, handle them carefully.
•To avoid fading, do not expose printed transparencies to prolonged
sunlight.
•Ensure that transparencies are not wrinkled, curled, or have any torn
edges.
•Do not use transparencies that separates from the backing sheet.
•To prevent transparencies from sticking to each other, do not let the
printed sheets stack up as they are begin printed out.
Labels
To avoid damaging the machine, use only labels designed for use in laser
machines.
•When selecting labels, consider the following factors:
-Adhesives: The adhesive material should be stable at your
machine’s fusing temperature (about 170°C(338 °F).
-Arrangement: Only use labels with no exposed backing between
them. Labels can peel off sheets that have spaces between the
labels, causing serious jams.
-Curl: Prior to printing, labels must lie flat with no more than 13 mm
of curl in any direction.
-Condition: Do not use labels with wrinkles, bubbles, or other
indications of separation.
•Make sure that there is no exposed adhesive material between labels.
Exposed areas can cause labels to peel off during printing, which can
cause paper jams. Exposed adhesive can also cause damage to
machine components.
1Pressure lever
Media and tray_15
•Do not run a sheet of labels through the machine more than once. The
adhesive backing is designed for only a single pass through the
machine.
•Do not use labels that are separating from the backing sheet or are
wrinkled, bubbled, or otherwise damaged.
Card stock/Custom-sized paper
Postcards, cards and other custom-sized materials can be printed with this
machine.
•Do not print on media smaller than 76 mm (3.00 inches) wide or 127 mm
(5.00 inches) long.
•In the software application, set margins at least 6.4 mm (0.25 inches)
away from the edges of the material.
•If media weight is over 160 g/m2 (43 lb), try printing in the rear cover
(face up).
Letterhead/Preprinted paper
•Letterhead/ Preprinted paper must be printed with heat-resistant ink that
will not melt, vaporize, or release hazardous emissions when subjected
to the machine’s fusing temperature (about 170°C(338 °F) for 0.1
second.
•Letterhead/ Preprinted paper ink must be non-flammable and should not
adversely affect machine rollers.
•Forms and letterhead should be sealed in a moisture-proof wrapping to
prevent changes during storage.
•Before you load letterhead/preprinted paper, verify that the ink on the
paper is dry. During the fusing process, wet ink can come off preprinted
paper, reducing print quality.
•Make sure not to use the inkjet photo paper with this machine. It could
cause damage to the machine.
Glossy
Load one paper to the manual tray at a time, glossy side facing up.
•Recommended media: Glossy paper (Letter) for this machine by HP
Brochure Paper (Product: Q6611A) only.
•Recommended media: Glossy paper (A4) for this machine by HP
Superior Paper 160 glossy (Product: Q6616A).
USING THE OUTPUT SUPPORT
The surface of the output tray may become hot if you print a large
number of pages at once. Make sure that you do not touch the
surface, and do not allow children near it.
The printed pages stack on the output support, and the output support will
help the printed pages to align. The printer sends output to the output tray
by default. To use the output tray, make sure that the rear cover is closed.
If you are using A5 paper, fold the output tray. Otherwise, printed
pages might be mis-alligned or jammed.
SINGLE-SIDED DOUBLE-SIDED
Tray1 Face down Face up
Manual tray Face up Face down
Printing_16
7.printing
This chapter explains common printing tasks.
This chapter includes:
•Printer driver features
•Basic printing
•Opening printing preferences
•Using help

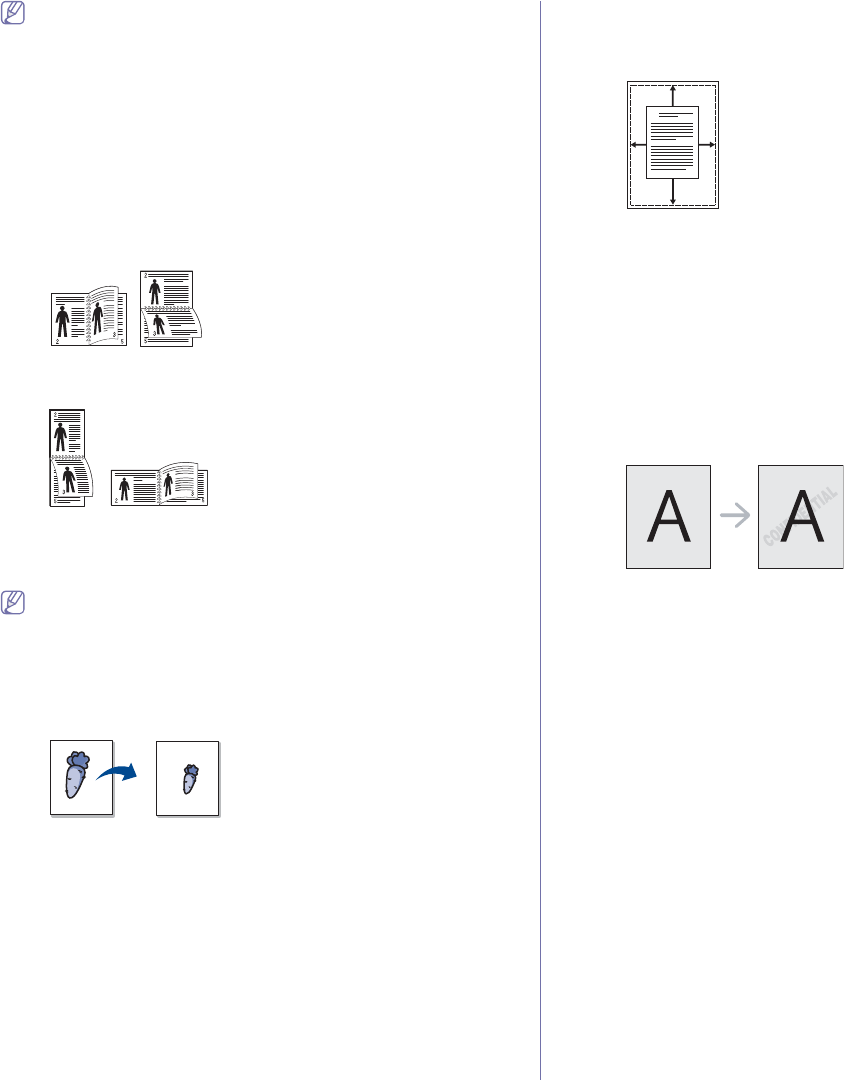

•Using special print features
•Changing the default print settings
•Setting your machine as a default machine
•Printing to a file (PRN)

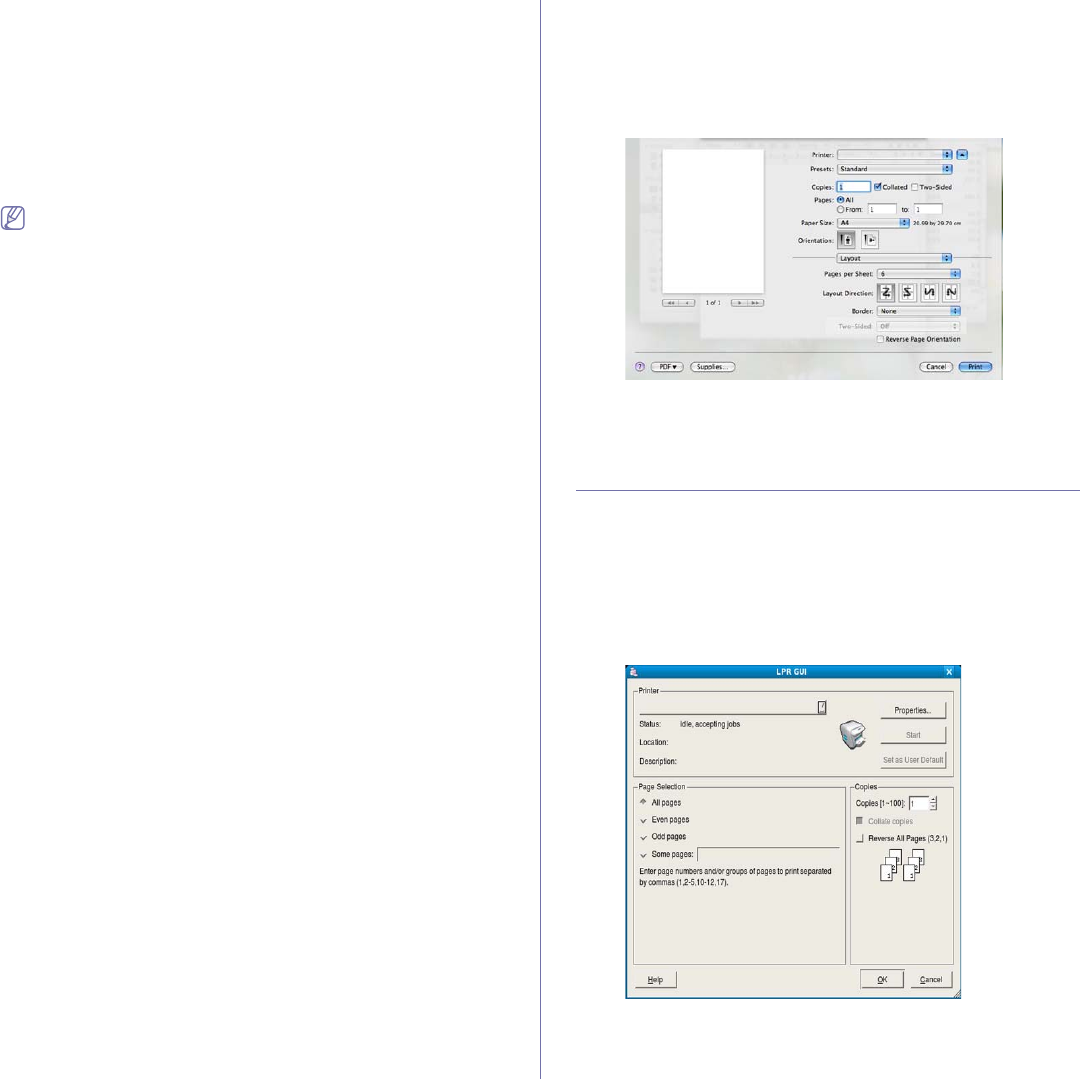

•Macintosh printing
•Linux printing
The procedures in this chapter are mainly based on Windows XP.
INTRODUCING USEFUL SOFTWARE PROGRAM
Samsung AnyWeb Print
This tool helps you to screen-capture, preview, scrap and print the screen of
Windows Internet Explorer more easily, than when you use the ordinary
program. Click Start > All programs > Samsung Printers > Samsung
AnyWeb Print > Download the lastest version to link the website where
the tool is available for the download. This tool is available only for Windows
operating systems.
PRINTER DRIVER FEATURES
Your printer drivers support the following standard features:
•Paper orientation, size, source, and media type selection
•Number of copies
In addition, you can use various special printing features. The following
table shows a general overview of features supported by your printer
drivers:
Some models or operating system may not support the certain
feature(s) in the following table.
Printer driver
(Ɣ: Supported, Blank: Not supported)

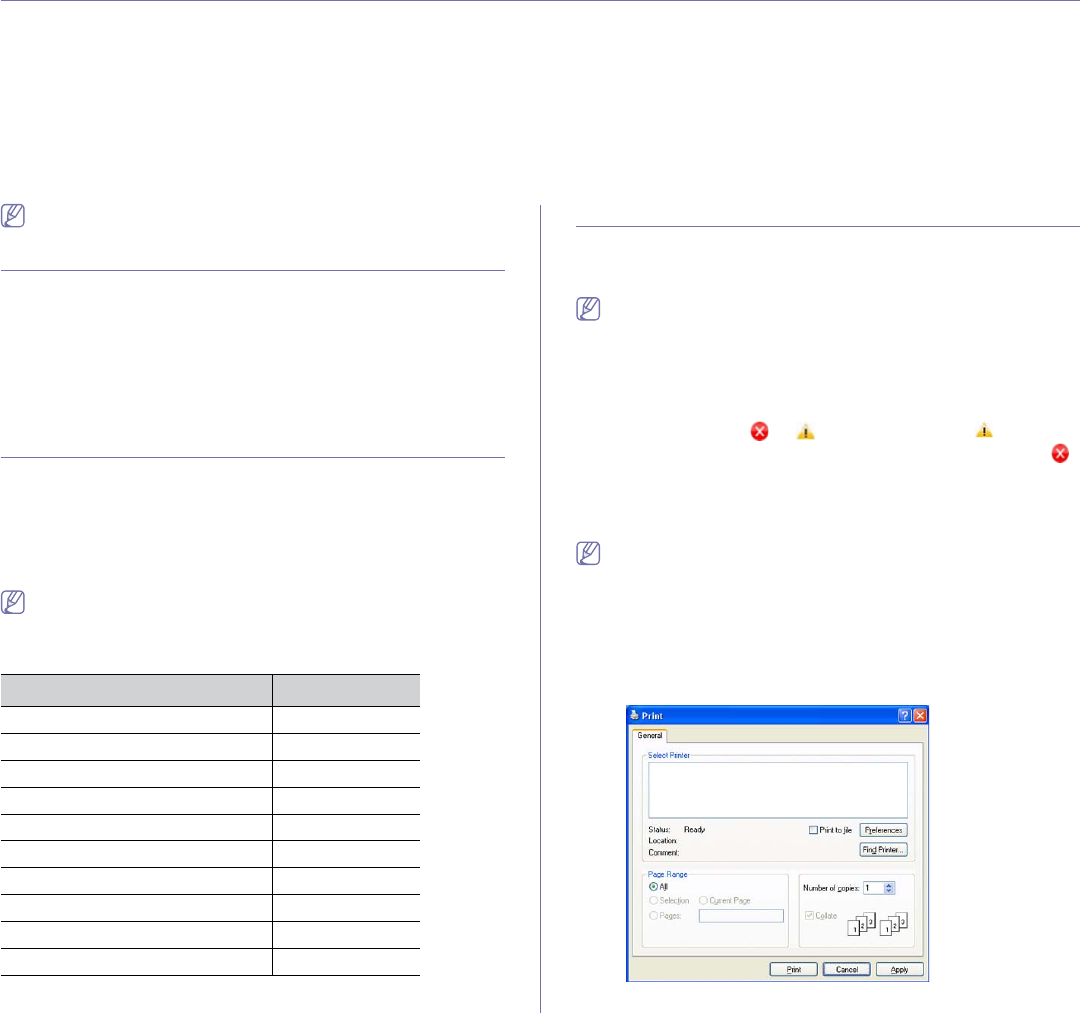

BASIC PRINTING
Your machine allows you to print from various Windows, Macintosh, or
Linux applications. The exact steps for printing a document may vary
depending on the application you use.
•Your Printing Preferences window that appears in this user’s
guide may differ depending on the machine in use. However, the
composition of the Printing Preferences window is similar. Check
the operating system(s) that are compatible with your machine.
Refer to the OS compatibility section of Printer Specifications.
(See "System requirements" on page 24.)
• When you select an option in Printing Preferences, you may see
a warning mark, , or . An exclamation mark ( ) means you
can select that certain option but it is not recommended, and ( )
mark means you cannot select that option due to the machine’s
setting or environment.
The following procedure describes the general steps required for printing
from various Windows applications.
Macintosh basic printing. (See "Macintosh printing" on page 21.)
Linux basic printing. (See "Linux printing" on page 22.)
The following Printing Preferences window is for Notepad in Windows XP.
Your Printing Preferences window may differ, depending on your
operating system or the application you are using.
1. Open the document you want to print.
2. Select Print from the File menu. The Print window appears.
3. Select your machine from the Select Printer list.
The basic print settings including the number of copies and print range
are selected within the Print window.
FEATURE WINDOWS
Machine quality option Ɣ
Poster printing Ɣ
Multiple pages per sheet Ɣ
Booklet printing (manual) Ɣ
Fit to page printing Ɣ
Reduce and enlarge printing Ɣ
Different source for first page Ɣ
Watermark Ɣ
Overlay Ɣ
Double-sided printing (manual) Ɣ
Printing_17
To take advantage of the printer features provided by your printer
driver, click Properties or Preferences in the application’s Print
window to change the print setting. (See "Opening printing
preferences" on page 17.)
4. To start the print job, click OK or Print in the Print window.
If you are using Windows Internet Explorer, the Samsung AnyWeb
Print too will save your time for screen-captured images or printing
the image. Click Start > All programs > Samsung Printers >
Samsung AnyWeb Print to link the website where the tool is
available for the download.
Canceling a print job
If the print job is waiting in a print queue or print spooler, cancel the job as
follows:
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printers and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. For Windows 2000, XP, 2003, Vista and 2008, double-click your
machine.
For Windows 7 and Windows Server 2008 R2, right click your printer
icon > context menus > See what’s printing.
If See what’s printing item has Ź mark, you can select other
printer drivers connected with selected printer.
4. From the Document menu, select Cancel.
You can also access this window by simply double-clicking the
machine icon ( ) in the Windows task bar.
You can also cancel the current job by pressing on the control
panel.
OPENING PRINTING PREFERENCES
You can preview the settings you selected on the upper right of the Printing
Preferences.
1. Open the document you want to print.
2. Select Print from the file menu. The Print window appears.
3. Select your machine from the Select Printer.
4. Click Properties or Preferences.
Using a favorite setting
The Presets option, which is visible on each preferences tab except for
Samsung tab, allows you to save the current preferences settings for future
use.
To save a Presets item:
1. Change the settings as needed on each tab.
2. Enter a name for the item in the Presets input box.
3. Click Add. When you save Presets, all current driver settings are saved.
If you click Add, the Add button changes to Update button. Select more
options and click Update, settings will be added to the Presets you made.
To use a saved setting, select it from the Presets drop down list. The
machine is now set to print according to the setting you selected.
To delete saved setting, select it from the Presets drop down list and click
Delete.
You can also restore the printer driver’s default settings by selecting Default
Preset from the Presets drop down list.
Printing_18
USING HELP
Click the question mark from the upper-right corner of the window and click
on any option you want to know about. Then a pop up window appears with
information about that option's feature which is provided from the driver.
If you want to search information via a keyword, click the Samsung tab in
the Printing Preferences window, and enter a keyword in the input line of
the Help option. To get information about supplies, driver update or
registration and so on, click appropriate buttons.
USING SPECIAL PRINT FEATURES
Special print features include:
•"Printing multiple pages on one sheet of paper" on page 18.
•"Printing posters" on page 18.
•"Printing booklets (Manual)" on page 18.
•"Printing on both sides of paper (Manual)" on page 18.
•"Change percentage of your document" on page 19.
•"Fitting your document to a selected paper size" on page 19.
•"Using watermarks" on page 19.
•"Using overlay" on page 20.
•"Advanced Options" on page 20.
Printing multiple pages on one sheet of paper
You can select the number of pages to print on a single sheet of paper. To
print more than one page per sheet, the pages will be reduced in size and
arranged in the order you specify. You can print up to 16 pages on one
sheet.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Basic tab, select Multiple Pages Per Side in the Type
drop-down list.
3. Select the number of pages you want to print per sheet (2, 4, 6, 9, or 16)
in the Pages per Side drop-down list.
4. Select the page order from the Page Order drop-down list, if necessary.
5. Check Print Page Border to print a border around each page on the
sheet.
6. Click the Paper tab, select the Size,Source, and Type.
7. Click OK or Print until you exit the Print window.
Printing posters
This feature allows you to print a single-page document onto 4, 9, or 16
sheets of paper, for the purpose of pasting the sheets together to form one
poster-size document.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Basic tab, select Poster Printing in the Type drop-down list.
3. Select the page layout you want.
Specification of the page layout:
•Poster 2x2: Document will be enlarged and be divided into 4
pages.
•Poster 3x3: Document will be enlarged and be divided into 9
pages.
•Poster 4x4: Document will be enlarged and be divided into 16
pages.
4. Select the Poster Overlap value. Specify Poster Overlap in millimeters
or inches by selecting the radio button on the upper right of Basic tab to
make it easier to paste the sheets together.
5. Click the Paper tab, select the Size,Source, and Type.
6. Click OK or Print until you exit the Print window.
7. You can complete the poster by pasting the sheets together.
Printing booklets (Manual)
This feature prints your document on both sides of a paper and arranges the
pages so that the paper can be folded in half after printing to produce a
booklet.
If you want to make a booklet, you need to print on Letter, Legal, A4,
US Folio, or Oficio sized print media.
1. To change the print settings from your software application, access the
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Basic tab, select Booklet Printing from the Type drop-down
list.
3. Click the Paper tab, select the Size,Source, and Type.
The Booklet Printing option is not available for all paper sizes. In
order to find out the available paper size for this feature, select the
available paper size in the Size option on the Paper tab.
If you select an unavailable paper size, this option can be
automatically canceled. Select only available paper. (paper without
or mark).
4. Click OK or Print until you exit the Print window.
5. After printing, fold and staple the pages.
Printing on both sides of paper (Manual)
You can print on both sides of a paper; duplex. Before printing, decide how
you want your document oriented. You can use this feature with Letter,
Legal, A4, US Folio, or Oficio sized paper. (See "Print media specifications"
on page 44.)
8
9
Printing_19
• We recommend not to print on both sides of the special media,
such as labels, envelopesS or thick paper to print on both sides of
paper. It may cause a paper jam or damage the machine.
•The Double-Sided Printing (Manual) feature is available only for
the tray 1.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Advanced tab.
3. From the Double-Sided Printing (Manual) section, select the binding
option you want.
•None
•Long Edge: This option is the conventional layout used in
bookbinding.
•Short Edge: This option is the conventional layout used in
calendars.
4. Click the Paper tab, select the Size,Source, and Type.
5. Click OK or Print until you exit the Print windowU
If your machine does not have a duplex unit, you should complete the
printing job manually. The machine prints every other page of the
document first. AfterGthat, a message appears on your computer.
Follow the on-screen instructions to complete the printing job.
Change percentage of your document
You can change the size of a document to appear larger or smaller on the
printed page by typing in a percentage you want.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Paper tab.
3. Enter the scaling rate in the Percentage input box.
You can also click the up/down arrows to select the scaling rate.
4. Select the Size,Source, and Type in Paper Options.
5. Click OK or Print until you exit the Print windowU
Fitting your document to a selected paper size
This printer feature allows you to scale your print job to any selected paper
size regardless of the document size. This can be useful when you want to
check fine details on a small document.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Paper tab.
3. Select the paper size you want from the Fit to Page.
4. Select the Size,Source, and Type in Paper Options.
5. Click OK or Print until you exit the Print windowU
Using watermarks
The watermark option allows you to print text over an existing document.
For example, you use it when you want to have large gray letters reading
“DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all
pages of a document.
There are several predefined watermarks that come with the machine. They
can be modified, or you can add new ones to the list.
Using an existing watermark
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Advanced tab, and select the desired watermark from the
Watermark drop-down list. You will see the selected watermark in
the preview image.
3. Click OK or Print until you exit the print window.
Creating a watermark
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. From the Advanced tab, select Edit from the Watermark drop-down
list. The Edit Watermarks window appears.
3. Enter a text message in the Watermark Message box. You can
enter up to 256 characters. The message displays in the preview
window.
When the First Page Only box is checked, the watermark prints on
the first page only.
4. Select watermark options.
You can select the font name, style, size, and shade from the Font
Attributes section, as well as set the angle of the watermark from
the Message Angle section.
5. Click Add to add a new watermark to the Current Watermarks list.
A
Printing_20
6. When you have finished editing, click OK or Print until you exit the
Print window.
To stop printing the watermark, select None from the Watermark
drop-down list.
Editing a watermark
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Advanced tab, select Edit from the Watermark drop-down
list. The Edit Watermarks window appears.
3. Select the watermark you want to edit from the Current Watermarks
list and change the watermark message and options.
4. Click Update to save the changes.
5. Click OK or Print until you exit the Print window.
Deleting a watermark
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Advanced tab, select Edit from the Watermark
drop-down list. The Edit Watermarks window appears.
3. Select the watermark you want to delete from the Current
Watermarks list and click Delete.
4. Click OK or Print until you exit the Print window.

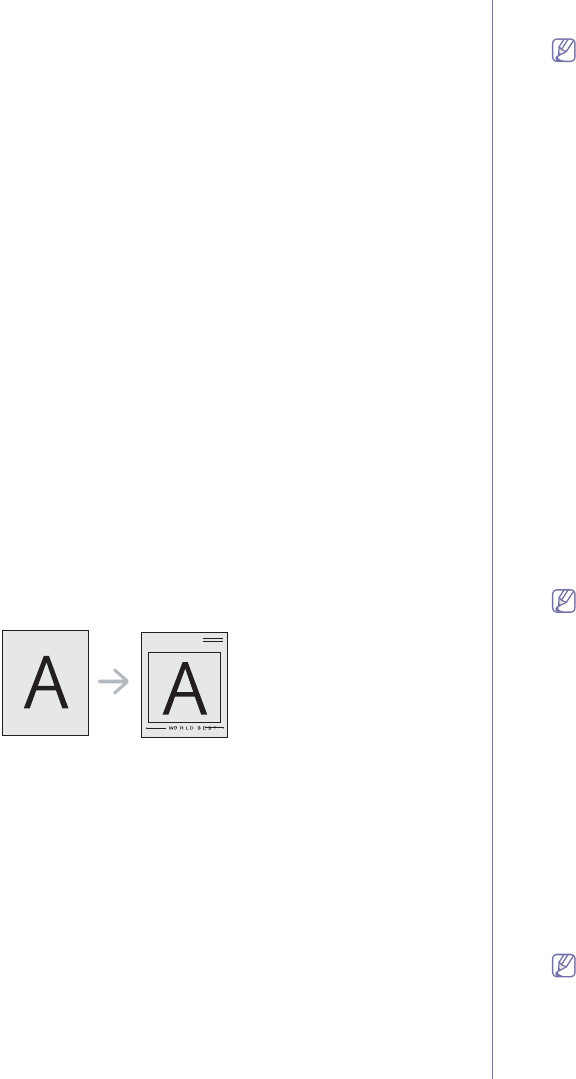

Using overlay
An overlay is text and/or images stored in the computer hard disk drive
(HDD) as a special file format that can be printed on any document.
Overlays are often used to take the place of letterhead paper. Rather than
using preprinted letterhead, you can create an overlay containing exactly
the same information that is currently on your letterhead. To print a letter
with your company’s letterhead, you do not need to load preprinted
letterhead paper in the machine just print the letterhead overlay on your
document.
Creating a new page overlay
To use a page overlay, you must create a new page overlay containing
your logo or image.
1. Create or open a document containing text or an image for use in a
new page overlay. Position the items exactly as you wish them to
appear when printed as an overlay.
2. To save the document as an overlay, access Printing Preferences.
(See "Opening printing preferences" on page 17.)
3. Click the Advanced tab, and select Edit from the Text drop-down
list. Edit Overlay window appears.
4. In the Edit Overlay window, click Create.
5. In the Save As window, type a name of up to eight characters in the
File name box. Select the destination path, if necessary. (The
default is C:\Formover.)
6. Click Save. The name appears on the Overlay List.
7. Click OK or Print until you exit the Print window.
8. The file is not printed. Instead, it is stored on your computer hard disk
drive.
The overlay document size must be the same as the document
you print with the overlay. Do not create an overlay with a
watermark.
Using a page overlay
After an overlay has been created, it is ready to be printed with your
document. To print an overlay with a document:
1. Create or open the document you want to print.
2. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
3. Click the Advanced tab.
4. Select the desired overlay from the Text drop-down list.
5. If the overlay file you want does not appear in the Text drop-down
list, select Edit from the list and click Load. Select the overlay file
you want to use.
If you have stored the overlay file you want to use in an external
source, you can also load the file when you access the Open
window.
After you select the file, click Open. The file appears in the Overlay
List box and is available for printing. Select the overlay from the
Overlay List box.
6. If necessary, check Confirm Page Overlay When Printing box. If
this box is checked, a message window appears each time you
submit a document for printing, asking you to confirm your wish to
print an overlay on your document.
If this box is not checked and an overlay has been selected, the
overlay automatically prints with your document.
7. Click OK or Print until you exit the Print window.
The selected overlay prints on your document.
The resolution of the overlay document must be the same as that
of the document you will print with the overlay.
Deleting a page overlay
You can delete page overlays that you no longer use.
1. In the Printing Preferences window, click the Advanced tab.
2. Select Edit in the Overlay drop down list.
3. Select the overlay you want to delete from the Overlay List box.
4. Click Delete.
5. When a confirming message window appears, click Yes.
6. Click OK or Print until you exit the Print window.
Advanced Options
Use the following Graphics options to adjust the print quality for your
specific printing needs.
1. To change the print settings from your software application, access
Printing Preferences. (See "Opening printing preferences" on
page 17.)
2. Click the Graphics tab.
• This options you can select may vary depending on your
printer model.
• Refer to the online help for each option’s information provided
from the Printing Preferences.
•Font/Text: Select Darken Text to print texts darker than on a
normal document. Use All Text Black to prints solid black,
regardless of the color it appears on the screen.
Printing_21
•Graphic Controller: Fine Edge allows user to emphasize edges of
texts and fine lines for improving readability.
•Toner Save: Selecting this option extends the life of your toner
cartridge and reduces your cost per page without a significant
reduction in print quality.
-Printer Setting: If you select this option, this feature is
determined by the setting you’ve made from the machine.
-On: Select this option to allow the printer to use less toner on
each page.
-Off: If you do not need to save toner when printing a document,
select this option.
3. Click OK or Print until you exit the Print window.
CHANGING THE DEFAULT PRINT SETTINGS
Most Windows applications will override settings you specify in the
printer driver. Change all print settings available in the software
application first, and change any remaining settings using the printer
driver.
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printers and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. Right-click your machine.
4. For Windows XP/2003/2008/Vista, press Printing Preferences.
For Windows 7 and Windows Server 2008 R2, from context menus,
select the Printing preferences.
If Printing preferences item has Ź mark, you can select other
printer drivers connected with selected printer.
5. Change the settings on each tab.
6. Click OK.
If you want to change the settings for each print job, change it in
Printing Preferences.
SETTING YOUR MACHINE AS A DEFAULT
MACHINE
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/2003, select Printers and Faxes.
•For Windows 2008/Vista, select Control Panel > Hardware and
Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. Select your machine.
4. Right-click your machine and select Set as Default Printer.
For Windows 7 and Windows Server 2008 R2
If Set as default printer item has Ź mark, you can select other
printer drivers connected with selected printer.
PRINTING TO A FILE (PRN)
You will sometimes need to save the print data as a file.
To create a file:
1. Check the Print to file box at the Print window.
2. Click Print.
3. Type in the destination path and the file name, and then click OK.
For example c:\Temp\file name.
If you type in only the file name, the file is automatically saved in
My Documents.
MACINTOSH PRINTING
This chapter explains how to print using Macintosh. You need to set the
print environment before printing.
•USB connected (See "Macintosh" on page 26.)
•Network connected (See "Macintosh" on page 32.)
Printing a document
When you print with a Macintosh, you need to check the printer driver
setting in each application you use. Follow the steps below to print from a
Macintosh:
1. Open an application and select the file you want to print.
2. Open the File menu and click Page Setup (Document Setup in some
applications).
3. Choose your paper size, orientation, scaling, other options, and make
sure that your machine is selected. Click OK.
Printing_22
4. Open the File menu and click Print.
5. Choose the number of copies you want and indicate which pages you
want to print.
6. Click Print.
Changing printer settings
You can use advanced printing features when using your machine.
Open an application and select Print from the File menu. The machine
name, which appears in the printer properties window may differ depending
on the machine in use. Except for the name, the composition of the printer
properties window is similar to the following.
• The setting options may differ depending on printers and
Macintosh OS version.
• The following panes may differ, depending on your operating
system or the application you are using.
Layout
The Layout tab provides options to adjust how the document appears
on the printed page. You can print multiple pages on one sheet of paper.
Select Layout from the drop-down list under Orientation to access the
following features.
•Pages per Sheet: This option determines how many pages to be
printed on one page. (See "Printing multiple pages on one sheet of
paper" on page 22.)
•Layout Direction: This option allows you to select the printing
direction on a page similar to the examples on UI.
•Border: This option allows you to print a border around each page
on the sheet.
•Reverse Page Orientation: This option allows you to rotate paper
180 degrees.
Graphics
The Graphics tab provides options for selecting Resolution. Select
Graphics from the drop-down list under Orientation to access the
graphic features.
•Resolution (Quality): This option allows you to select the printing
resolution. The higher the setting, the sharper the clarity of printed
characters and graphics. The higher setting also may increase the
time it takes to print a document.
Paper
Set Paper Type to correspond to the paper loaded in the tray from
which you want to print. This will let you get the best quality printout. If
you load a different type of print material, select the corresponding paper
type.
Printer Settings
Printer Settings tab provides Toner Save Mode option. Select Printer
Settings from the drop-down list under Orientation to access the
following features:
•Toner Save Mode: Selecting this option extends the life of your
toner cartridge and reduces your cost per page without a significant
reduction in print quality.
-Printer Setting: If you select this option, this feature is
determined by the setting you’ve made from the machine.
-On: Select this option to allow the printer to use less toner on
each page.
-Off: If you do not need to save toner when printing a document,
select this option.
Printing multiple pages on one sheet of paper
You can print more than one page on a single sheet of paper. This feature
provides a cost-effective way to print draft pages.
1. Open an application, and select Print from the File menu.
2. Select Layout from the drop-down list under Orientation. In the Pages
per Sheet drop-down list, select the number of pages you want to print
on one sheet of paper.
3. Select the other options you want to use.
4. Click Print, then the machine prints the selected the number of pages
you want to print on one sheet of paper.
LINUX PRINTING
Printing from applications
There are a lot of Linux applications that allow you to print using Common
UNIX Printing System (CUPS). You can print on your machine from any
such application.
1. Open an application, and select Print from the File menu.
2. Select Print directly using lpr.
3. In the LPR GUI window, select the model name of your machine from
the printer list and click Properties.
Printing_23

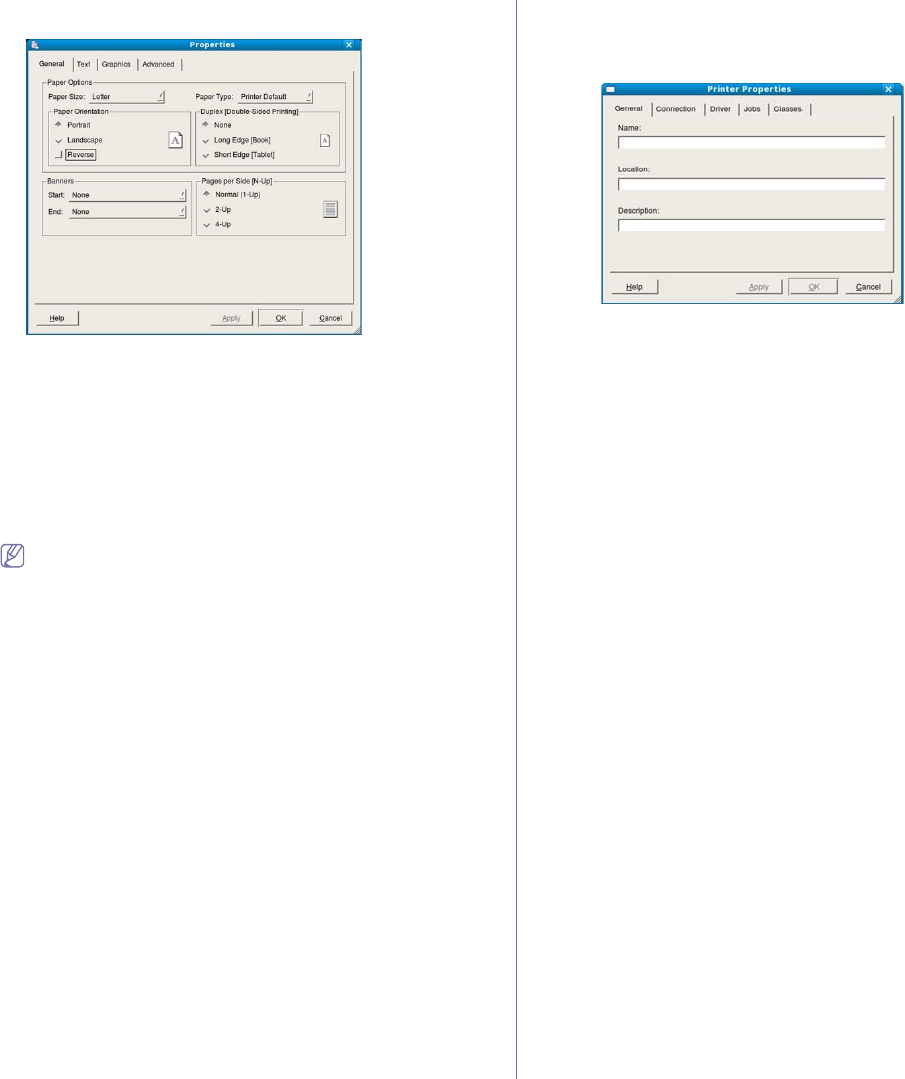

4. Change the print job properties using the following four tabs displayed at
the top of the window.
•General: This option allows you to change the paper size, the paper
type, and the orientation of the documents. It enables the duplex
feature, adds start and end banners, and changes the number of
pages per sheet.
•Text: This option allows you to specify the page margins and set the
text options, such as spacing or columns.
•Graphics: This option allows you to set image options that are used
when printing images/files, such as color options, image size, or
image position.
•Advanced: This option allows you to set the print resolution, paper
source and special print features.
If an option is grayed out, it means that the grayed out option is not
supported.
5. Click Apply to apply the changes and close the Properties window.
6. Click OK in the LPR GUI window to start printing.
7. The Printing window appears, allowing you to monitor the status of your
print job.
To abort the current job, click Cancel.
Printing files
You can print many different types of files on your machine using the
standard CUPS way, directly from the command line interface. The CUPS
lpr utility allows you to do that. But the drivers package replaces the
standard lpr tool by a much more user-friendly LPR GUI program.
To print any document file:
1. Type lpr <file_name> from the Linux shell command line and press
Enter. The LPR GUI window appears.
When you type only lpr and press Enter, the Select file(s) to print
window appears first. Just select any files you want to print and click
Open.
2. In the LPR GUI window, select your machine from the list, and change
the print job properties.
3. Click OK to start printing.
Configuring printer properties
Using the Printer Properties window provided by the Printers
configuration, you can change the various properties for your machine as
a printer.
1. Open the Unified Driver Configurator.
If necessary, switch to Printers configuration.
2. Select your machine on the available printers list and click Properties.
3. The Printer Properties window opens.
The following five tabs display at the top of the window:
•General: This option allows you to change the printer location and
name. The name entered in this tab displays on the printer list in
Printers configuration.
•Connection: This option allows you to view or select another port. If
you change the machine port from USB to parallel or vice versa
while in use, you must re-configure the machine port in this tab.
•Driver: Allows you to view or select another printer driver. By
clicking Options, you can set the default device options.
•Jobs: This option shows the list of print jobs. Click Cancel job to
cancel the selected job and select the Show completed jobs check
box to see previous jobs on the job list.
•Classes: This option shows the class that your machine is in. Click
Add to Class to add your machine to a specific class or click
Remove from Class to remove the machine from the selected
class.
4. Click OK to apply the changes and close the Printer Properties
window.
Management tools_24
8.management tools
This chapter introduces management tools provided to help you make full use of your machine.
This chapter includes:
•Introducing useful management tools
•Using SyncThru™ Web Service
•Using the Smart Panel program
•Using the Unified Linux Driver Configurator
INTRODUCING USEFUL MANAGEMENT TOOLS
The programs below help you to use your machine conveniently.
•"Using SyncThru™ Web Service" on page 24.
•"Using the Smart Panel program" on page 25.
•"Using the Unified Linux Driver Configurator" on page 25.
USING SYNCTHRU™ WEB SERVICE
Your SyncThru™ Web Service window that appears in this user’s
guide may differ depending on the machine in use.
If you have connected your machine to a network and set up TCP/IP
network parameters correctly, you can manage the machine via SyncThru™
Web Service, an embedded web server. Use SyncThru™ Web Service to:
•View the machine’s device information and check its current status.
•Change TCP/IP parameters and set up other network parameters.
•Change printer preference.
•Set the email notifications advising of the machine’s status.
•Get support for using the machine.
To access SyncThru™ Web Service:
1. Access a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address
field and press the Enter key or click Go.
2. Your machine’s embedded website opens.
SyncThru™ Web Service overview
•Information tab: This tab gives you general information about your
machine. You can check things, such as the machine’s IP address,
remaining amount of toner, ethernet information, firmware version, and
so on. You can also print reports such as an error report and so on.
•Machine Settings tab: This tab allows you to set options provided by
your machine.
•Network Settings tab: This tab allows you to view and change the
network environment. You can set things, such as TCP/IP, enabling
EtherTalk and so on.
•Maintenance tab: This tab allows you to maintain your machine by
upgrading firmware and setting security information.
•Support tab: This tab allows you to set contact information for sending
email. You can also connect to Samsung website or download drivers by
selecting Link.
E-mail notification setup
You can receive emails about your machine’s status by setting this option.
By setting information such as IP address, host name, e-mail address and
SMTP server information, the machine status (toner cartridge shortage or
machine error) will be sent to a certain person's e-mail automatically. This
option may be used more frequently by a machine administrator.
1. Start a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address
field and press the Enter key or click Go.
2. Your machine’s embedded website opens.
3. From the Machine Settings, select E-mail Notification Setup.
4. Set required settings.
Set SMTP server information and other settings to use E-mail
notification function. After setting the network environment, select the
recipient list. And just by clicking a radio button, you can select in what
case you want to receive an alert.
5. Click Apply.
Management tools_25
Setting the contact information
Set the machine administrator information and this setting is necessary to
use E-mail notification option.
1. Start a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address
field and press the Enter key or click Go.
2. Your machine’s embedded website opens.
3. Select Support.
4. Enter the name of machine administrator, phone number, location or
E-mail address.
5. Click Apply.
If the firewall is activated, the E-mail may not be sent successfully.
In that case, contact the a network administrator.
USING THE SMART PANEL PROGRAM
Smart Panel is a program that monitors and informs you of the machine
status, and allows you to customize the machine’s settings. For Winodws
and Macintosh, Smart Panel is installed automatically when you install the
machine software. For Linux, you can download Smart Panel from
Samsung website and install (See "Installing the SmartPanel" on page 27).
To use this program, you need the following system requirements:
• Windows. Check for windows operating system(s) compatible with
your machine. (See "System requirements" on page 24.)
• Mac OS X 10.3 or higher.
• Linux. Check for Linux systems that are compatible with your
machine. (See "System requirements" on page 24.)
• Internet Explorer version 5.0 or higher for flash animation in HTML
Help.
If you need to know the exact model name of your machine, you can
check the supplied software CD.

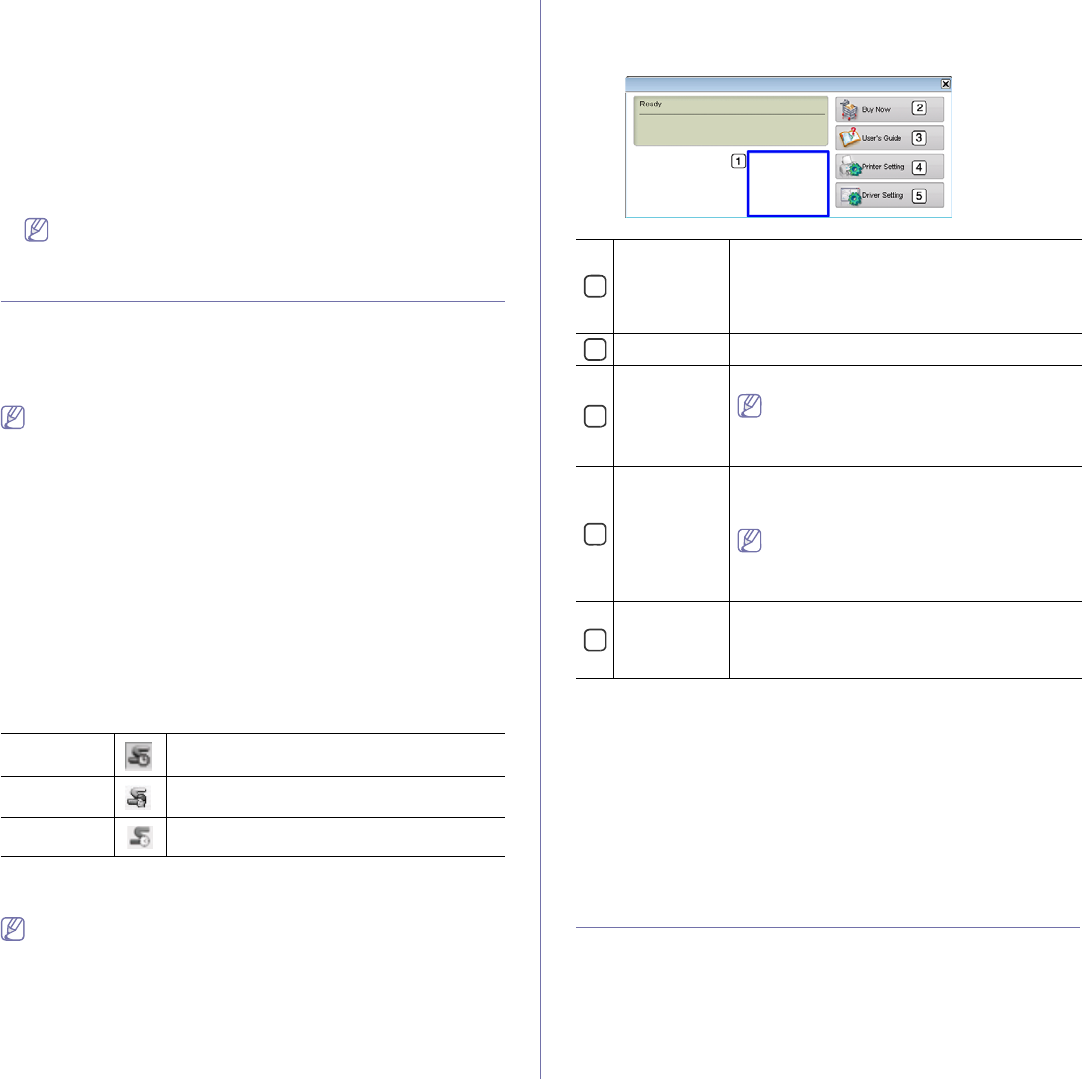

Understanding Smart Panel
If an error occurs while printing, you can check the error from the Smart
Panel.
You can also launch Smart Panel manually. Double-click the Smart Panel
icon on the Windows task bar (in Windows), or Notification Area (in Linux).
You can also click it on the status bar (in Mac OS X).
Or, if you are a Windows user, you can launch it from the Start menu, select
Programs or All Programs > Samsung Printers > your printer driver
name > Smart Panel.
• If you have already installed more than one Samsung machine,
first select the correct machine model you want in order to access
the corresponding Smart Panel.
Right-click (in Windows or Linux) or click (in Mac OS X) the Smart
Panel icon and select your machine.
• The Smart Panel window and its contents shown in this user’s
guide may differ depending on the machine or operating system in
use.
The Smart Panel program displays the current status of the machine, the
estimated level of toner remaining in the toner cartridge(s), and various
other types of information. You can also change settings.
Opening the Troubleshooting Guide
Find solutions for problems by using the Troubleshooting Guide.
Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel
icon and select Troubleshooting Guide.
Changing the Smart Panel Program Settings
Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel
icon and select Options. Select the settings you want from the Options
window.
USING THE UNIFIED LINUX DRIVER
CONFIGURATOR
Unified Driver Configurator is a tool primarily intended for configuring
machine devices. You need to install Unified Linux Driver to use Unified
Driver Configurator (See "Installing the Unified Linux Driver" on page 26).
After the driver is installed on your Linux system, the Unified Driver
Configurator icon will automatically be created on your desktopU
Windows Double-click this icon in Windows.
Macintosh Click this icon in Mac OS X.
Linux Click this icon in Linux.
1
Toner Level View the level of toner remaining in the toner
cartridge(s). The machine and the number of toner
cartridge(s) shown in the above window may differ
depending on the machine in use. Some machines
do not have this feature.
2Buy Now Order replacement toner cartridge(s) online.
3
User’s Guide View User’s Guide.
This button changes to Troubleshooting
Guide when error occurs. You can directly
open troubleshooting section in the user’s
guide.
4
Printer
Setting
Configure various machine settings in the Printer
Settings Utility window. Some machines do not
have this feature.
If you connect your machine to a network,
the SyncThru™ Web Service window
appears instead of the Printer Settings Utility
window.
5
Driver Setting Set all of the machine options you need in the
Printer Preferences window. This feature is
available only for Windows. (See "Opening
printing preferences" on page 17.)
Management tools_26
Opening the Unified Driver Configurator
1. Double-click the Unified Driver Configurator on the desktop.
You can also click the Startup Menu icon and select Samsung Unified
Driver > Unified Driver Configurator.
2. Click each button on the left to switch to the corresponding configuration
window.
To use the on screen help, click Help.
3. After changing the configurations, click Exit to close the Unified Driver
Configurator.
Printers configuration
Printers configuration has the two tabs: Printers and Classes.
Printers tab
View the current system’s printer configuration by clicking on the
machine icon button on the left side of the Unified Driver Configurator
window.
The printer control buttons are, as follows:
•Refresh: Renews the available machines list.
•Add Printer: Allows you to add a new machines.
•Remove Printer: Removes the selected machine.
•Set as Default: Sets the current selected machine as a default
machine.
•Stop/Start: Stops/starts the machine.
•Test: Allows you to print a test page to ensure the machine is
working properly.
•Properties: Allows you to view and change the printer properties.
Classes tab
The Classes tab shows a list of available machine classes.
•Refresh: Renews the classes list.
•Add Class: Allows you to add a new machine class.
•Remove Class: Removes the selected machine class.
1Printers
Configuration
2Ports
Configuration
1Switches to Printers configuration.
2Shows all of the installed machine.
3Shows the status, model name and URI of your machine.
1Shows all of the machine classes.
2Shows the status of the class and the number of machines in the
class.
Management tools_27
Ports configuration
In this window, you can view the list of available ports, check the status of
each port and release a port that is stalled in a busy state when its owner
has terminated the job for any reason.
•Refresh: Renews the available ports list.
•Release port: Releases the selected port.
1Switches to Ports configuration.
2Shows all of the available ports.
3Shows the port type, device connected to the port, and status.
Maintenance_28
9.maintenance
This chapter provides information for maintaining your machine and the toner cartridge.
This chapter includes:
•Printing a machine report
•Using toner low alert
•Cleaning a machine
•Storing the toner cartridge
•Tips for moving & storing your machine
PRINTING A MACHINE REPORT
You can print a configuration page to view current printer settings, or to help
troubleshoot printer problems.
In ready mode, press and hold the (cancel button) for about 5 seconds.
A configuration page prints out.
USING TONER LOW ALERT
If the amount of toner in the cartridge is low, the LED blinks red. You
can set the option for this LED to blink or not.
1. Ensure that you have installed the printer driver with the provided
Printer Software CD. For Linux, you can download Smart Panel from
Samsung website and install (See "Installing the SmartPanel" on
page 27).
2. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X.
3. Click Printer Setting.
4. Click Setting > Toner Low Alert. Select the appropriate setting and
then click Apply.
CLEANING A MACHINE
If printing quality problems occur or if you use your machine in a dusty
environment, you need to clean your machine regularly to keep the best
printing condition and use your machine longer.
• Cleaning the cabinet of the machine with cleaning materials
containing large amounts of alcohol, solvent, or other strong
substances can discolor or distort the cabinet.
• If your machine or the surrounding area is contaminated with
toner, we recommend you use cloth or tissue dampened with
water to clean it. If you use a vacuum cleaner, toner blows in the
air and might be harmful to you.
Cleaning the outside
Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth
slightly with water, but be careful not to let any water drip onto or into the
machine.
Printing a cleaning sheet
If you are experiencing blurred or smeared printouts, you can clear the
problem by printing a cleaning sheet, provided by your machine.
To print the cleaning sheet:
In ready mode, press and hold the (cancel button) for about 10 seconds.
•OPC cleaning sheet: Cleans the OPC drum of the toner cartridge.
This process will produce a page with toner debris, which should be
discarded.
Your machine automatically picks up a sheet of paper from the tray and
prints out a cleaning sheet with dust or toner particles on it.
Cleaning the inside
During the printing process, paper, toner, and dust particles can accumulate
inside the machine. This buildup can cause print quality problems, such as
toner specks or smearing. Cleaning the inside of the machine clears and
reduces these problems.
1. Turn the machine offGand unplug the power cord. Wait for the machine to
cool down.
2. Open the front cover and pull the toner cartridge out. Set it on a clean
flat surface
• To prevent damage to the toner cartridge, do not expose it to
light for more than a few minutes. Cover it with a piece of
paper, if necessary.
• Do not touch the green surface underside of the toner
cartridge. Use the handle on the cartridge to avoid touching
this area.

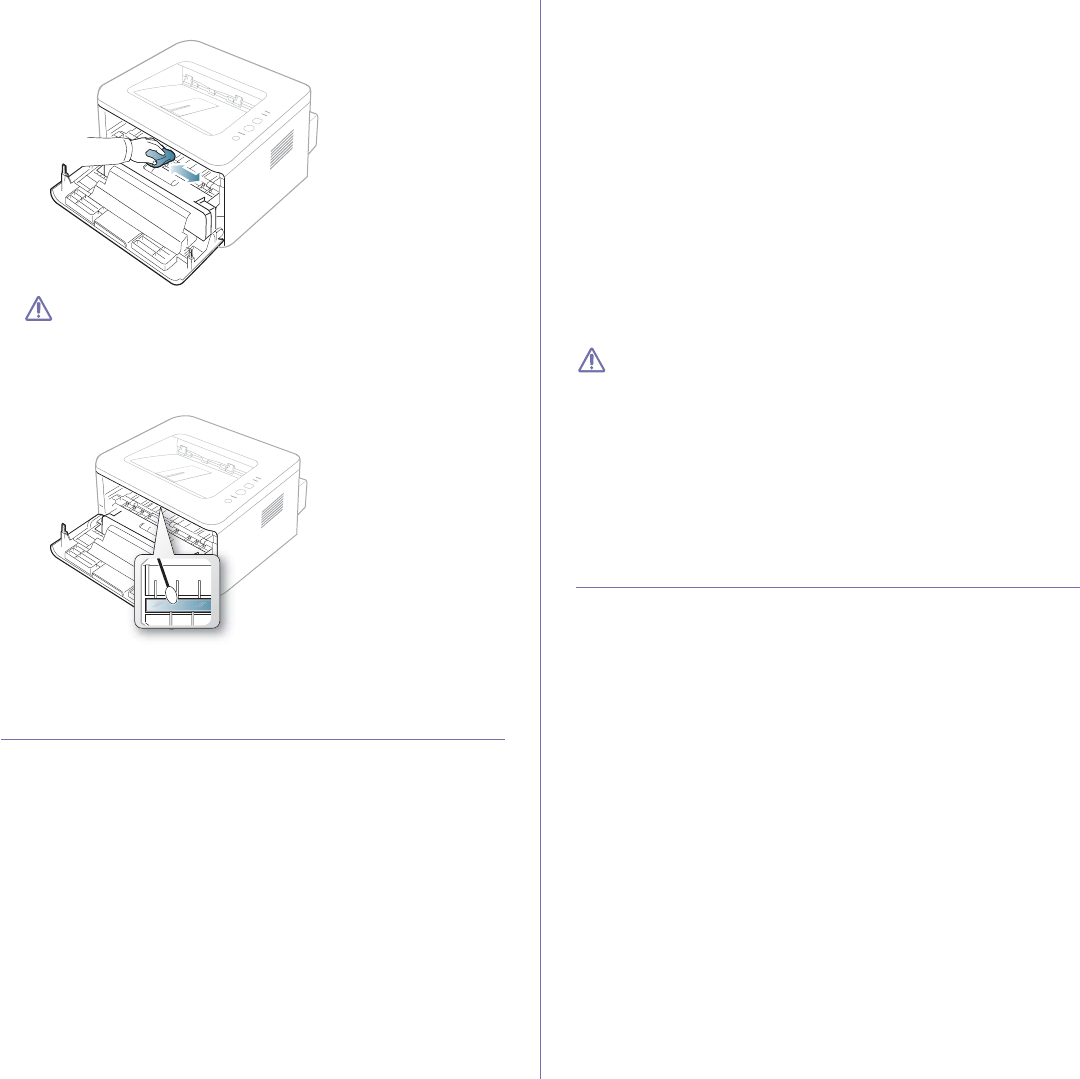

Maintenance_29
3. With a dry, lint-free cloth, wipe away any dust and spilled toner from the
toner cartridge area.
While cleaning the inside of the machine, be careful not to damage
the transfer roller or any other inside parts. Do not use solvents
such as benzene or thinner to clean. Printing quality problems can
occur and cause damage to the machine.
4. Locate the long strip of glass (LSU) inside the machine and gently swab
the glass to see if dirt turns the white cotton black.
5. Reinsert the toner cartridge and close the front cover.
6. Plug in the power cord and turn the machine on.
STORING THE TONER CARTRIDGE
Toner cartridges contain components that are sensitive to light,
temperature, and humidity. Samsung suggests users follow the
recommendations to ensure the optimum performance, highest quality, and
longest life from your new Samsung toner cartridge.
Store this cartridge in the same environment as the printer it will be used in;
this should be in controlled office temperature and humidity conditions. The
toner cartridge should remain in its original, unopened package until
installation – If original packaging is not available, cover the top opening of
the cartridge with paper and store in a dark cabinet.
Opening the cartridge package prior to use dramatically shortens its useful
shelf and operating life. Do not store on the floor. If the toner cartridge is
removed from the printer, always store the cartridge:
•Inside the protective bag from the original package.
•Store lying flat (not standing on end) with the same side facing up as if
they were installed in the machine.
•Do not store consumables in;
-Temperature greater than 40°C (104°F).
-Humidity range less than 20% nor not greater than 80%.
-An environment with extreme changes in humidity or temperature.
-Direct sunlight or room light.
-Dusty places.
-A car for a long period of time.
-An environment where corrosive gases are present.
-An environment with salty air.
Handling instructions
•Do not touch the surface of the photosensitive drum in the cartridge.
•Do not expose the cartridge to unnecessary vibrations or shock.
•Never manually rotate the drum, especially in the reverse direction; this
can cause internal damage and toner spillage.
Use of non-Samsung and refilled toner cartridge
Samsung Electronics does not recommend or approve the use of
non-Samsung brand toner cartridges in your printer including generic, store
brand, refilled, or remanufactured toner cartridges.
Samsung’s printer warranty does not cover damage to the machine
caused by the use of a refilled, remanufactured, or non-Samsung
brand toner cartridge.
Estimated cartridge life
Estimated cartridge life (the life of the toner cartridge yield) depends on the
amount of toner that print jobs require. The actual print-out number may
vary depending on the print density of the pages you print on, operating
environment, printing interval, media type, and/or media size. For example,
if you print a lot of graphics, the consumption of the toner is high and you
may need to change the cartridge more often.
TIPS FOR MOVING & STORING YOUR MACHINE
•When moving the machine, do not tilt or turn it upside down. Otherwise,
the inside of the machine may be contaminated by toner, which can
cause damage to the machine or bad print quality.
•When moving the machine, make sure at least two people are holding
the machine securely.
Troubleshooting_30
10.troubleshooting
This chapter gives helpful information for what to do if you encounter an error.
This chapter includes:
•Redistributing toner
•Tips for avoiding paper curls
•Tips for avoiding paper jams
•Clearing paper jams
•Solving other problems
REDISTRIBUTING TONER
When the toner cartridge is near the end of its life:
•White streaks or light printing occurs.
•The LED blinks red.
If this happens, you can temporarily improve print quality by redistributing
the remaining toner in the cartridge. In some cases, white streaks or light
printing will still occur even after you have redistributed the toner.
1. Open the front cover.
2. Pull the toner cartridge out.
3. Thoroughly roll the cartridge five or six times to distribute the toner
evenly inside the cartridge.
If toner gets on your clothing, wipe it off with a dry cloth and wash
clothing in cold water. Hot water sets toner into fabric.
Do not touch the green underside of the toner cartridge. Use the
handle on the cartridge to avoid touching this area.
4. Hold the toner cartridge by the handle and slowly insert the cartridge into
the opening in the machine.
Tabs on the sides of the cartridge and corresponding grooves within the
machine will guide the cartridge into the correct position until it locks into
place completely.
5. Close the front cover. Ensure that the cover is securely closed.
TIPS FOR AVOIDING PAPER CURLS
1. Open the rear cover.
2. Pull down the pressure lever on each side.
Keep the rear cover opened during printing.
Only use when the printout has more than 20 mm curl.
1Pressure lever
Troubleshooting_31
TIPS FOR AVOIDING PAPER JAMS
By selecting the correct media types, most paper jams can be avoided.
When a paper jam occurs, refer to the next guidelines.
•Ensure that the adjustable guides are positioned correctly. (See
"Loading paper in the tray" on page 12.)
•Do not overload the tray. Ensure that the paper level is below the paper
capacity mark on the inside of the tray.
•Do not remove paper from the tray while your machine is printing.
•Flex, fan, and straighten paper before loading.
•Do not use creased, damp, or highly curled paper.
•Do not mix paper types in a tray.
•Use only recommended print media.
•Ensure that the recommended side of the print media is facing down in
the tray, or facing up in the manual tray.
CLEARING PAPER JAMS
If a paper jam occurs, the LED on the control panel lights orange.
Find and remove the jammed paper.
To resume printing after clearing paper jams, you must open and close the
front cover.
To avoid tearing the paper, pull the jammed paper out slowly and
gently. Follow the instructions in the following sections to clear the
jam.
In tray
Click this link to open an animation about clearing a jam.
1. Open and close the front cover. The jammed paper is automatically
ejected from the machine.
If the paper does not exit, go to the next step.
2. Pull out tray.
3. Remove the jammed paper by gently pulling it straight out.
If the paper does not move when you pull, or if you do not see the paper
in this area, check the fuser area around the toner cartridge. (See
"Inside the machine" on page 31.)
4. Insert tray back into the machine until it snaps into place. Printing
automatically resumes.
In the manual tray
Click this link to open an animation about clearing a jam.
1. If the paper is not feeding properly, pull the paper out of the machine.
2. Open and close the front cover to resume printing.
Inside the machine
Click this link to open an animation about clearing a jam.
The fuser area is hot. Take care when removing paper from the
machine.

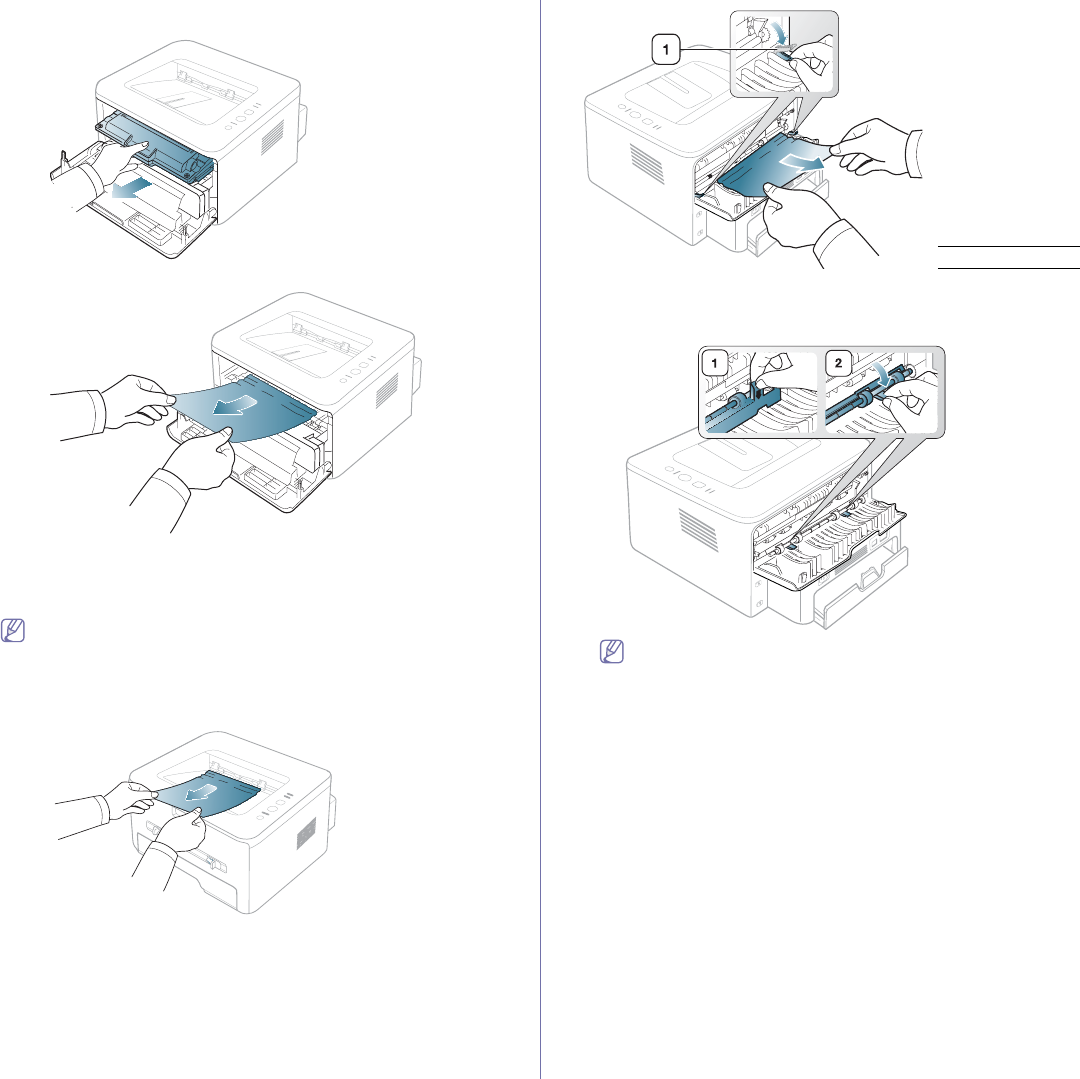

Troubleshooting_32
1. Open the front cover and pull the toner cartridge out, lightly pushing it
down.
2. Remove the jammed paper by gently pulling it straight out.
3. Replace the toner cartridge and close the front cover. Printing
automatically resumes.
In exit area
Click this link to open an animation about clearing a jam.
1. Open and close the front cover. The jammed paper is automatically
ejected from the machine.
If you do not see the jammed paper, go to next step.
2. Gently pull the paper out of the output tray.
If you do not see the jammed paper or if there is any resistance when
you pull, stop and go to the next step.
3. Open the rear cover.
4. Pull the pressure levers down and remove the paper.
Return the pressure levers to their original position.
If you do not see the jammed paper, go to next step.
5. Pull the fuser cover levers down and remove the paper.
Return the fuser cover levers to their original position.
The fuser area is hot. Take care when removing paper from the
machine.
6. Close the rear cover.
7. Open and close front cover, printing automatically resumes.
1Pressure lever
Troubleshooting_33
SOLVING OTHER PROBLEMS
The following chart lists some conditions that may occur and the
recommended solutions. Follow the suggested solutions until the problem is
corrected. If the problem persists, call for service.
Power problems
Click this link to open an animation about power problems.
Paper feeding problems
CONDITION SUGGESTED SOLUTIONS
The machine is
not receiving
power,
or the connection
cable between the
computer and the
machine is not
connected
properly.
•Plug in the power cord and press (power)
on the control panel.
•Disconnect the machine cable and reconnect
it.
-For Local Printing
-For Network Printing
CONDITION SUGGESTED SOLUTIONS
Paper jams during
printing.
Clear the paper jam. (See "Clearing paper jams"
on page 31.)
Paper sticks
together.
•Check the maximum paper capacity of the
tray. (See "Print media specifications" on
page 44.)
•Make sure that you are using the correct type
of paper. (See "Print media specifications" on
page 44.)
•Remove paper from the tray and flex or fan
the paper.
•Humid conditions may cause some paper to
stick together.
Multiple sheets of
paper do not feed.
Different types of paper may be stacked in the
tray. Load paper of only one type, size, and
weight.
Paper does not feed
into the machine.
•Remove any obstructions from inside the
machine.
•Paper has not been loaded correctly. Remove
paper from the tray and reload it correctly.
•There is too much paper in the tray. Remove
excess paper from the tray.
•The paper is too thick. Use only paper that
meets the specifications required by the
machine. (See "Print media specifications" on
page 44.)
The paper keeps
jamming.
•There is too much paper in the tray. Remove
excess paper from the tray. If you are printing
on special materials, use the manual tray.
•An incorrect type of paper is being used. Use
only paper that meets the specifications
required by the machine. (See "Print media
specifications" on page 44.)
•There may be debris inside the machine.
Open the front cover and remove any debris.
Transparencies stick
together in the paper
exit.
Use only transparencies specifically designed
for laser printers. Remove each transparency as
it exits from the machine.
Envelopes skew or
fail to feed correctly.
Ensure that the paper guides are against both
sides of the envelopes.
Troubleshooting_34
Printing problems
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
The machine
does not print.
The machine is
not receiving
power.
Check the power cord
connections.
The machine is
not selected as
the default
machine.
Select your machine as your
default machine in your Windows.
Check the machine for the following:
•The front cover is not closed. Close the front cover.
•Paper is jammed. Clear the paper jam. (See
"Clearing paper jams" on page 31.)
•No paper is loaded. Load paper. (See "Loading
paper in the tray" on page 12.)
•The toner cartridge is not installed. Install the toner
cartridge.
If a system error occurs, contact your service
representative.
The connection
cable between
the computer and
the machine is
not connected
properly.
Disconnect the machine cable and
reconnect it.
The connection
cable between
the computer and
the machine is
defective.
If possible, attach the cable to
another computer that is working
properly and print a job. You can
also try using a different machine
cable.
The port setting
is incorrect.
Check the Windows printer setting
to make sure that the print job is
sent to the correct port. If the
computer has more than one port,
make sure that the machine is
attached to the correct one.
The machine
may be
configured
incorrectly.
Check the Printing Preferences
to ensure that all of the print
settings are correct. (See
"Opening printing preferences" on
page 17.)
The printer driver
may be
incorrectly
installed.
Repair the machine software. (See
"Installing USB connected
machine’s driver" on page 24,
"Installing network connected
machine’s driver" on page 31.)
The machine is
malfunctioning.
•Check the LEDs on the control
panel to see if the machine is
indicating a system error.
Contact a service
representative.
•Checking an error message is
also possible from the Smart
Panel on your computer.
The machine
does not print.
The document
size is so big that
the hard disk
space of the
computer is
insufficient to
access the print
job.
Get more hard disk space and
print the document again.
The output tray is
full.
It can hold up to 80 sheets of plain
paper. Once the paper is removed
from the output tray, the machine
resumes printing.
The machine
selects print
materials from
the wrong
paper source.
The paper option
that was selected
in the Printing
Preferences
may be incorrect.
For many software applications,
the paper source selection is
found under the Paper tab within
the Printing Preferences. Select
the correct paper source. See the
printer driver help screen. (See
"Opening printing preferences" on
page 17.)
A print job is
extremely slow.
The job may be
very complex.
Reduce the complexity of the page
or try adjusting the print quality
settings.
Half the page is
blank.
The page
orientation
setting may be
incorrect.
Change the page orientation in
your application. See the printer
driver help screen.
The paper size
and the paper
size settings do
not match.
Ensure that the paper size in the
printer driver settings matches the
paper in the tray.
Or, ensure that the paper size in
the printer driver settings matches
the paper selection in the software
application settings you use.
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
Troubleshooting_35
The machine
prints, but the
text is wrong,
garbled, or
incomplete.
The machine
cable is loose or
defective.
Disconnect the machine cable and
reconnect. Try a print job that you
have already printed successfully.
If possible, attach the cable and
the machine to another computer
that you know works and try a print
job. Finally, try a new machine
cable.
The wrong
printer driver was
selected.
Check the application’s printer
selection menu to ensure that your
machine is selected.
The software
application is
malfunctioning.
Try printing a job from another
application.
The operating
system is
malfunctioning.
Exit Windows and reboot the
computer. Turn the machine off
and back on again.
If you are in a
DOS
environment, the
font setting for
your machine
may be set
incorrectly.
See "Changing font setting" on
page 10.
Pages print, but
they are blank.
The toner
cartridge is
defective or out
of toner.
Redistribute the toner, if
necessary.
If necessary, replace the toner
cartridge.
The file may
have blank
pages.
Check the file to ensure that it
does not contain blank pages.
Some parts, such
as the controller
or the board,
may be
defective.
Contact a service representative.
The machine
does not print
PDF file
correctly. Some
parts of
graphics, text,
or illustrations
are missing.
Incompatibility
between the PDF
file and the
Acrobat
products.
Printing the PDF file as an image
may enable the file to print. Turn
on Print As Image from the
Acrobat printing options.
It will take longer to print
when you print a PDF file as
an image.
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
The print
quality of
photos is not
good. Images
are not clear.
The resolution of
the photo is very
low.
Reduce the photo size. If you
increase the photo size in the
software application, the resolution
will be reduced.
Before printing,
the machine
emits vapor
near the output
tray.
Using damp
paper can cause
vapor during
printing.
This is not a problem. Just keep
printing.
The machine
does not print
special- sized
paper, such as
billing paper.
Paper size and
paper size
setting do not
match.
Set the correct paper size in the
Edit... in the Paper tab in the
Printing Preferences. (See
"Opening printing preferences" on
page 17.)
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
Troubleshooting_36

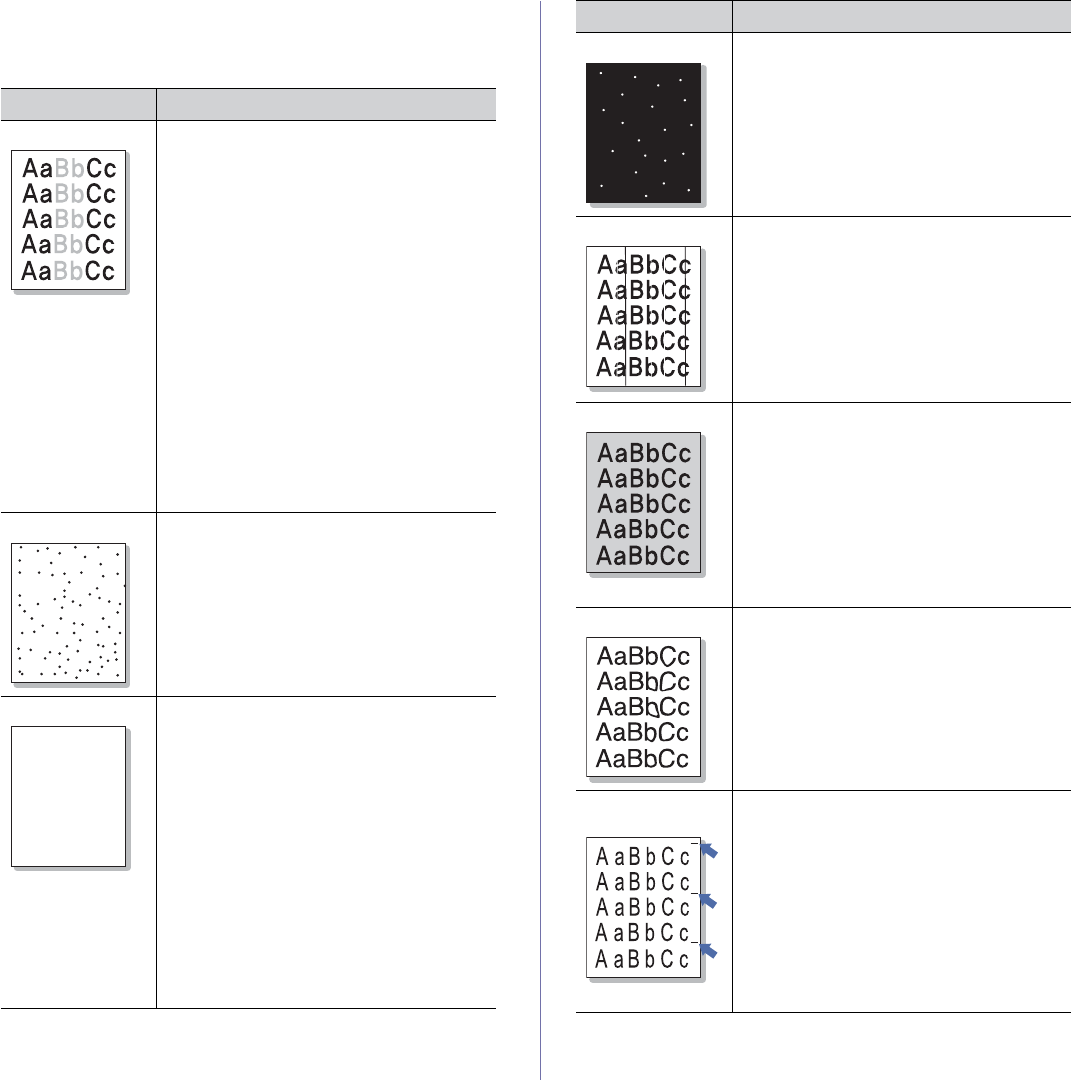

Printing quality problems
If the inside of the machine is dirty or paper has been loaded improperly,
there might be a reduction in print quality. See the table below to clear the
problem.
CONDITION SUGGESTED SOLUTIONS
Light or faded print •If a vertical white streak or faded area
appears on the page, the toner supply is low.
You may be able to temporarily extend the
toner cartridge life. (See "Redistributing toner"
on page 30.) If this does not improve the print
quality, install a new toner cart
•The paper may not meet paper specifications;
for example, the paper may be too moist or
rough. (See "Print media specifications" on
page 44.)
•If the entire page is light, the print resolution
setting is too low or the toner save mode is
on. Adjust the print resolution and turn the
toner save mode off. See the help screen of
the printer driver.
•A combination of faded or smeared defects
may indicate that the toner cartridge needs
cleaning. (See "Cleaning the inside" on
page 28.)
•The surface of the LSU part inside the
machine may be dirty. (See "Cleaning the
inside" on page 28.)
Toner specks •The paper may not meet specifications; for
example, the paper may be too moist or
rough. (See "Print media specifications" on
page 44.)
•The transfer roller may be dirty. Clean the
inside of your machine. Contact a service
representative.
•The paper path may need cleaning. Contact a
service representative.
Dropouts If faded areas, generally rounded, occur
randomly on the page:
•A single sheet of paper may be defective.
Try reprinting the job.
•The moisture content of the paper is uneven
or the paper has moist spots on its surface.
Try a different brand of paper. (See "Print
media specifications" on page 44.)
•The paper lot is bad. The manufacturing
processes can cause some areas to reject
toner. Try a different kind or brand of paper.
•Change the printer option and try again. Go
to Printing Preferences, click Paper tab,
and set type to Thick. (See "Opening
printing preferences" on page 17.)
•If these steps do not correct the problem,
contact a service representative.
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbC
AaBbC
AaBbC
AaBbC
AaBbC
White Spots If white spots appear on the page:
•The paper is too rough and a lot of dirt from a
paper falls to the inner devices within the
machine, so the transfer roller may be dirty.
Clean the inside of your machine. (See
"Cleaning the inside" on page 28.)
•The paper path may need cleaning. (See
"Cleaning the inside" on page 28.)
Vertical lines If black vertical streaks appear on the page:
•The surface (drum part) of the toner
cartridge inside the machine has probably
been scratched. Remove the toner cartridge
and install a new one. (See "Replacing the
toner cartridge" on page 40.)
If white vertical streaks appear on the page:
•The surface of the LSU part inside the
machine may be dirty. (See "Cleaning the
inside" on page 28.)
Black background If the amount of background shading becomes
unacceptable:
•Change to a lighter weight paper. (See "Print
media specifications" on page 44.)
•Check the environmental conditions: very
dry conditions or a high level of humidity
(higher than 80% RH) can increase the
amount of background shading.
•Remove the old toner cartridge and, install a
new one. (See "Replacing the toner
cartridge" on page 40.)
Toner smear If toner smears on the page:
•Clean the inside of the machine. (See
"Cleaning the inside" on page 28.)
•Check the paper type and quality. (See "Print
media specifications" on page 44.)
•Remove the toner cartridge and then, install
a new one. (See "Replacing the toner
cartridge" on page 40.)
Vertical repetitive
defects
If marks repeatedly appear on the printed side of
the page at even intervals:
•The toner cartridge may be damaged. If you
still have the same problem, remove the
toner cartridge and, install a new one. (See
"Replacing the toner cartridge" on page 40.)
•Parts of the machine may have toner on
them. If the defects occur on the back of the
page, the problem will likely correct itself
after a few more pages.
•The fusing assembly may be damaged.
Contact a service representative.
CONDITION SUGGESTED SOLUTIONS
Troubleshooting_37
Background
scatter
Background scatter results from bits of toner
randomly distributed on the printed page.
•The paper may be too damp. Try printing
with a different batch of paper. Do not open
packages of paper until necessary so that
the paper does not absorb too much
moisture.
•If background scatter occurs on an envelope,
change the printing layout to avoid printing
over areas that have overlapping seams on
the reverse side. Printing on seams can
cause problems.
•If background scatter covers the entire
surface area of a printed page, adjust the
print resolution through your software
application or in Printing Preferences. (See
"Opening printing preferences" on page 17.)
Misformed
characters
•If characters are improperly formed and
producing hollow images, the paper stock
may be too slick. Try different paper. (See
"Print media specifications" on page 44.)
Page skew •Ensure that the paper is loaded properly.
•Check the paper type and quality. (See "Print
media specifications" on page 44.)
•Ensure that the guides are not too tight or too
loose against the paper stack.
Curl or wave •Ensure that the paper is loaded properly.
•Check the paper type and quality. Both high
temperature and humidity can cause paper
curl. (See "Print media specifications" on
page 44.)
•Turn the stack of paper over in the tray. Also
try rotating the paper 180° in the tray.
CONDITION SUGGESTED SOLUTIONS
A
AaBb
C
AaBb
C
AaBb
C
AaBbC
AaBbC
c
Wrinkles or
creases
•Ensure that the paper is loaded properly.
•Check the paper type and quality. (See "Print
media specifications" on page 44.)
•Turn the stack of paper over in the tray. Also
try rotating the paper 180° in the tray.
Back of printouts
are dirty
Check for leaking toner. Clean the inside of the
machine. (See "Cleaning the inside" on
page 28.)
Solid Color or
Black pages
•The toner cartridge may not be installed
properly. Remove the cartridge and reinsert it.
•The toner cartridge may be defective.
Remove the toner cartridge and install a new
one. (See "Replacing the toner cartridge" on
page 40.)
•The machine may require repair. Contact a
service representative.
Loose toner •Clean the inside of the machine. (See
"Cleaning the inside" on page 28.)
•Check the paper type and quality. (See "Print
media specifications" on page 44.)
•Remove the toner cartridge and then, install a
new one. (See "Replacing the toner cartridge"
on page 40.)
•If the problem persists, the machine may
require repair. Contact a service
representative.
Character Voids Character voids are white areas within parts of
characters that should be solid black:
•If you are using transparencies, try another
type of transparency. Because of the
composition of transparencies, some
character voids are normal.
•You may be printing on the wrong surface of
the paper. Remove the paper and turn it
around.
•The paper may not meet paper
specifications. (See "Print media
specifications" on page 44.)
CONDITION SUGGESTED SOLUTIONS
A
A

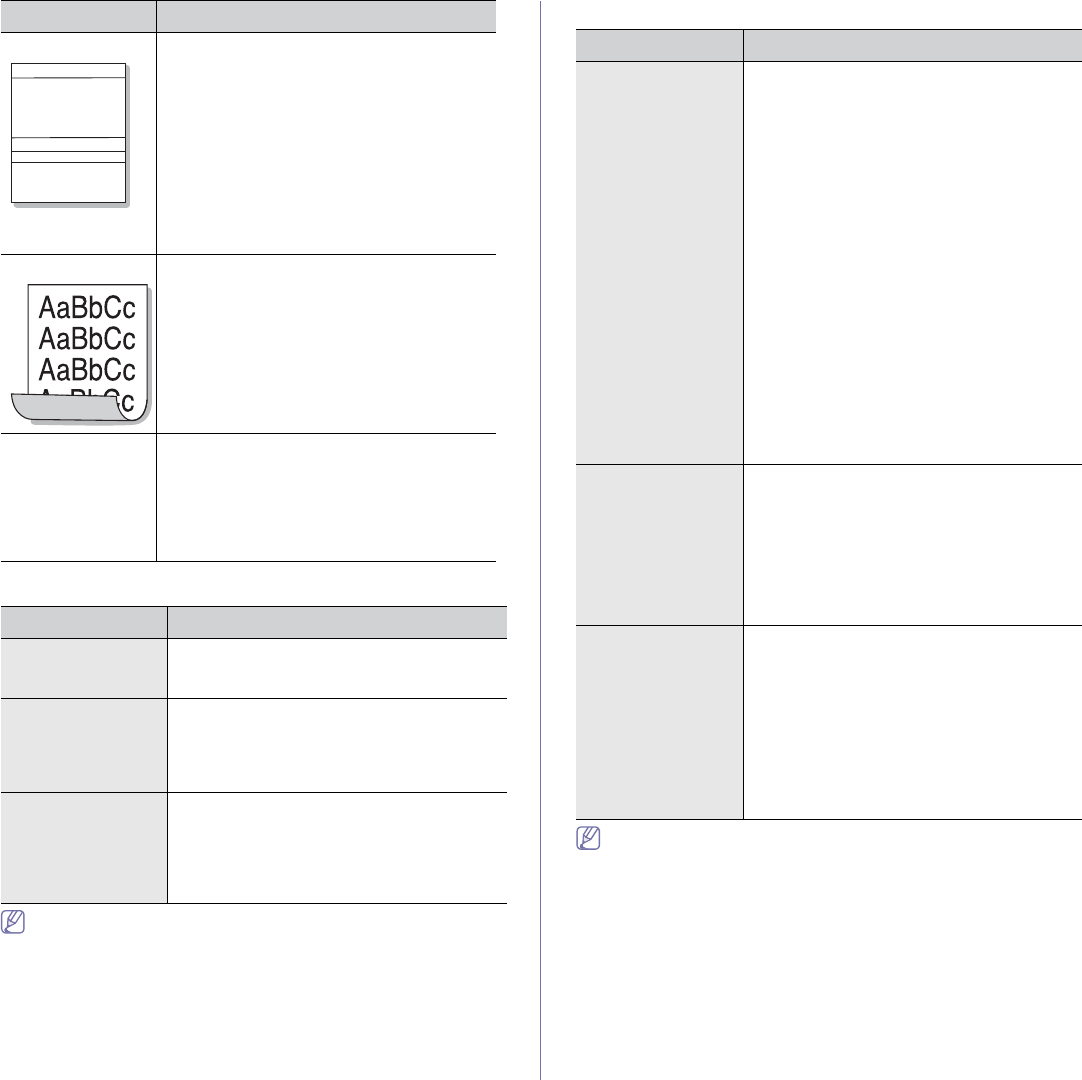

Troubleshooting_38
Common Windows problems
Refer to Microsoft Windows User’s Guide that came with your
computer for further information on Windows error messages.
Common Linux problems
Refer to Linux User’s Guide that came with your computer for further
information on Linux error messages.
Horizontal stripes If horizontally aligned black streaks or smears
appear:
•The toner cartridge may be installed
improperly. Remove the cartridge and
reinsert it.
•The toner cartridge may be defective.
Remove the toner cartridge and install a new
one. (See "Replacing the toner cartridge" on
page 40.)
•If the problem persists, the machine may
require repair. Contact a service
representative.
Curl If the printed paper is curled or paper does not
feed into the machine:
•Turn the stack of paper over in the tray. Also
try rotating the paper 180° in the tray.
•Change the printer option and try again. Go
to Printing Preferences, click Paper tab,
and set type to Thin. (See "Opening printing
preferences" on page 17.)
An unknown image
repetitively
appears on a few
sheets or loose
toner, light print, or
contamination
occurs.
Your machine is probably being used at an
altitude of 1,000 m (3,281 ft) or above.
The high altitude may affect the print quality,
such as loose toner or light imaging. Change the
correct altitude setting to your machine. (See
"Altitude adjustment" on page 9.)
CONDITION SUGGESTED SOLUTIONS
“File in Use”
message appears
during installation.
Exit all software applications. Remove all
software from the startup group, then restart
Windows. Reinstall the printer driver.
“General Protection
Fault”, “Exception
OE”, “Spool 32”, or
“Illegal Operation”
messages appear.
Close all other applications, reboot Windows
and try printing again.
“Fail To Print”, “A
printer timeout error
occurred” messages
appear.
These messages may appear during printing.
Just keep waiting until the machine finishes
printing. If the message appears in ready mode
or after printing has been completed, check the
connection and/or whether an error has
occurred.
CONDITION SUGGESTED SOLUTIONS
AaBbC
AaBbC
AaBbC
AaBbC
AaBbC
CONDITION SUGGESTED SOLUTIONS
The machine does
not print.
•Check if the printer driver is installed in your
system. Open Unified Driver Configurator and
switch to the Printers tab in Printers
configuration window to look at the list of
available machines. Make sure that your
machine is displayed on the list. If not, open
Add new printer wizard to set up your
device.
•Check if the machine is started. Open
Printers configuration and select your
machine on the printers list. Look at the
description in the Selected printer pane. If its
status contains Stopped string, press the
Start button. After that normal operation of
the machine should be restored. The
“stopped” status might be activated when
some problems in printing occurred.
•Check if your application has special print
option such as “-oraw”. If “-oraw” is specified
in the command line parameter, then remove
it to print properly. For Gimp front-end, select
“print” -> “Setup printer” and edit command
line parameter in the command item.
The machine does
not print whole
pages, and output is
printed on half the
page.
It is a known problem that occurs when a color
machine is used on version 8.51 or earlier of
Ghostscript, 64-bit Linux OS, and has been
reported to bugs.ghostscript.com as Ghostscript
Bug 688252. The problem is solved in AFPL
Ghostscript v. 8.52 or above. Download the
latest version of AFPL Ghostscript from
http://sourceforge.net/projects/ghostscript/ and
install it to solve this problem.
I encounter error
“Cannot open port
device file” when
printing a document.
Avoid changing print job parameters (via LPR
GUI, for example) while a print job is in progress.
Known versions of CUPS server break the print
job whenever print options are changed and
then try to restart the job from the beginning.
Since Unified Linux Driver locks the port while
printing, the abrupt termination of the driver
keeps the port locked and unavailable for
subsequent print jobs. If this situation occurs, try
to release the port by selecting Release port in
Port configuration window.
Troubleshooting_39
Common Macintosh problems
Refer to Macintosh User’s Guide that came with your computer for
further information on Macintosh error messages.
CONDITION SUGGESTED SOLUTIONS
The machine does
not print PDF files
correctly. Some
parts of graphics,
text, or illustrations
are missing.
Printing the PDF file as an image may enable
the file to print. Turn on Print As Image from the
Acrobat printing options.
It will take longer to print when you print a
PDF file as an image.
The document has
printed, but the print
job has not
disappeared from
the spooler in Mac
OS X 10.3.2.
Update your Mac OS to OS Mac OS X 10.3.3. or
higher.
Some letters are not
displayed normally
during the Cover
page printing.
Mac OS cannot create the font during the Cover
page printing. The English alphabet and
numbers are displayed normally on the Cover
page.
When printing a
document in
Macintosh with
Acrobat Reader 6.0
or higher, colors
print incorrectly.
Make sure that the resolution setting in your
machine driver matches the one in Acrobat
Reader.
Supplies_40
11.supplies
This chapter provides information on purchasing supplies and maintenance parts available for your machine.
This chapter includes:
•How to purchase
•Available supplies
•Available maintenance parts
•Replacing the toner cartridge
Available accessories may differ from country to country. Contact your
sales representatives to obtain the list of available accessories.
HOW TO PURCHASE
To order Samsung-authorized supplies, accessories and, maintenance
parts, contact your local Samsung dealer or the retailer where you
purchased your machine. You can also visit www.samsung.com/supplies,
select your country/region, and obtain information on calling for service.
AVAILABLE SUPPLIES
When supplies reach their lifespan, you can order the following types of
supplies for your machine:
To replace a toner cartridge see "Replacing the toner cartridge" on page 40.
Depending on the options and job mode used, the toner cartridge’s
lifespan may differ.
You must purchase supplies, including toner cartridges, in the same
country where you purchased your machine. Otherwise, supplies will
be incompatible with your machine since the system configuration of
these vary from country to country.
Samsung does not recommend using non-genuine Samsung toner
cartridge such as refilled or remanufactured. Samsung cannot
guarantee non-genuine Samsung toner cartridge's quality. Service or
repair required as a result of using non-genuine Samsung toner
cartridges will not be covered under the machine warranty.
AVAILABLE MAINTENANCE PARTS
To avoid print quality and paper feed problems resulting from worn parts
and to maintain your machine in top working condition, the following parts
will need to be replaced after printing the specified number of pages or
when the life span of each item has expired.
To purchase maintenance parts, contact the source where you bought the
machine.
Replacing maintenance parts can be performed only by an authorized
service provider, dealer, or the retailer where you bought the machine. The
warranty does not cover the replacement of any maintenance parts after
their lifespan.
REPLACING THE TONER CARTRIDGE
Click this link to open an animation about replacing a toner cartridge.
When the toner cartridge reaches its estimated cartridge life.
•The Smart Panel program window appears on the computer telling you
the toner cartridge needs to be replaced.
•The machine stops printing.
At this stage, the toner cartridge needs to be replaced. Check the type of the
toner cartridge for your machine. (See "Available supplies" on page 40.)
TYPE AVERAGE
YIELDa
a.Declared yield value in accordance with ISO/IEC 19752.
PART NAME
Standard yield
toner cartridge
Approx. 1,500
pages
•105 (MLT-D105S)
•Region Ab: 1052 (MLT-D1052S)
•Region Bc: 1053 (MLT-D1053S)
b.Region A: Albania, Austria, Belgium, Bosnia, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Italy, Macedonia, Netherlands, Norway, Poland, Portugal,
Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, UK.
c. Region B: China and India.
High yield
toner cartridge
Approx. 2,500
pages
•105L (MLT-D105L)
•Region Ab: 1052L (MLT-D1052L)
•Region Bc: 1053L (MLT-D1053L)
PARTS AVERAGE YIELDa
a.It will be affected by operating system used, computing performance,
application software, connecting method, media type, media size and
job complexity.
PART NAME
Transfer roller Approx. 50,000 pages ROLLER-TRANSF
ER
Fuser unit Approx. 50,000 pages FUSER
Pickup roller Approx. 50,000 pages ROLLER-PICK UP
Cassette unit Approx. 50,000 pages CASSETTE
Supplies_41
1. Open the front cover.
2. Pull the toner cartridge out.
3. Take a new toner cartridge out of its package.
4. Remove the paper protecting the toner cartridge by pulling the packing
tape.
5. Locate the sealing tape at the end of the toner cartridge. Carefully pull
the tape completely out of the cartridge and discard it.
• The sealing tape should be longer than 60 cm when correctly
removed.
• Holding the toner cartridge, pull the sealing tape straight to
remove it from the cartridge. Be careful not to cut the tape. If
this happens, you cannot use the toner cartridge.
• Refer to the helpful pictures on the cartridge wrapping paper.
6. Slowly shake the cartridge five or six times to distribute the toner evenly
inside the cartridge. It will assure maximum copies per cartridge.
If toner gets on your clothing, wipe it off with a dry cloth and wash
clothing in cold water. Hot water sets toner into fabric.
Do not touch the green underside of the toner cartridge. Use the
handle on the cartridge to avoid touching this area.
7. Hold the toner cartridge by the handle and slowly insert the cartridge into
the opening in the machine.
Tabs on the sides of the cartridge and corresponding grooves within the
machine will guide the cartridge into the correct position until it locks into
place completely.
8. Close the front cover. Make sure that the cover is securely closed.
Specifications_42
12.specifications
This chapter guides you about this machine’s specifications.
This chapter include:
•Hardware specifications
•Environmental specifications
•Electrical specifications
•Print media specifications
The specification values here are based on preliminary data. See www.samsung.com/printer for current information.
HARDWARE SPECIFICATIONS
ENVIRONMENTAL SPECIFICATIONS
ITEM DESCRIPTION
Dimension Height 197 mm (7.76 inches)
Depth 389 mm (15.31 inches)
Width 360 mm (14.17 inches)
Weight Machine with consumables 7.30 Kg (16.09 lbs)
Package weight Paper 1.23 Kg (2.70 lbs)
Plastic 0.19 Kg (0.42 lbs)
ITEM DESCRIPTION
Noise Levela
a.Sound Pressure Level, ISO 7779. Configuration tested: machine basic installation, A4 paper, simplex printing.
Ready mode 26 dB(A)
Printing mode 50 dB(A)
Temperature Operation 10 to 32 °C (50 to 90 °F)
Storage (unpacked) 0 to 40 °C (32 to 104 °F)
Humidity Operation 20 to 80% RH
Storage (unpacked) 10 to 80% RH
Specifications_43
ELECTRICAL SPECIFICATIONS
Power requirements are based on the country/region where the device is sold. Do not convert operating voltages. Doing so might damage the device and
void the product warranty.
ITEM DESCRIPTION
Power ratinga
a.See the rating label on the machine for the correct voltage, frequency (hertz) and type of current for your machine.
110 volt models AC 110 - 127 V
220 volt models AC 220 - 240 V
Power consumption Average operating mode Less than 360 W
Ready mode Less than 60 W
Power save mode Less than 8 W
Power off mode Less than 0.8 W
Specifications_44
PRINT MEDIA SPECIFICATIONS
TYPE SIZE DIMENSIONS
PRINT MEDIA WEIGHTa/CAPACITYb
a.If media weight is over 120 g/m2 (32 lb), load a paper into the tray one by one.
b.Maximum capacity may differ depending on media weight, thickness and environmental conditions.
TRAY1 MANUAL TRAY
Plain paper Letter 216 x 279 mm (8.50 x 11.00 inches) 60 to 120 g/m2 (16 to 32 lb bond)
•250 sheets of 80 g/m2 (20 lb
bond)
60 to 220 g/m2 (16 to 43 lb bond)
•1 sheet stacking
Legal 216 x 356 mm (8.50 x 14.00 inches)
US Folio 216 x 330 mm (8.50 x 13.00 inches)
A4 210 x 297 mm (8.27 x 11.69 inches)
Oficio 216 x 343 mm (8.50 x 13.50 inches)
JIS B5 182 x 257 mm (7.17 x 10.12 inches) 60 to 90 g/m2 (16 to 24 lb bond)
•150 sheets of 80 g/m2 (20 lb
bond)
ISO B5 176 x 250 mm (6.93 x 9.84 inches)
Executive 184 x 267 mm (7.25 x 0 inches)
A5 148 x 210 mm (5.83 x 8.27 inches)
A6 105 x 148 mm (4.13 x 5.83 inches)
Envelope Envelope Monarch 98 x 191 mm (3.87 x 7.50 inches) Not available in tray1. 75 to 90 g/m2 (20 to 24 lb bond)
•1 sheet stacking
Envelope No. 10 105 x 241 mm (4.12 x 9.50 inches)
Envelope DL 110 x 220 mm (4.33 x 8.66 inches)
Envelope C5 162 x 229 mm (6.38 x 9.02 inches)
Envelope C6 114 x 162 mm (4.49 x 6.38 inches)
Thick paper Refer to the Plain
paper section
Refer to the Plain paper section 90 g/m2 (24 lb bond) 90 g/m2 (24 lb bond)
•1 sheet stacking
Thin paper Refer to the Plain
paper section
Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lb bond) 60 to 70 g/m2 (16 to 19 lb bond)
•1 sheet stacking
Transparency Refer to the Plain
paper section
Refer to the Plain paper section Not available in tray1. 138 to 146 g/m2 (36.81 to 38.91
lb bond)
•1 sheet stacking
Labelsc
c. Smoothness: 100 to 250 (sheffield).
Letter, Legal, US
Folio, A4, JIS B5, ISO
B5, Executive, A5,
Statement
Refer to the Plain paper section Not available in tray1. 120 to 150 g/m2 (32 to 40 lb
bond)
•1 sheet stacking
Card stock Letter, Legal, US
Folio, A4, JIS B5, ISO
B5, Executive, A5,
Statement, PostCard
4x6
Refer to the Plain paper section Not available in tray1. 105 to 163 g/m2 ( 28 to 43 lb
bond)
•1 sheet stacking
Minimum size (custom) 76 x 127 mm (3.00 x 5.00 inches) 60 to 163 g/m2 (16 to 43 lb bond)
Maximum size (custom) 216 x 356 mm (8.50 x 14.02 inches)
Contact SAMSUNG worldwide_150
contact samsung worldwide
If you have any comments or questions regarding Samsung products, contact the Samsung customer care center.
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
ARGENTINE 0800-333-3733 www.samsung.com/ar
AUSTRALIA 1300 362 603 www.samsung.com/au
AUSTRIA 0810-SAMSUNG (7267864,
€ 0.07/min)
www.samsung.com/at
BELARUS 810-800-500-55-500 www.samsung/ua
www.
samsung
.com/ua_ru
BELGIUM 02 201 2418 www.samsung.com/be
(Dutch)
www.samsung.com/be_fr
(French)
BRAZIL 0800-124-421
4004-0000
www.samsung.com/br
CANADA 1-800-SAMSUNG
(726-7864)
www.samsung.com/ca
CHILE 800-SAMSUNG (726-7864) www.samsung.com/cl
CHINA 400-810-5858
010-6475 1880
www.samsung.com/cn
COLOMBIA 01-8000112112 www.samsung.com.co
COSTA RICA 0-800-507-7267 www.samsung.com/latin
CZECH
REPUBLIC
800-SAMSUNG
(800-726786)
www.samsung.com/cz
Samsung Zrt., þeská organizaþní složka, Oasis Florenc,
Sokolovská394/17, 180 00, Praha 8
DENMARK 8-SAMSUNG (7267864) www.samsung.com/dk
ECUADOR 1-800-10-7267 www.samsung.com/latin
EL SALVADOR 800-6225 www.samsung.com/latin
ESTONIA 800-7267 www.samsung.com/ee
KAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
KYRGYZSTAN 00-800-500-55-500
FINLAND 30-6227 515 www.samsung.com/fi
FRANCE 01 4863 0000 www.samsung.com/fr
GERMANY 01805 - SAMSUNG
(726-7864 € 0,14/min)
www.samsung.de
GUATEMALA 1-800-299-0013 www.samsung.com/latin
HONDURAS 800-7919267 www.samsung.com/latin
HONG KONG 3698-4698 www.samsung.com/hk
www.samsung.com/hk_en/
HUNGARY 06-80-SAMSUNG
(726-7864)
www.samsung.com/hu
INDIA 3030 8282
1800 110011
1800 3000 8282
www.samsung.com/in
INDONESIA 0800-112-8888 www.samsung.com/id
ITALIA 800-SAMSUNG (726-7864) www.samsung.com/it
JAMAICA 1-800-234-7267 www.samsung.com/latin
JAPAN 0120-327-527 www.samsung.com/jp
LATVIA 8000-7267 www.samsung.com/lv
LITHUANIA 8-800-77777 www.samsung.com/lt
LUXEMBURG 02 261 03 710 www.samsung.com/lu
MALAYSIA 1800-88-9999 www.samsung.com/my
MEXICO 01-800-SAMSUNG
(726-7864)
www.samsung.com/mx
MOLDOVA 00-800-500-55-500 www.samsung/ua
www.
samsung
.com/ua_ru
NETHERLANDS 0900-SAMSUNG
(0900-7267864) (€
0,10/min)
www.samsung.com/nl
NEW ZEALAND 0800 SAMSUNG (0800 726
786)
www.samsung.com/nz
NICARAGUA 00-1800-5077267 www.samsung.com/latin
NORWAY 3-SAMSUNG (7267864) www.samsung.com/no
PANAMA 800-7267 www.samsung.com/latin
PHILIPPINES
1800-10-SAMSUNG
(726-7864)
1-800-3-SAMSUNG
(726-7864)
1-800-8-SAMSUNG
(726-7864)
02-5805777
www.samsung.com/ph
POLAND 0 801 1SAMSUNG
(172678)
022-607-93-33
www.samsung.com/pl
PORTUGAL 80820-SAMSUNG
(726-7864)
www.samsung.com/pt
PUERTO RICO 1-800-682-3180 www.samsung.com/latin
REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
EIRE 0818 717 100 www.samsung.com/ie
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
Contact SAMSUNG worldwide_151
RUSSIA 8-800-555-55-55 www.samsung.ru
SINGAPORE 1800-SAMSUNG
(726-7864)
www.samsung.com/sg
SLOVAKIA 0800-SAMSUNG
(726-7864)
www.samsung.com/sk
SOUTH AFRICA 0860 SAMSUNG
(726-7864)
www.samsung.com/za
SPAIN 902-1-SAMSUNG(902 172
678)
www.samsung.com/es
SWEDEN 0771 726 7864
(SAMSUNG)
www.samsung.com/se
SWITZERLAND 0848-SAMSUNG (7267864,
CHF 0.08/min)
www.samsung.com/ch
TADJIKISTAN 8-10-800-500-55-500
TAIWAN 0800-329-999 www.samsung.com/tw
THAILAND 1800-29-3232
02-689-3232
www.samsung.com/th
TRINIDAD &
TOBAGO
1-800-SAMSUNG
(726-7864)
www.samsung.com/latin
TURKEY 444 77 11 www.samsung.com/tr
U.A.E 800-SAMSUNG (726-7864)
8000-4726
www.samsung.com/ae
U.K 0845 SAMSUNG
(726-7864)
www.samsung.com/uk
U.S.A 1-800-SAMSUNG
(7267864)
www.samsung.com/us
UKRAINE 8-800-502-0000 www.samsung/ua
www.
samsung
.com/ua_ru
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
VENEZUELA 0-800-100-5303 www.samsung.com/latin
VIETNAM 1 800 588 889 www.samsung.com/vn
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
Glossary_47
glossary
The following glossary helps you get familiar with the product by
understanding the terminologies commonly used with printing as well
as mentioned in this user’s guide.
802.11
802.11 is a set of standards for wireless local area network (WLAN)
communication, developed by the IEEE LAN/MAN Standards
Committee (IEEE 802).
802.11b/g
802.11b/g can share same hardware and use the 2.4 GHz band.
802.11b supports bandwidth up to 11 Mbps; 802.11g up to 54 Mbps.
802.11b/g devices may occasionally suffer interference from microwave
ovens, cordless telephones, and Bluetooth devices.
Access point
Access Point or Wireless Access Point (AP or WAP) is a device that
connects wireless communication devices together on wireless local
area networks (WLAN), and acts as a central transmitter and receiver of
WLAN radio signals.
ADF
An Automatic Document Feeder (ADF) is a mechanism that will
automatically feed an original sheet of paper so that the machine can
scan some amount of the paper at once.
AppleTalk
AppleTalk is a proprietary suite of protocols developed by Apple, Inc for
computer networking. It was included in the original Macintosh (1984)
and is now deprecated by Apple in favor of TCP/IP networking.
BIT Depth
A computer graphics term describing the number of bits used to
represent the color of a single pixel in a bitmapped image. Higher color
depth gives a broader range of distinct colors. As the number of bits
increases, the number of possible colors becomes impractically large for
a color map. 1-bit color is commonly called as monochrome or black and
white.
BMP
A bitmapped graphics format used internally by the Microsoft Windows
graphics subsystem (GDI), and used commonly as a simple graphics file
format on that platform.
BOOTP
Bootstrap Protocol. A network protocol used by a network client to
obtain its IP address automatically. This is usually done in the bootstrap
process of computers or operating systems running on them. The
BOOTP servers assign the IP address from a pool of addresses to each
client. BOOTP enables 'diskless workstation' computers to obtain an IP
address prior to loading any advanced operating system.
CCD
Charge Coupled Device (CCD) is a hardware which enables the scan
job. CCD Locking mechanism is also used to hold the CCD module to
prevent any damage when you move the machine.
Collation
Collation is a process of printing a multiple-copy job in sets. When
collation is selected, the device prints an entire set before printing
additional copies.
Control Panel
A control panel is a flat, typically vertical, area where control or
monitoring instruments are displayed. They are typically found in front of
the machine.
Coverage
It is the printing term used for a toner usage measurement on printing.
For example, 5% coverage means that an A4 sided paper has about 5%
image or text on it. So, if the paper or original has complicated images or
lots of text on it, the coverage will be higher and at the same time, a
toner usage will be as much as the coverage.
CSV
Comma Separated Values (CSV). A type of file format, CSV is used to
exchange data between disparate applications. The file format, as it is
used in Microsoft Excel, has become a pseudo standard throughout the
industry, even among non-Microsoft platforms.
DADF
A Duplex Automatic Document Feeder (DADF) is a mechanism that will
automatically feed and flip over an original sheet of paper so that the
machine can scan on both sides of the paper.
Default
The value or setting that is in effect when taking a printer out of its box
state, reset, or initialized.
DHCP
A Dynamic Host Configuration Protocol (DHCP) is a client-server
networking protocol. A DHCP server provides configuration parameters
specific to the DHCP client host requesting, generally, information
required by the client host to participate on an IP network. DHCP also
provides a mechanism for allocation of IP addresses to client hosts.
DIMM
Dual Inline Memory Module (DIMM), a small circuit board that holds
memory. DIMM stores all the data within the machine like printing data,
received fax data.
Glossary_48
DNS
The Domain Name Server (DNS) is a system that stores information
associated with domain names in a distributed database on networks,
such as the Internet.
Dot Matrix Printer
A dot matrix printer refers to a type of computer printer with a print head
that runs back and forth on the page and prints by impact, striking an
ink-soaked cloth ribbon against the paper, much like a typewriter.
DPI
Dots Per Inch (DPI) is a measurement of resolution that is used for
scanning and printing. Generally, higher DPI results in a higher
resolution, more visible detail in the image, and a larger file size.
DRPD
Distinctive Ring Pattern Detection. Distinctive Ring is a telephone
company service which enables a user to use a single telephone line to
answer several different telephone numbers.
Duplex
A mechanism that will automatically flip over a sheet of paper so that the
machine can print (or scan) on both sides of the paper. A printer
equipped with a Duplex can print double-sided of paper.
Duty Cycle
Duty cycle is the page quantity which does not affect printer
performance for a month. Generally the printer has the lifespan limitation
such as pages per year. The lifespan means the average capacity of
print-outs, usually within the warranty period. For example, if the duty
cycle is 48,000 pages per month assuming 20 working days, a printer
limits 2,400 pages a day.
ECM
Error Correction Mode (ECM) is an optional transmission mode built into
Class 1 fax machines or fax modems. It automatically detects and
corrects errors in the fax transmission process that are sometimes
caused by telephone line noise.
Emulation
Emulation is a technique of one machine obtaining the same results as
another.
An emulator duplicates the functions of one system with a different
system, so that the second system behaves like the first system.
Emulation focuses on exact reproduction of external behavior, which is
in contrast to simulation, which concerns an abstract model of the
system being simulated, often considering its internal state.
Ethernet
Ethernet is a frame-based computer networking technology for local
area networks (LANs). It defines wiring and signaling for the physical
layer, and frame formats and protocols for the media access control
(MAC)/data link layer of the OSI model. Ethernet is mostly standardized
as IEEE 802.3. It has become the most widespread LAN technology in
use during the 1990s to the present.
EtherTalk
A suite of protocols developed by Apple Computer for computer
networking. It was included in the original Macintosh (1984) and is now
deprecated by Apple in favor of TCP/IP networking.
FDI
Foreign Device Interface (FDI) is a card installed inside the machine to
allow a third party device such as a coin operated device or a card
reader. Those devices allow the pay-for-print service on your machine.
FTP
A File Transfer Protocol (FTP) is a commonly used protocol for
exchanging files over any network that supports the TCP/IP protocol
(such as the Internet or an intranet).
Fuser Unit
The part of a laser printer that melts the toner onto the print media. It
consists of a hot roller and a back-up roller. After toner is transferred
onto the paper, the fuser unit applies heat and pressure to ensure that
the toner stays on the paper permanently, which is why paper is warm
when it comes out of a laser printer.
Gateway
A connection between computer networks, or between a computer
network and a telephone line. It is very popular, as it is a computer or a
network that allows access to another computer or network.
Grayscale
A shades of gray that represent light and dark portions of an image
when color images are converted to grayscale; colors are represented
by various shades of gray.
Halftone
An image type that simulates grayscale by varying the number of dots.
Highly colored areas consist of a large number of dots, while lighter
areas consist of a smaller number of dots.
HDD
Hard Disk Drive (HDD), commonly referred to as a hard drive or hard
disk, is a non-volatile storage device which stores digitally-encoded data
on rapidly rotating platters with magnetic surfaces.
IEEE
The Institute of Electrical and Electronics Engineers (IEEE) is an
international non-profit, professional organization for the advancement
of technology related to electricity.
IEEE 1284
The 1284 parallel port standard was developed by the Institute of
Electrical and Electronics Engineers (IEEE). The term "1284-B" refers to
a specific connector type on the end of the parallel cable that attaches to
the peripheral (for example, a printer).
Glossary_49
Intranet
A private network that uses Internet Protocols, network connectivity, and
possibly the public telecommunication system to securely share part of
an organization's information or operations with its employees.
Sometimes the term refers only to the most visible service, the internal
website.
IP address
An Internet Protocol (IP) address is a unique number that devices use in
order to identify and communicate with each other on a network utilizing
the Internet Protocol standard.
IPM
The Images Per Minute (IPM) is a way of measuring the speed of a
printer. An IPM rate indicates the number of single-sided sheets a printer
can complete within one minute.
IPP
The Internet Printing Protocol (IPP) defines a standard protocol for
printing as well as managing print jobs, media size, resolution, and so
forth. IPP can be used locally or over the Internet to hundreds of
printers, and also supports access control, authentication, and
encryption, making it a much more capable and secure printing solution
than older ones.
IPX/SPX
IPX/SPX stands for Internet Packet Exchange/Sequenced Packet
Exchange. It is a networking protocol used by the Novell NetWare
operating systems. IPX and SPX both provide connection services
similar to TCP/IP, with the IPX protocol having similarities to IP, and
SPX having similarities to TCP. IPX/SPX was primarily designed for
local area networks (LANs), and is a very efficient protocol for this
purpose (typically its performance exceeds that of TCP/IP on a LAN).
ISO
The International Organization for Standardization (ISO) is an
international standard-setting body composed of representatives from
national standards bodies. It produces world-wide industrial and
commercial standards.
ITU-T
The International Telecommunication Union is an international
organization established to standardize and regulate international radio
and telecommunications. Its main tasks include standardization,
allocation of the radio spectrum, and organizing interconnection
arrangements between different countries to allow international phone
calls. A -T out of ITU-T indicates telecommunication.
ITU-T No. 1 chart
Standardized test chart published by ITU-T for document facsimile
transmissions.
JBIG
Joint Bi-level Image Experts Group (JBIG) is an image compression
standard with no loss of accuracy or quality, which was designed for
compression of binary images, particularly for faxes, but can also be
used on other images.
JPEG
Joint Photographic Experts Group (JPEG) is a most commonly used
standard method of lossy compression for photographic images. It is the
format used for storing and transmitting photographs on the World Wide
Web.
LDAP
The Lightweight Directory Access Protocol (LDAP) is a networking
protocol for querying and modifying directory services running over
TCP/IP.
LED
A Light-Emitting Diode (LED) is a semiconductor device that indicates
the status of a machine.
MAC address
Media Access Control (MAC) address is a unique identifier associated
with a network adapter. MAC address is a unique 48-bit identifier usually
written as 12 hexadecimal characters grouped in pairs (e. g.,
00-00-0c-34-11-4e). This address is usually hard-coded into a Network
Interface Card (NIC) by its manufacturer, and used as an aid for routers
trying to locate machines on large networks.
MFP
Multi Function Peripheral (MFP) is an office machine that includes the
following functionality in one physical body, so as to have a printer, a
copier, a fax, a scanner and etc.
MH
Modified Huffman (MH) is a compression method for decreasing the
amount of data that needs to be transmitted between the fax machines
to transfer the image recommended by ITU-T T.4. MH is a
codebook-based run-length encoding scheme optimized to efficiently
compress white space. As most faxes consist mostly of white space, this
minimizes the transmission time of most faxes.
MMR
Modified Modified READ (MMR) is a compression method
recommended by ITU-T T.6.
Modem
A device that modulates a carrier signal to encode digital information,
and also demodulates such a carrier signal to decode transmitted
information.
MR
Modified Read (MR) is a compression method recommended by ITU-T
T.4. MR encodes the first scanned line using MH. The next line is
compared to the first, the differences determined, and then the
differences are encoded and transmitted.
Glossary_50
NetWare
A network operating system developed by Novell, Inc. It initially used
cooperative multitasking to run various services on a PC, and the
network protocols were based on the archetypal Xerox XNS stack.
Today NetWare supports TCP/IP as well as IPX/SPX.
OPC
Organic Photo Conductor (OPC) is a mechanism that makes a virtual
image for print using a laser beam emitted from a laser printer, and it is
usually green or gray colored and a cylinder shaped.
An exposing unit of a drum is slowly worn away by its usage of the
printer, and it should be replaced appropriately since it gets scratches
from grits of a paper.
Originals
The first example of something, such as a document, photograph or text,
etc, which is copied, reproduced or translated to produce others, but
which is not itself copied or derived from something else.
OSI
Open Systems Interconnection (OSI) is a model developed by the
International Organization for Standardization (ISO) for communications.
OSI offers a standard, modular approach to network design that divides
the required set of complex functions into manageable, self-contained,
functional layers. The layers are, from top to bottom, Application,
Presentation, Session, Transport, Network, Data Link and Physical.
PABX
A private automatic branch exchange (PABX) is an automatic telephone
switching system within a private enterprise.
PCL
Printer Command Language (PCL) is a Page Description Language
(PDL) developed by HP as a printer protocol and has become an
industry standard. Originally developed for early inkjet printers, PCL has
been released in varying levels for thermal, matrix printer, and page
printers.
PDF
Portable Document Format (PDF) is a proprietary file format developed
by Adobe Systems for representing two dimensional documents in a
device independent and resolution independent format.
PostScript
PostScript (PS) is a page description language and programming
language used primarily in the electronic and desktop publishing areas. -
that is run in an interpreter to generate an image.
Printer Driver
A program used to send commands and transfer data from the computer
to the printer.
Print Media
The media like paper, envelopes, labels, and transparencies which can
be used on a printer, a scanner, a fax or, a copier.
PPM
Pages Per Minute (PPM) is a method of measurement for determining
how fast a printer works, meaning the number of pages a printer can
produce in one minute.
PRN file
An interface for a device driver, this allows software to interact with the
device driver using standard input/output system calls, which simplifies
many tasks.
Protocol
A convention or standard that controls or enables the connection,
communication, and data transfer between two computing endpoints.
PS
See PostScript.
PSTN
The Public-Switched Telephone Network (PSTN) is the network of the
world's public circuit-switched telephone networks which, on industrial
premises, is usually routed through the switchboard.
RADIUS
Remote Authentication Dial In User Service (RADIUS) is a protocol for
remote user authentication and accounting. RADIUS enables
centralized management of authentication data such as usernames and
passwords using an AAA (authentication, authorization, and accounting)
concept to manage network access.
Resolution
The sharpness of an image, measured in Dots Per Inch (DPI). The
higher the dpi, the greater the resolution.
SMB
Server Message Block (SMB) is a network protocol mainly applied to
share files, printers, serial ports, and miscellaneous communications
between nodes on a network. It also provides an authenticated
Inter-process communication mechanism.
SMTP
Simple Mail Transfer Protocol (SMTP) is the standard for e-mail
transmissions across the Internet. SMTP is a relatively simple,
text-based protocol, where one or more recipients of a message are
specified, and then the message text is transferred. It is a client-server
protocol, where the client transmits an email message to the server.
SSID
Service Set Identifier (SSID) is a name of a wireless local area network
(WLAN). All wireless devices in a WLAN use the same SSID in order to
communicate with each other. The SSIDs are case-sensitive and have a
maximum length of 32 characters.
Glossary_51
Subnet Mask
The subnet mask is used in conjunction with the network address to
determine which part of the address is the network address and which
part is the host address.
TCP/IP
The Transmission Control Protocol (TCP) and the Internet Protocol (IP);
the set of communications protocols that implement the protocol stack
on which the Internet and most commercial networks run.
TCR
Transmission Confirmation Report (TCR) provides details of each
transmission such as job status, transmission result and number of
pages sent. This report can be set to print after each job or only after
failed transmissions.
TIFF
Tagged Image File Format (TIFF) is a variable-resolution bitmapped
image format. TIFF describes image data that typically come from
scanners. TIFF images make use of tags, keywords defining the
characteristics of the image that is included in the file. This flexible and
platform-independent format can be used for pictures that have been
made by various image processing applications.
Toner Cartridge
A kind of bottle within a machine like printer which contains toner. Toner
is a powder used in laser printers and photocopiers, which forms the text
and images on the printed paper. Toner can be melted by the heat of the
fuser, causing it to bind to the fibers in the paper.
TWAIN
An industry standard for scanners and software. By using a
TWAIN-compliant scanner with a TWAIN-compliant program, a scan can
be initiated from within the program.; an image capture API for Microsoft
Windows and Apple Macintosh operating systems.
UNC Path
Uniform Naming Convention (UNC) is a standard way to access network
shares in Window NT and other Microsoft products. The format of a
UNC path is: \\<servername>\<sharename>\<Additional directory>
URL
Uniform Resource Locator (URL) is the global address of documents
and resources on the Internet. The first part of the address indicates
what protocol to use, the second part specifies the IP address or the
domain name where the resource is located.
USB
Universal Serial Bus (USB) is a standard that was developed by the
USB Implementers Forum, Inc., to connect computers and peripherals.
Unlike the parallel port, USB is designed to concurrently connect a
single computer USB port to multiple peripherals.
Watermark
A watermark is a recognizable image or pattern in paper that appears
lighter when viewed by transmitted light. Watermarks were first
introduced in Bologna, Italy in 1282; they have been used by
papermakers to identify their product, and also on postage stamps,
currency, and other government documents to discourage
counterfeiting.
WEP
Wired Equivalent Privacy (WEP) is a security protocol specified in IEEE
802.11 to provide the same level of security as that of a wired LAN. WEP
provides security by encrypting data over radio so that it is protected as
it is transmitted from one end point to another.
WIA
Windows Imaging Architecture (WIA) is an imaging architecture that is
originally introduced in Windows Me and Windows XP. A scan can be
initiated from within these operating systems by using a WIA-compliant
scanner.
WPA
Wi-Fi Protected Access (WPA) is a class of systems to secure wireless
(Wi-Fi) computer networks, which was created to improve upon the
security features of WEP.
WPA-PSK
WPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small
business or home users. A shared key, or password, is configured in the
wireless access point (WAP) and any wireless laptop or desktop
devices. WPA-PSK generates a unique key for each session between a
wireless client and the associated WAP for more advanced security.
Index_90
index
A
adjusting
tray size 47
B
booklet printing 56
booklets 56
C
change percentage of your document 57
cleaning
inside 66
outside 66
cleaning a machine 66
control panel 24
convention 18
D
duplex printing (manual)
printer driver 56
F
favorites settings, for printing 55
features 20
machine features 80
power saving feature 47, 82, 54
supplied software 27
font setting 48
front view 22
G
glossary 85
J
jam
clearing paper 69
tips for avoiding paper jams 69
L
Linux
common Linux problems 76
driver installation for network connected
37, 30
printer properties 61, 60
supplied softwares 28
unifled driver configurator 63, 35
loading
paper in manual tray 51, 50
special media 51
M
Macintosh
common Macintosh problems 77
driver installation for network connected
36, 30
printing 59
sharing a machine locally 32, 28
using SetIP 34, 45
maintenance parts 78
manual tray
