1.1 <Introduction>1 IntroductionCongratulations on the purchase of your printer! This chapter includes:• Special features• Printer overview• Finding more informationSpecial featuresYour new printer is equipped with several special features that improve the print quality. You can:Print with excellent quality and high speed• You can print up to 1200 x 1200 dpi effective output. See the Software Section.• Your printer prints A4-sized paper at up to 28 ppma and letter-sized paper at up to 30 ppm. If you use the ML-3051ND, for duplex printing, your printer prints A4-sized paper at up to 19 ipmb and letter-sized paper at up to 21 ipm.a. pages per minuteb. images per minuteHandle paper flexibly• The multi-purpose tray supports letterheads, envelopes, labels, transparencies, custom-sized materials, postcards, and heavy paper. The multi-purpose tray holds up to 50 sheets of plain paper.• The 250-sheet tray 1 and 250-sheet optional tray 2 support plain paper in various sizes.• Two output tray; select either the output tray (face-down) or the rear cover (face-up) for the most convenient access.• Straight-through paper path capability from the multi-purpose tray to the rear cover.Create professional documents• Print Watermarks. You can customize your documents with words, such as “Confidential.” See the Software Section.• Print Booklets. This feature enables you to easily print a document to create a book. Once printed, all you have to do is fold and staple the pages. See the Software Section.• Print Posters. The text and pictures of each page of your document are magnified and printed across the sheet of paper and can then be taped together to form a poster. See the Software Section.98Save time and money• This printer allows you to use toner save mode to save toner. See page 2.7.• You can print on both sides of the paper to save paper (double-sided printing) if you use the ML-3051ND.• You can print multiple pages on a single sheet of paper to save paper (2-Up printing). See the Software Section.• You can use preprinted forms and letterhead with plain paper. See the Software Section.• This printer automatically conserves electricity by substantially reducing power consumption when not in use.• This printer meets Energy Star guidelines for energy efficiency.Expand the printer capacity• The ML-3050 has 32 MB of memory which can be expanded to 288 MB. The ML-3051N or ML-3051ND has 64 MB of memory which can be expanded to 320 MB. See page 10.1.• A Network interface enables network printing. You can add an optional network printer server to the ML-3050.• You can also add an optional wireless network interface card to the ML-3051N and ML-3051ND.• You can add a 250-sheet optional tray 2 to your printer. This tray lets you add paper to the printer less often.• A PostScript 3 Emulation* (PS) enables PS printing (ML-3051N, ML-3051ND).* PostScript 3 Emulation• © Copyright 1995-2005, Zoran Corporation. All rights reserved. Zoran, the Zoran logo, IPS/PS3 and OneImage are trademarks of Zoran Corporation.* 136 PS3 fonts• Contains UFST and MicroType from Monotype Imaging Inc.Print in various environments• You can print in Windows 95/98/Me/NT 4.0/2000/XP/2003.• Your printer is compatible with Linux and Macintosh.• Your printer comes with both Parallel and USB interfaces. • You can also use a network interface. The ML-3051N and ML-3051ND come with a built-in network interface, 10/100 Base TX. However, you need to install the optional network printer server to the ML-3050.
1.2 <Introduction>Printer featuresThe table below lists a general overview of features supported by your printer.(I: Installed, O: Option, NA: Not Available)Features ML-3050 ML-3051N ML-3051NDIEEE 1284 Parallel I I IUSB 2.0 I I INetwork Interface(Ethernet 10/100 Base TX)OI IWireless LAN(IEEE 802.11 b/g Wireless LAN)OO OPostScript* Emulation NA I IDuplex printingaa. Printing on both sides of paper.NA NA IPrinter overviewFront view1output tray 7multi-purpose tray2control panel 8front cover3handle 9output support4paper level indicator 10 multi-purpose tray paper width guides5optional tray 2 11 multi-purpose tray extension6tray 1* The figure above shows an ML-3051ND with all available options.
1.3 <Introduction>Rear view1control board cover 6duplex unit2network port 7power receptacle3USB port 8power switch4parallel port 9rear cover5optional tray 2 cable connector* The figure above shows an ML-3051ND with all available options.Control panel overviewML-3050ML-3051N and ML-3051ND1Toner Save: Allows you to save on toner by using less toner in printing.2Demo: Allows you to print a demo page.3Stop: Stops an operation at any time.4Status: Shows the status of your printer. See page 9.6.1Menu: Enters Menu mode and scrolls through the available menus.2Scroll buttons: Scroll through the options available in the selected menu, and increase or decrease values.3OK: Confirms the selection on the display.4Back: Sends you back to the upper menu level.5Toner Save: Allows you to save on toner by using less toner in printing.6ML-3051N_Demo: Allows you to print a demo page.ML-3051ND_Duplex: Allows you to print documents on both sides of the paper.7Stop: Stops an operation at any time.8Status: Shows the status of your printer. See page 9.6.
1.4 <Introduction>Finding more informationYou can find information for setting up and using your from the following resources, either printed or onscreen.Quick Install Guide Provides information on setting up your printer and, therefore, be sure to follow the instructions in the guide to get the printer ready.Online User’s Guide Provides you with step-by-step instructions for using your printer’s full features, and contains information for maintaining your printer, troubleshooting, and installing accessories.This user’s guide also contains the Software Section providing you with information on how to print documents with your printer on various operating systems, and how to use the supplied software utilities.Note You can access the user’s guides in other languages from the Manual folder on the printer driver CD.Network Printer User’s Guide Contained on the network utilities CD, provides you with information on setting up and connecting your printer to a network.Printer Driver Help Provides you with help information on printer driver properties and instructions for setting up the properties for printing. To access a printer driver help screen, click Help from the printer properties dialog box.Samsung website If you have Internet access, you can get help, support, printer drivers, manuals, and order information from the Samsung website, www.samsungprinter.com.Selecting a locationSelect a level, stable place with adequate space for air circulation. Allow extra space for opening covers and trays. The area should be well-ventilated and away from direct sunlight or sources of heat, cold, and humidity. Do not set the printer close to the edge of your desk or table.Clearance spaceFront: 500 mm (enough space so that trays can be opened or removed)Back: 350 mm (enough space to allow opening of the rear cover or the duplex unit)Right: 100 mm (enough space for ventilation)Left: 100 mm (enough space to allow opening of the control board cover)
2.1 <System setup>2 System setupThis chapter provides step by step information on setting up your printer. This chapter includes:• Using control panel menus (ML-3051N, ML-3051ND only)• Menu overview• Printing a demo page• Changing the display language (ML-3051N, ML-3051ND only)• Using toner save modeUsing control panel menus (ML-3051N, ML-3051ND only)A number of menus are available to make it easy for you to change the printer settings. The diagram on the next column shows the menus and all of the menu items available in each menu. The items in each menu and the options you can select are described in more detail in the tables beginning on page 2.2.Accessing control panel menusYou can control your printer from the printer’s control panel. You can also set the control panel menus while the printer is in use.1Press Menu until the menu you want appears on the bottom line of the display and press OK.2Press the Scroll buttons until the desired menu item appears and press OK. 3If the menu item has sub menus, repeat step 2.4Press the Scroll buttons to access the desired setting option or the required value.5Press OK to save your selection.An asterisk (*) appears next to the selection on the display, indicating that it is now the default.6Press Stop to return to Standby mode.After 60 seconds of inactivity (no key being pressed), the printer automatically returns to Standby mode.NotePrint settings made from the printer driver on a connected computer override the settings on the control panel.Menu overviewThe control panel menus are used to configure the printer. The control panel provides access to the following menus: a. Available with the ML-3051ND.b. Available with optional wireless network interface.Information(See page 2.2.)Menu MapConfiguratonDemo PagePCL Font ListPS3 Font ListEPSON FontLayout(See page 2.2.)OrientationSimplex MarginDuplexsaDuplex MarginaEmulation(See page 2.4.)Emulation TypeSetupPaper(See page 2.3.)CopiesPaper SizePaper TypePaper SourceTray ChainingSystem Setup(See page 2.4.)LanguagePower SaveAuto ContinueJam RecoveryAltitude Adj.Auto CRJob TimeoutMaintenanceClear SettingGraphic(See page 2.3.)ResolutionDarknessImage EnhanceNetwork(See page 2.6.)TCP/IPEtherTalkNetWareEthernet SpeedWirelessbClear SettingNetwork Info
2.2 <System setup>Information menuThis menu contains printer information pages that give details about the printer and its configuration.Layout menuUse the Layout menu to define all settings relating to output.(*: the default setting)Item ExplanationMenu Map The menu map shows the layout and current settings of the control panel menu items.Configuraton The configuration page shows the printer’s current configuration. See page 8.1.Demo Page The demo page allows you to check if your printer properly performs printing. See page 2.6.PCL Font List PS3 Font List EPSON FontThe font sample list shows all of the fonts currently available in the selected language.Item ExplanationOrientationChoose the default orientation of the print image on the page. Simplex MarginSet the margin of print materials for one-sided printing. You can increase or decrease the value in 0.1 mm increments.•Top Margin: Set the top margin, from 0.0 to 250 mm. •Left Margin: Set the left margin, from 0.0 to 164 mm.Values: Portrait*, LandscapePortrait LandscapeValues: 0.0*DuplexTo print on both sides of paper, choose the binding edge as follows.•Long Edge: Flip on the long edge. Prints pages to read like a book.•Short Edge: Flip on the short edge. Prints pages to read by flipping over like a note pad.Select Off to print on one side of the paper.NoteThis menu item is available only with the ML-3051ND.Duplex MarginIn this menu, you can set the margins for double-sided printing. You can increase or decrease the value in 0.1 mm increments.•Top Margin: Set the top margin, from 0.0 to 9.9 mm.•Left Margin: Set the left margin, from 0.0 to 9.9 mm.•Short Binding: Set the bottom margin of the back of the page for short binding, from 0.0 to 22 mm.•Long Binding: Set the right margin of the back of the page for long binding, from 0.0 to 22 mm.NoteThis menu item is available only with the ML-3051ND.Item ExplanationValues: Off*, Long Edge, Short EdgeLong Edge in thePortrait orientation Long Edge in the Landscape orientation253253253253Short Edge in the Landscape orientationShort Edge in the Portrait orientationValues: Top/Left:5.0*, Short/Long: 0*
2.3 <System setup>Paper menu Use the Paper menu to define all settings relating to print material input and output, as well as the specific print material you are using with your printer.(*: the default setting)Item ExplanationCopiesSet the default number of copies by selecting any number from 1 to 999. Paper SizeSelect the paper size currently loaded in the tray.Paper TypeSelect the paper type currently loaded in the tray.Paper SourceUsing this item, you can set which tray you want to use. • If you select Auto, the printer can automatically determine the source. •Select MP Tray or Manual Tray to use the multi-purpose tray. If you select Manual Tray, you need to press Stop (ML-3050) or OK (ML-3051N, ML-3051ND) each time you print a page. •Tray 2 is available only when an optional tray 2 is installed.Tray ChainingWhen you select any other value except Auto from Paper Source and the selected tray is empty, the printer automatically prints from other trays.If this menu item is set to Off, the Status LED lights red and the printer doesn’t work until you insert paper into the specified tray. Values: 1* ~ 999Values: A4, A5, A6, JIS B5, ISO B5, Letter, Legal, Executive, No.10 Env., Monarch Env., DL Env., C5 Env., C6 Env., US Folio, Custom Paper* Letter for USA, A4 for Europe and AsiaValues: Plain Paper*, Bond Paper, Transparency, Envelope, Labels, Post Card, CardStock, Preprinted, Recycled, Color Paper, Cotton Paper, Thick Paper, Thin PaperValues: Tray 1, Tray 2, MP Tray, Manual Tray, Auto*Values: Off, On*Graphic menuUse the Graphic menu to change settings affecting the quality of the printed characters and images.(*: the default setting)Item ExplanationResolutionSpecify the number of dots printed per inch (dpi). The higher the setting, the sharper printed characters and graphics. • Select 300dpi-Draft to print a draft document.• If your print jobs are mostly text, select 600dpi-Normal for the highest quality printing. • Select 1200dpi-Best when your job contains bitmapped images, such as scanned photos or some graphics, that will benefit from enhanced line screening.DarknessYou can lighten or darken the print on the page by changing the toner density setting. The Normal setting usually produces the best result. Use the Light toner density setting to save toner. Image EnhanceThis item enhances the print quality. •Normal: Doesn’t enhance the quality.•Image Enhance: Enhances bitmap images, like scanned pictures.•Text Enhance: Enhances letters and simple figures. Values: 300dpi-Draft, 600dpi-Normal*, 1200dpi-BestValues: Normal*, Light, DarkValues: Normal, Image Enhance, Text Enhance*
2.4 <System setup>System Setup menuUse the System Setup menu to configure a variety of printer features.(*: the default setting)Item ExplanationLanguageThis setting determines the language of the text that appears on the control panel display and information printing.Power SaveWhen the printer does not receive data for an extended period of time, power consumption is automatically lowered. You can set how long the printer waits before going to power save mode.Auto ContinueThis item determines whether or not the printer continues printing when it detects the paper unmatched to your paper setting. •Off: If a paper mismatch occurs, the message will remain on the display and the printer will remain off-line until you insert the correct paper.•On: If the paper is mismatched occurs, an error message will display. The printer will go offline for 30 seconds, then automatically clear the message and continue printing. Jam RecoveryThis item determines how the printer behaves when a paper jam occurs. •Off: The printer does not reprint pages. Printing performance might be increased with this setting.•On: The printer automatically reprints pages after you clear the paper jam.Altitude Adj.You can optimize print quality according to your altitude.Values: English*, FRANCAIS, Espanol, I. Portuguese, B. Portugues, Deutsch, Italiano,.Values: 5 Min*, 10 Min, 15 Min, 30 Min, 45 MinValues: Off, On*Values: Off*, OnValues: Low*, HighEmulation menuUse the Emulation menu to configure printer language emulation.(*: the default setting)Auto CRThis item allows you to append the required carriage return to each line feed. Refer to the following samples: Job TimeoutYou can set the length of time the printer waits before printing the last page of a print job that does not end with a command to print the page. When a print time-out occurs, the printer prints the page in the print buffer.Maintenance This item allows you to maintain your printer.•Clean Drum: Cleans the OPC drum of the cartridge and produces a cleaning sheet with toner debris on it.•Clean Fuser: Cleans the fuser unit inside of the printer and produces a cleaning sheet with toner debris on it.•Supplies Life: This item allows you to check how many pages are printed and how much toner are left in the cartridge.Clear Setting This menu item allows you to restore the printer’s factory default settings.Item ExplanationEmulation TypeThe printer language defines how the computer communicates with the printer. If you select Auto, your printer can change the printer language automatically.SetupSee the tables on page 2.5 to configure the printer language.Item ExplanationValues: LF*, LF+CRLF LF+CR AA BB CC AA BB CCValues: 0 ~ 1800 sec *15 secValues: Auto*, PCL, EPSON, HEXDUMP, PS3, IBM ProPrintValues: PCL, PostScript, EPSON
2.5 <System setup>PCLThis menu sets the PCL emulation configuration. You can set the font type, symbol type, lines per page, and point size. (*: the default setting)Item ExplanationTypefaceYou can select the standard font to be used in PCL emulation. • PCL1~PCL7’s interval between letters is fixed, and PCL8~PCL45’s interval is proportional to the font type and point size. You can adjust the font size of PCL1~PCL7 using the Pitch item, and PCL8~PCL45 can do using Point Size item.• PCL46~PCL54’s interval and point size are fixed. SymbolThis item selects the symbol to be used in PCL emulation. The symbol is the group of numbers, marks, and special signs being used when printing letters. Point SizeWhen you select one between PCL8 and PCL45 from the Typeface menu, you can determine the font size by setting the height of the characters in the font. CourierThis item lets you select the version of Courier font to use.PitchWhen you select one between PCL1 and PCL7 from the Typeface menu, you can determine the font size by setting the number of characters that will print in one horizontal inch of type. The default value, 10 is the best size. LinesThis item allows you to set vertical spacing from 5 to 128 lines for the default paper size. The lines may differ according to the paper size and printing orientation. Values: PCL1* ~ PCL54Values: ROMAN8 ~ PCCYRIL *PC8Values: 4.00 ~ 999.75 (0.25 unit) *12Values: Regular*, DarkValues: 0.44 ~ 99.99 (0.01 unit) *10Values: 5 ~ 128 *60 (Letter), 64 (A4)PostScriptThis menu provides you with the Print PS Error menu item.(*: the default setting) EPSONThis menu sets the EPSON emulation configuration.(*: the default setting)Item ExplanationPrint PS ErrorYou can select whether or not your printer prints an error list when a PS error occurs.•Select On to print PS 3 emulation errors. If an error occurs, the job stops processing, the error message prints, and the printer flushes the job. • If this menu is set to Off, the job is flushed without an indication of the error.Item ExplanationFontYou can select the standard font will be used in EPSON emulation. Character SetThis item allows you to select a character set of the desired language.Character Tab.This item selects the character set.PitchYou can determine the font size by setting the number of characters that will print in one horizontal inch of type.LPIYou can set the number of lines printed in one vertical inch. Auto WrapThis item determines whether or not the printer automatically performs line feed when the data overflows the printable area of the print material.Values: On, Off* Values: SANSERIF*, ROMANValues: USA*, FRANCE, GERMANY, UK, DENMARK1, SWEDEN, ITALY, SPAIN1, JAPAN, NORWAY, DENMARK2, SPAIN2, LATINValues: ITALIC, PC437US*, PC850Values: 10*, 12, 17.14, 20Values: 6*, 8Values: Off, On*
2.6 <System setup>Network menuThis menu lets you configure the network interface installed in your printer. You can reset the network interface and print a configuration page.NoteIn the ML-3050 printer, this menu only appears when an optional network printer server is installed.(*: the default setting)Item ExplanationTCP/IPThis item allows you to manually set the TCP/IP addresses or receive the addresses from the network.•DHCP: The DHCP server allots the IP address to you automatically.•BOOTP: The BOOTP server allots the IP address to you automatically. •Static: You can enter IP address, subnet mask, and gateway manually. EtherTalkThis item lets you select whether or not you use the EtherTalk protocol. Select On to use the protocol.NetWareThis item lets you select the IPX frame type.•Auto: You can set the frame type automatically. •802.2: Select this value to use the IEEE 802.2 frame type. •802.3: Select this value to use the IEEE 802.3 frame type. •Ethernet II: Select this value to use the Ethernet 2 frame type.•SNAP: Select this value to use the SNAP frame type.•Off: You can disable the NetWare protocol.Ethernet SpeedThis item allows you to select the ethernet speed.Values: DHCP*, BOOTP, StaticValues: Off, On*Values: Auto*, 802.2, 802.3, Ethernet II, SNAP, OffValues: Auto*, 10M Half, 10M Full, 100M Half, 100M FullPrinting a demo pagePrint a demo page to make sure that the printer is operating correctly.ML-3050, ML-3051NPress and hold Demo for about 2 seconds.ML-3051N, ML-3051ND1Press Menu and then OK when Information appears.2Press the Scroll buttons until Demo Page appears and press OK.A demo page prints out.Changing the display language (ML-3051N, ML-3051ND only)To change the language that is displayed on the control panel, follow these steps:1Press Menu until System Setup appears on the bottom line of the display and press OK.2Press OK when Language appears.3Press the Scroll buttons to select the language you want and press OK.4Press Stop to return to Standby mode.WirelessConfigure the wireless network environments.See page 10.3.NoteThis menu only appears when an optional wireless network interface card has been installed. Clear Setting This item performs a simple reset and restores the factory default settings for the network configuration. This setting will only take effect after you have reset the printer.Network Info This item print a page showing the network parameters you set. Item ExplanationValues: SSID Type, Authentication, Encryption
2.7 <System setup>Using toner save modeToner save mode allows the printer to use less toner on each page. Activating this mode extends the life of your toner cartridge and reduces your cost per page beyond what one would experience in the normal mode, but it reduces print quality. This setting is not available with the 1200 dpi setting.There are two ways to enable this mode:Using the control panel buttonPress Toner Save on the control panel. The printer must be in Standby mode; the Status LED lights green and Ready is shown on the display, if you use the ML-3051N or ML-3051ND.• If the button backlight is on, the mode is enabled and the printer uses less toner to print a page.• If the button backlight is off, the mode is disabled and the printer prints in normal mode.From the software applicationYou can set toner save mode from the printer properties window on your printer driver. See the Software Section.
3.1 <Software overview>3 Software overviewThis chapter gives you an overview of the software that comes with your printer. Further details about installing and using the software are explained in the Software Section.This chapter includes:• Supplied software• Printer driver features• System requirementsSupplied softwareYou must install the printer and scanner software using the supplied CDs after you have set up your printer and connected it to your computer. Each CD provides you with the following software:CD Contentsprinter software CD Windows • Printer driver: Use this driver to take full advantage of your printer’s features.•Smart Panel: This program allows you to monitor the printer’s status and alerts you when an error occurs during printing.•Printer Settings Utility: This program is automatically installed when you install the Smart Panel.•User’s Guide in PDFLinux • Printer driver: Use this driver to run your printer from a Linux computer and print documents.•Smart Panel: This program allows you to monitor the printer’s status and alerts you when an error occurs during printing.PostScript printer driver CDWindows • Postscript Printer Description (PPD) file: Use the PostScript driver to print documents with complex fonts and graphics in the PostScript language.•User’s Guide in PDFMacintosh • Postscript Printer Description (PPD) file: Use this file to run your printer from a Macintosh computer and print documents.•Smart Panel: This program allows you to monitor the printer’s status and alerts you when an error occurs during printing.network utilities CD Windows • SyncThru™ Web Admin Service: Use this web-based program to remotely manage, monitor, and troubleshoot network printers.•Set IP: Use this program to set your printer’s TCP/IP addresses. •Network Printer User’s Guide in PDF
3.2 <Software overview>Printer driver featuresYour printer drivers support the following standard features:• Paper source selection• Paper size, orientation and media type• Number of copiesIn addition, you can use various special printing features. The following table shows a general overview of features supported by your printer drivers: Feature PCL 6 PostScriptWindows Windows Macintosh LinuxToner save O XXOPrint quality option OO OOPoster printing OX X XMultiple pages per sheet (N-up)O O O O (2, 4)Fit to page printing OO OOScale printing O O O ODifferent source for first pageOXOXWatermark O X X XOverlay O X X XSystem requirementsBefore you begin, ensure that your system meets the following requirements:WindowsNoteFor Windows NT 4.0/2000/XP/2003, users who have an administrator right can install the software. Item Requirements RecommendedOperating system Windows 95/98/Me/NT 4.0/2000/XP/2003CPU Windows 95/98/Me/NT 4.0/2000 Pentium II 400 MHz or higherPentium III 933 MHzWindows XP/2003 Pentium III 933 MHz or higherPentium IV 1GHzRAM Windows 95/98/Me/NT 4.0/2000 64 MB or more 128 MBWindows XP/2003 128 MB or more 256 MBFree disk space Windows 95/98/Me/NT 4.0/2000 300 MB or more 1 GBWindows XP/2003 1 GB or more 5 GBInternet Explorer 5.0 or higher
3.3 <Software overview>LinuxNotes• It is necessary to claim swap partition of 300 MB or larger for working with large scanned images.• The Linux scanner driver supports the optical resolution at maximum.MacintoshItem RequirementsOperating system • Red Hat 8.0 ~ 9.0• Fedora Core 1 ~ 3• Mandrake 9.2 ~ 10.1• SuSE 8.2 ~ 9.2Processor Pentium IV 1 GHz or higherRAM 256 MB or higherFree disk page 1 GB or higherSoftware • Linux Kernel 2.4 or higher• Glibc 2.2 or higher• CUPS•SANEItem RequirementsOperating system Macintosh 10.3 (ML-3050), 8.6 ~ 9.2 and 10.1 ~ 10.4 (ML-3051N or ML-3051ND)RAM 128 MBFree disk space 200 MBConnection USB interface, Network interface
4.1 <Network setup>4 Network setupThis chapter gives you step-by-step instructions for setting up your printer for network connections.This chapter includes:• Introduction• Supported operating systems• Configuring TCP/IP• Configuring EtherTalk• Configuring IPX frame types• Setting Ethernet speed• Restoring the network configuration• Printing a network configuration pageIntroductionOnce you have connected your printer to a network with an RJ-45 Ethernet cable, you can share the printer with other network users.You need to set up the network protocols on the printer to use it as your network printer. Protocols can be set up by the following two methods: Via network administration programsYou can configure your printer’s print server settings and manage the printer via the following programs that came with your printer:• SyncThru™ Web Admin Service: A web-based printer management solution for network administrators. SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network printers from any site with corporate intranet access.• SyncThru™ Web Service: A web server embedded to your network print server, which allows you to configure the network parameters necessary for the printer to connect to various network environments.• SetIP: A utility program allowing you to select a network interface and manually configure the addresses for use with the TCP/IP protocol.For further details, refer to the user’s guide on the network utilities CD that came with your printer.Via the control panelYou can set up the following basic network parameters through the printer’s control panel:• Configure TCP/IP• Configure IPX frame types for NetWare• Configure EtherTalkSupported operating systemsThe following table shows the network environments supported by the printer: • IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange• TCP/IP: Transmission Control Protocol/Internet Protocol• DHCP: Dynamic Host Configuration Protocol• BOOTP: Bootstrap ProtocolConfiguring TCP/IPYour printer can be set up with a variety of TCP/IP network information, such as an IP address, a subnet mask, a gateway, and DNS addresses. There are several ways in which your printer can be assigned a TCP/IP address, depending on your network.• Static addressing: A TCP/IP address is assigned manually by the system administrator.• Dynamic addressing via BOOTP/DHCP (default): A TCP/IP address is assigned automatically by the server.Note Before configuring TCP/IP, you need to set the network protocol to TCP/IP.Item RequirementsNetwork interface • 10/100 Base-TX• IEEE 802.11 b/g Wireless LAN (optional)Network operating system • Novell NetWare 4.x, 5.x, 6.x• Windows 95/98/Me/NT 4.0/2000/XP/2003• Various Linux OS• Macintosh OS 10.3 (ML-3050), 8.6 ~ 9.2 and 10.1 ~ 10.4 (ML-3051N, ML-3051ND)Network protocols • NetWare IPX/SPX• TCP/IP on Windows • EtherTalkDynamic addressing server • DHCP, BOOTP
4.2 <Network setup>Static addressingTo enter a TCP/IP address from your printer’s control panel, take the following step: 1Press Menu until Network appears on the bottom line of the display and press OK.2Press OK when TCP/IP appears.3Press the Scroll buttons until Static appears and press OK.4Press OK when IP Address appears. 5Set the first byte between 0 and 255 using the Scroll buttons and press OK to move to the next byte.Repeat this to complete the address from the 1st byte to the 4th byte.6When you have finished, press OK.7Repeat step 5 and 6 to configure the other TCP/IP parameters: subnet mask and gateway address.8Press Stop to return to Standby mode.Dynamic addressing (BOOTP/DHCP)To have a TCP/IP address assigned automatically by the server, take the following step:1Press Menu until Network appears on the bottom line of the display. 2Press OK when TCP/IP appears.3Press the Scroll buttons until DHCP or BOOTP appears and press OK.4Press Stop to return to Standby mode.Configuring EtherTalkEtherTalk is AppleTalk used in an Ethernet network. This protocol is widely used in Macintosh network environments. To use EtherTalk, take the following step:1Press Menu until Network appears on the bottom line of the display and press OK.2Press the Scroll buttons until EtherTalk appears and press OK.3Press the Scroll buttons until On appears and press OK.4Press Stop to return to Standby mode.Configuring IPX frame typesTo use IPX/SPX protocol networks (for example, Novell NetWare), the format of the network communication frames must be specified for the printer. In most cases, you can keep the Auto setting. However, you can manually set the frame type format, if required. Take the following step to change the frame type format:1Press Menu until Network on the bottom line of the display and press OK. 2Press the Scroll buttons until NetWare appears and press OK.3Press the Scroll buttons until the desired frame type appears.• Auto: Automatically senses and limits the frame type to the first one detected.• 802.2: Limits the frame type to IPX over IEEE 802.2 with IEEE 802.3 frames. All others will be discarded.• 802.3: Limits the frame type to IPX over IEEE 802.3 frames. All others will be discarded.• Ethernet II: Limits the frame type to IPX over Ethernet Frames. All others will be discarded.• SNAP: Limits the frame type to IPX over SNAP with IEEE 802.3 frames. All others will be discarded.• Off: The IPX/SPX protocol is disabled.4Press OK to save the selection.5Press Stop to return to Standby mode.
4.3 <Network setup>Setting Ethernet speedYou can select the communication speed for Ethernet connections.1Press Menu until Network appears on the bottom line of the display and press OK.2Press the Scroll buttons until Ethernet Speed appears and press OK.3Press the Scroll buttons until the speed you want appears and press OK.4Press Stop to return to Standby mode.Restoring the network configurationYou can return the network configuration to its default settings.1Press Menu until Network appears on the bottom line of the display and press OK. 2Press the Scroll buttons until Clear Setting appears and press OK.3Press OK when Yes appears to restore the network configuration.4Power the printer off and back on.Printing a network configuration pageThe network configuration page shows how the network interface card on your printer is configured. 1Press Menu until Network appears on the bottom line of the display and press OK.2Press the Scroll buttons until Network Info appears and press OK.3Press OK when Yes appears.The network configuration page prints out.
5.1 <Loading print media>5 Loading print mediaThis chapter will help you understand types of paper you can use with your printer and how to properly load paper in the different paper trays for the best print quality. This chapter includes:• Selecting print media• Loading paper• Selecting an output locationSelecting print mediaYou can print on a variety of print media, such as plain paper, envelopes, labels, and transparencies. Always use print media that meet the guidelines for use with your printer. Print media that does not meet the guidelines outlined in this user’s guide may cause the following problems:• Poor print quality• Increased paper jams• Premature wear on the printer.Properties, such as weight, composition, grain, and moisture content, are important factors that affect the printer’s performance and the output quality. When you choose print materials, consider the following:• Desired outcome: The print media you choose should be appropriate for your project.• Size: You can use any size media that fits easily within the paper adjusters of the paper tray.• Weight: Your printer supports print media weights as follows:- 16 to 24 lb (60 to 90 g/m2) bond for the tray 1 and optional tray 2- 16 to 43 lb (60 to 163 g/m2) bond for the multi-purpose tray - 20 to 24 lb (75 to 90 g/m2) for the duplex printing (ML-3051ND only)• Brightness: Some print media are whiter than others and produce sharper, more vibrant images.• Surface smoothness: The smoothness of the print media affects how crisp the printing looks on the paper.Notes• Some print media may meet all of the guidelines in this section and still not produce satisfactory results. This may be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Samsung has no control.• Before purchasing large quantities of print media, ensure that it meets the requirements specified in this user’s guide. CautionUsing print media that does not meet these specifications may cause problems, requiring repairs. Such repairs are not covered by Samsung’s warranty or service agreements.
5.2 <Loading print media>Supported sizes of paperNoteFor duplex printing, A4, Letter, Oficio, Legal, and Folio sizes are supported.Type Size Dimensions Weightaa. If media weight is over 24 lb (90 g/m2), use the multi-purpose tray.Capacitybb. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.Plain paperLetter 215.9 x 279 mm (8.5 x 11 inches) • 60 to 90 g/m2 bond (16 to 24 lb) for the tray• 60 to 163 g/m2 bond (16 to 43 lb) for the multi-purpose tray• 250 sheets of 75 g/m2 (20 lb) bond paper for the tray• 50 sheets for the multi-purpose trayLegal 215.9 x 355.6 mm (8.5 x 14 inches)Folio 216 x 330.2 mm (8.5 x 13 inches)Oficio 216 x 343 mm (8.5 x 13.5 inches)A4 210 x 297 mm (8.27 x 11.69 inches)JIS B5 182 x 257 mm (7.18 x 10.12 inches)ISO B5 176 x 250 mm (6.93 x 9.84 inches)Executive 184.2 x 266.7 mm (7.25 x 10.5 inches)A5 148.5 x 210 mm (5.85 x 8.27 inches)A6 105 x 148.5 mm (4.13 x 5.85 inches)EnvelopeEnvelope B5 176 x 250 mm (6.93 x 9.84 inches)75 to 90 g/m2 (20 to 24 lb) 5 sheets of 75 g/m2 (20 lb) in the multi-purpose trayEnvelope Monarch 98.4 x 190.5 mm (3.88 x 7.5 inches)Envelope COM-10 105 x 241 mm (4.12 x 9.5 inches)Envelope DL 110 x 220 mm (4.33 x 8.66 inches)Envelope C5 162 x 229 mm (6.38 x 9.02 inches)Envelope C6 114 x 162 mm (4.49 x 6.38 inches)Transparency Letter, A4 Refer to the Plain paper section 138 to 146 g/m25 sheets of 75 g/m2 (20 lb) in the multi-purpose trayLabelsLetter, Legal, Folio, Oficio, A4, JIS B5, ISO B5, Executive, A5, A6Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lb) 5 sheets of 75 g/m2 (20 lb) in the multi-purpose trayCard stockLetter, Legal, Folio, Oficio, A4, JIS B5, ISO B5, Executive, A5, A6Refer to the Plain paper section 60 to 163 g/m2 (16 to 43 lb) 5 sheets of 75 g/m2 (20 lb) in the multi-purpose trayMinimum size (custom) 98 x 148 mm (3.86 x 5.83 inches) 60 to 163 g/m2bond (16 to 43 lb) 5 sheets of 75 g/m2 (20 lb) in the multi-purpose trayMaximum size (custom) 215.9 x 356 mm (8.5 x 14 inches)
5.3 <Loading print media>Guidelines for selecting and storing print mediaWhen selecting or loading paper, envelopes, or other print materials, keep these guidelines in mind:• Always use print media that conform with the specifications listed on page 5.3.• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and poor print quality.• For the best print quality, use only high quality copier grade paper specifically recommended for use in laser printers.• Avoid using the following media types:- Paper with embossed lettering, perforations, or a texture that is too smooth or too rough- Erasable bond paper- Multi-paged paper- Synthetic paper and thermally reactive paper- Carbonless paper and Tracing paper. • Use of these types of paper could result in paper jams, chemical smells, and damage to your printer.• Store print media in its ream wrapper until you are ready to use it. Place cartons on pallets or shelves, not on the floor. Do not place heavy objects on top of the paper, whether it is packaged or unpackaged. Keep it away from moisture or other conditions that can cause it to wrinkle or curl.• Store unused print media at temperatures between 15o C and 30o C (59o F to 86o F). The relative humidity should be between 10% and 70%.• Store unused print media in a moisture-proof wrap, such as a plastic container or bag, to prevent dust and moisture from contaminating your paper.• Load special media types one sheet at a time through the multi-purpose tray to avoid paper jams.• To prevent print media, such as transparencies and label sheets, from sticking together, remove them as they print out.Guidelines for special print mediaMedia type GuidelinesEnvelopes• Successful printing on envelopes depends upon the quality of the envelopes. When selecting envelopes, consider the following factors:- Weight: The weight of the envelope paper should not exceed 90 g/m2 (24 lb) or jamming may occur.- Construction: Prior to printing, envelopes should lie flat with less than 6 mm (0.25 inches) curl, and should not contain air.- Condition: Envelopes should not be wrinkled, nicked, or otherwise damaged.- Temperature: You should use envelopes that are compatible with the heat and pressure of the printer during operation.• Use only well-constructed envelopes with sharp and well creased folds.• Do not use stamped envelopes.• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.• Do not use damaged or poorly made envelopes.• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the printer’s fusing temperature of 200° C (392° F) for 0.1 second. The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.• For the best print quality, position margins no closer than 15 mm (0.6 inches) from the edges of the envelope.• Avoid printing over the area where the envelope’s seams meet.AcceptableUnacceptable
5.4 <Loading print media>Transparencies• To avoid damaging the printer, use only transparencies designed for use in laser printers.• Transparencies used in the printer must be able to withstand 200° C (392° F), the printer’s fusing temperature.• Place them on a flat surface after removing them from the printer.• Do not leave them in the paper tray for long periods of time. Dust and dirt may accumulate on them, resulting in spotty printing.• To avoid smudging caused by fingerprints, handle them carefully.• To avoid fading, do not expose printed transparencies to prolonged sunlight.• Ensure that transparencies are not wrinkled, curled, or have any torn edges.Labels• To avoid damaging the printer, use only labels designed for use in laser printers.• When selecting labels, consider the following factors:- Adhesives: The adhesive material should be stable at 200° C (392° F), the printer’s fusing temperature.- Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.- Curl: Prior to printing, labels must lie flat with no more than 13 mm (5 inches) of curl in any direction.- Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components.• Do not run a sheet of labels through the printer more than once. The adhesive backing is designed for only a single pass through the printer.• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.Card stock or custom-sized materials• Do not print on media smaller than 76 mm (3 inches) wide or 127 mm (5 inches) long.• In the software application, set margins at least 6.4 mm (0.25 inches) away from the edges of the material.Media type GuidelinesLoading paperLoad the print media you use for the majority of your print jobs in the tray 1. The tray 1 can hold a maximum of 250 sheets of 20 lb plain paper. You can purchase an optional tray (tray 2) and attach it below the standard tray to load an additional 250 sheets of paper. For order information for an optional tray, see page 7.1.The paper level indicator on the front of the tray 1 and the optional tray 2 shows the amount of paper currently left in the tray. When the tray is empty, the indicator of the bar is completely lowered.Preprinted paper• Letterhead must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer’s fusing temperature of 205° C (400° F) for 0.1 second.• Letterhead ink must be non-flammable and should not adversely affect printer rollers.• Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes during storage.• Before you load preprinted paper, such as forms and letterhead, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.Media type GuidelinesFull ▲ ▲ Empty
5.5 <Loading print media>Using the tray 1 or the optional tray 2Use the print material you use for the majority of your print jobs in the tray 1. The tray 1 can hold a maximum of 250 sheets of 75 g/m2 paper.You can purchase an optional tray 2 and attach it below the tray 1 to load an additional 250 sheets of paper.To load paper, pull open the tray and load paper with the side to be printed on face down.You can load letterhead paper with the design side face down. The top edge of the sheet with the logo should be placed at the front of the tray.Notes• If you experience problems with paper feed, place one sheet at a time in the multi-purpose tray.• You can load previously printed paper. The printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feed, turn the paper around. Note that the print quality is not guaranteed.Changing the size of the paper in the tray 1To load longer sizes of paper, such as Legal-sized paper, you need to adjust the paper guides to extend the paper tray.12341paper length guide2support guide3guide lock4paper width guides1Press and hold the guide lock, and slide the paper length guide to locate it in the correct paper size slot.2After inserting paper into the tray, adjust the support guide so that it lightly touches the paper stack.3Squeeze the paper width guides, as shown and slide them to the stack of paper until it lightly touches the side of the stack.
5.6 <Loading print media>Notes• Do not push the paper width guide far enough to cause the material to warp. • If you do not adjust the paper width guide, it may cause paper jams.Using the multi-purpose trayThe multi-purpose tray can hold special sizes and types of print material, such as transparencies, postcards, note cards, and envelopes. It is useful for single page printing on letterhead or colored paper. To load paper in the multi-purpose tray:1Open the multi-purpose tray and unfold the multi-purpose tray extension, as shown.2If you are using paper, flex or fan the edge of the paper stack to separate the pages before loading.For transparencies, hold them by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems.3Load the paper with the side to be printed on facing up.Depending on the media type you are using, keep the following loading guidelines:• Envelopes: Flap side down and with the stamp area on the top left side.• Transparencies: Print side up and the top with the adhesive strip entering the printer first.• Labels: Print side up and top short edge entering the printer first.• Preprinted paper: Design side up with the top edge toward the printer.• Card stock: Print side up and the short edge entering the printer first.• Previously printed paper: Previously printed side down with an uncurled edge toward the printer.NoteMake sure that you have not loaded too much print material. The print material buckles if you load a stack that is too deep or if you push it in too far.CautionWhen you print on special material like envelopes, labels, transparencies, or cards, the output location should be the rear cover. Open the rear cover to use it. See page 5.8.4Squeeze the multi-purpose tray paper width guides and adjust them to the width of the paper. Do not force too much, or the paper will be bent, which will result in a paper jam or skew.
5.7 <Loading print media>5When you print a document, set the paper source and type in the software application. See the Software Section. For information about setting the paper source and type on the control panel, see page 2.3.6After printing, fold the multi-purpose tray extension and close the multi-purpose tray.Tips on using the multi-purpose tray• Load only one size of print media at a time in the multi-purpose tray.• To prevent paper jams, do not add paper when there is still paper in the multi-purpose tray. This also applies to other types of print media.• Print media should be loaded face up with the top edge going into the multi-purpose tray first and be placed in the center of the tray.• Always load only the print media specified in page 5.1 to avoid paper jams and print quality problems.• Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose tray.• When you print on 76 mm x 127 mm (3 x 5 inches) sized media on the multi-purpose tray, open the rear cover for straight paper path to avoid paper jams.• Make sure to open the rear cover when you print on transparencies. If not, they may tear while exiting the printer.Using manual feed modeYou can manually load a sheet of print material in the multi-purpose tray if you select Manual Feed in the Source option from the Paper tab when you change print settings to print a document. See the Software Section. Manually loading paper can be helpful when you want to check the print quality after each page is printed. This loading procedure is almost the same as the procedure for loading in the multi-purpose tray, except you load paper sheet-by-sheet in the tray, send print data to print the first page, and press Stop (if you use the ML-3050) or OK (if you use the ML-3051N or ML-3051ND) on the control panel to print each following page.1Load the paper with the side to be printed on facing up. 2Squeeze the multi-purpose tray paper width guides and adjust them to the width of the paper. Do not force too much, or the paper will be bent, which will result in a paper jam or skew.3When you print a document, set the paper source to Manual Feed and select the appropriate paper size and type in the software application. See the Software Section. 4Print a document.The display shows a message prompting you to load paper and press Stop (if you use the ML-3050) or OK (if you use the ML-3051N or ML-3051ND).5Press Stop or OK. The printer picks up the print material and prints. After one page is printed, the message appears again.NoteIf you do not press the button, after a pause the printer will automatically pick the print material.6Insert the next sheet into the multi-purpose tray and press Stop or OK. Repeat this step for every page to be printed.
5.8 <Loading print media>Selecting an output locationThe printer has two output locations; the rear cover (face up) and the output tray (face down). The printer sends output to the output tray by default. To use the output tray, make sure that the rear cover is closed.Notes• If paper coming out of the output tray has problems, such as excessive curl, try printing to the rear cover.• To avoid paper jams, do not open or close the rear cover while the printer is printing.Printing to the output tray (Face down)The output tray collects paper face down, in the order in which the sheets were printed. The tray should be used for most print jobs. 11rear cover2output tray2Printing to the rear cover (Face up)Using the rear cover, paper comes out of the printer face up.Printing from the multi-purpose tray to the rear cover provides a straight paper path. Using the rear cover might improve the output quality with special print media.To use the rear cover, open it by pulling down.Unfold the duplex guide.CautionThe fuser area inside the rear cover of your printer becomes very hot when in use. Take care when you access this area.
6.1 <Basic printing>6 Basic printingThis chapter explains common printing tasks. This chapter includes:• Printing a document• Canceling a print jobPrinting a documentThis printer allows you to print from various Windows, Macintosh, or Linux applications. The exact steps for printing a document may vary depending on the application you use. For details about printing, see the Software Section.Canceling a print jobIf the print job is waiting in a print queue or print spooler, such as the printer group in Windows, delete the job as follows:1Click the Windows Start button.2For Windows 98SE/NT 4.0/2000/Me, select Settings and then Printers.For Windows XP/2003, select Printers and Faxes.3Double-click the Samsung ML-3050 Series PCL6 or Samsung ML-3050 Series PS icon.4From the Document menu, select Cancel Printing (Windows 95/98/Me) or Cancel (Windows NT 4.0/2000/XP/2003).NoteYou can access this window simply by double-clicking the printer icon at the bottom right corner of the Windows desktop.You can also cancel the current job by pressing Stop on the control panel of your printer.
7.1 <Ordering supplies and accessories>7 Ordering supplies and accessoriesThis chapter provides information on purchasing toner cartridges and accessories available for your printer.• Toner cartridges• Accessories• How to purchaseToner cartridgesWhen the toner runs out, you can order the following types of toner cartridges for your printer:AccessoriesYou can purchase and install accessories to enhance your printer’s performance and capacity.The following accessories are available for your printer:Type Yieldaa. ISO 19752 5% coveragePart numberStandard yield 4,000 pages ML-D3050AHigh yield 8,000 pages ML-D3050BAccessory Description Part numberOptional tray If you are experiencing frequent paper supply problems, you can attach an additional 250 sheet tray. You can print documents on various sizes and types of print materials.ML-S3050AMemory DIMM Extends your printer’s memory capacity. • ML-00MA: 16 MB• ML-00MB: 32 MB• ML-00MC: 64 MB• ML-00MD: 128 MB• ML-MEM140: 256 MBIEEE 802.11 b/g Wireless LAN cardaAllows you to connect your printer to a wireless network and share it with other people over the network.ML-NWA10LHow to purchaseTo order Samsung-authorized supplies or accessories, contact your local Samsung dealer or the retailer where you purchased your printer, or visit www.samsungprinter.com and select your country/region for information on calling for technical support.Ethernet 10/100 Base TX Wired Network Printer ServerAllows you to connect your printer to a network environment using the wired network printer server.ML-00NDEthernet 10/100 Base TX Wired + 802.11b Wireless Network Printer ServerAllows you to connect your printer to a network environment using the wired or wireless network printer server.ML-00LAa. Depending on your country, wireless LAN cards may not be available. Contact your local Samsung dealer or the retailer where you bought your printer.Accessory Description Part number
8.1 <Maintenance>8 MaintenanceThis chapter provides information for maintaining your printer and the toner cartridge, as well as suggestions for high-quality and economical printing.This chapter includes:• Printing information page• Cleaning the printer• Maintaining the toner cartridge• Maintenance partsPrinting information pageFrom the printer’s control panel, you can print pages that give detailed information about the printer. They can be help you maintain your printer.In the ML-3051N and ML-3051ND1Press Menu until Information appears on the bottom line of the display and press OK.2Press the Scroll buttons until the information page you want appears and press OK.A page prints out.In the ML-3050The configuration page to view the current settings, to help troubleshoot problems, or to verify the installation of optional accessories can be printed.Press and hold down Stop for about 6 seconds.Cleaning the printerDuring the printing process, paper, toner, and dust particles can accumulate inside the printer. This buildup can cause print quality problems, such as toner specks or smearing. Your printer has a cleaning mode that can correct and prevent these types of problems.Cleaning the outside of the printerClean the cabinet of the printer with a soft, lint-free cloth. You can dampen the cloth slightly with water, but be careful not to let any water drip onto or into the printer.CautionCleaning the cabinet of the printer with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or crack the cabinet.Cleaning the inside of the printerThere are two methods to clean the inside of the printer:• Clean the inside manually.• Print a cleaning sheet, which can be done from the control panel.Cleaning the Inside of the printer manually1Turn the printer off and unplug the power cord. Wait for the printer to cool down.2Open the front cover and pull the toner cartridge out. Set it on a clean flat surface.Cautions• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
8.2 <Maintenance>3With a dry lint-free cloth, wipe away any dust and spilled toner from the toner cartridge area and the toner cartridge cavity.CautionWhile cleaning the inside of the printer, be careful not to touch the transfer roller, located underneath the toner cartridge. Oil from your fingers can cause print scan quality problems.4Locate the long strip of glass (LSU) inside the top of the cartridge compartment, and gently swab the glass to see if dirt turns the white cotton black.5Reinsert the toner cartridge and close the front cover.6Plug in the power cord and turn the printer on.Printing a cleaning sheetIf you are experiencing blurred, faded, or smeared printouts, you can clear the problem by printing a cleaning sheet, provided by your printer. You can print:• OPC Cleaning sheet: cleans the OPC drum of the toner cartridge.• Fuser Cleaning sheet: cleans the fuser unit inside the printer. In the ML-3050, press and hold down Stop for about 10 seconds to print a OPC cleaning sheet.In the ML-3051N and ML-3051ND, this process will produce a page with toner debris, which should be discarded.1Make sure that the printer is turned on with paper loaded in the tray.2Press Menu until System Setup appears on the bottom line of the display and press OK.3Press the Scroll buttons until Maintenance appears and press OK.4When Clean Drum appears, press OK.Or, press the Scroll buttons until Clean Drum or Clean Fuser appears and press OK.Your printer automatically picks up a sheet of paper from the tray and prints out a cleaning sheet with dust or toner particles on it.Maintaining the toner cartridgeToner cartridge storageTo get the most from the toner cartridge, keep the following guidelines in mind:• Do not remove the toner cartridge from its package until ready for use.• Do not refill the toner cartridge. The printer warranty does not cover damage caused by using a refilled cartridge.• Store toner cartridge in the same environment as the printer.• To prevent damage to the toner cartridge, do not expose it to light for more than a few minute.Expected cartridge lifeThe life of the toner cartridge depends on the amount of toner that print jobs require. When printing text at ISO 19752 5% coverage, a new toner cartridge lasts an average of either 8,000 or 4,000 pages. (The original toner cartridge supplied with the printer lasts an average of 4,000 pages.) The actual number may also be different depending on the print density of the pages you print on, and the number of pages may be affected by operating environment, printing interval, media type, and media size. If you print a lot of graphics, you may need to change the cartridge more often.Saving TonerTo save toner, press Toner Save on the control panel. The button backlight turns on.Using this feature extends the life of the toner cartridge and reduce your cost per page, but it also reduces print quality. Checking the remaining toner (ML-3051N, ML-3051ND only)You can check the level of toner left in the cartridge.
8.3 <Maintenance>If you are having print quality problems, this can help you determine if the problem is caused by low toner.1Press Menu until System Setup appears on the bottom line of the display press OK.2Press the Scroll buttons until Maintenance appears and press OK.3Press the Scroll buttons until Supplies Life appears and press OK.4Press the Scroll buttons to access Toner Remains and press OK.The display shows the percentage of the remaining toner.Redistributing toner cartridgeWhen the toner cartridge is near the end of its life:• White streaks or light printing occurs. • Toner Low appears on the display. (ML-3051N, ML-3051ND only)• The Smart Panel program window appears on the computer telling you that the toner level is low.• The Status LED blinks red.If this happens, you can temporarily reestablish print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner.1Open the front cover.2Pull the toner cartridge out.Cautions• Avoid reaching too far into the printer. The fusing area may be hot.• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.3Thoroughly roll the cartridge 5 or 6 times to distribute the toner evenly inside the cartridge. NoteIf toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.4Hold the toner cartridge by the handle and slowly insert the cartridge into the opening in the printer. 5Tabs on the sides of the cartridge and corresponding grooves within the printer will guide the cartridge into the correct position until it locks into place completely.6Close the front cover. Make sure that the cover is securely closed.
8.4 <Maintenance>Replacing the toner cartridgeWhen the toner cartridge is completely empty:• Toner Empty appears on the display. (ML-3051N, ML-3051ND only)• The Smart Panel program window appears on the computer telling you that the toner cartridge is empty.• The Status LED lights red.At this stage, the toner cartridge needs to be replaced. For order information for toner cartridges, see page 7.1.1Open the front cover.2Pull the toner cartridge out.3Remove the new toner cartridge from its bag.CautionDo not use sharp objects, such as a knife or scissors, to open the toner cartridge package. They might scratch the drum of the cartridge.4Remove the packing tape and roll the cartridge 5 or 6 items to distribute the toner.Thoroughly roll the cartridge to assure maximum copies per cartridge. Save the box and the plastic bag for shipping.Cautions• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. • Do not touch the green surface underside of the toner cartridge. Use the handle on the cartridge to avoid touching this area.5Hold the toner cartridge by the handle and slowly insert the cartridge into the opening in the printer.6Tabs on the sides of the cartridge and corresponding grooves within the printer will guide the cartridge into the correct position until it locks into place completely.7Close the front cover. Make sure that the cover is securely closed.Maintenance partsTo avoid print quality and paper feed problems resulting from worn parts and to maintain your printer in top working condition the following items will need to be replaced at the specified number of pages or when the life span of each item has expired.Samsung highly recommends that an authorized service provider, dealer or the retailer where you bought printer performs this maintenance activity. Items Yield (Average)Transfer roller 70,000Pick-up roller 150,000Fuser unit 80,000
9.1 <Troubleshooting>9 TroubleshootingThis chapter provides helpful information for what to do if you encounter an error while using your printer. This chapter includes:• Clearing paper jams• Troubleshooting checklist• Understanding the status LED• Understanding display messages• Solving general printing problems• Solving print quality problems• Common Windows problems• Common Macintosh problems• Common PostScript problems• Common Linux problemsClearing paper jamsNoteWhen removing paper that is jammed in the printer, if possible always pull the paper in the direction that it normally moves so as not to damage internal components. Always pull firmly and evenly; do not jerk the paper. If the paper tears, ensure that all fragments of paper are removed; otherwise a jam will occur again.When a paper jam occurs, the Status LED lights red. Open and close the front cover. The jammed paper automatically exit the printer. If the paper does not exit, check the display on the control panel. The message indicating the corresponding location of the paper jam appears. Refer to the table below to locate the paper jam and to clear it: In the paper feed areaIn the tray 11Pull the tray 1 open.Message Location of Jam Go ToPaper Jam 0Open/Close DoorIn the paper feed area(tray 1, optional tray 2, multi-purpose tray)belowPaper Jam 1Open/Close Door Around the toner cartridge page 9.3Paper Jam 2Check Inside In the paper exit area page 9.3Duplex Jam 0 Check Insideaa. ML-3051ND onlyIn the duplex area page 9.4Duplex Jam 1 Open/Close DooraIn the duplex area page 9.5
9.2 <Troubleshooting>2Remove the jammed paper by gently pulling it straight out. Make sure that all of the paper is properly aligned in the tray 1.If the paper does not move when you pull, or if you do not see the paper in this area, check the fuser area around the toner cartridge. See page 9.3.3Insert the tray 1 into the printer until it snaps into place. Printing automatically resumes.In the optional tray 21Pull the optional tray 2 open.2Remove the jammed paper from the printer.If the paper does not move when you pull, or if you do not see the paper in this area, stop and go to step 3.3Pull the tray 1 half.4Pull the paper straight up and out.5Insert the trays back into the printer. Printing automatically resumes.In the multi-purpose tray1If the paper is not feeding properly, pull the paper out of the printer.2Open and close the front cover to resume printing.
9.3 <Troubleshooting>Around the toner cartridgeNoteThe fuser area is hot. Take care when removing paper from the printer.1Open the front cover and pull the toner cartridge out.2Remove the jammed paper by gently pulling it straight out.3Replace the toner cartridge and close the front cover. Printing automatically resumes.In the paper exit area1Open and close the front cover. The jammed paper is automatically ejected from the printer. 2Gently pull the paper out of the output tray.If you do not see the jammed paper or if there is any resistance when you pull, stop and go to the next step.3Open the rear cover.4If you see the jammed paper, push the pressure lever on each side up and remove the paper. Return the pressure lever to its original position and skip the step 10.If you still do not see the paper, go to the next step.1pressure lever1
9.4 <Troubleshooting>5Release the blue strap, the rear cover stopper, and fully open the rear cover, as shown. 6Unfold the duplex guide fully.7While pushing the fuser lever to the right, open the fuser door.1rear cover stopper2rear cover211duplex guide11fuser lever2fuser door218Pull the jammed paper out.If the jammed paper does not move when you pull, push the pressure lever on each side up to loose the paper, and then remove it.9Return the lever, door, stopper, and guide to their original position.10 Close the rear cover. Printing automatically resumes.In the duplex unit area (ML-3051ND only)If the duplex unit is not inserted correctly, paper jam may occur. Make sure that the duplex unit is inserted correctly.Duplex jam 01Pull the duplex unit out of the printer.1pressure lever11duplex unit1
9.5 <Troubleshooting>2Remove the jammed paper from the duplex unit.If the paper does not come out with the duplex unit, remove the paper from the bottom of the printer.Duplex jam 11Open the rear cover.2Unfold the duplex guide fully.11duplex guide3Pull the jammed paper out.TiPs for avoiding paper jamsBy selecting the correct media types, most paper jams can be avoided. When a paper jam occurs, follow the steps outlined on page 9.1. • Follow the procedures on page 5.5. Ensure that the adjustable guides are positioned correctly.• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside wall of the tray.• Do not remove paper from the tray while your printer is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix paper types in a tray.• Use only recommended print media. See page 5.1.• Ensure that the recommended print side of print media is facing down in the tray, or facing up in the multi-purpose tray.• If paper jams occur frequently when you print on A5-sized paper:Load the paper into the tray with the long edge facing the front of the tray. In the printer properties window, set the page orientation to be rotated 90 degrees. See the Software Section.
9.6 <Troubleshooting>Troubleshooting checklistIf the printer is not working properly, consult the following checklist. If the printer does not pass a step, follow the corresponding troubleshooting suggestions.Condition Suggested solutionsMake sure that the Status LED on the control panel lights green and Ready is shown on the display. • If the Status LED is off, check the power cord connection. Check the power switch. Check the power source by plugging the power cord into another outlet.• If the Status LED lights red, check the display message. See page 9.7. Print a demo page to verify that the printer is feeding paper correctly. See page 2.6.• If a demo page does not print, check the paper supply in the tray.• If the paper jams in the printer, see page 9.1.• If an error message appears on the display, see page 9.7.Check the demo page to see if it printed correctly.If there is a print quality problem, see page 9.10.Print a short document from a software application to verify that the computer and printer are connected and are communicating correctly.• If the page does not print, check the cable connection between the printer and the computer. • Check the print queue or print spooler to see if the printer has been paused.• Check the software application to ensure that you are using the proper printer driver and communication port. If the page is interrupted during printing, see page 9.8.If completing the checklist does not resolve the printer problem, check the following troubleshooting sections.• “Understanding display messages” on page 9.7.• “Solving general printing problems” on page 9.8.• “Common Windows problems” on page 9.12.• “Common Macintosh problems” on page 9.15.• “Common PostScript problems” on page 9.13.• “Common Linux problems” on page 9.13.Understanding the status LEDStatus DescriptionOff• The printer is off-line and cannot print.• The printer is in power save mode. When data is received, it switches to on-line automatically.GreenOn The printer is on-line and can receive data from the computer.Blinking• When the backlight blinks slowly, the printer is receiving data from the computer.• When the backlight blinks quickly, the printer is receiving and printing data. RedOn• The toner cartridge is totally exhausted. Remove the old toner cartridge and install a new one. See page 8.4.• A paper jam has occurred. To solve the problem, see page 9.1.• The front cover is open. Close the front cover.• There is no paper in the tray. Load paper in the tray.• The printer has stopped printing due to a major error. Check the display message. See page 9.7 for details on the meaning of the error message.Blinking• A minor error is occurring and the printer is waiting for the error to be cleared. Check the display message. When the problem is cleared, the printer resumes printing. • The toner cartridge is low. Order a new toner cartridge. You can temporarily improve print quality by redistributing the toner. See page 8.3.

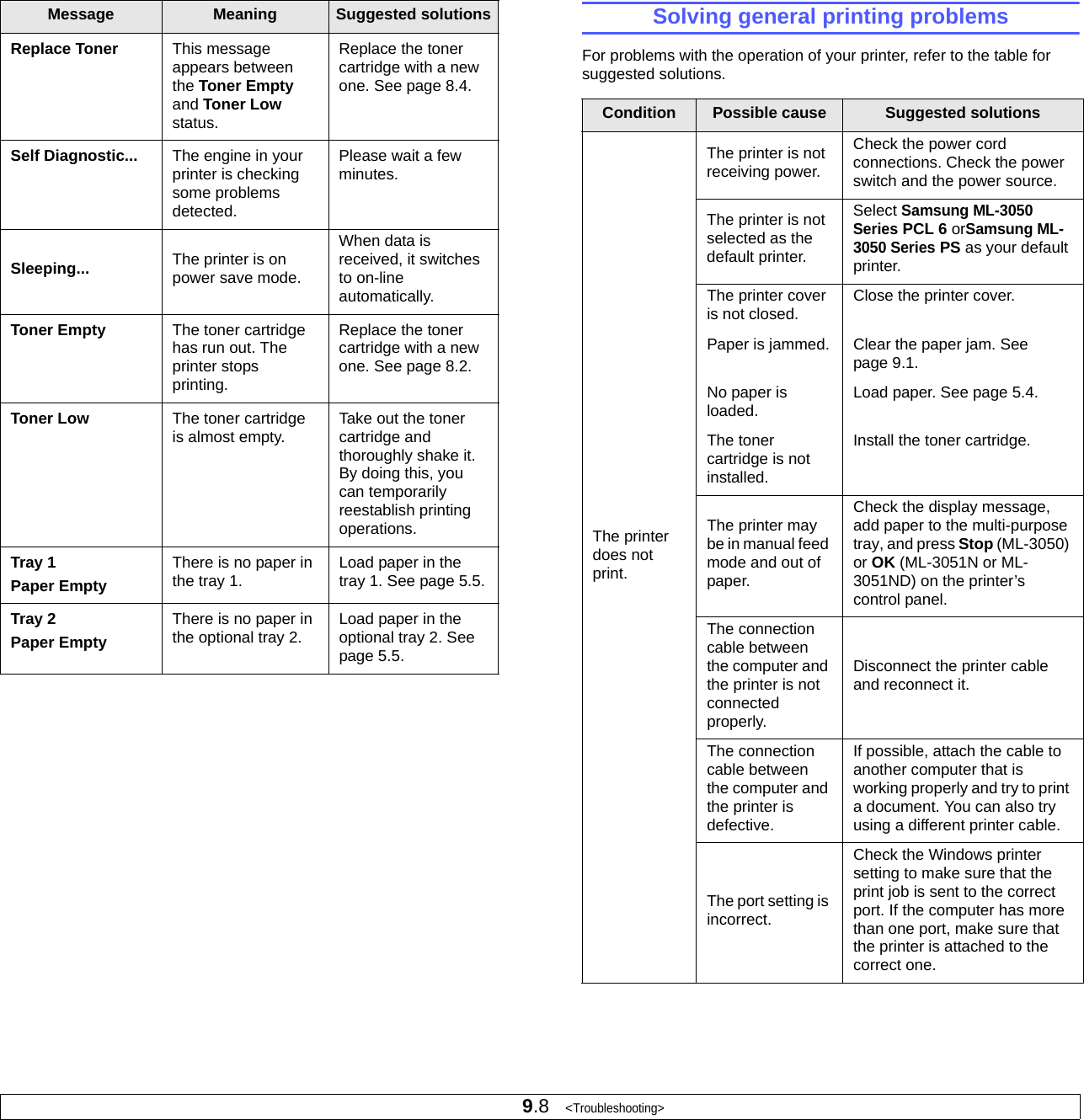

9.7 <Troubleshooting>Understanding display messagesMessages appear on the Smart Panel program window or the control panel display to indicate the printer’s status or errors. Refer to the tables below to understand the messages’ meaning and correct the problem if necessary. Messages and their meanings are listed in alphabetical order.NoteWhen you call for service, it is very convenient to tell the service representative the display message.Message Meaning Suggested solutionsDoor Open The front cover or rear cover is not securely latched.Close the cover until it locks into place.Duplex Jam 0 Check Inside Paper has jammed during duplex printing.Clear the jam. See page 9.4.Duplex Jam 1 Open/Close DoorPaper has jammed during duplex printing.Clear the jam. See page 9.5.Fuser Door Open The fuser door is not securely latched. Open the rear cover and close the fuser door until it locks into place. For the location of the fuser door, see page 9.4.Install Toner A toner cartridge is not installed. Install a toner cartridge.Invalid Toner The toner cartridge you have installed is not for your printer.Install a Samsung-genuine toner cartridge, designed for your printer.Load Manual Press Stop KeyThe multi-purpose tray is empty in manual feed mode.Load a sheet of print material and press Stop (if you use the ML-3050) or OK (if you use the ML-3051N or ML-3051ND). You need to press Stop or OK each page to be printed.Low Heat ErrorCycle PowerThere is a problem in the fuser unit. Unplug the power cord and plug it back in. If the problem persists, please call for service.LSU Hsync ErrorCycle PowerA problem has occurred in the LSU (Laser Scanning Unit).Unplug the power cord and plug it back inches. If the problem persists, please call for service.LSU Motor ErrorCycle PowerA problem has occurred in the LSU (Laser Scanning Unit).Unplug the power cord and plug it back inches. If the problem persists, please call for service.Main Motor Locked There is a problem in the main motor. Open and then close the front cover.Open Heat ErrorCycle PowerThere is a problem in the fuser unit. Unplug the power cord and plug it back in. If the problem persists, please call for service.Over Heat ErrorCycle PowerThere is a problem in the fuser unit. Unplug the power cord and plug it back in. If the problem persists, please call for service.Paper Jam 0Open/Close DoorPaper has jammed in the feeding area of the tray.Clear the jam. See page 9.1 and page 9.1.Paper Jam 1Open/Close DoorPaper has jammed in the fuser area. Clear the jam. See page 9.3.Paper Jam 2Check InsidePaper has jammed in the paper exit area.Clear the jam. See page 9.3.Printing...The printer is printing jobs using the displayed language.Complete your printing.Ready The printer is on-line and ready to printer. Use your printer.Message Meaning Suggested solutions
9.8 <Troubleshooting>Replace Toner This message appears between the Toner Empty and Toner Low status.Replace the toner cartridge with a new one. See page 8.4.Self Diagnostic... The engine in your printer is checking some problems detected.Please wait a few minutes.Sleeping... The printer is on power save mode.When data is received, it switches to on-line automatically.Toner Empty The toner cartridge has run out. The printer stops printing.Replace the toner cartridge with a new one. See page 8.2.Toner Low The toner cartridge is almost empty. Take out the toner cartridge and thoroughly shake it. By doing this, you can temporarily reestablish printing operations.Tray 1Paper EmptyThere is no paper in the tray 1. Load paper in the tray 1. See page 5.5.Tray 2Paper EmptyThere is no paper in the optional tray 2. Load paper in the optional tray 2. See page 5.5.Message Meaning Suggested solutions Solving general printing problemsFor problems with the operation of your printer, refer to the table for suggested solutions.Condition Possible cause Suggested solutionsThe printer does not print.The printer is not receiving power.Check the power cord connections. Check the power switch and the power source.The printer is not selected as the default printer.Select Samsung ML-3050 Series PCL 6 orSamsung ML-3050 Series PS as your default printer.The printer cover is not closed. Close the printer cover.Paper is jammed. Clear the paper jam. See page 9.1.No paper is loaded. Load paper. See page 5.4.The toner cartridge is not installed.Install the toner cartridge.The printer may be in manual feed mode and out of paper.Check the display message, add paper to the multi-purpose tray, and press Stop (ML-3050) or OK (ML-3051N or ML-3051ND) on the printer’s control panel.The connection cable between the computer and the printer is not connected properly.Disconnect the printer cable and reconnect it.The connection cable between the computer and the printer is defective.If possible, attach the cable to another computer that is working properly and try to print a document. You can also try using a different printer cable.The port setting is incorrect.Check the Windows printer setting to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the printer is attached to the correct one.
