Keep instructions for future reference.Be sure Use & Care Guide stays with oven.Part No.8112P298-60 Code No. DE68-03143HUse & Care GuideModel MMV5207BA/BC JMV8208BA/BCOver The Range Microwave OvenImportant Safety Instructions . . . . . . . . . . . . . . . . . . 2Precautions to Avoid Possible Exposure to Excessive Microwave Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Cooking Utensils . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Form No. A/08/05MMV5207BA_03143H.indd 1 2005-09-21 ｿﾀﾈﾄ 4:05:15
2Important Safety InstructionsWARNINGWARNING – Hazards or unsafe practices which COULD result in severe personal injury or death.CAUTIONCAUTION – Hazards or unsafe practices which COULDresult in minor personal injury.To avoid personal injury or property damage, observe the following:1. Do not deep fat fry in oven. Fat could overheat and be hazardous to handle.2. Do not cook or reheat eggs in shell or with an unbroken yolk using microwave energy. Pressure may build up and erupt. Pierce yolk with fork or knife before cooking.3. Pierce skin of potatoes, tomatoes, and similar foods before cooking with microwave energy. When skin is pierced, steam escapes evenly.4. Do not operate oven without load or food in oven cavity.5. Use only popcorn in packages designed and labeled for microwave use. Popping time varies depending on oven wattage. Do not continue to heat after popping has stopped. Popcorn will scorch or burn. Do not leave oven unattended.6. Do not use regular cooking thermometers in oven. Most cooking thermometers contain mercury and may cause an electrical arc, malfunction, or damage to oven.7. Do not use metal utensils in oven.8. Never use paper, plastic, or other combustible materials that are not intended for cooking.9. When cooking with paper, plastic, or other com-bustible materials, follow manufacturer's recom-mendations on product use.10. Do not use paper towels which contain nylon or other synthetic fibers. Heated synthetics could melt and cause paper to ignite.11. Do not heat sealed containers or plastic bags in oven. Food or liquid could expand quickly and cause container or bag to break. Pierce or open container or bag before cooking.12. To avoid pacemaker malfunction, consult physician or pacemaker manufacturer about effects of microwave energy on pacemaker.CAUTIONSAVE THESE INSTRUCTIONSInstaller: Please leave this guide with this appliance.Consumer: Please read and keep this Use & Care Guide for future reference.Keep sales receipt and/or cancelled check as proof ofpurchase.Model Number ________________________________Serial Number_________________________________Date of Purchase ______________________________In our continuing effort to improve the quality andperformance of our appliances, it may be necessary tomake changes to the appliance without revising thisguide.If you have questions, write us (include your modelnumber and phone number) or call: Attn: CAIR® Center P.O. Box 2370 Cleveland, TN 37320-2370 (Maytag) 1-800-843-0304 U.S.A 1-866-587-2002 Canada 1-800-688-2080 (US TTY for hearing or speech impaired) (Mon.-Fri., 8 a.m.-8 p.m. Eastern Time) Internet: http://www.maytag.com (Jenn-Air) 1-800-536-6247 U.S.A and Canada 1-800-688-2080 (US TTY for hearing or speech impaired) (Mon.-Fri., 8 a.m.-8 p.m. Eastern Time) Internet: http://www.jennair.comWhat You Need to Know About Safety InstructionsWarning and Important Safety Instructions appearing in thisUse & Care Guide are not meant to cover all possibleconditions and situations that may occur. Common sense,caution, and care must be exercised when installing,maintaining, or operating microwave.Always contact your dealer, distributor, service agent, ormanufacturer about problems or conditions you do notunderstand.Recognize Safety Symbols, Words, LabelsDANGERDANGER – Immediate hazards which WILL result insevere personal injury or death.MMV5207BA_03143H.indd 2 2005-09-21 ｿﾀﾈﾄ 4:05:15
3Important Safety InstructionsGrounding InstructionsOven MUST be grounded. Grounding reduces risk of electric shock by providing an escape wire for theelectric current if an electrical short occurs. This oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. See Installation Instructions.Consult a qualified electrician or servicer if groundinginstructions are not completely understood, or if doubt exists as to whether the oven is properly grounded.Do not use an extension cord. If the product power cord is too short, have a qualified electrician install a three-slot receptacle. This oven should be plugged into a separate 60 hertz circuit with the electrical rating as shown in specifications table. When the oven is on a circuit with other equipment, an increase in cooking times may be required and fuses can be blown.Microwave operates on standard household current, 110-120V.WARNINGTo avoid risk of electrical shock or death, this oven must be grounded and plug must not be altered.SAVE THESE INSTRUCTIONSFederal Communications Commission Radio Frequency Interference Statement (U.S.A. Only)This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following:● Reorient the receiving antenna of the radio or television.● Relocate the microwave oven with respect to the receiver.● Move the microwave oven away from the receiver.● Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits.The manufacturer is not responsible for any radio ortelevision interference caused by unauthorizedmodification to this microwave oven. It is the responsibility of the user to correct such interference.MMV5207BA_03143H.indd 3 2005-09-21 ｿﾀﾈﾄ 4:05:15

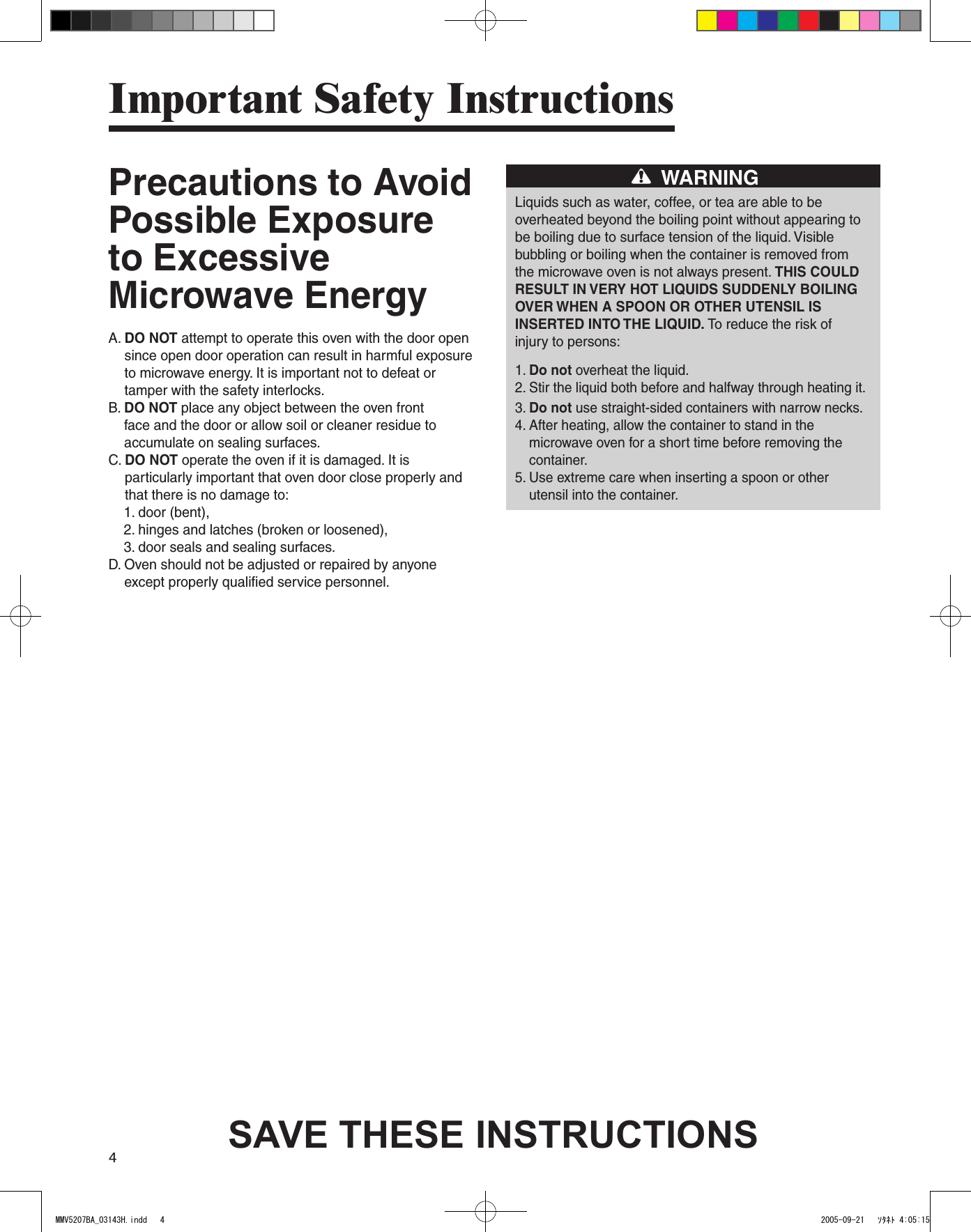

4Precautions to Avoid Possible Exposure to Excessive Microwave EnergyA. DO NOT attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.B. DO NOT place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.C. DO NOT operate the oven if it is damaged. It is particularly important that oven door close properly and that there is no damage to: 1. door (bent), 2. hinges and latches (broken or loosened), 3. door seals and sealing surfaces.D. Oven should not be adjusted or repaired by anyone except properly qualified service personnel.WARNINGLiquids such as water, coffee, or tea are able to beoverheated beyond the boiling point without appearing tobe boiling due to surface tension of the liquid. Visiblebubbling or boiling when the container is removed fromthe microwave oven is not always present. THIS COULDRESULT IN VERY HOT LIQUIDS SUDDENLY BOILINGOVER WHEN A SPOON OR OTHER UTENSIL ISINSERTED INTO THE LIQUID. To reduce the risk ofinjury to persons:1. Do not overheat the liquid.2. Stir the liquid both before and halfway through heating it.3. Do not use straight-sided containers with narrow necks.4. After heating, allow the container to stand in the microwave oven for a short time before removing the container.5. Use extreme care when inserting a spoon or other utensil into the container.Important Safety InstructionsSAVE THESE INSTRUCTIONSMMV5207BA_03143H.indd 4 2005-09-21 ｿﾀﾈﾄ 4:05:15
5Important Safety InstructionsWARNINGWhen using electrical appliances, basic safety precautions should be followed to reduce the risk of burns, electric shock, fire, or injury to persons or exposure to excessive microwave energy.1. READ all instructions before using oven.2. READ AND FOLLOW the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” on page 3.3. Install or locate this oven ONLY in accordance with the installation instructions in this manual.4. Some products such as whole eggs and sealed containers—for example, closed glass jars—are able to explode and SHOULD NOT be HEATED in this oven.5. Use this oven ONLY for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.6. As with any appliance, CLOSE SUPERVISION is necessary when used by CHILDREN or INFIRM PERSONS.7. See door cleaning instructions in the Care and Cleaning section on page 22.8. Baby food jars shall be open when heated and contents stirred or shaken before consumption, in order to avoid burns.9. DO NOT use this oven for commercial purposes. It is made for household use only.10. DO NOT heat baby bottles in oven.11. DO NOT operate this oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.12. This oven, including power cord, must be serviced ONLY by qualified service personnel. Special tools are required to service oven. Contact nearest authorized service facility for examination, repair, or adjustment.13. DO NOT cover or block filter or other openings on oven.14. DO NOT store this oven outdoors. DO NOT use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool or similar locations.15. DO NOT immerse cord or plug in water.16. Keep cord AWAY from HEATED surfaces.17. DO NOT let cord hang over edge of table or counter.18. Clean the ventilating hood frequently.19. DO NOT allow grease to accumulate on the hood or filters.20. Use care when cleaning the ventilating hood filter. Corrosive cleaning agents such as lye-based oven cleaners may damage the filters.21. When flaming foods under the hood, turn the fan on.22. Suitable for use above both gas and electric cooking equipment 36 inches or less wide.CAUTIONTo avoid risk of fire in the oven cavity:a. DO NOT overcook food. Carefully attend oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.c. If materials inside the oven ignite, keep oven door CLOSED, turn oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel.d. DO NOT use the cavity for storage. DO NOT leave paper products, cooking utensils, or food in the cavity when not in use.SAVE THESE INSTRUCTIONSMMV5207BA_03143H.indd 5 2005-09-21 ｿﾀﾈﾄ 4:05:15
6Door HandleModel and Serial Number Plate Wire RackWindow with Metal ShieldGlass TurntableCooking GuideVent GrilleOven ControlPanelDoor SafetyLock System FeaturesOVEN SPECIFICATIONSMMV5207BAPower Supply 120 VAC, 60 HzInput Power 1,700W (USA)1,500W (CANADA)Cooking Power1,100 W (USA) 1,000 W (CANADA) (IEC 60705 Standard)Frequency 2,450 MHzRated Current 14.5 A (USA)13 A (CANADA)Outer Dimensions29 7/8"(W) x 16 15/16"(H) x 15 21/32"(D)Cavity Volume 2.0 Cu. Ft.Net Weight 57.7 lbs.JMV8208BA/BCPower Supply 120 VAC, 60 HzInput Power 1,700W (USA)1,560W (CANADA)Cooking Power1,100 W (USA) 1,000 W (CANADA) (IEC 60705 Standard)Frequency 2,450 MHzRated Current 14.5 A (USA)13 A (CANADA)Outer Dimensions29 7/8"(W) x 16 15/16"(H) x 15 21/32"(D)Cavity Volume 2.0 Cu. Ft.Net Weight 57.7 lbs.MMV5207BA_03143H.indd 6 2005-09-21 ｿﾀﾈﾄ 4:05:16
7FeaturesFEATURES1. DISPLAY: The Display includes a clock and indicators to tell you time of day, cooking time settings and cooking functions selected.2. POPCORN: Touch this pad when popping popcorn in your microwave oven. The oven’s sensor will tell the oven how long to cook depending on the amount of gas it detects from the popcorn. See page 12 for more information.3. BAKED POTATO: Touch this pad to cook potatoes. The oven’s sensor will tell the oven how long to cook depending on the amount of gas it detects from the potato. See page 13 for more information.4. REHEAT: Touch this pad to reheat dinner plate, casserole, and pasta. The oven’s sensor will tell the oven how long to cook depending on the amount of gas coming from the food. See page 13 for more information.5. COOK: Touch this pad to cook beverage, frozen dinner, frozen breakfast, chicken breast. The oven’s sensor will tell the oven how long to cook depending on the amount of gas coming from the food. See page 13 for more information.6. VEGETABLES: Touch this pad to cook fresh or frozen vegetables. The oven’s sensor will tell the oven how long to cook depending on the amount of gas it detects from the vegetables. See page 13 for more information.7. PIZZA SLICE: Touch this pad to reheat pizza. The oven’s sensor will tell the oven how long to cook depending on the amount of gas it detects. See page 12 for more information.8. KIDS MEALS, SNACKS, SOFTEN/MELT : Touch this pad to cook specific food. See page 15, 16 and 17 for more information.9. CUSTOM PROGRAM: Touch this pad to recall one cooking instruction previously programmed into memory. See page 9 for more information.10. MORE(9): Touch this pad to add more cooking time. See page 10 for more information.11. LESS(1): Touch this pad to subtract the cooking time. See page 10 for more information.12. AUTO DEFROST: Touch this pad to defrost food by weight. See page 18 for more information.13. 1POUND DEFROST: This pad provides 1pound defrost for 1.0 pound of frozen food. See page 18 for more information.14. NUMBER: Touch number pads to enter cooking time, power level, quantities, or weights.15. POWER LEVEL: Touch this pad to select a cooking power level.16. STOP/CLEAR: Touch this pad to stop the oven or to clear all entries.17. ENTER/START: Touch this pad to start a function. If you open the door after oven begins to cook, close the door and touch ENTER/START pad again.18. CONTROL SETUP: Touch this pad to change the oven’s default settings. See page 8 for more information.19. ADD 30 SEC: Touch this pad to set and start quickly at 100% power level. See page 9 for more information.20. CLOCK: Touch this pad to enter the time of day. See page 8 for more information.21. LIGHT TIMER: Touch this pad to set the light timer. See page 9 for more information.22. KITCHEN TIMER: Touch this pad to set the kitchen timer. See page 8 for more information.23. VENT 5 SPEED: Touch this pad to choose one of 5 fan speeds.24. VENT ON/OFF: Touch this pad to turn the fan on/off.25. VENT DELAY OFF: Touch this pad when setting ventilation time. (1, 3, 5 10, 30 minutes)26. LIGHT HI/LO/OFF: Touch this pad to turn on the cooktop light. See page 9 for more infomation.MMV5207BA_03143H.indd 7 2005-09-21 ｿﾀﾈﾄ 4:05:17
8Operating InstructionsLEARN ABOUT YOUR MICROWAVE OVENThis section introduces you to the basics you need to know to operate your microwave oven. Please read this information before use. CAUTION● To avoid risk of personal injury or property damage, do not run oven empty.● To avoid risk of personal injury or property damage, do not use stoneware, aluminum foil, metal utensils, or metal trimmed utensils in the oven.CLOCKExample: To set 8:00 AM.1. Touch CLOCK pad. 2. Enter the time by using the number pads.3. Touch ENTER/START pad. 4. Touch 1 for AM.5. Touch ENTER/START pad. NOTE:● Follow steps 1-3 above in the 24 hour clock mode.KITCHEN TIMERYou can use your microwave oven as a timer. Use the Kitchen Timer for timing up to 99 minutes, 99 seconds.Example: To set for 8 minutes.1. Touch KITCHEN TIMER pad. 2. Enter the time by using the number pads.3. Touch ENTER/ START pad.When the time is over, you will hear beeps and END will display.CONTROL SETUPYou can change the default values.See following chart for more information.No. Function No. Result1Weight mode selected12Lbs.Kg.2Sound ON/OFF control12Sound ON Sound OFF3Clock display control1212HR24HR4 Display123Slow speedNormal speedFast speed5Remind end Signal12ONOFF6 Demo Mode 12ONOFF7Daylight Saving Time12ONOFFExample: To change weight mode (from Lbs. to Kg).1. Touch CONTROL SETUP pad.`2. Touch number 1 pad.3. Touch number 2 pad.VENT FANThe VENT moves steam and other vapors from the cooking surface. The vent will operate at the LEVEL 2 whenever the oven is on.Example: To set Level 4.1. Touch ON/OFF pad. This shows the last level until you select the fan speed level.2. Touch this pad until Level 4 appears in the display.Touch ON/OFF pad to turn off fan when desired.NOTE:• If the temperature gets too hot around the microwave oven, the fan in the vent hood will automatically turn on at the LEVEL2 setting to cool the oven. The fan will automatically turn off when the internal parts are cool. When this occurs, the vent cannot be turned off.DELAY OFFExample: To turn off fan after 30 minutes for Level 4.1. Touch ON/OFF pad.2. Touch this pad until Level 4 appears in the display.3. Touch this pad five times.MMV5207BA_03143H.indd 8 2005-09-21 ｿﾀﾈﾄ 4:05:18
9Operating InstructionsCHILD LOCKYou may lock the control panel to prevent the microwave from being accidentally started or used by children.The Child Lock feature is also useful when cleaning the control panel. Child Lock prevents accidental programming when wiping the controlpanel.Example: To set the child lock.Touch and hold ENTER/START pad more than 3 seconds. CHILD LOCK ON will appear in the display window with two beeps.Example: To cancel the child lock.Touch and hold ENTER/START pad more than 3 seconds. LOCKED will disappear and you hear two beeps.LIGHT HI/LO/OFFTouch LIGHT HI/LO/OFF pad once for bright light, twice for night light, or three times to turn the light off.ADD 30 SEC. A time-saving pad, this simplified control lets you quickly set and start microwave cooking without the need to touch the ENTER/ START pad.Example: To set ADD 30 SEC. for 2 minutes.Touch ADD 30 SEC. pad 4 times. The oven begins cooking and display shows time counting down. LIGHT TIMERYou can set the LIGHT to turn on and off automatically at any time. The light comes on at the same time every day until reset.Example: Turn on 2:00 AM, turn off 7:00 PM.1. Touch LIGHT TIMER pad. 2. Enter the time you want the LIGHT to turn on.3. Touch ENTER/START pad.4. Touch 1 for AM. 5. Touch ENTER/START pad. 6. Enter the time you want the LIGHT to turn off.7. Touch ENTER/ START pad.8. Touch 2 for PM. 9. Touch ENTER/ START pad.NOTE:● Follow steps 4, 5, 7, 8 for the 12 hour clock mode.Example: To cancel the LIGHT TIMER.1. Touch LIGHT TIMER pad.2. Touch 0 pad.NOTE:● If you want to cancel the LIGHT TIMER in operation, touch the 0 pad.CUSTOM PROGRAMCUSTOM PROGRAM lets you recall one cooking instruction previously placed in memory and begin cooking quickly.Example: To cook for 2 minutes at 70% power.1. Touch CUSTOM PROGRAM pad. 2. Enter the cook time.3. Touch POWER LEVEL pad.4. Enter the power level.5. Touch ENTER/ START pad.Example: To recall the custom program.1. Touch CUSTOM PROGRAM pad.2. Touch ENTER/ START pad.When the cook time is over, you will hear four beeps and END will display. MMV5207BA_03143H.indd 9 2005-09-21 ｿﾀﾈﾄ 4:05:20
10Operating InstructionsMORE/LESSThe More(9)/Less(1) pads allow you to adjust pre-set cooking times. They only work in the Sensor Reheat, Sensor Cooking(except Beverage), Add 30 sec, Custom Cook or Time Cook modes. Use the More(9)/Less(1) pads only after you have already begun cooking with one of these procedures.1. To ADD more time to an automatic cooking procedure: Touch the More(9) pad.2. To REDUCE the time of an automatic cooking procedure: Touch the Less(1) pad.COOKING AT HIGH POWER LEVELSExample: To cook food for 8 minutes 30 seconds at 100% power. 1. Enter the cook time.2. Touch ENTER/ START pad. When the cook time is over, you will hear four beeps and END will display.COOKING AT LOWER POWER LEVELSHIGH power cooking does not always give you the best results with foods that need slower cooking, such as roasts, baked goods, or custards. Your oven has 9 power settings in addition to HIGH.Example: To cook food for 7 minutes 30 seconds at 70% power. 1. Enter the cook time.2. Touch POWER LEVEL pad.3. Enter the power level.4. Touch ENTER/ START pad.When the cook time is over, you will hear four beeps and END will display.See cooking guide for Power levels, page 11.IMPORTANT:• DO NOT store or use the wire rack in this oven unless more than one item is being cooked or a recipe calls for it.• Damage to the oven could occur.COOKING WITH MORE THAN ONE COOK CYCLEFor best results, some recipes call for one Power Level for a certain length of time, and another Power Level for another length of time.Your oven can be set to change from one to another automatically, for up to three cycles if the first cycle is defrost.Example: To cook food for 3 minutes at 90% power and then 70% power for 7 minutes 30 seconds. 1. Enter the first cook time.2. Touch POWER LEVEL pad.3. Enter the power level. 4. Enter the second cook time.5. Touch POWER LEVEL pad.6. Enter the power level.7. Touch ENTER/ START pad.When the cook time is over, you will hear four beeps and END will display.MMV5207BA_03143H.indd 10 2005-09-21 ｿﾀﾈﾄ 4:05:21
11Operating InstructionsCOOKING GUIDE FOR POWER LEVELSThe power levels allow you to choose the best power level for the food you are cooking. Beloware listed all the power levels, examples of foods best cooked at each level, and the amount of microwave power you are using.POWER LEVEL MICROWAVE OUTPUT USE10 High 100% ● Boil water.● Cook ground beef.● Make candy.● Cook fresh fruits and vegetables.● Cook fish and poultry.● Preheat browning dish.● Reheat beverages.● Bacon slices. Place utensil on wire oven rack.9 90% ● Reheat meat slices quickly.● Saute onions, celery, and green pepper.8 80% ● All reheating.● Cook scrambled eggs.7 70% ● Cook breads and cereal products.● Cook cheese dishes, veal.● Cook cakes, muffins, brownies, cupcakes.6 60% ● Cook pasta.5 50% ● Cook meats, whole poultry.● Cook custard.● Cook whole chicken, turkey, spare ribs, rib roast, sirloin roast.4 40% ● Cook less tender cuts of meat.● Reheat frozen convenience foods.3 30% ● Thaw meat, poultry, and seafood.● Cook small quantities of food.● Finish cooking casserole, stew, and some sauces.2 20% ● Soften butter and cream cheese.● Heat small amounts of food.1 10% ● Soften ice cream.● Raise yeast dough.MMV5207BA_03143H.indd 11 2005-09-21 ｿﾀﾈﾄ 4:05:21
12SENSOR OPERATING INSTRUCTIONSSensor Cook allows you to cook most of your favorite foods without selecting cooking times and power levels. The display will indicate the sensing period by scrolling the name of the food. The oven automatically determines required cooking time for each food item. When the internal sensor detects a certain amount of gas coming from the food, it will tell the oven how much longer to cook. The display will show the remaining heating time. For best results when cooking by Sensor, follow these recommendations:1. Food cooked with the sensor system should be at normal storage temperature.2. Glass turntable and outside of container should be dry to assure best cooking results.3. Most foods should always be covered loosely with microwavable plastic wrap, waxed paper, or a lid.4. Do not open the door or touch the STOP/CLEAR pad during the sensing time. When sensing time is over, the oven beeps and the remaining cooking time will appear in the display window. At this time you can open the door to stir, turn, or rearrange the food.IMPORTANT:When using sensor cook, the oven must cool for 5 minutes between uses or food will not cook properly.SENSOR COOKING GUIDEAppropriate containers and coverings help assure good Sensor cooking results.1. Always use microwavable con-tainers and cover them with lids or vented plastic wrap.2. Never use tight-sealing plastic Operating Instructionscovers. They can prevent steam from escaping and cause food to overcook.3. Match the amount to the size of the container. Fill containers at least half full for best results.4. Be sure the outside of the cooking container and the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning into steam can mislead the sensor.NOTE :If food is not thoroughly cooked or reheated when using the sensor feature, complete using a power level and cooking time. DO NOT continue using the sensor pad.ADDING OR SUBTRACTING COOK TIMEBy using the More(9) or Less(1) pad all of the sensor cook and time cook settings can be adjusted to cook food for a longer or shorter time. PIZZA SLICE Reheating pizza with PIZZA SLICE pad lets you reheat one or several slices of pizza without selecting cooking times and power levels.Example: To reheat 2 slices of pizza. Touch PIZZA SLICE pad. When the cook time is over, you will hear four beeps and END will display. • Recommended amounts: 1-4 slices. CAUTION● DO NOT leave microwave oven unattended while pop-ping corn.● When popping commercially packaged popcorn,remove the rack from the oven; Do not place the bag of microwave popcorn on the rack or under the rack.POPCORN POPCORN pad lets you pop commercially packaged microwave popcorn. Pop only one package at a time. For best results, use fresh bags of popcorn.Example: To pop popcornTouch POPCORN pad. When the cook time is over, you will hear four beeps and END will display.• Recommended amounts: 3.0-3.5 ozs.MMV5207BA_03143H.indd 12 2005-09-21 ｿﾀﾈﾄ 4:05:22
13Operating InstructionsBAKED POTATO The BAKED POTATO pad lets you bake one to six potatoes without selecting cooking times and power levels.NOTES:• Cooking time is based on a 8-10 oz. potato.• Use the More(9)/Less(1) pads if cooking larger or smaller potatoes.• Before baking, pierce potato with fork several times.• If potatoes are not completely cooked, continue cooking using cooking time.• DO NOT use the BAKED POTATO pad to complete cooking.After baking, let stand for 5 minutes.Example: To cook 2 potatoes.Touch BAKED POTATO pad. When the cook time is over, you will hear four beeps and END will display.• Recommended amounts: 1-6 potatoes.VEGETABLE VEGETABLES pad has preset cook powers for 2 food categories: Fresh, Frozen.Example: To cook Frozen Vegetables.1. Touch VEGETABLES pad.2. Choose food category.When the cook time is over, you will hear four beeps and END will display.Category Touch Pad NumberFresh 1Frozen 2COOK Using COOK pad lets you heat common microwave-prepared foods without needing to program cooking times and power levels. COOK has 4 preset food categories: Beverage, Frozen Dinner, Frozen Breakfast and Chicken Breast.Example: To cook Frozen Breakfast.1. Touch COOK pad.2. Choose food category.When the cook time is over, you will hear four beeps and END will display.Category Touch Pad NumberBeverage 1Frozen Dinner 2Frozen Breakfast 3Chicken Breast 4Recommended amounts:Beverage 8 ozs.Frozen Dinner 8-14 ozs.Frozen Breakfast 4-8 ozs.Chicken Breast 8-24 ozs.See Sensor Cook Guide on page 14.REHEAT REHEAT pad lets you heat foods without needing to program cooking times and power levels. REHEAT has 3 preset categories: Dinner Plate, Casserole and Pasta.Example: To reheat Casserole.1. Touch REHEAT pad.2. Choose food category.When the cook time is over, you will hear four beeps and END will display.Category Touch Pad NumberDinner Plate 1Casserole 2Pasta 3Recommended amounts:Dinner Plate 1 servingCasserole 1-4 servingsPasta 1-4 sevingsSee Sensor Reheat Guide on page 14.MMV5207BA_03143H.indd 13 2005-09-21 ｿﾀﾈﾄ 4:05:22
14Operating InstructionsSENSOR COOK GUIDECATEGORY DIRECTIONS AMOUNTPopcorn Use only one microwave-only bag of popcorn at a time. Use caution when removing and opening the hot bag from oven. Let oven cool for at least 5 minutes before using again.3.0 to 3.5 oz. 1 packagePotatoPrick each potato several times with fork. Place on turntable in spoke-like fashion. Let stand 3-5 minutes. Let oven cool for at least 5 minutes before using again. Use More(9) pad when cooking larger potatoes.1 to 6 potatoesVEGETABLESFreshVegetablesPlace fresh vegetables in microwave-safe ceramic, glass or plastic dish and add 2-4 Tbs. water. Cover with lid or vented plastic wrap during cooking and stir before standing. Let oven cool for at least 5 minutes before using again. Use the More(9) pad when cooking dense vegetables such as carrots or broccoli spears.1 to 4 servingsFrozenVegetablesPlace frozen vegetables in microwave-safe ceramic, glass or plastic dish and add 2-4 Tbs. water. Cover with lid or vented plastic wrap during cooking and stir before standing. Let oven cool for at least 5 minutes before using again. Use the More(9) pad when cooking dense vegetables such as carrots or broccoli spears.1 to 4 servingsPizza SlicePut 1-4 slices of pizza on a Microwave-safe plate with wide end of slice toward the outside edge of the plate. Do not let slices overlap. Do not cover. Let oven cool for at least 5 minutes before using again. Use More(9) pad to increase reheat time for thick crust pizza.1 to 4 SlicesCOOKBeverageUse measuring cup or mug ; do not cover. Place the beverage in the oven. After heating, stir well. Let oven cool for at least 5 minutes before using again.Note: ● Reheat times based on an 8 ounce cup.● Beverage heated with the beverage feature may be very hot.● Remove container with care.8 oz.FrozenDinnerRemove food from outer wrapping and follow box instructions for covering and standing. Let oven cool for at least 5 minutes before using again. 8 to 14 oz.FrozenBreakfastFollow package instructions for covering and standing. Use this pad for frozen sandwich, breakfast entree, etc. Let oven cool for at least 5 minutes before using again. 4 to 8 oz.Chicken BreastPlace chicken breasts on a microwave-safe plate and cover with plastic wrap. Cook to an internal temperature of 170 degrees F. Let stand 5 minutes. Use the More(9) pad to increase cooking time for larger or thicker chicken breasts. Let oven cool for at least 5 minutes before using again.8 to 16 oz.SENSOR REHEAT GUIDECATEGORY DIRECTIONS AMOUNTDinner PlateUse only pre-cooked, refrigerated foods. Cover plate with vented plastic wrap or waxed paper, tucked under plate. If food is not as hot as you prefer after heating with REHEAT, continue heating using cooking time and power level. Do not continue cooking using the Reheat pad. Contents:- 3-4 oz. meat, poultry or fish (up to 6 oz. with bone)- 1/2 cup starch (potatoes, pasta, rice, etc.)- 1/2 cup vegetables (about 3-4 oz.)1 serving(1 plate)CasseroleCover plate with lid or vented plastic wrap. If food is not as hot as you prefer after heating with REHEAT, continue heating using time and power level. Do not continue cooking using the Reheat pad.Stir foods once before serving. Contents:- Casserole-refrigerated foods. (Examples : Lasagna and beef stew.)- Pasta-Canned spaghetti and ravioli, refrigerated foods.1 to 4 servings.PastaNOTE:Desired food temperature varies from person to person.Use the More(9)/Less(1) pads to fit your temperature MMV5207BA_03143H.indd 14 2005-09-21 ｿﾀﾈﾄ 4:05:23
15Operating InstructionsKIDS MEALS KIDS MEALS lets you heat 4 categories of food : Chicken Nuggets, Hot dogs, French Fries and Frozen Sandwiches.Example: To cook frozen sandwiches.1. Touch KIDS MEALS pad. Category Touch Pad NumberChicken Nuggets 1Hot Dogs 2French Fries 3Frozen Sandwiches 42. Choose food category(1-4).3. Touch ENTER/START pad.KIDS MEALS CHARTItem Amount or servings RemarksFrozen Chicken Nuggets1 serving (4-5 oz.) 2 servings (6-7 oz.)• Put a paper towel on top of plate and arrange nuggets in spoke fashion on paper towel.• Do not cover. Let stand 1 minute.Hot Dogs 2 EA 4 EA• Prick hot dogs, place on plate. When the oven beeps, add buns and re-start the oven.French Fries 1 serving (4-5 oz.) 2 servings (6-7 oz.)• Place 2 paper towels on plate and arrange french fries on towels, do not overlap. • Blot with additional paper towel after removal from oven.Frozen Sandwiches1 EA 2 EA• Place frozen sandwich in susceptor “sleeve” (which is in package) and put on plate.MMV5207BA_03143H.indd 15 2005-09-21 ｿﾀﾈﾄ 4:05:23
16Operating InstructionsSNACKS SNACKS lets you heat 4 categories of food : Nachos, Chicken Wings, Potato Skins, and Cheese Sticks.Example: To cook chicken wings.1. Touch SNACKS pad. Category Touch Pad NumberNachos 1Chicken Wings 2Potato Skins 3Cheese Sticks 42. Choose food category(1-4).3. Touch ENTER/START pad.SNACKS CHARTItem Amount or servings RemarksNachos 1 serving • Place tortilla chips on plate without overlapping.• Sprinkle evenly with cheese.• Contents : - 2 cups tortilla chips - 1/3 cup grated cheeseChicken Wings 5-6 oz.7-8 oz.• Use pre-cooked, refrigerated chicken wings.• Place chicken wings around plate in spoke fashion and cover with wax paper.Potato Skins 1 cooked potato2 cooked potatoes• Cut cooked potato into 4 even wedges. Scoop or cut out potato flesh, leaving about 1/4” of skin.• Place skins in spoke fashion around plate.• Sprinkle with bacon, onions and cheese. Do not cover.Cheese Sticks 5-6 pcs.7-10 pcs.• Place cheese sticks on plate in spoke fashion.• Do not cover.MMV5207BA_03143H.indd 16 2005-09-21 ｿﾀﾈﾄ 4:05:23
17Operating InstructionsSOFTEN/MELT SOFTEN/MELT lets you soften or melt 3 categories of food : Melt Chocolate, Soften Cream Cheese and Melt Butter.Example: To melt chocolate.1. Touch SOFTEN/MELT pad. Category Touch Pad NumberMelt Chocolate 1Soften Cream Cheese 2Melt Butter 32. Choose food category(1-3).3. Touch ENTER/START pad.SOFTEN/MELT CHARTItem Amount or servings RemarksMelt Chocolate 2 squares or 1 cup chips• Place chocolate chips or square in a microwave-safe dish.• Stir well at half time when the oven beeps, and re-start the oven.• Unless stirred, the chocolate keeps its shape even when heating time is over.Soften Cream Cheese 1 package (8 oz.) • Unwrap cream cheese and place on microwave-safe dish.• Let stand 1-2 minutes.Melt Butter 1 stick (1/4 lb.) • Remove wrapping and cut butter in half vertically.2 sticks (1/2 lb.) • Place butter in dish, cover with wax paper.• Stir well after finishing and let stand 1-2 minutes.MMV5207BA_03143H.indd 17 2005-09-21 ｿﾀﾈﾄ 4:05:23

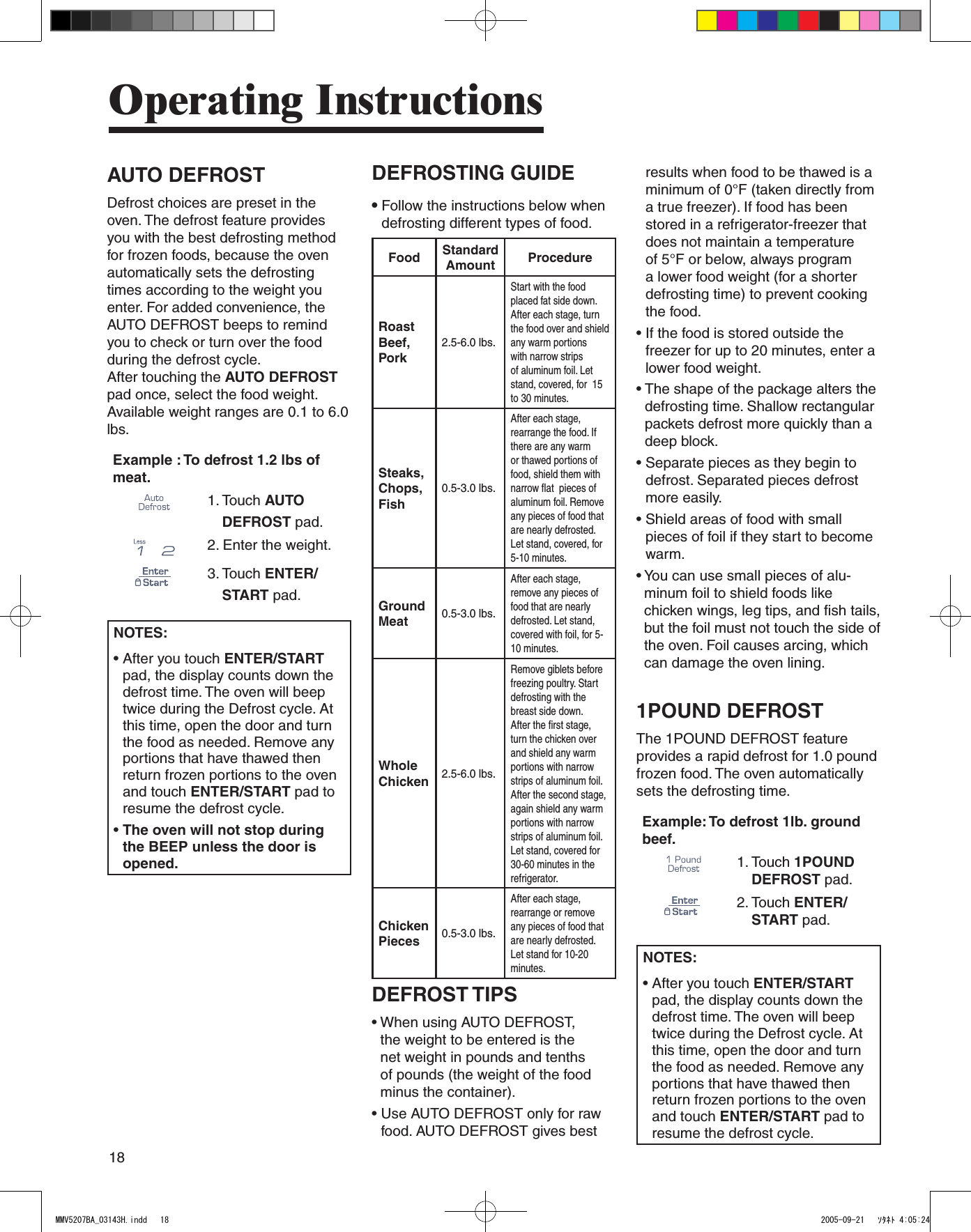

18DEFROSTING GUIDE● Follow the instructions below when defrosting different types of food.Food Standard Amount ProcedureRoast Beef, Pork2.5-6.0 lbs.Start with the food placed fat side down. After each stage, turn the food over and shield any warm portions with narrow strips of aluminum foil. Let stand, covered, for 15 to 30 minutes.Steaks, Chops, Fish0.5-3.0 lbs.After each stage, rearrange the food. If there are any warm or thawed portions of food, shield them with narrow flat pieces of aluminum foil. Remove any pieces of food that are nearly defrosted. Let stand, covered, for 5-10 minutes.Ground Meat0.5-3.0 lbs.After each stage, remove any pieces of food that are nearly defrosted. Let stand, covered with foil, for 5-10 minutes.Whole Chicken2.5-6.0 lbs.Remove giblets before freezing poultry. Start defrosting with the breast side down. After the first stage, turn the chicken over and shield any warm portions with narrow strips of aluminum foil. After the second stage, again shield any warm portions with narrow strips of aluminum foil. Let stand, covered for 30-60 minutes in the refrigerator.Chicken Pieces0.5-3.0 lbs.After each stage, rearrange or remove any pieces of food that are nearly defrosted. Let stand for 10-20 minutes.DEFROST TIPS • When using AUTO DEFROST, the weight to be entered is the net weight in pounds and tenths of pounds (the weight of the food minus the container).• Use AUTO DEFROST only for raw food. AUTO DEFROST gives best Operating InstructionsAUTO DEFROST Defrost choices are preset in the oven. The defrost feature provides you with the best defrosting method for frozen foods, because the oven automatically sets the defrosting times according to the weight you enter. For added convenience, the AUTO DEFROST beeps to remind you to check or turn over the food during the defrost cycle. After touching the AUTO DEFROST pad once, select the food weight. Available weight ranges are 0.1 to 6.0 lbs. Example : To defrost 1.2 lbs of meat.1. Touch AUTO DEFROST pad. 2. Enter the weight.3. Touch ENTER/START pad.NOTES: • After you touch ENTER/START pad, the display counts down the defrost time. The oven will beep twice during the Defrost cycle. At this time, open the door and turn the food as needed. Remove any portions that have thawed then return frozen portions to the oven and touch ENTER/START pad to resume the defrost cycle. • The oven will not stop during the BEEP unless the door is opened.results when food to be thawed is a minimum of 0°F (taken directly from a true freezer). If food has been stored in a refrigerator-freezer that does not maintain a temperature of 5°F or below, always program a lower food weight (for a shorter defrosting time) to prevent cooking the food.• If the food is stored outside the freezer for up to 20 minutes, enter a lower food weight.• The shape of the package alters the defrosting time. Shallow rectangular packets defrost more quickly than a deep block.• Separate pieces as they begin to defrost. Separated pieces defrost more easily.• Shield areas of food with small pieces of foil if they start to become warm.• You can use small pieces of alu-minum foil to shield foods like chicken wings, leg tips, and fish tails, but the foil must not touch the side of the oven. Foil causes arcing, which can damage the oven lining.1POUND DEFROSTThe 1POUND DEFROST feature provides a rapid defrost for 1.0 pound frozen food. The oven automatically sets the defrosting time.Example: To defrost 1lb. ground beef.1. Touch 1POUND DEFROST pad.2. Touch ENTER/START pad.NOTES: • After you touch ENTER/START pad, the display counts down the defrost time. The oven will beep twice during the Defrost cycle. At this time, open the door and turn the food as needed. Remove any portions that have thawed then return frozen portions to the oven and touch ENTER/START pad to resume the defrost cycle.MMV5207BA_03143H.indd 18 2005-09-21 ｿﾀﾈﾄ 4:05:24
19Operating InstructionsWIRE RACK CAUTIONTo avoid risk of property damage:● Do not use rack to pop popcorn.● Rack must be on the four plastic supports when used.● Use the rack only when cooking food on rack position.● Do not cook with rack on floor of the oven.The wire rack gives you extra space when cooking in more than one container at the same time. To use rack:1. Place rack securely in the four plastic supports.• Rack MUST NOT touch metal walls or back of microwave oven.2. Place equal amounts of food both ABOVE AND BELOW rack.• Amount of food must be approximately the same to balance out cooking energy.IMPORTANT:• DO NOT store or use the wire rack in this oven unless more than one item is being cooked or a recipe calls for it.• Damage to the oven could occur.GETTING THE BEST COOKING RESULTSTo get the best results from your microwave oven, read and follow the guidelines below.• Storage Temperature: Foods taken from the freezer or refrigerator take longer to cook than the same foods at room temperature.• Size: Small pieces of food cook faster than large ones, pieces similar in size and shape cook more evenly. For even cooking, reduce the power when cooking large pieces of food.• Natural Moisture: Very moist foods cook more evenly because microwave energy is attracted to water molecules.• Stir foods such as casseroles and vegetables from the outside to the center to distribute the heat evenly and speed cooking. Constant stirring is not necessary.• Turn over foods like pork chops, baking potatoes, roasts, or whole cauliflower halfway through the cooking time to expose all sides equally to microwave energy. • Place delicate areas of foods, such as asparagus tips, toward the center of the dish.• Arrange unevenly shaped foods, such as chicken pieces or salmon steaks, with the thicker, meatier parts toward the outside of the dish.• Shield, with small pieces of aluminum foil, parts of food that may cook quickly, such as wing tips and leg ends of poultry.• Let It Stand: After you remove the food from the microwave, cover food with foil or casserole lid and let it stand to finish cooking in the center and avoid overcooking the outer edges. The length of standing time depends on the density and surface area of the food.• Wrapping in waxed paper or paper towel: Sandwiches and many other foods containing prebaked bread should be wrapped prior to microwaving to prevent drying out.MMV5207BA_03143H.indd 19 2005-09-21 ｿﾀﾈﾄ 4:05:24
20COOKING GUIDEGuide for Cooking Meat in Your Microwave● Place meat on a microwave-safe roasting rack in a microwave-safe dish.● Start meat fat-side down. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas.● Check the temperature in several places before letting the meat stand the recommended time.● The following temperatures are removal temperatures. The temperature of the food will rise during the standing time.● Expect a 10°F rise in temperature during the standing time.Food Cook time Power level DirectionsRoast Beef Boneless (Up to 4 lbs.)7-11 min./lb. for 145° F(Rare)High(10) for first 5 minutes, then medium(5)Place roast fat-side down on roasting rack. Cover with wax paper. Turn over half way through cooking. Let stand 10 -15 minutes.8-12 min./lb. for 160° F(Medium)9-14 min./lb. for 170° F(Well Done)Pork Boneless or bone-in (Up to 4 lbs.)11-15 min./lb. for 170° F(Well Done)High(10) for first 5 minutes, then medium(5)Place roast fat-side down on roasting rack. Cover with wax paper. Turn over half way through cooking. Let stand 10 -15 minutes.Food Remove from oven After standing (10 -15 min.)BeefRare 135°F 145°F Medium 150°F 160°FWell Done 160°F 170°FPork Medium 150°F 160°FWell Done 160°F 170°FPoultry Dark meat 170°F 180°FLight meat 160°F 170°FGuide for Cooking Poultry in Your Microwave● Place poultry on a microwave-safe roasting rack in a microwave-safe dish.● Cover poultry with wax paper to prevent spattering.● Use aluminum foil to shield bone tips, thin meat areas, or areas that start to overcook.● Check the temperature in several places before letting the poultry stand the recommended time.Food Cook Time/Power Level DirectionsWhole ChickenUp to 4 lbs.Cooking Time: 6-9 min. / lb. 180°F dark meat 170°F light meatPower Level: Medium High(7).Place chicken breast-side down on roasting rack. Cover with wax paper. Turn over half way through cooking. Cook until juices run clear and meat near the bone is no longer pink. Let stand 5-10 minutes.Chicken PiecesUp to 2 lbs.Cooking Time: 6-9 min. / lb. 180°F dark meat 170°F light meatPower Level: Medium High(7).Place chicken bone-side down on dish, with the thickest portions toward the outside of the dish. Cover with wax paper. Turn over half way through cooking. Cook until juices run clear and meat near the bone is no longer pink. Let stand 5-10 minutes.Operating InstructionsMMV5207BA_03143H.indd 20 2005-09-21 ｿﾀﾈﾄ 4:05:24
21Operating InstructionsGuide for Cooking Seafood in Your Microwave● Cook fish until it flakes easily with a fork.● Place fish on a microwave-safe roasting rack in a microwave-safe dish.● Use a tight cover to steam fish. A lighter cover of wax paper or paper towel provides less steaming.● Do not overcook fish; check it at minimum cooking time.Food Cook Time/Power Level DirectionsSteaksUp to 1.5 lbs.Cooking Time: 6-10 min. / lb. Power Level: Medium-High(7).Arrange steaks on roasting rack with meaty portions towards the outside of rack. Cover with wax paper. Turn over and rearrange when cooking time is half up. Cook until fish flakes easily with a fork. Let stand 3-5 minutes. FilletsUp to 1.5 lbs.Cooking Time: 3-7 min. / lbPower Level:Medium-High(7).Arrange fillets in a baking dish, turning any thin pieces under. Cover with wax paper. If over ½ inch thick, turn over and rearrange when cooking time is half up. Cook until fish flakes easily with a fork. Let stand 2-3 minutes.ShrimpUp to 1.5 lbs.Cooking Time: 3-5 ½ min. / lb.Power Level: Medium-High(7).Arrange shrimp in a baking dish without overlapping or layering. Cover with wax paper. Cook until firm and opaque, stirring 2 or 3 times. Let stand 5 minutes.Guide for Cooking Eggs in Your Microwave● Never cook eggs in the shell, and never warm hard-cooked eggs in the shell; they can explode.● Always pierce whole eggs to keep them from bursting.● Cook eggs just until set; they become tough if overcooked.Guide for Cooking Vegetables in Your Microwave● Vegetables should be washed just before cooking. Often, no extra water is needed. If dense vegetables such as potatoes, carrots and green beans are being cooked, add about ¼ cup water.● Small vegetables (sliced carrots, peas, lima beans, etc.) will cook faster than larger ones.● Whole vegetables, such as potatoes, acorn squash or corn on the cob, should be arranged in a circle on the turntable before cooking. They will cook more evenly if turned over after half the cooking time has passed.● Always place vegetables like asparagus and broccoli with the stem ends pointing towards the edge of the dish and the tips toward the center.● When cooking cut vegetables, always cover the dish with a lid or vented microwavable plastic wrap.● Whole, unpeeled vegetables such as potatoes, squash, eggplant, etc., should have their skin pricked in several spots before cooking to prevent them from bursting.● For more even cooking, stir or rearrange whole vegetables halfway through the cooking time.● Generally, the denser the food, the longer the standing time. (Standing time refers to the time necessary for dense, large foods and vegetables to finish cooking after they come out of the oven.) A baked potato can stand on the counter for five minutes, while a dish of peas can be served immediately.MMV5207BA_03143H.indd 21 2005-09-21 ｿﾀﾈﾄ 4:05:24
224. Open the door.5. Push the hook and remove old filter.6. Slide a new charcoal filter into place and close the door. The filter should rest at the angle shown.7. Slide the bottom of the vent cover into place. Push the top until it snaps into place. Replace the mounting screws. Turn the power back on at the main power supply and set the clock. CHACOAL FILTER PART NO.8310P009-60CARE AND CLEANINGFor best performance and safety, keep the oven clean inside and out-side. Take special care to keep the inner door panel and the oven front frame free of food or grease build-up. Never use rough powder or pads. Wipe the microwave oven inside and out, including the hood bottom cover, with a soft cloth and a warm (not hot) mild detergent solution. Then rinse and wipe dry. Use a chrome cleaner and polish on chrome, metal and aluminum surfaces. Wipe spatters immediately with a wet paper towel, especially after cooking chicken or bacon. Clean your oven weekly or more often, if needed.CLEANING THE GREASE FILTERThe grease filter should be removed and cleaned often, at least once a month. CAUTIONTo avoid risk of personal injury or property damage, do not operate oven hood without filters in place.1. To remove grease filter, slide filter to the side. Pull filter downward and push to the other side. The filter will drop out.2. Soak grease filter in hot water and a mild detergent. Rinse well and shake to dry. Do not use ammonia or place in a dishwasher. The aluminum will darken.3. To reinstall the filter, slide it into the side slot, then push up and toward oven center to lock.CHARCOAL FILTER REPLACEMENTIf your oven is vented to the inside, the charcoal filter should be replaced every 6 to 12 months, and more often if necessary. The charcoal filter cannot be cleaned. To order a new charcoal filter, contact the Parts Department at your nearest Authorized Service Center or call 1-800-843-0304 (inside U.S.A) or 1-866-587-2002 (Canada).1. Unplug oven or turn off power at the main power supply.2. Remove the two vent grille mounting screws. (2 middle screws)3. Tip the grille forward, then lift it out.Care and CleaningMMV5207BA_03143H.indd 22 2005-09-21 ｿﾀﾈﾄ 4:05:25
23COOKTOP/NIGHT LIGHT REPLACEMENT CAUTIONTo avoid personal injury or property damage, wear gloves when replacing light bulb.1. Unplug the oven or turn off power at the main power supply.2. Remove the bulb cover mounting screws.3. Replace bulb with 20 watt appliance bulb.4. Replace bulb cover, and mounting screws.5. Turn the power back on at the main power supply.OVEN LIGHT REPLACEMENT1. Unplug oven or turn off power at the main power supply.2. Remove the vent cover mounting screws. (2 middle screws)3. Tip the cover forward, then lift out to remove.4. Lift up the bulb holder.5. Remove bulb holder.6. Replace bulb with a 20 watt appliance bulb.7. Replace the bulb holder.8. Slide the bottom of the vent cover into place. Push the top until it snaps into place. Replace the mounting screws. Turn the power back on at the main power supply.Care and CleaningOPTIONALFiller KitsUXA3036BDB - BLACKUXA3036BDW - WHITEUXA3036BDS - STAINLESS STEELWhen replacing a 36" range hood, the filler kit fills in the additional width to provide a custom built-in appearance.For installation between cabinets only; not for end-of-cabinet installation.Each kit contains two 3"-wide filler panels.MMV5207BA_03143H.indd 23 2005-09-21 ｿﾀﾈﾄ 4:05:27

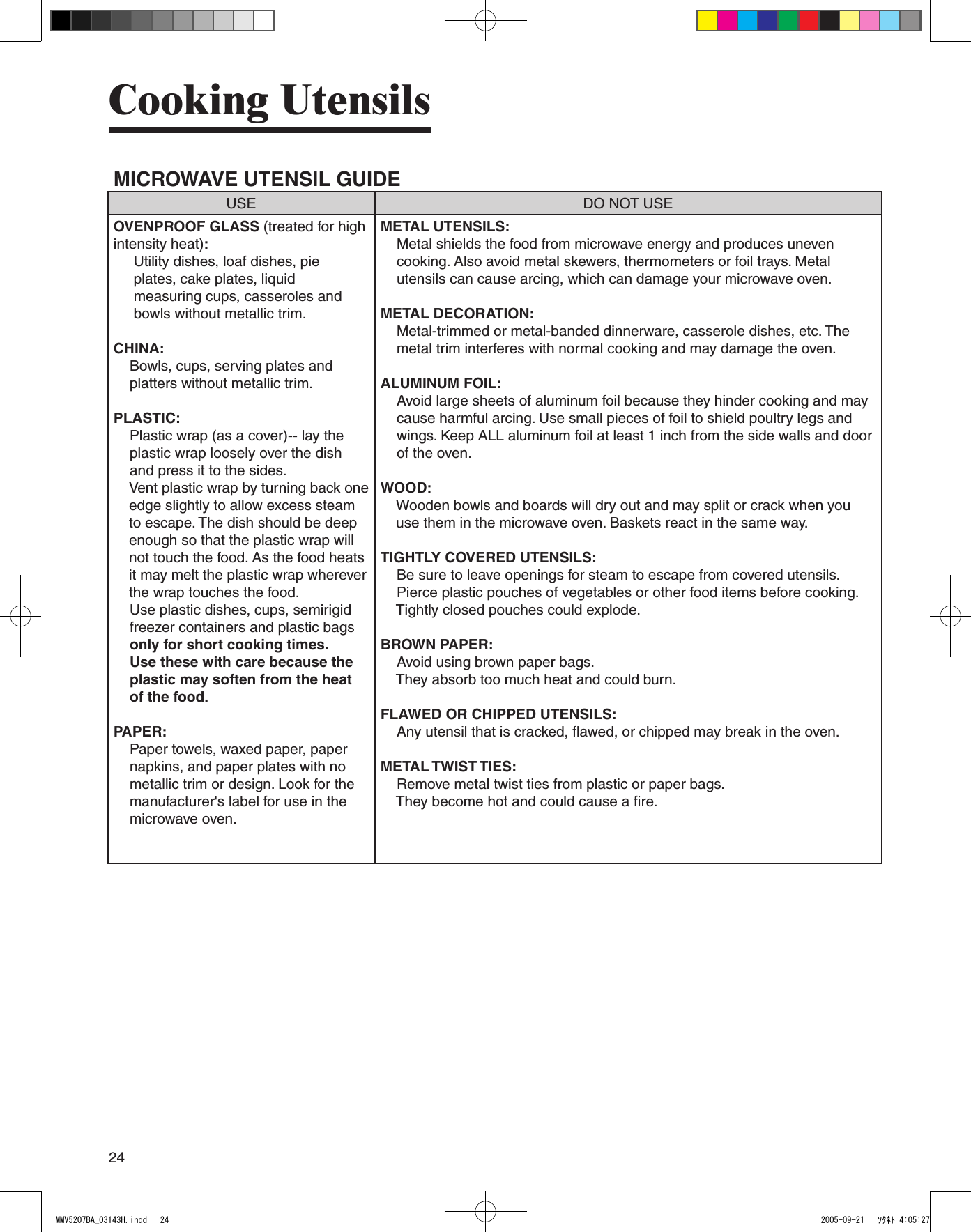

24Cooking UtensilsMICROWAVE UTENSIL GUIDEUSE DO NOT USEOVENPROOF GLASS (treated for high intensity heat): Utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles and bowls without metallic trim.CHINA: Bowls, cups, serving plates and platters without metallic trim.PLASTIC: Plastic wrap (as a cover)-- lay the plastic wrap loosely over the dish and press it to the sides. Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. As the food heats it may melt the plastic wrap wherever the wrap touches the food. Use plastic dishes, cups, semirigid freezer containers and plastic bags only for short cooking times. Use these with care because the plastic may soften from the heat of the food.PAPER: Paper towels, waxed paper, paper napkins, and paper plates with no metallic trim or design. Look for the manufacturer's label for use in the microwave oven.METAL UTENSILS: Metal shields the food from microwave energy and produces uneven cooking. Also avoid metal skewers, thermometers or foil trays. Metal utensils can cause arcing, which can damage your microwave oven.METAL DECORATION: Metal-trimmed or metal-banded dinnerware, casserole dishes, etc. The metal trim interferes with normal cooking and may damage the oven.ALUMINUM FOIL: Avoid large sheets of aluminum foil because they hinder cooking and may cause harmful arcing. Use small pieces of foil to shield poultry legs and wings. Keep ALL aluminum foil at least 1 inch from the side walls and door of the oven.WOOD: Wooden bowls and boards will dry out and may split or crack when you use them in the microwave oven. Baskets react in the same way.TIGHTLY COVERED UTENSILS: Be sure to leave openings for steam to escape from covered utensils. Pierce plastic pouches of vegetables or other food items before cooking. Tightly closed pouches could explode.BROWN PAPER: Avoid using brown paper bags. They absorb too much heat and could burn.FLAWED OR CHIPPED UTENSILS: Any utensil that is cracked, flawed, or chipped may break in the oven.METAL TWIST TIES: Remove metal twist ties from plastic or paper bags. They become hot and could cause a fire.MMV5207BA_03143H.indd 24 2005-09-21 ｿﾀﾈﾄ 4:05:27
25TroubleshootingTROUBLESHOOTING GUIDEBefore you call a repair person for your oven, check this list of possible problems and solutions.Neither the oven’s display nor the oven operate.● Properly insert the plug into a grounded outlet. ● If the outlet is controlled by a wall switch, make sure the wall switch is turned on. ● Remove the plug from the outlet, wait ten seconds, then plug it in again. ● Reset the circuit breaker or replace any blown fuse.● Plug another appliance into the outlet; if the other appliance doesn’t work, have a qualified electrician repair the outlet. ● Plug the oven into a different outlet.The oven’s display works, but the power won’t come on.● Make sure the door is closed securely.● Check to see if packing material or other material is stuck to the door seal. ● Check for door damage.● Press STOP/CLEAR pad twice and re-enter all cooking instructions.The power goes off before the set time has elapsed.● If there has not been a power outage, remove the plug from the outlet, wait ten seconds, then plug it in again. If there was a power outage, the time indicator will display: PLEASE TOUCH CLOCK AND TIME OF DAY. Reset the clock and any cooking instructions. ● Reset the circuit breaker or replace any blown fuse. The food is cooking too slowly.● Make sure the oven is on its own 20 amp circuit line. Operating another appliance on the same circuit can cause a voltage drop. If necessary, move the oven to its own circuit.You see sparks or arcing.● Remove any metallic utensils, cookware, or metal ties. If using foil, use only narrow strips and allow at least one inch between the foil and interior oven walls.The turntable makes noises or sticks.● Clean the turntable, roller ring and oven floor. ● Make sure the turntable and roller ring are positioned correctly.Using your microwave causes TV or radio interference.● This is similar to the interference caused by other small appliances, such as hair dryers. Move your microwave further away from other appliances, like your TV or radio.CARE AND CLEANINGFollow these instructions to clean and care for your oven.● Keep the inside of the oven clean. Food particles and spilled liquids can stick to the oven walls, causing the oven to work less efficiently.● Wipe up spills immediately. Use a damp cloth and mild soap. Do not use harsh detergents or abrasives. ● To help loosen baked on food particles or liquids, heat two cups of water (add the juice of one lemon if you desire to keep the oven fresh) in a four-cup measuring glass at High power for five minutes or until boiling. Let stand in the oven for one or two minutes. ● Remove the glass tray from the oven when cleaning the oven or tray. To prevent the tray from breaking, handle it carefully and do not put it in water immediately after cooking. Wash the tray carefully in warm sudsy water or in the dishwasher. ● Clean the outside surface of the oven with soap and a damp cloth. Dry with a soft cloth. To prevent damage to the operating parts of the oven, don’t let water seep into the openings.● Wash the door window with very mild soap and water. Be sure to use a soft cloth to avoid scratching.● If steam accumulates inside or outside the oven door, wipe with a soft cloth. Steam can accumulate when operating the oven in high humidity and in no way indicates microwave leakage.● Never operate the oven without food in it; this can damage the magnetron tube or glass tray. You may wish to leave a cup of water in the oven when it is not in use to prevent damage if the oven is accidentally turned on.If you have a problem you cannot solve,please call our service line:(1-800-843-0304)Note: If the oven is set to cook for more than 25 minutes, it will automatically adjust itself to 70 percent power after 25 minutes to avoid overcooking.MMV5207BA_03143H.indd 25 2005-09-21 ｿﾀﾈﾄ 4:05:27

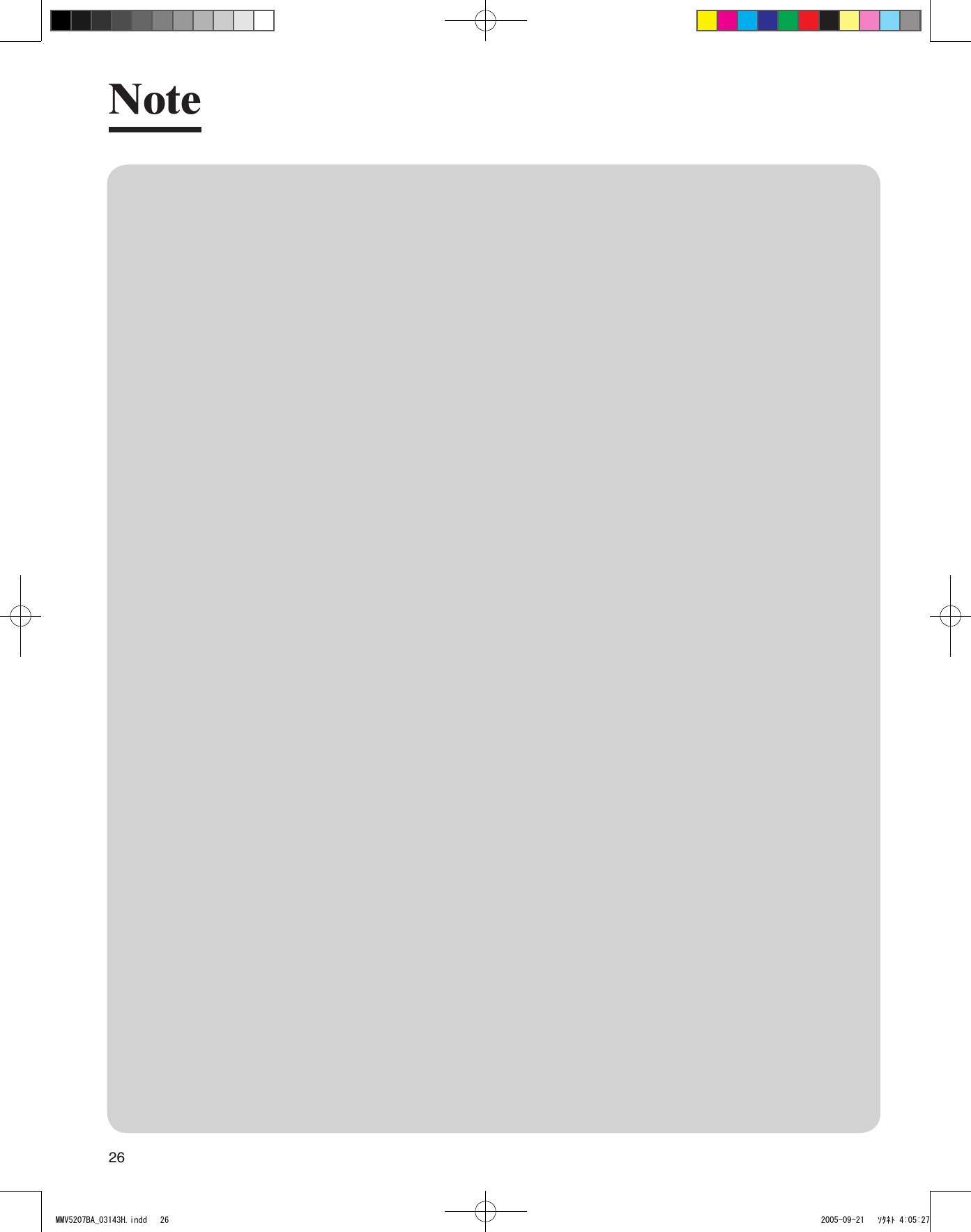

26NoteMMV5207BA_03143H.indd 26 2005-09-21 ｿﾀﾈﾄ 4:05:27

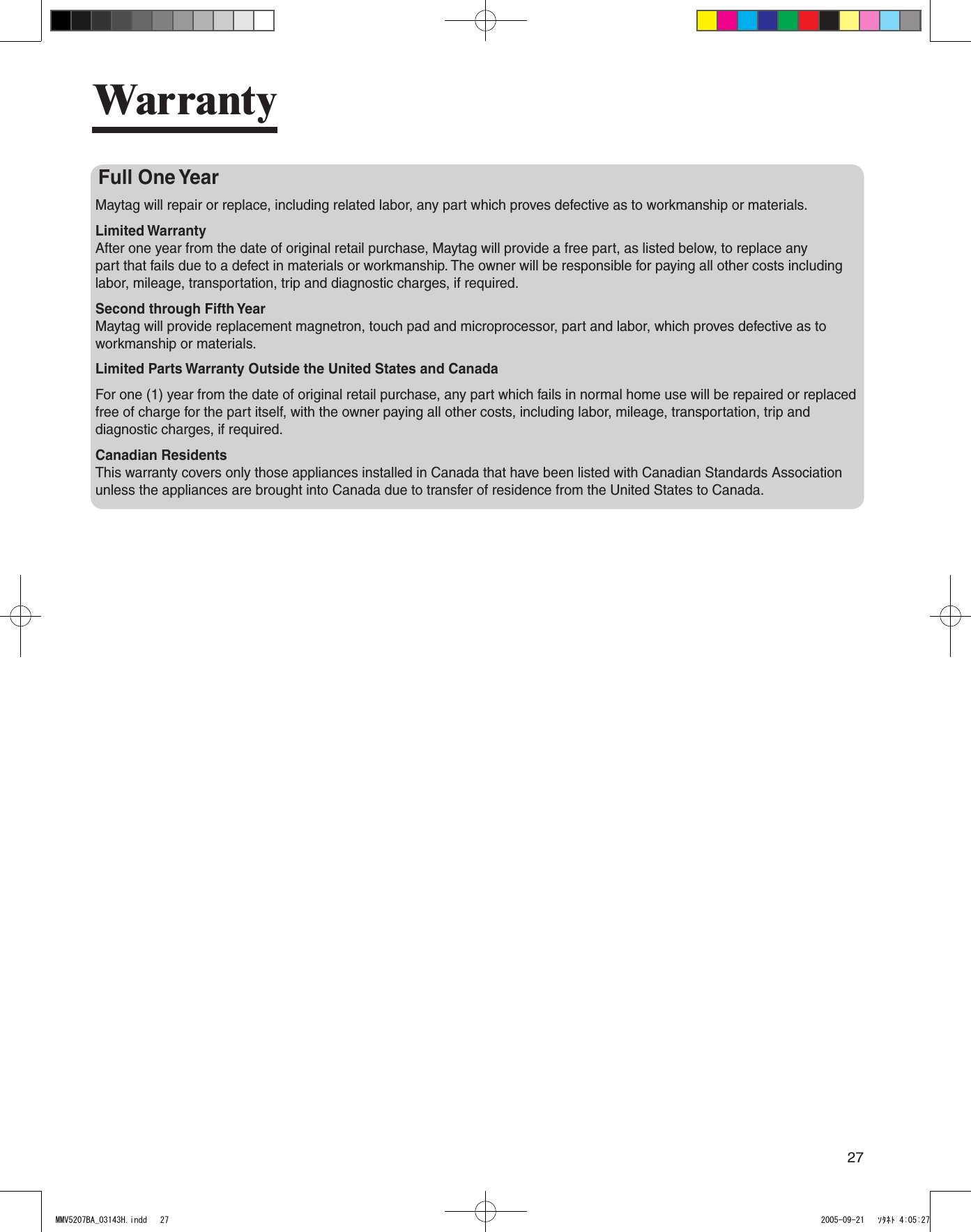

27WarrantyFull One YearMaytag will repair or replace, including related labor, any part which proves defective as to workmanship or materials.Limited Warranty After one year from the date of original retail purchase, Maytag will provide a free part, as listed below, to replace any part that fails due to a defect in materials or workmanship. The owner will be responsible for paying all other costs including labor, mileage, transportation, trip and diagnostic charges, if required.Second through Fifth Year Maytag will provide replacement magnetron, touch pad and microprocessor, part and labor, which proves defective as to workmanship or materials.Limited Parts Warranty Outside the United States and CanadaFor one (1) year from the date of original retail purchase, any part which fails in normal home use will be repaired or replaced free of charge for the part itself, with the owner paying all other costs, including labor, mileage, transportation, trip and diagnostic charges, if required.Canadian Residents This warranty covers only those appliances installed in Canada that have been listed with Canadian Standards Association unless the appliances are brought into Canada due to transfer of residence from the United States to Canada.MMV5207BA_03143H.indd 27 2005-09-21 ｿﾀﾈﾄ 4:05:27

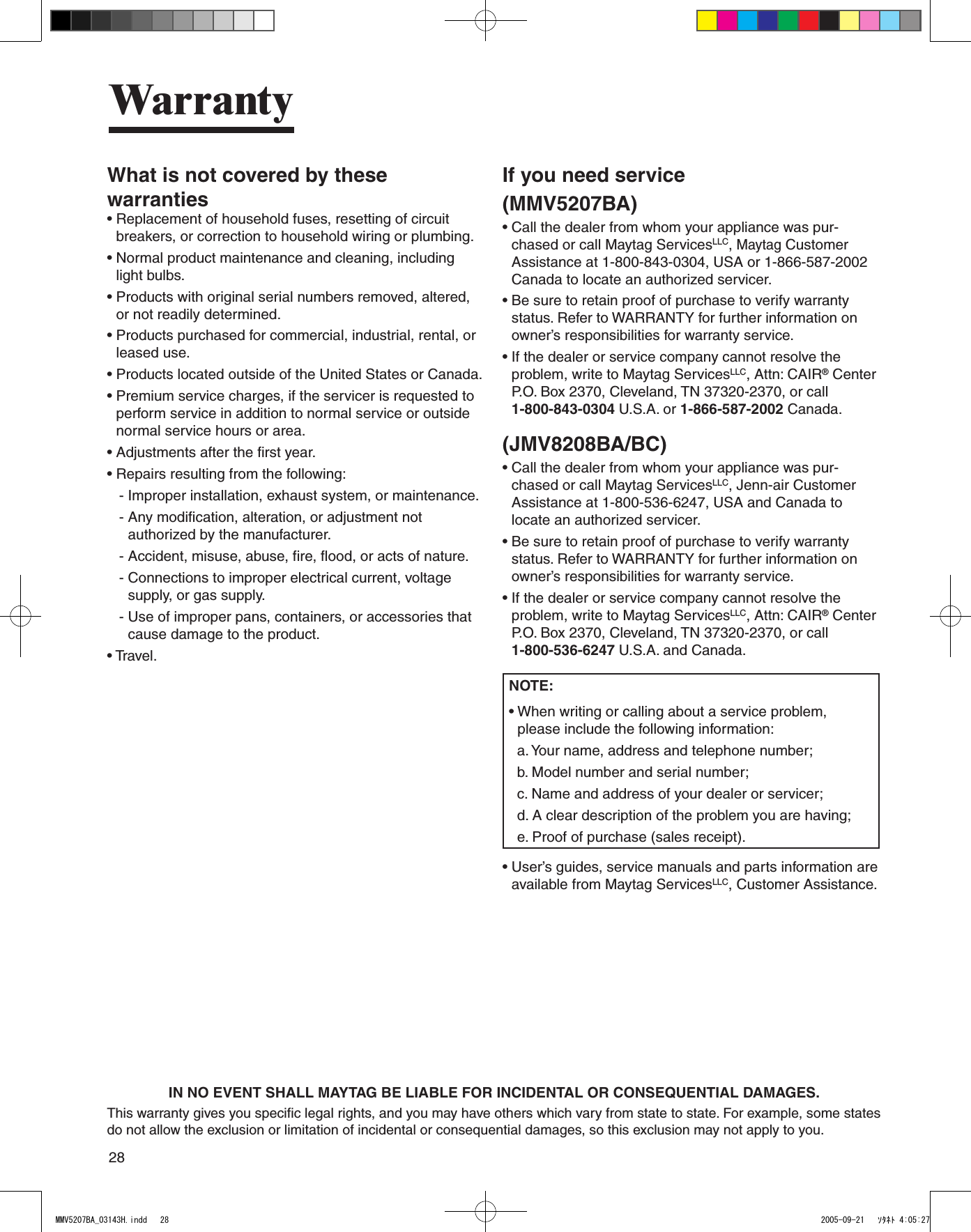

28IN NO EVENT SHALL MAYTAG BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.This warranty gives you specific legal rights, and you may have others which vary from state to state. For example, some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion may not apply to you.WarrantyWhat is not covered by these warranties• Replacement of household fuses, resetting of circuit breakers, or correction to household wiring or plumbing.• Normal product maintenance and cleaning, including light bulbs.• Products with original serial numbers removed, altered, or not readily determined.• Products purchased for commercial, industrial, rental, or leased use.• Products located outside of the United States or Canada.• Premium service charges, if the servicer is requested to perform service in addition to normal service or outside normal service hours or area.• Adjustments after the first year.• Repairs resulting from the following: - Improper installation, exhaust system, or maintenance. - Any modification, alteration, or adjustment not authorized by the manufacturer. - Accident, misuse, abuse, fire, flood, or acts of nature. - Connections to improper electrical current, voltage supply, or gas supply. - Use of improper pans, containers, or accessories that cause damage to the product.• Travel.If you need service(MMV5207BA)• Call the dealer from whom your appliance was pur-chased or call Maytag ServicesLLC, Maytag Customer Assistance at 1-800-843-0304, USA or 1-866-587-2002 Canada to locate an authorized servicer.• Be sure to retain proof of purchase to verify warranty status. Refer to WARRANTY for further information on owner’s responsibilities for warranty service.• If the dealer or service company cannot resolve the problem, write to Maytag ServicesLLC, Attn: CAIR® Center P.O. Box 2370, Cleveland, TN 37320-2370, or call 1-800-843-0304 U.S.A. or 1-866-587-2002 Canada.(JMV8208BA/BC)• Call the dealer from whom your appliance was pur-chased or call Maytag ServicesLLC, Jenn-air Customer Assistance at 1-800-536-6247, USA and Canada to locate an authorized servicer.• Be sure to retain proof of purchase to verify warranty status. Refer to WARRANTY for further information on owner’s responsibilities for warranty service.• If the dealer or service company cannot resolve the problem, write to Maytag ServicesLLC, Attn: CAIR® Center P.O. Box 2370, Cleveland, TN 37320-2370, or call 1-800-536-6247 U.S.A. and Canada.NOTE: • When writing or calling about a service problem, please include the following information: a. Your name, address and telephone number; b. Model number and serial number; c. Name and address of your dealer or servicer; d. A clear description of the problem you are having; e. Proof of purchase (sales receipt).• User’s guides, service manuals and parts information are available from Maytag ServicesLLC, Customer Assistance.MMV5207BA_03143H.indd 28 2005-09-21 ｿﾀﾈﾄ 4:05:27
