Samsung Electronics Co MMV20PN Microwave Oven User Manual AMV5206BA 03143F indd
Samsung Electronics Co Ltd Microwave Oven AMV5206BA 03143F indd
Users Manual
Keep instructions for future reference.
Be sure Use & Care Guide stays with oven.
Part No.8112P297-60
Code No. DE68-03143F
Use & Care Guide
Model AMV5206BA
Over The Range
Microwave Oven
Important Safety Instructions . . . . . . . . . . . . . . . . . . 2
Precautions to Avoid Possible Exposure to Excessive
Microwave Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cooking Utensils . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Form No. A/08/05
2
Important Safety Instructions
Installer: Please leave this guide with this appliance.
Consumer: Please read and keep this Use & Care
Guide for future reference.
Keep sales receipt and/or cancelled check as proof of
purchase.
Model Number ________________________________
Serial Number_________________________________
Date of Purchase ______________________________
In our continuing effort to improve the quality and
performance of our appliances, it may be necessary to
make changes to the appliance without revising this
guide.
If you have questions, write us (include your model
number and phone number) or call:
Maytag ServicesSM
Attn: CAIR® Center
P.O. Box 2370
Cleveland, TN 37320-2370
1-800-843-0304 U.S.A
1-866-587-2002 Canada
1-800-688-2080 (US TTY for hearing or speech
impaired)
(Mon.-Fri., 8 a.m.-8 p.m. Eastern Time)
Internet: http://www.amana.com
What You Need to
Know About Safety
Instructions
Warning and Important Safety Instructions appearing in this
Use & Care Guide are not meant to cover all possible
conditions and situations that may occur. Common sense,
caution, and care must be exercised when installing,
maintaining, or operating microwave.
Always contact your dealer, distributor, service agent, or
manufacturer about problems or conditions you do not
understand.
Recognize Safety
Symbols, Words,
Labels
DANGER
DANGER – Immediate hazards which WILL result in
severe personal injury or death.
WARNING
WARNING – Hazards or unsafe practices which COULD
result in severe personal injury or death.
CAUTION
CAUTION – Hazards or unsafe practices which COULD
result in minor personal injury.
To avoid personal injury or property damage, observe
the following:
1.
Do not deep fat fry in oven. Fat could overheat and
be hazardous to handle.
2.
Do not cook or reheat eggs in shell or with an
unbroken yolk using microwave energy. Pressure
may build up and erupt. Pierce yolk with fork or
knife before cooking.
3. Pierce skin of potatoes, tomatoes, and similar
foods before cooking with microwave energy. When
skin is pierced, steam escapes evenly.
4.
Do not operate oven without load or food in oven
cavity.
5. Use only popcorn in packages designed and
labeled for microwave use. Popping time varies
depending on oven wattage. Do not continue
to heat after popping has stopped. Popcorn will
scorch or burn. Do not leave oven unattended.
6.
Do not use regular cooking thermometers in oven.
Most cooking thermometers contain mercury
and may cause an electrical arc, malfunction, or
damage to oven.
7.
Do not use metal utensils in oven.
8. Never use paper, plastic, or other combustible
materials that are not intended for cooking.
9. When cooking with paper, plastic, or other com-
bustible materials, follow manufacturer's recom-
mendations on product use.
10.
Do not use paper towels which contain nylon or
other synthetic fibers. Heated synthetics could melt
and cause paper to ignite.
11.
Do not heat sealed containers or plastic bags
in oven. Food or liquid could expand quickly and
cause container or bag to break. Pierce or open
container or bag before cooking.
12. To avoid pacemaker malfunction, consult physician
or pacemaker manufacturer about effects of
microwave energy on pacemaker.
CAUTION
SAVE THESE INSTRUCTIONS
3
Important Safety Instructions

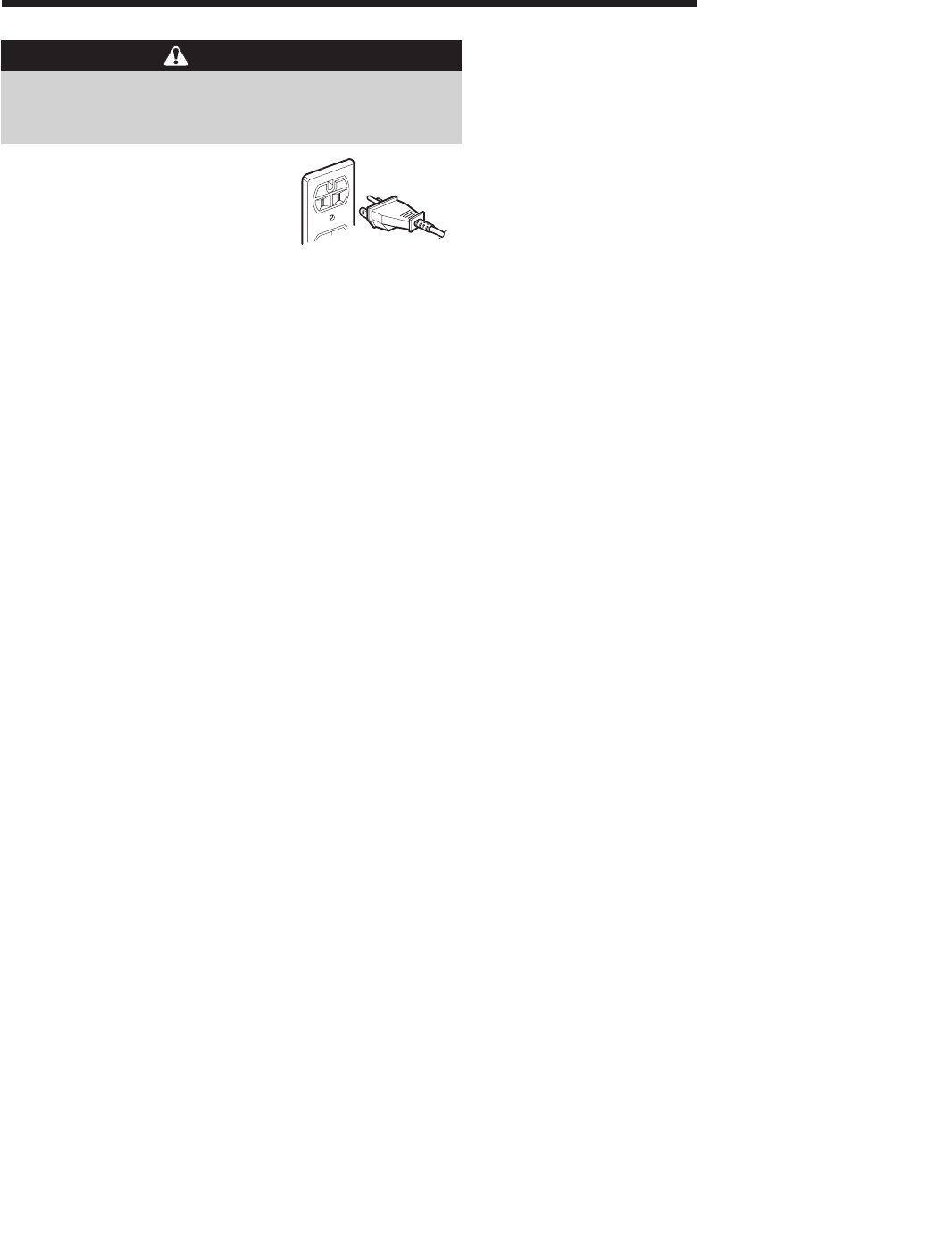

Grounding
Instructions
Oven MUST be grounded. Grounding reduces risk of
electric shock by providing an escape wire for the
electric current if an electrical short occurs. This oven
is equipped with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded. See Installation
Instructions.
Consult a qualified electrician or servicer if grounding
instructions are not completely understood, or if doubt
exists as to whether the oven is properly grounded.
Do not use an extension cord. If the product power
cord is too short, have a qualified electrician install a
three-slot receptacle. This oven should be plugged into
a separate 60 hertz circuit with the electrical rating as
shown in specifications table. When the oven is on a
circuit with other equipment, an increase in cooking
times may be required and fuses can be blown.
Microwave operates on standard household current, 110-
120V.
WARNING
To avoid risk of electrical shock or death, this oven
must be grounded and plug must not be altered.
SAVE THESE INSTRUCTIONS
Federal
Communications
Commission
Radio Frequency
Interference Statement
(U.S.A. Only)
This equipment generates and uses ISM frequency energy
and if not installed and used properly, that is in strict
accordance with the manufacturer's instructions, may cause
interference to radio and television reception. It has been type
tested and found to comply with limits for ISM Equipment
pursuant to part 18 of FCC Rules, which are designed to
provide reasonable protection against such interference in a
residential installation.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following:
●
Reorient the receiving antenna of the radio or television.
● Relocate the microwave oven with respect to the receiver.
● Move the microwave oven away from the receiver.
● Plug the microwave oven into a different outlet so that the
microwave oven and the receiver are on different branch
circuits.
The manufacturer is not responsible for any radio or
television interference caused by unauthorized
modification to this microwave oven. It is the responsibility
of the user to correct such interference.
4
Precautions to Avoid
Possible Exposure
to Excessive
Microwave Energy
A. DO NOT attempt to operate this oven with the door open
since open door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
B. DO NOT place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
C. DO NOT operate the oven if it is damaged. It is
particularly important that oven door close properly and
that there is no damage to:
1. door (bent),
2. hinges and latches (broken or loosened),
3. door seals and sealing surfaces.
D. Oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
WARNING
Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID. To reduce the risk of
injury to persons:
1.
Do not
overheat the liquid.
2. Stir the liquid both before and halfway through heating
it.
3.
Do not
use straight-sided containers with narrow
necks.
4. After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
5. Use extreme care when inserting a spoon or other
utensil into the container.
Important Safety Instructions
SAVE THESE INSTRUCTIONS
5
Important Safety Instructions
WARNING
When using electrical appliances, basic safety
precautions should be followed to reduce the risk
of burns, electric shock, fire, or injury to persons or
exposure to excessive microwave energy.
1. READ all instructions before using oven.
2. READ AND FOLLOW the specific
“PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” on page 3.
3. Install or locate this oven ONLY in accordance
with the installation instructions in this manual.
4. Some products such as whole eggs and sealed
containers—for example, closed glass jars—are
able to explode and SHOULD NOT be HEATED
in this oven.
5. Use this oven ONLY for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this oven. This type of
oven is specifically designed to heat, cook,
or dry food. It is not designed for industrial or
laboratory use.
6. As with any appliance, CLOSE SUPERVISION
is necessary when used by CHILDREN or
INFIRM PERSONS.
7. See door cleaning instructions in the Care and
Cleaning section. (On page 22)
8. Baby food jars shall be open when heated and
contents stirred or shaken before consumption,
in order to avoid burns.
9. DO NOT use this oven for commercial purposes.
It is made for household use only.
10. DO NOT heat baby bottles in oven.
11. DO NOT operate this oven if it has a damaged
cord or plug, if it is not working properly, or if it
has been damaged or dropped.
12. This oven, including power cord, must be
serviced ONLY by qualified service personnel.
Special tools are required to service oven.
Contact nearest authorized service facility for
examination, repair, or adjustment.
13. DO NOT cover or block filter or other openings
on oven.
14. DO NOT store this oven outdoors. DO NOT
use this product near water – for example,
near a kitchen sink, in a wet basement, near a
swimming pool or similar locations.
15. DO NOT immerse cord or plug in water.
16. Keep cord AWAY from HEATED surfaces.
17. DO NOT let cord hang over edge of table or
counter.
18. Clean the ventilating hood frequently.
19. DO NOT allow grease to accumulate on the
hood or filters.
20. Use care when cleaning the ventilating hood
filter. Corrosive cleaning agents such as lye-
based oven cleaners may damage the filters.
21. When flaming foods under the hood, turn the fan
on.
22. Suitable for use above both gas and electric
cooking equipment 36 inches or less wide.
CAUTION
To avoid risk of fire in the oven cavity:
a. DO NOT overcook food. Carefully attend oven when
paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c. If materials inside the oven ignite, keep oven door
CLOSED, turn oven off and disconnect the power cord,
or shut off power at the fuse or circuit breaker panel.
d. DO NOT use the cavity for storage. DO NOT leave
paper products, cooking utensils, or food in the cavity
when not in use.
SAVE THESE INSTRUCTIONS
6
Door Handle
Model and Serial
Number Plate
Metal Rack
Window with
Metal Shield
Glass Turntable
Cooking
Guide
Vent Grille
Oven Control
Panel
Door Safety
Lock System
Features

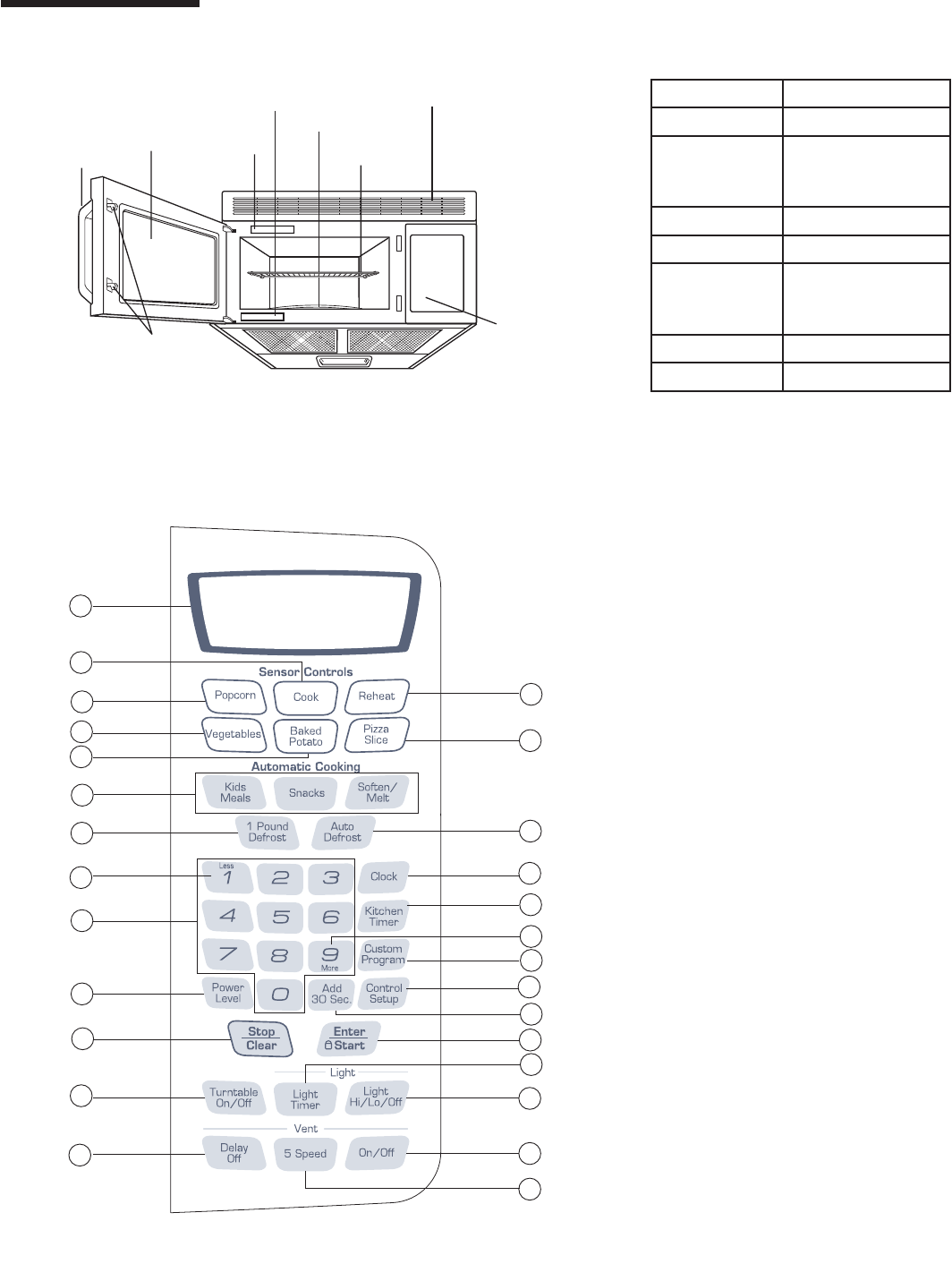

FEATURES
1. DISPLAY: The Display includes
a clock and indicators to tell you time
of day, cooking time settings and
cooking functions selected.
2. POPCORN: Touch this pad when
popping popcorn in your microwave
oven. The oven’s sensor will tell the
oven how long to cook depending
on the amount of gas it detects from
the popcorn. See page 12 for more
information.
3. BAKED POTATO: Touch this pad
to cook potatoes. The oven’s sensor
will tell the oven how long to cook
depending on the amount of gas it
detects from the potato. See page 13
for more information.
4. REHEAT: Touch this pad to reheat
dinner plate, casserole, and pasta.
The oven’s sensor will tell the oven
how long to cook depending on the
amount of gas coming from the food.
See page 13 for more information.
OVEN SPECIFICATIONS
Power Supply 120 VAC, 60 Hz
Input Power 1,700W (USA)
Cooking
Power
1,150 W
(IEC 60705
Standard)
Frequency 2,450 MHz
Rated Current 14.5 A (USA)
Outer
Dimensions
29 7/8"(W) x
16 15/16"(H) x
15 21/32"(D)
Cavity Volume 2.0 Cu. Ft.
Net Weight 58.4 lbs.
7
Features
FEATURES (Cont.)
5. COOK: Touch this pad to cook
beverage, frozen dinner, frozen
breakfast, chicken breast. The oven’s
sensor will tell the oven how long to
cook depending on the amount of gas
coming from the food. See page 13 for
more information.
6. VEGETABLES: Touch this pad to cook
fresh or frozen vegetables. The oven’s
sensor will tell the oven how long to
cook depending on the amount of gas it
detects from the vegetables. See page
13 for more information.
7.
PIZZA SLICE: Touch this pad to
reheat pizza. The oven’s sensor
will tell the oven how long to cook
depending on the amount of gas
it detects. See page 12 for more
information.
8. KIDS MEALS, SNACKS, SOFTEN/
MELT : Touch this pad to cook specific
food. See page 15, 16 and 17 for more
information.
9.
CUSTOM PROGRAM: Touch this
pad to recall one cooking instruction
previously programmed into memory.
See page 9 for more information.
10.
MORE(9): Touch this pad to add
more cooking time. See page 10 for
more information.
11.
LESS(1): Touch this pad to subtract
the cooking time. See page 10 for
more information.
12. AUTO DEFROST: Touch this pad to
defrost food by weight. See page 18
for more information.
13. 1POUND DEFROST: This pad
provides 1pound defrost for 1.0 pound
of frozen food. See page 18 for more
information.
14. NUMBER: Touch number pads to
enter cooking time, power level,
quantities, or weights.
15. POWER LEVEL: Touch this pad to
select a cooking power level.
16. STOP/CLEAR: Touch this pad to stop
the oven or to clear all entries.
17. ENTER/START: Touch this pad to
start a function. If you open the door
after oven begins to cook, close the
door and touch ENTER/START pad
again.
18. CONTROL SETUP: Touch this pad
to change the oven’s default settings.
See page 8 for more information.
19. ADD 30 SEC: Touch this pad to set
and start quickly at 100% power level.
See page 9 for more information.
20. TURNTABLE ON/OFF: Touch this
pad to turn off the turntable. OFF will
appear in the display. See page 8 for
more information.
NOTE:
●
This option is not available in
sensor cook and defrost modes.
21. CLOCK: Touch this pad to enter the
time of day. See page 8 for more
information.
22. LIGHT TIMER: Touch this pad to set
the light timer. See page 9 for more
information.
23. KITCHEN TIMER: Touch this pad to
set the kitchen timer. See page 8 for
more information.
24. VENT 5 SPEED: Touch this pad to
choose one of 5 fan speeds.
25. VENT ON/OFF: Touch this pad to turn
the fan on/off.
26. VENT DELAY OFF: Touch this pad
when setting ventilation time. (1, 3, 5
10, 30 minutes)
27. LIGHT HI/LO/OFF: Touch this pad to
turn on the cooktop light. See page 9
for more infomation.
8
CONTROL SETUP
You can change the default values.
See following chart for more information.
Example: To change weight mode
(from Lbs. to Kg).
1. Touch CONTROL
SETUP pad.
2. Touch number 1
pad.
3. Touch number 2
pad.
VENT FAN
The VENT moves steam and other
vapors from the cooking surface.
The vent will operate at the LEVEL 2
whenever the oven is on.
Example: To set Level 4.
1. Touch ON/OFF pad.
This shows the last
level until you select
the fan speed level.
2. Touch this pad until
Level 4 appears in
the display.
Touch ON/OFF pad to turn off fan
when desired.
LEARN ABOUT YOUR
MICROWAVE OVEN
This section introduces you to the
basics you need to know to operate
your microwave oven. Please read
this information before use.
CAUTION
● To avoid risk of personal injury or
property damage, do not run oven
empty.
● To avoid risk of personal injury
or property damage, do not use
stoneware, aluminum foil, metal
utensils, or metal trimmed utensils
in the oven.
CLOCK
Example: To set 8:00 AM.
1. Touch CLOCK
pad.
2. Enter the time
by using the
number pads.
3. Touch ENTER/
START pad.
4. Touch 1 for AM,
2 for PM.
5. Touch ENTER/
START pad.
NOTE:
● Follow steps 1~3 above in the 24
hour clock mode.
DELAY OFF
Example: To turn off fan after 30
minutes for Level 4.
1. Touch ON/OFF
pad.
2. Touch this pad
until Level 4
appears in the
display.
3. Touch this pad five
times.
TURNTABLE ON/OFF
For best cooking results, leave the
turntable on. It can be turned off for
large dishes.
Touch TURNTABLE
ON/OFF pad to turn the
turntable on or off.
Operating Instructions
NOTES:
● This option is not available in sen-
sor cook and defrost modes.
● Sometimes the turntable can
become hot to touch. Be careful
touching the turntable during and
after cooking.
● Do not run the oven empty.
NOTE:
● If the temperature gets too hot
around the microwave oven, the fan
in the vent hood will automatically
turn on at the LEVEL2 setting to cool
the oven. The fan will automatically
turn off when the internal parts are
cool. When this occurs, the vent
cannot be turned off.
No. Function No. Result
1
Weight mode
selected
1
2
Lbs.
Kg.
2
Sound ON/OFF
control
1
2
Sound ON
Sound OFF
3Clock display
control
1
2
12HR
24HR
4 Display
1
2
3
Slow speed
Nomal speed
Fast speed
5Remind end
Signal
1
2
ON
OFF
6 Demo Mode 1
2
ON
OFF
7Daylight
Saving Time
1
2
ON
OFF
KITCHEN TIMER
You can use your microwave oven
as a timer. Use the Kitchen Timer for
timing up to 99 minutes, 99 seconds.
Example: To set for 3 minutes.
1. Touch KITCHEN TIMER
pad.
2. Enter the time by using
the number pads.
3. Touch ENTER/ START
pad. When the time is
over, you will hear beeps
and END will display.
9
CUSTOM PROGRAM
CUSTOM PROGRAM lets you recall
one cooking instruction previously
placed in memory and begin cooking
quickly.
Example: To cook for 2 minutes at
70% power.
1. Touch CUSTOM
PROGRAM pad.
2. Enter the cook
time.
3. Touch POWER
LEVEL pad.
4. Enter the power
level.
5. Touch ENTER/
START pad.
Example: To recall the custom
program.
1. Touch CUSTOM
PROGRAM pad.
2. Touch ENTER/
START pad.
When the cook
time is over, you
will hear four
beeps and END
will display.
Operating Instructions
CHILD LOCK
You may lock the control panel to
prevent the microwave from being
accidentally started or used by
children.
The Child Lock feature is also useful
when cleaning the control panel.
Child Lock prevents accidental
programming when wiping the control
panel.
Example: To set the child lock.
1. Touch and hold
ENTER/START
pad more than 3
seconds. CHILD
LOCK ON will
appear in the
display window
with two beeps.
Example: To cancel the child lock.
1. Touch and hold
ENTER/START
pad more than
3 seconds.
LOCKED will
disappear and
you hear two
beeps.

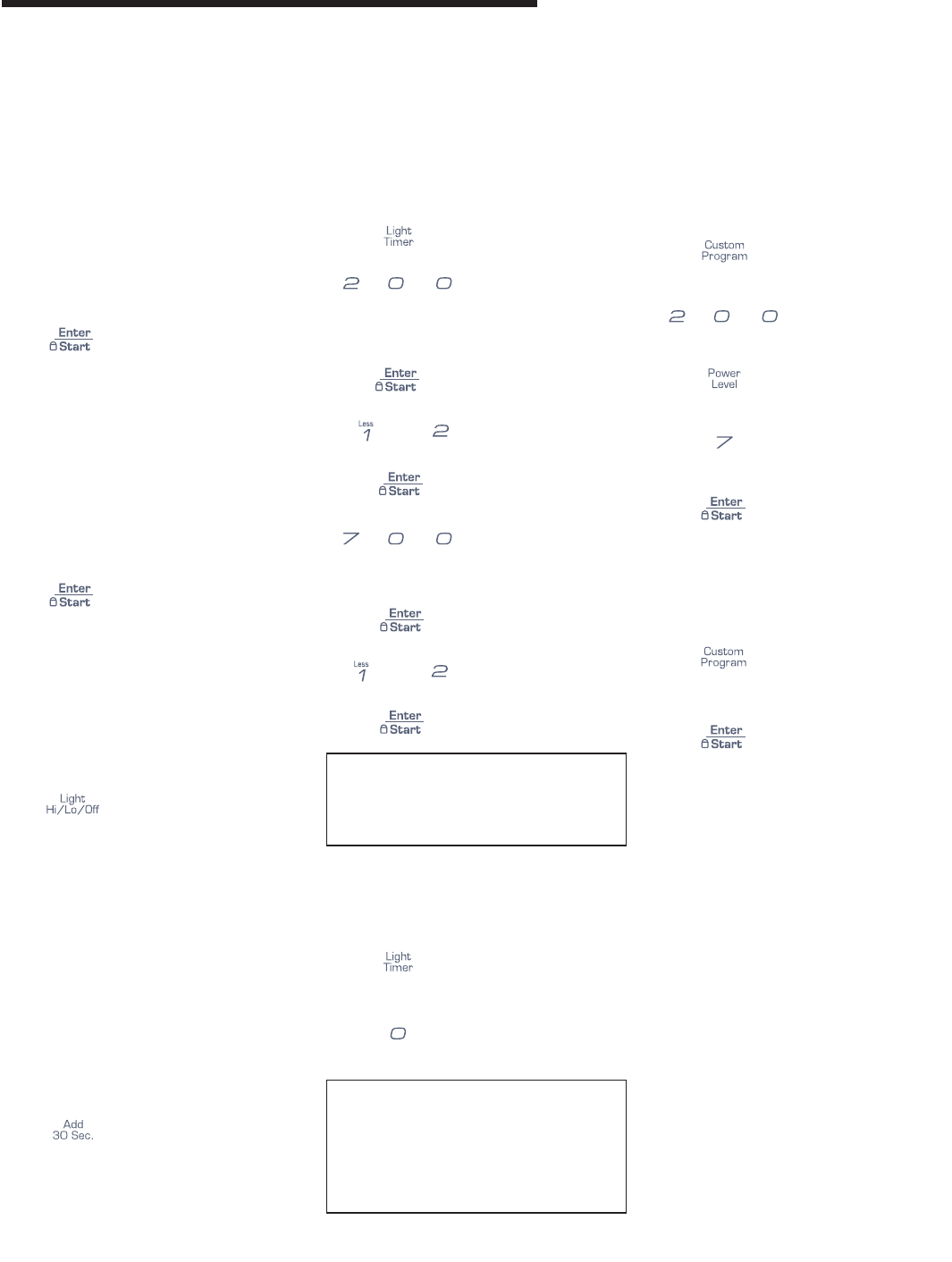

LIGHT HI/LO/OFF
Touch LIGHT
HI/LO/OFF pad
once for bright
light, twice for
night light, or three
times to turn the
light off.
ADD 30 SEC.
A time-saving pad, this simplified
control lets you quickly set and start
microwave cooking without the need
to touch the ENTER/ START pad.
Example: To set ADD 30 SEC. for 2
minutes.
1. Touch ADD 30
SEC. pad 4 times.
The oven begins
cooking and
display shows time
counting down
.
LIGHT TIMER
You can set the LIGHT to turn on and
off automatically at any time. The light
comes on at the same time every day
until reset.
Example: Turn on 2:00 AM, turn off
7:00 AM.
1. Touch LIGHT
TIMER pad.
2. Enter the time
you want the
LIGHT to turn
on.
3. Touch ENTER/
START pad
4. Touch 1 for AM,
2 for PM.
5. Touch ENTER/
START pad
6. Enter the time
you want the
LIGHT to turn
off.
7. Touch ENTER/
START pad.
8. Touch 1 for AM,
2 for PM.
9. Touch ENTER/
START pad.
Example: To cancel the LIGHT
TIMER.
1. Touch LIGHT
TIMER pad.
2. Touch 0 pad.
NOTE:
● Follow steps 4, 5, 7, 8 for the 12
hour clock mode.
NOTE:
● If you want to cancel the LIGHT
TIMER in operation, touch
the 0 pad.
10
COOKING AT LOWER
POWER LEVELS
HIGH power cooking does not always
give you the best results with foods
that need slower cooking, such as
roasts, baked goods, or custards.
Your oven has 9 power settings in
addition to HIGH.
Example: To cook food for 7
minutes 30 seconds at 70% power.
1.
Enter the cook
time.
2. Touch POWER
LEVEL pad.
3. Enter the power
level.
4. Touch ENTER/
START pad.
When the cook
time is over, you
will hear four
beeps and END
will display.
See cooking guide for Power levels,
page 11.

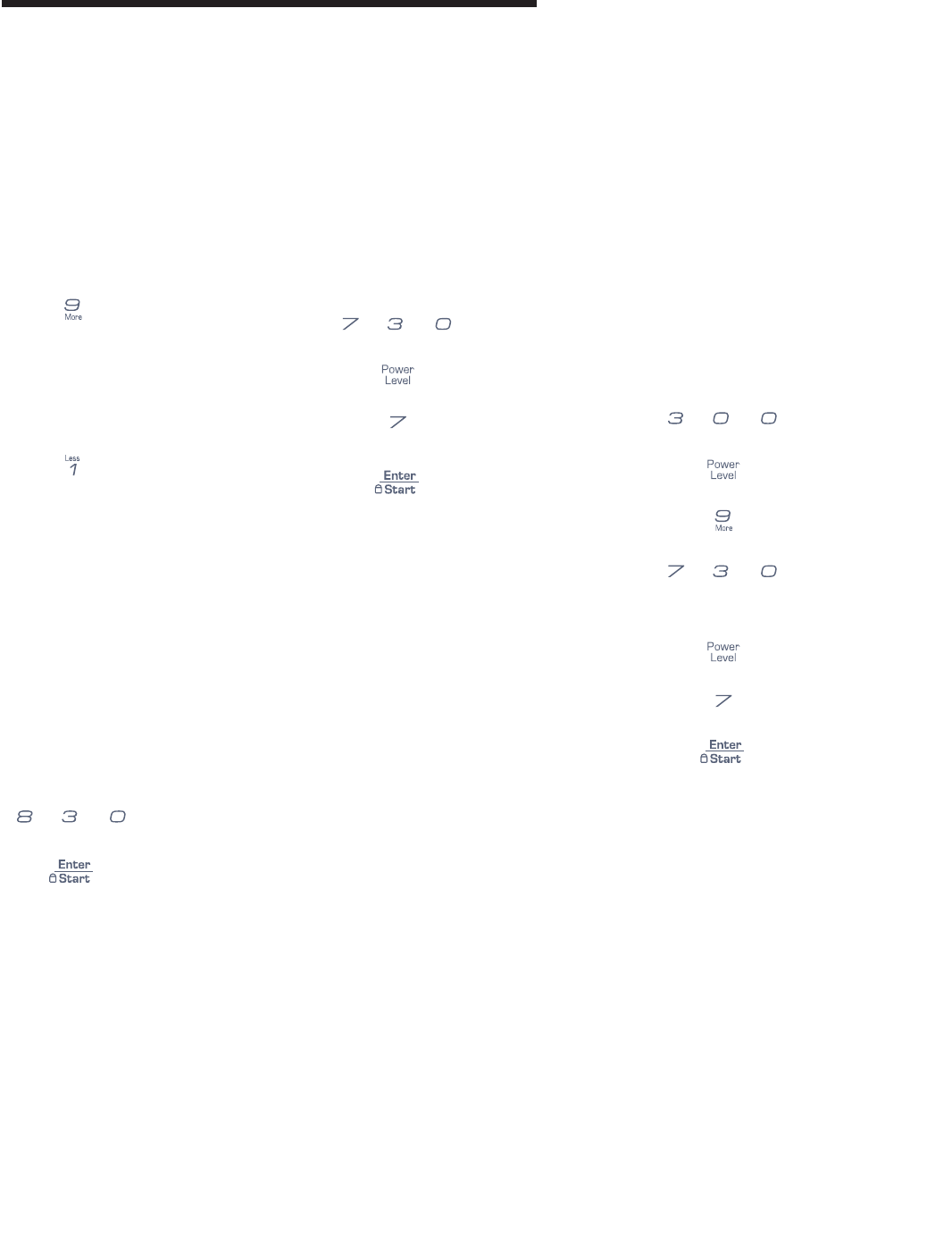

COOKING WITH
MORE THAN ONE
COOK CYCLE
For best results, some recipes call for
one Power Level for a certain length
of time, and another Power Level for
another length of time.Your oven can
be set to change from one to another
automatically, for up to three cycles if
the first cycle is defrost.
Example: To cook food for 3
minutes at 90% power and then
70% power for 7 minutes 30
seconds.
1. Enter the first
cook time.
2. Touch POWER
LEVEL pad.
3. Enter the power
level.
4. Enter the
second cook
time.
5. Touch POWER
LEVEL pad.
6. Enter the power
level.
7. Touch ENTER/
START pad.
When the cook
time is over, you
will hear four
beeps and END
will display.
Operating Instructions
MORE/LESS
The More(9)/Less(1) pads allow you
to adjust pre-set cooking times. They
only work in the Sensor Reheat,
Sensor Cooking(except Beverage),
Add 30 sec, Custom Cook or Time
Cook modes. Use the More(9)/
Less(1) pads only after you have
already begun cooking with one of
these procedures.
1. To ADD more
time to an
automatic
cooking
procedure:
Touch the
More(9) pad.
2. To REDUCE
the time of
an automatic
cooking
procedure:
Touch the
Less(1) pad.
COOKING AT HIGH
POWER LEVELS
Example: To cook food for 8 minutes
30 seconds at 100% power.
1.
Enter the cook
time.
2. Touch ENTER/
START pad.
When the cook time is over, you
will hear four beeps and END will
display.
11
Operating Instructions
COOKING GUIDE FOR LOWER POWER LEVELS
The 9 power levels in addition to HIGH allow you to choose the best power level for the food you are cooking. Below
are listed all the power levels, examples of foods best cooked at each level, and the amount of microwave power you are
using.
10 High 100% ● Boil water.
● Cook ground beef.
● Make candy.
● Cook fresh fruits and vegetables.
● Cook fish and poultry.
● Preheat browning dish.
● Reheat beverages.
● Bacon slices. Place utensil on metal oven rack.
9 90% ● Reheat meat slices quickly.
● Saute onions, celery, and green pepper.
8 80% ● All reheating.
● Cook scrambled eggs.
7 70% ● Cook breads and cereal products.
● Cook cheese dishes, veal.
● Cook cakes, muffins, brownies, cupcakes.
6 60% ● Cook pasta.
5 50% ● Cook meats, whole poultry.
● Cook custard.
● Cook whole chicken, turkey, spare ribs, rib roast, sirloin roast.
4 40% ● Cook less tender cuts of meat.
● Reheat frozen convenience foods.
3 30% ● Thaw meat, poultry, and seafood.
● Cook small quantities of food.
● Finish cooking casserole, stew, and some sauces.
2 20% ● Soften butter and cream cheese.
● Heat small amounts of food.
1 10% ● Soften ice cream.
● Raise yeast dough.
POWER LEVEL MICROWAVE OUTPUT USE
12
SENSOR OPERATING
INSTRUCTIONS
Sensor Cook allows you to cook
most of your favorite foods without
selecting cooking times and power
levels. The display will indicate the
sensing period by scrolling the name
of the food. The oven automatically
determines required cooking time for
each food item. When the internal
sensor detects a certain amount of
gas coming from the food, it will tell
the oven how much longer to cook.
The display will show the remaining
heating time.
For best results when cooking
by Sensor, follow these
recommendations:
1. Food cooked with the sensor
system should be at normal
storage temperature.
2. Glass turntable and outside of
container should be dry to assure
best cooking results.
3. Most foods should always be
covered loosely with microwavable
plastic wrap, waxed paper, or a lid.
4. Do not open the door or touch
the STOP/CLEAR pad during the
sensing time. When sensing time
is over, the oven beeps and the
remaining cooking time will appear
in the display window. At this time
you can open the door to stir, turn,
or rearrange the food.
SENSOR COOKING
GUIDE
Appropriate containers and coverings
help assure good Sensor cooking
results.
1. Always use microwavable con-
tainers and cover them with lids or
vented plastic wrap.
2. Never use tight-sealing plastic
covers. They can prevent steam
from escaping and cause food to
overcook.
3. Match the amount to the size of
the container. Fill containers at
least half full for best results.
4. Be sure the outside of the cooking
container and the inside of the
microwave oven are dry before
placing food in the oven. Beads of
moisture turning into steam can
mislead the sensor.
ADDING OR
SUBTRACTING
COOK TIME
By using the More(9) or Less(1)
pads all of the sensor cook and time
cook settings can be adjusted to cook
food for a longer or shorter time.
POPCORN
POPCORN pad lets you pop
commercial-ly packaged microwave
popcorn. Pop only one package at a
time. For best results, use fresh bags
of popcorn.
Example: To pop popcorn
1. Touch
POPCORN pad.
2. When the cook
time is over, you
will hear four
beeps and END
will display.
● Recommended amounts:
3.0-3.5 ozs.
PIZZA SLICE
Reheating pizza with PIZZA SLICE
pad lets you reheat one or several
slices of pizza without selecting
cooking times and power levels.
Example: To reheat 2 slices of
pizza.
1. Touch PIZZA
SLICE pad.
2. When the cook
time is over, you
will hear four
beeps and END
will display.
● Recommended amounts: 1-4 slices.

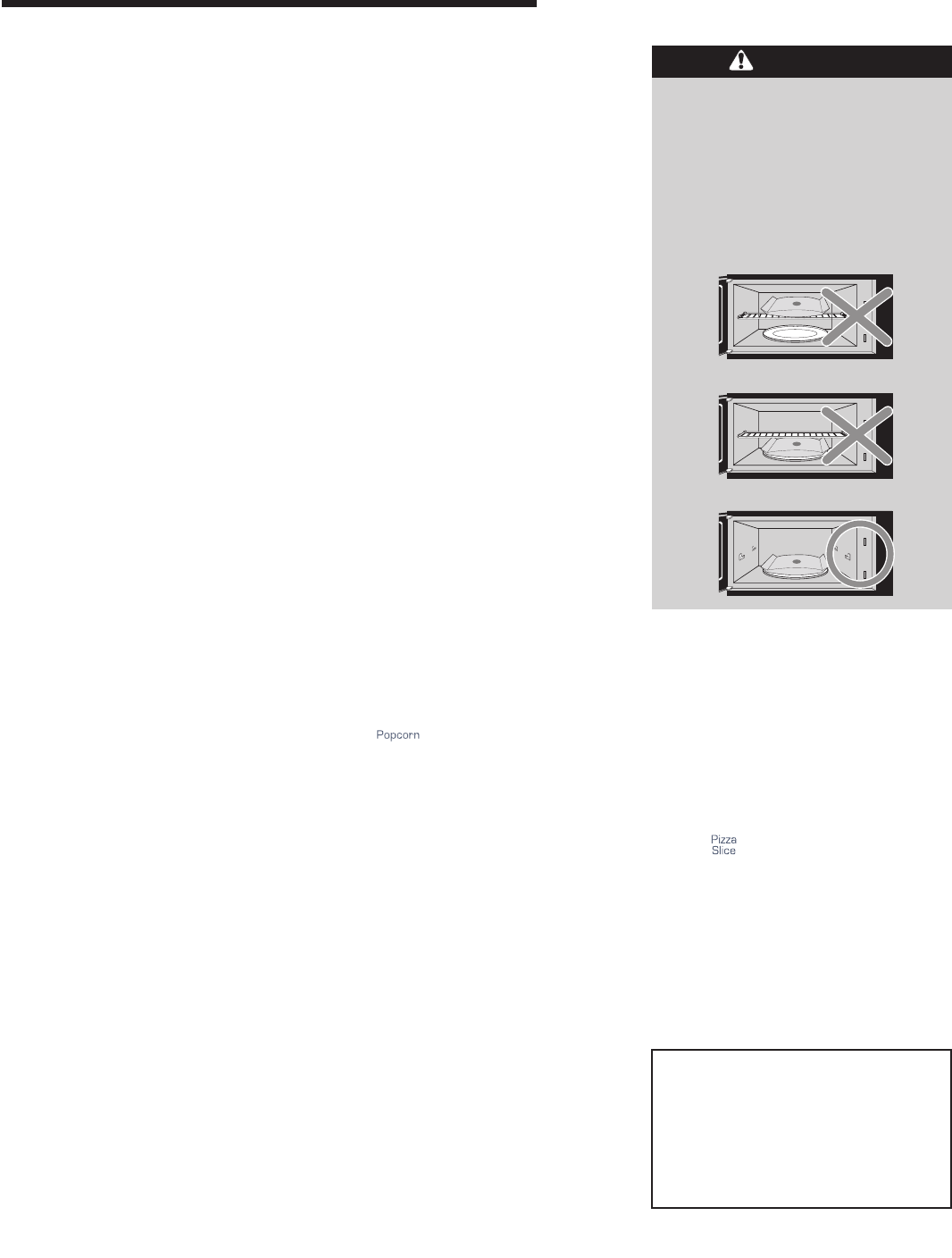

● DO NOT leave microwave
oven unattended while pop-
ping corn.
● When popping commercially
packaged popcorn,remove
the rack from the oven;
Do not place the bag of
microwave popcorn on the
rack or under the rack.
Operating Instructions
CAUTION
NOTE :
If food is not thoroughly cooked or
reheated when using the sensor
feature, complete using a power
level and cooking time. DO NOT
continue using the sensor pad.
13
COOK
Using COOK pad lets you heat
common microwave-prepared foods
without needing to program cooking
times and power levels. COOK has
4 preset food categories: Beverage,
Frozen Dinner, Frozen Breakfast,
Chicken Breast.
Example: To cook Frozen Breakfast.
1. Touch COOK
pad.
2. Choose food
category.
When the cook time is over, you will
hear four beeps and END will display.
BAKED POTATO
The BAKED POTATO pad lets you
bake one to six potatoes without
selecting cooking times and power
levels.
After baking, let stand for 5 minnutes.
Example: To cook 2 potatoes.
1. Touch BAKED
POTATO pad.
2. When the cook
time is over, you
will hear four
beeps and END
will display.
Recommended amounts: 1-6
potatoes.
VEGETABLE
VEGETABLES pad have preset cook
powers for 2 food categories: Fresh,
Frozen.
Example: To cook Frozen
Vegetables.
1. Touch
VEGETABLES
pad.
2. Choose food
category.
When the cook time is over, you will
hear four beeps and END will display.
Operating Instructions
REHEAT
REHEAT pad lets you heat foods
without needing to program cooking
times and power levels. REHEAT has
3 preset categories: Dinner Plate,
Casserole, and Pasta.
Example: To reheat Casserole.
1. Touch REHEAT
pad.
2. Choose food
category.
When the cook time is over, you will
hear four beeps and END will display.
Category Touch Pad
Number
Beverage 1
Frozen Dinner 2
Frozen Breakfast 3
Chicken Breast 4
Recommended amounts:
Beverage 8 ozs.
Frozen Dinner 8-14 ozs.
Frozen Breakfast 4-8 ozs.
Chicken Breast 8-24 ozs.
Category Touch Pad
Number
Dinner Plate 1
Casserole 2
Pasta 3
Recommended amounts:
Dinner Plate 1 serving
Casserole 1-4 servings
Pasta 1-4 sevings
NOTES:
● Cooking time is based on
a 8-10 oz. potato.
● Use the More(9)/Less(1) pads
if cooking longer or smaller
potatoes.
● Before baking, pierce potato with
fork several times.
● If potato is not completely cooked,
use Cooking Time and NOT
BAKED POTATO pad to complete
cooking.
Category Touch Pad
Number
Fresh 1
Frozen 2
14
Operating Instructions
SENSOR COOK TABLE
CATEGORY DIRECTIONS AMOUNT
Popcorn Use only one microwave-only bag of popcorn at a time. Use caution when removing and
opening the hot bag from oven. Let oven cool for at least 5 minutes before using again.
3.0-3.5 oz
1 package.
Potato
Prick each potato several times with fork. Place on turntable in spoke-like fashion. Let stand
3-5 minutes. Let oven cool for at least 5 minutes before using again. Use More pad when
cooking larger potatoes.
1 to 6 potatoes
VEGETABLES
Fresh
Vegetables
Place fresh vegetables in microwave-safe ceramic, glass or plastic dish and add 2-4 Tbs.
water. Cover with lid or vented plastic wrap during cooking and stir before standing. Let
oven cool for at least 5 minutes before using again. Use the More pad when cooking dense
vegetables such as carrots or broccoli spears.
1 to 4 servings
Frozen
Vegetables
Place frozen vegetables in microwave-safe ceramic, glass or plastic dish and add 2-4 Tbs.
water. Cover with lid or vented plastic wrap during cooking and stir before standing. Let
oven cool for at least 5 minutes before using again. Use the More pad when cooking dense
vegetables such as carrots or broccoli spears.
1 to 4 servings
Pizza Slice
Put 1-4 slices of pizza on a Microwave-safe plate with wide end of slice toward the outside
edge of the plate. Do not let slices overlap. Do not cover. Let oven cool for at least 5
minutes before using again. Use More pad to increase reheat time for thick crust pizza.
1 to 4 Slices
COOK
Beverage
Use measuring cup or mug ; do not cover. Place the beverage in the oven. After heating,
stir well. Let oven cool for at least 5 minutes before using again.
Note: ● Reheat times based on an 8 ounce cup.
● Beverage heated with the beverage feature may be very hot.
● Remove container with care.
8 oz.
Frozen
Dinner
Remove food from outer wrapping and follow box instructions for covering and standing.
Let oven cool for at least 5 minutes before using again. 8 to 14 oz.
Frozen
Breakfast
Follow package instructions for covering and standing. Use this pad for frozen sandwich,
breakfast entree, etc. Let oven cool for at least 5 minutes before using again. 4 to 8 oz.
Chicken
Breast
Place chicken breasts on a microwave-safe plate and cover with plastic wrap. Cook to an
internal temperature of 170 degrees F. Let stand 5 minutes. Use the MORE pad to increase
cooking time for larger or thicker chicken breasts. Let oven cool for at least 5 minutes
before using again.
8 to 16 oz.
SENSOR REHEAT TABLE
CATEGORY DIRECTIONS AMOUNT
Dinner Plate
Use only pre-cooked, refrigerated foods. Cover plate with vented plastic wrap or
waxed paper, tucked under plate. If food is not as hot as you prefer after heating
with SENSOR REHEAT, continue heating using cooking time and power level. Do
not continue cooking using the Reheat pad.
Contents:
- 3-4 oz. meat, poultry or fish (up to 6 oz. with bone)
- 1/2 cup starch (potatoes, pasta, rice, etc.)
- 1/2 cup vegetables (about 3-4 oz.)
1 serving
(1 plate)
Casserole
Cover plate with lid or vented plastic wrap. If food is not as hot as you prefer after
heating with SENSOR REHEAT, continue heating using time and power.
Stir foods once before serving.
Contents:
- Casserole-refrigerated foods. (Examples : Lasagna and beef stew.)
- Pasta-Canned spaghetti and ravioli, refrigerated foods.
1 to 4 servings.
Pasta
NOTE:
Desired food temperature varies from person to person.Use the More/Less pads to fit your temperature preference.
15
Operating Instructions
KIDS MEALS
KIDS MEALS lets you heat 4 categories of food : Chicken Nuggets, Hot dogs, French Fries and Frozen
Sandwiches.
Example: To cook frozen sandwiches.
1. Touch KIDS MEALS pad.
2. Choose food category(1-4).
3. Touch ENTER/START pad.
KIDS MEALS CHART
Item Amount or
servings Remarks
Frozen Chicken
Nuggets
1 serving
(4-5 oz.)
2 servings
(6-7 oz.)
• Put a paper towel on top of plate and arrange nuggets in spoke fashion on paper
towel.
• Do not cover. Let stand 1 minute.
Hot Dogs 2 EA
4 EA
• Prick hot dogs, place on plate. When the oven beeps, add buns and re-start the
oven.
French Fries 1 serving
(4-5 oz.)
2 servings
(6-7 oz.)
• Place 2 paper towels on plate and arrange french fries on towels, do not overlap.
• Blot with additional paper towel after removal from oven.
Frozen
Sandwiches
1 EA
2 EA
• Place frozen sandwich in susceptor “sleeve” (which is in package) and put on plate.
Category Touch Pad Number
Chicken Nuggets 1
Hot Dogs 2
French Fries 3
Frozen Sandwiches 4
16
SNACKS
SNACKS lets you heat 4 categories of food : Nachos, Chicken Wings, Potato Skins, and Cheese Sticks.
Example: To cook chicken wings.
1. Touch SNACKS pad.
2. Choose food category(1-4).
3. Touch ENTER/START pad.
SNACKS CHART
Item Amount or
servings Remarks
Nachos 1 serving • Place tortilla chips on plate without overlapping.
• Sprinkle evenly with cheese.
• Contents :
- 2 cups tortilla chips
- 1/3 cup grated cheese
Chicken Wings 5-6 oz.
7-8 oz.
• Use pre-cooked, refrigerated chicken wings.
• Place chicken wings around plate in spoke fashion and cover with wax paper.
Potato Skins 1 cooked potato
2 cooked potatoes
• Cut cooked potato into 4 even wedges. Scoop or cut out potato flesh, leaving
about 1/4” of skin.
• Place skins in spoke fashion around plate.
• Sprinkle with bacon, onions and cheese. Do not cover.
Cheese Sticks 5-6 pcs
7-10 pcs
• Place cheese sticks on plate in spoke fashion.
• Do not cover.
Category Touch Pad Number
Nachos 1
Chicken Wings 2
Potato Skins 3
Cheese Sticks 4
Operating Instructions
17
Operating Instructions
SOFTEN/MELT
SOFTEN/MELT lets you soften or melt 3 categories of food : Melt Chocolate, Soften Cream Cheese and Melt Butter.
Example: To melt chocolate.
1. Touch SOFTEN/MELT pad.
2. Choose food category(1-3).
3. Touch ENTER/START pad.
SOFTEN/MELT CHART
Item Amount or
servings Remarks
Melt Chocolate 2 squares or
1 cup chips
• Place chocolate chips or square in a microwave-safe dish.
• Stir well at half time when the oven beeps, and re-start the oven.
• Unless stirred, the chocolate keeps its shape even when heating time is over.
Soften Cream Cheese 1 package (8 oz.) • Unwrap cream cheese and place on microwave-safe dish.
• Let stand 1-2 minutes.
Melt Butter 1 stick (1/4 lb.) • Remove wrapping and cut butter in half vertically.
2 sticks (1/2 lb.) • Place butter in dish, cover with wax paper.
• Stir well after finishing and let stand 1-2 minutes.
Category Touch Pad Number
Melt Chocolate 1
Soften Cream Cheese 2
Melt Butter 3
18
DEFROSTING GUIDE
● Follow the instructions below when
defrosting different types of food.
Food Standard
Amount Procedure
Roast
Beef,
Pork
2.5-6.0 lbs.
Start with the food
placed fat side down.
After each stage,
turn the food over
and shield any warm
portions with narrow
strips of aluminum foil.
Let stand, covered, for
15 to 30 minute.
Steaks,
Chops,
Fish
0.5-3.0 lbs.
After each stage,
rearrange the food. If
there are any warm
or thawed portions of
food, shield them with
narrow flat pieces of
aluminum foil. Remove
any pieces of food that
are nearly defrosted.
Let stand, covered, for
5-10 minutes
Ground
Meat
0.5-3.0 lbs.
After each stage,
remove any pieces of
food that are nearly
defrosted. Let stand,
covered with foil, for
5-10 minutes.
Whole
Chicken
2.5-6.0 lbs.
Remove giblets before
freezing poultry. Start
defrosting with the
breast side down.
After the first stage,
turn the chicken over
and shield any warm
portions with narrow
strips of aluminum foil.
After the second stage,
again shield any warm
portions with narrow
strips of aluminum foil.
Let stand, covered for
30-60 minutes in the
refrigerator.
Chicken
Pieces
0.5-3.0 lbs.
After each stage,
rearrange or remove
any pieces of food that
are nearly defrosted.
Let stand for 10-20
minutes.
AUTO DEFROST
Defrost choices are preset in the
oven. The defrost feature provides
you with the best defrosting method
for frozen foods, because the oven
automatically sets the defrosting
times according to the weight you
enter. For added convenience, the
AUTO DEFROST beeps to remind
you to check or turn over the food
during the defrost cycle.
After touching the AUTO DEFROST
pad once, select the food weight.
Available weight ranges are 0.1 to
6.0 lbs.
Example : To defrost 1.2 lbs of
meat.
1. Touch AUTO
DEFROST pad.
2. Enter the weight.
3. Touch ENTER/
START pad.
Operating Instructions
1POUND DEFROST
The 1POUND DEFROST feature
provides a rapid defrost for 1.0 pound
frozen food. The oven automatically
sets the defrosting time.
Example: To defrost 1lb. ground
beef.
1. Touch 1POUND
DEFROST pad.
2. Touch ENTER/
START pad.
DEFROST TIPS
● When using AUTO DEFROST,
the weight to be entered is the
net weight in pounds and tenths
of pounds (the weight of the food
minus the container).
● Use AUTO DEFROST only for raw
food. AUTO DEFROST gives best
results when food to be thawed is a
minimum of 0°F (taken directly from
a true freezer). If food has been
stored in a refrigerator-freezer that
does not maintain a temperature
of 5°F or below, always program
a lower food weight (for a shorter
defrosting time) to prevent cooking
the food.
● If the food is stored outside the
freezer for up to 20 minutes, enter a
lower food weight.
● The shape of the package alters the
defrosting time. Shallow rectangular
packets defrost more quickly than a
deep block.
● Separate pieces as they begin to
defrost. Separated pieces defrost
more easily.
● Shield areas of food with small
pieces of foil if they start to become
warm.
● You can use small pieces of alu-
minum foil to shield foods like
chicken wings, leg tips, and fish
tails, but the foil must not touch the
side of the oven. Foil causes arcing,
which can damage the oven lining.
NOTES:
●
After you touch ENTER/START
pad, the display counts down the
defrost time. The oven will beep
twice during the Defrost cycle. At
this time, open the door and turn
the food as needed. Remove any
portions that have thawed then
return frozen portions to the oven
and touch ENTER/START pad to
resume the defrost cycle.
NOTES:
●
After you touch ENTER/START
pad, the display counts down the
defrost time. The oven will beep
twice during the Defrost cycle. At
this time, open the door and turn
the food as needed. Remove any
portions that have thawed then
return frozen portions to the oven
and touch ENTER/START pad to
resume the defrost cycle.
● The oven will not stop during
the BEEP unless the door is
opened.
19
Operating Instructions
METAL RACK
The metal rack gives you extra space
when cooking in more than one
container at the same time.
To use rack:
1. Place rack securely in the four
plastic supports.
● Rack MUST NOT touch metal
walls or back of microwave oven.
2. Place equal amounts of food both
ABOVE AND BELOW rack.
● Amount of food must be
approximately the same to
balance out cooking energy.
To avoid risk of property
damage:
● Do not use rack to pop
popcorn.
● Rack must be on the four
plastic supports when used.
● Use the rack only when
cooking food on rack position.
● Do not cook with rack on floor
of the oven.
CAUTION
GETTING THE BEST
COOKING RESULTS
To get the best results from your
microwave oven, read and follow the
guidelines below.
● Storage Temperature: Foods
taken from the freezer or refrigerator
take longer to cook than the same
foods at room temperature.
● Size: Small pieces of food cook
faster than large ones, pieces
similar in size and shape cook
more evenly. For even cooking,
reduce the power when cooking
large pieces of food.
● Natural Moisture: Very moist
foods cook more evenly because
microwave energy is attracted to
water molecules.
● Stir foods such as casseroles and
vegetables from the outside to the
center to distribute the heat evenly
and speed cooking. Constant
stirring is not necessary.
● Turn over foods like pork chops,
baking potatoes, roasts, or whole
cauliflower halfway through the
cooking time to expose all sides
equally to microwave energy.
● Place delicate areas of foods,
such as asparagus tips, toward the
center of the dish.
● Arrange unevenly shaped foods,
such as chicken pieces or salmon
steaks, with the thicker, meatier
parts toward the outside of the dish.
● Shield, with small pieces of
aluminum foil, parts of food that
may cook quickly, such as wing tips
and leg ends of poultry.
● Let It Stand: After you remove the
food from the microwave, cover
food with foil or casserole lid and
let it stand to finish cooking in the
center and avoid overcooking the
outer edges. The length of standing
time depends on the density and
surface area of the food.
● Wrapping in waxed paper or
paper towel: Sandwiches and
many other foods containing
prebaked bread should be wrapped
prior to microwaving to prevent
drying out.
20
COOKING GUIDE
Guide for Cooking Meat in Your Microwave
● Place meat on a microwave-safe roasting rack in a microwave-safe dish.
● Start meat fat-side down. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas.
● Check the temperature in several places before letting the meat stand the recommended time.
● The following temperatures are removal temperatures. The temperature of the food will rise during the standing time.
Food Cook time Power level Directions
Roast Beef Boneless
(Up to 4 lbs.)
7-11 min./lb. for 145° F
(Rare)
High(0) for first
5 minutes, then
medium(5)
Place roast fat-side down on roasting rack.
Cover with wax paper. Turn over half way
through cooking. Let stand 10 -15 minutes.
8-12 min./lb. for 160° F
(Medium)
9-14 min./lb. for 170° F
(Well Done)
Pork Boneless or bone-in
(Up to 4 lbs.)
11-15 min./lb. for 170° F
(Well Done)
High(0) for first
5 minutes, then
medium(5)
Place roast fat-side down on roasting rack.
Cover with wax paper. Turn over half way
through cooking. Let stand 10 -15 minutes.
● Expect a 10°F rise in temperature during the standing time.
Food Remove from oven After standing (10 -15 min.)
Beef
Rare 135°F 145°F
Medium 150°F 160°F
Well Done 160°F 170°F
Pork Medium 150°F 160°F
Well Done 160°F 170°F
Poultry Dark meat 170°F 180°F
Light meat 160°F 170°F
Guide for Cooking Poultry in Your Microwave
● Place poultry on a microwave-safe roasting rack in a microwave-safe dish.
● Cover poultry with wax paper to prevent spattering.
● Use aluminum foil to shield bone tips, thin meat areas, or areas that start to overcook.
● Check the temperature in several places before letting the poultry stand the recommended time.
Food Cook Time/Power Level Directions
Whole Chicken
Up to 4 lbs.
Cooking Time: 6-9 min. / lb.
180°F dark meat
170°F light meat
Power Level: Medium High(7).
Place chicken breast-side down on roasting rack. Cover with wax
paper. Turn over half way through cooking. Cook until juices run
clear and meat near the bone is no longer pink. Let stand 5-10
minutes.
Chicken Pieces
Up to 2 lbs.
Cooking Time: 6-9 min. / lb.
180°F dark meat
170°F light meat
Power Level: Medium High(7).
Place chicken bone-side down on dish, with the thickest portions
toward the outside of the dish. Cover with wax paper. Turn over
half way through cooking. Cook until juices run clear and meat
near the bone is no longer pink. Let stand 5-10 minutes.
Operating Instructions
21
Operating Instructions
Guide for Cooking Seafood in Your Microwave
● Cook fish until it flakes easily with a fork.
● Place fish on a microwave-safe roasting rack in a microwave-safe dish.
● Use a tight cover to steam fish. A lighter cover of wax paper or paper towel provides less steaming.
● Do not overcook fish; check it at minimum cooking time.
Food Cook Time/Power Level Directions
Steaks
Up to 1.5 lbs.
Cooking Time: 6-10 min. / lb.
Power Level: Medium-High(7).
Arrange steaks on roasting rack with meaty portions towards the
outside of rack. Cover with wax paper. Turn over and rearrange when
cooking time is half up. Cook until fish flakes easily with a fork. Let
stand 3-5 minutes.
Fillets
Up to 1.5 lbs.
Cooking Time: 3-7 min. / lb
Power Level:Medium-High(7).
Arrange fillets in a baking dish, turning any thin pieces under. Cover
with wax paper. If over ½ inch thick, turn over and rearrange when
cooking time is half up. Cook until fish flakes easily with a fork. Let
stand 2-3 minutes.
Shrimp
Up to 1.5 lbs.
Cooking Time: 3-5 ½ min. / lb.
Power Level: Medium-High(7).
Arrange shrimp in a baking dish without overlapping or layering. Cover
with wax paper. Cook until firm and opaque, stirring 2 or 3 times. Let
stand 5 minutes.
Guide for Cooking Eggs in Your Microwave
● Never cook eggs in the shell, and never warm hard-cooked eggs in the shell; they can explode.
● Always pierce whole eggs to keep them from bursting.
● Cook eggs just until set; they become tough if overcooked.
Guide for Cooking Vegetables in Your Microwave
● Vegetables should be washed just before cooking. Often, no extra water is needed. If dense vegetables such as
potatoes, carrots and green beans are being cooked, add about ¼ cup water.
● Small vegetables (sliced carrots, peas, lima beans, etc.) will cook faster than larger ones.
● Whole vegetables, such as potatoes, acorn squash or corn on the cob, should be arranged in a circle on the turntable
before cooking. They will cook more evenly if turned over after half the cooking time has passed.
● Always place vegetables like asparagus and broccoli with the stem ends pointing towards the edge of the dish and the
tips toward the center.
● When cooking cut vegetables, always cover the dish with a lid or vented microwavable plastic wrap.
● Whole, unpeeled vegetables such as potatoes, squash, eggplant, etc., should have their skin pricked in several spots
before cooking to prevent them from bursting.
● For more even cooking, stir or rearrange whole vegetables halfway through the cooking time.
● Generally, the denser the food, the longer the standing time. (Standing time refers to the time necessary for dense,
large foods and vegetables to finish cooking after they come out of the oven.) A baked potato can stand on the
counter for five minutes, while a dish of peas can be served immediately.
22

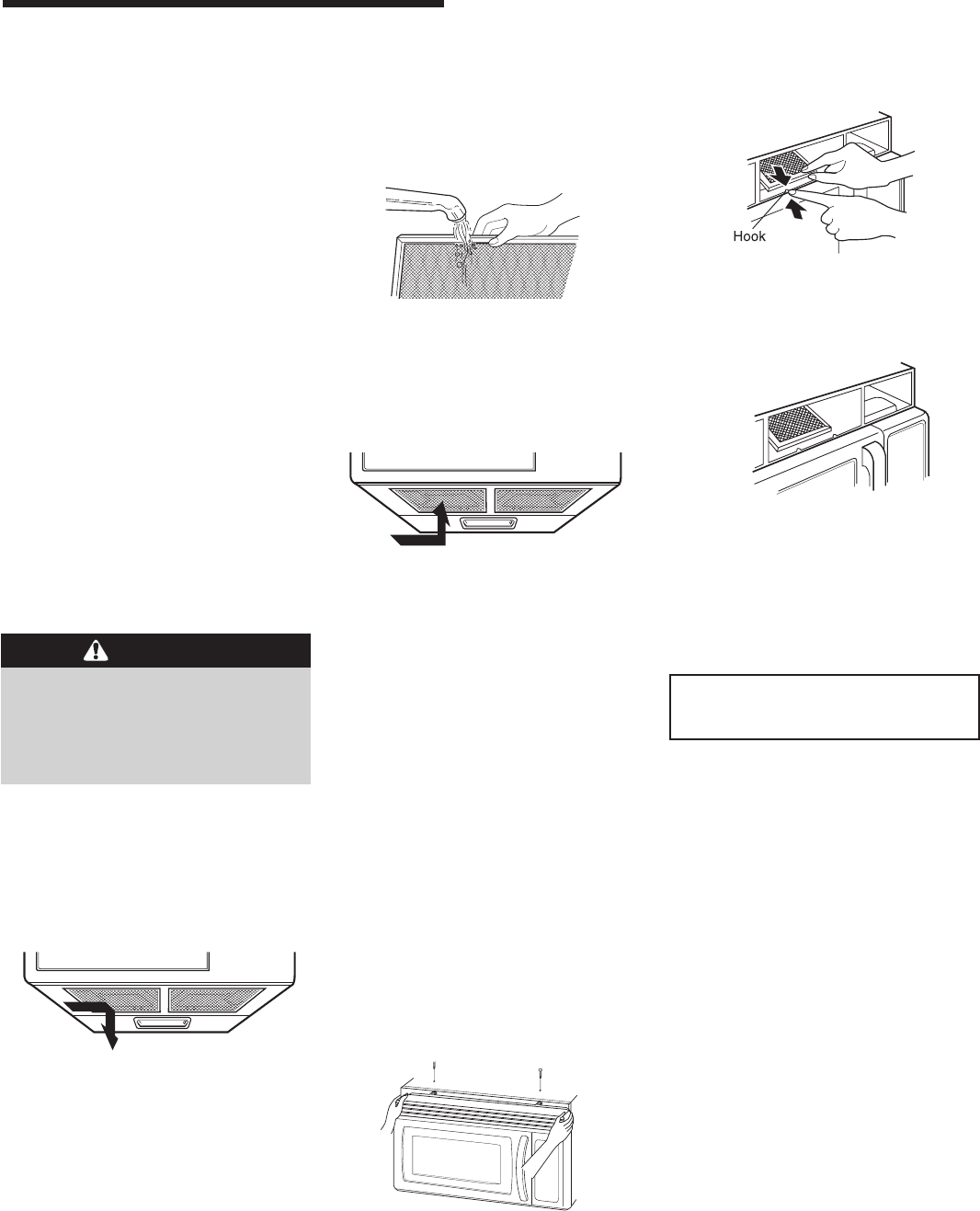

CARE AND CLEANING
For best performance and safety,
keep the oven clean inside and out-
side. Take special care to keep the
inner door panel and the oven front
frame free of food or grease build-up.
Never use rough powder or pads.
Wipe the microwave oven inside and
out, including the hood bottom cover,
with a soft cloth and a warm (not hot)
mild detergent solution. Then rinse
and wipe dry. Use a chrome cleaner
and polish on chrome, metal and
aluminum surfaces. Wipe spatters
immediately with a wet paper towel,
especially after cooking chicken or
bacon. Clean your oven weekly or
more often, if needed.
CLEANING THE GREASE
FILTER
The grease filter should be removed
and cleaned often, at least once a
month.
1. To remove grease filter, slide filter
to the side. Pull filter downward
and push to the other side. The
filter will drop out.
2. Soak grease filter in hot water and
a mild detergent. Rinse well and
shake to dry. Do not use ammonia
or place in a dishwasher. The
aluminum will darken.
3. To reinstall the filter, slide it into the
side slot, then push up and toward
oven center to lock.
CHARCOAL FILTER
REPLACEMENT
If your oven is vented to the inside,
the charcoal filter should be replaced
every 6 to 12 months, and more
often if necessary. The charcoal
filter cannot be cleaned. To order
a new charcoal filter, contact the
Parts Department at your nearest
Authorized Service Center or call
1-800-843-0304 (inside U.S.A) or
1-866-587-2002 (Canada).
1. Unplug oven or turn off power at
the main power supply.
2. Remove the two vent grille
mounting screws. (2 middle
screws)
3. Tip the grille forward, then lift it out.
4. Open the door.
5. Push the hook and remove old
filter.
6. Slide a new charcoal filter into
place and close the door. The filter
should rest at the angle shown.
7. Slide the bottom of the vent cover
into place. Push the top until it
snaps into place. Replace the
mounting screws. Turn the power
back on at the main power supply
and set the clock.
To avoid risk of personal injury
or property damage, do not
operate oven hood without
filters in place.
CAUTION
Care and Cleaning
CHACOAL FILTER PART NO.
:8310P009-60
23

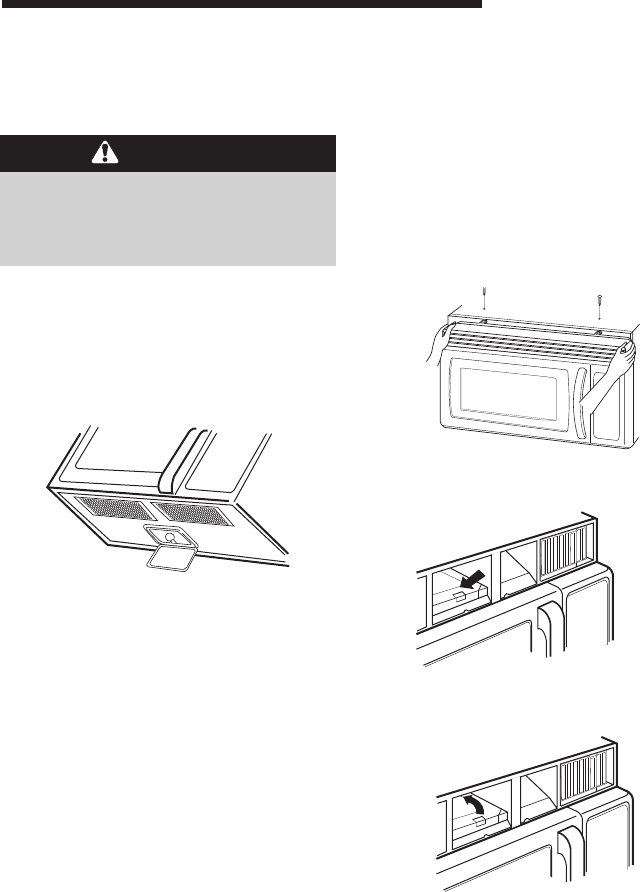

COOKTOP/NIGHT LIGHT
REPLACEMENT
1. Unplug the oven or turn off power
at the main power supply.
2. Remove the bulb cover mounting
screws.
3. Replace bulb with 20 watt
appliance bulb.
4. Replace bulb cover, and mounting
screws.
5. Turn the power back on at the main
power supply.
OVEN LIGHT
REPLACEMENT
1. Unplug oven or turn off power at
the main power supply.
2. Remove the vent cover mounting
screws. (2 middle screws)
3. Tip the cover forward, then lift out
to remove.
4. Lift up the bulb holder.
5. Remove bulb holder.
6. Replace bulb with a 20 watt
appliance bulb.
7. Replace the bulb holder.
8. Slide the bottom of the vent cover
into place. Push the top until it
snaps into place. Replace the
mounting screws. Turn the power
back on at the main power supply.
To avoid personal injury or
property damage, wear gloves
when replacing light bulb.
CAUTION
Care and Cleaning
OPTIONAL
Filler Kits
UXA3036BDB - BLACK
UXA3036BDW - WHITE
UXA3036BDS - STAINLESS
STEEL
When replacing a 36" range hood, the
filler kit fills in the additional width to
provide a custom built-in appearance.
For installation between cabinets
only; not for end-of-cabinet
installation.
Each kit contains two 3"-wide filler
panels.
24
Cooking Utensils
MICROWAVE UTENSIL GUIDE
USE DO NOT USE
OVENPROOF GLASS (treated for high
intensity heat):
Utility dishes, loaf dishes, pie
plates, cake plates, liquid
measuring cups, casseroles and
bowls without metallic trim.
CHINA:
Bowls, cups, serving plates and
platters without metallic trim.
PLASTIC:
Plastic wrap (as a cover)-- lay the
plastic wrap loosely over the dish
and press it to the sides.
Vent plastic wrap by turning back one
edge slightly to allow excess steam
to escape. The dish should be deep
enough so that the plastic wrap will
not touch the food.
As the food heats it may melt the
plastic wrap wherever the wrap
touches the food.
Use plastic dishes, cups, semirigid
freezer containers and plastic bags
only for short cooking times.
Use these with care because the
plastic may soften from the heat
of the food.
PAPER:
Paper towels, waxed paper, paper
napkins, and paper plates with no
metallic trim or design. Look for the
manufacturer's label for use in the
microwave oven.
METAL UTENSILS:
Metal shields the food from microwave energy and produces uneven
cooking. Also avoid metal skewers, thermometers or foil trays. Metal
utensils can cause arcing, which can damage your microwave oven.
METAL DECORATION:
Metal-trimmed or metal-banded dinnerware, casserole dishes, etc. The
metal trim interferes with normal cooking and may damage the oven.
ALUMINUM FOIL:
Avoid large sheets of aluminum foil because they hinder cooking and may
cause harmful arcing. Use small pieces of foil to shield poultry legs and
wings. Keep ALL aluminum foil at least 1 inch from the side walls and door
of the oven.
WOOD:
Wooden bowls and boards will dry out and may split or crack when you
use them in the microwave oven. Baskets react in the same way.
TIGHTLY COVERED UTENSILS:
Be sure to leave openings for steam to escape from covered utensils.
Pierce plastic pouches of vegetables or other food items before cooking.
Tightly closed pouches could explode.
BROWN PAPER:
Avoid using brown paper bags.
They absorb too much heat and could burn.
FLAWED OR CHIPPED UTENSILS:
Any utensil that is cracked, flawed, or chipped may break in the oven.
METAL TWIST TIES:
Remove metal twist ties from plastic or paper bags.
They become hot and could cause a fire.
25
Troubleshooting
TROUBLESHOOTING GUIDE
Before you call a repair person for your oven, check this list
of possible problems and solutions.
Neither the oven’s display nor the oven operate.
● Properly insert the plug into a grounded outlet.
● If the outlet is controlled by a wall switch, make sure the
wall switch is turned on.
● Remove the plug from the outlet, wait ten seconds, then
plug it in again.
● Reset the circuit breaker or replace any blown fuse.
● Plug another appliance into the outlet; if the other
appliance doesn’t work, have a qualified electrician repair
the outlet.
● Plug the oven into a different outlet.
The oven’s display works, but the power won’t come on.
● Make sure the door is closed securely.
● Check to see if packing material or other material is stuck
to the door seal.
● Check for door damage.
● Press STOP/CLEAR pad twice and re-enter all cooking
instructions.
The power goes off before the set time has elapsed.
● If there has not been a power outage, remove the plug
from the outlet, wait ten seconds, then plug it in again. If
there was a power outage, the time indicator will display:
ENJOY YOUR COOKING - - - PRESS OPTION PAD
FOR PERSONAL OPTIONS. Reset the clock and any
cooking instructions.
● Reset the circuit breaker or replace any blown fuse.
The food is cooking too slowly.
● Make sure the oven is on its own 20 amp circuit line.
Operating another appliance on the same circuit can
cause a voltage drop. If necessary, move the oven to its
own circuit.
You see sparks or arcing.
● Remove any metallic utensils, cookware, or metal ties. If
using foil, use only narrow strips and allow at least one
inch between the foil and interior oven walls.
The turntable makes noises or sticks.
● Clean the turntable, roller ring and oven floor.
● Make sure the turntable and roller ring are positioned
correctly.
Using your microwave causes TV or radio interference.
● This is similar to the interference caused by other small
appliances, such as hair dryers. Move your microwave
further away from other appliances, like your TV or radio.
CARE AND CLEANING
Follow these instructions to clean and care for your oven.
● Keep the inside of the oven clean. Food particles and
spilled liquids can stick to the oven walls, causing the
oven to work less efficiently.
● Wipe up spills immediately. Use a damp cloth and mild
soap. Do not use harsh detergents or abrasives.
● To help loosen baked on food particles or liquids, heat
two cups of water (add the juice of one lemon if you
desire to keep the oven fresh) in a four-cup measuring
glass at High power for five minutes or until boiling. Let
stand in the oven for one or two minutes.
● Remove the glass tray from the oven when cleaning the
oven or tray. To prevent the tray from breaking, handle
it carefully and do not put it in water immediately after
cooking. Wash the tray carefully in warm sudsy water or
in the dishwasher.
● Clean the outside surface of the oven with soap and a
damp cloth. Dry with a soft cloth. To prevent damage to
the operating parts of the oven, don’t let water seep into
the openings.
● Wash the door window with very mild soap and water. Be
sure to use a soft cloth to avoid scratching.
● If steam accumulates inside or outside the oven door,
wipe with a soft cloth. Steam can accumulate when
operating the oven in high humidity and in no way
indicates microwave leakage.
● Never operate the oven without food in it; this can
damage the magnetron tube or glass tray. You may wish
to leave a cup of water in the oven when it is not in use
to prevent damage if the oven is accidentally turned on.
If you have a problem you cannot solve,
please call our service line:
(1-800-536-6247)
Note:
If the oven is set to cook for more than 25 minutes, it
will automatically adjust itself to 70 percent power
after 25 minutes to avoid overcooking.
26
Warranty
Full One Year
Amana will repair or replace, including related labor, any part which proves defective as to workmanship or materials.
Limited Warranty
After one year from the date of original retail purchase, Amana will provide a free part, as listed below, to replace any
part that fails due to a defect in materials or workmanship. The owner will be responsible for paying all other costs including
labor, mileage, transportation, trip and diagnostic charges, if required.
Second through Fifth Year
Amana will provide replacement magnetron, touch pad and microprocessor, part and labor, which proves defective as to
workmanship or materials.
Limited Parts Warranty Outside the United States and Canada
For one (1) year from the date of original retail purchase, any part which fails in normal home use will be repaired or
replaced free of charge for the part itself, with the owner paying all other costs, including labor, mileage, transportation, trip
and diagnostic charges, if required.
Canadian Residents
This warranty covers only those appliances installed in Canada that have been listed with Canadian Standards Association
unless the appliances are brought into Canada due to transfer of residence from the United States to Canada.
What is not covered by these
warranties
● Replacement of household fuses, resetting of circuit
breakers, or correction to household wiring or plumbing.
● Normal product maintenance and cleaning, including
light bulbs.
● Products with original serial numbers removed, altered,
or not readily determined.
● Products purchased for commercial, industrial, rental, or
leased use.
● Products located outside of the United States or Canada.
● Premium service charges, if the servicer is requested to
perform service in addition to normal service or outside
normal service hours or area.
● Adjustments after the first year.
● Repairs resulting from the following:
- Improper installation, exhaust system, or maintenance.
- Any modification, alteration, or adjustment not
authorized by the manufacturer.
- Accident, misuse, abuse, fire, flood, or acts of nature.
- Connections to improper electrical current, voltage
supply, or gas supply.
- Use of improper pans, containers, or accessories that
cause damage to the product.
●Travel.
If you need service
●
Call the dealer from whom your appliance was pur-
chased or call Maytag ServicesSM, Amana Customer
Assistance at 1-800-843-0304, USA or 1-866-587-2002
Canada to locate an authorized servicer.
●
Be sure to retain proof of purchase to verify warranty
status. Refer to WARRANTY for further information on
owner’s responsibilities for warranty service.
●
If the dealer or service company cannot resolve the
problem, write to Maytag ServicesSM, Attn: CAIR® Center
P.O. Box 2370, Cleveland, TN 37320-2370, or call
1-800-843-0304 U.S.A. or 1-866-587-2002 Canada.
●
User’s guides, service manuals and parts information
are available from Maytag ServicesSM, Amana Customer
Assistance.
IN NO EVENT SHALL MAYTAG BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
This warranty gives you specific legal rights, and you may have others which vary from state to state. For example, some
states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion may not apply to you.
NOTE:
When writing or calling about a service problem, please
include the following information:
a. Your name, address and telephone number;
b. Model number and serial number;
c. Name and address of your dealer or servicer;
d. A clear description of the problem you are having;
e. Proof of purchase (sales receipt).
