Users Manual

www.GEAppliances.com164D3370P257 49-40323 02-03 JRMicrowave OvenJES1246Owner’s ManualSafety Instructions . . . . . . . . .2–11Operating InstructionsCare and Cleaning . . . . . . .31, 32Changing the Power Level . . . .16Convenience Features . . . .23–26Features of YourMicrowave Oven . . . . . . . .12–15Microwave Terms . . . . . . . . . . .30Other Features . . . . . . . . . .27–29Time Features . . . . . . . . . .17–22Troubleshooting Tips . . . . .33, 34Things That Are Normal With Your Microwave Oven . . .34Consumer SupportConsumer Support . . .Back CoverWarranty . . . . . . . . . . . . . . . . .35Write the model and serial numbers here:Model # ________________________Serial # ________________________Find these numbers on a label inside the oven.49-40323v03 2/6/03 9:21 AM Page 1
■Read and follow the specificprecautions in the Precautionsto Avoid Possible Exposure toExcessive Microwave Energysection above.■This appliance must begrounded. Connect only to a properly grounded outlet.See the Grounding Instructionssection on page 8.■Install or locate this applianceonly in accordance with the provided InstallationInstructions.■Be certain to place the frontsurface of the door threeinches or more back from the countertop edge to avoidaccidental tipping of theappliance in normal usage.■Do Not Attempt to operate this oven with the door opensince open-door operation can result in harmful exposure to microwave energy. It isimportant not to defeat ortamper with the safetyinterlocks.■Do Not Place any objectbetween the oven front faceand the door or allow soil orcleaner residue to accumulateon sealing surfaces.■Do Not Operate the oven if it is damaged. It is particularlyimportant that the oven doorclose properly and that there is no damage to the:door (bent),hinges and latches (broken or loosened),door seals and sealingsurfaces.■The Oven Should Not be adjusted or repaired byanyone except properlyqualified service personnel.321PRECAUTIONS TO AVOID POSSIBLEEXPOSURE TO EXCESSIVEMICROWAVE ENERGYSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.2For your safety, the information in this manual must befollowed to minimize the risk of fire or explosion, electricshock, or to prevent property damage, personal injury, or loss of life.WARNING! When using electrical appliances basic safety precautionsshould be followed, including the following:SAFETY PRECAUTIONS49-40323v03 2/6/03 9:21 AM Page 2
3Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationUse this appliance only for its intended purpose as describedin this Owner’s Manual.■This microwave oven is notapproved or tested for marine use.■Do not mount this applianceover a sink.■Do not mount the microwaveoven over or near any portionof a heating or cookingappliance.■Do not store anything directlyon top of the microwave ovensurface when the microwaveoven is in operation.■Do not operate this applianceif it has a damaged power cordor plug, if it is not workingproperly, or if it has beendamaged or dropped. ■Do not cover or block anyopenings on the appliance.■Use this appliance only for its intended use as describedin this manual. Do not usecorrosive chemicals or vaporsin this appliance. Thismicrowave oven is specificallydesigned to heat, dry or cookfood, and is not intended forlaboratory or industrial use.■Do not store this applianceoutdoors. Do not use thisproduct near water—forexample, in a wet basement,near a swimming pool, near a sink or in similar locations.■Keep power cord away fromheated surfaces.■Do not immerse power cordor plug in water.■Do not let power cord hangover edge of table or counter.■To reduce the risk of fire inthe oven cavity:— Do not overcook food.Carefully attend appliancewhen paper, plastic or othercombustible materials areplaced inside the oven whilecooking.— Remove wire twist-ties andmetal handles from paper or plastic containers beforeplacing them in the oven.— Do not use the oven forstorage purposes. Do not leavepaper products, cookingutensils or food in the ovenwhen not in use.— If materials inside the ovenignite, keep the oven doorclosed, turn the oven off anddisconnect the power cord, or shut off power at the fuseor circuit breaker panel. If the door is opened, the firemay spread.■See door surface cleaninginstructions in the Care andcleaning of the microwave ovensection of this manual.■GE does not support anyservicing of the microwave. We strongly recommend thatyou do not attempt to servicethe microwave yourself.■As with any appliance, closesupervision is necessary whenused by children.www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 3
Arcing is the microwave term for sparks in the oven. Arcing is caused by:■Metal or foil touching the side of the oven.■Foil not molded to food(upturned edges act likeantennas).■Metal, such as twist-ties, poultrypins, or gold-rimmed dishes, in the microwave.■Recycled paper towelscontaining small metal piecesbeing used in the microwave.■Do not pop popcorn in yourmicrowave oven unless in aspecial microwave popcornaccessory or unless you usepopcorn labeled for use inmicrowave ovens.■Some products such as wholeeggs and sealed containers—for example, closed jars—are able to explode andshould not be heated in thismicrowave oven. Such use ofthe microwave oven couldresult in injury.■Do not boil eggs in amicrowave oven. Pressure will build up inside egg yolkand will cause it to burst,possibly resulting in injury.■Operating the microwave withno food inside for more than a minute or two may causedamage to the oven and couldstart a fire. It increases the heataround the magnetron and canshorten the life of the oven.■Foods with unbroken outer“skin” such as potatoes, hotdogs, sausages, tomatoes,apples, chicken livers andother giblets, and egg yolksshould be pierced to allowsteam to escape duringcooking.■Don’t defrost frozen beveragesin narrow-necked bottles(especially carbonatedbeverages). Even if thecontainer is opened, pressurecan build up. This can causethe container to burst, possiblyresulting in injury.FOODSSafety InformationOperating InstructionsTroubleshooting TipsConsumer Support4WARNING! If you see arcing, press the CLEAR/OFF pad and correct the problem.ARCINGIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40323v03 2/6/03 9:21 AM Page 4

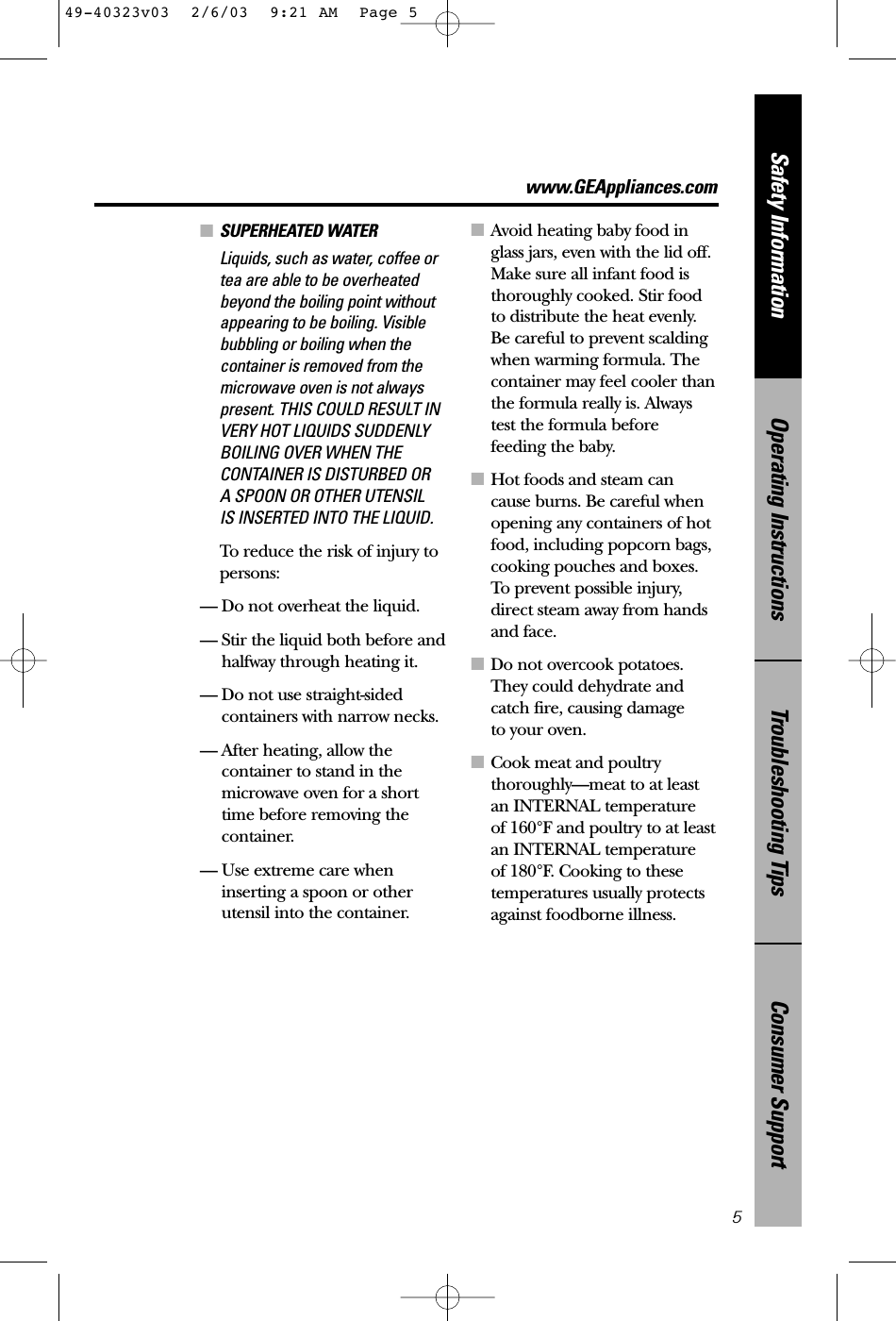

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information■SUPERHEATED WATERLiquids, such as water, coffee ortea are able to be overheatedbeyond the boiling point withoutappearing to be boiling. Visiblebubbling or boiling when thecontainer is removed from themicrowave oven is not alwayspresent. THIS COULD RESULT INVERY HOT LIQUIDS SUDDENLYBOILING OVER WHEN THECONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.To reduce the risk of injury topersons:— Do not overheat the liquid.— Stir the liquid both before andhalfway through heating it.— Do not use straight-sidedcontainers with narrow necks.— After heating, allow thecontainer to stand in themicrowave oven for a shorttime before removing thecontainer.— Use extreme care wheninserting a spoon or otherutensil into the container.■Avoid heating baby food inglass jars, even with the lid off.Make sure all infant food isthoroughly cooked. Stir foodto distribute the heat evenly.Be careful to prevent scaldingwhen warming formula. Thecontainer may feel cooler thanthe formula really is. Alwaystest the formula beforefeeding the baby.■Hot foods and steam can cause burns. Be careful whenopening any containers of hotfood, including popcorn bags,cooking pouches and boxes.To prevent possible injury,direct steam away from handsand face.■Do not overcook potatoes.They could dehydrate andcatch fire, causing damage to your oven.■Cook meat and poultrythoroughly—meat to at leastan INTERNAL temperature of 160°F and poultry to at leastan INTERNAL temperature of 180°F. Cooking to thesetemperatures usually protectsagainst foodborne illness.5www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 5
Make sure all cookware used inyour microwave oven is suitablefor microwaving. Most glasscasseroles, cooking dishes,measuring cups, custard cups,pottery or china dinnerwarewhich does not have metallic trimor glaze with a metallic sheen canbe used. Some cookware is labeled“suitable for microwaving.”■If you are not sure if a dish ismicrowave-safe, use this test:Place in the oven both thedish you are testing and a glass measuring cup filledwith 1 cup of water—set themeasuring cup either in ornext to the dish. Microwave 30–45 seconds at high. If thedish heats, it should not beused for microwaving. If the dish remains cool and only the water in the cup heats, then the dish ismicrowave-safe.■If you use a meat thermometerwhile cooking, make sure it is safe for use in microwaveovens.■Do not use recycled paperproducts. Recycled papertowels, napkins and waxedpaper can contain metal fleckswhich may cause arcing orignite. Paper productscontaining nylon or nylonfilaments should be avoided,since they may also ignite. ■Some styrofoam trays (likethose that meat is packagedon) have a thin strip of metalembedded in the bottom.When microwaved, the metalcan burn the floor of the ovenor ignite a paper towel.■Do not use the microwave todry newspapers.■Not all plastic wrap is suitablefor use in microwave ovens.Check the package for proper use.■Paper towels, waxed paper and plastic wrap can be usedto cover dishes in order toretain moisture and preventspattering. Be sure to ventplastic wrap so steam canescape.■Cookware may become hotbecause of heat transferredfrom the heated food. Potholders may be needed tohandle the cookware.MICROWAVE-SAFE COOKWARESafety InformationOperating InstructionsTroubleshooting TipsConsumer Support6WARNING! IMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40323v03 2/6/03 9:21 AM Page 6

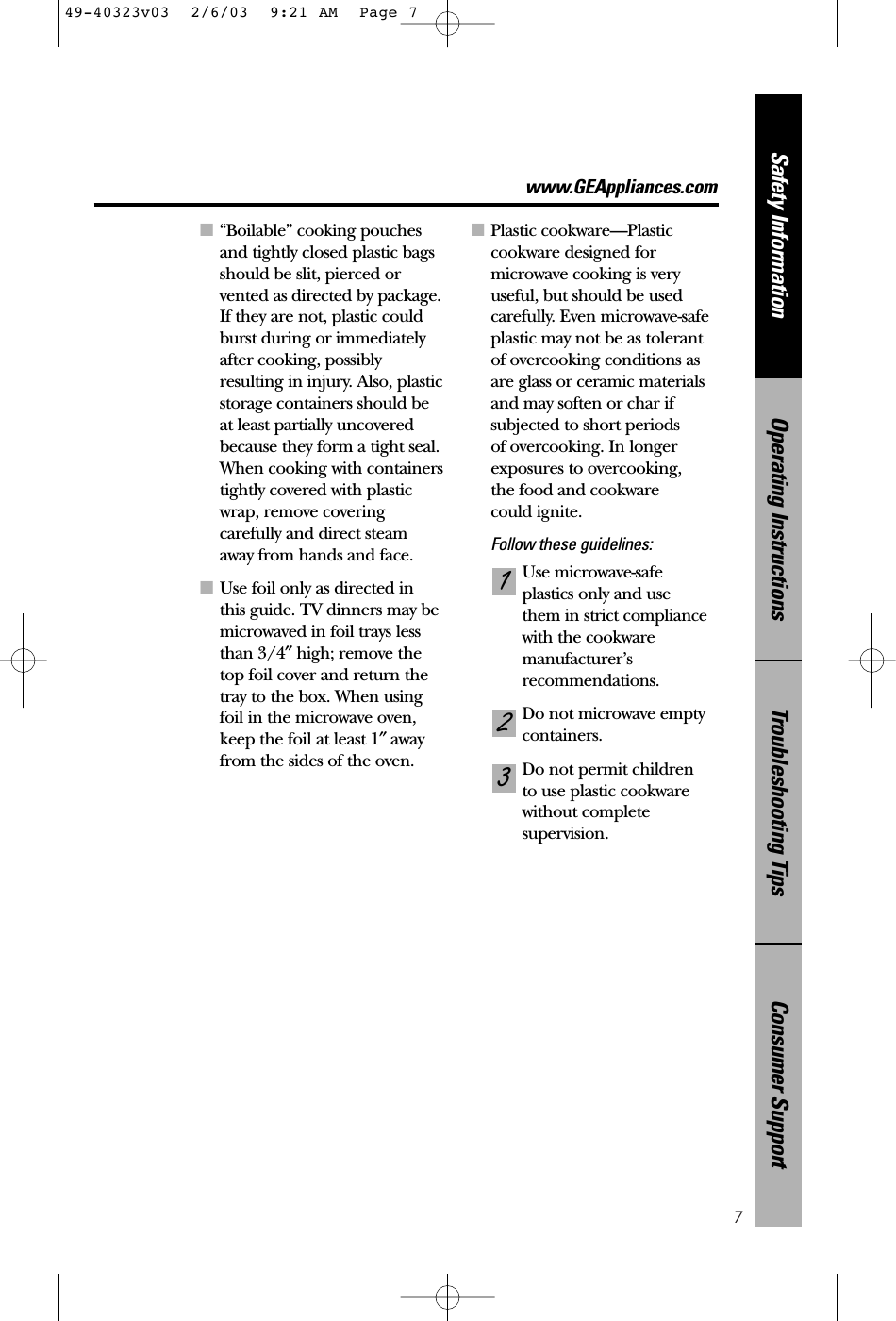

7Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information■“Boilable” cooking pouchesand tightly closed plastic bagsshould be slit, pierced orvented as directed by package.If they are not, plastic couldburst during or immediatelyafter cooking, possiblyresulting in injury. Also, plasticstorage containers should be at least partially uncoveredbecause they form a tight seal.When cooking with containerstightly covered with plasticwrap, remove coveringcarefully and direct steam away from hands and face.■Use foil only as directed in this guide. TV dinners may bemicrowaved in foil trays lessthan 3/4″high; remove thetop foil cover and return thetray to the box. When usingfoil in the microwave oven,keep the foil at least 1″awayfrom the sides of the oven.■Plastic cookware—Plasticcookware designed formicrowave cooking is veryuseful, but should be usedcarefully. Even microwave-safeplastic may not be as tolerantof overcooking conditions asare glass or ceramic materialsand may soften or char ifsubjected to short periods of overcooking. In longerexposures to overcooking, the food and cookware could ignite. Follow these guidelines: Use microwave-safeplastics only and use them in strict compliancewith the cookwaremanufacturer’srecommendations. Do not microwave empty containers. Do not permit children to use plastic cookwarewithout completesupervision.321www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 7
This appliance must be grounded. In the event of an electrical shortcircuit, grounding reduces the risk of electric shock by providing anescape wire for the electric current. This appliance is equipped with a power cord having a grounding wirewith a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.Consult a qualified electrician or service technician if the groundinginstructions are not completely understood, or if doubt exists as towhether the appliance is properly grounded.If the outlet is a standard 2-prong wall outlet, it is your personalresponsibility and obligation to have it replaced with a properlygrounded 3-prong wall outlet.Do not under any circumstances cut or remove the third (ground)prong from the power cord.We do not recommend using an extension cord with this appliance. If the power cord is too short, have a qualified electrician or servicetechnician install an outlet near the appliance. (See WARNING—EXTENSION CORDS section.)For best operation, plug this appliance into its own electrical outlet toprevent flickering of lights, blowing of fuse or tripping of circuit breaker.GROUNDING INSTRUCTIONSSafety InformationOperating InstructionsTroubleshooting TipsConsumer Support8Improper use of the grounding plug can result in a risk ofelectric shock.WARNING! IMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40323v03 2/6/03 9:21 AM Page 8
Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationUsage situations where appliance’s power cord will be disconnectedinfrequently.Because of potential safety hazardsunder certain conditions, we stronglyrecommend against the use of an adapterplug. However, if you still elect to use an adapter, where local codes permit, a TEMPORARY CONNECTION may be made to a properly grounded 2-prong wall receptacle by the use of a UL listed adapter which is available at most local hardware stores.The larger slot in the adapter must be aligned with the larger slot inthe wall receptacle to provide proper polarity in the connection of the power cord.CAUTION: Attaching the adapter ground terminal to thewall receptacle cover screw does not ground the appliance unless thecover screw is metal, not insulated, and the wall receptacle is groundedthrough the house wiring. You should have the circuit checked by a qualified electrician to makesure the receptacle is properly grounded.When disconnecting the power cord from the adapter, always hold the adapter with one hand. If this is not done, the adapter groundterminal is very likely to break with repeated use. Should this happen,DO NOT USE the appliance until a proper ground has again beenestablished.Usage situations where appliance’s power cord will be disconnectedfrequently.Do not use an adapter plug in these situations because frequentdisconnection of the power cord places undue strain on the adapterand leads to eventual failure of the adapter ground terminal. Youshould have the two-prong wall receptacle replaced with a 3-prong(grounding) receptacle by a qualified electrician before using theappliance.ADAPTER PLUGS9Ensure proper ground and firm connectionbefore use.TEMPORARYMETHODAlign largeprongs/slots(Adapter plugs notpermitted in Canada)www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 9
Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support10WARNING! A short power supply cord is provided to reduce the risks resultingfrom becoming entangled in or tripping over a longer cord.Extension cords may be used if you are careful in using them.If an extension cord is used—The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;The extension cord must be a grounding-type 3-wire cord and it must be plugged into a 3-slot outlet;The extension cord should be arranged so that it will not drapeover the countertop or tabletop where it can be pulled on bychildren or tripped over unintentionally.If you use an extension cord, the interior light may flicker and theblower sound may vary when the microwave oven is on. Cooking timesmay be longer, too.321EXTENSION CORDSIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.49-40323v03 2/6/03 9:21 AM Page 10
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information11READ AND FOLLOW THIS SAFETYINFORMATION CAREFULLY.SAVE THESE INSTRUCTIONSwww.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 11
12Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the features of your microwave oven.Throughout this manual, features and appearance may vary from your model.1100 Watts49-40323v03 2/6/03 9:21 AM Page 12
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information13Features of the OvenDoor Latches.Window with Metal Shield. Screen allows cooking to be viewedwhile keeping microwaves confined in the oven.Convenience Guide.Touch Control Panel Display.Door Latch Release. Press latch release to open door.Removable Turntable. Turntable and support must be in place when using the oven. The turntable may be removed for cleaning.NOTE: Rating plate, oven vent(s) and oven light are located on the insidewalls of the microwave oven.www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 13

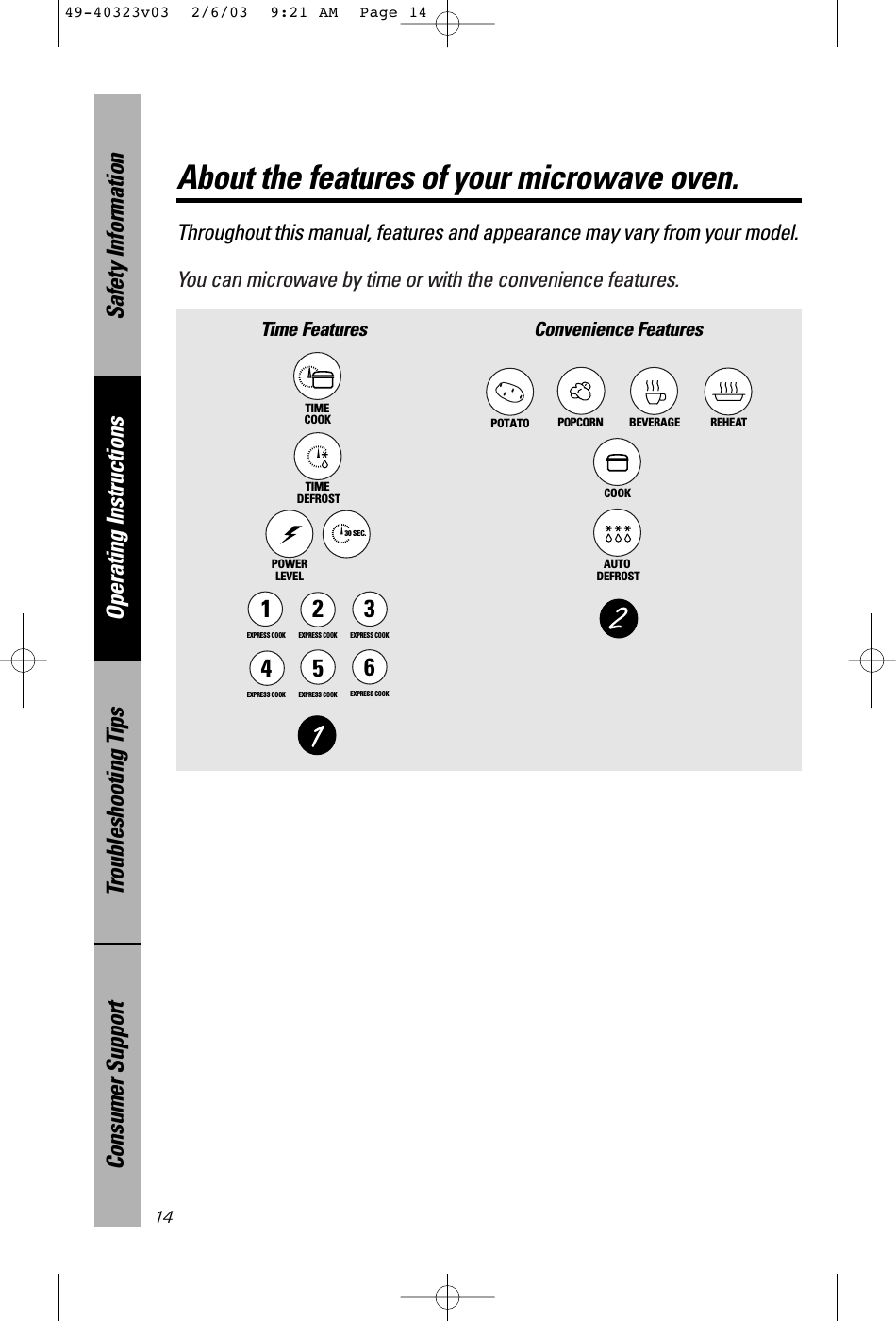

You can microwave by time or with the convenience features. 1EXPRESS COOK3EXPRESS COOK6EXPRESS COOK2EXPRESS COOK5EXPRESS COOK4EXPRESS COOKPOWERLEVEL30 SEC.TIME DEFROST TIME COOKAUTO DEFROSTCOOKPOPCORN REHEATBEVERAGEPOTATOSafety InformationOperating InstructionsTroubleshooting TipsConsumer Support14Time Features Convenience FeaturesAbout the features of your microwave oven.Throughout this manual, features and appearance may vary from your model.49-40323v03 2/6/03 9:21 AM Page 14

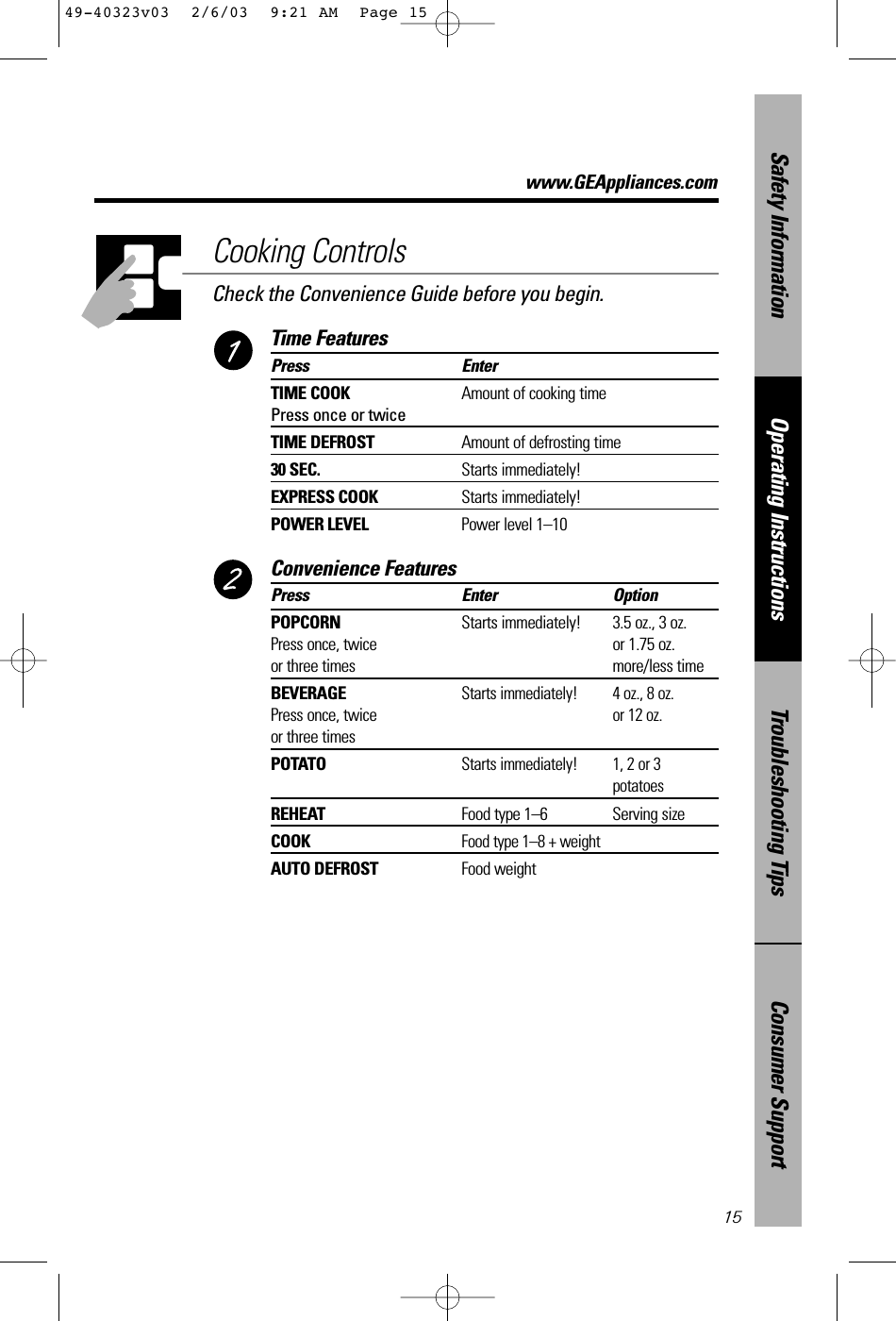

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationCooking ControlsCheck the Convenience Guide before you begin.Time FeaturesPress EnterTIME COOK Amount of cooking timePress once or twiceTIME DEFROST Amount of defrosting time30 SEC. Starts immediately!EXPRESS COOK Starts immediately!POWER LEVEL Power level 1–10Convenience FeaturesPress Enter OptionPOPCORN Starts immediately! 3.5 oz., 3 oz.Press once, twice or 1.75 oz.or three times more/less timeBEVERAGEStarts immediately! 4 oz., 8 oz. Press once, twiceor 12 oz.or three timesPOTATOStarts immediately! 1, 2 or 3 potatoesREHEAT Food type 1–6 Serving sizeCOOKFood type 1–8 + weightAUTO DEFROST Food weight15www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 15

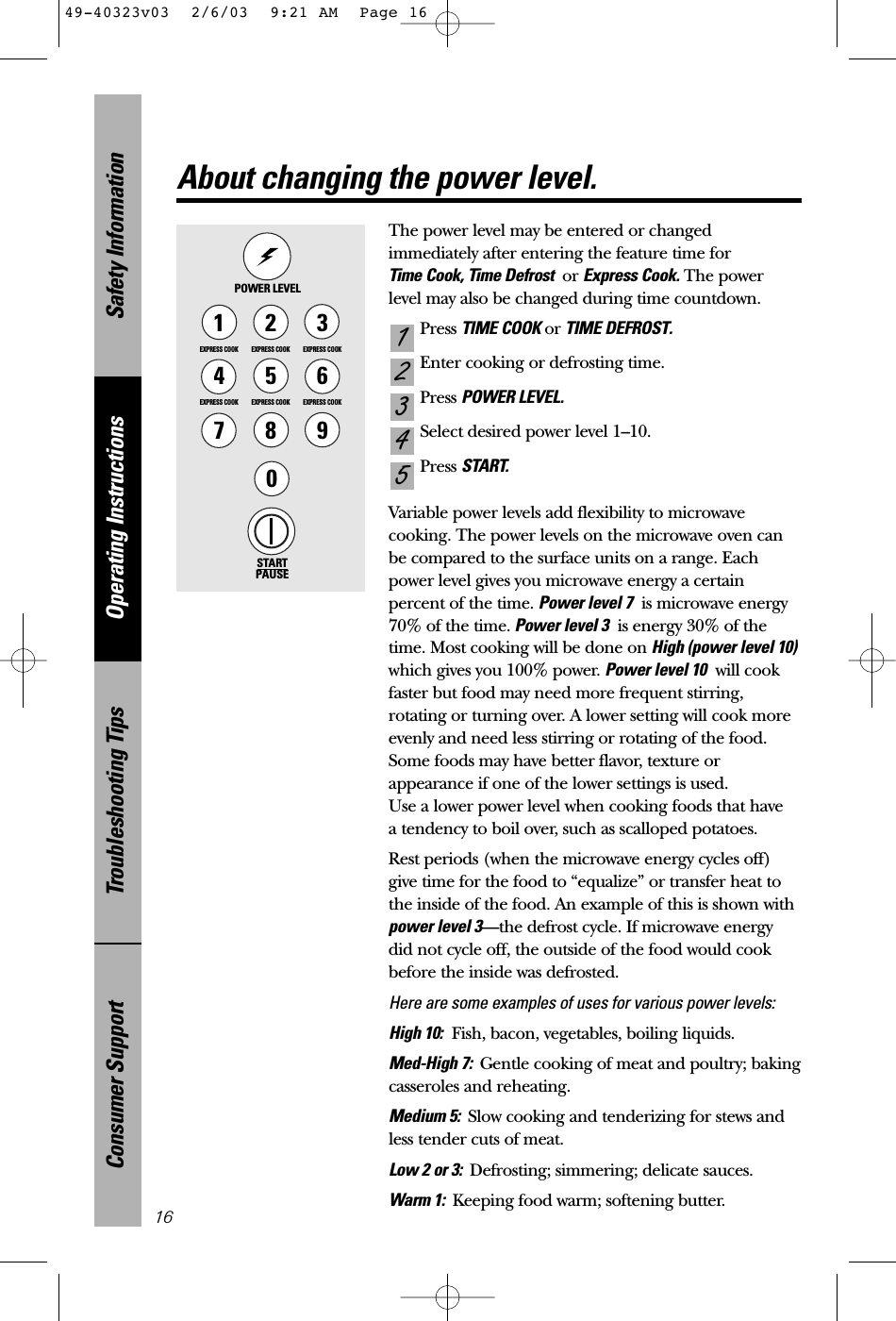

Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support16The power level may be entered or changedimmediately after entering the feature time for Time Cook, Time Defrost or Express Cook. The power level may also be changed during time countdown.Press TIME COOK or TIME DEFROST.Enter cooking or defrosting time.Press POWER LEVEL.Select desired power level 1–10.Press START.Variable power levels add flexibility to microwavecooking. The power levels on the microwave oven canbe compared to the surface units on a range. Eachpower level gives you microwave energy a certainpercent of the time. Power level 7 is microwave energy70% of the time. Power level 3 is energy 30% of thetime. Most cooking will be done on High (power level 10)which gives you 100% power. Power level 10 will cookfaster but food may need more frequent stirring,rotating or turning over. A lower setting will cook moreevenly and need less stirring or rotating of the food.Some foods may have better flavor, texture orappearance if one of the lower settings is used. Use a lower power level when cooking foods that have a tendency to boil over, such as scalloped potatoes.Rest periods (when the microwave energy cycles off)give time for the food to “equalize” or transfer heat tothe inside of the food. An example of this is shown withpower level 3—the defrost cycle. If microwave energydid not cycle off, the outside of the food would cookbefore the inside was defrosted.Here are some examples of uses for various power levels:High 10: Fish, bacon, vegetables, boiling liquids.Med-High 7: Gentle cooking of meat and poultry; bakingcasseroles and reheating.Medium 5: Slow cooking and tenderizing for stews andless tender cuts of meat.Low 2 or 3: Defrosting; simmering; delicate sauces.Warm 1: Keeping food warm; softening butter.54321POWER LEVELSTARTPAUSE1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKAbout changing the power level.49-40323v03 2/6/03 9:21 AM Page 16
Time CookTime Cook IAllows you to microwave for any time up to 99 minutesand 99 seconds. Power level 10 (High) is automatically set, but you maychange it for more flexibility. Press TIME COOK.Enter cooking time.Change power level if you don’t want full power.(Press POWER LEVEL. Select a desired power level1–10.)Press START.You may open the door during Time Cook to check the food. Close the door and press START to resumecooking.Time Cook IILets you change power levels automatically duringcooking. Here’s how to do it:Press TIME COOK.Enter the first cook time. Change the power level if you don’t want full power.(Press POWER LEVEL. Select a desired power level1–10.)Press TIME COOK again.Enter the second cook time.Change the power level if you don’t want full power.(Press POWER LEVEL. Select a desired power level1–10.)Press START.At the end of Time Cook I, Time Cook II counts down.76543214321STARTPAUSE1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOK TIME COOK17Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationAbout the time features. www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 17
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportCooking Guide for Time Cook NOTE: Use power level High (10) unless otherwise noted.18Vegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 5 to 8 min., In 11⁄2-qt. oblong glass baking Med-High (7) dish, place 1/4 cup water. (frozen spears) 10-oz. package 4 to 7 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 10 to 15 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz. package 4 to 8 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz. package 4 to 8 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 16 to 22 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch 5 to 9 min. In 2-qt. casserole, place (11⁄4to 11⁄2lbs.) 1/2 cup water.(fresh spears) 1 bunch 7 to 11 min. In 2-qt. oblong glass baking dish,(11⁄4to 11⁄2lbs.) place 1/4 cup water.(frozen, 10-oz. package 4 to 7 min. In 1-qt. casserole.chopped)(frozen spears) 10-oz. package 4 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head 6 to 10 min. In 11⁄2- or 2-qt. casserole, place (about 2 lbs.) 1/4 cup water.(wedges) 5 to 9 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 4 to 8 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 3 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 7 to 11 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 7 to 15 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz. package 3 to 7 min. In 1-qt. casserole, place 2 tablespoons water.About the time features.49-40323v03 2/6/03 9:21 AM Page 18

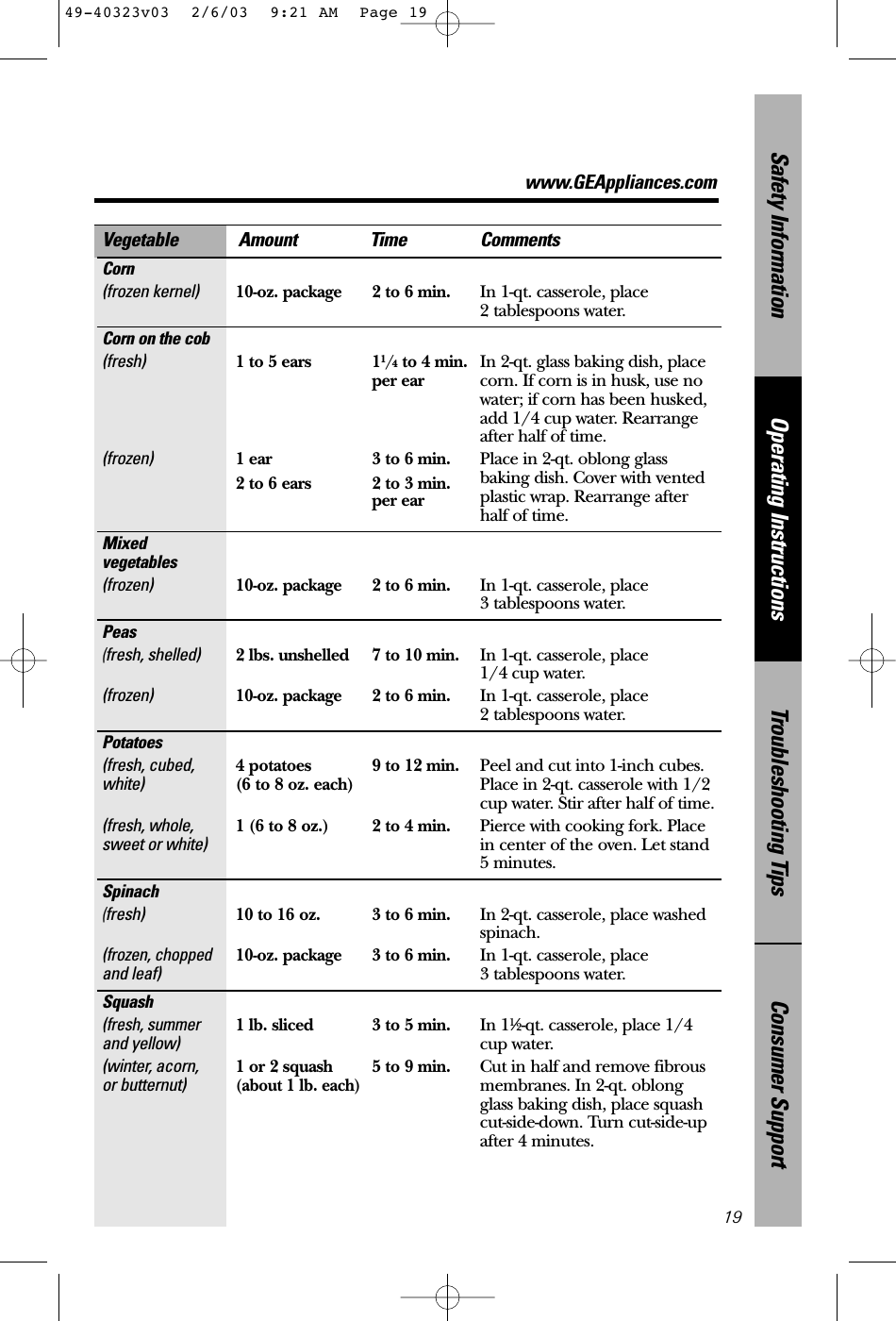

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information19Vegetable Amount Time CommentsCorn(frozen kernel) 10-oz. package 2 to 6 min. In 1-qt. casserole, place 2 tablespoons water.Corn on the cob(fresh) 1 to 5 ears 11/4to 4 min. In 2-qt. glass baking dish, place per ear corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time. (frozen) 1 ear 3 to 6 min. Place in 2-qt. oblong glass 2 to 6 ears 2 to 3 min. baking dish. Cover with vented per ear plastic wrap. Rearrange after half of time. Mixed vegetables(frozen) 10-oz. package 2 to 6 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled 7 to 10 min. In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 2 to 6 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes 9 to 12 min. Peel and cut into 1-inch cubes. white) (6 to 8 oz. each) Place in 2-qt. casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz.) 2 to 4 min. Pierce with cooking fork. Place sweet or white) in center of the oven. Let stand 5 minutes.Spinach(fresh) 10 to 16 oz. 3 to 6 min. In 2-qt. casserole, place washed spinach.(frozen, chopped 10-oz. package 3 to 6 min. In 1-qt. casserole, place and leaf) 3 tablespoons water.Squash(fresh, summer1 lb. sliced 3 to 5 min. In 11⁄2-qt. casserole, place 1/4 and yellow) cup water.(winter, acorn, 1 or 2 squash 5 to 9 min. Cut in half and remove fibrous or butternut)(about 1 lb. each)membranes. In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-upafter 4 minutes. www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 19

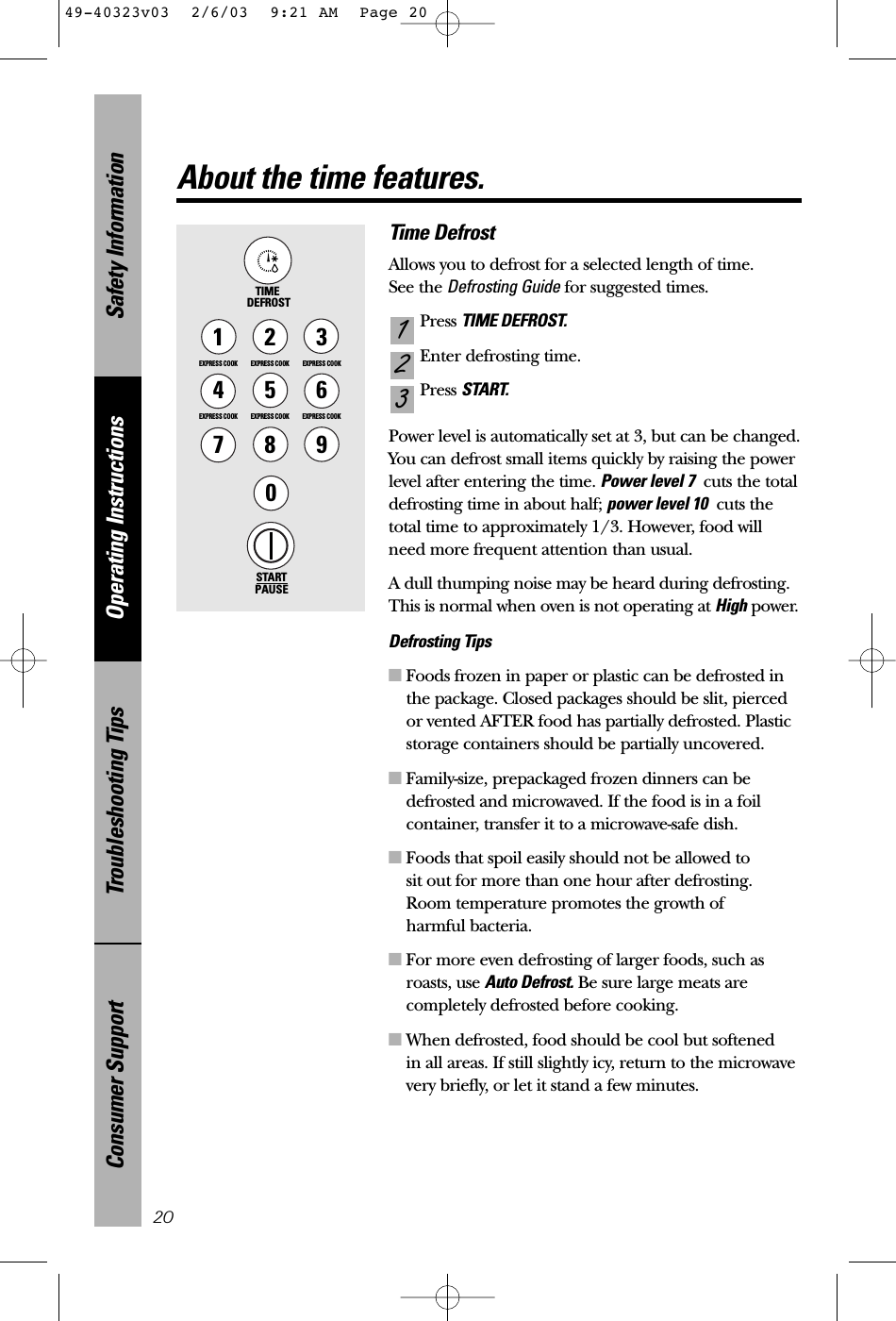

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportTime DefrostAllows you to defrost for a selected length of time. See the Defrosting Guide for suggested times. Press TIME DEFROST.Enter defrosting time.Press START. Power level is automatically set at 3, but can be changed.You can defrost small items quickly by raising the powerlevel after entering the time. Power level 7 cuts the totaldefrosting time in about half; power level 10 cuts thetotal time to approximately 1/3. However, food willneed more frequent attention than usual.A dull thumping noise may be heard during defrosting.This is normal when oven is not operating at High power.Defrosting Tips■Foods frozen in paper or plastic can be defrosted inthe package. Closed packages should be slit, piercedor vented AFTER food has partially defrosted. Plasticstorage containers should be partially uncovered.■Family-size, prepackaged frozen dinners can bedefrosted and microwaved. If the food is in a foilcontainer, transfer it to a microwave-safe dish.■Foods that spoil easily should not be allowed to sit out for more than one hour after defrosting. Room temperature promotes the growth of harmful bacteria.■For more even defrosting of larger foods, such asroasts, use Auto Defrost. Be sure large meats arecompletely defrosted before cooking.■When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the microwavevery briefly, or let it stand a few minutes.321STARTPAUSE1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKTIME DEFROST20About the time features.49-40323v03 2/6/03 9:21 AM Page 20
Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationFood Time CommentsBreads, CakesBread, buns or rolls (1 piece) 1/4 min.Sweet rolls (approx. 12 oz.) 2 to 4 min. Rearrange after half the time.Fish and SeafoodFillets, frozen (1 lb.) 6 to 9 min.Shellfish, small pieces(1 lb.)3 to 7 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch – 1 or 2 1 to 5 min.(10-oz. package)Meat Bacon (1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting. Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat (1 lb.) 4 to 6 min. Turn meat over after first half of time.Roast: beef, lamb, veal, pork9 to 13 min.Use power level 1.per lb.Steaks, chops and cutlets 4 to 8 min. Place unwrapped meat in cooking per lb. dish. Turn over after first half of time and shield warm areas with foil. After second half of time, separate pieces with table knife. Let stand to complete defrosting. PoultryChicken, broiler-fryer14 to 20 min.Place wrapped chicken in dish. Unwrapcut up (21⁄2to 3 lbs.)and turn over after first half of time. After second half of time, separate pieces and place in cooking dish. Microwave 2 to 4 minutes more, if necessary. Let stand a few minutes to finish defrosting.Chicken, whole20 to 25 min.Place wrapped chicken in dish. After half (21⁄2to 3 lbs.) the time, unwrap and turn chicken over. Shield warm areas with foil. To complete defrosting, run cold water in the cavity until giblets can be removed.Cornish hen 7 to 13 min. Place unwrapped hen in the oven per lb. breast-side-up. Turn over after first half of time. Run cool water in the cavity until giblets can be removed.Turkey breast (4 to 6 lbs.) 3 to 8 min. Place unwrapped breast in microwave-safeper lb. dish breast-side-down. After half of time, turn breast-side-up and shield warm areas with foil. Defrost for second half of time. Let stand 1 to 2 hours in refrigerator to complete defrosting.Defrosting Guide21www.GEAppliances.com49-40323v03 2/6/03 9:21 AM Page 21

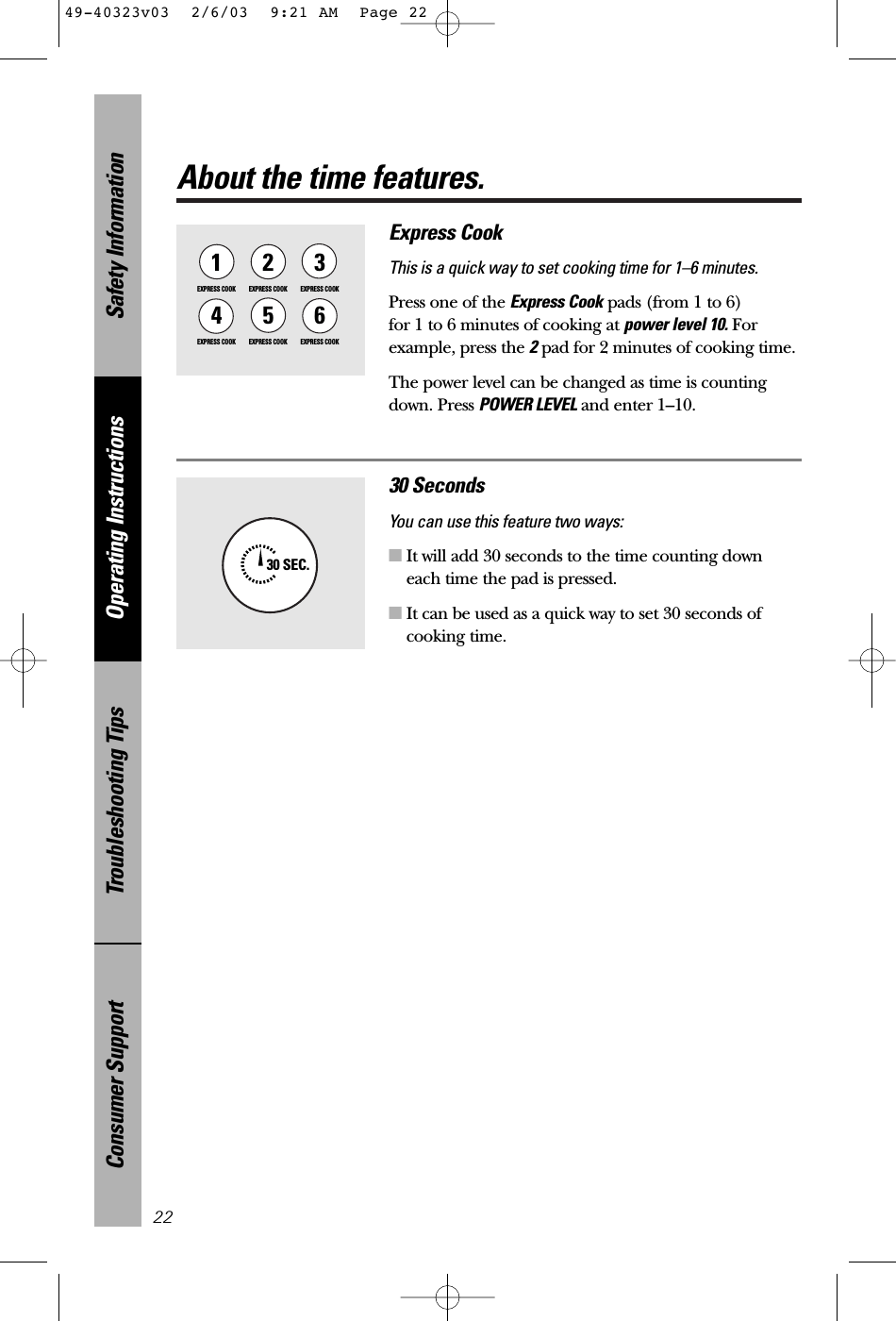

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.22Express CookThis is a quick way to set cooking time for 1–6 minutes.Press one of the Express Cook pads (from 1 to 6) for 1 to 6 minutes of cooking at power level 10. Forexample, press the 2pad for 2 minutes of cooking time. The power level can be changed as time is countingdown. Press POWER LEVEL and enter 1–10.1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK4EXPRESS COOK30 SecondsYou can use this feature two ways:■It will add 30 seconds to the time counting downeach time the pad is pressed.■It can be used as a quick way to set 30 seconds ofcooking time.30 SEC.49-40323v03 2/6/03 9:21 AM Page 22
About the convenience features. www.GEAppliances.com23Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationPopcornTo use the Popcorn feature:Follow package instructions, using Time Cookif the package is less than 1.75 ounces or largerthan 3.5 ounces. Place the package of popcorn in the center of the microwave.Press POPCORN once for a 3.5 ounce package ofpopcorn, twice for a 3.0 ounce package, or threetimes for a 1.75 ounce package. The oven startsimmediately. How to Adjust the Popcorn Program to Provide a Shorter or Longer Cook TimeIf you find that the brand of popcorn you use underpops or overcooks consistently, you can add orsubtract 20 seconds to the automatic popping time.To add time:After pressing POPCORN, press 9immediately after the oven starts for an extra 20 seconds.To subtract time:After pressing POPCORN, press 1immediately after the oven starts for 20 seconds less cooking time.211EXPRESS COOK9POPCORN(less time) (more time)Use only with prepackaged microwavepopcorn weighing 1.75 to 3.5 ounces.BeverageTo use the Beverage feature:Press BEVERAGE once for a 4-oz. beverage, twice for an 8-oz. beverage or three times for a 12-oz. beverage.Drinks heated with the Beverage feature may be very hot.Remove the container with care.BEVERAGE49-40323v03 2/6/03 9:21 AM Page 23

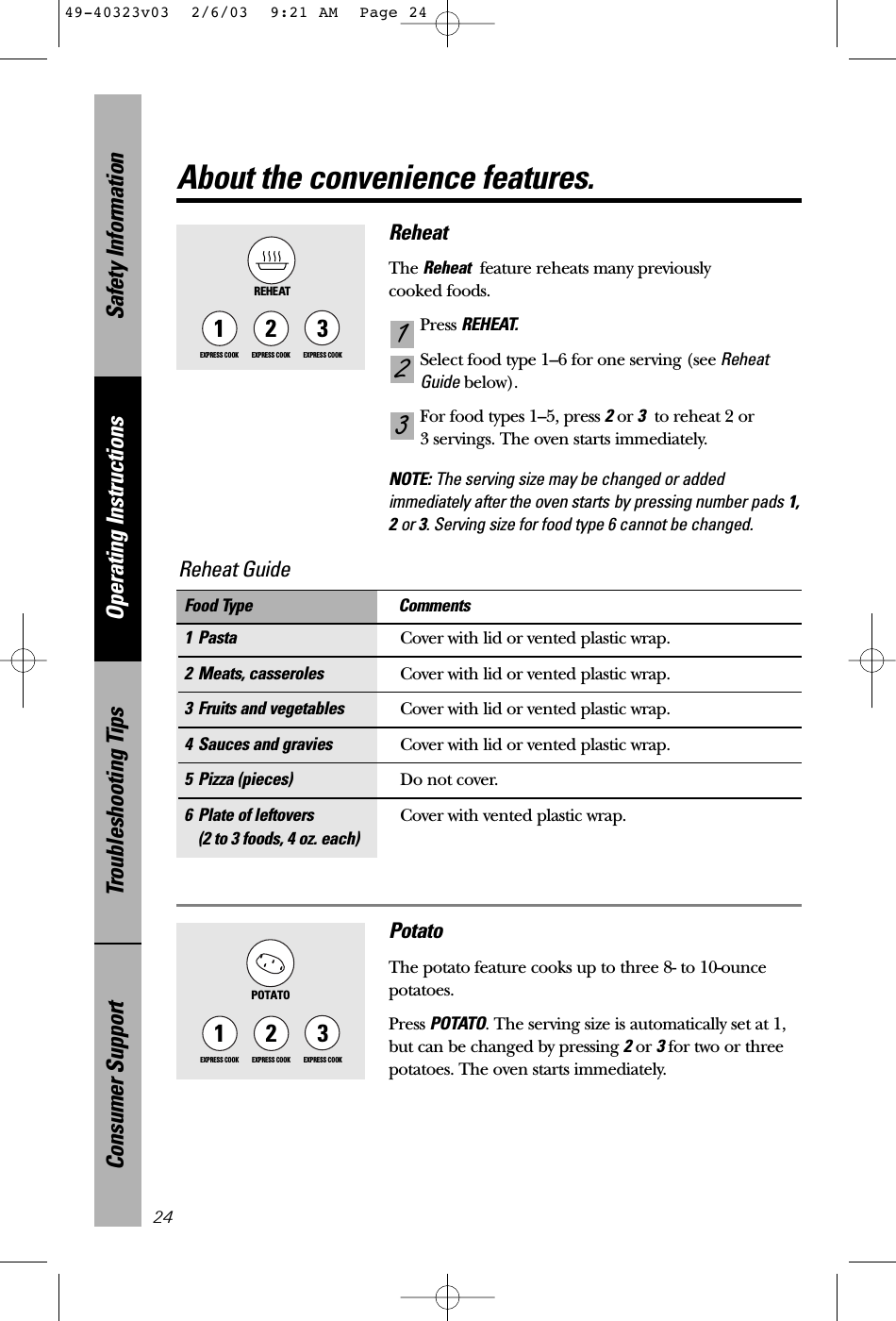

Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support24About the convenience features.ReheatThe Reheat feature reheats many previously cooked foods.Press REHEAT.Select food type 1–6 for one serving (see ReheatGuide below).For food types 1–5, press 2or 3to reheat 2 or 3 servings. The oven starts immediately.NOTE: The serving size may be changed or addedimmediately after the oven starts by pressing number pads 1,2or 3. Serving size for food type 6 cannot be changed.3211EXPRESS COOK3EXPRESS COOK2EXPRESS COOKREHEAT1 Pasta Cover with lid or vented plastic wrap.2 Meats, casseroles Cover with lid or vented plastic wrap.3 Fruits and vegetables Cover with lid or vented plastic wrap.4 Sauces and gravies Cover with lid or vented plastic wrap.5 Pizza (pieces) Do not cover.6 Plate of leftovers Cover with vented plastic wrap.(2 to 3 foods, 4 oz. each)Food Type CommentsReheat Guide PotatoThe potato feature cooks up to three 8- to 10-ouncepotatoes.Press POTATO. The serving size is automatically set at 1,but can be changed by pressing 2or 3for two or threepotatoes. The oven starts immediately.POTATO1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK49-40323v03 2/6/03 9:21 AM Page 24

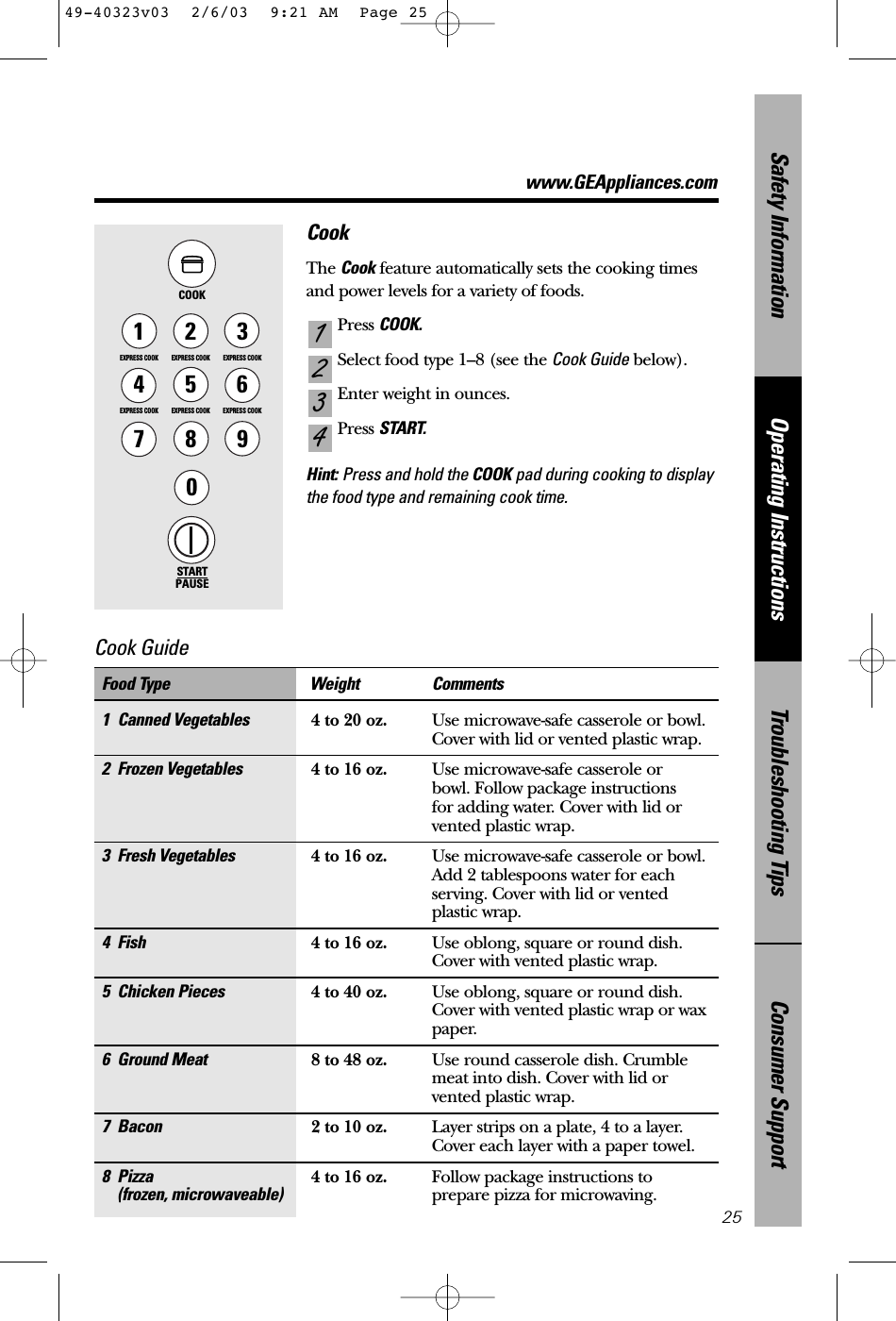

www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationCookThe Cook feature automatically sets the cooking timesand power levels for a variety of foods.Press COOK.Select food type 1–8 (see the Cook Guide below).Enter weight in ounces.Press START.Hint: Press and hold the COOK pad during cooking to displaythe food type and remaining cook time.43211 Canned Vegetables 4 to 20 oz. Use microwave-safe casserole or bowl. Cover with lid or vented plastic wrap.2 Frozen Vegetables 4 to 16 oz. Use microwave-safe casserole or bowl. Follow package instructions for adding water. Cover with lid or vented plastic wrap.3 Fresh Vegetables 4 to 16 oz. Use microwave-safe casserole or bowl. Add 2 tablespoons water for eachserving. Cover with lid or vented plastic wrap.4 Fish 4 to 16 oz. Use oblong, square or round dish.Cover with vented plastic wrap.5 Chicken Pieces 4 to 40 oz. Use oblong, square or round dish.Cover with vented plastic wrap or wax paper.6 Ground Meat 8 to 48 oz. Use round casserole dish. Crumble meat into dish. Cover with lid or vented plastic wrap.7 Bacon 2 to 10 oz. Layer strips on a plate, 4 to a layer.Cover each layer with a paper towel.8 Pizza 4 to 16 oz. Follow package instructions to (frozen, microwaveable) prepare pizza for microwaving.Food Type Weight CommentsSTARTPAUSE1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKCOOK25Cook Guide 49-40323v03 2/6/03 9:21 AM Page 25
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the convenience features.26Auto DefrostUse Auto Defrost for meat, poultry and fish. Use Time Defrost for most other frozen foods.Auto Defrost automatically sets the defrosting times andpower levels to give even defrosting results for meats,poultry and fish.Press AUTO DEFROST.Using the Conversion Guide below, enter food weight.For example, press pads 1and 2for 1.2 pounds (1 pound, 3 ounces).Press START.There is a handy guide located on the inside front of the oven. ■Remove meat from package and place on microwave-safe dish.■Twice during defrost, the oven signals “turn.”At each “turn” signal, turn the food over. Removedefrosted meat or shield warm areas with small piecesof foil.■After defrosting, most meats need to stand 5 minutesto complete defrosting. Large roasts should stand forabout 30 minutes.Conversion GuideIf the weight of food is stated in pounds and ounces, the ouncesmust be converted to tenths (.1) of a pound.Weight of Food in Ounces Enter Food Weight(tenths of a pound)1–2 .13.24–5 .36–7 .48.59–10 .611 .712–13 .814–15 .9321STARTPAUSE1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKAUTO DEFROSTGuide49-40323v03 2/6/03 9:21 AM Page 26

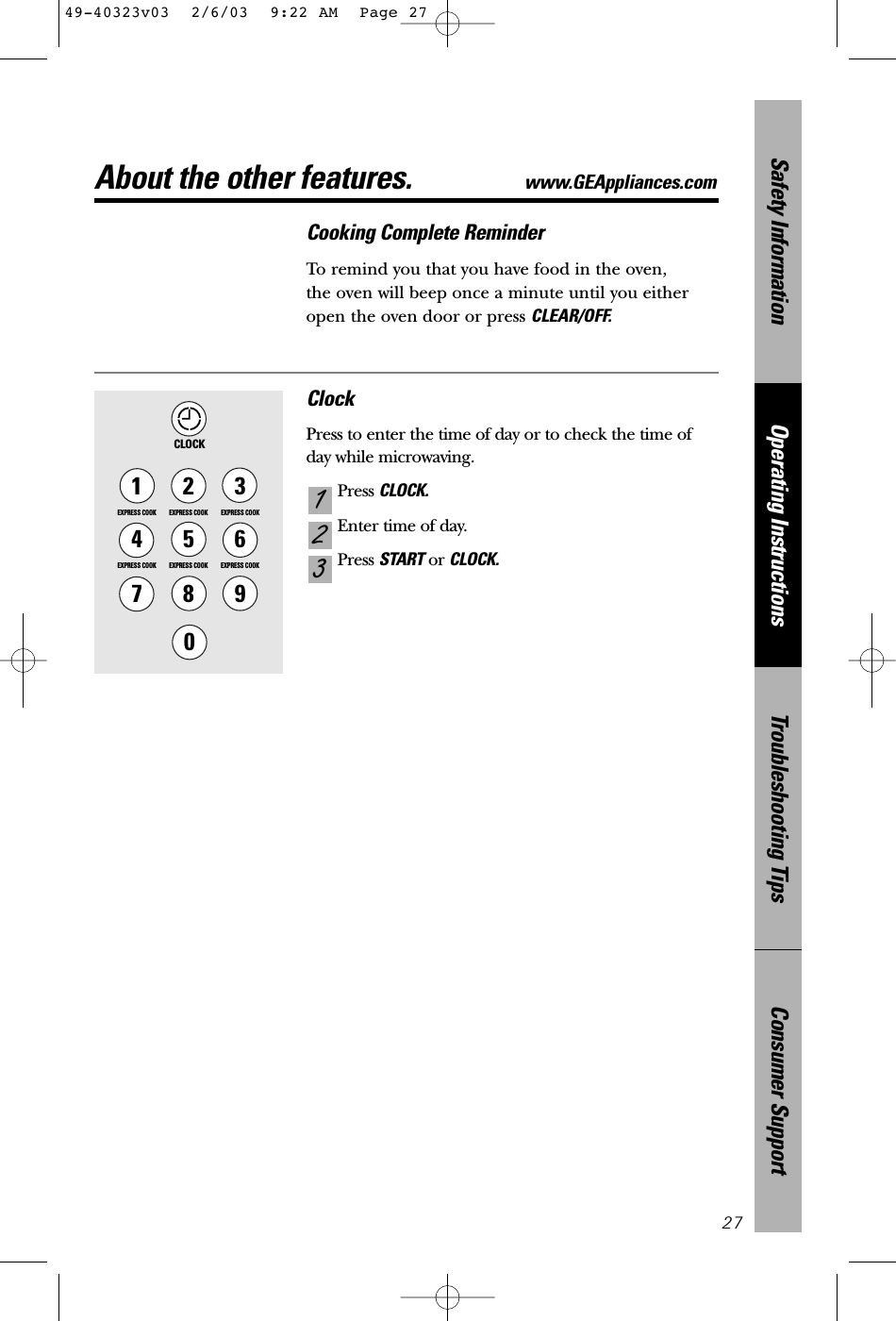

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationClockPress to enter the time of day or to check the time ofday while microwaving.Press CLOCK.Enter time of day.Press START or CLOCK.3211EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKCLOCK27About the other features. www.GEAppliances.comCooking Complete ReminderTo remind you that you have food in the oven, the oven will beep once a minute until you eitheropen the oven door or press CLEAR/OFF.49-40323v03 2/6/03 9:22 AM Page 27
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the other features.28Child Lock-OutYou may lock the control panel to prevent the microwavefrom being accidentally started or used by children.To lock or unlock the controls, press and hold CLEAR/OFFfor about three seconds. When the control panel islocked, LOC will be displayed.STOPCLEARCLEAROFFSTART/PAUSEIn addition to starting many functions, START/PAUSEallows you to stop cooking without opening the door orclearing the display.STARTPAUSE49-40323v03 2/6/03 9:22 AM Page 28
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationTimerThis pad performs three functions:■It operates as a minute timer.■It can be set to delay cooking.■It can be used as a hold setting after defrosting.The Timer operates without microwave energy.How to Use as a Minute TimerPress TIMER.Enter the amount of time you want to count down.Press START. When the time is up, the timer willsignal.How to Use to Delay the Start of CookingYou can set the microwave to delay cooking up to 99 minutes and 99 seconds.Press TIME COOK and enter the amount of cooking time.Press TIMER and enter the amount of time to delaythe start of cooking.Press START. The timer will begin counting down tozero and cooking will then begin.How to Use to Set a Holding TimeYou can set a holding time between Defrost and Time Cook, from one second to 99 minutes.Press TIME DEFROST.Enter defrosting time.Press TIMER.Enter the amount of time you want the oven to hold.Press TIME COOK.Enter cooking time.Press START.76543213213211EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKTIMERSTARTPAUSE2949-40323v03 2/6/03 9:22 AM Page 29
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportMicrowave terms.Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:■metal or foil touching the side of the oven.■foil that is not molded to food (upturned edges act like antennas).■metal such as twist-ties, poultry pins, gold-rimmed dishes.■recycled paper towels containing small metal pieces.Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.Shielding In a regular oven, you shield chicken breasts or baked foods to prevent overbrowning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.Term Definition3049-40323v03 2/6/03 9:22 AM Page 30

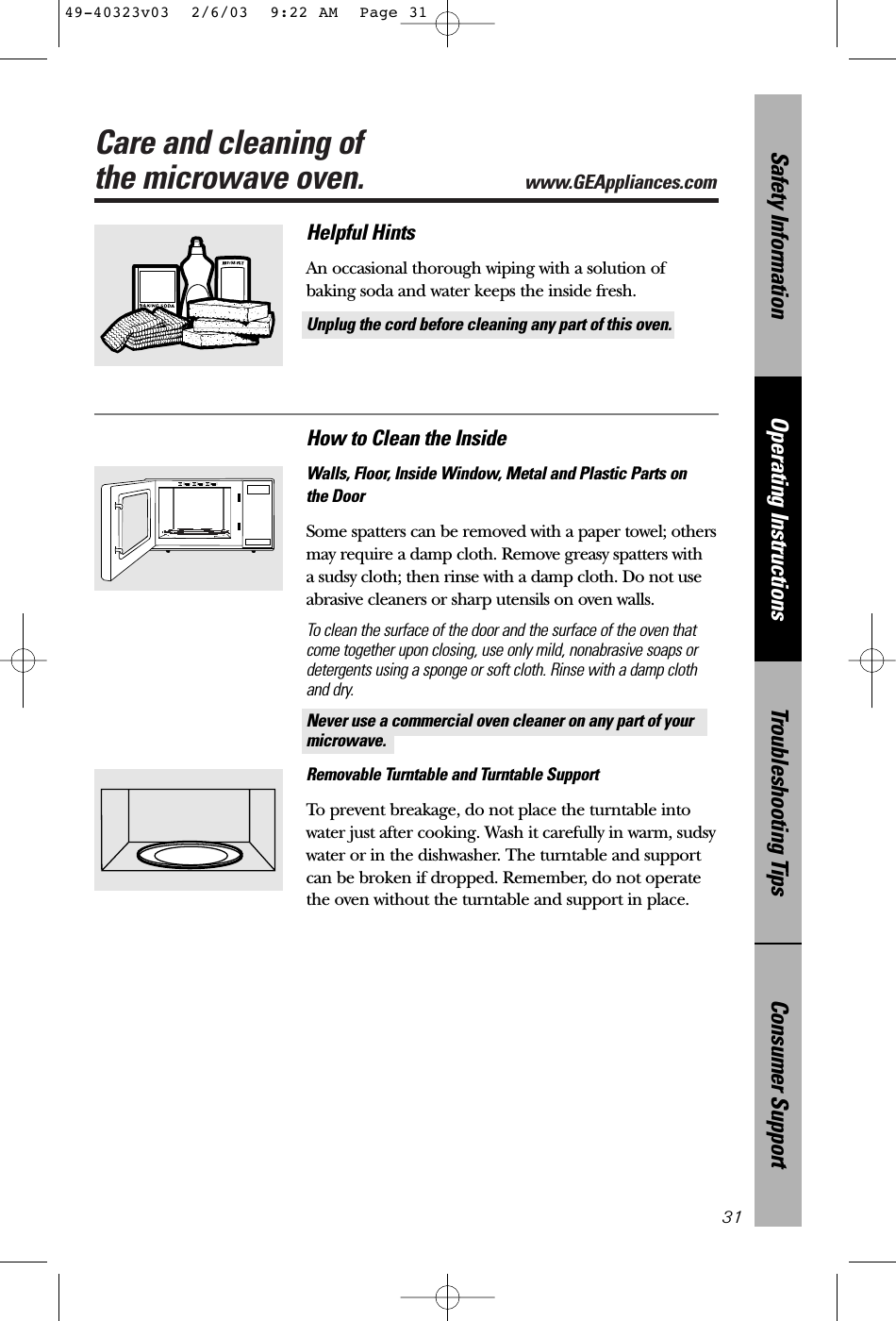

Care and cleaning of the microwave oven. www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information31Helpful HintsAn occasional thorough wiping with a solution ofbaking soda and water keeps the inside fresh.Unplug the cord before cleaning any part of this oven.How to Clean the InsideWalls, Floor, Inside Window, Metal and Plastic Parts on the DoorSome spatters can be removed with a paper towel; othersmay require a damp cloth. Remove greasy spatters with a sudsy cloth; then rinse with a damp cloth. Do not useabrasive cleaners or sharp utensils on oven walls. To clean the surface of the door and the surface of the oven thatcome together upon closing, use only mild, nonabrasive soaps ordetergents using a sponge or soft cloth. Rinse with a damp clothand dry.Never use a commercial oven cleaner on any part of yourmicrowave.Removable Turntable and Turntable Support To prevent breakage, do not place the turntable intowater just after cooking. Wash it carefully in warm, sudsywater or in the dishwasher. The turntable and supportcan be broken if dropped. Remember, do not operatethe oven without the turntable and support in place.49-40323v03 2/6/03 9:22 AM Page 31

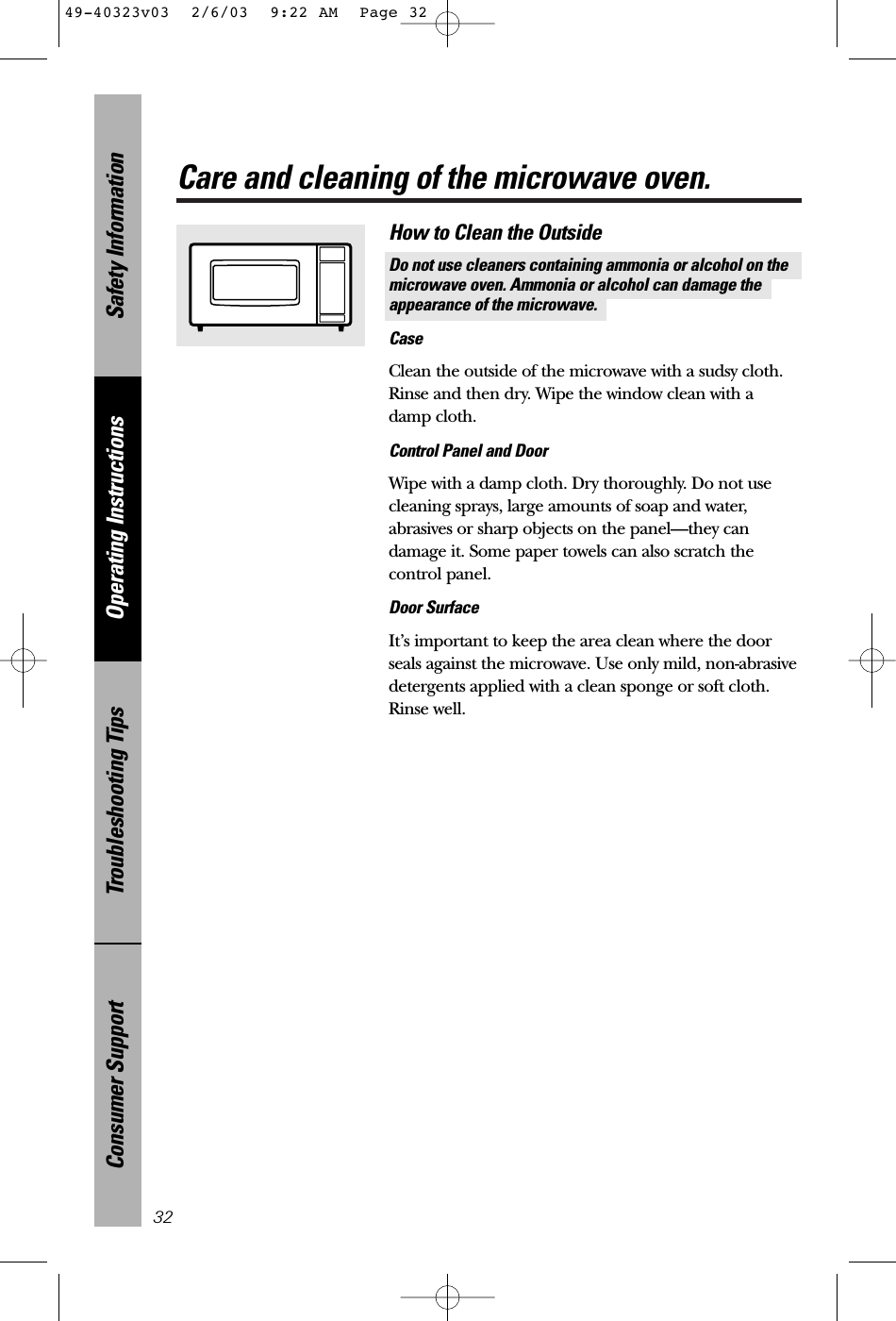

Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportCare and cleaning of the microwave oven.32How to Clean the OutsideDo not use cleaners containing ammonia or alcohol on themicrowave oven. Ammonia or alcohol can damage theappearance of the microwave.CaseClean the outside of the microwave with a sudsy cloth.Rinse and then dry. Wipe the window clean with a damp cloth. Control Panel and DoorWipe with a damp cloth. Dry thoroughly. Do not usecleaning sprays, large amounts of soap and water,abrasives or sharp objects on the panel—they candamage it. Some paper towels can also scratch thecontrol panel.Door SurfaceIt’s important to keep the area clean where the doorseals against the microwave. Use only mild, non-abrasivedetergents applied with a clean sponge or soft cloth.Rinse well.49-40323v03 2/6/03 9:22 AM Page 32
Troubleshooting Tips. www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information33Problem Possible Causes What To DoOven will not start A fuse in your home •Replace fuse or reset may be blown or the circuit breaker.circuit breaker tripped.Power surge. •Unplug the microwave oven; then plug it back in.Plug not fully inserted •Make sure the 3-prong into wall outlet. plug on the oven is fully inserted into wall outlet.Door not securely closed. •Open the door and closesecurely.Control panel lighted, Door not securely closed. •Open the door and closeyet oven will not start securely.START pad not pressed •Press START.after entering cookingselection.Another selection entered •Press CLEAR/OFF.already in oven andCLEAR/OFF pad notpressed to cancel it.Cooking time not entered •Make sure you have after pressing TIME COOK. entered cooking timeafter pressing TIME COOK.CLEAR/OFF was pressed •Reset cooking programaccidentally. and press START.Food weight not entered •Make sure you have after pressing AUTO entered food weightDEFROST.after pressing AUTO DEFROST.Food type not entered •Make sure you have after pressing REHEAT entered a food type.or COOK.49-40323v03 2/6/03 9:22 AM Page 33
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportTroubleshooting Tips.34Things That Are Normal With Your Microwave Oven■Steam or vapor escaping from around the door.■Light reflection around door or outer case.■Dimming oven light and change in the blower soundat power levels other than high.■Dull thumping sound while oven is operating.■TV/radio interference might be noticed while usingthe microwave. Similar to the interference caused byother small appliances, it does not indicate a problemwith the microwave. Plug the microwave into adifferent electrical circuit, move the radio or TV as far away from the microwave as possible, or check the position and signal of the TV/radio antenna.49-40323v03 2/6/03 9:22 AM Page 34

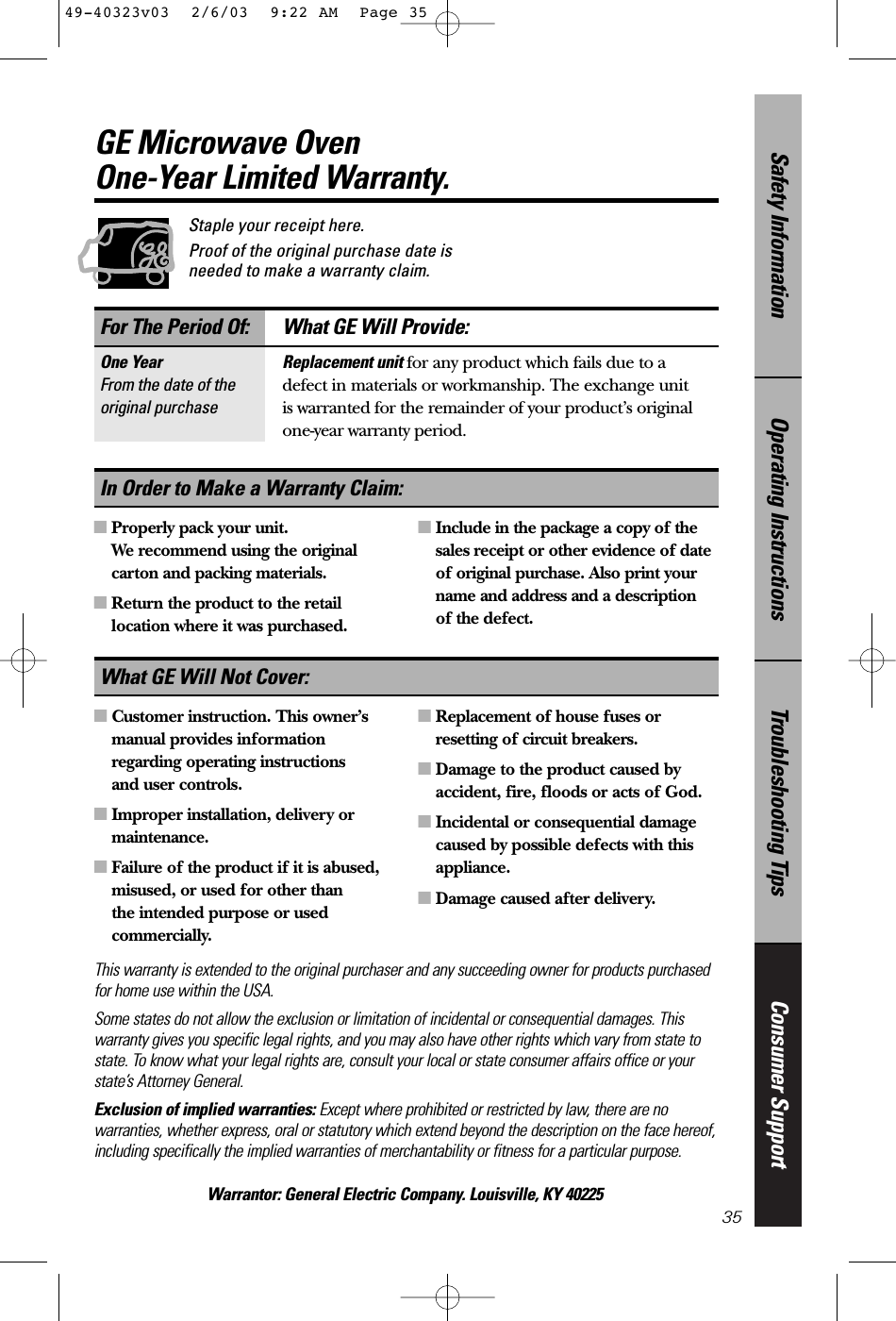

Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationThis warranty is extended to the original purchaser and any succeeding owner for products purchasedfor home use within the USA. Some states do not allow the exclusion or limitation of incidental or consequential damages. Thiswarranty gives you specific legal rights, and you may also have other rights which vary from state tostate. To know what your legal rights are, consult your local or state consumer affairs office or yourstate’s Attorney General.Exclusion of implied warranties: Except where prohibited or restricted by law, there are nowarranties, whether express, oral or statutory which extend beyond the description on the face hereof,including specifically the implied warranties of merchantability or fitness for a particular purpose.Warrantor: General Electric Company. Louisville, KY 40225For The Period Of: What GE Will Provide:One Year Replacement unit for any product which fails due to a From the date of the defect in materials or workmanship. The exchange unitoriginal purchase is warranted for the remainder of your product’s originalone-year warranty period.■Properly pack your unit. We recommend using the originalcarton and packing materials.■Return the product to the retaillocation where it was purchased.■Include in the package a copy of thesales receipt or other evidence of dateof original purchase. Also print yourname and address and a description of the defect.In Order to Make a Warranty Claim:35Staple your receipt here. Proof of the original purchase date isneeded to make a warranty claim.GE Microwave Oven One-Year Limited Warranty.■Customer instruction. This owner’smanual provides informationregarding operating instructions and user controls.■Improper installation, delivery ormaintenance.■Failure of the product if it is abused,misused, or used for other than the intended purpose or usedcommercially.■Replacement of house fuses orresetting of circuit breakers.■Damage to the product caused byaccident, fire, floods or acts of God.■Incidental or consequential damagecaused by possible defects with thisappliance.■Damage caused after delivery.What GE Will Not Cover:49-40323v03 2/6/03 9:22 AM Page 35
Printed in MalaysiaGE Appliances Website www.GEAppliances.comHave a question or need assistance with your appliance? Try the GE Appliances Website24 hours a day, any day of the year! For greater convenience and faster service, you cannow download Owner’s Manuals or order catalogs on-line. You can also “Ask Our Teamof Experts™” your questions, and so much more...Real Life Design Studio www.GEAppliances.comGE supports the Universal Design concept—products, services and environments thatcan be used by people of all ages, sizes and capabilities. We recognize the need todesign for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people withdisabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). Contact Us www.GEAppliances.comIf you are not satisfied with the service you receive from GE, contact us on our Websitewith all the details including your phone number, or write to: General Manager, Customer RelationsGE Appliances, Appliance ParkLouisville, KY 40225Consumer Support.Accessories www.GEAppliances.comA replacement turntable (WB49X10069) or turntable support ring (WB02X10838) isavailable at extra cost from our Parts Center and can be sent directly to your home(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hoursevery day or by phone at 800.626.2002 during normal business hours.49-40323v03 2/6/03 9:22 AM Page 36
