Microwave Oven
Owner’s Manual
MW1030WA / MW1030BA
MW1060WA / MW1060BA
MW1060SA / MW1230WA
MW1230BA / MW1255WA
MW1255BA / MW1260WA
MW1260BA / MW1430WA
MW1430BA / MW1455WA
MW1455BA / MW1460WA
MW1460BA / MW1660WA
MW1660BA / MW1960WA
MW1960BA
XGt~XW]W~ht~XY]W~hUGGwGXGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
2
S
AVE
T
HESE
I
NSTRUCTIONS
Safety
P
RECAUTIONS TO
A
VOID
P
OSSIBLE
E
XPOSURE TO
E
XCESSIVE
M
ICROWAVE
E
NERGY
:
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure to
microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the front face of the oven
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there is
no damage to the
1) Door (bent or dented),
2) Hinges and latches (broken or loosened),
3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
WARNING
Always observe Safety Precautions when using your
oven. Never try to repair the oven on your own – there is
dangerous voltage inside. If the oven needs to be
repaired, call of an authorized service center near you.
I
MPORTANT
S
AFETY
I
NSTRUCTIONS
When using any electrical appliance, basic safety precautions
should be followed, including the following:
WARNING
To reduce risk of burns, electric shock, fire, personal
injury or exposure to excessive microwave energy:
• Read all safety instructions before using the appliance.
• Read and follow the specific “Precautions to Avoid Possible Exposure
to Excessive Microwave Energy” on this page.
• This appliance must be grounded. Connect only to properly grounded
outlets. See “Important Grounding Instructions” on page 4 of this
manual.
• Install or place this appliance only in accordance with the installation
instructions provided.
• Some items, like whole eggs and food in sealed containers, may
explode if heated in this oven.
• Use this appliance only for its intended use as described in the
manual. Do not use corrosive chemicals or vapors in this appliance.
This type of oven is specifically designed to heat, cook, or dry food. It
is not designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary when used by
children.
• Do not operate this appliance if it has a damaged cord or plug, if it is
not working properly, or if it has been damaged.
• This appliance should be serviced only by qualified service
personnel. Contact the nearest authorized service facility for
examination, repair, or adjustment.
• Do not cover or block any of the openings on this appliance.
XGt~XW]W~ht~XY]W~hUGGwGYGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
3
S
AVE
T
HESE
I
NSTRUCTIONS
Safety
Important Safety Instructions, continued
• Do not store this appliance outdoors. Do not use near water – for
example, near a kitchen sink, in a wet basement, or near a swimming
pool, etc.
• Keep the inside of the oven clean. Food particles or spattered oils
stuck to the oven walls or floor can cause paint damage and reduce
the efficiency of the oven.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not let cord hang over edge of table or counter.
• When cleaning door and oven surfaces, use only mild, nonabrasive
soaps or detergents applied with a sponge or soft cloth.
• To reduce the risk of fire in the oven:
a. Do not overcook food. Watch appliance care fully if paper, plastic,
or other combustible materials are inside.
b. Remove wire twist-ties from plastic cooking bags before placing
bags in oven.
c. If materials inside the oven ignite, keep the oven door closed, turn
the oven off, disconnect the power cord, or shut off the power at
the fuse or circuit breaker panel.
d. Do not use the oven compartment for storage purposes. Do not
leave paper products, cooking utensils, or food in the oven when
not in use.
• Do not try to preheat oven or operate while empty.
• Do not cook without the glass tray in place on the oven floor. Food will
not cook properly without the tray.
• Do not defrost frozen beverages in narrow-necked bottles. The
containers can break.
• Dishes and containers can become hot. Handle with care.
• Carefully remove container coverings, directing steam away from
hands and face.
• Remove lids from bay food before heating. After heating baby food,
stir well and test temperature by tasting before serving.
• A short power-supply cord is provided to reduce the risk of becoming
entangled in or tripping over a longer cord. Longer cord sets or
extension cords are available and may be used with caution.
• Do not operate any other heating or cooking appliance beneath this
appliance.
• Do not mount unit over or near any portion of a heating or cooking
appliance.
• Do not mount over a sink.
• Do not store anything directly on top of the appliance when it is in
operation.
XGt~XW]W~ht~XY]W~hUGGwGZGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
4
S
AVE
T
HESE
I
NSTRUCTIONS
Safety
I
MPORTANT
G
ROUNDING
I
NSTRUCTIONS
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electrical current. This
appliance is equipped with a cord that includes a grounding wire
and a grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded. Plug the three-prong
power cord into a properly grounded outlet of standard 115-120
voltage, 60 Hz. Your oven should be the only appliance on this
circuit.
WARNING
Improper use of the grounding plug can result in a risk of
electric shock. Consult a qualified electrician or servicer if
you do not understand the grounding instructions or if you
are not sure if the appliance is properly grounded.
Use of Extension Cords
A short power-supply cord is provided to reduce the risk of
becoming entangled in or tripping over a longer cord. Longer
cord sets or extension cords are available and may be used if
care is exercised in their use. If a long cord or extension cord is
used:
1. The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the
appliance.
2. The extension cord must be a grounding-type 3-wire cord
and it must be plugged into a 3-slot outlet.
3. The longer cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over accidentally. If you use an extension
cord, the interior light may flicker and the blower may vary
when the microwave oven is on. Cooking times may be
longer, too.
WARNING
Do not cut or remove the third (ground) prong from the
power cord under any circumstances.
Connect the oven to a 20A safety fuse. When circuiting
the oven to a 15A, make sure that circuit breaker can
operate.
XGt~XW]W~ht~XY]W~hUGGwG[GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
5
Your New Microwave oven
Safety ...........................................................................................2
Your New Microwave oven .........................................................5
Checking Parts ..........................................................................6
Thank You for Choosing Samsung ...........................................6
Setting Up Your Microwave Oven .............................................6
Control Panel Buttons ...............................................................7
MW1260BA/MW1455WA/MG1340WA/MW1460WA ................7
Control Panel Buttons ...............................................................8
MW1260BA/MW1455WA/MG1340WA/MW1460WA ................8
Control Panel Buttons ...............................................................9
MW1260BA/MW1455WA/MG1340WA/MW1460WA ................9
Control Panel Buttons .............................................................10
MW1260BA/MW1455WA/MG1340WA/MW1460WA ..............10
10
Operation ...................................................................................11
Turning on the Power and Selecting a Weight ........................11
Setting the Clock .....................................................................11
Using the Pause/Cancel Button ..............................................11
Using the Instant Cook Buttons ...............................................12
Using the One Minute + Button ...............................................13
Reheating Automatically ..........................................................13
Operation ...................................................................................14
Defrosting Automatically ..........................................................14
Setting Cooking Times & Power Levels ..................................14
One-stage Cooking ...............................................................14
Multi-stage Cooking ...............................................................15
Using the More/Less Button ....................................................15
Adjusting the Volume ..............................................................15
Using the Kitchen Timer ..........................................................16
Demonstration Mode ...............................................................16
Setting the Child Protection Lock ............................................16
Cooking Instructions ................................................................ 17
Cooking Utensils ..................................................................... 17
Testing Utensils ...................................................................... 17
Cooking Techniques ............................................................... 18
General Tips ........................................................................... 18
Cooking Guide ........................................................................ 19
Auto Defrosting Guide ............................................................. 20
Guide for Cooking & Grilling ................................................... 21
Recipes ...................................................................................24
Appendix ...................................................................................26
Troubleshooting Guide............................................................ 26
Care and Cleaning .................................................................. 26
Specifications ..........................................................................27
Manual Black Warranty ............................................................ 28
Warranty Information .............................................................. 28
Quick Reference Bacck
XGt~XW]W~ht~XY]W~hUGGwG\GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
6
Your New Microwave oven

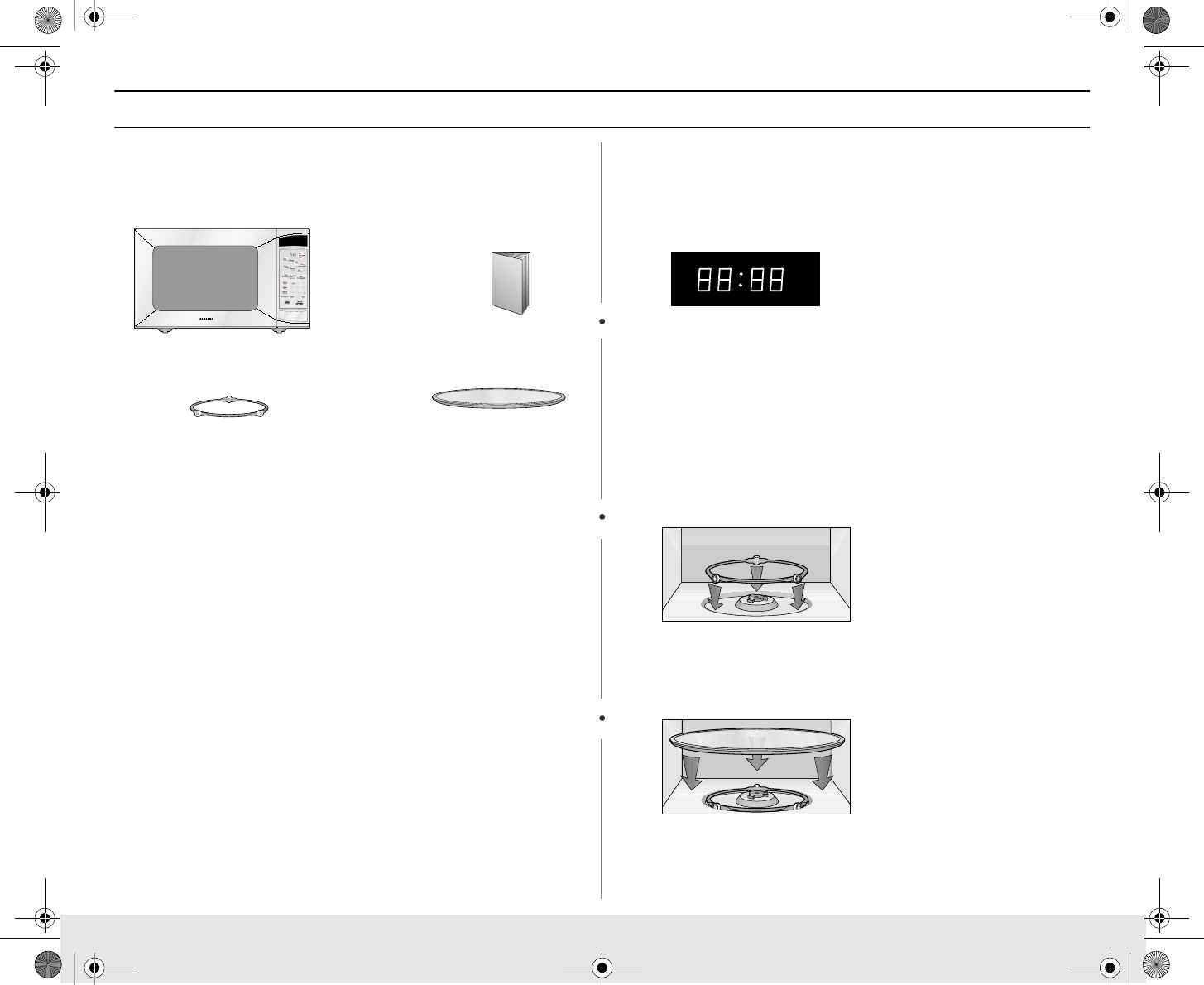

Checking Parts
Unpack your microwave oven and check to make sure that you have all
the parts shown here. If any part is missing or broken, call your dealer.
Thank You for Choosing Samsung
Your new oven represents the latest in microwave cooking technoligy.
This oven is a full-featured, easy-to-use appliance built to strict quality
standards set by Samsung- the highest in the industry. We’re proud to
offer you a product that will provide convenient, dependable service for
years to come.
Please record the serial number from the inside or back of your
Samsung microwave oven and the date of purchase in the space
provided below. We recommend that you keep your purchase receipt
with this manual for easy warranty service.
Model Number ________________________________
Serial Number ________________________________
Date Purchased ________________________________
Dealer ________________________________
Setting Up Your Microwave Oven
1Place the oven on a flat, sturdy surface and plug the cord into a
grounded outlet. Once plugged in, the display on your oven will
show:
Make sure there is adequate ventilation for your oven by leaving
at least four inches of space behind, above, and to the side of the
oven.
2Open the oven door by pressing the button below the control
panel.
3Wipe the inside of the oven with a damp cloth.
4Place the pre-assembled ring in the indentation in the center of
the oven.
5Place the glass tray on top of the ring so that the three glass tabs
in the center of the tray fit securely into the tabs on the floor of the
oven.
32
654
987
0
1
microwave oven
glass tray
roller guide ring
instruction manual
START ENTER COOK TIME TIME2
Kg g OZ Lbs. QTY.
XGt~XW]W~ht~XY]W~hUGGwG]GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
7
Your New Microwave oven

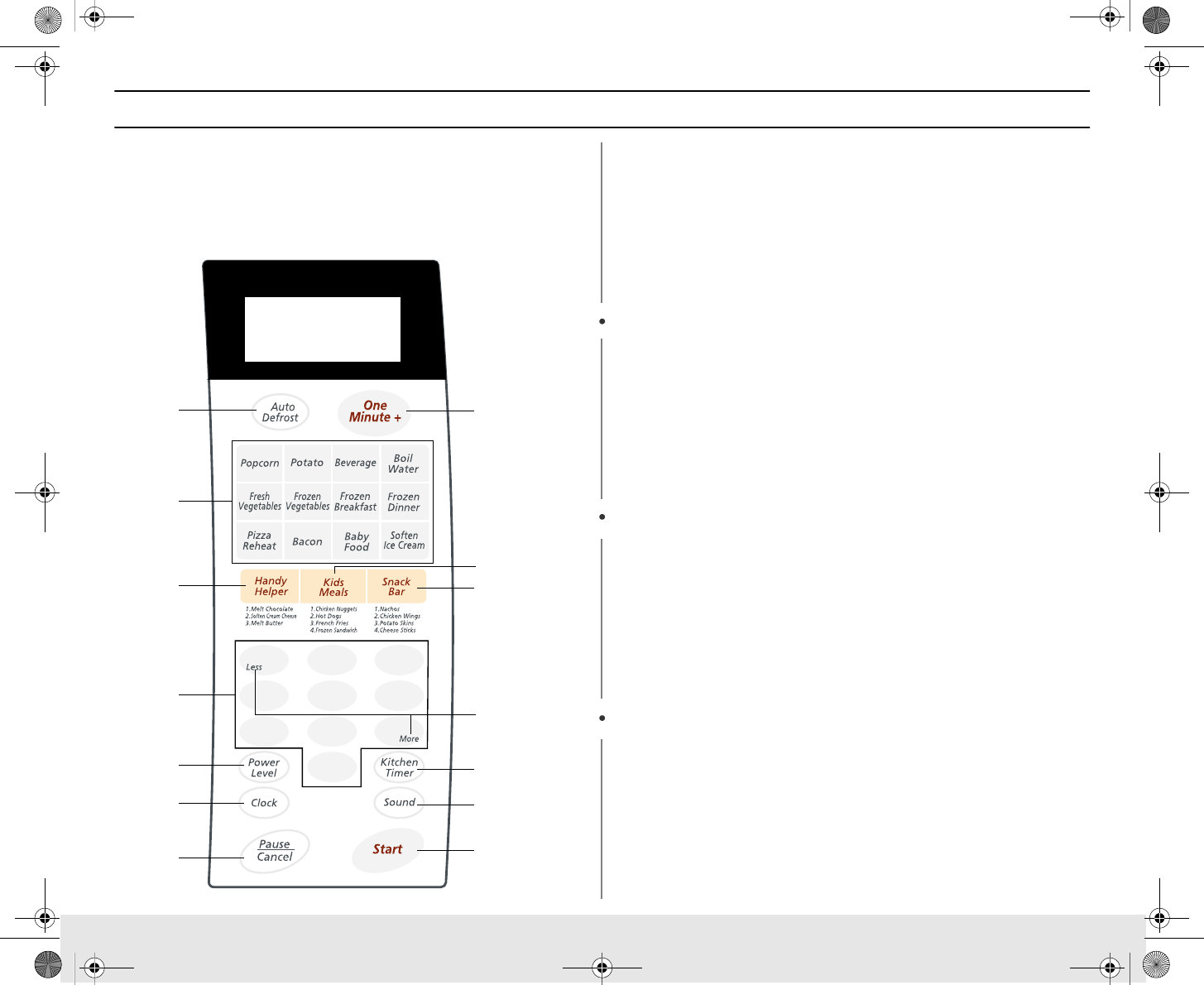

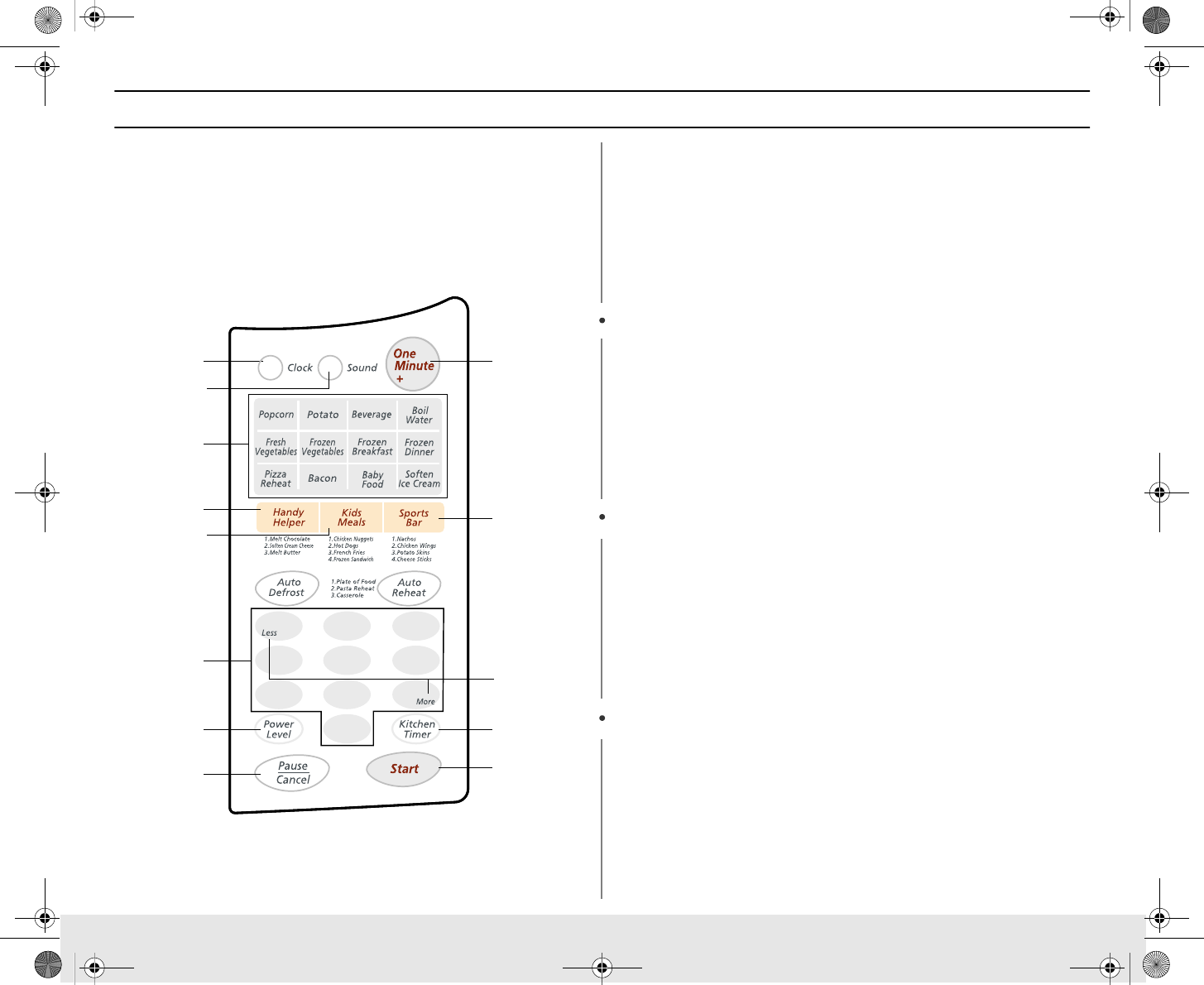

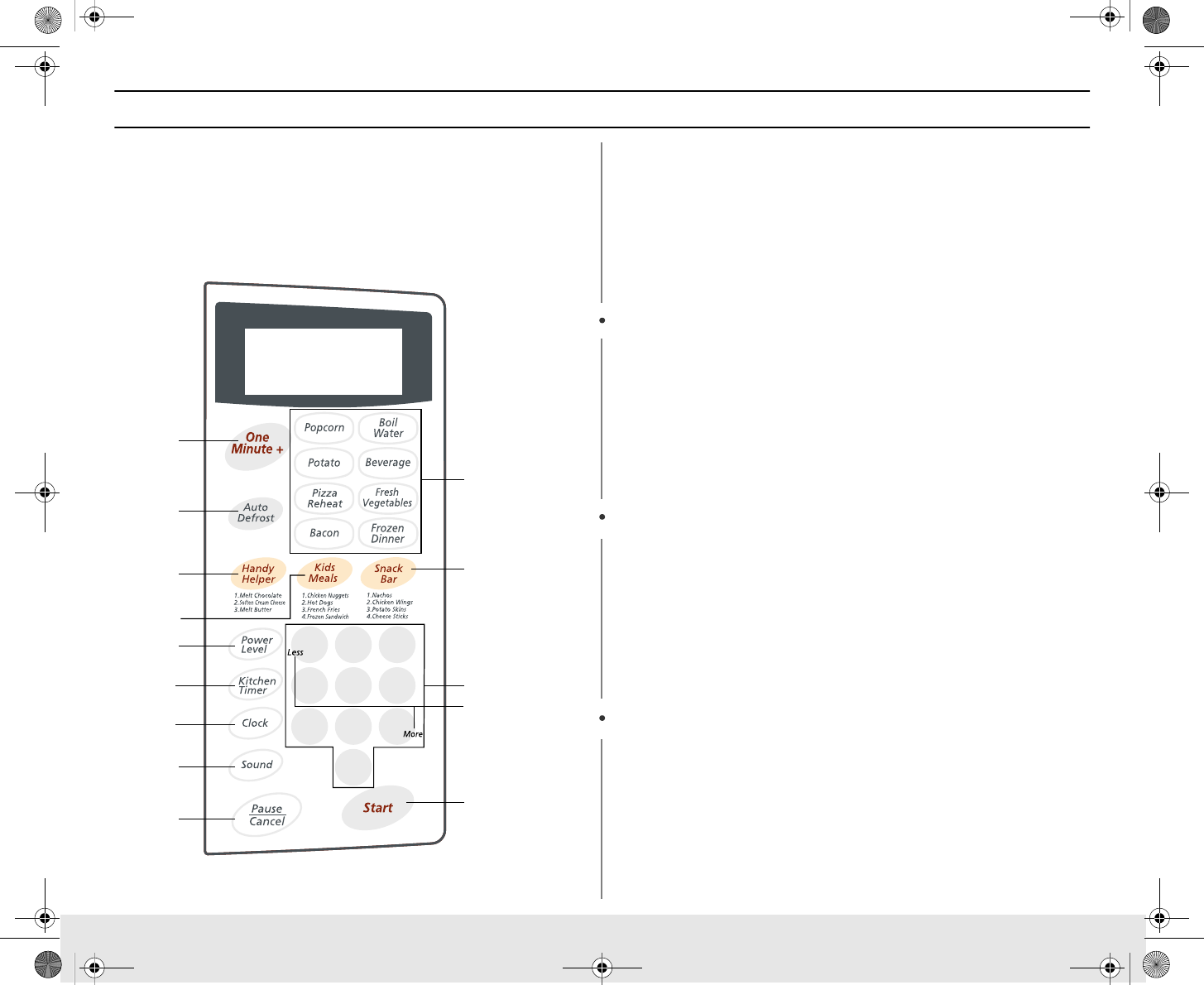

Control Panel Buttons(MW1460WA) 1. One Minute+ p.13
Press once for every minute of cooking at High Power
2. Clock p.11
Sets current time.
3. Sound Button p.15
4. Instant Cook Buttons p.12
Instant settings to cook popular foods.
5. Handy Helper)
6. Kids Meals p.15
7. Sports Bar p.16
8. Auto Defrost p.15
Sets weight of food to be defrosted.
9. Auto Reheat p.11
Selects type of dish to be rebested.
10. Number Buttons p.11
Sets cooking times or amants.
11. More/Less
Increase or decrease cooking time
12. Power Level p.11
Press this pad to set power level other than high.
13. Kitchen Timer) p.14
14. Pause/Cancel
Press th pause oven or correct mistake.
15. Start p.16
Press to start cooking.
2
3
4
1
123
456
8
79
0
7
11
13
15
6
5
12
14
10
XGt~XW]W~ht~XY]W~hUGGwG^GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
8
Your New Microwave oven

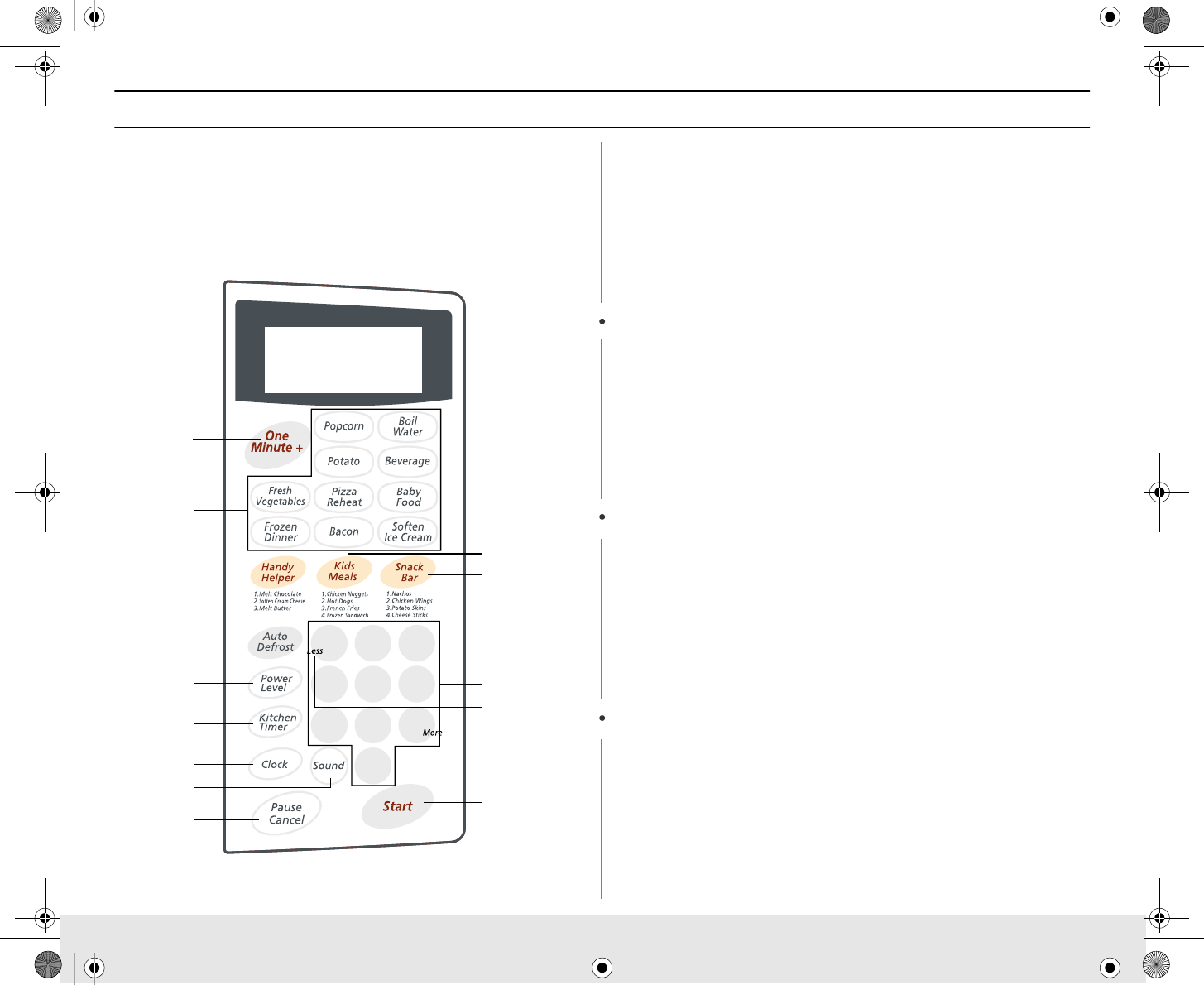

Control Panel Buttons
MW1455WA/MW1455BA
1. One Minute+ p.13
Press once for every minute of cooking at High Power
2. Auto Defrost p.9
Sets weight of food to be defrosted.
3. Instant Cook Buttons p.13
Instant settings to cook popular foods.
4. Handy Helper
5. Kids Meals p.11
6. Sports Bar p.16
7. Number Buttons p.15
Sets cooking times or amounts
8. More/Less p.11
Increase or decrease cooking time
9. Powel Level p.11
Press this pad to set power level other than high.
10. Kitchen Timer
11. Clock p.11
Sets current time.
12. Sound Button p.14
13. Pause/Cancel
Press th pause oven or correct mistake.
14. Start p.16
Press to start cooking.
2
3
1
5
123
456
8
79
0
6
8
12
10
14
4
7
9
11
13
XGt~XW]W~ht~XY]W~hUGGwG_GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
9
Your New Microwave oven
Control Panel Buttons
MW1430WA
1. One Minute+ p.13
Press once for every minute of cooking at High Power
2. Auto Defrost p.9
Sets weight of food to be defrosted.
3. Instant Cook Buttons p.13
Instant settings to cook popular foods.
4. Handy Helper
5. Kids Meals p.11
6. Sports Bar p.16
7. Number Buttons p.15
Sets cooking times or amounts
8. More/Less p.11
Increase or decrease cooking time
9. Powel Level p.11
Press this pad to set power level other than high.
10. Kitchen Timer
11. Clock p.11
Sets current time.
12. Sound Button p.14
13. Pause/Cancel
Press th pause oven or correct mistake.
14. Start p.16
Press to start cooking.
32
1
654
9
87
0
1
3
6
7
8
14
2
4
5
9
10
11
12
13
XGt~XW]W~ht~XY]W~hUGGwG`GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
10
Your New Microwave oven
Control Panel Buttons
MW1230WA
1. One Minute+ p.13
Press once for every minute of cooking at High Power
2. Auto Defrost p.9
Sets weight of food to be defrosted.
3. Handy Helper p.13
4. Kids Meals p.11
5. Sports Bar p.16
6. Number Buttons p.15
Sets cooking times or amounts
7. More/Less p.11
Increase or decrease cooking time
8. Auto Defrost p.11
Increase or decrease cooking time
9. Powel Level p.11
Sets weight of food to be defrosted.
10. Kitchen Timer
11. Clock p.11
Sets current time.
12. Sound Button p.14
13. Pause/Cancel
Press th pause oven or correct mistake.
14. Start p.16
Press to start cooking.
1
32
1
654
9
87
0
2
34
5
6
7
6
8
9
11
10
13
12
XGt~XW]W~ht~XY]W~hUGGwGXWGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
11
Operation
Turning on the Power and Selecting a Weight

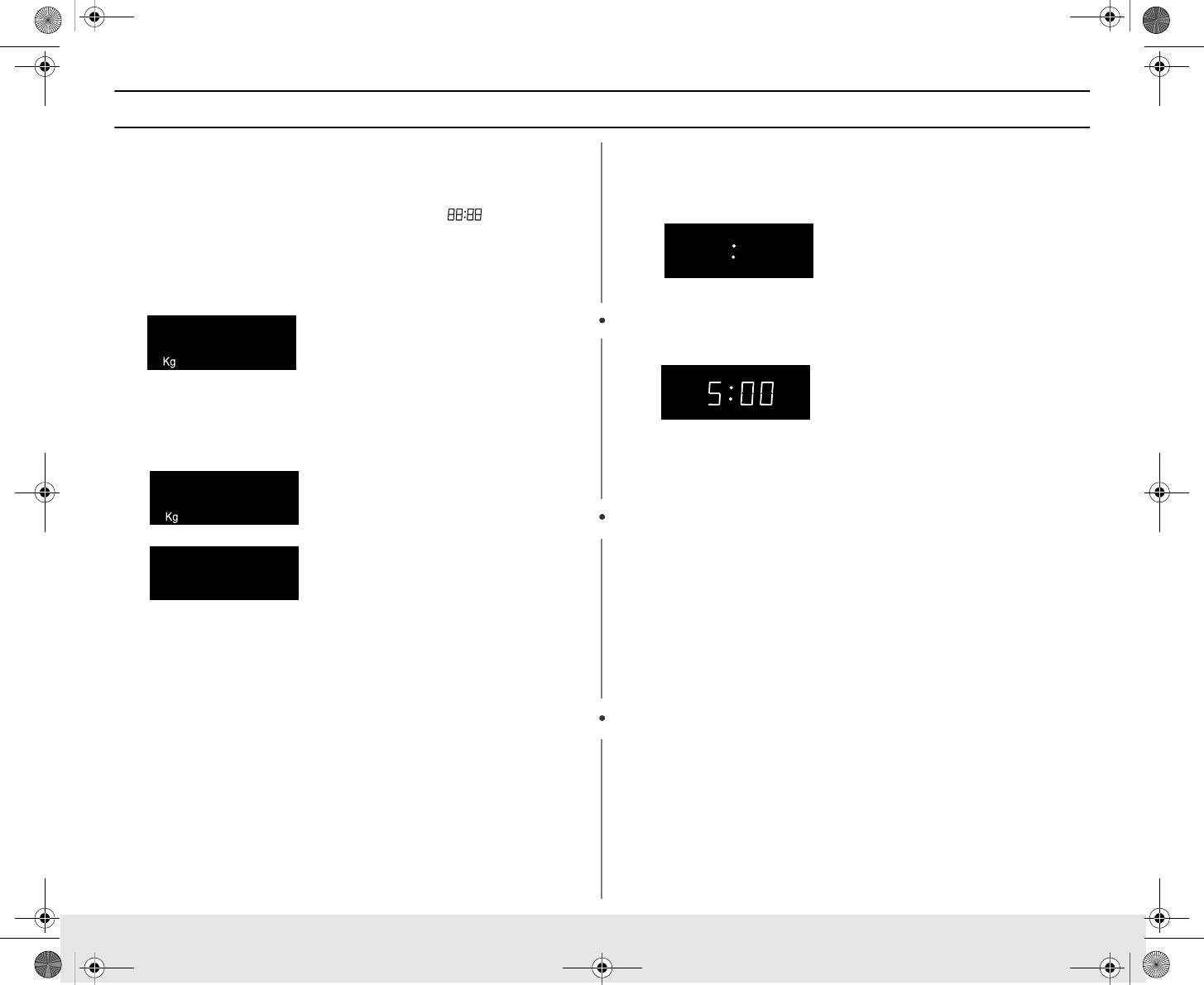

The first time you plug the power cord into an outlet, or after there has
been an interruption in power, the display shows “ ” At this point,
you can select weight system for the display. You can choose between
pounds (LBS) or kilograms (KG). To do so,
1Press “0” immediately after plugging in your microwave. The
display will show: If the display does not shows “Kg”, you will
need to unplug the microwave and then plug it in again in order to
change to the weight system.
2Press “0” repeatedly to select the weight system you wish to use:
When you have selected the weight system you want to use, press
the PAUSE/CANCEL button to end this procedure, or press
CLOCK to set the clock
Setting the Clock
1Press the Clock button. The display will show:
2Use the number buttons to enter the current time. You must
press at least three numbers to set the clock. If the current time is
5:00 enter, 5,0,0.
3Press Clock again. A colon will blink, indicating that the time is
set.
If there is a power interruption, you will need to reset the clock.
You can check the current time while cooking is in progress by
pressing the Clock button.
Using the Pause/Cancel Button
The Pause/Cancel button allows you to clear instructions you have
entered. It also allows you to pause the oven’s cooking cycle, so that
you can check the food.
•Pause the oven during cooking: press Pause/Cancel once. To
restart, press Start.
•Stop cooking, erase instructions, and return the oven display to the
time of day: press Pause/Cancel twice.
•Correct a mistake you have just entered: press Pause/Cancel once,
then re-enter the instructions.
kg g oz
Lbs
cup
.
On Lock Demo
kg g oz lbs cup
III
On Lock Demo
kg g oz lbs cup
III
XGt~XW]W~ht~XY]W~hUGGwGXXGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
12
Operation
Using the Instant Cook Buttons
1Press the Instant Cook button corresponding to the food you are
cooking (Popcorn, for example). The display shows the first
serving size:
2Press the button repeatedly to select the serving size you want.
The display will cycle through all available serving sizes. Once
you select the correct serving size, the microwave will begin
cooking automatically.
Instant Cook Chart
Item Weight Remarks
Popcorn 3.5 oz
3.0-3.5 oz
•Use one microwave-only bag of popcorn.
•Use caution when removing and opening
hot bag from oven.
Potato 1 EA, 2 EA
3 EA, 4 EA
5 EA, 6 EA
•Prick each potato several times with fork.
•Place on turntable in spoke-like fashion.
•Remove from oven, wrap in foil and let
stand 3-5 min.
Fresh
Vegetables 1 sr
2 sr
3 sr
4 sr
•Place the vegetables into a casserole and
add a small amount of water(2-4 Tbsp).
Cover during cooking and stir before
standing.
Cena
Congelada 7-10 oz
10-12 oz
12-18 oz
•Remove package from outer wrapping
and follow package instructions for
covering and standing. After cooking, let
stand 1-3 min.
On Lock Demo I
On Lock Demo I
Lock Demo III
On Lock Demo III
START ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
On Lock Demo I
On Lock Demo I
Lock Demo III
On Lock Demo III
START ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
Frozen
Breakfast 2-4 oz
4-6 oz
6-8 oz
•Remove Package from outer wrapping
and follow package instructions for
covering and standing.
•After cooking, let stand 1-3 min.
Baby Food 2.5 oz
4 oz
6 oz
•Remove lid from baby food and heat
(heating time is very short). Check
temperature and stir well before serving.
•The More/Less key cannot be used
with the baby food key
Beverage ½ cup
1 cup
2 cups
•Use a microwave-safe mug of room
temperature coffee
5/
tea, instant soup etc.
•Stir before serving.
Frozen
Vegetable 1 sr
2 sr
3 sr
4 sr
•Remove from package.
•Place the vegetables into a casserole and
add a small amount of water (2-4 Tbsp)
•Cover during cooking and stir before
standing.
Boil Water 0.5
1
2
•
Pizza Reheat 1 Slice
2 Slice
3 Slice
4 Slice
•
Bacon 2Slice
4 Slice
6 Slice
•
Soften Ice
Cream 1 Pint
0.5 GAL •
XGt~XW]W~ht~XY]W~hUGGwGXYGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
13
Operation
Using the One Minute + Button
This button offers a convenient way to heat food in one-minute
increments at the High power level.
1Press the One Minute + button once for each minute you wish to
cook the food. For example, press it twice for two minutes. The
time will display, and the oven starts automatically.
Add minutes to a program in progress by pressing the One
Minute + button for each minute you want to add.
Reheating Automatically
To reheat food, select the type of dish and the number of servings you
want to reheat, and the microwave automatically sets the reheating time.
1Press the Auto Reheat button repeatedly to select the type of
dish you wish to reheat. The initial serving size for each dish is
one serving.
Plato of Food
Casserole
Sopas /Salsas -One Serving-
You can select up to four servings for casseroles and soup. Only
one serving is available for a plate of food.
The display shows the dish and quantity you have chosen.
2Use the number buttons to increase the serving size. For
example, for three servings, press the“3” button(Refer to the Auto
Reheat Chart below for the servings). The display shows the
number of servings you have selected:

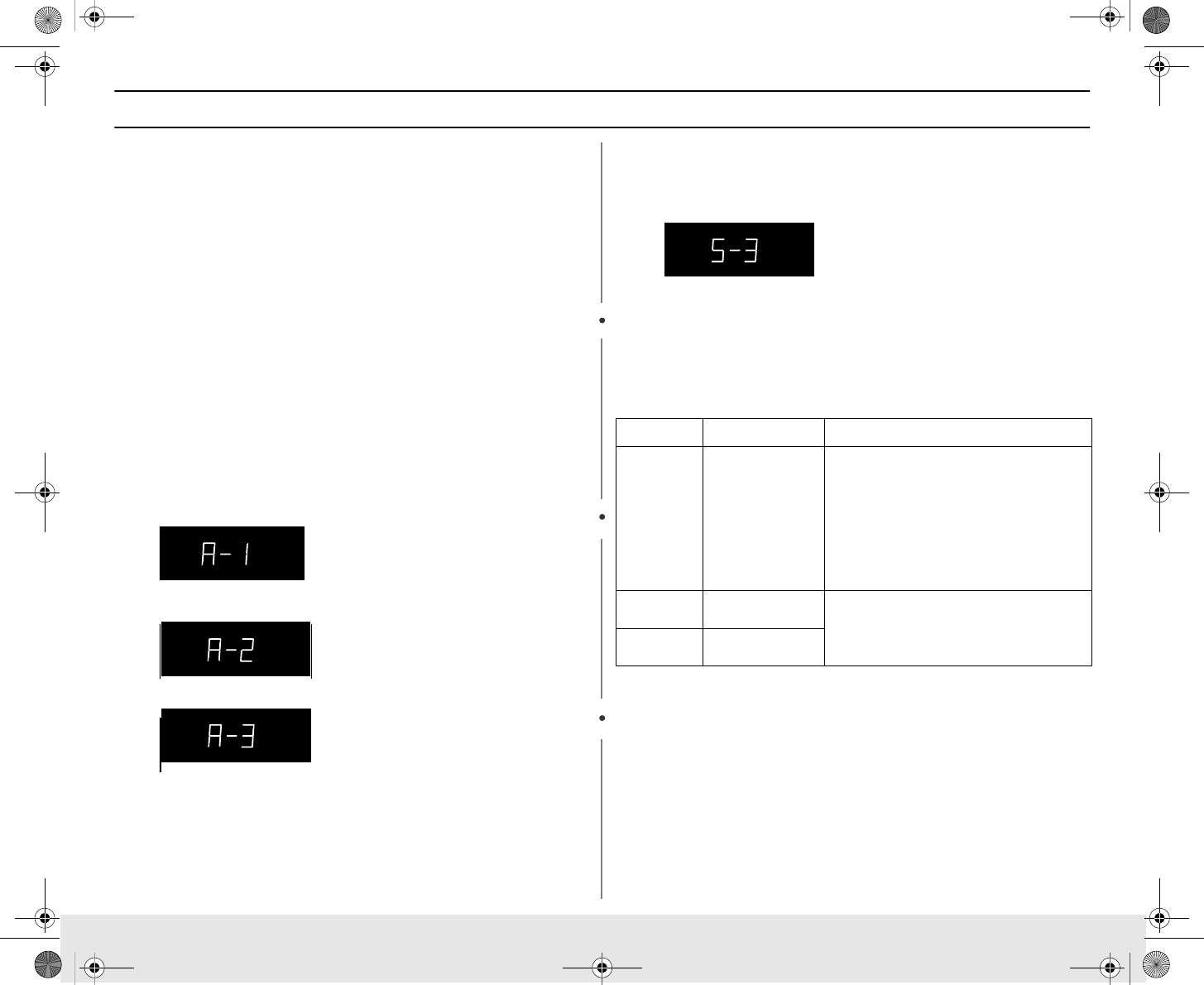

3Press the Start button. The display will show Cooking Time.
Auto Reheat Chart
On Lock Demo I
On Lock Demo I
Lock Demo III
On Lock Demo III
START ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
On Lock Demo I
On Lock Demo I
Lock Demo III
On Lock Demo III
S
TART ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
On Lock Demo I
On Lock Demo I
Lock Demo III
On Lock Demo III
START ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
On Lock Demo I
On Lock Demo I
Lock Demo III
On Lock Demo III
S
TART ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
On Lock Demo I
On Lock Demo I
Lock Demo III
On Lock Demo III
START ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
Item Weight Remarks
Plate of
Food 1 serving •Cover plate with vented plastic wrap
or wax paper
•Contents
- 3-4 oz. meat, poultry or fish (up to
6 oz. With bone)
-½ cup starch (potatoes, pasta,
rice, etc.)
-½ cup vegetables (about 3-4 oz.)
Casserole 1 to 4 servings
(8 oz./serving) •Cover with lid or vented plastic
wrap.
•Stir foods once before serving.
Plate
Reheat 1 to 4 servings
(8 oz./serving)
On Lock Demo I
On Lock Demo I
START
Lock Demo III
On Lock Demo III
XGt~XW]W~ht~XY]W~hUGGwGXZGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
14
Operation
Defrosting Automatically
To thaw frozen food, set the weight of the food and the microwave
automatically sets the defrosting time, power level and standing time.
1Press the Auto Defrost button. The display shows “0.5 lbs.”
(0.2Kg if you have set your oven for metric measure)
2To set the weight of your food, press the Auto Defrost button
repeatedly. This increases the weight by 0.5 lb increments, up to
6.0 lbs (The Auto Defrost button will increase the weight by 0.2Kg
if you are using metric measurement).
You can also use the number buttons to enter the weight of the
food directly.
The oven calculates the defrosting time and starts automatically.
Twice during defrosting, the oven will beep.
3Press the Pause/Cancel button, open the oven door, and turn
the food over.
4Press the Start button to resume defrosting.
• See page 20 for the Auto Defrosting Guide.
Setting Cooking Times & Power Levels
Your microwave allows you to set up to two different stages of cooking,
each with its own time length and power level. The power level lets you
control the heating intensity from Warm (1) to High (0).
One-stage Cooking
For simple one-stage cooking, you only need to set a cooking time. The
power level is automatically set at High. If you want to set the power to
any other level, you must set it using the Power Level button.
1Use the number buttons to set a cooking time. You can set a time
from one second to 99 minutes, 99 seconds. To set a time over
one minute, enter the seconds too. For example, to set 20
minutes, enter 2, 0, 0, 0 .
2If you want to set the power level to something other than High,
press the Power Level button, then use the number buttons to
enter a power level.
Power Levels:
1 = warm 6 = simmer
2 = low 7 = medium high
3 = defrost 8 = reheat
4 = medium low 9 = sauté
5 = medium 0 = high
3Press the Inicio/Más Tiempo button to begin cooking. If you
want to change the power level, press Pause/Cancel before you
press Inicio/Más Tiempo, and re-enter all of the instructions.
START ENTER COOK TIME TIME2
Kg g Oz. Lbs. QTY.
XGt~XW]W~ht~XY]W~hUGGwGX[GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
15
Operation
Setting Cooking Times, continued
Some recipes require different stages of cooking at different
temperatures. You can set multiple stages of cooking with your
microwave.
Multi-stage Cooking
1Follow steps 1 and 2 in the “One-Stage Cooking” section on this
page.
When entering more than one cooking stage, the Power Level
button must be pressed before the second cooking stage can be
entered.
To set the power level at High for a stage of cooking, press the
Power Level button twice.
2Use the number buttons to set a second cooking time.
3Press the Power Level button, then use the number buttons to
set the power level of the second stage of cooking.
4Press Start to begin cooking.
Using the More/Less Button
The More/Less button allows you to adjust pre-set cooking times. It only
works with Auto Recalentado and the Instant Cook buttons. Use the
More/Less button only after you have already begun cooking with one of
these procedures.
The More/Less key cannot be used with the Baby Food key.
1To ADD more time to an automatic cooking procedure: Press the
More(9) button.
2To REDUCE the time of an automatic cooking procedure: Press
the Less(1) button.
Adjusting the Volume
The sonido(Sound) button on the microwave allows you to adjust the
volume of the microwave’s chime sound. To change the volume:

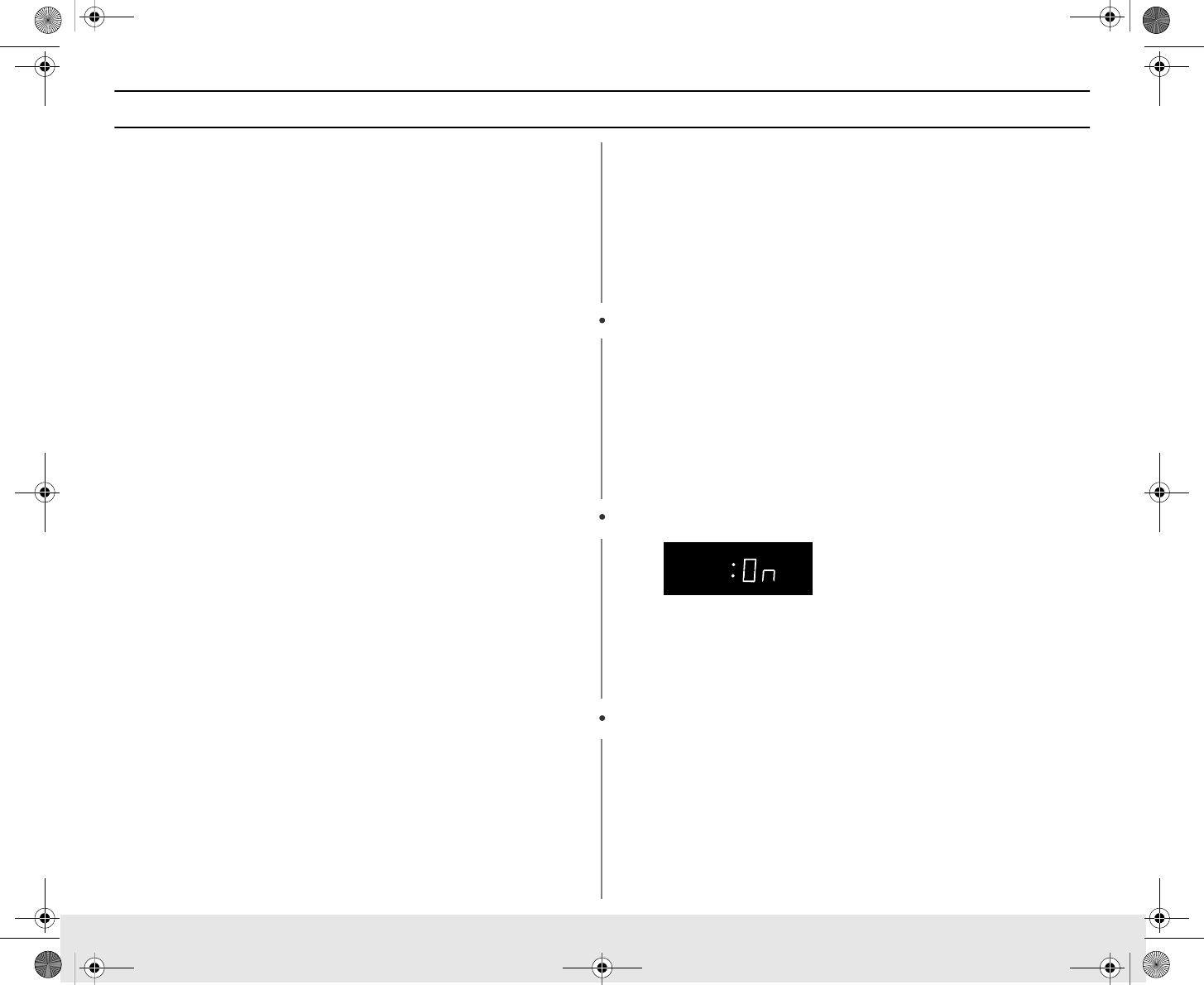

1Press the Sound button. The display shows: “ON”
2Press ‘Sound” button to turn the volume off, “Sonido” twice to
turn the volume on.
3Press Start: The display returns to the time of day.
START ENTER COOK TIME TIME2
K
g
g
Oz. Lbs. QTY.
XGt~XW]W~ht~XY]W~hUGGwGX\GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
16
Operation
Using the Kitchen Timer
1Use the Number buttons to set the length of time you want the
timer to run.
2Press the Kitchen Timer button.
3The display counts down and beeps when the time has elapsed
.
Demonstration Mode
You can use the Demonstration Mode to see how your microwave oven
operates without the oven heating.
1Press the “0” button and then “1” button simultaneously.
To turn demo mode off, repeat steps 1 above.
Setting the Child Protection Lock
You can lock your microwave oven so it can’t be used by unsupervised
children.
1Press the “0” button and then “2” button stimultaneously.
At this point, the microwave oven cannot be used until it is
unlocked. To unlock it, repeat steps 1 above.
k
g
g
oz
kg g oz
lbs cup
III
On Lock Demo
XGt~XW]W~ht~XY]W~hUGGwGX]GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
17
Cooking Instructions
Cooking Utensils
Recommended Use
•Glass and glass-ceramic bowls and dishes — Use for heating or
cooking.
•Microwavable plastic wrap — Use to retain steam. Leave a small
opening for some steam to escape and avoid placing it directly on
the food.
•Wax paper — Use as a cover to prevent spattering.
•Paper towels and napkins — Use for short-term heating and
covering; they absorb excess moisture and prevent spattering. Do
not use recycled paper towels, which may contain metal and can
catch fire.
•Paper plates and cups — Use for short-term heating at low
temperatures. Do not use recycled paper, which may contain metal
and can catch fire.
•Thermometers — Use only those labeled “Microwave Safe” and
follow all directions. Check the food in several places. Conventional
thermometers may be used once the food has been removed from
the oven.
Limited Use
•Aluminum foil — Use narrow strips of foil to prevent overcooking of
exposed areas. Using too much foil can damage your oven, so be
careful.
•Ceramic, porcelain, and stoneware — Use these if they are
labeled “Microwave Safe.” If they are not labeled, test them to make
sure they can be used safely. Never use dishes with metallic trim.
•Plastic — Use only if labeled “Microwave Safe.” Other plastics can
melt.
•Straw, wicker, and wood — Use only for short-term heating, as
they can be flammable.
Not Recommended
•Glass jars and bottles — Regular glass is too thin to be used in a
microwave, and can shatter.
•Paper bags — These are a fire hazard, except for popcorn bags that
are designed for microwave use.
•Styrofoam plates and cups — These can melt and leave an
unhealthy residue on food.
•Plastic storage and food containers — Containers such as
margarine tubs can melt in the microwave.
•Metal utensils — These can damage your oven. Remove all metal
before cooking.

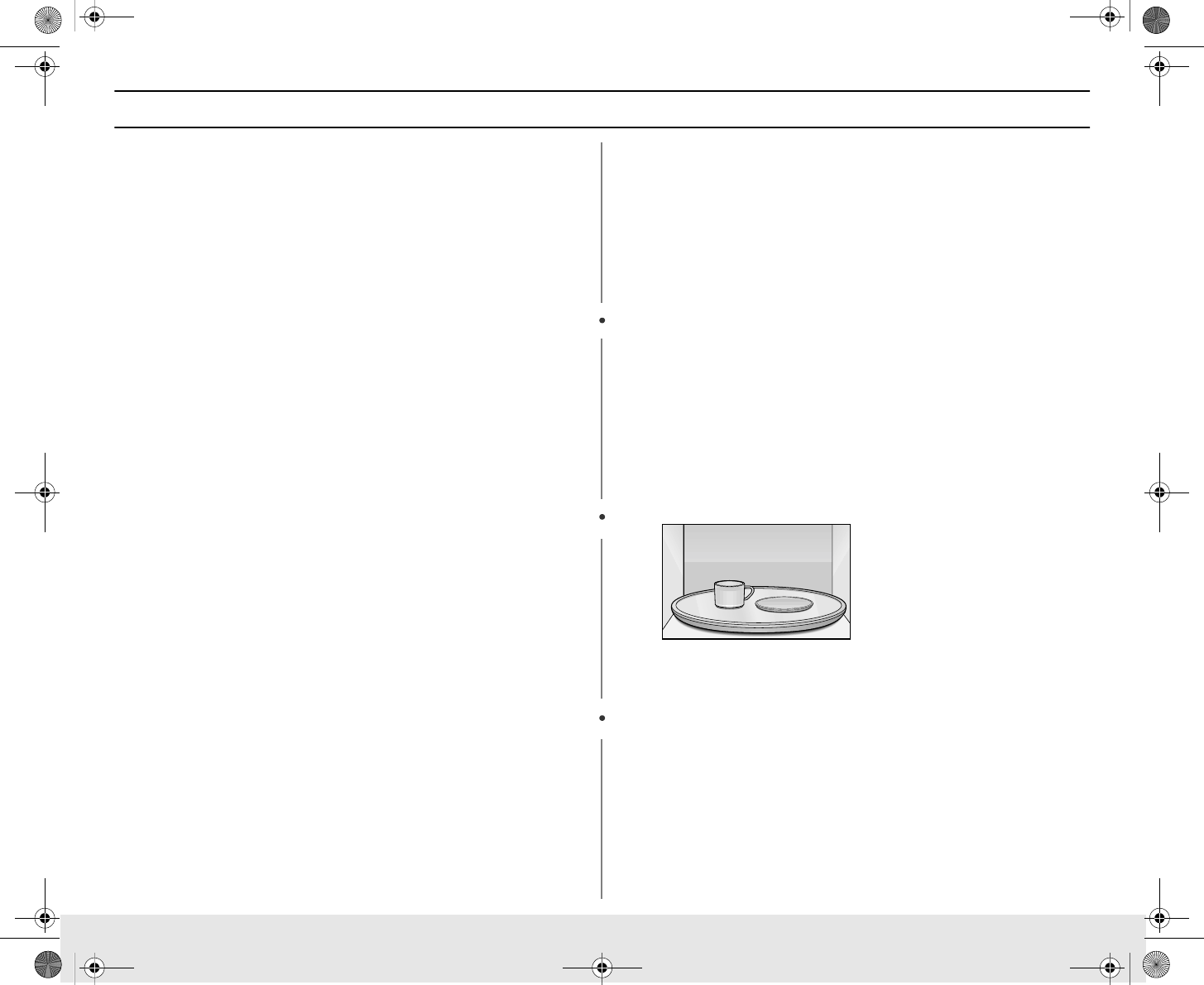

Testing Utensils
If you are not sure whether a dish is microwave-safe or not, you can
perform this test:
1Fill a 1 cup glass measuring cup with water and put it inside your
oven, next to the dish you want to test.
2Press the One Minute + button once to heat them for one minute
at High power.
The water should be warm and the dish you are testing should be cool. If
the dish is warm, then it is absorbing microwave energy and is not
acceptable for use in the microwave.
XGt~XW]W~ht~XY]W~hUGGwGX^GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
18
Cooking Instructions
Cooking Techniques
Stirring
Stir foods such as casseroles and vegetables while cooking to distribute
heat evenly. Food at the outside of the dish absorbs more energy and
heats more quickly, so stir from the outside to the center. The oven will
turn off when you open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as chicken pieces or chops, with
the thicker, meatier parts toward the outside of the turntable where they
receive more microwave energy. To prevent overcooking, place thin or
delicate parts toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum foil to prevent overcooking.
Areas that need shielding include poultry wing-tips, the ends of poultry
legs, and corners of square baking dishes. Use only small amounts of
aluminum foil. Larger amounts can damage your oven.
Turning
Turn foods over midway through cooking to expose all parts to
microwave energy. This is especially important with large items such as
roasts.
Standing
Foods cooked in the microwave build up internal heat and continue to
cook for a few minutes after the oven stops. Let foods stand to complete
cooking, especially foods such as roasts and whole vegetables. Roasts
need this time to complete cooking in the center without overcooking the
outer areas. All liquids, such as soup or hot chocolate, should be shaken
or stirred when cooking is complete. Let liquids stand a moment before
serving. When heating baby food, stir well and test the temperature
before serving.
Adding Moisture
Microwave energy is attracted to water molecules. Food that is uneven
in moisture content should be covered or allowed to stand so that the
heat disperses evenly. Add a small amount of water to dry food to help it
cook.
General Tips
•Dense foods, such as potatoes, take longer to heat than lighter
foods. Foods with a delicate texture should be heated at a low power
level to avoid becoming tough.
•Altitude and the type of cookware you are using can affect cooking
time. When using a new recipe, use the minimum cooking time and
check the food occasionally to prevent overcooking.
•Foods with a non-porous skin or shell, such as potatoes, eggs, or hot
dogs, should be pierced to prevent bursting.
•Frying with heating oil or fat is not recommended. Fat and oil can
suddenly boil over and cause severe burns.
•Some ingredients heat faster than others. For example, the jelly
inside a jelly doughnut will be hotter than the dough. Keep this in
mind to avoid burns.
•Home canning in the microwave oven is not recommended because
all harmful bacteria may not be destroyed by the microwave heating
process.
•Although microwaves do not heat the cookware, the heat is often
transferred to the cookware. Always use pot holders when removing
food from the microwave and instruct children to do the same.
XGt~XW]W~ht~XY]W~hUGGwGX_GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
19
Cooking Instructions
Cooking Guide
Guide for Cooking Meat in Your Microwave
•Place meat on a microwave-safe roasting rack in a microwave-safe
dish.
•Start meat fat-side down. Use narrow strips of aluminum foil to shield
any bone tips or thin meat areas.
•Check the temperature in several places before letting the meat
stand the recommended time.
•The following temperatures are removal temperatures. The
temperature of the food will rise during the standing time.
Guide for Cooking Poultry in Your Microwave
•Place poultry on a microwave-safe roasting rack in a microwave-safe
dish.
•Cover poultry with wax paper to prevent spattering.
•Use aluminum foil to shield bone tips, thin meat areas, or areas that
start to overcook.
•Check the temperature in several places before letting the poultry
stand the recommended time.
Food Cook Time/Power Level Directions
Roast
Beef
Boneless
Up to 4 lbs.
Cooking Time:
7-10 min. / lbs. for 115° F -
Rare
8-12 min. / lbs. for 120° F -
Medium
9-14 min. / lbs. for 145° F -
Well Done
Power Level: High(10) for
first 5 min., then
Medium(5).
Place roast fat-side down on
roasting rack. Cover with wax
paper. Turn over when
cooking time is half up. Let
stand 10 min.
Pork
Boneless
or bone-in
Up to 4 lbs.
Cooking Time:
10-14 min. / lbs. for 160° F
Well Done
Power Level: High(10) for
first 5 min., then
Medium(5).
Place roast fat-side down on
roasting rack. Cover with
vented plastic wrap. Turn
over when cooking time is
half up. Let stand 10 min.
Bacon
2-6 slices
Cooking Time:
2 slices: 1½- 1¾ min.
4 slices: 3- 3½ min.
6 slices: 4½-5½ min.
Power Level: High(10).
Arrange slices on roasting
rack or a dish lined with
paper-towel. Cover with
paper towel. Microwave until
crisp.
Food Cook Time/Power Level Directions
Whole
Chicken
Up to 4 lbs.
Cooking Time:
6-9 min. / lbs. 170° -180°F
Power Level: Medium
High(7).
Place chicken breast-side
down on roasting rack. Cover
with wax paper. Turn over
when the cooking time is half
up. Cook until juices run clear
and meat near the bone is no
longer pink. Let stand 5-10
min.
Chicken
Pieces
Up to 2 lbs.
Cooking Time:
6-9 min. / lbs.
180°F dark meat
170°F light meat
Power Level: Medium
High(7).
Place chicken bone-side
down on dish, with the
thickest portions towards the
outside of the dish. Cover
with wax paper. Turn over
when the cooking time is half
up. Cook until juices run clear
and meat near the bone is no
longer pink. Let stand 5-10
min.
XGt~XW]W~ht~XY]W~hUGGwGX`GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
20
Cooking Instructions
Auto Defrosting Guide
•Follow the instructions below when defrosting different types of food.
Notes
Check foods when the oven signals. After the final stage, small sections
may still be icy; let them stand to continue thawing. Do not defrost until
all ice crystals have thawed. Shielding roasts and steaks with small
pieces of foil prevents the edges from cooking before the center of the
food has defrosted. Use narrow, flat, smooth strips of aluminum foil to
cover the edges and thinner sections of the food.
Food Amount Procedure
Roast
Beef, Pork 2.5-6.0 lbs. Start with the food placed fat side down.
After each stage, turn the food over and
shield any warm portions with narrow
strips of aluminum foil.
Steaks,
Chops,
Fish
0.5-3.0 lbs. After each stage, rearrange the food. If
there are any warm or thawed portions of
food, shield them with narrow flat pieces
of aluminum foil. Remove any pieces of
food that are nearly defrosted. Let stand,
covered, for 5-10 minutes.
Ground
Meat 0.5-3.0 lbs. After each stage, remove any pieces of
food that are nearly defrosted. Let stand,
covered with foil, for 5–10 minutes.
Whole
Chicken 2.5-6.0 lbs. Remove giblets before freezing poultry.
Start defrosting with the breast side
down. After the first stage, turn the
chicken over and shield any warm
portions with narrow strips of aluminum
foil. After the second stage, again shield
any warm portions with narrow strips of
aluminum foil. Let stand, covered, for
30–60 minutes in the refrigerator.
Chicken
Pieces 0.5-3.0 lbs. After each stage, rearrange or remove
any pieces of food that are nearly
defrosted. Let stand for 10-20 minutes.
XGt~XW]W~ht~XY]W~hUGGwGYWGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
21
Cooking Instructions
Guide for Cooking & Grilling
•Always use microwave and heat-safe cooking utensils:
•Cover food with wax paper, plastic wrap ir lids during microwave time; remove during grilling.
•Always use the metal rack that comes with your oven when you want to get better grilling unless the food is very high, like whole chicken or meat
loaf. The rack is very helpful for quick grilling.
•The grill time given below is for grilling on one side of the food only. If grilling is desired on both sides, turn food over and grill for the same amount
of time as the first side.
•Place dish on the metal rack on glass tray or the foods directly on the metal rack after microwaving and draining.
•Preheating is not necessary. Howerer, preheating will increase grilling if desired.
Food Amount CookTime Power Level Grill Directions
Beef
Hamburger
patties, 4 oz. each,
½-inch thick.
Meat Ioaf.
Sirloin steak ¾ to
1-inch thick.
Tenderloin steak,
8 oz. each, 1-inch
thick.
2 patties
4 patties.
1½ to 2 lbs
1 to 2
4
2-3 min.
3-5 min.
20-25 min.
4-5 min./ib.
3-4 min./lb. for 120°F
Rare
4-6 min./lb. for 135°F
Medium
6-8 min./lb. for 150°F
Well Done
HIGH(10)
MEDIUM-HIGH(7)
MEDIUM-HIGH(7)
MEDIUM-HIGH(7)
MEDIUM-HIGH(7)
MEDIUM-HIGH(7)
6-8 min
8-10 min
8 min
8-10 min
8-10 min
Turn over after half the microwave time. Drain after
microwaving. Place directly on rack to grill.
Use ring mold or pyrex loaf pan. Do not use rack for
grilling.
Brush with melted butter before grilling. Turn over after
half the microwave time. Drain after microwaving. Place
directly on rack to grill.
Same as above.
Lamb
Lamb chops, 1-
inch thick. 1 to 1½ lbs 4- 6 min. MEDIUM-HIGH(7) 9-11 min
Veal
Veal cutlets or
loin chops, ½ to
¼-inch thick
1 to 2
4-6 min MEDIUM-HIGH(7) 9-11 min Same as above.
Pork
Pork chops, ½ to
¾-inch thick. 3 to 4 5-7 min. /lb. MEDIUM-HIGH(7) 9-11 min
XGt~XW]W~ht~XY]W~hUGGwGYXGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
22
Cooking Instructions
Food Amount CookTime Power Level Grill Directions
Pork
Center cut ham
slice, prcooked.
Sausage pat ties,
fresh/ Links,
fresh.
1 to 1½ lbs
2 to 4 pieces
4 to 6 pieces
5-7 min.
3-5 min.
5-7 min.
MEDIUM-HIGH(7)
HIGH(10)
8-10 min
3-7 min
Brush with honey or grill sugar glaze during microwave
and grilling times. Drain after microwaving, Place
directly on rack to grill.
Prick sausage links with a fork in several places. Add 2
tablespoons water to sausage and cover with plastic
wrap. Turn over after half the microwave time. Drain.
Place directly on rack to grill.
Poultry
Chicken pieces. 1 lb 5-7 min. MEDIUM-HIGH(7) 8-10 min Arrange chicken, skin side up in 9-inch pie plate. Cover
with wax paper. Turn over after ½ the cooking time.
Drain after microwaving. Brush with melted butter
before grilling. Place directly on rack to grill.
Fish
Fish Fillets, ½-
inch thick.
Fish Fillets, ½-
inch thick.
Fish steaks, 1-
inch thick.
Whole Fish 8 to 10
oz.
1 lb
2 lbs
1 lb
1½ to 2 lbs
3-4 min.
6-8 min
4-5 min
4-6 min
MEDIUM-HIGH(7)
MEDIUM-HIGH(7)
MEDIUM-HIGH(7)
MEDIUM-HIGH(7)
5-9 min
6-10 min
7-11 min
8-10 min
10-12 min
Turn fish steaks and whole fish over after half the
microwave time, drain after microwaving, brush with
melted butter before grilling. May be grilled in dish on
rack.
Turn fish fillets over after half the microwave time, drain
after microwaving, brush with melted butter before
grilling. May be grilled in dish on rack.
Turn over after half the microwave time.
Turn over after half the microwaving time. grill on rack.
XGt~XW]W~ht~XY]W~hUGGwGYYGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
23
Cooking Instructions
Guide for Cooking Seafood in Your Microwave
•Cook fish until it flakes easily with a fork.
•Place fish on a microwave-safe roasting rack in a microwave-safe
dish.
•Use a tight cover to steam fish. A lighter cover of wax paper or paper
towel provides less steaming.
•Do not overcook fish; check it at minimum cooking time.
Guide for Cooking Eggs in Your Microwave
•Never cook eggs in the shell, and never warm hard-cooked eggs in
the shell; they can explode.
•Always pierce whole eggs to keep them from bursting.
•Cook eggs just until set; they become tough if overcooked.
Guide for Cooking Vegetables in Your Microwave
•Vegetables should be washed just before cooking. Often, no extra
water is needed. If dense vegetables such as potatoes, carrots and
green beans are being cooked, add about ¼ cup water.
•Small vegetables (sliced carrots, peas, lima beans, etc.) will cook
faster than larger ones.
•Whole vegetables, such as potatoes, acorn squash or corn on the
cob, should be arranged in a circle on the turntable before cooking.
They will cook more evenly if turned over after half the cooking time.
•Always place vegetables like asparagus and broccoli with the stem
ends pointing towards the edge of the dish and the tips toward the
center.
•When cooking cut vegetables, always cover the dish with a lid or
vented microwavable plastic wrap.
•Whole, unpeeled vegetables such as potatoes, squash, eggplant,
etc., should have their skin pricked in several spots before cooking to
prevent them from bursting.
•For more even cooking, stir or rearrange whole vegetables halfway
through the cooking time.
•Generally, the denser the food, the longer the standing time.
(Standing time refers to the time necessary for dense, large foods
and vegetables to finish cooking after they come out of the oven.) A
baked potato can stand on the counter for five minutes before
cooking is completed, while a dish of peas can be served
immediately.
Food Cook Time/Power
Level Directions
Steaks
Up to 1.5 lbs.
Cooking Time:
6-10 min. / lbs.
Power Level: Medium-
High(7).
Arrange steaks on roasting
rack with meaty portions
towards the outside of rack.
Cover with wax paper. Turn
over and rearrange when
cooking time is half up. Cook
until fish flakes easily with a
fork. Let stand 3-5 min.
Fillets
Up to 1.5 lbs.
Cooking Time:
3-7 min. / lbs
Power Level: Medium-
High(7).
Arrange fillets in a baking
dish, turning any thin pieces
under Cover with wax paper.
If over ½ inch thick, turn over
and rearrange when cooking
time is half up. Cook until
fish flakes easily with a fork.
Let stand 2-3 min.
Shrimp
Up to 1.5 lbs.
Cooking Time:
3-5 ½ min. / lbs.
Power Level: Medium-
High(7).
Arrange shrimp in a baking
dish without overlapping or
layering. Cover with wax
paper. Cook until firm and
opaque, stirring 2 or 3 times.
Let stand 5 min.
XGt~XW]W~ht~XY]W~hUGGwGYZGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
24
Cooking Instructions
Recipes
Beef and Barley Stew
1½ lbs. beef stew cubes, cut into ½-inch pieces
½ cup chopped onion
2 Tbs. all-purpose flour
1 Tbs Worcestershire sauce
1 can (13.75-14.5 oz.) beef broth
2 medium carrots, cut into ½-inch slices (about 1 cup)
½ cup barley
1 bay leaf
¼ tsp. pepper
1 pkg. (9-10 oz.) frozen peas, thawed
1. In a 2-quart casserole, combine beef, onion, flour, and
Worcestershire; mix well. Cover with lid. Cook at High for 6 to 8
minutes until beef is no longer pink, stirring once.
2. Stir in beef broth, carrots, barley, bay leaf, and pepper. Cover with
lid. Cook at Medium for 1 to 1½ hours until carrots and beef are
tender, stirring 2 to 3 times.
3. Stir in peas. Cover with lid. Cook at Medium for 10 minutes. Let
stand for 10 minutes. Remove bay leaf before serving. Makes 6
servings.
Broccoli and Cheese Casserole
¼ cup butter or margarine
¼ cup chopped onion
1½ Tbs. flour
½ tsp. salt
¼ tsp. dry mustard
1/8 tsp. pepper
1½ cups milk
¼ cup chopped red pepper
8 oz. (2 cups) cheddar cheese, shredded
1 pkg. (9-10 oz.) frozen chopped broccoli, thawed
4 cups cooked spiral shaped pasta (8 oz. dry)
1. In a 2-quart casserole, cook butter and onion at High for 1 to 2
minutes until onion is soft, stirring once.
2. Add flour, salt, mustard, and pepper; mix well. Cook at High for 30 to
60 seconds until mixture boils. Stir in milk until smooth.
3. Stir in red pepper. Cook at High for 2 to 3 minutes until mixture boils
and thickens slightly, stirring twice. Stir in cheese until melted.
4. Add broccoli and pasta, mix well. Cover with lid. Cook at High for 4 to
6 minutes until heated through, stirring once. Stir before serving.
Makes 6 servings.
XGt~XW]W~ht~XY]W~hUGGwGY[GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
25
Cooking Instructions
Warm Potato Salad
2 lbs. small red potatoes, cut into ½-inch pieces
4 slices bacon (uncooked), cut into ½-inch pieces
¼ cup chopped onion
2 tsp. sugar
1 tsp. salt
1 tsp. flour
½ tsp. celery seed
1/8 tsp. pepper
2½ Tbs. apple cider vinegar
1. In a 2-quart casserole, combine potatoes and ¼ cup water. Cover
with lid. Cook at High until potatoes are tender (7-10 min.); stir twice.
Drain and set aside to cool slightly.
2. In a medium bowl, cook bacon at High until crisp (2½-3½ min.); stir
once. Place bacon on a paper towel. Reserve 1 Tbs. drippings.
3. Combine drippings and onion. Cover with plastic wrap; turn back a
corner to vent steam. Cook at High until tender (1½-2½ min.); stir
once.
4. Stir in sugar, salt, flour, celery seed, and pepper. Cook at High until
mixture boils (30-40 sec.). Stir in vinegar and ½ cup water. Cook at
High until liquid boils and thickens slightly (1-2 min.); stir once. Add
bacon to dressing. Pour dressing over potatoes. Stir well. Makes 6
servings.
Black Bean Soup
1 cup chopped onion
1 clove garlic, minced
2 cans (15 oz. each) black beans, drained
1 can (14-16 oz.) stewed tomatoes, chopped
1 can (13.75-14.5 oz.) chicken broth
1 can (7-8.5 oz.) corn
1 can (4 oz.) chopped green chilies
1-2 tsp. ground cumin, or to taste
1. Place onion and garlic in a 3-quart casserole. Cover with lid. Cook at
High for 2 to 4 minutes until tender.
2. Add one can of beans, mash beans with a fork. Add remaining
ingredients; mix well.
3. Cook uncovered, at High for 10 minutes; stir. Reduce power to
Medium and cook for 5 minutes. Stir before serving. Makes about 2
quarts.
XGt~XW]W~ht~XY]W~hUGGwGY\GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
26
Appendix
Troubleshooting Guide
Before you call a repair person for your oven, check this list of possible
problems and solutions.
Neither the oven’s display nor the oven operate.
•Properly insert the plug into a grounded outlet.
•If the outlet is controlled by a wall switch, make sure the wall switch
is turned on.
•Remove the plug from the outlet, wait ten seconds, then plug it in
again.
•Reset the circuit breaker or replace any blown fuse.
•Plug another appliance into the outlet; if the other appliance doesn’t
work, have a qualified electrician repair the outlet.
•Plug the oven into a different outlet.
The oven’s display works, but the power won’t come
on.
•Make sure the door is closed securely.
•Check to see if packing material or other material is stuck to the door
seal.
•Check for door damage.
•Press Cancel twice and re-enter all cooking instructions.
The power goes off before the set time has elapsed.
•If there has not been a power outage, remove the plug from the
outlet, wait ten seconds, then plug it in again. If there was a power
outage, the time indicator will display “ ” Reset the clock and
any cooking instructions.
•Reset the circuit breaker or replace any blown fuse.
The food is cooking too slowly.
•Make sure the oven is on its own 20 amp circuit line. Operating
another appliance on the same circuit can cause a voltage drop. If
necessary, move the oven to its own circuit.
You see sparks or arcing.
•Remove any metallic utensils, cookware, or metal ties. If using foil,
use only narrow strips and allow at least one inch between the foil
and interior oven walls.
The turntable makes noises or sticks.
•Clean the turntable, roller ring and oven floor.
•Make sure the turntable and roller ring are positioned correctly.
Using your microwave causes TV or radio interference.
•This is similar to the interference caused by other small appliances,
such as hair dryers. Move your microwave further away from other
appliances, like your TV or radio.
Care and Cleaning
Follow these instructions to clean and care for your oven.
•Keep the inside of the oven clean. Food particles and spilled liquids
can stick to the oven walls, causing the oven to work less efficiently.
•Wipe up spills immediately. Use a damp cloth and mild soap. Do not
use harsh detergents or abrasives.
•To help loosen baked on food particles or liquids, heat two cups of
water (add the juice of one lemon if you desire to keep the oven
fresh) in a four-cup measuring glass at High power for five minutes
or until boiling. Let stand in the oven for one or two minutes.
•Remove the glass tray from the oven when cleaning the oven or tray.
To prevent the tray from breaking, handle it carefully and do not put it
in water immediately after cooking. Wash the tray carefully in warm
sudsy water or in the dishwasher.
•Clean the outside surface of the oven with soap and a damp cloth.
Dry with a soft cloth. To prevent damage to the operating parts of the
oven, don’t let water seep into the openings.
•Wash the door window with very mild soap and water. Be sure to use
a soft cloth to avoid scratching.
•If steam accumulates inside or outside the oven door, wipe with a
soft cloth. Steam can accumulate when operating the oven in high
humidity and in no way indicates microwave leakage.
•Never operate the oven without food in it; this can damage the
magnetron tube or glass tray. You may wish to leave a cup of water
in the oven when it is not in use to prevent damage if the oven is
accidentally turned on.
XGt~XW]W~ht~XY]W~hUGGwGY]GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
27
Appendix
Specifications
Model Number MW1030BA/MW1030WA
Oven Cavity 1.0cuft
Controls 10 power levels, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1000 Watts
Outside Dimensions 2011/32”(W) X 1111/16”(H) X 14829/32”(D)
Oven Cavity Dimensions 137/32”(W) X 93/32”(H) X 1323/32”(D)
Net/Gross Weight 35.3/38.6 lbs
Model Number MW1060BA/MW1060WA
MW1060SA
Oven Cavity 1.0cuft
Controls 10 power levels, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1100 Watts
Outside Dimensions 2011/32”(W) X 1111/162”(H) X 1429/32”(D)
Oven Cavity Dimensions 137/32”(W) X 93/32”(H) X 1323/32”(D)
Net/Gross Weight 35.3/38.6 lbs
Model Number MW1455WA/MW1455BA
Oven Cavity 1.4cuft
Controls 10 power levels, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1200 Watts
Outside Dimensions 2157/64”(W) X 1221/64”(H) X 1631/32”(D)
Oven Cavity Dimensions 1449/64”(W) X 913/16”(H) X 161/16”(D)
Net/Gross Weight 38.8/42.3 lbs
Model Number MW1255BA/MW1660WA
Oven Cavity 1.4cuft
Controls 10 power levels, including defrost
Timer 99 minutes, 99 seconds
Power Source 120 VAC, 60 Hz
Power Output 1100 Watts
Outside Dimensions 217/8”(W) X 125/16”(H) X 179/32”(D)
Oven Cavity Dimensions 14.23/4”(W) X 927/32”(H) X 161/16”(D)
Net/Gross Weight 40.8/46.3 lbs
XGt~XW]W~ht~XY]W~hUGGwGY^GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
28
Manual Black Warranty
Warranty Information
SAMSUNG MICROWAVE OVEN
This SAMSUNG brand product, as supplied and distributed by
SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered
new, in the original carton to the original consumer purchaser, is
warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor, Eight (8) Years Parts Warranty for Magnetron
This limited warranty begins on the original date of purchase, and is valid
only on products purchased and used in the United States. To receive
warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures. Warranty service can only be
performed by a SAMSUNG authorized service center. The original dated
bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG’s authorized service center. Transportation of
the product to and from the service center is the responsibility of the
purchaser.
SAMSUNG will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if
found to be defective during the limited warranty period specified above.
All replaced parts and products become the property of SAMSUNG and
must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is
longer.
This limited warranty covers manufacturing defects in materials and
workmanship encountered in normal, noncommercial use of this product
and shall not apply to the following, including, but not limited to: damage
which occurs in shipment; delivery and installation; applications and uses
for which this product was not intended; altered product or serial
numbers; cosmetic damage or exterior finish; accidents, abuse, neglect,
fire, water, lightning or other acts of nature; use of products, equipment,
systems, utilities, services, parts, supplies, accessories, applications,
installations, repairs, external wiring or connectors not supplied or
authorized by SAMSUNG which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges;
customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered
and prescribed in the instruction book; product removal and
reinstallation; problems caused by pest infestations, and overheating or
overcooking by user; glass tray or turntable; reduced magnetron power
output related to normal aging. SAMSUNG does not warrant
uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE
LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE
EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER
EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON,
FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT
SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE
LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO
REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED
BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS
BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF
ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG
AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND
PURCHASER’S PROPERTY AND TO OTHERS AND THEIR
PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO
USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY
BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY
SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND
STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty
lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
To obtain warranty service, please contact: SAMSUNG ELECTRONICS
AMERICA, INC. - WWW.SAMSUNGUSA.COM
SAMSUNG CUSTOMER SERVICE
1 SAMSUNG PLACE, LEDGEWOOD, NJ 07852
Tel: 973-691-6200, Fax: 973-691-6201
1-800-SAMSUNG (1-800-726-7864)
WWW.SAMSUNGSUPPORT.COM
LIMITED WARRANTY TO ORIGINAL PURCHASER
XGt~XW]W~ht~XY]W~hUGGwGY_GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
29
Manual Black Warrant
SAMSUNG ELECTRONICS
Subject to the requirements, conditions, exclusions and limitations of the
Original Limited Warranty supplied with Samsung Electronics
(SAMSUNG) products, and the requirements, conditions, exclusions
and limitations contained herein, SAMSUNG will additionally provide
Warranty Repair Service in the United States on SAMSUNG products
purchased in Canada, and in Canada on SAMSUNG products
purchased in the United States, for the warranty period originally
specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a
SAMSUNG Authorized Service Center. Along with this Statement, the
Original Limited Warranty Statement and a dated Bill of Sale as Proof of
Purchase must be presented to the Service Center. Transportation to
and from the Service Center is the responsibility of the purchaser.
Conditions covered are limited only to manufacturing defects in material
or workmanship, and only those encountered in normal use of the
product.
Excluded, but not limited to, are any original specified provisions for, in-
home or on-site services, minimum or maximum repair times,
exchanges or replacements, accessories, options, upgrades, or
consumables.
For the locations of a SAMSUNG Authorized Service Center in the
United States and Canada, please contact SAMSUNG at:
1-800-SAMSUNG (1-800-726-7864)
Or on-line at:
WWW.SAMSUNGUSA.COM and WWW.SAMSUNGCANADA.COM
071100
Note
NORTH AMERICAN LIMITED WARRANTY ADDENDUM
XGt~XW]W~ht~XY]W~hUGGwGY`GGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
30
Quick Reference
Feature Operation
Set Clock 1. Press RELOJ.
2. Use number buttons to enter time.
3. Press RELOJ.
One Stage
Cooking 1. Use number buttons to set cooking time.
2. Set power level or leave at high.
3. Press INICIO.
One Minute+
Cooking 1. Press the UN MINUTO MÁS button once for
each minute of cooking.
2. The time will display and the oven will start.
Instant Cook
Buttons 1. Press button that corresponds to the food
you are cooking (for example, PALOMITAS
DE MAÍZ).
2. Press the button repeatedly to select serving
size.
Auto Defrost 1. Press Auto Defrost.
2. Enter weight of food by pressing AUTO
DEFROST button repeatedly or using the
number buttons.
3. When prompted by beep Sound, press
Pause/Cancel button and turn food over.
Press INICIO to resume defrosting cycle.
Auto Reheat 1. Press AUTO RECALENTADO repeatedly to
select type of dish to reheat.
2. To increase serving size, press the
corresponding number button.
3. Press INICIO to begin reheating cycle.
Set Cooking Time
and Power Levels 1. Use number buttons to set cooking time.
2. To set power level at other than HIGH, press
POWER LEVEL and use the number buttons
to enter the power level.
3. Press INICIO to begin cooking.
ELECTRONICS
Samsung Electronics Co., Ltd.
Feb. 2001
Printed in Korea
XGt~XW]W~ht~XY]W~hUGGwGZWGGzSGqGY^SGYWWXGG\aY]Gwt
Exhibit 8
