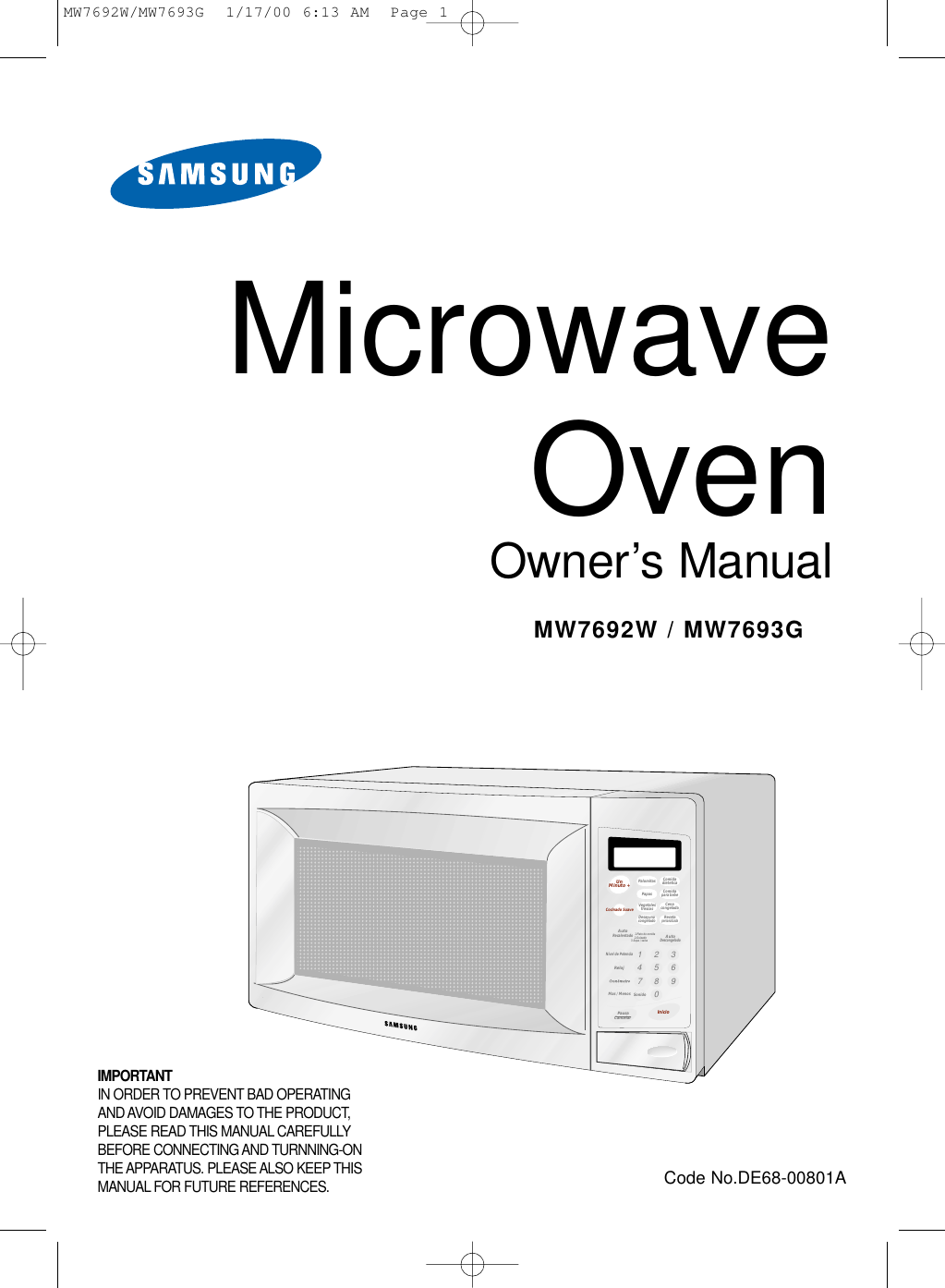

Microwave OvenOwner’s Manual3216549870AutoRecalentadoAutoDescongeladoInicio PausaCancelarRelojMas / MenosNivel de PotenciaUnMinuto +Cocinado SuavePapasPalomitas ComidadieteticaComidapara bebeVegetalesfrescosDesayunocongeladoCenacongeladaRecetapersonalizada1.Plato de comida2.Guisado3.Sopa / salsaSonidoMW7692W / MW7693GIMPORTANTIN ORDER TO PREVENT BAD OPERATINGAND AVOID DAMAGES TO THE PRODUCT, PLEASE READ THIS MANUAL CAREFULLYBEFORE CONNECTING AND TURNNING-ON THE APPARATUS. PLEASE ALSO KEEP THIS MANUAL FOR FUTURE REFERENCES.Code No.DE68-00801AMW7692W/MW7693G 1/17/00 6:13 AM Page 1

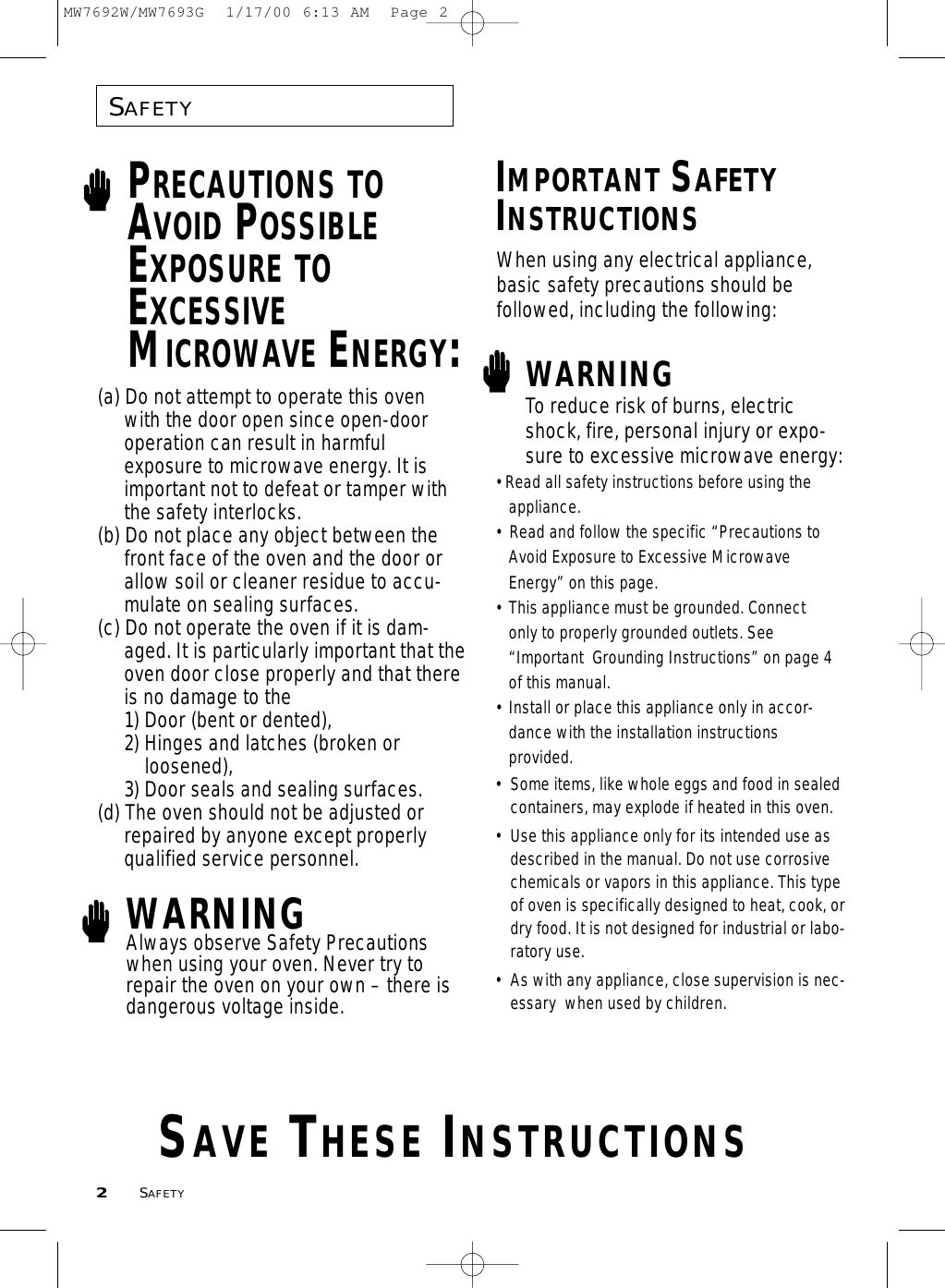

SAFETY2SAFETYPRECAUTIONS TOAVOID POSSIBLEEXPOSURE TOEXCESSIVEMICROWAVE ENERGY:(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.(b) Do not place any object between the front face of the oven and the door or allow soil or cleaner residue to accu-mulate on sealing surfaces.(c) Do not operate the oven if it is dam-aged. It is particularly important that theoven door close properly and that thereis no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken orloosened), 3) Door seals and sealing surfaces.(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.WARNINGAlways observe Safety Precautionswhen using your oven. Never try torepair the oven on your own – there isdangerous voltage inside. IMPORTANT SAFETYINSTRUCTIONSWARNING• Some items, like whole eggs and food in sealedcontainers, may explode if heated in this oven.• Use this appliance only for its intended use asdescribed in the manual. Do not use corrosivechemicals or vapors in this appliance. This typeof oven is specifically designed to heat, cook, ordry food. It is not designed for industrial or labo-ratory use.• As with any appliance, close supervision is nec-essary when used by children.To reduce risk of burns, electricshock, fire, personal injury or expo-sure to excessive microwave energy:• Read all safety instructions before using the appliance.• Read and follow the specific “Precautions to Avoid Exposure to Excessive Microwave Energy” on this page.• This appliance must be grounded. Connect only to properly grounded outlets. See “Important Grounding Instructions” on page 4of this manual. • Install or place this appliance only in accor-dance with the installation instructionsprovided.SAVE THESE INSTRUCTIONSWhen using any electrical appliance,basic safety precautions should be followed, including the following:MW7692W/MW7693G 1/17/00 6:13 AM Page 2
SAFETY3SAFETYImportant Safety Instructions,continued• Do not operate this appliance if it has a damagedcord or plug, if it is not working properly, or if ithas been damaged.• This appliance should be serviced only by quali-fied service personnel. Contact the nearest autho-rized service facility for examination, repair, oradjustment.• Do not cover or block any of the openings on thisappliance.• Do not store this appliance outdoors. Do not usenear water – for example, near a kitchen sink, in awet basement, or near a swimming pool, etc. • Keep the inside of the oven clean. Food particlesor spattered oils stuck to the oven walls or floorcan cause paint damage and reduce the efficien-cy of the oven.• Do not immerse cord or plug in water.• Keep cord away from heated surfaces.• Do not let cord hang over edge of table orcounter.• When cleaning door and oven surfaces, use onlymild, nonabrasive soaps or detergents appliedwith a sponge or soft cloth.• To reduce the risk of fire in the oven:a.Do not overcook food. Watch appliance carefully if paper, plastic, or other combustible materials are inside.b. Remove wire twist-ties from plastic cooking bags before placing bags in oven.c.If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel.d.Do not use the oven compartment for storage purposes. Do not leave paper products, cookingutensils, or food in the oven when not in use.• Do not try to preheat oven or operate while empty.• Do not cook without the glass tray in place on theoven floor. Food will not cook properly without thetray.• Do not defrost frozen beverages in narrow-neckedbottles. The containers can break.• Dishes and containers can become hot. Handlewith care.• Carefully remove container coverings, directingsteam away from hands and face.• Remove lids from bay food before heating. Afterheating baby food, stir well and test temperatureby tasting before serving.• A short power-supply cord is provided to reducethe risk of becoming entangled in or tripping overa longer cord. Longer cord sets or extensioncords are available and may be used with caution. • Do not operate any other heating or cooking appli-ance beneath this appliance.• Do not mount unit over or near any portion of aheating or cooking appliance.• Do not mount over a sink.• Do not store anything directly on top of the appli-ance when it is in operation.SAVE THESE INSTRUCTIONSMW7692W/MW7693G 1/17/00 6:13 AM Page 3
SAFETY4SAFETYImportant GroundingInstructionsThis appliance must be grounded. In the event ofan electrical short circuit, grounding reduces therisk of electric shock by providing an escape wirefor the electrical current. This appliance isequipped with a cord that includes a groundingwire and a grounding plug. The plug must beplugged into an outlet that is properly installed andgrounded. Plug the three-prong power cord into aproperly grounded outlet of standard 115-120 volt-age, 60 Hz. Your oven should be the only applianceon this circuit.WARNINGImproper use of the grounding plug can resultin a risk of electric shock. Consult a qualifiedelectrician or servicer if you do not under-stand the grounding instructions or if you arenot sure if the appliance is properly grounded.Use of Extension Cords A short power-supply cord is provided to reducethe risk of becoming entangled in or tripping overa longer cord. Longer cord sets or extension cordsare available and may be used if care is exercisedin their use. If a long cord or extension cord isused:1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.2. The extension cord must be a grounding-type 3-wire cord and it must be plugged into a 3-slot outlet. 3. The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or trippedover accidentally. If you use an extension cord,the interior light may flicker and the blower may vary when the microwave oven is on. Cooking times may be longer, too.WARNING Do not cut or remove the third (ground) prongfrom the power cord under any circum-stances.SAVE THESE INSTRUCTIONSMW7692W/MW7693G 1/17/00 6:13 AM Page 4
CONTENTS5CONTENTSYour New Microwave Oven . . . . . 6Checking Parts . . . . . . . . . . . . . . . . . . . . . . .6Setting Up Your Microwave Oven . . . . . . .6Control Panel Buttons . . . . . . . . . . . . . . . . .7Operation . . . . . . . . . . . . . . . . . . . . . 8Turning on the Power and Selecting aDisplay Language . . . . . . . . . . . . . . . . . . . . 8Setting the Reloj . . . . . . . . . . . . . . . . . . . . . 8Using the Pausa/Cancelar Button . . . . . . . 8Using the Instant Cook Buttons . . . . . . . . . 9Using the Un Minuto+ Button . . . . . . . . . . 10Auto Recalentado(Reheating Automatically) . 10Using the Cocinado Suave Button . . . . . . 11Setting and Using the Receta Personalizada Button . . . . . . . . . . . . . . . . . 11Auto Descongelado(Defrosting Automatically) . .12Setting Cooking Times & Nivel dePotencia(Power Levels) . . . . . . . . . . . . . . . . . . . . 12One-stage Cooking . . . . . . . . . . . . . . . . . 12Multi-stage Cooking . . . . . . . . . . . . . . . . 13Using the Mas/Menos Button . . . . . . . . . . 13Adjusting the Volume . . . . . . . . . . . . . . . . . 14Using the Cronómetro . . . . . . . . . . . . . . . . 14Setting the Child Protection Lock . . . . . . . 15Demonstration Mode . . . . . . . . . . . . . . . . . 15Cooking Instructions . . . . . . . . . . . .16Cooking Utensils . . . . . . . . . . . . . . . . . . . . .16Testing Utensils . . . . . . . . . . . . . . . . . . . . . .16Cooking Techniques . . . . . . . . . . . . . . . . . .17General Tips . . . . . . . . . . . . . . . . . . . . . . . . .17Cooking Guides . . . . . . . . . . . . . . . . . 18 -19Auto Defrosting Guide . . . . . . . . . . . . . . . . .20Recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21Appendix . . . . . . . . . . . . . . . . . . . . . .23Troubleshooting Guide . . . . . . . . . . . . . . . .23Care and Cleaning . . . . . . . . . . . . . . . . . . . .23Specifications . . . . . . . . . . . . . . . . . . . . . . .24Quick Guide . . . . . . . . . . . . Back CoverMW7692W/MW7693G 1/17/00 6:13 AM Page 5

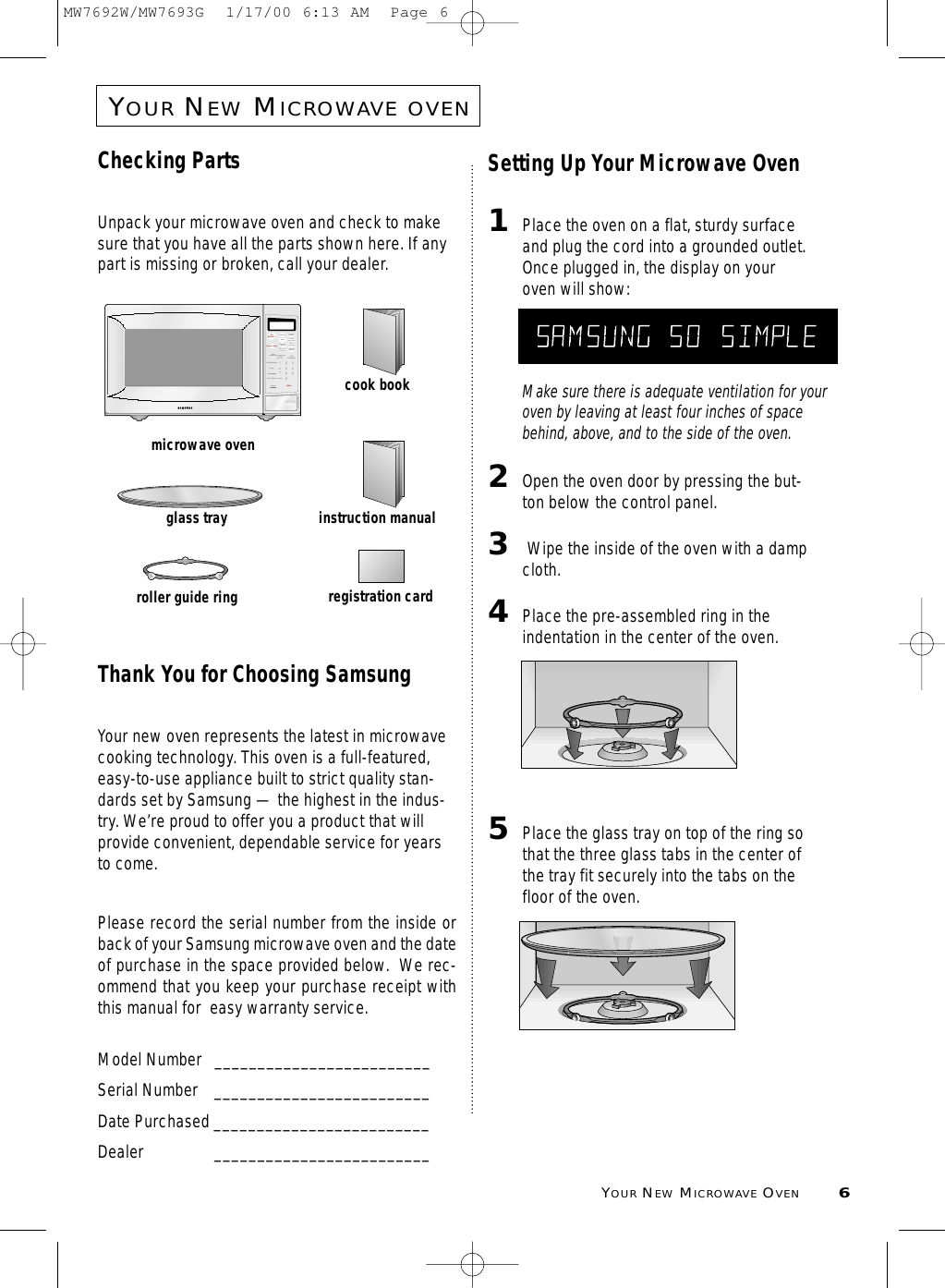

YOURNEWMICROWAVE OVEN6YOURNEWMICROWAVEOVENChecking PartsUnpack your microwave oven and check to makesure that you have all the parts shown here. If anypart is missing or broken, call your dealer.Thank You for Choosing SamsungYour new oven represents the latest in microwavecooking technology. This oven is a full-featured,easy-to-use appliance built to strict quality stan-dards set by Samsung — the highest in the indus-try. We’re proud to offer you a product that willprovide convenient, dependable service for yearsto come. Please record the serial number from the inside orback of your Samsung microwave oven and the dateof purchase in the space provided below. We rec-ommend that you keep your purchase receipt withthis manual for easy warranty service. Model Number _________________________Serial Number _________________________Date Purchased _________________________Dealer _________________________Setting Up Your Microwave Oven1Place the oven on a flat, sturdy surfaceand plug the cord into a grounded outlet.Once plugged in, the display on youroven will show:Make sure there is adequate ventilation for youroven by leaving at least four inches of spacebehind, above, and to the side of the oven. 2Open the oven door by pressing the but-ton below the control panel.3Wipe the inside of the oven with a dampcloth.4Place the pre-assembled ring in theindentation in the center of the oven.5Place the glass tray on top of the ring sothat the three glass tabs in the center ofthe tray fit securely into the tabs on thefloor of the oven.3216549870AutoRecalentadoAutoDescongeladoInicio PausaCancelarRelojMas / MenosNivel de PotenciaUnMinuto +Cocinado SuavePapasPalomitas ComidadieteticaComidapara bebeVegetalesfrescosDesayunocongeladoCenacongeladaRecetapersonalizada1.Plato de comida2.Guisado3.Sopa / salsaSonidomicrowave ovenglass trayroller guide ringinstruction manualcook bookregistration cardMICRO HELPMW7692W/MW7693G 1/17/00 6:13 AM Page 6
YOURNEWMICROWAVE OVEN7YOURNEWMICROWAVEOVEN3216549870AutoRecalentadoAutoDescongeladoInicio PausaCancelarRelojMas / MenosNivel de PotenciaUnMinuto +Cocinado SuavePapasPalomitas ComidadieteticaComidapara bebeVegetalesfrescosDesayunocongeladoCenacongeladaRecetapersonalizada1.Plato de comida2.Guisado3.Sopa / salsaSonidoOne Minute+(Un Minuto+) p. 10Press once for every minute of cooking at High power.Instant Cook Buttons p. 9Instant settings to cook popular foods.Custom Cook Button(Receta personalizada) p. 11Press twice to program your favorite recipe.Press once to cook with that recipe.Auto Reheat(Auto Recalentado) p. 10Sets type of dish to be reheated.Number ButtonsSets cooking times or amounts.Sound Button(Sonido) p. 14More/Less Button(Mas/Menos) p. 13Increases or decreases cooking time. Kitchen Timer(Cronómetro) p. 14Start(Inicio)Press to start cooking.Auto Defrost(Auto Descongelado) p. 12Sets weight of food to be defrosted.Power Level(Nivel de Potencia) p. 12Sets power to level other than high.Clock(Reloj) p. 8Sets current time.Pause/Cancel(Pausa/Cancelar) p. 8Press to pause oven or correct a mistake.Gentle Cook(Cocinado Suave) p. 11Press to set gentler cooking with reduced power.Control Panel ButtonsMW7692W/MW7693G 1/17/00 6:13 AM Page 7
OPERATION8OPERATIONTurning on the Power and Selecting aDisplay LanguageThe first time you plug the power cord into an out-let, or after there has been an interruption inpower, the display shows “SAMSUNG SO SIM-PLE.” At this point, you can select a language andweight system for the display. You can choosebetween English, French or Spanish and pounds(LBS) or kilograms (KG). To do so,1Press Inicio(Start) immediately after plugging in your microwave. The displayshows “ENGLISH/LBS”. If the displaydoes not show “ENGLISH/LBS”, you willneed to unplug the microwave and thenplug it in again in order to change to thelanguage.2Press Inicio(Start) repeatedly to selectthe language and weight system youwish to use:• ENGLISH/LBS,• ENGLISH/KG,• FRENCH/KG,• SPANISH/LBS, or SPANISH/KGIf you continue to press INICIO(START), thesettings will cycle in the order shown here.When you have selected the language and weight sys-tem you want to use, press the PAUSACANCELAR(PAUSE/CANCEL) button to end this proce-dure, or press RELOJ(CLOCK) to set the clock.Setting the Reloj(Clock)1Press the Reloj(Clock) button. The dis-play will show:2Use the number buttons to enter the cur-rent time. You must press at least threenumbers to set the clock. If the currenttime is 5:00 enter, 5,0,0. 3Press Reloj(Clock) again. A colon willappear, indicating that the time is set. If there is a power interruption, you will need toreset the clock.You can check the current time while cooking is inprogress by pressing the Reloj(Clock) button.Using the Pausa/Cancelar(Pause/Cancel) ButtonThe Pausa/Cancelar(Pause/Cancel) button allowsyou to clear instructions you have entered. It alsoallows you to pause the oven’s cooking cycle, sothat you can check the food. • Pause the oven during cooking: pressPausa/Cancelar(Pause/Cancel) once. To restart,press Inicio(Start).• Stop cooking, erase instructions, and return theoven display to the time of day: pressPausa/Cancelar(Pause/Cancel) twice.• Correct a mistake you have just entered: pressPausa/Cancelar(Pause/Cancel) once, then re-enter the instructions.MICRO HELPHELPMW7692W/MW7693G 1/17/00 6:13 AM Page 8

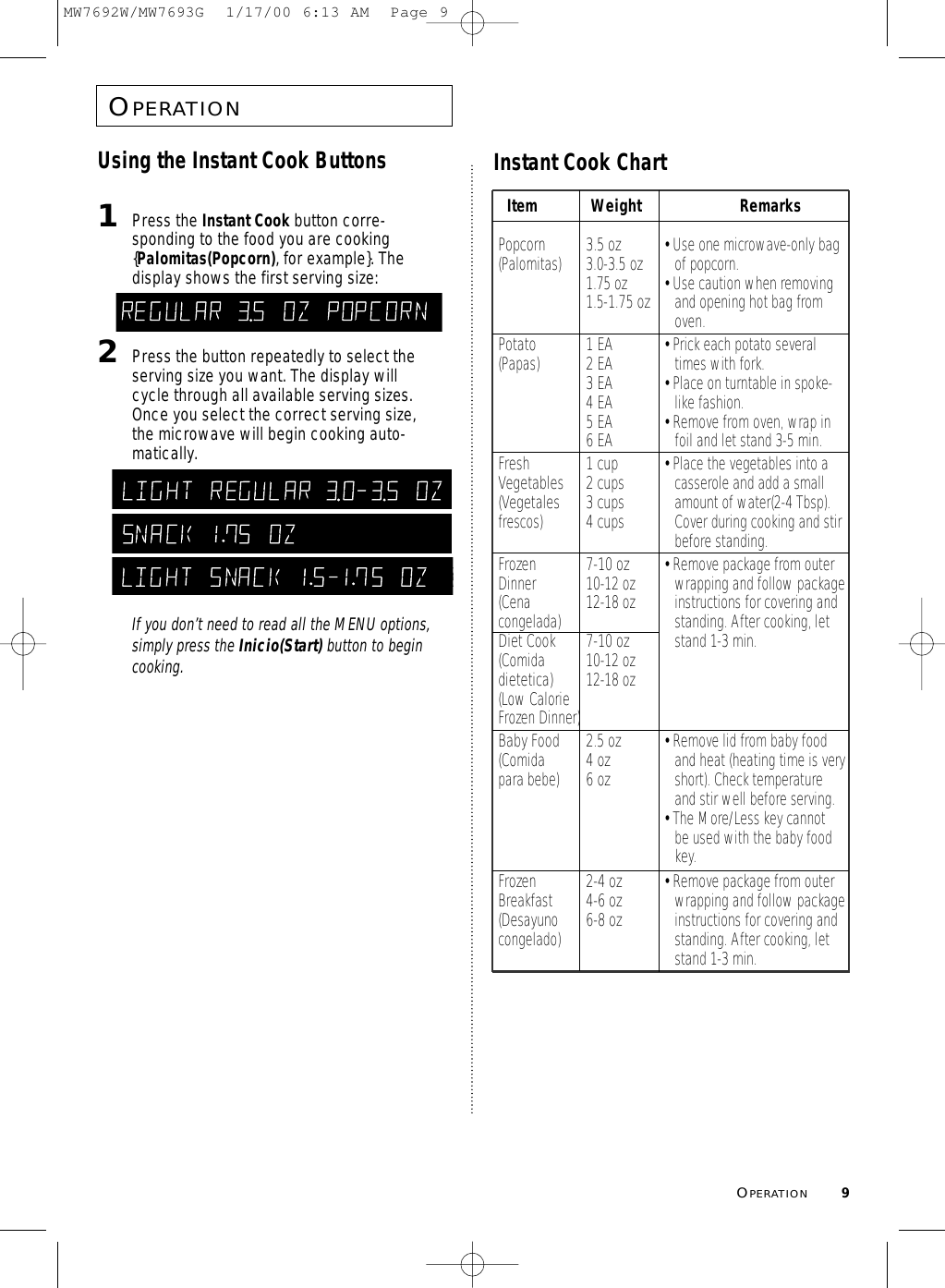

OPERATION9OPERATIONUsing the Instant Cook Buttons1Press the Instant Cook button corre-sponding to the food you are cooking{Palomitas(Popcorn), for example}. Thedisplay shows the first serving size:2Press the button repeatedly to select theserving size you want. The display willcycle through all available serving sizes.Once you select the correct serving size,the microwave will begin cooking auto-matically.If you don’t need to read all the MENU options,simply press the Inicio(Start) button to begincooking.Instant Cook ChartMICRO HELPMICRO HELPMICRO HELPMICRO HELPItem Weight RemarksPopcorn 3.5 oz• Use one microwave-only bag (Palomitas) 3.0-3.5 ozof popcorn.1.75 oz • Use caution when removing 1.5-1.75 ozand opening hot bag from oven.Potato 1 EA• Prick each potato several (Papas)2 EAtimes with fork.3 EA• Place on turntable in spoke-4 EAlike fashion.5 EA• Remove from oven, wrap in 6 EAfoil and let stand 3-5 min.Fresh 1 cup• Place the vegetables into a Vegetables 2 cupscasserole and add a small(Vegetales 3 cupsamount of water(2-4 Tbsp).frescos)4 cupsCover during cooking and stir before standing.Frozen 7-10 oz• Remove package from outer Dinner 10-12 oz wrapping and follow package(Cena 12-18 oz instructions for covering and congelada) standing. After cooking, let Diet Cook 7-10 ozstand 1-3 min.(Comida 10-12 ozdietetica)12-18 oz(Low CalorieFrozen Dinner)Baby Food 2.5 oz• Remove lid from baby food (Comida4 ozand heat (heating time is verypara bebe)6 ozshort). Check temperature and stir well before serving.• The More/Less key cannot be used with the baby food key.Frozen 2-4 oz• Remove package from outer Breakfast4-6 ozwrapping and follow package(Desayuno6-8 ozinstructions for covering and congelado) standing. After cooking, let stand 1-3 min.MW7692W/MW7693G 1/17/00 6:13 AM Page 9

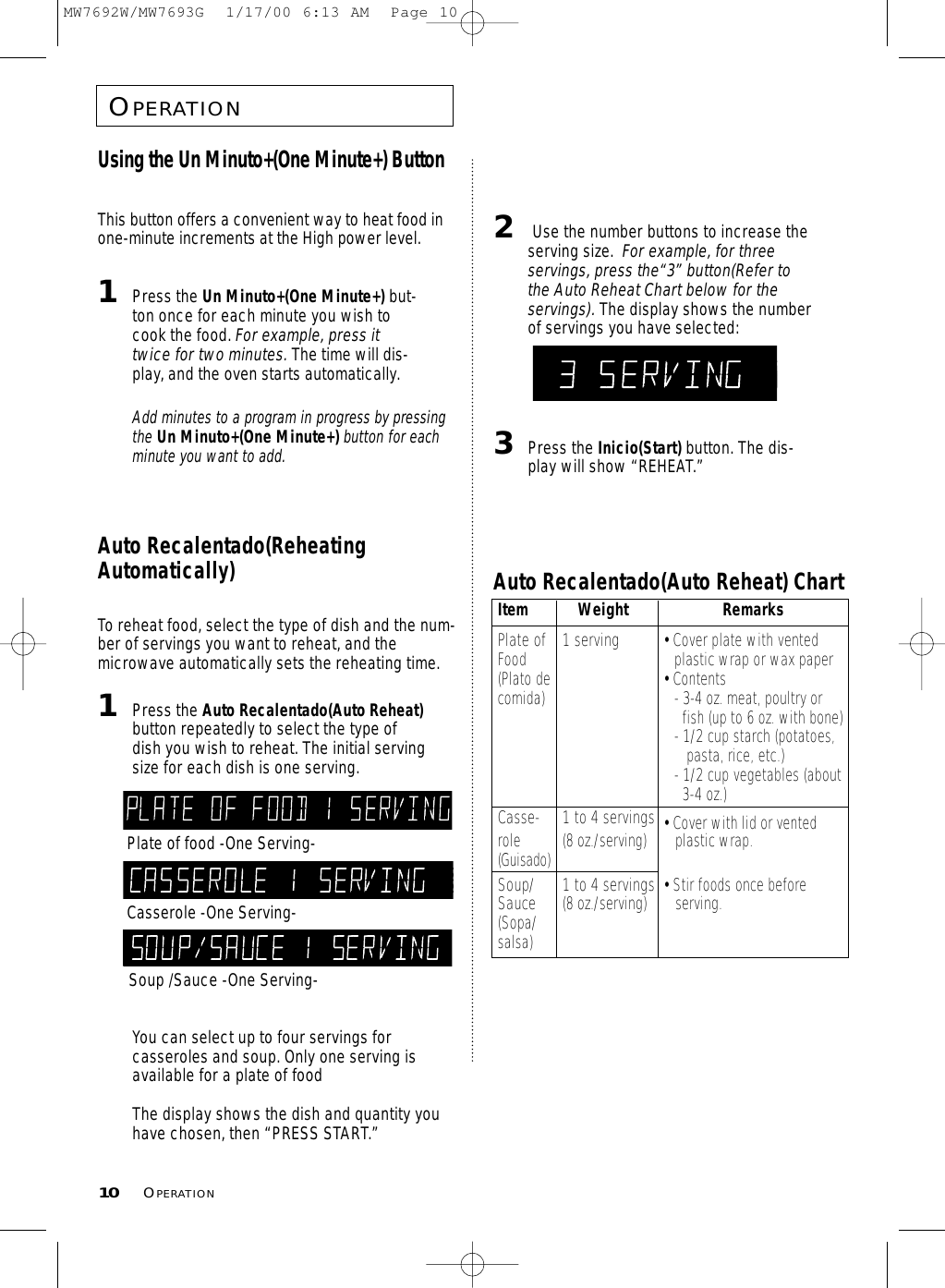

OPERATION10 OPERATIONUsing the Un Minuto+(One Minute+) ButtonThis button offers a convenient way to heat food inone-minute increments at the High power level.1 Press the Un Minuto+(One Minute+) but-ton once for each minute you wish tocook the food. For example, press ittwice for two minutes. The time will dis-play, and the oven starts automatically.Add minutes to a program in progress by pressingthe Un Minuto+(One Minute+) button for eachminute you want to add. Auto Recalentado(ReheatingAutomatically)To reheat food, select the type of dish and the num-ber of servings you want to reheat, and themicrowave automatically sets the reheating time. 1Press the Auto Recalentado(Auto Reheat)button repeatedly to select the type ofdish you wish to reheat. The initial servingsize for each dish is one serving.You can select up to four servings forcasseroles and soup. Only one serving isavailable for a plate of foodThe display shows the dish and quantity youhave chosen, then “PRESS START.”MICRO HELPPlate of food -One Serving- Casserole -One Serving-Soup /Sauce -One Serving-2Use the number buttons to increase theserving size. For example, for threeservings, press the“3” button(Refer tothe Auto Reheat Chart below for theservings). The display shows the numberof servings you have selected: 3Press the Inicio(Start) button. The dis-play will show “REHEAT.”Auto Recalentado(Auto Reheat) ChartItem Weight RemarksPlate of 1 serving• Cover plate with vented Food plastic wrap or wax paper(Plato de • Contentscomida) - 3-4 oz. meat, poultry or fish (up to 6 oz. with bone)- 1/2 cup starch (potatoes, pasta, rice, etc.)- 1/2 cup vegetables (about3-4 oz.)Casse- 1 to 4 servings• Cover with lid or vented role (8 oz./serving) plastic wrap.(Guisado)Soup/ 1 to 4 servings• Stir foods once beforeSauce(8 oz./serving) serving.(Sopa/salsa)MICRO HELPMW7692W/MW7693G 1/17/00 6:13 AM Page 10
OPERATION11OPERATIONUsing the Cocinado Suave(GentleCook) ButtonThis button is for slower, gentler cooking withreduced power. 1 Use the Number buttons to set a cookingtime.For example, to set 10 minutes, enter1,0,0,0.2Press the Cocinado Suave(Gentle Cook)button. The time will display and the ovenwill start automatically.Setting and Using the Receta person-alizada(Custom Cook) Button.The Receta personalizada(Custom Cook) button memo-rizes the time and power setting for a particular food. Programming the Receta personalizada(CustomCook) button1 Press the Receta personalizada(Custom Cook)button. The display shows “ENTER COOKINGTIME AND POWER.”2 Use the Number buttons to enter theamount of cooking time. The display willshow the amount of time you have set.3 Press Nivel de Potencia(Power Level)and use the Number buttons to enter thepower level. The display will show thepower level you have set. You can setthe power level from 0 to 9.1 = warm 6 = simmer2 = low 7 = medium high3 = defrost 8 = reheat4 = medium low 9 = sauté5 = medium 0 = high4 Press the Receta personalizada(CustomCook) button again. The display will read“CUSTOM RECIPE SAVED.”Using the Receta personaliadad(Custom Cook) buttonPress the Custom button after memorizing arecipe, then press the Inicio(Start) button.You can check the power level while cooking is inprogress by pressing the Nivel de Potencia(Power Level) button.Press the button twice to delete the previousCustom setting.MW7692W/MW7693G 1/17/00 6:13 AM Page 11
Setting Cooking Times & Nivel dePotencia(Power Levels)Your microwave allows you to set up to three differ-ent stages of cooking, each with its own time lengthand power level. The power level lets you control theheating intensity from Warm (1) to High (0).One-stage Cooking For simple one-stage cooking, you only need to seta cooking time. The power level is automaticallyset at High. If you want to set the power to anyother level, you must set it using the Nivel dePotencia(Power Level) button.1Use the number buttons to set a cookingtime. You can set a time from one secondto 99 minutes, 99 seconds. To set a timeover one minute, enter the seconds too.For example, to set 20 minutes, enter 2, 0,0, 0 .2 If you want to set the power level tosomething other than High, press theNivel de Potencia(Power Level) button,then use the number buttons to enter apower level. Nivel de Potencia(Power Levels):1 = warm 6 = simmer2 = low 7 = medium high3 = defrost 8 = reheat4 = medium low 9 = sauté5 = medium 0 = highThe display shows “PRESS START OR ENTER NEXTSTAGE COOKING TIME”3 Press the Inicio(Start) button to begincooking. If you want to change thepower level, pressPausa/Cancelar(Pause/Cancel) beforeyou press Inicio(Start), and re-enter all ofthe instructions. OPERATION12 OPERATIONAuto Descongelado(DefrostingAutomatically) To thaw frozen food, set the weight of the food andthe microwave automatically sets the defrostingtime, power level and standing time. 1 Press the Auto Descongelado(Auto Defrost)button.The display shows “0.5 LB.”(0.2Kg if you have set your oven for met-ric measure)2To set the weight of your food, press theAuto Descongelado(Auto Defrost) buttonrepeatedly. This increases the weight by0.5 lb increments, up to 6.0 lbs The AutoDescongelado(Auto Defrost) button willincrease the weight by 0.2Kg if you areusing metric measurement). You can also use the number buttons toenter the weight of the food directly. The oven calculates the defrosting timeand starts automatically. Twice duringdefrosting, the oven will beep and thedisplay will read “TURN THE FOODOVER.”3Press the Pausa/Cancelar(Pause/Cancel)button, open the oven door, and turn thefood over. 4 Press the Inicio(Start) button to resumedefrosting. • See page 20 for the Auto Defrosting Guide MICRO HELPMICRO HELPMW7692W/MW7693G 1/17/00 6:13 AM Page 12

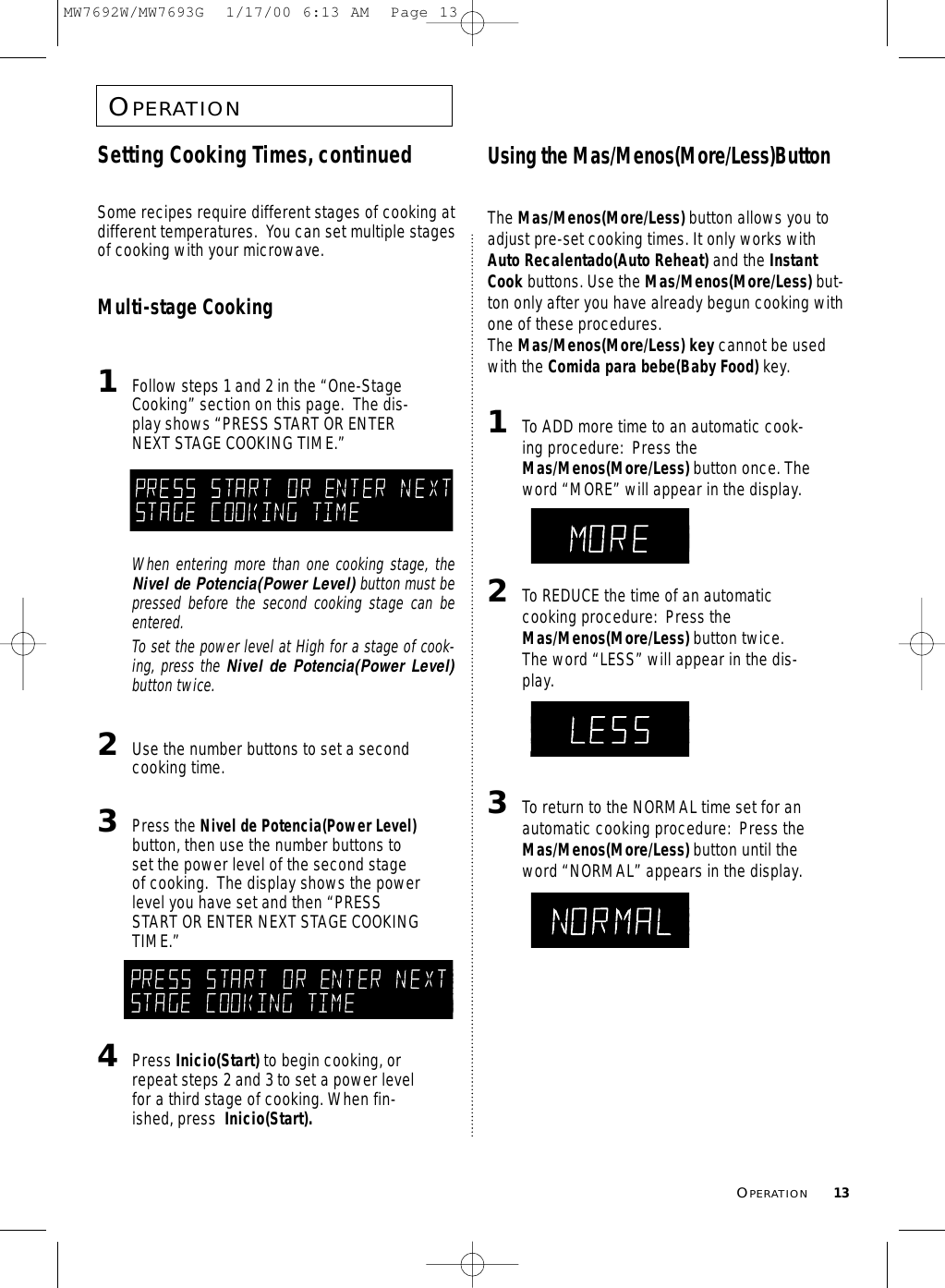

OPERATION13OPERATIONSetting Cooking Times, continuedSome recipes require different stages of cooking atdifferent temperatures. You can set multiple stagesof cooking with your microwave.Multi-stage Cooking 1Follow steps 1 and 2 in the “One-StageCooking” section on this page. The dis-play shows “PRESS START OR ENTERNEXT STAGE COOKING TIME.”When entering more than one cooking stage, theNivel de Potencia(Power Level) button must bepressed before the second cooking stage can beentered. To set the power level at High for a stage of cook-ing, press the Nivel de Potencia(Power Level)button twice. 2Use the number buttons to set a secondcooking time. 3Press the Nivel de Potencia(Power Level)button, then use the number buttons toset the power level of the second stageof cooking. The display shows the powerlevel you have set and then “PRESSSTART OR ENTER NEXT STAGE COOKINGTIME.”4Press Inicio(Start) to begin cooking, orrepeat steps 2 and 3 to set a power levelfor a third stage of cooking. When fin-ished, press Inicio(Start).MICRO HELPUsing the Mas/Menos(More/Less)ButtonThe Mas/Menos(More/Less) button allows you toadjust pre-set cooking times. It only works withAuto Recalentado(Auto Reheat) and the InstantCook buttons. Use the Mas/Menos(More/Less) but-ton only after you have already begun cooking withone of these procedures. The Mas/Menos(More/Less) key cannot be usedwith the Comida para bebe(Baby Food) key.1 To ADD more time to an automatic cook-ing procedure: Press theMas/Menos(More/Less) button once. Theword “MORE” will appear in the display. 2To REDUCE the time of an automaticcooking procedure: Press theMas/Menos(More/Less) button twice.The word “LESS” will appear in the dis-play.3 To return to the NORMAL time set for anautomatic cooking procedure: Press theMas/Menos(More/Less) button until theword “NORMAL” appears in the display.MICRO HELPHELPMW7692W/MW7693G 1/17/00 6:13 AM Page 13
OPERATION14 OPERATIONAdjusting the Volume The Sonido(Sound) button on the microwaveallows you to adjust the volume of the microwave’schime sound. The sound is initially set to its highestsetting. To change the volume.1Press the Sonido(Sound) button. The displayshows “0-OFF 1-LOW 2-MED 3-HIGH” 2Press “0” to turn the volume off, “1” forlow volume, “2” for medium volume, or“3” for high volume.The display will show the volume youhave chosen, then shows “PRESS INI-CIO(START)”.3 Press Inicio(Start). The display returns tothe time of day.Using the Cronómetro(Kitchen Timer)1Use the Number buttons to set the lengthof time you want the timer to run.2Press the Cronómetro(Kitchen Timer)button.3 The display counts down and beepswhen the time has elapsed.MW7692W/MW7693G 1/17/00 6:13 AM Page 14

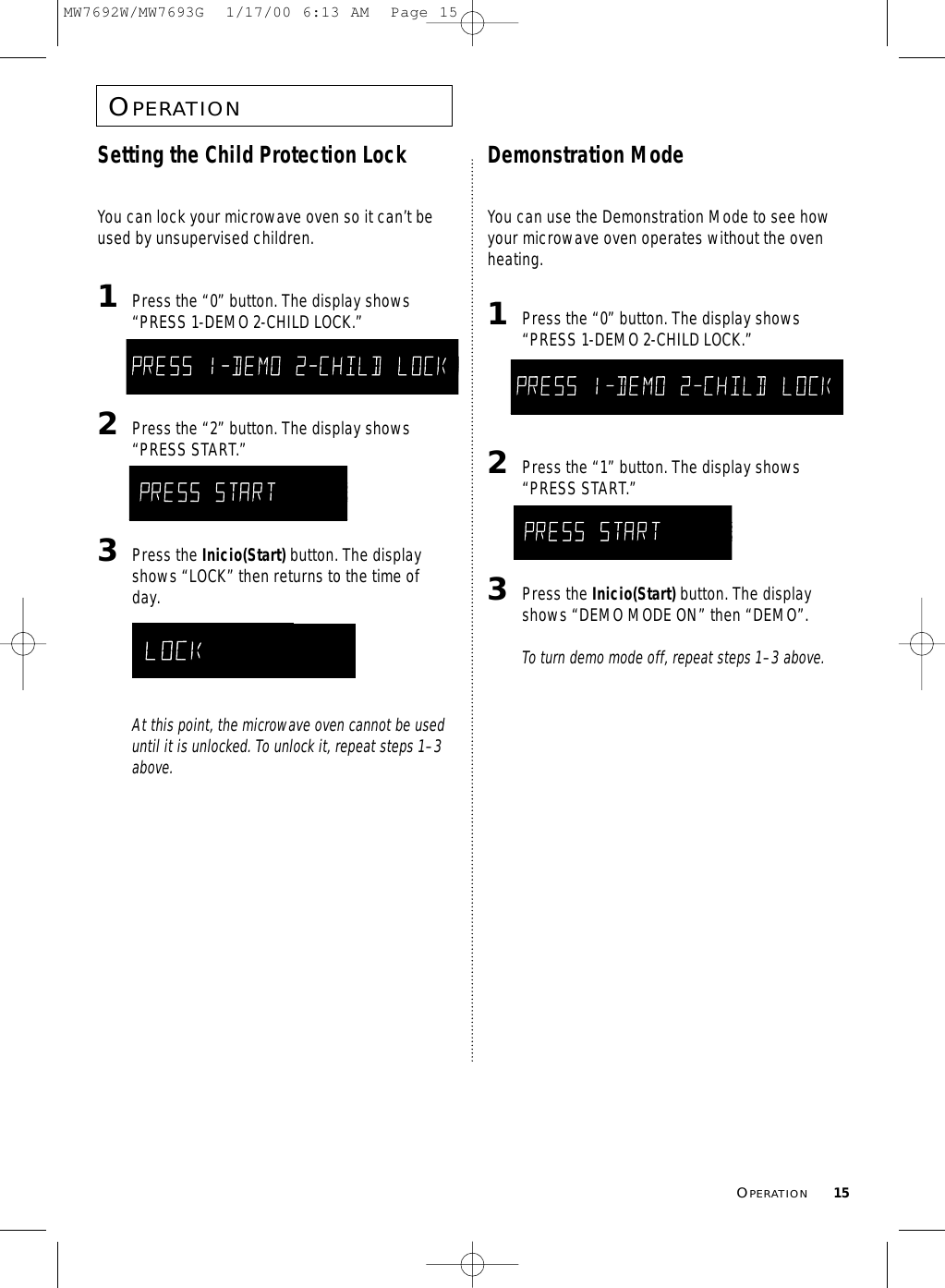

OPERATION15OPERATIONSetting the Child Protection LockYou can lock your microwave oven so it can’t beused by unsupervised children.1Press the “0” button. The display shows“PRESS 1-DEMO 2-CHILD LOCK.”2Press the “2” button. The display shows“PRESS START.”3Press the Inicio(Start) button. The displayshows “LOCK” then returns to the time ofday. At this point, the microwave oven cannot be useduntil it is unlocked. To unlock it, repeat steps 1–3above.Demonstration ModeYou can use the Demonstration Mode to see howyour microwave oven operates without the ovenheating.1Press the “0” button. The display shows“PRESS 1-DEMO 2-CHILD LOCK.”2Press the “1” button. The display shows“PRESS START.”3Press the Inicio(Start) button. The displayshows “DEMO MODE ON” then “DEMO”.To turn demo mode off, repeat steps 1–3 above.MW7692W/MW7693G 1/17/00 6:13 AM Page 15
COOKINGINSTRUCTIONS16 COOKINGINSTRUCTIONSCooking UtensilsRecommended Use• Glass and glass-ceramic bowls and dishes —Use for heating or cooking.• Microwave browning dish — Use to brown theexterior of small items such as steaks, chops, orpancakes. Follow the directions provided withyour browning dish.• Microwavable plastic wrap — Use to retainsteam. Leave a small opening for some steam toescape and avoid placing it directly on the food.• Wax paper — Use as a cover to prevent spatter-ing.• Paper towels and napkins — Use for short-termheating and covering; they absorb excess mois-ture and prevent spattering. Do not use recycledpaper towels, which may contain metal and cancatch fire.• Paper plates and cups — Use for short-termheating at low temperatures. Do not use recy-cled paper, which may contain metal and cancatch fire.• Thermometers — Use only those labeled“Microwave Safe” and follow all directions.Check the food in several places. Conventionalthermometers may be used once the food hasbeen removed from the oven.Limited Use• Aluminum foil — Use narrow strips of foil to pre-vent overcooking of exposed areas. Using toomuch foil can damage your oven, so be careful.• Ceramic, porcelain, and stoneware — Use theseif they are labeled “Microwave Safe.” If theyare not labeled, test them to make sure they canbe used safely. Never use dishes with metallictrim.• Plastic — Use only if labeled “Microwave Safe.”Other plastics can melt.• Straw, wicker, and wood — Use only for short-term heating, as they can be flammable.Not Recommended• Glass jars and bottles — Regular glass is toothin to be used in a microwave, and can shatter.• Paper bags — These are a fire hazard, exceptfor popcorn bags that are designed formicrowave use.• Styrofoam plates and cups — These can meltand leave an unhealthy residue on food.• Plastic storage and food containers —Containers such as margarine tubs can melt inthe microwave.• Metal utensils — These can damage your oven.Remove all metal before cooking. Testing UtensilsIf you are not sure whether a dish is microwave-safe or not, you can perform this test:1Fill a 1 cup glass measuring cup withwater and put it inside your oven, next tothe dish you want to test.2Press the Un Minuto +(One Minute +)button once to heat them for one minuteat High power.The water should be warm and the dish you aretesting should be cool. If the dish is warm, then it isabsorbing microwave energy and is not acceptablefor use in the microwave.MW7692W/MW7693G 1/17/00 6:13 AM Page 16
COOKINGINSTRUCTIONS17COOKINGINSTRUCTIONSCooking TechniquesStirringStir foods such as casseroles and vegetables whilecooking to distribute heat evenly. Food at the out-side of the dish absorbs more energy and heatsmore quickly, so stir from the outside to the center.The oven will turn off when you open the door tostir your food.ArrangementArrange unevenly shaped foods, such as chickenpieces or chops, with the thicker, meatier partstoward the outside of the turntable where theyreceive more microwave energy. To prevent over-cooking, place thin or delicate parts toward thecenter of the turntable.ShieldingShield food with narrow strips of aluminum foil toprevent overcooking. Areas that need shieldinginclude poultry wing-tips, the ends of poultry legs,and corners of square baking dishes. Use onlysmall amounts of aluminum foil. Larger amountscan damage your oven.Turning Turn foods over midway through cooking to exposeall parts to microwave energy. This is especiallyimportant with large items such as roasts.Standing Foods cooked in the microwave build up internalheat and continue to cook for a few minutes afterthe oven stops. Let foods stand to complete cook-ing, especially foods such as roasts and wholevegetables. Roasts need this time to completecooking in the center without overcooking theouter areas. All liquids, such as soup or hot choco-late, should be shaken or stirred when cooking iscomplete. Let liquids stand a moment before serv-ing. When heating baby food, stir well and test thetemperature before serving.Adding Moisture Microwave energy is attracted to water molecules.Food that is uneven in moisture content should becovered or allowed to stand so that the heat dis-perses evenly. Add a small amount of water to dryfood to help it cook.General Tips • Dense foods, such as potatoes, take longer toheat than lighter foods. Foods with a delicatetexture should be heated at a low power level toavoid becoming tough.• Altitude and the type of cookware you are usingcan affect cooking time. When using a newrecipe, use the minimum cooking time andcheck the food occasionally to prevent over-cooking.• Foods with a non-porous skin or shell, such aspotatoes, eggs, or hot dogs, should be piercedto prevent bursting.• Frying with heating oil or fat is not recommend-ed. Fat and oil can suddenly boil over andcause severe burns.• Some ingredients heat faster than others. Forexample, the jelly inside a jelly doughnut will behotter than the dough. Keep this in mind to avoidburns.• Home canning in the microwave oven is notrecommended because all harmful bacteria maynot be destroyed by the microwave heatingprocess.• Although microwaves do not heat the cook-ware, the heat is often transferred to the cook-ware. Always use pot holders when removingfood from the microwave and instruct childrento do the same.MW7692W/MW7693G 1/17/00 6:13 AM Page 17
COOKINGINSTRUCTIONS18 COOKINGINSTRUCTIONSGUIDE for Cooking Meat in Your Microwave• Place meat on a microwave-safe roasting rack in a microwave-safe dish.• Start meat fat-side down. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas.• Check the temperature in several places before letting the meat stand the recommended time.• The following temperatures are removal temperatures. The temperature of the food will rise during thestanding time.Roast BeefBonelessUp to 4 lbs.Cook Time /Power Level DirectionsPorkBoneless orbone-inUp to 4 lbs.Bacon2-6 slicesFoodWholeChickenUp to 4 lbs.Cook Time /Power Level DirectionsChickenPiecesUp to 2 lbs.Cooking Time: 6-9 min. / lbs. 170° -180°F Power Level: Medium High(7).Place chicken breast-side down onroasting rack. Cover with wax paper.Turn over when the cooking time is halfup. Cook until juices run clear and meatnear the bone is no longer pink. Letstand 5-10 min.FoodCooking Time: 6-9 min. / lbs. 180°F dark meat170°F light meatPower Level: Medium High(7).Place chicken bone-side down on dish,with the thickest portions towards theoutside of the dish. Cover with waxpaper. Turn over when the cooking timeis half up. Cook until juices run clear andmeat near the bone is no longer pink. Letstand 5-10 min.GUIDE for Cooking Poultry in Your Microwave• Place poultry on a microwave-safe roasting rack in a microwave-safe dish.• Cover poultry with wax paper to prevent spattering.• Use aluminum foil to shield bone tips, thin meat areas, or areas that start to overcook.• Check the temperature in several places before letting the poultry stand the recommended time.Cooking Time: 7-10 min. / lbs. for 115° F - Rare 8-12 min. / lbs. for 120° F - Medium9-14 min. / lbs. for 145° F - Well DonePower Level: High(10) for first 5 min., then Medium(5).Place roast fat-side down on roast-ing rack. Cover with wax paper.Turn over when cooking time is halfup. Let stand 10 min.Cooking Time: 10-14 min. / lbs. for 160° F Well Done Power Level: High(10) for first 5 min., then Medium(5).Place roast fat-side down on roast-ing rack. Cover with vented plasticwrap. Turn over when cooking timeis half up. Let stand 10 min.Cooking Time: 2 slices: 1- 13/4 min. 4 slices: 3- 31/2 min.6 slices: 41/2-51/2 min.Power Level: High(10).Arrange slices on roasting rack or adish lined with paper-towel. Coverwith paper towel. Microwave untilcrisp.MW7692W/MW7693G 1/17/00 6:13 AM Page 18
COOKINGINSTRUCTIONS19COOKINGINSTRUCTIONS• Vegetables should be washed just before cooking.Often, no extra water is needed. If dense vegeta-bles such as potatoes, carrots and green beansare being cooked, add about 1/4 cup water.• Small vegetables (sliced carrots, peas, lima beans,etc.) will cook faster than larger ones.• Whole vegetables, such as potatoes, acornsquash or corn on the cob, should be arranged ina circle on the turntable before cooking. They willcook more evenly if turned over after half thecooking time.• Always place vegetables like asparagus and broc-coli with the stem ends pointing towards the edgeof the dish and the tips toward the center.• When cooking cut vegetables, always cover thedish with a lid or vented microwavable plasticwrap. • Whole, unpeeled vegetables such as potatoes,squash, eggplant, etc., should have their skinpricked in several spots before cooking to preventthem from bursting.• For more even cooking, stir or rearrange wholevegetables halfway through the cooking time.• Generally, the denser the food, the longer thestanding time. (Standing time refers to the timenecessary for dense, large foods and vegetablesto finish cooking after they come out of the oven.)A baked potato can stand on the counter for fiveminutes before cooking is completed, while a dishof peas can be served immediately.GUIDE for Cooking Eggs in Your Microwave• Never cook eggs in the shell, and never warm hard-cooked eggs in the shell; they can explode.• Always pierce whole eggs to keep them from bursting.• Cook eggs just until set; they become tough if overcooked.GUIDE for Cooking Vegetables in Your MicrowaveGUIDE for Cooking Seafood in Your Microwave• Cook fish until it flakes easily with a fork.• Place fish on a microwave-safe roasting rack in a microwave-safe dish. • Use a tight cover to steam fish. A lighter cover of wax paper or paper towel provides less steaming.• Do not overcook fish; check it at minimum cooking time.SteaksUp to 1.5 lbs.Cook Time /Power Level DirectionsFilletsUp to 1.5 lbs.ShrimpUp to 1.5 lbs. Cooking Time: 6-10 min. / lbs. Power Level: Medium High(7).Arrange steaks on roasting rack withmeaty portions towards the outside ofrack. Cover with wax paper. Turn overand rearrange when cooking time is halfup. Cook until fish flakes easily with afork. Let stand 3-5 min. FoodCooking Time: 3-7 min. / lbs.Power Level: Medium High(7).Arrange fillets in a baking dish, turning anythin pieces under Cover with wax paper. Ifover 1/2 inch thick, turn over and rearrangewhen cooking time is half up. Cook until fishflakes easily with a fork. Let stand 2-3 min.Cooking Time: 3-5 1/2min. / lbs.Power Level: Medium High(7).Arrange shrimp in a baking dish without overlapping or layering. Cover with waxpaper. Cook until firm and opaque, stir-ring 2 or 3 times. Let stand 5 min.MW7692W/MW7693G 1/17/00 6:13 AM Page 19

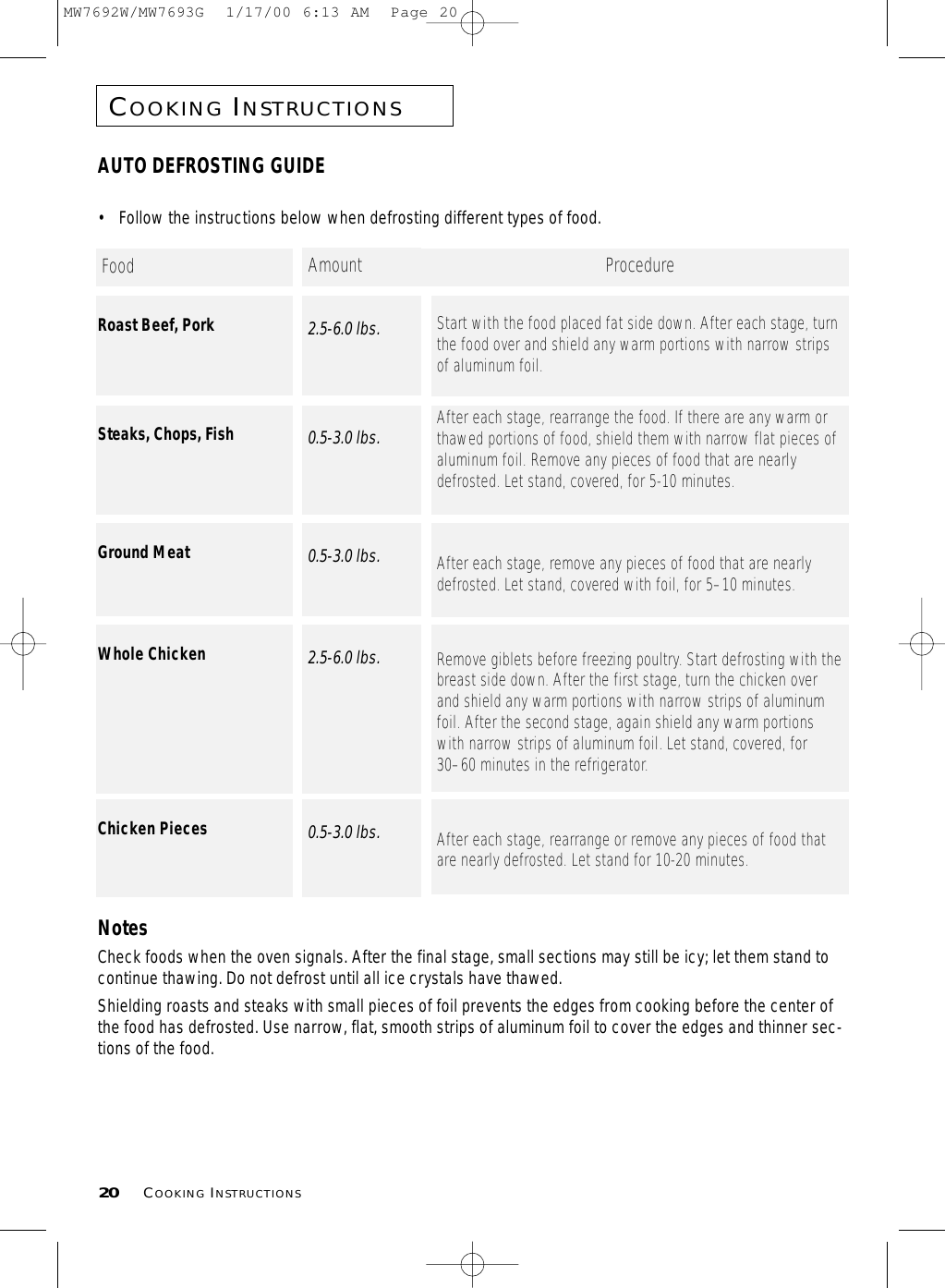

COOKINGINSTRUCTIONS20 COOKINGINSTRUCTIONSAUTO DEFROSTING GUIDE• Follow the instructions below when defrosting different types of food. NotesCheck foods when the oven signals. After the final stage, small sections may still be icy; let them stand tocontinue thawing. Do not defrost until all ice crystals have thawed.Shielding roasts and steaks with small pieces of foil prevents the edges from cooking before the center ofthe food has defrosted. Use narrow, flat, smooth strips of aluminum foil to cover the edges and thinner sec-tions of the food.Roast Beef, Pork 2.5-6.0 lbs. Start with the food placed fat side down. After each stage, turnthe food over and shield any warm portions with narrow stripsof aluminum foil.Ground Meat 0.5-3.0 lbs. After each stage, remove any pieces of food that are nearlydefrosted. Let stand, covered with foil, for 5–10 minutes.Whole Chicken 2.5-6.0 lbs. Remove giblets before freezing poultry. Start defrosting with thebreast side down. After the first stage, turn the chicken overand shield any warm portions with narrow strips of aluminumfoil. After the second stage, again shield any warm portionswith narrow strips of aluminum foil. Let stand, covered, for30–60 minutes in the refrigerator.Chicken Pieces 0.5-3.0 lbs. After each stage, rearrange or remove any pieces of food thatare nearly defrosted. Let stand for 10-20 minutes.Steaks, Chops, Fish 0.5-3.0 lbs. After each stage, rearrange the food. If there are any warm orthawed portions of food, shield them with narrow flat pieces ofaluminum foil. Remove any pieces of food that are nearlydefrosted. Let stand, covered, for 5-10 minutes.Food Amount ProcedureMW7692W/MW7693G 1/17/00 6:13 AM Page 20
COOKINGINSTRUCTIONS21COOKINGINSTRUCTIONSRecipesBeef and Barley Stew1 1/2 lbs. beef stew cubes, cut into 1/2-inch pieces1/2 cup chopped onion2 Tbs. all-purpose flour1 Tbs Worcestershire sauce1 can (13.75-14.5 oz.) beef broth2 medium carrots, cut into 1/2-inch slices (about 1cup)1/2 cup barley1 bay leaf1/4 tsp. pepper1 pkg. (9-10 oz.) frozen peas, thawed1. In a 2-quart casserole, combine beef, onion,flour, and Worcestershire; mix well. Cover withlid. Cook at High for 6 to 8 minutes until beef isno longer pink, stirring once.2. Stir in beef broth, carrots, barley, bay leaf, andpepper. Cover with lid. Cook at Medium for 1 to11/2 hours until carrots and beef are tender, stir-ring 2 to 3 times.3. Stir in peas. Cover with lid. Cook at Medium for10 minutes. Let stand for 10 minutes. Removebay leaf before serving. Makes 6 servings.Broccoli and Cheese Casserole1/4 cup butter or margarine1/4 cup chopped onion1 1/2 Tbs. flour1/2 tsp. salt1/4 tsp. dry mustard1/8 tsp. pepper1 1/2 cups milk1/4 cup chopped red pepper8 oz. (2 cups) cheddar cheese, shredded1 pkg. (9-10 oz.) frozen chopped broccoli, thawed4 cups cooked spiral shaped pasta (8 oz. dry)1. In a 2-quart casserole, cook butter and onion atHigh for 1 to 2 minutes until onion is soft, stirringonce.2. Add flour, salt, mustard, and pepper; mix well.Cook at High for 30 to 60 seconds until mixtureboils. Stir in milk until smooth.3. Stir in red pepper. Cook at High for 2 to 3 min-utes until mixture boils and thickens slightly,stirring twice. Stir in cheese until melted.4. Add broccoli and pasta, mix well. Cover with lid.Cook at High for 4 to 6 minutes until heatedthrough, stirring once. Stir before serving.Makes 6 servings.MW7692W/MW7693G 1/17/00 6:13 AM Page 21

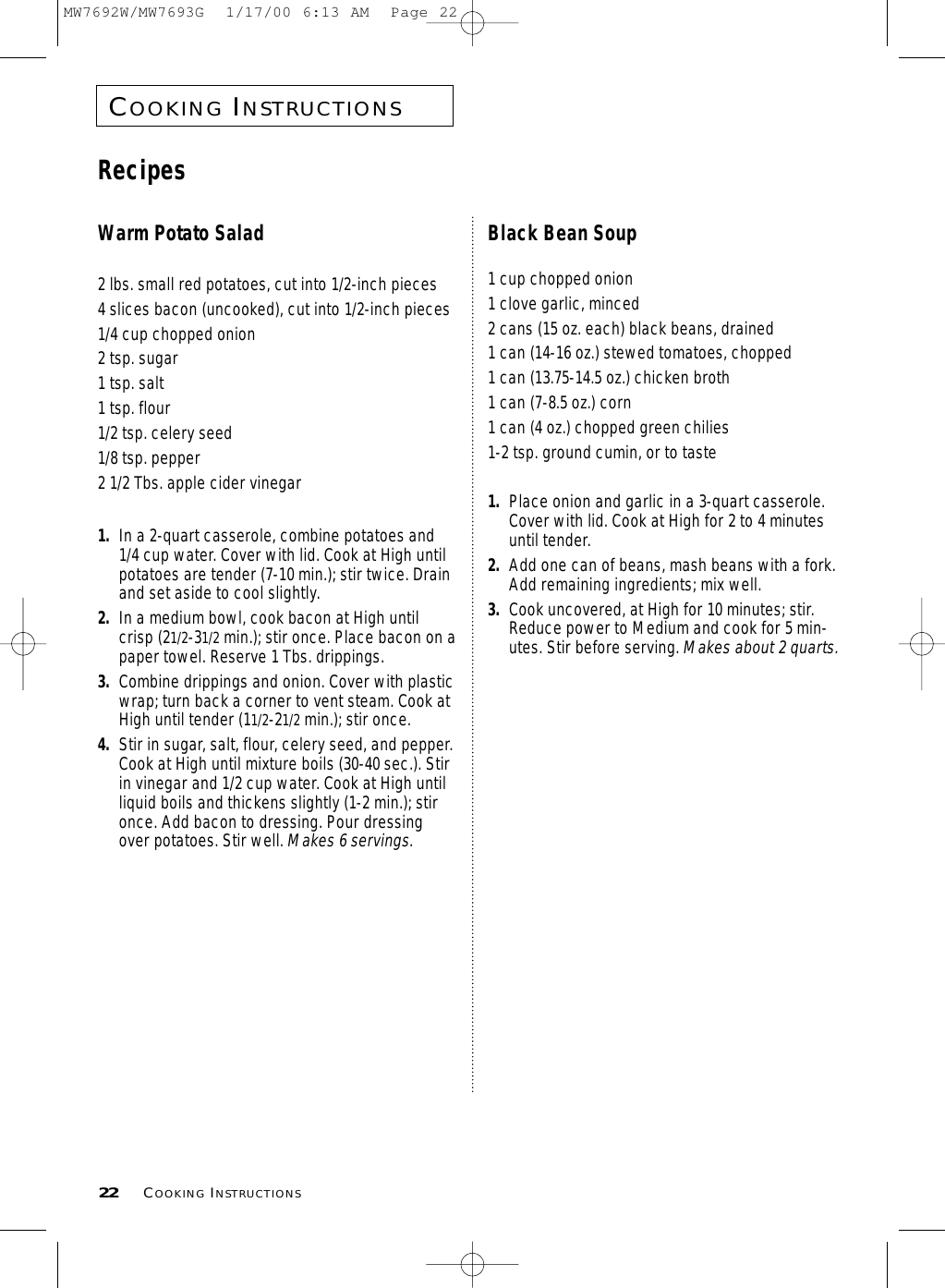

COOKINGINSTRUCTIONS22 COOKINGINSTRUCTIONSWarm Potato Salad2 lbs. small red potatoes, cut into 1/2-inch pieces4 slices bacon (uncooked), cut into 1/2-inch pieces1/4 cup chopped onion2 tsp. sugar1 tsp. salt1 tsp. flour1/2 tsp. celery seed1/8 tsp. pepper2 1/2 Tbs. apple cider vinegar1. In a 2-quart casserole, combine potatoes and1/4 cup water. Cover with lid. Cook at High untilpotatoes are tender (7-10 min.); stir twice. Drainand set aside to cool slightly.2. In a medium bowl, cook bacon at High untilcrisp (21/2-31/2 min.); stir once. Place bacon on apaper towel. Reserve 1 Tbs. drippings.3. Combine drippings and onion. Cover with plasticwrap; turn back a corner to vent steam. Cook atHigh until tender (11/2-21/2 min.); stir once.4. Stir in sugar, salt, flour, celery seed, and pepper.Cook at High until mixture boils (30-40 sec.). Stirin vinegar and 1/2 cup water. Cook at High untilliquid boils and thickens slightly (1-2 min.); stironce. Add bacon to dressing. Pour dressingover potatoes. Stir well. Makes 6 servings.Black Bean Soup1 cup chopped onion1 clove garlic, minced2 cans (15 oz. each) black beans, drained1 can (14-16 oz.) stewed tomatoes, chopped1 can (13.75-14.5 oz.) chicken broth1 can (7-8.5 oz.) corn1 can (4 oz.) chopped green chilies1-2 tsp. ground cumin, or to taste1. Place onion and garlic in a 3-quart casserole.Cover with lid. Cook at High for 2 to 4 minutesuntil tender.2. Add one can of beans, mash beans with a fork.Add remaining ingredients; mix well.3. Cook uncovered, at High for 10 minutes; stir.Reduce power to Medium and cook for 5 min-utes. Stir before serving. Makes about 2 quarts.RecipesMW7692W/MW7693G 1/17/00 6:13 AM Page 22
APPENDIX23APPENDIXTroubleshooting GuideBefore you call a repair person for your oven, check this list of possible problems and solutions.Neither the oven’s display nor the oven operate.• Properly insert the plug into a grounded outlet. • If the outlet is controlled by a wall switch, makesure the wall switch is turned on. • Remove the plug from the outlet, wait ten seconds,then plug it in again. • Reset the circuit breaker or replace any blown fuse.• Plug another appliance into the outlet; if the otherappliance doesn’t work, have a qualified electri-cian repair the outlet. • Plug the oven into a different outlet.The oven’s display works, but the power won’t comeon.• Make sure the door is closed securely.• Check to see if packing material or other materialis stuck to the door seal. • Check for door damage.• Press Cancel twice and re-enter all cookinginstructions.The power goes off before the set time has elapsed.• If there has not been a power outage, remove theplug from the outlet, wait ten seconds, then plug itin again. If there was a power outage, the timeindicator will display “SAMSUNG SO SIMPLE”Reset the clock and any cooking instructions. • Reset the circuit breaker or replace any blown fuse.The food is cooking too slowly.• Make sure the oven is on its own 20 amp circuitline. Operating another appliance on the same cir-cuit can cause a voltage drop. If necessary, movethe oven to its own circuit.You see sparks or arcing.• Remove any metallic utensils, cookware, or metal ties.If using foil, use only narrow strips and allow at leastone inch between the foil and interior oven walls.The turntable makes noises or sticks.• Clean the turntable, roller ring and oven floor. • Make sure the turntable and roller ring are positioned correctly.Using your microwave causes TV or radio interference.• This is similar to the interference caused by othersmall appliances, such as hair dryers. Move yourmicrowave further away from other appliances,like your TV or radio.Care and CleaningFollow these instructions to clean and care for youroven.• Keep the inside of the oven clean. Food particlesand spilled liquids can stick to the oven walls,causing the oven to work less efficiently.• Wipe up spills immediately. Use a damp cloth andmild soap. Do not use harsh detergents or abra-sives. • To help loosen baked on food particles or liquids,heat two cups of water (add the juice of one lemonif you desire to keep the oven fresh) in a four-cupmeasuring glass at High power for five minutes oruntil boiling. Let stand in the oven for one or twominutes. • Remove the glass tray from the oven when clean-ing the oven or tray. To prevent the tray frombreaking, handle it carefully and do not put it inwater immediately after cooking. Wash the traycarefully in warm sudsy water or in the dishwash-er. • Clean the outside surface of the oven with soapand a damp cloth. Dry with a soft cloth. To preventdamage to the operating parts of the oven, don’t letwater seep into the openings.• Wash the door window with very mild soap andwater. Be sure to use a soft cloth to avoid scratch-ing.• If steam accumulates inside or outside the ovendoor, wipe with a soft cloth. Steam can accumu-late when operating the oven in high humidity andin no way indicates microwave leakage.• Never operate the oven without food in it; this candamage the magnetron tube or glass tray. You maywish to leave a cup of water in the oven when it isnot in use to prevent damage if the oven is acci-dentally turned on.MW7692W/MW7693G 1/17/00 6:13 AM Page 23

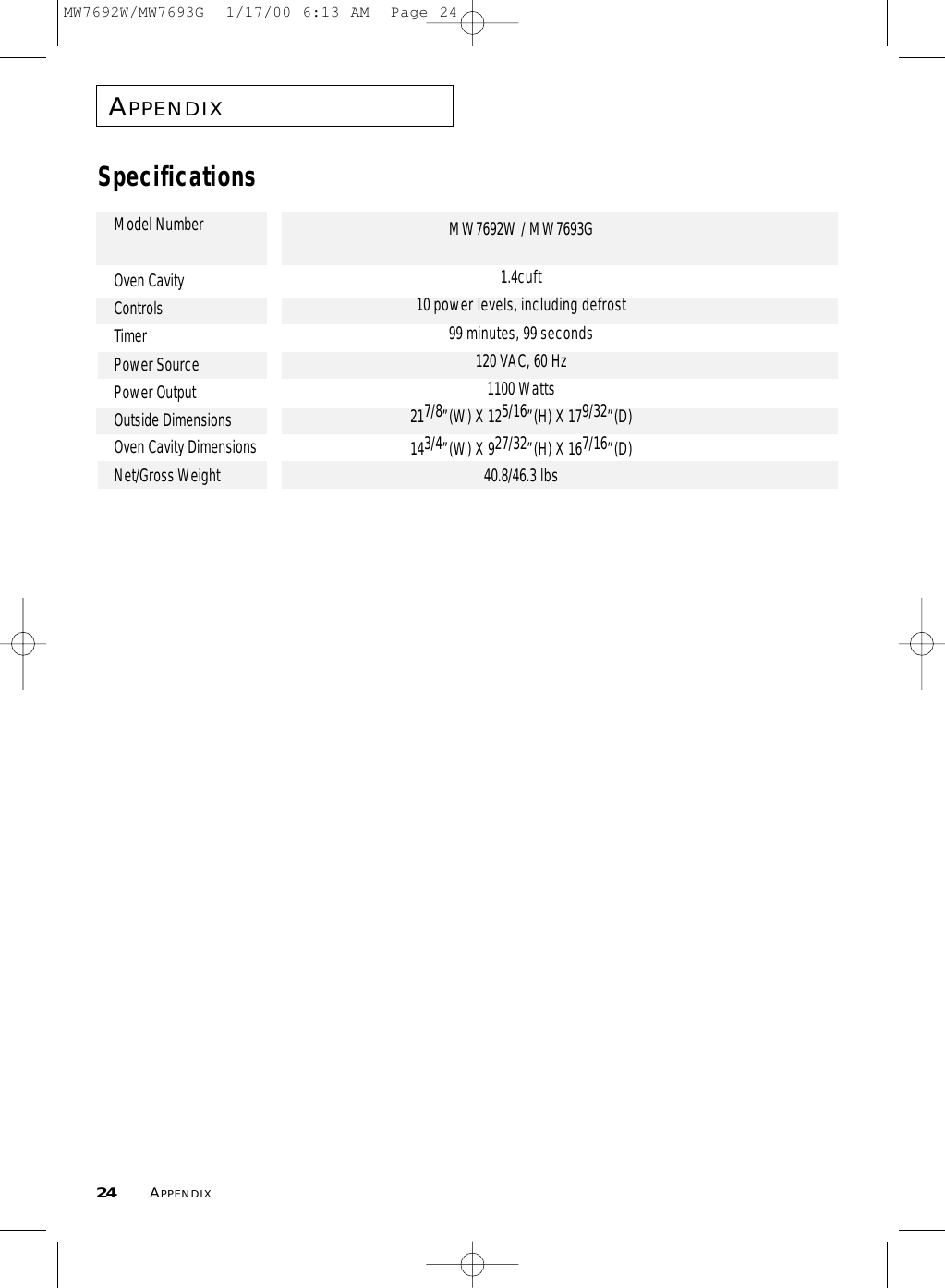

APPENDIX24 APPENDIXSpecificationsModel NumberOven CavityControlsTimerPower SourcePower OutputOutside DimensionsOven Cavity DimensionsNet/Gross WeightMW7692W / MW7693G1.4cuft10 power levels, including defrost99 minutes, 99 seconds120 VAC, 60 Hz1100 Watts217/8”(W) X 125/16”(H) X 179/32”(D)143/4”(W) X 927/32”(H) X 167/16”(D)40.8/46.3 lbsMW7692W/MW7693G 1/17/00 6:13 AM Page 24
QUICKREFERENCEELECTRONICSOperation1. Press RELOJ(CLOCK).2. Use number buttons to enter time.3. Press RELOJ(CLOCK) again.1. Use number buttons to set cooking time.2. Set power level or leave at high. 3. Press INICIO(START).1. Press the UN MINUTO +(ONE MINUTO +) button once for eachminute of cooking.2. The time will display and the oven will start.1. Press button that corresponds to the food you are cooking(for example, PALOMITAS(POPCORN)}.2. Press the button repeatedly to select serving size. 1. Press AUTO DESCONGELADO(AUTO DEGFROST).2. Enter weight of food by pressing AUTO DESCONGELADO(AUTODEGFROST) button repeatedly or using the number buttons.3. When prompted by oven display, press PAUSA/CANCELAR(PAUSA CANCEL) button and turn food over. Press INICIO(START) to resume defrosting cycle.1. Press AUTO RECALENTADO(AUTO REHEAT) repeatedly toselect type of dish to reheat.2. To increase serving size, press the corresponding number button.3. Press INICIO(START) to begin reheating cycle.1. Use number buttons to set cooking time.2. To set power level at other than HIGH, press NIVEL DE POTENCIA(POWER LEVEL) and use the number buttons to enter the power level. 3. Press INICIO(START) to begin cooking. FeatureSet ClockOne Stage CookingOne Minute+ CookingInstant Cook ButtonsAuto DefrostAuto ReheatSet Cooking Time andPower LevelsOctober. 1999Printed in koreaIMPORTER : SAMSUNG ELECTRONICS MEXICO S.A. DE C.V.SATURO NO.44 COL. NUEVA IND. VALLEJOGUSTAVO A. MADERO C.P. 07700 MEXICO, D.F.EXPORTER : SAMSUNG ELECTRONICS CO., LTD.JOONG-ANG DAILY NEWS BLDG.7SOON-WHA-DONG CHUNG-KU,C.P.O BOX 2775, 1144 SEOUL, KOREAMW7692W/MW7693G 1/17/00 6:13 AM Page 25
