Users Manual

164D3370P161 49-40170 12-00 JR Safety InformationAdapter Plugs . . . . . . .9Arcing . . . . . . . . . . . . . .4Extension Cords . . . .10Foods . . . . . . . . . . . .4, 5Grounding Instructions . . . . . . . . .8Microwave-Safe Cookware . . . . . . . . .6, 7Precautions to AvoidPossible Exposure toExcessive MicrowaveEnergy . . . . . . . . . . . . . .2Safety Precautions . .2, 3Operating InstructionsCare and Cleaning . . . . . . . .25, 26Changing thePower Level . . . . . . . .13Convenience Features . . . . . . . . 19–21Cooking Guide . .15, 16Defrosting Guide . . .18Features of Your Microwave Oven 11, 12Microwave Terms . . .24Other Features . . 22–24Time Features . .14–19Troubleshooting TipsBefore You Call For Service . . . . . . . . .27Things That Are Normal With YourMicrowave Oven . . . .28Consumer SupportConsumer Support . . . .Back CoverProduct Registration . . . . .29, 30Warranty . . . . . . . . . . .31www.GEAppliances.comWrite the model and serialnumbers here:#__________________#__________________Find these numbers on a label inside the oven.JEM25Owner’sManualMicrowave Oven49-40170v04 12/22/00 11:33 AM Page 1Code No. : DE68-01560A
■Read and follow the specificprecautions in the Precautionsto Avoid Possible Exposure toExcessive Microwave Energysection above.■This appliance must begrounded. Connect only to a properly groundedoutlet. See the GroundingInstructionssection on page 8.■Install or locate this applianceonly in accordance with theprovided InstallationInstructions.■Be certain to place the frontsurface of the door threeinches or more back from the countertop edge to avoidaccidental tipping of theappliance in normal usage.■Do Not Attemptto operate this oven with the door opensince open-door operationcan result in harmfulexposure to microwaveenergy. It is important not to defeat or tamper with thesafety interlocks.■Do Not Place any objectbetween the oven front faceand the door or allow soilor cleaner residue toaccumulate on sealingsurfaces.■Do Not Operate the oven if itis damaged. It is particularlyimportant that the ovendoor close properly and thatthere is no damage to the:door (bent),hinges and latches (broken or loosened),door seals and sealingsurfaces.■The Oven Should Not beadjusted or repaired byanyone except properlyqualified service personnel.321PRECAUTIONS TO AVOID POSSIBLEEXPOSURE TO EXCESSIVEMICROWAVE ENERGYSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.2For your safety, the information in this manual must befollowed to minimize the risk of fire or explosion, electricshock, or to prevent property damage, personal injury, or loss of life.WARNING! This microwave oven is not approved or tested formarine use.SAFETY PRECAUTIONS49-40170v04 12/22/00 11:33 AM Page 2
www.GEAppliances.com3Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationUse this appliance only for its intended purpose asdescribed in this Owner’s Manual.■Do not mount this applianceover a sink. ■Do not mount the microwaveoven over or near any portionof a heating or cookingappliance.■Do not store anything directlyon top of the microwave ovensurface when the microwaveoven is in operation.■Do not operate this applianceif it has a damaged powercord or plug, if it is notworking properly, or if it hasbeen damaged or dropped. If the power cord is damaged,it must be replaced byGeneral Electric Service or an authorized service agentusing a power cord availablefrom General Electric.■Do not cover or block anyopenings on the appliance.■Use this appliance only for its intended use as describedin this manual. Do not usecorrosive chemicals or vaporsin this appliance. Thismicrowave oven is specificallydesigned to heat, dry or cookfood, and is not intended forlaboratory or industrial use.■Do not store this applianceoutdoors. Do not use thisproduct near water—forexample, in a wet basement,near a swimming pool or near a sink.■Keep power cord away fromheated surfaces.■Do not immerse power cordor plug in water.■Do not let power cord hangover edge of table or counter.■To reduce the risk of fire inthe oven cavity:— Do not overcook food.Carefully attend appliance if paper, plastic or other combustible materials areplaced inside the oven whilecooking.— Remove wire twist-ties andmetal handles from paper or plastic containers beforeplacing them in the oven.— Do not use the oven forstorage purposes. Do notleave paper products,cooking utensils or food inthe oven when not in use.— If materials inside the ovenshould ignite, keep the ovendoor closed, turn the oven offand disconnect the powercord, or shut off power at thefuse or circuit breaker panel.If the door is opened, the firemay spread.■See door surface cleaninginstructions in the Care andcleaning of the microwave ovensection of this manual.■This appliance should beserviced only by qualifiedservice personnel. Contactnearest authorized servicefacility for examination,repair or adjustment.■As with any appliance, closesupervision is necessary whenused by children.49-40170v04 12/22/00 11:33 AM Page 3
Arcing is the microwave termfor sparks in the oven. Arcing is caused by:■Metal or foil touching theside of the oven.■Foil not molded to food(upturned edges act likeantennas).■Metal, such as twist-ties,poultry pins, or gold-rimmeddishes, in the microwave.■Recycled paper towelscontaining small metal piecesbeing used in the microwave.■Do not pop popcorn in yourmicrowave oven unless in aspecial microwave popcornaccessory or unless you usepopcorn labeled for use inmicrowave ovens.■Some products such as whole eggs and sealedcontainers—for example,closed jars—will explode andshould not be heated in thismicrowave oven. Such use ofthe microwave oven couldresult in injury.■Do not boil eggs in amicrowave oven. Pressure willbuild up inside egg yolk andwill cause it to burst, possiblyresulting in injury.■Operating the microwavewith no food inside for morethan a minute or two maycause damage to the ovenand could start a fire. Itincreases the heat around themagnetron and can shortenthe life of the oven.■Foods with unbroken outer“skin” such as potatoes, hotdogs, sausages, tomatoes,apples, chicken livers andother giblets, and egg yolksshould be pierced to allowsteam to escape duringcooking.FOODSSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.4WARNING! If you see arcing, press the CLEAR/OFF pad and correctthe problem.ARCING49-40170v04 12/22/00 11:33 AM Page 4
■SUPERHEATED WATERMicrowaved water and otherliquids do not always bubblewhen they reach the boilingpoint. They can actually getsuperheated and not bubble at all.Superheated liquid will bubbleup out of the cup when it ismoved or when something like a spoon or tea bag is put into it.To prevent this from happeningand causing injury, do not heatany liquid for more than 2minutes per cup. After heating,let the cup stand in themicrowave for 30 secondsbefore moving it or puttinganything into it.■Avoid heating baby food inglass jars, even with the lid off.Make sure all infant food isthoroughly cooked. Stir foodto distribute the heat evenly.Be careful to prevent scaldingwhen warming formula. Thecontainer may feel coolerthan the formula really is.Always test the formula beforefeeding the baby.■Don’t defrost frozenbeverages in narrow-neckedbottles (especially carbonatedbeverages). Even if thecontainer is opened, pressurecan build up. This can causethe container to burst,possibly resulting in injury.■Spontaneous boiling—Undercertain special circumstances,liquids may start to boilduring or shortly afterremoval from the microwaveoven. To prevent burns fromsplashing liquid, werecommend the following:before removing thecontainer from the oven,allow the container to stand inthe oven for 30 to 40 secondsafter the oven has shut off. Donot boil liquids in narrow-necked containers such as softdrink bottles, wine flasks andespecially narrow-neckedcoffee cups. Even if thecontainer is opened, excessivesteam can build up and causeit to burst or overflow.■Hot foods and steam cancause burns. Be careful whenopening any containers of hotfood, including popcorn bags,cooking pouches and boxes.To prevent possible injury,direct steam away from handsand face.■Do not overcook potatoes.They could dehydrate andcatch fire, causing damage to your oven.■Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry to at least anINTERNAL temperature of 180°F. Cooking to these temperatures usually protects againstfoodborne illness.www.GEAppliances.com5Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information49-40170v04 12/22/00 11:33 AM Page 5
Make sure all cookware used inyour microwave oven is suitablefor microwaving. Most glasscasseroles, cooking dishes,measuring cups, custard cups,pottery or china dinnerwarewhich does not have metallictrim or glaze with a metallicsheen can be used. Somecookware is labeled “suitablefor microwaving.”■If you are not sure if a dish ismicrowave-safe, use this test:Place in the oven both thedish you are testing and aglass measuring cup filledwith 1 cup of water—set themeasuring cup either in ornext to the dish. Microwave 1 minute at high. If the dishheats, it should not be usedfor microwaving. If the dish remains cool andonly the water in the cupheats, then the dish ismicrowave-safe.■If you use a meatthermometer while cooking,make sure it is safe for use in microwave ovens.■Do not use recycled paperproducts. Recycled papertowels, napkins and waxedpaper can contain metalflecks which may cause arcingor ignite. Paper productscontaining nylon or nylonfilaments should be avoided,as they may also ignite. ■Some styrofoam trays (likethose that meat is packagedon) have a thin strip of metalembedded in the bottom.When microwaved, the metalcan burn the floor of the ovenor ignite a paper towel.■Do not use the microwave todry newspapers.■Not all plastic wrap is suitablefor use in microwave ovens.Check the package forproper use.■Paper towels, waxed paperand plastic wrap can be usedto cover dishes in order toretain moisture and preventspattering. Be sure to ventplastic wrap so steam canescape.■Cookware may become hotbecause of heat transferredfrom the heated food. Potholders may be needed tohandle the cookware.MICROWAVE-SAFE COOKWARESafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.6WARNING! 49-40170v04 12/22/00 11:33 AM Page 6

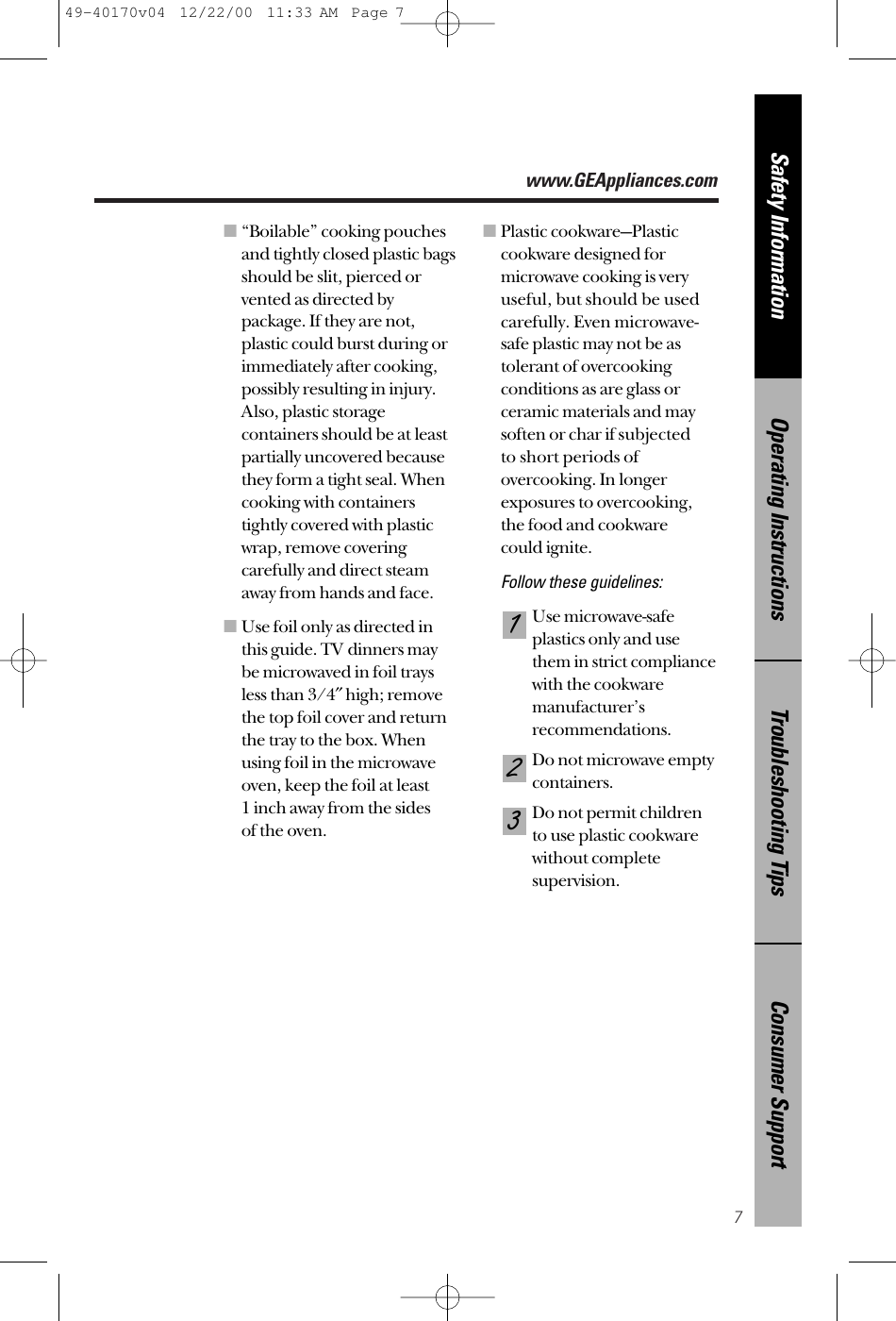

www.GEAppliances.com7Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information■“Boilable” cooking pouchesand tightly closed plastic bagsshould be slit, pierced orvented as directed bypackage. If they are not,plastic could burst during orimmediately after cooking,possibly resulting in injury.Also, plastic storagecontainers should be at leastpartially uncovered becausethey form a tight seal. Whencooking with containerstightly covered with plasticwrap, remove coveringcarefully and direct steamaway from hands and face.■Use foil only as directed inthis guide. TV dinners maybe microwaved in foil traysless than 3/4″high; removethe top foil cover and returnthe tray to the box. Whenusing foil in the microwaveoven, keep the foil at least 1 inch away from the sides of the oven.■Plastic cookware—Plasticcookware designed formicrowave cooking is veryuseful, but should be usedcarefully. Even microwave-safe plastic may not be astolerant of overcookingconditions as are glass orceramic materials and maysoften or char if subjected to short periods ofovercooking. In longerexposures to overcooking,the food and cookware could ignite. Follow these guidelines: Use microwave-safe plastics only and use them in strict compliancewith the cookware manufacturer’s recommendations. Do not microwave empty containers. Do not permit children to use plastic cookware without complete supervision.32149-40170v04 12/22/00 11:33 AM Page 7
This appliance must be grounded. In the event of an electrical shortcircuit, grounding reduces the risk of electric shock by providing anescape wire for the electric current. This appliance is equipped with a power cord having a groundingwire with a grounding plug. The plug must be plugged into anoutlet that is properly installed and grounded.Consult a qualified electrician or service technician if the groundinginstructions are not completely understood, or if doubt exists as towhether the appliance is properly grounded.If the outlet is a standard 2-prong wall outlet, it is your personalresponsibility and obligation to have it replaced with a properlygrounded 3-prong wall outlet.Do not under any circumstances cut or remove the third (ground)prong from the power cord.We do not recommend using an extension cord with this appliance.If the power cord is too short, have a qualified electrician or servicetechnician install an outlet near the appliance. (See WARNING—EXTENSION CORDSsection.)For best operation, plug this appliance into its own electrical outletto prevent flickering of lights, blowing of fuse or tripping of circuitbreaker.GROUNDING INSTRUCTIONSSafety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.8WARNING! Improper use of the grounding plug can result in a risk ofelectric shock.49-40170v04 12/22/00 11:33 AM Page 8
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationUsage situations where appliance’s power cord will be disconnectedinfrequently.Because of potential safety hazards under certain conditions,we strongly recommend against the use of an adapter plug.However, if you still elect to use an adapter, where local codes permit, aTEMPORARY CONNECTIONmay bemade to a properly grounded two-prong wall receptacle by the use of aUL listed adapter which is available at most local hardware stores.The larger slot in the adapter must be aligned with the larger slot inthe wall receptacle to provide proper polarity in the connection ofthe power cord.CAUTION:Attaching the adapter ground terminal to the wallreceptacle cover screw does not ground the appliance unless the coverscrew is metal, and not insulated, and the wall receptacle is groundedthrough the house wiring. You should have the circuit checked by a qualified electrician tomake sure the receptacle is properly grounded.When disconnecting the power cord from the adapter, always holdthe adapter with one hand. If this is not done, the adapter groundterminal is very likely to break with repeated use. Should thishappen, DO NOT USEthe appliance until a proper ground has againbeen established.Usage situations where appliance’s power cord will be disconnectedfrequently.Do not use an adapter plugin these situations because frequentdisconnection of the power cord places undue strain on the adapterand leads to eventual failure of the adapter ground terminal. Youshould have the two-prong wall receptacle replaced with a three-prong (grounding) receptacle by a qualified electrician beforeusing the appliance.ADAPTER PLUGS9Ensure proper ground and firm connectionbefore use.TEMPORARYMETHODAlign largeprongs/slots(Adapter plugs notpermitted in Canada)49-40170v04 12/22/00 11:33 AM Page 9
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.10WARNING! A short power supply cord is provided to reduce the risks resultingfrom becoming entangled in or tripping over a longer cord.Extension cords may be used if you are careful in using them.If an extension cord is used—The marked electrical rating of the extension cord should be atleast as great as the electrical rating of the appliance;The extension cord must be a grounding-type 3-wire cord and itmust be plugged into a 3-slot outlet;The extension cord should be arranged so that it will not drapeover the countertop or tabletop where it can be pulled on bychildren or tripped over unintentionally.If you use an extension cord, the interior light may flicker and theblower sound may vary when the microwave oven is on. Cookingtimes may be longer, too.321EXTENSION CORDSREAD AND FOLLOW THIS SAFETYINFORMATION CAREFULLY.SAVE THESE INSTRUCTIONS49-40170v04 12/22/00 11:33 AM Page 10
11About the features of your microwave oven.www.GEAppliances.com Throughout this manual, features and appearance may vary from your model.650 WattsFeatures of the OvenDoor Latches.Window with Metal Shield. Screen allows cooking to beviewed while keeping microwaves confined in the oven.Touch Control Panel Display. In the event of a powerfailure, or if the microwave has been unplugged, PFwill be displayed and the clock must be reset.Door Latch Release. Press latch release to open door.Removable Turntable.Turntable and support mustbe in place when using the oven. The turntable may beremoved for cleaning.Convenience Guide.NOTE: Rating plate, oven vent(s) and oven light are located on the insidewalls of the microwave oven.132465123456Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information49-40170v04 12/22/00 11:33 AM Page 11
Check the Convenience Guide before you begin.Time FeaturesPress EnterTIME COOK Amount of cooking time(Press once or twice)TIME DEFROST Amount of defrosting timeEXPRESS COOK Starts immediately!30 SEC. Starts immediately!POWER LEVEL Power level 1–10Convenience FeaturesPress Enter OptionPOPCORN Starts immediately! 3.5 oz., 3 oz. or 1.75 oz.(press once, twice or three times) more/less timeREHEAT Food type 1–7 Serving sizeBEVERAGEStarts immediately!4 oz., 8 oz. or 12 oz.(press once, twice or three times)AUTO DEFROST Food weightAbout the features of your microwave oven.You can microwave by time or with the convenience features. TIME COOK TIME DEFROSTPOWERLEVEL30 SEC.POPCORN REHEATBEVERAGE AUTO DEFROST1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK4EXPRESS COOKCooking Controls121 2Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support1249-40170v04 12/22/00 11:33 AM Page 12
The power level may be entered or changedimmediately after entering the feature time for TIME COOK, TIME DEFROSTor EXPRESS COOK.The powerlevel may also be changed during time countdown.Press TIME COOK or TIME DEFROST.Enter cooking or defrosting time.Press POWER LEVEL.Select desired power level 1–10.Press START.Variable power levels add flexibility to microwavecooking. The power levels on the microwave oven can becompared to the surface units on a range. Each powerlevel gives you microwave energy a certain percent of thetime. Power level 7is microwave energy 70% of the time.Power level 3is energy 30% of the time. Most cookingwill be done on High (power level 10)which gives you100% power. Power level 10will cook faster but foodmay need more frequent stirring, rotating or turningover. A lower setting will cook more evenly and need lessstirring or rotating of the food. Some foods may havebetter flavor, texture or appearance if one of the lowersettings is used. Use a lower power level when cookingfoods that have a tendency to boil over, such as scallopedpotatoes.Rest periods (when the microwave energy cycles off)give time for the food to “equalize” or transfer heat tothe inside of the food. An example of this is shown withpower level 3—the defrost cycle. If microwave energy didnot cycle off, the outside of the food would cook beforethe inside was defrosted.Here are some examples of uses for various power levels:High 10:Fish, bacon, vegetables, boiling liquids.Med-High 7: Gentle cooking of meat and poultry; bakingcasseroles and reheating.Medium 5: Slow cooking and tenderizing for stews andless tender cuts of meat.Low 3: Defrosting; simmering; delicate sauces.Warm 1: Keeping food warm; softening butter.54321Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information13About changing the power level.www.GEAppliances.com1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKPOWERLEVELSTART/PAUSE49-40170v04 12/22/00 11:33 AM Page 13
About the time features.Time CookTime Cook IAllows you to microwave for any time up to 99 minutesand 99 seconds. Power level 10 (High)is automatically set, but you maychange it for more flexibility. Press TIME COOK.Enter cooking time.Change power level if you don’t want full power. (Press POWER LEVEL.Select a desired power level 1–10.)Press START.You may open the door during Time Cookto check the food. Close the door and press STARTto resumecooking.Time Cook IILets you change power levels automatically duringcooking. Here’s how to do it:Press TIME COOK.Enter the first cook time. Change the power level if you don’t want full power. (Press POWER LEVEL.Select a desired power level 1–10.)Press TIME COOKagain.Enter the second cook time.Change the power level if you don’t want full power. (Press POWER LEVEL.Select a desired power level 1–10.)Press START.At the end of Time Cook I, Time Cook IIcounts down.765432143211EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKTIME COOKSTART/PAUSESafety InformationOperating InstructionsTroubleshooting TipsConsumer Support1449-40170v04 12/22/00 11:33 AM Page 14
15Consumer SupportTroubleshooting TipsOperating InstructionsSafety Informationwww.GEAppliances.comCooking Guide for Time Cook NOTE: Use power level High (10) unless otherwise noted.Vegetable Amount Time CommentsAsparagus(fresh spears)1 lb. 8 to 10 min., In 11⁄2-qt. casserole, place 1/4 cup Med-High (7) water. (frozen spears)10-oz. package 6 to 8 min. In 1-qt. casserole.Beans(fresh green)1 lb. cut in half 13 to 17 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green)10-oz. package 7 to 9 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima)10-oz. package 7 to 9 min. In 1-qt. casserole, place 1/4 cupwater.Beets(fresh, whole)1 bunch 20 to 25 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut)1 bunch 8 to 10 min. In 2-qt. casserole, place 1/2 cup (11⁄4to 11⁄2lbs.) water.(fresh spears)1 bunch 10 to 13 min. In 2-qt. casserole, place 1/4 cup (11⁄4to 11⁄2lbs.) water. (frozen, 10-oz. package 6 to 8 min. In 1-qt. casserole.chopped)(frozen spears)10-oz. package 6 to 8 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh)1 medium head 11 to 13 min. In 11⁄2- or 2-qt. casserole, place (about 2 lbs.) 1/4 cup water.(wedges)14 to 16 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced)1 lb. 7 to 9 min. In 11⁄2-qt. casserole, place 1/4 cupwater.(frozen)10-oz. package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets)1 medium head 10 to 14 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole)1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.(frozen)10-oz. package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.49-40170v04 12/22/00 11:33 AM Page 15
About the time features.Vegetable Amount Time CommentsCorn(frozen kernel)10-oz. package 5 to 8 min. In 1-qt. casserole, place 2 tablespoons water.Corn on the cob(fresh)1 to 3 ears 4 to 5 min. In round glass baking dish, place per ear corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time. (frozen)1 ear 6 to 7 min. Place in round glass baking dish.2 to 3 ears 3 to 4 min. Cover with vented plastic wrap. per ear Rearrange after half of time. Mixed vegetables(frozen)10-oz. package 5 to 8 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled)2 lbs. unshelled 10 to 12 min. In 1-qt. casserole, place 1/4 cup water.(frozen)10-oz. package 5 to 8 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed,4 potatoes 12 to 14 min. Peel and cut into 1-inch cubes. white)(6 to 8 oz. each) Place in 2-qt.casserole with 1/2 cup water. Stir after half of time.(fresh, whole,1 (6 to 8 oz.) 3 to 5 min. Pierce with cooking fork. Place sweet or white)in center of the oven. Let stand 5 minutes.Spinach(fresh)10 to 16 oz. 6 to 8 min. In 2-qt. casserole, place washed spinach.(frozen, chopped 10-oz. package 6 to 8 min. In 1-qt. casserole, place and leaf) 3 tablespoons water.Squash(fresh, summer1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place 1/4 and yellow)cup water.(winter, acorn1 squash 8 to 11 min. Cut in half and remove fibrous or butternut)(about 1 lb.)membranes. In round glass baking dish, place squash cut-side-down. Turn cut-side-up after 4 minutes. Safety InformationOperating InstructionsTroubleshooting TipsConsumer Support1649-40170v04 12/22/00 11:33 AM Page 16
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information17www.GEAppliances.comTime DefrostAllows you to defrost for a selected length of time. See the Defrosting Guidefor suggested times. Press TIME DEFROST.Enter defrosting time.Press START. Power level is automatically set at 3, but can be changed.You can defrost small items quickly by raising the powerlevel after entering the time. Power level 7cuts the totaldefrosting time in about half; power level 10cuts thetotal time to approximately 1/3. However, food willneed more frequent attention than usual.A dull thumping noise may be heard during defrosting.This is normal when oven is not operating at Highpower.Defrosting Tips■Foods frozen in paper or plastic can be defrosted inthe package. Closed packages should be slit, piercedor vented AFTER food has partially defrosted. Plasticstorage containers should be partially uncovered.■Family-size, prepackaged frozen dinners can bedefrosted and microwaved. If the food is in a foilcontainer, transfer it to a microwave-safe dish.■Foods that spoil easily should not be allowed to sit out for more than one hour after defrosting. Roomtemperature promotes the growth of harmfulbacteria.■For more even defrosting of larger foods, such asroasts, use Auto Defrost.Be sure large meats arecompletely defrosted before cooking.■When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the microwavevery briefly, or let it stand a few minutes.3211EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKTIME DEFROSTSTART/PAUSE49-40170v04 12/22/00 11:33 AM Page 17
About the time features.Food Time CommentsBreads, CakesBread, buns or rolls (1 piece)1 min.Sweet rolls (approx. 12 oz.)4 to 6 min.Fish and SeafoodFillets, frozen (1 lb.)9 to 12 min.Shellfish, small pieces(1 lb.)6 to 8 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch—1 or 24 to 7 min.(10-oz. package)Meat Bacon (1 lb.)4 to 6 min. Place unopened package in oven. Let stand 5 minutes after defrosting. Franks (1 lb.)4 to 6 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat (1 lb.)6 to 8 min. Turn meat over after half the time.Roast: beef, lamb, veal, pork12 to 16 min.Use power level 1.per lb.Steaks, chops and cutlets6 to 10 min. Place unwrapped meat in cooking per lb. dish. Turn over after half the time and shield warm areas with foil. When finished, separate pieces and let stand to complete defrosting.PoultryChicken, broiler-fryer18 to 22 min.Place wrapped chicken in dish. Unwrapcut up (21⁄2to 3 lbs.)and turn over after half the time. When finished, separate pieces and microwave2 to 4 minutes more, if necessary. Let stand to finish defrosting.Chicken, whole24 to 28 min.Place wrapped chicken in dish. After half (21⁄2to 3 lbs.)the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.Cornish hen10 to 16 min. Place unwrapped hen in the oven per lb. breast-side-up. Turn over after half the time. Run cool water in the cavity until giblets can be removed.Turkey breast (4 to 6 lbs.)6 to 10 min. Place unwrapped breast in dish breast-per lb. side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1 to 2 hours in refrigerator to complete defrosting.Defrosting GuideSafety InformationOperating InstructionsTroubleshooting TipsConsumer Support1849-40170v04 12/22/00 11:33 AM Page 18
About the convenience features.PopcornTo use the Popcornfeature:Follow package instructions, using Time Cookif thepackage is less than 1.75 ounces or larger than 3.5ounces. Place the package of popcorn in the centerof the microwave.Press POPCORN once for a 3.5 ounce package ofpopcorn, twice for a 3.0 ounce package or threetimes for a 1.75 ounce package. The oven startsimmediately.How to Adjust the Popcorn Program to Provide a Shorter orLonger Cook TimeIf you find that the brand of popcorn you use underpopsor overcooks consistently, you can add or subtract 20seconds to the automatic popping time.To add time:After pressing POPCORN,press 9immediately after theoven starts for an extra 20 seconds.To subtract time:After pressing POPCORN,press 1immediately afterthe oven starts for 20 seconds less cooking time.21POPCORN91EXPRESS COOK(less time) (more time)Consumer SupportTroubleshooting TipsOperating InstructionsSafety Information19www.GEAppliances.comExpress CookThis is a quick way to set cooking time for 1–6 minutes.Press one of the Express Cookpads (from 1 to 6) for 1 to 6 minutes of cooking at power level 10.For example,press the 2pad for 2 minutes of cooking time. The power level can be changed as time is countingdown. Press POWER LEVELand enter 1–10.1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK4EXPRESS COOK30 SecondsYou can use this feature two ways:■It will add 30 seconds to the time counting down eachtime the pad is pressed.■It can be used as a quick way to set 30 seconds ofcooking time.30 SEC.Use only with prepackagedmicrowave popcorn weighing 1.75 to 3.5 ounces.49-40170v04 12/22/00 11:33 AM Page 19
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the convenience features.ReheatThe Reheatfeature reheats many previously cooked foods.Press REHEAT.Select food type 1–7 for one serving (see ReheatGuidebelow).For food types 1–6, press 2or 3to reheat 2 or 3 servings.Press START.NOTE: The serving size may be changed or added afterpressing START by pressing number pads 1, 2 or 3.Serving size for food type 7 cannot be changed.4321REHEATSTART/PAUSE1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK201 PastaCover with lid or vented plastic wrap.2 Meats, casseroles, pizzaCover with lid or vented plastic wrap.3 Fruits and vegetablesCover with lid or vented plastic wrap.4 Beverages, 8–10 oz.Use wide mouth mug.5 Sauces and graviesCover with lid or vented plastic wrap.6 Pizza (pieces)Do not cover.7 Plate of leftoversCover with vented plastic wrap.(2 to 3 foods, 4 oz. each)Food Type CommentsReheat Guide BEVERAGEBeverageTo Use the Beverage Feature:Press BEVERAGE once for a 4 oz. beverage, twice for an 8 oz. beverage or three times for a 12 oz. beverage.Drinks heated with the Beverage feature may be very hot.Remove the container with care.49-40170v04 12/22/00 11:33 AM Page 20

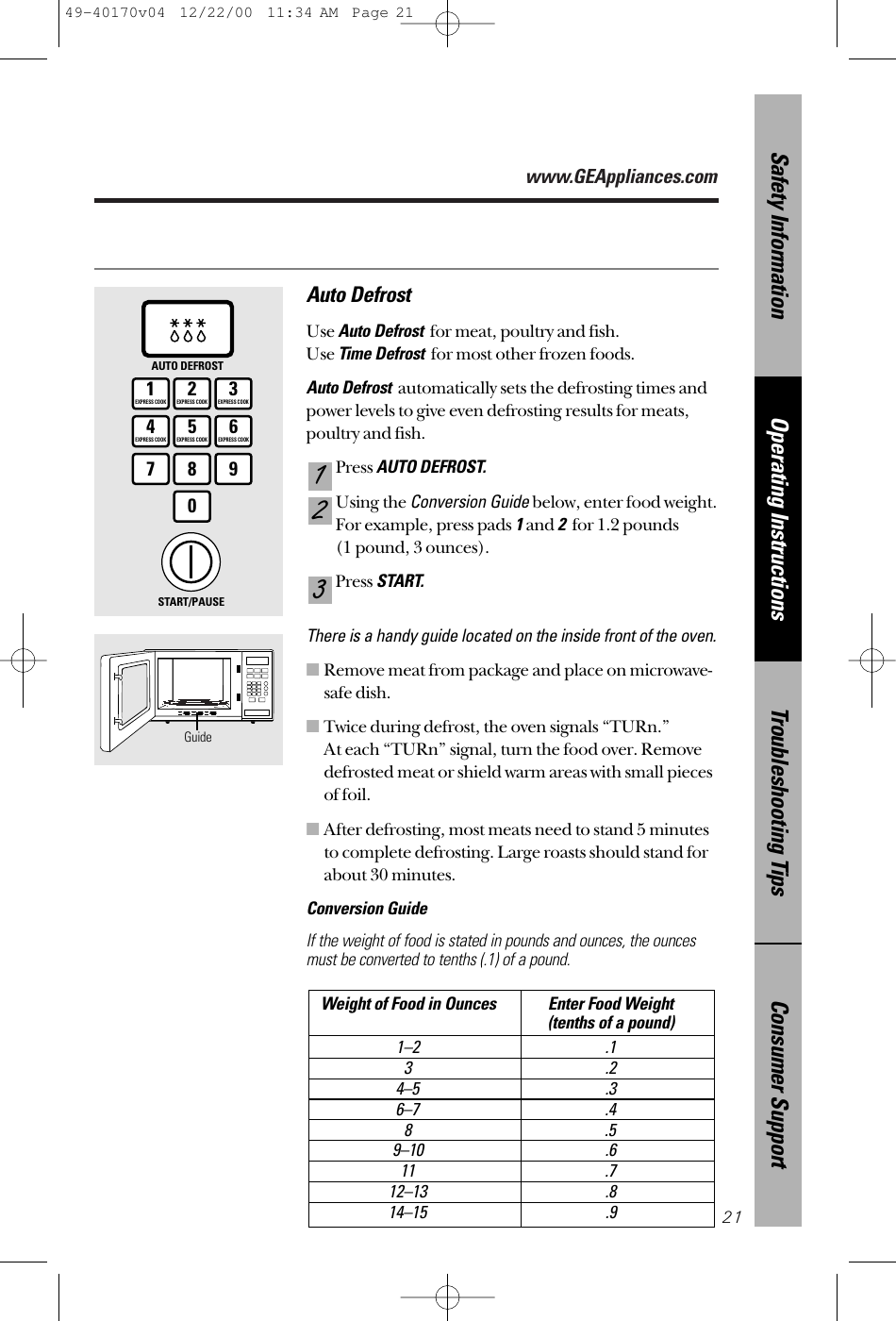

www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationAuto DefrostUse Auto Defrostfor meat, poultry and fish. Use Time Defrostfor most other frozen foods.Auto Defrostautomatically sets the defrosting times andpower levels to give even defrosting results for meats,poultry and fish.Press AUTO DEFROST.Using the Conversion Guidebelow, enter food weight.For example, press pads 1and 2for 1.2 pounds (1 pound, 3 ounces).Press START.There is a handy guide located on the inside front of the oven. ■Remove meat from package and place on microwave-safe dish.■Twice during defrost, the oven signals “TURn.”At each “TURn” signal, turn the food over. Removedefrosted meat or shield warm areas with small piecesof foil.■After defrosting, most meats need to stand 5 minutesto complete defrosting. Large roasts should stand forabout 30 minutes.Conversion GuideIf the weight of food is stated in pounds and ounces, the ouncesmust be converted to tenths (.1) of a pound.Weight of Food in Ounces Enter Food Weight(tenths of a pound)1–2 .13.24–5 .36–7 .48.59–10 .611 .712–13 .814–15 .9321Guide211EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKAUTO DEFROSTSTART/PAUSE49-40170v04 12/22/00 11:34 AM Page 21
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the other features.22ClockPress to enter the time of day or to check the time of daywhile microwaving.Press CLOCK.Enter time of day.Press STARTor CLOCK.321To remind you that you have food in the oven, the oven willbeep once a minute until you either open the oven door orpress CLEAR/OFF.Cooking Complete ReminderDelay Delay allows you to set the microwave to delay cookingup to 12 hours.Press DELAY.Enter the time you want the oven to start. (Be surethe microwave clock shows the correct time of day.)Select your desired cooking program.Press START.The Delay time will be displayed. The oven willautomatically start at the delayed time.The time of day may be displayed by pressing CLOCK.43211EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKCLOCK1EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKDELAYChild Lock-OutYou may lock the control panel to prevent the microwavefrom being accidentally started or used by children.To lock or unlock the controls, press and hold CLEAR/OFFfor about three seconds. When the control panel islocked, LOCwill be displayed.STOPCLEARCLEAROFF49-40170v04 12/22/00 11:34 AM Page 22
www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationTimerThis pad performs three functions:■It operates as a minute timer.■It can be set to delay cooking.■It can be used as a hold setting after defrosting.TheTimeroperates without microwave energy.How to Use as a Minute TimerPressTIMER.Enter the amount of time you want to count down.Press START.When the time is up, the timer will signal.How to Use to Delay the Start of CookingYou can set the microwave to delay cooking up to 99minutes and 99 seconds.Press TIME COOK and enter the amount of cookingtime.Press TIMERand enter the amount of time to delaythe start of cooking.Press START.The timer will begin counting down tozero and cooking will then begin.How to Use to Set a Holding TimeYou can set a holding time between Defrostand Time Cook,from one second to 99 minutes.Press TIME DEFROST.Enter defrosting time.Press TIMER.Enter the amount of time you want the oven to hold.Press TIME COOK.Enter cooking time.Press START.7654321321321231EXPRESS COOK3EXPRESS COOK2EXPRESS COOK5EXPRESS COOK6EXPRESS COOK78904EXPRESS COOKTIMER49-40170v04 12/22/00 11:34 AM Page 23
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportAbout the other features.24Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:■metal or foil touching the side of the oven.■foil that is not molded to food (upturned edges act like antennas).■metal such as twist-ties, poultry pins, gold-rimmed dishes.■recycled paper towels containing small metal pieces.CoveringCovers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.ShieldingIn a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing TimeWhen you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.VentingAfter covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.Term DefinitionMicrowave terms.START/PAUSEIn addition to starting many functions, START/PAUSEallows you to stop cooking without opening the door orclearing the display.START/PAUSE49-40170v04 12/22/00 11:34 AM Page 24

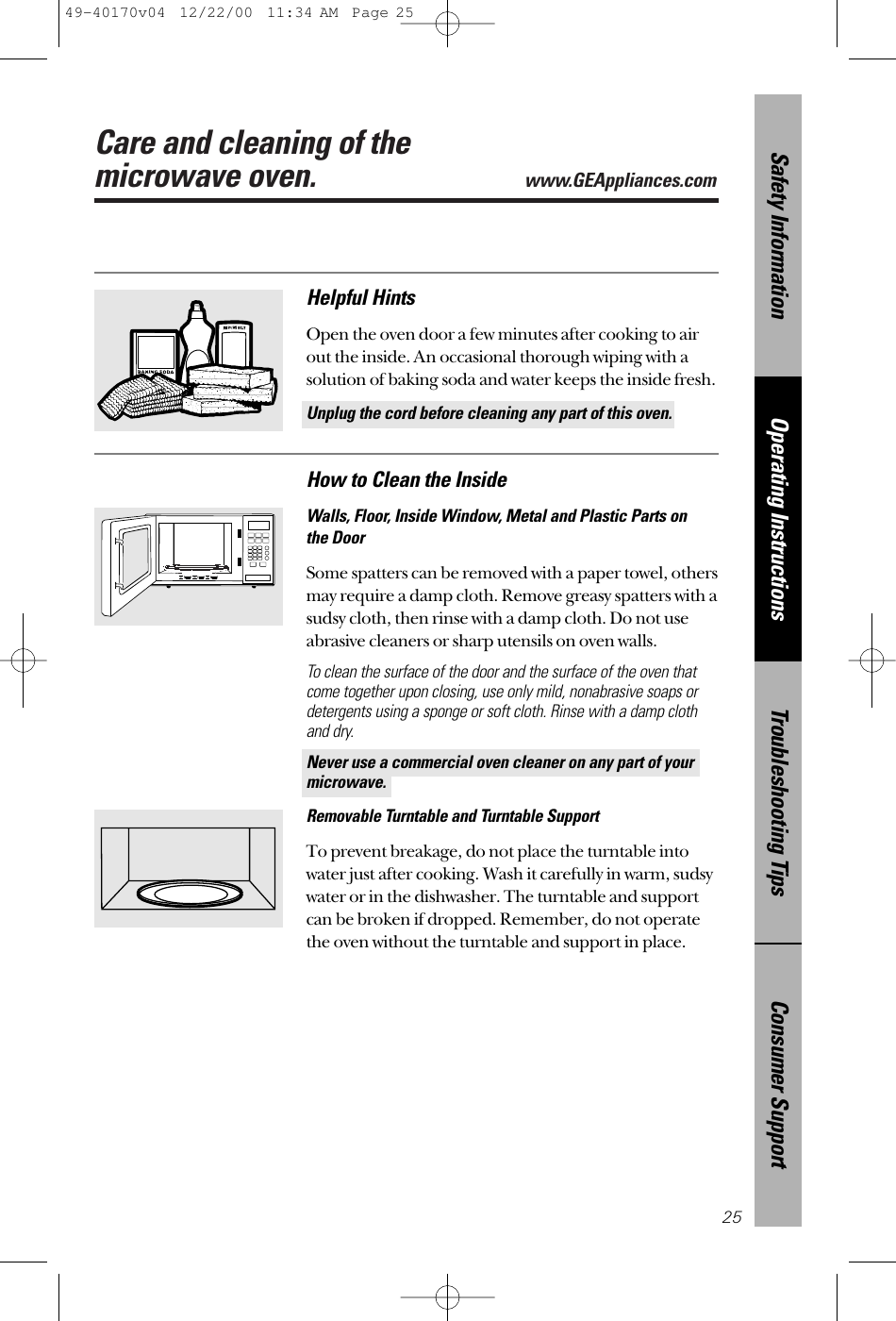

Care and cleaning of the microwave oven. www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Information25Helpful HintsOpen the oven door a few minutes after cooking to airout the inside. An occasional thorough wiping with asolution of baking soda and water keeps the inside fresh.Unplug the cord before cleaning any part of this oven.How to Clean the InsideWalls, Floor, Inside Window, Metal and Plastic Parts on the DoorSome spatters can be removed with a paper towel, othersmay require a damp cloth. Remove greasy spatters with asudsy cloth, then rinse with a damp cloth. Do not useabrasive cleaners or sharp utensils on oven walls. To clean the surface of the door and the surface of the oven thatcome together upon closing, use only mild, nonabrasive soaps ordetergents using a sponge or soft cloth. Rinse with a damp clothand dry.Never use a commercial oven cleaner on any part of yourmicrowave.Removable Turntable and Turntable Support To prevent breakage, do not place the turntable intowater just after cooking. Wash it carefully in warm, sudsywater or in the dishwasher. The turntable and supportcan be broken if dropped. Remember, do not operatethe oven without the turntable and support in place.49-40170v04 12/22/00 11:34 AM Page 25
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportCare and cleaning of the microwave oven.26How to Clean the OutsideDo not use cleaners containing ammonia or alcohol on themicrowave oven. Ammonia or alcohol can damage theappearance of the microwave.CaseClean the outside of the microwave with a sudsy cloth.Rinse and then dry. Wipe the window clean with a damp cloth. Control Panel and DoorWipe with a damp cloth. Dry thoroughly. Do not usecleaning sprays, large amounts of soap and water,abrasives or sharp objects on the panel—they candamage it. Some paper towels can also scratch thecontrol panel.Door SurfaceIt’s important to keep the area clean where the doorseals against the microwave. Use only mild, non-abrasivedetergents applied with a clean sponge or soft cloth.Rinse well.49-40170v04 12/22/00 11:34 AM Page 26
Before you call for service… www.GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InformationTroubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.Problem Possible Causes What To DoOven will not startA fuse in your home •Replace fuse or reset may be blown or the circuit breaker.circuit breaker tripped.Power surge. •Unplug the microwave oven, then plug it back in.Plug not fully inserted •Make sure the 3-prong into wall outlet. plug on the oven is fully inserted into wall outlet.Door not securely closed. •Open the door and closesecurely.Control panel lighted, Door not securely closed. •Open the door and closeyet oven will not startsecurely.STARTpad not pressed •Press START.after entering cookingselection.Another selection entered •Press CLEAR/OFF.already in oven andCLEAR/OFFpad notpressed to cancel it.Cooking time not entered •Make sure you have after pressing TIME COOK.entered cooking timeafter pressing TIME COOK.CLEAR/OFF was pressed •Reset cooking programaccidentally. and press START.Food weight not entered •Make sure you have after pressing AUTOentered food weightDEFROST.after pressing AUTO DEFROST.Food type not entered •Make sure you have after pressing REHEAT.entered a food type.“PF” shows in the displayPower failure or •Reset the clock.microwave has beenunplugged.2749-40170v04 12/22/00 11:34 AM Page 27
Safety InformationOperating InstructionsTroubleshooting TipsConsumer SupportBefore you call for service…28■Steam or vapor escaping from around the door.■Light reflection around door or outer case.■Dimming oven light and change in the blower sound at powerlevels other than high.■Dull thumping sound while oven is operating.■TV/radio interference might be noticed while using themicrowave. Similar to the interference caused by other smallappliances, it does not indicate a problem with the microwave.Plug the microwave into a different electrical circuit, move theradio or TV as far away from the microwave as possible, or checkthe position and signal of the TV/radio antenna.Things That Are Normal With Your Microwave Oven49-40170v04 12/22/00 11:34 AM Page 28
GE Service Protection Plus™GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!Benefits Include:• Backed by GE• All brands covered• Unlimited service calls• All parts and labor costs included• No out-of-pocket expenses• No hidden deductibles• One 800 number to callYou will be completely satisfied with our service protection or you may request yourmoney back on the remaining value of your contract. No questions asked. It’s that simple.Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and muchmore—any brand! Plus there’s no extra charge for emergency service and low monthlyfinancing is available. Even icemaker coverage and food spoilage protection is offered.You can rest easy, knowing that all your valuable household products are protectedagainst expensive repairs.Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224for more information.*All brands covered, up to 20 years old, in the continental U.S.We’ll Cover Any Appliance.Anywhere. Anytime.*General Electric CompanyWarranty Registration DepartmentP.O. Box 32150Louisville, KY 40232-2150Please place in envelope and mail to:Cut here✂2949-40170v04 12/22/00 11:34 AM Page 29
Day YearStreetAddressConsumer Product Ownership RegistrationDear Customer:Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!Follow these three steps to protect your new appliance investment:Complete and mailyour ConsumerProduct OwnershipRegistration today.Have the peace ofmind of knowing wecan contact you inthe unlikely event ofa safety modification.After mailing the registration below,store this document ina safe place. Itcontains informationyou will need shouldyou require service. Our service number is800 GE CARES (800-432-2737).Read your Owner’sManual carefully.It will help youoperate your newappliance properly.123Model Number Serial NumberImportant: If you did not get a registration card with your product, detach andreturn the form below to ensure that your product is registered, orregister online at www.GEAppliances.com.First NameApt. #CityLast NameZipCodeStatePhoneNumberGE AppliancesGeneral Electric Company Louisville, Kentuckywww.GEAppliances.comMr. Ms. Mrs. Miss E-mail AddressOccasionally, we may allow selected companies to send you information. Check here if you do not want this information.Consumer Product Ownership RegistrationModel Number Serial NumberImportantMailToday!Date Placed In UseMonthCut here✂3049-40170v04 12/22/00 11:34 AM Page 30
GE Microwave Oven Warranty.Consumer SupportTroubleshooting TipsOperating InstructionsSafety InformationThis warranty is extended to the original purchaser and any succeeding owner for products purchasedfor home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls toyour home.Some states do not allow the exclusion or limitation of incidental or consequential damages. Thiswarranty gives you specific legal rights, and you may also have other rights which vary from state tostate. To know what your legal rights are, consult your local or state consumer affairs office or yourstate’s Attorney General.■Service trips to your home to teach youhow to use the product.■Improper installation.■Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.■Replacement of house fuses orresetting of circuit breakers.■Damage to the product caused byaccident, fire, floods or acts of God.■Incidental or consequential damagecaused by possible defects with thisappliance.What GE Will Not Cover:31All warranty service provided by ourFactory Service Centers, or an authorizedCustomer Care®technician. To scheduleservice, on-line, 24 hours a day, contact us at www.GEAppliances.com, or call 800-GE-CARES.Staple your receipt here.Proof of the originalpurchase date is needed to obtain service under the warranty.For The Period Of: GE Will Replace:One Year Any partof the microwave oven which fails due to a From the date of thedefect in materials or workmanship. During this original purchase one-year limited warranty, GE will also provide, free of charge,all labor to replace the defective part. You will be responsible for any in-home service costs. Four Years The magnetron tube, if the magnetron tube fails due to For the second througha defect in materials or workmanship. During this fifth year from the date additional three-year limited warranty, you will be of the original purchaseresponsible for any labor or in-home service costs.For each of the above warranties: To avoid any trip charges, you must take the microwave oven to a General Electric Customer Care®servicer and pick it up following service. In-home service is alsoavailable, but you must pay for the service technician’s travel costs to your home.49-40170v04 12/22/00 11:34 AM Page 31
Printed in MalaysiaConsumer Support. GE Appliances Websitewww.GEAppliances.comHave a question or need assistance with your appliance? Try the GE Appliances Website24 hours a day, any day of the year! For greater convenience and faster service, you cannow download Owner’s Manuals, order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” your questions, and so much more...Schedule Servicewww.GEAppliances.comExpert GE repair service is only one step away from your door. Get on-line and scheduleyour service at your convenience 24 hours any day of the year! Or call 800-GE-CARES(800-432-2737) during normal business hours.Real Life Design Studiowww.GEAppliances.comGE supports the Universal Design concept—products, services and environments thatcan be used by people of all ages, sizes and capabilities. We recognize the need to designfor a wide range of physical and mental abilities and impairments. For details of GE’sUniversal Design applications, including kitchen design ideas for people withdisabilities, check out our Website today. For the hearing impaired, please call 800-TDD-GEAC (800-833-4322). Extended Warrantieswww.GEAppliances.comPurchase a GE extended warranty and learn about special discounts that are availablewhile your warranty is still in effect. You can purchase it on-line anytime, or call 800-626-2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.Parts and Accessories www.GEAppliances.comIndividuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800-626-2002 during normalbusiness hours.Instructions contained in this manual cover procedures to be performed by any user. Otherservicing generally should be referred to qualified service personnel. Caution must beexercised, since improper servicing may cause unsafe operation. Contact Uswww.GEAppliances.comIf you are not satisfied with the service you receive from GE, contact us on our Websitewith all the details including your phone number, or write to: General Manager, Customer RelationsGE Appliances, Appliance ParkLouisville, KY 40225Register Your Appliancewww.GEAppliances.comRegister your new appliance on-line—at your convenience! Timely product registrationwill allow for enhanced communication and prompt service under the terms of yourwarranty, should the need arise. You may also mail in the pre-printed registration cardincluded in the packing material, or detach and use the form in this Owner’s Manual.49-40170v04 12/22/00 11:34 AM Page 32
