Microwave Oven164D3370P322 49-40392 06-03 JRJEM25Owner’s ManualSafety Instructions . . . . . . . . . .2–11Operating InstructionsAuto Feature . . . . . . . . . . . . . . .21Care and Cleaning . . . . . . . .30, 31Changing Power Level . . . . . . . .14Features of Your Microwave Oven . . . . . . . . . .12, 13Microwave Terms . . . . . . . . . . . .29Other Features . . . . . . . . . . 26–28Sensor Features . . . . . . . . . .22–25Time Features . . . . . . . . . . .15–20Troubleshooting Tips . . . . . .32, 33Things That Are Normal With Your Microwave Oven . . . .33Consumer SupportConsumer Support . . .Back CoverWarranty . . . . . . . . . . . . . . . . . . .35Write the model and serial numbers here:Model # __________________________Serial # __________________________You can find them on a label inside ofthe oven.GEAppliances.com49-40392 v04 6/29/03 2:17 PM Page 1

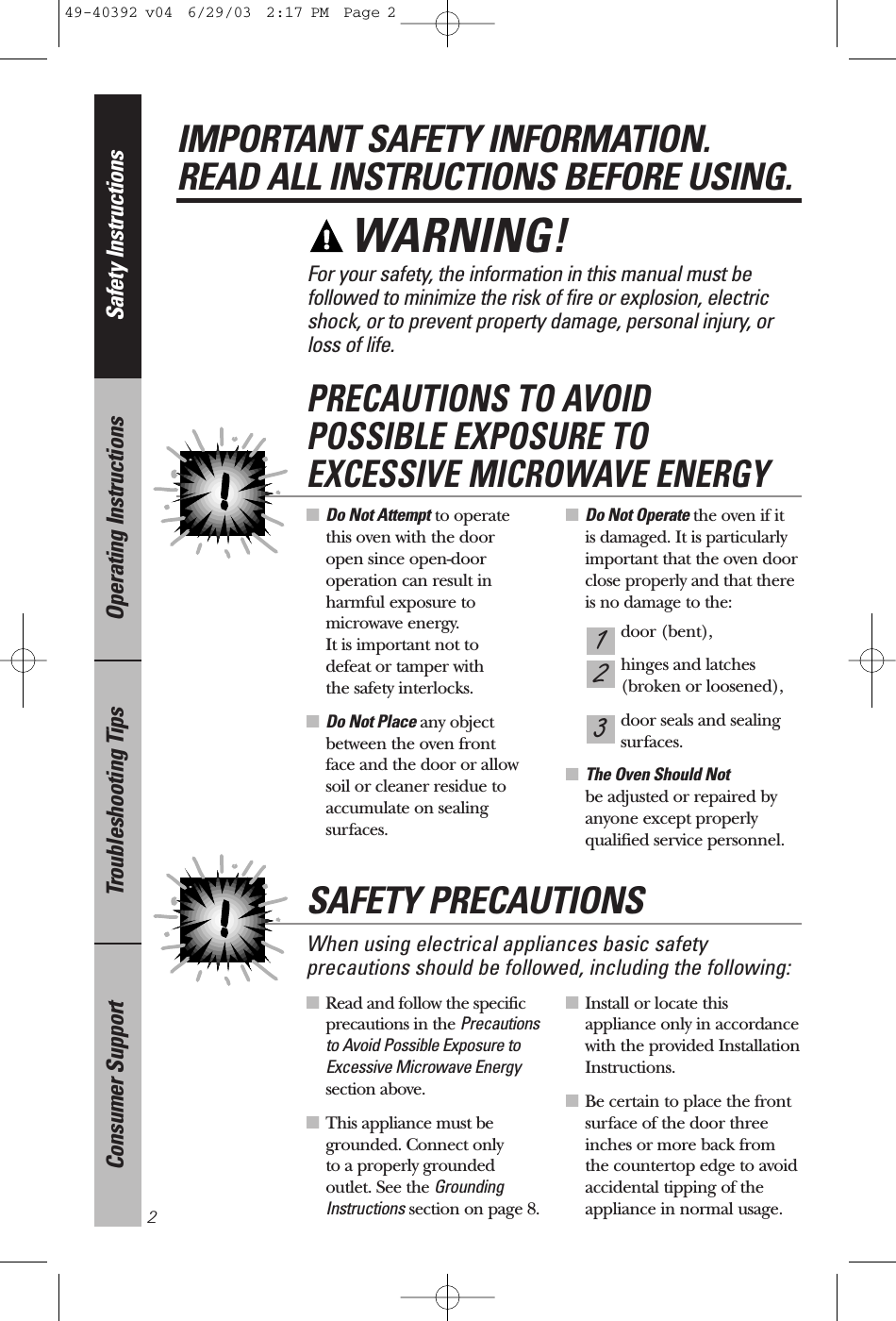

■Read and follow the specificprecautions in the Precautionsto Avoid Possible Exposure toExcessive Microwave Energysection above.■This appliance must begrounded. Connect only to a properly grounded outlet. See the GroundingInstructions section on page 8.■Install or locate this appliance only in accordancewith the provided InstallationInstructions.■Be certain to place the frontsurface of the door threeinches or more back from the countertop edge to avoidaccidental tipping of theappliance in normal usage.■Do Not Attempt to operate this oven with the door open since open-dooroperation can result inharmful exposure tomicrowave energy. It is important not to defeat or tamper with the safety interlocks.■Do Not Place any objectbetween the oven front face and the door or allowsoil or cleaner residue toaccumulate on sealing surfaces.■Do Not Operate the oven if it is damaged. It is particularlyimportant that the oven doorclose properly and that thereis no damage to the:door (bent),hinges and latches (broken or loosened),door seals and sealingsurfaces.■The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel.321PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYSafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.2For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electricshock, or to prevent property damage, personal injury, or loss of life.WARNING! When using electrical appliances basic safetyprecautions should be followed, including the following:SAFETY PRECAUTIONS49-40392 v04 6/29/03 2:17 PM Page 2
3Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsUse this appliance only for its intended purpose as described in thisOwner’s Manual.■This microwave oven is not approvedor tested for marine use.■Do not mount this appliance over a sink. ■Do not mount the microwave ovenover or near any portion of a heatingor cooking appliance.■Do not store anything directly on topof the microwave oven surface whenthe microwave oven is in operation.■Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. If thepower cord is damaged, it must bereplaced by General Electric Serviceor an authorized service agent using a power cord available from GeneralElectric.■Do not cover or block any openingson the appliance.■Use this appliance only for itsintended use as described in thismanual. Do not use corrosivechemicals or vapors in this appliance.This microwave oven is specificallydesigned to heat, dry or cook food,and is not intended for laboratory or industrial use.■Do not store this appliance outdoors.Do not use this product near water—for example, in a wet basement, neara swimming pool, near a sink or insimilar locations.■Keep power cord away from heatedsurfaces.■Do not immerse power cord or plug in water.■Do not let power cord hang over edge of table or counter.■To reduce the risk of fire in the oven cavity:— Do not overcook food. Carefullyattend appliance when paper, plasticor other combustible materials areplaced inside the oven while cooking.— Remove wire twist-ties and metalhandles from paper or plasticcontainers before placing them in the oven.— Do not use the oven for storagepurposes. Do not leave paperproducts, cooking utensils or food in the oven when not in use.— If materials inside the oven ignite,keep the oven door closed, turn theoven off and disconnect the powercord, or shut off power at the fuse orcircuit breaker panel. If the door isopened, the fire may spread.■See door surface cleaning instructionsin the Care and cleaning of themicrowave ovensection of this manual.■This appliance must only be servicedby qualified service personnel.Contact nearest authorized servicefacility for examination, repair oradjustment.■As with any appliance, closesupervision is necessary when used by children.GEAppliances.com49-40392 v04 6/29/03 2:17 PM Page 3
Arcing is the microwave termfor sparks in the oven. Arcing is caused by:■Metal or foil touching theside of the oven.■Foil not molded to food(upturned edges act likeantennas).■Metal, such as twist-ties, poultry pins, or gold-rimmeddishes, in the microwave.■Recycled paper towels containing small metal piecesbeing used in the microwave.■Do not pop popcorn in yourmicrowave oven unless in a special microwave popcornaccessory or unless you usepopcorn labeled for use inmicrowave ovens.■Some products such as whole eggs and sealed containers—for example,closed jars—are able toexplode and should not beheated in this microwaveoven. Such use of themicrowave oven could result in injury.■Do not boil eggs in amicrowave oven. Pressure will build up inside egg yolkand will cause it to burst, possibly resulting in injury.■Operating the microwavewith no food inside for morethan a minute or two maycause damage to the ovenand could start a fire. It increases the heat aroundthe magnetron and canshorten the life of the oven.■Foods with unbroken outer“skin” such as potatoes, hot dogs, sausages, tomatoes,apples, chicken livers andother giblets, and egg yolksshould be pierced to allowsteam to escape during cooking.FOODSSafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.4WARNING! If you see arcing, press the CLEAR/OFF pad and correctthe problem.ARCING49-40392 v04 6/29/03 2:17 PM Page 4

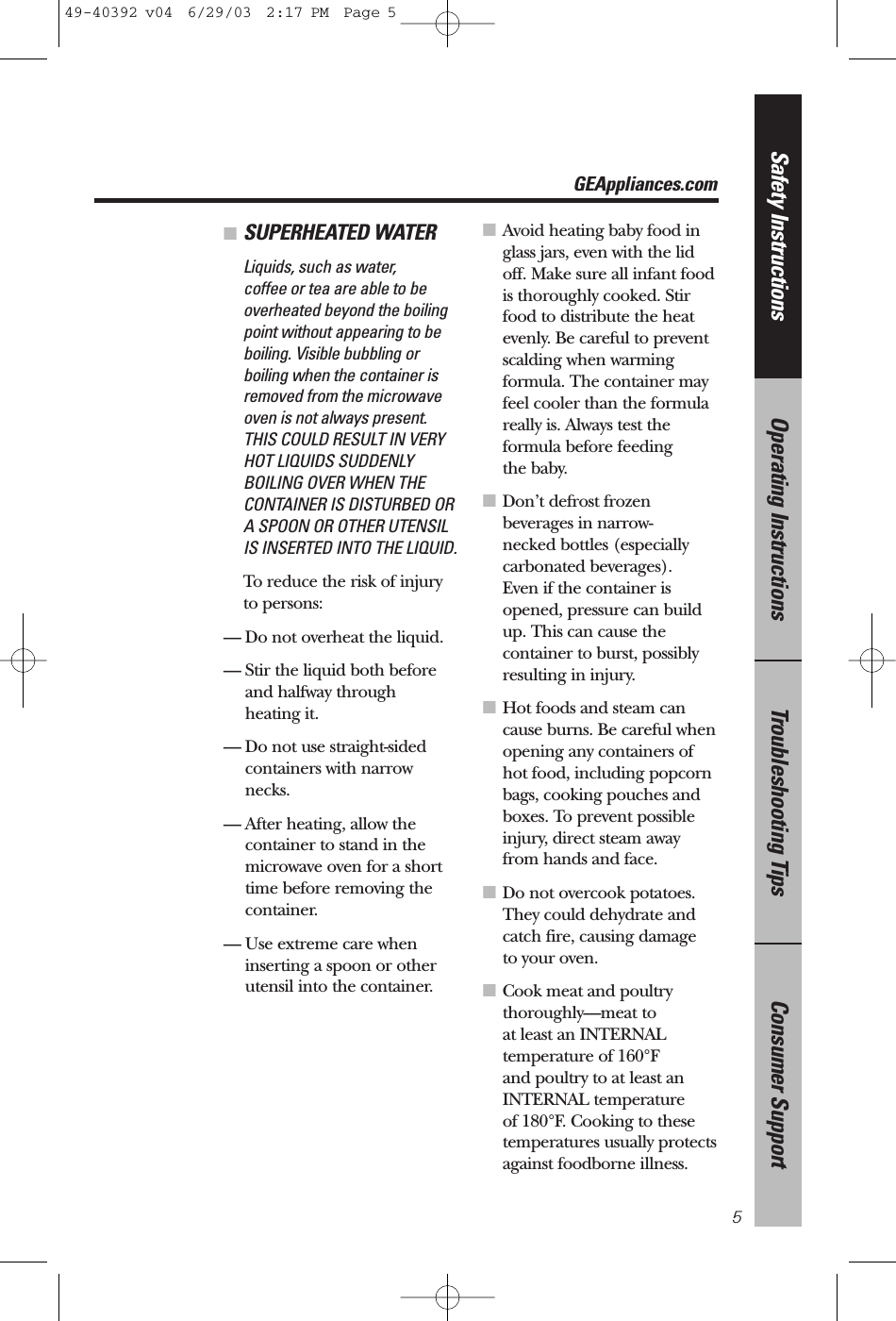

GEAppliances.com5Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions■SUPERHEATED WATERLiquids, such as water, coffee or tea are able to beoverheated beyond the boilingpoint without appearing to beboiling. Visible bubbling orboiling when the container isremoved from the microwaveoven is not always present.THIS COULD RESULT IN VERYHOT LIQUIDS SUDDENLYBOILING OVER WHEN THECONTAINER IS DISTURBED ORA SPOON OR OTHER UTENSILIS INSERTED INTO THE LIQUID.To reduce the risk of injuryto persons:— Do not overheat the liquid.— Stir the liquid both beforeand halfway through heating it.— Do not use straight-sidedcontainers with narrownecks.— After heating, allow thecontainer to stand in themicrowave oven for a shorttime before removing thecontainer.— Use extreme care wheninserting a spoon or otherutensil into the container.■Avoid heating baby food inglass jars, even with the lidoff. Make sure all infant foodis thoroughly cooked. Stirfood to distribute the heatevenly. Be careful to preventscalding when warming formula. The container mayfeel cooler than the formulareally is. Always test the formula before feeding the baby.■Don’t defrost frozen beverages in narrow-necked bottles (especiallycarbonated beverages). Even if the container isopened, pressure can buildup. This can cause thecontainer to burst, possiblyresulting in injury.■Hot foods and steam cancause burns. Be careful whenopening any containers ofhot food, including popcornbags, cooking pouches andboxes. To prevent possibleinjury, direct steam awayfrom hands and face.■Do not overcook potatoes.They could dehydrate andcatch fire, causing damage to your oven.■Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least anINTERNAL temperature of 180°F. Cooking to thesetemperatures usually protectsagainst foodborne illness.49-40392 v04 6/29/03 2:17 PM Page 5
Make sure all cookware used inyour microwave oven is suitablefor microwaving. Most glasscasseroles, cooking dishes,measuring cups, custard cups,pottery or china dinnerwarewhich does not have metallictrim or glaze with a metallicsheen can be used. Some cookware is labeled “suitable for microwaving.”■If you are not sure if a dish ismicrowave-safe, use this test:Place in the oven both thedish you are testing and a glass measuring cup filledwith 1 cup of water—set themeasuring cup either in ornext to the dish. Microwave one minute at high. If thedish heats, it should not beused for microwaving. If the dish remains cool and only the water in the cup heats, then the dish ismicrowave-safe.■If you use a meat thermometer while cooking,make sure it is safe for use in microwave ovens.■Do not use recycled paperproducts. Recycled papertowels, napkins and waxedpaper can contain metalflecks which may causearcing or ignite. Paperproducts containing nylon or nylon filaments should be avoided, as they may also ignite. ■Some styrofoam trays (likethose that meat is packagedon) have a thin strip of metalembedded in the bottom.When microwaved, the metalcan burn the floor of theoven or ignite a paper towel.■Do not use the microwave todry newspapers.■Not all plastic wrap is suitablefor use in microwave ovens.Check the package for proper use.■Paper towels, waxed paperand plastic wrap can be usedto cover dishes in order toretain moisture and preventspattering. Be sure to ventplastic wrap so steam canescape.■Cookware may become hotbecause of heat transferredfrom the heated food. Pot holders may be neededto handle the cookware.MICROWAVE-SAFE COOKWARESafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.6WARNING! 49-40392 v04 6/29/03 2:17 PM Page 6
GEAppliances.com7Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions■“Boilable” cooking pouchesand tightly closed plastic bagsshould be slit, pierced orvented as directed by package. If they are not, plastic could burst during orimmediately after cooking,possibly resulting in injury.Also, plastic storage containers should be at leastpartially uncovered becausethey form a tight seal. Whencooking with containers tightly covered with plasticwrap, remove covering carefully and direct steamaway from hands and face.■Use foil only as directed inthis guide. TV dinners maybe microwaved in foil traysless than 3/4″high; removethe top foil cover and returnthe tray to the box. Whenusing foil in the microwaveoven, keep the foil at least 1″away from the sides of the oven.■Plastic cookware—Plasticcookware designed formicrowave cooking is veryuseful, but should be usedcarefully. Even microwave-safe plastic may not be as tolerant of overcooking conditions as are glass orceramic materials and may soften or char ifsubjected to short periods of overcooking. In longer exposures to overcooking,the food and cookware could ignite. Follow these guidelines: Use microwave-safeplastics only and use them in strictcompliance with the cookwaremanufacturer’srecommendations. Do not microwave empty containers. Do not permit childrento use plastic cookwarewithout completesupervision.32149-40392 v04 6/29/03 2:17 PM Page 7
This appliance must be grounded. In the event of an electricalshort circuit, grounding reduces the risk of electric shock byproviding an escape wire for the electric current. This appliance is equipped with a power cord having a groundingwire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.Consult a qualified electrician or service technician if the groundinginstructions are not completely understood, or if doubt exists as towhether the appliance is properly grounded.If the outlet is a standard 2-prong wall outlet, it is your personalresponsibility and obligation to have it replaced with a properlygrounded 3-prong wall outlet.Do not under any circumstances cut or remove the third (ground)prong from the power cord.We do not recommend using an extension cord with this appliance.If the power cord is too short, have a qualified electrician or servicetechnician install an outlet near the appliance. (See WARNING—EXTENSION CORDS section.)For best operation, plug this appliance into its own electrical outletto prevent flickering of lights, blowing of fuse or tripping of circuitbreaker.GROUNDING INSTRUCTIONSSafety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.8WARNING! Improper use of the grounding plug can result in a risk ofelectric shock.49-40392 v04 6/29/03 2:17 PM Page 8
GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsUsage situations where appliance’s power cord will be disconnectedinfrequently.Because of potential safety hazards under certain conditions,we strongly recommend against the use of an adapter plug. However, if you still elect to use an adapter, where local codes permit, a TEMPORARY CONNECTION may be made to a properly grounded 2-prong wall receptacle by the use of a UL-listed adapter which isavailable at most local hardware stores.The larger slot in the adapter must be aligned with the larger slotin the wall receptacle to provide proper polarity in the connectionof the power cord.CAUTION: Attaching the adapter ground terminal to the wall receptaclecover screw does not ground the appliance unless the cover screw ismetal, and not insulated, and the wall receptacle is grounded through the house wiring. You should have the circuit checked by a qualified electrician tomake sure the receptacle is properly grounded.When disconnecting the power cord from the adapter, always holdthe adapter with one hand. If this is not done, the adapter groundterminal is very likely to break with repeated use. Should this happen, DO NOT USE the appliance until a proper ground has again been established.Usage situations where appliance’s power cord will be disconnectedfrequently.Do not use an adapter plug in these situations because frequent disconnection of the power cord places undue strain on theadapter and leads to eventual failure of the adapter groundterminal. You should have the 2-prong wall receptacle replacedwith a 3-prong (grounding) receptacle by a qualified electricianbefore using the appliance.ADAPTER PLUGS9Ensure proper ground and firm connectionbefore use.TEMPORARYMETHODAlign largeprongs/slots(Adapter plugs notpermitted in Canada)49-40392 v04 6/29/03 2:17 PM Page 9
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportIMPORTANT SAFETY INFORMATION.READ ALL INSTRUCTIONS BEFORE USING.10WARNING! A short power supply cord is provided to reduce the risks resultingfrom becoming entangled in or tripping over a longer cord.Extension cords may be used if you are careful in using them.If an extension cord is used—The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;The extension cord must be a grounding-type 3-wire cord andit must be plugged into a 3-slot outlet;The extension cord should be arranged so that it will notdrape over the countertop or tabletop where it can be pulledon by children or tripped over unintentionally.If you use an extension cord, the interior light may flicker and theblower sound may vary when the microwave oven is on. Cookingtimes may be longer, too.321EXTENSION CORDS49-40392 v04 6/29/03 2:17 PM Page 10

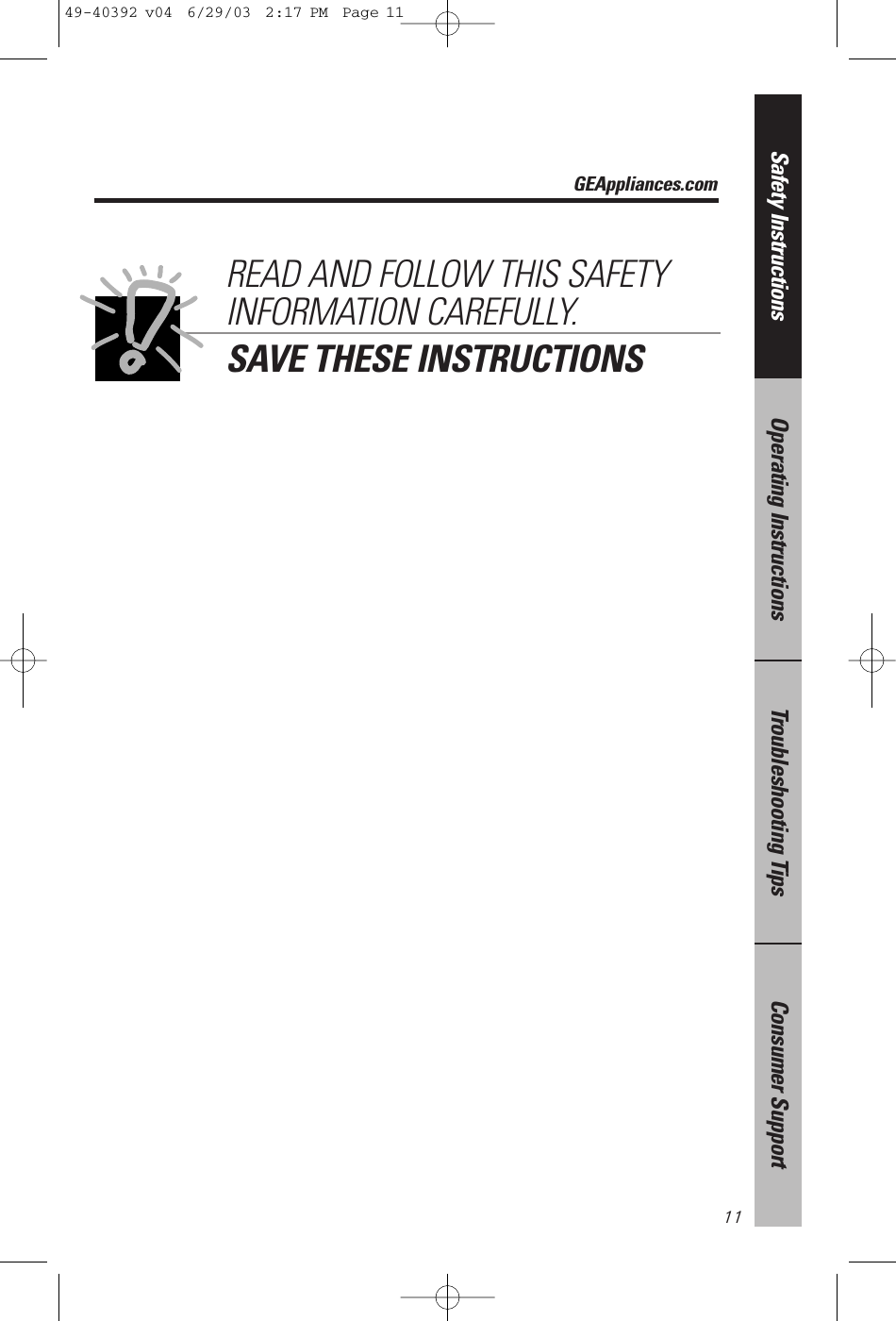

GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions11READ AND FOLLOW THIS SAFETYINFORMATION CAREFULLY.SAVE THESE INSTRUCTIONS49-40392 v04 6/29/03 2:17 PM Page 11
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer Support12About the features of your microwave oven.Throughout this manual, features and appearance may vary from your model.Features of the OvenDoor Latches.Window with Metal Shield. Screen allows cooking to be viewedwhile keeping microwaves confined in the oven.Touch Control Panel Display.Door Latch Release. Press latch release to open door.Removable Turntable. Turntable and support must be in placewhen using the oven. The turntable may be removed forcleaning.Convenience Guide.NOTE: Rating plate, oven vent(s) and oven light are located on the insidewalls of the microwave oven.Available at extra cost from your GE supplier.04-A019 Hanging Kit allows this oven to be mounted under a cabinet.JX827 27 ″ Built-In Kit allows this oven to be built into a cabinet or wall.Optional Accessories800 Watts49-40392 v04 6/29/03 2:17 PM Page 12
Check the Convenience Guide before you begin.Time FeaturesPress EnterTIME COOK Amount of cooking timePress once or twiceTIME DEFROST Amount of defrosting timeEXPRESS COOK Starts immediately!ADD 30 SEC Starts immediately!POWER LEVEL Power level 1–10Convenience Features and Auto FeaturePress Enter OptionPOPCORN Starts immediately! 3.0 or 3.5 oz.BEVERAGE Starts immediately! 4, 8, or 12 oz.REHEAT Food type 1–7 Serving sizeSNACKS Food type 1–6 Food weightCOOK Food type 1–9 Food weightAUTO DEFROST Food weightConsumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsYou can microwave by time, with the convenience features or with the auto feature.GEAppliances.comCooking Controls1349-40392 v04 6/29/03 2:17 PM Page 13
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout changing the power level.14The power level may be entered or changed immediately after entering the feature time for TIMECOOK, TIME DEFROST or EXPRESS COOK. The power level may also be changed during time countdown.Press TIME COOK orTIME DEFROST.Enter cooking or defrosting time.Press POWER LEVEL.Select desired power level 1–10.Press START.Variable power levels add flexibility to microwave cooking. The power levels on the microwave oven can be compared to the surface units on a range. Each power level gives you microwave energy a certainpercent of the time. Power level 7 is microwave energy70% of the time. Power level 3 is energy 30% of thetime. Most cooking will be done on High (power level 10)which gives you 100% power. Power level 10 will cookfaster but food may need more frequent stirring,rotating or turning over. A lower setting will cook moreevenly and need less stirring or rotating of the food.Some foods may have better flavor, texture orappearance if one of the lower settings is used. Use a lower power level when cooking foods that have atendency to boil over, such as scalloped potatoes.Rest periods (when the microwave energy cycles off)give time for the food to “equalize” or transfer heat tothe inside of the food. An example of this is shown withpower level 3—the defrost cycle. If microwave energydid not cycle off, the outside of the food would cookbefore the inside was defrosted.Here are some examples of uses for various power levels:High 10: Fish, bacon, vegetables, boiling liquids.Med-High 7: Gentle cooking of meat and poultry; baking casseroles and reheating.Medium 5: Slow cooking and tenderizing for stews andless tender cuts of meat.Low 2 or 3: Defrosting; simmering; delicate sauces.Warm 1: Keeping food warm; softening butter.5432149-40392 v04 6/29/03 2:17 PM Page 14
About the time features. GEAppliances.comTime CookTime Cook IAllows you to microwave for any time up to 99 minutesand 99 seconds. Power level 10 (High) is automatically set, but you maychange it for more flexibility. Press TIME COOK.Enter cooking time.Change power level if you don’t want full power.(Press POWER LEVEL. Select a desired power level1–10.)Press START.You may open the door during Time Cook to check the food. Close the door and press START to resumecooking.Time Cook IILets you change power levels automatically during cooking. Here’s how to do it:Press TIME COOK. Enter the first cook time. Change the power level if you don’t want fullpower. (Press POWER LEVEL. Select a desired power level 1–10.)Press TIME COOK again.Enter the second cook time.Change the power level if you don’t want fullpower. (Press POWER LEVEL. Select a desired power level 1–10.)Press START.At the end of Time Cook I, Time Cook II counts down.7654321432115Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions49-40392 v04 6/29/03 2:17 PM Page 15
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.Cooking Guide for Time Cook NOTE: Use power level High (10) unless otherwise noted.16Vegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 7 to 10 min., In 11⁄2-qt. oblong glass baking Med-High (7) dish, place 1/4 cup water. (frozen spears) 10-oz. package 5 to 8 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 12 to 17 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz. package 5 to 9 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz. package 5 to 9 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 18 to 25 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch 7 to 10 min. In 2-qt. casserole, place (11⁄4to 11⁄2lbs.) 1/2 cup water.(fresh spears) 1 bunch 9 to 13 min. In 2-qt. oblong glass baking dish,(11⁄4to 11⁄2lbs.) place 1/4 cup water.(frozen, 10-oz. package 5 to 8 min. In 1-qt. casserole.chopped)(frozen spears) 10-oz. package 5 to 8 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head 8 to 11 min. In 11⁄2- or 2-qt. casserole, place (about 2 lbs.) 1/4 cup water.(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 6 to 9 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 5 to 8 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 9 to 17 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz. package 5 to 8 min. In 1-qt. casserole, place 2 tablespoons water.49-40392 v04 6/29/03 2:17 PM Page 16
GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsVegetable Amount Time CommentsCorn(frozen kernel) 10-oz. package 4 to 8 min. In 1-qt. casserole, place 2 tablespoons water.Corn on the cob(fresh) 1 to 5 ears 3 to 5 min. In 2-qt. oblong glass baking per ear dish, place corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time. (frozen) 1 ear 5 to 7 min. Place in 2-qt. oblong glass 2 to 6 ears 2 to 4 min. baking dish. Cover with vented per ear plastic wrap. Rearrange after half of time. Mixed vegetables(frozen) 10-oz. package 4 to 8 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled 9 to 12 min. In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 4 to 8 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes 11 to 14 min. Peel and cut into 1″cubes. white) (6 to 8 oz. each) Place in 2-qt. casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz.) 2 to 5 min. Pierce with cooking fork. Place sweet or white) in center of the oven. Let stand 5 minutes.Spinach(fresh) 10 to 16 oz. 5 to 8 min. In 2-qt. casserole, place washed spinach.(frozen, chopped 10-oz. package 5 to 8 min. In 1-qt. casserole, place and leaf) 3 tablespoons water.Squash(fresh, summer1 lb. sliced 4 to 7 min. In 11⁄2-qt. casserole, place 1/4 and yellow) cup water.(winter, acorn 1 or 2 squash 7 to 11 min. Cut in half and remove fibrous or butternut)(about 1 lb. each)membranes. In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-upafter 4 minutes. 1749-40392 v04 6/29/03 2:17 PM Page 17
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.Time DefrostAllows you to defrost for a selected length of time. Seethe Defrosting Guide for suggested times. (Auto Defrostexplained in the About the auto feature section.)Press TIME DEFROST.Enter defrosting time.Press START.Turn food over when the oven signals.Press START. Power level is automatically set at 3, but can be changed.You can defrost small items quickly by raising the powerlevel after entering the time. Power level 7 cuts the totaldefrosting time in about half; power level 10 cuts thetotal time to approximately 1/3. However, food willneed more frequent attention than usual.At one half of selected defrosting time, the oven signalsTURN. At this time, turn food over and break apart orrearrange pieces for more even defrosting. Shield anywarm areas with small pieces of foil.A dull thumping noise may be heard during defrosting.This is normal when oven is not operating at High power.Defrosting Tips■Foods frozen in paper or plastic can be defrosted inthe package. Closed packages should be slit, piercedor vented AFTER food has partially defrosted. Plasticstorage containers should be partially uncovered.■Family-size, prepackaged frozen dinners can bedefrosted and microwaved. If the food is in a foil container, transfer it to a microwave-safe dish.■Foods that spoil easily should not be allowed to sit out for more than one hour after defrosting. Roomtemperature promotes the growth of harmful bacteria.■For more even defrosting of larger foods, such asroasts, use Auto Defrost. Be sure large meats arecompletely defrosted before cooking.■When defrosted, food should be cool but softened inall areas. If still slightly icy, return to the microwavevery briefly or let it stand a few minutes.543211849-40392 v04 6/29/03 2:18 PM Page 18
GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsFood Time CommentsBreads, CakesBread, buns or rolls (1 piece) 1/2 min.Sweet rolls (approx. 12 oz.) 2 to 4 min.Fish and SeafoodFillets, frozen (1 lb.) 8 to 12 min.Shellfish, small pieces(1 lb.)5 to 8 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch – 1 or 2 3 to 7 min.(10-oz. package)Meat Bacon (1 lb.) 3 to 6 min. Place unopened package in oven. Let stand 5 minutes after defrosting. Franks (1 lb.) 3 to 6 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat (1 lb.) 5 to 8 min. Turn meat over after half the time.Roast: beef, lamb, veal, pork10 to 16 min.Use power level 1.per lb.Steaks, chops and cutlets 5 to 10 min. Place unwrapped meat in cooking per lb. dish. Turn over after half the time and shield warm areas with foil. When finished, separate pieces and let stand to complete defrosting.PoultryChicken, broiler-fryer16 to 22 min.Place wrapped chicken in dish. Unwrapcut up (21⁄2to 3 lbs.)and turn over after half the time. When finished, separate pieces and microwave2–4 minutes more, if necessary. Let standto finish defrosting.Chicken, whole22 to 28 min.Place wrapped chicken in dish. After half (21⁄2to 3 lbs.) the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.Cornish hen 9 to 16 min. Place unwrapped hen in the oven per lb. breast-side-up. Turn over after half the time. Run cool water in the cavity until giblets can be removed.Turkey breast (4 to 6 lbs.) 5 to 10 min. Place unwrapped breast in dish breast-per lb. side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1–2 hours in refrigerator to complete defrosting.19Defrosting Guide49-40392 v04 6/29/03 2:18 PM Page 19
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the time features.Express CookThis is a quick way to set cooking time for 1–6 minutes.Press one of the Express Cook pads (from 1 to 6) for1–6 minutes of cooking at power level 10. For example,press the 2pad for 2 minutes of cooking time. The power level can be changed as time is countingdown. Press POWER LEVEL and enter 1–10.20Add 30 SecondsYou can use this feature two ways:■It will add 30 seconds to the time counting downeach time the pad is pressed.■It can be used as a quick way to set 30 seconds of cooking time.49-40392 v04 6/29/03 2:18 PM Page 20
About the auto feature. GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsAuto DefrostUse Auto Defrost for meat, poultry and fish. Use TimeDefrost for most other frozen foods.Auto Defrost automatically sets the defrosting times andpower levels to give even defrosting results for meats,poultry and fish weighing up to 6 pounds. Press AUTO DEFROST.Using the Conversion Guide below, enter food weight.For example, press pads 1and 2for 1.2 pounds (1 pound, 3 ounces).Press START.(Time Defrost is explained in the About the time featuressection.)There is a handy guide located on the inside front of the oven. ■Remove meat from package and place on microwave-safe dish.■Twice during defrost, the oven signals turn. At eachturn signal, turn the food over. Remove defrostedmeat or shield warm areas with small pieces of foil.■After defrosting, most meats need to stand 5 minutesto complete defrosting. Large roasts should stand forabout 30 minutes.Conversion GuideIf the weight of food is stated in pounds and ounces, the ouncesmust be converted to tenths (.1) of a pound.Weight of Food in Ounces Enter Food Weight(tenths of a pound)1–2 .13.24–5 .36–7 .48.59–10 .611 .712–13 .814–15 .9321Guide2149-40392 v04 6/29/03 2:18 PM Page 21
PopcornTo use the Popcorn feature:Follow package instructions, using Time Cookif the package is less than 3.0 ounces or larger than 3.5 ounces. Place the package of popcorn in the center of the microwave.Press POPCORN once for a 3.0-ounce package ofpopcorn or twice for a 3.5-ounce package ofpopcorn. The oven starts immediately. During the POPCORN cycle, the turntable will rotate,stop, then rotate again. This feature provides optimumresults.How to Adjust the Popcorn Program to Provide a Shorter or Longer Cook TimeIf you find that the brand of popcorn you useunderpops or overcooks consistently, you can add orsubtract 20 seconds to the automatic popping time.To add time:After pressing POPCORN, press 9immediately after theoven starts for an extra 10 seconds. Press 9again to addanother 10 seconds (total 20 seconds additional time).To subtract time:After pressing POPCORN, press 1immediately after the oven starts for 10 seconds less cooking time. Press 1again to reduce cooking time another 10 seconds (total 20 seconds less cooking time).21(less time) (more time)Use only with prepackagedmicrowave popcorn weighing 3.0 to 3.5 ounces.Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the convenience features.2249-40392 v04 6/29/03 2:18 PM Page 22
GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsBeverageTo use the Beverage feature:Press BEVERAGE once for a 4-oz. beverage, twice for and8-oz. beverage or three times for a 12-oz. beverage.Drinks heated with the Beverage feature may be very hot.Remove the container with care.23SnacksThe Snacks feature automatically sets the microwavingtimes and power levels to warm a variety of snack foods.Press SNACKS.Select snack type 1–6 (see Snacks Guide below).Enter the number of items or the food weight in ounces.Press START. HINT: You can press and hold the SNACKS pad duringcooking to display the remaining microwaving time.43211 Bread, rolls, muffins 1 to 42 Sandwiches 1 to 23 Pizza (leftover slices) 1 to 44 Dessert toppings 1 to 45 Soup 8 to 40 oz.6 Cheese dip 4 to 16 oz.Food Type Quantity or WeightSnacks Guide 49-40392 v04 6/29/03 2:18 PM Page 23
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the convenience features.24ReheatThe Reheat feature reheats many previously cooked foods.Press REHEAT.Select food type 1–7 for one serving (see ReheatGuide below).For food types 1–6, press 2or 3to reheat 2 or 3 servings.Press START.NOTE: The serving size may be changed or added afterpressing START by pressing number pads 1, 2 or 3.Serving size for food type 7 cannot be changed.43211 Pasta Cover with lid or vented plastic wrap.2 Meats, casseroles, pizza Cover with lid or vented plastic wrap.3 Fruits and vegetables Cover with lid or vented plastic wrap.4 Beverages, 8–10 oz. Use wide mouth mug.5 Sauces and gravies Cover with lid or vented plastic wrap.6 Pizza (pieces) Do not cover.7 Plate of leftovers Cover with vented plastic wrap.(2 to 3 foods, 4 oz. each)Food Type CommentsReheat Guide 49-40392 v04 6/29/03 2:18 PM Page 24
GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions25CookThe Cook feature automatically sets the cooking timesand power levels for a variety of foods.Press COOK.Select food type 1–9 (see the Cook Guide below).Enter weight in ounces.Press START.Hint: Press and hold the COOK pad during cooking to displaythe food type and remaining cook time.43211 Canned Vegetables 4 to 20 oz. Use microwave-safe casserole or bowl. Cover with lid or vented plastic wrap.2 Frozen Vegetables 4 to 20 oz. Use microwave-safe casserole or bowl. Follow package instructions for adding water. Cover with lid or vented plastic wrap.3 Fresh Vegetables 4 to 16 oz. Use microwave-safe casserole or bowl. Add 2 tablespoons water for eachserving. Cover with lid or vented plastic wrap.4 Potatoes 8 to 40 oz. Pierce skin with fork. Place potatoes on the turntable.5 Fish 4 to 16 oz. Use oblong, square or round dish. Cover with vented plastic wrap.6 Chicken Pieces 4 to 40 oz. Use oblong, square or round dish. Cover with vented plastic wrap or wax paper.7 Ground Meat 8 to 48 oz. Use round casserole dish. Crumble (beef, pork, turkey)meat into dish. Cover with lid or vented plastic wrap.8 Bacon 2 to 10 oz. Layer strips on a plate, 4 to a layer.Cover each layer with a paper towel.9 Pizza 4 to 16 oz. Follow package instructions to (frozen, microwaveable) prepare pizza for microwaving.Food Type Weight CommentsCook Guide 49-40392 v04 6/29/03 2:18 PM Page 25
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the other features.26ClockPress to enter the time of day or to check the time ofday while microwaving.Press CLOCK.Enter time of day.Press START or CLOCK.321Cooking Complete ReminderTo remind you that you have food in the oven, the ovenwill beep once a minute until you either open the ovendoor or press CLEAR/OFF.49-40392 v04 6/29/03 2:18 PM Page 26

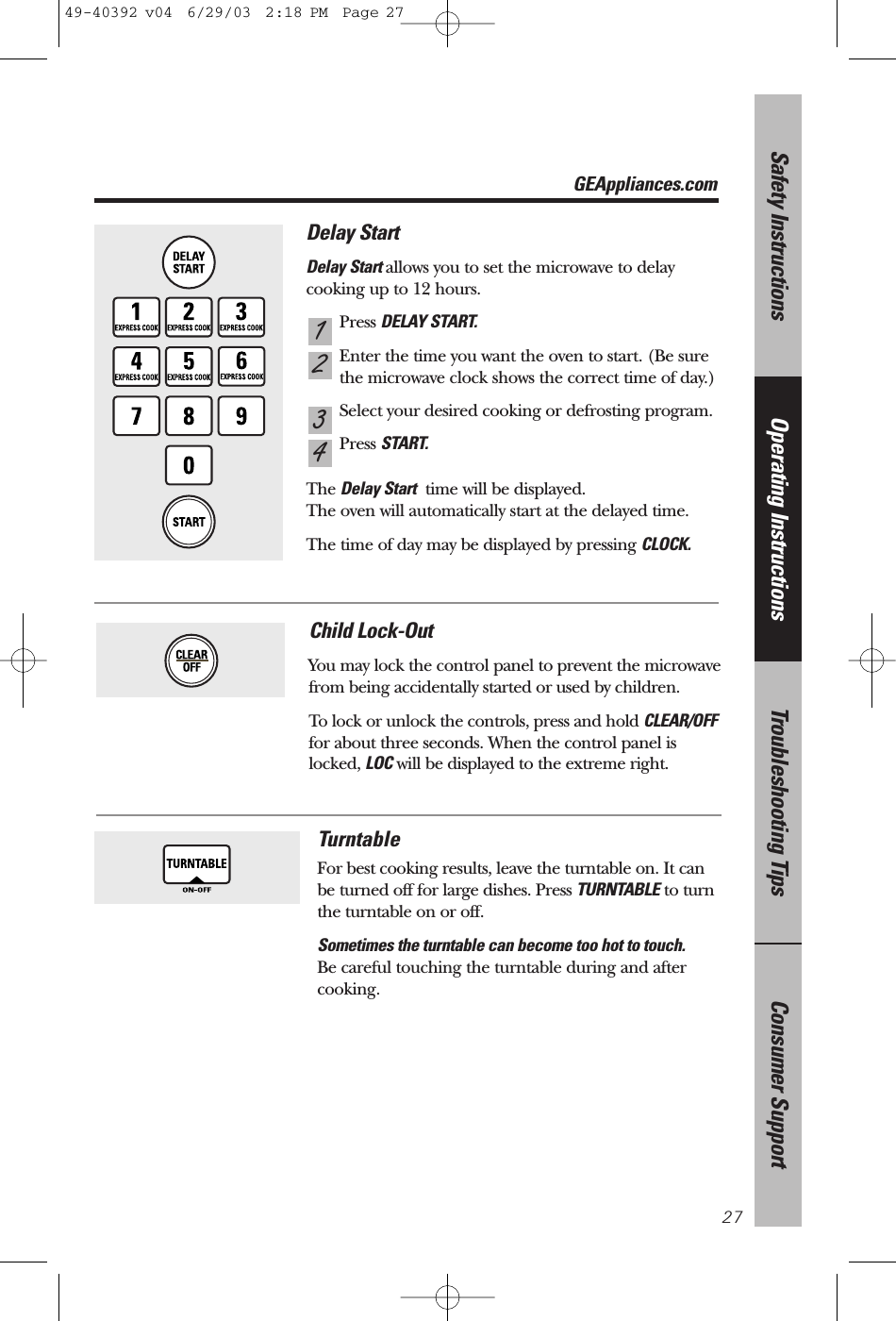

GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions27Delay StartDelay Start allows you to set the microwave to delay cooking up to 12 hours.Press DELAY START.Enter the time you want the oven to start. (Be surethe microwave clock shows the correct time of day.)Select your desired cooking or defrosting program.Press START.The Delay Start time will be displayed.The oven will automatically start at the delayed time.The time of day may be displayed by pressing CLOCK.4321Child Lock-OutYou may lock the control panel to prevent the microwavefrom being accidentally started or used by children.To lock or unlock the controls, press and hold CLEAR/OFFfor about three seconds. When the control panel islocked, LOC will be displayed to the extreme right.TurntableFor best cooking results, leave the turntable on. It canbe turned off for large dishes. Press TURNTABLE to turnthe turntable on or off.Sometimes the turntable can become too hot to touch.Be careful touching the turntable during and aftercooking.49-40392 v04 6/29/03 2:18 PM Page 27
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportAbout the other features.28Kitchen TimerThis pad performs three functions:■It operates as a minute timer.■It can be set to delay cooking.■It can be used as a hold setting after defrosting.The Kitchen Timer operates without microwave energy.How to Use as a Minute TimerPress KITCHEN TIMER.Enter the amount of time you want to count down.Press START. When the time is up, the timer will signal.How to Use to Delay the Start of CookingYou can set the microwave to delay cooking up to 99 minutes and 99 seconds.Press TIME COOK and enter the amount of cooking time.Press KITCHEN TIMER and enter the amount of timeto delay the start of cooking.Press START. The timer will begin counting down to zero and cooking will then begin.How to Use to Set a Holding TimeYou can set a holding time between Defrost and Time Cook, from one second to 99 minutes.Press TIME DEFROST.Enter defrosting time.Press KITCHEN TIMER.Enter the amount of time you want the oven to hold.Press TIME COOK.Enter cooking time.Press START.765432132132149-40392 v04 6/29/03 2:18 PM Page 28
Microwave terms. GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions29Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:■metal or foil touching the side of the oven.■foil that is not molded to food (upturned edges act like antennas).■metal such as twist-ties, poultry pins, gold-rimmed dishes.■recycled paper towels containing small metal pieces.Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.Term Definition49-40392 v04 6/29/03 2:18 PM Page 29
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportCare and cleaning of the microwave oven.30Helpful HintsAn occasional thorough wiping with a solution ofbaking soda and water keeps the inside fresh.Unplug the cord before cleaning any part of this oven.How to Clean the InsideWalls, Floor, Inside Window, Metal and Plastic Parts on the DoorSome spatters can be removed with a paper towel; others may require a damp cloth. Remove greasy spatters with a sudsy cloth, then rinse with a damp cloth. Do not use abrasive cleaners or sharp utensils on oven walls. To clean the surface of the door and the surface of the oven thatcome together upon closing, use only mild, nonabrasive soaps ordetergents using a sponge or soft cloth. Rinse with a damp clothand dry.Never use a commercial oven cleaner on any part of your microwave.Removable Turntable and Turntable Support To prevent breakage, do not place the turntable intowater just after cooking. Wash it carefully in warm, sudsywater or in the dishwasher. The turntable and supportcan be broken if dropped. Remember, do not operatethe oven without the turntable and support in place.49-40392 v04 6/29/03 2:18 PM Page 30
GEAppliances.com31Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsHow to Clean the OutsideDo not use cleaners containing ammonia or alcohol on the microwave oven. Ammonia or alcohol can damage the appearance of the microwave.CaseClean the outside of the microwave with a sudsy cloth.Rinse and then dry. Wipe the window clean with a damp cloth. Control Panel and DoorWipe with a damp cloth. Dry thoroughly. Do not usecleaning sprays, large amounts of soap and water, abrasives or sharp objects on the panel—they can damage it. Some paper towels can also scratch the control panel.Door SurfaceIt’s important to keep the area clean where the doorseals against the microwave. Use only mild, non-abrasivedetergents applied with a clean sponge or soft cloth.Rinse well.Stainless Steel (on some models)Do not use a steel-wood pad; it will scratch the surface.To clean the stainless steel surface, use a hot, dampcloth with a mild detergent suitable for stainless steelsurfaces. Use a clean, hot, damp cloth to remove soap.Dry with a dry, clean cloth. Always scrub lightly in thedirection of the grain.49-40392 v04 6/29/03 2:18 PM Page 31
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportBefore you call for service…32Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.Problem Possible Causes What To DoOven will not start A fuse in your home •Replace fuse or reset may be blown or the circuit breaker.circuit breaker tripped.Power surge. •Unplug the microwave oven, then plug it back in.Plug not fully inserted •Make sure the 3-prong into wall outlet. plug on the oven is fully inserted into wall outlet.Door not securely closed. •Open the door and closesecurely.Control panel lighted, Door not securely closed. •Open the door and closeyet oven will not start securely.START pad not pressed •Press START.after entering cookingselection.Another selection entered •Press CLEAR/OFF.already in oven andCLEAR/OFF pad notpressed to cancel it.Cooking time not entered •Make sure you have after pressing TIME COOK.entered cooking timeafter pressing TIME COOK.CLEAR/OFF was pressed •Reset cooking programaccidentally. and press START.Food weight not entered •Make sure you have after selecting Auto Defrost. entered food weightafter selecting Auto Defrost.Food type not entered •Make sure you have after selecting REHEAT, entered a food type.SNACKS or COOK.“LOC” appears in The control has been •Press and hold CLEAR/OFFdisplay locked. (When the control for about three seconds to panel is locked, LOC will unlock the control.be displayed.)49-40392 v04 6/29/03 2:18 PM Page 32
GEAppliances.comConsumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions33■Steam or vapor escaping from around the door.■Light reflection around door or outer case.■Dimming oven light and change in the blower sound at powerlevels other than high.■Dull thumping sound while oven is operating.■Turntable starts and stops automatically during POPCORN.■TV/radio interference might be noticed while using themicrowave. Similar to the interference caused by other smallappliances, it does not indicate a problem with the microwave.Plug the microwave into a different electrical circuit, move theradio or TV as far away from the microwave as possible, or check the position and signal of the TV/radio antenna.Things That Are Normal With Your Microwave Oven49-40392 v04 6/29/03 2:18 PM Page 33
Safety InstructionsOperating InstructionsTroubleshooting TipsConsumer SupportNotes.3449-40392 v04 6/29/03 2:18 PM Page 34
GE Microwave Oven Warranty.Consumer SupportTroubleshooting TipsOperating InstructionsSafety InstructionsAll warranty service provided by ourFactory Service Centers, or an authorizedCustomer Care®technician. To scheduleservice, on-line, 24 hours a day, visit us atGEAppliances.com, or call 800.GE.CARES(800.432.2737).This warranty is extended to the original purchaser and any succeeding owner for products purchasedfor home use within the USA.Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state tostate. To know what your legal rights are, consult your local or state consumer affairs office or yourstate’s Attorney General.Warrantor: General Electric Company. Louisville, KY 40225For The Period Of: GE Will Replace:One Year Any part of the microwave oven which fails due to a From the date of the defect in materials or workmanship. During this limitedoriginal purchase one-year warranty, GE will also provide, free of charge,all parts and service labor to repair or replace the defective part. Ten Years The magnetron tube, if the magnetron tube fails due to For the second through a defect in materials or workmanship. During this the tenth year from the additional nine-year limited warranty, you will be date of original purchase responsible for any labor or in-home service costs.For each of the above warranties: To avoid any trip charges, you must take the microwave oven to a General Electric Customer Care®servicer and pick it up following service. In-home service is also available, but you must pay for the service technician’s travel costs to your home.■Service trips to your home to teachyou how to use the product.■Improper installation, delivery ormaintenance.■Failure of the product if it is abused, misused, or used for other than the intended purpose or usedcommercially.■Replacement of house fuses or resetting of circuit breakers.■Damage to the product caused by accident, fire, floods or acts of God.■Incidental or consequential damagecaused by possible defects with thisappliance.■Damage caused after delivery.What GE Will Not Cover:35Staple your receipt here.Proof of the originalpurchase date is needed to obtain service under the warranty.49-40392 v04 6/29/03 2:18 PM Page 35
Printed in MalaysiaConsumer Support. GE Appliances Website GEAppliances.comHave a question or need assistance with your appliance? Try the GE Appliances Website24 hours a day, any day of the year! For greater convenience and faster service, you cannow download Owner’s Manuals, order parts, catalogs, or even schedule service on-line.You can also “Ask Our Team of Experts™” your questions, and so much more…Schedule Service GEAppliances.comExpert GE repair service is only one step away from your door. Get on-line andschedule your service at your convenience 24 hours any day of the year! Or call800.GE.CARES (800.432.2737) during normal business hours.Real Life Design Studio GEAppliances.comGE supports the Universal Design concept—products, services and environments thatcan be used by people of all ages, sizes and capabilities. We recognize the need todesign for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people withdisabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). Extended Warranties GEAppliances.comPurchase a GE extended warranty and learn about special discounts that are availablewhile your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.Parts and Accessories GEAppliances.comIndividuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normalbusiness hours.Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. Contact Us GEAppliances.comIf you are not satisfied with the service you receive from GE, contact us on our Websitewith all the details including your phone number, or write to: General Manager, Customer RelationsGE Appliances, Appliance ParkLouisville, KY 40225Register Your Appliance GEAppliances.comRegister your new appliance on-line—at your convenience! Timely product registrationwill allow for enhanced communication and prompt service under the terms of yourwarranty, should the need arise. You may also mail in the pre-printed registration cardincluded in the packing material.49-40392 v04 6/29/03 2:18 PM Page 36Code No. : DE68-02290A
