Users Manual

Safety Instructions . . . . . . . . 2–7Operating InstructionsCare and Cleaning . . . . . . . .37–40Cooking Features . . . . . . . . .12–18Defrosting Features . . . . . . .21–27Easy Guide™Menu System . . . . .9Help Features . . . . . . . . . . . . . .34Home Screen . . . . . . . . . . . . . . .10Microwave Oven Features . . . . . .8Microwave Terms . . . . . . . . . . . .36Options . . . . . . . . . . . . . . . .28–32Other Features . . . . . . . . . . .33, 35Power Levels . . . . . . . . . . . . . . .11Reheating Features . . . . . . .19–20Troubleshooting Tips . . . . . . .41Consumer SupportConsumer Support . . . Back CoverWarranty . . . . . . . . . . . . . . . . . . 42www.GEAppliances.comMicrowave Oven164D3370P262 49-40329-1 04-03 JRJVM2070Owner’s ManualSpacemaker 2.0Write the model and serial numbers here:Model # ________________Serial # __________________Find these numbers on a label on the left front when the door is open.
2IMPORTANT SAFETY INSTRUCTIONSPRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY(a) Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It isimportant not to defeat or tamper with the safetyinterlocks.(b) Do Not Place any object between the oven front face and the door or allow soil or cleaner residue toaccumulate on sealing surfaces.(c) Do Not Operate the oven if it is damaged. It isparticularly important that the oven door closeproperly and that there is no damage to the:(1) door (bent),(2) hinges and latches (broken or loosened),(3) door seals and sealing surfaces.(d) The Oven Should Not be adjusted or repaired byanyone except properly qualified service personnel.
• This microwave oven is UL listed forinstallation over electric and gas ranges.• This microwave oven is not approved ortested for marine use.• Read and follow the specific precautions in the Precautions to Avoid Possible Exposureto Excessive Microwave Energy section onpage 2.• This appliance must be grounded. Connectonly to properly grounded outlet. See theGrounding Instructions section on page 7.• Install or locate this appliance only inaccordance with the provided InstallationInstructions.• Do not mount this appliance over a sink.• This over-the-range oven was designed for use over ranges no wider than 36.″It may beinstalled over both gas and electric cookingequipment.• Do not operate this appliance if it has adamaged power cord or plug, if it is notworking properly or if it has been damagedor dropped. If the power cord is damaged, it must be replaced by General ElectricService or an authorized service agent using a power cord available from General Electric.• Do not cover or block any openings on the appliance.• Use this appliance only for its intended use as described in this manual. Do not usecorrosive chemicals or vapors in thisappliance. This microwave oven is specificallydesigned to heat, dry or cook food, and is notintended for laboratory or industrial use.• Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink, or in similarlocations.• Keep power cord away from heated surfaces.• Do not immerse power cord or plug in water.• To reduce the risk of fire in the oven cavity:— Do not overcook food. Carefully attendappliance when paper, plastic or othercombustible materials are placed inside the oven while cooking.— Remove wire twist-ties and metal handlesfrom paper or plastic containers beforeplacing them in the oven.— Do not use the oven for storage purposes.Do not leave paper products, cookingutensils or food in the oven when not in use.— If materials inside oven ignite, keep theoven door closed, turn the oven off anddisconnect the power cord, or shut offpower at the fuse or circuit breaker panel.If the door is opened, the fire may spread.— Do not use the Sensor Features twice in succession on the same food portion. If food is undercooked after the firstcountdown, use TIME COOK foradditional cooking time.• See door surface cleaning instructions in the Care and Cleaning of the microwave ovensection of this manual.• This appliance should be serviced only byqualified service personnel. Contact nearestauthorized service facility for examination, repair or adjustment.• As with any appliance, close supervision isnecessary when used by children.• Do not store anything directly on top of themicrowave oven surface when the microwaveoven is in operation.3IMPORTANT SAFETY INSTRUCTIONSWARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.SAFETY PRECAUTIONSUse this appliance only for its intended purpose as described in this Owner’s Manual. When usingelectrical appliances, basic safety precautions should be followed, including the following:
4VENTFANThe fan will operate automatically undercertain conditions (see Automatic Fan feature).Take care to prevent the starting and spreadingof accidental cooking fires while the vent fan is in use.• Clean the underside of the microwave often. Do not allow grease to build up on the microwave or the fan filters.• In the event of a grease fire on the surfaceunits below the microwave oven, smother aflaming pan on the surface unit by coveringthe pan completely with a lid, cookie sheet or flat tray.• Use care when cleaning the vent fan filters.Corrosive cleaning agents, such as lye-basedoven cleaners, may damage the filters.• When preparing flaming foods under themicrowave, turn the fan on.• Never leave surface units beneath yourmicrowave oven unattended at high heatsettings. Boilovers cause smoking and greasyspillovers that may ignite and spread if themicrowave vent fan is operating. To minimizeautomatic fan operation, use adequate-sizedcookware and use high heat on surface unitsonly when necessary.IMPORTANT SAFETY INSTRUCTIONSWARNING!ARCING If you see arcing, press the OFF pad and correct the problem.Arcing is the microwave term for sparks in the oven. Arcing is caused by:• The metal shelf not installed correctly so it touches the microwave wall.• Metal or foil touching the side of the oven.• Foil not molded to food (upturned edges actlike antennas).• Metal, such as twist-ties, poultry pins orgoldrimmed dishes, in the microwave.• Recycled paper towels containing small metalpieces being used in the microwave.
FOODS5IMPORTANT SAFETY INSTRUCTIONSWARNING!• Do not pop popcorn in your microwave oven unless in a special microwave popcornaccessory or unless you use popcorn labeledfor use in microwave ovens.•Some products such as whole eggs and sealedcontainers—for example, closed jars—areable to explode and should not be heated in this microwave oven. Such use of themicrowave oven could result in injury.• Do not boil eggs in a microwave oven.Pressure will build up inside egg yolk and willcause it to burst, possibly resulting in injury.• Operating the microwave with no food insidefor more than a minute or two may causedamage to the oven and could start a fire. It increases the heat around the magnetronand can shorten the life of the oven.• Foods with unbroken outer ‘‘skin’’ such aspotatoes, hot dogs, sausages, tomatoes,apples, chicken livers and other giblets andegg yolks should be pierced to allow steam to escape during cooking.• Hot foods and steam can cause burns. Be careful when opening any containers ofhot food, including popcorn bags, cookingpouches and boxes. To prevent possibleinjury, direct steam away from hands and face.• Avoid heating baby food in glass jars, even with the lid off. Make sure all infantfood is thoroughly cooked. Stir food todistribute the heat evenly. Be careful toprevent scalding when warming formula orbreast milk. The container may feel coolerthan the milk really is. Always test the milkbefore feeding the baby.• SUPERHEATED WATERLiquids, such as water, coffee or tea are ableto be overheated beyond the boiling pointwithout appearing to be boiling. Visiblebubbling or boiling when the container isremoved from the microwave oven is notalways present. THIS COULD RESULT INVERY HOT LIQUIDS SUDDENLY BOILINGOVER WHEN THE CONTAINER ISDISTURBED OR A SPOON OR OTHERUTENSIL IS INSERTED INTO THE LIQUID.To reduce the risk of injury to persons:— Do not overheat the liquid.— Stir the liquid both before and halfwaythrough heating it.— Do not use straight-sided containers withnarrow necks.— After heating, allow the container to standin the microwave oven for a short timebefore removing the container.— Use extreme care when inserting a spoonor other utensil into the container.• Don’t defrost frozen beverages in narrow-necked bottles (especially carbonatedbeverages). Even if the container is opened,pressure can build up. This can cause thecontainer to burst, possibly resulting in injury.• Do not overcook potatoes. They coulddehydrate and catch fire, causing damage to your oven.• Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°Fand poultry to at least an INTERNALtemperature of 180°F. Cooking to thesetemperatures usually protects againstfoodborne illness.
6IMPORTANT SAFETY INSTRUCTIONSWARNING!MICROWAVE-SAFE COOKWAREMake sure all cookware used in your microwaveoven is suitable for microwaving. Most glasscasseroles, cooking dishes, measuring cups,custard cups, pottery or china dinnerwarewhich does not have metallic trim or glaze witha metallic sheen can be used. Some cookwareis labeled “suitable for microwaving.”• If you are not sure if a dish is microwave-safe,use this test: Place in the oven both the dishyou are testing and a glass measuring cupfilled with 1 cup of water—set the measuringcup either in or next to the dish. Microwave 30–45 seconds at high. If the dish heats, it should not be used for microwaving.If the dish remains cool and only the water in the cup heats, then the dish ismicrowave-safe.• If you use a meat thermometer while cooking, make sure it is safe for use inmicrowave ovens.• Do not use recycled paper products. Recycledpaper towels, napkins and waxed paper cancontain metal flecks which may cause arcing or ignite. Paper products containing nylon ornylon filaments should be avoided, as theymay also ignite.• Use foil only as directed in this manual. TV dinners may be microwaved in foil traysless than 3/4″high; remove the top foil coverand return the tray to the box. When usingfoil in the microwave oven, keep the foil atleast 1 inch away from the sides of the oven.• Some styrofoam trays (like those that meat is packaged on) have a thin strip of metalembedded in the bottom. When microwaved,the metal can burn the floor of the oven orignite a paper towel.• Do not use the microwave to dry newspapers.• Not all plastic wrap is suitable for use inmicrowave ovens. Check the package forproper use.• Paper towels, waxed paper and plastic wrapcan be used to cover dishes in order to retainmoisture and prevent spattering. Be sure tovent plastic wrap so steam can escape.• Cookware may become hot because of heattransferred from the heated food. Pot holdersmay be needed to handle the cookware.• “Boilable” cooking pouches and tightly closedplastic bags should be slit, pierced or ventedas directed by package. If they are not, plasticcould burst during or immediately aftercooking, possibly resulting in injury. Also,plastic storage containers should be at leastpartially uncovered because they form a tightseal. When cooking with containers tightlycovered with plastic wrap, remove coveringcarefully and direct steam away from handsand face.• Plastic cookware—Plastic cookware designedfor microwave cooking is very useful, butshould be used carefully. Even microwave-safeplastic may not be as tolerant of overcookingconditions as are glass or ceramic materials,and may soften or char if subjected to shortperiods of overcooking. In longer exposuresto overcooking, the food and cookware could ignite.Follow these guidelines:1Use microwave-safe plastics only and usethem in strict compliance with the cookwaremanufacturer’s recommendations.2Do not microwave empty containers.3Do not permit children to use plasticcookware without complete supervision.
7SAVE THESE INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONSWARNING! Improper use of the grounding plug can result in a risk of electric shock.GROUNDING INSTRUCTIONSThis appliance must be grounded. In the event of an electrical short circuit, groundingreduces the risk of electric shock by providingan escape wire for the electric current.This appliance is equipped with a power cordhaving a grounding wire with a grounding plug.The plug must be plugged into an outlet that is properly installed and grounded.Consult a qualified electrician or servicetechnician if the grounding instructions are not completely understood, or if doubtexists as to whether the appliance is properlygrounded.If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligationto have it replaced with a properly grounded 3-prong wall outlet.Do not under any circumstances cut or removethe third (ground) prong from the power cord.Do not use an adapter plug with this appliance.Do not use an extension cord with thisappliance. If the power cord is too short, have a qualified electrician or servicetechnician install an outlet near the appliance.For best operation, plug this appliance into itsown electrical outlet to prevent flickering oflights, blowing of fuse or tripping of circuitbreaker.OPTIONALKITSFiller Panel KitsJX40WH—WhiteJX41—BlackJX40CT—BisqueWhen replacing a 36″range hood, filler panelkits fill in the additional width to provide acustom built-in appearance.For installation between cabinets only; not forend-of-cabinet installation. Each kit contains two 3″-wide filler panels.Filter KitsJX81H—Recirculating Charcoal Filter KitFilter kits are used when the microwave ovencannot be vented to the outside.Decorative Panel KitJX22SS—Stainless SteelWhen replacing a Hi/Low range, the decorativepanel kit fills in the area between the microwaveand the range left by the Hi/Low model.Available at extra cost from your GE supplier.
Microwave Oven Featureswww.GEAppliances.comThroughout this manual, features and appearance may vary from your model.81100 WattsFeatures of themicrowaveoven1 Door Handle. Pull to open the door. The door must be securely latched for the microwave to operate.2 Door Latches.3 Window with Metal Shield. Screen allowscooking to be viewed while keepingmicrowaves confined in the oven.4 Active Vent (on some models). The ventdoor swings open when the fan operatesand closes when the fan shuts off.5 Shelf. Lets you microwave several foods atonce. Food microwaves best when placeddirectly on the turntable.Only use the shelf when reheating on morethan one level. Do not store the shelf insidethe oven cavity.6 Touchscreen Display. Press the graphics on the interactive display to use the ovenfeatures.If the Touchscreen is dark, press HOME orthe Touchscreen, or open the door to accessthe menu.7 Cooktop Light.8 Grease Filters.9 Removable Turntable. Turntable andsupport must be in place when using theoven. The turntable may be removed forcleaning.10 Side Stirrer. Helps circulate microwavesthroughout the oven cavity for consistentheating and defrosting. Do not remove the cover from the side stirrer.NOTE: Rating plate is located on the left frontwhen the door is open. Oven vent(s) and ovenlight are located on the inside walls of themicrowave oven.
9Using theEasyGuide™Menu SystemExample: Setting a timed cooking programREHEATOPTIONSDEFROSTPOPCORNCUSTOM 230 SECEXPRESSCUSTOM 1COOKBACKDELAYTIME COOK1 & 2MELTSOFTENSELECTBEVERAGESSELECTFOODTIME COOKEXPRESSCOOKSTARTCOOK TIMEADD30 SECPOWERLEVEL10TIME REMAINING3:30SUMMARYSelect COOK from the touchscreen.2 315 648 970ENTERCLEAR3:30ENTER COOK TIMEWhen cooking isfinished, remove thefood from the oven.EasyGuide™Menu Systemwww.GEAppliances.comThe easy-to-use touchscreen systemautomatically leads you through each step of the cooking process.It lets you select as many or as few options asyou need for the results you want.Select TIME COOK from thetouchscreen.Enter the cooking timeusing the numbers onthe touchscreen. PressENTER when finishedor CLEAR to erase thetime you entered.The Summary Screenwill allow you to add30 seconds to thecooking program, orchange the powerlevel during cooking(on some functions).Check to make surethe time and powerlevel are correct, andpress START on thetouchscreen.
10OPTIONSPOPCORNCUSTOM 230 SECEXPRESSCUSTOM 1DEFROSTREHEATCOOKHOMEFeature DescriptionCOOK Press to cook by time, or by microwave sensor food selection. See “Cooking Features.”REHEAT Press to choose from a variety of foods for reheating. See “Reheat Features.”DEFROST Press to defrost foods by time, weight or food type. See “Defrost Features.”CUSTOM 1 and Press for one-touch access to several of the oven’s cooking functions. CUSTOM 2 Cooking functions can be customized using OPTIONS.OPTIONS Press to set microwave options and features. See “Microwave Options.”• Set the clock• Set a Reminder• Set the beeper volume• Set the custom functions available on the Home Screen• Set the timer• Set the Auto Nite Light• Turn the turntable on or off• Set the charcoal filter reminder• Set options for the touchscreendisplayFeatures of theHome ScreenIf the touchscreen is dark, pressHOME or thetouchscreen to access the menu.Home Screenwww.GEAppliances.comThe Home Screen is the starting point forsetting any cooking or defrost program, or for setting microwave options.You can reach the Home Screen at any time bypressing the HOME pad below the touchscreen.
11Variable PowerLevels 1–10Changing the Power Levelwww.GEAppliances.comThe power level may be entered or changedimmediately after entering the feature time for:• Time Cook• Time Defrost• Express Cook• Reheating Pizza, Casserole or RiceThe power level may also be changed duringtime countdown.1 From the Home Screen, select COOK,DEFROST or REHEAT.2 From the Cook Screen, select TIME COOKor EXPRESS. From the Defrost Screen, select BY TIME. From the Reheat Screen,select PIZZA, CASSEROLE or RICE.3 Enter the cooking or defrosting time andpress ENTER, or select a reheat food type.4 On the Summary Screen, press POWERLEVEL.5 Using the arrow pads, select desired powerlevel 1–10.6 Press ENTER to enter the new power level or CANCEL to cancel your selection.Variable power levels add flexibility to yourmicrowave cooking. The power levels on yourmicrowave oven can be compared to thesurface units on a range. Each power levelgives you microwave energy a certain percentof the time. Power level 7 is microwave energy70% of the time. Power level 3 is microwaveenergy 30% of the time. Most cooking will bedone on High (power level 10) which gives you 100% power.Power level 10 will cook faster but food mayneed more frequent stirring, rotating orturning over. A lower setting will cook moreevenly and need less stirring or rotating of the food. Some foods may have better flavor, texture orappearance if one of the lower settings is used.Use a lower power level when cooking foodsthat have a tendency to boil over, such asscalloped potatoes.Rest periods (when the microwave energycycles off) give time for the food to “equalize”or transfer heat to the inside of the food. Anexample of this is shown with power level 3—the defrost cycle. If microwave energy did notcycle off, the outside of the food would cookbefore the inside was defrosted.Here are some examples of uses for various power levels:POWER LEVEL BEST USESHigh 10 Fish, bacon, vegetables, boiling liquids.Med-High 7 Gentle cooking of meat and poultry; baking casseroles and reheating.Medium 5 Slow cooking and tenderizing such as stews and less tender cuts of meat.Low 3 Defrosting without cooking; simmering; delicate sauces.Warm 1 Keeping food warm without overcooking; softening butter.ENTERCANCEL10HIGHERLOWERPOWER LEVEL
Press Enter OptionEXPRESS Amount of cooking time—Starts immediately!TIME COOK Amount of cooking time.SELECT FOOD Food type, food weight/ More done/Less donequantity (some food types)SELECT BEVERAGES Beverage type—Starts immediately!SOFTEN Food type.MELT Food type, food weight.TIME COOK 1 & 2 Amount of cooking time and power level for first and second cooking programs.DELAY Cooking or defrosting function and time of day to start.12DELAYTIME COOK1 & 2MELTSOFTENSELECTBEVERAGESSELECTFOODTIME COOKEXPRESSCOOKFeatures of theCOOK ScreenNOTE: Do not usethe metal shelf when using thefeatures found inSelect Food or Select Beverage.Cooking Featureswww.GEAppliances.comThe Cook Screen allows you to choose from avariety of functions to microwave by time orwith the sensor features.
13TIME COOKTime CookCooking Featureswww.GEAppliances.comTime Cook allows you to microwave for anytime up to 99 minutes and 99 seconds.Power level 10 (High) is automatically set, but you may change it for more flexibility.1 From the Home Screen, select COOK.2 From the Cook Screen, select TIME COOK.3 Enter the cooking time using the numberson the touchscreen. Press ENTER whenfinished or CLEAR to erase the time youentered.4 From the Summary Screen, select ADD 30SEC if you wish to add 30 seconds to thecook time, or select POWER LEVEL if youdon’t want full power.5 Check to make sure the time and powerlevel are correct, and press START on thetouchscreen.You may open the door during Time Cook to check the food. Close the door and pressSTART to resume cooking.Time Cook 1 &2Time Cook 1 & 2 lets you change power levelsautomatically during cooking.1 From the Home Screen, select COOK.2 From the Cook Screen, select TIME COOK 1 & 2.3 Enter the first cooking time using thenumbers on the touchscreen. Press ENTERwhen finished or CLEAR to erase the timeyou entered.4 Using the arrow pads, select desired powerlevel 1–10 for the first cooking time. PressENTER to enter the new power level orCANCEL to cancel your selection.5 Enter the second cooking time using thenumbers on the touchscreen. Press ENTERwhen finished or CLEAR to erase the timeyou entered.6 Using the arrow pads, select desired powerlevel 1–10 for the second cooking time. Press ENTER to enter the new power levelor CANCEL to cancel your selection.7 Check to make sure the time and powerlevel are correct, and press START on thetouchscreen.At the end of Time Cook 1, Time Cook 2counts down.TIME COOK1 & 2
14CookingGuide forTime CookVegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 6 to 9 min., In 11⁄2-qt. oblong glass baking dish, place 1/4 cup water.Med-High (7)(frozen spears) 10-oz package 5 to 7 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 9 to 11 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch (11⁄4to 11⁄2lbs.) 7 to 10 min. In 2-qt. casserole, place 1/2 cup water.(fresh spears) 1 bunch (11⁄4to 11⁄2lbs.) 9 to 13 min. In 2-qt. oblong glass baking dish, place 1/4 cup water. (frozen, chopped) 10-oz package 5 to 7 min. In 1-qt. casserole.(frozen spears) 10-oz package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head (about 2 lbs.) 8 to 11 min. In 11⁄2- or 2-qt. casserole, place 1/4 cup water.(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 7 to 9 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Corn(frozen kernel) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Corn on the cob(fresh) 1 to 5 ears 3 to 4 min. per ear In 2-qt. oblong glass baking dish, place corn. If cornis in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time.(frozen) 1 ear 5 to 6 min. Place in 2-qt. oblong glass baking dish.2 to 6 ears 3 to 4 min. per ear Cover with vented plastic wrap. Rearrange after half of time. Mixed vegetables(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled9 to 12 min.In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes9 to 12 min.Peel and cut into 1 inch cubes. Place in 2-qt. white) (6 to 8 oz each) casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz) 3 to 4 min. Pierce with cooking fork. Place in center of the oven.sweet or white) Let stand 5 minutes.Spinach(fresh) 10 to 16 oz 5 to 7 min. In 2-qt. casserole, place washed spinach.(frozen, 10-oz package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.chopped and leaf)Squash(fresh, summer 1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place 1/4 cup water. and yellow)(winter, acorn, 1 to 2 squash 8 to 11 min. Cut in half and remove fibrous membranes. butternut)(about 1 lb. each)In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-up after 4 minutes.Cooking Featureswww.GEAppliances.com
15Express CookCooking Featureswww.GEAppliances.comThis is a quick way to set cooking time from 30 seconds to 6 minutes.1 From the Home Screen, select COOK.2 From the Cook Screen, select EXPRESS.3 Select the cooking time from thetouchscreen. The oven starts immediately.Microwave Sensor Features• Popcorn• Potato• Chicken pieces• Fresh vegetables• Frozen vegetables• Canned vegetables• Ground meat• Fish• Rice5 MIN3 MIN1 MIN4 MIN30 SEC2 MIN6 MINEXPRESSHumiditySensorSome microwave features are Sensor functionsthat detect the increasing humidity releasedduring cooking. The oven automatically adjuststhe cooking time to various types and amountsof food.When using Sensor features, do not open theoven door until time is counting down. If thedoor is opened, close it and press STARTimmediately.Do not use the Sensor Features twice insuccession on the same food portion—it mayresult in severely overcooked or burnt food. If food is undercooked after the countdown,use TIME COOK for additional cooking time.If you wish to adjust the cooking time, pressLESS DONE or MORE DONE within the first30 seconds to reduce or add time.• The proper containers and covers areessential for best sensor cooking.• Always use microwave-safe containers andcover them with lids or vented plastic wrap.Never use tight-sealing plastic covers—theycan prevent steam from escaping and causefood to overcook.• Be sure the outside of the cooking containerand the inside of the microwave oven are drybefore placing food in the oven. Beads ofmoisture turning into steam can mislead the sensor.CoveredVentedDry off dishes so they don’t mislead the sensor.
16Food Type Amount CommentsPopcorn 3.0 to 3.5 ounce bag Follow package instructions, using Time Cook if the package is less than 3.0 ounces or larger than 3.5 ounces.Potato 8–32 oz. Pierce skin with fork. Place potatoes on the turntable.Chicken Pieces 2–8 pieces Cover with vented plastic wrap.Fresh Vegetable 4–16 oz. Add 1/4 cup water per serving. Cover with lid or vented plastic wrap.Frozen Vegetable 4–16 oz. Follow package instructions for adding water. Cover with lid or vented plastic wrap.Canned Vegetable 4–16 oz. Cover with lid or vented plastic wrap.Ground Meat 1/2 to 2 lbs. Do not cover dish; drain and stir at signal.Fish 4–16 oz. Cover with vented plastic wrap.Frozen Pizza 4–16 oz.Rice 1/2 to 2 cups For long-cooking rice (not instant rice), follow package instructions for addition of water. Use large dish; cover with lid or vented plastic wrap.Bacon 1 to 10 slices Layer slices in paper towels on a plate, 4 slices per layer with paper towel between and one on top.Eggs 1 to 12 eggs Place eggs in measuring cup or bowl. Stir after 1/2 time.Microwaving by Food TypeNOTE: Do not usethe metal shelf withfeatures found inSelect Food.NOTE: Do not usethis feature twice insuccession on thesame food portion—it may result inseverely overcookedor burnt food.Cooking Featureswww.GEAppliances.comThe Select Food feature gives you easy,automatic results with a variety of foods (see the Cooking Guide below).1 Place covered food in the oven.2 From the Home Screen, select COOK.3 From the Cook Screen, choose SELECTFOOD.4 Select the food type from the touchscreen.You can find additional food types bypressing MORE at the bottom of thetouchscreen.5 For Sensor features, the oven startsimmediately after selecting the food type.6 For non-sensor features, enter thedescription, weight or quantity. PressENTER after each entry or CLEAR to erase the entry. Press START to begincooking.If food is undercooked after the countdown,use TIME COOK for additional cooking time.BACONFISHGROUNDMEATCANNEDVEGETABLESEGGSRICEFROZENVEGETABLESFROZENPIZZAFRESHVEGETABLESCHICKENPIECESPOTATOPOPCORNSELECT FOOD
17MicrowavingPopcornNOTE: Do not usethe metal shelf when microwavingpopcorn.NOTE: Do not usethis feature twice insuccession on thesame food portion—it may result inseverely overcookedor burnt food.Cooking Featureswww.GEAppliances.comUse only with prepackaged microwave popcornweighing 3.0 to 3.5 ounces.1 Follow package instructions, using TimeCook if the package is less than 3.0 ouncesor larger than 3.5 ounces. Place the packageof popcorn in the center of the microwave.2 From the Home Screen, select COOK.3 From the Cook Screen, choose SELECTFOOD.4 Select POPCORN from the touchscreen. The oven starts immediately.Do not open the oven door until time iscounting down. If the door is opened, close it and press START immediately.If food is undercooked after the countdown,use TIME COOK for additional cooking time.If you find that the brand of popcorn you useunderpops or overpops consistently, you canadd or subtract 20–30 seconds to the automaticpopping time.To add time:After pressing POPCORN, press MORE DONEwithin the first 30 seconds after the oven startsfor an extra 20 seconds of cooking time. PressMORE DONE again to add another 10 seconds(total of 30 seconds additional time).To subtract time:After pressing POPCORN, press LESS DONEwithin the first 30 seconds after the oven startsfor 20 seconds less cooking time. Press LESSDONE again to reduce cooking time another10 seconds (total of 30 seconds less time).Microwaving byBeverage TypeNOTE: Do not usethe metal shelf when microwavingbeverages.NOTE: Do not usethis feature twice insuccession on thesame food portion—it may result inseverely overcookedor burnt food.The Select Beverage feature allows you to heata cup of coffee or other beverage.Drinks heated with the Beverage feature maybe very hot. Remove the container with care.1 From the Home Screen, select COOK.2 From the Cook Screen, press SELECTBEVERAGE.3 Select the beverage type from thetouchscreen. The oven starts immediately.Do not open the oven door. If the door isopened, close it and press START immediately.If food is undercooked after the countdown,use TIME COOK for additional cooking time.HOTCHOCOLATECOFFEEWATERMILKTEASELECT BEVERAGE
18MARSH-MALLOWBUTTER2 STICKSBUTTER1 STICKBUTTER1/2 STICKMELTCHOCOLATECARAMELCHEESEUsing theSoften FeatureCooking Featureswww.GEAppliances.comThe Soften feature allows you to soften withoutmelting frozen or refrigerated foods.Unwrap butter or cream cheese and place on plate.Make sure that foil covers are removed fromfrosting or ice cream and place the containerin the oven.1 From the Home Screen, select COOK.2 From the Cook Screen, press SOFTEN.3 Select the food type from the touchscreen.4 Check to make sure the time is correct, andpress START on the touchscreen.Using the Melt FeatureThe Melt feature allows you to melt foods for cooking.1 Place the unwrapped item into bowl. The Chocolate melting feature is for up to 16 oz. of chocolate morsels (chips).2 From the Home Screen, select COOK.3 From the Cook Screen, press MELT.4 Select the food type from the touchscreen.5 For all food types except Butter, enter thefood weight and press ENTER. Press CLEARif you want to clear your previous entry, orpress BACK to return to the previous screen.6 Check to make sure the time is correct, and press START on the touchscreen.7 After removing food from the oven, stir wellto complete the melting process.ICE CREAM1 PINTCREAM CHEESE 8 OZICE CREAM1 QUARTCREAM CHEESE 3 OZFROSTING1 CANBUTTER2 STICKSBUTTER1 STICKBUTTER1/2 STICKSOFTENHow to Delaythe Start ofCookingThe Delay feature allows you to set themicrowave to delay the start times for TimeCook, Time Cook 1 & 2, and Time Defrost, for up to 24 hours.1 From the Home Screen, select COOK.2 From the Cook Screen, press DELAY.3 Enter the time you want the oven to start. (Be sure the microwave clock shows thecorrect time of day.) Press ENTER whenfinished or CLEAR to erase the time youentered.4 Select AM or PM. Press ENTER whenfinished or BACK to enter a new time.5 Select the cooking or defrosting feature you wish to delay, then set the cooking ordefrosting program.6 Check to make sure the Delay time is correct,and press START on the touchscreen.The start time will be displayed and will remain until the oven automatically starts at the delayed time.DELAY
19SOUPCASSEROLEVEGETABLERICEBEVERAGEPLATEPASTAPIZZAREHEATPress Enter Option CommentsPLATE Starts immediately! More done/ Cover with lid or vented Less done plastic wrap.BEVERAGE Beverage type— Use wide mouth mug.Starts immediately!PIZZA, 1–4 slices Type of crust and Do not cover.number of slicesPASTA, 8–12 oz. Starts immediately! More done/ Cover with lid or vented Less done plastic wrap.VEGETABLE, 1/2–2 cups Starts immediately! More done/ Cover with lid or vented Less done plastic wrap.CASSEROLE, 1–4 cups Food amount Cover with lid or vented plastic wrap.RICE, 1/2–5 cups Food amount Cover with lid or vented plastic wrap.SOUP, 8–24 oz. Starts immediately! More done/ Cover with lid or vented Less done plastic wrap.Features of the REHEATScreenNOTE: Do not usethe metal shelf when reheatingpasta, vegetables,beverages, soup or a plate ofleftovers.NOTE: Do not useSensor Reheatingfeatures twice insuccession on thesame food portion—it may result inseverely overcookedor burnt food.Reheating Featureswww.GEAppliances.comThe Reheat Screen allows you to reheat singleservings of previously cooked foods or a plateof leftovers.Some Foods Not Recommended For Use With Reheat:It is best to use Time Cook for these foods:• Bread products.• Foods that must be reheated uncovered.• Foods that need to be stirred or rotated.• Foods calling for a dry look or crisp surfaceafter reheating.
20ConvenienceReheatingFeaturesReheating Featureswww.GEAppliances.comConvenience reheating features microwaveaccording to food type, quantity and weight.Use the convenience reheating features to reheat:• Pizza• Casserole• Rice1 From the Home Screen, select REHEAT.2 From the Reheat Screen, select the food type.3 Depending on food type, enter the fooddescription, weight or quantity. PressENTER after each entry or CLEAR to erasethe entry.4 Check to make sure the time and power level are correct, and press START on thetouchscreen.After removing food from the oven, stir, ifpossible, to even out the temperature. If foodis not hot enough, use Time Cook to reheat for more time. Reheated foods may have widevariations in temperature. Some areas may be extremely hot.SensorReheatingFeaturesNOTE: Do not usethe metal shelf whenSensor reheating.NOTE: Do not usethis feature twice insuccession on thesame food portion—it may result inseverely overcookedor burnt food.Sensor reheating features detect the increasinghumidity released during cooking andautomatically adjust the cooking time tovarious types and amounts of food.Use the sensor reheating features to reheat:• Plate of leftovers• Beverages• Soup• Pasta• Vegetable1 From the Home Screen, select REHEAT.2 From the Reheat Screen, select PLATE,PASTA, VEGETABLE, BEVERAGE or SOUP.3 For PASTA, VEGETABLE, PLATE andSOUP, the oven starts immediately afterselecting the food type. If you wish to adjustthe cooking time, press LESS DONE orMORE DONE within the first 30 seconds to reduce or add time.4 For BEVERAGE, select the beverage type.The oven starts immediately.The oven signals when steam is sensed and thetime remaining begins counting down. Turn orstir the food if necessary.Do not open the oven door until time iscounting down. If the door is opened, close it and press START immediately.After removing food from the oven, stir, if possible, to even out the temperature.Reheated foods may have wide variations intemperature. Some areas may be extremely hot.If food is not hot enough after the countdowntime, use Time Cook to reheat for more time.
21MELTSOFTEN1 LB QUICKDEFROSTBY WEIGHTBY TIMEBY FOODDELAYDEFROSTPress EnterBY TIME Amount of cooking timeBY WEIGHT Food weightBY FOOD Food type, food weight1 LB. QUICK DEFROST Starts immediately!SOFTEN Food typeMELT Food type, food weightDELAY Cooking or defrosting function and time of day to start.Features of the DEFROSTScreenDefrosting Featureswww.GEAppliances.comThe Defrost Screen allows you to choose from a variety of functions to defrost by time,by weight or by food type.
22Defrosting by TimeDefrosting Featureswww.GEAppliances.comAllows you to defrost for a selected length of time. See the Defrosting Guide for suggested times.1 From the Home Screen, select DEFROST.2 From the Defrost Screen, select BY TIME.3 Enter the defrosting time using the numberson the touchscreen. Press ENTER whenfinished or CLEAR to erase the time youentered.4 Check to make sure the time and power level are correct, and press START on thetouchscreen.For best results, turn food over after half thetime and break apart or rearrange pieces formore even defrosting. Shield any warm areaswith small pieces of foil.Power level is automatically set at 3, but can bechanged. You can defrost small items quickly byraising the power level after entering the time.Power level 7 cuts the total defrosting time inabout half; power level 10 cuts the total time to approximately 1/3. However, food will needmore frequent attention than usual.A dull thumping noise may be heard duringdefrosting. This is normal when oven is notoperating at High power.Defrosting Tips• Foods frozen in paper or plastic can bedefrosted in the package. Closed packagesshould be slit, pierced or vented AFTER food has partially defrosted. Plastic storagecontainers should be partially uncovered.• Family-size, prepackaged frozen dinners canbe defrosted and microwaved. If the food is in a foil container, transfer it to a microwave-safe dish.• For more even defrosting of larger foods,such as roasts, use Auto Defrost. Be sure large meats are completely defrosted beforecooking.• Foods that spoil easily should not be allowedto sit out for more than one hour afterdefrosting. Room temperature promotes the growth of harmful bacteria.• When defrosted, food should be cool butsoftened in all areas. If still slightly icy, returnto the microwave very briefly, or let it stand a few minutes.BY TIME
23DefrostingGuide for TimeDefrostFood Time CommentsBreads, CakesBread, buns or rolls (1 piece) 1 min.Sweet rolls (approx. 12 oz) 3 to 5 min.Fish and SeafoodFillets, frozen (1 lb.) 6 to 8 min.Shellfish, small pieces (1 lb.) 5 to 7 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch – 1 to 2 3 to 6 min.(10-oz package)Meat Bacon (1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting.Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat (1 lb.) 5 to 7 min. Turn meat over after half the time.Roast: beef, lamb, veal, pork 12 to 16 min. Use power level 1.per lb.Steaks, chops and cutlets 5 to 7 min. Place unwrapped meat in cooking per lb. dish. Turn over after half the time and shield warm areas with foil. When finished, separate pieces and let stand to complete defrosting.PoultryChicken, broiler-fryer 15 to 19 min. Place wrapped chicken in dish. cut up (21⁄2to 3 lbs.) Unwrap and turn over after half the time. When finished, separate pieces and microwave 2 to 4 minutes more, if necessary.Let stand to finish defrosting.Chicken, whole 17 to 21 min. Place wrapped chicken in dish. (21⁄2to 3 lbs.) After half the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.Cornish hen 7 to 13 min. Place unwrapped hen in the oven per lb. breast-side-up. Turn over after halfthe time. Run cool water in the cavity until giblets can be removed.Turkey breast (4 to 6 lbs.) 5 to 9 min. Place unwrapped breast in dish per lb. breast-side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1 to 2 hours in refrigerator to complete defrosting.Defrosting Featureswww.GEAppliances.com
24Defrosting by WeightDefrosting Featureswww.GEAppliances.comDefrosting by Weight automatically sets thedefrosting times and power levels to give evendefrosting results for meats, poultry and fishweighing up to six pounds.1 From the Home Screen, select DEFROST.2 From the Defrost Screen, select BY WEIGHT.3 Using the Conversion Guide at right, enterthe food weight using the numbers on thetouchscreen. For example, press 1 and 2 for 1.2 pounds (1 pound, 3 ounces). PressENTER when finished or CLEAR to erase the weight you entered.4 Check to make sure the time is correct, andpress START on the touchscreen.• Remove meat from package and place onmicrowave-safe dish.• If the oven signals “TURN FOOD OVER,”turn the food over and break apart orrearrange pieces for more even defrosting.Shield any warm areas with small pieces offoil. The oven will continue to defrost if youdon’t open the door and turn the food.• After defrosting, most meats need to stand 5 minutes to complete defrosting. Largeroasts should stand for about 30 minutes.Conversion GuideIf the weight of food is stated in pounds andounces, the ounces must be converted totenths (0.1) of a pound.Weight of Food Enter Food Weight in Ounces (tenths of a pound)1–2 0.130.24–5 0.36–7 0.480.59–10 0.611 0.712–13 0.814–15 0.9BY WEIGHT1 Lb. QuickDefrost1 Lb. Quick Defrost automatically sets thedefrosting times and power levels for foodsweighing one pound.• Remove meat from package and place on a microwave-safe dish.1 From the Home Screen, select DEFROST.2 From the Defrost Screen, select 1 LBQUICK DEFROST. The oven startsimmediately.1 LB QUICKDEFROST
25Defrosting by FoodDefrosting Featureswww.GEAppliances.comDefrosting by Food allows you to specify thefood you are defrosting and automatically setsthe defrosting times and power levels to giveeven defrosting results for that type of food.1 From the Home Screen, select DEFROST.2 From the Defrost Screen, select BY FOOD.3 Select the food type from the touchscreen.4 Using the Conversion Guide at right, enterthe food weight using the numbers on thetouchscreen. For example, press 1 and 2 for1.2 pounds (1 pound, 3 ounces). PressENTER when finished. Press CLEAR to erase the weight you entered or BACK toselect a different food type.5 Check to make sure the food type and timeare correct, and press START on thetouchscreen.• Remove meat from package and place onmicrowave-safe dish.• If the oven signals “TURN FOOD OVER,”turn the food over and break apart orrearrange pieces for more even defrosting.Shield any warm areas with small pieces offoil. The oven will continue to defrost if youdon’t open the door and turn the food.• After defrosting, most meats need to stand 5 minutes to complete defrosting. Largeroasts should stand for about 30 minutes.Conversion GuideIf the weight of food is stated in pounds andounces, the ounces must be converted totenths (0.1) of a pound.Weight of Food Enter Food Weight in Ounces (tenths of a pound)1–2 0.130.24–5 0.36–7 0.480.59–10 0.611 0.712–13 0.814–15 0.9BACONHOT DOG ORSAUSAGEPOULTRYSTEAKS ORCHOPSGROUNDMEATFISH ORSEAFOODBREADROASTDEFROST BY FOOD
26Using theSoftenFeatureDefrosting Featureswww.GEAppliances.comThe Soften feature allows you to soften withoutmelting frozen or refrigerated foods.Unwrap butter or cream cheese and place on plate.Make sure that foil covers are removed fromfrosting or ice cream and place the containerin oven.1 From the Home Screen, select DEFROST.2 From the Cook Screen, press SOFTEN.3 Select the food type from the touchscreen.4 Check to make sure the time is correct, andpress START on the touchscreen.ICE CREAM1 PINTCREAM CHEESE 8 OZICE CREAM1 QUARTCREAM CHEESE 3 OZFROSTING1 CANBUTTER2 STICKSBUTTER1 STICKBUTTER1/2 STICKSOFTENUsing theMelt FeatureThe Melt feature allows you to melt foods for cooking.1 Place the unwrapped item into bowl. The Chocolate melting feature is for up to 16 oz. of chocolate morsels (chips).2 From the Home Screen, select DEFROST3 From the Defrost Screen, press MELT.4 Select the food type from the touchscreen.5 For all food types except Butter, enter thefood weight and press ENTER. Press CLEARif you want to clear your previous entry, orpress BACK to return to the previous screen.6 Check to make sure the time is correct, andpress START on the touchscreen.7 After removing food from the oven, stir wellto complete the melting process.MARSH-MALLOWBUTTER2 STICKSBUTTER1 STICKBUTTER1/2 STICKMELTCHOCOLATECARAMELCHEESE
27How to Delaythe Start ofDefrostingDefrosting Featureswww.GEAppliances.comThe Delay feature allows you to set themicrowave to delay the start time for TimeCook, Time Cook 1 & 2, and Time Defrost, for up to 24 hours.1 From the Home Screen, select DEFROST.2 From the Defrost Screen, select DELAY.3 Enter the time you want the oven to start.(Be sure the microwave clock shows thecorrect time of day.) Press ENTER whenfinished or CLEAR to erase the time youentered.4 Select AM or PM. Press ENTER whenfinished or BACK to enter a new time.5 Select the cooking or defrosting feature you wish to delay, then set the cooking ordefrosting program.6 Check to make sure the Delay time is correct, and press START on thetouchscreen.The start time will be displayed and will remain until the oven automatically starts at the delayed time.DELAY
28TURNTABLEEDITCUSTOM 1EDITCUSTOM 2FILTERREMINDERDISPLAYOPTIONSMOREBEEPERVOLUMEAUTONITE LITETIMERSET CLOCKREMINDEROPTIONSPress Enter OptionSET CLOCK Time of day, AM/PMTIMER Countdown timeREMINDER Reminder time, AM/PMAUTO NITE LITE ON time, AM/PMOFF time, AM/PMBEEPER VOLUME LOW, NORMAL, LOUD, MUTETURNTABLE ON, OFFEDIT CUSTOM 1, Microwave programEDIT CUSTOM 2FILTER REMINDER Reset reminder timeDISPLAY OPTIONS • Clock display ON/OFF• Display contrast 1–5Features of theOPTIONSScreenMicrowave Optionswww.GEAppliances.comThe Options Screen allows you to:• Set the clock• Set a countdown timer• Set a Reminder time• Set the time for the Auto Nite Light to come on and go off• Change the Beeper volume• Turn the turntable on or off• Change the microwave features controlled by the Custom 1 and Custom 2 features• Set a reminder to change the charcoal filter• Change display options
29Setting theClockMicrowave Optionswww.GEAppliances.comSelect SET CLOCK from the Options Screento set the time of day.1 From the Home Screen, select OPTIONS.2 From the Options Screen, select SET CLOCK.3 Using the numbers on the touchscreen,enter the time of day. Press ENTER whenfinished or CLEAR to erase the time youentered.4 Select AM or PM from the touchscreen.Press ENTER when finished or BACK toenter a new time.Setting theTimerTimer operates as a minute timer and can be used at any time, even when the oven is operating.1 From the Home Screen, select OPTIONS.2 From the Options Screen, select TIMER.3 Using the numbers on the touchscreen,enter time you want to count down. PressENTER when finished or CLEAR to erasethe time you entered.4 Press START.To cancel the timer, press TIMER OFF.When time is up, the oven will signal. To turnoff the timer signal, press TIMER OFF.NOTE: If the timer is operating whilemicrowaving, press DISPLAY TIMER orDISPLAY COOK TIME to view the timeremaining on the timer or cooking program.TIMERSET CLOCKSetting theReminderThe Reminder feature can be used like analarm clock, and can be used at any time, evenwhen the oven is operating. The Remindertime can be set up to 24 hours later.1 From the Home Screen, select OPTIONS.2 From the Options Screen, selectREMINDER.3 Using the numbers on the touchscreen,enter the time you want the oven to remindyou (be sure the microwave clock shows the correct time of day). Press ENTERwhen finished or CLEAR to erase the timeyou entered.4 Select AM or PM from the touchscreen.Press ENTER when finished or BACK toenter a new time.5 If the time shown is correct, press ENTER.When Reminder signal occurs, press OK toturn it of.NOTE: The REM indicator will remain lit toshow that the Reminder is set.REMINDER
30Setting theAuto NiteLightMicrowave Optionswww.GEAppliances.comThe Auto Nite Light can be set to come on and go off at desired times.To set the timer:1 From the Home Screen, select OPTIONS.2 From the Options Screen, select AUTONITE LITE.3 The display will show the previous time forwhich the Auto Nite Light was set. If youwish to use that time, press ENTER. To set a new time, press CHANGE TIME.4 If entering a new time, using the numbers on the touchscreen, enter the time of dayfor the light to come on. (Be sure themicrowave clock shows the correct time of day). Press ENTER when finished orCLEAR to erase the time you entered.5 Select AM or PM from the touchscreen. Press ENTER when finished or BACK toenter a new time.6 Using the numbers on the touchscreen, enter the time of day for the light to go off.Press ENTER when finished or CLEAR toerase the time you entered.7 Select AM or PM from the touchscreen. Press ENTER when finished or BACK toenter a new time.8 The display will show the time for which theAuto Nite Light was set. If you wish to usethat time, press ENTER. To set a new time,press CHANGE TIME and repeat theprevious steps.Press AUTO NITE LITE to turn the light on or off and press ENTER. If set to ON, the lightwill come on and go off at the times set.NOTE: The NITE indicator will remain lit to show that the Auto Nite Light is set.Changing the BeeperVolumeThe beeper sound level can be adjusted.1 From the Home Screen, select OPTIONS.2 From the Options Screen, select BEEPER VOLUME.3 Using the arrows on the touchscreen, select a volume from mute to loud4 Press ENTER when done or CANCELto keep the current volume.BEEPERVOLUMEAUTONITE LITETurntableOn/OffFor best cooking results, leave the turntableon. It can be turned off for large dishes.1 From the Home Screen, select OPTIONS.2 From the Options Screen, select TURNTABLE.3 Press TURNTABLE to turn the turntable on or off.4 Press ENTER to save or CANCEL to cancelyour selection.Sometimes the turntable can become too hot to touch.Be careful touching the turntable during andafter cooking.TURNTABLE
31Changing the CustomProgramsMicrowave Optionswww.GEAppliances.comThe CUSTOM 1 and CUSTOM 2 pads on the Home Screen can be changed to activateseveral different microwave programs for one touch recall.1 From the Home Screen, select OPTIONS.2 From the Options Screen, select EDITCUSTOM 1 if you want to change theselection for CUSTOM 1. Select EDITCUSTOM 2 if you want to change theselection for CUSTOM 2.3 Select a cooking or time feature from thetouchscreen. You can find additionalfeatures by pressing MORE at the bottom of the touchscreen.The CUSTOM 1 and CUSTOM 2 pads on the Home Screen will show the programs you selected for one-touch recall.Setting theCharcoalFilterReminderThe Charcoal Filter Reminder is a 180-day timer to remind you when to change thecharcoal filter.1 From the Home Screen, select OPTIONS.2 From the Options Screen, select FILTERREMINDER.2 The display will show the number of daysremaining until the reminder signals.3 To set the reminder back to 180 days, press RESET, then press ENTER.2 To turn the reminder on or off withoutchanging the countdown time, simply press ENTER.2 To cancel your entry and return to theOptions Screen, press CANCEL.4 To turn the reminder on or off, press the FILTER REMINDER button on thetouchscreen.5 Press ENTER to save or press BACK toreturn to the previous screen.If the Filter Reminder is turned ON, themicrowave will signal at the end of thecountdown to change the charcoal filter.FILTERREMINDEREDITCUSTOM 1EDITCUSTOM 2
32Changing the DisplayOptionsMicrowave Optionswww.GEAppliances.comChanging the Display Options allows you toturn the clock display on or off, change thecolor contrast of the touchscreen display orchange from standard to metric measurementson the display.1 From the Home Screen, select OPTIONS.2 From the Options Screen, select DISPLAYOPTIONS.3 To turn the clock display on or off, pressCLOCK on the touchscreen.2 To change the color contrast of the display,press CONTRAST until the screen shows the contrast you want.4 Press ENTER to save your settings orCANCEL to cancel your settings.DISPLAYOPTIONS
33AutomaticFanOther Featureswww.GEAppliances.comAn automatic fan feature protects themicrowave from too much heat rising from the cooktop below it. It automatically turns on if it senses too much heat.If you have turned the fan on, you may findthat you cannot turn it off. The fan willautomatically turn off when the internal partsare cool. It may stay on for 30 minutes or moreafter the cooktop and microwave controls areturned off.Vent FanThe vent fan removes steam and other vaporsfrom surface cooking.Press VENT once for high fan speed, twice formedium fan speed, a third time for low fanspeed or a fourth time to turn the fan off.Press the BOOST pad for extra fan speed.BOOSTVENTSurfaceLightPress LIGHT once for bright light, twice forthe night light or three times to turn the light off.LIGHTOffPressing OFF while on the Home Screen willput the touchscreen display into standby mode, and the display will be dark. Press thetouchscreen or HOME, or open the door to“wake up” the display.Pressing OFF while cooking will cancel thecurrent program and returns the display to the Home Screen.NOTE: Pressing OFF does not disconnect the appliance from the power supply.OFFChildLockoutYou may lock the control panel to prevent themicrowave from being accidentally started orused by children.To lock or unlock the controls, press and hold OFF for about three seconds. When the control panel is locked, CONTROL ISLOCKED will be displayed.OFF
34About the HelpFeatureHelp Featureswww.GEAppliances.comPressing HELP from the Home Screen allowsyou to locate feature information and helpfulhints. After pressing HELP:• Press PRODUCT DETAILS to findinformation concerning your model andserial number.• Press FEATURE HELP to find help locatinginformation on microwave features.• Press SAFETY GUIDE to find help locatingmicrowave safety information.• Press TROUBLESHOOTER to findtroubleshooting tips for common microwaveproblems.• Press SPACEMAKER 2.0 OVERVIEW to find an overview of the features of yourmicrowave.FeatureHelpPressing the HELP pad while on any screenother than the Home Screen allows you to findadditional information on features found onthat screen.Press HELP, then touch any pad on the TouchScreen for an explanation of that feature.SPACEMAKER 2.0OVERVIEWTROUBLESHOOTERSAFETYGUIDEFEATUREHELPPRODUCTDETAILSSELECT HELP FUNCTIONHELPUsing theTroubleshooterTo locate Troubleshooting Tips for commonmicrowave problems:1 Press the HELP button from the HomeScreen.2 Select TROUBLESHOOTER from thetouchscreen.3 Select the problem description from the liston the touchscreen. You can find additionalproblems by pressing MORE at the bottomof the touchscreen, or press BACK to returnto the previous screen.
Food microwaves best when placed on theturntable or on the shelf in the lower position.Only use the shelf when reheating on morethan one level. Do not store the shelf inside the oven cavity.• Make sure the shelf is positioned properlyinside the microwave to prevent damage tothe oven from arcing.• Do not use a microwave browning dish on the shelf. The shelf could overheat.• Do not use the oven with the shelf on themicrowave floor. This could damage themicrowave.• Use pot holders when handling the shelf—it may be hot.• Do not use the shelf when cooking popcorn.• Do not use the shelf with Sensor Cooking or Reheat.35For best resultsUneven results2-level reheatingSwitch places after 1/2 timeSwitch places after 1/2 timeSwitch places twiceShelfOther Featureswww.GEAppliances.comShelf andReheatingTo reheat on 2 levels ORTo reheat 2 dishes on the lower level:1 Multiply reheat time by 1-1/2.2 Switch places after 1/2 the time.To reheat on 3 levels:1 Turn the turntable off.2 Double the reheating time.3 Switch places twice and give the dishes a 1/2 turn during reheating. (Place densefoods, or those that require a longer cooktime, on the upper shelf first.)
36Term DefinitionArcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:• the metal shelf being installed incorrectly and touching the microwave walls.• metal or foil touching the side of the oven.• foil that is not molded to food (upturned edges act like antennas).• metal such as twist-ties, poultry pins, gold-rimmed dishes.• recycled paper towels containing small metal pieces.Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.Microwave Termswww.GEAppliances.com
37An occasional thorough wiping with a solutionof baking soda and water keeps the inside fresh.Be certain the oven control is turned offbefore cleaning any part of this oven.HelpfulHintsCare and Cleaningwww.GEAppliances.comHow toClean theInsideWalls, Floor, Inside Window, Metal andPlastic Parts on the DoorSome spatters can be removed with a papertowel; others may require a damp cloth.Remove greasy spatters with a sudsy cloth, thenrinse with a damp cloth. Do not use abrasivecleaners or sharp utensils on oven walls.Never use a commercial oven cleaner on any part of your microwave.Removable Turntable and Turntable SupportTo prevent breakage, do not place theturntable into water just after cooking. Wash it carefully in warm, sudsy water or in thedishwasher. The turntable and support can be broken if dropped. Remember, do notoperate the oven without the turntable andsupport in place.ShelfClean with mild soap and water or in thedishwasher.Do not clean in a self-cleaning oven.
38Charcoal Filter behind ActiveVent (on some models)Reusable Grease Filters (on all models)We recommend against using cleaners withammonia or alcohol, as they can damage theappearance of the microwave oven. If youchoose to use a common household cleaner,first apply the cleaner directly to a clean cloth,then wipe the soiled area.BottomClean off the grease and dust on the bottomoften. Use a solution of warm water anddetergent.CaseClean the outside of the microwave with a sudsy cloth.Rinse and then dry. Wipe the window cleanwith a damp cloth.Control Panel and DoorWipe with a damp cloth. Dry thoroughly. Do not use cleaning sprays, large amounts ofsoap and water, abrasives or sharp objects onthe panel—they can damage it. Some papertowels can also scratch the control panel.Door SealIt is important to keep the area clean wherethe door seals against the microwave. Use onlymild, non-abrasive detergents applied with aclean sponge or soft cloth. Rinse well.Stainless Steel (on some models)Do not use a steel-wool pad; it will scratch the surface.To clean the stainless steel surface, use a hot,damp cloth with a mild detergent suitable for stainless steel surfaces. Use a clean, hot,damp cloth to remove soap. Dry with a dry,clean cloth.If food soil remains, try a general kitchencleaner.For hard-to-clean soil, use a standard stainlesssteel cleaner, such as Bon-Ami®or Cameo.®Apply cleaner with a damp sponge. Use aclean, hot, damp cloth to remove cleaner. Dry with a dry, clean cloth. Always scrub lightly in the direction of the grain.After cleaning, use a stainless steel polish, suchas Stainless Steel Magic,®Revere Copper andStainless Steel Cleaner®or Wenol All PurposeMetal Polish.®Follow the product instructionsfor cleaning the stainless steel surface.HelpfulHintsCare and Cleaningwww.GEAppliances.comVent FanThe vent fan has 2 metal reusable grease filters.Models that recirculate air back into the roomalso use a charcoal filter.
To remove the charcoal filter:1 Disconnect power at the main fuse or circuitbreaker panel or pull the plug.2 Remove the top grille by removing the screwson top of the grille that hold it in place andsliding the grille to the left (opening thedoor makes grille removal easier).3 Slide the filter toward the front of the ovenand remove it.To install a new filter:1 Remove plastic and other outer wrappingfrom the new filter.2 Insert the filter into the top opening of theoven as shown. It will rest at an angle on 2 side support tabs and in front of the rightrear tab.3 Replace the grille and screws. 39Remove grille screws to remove the grilleThe metal filters trap grease released by foodson the cooktop. They also prevent flames fromfoods on the cooktop from damaging theinside of the microwave.For this reason, the filters must ALWAYS be inplace when the hood is used. The grease filtersshould be cleaned once a month, or as needed.Reusable GreaseFiltersCare and Cleaningwww.GEAppliances.comRemoving and Cleaningthe FilterTo remove, slide it to the outside using the tab. Pull it down and out.To clean the grease filter, soak it and thenswish it around in hot water and detergent.Don’t use ammonia or ammonia productsbecause they will darken the metal. Light brushing can be used to removeembedded dirt.Rinse, shake and let it dry before replacing.To replace, slide the filter in the frame slot at the outside of the opening. Pull up and in to lock into place.CharcoalFilter (onsome models)The charcoal filter cannot be cleaned. It must be replaced. Order Part No. WB2X10956 fromyour GE supplier.If the model is not vented to the outside, the air will be recirculated through a disposable charcoal filter that helps remove smoke and odors.The charcoal filter should be replaced when itis noticeably dirty or discolored (usually after 6 to 12 months, depending on hood usage).Replacing the CharcoalFilter

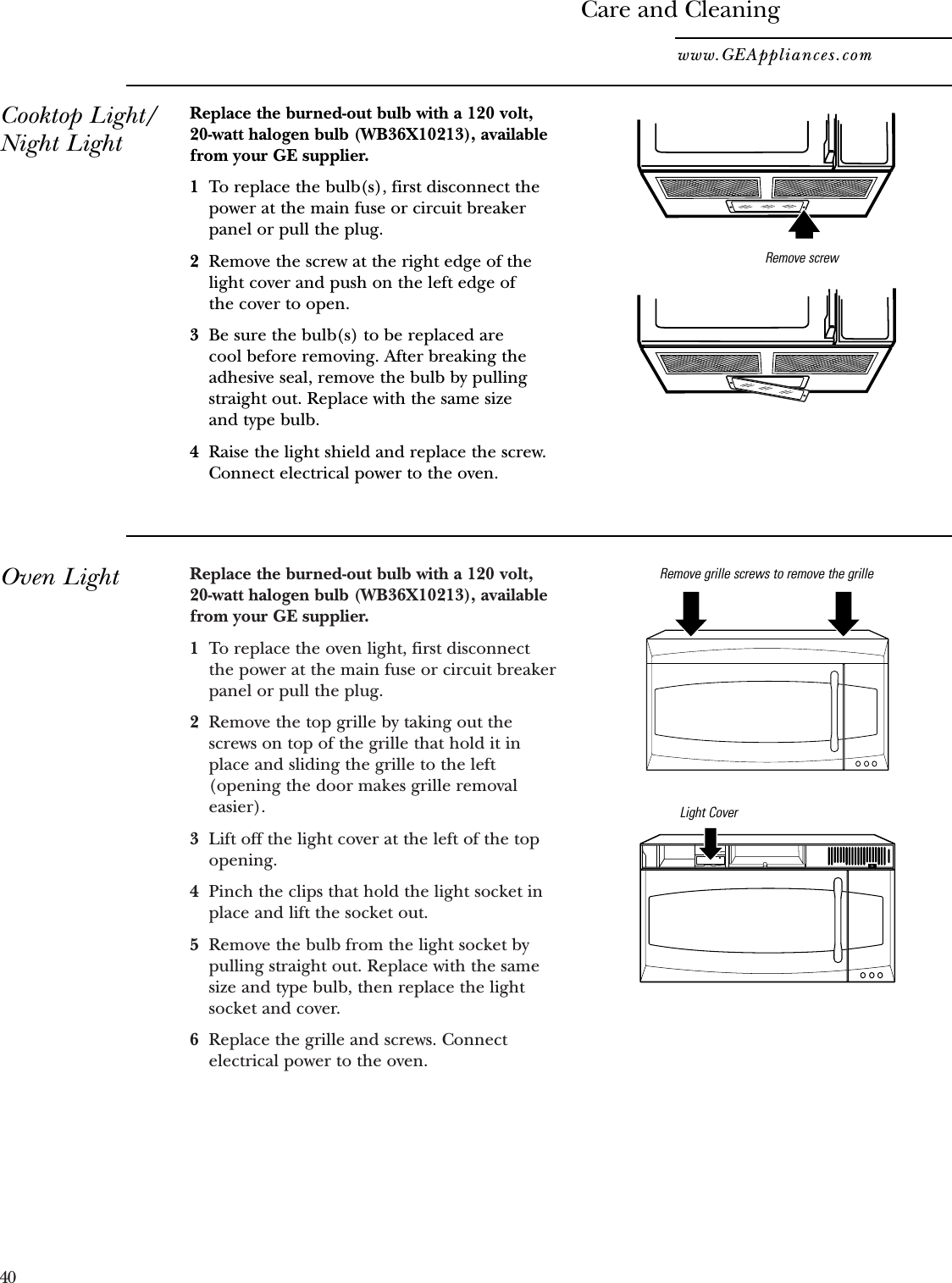

Replace the burned-out bulb with a 120 volt, 20-watt halogen bulb (WB36X10213), availablefrom your GE supplier.1 To replace the oven light, first disconnectthe power at the main fuse or circuit breakerpanel or pull the plug.2 Remove the top grille by taking out thescrews on top of the grille that hold it inplace and sliding the grille to the left(opening the door makes grille removaleasier).3 Lift off the light cover at the left of the topopening.4 Pinch the clips that hold the light socket inplace and lift the socket out.5 Remove the bulb from the light socket bypulling straight out. Replace with the samesize and type bulb, then replace the lightsocket and cover.6 Replace the grille and screws. Connectelectrical power to the oven.40Remove grille screws to remove the grilleLight CoverReplace the burned-out bulb with a 120 volt, 20-watt halogen bulb (WB36X10213), availablefrom your GE supplier.1 To replace the bulb(s), first disconnect thepower at the main fuse or circuit breakerpanel or pull the plug.2 Remove the screw at the right edge of thelight cover and push on the left edge of the cover to open.3 Be sure the bulb(s) to be replaced are cool before removing. After breaking theadhesive seal, remove the bulb by pullingstraight out. Replace with the same size and type bulb.4 Raise the light shield and replace the screw.Connect electrical power to the oven.Cooktop Light/Night LightCare and Cleaningwww.GEAppliances.comOven LightRemove screw
41Problem Possible Cause What To DoOven will not start Control panel is asleep •This is normal. Press HOME or thetouchscreen to activate the control panel.A fuse in your home may •Replace fuse or reset circuit breaker.be blown or the circuit breaker trippedPower surge •Unplug the microwave oven, then plug it back in.Controls are not set properly •Check controls.Plug not fully inserted into •Make sure the 3-prong plug on the oven is fully wall outlet inserted into wall outlet.START was not pressed •Press START.“CONTROL IS The control has been locked •Press and hold OFF for about 3 seconds to LOCKED” appears unlock the control.on the displayFor a complete list of solutions to common microwaving problems, use theTroubleshooting Tips feature located by pressing the HELP button while on the microwave Home Screen (see Using the Troubleshooter).If your microwave will not operate, check the Problem Solver below:Problem Solverwww.GEAppliances.com• Steam or vapor escaping from around the door.• Light reflection around door or outer case.• Dimming oven light and change in theblower sound at power levels other than high.• Moisture on the oven door and walls whilecooking. Wipe the moisture off with a papertowel or soft cloth.• Moisture between the oven door panels whencooking certain foods. Moisture shoulddissipate shortly after cooking is finished.• Dull thumping sound while oven is operating.• TV/radio interference might be noticedwhile using the microwave. Similar to the interference caused by other smallappliances, it does not indicate a problemwith the microwave. Plug the microwave intoa different electrical circuit, move the radioor TV as far away from the microwave aspossible, or check the position and signal of the TV/radio antenna.• The Active Vent door (on some models) will open during operation, and remain open while the microwave is running, to keep the electronics cool. It is also normal to hear a clicking noise as the vent door opens and closes.Things ThatAre NormalWith YourMicrowaveOven
42Staple your receipt here. Proof of the original purchasedate is needed to obtain serviceunder the warranty.For The Period Of: We Will Replace:One Year Any part of the microwave oven which fails due to a defect in materials or workmanship. During From the date of the this full one-year warranty, GE will also provide, free of charge, all labor and related service costs to original purchase replace the defective part.Second through The magnetron tube, if the magnetron tube fails due to a defect in materials or workmanship. During Tenth Year this additional nine-year limited warranty, you will be responsible for any labor or related service costs.From the date of theoriginal purchaseAll warranty service provided by our Factory Service Centers or an authorized Customer Care®technician. To schedule service,on-line, 24 hours a day, visit us at www.GEAppliances.com orcall 800.GE.CARES (800.432.2737).■ Service trips to your home to teach you how to use the product.■Improper installation, delivery or maintenance.■Failure of the product if it is abused, misused, or used for other than the intended purpose or usedcommercially.■Replacement of the cooktop light bulb.■ Replacement of house fuses or resetting of circuitbreakers.■ Damage to the product caused by accident, fire, floodsor acts of God.■ Incidental or consequential damage caused by possibledefects with this appliance.■ Damage caused after delivery.What Is Not Covered:This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within theUSA. In Alaska, the warranty excludes the cost of shipping or service calls to your home. Proof of the original purchase date isneeded to obtain service under the warranty.Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specificlegal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consultyour local or state consumer affairs office or your state’s Attorney General.Warrantor: General Electric Company. Louisville, KY 40225Microwave Oven Warrantywww.GEAppliances.com
43Noteswww.GEAppliances.com
Consumer SupportGE Appliances Web site www.GEAppliances.comHave a question or need assistance with your appliance? Try the GE Appliances Web site 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” yourquestions, and so much more...Schedule Service www.GEAppliances.comExpert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normalbusiness hours.Real Life Design Studio www.GEAppliances.comGE supports the Universal Design concept—products, services, and environments that can be used by people of all ages, sizes, and capabilities. We recognize the need to design for a wide range of physical andmental abilities and impairments. For details of GE’s Universal Design applications, including kitchendesign ideas for people with disabilities, check out our Web site today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322). Extended Warranties www.GEAppliances.comPurchase a GE extended warranty and learn about special discounts that are available while your warrantyis still in effect. You can purchase it on-line anytime or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.Parts and Accessories www.GEAppliances.comIndividuals qualified to service their own appliances can have parts or accessories sent directly to theirhomes (VISA, MasterCard, and Discover cards are accepted). Order on-line today, 24 hours every day, or by phone at 800.626.2002 during normal business hours.Instructions contained in this manual cover procedures to be performed by any user. Other servicing generallyshould be referred to qualified service personnel. Caution must be exercised, since improper servicing may causeunsafe operation. Contact Us www.GEAppliances.comIf you are not satisfied with the service you receive from GE, contact us on our Web site with all the details,including your phone number, or write to: General Manager, Customer RelationsGE Appliances, Appliance ParkLouisville, KY 40225Printed in KoreaRegister Your Appliance www.GEAppliances.comRegister your new appliance on-line—at your convenience! Timely product registration will allow forenhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the preprinted registration card included in the packing material.
