SpacemakerXL Microwave OvenOwner’s ManualModels: 950 WattsJVM1410JVM1420JVM1421JVM1430JVM1440JVM1441230Helpful InformationMicrowave Terms 32Care and Cleaning 3336If Something Goes WrongBefore You Call For Service 38GE Service Numbers 42Warranty Back CoverGEAppliances.com11Important Safety InformationPrecautions to Avoid Possible Exposure to Excessive Microwave Energy 2Special Notes About Microwaving 6Operating InstructionsFeatures of Your Microwave 11The Controls on Your Microwave 12Time Cooking 15Automatic Cooking 21Other Features 25Oven Shelf 30164D3370P18649-40215-110-01 JR49-402151v03 10/5/01 10:53 AM Page 1
2IMPORTANT SAFETY INFORMATIONREAD ALL SAFETYINFORMATION BEFORE USINGFOR YOURSAFETYPRECAUTIONSTO AVOIDPOSSIBLEEXPOSURE TO EXCESSIVEMICROWAVEENERGYFor your safety the information in this manualmust be followed to minimize the risk of fire orexplosion or to prevent property damage,personal injury or loss of life.Do Not Attempt tooperate this oven withthe door open sinceopen-door operationcan result in harmfulexposure to microwaveenergy. It is importantnot to defeat or tamper with the safety interlocks.Do Not Place any objectbetween the oven frontface and the door orallow soil or cleanerresidue to accumulateon sealing surfaces.Do Not Operate the oven if it is damaged. It isparticularly importantthat the oven doorclose properly and that there is nodamage to the:1door (bent),2hinges and latches(broken or loosened),3door seals and sealingsurfaces.The Oven Should Not be adjusted or repairedby anyone exceptproperly qualifiedservice personnel.49-402151v03 10/5/01 10:53 AM Page 2
3Welcome to the GE family.We’re proud of our qualityproducts and we believe in dependable service. You’ll see it in this easy-to-use manual and you’ll hearit in the friendly voices ofour consumer servicedepartment. Best of all, you’ll experiencethese values each time youuse your microwave. That’simportant, because your newmicrowave will be part ofyour family for a long time.WelcomeWrite down the model andserial numbers here.They areon a label inside the oven.Model numberSerial numberDate of purchaseStaple your receipt to theinside back cover of thismanual. You will need it toobtain service underwarranty.Before you call for service, there are a few things youcan do to help us serve youbetter.Read this manual. It contains instructions tohelp you use and maintainyour microwave properly.If you received a damagedoven...immediately contactthe dealer (or builder)that sold you the oven.Save time and money. Check the section titled “If Something GoesWrong” before calling.This section helps yousolve common problemsthat might occur.If you do need service, you can relax knowinghelp is only a phone callaway. A list of toll-freecustomer service numbersis included in the back of this manual. Need Help?Start Here!…Before using your Microwave49-402151v03 10/5/01 10:53 AM Page 3
To reduce the risk of fire, burns, electric shock, injury to persons, or exposure to excessivemicrowave energy when using your appliance, follow basic precautions, including thefollowing sections.WARNING•Read and follow thespecific “Precautions toAvoid Possible Exposureto Excessive MicrowaveEnergy” on page 2.•This appliance must begrounded. Connect onlyto properly groundedoutlet. See GroundingInstructions section onpage 10.•Do not mount thisappliance over a sink. •Install or locate thisappliance only inaccordance with theprovided InstallationInstructions.•This over-the-range ovenwas designed for use overranges no wider than 36″.It may be installed overboth gas and electriccooking equipment.•Do not operate thisappliance if it has adamaged power cord orplug, if it is not workingproperly, or if it has beendamaged or dropped. If the power cord isdamaged, it must bereplaced by GeneralElectric Service or anauthorized service agentusing a power cord fromGeneral Electric.•Do not cover or block any openings on theappliance.•Use this appliance onlyfor its intended use asdescribed in this manual.Do not use corrosivechemicals or vapors inthis appliance. Thismicrowave oven isspecifically designed toheat, dry or cook food,and is not intended for laboratory orindustrial use.This microwave oven isUL listed for installationover electric and gasranges.This microwave oven isnot approved or testedfor marine use.SAFETYPRECAUTIONS4IMPORTANT SAFETY INFORMATIONREAD ALL SAFETYINFORMATION BEFORE USING49-402151v03 10/5/01 10:53 AM Page 4
•Do not store this applianceoutdoors. Do not use this productnear water—for example,in a wet basement, near a swimming pool or near a sink.•Keep power cord awayfrom heated surfaces.•Do not immerse powercord or plug in water.•To reduce the risk of firein the oven cavity:– Do not overcook food.Carefully attend applianceif paper, plastic or othercombustible materials areplaced inside the ovenwhile cooking.– Remove wire twist-ties andmetal handles from paperor plastic containersbefore placing them inthe oven.– Do not use the oven forstorage purposes. Do notleave paper products,cooking utensils or foodin the oven when not in use.– If materials inside ovenshould ignite, keep theoven door closed, turn theoven off and disconnectthe power cord, or shutoff power at the fuse orcircuit breaker panel. If the door is opened, the fire may spread.•See door surface cleaninginstructions in the Careand Cleaning section(s) of this guide.•This appliance should be serviced only byqualified service personnel.Contact nearest authorizedservice facility forexamination, repair or adjustment.•As with any appliance,close supervision isnecessary when used by children.SAVE THESE INSTRUCTIONS549-402151v03 10/5/01 10:53 AM Page 5
IMPORTANT SAFETY INFORMATIONSPECIAL NOTES ABOUT MICROWAVINGArcing is the microwaveterm for sparks in theoven. Arcing is caused by:•The metal shelf notinstalled correctly so ittouches the microwavewall.•Metal or foil touchingthe side of the oven.•Foil not molded to food(upturned edges act likeantennas).•Metal, such as twist-ties,poultry pins, or gold-rimmed dishes, in themicrowave.•Recycled paper towelscontaining small metalpieces being used in themicrowave.If you see arcing, pressthe CLEAR/OFF pad andcorrect the problem.ARCING•Do not pop popcorn inyour microwave ovenunless in a specialmicrowave popcornaccessory or unless youuse popcorn labeled foruse in microwave ovens.•Some products such aswhole eggs and sealedcontainers—for example,closed jars—will explodeand should not be heatedin this microwave oven.Such use of the microwaveoven could result in injury.•Do not boil eggs in amicrowave oven. Pressurewill build up inside eggyolk and will cause it toburst, possibly resultingin injury.•Operating the microwavewith no food inside formore than a minute ortwo may cause damage to the oven and couldstart a fire. It increasesthe heat around themagnetron and canshorten the life of the oven.•Foods with unbrokenouter “skin” such aspotatoes, hot dogs,sausages, tomatoes,apples, chicken livers and other giblets, andegg yolks should bepierced to allow steam to escape duringcooking.FOODS649-402151v03 10/5/01 10:53 AM Page 6
7•Avoid heating baby foodin glass jars, even with thelid off. Make sure allinfant food is thoroughlycooked. Stir food todistribute the heat evenly.Be careful to preventscalding when warmingformula or breast milk.The container may feelcooler than the milk reallyis. Always test the milkbefore feeding the baby.•Spontaneous boiling—Under certain specialcircumstances, liquidsmay start to boil duringor shortly after removalfrom the microwaveoven. To prevent burnsfrom splashing liquid, werecommend the following:before removing thecontainer from the oven,allow the container tostand in the oven for 30 to 40 seconds after the oven has shut off. Do not boil liquids innarrow-necked containerssuch as soft drink bottles,wine flasks and especiallynarrow-necked coffeecups. Even if thecontainer is opened,excessive steam can buildup and cause it to burstor overflow.•Don’t defrost frozenbeverages in narrow-necked bottles (especiallycarbonated beverages).Even if the container isopened, pressure canbuild up. This can causethe container to burst,possibly resulting ininjury.•Hot foods and steam can cause burns. Becareful when opening any containers of hotfood, including popcornbags, cooking pouchesand boxes. To preventpossible injury, directsteam away from handsand face.•Do not overcookpotatoes. They coulddehydrate and catch fire, causing damage toyour oven.•Cook meat and poultrythoroughly—meat to at least an INTERNALtemperature of 160°F and poultry to at least anINTERNAL temperature of 180°F. Cooking tothese temperaturesusually protects againstfoodborne illness.SAFETYFACTSUPERHEATED WATERMicrowaved water and other liquids do notalways bubble whenthey reach the boilingpoint. They can actuallyget superheated and notbubble at all.Superheated liquid will bubble up out of the cup when it is moved orwhen something like aspoon or tea bag is putinto it.To prevent this fromhappening and causinginjury, do not heat anyliquid for more than 2minutes per cup. Afterheating, let the cup stand in the microwavefor 30 seconds beforemoving it or puttinganything into it.49-402151v03 10/5/01 10:53 AM Page 7

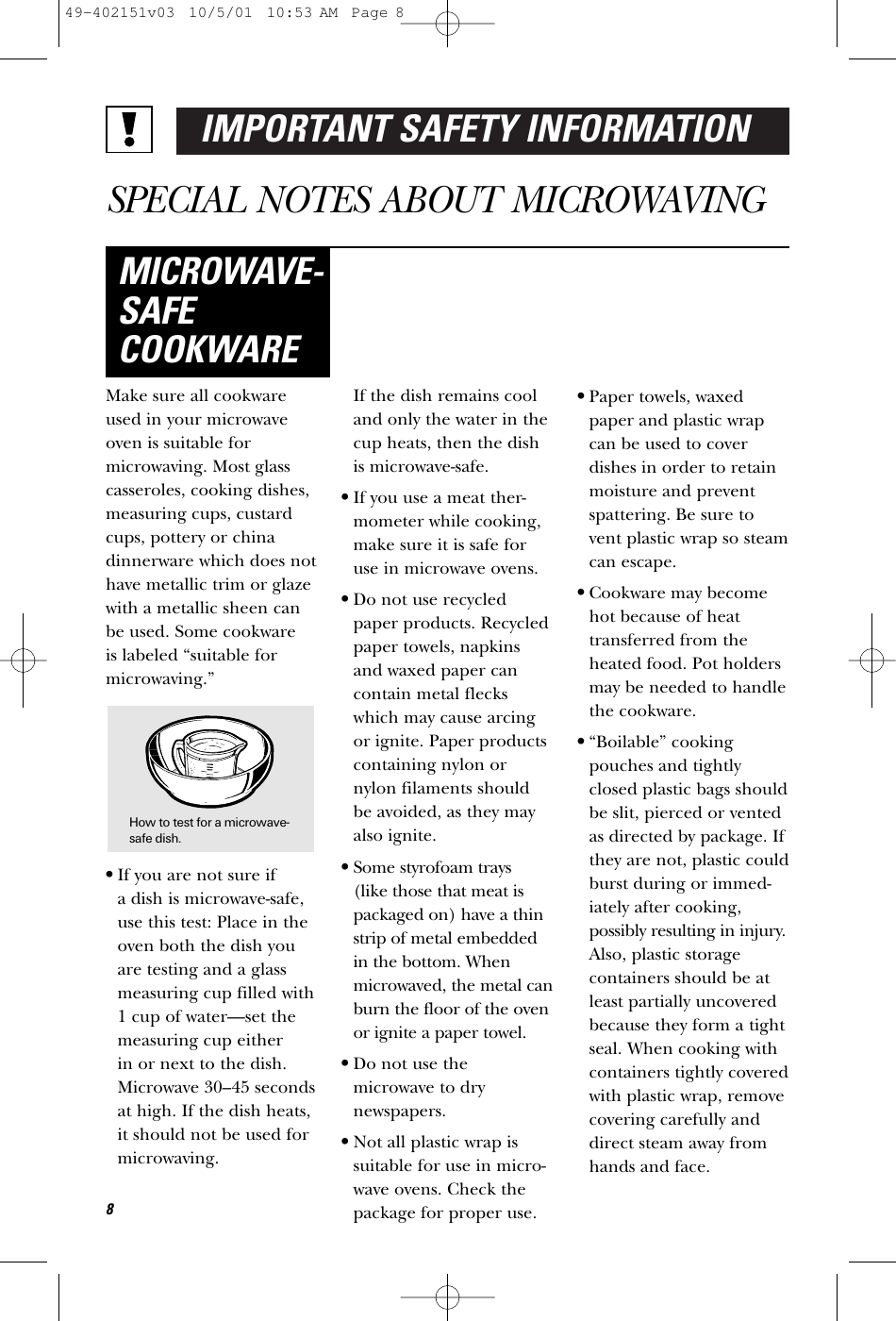

IMPORTANT SAFETY INFORMATIONSPECIAL NOTES ABOUT MICROWAVINGMake sure all cookwareused in your microwaveoven is suitable formicrowaving. Most glasscasseroles, cooking dishes,measuring cups, custardcups, pottery or chinadinnerware which does nothave metallic trim or glazewith a metallic sheen canbe used. Some cookware is labeled “suitable formicrowaving.”•If you are not sure if a dish is microwave-safe,use this test: Place in theoven both the dish youare testing and a glassmeasuring cup filled with1 cup of water—set themeasuring cup either in or next to the dish.Microwave 30–45 secondsat high. If the dish heats,it should not be used formicrowaving. If the dish remains cooland only the water in thecup heats, then the dishis microwave-safe.•If you use a meat ther-mometer while cooking,make sure it is safe foruse in microwave ovens.•Do not use recycledpaper products. Recycledpaper towels, napkinsand waxed paper cancontain metal fleckswhich may cause arcingor ignite. Paper productscontaining nylon ornylon filaments shouldbe avoided, as they mayalso ignite. •Some styrofoam trays (like those that meat ispackaged on) have a thinstrip of metal embeddedin the bottom. Whenmicrowaved, the metal canburn the floor of the ovenor ignite a paper towel.•Do not use themicrowave to drynewspapers.•Not all plastic wrap issuitable for use in micro-wave ovens. Check thepackage for proper use.•Paper towels, waxedpaper and plastic wrapcan be used to coverdishes in order to retainmoisture and preventspattering. Be sure tovent plastic wrap so steamcan escape.•Cookware may becomehot because of heattransferred from theheated food. Pot holdersmay be needed to handlethe cookware.•“Boilable” cookingpouches and tightlyclosed plastic bags shouldbe slit, pierced or ventedas directed by package. Ifthey are not, plastic couldburst during or immed-iately after cooking,possibly resulting in injury.Also, plastic storagecontainers should be atleast partially uncoveredbecause they form a tightseal. When cooking withcontainers tightly coveredwith plastic wrap, removecovering carefully anddirect steam away fromhands and face.MICROWAVE-SAFECOOKWARE8How to test for a microwave-safe dish.49-402151v03 10/5/01 10:53 AM Page 8
9•Use foil only as directedin this manual. TVdinners may bemicrowaved in foil traysless than 3/4″high;remove the top foil coverand return the tray to thebox. When using foil inthe microwave oven, keep the foil at least 1″away from the sides of the oven.•Plastic cookware—Plasticcookware designed formicrowave cooking is veryuseful, but should be usedcarefully. Even microwave-safe plastic may not be astolerant of overcookingconditions as are glass orceramic materials andmay soften or char ifsubjected to short periodsof overcooking. In longerexposures to overcooking,the food and cookwarecould ignite.Follow these guidelines: 1Use microwave-safeplastics only and use them in strict compliance with the cookwaremanufacturer’srecommendations. 2Do not microwave emptycontainers. 3Do not permit children to use plastic cookwarewithout completesupervision.The fan will operateautomatically undercertain conditions (seeAutomatic Fan feature).Take care to prevent thestarting and spreading ofaccidental cooking fireswhile the vent fan is in use. •Clean the underside ofthe microwave often. Do not allow grease to build up on themicrowave or the fan filters.•In the event of a greasefire on the surface unitsbelow the microwaveoven, smother a flamingpan on the surface unitby covering the pancompletely with a lid, acookie sheet or a flat tray.•Use care when cleaningthe vent fan filters.Corrosive cleaningagents, such as lye-basedoven cleaners, maydamage the filters.•When preparing flaming foods under themicrowave, turn the ventfan on.•Never leave surface unitsbeneath your microwaveoven unattended at highheat settings. Boiloverscause smoking and greasyspillovers that may igniteand spread if themicrowave vent fan isoperating. To minimizeautomatic fan operation,use adequate sizedcookware and use highheat on surface unitsonly when necessary.THE VENTFAN49-402151v03 10/5/01 10:53 AM Page 9
IMPORTANT SAFETY INFORMATIONGROUNDING INSTRUCTIONS/OPTIONAL KITSWARNINGImproper use of thegrounding plug can result ina risk of electric shock.This appliance must begrounded. In the event of an electrical short circuit,grounding reduces the risk of electric shock byproviding an escape wire for the electric current. This appliance is equippedwith a power cord having a grounding wire with agrounding plug. The plugmust be plugged into anoutlet that is properlyinstalled and grounded.Consult a qualified electrician or servicetechnician if the groundinginstructions are notcompletely understood, or if doubt exists as towhether the appliance isproperly grounded.If the outlet is a standard 2-prong wall outlet, it is your personal responsibilityand obligation to have itreplaced with a properlygrounded 3-prong walloutlet.Do not under any circum-stances cut orremove the third (ground)prong from the power cord.Do not use an adapter plugwith this appliance.Do not use an extensioncord with this appliance. If the power cord is tooshort, have a qualifiedelectrician or servicetechnician install an outletnear the appliance.For best operation, plug this appliance into its ownelectrical outlet to preventflickering of lights, blowingof fuse or tripping of circuitbreaker.GROUNDINGINSTRUCTIONSFiller Panel KitsJX40WH or JX46WH—WhiteJX41 or JX46BL—BlackJX40AL or JX46AL—AlmondWhen replacing a 36″range hood, filler panelkits fill in the additionalwidth to provide a custombuilt-in appearance. For installation betweencabinets only; not for end-of-cabinet installation.Each kit contains two 3″-wide filler panels. Filter KitsJX81A—RecirculatingCharcoal Filter KitFilter kits are used whenthe microwave oven cannotbe vented to the outside.Decorative Panel KitJX22SS—Stainless SteelWhen replacing a Hi/Lowrange, the decorative panelkit fills in the area betweenthe microwave and therange left by the Hi/Lowmodel.Available at extra cost fromyour GE supplier.Optional KitsEnsure proper groundexists before use.1049-402151v03 10/5/01 10:53 AM Page 10

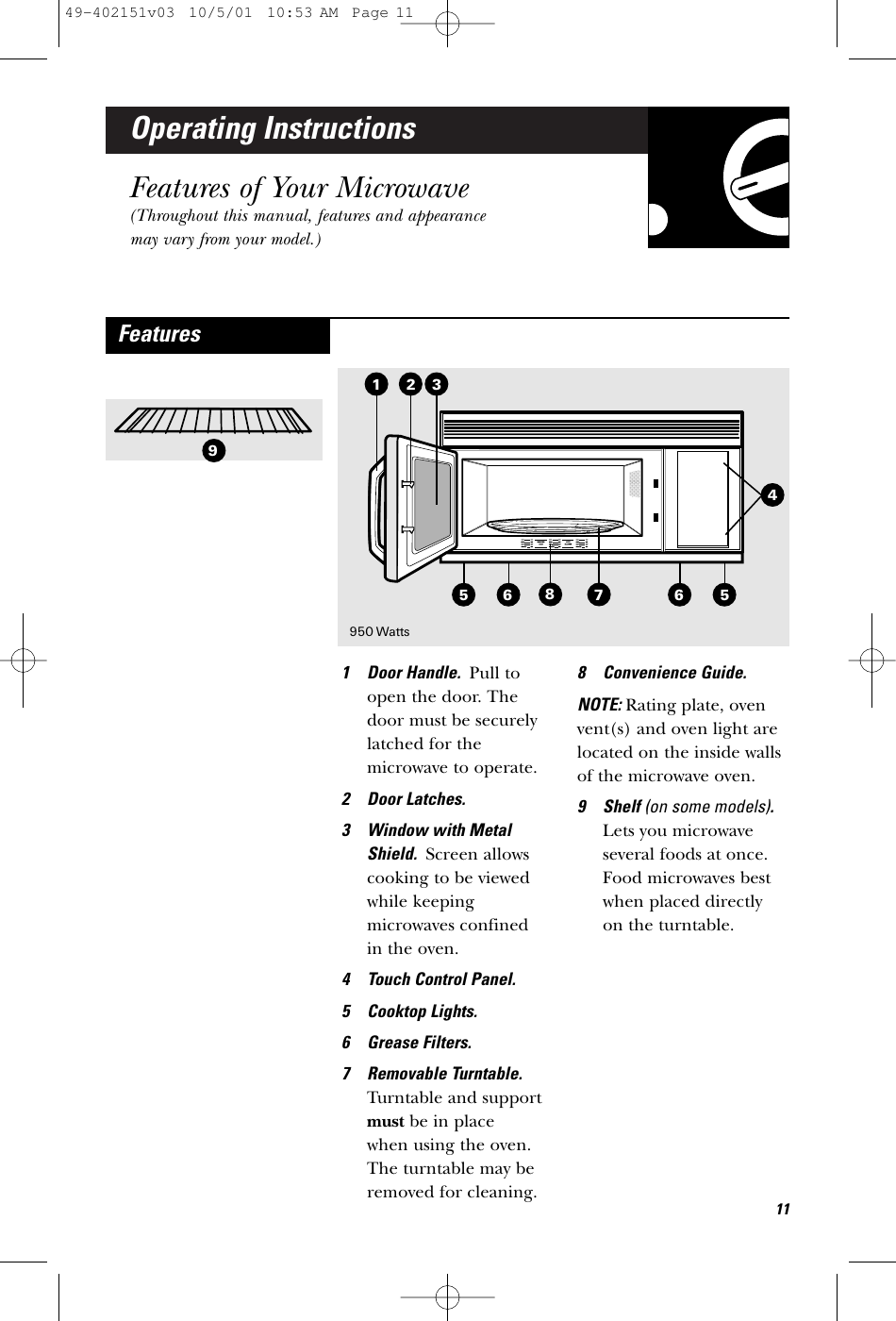

Operating InstructionsFeatures of Your Microwave(Throughout this manual, features and appearancemay vary from your model.)1 Door Handle. Pull toopen the door. Thedoor must be securelylatched for themicrowave to operate.2 Door Latches.3 Window with MetalShield. Screen allowscooking to be viewedwhile keepingmicrowaves confined in the oven.4 Touch Control Panel. 5 Cooktop Lights.6 Grease Filters.7 Removable Turntable.Turntable and supportmust be in place when using the oven.The turntable may beremoved for cleaning.8 Convenience Guide.NOTE: Rating plate, ovenvent(s) and oven light arelocated on the inside wallsof the microwave oven.9 Shelf (on some models).Lets you microwaveseveral foods at once.Food microwaves bestwhen placed directly on the turntable.Features32155687116950 Watts4949-402151v03 10/5/01 10:53 AM Page 11
Time FeaturesTime CookingPress EnterTIME COOK I & II (Press once or twice) Amount of cooking time.DEFROST AUTO/TIME (Press twice) Amount of defrosting time.EXPRESS COOK Starts immediately!POWER LEVEL Power level 1–10.ADD 30 SEC Starts immediately!12Quick StartThe Controls on Your Microwave Oven(Throughout this manual, features and appearance may vary from your model.)1You can microwaveby time, temperature,or with theconveniencefeatures.49-402151v03 10/5/01 10:53 AM Page 12
13Convenience FeaturesPress Enter OptionPOPCORN Starts immediately! more/less timeserving sizeBEVERAGE Starts immediately! serving sizeREHEAT Food type 1–6 serving sizeDEFROST AUTO/TIME Food weight(Press once)2HELPPress this pad and anyfeature pad for usageinstructions and tips.GUIDE ON MICROWAVEBefore you begin, checkthe guide located on theinside front of the ovenwhen you open the door.GUIDES IN BOOK•Cooking•Time Defrost•Reheat49-402151v03 10/5/01 10:53 AM Page 13

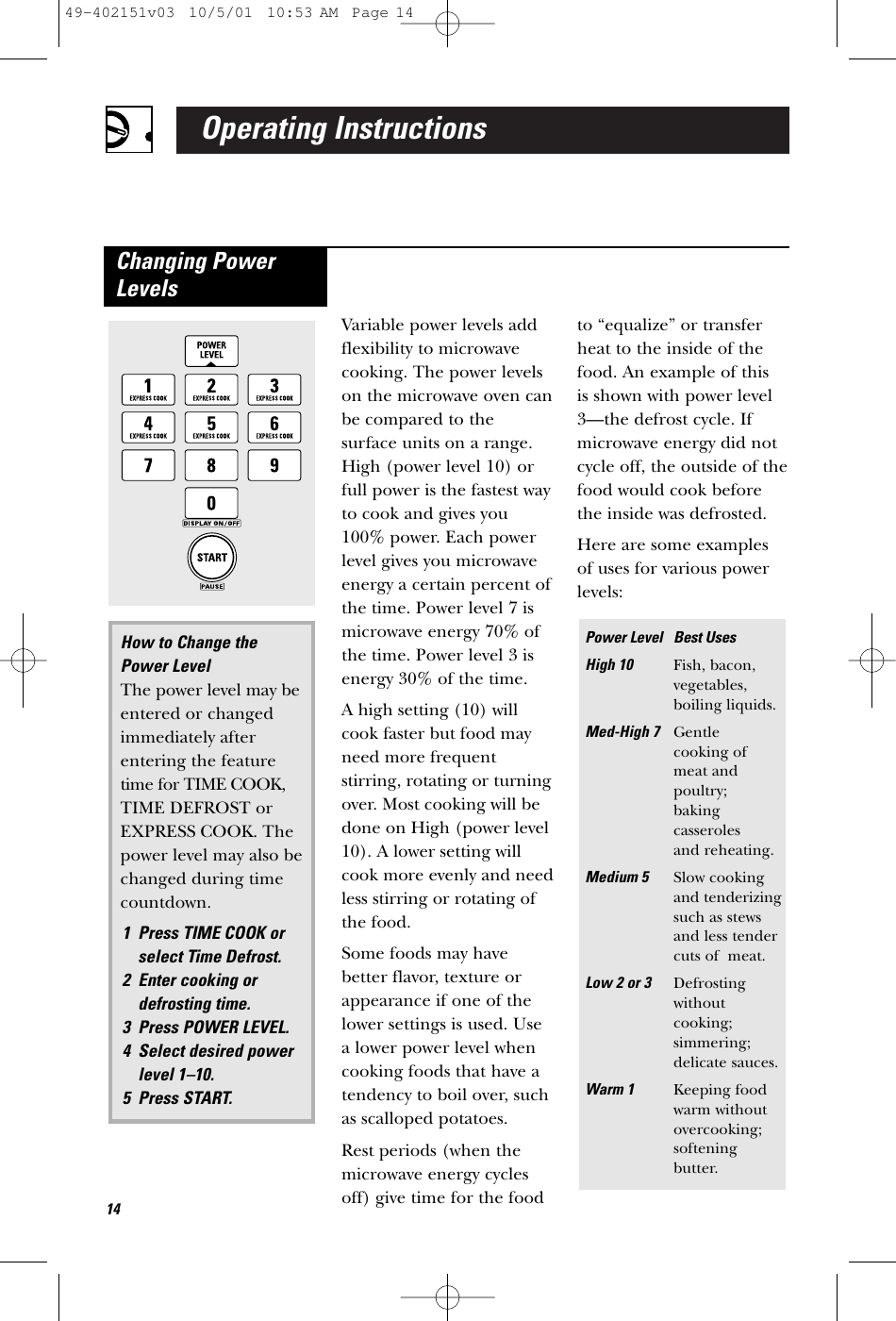

Operating InstructionsVariable power levels addflexibility to microwavecooking. The power levelson the microwave oven canbe compared to thesurface units on a range.High (power level 10) orfull power is the fastest wayto cook and gives you100% power. Each powerlevel gives you microwaveenergy a certain percent ofthe time. Power level 7 ismicrowave energy 70% ofthe time. Power level 3 isenergy 30% of the time.A high setting (10) willcook faster but food mayneed more frequentstirring, rotating or turningover. Most cooking will bedone on High (power level10). A lower setting willcook more evenly and needless stirring or rotating ofthe food. Some foods may havebetter flavor, texture orappearance if one of thelower settings is used. Usea lower power level whencooking foods that have atendency to boil over, suchas scalloped potatoes.Rest periods (when themicrowave energy cyclesoff) give time for the food to “equalize” or transferheat to the inside of thefood. An example of this is shown with power level3—the defrost cycle. Ifmicrowave energy did notcycle off, the outside of thefood would cook beforethe inside was defrosted.Here are some examples of uses for various powerlevels:Power Level Best UsesHigh 10Fish, bacon, vegetables, boiling liquids.Med-High 7Gentle cooking of meat and poultry; baking casserolesand reheating.Medium 5Slow cooking and tenderizingsuch as stewsand less tendercuts of meat.Low 2 or 3 Defrosting withoutcooking; simmering; delicate sauces.Warm 1Keeping food warm without overcooking; softening butter.How to Change the Power Level The power level may beentered or changedimmediately afterentering the featuretime for TIME COOK,TIME DEFROST orEXPRESS COOK. Thepower level may also bechanged during timecountdown.1 Press TIME COOK orselect Time Defrost.2 Enter cooking ordefrosting time.3 Press POWER LEVEL.4 Select desired powerlevel 1–10.5 Press START.Changing PowerLevels1449-402151v03 10/5/01 10:53 AM Page 14
15Time FeaturesTime Cook IAllows you to microwavefor any time up to 99minutes and 99 seconds. Power level 10 (High) isautomatically set, but youmay change it for moreflexibility. You may open the doorduring Time Cook tocheck the food. Close thedoor and press START toresume cooking.Time Cook IILets you change powerlevels automatically duringcooking. Here’s how to do it:1Press TIME COOK.2Enter the first cook time. 3Change the power level if you don’t want fullpower. (Press POWERLEVEL. Select a desiredpower level 1–10.)4Press TIME COOKagain.5Enter the second cooktime.6Change the power level if you don’t want fullpower. (Press POWERLEVEL. Select a powerlevel 1–10.)7Press START. At the end of Time Cook I,Time Cook II counts down.1 Press TIME COOK.2 Enter cooking time.3 Change power level if you don’t want fullpower. (Press POWERLEVEL. Select adesired power level1–10.)4 Press START.Time Cook49-402151v03 10/5/01 10:53 AM Page 15
16Operating InstructionsCooking Guide for Time Cook I & IINOTE: Use power level High (10) unless otherwise noted.Vegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 6 to 9 min., In 11⁄2-qt. oblong glass baking dish, Med-High (7) place 1/4 cup water. (frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 9 to 11 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch 7 to 10 min. In 2-qt. casserole, place 1/2 cup water.(11⁄4to 11⁄2lbs.)(fresh spears) 1 bunch 9 to 13 min. In 2-qt. oblong glass baking dish, place (11⁄4to 11⁄2lbs.) 1/4 cup water. (frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole.chopped)(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head 8 to 11 min. In 11⁄2- or 2-qt. casserole, place 1/4 cup (about 2 lbs.) water.(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 7 to 9 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.49-402151v03 10/5/01 10:53 AM Page 16
17Vegetable Amount Time CommentsCorn(frozen kernel) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoonswater.Corn on the cob(fresh) 1 to 5 ears 3 to 4 min. In 2-qt. oblong glass baking dish, place per ear corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time.(frozen) 1 ear 5 to 6 min. Place in 2-qt. oblong glass baking dish. 2 to 6 ears 3 to 4 min. Cover with vented plastic wrap. per ear Rearrange after half of time. Mixed vegetables(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled9 to 12 min.In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes9 to 12 min.Peel and cut into 1 inch cubes. Place white) (6 to 8 oz. each) in 2-qt. casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz.) 3 to 4 min. Pierce with cooking fork. Place in sweet or white) center of the oven. Let stand 5 minutes.Spinach(fresh) 10 to 16 oz. 5 to 7 min. In 2-qt. casserole, place washed spinach.(frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons chopped water.and leaf)Squash(fresh, summer 1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place 1/4 cup water.and yellow)(winter, acorn 1 to 2 squash 8 to 11 min. Cut in half and remove fibrous butternut)(about 1 lb. each)membranes. In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-up after 4 minutes.49-402151v03 10/5/01 10:53 AM Page 17

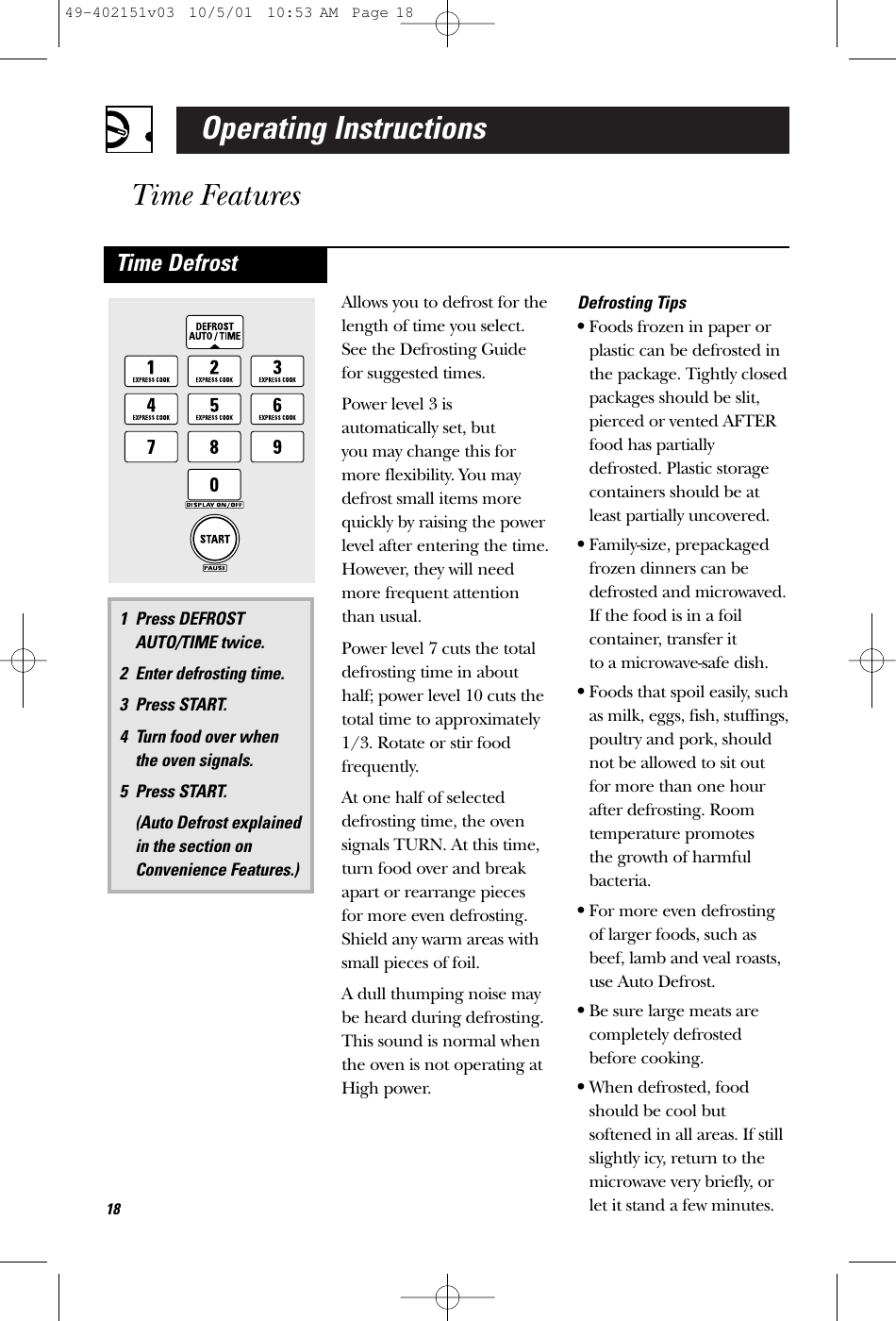

Operating InstructionsTime FeaturesAllows you to defrost for thelength of time you select.See the Defrosting Guide for suggested times.Power level 3 isautomatically set, but you may change this formore flexibility. You maydefrost small items morequickly by raising the powerlevel after entering the time.However, they will needmore frequent attentionthan usual.Power level 7 cuts the totaldefrosting time in abouthalf; power level 10 cuts thetotal time to approximately1/3. Rotate or stir foodfrequently. At one half of selecteddefrosting time, the ovensignals TURN. At this time,turn food over and breakapart or rearrange pieces for more even defrosting.Shield any warm areas withsmall pieces of foil.A dull thumping noise maybe heard during defrosting.This sound is normal whenthe oven is not operating atHigh power.Defrosting Tips•Foods frozen in paper orplastic can be defrosted inthe package. Tightly closedpackages should be slit,pierced or vented AFTERfood has partiallydefrosted. Plastic storagecontainers should be atleast partially uncovered.•Family-size, prepackagedfrozen dinners can bedefrosted and microwaved.If the food is in a foilcontainer, transfer it to a microwave-safe dish.•Foods that spoil easily, suchas milk, eggs, fish, stuffings,poultry and pork, shouldnot be allowed to sit outfor more than one hour after defrosting. Roomtemperature promotes the growth of harmfulbacteria.•For more even defrostingof larger foods, such asbeef, lamb and veal roasts,use Auto Defrost.•Be sure large meats are completely defrostedbefore cooking.•When defrosted, foodshould be cool butsoftened in all areas. If stillslightly icy, return to themicrowave very briefly, orlet it stand a few minutes.1 Press DEFROSTAUTO/TIME twice.2 Enter defrosting time.3 Press START. 4 Turn food over when the oven signals.5 Press START. (Auto Defrost explained in the section onConvenience Features.)Time Defrost1849-402151v03 10/5/01 10:53 AM Page 18

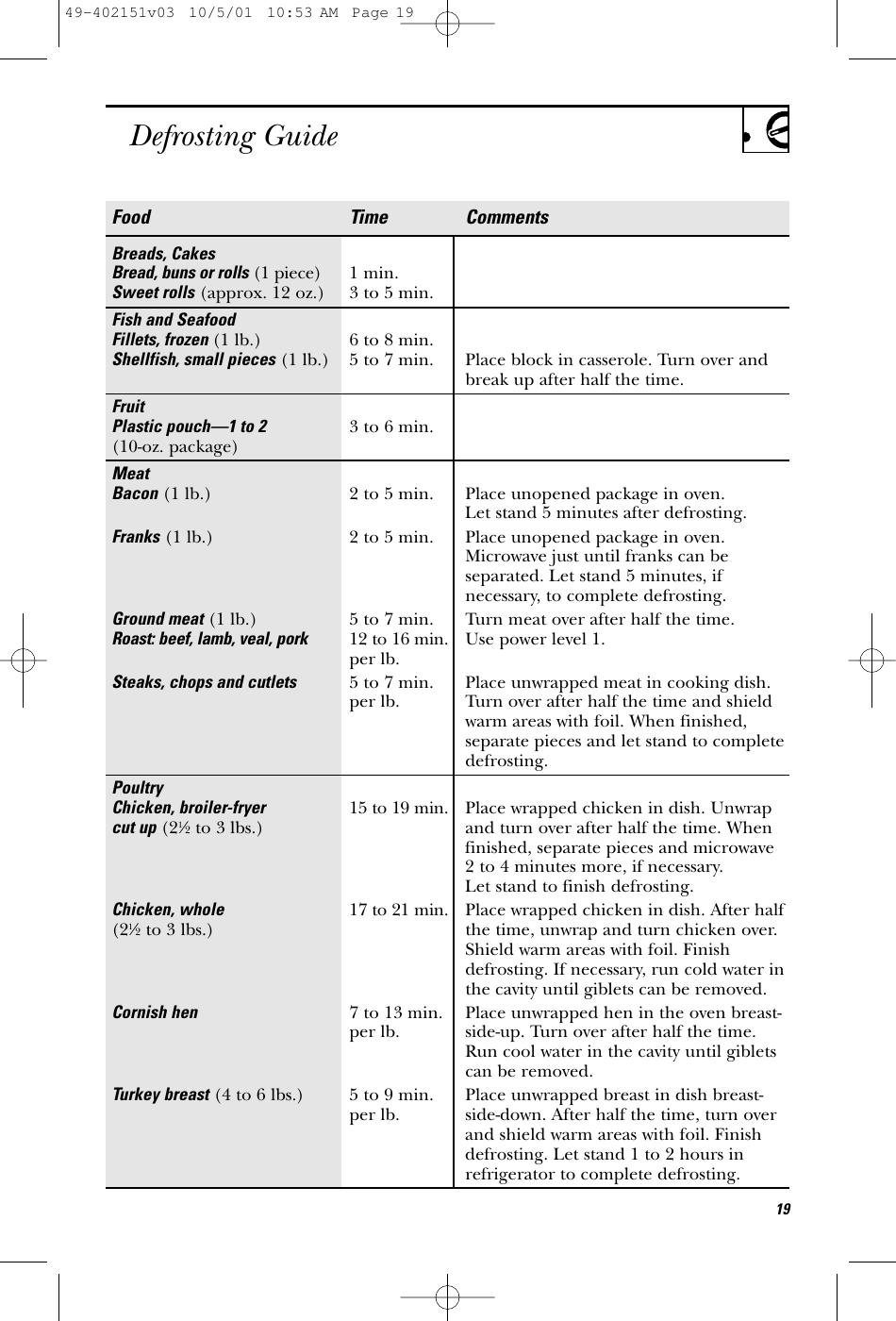

Defrosting GuideFood Time CommentsBreads, CakesBread, buns or rolls(1 piece) 1 min.Sweet rolls(approx. 12 oz.) 3 to 5 min.Fish and SeafoodFillets, frozen (1 lb.) 6 to 8 min.Shellfish, small pieces(1 lb.) 5 to 7 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch—1 to 23 to 6 min.(10-oz. package)Meat Bacon(1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting. Franks(1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat(1 lb.) 5 to 7 min. Turn meat over after half the time.Roast: beef, lamb, veal, pork12 to 16 min. Use power level 1.per lb.Steaks, chops and cutlets5 to 7 min. Place unwrapped meat in cooking dish. per lb. Turn over after half the time and shield warm areas with foil. When finished, separate pieces and let stand to complete defrosting.PoultryChicken, broiler-fryer15 to 19 min. Place wrapped chicken in dish. Unwrap cut up(21⁄2to 3 lbs.) and turn over after half the time. When finished, separate pieces and microwave 2 to 4 minutes more, if necessary. Let stand to finish defrosting.Chicken, whole17 to 21 min. Place wrapped chicken in dish. After half (21⁄2to 3 lbs.) the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.Cornish hen7 to 13 min. Place unwrapped hen in the oven breast-per lb. side-up. Turn over after half the time. Run cool water in the cavity until giblets can be removed.Turkey breast(4 to 6 lbs.) 5 to 9 min. Place unwrapped breast in dish breast-per lb. side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1 to 2 hours in refrigerator to complete defrosting.1949-402151v03 10/5/01 10:53 AM Page 19

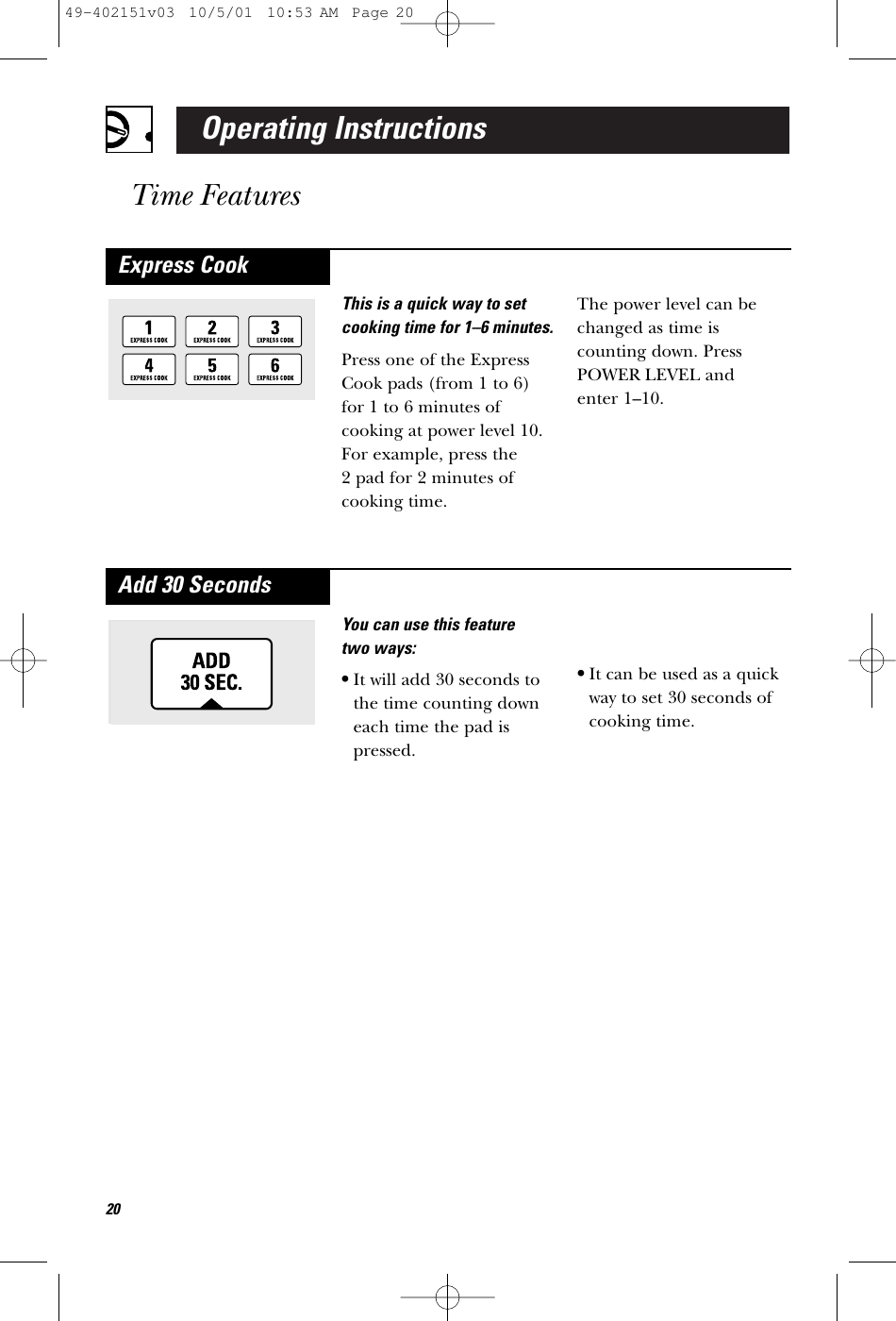

Operating InstructionsTime FeaturesYou can use this feature two ways:•It will add 30 seconds tothe time counting downeach time the pad ispressed.•It can be used as a quickway to set 30 seconds ofcooking time.Add 30 SecondsThis is a quick way to setcooking time for 1–6 minutes.Press one of the ExpressCook pads (from 1 to 6)for 1 to 6 minutes ofcooking at power level 10.For example, press the 2 pad for 2 minutes ofcooking time. The power level can bechanged as time iscounting down. PressPOWER LEVEL and enter 1–10.Express Cook2049-402151v03 10/5/01 10:53 AM Page 20

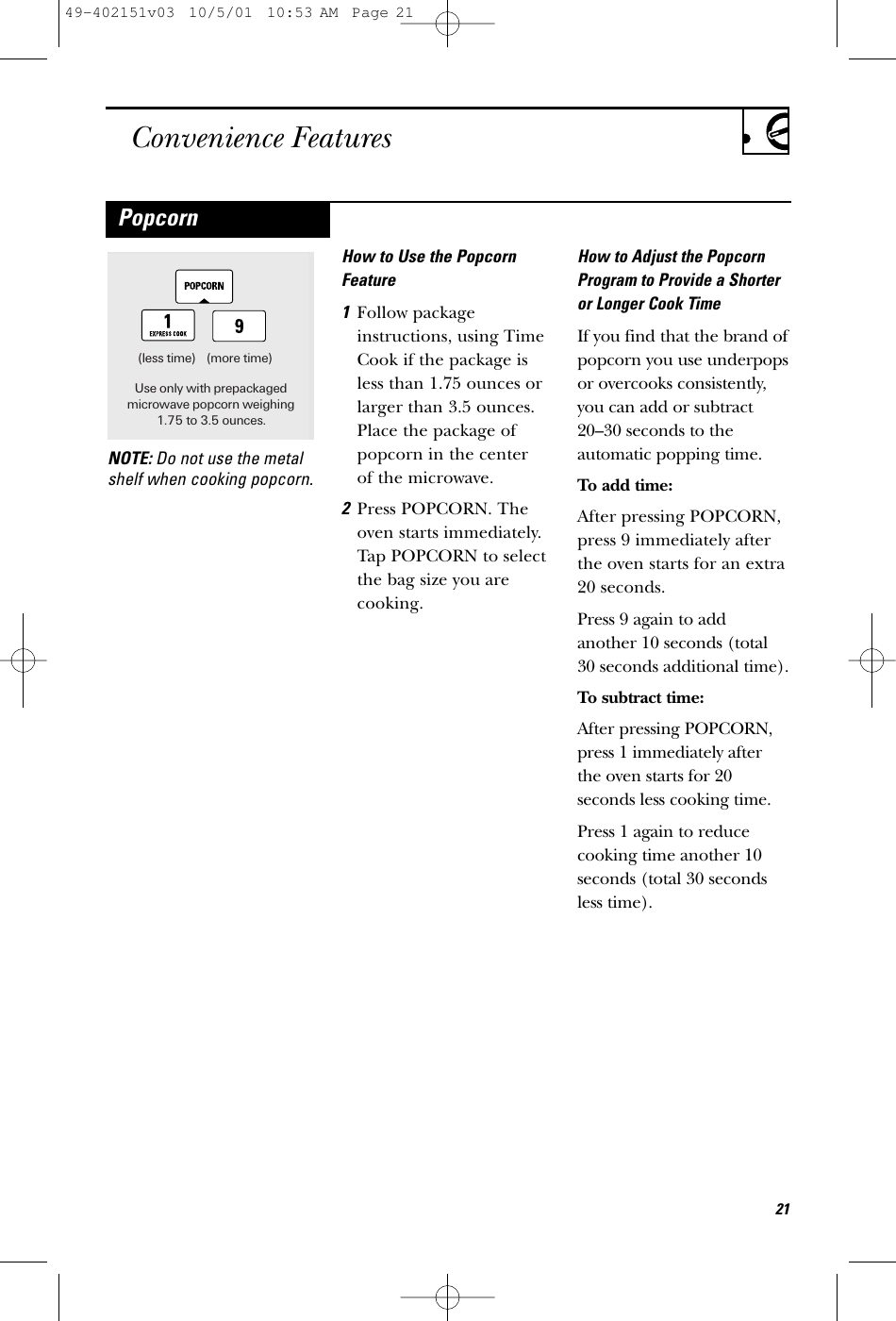

Convenience Features21How to Use the PopcornFeature1Follow package instructions, using TimeCook if the package isless than 1.75 ounces orlarger than 3.5 ounces.Place the package ofpopcorn in the center of the microwave.2Press POPCORN. Theoven starts immediately.Tap POPCORN to selectthe bag size you arecooking.How to Adjust the PopcornProgram to Provide a Shorteror Longer Cook TimeIf you find that the brand ofpopcorn you use underpopsor overcooks consistently,you can add or subtract20–30 seconds to theautomatic popping time.To add time:After pressing POPCORN,press 9 immediately afterthe oven starts for an extra20 seconds.Press 9 again to addanother 10 seconds (total30 seconds additional time).To subtract time:After pressing POPCORN,press 1 immediately afterthe oven starts for 20seconds less cooking time.Press 1 again to reducecooking time another 10seconds (total 30 secondsless time).(less time) (more time)Use only with prepackagedmicrowave popcorn weighing1.75 to 3.5 ounces.PopcornNOTE: Do not use the metalshelf when cooking popcorn.49-402151v03 10/5/01 10:53 AM Page 21

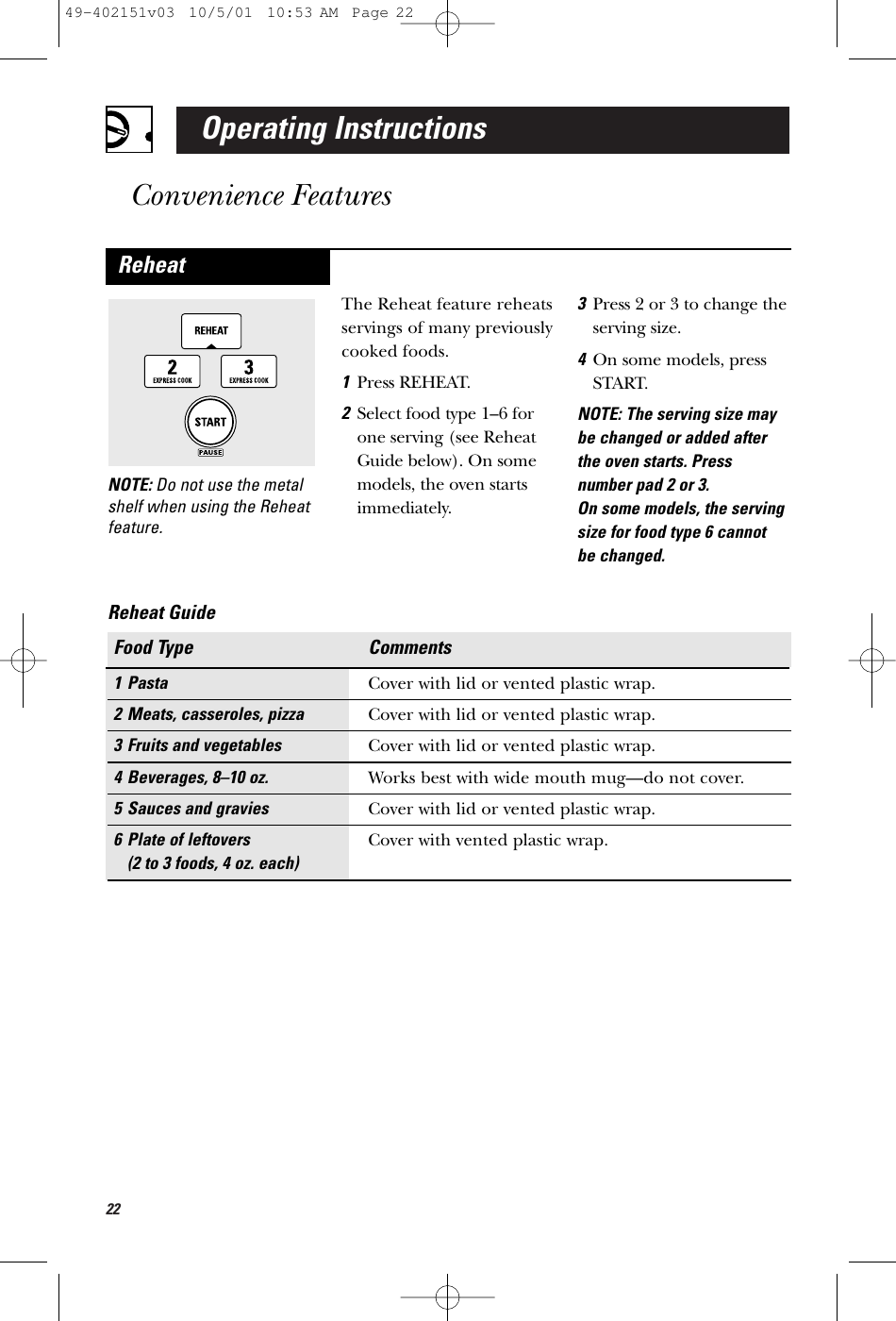

22Operating InstructionsConvenience FeaturesThe Reheat feature reheatsservings of many previouslycooked foods.1Press REHEAT.2Select food type 1–6 forone serving (see ReheatGuide below). On somemodels, the oven startsimmediately.3Press 2 or 3 to change theserving size.4On some models, pressSTART.NOTE: The serving size maybe changed or added afterthe oven starts. Pressnumber pad 2 or 3. On some models, the servingsize for food type 6 cannot be changed.Reheat1 PastaCover with lid or vented plastic wrap.2 Meats, casseroles, pizzaCover with lid or vented plastic wrap.3 Fruits and vegetablesCover with lid or vented plastic wrap.4 Beverages, 8–10 oz.Works best with wide mouth mug—do not cover.5 Sauces and graviesCover with lid or vented plastic wrap.6 Plate of leftoversCover with vented plastic wrap.(2 to 3 foods, 4 oz. each)Food Type CommentsReheat Guide NOTE: Do not use the metalshelf when using the Reheatfeature.49-402151v03 10/5/01 10:53 AM Page 22
23The Beverage feature heatsservings of any beverage.Press BEVERAGE. Theoven starts immediately.On some models,the servingsize is automatically set at1, but can be changed bypressing 2 or 3 right afterpressing BEVERAGE.On model JVM1430 only,theserving size is automaticallyset at 4 ounces, but can be changed by tappingBEVERAGE to select 8 or 12 ounces.Drinks heated with theBeverage feature may bevery hot. Remove thecontainer with care.Beverage49-402151v03 10/5/01 10:53 AM Page 23
Operating InstructionsConvenience FeaturesAuto DefrostThe Defrost Auto/Timefeature gives you two waysto defrost frozen foods.Press DEFROSTAUTO/TIME once forAuto Defrost or twice forTime Defrost.Use Auto Defrost for meat,poultry and fish. Use TimeDefrost for most otherfrozen foods.Auto Defrost automaticallysets the defrosting timesand power levels to giveeven defrosting results formeats, poultry and fishweighing up to six pounds.There is a handy guidelocated on the inside frontof the oven. •Remove meat frompackage and place onmicrowave-safe dish.•Twice during defrost, the oven signals TURN.At each TURN signal,turn the food over.Remove defrosted meator shield warm areas withsmall pieces of foil.•After defrosting, mostmeats need to stand 5 minutes to completedefrosting. Large roastsshould stand for about 30 minutes.Conversion GuideIf the weight of food isstated in pounds andounces, the ounces mustbe converted to tenths(.1) of a pound.Weight of Enter Food Food in Weight Ounces (tenths of a pound)1–2 .13.24–5 .36–7 .48.59–10 .611 .712–13 .814–15 .91 Press DEFROSTAUTO/TIME once.2 Using the ConversionGuide at right, enterfood weight. Forexample, press pads 1and 2 for 1.2 pounds (1 pound, 3 ounces).3 Press START. (Time Defrost isexplained in the TimeFeatures section.)Guide2449-402151v03 10/5/01 10:53 AM Page 24
Other Features Your Model May Have25The HELP pad displaysfeature information andhelpful hints. Press HELP,then select a feature pad.HelpTo remind you that youhave food in the oven, theoven will display “FOOD ISREADY” and beep once aminute until you eitheropen the oven door orpress CLEAR/OFF.Cooking CompleteReminderPress to enter the time ofday or to check the time ofday while microwaving.1Press CLOCK.2Enter time of day.3On some models, selectAM or PM.4Press START or CLOCK.Clock49-402151v03 10/5/01 10:53 AM Page 25
(On some models)Operating InstructionsOther Features Your Model May HaveThe scroll speed of thedisplay can be changed.Press and hold the AM/PMpad about 3 seconds tobring up the display. Select 1–5 for slow to fast scroll speed.Scroll Speed To turn the clock displayoff, press and hold 0 forabout three seconds.To redisplay the clock,repeat.Display On/OffDelay Start allows you to set the microwave to delaycooking up to 24 hours.1Press DELAY START.2Enter the time you wantthe oven to start. (Besure the microwave clockshows the correct time of day.)3On some models, selectAM or PM.4Select any combinationof Defrost Auto/Time or Time Cook I & II.5Press START.The Delay Start time will be displayed. The oven willautomatically start at thedelayed time.The time of day may bedisplayed by pressingCLOCK.Delay Start2649-402151v03 10/5/01 10:53 AM Page 26
27In addition to starting manyfunctions, START/PAUSEallows you to stop cookingwithout opening the door orclearing the display.Start/PauseThe Reminder feature canbe used like an alarm clockand can be used at anytime, even when the oven isoperating. The Remindertime can be set up to 24 hours later.1Press REMINDER.2Enter the time you wantthe oven to remind you.(Be sure the microwaveclock shows the correcttime of day.) 3On some models, selectAM or PM.4Press REMINDER. WhenReminder signal occurs,press REMINDER to turnit off. The Remindertime may be displayed bypressing REMINDER. NOTE:The REM indicatorwill remain lit to show thatthe Reminder is set. Toclear the Reminder beforeit occurs, press REMINDER,then 0. The REM indicatorwill no longer be lit.ReminderTimer On/Off operates asa minute timer and can beused at any time, evenwhen the oven is operating.1Press TIMER ON/OFF.2Enter time you want tocount down.3Press TIMER ON/OFFto start.When time is up, the ovenwill signal. To turn off thetimer signal, press TIMERON/OFF.NOTE:The timer indicatorwill be lit while the timer is operating.Timer On/Off49-402151v03 10/5/01 10:53 AM Page 27
Operating InstructionsOther Features Your Model May HaveYou may lock the controlpanel to prevent themicrowave from beingaccidentally started or usedby children.To lock or unlock thecontrols, press and holdCLEAR/OFF for aboutthree seconds. When thecontrol panel is locked, “L”or “LOC” will be displayedto the extreme right.Child Lock-OutAn automatic fan featureprotects the microwavefrom too much heat risingfrom the cooktop below it.It automatically turns on ifit senses too much heat. If you have turned the fanon you may find that youcannot turn it off. The fanwill automatically turn offwhen the internal parts are cool. It may stay on for 30 minutes or moreafter the cooktop andmicrowave controls areturned off.Automatic FanFor best cooking results,leave the turntable on. It can be turned off forlarge dishes. PressTURNTABLE to turn the turntable on or off.Sometimes the turntablecan become too hot totouch. Be careful touchingthe turntable during andafter cooking.Turntable2849-402151v03 10/5/01 10:53 AM Page 28
The vent fan removessteam and other vaporsfrom surface cooking. Press VENT FAN once forhigh fan speed, twice forlow fan speed or a thirdtime to turn the fan off.Vent Fan29Press to turn the surfacelight on or off.On some models, there is a night light option. Press SURFACE LIGHTonce for bright light, twicefor the night light or threetimes to turn the light off.Surface LightThe beeper sound levelcan be adjusted. PressBEEPER VOLUME.Choose 0–3 for mute to loud.Beeper Volume49-402151v03 10/5/01 10:53 AM Page 29
30How to Use the ShelfWhen MicrowavingFood microwaves bestwhen placed on theturntable or on the shelf in the lower position.For best cooking results,remove the shelf unless youare reheating on morethan one level.The shelf gives you theoption to reheat morethan one dish of food atthe same time.•Make sure the shelf is positioned properly inside the microwave to prevent damage to the oven from arcing.•Do not use amicrowave browningdish on the shelf. The shelf could overheat.•Do not use the ovenwith the shelf on themicrowave floor. Thiscould damage themicrowave.•Use pot holders when handling the shelf—it may be hot.•Do not use the shelf when cooking popcorn.•Do not use the shelf with the Reheatfeature.For best resultsUneven results2-level reheatingOperating InstructionsOther Features Your Model May HaveShelf (on some models)49-402151v03 10/5/01 10:54 AM Page 30
31•To reheat on 2 levelsor•To reheat 2 dishes on thelower level:1Multiply reheat time by 11/2.2Switch places after 1/2the time.Shelf and ReheatingSwitch places after 1/2 time.Switch places after 1/2 time.49-402151v03 10/5/01 10:54 AM Page 31
32Helpful InformationMicrowave TermsArcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:•the metal shelf being installed incorrectly and touching the microwave walls.•metal or foil touching the side of the oven.•foil that is not molded to food (upturned edges act like antennas).•metal such as twist ties, poultry pins, gold-rimmed dishes.•recycled paper towels containing small metal pieces.CoveringCovers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.ShieldingIn a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs onpoultry, which would cook before larger parts.Standing TimeWhen you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.VentingAfter covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.Term Definition49-402151v03 10/5/01 10:54 AM Page 32
33Care and CleaningAn occasional thoroughwiping with a solution ofbaking soda and waterkeeps the inside fresh.NOTE: Be certain the poweris off before cleaning anypart of this oven.Helpful HintsWalls, Floor, Inside Window,Metal and Plastic Parts onthe DoorSome spatters can beremoved with a papertowel, others may require a damp cloth. Removegreasy spatters with a sudsycloth, then rinse with adamp cloth. Do not useabrasive cleaners or sharputensils on oven walls.Never use a commercialoven cleaner on any part of your microwave.Removable Turntable andTurntable SupportTo prevent breakage, do not place the turntableinto water just aftercooking. Wash it carefullyin warm, sudsy water or in the dishwasher. Theturntable and support can be broken if dropped.Remember, do not operatethe oven without theturntable and support in place.Shelf (on some models)Clean with mild soap andwater or in the dishwasher.Do not clean in a self-cleaning oven.How to Clean the Inside49-402151v03 10/5/01 10:54 AM Page 33
Helpful InformationCare and Cleaning34CaseClean the outside of themicrowave with a sudsycloth. Rinse and then dry.Wipe the window cleanwith a damp cloth. Control Panel and DoorWipe with a damp cloth.Dry thoroughly. Do not use cleaning sprays, largeamounts of soap and water,abrasives or sharp objectson the panel—they candamage it. Some papertowels can also scratch the control panel.Door SurfaceIt’s important to keep the area clean where thedoor seals against themicrowave. Use only mild,non-abrasive detergentsapplied with a cleansponge or soft cloth. Rinse well.BottomClean off the grease anddust on the bottom often.Use a solution of warmwater and detergent. Do not use cleanerscontaining ammonia oralcohol on themicrowave oven.Ammonia or alcohol candamage the appearance of the microwave.How to Clean the Outside49-402151v03 10/5/01 10:54 AM Page 34

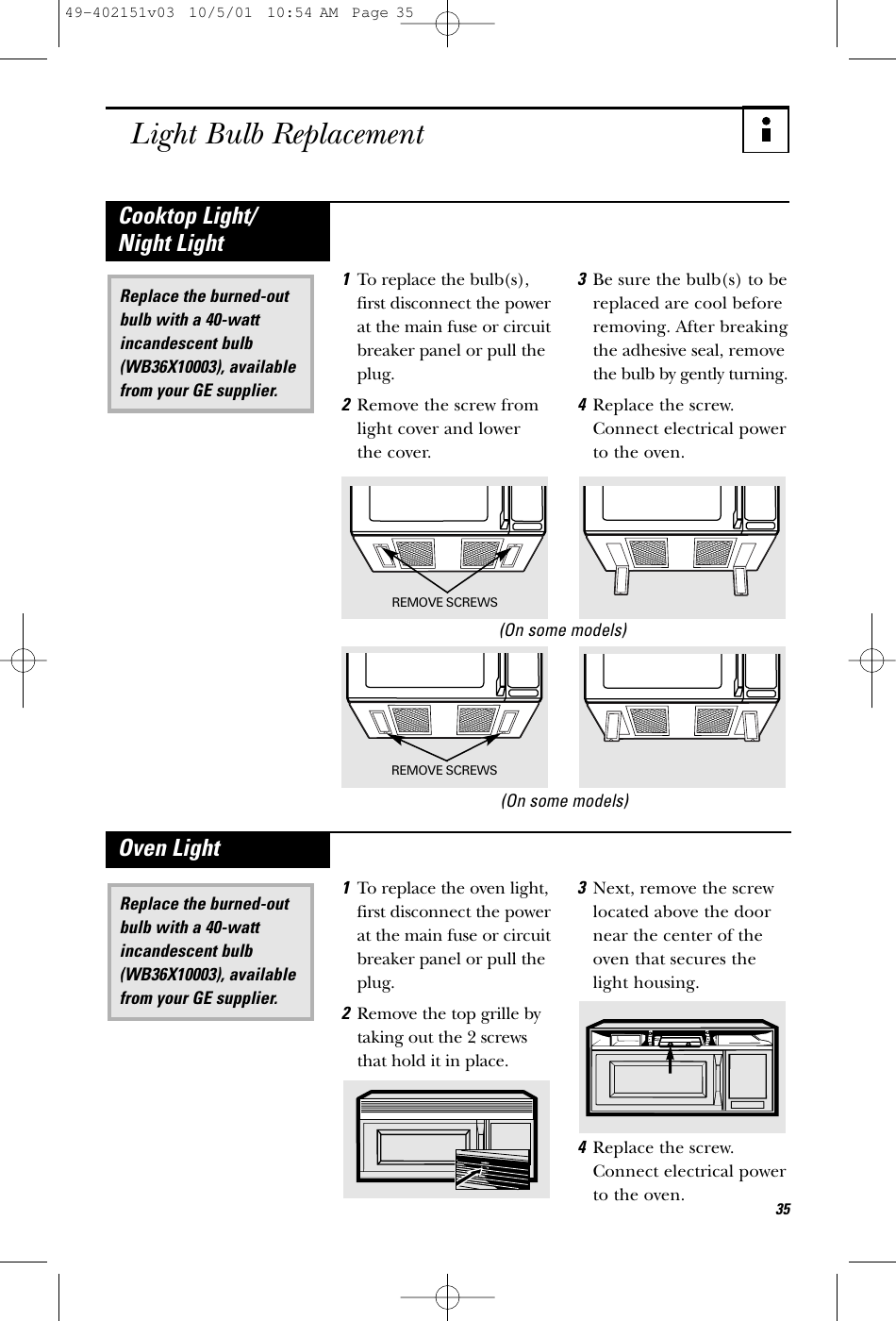

Light Bulb Replacement1To replace the bulb(s),first disconnect the powerat the main fuse or circuitbreaker panel or pull theplug.2Remove the screw fromlight cover and lower the cover.3Be sure the bulb(s) to bereplaced are cool beforeremoving. After breakingthe adhesive seal, removethe bulb by gently turning.4Replace the screw.Connect electrical powerto the oven.Replace the burned-outbulb with a 40-wattincandescent bulb(WB36X10003), availablefrom your GE supplier.Cooktop Light/Night Light1To replace the oven light,first disconnect the powerat the main fuse or circuitbreaker panel or pull theplug.2Remove the top grille bytaking out the 2 screwsthat hold it in place.3Next, remove the screwlocated above the doornear the center of theoven that secures thelight housing.4Replace the screw.Connect electrical powerto the oven.Replace the burned-outbulb with a 40-wattincandescent bulb(WB36X10003), availablefrom your GE supplier.Oven Light35REMOVE SCREWSREMOVE SCREWS(On some models)(On some models)49-402151v03 10/5/01 10:54 AM Page 35

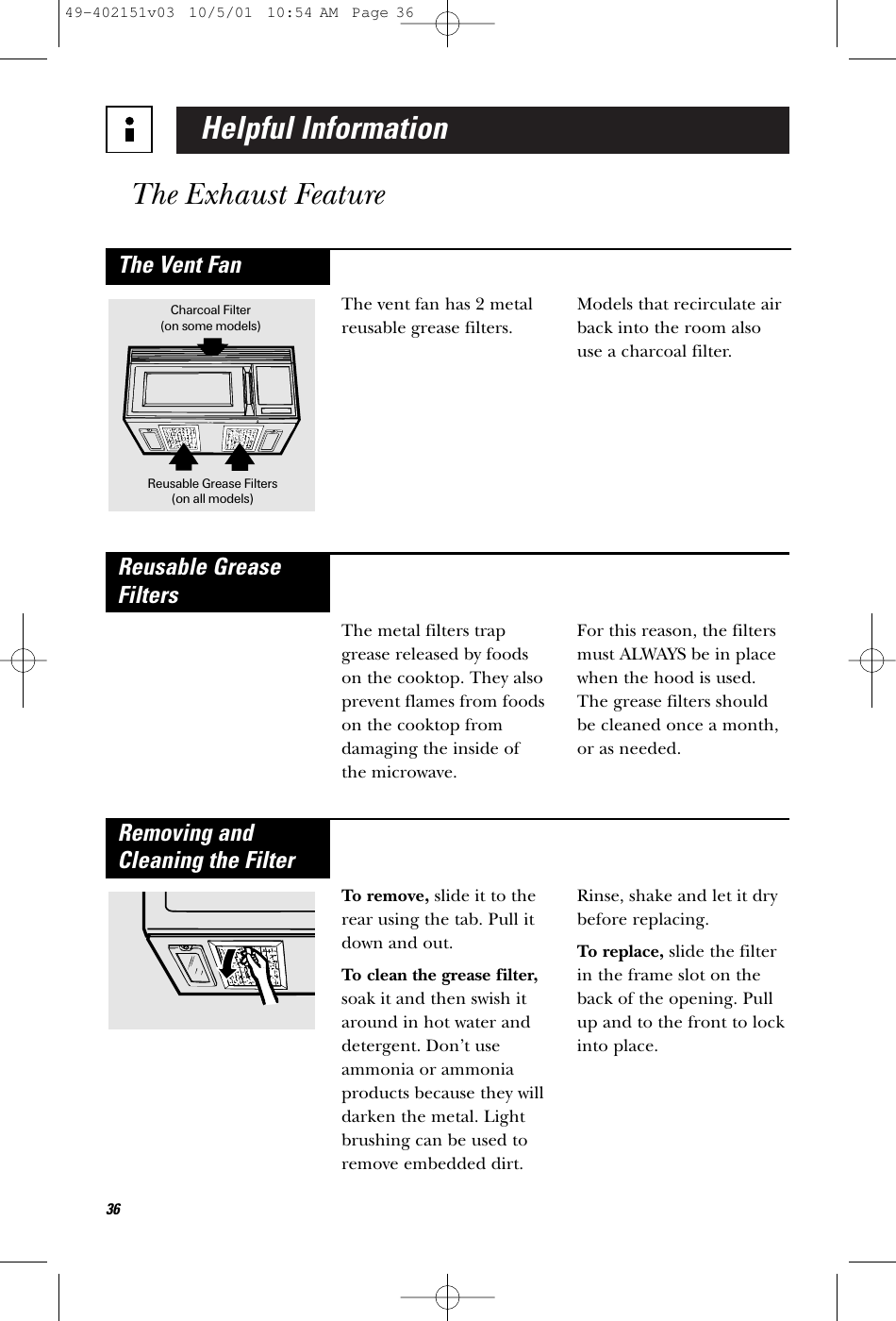

Helpful InformationThe Exhaust Feature36The vent fan has 2 metalreusable grease filters. Models that recirculate airback into the room alsouse a charcoal filter.The Vent FanCharcoal Filter(on some models)Reusable Grease Filters(on all models)The metal filters trapgrease released by foodson the cooktop. They alsoprevent flames from foodson the cooktop fromdamaging the inside of the microwave. For this reason, the filtersmust ALWAYS be in placewhen the hood is used.The grease filters shouldbe cleaned once a month,or as needed.Reusable GreaseFiltersTo remove, slide it to therear using the tab. Pull itdown and out. To clean the grease filter,soak it and then swish itaround in hot water anddetergent. Don’t useammonia or ammoniaproducts because they willdarken the metal. Lightbrushing can be used toremove embedded dirt.Rinse, shake and let it drybefore replacing.To replace, slide the filterin the frame slot on theback of the opening. Pullup and to the front to lockinto place.Removing andCleaning the Filter49-402151v03 10/5/01 10:54 AM Page 36
37If the model is not ventedto the outside, the air willbe recirculated through adisposable charcoal filterthat helps remove smokeand odors. The charcoal filter should be replaced when it is noticeably dirty or discolored (usually after 6 to 12 months, dependingon hood usage).The charcoal filtercannot be cleaned. Itmust be replaced. OrderPart No. WB2X9883 fromyour GE supplier.Charcoal Filter (on some models)To remove the charcoalfilter, disconnect power atthe main fuse or circuitbreaker panel or pull the plug. Remove the top grille byremoving the 2 screws thathold it in place. Slide thefilter towards the front ofthe oven and remove it.To Remove Charcoal FilterRemove 2 grille screws toremove the grille.To install a new filter,remove plastic and otherouter wrapping from thenew filter. Insert the filter into the top opening of the oven asshown. It will rest at anangle on 2 side supporttabs and in front of theright rear tab. Replace the grille and 2 screws.To Install Charcoal Filter49-402151v03 10/5/01 10:54 AM Page 37
38If Something Goes WrongBefore You Call For ServiceOven will notstartFloor of the oven iswarm, even whenthe oven has notbeen used“LOCKED” or “LOC”appears on displayYou hear anunusual, low-tonebeepProblem Possible Cause What to DoA fuse in your home •Replace fuse or reset circuit breaker.may be blown or the circuit breaker tripped.Power surge. •Unplug the microwave oven, then plug it back in.Plug not fully inserted •Make sure the 3-prong plug on theinto wall outlet. oven is fully inserted into wall outlet.The cooktop light is •This is normal.located below the ovenfloor. When the lightis on, the heat it produces may make the oven floor get warm.The control has been •Press and hold CLEAR/OFF forlocked. about 3 seconds to unlock the control.You have tried to start•Start over and enter a valid time the Reminder without of day.a valid time of day.You have tried to change •Many of the oven’s features are preset the power level when it isand cannot be changed.not allowed.49-402151v03 10/5/01 10:54 AM Page 38
39•Steam or vapor escapingfrom around the door.•Light reflection arounddoor or outer case.•Dimming oven light andchange in the blowersound at power levelsother than high.•Dull thumping soundwhile oven is operating.•TV-radio interferencemight be noticed whileusing the microwave.Similar to the interferencecaused by other smallappliances, it does notindicate a problem withthe microwave. Plug themicrowave into a differentelectrical circuit, move theradio or TV as far awayfrom the microwave aspossible, or check theposition and signal of theTV/radio antenna.Things ThatAre Normal49-402151v03 10/5/01 10:54 AM Page 39
40Notes49-402151v03 10/5/01 10:54 AM Page 40
41Notes49-402151v03 10/5/01 10:54 AM Page 41
42GEAppliances.comHave a question or needassistance with yourappliance? Try the GEAppliances Website 24 hoursa day, any day of the year! For greater convenience andfaster service, you can nowdownload Owner’s Manuals,order parts, catalogs, or evenschedule service on-line. Youcan also “Ask Our Team ofExperts™” your questions,and so much more...GE AppliancesWebsiteGEAppliances.com800.GE.CARES (800.432.2737)Expert GE repair service isonly one step away fromyour door. Get on-line andschedule your service at yourconvenience 24 hours anyday of the year! Or call 800.GE.CARES(800.432.2737) duringnormal business hours.Schedule ServiceGEAppliances.com800.TDD.GEAC(800.833.4322)GE supports the UniversalDesign concept—products,services and environmentsthat can be used by peopleof all ages, sizes andcapabilities. We recognizethe need to design for awide range of physical andmental abilities andimpairments. For details ofGE’s Universal Designapplications, includingkitchen design ideas forpeople with disabilities,check out our Website today.For the hearing impaired, please call 800.TDD.GEAC(800.833.4322). Real Life Design StudioGE Service NumbersWe’ll Be There!GEAppliances.com800.626.2224Purchase a GE extendedwarranty and learn aboutspecial discounts that areavailable while your warrantyis still in effect. You canpurchase it on-line anytime, or call 800.626.2224 duringnormal business hours. GEConsumer Home Services will still be there after yourwarranty expires.Extended Warranties49-402151v03 10/5/01 10:54 AM Page 42

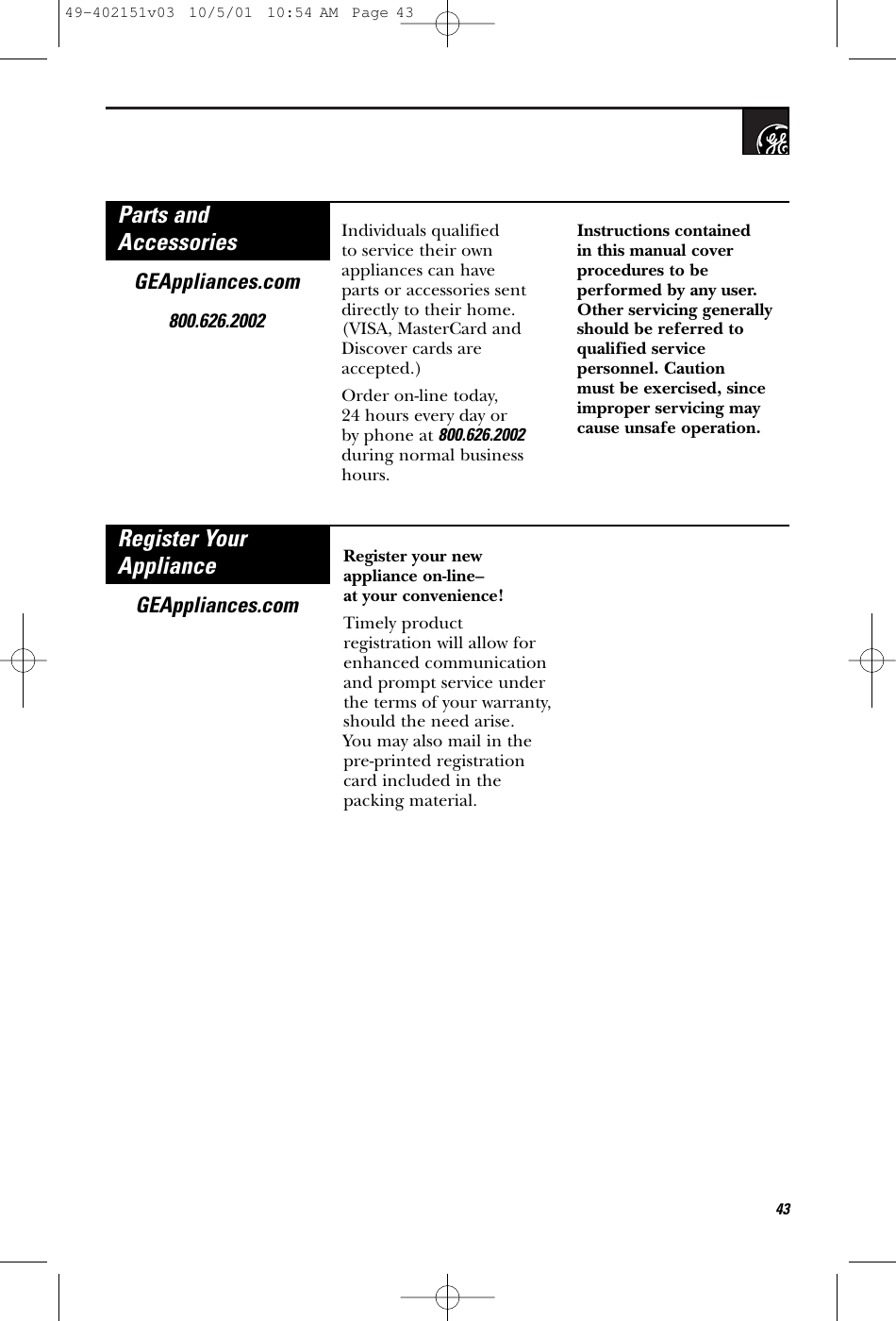

GEAppliances.com800.626.2002Individuals qualified to service their ownappliances can have parts or accessories sentdirectly to their home.(VISA, MasterCard andDiscover cards areaccepted.) Order on-line today, 24 hours every day or by phone at 800.626.2002during normal businesshours.Instructions contained in this manual coverprocedures to beperformed by any user.Other servicing generallyshould be referred toqualified servicepersonnel. Caution must be exercised, sinceimproper servicing maycause unsafe operation.Parts andAccessories43Register YourApplianceGEAppliances.comRegister your newappliance on-line–at your convenience!Timely productregistration will allow forenhanced communicationand prompt service underthe terms of your warranty,should the need arise. You may also mail in thepre-printed registrationcard included in thepacking material.49-402151v03 10/5/01 10:54 AM Page 43
FULL ONE-YEAR WARRANTYFor one year from date of originalpurchase, we will provide, free of charge,parts and service labor in your home to repair or replace any part of the microwaveoven that fails because of a manufacturingdefect.LIMITED ADDITIONAL NINE-YEAR WARRANTYFor the second through the tenth yearfrom the date of original purchase, we will provide, free of charge, a replacementmagnetron tube if the magnetron tube fails because of a manufacturing defect.You pay for the service trip to your homeand service labor charges.************************************This warranty is extended to the originalpurchaser and any succeeding owner forproducts purchased for ordinary home use in the 48 mainland states, Hawaii andWashington, D.C. In Alaska the warranty is the same except that it is LIMITEDbecause you must pay to ship the productto the service shop or for the servicetechnician’s travel costs to your home.All warranty service will be provided by our Factory Service Centers or by ourauthorized Customer Care®servicersduring normal working hours.Should your appliance need service, during warranty period or beyond, call 800.GE.CARES (800.432.2737).MICROWAVE OVENWARRANTYWhat Is CoveredWhat Is Not CoveredStaple sales slip or cancelled check here. Proof of originalpurchase date is needed to obtain service under warranty.•Service trips to your home to teach youhow to use the product.•Improper installation.If you have an installation problem, contactyour dealer or installer. You are responsiblefor providing adequate electrical,exhausting and other connecting facilities.•Replacement of house fuses or resettingof circuit breakers.•Failure of the product if it is misused, orused for other than the intendedpurpose or used commercially.•Damage to product caused by accident,fire, floods or acts of God.•Incidental or consequential damagecaused by possible defects with thisappliance.Some states do not allow the exclusion or limitation of incidental or consequential damages,so the above limitation or exclusion may not apply to you. This warranty gives you specificlegal rights, and you may also have other rights which vary from state to state. To know whatyour legal rights are in your state, consult your local or state consumer affairs office or yourstate’s Attorney General.Warrantor: General Electric Company. Louisville, KY 40225Warrantor is not responsible for consequential damages.Printed in Korea49-402151v03 10/5/01 10:54 AM Page 44
