SpacemakerXL Microwave Oven
Owner’s Manual
Models:
1000 Watts
JVM1630
JVM1631
2
28
Helpful Information
Care and Cleaning 29
34
If Something Goes Wrong
Before You Call For Service 34
GE Service Numbers 38
Warranty Back Cover
11
Important Safety Information
Precautions to Avoid Possible Exposure
to Excessive Microwave Energy 2
Special Notes About Microwaving 6
Operating Instructions
Features of Your Microwave 11
The Controls on Your Microwave 12
Time Cooking 15
Automatic Cooking 21
Other Features 24
49-400811v01 8/2/01 4:02 PM Page 1
2
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
FOR YOUR
SAFETY
PRECAUTIONS
TO AVOID
POSSIBLE
EXPOSURE
TO EXCESSIVE
MICROWAVE
ENERGY
For your safety the information in this manual
must be followed to minimize the risk of fire or
explosion or to prevent property damage,
personal injury or loss of life.
Do Not Attempt
to
operate this oven with
the door open since
open-door operation
can result in harmful
exposure to microwave
energy. It is important
not to defeat or tamper
with the safety
interlocks.
Do Not Place
any object
between the oven front
face and the door or
allow soil or cleaner
residue to accumulate
on sealing surfaces.
Do Not Operate
the oven
if it is damaged. It is
particularly important
that the oven door
close properly and that
there is no damage to
the:
1
door (bent),
2
hinges and latches
(broken or loosened),
3
door seals and sealing
surfaces.
The Oven Should Not
be adjusted or repaired
by anyone except
properly qualified
service personnel.
49-400811v01 8/2/01 4:02 PM Page 2
3

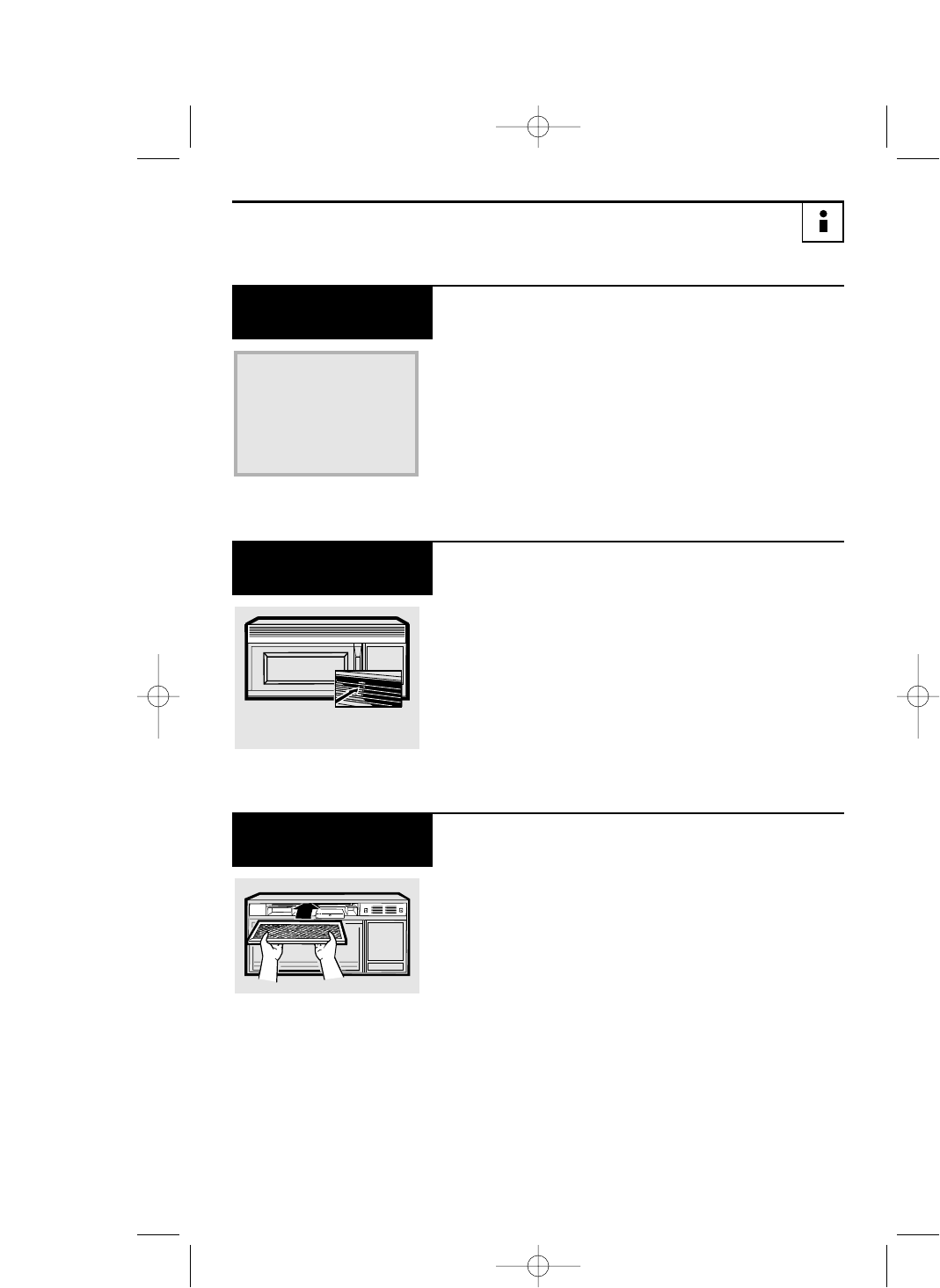

Welcome to the GE family.
We’re proud of our quality
products and we believe in
dependable service.
You’ll see it in this easy-to-
use manual and you’ll hear
it in the friendly voices of
our consumer service
department.
Best of all, you’ll
experience these values
each time you use your
microwave. That’s
important, because your
new microwave will be part
of your family for a long
time.
Welcome
Write down the model and
serial numbers here.
They
are on a label inside the
oven.
Model number
Serial number
Date of purchase
Staple your receipt to the
inside back cover of this
manual. You will need it to
obtain service under
warranty.
Help us
help you
Before you call for service,
there are a few things you
can do to help us serve you
better.
Read this manual.
It contains instructions to
help you use and maintain
your microwave properly.
If you received a damaged
oven...
immediately contact
the dealer (or builder) that
sold you the oven.
Save time and money.
Check the section titled
“If Something Goes
Wrong” before calling.
This section helps you
solve common problems
that might occur.
If you do need service,
you can relax knowing help
is only a phone call away.
A list of toll-free customer
service numbers is
included in the back of
this manual.
Need Help?
Start Here!…Before using your Microwave
49-400811v01 8/2/01 4:02 PM Page 3
To reduce the risk of fire, burns, electric shock, injury to persons, or exposure to excessive
microwave energy when using your appliance, follow basic precautions, including the
following sections.
WARNING
•Read and follow the
specific “Precautions to
Avoid Possible Exposure
to Excessive Microwave
Energy” on page 2.
•This appliance must be
grounded. Connect only
to properly grounded
outlet. See Grounding
Instructions section on
page 10.
•Do not mount this
appliance over a sink.
•Install or locate this
appliance only in
accordance with the
provided Installation
Instructions.
•This over-the-range oven
was designed for use over
ranges no wider than 36″.
It may be installed over
both gas and electric
cooking equipment.
•Do not operate this
appliance if it has a
damaged power cord or
plug, if it is not working
properly, or if it has been
damaged or dropped.
If the power cord is
damaged, it must be
replaced by General
Electric Service or an
authorized service agent
using a power cord
available from General
Electric.
•Use this appliance only
for its intended use as
described in this manual.
Do not use corrosive
chemicals or vapors in this
appliance. This microwave
oven is specifically
designed to heat, dry or
cook food, and is not
intended for laboratory
or industrial use.
This microwave oven is
UL listed for installation
over electric and gas
ranges.
This microwave oven is
not approved or tested
for marine use.
SAFETY
PRECAUTIONS
4
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
49-400811v01 8/2/01 4:02 PM Page 4
•Do not cover or block
any openings on the
appliance.
•Do not store this
appliance outdoors.
Do not use this product
near water—for example,
in a wet basement, near a
swimming pool or near
a sink.
•Keep power cord away
from heated surfaces.
•Do not immerse power
cord or plug in water.
•To reduce the risk of fire
in the oven cavity:
— Do not overcook food.
Carefully attend
appliance if paper,
plastic or other com-
bustible materials are
placed inside the oven
while cooking.
— Remove wire twist-ties
and metal handles from
paper or plastic con-
tainers before placing
them in the oven.
— Do not use the oven
for storage purposes.
Do not leave paper
products, cooking
utensils or food in the
oven when not in use.
— If materials inside oven
should ignite, keep the
oven door closed, turn
the oven off and
disconnect the power
cord, or shut off power
at the fuse or circuit
breaker panel. If the
door is opened, the fire
may spread.
•See door surface cleaning
instructions in the Care
and Cleaning section(s)
of this manual.
•This appliance should
be serviced only by
qualified service
personnel. Contact
nearest authorized
service facility for
examination, repair
or adjustment.
•As with any appliance,
close supervision is
necessary when used by
children.
SAVE THESE INSTRUCTIONS
5
49-400811v01 8/2/01 4:02 PM Page 5
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Arcing is the microwave
term for sparks in the oven.
Arcing is caused by:
•Metal or foil touching the
side of the oven.
•Foil not molded to food
(upturned edges act like
antennas).
•Metal, such as twist-ties,
poultry pins, or gold-
rimmed dishes, in the
microwave.
•Recycled paper towels
containing small metal
pieces being used in the
microwave.
If you see arcing, press
the CLEAR/OFF pad and
correct the problem.
ARCING
•Do not pop popcorn in
your microwave oven
unless in a special
microwave popcorn
accessory or unless you
use popcorn labeled for
use in microwave ovens.
•Some products such as
whole eggs and sealed
containers—for example,
closed jars—will explode
and should not be heated
in this microwave oven.
Such use of the microwave
oven could result in injury.
•Do not boil eggs in a
microwave oven. Pressure
will build up inside egg
yolk and will cause it to
burst, possibly resulting
in injury.
•Operating the microwave
with no food inside for
more than a minute or
two may cause damage to
the oven and could start a
fire. It increases the heat
around the magnetron
and can shorten the life
of the oven.
•Foods with unbroken
outer “skin” such as
potatoes, hot dogs,
sausages, tomatoes,
apples, chicken livers
and other giblets, and
egg yolks should be
pierced to allow steam
to escape during cooking.
FOODS
6
49-400811v01 8/2/01 4:02 PM Page 6
7
•Avoid heating baby food
in glass jars, even with the
lid off. Make sure all
infant food is thoroughly
cooked. Stir food to
distribute the heat
evenly. Be careful to
prevent scalding when
warming formula or
breast milk. The container
may feel cooler than the
milk really is. Always test
the milk before feeding
the baby.
•Spontaneous boiling—
Under certain special
circumstances, liquids
may start to boil during
or shortly after removal
from the microwave oven.
To prevent burns from
splashing liquid, we
recommend the following:
before removing the
container from the oven,
allow the container to
stand in the oven for 30
to 40 seconds after the
oven has shut off. Do not
boil liquids in narrow-
necked containers such
as soft drink bottles, wine
flasks and especially
narrow-necked coffee
cups. Even if the
container is opened,
excessive steam can build
up and cause it to burst
or overflow.
•Don’t defrost frozen
beverages in narrow-
necked bottles (especially
carbonated beverages).
Even if the container is
opened, pressure can
build up. This can cause
the container to burst,
possibly resulting in
injury.
•Hot foods and steam
can cause burns. Be
careful when opening
any containers of hot
food, including popcorn
bags, cooking pouches
and boxes. To prevent
possible injury, direct
steam away from hands
and face.
•Do not overcook
potatoes. They could
dehydrate and catch
fire, causing damage to
your oven.
•Cook meat and poultry
thoroughly—meat to at
least an INTERNAL
temperature of 160°F.
and poultry to at least an
INTERNAL temperature
of 180°F. Cooking to
these temperatures
usually protects against
foodborne illness.
SAFETY
FACT
SUPERHEATED WATER
Microwaved water and
other liquids do not
always bubble when
they reach the boiling
point. They can actually
get superheated and not
bubble at all.
Superheated liquid will
bubble up out of the cup
when it is moved or
when something like a
spoon or tea bag is put
into it.
To prevent this from
happening and causing
injury, do not heat any
liquid for more than
2 minutes per cup.
After heating, let the cup
stand in the microwave
for 30 seconds before
moving it or putting
anything into it.
49-400811v01 8/2/01 4:02 PM Page 7
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Make sure all cookware
used in your microwave
oven is suitable for
microwaving. Most glass
casseroles, cooking dishes,
measuring cups, custard
cups, pottery or china
dinnerware which does not
have metallic trim or glaze
with a metallic sheen can
be used. Some cookware is
labeled “suitable for
microwaving.”
•If you are not sure if a
dish is microwave-safe,
use this test: Place in the
oven both the dish you
are testing and a glass
measuring cup filled with
1 cup of water—set the
measuring cup either
in or next to the dish.
Microwave 30-45 seconds
at high. If the dish heats,
it should not be used for
microwaving.
If the dish remains cool
and only the water in the
cup heats, then the dish
is microwave-safe.
•If you use a meat ther-
mometer while cooking,
make sure it is safe for
use in microwave ovens.
•Do not use recycled
paper products. Recycled
paper towels, napkins
and waxed paper can
contain metal flecks
which may cause arcing
or ignite. Paper products
containing nylon or
nylon filaments should
be avoided, as they may
also ignite.
•Some styrofoam trays
(like those that meat is
packaged on) have a thin
strip of metal embedded
in the bottom. When
microwaved, the metal
can burn the floor of the
oven or ignite a paper
towel.
•Do not use the microwave
to dry newspapers.
•Not all plastic wrap is
suitable for use in micro-
wave ovens. Check the
package for proper use.
•Paper towels, waxed
paper and plastic wrap
can be used to cover
dishes in order to retain
moisture and prevent
spattering. Be sure to
vent plastic wrap so steam
can escape.
•Cookware may become
hot because of heat
transferred from the
heated food. Pot holders
may be needed to handle
the cookware.
•“Boilable” cooking
pouches and tightly
closed plastic bags should
be slit, pierced or vented
as directed by package. If
they are not, plastic could
burst during or immed-
iately after cooking,
possibly resulting in injury.
Also, plastic storage
containers should be at
least partially uncovered
because they form a tight
seal. When cooking with
containers tightly covered
with plastic wrap, remove
covering carefully and
direct steam away from
hands and face.

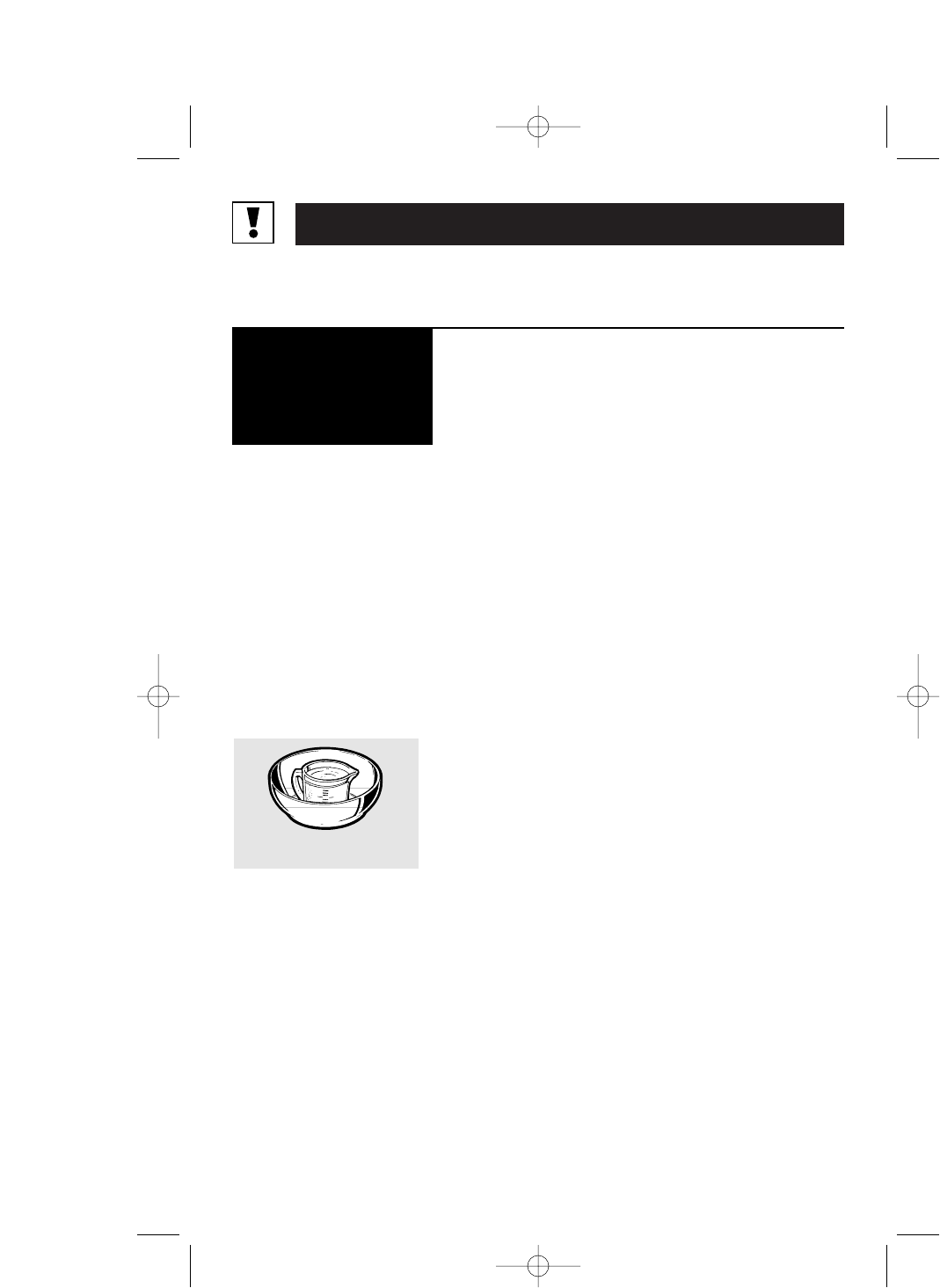

MICROWAVE-
SAFE
COOKWARE
How to test for a microwave-
safe dish.
8
49-400811v01 8/2/01 4:02 PM Page 8
9
•Use foil only as directed
in this manual. TV
dinners may be
microwaved in foil trays
less than 3/4″high;
remove the top foil cover
and return the tray to the
box. When using foil in
the microwave oven,
keep the foil at least
1 inch away from the
sides of the oven.
•Plastic cookware—Plastic
cookware designed for
microwave cooking is very
useful, but should be used
carefully. Even microwave-
safe plastic may not be as
tolerant of overcooking
conditions as are glass or
ceramic materials and
may soften or char if
subjected to short periods
of overcooking. In longer
exposures to over-
cooking, the food and
cookware could ignite.
Follow these guidelines:
1
Use microwave-safe
plastics only and use
them in strict compliance
with the cookware
manufacturer’s
recommendations.
2
Do not microwave empty
containers.
3
Do not permit children
to use plastic cookware
without complete
supervision.
The fan will operate
automatically under
certain conditions (see
Automatic Fan feature).
Take care to prevent the
starting and spreading of
accidental cooking fires
while the vent fan is in use.
•Clean the underside of
the microwave often. Do
not allow grease to build
up on the microwave or
the fan filters.
•In the event of a grease
fire on the surface units
below the microwave
oven, smother a flaming
pan on the surface unit
by covering the pan
completely with a lid, a
cookie sheet or a flat tray.
•Use care when cleaning
the vent fan filters.
Corrosive cleaning
agents, such as lye-based
oven cleaners, may
damage the filters.
•When preparing
flaming foods under
the microwave, turn the
fan on.
•Never leave surface units
beneath your microwave
oven unattended at high
heat settings. Boilovers
cause smoking and greasy
spillovers that may ignite
and spread if the
microwave vent fan is
operating. To minimize
automatic fan operation,
use adequate sized
cookware and use high
heat on surface units only
when necessary.
THE VENT
FAN
49-400811v01 8/2/01 4:02 PM Page 9
IMPORTANT SAFETY INFORMATION

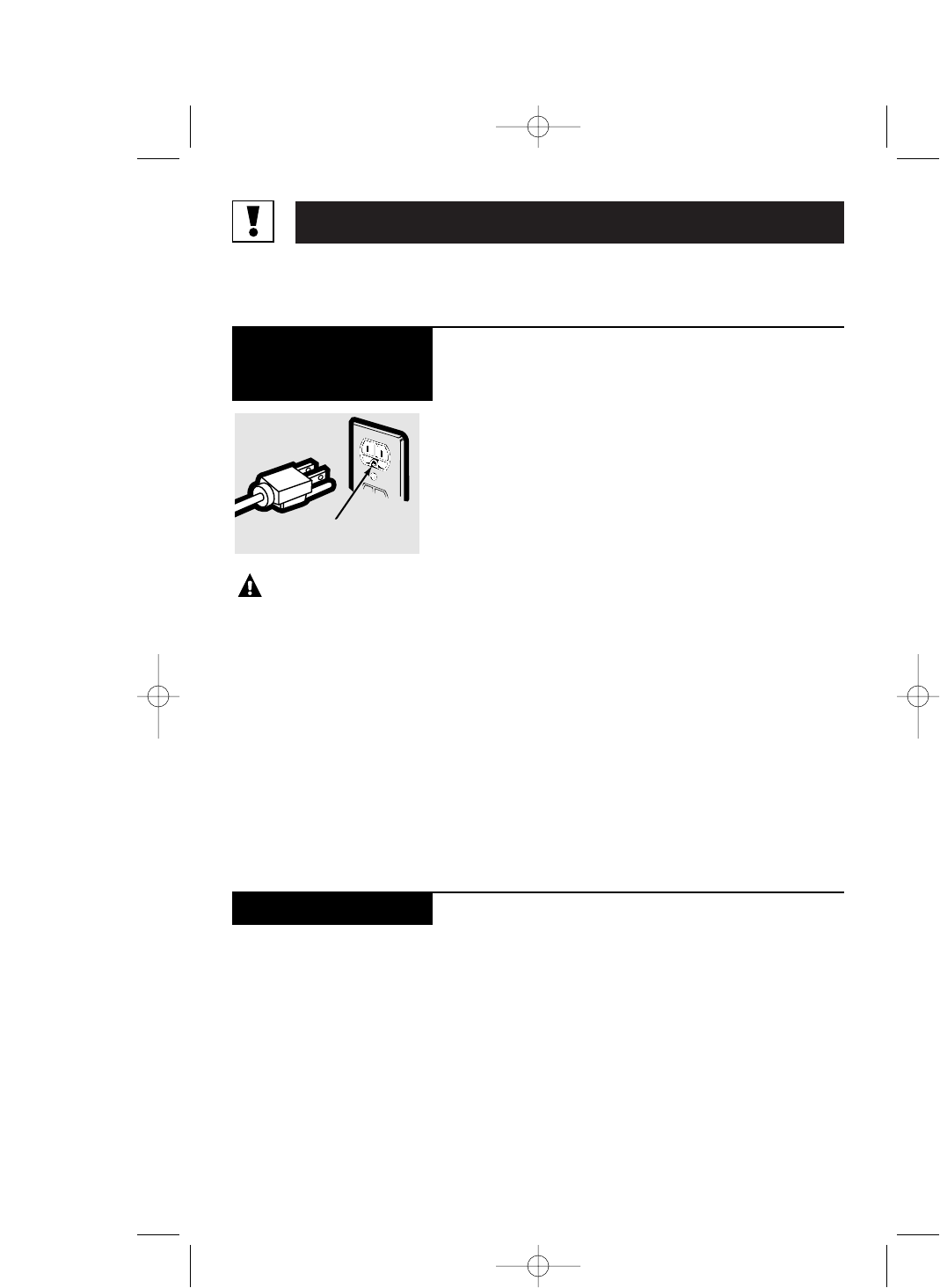

GROUNDING INSTRUCTIONS/OPTIONAL KITS
WARNING
Improper use of the
grounding plug can result in
a risk of electric shock.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the risk
of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a power cord having a
grounding wire with a
grounding plug. The plug
must be plugged into an
outlet that is properly
installed and grounded.
Consult a qualified electri-
cian or service technician if
the grounding instructions
are not completely under-
stood, or if doubt exists as
to whether the appliance is
properly grounded.
If the outlet is a standard
2-prong wall outlet, it is
your personal responsibility
and obligation to have it
replaced with a properly
grounded 3-prong wall
outlet.
Do not under any circum-
stances cut or remove the
third (ground) prong from
the power cord.
Do not use an adapter plug
with this appliance.
Do not use an extension
cord with this appliance. If
the power cord is too short,
have a qualified electrician
or service technician install
an outlet near the
appliance.
For best operation, plug
this appliance into its own
electrical outlet to prevent
flickering of lights, blowing
of fuse or tripping of
circuit breaker.
GROUNDING
INSTRUCTIONS
Filler Panel Kits
JX48WH—White
JX48BL—Black
JX48CT—Bisque
When replacing a 36″
range hood, filler panel
kits fill in the additional
width to provide a custom
built-in appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two
3″-wide filler panels.
Filter Kits
JX81A—Recirculating
Charcoal Filter Kit
Filter kits are used when
the microwave oven cannot
be vented to the outside.
Decorative Panel Kit
JX22SS—Stainless Steel
When replacing a Hi/Low
range, the decorative panel
kit fills in the area between
the microwave and the
range left by the Hi/Low
model.
Available at extra cost from
your GE supplier.
Optional Kits
Ensure proper ground
exists before use.
10
49-400811v01 8/2/01 4:02 PM Page 10
Operating Instructions
Features of Your Microwave
(Throughout this manual, features and appearance
may vary from your model.)

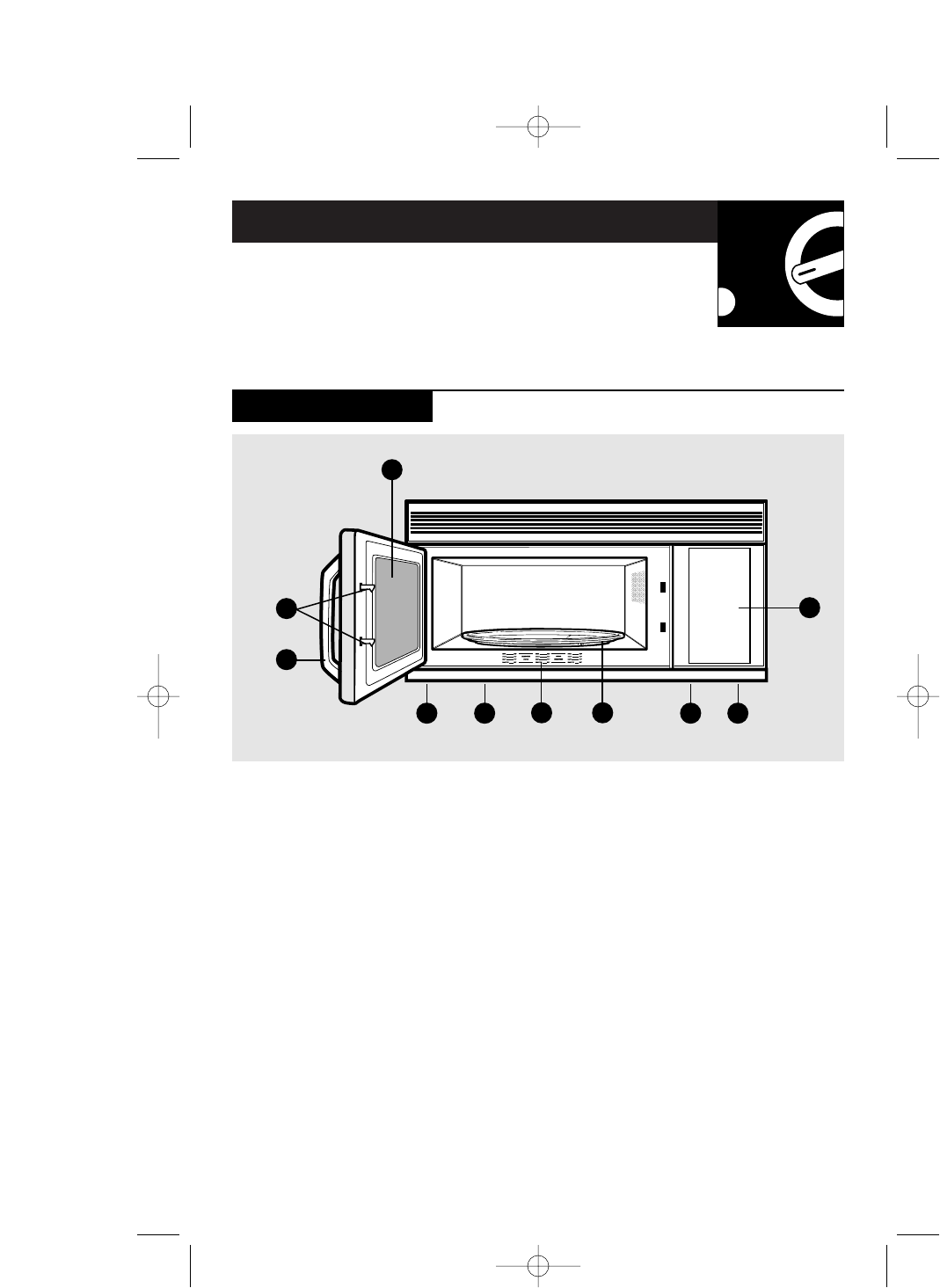

1 Door Handle.
Pull to
open the door. The
door must be securely
latched for the
microwave to operate.
2 Door Latches.
3 Window with Metal
Shield.
Screen allows
cooking to be viewed
while keeping
microwaves confined
in the oven.
4 Touch Control Panel
You must set the clock
before using the
microwave.
5 Cooktop Lights.
6 Grease Filters.
7 Removable Turntable.
Turntable and support
must be in place when
using the oven. The
turntable may be
removed for cleaning.
8 Convenience Guide.
NOTE:
Rating plate, oven
vent(s) and oven light are
located on the inside walls
of the microwave oven.
Features
3
55
6
87
11
6
4
1000 Watts
1
2
49-400811v01 8/2/01 4:02 PM Page 11

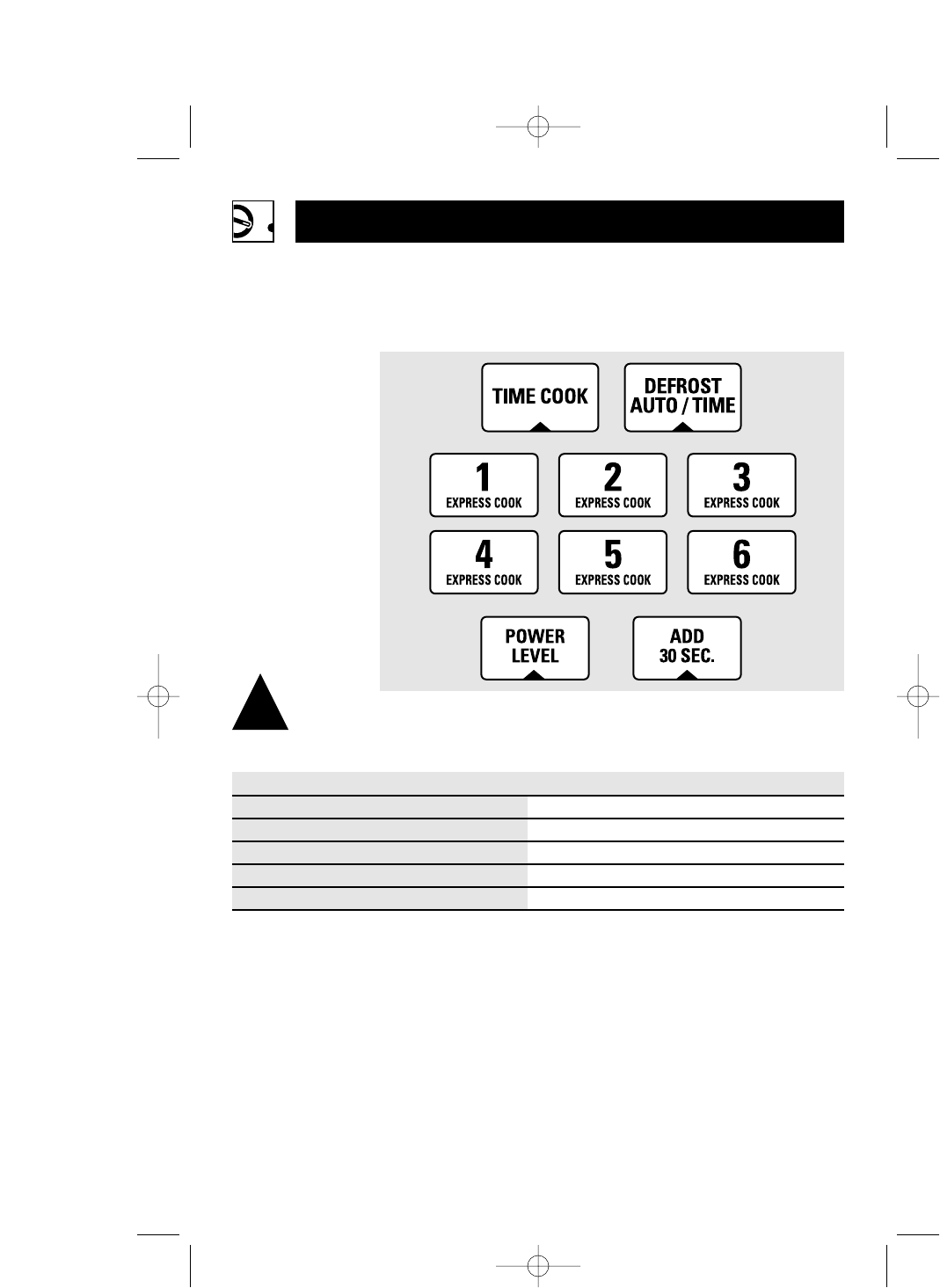

Time Features
Time Cooking
Press Enter
TIME COOK I & II (Press once or twice) Amount of cooking time.
DEFROST AUTO/TIME (Press twice) Amount of defrosting time.
EXPRESS COOK Starts immediately!
POWER LEVEL Power level 1–10.
ADD 30 SEC Starts immediately!
12
Quick Start
The Controls on Your Microwave Oven
(Throughout this manual, features and appearance may vary from your model.)
1
You can
microwave by
time or with the
convenience
features.
49-400811v01 8/2/01 4:02 PM Page 12

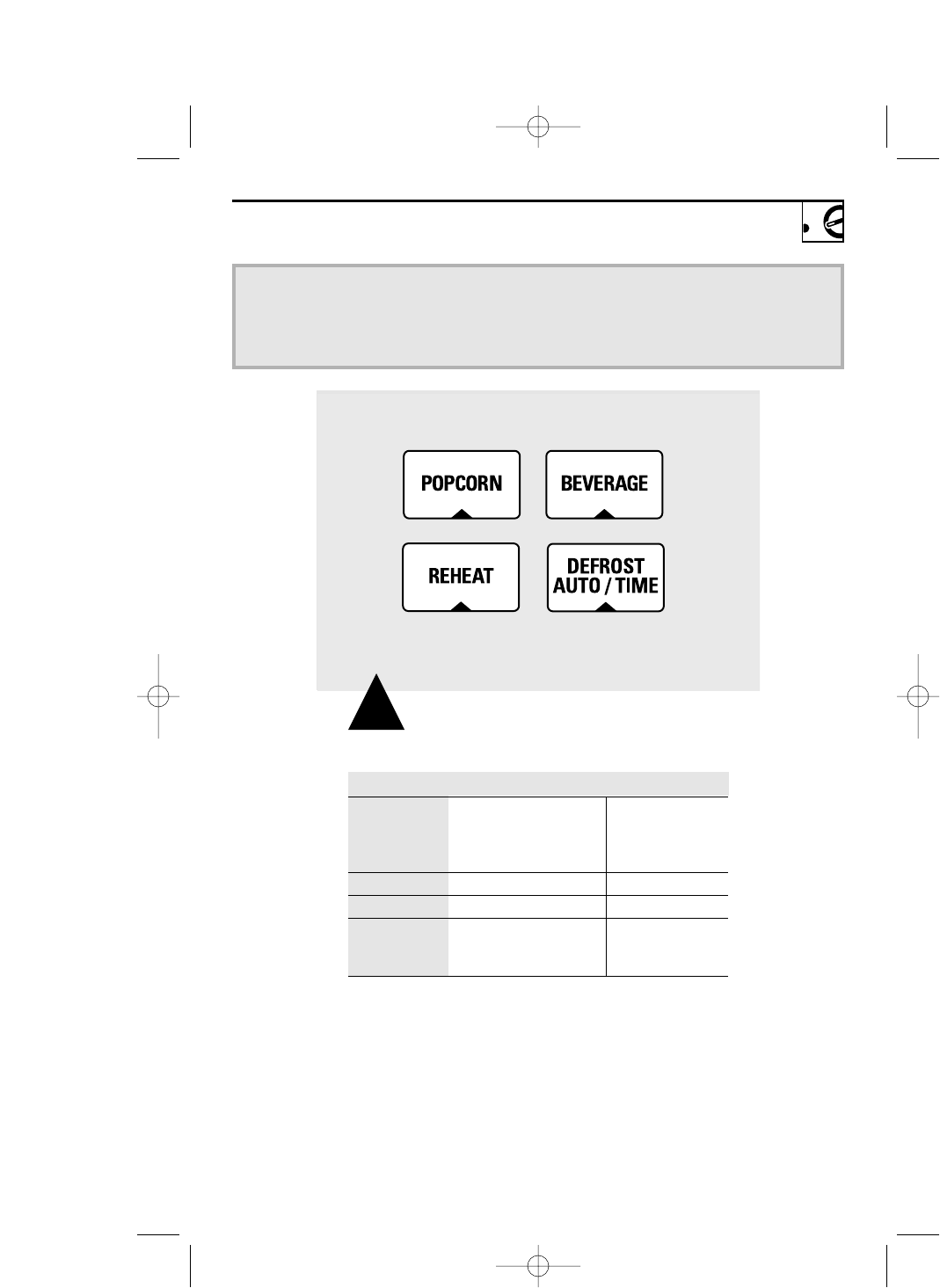

Convenience Features
Press Enter Option
POPCORN Starts immediately! more/less time
Press once 3.5 oz.
Press twice 3.0 oz.
Press 3 times 1.75 oz.
BEVERAGE Starts immediately! 1–3 servings
REHEAT Food type 1–6 1–3 servings
DEFROST Food weight
AUTO/TIME
(Press once)
13
2
GUIDE ON MICROWAVE
Before you begin, check the guide located
on the inside front of the oven when you
open the door.
GUIDES IN BOOK
•Cooking
•Time Defrost
•Reheat
49-400811v01 8/2/01 4:02 PM Page 13

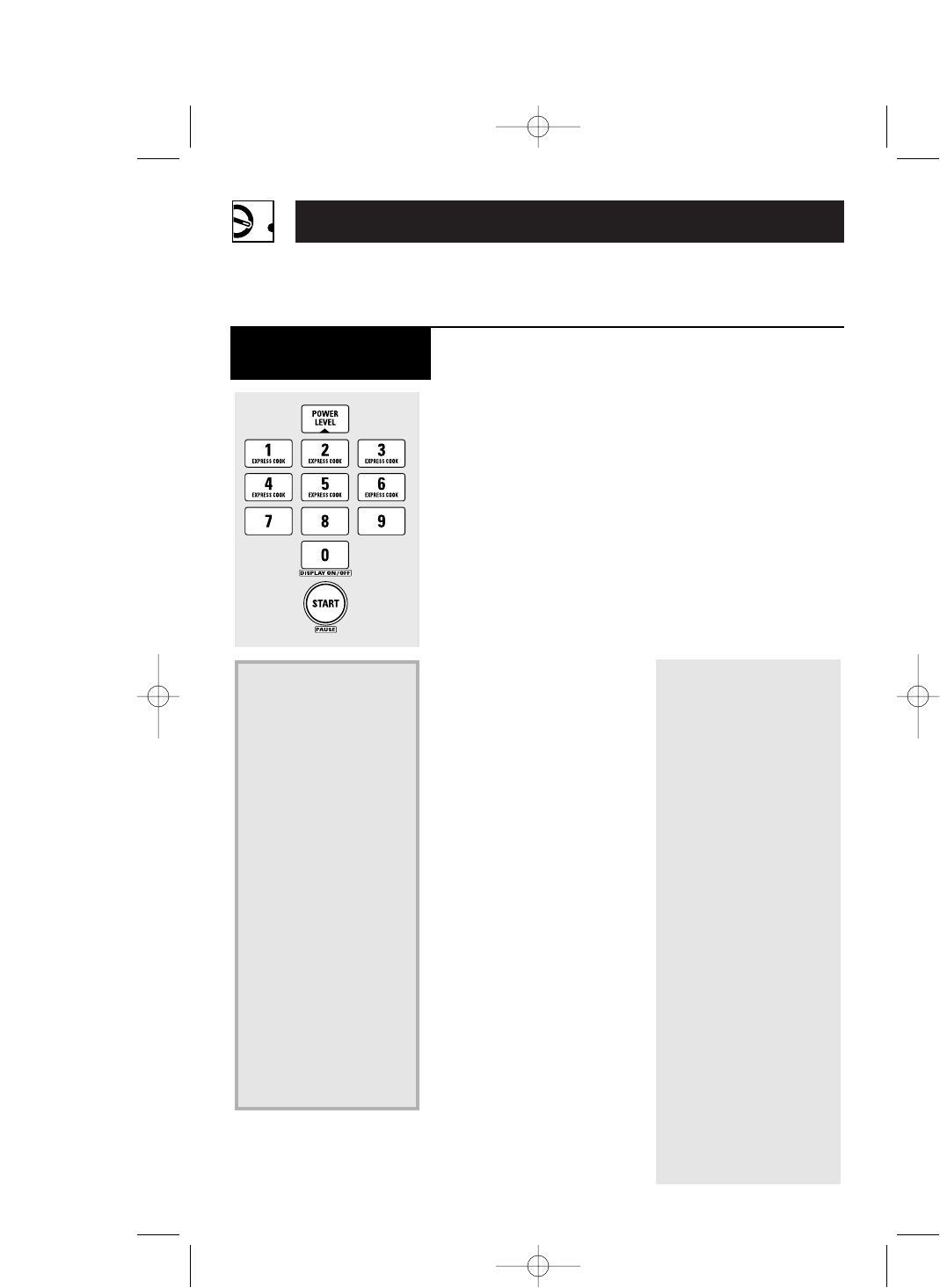

Operating Instructions
Variable power levels add
flexibility to microwave
cooking. The power levels
on the microwave oven can
be compared to the surface
units on a range. High
(power level 10) or full
power is the fastest way to
cook and gives you 100%
power. Each power level
gives you microwave
energy a certain percent of
the time. Power level 7 is
microwave energy 70% of
the time. Power level 3 is
energy 30% of the time.
A high setting (10) will
cook faster but food may
need more frequent
stirring, rotating or turning
over. Most cooking will be
done on High (power level
10). A lower setting will
cook more evenly and
need less stirring or
rotating of the food.
Some foods may have
better flavor, texture or
appearance if one of the
lower settings is used. Use
a lower power level when
cooking foods that have a
tendency to boil over, such
as scalloped potatoes.
Rest periods (when the
microwave energy cycles
off) give time for the food
to “equalize” or transfer
heat to the inside of the
food. An example of this is
shown with power level 3—
the defrost cycle. If micro-
wave energy did not cycle
off, the outside of the food
would cook before the
inside was defrosted.
Here are some examples
of uses for various power
levels:
Power Level Best Uses
High 10
Fish, bacon,
vegetables,
boiling liquids.
Med-High 7
Gentle
cooking of
meat and
poultry;
baking
casseroles
and reheating.
Medium 5
Slow cooking
and tenderiz-
ing such as
stews and less
tender cuts of
meat.
Low 3
Defrosting
without
cooking;
simmering;
delicate sauces.
Warm 1
Keeping food
warm without
overcooking;
softening
butter.
How to Change the
Power Level
The power level may be
entered or changed
immediately after
entering the feature
time for TIME COOK,
TIME DEFROST or
EXPRESS COOK. The
power level may also be
changed during time
countdown.
1 Press TIME COOK or
select Time Defrost.
2 Enter cooking or
defrosting time.
3 Press POWER LEVEL.
4 Select desired power
level 1–10.
5 Press START.
Changing Power
Levels
14
49-400811v01 8/2/01 4:02 PM Page 14
15
Time Features

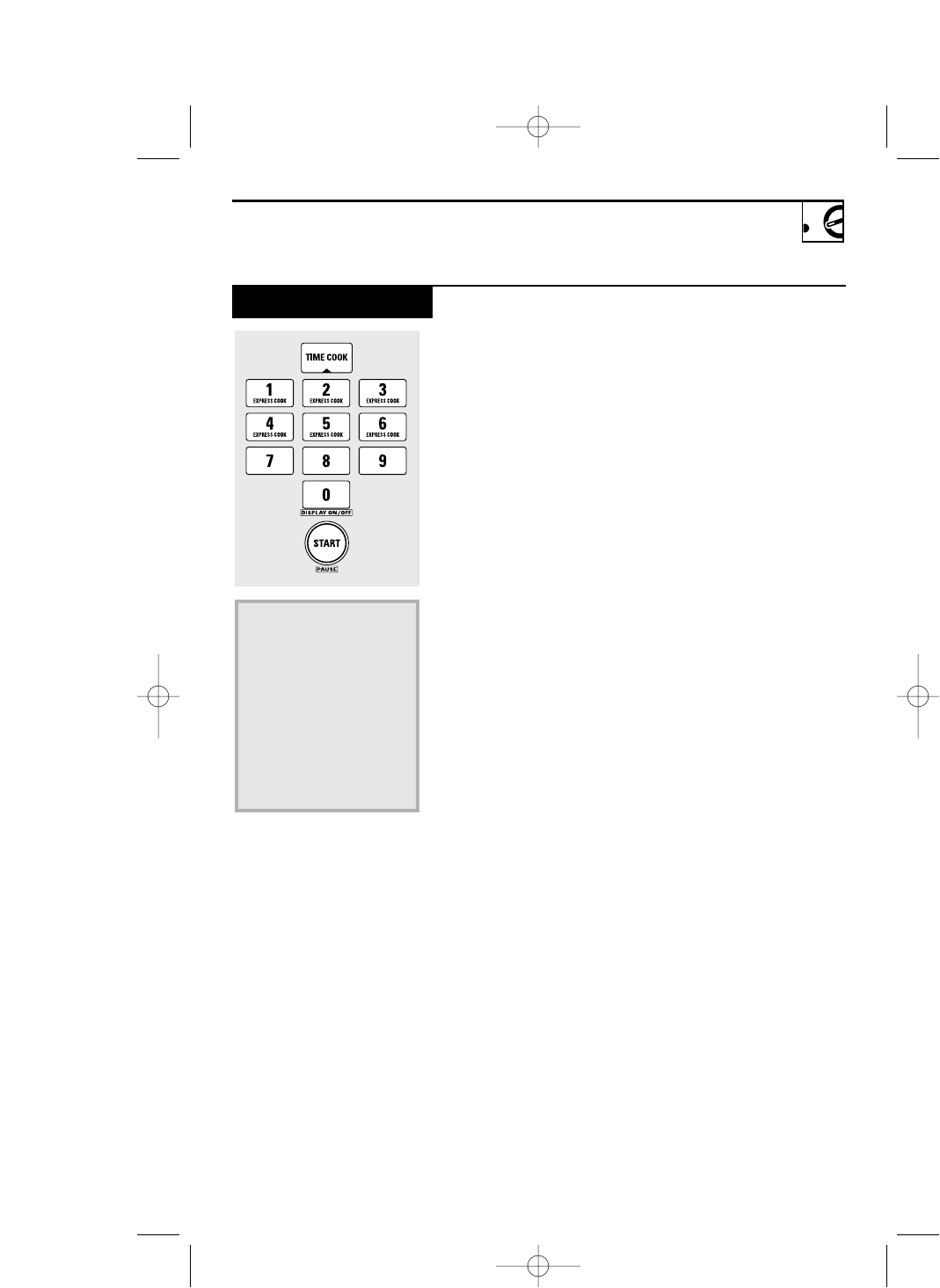

Time Cook I
Allows you to microwave
for any time up to 99
minutes and 99 seconds.
Power level 10 (High) is
automatically set, but you
may change it for more
flexibility.
You may open the door
during Time Cook to
check the food. Close the
door and press START to
resume cooking.
Time Cook II
Lets you change power
levels automatically during
cooking. Here’s how to
do it:
1
Press TIME COOK.
2
Enter the first cook time.
3
Change the power level
if you don’t want full
power. (Press POWER
LEVEL. Select a desired
power level 1–10.)
4
Press TIME COOK.
5
Enter the second cook
time.
6
Change the power level
if you don’t want full
power. (Press POWER
LEVEL. Select a power
level 1–10.)
7
Press START.
At the end of Time Cook I,
Time Cook II counts down.
1 Press TIME COOK.
2 Enter cooking time.
3 Change power level
if you don’t want full
power. (Press POWER
LEVEL. Select a
desired power level
1–10.)
Time Cook
49-400811v01 8/2/01 4:02 PM Page 15
16
Operating Instructions
Cooking Guide for Time Cook I &II
NOTE: Use power level High (10) unless otherwise noted.
Vegetable Amount Time Comments
Asparagus
(fresh spears) 1 lb. 6 to 9 min., In 1
1
⁄
2
-qt. oblong glass baking dish,
Med-High (7) place 1/4 cup water.
(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole.
Beans
(fresh green) 1 lb. cut in half 9 to 11 min. In 1
1
⁄
2
-qt. casserole, place 1/2 cup water.
(frozen green) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons
water.
(frozen lima) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.
Beets
(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.
Broccoli
(fresh cut) 1 bunch 7 to 10 min. In 2-qt. casserole, place 1/2 cup water.
(1
1
⁄
4
to 1
1
⁄
2
lbs.)
(fresh spears) 1 bunch 9 to 13 min. In 2-qt. oblong glass baking dish, place
(1
1
⁄
4
to 1
1
⁄
2
lbs.) 1/4 cup water.
(frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole.
chopped)
(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons
water.
Cabbage
(fresh) 1 medium head 8 to 11 min. In 1
1
⁄
2
- or 2-qt. casserole, place 1/4 cup
(about 2 lbs.) water.
(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup
water.
Carrots
(fresh, sliced) 1 lb. 7 to 9 min. In 1
1
⁄
2
-qt. casserole, place 1/4 cup water.
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
Cauliflower
(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.
(fresh, whole) 1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
49-400811v01 8/2/01 4:02 PM Page 16
17
Vegetable Amount Time Comments
Corn
(frozen kernel) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
Corn on the cob
(fresh) 1 to 5 ears 3 to 4 min. In 2-qt. oblong glass baking dish, place
per ear corn. If corn is in husk, use no water;
if corn has been husked, add 1/4 cup
water. Rearrange after half of time.
(frozen) 1 ear 5 to 6 min. Place in 2-qt. oblong glass baking dish.
2 to 6 ears 3 to 4 min. Cover with vented plastic wrap.
per ear Rearrange after half of time.
Mixed
vegetables
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons
water.
Peas
(fresh, shelled) 2 lbs. unshelled
9 to 12 min.
In 1-qt. casserole, place 1/4 cup water.
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
Potatoes
(fresh, cubed, 4 potatoes
9 to 12 min.
Peel and cut into 1 inch cubes. Place
white) (6 to 8 oz. each) in 2-qt. casserole with 1/2 cup water.
Stir after half of time.
(fresh, whole, 1 (6 to 8 oz.) 3 to 4 min. Pierce with cooking fork. Place in
sweet or white) center of the oven. Let stand 5 minutes.
Spinach
(fresh) 10 to 16 oz. 5 to 7 min. In 2-qt. casserole, place washed spinach.
(frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons
chopped water.
and leaf)
Squash
(fresh, summer 1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place 1/4 cup water.
and yellow)
(winter, acorn 1 to 2 squash 8 to 11 min. Cut in half and remove fibrous
butternut)
(about 1 lb. each)
membranes. In 2-qt. oblong glass
baking dish, place squash cut-side-
down. Turn cut-side-up after 4 minutes.
49-400811v01 8/2/01 4:02 PM Page 17

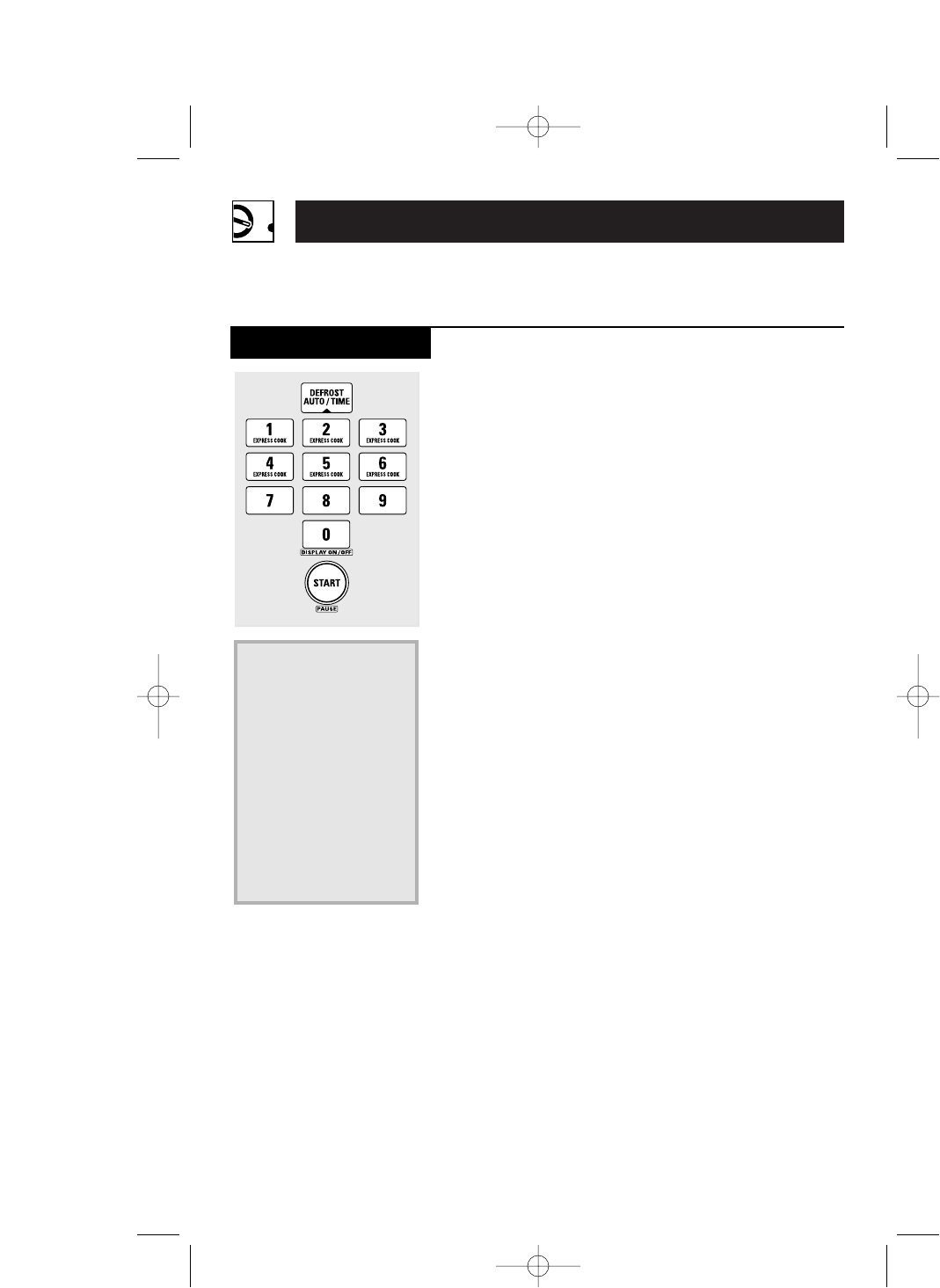

Operating Instructions
Time Features
Allows you to defrost for
the length of time you
select. See the Defrosting
Guide for suggested times.
Power level 3 is automati-
cally set, but you may
change this for more flexi-
bility. You may defrost
small items more quickly
by raising the power level
after entering the time.
However, they will need
more frequent attention
than usual.
Power level 7 cuts the total
defrosting time in about
half; power level 10 cuts
the total time to approxi-
mately 1/3. Rotate or stir
food frequently.
At one half of selected
defrosting time, the oven
signals TURN. At this time,
turn food over and break
apart or rearrange pieces
for more even defrosting.
Shield any warm areas with
small pieces of foil.
A dull thumping noise may
be heard during defrosting.
This sound is normal when
the oven is not operating at
High power.
Defrosting Tips
•Foods frozen in paper or
plastic can be defrosted
in the package. Tightly
closed packages should
be slit, pierced or vented
AFTER food has partially
defrosted. Plastic storage
containers should be at
least partially uncovered.
•Family-size, prepackaged
frozen dinners can be
defrosted and micro-
waved. If the food is in a
foil container, transfer it
to a microwave-safe dish.
•Foods that spoil easily,
such as milk, eggs, fish,
stuffings, poultry and
pork, should not be
allowed to sit out for
more than one hour
after defrosting. Room
temperature promotes
the growth of harmful
bacteria.
•For more even defrosting
of larger foods, such as
beef, lamb and veal
roasts, use Auto Defrost.
•Be sure large meats are
completely defrosted
before cooking.
•When defrosted, food
should be cool but
softened in all areas. If still
slightly icy, return to the
microwave very briefly, or
let it stand a few minutes.
1 Press DEFROST
AUTO/TIME twice.
2 Enter defrosting time.
3 Press START.
4 Turn food over when
the oven signals.
5 Press START.
(Auto Defrost explained
in the section on
Convenience Features.)
Time Defrost
18
49-400811v01 8/2/01 4:02 PM Page 18
Defrosting Guide
Food Time Comments
Breads, Cakes
Bread, buns or rolls
(1 piece) 1 min.
Sweet rolls
(approx. 12 oz.) 3 to 5 min.
Fish and Seafood
Fillets, frozen
(1 lb.) 6 to 8 min.
Shellfish, small pieces
(1 lb.) 5 to 7 min. Place block in casserole. Turn over and
break up after half the time.
Fruit
Plastic pouch—1 to 2
3 to 6 min.
(10-oz. package)
Meat
Bacon
(1 lb.) 2 to 5 min. Place unopened package in oven.
Let stand 5 minutes after defrosting.
Franks
(1 lb.) 2 to 5 min. Place unopened package in oven.
Microwave just until franks can be
separated. Let stand 5 minutes, if
necessary, to complete defrosting.
Ground meat
(1 lb.) 5 to 7 min. Turn meat over after half the time.
Roast: beef, lamb, veal, pork
12 to 16 min. Use power level 1.
per lb.
Steaks, chops and cutlets
5 to 7 min. Place unwrapped meat in cooking dish.
per lb. Turn over after half the time and shield
warm areas with foil. When finished,
separate pieces and let stand to complete
defrosting.
Poultry
Chicken, broiler-fryer
15 to 19 min. Place wrapped chicken in dish. Unwrap
cut up
(21⁄2to 3 lbs.) and turn over after half the time. When
finished, separate pieces and microwave
2 to 4 minutes more, if necessary.
Let stand to finish defrosting.
Chicken, whole
17 to 21 min. Place wrapped chicken in dish. After half
(21⁄2to 3 lbs.) the time, unwrap and turn chicken over.
Shield warm areas with foil. Finish
defrosting. If necessary, run cold water in
the cavity until giblets can be removed.
Cornish hen
7 to 13 min. Place unwrapped hen in the oven breast-
per lb. side-up. Turn over after half the time.
Run cool water in the cavity until giblets
can be removed.
Turkey breast
(4 to 6 lbs.) 5 to 9 min. Place unwrapped breast in dish breast-
per lb. side-down. After half the time, turn over
and shield warm areas with foil. Finish
defrosting. Let stand 1 to 2 hours in
refrigerator to complete defrosting.
19
49-400811v01 8/2/01 4:02 PM Page 19
Operating Instructions
Time Features

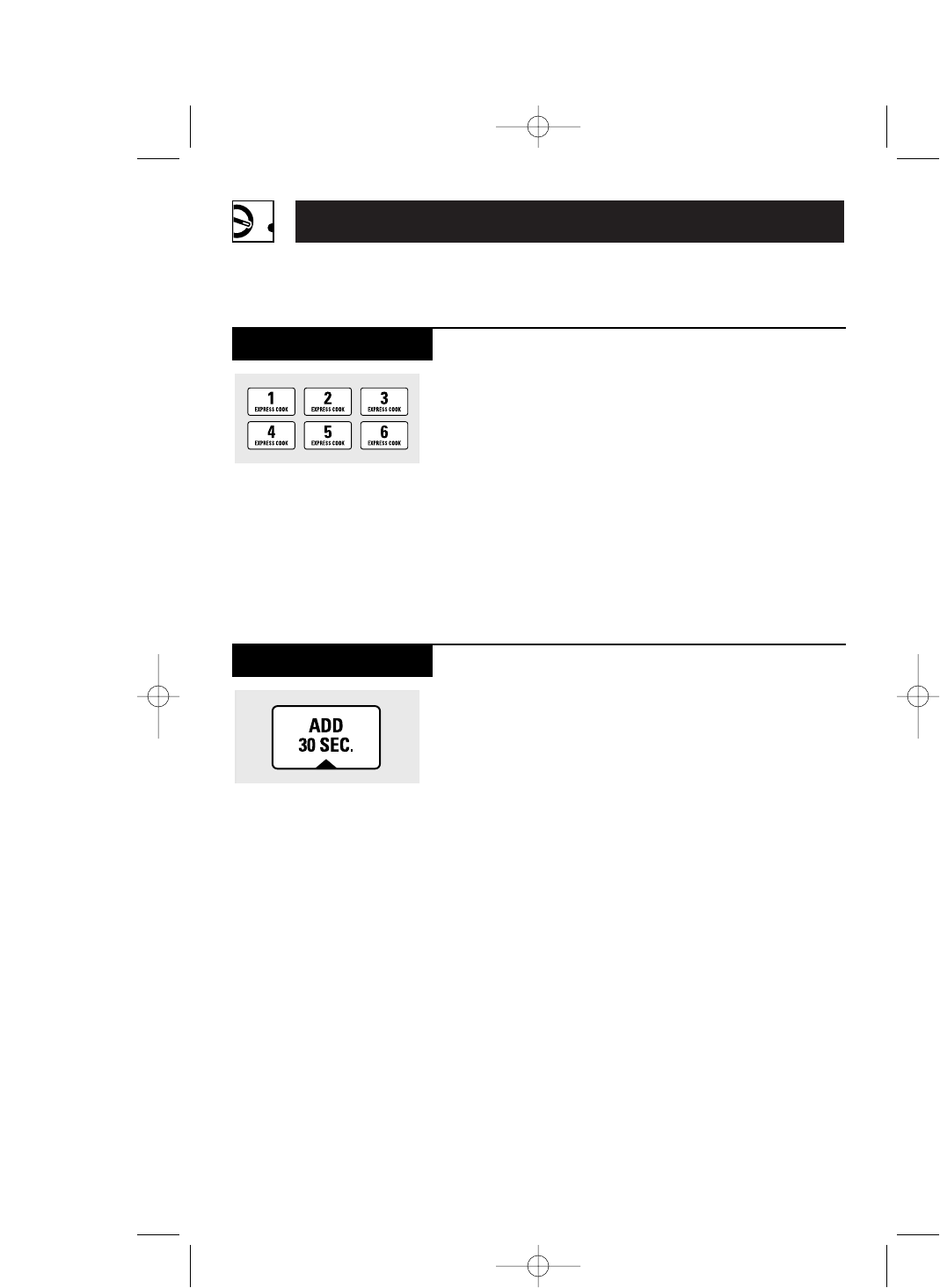

You can use this feature
two ways:
•It will add 30 seconds to
the time counting down
each time the pad is
pressed.
•It can be used as a quick
way to set 30 seconds of
cooking time.
Add 30 Seconds
This is a quick way to set
cooking time for 1–6 minutes.
Press one of the Express
Cook pads (from 1 to 6)
for 1 to 6 minutes of
cooking at power level 10.
For example, press the
2 pad for 2 minutes of
cooking time.
The power level can be
changed as time is
counting down. Press
POWER LEVEL and
enter 1–10.
Express Cook
20
49-400811v01 8/2/01 4:02 PM Page 20

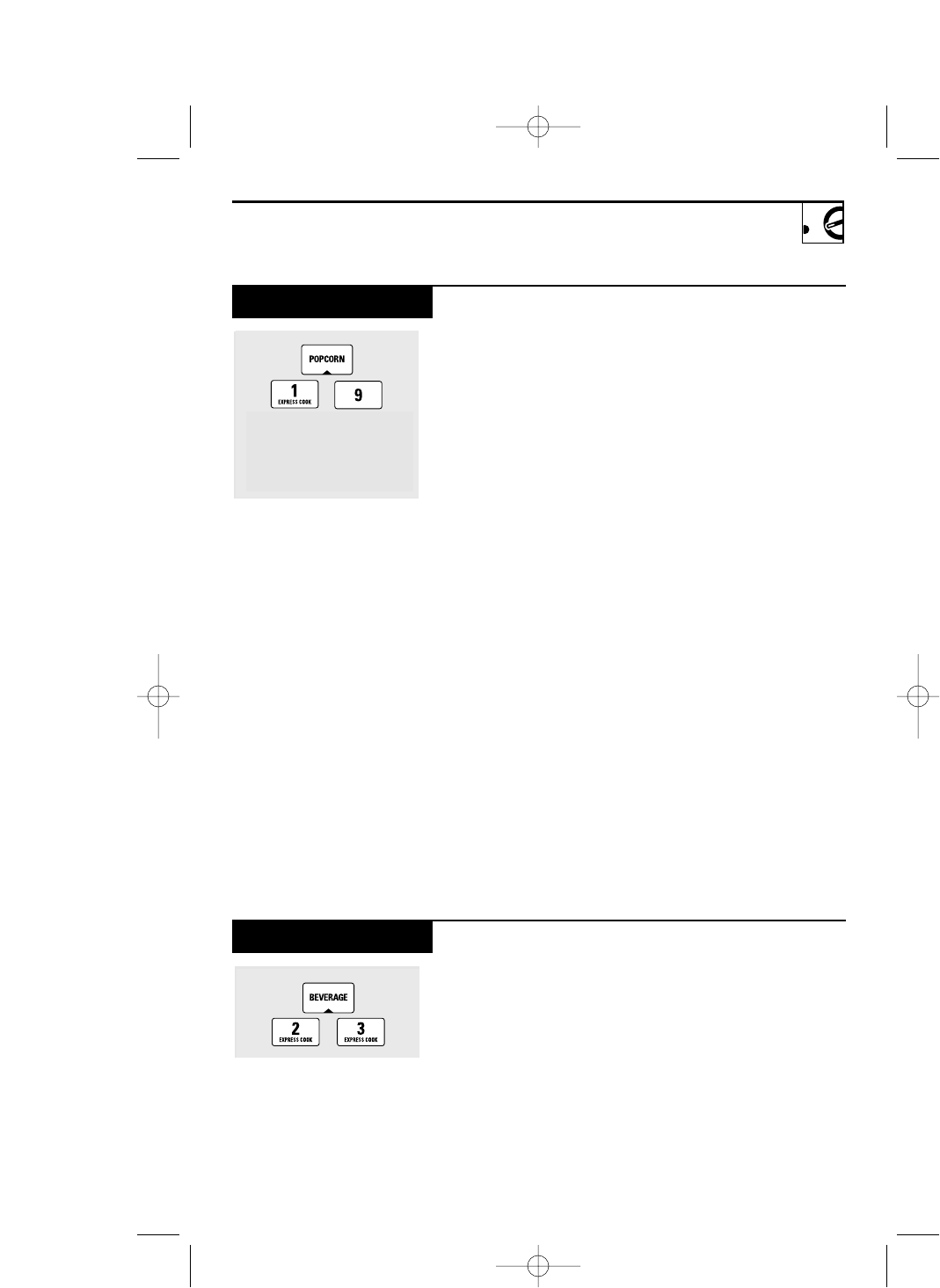

Convenience Features
How to Use the Popcorn
Feature
1
Follow package instruc-
tions, using Time Cook if
the package is less than
1.75 ounces or larger
than 3.5 ounces. Place
the package of popcorn
in the center of the
microwave.
2
Press POPCORN. The
oven starts immediately.
Tap POPCORN to select
the bag size you are
cooking.
How to Adjust the Popcorn
Program to Provide a Shorter
or Longer Cook Time
If you find that the brand of
popcorn you use underpops
or overcooks consistently,
you can add or subtract
20–30 seconds to the
automatic popping time.
To add time:
After pressing POPCORN,
press 9 immediately after
the oven starts for an extra
20 seconds.
Press 9 again to add another
10 seconds (total 30 seconds
additional time).
To subtract time:
After pressing POPCORN,
press 1 immediately after
the oven starts for 20
seconds less cooking time.
Press 1 again to reduce
cooking time another 10
seconds (total 30 seconds
less time).
(less time) (more time)
Use only with prepackaged
microwave popcorn weighing
1.75 to 3.5 ounces.
Popcorn
The Beverage feature heats
1 to 3 servings of any
beverage.
Press BEVERAGE. The
oven starts immediately.
The serving size is
automatically set at 1, but
can be changed by pressing
2 or 3 right after pressing
BEVERAGE.
Drinks heated with the
Beverage feature may be
very hot. Remove the
container with care.
Beverage
21
Use only with prepackaged
microwave popcorn weighing
1.75 to 3.5 ounces.
(more time)(less time)
49-400811v01 8/2/01 4:02 PM Page 21
22
Operating Instructions
Convenience Features

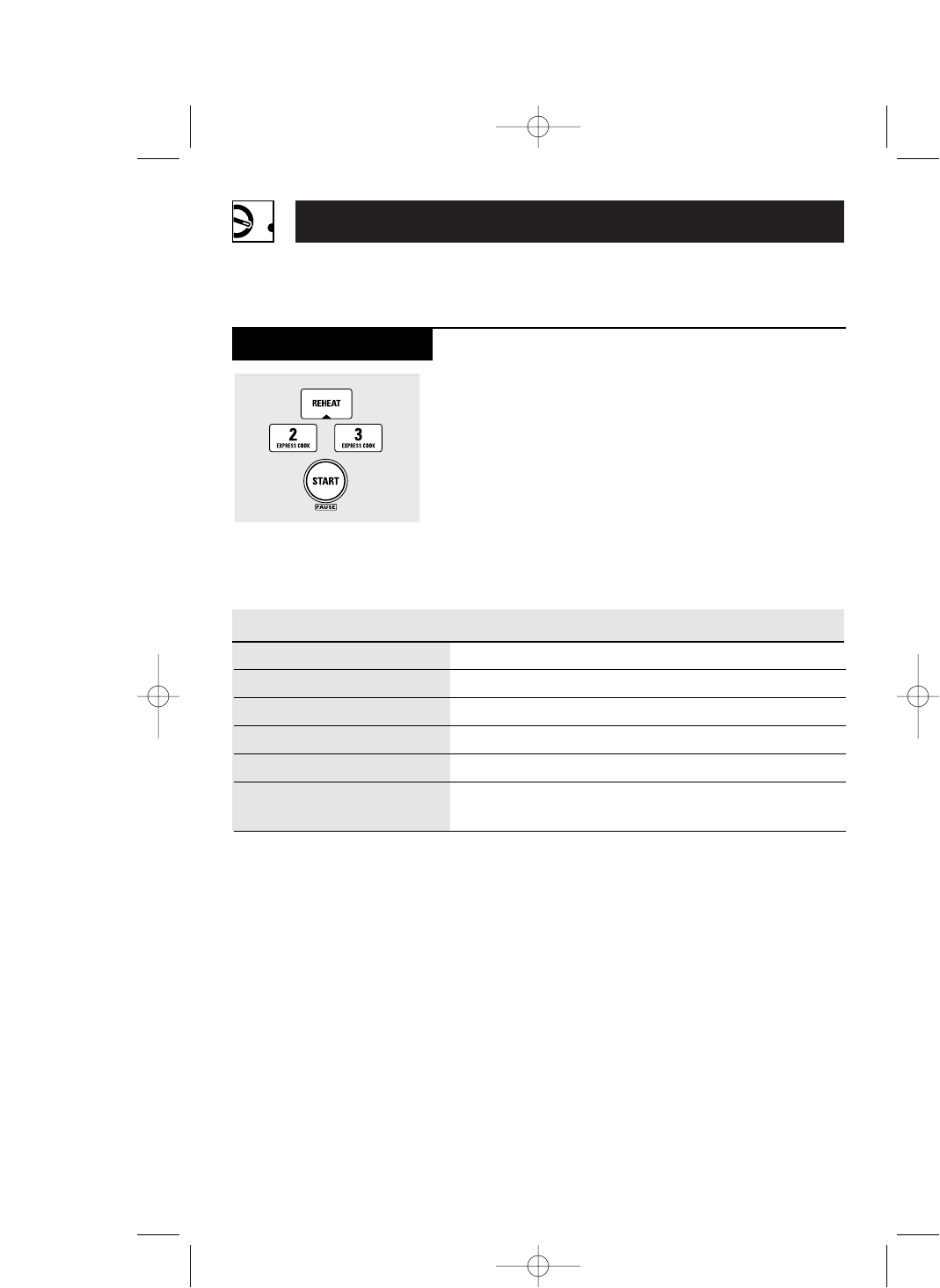

The Reheat feature reheats
1 to 3 servings of many
previously cooked foods.
1
Press REHEAT.
2
Select food type 1–6 for
one serving (see Reheat
Guide below).
3
Press 2 or 3 to reheat 2 or
3 servings.
4
Press START.
NOTE: The serving size may
be changed or added after
pressing START. Press
number pad 2 or 3.
Reheat
1 Pasta
Cover with lid or vented plastic wrap.
2 Meats, casseroles, pizza
Cover with lid or vented plastic wrap.
3 Fruits and vegetables
Cover with lid or vented plastic wrap.
4 Beverages, 8–10 oz.
Works best with wide mouth mug—do not cover.
5 Sauces and gravies
Cover with lid or vented plastic wrap.
6 Plate of leftovers
Cover with vented plastic wrap.
(2 to 3 foods, 4 oz. each)
Food Type Comments
Reheat Guide
49-400811v01 8/2/01 4:02 PM Page 22
23

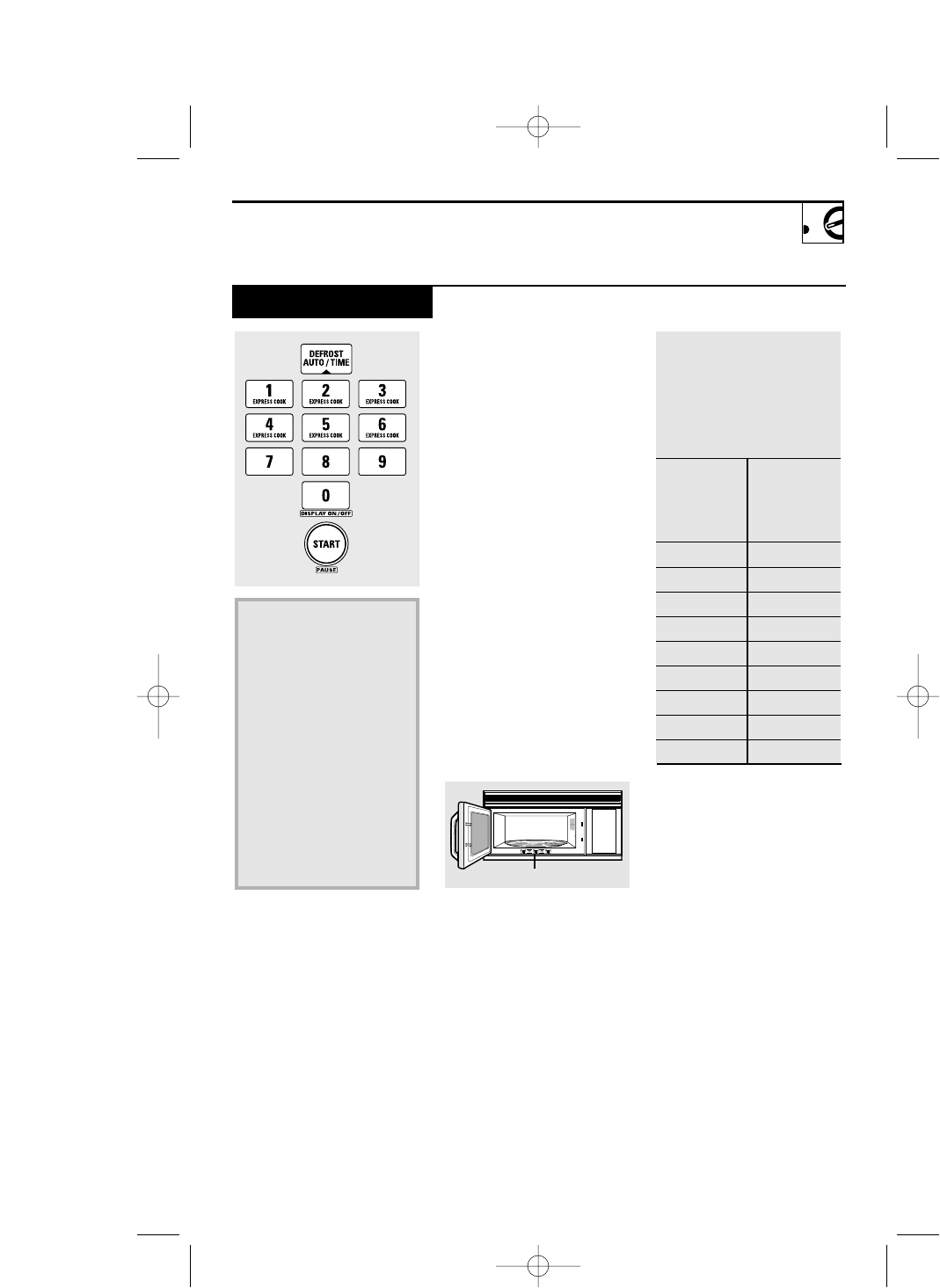

Auto Defrost
The Defrost Auto/Time
feature gives you two ways
to defrost frozen foods.
Press DEFROST
AUTO/TIME once for
Auto Defrost or twice for
Time Defrost.
Use Auto Defrost for meat,
poultry and fish. Use Time
Defrost for most other
frozen foods.
Auto Defrost automatically
sets the defrosting times
and power levels to give
even defrosting results for
meats, poultry and fish
weighing up to six pounds.
There is a handy guide
located on the inside front
of the oven.
•Remove meat from
package and place on
microwave-safe dish.
•Twice during defrost, the
oven signals TURN. At
each TURN signal, turn
the food over. Remove
defrosted meat or shield
warm areas with small
pieces of foil.
•After defrosting, most
meats need to stand
5 minutes to complete
defrosting. Large roasts
should stand for about
30 minutes.
Conversion Guide
If the weight of food is
stated in pounds and
ounces, the ounces must
be converted to tenths
(.1) of a pound.
Weight of Enter Food
Food in Weight
Ounces (tenths of
a pound)
1–2 .1
3.2
4–5 .3
6–7 .4
8.5
9–10 .6
11 .7
12–13 .8
14–15 .9
1 Press DEFROST
AUTO/TIME once.
2 Using the Conversion
Guide at right, enter
food weight. For
example, press pads 1
and 2 for 1.2 pounds
(1 pound, 3 ounces).
3 Press START.
(Time Defrost is
explained in the Time
Features section.)
Guide
49-400811v01 8/2/01 4:02 PM Page 23

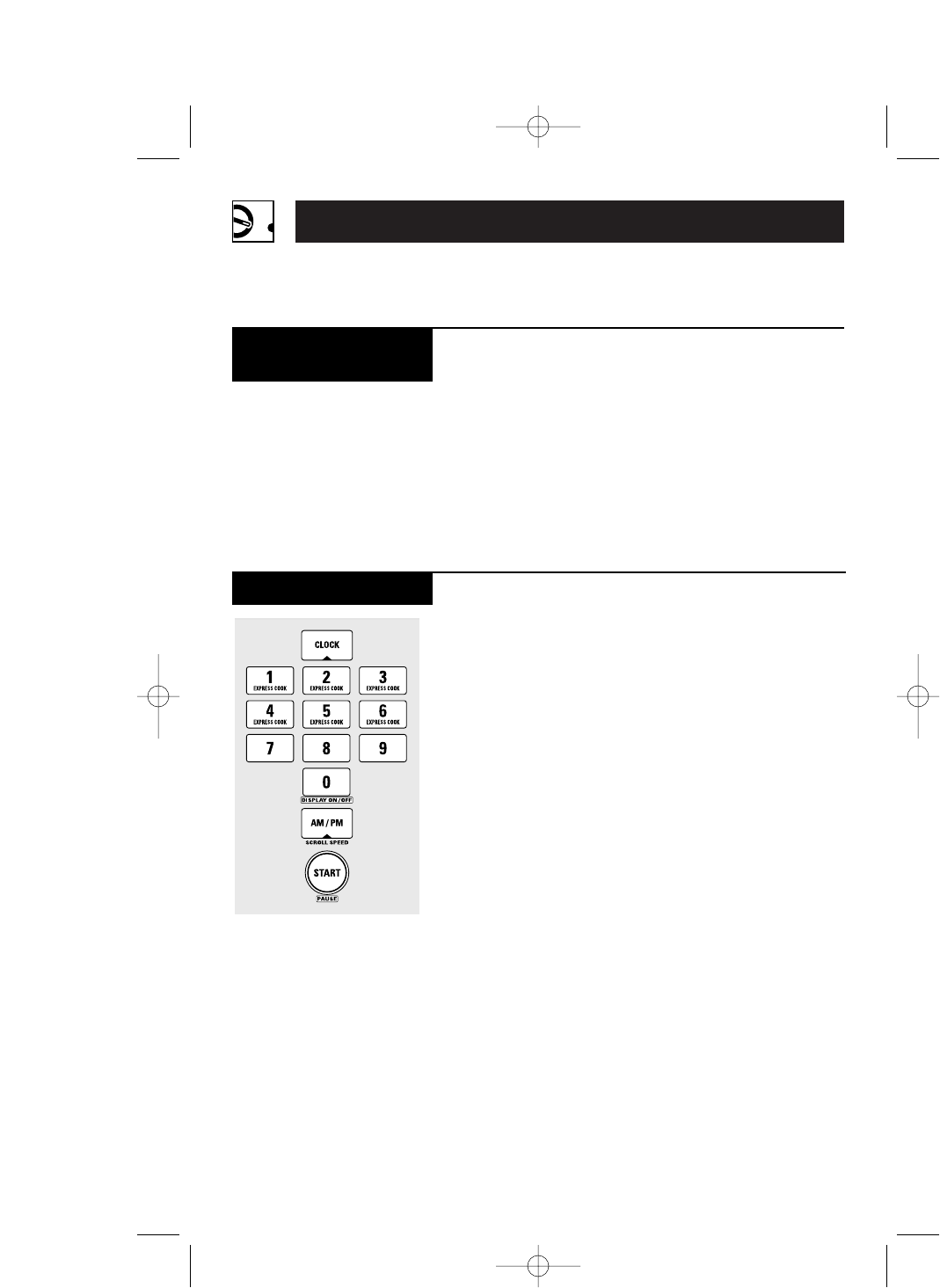

Operating Instructions
Other Features
To remind you that you
have food in the oven, the
oven will display “FOOD IS
READY” and beep once a
minute until you either
open the oven door or
press CLEAR/OFF.
Cooking Complete
Reminder
Press to enter the time of
day or to check the time of
day while microwaving.
1
Press CLOCK.
2
Enter time of day.
3
Select AM or PM.
4
Press START or CLOCK.
Clock
24
49-400811v01 8/2/01 4:02 PM Page 24
The scroll speed of the
display can be changed.
Press and hold the AM/PM
pad about 3 seconds to
bring up the display. Select
1–5 for slow to fast scroll
speed.

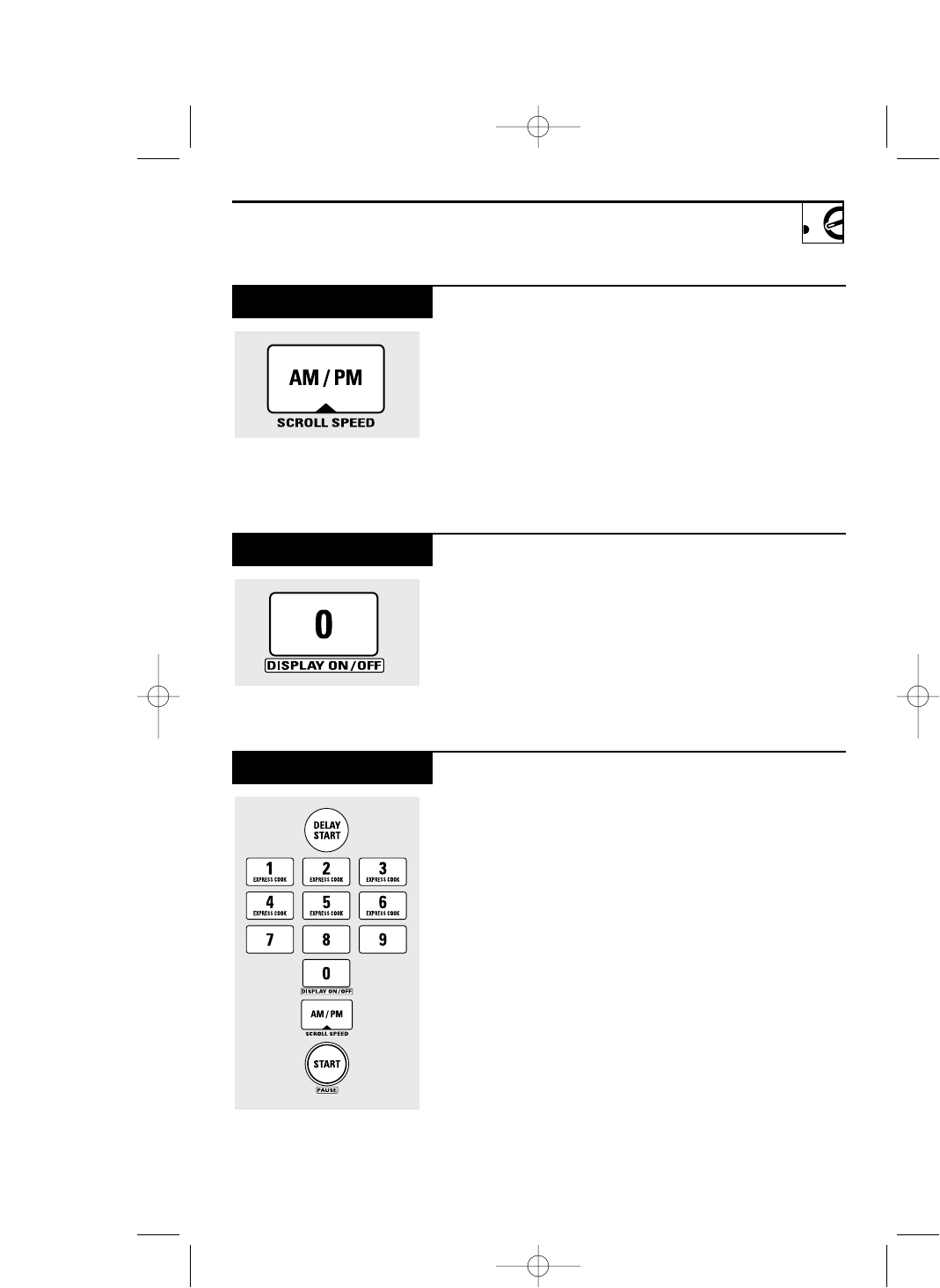

Scroll Speed
To turn the clock display
off, press and hold 0 for
about three seconds.
To redisplay the clock,
repeat.
Display On/Off
Delay Start allows you to set
the microwave to delay
cooking up to 24 hours.
1
Press DELAY START.
2
Enter the time you want
the oven to start. (Be sure
the microwave clock
shows the correct time
of day.)
3
Select AM or PM.
4
Select any combination
of Defrost Auto/Time or
Time Cook I & II.
5
Press START.
The Delay Start time will be
displayed plus “DS.” The
oven will automatically
start at the delayed time.
The time of day may be
displayed by pressing
CLOCK.
Delay Start
25
49-400811v01 8/2/01 4:03 PM Page 25
Operating Instructions
Other Features
In addition to starting
many functions,
START/PAUSE allows you
to stop cooking without
opening the door or
clearing the display.

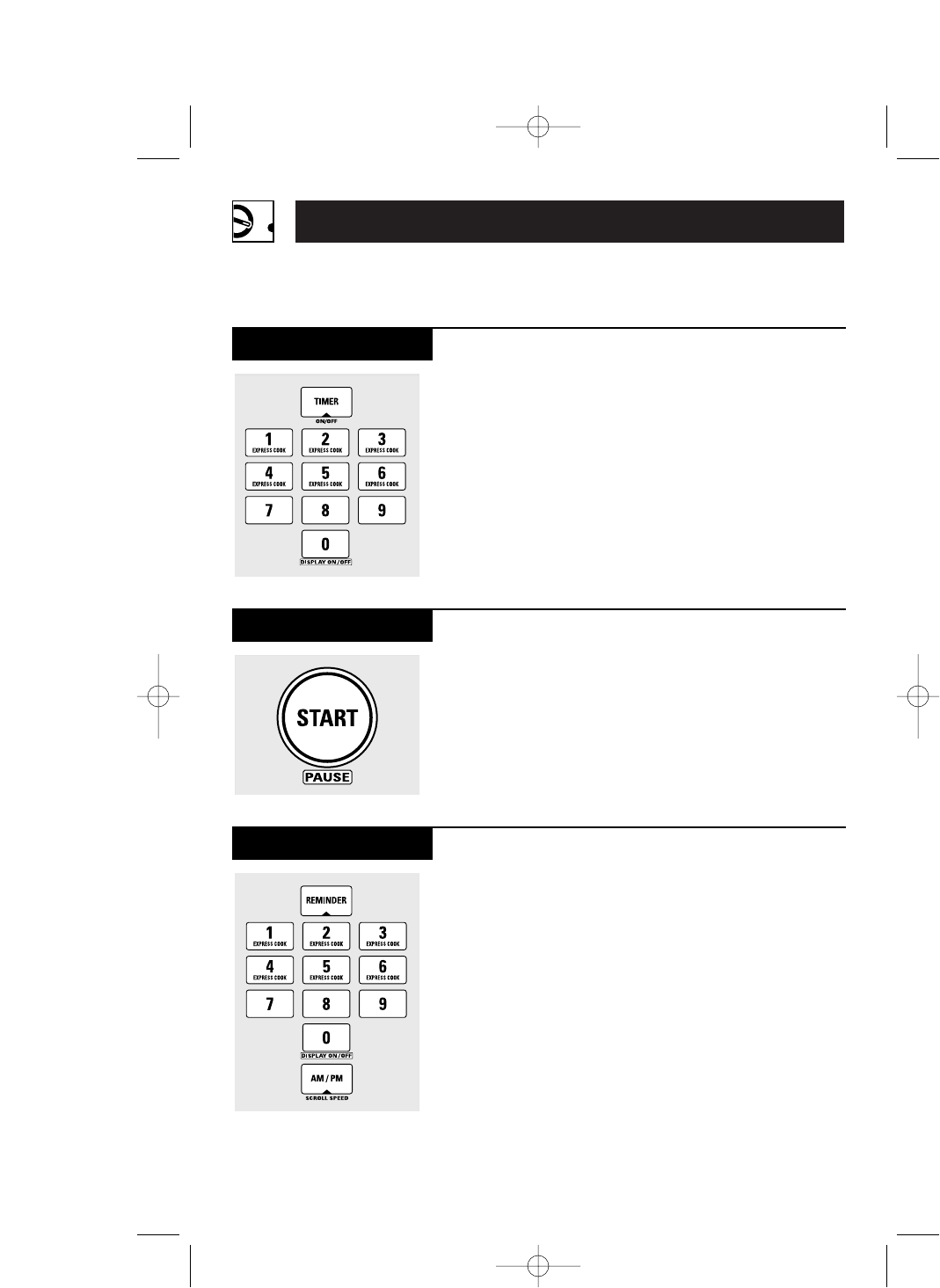

Start/Pause
The Reminder feature can
be used like an alarm clock
and can be used at any
time, even when the oven
is operating. The
Reminder time can be set
up to 24 hours later.
1
Press REMINDER.
2
Enter the time you want
the oven to remind you.
(Be sure the microwave
clock shows the correct
time of day.)
3
Select AM or PM.
4
Press REMINDER. When
Reminder signal occurs,
press REMINDER to turn
it off. The Reminder
time may be displayed by
pressing REMINDER.
NOTE:
The REM indicator
will remain lit to show that
the Reminder is set. To
clear the Reminder before
it occurs, press REMINDER,
then 0. The REM indicator
will no longer be lit.
Reminder
Timer On/Off operates as
a minute timer and can be
used at any time, even
when the oven is operating.
1
Press TIMER ON/OFF.
2
Enter time you want to
count down.
3
Press TIMER ON/OFF
to start.
When time is up, the oven
will signal. To turn off the
timer signal, press TIMER
ON/OFF.
NOTE:
The timer indicator
will be lit while the timer
is operating.
Timer On/Off
26
49-400811v01 8/2/01 4:03 PM Page 26

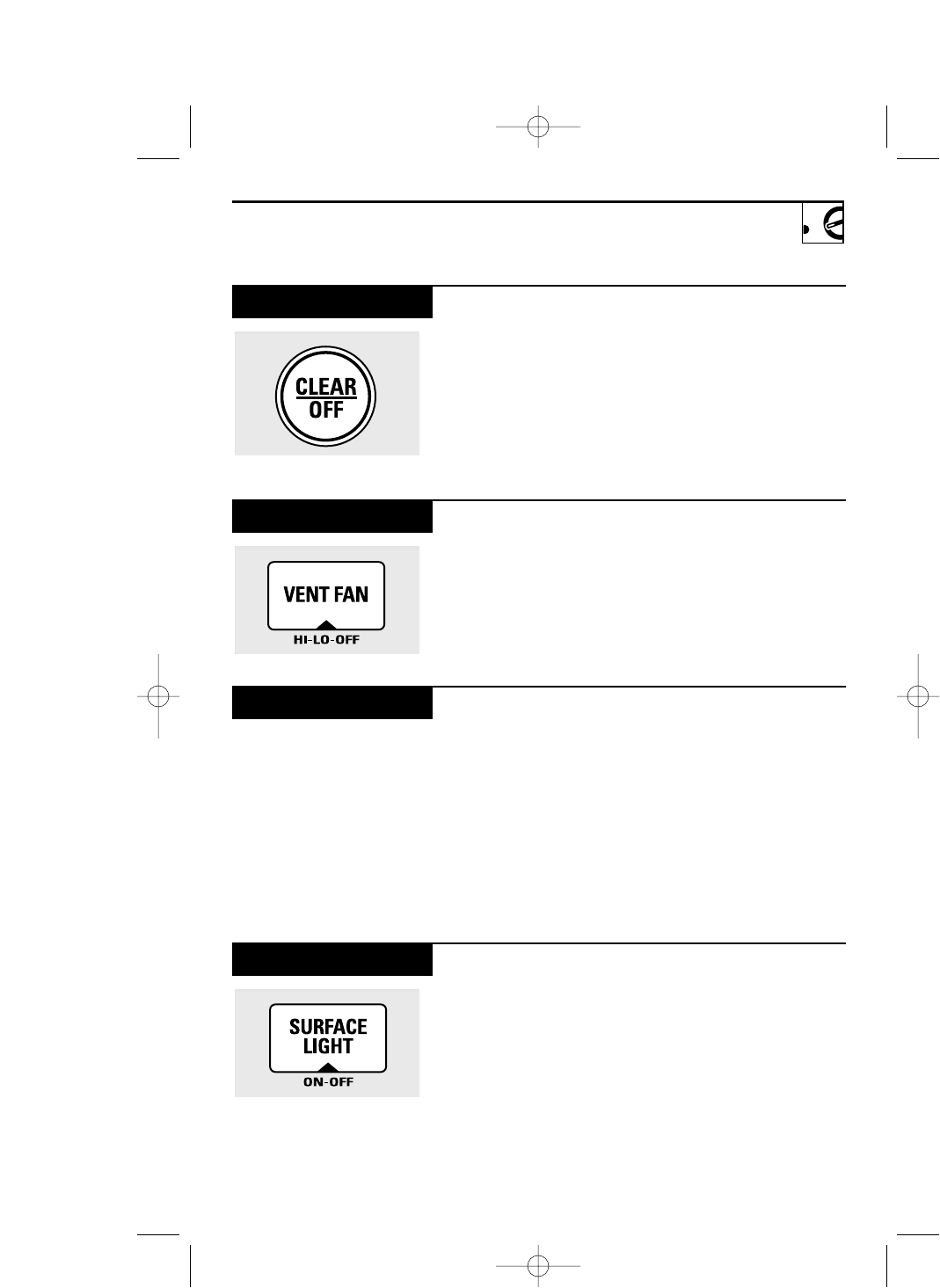

The vent fan removes
steam and other vapors
from surface cooking.
Press VENT FAN once for
high fan speed, twice for
low fan speed or a third
time to turn the fan off.
Vent Fan
You may lock the control
panel to prevent the
microwave from being
accidentally started or used
by children.
To lock or unlock the
controls, press and hold
CLEAR/OFF for about
three seconds. When the
control panel is locked, an
“L” will be displayed to the
extreme right.
Child Lock-Out
An automatic fan feature
protects the microwave
from too much heat rising
from the cooktop below it.
It automatically turns on at
low speed if it senses too
much heat.
If you have turned the fan
on you may find that you
cannot turn it off. The fan
will automatically turn off
when the internal parts are
cool. It may stay on for 30
minutes or more after the
cooktop and microwave
controls are turned off.
Automatic Fan
Press to turn the surface
light on or off.
Surface Light
27
49-400811v01 8/2/01 4:03 PM Page 27
28
Arcing
Arcing is the microwave term for sparks in the oven. Arcing is
caused by:
•metal or foil touching the side of the oven.
•foil that is not molded to food (upturned edges act like
antennas).
•metal such as twist ties, poultry pins, gold-rimmed dishes.
•recycled paper towels containing small metal pieces.
Covering
Covers hold in moisture, allow for more even heating and reduce
cooking time. Venting plastic wrap or covering with wax paper
allows excess steam to escape.
Shielding
In a regular oven, you shield chicken breasts or baked foods to
prevent over-browning. When microwaving, you use small strips of
foil to shield thin parts, such as the tips of wings and legs on poultry,
which would cook before larger parts.
Standing Time
When you cook with regular ovens, foods such as roasts or cakes are
allowed to stand to finish cooking or to set. Standing time is
especially important in microwave cooking. Note that a microwaved
cake is not placed on a cooling rack.
Venting
After covering a dish with plastic wrap, you vent the plastic wrap by
turning back one corner so excess steam can escape.
Term Definition
Helpful Information
Microwave Terms
49-400811v01 8/2/01 4:03 PM Page 28
29

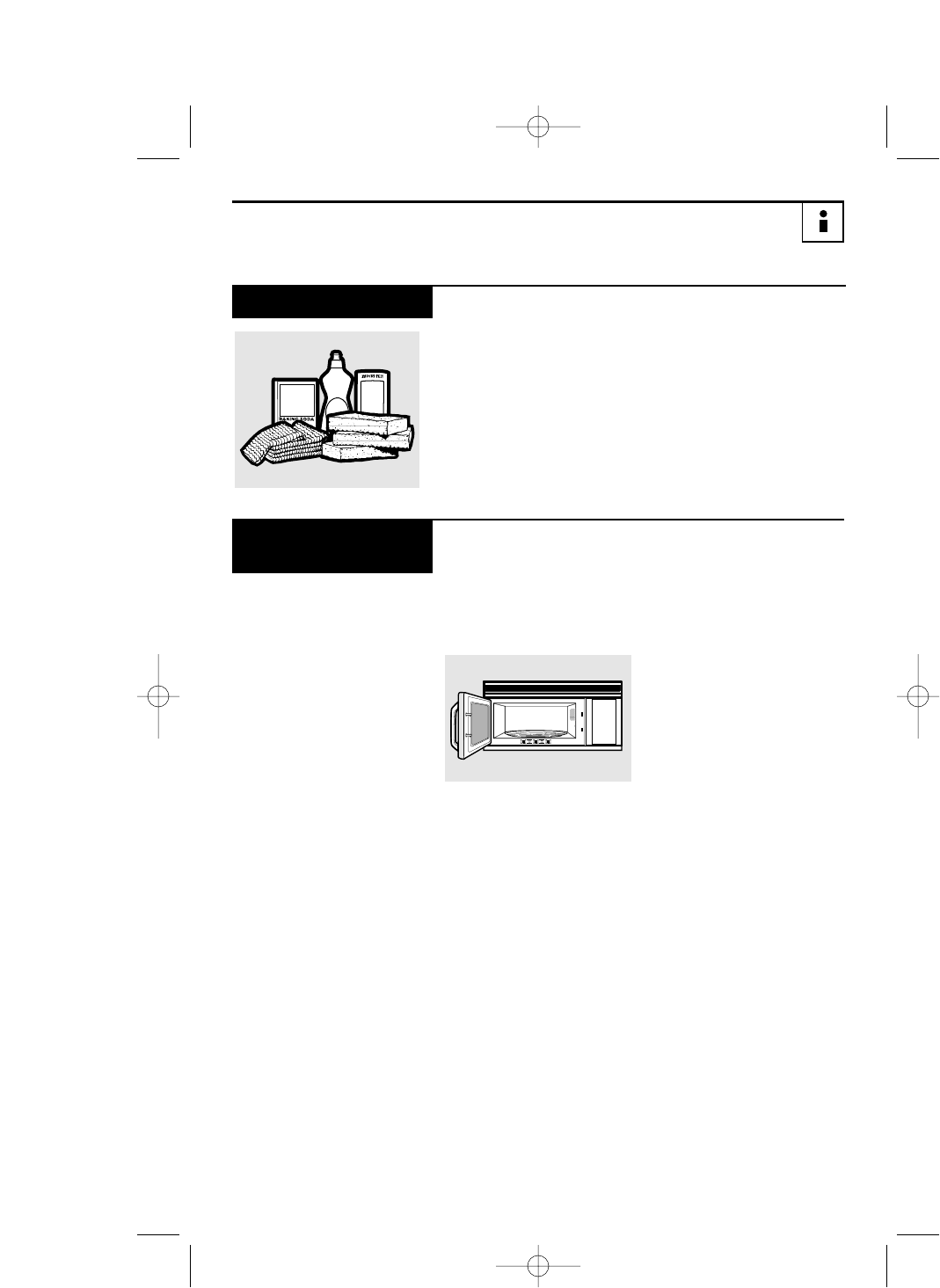

Care and Cleaning
An occasional thorough
wiping with a solution of
baking soda and water
keeps the inside fresh.
NOTE: Be certain the power
is off before cleaning any
part of this oven.
Helpful Hints
Walls, Floor, Inside Window,
Metal and Plastic Parts on
the Door
Some spatters can be
removed with a paper
towel, others may require
a damp cloth. Remove
greasy spatters with a sudsy
cloth, then rinse with a
damp cloth. Do not use
abrasive cleaners or sharp
utensils on oven walls.
Never use a commercial
oven cleaner on any part
of your microwave.
Removable Turntable and
Turntable Support
To prevent breakage, do
not place the turntable
into water just after
cooking. Wash it carefully
in warm, sudsy water or in
the dishwasher. The
turntable and support
can be broken if dropped.
Remember, do not operate
the oven without the
turntable and support
in place.
How to Clean
the Inside
49-400811v01 8/2/01 4:03 PM Page 29

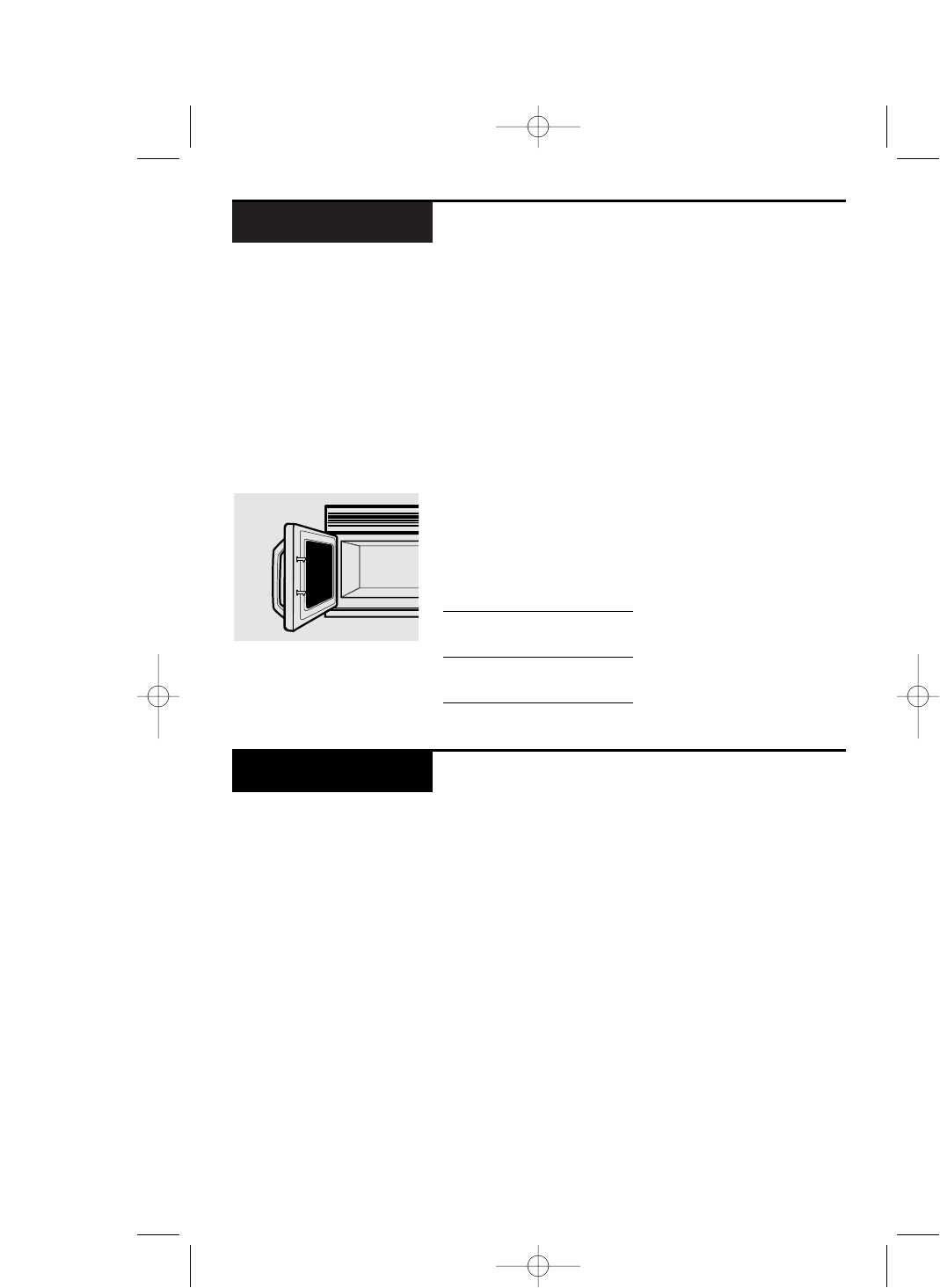

Helpful Information
Care and Cleaning
30
Case
Clean the outside of the
microwave with a sudsy
cloth. Rinse and then dry.
Wipe the window clean
with a damp cloth.
Control Panel and Door
Wipe with a damp cloth.
Dry thoroughly. Do not use
cleaning sprays, large
amounts of soap and
water, abrasives or sharp
objects on the panel—they
can damage it. Some paper
towels can also scratch the
control panel.
Door Surface
It’s important to keep
the area clean where the
door seals against the
microwave. Use only mild,
nonabrasive detergents
applied with a clean sponge
or soft cloth. Rinse well.
Bottom
Clean off the grease and
dust on the bottom often.
Use a solution of warm
water and detergent.
Do not use cleaners
containing ammonia or
alcohol on the
microwave oven.
Ammonia or alcohol can
damage the appearance
of the microwave.
How to Clean
the Outside
49-400811v01 8/2/01 4:03 PM Page 30

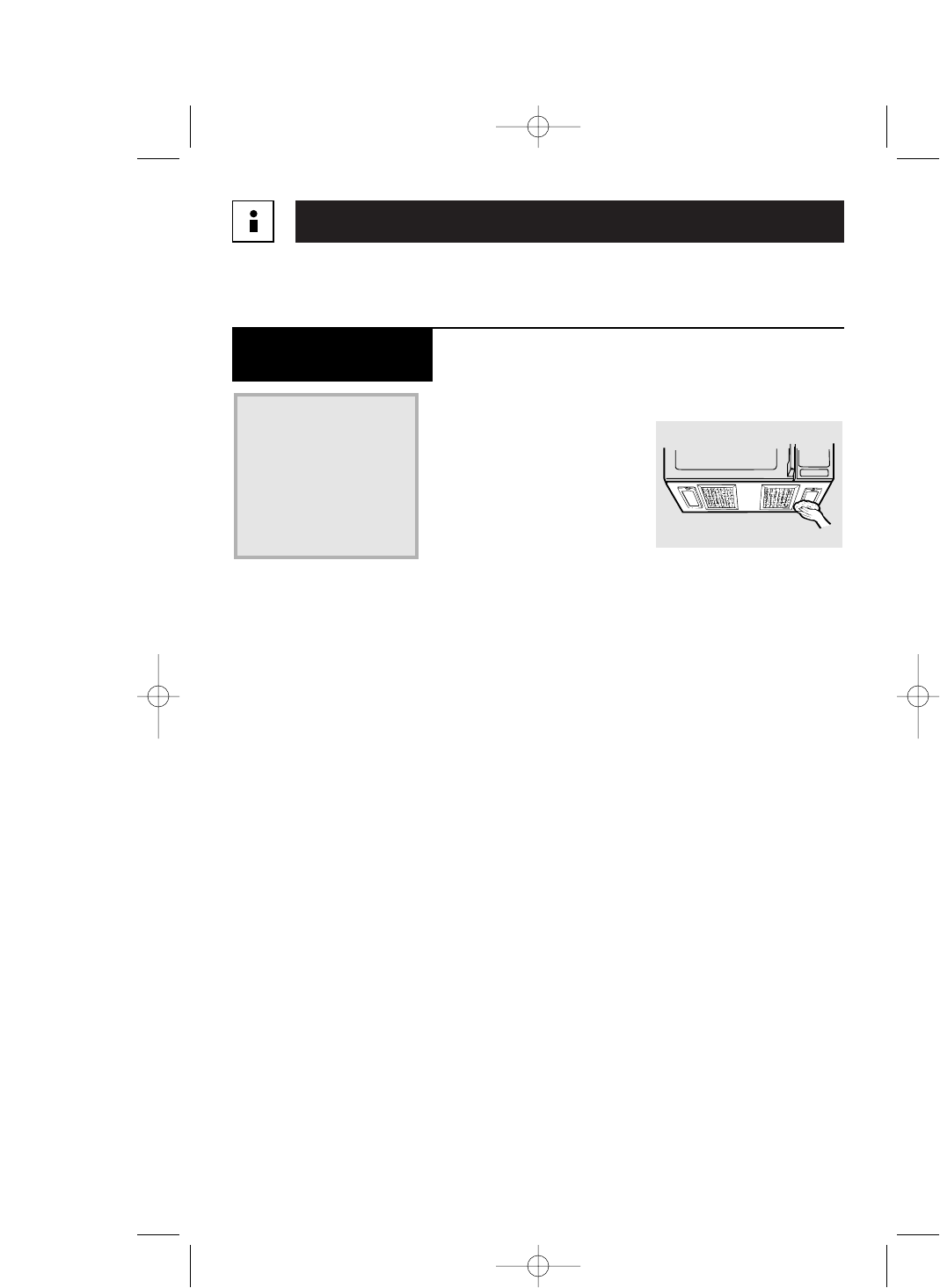

31
Light Bulb Replacement
1
To replace the bulb(s),
first disconnect the power
at the main fuse or circuit
breaker panel or pull the
plug.
2
Remove the screw at the
front of the light cover
and lower the cover.
3
Be sure the bulb(s) to be
replaced are cool before
removing. After breaking
the adhesive seal, remove
the bulb by gently turning.
4
Replace the screw.
Connect electrical power
to the oven.
Replace the burned-out
bulb with a 40-watt
incandescent bulb
(WB36X10003), available
from your GE supplier.
Cooktop Light
1
To replace the oven light,
first disconnect the power
at the main fuse or circuit
breaker panel or pull the
plug.
2
Remove the top grille by
taking out the 2 screws
that hold it in place.
3
Next, remove the screw
located above the door
near the center of the
oven that secures the
light housing.
4
Replace the screw.
Connect electrical power
to the oven.
Replace the burned-out
bulb with a 40-watt
incandescent bulb
(WB36X10003), available
from your GE supplier.
Oven Light
REMOVE SCREWS
49-400811v01 8/2/01 4:04 PM Page 31

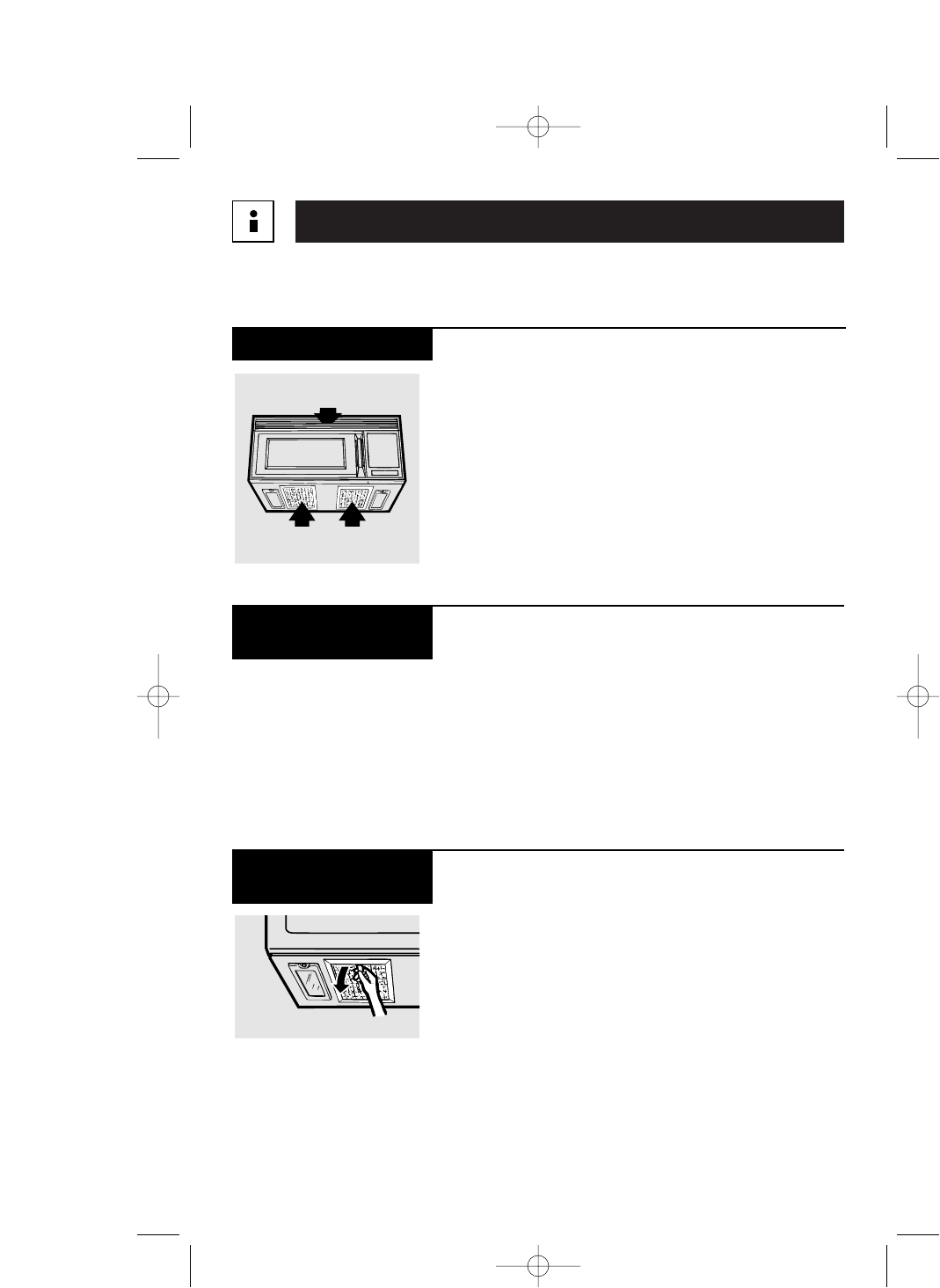

Helpful Information
The Exhaust Feature
32
The vent fan has 2 metal
reusable grease filters.
Models that recirculate air
back into the room also use
a charcoal filter.
The Vent Fan
Charcoal Filter
(on some models)
Reusable Grease Filters
(on all models)
The metal filters trap
grease released by foods on
the cooktop. They also
prevent flames from foods
on the cooktop from
damaging the inside of the
microwave.
For this reason, the filters
must ALWAYS be in place
when the hood is used.
The grease filters should
be cleaned once a month,
or as needed.
Reusable Grease
Filters
To remove, slide it to the
rear using the tab. Pull it
down and out.
To clean the grease filter,
soak it and then swish it
around in hot water and
detergent. Don’t use
ammonia or ammonia
products because they will
darken the metal. Light
brushing can be used to
remove embedded dirt.
Rinse, shake and let it dry
before replacing.
To replace, slide the filter
in the frame slot on the
back of the opening. Pull
up and to the front to lock
into place.
Removing and
Cleaning the Filter
49-400811v01 8/2/01 4:04 PM Page 32
33
If the model is not vented
to the outside, the air will
be recirculated through a
disposable charcoal filter
that helps remove smoke
and odors.
The charcoal filter should
be replaced when it is
noticeably dirty or
discolored (usually after
6 to 12 months, depending
on hood usage).
The charcoal filter
cannot be cleaned. It
must be replaced. Order
Part No. WB2X9883
from your GE supplier.
Charcoal Filter
(on some models)
To remove the charcoal
filter, disconnect power
at the main fuse or circuit
breaker panel or pull
the plug.
Remove the top grille by
removing the 2 screws that
hold it in place. Slide the
filter towards the front of
the oven and remove it.
To Remove
Charcoal Filter
Remove 2 grille screws to
remove the grille.
To install a new filter,
remove plastic and other
outer wrapping from the
new filter.
Insert the filter into the
top opening of the oven as
shown. It will rest at an
angle on 2 side support
tabs and in front of the
right rear tab. Replace
the grille and 2 screws.
To Install
Charcoal Filter
49-400811v01 8/2/01 4:04 PM Page 33
34
Oven will not
start
Floor of the oven is
warm, even when
the oven has not
been used
“LOCKED” appears
on display
You hear an
unusual, low-tone
beep
Problem Possible Cause What to Do
A fuse in your home •Replace fuse or reset circuit breaker.
may be blown or the
circuit breaker tripped.
Power surge. •Unplug the microwave oven, then plug
it back in.
Plug not fully inserted •Make sure the 3-prong plug on the
into wall outlet. oven is fully inserted into wall outlet.
The cooktop light is •This is normal.
located below the oven
floor. When the light
is on, the heat it
produces may make the
oven floor get warm.
The control has been •Press and hold CLEAR/OFF for
locked. about 3 seconds to unlock the control.
If Something Goes Wrong
Before You Call For Service
You have tried to start
•Start over and enter a valid time
the Reminder without
of
day.
a valid time of day.
You have tried to change
•Many of the oven’s features are preset
the
power level when it is
and
cannot be changed.
not allowed.
49-400811v01 8/2/01 4:04 PM Page 34
35
•Steam or vapor escaping
from around the door.
•Light reflection around
door or outer case.
•Dimming oven light and
change in the blower
sound at power levels
other than high.
•Dull thumping sound
while oven is operating.
•TV-radio interference
might be noticed while
using the microwave.
Similar to the interference
caused by other small
appliances, it does not
indicate a problem with
the microwave. Plug the
microwave into a different
electrical circuit, move the
radio or TV as far away
from the microwave as
possible, or check the
position and signal of the
TV/radio antenna.
Things That
Are Normal
49-400811v01 8/2/01 4:04 PM Page 35
36
Notes
49-400811v01 8/2/01 4:04 PM Page 36
37
Notes
49-400811v01 8/2/01 4:04 PM Page 37
38
GEAppliances.com
Have a question or need
assistance with your
appliance? Try the GE
Appliances Website 24
hours a day, any day of
the year!
For greater convenience and
faster service, you can now
download Owner’s Manuals,
order parts, catalogs, or even
schedule service on-line. You
can also “Ask Our Team of
Experts™” your questions,
and so much more...
GE Appliances
Website
GEAppliances.com
800.GE.CARES
(800.432.2737)
Expert GE repair service is
only one step away from
your door. Get on-line and
schedule your service at your
convenience 24 hours any
day of the year!
Or call 800.GE.CARES
(800.432.2737) during
normal business hours.
Schedule Service
GEAppliances.com
800.TDD.GEAC
(800.833.4322)
GE supports the Universal
Design concept—products,
services and environments
that can be used by people
of all ages, sizes and
capabilities. We recognize
the need to design for a wide
range of physical and mental
abilities and impairments.
For details of GE’s Universal
Design applications,
including kitchen design
ideas for people with
disabilities, check out
our Website today. For
the hearing impaired,
please call 800.TDD.GEAC
(800.833.4322).
Real Life
Design Studio
GE Service Numbers
We’ll Be There!
GEAppliances.com
800.626.2224
Purchase a GE extended
warranty and learn about
special discounts that are
available while your warranty
is still in effect. You can
purchase it on-line anytime,
or call 800.626.2224 during
normal business hours. GE
Consumer Home Services
will still be there after your
warranty expires.
Extended Warranties
49-400811v01 8/2/01 4:04 PM Page 38
39
GEAppliances.com
800.626.2002
Individuals qualified
to service their own
appliances can have
parts or accessories sent
directly to their home.
(VISA, MasterCard and
Discover cards are
accepted.)
Order on-line today,
24 hours every day or
by phone at
800.626.2002
during normal business
hours.
Instructions contained
in this manual cover
procedures to be
performed by any user.
Other servicing generally
should be referred to
qualified service
personnel. Caution
must be exercised, since
improper servicing may
cause unsafe operation.
Parts and
Accessories
Register Your
Appliance
GEAppliances.com
Register your new
appliance on-line–
at your convenience!
Timely product
registration will allow for
enhanced communication
and prompt service under
the terms of your warranty,
should the need arise.
You may also mail in the
pre-printed registration
card included in the
packing material.
49-400811v01 8/2/01 4:04 PM Page 39
FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of charge,
parts and service labor in your home
to repair or replace any part of the
microwave oven that fails because of
a manufacturing defect.
LIMITED ADDITIONAL
NINE-YEAR WARRANTY
For the second through the tenth year
from the date of original purchase, we
will provide, free of charge, a replacement
magnetron tube if the magnetron tube fails
because of a manufacturing defect. You
pay for the service trip to your home and
service labor charges.
************************************
This warranty is extended to the original
purchaser and any succeeding owner for
products purchased for ordinary home
use in the 48 mainland states, Hawaii and
Washington, D.C. In Alaska the warranty
is the same except that it is LIMITED
because you must pay to ship the product
to the service shop or for the service
technician’s travel costs to your home.
All warranty service will be provided by
our Factory Service Centers or by our
authorized Customer Care® servicers
during normal working hours.
Should your appliance need service,
during warranty period or beyond,
call 800.GE.CARES (800.432.2737).
MICROWAVE OVEN
WARRANTY
What Is Covered
What Is Not Covered
Staple sales slip or cancelled check here. Proof of original
purchase date is needed to obtain service under warranty.
•Service trips to your home to teach you
how to use the product.
•
Improper installation.
If you have an installation problem, contact
your dealer or installer. You are responsible
for providing adequate electrical,
exhausting and other connecting facilities.
•Replacement of house fuses or resetting
of circuit breakers.
•Failure of the product if it is misused, or
used for other than the intended purpose
or used commercially.
•Damage to product caused by accident,
fire, floods or acts of God.
•Incidental or consequential damage
caused by defects with this appliance.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state. To know what your
legal rights are in your state, consult your local or state consumer affairs office or your state’s
Attorney General.
Warrantor: General Electric Company. Louisville, KY 4022
5
Warrantor is not responsible for consequential damages.
164D3370P080
49-40081-1
JVM1630
JVM1631
Printed in Korea
08-01 JR
49-400811v01 8/2/01 4:04 PM Page 40
