Countersaver Plus Microwave OvenOwner’s ManualModel: 1000 WattsRVM1625228Helpful InformationCare and Cleaning 2934If Something Goes WrongBefore You Call For Service 34Hotpoint Service Numbers 38Warranty Back Cover11Important Safety InformationPrecautions to Avoid Possible Exposure to Excessive Microwave Energy 2Special Notes About Microwaving 6Operating InstructionsFeatures of Your Microwave 11The Controls on Your Microwave 12Time Cooking 15Convenience Features 21Other Features 24164D3370P29539-40365-102-04 JRwww.Hotpoint.com39-40365-1v01 2/5/04 10:32 AM Page 1
2IMPORTANT SAFETY INFORMATIONREAD ALL SAFETYINFORMATION BEFORE USINGFOR YOURSAFETYPRECAUTIONSTO AVOIDPOSSIBLEEXPOSURE TO EXCESSIVEMICROWAVEENERGYFor your safety the information in this manualmust be followed to minimize the risk of fire or explosion or to prevent property damage,personal injury or loss of life.Do Not Attempt to operate this ovenwith the door opensince open-dooroperation can result in harmful exposure to microwave energy. It is important not todefeat or tamper withthe safety interlocks.Do Not Place any objectbetween the oven frontface and the door orallow soil or cleanerresidue to accumulateon sealing surfaces.Do Not Operate the oven if it is damaged. It isparticularly importantthat the oven door closeproperly and that thereis no damage to the:1door (bent),2hinges and latches(broken or loosened),3door seals and sealingsurfaces.The Oven Should Not be adjusted or repairedby anyone exceptproperly qualifiedservice personnel.39-40365-1v01 2/5/04 10:32 AM Page 2
3Welcome to the Hotpointfamily. We’re proud of ourquality products and webelieve in dependableservice. You’ll see it in this easy-to-use manual and you’ll hear it in the friendly voices of our consumer servicedepartment. Best of all, you’llexperience these valueseach time you use yourmicrowave. That’simportant, because yournew microwave will be part of your family for a long time.WelcomeWrite down the model and serial numbers here.They are on a label insidethe oven.Model numberSerial numberDate of purchaseStaple your receipt to theinside back cover of thismanual. You will need it to obtain service underwarranty.Before you call for service, there are a few things youcan do to help us serve you better.Read this manual. It contains instructions tohelp you use and maintainyour microwave properly.If you received a damagedoven…immediately contactthe dealer (or builder)that sold you the oven.Save time and money. Check the section titled “If Something GoesWrong” before calling.This section helps yousolve common problemsthat might occur.If you do need service, you can relax knowinghelp is only a phone callaway. A list of toll-freecustomer service numbersis included in the back of this book. Need Help?Start Here!…Before using your Microwave39-40365-1v01 2/5/04 10:32 AM Page 3
WARNING•Read and follow thespecific “Precautions toAvoid Possible Exposureto Excessive MicrowaveEnergy” on page 2.•This appliance must begrounded. Connect onlyto properly groundedoutlet. See GroundingInstructions section onpage 10.•Do not mount thisappliance over a sink. •Install or locate thisappliance only inaccordance with theprovided InstallationInstructions.•This over-the-range ovenwas designed for use over ranges no widerthan 36.″It may beinstalled over both gasand electric cookingequipment.•Do not cover or block any openings on theappliance.•Do not operate thisappliance if it has adamaged power cord orplug, if it is not workingproperly, or if it has beendamaged or dropped. If the power cord isdamaged, it must bereplaced by GeneralElectric service or anauthorized service agentusing a power cordavailable from GeneralElectric.•Use this appliance onlyfor its intended use asdescribed in this guide.Do not use corrosivechemicals or vapors inthis appliance. Thismicrowave oven isspecifically designed toheat, dry or cook food,and is not intended for laboratory orindustrial use.This microwave oven isintended for householduse and is UL listed forinstallation over electricand gas ranges.This microwave oven isnot approved or testedfor marine use.SAFETYPRECAUTIONS4IMPORTANT SAFETY INFORMATIONREAD ALL SAFETYINFORMATION BEFORE USINGWhen using electrical appliances, basic safety precautions should be followed, includingthe following:39-40365-1v01 2/5/04 10:32 AM Page 4
•Do not store thisappliance outdoors. Do not use this productnear water—for example,in a wet basement, near a swimming pool, near a sink or in similarlocations.•Keep power cord awayfrom heated surfaces.•Do not immerse powercord or plug in water.•To reduce the risk of firein the oven cavity:— Do not overcook food.Carefully attendappliance when paper,plastic or othercombustible materialsare placed inside theoven while cooking.— Remove wire twist-tiesand metal handles from paper or plasticcontainers beforeplacing them in the oven.— Do not use the oven for storage purposes. Do not leave paperproducts, cookingutensils or food in theoven when not in use.— If materials inside ovenignite, keep the ovendoor closed, turn theoven off and disconnectthe power cord, or shutoff power at the fuse orcircuit breaker panel. If the door is opened,the fire may spread.•See door surfacecleaning instructions inthe Care and Cleaningsection(s) of this guide.•This appliance must onlybe serviced by qualifiedservice personnel.Contact nearestauthorized service facilityfor examination, repair or adjustment.•As with any appliance,close supervision isnecessary when used by children.• Do not store anythingdirectly on top of themicrowave oven surfacewhen the microwave ovenis in operation.SAVE THESE INSTRUCTIONS539-40365-1v01 2/5/04 10:32 AM Page 5
IMPORTANT SAFETY INFORMATIONSPECIAL NOTES ABOUT MICROWAVINGArcing is the microwaveterm for sparks in theoven. Arcing is caused by:•Metal or foil touchingthe side of the oven.•Foil not molded to food(upturned edges act likeantennas).•Metal, such as twist-ties,poultry pins, or gold-rimmed dishes, in themicrowave.•Recycled paper towelscontaining small metalpieces being used in themicrowave.If you see arcing, pressthe CLEAR/OFF pad andcorrect the problem.ARCING•Do not pop popcorn inyour microwave ovenunless in a specialmicrowave popcornaccessory or unless youuse popcorn labeled foruse in microwave ovens.•Some products such aswhole eggs and sealedcontainers—for example,closed jars—are able toexplode and should notbe heated in thismicrowave oven. Such useof the microwave ovencould result in injury.•Do not boil eggs in amicrowave oven. Pressurewill build up inside eggyolk and will cause it toburst, possibly resultingin injury.•Operating the microwavewith no food inside formore than a minute ortwo may cause damage tothe oven and could start afire. It increases the heataround the magnetronand can shorten the lifeof the oven.•Foods with unbrokenouter “skin” such aspotatoes, hot dogs,sausages, tomatoes,apples, chicken livers and other giblets, andegg yolks should bepierced to allow steam to escape duringcooking.FOODS639-40365-1v01 2/5/04 10:32 AM Page 6
7SAFETY FACTSUPERHEATED WATERLiquids, such as water,coffee or tea, are able to be overheated beyond the boiling point withoutappearing to be boiling.Visible bubbling or boilingwhen the container isremoved from the microwaveoven is not always present.THIS COULD RESULT IN VERY HOT LIQUIDSSUDDENLY BOILING OVERWHEN THE CONTAINER ISDISTURBED OR A SPOON OR OTHER UTENSIL ISINSERTED INTO THE LIQUID. To reduce the risk of injuryto persons:— Do not overheat theliquid.— Stir the liquid bothbefore and halfwaythrough heating it.— Do not use straight-sided containers withnarrow necks.— After heating, allow the container to standin the microwave ovenfor a short time beforeremoving the container.— Use extreme care wheninserting a spoon orother utensil into thecontainer.•Avoid heating baby foodin glass jars, even withthe lid off. Make sure allinfant food is thoroughlycooked. Stir food todistribute the heat evenly.Be careful to preventscalding when warmingformula or breast milk.The container may feelcooler than the milkreally is. Always test themilk before feeding the baby.•Don’t defrost frozenbeverages in narrow-necked bottles (especiallycarbonated beverages).Even if the container isopened, pressure canbuild up. This can causethe container to burst,possibly resulting ininjury.•Hot foods and steam can cause burns. Becareful when opening any containers of hotfood, including popcornbags, cooking pouchesand boxes. To preventpossible injury, directsteam away from handsand face.•Do not overcookpotatoes. They coulddehydrate and catch fire, causing damage to your oven.•Cook meat and poultrythoroughly—meat to at least an INTERNALtemperature of 160°F and poultry to at least anINTERNAL temperature of 180°F. Cooking tothese temperaturesusually protects againstfoodborne illness.39-40365-1v01 2/5/04 10:32 AM Page 7
IMPORTANT SAFETY INFORMATIONSPECIAL NOTES ABOUT MICROWAVINGMake sure all cookwareused in your microwaveoven is suitable formicrowaving. Most glasscasseroles, cooking dishes,measuring cups, custardcups, pottery or chinadinnerware which does nothave metallic trim or glazewith a metallic sheen canbe used. Some cookware is labeled “suitable formicrowaving.”•If you are not sure if adish is microwave-safe,use this test: Place in theoven both the dish youare testing and a glassmeasuring cup filled with1 cup of water—set themeasuring cup either in or next to the dish.Microwave 30–45 secondsat high. If the dish heats,it should not be used formicrowaving. If the dish remains cooland only the water in thecup heats, then the dish is microwave-safe.•If you use a meatthermometer whilecooking, make sure it is safe for use inmicrowave ovens.•Do not use recycled paperproducts. Recycled papertowels, napkins and waxedpaper can contain metalflecks which may causearcing or ignite. Paperproducts containing nylonor nylon filaments shouldbe avoided, as they mayalso ignite. •Some styrofoam trays (like those that meat ispackaged on) have a thinstrip of metal embeddedin the bottom. Whenmicrowaved, the metal canburn the floor of the ovenor ignite a paper towel.•Do not use the microwaveto dry newspapers.•Not all plastic wrap issuitable for use inmicrowave ovens. Check the package for proper use.•Paper towels, waxed paperand plastic wrap can beused to cover dishes inorder to retain moistureand prevent spattering. Be sure to vent plasticwrap so steam can escape.•Cookware may becomehot because of heattransferred from theheated food. Pot holdersmay be needed to handlethe cookware.•“Boilable” cookingpouches and tightly closedplastic bags should be slit,pierced or vented asdirected by package. If they are not, plasticcould burst during orimmediately after cooking,possibly resulting in injury.Also, plastic storagecontainers should be atleast partially uncoveredbecause they form a tightseal. When cooking withcontainers tightly coveredwith plastic wrap, removecovering carefully anddirect steam away fromhands and face.MICROWAVE-SAFECOOKWAREHow to test for a microwave-safe dish.839-40365-1v01 2/5/04 10:32 AM Page 8
9•Use foil only as directedin this guide. TV dinnersmay be microwaved infoil trays less than 3/4″high; remove the top foilcover and return the trayto the box. When usingfoil in the microwaveoven, keep the foil at least 1″away from the sides of the oven.•Plastic cookware—Plasticcookware designed formicrowave cooking isvery useful, but should be used carefully. Evenmicrowave-safe plasticmay not be as tolerant ofovercooking conditionsas are glass or ceramicmaterials and may softenor char if subjected to short periods ofovercooking. In longerexposures to overcooking,the food and cookwarecould ignite. Follow these guidelines: 1Use microwave-safeplastics only and use them in strict compliance with the cookwaremanufacturer’srecommendations. 2Do not microwave emptycontainers. 3Do not permit children to use plastic cookwarewithout completesupervision.The fan will operateautomatically undercertain conditions (seeAutomatic Fan feature).Take care to prevent thestarting and spreading ofaccidental cooking fireswhile the vent fan is in use. •Clean the underside ofthe microwave often. Donot allow grease to buildup on the microwave orthe fan filters.•In the event of a greasefire on the surface unitsbelow the microwaveoven, smother a flamingpan on the surface unitby covering the pancompletely with a lid, acookie sheet or a flat tray.•Use care when cleaningthe vent fan filters.Corrosive cleaningagents, such as lye-basedoven cleaners, maydamage the filters.•When preparing flaming foods under the microwave, turn the vent fan on.•Never leave surface unitsbeneath your microwaveoven unattended at highheat settings. Boiloverscause smoking and greasyspillovers that may igniteand spread if themicrowave vent fan isoperating. To minimizeautomatic fan operation,use adequate sizedcookware and use highheat on surface units only when necessary.THE VENTFAN39-40365-1v01 2/5/04 10:32 AM Page 9
IMPORTANT SAFETY INFORMATIONGROUNDING INSTRUCTIONS/OPTIONAL KITSWARNINGImproper use of thegrounding plug can result in a risk of electric shock.This appliance must begrounded. In the event ofan electrical short circuit,grounding reduces the riskof electric shock byproviding an escape wirefor the electric current. This appliance is equippedwith a power cord having agrounding wire with agrounding plug. The plugmust be plugged into anoutlet that is properlyinstalled and grounded.Consult a qualified electrician or servicetechnician if thegrounding instructions are not completelyunderstood, or if doubtexists as to whether theappliance is properlygrounded.If the outlet is a standard 2-prong wall outlet, it isyour personal responsibilityand obligation to have itreplaced with a properlygrounded 3-prong walloutlet.Do not under any circumstances cut orremove the third (ground) prong from the power cord.Do not use an adapterplug with this appliance.Do not use an extensioncord with this appliance. If the power cord is tooshort, have a qualifiedelectrician or servicetechnician install an outletnear the appliance.For best operation, plugthis appliance into its ownelectrical outlet to preventflickering of lights, blowingof fuse or tripping ofcircuit breaker.GROUNDINGINSTRUCTIONSFiller Panel KitsJX40WH—WhiteJX41—BlackWhen replacing a 36″range hood, filler panelkits fill in the additionalwidth to provide a custombuilt-in appearance. For installation betweencabinets only; not for end-of-cabinet installation.Each kit contains two 3″-wide filler panels.Filter KitsJX81A—RecirculatingCharcoal Filter KitFilter kits are used whenthe microwave oven cannotbe vented to the outside.Available at extra cost fromyour Hotpoint supplier.Optional KitsEnsure proper groundexists before use.1039-40365-1v01 2/5/04 10:32 AM Page 10
Operating InstructionsFeatures of Your Microwave(Throughout this manual, features and appearancemay vary from your model.)1 Door Handle. Pull toopen the door. Thedoor must be securelylatched for themicrowave to operate.2 Door Latches.3 Window with MetalShield. Screen allowscooking to be viewedwhile keepingmicrowaves confined in the oven.4 Touch Control PanelDisplay.5 Cooktop Lights.6 Grease Filters.7 Removable Turntable.Turntable and supportmust be in place when using the oven.The turntable may beremoved for cleaning.8 Convenience Guide.NOTE: Rating plate, ovenvent(s) and oven light arelocated on the inside wallsof the microwave oven.Features3215568741161000 Watts39-40365-1v01 2/5/04 10:32 AM Page 11
Time FeaturesTime CookingPress EnterTIME COOK I & II (Press once or twice) Amount of cooking time.DEFROST AUTO/TIME (Press twice) Amount of defrosting time.MINUTE COOK Starts immediately!POWER LEVEL Power level 1–10.12Quick StartThe Controls on Your Microwave Oven(Throughout this manual, features and appearance may vary from your model.)1 2 34 5 6DEFROSTAUTO/TIMETIMECOOKminute cook — 1 - 6ADD30 SECPOWERLEVEL1You canmicrowave by time or with theconveniencefeatures.POWERLEVEL39-40365-1v01 2/5/04 10:32 AM Page 12
Convenience Features13DEFROSTAUTO/TIMEPOPCORNREHEAT2GUIDE ON MICROWAVEBefore you begin, checkthe guide located on theinside front of the ovenwhen you open the door.GUIDES IN BOOK•Cooking•Time Defrost•ReheatPress Enter OptionPOPCORN Starts immediately! more/less timePress once 3.5 oz.Press twice 3.0 oz.Press 3 times 1.75 oz.REHEAT Food type 1–6 1–3 servingsDEFROST Food weightAUTO/TIME(Press once)39-40365-1v01 2/5/04 10:32 AM Page 13
Operating InstructionsVariable power levels addflexibility to microwavecooking. The power levelson the microwave oven canbe compared to the surfaceunits on a range. High(power level 10) or fullpower is the fastest way tocook and gives you 100%power. Each power levelgives you microwave energya certain percent of thetime. Power level 7 ismicrowave energy 70% ofthe time. Power level 3 isenergy 30% of the time.A high setting (10) willcook faster but food mayneed more frequentstirring, rotating or turningover. Most cooking will bedone on High (power level10). A lower setting willcook more evenly and needless stirring or rotating ofthe food. Some foods may have betterflavor, texture orappearance if one of thelower settings is used. Use a lower power level whencooking foods that have a tendency to boil over,such as scalloped potatoes.Rest periods (when themicrowave energy cyclesoff) give time for the food to “equalize” or transferheat to the inside of thefood. An example of this is shown with powerlevel 3—the defrost cycle. If microwave energy did notcycle off, the outside of thefood would cook before theinside was defrosted.Here are some examples of uses for various powerlevels:Power Level Best UsesHigh 10 Fish, bacon, vegetables, boiling liquids.Med-High 7 Gentle cooking of meat and poultry; baking casserolesand reheating.Medium 5 Slow cooking and tenderizing such as stews and less tender cuts of meat.Low 3 Defrosting without cooking; simmering; delicate sauces.Warm 1 Keeping food warm without overcooking; softening butter.How to Change the Power Level The power level may beentered or changedimmediately afterentering the featuretime for TIME COOK,TIME DEFROST orMINUTE COOK. Thepower level may also bechanged during timecountdown.1 Press TIME COOK orselect Time Defrost.2 Enter cooking ordefrosting time.3 Press POWER LEVEL.4 Select desired powerlevel 1–10.5 Press START.Changing PowerLevels1 2 34 5 67 8 90minute cook — 1 - 6display on / offPOWERLEVELSTART1439-40365-1v01 2/5/04 10:32 AM Page 14
15Time FeaturesTime Cook IAllows you to microwavefor any time up to 99minutes and 99 seconds. Power level 10 (High) isautomatically set, but youmay change it for moreflexibility. You may open the doorduring Time Cook tocheck the food. Close thedoor and press START to resume cooking.Time Cook IILets you change powerlevels automatically duringcooking. Here’s how to do it:1Press TIME COOK. 2Enter the first cook time. 3Change the power level if you don’t want fullpower. (Press POWERLEVEL. Select a desiredpower level 1–10.)4Press TIME COOKagain.5Enter the second cooktime.6Change the power level if you don’t want fullpower. (Press POWERLEVEL. Select a powerlevel 1–10.)7Press START. At the end of Time Cook I,Time Cook II counts down.1 Press TIME COOK.2 Enter cooking time.3 Change power level if you don’t want fullpower. (Press POWERLEVEL. Select adesired power level1–10.)4 Press START.Time Cook1 2 34 5 67 8 90minute cook — 1 - 6display on / offTIMECOOKSTART39-40365-1v01 2/5/04 10:32 AM Page 15
16Operating InstructionsCooking Guide for Time Cook I &IINOTE: Use power level High (10) unless otherwise noted.Vegetable Amount Time CommentsAsparagus(fresh spears) 1 lb. 6 to 9 min., In 11⁄2-qt. oblong glass baking dish, Med-High (7) place 1/4 cup water. (frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole.Beans(fresh green) 1 lb. cut in half 9 to 11 min. In 11⁄2-qt. casserole, place 1/2 cup water.(frozen green) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.(frozen lima) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.Beets(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.Broccoli(fresh cut) 1 bunch 7 to 10 min. In 2-qt. casserole, place 1/2 cup water.(11⁄4to 11⁄2lbs.)(fresh spears) 1 bunch 9 to 13 min. In 2-qt. oblong glass baking dish, place (11⁄4to 11⁄2lbs.) 1/4 cup water. (frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole.chopped)(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Cabbage(fresh) 1 medium head 8 to 11 min. In 11⁄2- or 2-qt. casserole, place 1/4 cup (about 2 lbs.) water.(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup water.Carrots(fresh, sliced) 1 lb. 7 to 9 min. In 11⁄2-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Cauliflower(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.(fresh, whole) 1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.39-40365-1v01 2/5/04 10:32 AM Page 16
17Vegetable Amount Time CommentsCorn(frozen kernel) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoonswater.Corn on the cob(fresh) 1 to 5 ears 3 to 4 min. In 2-qt. oblong glass baking dish, place per ear corn. If corn is in husk, use no water; if corn has been husked, add 1/4 cup water. Rearrange after half of time.(frozen) 1 ear 5 to 6 min. Place in 2-qt. oblong glass baking dish. 2 to 6 ears 3 to 4 min. Cover with vented plastic wrap. per ear Rearrange after half of time. Mixed vegetables(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.Peas(fresh, shelled) 2 lbs. unshelled9 to 12 min.In 1-qt. casserole, place 1/4 cup water.(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.Potatoes(fresh, cubed, 4 potatoes9 to 12 min.Peel and cut into 1 inch cubes. Place white) (6 to 8 oz. each) in 2-qt. casserole with 1/2 cup water. Stir after half of time.(fresh, whole, 1 (6 to 8 oz.) 3 to 4 min. Pierce with cooking fork. Place in sweet or white) center of the oven. Let stand 5 minutes.Spinach(fresh) 10 to 16 oz. 5 to 7 min. In 2-qt. casserole, place washed spinach.(frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons chopped water.and leaf)Squash(fresh, summer 1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place 1/4 cup water.and yellow)(winter, acorn 1 to 2 squash 8 to 11 min. Cut in half and remove fibrous butternut)(about 1 lb. each)membranes. In 2-qt. oblong glass baking dish, place squash cut-side-down. Turn cut-side-up after 4 minutes.39-40365-1v01 2/5/04 10:32 AM Page 17
Operating InstructionsTime FeaturesAllows you to defrost forthe length of time youselect. See the DefrostingGuide for suggested times.Power level 3 isautomatically set, but youmay change this for moreflexibility. You may defrostsmall items more quicklyby raising the power levelafter entering the time.However, they will needmore frequent attentionthan usual.Power level 7 cuts the total defrosting time inabout half; power level 10 cuts the total time toapproximately 1/3. Rotateor stir food frequently. At one half of selecteddefrosting time, the ovensignals TURN. At this time,turn food over and breakapart or rearrange piecesfor more even defrosting.Shield any warm areas with small pieces of foil.A dull thumping noise maybe heard during defrosting.This sound is normal whenthe oven is not operatingat High power.Defrosting Tips•Foods frozen in paper orplastic can be defrostedin the package. Tightlyclosed packages shouldbe slit, pierced or ventedAFTER food has partiallydefrosted. Plastic storagecontainers should be atleast partially uncovered.•Family-size, prepackagedfrozen dinners can bedefrosted and microwaved.If the food is in a foilcontainer, transfer it to a microwave-safe dish.•Foods that spoil easily, suchas milk, eggs, fish, stuffings,poultry and pork, shouldnot be allowed to sit outfor more than one hourafter defrosting. Roomtemperature promotes thegrowth of harmfulbacteria.•For more even defrostingof larger foods, such asbeef, lamb and vealroasts, use Auto Defrost.•Be sure large meats are completely defrostedbefore cooking.•When defrosted, foodshould be cool butsoftened in all areas. If stillslightly icy, return to themicrowave very briefly, orlet it stand a few minutes.1 Press DEFROSTAUTO/TIME twice.2 Enter defrosting time.3 Press START. 4 Turn food over when the oven signals.5 Press START. (Auto Defrost explained in the section onConvenience Features.)Time Defrost181 2 34 5 67 8 90minute cook — 1 - 6display on / offDEFROSTAUTO/TIMESTART39-40365-1v01 2/5/04 10:32 AM Page 18
Defrosting GuideFood Time CommentsBreads, CakesBread, buns or rolls (1 piece) 1 min.Sweet rolls (approx. 12 oz.) 3 to 5 min.Fish and SeafoodFillets, frozen (1 lb.) 6 to 8 min.Shellfish, small pieces (1 lb.) 5 to 7 min. Place block in casserole. Turn over and break up after half the time.FruitPlastic pouch—1 to 2 2 to 6 min.(10-oz. package)Meat Bacon (1 lb.) 2 to 5 min. Place unopened package in oven. Let stand 5 minutes after defrosting. Franks (1 lb.) 3 to 5 min. Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.Ground meat (1 lb.) 5 to 7 min. Turn meat over after half the time.Roast: beef, lamb, veal, pork 12 to 16 min. Use power level 1.per lb.Steaks, chops and cutlets 5 to 7 min. Place unwrapped meat in cooking dish. per lb. Turn over after half the time and shield warm areas with foil. When finished, separate pieces and let stand to complete defrosting.PoultryChicken, broiler-fryer 15 to 19 min. Place wrapped chicken in dish. Unwrap cut up (21⁄2to 3 lbs.) and turn over after half the time. When finished, separate pieces and microwave 2–4 minutes more, if necessary. Let standto finish defrosting.Chicken, whole 17 to 21 min. Place wrapped chicken in dish. After half (21⁄2to 3 lbs.) the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.Cornish hen 7 to 13 min. Place unwrapped hen in the oven breast-per lb. side-up. Turn over after half the time. Run cool water in the cavity until giblets can be removed.Turkey breast (4 to 6 lbs.) 5 to 9 min. Place unwrapped breast in dish breast-per lb. side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1–2 hours in refrigerator to complete defrosting.1939-40365-1v01 2/5/04 10:32 AM Page 19
Operating InstructionsTime FeaturesThis is a quick way to setcooking time for 1–6 minutes.Press one of the MinuteCook pads (from 1 to 6)for 1 to 6 minutes ofcooking at power level 10.For example, press the 2 pad for 2 minutes ofcooking time. The power level can bechanged as time iscounting down. PressPOWER LEVEL and enter 1–10.Minute Cook1 2 34 5 6minute cook — 1 - 62039-40365-1v01 2/5/04 10:32 AM Page 20
Convenience Features21How to Use the PopcornFeature1Follow package instructions, using TimeCook if the package isless than 1.75 ounces orlarger than 3.5 ounces.Place the package ofpopcorn in the center of the microwave.2Press POPCORN. Theoven starts immediately.Tap POPCORN to selectthe bag size you arecooking.How to Adjust the PopcornProgram to Provide a Shorteror Longer Cook TimeIf you find that the brand ofpopcorn you use underpopsor overcooks consistently,you can add or subtract20–30 seconds to theautomatic popping time.To add time:After pressing POPCORN,press 9 immediately afterthe oven starts for an extra20 seconds.Press 9 again to addanother 10 seconds (total30 seconds additional time).To subtract time:After pressing POPCORN,press 1 immediately afterthe oven starts for 20seconds less cooking time.Press 1 again to reducecooking time another 10seconds (total 30 secondsless time).PopcornPOPCORN91(less time) (more time)Use only with prepackagedmicrowave popcorn weighing1.75 to 3.5 ounces.39-40365-1v01 2/5/04 10:32 AM Page 21
22Operating InstructionsConvenience FeaturesThe Reheat feature reheats1 to 3 servings of manypreviously cooked foods.1Press REHEAT.2Select food type 1–6 forone serving (see ReheatGuide below).3Press 2 or 3 to reheat 2 or3 servings.4Press START.NOTE: The serving size maybe changed or added afterpressing START. Pressnumber pad 2 or 3.Reheat321 Pasta Cover with lid or vented plastic wrap.2 Meats, casseroles, pizza Cover with lid or vented plastic wrap.3 Fruits and vegetables Cover with lid or vented plastic wrap.4 Beverages, 8–10 oz. Use wide mouth mug.5 Sauces and gravies Cover with lid or vented plastic wrap.6 Plate of leftovers Cover with vented plastic wrap.(2 to 3 foods, 4 oz. each)Food Type CommentsReheat Guide REHEATSTART39-40365-1v01 2/5/04 10:32 AM Page 22
23Auto DefrostThe Defrost Auto/Timefeature gives you two waysto defrost frozen foods.Press DEFROSTAUTO/TIME once forAuto Defrost or twice forTime Defrost.Use Auto Defrost for meat,poultry and fish. Use TimeDefrost for most otherfrozen foods.Auto Defrost automaticallysets the defrosting timesand power levels to giveeven defrosting results formeats, poultry and fish.There is a handy guidelocated on the inside frontof the oven. •Remove meat frompackage and place onmicrowave-safe dish.•Twice during defrost, the oven signals TURN.At each TURN signal,turn the food over.Remove defrosted meator shield warm areas with small pieces of foil.•After defrosting, mostmeats need to stand 5 minutes to completedefrosting. Large roastsshould stand for about 30 minutes.Conversion GuideIf the weight of food isstated in pounds andounces, the ounces mustbe converted to tenths(.1) of a pound.Weight of Enter Food Food in Weight Ounces (tenths of a pound)1–2 .13.24–5 .36–7 .48.59–10 .611 .712–13 .814–15 .91 Press DEFROSTAUTO/TIME once.2 Using the ConversionGuide at right, enterfood weight. Forexample, press pads 1and 2 for 1.2 pounds (1 pound, 3 ounces).3 Press START. (Time Defrost isexplained in the TimeFeatures section.)Guide1 2 34 5 67 8 90minute cook — 1 - 6display on / offDEFROSTAUTO/TIMESTART39-40365-1v01 2/5/04 10:32 AM Page 23
The scroll speed of thedisplay can be changed.Press and hold theAM/PM pad about 3 seconds to bring up the display. Select 1–5 forslow to fast scroll speed.AM / PMscroll speedScroll SpeedOperating InstructionsOther Features To remind you that youhave food in the oven, theoven will display “FOOD ISREADY” and beep once aminute until you eitheropen the oven door orpress CLEAR/OFF.Cooking CompleteReminderPress to enter the time ofday or to check the time ofday while microwaving.1Press CLOCK.2Enter time of day.3Select AM/PM.4Press START or CLOCK.Clock241 2 34 5 67 8 90minute cook — 1 - 6display on / offCLOCKAM / PM39-40365-1v01 2/5/04 10:32 AM Page 24
To turn the clock displayoff, press and hold 0 forabout three seconds.To redisplay the clock,repeat.0display on / offDisplay On/OffDelay Start allows you to setthe microwave to delaycooking up to 24 hours.1Press DELAY START.2Enter the time you want the oven to start.(Be sure the microwaveclock shows the correcttime of day.)3Select AM or PM.4Select any combinationof Defrost Auto/Time orTime Cook I & II.5Press START.The Delay Start time willbe displayed plus “DS.”The oven will automaticallystart at the delayed time.The time of day may bedisplayed by pressingCLOCK.Delay Start251 2 34 5 67 8 90minute cook — 1 - 6display on / offDELAYSTARTAM / PMTimer On/Off operates asa minute timer and can beused at any time, evenwhen the oven is operating.1Press TIMER ON/OFF.2Enter time you want tocount down.3Press TIMER ON/OFFto start.When time is up, the ovenwill signal. To turn off thetimer signal, press TIMERON/OFF.NOTE: The timer indicatorwill be lit while the timer is operating.Timer On/Off1 2 34 5 67 8 90minute cook — 1 - 6display on / offTIMERON/OFF39-40365-1v01 2/5/04 10:32 AM Page 25
You may lock the controlpanel to prevent themicrowave from beingaccidentally started or usedby children.To lock or unlock thecontrols, press and holdCLEAR/OFF for aboutthree seconds. When thecontrol panel is locked, an “L” will be displayed tothe extreme right.CLEAROFFChild Lock-OutOperating InstructionsOther Features In addition to startingmany functions,START/PAUSE allows youto stop cooking withoutopening the door orclearing the display.STARTpauseStart/PauseThe Reminder feature can be used like an alarmclock and can be used atany time, even when theoven is operating. TheReminder time can be set up to 24 hours later.1Press REMINDER.2Enter the time you wantthe oven to remind you.(Be sure the microwaveclock shows the correcttime of day.)3Select AM or PM.4Press REMINDER. WhenReminder signal occurs,press REMINDER to turnit off. The Remindertime may be displayed bypressing REMINDER. NOTE: The REM indicatorwill remain lit to show thatthe Reminder is set. Toclear the Reminder beforeit occurs, press REMINDER,then 0. The REM indicatorwill no longer be lit.Reminder261 2 34 5 67 8 90minute cook — 1 - 6display on / offREMINDERAM / PM39-40365-1v01 2/5/04 10:32 AM Page 26
The vent fan removessteam and other vaporsfrom surface cooking. Press VENT FAN once forhigh fan speed, twice forlow fan speed or a thirdtime to turn the fan off.hi - lo - offVENTFANVent FanAn automatic fan featureprotects the microwavefrom too much heat risingfrom the cooktop below it.It automatically turns on atlow speed if it senses toomuch heat. If you have turned the fanon you may find that youcannot turn it off. The fanwill automatically turn offwhen the internal parts arecool. It may stay on for 30 minutes or more afterthe cooktop and microwavecontrols are turned off.Automatic FanPress to turn the surfacelight on or off.bright - night- offSURFACELIGHTSurface Light27hi-lo-offon-off39-40365-1v01 2/5/04 10:32 AM Page 27
28Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:•metal or foil touching the side of the oven.•foil that is not molded to food (upturned edges act like antennas).•metal such as twist ties, poultry pins, gold-rimmed dishes.•recycled paper towels containing small metal pieces.Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.Term DefinitionHelpful InformationMicrowave Terms39-40365-1v01 2/5/04 10:32 AM Page 28
29Care and CleaningAn occasional thoroughwiping with a solution ofbaking soda and waterkeeps the inside fresh.NOTE: Be certain the poweris off before cleaning anypart of this oven.Helpful HintsWalls, Floor, Inside Window,Metal and Plastic Parts onthe DoorSome spatters can beremoved with a papertowel, others may require a damp cloth. Removegreasy spatters with a sudsycloth, then rinse with adamp cloth. Do not useabrasive cleaners or sharputensils on oven walls.Never use a commercialoven cleaner on any part of your microwave.Removable Turntable andTurntable SupportTo prevent breakage, donot place the turntable intowater just after cooking.Wash it carefully in warm,sudsy water or in thedishwasher. The turntableand support can be brokenif dropped. Remember, do not operate the ovenwithout the turntable andsupport in place.How to Clean the Inside39-40365-1v01 2/5/04 10:32 AM Page 29

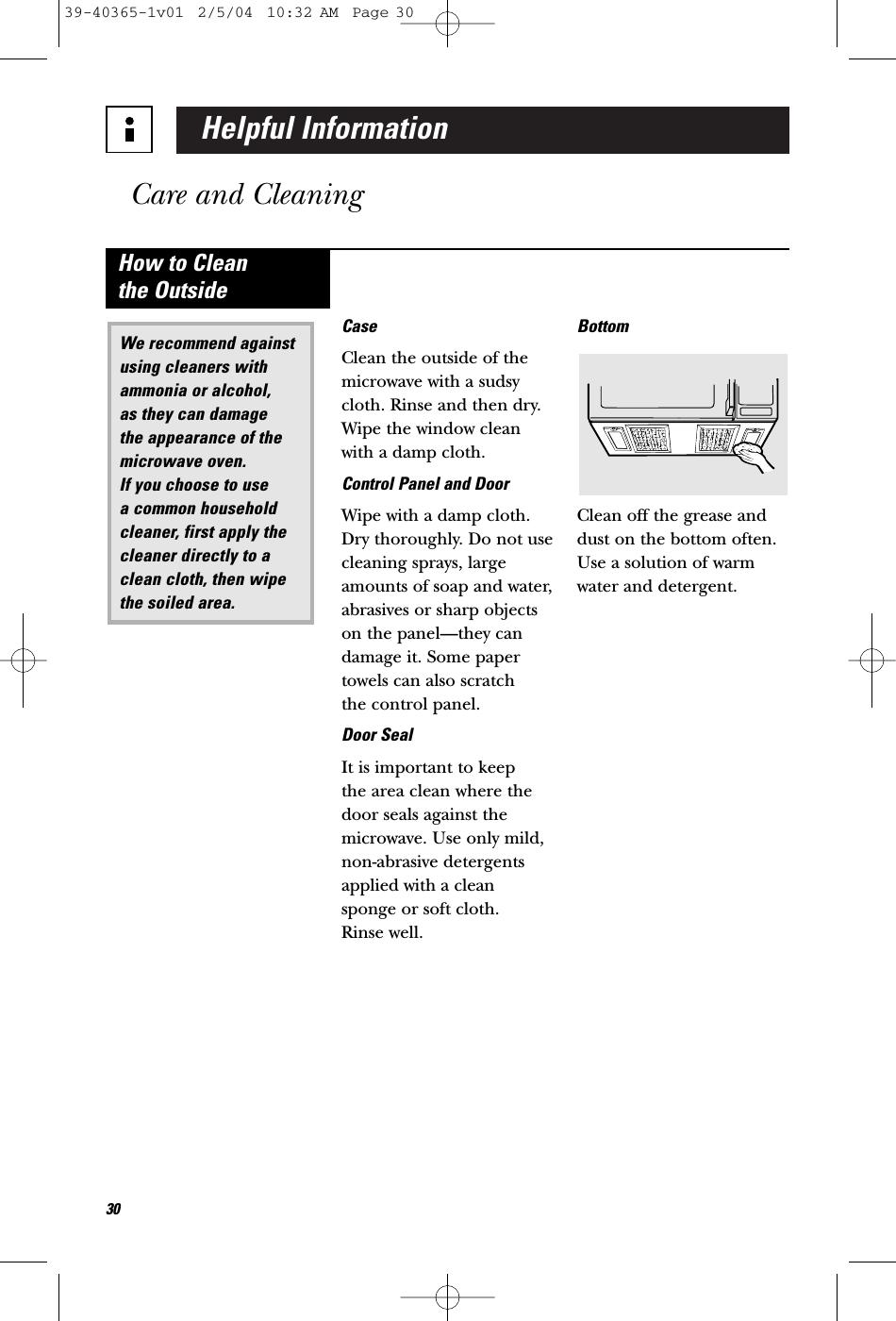

Helpful InformationCare and Cleaning30CaseClean the outside of themicrowave with a sudsycloth. Rinse and then dry.Wipe the window cleanwith a damp cloth. Control Panel and DoorWipe with a damp cloth.Dry thoroughly. Do not usecleaning sprays, largeamounts of soap and water,abrasives or sharp objectson the panel—they candamage it. Some papertowels can also scratch the control panel.Door SealIt is important to keep the area clean where thedoor seals against themicrowave. Use only mild,non-abrasive detergentsapplied with a cleansponge or soft cloth. Rinse well.BottomClean off the grease anddust on the bottom often.Use a solution of warmwater and detergent. We recommend againstusing cleaners withammonia or alcohol, as they can damage the appearance of themicrowave oven. If you choose to use a common householdcleaner, first apply thecleaner directly to aclean cloth, then wipethe soiled area.How to Clean the Outside39-40365-1v01 2/5/04 10:32 AM Page 30
31Light Bulb Replacement1To replace the bulb(s),first disconnect the powerat the main fuse or circuitbreaker panel or pull the plug.2Remove the screw at thefront of the light coverand lower the cover.3Be sure the bulb(s) to bereplaced are cool beforeremoving. After breakingthe adhesive seal, removethe bulb by gently turning.4Replace the screw.Connect electrical powerto the oven.Replace the burned-outbulb with a 40-wattincandescent bulb(WB36X10003), availablefrom your Hotpointsupplier.Cooktop Light1To replace the oven light,first disconnect the powerat the main fuse or circuitbreaker panel or pull the plug.2Remove the top grille bytaking out the 2 screwsthat hold it in place.3Next, remove the screwlocated above the doornear the center of theoven that secures thelight housing.4Replace the screw.Connect electrical power to the oven.Replace the burned-outbulb with a 40-wattincandescent bulb(WB36X10003), availablefrom your Hotpointsupplier.Oven LightREMOVE SCREWS39-40365-1v01 2/5/04 10:33 AM Page 31
Helpful InformationThe Exhaust Feature32The vent fan has 2 metalreusable grease filters. Models that recirculate airback into the room alsouse a charcoal filter.The Vent FanCharcoal Filter(on some models)Reusable Grease Filters(on all models)The metal filters trapgrease released by foodson the cooktop. They alsoprevent flames from foodson the cooktop fromdamaging the inside of the microwave. For this reason, the filtersmust ALWAYS be in placewhen the hood is used.The grease filters shouldbe cleaned once a month,or as needed.Reusable GreaseFiltersTo remove, slide it to therear using the tab. Pull itdown and out. To clean the grease filter,soak it and then swish itaround in hot water anddetergent. Don’t useammonia or ammoniaproducts because they willdarken the metal. Lightbrushing can be used toremove embedded dirt.Rinse, shake and let it drybefore replacing.To replace, slide the filterin the frame slot on theback of the opening. Pullup and to the front to lockinto place.Removing andCleaning the Filter39-40365-1v01 2/5/04 10:33 AM Page 32
33If the model is not ventedto the outside, the air willbe recirculated through adisposable charcoal filterthat helps remove smokeand odors. The charcoal filter should be replaced when it is noticeably dirty or discolored (usually after 6–12 months, dependingon hood usage).The charcoal filtercannot be cleaned. Itmust be replaced. OrderPart No. WB02X9883from your Hotpointsupplier.Charcoal Filter (on some models)To remove the charcoalfilter, disconnect power atthe main fuse or circuitbreaker panel or pull the plug. Remove the top grille byremoving the 2 screws thathold it in place. Slide thefilter towards the front ofthe oven and remove it.To Remove Charcoal FilterRemove 2 grille screws toremove the grille.To install a new filter,remove plastic and otherouter wrapping from the new filter. Insert the filter into the top opening of the oven as shown. It will rest at an angle on 2 side supporttabs and in front of theright rear tab. Replace the grille and 2 screws.To Install Charcoal Filter39-40365-1v01 2/5/04 10:33 AM Page 33
34Oven will notstartFloor of the oven iswarm, even whenthe oven has notbeen used“LOCKED” appearson displayYou hear anunusual, low-tonebeepProblem Possible Cause What to DoA fuse in your home •Replace fuse or reset circuit breaker.may be blown or the circuit breaker tripped.Power surge. •Unplug the microwave oven, then plug it back in.Plug not fully inserted •Make sure the 3-prong plug on theinto wall outlet. oven is fully inserted into wall outlet.The cooktop light is •This is normal.located below the ovenfloor. When the lightis on, the heat it produces may make the oven floor get warm.The control has been •Press and hold CLEAR/OFF forlocked. about 3 seconds to unlock the control.If Something Goes WrongBefore You Call For ServiceYou have tried to start•Start over and enter a valid time the Reminder without of day.a valid time of day.You have tried to change •Many of the oven’s features are preset the power level when itand cannot be changed.is not allowed.39-40365-1v01 2/5/04 10:33 AM Page 34
35•Steam or vapor escapingfrom around the door.•Light reflection arounddoor or outer case.•Dimming oven light andchange in the blowersound at power levelsother than high.•Dull thumping soundwhile oven is operating.•TV-radio interferencemight be noticed whileusing the microwave.Similar to the interferencecaused by other smallappliances, it does notindicate a problem withthe microwave. Plug themicrowave into a differentelectrical circuit, move theradio or TV as far awayfrom the microwave aspossible, or check theposition and signal of the TV/radio antenna.Things ThatAre Normal39-40365-1v01 2/5/04 10:33 AM Page 35
36Notes39-40365-1v01 2/5/04 10:33 AM Page 36
37Notes39-40365-1v01 2/5/04 10:33 AM Page 37
38www.Hotpoint.com Have a question or needassistance with yourappliance? Try theHotpoint Website 24 hoursa day, any day of the year!You can also shop formore great Hotpointproducts and takeadvantage of all of our on-line supportservices designed for your convenience.Hotpoint Websitewww.Hotpoint.com800.GE.CARES (800.432.2737)Expert Hotpoint repairservice is only one stepaway from your door. Get on-line and scheduleyour service at yourconvenience 24 hours any day of the year! Or call 800.GE.CARES(800.432.2737) duringnormal business hours.Schedule Servicewww.GEAppliances.com800.TDD.GEAC(800.833.4322)GE supports the UniversalDesign concept—products,services and environmentsthat can be used by peopleof all ages, sizes andcapabilities. We recognizethe need to design for awide range of physical andmental abilities andimpairments. For details of GE’s Universal Designapplications, includingkitchen design ideas forpeople with disabilities,check out our Websitetoday. For the hearingimpaired, please call 800.TDD.GEAC (800.833.4322). Real Life Design Studiowww.GEAppliances.com800.626.2224Purchase a Hotpointextended warranty andlearn about specialdiscounts that are availablewhile your warranty is stillin effect. You can purchaseit on-line anytime, or call 800.626.2224 duringnormal business hours.Hotpoint Consumer HomeServices will still be thereafter your warranty expires.Extended WarrantiesHotpoint Service NumbersWe’ll Be There!39-40365-1v01 2/5/04 10:33 AM Page 38
www.Hotpoint.com800.626.2002Individuals qualified to service their ownappliances can have parts or accessories sentdirectly to their home.(VISA, MasterCard andDiscover cards areaccepted.) Order on-linetoday, 24 hours every day orby phone at 800.626.2002during normal businesshours.Instructions contained in this manual coverprocedures to beperformed by any user.Other servicing generallyshould be referred toqualified servicepersonnel. Caution must be exercised, sinceimproper servicing maycause unsafe operation.Parts andAccessoriesIf for some reason you arenot happy with the serviceyou receive, here are stepsto follow for further help.First, contact the peoplewho serviced yourappliance. Explain why you are not pleased.Next, if you are still notpleased, write all thedetails—including your phone number—to:Manager Customer RelationsHotpoint, Appliance ParkLouisville, KY 40225Further Service3939-40365-1v01 2/5/04 10:33 AM Page 39
FULL ONE-YEAR WARRANTYFor one year from date of originalpurchase, we will provide, free of charge,parts and service labor in your home to repair or replace any part of the microwave oven that fails because of a manufacturing defect.LIMITED ADDITIONAL FOUR-YEAR WARRANTYFor the second through the fifth year from the date of original purchase, we will provide, free of charge, a replacementmagnetron tube if the magnetron tube failsbecause of a manufacturing defect. Youpay for the service trip to your home andservice labor charges.************************************This warranty is extended to the originalpurchaser and any succeeding owner forproducts purchased for ordinary home usein the 48 mainland states, Hawaii andWashington, D.C. In Alaska the warranty is the same except that it is LIMITEDbecause you must pay to ship the productto the service shop or for the servicetechnician’s travel costs to your home.All warranty service will be provided by our Factory Service Centers or by ourauthorized Customer Care®servicersduring normal working hours.Should your appliance need service, during warranty period or beyond, call 800.GE.CARES (800.432.2737).MICROWAVE OVENWARRANTYWhat Is CoveredWhat Is Not CoveredStaple sales slip or cancelled check here. Proof of originalpurchase date is needed to obtain service under warranty.•Service trips to your home to teach youhow to use the product.•Improper installation, delivery ormaintenance.If you have an installation problem, contactyour dealer or installer. You are responsiblefor providing adequate electrical,exhausting and other connecting facilities.•Replacement of house fuses or resettingof circuit breakers.•Replacement of the cooktop light bulbs.•Failure of the product if it is misused, or used for other than the intendedpurpose or used commercially.•Damage to product caused by accident,fire, floods or acts of God.•Incidental or consequential damagecaused by possible defects with thisappliance.•Damage caused after delivery.Some states do not allow the exclusion or limitation of incidental or consequential damages,so the above limitation or exclusion may not apply to you. This warranty gives you specificlegal rights, and you may also have other rights which vary from state to state. To know whatyour legal rights are in your state, consult your local or state consumer affairs office or yourstate’s Attorney General.Warrantor: General Electric Company If further help is needed concerning this warranty, write:Manager—Consumer Affairs, GE Appliances, Louisville, KY 40225Warrantor is not responsible for consequential damages.Printed in Malaysia39-40365-1v01 2/5/04 10:33 AM Page 40
