Contents

Users Manual

SpacemakerXL Microwave Oven
Owner’s Manual
1000 Watts
JVM1653
2
33
Helpful Information
Microwave Terms 33
Care and Cleaning 34
39
If Something Goes Wrong
Before You Call For Service 39
GE Service Numbers 42
Warranty Back Cover
GE Appliances
11
Important Safety Information
Precautions to Avoid Possible Exposure
to Excessive Microwave Energy 2
Special Notes About Microwaving 6
Operating Instructions
Features of Your Microwave 11
The Controls on Your Microwave 12
Time Cooking 15
Automatic Cooking 22
Other Features 26
Oven Shelf 31
Models:
49-40194v04 4/19/01 11:53 AM Page 1
2
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
FOR YOUR
SAFETY
PRECAUTIONS
TO AVOID
POSSIBLE
EXPOSURE
TO EXCESSIVE
MICROWAVE
ENERGY
For your safety the information in this manual
must be followed to minimize the risk of fire or
explosion or to prevent property damage,
personal injury or loss of life.
Do Not Attempt
to
operate this oven with
the door open since
open-door operation
can result in harmful
exposure to microwave
energy. It is important
not to defeat or tamper
with the safety
interlocks.
Do Not Place
any object
between the oven front
face and the door or
allow soil or cleaner
residue to accumulate
on sealing surfaces.
Do Not Operate
the
oven if it is damaged.
It is particularly
important that the
oven door close
properly and that there
is no damage to the:
1
door (bent),
2
hinges and latches
(broken or loosened),
3
door seals and sealing
surfaces.
The Oven Should Not
be adjusted or repaired
by anyone except
properly qualified
service personnel.
49-40194v04 4/19/01 11:53 AM Page 2
3
Welcome to the GE family.
We’re proud of our quality
products and we believe
in dependable service.
You’ll see it in this easy-to-
use manual and you’ll hear
it in the friendly voices of
our consumer service
department.
Best of all, you’ll
experience these values
each time you use your
microwave. That’s
important, because your
new microwave will be
part of your family for a
long time.
Welcome

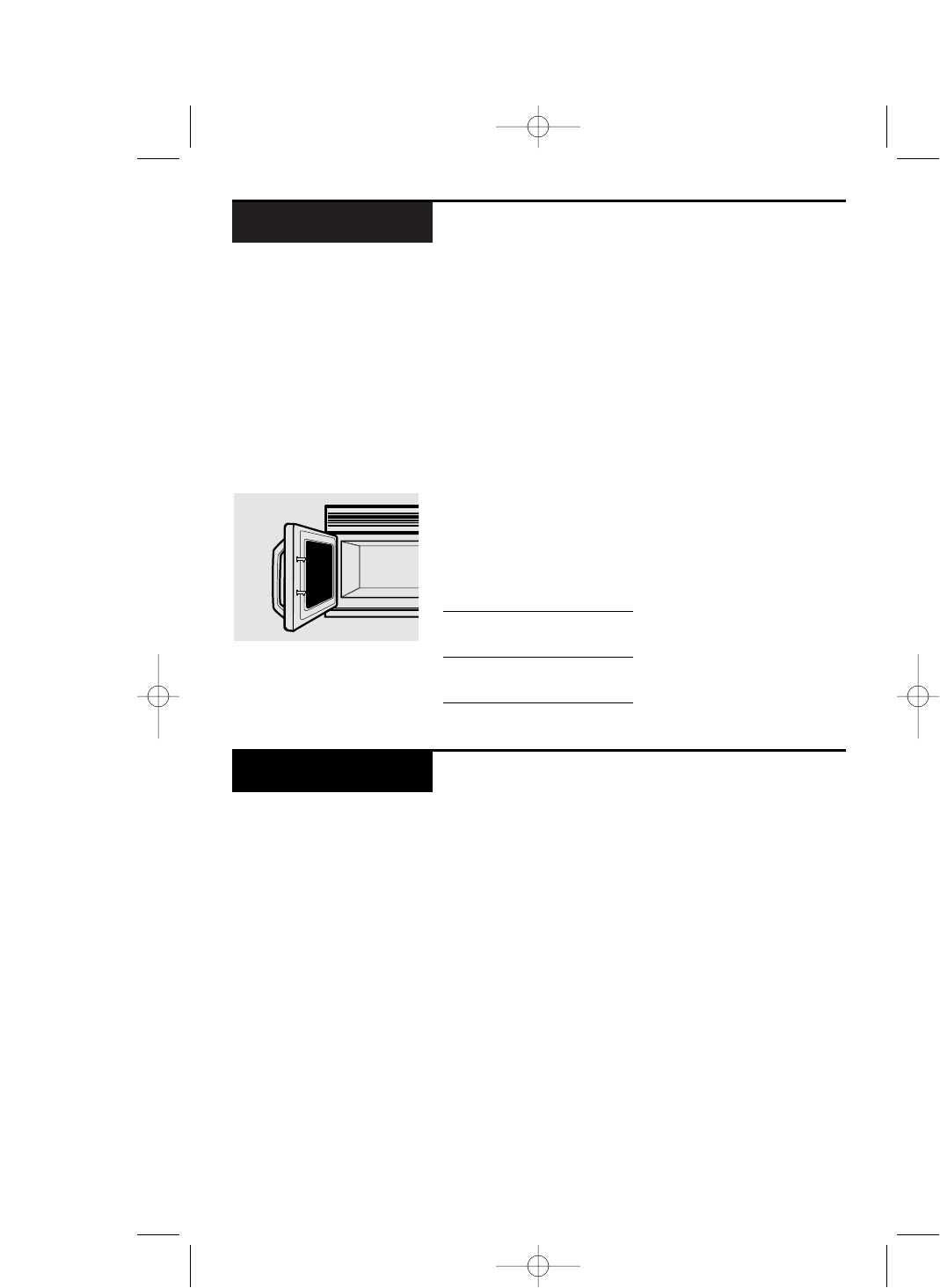

Write down the model and
serial numbers here.
They
are on a label inside the
oven.
Model number
Serial number
Date of purchase
Staple your receipt to the
inside back cover of this
manual. You will need it
to obtain service under
warranty.
Help us
help you
Before you call for service,
there are a few things you
can do to help us serve
you better.
Read this manual.
It contains instructions to
help you use and maintain
your microwave properly.
If you received a damaged
oven...
immediately contact
the dealer (or builder)
that sold you the oven.
Save time and money.
Check the section titled
“If Something Goes
Wrong” before calling.
This section helps you
solve common problems
that might occur.
If you do need service,
you can relax knowing help
is only a phone call away.
A list of toll-free customer
service numbers is included
in the back of this manual.
Need Help?
Start Here!…Before using your Microwave
49-40194v04 4/19/01 11:53 AM Page 3
To reduce the risk of fire, burns, electric shock, injury to persons, or exposure to excessive
microwave energy when using your appliance, follow basic precautions, including the
following sections.
WARNING
•Read and follow the
specific “Precautions to
Avoid Possible Exposure
to Excessive Microwave
Energy” on page 2.
•This appliance must be
grounded. Connect only
to properly grounded
outlet. See Grounding
Instructions section on
page 10.
•Do not mount this
appliance over a sink.
•Install or locate this
appliance only in
accordance with the
provided Installation
Instructions.
•This over-the-range oven
was designed for use over
ranges no wider than 36″.
It may be installed over
both gas and electric
cooking equipment.
•
Do not operate this
appliance if it has a
damaged power cord or
plug, if it is not working
properly, or if it has been
damaged or dropped. If the
power cord is damaged,
it must be replaced by
General Electric Service
or an authorized service
agent using a power
cord available from
General Electric.
•Do not cover or block
any openings on the
appliance.
•Use this appliance only
for its intended use as
described in this manual.
Do not use corrosive
chemicals or vapors in
this appliance. This
microwave oven is
specifically designed to
heat, dry or cook food,
and is not intended
for laboratory or
industrial use.
This microwave oven is
UL listed for installation
over electric and gas
ranges.
This microwave oven is
not approved or tested
for marine use.
SAFETY
PRECAUTIONS
4
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
49-40194v04 4/19/01 11:53 AM Page 4
•Do not store this
appliance outdoors.
Do not use this product
near water—for example,
in a wet basement, near a
swimming pool or near
a sink.
•Keep power cord away
from heated surfaces.
•Do not immerse power
cord or plug in water.
•To reduce the risk of fire
in the oven cavity:
— Do not overcook food.
Carefully attend
appliance if paper,
plastic or other com-
bustible materials are
placed inside the oven
while cooking.
— Remove wire twist-ties
and metal handles from
paper or plastic con-
tainers before placing
them in the oven.
— Do not use the oven
for storage purposes.
Do not leave paper
products, cooking
utensils or food in the
oven when not in use.
— If materials inside oven
should ignite, keep the
oven door closed, turn
the oven off and
disconnect the power
cord, or shut off power
at the fuse or circuit
breaker panel. If the
door is opened, the fire
may spread.
•See door surface cleaning
instructions in the Care
and Cleaning section(s)
of this manual.
•This appliance should
be serviced only by
qualified service
personnel. Contact
nearest authorized
service facility for
examination, repair
or adjustment.
•As with any appliance,
close supervision is
necessary when used
by children.
SAVE THESE INSTRUCTIONS
5
49-40194v04 4/19/01 11:53 AM Page 5
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Arcing is the microwave
term for sparks in the oven.
Arcing is caused by:
•The metal shelf not
installed correctly so it
touches the microwave
wall.
•Metal or foil touching the
side of the oven.
•Foil not molded to food
(upturned edges act like
antennas).
•Metal, such as twist-ties,
poultry pins, or gold-
rimmed dishes, in the
microwave.
•Recycled paper towels
containing small metal
pieces being used in the
microwave.
If you see arcing, press
the CLEAR/OFF pad and
correct the problem.
ARCING
•Do not pop popcorn in
your microwave oven
unless in a special
microwave popcorn
accessory or unless you
use popcorn labeled for
use in microwave ovens.
•Some products such as
whole eggs and sealed
containers—for example,
closed jars—will explode
and should not be heated
in this microwave oven.
Such use of the microwave
oven could result in injury.
•Do not boil eggs in a
microwave oven. Pressure
will build up inside egg
yolk and will cause it to
burst, possibly resulting
in injury.
•Operating the microwave
with no food inside for
more than a minute or
two may cause damage to
the oven and could start a
fire. It increases the heat
around the magnetron
and can shorten the life
of the oven.
•Foods with unbroken
outer “skin” such as
potatoes, hot dogs,
sausages, tomatoes,
apples, chicken livers
and other giblets, and
egg yolks should be
pierced to allow steam
to escape during cooking.
FOODS
6
49-40194v04 4/19/01 11:53 AM Page 6
7
•Avoid heating baby food
in glass jars, even with the
lid off. Make sure all
infant food is thoroughly
cooked. Stir food to
distribute the heat
evenly. Be careful to
prevent scalding when
warming formula or
breast milk. The container
may feel cooler than the
milk really is. Always test
the milk before feeding
the baby.
•Spontaneous boiling—
Under certain special
circumstances, liquids
may start to boil during
or shortly after removal
from the microwave oven.
To prevent burns from
splashing liquid, we
recommend the following:
before removing the
container from the oven,
allow the container to
stand in the oven for 30
to 40 seconds after the
oven has shut off. Do not
boil liquids in narrow-
necked containers such
as soft drink bottles, wine
flasks and especially
narrow-necked coffee
cups. Even if the
container is opened,
excessive steam can build
up and cause it to burst
or overflow.
•Don’t defrost frozen
beverages in narrow-
necked bottles (especially
carbonated beverages).
Even if the container is
opened, pressure can
build up. This can cause
the container to burst,
possibly resulting in
injury.
•Hot foods and steam
can cause burns. Be
careful when opening
any containers of hot
food, including popcorn
bags, cooking pouches
and boxes. To prevent
possible injury, direct
steam away from hands
and face.
•Do not overcook
potatoes. They could
dehydrate and catch
fire, causing damage to
your oven.
•Cook meat and poultry
thoroughly—meat to at
least an INTERNAL
temperature of 160°F.
and poultry to at least an
INTERNAL temperature
of 180°F. Cooking to
these temperatures
usually protects against
foodborne illness.
SAFETY
FACT
SUPERHEATED WATER
Microwaved water and
other liquids do not
always bubble when
they reach the boiling
point. They can actually
get superheated and not
bubble at all.
Superheated liquid will
bubble up out of the cup
when it is moved or
when something like a
spoon or tea bag is put
into it.
To prevent this from
happening and causing
injury, do not heat any
liquid for more than
2 minutes per cup.
After heating, let the cup
stand in the microwave
for 30 seconds before
moving it or putting
anything into it.
49-40194v04 4/19/01 11:53 AM Page 7
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Make sure all cookware
used in your microwave
oven is suitable for
microwaving. Most glass
casseroles, cooking dishes,
measuring cups, custard
cups, pottery or china
dinnerware which does not
have metallic trim or glaze
with a metallic sheen can
be used. Some cookware is
labeled “suitable for
microwaving.”
•If you are not sure if a
dish is microwave-safe,
use this test: Place in the
oven both the dish you
are testing and a glass
measuring cup filled with
1 cup of water—set the
measuring cup either in
or next to the dish.
Microwave 30 – 45
seconds at high. If the
dish heats, it should not
be used for microwaving.
If the dish remains cool
and only the water in the
cup heats, then the dish
is microwave-safe.
•If you use a meat ther-
mometer while cooking,
make sure it is safe for
use in microwave ovens.
•Do not use recycled
paper products. Recycled
paper towels, napkins
and waxed paper can
contain metal flecks
which may cause arcing
or ignite. Paper products
containing nylon or
nylon filaments should
be avoided, as they may
also ignite.
•Some styrofoam trays
(like those that meat is
packaged on) have a thin
strip of metal embedded
in the bottom. When
microwaved, the metal
can burn the floor of the
oven or ignite a paper
towel.
•Do not use the microwave
to dry newspapers.
•Not all plastic wrap is
suitable for use in micro-
wave ovens. Check the
package for proper use.
•Paper towels, waxed
paper and plastic wrap
can be used to cover
dishes in order to retain
moisture and prevent
spattering. Be sure to
vent plastic wrap so steam
can escape.
•Cookware may become
hot because of heat
transferred from the
heated food. Pot holders
may be needed to handle
the cookware.
•“Boilable” cooking
pouches and tightly
closed plastic bags should
be slit, pierced or vented
as directed by package.
If they are not, plastic
could burst during or
immediately after
cooking, possibly
resulting in injury. Also,
plastic storage containers
should be at least partially
uncovered because they
form a tight seal. When
cooking with containers
tightly covered with plastic
wrap, remove covering
carefully and direct steam
away from hands and face.
MICROWAVE-
SAFE
COOKWARE
8

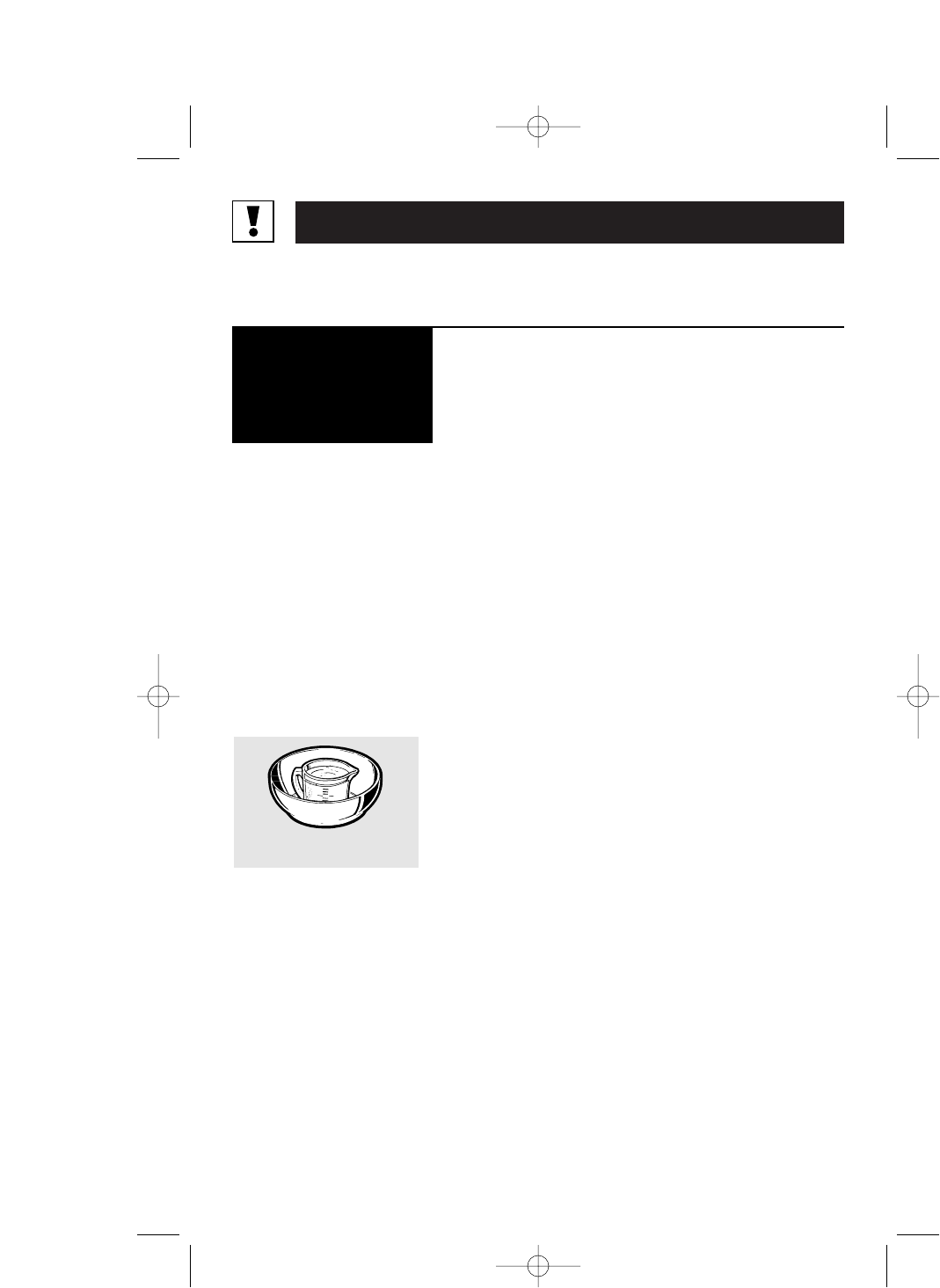

How to test for a microwave-
safe dish.
49-40194v04 4/19/01 11:53 AM Page 8
9
•Use foil only as directed
in this manual. TV
dinners may be
microwaved in foil trays
less than 3/4″high;
remove the top foil cover
and return the tray to the
box. When using foil in
the microwave oven,
keep the foil at least
1″away from the sides
of the oven.
•Plastic cookware—Plastic
cookware designed for
microwave cooking is very
useful, but should be used
carefully. Even microwave-
safe plastic may not be as
tolerant of overcooking
conditions as are glass or
ceramic materials and
may soften or char if
subjected to short periods
of overcooking. In longer
exposures to over-
cooking, the food and
cookware could ignite.
Follow these guidelines:
1
Use microwave-safe
plastics only and use
them in strict compliance
with the cookware
manufacturer’s
recommendations.
2
Do not microwave empty
containers.
3
Do not permit children
to use plastic cookware
without complete
supervision.
The fan will operate
automatically under
certain conditions (see
Automatic Fan feature).
Take care to prevent the
starting and spreading of
accidental cooking fires
while the vent fan is in use.
•Clean the underside of
the microwave often. Do
not allow grease to build
up on the microwave or
the fan filters.
•In the event of a grease
fire on the surface units
below the microwave
oven, smother a flaming
pan on the surface unit
by covering the pan
completely with a lid, a
cookie sheet or a flat tray.
•Use care when cleaning
the vent fan filters.
Corrosive cleaning
agents, such as lye-based
oven cleaners, may
damage the filters.
•When preparing
flaming foods under
the microwave, turn
the fan on.
•Never leave surface units
beneath your microwave
oven unattended at high
heat settings. Boilovers
cause smoking and greasy
spillovers that may ignite
and spread if the
microwave vent fan is
operating. To minimize
automatic fan operation,
use adequate sized
cookware and use high
heat on surface units only
when necessary.
THE VENT
FAN
49-40194v04 4/19/01 11:53 AM Page 9
IMPORTANT SAFETY INFORMATION

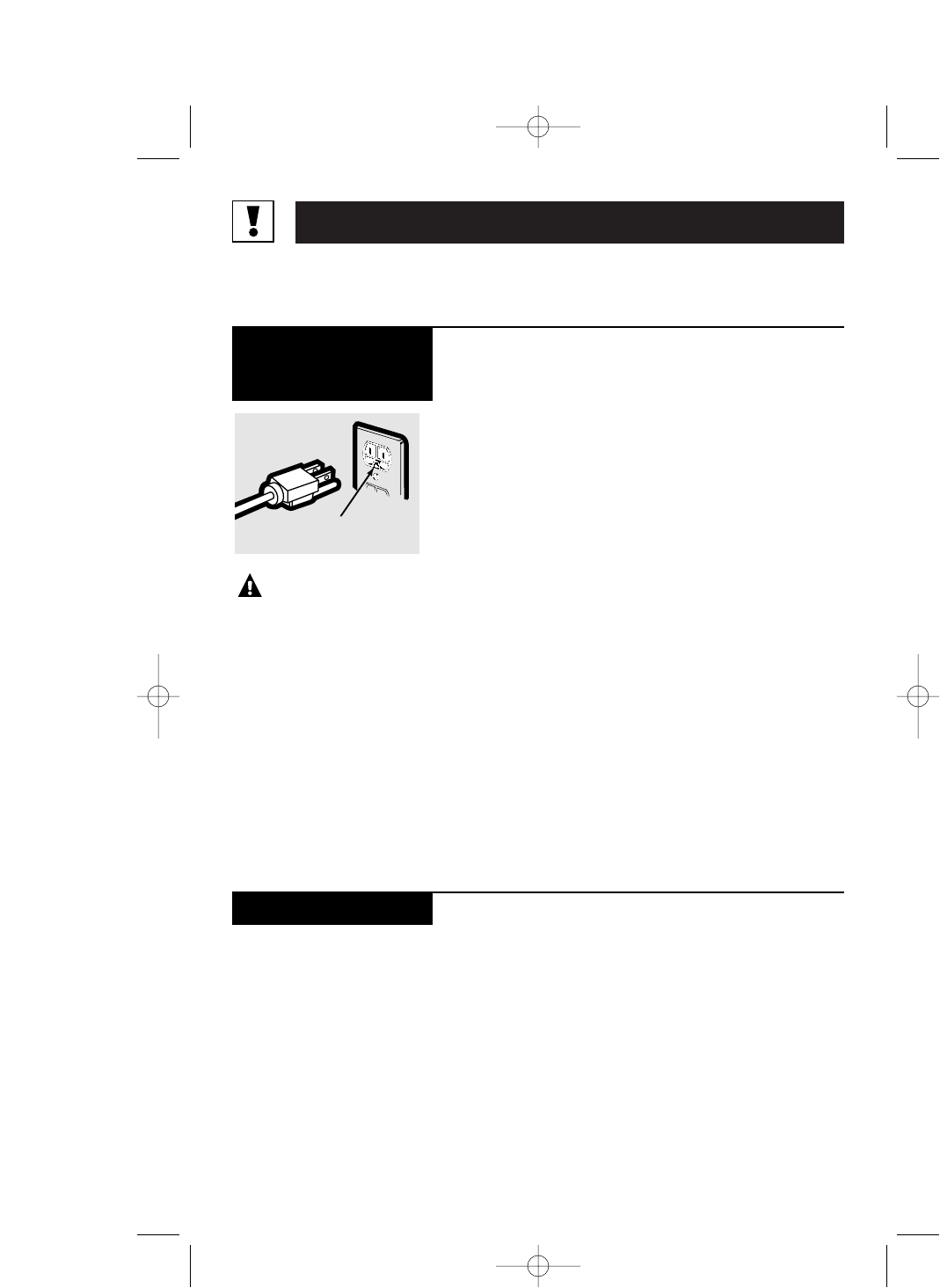

GROUNDING INSTRUCTIONS/OPTIONAL KITS
WARNING
Improper use of the
grounding plug can result in
a risk of electric shock.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the risk
of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a power cord having a
grounding wire with a
grounding plug. The plug
must be plugged into an
outlet that is properly
installed and grounded.
Consult a qualified electri-
cian or service technician if
the grounding instructions
are not completely under-
stood, or if doubt exists as
to whether the appliance is
properly grounded.
If the outlet is a standard
2-prong wall outlet, it is
your personal responsibility
and obligation to have it
replaced with a properly
grounded 3-prong wall
outlet.
Do not under any circum-
stances cut or remove the
third (ground) prong from
the power cord.
Do not use an adapter
plug with this appliance.
Do not use an extension
cord with this appliance.
If the power cord is too
short, have a qualified
electrician or service
technician install an outlet
near the appliance.
For best operation, plug
this appliance into its own
electrical outlet to prevent
flickering of lights, blowing
of fuse or tripping of
circuit breaker.
GROUNDING
INSTRUCTIONS
Filler Panel Kits
JX48WH—White
JX48BL—Black
When replacing a 36″
range hood, filler panel
kits fill in the additional
width to provide a custom
built-in appearance.
For installation between
cabinets only; not for end-
of-cabinet installation. Each
kit contains two 3″wide
filler panels.
Filter Kits
JX81A—Recirculating
Charcoal Filter Kit
Filter kits are used when
the microwave oven cannot
be vented to the outside.
Decorative Panel Kit
JX22SS—Stainless Steel
When replacing a Hi/Low
range, the decorative panel
kit fills in the area between
the microwave and the
range left by the Hi/Low
model.
Available at extra cost from
your GE supplier.
Optional Kits
Ensure proper ground
exists before use.
10
49-40194v04 4/19/01 11:53 AM Page 10
Operating Instructions

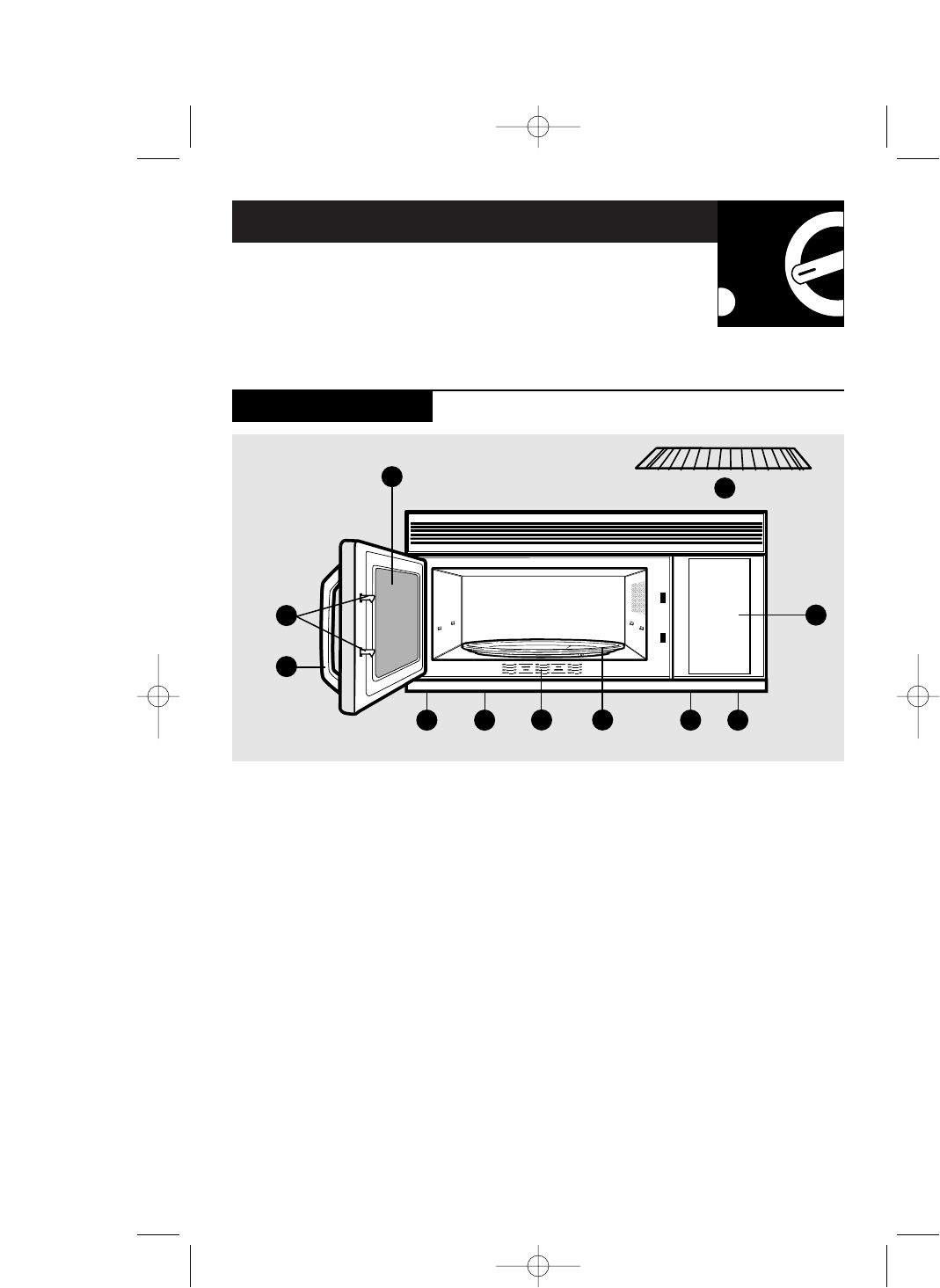

Features of Your Microwave
(Throughout this manual, features and appearance
may vary from your model.)
1 Door Handle.
Pull to
open the door. The
door must be securely
latched for the
microwave to operate.
2 Door Latches.
3 Window with Metal
Shield.
Screen allows
cooking to be viewed
while keeping
microwaves confined
in the oven.
4 Shelf.
Lets you
microwave several
foods at once. Food
microwaves best when
placed directly on the
oven floor or turntable.
5 Touch Control Panel
You must set the clock
before using the
microwave.
6 Cooktop Lights.
7 Grease Filters.
8 Removable Turntable.
Turntable and support
must be in place
when using the oven.
The turntable may be
removed for cleaning.
9 Convenience Guide.
NOTE:
Rating plate, oven
vent(s) and oven light are
located on the inside walls
of the microwave oven.
Features
3
66
7
98
11
7
4
1000 Watts
1
25
49-40194v04 4/19/01 11:53 AM Page 11
12
Quick Start
The Controls on Your Microwave Oven
(Throughout this manual, features and appearance may vary from your model.)
You can
microwave by
time or with the
sensor features.

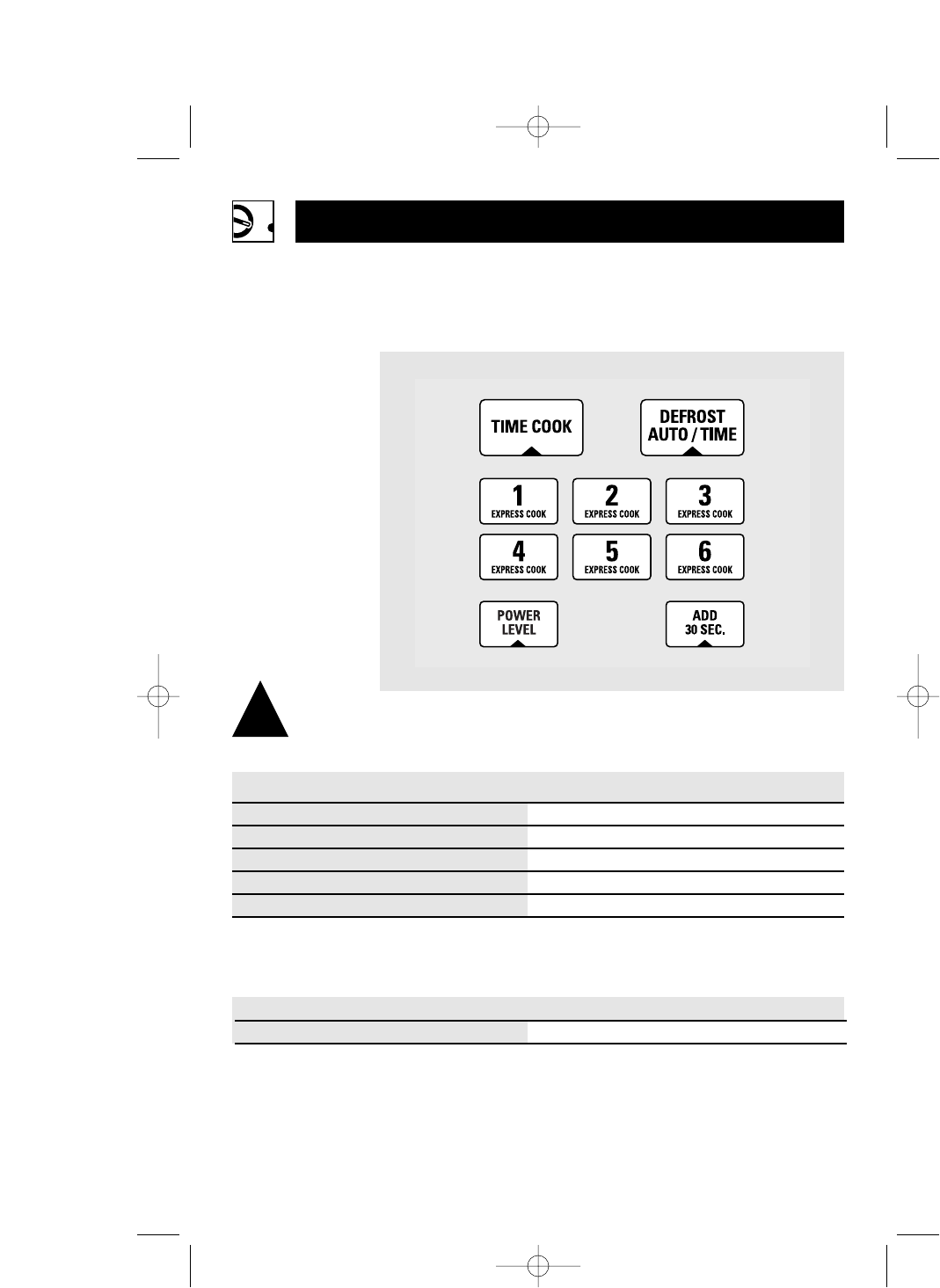

Time Features
Time Cooking
Press Enter
TIME COOK I & II (Press once or twice) Amount of cooking time.
DEFROST AUTO/TIME (Press twice) Amount of defrosting time.
EXPRESS COOK Starts immediately!
POWER LEVEL Power level 1–10.
ADD 30 SEC Starts immediately!
1
Defrosting by Weight
Press Enter
DEFROST AUTO/TIME (Press once) Food weight
49-40194v04 4/19/01 11:53 AM Page 12
Sensor Features
Press Enter Option
POPCORN Starts immediately! more/less time
BEVERAGE Starts immediately!
REHEAT Starts immediately! more/less time
POTATO Starts immediately! more/less time
COOK Food type 1– 6
Press 1 for Chicken Starts immediately!
Press 2 for Fish
Press 3 for Ground Meats
Press 4 for Fresh Vegetables
Press 5 for Frozen Vegetables
Press 6 for Canned Vegetables
2
2
HELP
Press this pad and any
feature pad for usage
instructions and tips.
GUIDE ON MICROWAVE
Before you begin, check
the guide located on the
inside front of the oven
when you open the door.
GUIDES IN BOOK
•Cooking
•Time Defrost
13
49-40194v04 4/19/01 11:53 AM Page 13
Operating Instructions
Variable power levels add
flexibility to microwave
cooking. The power levels
on the microwave oven can
be compared to the surface
units on a range. High
(power level 10) or full
power is the fastest way to
cook and gives you 100%
power. Each power level
gives you microwave
energy a certain percent of
the time. Power level 7 is
microwave energy 70% of
the time. Power level 3 is
energy 30% of the time.
A high setting (10) will
cook faster but food may
need more frequent
stirring, rotating or turning
over. Most cooking will be
done on High (power level
10). A lower setting will
cook more evenly and
need less stirring or
rotating of the food.
Some foods may have
better flavor, texture or
appearance if one of the
lower settings is used. Use
a lower power level when
cooking foods that have a
tendency to boil over, such
as scalloped potatoes.
Rest periods (when the
microwave energy cycles
off) give time for the food
to “equalize” or transfer
heat to the inside of the
food. An example of this is
shown with power level 3—
the defrost cycle. If micro-
wave energy did not cycle
off, the outside of the food
would cook before the
inside was defrosted.
Here are some examples
of uses for various power
levels:
Power Level Best Uses
High 10
Fish, bacon,
vegetables,
boiling liquids.
Med-High 7
Gentle
cooking of
meat and
poultry;
baking
casseroles
and reheating.
Medium 5
Slow cooking
and tenderiz-
ing such as
stews and less
tender cuts of
meat.
Low 2 or 3
Defrosting
without
cooking;
simmering;
delicate sauces.
Warm 1
Keeping food
warm without
overcooking;
softening
butter.

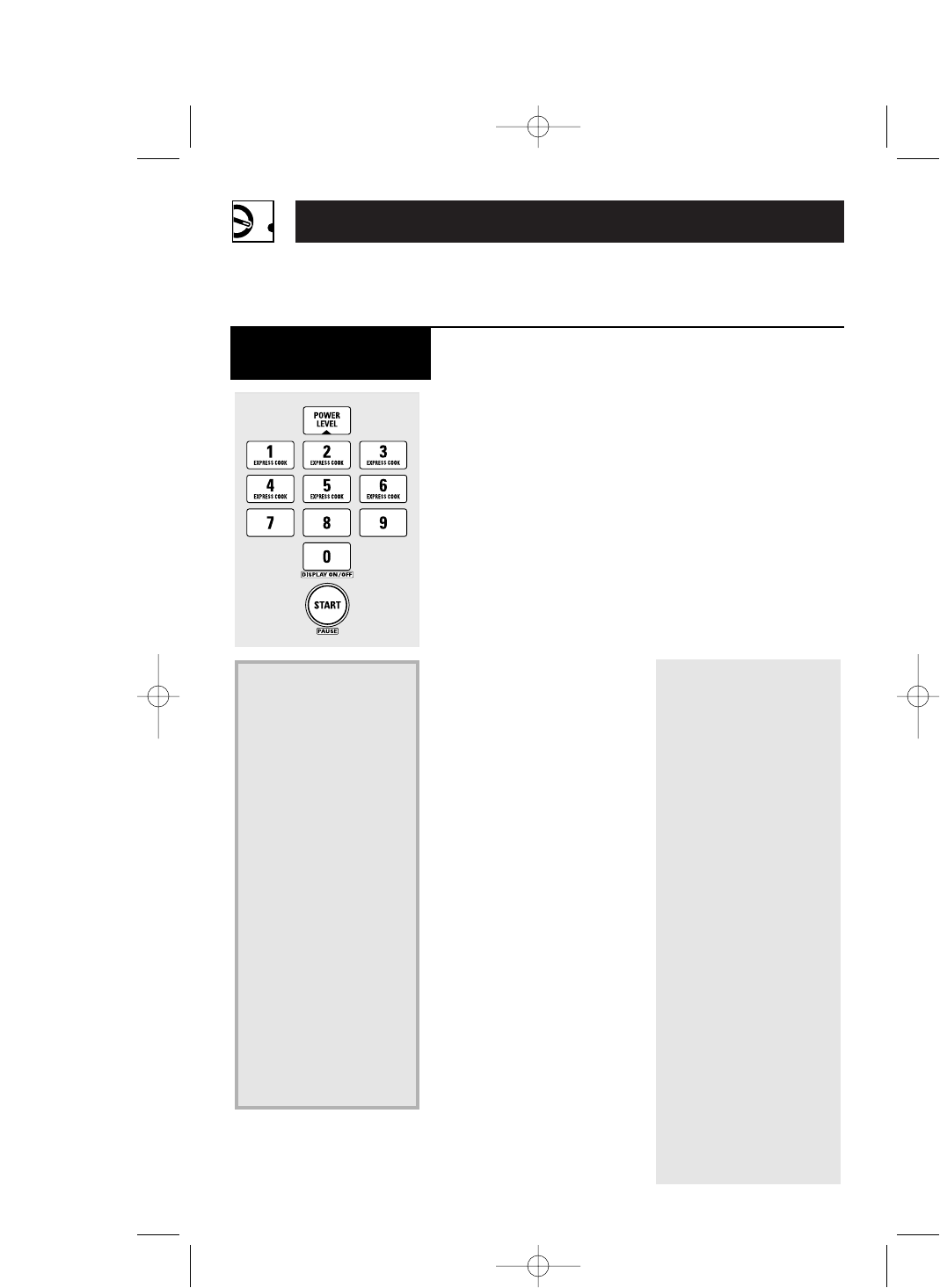

How to Change the
Power Level
The power level may be
entered or changed
immediately after
entering the feature
time for TIME COOK,
TIME DEFROST or
EXPRESS COOK. The
power level may also be
changed during time
countdown.
1 Press TIME COOK or
select Time Defrost.
2 Enter cooking or
defrosting time.
3 Press POWER LEVEL.
4 Select desired power
level 1–10.
5 Press START.
Changing Power
Levels
14
49-40194v04 4/19/01 11:53 AM Page 14
15
Time Features

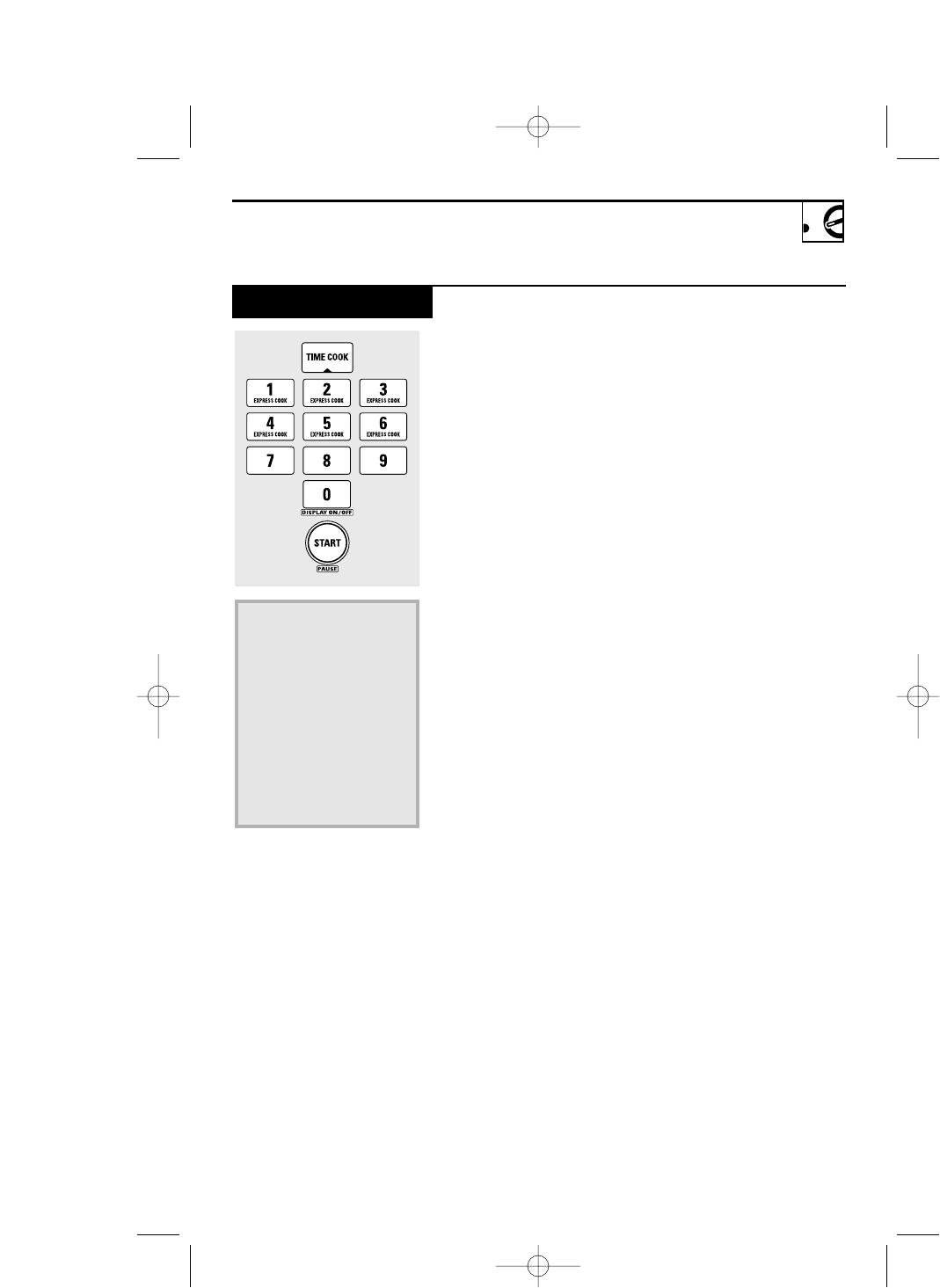

Time Cook I
Allows you to microwave
for any time up to 99
minutes and 99 seconds.
Power level 10 (High) is
automatically set, but you
may change it for more
flexibility.
You may open the door
during Time Cook to
check the food. Close the
door and press START
to resume cooking.
Time Cook II
Lets you change power
levels automatically during
cooking. Here’s how to
do it:
1
Press TIME COOK.
2
Enter the first cook time.
3
Change the power level
if you don’t want full
power. (Press POWER
LEVEL. Select a desired
power level 1–10.)
4
Press TIME COOK
again.
5
Enter the second cook
time.
6
Change the power level
if you don’t want full
power. (Press POWER
LEVEL. Select a power
level 1–10.)
7
Press START.
At the end of Time Cook I,
Time Cook II counts down.
1 Press TIME COOK.
2 Enter cooking time.
3 Change power level
if you don’t want full
power. (Press POWER
LEVEL. Select a
desired power level
1–10.)
4 Press START.
Time Cook
49-40194v04 4/19/01 11:53 AM Page 15
16
Operating Instructions
Cooking Guide for Time Cook I &II
NOTE: Use power level High (10) unless otherwise noted.
Vegetable Amount Time Comments
Asparagus
(fresh spears) 1 lb. 6 to 9 min., In 1
1
⁄
2
-qt. oblong glass baking dish,
Med-High (7) place 1/4 cup water.
(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole.
Beans
(fresh green) 1 lb. cut in half 9 to 11 min. In 1
1
⁄
2
-qt. casserole, place 1/2 cup water.
(frozen green) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons
water.
(frozen lima) 10-oz. package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.
Beets
(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.
Broccoli
(fresh cut) 1 bunch 7 to 10 min. In 2-qt. casserole, place 1/2 cup water.
(1
1
⁄
4
to 1
1
⁄
2
lbs.)
(fresh spears) 1 bunch 9 to 13 min. In 2-qt. oblong glass baking dish, place
(1
1
⁄
4
to 1
1
⁄
2
lbs.) 1/4 cup water.
(frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole.
chopped)
(frozen spears) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons
water.
Cabbage
(fresh) 1 medium head 8 to 11 min. In 1
1
⁄
2
- or 2-qt. casserole, place 1/4 cup
(about 2 lbs.) water.
(wedges) 7 to 10 min. In 2- or 3-qt. casserole, place 1/4 cup
water.
Carrots
(fresh, sliced) 1 lb. 7 to 9 min. In 1
1
⁄
2
-qt. casserole, place 1/4 cup water.
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
Cauliflower
(flowerets) 1 medium head 9 to 14 min. In 2-qt. casserole, place 1/2 cup water.
(fresh, whole) 1 medium head 10 to 17 min. In 2-qt. casserole, place 1/2 cup water.
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
49-40194v04 4/19/01 11:53 AM Page 16
17
Vegetable Amount Time Comments
Corn
(frozen kernel) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
Corn on the cob
(fresh) 1 to 5 ears 3 to 4 min. In 2-qt. oblong glass baking dish, place
per ear corn. If corn is in husk, use no water; if
corn has been husked, add 1/4 cup
water. Rearrange after half of time.
(frozen) 1 ear 5 to 6 min. Place in 2-qt. oblong glass baking dish.
2 to 6 ears 3 to 4 min. Cover with vented plastic wrap.
per ear Rearrange after half of time.
Mixed
vegetables
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons
water.
Peas
(fresh, shelled) 2 lbs. unshelled
9 to 12 min.
In 1-qt. casserole, place 1/4 cup water.
(frozen) 10-oz. package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons
water.
Potatoes
(fresh, cubed, 4 potatoes
9 to 12 min.
Peel and cut into 1 inch cubes. Place in
white) (6 to 8 oz. each) 2-qt. casserole with 1/2 cup water. Stir
after half of time.
(fresh, whole, 1 (6 to 8 oz.) 3 to 4 min. Pierce with cooking fork. Place in
sweet or white) center of the oven. Let stand 5 minutes.
Spinach
(fresh) 10 to 16 oz. 5 to 7 min. In 2-qt. casserole, place washed spinach.
(frozen, 10-oz. package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons
chopped water.
and leaf)
Squash
(fresh, summer 1 lb. sliced 5 to 7 min. In 11⁄2-qt. casserole, place 1/4 cup water.
and yellow)
(winter, acorn 1 to 2 squash 8 to 11 min. Cut in half and remove fibrous
butternut)
(about 1 lb. each)
membranes. In 2-qt. oblong glass
baking dish, place squash cut-side-
down. Turn cut-side-up after 4 minutes.
49-40194v04 4/19/01 11:53 AM Page 17
Operating Instructions
Time Features
Allows you to defrost for
the length of time you
select. See the Defrosting
Guide for suggested times.
Power level 3 is automati-
cally set, but you may
change this for more
flexibility. You may defrost
small items more quickly
by raising the power level
after entering the time.
However, they will need
more frequent attention
than usual.
Power level 7 cuts the total
defrosting time in about
half; power level 10 cuts
the total time to approxi-
mately 1/3. Rotate or stir
food frequently.
At one half of selected
defrosting time, the oven
signals TURN. At this time,
turn food over and break
apart or rearrange pieces
for more even defrosting.
Shield any warm areas with
small pieces of foil.
A dull thumping noise may
be heard during defrosting.
This sound is normal when
the oven is not operating at
High power.
Defrosting Tips
•Foods frozen in paper or
plastic can be defrosted
in the package. Tightly
closed packages should
be slit, pierced or vented
AFTER food has partially
defrosted. Plastic storage
containers should be at
least partially uncovered.
•Family-size, prepackaged
frozen dinners can be
defrosted and micro-
waved. If the food is in a
foil container, transfer it
to a microwave-safe dish.
•Foods that spoil easily,
such as milk, eggs, fish,
stuffings, poultry and
pork, should not be
allowed to sit out for
more than one hour
after defrosting. Room
temperature promotes
the growth of harmful
bacteria.
•For more even defrosting
of larger foods, such as
beef, lamb and veal
roasts, use Auto Defrost.
•Be sure large meats are
completely defrosted
before cooking.
•When defrosted, food
should be cool but
softened in all areas. If still
slightly icy, return to the
microwave very briefly, or
let it stand a few minutes.
1 Press DEFROST
AUTO/TIME twice.
2 Enter defrosting time.
3 Press START.
4 Turn food over when
the oven signals.
5 Press START.
(Auto Defrost explained
in the section on
Convenience Features.)
Time Defrost
18
49-40194v04 4/19/01 11:53 AM Page 18
Defrosting Guide
Food Time Comments
Breads, Cakes
Bread, buns or rolls
(1 piece) 1 min.
Sweet rolls
(approx. 12 oz.) 3 to 5 min.
Fish and Seafood
Fillets, frozen
(1 lb.) 6 to 8 min.
Shellfish, small pieces
(1 lb.) 5 to 7 min. Place block in casserole. Turn over and
break up after half the time.
Fruit
Plastic pouch—1 to 2
3 to 6 min.
(10-oz. package)
Meat
Bacon
(1 lb.) 2 to 5 min. Place unopened package in oven.
Let stand 5 minutes after defrosting.
Franks
(1 lb.) 2 to 5 min. Place unopened package in oven.
Microwave just until franks can be
separated. Let stand 5 minutes, if
necessary, to complete defrosting.
Ground meat
(1 lb.) 5 to 7 min. Turn meat over after half the time.
Roast: beef, lamb, veal, pork
12 to 16 min. Use power level 1.
per lb.
Steaks, chops and cutlets
5 to 7 min. Place unwrapped meat in cooking dish.
per lb. Turn over after half the time and shield
warm areas with foil. When finished,
separate pieces and let stand to complete
defrosting.
Poultry
Chicken, broiler-fryer
15 to 19 min. Place wrapped chicken in dish. Unwrap
cut up
(21⁄2to 3 lbs.) and turn over after half the time. When
finished, separate pieces and microwave
2 to 4 minutes more, if necessary.
Let stand to finish defrosting.
Chicken, whole
17 to 21 min. Place wrapped chicken in dish. After half
(21⁄2to 3 lbs.) the time, unwrap and turn chicken over.
Shield warm areas with foil. Finish
defrosting. If necessary, run cold water in
the cavity until giblets can be removed.
Cornish hen
7 to 13 min. Place unwrapped hen in the oven breast-
per lb. side-up. Turn over after half the time.
Run cool water in the cavity until giblets
can be removed.
Turkey breast
(4 to 6 lbs.) 5 to 9 min. Place unwrapped breast in dish breast-
per lb. side-down. After half the time, turn over
and shield warm areas with foil. Finish
defrosting. Let stand 1 to 2 hours in
refrigerator to complete defrosting.
19
49-40194v04 4/19/01 11:53 AM Page 19
Operating Instructions
Time Features
You can use this feature
two ways:
•It will add 30 seconds to
the time counting down
each time the pad is
pressed.
•It can be used as a quick
way to set 30 seconds of
cooking time.
Add 30 Seconds
This is a quick way to set
cooking time for 1–6 minutes.
Press one of the Express
Cook pads (from 1 to 6)
for 1 to 6 minutes of
cooking at power level 10.
For example, press the
2 pad for 2 minutes of
cooking time.
The power level can be
changed as time is
counting down. Press
POWER LEVEL and
enter 1–10.
Express Cook
20
49-40194v04 4/19/01 11:53 AM Page 20
21

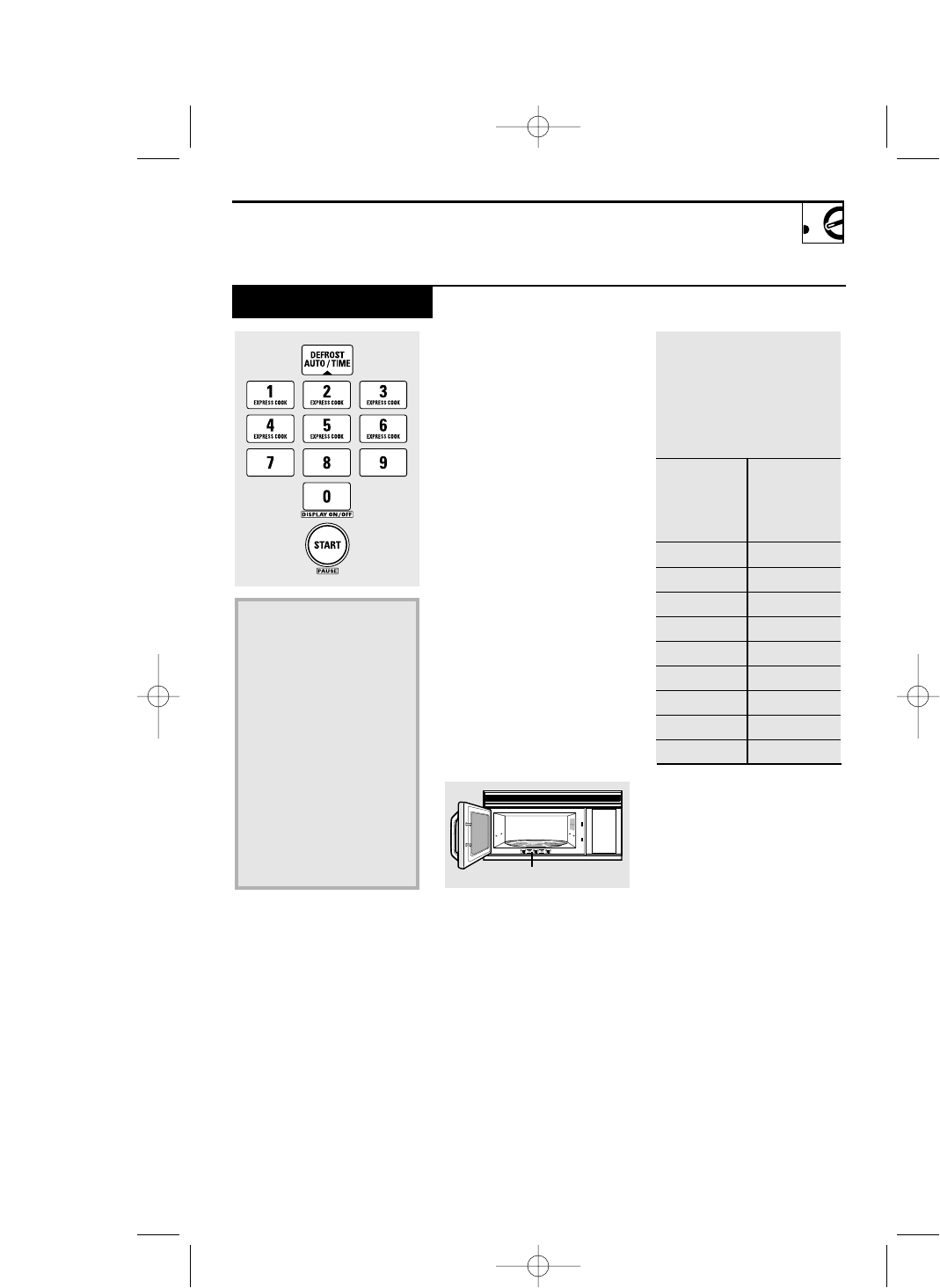

Auto Defrost
The Defrost Auto/Time
feature gives you two ways
to defrost frozen foods.
Press DEFROST
AUTO/TIME once for
Auto Defrost or twice for
Time Defrost.
Use Auto Defrost for meat,
poultry and fish up to
6 pounds. Use Time
Defrost for most other
frozen foods.
Auto Defrost automatically
sets the defrosting times
and power levels to give
even defrosting results for
meats, poultry and fish.
There is a handy guide
located on the inside front
of the oven.
•Remove meat from
package and place on
microwave-safe dish.
•Twice during defrost,
the oven signals TURN.
At each TURN signal,
turn the food over.
Remove defrosted meat
or shield warm areas with
small pieces of foil.
•After defrosting, most
meats need to stand
5 minutes to complete
defrosting. Large roasts
should stand for about
30 minutes.
Conversion Guide
If the weight of food is
stated in pounds and
ounces, the ounces must
be converted to tenths
(.1) of a pound.
Weight of Enter Food
Food in Weight
Ounces (tenths of
a pound)
1–2 .1
3.2
4–5 .3
6–7 .4
8.5
9–10 .6
11 .7
12–13 .8
14–15 .9
1 Press DEFROST
AUTO/TIME once.
2 Using the Conversion
Guide at right, enter
food weight. For
example, press pads 1
and 2 for 1.2 pounds
(1 pound, 3 ounces).
3 Press START.
(Time Defrost is
explained in the Time
Features section.)
Guide
49-40194v04 4/19/01 11:53 AM Page 21

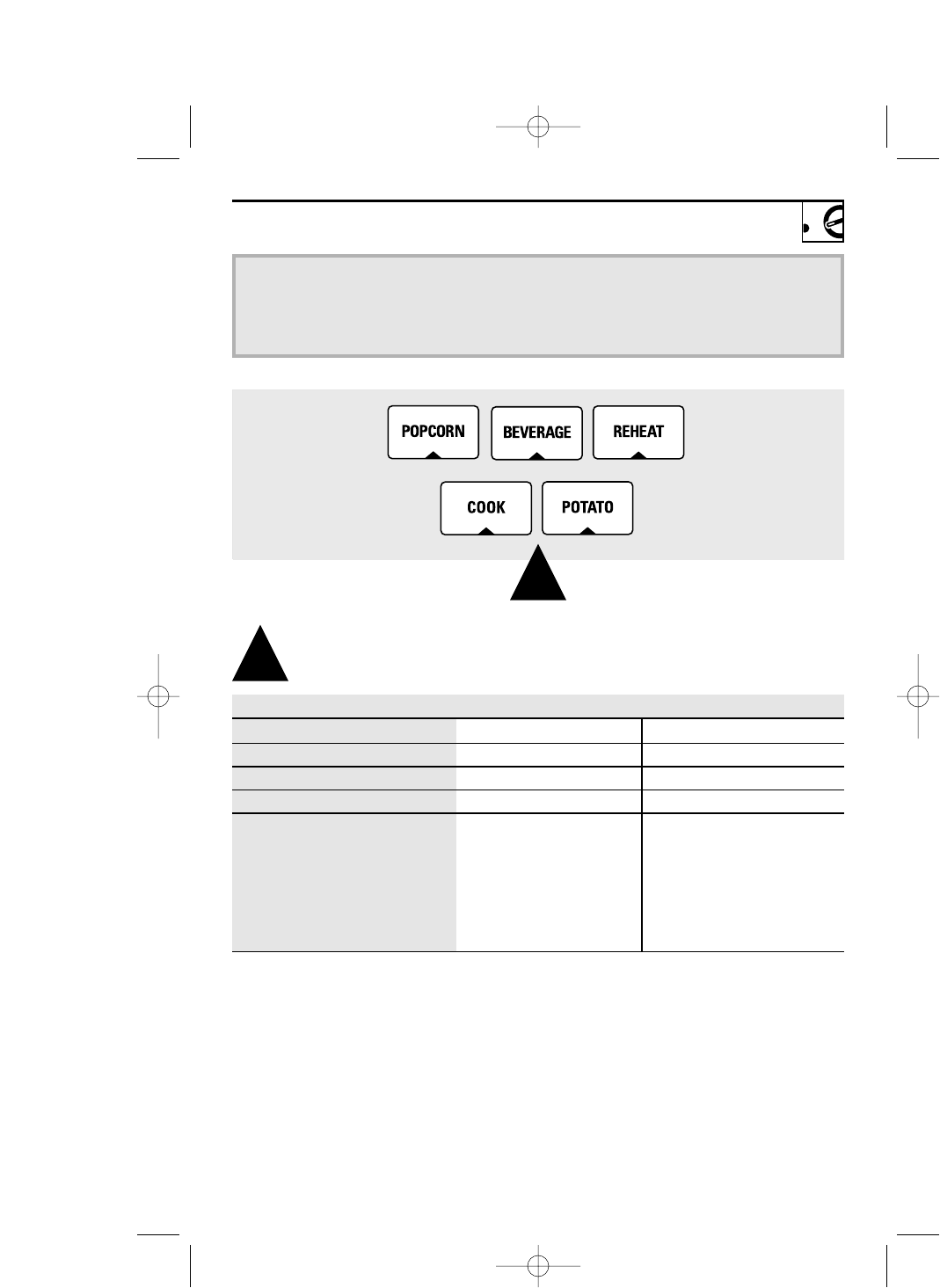

Operating Instructions
Sensor Features
22
•The proper containers
and covers are essential
for best sensor cooking.
•Always use microwave-
safe containers and cover
them with lids or vented
plastic wrap. Never use
tight sealing plastic
containers—they can
prevent steam from
escaping and cause
food to overcook.
•Be sure the outside of
the cooking containers
and the inside of the
microwave oven are dry
before placing food in
the oven. Beads of
moisture turning into
steam can mislead the
sensor.
What happens when
using the Sensor
Features…
The Sensor Features
detect the increasing
humidity released
during cooking. The
oven automatically
adjusts the cooking
time to various types
and amounts of food.
Humidity Sensor
Dry off dishes so they don’t
mislead the sensor.
Vented
Covered
49-40194v04 4/19/01 11:53 AM Page 22
23

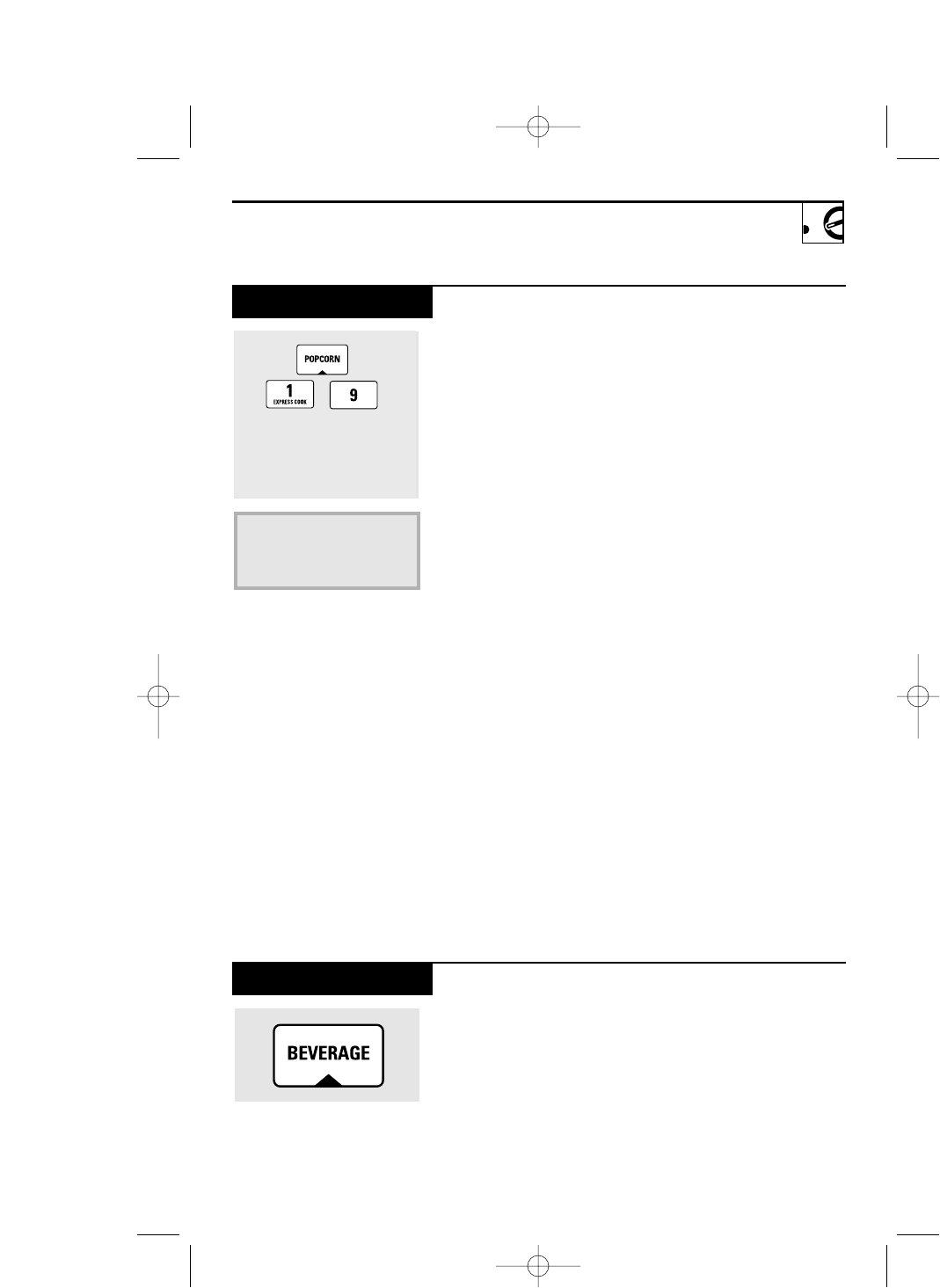

How to Use the Popcorn
Feature
1
Follow package
instructions, using Time
Cook if the package is
less than 1.75 ounces or
larger than 3.5 ounces.
Place the package of
popcorn in the center
of the microwave.
2
Press POPCORN. The
oven starts immediately.
If you open the door while
“POPCORN” is displayed,
“SENSOR ERROR” will
appear. Close the door,
press CLEAR/OFF and
begin again.
How to Adjust the Popcorn
Program to Provide a Shorter
or Longer Cook Time
If you find that the brand of
popcorn you use underpops
or overcooks consistently,
you can add or subtract
20–30 seconds to the
automatic popping time.
To add time:
After pressing POPCORN,
press 9 immediately after
the oven starts for an extra
20 seconds.
Press 9 again to add another
10 seconds (total 30 seconds
additional time).
To subtract time:
After pressing POPCORN,
press 1 immediately after the
oven starts for 20 seconds
less cooking time.
Press 1 again to reduce
cooking time another
10 seconds (total 30 seconds
less time).
NOTE: Do not use the
metal shelf when cooking
popcorn.
(less time) (more time)
Use only with prepackaged
microwave popcorn weighing
1.75 to 3.5 ounces.
Popcorn
Press BEVERAGE to heat a
cup of coffee or other
beverage.
Drinks heated with the
Beverage feature may be
very hot. Remove the
container with care.
Beverage
49-40194v04 4/19/01 11:53 AM Page 23

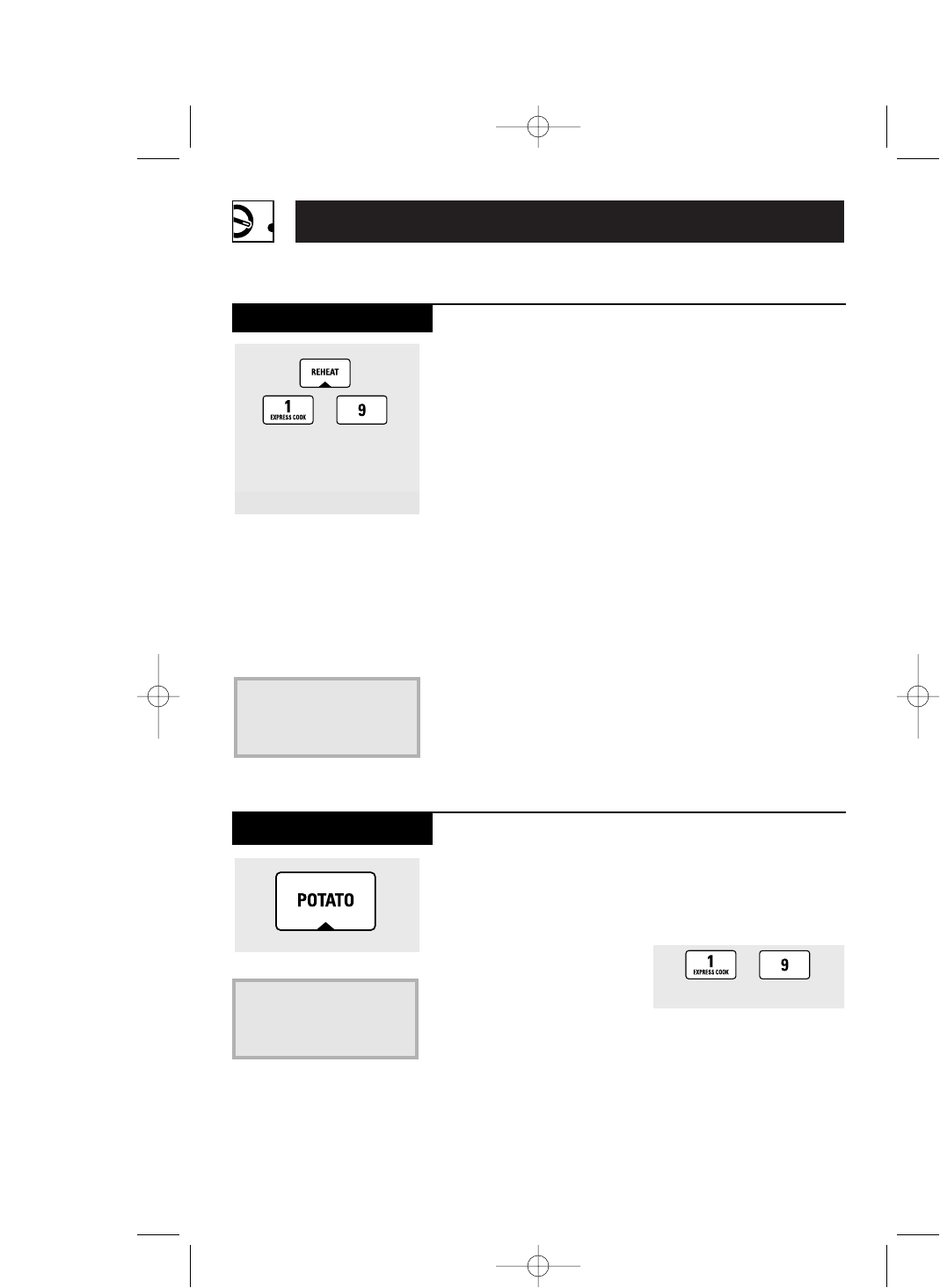

Operating Instructions
Sensor Features
How to Change the
Automatic Settings
Reduce time by 10%:
Press
1
after the feature pad.
Add 10% to cooking time:
Press
9
after the feature pad.
How to Use the Reheat
Feature
1
Place covered food in
the oven. Press
REHEAT. The oven
starts immediately.
2
The oven signals when
steam is sensed and the
time remaining begins
counting down.
Do not open the oven door
until time is counting
down. If the door is
opened, close it and press
START immediately.
After removing food from the
oven, stir, if possible, to even
out the temperature. If food
is not hot enough, use Time
Cook to reheat for more time.
Reheated foods may have
wide variations in
temperature. Some areas
may be extremely hot.
Some Foods Not
Recommended For Use
With Reheat
It is best to use Time Cook
for these foods:
•Bread products.
•Foods that must be
reheated uncovered.
•Foods that need to be
stirred or rotated.
•Foods calling for a dry
look or crisp surface
after reheating.
NOTE: Do not use the
metal shelf when using
the Reheat feature.
Reheat
(less time) (more time)
For reheating single servings of
previously cooked foods or a
plate of leftovers.
1
Pierce potato skin with
fork and place potato in
the oven.
2
Press POTATO. The
oven starts immediately.
3
The oven signals when
steam is sensed and time
remaining is counting
down. Turn or stir the
food if necessary.
Do not open the oven door
until time is counting
down. If the door is
opened, close it and press
START immediately.
NOTE:
If the food is not
done enough, use Time
Cook to cook for more
time.
How to Change the
Automatic Settings
You can adjust the cooking
time for all foods to suit
your personal taste.
Reduce time by 10%:
Press
1
after the food pad.
Add 10% to cooking time:
Press
9
after the food pad.
Potato
NOTE: Do not use the
metal shelf with Sensor
Cooking.
24
(less time) (more time)
49-40194v04 4/19/01 11:53 AM Page 24

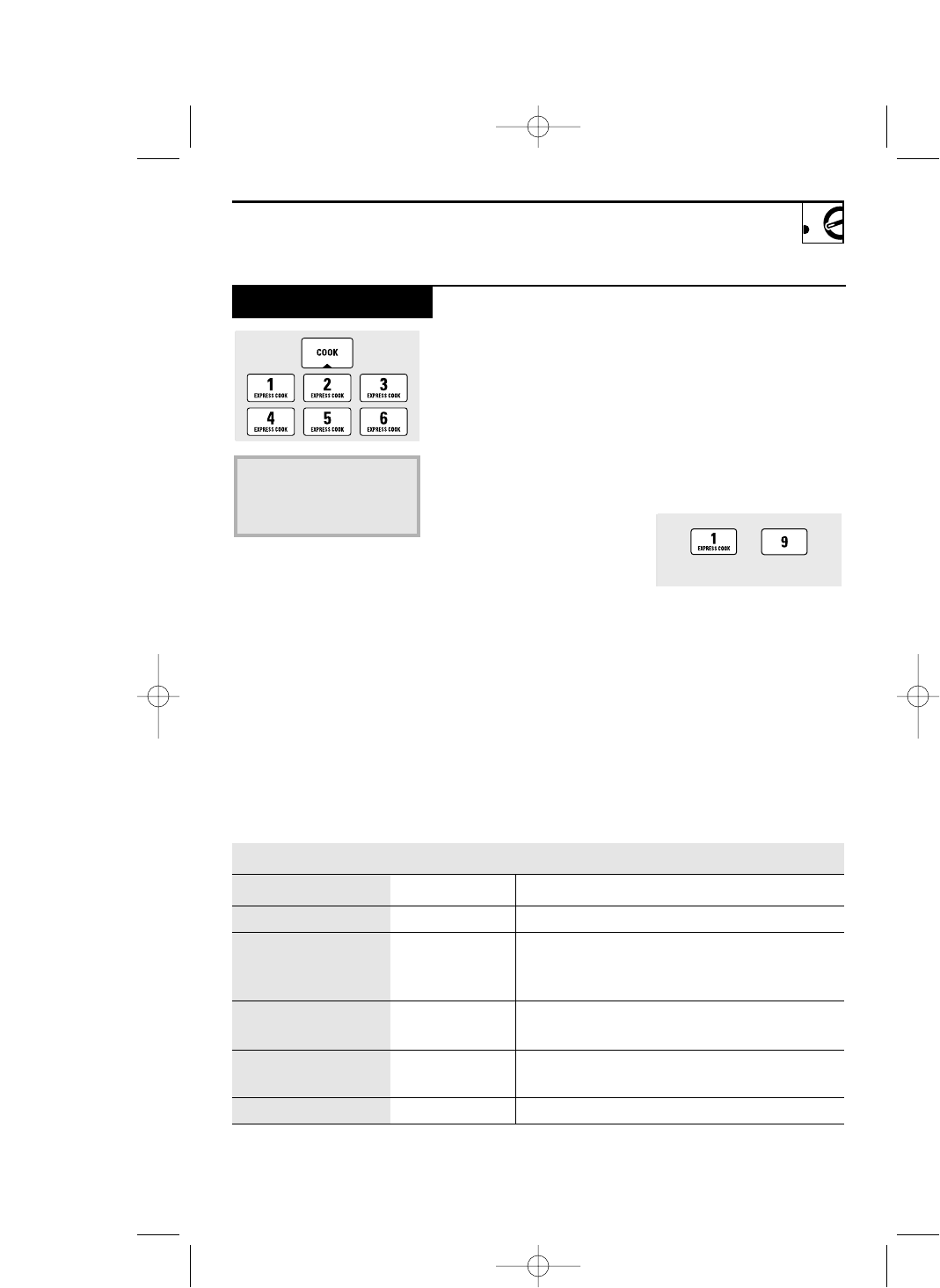

Sensor Cooking gives you
easy, automatic results with
a variety of foods.
1
Place covered food in
the oven.
2
Press the COOK pad.
3
Select food type 1–6
(see the Cooking Guide
below). The oven starts
immediately.
4
The oven signals when
steam is sensed and time
remaining is counting
down. Turn or stir the
food if necessary.
Do not open the oven door
until time is counting
down. If the door is
opened, close it and press
START immediately.
NOTE:
If the food is not
done enough, use Time
Cook to cook for more time.
How to Change the
Automatic Settings
(automatic settings for
canned vegetables cannot
be adjusted on some models)
You can adjust the cooking
time for all foods to suit
your personal taste.
To reduce time by 10%:
Press
1
after the food pad.
To add 10% to cooking time:
Press
9
after the food pad.
NOTE: Do not use the
metal shelf with Sensor
Cooking.
Sensor Cooking
1. Chicken Pieces
–8 piecesCover with vented plastic wrap.
2. Fish
4–16 oz. Cover with vented plastic wrap.
3. Ground Meats
1/2 – lbs.Use round casserole dish. Crumble meat into
(Beef, Pork, Turkey)
dish. Cover with lid or vented plastic wrap.
Drain and stir at signal.
4. Fresh Vegetables
4–16 oz. Add 1/4 cup water per serving.
Cover with lid or vented plastic wrap.
5. Frozen Vegetables
4–16 oz. Follow package instructions for adding water.
Cover with lid or vented plastic wrap.
6. Canned Vegetables
4–16 oz. Cover with lid or vented plastic wrap.
Food Type Amount Comments
Cooking Guide
(less time) (more time)
25
49-40194v04 4/19/01 11:53 AM Page 25
2
2

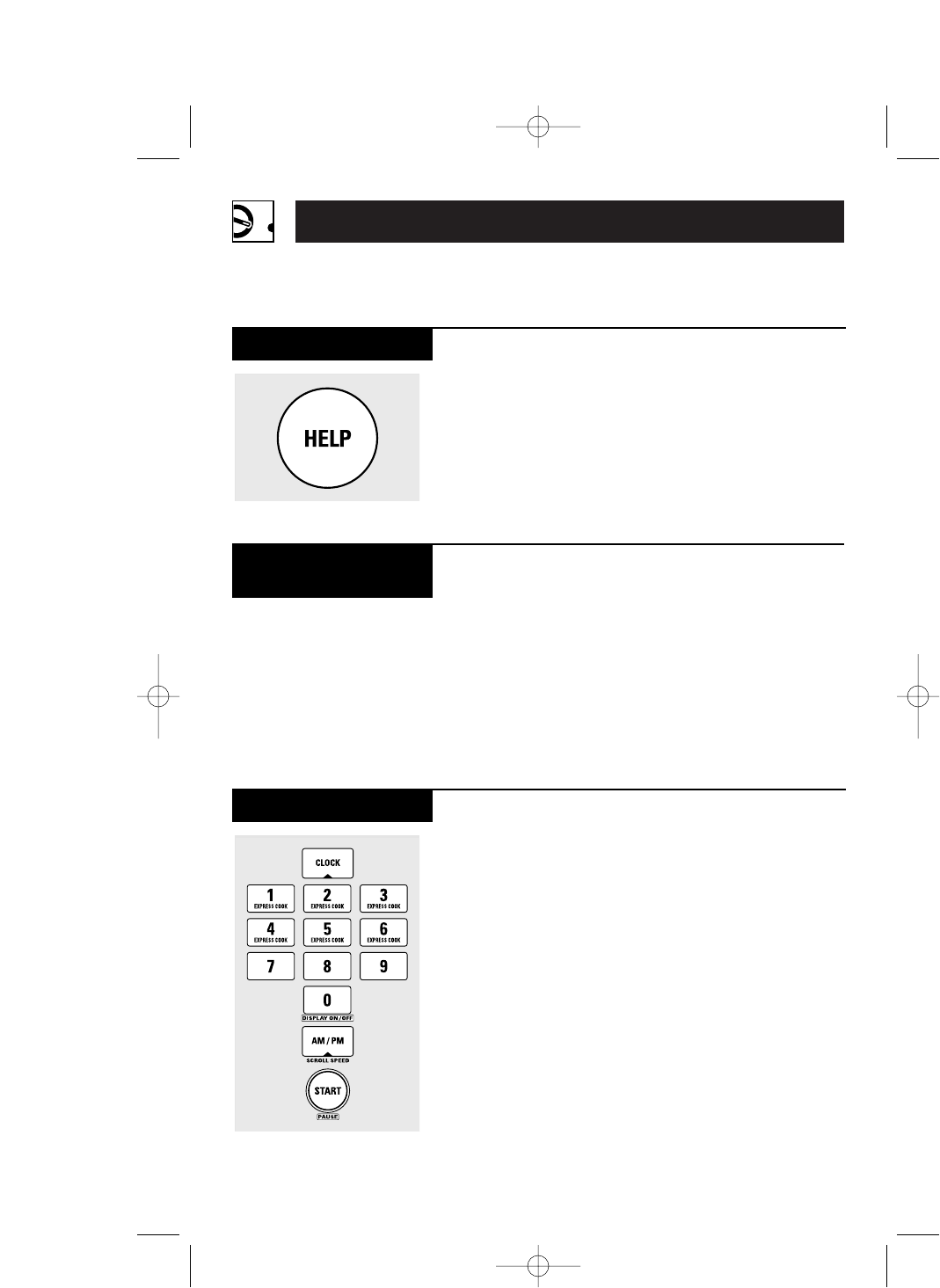

Operating Instructions
Other Features Your Model May Have
The HELP pad displays
feature information and
helpful hints. Press HELP,
then select a feature pad.
Help
To remind you that you
have food in the oven, the
oven will display “FOOD IS
READY” and beep once a
minute until you either
open the oven door or
press CLEAR/OFF.
Cooking Complete
Reminder
Press to enter the time of
day or to check the time of
day while microwaving.
1
Press CLOCK.
2
Enter time of day.
3
Select AM or PM.
4
Press START or CLOCK.
Clock
26
49-40194v04 4/19/01 11:53 AM Page 26

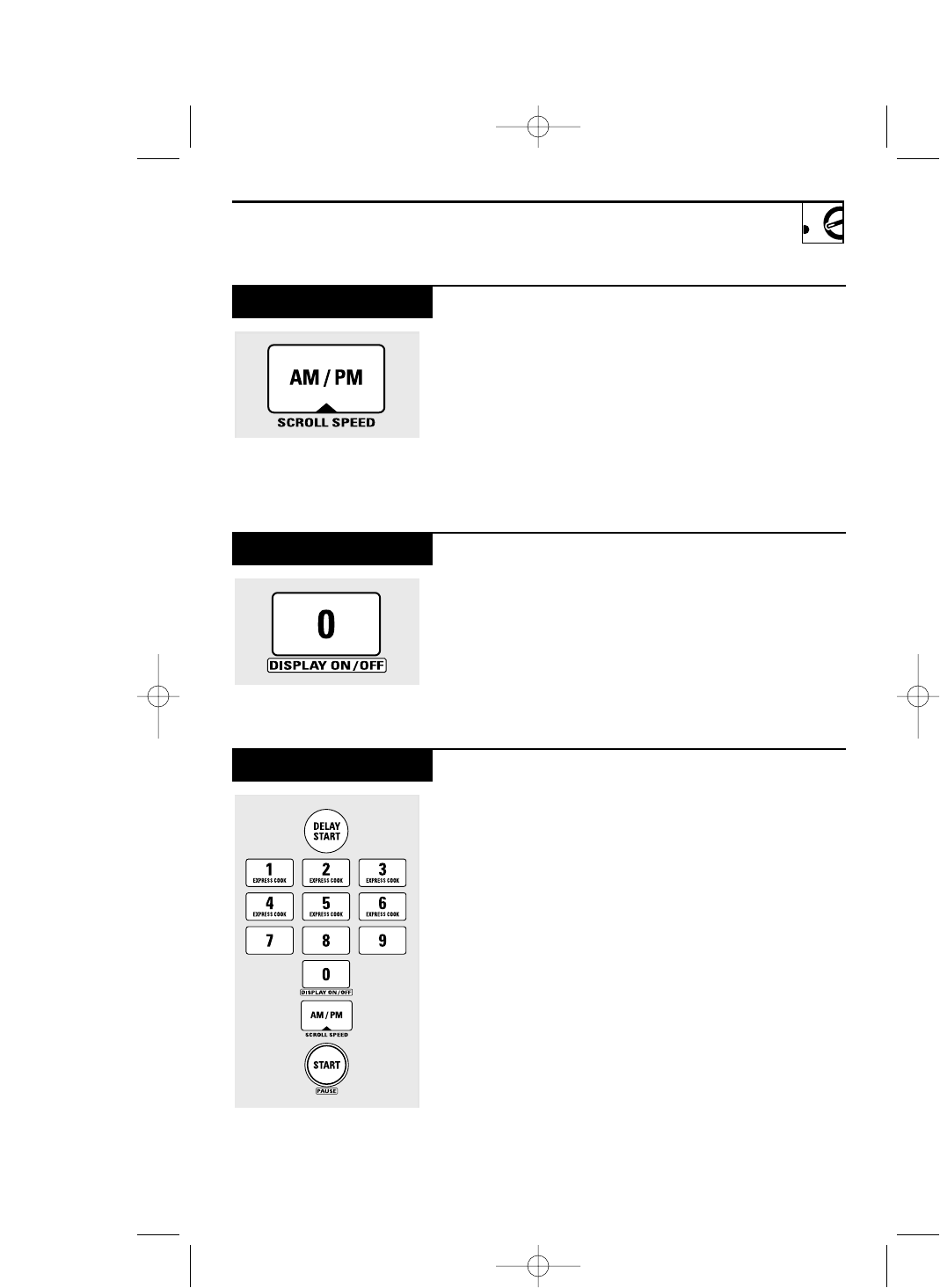

The scroll speed of the
display can be changed.
Press and hold the AM/PM
pad about 3 seconds to
bring up the display.
Select 1–5 for slow to
fast scroll speed.
Scroll Speed
To turn the clock display
off, press and hold 0 for
about three seconds.
To redisplay the clock,
repeat.
Display On/Off
Delay Start allows you to set
the microwave to delay
cooking up to 24 hours.
1
Press DELAY START.
2
Enter the time you want
the oven to start. (Be sure
the microwave clock
shows the correct time
of day.)
3
Select AM or PM.
4
Select any combination
of Defrost Auto/Time
or Time Cook I & II.
5
Press START.
The Delay Start time will
be displayed plus “DS.”
The oven will automatically
start at the delayed time.
The time of day may be
displayed by pressing
CLOCK.
Delay Start
27
49-40194v04 4/19/01 11:53 AM Page 27

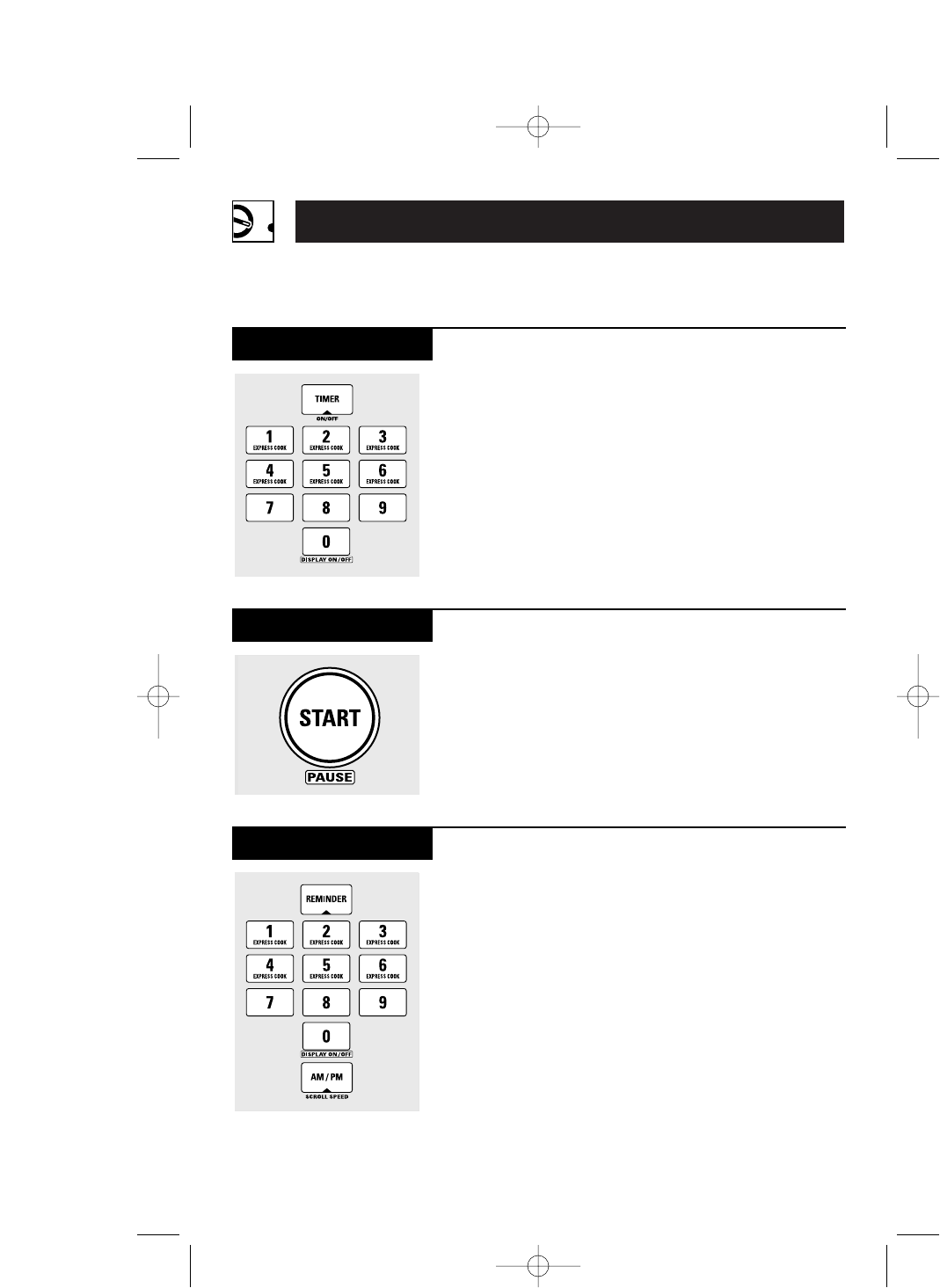

Operating Instructions
Other Features Your Model May Have
In addition to starting
many functions,
START/PAUSE allows you
to stop cooking without
opening the door or
clearing the display.
Start/Pause
The Reminder feature can
be used like an alarm clock
and can be used at any
time, even when the oven
is operating. The
Reminder time can be set
up to 24 hours later.
1
Press REMINDER.
2
Enter the time you want
the oven to remind you.
(Be sure the microwave
clock shows the correct
time of day.)
3
Select AM or PM.
4
Press REMINDER. When
Reminder signal occurs,
press REMINDER to turn
it off. The Reminder
time may be displayed by
pressing REMINDER.
NOTE:
The REM indicator
will remain lit to show that
the Reminder is set. To
clear the Reminder before
it occurs, press REMINDER,
then 0. The REM indicator
will no longer be lit.
Reminder
Timer On/Off operates as
a minute timer and can be
used at any time, even
when the oven is operating.
1
Press TIMER ON/OFF.
2
Enter time you want to
count down.
3
Press TIMER ON/OFF
to start.
When time is up, the oven
will signal. To turn off the
timer signal, press TIMER
ON/OFF.
NOTE:
The timer indicator
will be lit while the timer
is operating.
Timer On/Off
28
49-40194v04 4/19/01 11:53 AM Page 28

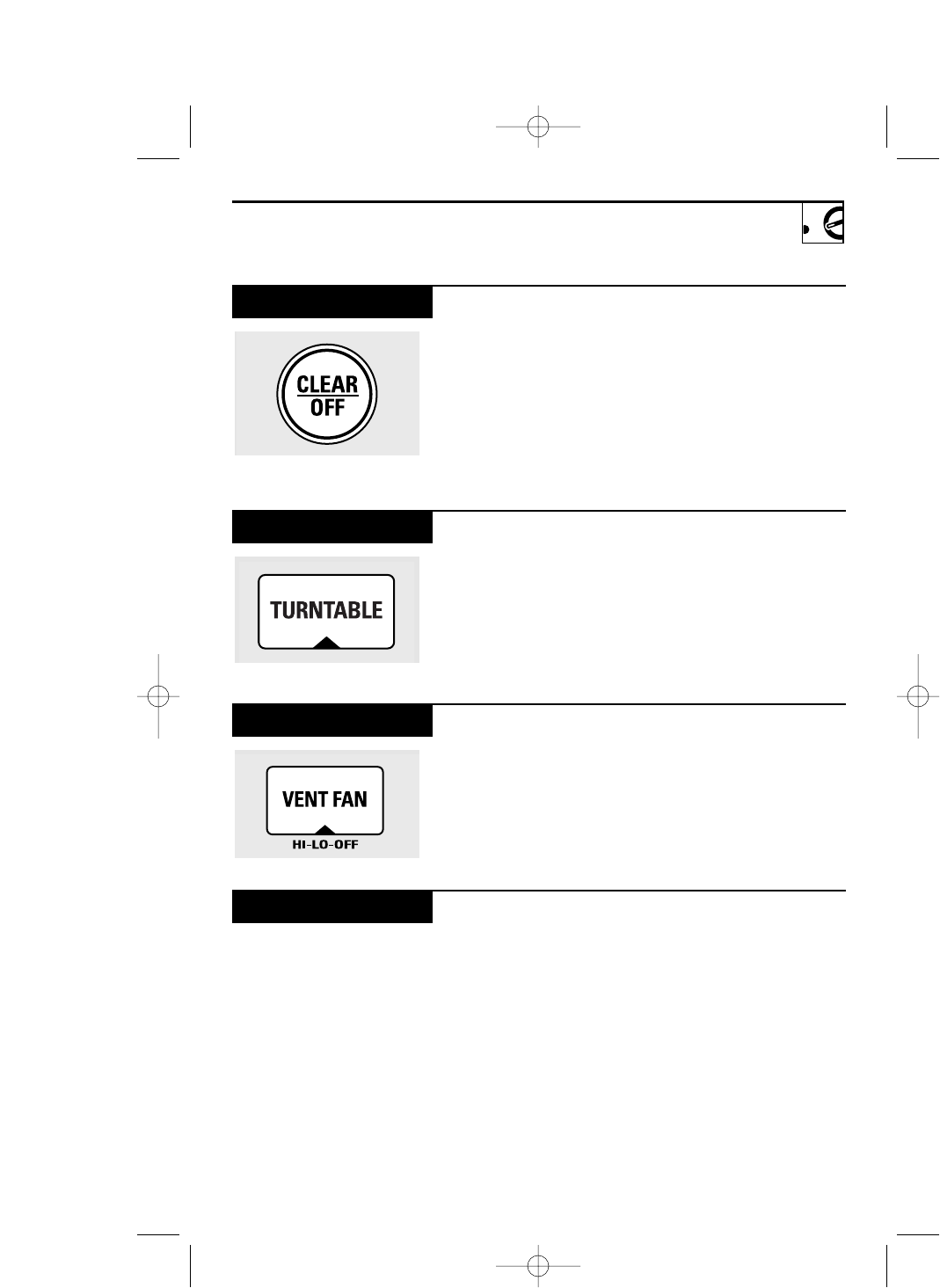

The vent fan removes
steam and other vapors
from surface cooking.
Press VENT FAN once for
high fan speed, twice for
low fan speed or a third
time to turn the fan off.
Vent Fan
You may lock the control
panel to prevent the
microwave from being
accidentally started or used
by children.
To lock or unlock the
controls, press and hold
CLEAR/OFF for about
three seconds. When the
control panel is locked,
an “L” will be displayed to
the extreme right.
Child Lock-Out
An automatic fan feature
protects the microwave
from too much heat rising
from the cooktop below it.
It automatically turns on if
it senses too much heat.
If you have turned the fan
on you may find that you
cannot turn it off. The fan
will automatically turn off
when the internal parts are
cool. It may stay on for
30 minutes or more after
the cooktop and microwave
controls are turned off.
Automatic Fan
For best cooking results,
leave the turntable on.
It can be turned off for
large dishes. Press
TURNTABLE to turn
the turntable on or off.
Sometimes the turntable
can become too hot to
touch. Be careful touching
the turntable during and
after cooking.
Turntable
29
49-40194v04 4/19/01 11:53 AM Page 29

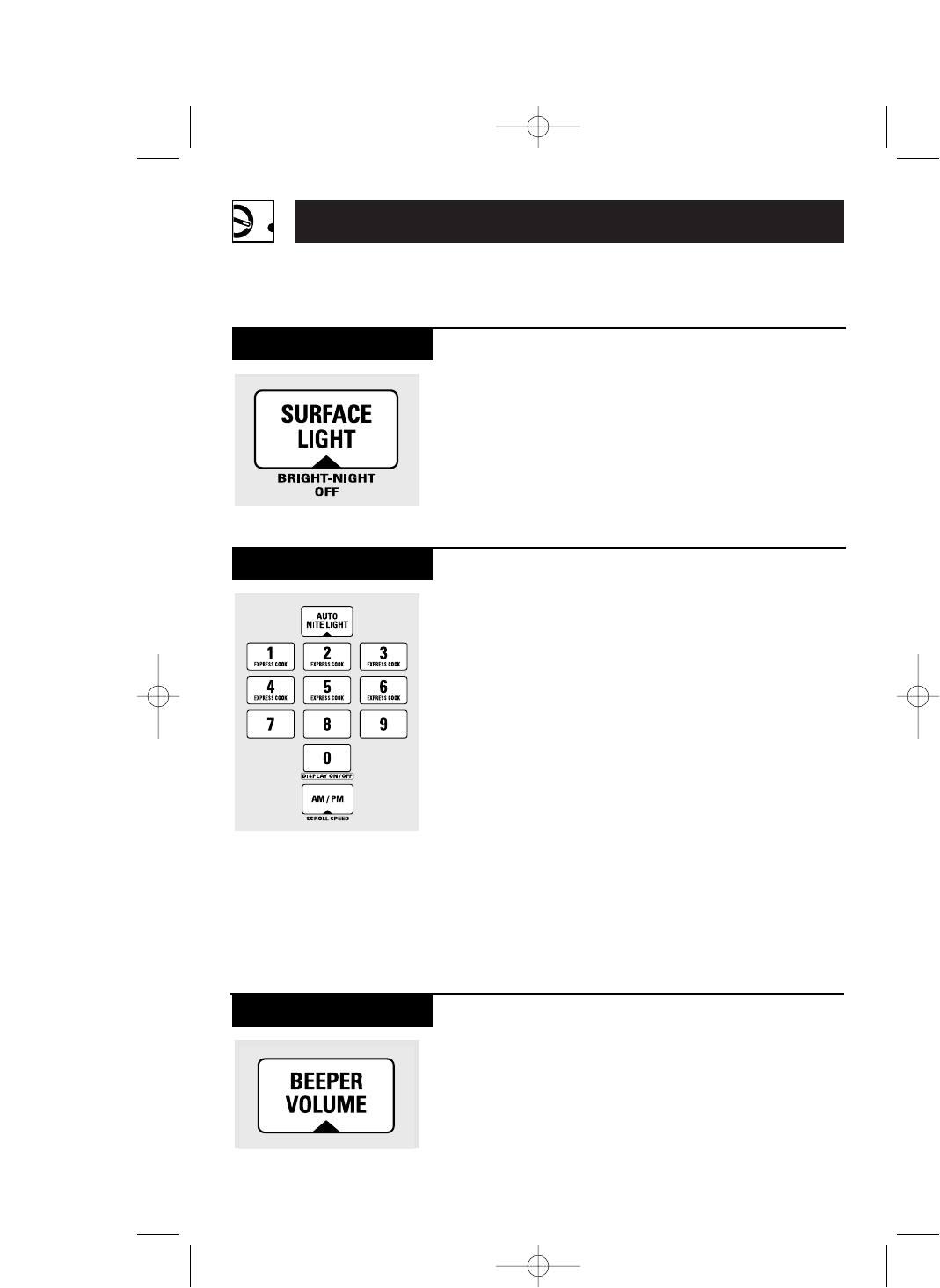

Operating Instructions
Other Features Your Model May Have
Press to turn the surface
light on or off.
On some models, there is
a night light option.
Press SURFACE LIGHT
once for bright light, twice
for the night light or three
times to turn the light off.
Surface Light
You can set the night
light to turn on and off
automatically at any time
you want.
1
Press AUTO NITE
LIGHT.
2
Enter the time you want
the light to turn on.
Select AM or PM.
3
Press AUTO NITE
LIGHT again and enter
the time you want the
light to turn off. Select
AM or PM.
4
Press AUTO NITE
LIGHT.
NITE will stay lit to remind
you that the feature is set.
You can review the Auto
Nite Light settings by
pressing AUTO NITE
LIGHT.
To erase your settings
and turn off the automatic
feature, press AUTO NITE
LIGHT, then 0.
Auto Nite Light
30
The beeper sound level
can be adjusted. Press
BEEPER VOLUME.
Choose 0–3 for mute to
loud.
Beeper Volume
49-40194v04 4/19/01 11:53 AM Page 30
31

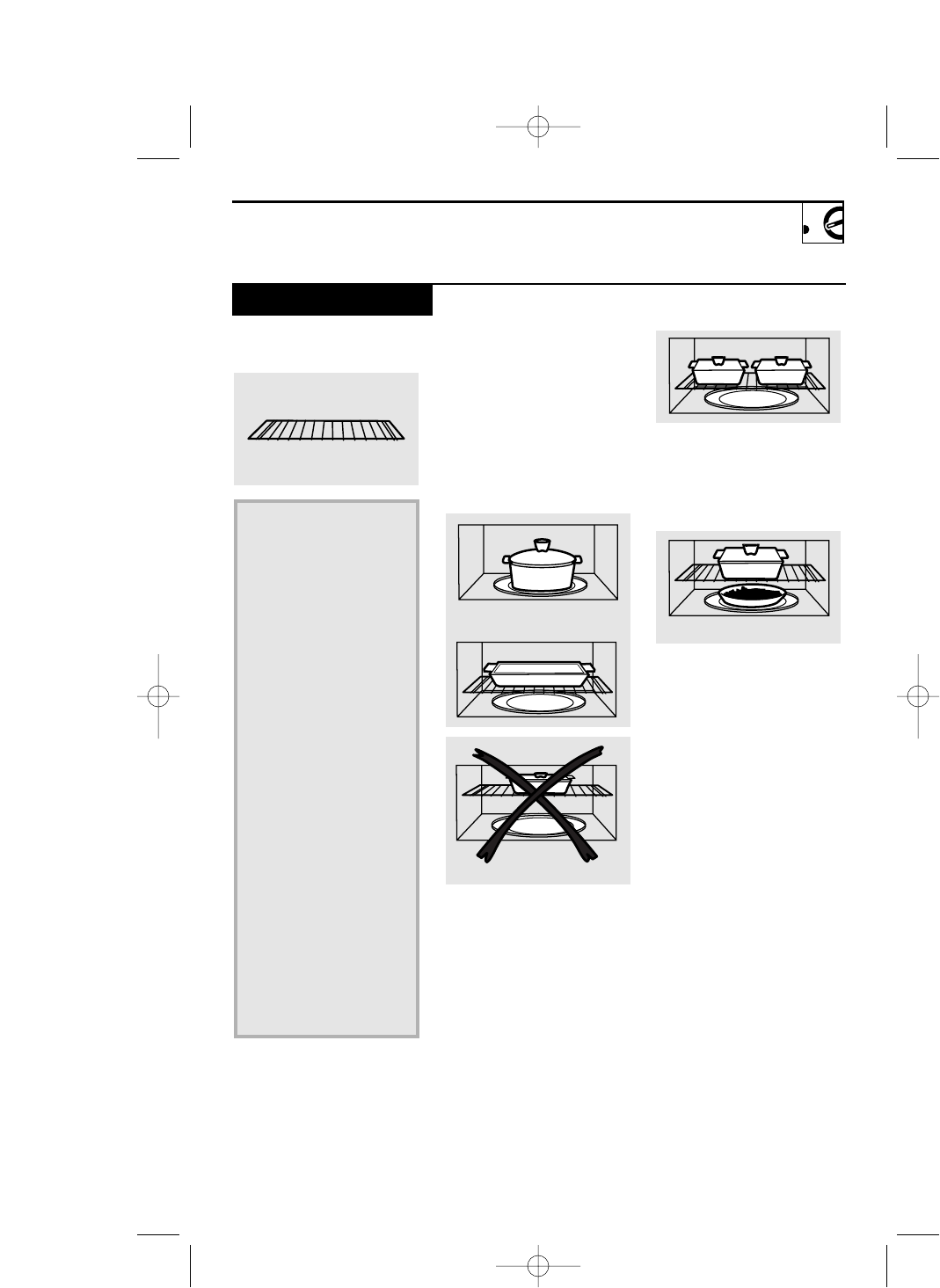

How to Use the Shelf
When Microwaving
Food microwaves best
when placed on the
turntable or on the shelf
in the lower position.
For best cooking results,
remove the shelf unless you
are reheating on more than
one level.
The shelf gives you the
option to reheat more
than one dish of food at
the same time.
•Make sure the shelf is
positioned properly
inside the microwave
to prevent damage to
the oven from arcing.
•Do not use a microwave
browning dish on the
shelf. The shelf could
overheat.
•Do not use the oven
with the shelf on the
microwave floor. This
could damage the
microwave.
•Use pot holders when
handling the shelf—
it may be hot.
•Do not use the shelf
when cooking
popcorn.
•Do not use the shelf
with Sensor Cooking
or Reheat.
For best results
Uneven results
2-level reheating
Shelf
49-40194v04 4/19/01 11:53 AM Page 31
32
•To reheat on 2 levels
or
•To reheat 2 dishes on the
lower level:
1
Multiply reheat time
by 11
/2.
2
Switch places after 1/2
the time.
•To reheat on 3 levels
1
Double the reheating
time.
2
Switch places twice and
give the dishes a 1/2 turn
during reheating. (Place
dense foods, or those
that require a longer
cook time, on the upper
shelf first.)
Switch places after 1/2 time.
Switch places after 1/2 time.
Operating Instructions
Other Features Your Model May Have
Shelf and Reheating
Switch places twice
49-40194v04 4/19/01 11:53 AM Page 32
33
Arcing
Arcing is the microwave term for sparks in the oven. Arcing is
caused by:
•the metal shelf being installed incorrectly and touching the
microwave walls.
•metal or foil touching the side of the oven.
•foil that is not molded to food (upturned edges act like
antennas).
•metal such as twist ties, poultry pins, gold-rimmed dishes.
•recycled paper towels containing small metal pieces.
Covering
Covers hold in moisture, allow for more even heating and reduce
cooking time. Venting plastic wrap or covering with wax paper
allows excess steam to escape.
Shielding
In a regular oven, you shield chicken breasts or baked foods to
prevent over-browning. When microwaving, you use small strips of
foil to shield thin parts, such as the tips of wings and legs on poultry,
which would cook before larger parts.
Standing Time
When you cook with regular ovens, foods such as roasts or cakes are
allowed to stand to finish cooking or to set. Standing time is
especially important in microwave cooking. Note that a microwaved
cake is not placed on a cooling rack.
Venting
After covering a dish with plastic wrap, you vent the plastic wrap by
turning back one corner so excess steam can escape.
Term Definition
Helpful Information
Microwave Terms
49-40194v04 4/19/01 11:53 AM Page 33
Helpful Information
Care and Cleaning
An occasional thorough
wiping with a solution of
baking soda and water
keeps the inside fresh.
NOTE: Be certain the power
is off before cleaning any
part of this oven.
Helpful Hints
Walls, Floor, Inside Window,
Metal and Plastic Parts on
the Door
Some spatters can be
removed with a paper
towel, others may require
a damp cloth. Remove
greasy spatters with a sudsy
cloth, then rinse with a
damp cloth. Do not use
abrasive cleaners or sharp
utensils on oven walls.
Never use a commercial
oven cleaner on any part
of your microwave.
Removable Turntable and
Turntable Support
To prevent breakage,
do not place the turntable
into water just after
cooking. Wash it carefully
in warm, sudsy water or in
the dishwasher. The
turntable and support
can be broken if dropped.
Remember, do not operate
the oven without the
turntable and support
in place.
Shelf
Clean with mild soap and
water or in the dishwasher.
Do not clean in a self-
cleaning oven.
How to Clean
the Inside
34
49-40194v04 4/19/01 11:53 AM Page 34
35

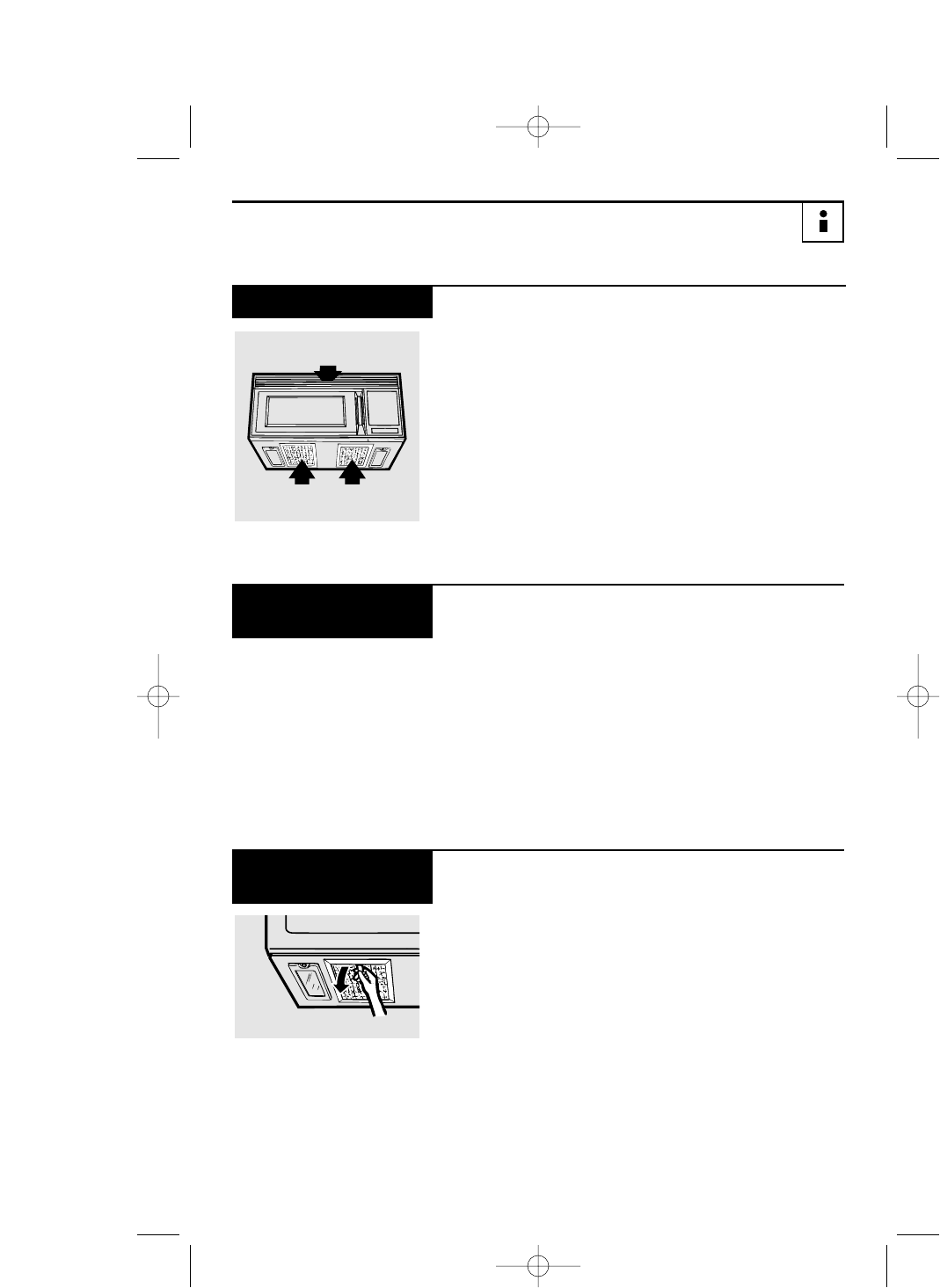

Case
Clean the outside of the
microwave with a sudsy
cloth. Rinse and then dry.
Wipe the window clean
with a damp cloth.
Control Panel and Door
Wipe with a damp cloth.
Dry thoroughly. Do not use
cleaning sprays, large
amounts of soap and
water, abrasives or sharp
objects on the panel—they
can damage it. Some paper
towels can also scratch the
control panel.
Door Surface
It’s important to keep the
area clean where the door
seals against the microwave.
Use only mild, non-abrasive
detergents applied with a
clean sponge or soft cloth.
Rinse well.
Bottom
Clean off the grease and
dust on the bottom often.
Use a solution of warm
water and detergent.
Do not use cleaners
containing ammonia
or alcohol on the
microwave oven.
Ammonia or alcohol can
damage the appearance
of the microwave.
How to Clean
the Outside
Do not use a steel-wool pad;
it will scratch the surface.
To clean stainless steel
surfaces, use a hot, damp
cloth with a mild detergent
suitable for stainless steel
surfaces. Use a clean, hot,
damp cloth to remove soap.
Dry with a dry, clean cloth.
If food soil remains, try a
general kitchen cleaner,
such as Fantastik®, Simple
Green®, or Formula 409®.
For hard-to-clean soil, use
a standard stainless steel
cleaner, such as Bon-Ami®
or Cameo®.
Apply cleaner with a damp
sponge. Use a clean, hot,
damp cloth to remove
cleaner. Dry with a dry,
clean cloth. Always scrub
lightly in the direction of
the grain.
After cleaning, use a
stainless steel polish, such
as Stainless Steel Magic®,
Revere Copper and
Stainless Steel Cleaner®,
or Wenol All Purpose
Metal Polish®. Follow the
product instructions for
cleaning the stainless steel
surface.
Stainless Steel
Surfaces
49-40194v04 4/19/01 11:53 AM Page 35
Helpful Information

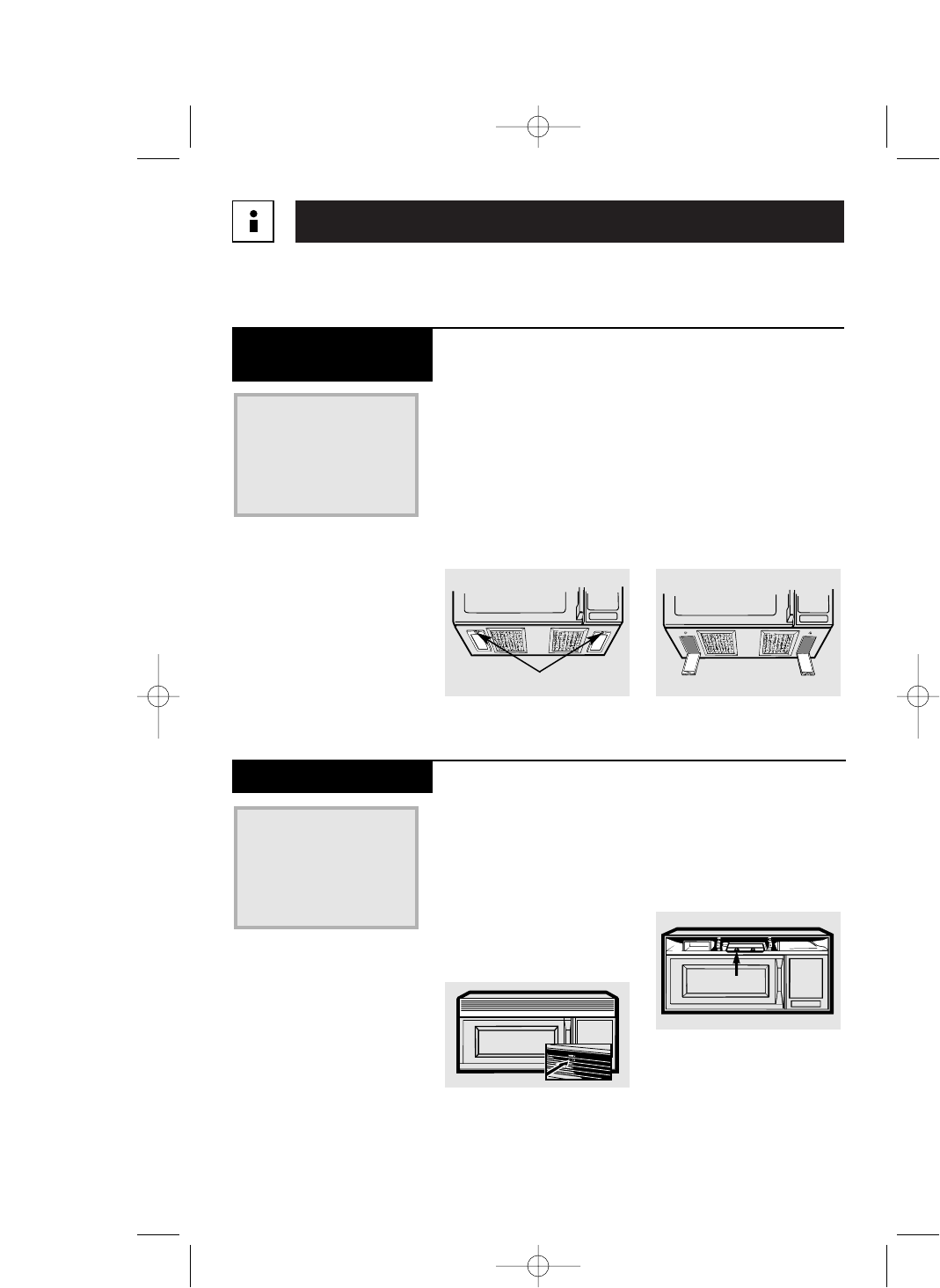

Light Bulb Replacement
1
To replace the bulb(s),
first disconnect the power
at the main fuse or circuit
breaker panel or pull the
plug.
2
Remove the screw at the
front of the light cover
and lower the cover.
3
Be sure the bulb(s) to be
replaced are cool before
removing. After breaking
the adhesive seal, remove
the bulb by gently turning.
4
Replace the screw.
Connect electrical power
to the oven.
Replace the burned-out
bulb with a 40-watt
incandescent bulb
(WB36X10003), available
from your GE supplier.
Cooktop Light/
Night Light
1
To replace the oven light,
first disconnect the power
at the main fuse or circuit
breaker panel or pull the
plug.
2
Remove the top grille by
taking out the 2 screws
that hold it in place.
3
Next, remove the screw
located above the door
near the center of the
oven that secures the
light housing.
4
Replace the screw.
Connect electrical power
to the oven.
Replace the burned-out
bulb with a 40-watt
incandescent bulb
(WB36X10003), available
from your GE supplier.
Oven Light
REMOVE SCREWS
36
49-40194v04 4/19/01 11:53 AM Page 36

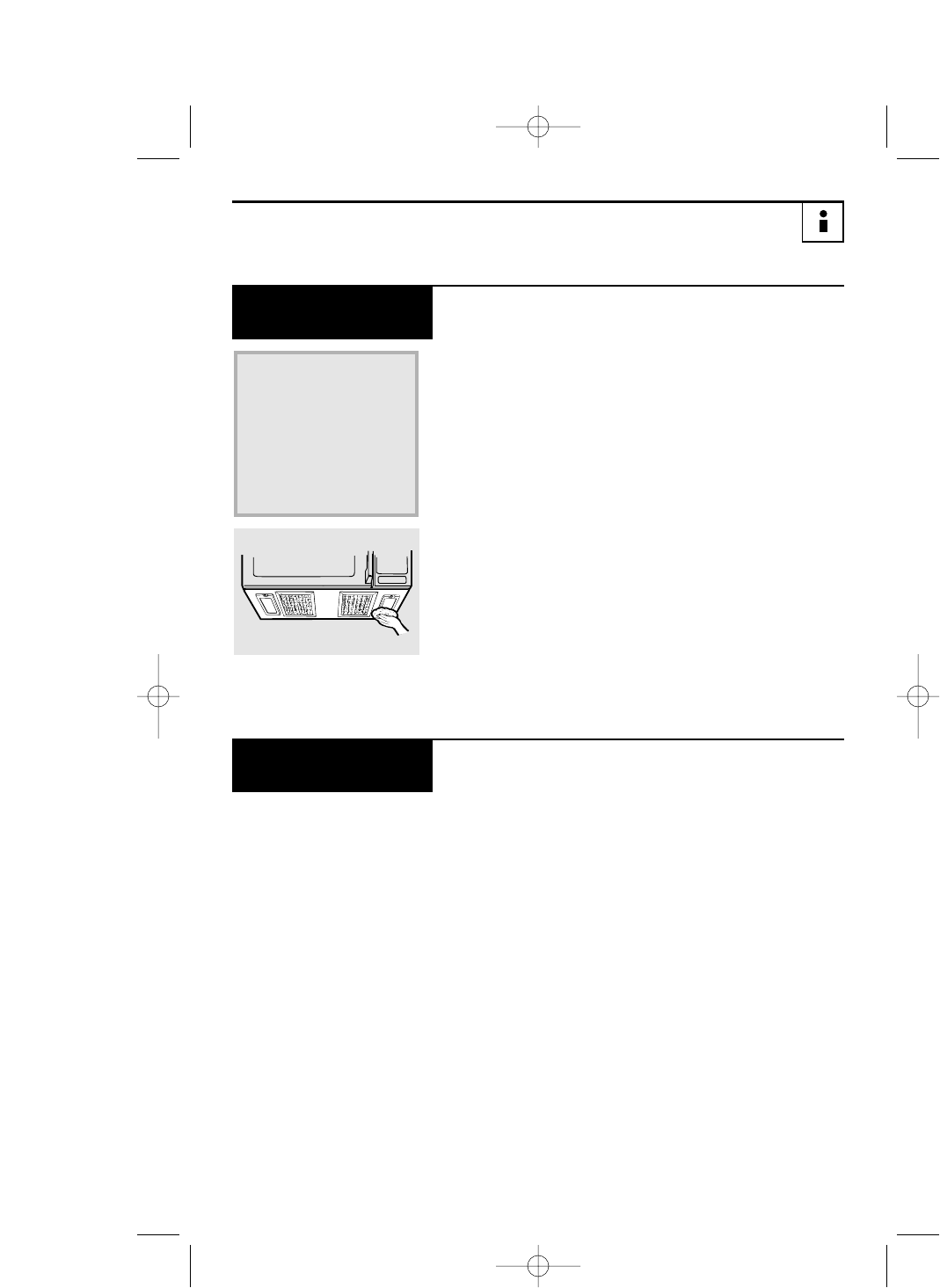

The Exhaust Feature
37
The vent fan has 2 metal
reusable grease filters.
Models that recirculate air
back into the room also use
a charcoal filter.
The Vent Fan
Charcoal Filter
(on some models)
Reusable Grease Filters
(on all models)
The metal filters trap
grease released by foods
on the cooktop. They also
prevent flames from foods
on the cooktop from
damaging the inside of
the microwave.
For this reason, the filters
must ALWAYS be in place
when the hood is used.
The grease filters should
be cleaned once a month,
or as needed.
Reusable Grease
Filters
To remove, slide it to the
rear using the tab. Pull it
down and out.
To clean the grease filter,
soak it and then swish it
around in hot water and
detergent. Don’t use
ammonia or ammonia
products because they will
darken the metal. Light
brushing can be used to
remove embedded dirt.
Rinse, shake and let it dry
before replacing.
To replace, slide the filter
in the frame slot on the
back of the opening. Pull
up and to the front to lock
into place.
Removing and
Cleaning the Filter
49-40194v04 4/19/01 11:53 AM Page 37

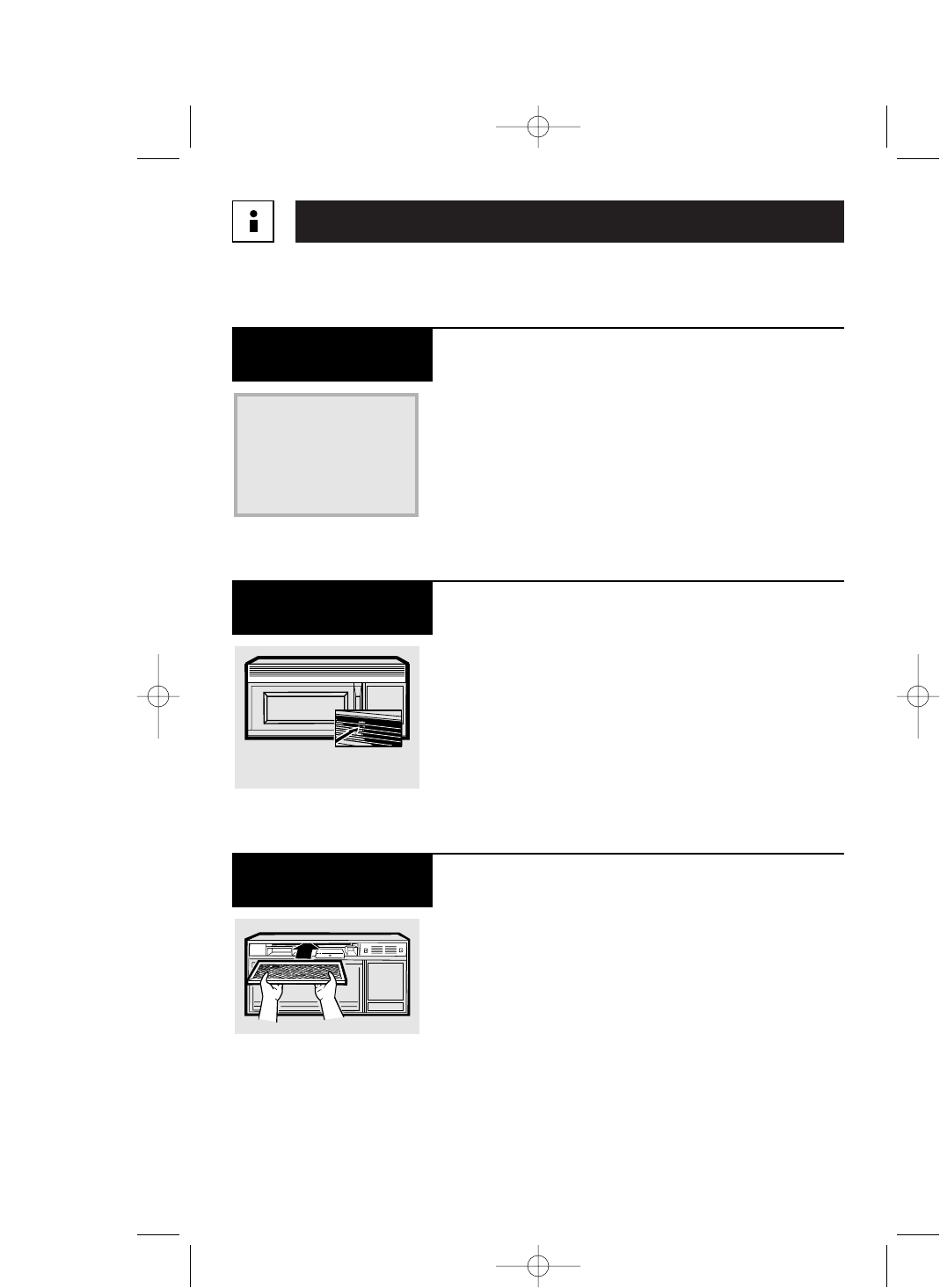

Helpful Information
The Exhaust Feature
38
If the model is not vented
to the outside, the air will
be recirculated through a
disposable charcoal filter
that helps remove smoke
and odors.
The charcoal filter should
be replaced when it is
noticeably dirty or dis-
colored (usually after 6 to
12 months, depending on
hood usage).
The charcoal filter
cannot be cleaned. It
must be replaced. Order
Part No. WB02X9883
from your GE supplier.
Charcoal Filter
(on some models)
To remove the charcoal
filter, disconnect power at
the main fuse or circuit
breaker panel or pull
the plug.
Remove the top grille by
removing the 2 screws that
hold it in place. Slide the
filter towards the front of
the oven and remove it.
To Remove
Charcoal Filter
Remove 2 grille screws to
remove the grille.
To install a new filter,
remove plastic and other
outer wrapping from the
new filter.
Insert the filter into the
top opening of the oven as
shown. It will rest at an
angle on 2 side support
tabs and in front of the
right rear tab. Replace
the grille and 2 screws.
To Install
Charcoal Filter
49-40194v04 4/19/01 11:53 AM Page 38
39
If Something Goes Wrong
Before You Call For Service
Oven will not
start
Floor of the oven is
warm, even when
the oven has not
been used
“LOCKED” appears
on display
You hear an
unusual, low-tone
beep
“SENSOR ERROR”
appears on display
Food amount too
large for Sensor
Reheat
Problem Possible Cause What to Do
A fuse in your home •Replace fuse or reset circuit breaker.
may be blown or the
circuit breaker tripped.
Power surge. •Unplug the microwave oven, then plug
it back in.
Plug not fully inserted •Make sure the 3-prong plug on the
into wall outlet. oven is fully inserted into wall outlet.
The cooktop light is •This is normal.
located below the oven
floor. When the light
is on, the heat it
produces may make the
oven floor get warm.
The control has been •Press and hold CLEAR/OFF for
locked. about 3 seconds to unlock the control.
You have tried to start
•Start over and enter a valid time
the Reminder without
of
day.
a valid time of day.
You have tried to start
•Start over and enter a valid time
the Auto Nite Light
of
day.
without a valid time of
day entered for the
on-time and off-time.
You have tried to change
•Many of the oven’s features are preset
the
power level when it is
and
cannot be changed.
not allowed.
When using a Sensor •Do not open door until steam is
feature, the door was sensed and time is shown counting
opened before steam down on display.
could
be detected.
Steam was not detected
•
Use Time Cook to heat for more time.
in maximum amount of
time.
Sensor Reheat is for •Use Time Cook for large amounts
single servings of of food.
recommended foods.
49-40194v04 4/19/01 11:53 AM Page 39
40
•Steam or vapor escaping
from around the door.
•Light reflection around
door or outer case.
•Dimming oven light and
change in the blower
sound at power levels
other than high.
•Dull thumping sound
while oven is operating.
•TV-radio interference
might be noticed while
using the microwave.
Similar to the interference
caused by other small
appliances, it does not
indicate a problem with
the microwave. Plug the
microwave into a different
electrical circuit, move the
radio or TV as far away
from the microwave as
possible, or check the
position and signal of
the TV/radio antenna.
Things That
Are Normal
If Something Goes Wrong
Before You Call For Service
49-40194v04 4/19/01 11:53 AM Page 40
Notes
41
49-40194v04 4/19/01 11:53 AM Page 41
42
GE Service Numbers
We’ll Be There!
www.GEAppliances.com
Have a question or need
assistance with your
appliance? Try the GE
Appliances Website 24
hours a day, any day of the
year!
For greater convenience and
faster service, you can now
download Owner’s Manuals,
order parts, catalogs, or even
schedule service on-line. You
can also “Ask Our Team of
Experts™” your questions,
and so much more...
GE Appliances
Website
www.GEAppliances.com
800.GE.CARES
(800.432.2737)
Expert GE repair service is
only one step away from
your door. Get on-line and
schedule your service at your
convenience 24 hours any
day of the year! Or call
800.GE.CARES
(800.432.2737) during
normal business hours.
Schedule Service
www.GEAppliances.com
800.TDD.GEAC
(800.833.4322)
GE supports the Universal
Design concept—products,
services and environments
that can be used by people
of all ages, sizes and
capabilities. We recognize
the need to design for a wide
range of physical and mental
abilities and impairments.
For details of GE’s Universal
Design applications,
including kitchen design
ideas for people with
disabilities, check out
our Website today. For
the hearing impaired,
please call 800.TDD.GEAC
(800.833.4322).
Real Life
Design Studio
www.GEAppliances.com
800.626.2224
Purchase a GE extended
warranty and learn about
special discounts that are
available while your warranty
is still in effect. You can
purchase it on-line anytime,
or call 800.626.2224 during
normal business hours.
GE Consumer Home
Services will still be there
after your warranty expires.
Extended Warranties
49-40194v04 4/19/01 11:53 AM Page 42
43
www.GEAppliances.com
800.626.2002
Individuals qualified
to service their own
appliances can have
parts or accessories sent
directly to their home.
(VISA, MasterCard and
Discover cards are
accepted.)
Order on-line today,
24 hours every day or
by phone at
800.626.2002
during normal business
hours.
Instructions contained
in this manual cover
procedures to be
performed by any user.
Other servicing generally
should be referred to
qualified service
personnel. Caution
must be exercised, since
improper servicing may
cause unsafe operation.
Parts and
Accessories
If for some reason you are
not happy with the service
you receive, here are steps
to follow for further help.
First,
contact the people
who serviced your
appliance. Explain why
you are not pleased.
Next,
if you are still not
pleased, write all the
details—including
your phone number—to:
Customer Relations
GE Appliances
Louisville, KY 40225
Contact Us
Register Your
Appliance
www.GEAppliances.com
Register your new
appliance on-line–
at your convenience!
Timely product
registration will allow for
enhanced communication
and prompt service under
the terms of your warranty,
should the need arise.
You may also mail in the
pre-printed registration
card included in the
packing material.
49-40194v04 4/19/01 11:53 AM Page 43
FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of charge,
parts and service labor in your home
to repair or replace any part of the
microwave oven that fails because of
a manufacturing defect.
LIMITED ADDITIONAL
NINE-YEAR WARRANTY
For the second through the tenth year
from the date of original purchase,
we will provide, free of charge, a
replacement magnetron tube if the
magnetron tube fails because of a
manufacturing defect. You pay for the
service trip to your home and service
labor charges.
************************************
This warranty is extended to the original
purchaser and any succeeding owner for
products purchased for ordinary home
use in the 48 mainland states, Hawaii and
Washington, D.C. In Alaska the warranty is
the same except that it is LIMITED because
you must pay to ship the product to the
service shop or for the service technician’s
travel costs to your home.
All warranty service will be provided by
our Factory Service Centers or by our
authorized Customer Care® servicers
during normal working hours.
Should your appliance need service,
during warranty period or beyond, call
800.GE.CARES (800.432.2737).
MICROWAVE OVEN
WARRANTY
What Is Covered
What Is Not Covered
Staple sales slip or cancelled check here. Proof of original
purchase date is needed to obtain service under warranty.
•Service trips to your home to teach
you how to use the product.
•
Improper installation.
If you have an installation problem, contact
your dealer or installer. You are responsible
for providing adequate electrical,
exhausting and other connecting facilities.
•Replacement of house fuses or resetting
of circuit breakers.
•Failure of the product if it is misused, or
used for other than the intended purpose
or used commercially.
•Damage to product caused by accident,
fire, floods or acts of God.
•Incidental or consequential damage
caused by possible defects with this
appliance.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state. To know what your
legal rights are in your state, consult your local or state consumer affairs office or your state’s
Attorney General.
Warrantor: General Electric Company, Louisville, KY 4022
5
Warrantor is not responsible for consequential damages.
Part No. 164D3370P180
Pub. No. 49-40194 JVM1653
Printed in Korea
04-01 JR
49-40194v04 4/19/01 11:53 AM Page 44

Navigation menu
