Digital Photo FrameUser manual800P 1000PThe images and screen shots used in this manual are from the 800P.ContentsSafety precautionsGet startedPlay multimediaBrowse and manage multimediaUse the Bluetooth wireless featureCustomize settingsAppendixIndex Read this manual thoroughly for proper use and maintenance instructions.Click
Instructional iconsBefore you start, familiarize yourself with the icons you will see in this manual:Caution - situations that could cause damage to your device or other equipmentNote - notes, usage tips, or additional informationContentsSafety precautions ............................. 3Get started .......................................... 6What’s in the box .....................................6Get to know your frame ...........................7Set up your frame ..................................10Connect the adapter and turn the power on ..................................10Customize basic settings .......................11Get to know the Main menu ...................12View the time and date ...........................13Connect external memory devices .........14Select a memory location .......................15Connect to a PC ....................................16Transfer files from a PC ..........................17Play multimedia ................................ 19Play a slideshow ....................................19Play videos .............................................24Play music .............................................26Browse and manage multimedia ..... 28Browse files ...........................................28Manage files ...........................................29Use the Bluetooth wireless feature . . 32Find and pair with other Bluetooth-enabled devices .....................32Get data using the Bluetooth wireless feature ...................................................33Use Bluetooth menus .............................34Information for using Bluetooth ..............35Customize settings ........................... 36Adjust slideshow effects .........................36Set the time and date .............................36Set and use alarms ................................37Customize general settings ....................39Customize Bluetooth settings .................40Update or reset the frame ......................41Appendix ........................................... 42Use as a PC mini-monitor ......................42Use the PhotoActiva program ................43Update Firmware ...................................44Troubleshooting .....................................45Specifications .........................................47Correct disposal of the frame .................48Contact information of Samsung Worldwide ..............................49Software License ...................................50Index ......................................................51©2009 SAMSUNG ELECTRONICS CO., LTD.It is strictly forbidden to copy or distribute the contents of this •manual without permission from SAMSUNG ELECTRONICS CO., LTDProduct specifications or contents of this manual may be •changed without prior notice due to upgrade of product functions.
3Do not overload wall outlets, extension cords, or •adaptors beyond their intended capacity, as this may result in fire or electrical shock.Route all power supply cords away from traffic areas •and other objects so that they are not likely to be stepped on or pinched by items placed on or against them. Ensure that wires are not twisted or pinched at plug ends or adapter connections.During electrical storms or when the frame will be •unattended and unused for extended periods of time, unplug the frame from the wall. This will prevent damage to the frame from electrical surges.Before connecting the power cord, make sure that the •voltage designation of the frame corresponds to the local electrical supply.The slots and openings in the frame provide needed •ventilation. To ensure reliable operation and prevent overheating, these openings must not be blocked or covered:Do not cover the slots or openings. -Do not block the slots or openings by placing the frame on -soft surfaces, such as beds, sofas, or rugs.Do not place the frame in an enclosed space, such as a -bookcase or cabinet, without proper ventilation.Do not place the frame near or on sources of heat, such •as radiators, or in direct sunlight.Do not allow the frame to come in contact with water. •Do not place the frame near sources of water, such as bathtubs or sinks, or where water or other liquids may splash or drip on the frame. If the frame gets wet, unplug the frame immediately and contact the dealer or an authorized service center.Safety precautionsWARNING: TO PREVENT ELECTRIC SHOCK, DO NOT OPEN OR REMOVE THE COVER OR BACK OF THE FRAME. THERE ARE NO •USER-SERVICEABLE PARTS INSIDE. ALLOW ONLY QUALIFIED PERSONNEL TO SERVICE THIS FRAME.TO PREVENT FIRE, KEEP THIS FRAME AWAY FROM ALL OPEN FLAMES, SUCH AS CANDLES, AT ALL TIMES.•
Safety precautions4Do not drop the frame or subject the frame to any •strong impacts. If the frame is damaged, disconnect the power cord and contact a dealer or an authorized service center.Always unplug the power cord when cleaning the frame. •Use only a soft, dry cloth to wipe frame. Do not expose the frame to any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, or detergents, as these may damage the frame’s finish and void your warranty.Clean the product with a soft dry cloth.•Avoid cleaning the product with a flammable substance such -as benzene or thinner or with a wet cloth. This may result in damage to the product.Avoid scratching the screen with your fingernails or a sharp -object.Avoid cleaning the product by spraying water onto it. If water -enters the product, it may result in fire, electric shock or malfunction.Avoid using a supersonic humidifier near the product. It may -result in a white stain on the surface of the product.Never insert any metal objects into the open parts of •this frame, as this may result in electrical shock. Ensure that the power cord is completely plugged in when using this frame. Grasp the plug firmly when removing the power cord and never touch the power cord with wet hands.If you notice any unusual operation, such as unusual •sounds or burning smells coming from the frame, unplug it immediately and contact the dealer or an authorized service center.It is not recommended to install the frame in a location •where it will be exposed to heavy dust, high or low temperatures, high humidity, or chemical substances or where it operates continuously.Use only properly grounded plugs and outlets when •connecting this frame. Improper grounding may cause electrical shock or damage to equipment.Keep this frame and all accessories out of the reach of •children.Do not install the frame in unstable locations, such as •improperly mounted shelves, angled surfaces, or where the frame may be exposed to vibration.

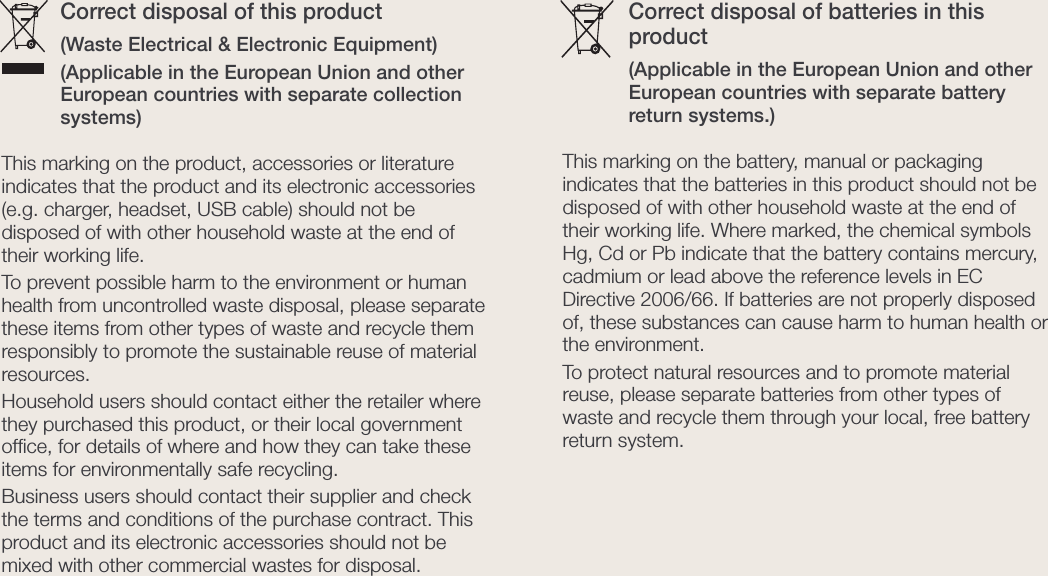

Safety precautions5Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems.)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.Correct disposal of this product(Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
6Get startedWhat’s in the box Digital frame Power cable* Adapter USB cable
Get started7Get to know your frame The front of your frame ScreenBaseTouch button* DescriptionpTurn the frame on; Turn the frame off (touch and hold)hAccess the Main menumAccess menusu/d/l/rScroll through menus or items (up/down/left/right)eSelect menus or items; Perform selected functionsbReturn to the previous levelsPlay a slideshow in an any screen; Change the view mode during a slideshow* The descriptions in this manual are based on the touch button. Please read this manual carefully and use correctly.When using the touch buttonsOperate the touch buttons only with your fingers. •Make sure your hands are clean and dry when using the touch buttons.Lightly touch the button that corresponds to the •desired function.The touch sensor may not work properly when wet or •in humid places.When the touch buttons disappear, lightly touch the •touch panel to make the buttons visible.Remote control sensor
Get started8SpeakerSD memory card slotUSB memory device portUSB cable portSpeakerPower cable portHeadset portGet to know your frame (continued) The rear of your frame
Get started9Get to know your frame (continued) Remote control Button DescriptionTurn the frame on or offAccess the Main menuAccess menusReturn to the previous levelScroll through menus or items (up/down/left/right)Select menus or itemsPlay a slideshow in any screen; Change the view mode during a slideshowView the time and dateRotate a photo during a slideshowAccess the photo list screenAccess the music list screenAccess the video list screenBe sure to point the remote control to the remote •control sensor on the frame (p. 7).Open the battery cover by turning to the left, •replace the battery, and close the battery cover by turning to the right.
Get started10Set up your frame Connect the adapter and turn the power on Do not put too much pressure on the frame or force the screen to rotate in the wrong direction, as this may damage the frame.Touch p to turn the frame on. The light on p will turn and the Main menu will appear. To turn the frame off, touch and hold p.The shape of the plug may differ depending on your region.
Get started11Scroll to your language and touch 1 e.Select 2 Yes to start the setup wizard.Follow the on-screen instructions to customize your frame 3 according to your preferences.Setting DescriptionView Mode Select a view mode for a slideshow (p. 20)Slideshow Transition Select a transition effect for a slideshow (p. 22)Clock Set Set the current time and date (p. 13)Startup Mode Select a mode to activate when the frame turns on (p. 39)When you complete the setup, select 4 Yes to view the product guide.Review the basic usage instructions for your frame, and 5 then select Done.Customize basic settings When you turn the frame on for the first time, the Quick setup screen appears. Select a language and customize the basic settings of your frame. Start Quick SetupQuick Setup helps you setup several settings to use your photo frame. This includes View Mode, Slideshow Transition, Clock Set, and Startup Mode settingsDo you want to start?ENTER BACK EXITNoYes
Get started12Get to know the Main menu From the Main menu screen, you can access the following menus.Menu DescriptionPhotos Browse photos stored in the internal memory or on an external memory device and change options (p. 19)Music Listen to music stored in the internal memory or on an external memory device and change options (p. 26)Videos View videos stored in the internal memory or on an external memory device and change options (p. 24)Bluetooth Use the Bluetooth wireless feature to connect to other wireless devices (p. 32)Clock View the current time and date (p. 13)Mini Monitor Use the frame as a supplementary monitor for your PC (p. 42)Settings Customize settings (p. 36)You can set other functions to be activated instead of the Main menu •when you turn the frame on (Startup Mode p. 39).While you are using other functions or the screensaver is active, touch •h to access the Main menu screen.Frame MemoryMusicVideosBluetoothClockMini MonitorSettingsPhotos
Get started13From the Main menu screen, scroll to 1 Clock and touch e.The current time and date will display.•Touch 2 m and select Settings.Scroll to 3 Clock and touch e.Scroll to one of the following options and touch 4 e.For • Clock Set, touch l or r to select the option you want and touch u or d to set the value.Option DescriptionClock Set Set the current time and dateDate Format Select how dates display (YYYY.MM.DD, MM.DD.YYYY, DD.MM.YYYY)Time Format Select how time displays (12 Hours, 24 Hours)Clock Type Select the clock type (Clock Only, Clock & Calendar)▲ Clock Only ▲ Clock & CalendarView the time and date Check the current time and date or customize clock settings.
Get started14Connect external memory devices You can connect USB memory devices or SD memory cards to the frame. The frame supports FAT16 and FAT32 file format systems for external memory devices.If you connect an external memory device while the power is on, a pop-up window will appear. •To start a slideshow of photos stored in the external memory device, select Slideshow.Recommended memory capacities for different types of memory cards:•SD Up to 2 GBmicroSD Up to 2 GBminiSD Up to 2 GBSDHC Up to 32 GBmicroSDHC Up to 8 GBminiSDHC Up to 4 GBUSB Up to 32 GBTo remove the SD memory card, push it gently until it disengages from the frame.Insert an SD memory card with the metal contacts facing down. Push the card in until it locks in place.
Get started15From the Main menu screen, scroll to the memory location 1 list.Scroll to one of the following memory locations and touch 2 e.Memory location DescriptionFrame Memory Internal memorySD Card SD memory card (external)USB USB memory device (external)You can also change the memory location while browsing photos by touching m and selecting Select Storage Device (p. 29).Select a memory location When there is an external memory device (SD memory card or USB memory device) connected, you can select the source of files.Frame MemoryMusicVideosBluetoothClockMini MonitorSettingsPhotos
Get started16Connect to a PC You can transfer files (p. 17) or use the frame as a mini-monitor by connecting it to a PC (p. 42). Connect the smaller end of the USB cable to the frame and the larger end to the USB port of a PC.USB connector
Get started17 To transfer files from a PC Connect the frame to a PC with the supplied USB cable 1 (p. 16).When the frame is turned off, connect it to the PC first, and then turn it on.Select 2 Mass Storage. When connected, ‘• Mass Storage’ will appear on the screen and a pop-up window will appear on the PC.If you connect the frame to a PC while using it as a mini-monitor (p. 42), you need to switch to Mass Storage mode by using the Frame Manager program. For more information, refer to the user manual of the Frame Manager.Open a folder to view files.3 The removable disk drive will appear as ‘• 800P’ or ‘1000P’ on the PC. Open the drive for the corresponding model in My Computer and copy your photos.Copy files from the PC to the frame or vice versa.4 Some files are embedded on the frame by default. •When there is not enough memory, delete these stock files. If your photos are large, they will consume more •memory and the preview will play slowly. Change the photo resolution to 800 X 480 (for ‘800P’) or 1024 X 600 (for ‘1000P’). Or set the frame to copy and automatically resize your photos (Frame Memory Copy p. 39).Transfer les from a PC Connected to PC USB port.Do not insert or remove storage devices to/from the Photo Frame while they are connected to the PC.You can switch to Mini Monitor mode by using Frame Manager.Mass Storage
Get started18 To disconnect the frame from a PC Make sure to end the connection properly to prevent damage to the frame or your data.Click 1 on the Windows Taskbar.Click the pop-up message.2 Safely remove USB Mass Storage Device - Drive(G:) Disconnect the USB cable only when the message says that it is safe to remove the hardware.3 Do not disconnect the USB cable while the files are being copied, as this could result in loss of data or damage to the frame.•The connection will not end if you have frame files open on the PC. Close all frame files and try again.•Transfer les from a PC (continued)
19Play multimediaPlay a slideshow From the Main menu screen, select a memory location 1 (Frame Memory, SD Card, or USB).Scroll to 2 Photos and touch e.Scroll to a file and touch 3 e or s to play a slideshow.To play a slideshow with specific photos, touch m and select Select Multiple Files (p. 29).Control playback using the following buttons:4 Touch buttons DescriptionhAccess the Main menumAccess the slideshow menud/uAdjust the volume of the background musicl/rView the previous or next photoePause or resume the slideshowbReturn to the previous levelsChange the view mode
Play multimedia20 Change the view mode Display a clock or calendar during a slideshow or multiple photos on one screen during a slideshow. Touch s repeatedly during a slideshow to change the view mode.Each time you touch • s, the view mode changes (Photo Only → Photo & Clock → Photo & Calendar → Multiview 1 → Multiview 2 → Multiview 3). You can also change the view mode by accessing • View Mode in Settings → Photos (p. 23).Set the current time and date before displaying the clock or calendar •(p. 36).You can view the previous or next photo by touching •l or r during a slide show.Play a slideshow (continued)▲ Photo Only▲ Photo & Calendar▲ Multiview 2▲ Photo & Clock▲ Multiview 1▲ Multiview 3
Play multimedia21 Use slideshow menus Control a slideshow and adjust the slideshow settings.Touch 1 m during a slideshow.Scroll to one of the following menus and touch 2 e.Option DescriptionRotate Rotate a photo (Original, 90°, -90°, 180°)Zoom Enlarge in a photo (x1, x2, x4)Background Music Turn the background music on or offSettings Access the Settings menu (p. 22)You can rotate or zoom a photo only in • Photo Only and Photo & Clock modes.When you zoom a photo, you can move around the photo by •touching u, d, l, or r.When you are finished, touch 3 e.When you touch •b in the Settings menu, the Main menu appears. To play the slideshow, touch s.Play a slideshow (continued)RotateZoomBackground MusicSettings OnOSelect Music
Play multimedia22 Select slideshow effects Adjust the transition effect, speed, play mode, or order of photos for a slideshow.Touch 1 m during a slideshow.Select 2 Settings.Scroll to 3 Photos and touch e.You can also select slideshow effects by accessing Photos in Settings.Scroll to one of the following options and touch 4 e.Option DescriptionSlideshow Transition Select a transition effect (No Effect, Fade, Blinds, Cross Comb, Checkerboard, Slide, Wipe, Silk, Wheel, Circle, Box In/Out, Diamond, Plus, Uncover, Push, Stairs, Random)Slideshow Speed Select a slideshow speed (Fast, Normal, Slow)Slideshow Mode All photos• : Play all photos in the order of file namesPhotos in folder• : Play all photos in the selected folder in the order of file namesOne photo• : Repeat the selected photoPlay a slideshow (continued)CategoryPhotosClockAlarmGeneralBluetoothSupportOptionSlideshow TransitionSlideshow SpeedSlideshow ModeSlideshow OrderView ModeAspect RatioDisplay Photo Info FastNormalSlow: OnSettings
Play multimedia23Option DescriptionSlideshow Order Normal• : Play photos in the order of file namesShuffle• : Play photos in a random orderView Mode Change the view mode (p. 20)Aspect Ratio Original Fit• : Display photos in the original sizes. When a photo is larger than the screen, it will be adjusted to fit the screen in the same ratioAuto Fit• : Resize photos to fit the screen in the same ratio (some parts of the photo may not appear)Fit to Width• : Resize photos to fit the screen widthFit to Screen• : Resize photos to fill the screen Display Photo Info Set the slideshow to display details of each photoTouch 5 s to play the slideshow.Play a slideshow (continued)CategoryPhotosClockAlarmGeneralBluetoothSupportOptionSlideshow TransitionSlideshow SpeedSlideshow ModeSlideshow OrderView ModeAspect RatioDisplay Photo Info : OnOriginal Fit Auto FitFit to WidthFit to ScreenSettings
