User manual 1 of 2

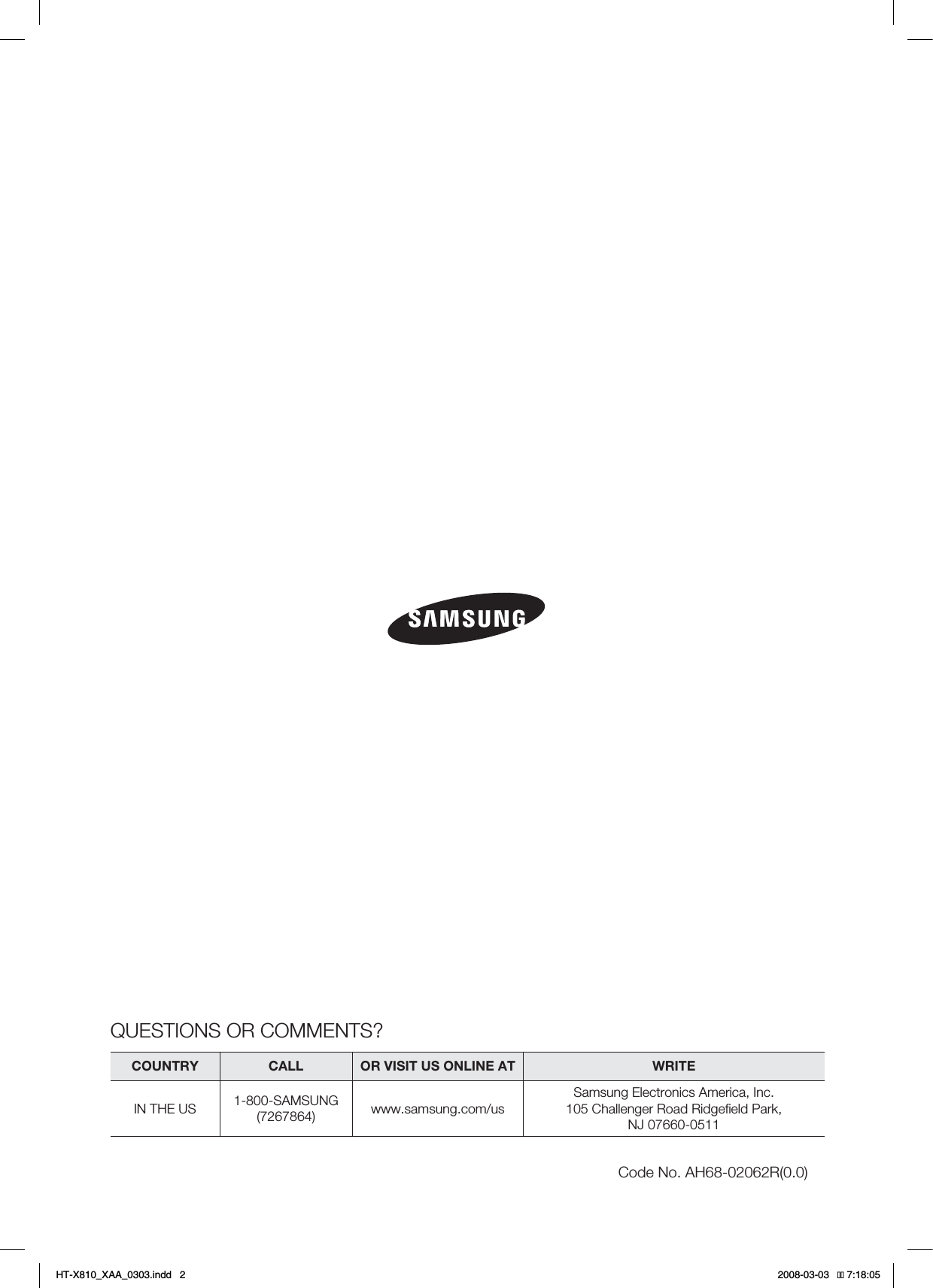

QUESTIONS OR COMMENTS?COUNTRY CALL OR VISIT US ONLINE AT WRITEIN THE US 1-800-SAMSUNG(7267864) www.samsung.com/usSamsung Electronics America, Inc.105 Challenger Road Ridgefield Park, NJ 07660-0511Code No. AH68-02062R(0.0)HT-X810_XAA_0303.indd 2 
Digital HomeTheater Systemuser manualimagine the possibilitiesThank you for purchasing this Samsung product.To receive more complete service, please register your product atwww.samsung.com/global/registerHT-X810HT-X810_XAA_0303.indd 3  / PS-WX810
2featuresPlayback of many disc typesThis Home Theater System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD±R/RW.DVD-Audio compatibleExperience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.USB Host supportYou can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Theater's USB HOST function.TV Screen Saver FunctionIf the main unit remains in Stop mode for 3 minutes, Samsung logo appears on TV screen.The HT-X810 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.Power Saving FunctionThe HT-X810 automatically shuts itself off after 20 minutes in Stop mode.Customized TV Screen DisplayThe HT-X810 allows you to select your favorite image during JPEG, DVD playback and set it as your background wallpaper.HDMIHDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.AV SYNC FunctionVideo may lag behind the audio if the unit is connected to a digital TV.To compensate for this, you can adjust the audio delay time to sync up with the video.Anynet+(HDMI-CEC) FunctionAnynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)Bluetooth FunctionYou can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!Wireless SubwooferYou can hear powerful sound from the subwoofer without having to use speaker cables.WHAT’S INCLUDEDCheck for the supplied accessories below.Video Cable (AH39-40001V)FM Antenna (AH42-00017A)User's Manual (AH68-02062R)Remote Control(AH59-01907T)/ Batteries (AAA size)(4301-000116)Bracket-Wall Mount(AH61-02574A)/ Mounting Studs (2EA)(AH97-02638A)HT-X810_XAA_0303.indd 2 
3ENGsafety informationSAFETY WARNINGSTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENThe lighting flash and Arrowhead within Triangle Is a warning sign alerting you of dangerous voltage inside the productCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QULAIFIED SERVICE PERSONNEL.The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.WARNINGTo reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. If this power supply is used at 240V ac, a suitable plug adapter should be used.CAUTIONApparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time.This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.FCC NOTE (for U.S.A):This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.•••••••••CLASS 1 LASER PRODUCTThis Compact Disc player is classified as a CLASS 1 LASER product.Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.CAUTION :INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKTLUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LASER CLASE 1HT-X810_XAA_0303.indd 3 
4safety informationIMPORTANT SAFETY INSTRUCTIONSRead these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.1) Read these instructions.2) Keep these Instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use attachment/accessories specified by the manufacturer.12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13) Unplug this apparatus during lightning storms or when unused for long periods of time.14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.HT-X810_XAA_0303.indd 4 
PRECAUTIONSThis product is covered by one or more of the following U.S. patents:5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,4746,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327 7,099,566 7,123,5647,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891 7,177,250 7,194,1877,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,1067,280,460 7,283,729 7,286,454 7,304,938This product is covered by the following U.S. patents:US4,930,158 US4,930,160Ensure that the AC power supply in your house complies with the identifi cation sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not covered. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power sup-ply, remove the main plug from the wall outlet, especially when left unused for a long period of time.During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.Protect the player from moisture (i.e. vases) , and excess heat (e.g.fi replace) or equipment creating strong magnetic or electric fi elds (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.Do not expose the unit to direct sunlight or other heat sources.This could lead to overheating and malfunction of the unit. The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.5ENG*6:A:##AKPFF 

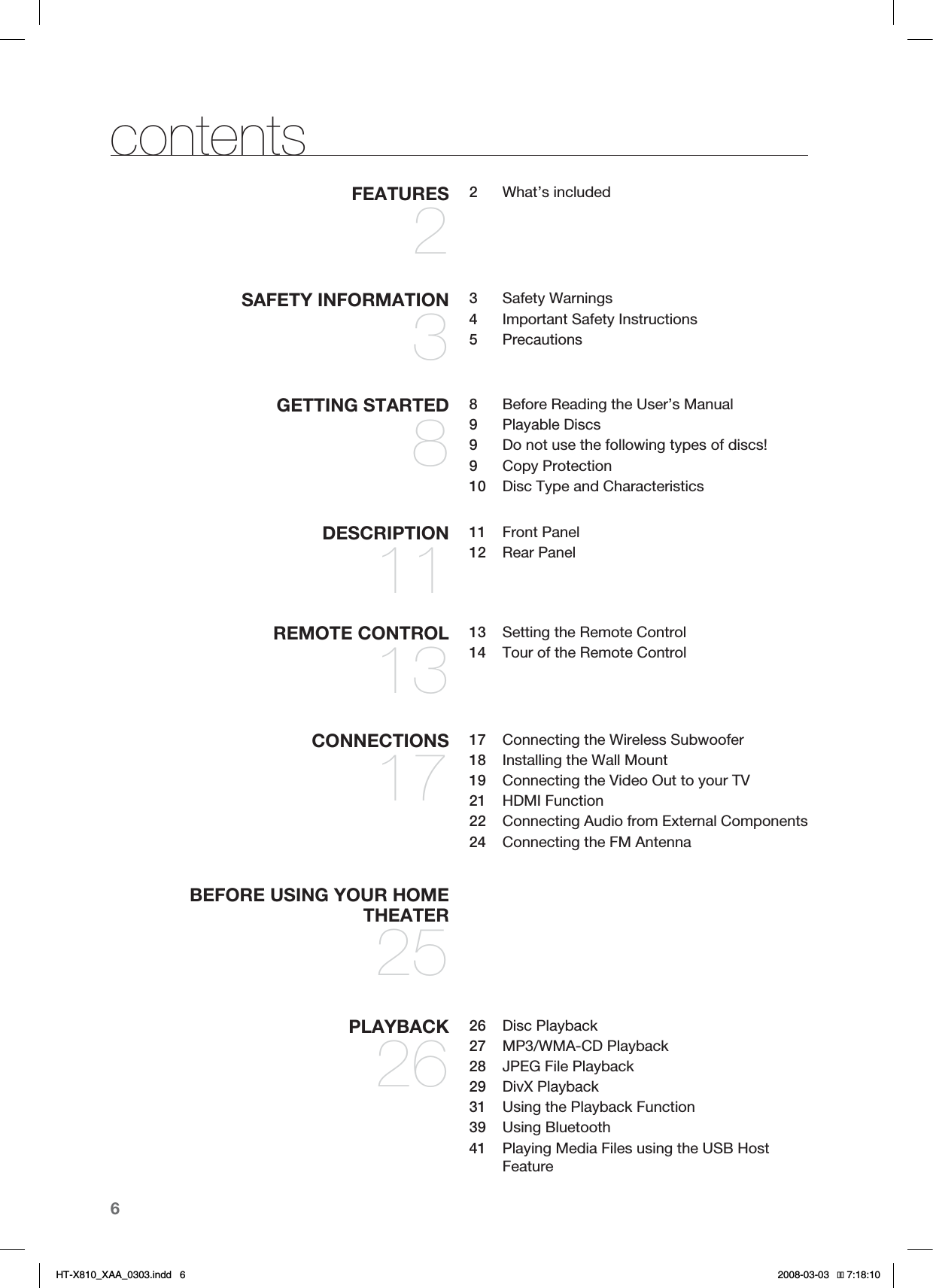

6contentsFEATURES22 What’s includedSAFETY INFORMATION33 Safety Warnings4 Important Safety Instructions5 PrecautionsGETTING STARTED88 Before Reading the User’s Manual9 Playable Discs9Do not use the following types of discs!9 Copy Protection10 Disc Type and CharacteristicsDESCRIPTION1111 Front Panel12 Rear PanelREMOTE CONTROL1313 Setting the Remote Control14 Tour of the Remote ControlCONNECTIONS1717 Connecting the Wireless Subwoofer18 Installing the Wall Mount19 Connecting the Video Out to your TV21 HDMI Function22 Connecting Audio from External Components24 Connecting the FM AntennaBEFORE USING YOUR HOMETHEATER25PLAYBACK2626 Disc Playback27 MP3/WMA-CD Playback28 JPEG File Playback29 DivX Playback31 Using the Playback Function39 Using Bluetooth41 Playing Media Files using the USB HostFeature*6:A:##AKPFF 
7ENGSYSTEM SETUP4343 Setting the Language44 Setting TV Screen Type45 Setting Parental Controls (Rating Level)45 Setting the Password46 Setting the Wallpaper46 To Select One of the 3 Wallpaper SettingsYou've Made47 DVD Playback Mode47 Setting the DRC (Dynamic RangeCompression)48 Setting the AV SYNC48 Setting the HDMI Audio48 Setting the AudioRADIO4949 Listening to Radio49 Presetting StationsCONVENIENT FUNCTION5050 Sleep Timer Function50 Adjusting Display Brightness50 Mute Function51 V-SOUND (Virtual Sound)51 S.VOL (Smart Volume)51 P.BASS/Audio UpscalingTROUBLESHOOTING52USB HOST FEATURE SUPPORTEDPRODUCTS5555 Digital Camera55 USB Flash Disc55 MP3 PlayerAPPENDIX5656 Cautions on Handling and Storing Discs57 Specifications58 WarrantyLANGUAGE CODE LIST54*6:A:##AKPFF 
8getting startedBEFORE READING THE USER’S MANUALMake sure to check the following terms before reading the user manual.Icons that will be used in manualIcon Term DefinitionDVD This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode.BCD This involves a function available with a data CD (CD-R or CD-RW).AMP3 This involves a function available with CD-R/-RW discs.GJPEG This involves a function available with CD-R/-RW discs.DDivX This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW)Caution This involves a case where a function does not operate or settings may be cancelled.MNote This involves tips or instructions on the page that help each function operate.In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is mentioned, it is indicated separately. If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.About the use of this user’s manualBe sure to be familiar with Safety Instructions before using this product. (See pages 3~4)If a problem occurs, check the Troubleshooting. (See pages 52~53)Copyright©2008 Samsung Electronics Co.,Ltd.All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.M1)2)HT-X810_XAA_0303.indd 8 
9ENG ●GETTING STARTEDPLAYABLE DISCSDisc Type Mark (Logo) Recorded Signals Disc Size Max. Playing TimeDVD-AUDIODVD-VIDEO AUDIO + VIDEO 5 inchesApprox. 240 min. (single-sided)Approx. 480 min. (double-sided)3 1/2 inchesApprox. 80 min. (single-sided)Approx. 160 min. (double-sided)AUDIO-CDCOMPACTDIGITAL AUDIOAUDIO5 inches 74 min.3 1/2 inches 20 min.DivX AUDIO + VIDEO5 inches—3 1/2 inches—DO NOT USE THE FOLLOWING TYPES OF DISCS !LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player.If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.DVD discs purchased abroad may not play on this player.If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the TV screen. COPY PROTECTIONMany DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.••••DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.The Region Number for this player is given on the rear panel of the player.(Your DVD player will only play DVDs that are labeled with identical region codes.)1 6~*6:A:##AKPFF 
10getting startedDISC TYPE AND CHARACTERISTICSThis product does not support Secure (DRM) Media files. CD-R Discs Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minute as they may not be played back. Some CD-RW (Rewritable) media, may not be playable. Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.CD-R MP3 Discs Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played. MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +). Use discs recorded with a compression/decompression data rate greater than 128Kbps. Only files with the ".mp3" and ".MP3" extensions can be played. Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment. If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played. For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback. A maximum of 500 tracks can be played per CD. A maximum of 300 folders can be played per CD.CD-R JPEG Discs Only files with the "jpg" extensions can be played. If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played. Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played. JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +). Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment. A maximum of 9,999 images can be stored on a single CD. When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played. Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.DVD±R/RW, CD-R/RW DivX Discs Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play. Software updates for incompatible formats are not supported.(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.) Sections with a high frame rate might not be played while playing a DivX file. For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".❖••••❖•••••••••❖••••••••❖••••HT-X810_XAA_0303.indd 10 
11ENG●DESCRIPTIONdescriptionFRONT PANELPOWER( ) BUTTON TUNING DOWN & SKIP ( )BUTTON Volume ControlDISC SLOT STOP (¦) BUTTON10SPEAKERSEJECT BUTTON PLAY/PAUSE ( ) BUTTON11AUX IN 1 JackFUNCTION BUTTON TUNING UP & SKIP ( ) BUTTON12USB Port712891110HT-X810_XAA_0303.indd 11 
12descriptionREAR PANELFM 75š COAXIAL JACK Connect the FM antenna.EXTERNAL DIGITAL OPTICAL INPUT JACK Use this to connect external equipment capable of digital output.COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.VIDEO OUTPUT JACK Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.AUX IN 2 JACKS Connect to the 2CH analog output of an external device (such as a VCR)HDMI OUT JACK Using an HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.HDMI OUTHDMI OUT1 2 3 4 56HT-X810_XAA_0303.indd 12 
13ENG●REMOTE CONTROLOperation Range of the Remote ControlThe remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.When operating a TV with the remote control1. Press the TV button to set the remote to TV mode. 2. Press the POWER button to turn on the TV.3. While holding down the POWER button, enter the code corresponding to your brand of TV.If there is more than one code listed for your TV in the able, enter one at a time to determine which code works. Example : For a Samsung TVWhile holding down the POWER button, use the numberbuttons to enter 00, 15, 16, 17 and 40.4. If the TV turns off, the setting is complete. You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).The remote control may not work on some brands of TVs. Also, some operations may not be possible depending on your brand of TV. If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.••MSETTING THE REMOTE CONTROLYou can control certain functions of your TV with this remote control.remote controlHT-X810_XAA_0303.indd 13 
14remote controlTOUR OF THE REMOTE CONTROL2115141312111098765431817163332313029282726252423222120193435HT-X810_XAA_0303.indd 14 
15ENG ●REMOTE CONTROLPORT buttonTV/VIDEO buttonEJECT buttonCANCEL buttonPAUSE buttonPLAY buttonSTOP buttonSEARCH buttonsTUNING/CH buttonMUTE buttonRETURN buttonCursor/ENTER buttonSUBTITLE buttonEXIT buttonINFO buttonREPEAT buttonSOUND EDIT buttonZOOM button34DIMMER button35S.VOL(Smart Volume) buttonDVD RECEIVER buttonTV buttonPOWER buttonNumber (0~9) buttonsREMAIN buttonSTEP buttonTuning Preset/CD Skip buttonsVOLUME buttonMENU buttonAUDIO buttonTUNER MEMORY, SD(Standard Definition)/HD(High Definition) buttonLOGO button13V-SOUND(Virtual Sound) button14AUDIO UPSCALE/P.BASS button15SLEEP button16SLOW, MO/ST button17DVDDVD buttonTUNER buttonAUX button3332313029282726121110987654321Insert Remote Batteries1. Remove the battery cover in the direction of the arrow.2. Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).3. Replace the battery cover.Follow these precautions to avoid leaking or cracking cells:Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–). Use the correct type of batteries. Batteries that look similar may differ in voltage.Always replace both batteries at the same time.Do not expose the batteries to heat or a flame.M1819202122232425ENG15*6:A:##AKPFF 
16remote controlTV Brand Code ListAdmiral (M.Wards)A MarkAnamAOCBell & Howell (M.Wards)BrocsonicCandleCetronicCitizenCinemaClassicConcertoContecCoronadoCraigCroslexCrownCurtis MatesCXCDaewooDaytronDynastyEmersonFisherFunaiFuturetechGeneral Electric (GE)Hall MarkHitachiInkelJC PennyJVCKTVKECKMCLG (Goldstar)LuxmanLXI (Sears)MagnavoxMarantzMatsuiMGAMitsubishi/MGA1234567891011121314151617181920212223242526272829303132333435363738394041424356, 57, 5801, 1501, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 1401, 18, 40, 4857, 58, 8159, 60180303, 18, 25970318461503, 05, 61, 82, 83, 84620359, 61, 630302, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90400303, 15, 40, 46, 59, 61, 64, 82, 83, 84, 8519, 65030306, 40, 56, 59, 66, 67, 684015, 18, 50, 59, 694556, 59, 67, 867059, 61, 87, 8803, 15, 401501, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 441819, 54, 56, 59, 60, 62, 63, 65, 7115, 17, 18, 48, 54, 59, 60, 62, 72, 8940, 545418, 4018, 40, 59, 60, 7544454647484950515253545556575859606162636465666768697071727374757677787980818283848586MTCNECNikeiOnkingOnwaPanasonicPenneyPhilcoPhilipsPioneerPortlandProtonQuasarRadio ShackRCA/ProscanRealisticSampoSamsungSanyoScottSearsSharpSignature 2000 (M.Wards)SonySoundesignSpectriconSSSSylvaniaSymphonicTatungTechwoodTeknikaTMKToshibaVidtechVidechWardsYamahaYorkYupiteruZenithZondaDongyang1818, 19, 20, 40, 59, 6003030306, 07, 08, 09, 54, 66, 67, 73, 741803, 15, 17, 18, 48, 54, 59, 62, 69, 9015, 17, 18, 40, 48, 54, 62, 7263, 66, 80, 9115, 18, 594006, 66, 6717, 48, 56, 60, 61, 7518, 59, 67, 76, 77, 78, 92, 93, 9403, 194000, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 9819, 61, 6503, 40, 60, 6115, 18, 1915, 57, 6457, 5850, 51, 52, 53, 5503, 40011818, 40, 48, 54, 59, 60, 6261, 95, 96061803, 15, 18, 2518, 4019, 57, 63, 711859, 60, 6915, 17, 18, 40, 48, 54, 60, 6418400358, 790103, 54No.BrandCode No.BrandCode*6:A:##AKPFF 
17ENG●CONNECTIONSconnectionsCONNECTING THE WIRELESS SUBWOOFERPress the POWER button on the rear of the subwoofer to turn it on.If the main unit is turned onThe subwoofer will be automatically connected to the product and the Link LED on its front will blink blue for a few seconds.If the main unit is turned offThe Link LED on the front of the subwoofer will blink blue for about 30 seconds, then will change to red as the sub switches to STANDBY mode.If the subwoofer is turned off, you will see S/W CHECK on the display panel of the main unit.Place the wireless subwoofer under the main unit.If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.The transmission distance of radio wave is about 32 feet, 9.7 inches, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the radio wave cannot penetrate metal.If the main unit doesn't make wireless connection, the system needs ID Setting between the main unit and wireless subwoofer. With the main unit turned off, press the remote control's "0"J"1"J"3"J"5" number buttons and the unit will turn on. With the wireless subwoofer turned on, press ID SET button on the back of the unit for 5 seconds.••MThis section involves various methods of connecting the Digital Home Cinema to other external components.Before moving or installing the product, be sure to turn off the power and disconnect the power cord.The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture. For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.ID SET button POWER buttonHT-X810_XAA_0303.indd 17 
18connectionsINSTALLING THE WALL MOUNT Place the Mounting Studs on the rear of the product and turn them clockwise to fi x.Place the wall mount bracket on a wall surface so that the arrow on it points upward, and then secure it with four screws (not supplied). Then, fi t the product (Mounting Studs installed) into thecorresponding hole of the wall mount bracket. This is the completion of the wall mount installation.1.2.3.4.Mounting Studs (2EA)(supplied)Secure the Home Theater fi rmly to the wall so that it does not fall off.If the Home theater falls off, it may result in an injury or damage to the product.When the Home Theater is installed on wall, please make sure that a child does not pull any ofconnecting cables. as it may cause it to fall.HT-X810_XAA_0303.indd 18 
19ENG●CONNECTIONSCONNECTING THE VIDEO OUT TO YOUR TVChoose one of the three methods for connecting to a TV.HDMI OUTHDMI OUTMETHOD3(supplied)METHOD2METHOD1METHOD 1 : HDMI (BEST QUALITY)Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV.METHOD 2 : Component Video (BETTER QUALITY)If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (Pr, Pb and Y) jacks on the back of the DVD Player to the Component Video Input jacks on your TV. METHOD 3 : Composite Video (GOOD QUALITY)Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the VIDEO IN jack on your TV.This product operates in Interlace scan mode (480i) for Component output.If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Theater using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).Please check the logo (If your TV has an logo, then it supports the Anynet+ function.)M*6:A:##AKPFF 
20connectionsCONNECTING THE VIDEO OUT TO YOUR TV (CON'T)HDMI Auto Detection FunctionThe player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on.HDMI (High Definition Multimedia Interface)HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.Using HDMI, the DVD Home Theater transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.HDMI connection descriptionHDMI connector - Supports video and digital audio data.- HDMI outputs only a pure digital signal to the TV.- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.Why does Samsung use HDMI?Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Theater) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.What is the HDCP?HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.What is Anynet+?Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature.- If your Samsung TV has an logo, then it supports the Anynet+ function.- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode.- If you turn on the player and press the Play button with a disc already inserted, the TV will immediately turn on and switch to HDMI mode.•••••HT-X810_XAA_0303.indd 20 
21ENG ●CONNECTIONSHDMI FUNCTIONResolution SelectionThis function allows the user to select the screen resolution for HDMI output.In Stop mode, press and hold the SD/HD (Standard Defi nition/High Defi nition) button on the remote control.Resolutions available for the HDMI output are 480p, 720p, 1080i/1080p.SD(Standard Defi nition) resolution is 480p and HD(High Defi nition) resolution is 720p, 1080i/1080p.The default value of HDMI output is 480p.If the TV does not support the confi gured resolution, you will not be able to see the picture properly.When an HDMI cable is connected, composite and component video signals are not output.See your TV owner's manual for more information on how to select the TV's Video Input source.Using Anynet+(HDMI-CEC)Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable. (See page 19)Set the Anynet+ function on your TV.(See the TV instruction manual for more information.)You can operate the Home Theater by using the TV remote control. (Available TV buttons : , , , ,S,T and W,X buttons, ~button)If you select the TVSet the Anynet+(HDMI-CEC) to On by pressing the Anynet+ button on your TV remote control.• Receiver : On : You can listen to audio through the Home Theater.• Receiver : Off : You can listen to audio through the TV.If you select the THEATERSelect THEATER to connect and set the option of each item below.• View TV : If Anynet+(HDMI CEC) is set to on and you select View TV, the home theater will automatically switch to digital in mode.• Theater Menu : you can access and control the Home theater menu.• Theater Operation : The Home Theater disc playback information will be displayed. You can control the Disc operation of the Home Theater such as title, chapter and subtitle change.• Receiver : On : You can listen to audio through the Home Theater.• Receiver : Off : You can listen to audio through the TV.If you chose 'View TV' and you want to listen to TV sound through Digital In of the Home theater, you have to connect an optical cable between the TV and the Home Theater.••M1.2.•MWhy use HDMI (High Defi nition Multimedia Interface)? This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection.MOVEENTEREXITMOVEENTEREXITMOVEENTEREXITWith Anynet+You can operate this unit, power on your TV, or watch a movie by pressing the Play button on your Samsung TV's remote control.HT-X810_XAA_0303.indd 21 
22connectionsCONNECTING AUDIO FROM EXTERNAL COMPONENTSAUX1 : Connecting an External Component/MP3 playerComponents such as an MP3 Player Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player.Press the AUX button on the remote control to select AUX1 input.You can also use the FUNCTION button on the main unit.The mode switches as follows : DVD/CD ➝ D.IN ➝AUX 1 ➝AUX 2 ➝USB ➝BT AUDIO ➝FM.1.2.•Audio Cable(not supplied)Audio OUTHT-X810_XAA_0303.indd 22 
23ENG ●CONNECTIONSHDMI OUTHDMI OUTAUX2 : Connecting an External Analog ComponentAnalog signal components such as a VCR. Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component. Be sure to match connector colors. Press the AUX button on the remote control to select AUX 2 input. You can also use the FUNCTION button on the main unit.The mode switches as follows : DVD/CD ➝ D.IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝BT AUDIO ➝ FM. You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.OPTICAL : Connecting an External Digital ComponentDigital signal components such as a Cable Box/Satellite receiver (Set-Top Box). Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital component.Press the AUX button on the remote control to select DIGITAL IN.You can also use the FUNCTION button on the main unit.The mode switches as follows : DVD/CD ➝ D.IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝BT AUDIO ➝ FM.1.•2.•M1.2.•Audio Cable (not supplied)If the external analog component has only one Audio Out, connect either left or right.Optical Cable(not supplied)AUX2 : Rear Panel OPTICAL : Rear PanelExternal Analog Component External Digital ComponentHT-X810_XAA_0303.indd 23 
24connectionsCONNECTING THE FM ANTENNA Connect the FM antenna supplied to the FM 75ΩCOAXIAL Jack. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.This unit does not receive AM broadcasts.1.2.MHDMI OUTFM Antenna(supplied)HT-X810_XAA_0303.indd 24 
25ENG●BEFORE USING YOUR HOME THEATERbefore using your home theaterThe DVD Home Theater's remote can be used to control Samsung TVs.Plug the main unit's power cord into the AC power supply.Press the DVD RECEIVER button to switch to DVD RECEIVER mode to operate the DVD Home Theater.Press the FUNCTION button on the main unit or DVD button on the remote to enable DVD/CD playback.Press the TV button to set the remote to TV mode.Press the POWER button to turn on your Samsung TV with this remote. Press the TV/VIDEO button to select VIDEO mode on your TV. 1.2.3.4.5.6.VIDEO*6:A:##AKPFF 
26playbackDISC PLAYBACKB Load a disc vertically into the Disc Insert Hole.Place a disc gently into the tray with the disc’s label facing up.Close the compartment by pressing the PLAY ( ) button.Playback starts automatically.To stop playback, press the STOP ( ) button during playback. If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory. If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.) If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the beginning.To temporarily pause playback, press the PAUSE ( ) button during playback. To resume playback, press the PLAY ( ) button.Depending on the content of the disc, the initial screen may appear different.Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection system) recommendations.1.•2.••••M*6:A:##AKPFF 
27ENG●PLAYBACKMP3/WMA-CD PLAYBACKData CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.ALoad an MP3/WMA disc.The MP3/WMA menu screen will appear and playback will start.The appearance of the menu depends on the MP3/WMA disc. WMA-DRM fi les cannot be played.In Stop mode, use the Cursor S,T,W,X button to select the album, and then press the ENTER button.Use the Cursor S,Tbutton to select the track.To change the album, use the Cursor S,T,W,Xbutton to select another album in Stop mode, and then press the ENTER button.Press the STOP() button to stop playback.Depending on the recording mode, some MP3/WMA-CDs may not play.Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.Press the Cursor S,T,W,Xbutton when it is in Stop mode and select a desired icon from the top part of the menu.Music File Icon : To play music fi les only, select the Icon.Image File Icon : To view image fi les only, select the Icon.Movie File Icon : To view movie fi les only, select the Icon.All File Icon : To view all fi les, select the Icon.1.•••2.•3.4.M•To play a fi le icon in the screen,*6:A:##AKPFF 
28playbackJPEG FILE PLAYBACKImages captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played back with this Home Theater.Rotate/Flip Function GPress the Cursor S,T,W,X button during playback.The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG fi les and 2048 x 1536 (or 3.0 MPixel) for progressive image fi les. If a JPEG fi le is played when the HDMI output resolution is 720p/1080i/1080p, the mode is automatically converted to 480p mode.Mbutton: Rotate 90° Clockwisebutton: Rotate 90° Counterclockwisebutton: Flip Verticallybutton: Flip HorizontallyOriginal ImageHT-X810_XAA_0303.indd 28 
29ENG ●PLAYBACKDIVX PLAYBACKThe functions on this page apply to DivX disc playback.Skip Forward/Back DDuring playback, press the #,$ button. Goes to the next fi le whenever you press the $ button, if there are over 2 fi les in the disc. Goes to the previous fi le whenever you press the # button, if there are over 2 fi les in the disc.Fast Playback DDuring playback, press the , button.To play back the disc at a faster speed, press the  or  button during playback. Each time you press either button, the playback speed will change as follows: 2x ➝4x ➝8x ➝32x ➝Normal.5 Minutes Skip function DDuring playback, press the Cursor W,X button.Playback skips 5 minutes forward whenever you press the Cursor X button.Playback skips 5 minutes back whenever you press the Cursor W button.Audio Display DPress the AUDIO button.If there are multiple audio tracks on a disc, you can toggle between them.Each time you press the button, your selection will toggle between AUDIO (1/N, 2/N ...) and . is displayed when there is only one supported language in the disc.Subtitle Display D Press the SUBTITLE button.Each time you press the button, your selection will toggle between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.If the disc has only one subtitle fi le, it will be played automatically.See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX discs.•••••••M•••*6:A:##AKPFF 
30playbackDIVX PLAYBACK (CON'T)If the Disc has more than One Subtitle File DIf the disc has more than one subtitle fi le, the default subtitle may not match the movie and you will have to select your subtitle language as follows:In Stop mode, press the Cursor S,T button, select the desired subtitle ( ) from the TV screen, and then press the ENTER button.When you select the desired DivX fi le from the TV screen, the movie will be played normally.DivX(Digital internet video eXpress) DivX is a video fi le format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time. MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio. Supported Formats This product only supports the following media formats.If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.Supported Video FormatsFormat AVI WMVSupported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7Supported Audio FormatsFormat MP3 WMA AC3Bit Rate 80~384kbps 56~128kbps 128~384kbpsSampling Frequency 44.1khz 44.1/48khzAspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback. Caption FunctionYou must have some experience with video extraction and editing in order to use this feature properly.To use the caption function, save the caption fi le (*.smi) in the same fi le name as that of the DivX media fi le (*.avi) within the same folder. Example. Root Samsung_007CD1.aviSamsung_007CD1.smiUp to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the fi le name. 1.2.1.••2.•••HT-X810_XAA_0303.indd 30 
31ENG ●PLAYBACKUSING THE PLAYBACK FUNCTIONDisplaying Disc Information BAGDYou can view disc playback information on the TV screen.Press the INFO button.Depending on the disc, the disc information display may appear different.Depending on the disc, you can also select DOLBY DIGITAL, or PRO LOGIC. appears on the TV screen! If this symbol appears on the TV screen when pressing a button, that operation is not possible with the disc currently being played.Checking the Remaining Time BAPress the REMAIN button.For checking the total and remaining time of a title or chapter being played.Each time the Remain button is pressedDVD-VIDEOTITLE ELAPSED ➞TITLE REMAIN ➞CHAPTER ELAPSED ➞CHAPTER REMAINDVD-AUDIOGROUP ELAPSED ➞GROUP REMAIN ➞TRACK ELAPSED ➞TRACK REMAINBTRACK ELAPSED ➞TRACK REMAIN ➞TOTAL ELAPSED ➞TOTAL REMAINATRACK REMAIN ➞TRACK ELAPSEDM•HT-X810_XAA_0303.indd 31 

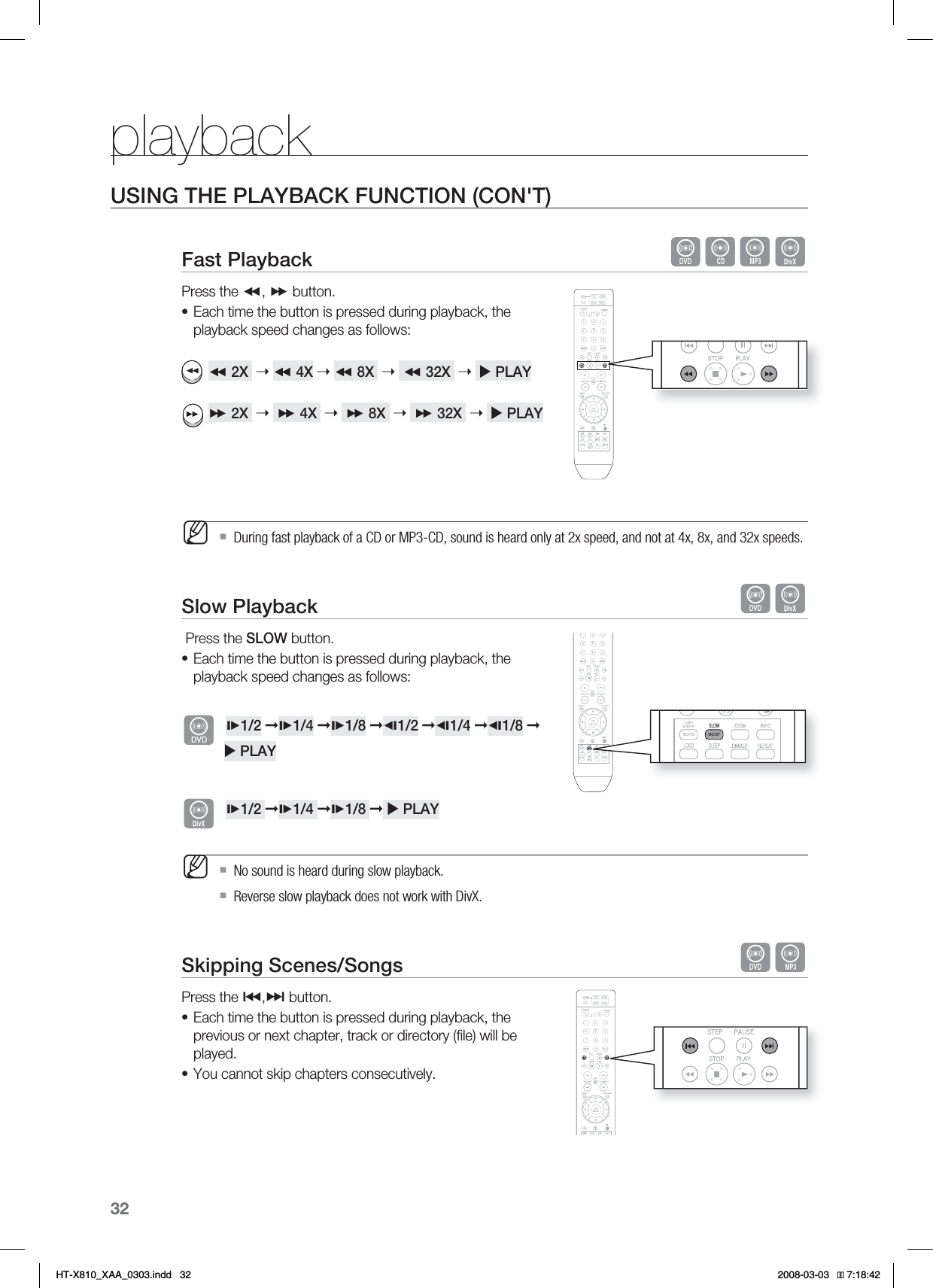

32playbackUSING THE PLAYBACK FUNCTION (CON'T)Fast Playback BADPress the ,  button.Each time the button is pressed during playback, the playback speed changes as follows:2X ➝4X ➝8X ➝32X ➝XPLAY2X ➝4X ➝8X ➝32X ➝XPLAY During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.Slow Playback D Press the SLOW button.Each time the button is pressed during playback, the playback speed changes as follows:d1/2 ➞1/4 ➞1/8 ➞1/2 ➞1/4 ➞1/8 ➞ X PLAYD1/2 ➞1/4 ➞1/8 ➞X PLAY No sound is heard during slow playback.Reverse slow playback does not work with DivX.Skipping Scenes/Songs APress the #,$ button.Each time the button is pressed during playback, the previous or next chapter, track or directory (fi le) will be played.You cannot skip chapters consecutively.•M•M••HT-X810_XAA_0303.indd 32 

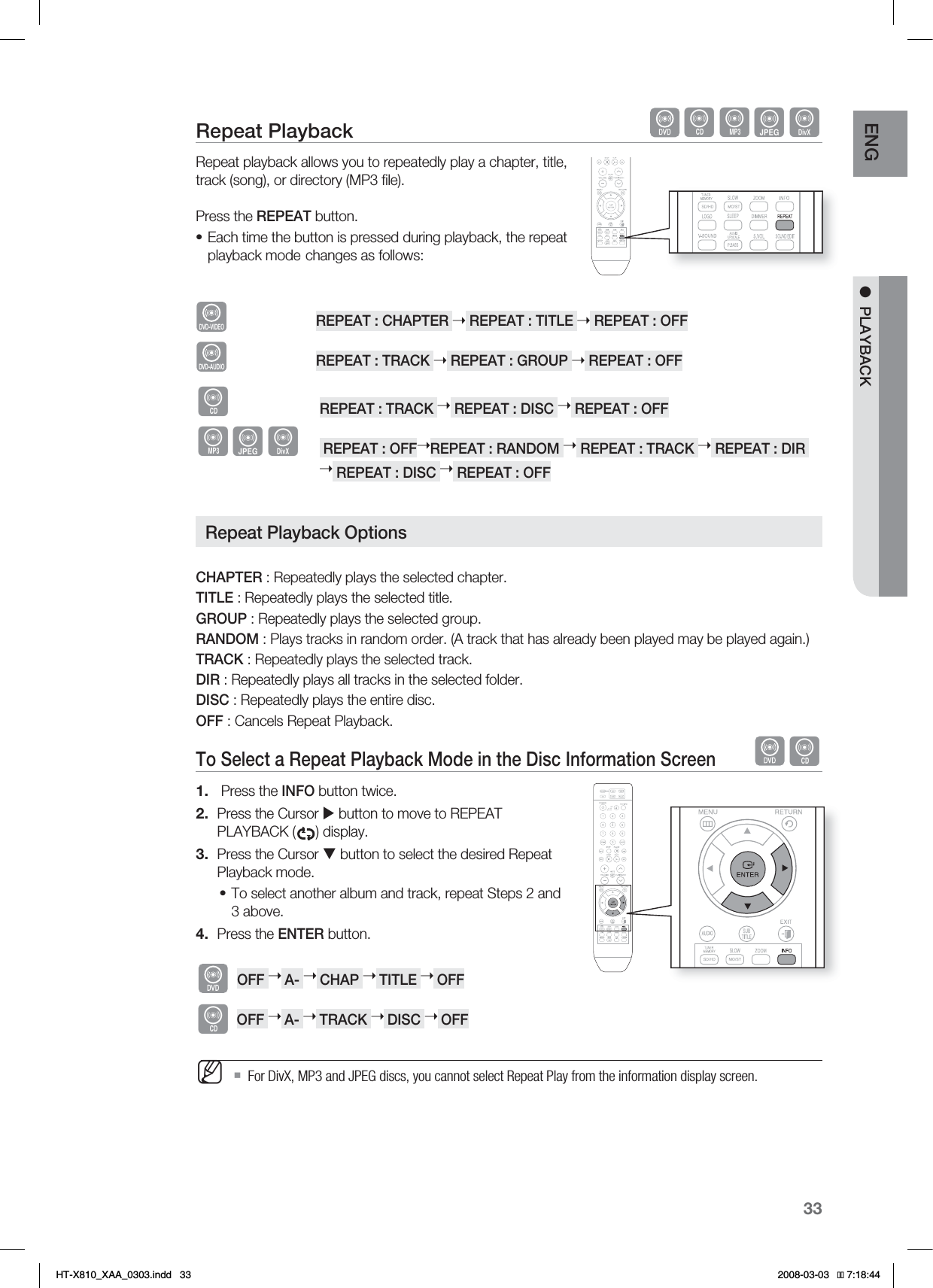

33ENG ●PLAYBACKRepeat Playback BAGDRepeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 fi le).Press the REPEAT button.Each time the button is pressed during playback, the repeat playback mode changes as follows:DVD-VIDEOREPEAT : CHAPTER ➝ REPEAT : TITLE ➝ REPEAT : OFFDVD-AUDIO REPEAT : TRACK ➝ REPEAT : GROUP ➝ REPEAT : OFFBREPEAT : TRACK ➝ REPEAT : DISC ➝ REPEAT : OFFAGD REPEAT : OFF➝REPEAT : RANDOM ➝ REPEAT : TRACK ➝ REPEAT : DIR ➝ REPEAT : DISC ➝ REPEAT : OFFCHAPTER : Repeatedly plays the selected chapter.TITLE : Repeatedly plays the selected title.GROUP : Repeatedly plays the selected group.RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)TRACK : Repeatedly plays the selected track.DIR : Repeatedly plays all tracks in the selected folder.DISC : Repeatedly plays the entire disc.OFF : Cancels Repeat Playback.To Select a Repeat Playback Mode in the Disc Information ScreenB Press the INFO button twice.Press the Cursor X button to move to REPEAT PLAYBACK ( ) display.Press the Cursor T button to select the desired Repeat Playback mode.To select another album and track, repeat Steps 2 and 3 above. Press the ENTER button.OFF ➝A- ➝CHAP ➝TITLE ➝OFFB OFF ➝A- ➝TRACK ➝DISC ➝OFF For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.•1.2.3.•4.MRepeat Playback OptionsHT-X810_XAA_0303.indd 33 

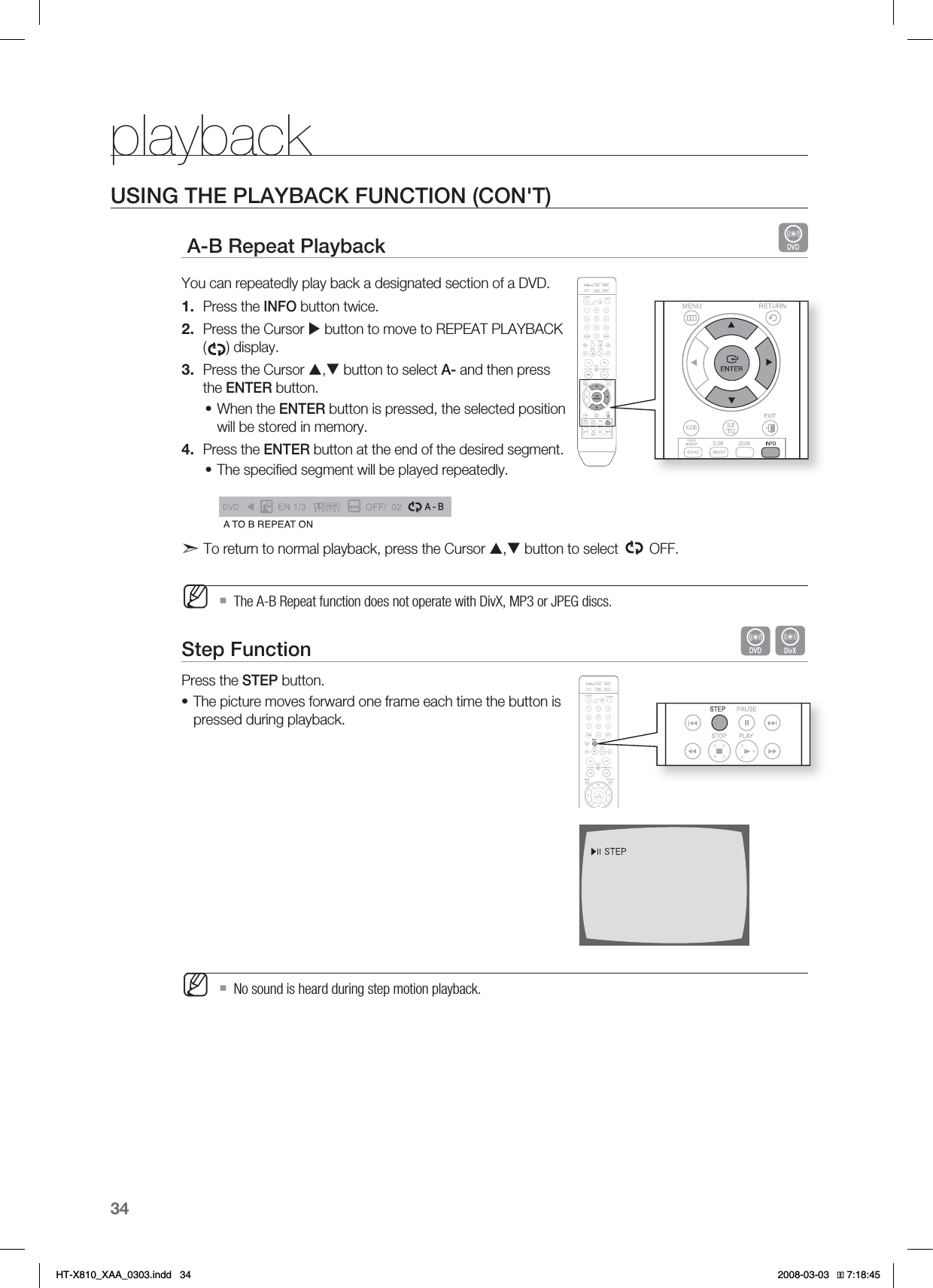

34playbackUSING THE PLAYBACK FUNCTION (CON'T) A-B Repeat Playback You can repeatedly play back a designated section of a DVD.Press the INFO button twice.Press the Cursor X button to move to REPEAT PLAYBACK () display.Press the Cursor S,T button to select A- and then press the ENTER button.When the ENTER button is pressed, the selected position will be stored in memory.Press the ENTER button at the end of the desired segment.The specifi ed segment will be played repeatedly.A - B To return to normal playback, press the Cursor S,T button to select OFF. The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.Step Function DPress the STEP button.The picture moves forward one frame each time the button is pressed during playback.No sound is heard during step motion playback.1.2.3.•4.•M•MHT-X810_XAA_0303.indd 34 
35ENG ●PLAYBACKAngle Function This function allows you to view the same scene in different angles.Press the INFO button.Press the Cursor X button to move to ANGLE ( )display.Press the Cursor S,T button or numeric buttons to select the desired angle.Each time the button is pressed, the angle changes as follows: 1/3  2/3  3/3  1/3 The Angle function works only with discs on which multiple angles have been recorded.Zoom (Screen Enlarge) Function This function allows you to enlarge a particular area of the displayed image.Press the ZOOM button.Press the Cursor ▲, ▼, ◄, ►button to move to ANGLE ( ) display.Press the ENTER button.Each time the button is pressed, the zoom level changes as follows:ZOOM X 1.5 ➝ZOOM X 2 ➝ZOOM X 3 ➝ZOOM OFF1.2.3.•M1.2.3.•SELECT ZOOM POSITION*6:A:##AKPFF 
36playbackUSING THE PLAYBACK FUNCTION (CON'T)Bonus Group DVD-AUDIOSome DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the key number.When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically. If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.Navigating Pages DVD-AUDIODuring playback, press the .,, button on the remote control. You can select the desired image from a DVD-Audio disc containing still images.With some discs, you may not be able to select images.Audio Language Selection Function Press the INFO button twice.Press the Cursor S,T button or numeric buttons to select the desired audio language.Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.EN 1/3 ➝SP 2/3 ➝FR 3/3 ➝EN 1/3To operate this function, you can also press the AUDIO buttons on the remote control.Depending on the disc, the Audio Language functions may not be available.M••1.2.•MBONUS GROUPKEY NUMBER :*6:A:##AKPFF 
37ENG ●PLAYBACKSubtitle Language Selection Function Press the INFO button twice.Press the Cursor X button to move to SUBTITLE ( )display.Press the Cursor T button or numeric buttons to select the desired subtitle.EN 01/03 ➝SP 02/03 ➝FR 03/03 ➝OFF/03 ➝EN 01/03To operate this function, you can also press the SUBTITLE buttons on the remote control.Depending on the disc, the Subtitle Language functions may not be available.Moving Directly to a Scene/Song BAGBPress the INFO button.Press the Cursor S,T button or numeric buttons to select the desired title/track ( ) and then press the ENTERbutton.Press the Cursor W,X button to move to the Chapter () display.Press the Cursor S,T button or numeric buttons to select the desired chapter and then press the ENTER button.Press the Cursor W,X button to move to time ( ) display.Press the numeric buttons to select the desired time and then press the ENTER button.AGPress the numeric buttons.The selected fi le will be played.When playing an MP3 or JPEG disc, you cannot use the Cursor S,Tbutton to move to a folder. To move a folder, press the STOP() and then press the Cursor S,Tbutton.You can press the #,$ button on the remote control to move directly to the desired title, chapter, or track.Depending on the disc, you may not be able to move to the selected title or time.1.2.3.M1.2.3.4.5.6.••M*6:A:##AKPFF 
38playbackUSING THE PLAYBACK FUNCTION (CON'T) Using the Disc Menu You can use the menus for the audio language, subtitle language, profi le, etc. DVD menu contents differ from disc to disc. In Stop mode, press the MENU button.Press the Cursor S,T button or numeric buttons to move to Disc Menu and then press the ENTER button.When you select Disc Menu and it is not supported by the disc, the "This menu is not supported" message appears on the screen.Press the Cursor S,T,W,X button to select the desired item. Press the ENTER button. Press the EXIT button to exit the setup screen.The disc menu display may be different depending on the disc.Using the Title Menu For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary. In Stop mode, press the MENU button.Press the Cursor S,T button to move to Title Menu.Press the ENTER button.The title menu appears. Press the EXIT button to exit the setup screen.The Title menu display may be different depending on the disc.1.2.•3.4.M1.2.3.•MENTERMOVE EXITENTERMOVE EXITHT-X810_XAA_0303.indd 38 
