Samsung Electronics Co PSWX810 Active Sub Woofer User Manual
Samsung Electronics Co Ltd Active Sub Woofer
Contents
- 1. User manual 1 of 2
- 2. User manual 2 of 2
User manual 1 of 2
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT WRITE
IN THE US 1-800-SAMSUNG
(7267864) www.samsung.com/us
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park,
NJ 07660-0511
Code No. AH68-02062R(0.0)
HT-X810_XAA_0303.indd 2
Digital Home
Theater System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/global/register
HT-X810
HT-X810_XAA_0303.indd 3
/ PS-WX810
2
features
Playback of many disc types
This Home Theater System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD,
WMA-CD, DivX, CD-R/RW, and DVD±R/RW.
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to
deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.
USB Host support
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc.
using the Home Theater's USB HOST function.
TV Screen Saver Function
If the main unit remains in Stop mode for 3 minutes, Samsung logo appears on TV screen.
The HT-X810 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.
Power Saving Function
The HT-
X810
automatically shuts itself off after 20 minutes in Stop mode.
Customized TV Screen Display
The HT-X810 allows you to select your favorite image during JPEG, DVD playback and set it as your background
wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Anynet+(HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the
Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)
Bluetooth Function
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
Wireless Subwoofer
You can hear powerful sound from the subwoofer without having to use speaker cables.

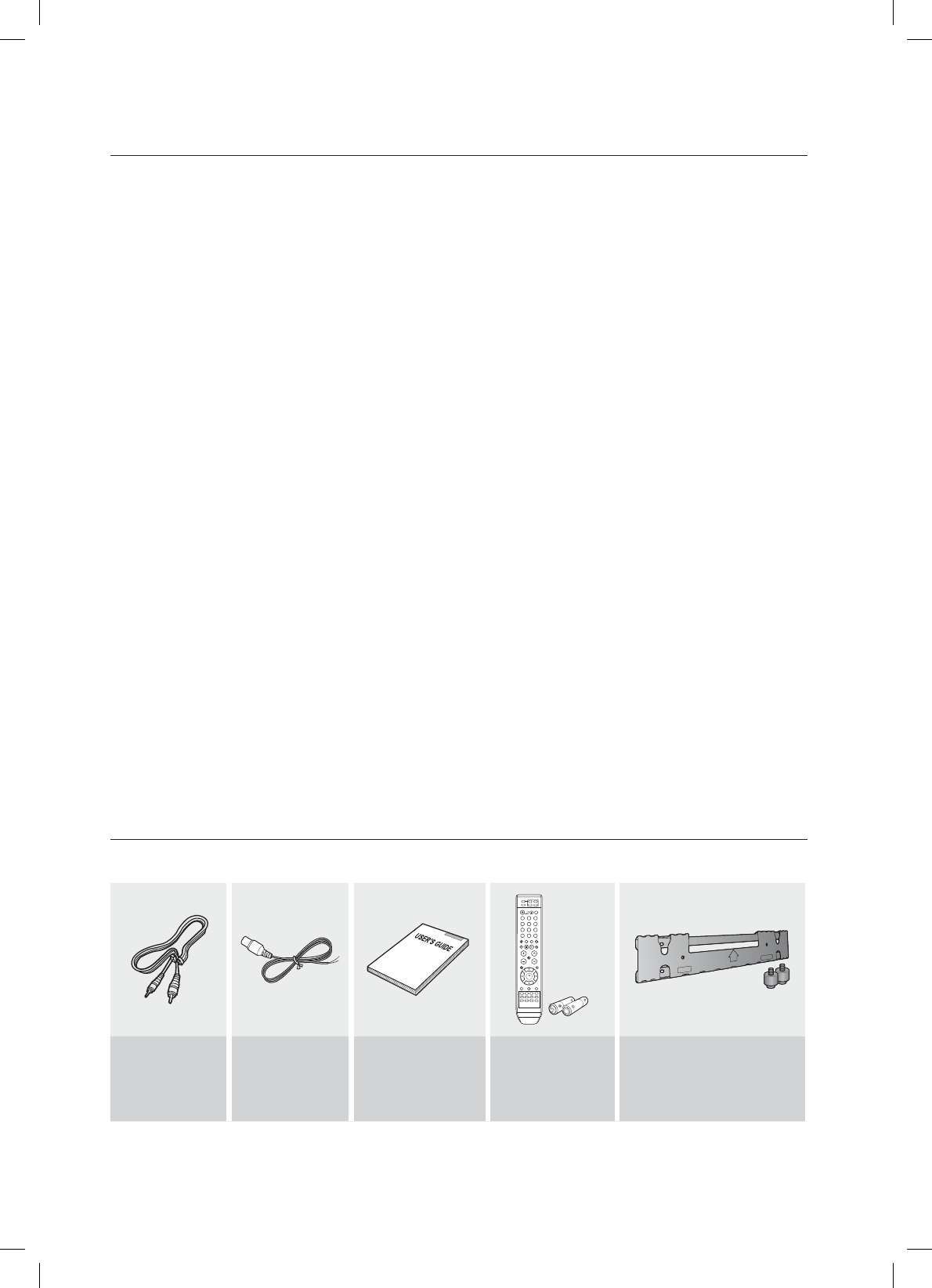

WHAT’S INCLUDED
Check for the supplied accessories below.
Video Cable
(AH39-40001V)
FM Antenna
(AH42-00017A)
User's Manual
(AH68-02062R)
Remote Control
(AH59-01907T)
/ Batteries (AAA size)
(4301-000116)
Bracket-Wall Mount
(AH61-02574A)
/ Mounting Studs (2EA)
(AH97-02638A)
HT-X810_XAA_0303.indd 2
3
ENG
safety information
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead within
Triangle Is a warning sign alerting you of
dangerous voltage inside the product
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QULAIFIED SERVICE
PERSONNEL.
The explanation point within the triangle
is a warning sign alerting you of
important instructions accompanying the
product.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
If this power supply is used at 240V ac, a suitable plug adapter should be used.
CAUTION
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other
equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use
shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the
user's authority to operate it.
•
•
•
•
•
•
•
•
•
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER
product.
Use of controls, adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION :
INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
HT-X810_XAA_0303.indd 3
4
safety information
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep
these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these Instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11) Only use attachment/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
HT-X810_XAA_0303.indd 4
PRECAUTIONS
This product is covered by one or more of the following U.S. patents:
5,060,220 5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061 6,556,521 6,578,163 6,697,307 6,728,474
6,771,891 6,894,963 6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649 7,092,327 7,099,566 7,123,564
7,142,493 7,142,495 7,145,861 7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891 7,177,250 7,194,187
7,203,891 7,209,423 7,210,067 7,228,062 7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086 7,272,106
7,280,460 7,283,729 7,286,454 7,304,938
This product is covered by the following U.S. patents:
US4,930,158 US4,930,160

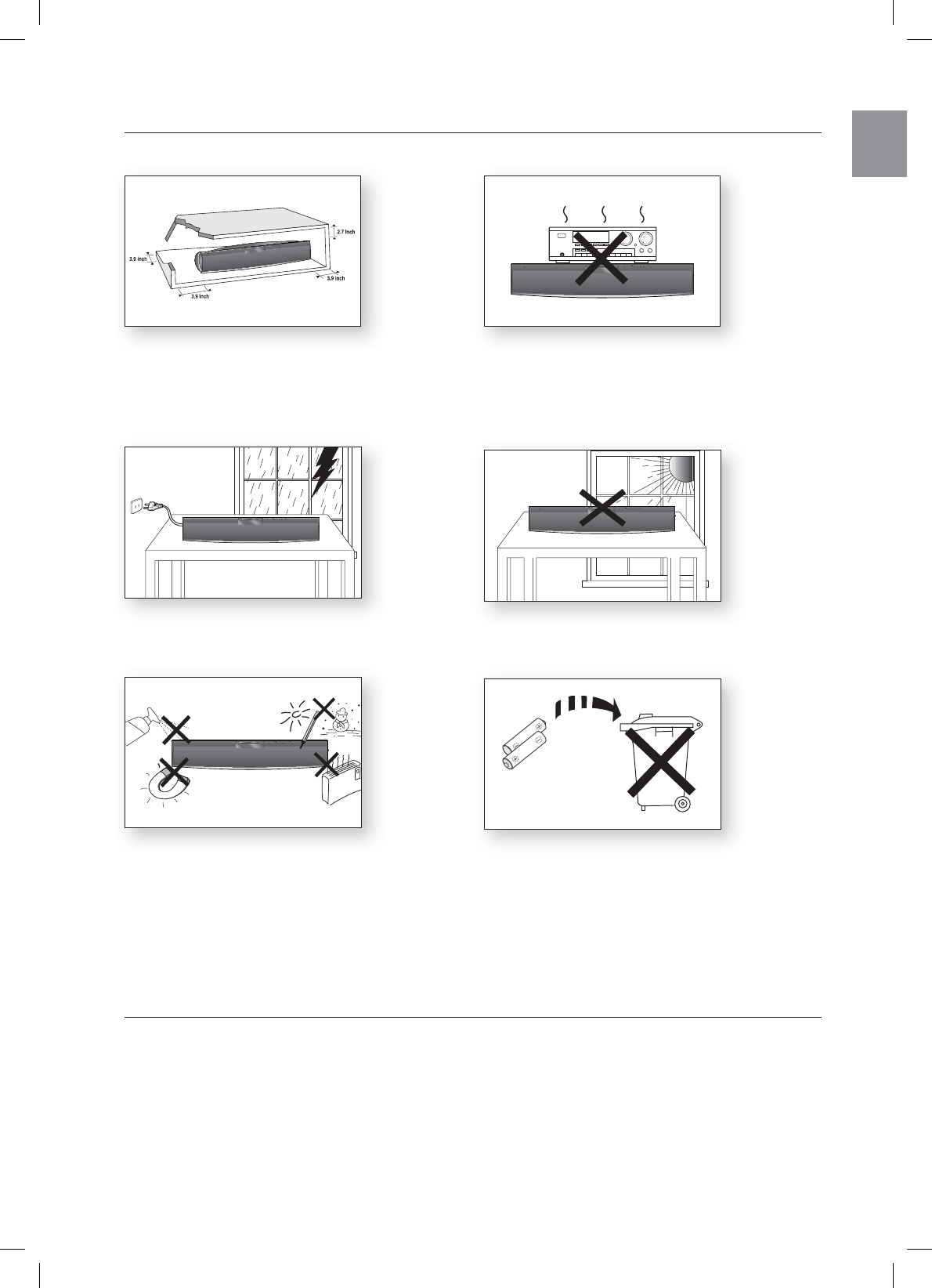

Ensure that the AC power supply in your house complies with the identifi cation sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots
are not covered. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD
player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power sup-
ply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
During thunderstorms, disconnect the AC main plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fi replace) or equipment creating strong magnetic or electric fi elds
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use. Use of
this product is for personal use only.
Condensation may occur if your player or disc has been stored in
cold temperatures. If transporting the player during the winter,
wait approxi
mately 2 hours until the unit has reached room temperature
before using.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
5
ENG
*6:A:##AKPFF
6
contents
FEATURES
2
2 What’s included
SAFETY INFORMATION
3
3 Safety Warnings
4 Important Safety Instructions
5 Precautions
GETTING STARTED
8
8 Before Reading the User’s Manual
9 Playable Discs
9Do not use the following types of discs!
9 Copy Protection
10 Disc Type and Characteristics
DESCRIPTION
11
11 Front Panel
12 Rear Panel
REMOTE CONTROL
13

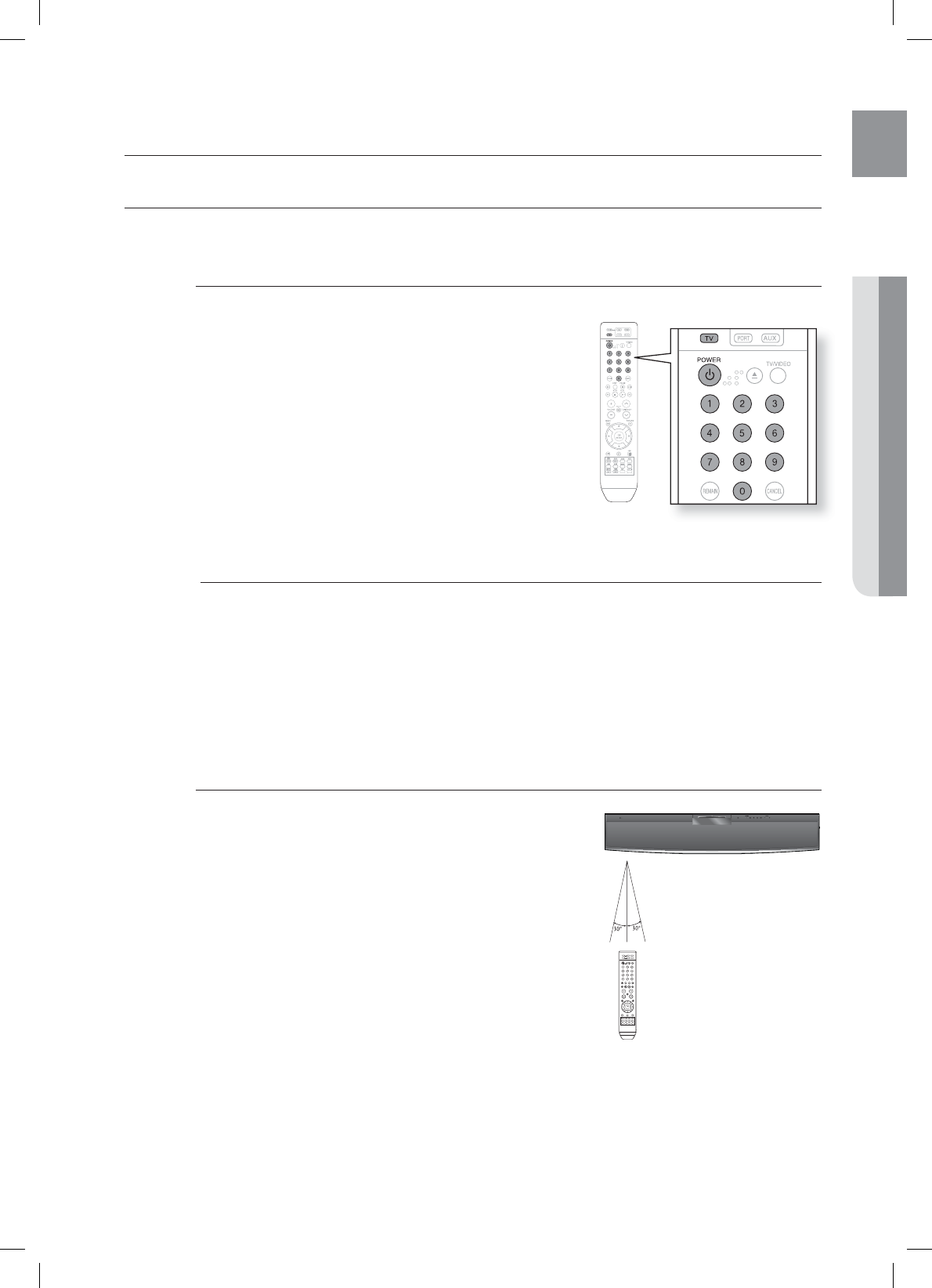

13 Setting the Remote Control
14 Tour of the Remote Control
CONNECTIONS
17
17 Connecting the Wireless Subwoofer

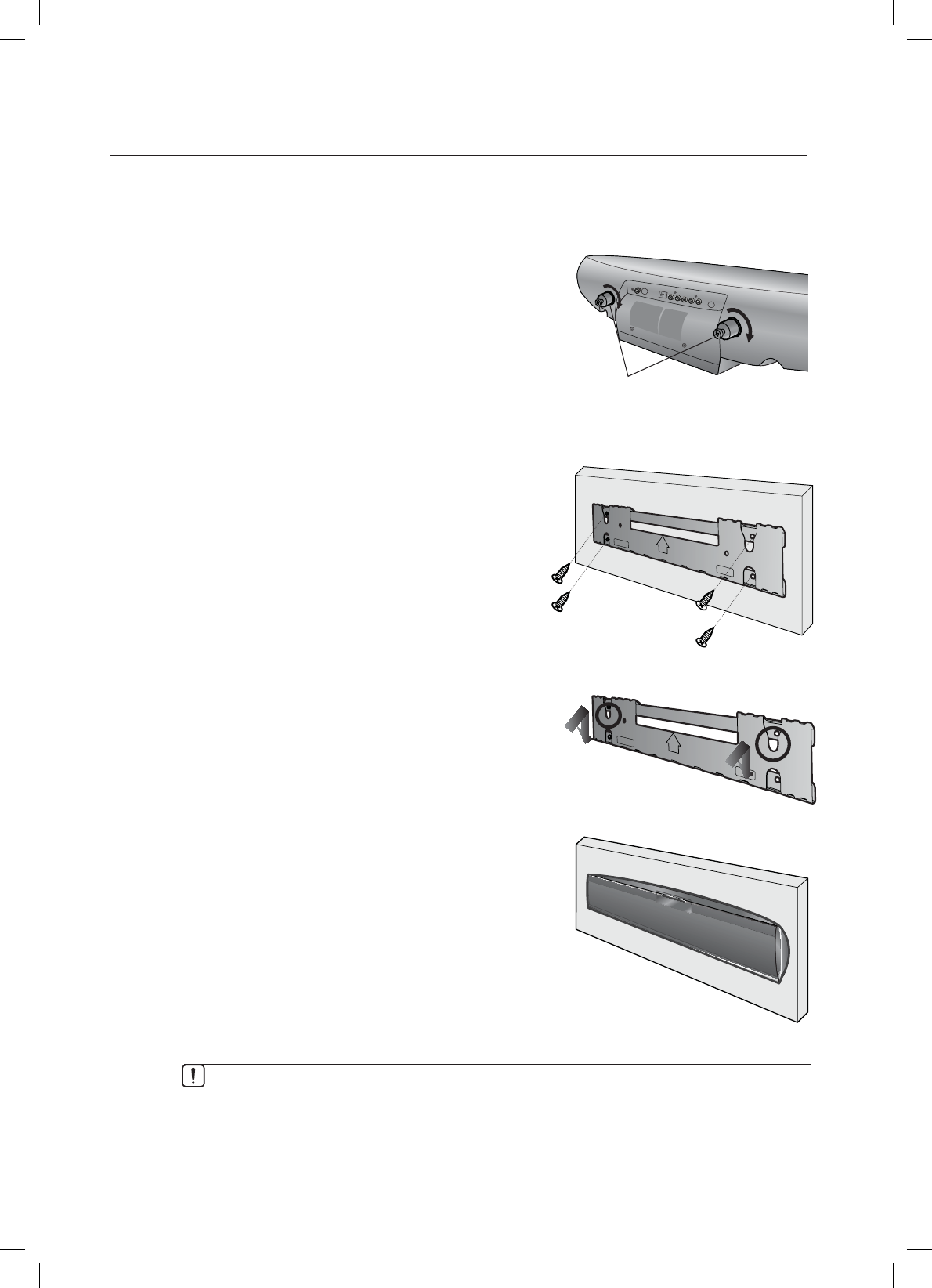

18 Installing the Wall Mount

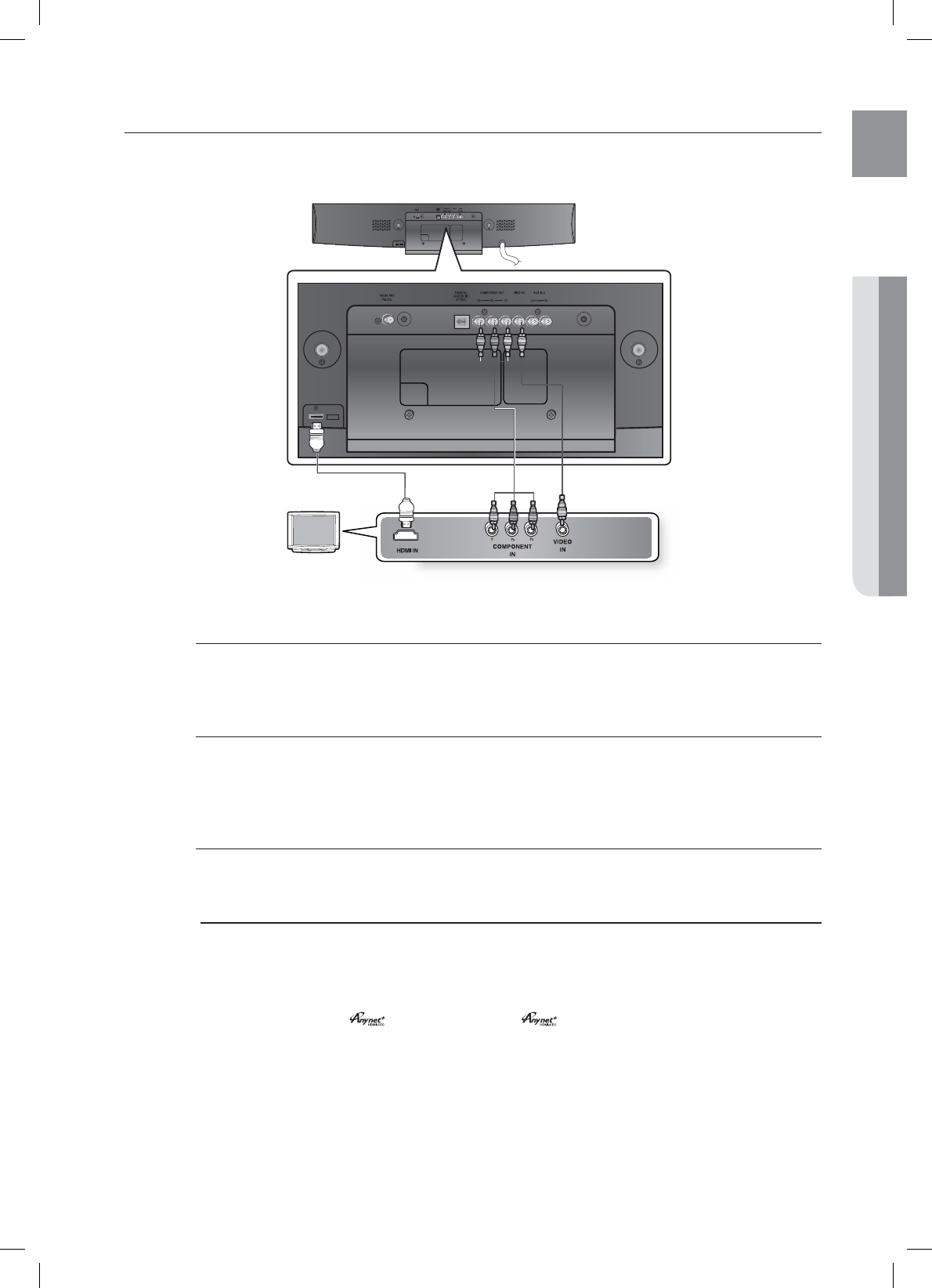

19 Connecting the Video Out to your TV
21 HDMI Function
22 Connecting Audio from External Components

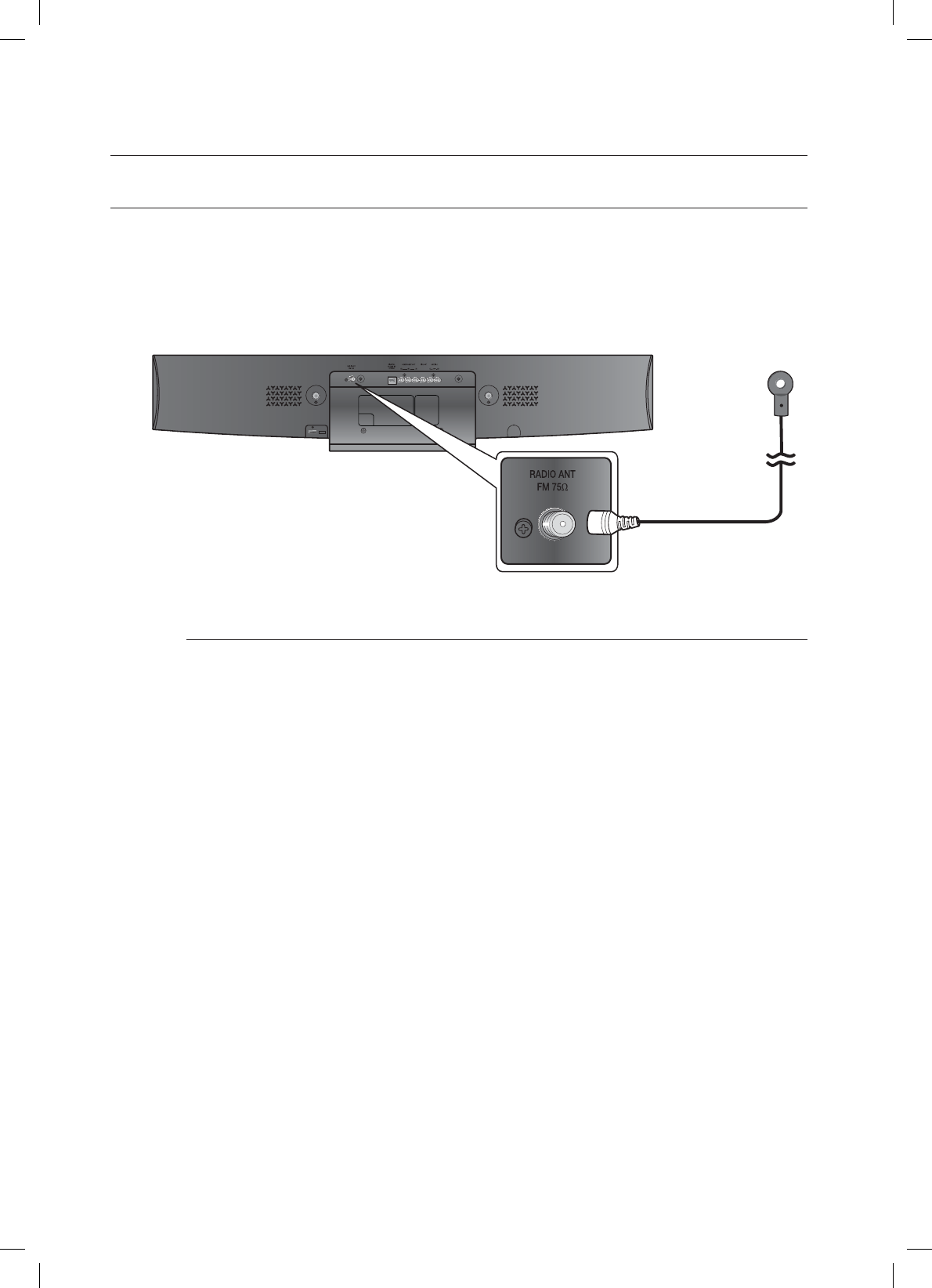

24 Connecting the FM Antenna
BEFORE USING YOUR HOME
THEATER
25
PLAYBACK
26
26 Disc Playback
27 MP3/WMA-CD Playback

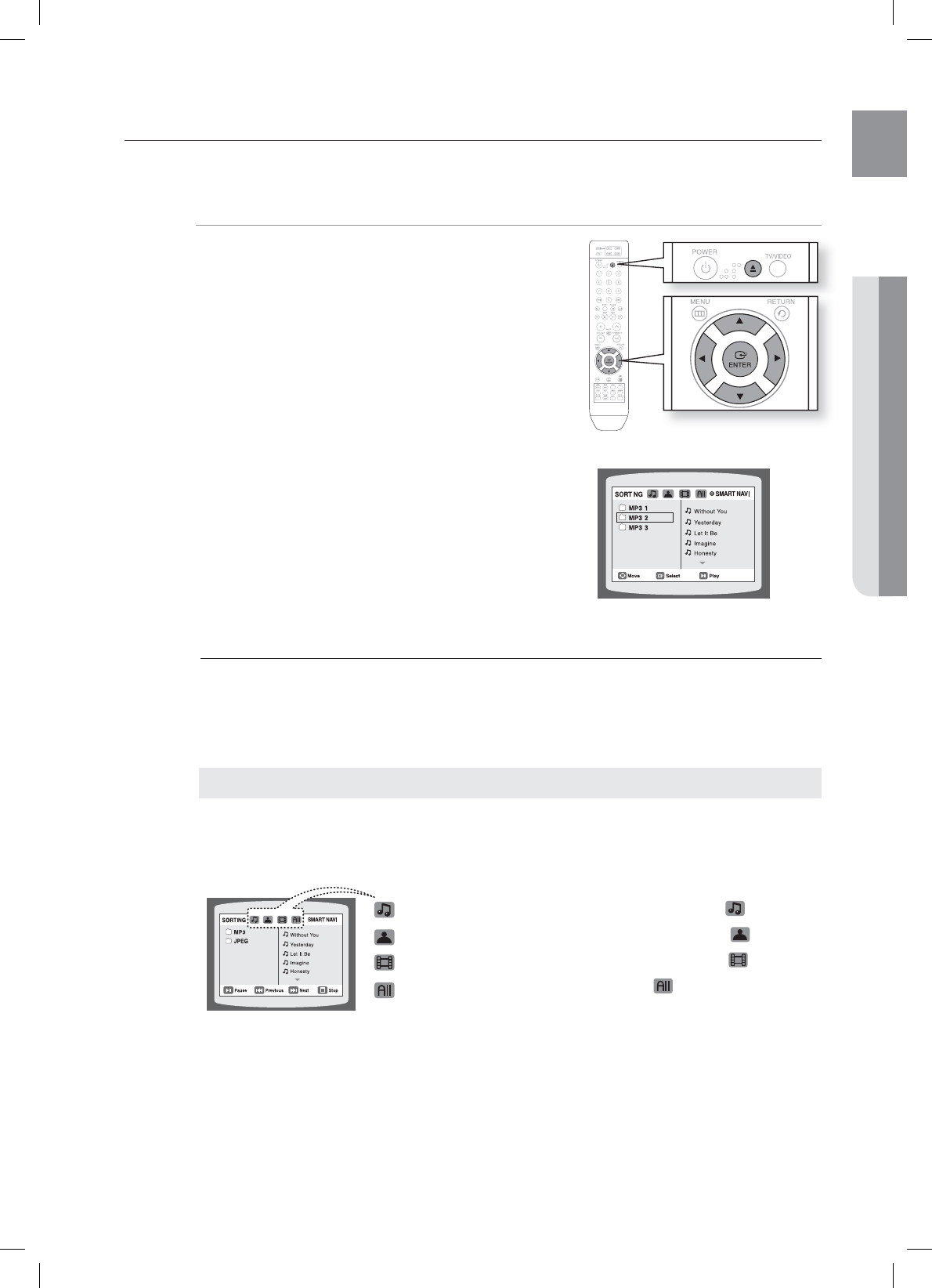

28 JPEG File Playback
29 DivX Playback

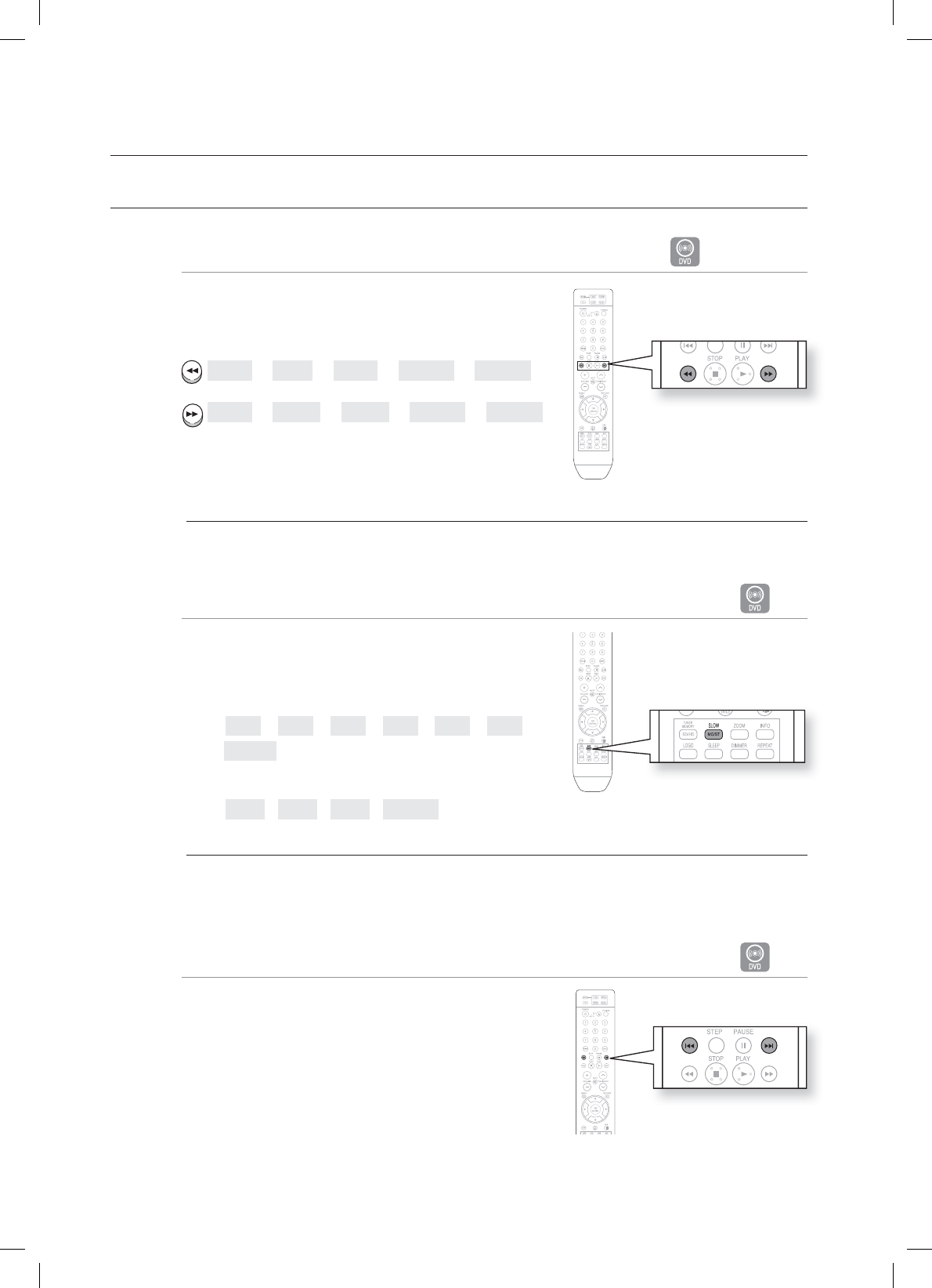

31 Using the Playback Function
39 Using Bluetooth
41 Playing Media Files using the USB Host
Feature
*6:A:##AKPFF
7
ENG
SYSTEM SETUP
43
43 Setting the Language
44 Setting TV Screen Type
45 Setting Parental Controls (Rating Level)
45 Setting the Password
46 Setting the Wallpaper
46 To Select One of the 3 Wallpaper Settings
You've Made
47 DVD Playback Mode
47 Setting the DRC (Dynamic Range
Compression)
48 Setting the AV SYNC
48 Setting the HDMI Audio
48 Setting the Audio
RADIO
49
49 Listening to Radio
49 Presetting Stations
CONVENIENT FUNCTION
50
50 Sleep Timer Function
50 Adjusting Display Brightness
50 Mute Function
51 V-SOUND (Virtual Sound)
51 S.VOL (Smart Volume)
51 P.BASS/Audio Upscaling
TROUBLESHOOTING
52
USB HOST FEATURE SUPPORTED
PRODUCTS
55
55 Digital Camera
55 USB Flash Disc
55 MP3 Player
APPENDIX
56
56 Cautions on Handling and Storing Discs
57 Specifications
58 Warranty
LANGUAGE CODE LIST
54
*6:A:##AKPFF
8
getting started
BEFORE READING THE USER’S MANUAL
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon Term Definition
DVD This involves a function available with DVD or DVD-R/DVD-RW discs that
have been recorded and finalized in Video Mode.
B
CD This involves a function available with a data CD (CD-R or CD-RW).
A
MP3 This involves a function available with CD-R/-RW discs.
G
JPEG This involves a function available with CD-R/-RW discs.
D
DivX This involves a function available with MPEG4 discs.
(DVD±R/RW, CD-R or CD-RW)
Caution This involves a case where a function does not operate or settings may be
cancelled.
M
Note This involves tips or instructions on the page that help each function
operate.
In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO and
DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is
mentioned, it is indicated separately.
If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
About the use of this user’s manual
Be sure to be familiar with Safety Instructions before using this product. (See pages 3~4)
If a problem occurs, check the Troubleshooting. (See pages 52~53)
Copyright
©2008 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
M
1)
2)
HT-X810_XAA_0303.indd 8
9
ENG ●GETTING STARTED
PLAYABLE DISCS
Disc Type Mark (Logo) Recorded Signals Disc Size Max. Playing Time
DVD-AUDIO
DVD-VIDEO AUDIO + VIDEO
5 inches
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
3 1/2 inches
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
AUDIO-CD
COMPACT
DIGITAL AUDIO
AUDIO
5 inches 74 min.
3 1/2 inches 20 min.
DivX AUDIO + VIDEO
5 inches
—
3 1/2 inches
—
DO NOT USE THE FOLLOWING TYPES OF DISCS !
LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the
TV screen.
COPY PROTECTION
Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player
directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD
discs.
This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
•
•
•
•
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
DVD players and the discs are coded by region. These regional codes must match in order for the
disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
1 6
~
*6:A:##AKPFF
10
getting started
DISC TYPE AND CHARACTERISTICS
This product does not support Secure (DRM) Media files.
CD-R Discs
Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be played back.
Some CD-RW (Rewritable) media, may not be playable.
Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
CD-R MP3 Discs
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
Only files with the ".mp3" and ".MP3" extensions can be played.
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession
disc, the disc can be played only up to the blank segment.
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
A maximum of 500 tracks can be played per CD.
A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
Only files with the "jpg" extensions can be played.
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank segment.
A maximum of 9,999 images can be stored on a single CD.
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
DVD±R/RW, CD-R/RW DivX Discs
Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the
user might not play.
Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
Sections with a high frame rate might not be played while playing a DivX file.
For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.
net".
❖
•
•
•
•
❖
•
•
•
•
•
•
•
•
•
❖
•
•
•
•
•
•
•
•
❖
•
•
•
•
HT-X810_XAA_0303.indd 10
11
ENG
●DESCRIPTION
description

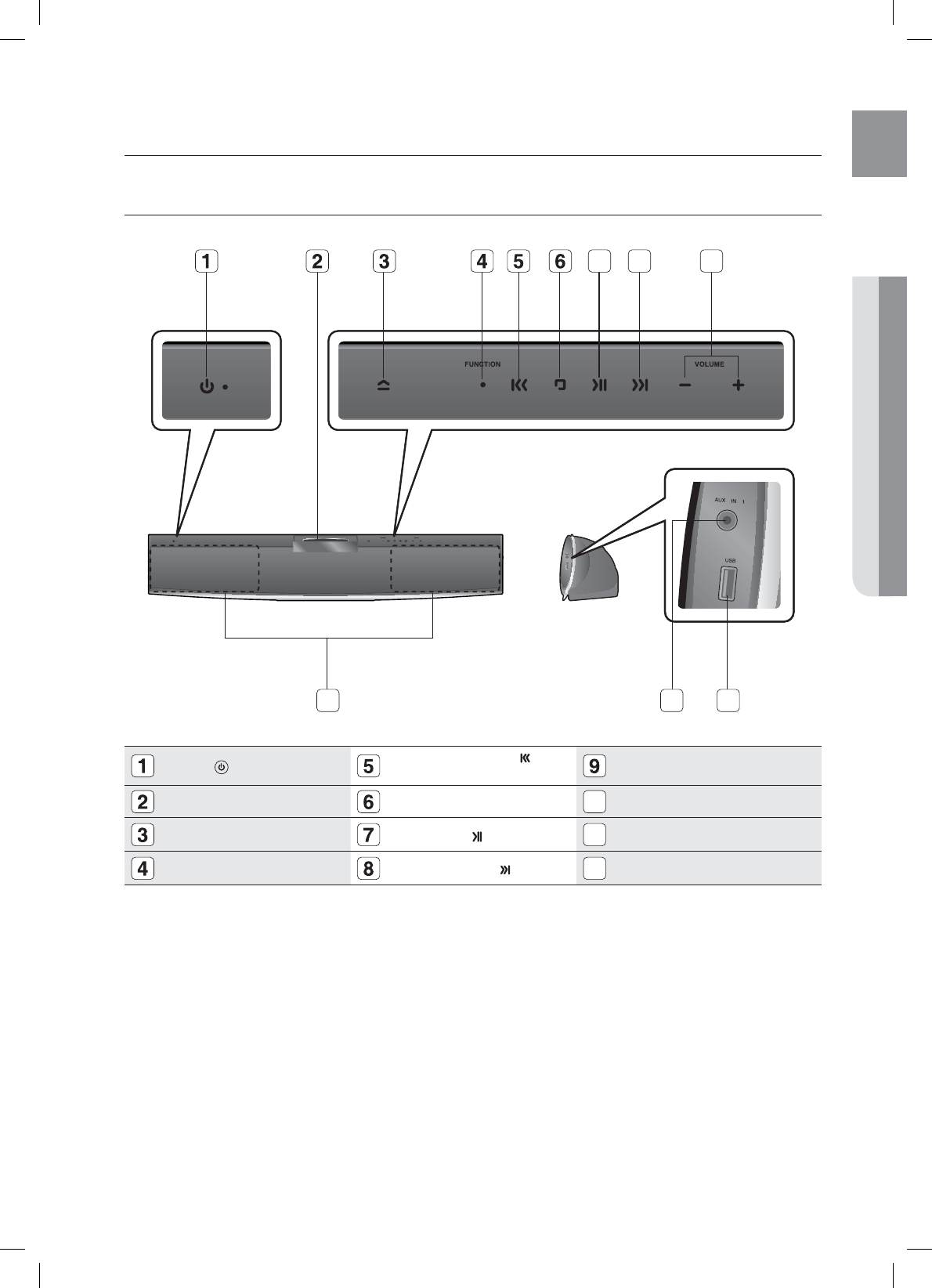

FRONT PANEL
POWER( ) BUTTON TUNING DOWN & SKIP ( )
BUTTON Volume Control
DISC SLOT STOP
(¦)
BUTTON
10
SPEAKERS
EJECT BUTTON PLAY/PAUSE ( ) BUTTON
11
AUX IN 1 Jack
FUNCTION BUTTON TUNING UP & SKIP ( ) BUTTON
12
USB Port
7
12
89
1110
HT-X810_XAA_0303.indd 11
12
description

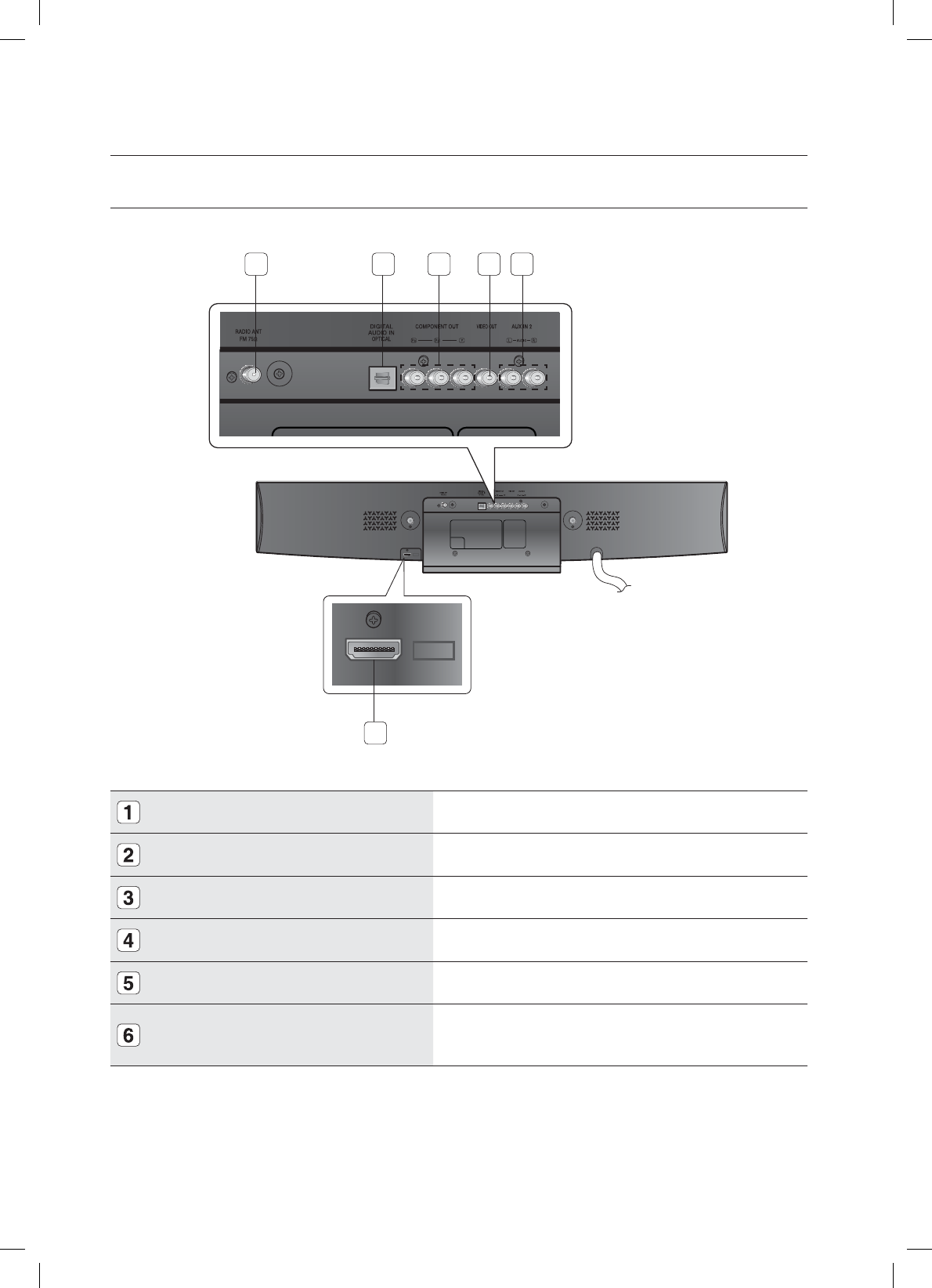

REAR PANEL
FM 75
š
COAXIAL JACK Connect the FM antenna.
EXTERNAL DIGITAL OPTICAL INPUT JACK Use this to connect external equipment capable of digital output.
COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.
VIDEO OUTPUT JACK Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
AUX IN 2 JACKS Connect to the 2CH analog output of an external device (such as a VCR)
HDMI OUT JACK Using an HDMI cable, connect this HDMI output terminal to the HDMI
input terminal on your TV for the best quality picture.
HDMI OUT
HDMI OUT
1 2 3 4 5
6
HT-X810_XAA_0303.indd 12
13
ENG
●REMOTE CONTROL
Operation Range of the Remote Control
The remote control can be used up to approximately
23 feet (7 meters) in a straight line. It can also be operated at a
horizontal angle of up to 30° from the remote control sensor.
When operating a TV with the remote control
1. Press the TV button to set the remote to TV mode.
2. Press the POWER button to turn on the TV.
3. While holding down the POWER button, enter the code
corresponding to your brand of TV.
If there is more than one code listed for your TV in the
able, enter one at a time to determine which code works.
Example : For a Samsung TV
While holding down the POWER button, use the number
buttons to enter 00, 15, 16, 17 and 40.
4. If the TV turns off, the setting is complete.
You can use the TV POWER, VOLUME, CHANNEL, and
Numeric buttons (0~9).
The remote control may not work on some brands of TVs. Also, some operations may not be possible
depending on your brand of TV.
If you do not set the remote control with the code for your brand of TV, the remote control will work on a
Samsung TV by default.
•
•
M
SETTING THE REMOTE CONTROL
You can control certain functions of your TV with this remote control.
remote control
HT-X810_XAA_0303.indd 13
14
remote control

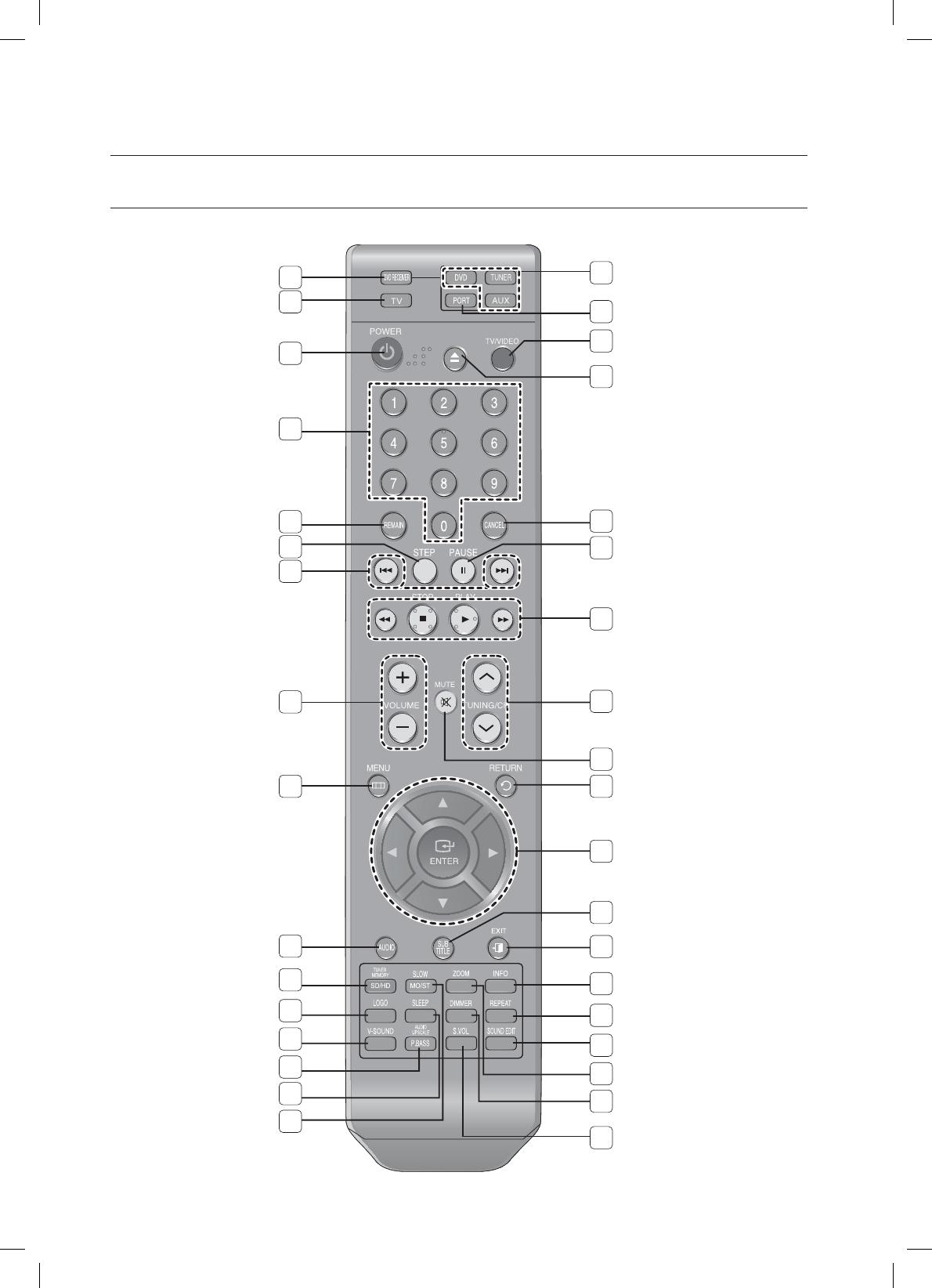

TOUR OF THE REMOTE CONTROL
2
1
15
14
13
12
11
10
9
8
7
6
5
4
3
18
17
16
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
34
35
HT-X810_XAA_0303.indd 14
15
ENG ●REMOTE CONTROL
PORT button
TV/VIDEO button
EJECT button
CANCEL button
PAUSE button
PLAY button
STOP button
SEARCH buttons
TUNING/CH button
MUTE button
RETURN button
Cursor/ENTER button
SUBTITLE button
EXIT button
INFO button
REPEAT button
SOUND EDIT button
ZOOM button
34
DIMMER button
35
S.VOL(Smart Volume) button
DVD RECEIVER button
TV button
POWER button
Number (0~9) buttons
REMAIN button
STEP button
Tuning Preset/CD Skip buttons
VOLUME button
MENU button
AUDIO button
TUNER MEMORY, SD(Standard
Definition)/HD(High Definition) button
LOGO button
13
V-SOUND(Virtual Sound) button
14
AUDIO UPSCALE/P.BASS button
15
SLEEP button
16
SLOW, MO/ST button
17
DVD
DVD button
TUNER button
AUX button
33
32
31
30
29
28
27
26
12
11
10
9
8
7
6
5
4
3
2
1

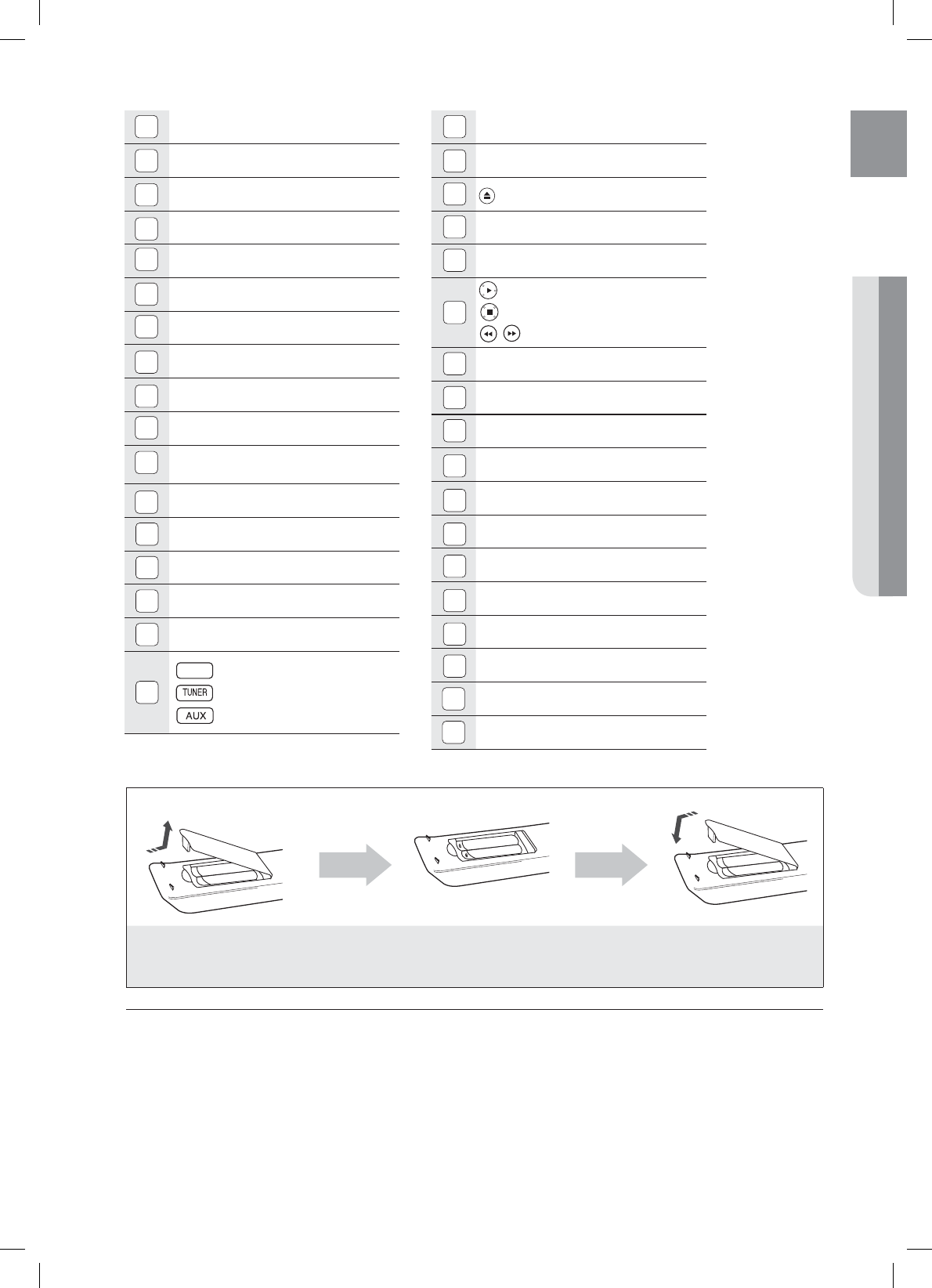

Insert Remote Batteries
1. Remove the battery
cover in the direction
of the arrow.
2. Insert two 1.5V AAA batteries, paying
attention to the correct polarities
(+ and –).
3. Replace the battery
cover.
Follow these precautions to avoid leaking or cracking cells:
Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose the batteries to heat or a flame.
M
18
19
20
21
22
23
24
25
ENG
15
*6:A:##AKPFF
16
remote control
TV Brand Code List
Admiral (M.Wards)
A Mark
Anam
AOC
Bell & Howell (M.Wards)
Brocsonic
Candle
Cetronic
Citizen
Cinema
Classic
Concerto
Contec
Coronado
Craig
Croslex
Crown
Curtis Mates
CXC
Daewoo
Daytron
Dynasty
Emerson
Fisher
Funai
Futuretech
General Electric (GE)
Hall Mark
Hitachi
Inkel
JC Penny
JVC
KTV
KEC
KMC
LG (Goldstar)
Luxman
LXI (Sears)
Magnavox
Marantz
Matsui
MGA
Mitsubishi/MGA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
56, 57, 58
01, 15
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
12, 13, 14
01, 18, 40, 48
57, 58, 81
59, 60
18
03
03, 18, 25
97
03
18
46
15
03, 05, 61, 82, 83, 84
62
03
59, 61, 63
03
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
40
03
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
19, 65
03
03
06, 40, 56, 59, 66, 67, 68
40
15, 18, 50, 59, 69
45
56, 59, 67, 86
70
59, 61, 87, 88
03, 15, 40
15
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
18
19, 54, 56, 59, 60, 62, 63, 65, 71
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
40, 54
54
18, 40
18, 40, 59, 60, 75
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
MTC
NEC
Nikei
Onking
Onwa
Panasonic
Penney
Philco
Philips
Pioneer
Portland
Proton
Quasar
Radio Shack
RCA/Proscan
Realistic
Sampo
Samsung
Sanyo
Scott
Sears
Sharp
Signature 2000 (M.Wards)
Sony
Soundesign
Spectricon
SSS
Sylvania
Symphonic
Tatung
Techwood
Teknika
TMK
Toshiba
Vidtech
Videch
Wards
Yamaha
York
Yupiteru
Zenith
Zonda
Dongyang
18
18, 19, 20, 40, 59, 60
03
03
03
06, 07, 08, 09, 54, 66, 67, 73, 74
18
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
15, 17, 18, 40, 48, 54, 62, 72
63, 66, 80, 91
15, 18, 59
40
06, 66, 67
17, 48, 56, 60, 61, 75
18, 59, 67, 76, 77, 78, 92, 93, 94
03, 19
40
00, 15, 16, 17, 40, 43, 46, 47, 48, 49,
59, 60, 98
19, 61, 65
03, 40, 60, 61
15, 18, 19
15, 57, 64
57, 58
50, 51, 52, 53, 55
03, 40
01
18
18, 40, 48, 54, 59, 60, 62
61, 95, 96
06
18
03, 15, 18, 25
18, 40
19, 57, 63, 71
18
59, 60, 69
15, 17, 18, 40, 48, 54, 60, 64
18
40
03
58, 79
01
03, 54
No.
Brand
Code No.
Brand
Code
*6:A:##AKPFF
17
ENG
●CONNECTIONS
connections

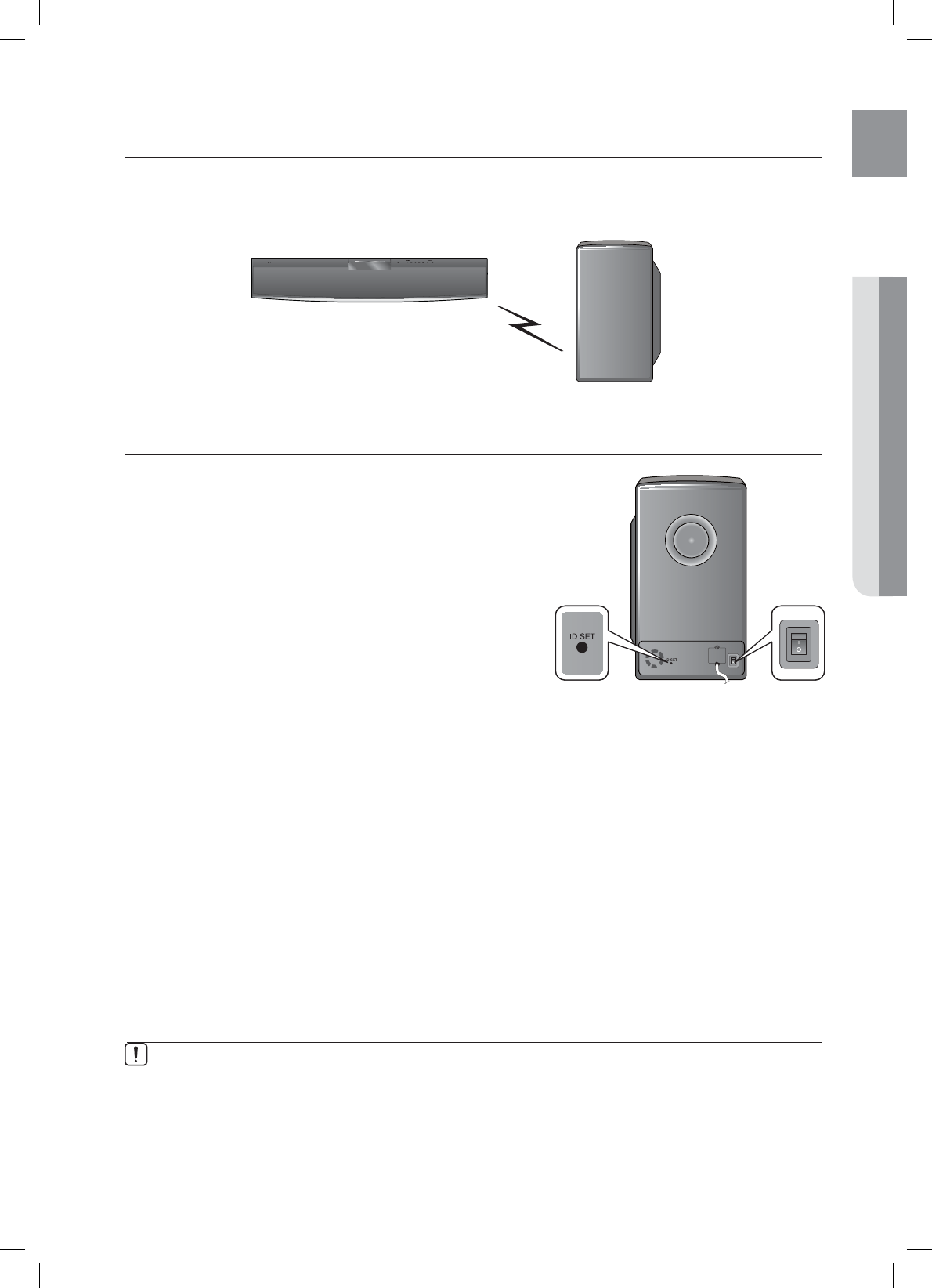

CONNECTING THE WIRELESS SUBWOOFER
Press the POWER button on the rear of the subwoofer to turn it on.
If the main unit is turned on
The subwoofer will be automatically connected to the product and
the Link LED on its front will blink blue for a few seconds.
If the main unit is turned off
The Link LED on the front of the subwoofer will blink blue for about
30 seconds, then will change to red as the sub switches to
STANDBY mode.
If the subwoofer is turned off, you will see S/W CHECK on the display panel of the main unit.
Place the wireless subwoofer under the main unit.
If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other
device that uses the same frequency (2.4GHz) near the system, some sound interruption may be
heard due to interference.
The transmission distance of radio wave is about 32 feet, 9.7 inches, but may vary depending on
your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the
wireless subwoofer, the system may not operate at all, because the radio wave cannot penetrate
metal.
If the main unit doesn't make wireless connection, the system needs ID Setting between the main
unit and wireless subwoofer. With the main unit turned off, press the remote control's
"0"J"1"J"3"J"5" number buttons and the unit will turn on. With the wireless subwoofer turned on,
press ID SET button on the back of the unit for 5 seconds.
•
•
M
This section involves various methods of connecting the Digital Home Cinema to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and
moisture.
For optimal listening performance, make sure that the area around the wireless subwoofer location is clear
of any obstructions.
ID SET button POWER button
HT-X810_XAA_0303.indd 17
18
connections
INSTALLING THE WALL MOUNT
Place the Mounting Studs on the rear of the product and
turn them clockwise to fi x.
Place the wall mount bracket on a wall surface so that
the arrow on it points upward, and then secure it with
four screws (not supplied).
Then, fi t the product (Mounting Studs installed) into the
corresponding hole of the wall mount bracket.
This is the completion of the wall mount installation.
1.
2.
3.
4.
Mounting Studs (2EA)
(supplied)
Secure the Home Theater fi rmly to the wall so that it does not fall off.
If the Home theater falls off, it may result in an injury or damage to the product.
When the Home Theater is installed on wall, please make sure that a child does not pull any of
connecting cables. as it may cause it to fall.
HT-X810_XAA_0303.indd 18
19
ENG
●CONNECTIONS
CONNECTING THE VIDEO OUT TO YOUR TV
Choose one of the three methods for connecting to a TV.
HDMI OUT
HDMI OUT
METHOD3
(supplied)
METHOD2METHOD1
METHOD 1 : HDMI
(BEST QUALITY)
Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the DVD Player to the
HDMI IN jack on your TV.
METHOD 2 : Component Video
(BETTER QUALITY)
If your television is equipped with Component Video inputs, connect a Component video cable(not
supplied) from the Component Video Output (Pr, Pb and Y) jacks on the back of the DVD Player to the
Component Video Input jacks on your TV.
METHOD 3 : Composite Video
(GOOD QUALITY)
Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the
VIDEO IN jack on your TV.
This product operates in Interlace scan mode (480i) for Component output.
If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home
Theater using the TV's remote control. This is only available with SAMSUNG TVs that support
Anynet+(HDMI-CEC).
Please check the logo (If your TV has an logo, then it supports the Anynet+ function.)
M
*6:A:##AKPFF
20
connections
CONNECTING THE VIDEO OUT TO YOUR TV (CON'T)
HDMI Auto Detection Function
The player's video output will automatically change to HDMI mode when connecting an HDMI cable
while power is on.
HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
Using HDMI, the DVD Home Theater transmits a digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.
HDMI connection description
HDMI connector - Supports video and digital audio data.
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise
appears on the screen.
Why does Samsung use HDMI?
Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted
to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Theater) or an
analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is
degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A
conversion and is a pure digital signal from the player to your TV.
What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted
via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc)
and a display device (TV, projector. etc). Content is encrypted at the source device to prevent
unauthorized copies from being made.
What is Anynet+?
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the
Anynet+ feature.
- If your Samsung TV has an logo, then it supports the Anynet+ function.
- If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on
automatically and switch to HDMI mode.
- If you turn on the player and press the Play button with a disc already inserted, the TV will
immediately turn on and switch to HDMI mode.
•
•
•
•
•
HT-X810_XAA_0303.indd 20
21
ENG ●CONNECTIONS
HDMI FUNCTION
Resolution Selection
This function allows the user to select the screen resolution for
HDMI output.
In Stop mode, press and hold the SD/HD (Standard
Defi nition/High Defi nition) button on the remote control.
Resolutions available for the HDMI output are 480p,
720p, 1080i/1080p.
SD(Standard Defi nition) resolution is 480p and HD
(High Defi nition) resolution is 720p, 1080i/1080p.
The default value of HDMI output is 480p.
If the TV does not support the confi gured resolution, you will
not be able to see the picture properly.
When an HDMI cable is connected, composite and component
video signals are not output.
See your TV owner's manual for more information on how to select
the TV's Video Input source.

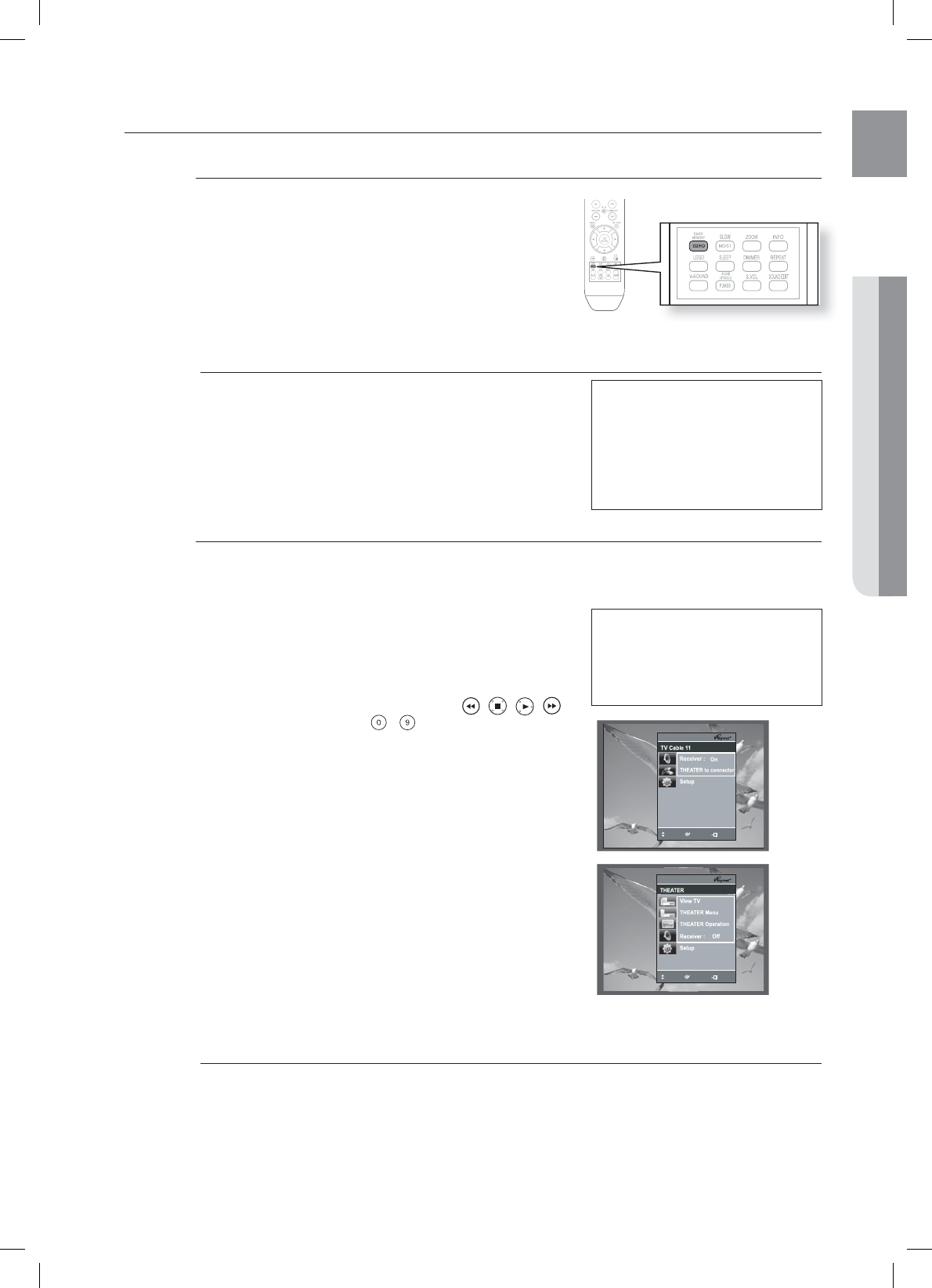

Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote
control. Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable.
This is only available with SAMSUNG TVs that support Anynet+.
Connect the main unit of the Home Theater to a Samsung
TV with an HDMI cable. (See page 19)
Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
You can operate the Home Theater by using the TV
remote control. (Available TV buttons : , , , ,
S,T
and
W,X
buttons, ~button)
If you select the TV
Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+
button on your TV remote control.
•
Receiver : On :
You can listen to audio through the Home Theater.
•
Receiver : Off : You can listen to audio through the TV.
If you select the THEATER
Select THEATER to connect and set the option of each item below.
•
View TV :
If Anynet+(HDMI CEC) is set to on and you select View TV,
the home theater will automatically switch to digital in mode.
• Theater
Menu :
you can access and control the Home theater menu.
• Theater Operation : The Home Theater disc playback
information will be displayed. You can
control the Disc operation of the
Home Theater such as title, chapter
and subtitle change.
•
Receiver : On :
You can listen to audio through the Home Theater.
•
Receiver : Off : You can listen to audio through the TV.
If you chose 'View TV' and you want to listen to TV sound through Digital In of the Home theater, you have to
connect an optical cable between the TV and the Home Theater.
•
•
M
1.
2.
•
M
Why use HDMI (High Defi nition
Multimedia Interface)?
This device transmits a DVD video
signal digitally without the process
of converting to analog. You will get
sharper digital pictures when using
an HDMI connection.
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
MOVE
ENTER
EXIT
With Anynet+
You can operate this unit, power
on your TV, or watch a movie by
pressing the Play button on your
Samsung TV's remote control.
HT-X810_XAA_0303.indd 21
22
connections
CONNECTING AUDIO FROM EXTERNAL COMPONENTS

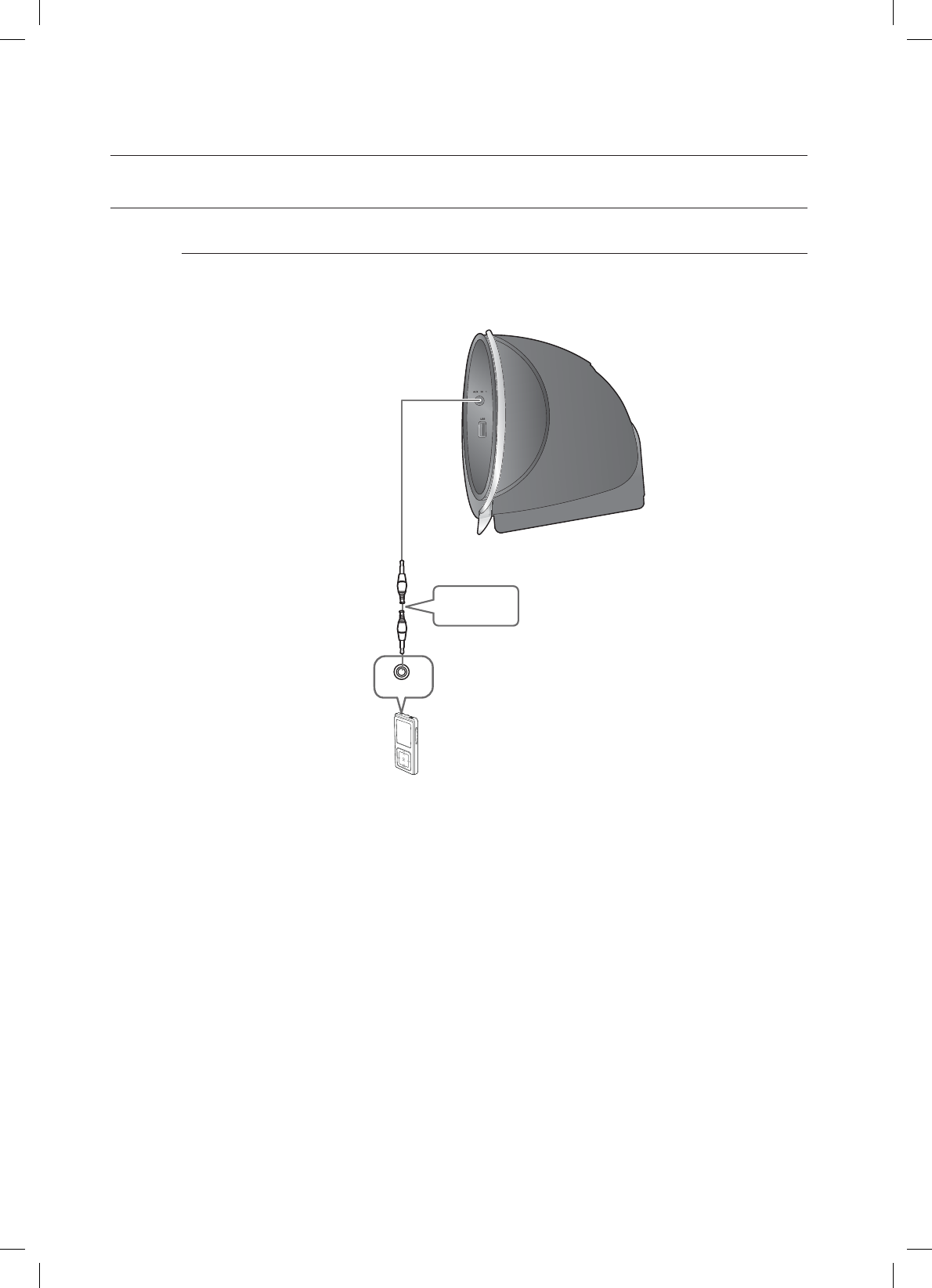

AUX1 : Connecting an External Component/MP3 player
Components such as an MP3 Player
Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3
player.
Press the AUX button on the remote control to select AUX1 input.
You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➝ D.IN ➝AUX 1 ➝AUX 2 ➝USB ➝BT AUDIO ➝FM.
1.
2.
•
Audio Cable
(not supplied)
Audio OUT
HT-X810_XAA_0303.indd 22
23
ENG ●CONNECTIONS
HDMI OUT
HDMI OUT

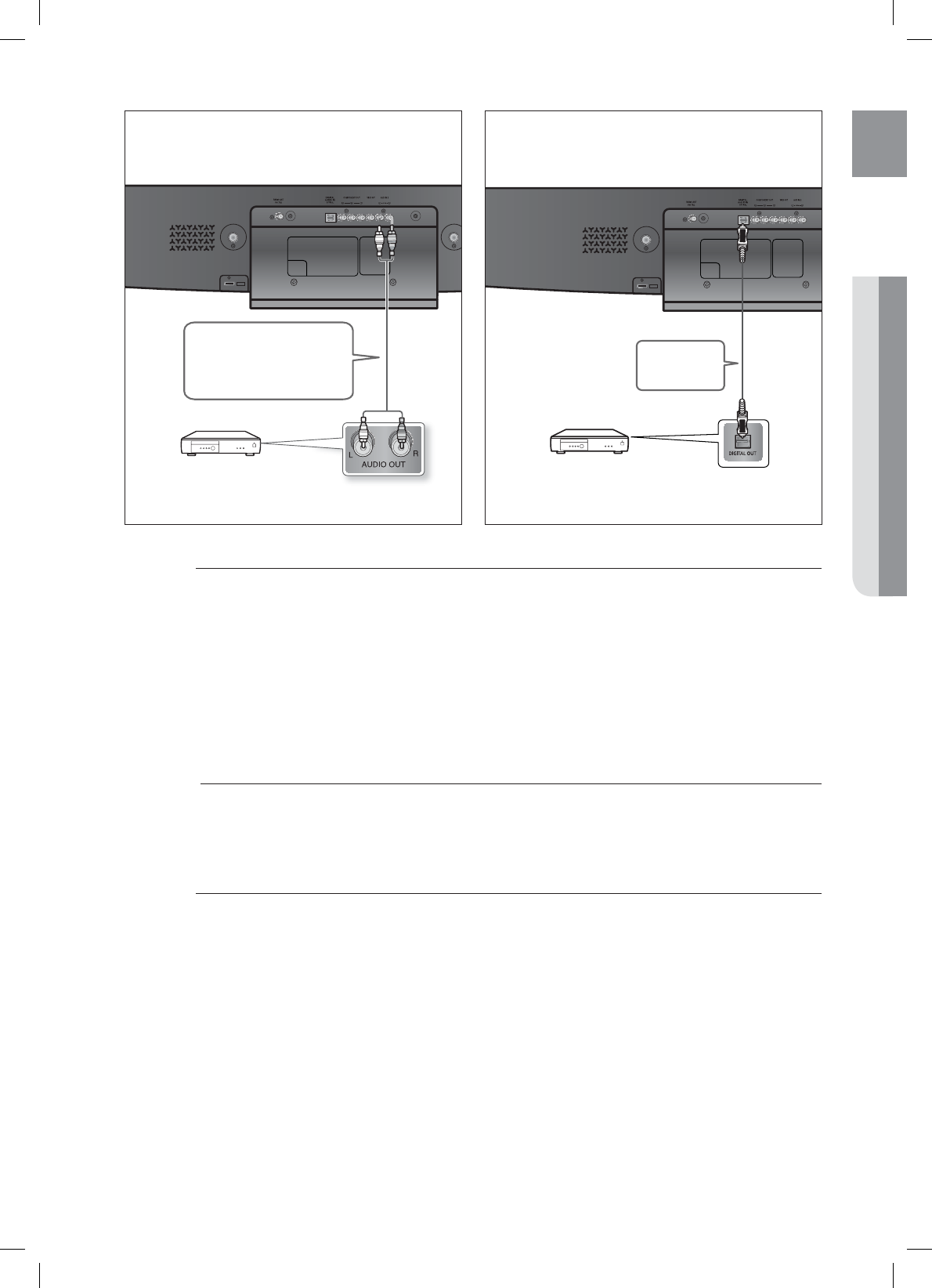

AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
Be sure to match connector colors.
Press the AUX button on the remote control to select AUX 2 input.
You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➝ D.IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝BT AUDIO ➝ FM.
You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR
to this product.
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital
component.
Press the AUX button on the remote control to select DIGITAL IN.
You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➝ D.IN ➝ AUX 1 ➝ AUX 2 ➝ USB ➝BT AUDIO ➝ FM.
1.
•
2.
•
M
1.
2.
•
Audio Cable (not supplied)
If the external analog component
has only one Audio Out, connect
either left or right.
Optical Cable
(not supplied)
AUX2 : Rear Panel OPTICAL : Rear Panel
External Analog Component External Digital Component
HT-X810_XAA_0303.indd 23
24
connections
CONNECTING THE FM ANTENNA
Connect the FM antenna supplied to the FM 75ΩCOAXIAL Jack.
Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
This unit does not receive AM broadcasts.
1.
2.
M
HDMI OUT
FM Antenna
(supplied)
HT-X810_XAA_0303.indd 24
25
ENG
●
BEFORE USING YOUR HOME THEATER
before using your home theater

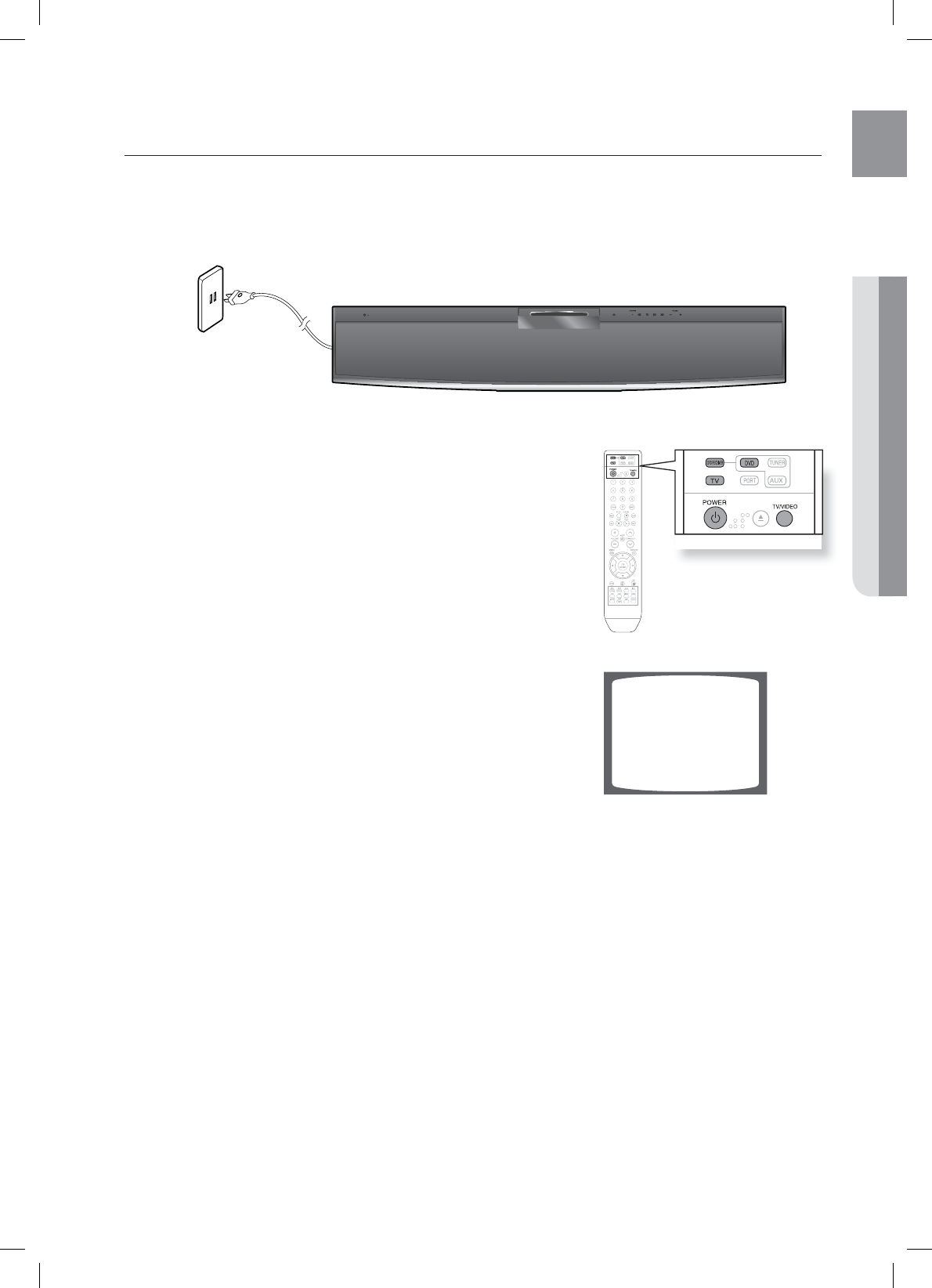

The DVD Home Theater's remote can be used to control Samsung TVs.
Plug the main unit's power cord into the AC power supply.
Press the DVD RECEIVER button to switch to DVD
RECEIVER mode to operate the DVD Home Theater.
Press the FUNCTION button on the main unit or DVD button
on the remote to enable DVD/CD playback.
Press the TV button to set the remote to TV mode.
Press the POWER button to turn on your Samsung TV
with this remote.
Press the TV/VIDEO button to select VIDEO mode
on your TV.
1.
2.
3.
4.
5.
6.
VIDEO
*6:A:##AKPFF
26
playback
DISC PLAYBACK
B
Load a disc vertically into the Disc Insert Hole.
Place a disc gently into the tray with the disc’s label
facing up.
Close the compartment by pressing the PLAY ( ) button.
Playback starts automatically.
To stop playback, press the STOP ( ) button during playback.
If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory.
If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press the
PAUSE ( )
button during playback.
To resume playback, press the PLAY ( ) button.
Depending on the content of the disc, the initial screen may appear different.
Pirated discs will not run in this player because it violates the CSS (Content Scrambling System :
a copy protection system) recommendations.
1.
•
2.
•
•
•
•
M
*6:A:##AKPFF
27
ENG
●PLAYBACK
MP3/WMA-CD PLAYBACK
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
A
Load an MP3/WMA disc.
The MP3/WMA menu screen will appear and
playback will start.
The appearance of the menu depends on the
MP3/WMA disc.
WMA-DRM fi les cannot be played.
In Stop mode, use the Cursor S,T,W,X button
to select the album, and then press the ENTER button.
Use the Cursor
S,T
button to select the track.
To change the album, use the Cursor S,T,W,X
button to select another album in Stop mode, and then
press the ENTER button.
Press the STOP
()
button to stop playback.
Depending on the recording mode, some MP3/WMA-CDs may not play.
Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.
Press the Cursor S,T,W,Xbutton when it is in Stop mode and select a desired icon from
the top part of the menu.
Music File Icon : To play music fi les only, select the Icon.
Image File Icon : To view image fi les only, select the Icon.
Movie File Icon : To view movie fi les only, select the Icon.
All File Icon : To view all fi les, select the Icon.
1.
•
•
•
2.
•
3.
4.
M
•
To play a fi le icon in the screen,
*6:A:##AKPFF
28
playback
JPEG FILE PLAYBACK
Images captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played back
with this Home Theater.
Rotate/Flip Function G
Press the Cursor S,T,W,X button during playback.
The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for
standard JPEG fi les and 2048 x 1536 (or 3.0 MPixel) for progressive image fi les.
If a JPEG fi le is played when the HDMI output resolution is 720p/1080i/1080p, the mode is
automatically converted to 480p mode.
M
button: Rotate 90°
Clockwise
button: Rotate 90°
Counterclockwise
button: Flip Vertically
button: Flip Horizontally
Original Image
HT-X810_XAA_0303.indd 28
29
ENG ●PLAYBACK
DIVX PLAYBACK
The functions on this page apply to DivX disc playback.
Skip Forward/Back D
During playback, press the #,$ button.
Goes to the next fi le whenever you press the $ button,
if there are over 2 fi les in the disc.
Goes to the previous fi le whenever you press the
# button, if there are over 2 fi les in the disc.
Fast Playback D
During playback, press the , button.
To play back the disc at a faster speed, press the or
button during playback.
Each time you press either button, the playback speed
will change as follows:
2x ➝4x ➝8x ➝32x ➝Normal.
5 Minutes Skip function D
During playback, press the Cursor W,X button.
Playback skips 5 minutes forward whenever you press the Cursor X button.
Playback skips 5 minutes back whenever you press the Cursor W button.
Audio Display D
Press the AUDIO button.
If there are multiple audio tracks on a disc, you can
toggle between them.
Each time you press the button, your selection will toggle
between AUDIO (1/N, 2/N ...) and .
is displayed when there is only one supported language in the disc.
Subtitle Display D
Press the SUBTITLE button.
Each time you press the button, your selection will toggle
between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF.
If the disc has only one subtitle fi le, it will be played automatically.
See number 2 (Caption Function) below for more details
concerning Subtitle usage with DivX discs.
•
•
•
•
•
•
•
M
•
•
•
*6:A:##AKPFF
30
playback
DIVX PLAYBACK (CON'T)
If the Disc has more than One Subtitle File D
If the disc has more than one subtitle fi le, the default
subtitle may not match the movie and you will have
to select your subtitle language as follows:
In Stop mode, press the Cursor S,T button, select the
desired subtitle ( ) from the TV screen, and then
press the ENTER button.
When you select the desired DivX fi le from the TV
screen, the movie will be played normally.
DivX(Digital internet video eXpress)
DivX is a video fi le format developed by Microsoft and is based on MPEG4 compression technology to
provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at
near DVD-quality video and audio.
Supported Formats
This product only supports the following media formats.If both video and audio formats are not
supported, the user may experience problems such as broken images or no sound.
Supported Video Formats
Format AVI WMV
Supported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7
Supported Audio Formats
Format MP3 WMA AC3
Bit Rate 80~384kbps 56~128kbps 128~384kbps
Sampling Frequency 44.1khz 44.1/48khz
Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports
up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
Caption Function
You must have some experience with video extraction and editing in order to use this feature
properly.
To use the caption function, save the caption fi le (*.smi) in the same fi le name as that of the DivX
media fi le (*.avi) within the same folder.
Example. Root Samsung_007CD1.avi
Samsung_007CD1.smi
Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean
and Chinese) for the fi le name.
1.
2.
1.
•
•
2.
•
•
•
HT-X810_XAA_0303.indd 30
31
ENG ●PLAYBACK
USING THE PLAYBACK FUNCTION

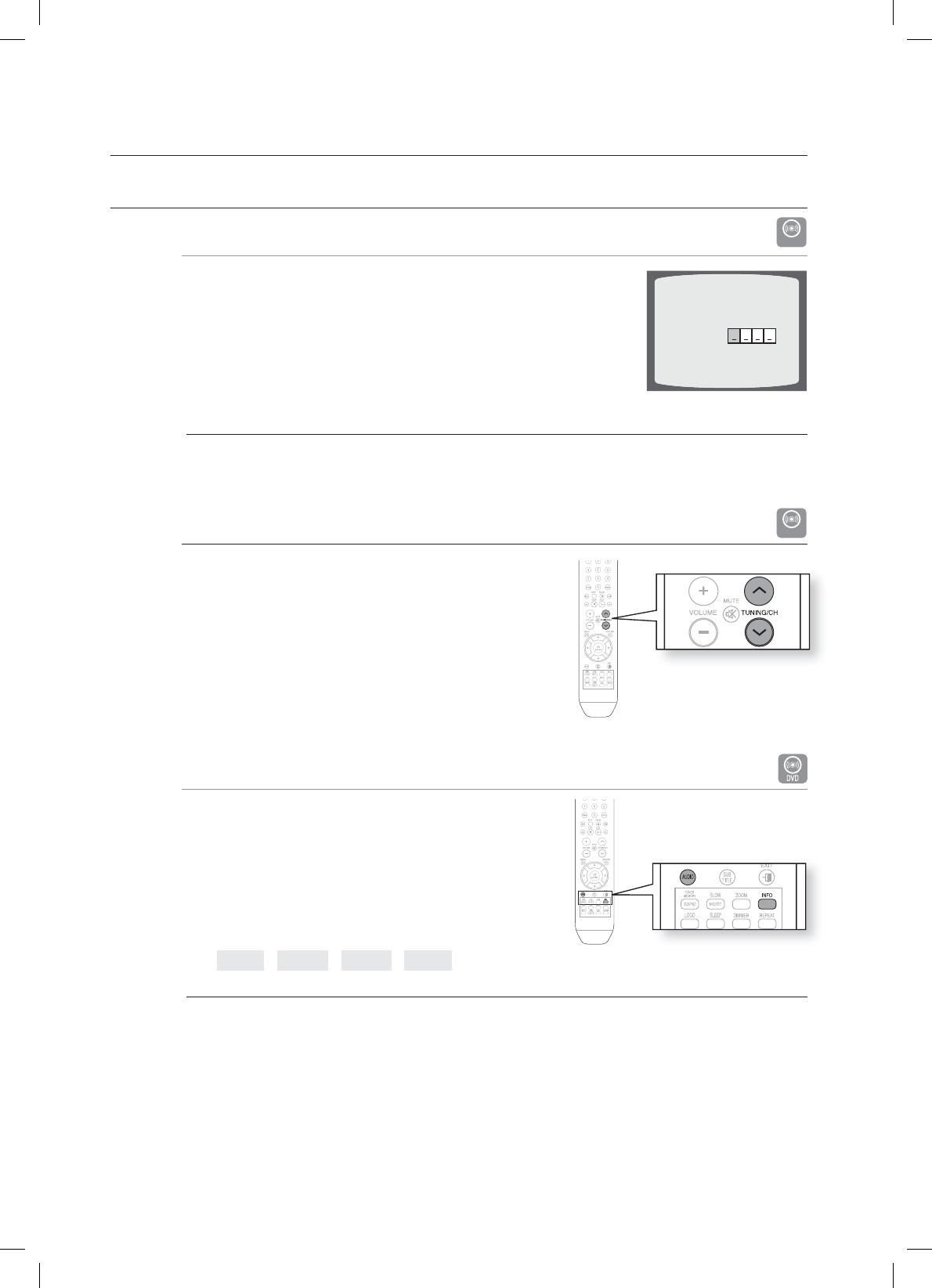

Displaying Disc Information BAGD
You can view disc playback information on the TV screen.
Press the INFO button.
Depending on the disc, the disc information display may
appear different.
Depending on the disc, you can also select DOLBY DIGITAL,
or PRO LOGIC.
appears on the TV screen!
If this symbol appears on the TV screen when pressing
a button, that operation is not possible with the disc
currently being played.
Checking the Remaining Time BA
Press the REMAIN button.
For checking the total and remaining time of a title or
chapter being played.
Each time the Remain button is pressed
DVD-VIDEO
TITLE ELAPSED ➞TITLE REMAIN ➞CHAPTER ELAPSED ➞CHAPTER REMAIN
DVD-AUDIO
GROUP ELAPSED ➞GROUP REMAIN ➞TRACK ELAPSED ➞TRACK REMAIN
B
TRACK ELAPSED ➞TRACK REMAIN ➞TOTAL ELAPSED ➞TOTAL REMAIN
A
TRACK REMAIN ➞TRACK ELAPSED
M
•
HT-X810_XAA_0303.indd 31
32
playback
USING THE PLAYBACK FUNCTION (CON'T)
Fast Playback BAD
Press the , button.
Each time the button is pressed during playback, the
playback speed changes as follows:
2X ➝4X ➝8X ➝32X ➝XPLAY
2X ➝4X ➝8X ➝32X ➝XPLAY
During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.
Slow Playback D
Press the SLOW button.
Each time the button is pressed during playback, the
playback speed changes as follows:
d
1/2 ➞1/4 ➞1/8 ➞1/2 ➞1/4 ➞1/8 ➞
X PLAY
D
1/2 ➞1/4 ➞1/8 ➞X PLAY
No sound is heard during slow playback.
Reverse slow playback does not work with DivX.
Skipping Scenes/Songs A
Press the #,$ button.
Each time the button is pressed during playback, the
previous or next chapter, track or directory (fi le) will be
played.
You cannot skip chapters consecutively.
•
M
•
M
•
•
HT-X810_XAA_0303.indd 32
33
ENG ●PLAYBACK

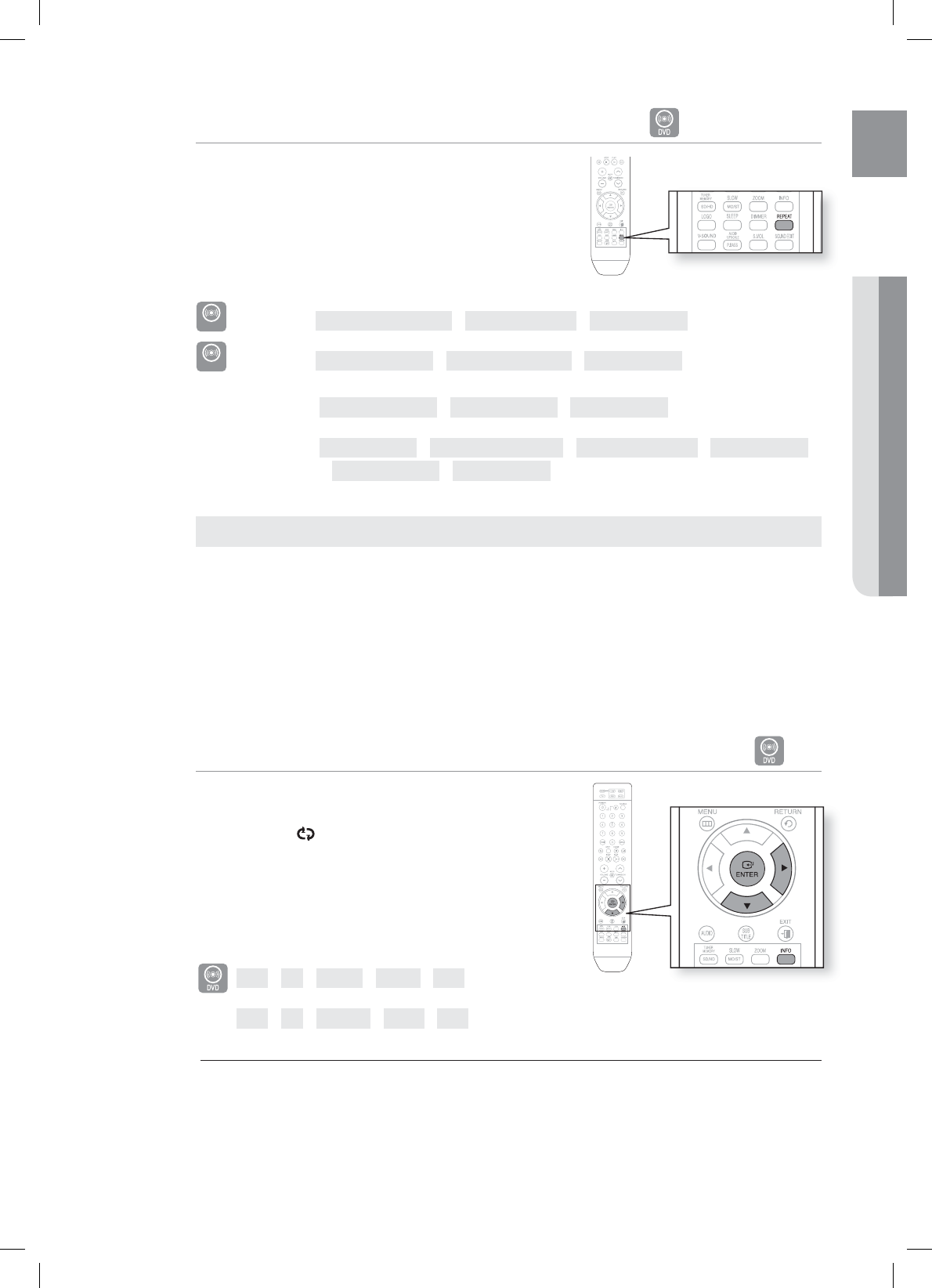

Repeat Playback BAGD
Repeat playback allows you to repeatedly play a chapter, title,
track (song), or directory (MP3 fi le).
Press the REPEAT button.
Each time the button is pressed during playback, the repeat
playback mode changes as follows:
DVD-VIDEO
REPEAT : CHAPTER ➝ REPEAT : TITLE ➝ REPEAT : OFF
DVD-AUDIO
REPEAT : TRACK ➝ REPEAT : GROUP ➝ REPEAT : OFF
B
REPEAT : TRACK ➝ REPEAT : DISC ➝ REPEAT : OFF
AGD
REPEAT : OFF➝REPEAT : RANDOM ➝ REPEAT : TRACK ➝ REPEAT : DIR
➝ REPEAT : DISC ➝ REPEAT : OFF
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
GROUP : Repeatedly plays the selected group.
RANDOM : Plays tracks in random order. (A track that has already been played may be played again.)
TRACK : Repeatedly plays the selected track.
DIR : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
To Select a Repeat Playback Mode in the Disc Information Screen
B
Press the INFO button twice.
Press the Cursor X button to move to REPEAT
PLAYBACK ( ) display.
Press the Cursor T button to select the desired Repeat
Playback mode.
To select another album and track, repeat Steps 2 and
3 above.
Press the ENTER button.
OFF ➝A- ➝CHAP ➝TITLE ➝OFF
B
OFF ➝A- ➝TRACK ➝DISC ➝OFF
For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
•
1.
2.
3.
•
4.
M
Repeat Playback Options
HT-X810_XAA_0303.indd 33
34
playback
USING THE PLAYBACK FUNCTION (CON'T)

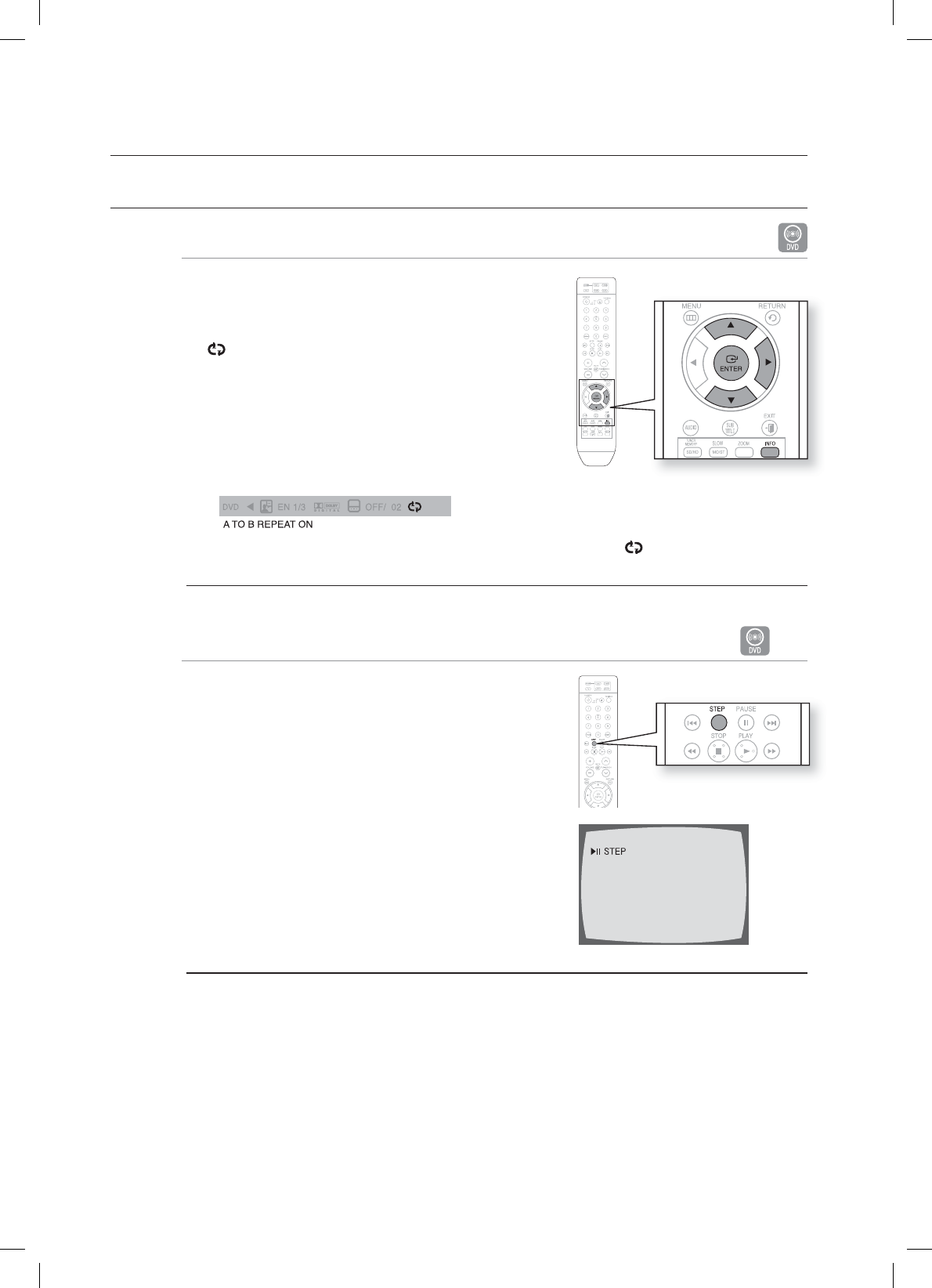

A-B Repeat Playback
You can repeatedly play back a designated section of a DVD.
Press the INFO button twice.
Press the Cursor X button to move to REPEAT PLAYBACK
() display.
Press the Cursor S,T button to select A- and then press
the ENTER button.
When the ENTER button is pressed, the selected position
will be stored in memory.
Press the ENTER button at the end of the desired segment.
The specifi ed segment will be played repeatedly.
A - B
To return to normal playback, press the Cursor S,T button to select OFF.
The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
Step Function D
Press the STEP button.
The picture moves forward one frame each time the button is
pressed during playback.
No sound is heard during step motion playback.
1.
2.
3.
•
4.
•
M
•
M
HT-X810_XAA_0303.indd 34
35
ENG ●PLAYBACK

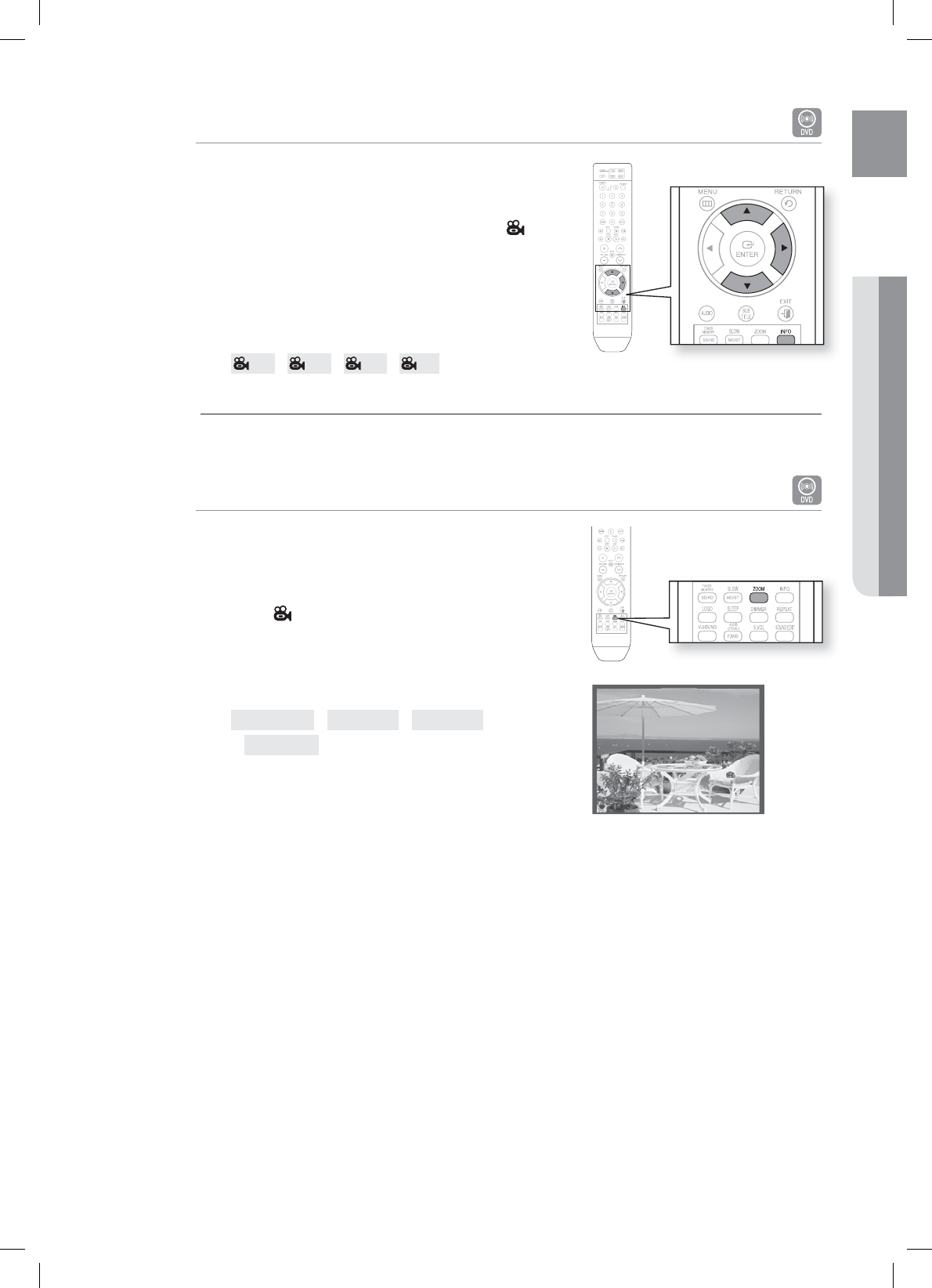

Angle Function
This function allows you to view the same scene in different
angles.
Press the INFO button.
Press the Cursor X button to move to ANGLE ( )
display.
Press the Cursor S,T button or numeric buttons to select
the desired angle.
Each time the button is pressed, the angle changes as
follows:
1/3 2/3 3/3 1/3
The Angle function works only with discs on which multiple angles have been recorded.

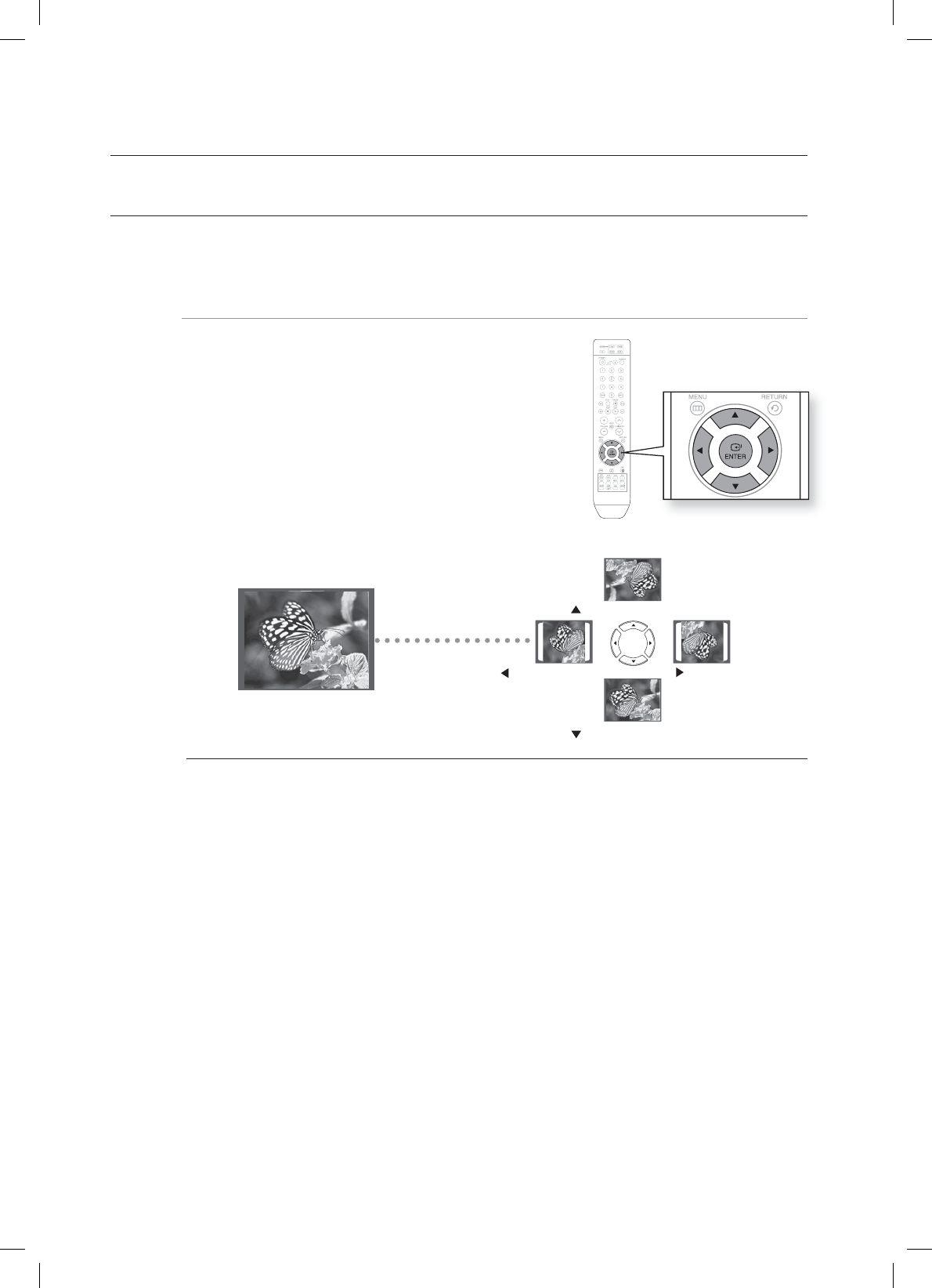

Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the
displayed image.
Press the ZOOM button.
Press the Cursor ▲, ▼, ◄, ►button to move to
ANGLE ( ) display.
Press the ENTER button.
Each time the button is pressed, the zoom level changes
as follows:
ZOOM X 1.5 ➝ZOOM X 2 ➝ZOOM X 3
➝ZOOM OFF
1.
2.
3.
•
M
1.
2.
3.
•
SELECT ZOOM POSITION
*6:A:##AKPFF
36
playback
USING THE PLAYBACK FUNCTION (CON'T)
Bonus Group
DVD-AUDIO
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit
key number to access. See the disc packaging for details and the key
number.
When you play a DVD-Audio disc that has a bonus group, the key number
input screen appears automatically.
If you eject the disc, switch the power off, or unplug the player, you will need to re-enter
the key number.
Navigating Pages
DVD-AUDIO
During playback, press the .,, button on the remote control.
You can select the desired image from a DVD-Audio disc
containing still images.
With some discs, you may not be able to select images.
Audio Language Selection Function
Press the INFO button twice.
Press the Cursor S,T button or numeric buttons to select
the desired audio language.
Depending on the number of languages on a DVD disc,
a different audio language (ENGLISH, SPANISH,
FRENCH, etc.) is selected each time the button is
pressed.
EN 1/3 ➝SP 2/3 ➝FR 3/3 ➝EN 1/3
To operate this function, you can also press the AUDIO buttons on the remote control.
Depending on the disc, the Audio Language functions may not be available.
M
•
•
1.
2.
•
M
BONUS GROUP
KEY NUMBER :
*6:A:##AKPFF
37
ENG ●PLAYBACK
Subtitle Language Selection Function
Press the INFO button twice.
Press the Cursor X button to move to SUBTITLE ( )
display.
Press the Cursor T button or numeric buttons to select the
desired subtitle.
EN 01/03 ➝SP 02/03 ➝FR 03/03 ➝OFF/03 ➝
EN 01/03
To operate this function, you can also press the SUBTITLE buttons on the remote control.
Depending on the disc, the Subtitle Language functions may not be available.
Moving Directly to a Scene/Song BAG
B
Press the INFO button.
Press the Cursor S,T button or numeric buttons to select
the desired title/track ( ) and then press the ENTER
button.
Press the Cursor W,X button to move to the Chapter
() display.
Press the Cursor S,T button or numeric buttons to select
the desired chapter and then press the ENTER button.
Press the Cursor W,X button to move to time ( ) display.
Press the numeric buttons to select the desired time
and then press the ENTER button.
AG
Press the numeric buttons.
The selected fi le will be played.
When playing an MP3 or JPEG disc, you cannot use the Cursor S,T
button to move to a folder.
To move a folder, press the STOP
(
)
and then press the Cursor S,T
button.
You can press the
#,$
button on the remote control to move directly to the desired title, chapter, or track.
Depending on the disc, you may not be able to move to the selected title or time.
1.
2.
3.
M
1.
2.
3.
4.
5.
6.
•
•
M
*6:A:##AKPFF
38
playback
USING THE PLAYBACK FUNCTION (CON'T)

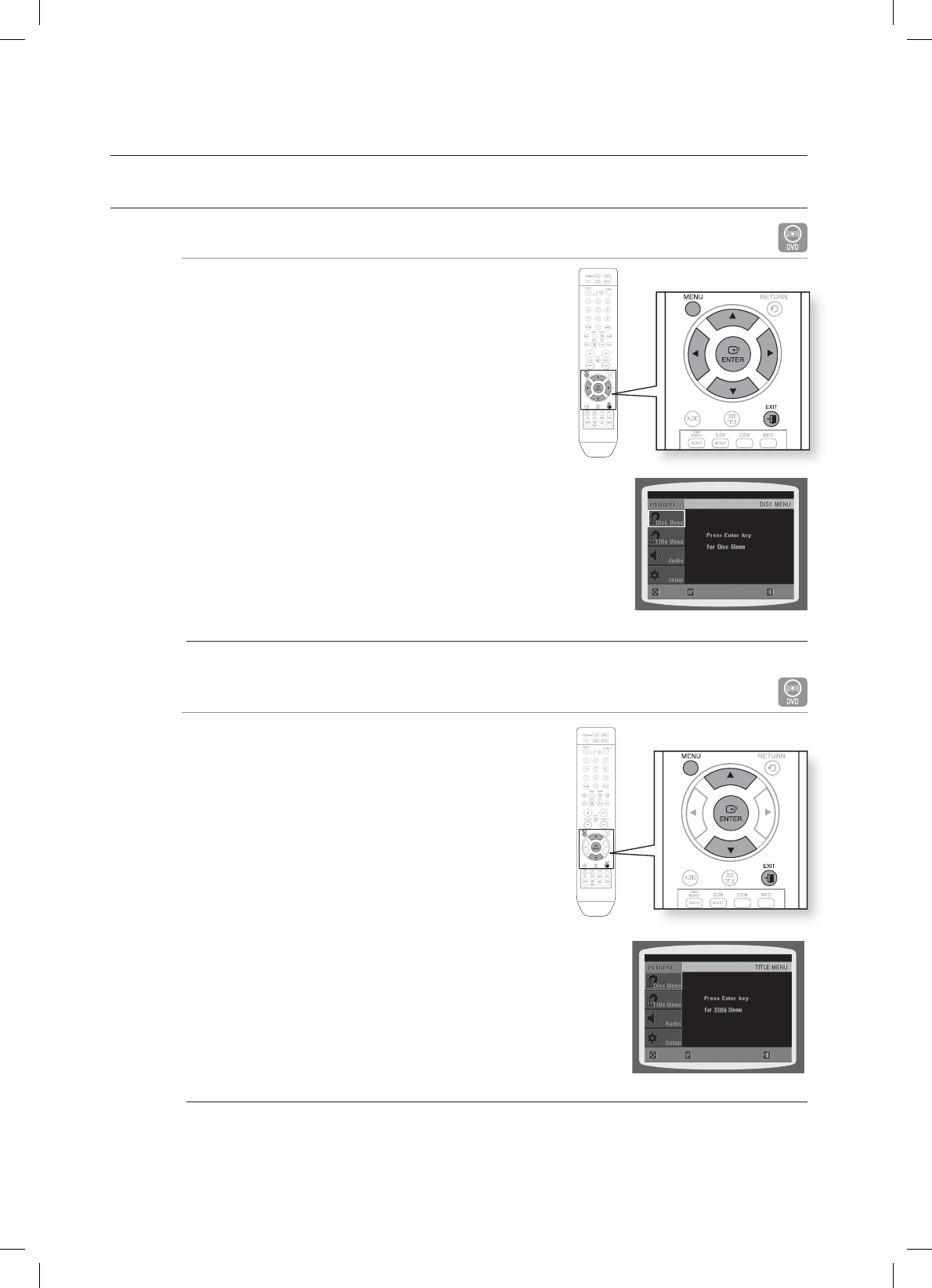

Using the Disc Menu
You can use the menus for the audio language, subtitle
language, profi le, etc.
DVD menu contents differ from disc to disc.
In Stop mode, press the MENU button.
Press the Cursor S,T button or numeric buttons
to move to Disc Menu and then press the
ENTER button.
When you select Disc Menu and it is not supported by
the disc, the "This menu is not
supported" message appears on the screen.
Press the Cursor S,T,W,X button to select the desired
item.
Press the ENTER button.
Press the EXIT button to exit the setup screen.
The disc menu display may be different depending on the disc.
Using the Title Menu
For DVDs containing multiple titles, you can view the title of
each movie. Depending on the disc, the availability of this
feature may vary.
In Stop mode, press the MENU button.
Press the Cursor S,T button to move to Title Menu.
Press the ENTER button.
The title menu appears.
Press the EXIT button to exit the setup screen.
The Title menu display may be different depending on the disc.
1.
2.
•
3.
4.
M
1.
2.
3.
•
M
ENTERMOVE EXIT
ENTERMOVE EXIT
HT-X810_XAA_0303.indd 38
