- 1 -Wireless Hand PCNEXiO(Samsung S160)Quick Reference GuideSAMSUNG DIGITalleveryone's invited
- 2 -
- 3 -NEXiOSamsung S160
- 4 -NEXiOPowerful Mobile Office- Pocket Internet Explorer 5.5- Pocket Office(Word, Spreadsheet, PPT)- PIMS compatible w/MS Outlook- Smart PresentationFull Internet Capability- 800*480 WVGA: No horizontal scrolling !- JVM, Flash Player built-in- 802.11b(11Mbps) built-inHighest Performance- Intel 400MHz CPU- 64MB FROM, 128MB RAM- WLAN built-inVarious Expandability- standard USB slot-CFIIslot: Camera, Memory, WAN module- PCMCIA adapter(optional)
- 5 -Big&vividWidescreen- 5inch wide screen LCD- Clear & Bright Transflective LCD- Low power consumption LCDEnforced Battery Solution- Li-Polymer rechargeable battery: 3hrs for continuous Internet use- 2nd Li-Polymer option Battery pack: 3hrs talking timeDigital Entertainments- MP3, MPEG Player-e-BookViewer- Games- Camera & Image viewerOutstanding Design- Slim & Sexy: 154*91*13.4, 250g- Homogeneous design: keyboard cover, 2nd battery
- 6 -UnpackingYour package contains the following items.NEXiO (Samsung S160) Stylus Ear-microphoneAC Adapter Communication Cable External DisplayCableCradle Leather Cover Stand NEXiO CDQuick Reference Guide Accessory Guide HandwritingGuide
- 7 -NEXiO (Samsung S160)Nickname of Samsung S160StylusStylus that is appropriate for operating NEXiO. Kept in stylusslot on the right side.Ear-microphoneListen to music and record soundAC AdapterSupply DC power and charge batteryCommunication CableConnect NEXiO to computer and transfer data between twodevicesExternal Display CableConnect NEXiO to External Display and enable to view NEXiOscreen through external display device (ex : Monitor, Project)CradleEnable to use NEXiO at more comfortable angle and chargeexternal batteryLeather CoverProtect LCD screenStandInserted in the back side and stand NEXiO. Kept in CF cardslot in the right side.NEXiO CDInstall program in NEXiO from computer or read online manualQuick Reference GuideExplain basic operation skillAccessory GuideShow Accessory and Option items that can be purchasedseparatelyHandwriting GuideShow handwriting method
- 8 -NEXiO OverviewNEXiO OverviewFront ViewIndicatorShow NEXiO operation statusMicrophoneArrow KeyMove cursor(item) to up/down/left/rightEnter KeyRun selected programHot KeyShort cut to run programSpeakerNoteHot KeyLauncher Run NEXiO ProgramsBacklight Turnon/offbacklightREC Run recorder program
- 9 -IndicatorNetworkShow wireless LAN connection status- On after 2 blinking : connectiontrial. network icon is activated ifconnection is successful- On: connected to network- Off : not connected to networkReminder Blinks at set-up reminder timePowerShow internal battery charge statuswhen connected to adapter- Green: Charging complete- Red: Charging proceeding- Red Blinker: Low BatteryRear ViewReset HoleRecover NEXiO when it does not operate normally(refer "Resetting")External Battery ConnectorProtection HoleFix External Battery or stick stand in to use NEXiO in a morecomfortable angle
- 10 -Left ViewPower ButtonTurn on/off NEXiOHold ButtonOnly power button is activated in HOLDstatus. Touch screen is activated whenpower is on.Ear-microphone PortAC Adapter PortRight ViewStylus SlotKeep StylusPCMCIA Adapter PortInsert PCMCIA Adapter (option)CF Card SlotInsert CF CardNote Since PCMCIA Adapter uses bothPCMCIA Adapter Port and CF CardSlot, you cannot use CF Card whenyou are already using PCMCIA Adapter.Bottom View

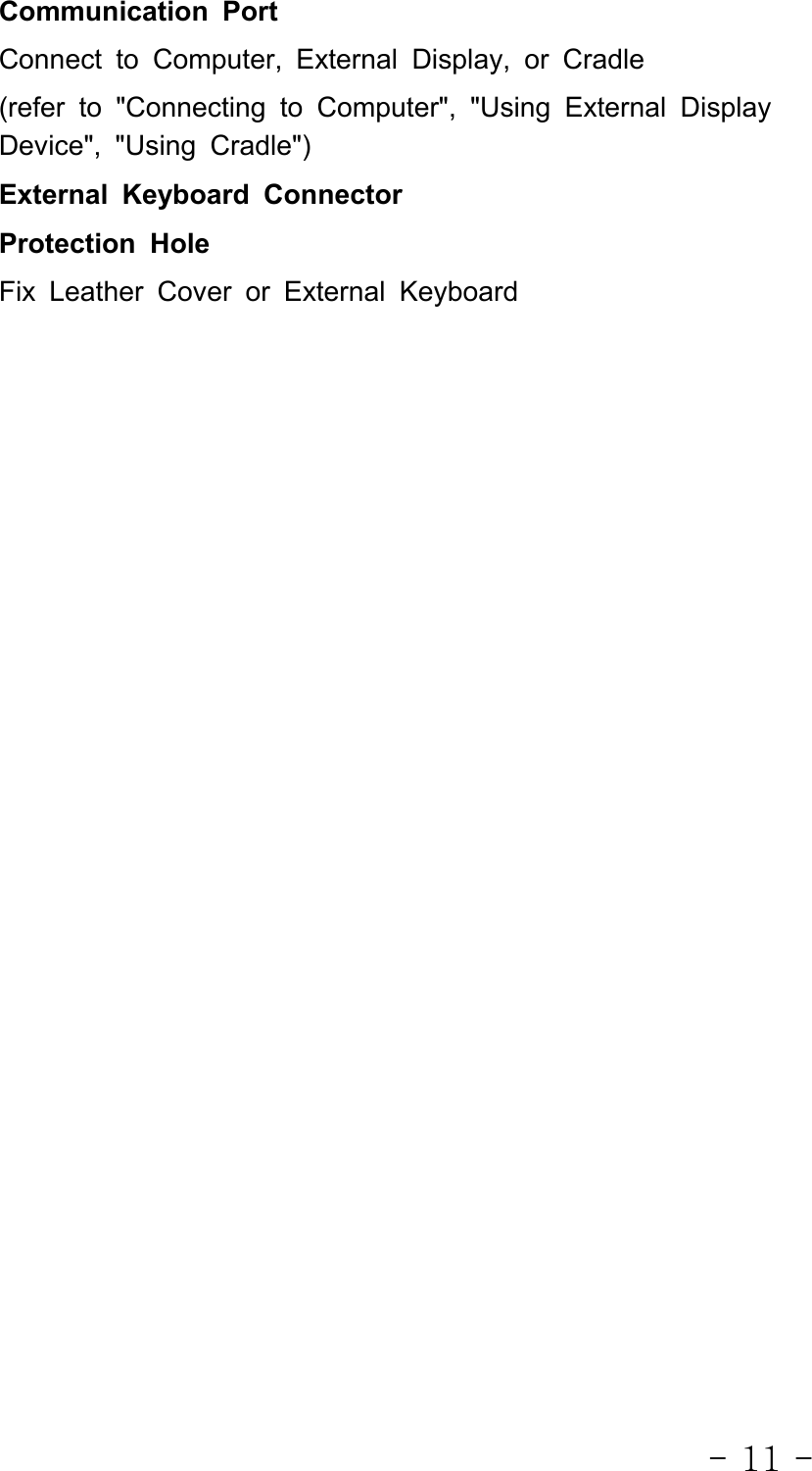

- 11 -Communication PortConnect to Computer, External Display, or Cradle(refer to "Connecting to Computer", "Using External DisplayDevice", "Using Cradle")External Keyboard ConnectorProtection HoleFix Leather Cover or External Keyboard
- 12 -Cradle overviewFrontIndicatorShow battery charge status when connected to adapterExternal Battery roomAttach and charge External BatteryDummyExternal Battery ConnectorNEXiO ConnectorConnect to Communication Port of NEXiONoteIndicatorNEXiO internal Battery- Green: Chargingcomplete- Red: ChargingproceedingExternal Battery* When you charge NEXiO internal Battery and ExternalBattery at the same time, external battery starts beingcharged after internal battery is fully charged.
- 13 -BackCommunication PortConnect to Computer or External Display(refer to "Connecting to Computer", "Using External DisplayDevice", "Using Cradle")AC Adapter PortStylus/Pen StandEar-microphone overviewEar-phoneMicrophoneVolume control dial
- 14 -Connecting NEXiO with peripheralsThis part explains connecting NEXiO with peripherals such as ACAdapter, Cradle and using.NEXiO power is supplied with AC Adapter or internal battery.Battery should be sufficiently charged with AC adapter to be inuse.Note Sufficiently charge internal battery.It takes 2 1/2 hours to fully charge internal battery. Ifyou want to charge quickly, charge 2 hours and you willbe able to use.Connecting AC AdapterAttaching CoverFit cover to 4 protection holes in the NEXiO bottom. Whilepressing cover against NEXiO, slide two lock buttons to arrowdirection and fix cover.①②①②②

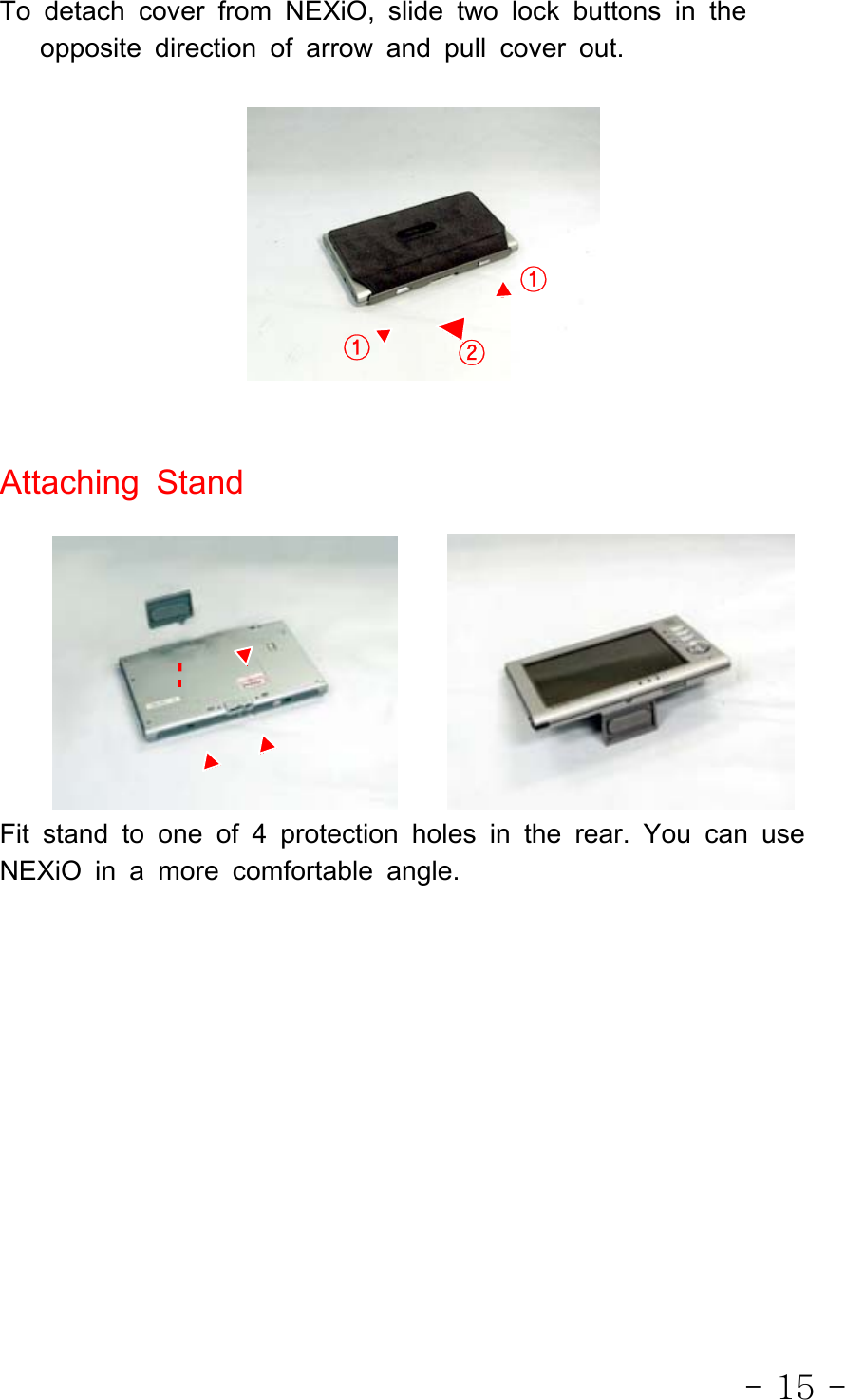

- 15 -To detach cover from NEXiO, slide two lock buttons in theopposite direction of arrow and pull cover out.Attaching StandFit stand to one of 4 protection holes in the rear. You can useNEXiO in a more comfortable angle.①②①
- 16 -FittingtoCradleconnecting adapter fitting NEXiO to cradleNote You cannot use fit NEXiO to cradle when AC adapter isconnected to NEXiO. To use cradle, connect adapter to the backside of cradle.Connecting to ComputerYou can transfer data and install program in NEXiO by connectingCommunication Port of NEXiO to a Computer.(refer to "Connecting to computer")Connect Communication Port of NEXiO and USB Port of computerwith Communication Cable.directly connecting with NEXiO connecting through Cradle①②①②②①
- 17 -Connecting External Display DeviceYou can view NEXiO screen through external display device andpresent reports by connecting External Display Device such asMonitor and Projection. (refer to "Connecting external displaydevice")Connect Communication Port of NEXiO and Monitor Cable withExternal Display Cable.directly connecting with NEXiO connecting through Cradle①②②①
- 18 -Basic uses of NEXiOTurning on/off NEXiONote When you are first using NEXiO, you have to chargeinternal battery sufficiently with AC Adapter before using. (Refer to"Charging battery")Press power button on the left side of NEXiO, then NEXiO will beturned on.When you turn on NEXiO for the first time, Stylus calibrationsetting screen will appear.Stylus calibration settingWhen you turn on NEXiO for the first time, + mark will be shownon Stylus calibration setting screen. Tap on + mark to correspondstylus and the location on screen.1. Follow instructions on screen and tap on the + marks withstylus. + marks disappears after tapping 5 times.
- 19 -2. Tap screen once, then setting will be completed and NEXiOscreen appears.Turning off NEXiOPress power button once more, then NEXiO will be turned off.Or you can tap Start > Suspend on taskbar with stylus.NEXiO runs on Flash memory, so when you turn off and onagain, last screen status before turning off will be shown.Note Tap is softly pressing LCD screen with stylus. Refer to"Using Stylus" for more information.NEXiO is automatically turned off when no action isoccured in set time. To change setting, refer to "...".Learning NEXiO ProgramWhen you turn on NEXiO and finish Stylus calibration setting,NEXiO Program appears. NEXiO Program is a launch programthat lets you run programs easily.
- 20 -You will first learn about components on screen..Task bar List of programs that are currently running and sStart Menu Button, Task bar Icon are shown.Start You can run NEXiO Programs or see help.Task bar icon Time and Task icon are shown.Background icon You can see Background. Press oncemore go back to former view.(Background)Program Icon: Press icon twice to runcorresponding program.Task bar iconSoftware keyboard Icon Software Keyboard which lets youto input letters will be shownPower Shows internal battery charge status when adapteris connected.Charging is completedCharging is proceedingW-LAN Activate Wireless LanNetwork On connected to networkOff not connected to networkComm Shows if NEXiO is connected with computerNote To see basic user guide about Windows CE, which is
- 21 -operating system of NEXiO, refer to help on Start > Help >Windows CE Basics.For more information on how to use NEXiO Programs,referto"UsingNEXiOPrograms".Using StylusStylus is a screen touch pen to operate NEXiO, and correspondsto mouse in computers. In this section, you will learn how to inputusing stylus.Note Always use stylus to input data into screen. LCD screenwill be damaged if you use sharp tools, so be careful.TapPressing screen one time. Corresponds toclicking left button in mouse.You can select item or run program bytapping.Double TapPressing screen two times continuously.Corresponds to double clicking left button inmouse.You can run some programs by doubletapping.DragMove to intended point while you are pressingscreen.You can select an area on screen or selectmultiple items at once by dragging.
- 22 -Tap and HoldPress screen for about 2 seconds.Correspones to clicking right button in mouseYou can see additional functions of theselected item.If you want to use Tap and Hold function,you have to change setting. (Refer to"Mouse right button function")Note If stylus is not operating normally, recalibrate. (Refer to"Recalibrating")
- 23 -Entering TextThere are several ways to enter text in NEXiO.- Using Software Keyboard which is internally embedded in NEXiO- Using External Keyboard which is an option (refer to AccessoryGuide)Software Keyboard is provided in NEXiO. so let's learn how touse Software Keyboard with stylus.Using Software KeyboardSoftware Keyboard is a keyboard shown on the screen. SoftwareKeyboard is made up of Keyboard Mode, Hand Writing Mode, andInternet Mode.Tap Keyboard (그림) Icon on the taskbar, then Software Keyboardwill appear.When you first run Keyboard, Small Size Keyboard in KeyboardMode will be shown. When you change keyboard mode and runkeyboard again, recently changed mode will be shown.(위치 지시선)Software KeyboardKeyboard ModeHand Writing ModeInternet Mode
- 24 -Retting(Normalizing NEXiO)You can reset to normalize NEXiO when NEXiO is not operatingproperly.There are two ways of resetting : Soft reset, which is just shuttingdown all running programs, and hard reset, which is initializingNEXiO to the state when you first bought it.Soft ResetWhen you soft reset, all running programs are shut down andNEXiO is turned on again.To soft reset, press reset hole in the rear side with stylus.reset holeHard ResetWhen NEXiO does not operate normally even after soft resetting,hard reset. When you hard reset, NEXiO is initialized to the statewhen you first bought it.Note When you hard reset, data and password are deleted.Reter to "Backup and restore" to save data before hard reset.To hard reset, press reset hole in the rear side with stylus whileyou are pressing power button.
- 25 -power button + reset holeNote After hard resetting, Stylus calibration setting screen willappear. Refer to stylus calibration section of "Turning on/offNEXiO" to finish setting.
- 26 -Leaning about NEXiO ProgramsNEXiO Programs is a launcher program that lets users to useprograms in NEXiO easily.In this chapter, you will learn about how to use NEXiO Programand what programs are provided in NEXiO.Note Refer to online manual for more specific guide on usingprograms.Programs provided with NEXiO can be added or deletedafterward and may be different from this guide.Running NEXiO ProgramsWhen you turn on NEXiO, NEXiO Programs will be shown on thescreen.NEXiO Programs screen is made up of menu and list of programs.-menu classified in 5 categories-program programs that comes under each category areshownNote If NEXiO programs is not automatically run, press NEXiObutton on the front side of NEXiO.
- 27 -Or tap Start > Programs > NEXiO from the taskbar,or double tab NEXiO ( ) icon on the background.
- 28 -NoticesNo part of this publication may be reproduced, stored in a retrieval system,or transmitted, in any form or by any means, mechanical photocopying,recording or otherwise, without the prior written permission of themanufacturer.The information within this manual is subject to change without notice.The manufacturer shall not be held liable for technical or editorial errors oromissions contained in herein; nor for incidental or consequential damagesresulting from the furnishing, performance or use of this material.Microsoft Windows is a registered trademark of the Microsoft Corporation.Product names mentioned herein are for identification purposes only, andmay be trademarks and/or registered trademarks of their respectivecompanies.Important Safety InformationSafety InstructionsYour system is designed and tested to meet the latest standards for safetyof information technology equipment. However, to ensure safe use of thisproduct, it is important that the safety instructions marked on the productand in the documentation are followed.Always follow these instructions to help guard against personal injury anddamage to your system.Setting Up your SystemReplacement Parts and AccessoriesUse only replacement parts and accessories recommended bymanufacturer.To reduce the risk of fire, use only No. 26 AWG or largertelecommunications line cord.Do not use this product in areas classified as hazardous. Such areasinclude patient care areas of medical and dental facilities, oxygen richenvironments, or industrial areas.Battery DisposalDo not put rechargeable batteries or products powered by non-removablerechargeable batteries in the garbage.
- 29 -Contact the Samsung Helpline for information on how to dispose ofbatteries that you cannot use or recharge any longer.Follow all local regulations when disposing of old batteries.Power Cord RequirementsThe power cord set (wall plug, cable and AC adapter plug) you receivedwith your computer meets the requirements for use in the country whereyou purchased your equipment.Power cord sets for use in other countries must meet the requirements ofthe country where you use the computer. For more information on powercord set requirements, contact your authorized dealer, reseller, or serviceprovider.General RequirementsThe requirements listed below are applicable to all countries:·227The length of the power cord set must be at least 6.00 feet (1.8m) and a maximum of 9.75 feet (3.0m).·All power cord sets must be approved by an acceptable accreditedagency responsible for evaluation in the country where the power cordset will be used.·The power cord set must have a minimum current capacity of 7 Aand a nominal voltage rating of 125 or 250 volts AC, as required byeach country's power system.·The appliance coupler must meet the mechanical configuration ofan EN 60 320/IEC 320 Standard Sheet C13 connector, for mating withappliance inlet on the computer.Regulatory Compliance StatementsWireless GuidanceLow power, Radio LAN type devices (radio frequency (RF) wirelesscommunication devices), operating in the 2.4 GHz Band, may be present(embedded) in your notebook system. The following section is a generaloverview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listedin the specific country sections (or country group sections). The wirelessdevices in your system are only qualified for use in the countries identifiedby the Radio Approval Marks on the system rating label. If the country youwill be using the wireless device in, is not listed, please contact your localRadio Approval agency for requirements. Wireless devices are closely
- 30 -regulated and use may not be allowed.The power output of the wireless device or devices that may be embeddedin your notebook is well below the RF exposure limits as known at thistime. Because the wireless devices (which may be embedded into yournotebook) emit less energy than is allowed in radio frequency safetystandards and recommendations, manufacturer believes these devices aresafe for use. Regardless of the power levels, care should be taken tominimize human contact during normal operation.This transmitter must not be collocatedoroperateinconjunctionwithanyother antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples ofcommon restrictions are listed below:Radio frequency wireless communication can interfere with equipment oncommercial aircraft. Current aviation regulations require wireless devices tobe turned off while traveling in an airplane. 802.11B (also known aswireless Ethernet or Wifi) and Bluetooth communication devices areexamples of devices that provide wireless communication.In environments where the risk of interference to other devices or servicesis harmful or perceived as harmful, the option to use a wireless device maybe restricted or eliminated. Airports, Hospitals, and Oxygen or flammablegas laden atmospheres are limited examples where use of wireless devicesmay be restricted or eliminated. When in environments where you areuncertain of the sanction to use wireless devices, ask the applicableauthority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices.Since your system is equipped with a wireless device, when travelingbetween countries with your system, check with the local Radio Approvalauthorities prior to any move or trip for any restrictions on the use of awireless device in the destination country.If your system came equipped with an internal embedded wireless device,do not operate the wireless device unless all covers and shields are inplace and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way.Modification to a wireless device will void the authorization to use it. Pleasecontact manufacturer for service.Only use drivers approved for the country in which the device will be used.See the manufacturer System Restoration Kit, or contact manufacturerTechnical Support for additional information.United States of AmericaUnintentional Emitter per FCC Part 15This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions:(1) this device may not cause
- 31 -harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limitsfor a Class B digital device pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerate uses and can radiate radio frequency energy and if notinstalled and used in accordance with the instructions may causeharmful interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one ormore of the following measures:·Reorient or relocate the receiving antenna.·Increase the separation between the equipment and receiver.·Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected·Consult the dealer or an experienced radio/TV technician for help.If necessary, the user should consult the dealer or an experiencedradio/television technician for additional suggestions. The user may findthe following booklet helpful: 밪omething About Interference.?This isavailable at FCC local regional offices. Our company is not responsiblefor any radio or television interference caused by unauthorizedmodifications of this equipment or the substitution or attachment ofconnecting cables and equipment other than those specified by ourcompany. The correction will be the responsibility of the user. Useonly shielded data cables with this system.Intentional emitter per FCC Part 15Low power, Radio LAN type devices (radio frequency (RF) wirelesscommunication devices), operating in the 2.4 GHz Band, may bepresent (embedded) in your notebook system. This section is onlyapplicable if these devices are present. Refer to the system label toverify the presence of wireless devices.Wireless devices that may be in your system are only qualified for useintheUnitedStatesofAmericaifanFCCIDnumberisonthesystem label.This transmitter must not be collocated or operate in conjunction withany other antenna or transmitter.Operation of this device is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that maycause undesired operation of the device.Wireless devices are not user serviceable. Do not modify them in any
- 32 -way. Modification to a wireless device will void the authorization to useit. Contact manufacturer for service.FCC RF EXPOSURE INFORMATIONIn August 1996 the Federal Communications Commission (FCC) of theUnited States with its action in Report and Order FCC 96-326 adoptedan updated safety standard for human exposure to radio frequencyelectromagnetic energy emitted by FCC regulated transmitters. Thoseguidelines are consistent with the safety standard previously set byboth U.S. and international standards bodies.The design of this Hand PC complies with the FCC guidelines andthese international standards. Use only the supplied or an approvedantenna. Unauthorized antennas, modifications, or attachments couldresult in violation of FCC regulations.Body-worn OperationThis device was tested for typical body-worn operations with thedevice directly contacted to the human body to the back and side ofthe Hand PC. To maintain compliance with FCC RF exposurecompliance requirements, use other accessories should not containmetallic components in its assembly. The use of accessories that donot satisfy these requirements may not comply with FCC RF exposurecompliance requirements, and should be avoided.Face Held OperationThis device was tested for Face Held operations with the separationdistance of 2.5 cm between the microphone of the device to thehuman face. While using face held operation, hold the Hand PC atleast 2.5 cm(1 inch) from your face and speak in a normal voice.
- 33 -SAMSUNG HANDHELD PERSONAL COMPUTERLIMITED WARRANTY TO ORIGINAL PURCHASERThis SAMSUNG brand product, as supplied and distributed by SamsungElectronics America, Inc. (SAMSUNG) and delivered new, in the originalcarton to the original consumer purchaser, is warranted by SAMSUNGagainst manufacturing defects in materials and workmanship for a limitedwarranty period of:One (1) Year Parts and Labor Carry-In/Ship-In Service*(*90 Days Parts and Labor for Commercial Use)This limited warranty begins on the original date of purchase, and is validonly on products purchased and used in the United States. To receivewarranty service, the purchaser must contact SAMSUNG for problemdetermination and service procedures. Warranty service can only beperformed by a SAMSUNG authorized service center. The original datedbill of sale must be presented upon request as proof of purchase toSAMSUNG or SAMSUNG's authorized service center. Transportation of theproduct to and from the service center is the responsibility of the purchaser.SAMSUNG will repair or replace this product, at our option and at nocharge as stipulated herein, with new or reconditioned parts or products iffound to be defective during the limited warranty period specified above.All replaced parts and products become the property of SAMSUNG andmust be returned to SAMSUNG. Replacement parts and products assumethe remaining original warranty, or ninety (90) days, whichever is longer.SAMSUNG does not warrant uninterrupted or error-free operation of theproduct, and shall not be liable for the loss or destruction of data or mediaresulting from the use or service of this product. It is the purchaser'sresponsibility to secure all programs and data contained in or affected bythe product. The purchaser is cautioned that product performance may beaffected by installation, system configuration, software, applications,equipment compatibility, purchaser data and operator control of the system,among other factors, and it is the purchaser's responsibility to determine thefunctional implementation.SAMSUNG's obligations with respect to software products distributed bySAMSUNG under the SAMSUNG brand name are set forth in theapplicable end user license agreement. Non-SAMSUNG hardware andsoftware products, if provided, are on an “ AS IS” basis. Non-SAMSUNGmanufacturers, suppliers, publishers, and service providers may provide theirown warranties.This limited warranty covers manufacturing defects in materials andworkmanship encountered in normal, and except to the extent otherwiseexpressly provided for in this statement, noncommercial use of this product,and shall not apply to the following, including, but not limited to: damagewhich occurs in shipment; delivery and installation; applications and uses forwhich this product was not intended; altered product or serial numbers;
- 34 -cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water,lightning or other acts of nature; use of products, equipment, systems,utilities, services, parts, supplies, accessories, applications, installations,repairs, external wiring or connectors not supplied or authorized bySAMSUNG, or which damage this product or result in service problems;incorrect electrical line voltage, fluctuations and surges; customeradjustments and failure to follow operating instructions, cleaning,maintenance and environmental instructions that are covered and prescribedin the instruction book; product removal or reinstallation; reception or displayproblems and distortion related to noise, echo, interference or other signaltransmission and delivery problems; reduced screen brightness related tonormal tube and lamp aging, or burned-in images.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTEDAND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESSOR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIEDWARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULARPURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODSSTATED ABOVE, AND NO OTHER EXPRESS WARRANTY ORGUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITHRESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE ORPROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, ORANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGESCAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM ISBASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THEPOSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANYKIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THEPURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG ANDCAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THEFOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FORLOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'SPROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OFTHE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BYSAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OFSAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TOANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT,IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.Some states do not allow limitations on how long an implied warranty lasts,or the exclusion or limitation of incidental or consequential damages, so theabove limitations or exclusions may not apply to you. This warranty givesyou specific legal rights, and you may also have other rights, which varyfrom state to state.To obtain warranty service, please contact SAMSUNG at:SAMSUNG CUSTOMER CARE CENTER400 Valley Road, Suite 201, Mt. Arlington, NJ 07856Tel: 973-601-6000, Fax: 973-601-6001XXX-XXX-XXXX and www.SAMSUNGUSA.com
- 35 -specificationOSWinCE.net (4.0 PB)CPUPXA250 300(400)MHz (Intel)Display5 inch Transflective WVGA TFT LCD (800*480, 64K color)MemoryFlash ROM 64MB(NAND type)SDRAM128MB(upto256MB)Wireless Comm.WLAN(802.11b) built-in (11Mbps)(Support CF II, PCMCIA type WAN solution)InterfaceCF II slot, Standard USB(Host) ,USB docking port (PC sync.,VGA-out,Power charging)Keyboard port (4pin), Earphone jack (stereo)BatteryLi-polymer 1500mAH (Quick charging, 2.5hrs @ 90%)( * battery life : PDA 9hrs, WLAN 3hrs )SoundSpeaker (17 Φ, mono), Mic (6Φ, mono)Earphone (stereo, VOIP support)LED Indicator3 ea ; Red/Green (power), Orange (Alarm), Blue (Data TRX status, Emailalarm)Key Buttons4 way navigation + enter button,2 Hot button (Launcher, Backlit), Rec.,Reset, Hold switchCoverLeather coverStylus102.2mm, 4.5 ΦSize155 * 91 * 13.4 (w/ leather cover)
- 36 -Weight280g (incld. Battery, keyboard cover)250g (incld. Battery, leather cover)AccessoriesCradleLED (power), 2 Holes(Stylus & Pen)Charging slot for 2nd batteryDetachable Sync. Cable & AC adapter**Leather/keyboard Cover can be open on cradle**Device with 2nd battery can be mounted on cradleEarphone2.5 Φ,StereoMP3,Mic.SupportStanding moduleCF slot built-in type, Simple & Rugged styleVGA-out cable800*600, 640*480 support,Enhanced compression rate
- 37 -SAMSUNG DIGITalleveryone's invitedSAMSUNG CUSTOMER CARE CENTER400 Valley Road, Suite 201, Mt. Arlington, NJ 07856Tel: 973-601-6000, Fax: 973-601-6001www.samsungnexio.comPrinted in Korea.
