Wireless Hand PC
NEXiO
(Samsung S160)
Quick Reference Guide
SAMSUNG DIGITall
everyone's invited
- 2 -
- 3 -
NEXiO
Samsung S160
- 4 -
NEXiO
Powerful Mobile Office
- Pocket Internet Explorer 5.5
- Pocket Office(Word, Spreadsheet, PPT)
- PIMS compatible w/MS Outlook
- Smart Presentation
Full Internet Capability
- 800*480 WVGA
: No horizontal scrolling !
- JVM, Flash Player built-in
- 802.11b(11Mbps) built-in
Highest Performance
- Intel 400MHz CPU
- 64MB FROM, 128MB RAM
- WLAN built-in
Various Expandability
- standard USB slot
-CFIIslot
: Camera, Memory, WAN module
- PCMCIA adapter(optional)
- 5 -
Big&vividWidescreen
- 5inch wide screen LCD
- Clear & Bright Transflective LCD
- Low power consumption LCD
Enforced Battery Solution
- Li-Polymer rechargeable battery
: 3hrs for continuous Internet use
- 2nd Li-Polymer option Battery pack
: 3hrs talking time
Digital Entertainments
- MP3, MPEG Player
-e-BookViewer
- Games
- Camera & Image viewer
Outstanding Design
- Slim & Sexy
: 154*91*13.4, 250g
- Homogeneous design
: keyboard cover, 2nd battery
- 6 -
Unpacking
Your package contains the following items.

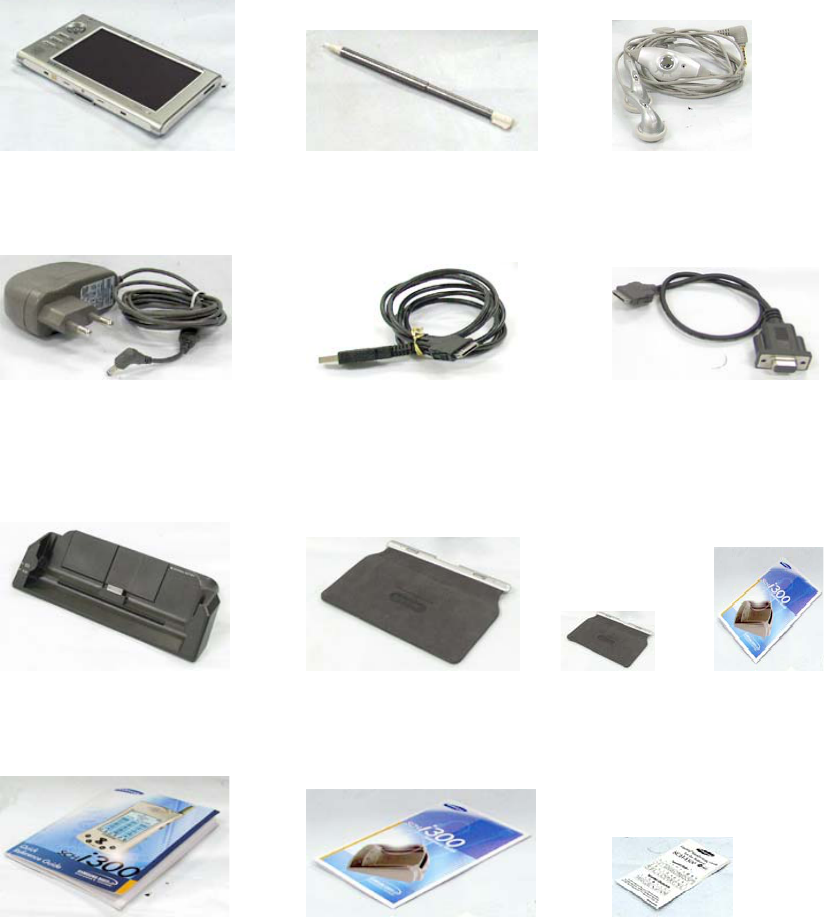

NEXiO (Samsung S160) Stylus Ear-microphone
AC Adapter Communication Cable External Display
Cable
Cradle Leather Cover Stand NEXiO CD
Quick Reference Guide Accessory Guide Handwriting
Guide
- 7 -
NEXiO (Samsung S160)
Nickname of Samsung S160
Stylus
Stylus that is appropriate for operating NEXiO. Kept in stylus
slot on the right side.
Ear-microphone
Listen to music and record sound
AC Adapter
Supply DC power and charge battery
Communication Cable
Connect NEXiO to computer and transfer data between two
devices
External Display Cable
Connect NEXiO to External Display and enable to view NEXiO
screen through external display device (ex : Monitor, Project)
Cradle
Enable to use NEXiO at more comfortable angle and charge
external battery
Leather Cover
Protect LCD screen
Stand
Inserted in the back side and stand NEXiO. Kept in CF card
slot in the right side.
NEXiO CD
Install program in NEXiO from computer or read online manual
Quick Reference Guide
Explain basic operation skill
Accessory Guide
Show Accessory and Option items that can be purchased
separately
Handwriting Guide
Show handwriting method
- 8 -
NEXiO Overview
NEXiO Overview

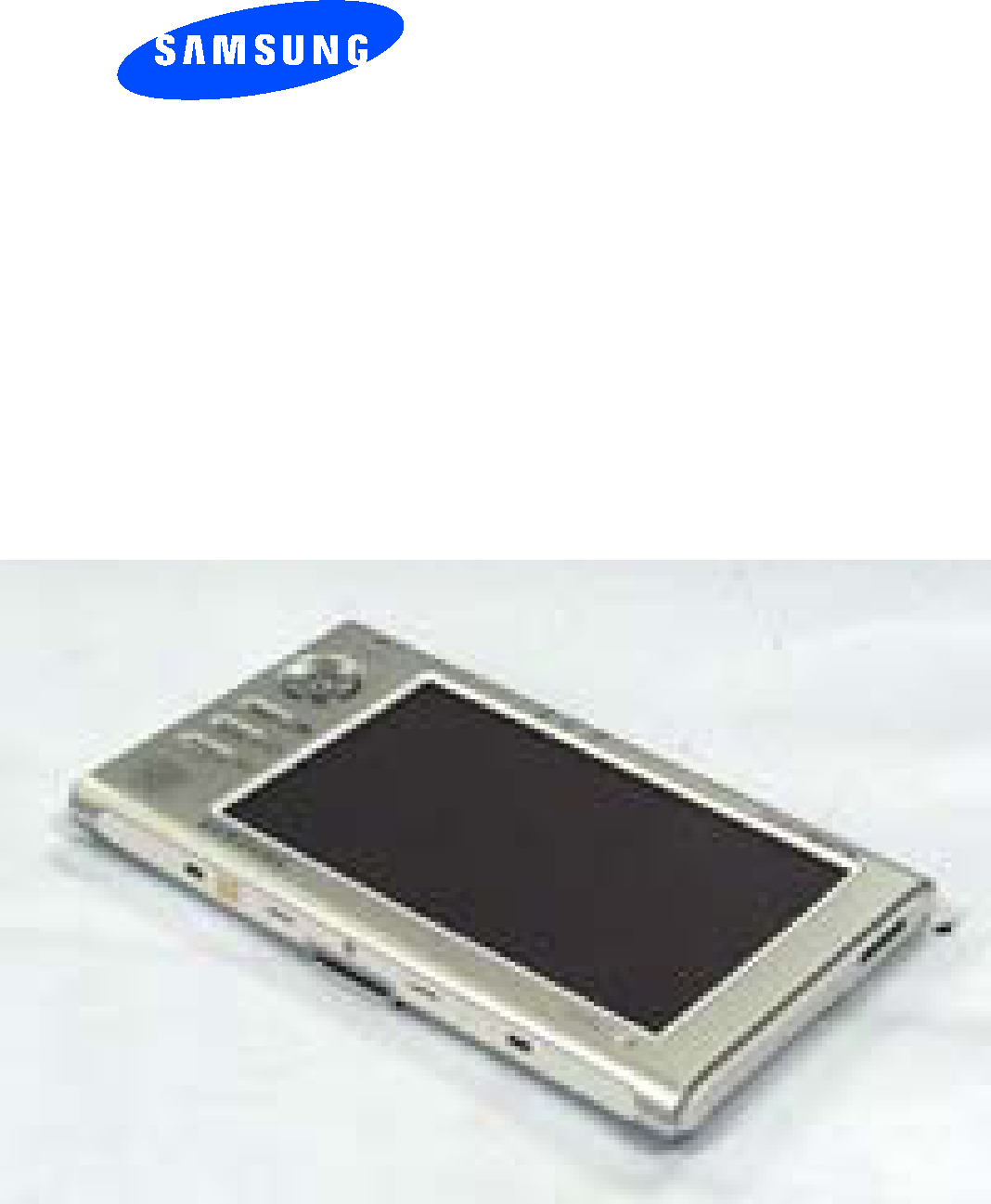

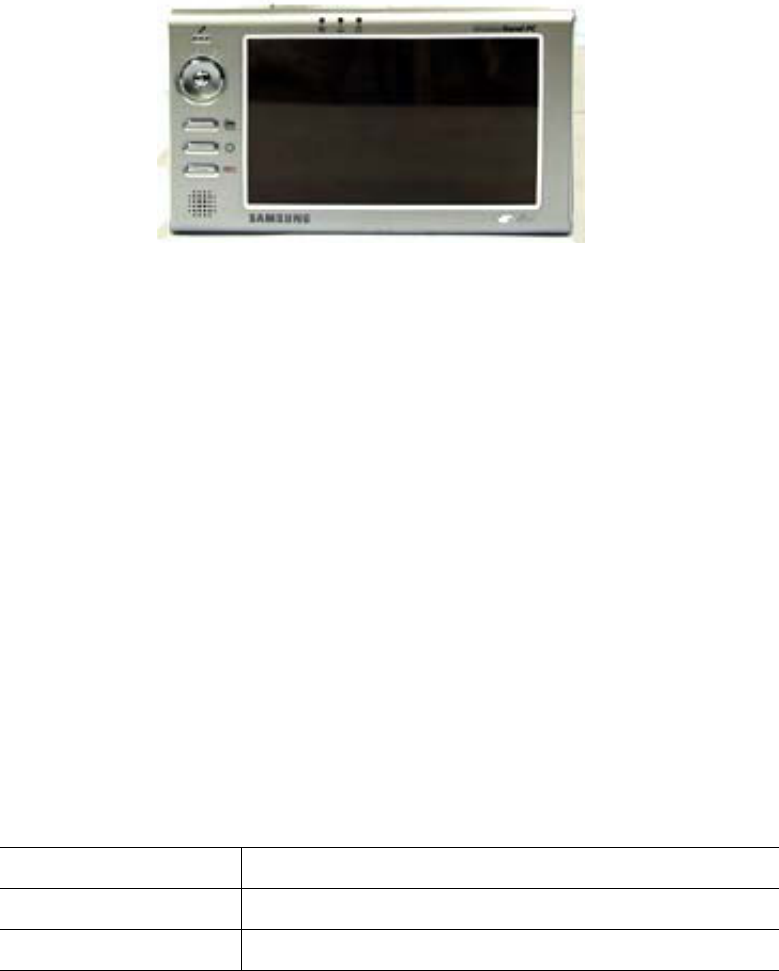

Front View
Indicator
Show NEXiO operation status
Microphone
Arrow Key
Move cursor(item) to up/down/left/right
Enter Key
Run selected program
Hot Key
Short cut to run program
Speaker
Note
Hot Key
Launcher Run NEXiO Programs
Backlight Turnon/offbacklight
REC Run recorder program
- 9 -
Indicator
Network
Show wireless LAN connection status
- On after 2 blinking : connection
trial. network icon is activated if
connection is successful
- On: connected to network
- Off : not connected to network
Reminder Blinks at set-up reminder time
Power
Show internal battery charge status
when connected to adapter
- Green: Charging complete
- Red: Charging proceeding
- Red Blinker: Low Battery

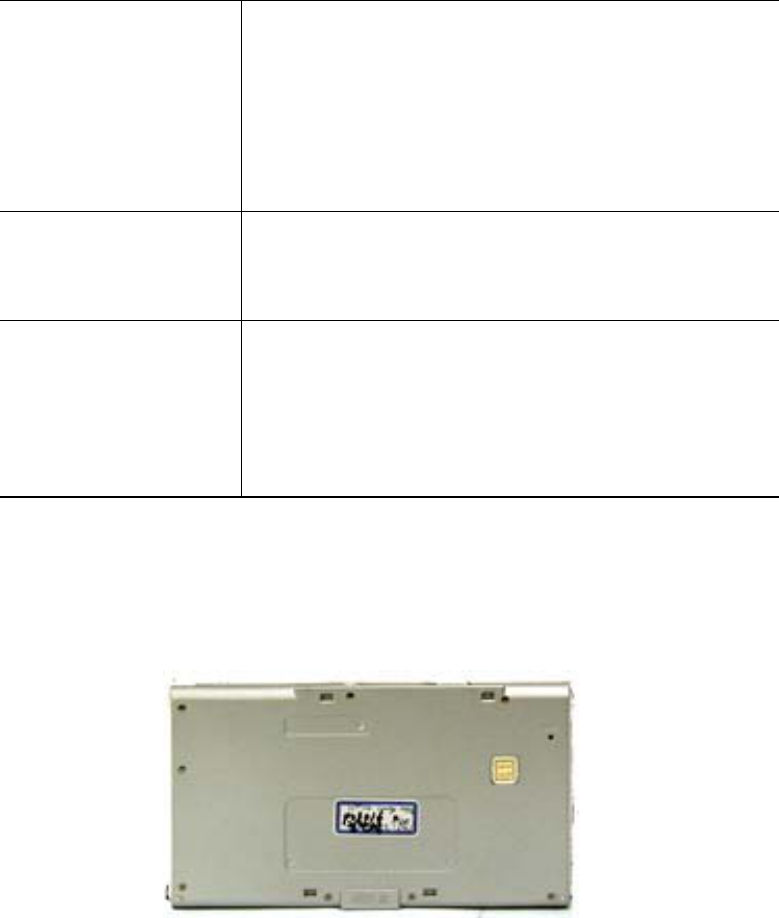

Rear View
Reset Hole
Recover NEXiO when it does not operate normally
(refer "Resetting")
External Battery Connector
Protection Hole
Fix External Battery or stick stand in to use NEXiO in a more
comfortable angle
- 10 -

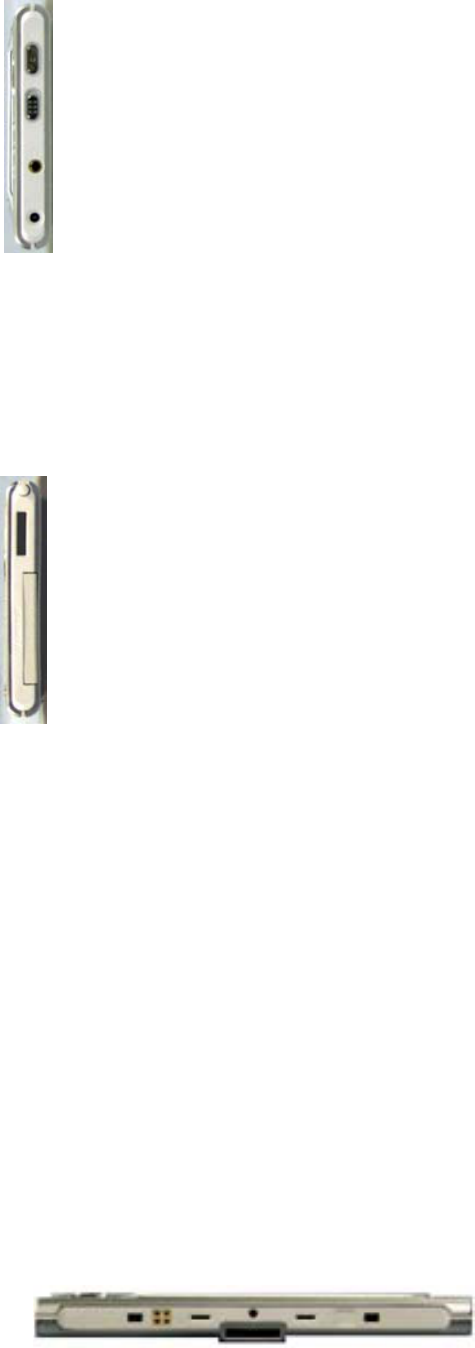

Left View
Power Button
Turn on/off NEXiO
Hold Button
Only power button is activated in HOLD
status. Touch screen is activated when
power is on.
Ear-microphone Port
AC Adapter Port
Right View
Stylus Slot
Keep Stylus
PCMCIA Adapter Port
Insert PCMCIA Adapter (option)
CF Card Slot
Insert CF Card
Note Since PCMCIA Adapter uses both
PCMCIA Adapter Port and CF Card
Slot, you cannot use CF Card when
you are already using PCMCIA Adapter.
Bottom View
- 11 -
Communication Port
Connect to Computer, External Display, or Cradle
(refer to "Connecting to Computer", "Using External Display
Device", "Using Cradle")
External Keyboard Connector
Protection Hole
Fix Leather Cover or External Keyboard
- 12 -

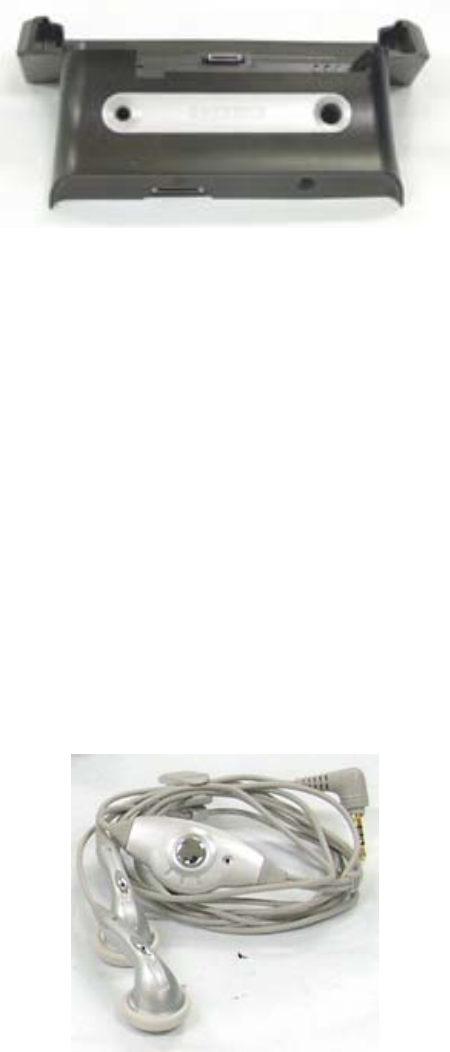

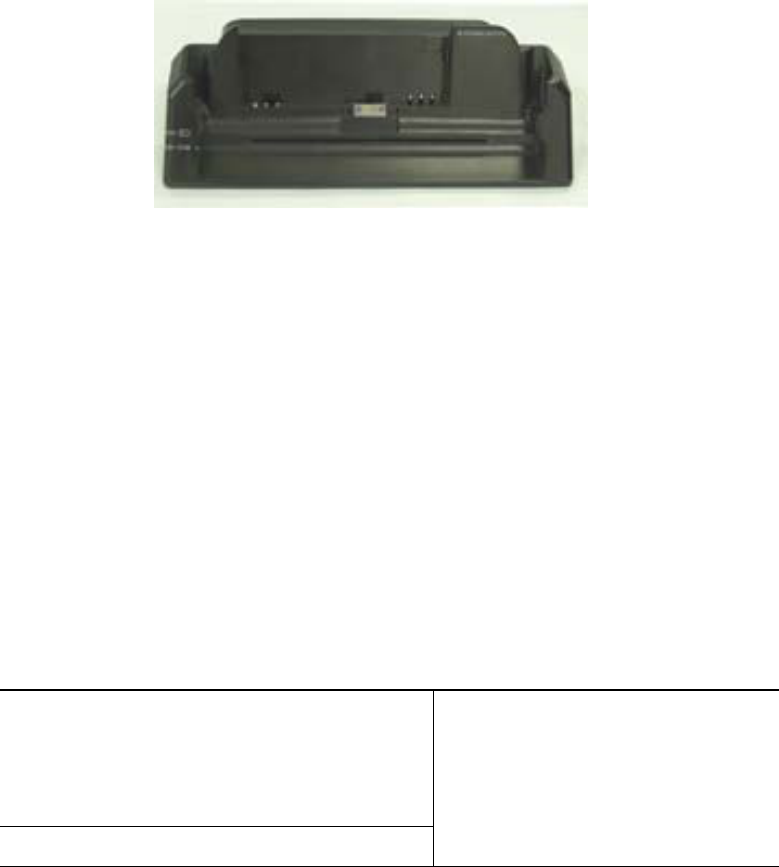

Cradle overview
Front
Indicator
Show battery charge status when connected to adapter
External Battery room
Attach and charge External Battery
Dummy
External Battery Connector
NEXiO Connector
Connect to Communication Port of NEXiO
Note
Indicator
NEXiO internal Battery
- Green: Charging
complete
- Red: Charging
proceeding
External Battery
* When you charge NEXiO internal Battery and External
Battery at the same time, external battery starts being
charged after internal battery is fully charged.
- 13 -
Back
Communication Port
Connect to Computer or External Display
(refer to "Connecting to Computer", "Using External Display
Device", "Using Cradle")
AC Adapter Port
Stylus/Pen Stand
Ear-microphone overview
Ear-phone
Microphone
Volume control dial
- 14 -
Connecting NEXiO with peripherals
This part explains connecting NEXiO with peripherals such as AC
Adapter, Cradle and using.
NEXiO power is supplied with AC Adapter or internal battery.
Battery should be sufficiently charged with AC adapter to be in
use.
Note Sufficiently charge internal battery.
It takes 2 1/2 hours to fully charge internal battery. If
you want to charge quickly, charge 2 hours and you will
be able to use.

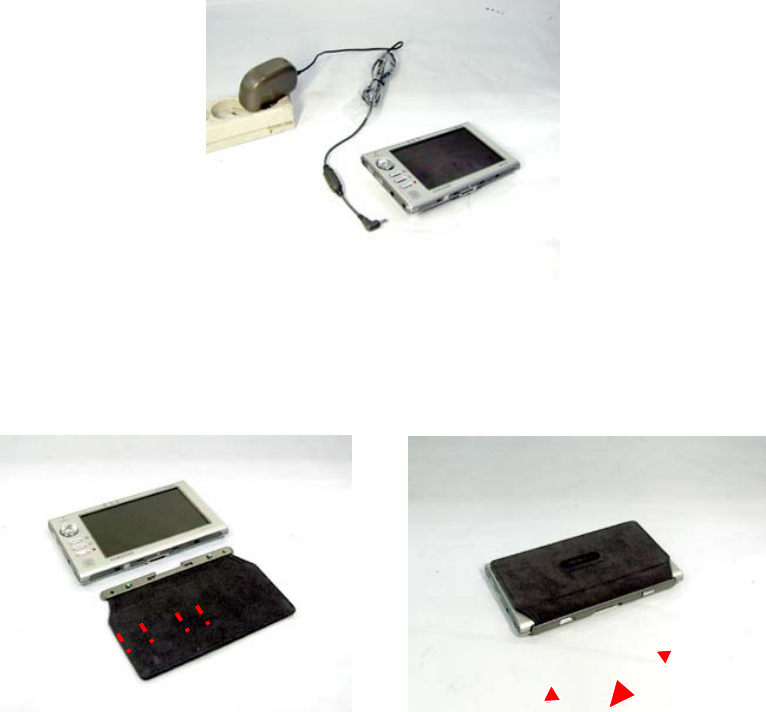

Connecting AC Adapter

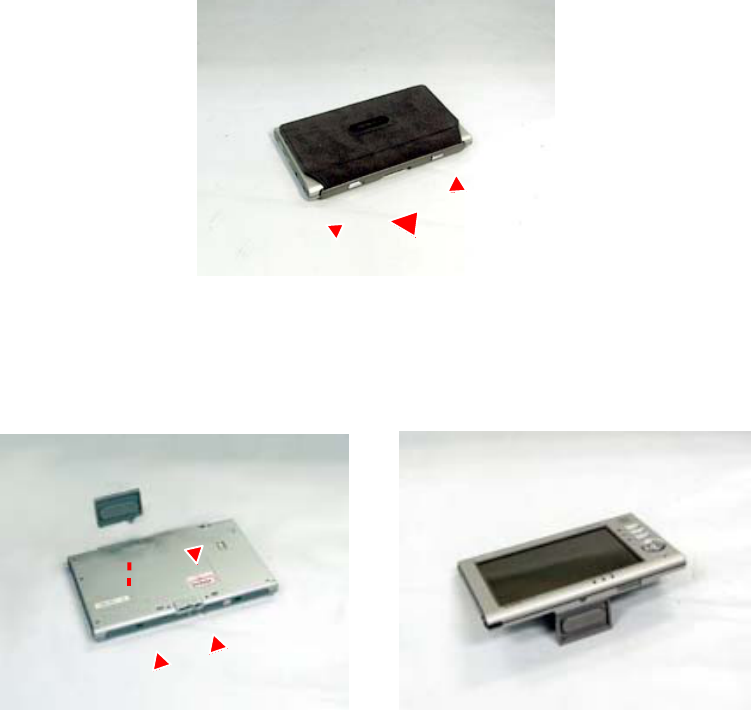

Attaching Cover
Fit cover to 4 protection holes in the NEXiO bottom. While
pressing cover against NEXiO, slide two lock buttons to arrow
direction and fix cover.
①
②
①
②
②
- 15 -
To detach cover from NEXiO, slide two lock buttons in the
opposite direction of arrow and pull cover out.
Attaching Stand
Fit stand to one of 4 protection holes in the rear. You can use
NEXiO in a more comfortable angle.
①②
①
- 16 -
FittingtoCradle
connecting adapter fitting NEXiO to cradle
Note You cannot use fit NEXiO to cradle when AC adapter is
connected to NEXiO. To use cradle, connect adapter to the back
side of cradle.
Connecting to Computer
You can transfer data and install program in NEXiO by connecting
Communication Port of NEXiO to a Computer.
(refer to "Connecting to computer")
Connect Communication Port of NEXiO and USB Port of computer
with Communication Cable.
directly connecting with NEXiO connecting through Cradle
①
②
①
②②
①
- 17 -
Connecting External Display Device
You can view NEXiO screen through external display device and
present reports by connecting External Display Device such as
Monitor and Projection. (refer to "Connecting external display
device")
Connect Communication Port of NEXiO and Monitor Cable with
External Display Cable.
directly connecting with NEXiO connecting through Cradle
①②②
①
- 18 -
Basic uses of NEXiO
Turning on/off NEXiO
Note When you are first using NEXiO, you have to charge
internal battery sufficiently with AC Adapter before using. (Refer to
"Charging battery")
Press power button on the left side of NEXiO, then NEXiO will be
turned on.
When you turn on NEXiO for the first time, Stylus calibration
setting screen will appear.
Stylus calibration setting
When you turn on NEXiO for the first time, + mark will be shown
on Stylus calibration setting screen. Tap on + mark to correspond
stylus and the location on screen.
1. Follow instructions on screen and tap on the + marks with
stylus. + marks disappears after tapping 5 times.
- 19 -
2. Tap screen once, then setting will be completed and NEXiO
screen appears.
Turning off NEXiO
Press power button once more, then NEXiO will be turned off.
Or you can tap Start > Suspend on taskbar with stylus.
NEXiO runs on Flash memory, so when you turn off and on
again, last screen status before turning off will be shown.
Note Tap is softly pressing LCD screen with stylus. Refer to
"Using Stylus" for more information.
NEXiO is automatically turned off when no action is
occured in set time. To change setting, refer to "...".
Learning NEXiO Program
When you turn on NEXiO and finish Stylus calibration setting,
NEXiO Program appears. NEXiO Program is a launch program
that lets you run programs easily.
- 20 -
You will first learn about components on screen..
Task bar List of programs that are currently running and s
Start Menu Button, Task bar Icon are shown.
Start You can run NEXiO Programs or see help.
Task bar icon Time and Task icon are shown.
Background icon You can see Background. Press once
more go back to former view.
(Background)
Program Icon: Press icon twice to run
corresponding program.
Task bar icon
Software keyboard Icon Software Keyboard which lets you
to input letters will be shown
Power Shows internal battery charge status when adapter
is connected.
Charging is completed
Charging is proceeding
W-LAN Activate Wireless Lan
Network On connected to network
Off not connected to network
Comm Shows if NEXiO is connected with computer
Note To see basic user guide about Windows CE, which is
- 21 -
operating system of NEXiO, refer to help on Start > Help >
Windows CE Basics.
For more information on how to use NEXiO Programs,
referto"UsingNEXiOPrograms".
Using Stylus
Stylus is a screen touch pen to operate NEXiO, and corresponds
to mouse in computers. In this section, you will learn how to input
using stylus.
Note Always use stylus to input data into screen. LCD screen
will be damaged if you use sharp tools, so be careful.
Tap
Pressing screen one time. Corresponds to
clicking left button in mouse.
You can select item or run program by
tapping.
Double Tap
Pressing screen two times continuously.
Corresponds to double clicking left button in
mouse.
You can run some programs by double
tapping.
Drag
Move to intended point while you are pressing
screen.
You can select an area on screen or select
multiple items at once by dragging.
- 22 -
Tap and Hold
Press screen for about 2 seconds.
Correspones to clicking right button in mouse
You can see additional functions of the
selected item.
If you want to use Tap and Hold function,
you have to change setting. (Refer to
"Mouse right button function")
Note If stylus is not operating normally, recalibrate. (Refer to
"Recalibrating")
- 23 -
Entering Text
There are several ways to enter text in NEXiO.
- Using Software Keyboard which is internally embedded in NEXiO
- Using External Keyboard which is an option (refer to Accessory
Guide)
Software Keyboard is provided in NEXiO. so let's learn how to
use Software Keyboard with stylus.
Using Software Keyboard
Software Keyboard is a keyboard shown on the screen. Software
Keyboard is made up of Keyboard Mode, Hand Writing Mode, and
Internet Mode.
Tap Keyboard (그림) Icon on the taskbar, then Software Keyboard
will appear.
When you first run Keyboard, Small Size Keyboard in Keyboard
Mode will be shown. When you change keyboard mode and run
keyboard again, recently changed mode will be shown.
(위치 지시선)
Software Keyboard
Keyboard Mode
Hand Writing Mode
Internet Mode
- 24 -
Retting(Normalizing NEXiO)
You can reset to normalize NEXiO when NEXiO is not operating
properly.
There are two ways of resetting : Soft reset, which is just shutting
down all running programs, and hard reset, which is initializing
NEXiO to the state when you first bought it.
Soft Reset
When you soft reset, all running programs are shut down and
NEXiO is turned on again.
To soft reset, press reset hole in the rear side with stylus.
reset hole
Hard Reset
When NEXiO does not operate normally even after soft resetting,
hard reset. When you hard reset, NEXiO is initialized to the state
when you first bought it.
Note When you hard reset, data and password are deleted.
Reter to "Backup and restore" to save data before hard reset.
To hard reset, press reset hole in the rear side with stylus while
you are pressing power button.
- 25 -
power button + reset hole
Note After hard resetting, Stylus calibration setting screen will
appear. Refer to stylus calibration section of "Turning on/off
NEXiO" to finish setting.
- 26 -
Leaning about NEXiO Programs
NEXiO Programs is a launcher program that lets users to use
programs in NEXiO easily.
In this chapter, you will learn about how to use NEXiO Program
and what programs are provided in NEXiO.
Note Refer to online manual for more specific guide on using
programs.
Programs provided with NEXiO can be added or deleted
afterward and may be different from this guide.
Running NEXiO Programs
When you turn on NEXiO, NEXiO Programs will be shown on the
screen.
NEXiO Programs screen is made up of menu and list of programs.
-menu classified in 5 categories
-program programs that comes under each category are
shown
Note If NEXiO programs is not automatically run, press NEXiO
button on the front side of NEXiO.
- 27 -
Or tap Start > Programs > NEXiO from the taskbar,
or double tab NEXiO ( ) icon on the background.
- 28 -
Notices
No part of this publication may be reproduced, stored in a retrieval system,
or transmitted, in any form or by any means, mechanical photocopying,
recording or otherwise, without the prior written permission of the
manufacturer.
The information within this manual is subject to change without notice.
The manufacturer shall not be held liable for technical or editorial errors or
omissions contained in herein; nor for incidental or consequential damages
resulting from the furnishing, performance or use of this material.
Microsoft Windows is a registered trademark of the Microsoft Corporation.
Product names mentioned herein are for identification purposes only, and
may be trademarks and/or registered trademarks of their respective
companies.
Important Safety Information
Safety Instructions
Your system is designed and tested to meet the latest standards for safety
of information technology equipment. However, to ensure safe use of this
product, it is important that the safety instructions marked on the product
and in the documentation are followed.
Always follow these instructions to help guard against personal injury and
damage to your system.
Setting Up your System
Replacement Parts and Accessories
Use only replacement parts and accessories recommended by
manufacturer.
To reduce the risk of fire, use only No. 26 AWG or larger
telecommunications line cord.
Do not use this product in areas classified as hazardous. Such areas
include patient care areas of medical and dental facilities, oxygen rich
environments, or industrial areas.
Battery Disposal
Do not put rechargeable batteries or products powered by non-removable
rechargeable batteries in the garbage.
- 29 -
Contact the Samsung Helpline for information on how to dispose of
batteries that you cannot use or recharge any longer.
Follow all local regulations when disposing of old batteries.
Power Cord Requirements
The power cord set (wall plug, cable and AC adapter plug) you received
with your computer meets the requirements for use in the country where
you purchased your equipment.
Power cord sets for use in other countries must meet the requirements of
the country where you use the computer. For more information on power
cord set requirements, contact your authorized dealer, reseller, or service
provider.
General Requirements
The requirements listed below are applicable to all countries:
·227The length of the power cord set must be at least 6.00 feet (1.
8m) and a maximum of 9.75 feet (3.0m).
·All power cord sets must be approved by an acceptable accredited
agency responsible for evaluation in the country where the power cord
set will be used.
·The power cord set must have a minimum current capacity of 7 A
and a nominal voltage rating of 125 or 250 volts AC, as required by
each country's power system.
·The appliance coupler must meet the mechanical configuration of
an EN 60 320/IEC 320 Standard Sheet C13 connector, for mating with
appliance inlet on the computer.
Regulatory Compliance Statements
Wireless Guidance
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz Band, may be present
(embedded) in your notebook system. The following section is a general
overview of considerations while operating a wireless device.
Additional limitations, cautions, and concerns for specific countries are listed
in the specific country sections (or country group sections). The wireless
devices in your system are only qualified for use in the countries identified
by the Radio Approval Marks on the system rating label. If the country you
will be using the wireless device in, is not listed, please contact your local
Radio Approval agency for requirements. Wireless devices are closely
- 30 -
regulated and use may not be allowed.
The power output of the wireless device or devices that may be embedded
in your notebook is well below the RF exposure limits as known at this
time. Because the wireless devices (which may be embedded into your
notebook) emit less energy than is allowed in radio frequency safety
standards and recommendations, manufacturer believes these devices are
safe for use. Regardless of the power levels, care should be taken to
minimize human contact during normal operation.
This transmitter must not be collocatedoroperateinconjunctionwithany
other antenna or transmitter.
Some circumstances require restrictions on wireless devices. Examples of
common restrictions are listed below:
Radio frequency wireless communication can interfere with equipment on
commercial aircraft. Current aviation regulations require wireless devices to
be turned off while traveling in an airplane. 802.11B (also known as
wireless Ethernet or Wifi) and Bluetooth communication devices are
examples of devices that provide wireless communication.
In environments where the risk of interference to other devices or services
is harmful or perceived as harmful, the option to use a wireless device may
be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable
gas laden atmospheres are limited examples where use of wireless devices
may be restricted or eliminated. When in environments where you are
uncertain of the sanction to use wireless devices, ask the applicable
authority for authorization prior to use or turning on the wireless device.
Every country has different restrictions on the use of wireless devices.
Since your system is equipped with a wireless device, when traveling
between countries with your system, check with the local Radio Approval
authorities prior to any move or trip for any restrictions on the use of a
wireless device in the destination country.
If your system came equipped with an internal embedded wireless device,
do not operate the wireless device unless all covers and shields are in
place and the system is fully assembled.
Wireless devices are not user serviceable. Do not modify them in any way.
Modification to a wireless device will void the authorization to use it. Please
contact manufacturer for service.
Only use drivers approved for the country in which the device will be used.
See the manufacturer System Restoration Kit, or contact manufacturer
Technical Support for additional information.
United States of America
Unintentional Emitter per FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1) this device may not cause
- 31 -
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generate uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
·Reorient or relocate the receiving antenna.
·Increase the separation between the equipment and receiver.
·Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
·Consult the dealer or an experienced radio/TV technician for help.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user may find
the following booklet helpful: 밪omething About Interference.?This is
available at FCC local regional offices. Our company is not responsible
for any radio or television interference caused by unauthorized
modifications of this equipment or the substitution or attachment of
connecting cables and equipment other than those specified by our
company. The correction will be the responsibility of the user. Use
only shielded data cables with this system.
Intentional emitter per FCC Part 15
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz Band, may be
present (embedded) in your notebook system. This section is only
applicable if these devices are present. Refer to the system label to
verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for use
intheUnitedStatesofAmericaifanFCCIDnumberisonthe
system label.
This transmitter must not be collocated or operate in conjunction with
any other antenna or transmitter.
Operation of this device is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify them in any
- 32 -
way. Modification to a wireless device will void the authorization to use
it. Contact manufacturer for service.
FCC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC) of the
United States with its action in Report and Order FCC 96-326 adopted
an updated safety standard for human exposure to radio frequency
electromagnetic energy emitted by FCC regulated transmitters. Those
guidelines are consistent with the safety standard previously set by
both U.S. and international standards bodies.
The design of this Hand PC complies with the FCC guidelines and
these international standards. Use only the supplied or an approved
antenna. Unauthorized antennas, modifications, or attachments could
result in violation of FCC regulations.
Body-worn Operation
This device was tested for typical body-worn operations with the
device directly contacted to the human body to the back and side of
the Hand PC. To maintain compliance with FCC RF exposure
compliance requirements, use other accessories should not contain
metallic components in its assembly. The use of accessories that do
not satisfy these requirements may not comply with FCC RF exposure
compliance requirements, and should be avoided.
Face Held Operation
This device was tested for Face Held operations with the separation
distance of 2.5 cm between the microphone of the device to the
human face. While using face held operation, hold the Hand PC at
least 2.5 cm(1 inch) from your face and speak in a normal voice.
- 33 -
SAMSUNG HANDHELD PERSONAL COMPUTER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung
Electronics America, Inc. (SAMSUNG) and delivered new, in the original
carton to the original consumer purchaser, is warranted by SAMSUNG
against manufacturing defects in materials and workmanship for a limited
warranty period of:
One (1) Year Parts and Labor Carry-In/Ship-In Service*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid
only on products purchased and used in the United States. To receive
warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures. Warranty service can only be
performed by a SAMSUNG authorized service center. The original dated
bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG's authorized service center. Transportation of the
product to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if
found to be defective during the limited warranty period specified above.
All replaced parts and products become the property of SAMSUNG and
must be returned to SAMSUNG. Replacement parts and products assume
the remaining original warranty, or ninety (90) days, whichever is longer.
SAMSUNG does not warrant uninterrupted or error-free operation of the
product, and shall not be liable for the loss or destruction of data or media
resulting from the use or service of this product. It is the purchaser's
responsibility to secure all programs and data contained in or affected by
the product. The purchaser is cautioned that product performance may be
affected by installation, system configuration, software, applications,
equipment compatibility, purchaser data and operator control of the system,
among other factors, and it is the purchaser's responsibility to determine the
functional implementation.
SAMSUNG's obligations with respect to software products distributed by
SAMSUNG under the SAMSUNG brand name are set forth in the
applicable end user license agreement. Non-SAMSUNG hardware and
software products, if provided, are on an “ AS IS” basis. Non-SAMSUNG
manufacturers, suppliers, publishers, and service providers may provide their
own warranties.
This limited warranty covers manufacturing defects in materials and
workmanship encountered in normal, and except to the extent otherwise
expressly provided for in this statement, noncommercial use of this product,
and shall not apply to the following, including, but not limited to: damage
which occurs in shipment; delivery and installation; applications and uses for
which this product was not intended; altered product or serial numbers;
- 34 -
cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water,
lightning or other acts of nature; use of products, equipment, systems,
utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by
SAMSUNG, or which damage this product or result in service problems;
incorrect electrical line voltage, fluctuations and surges; customer
adjustments and failure to follow operating instructions, cleaning,
maintenance and environmental instructions that are covered and prescribed
in the instruction book; product removal or reinstallation; reception or display
problems and distortion related to noise, echo, interference or other signal
transmission and delivery problems; reduced screen brightness related to
normal tube and lamp aging, or burned-in images.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED
AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS
STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR
GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR
ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS
BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY
KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND
CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR
LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S
PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF
THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY
SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF
SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO
ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT,
IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts,
or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights, which vary
from state to state.
To obtain warranty service, please contact SAMSUNG at:
SAMSUNG CUSTOMER CARE CENTER
400 Valley Road, Suite 201, Mt. Arlington, NJ 07856
Tel: 973-601-6000, Fax: 973-601-6001
XXX-XXX-XXXX and www.SAMSUNGUSA.com
- 35 -
specification
OS
WinCE.net (4.0 PB)
CPU
PXA250 300(400)MHz (Intel)
Display
5 inch Transflective WVGA TFT LCD (800*480, 64K color)
Memory
Flash ROM 64MB(NAND type)
SDRAM128MB(upto256MB)
Wireless Comm.
WLAN(802.11b) built-in (11Mbps)
(Support CF II, PCMCIA type WAN solution)
Interface
CF II slot, Standard USB(Host) ,
USB docking port (PC sync.,VGA-out,Power charging)
Keyboard port (4pin), Earphone jack (stereo)
Battery
Li-polymer 1500mAH (Quick charging, 2.5hrs @ 90%)
( * battery life : PDA 9hrs, WLAN 3hrs )
Sound
Speaker (17 Φ, mono), Mic (6Φ, mono)
Earphone (stereo, VOIP support)
LED Indicator
3 ea ; Red/Green (power), Orange (Alarm), Blue (Data TRX status, Email
alarm)
Key Buttons
4 way navigation + enter button,
2 Hot button (Launcher, Backlit), Rec.,
Reset, Hold switch
Cover
Leather cover
Stylus
102.2mm, 4.5 Φ
Size
155 * 91 * 13.4 (w/ leather cover)
- 36 -
Weight
280g (incld. Battery, keyboard cover)
250g (incld. Battery, leather cover)
Accessories
Cradle
LED (power), 2 Holes(Stylus & Pen)
Charging slot for 2nd battery
Detachable Sync. Cable & AC adapter
**Leather/keyboard Cover can be open on cradle
**Device with 2nd battery can be mounted on cradle
Earphone
2.5 Φ,StereoMP3,Mic.Support
Standing module
CF slot built-in type, Simple & Rugged style
VGA-out cable
800*600, 640*480 support,
Enhanced compression rate
- 37 -
SAMSUNG DIGITall
everyone's invited
SAMSUNG CUSTOMER CARE CENTER
400 Valley Road, Suite 201, Mt. Arlington, NJ 07856
Tel: 973-601-6000, Fax: 973-601-6001
www.samsungnexio.com
Printed in Korea.

Navigation menu
