Keyboard portion of user manual
Keyboard
(KB-160E)

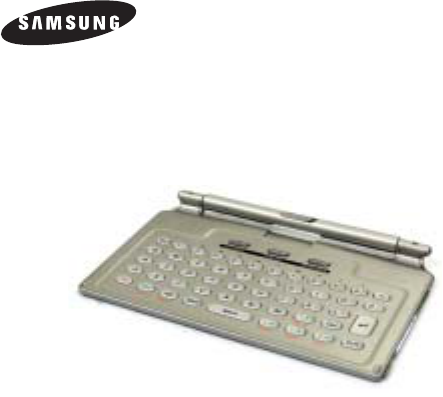

The KB-160E Keyboard is NEXiO S160’s exclusive keyboard which
combines functionality and mobility.
You may use the external keyboard immediately by attaching it to
NEXiO. Also, when on the run, the keyboard can be folded and
used as a protective cover for the LCD.
Keyboard Overview
Attaching/Removing the Keyboard
To Attach the Keyboard
1Place the keyboard on top of NEXiO, and then align the guide rib
on keyboard with the keyboard hole on the bottom of NEXiO.
Power
Connector
Guide Rib
Keyboar Hook
Hook Bar
2 Push the bottom of the keyboard down to attach it to NEXiO.
3 The keyboard icon ( ) will appear in the NEXiO task bar.
Note You will hear a sound when the keyboard is connected or disconnected
from NEXiO.

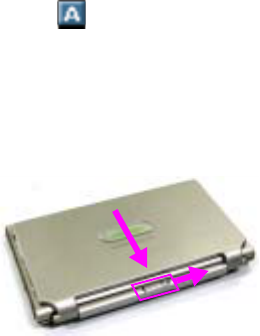

To Remove the Keyboard
1While (a) holding hook bar on keyboard to the right, (b) slide the
keyboard toward the bottom side of NEXiO.
2 Keyboard is now disconnected.
a
b
Using the Keyboard
Hot Keys Executes the Calendar, Contact and Messenger pro-
grams.
Fn Key Allows you to use the orange keys.
Ctrl Key Allows you to use the green keys.
Shift Key Allows you to type capital letters or the symbols on the
upper part of the keys.
Note The keyboard will not work when NEXiO’s Hold Button is activated or
when the LCD is turned off.
Note Due to the fewer number of keys (53) than a standard keyboard, the fol-
lowing features are not supported.
We recommend using the software keyboard in the following instances:
- The features on a standard keyboard are activated using Ctrl + the
arrow keys.
Hot Keys
Ctrl Key
Shift Key
Fn Key
- Key entry when using the RDP (Remote Desktop Protocol) to activate
the PC’s Client terminal.
To Lock Internal Software Keyboard
You can lock the NEXiO’s internal software keyboard when using
the external keyboard.
1Tap on the extended keyboard ( ) icon in NEXiO’s task bar.
"Lock Soft Keyboard" message appears.
2Tap the message. The software keyboard will be locked, and ( )
icon will replace ( ) icon in the NEXiO’s taskbar.
3Tap on this message again to activate the software keyboard.

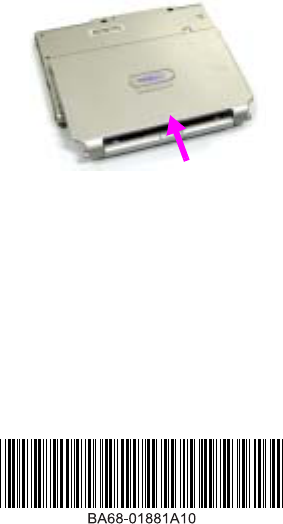

To Keep Keyboard while not in Use
Attach the keyboard to the underside of NEXiO when not in use.
Turn the NEXiO so its LCD is down, and attach keyboard to the
backside. Use the same method explained above.
Specifications
Total number of keys 53
Size 47.6mm * 81mm * 4mm
Interface Serial
