Samsung Electronics Co S22E450B LCD Monitor User Manual

Samsung Electronics Co Ltd LCD Monitor

Contents

user manual

User manualS19E200BR S19E200BW S19E200NW S19E200NY S19E450BRS19E450BWS19E450MR S19E450MW S22E200B S22E200BWS22E200NS22E200NYS22E450BS22E450BW S22E450DS22E450DWS22E450M S22E450MW S23E200B S23E450B S24E200BL S24E450B S24E450BLS24E450D S24E450DL S24E450M S24E650BWS27E450B S27E450DThe color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.BN46-00478A-01
Table Of Contents 2Table Of ContentsBEFORE USING THEPRODUCT8 Copyright8 Icons used in this manual9 Cleaning10 Securing the Installation Space10 Precautions for storage11 Safety Precautions11 Symbols12 Electricity and Safety13 Installation and Safety 15 Operation and Safety19 Correct posture to use the product PREPARATIONS 20 Checking the Components20 Checking the Components22 Parts22 Frontal Buttons (SE200 Series)24 Frontal Buttons (S**E450B*, S**E650B*)26 Frontal Buttons (S**E450M*)28 Frontal Buttons (S**E450D*)30 Reverse Side (SE200 Series)31 Reverse Side (S**E450B*, S**E650B*)32 Reverse Side (S**E450M*)33 Reverse Side ( S**E450D*)34 Right Side View (S**E450D*)35 Installation35 Attaching the Stand (SE200 Series)36 Attaching the Stand (SE450, SE650 Series)37 Removing the Stand (SE200 Series)38 Adjusting the Product Tilt (SE200 Series)39 Adjusting the Product Tilt and Height (SE450, SE650 Series)40 Rotating the Monitor (SE450, SE650 Series)41 Installing a Wall-mount Kit or Desktop Stand44 Anti-theft Lock
Table Of ContentsTable Of Contents 3CONNECTING AND USINGA SOURCE DEVICE45 Before Connecting45 Pre-connection Checkpoints46 Connecting and Using a PC46 Connecting to a PC50 Connecting the Power54 Driver Installation55 Setting Optimum ResolutionSCREEN SETUP 56 Brightness56 Configuring Brightness57 Contrast57 Configuring Contrast58 Sharpness58 Configuring Sharpness59 Eye Saver Mode59 Configuring Eye Saver Mode60 Game Mode60 Configuring Game Mode61 SAMSUNG MAGIC Bright61 Configuring SAMSUNG MAGIC Bright62 SAMSUNG MAGIC Angle (Except S19E200NY / S22E200NY)62 Configuring SAMSUNG MAGIC Angle64 SAMSUNG MAGIC Upscale64 Configuring SAMSUNG MAGIC Upscale65 Image Size (Except S19E200BR / S19E450BR / S19E450MR)65 Changing the Image Size67 H-Position & V-Position67 Configuring H-Position & V-Position
Table Of ContentsTable Of Contents 468 Coarse68 Adjusting Coarse69 Fine69 Adjusting FineCONFIGURING TINT 70 Red70 Configuring Red71 Green71 Configuring Green72 Blue72 Configuring Blue73 Color Tone73 Configuring the Color Tone Settings74 Gamma74 Configuring GammaRESIZING ORRELOCATING THESCREEN75 Language75 Changing the Language76 Menu H-Position & Menu V-Position76 Configuring Menu H-Position & Menu V-Position77 Display Time77 Configuring Display Time78 Transparency 78 Changing TransparencySETUP AND RESET 79 Reset All79 Initializing Settings (Reset All)80 Smart Eco Saving 80 Configuring Smart Eco Saving
Table Of ContentsTable Of Contents 581 Off Timer (S19E200NW / S19E200NY / S22E200N /S22E200NY)81 Configuring Off Timer82 Configuring Turn Off After83 Off Timer Plus (Except S19E200NW / S19E200NY / S22E200N / S22E200NY)83 Configuring Off Timer85 Configuring Eco Timer87 PC/AV Mode (Except S19E200NW / S19E200NY / S22E200N / S22E200NY) 87 Configuring PC/AV Mode88 Key Repeat Time 88 Configuring Key Repeat Time89 Source Detection (Except S19E200NW / S19E200NY / S22E200N / S22E200NY)89 Configuring Source DetectionINFORMATION MENU ANDOTHERS90 INFORMATION90 Displaying INFORMATION91 Configuring Brightness, Contrast and Sharpness from the Initial Screen92 Configuring Volume in the Initial ScreenINSTALLING THESOFTWARE93 MultiScreen 93 Installing the Software94 Removing the SoftwareTROUBLESHOOTINGGUIDE95 Requirements Before Contacting Samsung Customer Service Center95 Testing the Product95 Checking the Resolution and Frequency95 Check the following.98 Q & A
Table Of ContentsTable Of Contents 6SPECIFICATIONS 100 General (S19E200NY / S19E200NW)102 General (S19E200BW / S19E200BR)104 General (S22E200NY)105 General (S22E200B / S22E200N / S22E200BW)107 General (S23E200B / S24E200BL)109 General (S19E450BW / S19E450MW / S19E450BR / S19E450MR)111 General (S22E450B / S22E450M / S22E450D)113 General (S22E450BW / S22E450MW / S22E450DW)115 General (S23E450B)117 General (S24E450BL / S24E450DL)119 General (S24E450B / S24E450M / S24E450D)121 General (S24E650BW)123 General (S27E450B / S27E450D)125 PowerSaver129 Standard Signal Mode TableAPPENDIX 137 Responsibility for the Pay Service (Cost to Customers)137 Not a product defect137 A Product damage caused by customer's fault137 Others139 Correct Disposal139 Correct Disposal of This Product (Waste Electrical & Electronic Equipment)139 Extended warranty
Table Of ContentsTable Of Contents 7140 TerminologyINDEX
8 Before Using the Product Before Using the ProductCopyrightThe contents of this manual are subject to change without notice to improve quality.© 2015 Samsung ElectronicsSamsung Electronics owns the copyright for this manual.Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.Icons used in this manualAn administration fee may be charged if either(a) an engineer is called out at your request and there is no defect in the product(i.e. where you have failed to read this user manual).(b) you bring the unit to a repair center and there is no defect in the product (i.e. where you have failed to read this user manual).The amount of such administration charge will be advised to you before any work or home visit is carried out.The following images are for reference only. Real-life situations may differ from what is shown in the images.
9Before Using the Product Before Using the ProductCleaningExercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning. 1. Power off the monitor and computer.2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result. 3. Wipe the monitor screen using a clean, soft and dry cloth.Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.Do not spray water or detergent directly on the product.4. Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the monitor.5. Connect the power cord to the product after cleaning the product.6. Power on the monitor and computer.!!
10Before Using the Product Before Using the ProductSecuring the Installation SpaceEnsure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product. The exterior may differ depending on the product. Precautions for storage Be sure to contact Samsung Customer Service Center if the inside of the monitor needs cleaning. (A service fee will be charged.) SE200 SeriesSE450, SE650 Series3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)3.93 inches (10 cm)
11Before Using the Product Before Using the ProductSafety PrecautionsSymbolsCautionRISK OF ELECTRIC SHOCK DO NOT OPENCaution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.This symbol alerts you that important literature concerning operation and maintenance has been included with this product. Warning A serious or fatal injury may result if instructions are not followed. Caution Personal injury or damage to properties may result if instructions are not followed.Activities marked by this symbol are prohibited.Instructions marked by this symbol must be followed.
12Before Using the Product Before Using the ProductElectricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images. WarningDo not use a damaged power cord or plug, or a loose power socket.An electric shock or fire may result.Do not plug many products into the same power socket.Otherwise, the socket may overheat and cause a fire.Do not touch the power plug with wet hands.Otherwise, an electric shock may result.Insert the power plug all the way in so it is not loose.An unstable connection may cause a fire.Ensure you connect the power plug to a grounded power socket. (type 1 insulated devices only). An electric shock or injury may result.Do not bend or pull the power cord with force. Do not weigh the power cord down with a heavy object.A damaged power cord may cause an electric shock or fire.Do not place the power cord or product near heat sources. An electric shock or fire may result.Remove foreign substances such as dust around the plug pins and power socket with a dry cloth. Otherwise, a fire may result.!!!
13Before Using the Product Before Using the Product CautionInstallation and Safety WarningDo not unplug the power cord when the product is in use.The product may become damaged by an electric shock.Do not use the power cord for products other than authorized products supplied by Samsung. An electric shock or fire may result.Keep the power socket where the power cord is connected unobstructed. If any problem occurs in the product, unplug the power cable to completely cut the power to the product. Power to the product cannot be completely cut off with the power button. Hold the plug when disconnecting the power cord from the power socket. An electric shock or fire may result.DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.Otherwise, a fire may result.Avoid installing the product in a narrow space with bad ventilation, such as a bookshelf or wall closet.Otherwise, a fire may result due to an increased internal temperature.Keep the plastic packaging bag for the product in a place that cannot be reached by children.Children may suffocate.!!!!
14Before Using the Product Before Using the Product CautionDo not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). The product may fall and break or cause a personal injury.Using the product in an area with excess vibration may damage the product or cause a fire.Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke. An electric shock or fire may result.Do not expose the product to direct sunlight, heat, or a hot object such as a stove.Otherwise, the product lifespan may be reduced, or a fire may result.Do not install the product within the reach of young children.The product may fall and injure children. Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.Take care not to drop the product when moving it. Otherwise, product failure or personal injury may result.Do not set down the product on its front.The screen may become damaged.When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.The product may fall and break or cause a personal injury.Install the product only on cabinets or shelves of the right size.!!
15Before Using the Product Before Using the ProductOperation and Safety WarningPut down the product carefully.The product may fall and break or cause a personal injury.Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.Be sure to consult Samsung Customer Service Center before installation if you want to install the product at such a place.High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product on your own.An electric shock or fire may result.Contact Samsung Customer Service Center for repair.To move the product, first disconnect all the cables from it, including the power cable.Otherwise, the power cord may be damaged and a fire or electric shock may result.If the product generates a strange noise, a burning smell, or smoke, remove the power cord immediately and contact Samsung Customer Service Center.An electric shock or fire may result.Do not let children hang from the product or climb on top of it.The product may fall, and your child may become injured or seriously harmed.If the product falls or the exterior is damaged, power off the product, remove the power cord, and contact Samsung Customer Service Center.Otherwise, an electric shock or fire may result. Do not put a heavy object, toy, or sweets on top of the product.The product or heavy objects may fall as children try to reach for the toy or sweets resulting in a serious injury.!SAMSUNG!!!
16Before Using the Product Before Using the ProductIf there is a thunderstorm or lightning strike, turn off the power and disconnect the power cable.An electric shock or fire may result.Do not drop objects on the product or apply impact.An electric shock or fire may result.Do not move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.Sparks can cause an explosion or fire.Do not lift or move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.Do not use or keep combustible spray or an inflammable substance near the product.An explosion or fire may result.Ensure the vents are not blocked by tablecloths or curtains.Otherwise, a fire may result from an increased internal temperature.Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable object (paper, match, etc.) into the vent or ports of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center.Product failure, an electric shock or fire may result. Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center. Product failure, an electric shock or fire may result.!!!GAS!10 0
17Before Using the Product Before Using the Product CautionLeaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.If you are not going to use the product for an extended period of time, activate power-saving mode or a moving-picture screen saver.Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc.).Otherwise, a fire may result from accumulated dust, overheating, an electric shock, or electric leakage. Use the product at the recommended resolution and frequency.Otherwise,Your eyesight may deteriorate.Do not put DC power adapters together.Otherwise, a fire may result.Remove the plastic bag from the DC power adapter before you use it.Otherwise, a fire may result.Do not let water enter the DC power device or get the device wet.An electric shock or fire may result. Avoid using the product outdoors where it can be exposed to rain or snow.Be careful not to get the DC power adapter wet when you wash the floor.Do not put the DC power adapter near to any heating apparatus.Otherwise, a fire may result.Keep the DC power adapter in a well-ventilated area.Looking at the screen too close for an extended period of time can deteriorate your eyesight.!!-_-!!!!
18Before Using the Product Before Using the ProductDo not hold the monitor upside-down or move it by holding the stand.The product may fall and break or cause a personal injury.Do not use humidifiers or stoves around the product.An electric shock or fire may result.Rest your eyes for more than 5 minutes for every 1 hour of product use.Eye fatigue will be relieved.Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.Store the small accessories used with the product out of reach of children.Exercise caution when adjusting the product angle or stand height.Otherwise, children's fingers or hands may become stuck and injured.Tilting the product excessively may cause it to fall and result in personal injury. Do not place heavy objects on the product.Product failure or personal injure may result.When using headphones or earphones, do not turn the volume too high.Having the sound too loud may damage your hearing.!!!
19Before Using the Product Before Using the ProductCorrect posture to use the product Use the product in the correct posture as follows:Straighten your back.Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly downward at the screen. Keep your eyes directly in front of the screen. Adjust the angle so light does not reflect on the screen.Keep your forearms perpendicular to your upper arms and level with the back of your hands.Keep your elbows at about a right angle.Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.
201 Preparations1 Preparations1.1 Checking the Components1.1.1 Checking the Components Contact the dealer from whom you purchased the product if any item is missing.The pictures may look different from the actual components. ComponentsQuick setup guide Warranty card (Not available in some locations)Regulatory guide (optional)User manual(optional) Power cable D-SUB cable(optional)DVI cable(optional)HDMI-DVI cable(optional)DP cableFor S**E450D* Model(optional)Stereo CableFor S**E450M* Model(optional)USB cable For S**E450D* Model(optional)Stand baseFor SE200 Series Model(optional)
21Preparations11 Preparations Components may vary depending on the country. Stand baseFor SE450 Series Model,For S**E650B* Model(optional)Stand baseFor S**E450D* Model(Applicable to the stand models that have USB ports only.) (optional)Stand neckFor SE200 Series Model(optional)Stand neckFor SE450 Series Model,For S**E650B* Model(optional)
22Preparations11 Preparations1.2 Parts1.2.1 Frontal Buttons (SE200 Series) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Icons DescriptionOpen or close the onscreen display (OSD) menu, or return to the parent menu.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [ ] button for 10 seconds. Disable: To unlock the locked OSD control, press the [ ] button for more than 10 seconds. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. INFORMATION can be viewed.The Eye Saver Mode function can be used by pressing the [ ] button. (The Eye Saver Mode is available even when the OSD control is locked.) Press [ ] to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE Brightness, Game Mode, Bright, AngleCOLORSETUP&RESET Smart Eco SavingMove to the upper or lower menu or adjust the value for an option on the OSD menu.Key GuideEYESAVERMENU SOURCEAUTOEYESAVERMENU SOURCEAUTOMENUMENUMENUSAMSUNGMAGICSAMSUNGMAGIC
23Preparations11 PreparationsUse this button to control the brightness, contrast and sharpness of the screen.Confirm a menu selection.Pressing the [ ] button when the OSD menu is not displayed will change the input source (Analog/DVI). If you power on the product or change the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen. This function is not available for products with an Analog interface only. Press the [ ] button to automatically adjust the screen settings. Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode. Turn the screen on or off. Key GuideWhen a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.)To access the onscreen menu when the guide is displayed, press the corresponding button again.The Key Guide may vary depending on the function or product model. Refer to the actual product.Icons DescriptionAUTOAUTO
24Preparations11 Preparations1.2.2 Frontal Buttons (S**E450B*, S**E650B*) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Icons DescriptionOpen or close the onscreen display (OSD) menu, or return to the parent menu.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [ ] button for 10 seconds. Disable: To unlock the locked OSD control, press the [ ] button for more than 10 seconds. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. INFORMATION can be viewed.The Eye Saver Mode function can be used by pressing the [ ] button. (The Eye Saver Mode is available even when the OSD control is locked.) Press [ ] to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE Brightness, Game Mode, Bright, AngleCOLORSETUP&RESET Smart Eco SavingMove to the upper or lower menu or adjust the value for an option on the OSD menu.Use this button to control the brightness, contrast and sharpness of the screen.Key GuideEYESAVERMENU SOURCEAUTOMENUMENUMENUSAMSUNGMAGICSAMSUNGMAGIC
25Preparations11 PreparationsConfirm a menu selection.Pressing the [ ] button when the OSD menu is not displayed will change the input source (Analog/DVI). If you power on the product or change the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen. This function is not available for products with an Analog interface only. Press the [ ] button to automatically adjust the screen settings. Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode. Turn the screen on or off. Key GuideWhen a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.)To access the onscreen menu when the guide is displayed, press the corresponding button again.The Key Guide may vary depending on the function or product model. Refer to the actual product.Icons DescriptionAUTOAUTO
26Preparations11 Preparations1.2.3 Frontal Buttons (S**E450M*) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Icons DescriptionOpen or close the onscreen display (OSD) menu, or return to the parent menu.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [ ] button for 10 seconds. Disable: To unlock the locked OSD control, press the [ ] button for more than 10 seconds. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. INFORMATION can be viewed.The Eye Saver Mode function can be used by pressing the [ ] button. (The Eye Saver Mode is available even when the OSD control is locked.) Press [ ] to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE Brightness, Game Mode, Bright, AngleCOLORSETUP&RESET Smart Eco SavingMove to the upper or lower menu or adjust the value for an option on the OSD menu.Use this button to control the brightness and contrast of the screen. Volume can be adjusted if a cable is connected to the [IN] port. Key GuideEYESAVERMENU SOURCEAUTOEYESAVERMENU SOURCEAUTOMENUMENUMENUSAMSUNGMAGICSAMSUNGMAGIC
27Preparations11 PreparationsConfirm a menu selection.Pressing the [ ] button when the OSD menu is not displayed will change the input source (Analog/DVI). If you power on the product or change the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen. This function is not available for products with an Analog interface only. Press the [ ] button to automatically adjust the screen settings. Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode. Turn the screen on or off. Key GuideWhen a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.)To access the onscreen menu when the guide is displayed, press the corresponding button again.The Key Guide may vary depending on the function or product model. Refer to the actual product.Icons DescriptionAUTOAUTO
28Preparations11 Preparations1.2.4 Frontal Buttons (S**E450D*) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Icons DescriptionOpen or close the onscreen display (OSD) menu, or return to the parent menu.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [ ] button for 10 seconds. Disable: To unlock the locked OSD control, press the [ ] button for more than 10 seconds. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. INFORMATION can be viewed.The Eye Saver Mode function can be used by pressing the [ ] button. (The Eye Saver Mode is available even when the OSD control is locked.) Press [ ] to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE Brightness, Game Mode, Bright, AngleCOLORSETUP&RESET Smart Eco SavingMove to the upper or lower menu or adjust the value for an option on the OSD menu.Use this button to control the brightness, contrast and sharpness of the screen.Key GuideEYESAVERMENU SOURCEAUTOMENUMENUMENUSAMSUNGMAGICSAMSUNGMAGIC
29Preparations11 PreparationsConfirm a menu selection.Pressing the [ ] button when the OSD menu is not displayed will change the input source (Analog/DVI/DisplayPort). If you power on the product or change the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen. This function is not available for products with an Analog interface only. Press the [ ] button to automatically adjust the screen settings. Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode. Turn the screen on or off. Key GuideWhen a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.) To access the onscreen menu when the guide is displayed, press the corresponding button again.The Key Guide may vary depending on the function or product model.Refer to the actual product.Icons DescriptionAUTOAUTO
30Preparations11 Preparations1.2.5 Reverse Side (SE200 Series) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port DescriptionConnect to a PC using the DVI cable. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. Connect to a PC using the D-SUB cable.Connect to an external device.Connect the power cord for your monitor to the [POWER IN] port on the back of the product.DVI IN RGB IN POWER INPOWER INRGB INDVI INRGB INDVI INPOWER IN
31Preparations11 Preparations1.2.6 Reverse Side (S**E450B*, S**E650B*) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port DescriptionConnect to a PC using the DVI cable. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. Connect to a PC using the D-SUB cable.Connect to an external device.Connect the power cord for your monitor to the [POWER IN] port on the back of the product.DVI IN RGB IN POWER INDVI INRGB INPOWER INDVI IN RGB IN POWER IN
32Preparations11 Preparations1.2.7 Reverse Side (S**E450M*) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port DescriptionConnect to a PC using the DVI cable. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. Connect to a PC using the D-SUB cable.Connect to an audio output device such as headphones. Applicable to the models that have speakers only. Connect to an audio-input source using an audio cable. Applicable to the models that have speakers only. Connect to an external device.Connect the power cord for your monitor to the [POWER IN] port on the back of the product.DVI IN RGB IN AUDIO IN/OUT POWER INAUDIO IN/OUTOUTINDVI IN RGB IN POWER INDVI INRGB INAUDIO IN/OUTPOWER INOUT IN

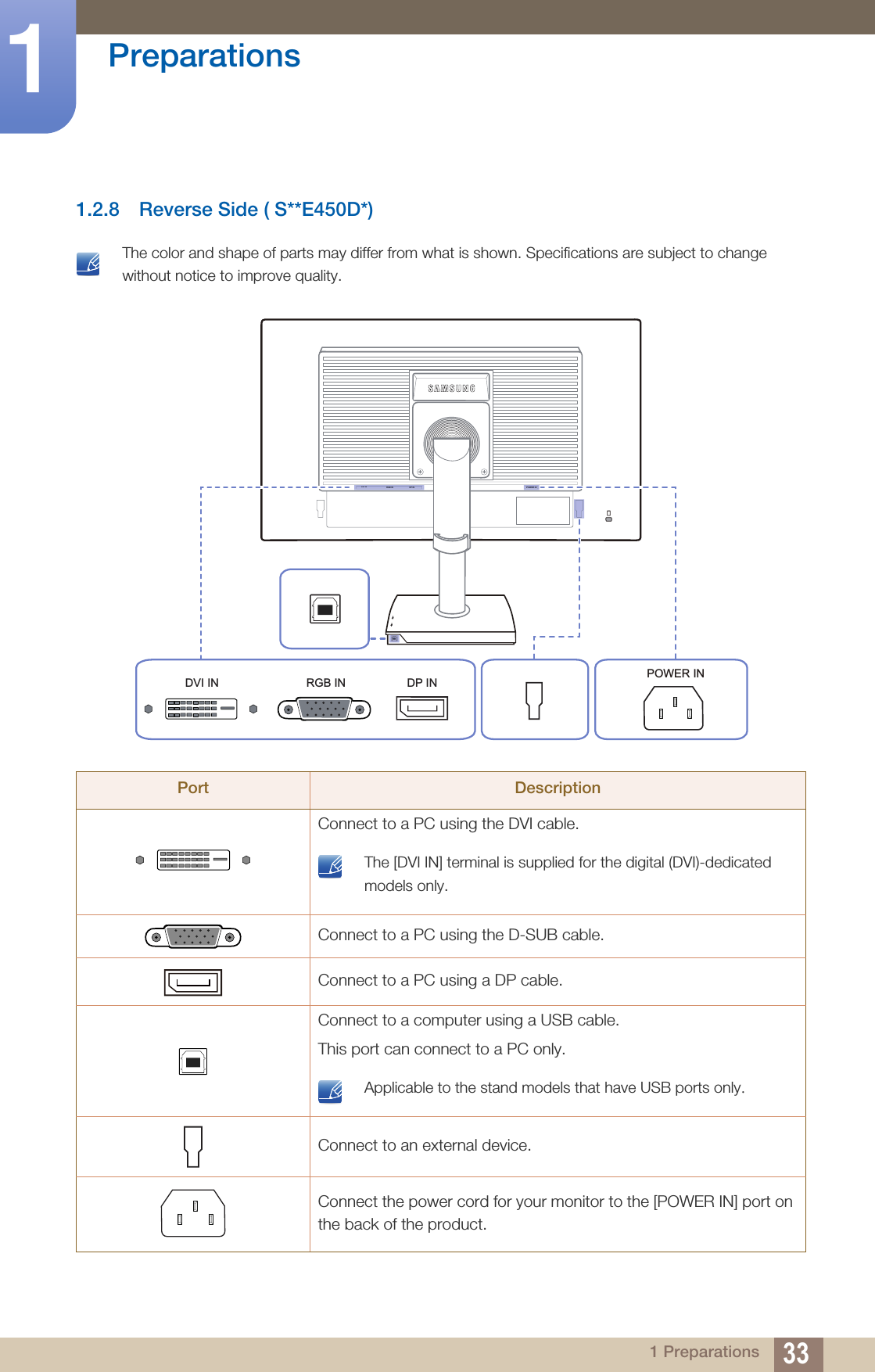

33Preparations11 Preparations1.2.8 Reverse Side ( S**E450D*) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port DescriptionConnect to a PC using the DVI cable. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. Connect to a PC using the D-SUB cable.Connect to a PC using a DP cable.Connect to a computer using a USB cable.This port can connect to a PC only. Applicable to the stand models that have USB ports only. Connect to an external device.Connect the power cord for your monitor to the [POWER IN] port on the back of the product.POWER INPOWER INPOWER INDVI IN RGB IN DP INDVI INRGB INDP INDVI IN DP INRGB IN
34Preparations11 Preparations1.2.9 Right Side View (S**E450D*) The color and shape of parts may differ from what is shown. Specifications are subject to changewithout notice to improve quality. Port DescriptionConnect to a source device using a USB cable.
35Preparations11 Preparations1.3 Installation1.3.1 Attaching the Stand (SE200 Series) Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Insert the Stand Connector into the Stand in the direction shown by the figure.Check if the Stand Connector is firmly connected.Turn the connecting screw at the bottom of the stand fully so that it is completely fixed.Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product is facing downwards.Hold the main body of the product with your hand as shown by the figure.Push the assembled stand into the main body in the direction of the arrow as shown in the figure.- CautionDo not hold the product upside down only by the stand.
36Preparations11 Preparations1.3.2 Attaching the Stand (SE450, SE650 Series) Disassembly is the reverse order of assembly.The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Place a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or cushion.Do not remove the fixing pin until you are finished attaching the stand.Insert the stand base into the stand in the direction of the arrow.Fasten the screw tightly (using a screwdriver or coin) into the bottom of the stand base.After installing the stand, place the product upright.You can remove the fixing pin and adjust the stand now.- CautionDo not hold the product upside down only by the stand.
37Preparations11 Preparations1.3.3 Removing the Stand (SE200 Series) The exterior may differ depending on the product. Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product faces downwards.While holding the stand neck with one hand, pound the other fisted hand down onto the top of the stand base in the direction of the arrow to detach the stand base.Turn the connecting screw at the bottom of the stand base to separate it.Remove the stand neck from the stand base by pulling it in the direction of the arrow as shown in the figure.
38Preparations11 Preparations1.3.4 Adjusting the Product Tilt (SE200 Series) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.You can adjust the tilt of your monitor.Hold the lower part of the product and adjust the tilt carefully. -1° (-2°/+1°) - 20° (0°/+2°)
39Preparations11 Preparations1.3.5 Adjusting the Product Tilt and Height (SE450, SE650 Series) The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.To adjust the height, remove the fixing pin.The monitor tilt and height can be adjusted.Hold the top center of the product and adjust the height carefully. 19"-22" (without a USB port)0 (± 5 mm) - 100 mm (± 5 mm)0 (± 5 mm) - 130 mm (± 5 mm)23"-27" / 21.5", 22" (with a USB port)427"19"-24"
40Preparations11 Preparations1.3.6 Rotating the Monitor (SE450, SE650 Series)You can rotate your monitor as shown below. Be sure to fully extend the stand before rotating the monitor.If you rotate the monitor without fully extending the stand, the corner of the monitor may hit the floor and get damaged.Do not rotate the monitor counterclockwise. The monitor may get damaged. 1 2 34 5 6
41Preparations11 Preparations1.3.7 Installing a Wall-mount Kit or Desktop StandBefore Installation Power the product off and remove the power cable from the power socket. SE200 SeriesSE450, SE650 SeriesPlace a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or cushion.Hold the main body of the product with your hand as shown by the figure. Pull the stand in the direction of the arrow as shown in the figure to separate it.Place a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or cushion.Unfasten the screw from the back of the product.Lift and detach the stand.
42Preparations11 PreparationsAlign the grooves and tightly fasten the screws on the bracket on the product with the corresponding parts on the wall-mount kit or desktop stand you want to attach. NotesUsing a screw longer than the standard length can damage the internal components of the product.The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications.Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm or farther away from the wall.Be sure to use a wall-mount kit that complies with the standards. Installing a Wall-mount Kit or Desktop Stand (SE200 Series) Attach the wall-mount kit or desktop stand here Bracket (sold separately)143B2AAB
43Preparations11 PreparationsAlign the grooves and tightly fasten the screws on the bracket on the product with the corresponding parts on the wall-mount kit or desktop stand you want to attach. NotesUsing a screw longer than the standard length can damage the internal components of the product.The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications.Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm or farther away from the wall.Be sure to use a wall-mount kit that complies with the standards.To install the monitor using a wall mount, disconnect the stand base from the monitor. Installing a Wall-mount Kit or Desktop Stand (SE450, SE650 Series) Attach the wall-mount kit or desktop stand here Bracket (sold separately)143B2ABAB
44Preparations11 Preparations1.3.8 Anti-theft LockAn anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. The lock device is sold separately. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. To lock an anti-theft locking device: 1Fix the cable of your anti-theft locking device to a heavy object such as a desk.2Put one end of the cable through the loop on the other end.3Insert the locking device into the anti-theft lock slot at the back of the product.4Lock the locking device. An anti-theft locking device can be purchased separately.Refer to the user guide provided with your anti-theft locking device for details.Anti-theft locking devices can be purchased at electronics retailers or online. SE200 SeriesSE450, SE650 SeriesRGB INDVI IN POWER IN
452 Connecting and Using a Source Device2 Connecting and Using a Source Device2.1 Before Connecting2.1.1 Pre-connection CheckpointsBefore connecting a source device, read the user manual provided with it.The number and locations of ports on source devices may differ from device to device.Do not connect the power cable until all connections are completed.Connecting the power cable during connection may damage the product.Check the types of ports at the back of the product you want to connect.
46Connecting and Using a Source Device22 Connecting and Using a Source Device2.2 Connecting and Using a PC2.2.1 Connecting to a PCSelect a connection method suitable for your PC. Connecting parts may differ in different products.The exterior may differ depending on the product. Connection Using the D-SUB Cable (Analog Type) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC. Connect to the [RGB IN] port on the product, then connect to the RGB port on the computer. 2Press [ ] to change the input source to Analog. This function is not available for products with an Analog interface only. SE200 SeriesSE450, SE650 SeriesRGB INAB DVI IN RGB IN DVI IN RGB IN RGB INABAB
47Connecting and Using a Source Device22 Connecting and Using a Source DeviceConnection Using the DVI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC. Connect to the [DVI IN] port on the product, then connect to the DVI port on the computer. 2Press [ ] to change the input source to DVI. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. SE200 SeriesSE450, SE650 Series DVI IN RGB IN DVI INABDVI INAB DVI IN RGB IN AB
48Connecting and Using a Source Device22 Connecting and Using a Source DeviceConnection Using the DVI-HDMI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the HDMI-DVI cable to the [DVI IN] port on the back of the product and the HDMI port on the PC.2Press [ ] to change the input source to DVI. The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only. SE200 SeriesSE450, SE650 SeriesDVI IN DVI IN RGB IN DVI IN DVI IN RGB IN
49Connecting and Using a Source Device22 Connecting and Using a Source DeviceConnection Using the DP Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the DP cable to the [DP IN] port on the back of the product and the DP port on the PC.2Press [] to change the input source to DisplayPort.Connecting to Headphones or Speakers Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect an audio output device such as headphones or speakers to [ ] port on the product. Applicable to the models that have speakers only. 2Connect an audio input device such as a computer to the [ ] port on the product. Applicable to the models that have speakers only. S**E450D*S**E450M* DVI IN RGB IN DP IN DP INOUTIN DVI IN RGB IN OUTIN
50Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.2 Connecting the Power Connecting parts may differ in different products.The exterior may differ depending on the product. To use the product, connect the power cable to a power outlet and the [POWER IN] port on the product. The input voltage is switched automatically. SE200 SeriesSE450, SE650 SeriesPOWER IN DVI IN RGB IN DVI IN RGB IN POWER IN
51Connecting and Using a Source Device22 Connecting and Using a Source DeviceConnecting USB (S**E450D* Models) Applicable to the stand models that have USB ports only.You can use a USB device such as a mouse, keyboard, memory stick or external hard disk drive (HDD) by connecting it directly to the [ ] port on the monitor. You do not need to connect it to the computer.An external mass-storage HDD requires an external power supply and be sure to connect it to a power source. The [ ] USB port of the monitor supports High-Speed Certified USB 2.0.1Connect the [ ]port of the monitor and the USB port of the computer with the USB cable. To use [ ] port, you have to connect the UP (Upstream Cable) to the PC.Make sure to use the USB cable supplied with this monitor to connect the monitor's [ ] port and your computer's USB port. High speed Full speed Low speedData Rate 480 Mbps 12 Mbps 1.5 MbpsPower Consumption 2.5 W(Max., each port)2.5 W(Max., each port)2.5 W(Max., each port) DVI IN RGB IN DP IN ABUSBBA
52Connecting and Using a Source Device22 Connecting and Using a Source Device2Connect the [ ] port of the USB monitor and a USB device with the USB cable.3The use procedures are as the same as those for using an external device connecting to the PC.You can connect and use a keyboard and mouse.You can play a file from a media device. (Examples of media devices: MP3, digital camera, etc.)You can run, move, copy or delete the files on the storage device. (Examples of storage devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.)You can use other USB devices that can be connected to a computer. When connecting a device to the [ ] port of the monitor, connect the device using a cable appropriate to the device.For the purchase of the cable and external devices, ask the service center of the corresponding product.The company is not liable for problems or damages to an external device caused by using an unauthorized cable for the connection.Some products do not follow the USB standard, and it may cause a malfunction of the device.If the device malfunctions even if it is connected to the computer, contact the service center of the device/computer.
53Connecting and Using a Source Device22 Connecting and Using a Source DeviceChanging the sound settings on Windows (S**E450M* Models)Control Panel Audio Speaker Speaker Setup→ → → 3 41 2
54Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.3 Driver Installation You can set the optimum resolution and frequency for this product by installing the corresponding drivers.An installation driver is contained on the CD supplied with the product.If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com) and download the file. 1Insert the user manual CD provided with the product into the CD-ROM drive.2Click "Windows Driver".3Follow the instructions given on the screen to proceed with installation.4Select your product model from the list of models.5Go to Display Properties and check that the resolution and refresh rate are appropriate.Refer to your Windows OS manual for further details.
55Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.4 Setting Optimum ResolutionAn information message about setting optimum resolution will appear if you power on the product for the first time after purchase.Select a language on the product and change the resolution on your PC to the optimum setting.1Press [ ] to move to the language you want and press [ ].2To hide the information message, press [ ]. If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again.The optimum resolution can also be selected in Control Panel on your PC. 2.(QJOLVK7KHRSWLPDOUHVROXWLRQIRUWKLVPRQLWRULVDVIROORZV****x**** **Hz8VHWKHDERYHVHWWLQJVWRVHWWKHUHVROXWLRQRQ\RXU3&6HWXS*XLGHAUTOAUTOMENU
563 Screen Setup3 Screen SetupA detailed description of each function is provided. Refer to your product for details.Configure the screen settings such as brightness.3.1 BrightnessYou can adjust the general brightness of the picture. (Range: 0~100)A higher value will make the picture appear brighter. This menu is not available when Bright is set to Dynamic Contrast mode.This menu is not available when Smart Eco Saving is set.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.1.1 Configuring Brightness1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Brightness and press [ ] on the product.The following screen will appear.4Adjust the Brightness using the [ ] buttons.SAMSUNGMAGICMENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the brightness level. Values closer to 100 mean a brighter screen.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTOPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the brightness level. Values closer to 100 mean a brighter screen.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTO
57Screen Setup33 Screen Setup3.2 ContrastAdjust the contrast between the objects and background. (Range: 0~100)A higher value will increase the contrast to make the object appear clearer. This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.2.1 Configuring Contrast1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Contrast and press [ ] on the product.The following screen will appear.4Adjust the Contrast using the [ ] buttons.SAMSUNGMAGICMENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTO SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffPICTUREAUTOAUTOAUTO
58Screen Setup33 Screen Setup3.3 SharpnessMake the outline of objects more clear or blurry. (Range: 0~100)A higher value will make the outline of objects clearer. This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Upscale is in Mode1 or Mode2.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.3.1 Configuring Sharpness1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Sharpness and press [ ] on the product.The following screen will appear.4Adjust the Sharpness using the [ ] buttons.SAMSUNGMAGICSAMSUNGMAGICMENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffAUTOAUTOAUTO SAMSUNGMAGICBrightSAMSUNGMAGICAngleAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.AUTOBrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOffPICTUREAUTOAUTOAUTOAUTO
59Screen Setup33 Screen Setup3.4 Eye Saver ModeSet to an optimum picture quality suitable for eye relaxation.TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will become lower and lower, and one hour later it will approach the optimum picture quality suitable for eye relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.4.1 Configuring Eye Saver Mode1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Eye Saver Mode and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENUPICTURE SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleSet to an optimum picture quality suitable for eye relaxation.1007560OffOffCustomOffOffOnBrightnessContrastSharpnessEye Saver ModeGame ModeAUTOAUTO SAMSUNGMAGICBrightSAMSUNGMAGICAngleSet to an optimum picture quality suitable for eye relaxation.AUTO1007560OffOffCustomOffOffOnBrightnessContrastSharpnessEye Saver ModeGame ModePICTUREAUTOAUTOAUTO
60Screen Setup33 Screen Setup3.5 Game ModeConfigure the product screen settings for game mode. Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™ is connected. This menu is not available when Eye Saver Mode or Smart Eco Saving is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.5.1 Configuring Game Mode1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Game Mode and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied. When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off even if it is set to On.If you want to keep Game Mode enabled all the time, select Always On. MENUPICTURE 1007560OffCustomOffOptimizes image settings for playing games.AUTOOffOnAlways OnBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAUTOAUTO 1007560OffCustomOffOptimizes image settings for playing games.AUTOOffOnAlways OnBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAnglePICTUREAUTOAUTO

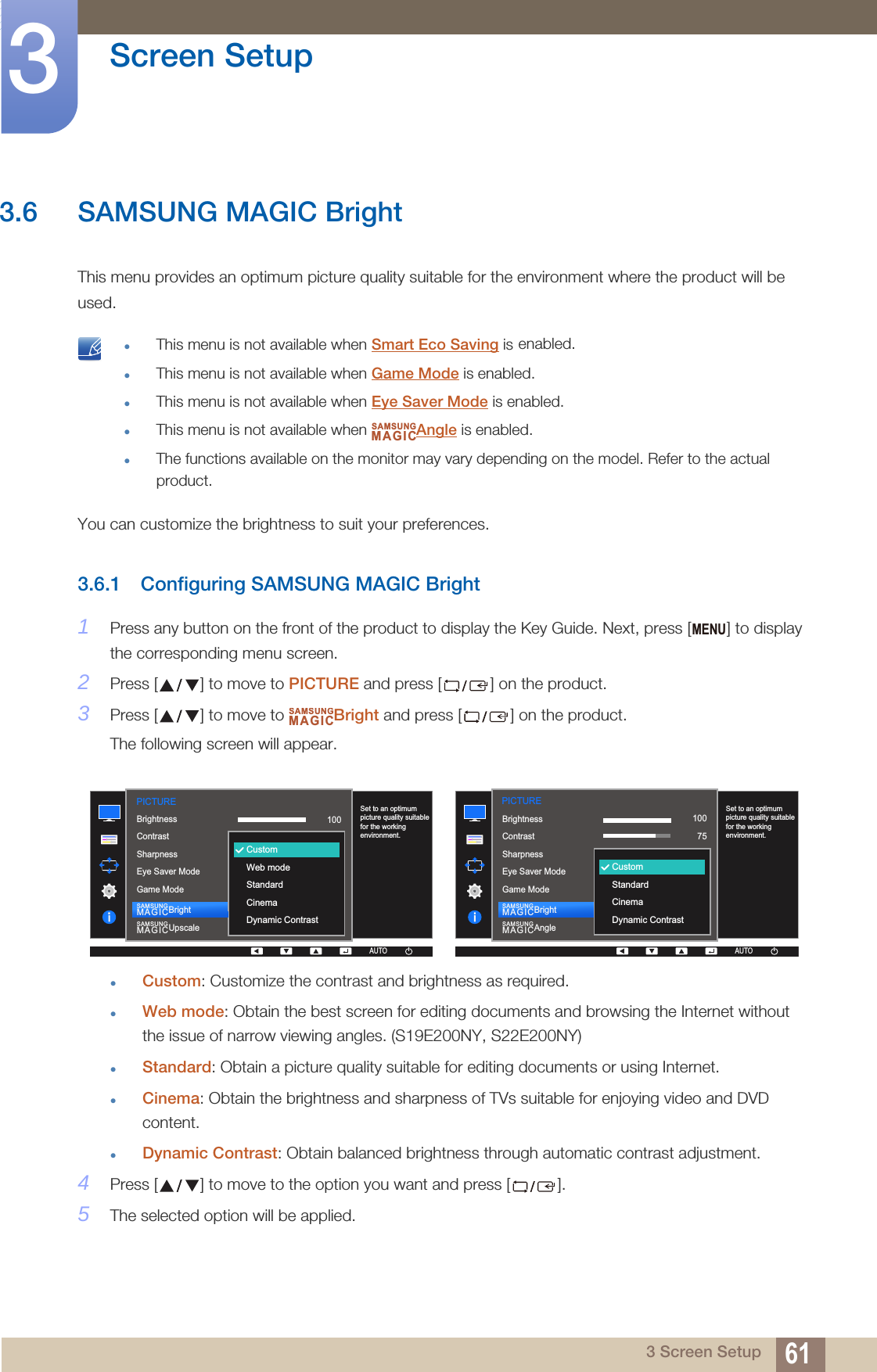

61Screen Setup33 Screen Setup3.6 SAMSUNG MAGIC BrightThis menu provides an optimum picture quality suitable for the environment where the product will be used. This menu is not available when Smart Eco Saving is This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.This menu is not available when Angle is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. You can customize the brightness to suit your preferences.3.6.1 Configuring SAMSUNG MAGIC Bright1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Bright and press [ ] on the product.The following screen will appear.Custom: Customize the contrast and brightness as required.Web mode: Obtain the best screen for editing documents and browsing the Internet without the issue of narrow viewing angles. (S19E200NY, S22E200NY)Standard: Obtain a picture quality suitable for editing documents or using Internet.Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.SAMSUNGMAGICMENUSAMSUNGMAGIC1007560505022000PICTURE 100Set to an optimum picture quality suitable for the working environment.AUTOCustomWeb modeStandardCinemaDynamic ContrastBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAUTOAUTO1007560505022000 1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.AUTOCustomStandardCinemaDynamic ContrastBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAnglePICTUREAUTOAUTOenabled.
62Screen Setup33 Screen Setup3.7 SAMSUNG MAGIC Angle (Except S19E200NY / S22E200NY)Angle allows you to configure the settings to obtain the optimum picture quality according to your viewing angle. This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode, Eye Saver Mode or Smart Eco Saving is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. You can customize the angle to suit your preferences.3.7.1 Configuring SAMSUNG MAGIC Angle1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Angle and press [ ] on the product.The following screen will appear.Off : Select this option to view directly in front of the product.Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.Standing Mode : Select this option to view from a place higher than the product.Side Mode : Select this option to view from either side of the product.Group View: Select this option for more than one viewer to view from places , , and .SAMSUNGMAGICSAMSUNGMAGICMENUSAMSUNGMAGIC1007560505022000 1007560CustomOffOffWideAUTOoffLean Back Mode 1Lean Back Mode 2Standing ModeSide ModeBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICAngleSelect an angle that best suits your viewing position.PICTUREAUTOAUTO423115 5①② ③④⑤①④⑤
63Screen Setup33 Screen SetupCustom: Lean Back Mode 1 will be applied by default if Custom is selected.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.
64Screen Setup33 Screen Setup3.8 SAMSUNG MAGIC UpscaleUpscale function can enhance the layers of the picture details and the vividness of the picture. The function has more obvious effects on low-resolution pictures.This menu is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.8.1 Configuring SAMSUNG MAGIC Upscale1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen. 2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Upscale and press [ ] on the product. The following screen will appear.Comparing with Mode1, Mode2 has a stronger effect.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.SAMSUNGMAGICSAMSUNGMAGICMENUSAMSUNGMAGIC1007560505022000PICTURE 1007560CustomOffOffWideEnhance picture detail and vividness.AUTOoffMode1Mode2BrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAUTOAUTO AUTOImage SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscaleoffMode1Mode2Enhance picture detail and vividness.PICTUREAUTOAUTO22000
65Screen Setup33 Screen Setup3.9 Image Size (Except S19E200BR / S19E450BR / S19E450MR)Change the picture size. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.9.1 Changing the Image Size1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Image Size and press [ ] on the product. The following screen will appear.Auto: Display the picture according to the aspect ratio of the input source.Wide: Display the picture in full screen regardless of the aspect ratio of the input source.4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.16:9: Display the picture with an aspect ratio of 16:9.Screen Fit: Display the picture with the original aspect ratio without cutting off.Wide: Display the picture in full screen regardless of the aspect ratio of the input source. (S19E200NW, S19E200BW, S22E200BW, S19E450BW, S19E450MW, S22E450BW, S22E450MW, S22E450DW)In PC modeIn AV modeMENUPICTURE AutoWideChoose the size and aspect ratio of the picture displayed on screen.AUTOImage SizeH-PositionV-PositionCoarseFine22000AUTOAUTO AutoWideChoose the size and aspect ratio of the picture displayed on screen.AUTOSAMSUNGMAGICUpscalePICTUREImage SizeH-PositionV-PositionCoarseFineAUTOAUTO22000 Choose the size and aspect ratio of the picture displayed on screen.AUTO4:316:9Screen FitSAMSUNGMAGICUpscalePICTUREImage SizeH-PositionV-PositionCoarseFineAUTOAUTO Choose the size and aspect ratio of the picture displayed on screen.AUTO4:3WideScreen FitSAMSUNGMAGICUpscalePICTUREImage SizeH-PositionV-PositionCoarseFineAUTOAUTO
66Screen Setup33 Screen Setup Changing the screen size is available when the following conditions are satisfied.A digital output device is connected using the DVI/DP cable.The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (not every model can support all of these signals).This can only be set when the external input is connected through DVI and PC/AV Mode is set to AV. 4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.
67Screen Setup33 Screen Setup3.10 H-Position & V-PositionH-Position: Move the screen to the left or right.V-Position: Move the screen up or down. This menu is available in Analog mode.This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally ,select Screen Fit to adjust horizontal position in 0-6 levels.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.10.1 Configuring H-Position & V-Position1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to H-Position or V-Position, and press [ ]. The following screen will appear.4Press [ ] to configure H-Position or V-Position.MENUPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOMove the image displayed on the screen to the left or right.AUTOAUTOPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOMove the image displayed on the screen up or down.AUTOAUTO AUTOAUTOMove the image displayed on the screen to the left or right.OffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTURE Move the image displayed on the screen up or down.OffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTUREAUTOAUTO
68Screen Setup33 Screen Setup3.11 CoarseAdjust the screen frequency. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.11.1 Adjusting Coarse1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Coarse and press [ ] on the product. The following screen will appear.4Adjust the Coarse using the [ ] buttons.MENUPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOAdjust the screen frequency.AUTOAUTO AUTOAUTOAdjust the screen frequency.OffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTUREAUTOAUTO
69Screen Setup33 Screen Setup3.12 FineFine-adjust the screen to obtain a vivid picture. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.12.1 Adjusting Fine1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to PICTURE and press [ ] on the product.3Press [ ] to move to Fine and press [ ] on the product. The following screen will appear.4Adjust the Fine using the [ ] buttons.MENUPICTURE Image SizeH-PositionV-PositionCoarseFineWide505022000AUTOFine-tune the screen to get a vivid picture.AUTOAUTO AUTOAUTOOffWide505022000Image SizeH-PositionV-PositionCoarseFineSAMSUNGMAGICUpscalePICTUREAUTOAUTOFine-tune the screen to get a vivid picture.
704 Configuring Tint4 Configuring TintA detailed description of each function is provided. Refer to your product for details.Adjust the tint of the screen. This menu is not available when Bright is in Cinema or Web mode, Dynamic Contrast mode. This menu is not available when Game Mode or Eye Saver Mode is enabled.SAMSUNGMAGICMENU RedGreenBlueColor ToneGammaAdjust the red saturation level. Values closer to 100 mean greater intensity for the color.505050NormalMode1COLORAUTOAUTOAUTOAUTO4.1 RedAdjust the value of the color red in the picture. (Range: 0~100)A higher value will increase the intensity of the color.4.1.1 Configuring Red1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Red and press [ ] on the product.The following screen will appear.4Adjust the Red using the [ ] buttons.
MENUCOLOR RedGreenBlueColor ToneGamma505050NormalMode1Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.AUTOAUTOAUTOAUTO71Configuring Tint44 Configuring Tint4.2 GreenAdjust the value of the color green in the picture. (Range: 0~100)A higher value will increase the intensity of the color.4.2.1 Configuring Green1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Green and press [ ] on the product.The following screen will appear.4Adjust the Green using the [ ] buttons.
MENU RedGreenBlueColor ToneGamma505050NormalMode1AUTOAdjust the blue saturation level. Values closer to 100 mean greater intensity for the color.COLORAUTOAUTOAUTO72Configuring Tint44 Configuring Tint4.3 BlueAdjust the value of the color blue in the picture. (Range: 0~100)A higher value will increase the intensity of the color.4.3.1 Configuring Blue1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Blue and press [ ] on the product.The following screen will appear.4Adjust the Blue using the [ ] buttons.
73Configuring Tint44 Configuring Tint4.4 Color ToneAdjust the general color tone of the picture. This menu is not available when Angle is enabled. 4.4.1 Configuring the Color Tone Settings1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Color Tone and press [ ] on the product.The following screen will appear.Cool 2: Set the color temperature to be cooler than Cool 1.Cool 1: Set the color temperature to be cooler than Normal mode.Normal: Display the standard colour tone.Warm 1: Set the color temperature to be warmer than Normal mode.Warm 2: Set the color temperature to be warmer than Warm 1.Custom : Customize the color tone.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.SAMSUNGMAGICMENU RedGreenBlueColor ToneGammaCool 2 Cool 1 NormalWarm 1 Warm 2AUTOSelect a color tone that best suits your viewing needs.COLOR50
74Configuring Tint44 Configuring Tint4.5 GammaAdjust the mid-range brightness (Gamma) of the picture. This menu is not available when Angle is enabled. 4.5.1 Configuring Gamma1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to COLOR and press [ ] on the product.3Press [ ] to move to Gamma and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.SAMSUNGMAGICMENU 505050NormalMode1RedGreenBlueColor ToneGammaAUTOMode1 Mode2Mode3Adjust the middle level of luminance.COLOR
755 Resizing or Relocating the Screen5 Resizing or Relocating the ScreenA detailed description of each function is provided. Refer to your product for details.5.1 LanguageSet the menu language. A change to the language setting will only be applied to the onscreen menu display.It will not be applied to other functions on your PC. 5.1.1 Changing the Language1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Language and press [ ] on the product.The following screen will appear.4Press [ ] to move to the language you want and press [ ].5The selected option will be applied.MENUMENU SETTINGS DeutschEnglishEspañolFrançaisItalianoLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency Set the menu language.AUTOAUTO
76Resizing or Relocating the Screen55 Resizing or Relocating the Screen5.2 Menu H-Position & Menu V-PositionMenu H-Position: Move the menu position to the left or right. Menu V-Position: Move the menu position up or down. 5.2.1 Configuring Menu H-Position & Menu V-Position1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ].The following screen will appear.4Press [ ] to configure Menu H-Position or Menu V-Position.MENU LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency English100120 secOnMove the menu position to the left or right.AUTOMENU SETTINGSAUTOAUTOAUTOAUTO LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency English100120 secOnMove the menu position up or down.AUTOMENU SETTINGSAUTOAUTOAUTOAUTO
77Resizing or Relocating the Screen55 Resizing or Relocating the Screen5.3 Display TimeSet the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time. Display Time can be used to specify the time after which you want the OSD menu to disappear. 5.3.1 Configuring Display Time1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Display Time and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENU English100220 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency 5 sec10 sec20 sec200 secSet how long the menu window will remain on screen for when it is not in use.AUTOMENU SETTINGSAUTO
78Resizing or Relocating the Screen55 Resizing or Relocating the Screen5.4 Transparency Set the transparency for the menu windows.5.4.1 Changing Transparency1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to MENU SETTINGS and press [ ] on the product.3Press [ ] to move to Transparency and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENUMENU SETTINGS English100120 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency OffOnConfigure the transparency of the menu windows.AUTOAUTO
796 Setup and Reset6 Setup and ResetA detailed description of each function is provided. Refer to your product for details.6.1 Reset AllReturn all the settings for the product to the default factory settings. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.1.1 Initializing Settings (Reset All)1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Reset All and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENUSETUP&RESET OffAccelerationReset AllSmart Eco SavingOff Timer PlusKey Repeat Time AUTOReturn all the settings for the product to the default factory settings.AUTOAUTOAUTOSETUP&RESET OffAccelerationAutoReset AllSmart Eco SavingOff Timer PlusPC/AV ModeKey Repeat TimeSource DetectionAUTOReturn all the settings for the product to the default factory settings.AUTOAUTOAUTO $OOWKHPHQXVHWWLQJVZLOOEHUHVHWWRGHIDXOW$UH\RXVXUH\RXZDQWWRUHVHW"<HV 1RAUTO
80Setup and Reset66 Setup and Reset6.2 Smart Eco Saving The Smart Eco Saving function reduces power consumption by controlling the electric current used by the monitor panel. This menu is not available when Eye Saver Mode is enabled.Game Mode will automatically turn off when Smart Eco Saving is enabled.Dynamic Contrast mode is not available when Smart Eco Saving is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.2.1 Configuring Smart Eco Saving1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Smart Eco Saving and press [ ] on the product.The following screen will appear.Off: Deactivate the Smart Eco Saving function.On: Allow the video to reduce the power consumption automatically by about 10% compared with the current setting. (The reduction of power consumption depends on the customer screen brightness condition.)4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENU OffOnAUTOSETUP&RESETReset AllSmart Eco SavingOff Timer PlusKey Repeat Time Adjust the power consumption of the product to save energy automaticallyAUTOAUTOAUTO AUTOSETUP&RESETAdjust the power consumption of the product to save energy automaticallyAUTOAUTOAUTOReset AllSmart Eco SavingOff Timer PlusPC/AV ModeKey Repeat TimeSource DetectionOffOn
81Setup and Reset66 Setup and Reset6.3 Off Timer (S19E200NW / S19E200NY / S22E200N /S22E200NY)You can set the product to automatically turn off. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.3.1 Configuring Off Timer1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer and press [ ] on the product.4Press [ ] to move to Off Timer and press [ ] on the product.The following screen will appear.Off: Deactivate the off timer so that the product does not power off automatically.On: Activate the off timer so that the product powers off automatically.5Press [ ] to move to the option you want and press [ ].6The selected option will be applied.MENU SETUP&RESETOffAccelerationReset AllSmart Eco SavingOff TimerKey Repeat Time Enable or disable the Off Timer.AUTOAUTOAUTOAUTOAUTO AUTOSETUP&RESETReset AllSmart Eco SavingOff TimerPC/AV ModeKey Repeat TimeSource DetectionOffAccelerationAutoAUTOAUTOAUTOAUTOEnable or disable the Off Timer. Off TimerOff TimerTurn Off After OffOnAUTOEnable or disable the Off Timer.AUTOAUTOAUTOAUTOAUTO
82Setup and Reset66 Setup and Reset6.3.2 Configuring Turn Off After1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer and press [ ] on the product.4Press [ ] to move to Turn Off After and press [ ] on the product.The following screen will appear.5Press [ ] to configure Turn Off After. The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours.This option is only available when Off Timer is set to On.For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU SETUP&RESET and set Off Timer to Off. MENU Off TimerOff TimerTurn Off After AUTOSet the monitor to automatically turn off after a certain time period.AUTOAUTOAUTOAUTOAUTO4h→
83Setup and Reset66 Setup and Reset6.4 Off Timer Plus (Except S19E200NW / S19E200NY / S22E200N / S22E200NY)You can set the product to automatically turn off. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.4.1 Configuring Off TimerOff Timer1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer Plus and press [ ] on the product.4Press [ ] to move to Off Timer and press [ ] on the product.5Press [ ] to move to Off Timer and press [ ] on the product.The following screen will appear.MENU SETUP&RESETOffAccelerationReset AllSmart Eco SavingOff Timer PlusKey Repeat Time Set the monitor to automatically turn off after a certain time period.AUTOAUTOAUTOAUTOAUTO AUTOSETUP&RESETReset AllSmart Eco SavingOff Timer PlusPC/AV ModeKey Repeat TimeSource DetectionOffAccelerationAutoAUTOAUTOAUTOAUTOSet the monitor to automatically turn off after a certain time period. Off Timer PlusAUTOEnable or disable the Off Timer.AUTOAUTOAUTOAUTOAUTOOff TimerEco Timer Off TimerOff TimerTurn Off After OffOnAUTOEnable or disable the Off Timer.AUTOAUTOAUTOAUTOAUTO
84Setup and Reset66 Setup and ResetOff: Deactivate the off timer so that the product does not power off automatically.On: Activate the off timer so that the product powers off automatically.6Press [ ] to move to the option you want and press [ ].7The selected option will be applied.Turn Off After1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer Plus and press [ ] on the product.4Press [ ] to move to Off Timer and press [ ] on the product.5Press [ ] to move to Turn Off After and press [ ] on the product.The following screen will appear.6Press [ ] to configure Turn Off After. The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours.This option is only available when Off Timer is set to On.For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU SETUP&RESET Off Timer Plus and set Off Timer to Off. MENU Off TimerOff TimerTurn Off After AUTOSet the monitor to automatically turn off after a certain time period.AUTOAUTOAUTOAUTOAUTO4h→ →
85Setup and Reset66 Setup and Reset6.4.2 Configuring Eco Timer This menu is not available for S19E200NY, S19E200NW, S22E200NY and S22E200N models. Eco Timer 1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer Plus and press [ ] on the product.4Press [ ] to move to Eco Timer and press [ ] on the product.5Press [ ] to move to Eco Timer and press [ ] on the product.The following screen will appear.Off: Deactivate the eco timer to disable the automatic power off feature. The product will not power off while in power-saving mode if this feature is deactivated.On: Activate the eco timer so that the product powers off automatically when it has been in power-saving mode for a specified period of time.6Press [ ] to move to the option you want and press [ ].7The selected option will be applied.MENU SETUP&RESETOffAccelerationReset AllSmart Eco SavingOff Timer PlusKey Repeat Time Set the monitor to automatically turn off after a certain time period.AUTOAUTOAUTOAUTOAUTO AUTOSETUP&RESETReset AllSmart Eco SavingOff Timer PlusPC/AV ModeKey Repeat TimeSource DetectionOffAccelerationAutoAUTOAUTOAUTOAUTOSet the monitor to automatically turn off after a certain time period. Off Timer PlusAUTOAUTOAUTOAUTOAUTOAUTOOff TimerEco Timer Enable or disable the Eco Timer. Eco TimerEco TimerEco Off After OffOnAUTOEnable or disable the Eco Timer.AUTOAUTOAUTOAUTOAUTO
86Setup and Reset66 Setup and ResetEco Off After1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Off Timer Plus and press [ ] on the product.4Press [ ] to move to Eco Timer and press [ ] on the product.5Press [ ] to move to Eco Off After and press [ ] on the product.The following screen will appear.6Press [ ] to configure Eco Off After. The Eco timer can be set between 10 and 180 minutes. The product will automatically power off after the specified time has elapsed.This option is only available when Eco Timer is set to On. MENU Eco TimerAUTOSet the monitor to automatically turn off after a certain time period.AUTOAUTOAUTOAUTOAUTO10minutesEco TimerEco Off After
87Setup and Reset66 Setup and Reset6.5 PC/AV Mode (Except S19E200NW / S19E200NY / S22E200N / S22E200NY) Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. This function does not support Analog mode.Supplied for the wide models only such as 16:9 or 16:10.If the monitor (when set to DVI) is in power saving mode or is displaying the message Check Signal Cable, press the [ ] button to display the On Screen Display (OSD). You can select PC or AV.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.5.1 Configuring PC/AV Mode1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to PC/AV Mode and press [ ] on the product.The following screen will appear.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENUMENU AUTOSETUP&RESETSet to AV to enlarge the picture.Reset AllSmart Eco SavingOff Timer PlusPC/AV ModeKey Repeat TimeSource DetectionOffAccelerationAutoAUTOAUTOAUTOAUTOAUTO DVIDisplayPort PCAVAUTOPC/AV ModeSelect the PC/AV mode for the DVI source.AUTOAUTOAUTOAUTO DVIDisplayPort PCAVAUTOPC/AV ModeSelect the PC/AV mode for the DisplayPort source.AUTOAUTOAUTOAUTO
88Setup and Reset66 Setup and Reset6.6 Key Repeat Time Control the response rate of a button when the button is pressed. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.6.1 Configuring Key Repeat Time1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Key Repeat Time and press [ ] on the product.The following screen will appear.Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENU OffAccelerationAutoAcceleration1 sec2 secNo RepeatReset AllSmart Eco SavingOff Timer PlusKey Repeat Time AUTOSETUP&RESETAUTOAUTOConfigure the response rate of a button when the button is pressed. AUTOSETUP&RESETConfigure the response rate of a button when the button is pressed.OffAccelerationAutoAUTOAUTOAUTOAUTOAUTOAcceleration1 sec2 secNo RepeatReset AllSmart Eco SavingOff Timer PlusPC/AV ModeKey Repeat TimeSource DetectionAUTOAUTO
89Setup and Reset66 Setup and Reset6.7 Source Detection (Except S19E200NW / S19E200NY / S22E200N / S22E200NY)You can activate Source Detection. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.7.1 Configuring Source Detection1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to SETUP&RESET and press [ ] on the product.3Press [ ] to move to Source Detection and press [ ] on the product.The following screen will appear.Auto: The input source is automatically recognized.Manual: Manually select an input source.4Press [ ] to move to the option you want and press [ ].5The selected option will be applied.MENU AUTOSETUP&RESETDecide how input sources will be detected.OffAccelerationAutoAUTOAUTOAUTOAUTOAUTOAUTOAUTOAutoManualReset AllSmart Eco SavingOff Timer PlusPC/AV ModeKey Repeat TimeSource Detection
907 INFORMATION Menu and Others7 INFORMATION Menu and OthersA detailed description of each function is provided. Refer to your product for details.7.1 INFORMATIONView the current input source, frequency and resolution.7.1.1 Displaying INFORMATION1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display the corresponding menu screen.2Press [ ] to move to INFORMATION. The current input source, frequency and resolution will appear. The displayed menu items may vary depending on the model. MENUINFORMATION LS********/**S / N : ***************Analog**kHz **Hz NN**** x ****Optimal Mode**** x **** **HzPICTURECOLORMENU SETTINGSSETUP&RESETINFORMATIONAUTOINFORMATION LS********/**S / N : ***************HDMI**kHz **Hz NN**** x ****Optimal Mode**** x **** **HzPICTURECOLORMENU SETTINGSSETUP&RESETINFORMATIONAUTOINFORMATION LS********/**S / N : ***************DisplayPort**kHz **Hz NN**** x ****Optimal Mode**** x **** **HzPICTURECOLORMENU SETTINGSSETUP&RESETINFORMATIONAUTO
91INFORMATION Menu and Others77 INFORMATION Menu and Others7.2 Configuring Brightness, Contrast and Sharpness from the Initial ScreenAdjust the Brightness, Contrast and Sharpness setting using the [ ] buttons in the initial screen (where no OSD menu is displayed). Brightness :This menu is not available when Bright is set to Dynamic Contrast mode.This menu is not available when Smart Eco Saving is enabled.This menu is not available when Eye Saver Mode is enabled. Contrast :This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled. Sharpness :This option is not available when Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled. 1Press any button on the front of the product (when no menu screen is displayed) to display the Key guide. Next, press the [ ] button. The following screen will appear.2Press the [ ] button to alternate between the Brightness, Contrast and Sharpness settings.3Adjust the Brightness, Contrast and Sharpness settings using the [ ] buttons.SAMSUNGMAGICSAMSUNGMAGICSAMSUNGMAGICContrastSharpness100Brightness
92INFORMATION Menu and Others77 INFORMATION Menu and Others7.3 Configuring Volume in the Initial ScreenAdjust the Volume by pressing the [ ] button when the Key Guide is displayed.1Press any button on the front of the product (when no menu screen is displayed) to display the Key guide. Next, press [ ]. The following screen will appear.2Adjust the Volume setting using the [ ] buttons. Applicable to the models that have speakers only.Volume can be adjusted if a cable is connected to the [IN] port. Volume50
938 Installing the Software8 Installing the Software8.1 MultiScreen "MultiScreen" enables users to use the monitor by partitioning multiple sections.8.1.1 Installing the Software1Insert the installation CD into the CD-ROM drive.2Select the "MultiScreen" setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the "MultiScreen" setup file on the CD-ROM. 3When the Installation Wizard appears, click "Next".4Complete the remaining software installation steps according to the instructions displayed on the screen. The software may not work properly if you do not restart the computer after the installation.The "MultiScreen" icon may not appear depending on the computer system and the product specifications.If the shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation ("MultiScreen")The "MultiScreen" installation may be affected by the Graphics Card, Motherboard and the Networking Environment.System RequirementsOSWindows™ 2000 Windows XP Home EditionWindows XP ProfessionalWindows Vista 32BitWindows 7 32BitWindows 8 32Bit For "MultiScreen", the operating systems Windows 2000 or later is recommended. MultiScreen
94Installing the Software88 Installing the SoftwareHardwareAt least 32MB of memoryAt least 60MB of free space on the hard disk drive8.1.2 Removing the SoftwareClick Start, select Settings/Control Panel, and then double-click Add or Remove Programs.Select "MultiScreen" from the program list and click the Add/Delete button.
959 Troubleshooting Guide9 Troubleshooting Guide9.1 Requirements Before Contacting Samsung Customer Service Center9.1.1 Testing the Product Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function.If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.1Power off both the PC and product.2Disconnect the cables from the product.3Power on the product.4If the message Check Signal Cable appears, the product is working normally. If the screen remains blank, check the PC system, video controller and cable. 9.1.2 Checking the Resolution and FrequencyFor a mode that exceeds the supported resolution (refer to "10.15 Standard Signal Mode Table"), the message Not Optimum Mode will appear for a short time.9.1.3 Check the following.Installation issue (PC mode)Issues SolutionsThe screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connectors are locked. (Refer to "2.2 Connecting and Using a PC")

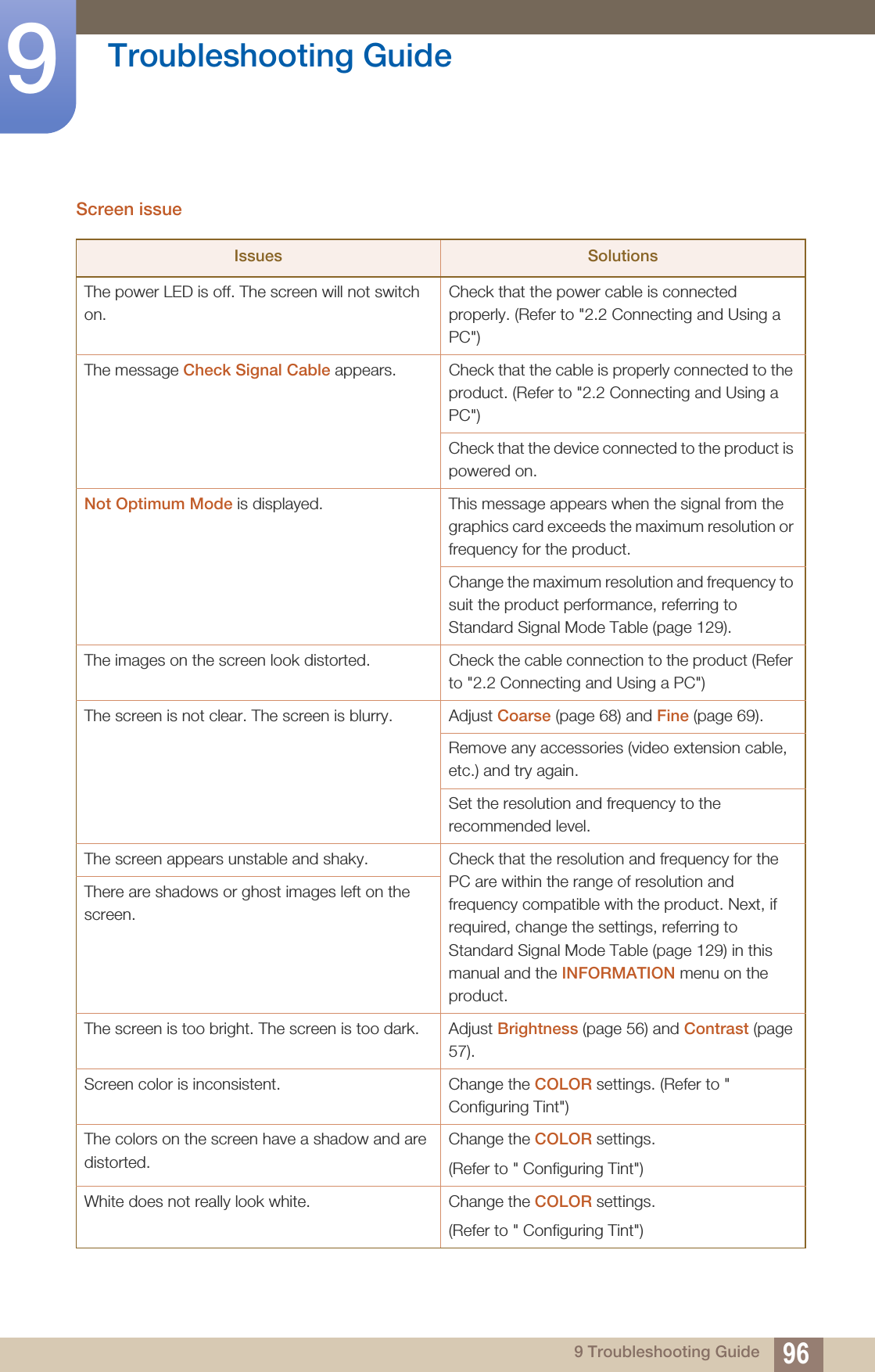

96Troubleshooting Guide99 Troubleshooting GuideScreen issueIssues SolutionsThe power LED is off. The screen will not switch on.Check that the power cable is connected properly. (Refer to "2.2 Connecting and Using a PC")The message Check Signal Cable appears. Check that the cable is properly connected to the product. (Refer to "2.2 Connecting and Using a PC")Check that the device connected to the product is powered on.Not Optimum Mode is displayed. This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (page 129).The images on the screen look distorted. Check the cable connection to the product (Refer to "2.2 Connecting and Using a PC")The screen is not clear. The screen is blurry. Adjust Coarse (page 68) and Fine (page 69).Remove any accessories (video extension cable, etc.) and try again.Set the resolution and frequency to the recommended level.The screen appears unstable and shaky. Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (page 129) in this manual and the INFORMATION menu on the product.There are shadows or ghost images left on the screen.The screen is too bright. The screen is too dark. Adjust Brightness (page 56) and Contrast (page 57).Screen color is inconsistent. Change the COLOR settings. (Refer to " Configuring Tint")The colors on the screen have a shadow and are distorted.Change the COLOR settings. (Refer to " Configuring Tint")White does not really look white. Change the COLOR settings. (Refer to " Configuring Tint")
97Troubleshooting Guide99 Troubleshooting GuideSound issueSource device issue The LED lights on the frame of the product may be seen depending on the user's viewing angle. The light is harmless to people and has no bearing on product features and performance. The product is safe to use. There is no image on the screen and the power LED blinks every 0.5 to 1 second.The product is operating in power-saving mode.Press any key on the keyboard or move the mouse to return to normal operating mode.Issues SolutionsThere is no sound. Check the connection of the audio cable or adjust the volume.Check the volume.The volume is too low. Adjust the volume.If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program.Issues SolutionsA beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is booting, have your PC serviced.Issues Solutions
98Troubleshooting Guide99 Troubleshooting Guide9.2 Q & AQuestion AnswerHow can I change the frequency?Set the frequency on your graphics card.Windows XP: Go to Control Panel Appearance and Themes Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings.Windows ME/2000: Go to Control Panel Display Settings Advanced Monitor, and adjust Refresh rate under Monitor settings.Windows Vista: Go to Control Panel Appearance and Personalization Personalization Display Settings Advanced Settings Monitor, and adjust Refresh rate under Monitor settings.Windows 7: Go to Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings.Windows 8: Go to Settings Control Panel Appearance and Personalization Display Screen Resolution Advanced settings Monitor, and adjust Refresh rate under Monitor settings.
99Troubleshooting Guide99 Troubleshooting Guide Refer to the user manual for your PC or graphics card for further instructions on adjustment. How can I change the resolution?Windows XP: Go to Control Panel Appearance and Themes Display Settings, and adjust the resolution.Windows ME/2000: Go to Control Panel Display Settings, and adjust the resolution.Windows Vista: Go to Control Panel Appearance and Personalization Personalize Display Settings, and adjust the resolution.Windows 7: Go to Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution.Windows 8: Go to Settings Control Panel Appearance and Personalization Display Adjust Resolution, and adjust the resolution.How do I set power-saving mode?Windows XP: Set power-saving mode in Control Panel Appearance and Themes Display Screen Saver Settings or BIOS SETUP on the PC. Windows ME/2000: Set power-saving mode in Control Panel Display Screen Saver Settings or BIOS SETUP on the PC.Windows Vista: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Windows 7: Set power-saving mode in Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Windows 8: Set power-saving mode in Settings Control Panel Appearance and Personalization Personalize Screen Saver Settings or BIOS SETUP on the PC.Question Answer
10010 Specifications10 Specifications10.1 General (S19E200NY / S19E200NW) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. Model Name S19E200NY S19E200NWPanel Size 19 CLASS (18.5 inches / 47.0 cm)19 CLASS (19.0 inches / 48.1 cm)Display area 409.8 mm (H) x 230.4 mm (V)16.1 Inches (H) x 9.1 Inches (V)408.24 mm (H) x 255.15 mm (V)16.1 Inches (H) x 10.0 Inches (V)Pixel Pitch 0.300 mm (H) x 0.300 mm (V)0.011811 Inches (H) x 0.011811 Inches (V)0.2835 mm (H) x 0.2835 mm (V)0.011161 Inches (H) x 0.011161 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 441.4 x 266.6 x 77.7 mm17.4 x 10.5 x 3.1 Inches439.4 x 289.9 x 76.9 mm17.3 x 11.4 x 3.0 InchesWith Stand 441.4 x 349.3 x 170.0 mm / 2.73 kg17.4 x 13.8 x 6.7 Inches / 6.0 lbs439.4 x 373.6 x 170.0 mm / 3.01 kg17.3 x 14.7 x 6.7 Inches / 6.6 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
101Specifications1010 Specifications This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
102Specifications1010 Specifications10.2 General (S19E200BW / S19E200BR) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. Model Name S19E200BW S19E200BRPanel Size 19 CLASS (19.0 inches / 48.1 cm)19 CLASS (19.0 inches / 48.2 cm)Display area 408.24 mm (H) x 255.15 mm (V)16.1 Inches (H) x 10.0 Inches (V)376.32 mm (H) x 301.06 mm (V)14.8 Inches (H) x 11.9 Inches (V)Pixel Pitch 0.2835 mm (H) x 0.2835 mm (V)0.011161 Inches (H) x 0.011161 Inches (V)0.294 mm (H) x 0.294 mm (V)0.011575 Inches (H) x 0.011575 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 439.4 x 289.9 x 76.9 mm17.3 x 11.4 x 3.0 Inches407.0 x 336.0 x 76.8 mm16.0 x 13.2 x 3.0 InchesWith Stand 439.4 x 373.6 x 170.0 mm / 3.01 kg17.3 x 14.7 x 6.7 Inches / 6.6 lbs407.0 x 419.6 x 170.0 mm / 3.21 kg16.0 x 16.5 x 6.7 Inches / 7.1 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
103Specifications1010 Specifications This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
104Specifications1010 Specifications10.3 General (S22E200NY) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S22E200NYPanel Size 22 CLASS (21.5 inches / 54.6 cm)Display area 476.64 mm (H) x 268.11 mm (V)18.8 Inches (H) x 10.6 Inches (V)Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)0.009774 Inches (H) x 0.009774 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions(W x H x D) / WeightWithout Stand 504.3 x 301.9 x 77.5 mm19.9 x 11.9 x 3.1 InchesWith Stand 504.3 x 385.4 x 170.0 mm / 3.37 kg19.9 x 15.2 x 6.7 Inches / 7.4 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
105Specifications1010 Specifications10.4 General (S22E200B / S22E200N / S22E200BW) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S22E200B / S22E200N S22E200BWPanel Size 22 CLASS (21.5 inches / 54.6 cm)22 CLASS (22.0 inches / 55.8 cm)Display area 476.64 mm (H) x 268.11 mm (V)18.8 Inches (H) x 10.6 Inches (V)473.76 mm (H) x 296.1 mm (V)18.7 Inches (H) x 11.7 Inches (V)Pixel Pitch0.24825 mm (H) x 0.24825 mm (V)0.009774 Inches (H) x 0.009774 Inches (V)0.282 mm (H) x 0.282 mm (V)0.011102 Inches (H) x 0.011102 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 504.3 x 301.9 x 77.5 mm19.9 x 11.9 x 3.1 Inches502.4 x 329.8 x 77.6 mm19.8 x 13.0 x 3.1 InchesWith Stand 504.3 x 385.4 x 170.0 mm / 3.37 kg19.9 x 15.2 x 6.7 Inches / 7.4 lbs502.4 x 414.0 x 170.0 mm / 3.70 kg19.8 x 16.3 x 6.7 Inches / 8.2 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
106Specifications1010 Specifications(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
107Specifications1010 Specifications10.5 General (S23E200B / S24E200BL) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S23E200B S24E200BLPanel Size 23 CLASS (23.0 inches / 58.4 cm)24 CLASS (23.6 inches / 59.8 cm)Display area 509.76 mm (H) x 286.74 mm (V)20.1 Inches (H) x 11.3 Inches (V)521.28 mm (H) x 293.22 mm (V)20.5 Inches (H) x 11.5 Inches (V)Pixel Pitch 0.2655 mm (H) x 0.2655 mm (V)0.010453 Inches (H) x 0.010453 Inches (V)0.2715 mm (H) x 0.2715 mm (V)0.010689 Inches (H) x 0.010689 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 542.9 x 321.4 x 77.2 mm21.4 x 12.7 x 3.0 Inches554.6 x 330.5 x 78.1 mm21.8 x 13.0 x 3.1 InchesWith Stand 542.9 x 404.9 x 170.0 mm / 3.67 kg21.4 x 15.9 x 6.7 Inches / 8.1 lbs554.6 x 412.7 x 185.0 mm / 4.06 kg21.8 x 16.2 x 7.3 Inches / 9.0 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
108Specifications1010 Specifications(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
109Specifications1010 Specifications10.6 General (S19E450BW / S19E450MW / S19E450BR / S19E450MR)Model Name S19E450BW / S19E450MW S19E450BR / S19E450MRPanel Size 19 CLASS (19.0 inches / 48.1 cm)19 CLASS (19.0 inches / 48.2 cm)Display area 408.24 mm (H) x 255.15 mm (V)16.1 Inches (H) x 10.0 Inches (V)376.32 mm (H) x 301.06 mm (V)14.8 Inches (H) x 11.9 Inches (V)Pixel Pitch 0.2835 mm (H) x 0.2835 mm (V)0.011161 Inches (H) x 0.011161 Inches (V)0.294 mm (H) x 0.294 mm (V)0.011575 Inches (H) x 0.011575 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 439.4 x 289.9 x 55.7 mm / 2.71 kg17.3 x 11.4 x 2.2 Inches / 6.0 lbs407.0 x 336.0 x 54.8 mm / 2.91 kg16.0 x 13.2 x 2.2 Inches /6.4 lbsWith StandMIN: 439.4 x 323.3 x 210.0 mm / 4.20 kg17.3 x 12.7 x 8.3 Inches / 9.3 lbsMAX: 439.4 x 423.3 x 210.0 mm / 4.20 kg17.3 x 16.7 x 8.3 Inches / 9.3 lbsMIN: 407.0 x 368.9 x 210.0 mm / 4.40 kg 16.0 x 14.5 x 8.3 Inches / 9.7 lbsMAX: 407.0 x 468.9 x 210.0 mm / 4.40 kg16.0 x 18.5 x 8.3 Inches / 9.7 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
110Specifications1010 Specifications Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
111Specifications1010 Specifications10.7 General (S22E450B / S22E450M / S22E450D)Model Name S22E450B / S22E450M S22E450DPanel Size 22 CLASS (21.5 inches / 54.6 cm)Display area 476.64 mm (H) x 268.11 mm (V)18.8 Inches (H) x 10.6 Inches (V)Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)0.009774 Inches (H) x 0.009774 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 504.3 x 301.9 x 55.4 mm / 3.07 kg19.9 x 11.9 x 2.2 Inches / 6.8 lbsWith StandMIN: 504.3 x 325.3 x 210.0 mm / 4.57 kg 19.9 x 12.8 x 8.3 Inches / 10.1 lbsMAX: 504.3 x 425.3 x 210.0 mm / 4.57 kg19.9 x 16.7 x 8.3 Inches / 10.1 lbsWithout USB: MIN: 504.3 x 325.3 x 210.0 mm / 4.57 kg19.9 x 12.8 x 8.3 Inches / 10.1 lbsMAX: 504.3 x 425.3 x 210.0 mm / 4.57 kg19.9 x 16.7 x 8.3 Inches / 10.1 lbsWith USB:MIN: 504.3 x 359.4 x 210.0 mm / 4.77 kg 19.9 x 14.1 x 8.3 Inches / 10.5 lbsMAX: 504.3 x 489.4 x 210.0 mm / 4.77 kg19.9 x 19.3 x 8.3 Inches / 10.5 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
112Specifications1010 Specifications Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
113Specifications1010 Specifications10.8 General (S22E450BW / S22E450MW / S22E450DW)Model Name S22E450BW / S22E450MW S22E450DWPanel Size 22 CLASS (22.0 inches / 55.8 cm)Display area 473.76 mm (H) x 296.1 mm (V)18.7 Inches (H) x 11.7 Inches (V)Pixel Pitch0.282 mm (H) x 0.282 mm (V)0.011102 Inches (H) x 0.011102 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 502.4 x 329.8 x 55.7 mm / 3.42 kg19.8 x 13.0 x 2.2 Inches / 7.5 lbsWith Stand MIN: 502.4 x 353.4 x 210.0 mm / 4.91 kg 19.8 x 13.9 x 8.3 Inches / 10.8 lbsMAX: 502.4 x 453.4 x 210.0 mm / 4.91 kg19.8 x 17.9 x 8.3 Inches / 10.8 lbsWithout USB:MIN: 502.4 x 353.4 x 210.0 mm / 4.91 kg19.8 x 13.9 x 8.3 Inches / 10.8 lbsMAX: 502.4 x 453.4 x 210.0 mm / 4.91 kg19.8 x 17.9 x 8.3 Inches / 10.8 lbsWith USB:MIN: 502.4 x 387.5 x 210.0 mm / 5.03 kg19.8 x 15.3 x 8.3 Inches / 11.1 lbsMAX: 502.4 x 517.5 x210.0 mm / 5.03 kg19.8 x 20.4 x 8.3 Inches / 11.1 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
114Specifications1010 Specifications Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
115Specifications1010 Specifications10.9 General (S23E450B) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S23E450BPanel Size 23 CLASS (23.0 inches / 58.4 cm)Display area 509.76 mm (H) x 286.74 mm (V)20.1 Inches (H) x 11.3 Inches (V)Pixel Pitch 0.2655 mm (H) x 0.2655 mm (V)0.010453 Inches (H) x 0.010453 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions(W x H x D) / WeightWithout Stand 542.9 x 321.4 x 55.3 mm / 3.44 kg21.4 x 12.7 x 2.2 Inches / 7.6 lbsWith Stand MIN: 542.9 x 344.7 x 224.0 mm / 5.13 kg21.4 x 13.6 x 8.8 Inches / 11.3 lbsMAX: 542.9 x 474.7 x 224.0 mm / 5.13 kg21.4 x 18.7 x 8.8 Inches / 11.3 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
116Specifications1010 Specifications(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
117Specifications1010 Specifications10.10 General (S24E450BL / S24E450DL)Model Name S24E450BL S24E450DLPanel Size 24 CLASS (23.6 inches / 59.8 cm)Display area 521.28 mm (H) x 293.22 mm (V)20.5 Inches (H) x 11.5 Inches (V)Pixel Pitch 0.2715 mm (H) x 0.2715 mm (V)0.010689 Inches (H) x 0.010689 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 554.6 x 330.5 x 55.4 mm / 3.78 kg21.8 x 13.0 x 2.2 Inches / 8.3 lbsWith StandMIN: 554.6 x 352.3 x 224.0 mm / 5.48 kg21.8 x 13.9 x 8.8 Inches / 12.0 lbsMAX: 554.6 x 482.3 x 224.0 mm / 5.48 kg21.8 x 19.0 x 8.8 Inches / 12.0 lbsWithout USB:MIN: 554.6 x 352.3 x 224.0 mm / 5.48 kg21.8 x 13.9 x 8.8 Inches / 12.0 lbsMAX: 554.6 x 482.3 x 224.0 mm / 5.48 kg21.8 x 19.0 x 8.8 Inches / 12.0 lbsWith USB:MIN: 554.6 x 357.3 x 224.0 mm / 5.48 kg 21.8 x 14.1 x 8.8 Inches / 12.0 lbsMAX: 554.6 x 487.3 x 224.0 mm / 5.48 kg21.8 x 19.2 x 8.8 Inches / 12.0 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
118Specifications1010 Specifications Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
119Specifications1010 Specifications10.11 General (S24E450B / S24E450M / S24E450D)Model Name S24E450B / S24E450M S24E450DPanel Size 24 CLASS (24.0 inches / 60.9 cm)Display area531.36 mm (H) x 298.89 mm (V)20.9 Inches (H) x 11.8 Inches (V)Pixel Pitch 0.27675 mm (H) x 0.27675 mm (V)0.010896 Inches (H) x 0.010896 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (W x H x D) / WeightWithout Stand 565.4 x 333.2 x 56.6 mm / 4.18 kg22.3 x 13.1 x 2.2 Inches / 9.2 lbsWith Stand MIN: 565.4 x 356.8 x 224.0 mm / 5.87 kg22.3 x 14.0 x 8.8 Inches / 12.9 lbsMAX: 565.4 x 486.8 x 224.0 mm / 5.87 kg22.3 x 19.2 x 8.8 Inches / 12.9 lbsWithout USB: MIN: 565.4 x 356.8 x 224.0 mm / 5.87 kg22.3 x 14.0 x 8.8 Inches / 12.9 lbsMAX: 565.4 x 486.8 x 224.0 mm / 5.87 kg22.3 x 19.2 x 8.8 Inches / 12.9 lbsWith USB:MIN: 565.4 x 361.8 x 224.0 mm / 5.87 kg22.3 x 14.2 x 8.8 Inches / 12.9 lbsMAX: 565.4 x 491.8 x 224.0 mm / 5.87 kg22.3 x 19.4 x 8.8 Inches / 12.9 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
120Specifications1010 Specifications Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
121Specifications1010 Specifications10.12 General (S24E650BW) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. Model Name S24E650BWPanel Size 24 CLASS (24.0 inches / 61.1cm)Display area 518.4 mm (H) x 324.0 mm (V)20.4 Inches (H) x 12.8 Inches (V)Pixel Pitch 0.270 mm (H) x 0.270 mm (V)0.01063 Inches (H) x 0.01063 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions(W x H x D) / WeightWithout Stand 554.8 x 359.4 x 55.1 mm / 4.11 kg21.8 x 14.1 x 2.2 Inches / 9.1 lbsWith Stand MIN: 554.8 x 382.3 x 224.0 mm / 5.80 kg21.8 x 15.1 x 8.8 Inches / 12.8 lbsMAX: 554.8 x 512.3 x 224.0 mm / 5.80 kg21.8 x 20.2 x 8.8 Inches / 12.8 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
122Specifications1010 Specifications(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
123Specifications1010 Specifications10.13 General (S27E450B / S27E450D)Model Name S27E450B S27E450DPanel Size 27 CLASS (27.0 inches / 68.5 cm)Display area 597.6 mm (H) x 336.15 mm (V)23.5 Inches (H) x 13.2 Inches (V)Pixel Pitch 0.3114 mm (H) x 0.3114 mm (V)0.01226 Inches (H) x 0.01226 Inches (V)Power Supply This product uses 100 to 240 V.Refer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions(W x H x D) / WeightWithout Stand639.0 x 378.1 x 57.6 mm / 4.60 kg25.2 x 14.9 x 2.3 Inches / 10.1 lbs639.0 x 378.1 x 57.6 mm / 5.20 kg25.2 x 14.9 x 2.3 Inches / 11.5 lbsWith Stand MIN: 639.0 x 397.8 x 224.0 mm / 6.29 kg25.2 x 15.7 x 8.8 Inches / 13.9 lbsMAX: 639.0 x 527.8 x 224.0 mm / 6.29 kg25.2 x 20.8 x 8.8 Inches / 13.9 lbsWithout USB: MIN: 639.0 x 397.8 x 224.0 mm / 6.92 kg25.2 x 15.7 x 8.8 Inches / 15.3 lbsMAX: 639.0 x 527.8 x 224.0 mm / 6.92 kg25.2 x 20.8 x 8.8 Inches / 15.3 lbsWith USB:MIN: 639.0 x 402.8 x 224.0 mm / 6.92 kg25.2 x 15.9 x 8.8 Inches / 15.3 lbsMAX: 639.0 x 532.8 x 224.0 mm / 6.92 kg25.2 x 21.0 x 8.8 Inches / 15.3 lbsVESA Mounting Interface 100.0 mm x 100.0 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.) Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10% – 80%, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5% – 95%, non-condensing
124Specifications1010 Specifications Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. The above specifications are subject to change without notice to improve quality. This device is a Class B digital apparatus. (USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
125Specifications1010 Specifications10.14 PowerSaverThe power-saving function of this product reduces power consumption by switching off the screen and making the Power LED blink if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-saving function.PowerSaver Normal operation modeEnergy Star Power ConsumptionPower saving modePower off (Power button)Power Indicator On On Blinking OffPower Consumption(S19E200NY)Typical 19 WTypical 13 WLess than 0.1 W Less than 0.1 WPower Consumption(S19E200BR)Typical 16 WPower Consumption(S19E200NW) Typical 15 WPower Consumption(S19E200BW)Power Consumption(S22E200NY)Typical 24 WTypical 21 WPower Consumption(S22E200N)Power Consumption(S22E200B)Power Consumption(S22E200BW)Typical 19 W
126Specifications1010 SpecificationsPowerSaver Normal operation modeEnergy Star Power ConsumptionPower saving modePower off (Power button)Power Consumption(S23E200B) Typical 25 W Typical 22 W Less than 0.1 W Less than 0.1 WPower Consumption(S24E200BL)Power Consumption(S19E450BW)Typical 19 WTypical 15 WTypical 0.3 WLess than 0.005 W(0 W mode) Power Consumption(S19E450MW)Power Consumption(S19E450BR) Typical 16 WPower Consumption(S19E450MR)Power Consumption(S22E450B)Typical 24 W Typical 21 W
127Specifications1010 SpecificationsPowerSaver Normal operation modeEnergy Star Power ConsumptionPower saving modePower off (Power button)Power Consumption(S22E450M)Typical 24 WTypical 21 WTypical 0.3 WLess than 0.005 W(0 W mode) Power Consumption(S22E450D)Power Consumption(S22E450BW)Typical 19 WPower Consumption(S22E450MW)Power Consumption(S22E450DW)Power Consumption(S23E450B)Typical 25 W Typical 22 WPower Consumption(S24E450BL)Power Consumption(S24E450DL)
128Specifications1010 Specifications The displayed power consumption level can vary in different operating conditions or when settings are changed. (S**E200** Model Power saving mode / Power off (Power button) : Less than 0.1 watts (Analog Input Condition), Max 0.25 watts) (S**E450**& S**E650** Model Power saving mode / Power off (Power button) : Less than 0.005 watts (0 W mode). The 0 W mode indicates that the product is not receiving external commands. The power consumption is higher when the product receives an external command, such as a signal from the Magic Rotation program.)ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.Energy Star power is measured with the test method in the current Energy Star® Standard.To reduce the power consumption to 0, disconnect the power cord. Be sure to disconnect the power cable when you will not be using the product for an extended period of time. To reduce the power consumption to 0 W when the power switch is not available, disconnect the power cable. PowerSaver Normal operation modeEnergy Star Power ConsumptionPower saving modePower off (Power button)Power Consumption(S24E450B)Typical 25 W Typical 23 WTypical 0.3 WLess than 0.005 W(0 W mode) Power Consumption(S24E450M)Power Consumption(S24E450D)Power Consumption(S24E650BW)Typical 31 W Typical 25 WPower Consumption(S27E450B) Typical 35 W Typical 29 WPower Consumption(S27E450D)
129Specifications1010 Specifications10.15 Standard Signal Mode Table This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for the screen size of your product.Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor. If the LCD monitor does not support 85 Hz, change the vertical frequency to 60 Hz using the CDT monitor before you exchange it with the LCD monitor. Model NameSynchronization ResolutionHorizontal FrequencyVertical Frequency Optimum Resolution Maximum ResolutionS19E200NY30 – 81 kHz 56 – 75 Hz1366 x 768 @ 60 Hz 1366 x 768 @ 60 HzS19E200NW S19E200BWS19E450BWS19E450MW1440 x 900 @ 60 Hz 1440 x 900 @ 75 HzS19E200BRS19E450BRS19E450MR1280 x 1024 @ 60 Hz 1280 x 1024 @ 75 HzS22E200BWS22E450BWS22E450MWS22E450DW1680 x 1050 @ 60 Hz 1680 x 1050 @ 60 HzS22E200NYS22E200N1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 HzS22E200BS23E200BS24E200BLS22E450BS22E450MS22E450DS23E450BS24E450BLS24E450DL
130Specifications1010 SpecificationsIf a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.S24E650BW30 – 81 kHz56 – 60 Hz 1920 x 1200 @ 60 Hz 1920 x 1200 @ 60 HzS24E450BS24E450MS24E450DS27E450BS27E450D56 – 75 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 HzModel NameSynchronization ResolutionHorizontal FrequencyVertical Frequency Optimum Resolution Maximum Resolution
131Specifications1010 SpecificationsS19E200NYResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1366 x 768 47.712 59.790 85.500 +/+
132Specifications1010 SpecificationsS19E200NW / S19E200BW / S19E450BW / S19E450MWResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1440 x 900 70.635 74.984 136.750 -/+
133Specifications1010 SpecificationsS19E200BR / S19E450BR / S19E450MRResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 960 60.000 60.000 108.000 +/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+
134Specifications1010 SpecificationsS22E200NY / S22E200N / S22E200B / S23E200B / S24E200BL / S22E450B / S22E450M / S22E450D / S23E450B / S24E450BL / S24E450DL / S24E450B / S24E450M / S24E450D / S27E450B / S27E450DResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+VESA, 1920 x 1080 67.500 60.000 148.500 +/+
135Specifications1010 SpecificationsS22E200BW / S22E450BW / S22E450MW / S22E450DWResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726 74.551 57.284 -/-MAC, 1152 x 870 68.681 75.062 100.000 -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809 31.500 -/-VESA, 640 x 480 37.500 75.000 31.500 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 800 x 600 48.077 72.188 50.000 +/+VESA, 800 x 600 46.875 75.000 49.500 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1024 x 768 56.476 70.069 75.000 -/-VESA, 1024 x 768 60.023 75.029 78.750 +/+VESA, 1152 x 864 67.500 75.000 108.000 +/+VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1280 x 1024 79.976 75.025 135.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+
136Specifications1010 SpecificationsS24E650BW Horizontal FrequencyThe time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.Vertical FrequencyRepeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz. ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 800 x 600 35.156 56.250 36.000 +/+ VESA, 800 x 600 37.879 60.317 40.000 +/+VESA, 1024 x 768 48.363 60.004 65.000 -/-VESA, 1280 x 720 45.000 60.000 74.250 +/+VESA, 1280 x 800 49.702 59.810 83.500 -/+ VESA, 1280 x 1024 63.981 60.020 108.000 +/+VESA, 1440 x 900 55.935 59.887 106.500 -/+ VESA, 1600 x 900 60.000 60.000 108.000 +/+VESA, 1680 x 1050 65.290 59.954 146.250 -/+ VESA, 1920 x 1080 67.500 60.000 148.500 +/+VESA, 1920 x 1200 74.038 59.950 154.000 +/-
137 Appendix AppendixResponsibility for the Pay Service (Cost to Customers) When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases. Not a product defectCleaning of the product, Adjustment, Explanation, Re-installation and etc.If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.If a product is reinstalled to move to a different spot or to move to a different house.If customer requests instructions on how to use because of another company's product.If customer requests instructions on how to use the network or another company's program.If customer requests software installation and setup for the product.If a service technician removes/cleans dusts or foreign materials inside of the product.If customer requests an installation additionally after purchasing a product through home-shopping or online.A Product damage caused by customer's faultProduct damage caused by customer's mishandling or wrong repair If a product damage is caused by;external impact or drop.use of supplies or separately sold product unspecified by Samsung.repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.remodeling or repairing the product by customer.using it with incorrect voltage or non-authorised electrical connections.not following the "cautions" in User Manual.OthersIf product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.)
138Appendix Appendix If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.
139Appendix AppendixCorrect DisposalCorrect Disposal of This Product (Waste Electrical & Electronic Equipment)Extended warranty(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.You can buy an extended warranty within 90 days of purchasing the product.The extended warranty will cover an additional period of 3 years, beyond the standard 3 year warranty.Samsung guarantee that replacement parts will be available for 5 years after the end of production.After 5 years, in the event that the Samsung’s service center has run out of replacement parts andcannot repair the product, Samsung will replace your product at no additional charge. If the model youpurchased is no longer available, Samsung replace it with the current equivalent model.
140Appendix AppendixTerminologyOSD (On Screen Display)On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as required. You can change the screen brightness, tint, size and many other settings using menus displayed on the screen.GammaThe Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.Grey scaleScale refers to levels of color intensity that show variations of color change from darker areas to brighter areas on the screen. Changes to the screen brightness are expressed with black and white variation, and grey scale refers to the medium area between black and white. Changing the grey scale through Gamma adjustment will change the medium brightness on the screen.Scanning rateScanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that the screen refreshes 60 times per second. The screen scanning rate depends on the performance of the graphics cards in your PC and monitor. Horizontal FrequencyCharacters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal frequency is measured in kHz and represents how many times horizontal lines per second are transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the horizontal lines that make up an image are transmitted 85000 times per second. The horizontal frequency is indicated in 85kHz.Vertical FrequencyOne image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. A vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called "refresh rate" and affects screen flicker.
141Appendix AppendixResolutionResolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time.E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080 vertical lines (vertical resolution).Plug & PlayThe Plug & Play feature allows the automatic exchange of information between a monitor and PC to produce an optimum display environment. The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 142IndexBBefore Connecting 45Blue 72Brightness 56CCleaning 9Coarse 68Color Tone 73Connecting and Using a PC 46Contrast 57Copyright 8Correct Disposal 139Correct posture to use the product 19DDisplay Time 77EEye Saver Mode 59FFine 69GGame Mode 60Gamma 74General 100Green 71IImage Size 65INFORMATION 90Installation 35KKey Repeat Time 88LLanguage 75MMultiScreen 93OOff Timer 81Off Timer Plus 83PParts 22PC/AV Mode 87PowerSaver 125QQ & A 98RRed 70Requirements Before Contacting Samsung Customer Service Center 95Reset All 79Responsibility for the Pay Service (Cost to Customers) 137SSafety Precautions 11SAMSUNG MAGIC Angle 62SAMSUNG MAGIC Bright 61SAMSUNG MAGIC Upscale 64Sharpness 58
IndexIndex 143Smart Eco Saving 80Source Detection 89Standard Signal Mode Table 129TTerminology 140Transparency 78
