user manual
User manual
S22E450F
S22E650D
S23E650D
S23E650K
S24E450F
S24E650PL
S24E650XL
S24E650DW
S24E650MW
S24E650XW
S27E650D
S27E650X
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
BN46-00480A-00
Table Of Contents 2
Table Of Contents
BEFORE USING THE
PRODUCT
7 Copyright
7 Icons used in this manual
8 Cleaning
9 Securing the Installation Space
9 Precautions for storage
10 Safety Precautions
10 Symbols
11 Electricity and Safety
12 Installation and Safety
14 Operation and Safety

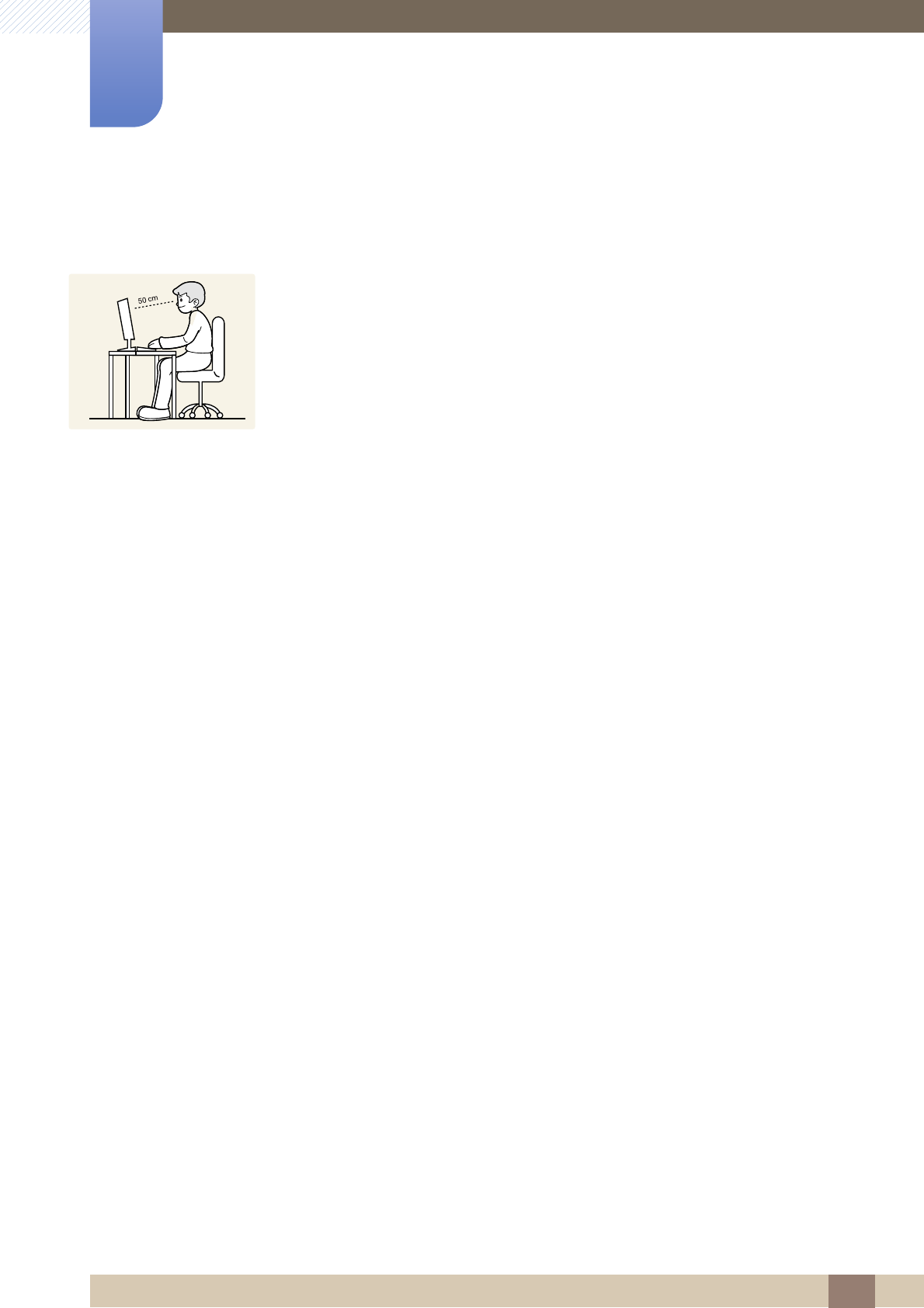

18 Correct posture to use the product
PREPARATIONS 19 Checking the Components
19 Checking the Components
21 Parts

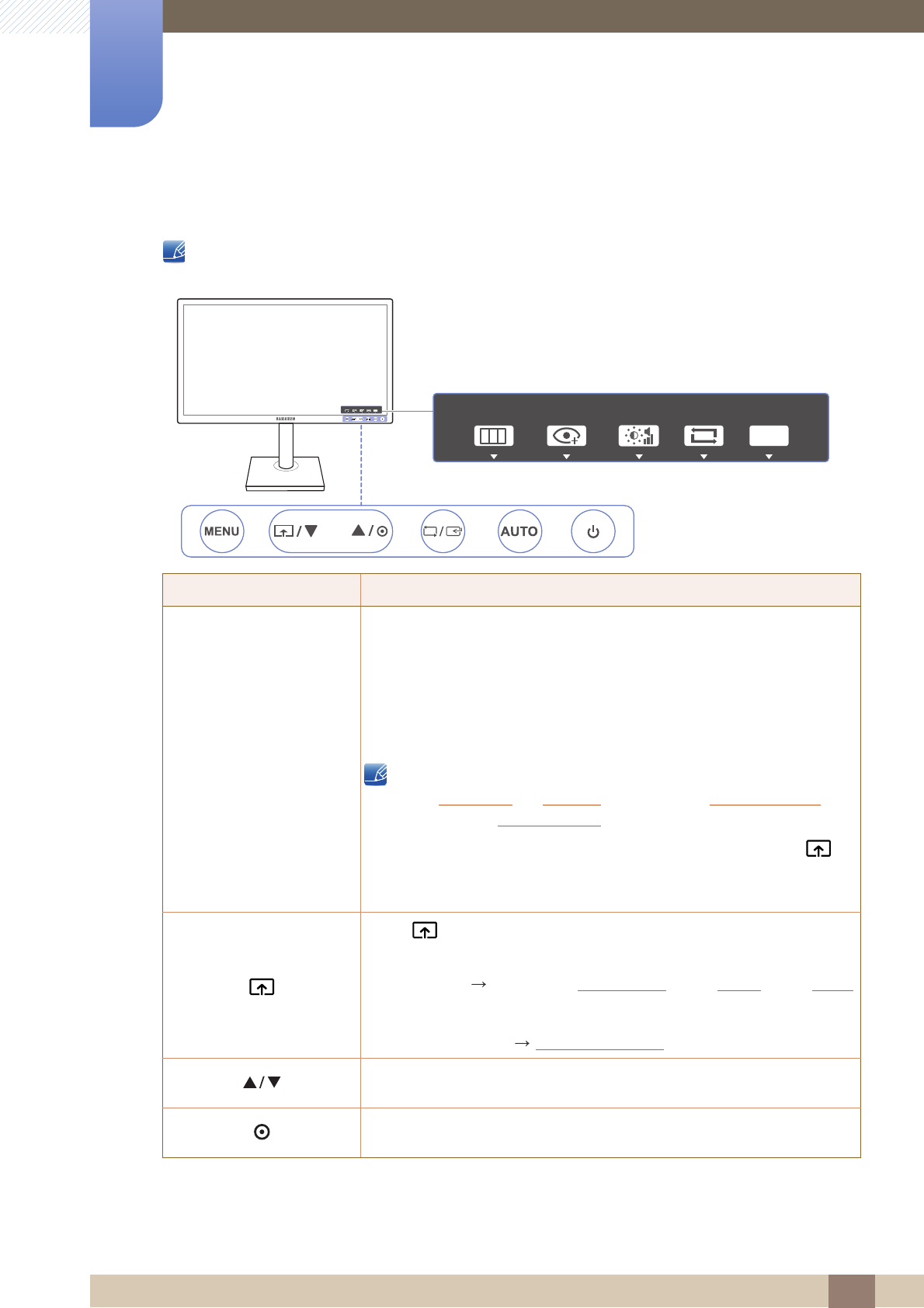

21 Frontal Buttons (S22E450F / S24E450F)
23 Frontal Buttons (S24E650PL / S24E650XL /
S24E650XW / S27E650X)
25 Frontal Buttons (S22E650D / S23E650D /
S24E650DW / S27E650D)
27 Frontal Buttons (S23E650K / S24E650MW)
29 Reverse Side (S23E650K)
30 Reverse Side (S24E650MW)
31 Reverse Side (S22E450F / S24E450F)
32 Reverse Side (S22E650D / S23E650D /
S24E650DW / S27E650D)
33 Reverse Side (S24E650XL / S24E650XW /
S27E650X)
34 Reverse Side (S24E650PL)
35 Right Side View
Table Of Contents
Table Of Contents 3
36 Installation

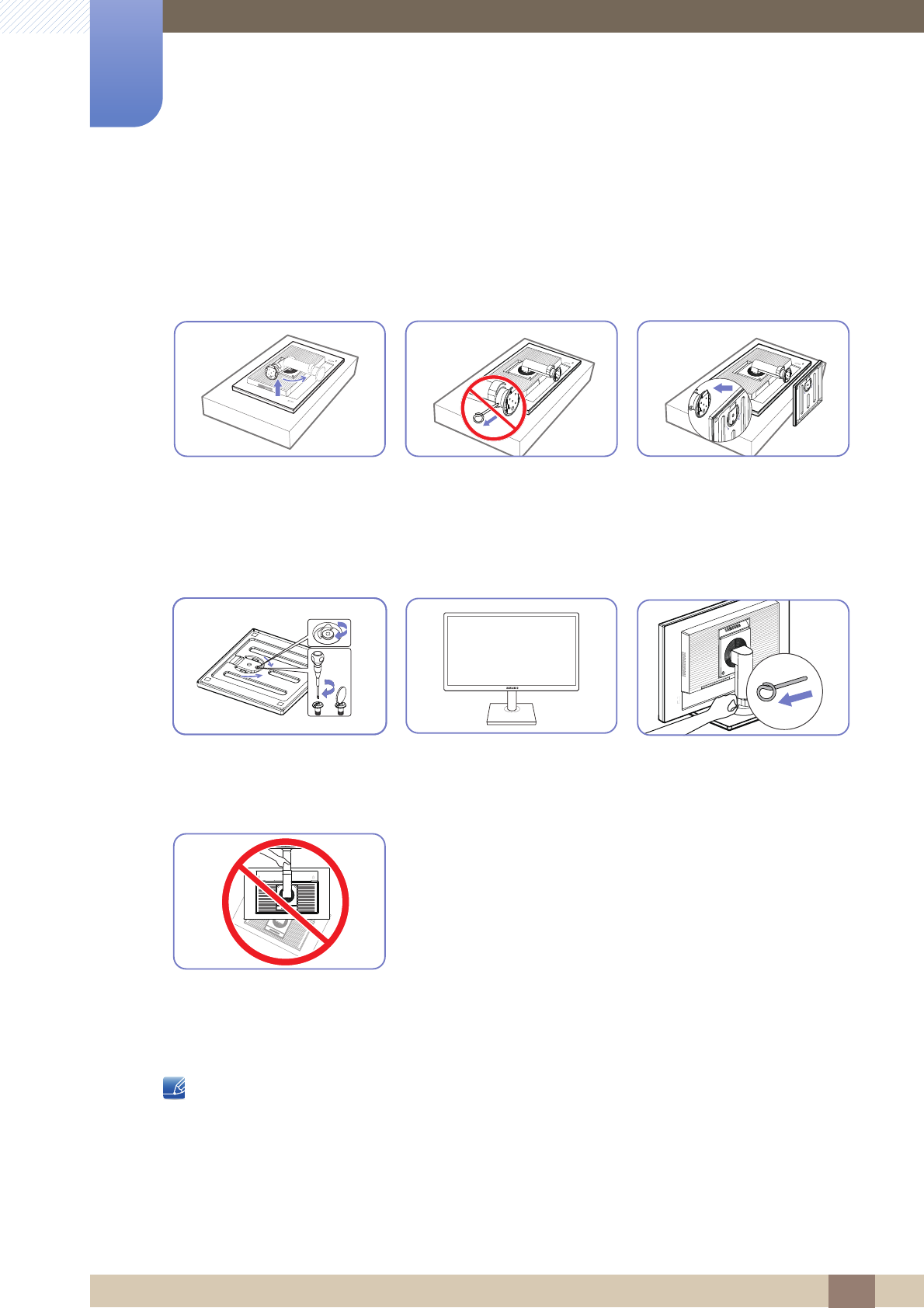

36 Attaching the Stand

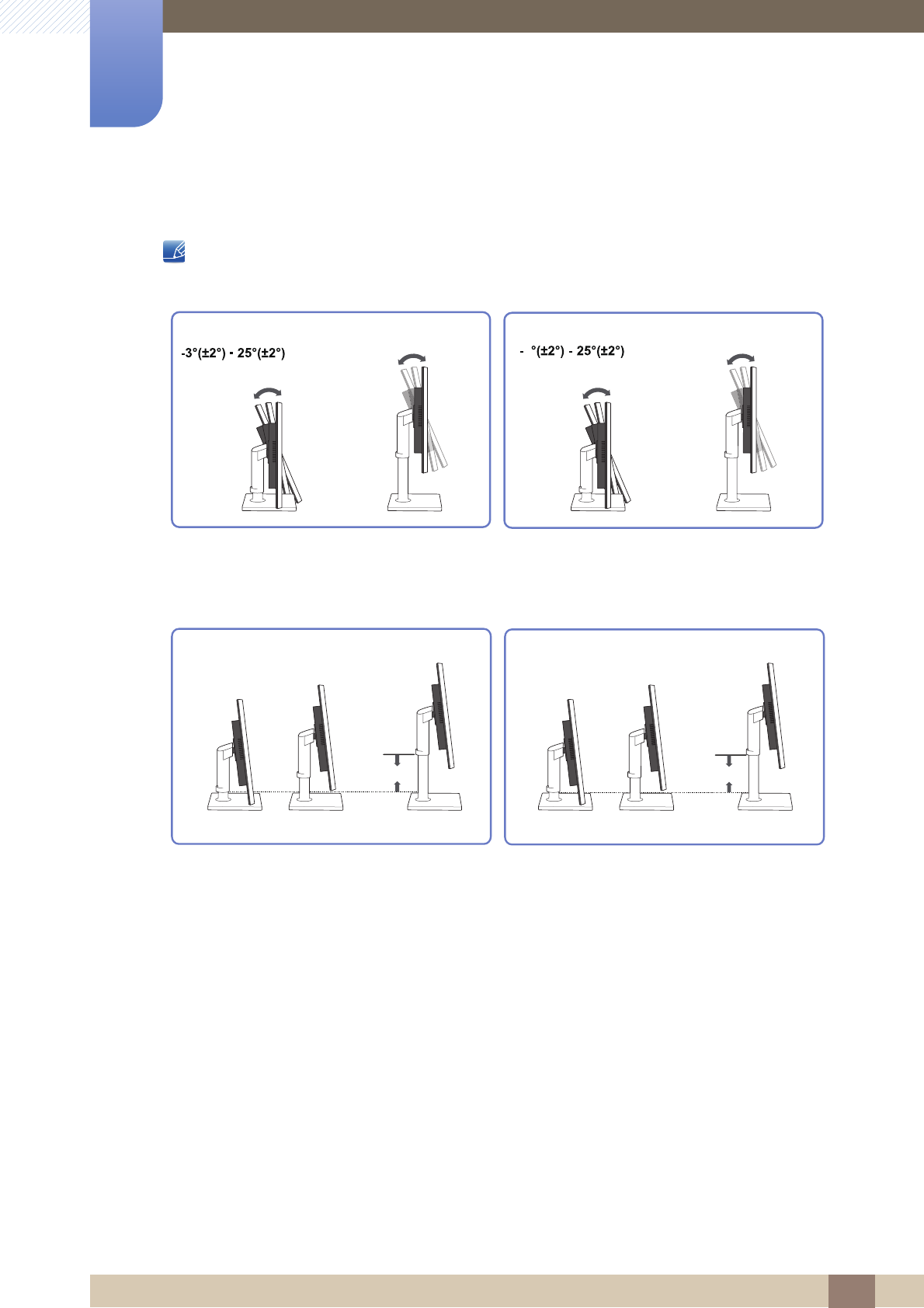

37 Adjusting the Product Tilt and Height

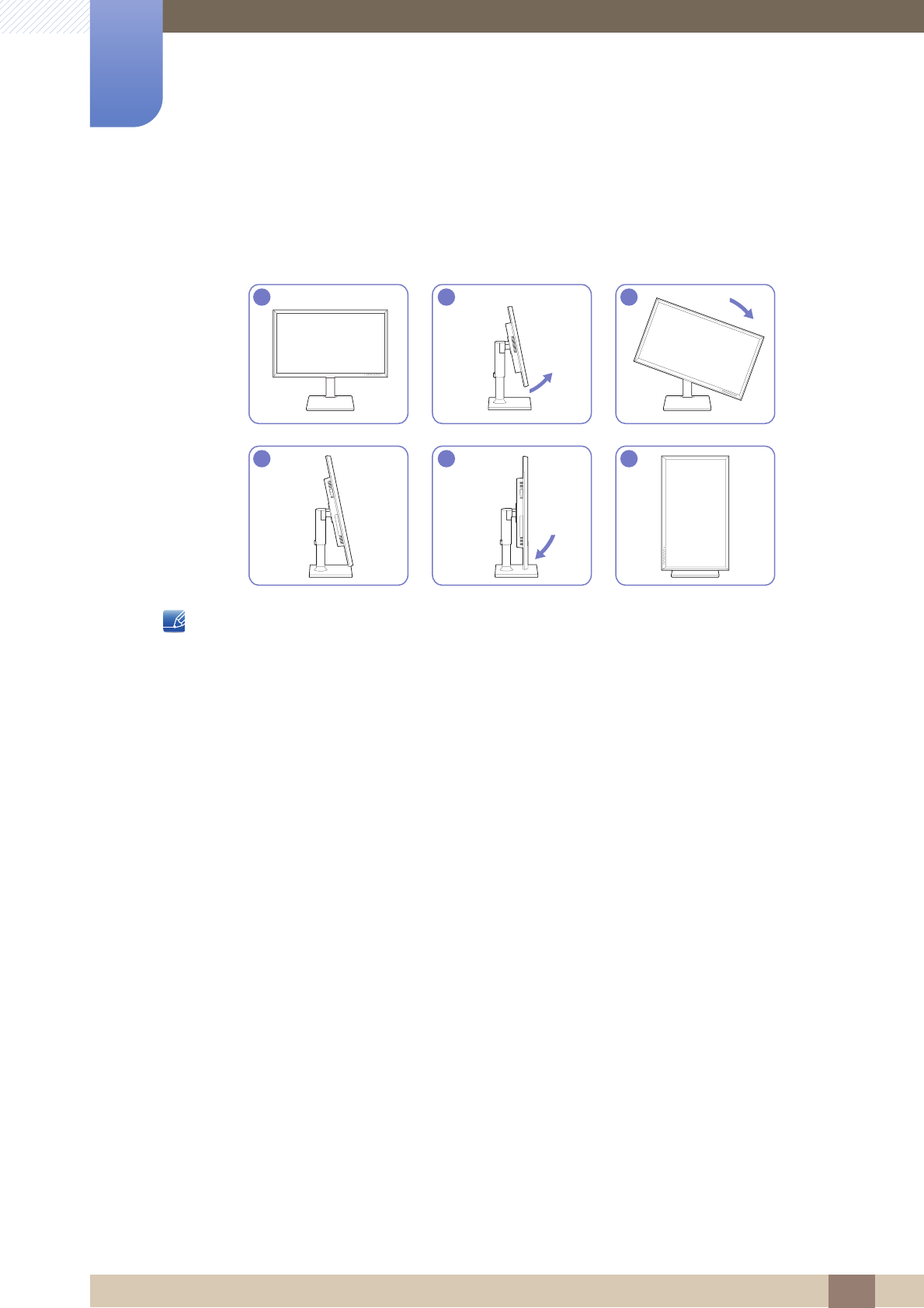

38 Rotating the Monitor
39 Installing a Wall-mount Kit or Desktop Stand
41 Anti-theft Lock
CONNECTING AND USING
A SOURCE DEVICE
42 Before Connecting
42 Pre-connection Checkpoints
43 Connecting and Using a PC

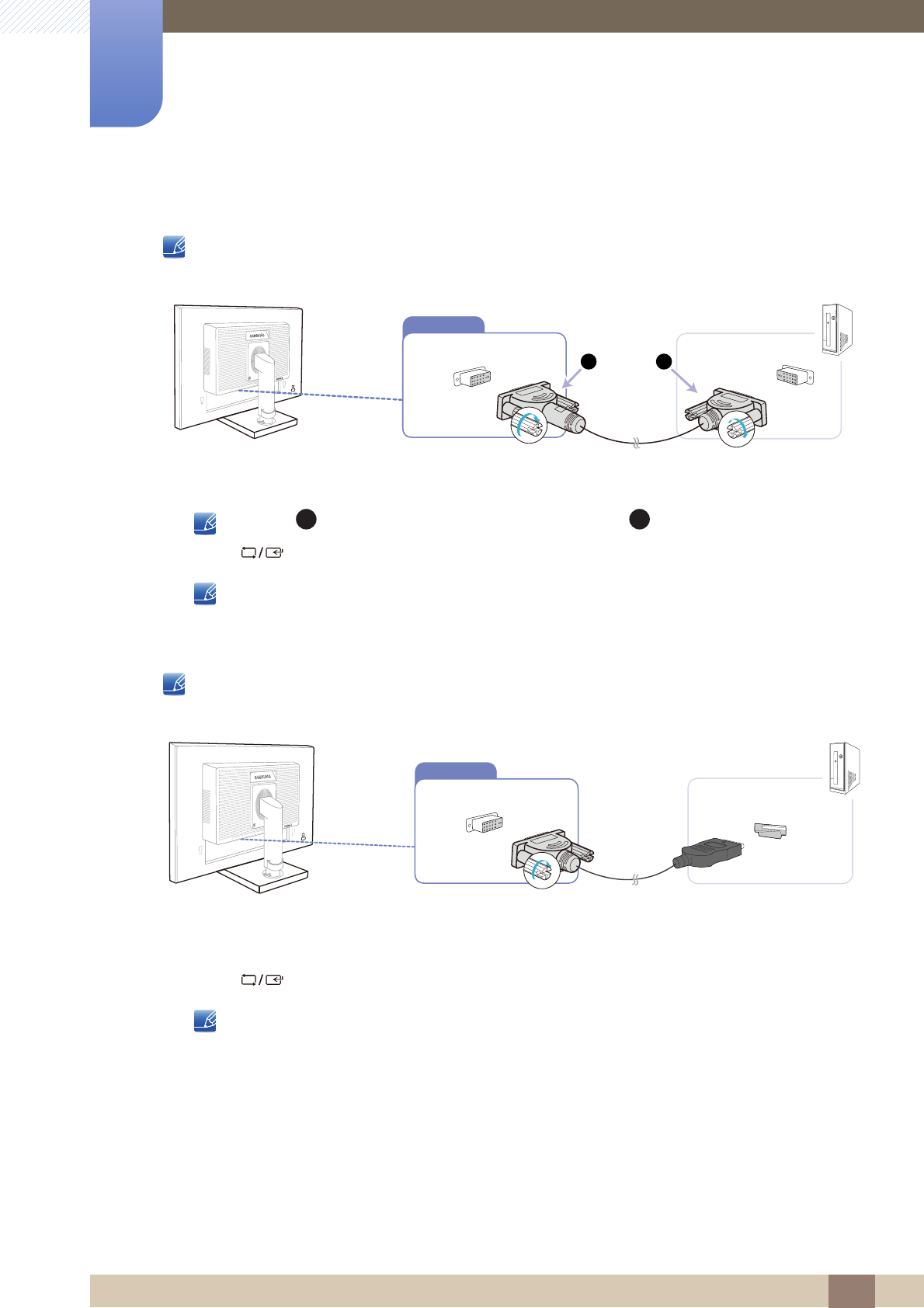

43 Connecting to a PC
47 Connecting the Power

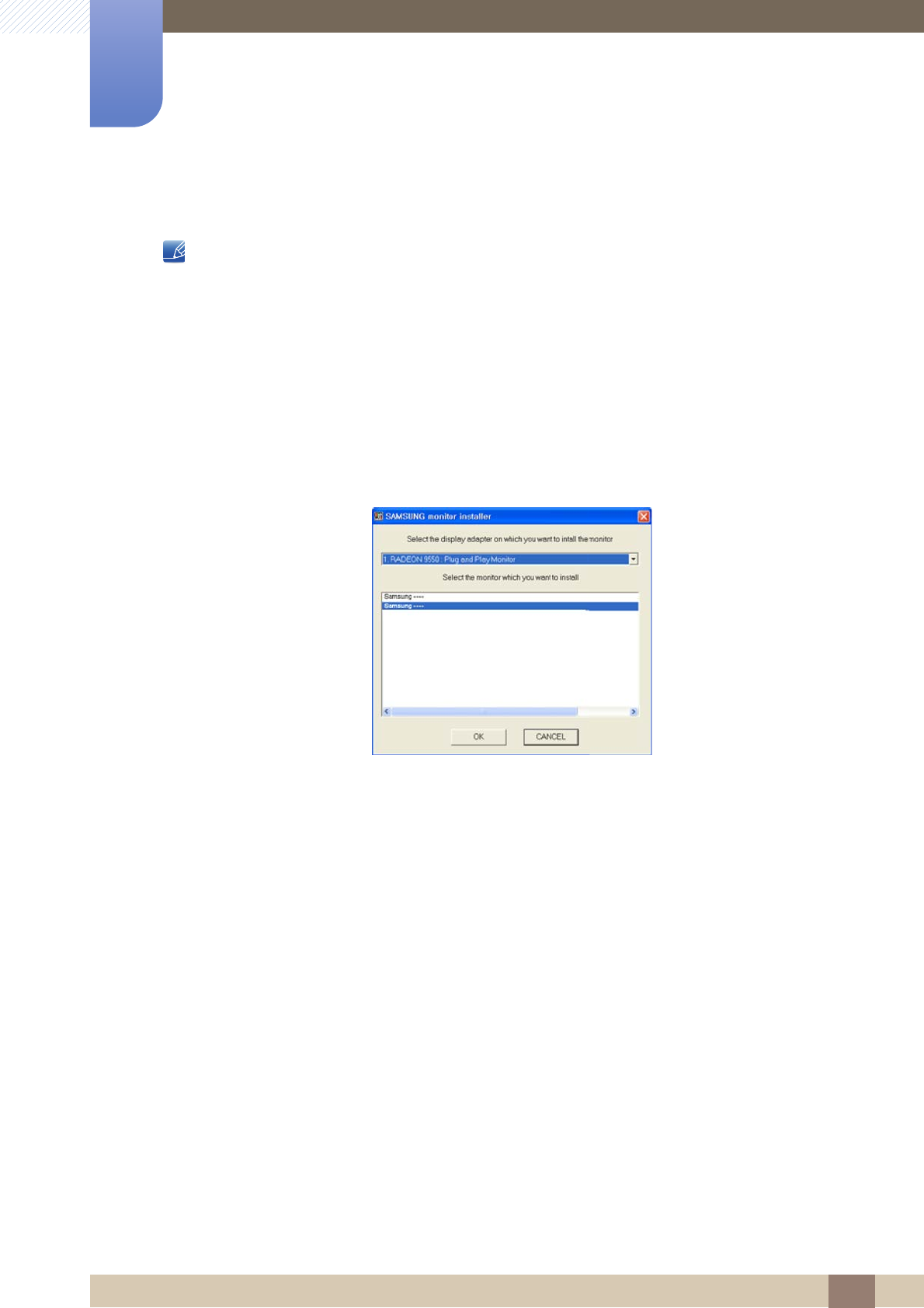

51 Driver Installation
52 Setting Optimum Resolution
SCREEN SETUP 53 Brightness
53 Configuring Brightness
54 Contrast
54 Configuring Contrast
55 Sharpness
55 Configuring Sharpness
56 Eye Saver Mode
56 Configuring Eye Saver Mode
57 Game Mode
57 Configuring Game Mode
58 SAMSUNG MAGIC Bright
58 Configuring SAMSUNG MAGIC Bright
60 SAMSUNG MAGIC Angle (S22E450F /
S24E450F)
60 Configuring SAMSUNG MAGIC Angle
62 SAMSUNG MAGIC Upscale
62 Configuring SAMSUNG MAGIC Upscale
Table Of Contents
Table Of Contents 4
63 Image Size
63 Changing the Image Size
65 HDMI Black Level (S22E450F / S24E450F
/ S23E650K / S24E650PL)
65 Configuring the HDMI Black Level Settings
66 Response Time (Except S22E450F /
S24E450F)
66 Configuring the Response Time
67 H-Position & V-Position
67 Configuring H-Position & V-Position
69 Coarse
69 Adjusting Coarse
70 Fine
70 Adjusting Fine
CONFIGURING TINT 71 Red
71 Configuring Red
72 Green
72 Configuring Green
73 Blue
73 Configuring Blue
74 Color Tone
74 Configuring the Color Tone Settings
75 Gamma
75 Configuring Gamma
RESIZING OR
RELOCATING THE
SCREEN
76 Language
76 Changing the Language
77 Menu H-Position & Menu V-Position
77 Configuring Menu H-Position & Menu V-
Position
Table Of Contents
Table Of Contents 5
78 Display Time
78 Configuring Display Time
79 Transparency
79 Changing Transparency
SETUP AND RESET 80 Reset All
80 Initializing Settings (Reset All)
81 Smart Eco Saving
81 Configuring Smart Eco Saving
82 Off Timer Plus
82 Configuring Off Timer
84 Configuring Eco Timer
86 PC/AV Mode
86 Configuring PC/AV Mode
88 Key Repeat Time
88 Configuring Key Repeat Time
89 Source Detection
89 Configuring Source Detection
INFORMATION MENU AND
OTHERS
90 INFORMATION
90 Displaying INFORMATION
91 Configuring Brightness, Contrast and
Sharpness from the Initial Screen
92 Configuring Volume in the Initial Screen
INSTALLING THE
SOFTWARE
93 MultiScreen
93 Installing the Software
94 Removing the Software
Table Of Contents
Table Of Contents 6
TROUBLESHOOTING
GUIDE
95 Requirements Before Contacting
Samsung Customer Service Center
95 Testing the Product
95 Checking the Resolution and Frequency
95 Check the following.
98 Q & A
SPECIFICATIONS 100 General (S22E450F / S22E650D)
102 General (S23E650D / S23E650K)
104 General (S24E450F)
106 General (S24E650PL / S24E650XL)
108 General (S24E650DW / S24E650MW /
S24E650XW)
110 General (S27E650D / S27E650X)
112 PowerSaver
114 Standard Signal Mode Table
APPENDIX 117 Responsibility for the Pay Service (Cost
to Customers)
117 Not a product defect
117 A Product damage caused by customer's fault
117 Others

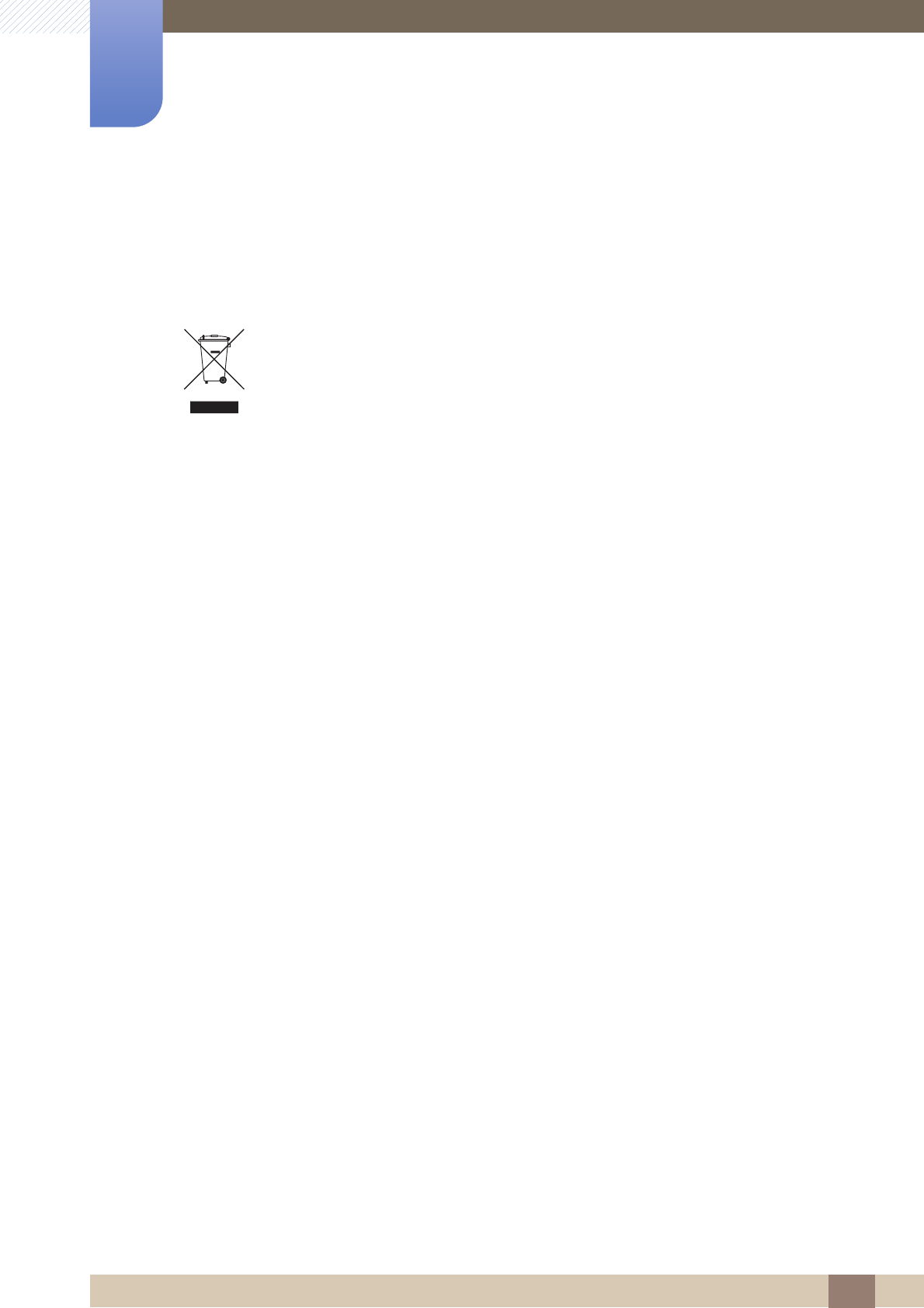

119 Correct Disposal
119 Correct Disposal of This Product (Waste
Electrical & Electronic Equipment)
119 Extended warranty
120 Terminology
INDEX
7
Before Using the Product
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2015 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Icons used in this manual
An administration fee may be charged if either
(a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
(b) you bring the unit to a repair center and there is no defect in the product
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is
carried out.
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
8
Before Using the Product
Before Using the Product

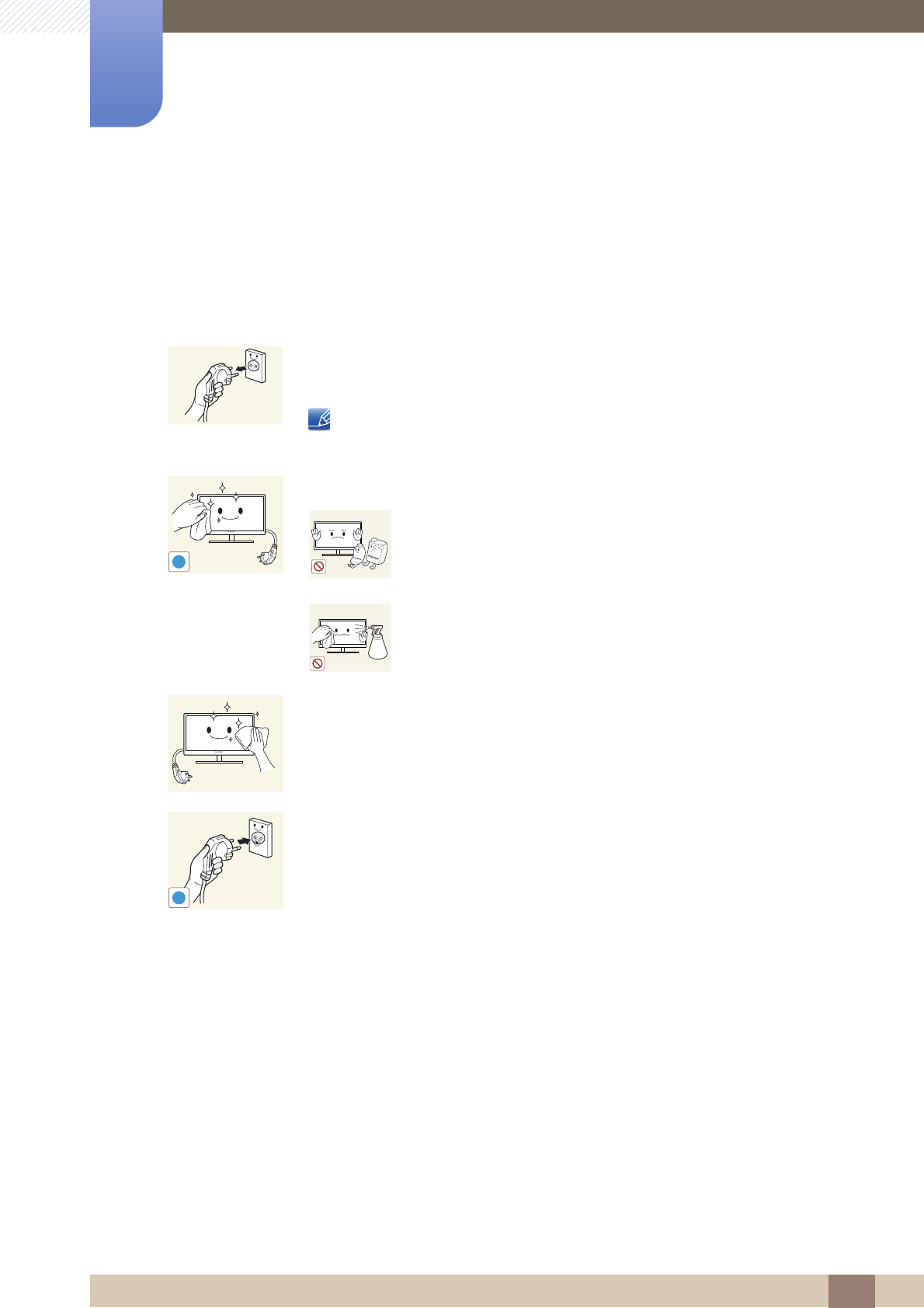

Cleaning
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cord from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor screen using a clean, soft and dry cloth.
Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cord to the product after cleaning the product.
6. Power on the monitor and computer.
!
!
9
Before Using the Product
Before Using the Product

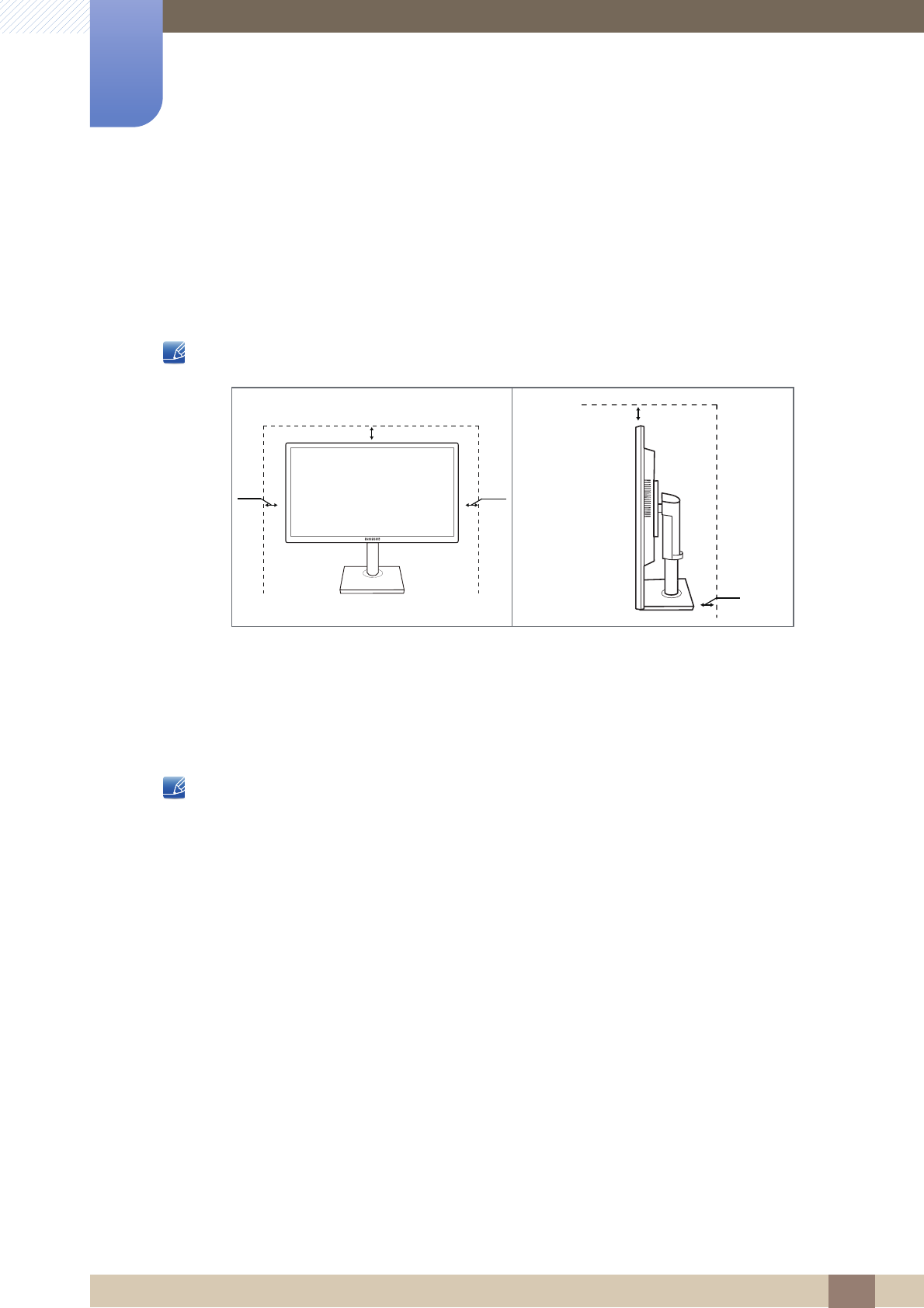

Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire
and damage the product. Be sure to allow the amount of space as shown below or greater when
installing the product.
The exterior may differ depending on the product.
Precautions for storage
Be sure to contact Samsung Customer Service Center if the inside of the monitor needs cleaning. (A
service fee will be charged.)
3.93
inches
(10 cm)
3.93
inches
(10 cm)
3.93 inches (10 cm)
3.93 inches (10 cm)
3.93 inches (10 cm)
10
Before Using the Product
Before Using the Product
Safety Precautions
Symbols
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside. It is dangerous to
make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and
maintenance has been included with this product.
Warning A serious or fatal injury may result if instructions are not followed.
Caution Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
11
Before Using the Product
Before Using the Product

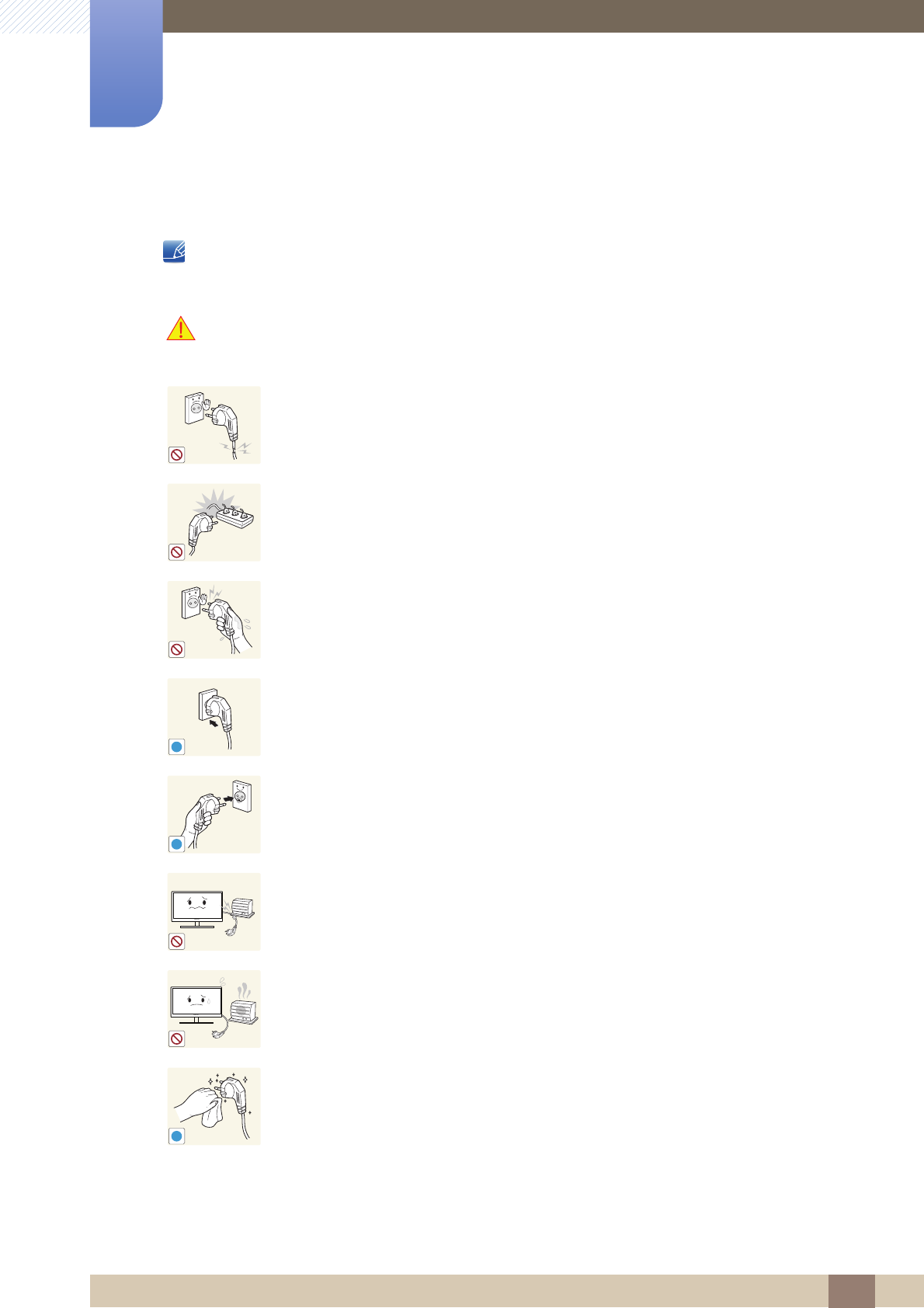

Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
An electric shock or fire may result.
Do not plug many products into the same power socket.
Otherwise, the socket may overheat and cause a fire.
Do not touch the power plug with wet hands.
Otherwise, an electric shock may result.
Insert the power plug all the way in so it is not loose.
An unstable connection may cause a fire.
Ensure you connect the power plug to a grounded power socket. (type 1
insulated devices only).
An electric shock or injury may result.
Do not bend or pull the power cord with force. Do not weigh the power cord
down with a heavy object.
A damaged power cord may cause an electric shock or fire.
Do not place the power cord or product near heat sources.
An electric shock or fire may result.
Remove foreign substances such as dust around the plug pins and power socket
with a dry cloth.
Otherwise, a fire may result.
!
!
!
12
Before Using the Product
Before Using the Product

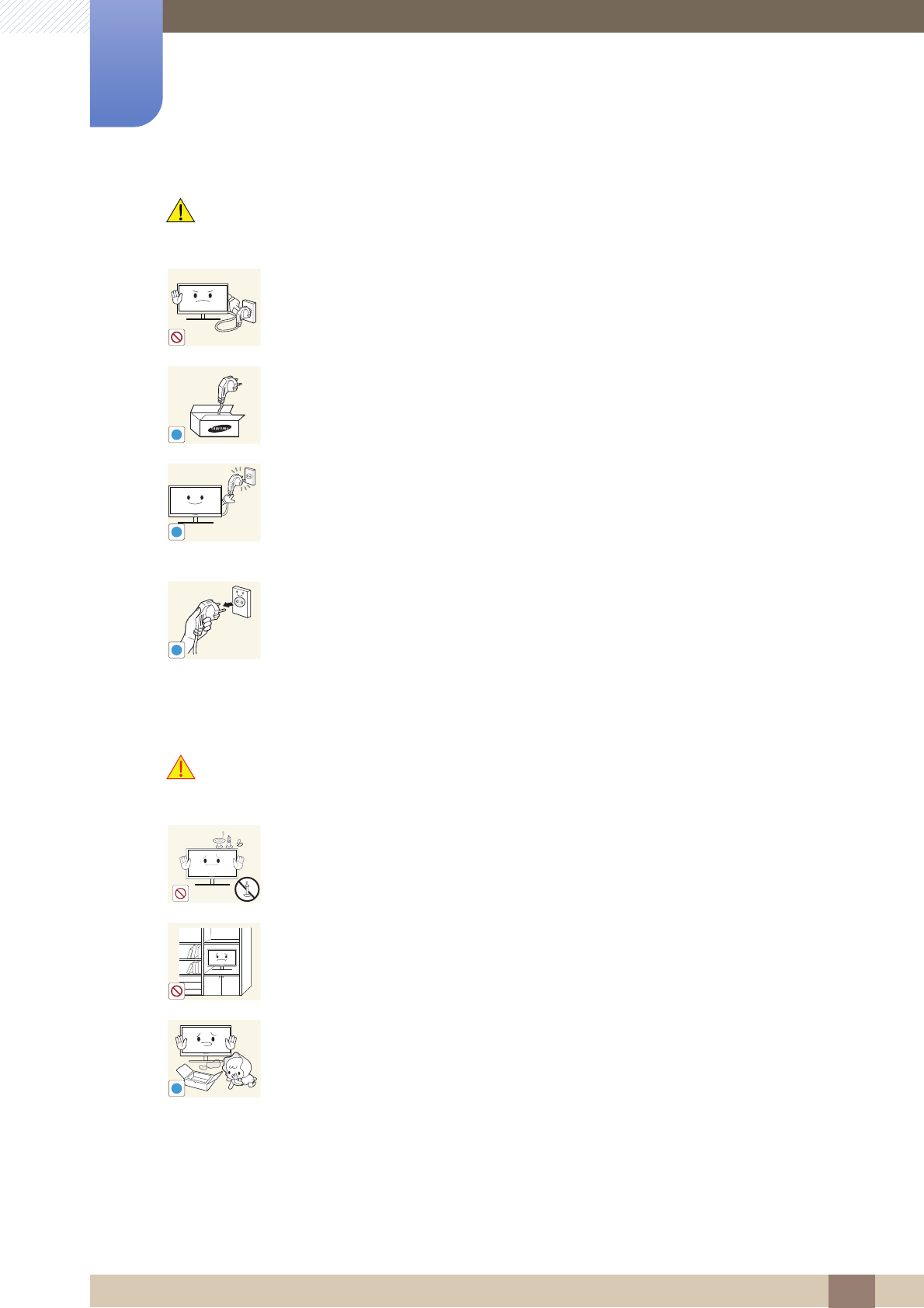

Caution
Installation and Safety
Warning
Do not unplug the power cord when the product is in use.
The product may become damaged by an electric shock.
Do not use the power cord for products other than authorized products supplied
by Samsung.
An electric shock or fire may result.
Keep the power socket where the power cord is connected unobstructed.
If any problem occurs in the product, unplug the power cable to completely
cut the power to the product.
Power to the product cannot be completely cut off with the power button.
Hold the plug when disconnecting the power cord from the power socket.
An electric shock or fire may result.
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
Otherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
Otherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
Children may suffocate.
!
!
!
!
13
Before Using the Product
Before Using the Product

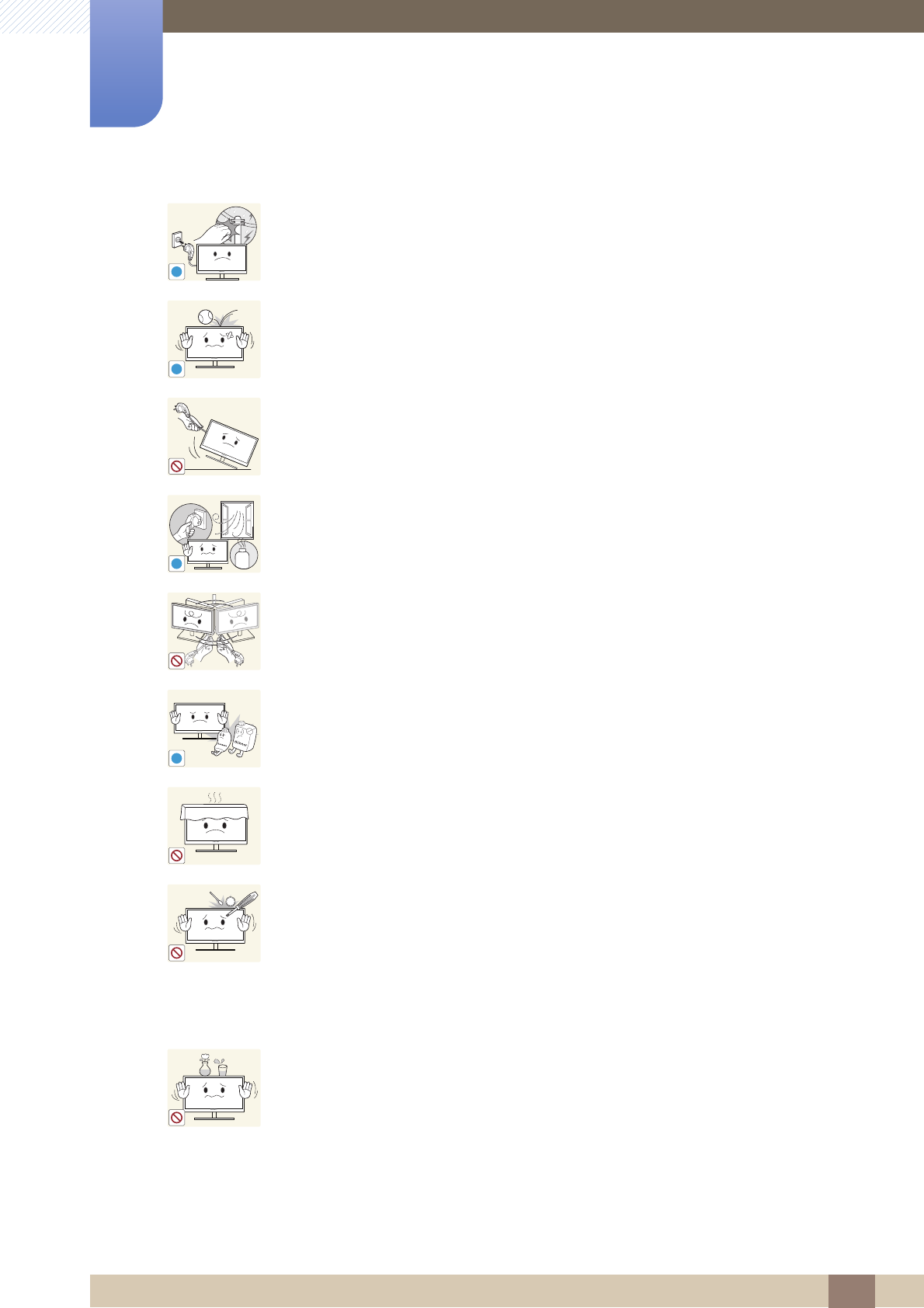

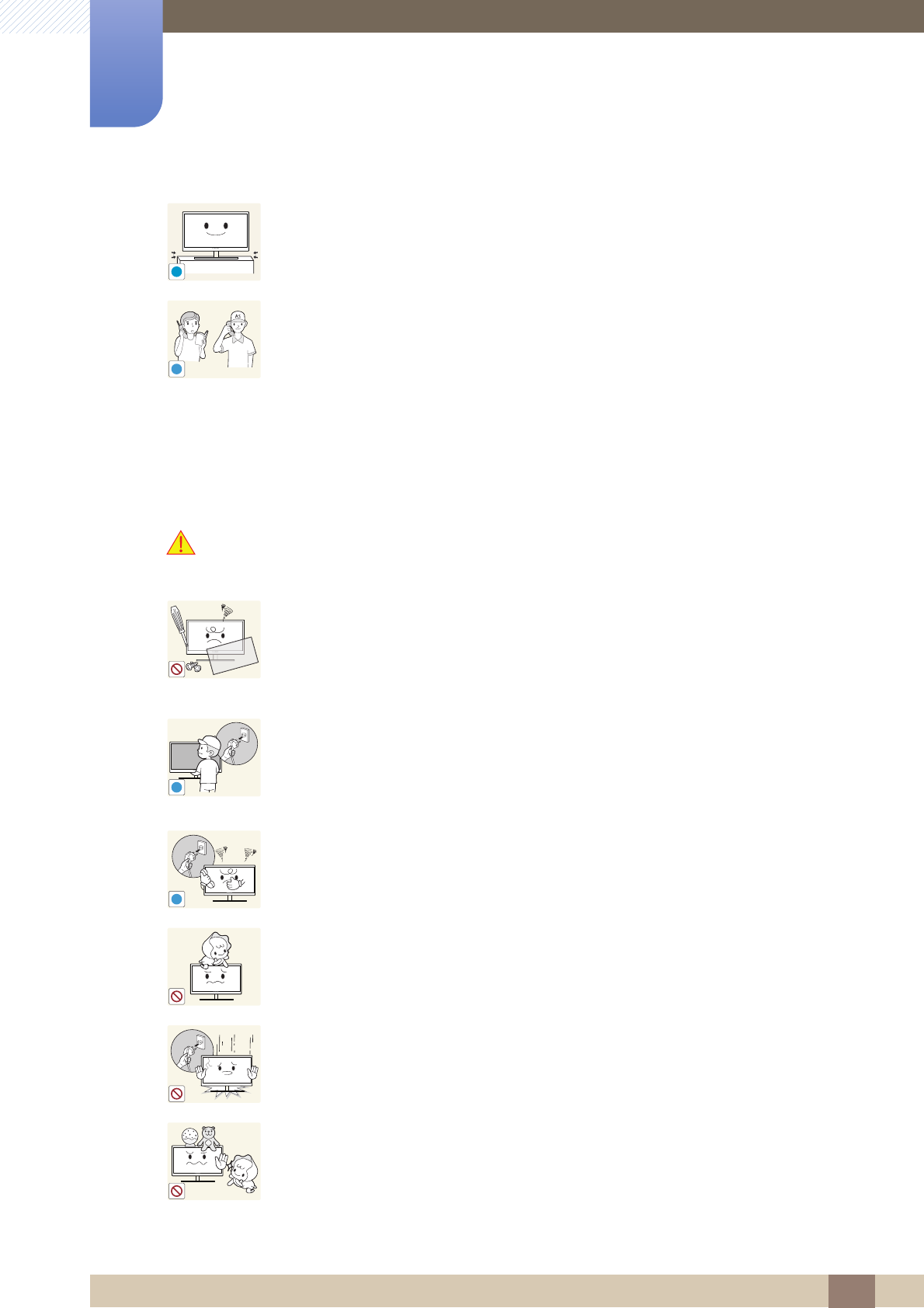

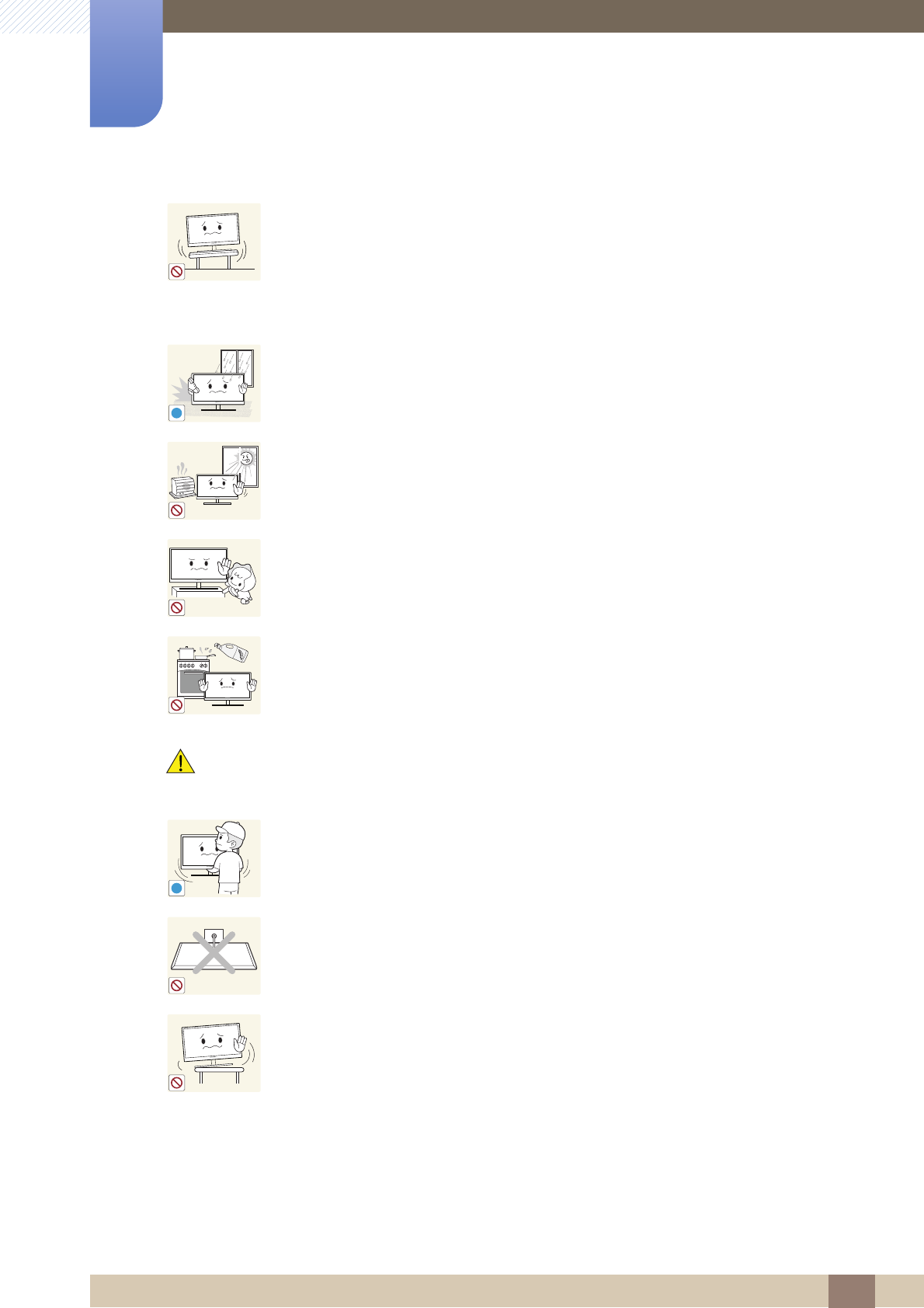

Caution
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
The product may fall and break or cause a personal injury.
Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
An electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
Otherwise, the product lifespan may be reduced, or a fire may result.
Do not install the product within the reach of young children.
The product may fall and injure children.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Take care not to drop the product when moving it.
Otherwise, product failure or personal injury may result.
Do not set down the product on its front.
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
The product may fall and break or cause a personal injury.
Install the product only on cabinets or shelves of the right size.
!
!
14
Before Using the Product
Before Using the Product
Operation and Safety
Warning
Put down the product carefully.
The product may fall and break or cause a personal injury.
Installing the product in an unusual place (a place exposed to a lot of fine dust,
chemical substances, extreme temperatures or a significant presence of
moisture, or a place where the product will operate continuously for an extended
period of time) may seriously affect its performance.
Be sure to consult Samsung Customer Service Center before installation if
you want to install the product at such a place.
High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
An electric shock or fire may result.
Contact Samsung Customer Service Center for repair.
To move the product, first disconnect all the cables from it, including the power
cable.
Otherwise, the power cord may be damaged and a fire or electric shock may
result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cord immediately and contact Samsung Customer Service Center.
An electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
The product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cord, and contact Samsung Customer Service Center.
Otherwise, an electric shock or fire may result.
Do not put a heavy object, toy, or sweets on top of the product.
The product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
!
SAMSUNG
!
!
!
15
Before Using the Product
Before Using the Product
If there is a thunderstorm or lightning strike, turn off the power and disconnect the
power cable.
An electric shock or fire may result.
Do not drop objects on the product or apply impact.
An electric shock or fire may result.
Do not move the product by pulling the power cord or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
An explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
Otherwise, a fire may result from an increased internal temperature.
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center.
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center.
Product failure, an electric shock or fire may result.
!
!
!
GAS
!
10 0
16
Before Using the Product
Before Using the Product

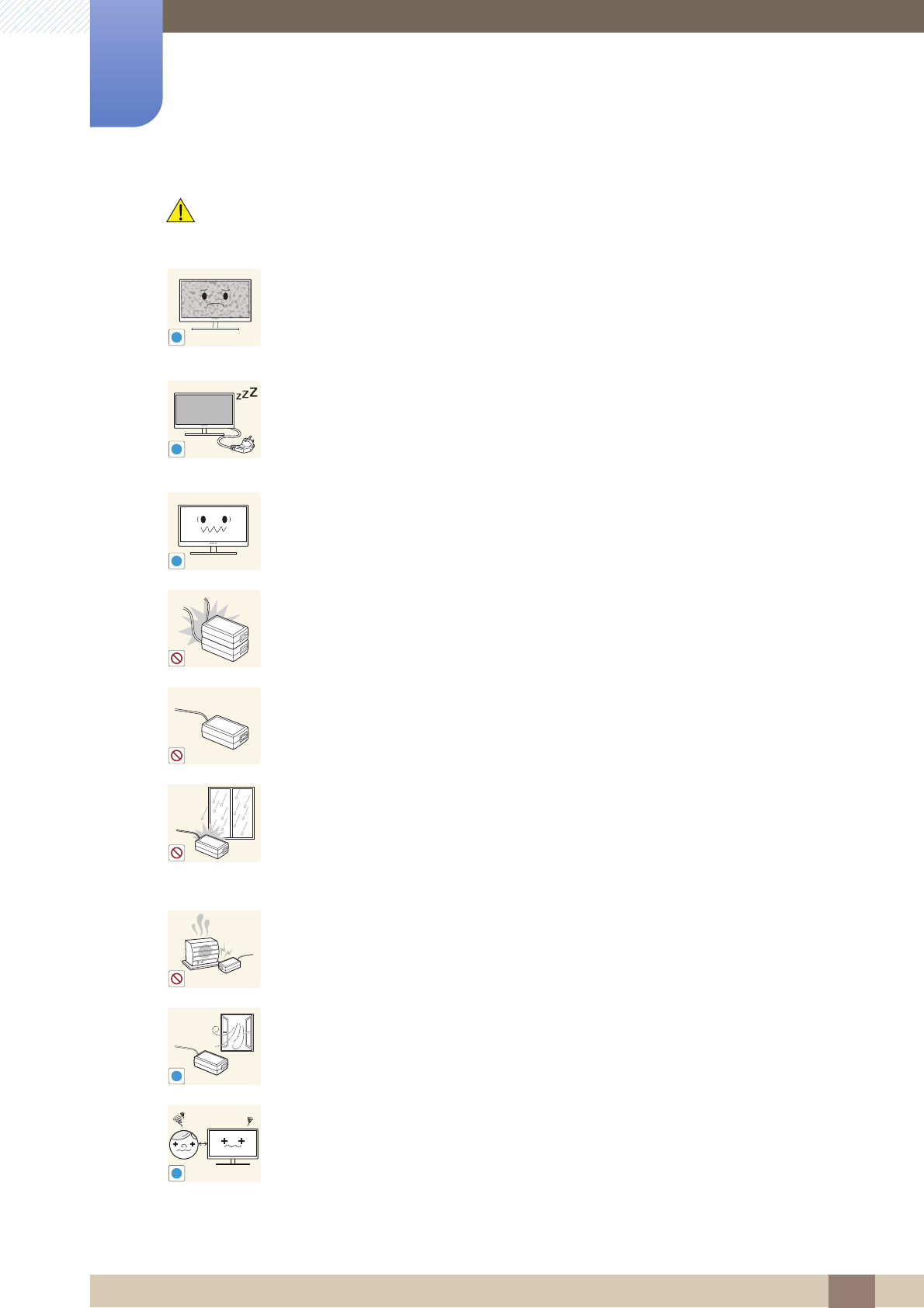

Caution
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
If you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc.).
Otherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
Otherwise,Your eyesight may deteriorate.
Do not put DC power adapters together.
Otherwise, a fire may result.
Remove the plastic bag from the DC power adapter before you use it.
Otherwise, a fire may result.
Do not let water enter the DC power device or get the device wet.
An electric shock or fire may result.
Avoid using the product outdoors where it can be exposed to rain or snow.
Be careful not to get the DC power adapter wet when you wash the floor.
Do not put the DC power adapter near to any heating apparatus.
Otherwise, a fire may result.
Keep the DC power adapter in a well-ventilated area.
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
!
!
-_-
!
!
!
!
17
Before Using the Product
Before Using the Product

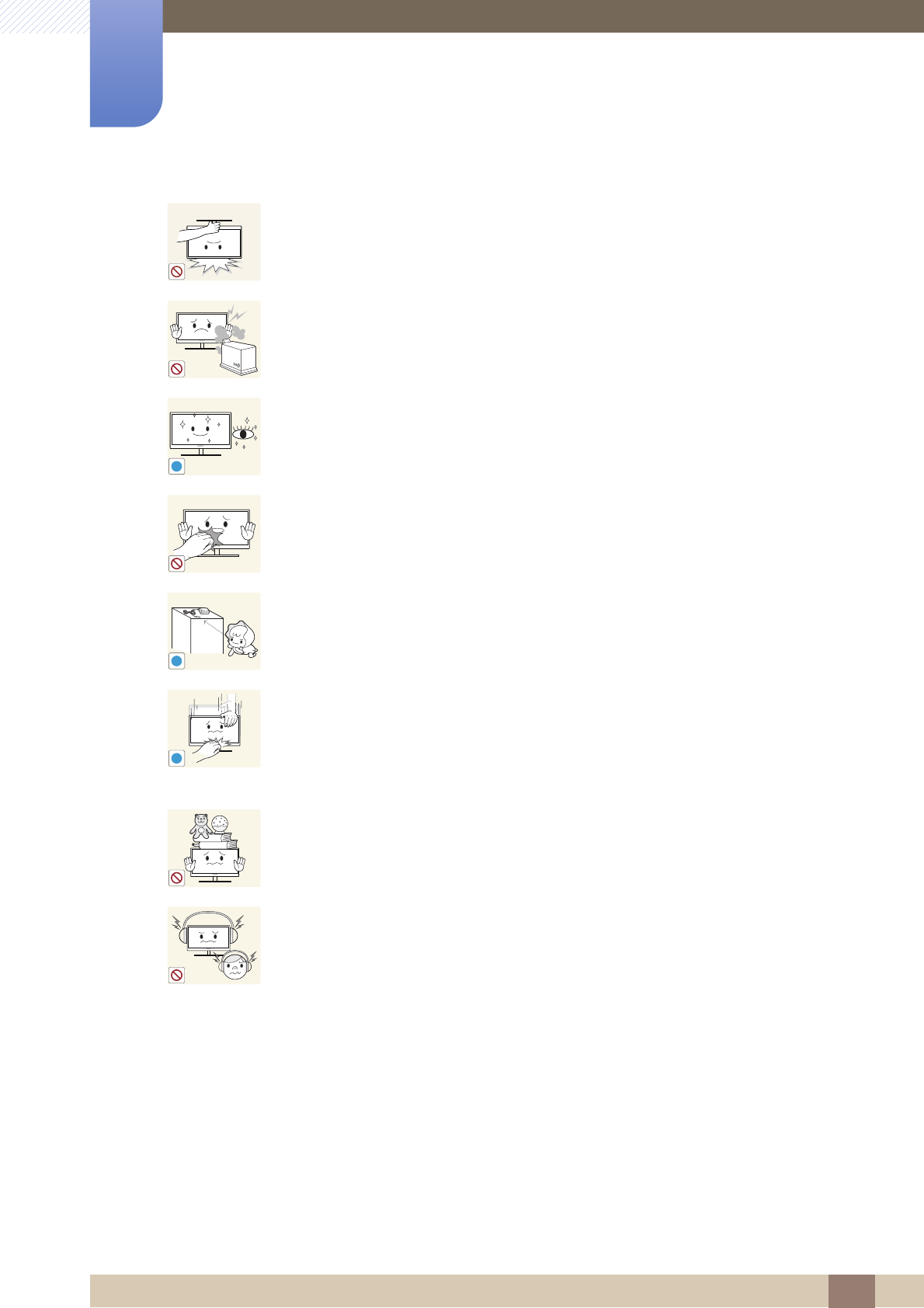

Do not hold the monitor upside-down or move it by holding the stand.
The product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
An electric shock or fire may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
Otherwise, children's fingers or hands may become stuck and injured.
Tilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
Product failure or personal injure may result.
When using headphones or earphones, do not turn the volume too high.
Having the sound too loud may damage your hearing.
!
!
!
18
Before Using the Product
Before Using the Product
Correct posture to use the product
Use the product in the correct posture as follows:
Straighten your back.
Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
Adjust the angle so light does not reflect on the screen.
Keep your forearms perpendicular to your upper arms and level with the back of
your hands.
Keep your elbows at about a right angle.
Adjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.
19
1 Preparations
1 Preparations

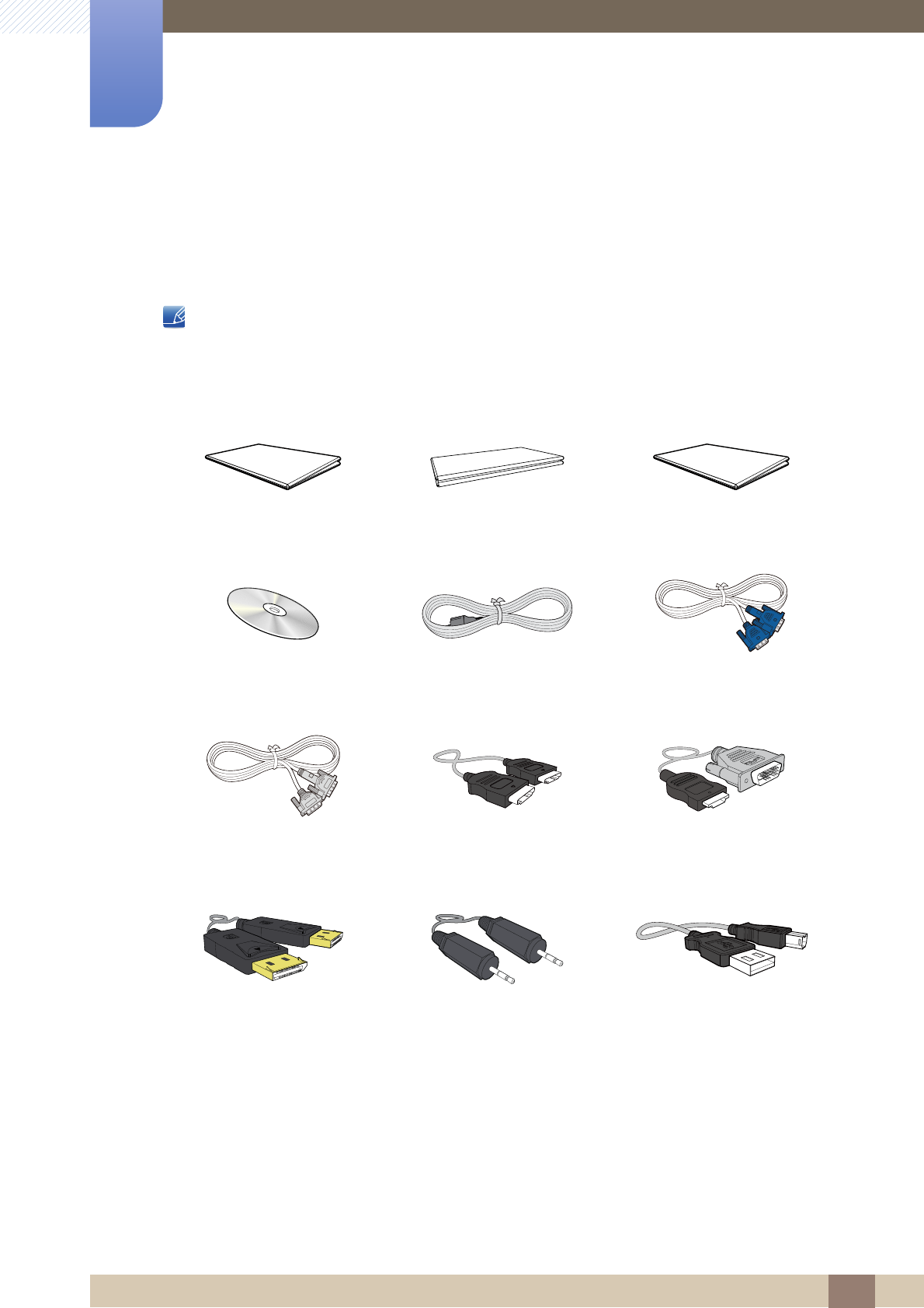

1.1 Checking the Components
1.1.1 Checking the Components
Contact the dealer from whom you purchased the product if any item is missing.
The appearance of the components may differ from the images shown.
Components
Quick setup guide Warranty card
(Not available in some locations)
Regulatory guide
(optional)
User manual
(optional) Power cable D-SUB cable
(optional)
DVI cable
(optional)
HDMI cable
(optional)
HDMI-DVI cable
(optional)
DP cable
(optional)
Stereo Cable
(optional)
USB cable
(optional)
20
Preparations
1
1 Preparations
Components may vary depending on the country.

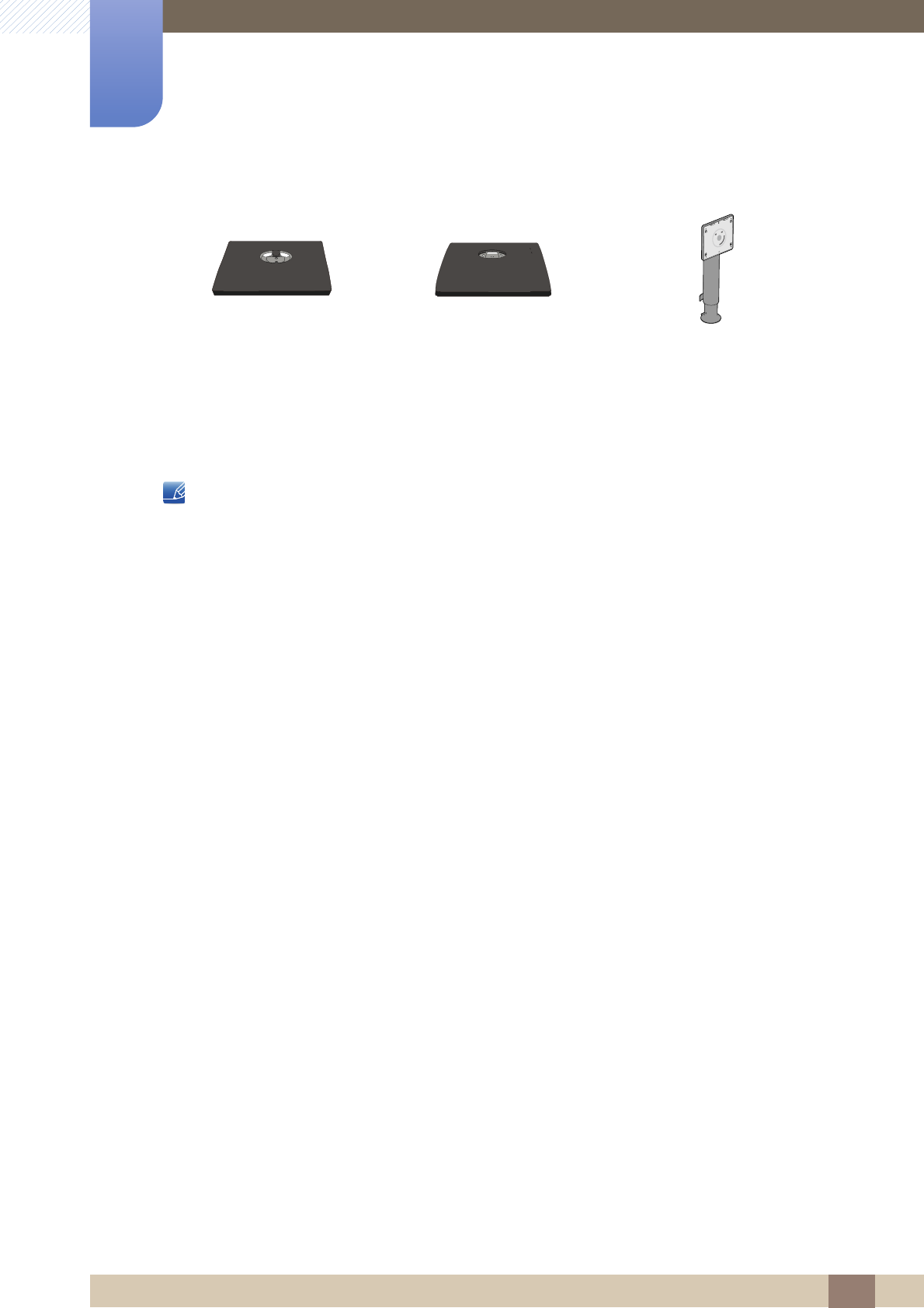

Stand base
(optional)
Stand base
(Applicable to the stand
models that have USB ports
only.)
(optional)
Stand neck
(optional)
21
Preparations
1
1 Preparations
1.2 Parts

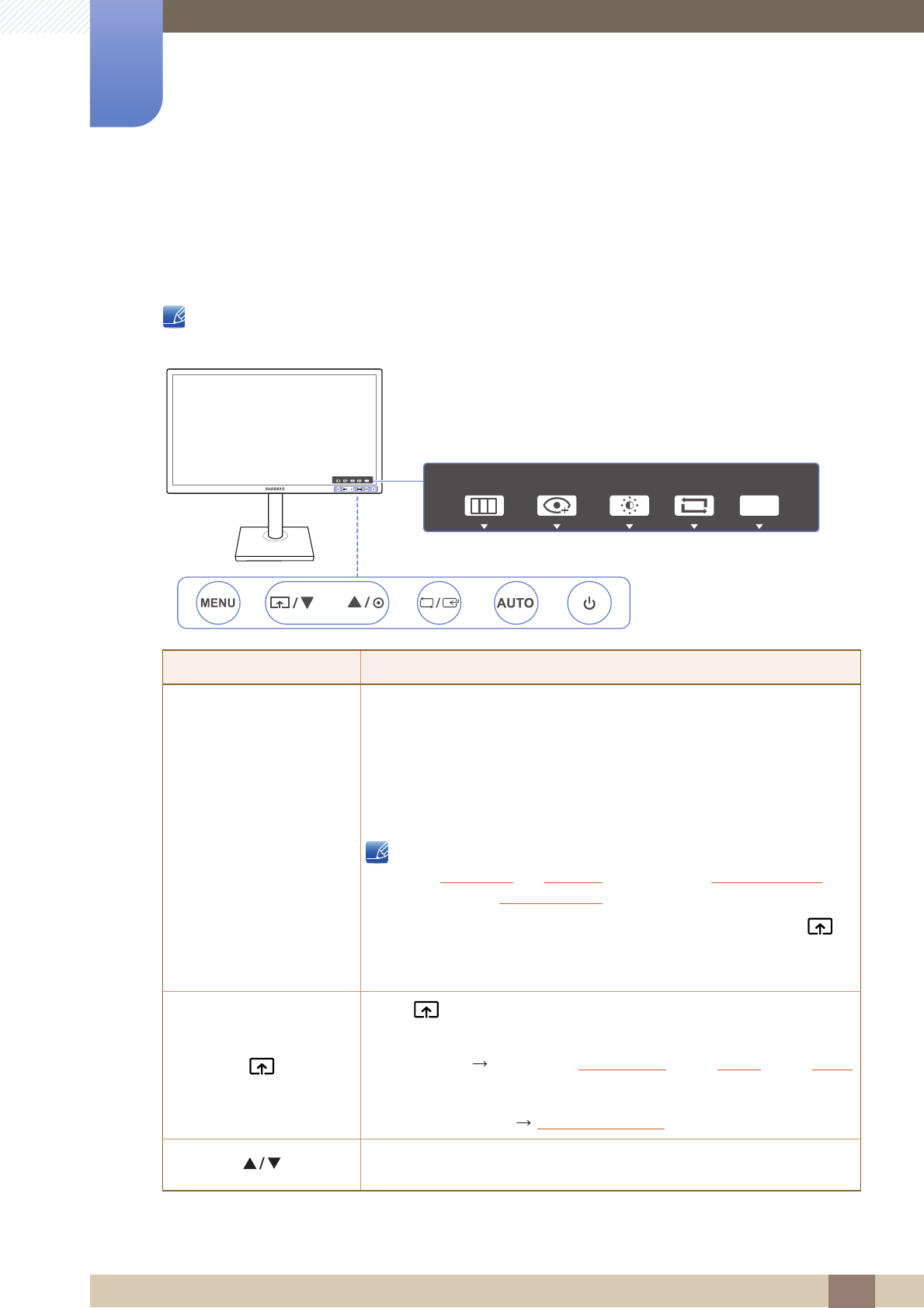

1.2.1 Frontal Buttons (S22E450F / S24E450F)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent
menu.
OSD control lock: Maintain the current settings, or lock the OSD control
to prevent unintended changes to settings. Enable: To lock the OSD
control, press the [ ] button for 10 seconds. Disable: To unlock the
locked OSD control, press the [ ] button for more than 10 seconds.
If the OSD control is locked,
Brightness
and
Contrast
can be adjusted.
Eye Saver Mode
is
available.
INFORMATION
can be viewed.
The
Eye Saver Mode
function can be used by pressing the [ ]
button. (The
Eye Saver Mode
is available even when the OSD
control is locked.)
Press [ ] to enable or disable
Eye Saver Mode
.
The items below are not available if the
Eye Saver Mode
function is enable.
PICTURE Brightness, Game Mode, Bright, Angle
COLOR
SETUP&RESET Smart Eco Saving
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Key Guide
EYE
SAVERMENU SOURCE
AUTO
EYE
SAVERMENU SOURCE
AUTO
MENU
MENU
M
ENU
SAMSUNG
MAGIC
SAMSUNG
MAGIC
22
Preparations
1
1 Preparations
Use this button to control the brightness, contrast and sharpness of the
screen.
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/DVI/HDMI). If you power on the
product or change the input source by pressing the [ ] button, a
message that shows the changed input source will appear at the top left
corner of the screen.
This function is not available for products with an Analog interface
only.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
This function is only available in Analog mode.
Turn the screen on or off.
Key Guide
When a control button on the product is pressed, the Key Guide will be
displayed before the onscreen menu opens. (The guide shows the
function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
Icons Description
AUTO
AUTO
23
Preparations
1
1 Preparations
1.2.2 Frontal Buttons (S24E650PL / S24E650XL / S24E650XW / S27E650X)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent
menu.
OSD control lock: Maintain the current settings, or lock the OSD control
to prevent unintended changes to settings. Enable: To lock the OSD
control, press the [ ] button for 10 seconds. Disable: To unlock the
locked OSD control, press the [ ] button for more than 10 seconds.
If the OSD control is locked,
Brightness
and
Contrast
can be adjusted.
Eye Saver Mode
is
available.
INFORMATION
can be viewed.
The
Eye Saver Mode
function can be used by pressing the [ ]
button. (The
Eye Saver Mode
is available even when the OSD control
is locked.)
Press [ ] to enable or disable
Eye Saver Mode
.
The items below are not available if the
Eye Saver Mode
function is enable.
Brightness
,
Game Mode
,
Bright
COLOR
SETUP&RESET Smart Eco Saving
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Use this button to control the volume or the screen brightness or
contrast.
EYE
SAVERMENU SOURCE
AUTO
Key Guide
EYE
SAVERMENU SOURCE
AUTO
EYE
SAVERMENU SOURCE
AUTO
MENU
MENU
M
ENU
SAMSUNG
MAGIC
24
Preparations
1
1 Preparations
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (S24E650XL/S24E650XW/S27E650X: Analog/
DVI/DisplayPort, S24E650PL: Analog/HDMI/DisplayPort). If you power
on the product or change the input source by pressing the [ ]
button, a message that shows the changed input source will appear at
the top left corner of the screen.
This function is not available for products with an Analog interface
only.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
This function is only available in Analog mode.
Turn the screen on or off.
Key Guide
When a control button on the product is pressed, the Key Guide will be
displayed before the onscreen menu opens. (The guide shows the
function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
Icons Description
AUTO
AUTO
25
Preparations
1
1 Preparations
1.2.3 Frontal Buttons (S22E650D / S23E650D / S24E650DW / S27E650D)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent
menu.
OSD control lock: Maintain the current settings, or lock the OSD control
to prevent unintended changes to settings. Enable: To lock the OSD
control, press the [ ] button for 10 seconds. Disable: To unlock the
locked OSD control, press the [ ] button for more than 10 seconds.
If the OSD control is locked,
Brightness
and
Contrast
can be adjusted.
Eye Saver Mode
is
available.
INFORMATION
can be viewed.
The
Eye Saver Mode
function can be used by pressing the [ ]
button. (The
Eye Saver Mode
is available even when the OSD control
is locked.)
Press [ ] to enable or disable
Eye Saver Mode
.
The items below are not available if the
Eye Saver Mode
function is enable.
PICTURE Brightness, Game Mode, Bright
COLOR
SETUP&RESET Smart Eco Saving
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Use this button to control the brightness, contrast and sharpness of the
screen.
Key Guide
EYE
SAVERMENU SOURCE
AUTO
EYE
SAVERMENU SOURCE
AUTO
MENU
MENU
M
ENU
SAMSUNG
MAGIC
26
Preparations
1
1 Preparations
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/DVI/DisplayPort). If you power on the
product or change the input source by pressing the [ ] button, a
message that shows the changed input source will appear at the top left
corner of the screen.
This function is not available for products with an Analog interface
only.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
This function is only available in Analog mode.
Turn the screen on or off.
Key Guide
When a control button on the product is pressed, the Key Guide will be
displayed before the onscreen menu opens. (The guide shows the
function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
Icons Description
AUTO
AUTO
27
Preparations
1
1 Preparations
1.2.4 Frontal Buttons (S23E650K / S24E650MW)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent
menu.
OSD control lock: Maintain the current settings, or lock the OSD control
to prevent unintended changes to settings. Enable: To lock the OSD
control, press the [ ] button for 10 seconds. Disable: To unlock the
locked OSD control, press the [ ] button for more than 10 seconds.
If the OSD control is locked,
Brightness
and
Contrast
can be adjusted.
Eye Saver Mode
is
available.
INFORMATION
can be viewed.
The
Eye Saver Mode
function can be used by pressing the [ ]
button. (The
Eye Saver Mode
is available even when the OSD control
is locked.)
Press [ ] to enable or disable
Eye Saver Mode
.
The items below are not available if the
Eye Saver Mode
function is enable.
PICTURE Brightness, Game Mode, Bright, Angle
COLOR
SETUP&RESET Smart Eco Saving
Move to the upper or lower menu or adjust the value for an option on the OSD
menu.
Use this button to control the volume or the screen brightness or
contrast.
EYE
SAVERMENU SOURCE
AUTO
Key Guide
EYE
SAVERMENU SOURCE
AUTO
EYE
SAVERMENU SOURCE
AUTO
MENU
MENU
M
ENU
SAMSUNG
MAGIC
SAMSUNG
MAGIC
28
Preparations
1
1 Preparations
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (S23E650K: Analog/HDMI, S24E650MW:
Analog/DVI). If you power on the product or change the input source by
pressing the [ ] button, a message that shows the changed input
source will appear at the top left corner of the screen.
This function is not available for products with an Analog interface
only.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
This function is only available in
Analog
mode.
Turn the screen on or off.
Key Guide
When a control button on the product is pressed, the Key Guide will be displayed
before the onscreen menu opens. (The guide shows the function of the button
pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
Icons Description
AUTO
AUTO
29
Preparations
1
1 Preparations
1.2.5 Reverse Side (S23E650K)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connect to a source device using an HDMI cable.
Connect to a PC using the D-SUB cable.
Connect to an audio output device such as headphones.
Applicable to the models that have speakers only.
Connect to an audio-input source using an audio cable.
Applicable to the models that have speakers only.
Connect to an external device.
Connect the [ ] port of the monitor and the USB port of the
computer with the USB cable.
Applicable to the stand models that have USB ports only.
Connect the power cord for your monitor to the [POWER IN] port on
the back of the product.
HDMI IN RGB IN AUDIO IN/OUT POWER IN
AUDIO IN/OUT
OUT
IN
RGB IN POWER IN
HDMI
IN
R
GB I
N
AUDIO IN/OUT
PO
WER I
N
HDMI IN
POWER IN
PO
WER I
N
HDMI IN RGB IN AUDIO IN/OUT
HDMI IN
R
GB IN
A
UDIO IN/OUT
AUDIO IN/OUT
OUT
IN
RGB IN
POWER IN
HDMI IN
OUT
IN
30
Preparations
1
1 Preparations
1.2.6 Reverse Side (S24E650MW)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connect to a PC using the DVI cable.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated
models only.
Connect to a PC using the D-SUB cable.
Connect to an audio output device such as headphones.
Applicable to the models that have speakers only.
Connect to an audio-input source using an audio cable.
Applicable to the models that have speakers only.
Connect to an external device.
Connect the [ ] port of the monitor and the USB port of the
computer with the USB cable.
Applicable to the stand models that have USB ports only.
Connect the power cord for your monitor to the [POWER IN] port on
the back of the product.
DVI IN RGB IN AUDIO IN/OUT POWER IN
AUDIO IN/OUT
OUT
IN
RGB IN POWER IN
DVI
IN
R
GB I
N
AUDIO IN/OU
T
PO
WER I
N
DVI IN
POWER IN
POWER IN
PO
WER I
N
DVI IN RGB IN
AUDIO IN/OUT
D
VI IN
R
GB IN
AUDIO IN/OU
T
AUDIO IN/OUT
OUT
IN
RGB INDVI IN
OUT
IN
31
Preparations
1
1 Preparations

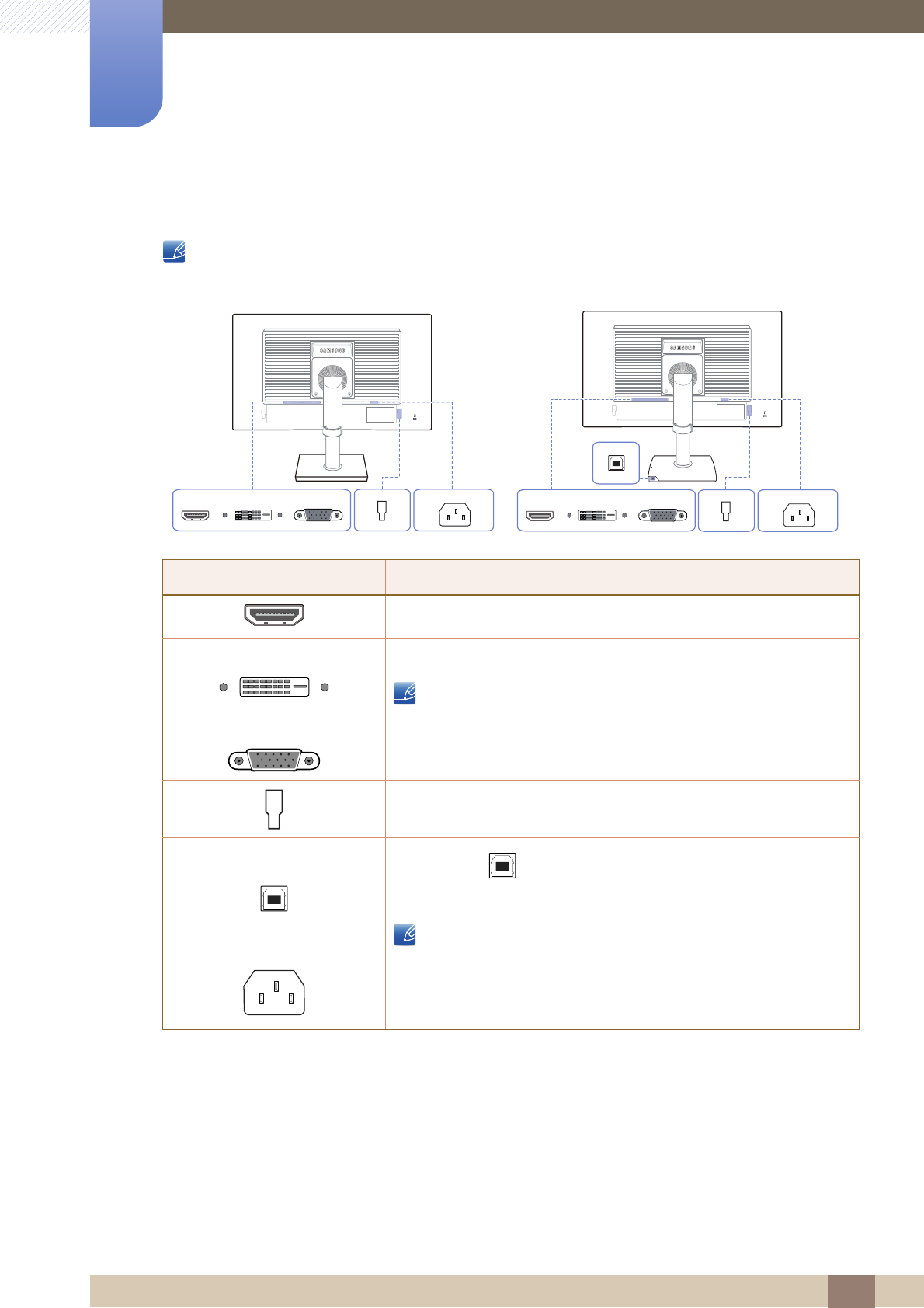

1.2.7 Reverse Side (S22E450F / S24E450F)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connect to a source device using an HDMI cable.
Connect to a PC using the DVI cable.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated
models only.
Connect to a PC using the D-SUB cable.
Connect to an external device.
Connect the [ ] port of the monitor and the USB port of the
computer with the USB cable.
Applicable to the stand models that have USB ports only.
Connect the power cord for your monitor to the [POWER IN] port on
the back of the product.
HDMI IN DVI IN RGB IN POWER IN
POWER IN
HDMI
IN
DVIIN
RGB IN
PO
WER I
N
DVI IN RGB IN
HDMI IN
POWER IN
PO
WER I
N
HDMI IN DVI IN RGB IN
HDMI IN
DVIIN
RGB I
N
POWER IN
DVI IN
RGB IN
HDMI IN
32
Preparations
1
1 Preparations
1.2.8 Reverse Side (S22E650D / S23E650D / S24E650DW / S27E650D)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connect to a PC using a DP cable.
Connect to a PC using the DVI cable.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated
models only.
Connect to a PC using the D-SUB cable.
Connect to an external device.
Connect the [ ] port of the monitor and the USB port of the
computer with the USB cable.
Applicable to the stand models that have USB ports only.
Connect the power cord for your monitor to the [POWER IN] port on
the back of the product.
DP IN DVI IN RGB IN POWER IN
POWER IN
DP
IN
DVIIN
RGB IN
PO
WER I
N
DVI INDP IN RGB IN
POWER IN
POWER IN
PO
WER I
N
DP IN DVI IN RGB IN
D
P I
N
DVIIN
RGB I
N
DVI INDP IN RGB IN
33
Preparations
1
1 Preparations

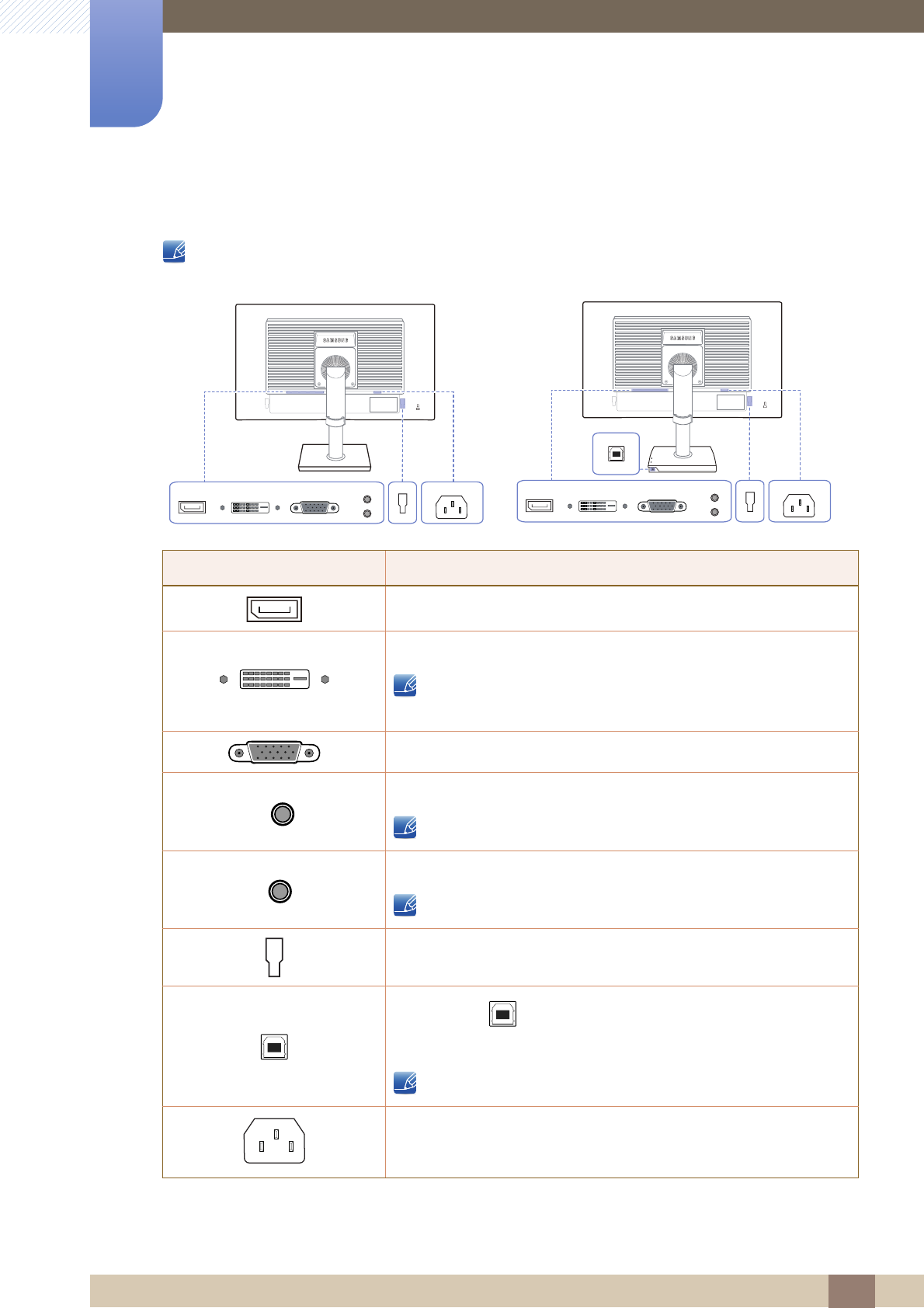

1.2.9 Reverse Side (S24E650XL / S24E650XW / S27E650X)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connect to a PC using a DP cable.
Connect to a PC using the DVI cable.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated
models only.
Connect to a PC using the D-SUB cable.
Connect to an audio output device such as headphones.
Applicable to the models that have speakers only.
Connect to an audio-input source using an audio cable.
Applicable to the models that have speakers only.
Connect to an external device.
Connect the [ ] port of the monitor and the USB port of the
computer with the USB cable.
Applicable to the stand models that have USB ports only.
Connect the power cord for your monitor to the [POWER IN] port on
the back of the product.
DP IN DVI IN RGB IN AUDIO IN/OUT POWER IN
DP
IN
DVI
IN
RGB IN
A
UDIO IN/OU
T
P
O
WER IN
POWER IN
DVI INDP IN RGB IN AUDIO IN/OUT
OUT
IN
POWER IN
POWER IN
PO
WER I
N
DP IN DVI IN RGB IN AUDIO IN/OUT
DPIN
DVIIN
RG
B I
N
A
U
DI
O
IN
/OUT
DVI INDP IN RGB IN AUDIO IN/OUT
OUT
IN
OUT
IN
34
Preparations
1
1 Preparations

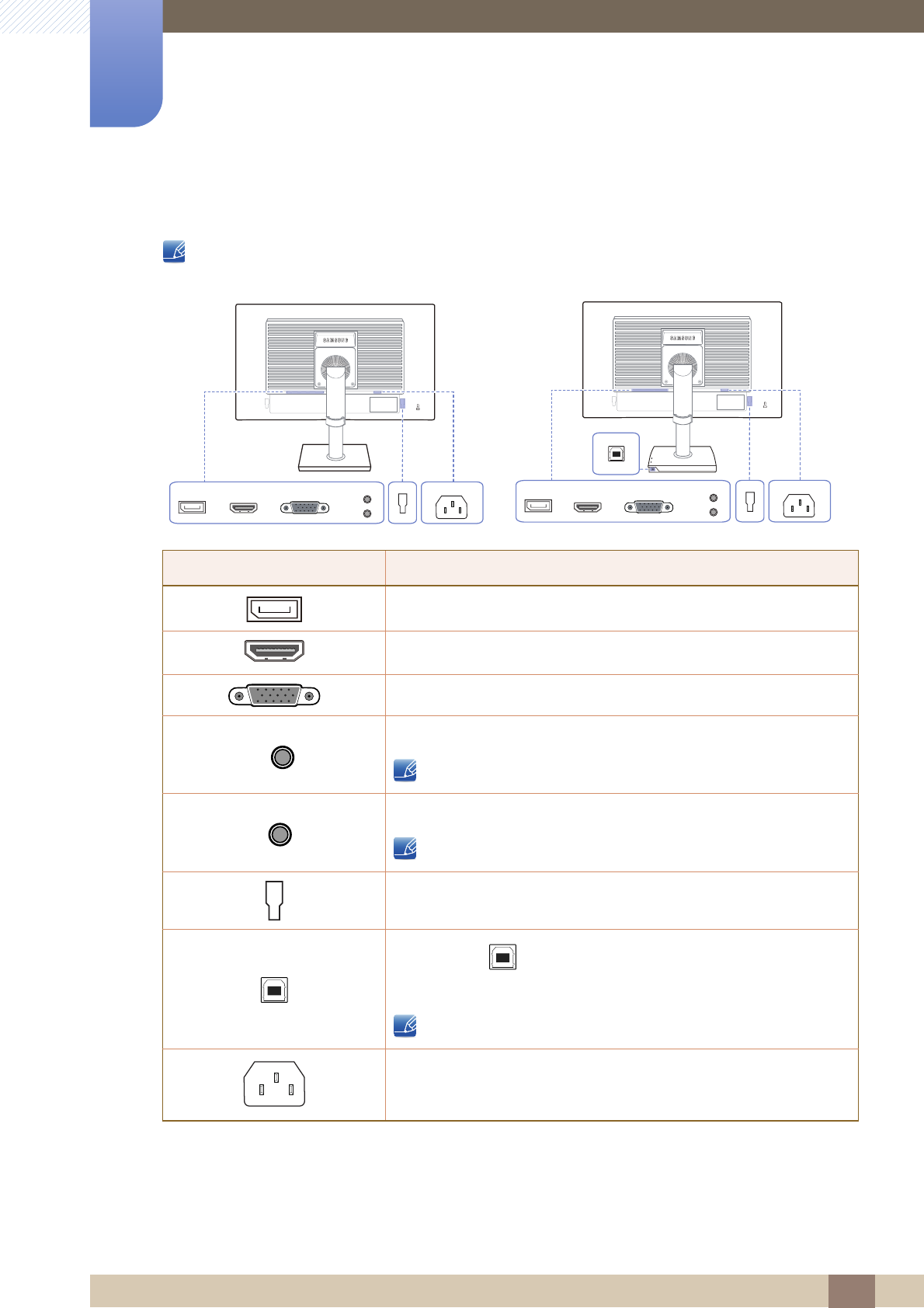

1.2.10 Reverse Side (S24E650PL)
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connect to a PC using a DP cable.
Connect to a source device using an HDMI cable.
Connect to a PC using the D-SUB cable.
Connect to an audio output device such as headphones.
Applicable to the models that have speakers only.
Connect to an audio-input source using an audio cable.
Applicable to the models that have speakers only.
Connect to an external device.
Connect the [ ] port of the monitor and the USB port of the
computer with the USB cable.
Applicable to the stand models that have USB ports only.
Connect the power cord for your monitor to the [POWER IN] port on
the back of the product.
DP IN RGB IN
HDMI IN AUDIO IN/OUT POWER IN
DP
IN
RG
B I
N
HDMIIN
AUDIO IN/OU
T
P
O
WER IN
HDMI IN POWER IN
DP IN RGB IN AUDIO IN/OUT
OUT
IN
POWER IN
POWER IN
PO
WER I
N
DP IN RGB IN
HDMI IN AUDIO IN/OUT
DPIN
R
GB I
N
HDMI I
N
A
U
DI
O
IN
/OU
T
DP IN AUDIO IN/OUT
OUT
IN
HDMI IN RGB IN
OUT
IN
35
Preparations
1
1 Preparations

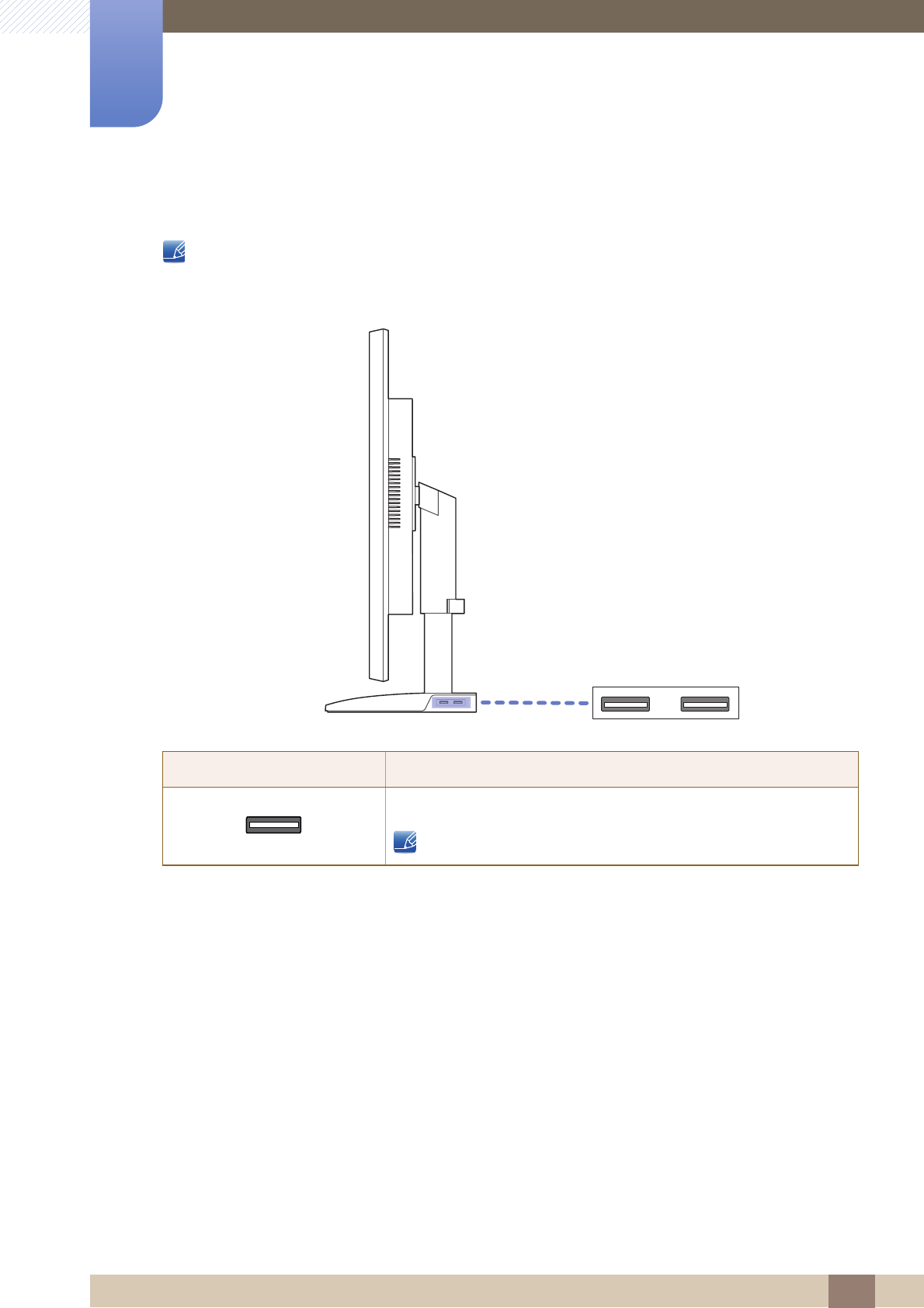

1.2.11 Right Side View
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Port Description
Connect to a USB device.
Applicable to the stand models that have USB ports only.
36
Preparations
1
1 Preparations
1.3 Installation
1.3.1 Attaching the Stand
Disassembly is the reverse order of assembly.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Place a protective cloth or
cushion on a flat surface. Next,
place the product with the face
down on top of the cloth or
cushion.
Do not remove the fixing pin until
you are finished attaching the
stand.
Insert the stand base into the
stand in the direction of the
arrow.
Fasten the screw tightly (using a
screwdriver or coin) into the
bottom of the stand base.
After installing the stand, place
the product upright.
You can remove the fixing pin
and adjust the stand now.
- Caution
Do not hold the product upside
down only by the stand.
37
Preparations
1
1 Preparations
1.3.2 Adjusting the Product Tilt and Height
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To adjust the height, remove the fixing pin.
The monitor tilt and height can be adjusted.
Hold the top center of the product and adjust the height carefully.
21.5" (without a USB port) 23" - 27" / 21.5" (with a USB port)
4
27"
22"-24"
0 (± 5 mm) -
100 mm (± 5 mm)
0 (± 5 mm) -
130 mm (± 5 mm)
38
Preparations
1
1 Preparations
1.3.3 Rotating the Monitor
You can rotate your monitor as shown below.
Be sure to fully extend the stand before rotating the monitor.
If you rotate the monitor without fully extending the stand, the corner of the monitor may hit the
floor and get damaged.
Do not rotate the monitor counterclockwise. The monitor may get damaged.
1 2 3
4 5 6
39
Preparations
1
1 Preparations

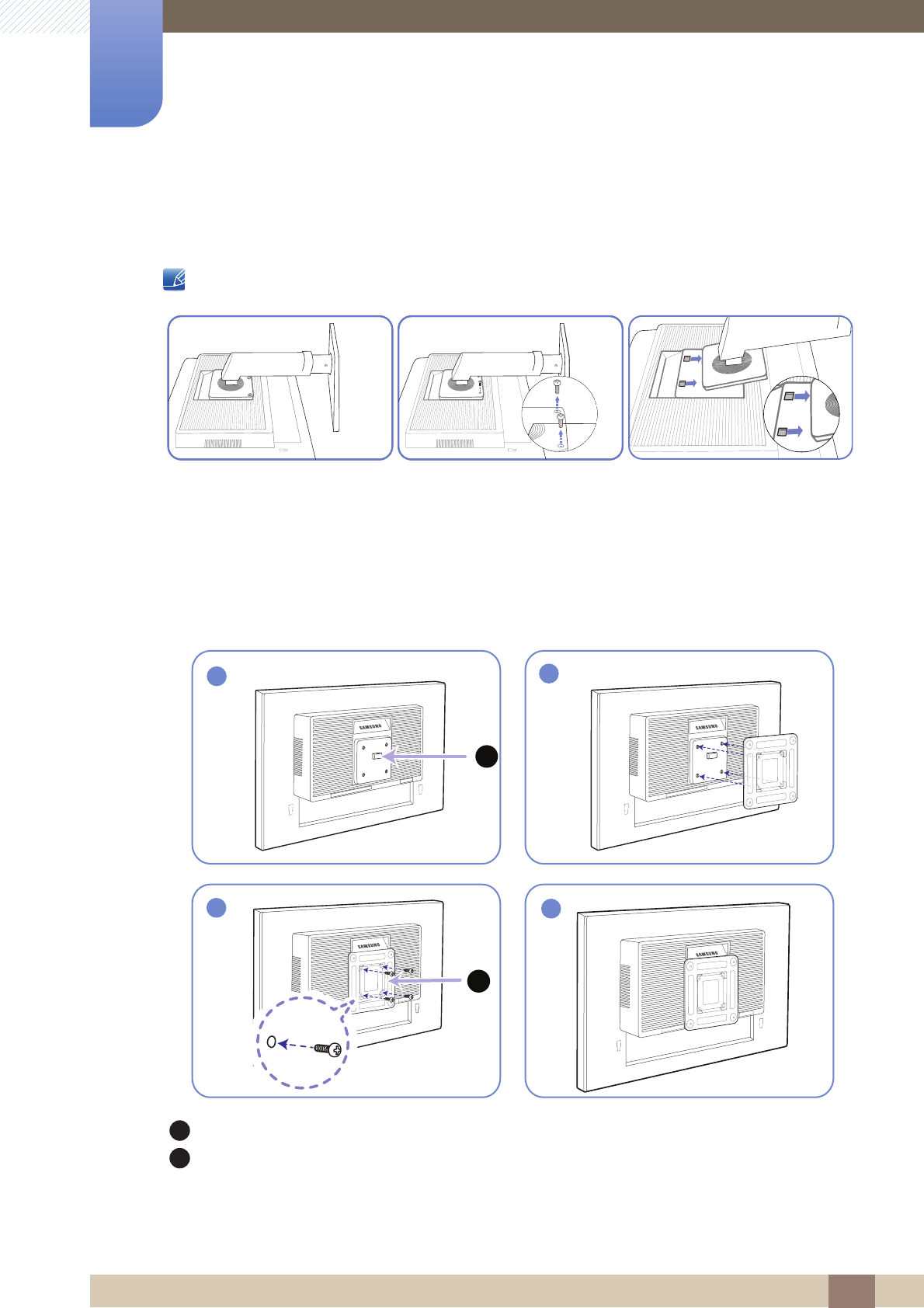

1.3.4 Installing a Wall-mount Kit or Desktop Stand
Before Installation
Power the product off and remove the power cable from the power socket.
Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding
parts on the wall-mount kit or desktop stand you want to attach.
Place a protective cloth or
cushion on a flat surface. Next,
place the product with the face
down on top of the cloth or
cushion.
Unfasten the screw from the
back of the product.
Lift and detach the stand.
Installing a Wall-mount Kit or Desktop Stand
Attach the wall-mount kit or desktop stand here
Bracket (sold separately)
1
4
3
B
2
A
B
A
B
40
Preparations
1
1 Preparations
Notes
Using a screw longer than the standard length can damage the internal components of the
product.
The length of screws required for a wall mount that does not comply with the VESA standards may
vary depending on the specifications.
Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit
or desktop stand using excessive force. The product may get damaged or fall and cause personal
injury. Samsung shall not be held liable for any damage or injury caused by using improper screws
or attaching the wall-mount kit or desktop stand using excessive force.
Samsung shall not be held liable for any product damage or personal injury caused by using a wall-
mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10 cm
or farther away from the wall.
Be sure to use a wall-mount kit that complies with the standards.
To install the monitor using a wall mount, disconnect the stand base from the monitor.
41
Preparations
1
1 Preparations

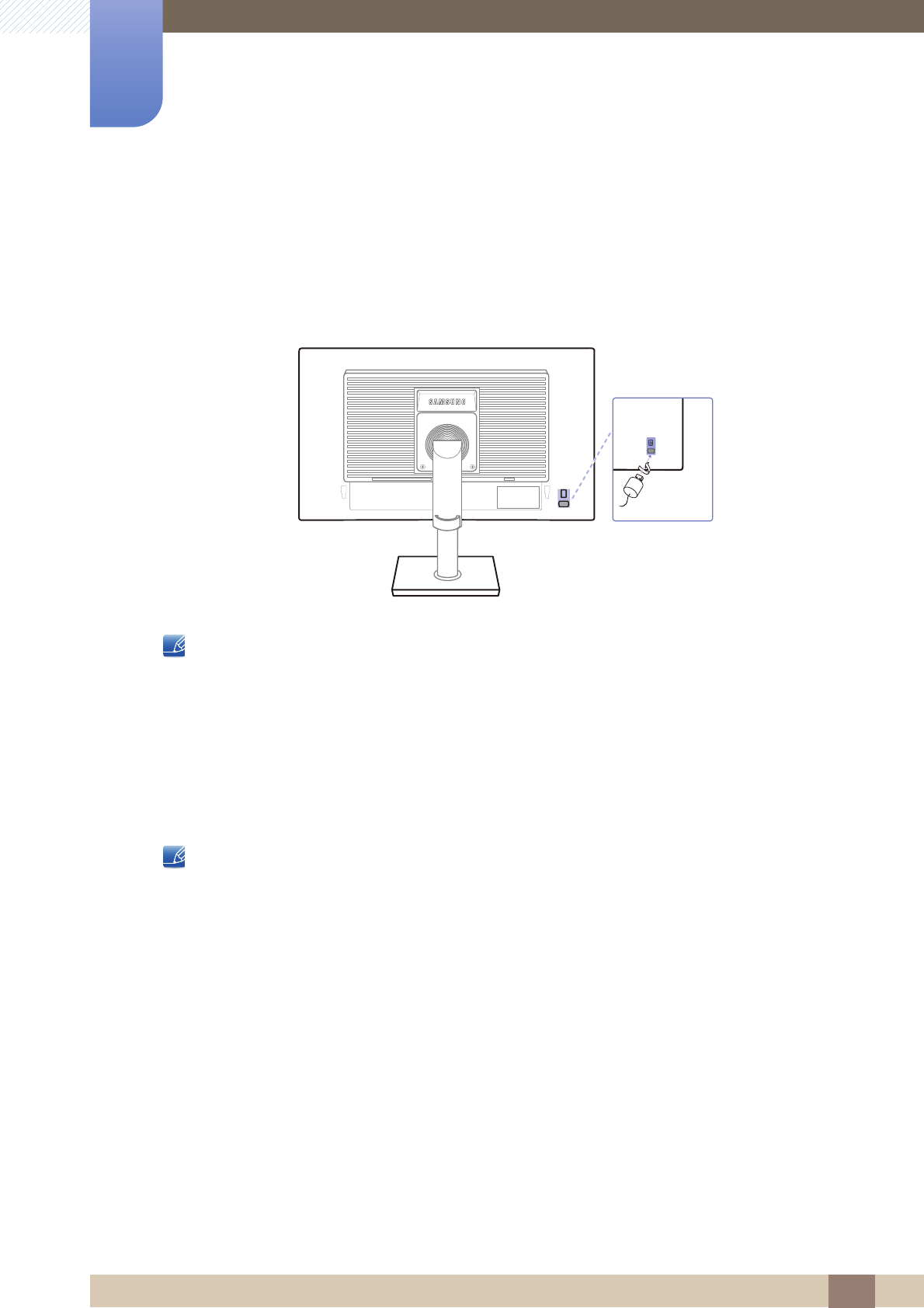

1.3.5 Anti-theft Lock
An anti-theft lock allows you to use the product securely even in public places. The locking device shape
and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft
locking device for details. The lock device is sold separately.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To lock an anti-theft locking device:
1Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2Put one end of the cable through the loop on the other end.
3Insert the locking device into the anti-theft lock slot at the back of the product.
4Lock the locking device.
An anti-theft locking device can be purchased separately.
Refer to the user guide provided with your anti-theft locking device for details.
Anti-theft locking devices can be purchased at electronics retailers or online.
42
2 Connecting and Using a Source Device
2 Connecting and Using a Source Device
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
Check the types of ports at the back of the product you want to connect.
43
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2 Connecting and Using a PC
2.2.1 Connecting to a PC
Select a connection method suitable for your PC.
Connecting parts may differ in different products.
The exterior may differ depending on the product.
Connection Using the D-SUB Cable (Analog Type)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the
PC.
Connect to the [RGB IN] port on the product, then connect to the RGB port on the
computer.
2Press [ ] to change the input source to Analog.
This function is not available for products with an Analog interface only.
RGB IN
A
B
RGB IN
A
B
44
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
Connection Using the DVI Cable (Except S23E650K / S24E650PL)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC.
Connect to the [DVI IN] port on the product, then connect to the DVI port on the computer.
2Press [ ] to change the input source to DVI.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only.
Connection Using the DVI-HDMI Cable (Except S23E650K / S24E650PL)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the HDMI-DVI cable to the [DVI IN] port on the back of the product and the HDMI port on
the PC.
2Press [ ] to change the input source to DVI.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only.
DVI IN
A
B
DVI IN
A
B
DVI IN
DVI IN
45
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
Connection Using the HDMI Cable (S22E450F / S23E650K / S24E450F / S24E650PL)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the
PC.
2Press [ ] to change the input source to HDMI.
Connection Using the HDMI-DVI Cable (S22E450F / S23E650K / S24E450F / S24E650PL)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on
the PC.
2Press [ ] to change the input source to HDMI.
HDMI IN
HDMI IN
HDMI IN
HDMI IN
46
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
Connection Using the DP Cable (S22E650D / S23E650D / S24E650XL / S24E650PL /
S24E650XW / S24E650DW / S27E650X / S27E650D)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect the DP cable to the [DP IN] port on the back of the product and the DP port on the PC.
2Press
[]
to change the input source to DisplayPort.
Connecting to Headphones or Speakers (S23E650K / S24E650XL / S24E650PL /
S24E650MW / S24E650XW / S27E650X)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
1Connect an audio output device such as headphones or speakers to [ ] port on the product.
Applicable to the models that have speakers only.
2Connect an audio input device such as a computer to the [ ] port on the product.
Applicable to the models that have speakers only.
DP IN
DP IN
OUT
IN
OUT
IN
47
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

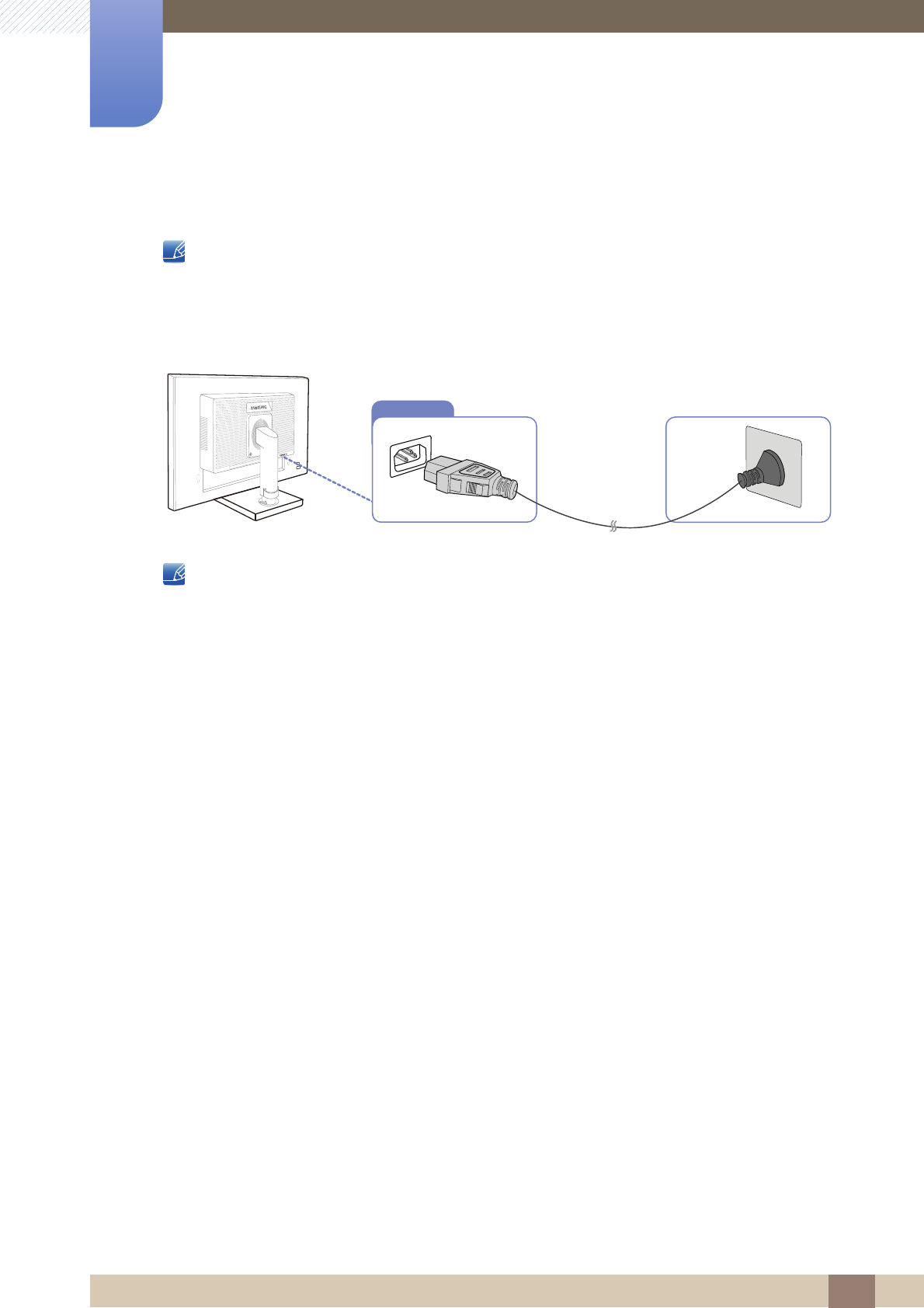

2.2.2 Connecting the Power
Connecting parts may differ in different products.
The exterior may differ depending on the product.
To use the product, connect the power cable to a power outlet and the [POWER IN] port on the
product.
The input voltage is switched automatically.
POWER IN
48
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

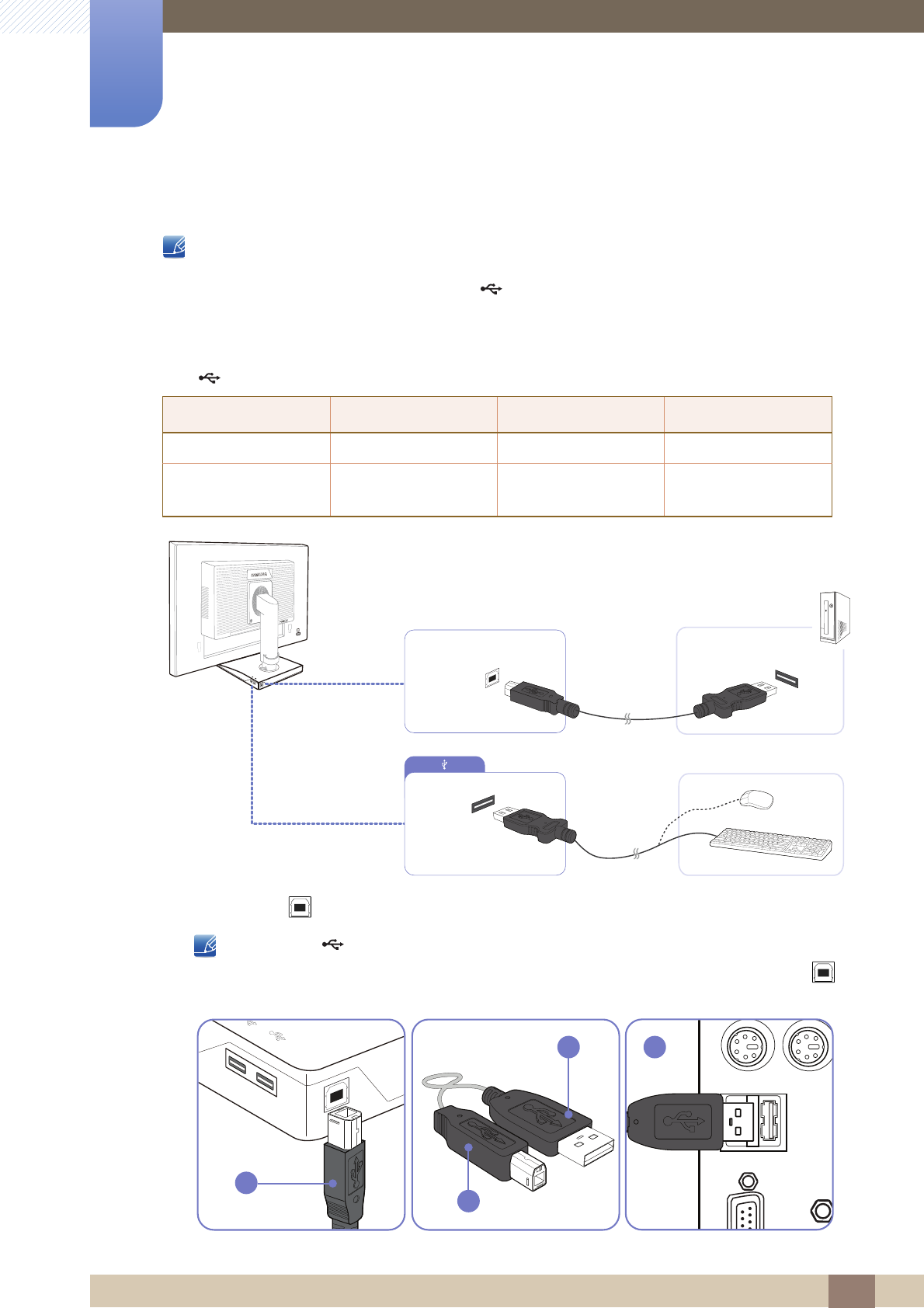

Connecting USB
Applicable to the stand models that have USB ports only.
You can use a USB device such as a mouse, keyboard, memory stick or external hard disk drive
(HDD) by connecting it directly to the [ ] port on the monitor. You do not need to connect it to
the computer.
An external mass-storage HDD requires an external power supply and be sure to connect it to a
power source.
The [ ] USB port of the monitor supports High-Speed Certified USB 2.0.
1Connect the [ ] port of the monitor and the USB port of the computer with the USB cable.
To use [ ] port, you have to connect the UP (Upstream Cable) to the PC.
Make sure to use the USB cable supplied with this monitor to connect the monitor's [ ]
port and your computer's USB port.
High speed Full speed Low speed
Data Rate 480 Mbps 12 Mbps 1.5 Mbps
Power Consumption 2.5 W
(Max., each port)
2.5 W
(Max., each port)
2.5 W
(Max., each port)
DVI IN RGB IN DP IN
A
B
USB
B
A
49
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2Use the USB cable to connect a USB device to the [ ] port on the monitor.
3The use procedures are as the same as those for using an external device connecting to the PC.
You can connect and use a keyboard and mouse.
You can play a file from a media device. (Examples of media devices: MP3, digital camera, etc.)
You can run, move, copy or delete the files on the storage device. (Examples of storage
devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.)
You can use other USB devices that can be connected to a computer.
When connecting a device to the [ ] port of the monitor, connect the device using a cable
appropriate to the device.
For the purchase of the cable and external devices, ask the service center of the corresponding
product.
The company is not liable for problems or damages to an external device caused by using an
unauthorized cable for the connection.
Some products do not follow the USB standard, and it may cause a malfunction of the device.
If the device malfunctions even if it is connected to the computer, contact the service center of the
device/computer.
50
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device

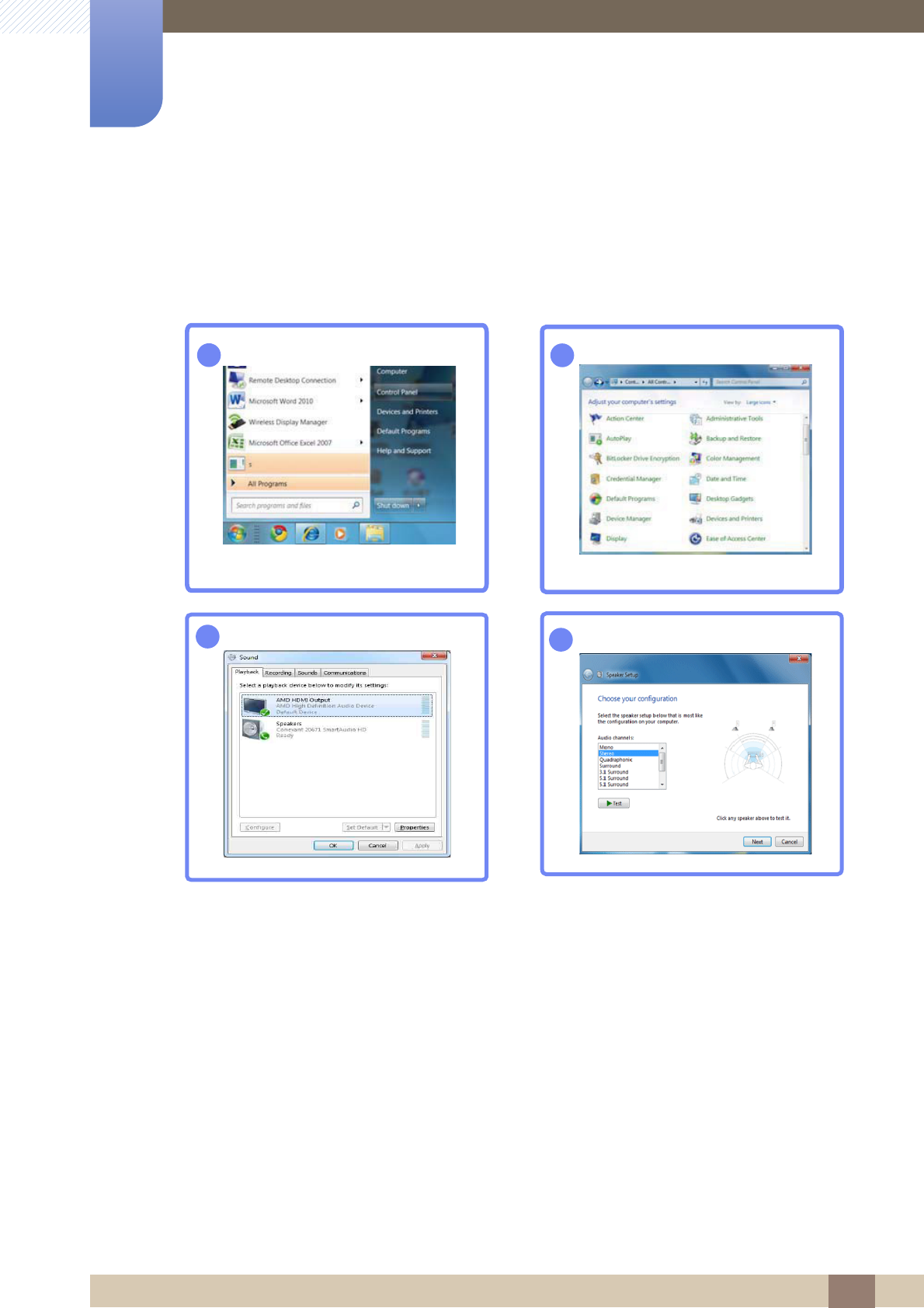

Changing the sound settings on Windows (S23E650K / S24E650XL / S24E650PL /
S24E650MW / S24E650XW / S27E650X)
Control Panel Audio Speaker Speaker Setup
→
→
→
12
34
51
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.3 Driver Installation
You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
An installation driver is contained on the CD supplied with the product.
If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com) and
download the file.
1Insert the user manual CD provided with the product into the CD-ROM drive.
2Click "Windows Driver".
3Follow the instructions given on the screen to proceed with installation.
4Select your product model from the list of models.
5Go to Display Properties and check that the resolution and refresh rate are appropriate.
Refer to your Windows OS manual for further details.
52
Connecting and Using a Source Device
2
2 Connecting and Using a Source Device
2.2.4 Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for the
first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
1Press [ ] to move to the language you want and press [ ].
2To hide the information message, press [ ].
If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
The optimum resolution can also be selected in Control Panel on your PC.
2.
(QJOLVK
7KHRSWLPDOUHVROXWLRQIRUWKLV
PRQLWRULVDVIROORZV
****x**** **Hz
8VHWKHDERYHVHWWLQJVWRVHW
WKHUHVROXWLRQRQ\RXU3&
6HWXS*XLGH
AUTO
AUTO
M
ENU
53
3 Screen Setup
3 Screen Setup
A detailed description of each function is provided. Refer to your product for details.
Configure the screen settings such as brightness.
3.1 Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Smart Eco Saving is set.
This menu is not available when Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

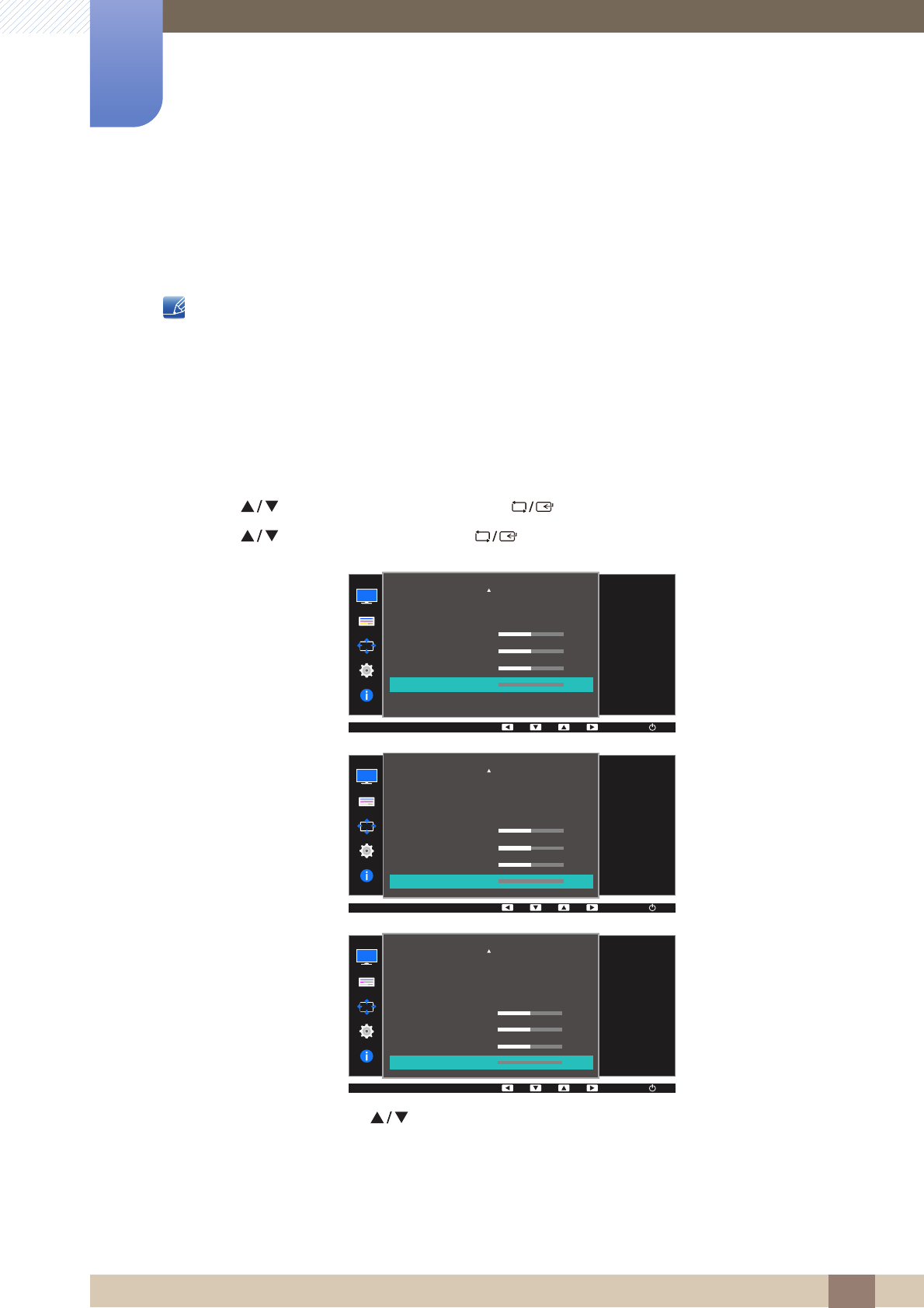

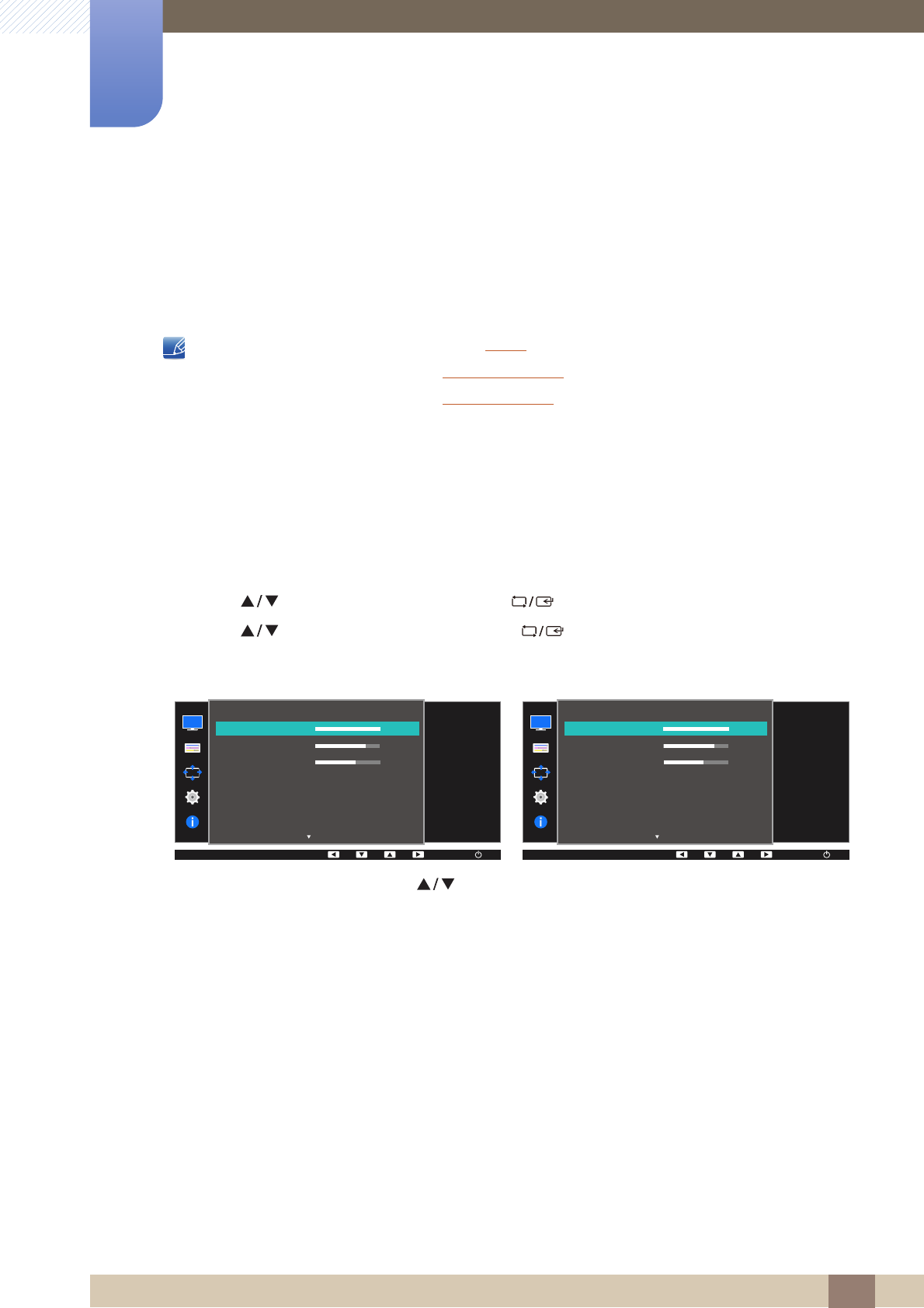

3.1.1 Configuring Brightness
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Brightness and press [ ] on the product.
The following screen will appear.
4Adjust the Brightness using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the brightness
level. Values closer
to 100 mean a
brighter screen.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the brightness
level. Values closer
to 100 mean a
brighter screen.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
54
Screen Setup
3
3 Screen Setup
3.2 Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

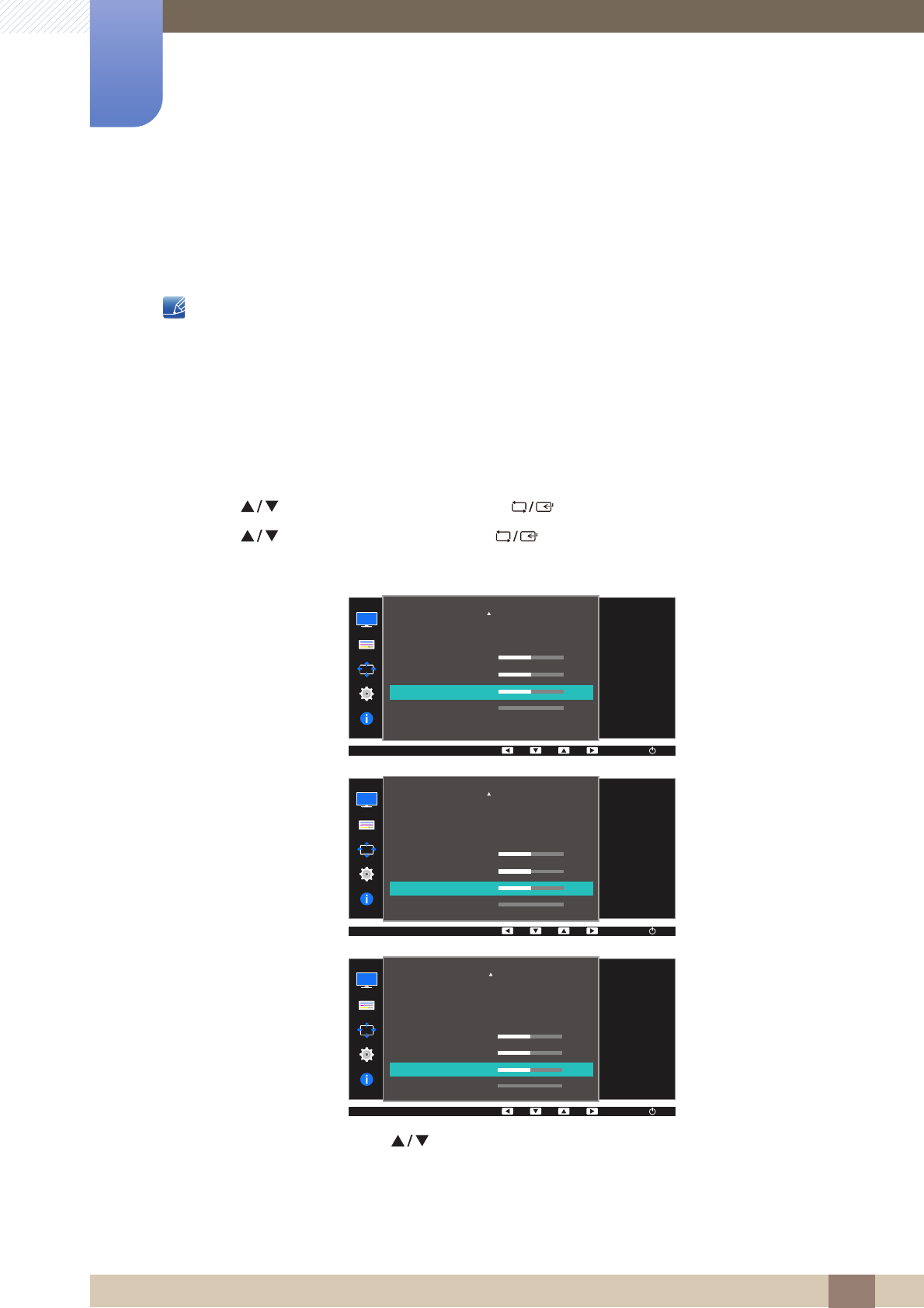

3.2.1 Configuring Contrast
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Contrast and press [ ] on the product.
The following screen will appear.
4Adjust the Contrast using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
55
Screen Setup
3
3 Screen Setup
3.3 Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Upscale is in Mode1 or Mode2.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.3.1 Configuring Sharpness
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Sharpness and press [ ] on the product.
The following screen will appear.
4Adjust the Sharpness using the [ ] buttons.
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Adjust the sharpness
of the picture. Values
closer to 100 mean a
sharper image.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Adjust the sharpness
of the picture. Values
closer to 100 mean a
sharper image.
AUTO
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
100
75
60
Off
Off
Custom
Off
AUTO
AUTO
AUTO
AUTO
56
Screen Setup
3
3 Screen Setup

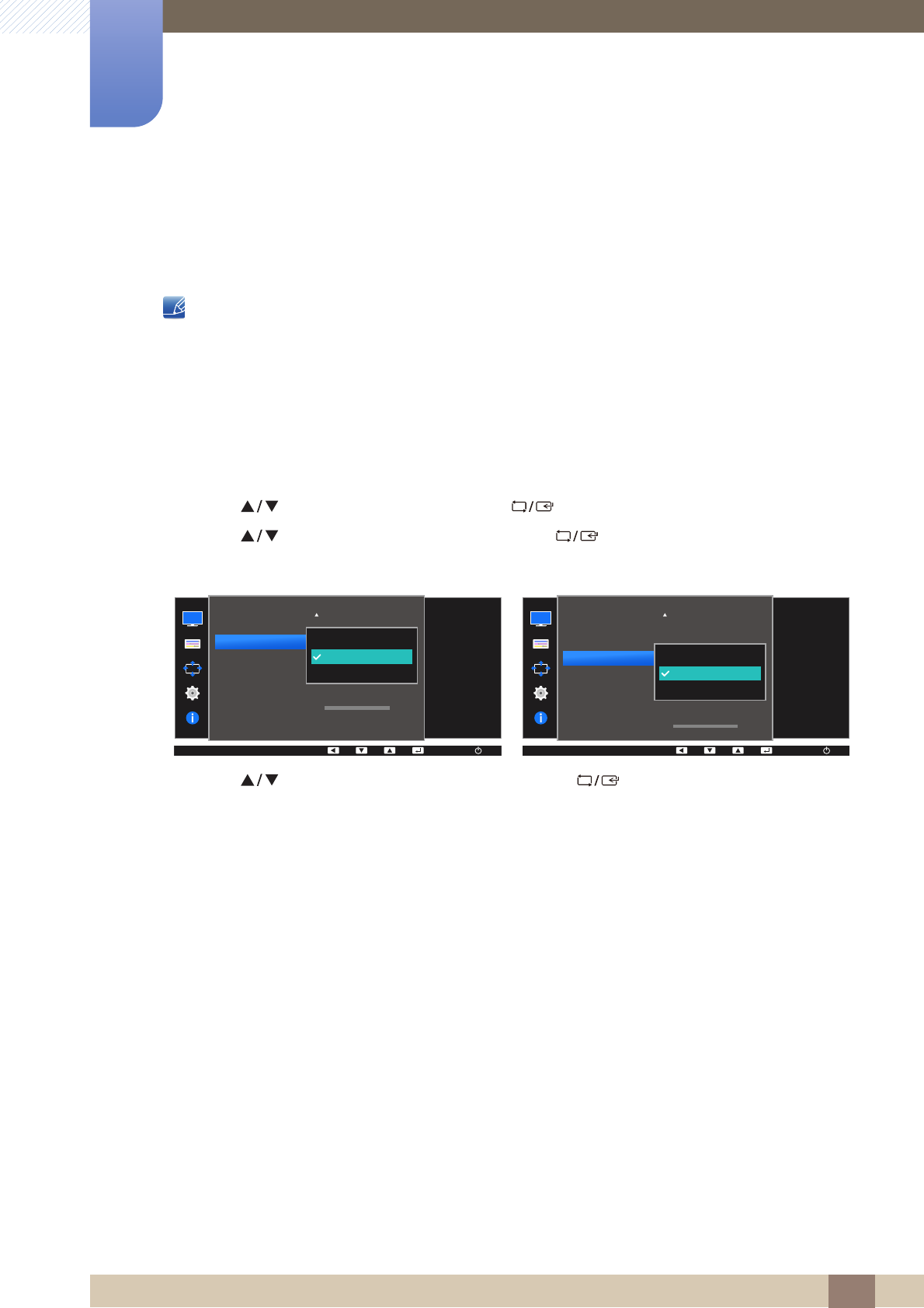

3.4 Eye Saver Mode
Set to an optimum picture quality suitable for eye relaxation.
TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower
blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will
become lower and lower, and one hour later it will approach the optimum picture quality suitable for eye
relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by
TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content”
standards.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
3.4.1 Configuring Eye Saver Mode
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Eye Saver Mode and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
Set to an optimum
picture quality suitable
for eye relaxation.
100
75
60
Off
Off
Custom
Off
Off
On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
AUTO
AUTO
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Set to an optimum
picture quality suitable
for eye relaxation.
AUTO
100
75
60
Off
Off
Custom
Off
Off
On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
AUTO
AUTO
AUTO
57
Screen Setup
3
3 Screen Setup
3.5 Game Mode
Configure the product screen settings for game mode. Use this feature when playing games on a PC or
when a game console such as PlayStation™ or Xbox™ is connected.
This menu is not available when Eye Saver Mode or Smart Eco Saving is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

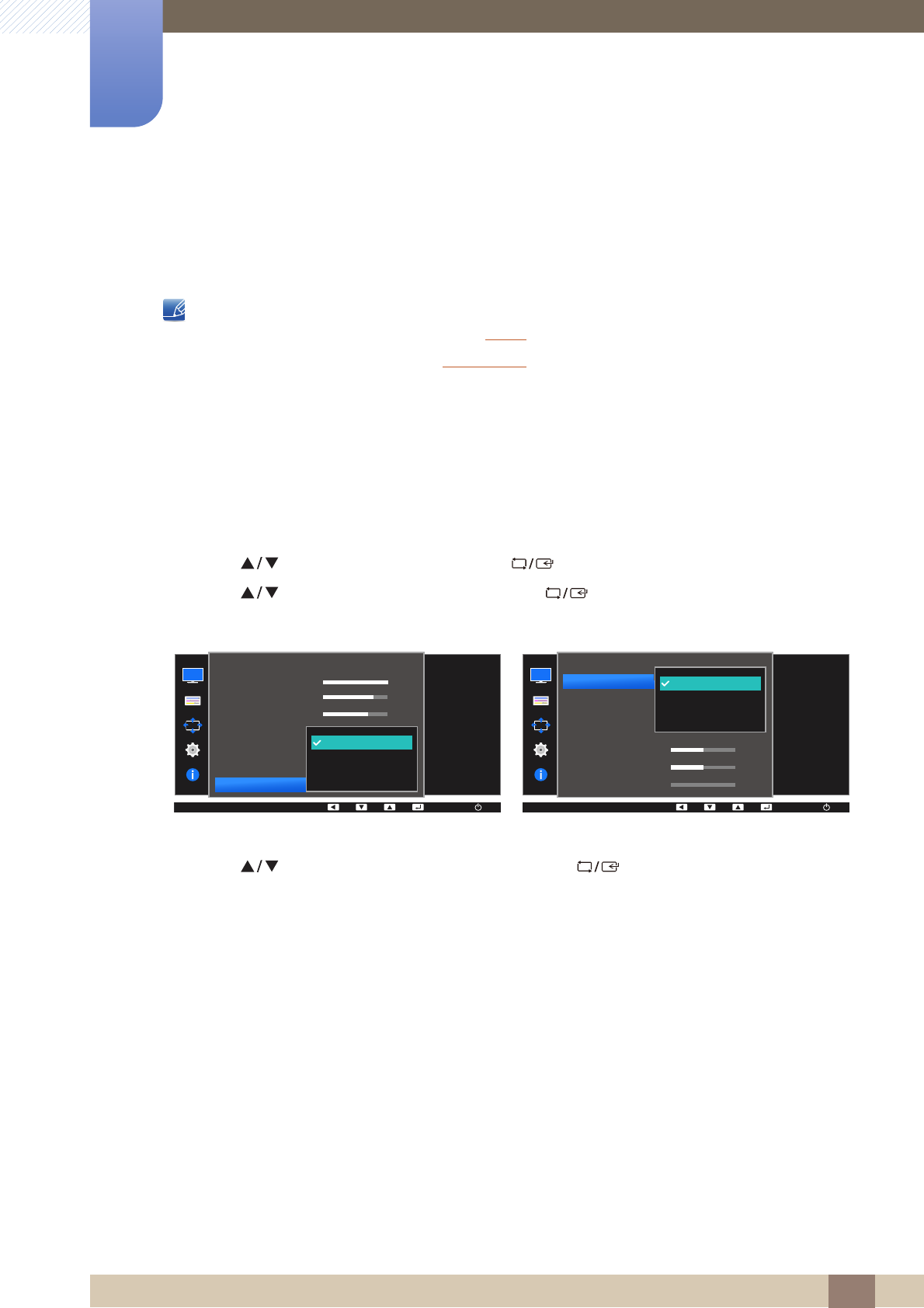

3.5.1 Configuring Game Mode
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Game Mode and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
When the monitor turns off, enters power-saving mode or changes input sources, Game Mode
turns Off even if it is set to On.
If you want to keep Game Mode enabled all the time, select Always On.
MENU
100
75
60
Off
Custom
Off
Optimizes image
settings for playing
games.
AUTO
Off
On
Always On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
AUTO
AUTO
100
75
60
Off
Custom
Off
Optimizes image
settings for playing
games.
AUTO
Off
On
Always On
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
AUTO
AUTO
58
Screen Setup
3
3 Screen Setup

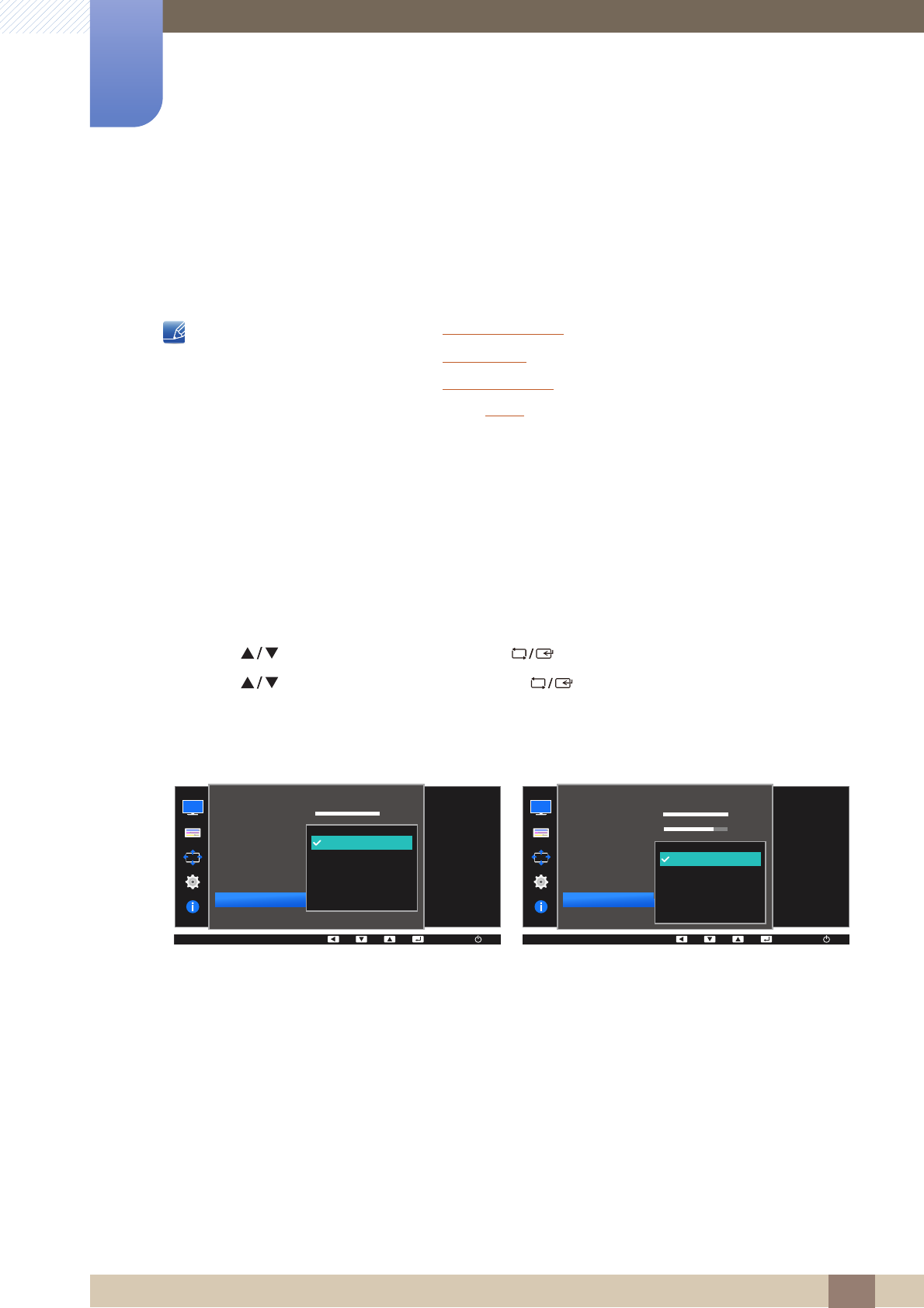

3.6 SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
This menu is not available when Smart Eco Saving is set.
This menu is not available when Game Mode is enabled.
This menu is not available when Eye Saver Mode is enabled.
This menu is not available when Angle is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
You can customize the brightness to suit your preferences.
3.6.1 Configuring SAMSUNG MAGIC Bright
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Bright and press [ ] on the product.
The following screen will appear.
Custom: Customize the contrast and brightness as required.
Standard: Obtain a picture quality suitable for editing documents or using Internet.
Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD
content.
Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
In PC mode
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
Set to an optimum
picture quality suitable
for the working
environment.
AUTO
Custom
Standard
Cinema
Dynamic Contrast
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
AUTO
AUTO
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Set to an optimum
picture quality suitable
for the working
environment.
AUTO
Custom
Standard
Cinema
Dynamic Contrast
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
AUTO
AUTO
59
Screen Setup
3
3 Screen Setup
When the external input is connected through DVI/HDMI/DP and PC/AV Mode is set to AV,
Bright has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are
preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can
select Custom which automatically recalls your personalized picture settings.
Dynamic: Select this mode to view a sharper image than in Standard mode.
Standard: Select this mode when the surroundings are bright. This also provides a sharp
image.
Movie: Select this mode when the surroundings are dark. This will save power and reduce eye
fatigue.
Custom: Select this mode when you want to adjust the image according to your preferences.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
In AV mode (S22E450F / S24E450F / S23E650K / S24E650PL)
100
75
60
50
50
2200
0
100
Set to an optimum
picture quality suitable
for the working
environment.
AUTO
Dynamic
Standard
Movie
Custom
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
AUTO
AUTO
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Set to an optimum
picture quality suitable
for the working
environment.
AUTO
Dynamic
Standard
Movie
Custom
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
AUTO
AUTO
SAMSUNG
MAGIC
60
Screen Setup
3
3 Screen Setup
3.7 SAMSUNG MAGIC Angle (S22E450F / S24E450F)
Angle allows you to configure the settings to obtain the optimum picture quality according to your
viewing angle.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode or Eye Saver Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
You can customize the angle to suit your preferences.

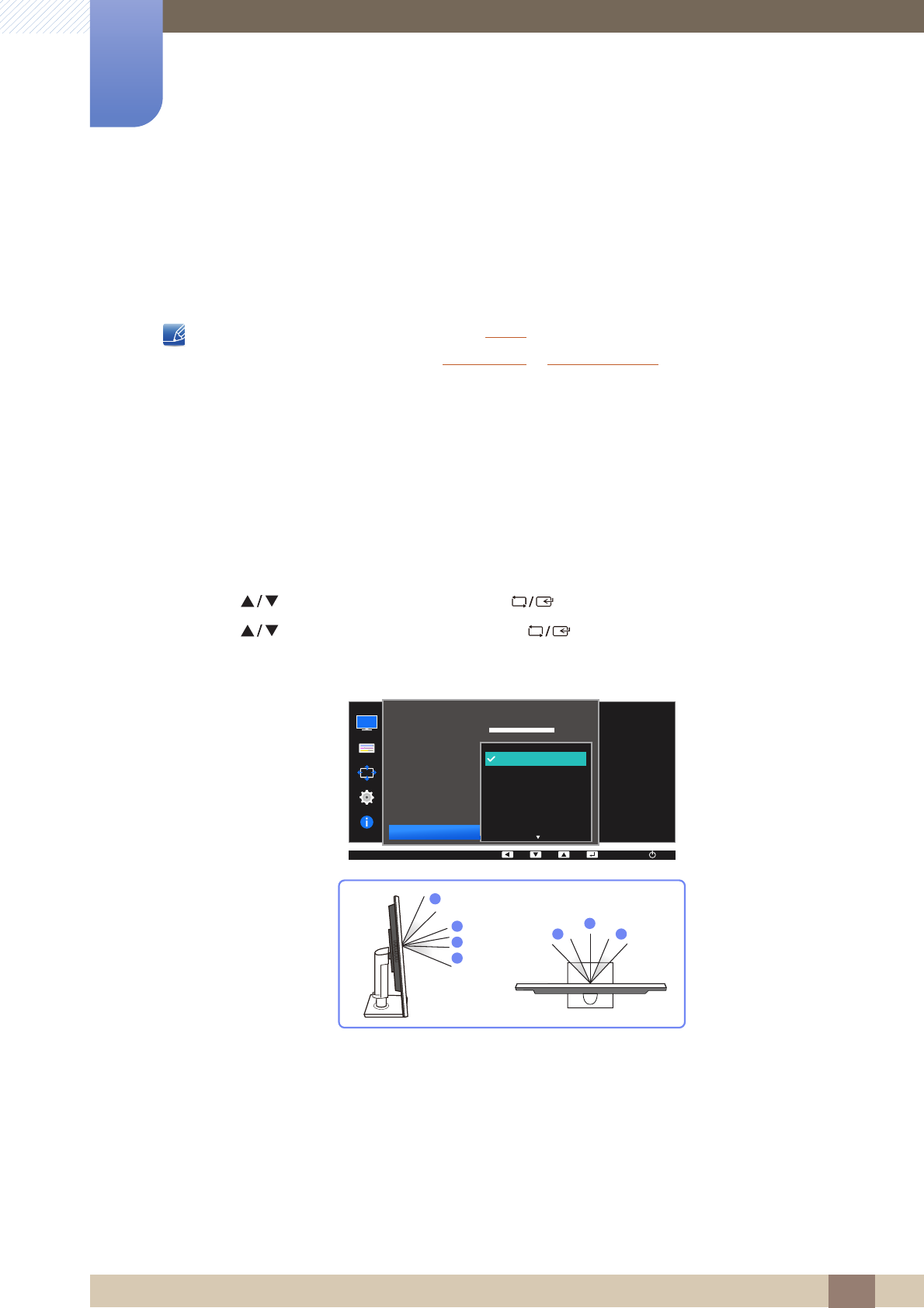

3.7.1 Configuring SAMSUNG MAGIC Angle
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Angle and press [ ] on the product.
The following screen will appear.
Off : Select this option to view directly in front of the product.
Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.
Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.
Standing Mode : Select this option to view from a place higher than the product.
Side Mode : Select this option to view from either side of the product.
Group View: Select this option for more than one viewer to view from places , , and .
Custom: Lean Back Mode 1 will be applied by default if Custom is selected.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
AUTO
Off
Lean Back Mode 1
Lean Back Mode 2
Standing Mode
Side Mode
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICAngle
Select an angle that
best suits your
viewing position.
AUTO
AUTO
4
2
3
11
5 5
①
②
③
④
⑤
①
④
⑤
61
Screen Setup
3
3 Screen Setup
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
62
Screen Setup
3
3 Screen Setup
3.8 SAMSUNG MAGIC Upscale
Upscale function can enhance the layers of the picture details and the vividness of the picture.
The function has more obvious effects on low-resolution pictures.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.8.1 Configuring SAMSUNG MAGIC Upscale
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Upscale and press [ ] on the product. The following screen
will appear.
Comparing with Mode1, Mode2 has a stronger effect.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Enhance picture
detail and vividness.
AUTO
Off
Mode1
Mode2
Brightness
Contrast
Sharpness
Eye Saver Mode
Game Mode
SAMSUNG
MAGICBright
SAMSUNG
MAGICUpscale
AUTO
AUTO
AUTO
SAMSUNG
MAGICUpscale
Off
Mode1
Mode2
Enhance picture
detail and vividness.
AUTO
AUTO
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
63
Screen Setup
3
3 Screen Setup
3.9 Image Size
Change the picture size.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
3.9.1 Changing the Image Size
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Image Size and press [ ] on the product. The following screen will
appear.
Auto: Display the picture according to the aspect ratio of the input source.
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
In PC mode
MENU
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
AUTO
AUTO
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
50
2200
0
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
AUTO
AUTO
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
50
50
2200
0
Auto
Wide
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
AUTO
AUTO
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
50
2200
0
64
Screen Setup
3
3 Screen Setup

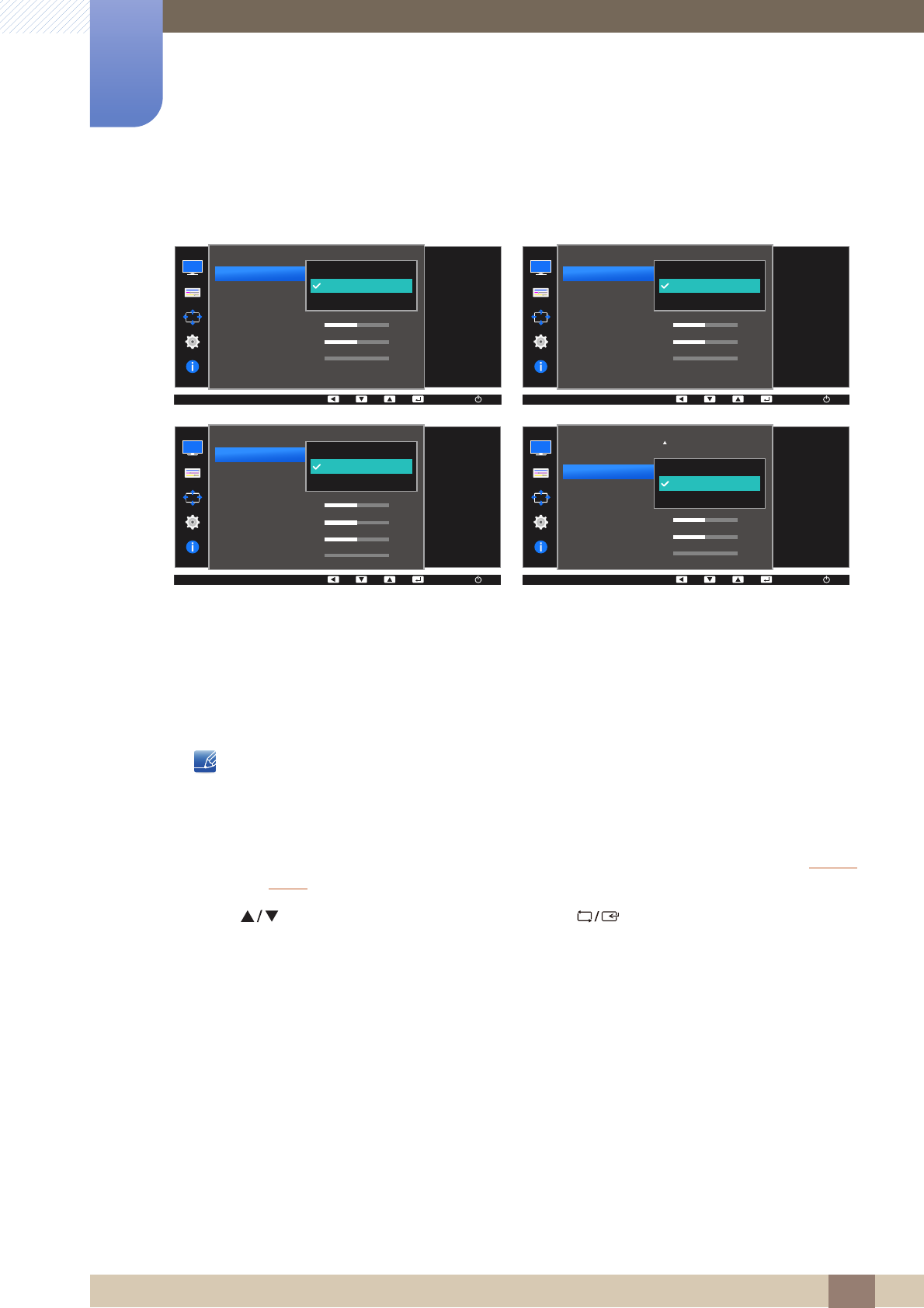

4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
16:9: Display the picture with an aspect ratio of 16:9.
Screen Fit: Display the picture with the original aspect ratio without cutting off.
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
(S24E650DW / S24E650MW / S24E650XW)
Changing the screen size is available when the following conditions are satisfied.
A digital output device is connected using the DVI/HDMI/DP cable.
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (not every
model can support all of these signals).
This can only be set when the external input is connected through DVI/HDMI/DP and PC/AV
Mode is set to AV.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
In AV mode
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
AUTO
AUTO
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
50
2200
0
4:3
16:9
Screen Fit
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
AUTO
AUTO
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
50
2200
0
4:3
Wide
Screen Fit
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
4:3
16:9
Screen Fit
AUTO
AUTO
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
50
50
2200
0
Choose the size and
aspect ratio of the
picture displayed on
screen.
AUTO
4:3
16:9
Screen Fit
AUTO
AUTO
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
50
2200
0
65
Screen Setup
3
3 Screen Setup
3.10 HDMI Black Level (S22E450F / S24E450F / S23E650K /
S24E650PL)
If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/
color degradation, black level, etc.) may occur, depending on the connected source device. In such
case, HDMI Black Level can be used to adjust the image quality. If this is the case, correct the degraded
picture quality using HDMI Black Level.
This function is only available in HDMI mode.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.

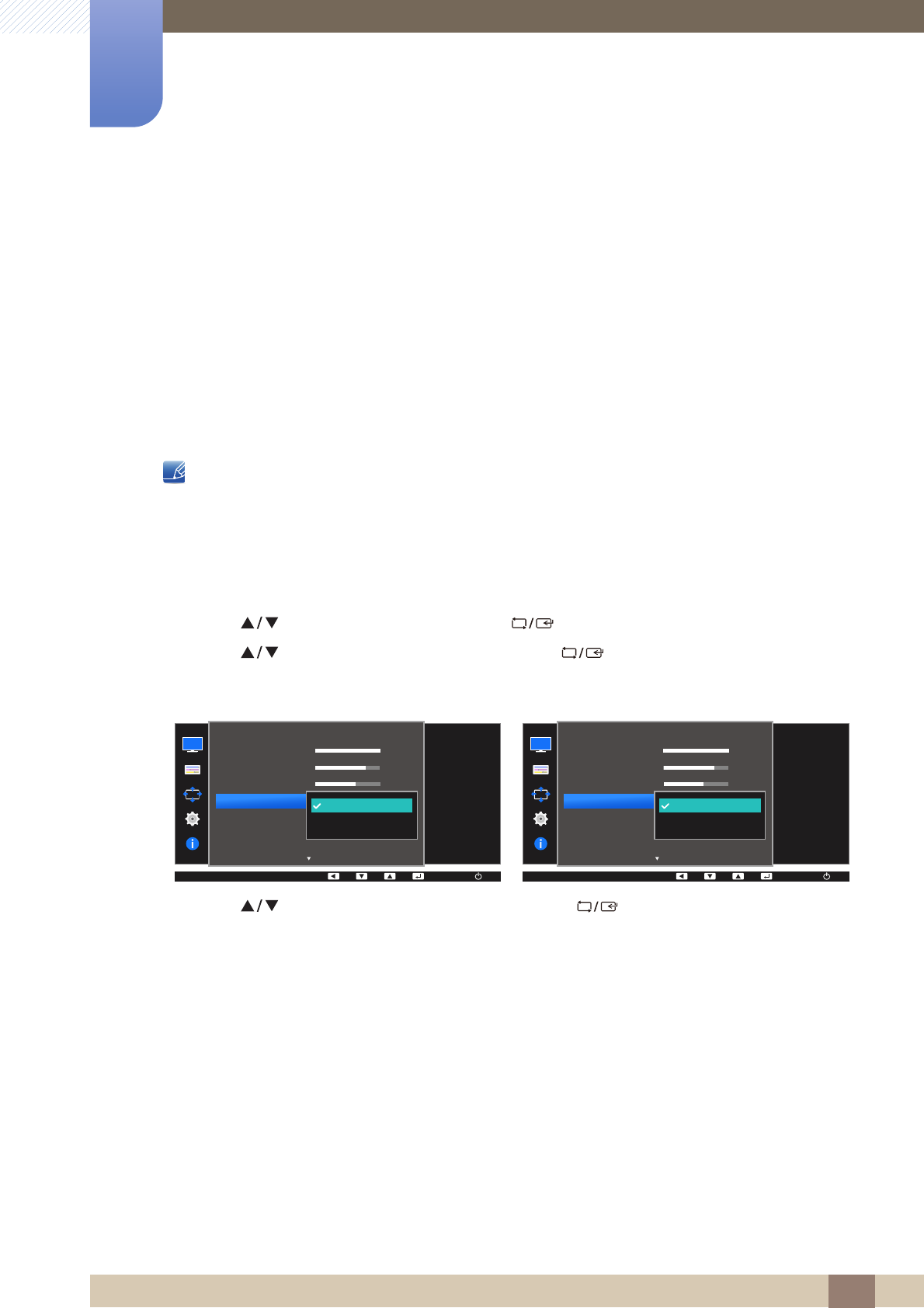

3.10.1 Configuring the HDMI Black Level Settings
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to HDMI Black Level and press [ ] on the product. The following
screen will appear.
Normal: Select this mode when there is no contrast ratio degradation.
Low: Select this mode to reduce the black level and increase the white level when there is a
contrast ratio degradation.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
HDMI Black Level may not be compatible with some source devices.

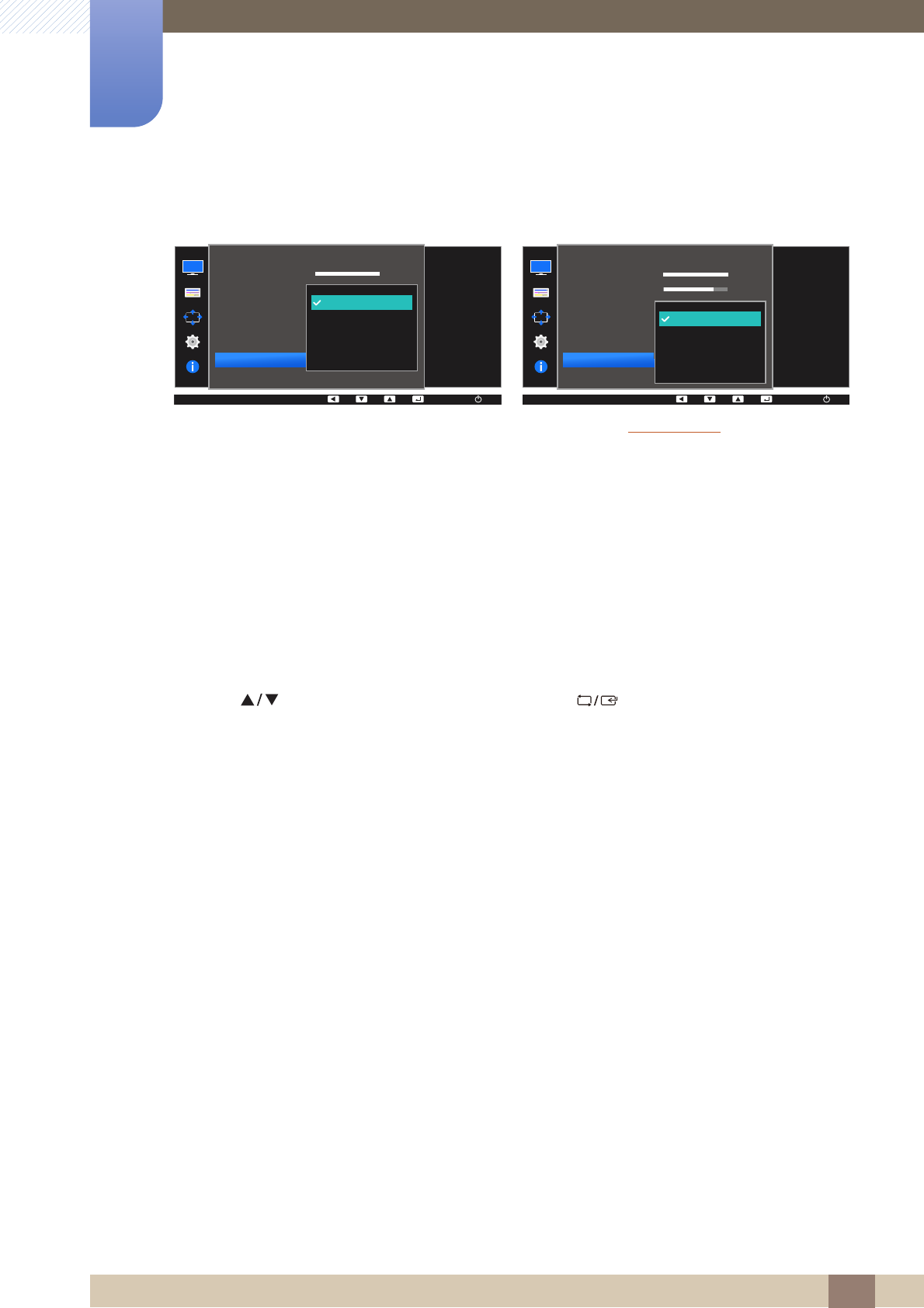

MENU
AUTO
AUTO
AUTO
Normal
Low
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Optimize HDMI
picture brightness and
contrast by adjusting
the black level of the
video signal.
AUTO
SAMSUNG
MAGICUpscale
AUTO
AUTO
Normal
Low
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Optimize HDMI
picture brightness and
contrast by adjusting
the black level of the
video signal.
66
Screen Setup
3
3 Screen Setup

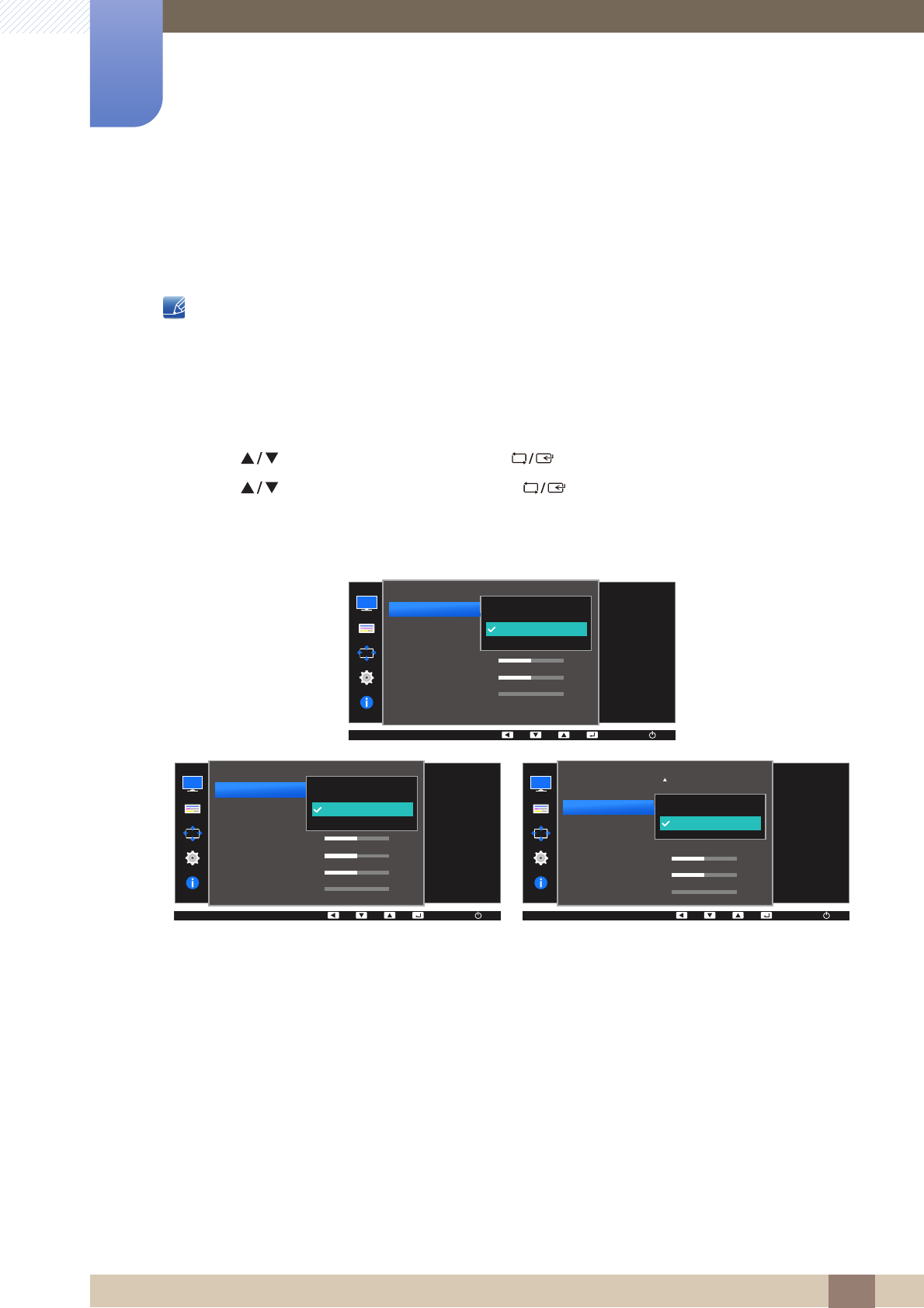

3.11 Response Time (Except S22E450F / S24E450F)
Accelerate the panel response rate to make video appear more vivid and natural.
It is best to set Response Time to Standard or Faster when you are not viewing a movie.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.11.1 Configuring the Response Time
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Response Time and press [ ] on the product. The following screen
will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
AUTO
AUTO
AUTO
Standard
Faster
Fastest
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
Accelerate the panel
response rate to
make video appear
more vivid and
natural.
0
AUTO
AUTO
AUTO
Standard
Faster
Fastest
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
Accelerate the panel
response rate to
make video appear
more vivid and
natural.
Wide
0
67
Screen Setup
3
3 Screen Setup
3.12 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
This menu is available in Analog mode.
This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally ,select
Screen Fit to adjust horizontal position in 0-6 levels.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.12.1 Configuring H-Position & V-Position
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to H-Position or V-Position, and press [ ]. The following screen will
appear.
MENU
AUTO
Move the image
displayed on the
screen to the
left or right.
AUTO
AUTO
Wide
Faster
50
50
2200
0
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
AUTO
Move the image
displayed on the
screen up or down.
AUTO
AUTO
Wide
Faster
50
50
2200
0
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
Wide
Faster
50
50
2200
0
AUTO
Move the image
displayed on the
screen to the
left or right.
AUTO
AUTO
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
AUTO
Move the image
displayed on the
screen up or down.
AUTO
AUTO
Wide
Faster
50
50
2200
0
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
AUTO
AUTO
Move the image
displayed on the
screen to the
left or right.
Off
Wide
50
50
2200
0
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Move the image
displayed on the
screen up or down.
SAMSUNG
MAGICUpscale
AUTO
AUTO
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
Off
Wide
50
50
2200
0
68
Screen Setup
3
3 Screen Setup
4Press [ ] to configure H-Position or V-Position.
5The selected option will be applied.
69
Screen Setup
3
3 Screen Setup
3.13 Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.13.1 Adjusting Coarse
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Coarse and press [ ] on the product. The following screen will
appear.
4Adjust the Coarse using the [ ] buttons.
5The selected option will be applied.
MENU
AUTO
Adjust the screen
frequency.
AUTO
AUTO
Wide
Faster
50
50
2200
0
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
AUTO
Adjust the screen
frequency.
AUTO
AUTO
Wide
Faster
50
50
2200
0
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
AUTO
AUTO
Adjust the screen
frequency.
AUTO
AUTO
Off
Wide
50
50
2200
0
SAMSUNG
MAGICUpscale
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
70
Screen Setup
3
3 Screen Setup
3.14 Fine
Fine-adjust the screen to obtain a vivid picture.
This menu is available in Analog mode only.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
3.14.1 Adjusting Fine
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to PICTURE and press [ ] on the product.
3Press [ ] to move to Fine and press [ ] on the product. The following screen will appear.
4Adjust the Fine using the [ ] buttons.
5The selected option will be applied.
MENU
AUTO
Fine-tune the
screen
to get a vivid
picture.
AUTO
AUTO
Wide
Faster
50
50
2200
0
Image Size
Response Time
H-Position
V-Position
Coarse
Fine
AUTO
Fine-tune the
screen
to get a vivid
picture.
AUTO
AUTO
Wide
Faster
50
50
2200
0
Image Size
HDMI Black Level
Response Time
H-Position
V-Position
Coarse
Fine
AUTO
Fine-tune the
screen
to get a vivid
picture.
AUTO
AUTO
Off
Wide
50
50
2200
0
Image Size
HDMI Black Level
H-Position
V-Position
Coarse
Fine
SAMSUNG
MAGICUpscale
71
4 Configuring Tint
4 Configuring Tint
A detailed description of each function is provided. Refer to your product for details.
Adjust the tint of the screen. This menu is not available when Bright is in Cinema or
Dynamic Contrast mode. This menu is not available when Game Mode or Eye Saver Mode
is enabled.
SAMSUNG
MAGIC
4.1 Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.1.1 Configuring Red
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Red and press [ ] on the product.
The following screen will appear.
4Adjust the Red using the [ ] buttons.
5The selected option will be applied.
MENU
Red
Green
Blue
Color Tone
Gamma
Adjust the red
saturation level.
Values closer to 100
mean greater
intensity for the color.
50
50
50
Normal
Mode1
COLOR
AUTOAUTO
AUTO
AUTO
72
Configuring Tint
4
4 Configuring Tint
4.2 Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.2.1 Configuring Green
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Green and press [ ] on the product.
The following screen will appear.
4Adjust the Green using the [ ] buttons.
5The selected option will be applied.
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
Adjust the green
saturation level.
Values closer to 100
mean greater
intensity for the color.
AUTOAUTO
AUTO
AUTO
73
Configuring Tint
4
4 Configuring Tint

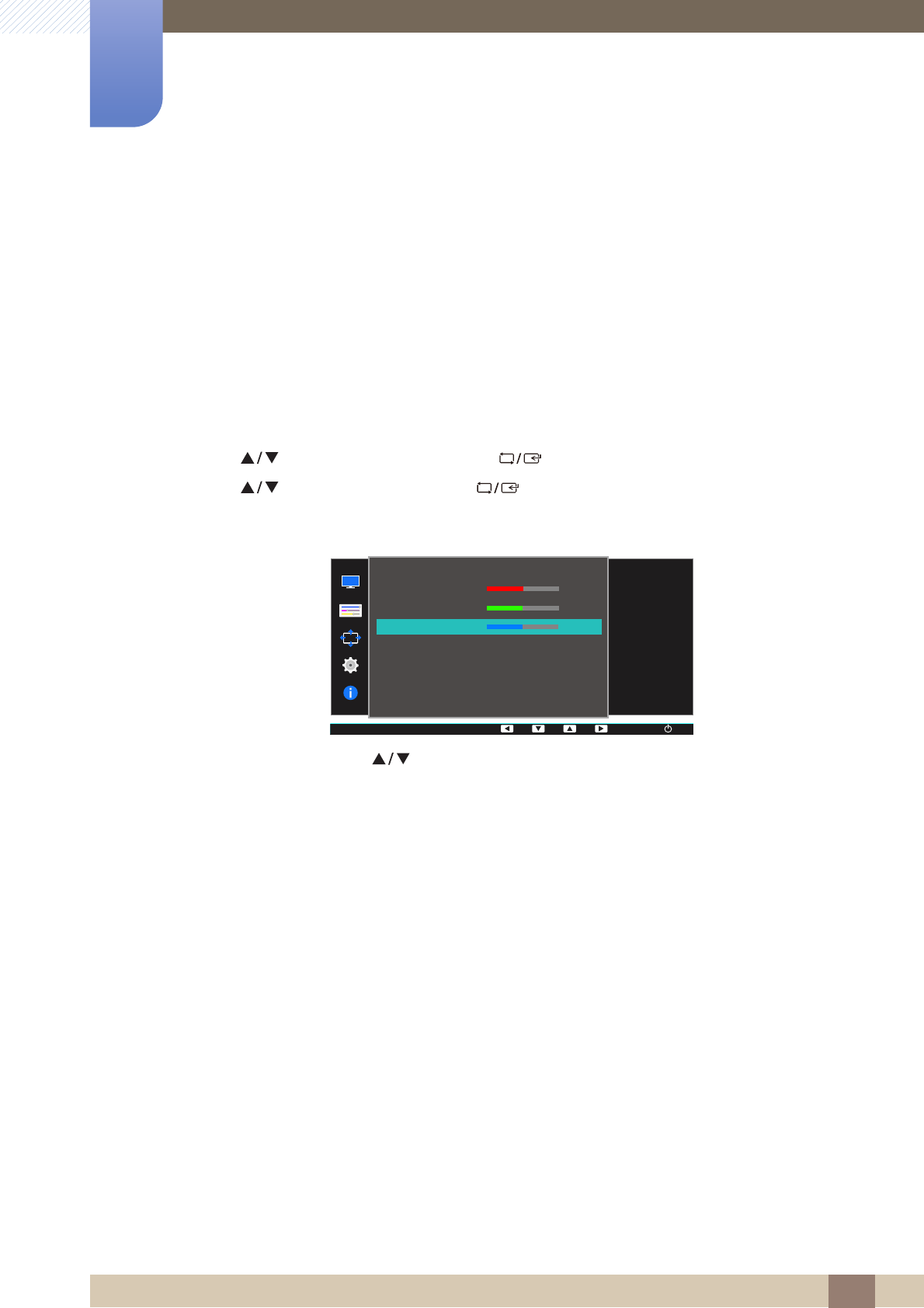

4.3 Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.3.1 Configuring Blue
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Blue and press [ ] on the product.
The following screen will appear.
4Adjust the Blue using the [ ] buttons.
5The selected option will be applied.
MENU
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
AUTO
Adjust the blue
saturation level.
Values closer to 100
mean greater
intensity for the color.
COLOR
AUTO
AUTO
AUTO
74
Configuring Tint
4
4 Configuring Tint

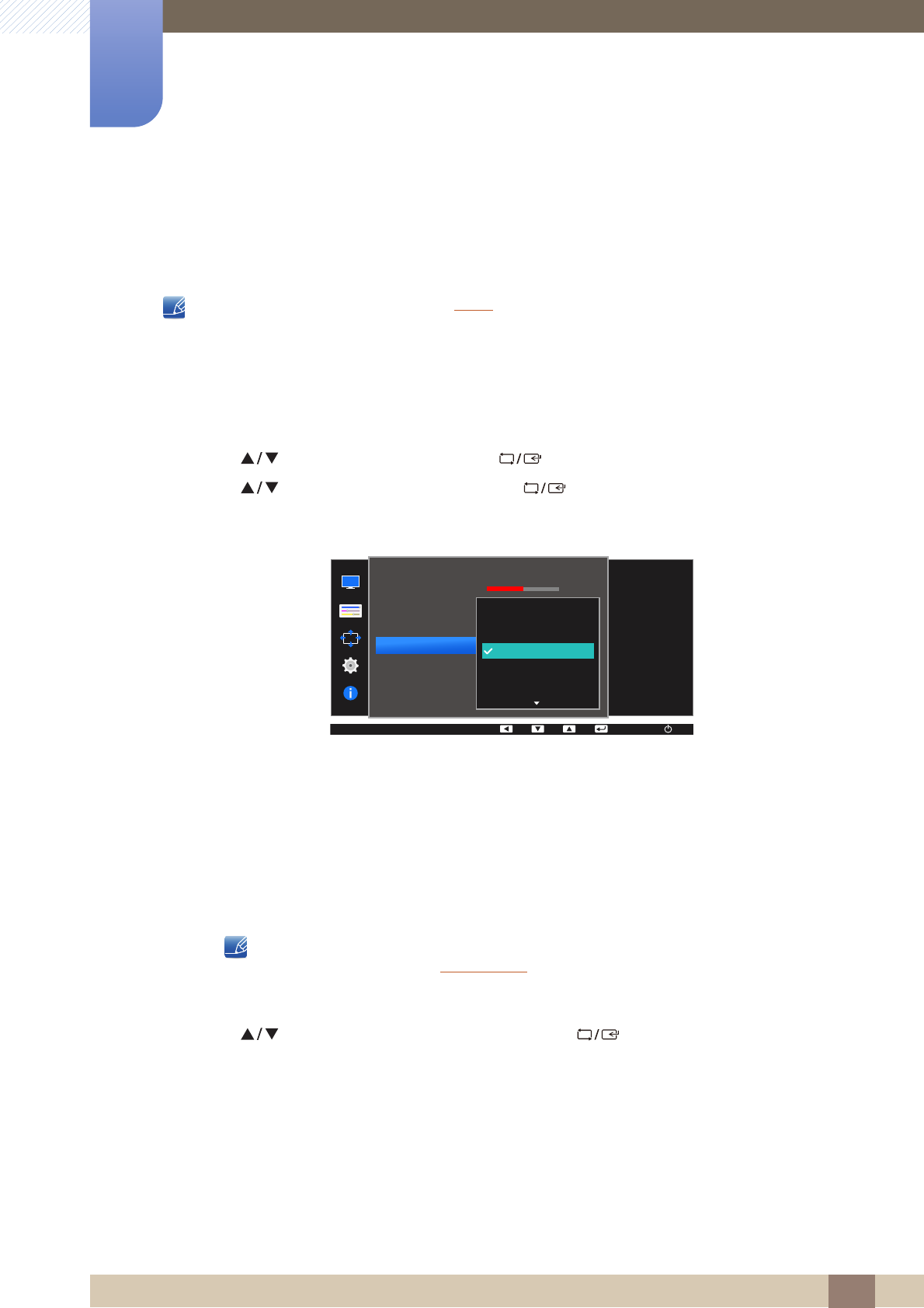

4.4 Color Tone
Adjust the general color tone of the picture.
This menu is not available when Angle is enabled.
4.4.1 Configuring the Color Tone Settings
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Color Tone and press [ ] on the product.
The following screen will appear.
Cool 2: Set the color temperature to be cooler than Cool 1.
Cool 1: Set the color temperature to be cooler than Normal mode.
Normal: Display the standard color tone.
Warm 1: Set the color temperature to be warmer than Normal mode.
Warm 2: Set the color temperature to be warmer than Warm 1.
Custom : Customize the color tone.
S22E450F / S24E450F / S23E650K / S24E650PL: When the external input is connected
through DVI/HDMI/DP and PC/AV Mode is set to AV, Color Tone has four color temperature
settings (Cool, Normal, Warm and Custom).
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
Red
Green
Blue
Color Tone
Gamma
Cool 2
Cool 1
Normal
Warm 1
Warm 2
AUTO
Select a color tone
that best suits your
viewing needs.
COLOR
50
75
Configuring Tint
4
4 Configuring Tint

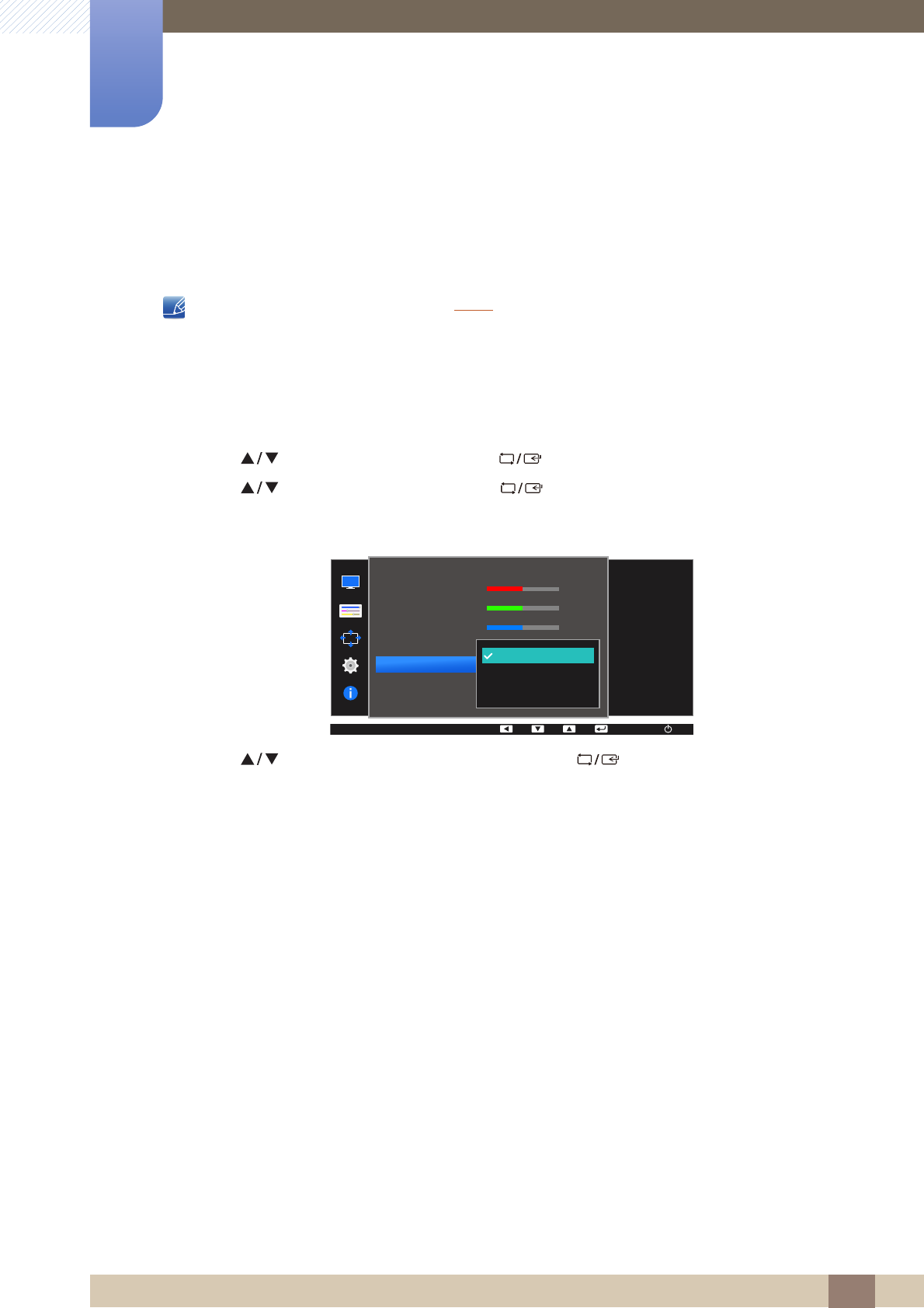

4.5 Gamma
Adjust the mid-range brightness (Gamma) of the picture.
This menu is not available when Angle is enabled.
4.5.1 Configuring Gamma
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to COLOR and press [ ] on the product.
3Press [ ] to move to Gamma and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
SAMSUNG
MAGIC
MENU
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
AUTO
Mode1
Mode2
Mode3
Adjust the middle level
of luminance.
COLOR
76
5 Resizing or Relocating the Screen
5 Resizing or Relocating the Screen
A detailed description of each function is provided. Refer to your product for details.

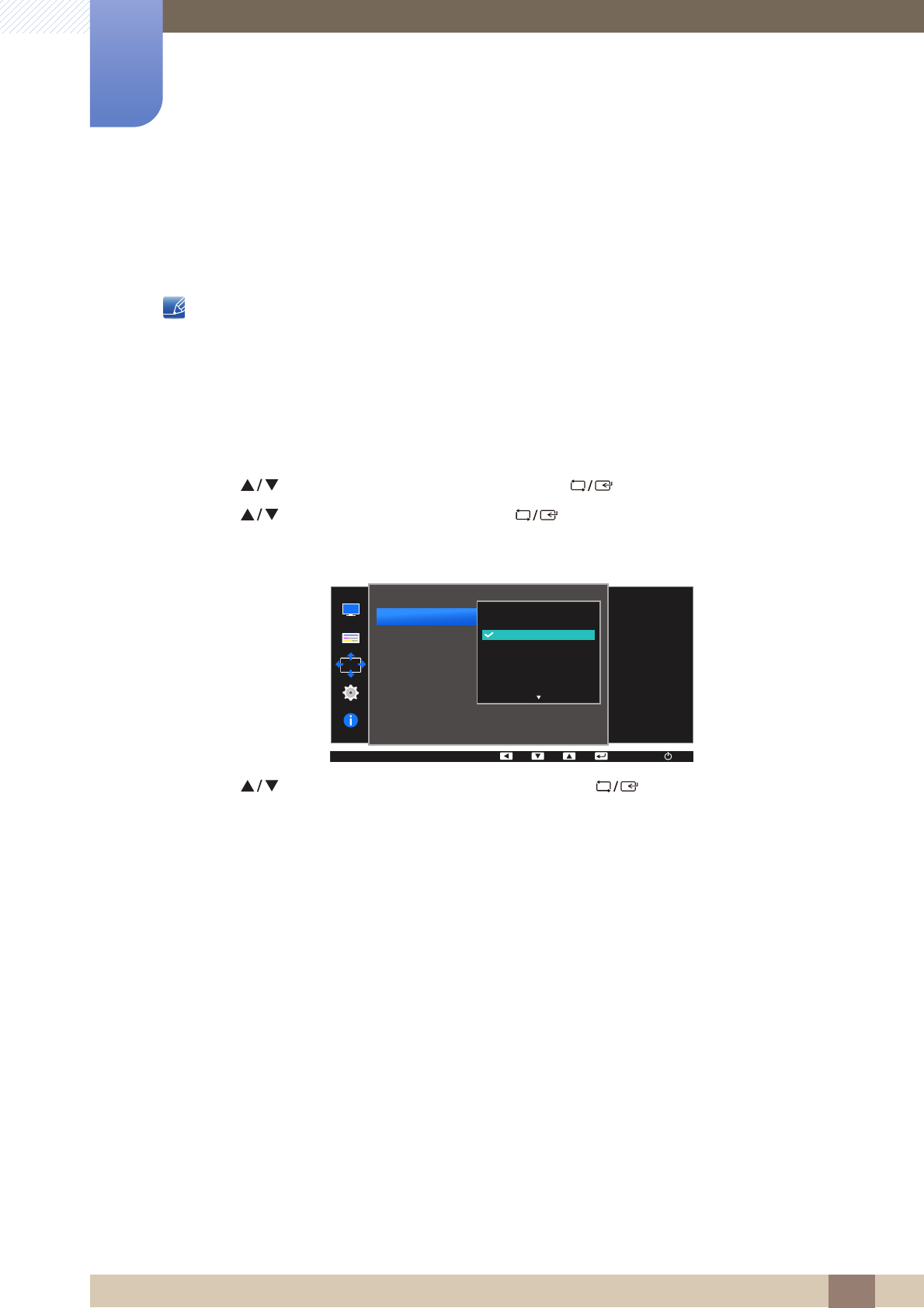

5.1 Language
Set the menu language.
A change to the language setting will only be applied to the onscreen menu display.
It will not be applied to other functions on your PC.
5.1.1 Changing the Language
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Language and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the language you want and press [ ].
5The selected option will be applied.
MENU
MENU SETTINGS
Deutsch
English
Español
Français
Italiano
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Set the menu
language.
AUTOAUTO
77
Resizing or Relocating the Screen
5
5 Resizing or Relocating the Screen
5.2 Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
5.2.1 Configuring Menu H-Position & Menu V-Position
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ].
The following screen will appear.
4Press [ ] to configure Menu H-Position or Menu V-Position.
5The selected option will be applied.
MENU
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
1
20 sec
On
Move the menu
position to the left or
right.
AUTO
MENU SETTINGS
AUTOAUTO
AUTO
AUTO
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
1
20 sec
On
Move the menu
position up or down.
AUTO
MENU SETTINGS
AUTOAUTO
AUTO
AUTO
78
Resizing or Relocating the Screen
5
5 Resizing or Relocating the Screen

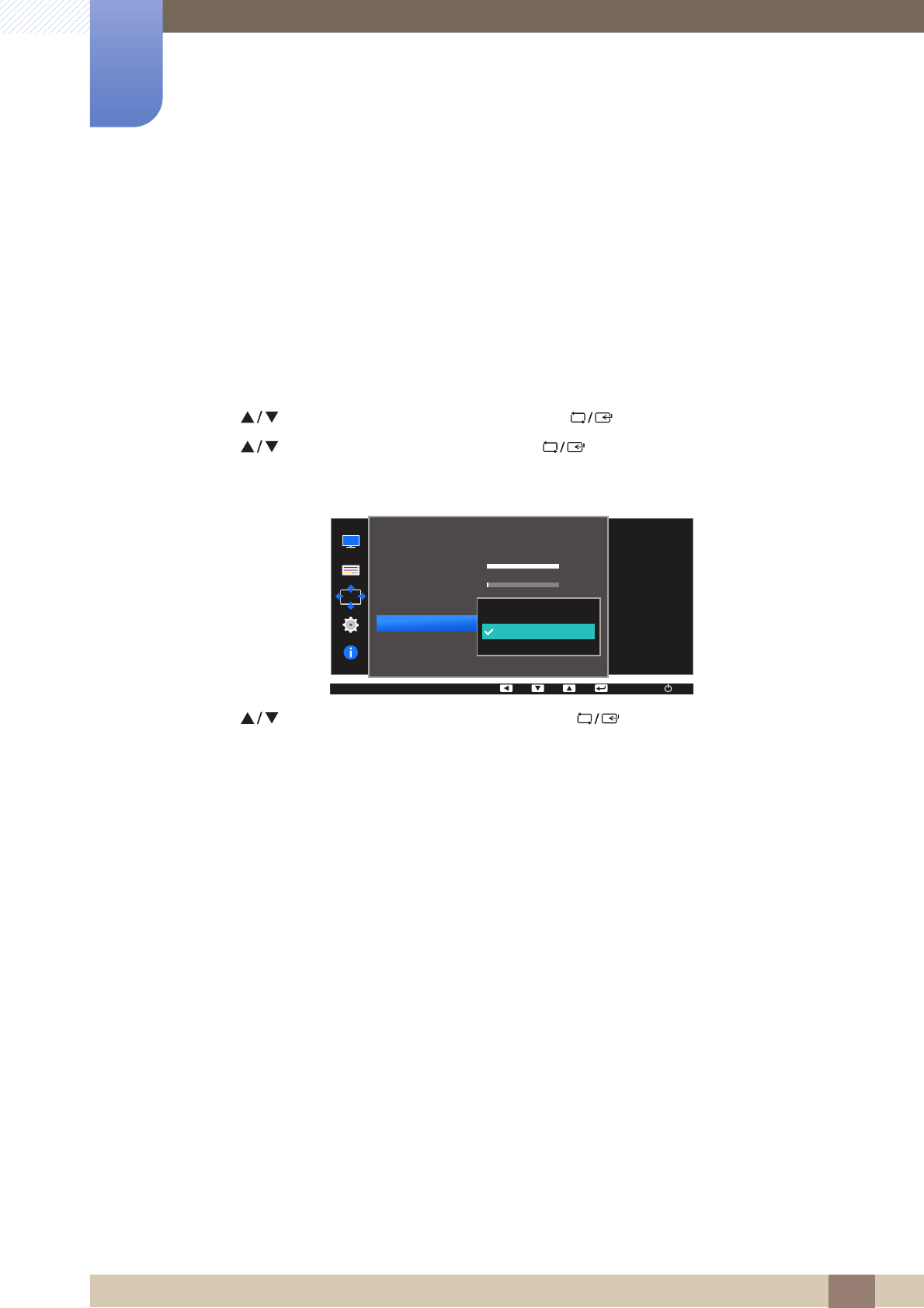

5.3 Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
5.3.1 Configuring Display Time
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Display Time and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
English
100
2
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
5 sec
10 sec
20 sec
200 sec
Set how long the menu
window will remain on
screen for when it is
not in use.
AUTO
MENU SETTINGS
AUTO
79
Resizing or Relocating the Screen
5
5 Resizing or Relocating the Screen
5.4 Transparency
Set the transparency for the menu windows.
5.4.1 Changing Transparency
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3Press [ ] to move to Transparency and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
MENU SETTINGS
English
100
1
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Off
On
Configure the
transparency of the
menu windows.
AUTOAUTO
80
6 Setup and Reset
6 Setup and Reset
A detailed description of each function is provided. Refer to your product for details.
6.1 Reset All
Return all the settings for the product to the default factory settings.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.1.1 Initializing Settings (Reset All)
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Reset All and press [ ] on the product.
The following screen will appear.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
SETUP&RESET
Off
Acceleration
Auto
Reset All
Smart Eco Saving
Off Timer Plus
PC/AV Mode
Key Repeat Time
Source Detection
AUTO
Return all the
settings for the
product to the
default factory
settings.
AUTO
AUTO
AUTO
$OOWKHPHQXVHWWLQJVZLOOEHUHVHW
WRGHIDXOW
$UH\RXVXUH\RXZDQWWRUHVHW"
<HV 1R
AUTO
81
Setup and Reset
6
6 Setup and Reset

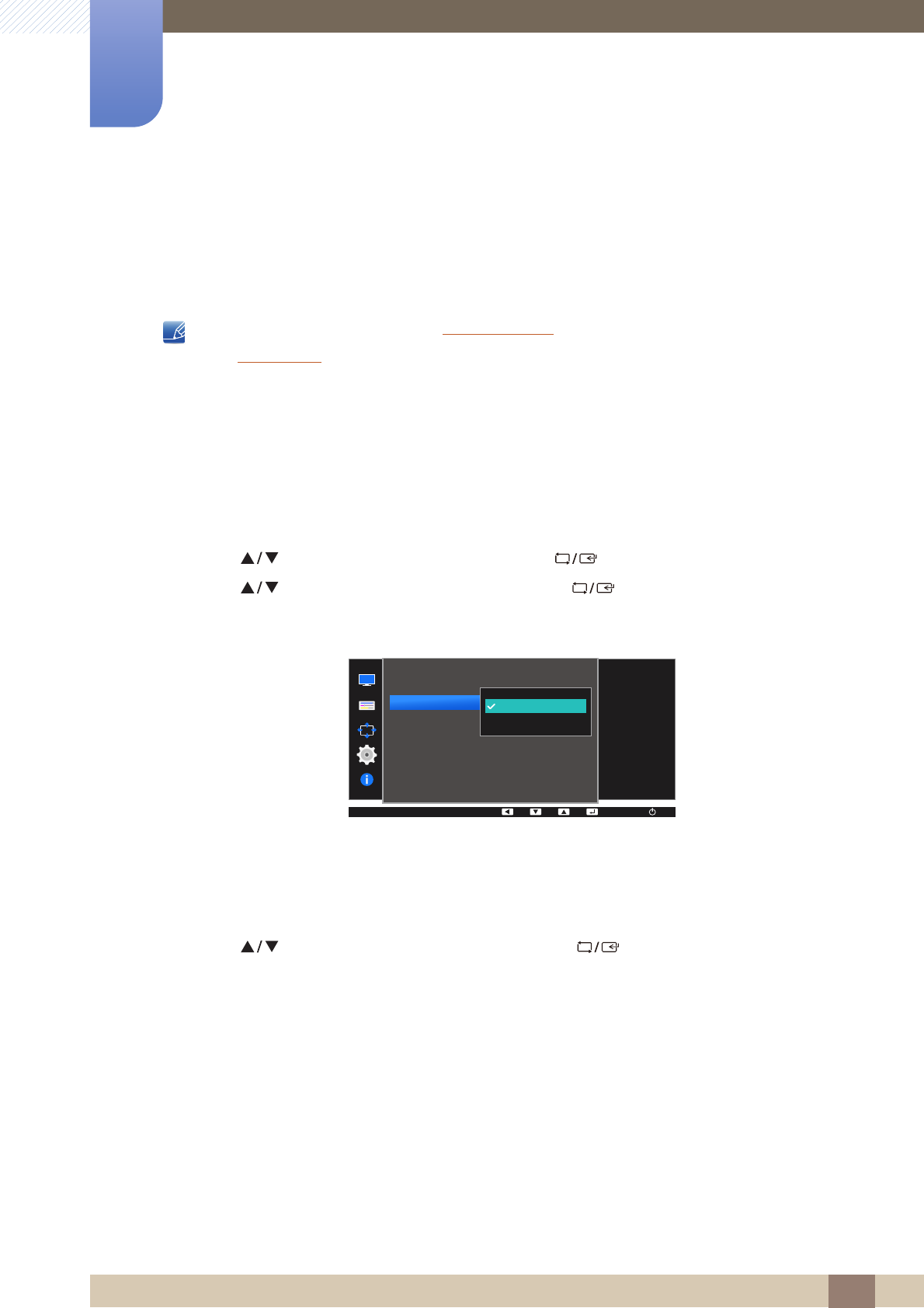

6.2 Smart Eco Saving
The Smart Eco Saving function reduces power consumption by controlling the electric current used by
the monitor panel.
This menu is not available when Eye Saver Mode is enabled.
Game Mode will automatically turn off when Smart Eco Saving is enabled.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
6.2.1 Configuring Smart Eco Saving
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Smart Eco Saving and press [ ] on the product.
The following screen will appear.
Off: Deactivate the Smart Eco Saving function.
On: The power consumption will automatically be reduced by about 10% over the current
setting. (The reduction of power consumption depends on the customer screen brightness
condition.)
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
AUTO
SETUP&RESET
Adjust the power
consumption of the
product to save
energy automatically
AUTO
AUTO
AUTO
Reset All
Smart Eco Saving
Off Timer Plus
PC/AV Mode
Key Repeat Time
Source Detection
Off
On
Acceleration
Auto
82
Setup and Reset
6
6 Setup and Reset
6.3 Off Timer Plus
You can set the product to automatically turn off.
The functions available on the monitor may vary depending on the model. Refer to the actual product.

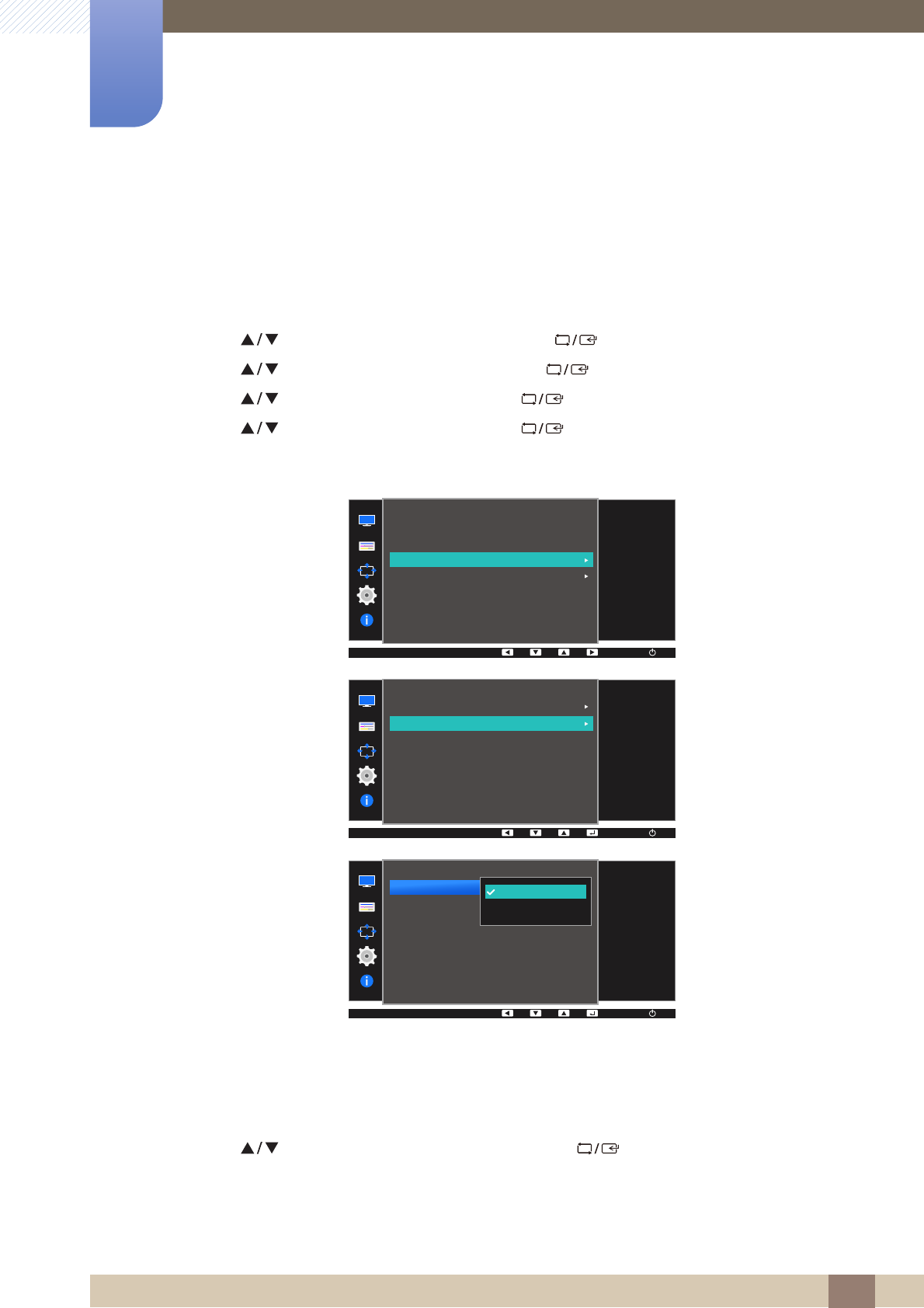

6.3.1 Configuring Off Timer
Off Timer
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer Plus and press [ ] on the product.
4Press [ ] to move to Off Timer and press [ ] on the product.
5Press [ ] to move to Off Timer and press [ ] on the product.
The following screen will appear.
MENU
AUTO
SETUP&RESET
Reset All
Smart Eco Saving
Off Timer Plus
PC/AV Mode
Key Repeat Time
Source Detection
Off
Acceleration
Auto
AUTOAUTO
AUTO
AUTO
Set the monitor to
automatically turn off
after a certain time
period.
Off Timer Plus
AUTO
Enable or disable
the Off Timer.
AUTOAUTOAUTO
AUTO
AUTO
Off Timer
Eco Timer
Off Timer
Off Timer
Turn Off After
Off
On
AUTO
Enable or disable
the Off Timer.
AUTOAUTOAUTO
AUTO
AUTO
83
Setup and Reset
6
6 Setup and Reset
Off: Deactivate the off timer so that the product does not power off automatically.
On: Activate the off timer so that the product powers off automatically.
6Press [ ] to move to the option you want and press [ ].
7The selected option will be applied.

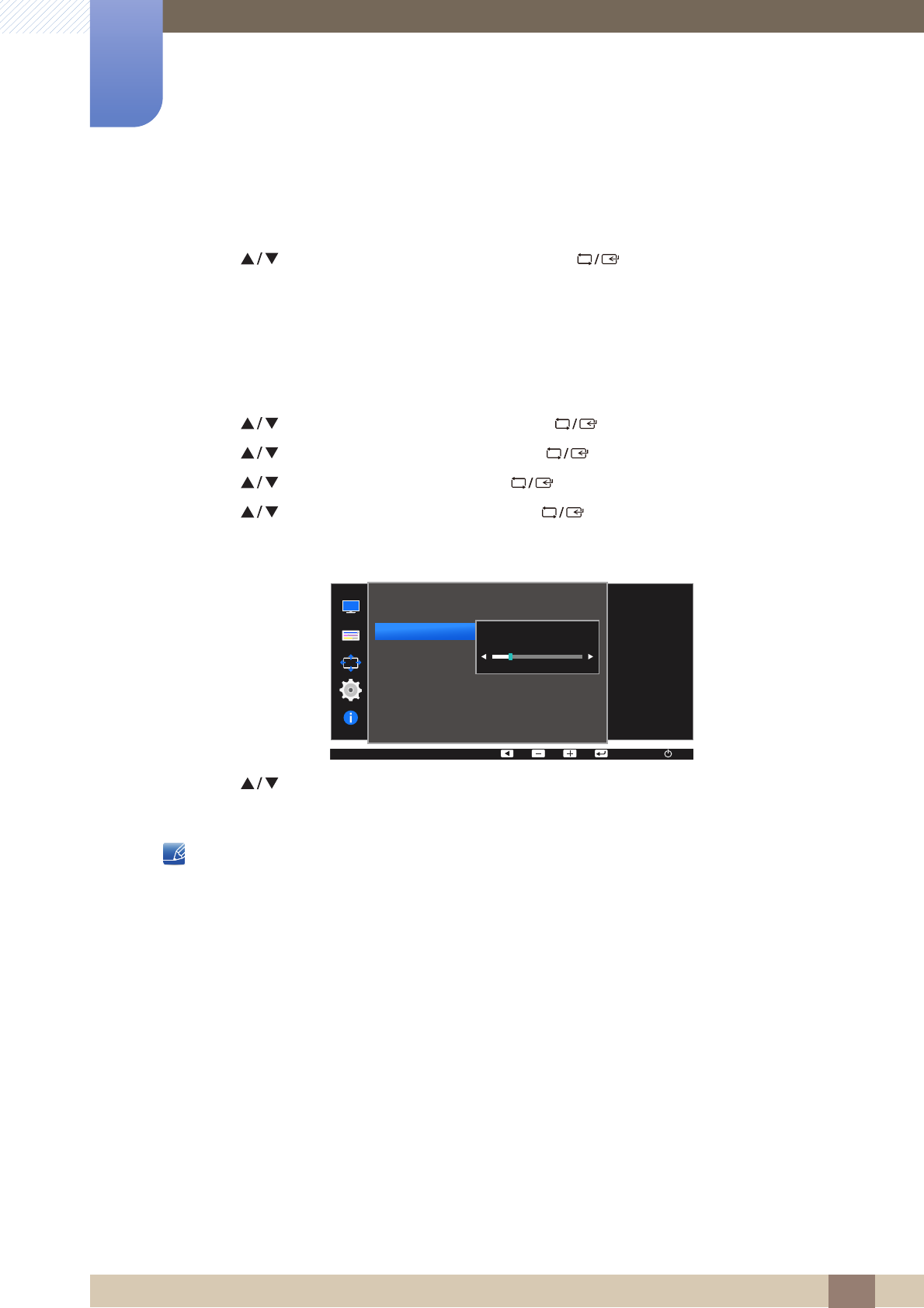

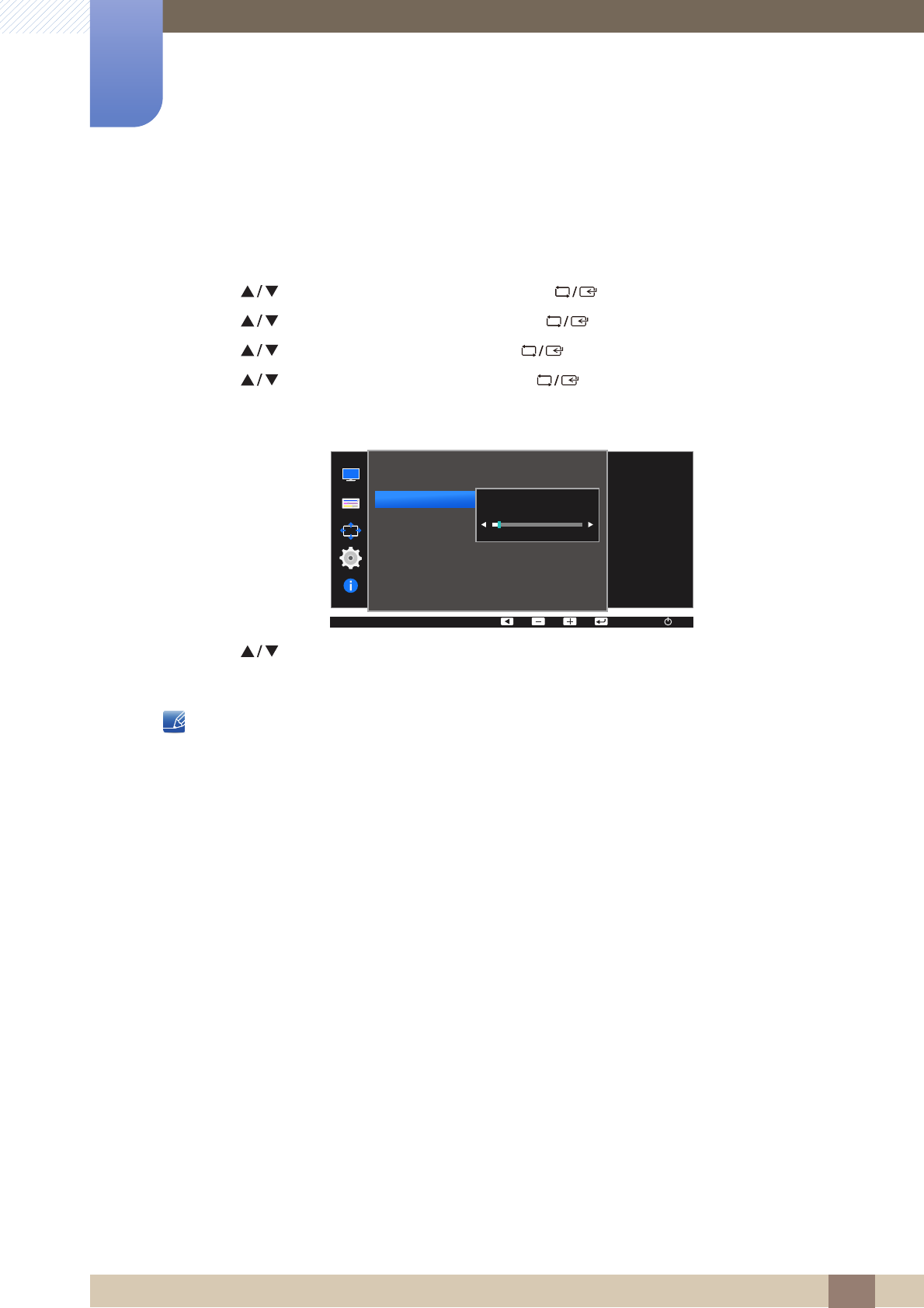

Turn Off After
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer Plus and press [ ] on the product.
4Press [ ] to move to Off Timer and press [ ] on the product.
5Press [ ] to move to Turn Off After and press [ ] on the product.
The following screen will appear.
6Press [ ] to configure Turn Off After.
7The selected option will be applied.
The off timer can be set within a range of 1 to 23 hours. The product will automatically power off
after the specified number of hours.
This option is only available when Off Timer is set to On.
For products for the market in some regions, the Off Timer is set to automatically activate 4 hours
after the product powers on. This is done in accordance with power supply regulations. If you do
not want the timer to activate, go to MENU SETUP&RESET Off Timer Plus and set Off
Timer to Off.
MENU
Off Timer
Off Timer
Turn Off After
AUTO
Set the monitor to
automatically turn off
after a certain time
period.
AUTOAUTOAUTO
AUTO
AUTO
4h
→
→
84
Setup and Reset
6
6 Setup and Reset
6.3.2 Configuring Eco Timer
Eco Timer
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer Plus and press [ ] on the product.
4Press [ ] to move to Eco Timer and press [ ] on the product.
5Press [ ] to move to Eco Timer and press [ ] on the product.
The following screen will appear.
Off: Deactivate the eco timer to disable the automatic power off feature. The product will not
power off while in power-saving mode if this feature is deactivated.
On: Activate the eco timer so that the product powers off automatically when it has been in
power-saving mode for a specified period of time.
6Press [ ] to move to the option you want and press [ ].
7The selected option will be applied.
MENU
AUTO
SETUP&RESET
Reset All
Smart Eco Saving
Off Timer Plus
PC/AV Mode
Key Repeat Time
Source Detection
Off
Acceleration
Auto
AUTOAUTO
AUTO
AUTO
Set the monitor to
automatically turn off
after a certain time
period.
Off Timer Plus
AUTOAUTOAUTOAUTO
AUTO
AUTO
Off Timer
Eco Timer
Enable or disable
the Eco Timer.
Eco Timer
Eco Timer
Eco Off After
Off
On
AUTO
Enable or disable
the Eco Timer.
AUTOAUTOAUTO
AUTO
AUTO
85
Setup and Reset
6
6 Setup and Reset
Eco Off After
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Off Timer Plus and press [ ] on the product.
4Press [ ] to move to Eco Timer and press [ ] on the product.
5Press [ ] to move to Eco Off After and press [ ] on the product.
The following screen will appear.
6Press [ ] to configure Eco Off After.
7The selected option will be applied.
The Eco timer can be set between 10 and 180 minutes. The product will automatically power off
after the specified time has elapsed.
This option is only available when Eco Timer is set to On.
MENU
Eco Timer
AUTO
Set the monitor to
automatically turn off
after a certain time
period.
AUTOAUTOAUTO
AUTO
AUTO
10m
Eco Timer
Eco Off After
86
Setup and Reset
6
6 Setup and Reset

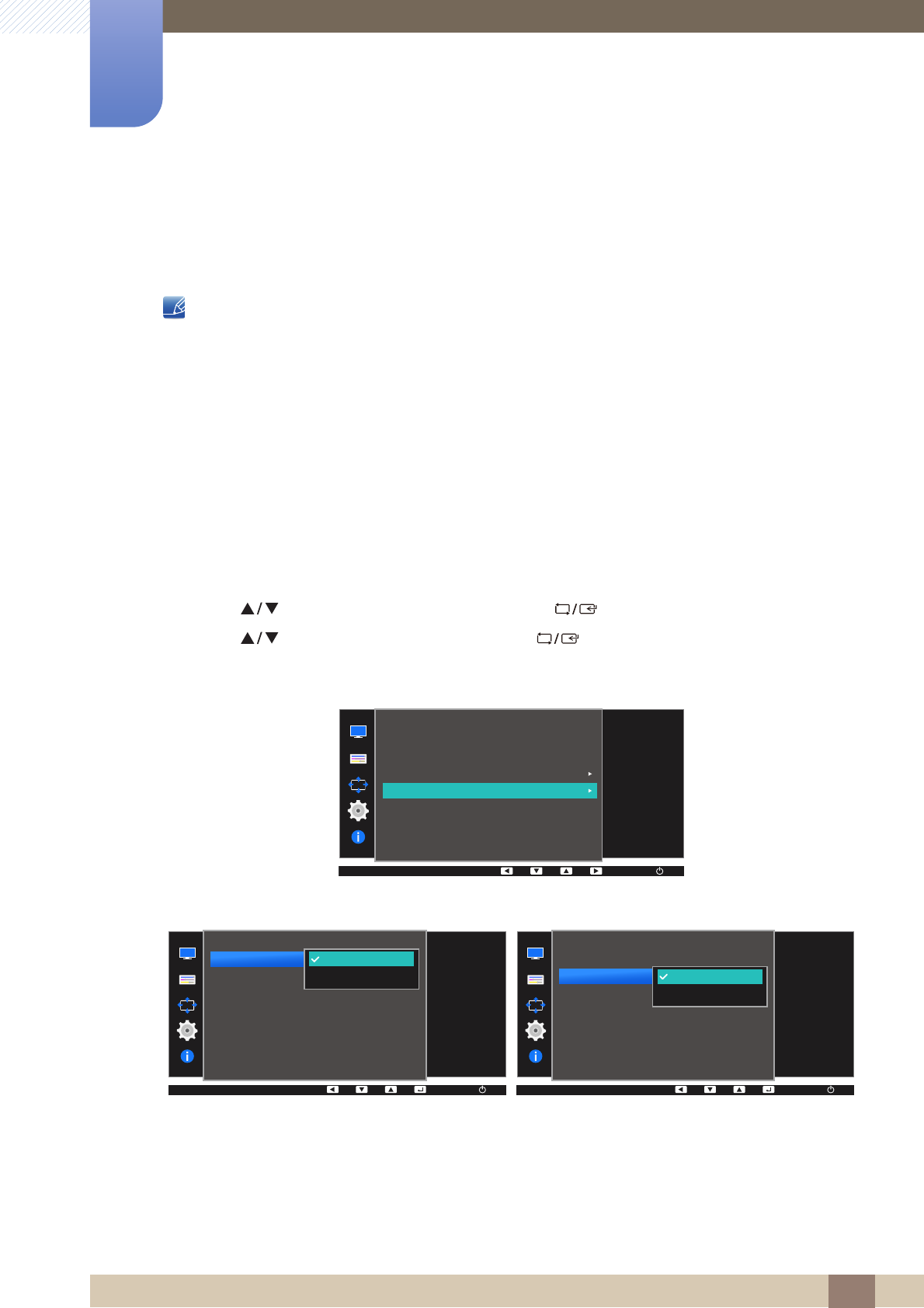

6.4 PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
This function does not support Analog mode.
Supplied for the wide models only such as 16:9 or 16:10.
If the monitor (when set to DVI/HDMI/DP) is in power saving mode or is displaying the message
Check Signal Cable, press the [ ] button to display the On Screen Display (OSD).
You can select PC or AV.
The functions available on the monitor may vary depending on the model. Refer to the actual
product.
6.4.1 Configuring PC/AV Mode
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to PC/AV Mode and press [ ] on the product.
The following screen will appear.
S22E650D / S23E650D / S24E650XL / S24E650XW / S24E650DW / S27E650D / S27E650X
MENU
MENU
AUTO
SETUP&RESET
Set to AV to enlarge
the picture.
Reset All
Smart Eco Saving
Off Timer Plus
PC/AV Mode
Key Repeat Time
Source Detection
Off
Acceleration
Auto
AUTOAUTOAUTO
AUTO
AUTO
DVI
DisplayPort
PC
AV
AUTO
PC/AV Mode
Select the PC/AV
mode for the DVI
source.
AUTOAUTO
AUTO
AUTO
DVI
DisplayPort
PC
AV
AUTO
PC/AV Mode
Select the PC/AV
mode for the
DisplayPort source.
AUTOAUTO
AUTO
AUTO
87
Setup and Reset
6
6 Setup and Reset
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
S22E450F / S24E450F
S23E650K
S24E650MW
S24E650PL
DVI
HDMI
PC
AV
AUTO
PC/AV Mode
Select the PC/AV
mode for the DVI
source.
AUTOAUTO
AUTO
AUTO
DVI
HDMI
PC
AV
AUTO
PC/AV Mode
Select the PC/AV
mode for the HDMI
source.
AUTOAUTO
AUTO
AUTO
HDMI
PC
AV
DVI PC
AUTO
PC/AV Mode
Select the PC/AV
mode for the HDMI
source.
AUTOAUTO
AUTO
AUTO
DVI
PC
AV
AUTO
PC/AV Mode
Select the PC/AV
mode for the DVI
source.
AUTOAUTO
AUTO
AUTO
HDMI
DisplayPort
AUTO
PC/AV Mode
Select the PC/AV
mode for the HDMI
source.
AUTOAUTO
AUTO
AUTO
PC
AV
DVI PC
HDMI
DisplayPort
PC
AV
AUTO
PC/AV Mode
Select the PC/AV
mode for the
DisplayPort source.
AUTOAUTO
AUTO
AUTO
88
Setup and Reset
6
6 Setup and Reset
6.5 Key Repeat Time
Control the response rate of a button when the button is pressed.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.5.1 Configuring Key Repeat Time
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Key Repeat Time and press [ ] on the product.
The following screen will appear.
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds
only once when a button is pressed.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
AUTO
SETUP&RESET
Configure the
response rate of a
button when the
button is pressed.
Off
Acceleration
Auto
AUTOAUTOAUTO
AUTO
AUTO
Acceleration
1 sec
2 sec
No Repeat
Reset All
Smart Eco Saving
Off Timer Plus
PC/AV Mode
Key Repeat Time
Source Detection
AUTO
AUTO
89
Setup and Reset
6
6 Setup and Reset
6.6 Source Detection
You can activate Source Detection.
The functions available on the monitor may vary depending on the model. Refer to the actual product.
6.6.1 Configuring Source Detection
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to SETUP&RESET and press [ ] on the product.
3Press [ ] to move to Source Detection and press [ ] on the product.
The following screen will appear.
Auto: The input source is automatically recognized.
Manual: Manually select an input source.
4Press [ ] to move to the option you want and press [ ].
5The selected option will be applied.
MENU
AUTO
SETUP&RESET
Decide how input
sources will be
detected.
Off
Acceleration
Auto
AUTOAUTOAUTO
AUTO
AUTO
AUTO
AUTO
Auto
Manual
Reset All
Smart Eco Saving
Off Timer Plus
PC/AV Mode
Key Repeat Time
Source Detection
90
7 INFORMATION Menu and Others
7 INFORMATION Menu and Others
A detailed description of each function is provided. Refer to your product for details.

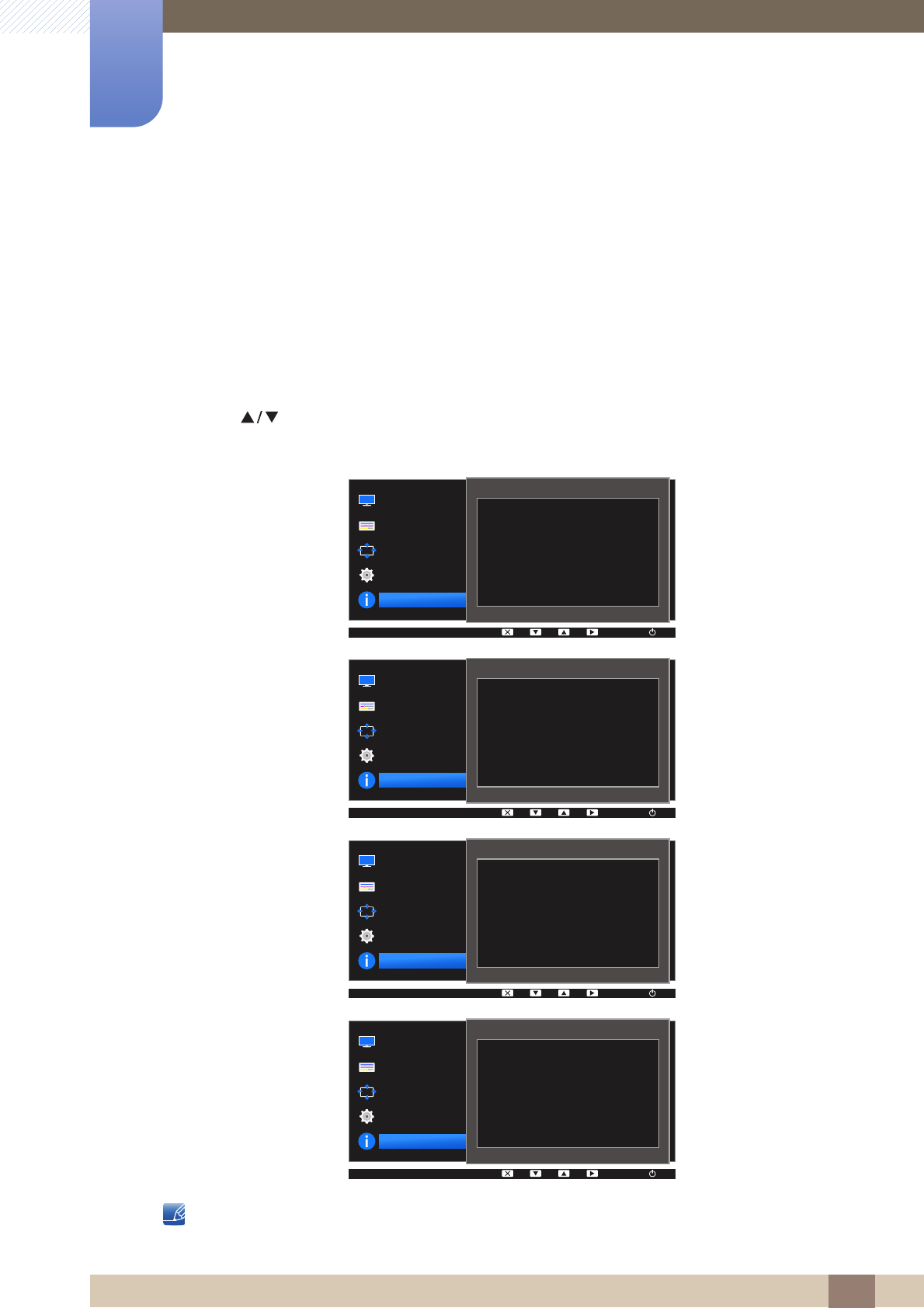

7.1 INFORMATION
View the current input source, frequency and resolution.
7.1.1 Displaying INFORMATION
1Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2Press [ ] to move to INFORMATION. The current input source, frequency and resolution will
appear.
The displayed menu items may vary depending on the model.
MENU
INFORMATION
LS********/**
S / N : ***************
Analog
**kHz **Hz **
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
AUTO
INFORMATION
LS********/**
S / N : ***************
DVI
**kHz **Hz **
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
AUTO
INFORMATION
LS********/**
S / N : ***************
HDMI
**kHz **Hz **
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
AUTO
INFORMATION
LS********/**
S / N : ***************
DisplayPort
**kHz **Hz **
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
AUTO
91
INFORMATION Menu and Others
7
7 INFORMATION Menu and Others
7.2 Configuring Brightness, Contrast and Sharpness from the
Initial Screen
Adjust the Brightness, Contrast and Sharpness setting using the [ ] buttons in the initial screen
(where no OSD menu is displayed).
Brightness :
This menu is not available when Bright is set to Dynamic Contrast mode.
This menu is not available when Smart Eco Saving is enabled.
This menu is not available when Eye Saver Mode is enabled.
Contrast :
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
Sharpness :
This option is not available when Bright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
1Press any button on the front of the product (when no menu screen is displayed) to display the Key
guide. Next, press the [ ] button. The following screen will appear.
2Press the [ ] button to alternate between the Brightness, Contrast and Sharpness settings.
3Adjust the Brightness, Contrast and Sharpness settings using the [ ] buttons.
SAMSUNG
MAGIC
SAMSUNG
MAGIC
SAMSUNG
MAGIC
Contrast
Sharpness
100
Brightness
92
INFORMATION Menu and Others
7
7 INFORMATION Menu and Others

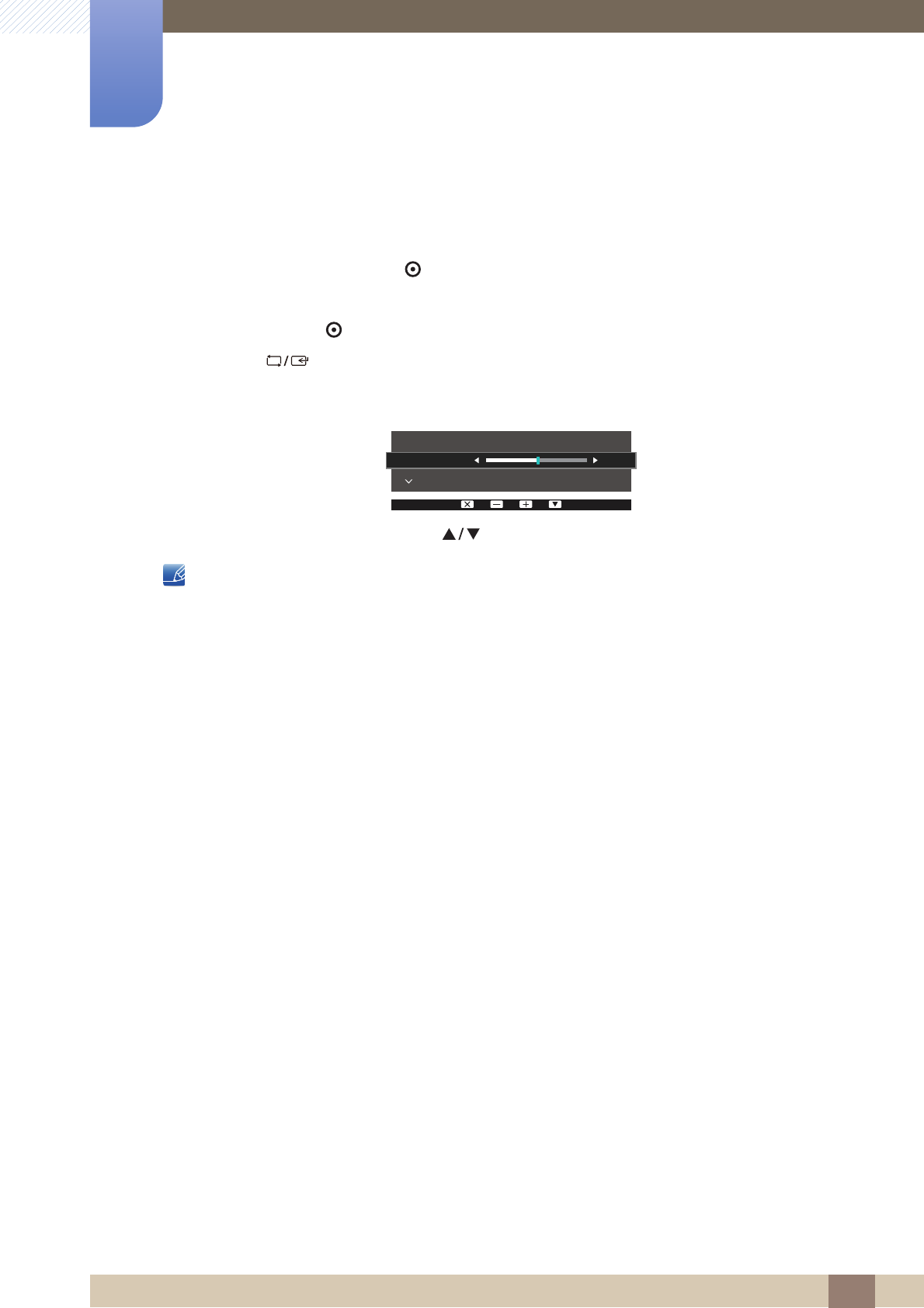

7.3 Configuring Volume in the Initial Screen
Adjust the Volume by pressing the [ ] button when the Key Guide is displayed.
1Press any button on the front of the product (when no menu screen is displayed) to display the Key
guide. Next, press [ ].
2Press the [ ] button to alternate between the Brightness, Contrast and Volume settings.
The following screen will appear.
3Adjust the Volume setting using the [ ] buttons.
Applicable to the models that have speakers only.
Brightness
Contrast
50
Volume
93
8 Installing the Software
8 Installing the Software
8.1 MultiScreen
"MultiScreen" enables users to use the monitor by partitioning multiple sections.
8.1.1 Installing the Software
1Insert the installation CD into the CD-ROM drive.
2Select the "MultiScreen" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "MultiScreen" setup file on the CD-ROM.
3When the Installation Wizard appears, click "Next".
4Complete the remaining software installation steps according to the instructions displayed on the
screen.
The software may not work properly if you do not restart the computer after the installation.
The "MultiScreen" icon may not appear depending on the computer system and the product
specifications.
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation ("MultiScreen")
The "MultiScreen" installation may be affected by the Graphics Card, Motherboard and the Networking
Environment.
System Requirements
OS
Windows™ 2000
Windows XP Home Edition
Windows XP Professional
Windows Vista 32Bit
Windows 7 32Bit
Windows 8 32Bit
For "MultiScreen", the operating systems Windows 2000 or later is recommended.
MultiScreen
94
Installing the Software
8
8 Installing the Software
Hardware
At least 32MB of memory
At least 60MB of free space on the hard disk drive
8.1.2 Removing the Software
Click Start, select Settings/Control Panel, and then double-click Add or Remove Programs.
Select "MultiScreen" from the program list and click the Add/Delete button.
95
9 Troubleshooting Guide
9 Troubleshooting Guide
9.1 Requirements Before Contacting Samsung Customer
Service Center
9.1.1 Testing the Product
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1Power off both the PC and product.
2Disconnect the cables from the product.
3Power on the product.
4If the message Check Signal Cable appears, the product is working normally.
If the screen remains blank, check the PC system, video controller and cable.
9.1.2 Checking the Resolution and Frequency
For a mode that exceeds the supported resolution (refer to "10.8Standard Signal Mode Table"), the
message Not Optimum Mode will appear for a short time.
9.1.3 Check the following.
Installation issue (PC mode)
Issues Solutions
The screen keeps switching on and off. Check the cable connection between the product
and PC, and ensure the connectors are locked.
(Refer to "2.2Connecting and Using a PC")
96
Troubleshooting Guide
9
9 Troubleshooting Guide
Screen issue
Issues Solutions
The power LED is off. The screen will not switch
on.
Check that the power cable is connected
properly. (Refer to "2.2Connecting and Using a
PC")
The message Check Signal Cable appears. Check that the cable is properly connected to the
product. (Refer to "2.2Connecting and Using a
PC")
Check that the device connected to the product is
powered on.
Not Optimum Mode is displayed. This message appears when the signal from the
graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to
suit the product performance, referring to
Standard Signal Mode Table (page 114).
The images on the screen look distorted. Check the cable connection to the product (Refer
to "2.2Connecting and Using a PC")
The screen is not clear. The screen is blurry. Adjust Coarse (page 69) and Fine (page 70).
Remove any accessories (video extension cable,
etc.) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears unstable and shaky. Check that the resolution and frequency for the
PC are within the range of resolution and
frequency compatible with the product. Next, if
required, change the settings, referring to
Standard Signal Mode Table (page 114) in this
manual and the INFORMATION menu on the
product.
There are shadows or ghost images left on the
screen.
The screen is too bright. The screen is too dark. Adjust Brightness (page 53) and Contrast (page
54).
Screen color is inconsistent. Change the COLOR settings.
(Refer to "Configuring Tint")
The colors on the screen have a shadow and are
distorted.
Change the COLOR settings.
(Refer to "Configuring Tint")
White does not really look white. Change the COLOR settings.
(Refer to "Configuring Tint")
97
Troubleshooting Guide
9
9 Troubleshooting Guide
Sound issue
Source device issue
The LED lights on the frame of the product may be seen depending on the user's viewing angle. The
light is harmless to people and has no bearing on product features and performance. The product is
safe to use.
There is no image on the screen and the power
LED blinks every 0.5 to 1 second.
The product is operating in power-saving mode.
Press any key on the keyboard or move the
mouse to return to normal operating mode.
Issues Solutions
There is no sound. Check the connection of the audio cable or adjust
the volume.
Check the volume.
The volume is too low. Adjust the volume.
If the volume is still low after turning it up to the
maximum level, adjust the volume on your PC
sound card or software program.
Issues Solutions
A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is
booting, have your PC serviced.
Issues Solutions
98
Troubleshooting Guide
9
9 Troubleshooting Guide
9.2 Q & A
Question Answer
How can I change the
frequency?
Set the frequency on your graphics card.
Windows XP: Go to Control Panel
Appearance and Themes Display Settings
Advanced Monitor, and adjust Refresh rate under
Monitor settings.
Windows ME/2000: Go to Control Panel Display
Settings Advanced Monitor, and adjust Refresh rate
under Monitor settings.
Windows Vista: Go to Control Panel Appearance and
Personalization Personalization Display Settings
Advanced Settings Monitor, and adjust Refresh rate
under Monitor settings.
Windows 7: Go to Control Panel Appearance and
Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
Windows 8: Go to Settings Control Panel
Appearance and Personalization Display
Screen Resolution Advanced settings Monitor, and
adjust Refresh rate under Monitor settings.
99
Troubleshooting Guide
9
9 Troubleshooting Guide
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
How can I change the
resolution?
Windows XP: Go to Control Panel
Appearance and Themes Display Settings, and adjust
the resolution.
Windows ME/2000: Go to Control Panel Display
Settings, and adjust the resolution.
Windows Vista: Go to Control Panel
Appearance and Personalization Personalize
Display Settings, and adjust the resolution.
Windows 7: Go to Control Panel
Appearance and Personalization Display
Adjust Resolution, and adjust the resolution.
Windows 8: Go to Settings Control Panel
Appearance and Personalization Display
Adjust Resolution, and adjust the resolution.
How do I set power-saving
mode?
Windows XP: Set power-saving mode in Control Panel
Appearance and Themes Display
Screen Saver Settings or BIOS SETUP on the PC.
Windows ME/2000: Set power-saving mode in Control Panel
Display Screen Saver Settings or BIOS SETUP on the
PC.
Windows Vista: Set power-saving mode in Control Panel
Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Windows 7: Set power-saving mode in Control Panel
Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Windows 8: Set power-saving mode in Settings
Control Panel Appearance and Personalization
Personalize Screen Saver Settings or BIOS SETUP on the
PC.
Question Answer
100
10 Specifications
10 Specifications
10.1 General (S22E450F / S22E650D)
Model Name S22E450F S22E650D
Panel Size 22 CLASS (21.5 inches / 54.6 cm)
Display area 476.64 mm (H) x 268.11 mm (V)
18.8 Inches (H) x 10.6 Inches (V)
Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)
0.009774 Inches (H) x 0.009774 Inches (V)
Power Supply This product uses 100 to 240 V.
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 504.3 x 301.9 x 55.4 mm /
3.07 kg
19.9 x 11.9 x 2.2 Inches /
6.8 lbs
504.3 x 301.9 x 55.4 mm /
3.27 kg
19.9 x 11.9 x 2.2 Inches /
7.2 lbs
With Stand With USB:
Min: 504.3 x 359.4 x
210.0 mm / 4.77 kg
19.9 x 14.1 x 8.3 Inches / 10.5 lbs
Max: 504.3 x 489.4 x
210.0 mm / 4.77 kg
19.9 x 19.3 x 8.3 Inches / 10.5 lbs
Without USB:
Min: 504.3 x 325.3 x
210.0 mm / 4.57 kg
19.9 x 12.8 x 8.3 Inches / 10.1 lbs
Max: 504.3 x 425.3 x
210.0 mm / 4.57 kg
19.9 x 16.7 x 8.3 Inches / 10.1 lbs
With USB:
Min: 504.3 x 359.4 x
210.0 mm / 4.87 kg
19.9 x 14.1 x 8.3 Inches / 10.7 lbs
Max: 504.3 x 489.4 x
210.0 mm / 4.87 kg
19.9 x 19.3 x 8.3 Inches / 10.7 lbs
Without USB:
Min: 504.3 x 325.3 x
210.0 mm / 4.75 kg
19.9 x 12.8 x 8.3 Inches / 10.5 lbs
Max: 504.3 x 425.3 x
210.0 mm / 4.75 kg
19.9 x 16.7 x 8.3 Inches / 10.5 lbs
VESA Mounting Interface 100.0 mm x 100.0 mm
3.9 Inches x 3.9 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
101
Specifications
10
10 Specifications
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
102
Specifications
10
10 Specifications
10.2 General (S23E650D / S23E650K)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Model Name S23E650D / S23E650K
Panel Size 23 CLASS (23.0 inches / 58.4 cm)
Display area 509.184 mm (H) x 286.416 mm (V)
20.0 Inches (H) x 11.3 Inches (V)
Pixel Pitch 0.2652 mm (H) x 0.2652 mm (V)
0.010441 Inches (H) x 0.010441 Inches (V)
Power Supply This product uses 100 to 240 V.
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 542.9 x 321.4 x 55.3 mm / 3.69 kg
21.4 x 12.7 x 2.2 Inches / 8.1 lbs
With Stand With USB:
Min: 542.9 x 349.7 x 224.0 mm / 5.37 kg
21.4 x 13.8 x 8.8 Inches / 11.8 lbs
Max: 542.9 x 479.7 x 224.0 mm / 5.37 kg
21.4 x 18.9 x 8.8 Inches / 11.8 lbs
Without USB:
Min: 542.9 x 344.7 x 224.0 mm / 5.37 kg
21.4 x 13.6 x 8.8 Inches / 11.8 lbs
Max: 542.9 x 474.7 x 224.0 mm / 5.37 kg
21.4 x 18.7 x 8.8 Inches / 11.8 lbs
VESA Mounting Interface 100.0 mm x 100.0 mm
3.9 Inches x 3.9 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
103
Specifications
10
10 Specifications
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
104
Specifications
10
10 Specifications
10.3 General (S24E450F)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Model Name S24E450F
Panel Size 24 CLASS (24 inches / 60.9 cm)
Display area 531.36 mm (H) x 298.89 mm (V)
20.9 Inches (H) x 11.8 Inches (V)
Pixel Pitch 0.27675 mm (H) x 0.27675 mm (V)
0.010896 Inches (H) x 0.010896 Inches (V)
Power Supply This product uses 100 to 240 V.
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 565.4 x 333.2 x 56.6 mm / 4.18 kg
22.3 x 13.1 x 2.2 Inches / 9.2 lbs
With Stand With USB:
Min: 565.4 x 361.8 x 224.0 mm / 5.87 kg
22.3 x 14.2 x 8.8 Inches / 12.9 lbs
Max: 565.4 x 491.8 x 224.0 mm / 5.87 kg
22.3 x 19.4 x 8.8 Inches / 12.9 lbs
Without USB:
Min: 565.4 x 356.8 x 224.0 mm / 5.87 kg
22.3 x 14.0 x 8.8 Inches / 12.9 lbs
Max: 565.4 x 486.8 x 224.0 mm / 5.87 kg
22.3 x 19.2 x 8.8 Inches / 12.9 lbs
VESA Mounting Interface 100.0 mm x 100.0 mm
3.9 Inches x 3.9 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
105
Specifications
10
10 Specifications
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
106
Specifications
10
10 Specifications
10.4 General (S24E650PL / S24E650XL)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Model Name S24E650PL / S24E650XL
Panel Size 24 CLASS (23.6 inches / 59.8 cm)
Display area 521.28 mm (H) x 293.22 mm (V)
20.5 Inches (H) x 11.5 Inches (V)
Pixel Pitch 0.2715 mm (H) x 0.2715 mm (V)
0.010689 Inches (H) x 0.010689 Inches (V)
Power Supply This product uses 100 to 240 V.
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 554.6 x 330.5 x 55.4 mm / 3.97 kg
21.8 x 13.0 x 2.2 Inches / 8.8 lbs
With Stand With USB:
Min: 554.6 x 357.3 x 224.0 mm / 5.63 kg
21.8 x 14.1 x 8.8 Inches / 12.4 lbs
Max: 554.6 x 487.3 x 224.0 mm / 5.63 kg
21.8 x 19.2 x 8.8 Inches / 12.4 lbs
Without USB:
Min: 554.6 x 352.3 x 224.0 mm / 5.63 kg
21.8 x 13.9 x 8.8 Inches / 12.4 lbs
Max: 554.6 x 482.3 x 224.0 mm / 5.63 kg
21.8 x 19.0 x 8.8 Inches / 12.4 lbs
VESA Mounting Interface 100.0 mm x 100.0 mm
3.9 Inches x 3.9 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
107
Specifications
10
10 Specifications
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
108
Specifications
10
10 Specifications
10.5 General (S24E650DW / S24E650MW / S24E650XW)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Model Name S24E650DW / S24E650MW / S24E650XW
Panel Size 24 CLASS (24.0 inches / 61.1 cm)
Display area 518.4 mm (H) x 324.0 mm (V)
20.4 Inches (H) x 12.8 Inches (V)
Pixel Pitch 0.270 mm (H) x 0.270 mm (V)
0.01063 Inches (H) x 0.01063 Inches (V)
Power Supply This product uses 100 to 240 V.
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 554.8 x 359.4 x 55.1 mm / 4.11 kg
21.8 x 14.1 x 2.2 Inches / 9.1 lbs
With Stand With USB:
Min: 554.8 x 387.3 x 224.0 mm / 5.80 kg
21.8 x 15.2 x 8.8 Inches / 12.8 lbs
Max: 554.8 x 517.3 x 224.0 mm / 5.80 kg
21.8 x 20.4 x 8.8 Inches / 12.8 lbs
Without USB:
Min: 554.8 x 382.3 x 224.0 mm / 5.80 kg
21.8 x 15.1 x 8.8 Inches / 12.8 lbs
Max: 554.8 x 512.3 x 224.0 mm / 5.80 kg
21.8 x 20.2 x 8.8 Inches / 12.8 lbs
VESA Mounting Interface 100.0 mm x 100.0 mm
3.9 Inches x 3.9 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
109
Specifications
10
10 Specifications
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
110
Specifications
10
10 Specifications
10.6 General (S27E650D / S27E650X)
Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data
exchange between the monitor and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the installation settings if desired.
Model Name S27E650D / S27E650X
Panel Size 27 CLASS (27.0 inches / 68.5 cm)
Display area 597.9 mm (H) x 336.3 mm (V)
23.5 Inches (H) x 13.2 Inches (V)
Pixel Pitch 0.3114 mm (H) x 0.3114 mm (V)
0.01226 Inches (H) x 0.01226 Inches (V)
Power Supply This product uses 100 to 240 V.
Refer to the label at the back of the product as the standard
voltage can vary in different countries.
Dimensions
(W x H x D) /
Weight
Without Stand 639.0 x 378.1 x 57.6 mm / 5.20 kg
25.2 x 14.9 x 2.3 Inches / 11.5 lbs
With Stand With USB:
Min: 639.0 x 402.8 x 224.0 mm / 6.92 kg
25.2 x 15.9 x 8.8 Inches / 15.3 lbs
Max: 639.0 x 532.8 x 224.0 mm / 6.92 kg
25.2 x 21.0 x 8.8 Inches / 15.3 lbs
Without USB:
Min: 639.0 x 397.8 x 224.0 mm / 6.92 kg
25.2 x 15.7 x 8.8 Inches / 15.3 lbs
Max: 639.0 x 527.8 x 224.0 mm / 6.92 kg
25.2 x 20.8 x 8.8 Inches / 15.3 lbs
VESA Mounting Interface 100.0 mm x 100.0 mm
3.9 Inches x 3.9 Inches
(For use with Specialty(Arm) Mounting hardware.)
Environmental
considerations
Operating Temperature : 50 °F – 104 °F (10 °C – 40 °C)
Humidity : 10% – 80%, non-condensing
Storage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)
Humidity : 5% – 95%, non-condensing
111
Specifications
10
10 Specifications
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm)
may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
(USA only)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect or call, (877) 278 - 0799
112
Specifications
10
10 Specifications
10.7 PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and
making the Power LED blink if the product is not used for a specified period of time. The power is not
turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move
the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-
saving function.
PowerSaver
Normal
operation
mode
Energy Star
Power
Consumption
Power saving
mode
Power off
(Power button)
Power Indicator On On Blinking Off
Power
Consumption
(S22E450F)
Typical 24 W Typical 21 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S22E650D)
Typical 22 W Typical 21 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S23E650D)
Typical 23 W Typical 22 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S23E650K)
Typical 25 W Typical 22 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S24E450F)
Typical 25 W Typical 23 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S24E650PL)
Typical 25 W Typical 22 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S24E650XL)
Typical 25 W Typical 22 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S24E650DW)
Typical 30 W Typical 25 W Typical 0.3 W Less than 0.005 W
(0 W mode)
113
Specifications
10
10 Specifications
The displayed power consumption level can vary in different operating conditions or when settings
are changed. (S**E450**& S**E650** Model Power off (Power button) : Less than 0.005 W (0 W
mode). The 0 W mode indicates that the product is not receiving external commands. The power
consumption is higher when the product receives an external command, such as a signal from the
Magic Rotation program.)
ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
Energy Star power is measured with the test method in the current Energy Star® Standard.
To reduce the power consumption to 0, disconnect the power cord. Disconnect the power cable if
you will not be using the product for an extended period of time (during vacation, etc.)
PowerSaver Normal
operation mode
Energy Star
Power
Consumption
Power saving
mode
Power off
(Power button)
Power
Consumption
(S24E650MW)
Typical 32 W Typical 25 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S24E650XW)
Typical 30 W Typical 25 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S27E650D)
Typical 26 W Typical 20 W Typical 0.3 W Less than 0.005 W
(0 W mode)
Power
Consumption
(S27E650X)
Typical 28 W Typical 20 W Typical 0.3 W Less than 0.005 W
(0 W mode)
114
Specifications
10
10 Specifications
10.8 Standard Signal Mode Table
This product can be set to only one resolution for each screen size to obtain the optimum picture
quality due to the nature of the panel. Therefore, a resolution other than the specified resolution
may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for the screen size of your product.
Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.
If the LCD monitor does not support 85 Hz, change the vertical frequency to 60 Hz using the CDT
monitor before you exchange it with the LCD monitor.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will
automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the
settings according to the following table by referring to the graphics card user manual.
Model Name
Synchronization Resolution
Horizontal
Frequency
Vertical
Frequency Optimum Resolution Maximum Resolution
S22E450F
S22E650D
S23E650K
S23E650D
S24E450F
S24E650XL
S24E650PL
S27E650D
S27E650X
30 – 81 kHz
56 – 75 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
S24E650DW
S24E650MW
S24E650XW
56 – 60 Hz 1920 x 1200 @ 60 Hz 1920 x 1200 @ 60 Hz
115
Specifications
10
10 Specifications
S22E450F / S22E650D / S23E650D / S23E650K / S24E450F / S24E650PL / S24E650XL / S27E650D /
S27E650X
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
116
Specifications
10
10 Specifications
S24E650DW / S24E650MW / S24E650XW
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a
horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.
Horizontal frequency is measured in kHz.
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The
repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
VESA, 1920 x 1200RB 74.038 59.950 154.000 +/-
117
Appendix
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)
If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first time.
If a product is reinstalled to move to a different spot or to move to a different house.
If customer requests instructions on how to use because of another company's product.
If customer requests instructions on how to use the network or another company's program.
If customer requests software installation and setup for the product.
If a service technician removes/cleans dusts or foreign materials inside of the product.
If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
external impact or drop.
use of supplies or separately sold product unspecified by Samsung.
repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
remodeling or repairing the product by customer.
using it with incorrect voltage or non-authorised electrical connections.
not following the "cautions" in User Manual.
Others
If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
118
Appendix
Appendix
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
119
Appendix
Appendix
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
Extended warranty
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
You can buy an extended warranty within 90 days of purchasing the product.
The extended warranty will cover an additional period of 3 years, beyond the standard 3 year warranty.
Samsung guarantee that replacement parts will be available for 5 years after the end of production.
After 5 years, in the event that the Samsung’s service center has run out of replacement parts and
cannot repair the product, Samsung will replace your product at no additional charge. If the model you
purchased is no longer available, Samsung replace it with the current equivalent model.
120
Appendix
Appendix
Terminology
OSD (On Screen Display)
On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as
required. You can change the screen brightness, tint, size and many other settings using menus
displayed on the screen.
Gamma
The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the
brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.
Grey scale
Scale refers to levels of color intensity that show variations of color change from darker areas to
brighter areas on the screen. Changes to the screen brightness are expressed with black and white
variation, and grey scale refers to the medium area between black and white. Changing the grey scale
through Gamma adjustment will change the medium brightness on the screen.
Scanning rate
Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted
as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of
screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that
the screen refreshes 60 times per second. The screen scanning rate depends on the performance of
the graphics cards in your PC and monitor.
Horizontal Frequency
Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are
transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal
frequency is measured in kHz and represents how many times horizontal lines per second are
transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the
horizontal lines that make up an image are transmitted 85000 times per second. The horizontal
frequency is indicated in 85kHz.
Vertical Frequency
One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and
represents how many images can be created per second by those horizontal lines. A vertical
frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is
also called "refresh rate" and affects screen flicker.
121
Appendix
Appendix
Resolution
Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the
level of display detail.
A higher resolution displays a greater amount of information on the screen and is suitable for
performing multiple tasks at the same time.
E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080
vertical lines (vertical resolution).
Plug & Play
The Plug & Play feature allows the automatic exchange of information between a monitor and PC to
produce an optimum display environment.
The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 122
Index
B
Before Connecting 42
Blue 73
Brightness 53
C
Cleaning 8
Coarse 69
Color Tone 74
Connecting and Using a PC 43
Contrast 54
Copyright 7
Correct Disposal 119
Correct posture to use the product 18
D
Display Time 78
E
Eye Saver Mode 56
F
Fine 70
G
Game Mode 57
Gamma 75
General 100
Green 72
H
HDMI Black Level 65
I
Image Size 63
INFORMATION 90
Installation 36
K
Key Repeat Time 88
L
Language 76
M
MultiScreen 93
O
Off Timer Plus 82
P
Parts 21
PC/AV Mode 86
PowerSaver 112
Q
Q & A 98
R
Red 71
Requirements Before Contacting Samsung
Customer Service Center 95
Reset All 80
Response Time 66
Responsibility for the Pay Service (Cost to
Customers) 117
