user manual

User manualS22E360HS22E390HS22E391HS22E393HS22E395H PLUSS24E360HLS24E390HLS24E391HLS24E393HLS24E395H PLUSS27E360FS27E360HS27E390HS27E391HS27E393HS27E395H PLUSS32E360F The color and the appearance may differ depending onthe product, and the specifications are subject tochange without prior notice to improve the performance.BN46-00444B-00
Table Of Contents 2Table Of ContentsBEFORE USING THEPRODUCT7 Copyright7 Icons used in this manual8 Cleaning9 Securing the Installation Space9 Precautions for storage10 Safety Precautions10 Symbols11 Electricity and Safety12 Installation and Safety 14 Operation and Safety18 Correct posture to use the product PREPARATIONS 19 Checking the Contents19 Checking the Components20 Parts20 Control Panel21 Direct Key guide22 Function Key Guide24 Reverse Side25 Installation25 Attaching the Stand26 Removing the Stand27 Adjusting the Product Tilt27 Installing a Wall-mount Kit or Desktop Stand (S27E360F / S32E360F)28 Anti-theft LockCONNECTING AND USINGA SOURCE DEVICE29 Before Connecting29 Pre-connection Checkpoints
Table Of ContentsTable Of Contents 329 Connecting and Using a PC29 Connecting to a PC32 Connecting the Power34 Driver Installation35 Setting Optimum ResolutionSCREEN SETUP 36 Brightness36 Configuring Brightness37 Contrast37 Configuring Contrast38 Sharpness38 Configuring Sharpness39 Eye Saver Mode39 Configuring Eye Saver Mode40 Game Mode40 Configuring Game Mode41 SAMSUNG MAGIC Bright41 Configuring SAMSUNG MAGIC Bright43 SAMSUNG MAGIC Upscale43 Configuring SAMSUNG MAGIC Upscale44 Image Size44 Changing the Image Size46 HDMI Black Level46 Configuring the HDMI Black Level Settings47 Response Time47 Configuring the Response Time48 H-Position & V-Position48 Configuring H-Position & V-Position49 Coarse49 Adjusting Coarse
Table Of ContentsTable Of Contents 450 Fine50 Adjusting FineCONFIGURING TINT 51 Red51 Configuring Red52 Green52 Configuring Green53 Blue53 Configuring Blue54 Color Tone54 Configuring the Color Tone Settings55 Gamma55 Configuring GammaCOORDINATING OSD 56 Language56 Configuring Language57 Menu H-Position & Menu V-Position57 Configuring Menu H-Position & Menu V-Position58 Display Time58 Configuring Display Time59 Transparency59 Changing TransparencySETUP AND RESET 60 Reset All 60 Initializing Settings (Reset All)61 Eco Saving Plus 61 Configuring Eco Saving Plus62 Off Timer62 Configuring Off Timer63 Configuring Turn Off After
Table Of ContentsTable Of Contents 564 PC/AV Mode64 Configuring PC/AV Mode65 Key Repeat Time65 Configuring Key Repeat Time66 Source Detection66 Configuring Source Detection67 Power LED On67 Configuring Power LED OnINFORMATION MENU ANDOTHERS68 INFORMATION68 Displaying INFORMATION69 Configuring Brightness, Contrast and Sharpness from the Initial Screen 70 Configuring Volume in the Initial Screen70 VolumeINSTALLING THESOFTWARE71 Easy Setting Box71 Installing the Software72 Removing the SoftwareTROUBLESHOOTINGGUIDE73 Requirements Before Contacting Samsung Customer Service Center73 Testing the Product73 Checking the Resolution and Frequency73 Check the following.76 Q & ASPECIFICATIONS 78 General (S22E360H / S22E390H / S22E391H / S22E393H / S22E395H PLUS)79 General (S24E360HL / S24E390HL / S24E391HL / S24E393HL / S24E395H PLUS)
Table Of ContentsTable Of Contents 680 General (S27E360F / S27E360H / S27E390H / S27E391H / S27E393H / S27E395H PLUS)81 General (S32E360F)82 PowerSaver83 Standard Signal Mode TableAPPENDIX 86 Responsibility for the Pay Service (Cost to Customers)86 Not a product defect86 A Product damage caused by customer's fault86 Others87 Correct Disposal87 Correct Disposal of This Product (Waste Electrical & Electronic Equipment)88 TerminologyINDEX
7 Before Using the Product Before Using the ProductCopyrightThe contents of this manual are subject to change without notice to improve quality.© 2015 Samsung ElectronicsSamsung Electronics owns the copyright for this manual.Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.Icons used in this manualAn administration fee may be charged if either(a) an engineer is called out at your request and there is no defect in the product(i.e. where you have failed to read this user manual).(b) you bring the unit to a repair center and there is no defect in the product (i.e. where you have failed to read this user manual).The amount of such administration charge will be advised to you before any work or home visit is carried out.The following images are for reference only. Real-life situations may differ from what is shown in the images.
8Before Using the Product Before Using the ProductCleaningExercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning. 1. Power off the monitor and computer.2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result. 3. Wipe the monitor screen using a clean, soft and dry cloth.Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.Do not spray water or detergent directly on the product.4. Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the monitor.5. Connect the power cord to the product after cleaning the product.6. Power on the monitor and computer.!!
9Before Using the Product Before Using the ProductSecuring the Installation SpaceEnsure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product. The exterior may differ depending on the product. Precautions for storage Be sure to contact Samsung Customer Service Center if the inside of the monitor needs cleaning. (A service fee will be charged.) 10 cm(3.93inches)10 cm(3.93inches)10 cm(3.93 inches)10 cm(3.93 inches)10 cm(3.93 inches)
10Before Using the Product Before Using the ProductSafety PrecautionsSymbolsCautionRISK OF ELECTRIC SHOCK DO NOT OPENCaution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.This symbol alerts you that important literature concerning operation and maintenance has been included with this product. Warning  A serious or fatal injury may result if instructions are not followed. Caution Personal injury or damage to properties may result if instructions are not followed.Activities marked by this symbol are prohibited.Instructions marked by this symbol must be followed.
11Before Using the Product Before Using the ProductElectricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images.  WarningDo not use a damaged power cord or plug, or a loose power socket.An electric shock or fire may result.Do not plug many products into the same power socket.Otherwise, the socket may overheat and cause a fire.Do not touch the power plug with wet hands.Otherwise, an electric shock may result.Insert the power plug all the way in so it is not loose.An unstable connection may cause a fire.Ensure you connect the power plug to a grounded power socket. (type 1 insulated devices only). An electric shock or injury may result.Do not bend or pull the power cord with force. Do not weigh the power cord down with a heavy object.A damaged power cord may cause an electric shock or fire.Do not place the power cord or product near heat sources. An electric shock or fire may result.Remove foreign substances such as dust around the plug pins and power socket with a dry cloth. Otherwise, a fire may result.!!!
12Before Using the Product Before Using the Product CautionInstallation and Safety  WarningDo not unplug the power cord when the product is in use.The product may become damaged by an electric shock.Do not use the power cord for products other than authorized products supplied by Samsung. An electric shock or fire may result.Keep the power socket where the power cord is connected unobstructed. If any problem occurs in the product, unplug the power cable to completely cut the power to the product. Power to the product cannot be completely cut off with the power button. Hold the plug when disconnecting the power cord from the power socket. An electric shock or fire may result.DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.Otherwise, a fire may result.Avoid installing the product in a narrow space with bad ventilation, such as a bookshelf or wall closet.Otherwise, a fire may result due to an increased internal temperature.Keep the plastic packaging bag for the product in a place that cannot be reached by children.Children may suffocate.!!!!
13Before Using the Product Before Using the Product CautionDo not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). The product may fall and break or cause a personal injury.Using the product in an area with excess vibration may damage the product or cause a fire.Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke. An electric shock or fire may result.Do not expose the product to direct sunlight, heat, or a hot object such as a stove.Otherwise, the product lifespan may be reduced, or a fire may result.Do not install the product within the reach of young children.The product may fall and injure children. Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.Take care not to drop the product when moving it. Otherwise, product failure or personal injury may result.Do not set down the product on its front.The screen may become damaged.When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.The product may fall and break or cause a personal injury.Install the product only on cabinets or shelves of the right size.!!
14Before Using the Product Before Using the ProductOperation and Safety WarningPut down the product carefully.The product may fall and break or cause a personal injury.Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.Be sure to consult Samsung Customer Service Center before installation if you want to install the product at such a place.High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product on your own.An electric shock or fire may result.Contact Samsung Customer Service Center for repair.To move the product, first disconnect all the cables from it, including the power cable.Otherwise, the power cord may be damaged and a fire or electric shock may result.If the product generates a strange noise, a burning smell, or smoke, remove the power cord immediately and contact Samsung Customer Service Center.An electric shock or fire may result.Do not let children hang from the product or climb on top of it.The product may fall, and your child may become injured or seriously harmed.If the product falls or the exterior is damaged, power off the product, remove the power cord, and contact Samsung Customer Service Center.Otherwise, an electric shock or fire may result. Do not put a heavy object, toy, or sweets on top of the product.The product or heavy objects may fall as children try to reach for the toy or sweets resulting in a serious injury.!SAMSUNG!!!
15Before Using the Product Before Using the ProductIf there is a thunderstorm or lightning strike, turn off the power and disconnect the power cable.An electric shock or fire may result.Do not drop objects on the product or apply impact.An electric shock or fire may result.Do not move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.Sparks can cause an explosion or fire.Do not lift or move the product by pulling the power cord or any cable.Otherwise, the cable may be damaged and product failure, an electric shock or fire may result.Do not use or keep combustible spray or an inflammable substance near the product.An explosion or fire may result.Ensure the vents are not blocked by tablecloths or curtains.Otherwise, a fire may result from an increased internal temperature.Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable object (paper, match, etc.) into the vent or ports of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center.Product failure, an electric shock or fire may result. Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center. Product failure, an electric shock or fire may result.!!!GAS!10 0
16Before Using the Product Before Using the Product CautionLeaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.If you are not going to use the product for an extended period of time, activate power-saving mode or a moving-picture screen saver.Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc.).Otherwise, a fire may result from accumulated dust, overheating, an electric shock, or electric leakage. Use the product at the recommended resolution and frequency.Otherwise,Your eyesight may deteriorate.Do not put DC power adapters together.Otherwise, a fire may result.Remove the plastic bag from the DC power adapter before you use it.Otherwise, a fire may result.Do not let water enter the DC power device or get the device wet.An electric shock or fire may result. Avoid using the product outdoors where it can be exposed to rain or snow.Be careful not to get the DC power adapter wet when you wash the floor.Do not put the DC power adapter near to any heating apparatus.Otherwise, a fire may result.Keep the DC power adapter in a well-ventilated area.Looking at the screen too close for an extended period of time can deteriorate your eyesight.!!-_-!!!!
17Before Using the Product Before Using the ProductDo not hold the monitor upside-down or move it by holding the stand.The product may fall and break or cause a personal injury.Do not use humidifiers or stoves around the product.An electric shock or fire may result.Rest your eyes for more than 5 minutes for every 1 hour of product use.Eye fatigue will be relieved.Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.Store the small accessories used with the product out of reach of children.Exercise caution when adjusting the product angle or stand height.Otherwise, children's fingers or hands may become stuck and injured.Tilting the product excessively may cause it to fall and result in personal injury. Do not place heavy objects on the product.Product failure or personal injure may result.When using headphones or earphones, do not turn the volume too high.Having the sound too loud may damage your hearing.!!!
18Before Using the Product Before Using the ProductCorrect posture to use the product Use the product in the correct posture as follows:Straighten your back.Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen. Keep your eyes directly in front of the screen. Adjust the angle so light does not reflect on the screen.Keep your forearms perpendicular to your upper arms and level with the back of your hands.Keep your elbows at about a right angle.Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.
191 Preparations1  Preparations1.1 Checking the Contents1.1.1 Checking the Components Contact the dealer from whom you purchased the product if any item is missing.The appearance of the components may differ from the images shown. Components Components may vary depending on the country. Quick Setup Guide Warranty card(Not available in some locations)Regulatory guideUser manual (optional) DC power adapter(Integrated)(optional)DC power adapter(Detachable)(optional)Power cable(Only provided with the detachable DC power adapter.)D-SUB cable (optional) HDMI cable (optional)HDMI-DVI cable (optional) Stand base Stand neck
20Preparations11 Preparations1.2 Parts1.2.1 Control Panel The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Icons DescriptionJOG ButtonMulti directional button that helps navigate. The JOG button is located on the rear left side of the product.The button can be used to move up, down, left or right, or as Enter. (Power LED)This LED is power status indicator and works asPower on (Power button): OffPower saving mode: BlinkingPower Off (Power button): On The power Indicator operation can be swapped by changing in themenu. (SETUP&RESET  Power LED On)Actual models because of functional variation maybe haven’t thisfunction. Function Key GuidePress the JOG button when the screen is turned on. The Function Key Guide will appear. To access the onscreen menu when the guide is displayed, press the corresponding direction button again. Function Key Guide may vary depending on the function or productmodel. Please refer to the actual product. Power LEDJOG ButtonLEFTFunction Key GuideUPRIGHTPRESS(ENTER) DOWNReturn
21Preparations11 Preparations1.2.2 Direct Key guideFor guidance on shortcut keys, the below OSD (On Screen Display) will be displayed if you move the JOG button in any direction.UP/DOWN: Adjust Brightness.LEFT/RIGHT: Adjust the screen settings automatically.Changing the resolution in Display Properties will activate the Auto Adjustment function.This function is only available in Analog mode.PRESS(ENTER): Display Function Key Guide. This is only for SE390 series models with an earphone jack and  in HDMI mode. UP/DOWN: Adjust Brightness.LEFT/RIGHT: Adjust Volume.PRESS(ENTER): Display Function Key Guide.BrightnessAutoFeaturesEye Saver Mode OffBrightnessVolumeFeaturesEye Saver Mode Off
22Preparations11 Preparations1.2.3 Function Key GuideTo enter the main menu or to use other items, press the JOG button to display the Function Key Guide. You can exit by pressing the JOG button again.UP/DOWN/LEFT/RIGHT: Move to the item you want. The description for each item will appear when the focus changes.PRESS(ENTER): The selected item will be applied.Icons DescriptionSelect [ ] to change the input signal by moving the JOG button in the Function Key Guide screen. A message will appear on the top left corner of the screen if the input signal has been changed.Select [ ] by moving the JOG button in the function key guide screen.The OSD (On Screen Display) of your Monitor’s feature appears.OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable/Disable: To lock/unlock the OSD control, press the LEFT button for 10 seconds when the main menu displayed. If the OSD control is locked,Brightness and Contrast can be adjusted. Eye Saver Mode is available. SETUP&RESET  Power LED On is available. INFORMATION can be viewed. Return
23Preparations11 Preparations Actual models because of functional variation, Function key guide options will be different.Please run the corresponding function based on the actual icon and description.  When the monitor displays nothing (i.e. Power saving mode or Non-signal mode), 2 direct keys for control source and power could be used as below.  When the monitor displays the Main menu the JOG Button could be used as below.  Select [ ] by moving the JOG button in the function key guide screen.Press to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.PICTURE  Game Mode,  Bright, BrightnessCOLOR SETUP&RESET   Eco Saving PlusSelect [ ] to turn the Monitor off by moving the JOG button in the function key guide screen.JOG Button Power saving/Non-signal modeUP Source ChangeDownPRESS(ENTER) for 2 seconds Power OffJOG Button ActionUP/DOWN - Move the optionLEFT- Exit the Main menu.- Close Sublist without saving value.- Value decreases in the slider.RIGHT - Move to next depth.- Value increases in the slider.ENTER - Move to next depth.- Save the value and close Sublist.Icons DescriptionSAMSUNGMAGIC
24Preparations11 Preparations1.2.4 Reverse Side The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.The exterior may differ depending on the product. Port About portsConnect to a source device using an HDMI cable.Connect to a PC using the D-SUB cable.Connects to the DC power adapter.Connect to an audio output device such as headphones. This is only for SE390 series models with an earphone jack and  in HDMI mode.The sound could only be heard when using the HDMI to HDMI cable.
25Preparations11 Preparations1.3 Installation1.3.1 Attaching the Stand Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.The exterior may differ depending on the product. Insert the stand neck into the stand base in the direction shown in the figure.Check that the stand neck is firmly connected.Tightly fasten the connecting screw at the bottom of the stand base.Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product is facing downwards.Hold the main body of the product with your hand as shown by the figure.Push the assembled stand into the main body in the direction of the arrow as shown in the figure.- CautionDo not hold the product upside down only by the stand.
26Preparations11 Preparations1.3.2 Removing the Stand The exterior may differ depending on the product. Place a soft cloth over the table to protect the product and place the product onto the cloth so that the front of the product faces downwards.While holding the stand neck with one hand, pound the other fisted hand down onto the top of the stand base in the direction of the arrow to detach the stand base.Turn the connecting screw at the bottom of the stand base to separate it.Remove the stand neck from the stand base by pulling it in the direction of the arrow as shown in the figure.
27Preparations11 Preparations1.3.3 Adjusting the Product Tilt The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. You can adjust the tilt of your monitor.Hold the lower part of the product and adjust the tilt carefully.1.3.4 Installing a Wall-mount Kit or Desktop Stand (S27E360F / S32E360F) Power the product off and remove the power cable from the power socket. Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding parts on the wall-mount kit or desktop stand you want to attach. Attach the wall-mount kit or desktop stand here Bracket (sold separately) -2° (±2°) ~ 15° (±2°)241A3BAB
28Preparations11 Preparations NotesUsing a screw longer than the standard length can damage the internal components of the product.The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications.Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm or farther away from the wall.Be sure to use a wall-mount kit that complies with the standards.To install the monitor using a wall mount, disconnect the stand base from the monitor. 1.3.5 Anti-theft LockAn anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. The lock device is sold separately. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. To lock an anti-theft locking device: 1Fix the cable of your anti-theft locking device to a heavy object such as a desk.2Put one end of the cable through the loop on the other end.3Insert the locking device into the anti-theft lock slot at the back of the product.4Lock the locking device. An anti-theft locking device can be purchased separately.Refer to the user guide provided with your anti-theft locking device for details.Anti-theft locking devices can be purchased at electronics retailers or online.
292 Connecting and Using a Source Device2  Connecting and Using a Source Device2.1 Before Connecting2.1.1 Pre-connection CheckpointsBefore connecting a source device, read the user manual provided with it.The number and locations of ports on source devices may differ from device to device.Do not connect the power cable until all connections are completed.Connecting the power cable during connection may damage the product.Check the types of ports at the back of the product you want to connect.2.2 Connecting and Using a PC2.2.1 Connecting to a PCSelect a connection method suitable for your PC. Connecting parts may differ in different products.The exterior may differ depending on the product. Connection Using the D-SUB Cable (Analog Type) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "2.2.2  Connecting the Power".)3Change the input source to Analog controlling the JOG button UP/DOWN, when input source is not set.RGB IN
30Connecting and Using a Source Device22 Connecting and Using a Source DeviceConnection Using the HDMI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the PC.2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "2.2.2  Connecting the Power".)3Change the input source to HDMI controlling the JOG button UP/DOWN, when input source is not set.Connection Using an HDMI-DVI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on the PC.2Connect the DC power adapter to the product and a power socket. Next, turn on the power switch on the PC. (For details, refer to "2.2.2  Connecting the Power".)3Change the input source to HDMI controlling the JOG button UP/DOWN, when input source is not set.HDMI INHDMI IN
31Connecting and Using a Source Device22 Connecting and Using a Source DeviceConnecting to Headphones (S22E390H / S22E393H / S22E395H PLUS / S24E390HL / S24E393HL / S24E395H PLUS / S27E390H / S27E393H / S27E395H PLUS) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. 1Connect an audio output device such as headphones to [ ] port on the product. This function is only available in HDMI mode.The sound could only be heard when using the HDMI to HDMI cable.
32Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.2 Connecting the Power Connecting parts may differ in different products.The exterior may differ depending on the product. Power connection using integrated DC power adapterConnect the DC power adapter to [DC 14V] port on the back of the product and to the power outlet. The input voltage is switched automatically. Power connection using detachable DC power adapterConnect the power cable to the DC power adapter.Then, connect the DC power adapter to the [DC 14V] port on the back of the product.Next, connect the power cable to the power outlet. The input voltage is switched automatically. DC 14V DC 14V
33Connecting and Using a Source Device22 Connecting and Using a Source DeviceChanging the sound settings on WindowsControl Panel  Audio  Speaker  Speaker Setup→ →  → 1234
34Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.3 Driver Installation You can set the optimum resolution and frequency for this product by installing the corresponding drivers.An installation driver is contained on the CD supplied with the product.If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and download the file. 1Insert the user manual CD provided with the product into the CD-ROM drive.2Click "Windows Driver".3Follow the instructions given on the screen to proceed with installation.4Select your product model from the list of models.5Go to Display Properties and check that the resolution and refresh rate are appropriate.Refer to your Windows OS manual for further details.
35Connecting and Using a Source Device22 Connecting and Using a Source Device2.2.4 Setting Optimum ResolutionAn information message about setting optimum resolution will appear if you power on the product for the first time after purchase.Select a language on the product and change the resolution on your PC to the optimum setting.1Select a language by moving the JOG button LEFT/RIGHT. Next, press the JOG button.2To hide the information message, press the JOG button. If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again.The optimum resolution can also be selected in Control Panel on your PC.  5HWXUQ(QJOLVK7KHRSWLPDOUHVROXWLRQIRUWKLVPRQLWRULVDVIROORZV****x****  **Hz8VHWKHDERYHVHWWLQJVWRVHWWKHUHVROXWLRQRQ\RXU3&6HWXS*XLGH
363 Screen Setup3  Screen SetupConfigure the screen settings such as brightness.A detailed description of each function is provided. Refer to your product for details.3.1 BrightnessYou can adjust the general brightness of the picture. (Range: 0~100)A higher value will make the picture appear brighter. This menu is not available when  Bright is set to Dynamic Contrast mode.This menu is not available when Eco Saving Plus is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.1.1 Configuring Brightness1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Brightness controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear. 4Adjust the Brightness controlling the JOG button LEFT/RIGHT.5The selected option will be applied.SAMSUNGMAGICPICTURE  SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the brightness level. Values closer to 100 mean a brighter screen.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOff
37Screen Setup33 Screen Setup3.2 ContrastAdjust the contrast between the objects and background. (Range: 0~100)A higher value will increase the contrast to make the object appear clearer. This option is not available when  Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.2.1 Configuring Contrast1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Contrast controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Contrast controlling the JOG button LEFT/RIGHT.5The selected option will be applied.SAMSUNGMAGICPICTURE  SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOff
38Screen Setup33 Screen Setup3.3 SharpnessMake the outline of objects more clear or blurry. (Range: 0~100)A higher value will make the outline of objects clearer. This option is not available when  Bright is in Cinema or Dynamic Contrast mode.This menu is not available when  Upscale is in Mode1 or Mode2.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.3.1 Configuring Sharpness1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Sharpness controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Sharpness controlling the JOG button LEFT/RIGHT.5The selected option will be applied.SAMSUNGMAGICSAMSUNGMAGICPICTURE  SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleAdjust the sharpness of the picture. Values closer to 100 mean a sharper image.BrightnessContrastSharpnessEye Saver ModeGame Mode1007560OffOffCustomOff
39Screen Setup33 Screen Setup3.4 Eye Saver ModeSet to an optimum picture quality suitable for eye relaxation.TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is 'On', the blue light that wavelength is around 400nm will become lower and lower, and one hour later it will approach the optimum picture quality suitable for eye relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.4.1 Configuring Eye Saver Mode1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Eye Saver Mode controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.PICTURE  SAMSUNGMAGICBrightSAMSUNGMAGICUpscaleSet to an optimum picture quality suitable for eye relaxation.1007560OffOffCustomOffOffOnBrightnessContrastSharpnessEye Saver ModeGame Mode
40Screen Setup33 Screen Setup3.5 Game ModeConfigure the product screen settings for game mode.Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™ is connected. The functions available on the monitor may vary depending on the model. Refer to the actual product.This menu is not available when Eye Saver Mode is enabled. 3.5.1 Configuring Game Mode1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Game Mode controlling the JOG button UP/DOWN and press the JOG button. The following screen will appear.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied. When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off even if it is set to On.If you want to keep Game Mode enabled all the time, select Always On. PICTURE  1007560OffCustomOffOptimizes image settings for playing games.OffOnAlways OnBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscale
41Screen Setup33 Screen Setup3.6 SAMSUNG MAGIC BrightThis menu provides an optimum picture quality suitable for the environment where the product will be used. This menu is not available when Eco Saving Plus is enabled.This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. You can customize the brightness to suit your preferences.3.6.1 Configuring SAMSUNG MAGIC Bright1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to  Bright controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Custom: Customize the contrast and brightness as required.Standard: Obtain a picture quality suitable for editing documents or using Internet.Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.SAMSUNGMAGIC1007560505022000PICTURE  1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.CustomStandardCinemaDynamic ContrastBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscale
42Screen Setup33 Screen SetupWhen the external input is connected through HDMI and PC/AV Mode is set to AV,  Bright has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.Dynamic: Select this mode to view a sharper image than in Standard mode.Standard: Select this mode when the surroundings are bright. This also provides a sharp image.Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.Custom: Select this mode when you want to adjust the image according to your preferences.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.1007560505022000PICTURE  1007560CustomOffOffWideSet to an optimum picture quality suitable for the working environment.DynamicStandardMovieCustomBrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscaleSAMSUNGMAGIC
43Screen Setup33 Screen Setup3.7 SAMSUNG MAGIC UpscaleUpscale function can enhance the layers of the picture details and the vividness of the picture. The function has more obvious effects on low-resolution pictures.This menu is not available when  Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.7.1 Configuring SAMSUNG MAGIC Upscale1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to  Upscale controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Comparing with Mode1, Mode2 has a stronger effect.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.SAMSUNGMAGICSAMSUNGMAGICSAMSUNGMAGIC1007560505022000PICTURE  1007560CustomOffOffWideEnhance picture detail and vividness.offMode1Mode2BrightnessContrastSharpnessEye Saver ModeGame ModeSAMSUNGMAGICBrightSAMSUNGMAGICUpscale
44Screen Setup33 Screen Setup3.8 Image SizeChange the picture size. The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.8.1 Changing the Image Size1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Image Size controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Auto: Display the picture according to the aspect ratio of the input source.Wide: Display the picture in full screen regardless of the aspect ratio of the input source.In PC modePICTURE  AutoWideChoose the size and aspect ratio of the picture displayed on screen.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine0013440
45Screen Setup33 Screen Setup4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.16:9: Display the picture with an aspect ratio of 16:9.Screen Fit: Display the picture with the original aspect ratio without cutting off. Changing the screen size is available when the following conditions are satisfied.The function may not be supported depending on the ports provided with the product.A digital output device is connected using the HDMI cable.The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of these signals.).This can only be set when the external input is connected through HDMI and PC/AV Mode is set to AV. 4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.In AV modePICTURE  Choose the size and aspect ratio of the picture displayed on screen.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine4:316:9Screen Fit
46Screen Setup33 Screen Setup3.9 HDMI Black LevelIf a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/color degradation, black level, etc.) may occur, depending on the connected source device. In such case, HDMI Black Level can be used to adjust the image quality. If this is the case, correct the degraded picture quality using HDMI Black Level. This function is only available in HDMI mode.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.9.1 Configuring the HDMI Black Level Settings1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to HDMI Black Level controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Normal: Select this mode when there is no contrast ratio degradation.Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied. HDMI Black Level may not be compatible with some source devices. PICTURE  NormalLowOptimize HDMI picture brightness and contrast by adjusting the black level of the video signal.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine
47Screen Setup33 Screen Setup3.10 Response TimeAccelerate the panel response rate to make video appear more vivid and natural. It is best to set Response Time to Standard or Faster when you are not viewing a movie.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.10.1 Configuring the Response Time1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Response Time controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.PICTURE  StandardFasterFastestAccelerate the panel response rate to make video appear more vivid and natural.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFine 0Wide
48Screen Setup33 Screen Setup3.11 H-Position & V-PositionH-Position: Move the screen to the left or right.V-Position: Move the screen up or down. This menu is available in Analog mode only. This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select Screen Fit to adjust horizontal position in 0-6 levels.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.11.1 Configuring H-Position & V-Position1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to the H-Position or V-Position controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the H-Position or V-Position controlling the JOG button LEFT/RIGHT and press the JOG button.5The selected option will be applied.PICTURE  Faster0013440Move the image displayed on the screen to the left or right.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWidePICTURE  Faster0013440Move the image displayed on the screen up or down.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWide
49Screen Setup33 Screen Setup3.12 CoarseAdjust the screen frequency. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.12.1 Adjusting Coarse1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Coarse controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Coarse controlling the JOG button LEFT/RIGHT.5The selected option will be applied.PICTURE  Faster0013440Adjust the screen frequency.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWide
50Screen Setup33 Screen Setup3.13 FineFine-adjust the screen to obtain a vivid picture. This menu is available in Analog mode only.The functions available on the monitor may vary depending on the model. Refer to the actual product. 3.13.1 Adjusting Fine1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to PICTURE controlling the JOG button UP/DOWN and press the JOG button.3Move to Fine controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Fine controlling the JOG button LEFT/RIGHT.5The selected option will be applied.PICTURE  Faster0013440Fine-tune the screen to get a vivid picture.Image SizeHDMI Black LevelResponse TimeH-PositionV-PositionCoarseFineWide
514 Configuring Tint4  Configuring Tint A detailed description of each function is provided. Refer to your product for details.Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or Dynamic Contrast mode. This menu is not available when Game Mode or Eye Saver Mode is enabled.SAMSUNGMAGIC4.1 RedAdjust the value of the color red in the picture. (Range: 0~100)A higher value will increase the intensity of the color.4.1.1 Configuring Red1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to COLOR controlling the JOG button UP/DOWN and press the JOG button.3Move to Red controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Red controlling the JOG button LEFT/RIGHT.5The selected option will be applied.COLOR  RedGreenBlueColor ToneGammaAdjust the red saturation level. Values closer to 100 mean greater intensity for the color.505050NormalMode1

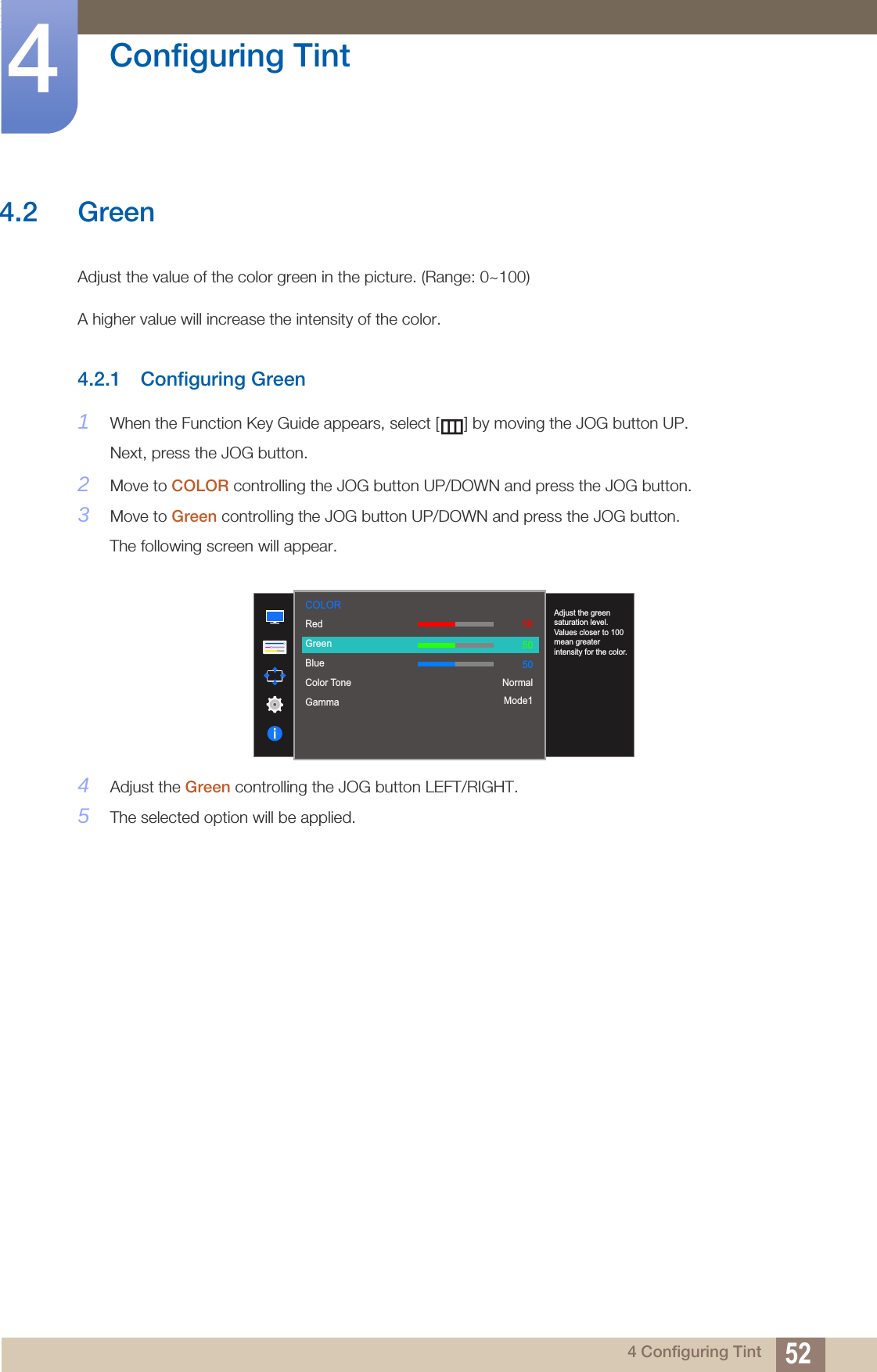

52Configuring Tint44 Configuring Tint4.2 GreenAdjust the value of the color green in the picture. (Range: 0~100)A higher value will increase the intensity of the color.4.2.1 Configuring Green1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to COLOR controlling the JOG button UP/DOWN and press the JOG button.3Move to Green controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Green controlling the JOG button LEFT/RIGHT.5The selected option will be applied.COLOR  RedGreenBlueColor ToneGamma505050NormalMode1Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.
53Configuring Tint44 Configuring Tint4.3 BlueAdjust the value of the color blue in the picture. (Range: 0~100)A higher value will increase the intensity of the color.4.3.1 Configuring Blue1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to COLOR controlling the JOG button UP/DOWN and press the JOG button.3Move to Blue controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Blue controlling the JOG button LEFT/RIGHT.5The selected option will be applied.COLOR  RedGreenBlueColor ToneGamma505050NormalMode1Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color.

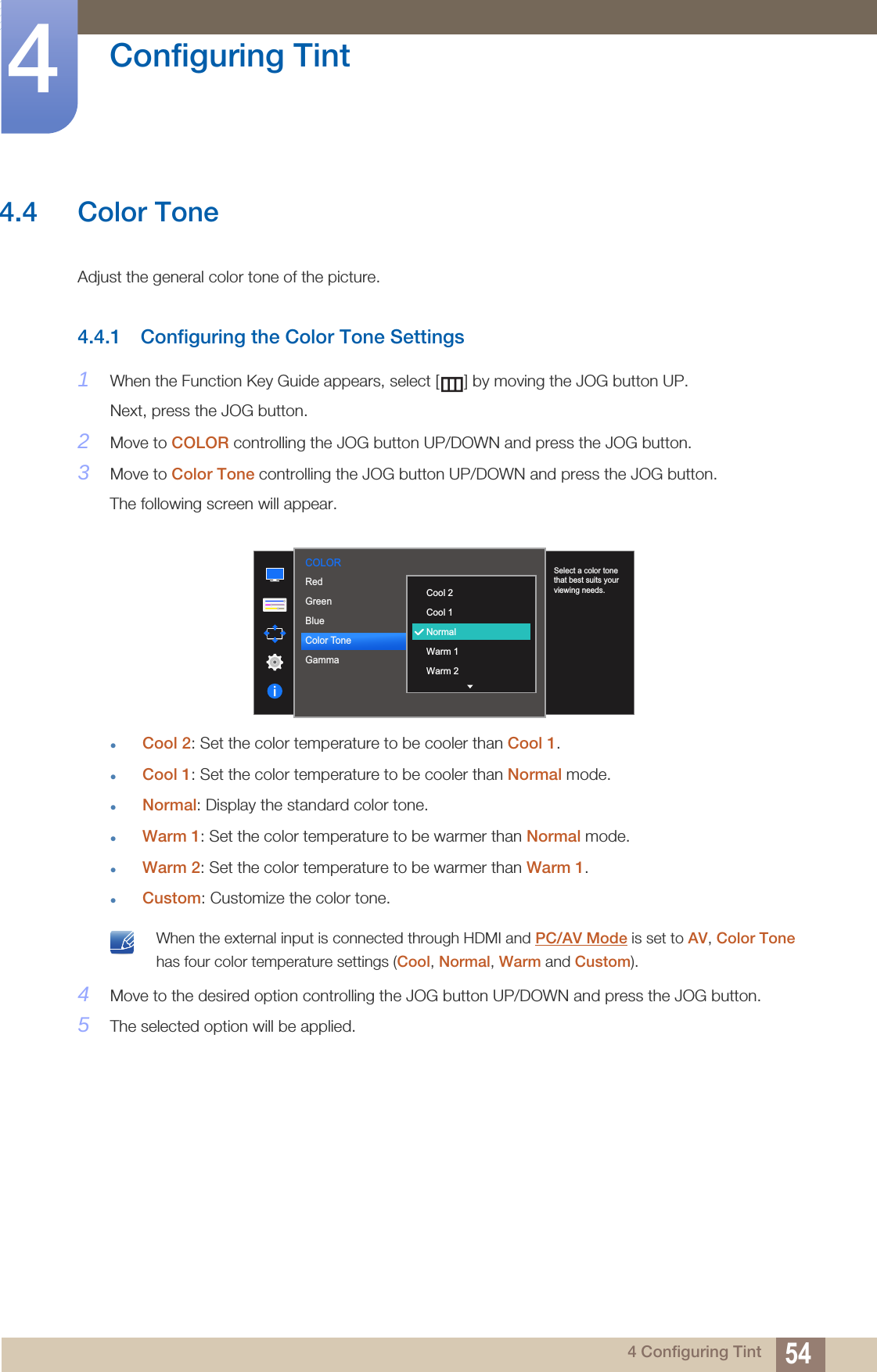

54Configuring Tint44 Configuring Tint4.4 Color ToneAdjust the general color tone of the picture. 4.4.1 Configuring the Color Tone Settings1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to COLOR controlling the JOG button UP/DOWN and press the JOG button.3Move to Color Tone controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Cool 2: Set the color temperature to be cooler than Cool 1.Cool 1: Set the color temperature to be cooler than Normal mode.Normal: Display the standard color tone.Warm 1: Set the color temperature to be warmer than Normal mode.Warm 2: Set the color temperature to be warmer than Warm 1.Custom: Customize the color tone. When the external input is connected through HDMI and PC/AV Mode is set to AV, Color Tone has four color temperature settings (Cool, Normal, Warm and Custom). 4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.COLOR  505050NormalMode1RedGreenBlueColor ToneGammaCool 2 Cool 1 NormalWarm 1 Warm 2Select a color tone that best suits your viewing needs.
55Configuring Tint44 Configuring Tint4.5 GammaAdjust the mid-range brightness (Gamma) of the picture.4.5.1 Configuring Gamma1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to COLOR controlling the JOG button UP/DOWN and press the JOG button.3Move to Gamma controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.COLOR  505050NormalMode1RedGreenBlueColor ToneGammaMode1 Mode2Mode3Adjust the middle level of luminance.

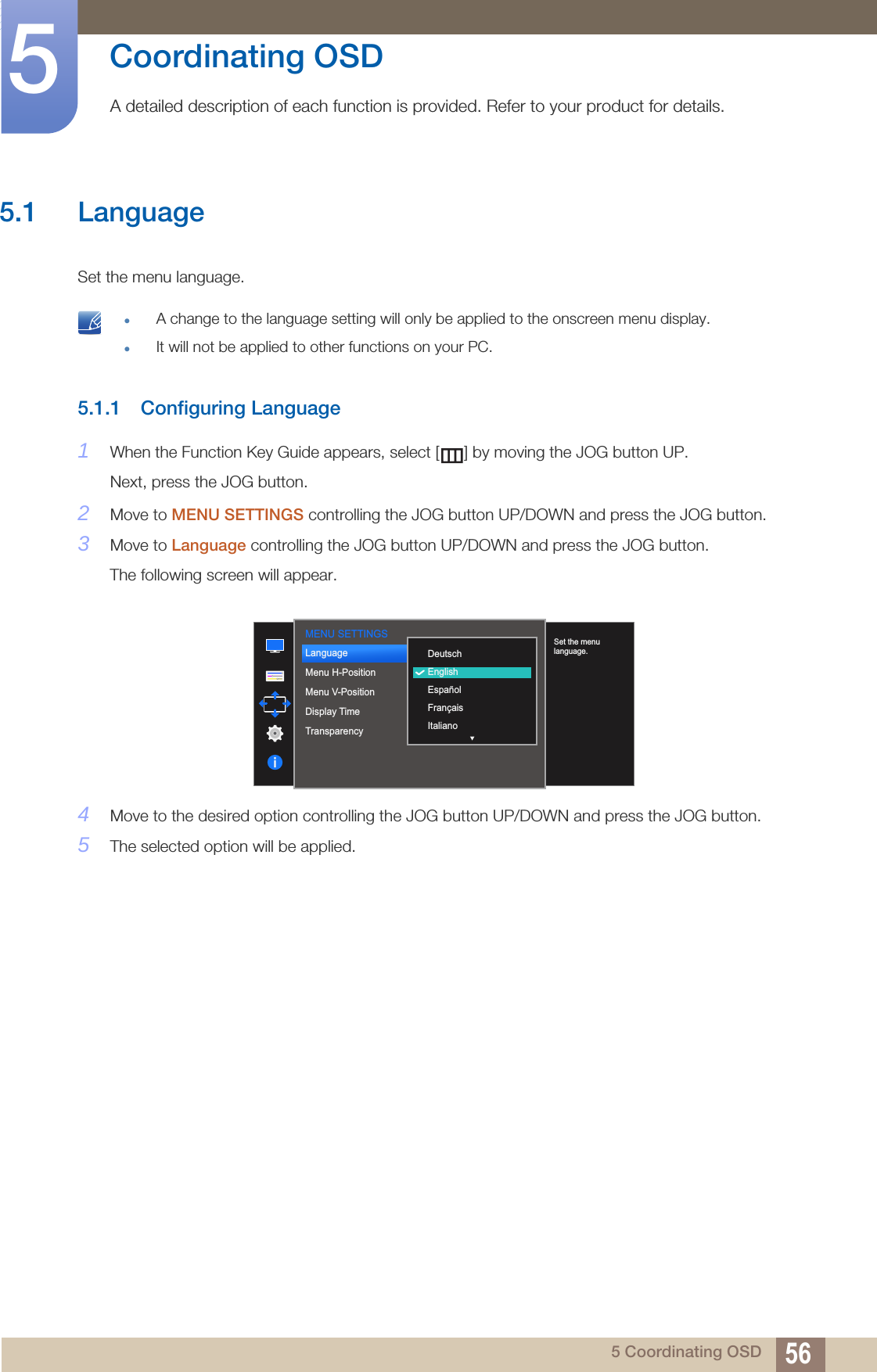

565 Coordinating OSD5  Coordinating OSDA detailed description of each function is provided. Refer to your product for details.5.1 LanguageSet the menu language. A change to the language setting will only be applied to the onscreen menu display.It will not be applied to other functions on your PC. 5.1.1 Configuring Language1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to MENU SETTINGS controlling the JOG button UP/DOWN and press the JOG button.3Move to Language controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.MENU SETTINGS  DeutschEnglishEspañolFrançaisItalianoLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency  Set the menu language.
57Coordinating OSD55 Coordinating OSD5.2 Menu H-Position & Menu V-PositionMenu H-Position: Move the menu position to the left or right. Menu V-Position: Move the menu position up or down. 5.2.1 Configuring Menu H-Position & Menu V-Position1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to MENU SETTINGS controlling the JOG button UP/DOWN and press the JOG button.3Move to the Menu H-Position or Menu V-Position controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Adjust the Menu H-Position or Menu V-Position controlling the JOG button LEFT/RIGHT and press the JOG button.5The selected option will be applied.MENU SETTINGS  LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency  English100220 secOnMove the menu position to the left or right.MENU SETTINGS  LanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency  English100220 secOnMove the menu position up or down.
58Coordinating OSD55 Coordinating OSD5.3 Display TimeSet the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time.Display Time can be used to specify the time after which you want the OSD menu to disappear.5.3.1 Configuring Display Time1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to MENU SETTINGS controlling the JOG button UP/DOWN and press the JOG button.3Move to Display Time controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button. 5The selected option will be applied.MENU SETTINGS  English100220 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency  5 sec10 sec20 sec200 secSet how long the menu window will remain on screen for when it is not in use.
59Coordinating OSD55 Coordinating OSD5.4 TransparencySet the transparency for the menu windows.5.4.1 Changing Transparency1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to MENU SETTINGS controlling the JOG button UP/DOWN and press the JOG button.3Move to Transparency controlling the JOG button UP/DOWN and press the JOG button. The following screen will appear.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.MENU SETTINGS  English100220 secOnLanguageMenu H-PositionMenu V-PositionDisplay TimeTransparency  OffOnConfigure the transparency of the menu windows.
606 Setup and Reset6  Setup and Reset A detailed description of each function is provided. Refer to your product for details.6.1 Reset All Return all the settings for the product to the default factory settings. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.1.1 Initializing Settings (Reset All)1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to Reset All controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.4Move to the desired option controlling the JOG button LEFT/RIGHT and press the JOG button.5The selected option will be applied.SETUP&RESET  OffAccelerationAutoStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnReturn all the settings for the product to the default factory settings. $OOWKHPHQXVHWWLQJVZLOOEHUHVHWWRGHIDXOW$UH\RXVXUH\RXZDQWWRUHVHW"<HV 1R
61Setup and Reset66 Setup and Reset6.2 Eco Saving Plus The Eco Saving Plus function reduces power consumption by controlling the electric current used by the monitor panel. This menu is not available when  Bright is in Dynamic Contrast mode.This menu is not available when Game Mode is enabled.This menu is not available when Eye Saver Mode is enabled.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.2.1 Configuring Eco Saving Plus1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to Eco Saving Plus controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Off: Deactivate the Eco Saving Plus function.Auto: The power consumption will automatically be reduced by about 10% over the current setting.(The reduction of power consumption depends on the customer screen brightness condition.)Low: The power consumption will be reduced by 25% over the default setting.High: The power consumption will be reduced by 50% over the default setting.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.SAMSUNGMAGICSETUP&RESET  AccelerationAutoStand-byOffAutoLowHighReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnAdjust the power consumption of the product to save energy.
62Setup and Reset66 Setup and Reset6.3 Off TimerYou can set the product to automatically turn off. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.3.1 Configuring Off Timer1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to Off Timer controlling the JOG button UP/DOWN and press the JOG button.4Move to Off Timer controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Off: Deactivate the off timer so that the product does not power off automatically.On: Activate the off timer so that the product powers off automatically.5Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.6The selected option will be applied.SETUP&RESET  OffAccelerationAutoStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnEnable or disable the Off Timer.  Off TimerOff TimerTurn Off After  OffOnEnable or disable the Off Timer.
63Setup and Reset66 Setup and Reset6.3.2 Configuring Turn Off After1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to Off Timer controlling the JOG button UP/DOWN and press the JOG button.4Move to Turn Off After controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear. 5Adjust the Turn Off After controlling the JOG button LEFT/RIGHT.6The selected option will be applied. The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours.This option is only available when Off Timer is set to On.For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to MENU  SETUP&RESET and set Off Timer to Off.   Off TimerOff TimerTurn Off After  On4hSet the monitor to automatically turn off after a certain time period.→
64Setup and Reset66 Setup and Reset6.4 PC/AV ModeSet PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. This function does not support Analog mode.Supplied for the wide models only such as 16:9 or 16:10.If the monitor (when set to HDMI) is in power saving mode or is displaying the message Check Signal Cable, press the MENU button to display the On Screen Display(OSD). You can select PC or AV.The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.4.1 Configuring PC/AV Mode1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to PC/AV Mode controlling the JOG button UP/DOWN and press the JOG button.4Move to the HDMI controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.5Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.6The selected option will be applied.SETUP&RESET  OffAccelerationAutoStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnSet to AV to enlarge the picture.PC/AV Mode  HDMI   PCAVSelect the PC/AV mode for the HDMI source.

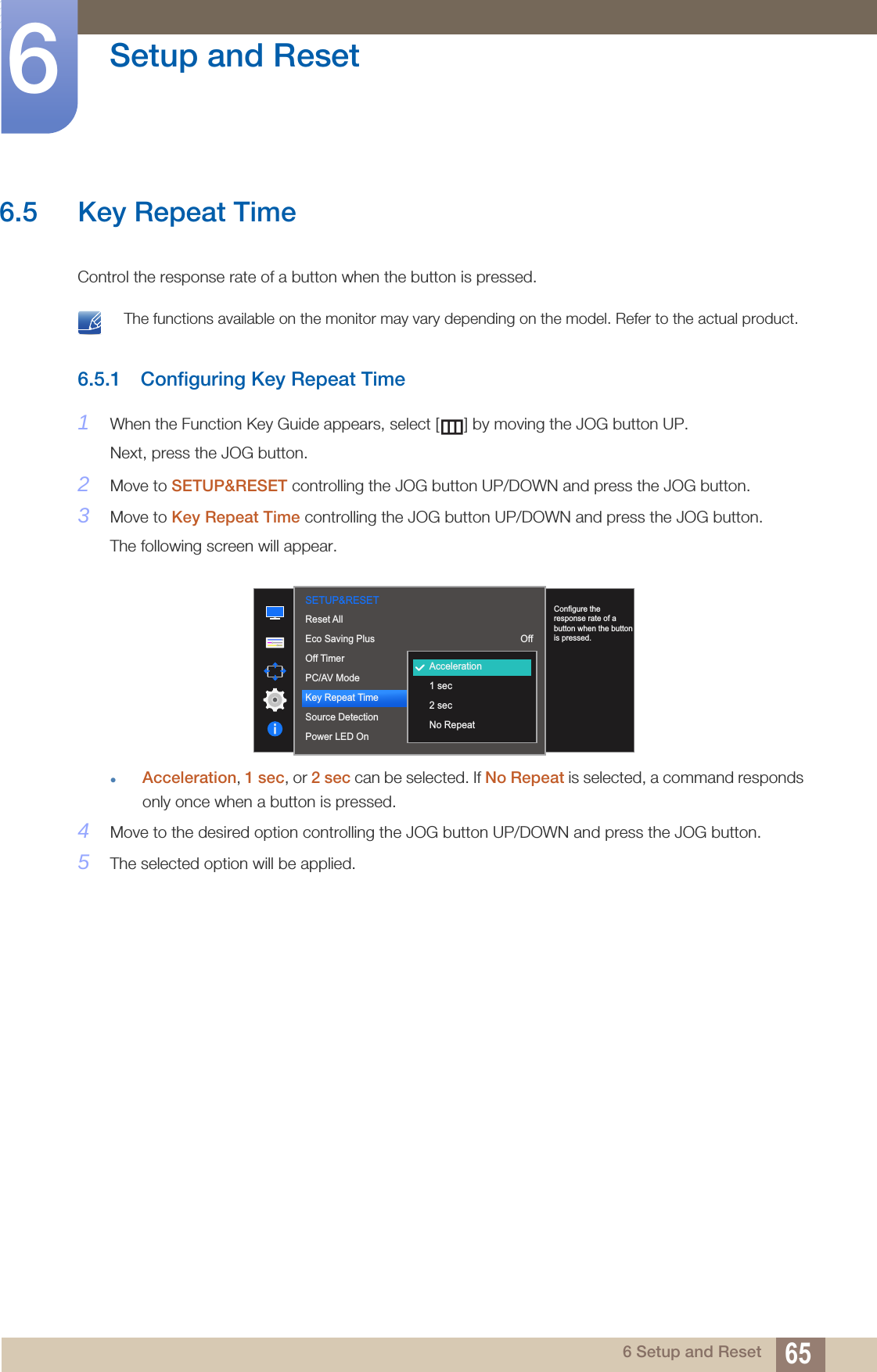

65Setup and Reset66 Setup and Reset6.5 Key Repeat TimeControl the response rate of a button when the button is pressed.  The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.5.1 Configuring Key Repeat Time1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to Key Repeat Time controlling the JOG button UP/DOWN and press the JOG button. The following screen will appear.Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.SETUP&RESET  OffAccelerationAutoAcceleration1 sec2 secNo RepeatReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnConfigure the response rate of a button when the button is pressed.
66Setup and Reset66 Setup and Reset6.6 Source DetectionYou can activate Source Detection. The functions available on the monitor may vary depending on the model. Refer to the actual product. 6.6.1 Configuring Source Detection1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to Source Detection controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Auto: The input source is automatically recognized.Manual: Manually select an input source.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.SETUP&RESET  OffAutoAutoManualReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnDecide how input sources will be detected.
67Setup and Reset66 Setup and Reset6.7 Power LED OnConfigure the settings to enable or disable the power LED located at the lower part of the product.6.7.1 Configuring Power LED On1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to SETUP&RESET controlling the JOG button UP/DOWN and press the JOG button.3Move to Power LED On controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear.Working: The power LED is on when the product is turned on.Stand-by: The power LED is on when the product is turned off.4Move to the desired option controlling the JOG button UP/DOWN and press the JOG button.5The selected option will be applied.SETUP&RESET  OffAutoWorkingStand-byReset AllEco Saving PlusOff TimerPC/AV ModeKey Repeat TimeSource DetectionPower LED OnSet the status of the power LED.
687 INFORMATION Menu and Others7  INFORMATION Menu and OthersA detailed description of each function is provided. Refer to your product for details.7.1 INFORMATIONView the current input source, frequency and resolution.7.1.1 Displaying INFORMATION1When the Function Key Guide appears, select [ ] by moving the JOG button UP. Next, press the JOG button.2Move to INFORMATION controlling the JOG button UP/DOWN and press the JOG button.The following screen will appear. The displayed menu items may vary depending on the model. INFORMATION  Analog**kHz **Hz NN**** x ****Optimal Mode**** x **** **HzPICTURECOLORMENU SETTINGSSETUP&RESETINFORMATION
69INFORMATION Menu and Others77 INFORMATION Menu and Others7.2 Configuring Brightness, Contrast and Sharpness from the Initial Screen When the shortcut button page is displayed, adjust the Brightness, Contrast and Sharpness settings from the initial screen using the JOG button. Brightness :This menu is not available when  Bright is set to Dynamic Contrast mode.This menu is not available when Eco Saving Plus is enabled.This menu is not available when Eye Saver Mode is enabled.  Contrast :This option is not available when  Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled.  Sharpness :This option is not available when  Bright is in Cinema or Dynamic Contrast mode.This menu is not available when Game Mode is enabled. 1When you control the JOG button LEFT/RIGHT, the following screen will appear.2Move to Brightness  Contrast  Sharpness controlling the JOG button UP/DOWN.3Move the JOG button LEFT/RIGHT to adjust the Brightness, Contrast or Sharpness setting.SAMSUNGMAGICSAMSUNGMAGICSAMSUNGMAGICContrastSharpness100Brightness
70INFORMATION Menu and Others77 INFORMATION Menu and Others7.3 Configuring Volume in the Initial Screen7.3.1 VolumeAdjust the Volume by moving the JOG button when the Direct Key Guide is displayed on the screen.1When you control the JOG button LEFT/RIGHT, the following screen will appear.2Adjust the Volume controlling the JOG button LEFT/RIGHT. This is only for SE390 series models with an earphone jack and  in HDMI mode.If the audio quality of a connected input device is poor, the Auto Mute function on the product may mute the sound or cause choppy audio when applying the headphones.Set the input volume for the input device to at least 20% and control the volume using the volume control (JOG button LEFT/RIGHT) on the product.What is Auto Mute?The function mutes the audio to improve sound effect when there is sound noise or when the input signal is weak, usually due to a problem with the volume of an input device. 50Volume
718 Installing the Software8  Installing the Software8.1 Easy Setting Box"Easy Setting Box" enables users to use the monitor by partitioning multiple sections.8.1.1 Installing the Software1Insert the installation CD into the CD-ROM drive.2Select the "Easy Setting Box" setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the "Easy Setting Box" setup file on the CD-ROM. 3When the Installation Wizard appears, click Next.4Follow the instructions given on the screen to proceed with installation. The software may not work properly if you do not restart the computer after the installation.The "Easy Setting Box" icon may not appear depending on the computer system and the product specifications.If the shortcut icon does not appear, press the F5 key. Restrictions and Problems with the Installation ("Easy Setting Box")The "Easy Setting Box" installation may be affected by the Graphics Card, Motherboard and the Networking Environment.System RequirementsOSWindows XP 32Bit/64BitWindows Vista 32Bit/64BitWindows 7 32Bit/64BitWindows 8 32Bit/64BitHardwareAt least 32MB of memoryAt least 60MB of free space on the hard disk driveEasy Setting Box
72Installing the Software88 Installing the Software8.1.2 Removing the SoftwareClick Start, select Settings/Control Panel, and then double-click Add or Remove Programs.Select "Easy Setting Box" from the program list and click the Add/Delete button.
739 Troubleshooting Guide9  Troubleshooting Guide9.1 Requirements Before Contacting Samsung Customer Service Center9.1.1 Testing the Product Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function.If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.1Power off both the PC and product.2Disconnect the cables from the product.3Power on the product.4If the message Check Signal Cable appears, the product is working normally. If the screen remains blank, check the PC system, video controller and cable. 9.1.2 Checking the Resolution and FrequencyFor a mode that exceeds the supported resolution (refer to "10.6 Standard Signal Mode Table"), the message Not Optimum Mode will appear for a short time.9.1.3 Check the following.Installation issue (PC mode)Issues SolutionsThe screen keeps switching on and off.  Check the cable connection between the product and PC, and ensure the connectors are locked. (Refer to "2.2 Connecting and Using a PC")
74Troubleshooting Guide99 Troubleshooting GuideScreen issueIssues SolutionsThe screen will not switch on. Check that the power cable is connected properly. (Refer to "2.2 Connecting and Using a PC")The message Check Signal Cable appears.  Check that the cable is properly connected to the product. (Refer to "2.2 Connecting and Using a PC")Check that the device connected to the product is powered on.Not Optimum Mode is displayed. This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.Check that the HDMI or HDMI-DVI cable is properly connected. (Refer to "2.2 Connecting and Using a PC")Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (page 83).The images on the screen look distorted. Check the cable connection to the product (Refer to "2.2 Connecting and Using a PC")The screen is not clear. The screen is blurry. Adjust Coarse (page 49) and Fine (page 50).Remove any accessories (video extension cable, etc.) and try again.Set the resolution and frequency to the recommended level.The screen appears unstable and shaky. Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (page 83) in this manual and the INFORMATION menu on the product.There are shadows or ghost images left on the screen.The screen is too bright. The screen is too dark. Adjust Brightness (page 36) and Contrast (page 37).Screen color is inconsistent. Change the COLOR settings. (Refer to " Configuring Tint")The colors on the screen have a shadow and are distorted.Change the COLOR settings. (Refer to " Configuring Tint")
75Troubleshooting Guide99 Troubleshooting GuideSound issueSource device issue The LED lights on the frame of the product may be seen depending on the user's viewing angle. The light is harmless to people and has no bearing on product features and performance. The product is safe to use. White does not really look white. Change the COLOR settings. (Refer to " Configuring Tint")There is no image on the screen and the power LED blinks every 0.5 to 1 second.The product is operating in power-saving mode.Press any key on the keyboard or move the mouse to return to normal operating mode.Issues SolutionsThere is no sound. Check the connection of the audio cable or adjust the volume.Check the volume.The volume is too low. Adjust the volume.If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program.Issues SolutionsA beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is booting, have your PC serviced.Issues Solutions
76Troubleshooting Guide99 Troubleshooting Guide9.2 Q & AQuestion AnswerHow can I change the frequency?Set the frequency on your graphics card.Windows XP: Go to Control Panel  Appearance and Themes  Display  Settings  Advanced  Monitor, and adjust Refresh rate under Monitor settings.Windows ME/2000: Go to Control Panel  Display  Settings  Advanced  Monitor, and adjust Refresh rate under Monitor settings.Windows Vista: Go to Control Panel  Appearance and Personalization  Personalization  Display Settings  Advanced Settings  Monitor, and adjust Refresh rate under Monitor settings.Windows 7: Go to Control Panel  Appearance and Personalization  Display  Screen Resolution  Advanced settings  Monitor, and adjust Refresh rate under Monitor settings.Windows 8: Go to Settings  Control Panel  Appearance and Personalization  Display  Screen Resolution  Advanced settings  Monitor, and adjust Refresh rate under Monitor settings.
77Troubleshooting Guide99 Troubleshooting Guide Refer to the user manual for your PC or graphics card for further instructions on adjustment. How can I change the resolution?Windows XP: Go to Control Panel  Appearance and Themes  Display  Settings, and adjust the resolution.Windows ME/2000: Go to Control Panel  Display  Settings, and adjust the resolution.Windows Vista: Go to Control Panel  Appearance and Personalization  Personalize  Display Settings, and adjust the resolution.Windows 7: Go to Control Panel  Appearance and Personalization  Display  Adjust Resolution, and adjust the resolution.Windows 8: Go to Settings   Control Panel  Appearance and Personalization  Display  Adjust Resolution, and adjust the resolution.How do I set power-saving mode?Windows XP: Set power-saving mode in Control Panel  Appearance and Themes  Display  Screen Saver Settings or BIOS SETUP on the PC. Windows ME/2000: Set power-saving mode in Control Panel  Display  Screen Saver Settings or BIOS SETUP on the PC.Windows Vista: Set power-saving mode in Control Panel  Appearance and Personalization  Personalize  Screen Saver Settings or BIOS SETUP on the PC.Windows 7: Set power-saving mode in Control Panel  Appearance and Personalization  Personalize  Screen Saver Settings or BIOS SETUP on the PC.Windows 8: Set power-saving mode in Settings  Control Panel  Appearance and Personalization  Personalize  Screen Saver Settings or BIOS SETUP on the PC.Question Answer
7810 Specifications10 Specifications10.1 General (S22E360H / S22E390H / S22E391H / S22E393H / S22E395H PLUS)Model Name S22E360H / S22E390H / S22E391H / S22E393H / S22E395H PLUSPanel Size 22 CLASS 21.5 Inches (54 cm)Display area 476.64 mm (H) x 268.11 mm (V)18.8 Inches (H) x 10.6 Inches (V)Pixel Pitch 0.24825 mm (H) x 0.24825 mm (V)0.009774 Inches (H) x 0.009774 Inches (V)Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (WxHxD) / WeightWithout Stand 519.06 x 327.7 x 70.08 mm / 3.05 Kg20.4 x 12.9 x 2.8 Inches / 6.7 lbsWith Stand 519.06 x 391.68 x 167.46 mm / 3.55 kg20.4 x 15.4 x 6.6 Inches / 7.8 lbsEnvironmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10 % – 80 %, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5 % – 95 %, non-condensing
79Specifications1010 Specifications10.2 General (S24E360HL / S24E390HL / S24E391HL / S24E393HL / S24E395H PLUS)Model Name S24E360HL / S24E390HL / S24E391HL / S24E393HL / S24E395H PLUSPanel Size 24 CLASS 23.6 Inches (59 cm)Display area 521.28 mm (H) x 293.22 mm (V)20.5 Inches (H) x 11.5 Inches (V)Pixel Pitch 0.2715 mm (H) x 0.2715 mm (V) 0.010689 Inches (H) x 0.010689 Inches (V)Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (WxHxD) / WeightWithout Stand 548.3 x 333.3 x 69.9 mm / 3.47 Kg21.6 x 13.1 x 2.8 Inches / 7.7 lbsWith Stand 548.3 x 409.0 x 181.9 mm / 4.02 Kg21.6 x 16.1 x 7.2 Inches / 8.9 lbsEnvironmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10 % – 80 %, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5 % – 95 %, non-condensing
80Specifications1010 Specifications10.3 General (S27E360F / S27E360H / S27E390H / S27E391H / S27E393H / S27E395H PLUS)Model Name S27E360F S27E360H / S27E390H / S27E391H / S27E393H / S27E395H PLUSPanel Size 27 CLASS27 Inches (68 cm)Display area 597.9 mm (H) x 336.3 mm (V)23.5 Inches (H) x 13.2 Inches (V)Pixel Pitch 0.3114 mm (H) x 0.3114 mm (V)0.01226 Inches (H) x 0.01226 Inches (V)Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (WxHxD) / WeightWithout Stand626.0 x 377.2 x 70.8 mm / 4.58 kg24.6 x 14.9 x 2.8 Inches / 10.1 lbsWith Stand 626.0 x 452.9 x 181.9 mm / 5.14 kg24.6 x 17.8 x 7.2 Inches / 11.3 lbsVESA Mounting Interface 75 mm x 75 mm3.0 Inches x 3.0 Inches(For use with Specialty(Arm) Mounting hardware.)Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10 % – 80 %, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5 % – 95 %, non-condensing
81Specifications1010 Specifications10.4 General (S32E360F) Plug-and-PlayThis monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.  Panel Dots (Pixels)Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.  The above specifications are subject to change without notice to improve quality.  This device is a Class B digital apparatus. Model Name S32E360FPanel Size 32 CLASS31.5 Inches (80 cm)Display area 698.4 mm (H) x 392.85 mm (V)27.5 Inches (H) x 15.5 Inches (V)Pixel Pitch 0.36375 mm (H) x 0.36375 mm (V)0.014321 Inches (H) x 0.014321 Inches (V)Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.Dimensions (WxHxD) / WeightWithout Stand738.0 x 443.2 x 68.0 mm / 6.21 kg29.1 x 17.4 x 2.7 Inches / 13.7 lbsWith Stand 738.0  x 517.0 x 194.0 mm / 7.05 kg29.1 x 20.4 x 7.6 Inches / 15.5 lbsVESA Mounting Interface 100 mm x 100 mm3.9 Inches x 3.9 Inches(For use with Specialty(Arm) Mounting hardware.)Environmental considerationsOperating Temperature : 50 °F – 104 °F (10 °C – 40 °C)Humidity : 10 % – 80 %, non-condensingStorage Temperature : -4 °F – 113 °F (-20 °C – 45 °C)Humidity : 5 % – 95 %, non-condensing(USA only)Dispose unwanted electronics through an approved recycler.To find the nearest recycling location, go to our website:www.samsung.com/recyclingdirect or call, (877) 278 - 0799
82Specifications1010 Specifications10.5 PowerSaverThe power-saving function of this product reduces power consumption by switching off the screen and making the Power LED blink if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-saving function. The displayed power consumption level can vary in different operating conditions or when settings are changed.ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.Energy Star power is measured with the test method in the current Energy Star® Standard.To reduce the power consumption to 0, disconnect the power cord. Be sure to disconnect the power cable when you will not be using the product for an extended period of time. To reduce the power consumption to 0 W when the power switch is not available, disconnect the power cable. PowerSaver Energy Star Power Consumption Power saving mode Power off (Power button)Power Indicator Off Blinking OnPower Consumption(S22E360H / S22E390H / S22E391H / S22E393H / S22E395H PLUS)Typical 17.9 W Typical 0.3 WMax 0.45 W Less than 0.3 WPower Consumption(S24E360HL / S24E390HL / S24E391HL / S24E393HL / S24E395H PLUS)Typical 18.5 W Typical 0.3 WMax 0.45 W Less than 0.3 WPower Consumption(S27E360F / S27E360H / S27E390H / S27E391H / S27E393H / S27E395H PLUS)Typical 17.8 W Typical 0.3 WMax 0.45 W Less than 0.3 WPower Consumption(S32E360F) Typical 22.6 W Typical 0.3 WMax 0.45 W Less than 0.3 W
83Specifications1010 Specifications10.6 Standard Signal Mode Table This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for the screen size of your product.Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor. If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT monitor before you exchange it with the LCD monitor. If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.S22E360H / S22E390H / S22E391H / S22E393H / S22E395H PLUS / S24E360HL / S24E390HL / S24E391HL / S24E393HL / S24E395H PLUS / S27E360F / S27E360H / S27E390H / S27E391H / S27E393H / S27E395H PLUSSynchronization Horizontal Frequency 30 – 81 kHzVertical Frequency 56 – 75 Hz56 – 60 Hz (S32E360F)Resolution Optimum Resolution 1920 x 1080 @ 60 HzMaximum Resolution 1920 x 1080 @ 60 HzResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)IBM, 720 x 400 31.469 70.087 28.322 -/+MAC, 640 x 480 35.000 66.667 30.240 -/-MAC, 832 x 624 49.726  74.551  57.284 -/-MAC, 1152 x 870 68.681  75.062  100.000  -/-VESA, 640 x 480 31.469 59.940 25.175 -/-VESA, 640 x 480 37.861 72.809  31.500  -/-VESA, 640 x 480 37.500 75.000  31.500  -/-VESA,  800 x 600 35.156 56.250 36.000 +/+ VESA,  800 x 600 37.879  60.317  40.000  +/+VESA,  800 x 600 48.077  72.188  50.000  +/+VESA,  800 x 600 46.875  75.000  49.500  +/+
84Specifications1010 SpecificationsS32E360FVESA, 1024 x 768 48.363  60.004  65.000  -/-VESA, 1024 x 768 56.476  70.069  75.000  -/-VESA, 1024 x 768 60.023  75.029  78.750  +/+VESA, 1152 x 864 67.500  75.000  108.000  +/+VESA,  1280 x 720  45.000  60.000  74.250  +/+VESA, 1280 x 800 49.702  59.810  83.500  -/+ VESA, 1280 x 1024 63.981  60.020  108.000  +/+VESA, 1280 x 1024 79.976  75.025  135.000  +/+VESA, 1440 x 900 55.935  59.887  106.500  -/+ VESA, 1600 x 900 (RB) 60.000  60.000  108.000  +/+VESA, 1680 x 1050  65.290  59.954  146.250  -/+ VESA, 1920 x 1080p 67.500  60.000  148.500  +/+ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)VESA, 640 x 480 31.469 59.940 25.175 -/-VESA,  800 x 600 35.156 56.250 36.000 +/+ VESA,  800 x 600 37.879  60.317  40.000  +/+VESA, 1024 x 768 48.363  60.004  65.000  -/-VESA,  1280 x 720  45.000  60.000  74.250  +/+VESA, 1280 x 800 49.702  59.810  83.500  -/+ VESA, 1280 x 1024 63.981  60.020  108.000  +/+VESA, 1440 x 900 55.935  59.887  106.500  -/+ VESA, 1600 x 900 (RB) 60.000  60.000  108.000  +/+VESA, 1680 x 1050  65.290  59.954  146.250  -/+ VESA, 1920 x 1080p 67.500  60.000  148.500  +/+ResolutionHorizontal Frequency (kHz)Vertical Frequency (Hz)Pixel Clock (MHz)Sync Polarity (H/V)
85Specifications1010 Specifications Horizontal FrequencyThe time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.Vertical FrequencyRepeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
86 Appendix AppendixResponsibility for the Pay Service (Cost to Customers) When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases. Not a product defectCleaning of the product, Adjustment, Explanation, Re-installation and etc.If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.If a product is reinstalled to move to a different spot or to move to a different house.If customer requests instructions on how to use because of another company's product.If customer requests instructions on how to use the network or another company's program.If customer requests software installation and setup for the product.If a service technician removes/cleans dusts or foreign materials inside of the product.If customer requests an installation additionally after purchasing a product through home-shopping or online.A Product damage caused by customer's faultProduct damage caused by customer's mishandling or wrong repair If a product damage is caused by;external impact or drop.use of supplies or separately sold product unspecified by Samsung.repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.remodeling or repairing the product by customer.using it with incorrect voltage or non-authorised electrical connections.not following the "cautions" in User Manual.OthersIf product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.) If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.
87Appendix AppendixCorrect DisposalCorrect Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in  countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
88Appendix AppendixTerminologyOSD (On Screen Display)On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as required. You can change the screen brightness, tint, size and many other settings using menus displayed on the screen.GammaThe Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.Grey scaleScale refers to levels of color intensity that show variations of color change from darker areas to brighter areas on the screen. Changes to the screen brightness are expressed with black and white variation, and grey scale refers to the medium area between black and white. Changing the grey scale through Gamma adjustment will change the medium brightness on the screen.Scanning rateScanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that the screen refreshes 60 times per second. The screen scanning rate depends on the performance of the graphics cards in your PC and monitor. Horizontal FrequencyCharacters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal frequency is measured in kHz and represents how many times horizontal lines per second are transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the horizontal lines that make up an image are transmitted 85000 times per second. The horizontal frequency is indicated in 85kHz.Vertical FrequencyOne image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. A vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called "refresh rate" and affects screen flicker.
89Appendix AppendixResolutionResolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time.E.g. A resolution of 1920 x 1080 consists of 1920 horizontal pixels (horizontal resolution) and 1080 vertical lines (vertical resolution).Plug & PlayThe Plug & Play feature allows the automatic exchange of information between a monitor and PC to produce an optimum display environment. The monitor uses VESA DDC (international standard) to execute Plug & Play.
Index 90IndexBBefore Connecting 29Blue 53Brightness 36CChecking the Contents 19Cleaning 8Coarse 49Color Tone 54Connecting and Using a PC 29Contrast 37Copyright 7Correct Disposal 87Correct posture to use the product 18DDisplay Time 58EEasy Setting Box 71Eco Saving Plus 61Eye Saver Mode 39FFine 50GGame Mode 40Gamma 55General 78, 79, 80, 81Green 52HHDMI Black Level 46IImage Size 44INFORMATION 68Installation 25KKey Repeat Time 65LLanguage 56OOff Timer 62PParts 20PC/AV Mode 64Power LED On 67PowerSaver 82QQ & A 76RRed 51Requirements Before Contacting Samsung Customer Service Center 73Reset All 60Response Time 47Responsibility for the Pay Service (Cost to Customers) 86
IndexIndex 91SSafety Precautions 10SAMSUNG MAGIC Bright 41SAMSUNG MAGIC Upscale 43Sharpness 38Source Detection 66Standard Signal Mode Table 83TTerminology 88Transparency 59
