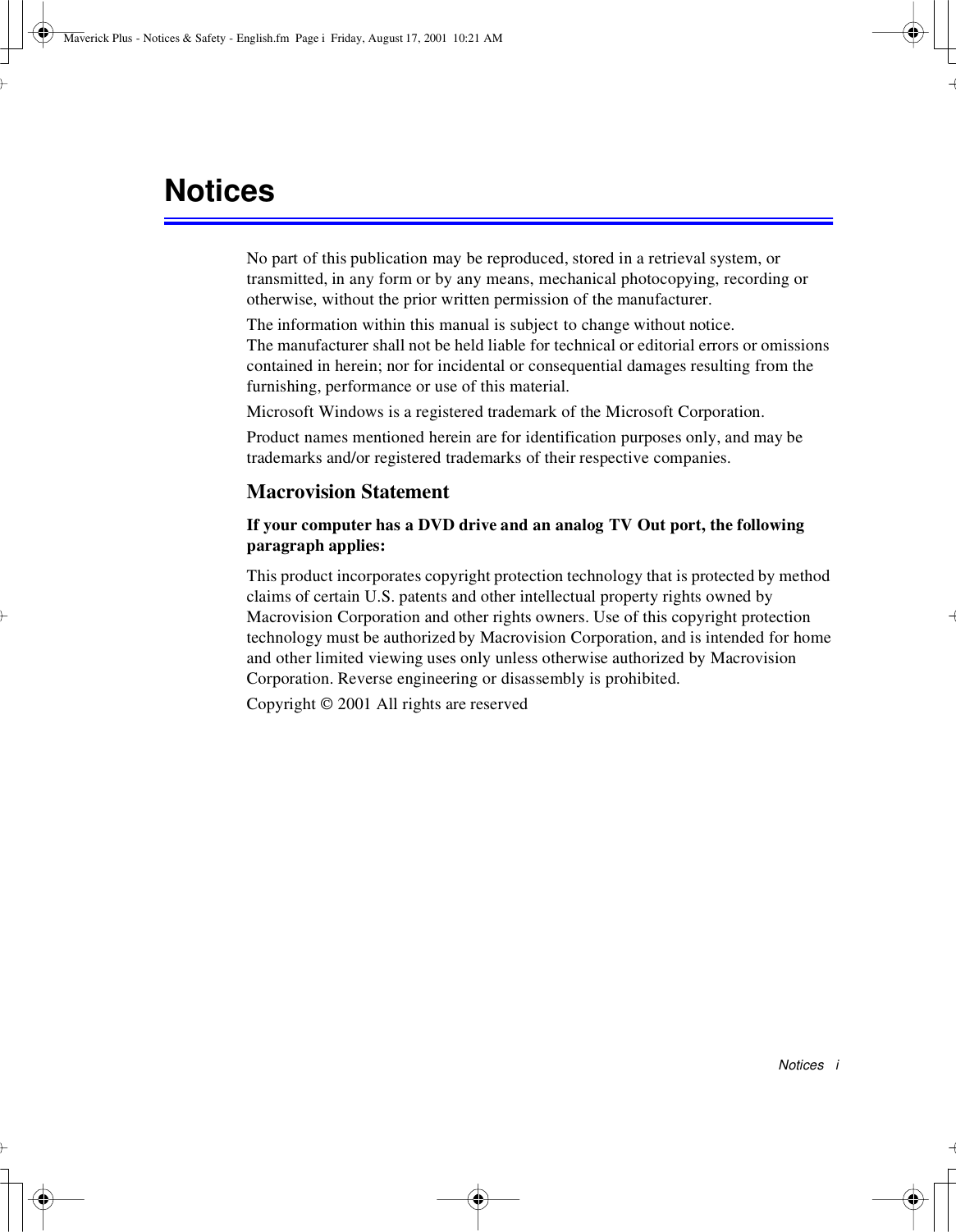

Notices iNoticesNo part of this publication may be reproduced, stored in a retrieval system, ortransmitted, in any form or by any means, mechanical photocopying, recording orotherwise, without the prior written permission of the manufacturer.The information within this manual is subject to change without notice.The manufacturer shall not be held liable for technical or editorial errors or omissionscontained in herein; nor for incidental or consequential damages resulting from thefurnishing, performance or use of this material.Microsoft Windows is a registered trademark of the Microsoft Corporation.Product names mentioned herein are for identification purposes only, and may betrademarks and/or registered trademarks of their respective companies.Macrovision StatementIf your computer has a DVD drive and an analog TV Out port, the followingparagraph applies:This product incorporates copyright protection technology that is protected by methodclaims of certain U.S. patents and other intellectual property rights owned byMacrovision Corporation and other rights owners. Use of this copyright protectiontechnology must be authorized by Macrovision Corporation, and is intended for homeand other limited viewing uses only unless otherwise authorized by MacrovisionCorporation. Reverse engineering or disassembly is prohibited.Copyright 2001 All rights are reservedMaverick Plus - Notices & Safety - English.fm Page i Friday, August 17, 2001 10:21 AM

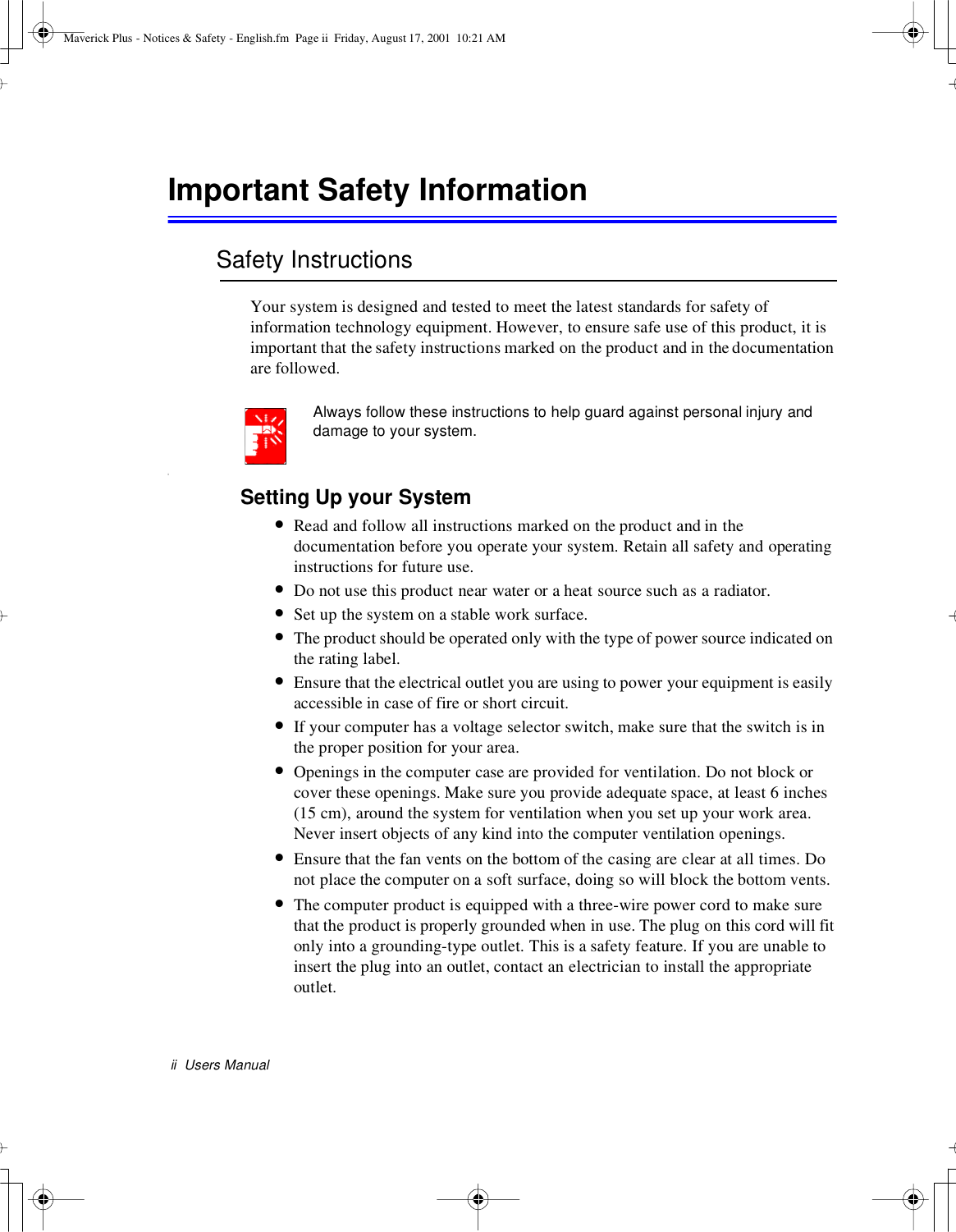

ii Users ManualImportant Safety InformationSafety InstructionsYour system is designed and tested to meet the latest standards for safety ofinformation technology equipment. However, to ensure safe use of this product, it isimportant that the safety instructions marked on the product and in thedocumentationare followed.Always follow these instructions to help guard against personal injury anddamage to your system.iSetting Up your System•Read and follow all instructions marked on the product and in thedocumentation before you operate your system. Retain all safety and operatinginstructions for future use.•Do not use this product near water or a heat source such as a radiator.•Set up the system on a stable work surface.•The product should be operated only with the type of power source indicated onthe rating label.•Ensure that the electrical outlet you are using to power your equipment is easilyaccessible in case of fire or short circuit.•If your computer has a voltage selector switch, make sure that the switch is inthe proper position for your area.•Openings in the computer case are provided for ventilation. Do not block orcover these openings. Make sure you provide adequate space, at least 6 inches(15 cm), around the system for ventilation when you set up your work area.Never insert objects of any kind into the computer ventilation openings.•Ensure that the fan vents on the bottom of the casing are clear at all times. Donot place the computer on a soft surface, doing so will block the bottom vents.•The computer product is equipped with a three-wire power cord to make surethat the product is properly grounded when in use. The plug on this cord will fitonly into a grounding-type outlet. This is a safety feature. If you are unable toinsert the plug into an outlet, contact an electrician to install the appropriateoutlet.Maverick Plus - Notices & Safety - English.fm Page ii Friday, August 17, 2001 10:21 AM

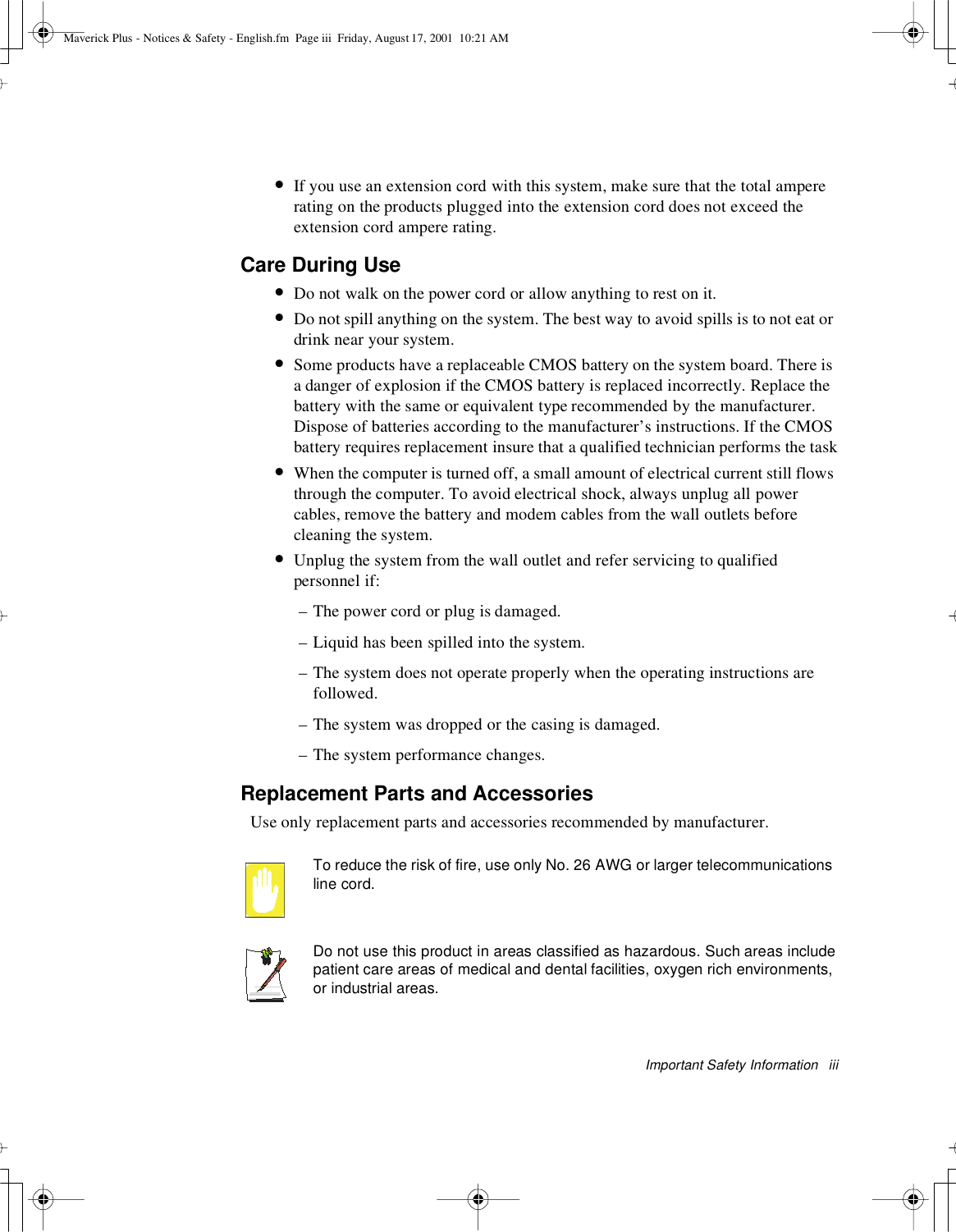

Important Safety Information iii•If you use an extension cord with this system, make sure that the total ampererating on the products plugged into the extension cord does not exceed theextension cord ampere rating.Care During Use•Do not walk on the power cord or allow anything to rest on it.•Do not spill anything on the system. The best way to avoid spills is to not eat ordrink near your system.•Some products have a replaceable CMOS battery on the system board. There isa danger of explosion if the CMOS battery is replaced incorrectly. Replace thebattery with the same or equivalent type recommended by the manufacturer.Dispose of batteries according to the manufacturer’s instructions. If the CMOSbattery requires replacement insure that a qualified technician performs the task•When the computer is turned off, a small amount of electrical current still flowsthrough the computer. To avoid electrical shock, always unplug all powercables, remove the battery and modem cables from the wall outlets beforecleaning the system.•Unplug the system from the wall outlet and refer servicing to qualifiedpersonnel if:– The power cord or plug is damaged.– Liquid has been spilled into the system.– The system does not operate properly when the operating instructions arefollowed.– The system was dropped or the casing is damaged.– The system performance changes.Replacement Parts and AccessoriesUse only replacement parts and accessories recommended by manufacturer.To reduce the risk of fire, use only No. 26 AWG or larger telecommunicationsline cord.Do not use this product in areas classified as hazardous. Such areas includepatient care areas of medical and dental facilities, oxygen rich environments,or industrial areas.Maverick Plus - Notices & Safety - English.fm Page iii Friday, August 17, 2001 10:21 AM

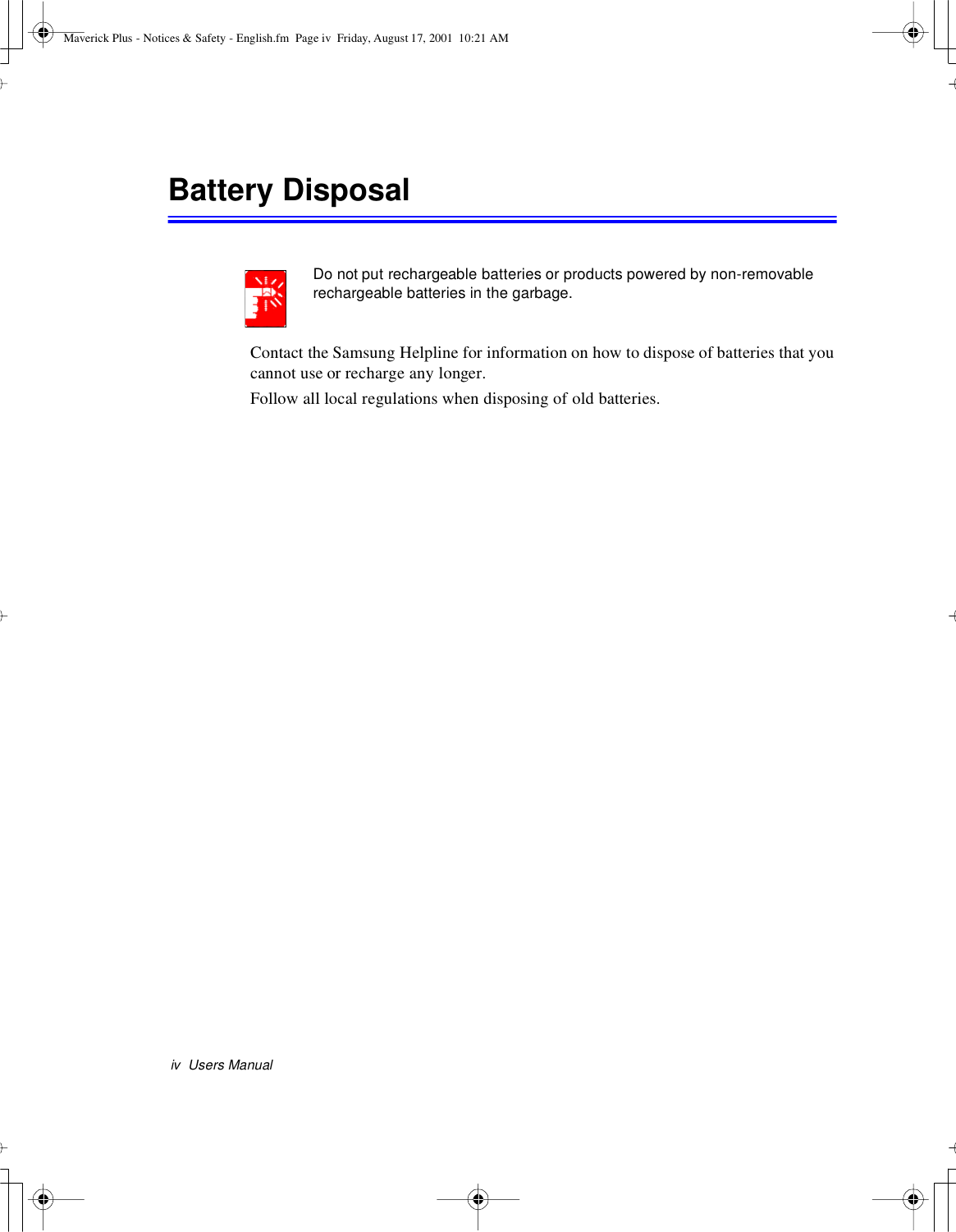

iv Users ManualBattery DisposalDo not put rechargeable batteries or products powered by non-removablerechargeable batteries in the garbage.Contact the Samsung Helpline for information on how to dispose of batteries that youcannot use or recharge any longer.Follow all local regulations when disposing of old batteries.Maverick Plus - Notices & Safety - English.fm Page iv Friday, August 17, 2001 10:21 AM
Federal Communications Commission (FCC) vFederal Communications Commission (FCC)This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that maycause undesired operation.This equipment has been tested and found to comply with the limits for a ClassB digital device pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generate uses and can radiate radiofrequency energy and if not installed and used in accordance with theinstructions may cause harmful interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or moreof the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.If necessary, the user should consult the dealer or an experienced radio/televisiontechnician for additional suggestions. The user may find the following booklet helpful:"Something About Interference." This is available at FCC local regional offices. Ourcompany is not responsible for any radio or television interference caused byunauthorized modifications of this equipment or the substitution or attachment ofconnecting cables and equipment other than those specified by our company. Thecorrection will be the responsibility of the user. Use only shielded data cables with thissystem.Maverick Plus - Notices & Safety - English.fm Page v Friday, August 17, 2001 10:21 AM
vi Users ManualFederal Communications Commission Part 68 StatementNote:This equipment compiles with part of the FCC rules. On the back of this equipment isa label that contains, among other information, the FCC registration number and ringerequivalence number(REN) for this equipment. If requested, this information must beprovided to the telephone company.This equipment uses the following USOC jacks : RJ11CAn FCC compliant telephone cord and modular plug is provided with this equipment.This equipment is designed to be connected to the telephone network or promiseswiring using a compatible modular jack which is Part 68 compliant. See InstallationInstructions for details.The REN is used to determine the quantity of devices which may be connected totelephone line. Excessive RENs on the telephone line may result in the devices notringing in response to an incoming call. In most, but not all areas, the sum of RENsshould not exceed five(5.0). To be certain of the number of devices that may beconnected to a line, as determined by total RENs, contact the local telephone companyto determine the maximum REN for the calling area.If the terminal equipment causes harm to the telephone network, the TelephoneCompany will notify you in advance that temporary discontinuance of service may berequired. But if advance notice is not practical, the telephone company will notify thecustomer as soon as possible. Also, you will be advised of your right to file a complaintwith the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations, orprocedures that could affect the operation of the equipment. If this happens, thetelephone company will provide advanced notice in order for you to make necessarymodifications to maintain uninterrupted service.If trouble is experienced with this equipment (SENS Modem) for repair or warrantyinformation, please contact your local distributor. If the equipment is causing harm tothe telephone network, the telephone company may request that you disconnect theequipment until the problem is resolved.The user must use the accessories and cables supplied by the manufacturer to getoptimum performance from the product.No repairs may be done by the customer.This equipment cannot be used on public coin phone service provided by the telephonecompany. Connection to party line service is subject to state tariffs.Maverick Plus - Notices & Safety - English.fm Page vi Friday, August 17, 2001 10:21 AM

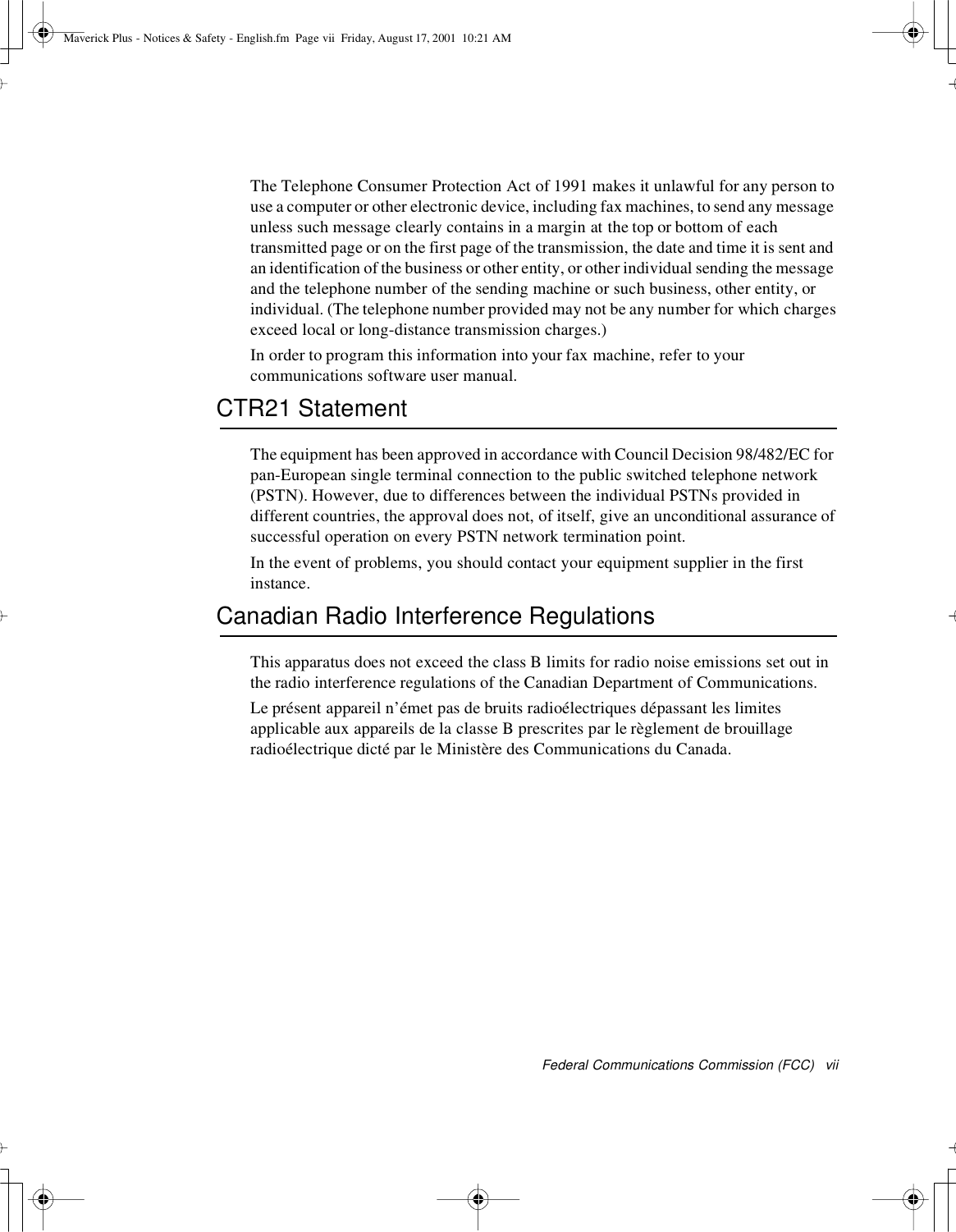

Federal Communications Commission (FCC) viiThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person touse a computer or other electronic device, including fax machines, to send any messageunless such message clearly contains in a margin at the top or bottom of eachtransmitted page or on the first page of the transmission, the date and time it is sent andan identification of the business or other entity, or other individual sending the messageand the telephone number of the sending machine or such business, other entity, orindividual. (The telephone number provided may not be any number for which chargesexceed local or long-distance transmission charges.)In order to program this information into your fax machine, refer to yourcommunications software user manual.CTR21 StatementThe equipment has been approved in accordance with Council Decision 98/482/EC forpan-European single terminal connection to the public switched telephone network(PSTN). However, due to differences between the individual PSTNs provided indifferent countries, the approval does not, of itself, give an unconditional assurance ofsuccessful operation on every PSTN network termination point.In the event of problems, you should contact your equipment supplier in the firstinstance.Canadian Radio Interference RegulationsThis apparatus does not exceed the class B limits for radio noise emissions set out inthe radio interference regulations of the Canadian Department of Communications.Le présent appareil n’émet pas de bruits radioélectriques dépassant les limitesapplicable aux appareils de la classe B prescrites par le règlement de brouillageradioélectrique dicté par le Ministère des Communications du Canada.Maverick Plus - Notices & Safety - English.fm Page vii Friday, August 17, 2001 10:21 AM

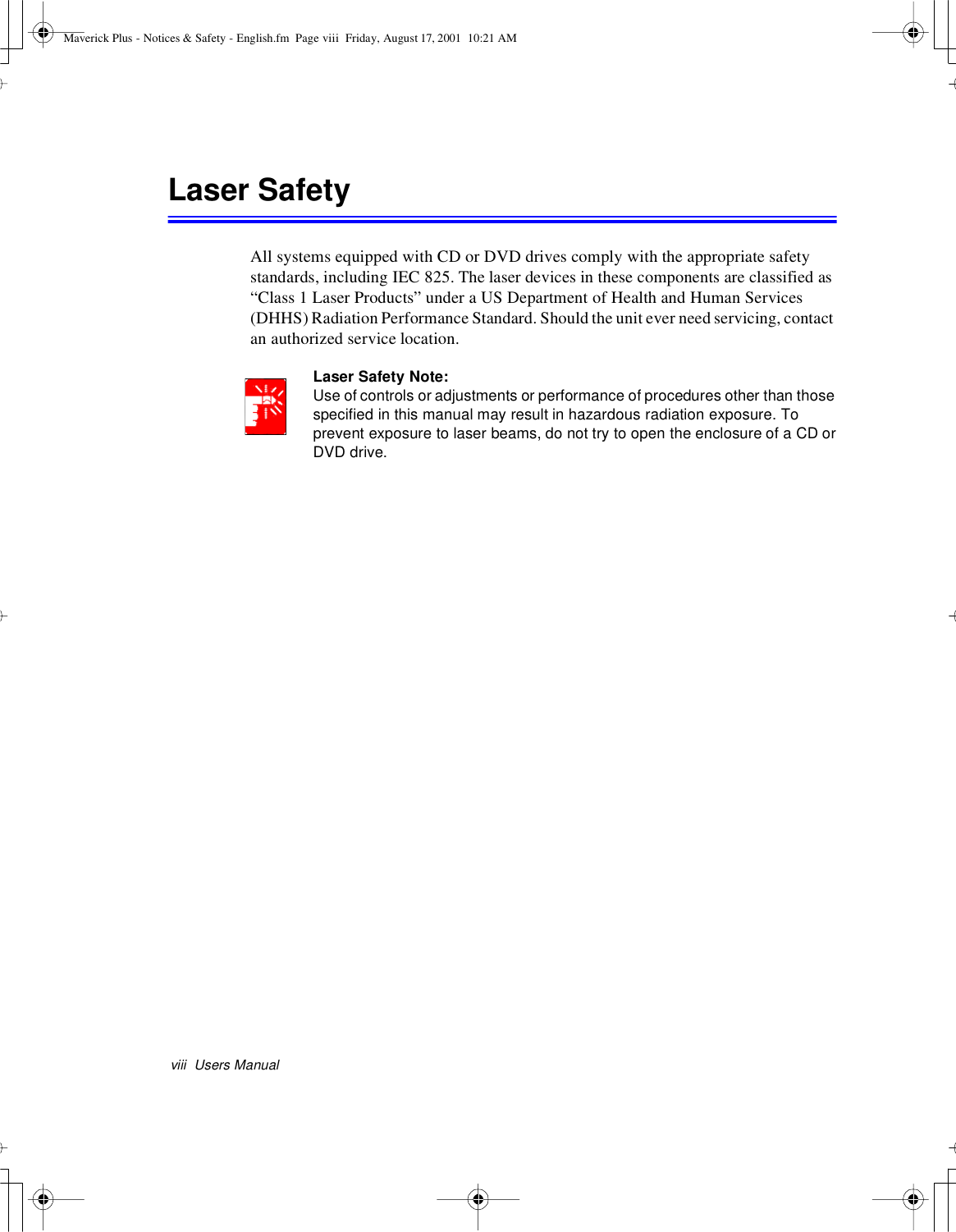

viii Users ManualLaser SafetyAll systems equipped with CD or DVD drives comply with the appropriate safetystandards, including IEC 825. The laser devices in these components are classified as“Class 1 Laser Products” under a US Department of Health and Human Services(DHHS) Radiation Performance Standard. Should the unit ever need servicing, contactan authorized service location.Laser Safety Note:Use of controls or adjustments or performance of procedures other than thosespecified in this manual may result in hazardous radiation exposure. Toprevent exposure to laser beams, do not try to open the enclosure of a CD orDVD drive.Maverick Plus - Notices & Safety - English.fm Page viii Friday, August 17, 2001 10:21 AM
Power Cord Requirements ixPower Cord RequirementsThe power cord set (wall plug, cable and AC adapter plug) you received with yourcomputer meets the requirements for use in the country where you purchased yourequipment.Power cord sets for use in other countries must meet the requirements of the countrywhere you use the computer. For more information on power cord set requirements,contact your authorized dealer, reseller, or service provider.General RequirementsThe requirements listed below are applicable to all countries:•The length of the power cord set must be at least 6.00 feet (1.8m) and amaximum of 9.75 feet (3.0m).•All power cord sets must be approved by an acceptable accredited agencyresponsible for evaluation in the country where the power cord set will be used.•The power cord set must have a minimum current capacity of 7 A and anominal voltage rating of 125 or 250 volts AC, as required by each country’spower system.•The appliance coupler must meet the mechanical configuration of an EN 60320/IEC 320 Standard Sheet C13 connector, for mating with appliance inlet onthe computer.Maverick Plus - Notices & Safety - English.fm Page ix Friday, August 17, 2001 10:21 AM
x Users ManualCountry-Specific Power Cord Set RequirementsThe requirements listed below are applicable to the specific country listed:Notes:1.Flexible cord must be Type HO5VV-F, 2-conductor, 1.0 mm² conductorsize. Power cord set fittings (appliance coupler and wall plug) must bearthe certification mark of the agency responsible for evaluation in thecountry where it will be used.2.Flexible cord must be Type SVT or equivalent, No.18 AWG. Wall plugmust be a two-pole grounding type.3.Appliance coupler, flexible cord, and wall plug must bear a "T" mark andregistration number in accordance with the Japanese Dentori Law.Flexible cord must be Type VCT or VCTF, 2-conductor, 0.75 mm²conductor size. Wall plug must be a two-pole grounding type with aJapanese Industrial Standard C8303 (15 A, 125V) configuration.Country AccreditingAgency Applicable NoteNumbersAustralia EANSW 1Austria OVE 1Belgium CEBC 1Canada CSA 2Denmark DEMKO 1Finland FIMKO 1France UTE 1Germany VDE 1Italy IMQ 1Japan JIS 3The Netherlands KEMA 1Norway NEMKO 1Sweden SEMKO 1Switzerland SEV 1United Kingdom BSI 1United States UL 2Maverick Plus - Notices & Safety - English.fm Page x Friday, August 17, 2001 10:21 AM
Using Your Documentation 1Using Your DocumentationCongratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a notebook computer or are an experienced user, this user’s manual can help you get the most from your computer.Manual Documentation ConventionsInformation IconsThree icons and their associated messages appear in this manual. The information icons are placed before the step/information they apply to:Warning:Indicates the possibility of personal injury.Caution:Warns you of possible damage to equipment or data.Note:Informs you of special circumstances.Procedure Begin:Indicates the beginning of steps to accomplish task.Procedure End:Indicates the end of steps to accomplish task.Keyboard ConventionsKeys that you need to press to perform certain functions are displayed in the manual using a small graphic of the button. For example: <Ctrl> indicates the control key (Ctrl on the keyboard). If you need to press two keys at the same time, the key names are shown joined by a plus sign. For example:<Alt+PgUp> means you press the Alt key and hold it and then press the PgUp key.Matrix II (Windows XP) - English.fm Page 1 Thursday, September 13, 2001 11:42 AM
2 Users ManualCD-ROM Device Naming ConventionIn many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD. For instance, if you have one HDD with two partitions, the HDD is drives C: and D: and the CD-ROM drive is then drive E.Touchpad ConventionsYou may be asked to click or double-click on items on the display screen. As a general note the touchpad actions act much in the same way as a wheel mouse, any differences are explained fully.The object that needs to be clicked upon will be displayed in Bold text or shown in a small figure such as the “Start Button” shown on the right =>. Table 1. Touchpad Click ConventionsWindows Conventions:Almost all "Windows" programs will display the name/function of a button or icon if you place the touchpad pointer on the item you want information about.Software User DocumentationYour computer is shipped from the factory with several software programs installed. The software may include its own online or printed documentation. Refer to the documentation or the Help options in the software for more information.The figures and illustrations in this manual may not be identical to those on your system.General Icon Note:Some of the Icons used in Windows XP may be placed on the taskbar by selecting (ex: Place the volume icon in the taskbar) in the properties dialog box.Action ProcessClick Depress the touchpad left button and releaseDouble-Click Quickly click the left touchpad button two timesMatrix II (Windows XP) - English.fm Page 2 Thursday, September 13, 2001 11:42 AM
Introducing Your Computer 3Introducing Your ComputerYour computer is a lightweight portable computer that includes features such as a Dolby Digital & Dolby Theater System support, Audio DJ CD player, Flex-Bay supported CD-ROM and floppy drives, Bluetooth capability (factory option) and Wireless LAN (factory option) to meet your computing needs at home or on the road.Where Everything IsThe next 7 figures will explain the location of all of the buttons, LEDs and equipment needed to operate your notebook computer.Front TouchpadSpeakerTouchpad ButtonsPower ButtonLCD LatchLEDsCover Latch SlotKeyboardSpeakerAudio DJ ButtonsInternal Microphone Power & Battery LEDsLCD DisplaySENS Keyboard ButtonsMatrix II (Windows XP) - English.fm Page 3 Thursday, September 13, 2001 11:42 AM

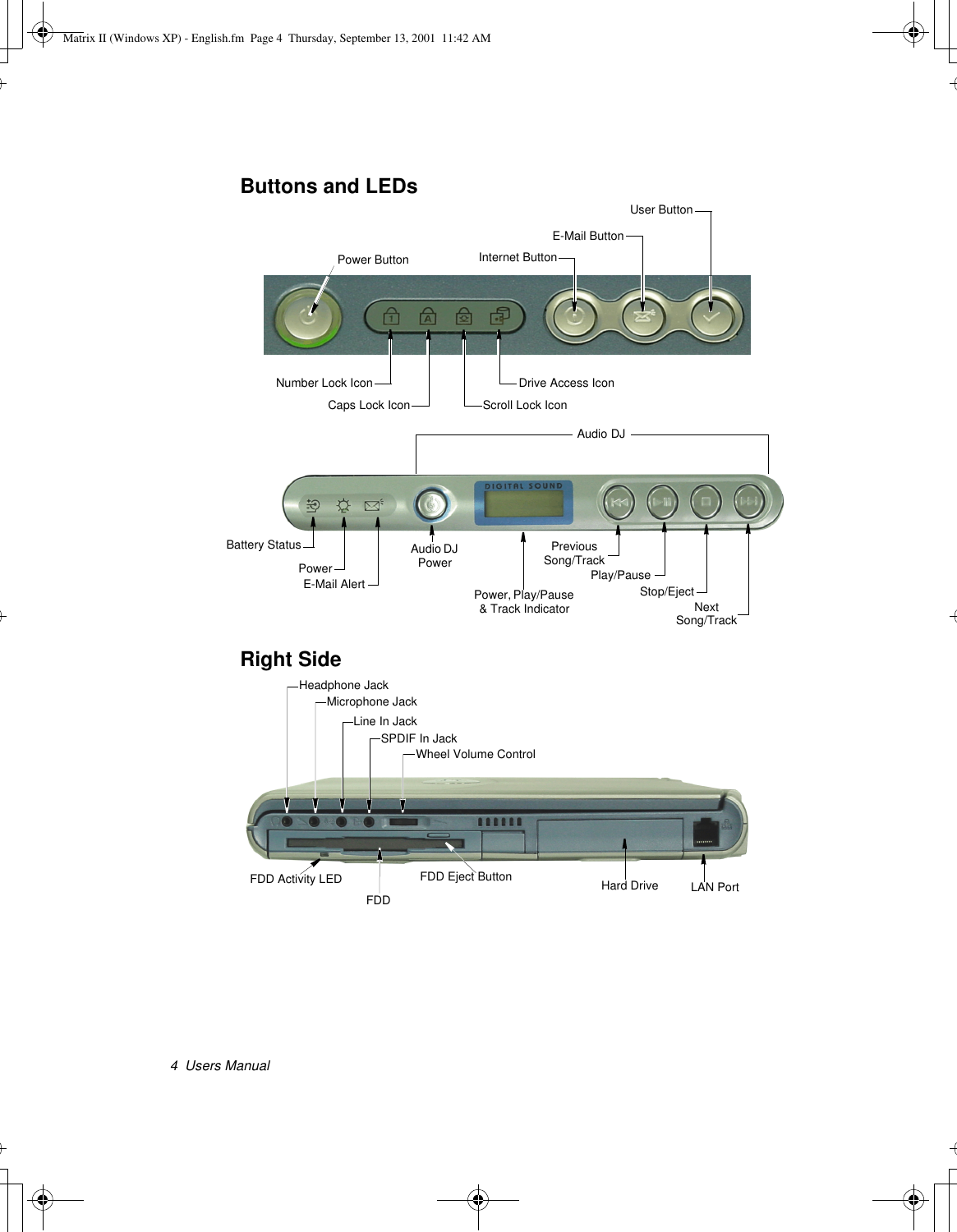

4 Users ManualButtons and LEDs Right Side Drive Access IconScroll Lock IconNumber Lock IconCaps Lock IconPower Button Internet ButtonE-Mail ButtonUser ButtonPower, Play/Pause & Track IndicatorAudio DJ PowerNextSong/TrackPlay/PauseStop/EjectAudio DJPrevious Song/TrackBattery StatusPowerE-Mail AlertFDDFDD Eject ButtonFDD Activity LED LAN PortHard DriveMicrophone JackHeadphone JackWheel Volume ControlLine In JackSPDIF In JackMatrix II (Windows XP) - English.fm Page 4 Thursday, September 13, 2001 11:42 AM

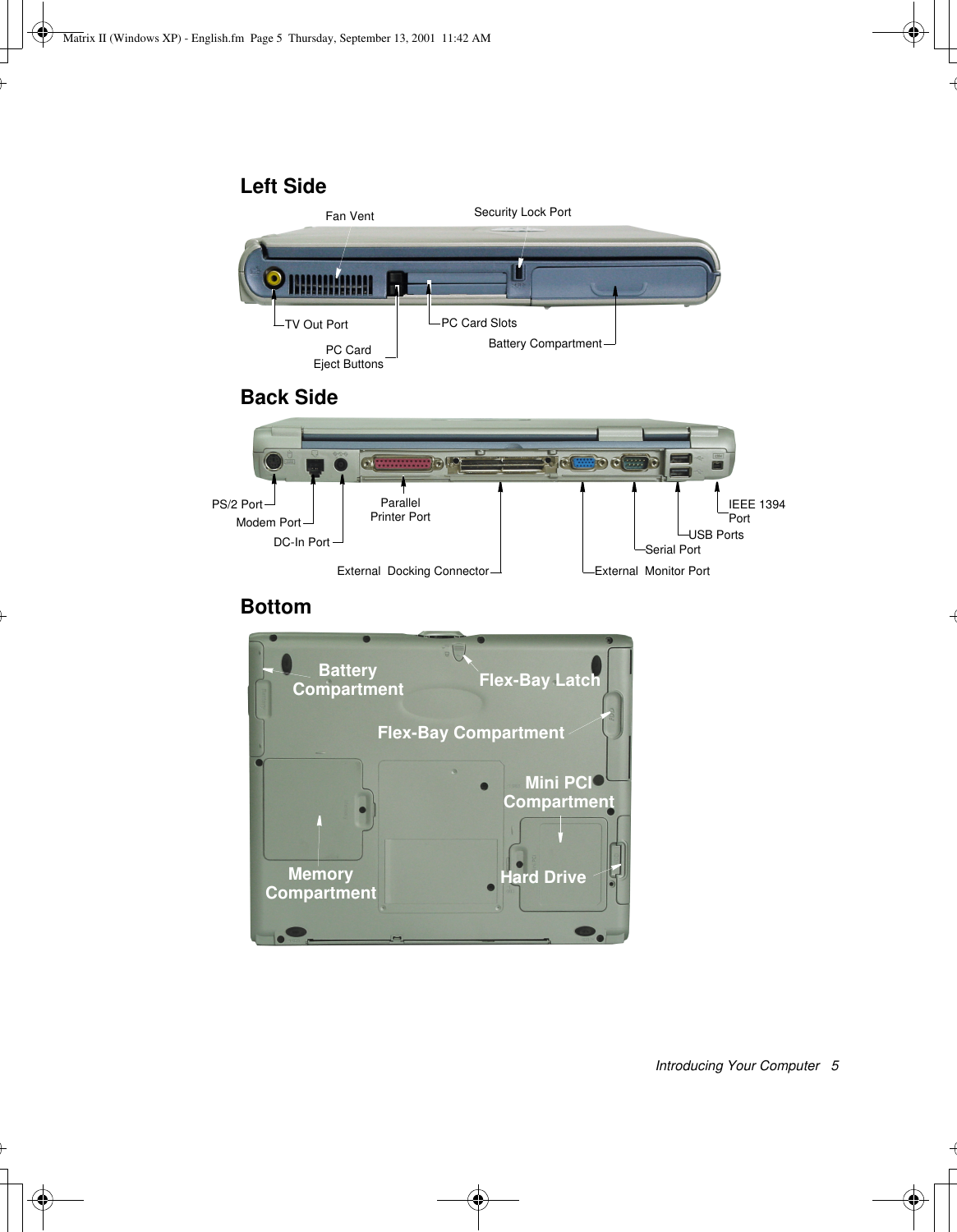

Introducing Your Computer 5Left SideBack SideBottomPC Card Eject ButtonsPC Card SlotsFan Vent Security Lock PortTV Out PortBattery CompartmentParallel Printer PortPS/2 PortUSB PortsSerial PortDC-In PortModem PortExternal Monitor PortIEEE 1394 PortExternal Docking ConnectorHard DriveBatteryMini PCICompartmentFlex-Bay CompartmentCompartmentCompartmentMemoryFlex-Bay LatchMatrix II (Windows XP) - English.fm Page 5 Thursday, September 13, 2001 11:42 AM
6 Users ManualUsing Your Computer for the First TimeThis section gives you detailed information on using your computer for the first time.Installing the BatteryTo install the battery pack:1. With the computer’s power off, close the LCD panel and turn the computer over so the bottom of the unit faces up.2. Slide the battery compartment cover straight up and off the computer.Insert the battery into the battery compartment, ensuring the correct orientation so that the battery fits in its slot properly. 3. Slide the battery pack into the compartment. Make sure the battery is fully inserted into the compartment. Carefully fold up the wire removal device.4. Align the tabs on the battery compartment cover with the slots on the battery compartment.5. Push the cover straight down until it snaps into place. Matrix II (Windows XP) - English.fm Page 6 Thursday, September 13, 2001 11:42 AM
Using Your Computer for the First Time 7Attaching the AC AdapterYour computer runs on power from the battery in the computer or from an electrical outlet. The first time that you use your computer, fully charge the battery by attaching the power cord to the computer and to an electrical outlet. All batteries lose their charge if they sit unused for an extended time period. When not used, battery can discharge fully in 2 to 3 months. The battery may have discharged in the time it took for the computer to go from the factory to you.To attach the power cord:1. Plug the AC adapter into the power connector on the back side of the computer.2. Connect the power cord to the AC adapter and then to an electrical outlet.The battery starts charging as soon as you plug the power cord into an electrical outlet. The battery charges faster if the computer is turned off during charging. If the battery is fully depleted and the computer is turned off, the battery charges in about 3 hours. If the computer is turned on, the battery charges in about 6 hours. When the battery is charging, the battery charge light is red. When the battery is fully charged, the light turns green.See “Using Power Management Options” on page 54 for more information on using your computer’s battery.AC AdapterMatrix II (Windows XP) - English.fm Page 7 Thursday, September 13, 2001 11:42 AM
8 Users ManualTurning On the ComputerTo turn on the computer’s power for the first time:1. Pull the bottom of the cover latch slightly outward.2. Lift up the cover.3. Press and then release the power button. The power light is on when the computer’s power is on.Initial Computer Startup:The first time you start your computer you will see the operating system registration screens. Simply read each screen and follow the simple directions. You must complete this process in order to use your computer. A tutorial is provided if you require it.Adjusting the LCD DisplayYou may wish to adjust the LCD (Liquid-Crystal Display) when you begin using your computer. A TFT (Thin-Film Transistor) LCD does not require adjustment for contrast because the contrast is set to remain at maximum.To adjust the LCD:•Press <Fn+Right Arrow> to increase the display brightness. •Press <Fn+Left Arrow> to decrease the display brightness.Power LEDCover latchPower ButtonMatrix II (Windows XP) - English.fm Page 8 Thursday, September 13, 2001 11:42 AM
Using Your Computer for the First Time 9Turning Off Your ComputerPrior to shutting down your computer ensure all of your data and current work are saved. The system will ask if you wish to save any unsaved work, saving your work first will speed the shutdown process.To turn off the computer, complete the following steps:1. Click on the taskbar.If you need to restart your computer after software (re)installation or because it is not responding select the Restart option in step 3 below.2. Click Shut Down Computer to display the shutdown popup window shown below.. 3. Click Turn Off to complete the shutdown sequence.Power Off:If the system does not power off, then press and hold the power button for over 5 seconds. See “Using Power Management Options” on page 54.Power Button Functions:The power button has several functions other than just turning on and off your computer, see “Using Power Management Options” on page 54.You can also perform a soft boot by saving your files and pressing <Ctrl+Alt+Del> to pop-up the “Windows Task Manager” window. Click Shut Down > Restart.You can perform a cold boot by pressing the power button for more than 5 seconds to turn the computer off, waiting more than five seconds, and then pressing the power button to turn the computer on. The system may perform some extra checks during the restart.Matrix II (Windows XP) - English.fm Page 9 Thursday, September 13, 2001 11:42 AM

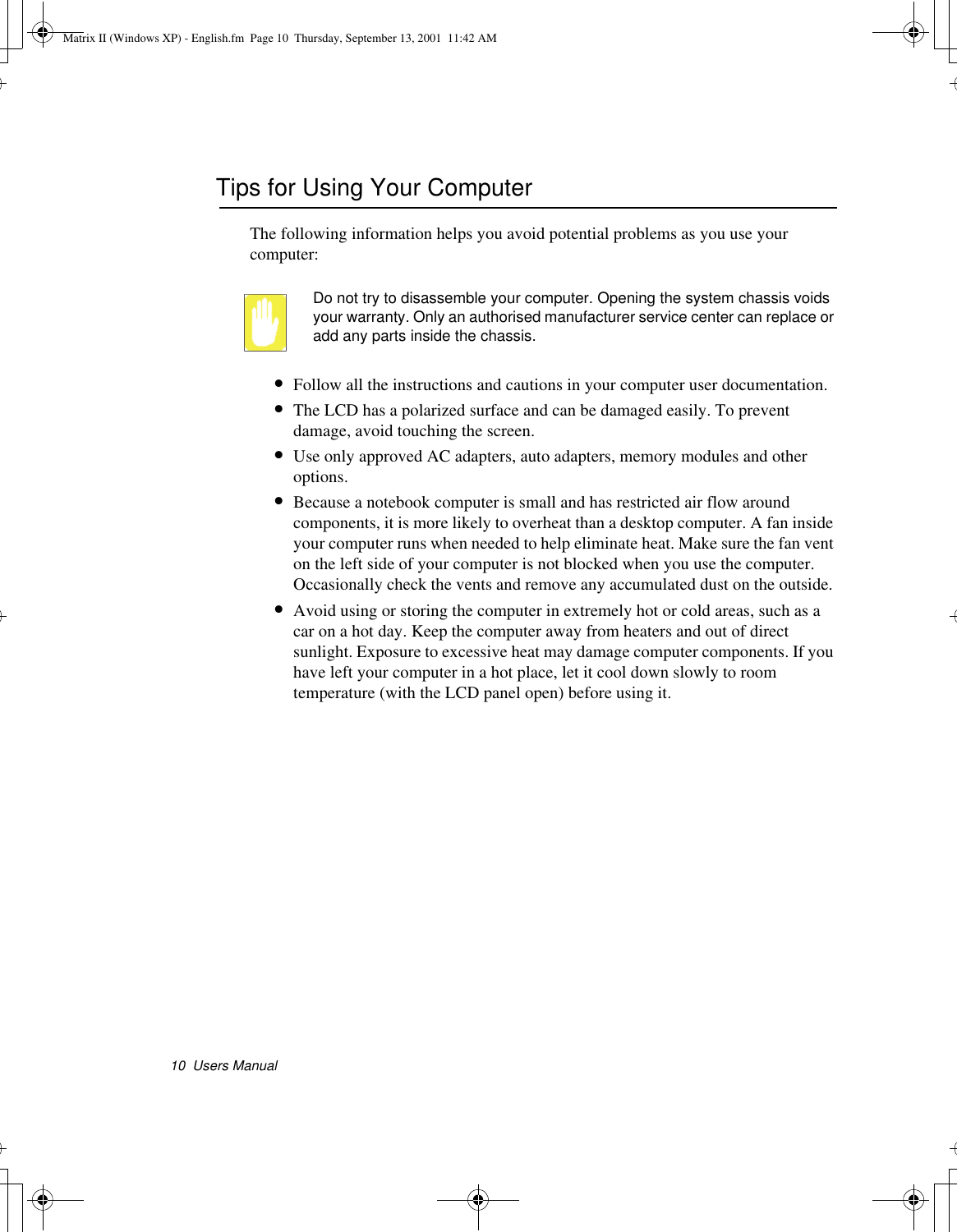

10 Users ManualTips for Using Your ComputerThe following information helps you avoid potential problems as you use your computer:Do not try to disassemble your computer. Opening the system chassis voids your warranty. Only an authorised manufacturer service center can replace or add any parts inside the chassis.•Follow all the instructions and cautions in your computer user documentation.•The LCD has a polarized surface and can be damaged easily. To prevent damage, avoid touching the screen.•Use only approved AC adapters, auto adapters, memory modules and other options.•Because a notebook computer is small and has restricted air flow around components, it is more likely to overheat than a desktop computer. A fan inside your computer runs when needed to help eliminate heat. Make sure the fan vent on the left side of your computer is not blocked when you use the computer. Occasionally check the vents and remove any accumulated dust on the outside. •Avoid using or storing the computer in extremely hot or cold areas, such as a car on a hot day. Keep the computer away from heaters and out of direct sunlight. Exposure to excessive heat may damage computer components. If you have left your computer in a hot place, let it cool down slowly to room temperature (with the LCD panel open) before using it.Matrix II (Windows XP) - English.fm Page 10 Thursday, September 13, 2001 11:42 AM

Users Manual1

Notices iNoticesNo part of this publication may be reproduced, stored in a retrieval system, ortransmitted, in any form or by any means, mechanical photocopying, recording orotherwise, without the prior written permission of the manufacturer.The information within this manual is subject to change without notice.The manufacturer shall not be held liable for technical or editorial errors or omissionscontained in herein; nor for incidental or consequential damages resulting from thefurnishing, performance or use of this material.Microsoft Windows is a registered trademark of the Microsoft Corporation.Product names mentioned herein are for identification purposes only, and may betrademarks and/or registered trademarks of their respective companies.Macrovision StatementIf your computer has a DVD drive and an analog TV Out port, the followingparagraph applies:This product incorporates copyright protection technology that is protected by methodclaims of certain U.S. patents and other intellectual property rights owned byMacrovision Corporation and other rights owners. Use of this copyright protectiontechnology must be authorized by Macrovision Corporation, and is intended for homeand other limited viewing uses only unless otherwise authorized by MacrovisionCorporation. Reverse engineering or disassembly is prohibited.Copyright 2001 All rights are reservedMaverick Plus - Notices & Safety - English.fm Page i Friday, August 17, 2001 10:21 AM
ii Users ManualImportant Safety InformationSafety InstructionsYour system is designed and tested to meet the latest standards for safety ofinformation technology equipment. However, to ensure safe use of this product, it isimportant that the safety instructions marked on the product and in thedocumentationare followed.Always follow these instructions to help guard against personal injury anddamage to your system.iSetting Up your System•Read and follow all instructions marked on the product and in thedocumentation before you operate your system. Retain all safety and operatinginstructions for future use.•Do not use this product near water or a heat source such as a radiator.•Set up the system on a stable work surface.•The product should be operated only with the type of power source indicated onthe rating label.•Ensure that the electrical outlet you are using to power your equipment is easilyaccessible in case of fire or short circuit.•If your computer has a voltage selector switch, make sure that the switch is inthe proper position for your area.•Openings in the computer case are provided for ventilation. Do not block orcover these openings. Make sure you provide adequate space, at least 6 inches(15 cm), around the system for ventilation when you set up your work area.Never insert objects of any kind into the computer ventilation openings.•Ensure that the fan vents on the bottom of the casing are clear at all times. Donot place the computer on a soft surface, doing so will block the bottom vents.•The computer product is equipped with a three-wire power cord to make surethat the product is properly grounded when in use. The plug on this cord will fitonly into a grounding-type outlet. This is a safety feature. If you are unable toinsert the plug into an outlet, contact an electrician to install the appropriateoutlet.Maverick Plus - Notices & Safety - English.fm Page ii Friday, August 17, 2001 10:21 AM
Important Safety Information iii•If you use an extension cord with this system, make sure that the total ampererating on the products plugged into the extension cord does not exceed theextension cord ampere rating.Care During Use•Do not walk on the power cord or allow anything to rest on it.•Do not spill anything on the system. The best way to avoid spills is to not eat ordrink near your system.•Some products have a replaceable CMOS battery on the system board. There isa danger of explosion if the CMOS battery is replaced incorrectly. Replace thebattery with the same or equivalent type recommended by the manufacturer.Dispose of batteries according to the manufacturer’s instructions. If the CMOSbattery requires replacement insure that a qualified technician performs the task•When the computer is turned off, a small amount of electrical current still flowsthrough the computer. To avoid electrical shock, always unplug all powercables, remove the battery and modem cables from the wall outlets beforecleaning the system.•Unplug the system from the wall outlet and refer servicing to qualifiedpersonnel if:– The power cord or plug is damaged.– Liquid has been spilled into the system.– The system does not operate properly when the operating instructions arefollowed.– The system was dropped or the casing is damaged.– The system performance changes.Replacement Parts and AccessoriesUse only replacement parts and accessories recommended by manufacturer.To reduce the risk of fire, use only No. 26 AWG or larger telecommunicationsline cord.Do not use this product in areas classified as hazardous. Such areas includepatient care areas of medical and dental facilities, oxygen rich environments,or industrial areas.Maverick Plus - Notices & Safety - English.fm Page iii Friday, August 17, 2001 10:21 AM
iv Users ManualBattery DisposalDo not put rechargeable batteries or products powered by non-removablerechargeable batteries in the garbage.Contact the Samsung Helpline for information on how to dispose of batteries that youcannot use or recharge any longer.Follow all local regulations when disposing of old batteries.Maverick Plus - Notices & Safety - English.fm Page iv Friday, August 17, 2001 10:21 AM
Federal Communications Commission (FCC) vFederal Communications Commission (FCC)This device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that maycause undesired operation.This equipment has been tested and found to comply with the limits for a ClassB digital device pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generate uses and can radiate radiofrequency energy and if not installed and used in accordance with theinstructions may cause harmful interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or moreof the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.•Consult the dealer or an experienced radio/TV technician for help.If necessary, the user should consult the dealer or an experienced radio/televisiontechnician for additional suggestions. The user may find the following booklet helpful:"Something About Interference." This is available at FCC local regional offices. Ourcompany is not responsible for any radio or television interference caused byunauthorized modifications of this equipment or the substitution or attachment ofconnecting cables and equipment other than those specified by our company. Thecorrection will be the responsibility of the user. Use only shielded data cables with thissystem.Maverick Plus - Notices & Safety - English.fm Page v Friday, August 17, 2001 10:21 AM
vi Users ManualFederal Communications Commission Part 68 StatementNote:This equipment compiles with part of the FCC rules. On the back of this equipment isa label that contains, among other information, the FCC registration number and ringerequivalence number(REN) for this equipment. If requested, this information must beprovided to the telephone company.This equipment uses the following USOC jacks : RJ11CAn FCC compliant telephone cord and modular plug is provided with this equipment.This equipment is designed to be connected to the telephone network or promiseswiring using a compatible modular jack which is Part 68 compliant. See InstallationInstructions for details.The REN is used to determine the quantity of devices which may be connected totelephone line. Excessive RENs on the telephone line may result in the devices notringing in response to an incoming call. In most, but not all areas, the sum of RENsshould not exceed five(5.0). To be certain of the number of devices that may beconnected to a line, as determined by total RENs, contact the local telephone companyto determine the maximum REN for the calling area.If the terminal equipment causes harm to the telephone network, the TelephoneCompany will notify you in advance that temporary discontinuance of service may berequired. But if advance notice is not practical, the telephone company will notify thecustomer as soon as possible. Also, you will be advised of your right to file a complaintwith the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations, orprocedures that could affect the operation of the equipment. If this happens, thetelephone company will provide advanced notice in order for you to make necessarymodifications to maintain uninterrupted service.If trouble is experienced with this equipment (SENS Modem) for repair or warrantyinformation, please contact your local distributor. If the equipment is causing harm tothe telephone network, the telephone company may request that you disconnect theequipment until the problem is resolved.The user must use the accessories and cables supplied by the manufacturer to getoptimum performance from the product.No repairs may be done by the customer.This equipment cannot be used on public coin phone service provided by the telephonecompany. Connection to party line service is subject to state tariffs.Maverick Plus - Notices & Safety - English.fm Page vi Friday, August 17, 2001 10:21 AM
Federal Communications Commission (FCC) viiThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person touse a computer or other electronic device, including fax machines, to send any messageunless such message clearly contains in a margin at the top or bottom of eachtransmitted page or on the first page of the transmission, the date and time it is sent andan identification of the business or other entity, or other individual sending the messageand the telephone number of the sending machine or such business, other entity, orindividual. (The telephone number provided may not be any number for which chargesexceed local or long-distance transmission charges.)In order to program this information into your fax machine, refer to yourcommunications software user manual.CTR21 StatementThe equipment has been approved in accordance with Council Decision 98/482/EC forpan-European single terminal connection to the public switched telephone network(PSTN). However, due to differences between the individual PSTNs provided indifferent countries, the approval does not, of itself, give an unconditional assurance ofsuccessful operation on every PSTN network termination point.In the event of problems, you should contact your equipment supplier in the firstinstance.Canadian Radio Interference RegulationsThis apparatus does not exceed the class B limits for radio noise emissions set out inthe radio interference regulations of the Canadian Department of Communications.Le présent appareil n’émet pas de bruits radioélectriques dépassant les limitesapplicable aux appareils de la classe B prescrites par le règlement de brouillageradioélectrique dicté par le Ministère des Communications du Canada.Maverick Plus - Notices & Safety - English.fm Page vii Friday, August 17, 2001 10:21 AM
viii Users ManualLaser SafetyAll systems equipped with CD or DVD drives comply with the appropriate safetystandards, including IEC 825. The laser devices in these components are classified as“Class 1 Laser Products” under a US Department of Health and Human Services(DHHS) Radiation Performance Standard. Should the unit ever need servicing, contactan authorized service location.Laser Safety Note:Use of controls or adjustments or performance of procedures other than thosespecified in this manual may result in hazardous radiation exposure. Toprevent exposure to laser beams, do not try to open the enclosure of a CD orDVD drive.Maverick Plus - Notices & Safety - English.fm Page viii Friday, August 17, 2001 10:21 AM
Power Cord Requirements ixPower Cord RequirementsThe power cord set (wall plug, cable and AC adapter plug) you received with yourcomputer meets the requirements for use in the country where you purchased yourequipment.Power cord sets for use in other countries must meet the requirements of the countrywhere you use the computer. For more information on power cord set requirements,contact your authorized dealer, reseller, or service provider.General RequirementsThe requirements listed below are applicable to all countries:•The length of the power cord set must be at least 6.00 feet (1.8m) and amaximum of 9.75 feet (3.0m).•All power cord sets must be approved by an acceptable accredited agencyresponsible for evaluation in the country where the power cord set will be used.•The power cord set must have a minimum current capacity of 7 A and anominal voltage rating of 125 or 250 volts AC, as required by each country’spower system.•The appliance coupler must meet the mechanical configuration of an EN 60320/IEC 320 Standard Sheet C13 connector, for mating with appliance inlet onthe computer.Maverick Plus - Notices & Safety - English.fm Page ix Friday, August 17, 2001 10:21 AM
x Users ManualCountry-Specific Power Cord Set RequirementsThe requirements listed below are applicable to the specific country listed:Notes:1.Flexible cord must be Type HO5VV-F, 2-conductor, 1.0 mm² conductorsize. Power cord set fittings (appliance coupler and wall plug) must bearthe certification mark of the agency responsible for evaluation in thecountry where it will be used.2.Flexible cord must be Type SVT or equivalent, No.18 AWG. Wall plugmust be a two-pole grounding type.3.Appliance coupler, flexible cord, and wall plug must bear a "T" mark andregistration number in accordance with the Japanese Dentori Law.Flexible cord must be Type VCT or VCTF, 2-conductor, 0.75 mm²conductor size. Wall plug must be a two-pole grounding type with aJapanese Industrial Standard C8303 (15 A, 125V) configuration.Country AccreditingAgency Applicable NoteNumbersAustralia EANSW 1Austria OVE 1Belgium CEBC 1Canada CSA 2Denmark DEMKO 1Finland FIMKO 1France UTE 1Germany VDE 1Italy IMQ 1Japan JIS 3The Netherlands KEMA 1Norway NEMKO 1Sweden SEMKO 1Switzerland SEV 1United Kingdom BSI 1United States UL 2Maverick Plus - Notices & Safety - English.fm Page x Friday, August 17, 2001 10:21 AM
Using Your Documentation 1Using Your DocumentationCongratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a notebook computer or are an experienced user, this user’s manual can help you get the most from your computer.Manual Documentation ConventionsInformation IconsThree icons and their associated messages appear in this manual. The information icons are placed before the step/information they apply to:Warning:Indicates the possibility of personal injury.Caution:Warns you of possible damage to equipment or data.Note:Informs you of special circumstances.Procedure Begin:Indicates the beginning of steps to accomplish task.Procedure End:Indicates the end of steps to accomplish task.Keyboard ConventionsKeys that you need to press to perform certain functions are displayed in the manual using a small graphic of the button. For example: <Ctrl> indicates the control key (Ctrl on the keyboard). If you need to press two keys at the same time, the key names are shown joined by a plus sign. For example:<Alt+PgUp> means you press the Alt key and hold it and then press the PgUp key.Matrix II (Windows XP) - English.fm Page 1 Thursday, September 13, 2001 11:42 AM
2 Users ManualCD-ROM Device Naming ConventionIn many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD. For instance, if you have one HDD with two partitions, the HDD is drives C: and D: and the CD-ROM drive is then drive E.Touchpad ConventionsYou may be asked to click or double-click on items on the display screen. As a general note the touchpad actions act much in the same way as a wheel mouse, any differences are explained fully.The object that needs to be clicked upon will be displayed in Bold text or shown in a small figure such as the “Start Button” shown on the right =>. Table 1. Touchpad Click ConventionsWindows Conventions:Almost all "Windows" programs will display the name/function of a button or icon if you place the touchpad pointer on the item you want information about.Software User DocumentationYour computer is shipped from the factory with several software programs installed. The software may include its own online or printed documentation. Refer to the documentation or the Help options in the software for more information.The figures and illustrations in this manual may not be identical to those on your system.General Icon Note:Some of the Icons used in Windows XP may be placed on the taskbar by selecting (ex: Place the volume icon in the taskbar) in the properties dialog box.Action ProcessClick Depress the touchpad left button and releaseDouble-Click Quickly click the left touchpad button two timesMatrix II (Windows XP) - English.fm Page 2 Thursday, September 13, 2001 11:42 AM
Introducing Your Computer 3Introducing Your ComputerYour computer is a lightweight portable computer that includes features such as a Dolby Digital & Dolby Theater System support, Audio DJ CD player, Flex-Bay supported CD-ROM and floppy drives, Bluetooth capability (factory option) and Wireless LAN (factory option) to meet your computing needs at home or on the road.Where Everything IsThe next 7 figures will explain the location of all of the buttons, LEDs and equipment needed to operate your notebook computer.Front TouchpadSpeakerTouchpad ButtonsPower ButtonLCD LatchLEDsCover Latch SlotKeyboardSpeakerAudio DJ ButtonsInternal Microphone Power & Battery LEDsLCD DisplaySENS Keyboard ButtonsMatrix II (Windows XP) - English.fm Page 3 Thursday, September 13, 2001 11:42 AM
4 Users ManualButtons and LEDs Right Side Drive Access IconScroll Lock IconNumber Lock IconCaps Lock IconPower Button Internet ButtonE-Mail ButtonUser ButtonPower, Play/Pause & Track IndicatorAudio DJ PowerNextSong/TrackPlay/PauseStop/EjectAudio DJPrevious Song/TrackBattery StatusPowerE-Mail AlertFDDFDD Eject ButtonFDD Activity LED LAN PortHard DriveMicrophone JackHeadphone JackWheel Volume ControlLine In JackSPDIF In JackMatrix II (Windows XP) - English.fm Page 4 Thursday, September 13, 2001 11:42 AM
Introducing Your Computer 5Left SideBack SideBottomPC Card Eject ButtonsPC Card SlotsFan Vent Security Lock PortTV Out PortBattery CompartmentParallel Printer PortPS/2 PortUSB PortsSerial PortDC-In PortModem PortExternal Monitor PortIEEE 1394 PortExternal Docking ConnectorHard DriveBatteryMini PCICompartmentFlex-Bay CompartmentCompartmentCompartmentMemoryFlex-Bay LatchMatrix II (Windows XP) - English.fm Page 5 Thursday, September 13, 2001 11:42 AM
6 Users ManualUsing Your Computer for the First TimeThis section gives you detailed information on using your computer for the first time.Installing the BatteryTo install the battery pack:1. With the computer’s power off, close the LCD panel and turn the computer over so the bottom of the unit faces up.2. Slide the battery compartment cover straight up and off the computer.Insert the battery into the battery compartment, ensuring the correct orientation so that the battery fits in its slot properly. 3. Slide the battery pack into the compartment. Make sure the battery is fully inserted into the compartment. Carefully fold up the wire removal device.4. Align the tabs on the battery compartment cover with the slots on the battery compartment.5. Push the cover straight down until it snaps into place. Matrix II (Windows XP) - English.fm Page 6 Thursday, September 13, 2001 11:42 AM
Using Your Computer for the First Time 7Attaching the AC AdapterYour computer runs on power from the battery in the computer or from an electrical outlet. The first time that you use your computer, fully charge the battery by attaching the power cord to the computer and to an electrical outlet. All batteries lose their charge if they sit unused for an extended time period. When not used, battery can discharge fully in 2 to 3 months. The battery may have discharged in the time it took for the computer to go from the factory to you.To attach the power cord:1. Plug the AC adapter into the power connector on the back side of the computer.2. Connect the power cord to the AC adapter and then to an electrical outlet.The battery starts charging as soon as you plug the power cord into an electrical outlet. The battery charges faster if the computer is turned off during charging. If the battery is fully depleted and the computer is turned off, the battery charges in about 3 hours. If the computer is turned on, the battery charges in about 6 hours. When the battery is charging, the battery charge light is red. When the battery is fully charged, the light turns green.See “Using Power Management Options” on page 54 for more information on using your computer’s battery.AC AdapterMatrix II (Windows XP) - English.fm Page 7 Thursday, September 13, 2001 11:42 AM
8 Users ManualTurning On the ComputerTo turn on the computer’s power for the first time:1. Pull the bottom of the cover latch slightly outward.2. Lift up the cover.3. Press and then release the power button. The power light is on when the computer’s power is on.Initial Computer Startup:The first time you start your computer you will see the operating system registration screens. Simply read each screen and follow the simple directions. You must complete this process in order to use your computer. A tutorial is provided if you require it.Adjusting the LCD DisplayYou may wish to adjust the LCD (Liquid-Crystal Display) when you begin using your computer. A TFT (Thin-Film Transistor) LCD does not require adjustment for contrast because the contrast is set to remain at maximum.To adjust the LCD:•Press <Fn+Right Arrow> to increase the display brightness. •Press <Fn+Left Arrow> to decrease the display brightness.Power LEDCover latchPower ButtonMatrix II (Windows XP) - English.fm Page 8 Thursday, September 13, 2001 11:42 AM
Using Your Computer for the First Time 9Turning Off Your ComputerPrior to shutting down your computer ensure all of your data and current work are saved. The system will ask if you wish to save any unsaved work, saving your work first will speed the shutdown process.To turn off the computer, complete the following steps:1. Click on the taskbar.If you need to restart your computer after software (re)installation or because it is not responding select the Restart option in step 3 below.2. Click Shut Down Computer to display the shutdown popup window shown below.. 3. Click Turn Off to complete the shutdown sequence.Power Off:If the system does not power off, then press and hold the power button for over 5 seconds. See “Using Power Management Options” on page 54.Power Button Functions:The power button has several functions other than just turning on and off your computer, see “Using Power Management Options” on page 54.You can also perform a soft boot by saving your files and pressing <Ctrl+Alt+Del> to pop-up the “Windows Task Manager” window. Click Shut Down > Restart.You can perform a cold boot by pressing the power button for more than 5 seconds to turn the computer off, waiting more than five seconds, and then pressing the power button to turn the computer on. The system may perform some extra checks during the restart.Matrix II (Windows XP) - English.fm Page 9 Thursday, September 13, 2001 11:42 AM
10 Users ManualTips for Using Your ComputerThe following information helps you avoid potential problems as you use your computer:Do not try to disassemble your computer. Opening the system chassis voids your warranty. Only an authorised manufacturer service center can replace or add any parts inside the chassis.•Follow all the instructions and cautions in your computer user documentation.•The LCD has a polarized surface and can be damaged easily. To prevent damage, avoid touching the screen.•Use only approved AC adapters, auto adapters, memory modules and other options.•Because a notebook computer is small and has restricted air flow around components, it is more likely to overheat than a desktop computer. A fan inside your computer runs when needed to help eliminate heat. Make sure the fan vent on the left side of your computer is not blocked when you use the computer. Occasionally check the vents and remove any accumulated dust on the outside. •Avoid using or storing the computer in extremely hot or cold areas, such as a car on a hot day. Keep the computer away from heaters and out of direct sunlight. Exposure to excessive heat may damage computer components. If you have left your computer in a hot place, let it cool down slowly to room temperature (with the LCD panel open) before using it.Matrix II (Windows XP) - English.fm Page 10 Thursday, September 13, 2001 11:42 AM
