Users Manual

User Manualfor
1INDEX1. Introduction1.1 Introduction to Bluetooth Wireless Technology ......................................................... 21.2 Introduction to Bluetooth PC Dongle............................................................................... 21.3 Box Content and Picture ....................................................................................................... 22. System Requirement2.1 PC System Requirement: ....................................................................................................... 33. Specification3.1 External appearance...................................................................................................................43.2 Bluetooth Specification.............................................................................................................43.3 Supported Bluetooth Profile ................................................................................................ 44. Software Installation ................................................................................................... 55. Pairing Guide ................................................................................................................ 106. Connect and Disconnect6.1 Connect .......................................................................................................................................186.2 Disconnect ................................................................................................................................. 197. Certification and safety approvals ....................................................................248. Correct Disposal of This Product.........................................................................26

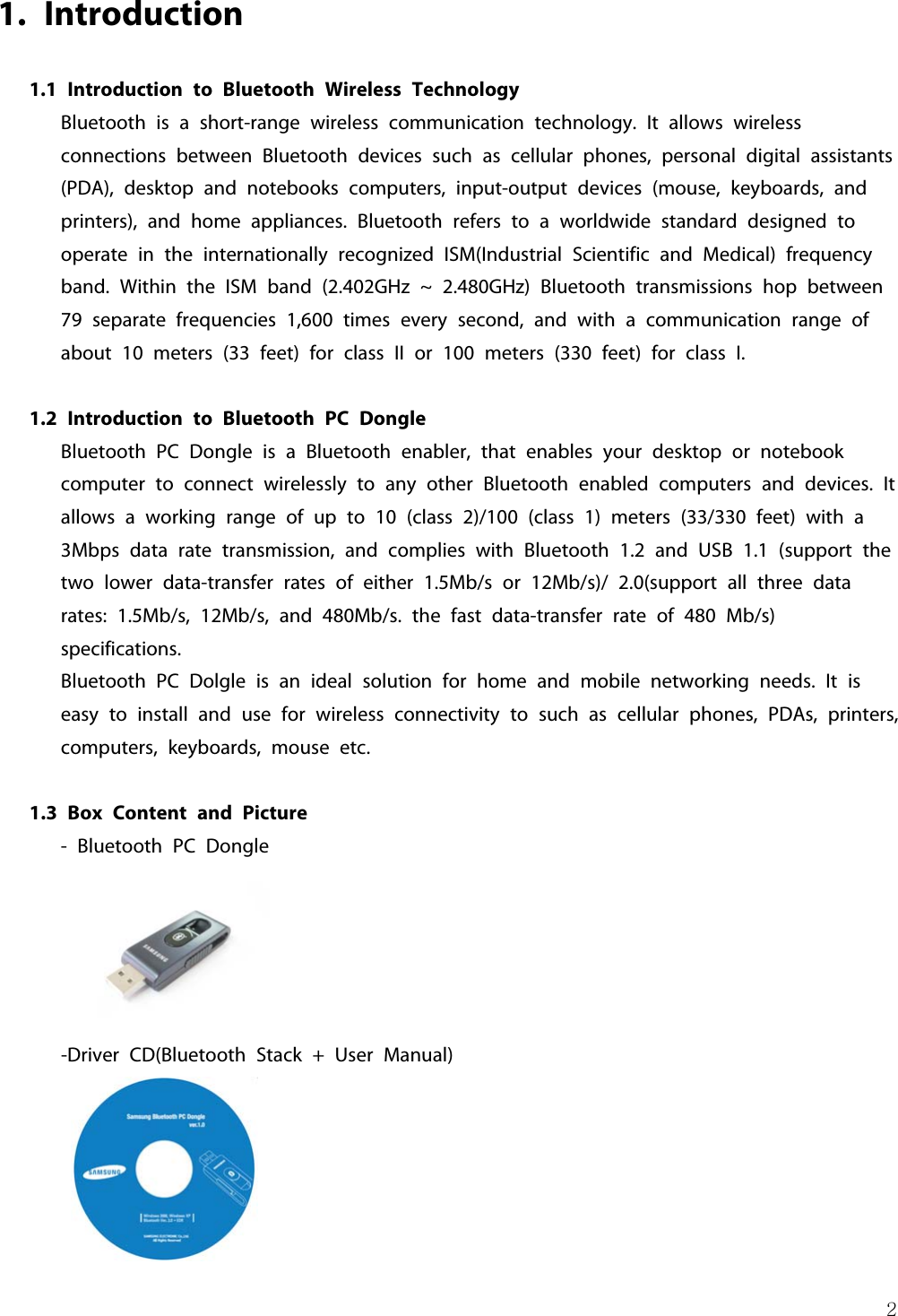

21. Introduction1.1 Introduction to Bluetooth Wireless TechnologyBluetooth is a short-range wireless communication technology. It allows wirelessconnections between Bluetooth devices such as cellular phones, personal digital assistants(PDA), desktop and notebooks computers, input-output devices (mouse, keyboards, andprinters), and home appliances. Bluetooth refers to a worldwide standard designed tooperate in the internationally recognized ISM(Industrial Scientific and Medical) frequencyband. Within the ISM band (2.402GHz ~ 2.480GHz) Bluetooth transmissions hop between79 separate frequencies 1,600 times every second, and with a communication range ofabout 10 meters (33 feet) for class II or 100 meters (330 feet) for class I.1.2 Introduction to Bluetooth PC DongleBluetooth PC Dongle is a Bluetooth enabler, that enables your desktop or notebookcomputer to connect wirelessly to any other Bluetooth enabled computers and devices. Itallows a working range of up to 10 (class 2)/100 (class 1) meters (33/330 feet) with a3Mbps data rate transmission, and complies with Bluetooth 1.2 and USB 1.1 (support thetwo lower data-transfer rates of either 1.5Mb/s or 12Mb/s)/ 2.0(support all three datarates: 1.5Mb/s, 12Mb/s, and 480Mb/s. the fast data-transfer rate of 480 Mb/s)specifications.Bluetooth PC Dolgle is an ideal solution for home and mobile networking needs. It iseasy to install and use for wireless connectivity to such as cellular phones, PDAs, printers,computers, keyboards, mouse etc.1.3 Box Content and Picture- Bluetooth PC Dongle-Driver CD(Bluetooth Stack + User Manual)

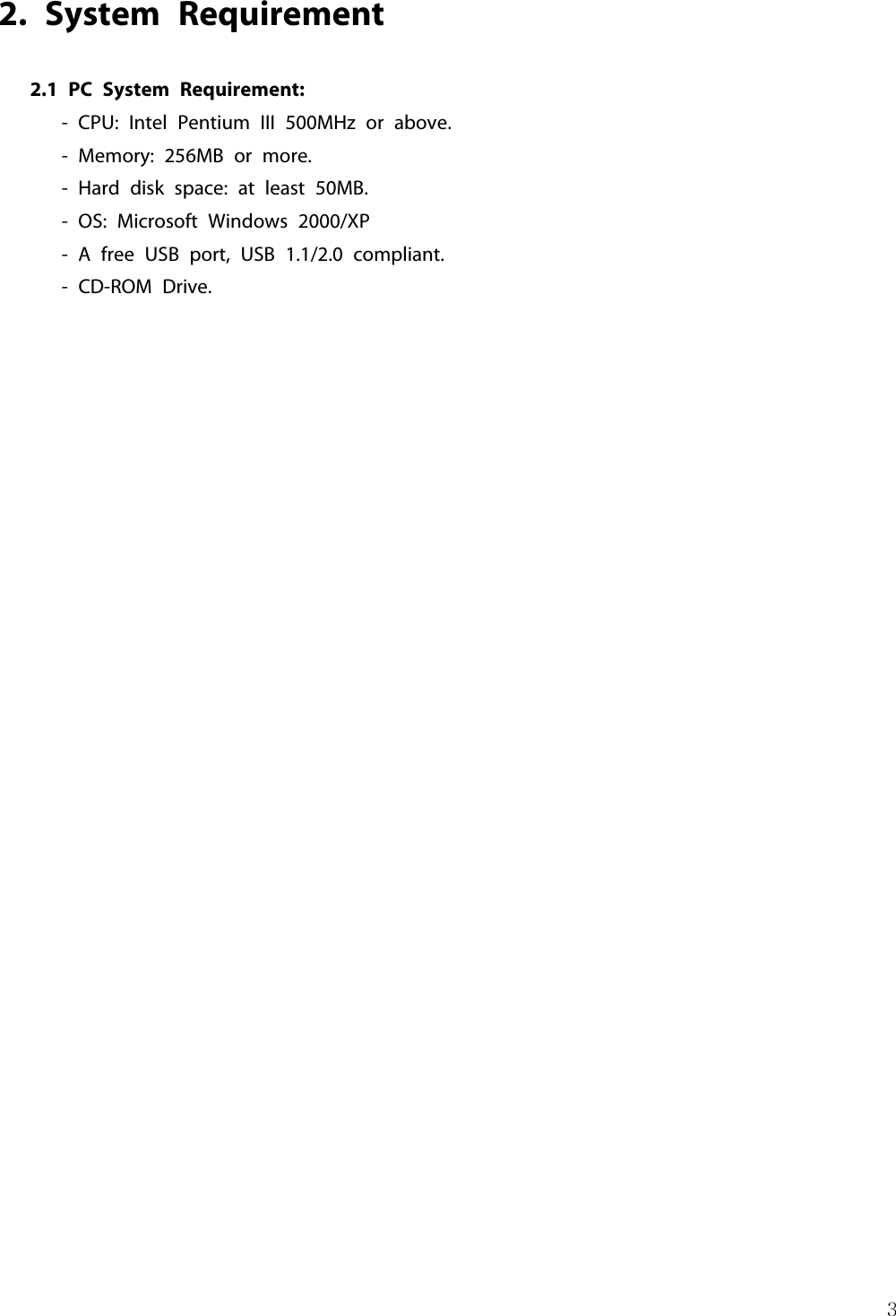

32. System Requirement2.1 PC System Requirement:- CPU: Intel Pentium III 500MHz or above.- Memory: 256MB or more.- Hard disk space: at least 50MB.- OS: Microsoft Windows 2000/XP- A free USB port, USB 1.1/2.0 compliant.-CD-ROMDrive.
43. Specification3.1 External appearance- Dimensions : 53mm x 22.5mm x 11.2mm- Weight : 10.2g- Operating Temperature Range : -20℃~60℃3.2 Bluetooth Specification- In compatible with Bluetooth Spec. V2.0+EDR(Enhanced Data Rate)- Frequency Range : 2.402GHz ~ 2.480GHz- Data Rate : Support 1Mbps, 2Mbps and 3Mbps-RxSensitivity:-75dBm-TxOutputPower:-6~+4dBm3.3 Supported Bluetooth Profile- DUN(Dial-Up Networking Profile)- BIP(Basic Image Profile)- HCRP(Hard Copy Replacement Profile)- GAVDP(Generic Audio/Video Distribution Profile)- A2DP(Advanced Audio Distribution Profile)- AVRCP(Audio/Video Remote Control Profile)- HID(Human Interface Device)- PAN(Personal Area Networking)- LAP(LAN Access Profile)- FTP(File Transfer Profile)-OPP(ObjectPushProfile)
54. Software InstallationNote: Do not plug your Bluetooth PC Dongle into USB port until you have completed thesoftware installation as the following1. Insert the software CD comes with your PC Dongle. The “InstallShield Wizard” shouldautomatically start running. If it doesn’t load, run its “Setup.exe” file.2. A menu window appears for you to select settings items. Click “Install” to startinstallation process.3. The InstallShield Wizard window should now appear, Click “Next”.
64. Select “Yes” to accept License Agreement.5. Click “Install” to begin the installation.
76. InstallShield is processing.7. Wait for the setup.
88. Now plug the PC Dongle onto an available USB port and click “OK” to continueinstallation.9. Click “Finish” to finish the installation.

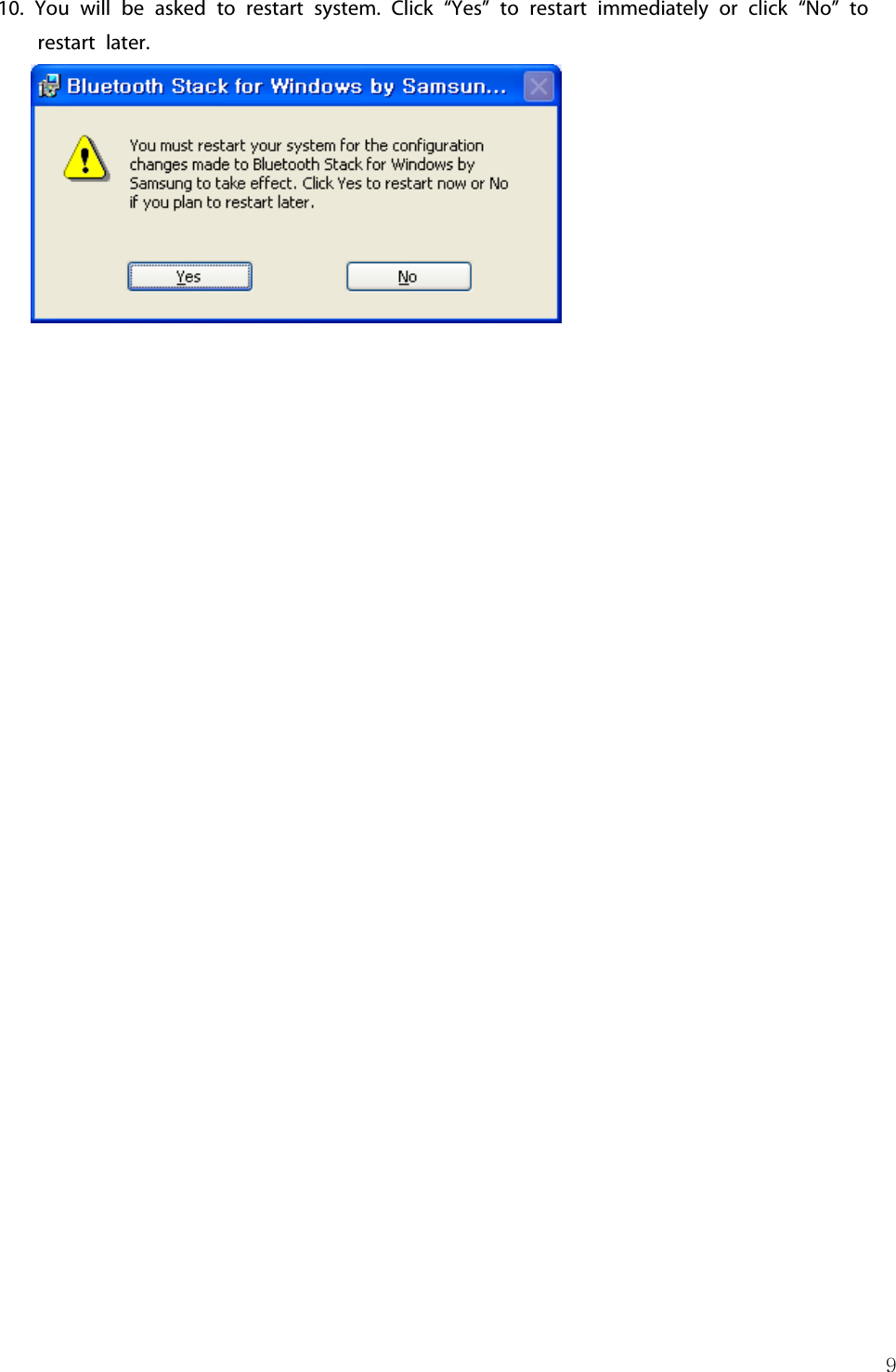

910. You will be asked to restart system. Click “Yes” to restart immediately or click “No” torestart later.
105. Pairing GuideWhat’s pairing?Pairing is a process of associating Bluetooth devices with each other. It allows avoidingentering access information every time when a connection is requested. Bluetooth devicesneed to be paired with each other before attempting a connection at first time.Paired devices will remain paired, even if:1. One of the devices is un-powered.2. A service connection is interrupted or stopped.3. One or both devices are rebooted.Pass KeyPaireddevicesshareauniquePassKey(alsoreferredtoasLinkKey),bywhichtheyauthenticate with each other when connecting. The Pass Key can be alphanumeric, numbers,or letters, and must consist of one or up to 16 characters.How to pair devices?Automatically--Ifapasskeyisrequiredbeforeconnection,deviceswillpairautomaticallythe first time they connect (a passkey must be successfully exchanged).Manually -- In the main window of Bluetooth Manager, right click a device, select PairDevice from the popup menu, and then input a same passkey on both sides.

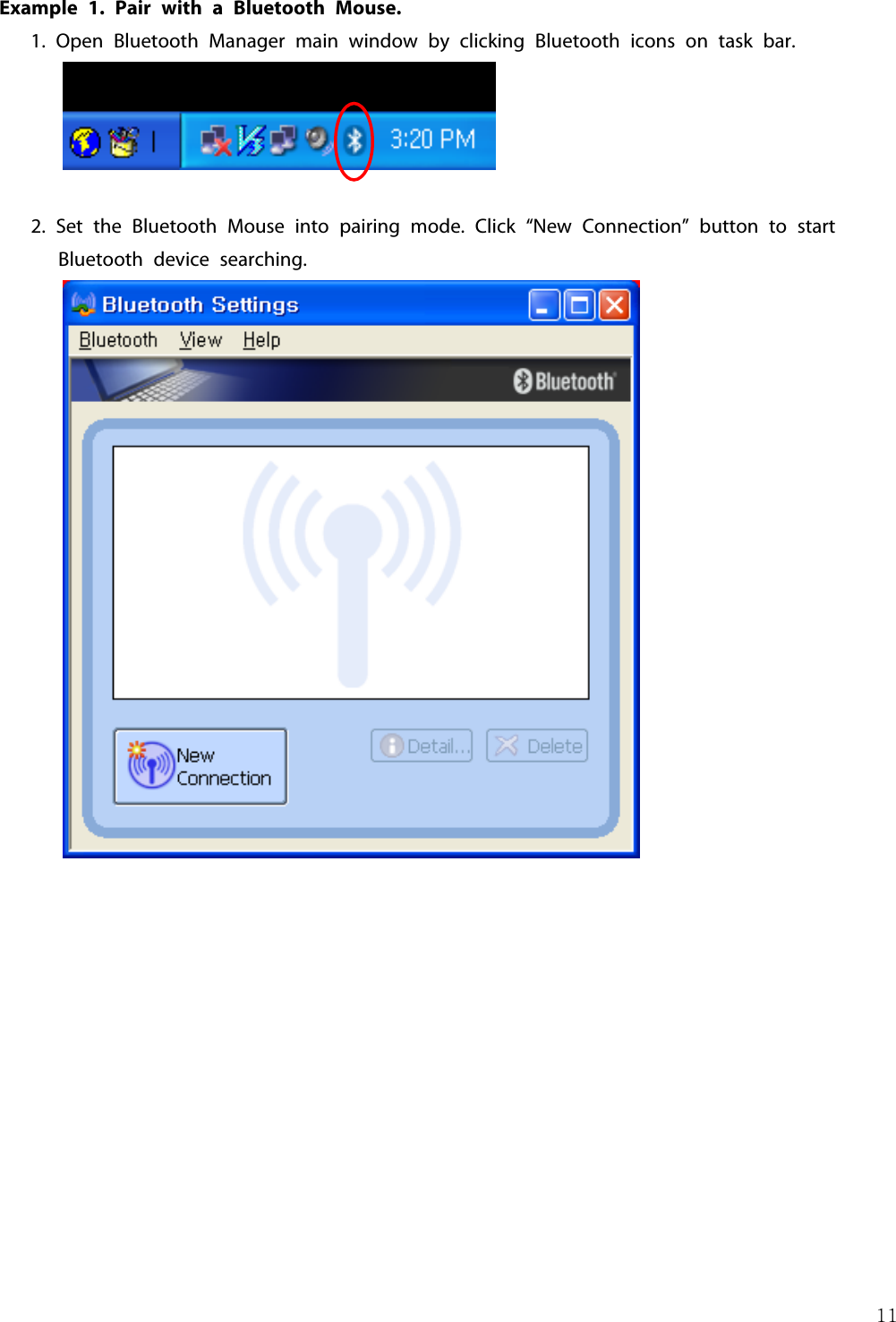

11Example 1. Pair with a Bluetooth Mouse.1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar.2. Set the Bluetooth Mouse into pairing mode. Click “New Connection” button to startBluetooth device searching.
123. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices inworking range.4. Select the “Bluetooth Mouse” in the Bluetooth Device list and click “Next”.If you can’tfind the device you want to pair with, click “Refresh” to search again.

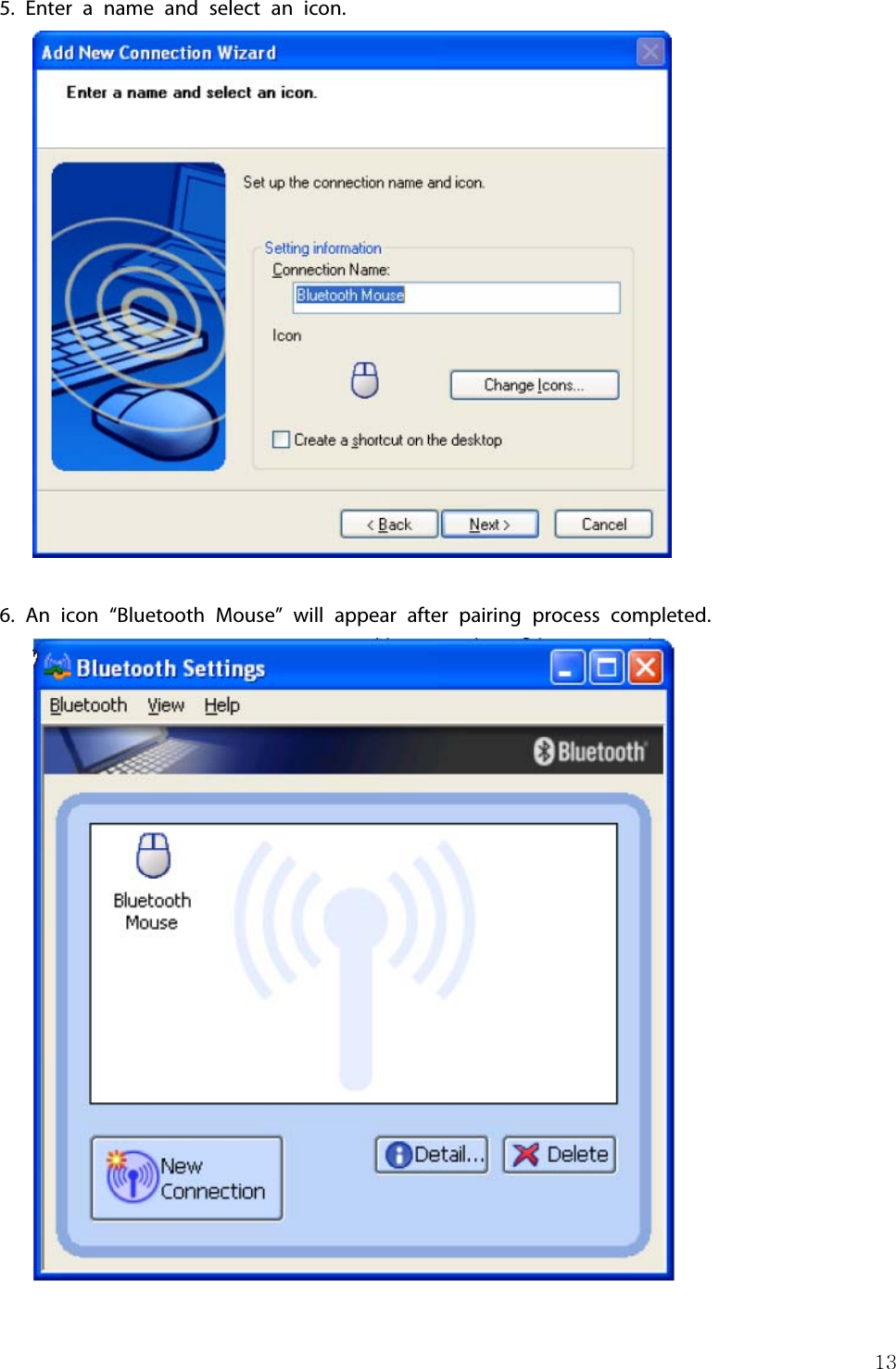

135. Enter a name and select an icon.6. An icon “Bluetooth Mouse” will appear after pairing process completed.
14Example 2. Pair with a Bluetooth Headset.1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar.2. Set the Bluetooth Headset into pairing mode. Click “New Connection” button to startBluetooth device searching.
153. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices inworking range.4. Select the “Samsung Stereo Headset” in the Bluetooth Device list and click “Next”.If you can’t find the device you want to pair with, click “Refresh” to search again.
165. You will be required to enter Passkey (PIN Code). Check headset’s manual for thepasskey and enter it.6. Enter a name and select an icon.

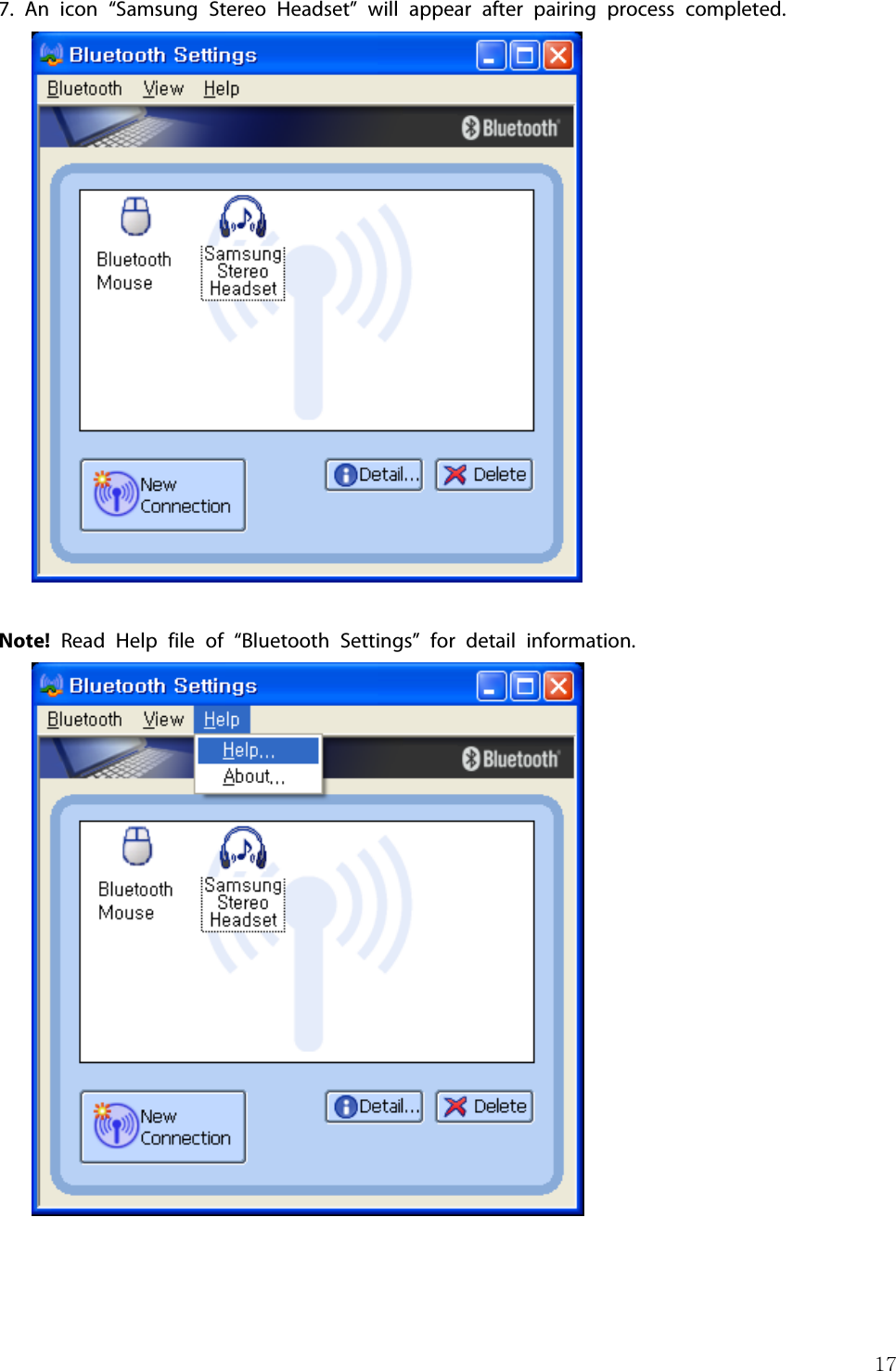

177. An icon “Samsung Stereo Headset” will appear after pairing process completed.Note! Read Help file of “Bluetooth Settings” for detail information.
186. Connect and Disconnect6.1 ConnectThere are two ways to setup a Bluetooth connection.Select Remote Device First :Select a remote device and double click it to refresh its services. Bluetooth passkey maybe asked if security level of either side of the connection is set to High and they arenot paired devices. After service searching finished, the services that the remote devicesupports are found and the corresponding service icons on the top of the main windowwill change to be pink color.Double click the pink color service icon you want to connect on the top of the MainWindow.Connection will be setup. After connection is OK, the remote device and the service iconwill turn green.Note:PAN: If the PAN server side does not connect to a DHCP server, it will take about 45seconds to assign the IP address for the PAN client. Users have to wait about 45seconds before using TCP/IP.DUN:Therewillbeadial-updialogbox.TheuserneedstoinputtheISPphonenumber,itsnameandthepassword.FTP: After connection is setup, a FTP Window will pop up. The window shows theshared directories of the remote device. The window may be empty if there is nofile or directory on the remote site.OPP: There are four kinds of operation modes for OPP: Send My Card, Get Card, SendObjects and Exchange Cards. At the beginning, the default operation is Send MyCard. Users can right click the icon to select operation on the popup menu. SendMy Card will send my card directly to the remote device. Get Card will try torequire the owner’s card from the remote device. Exchange Cards will send mycard first and then get the remote device card. Send Objects will pop up a filedialog box to let users to select some object files to send to the remote device.Object means the files in the format of vCards2.1, vCalendar1.0, vMessage andvNote.
19Synchronization: There will be a dialog to let user to operate.Printer: After the connection is established, users can use the printer to print with anyother Windows applications that support printing.Select Service Icon First :Select a service icon on the top of the main Window. If you have ever browsed theservices of some remote devices, the device that supports the service will be highlightedin yellow.Double click the remote browse first to check whether the device has the service andthen connect to it. If the remote device does not have the service, connection will fail.The Bluetooth passkey may be asked if the security level of either side of theconnection is set to High and they are not paired devices.Note:There are corresponding operation menu on the remote device icon and the service icon.Users can also start the connection using the pop up menu.6.2 DisconnectSelect the remote device first and right click the service icon on the top of the mainwindow. On the pop up menu, select Disconnect.Selecttheremotedeviceandrightclickthedeviceicon.Onthepopupmenu,selectDisconnect / submenu(the connection you want to disconnect).With FTP and Synchronization, close their operation window and the connection will bedisconnected.The remote device side can disconnect the connection directly.If the local Bluetooth device is removed or the remote device is removed, all theconnections will be disconnected. If the remote device moves out of the radio range, allthe connections with the remote device will be disconnected after about 1 minute.Note: When the program starts, it will show some words in the bottom right handcorner of the screen.
20Example 1. Connect/ Disconnect with a Bluetooth Mouse.1. Turn on the Bluetooth Mouse. Move the cursor over the icon of Bluetooth Mouse inBluetooth Settings. Right click it and select “Connect”.2. The icon of Bluetooth Mouse will be changed to connecting status.

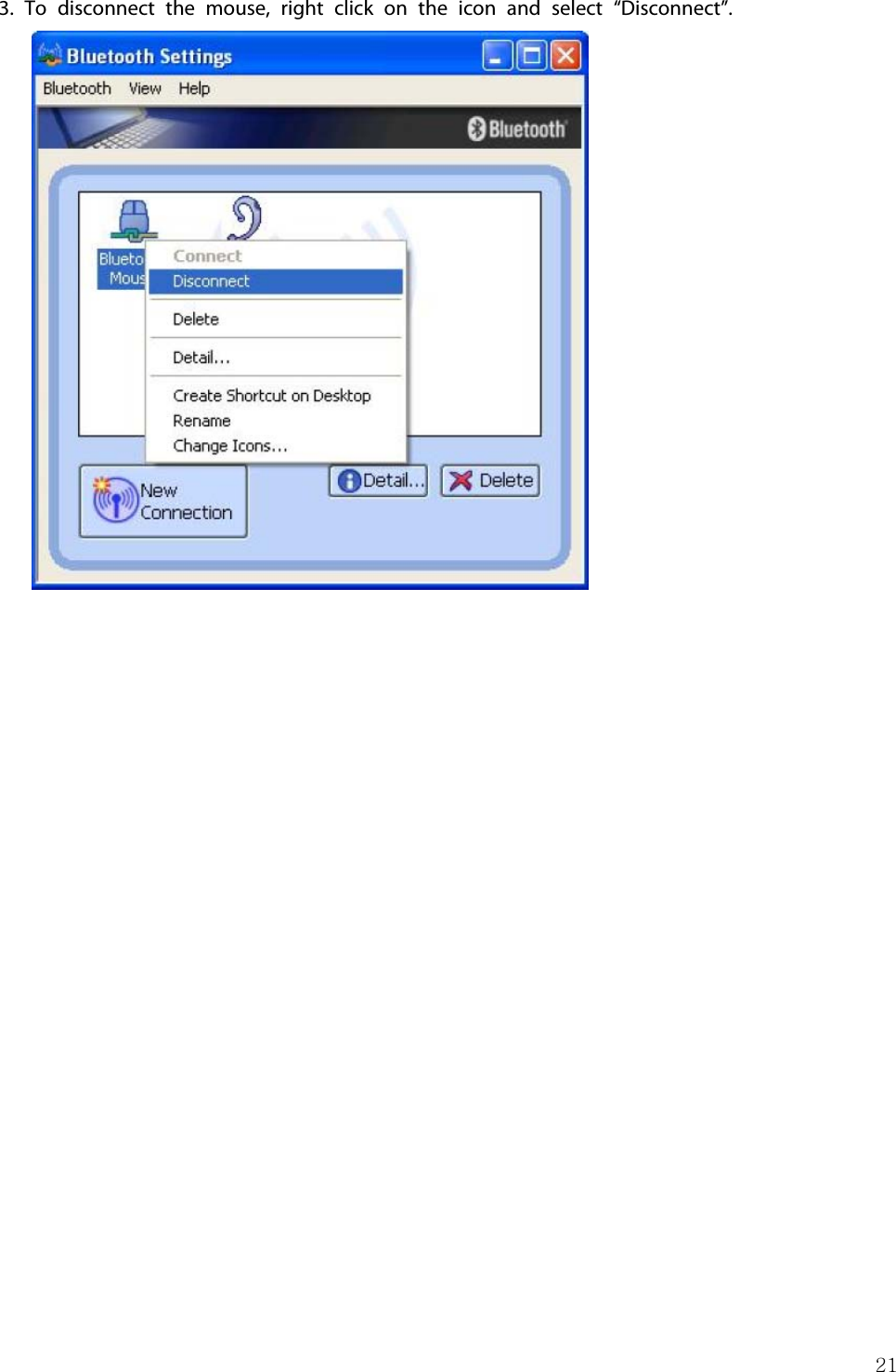

213. To disconnect the mouse, right click on the icon and select “Disconnect”.
22Example 2. Connect/ Disconnect with a Bluetooth Headset.1. Turn on the Bluetooth Headset.Move the cursor over the icon of Bluetooth Headset inBluetooth Settings. Right click it and select “Connect”.2. The icon of Bluetooth Headset will be changed to connecting status.
233. To disconnect the mouse, right click on the icon and select “Disconnect”.Note! Read Help file of “Bluetooth Settings” for detail information.
247. Certification and safety approvalsDeclaration of Conformity(R&TTE)yFor the following product : Samsung Bluetooth PC Dongle (SBD100PBE)yManufactured at : Youngbo Engineering Inc.HCN B/D 7th 1462-7, Seocho 3-dongSeocho-Gu, SeoulKoreato which this declaration relates, is in conformity with the following standards and/or othernormative documents.yRadio : EN 300328 V1.4.1 (2003-04)yEMC : EN 301 489-1 V1.4.1 (2002-08)/ EN 301 489-17 V1.2.1 (2002-08)ySafety : EN 60950 : 2000(3rd Edition)ySAR: EN 50371 : 2002We hereby declare that [all essential radio test suites have been carried out and that] theabove named product is in conformity to all the essential requirements of Directive 1999/5/EC.SAMSUNG ELECTRONICS CO., LTD.Samsung Main Bldg.250, 2-Ga, Taepyoung-Ro, Jung-GuSeoul, Korea 100-7422005. 11. 2Manager서명란Cruise Jong-Myung Park
25FCCThis device complies with part 15 of the FCC Rules, Operation is subject to the followingtwo conditions:(1) This device may not cause harmful interface, and (2) this device must accept anyinterference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protection against harmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instruction, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment dose cause harmful interference to radio or television reception, which canbe determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measure:yReorient or relocate the receiving antennayIncrease the separation between the equipment and receiveryConnect the equipment into an outlet on a circuit different from that to which thereceiver is connectedyConsult the dealer or an experienced radio/TV technician for helpThe device and its antenna must not be co-located or operating in conjunction with anyother antenna or transmitter.Users are not permitted to make changes or modify the device in any way. Changes ormodifications not expressly approved by Samsung will void the user's authority to operatethe equipment.BluetoothThe Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use ofsuch marks by Youngbo Engineering Inc. is under license.Other trademarks and trade names are those of their respective owners.

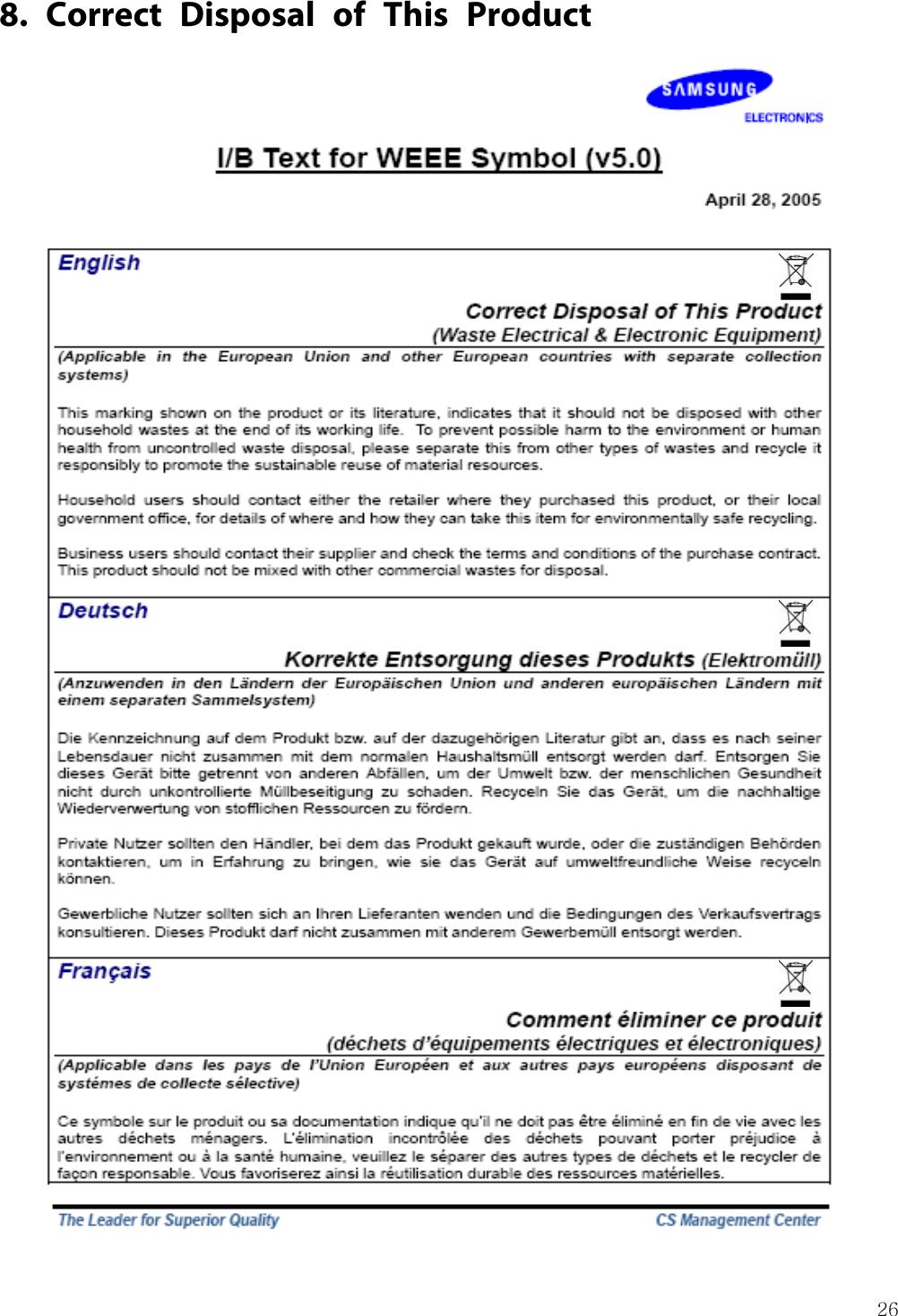

268. Correct Disposal of This Product
27
28
29
30
31
