Thank you for purchasing the SBH200, Samsung Stereo
Bluetooth Headset. We hope you will be satisfied with
your new headset. Please read the instruction manual to
get started and to make the best use of the headset’s
features.
Using a mobile phone while driving creates a distraction
to the driver which may increase the likelihood of an
accident.
When using the phone while driving, keep conversations
short and do not make notes or read documents. Before
answering calls consider your circumstances. Pull off the
road and park before making or answering calls when
driving conditions require (e.g. bad weather, high traffic
density, presence of children in the car, difficult junctions
or manoeuvres.)
Remember, driving comes first, not the call!
Abide by local laws.
The SBH200 is compatible with most Bluetooth
1
(see
Glossary) phones that are compliant with Bluetooth
version 1.1 or higher and support Advanced Audio
Distribution profile, Audio Video Remote Control profile,
Headset profile, and Hands-free profile
2
. Ensure that your
phone has Bluetooth capability by visiting your phone
manufacturer’s website.
Thank you
Drive safely
Check phone compatibility
Some devices, especially those that are not tested
or approved by SIG, may be incompatible with your
phone
.
4
Getting started
This section explains what to remember for the proper
use of your Bluetooth headset.
Make sure you have the following items with your
headset: Headset holder, Portable holder, Travel adapter,
User’s Guide.
Checking the accessories
The items supplied with your headset and the
accessories available at Samsung dealer may vary,
depending on your country.
Your headset overview
ON/OFF Switch
Left
Earpiece
Volume Down
Button
Indicator Light
Tal k B u t t on
REW Button
Play/Pause/
Stop Button
FF Button
Right
Earpiece
Microphone
Volume Up
Button
5
English
Talk button
In Standby mode
• Press to activate voice dialling.
Available only when your headset and phone are
connected using the Hands-free Bluetooth profile and
your phone supports this function.
• Press and hold to redial the last dialled number.
For some phones, pressing and holding this button
opens the call log list. Press and hold it again to redial
the last number.
When a call comes in
• Press to answer the call.
• Press and hold to reject the call.
During a call
• Press and hold to place the call on hold or retrieve the
held call.
• Press and hold to answer a second call.
• Press and hold to switch between the active call and
held the call.
• Press to end the call.
In Connectable mode
• Press to connect the headset to the phone, if they have
been paired, via the Handsfree or Headset profile.
Button functions
6
Play/Pause/Stop button
In Standby mode
• Press and hold to launch the music player.
When the music player is launched
• Press to begin playing music.
• Press to pause or resume playback.
• Press and hold to stop playback.
• Press again to play from the start of the track.
In Connectable mode
• Press to connect the headset to the phone, if they have
been paired, via the
A/V Remote Control
profile.
Volume Up/Down button
• Press to adjust the speaker volume during playback.
• Press to adjust the earpiece volume during a call.
• Press to scroll through call logs, if you accessed the call
log list by pressing and holding .
REW button
• Press to move to the previous track during music
playback.
• Press and hold to rewind during music playback.
FF button
• Press to move to the next track during music playback.
• Press and hold to fast forward during music playback.
7
English
This headset has a rechargeable internal battery which is
non-removable. Please make sure that you fully charge
the battery before using the headset for the first time.
You can use the supplied headset holder and portable
holder to charge the battery.
Using the headset holder
The supplied headset holder serves as a desktop charger
and a wall charger.

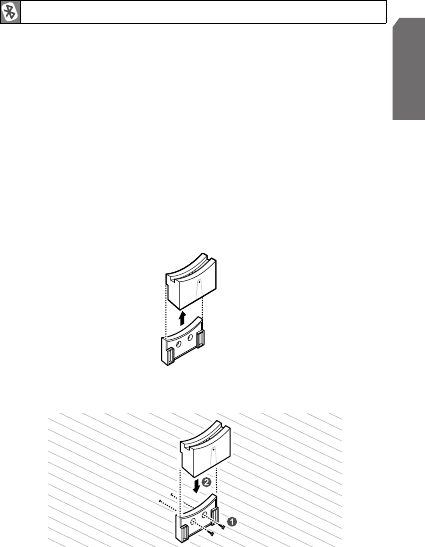

To use the holder as a wall charger:
1
Separate the fixing board from the main body of the
holder.
2
Fix the board on the wall with the supplied screws and
then connect the main body to the board.
Charging the battery
8
3
Plug the adapter into the holder’s charger connector
and place the headset on the holder.
4
Plug the adapter into the electrical outlet.
The red indicator light turns on. When the battery is
fully charged, the indicator light changes to blue.
To use the holder as a desktop charger:
Place the main body of the holder on a flat surface and
place the headset on the holder.
9
English

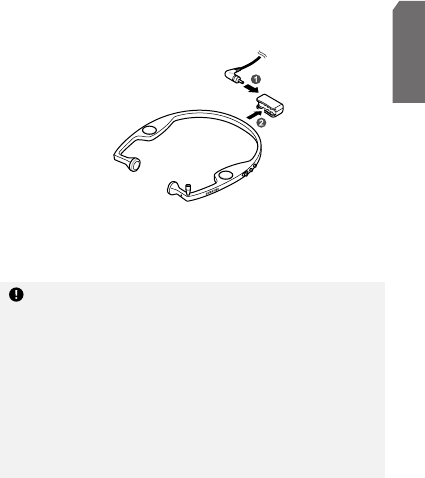

Using the portable holder
1
Plug the adapter into the holder’s charger connector
and place the headset on the holder.
2
Plug the adapter into the electrical outlet.
The red indicator light turns on. When the battery is
fully charged, the indicator light changes to blue.
• Disconnect the charger from the power source or the
headset after charging is completed.
• Use only a Samsung-approved charger.
Unauthorised chargers may cause an explosion or
damage on the headset.
• Always try to keep the headset at room temperature
(0 ~ +40
o
C).
• The battery will gradually wear out if charging/
discharging are repeated because it is a consumable
part.
• The headset is not able to operate while charging.
Try connecting again after charging is completed.
10
About the charging
Battery charging and standard operation time
When the battery charge falls low
A warning sound beeps and the red indicator light
flashes. If you are on a call, switch the call from the
headset to the phone before the headset automatically
turns off.
Place the headset on your ear. Be sure to put the correct
(Left, Right) earpiece on each ear.
Charging time Standard operation time
Battery
operation
time
Up to
2 hr 30 mins
Tal k ti me Standby
time Play time
Up to
8 hr
Up to
160 hr
Up to
8 hr
Putting on the headset
11
English
Before using your headset
This section explains basic operations and set-ups of your
Bluetooth headset.
• Push the ON/OFF switch to turn the headset on.
When the headset is ready to be paired, the blue
indicator light turns on.
• Push the ON/OFF switch to turn the headset off.
Turning the headset on or off
12
Pairing
3
will create a unique and encrypted wireless link
between two Bluetooth enabled devices, such as a
Bluetooth phone and a Bluetooth headset. To use the
headset with other Bluetooth devices, both devices must
be paired. When trying to pair the two devices, keep the
headset and the phone reasonably close together.
1
Get your headset ready to be paired.
There are 2 cases for being ready to be paired:
• When turning on the headset for the first time.
• When turning on the headset with pressing and
holding . After the indicator sequentially flashes
blue, red, and purple twice, it will turn to blue.
2
Search for the headset on your phone according to the
phone user’s guide.
Your phone will find “Samsung SBH200.”
3
Select
Samsung SBH200
.
4
When the phone asks if you want to pair with it,
confirm by selecting
Yes
or
OK
.
5
Enter the headset
passkey or PIN
,
4
“0000 (4 zeros)”.
Pairing the headset with a compatible
phone
13
English
If two Bluetooth devices are disconnected by a power
failure, you need to reconnect them. When you reconnect
a paired headset, you are not asked for its passkey.
1
Be sure that the headset is turned on.
The headset may be connected to your phone
automatically when the pairing is completed
depending on the types of the phone.
2
Choose the connection method you want.
• To connect from the phone, follow the phone user’s
guide.
• To connect from the headset, your phone and the
headset have had to be connected more than once.
Press .
3
When the two devices are connected successfully, you
can make or answer a call on the headset.
Connecting the paired headset to your
phone
14
Using your headset
This section explains how to use various functions, such
as making or answering a call, using menus that you can
use while a call is in progress, and listening to music.
Making a call
Redialling the last dialled number
• If your headset is connected by the Headset profile,
press to dial the last number.
For some phones, pressing and holding the key opens
the call log list. You can then press or to scroll
through the list, and then press and hold to dial the
selected number.
• If your headset is connected by the Hands-free profile,
press and hold to dial the last number.
Dialling a number by voice
Press to dial a number by voice, and say a name into
the microphone.
Activated functions may differ depending on the types
of the phone. Please make sure that your phone
supports all the features that your headset provides
before starting to use.
Using call functions
This is available only when
your phone supports the
voice recognition function
and your phone and the
headset are connected by the Hands-free profile.
15
English
Answering a call
Press when the phone rings.
Ending a call
Press when you have finished the conversation.
Rejecting a call
Press and hold as a call comes in.
Using options during a call
You can use the following functions to control your call
while a call is in progress.
Adjusting the volume
Press or to adjust the earpiece volume while talking.
Muting the microphone
Press and hold or to turn off the microphone so that
the person with whom you are speaking cannot hear you.
Press and hold or again to turn back on the
microphone.
This is available only when your headset and the phone
are connected by the Hands-free Bluetooth profile, and
the phone supports the incoming call rejecting
function.
At very high volumes, prolonged listening to the
headset can damage your hearing.
16
Placing a call on hold
Press and hold to place the current call on hold.
Answering a second call
Press and hold to answer a second call when you hear
a call waiting tone. The first call places on hold.
To reject a second call, press .
Switching between two calls
Press and hold to switch between an active call and
one on hold.
Switching a call from the phone to the headset
Press to switch the call from the phone to the
headset.
Settings to play music files may differ depending on your
Bluetooth phone. Please make sure that you create the
proper settings for music playbacks on your phone by
following the phone’s user guide.
Listening to music
Press . The music player launches and sound output
switches to the headset.
For some phones, the phone may ask you if you want to
listen to music via the headset. Confirm the message by
selecting
Yes
or
OK
.
This is available only when your headset and the phone
are connected by the Hands-free Bluetooth profile.
Using music control functions
17
English
Pausing and resuming music
1
Press to pause playback.
2
Press to resume playback.
Stopping music
Press and hold .
Listening to the previous/next track
Press to move to the previous track or press to
move to the next track.
Rewinding/Fast forwarding
Press and hold or while music is on.
Adjusting the volume
Press or to increase or decrease the volume level.
Depending on the types of your Bluetooth phone, it
may read MP3 files only. Make sure that you have the
right file format (*.mp3) for your music files.
At very high volumes, prolonged listening to the
headset can damage your hearing.
18
When a call comes in while music is playing, your headset
will alert you so that you can answer the call.
1
When the phone rings, press . The music stops and
you are connected with the caller.
2
When you have finished a conversation, press .
3
Press to begin playing music.
Some phones may automatically begin playback after
a call.
Appendix
• Always store the headset with the power off.
• Avoid storage at high temperatures (above 60
o
C / 134
o
F), such as in a hot vehicle or in direct sunlight. Storage at
high temperatures can impair performance and reduce
battery life.
• Do not expose the headset or any of its supplied parts to
rain or other liquids.
Answering a call while listening to music
• This is available only when your phone supports the
Advanced Audio Distribution profile, A/V Remote
Control profile, and Hands-free Bluetooth profile.
• You are not able to make a call while music is
playing.
Storing the headset
19
English
Frequently asked questions
How far away from
my phone will my
headset work?
The operating range is typically up to 30
feet (10 metres)
Will my headset
work with my
cordless phone at
home?
Samsung SBH200 is not designed for use
with cordless phones.
Will my headset
work with laptops,
PCs, and PDAs?
Samsung SBH200 will work with devices
that are compliant with Bluetooth version
1.2 and support Advanced Audio
Distribution profile, A/V Remote Control
profile, Headset profile and/or Hands-
free profile(s).
Will anything cause
interference with
my conversation
when I’m using my
headset?
Appliances such as cordless phones and
wireless networking equipment may
cause interference with your
conversation, usually adding a crackling
noise. To reduce any interference, keep
the headset away from other devices
that use or produce radio waves.
Will my headset
interfere with my
car’s electronics,
radio, or computer?
Samsung SBH200 produces significantly
less power than a typical mobile phone.
It also only emits signals that are in
compliance with the international
Bluetooth standard. Therefore, you
should not expect any interference with
standard consumer-grade electronics
equipment.
20
Can other Bluetooth
phone users hear
my conversation?
When you pair your headset to your
Bluetooth phone, you are creating a
private link between only these two
Bluetooth devices. The wireless
Bluetooth technology used in your
headset is not easily monitored by third
parties because Bluetooth wireless
signals are significantly lower in radio
frequency power than those produced by
a typical mobile phone.
Can I use the
headset while
charging?
The headset is not able to operate while
charging.
Making/receiving a
call does not work
well and the call
ends often while
talking.
The electric wave is in unsteady
condition. Please move to another area
and try again.
Battery operation
time doesn’t match
the one stated in
the user’s guide.
• The battery will gradually wear out
because it is a consumable part.
• If you place the battery in extreme
heat or cold, the operation time is
shortened.
The sound is
echoing while
talking.
Adjust the speaker volume, or move to
another area and try again.
Music files are not
activated!
According to the types of your phone, it
may not read other file formats, such as
*.wav, * .wma and *.avi other than MP3
files. Make sure that you have the right
file format (*.mp3) for your music files.
How do I take care
of my headset?
To clean the headset, use a clean, soft
cloth that is slightly damp.
21
English
Declaration of Conformity (R&TTE)
•
For the following product
: Stereo Bluetooth Headset
SBH200
•
Manufactured at
: Kyungwon Electronics
#280, Cheonpyeong-Ri, Gasan-Myun,
Chilgok-Gun, Gyeongbuk, Korea
to which this declaration relates, is in conformity with the following
standards and/or other normative documents.
•
Radio
:
•
EMC
:
•
Safety
:
We hereby declare that [all essential radio test suites have been
carried out and that] the above named product is in conformity to
all the essential requirements of Directive 1999/5/EC.
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yateley, Hampshire, GU46 6GG, UK
2005. 07. 18
Yong-Sang Park / S. Manager
Certification and safety approvals
22
FCC
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by Samsung
will void the user’s authority to operate the equipment.
23
English
Samsung warrants this product as free of defects in material,
design and workmanship for the period of one year from the
original date of purchase.
If during the period of warranty this product proves defective
under normal use and service you should return the product
to the retailer from whom it was originally purchased or
qualified service center. The liability of Samsung and its
appointed maintenance company is limited to the cost of
repair and/or replacement of the unit under warranty.
• The warranty is limited to the original purchaser
• A copy of your receipt or other proof of purchase is
required for a proper warranty service
• The warranty is void if the serial number, date code label or
product label is removed, or if the product has been subject
to physical abuse, improper installation, modification, or
repair by unauthorised third parties
• The responsibility of Samsung products shall be limited to
the repair or replacement of the product at its sole
discretion
• Specifically exempt from any warranty are limited-life
consumable components such as batteries and other
accessories
• Samsung is not liable to any incidental or consequential
damages arising from the use or misuse of any Samsung
product
• This warranty gives you specific rights and you may have
other rights which vary from area to area
• Unless instructed in the User Guide, the user may not,
under any circumstances, attempt to perform service,
adjustments or repairs on the unit, whether in or out of
warranty. It must be returned to the purchase point,
factory or authorised service agency for all such work
Warranty and parts replacement
24
• Samsung will not assume any responsibility for any loss or
damage incurred in shipping. All repair work on Samsung
products by unauthorised third parties voids any warranty
1
Bluetooth
is a radio technology developed to connect
devices, such as mobile phones and headsets, without
wires or cords over a short distance of approximately
10 metres. More information is available at
www.bluetooth.com
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature,
indicates that it should not be disposed with other
household wastes at the end of its working life.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
please separate this from other types of wastes and
recycle it responsibly to promote the sustainable reuse
of material resources.
Household users should contact either the retailer
where they purchased this product, or their local
government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check
the terms and conditions of the purchase contract.
This product should not be mixed with other
commercial wastes for disposal.
Glossary
25
English
2
Bluetooth profiles
are protocols through which
Bluetooth devices communicate with other devices.
Bluetooth phones support different sets of profiles -
most support the headset profile but some support the
hands-free profile and others support both profiles. In
order to support a certain profile, a phone
manufacturer has to implement certain mandatory
features within the phone’s software.
3
Pairing
creates a unique and encrypted
communication link between two Bluetooth-enabled
devices and allows them to communicate with each
other. Bluetooth devices will not work if the devices
have not been paired with each other.
4
Passkey or PIN
is a secret code that needs to be
entered on a phone in order to pair the phone with a
Bluetooth headset. When you have already paired
your phone with the headset, the phone and the
headset will recognise each other and the phone will
bypass the discovery and authentication process and
automatically accept the transmission.
5
Standby mode
is when the headset is passively
waiting for a call. When you “end” the call on your
mobile phone, the headset will go into Standby mode.
26
Specifications
Bluetooth version
Version 1.2
Bluetooth profile
support
Advanced audio distribution profile,
A/V Remote control profile, Headset
profile, Hands-free profile.
Frequency range
2.402 ~ 2.480 GHz
Power consumption
for transmission
0.25 ~ 2.5 mW
Bluetooth-available
distance
10 m
Dimensions
40 mm (D: diameter) x 24 mm (H)
Weight
57 g (or 56±1 g)
Operating
temperature range
0 ~ 40
°
C
Typical standby
time
1
1.
The battery’s operation time may shorten, depending on the usage and
charging status.
Up to 160 hr
Typical talk time
1
Up to 8 hr
Typical play time
1
Up to 8 hr
Battery charging
time
Approximately 2 hr 30 mins
Adapter input
AC 100 ~ 240 V, 50/60 Hz
Adapter output
DC 5 V. 700 mA
