Users Manual

1IntroductionGetting ~ Basic O ~ The Menu Phone B ~ Security ~ Voice Dial Message~ Safety Accesso ~ Glossary IndexSCH-3500 English 3/27/99 4:20 PM Page 1
3Introduction2Introduction Table of ContentsPrecautionsGetting StartedFeatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Description of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . .7Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8Key Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10Display Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12Call Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15Basic Operations Basic Operations of Your Phone . . . . . . . . . . . . . . . . . . .16Turn On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19The MenuMenu Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21Calls Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24Set Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26Sounds Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27Display Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30Setup Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32Phone Book Overview of the Phone Book . . . . . . . . . . . . . . . . . . . . . .34Storing Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . .35Viewing Stored Entries . . . . . . . . . . . . . . . . . . . . . . . . . . .36Important InformationThis manual is based on the production version of the includedportable cellular telephone. Software changes may haveoccurred after this printing.Safety PrecautionFor more detailed safety information, see “Safety” on page 60.• Do not use a phone while driving; park the vehicle first.• Do not use your phone near medical equipment.• Do not use your phone at any time while traveling on boarda plane.• Do not use your phone where a blasting operation is inprogress.• Do not use your phone at a refueling point.FCC/IC NoticeThis device complies with part 15 of the FCC rules. Operation issubject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-ing interference that may cause undesired operation.SCH-3500 English 3/27/99 4:20 PM Page 2
54Electronic Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60Aircraft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61Blasting Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61Other Dangerous Areas . . . . . . . . . . . . . . . . . . . . . . . . . .62Accessories Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Dual-Slot Desktop Charger . . . . . . . . . . . . . . . . . . . . . . .63Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . . . .63Travel Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Hands-Free Car Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Glossary of Terms . . . . . . . . . . . . . . . . . . . . . .64Displaying Your Phone Number. . . . . . . . . . . . . . . . . . . . 37Dialing from the Phone Book. . . . . . . . . . . . . . . . . . . . . . 37Editing Phone Book Entries . . . . . . . . . . . . . . . . . . . . . . . 38Erasing Phone Book Entries. . . . . . . . . . . . . . . . . . . . . . . 39Storing Secret Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . 40Security Options Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41Lock Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42Call Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44Special Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45Other Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46KeyGuard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48Voice DialVoice Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49Training the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51Using Voice Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52Voice Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54Message Services Short Message Services and Voicemail . . . . . . . . . . . . .56Reviewing Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . .57Safety Compliance with Safety Standards . . . . . . . . . . . . . . . . .60Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60SCH-3500 English 3/27/99 4:20 PM Page 4
Getting Started76FeaturesThank you for the purchase of your SAMSUNG Phone. Using the latest digital technology, the phone operates in a sim-ilar manner to other wireless phones, while providing superiorresonance and tone quality.The following options make your phone both fun and easy touse:• Active Flip• Variable Character Display• Phone Book Memory-99 Locations• Voice Dialing - 20 Locations• Programmable Lock• Short Message Services (SMS) and Voicemail• 9 Ring Tones, 4 Melody Tones, Vibrator Alert• Call Logs - 9 Locations Each: Outgoing and Incoming Calls• Pause Dialing• Ringer Mute During Incoming Call• Remind Call• Voice Memo'.GHIPQRSABCJKLOPERTUVDEFMNOWXYZDescription of Your PhoneFunction keys and other controls activate the features of yourphone. The following illustration identifies the function keys,controls and indicators:(not actual size)1234567891110 1012131415161) Antenna2) Flip3) Earpiece4) Earphone Mic Jack5) Power On Light6) Volume Control7) Voice Memo8) Menu Key9) TALK Key10) Scroll Keys11) Microphone12) Clear Key13) End / Power Key14)OK (Store) Key15) Scroll Keys16) LCD ScreenGetting StartedSCH-3500 English 3/27/99 4:20 PM Page 6
9Getting Started8Screen DisplayThis phone features dynamic character sizing, which enablesthe screen to display 12 characters per line. The five-linescreen includes four text lines and one icon line, which displaysactive options and selected menu items.During conversation, the screen displays the call timer , thename and number of the other party, if available.Active in-use options, such as Mute and Call Waiting, also aredisplayed during conversation.The following icons are displayed at pressing power key:Key FunctionsPress TALK to:• make a call after dialing the number,• receive an incoming call,• initiate Three-way calling,• access Call Logs.Press CLR to:• erase one character at a time while enteringnames and numbers,• go back one menu level at a time while view-ing menu options,• initiate Voice Dialing when the flip is open.Press and hold CLR to:• erase all displayed characters while enteringnames and numbers,• return to Standby mode while viewing menuoptions.Press to:• end a call,• exit the current menu and return to Standbymode,• turn the phone on and off. Press MENU to:• display the Main Menu,• scroll through menus,• enter a pause while entering numbers.Press to:• save menu option settings,• access messages.Press the arrow keys to scan menu options.RSignalStrength Roaming Analog Battery StrengthNo Service/In Use Message Vibrator On(not actual size)SCH-3500 English 3/27/99 4:20 PM Page 8
Press and hold the Voice Memo button to:• record the voice memo during conversation orin standby mode.Press the Volume button to:• adjust voice volume during conversation,• adjust key beep volume in Standby mode,• mute the ringer during an incoming call,• scroll Call Logs and Phone Book entries.Status IndicatorsSignal StrengthIndicates a current signal strength.No Service Indicates that the phone is outside a servicearea and cannot make or receive calls.RoamingDisplays when the phone is outside the homeservice area but within the network.MessageIndicates you have voicemail or text messages.AnalogIndicates an Analog mode.VibrateIndicates Vibrator is set as a current ring type.Battery ChargeIndicates a battery charge level.R11Getting Started10Display MessagesMAINTENANCE The phone number is not registered in REQUIRED the base station.NO ACCESS:PHONE BOOK You have tried to access the memoryRESTRICTED while the phone is in the restrictedmemory mode.New Entry will replace A phone number is already stored in selectedOK:Replace memory location.MATCHING NUMBER The number you are trying to find does not exist.NOT FOUNDNO OUTGOING You have not made any outgoingCALL LOG calls.NO SERVICE The phone is out of the service area.OUTGOING CALL IS While the phone is restricted,RESTRICTED you have tried to make a call.REDIAL CALL The call cannot be made completelyFAILED even after automatic redialing.SCH-3500 English 3/27/99 4:20 PM Page 10

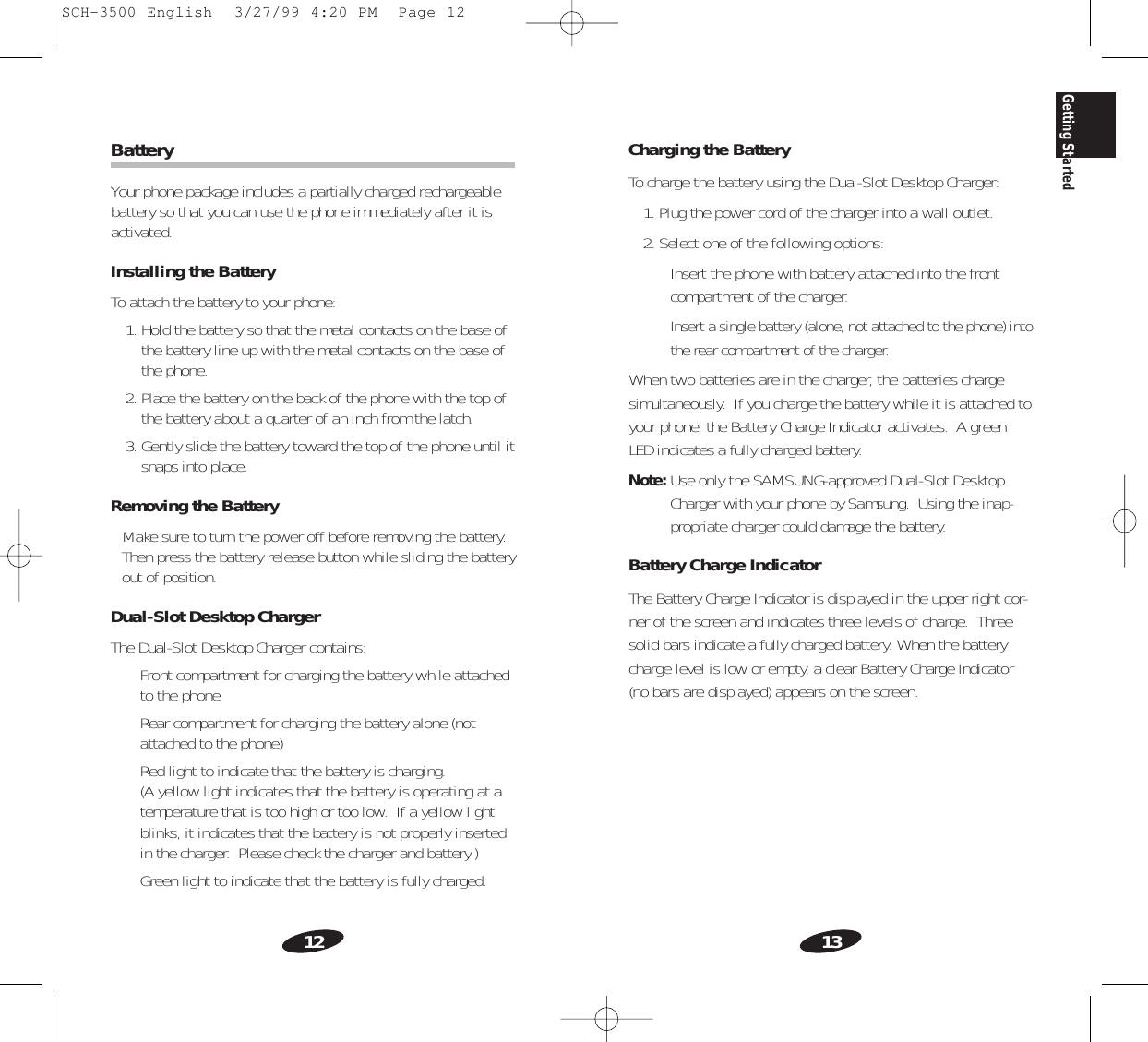

13Getting Started12Charging the BatteryTo charge the battery using the Dual-Slot Desktop Charger:1. Plug the power cord of the charger into a wall outlet.2. Select one of the following options:• Insert the phone with battery attached into the frontcompartment of the charger.• Insert a single battery (alone, not attached to the phone) intothe rear compartment of the charger.When two batteries are in the charger, the batteries chargesimultaneously. If you charge the battery while it is attached toyour phone, the Battery Charge Indicator activates. A greenLED indicates a fully charged battery.Note: Use only the SAMSUNG-approved Dual-Slot DesktopCharger with your phone by Samsung. Using the inap-propriate charger could damage the battery.Battery Charge IndicatorThe Battery Charge Indicator is displayed in the upper right cor-ner of the screen and indicates three levels of charge. Threesolid bars indicate a fully charged battery. When the batterycharge level is low or empty, a clear Battery Charge Indicator(no bars are displayed) appears on the screen.BatteryYour phone package includes a partially charged rechargeablebattery so that you can use the phone immediately after it isactivated.Installing the BatteryTo attach the battery to your phone:1. Hold the battery so that the metal contacts on the base ofthe battery line up with the metal contacts on the base ofthe phone.2. Place the battery on the back of the phone with the top ofthe battery about a quarter of an inch from the latch.3. Gently slide the battery toward the top of the phone until itsnaps into place.Removing the BatteryMake sure to turn the power off before removing the battery.Then press the battery release button while sliding the batteryout of position.Dual-Slot Desktop ChargerThe Dual-Slot Desktop Charger contains:• Front compartment for charging the battery while attachedto the phone• Rear compartment for charging the battery alone (notattached to the phone)• Red light to indicate that the battery is charging. (A yellow light indicates that the battery is operating at atemperature that is too high or too low. If a yellow lightblinks, it indicates that the battery is not properly insertedin the charger. Please check the charger and battery.)• Green light to indicate that the battery is fully charged.SCH-3500 English 3/27/99 4:20 PM Page 12
15Getting Started14Call QualityFor optimum call quality with your phone, please follow theseguidelines:• Fully extend the antenna. While it may be possible tomake calls with the antenna retracted, the phone operatesbest with the antenna fully extended.• Hold the phone as you would hold any other telephonehandset. Speak directly into the microphone, and extendthe antenna over your shoulder while talking.• Do not hold the antenna while using the phone, as thismay affect call quality.Table 1: Phone and Battery SpecificationsPhone Type Dual Band CDMA 1.9 GHz / AMPS 800 MHzGraphic LCD 5 Lines (4 Text Lines, 1 Icon Line)Battery Type Standard: 1000 mAh Li-ionExtended: 1600 mAh Li-ionPhone with Standard Battery Extended BatteryDimensions (H✕W✕D) 112✕52✕25 mm 112✕52✕30 mmWeight 146 g 166 gTalk Time up tp 170 / 55 minutes up tp 280 / 90 minutesStandby Time 150 / 17 hours 240 / 26 hoursCaring for the BatteryUse only SAMSUNG-approved batteries, Desktop and Travelchargers. These chargers maximize battery life and perfor-mance. Using other batteries or chargers may invalidate yourwarranty and may damage your phone.For proper battery care, please follow these guidelines:• To avoid damage, charge the battery in temperatures thatrange from 32˚F to 104˚F (O˚C to 40˚C).• Do not use the battery charger in direct sunlight or in highhumidity areas (such as a bathroom).• Never dispose of the battery by incineration (fire). • Keep the metal contacts at the battery base clean.• Do not attempt to disassemble or short-circuit the battery,as injuries or burns may result.• Replace the battery when it provides no longer acceptableperformance.• Do not store the battery in high-temperature areas for along time.• Do not allow metal objects or liquids to contact or short-circuit the battery terminals, as injuries or burns mayresult.Battery Disposal Please be aware of the following guidelines when disposing ofthe battery:• Do not dispose of the battery in a fire; the cell mayexplode. Check the regulations in your area for special disposal instructions.• Do not open or puncture the battery; the released elec-trolyte is corrosive and may cause damage to the eyes andskin. This substance also can be toxic if swallowed.• Charge the battery in accordance with the instructionsspecified in this manual.SCH-3500 English 3/27/99 4:20 PM Page 14
17Basic OperationsBasic Operations16Turn On/OffTurning OnTo turn on your phone, press and hold .The red light flashes, the phone beeps. The display updates toreflect the following conditions:• When your phone is located in service area, your phonenumber and the greeting message displays, along with thedate and time. You can now make and receive calls.• If your phone is not located in service area, “No Service” isdisplayed. In this case, you cannot make and receive calls.Turn off your phone, and then try again later when serviceis available.• If your phone is locked, “Locked” is displayed. Enter thefour-digit lock code to release the lock mode.Turning OffTo turn off your phone, press and hold .When your phone is turned off, nothing is displayed on thescreen.Standby ModeWhen your phone is turned on but no call is in progress,the phone is in standby mode.Basic Operations of Your PhonePower On/Off Press and hold .Menu Scrolling Press , then / or .Make Calls Enter number, and then press .Correct MistakesPress .Redial a Call Press twice.Speed Dialing Enter memory location, and then press.End a Call Press , or close flip.Receive a Call Press , or open flip.Save Numbers Enter phone number, press , andthen follow screen prompts.Outgoing Call Press , , , to review thelast 9 outgoing calls.Incoming Call Press , , , to reviewthe last 9 incoming calls.Name Search Press , , , to search thenames.'.ABCABC'.'.'.SCH-3500 English 3/27/99 4:20 PM Page 16
19Basic Operations18To prepend existing phone numbers in the Phone Book or CallLogs:1. Access the phone number entry.2. When the phone number is displayed, press to dis-play context-specific options.3. Press .4. Enter the area code or feature code.5. Press to call the number.Correcting a Misdialed NumberTo correct a misdialed number:• Press to erase the digit, and then enter the correctdigit.• Press and hold to erase the entire entry, and thenenter the correct phone number.Receiving CallsAnswering a CallTo answer an incoming call, press , or open the flip.Ending a CallTo end a call, press , or close the flip. The call time isdisplayed along with the name/number of the called party (ifavailable). The phone returns to Standby mode automatically.DEFMaking CallsMaking a CallTo make a call:1. Press and hold to turn on your phone. An activescreen display indicates that the phone is turned on.(No dial tone sounds.)2. Enter the phone number, up to 33 digits, by pressing thedigit keys. The phone number is displayed on the screen. 3. Press . You make the call to the entered phonenumber.Emergency DialingYou can make calls to 911 or one of the three emergencynumbers that are in your emergency number list even if yourphone is locked.Prepend DialingThe prepend option enables you to add up to three digits, suchas area codes and network feature activation codes, to a phonenumber of up to 10 digits. You can prepend a phone numberbefore dialing, or prepend an existing entry in the Phone Bookor Call Logs.To use prepending, select one of the following options:• Enter the area code or feature activation code, and thenenter the phone number.• Access a phone number stored in the Phone Book or CallLogs, and then prepend the number.SCH-3500 English 3/27/99 4:20 PM Page 18
The Menu21The Menu20Menu OrganizationThe Main Menu in Standby mode contains 10 primary options,many of which contain sub-menus with more specific options. The In Use Menu options are available in Conversation mode:1. (Un) Mute2. Silent Key3. Phone Book4. Version5. Send Tel#To access a menu option, press , and then press the asso-ciated digit key to select the desired option.As an alternative to pressing the digit keys, access the menu,and then press the scroll keys to scan options. Pressing thescroll keys highlights each option in sequence. Press toselect the highlighted option.Call WaitingCall Waiting enables you to receive a second call during conversation. When a Call Waiting call comes in, theincoming call alert sounds, when set, and a text notification isdisplayed. Contact your service provider to activate Call Waiting.To answer a Call Waiting call:1. To answer the call, press .The phone connects the calling party, and the places currentparty on hold.2. Press again to switch between the two parties.Three-Way CallingThree-Way Calling enables you to conduct conference calls withtwo separate parties at the same time. The phone records theoutgoing call to both parties as separate entries in the OutgoingCall Log, and you are billed airtime for each outgoing callseperately. Contact your service provider to activate Three-WayCalling.To make a Three-Way Call:1. During conversation, press .Enter the phone number for the third party, and then pressagain. The phone makes the other party on hold.2. When the third party answers, press again to con-nect with the original party.Call ForwardingThis phone provides the option of forwarding incoming calls toanother phone number, even while your phone is turned off.Activating Call Forwarding does not affect outgoing calls madefrom this phone. Contact your service provider to activate Call Forwarding.SCH-3500 English 3/27/99 4:20 PM Page 20

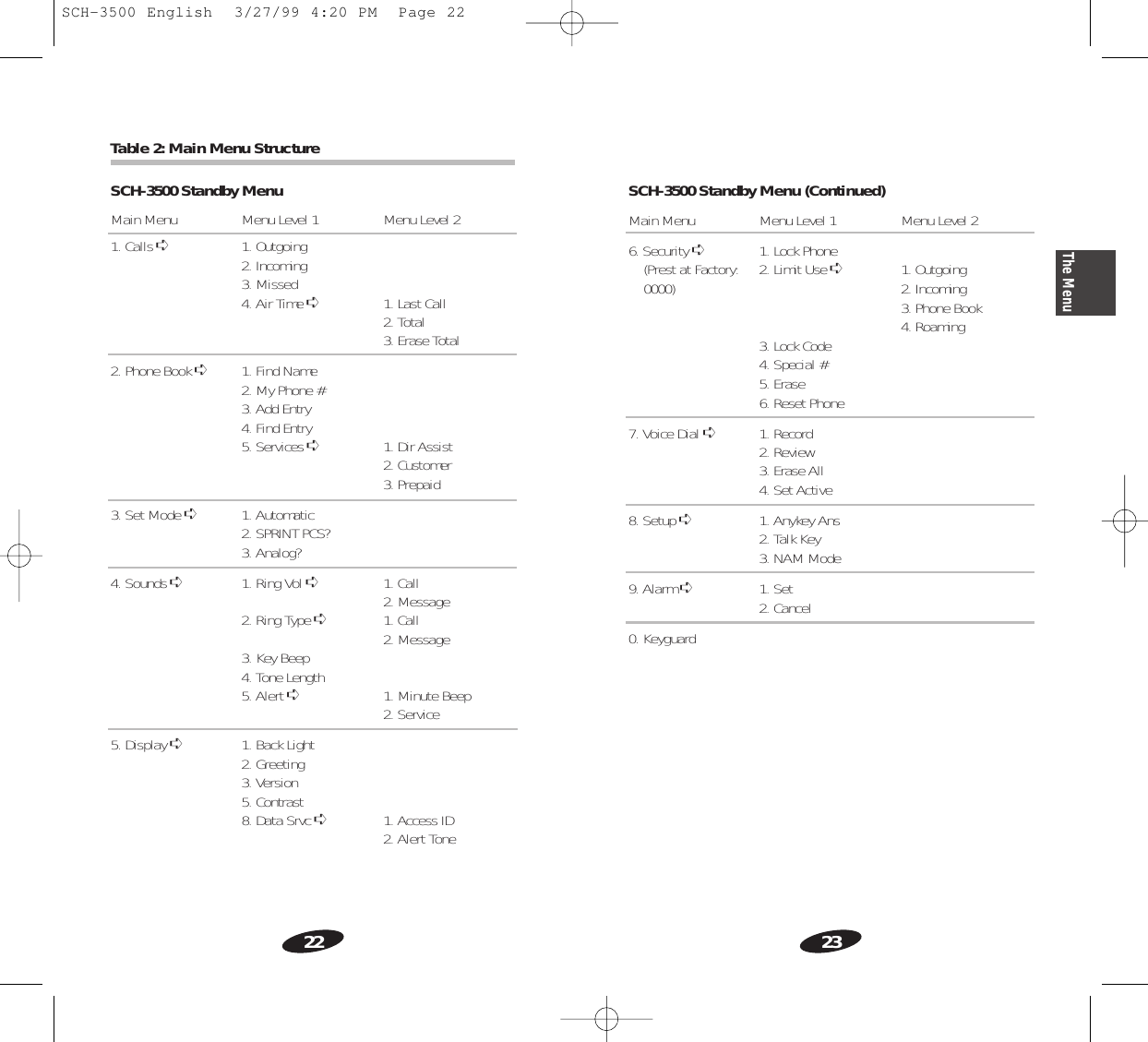

23The Menu22SCH-3500 Standby Menu (Continued)Main Menu Menu Level 1 Menu Level 26. Security ➪1. Lock Phone(Prest at Factory: 2. Limit Use ➪1. Outgoing0000) 2. Incoming3. Phone Book4. Roaming3. Lock Code4. Special #5. Erase6. Reset Phone7. Voice Dial ➪1. Record2. Review3. Erase All4. Set Active8. Setup ➪1. Anykey Ans2. Talk Key3. NAM Mode9. Alarm ➪1. Set2. Cancel0. KeyguardTable 2: Main Menu StructureSCH-3500 Standby Menu Main Menu Menu Level 1 Menu Level 21. Calls ➪1. Outgoing2. Incoming3. Missed4. Air Time ➪1. Last Call2. Total3. Erase Total2. Phone Book ➪1. Find Name2. My Phone #3. Add Entry4. Find Entry5. Services ➪1. Dir Assist2. Customer3. Prepaid3. Set Mode ➪1. Automatic2. SPRINT PCS?3. Analog?4. Sounds ➪1. Ring Vol ➪1. Call2. Message2. Ring Type ➪1. Call2. Message3. Key Beep 4. Tone Length5. Alert ➪1. Minute Beep2. Service5. Display ➪1. Back Light2. Greeting3. Version5. Contrast 8. Data Srvc ➪1. Access ID2. Alert ToneSCH-3500 English 3/27/99 4:20 PM Page 22
25The Menu24Erasing Call LogsYou can erase phone numbers stored in the Call Logs.To erase call logs:1. Press to display the Main Menu.2. Press for Calls.3. Press for erasing logs. Additional options are dis-played.4. Press the associated digit key to select one of thefollowing context-specific options:• Press for Outgoing calls.• Press for Incoming calls.• Press for All calls.5. When the screen prompts for confirmation, press to confirm erasing the call logs, or pressto cancel the operation.Reviewing AirtimeYou can review the airtime of the most recent call, as well astotal airtime for all calls since the last reset action.To review airtime:1. Press to display the Main Menu2. Press for Calls3. Press for Airtime4. Press the associated digit key to display airtime for theselected calls:• Press for Last Call.• Press for Total.• Press for Erase Total5. Press to return to Standby mode.DEFABC'.GHI'.DEFABC'.DEF'.Calls OptionsTracking Calls Through Call LogsThe Call Logs store up to nine incoming calls and nine outgoingcalls. Each log stores the name and phone number (if avail-able), as well as the date/time stamp. In case of duplicateentries back to back, the system consolidates those entries andstores only the most recent call from the same phone number.To review call logs:1. Press to display the Main Menu.2. Press for Calls.3. Press the associated digit key to select an option:• Press for Outgoing calls.• Press for Incoming calls.4. When the list of calls is displayed, press the scroll keys toselect an entry to view, and then press or the asso-ciated digit key to view the date/time stamp for the select-ed entry. If it matches up to one of entries in a PhoneBook, the name is displayed. If it doesn’t match up to oneof entries in a Phone Book, only the phone number is dis-played.5. Press to display context-specific options:• Press for Talk.• Press for Show Entry (or Store if the phone num-ber is not currently stored in the Phone Book).• Press for Prepend, and then add an area code orfeature code to the number before calling or saving thenumber.6. Press to exit the Call Logs and return to the previ-ous screen.DEFABC'.ABC'.'.SCH-3500 English 3/27/99 4:20 PM Page 24
27The Menu26Sounds OptionsYour phone receives incoming calls and provides call notifica-tion only when it is on. Notification type depends on theselected setting.Ring VolumeYou can set ring volume in Standby mode from the Main Menu.During an incoming call, press the Volume buttons to mute theringer.To adjust ring volume in Standby mode:1. Press to display the Main Menu.2. Press for Sounds.3. Press for Ring Volume.4. Press for Call.5. Press the scroll keys to scan volume options.6. When the desired volume level is displayed, press tosave the setting.Ring TypeWhen you select BELL as your ring tone, you can set ring typefrom nine tones and four melodies.To set ring type:1. Press to display the Main Menu.2. Press for Sounds.3. Press for Ring Type.4. Press for Call.5. Press the scroll keys to scan ring types.6. When the desired option is displayed, press to savethe setting.'.ABCGHI'.'.GHISounds OptionsYour phone receives incoming calls and provides call notifica-tion only when it is on. Notification type depends on theselected setting.Ring VolumeYou can set ring volume in Standby mode from the Main Menu.During an incoming call, press the Volume buttons to mute theringer.To adjust ring volume in Standby mode:1. Press to display the Main Menu.2. Press for Sounds.3. Press for Ring Volume.4. Press for Call.5. Press the scroll keys to scan volume options.6. When the desired volume level is displayed, press tosave the setting.Ring TypeWhen you select BELL as your ring tone, you can set ring typefrom nine tones and four melodies.To set ring type:1. Press to display the Main Menu.2. Press for Sounds.3. Press for Ring Type.4. Press for Call.5. Press the scroll keys to scan ring types.6. When the desired option is displayed, press to savethe setting.'.ABCGHI'.'.GHISet ModeYou can set the following service system mode.To set the service system:• Analog?• Automatic (If you set the service system as ‘Automatic’your phone searches the system automatically.• SPRINT PCS?1. Press to display the Main Menu.2. Press for Modes.3. Press the scroll keys until the set mode is displayed.4. Press to save the setting.DEFSCH-3500 English 3/27/99 4:20 PM Page 26

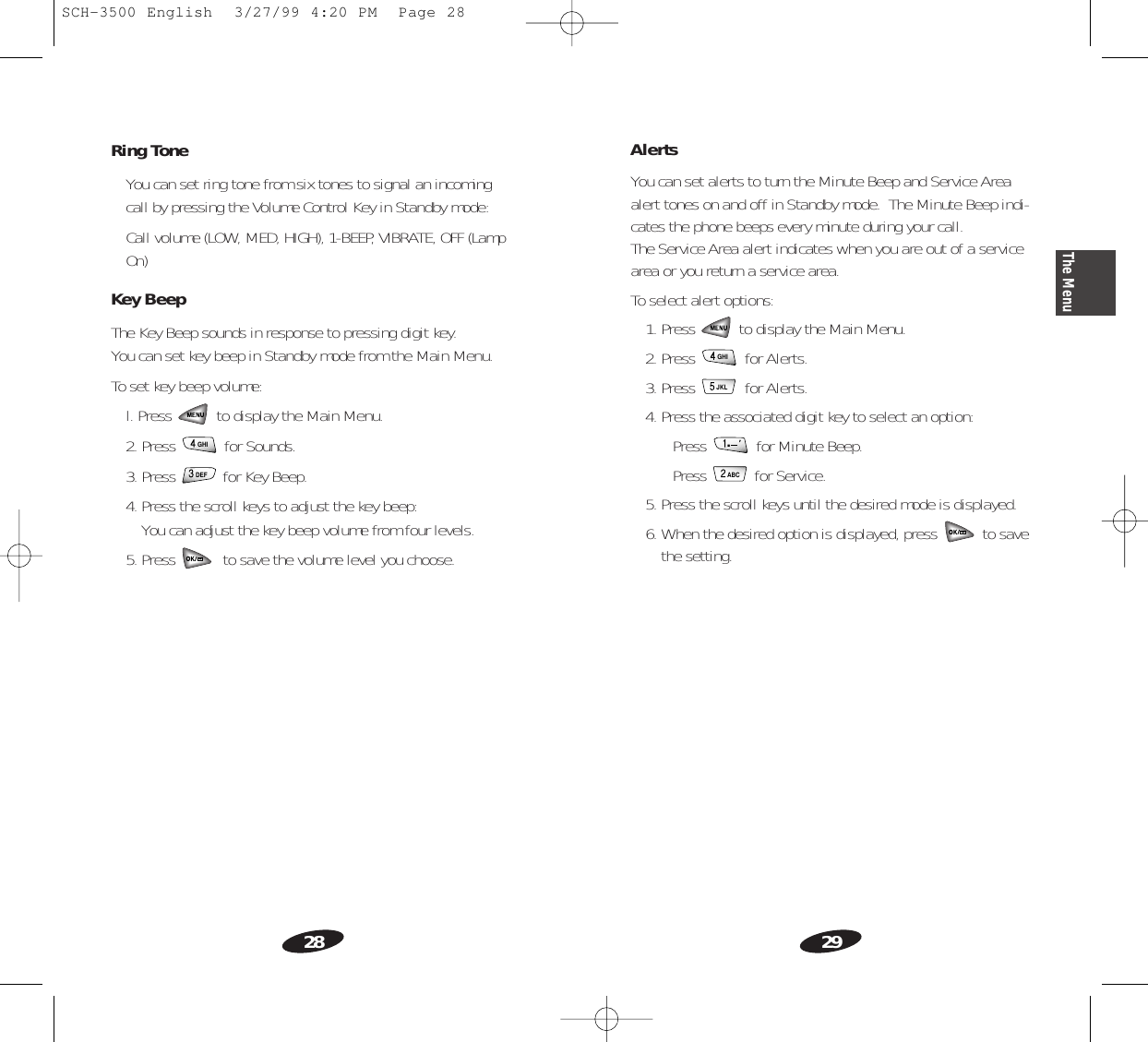

29The Menu28AlertsYou can set alerts to turn the Minute Beep and Service Areaalert tones on and off in Standby mode. The Minute Beep indi-cates the phone beeps every minute during your call.The Service Area alert indicates when you are out of a servicearea or you return a service area.To select alert options:1. Press to display the Main Menu.2. Press for Alerts.3. Press for Alerts.4. Press the associated digit key to select an option:• Press for Minute Beep.• Press for Service.5. Press the scroll keys until the desired mode is displayed.6. When the desired option is displayed, press to savethe setting.ABC'.JKLGHIRing ToneYou can set ring tone from six tones to signal an incomingcall by pressing the Volume Control Key in Standby mode:Call volume (LOW, MED, HIGH), 1-BEEP, VIBRATE, OFF (LampOn)Key BeepThe Key Beep sounds in response to pressing digit key.You can set key beep in Standby mode from the Main Menu.To set key beep volume:l. Press to display the Main Menu.2. Press for Sounds.3. Press for Key Beep.4. Press the scroll keys to adjust the key beep: You can adjust the key beep volume from four levels.5. Press to save the volume level you choose.DEFGHISCH-3500 English 3/27/99 4:20 PM Page 28

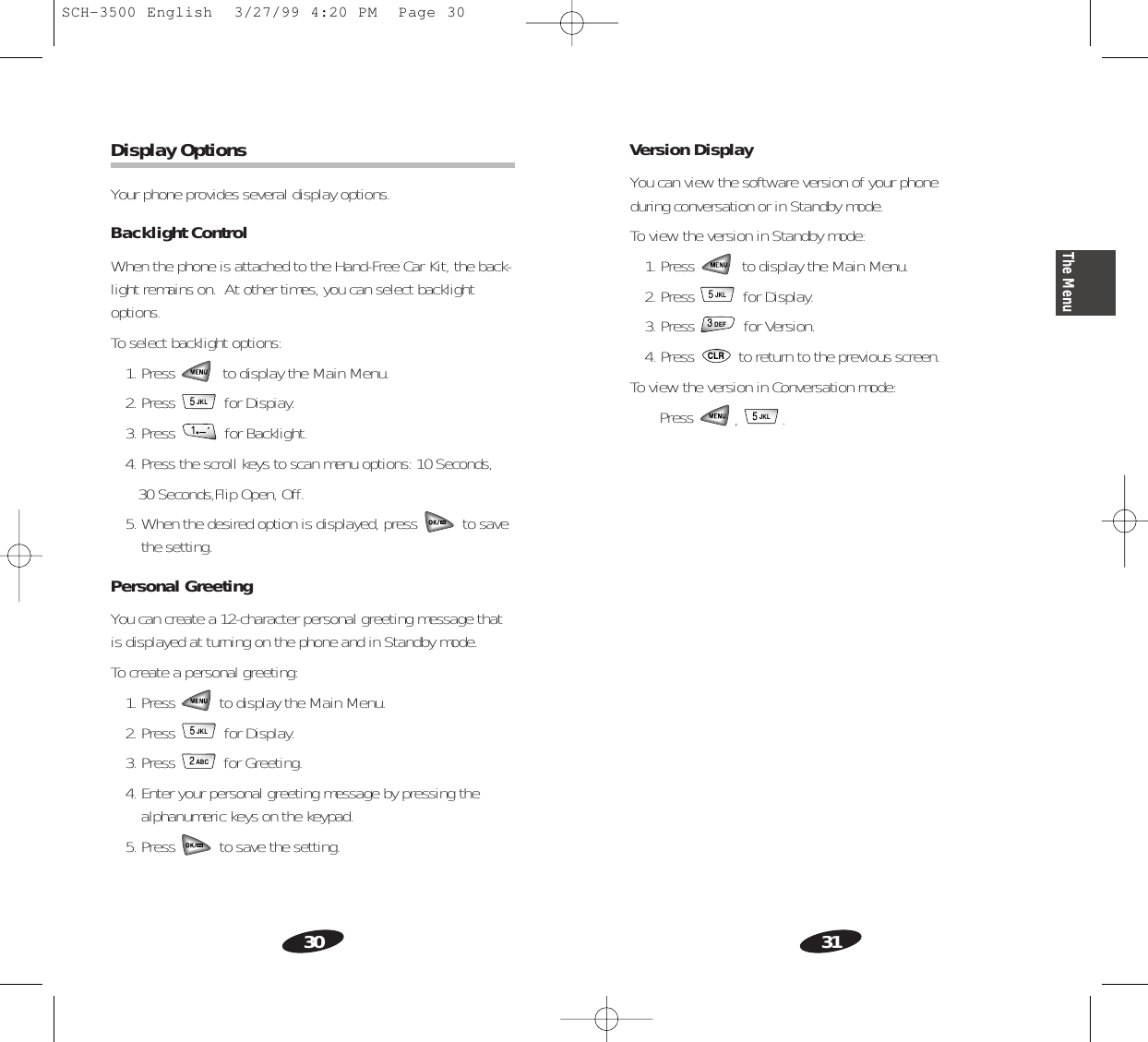

31The Menu30Version DisplayYou can view the software version of your phone during conversation or in Standby mode.To view the version in Standby mode:1. Press to display the Main Menu.2. Press for Display.3. Press for Version.4. Press to return to the previous screen. To view the version in Conversation mode:• Press , .JKLDEFJKLDisplay OptionsYour phone provides several display options.Backlight ControlWhen the phone is attached to the Hand-Free Car Kit, the back-light remains on. At other times, you can select backlightoptions. To select backlight options:1. Press to display the Main Menu.2. Press for Dispiay.3. Press for Backlight.4. Press the scroll keys to scan menu options: 10 Seconds,30 Seconds,Flip Open, Off.5. When the desired option is displayed, press to savethe setting.Personal GreetingYou can create a 12-character personal greeting message thatis displayed at turning on the phone and in Standby mode.To create a personal greeting:1. Press to display the Main Menu.2. Press for Display.3. Press for Greeting.4. Enter your personal greeting message by pressing thealphanumeric keys on the keypad.5. Press to save the setting.ABCJKL'.JKLSCH-3500 English 3/27/99 4:20 PM Page 30
33The Menu32Any Key AnswerActivate Any Key Answer to answer incoming calls by pressingany key on the keypad, except .Tone LengthSome phones you call can recognize only longer tones. Youmay have to change the length to LONG for some calls. Whencalling a paging system, your phone should be in the SHORTmode.1. Press to display the Main Menu.2. Press for Sounds.3. Press for Tone Length.4. Press the scroll keys until the desired mode is displayed.5. Press to save the setting.Release ToneYou can set your phone to sound the release tone when a call isreleased or dropped.Connect ToneYou can set your phone to sound the connect tone when yourcall is connected to the system.GHIGHISetup OptionsYour phone contains many setup features that make communi-cation easier and more efficient. Using them saves time andmakes yours even more fun to use.To set setup options:1. Press to display the Main Menu.2. Press for Setup.3. Press the corresponding digit key to select the desiredoption:• Press for Any Key Answer.• Press for Talk Key. • Press for NAM Mode. 4. Press the scroll keys until the desired mode is displayed.5. Press to save the setting.Automatic RetryWhen you make a call and the call is not connected, your phonecontinues to make the call to the entered phone number.Automatic ReceivingWhen a call comes in, you can answer the call automaticallyafter 2 rings. This feature does not work if you have chosenVibrator or Lamp as your ring type.Automatic HyphenationAutomatic Hyphenation hyphenates numbers as follows:• 123-456-7890Digits following a pause are not hyphenated.DEFABC'.TUVSCH-3500 English 3/27/99 4:20 PM Page 32

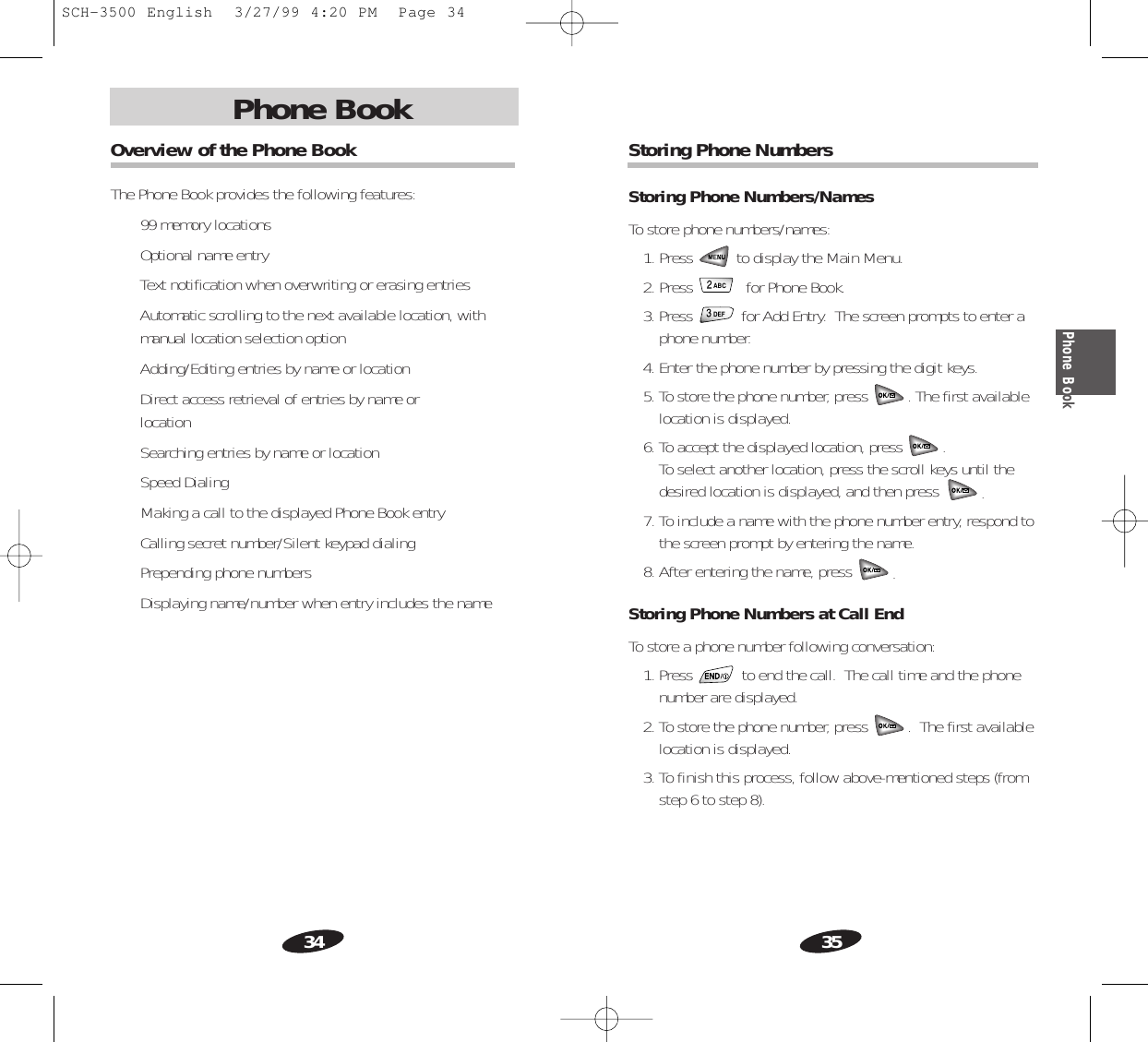

35Phone Book34Storing Phone NumbersStoring Phone Numbers/NamesTo store phone numbers/names:1. Press to display the Main Menu.2. Press for Phone Book.3. Press for Add Entry. The screen prompts to enter aphone number.4. Enter the phone number by pressing the digit keys.5. To store the phone number, press . The first availablelocation is displayed.6. To accept the displayed location, press . To select another location, press the scroll keys until thedesired location is displayed, and then press .7. To include a name with the phone number entry, respond tothe screen prompt by entering the name.8. After entering the name, press .Storing Phone Numbers at Call EndTo store a phone number following conversation:1. Press to end the call. The call time and the phonenumber are displayed.2. To store the phone number, press . The first availablelocation is displayed.3. To finish this process, follow above-mentioned steps (fromstep 6 to step 8).DEFABCOverview of the Phone BookThe Phone Book provides the following features:• 99 memory locations• Optional name entry• Text notification when overwriting or erasing entries• Automatic scrolling to the next available location, withmanual location selection option• Adding/Editing entries by name or location• Direct access retrieval of entries by name or location• Searching entries by name or location• Speed Dialing• Making a call to the displayed Phone Book entry• Calling secret number/Silent keypad dialing• Prepending phone numbers• Displaying name/number when entry includes the namePhone BookSCH-3500 English 3/27/99 4:20 PM Page 34
37Phone Book36Displaying Your Phone NumberYou can check your own phone number.To display your phone number:1. Press to display the Main Menu.2. Press for Phone Book.3. Press for My Phone Number. The phone number ofyour phone is displayed. If you have more than one ownphone number, press the scroll keys to check the next num-ber4. Press to return to the previous screen.Dialing from the Phone BookDialing By Memory LocationYour phone enables you to make calls quickly by entering theassociated digit key (s) for the Phone Book memory location ofthe phone number you are calling.The following table outlines dialing shortcuts:Table 3: Memory Dialing ShortcutsACTIVITY SHORTCUTOne-touch Dialing Press and hold the associated digit keyfor the location.Two-touch Dialing Press the first associated digit keybriefly, and then press and hold thesecond digit key.ABCABCViewing Stored EntriesFinding Entries By Location To find an entry by location:1. Press to display the Main Menu2. Press for Phone Book.3. Press for Find Entry. The screen prompts to enter alocation number.4. Enter the location by pressing the associated digit key, orpress the scroll keys until the desired location is displayed,and then press to display the selected entry.5. When the desired entry is displayed, press to makea call.Finding Entries by NameYou can locate Phone Book entries quickly when the phone is inStandby mode: Press to access the Phone Book in onestep and then press the scroll keys until the desired mode is displayed.To find Phone Book entries from the Main Menu;1. Press to display the Main Menu.2. Press for Phone Book.3. Press for Find Name. Stored names are displayed inan alphabetical list.4. Press the scroll keys until the desired name is displayed.You can also enter the first letter of the name by pressingthe associated alphanumeric key. Using this method, thephone searches for the names in the list beginning withthat letter, and then the first name is displayed in that sec-tion of the list. If desired, you can also enter the secondletter in the name by pressing the associated alphanumerickey.5. when the desired entry is displayed, press to makea call.'.GHIABCABCSCH-3500 English 3/27/99 4:21 PM Page 36
39Phone Book38Erasing Phone Book EntriesTo erase Phone Book entries:1. Press to display the Main Menu.2. Press for Phone Book.3. Access the desired entry using one of the search methodsdescribed under “Viewing Stored Entries” on page 36.4. When the desired entry is displayed, press for con-text-specific options.5. Press for Erase. 6. Press to erase the displayed entry. The “Erased”notification is displayed, along with the name, number, andlocation.GHIABCEditing Phone Book EntriesTo edit a Phone Book entry:1. Press to display the Main Menu.2. Press for Phone Book.3. Access the desired entry using one of the search methodsdescribed under “Viewing Stored Entries” on page 36.4. When the desired entry is displayed, press for context-specific options.5. Press for Edit. Additional options are displayed.6. Press the associated digit key to select an option:• Press for Phone #. The phone number is dis-played. Press to delete the phone number, andthen enter the new phone number by pressing the digitkeys. Press to save the new number.• Press for Name. The name is displayed.Enter the new name by pressing the alphanumeric keys.Press to save the new name.• Press for Entry #. The Phone Book location number is displayed.Press the scroll keys until the desired location is dis-played, and then press to save the new location.• Press for Secret.This option is to prevent dialed phone numbers from displaying on the screen.See the ‘Storing Secret Numbers’ on the page 40.GHIDEFABC'.ABCABCSCH-3500 English 3/27/99 4:21 PM Page 38
41SecurityOptions40Storing Secret NumbersYou can select the Secret option to prevent dialed phone num-bers from displaying on the screen.To store a secret number in the Phone Book:1. Press to display the Main Menu.2. Press for Phone Book.3. Store the phone number as described under “Storing PhoneNumbers” on page 35, or access an existing entry asdescribed under “Viewing Stored Entries” on page 36.4. When the phone number is displayed, press for context-specific options.5. Press for Edit. Additional options are displayed.6. Press for Secret. 7. Press the scroll keys until the desired mode is displayed. 8. Press to save the setting.GHIABCABCSecurity OptionsSecurity MenuYour phone provides many security options, including a user-programmable lock code, and call restriction features.To access the Security menu in Standby mode, press ,. Press the associated digit key to acces oneof the security options.You must enter the four digit lock code to see any options inthis menu. The default lock code is 0000 or the last four digitsof your phone number.MNOSCH-3500 English 3/27/99 4:21 PM Page 40
43SecurityOptions42Lock ModeLocking the phone restricts outgoing calls except emergencynumbers.To make an outgoing call in Lock mode:• To call an emergency number, enter the number and thenpress .• To place normal outgoing calls, press to display theLock Code screen, and then enter the lock code. When theStandby screen is displayed, enter the phone number, andthen press .Lock Code SettingThe default lock code for your phone is 0000 or the last fourdigits of your phone number, depending on activation. You canenter a personal lock code, and then change the lock code asoften as you like.To enter a new lock code:1. Press to display the Main Menu.2. Press for Security.3. Press for Lock Code.4. Enter a new, four-digit lock code by pressing the desireddigit keys.5. Press to save the new lock code.DEFMNOLocking the PhoneTo lock the phone:1. Press to display the Main Menu.2. Press for Security.3. Press for Lock Phone.4. Press the scroll keys to select an option:• Off: The phone remains unlocked.• Now: The phone is locked immediately.• On Power-Up: The phone is locked automatically whenyou turn the phone on.5. Press to save the setting.'.MNOSCH-3500 English 3/27/99 4:21 PM Page 42
45SecurityOptions44Call RestrictionRestricting CallsYour phone provides the following Call Restriction options inthe Security menu:• Phone Book Use.• Limit Incoming Calls.• Limit Outgoing Calls.To restrict calls:1. Press to display the Main Menu.2. Press for Security.3. Press for Limit Use.4. Press the associated digit key to select an option:• Press to restrict Outgoing.• Press to restrict Incoming.• Press to restrict Phone Book.• Press to restrict Roaming.5. Press the scroll keys when the desired mode is displayed.6. Press to save the setting.GHIDEFABC'.ABCMNOSpecial NumbersSpecial numbers (911, *911, #911) are prograrmmed into yourphone. The Security menu provides the option of storing threespecial numbers.You can make calls to special numbers when the phone islocked or when “Outgoing call is restricted” is active.Storing Special NumbersTo store special numbers:1. Press to display the Main menu.2. Press for Security.3. Press for special #.4. Press the associated digit key to select a location for thespecial number.5. Enter the number by pressing the digit keys.6. Press to save the number.Dialing Special NumbersTo dial special numbers in Lock mode:1. Enter the special number by pressing the digit keys.2. Press to make the call.GHIMNOSCH-3500 English 3/27/99 4:21 PM Page 44
47SecurityOptions46Other OptionsTalk PINIf your system supplier provides this service and you have a PINassigned by the system supplier, you can set your phone to talkthe PIN when you make a call. This feature prevents the phonefrom being used by unauthorized persons. For information onthis service in detail, contact your service provider.Clear MemoryYou can erase all numbers in memory at the Phone Book. Thescreen displays “All memories are cleared”.To erase all numbers in memory:1. Press to display the Main Menu.2. Press for Security.3. Press for Erase.4. Press for Phone Book.5. Press the corresponding key to select context-specificoptions.• press to erase.• Press to cancel.DEFJKLMNONAM SelectionThe NAM (Number Assignment Module) enables you to sub-scribe to one or more service networks. Your phone has aManual and an Automatic mode for selecting the network.In the Manual mode, you set the phone to the network youwant to use. In the Automatic mode, the phone selects thenetwork automatically based on system information for the areayou are in.To set NAM mode:1. Press to display the Main Menu.2. Press for Setup.3. Press for NAM Mode.4. Press the scroll keys until the desired mode is displayed.5. Press to save the setting.DEFTUVSCH-3500 English 3/27/99 4:21 PM Page 46
49Voic Dial48Reset PhoneIf you want to reset all of your phone’s features to the manufactur-er’s defaults, you can do so with this feature.To reset the phone:1. Press to display the Main Menu.2. Press for Security.3. Press for Reset Phone.4. Press the corresponding key to select the desired mode.• Press to reset.• Press to cancel.KeyGuardThe KeyGuard feature is available in Standby mode to preventaccidental dialing while the phone is on but not in use.KeyGuard also prevents excess battery drainage, because thephone does not respond to keypresses or activate the backlightwhen KeyGuard is on.To activate KeyGuard is on:1. Press to display the Main Menu.2. Press for KeyGuard. The keypad locks, and“KeyGuard” displays.To release KeyGuard temporarily:• Open the flip. When you close the flip after ending a call,KeyGuard resets automatically.To release KeyGuard manually:• Press and hold . When you want to use KeyGuardagain, set the function manually from the Main Menu.OPERMNOMNOVoice DialVoice DialingYour phone features Smartspeak®, the new Voice Dialing sys-tem from Advanced Recognition Technology. You can call up to20 stored entries by speaking the name into the microphone.Using the Voice Dialing option requires that you first train thephone to recognize the name.Training the PhoneTo train the phone for Voice Dialing:1. Press to display the Main Menu.2. Press for Voice Dial.3. Press for Record. The system provides voiceprompts and screen displays to guide you through therecording process.4. Respond to the prompt by saying the name you want tosave. The phone stores the name as a first sample, andthen prompts for the name again.5. Respond to the prompt by repeating the name after thebeep. The phone stores the name as a second sample, andthen requests the phone number.6. Enter the phone number by pressing the digit keys.7. To store the phone number, press . The name andnumber display, along with the notification “Recorded”.The screen then returns to the Voice Dialing menu.'.PQRSSCH-3500 English 3/27/99 4:21 PM Page 48
51Voic Dial50Tips on Recording Name◆Avoid recording similar names phonetically. If you record asimilar name to the one already in memory, the phone requests another name.◆Avoid recording in a noisy place.◆Speak clearly and naturally.◆The person who will use the phone should record the name.The phone does not recognize the name if the voice soundsdifferently.◆Avoid too long or short name. It is recommended to contain2 to 5 syllables.◆Voice dial feature is available only in CDMA mode.◆If this feature does not work properly, erase the name, andrecord with another name.◆It is recommended to practice several times to obtain bestresult.◆You can record up to 20 names. If you record more than 20,the phone announces ‘Memory is full!’.ActivationVoice Dialing is always active once you have trained the phoneto accept Voice Dialing entries. To make calls using VoiceDialing, simply press and hold , and then say the nameinto the phone after you hear the prompt.You can also initiate a Voice Dialing call just by opening theflip, when you select this option through the Main Menu.To change Voice Dialing setup options:1. Press to display the Main Menu.2. Press for Voice Dial.3. Press for Set Active.4. Press the scroll keys until the desired mode is displayed:• [ ] Only: Enables Voice Dialing by pressing and holding.• [ ] / Flip: Enables Voice Dialing by pressing and holding, or by opening the flip.5. When the desired option is displayed, press to savethe setting.GHIPQRSSCH-3500 English 3/27/99 4:21 PM Page 50
53Message Services52Using Voice DialingMaking a CallTo make a call using Voice Dialing:1. To make the call, press and hold , or open the flip,depending on the setting.2. At the voice prompt, say the name into the phone.• If the phone recognizes the name, the phone attempts aconnection.• If the phone does not recognize the name, the screenprompts to enter the name again.• If the phone is unable to recognize the name after twoattempts, the message “cannot recognize name.Pleasecheck name.” is displayed. Return to Standby mode bypressing , and then try the call again later.Reviewing Voice Dialing EntriesTo review Voice Dialing entries:1. Press to display the Main Menu.2. Press for Voice Dial.3. Press for Review. A list of entries is displayed.4. Press the digit key to select the desired entry, or press thescroll keys to scan entries. The recorded names play audi-bly as you scroll through the list.5. Press to return to Standby mode.ABCPQRSErasing Voice Dialing EntriesTo erase an individual Voice Dialing entry:1. Press to display the Main Menu.2. Press for Voice Dial.3. Press for Review. A list of entries is displayed.4. Press the digit key to select the desired entry, or press thescroll keys to scan entries. The recorded names play audi-bly as you scroll through the list.5. When the desired entry is displayed, press to erasethat entry.To erase all Voice Dialing entries:1. Press to display the Main Menu.2. Press for Voice Dial.3. Press for Erase All.4. Press to erase all voice dialing entries.DEFPQRSABCPQRSSCH-3500 English 3/27/99 4:21 PM Page 52

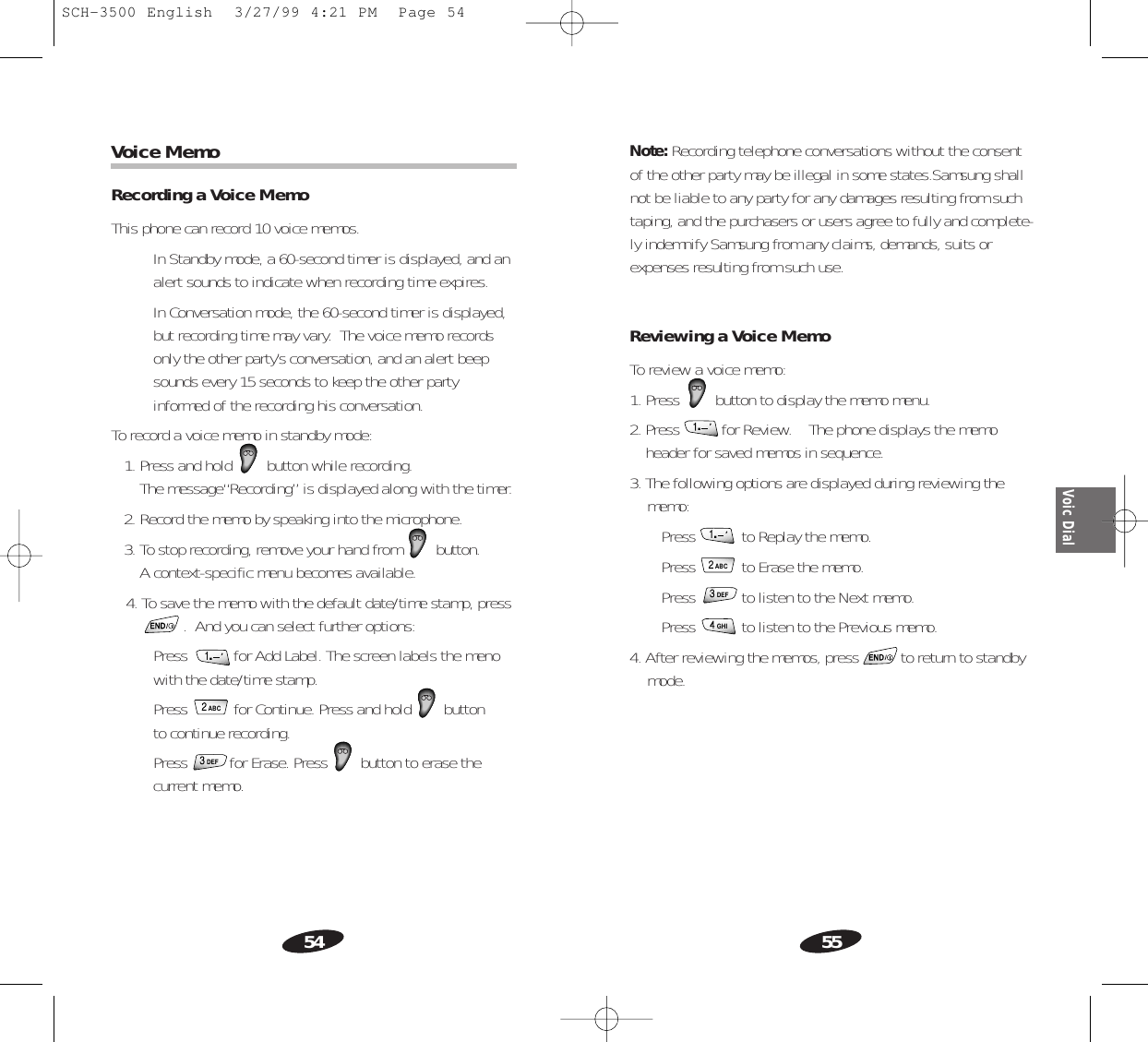

55Voic Dial54Voice MemoRecording a Voice MemoThis phone can record 10 voice memos. • In Standby mode, a 60-second timer is displayed, and analert sounds to indicate when recording time expires.• In Conversation mode, the 60-second timer is displayed,but recording time may vary. The voice memo recordsonly the other party’s conversation, and an alert beepsounds every 15 seconds to keep the other partyinformed of the recording his conversation.To record a voice memo in standby mode:1. Press and hold button while recording. The message“Recording” is displayed along with the timer.2. Record the memo by speaking into the microphone.3. To stop recording, remove your hand from button.A context-specific menu becomes available.4. To save the memo with the default date/time stamp, press. And you can select further options:• Press for Add Label. The screen labels the menowith the date/time stamp.• Press for Continue. Press and hold buttonto continue recording.• Press for Erase. Press button to erase thecurrent memo.'.ABCDEFNote: Recording telephone conversations without the consentof the other party may be illegal in some states.Samsung shallnot be liable to any party for any damages resulting from suchtaping, and the purchasers or users agree to fully and complete-ly indemnify Samsung from any claims, demands, suits orexpenses resulting from such use.Reviewing a Voice MemoTo review a voice memo:1. Press button to display the memo menu.2. Press for Review. The phone displays the memoheader for saved memos in sequence.3. The following options are displayed during reviewing thememo:• Press to Replay the memo.• Press to Erase the memo.• Press to listen to the Next memo.• Press to listen to the Previous memo.4. After reviewing the memos, press to return to standbymode.'.'.ABCDEFGHISCH-3500 English 3/27/99 4:21 PM Page 54
57Message Services56Reviewing MessagesYour phone receives incoming messages in both Standby andConversation modes. When a new message arrives, an alertsounds, and the message header is displayed. The messageheader includes the type of message (Text, Paging, VoicemailNotification) and the name/phone number, if available.You can review the message upon notification or store the mes-sage for later review. The Messages menu provides options forreviewing the name/phone number of the talker, date/timestamp, priority, and the message.Your phone can store up to 10 pages and text messages,depending on the length of the message.You can erase an individual message after reviewing it, or eraseall stored messages at one time.Reviewing Voicemail MessagesTo review voicemail messages:1. Press to dispiay the Messages Menu. 2. Press for Voicemail. The screen displays“Voicemail”, the time, date, and the number of new,unread messages.3. Press for context-specific options:• Press to Listen to voicemail messages.• Press to Reset the counter for voicemail mes-sages, if desired. (The system resets the counter auto-matically after you listen to all new messages).ABC'.'.Message ServicesShort Message Services and VoicemailYour phone receives voicemail notification, text messages, andpaging. When the phone receives a message, an alert sounds,and a text notification is displayed. The message indicator( ) remains on the screen until you read the text messagesor you listen to the voicemail notification messages.When message memory reaches 75 percent capacity, the screendisplays a text notification and a prompt to erase old messages.At 100 percent capacity, the screen displays a text notificationand rejects additional incoming messages until you erase someof the stored messages.The phone automatically adjusts the incoming message alertvolume to the lowest setting when the phone is in Conversationmode.Incoming voicemail notification and text messages transmit evenwhen the phone is in Lock mode. To access a message, or toreturn a call other than an emergency number, enter the lockcode.* Contact your service provider to activate Message Service. Not currently available in all markets.SCH-3500 English 3/27/99 4:21 PM Page 56
59Message Services58Erasing MessagesYou can erase all stored messages. To erase messages:1. Press to display the Message Menu.2. Press for RX Message.3. Press for Delete All.4. Press to confirm erasing, or press to cancel.GHI'.Reviewing Page and Text Messages To review page and text messages:1. Press to display the Messages Menu. 2. Press for Page, or press for Text. An indexedlist of paging or text messages is displayed. An exclama-tion point next to an entry indicates an urgent message.A tick(v) beside the entry indicates that you have read andstored the message.3. Press the scroll keys to highlight a message, and thenpress to select the highlighted message for review.(You can also press the associated digital key to select amessage by its entry number.)4. When the message is displayed, press to review themessage.5. After reviewing the message, press for context-specific options:• Press for Talk (to call the phone number).• Press to erase the current message.• Press to review the Next message.• Press to review the Previous message.6. Press to return to the standby mode. GHIDEFABC'.DEFABCSCH-3500 English 3/27/99 4:21 PM Page 58
61SafetySafety60Note if there are any regulations posted in the area regardingthe operation of wireless phones, and learn where you can usethem safely within the facility.AircraftTurn off your phone before boarding any aircraft. The FederalAviation Administration (FAA) requires that you have prior per-mission from the crew to use your phone while the plane is onthe ground. FCC regulations prohibit using your phone while theplane is in the air. Do not use your phone at any time whiletraveling on board .Blasting AreasConstruction crews often use remote-control RF devices to setoff explosives. To avoid interfering with blasting operations,turn off your phone when you are in a blasting area or in anyarea with signs posted that read “Turn off two-way radio.”For a variety of safety reasons, it is important to consider whereyou will be using your phone. When using your phone and itsaccessories, please follow these guidelines:Compliance with Safety StandardsThe SAMSUNG phone meets all standards and recommenda-tions for the protection of the public from exposure to radio fre-quency (RF) electromagneticenergy established by governmentalbodies and other qualified organizations. To reduce the risk offire, electric shock, serious personal injury, or property damage,please follow these guidelines:DrivingUsing a wireless phone while driving is illegal in some statesand countries. Observe the laws and regulations for your area,and pull over the car and park if you need to make a call. If you must use the phone while driving, purchase and installthe optional Hands-Free Car Kit.Electronic DevicesYour wireless telephone is a radio transmitter and receiver.When the power is on, the phone receives and talks out RFenergy. Most modern electronic equipment, such as equipmentin hospitals and cars, contains an RF signal shield. RF energymay affect some inadequately shielded electronic equipment.Turn off your phone in health care facilities, and always requestpermission before using the phone near medical equipment.Consult the manufacturer of any personal medical devices, suchas pacemakers and hearing aids, to determine if they areshielded adequately from external RF signals.SCH-3500 English 3/27/99 4:21 PM Page 60
Accessories63Accessories62BatteriesThree types of Li-ion batteries are available for use with yourSAMSUNG phone:• Standard Battery - BTL1024S• Extended Battery - BTL1624MDual-Slot Desktop Charger (DTC67) The Dual-Slot Desktop Charger charges the battery at yourhome or office.Cigarette Lighter Adapter (CHG67)The Cigarette Lighter Adapter charges your SAMSUNG phone ina vehicle while you drive and enables you to operate the phonefrom a vehicle cigarette lighter socket. Travel Charger (TC67)The Travel Charger plugs into a wall outlet and enables you tocharge a single battery at your home or office or while travel-ing.Hands-Free Car Kit (HF67)The Hands-Free Car Kit provides safety, freedom and conve-nience in your vehicle. (Kit includes Cradle and Microphone.) Other Dangerous AreasTurn off your phone in any area with a potentially explosiveatmosphere. It is rare, but your phone or its accessories couldgenerate sparks, which could cause explosion or fire. Areaswith a potentially explosive atmosphere may not always beclearly marked. These areas may include:• Fueling areas, such as gas stations• Below deck on boats• Fuel or chemical transfer or storage facilities• Areas where the air contains chemicals or particlessuch asgrain, dust, or metal powders• Any other area where you would normally be advised toturn off your vehicle engineDo not transport or store flammable gas, liquid, or explosives inthe compartment of a vehicle containing your phone or acces-sories.SCH-3500 English 3/27/99 4:21 PM Page 62

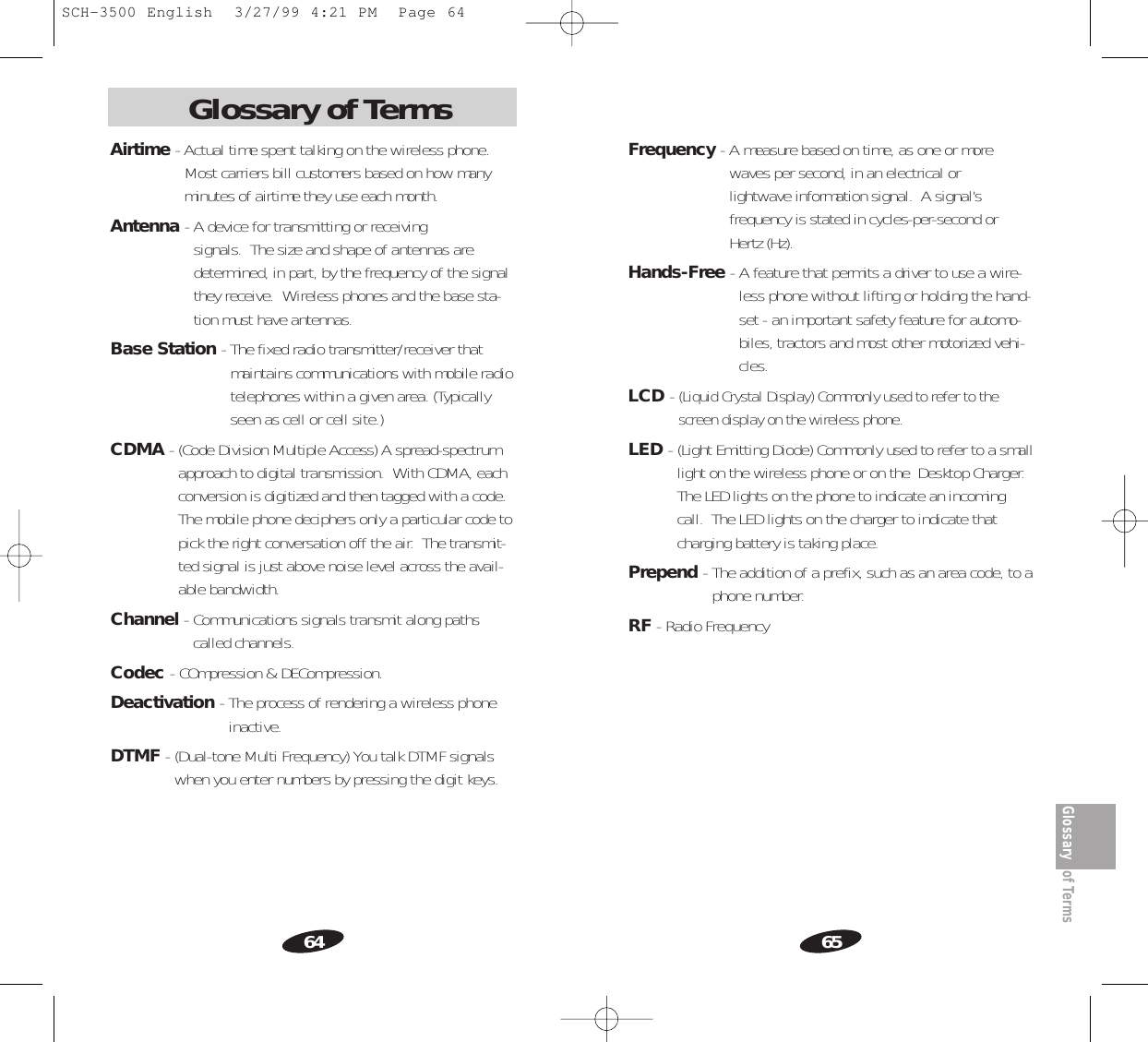

Glossary of Terms6564Glossary of TermsFrequency - A measure based on time, as one or morewaves per second, in an electrical or lightwave information signal. A signal’s frequency is stated in cycles-per-second orHertz (Hz).Hands-Free - A feature that permits a driver to use a wire-less phone without lifting or holding the hand-set - an important safety feature for automo-biles, tractors and most other motorized vehi-cles.LCD - (Liquid Crystal Display) Commonly used to refer to thescreen display on the wireless phone.LED - (Light Emitting Diode) Commonly used to refer to a smalllight on the wireless phone or on the Desktop Charger.The LED lights on the phone to indicate an incomingcall. The LED lights on the charger to indicate thatcharging battery is taking place.Prepend - The addition of a prefix, such as an area code, to aphone number.RF - Radio FrequencyAirtime - Actual time spent talking on the wireless phone.Most carriers bill customers based on how manyminutes of airtime they use each month.Antenna - A device for transmitting or receiving signals. The size and shape of antennas are determined, in part, by the frequency of the signalthey receive. Wireless phones and the base sta-tion must have antennas.Base Station - The fixed radio transmitter/receiver thatmaintains communications with mobile radiotelephones within a given area. (Typicallyseen as cell or cell site.)CDMA - (Code Division Multiple Access) A spread-spectrumapproach to digital transmission. With CDMA, eachconversion is digitized and then tagged with a code.The mobile phone deciphers only a particular code topick the right conversation off the air. The transmit-ted signal is just above noise level across the avail-able bandwidth.Channel - Communications signals transmit along pathscalled channels.Codec - COmpression & DECompression.Deactivation - The process of rendering a wireless phoneinactive.DTMF - (Dual-tone Multi Frequency) You talk DTMF signalswhen you enter numbers by pressing the digit keys.SCH-3500 English 3/27/99 4:21 PM Page 64
66Roaming - The ability to use a wireless phone to make andreceive calls outside of the home service area.Service Charge - The amount paid each month to receivewireless service.SMS - (Short Message Services) The variety of messaging ser-vices available on the SAMSUNG phone, including voice-mail, numeric paging and text messaging.Standby Time - The amount of time a fully charged wirelessportable or transportable phone can be onand idle without being in use. (SeeTalkTime.)Talk Time - The length of time a person can talk on a portableor transportable wireless phone without recharg-ing the battery.Vocoder - Voice Coder. A device used to convert speech intodigital signals.Voicemail - A computerized answering service that answers acall, plays a greeting and records a message.Depending on the sophistication of the service, itcan notify the subscriber, via a pager, of an incom-ing call or message. (Also called voice messaging.)Wireless - Radio-based Systems that allow transmission oftelephone or data signals through the air without aphysical connection, such as a metal wire (copper)or fiber optic cable.Licensed by QUALCOMM lncorporated under one or more of the followingPatents.U.S. Patent No. 4,901,307 5,056,109 5,099,204 5,101,501 5,103,459 5,107,2255,109,390SCH-3500 English 3/27/99 4:21 PM Page 66
ELECTRONICSPrinted in KoreaCode No.: Test VersionU.S.A 99/4. Rev.1.0ELECTRPlease read this manual before operating the phone, and keep it for future reference.DIGITAL PORTABLECELLULAR TELEPHONESCH-3500 Owner’s ManualSCH-3500 English 3/27/99 4:21 PM Page 67
