PORTABLE CELLULAR TELEPHONESCH-A105User’s ManualPrinted in KoreaCode No. : GH68-xxxxxAEnglish. 2000/04. Rev.1.0ELECTRONICSWorld Wide Webhttp://www.samsungmobile.com
1ContentsGETTING STARTEDUnpacking ..............................................................................................7Phone Layout .........................................................................................8Key Functions ......................................................................................8Display .................................................................................................10Icons .................................................................................................10Installing Battery ...................................................................................11To Install the Battery .........................................................................11To Remove the Battery ......................................................................12Charging a Battery ................................................................................13Low Battery Indicator ........................................................................14Switching the Phone On/Off ..................................................................15GENERAL FUNCTIONSMaking a Call ........................................................................................16Correcting the Number ......................................................................16Ending a Call .....................................................................................16Emergency Dialing ............................................................................17Prepend Dialing ................................................................................17Making a Call from the Phone Book ......................................................18To Search an Entry, Then Dial ............................................................18To Search a Name, Then Dial .............................................................18Speed Dial ............................................................................................19One-Touch Dial ..................................................................................19Two-Touch Dial ..................................................................................19Three-Touch Dial ...............................................................................20Voice Dialing ........................................................................................21Last Number Redial ...............................................................................21Answering a Call ....................................................................................22Viewing Missed Calls ..............................................................................22In-Call Options .......................................................................................23Call Waiting ......................................................................................24Three-Way Calling..............................................................................24Call Forwarding..................................................................................25Adjusting the Volume..............................................................................25Quick Switching to Vibration Mode .........................................................26Recording a Voice Memo ........................................................................26Table of ContentsFCC RF EXPOSURE INFORMATIONIn August 1996 the Federal Communications Commission (FCC) of theUnited States with its action in Report and Order FCC 96-326 adopted anupdated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters.Those guidelines are consistent with the safety standard previously set byboth U.S. and international standards bodies. The design of this phonecomplies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas,modifications, or attachments could impair call quality, damage thephone, or result in violation of FCC regulations.Do not use the phone with a damaged antenna. If a damaged antennacomes into contact with the skin, a minor burn may result. Please contactyour local dealer for replacement antenna.Body-worn OperationThis device was tested for typical body-worn operations using the optional belt-clip/holster placed 0.8 inches (2.1cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.8 inches (2.1cm) must be maintained between the user’sbody and the phone, including the antenna, whether extended or retract-ed. Third-party belt-clips, holsters and similar accessories used by thisdevice must meet the separation distance requirement of 0.8 inches (2.1cm)from the body and should not contain metallic componants. Body-wornaccessories that do not meet these requirements may not comply with FCC RF exposure limits and should be avoided.For more information about RF exposure, please visit the FCC website atwww.fcc.gov
2Contents 3ContentsUSINGTHEMENUSUsing the Navigation Keys ..................................................................... 28Using the Index System ......................................................................... 29Menu Map ............................................................................................. 30CALLSOutgoing (MENU 1-1) ..................................................................... 32Incoming (MENU 1-2) ..................................................................... 33Erase Logs (MENU 1-3) ................................................................... 34Air Time (MENU 1-4) ...................................................................... 34PHONE BOOKFind Name (MENU 2-1) ................................................................... 35My Phone Number (MENU 2-2) ....................................................... 36Add Entry (MENU 2-3) .................................................................... 36Creating a New Entry ......................................................................... 36Adding a Number in an Existing Entry.................................................. 37Storing Phone Numbers at Call End ..................................................... 37Entering a Name ................................................................................ 38Find Entry (MENU 2-4) .................................................................... 38SOUNDSRing (MENU 3-1) ............................................................................ 39Ring Volume ...................................................................................... 39Ring Type ........................................................................................... 39Ring Tone ........................................................................................... 40Data/Fax ........................................................................................... 40Key Beep (MENU 3-2) ..................................................................... 40Alert (MENU 3-3) ............................................................................ 40Alarm (MENU 3-4) .......................................................................... 41Differential Ring (MENU 3-5) .......................................................... 41Power-on/off (MENU 3-6) ............................................................... 42DISPLAYBacklight (MENU 4-1) ..................................................................... 42Greeting (MENU 4-2) ...................................................................... 43DISPLAY (Continued...)Version (MENU 4-3) ........................................................................ 43Language(MENU 4-4) ..................................................................... 43Animations (MENU 4-5) .................................................................. 43PIM (Personal Information Manager)Schedular (MENU 5-1) .................................................................... 44To Do List (MENU 5-2) .................................................................... 46Calculator (MENU 5-3) .................................................................... 47World Time (MENU 5-4) .................................................................. 48D-Day (MENU 5-5) ......................................................................... 49Record (MENU 6-1) ......................................................................... 50Review/Erase (MENU 6-2) .............................................................. 51Erase All (MENU 6-3) ...................................................................... 52Set Active (MENU 6-4) .................................................................... 52SETUPAuto Retry (MENU 7-1) ................................................................... 53Auto Receive (MENU7-2) ................................................................. 53Auto Hyphen (MENU 7-3) ............................................................... 53Answer Mode (MENU 7-4) ............................................................... 53Tone Length (MENU 7-5) ................................................................. 54Tone (MENU 7-6) ............................................................................ 54Set Time (MENU 7-7) ...................................................................... 54Service Light (MENU 7-8) ................................................................ 55In Data/Fax (MENU 7-9) ................................................................ 55terminal bps (MENU 7-0) ................................................................ 55SECURITYLock (MENU 0-1) ............................................................................ 56Restrict (MENU 0-2) ........................................................................ 57Lock Code (MENU 0-3) .................................................................... 57Emergency Number (MENU 0-4) ..................................................... 57
4Contents 5Safety PrecautionsSafety Precautions and Important NoticesRead these simple guidelines. Failure to comply with theseguidelines may be dangerous or illegal.For more detailed safety information, see Safety Informationon page 67.ROAD SAFETY COMES FIRSTDo not use a hand-held phone while driving; park the vehiclefirst.SWITCH OFF IN AIRCRAFTMobile phones can cause interference. Using them on aircraftis illegal.SWITCH OFF NEAR BLASTINGDo not use the phone where a blasting operation is inprogress. Observe restrictions, and follow any regulations orrules in force.SWITCH OFF WHEN REFUELLINGDo not use the phone at a refuelling point or near fuels orchemicals.INTERFERENCEAll mobile phone may be subject to radio interference, whichmay affect their performance.SECURITY (Continued...)Send PIN (MENU 0-5) ..................................................................... 58Clear Memory (MENU 0-6) .............................................................. 58NAM Mode (MENU 0-7) ................................................................... 59Block Own Number (MENU 0-8) ...................................................... 59System Select (MENU 0-9) ............................................................... 60Reset Phone (MENU 0-0) ................................................................. 60MESSAGESReceived Messages ( -1).................................................................. 61Transmitting Messages ( -2) ............................................................ 63ACCESSORIESBatteries ............................................................................................... 64Cigarette Lighter Adapter ....................................................................... 64Travel Charger ....................................................................................... 64Hands-Free Car Kit ................................................................................ 64Ear-Microphone ..................................................................................... 64RS-232C Cable ....................................................................................... 64USINGTHEBATTERIESPrecautions When Using Batteries .......................................................... 65SAFETY INFORMATIONRoad Safety .......................................................................................... 67Operating Environment .......................................................................... 67Care and Maintenance ........................................................................... 69Emergency Calls .................................................................................... 70GLOSSARY OF TERMS ........................................................................ 71PHONE AND BATTERY SPECIFICATIONS......................................74QUICK REFERENCE CARD................................................................... 75
6Safety Precautions 7Getting StartedMENUOK/231. ´6458790Desktop ChargerIn addition, you can obtain the accessories for your phonefrom your local SAMSUNG dealer. For information on theaccessories, see page 64.HandsetBatteriesUser’s Manual Ear MicrophoneHand Strap / NecklaceQUALIFIED SERVICEOnly qualified service personnel must install or repair cellularequipment. Use only approved accessories and batteries.USE SENSIBLYUse only in the normal position (to ear).Avoid unnecessary contact with the antenna when the phoneis switched on.IMPORTANT! Use only accessories approved by the phonemanufacturer. This apparatus is intended for use when supplied with power from SAMSUNG approved Travel adapterand Desktop charger. The use of any other types will invali-date any approval or warranty applying to the phone, and maybe dangerous.When you disconnect the power cord of any accessory, graspand pull the plug, not the cord.Getting StartedUnpackingYour package contains the following items.Leather Case
8Getting Started 9Getting StartedKey Functions (Continued...)In the menu facility, scroll through the menu optionsand phonebook memory. In the idle mode, key displays the Phone Bookentries and key displays the Phone Book names.In the menu facility, scroll through the menu optionsand phonebook memory. When entering a name, move the cursor left or right.When the key is held down in the idle mode,records a voice memo. (For details, refer to page 26).Makes or answers call. In the idle mode, enters the Outgoing Call Log.Deletes characters from the display. In the menu facility, returns to the previous menu level.Ends a call. Also, switches the phone on or off whenpressed and held. In the menu facility, returns to the idle mode and cancels your input.Enters numbers, letters and some special characters.In the idle mode, enters the Voice Dial mode whenpressed and held.In the idle mode, quickly changes to Vibration modewhen pressed and held.(On the side of the phone)Adjusts voice volume during a conversation and keybeep volume in the idle mode. In the menu facility,scrolls through the menu options.Service LightEarphone jackVolume keysEarpieceDisplayAlphanumerickeysVibration modekeyMicrophoneSee the oppositepageVoice Dial key09~Phone LayoutThe following illustrations shows the main elements of yourphone.MENUOK/231. ‘6458790Key FunctionsEnters the menu facility. Also, scrolls through themenu options. In the idle mode, enters the Messages menu.In the menu facility, selects a menu function orstores information that you have entered (such as aname in the phone memory). MENUOK/
Installing BatteryTo Install the Battery1. Insert the saw-toothed end on the bottom of the batteryinto the slots on the bottom of the phone (➀), then slidethe battery down (➁).2. Press the battery down until you hear a click.10 Getting Started 11Getting StartedDisplayThe display comprises two areas: an upper line of static icons,and the lower text and graphic area. The following icons dis-play at power-on:IconsShows the received signal strength. The more barsyou see, the stronger the signal.Indicates the phone is out of service area, and youcannot make or receive calls.Appears when you are out of your home area andhave registered with a different network (whentravelling in other countries, for example).Appears when a new message has been received.Indicates a Digital mode.Indicates a Vibration mode.Shows the level of your battery. The more bars yousee, the more power you have left.IconsText andgraphic area➀➁
Charging a BatteryYour phone is powered by a rechargeable Li-ion battery. A desk top charger is provided with your phone. Use onlyapproved batteries and chargers. Ask you local SAMSUNGdealer for further details.The phone can be used while the battery is charging.Note: You must fully charge the battery before using yourphone for the first time. A discharged battery is fullyrecharged in approximately 8~12 hours.1. Plug the power cord of the charger into a standard wall outlet. 2. Remove the battery from the phone and place it in the rearcompartment of the charger. The light marked on thefront of the charger turns red.13Getting Started12 Getting StartedTo Remove the BatteryIf you want to remove the battery, do as follows:1. If necessary, switch off the phone by holding down key until the power-off message is displayed.2. Push up and hold the catch above the battery on the backof the phone (➀) and lift the battery away. (➁ ~ ➂)➀➁➂Use the grooves on both sides of thephone when you lift the battery away.
Switching the Phone On/Off1. Open the flip cover.2. Hold down key for more than one second to switchthe phone on.The red light flashes, an alert sounds:• When the system locates services, the greeting messagedisplays along with the date and time. You can nowplace and receive calls.• If the system cannot locate service, the greeting message displays without the date and time. In thiscase, you cannot place and receive calls. You can trylater when service is available.• If your phone is locked, the lock icon appears. Presskey, and enter the four-digit lock code to unlock the phone.3. When you wish to switch the phone off, hold down key for more than two seconds.14 Getting Started 15Getting Started3. If you do not wish to use your phone while charging thebattery, you can leave the battery attached to the phone.Place the phone with the battery attached in the front compartment of charger with the keypad facing forward.The light marked on the front of the charger turns red.Low Battery IndicatorWhen the battery is weak and only a few minutes of talk timeremain, an empty battery icon (no bars displayed) flashes inthe upper right corner of the screen. You will hear a warningtone.When the battery becomes too weak for the phone to operate,it switches off automatically.[MON]SAMSUNG06/26 13:45MENU

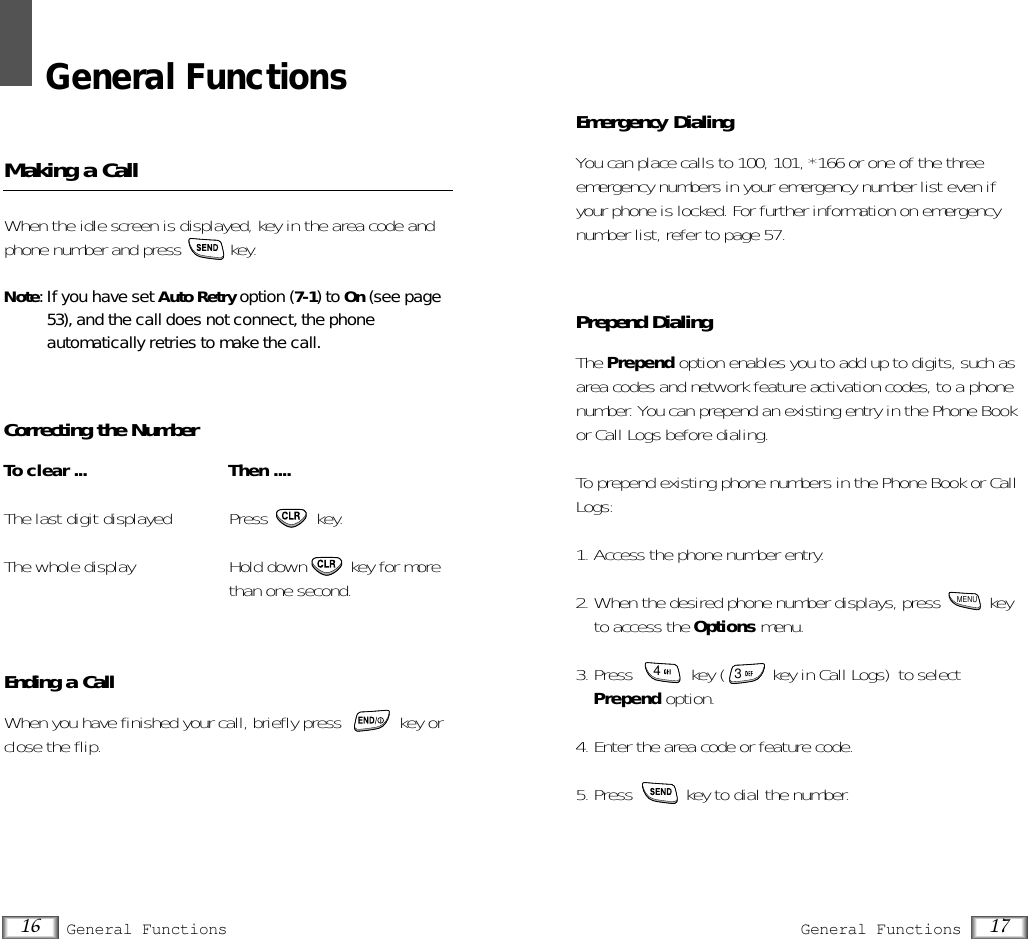

General FunctionsMaking a CallWhen the idle screen is displayed, key in the area code andphone number and press key.Note: If you have set Auto Retry option (7-1) to On (see page53), and the call does not connect, the phone automatically retries to make the call.Correcting the NumberTo clear ... Then ....The last digit displayed Press key.The whole display Hold down key for morethan one second.Ending a CallWhen you have finished your call, briefly press key orclose the flip.16 General Functions 17General FunctionsEmergency DialingYou can place calls to 100, 101, *166 or one of the threeemergency numbers in your emergency number list even ifyour phone is locked. For further information on emergencynumber list, refer to page 57.Prepend DialingThe Prepend option enables you to add up to digits, such asarea codes and network feature activation codes, to a phonenumber. You can prepend an existing entry in the Phone Bookor Call Logs before dialing.To prepend existing phone numbers in the Phone Book or CallLogs:1. Access the phone number entry.2. When the desired phone number displays, press keyto access the Options menu.3. Press key ( key in Call Logs) to selectPrepend option.4. Enter the area code or feature code.5. Press key to dial the number.MENU43
18 General Functions 19General FunctionsMaking a Call from the Phone BookYou can store the phone numbers called regularly in memory,called the Phone Book. You then simply recall the number todial. For further information on Phone Book, refer to page 35.To Search an Entry, Then Dial1. Press key in the idle mode. The screen shows the entries stored in the Phone Book innumerical order.2. Use or key to find the desired entry. You can also enter the first digit of the number by pressingthe associated alphanumeric key, then press orkey to find the desired entry.3. Press key to dial the stored number.To Search a Name, Then Dial1. Press key in the idle mode. The screen shows the names stored in the Phone Book inalphabetical order.2. Use or key to find the desired name. You canalso enter the first letter of the name by pressing the associated alphanumeric key, then press or keyto find the desired entry.3. Press key to dial the stored number.Speed DialOnce you have stored phone numbers in the phone book memory, you can dial them easily whenever you want.One-Touch DialMemory locations 01 through 09 are special one-touch locations. You can dial the phone numbers stored in the PhoneBook memory from 01 through 09 simply by pressing one button. Press and hold the third digit of the memory location containing the number to be dialed.For example: Location no. 009Press and hold.The number (and name) stored is displayed, then dialed.Two-Touch DialMemory locations 10 through 99 are special two-touch locations.Press the second digit briefly, then hold down the third digitof the memory cell.For example: Location no. 023Press briefly and hold down .The number (and name) stored is displayed, then dialed.923
21General Functions20 General FunctionsThree-Touch DialMemory locations 100 through 229 are special three-touch locations.Press the first and the second digit briefly, then hold down thethird digit of the memory cell.For example: Location no. 123Press and briefly, then hold down .The number (and name) stored is displayed, then dialed.Notes•If you press after pressing the digits for speeddialing, you can see the phonebook contents of thecorresponding location number; name, memory loca-tion number, phone number, and so on. •When several numbers are saved in one location, onlythe phone number which is specified with Set Speed Dialoption will be automatically dialed. For details, refer to Options under Phone Book menu onpage 35.Voice DialingBefore using the Voice Dialing featue, you must record thename in your phone. For details, refer to page 50.1. To place a call, press and hold key, or open the flip,depending on the Set Active (6-4) option (see page 52).2. At the voice prompt, say the name into the phone. • If the phone recognizes the name, the phone attempts aconnection. • If the phone does not recognize the name, the screenprompts for the name again.• If the phone is unable to recognize the name after twoattempts, the message Cannot Recognize Name.Please check name displays. Try the call again later, orcheck the recorded name.Last Number RedialThe phone stores the last 10 numbers dialed. To recall any ofthese numbers, proceed as follows.1. If there are any characters on the display, clear the displayby holding down key for more than one second.2. Press key. The list of outgoing calls are displayed.3. Use or key (or or key on the left side ofthe phone) to scroll through the list until you select therequired name or number.4. Press key to dial the number displayed.21. `3
22 General Functions 23General FunctionsAnswering a CallWhen somebody calls you, the phone rings and the phoneicon is displayed in the middle of the screen.If the caller can be identified, the caller’s phone number (orname if pre-stored in your Phone Book) is displayed. If thecaller cannot be identified, only the phone icon appears.1. To answer a call, open the flip cover. If the flip is alreadyopen, press any key except for key.If the Answer Mode menu (7-4) is set to Send=Answeroption, you can answer a call only by pressing key.2. End the call by closing the flip cover or pressing key.Note: You can answer a call while using the phone book ormenu features. The current operation will be inter-rupted.Viewing Missed CallsIf you are unable to answer a call for any reason, you can findout who was calling you, if this service is available. In thisway, you can call the person back simply by pressingkey, if necessary.The number of missed calls is displayed on the idle screenimmediately after the call was missed.To view the missed call, refer to ‘Incoming’(1-2) underIn-call OptionsYour phone provides a number of functions that you can useduring a call. You may not utilize all of these functions at alltimes. Many of the in-call options are network services. Press key during a call to access the following in-call options:Calls: allows you to access the Calls menu.Phone Book: allows you to access the Phone Book menu.Mute/Unmute: allows you to switch your phone’s microphoneoff, so that the other party cannot hear you. Example: You wish to say something to another person in theroom but do not want the other party to hear you.Silent Key: does not transmit the key tones. It allows you topress keys without hearing annoying key tonesduring a call.Note: To communicate with answering machines or computerized telephony systems, the Silent keysoption must be disabled.Version: allows you to view the software and hardware version of your phone. Send Tel #: sends DTMF tones of your number.SEND: sends DTMF tones of the currently displayed number.DTMF (Dual Tone Multi Frequency) tones can be usedto control electronic phone services such as bank-by-phone or voicemail. During a call, key in the digits youwant to send as DTMF tones, for example, the bankaccount number and password. Then select this in-calloption. MENU
24 General Functions 25General FunctionsCall WaitingYou can answer an incoming call while you have a call inprogress, if this service is supported by the network. Contactyour service provider to activate Call Waiting.When a waiting call is detected, the incoming call alertsounds (network dependent) and a text notification displays.To answer a waiting call:1. To answer the call, Press key. The phone connectsthe calling party, and places the current party on hold.2. Press key again to switch between two parties.Three-Way CallingThis feature enables you to conduct conference calls with twoseparate parties at the same time. You are billed airtime foreach outgoing call separately. Contact your service provider to activate Three-Way Calling.To place a Three-Way call:1. During conversation, press key, enter the phone num-ber for the third party, and then press key again. Thephone places the other party on hold.2. When the third party answers, press key again toconnect with the original party.Call ForwardingThis feature provides the option of forwarding incoming callsto another phone number, even while your phone is off.Activating Call Forwarding does not affect outgoing callsmade from this phone. Contact your service provider to activate Call Forwarding.Adjusting the VolumeDuring a call, if you want to adjust the earpiece volume, usethe volume keys on the left side of the phone. Press keyto increase and key to decrease the volume.In the idle mode, you can adjust the key tone volume usingthe same keys.Press the keys to adjustthe volume.
26 General Functions 27General FunctionsThe following options for the current voice memo becomesavailable:Add Label: allows you to add a label for the memo you havejust recorded. Enter a proper name up to 12 digitsusing the keypad. If you do not add a label, therecorded date and time will be used to identifythe memo. If you make a call and record the con-versation, the phone number is saved as the labelwhen you do not add a label. If you record theconversation which is held by someone’s calling and do not enter a label, NoLabel is saved as the label. Continue: allows you to continue recording the memo.Erase: allows you to erase the memo you have just recorded.To Review a Voice MemoThis option allows you to play back all memos recorded, starting with the latest memo. The screen displays the label ifyou have entered one. If not, the screen displays the date andtime when the memo was recorded, the phone number or NoLabel. For more details, see ‘Add Label’ above.While the memos display, the following options areavailable.Replay: plays the current memo once again.Erase: erases the memo currently being played.Next Memo: skips to the next memo.Prev Memo: skips to the previous memo.Recording a Voice MemoYour phone can record up to 5 voice memos. Each voice memocan be up to one minute in length. When recording, a 60-second timer displays and an alertsounds to indicate when recording time expires. To Record a Voice MemoTo record a voice memo, press and hold key. The mes-sage “Recording” displays, along with the timer. To stop recording, press key again. Quick Switching to Vibration ModeYou can quickly switch your phone to vibration mode with atouch of key. Press and hold the key until the iconand Vibrate appears in the display. Your phone goes tothe vibration mode immediately. Press and hold key again to return to Bell ring mode.This feature is convenient when you are in a hurry to mute thephone’s ringer in a theater for example.
28 Using the Menus 29Using the MenusUsing the MenusA three-level menu structure is available to set the variousoptions available on your phone. You can set the menuoptions in two different ways.Using the Navigation KeysThe following keys are used to set menu option by scrollingthen selecting an option.Key PurposeEnters the menu structure.In the menu mode, moves to the nextmenu in the main menu level and movesto the next screen in the sub-menu level.In the menu mode, moves to the next menu or option.You can also use or key on theleft side of the phone to move to the nextor previous option.Access the menu displayed or thehighlighted option.OK/Example: Selecting the Record option in Voice Dial menu1. Press key to access the main menu.2. Press or ( or ) key repeatedly until VoiceDial is displayed, then press key. The Voice Dialoptions are displayed.3. Press key to select the highlighted Record. The Record option is activated.Using the Index SystemEach menu option is assigned a hierarchical number. You canuse this number to access the corresponding option directly.Simply press and key in the required number.Example: Selecting the Record option in Voice Dial menu1. Press key to access the main menu.2. Press key to access the Voice Dial menu. The VoiceDial options are displayed.3. Press key to select Record. The Record option isactivated.The numbers assigned to each option are indicated on the following menu map.MENUMENUMENUMENUOK/OK/MENU61. `or
30 Using the Menus 31Using the MenusMain Menu Menu Level 1 Menu Level 2 1. Calls 1: Outgoing2: Incoming3: Erase Logs 1: Outgoing2: Incoming3: All4: Air Time 1: Last Call2: Total3: EraseTotal2. Phone Book 1: Find Name2: My Phone # 3: Add Entry4: Find Entry 3. Sounds 1: Ring 1: Ring Volume2: Ring Type3: Ring Tone4: Data/Fax2: Key Beep3: Alert 1: Minute Beep2: SVC Area4: Alarm5: Diff. Ring6: Power-on/off4. Display 1: Backlight2: Greeting3: Version4: Language5: Animations5. PIM 1: Scheduler2: To Do List3: Calculator4: World Time5: D-DayMenu Map Main Menu Menu Level 1 Menu Level 2 6. Voice Dial 1: Record2: Review/Erase3: Erase All4: Set Active 7. Setup 1: Auto Retry2: Auto Receive3: Auto Hyphen4: Answer Mode5: Tone Length6: Tone7: Set Time8: SVC Light9: In Data/Fax0: terminal bps8. Web Browser0. Security 1: Lock2: Restrict 1: Phone Book2: Incoming3: Outgoing3: Lock Code4: Emergency #5: Send PIN6: Clear Memory 7: NAM Mode 1: Manual NAM2: Auto NAM8: Block Own #9: System Select 1: FM2: CDMA0: Reset Phone
CallsYou can use the Calls menu to:• View and dial the last outgoing or incoming numbers. • Erase the numbers in the Call Log memory.• View the duration of calls.Outgoing Menu 1-1The phone stores up to 10 outgoing calls you dialed. Whenyou access this menu, the list of outgoing calls is displayed.To ... Press ... Select an entry or key Dial the selected entry keyView the date and time keyat which the call was dialedand use option featuresWhen you press key, you can view the date/time stampfor the selected entry. If there is a Phone Book match, thename displays.Press key to access Options. The following options areavailable:Talk: dials the selected number.Show Entry (or Store if the phone number is not currentlystored in the Phone Book): shows the phonebook entry or stores the number in the PhoneBook.Prepend: allows to add an area code or feature code to thenumber before calling the number.32 Calls 33CallsIncoming Menu 1-2This option lets you view the last 10 calls received. (if you aresubscribed to the callerID service). When you access thismenu, the last incoming calls are displayed.To... Press ... Select entry or key Dial the selected entry keyView the date and time keyat which the call was receivedand use option featuresWhen you press key, you can view the date/time stampfor the selected entry. If there is a Phone Book match, thename displays.Press key to access Options. The following options areavailable:Talk: dials the selected number.Show Entry (or Store if the phone number is not currentlystored in the Phone Book): shows the phonebook entry (or stores the number) in the PhoneBook.Prepend: allows to add an area code or feature code to thenumber before calling the number.MENUOK/OK/OK/MENUOK/
Phone BookThe Phone book allows you to store frequently used phonenumbers and the associated names in your personal directoryto make it easy for you to make a call without having toremember or enter the phone number. You can store up to 229numbers.Find Name Menu 2-1This option displays the stored names in the Phone Book inalphabetical list.Press or key to scroll to the desired name. You canalso enter the first letter(s) of the name by pressing the associated alphanumeric key. Using this method, the phonesearches for the names in the list beginning with thatletter(s), and then displays the first name in that section ofthe list. When the desired entry displays, press key to place acall. If you press key, then key, you can accessthe following options:Talk: dials the number.Add Phone#: allows you to add several different types ofnumbers to the name, such as work office num-ber or mobile number.Edit: allows you to edit phone number, name, or entry number. Set Secret option prevents the number frombeing displayed on the screen. Set Speed Dial optionallows you to designate the number to be dialed as aspeed-dial number. For details, refer to page 19.34 Calls 35Phone BookErase Logs Menu 1-3You can erase the numbers stored in the Call Log memory.Outgoing: The numbers you called are erased. Incoming: The numbers you received are erased.All: All calls you dialed and received are erased.Air Time Menu 1-4Using this option, you can view the call time of the last call,as well as total air time for all calls since you last resetthe timer.Last Call: duration of the last callTotal: total duration of all calls made since the timer was lastreset.Erase Total: resets the call timers.OK/MENU
3. You are asked to select a label. The following labels areavailable: Home, Work, Mobile, Pager, Fax, No Label.After selecting the label, press key. 4. The first available location displays. To accept the dis-played location, press key. To select another location,press or key to scroll to the desired location orenter the location number using the number keys, thenpress key. Note:An entry’s location is also its speed-dial code5. To include a name with the entry, enter the desired name,then press key. For information on how to enter aname, see page 38.Adding a Number in an Existing Entry1. Enter a number and press key. The phone bookentries are displayed. 2. Select the entry you want to add a number to with or key, then press .3. Available labels are displayed. After selecting the desiredlabel, press key to save the setting.Storing Phone Numbers at Call EndTo store a phone number at your call end:1. Press key to end the call. The call time and thephone number display.2. To store the phone number, press key. 3. To complete storing the number, follow the instructionsmentioned above. 37Phone Book36 Phone BookPrepend: prepends the number to add an area code or feature code to the number before dialing.Erase: erases the number.Name Ringer: allows you to designate a unique tone to signal an incoming call by the number.Note: You can locate Phone Book entries quickly when thephone is in the idle mode. Press key to accessFind Name menu in one step and then press or key to scan entries.My Phone Number Menu 2-2You can check your phone number. If you have more than onephone number, press or key to check the next num-ber.Note: You can block this feature by setting Block OwnNumber option (0-8) to ON. Refer to page 59.Add Entry Menu 2-3This menu allows you to store a number with a name in yourPhone Book. You can save a person’s various numbers, suchas workplace number, mobile number and fax number, intoone entry. Using this feature, you can keep someone’s infor-mation together. It also helps you to find numbers easily in thePhone Book.Creating a New Entry1. Enter a number and press key. The phone bookentries are displayed. 2. Press key to confirm <New Name>. OK/OK/OK/OK/OK/OK/OK/OK/OK/OK/
SoundsYou can use the Sounds menu to customize various soundsettings, such as the:• Ring volume, type, and tone• Alert sounds• AlarmRing Menu 3-1Ring VolumeThis option allows you to adjust the ringing volume to one ofnine levels. You can also turn the ringer off. Use orkey (or or key on the left side of the phone). The morethe bars, the louder the volume. Note: During an incoming call, you can mute the ringer by pressing key. Ring TypeThis option allows you to indicate how you are to be informedof any incoming calls. The following options are available. BELL: The phone rings using the ring tone selected via themenu option.LAMP: The backlight is switched on and the lamp blinks; thephone neither rings nor vibrates.VIBRATOR: The phone vibrates but does not ring.VIB + BELL: The phone vibrates first, then rings.39Sounds38 Phone BookEntering a Name1. Press the key labeled with the desired letter. Since each key has three or more letters, press the keyrepeatedly until the desired letter appears in the display.2. Select the other letters in the same way.Notes•You can enter a special letter by pressing repeatedly.The available special letters are 1 . , ? ! @ $ % ^ & ( ) _ + - ={ } [ ] < > / | : ; ” \ ’~` .•The cursor moves to next available space when you pressa different key. When entering the same letter twice (or adifferent letter on the same key), just wait for a second forthe cursor to move automatically, and then select the nextletter. To delete letters, press key.Find Entry Menu 2-4This option allows you to find an entry by location number.Enter the location by pressing the number keys or pressor key to scroll to the desired location, then presskey to display the selected entry.When the desired entry displays, press key to place acall.If you press key, then key, you can access Options.For details on Options, refer to the Options under the FindName menu on page 35.OK/OK/MENU1. `
Ring ToneThis option allows you to select the required ringing tone. Youcan choose among 23 different tones or melodies. Each timeyou select a tone, it sounds for a few seconds.Data/FaxThis option allows you to be alerted with a distinct ringingtone when you are faxed or received a data through the phone(network dependent). You can choose between 23 differenttones or melodies. Each time you select a tone, it is played fora few seconds.Key Beep Menu 3-2This option allows you to adjust the tone volume that the keypad generates when you press a key. You can also use or key on the left side of the phoneto adjust key volume in the idle mode.Alert Menu 3-3Minute BeepWith this menu option set to ON, the phone sounds an alert10 seconds before each elapsed minute to remind you of thelength of the current call.Service AreaWith this menu option set to ON, the phone beeps when youexit service area or when you return to a service area. Alarm Menu 3-4The option allows you to set the alarm to ring at a specifictime.To set the alarm, proceed as follows.1. Select Set option.2. Choose the alarm frequency option, and press key.Daily: the alarm rings every day at the same time.One Time: the alarm rings only once and is then deactivated.3. Enter the required time.4. Press key.To stop the alarm when it rings, simply open/close the phoneor press any key.To deactivate the alarm, select Release option, then press key. Differential Ring Menu 3-5This option allows you to designate a unique ring to signal anincoming call by a stored caller number.You can specify up to 5 callers and select a unique ring tonefor each caller from 23 different tones and melodies.41Sounds40 SoundsOK/OK/OK/
Greeting Menu 4-2This option allows you to set a greeting message to be displayed in the idle mode. It is preset to . You canchange the greeting message according to your ownpreference.Enter your personal greeting up to 12 digits by using thealphanumeric keys. For more information on entering letters,refer to page 38.Version Menu 4-3This option allows you to view the software and hardwareversion of your phone. Language Menu 4-4Sets the language of voice promps, menu’s and key-input.Animations Menu 4-5This menu allows you to select animations displayed when youswitch the phone on and off. On Animation: You can select a power-on animation. Thereare three graphics to choose from.Off Animation: You can select a power-off animation. Thereare three graphics to choose from.43Display42 SoundsPower-on/off Menu 3-6This menu enables or disables the phone sounds when it isswitched on or off. The following options are available:Enable Disable: The phone sounds when it is switched on,and does not sound when off.Disable Disable: Neither does the phone sound when it isswitched on nor off.Enable Enable: The phone sounds both when it is switchedon and off.Disable Enable: The phone does not sound when it isswitched on, and sounds when off.DisplayBacklight Menu 4-1You can select whether or not the phone uses the LCD backlight. The following options are available.8 SECONDS: The backlight comes on when you press a keyor receive a call and switches off 8 secondsafter the last key is pressed.OFF: The backlight is not used.
Writing a MemoTo write or edit a memo on a specific date, proceed as follows.1. Select the required date in the calendar, using the navigation keys.Note: To skip to the previous or next month, press orkey on the left side of the phone. 2. Press key. The cursor blinks to allow you to enter the desired time.3. Enter the time and then press key to write a memo.4. Enter your memo and then press key.Note: For further details on how to enter characters, referto page 38.5. If you want the alarm to ring at the time on the chosen day,select an alert type: Melody Mode or Bell Mode.Selecting Sound Off does not ring at the selected time. 6. Press key. The phone saves your setting.Editing, Adding or Deleting a MemoIf you select a day for which a memo already exists, you canpress key to edit, add or delete the memo. The following options are available:Edit: allows you to edit the memo. Add: allows you to add a memo on the day.Del: allows you to delete the memo.After you select an option, press key. Then follow thewindow prompt.PIMPIM 4544PIM (Personal Information Manager)The PIM feature enables you to:• View the calendar and organize your schedule• Define a list of things to do• Use the phone as a calculator• Check the current time for 24 major cities around the world• Set and count D-Day• Play gamesScheduler Menu 5-1With the scheduler feature, you can:• Consult the calendar• Write memos to keep a track of your schedule and triggeran alarm if necessaryConsulting the CalendarWhen you select the Schedular menu option (5-1), the current month calendar is displayed with the day highlightedwith the cursor. To view the previous or next month, press or key onthe left side of the phone.To move the cursor, use the navigation keys. OK/OK/OK/MENUOK/
Calculator Menu 5-3Using this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions: addition, subtraction, multiplication and division. Using the Calculator1. Enter the first number using the numeric keys. 2. Press a navigation key until the required arithmetic symbolappears: + (add), - (subtract), x (multiply), / (divide).3. Enter the second number. 4. To calculate the result, press key.5. Repeat steps 1 to 4 as many times as required. Note: To erase any mistakes and clear the display, presskey.47PIM46 PIMTo Do List Menu 5-2This feature allows you to draw up a list of tasks to be done.Creating the To Do List1. Enter a task.Note: You can enter up to 32 characters. For further detailson how to enter characters, see page 38. 2. Press key two times and enter a desired due date forthe task.3. Press key.Editing the To Do ListIf a task is already defined in the To Do List, it is displayedwhen you select the To Do List menu option (5-2). Presskey to edit the content.The following options are available.Edit: allows you to edit the task. Add: allows you to add another task.Del: allows you to delete the task.Select an option, and press key. Then follow the window prompt.Note: A one hour difference from current time at destinationmay occur due to daylight saving time.OK/OK/OK/MENU

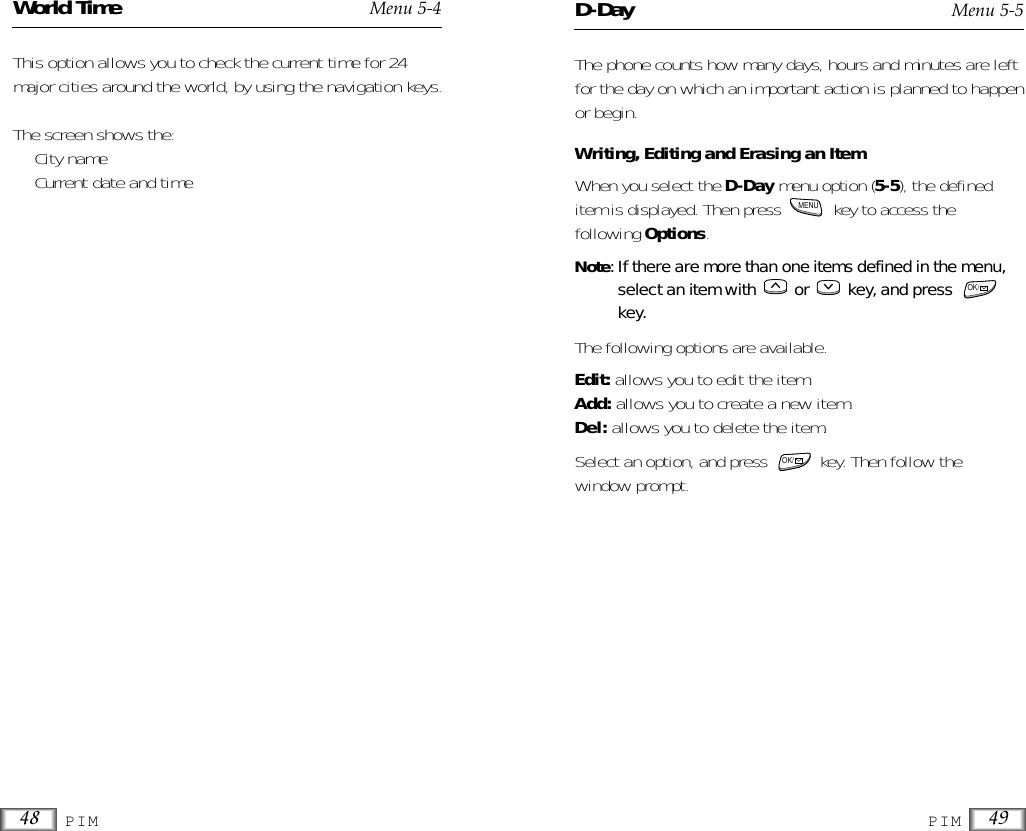

49PIM48 PIMD-Day Menu 5-5The phone counts how many days, hours and minutes are leftfor the day on which an important action is planned to happenor begin.Writing, Editing and Erasing an ItemWhen you select the D-Day menu option (5-5), the defineditem is displayed. Then press key to access the following Options.Note: If there are more than one items defined in the menu,select an item with or key, and presskey. The following options are available.Edit: allows you to edit the item. Add: allows you to create a new item.Del: allows you to delete the item.Select an option, and press key. Then follow the window prompt.MENUOK/OK/World Time Menu 5-4This option allows you to check the current time for 24major cities around the world, by using the navigation keys. The screen shows the:• City name• Current date and time

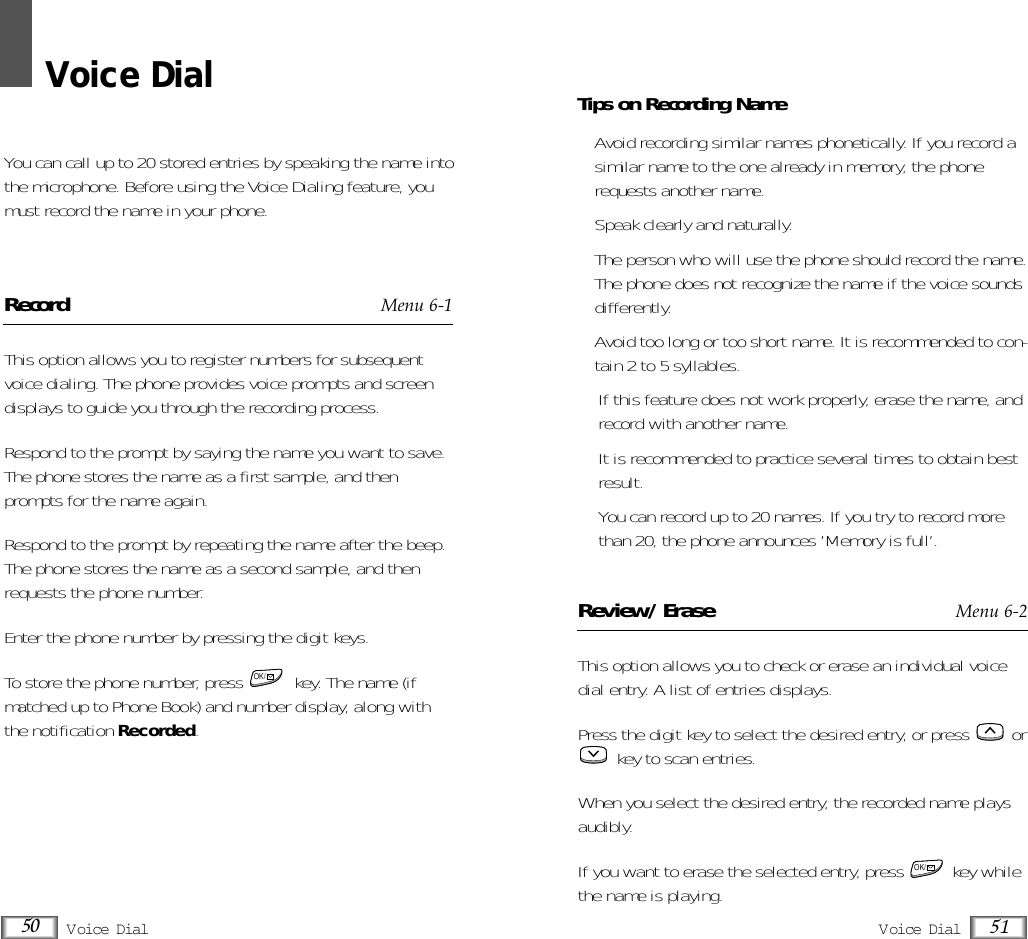

Voice DialYou can call up to 20 stored entries by speaking the name intothe microphone. Before using the Voice Dialing feature, youmust record the name in your phone.Record Menu 6-1This option allows you to register numbers for subsequentvoice dialing. The phone provides voice prompts and screendisplays to guide you through the recording process.Respond to the prompt by saying the name you want to save.The phone stores the name as a first sample, and thenprompts for the name again.Respond to the prompt by repeating the name after the beep.The phone stores the name as a second sample, and thenrequests the phone number.Enter the phone number by pressing the digit keys.To store the phone number, press key. The name (ifmatched up to Phone Book) and number display, along withthe notification Recorded.OK/V oice DialV oice Dial 5150Tips on Recording Name• Avoid recording similar names phonetically. If you record asimilar name to the one already in memory, the phonerequests another name.• Speak clearly and naturally.• The person who will use the phone should record the name.The phone does not recognize the name if the voice soundsdifferently.• Avoid too long or too short name. It is recommended to con-tain 2 to 5 syllables.• If this feature does not work properly, erase the name, andrecord with another name.• It is recommended to practice several times to obtain bestresult.• You can record up to 20 names. If you try to record morethan 20, the phone announces ’Memory is full’.Review/Erase Menu 6-2This option allows you to check or erase an individual voicedial entry. A list of entries displays.Press the digit key to select the desired entry, or press orkey to scan entries.When you select the desired entry, the recorded name playsaudibly. If you want to erase the selected entry, press key whilethe name is playing.OK/
SetupMany different features of your phone can be customized tosuit your preferences.Auto Retry Menu 7-1With this menu option set to ON, when you place a call andthe call does not connect, the phone automatically retries tomake the call.Auto Receive Menu 7-2With this menu option set to ON, the phone automaticallyanswers calls. This option is useful while driving, for instance.When a call comes in, your phone will answer the call automatically after 2 rings. The feature does not work if youhave chosen VIBRATOR as a ring type or set the ring volumeto off.Auto Hyphen Menu 7-3With this menu option set to ON, your phone automaticallyhyphenates numbers as follows: (area code)-(number). Digits following a pause are not hyphenated.Answer Mode Menu 7-4This menu option allows you to select an answer mode whenan incoming call comes. It is preset to Send=Answer.Erase All Menu 6-3This option allows you to delete all voice dialing entries.Press key, to confirm the deletion. Otherwise, press orkey to exit this menu without deleting the voice dialing entries.Set Active Menu 6-4Voice Dialing is always active once you have recorded a nameand have entered the associated phone number. To place acall using Voice Dialing, simply press and hold key inthe idle mode and then say the name into the phone after youhear the prompt.You can also initiate a Voice Dialing call just by opening theflip, when you select this option.[ ] only: Enables Voice Dialing only by pressing and holdingkey.[ ] / FOLDER: Enables Voice Dialing by pressing and holdingkey or by opening the flip.53Setup52 V oice DialOK/
Service Light Menu 7-8The SVC Light option allows you to select whether or not theservice light in the top right-hand corner of the phone is used.See the phone layout on page 8.The following options are available.OFF: the service light is not used.ON: blinks green to indicate phone is on and in a service area.Flashes red to indicate incoming call, alarm, or reminder.In Data/Fax Menu 7-9To send or receive data or fax through the phone, you have toset this option to Incoming Data Only or Incoming FaxOnly. When you want to use the phone for a normal voicecall, set to Off: Voice Call Only. The following options are available:Off: Voice Call Only: receives a call.Incoming Data Only: receives or sends data.Incoming Fax Only: receives or sends fax.terminal bps Menu 7-0When using PC, PDA, or Palm Top, you can select the datatransmission speed with this menu. If you are using PC Link,select AUTO or 19200 bps. If you are using MDR, select115200 bps.55Setup54 SetupThe following options are available:Open=Answer: The phone answers when you open the fold-er.AnyKey=Answer: The phone answers when you press anykey except key.Send=Answer: The phone answers when you presskey.Tone Length Menu 7-5Some phones you call can recognize only longer tones. Youmay have to change the length to LONG for some calls. Whencalling a paging system, your phone should be in the SHORTmode.Tone Menu 7-6Release Tone: You can set your phone to sound the releasetone when a call is disconnected or dropped.Connect Tone: You can set your phone to sound the connecttone when your call is connected to the system.Set Time Menu 7-7The option enables you to set the current date and time. Enterthe time and date. The current time, if set, displays. The month, day, hour andminute must be entered with 2 digits. The year requires allfour digits. If you do not input the time or you input the wrongtime, Invalid Time displays.

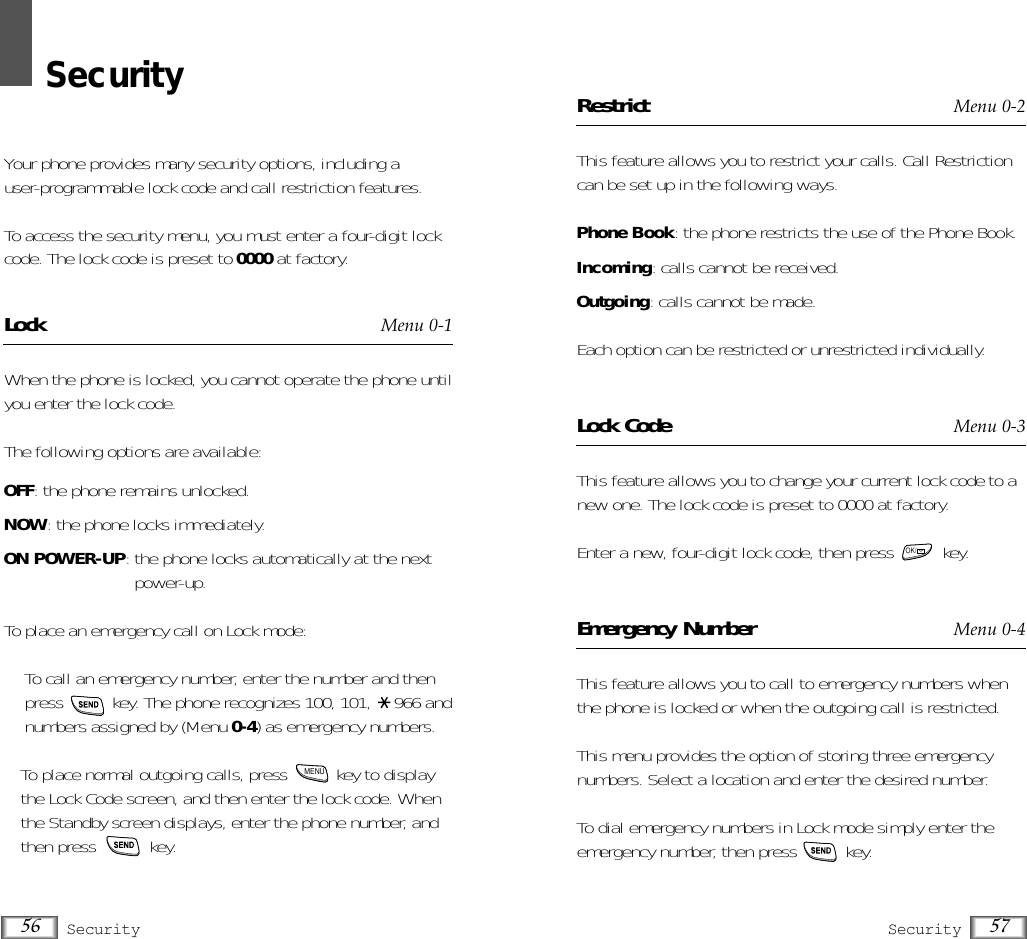

SecurityYour phone provides many security options, including a user-programmable lock code and call restriction features. To access the security menu, you must enter a four-digit lockcode. The lock code is preset to 0000 at factory.Lock Menu 0-1When the phone is locked, you cannot operate the phone untilyou enter the lock code. The following options are available:OFF: the phone remains unlocked.NOW: the phone locks immediately.ON POWER-UP: the phone locks automatically at the nextpower-up.To place an emergency call on Lock mode:• To call an emergency number, enter the number and thenpress key. The phone recognizes 100, 101, 966 andnumbers assigned by (Menu 0-4) as emergency numbers.• To place normal outgoing calls, press key to displaythe Lock Code screen, and then enter the lock code. Whenthe Standby screen displays, enter the phone number, andthen press key.57Security56 SecurityRestrict Menu 0-2This feature allows you to restrict your calls. Call Restrictioncan be set up in the following ways.Phone Book: the phone restricts the use of the Phone Book.Incoming: calls cannot be received.Outgoing: calls cannot be made.Each option can be restricted or unrestricted individually.Lock Code Menu 0-3This feature allows you to change your current lock code to anew one. The lock code is preset to 0000 at factory.Enter a new, four-digit lock code, then press key.Emergency Number Menu 0-4This feature allows you to call to emergency numbers whenthe phone is locked or when the outgoing call is restricted.This menu provides the option of storing three emergencynumbers. Select a location and enter the desired number.To dial emergency numbers in Lock mode simply enter the emergency number, then press key. MENUOK/
58 Security 59SecuritySend PIN Menu 0-5This feature prevents the phone from being used by unauthorized persons. The feature is only available if yoursystem supplier provides this service and you have a PINassigned by the system supplier.These options are available:Never: The option is not activatedPrompt: When you make a call, you are asked to send PIN.For information about this service in detail, contact your service provider.Clear Memory Menu 0-6This menu option enables you to clear all phone memories. All user-input in the phonebook, call logs, PIM, etc. will bedeleted.NAM Mode Menu 0-7The NAM (Number Assignment Module) enables you to subscribe to one or more service networks.The following options are available:Manual NAM: You set the phone to the network you want touse. You can select a NAM from a maximumof 2 NAMs. If you select a new network manually, the phone shows the greeting message and sounds the starting beep, andthen returns to the idle mode. For details,contact your service provider.Auto NAM: With this option set to ON, the phone selectsthe networks automatically based on systeminformation for the area you are in. Block Own Number Menu 0-8This feature allows you to block your own number display, andothers cannot view your phone number. If you turn this featureon, the message Blocked for phone number displays whenthe My phone # menu (2-2) is accessed.
60 Security 61MessagesMessagesYour phone receives voicemail notification, text messages,and pages. And your phone transmits text messages andpages if your system supplier provides this service. When thephone receives a message, an alert sounds, and a text notification displays. The icon remains on the screenuntil you read the pending text messages or until you listen tothe voicemail notification messages.Your phone can store up to 100 pages and text messages,depending on the length of the message. If the messagememory is full, a message is displayed and you cannot receiveany new messages. Delete obsolete messages.Received Messages 1The menu allows you to read voicemail notification, text messages, and pages.The following options are available: Voice ( 1-1): The screen displays the time, date and thenumber of new, unheard messages.Press key to access the following options.• Listen: You can listen to the voicemail. • Reset: You can reset manually the counter for voicemailmessages, if desired. (The system resets the counter automatically after you listen to all new messages.)MENUReset Phone Menu 0-0With this menu option, you can easily reset your phone to itsdefault configuration.Note: This option does not clear phone memories, but onlychanges back setting to their original state.System Select Menu 0-9With this menu option, you can select the system servicemode between FM(analog) and CDMA(digital). Each servicemode allows you to select a roaming option. Roaming is afeature which is only relevant in areas where there are atleast two cellular service providers having valid roamingagreements.Roaming, when available, allows you to register your phoneon one of the networks, but use the facilities of the other ifyour own network is not available. This system priority feature allows you to program your phone for optimum operation when within your home service area or when outside your home service area.Contact your home cellular service provider for information onthe availability of this feature and roaming agreements theyhave with other cellular service providers.There are five different roaming options:A Only: the phone uses A system only.A Pref: the phone tries A system first, then tries the other.B Only: the phone uses B system only.B Pref: the phone tries B system first, then tries the other.Home Only: the phone uses your home network only.
Page ( 1-2): An indexed list of page messages displays.An exclamation point next to an entry indicates an urgentmessage. A check mark next to an entry indicates that youhave read and stored the message.Select the desired message to review, then press key. After reviewing the message, press key to access thefollowing options.• Talk: To call the phone number.• Save #: To store the phone number in your Phone Book.• Erase: To erase the phone number in your Phone Book.• Next Mgs: To review the next message.• Previous Msg: To review the previous message.Text ( 1-3): An indexed list of text messages displays. An exclamation point next to an entry indicates an urgentmessage. A check mark next to an entry indicates that youhave read and stored the message.Select the desired message to review, then press key. After reviewing the message, press key to access thefollowing options. For details on Option, refer to the Page ( 1-2) menu.Via the Alert ( 1-4) menu, the phone alerts you when amessage is received. You can choose how frequently this happens. The three options are: EVERY 2 MIN, OFF, ONCE.To delete all text and page messages you have received,select Erase Msgs? ( 1-5).62 Messages 63MessagesOK/MENUMENUOK/Transmitting Messages 2The menu allows you to transmit pages and text messages,and to store the messages you have transmitted.The following options are available: Paging ( 2-1): When prompted, enter the desired destination address number, then the number you want to becalled back.Messaging ( 2-2): When prompted, write the messageand enter its destination address number, then the numberyou want to be called back. You can set text message’s priori-ty. Priority options are available: NORMAL, URGENT, EMERGENCY. The messages you have transmitted are stored in Tx Box ( 2-3). • Stored Msg: This menu allows you to read the stored messages you have transmitted.• Erase All: This menu allows you to erase all messages youhave transmitted.
65Using the Batteries64 AccessoriesAccessoriesBatteries Two types of Li-ion batteries are available for use with yourphone:• SLIM Battery (500 mAh)• STANDARD Battery (1000 mAh)Cigarette Lighter Adapter The Cigarette Lighter Adapter charges your phone in a vehiclewhile you drive and enables you to operate the phone from avehicle cigarette lighter socket.Travel Charger The Travel Charger plugs into a wall outlet and enables you tocharge a single battery at your home or office or while travel-ing.Hands-Free Car KitThe Hands-Free Car Kit provides safety, freedom and conve-nience in your vehicle. (Kit includes Cradle and Microphone.)Ear-MicrophoneThe Ear-Microphone includes both the earpiece and micro-phone in a convenient, lightweight unit.RS-232C CableThe RS-232C Cable connects your phone to a computer port,allowing you to use Internet or other communication programs.Using the BatteriesYour phone is powered by a rechargeable Li-ion standard battery. Additional batteries are available for purchase (ask your SAMSUNG dealer for further details):Precautions When Using Batteries• Never use any charger or battery that is damaged in anyway.• Use the battery only for its intended purpose.• If you use the phone near the network’s base station, ituses less power; talk and standby times are greatly affect-ed by the signal strength on the cellular network and theparameters set by the network operator.• Battery charging times depend on the remaining batterycharge and the type of battery and charger used. The bat-tery can be charged and discharged hundreds of times, butit will gradually wear out. When the operation time (talktime and standby time) is noticeably shorter than normal, itis time to buy a new battery.• If left unused, a fully charged battery will discharge itselfover time.
• Use only Samsung-approved batteries and recharge yourbattery only with Samsung-approved chargers. When acharger is not in use, disconnect it from the power source.Do not leave the battery connected to a charger for morethan a week, since overcharging may shorten its life.• Extreme temperatures will affect the charging capacity ofyour battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in acar in summer or winter conditions, as you will reduce thecapacity and life-time of the battery. Always try to keepthe battery at room temperature. A phone with a hot orcold battery may temporarily not work, even when the bat-tery is fully charged. Li-ion batteries are particularlyaffected by temperatures below 0 °C (32 °F).• Do not short-circuit the battery. Accidental short circuitingcan occur when a metallic object (coin, clip or pen) causesa direct connection between the + and - terminals of thebattery (metal strips on the back of the battery), for exam-ple when you carry a spare battery in a pocket or bag.Short-circuiting the terminals may damage the battery orthe object causing the short-circuit.• Dispose of used batteries in accordance with local regula-tions. Always recycle. Do not dispose of batteries in a fire.67Safety Information66 Using the BatteriesSafety InformationRoad Safety• Remember, road safety always comes first!• Do not use a hand-held phone while driving a vehicle.Always park the vehicle before having a conversation.• Make sure that the phone is stored safely and will not fallor be broken in the event of a collision or emergency stop.• The use of an alert device to operate a vehicle’s lights orhorn on public roads is not permitted.• Only qualified personnel should install or service the phonein a vehicle. Faulty installation or service may be danger-ous and may invalidate any warranty applicable to the unit.• Electronic fuel injection, anti-skid braking, electronic cruisecontrol or any other electronic systems may malfunctiondue to the lack of protection from radio signals. Check regularly that all cellular phone equipment in your vehicleis mounted and operating correctly.Operating Environment• Remember to follow any special regulations in force in anyarea and always switch off your phone whenever it is for-bidden to use it, or when it may cause interference or dan-ger (in a hospital for example).
69Safety Information68 Safety InformationCare and MaintenanceYour phone is a product of superior design and craftsmanshipand should be treated with care. The suggestions below willhelp you fulfill the warranty obligations and enjoy this productfor many years.• Keep the phone and all its parts and accessories out of thereach of small children.• Keep the phone dry. Precipitation, humidity and liquids con-taining minerals will corrode the electronic circuits.• Do not use or store the phone in dusty, dirty areas as itscomponents may be damaged.• Do not store the phone in hot areas. High temperatures canshorten the life of electronic devices, damage batteries andwarp or melt certain plastics.• Do not store the phone in cold areas. When the phonewarms up (to its normal temperature), moisture can forminside the phone, which may damage the electronic cir-cuits.• Do not attempt to open the phone. Non-expert handling ofthe phone may damage it.• Do not drop or knock the phone. Rough handling may damage the internal circuits.• Operation of any radio transmitting equipment, includingcellular phones, may interfere with inadequately protectedmedical devices. Consult a physician or the manufacturerof the medical device if you have any questions. Otherelectronic equipment may also be subject to interference.• As with other mobile radio transmitting equipment, you areadvised that for satisfactory operations and personal safety, the equipment should only be used in the normaloperating position.• Always switch off the phone when at a refuelling point(service station). You are reminded of the need to observerestrictions on the use of radio equipment in fuel depots(fuel storage and distribution areas), chemical plants orwhere blasting operations are in progress.• Do not store or carry flammable liquids, gases or explosivematerials in the same compartment as the phone, its partsor accessories.• Switch off your cellular phone when in an aircraft. The useof cellular phones in an aircraft is illegal and may be dangerous to the operation of the aircraft or disrupt thecellular network. Failure to observe these instructions maylead to the suspension or denial of cellular telephone ser-vices to the offender, legal action or both.

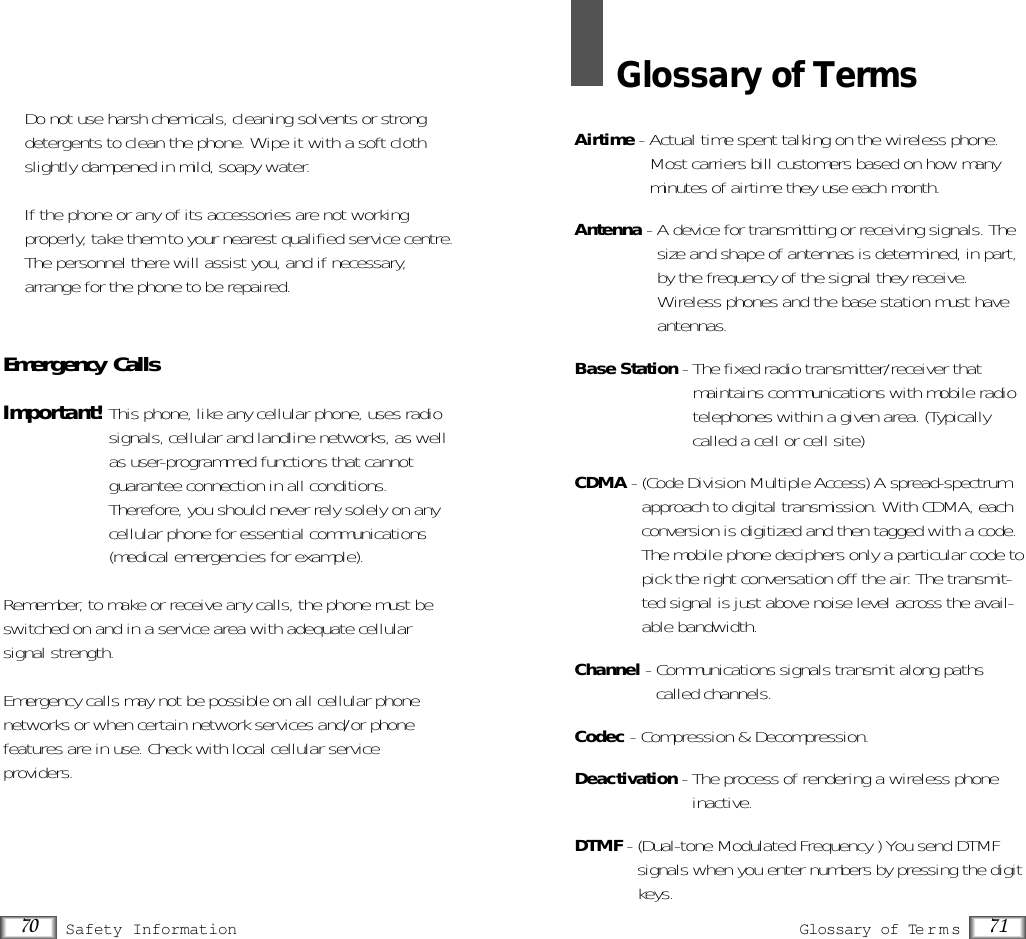

71Glossary of Terms70 Safety Information• Do not use harsh chemicals, cleaning solvents or strongdetergents to clean the phone. Wipe it with a soft clothslightly dampened in mild, soapy water.• If the phone or any of its accessories are not working properly, take them to your nearest qualified service centre.The personnel there will assist you, and if necessary,arrange for the phone to be repaired.Emergency CallsImportant!This phone, like any cellular phone, uses radiosignals, cellular and landline networks, as wellas user-programmed functions that cannotguarantee connection in all conditions.Therefore, you should never rely solely on anycellular phone for essential communications(medical emergencies for example).Remember, to make or receive any calls, the phone must beswitched on and in a service area with adequate cellular signal strength.Emergency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use. Check with local cellular serviceproviders.Glossary of TermsAirtime - Actual time spent talking on the wireless phone.Most carriers bill customers based on how manyminutes of airtime they use each month.Antenna - A device for transmitting or receiving signals. Thesize and shape of antennas is determined, in part,by the frequency of the signal they receive.Wireless phones and the base station must haveantennas.Base Station - The fixed radio transmitter/receiver thatmaintains communications with mobile radiotelephones within a given area. (Typicallycalled a cell or cell site)CDMA - (Code Division Multiple Access) A spread-spectrumapproach to digital transmission. With CDMA, eachconversion is digitized and then tagged with a code.The mobile phone deciphers only a particular code topick the right conversation off the air. The transmit-ted signal is just above noise level across the avail-able bandwidth.Channel - Communications signals transmit along pathscalled channels.Codec - Compression & Decompression.Deactivation - The process of rendering a wireless phoneinactive. DTMF - (Dual-tone Modulated Frequency ) You send DTMFsignals when you enter numbers by pressing the digitkeys.
73Glossary of Terms72 Glossary of TermsEVRC - (Enhanced Variable Rate Codec) EVRC is a new globalstandard for compressing and decompressing voicesignals. EVRC uses a lower bit rate (the number of bitssent per second) than existing CDMA vocoders, whileproviding significant improvements in voice quality.This technology enables your phone to provide superbvoice quality while benefiting from the ability toprocess more cellular voice calls using less bandwidththan the voice codecs in CDMA networks today.Frequency - A measure based on time, as one or more wavesper second, in an electrical or light wave infor-mation signal. A signal’s frequency is stated incycles-per-second or Hertz (Hz).Hands-Free - A feature that permits a driver to use a wire-less phone without lifting or holding the handset - an important safety feature for automobiles, tractors and most other motorizedvehicles.LCD - (Liquid Crystal Display) Commonly used to refer to thescreen display on the wireless phone.LED - (Light Emitting Diode) Commonly used to refer to asmall light on the wireless phone or on the DesktopCharger. The LED lights on the phone to indicate anincoming call. The lights on the charger indicate thatbattery charging is taking place.Prepend - The addition of a prefix, such as an area code, to aphone number.RF - Radio FrequencyRoaming - The ability to use a wireless phone to make andreceive calls in places outside of the home servicearea.Service Charge - The amount paid each month to receivewireless service.Standby Time - The amount of time a fully charged wirelessportable or transportable phone can be onand idle without being in use. (See Talk Time)Talk Time - The length of time a person can talk on aportable or transportable wireless phone withoutrecharging the battery.Vocoder - Voice Coder. A device used to convert speech intodigital signals.Voicemail - A computerized answering service that answersa call, plays a greeting and records a message.Depending on the sophistication of the service, itcan notify the subscriber, via a pager, of anincoming call or message. (Also called voicemessaging)Wireless - Radio-based Systems that allow transmission oftelephone or data signals through the air withouta physical connection, such as a metal wire (copper) or fiber optic cable.
SCH-A105 Quick Reference CardBASIC OPERATIONMake a call Phone number + SENDReceive a call SEND or Open the phoneAdjust speaker (in conversation mode)volume „/Scan the last calls SEND + 0r and dial + SENDSwitch to vibration Press and hold modeVoice dial Press and hold Record voice memo Press and hold INTERNAL PHONE BOOKStore a new Phone number + OK + OKnumber Label + OK + OK (or assign into memory another location + OK)+ name + OKSpeed dial One Touch (001~009): Hold down the third digit.Two-Touch (010~099): Press the seond digit briefly, then hold down the third digit.Three-Touch (100~229): Press the first and the second digit briefly, then hold down the third.Scan memories • name + Name ( 0r ) + OK• location + 0r + OKErasing a 0r + 0r specific entry + OK + MENU + 5 + OK75Quick Reference Card74 Phone and Battery SpecificationPhone and BatterySpecificationsDescriptionItemDimensions (HWD) 80 x 42 x 23 mmWeight 66 gBattery Type Slim BatteryDescriptionItem500 mAh Lithium-Ion 1000 mAh Lithium-IonDimensions (HWD) 72 x 41 x 6 mm 72 x 41 x 8 mmWeight 21 g 48 gStandard BatteryPhone (without battery)BatterySlim BatteryDescriptionItemDimensions (HWD) 80 x 42 x 23 mm 80 x 42 x 25 mmWeight 87 g 114 gStandard BatteryPhone (with battery)
76 Quick Reference CardMENU TREEMain Menu (To access, press MENU)1 : Calls 1 : Outgoing2 : Incoming3 : Erase Logs4 : Air Time2 : Phone Book 1 : Find Name2 : My Phone #3 : Add Entry4 : Find Entry3 : Sounds 1 : Ring 2 : Key Beep 3 : Alert 4 : Alarm5 : Diff. Ring6 : Power-on/off4 : Display 1 : Backlight2 : Greeting3 : Version4 : Language5 : Animations5 : PIM 1 : Scheduler2 : To Do List3 : Calculator4 : World Time5 : D-Day6 : Voice Dial 1 : Record2 : Review/Erase3 : Erase All4 : Set Active7 : Setup 1 : Auto Retry2 : Auto Receive3 : Auto Hyphen4 : Answer Mode5 : Tone Length6 : Tone7 : Set Time8 : SVC Light9 : In Data/Fax0 : terminal bps8 : Web Browser0 : Security 1 : Lock2 : Restrict3 : Lock Code4 : Emergency #5 : Send PIN6 : Clear Memory7 : NAM Mode8 : Block own #9 : System Select0 : Reset PhoneLicensed by QUALCOMM Incorporated under one or more of the following Patents.U.S Patent No. 4,901,307 5,056,109 5,099,2045,101,501 5,103,459 5,107,2255,109,390
