For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone

3Safety Quick Guide ..................................................................... 7Unpacking ..................................................................................... 9Your PhonePhone Layout ................................................................................. 10Display .......................................................................................... 13Service light ................................................................................... 15Getting StartedInstalling a Battery .......................................................................... 16Charging a Battery .......................................................................... 17Switching the Phone On/Off ............................................................ 20Your Phone’s Mode ......................................................................... 21Call FunctionsMaking a Call .................................................................................. 23Redialing the Last Number................................................................ 24Emergency Dialing............................................................................ 24Prepend Dialing................................................................................ 25Making a Call from the Phonebook................................................... 25Speed Dialing................................................................................... 26Pause Dialing................................................................................... 27Voice Dialing.................................................................................... 30Adjusting the Volume........................................................................ 31Answering a Call .............................................................................. 32In-call Options ................................................................................. 33Using Caller ID ................................................................................ 34Viewing Missed Calls ........................................................................ 34Three-Way Calling ........................................................................... 35Call Waiting ..................................................................................... 36Call Forwarding ............................................................................... 36Table of Contents

4 5Entering TextChanging Text Input Mode ............................................................... 38T9 Mode .......................................................................................... 39ABC Mode ....................................................................................... 41Symbol Mode .................................................................................. 43123 Mode ....................................................................................... 43Using the MenusAccessing q Menu Function by Scrolling ............................................ 44Accessing a Menu Function by Using its Shortcut................................ 45List of Menu Functions ..................................................................... 46CallsOutgoing (MENU 1-1) ............................................................... 48Incoming (MENU 1-2) ............................................................... 49Missed (MENU 1-3).................................................................... 49Erase History (MENU 1-4) .......................................................... 49Air Time (MENU 1-5) ................................................................. 50Phone BookFind (MENU 2-1) ...................................................................... 57Add (MENU 2-2) ....................................................................... 52Group Setting (MENU 2-3) ........................................................ 55My Phone # (MENU 2-4)............................................................ 55Memory (MENU 2-5) ................................................................ 55MessagesNew Message (MENU 3-1) .......................................................... 56Voice (MENU 3-2) ...................................................................... 59Inbox (MENU 3-3) ..................................................................... 59Outbox (MENU 3-4) ................................................................... 60Filed Message (MENU 3-5)......................................................... 61Web Alert (MENU 3-6)................................................................ 62Erase Message (MENU 3-7) ........................................................ 62Message Setup (MENU 3-8)........................................................ 63Wireless WebGet In Web (MENU 4-1)............................................................. 66Prompt (MENU 4-2) .................................................................... 69PlannerToday (MENU 5-1) ................................................................... 70View Month (MENU 5-2) ........................................................... 71Jump To Date (MENU 5-3) ........................................................ 72To Do List (MENU 5-4) .............................................................. 73Memo Pad (MENU 5-5) ............................................................ 74Count Down (MENU 5-6) .......................................................... 75Alarm Clock (MENU 5-7) .......................................................... 76World Time (MENU 5-8) ............................................................ 77Calculator (MENU 5-9) ............................................................. 78VoiceVoice Dial (MENU 6-1) .............................................................. 79Voice Memo (MENU 6-2) .......................................................... 82Voice Answer (MENU 6-3).......................................................... 84SoundsRinger Volume (MENU 7-1) ...................................................... 87Ringer Type (MENU 7-2) .......................................................... 88Tone Length (MENU 7-3) .......................................................... 89Alerts (MENU 7-4) .................................................................... 89Roam Ringer (MENU 7-5) .......................................................... 90DISPLAYAnimation (MENU 8-1) ............................................................. 91Greeting (MENU 8-2) ............................................................... 92Backlight (MENU 8-3) .............................................................. 92Contrast (MENU 8-4) ................................................................ 93Auto Hyphen (MENU 8-5) ......................................................... 93Dual Clock (MENU 8-6) ............................................................ 94Games........................................................................................... 95

6 7Safety Quick GuideRead these guidelines before using your wirelessphone. Failure to comply with these guidelines may bedangerous or illegal. For more detailed safetyinformation, see “Health and Safety Information” onpage xx.Road safety comes firstDo not use a hand-held phone while driving; park thevehicle first. Switch off when refuellingDo not use the phone at a refuelling point (servicestation) or near fuels or chemicals.Switch off on aircraftWireless phones can cause interference. Using themon aircraft is both illegal and dangerous.Switch off in hospitalSwitch off your phone near medical equipment.Follow any regulations or rules in force.InterferenceAll wireless phones may get interference which couldaffect performance.Respect special regulationsFollow any special regulations in force in any area andalways switch off your phone whenever it is forbiddento use it, or when it may cause interference or danger(in a hospital for example).SetupAuto Answer (MENU 0-1) .......................................................... 96Answer Mode (MENU 0-2) ......................................................... 96Auto Retry (MENU 0-3) ............................................................. 97Language (MENU 0-4) .............................................................. 97Set Time (MENU 0-5) ................................................................ 97Set NAM (MENU 0-6) ............................................................... 98Set System (MENU 0-7) ............................................................. 98Data/Fax (MENU 0-8) .............................................................. 99Version (MENU 0-9) ................................................................ 101Security (MENU 0-0) ............................................................... 101HEALTH and Safety informationPrecautions When Using Batteries .................................................. 105Road Safety .................................................................................. 107Operating Environment................................................................... 109Electronic Devices .......................................................................... 110Potentially Explosive Atmospheres .................................................. 112Emergency Calls ............................................................................ 113Other Important Safety Information................................................ 114Care and Maintenance.................................................................... 115Glossary ........................................................................ 117Index............................................................................. 120Quick Reference Card..................................................... 123

8SSaaffeettyy QQuuiicckk GGuuiiddee9Use sensiblyUse only in the normal position (to ear). Avoidunnecessary contact with the antenna when the phoneis switched on.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use qualified serviceOnly qualified service personnel may install or repairyour phone. Travel AdapterHandset BatteryUser’s ManualHand strapUnpackingYour package contains the following items.In addition, you can obtain the following accessoriesfor your phone from your local Samsung dealer.• Ear-microphone• Cigarette lighter adapter• Battery charger• Hands-free car kit• Extended and standard batteries• Data cable• Leather case

1110YYoouurr PPhhoonneeEnters the menu facility. Also, scrollsthrough the menu options.In the menu facility, scroll through themenu options and Phonebook memory.In Standby mode, enters the Findmenu, enters the Ring Tone menu,enters the Voice Memo menu andenters the View Month menu. Key FunctionsAntennaIn the menu facility, selects a menu functionor stores information that you have entered,such as a name in the phone memory. In Standby mode, enters the Messagemenu.MicrophoneEarpieceMain DisplayYour PhonePhone LayoutThe following illustrations shows the main elements ofyour phone. Service lightExternalDisplayEar-microphonejackVolumeKeysOpen ViewClosed ViewEnters the Wireless Web menu.When held down, quickly launches the WebBrowser.

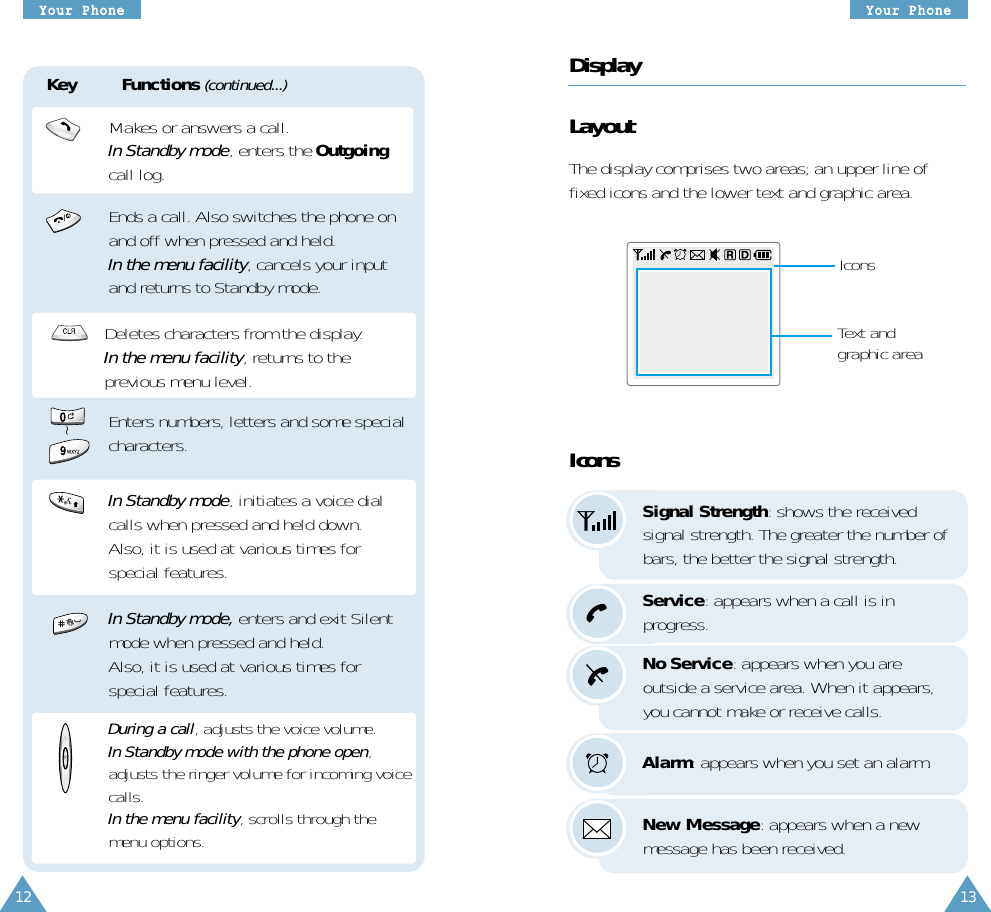

1312DisplayLayoutThe display comprises two areas; an upper line offixed icons and the lower text and graphic area. IconsText andgraphic areaSignal Strength: shows the receivedsignal strength. The greater the number ofbars, the better the signal strength.IconsService: appears when a call is inprogress.No Service: appears when you areoutside a service area. When it appears,you cannot make or receive calls. YYoouurr PPhhoonneeYYoouurr PPhhoonneeKey Functions (continued...)Alarm: appears when you set an alarm.During a call, adjusts the voice volume.In Standby mode with the phone open,adjusts the ringer volume for incoming voicecalls. In the menu facility, scrolls through themenu options.Ends a call. Also switches the phone onand off when pressed and held. In the menu facility, cancels your inputand returns to Standby mode.Makes or answers a call.In Standby mode, enters the Outgoingcall log.New Message: appears when a newmessage has been received.Enters numbers, letters and some specialcharacters.~In Standby mode, enters and exit Silentmode when pressed and held.Also, it is used at various times forspecial features.Deletes characters from the display.In the menu facility, returns to theprevious menu level.In Standby mode, initiates a voice dialcalls when pressed and held down.Also, it is used at various times forspecial features.

1514BacklightThe display and the keys of your phone are illuminatedby a backlight. When you press any key, the backlightilluminates. It turns off if no key is pressed within agiven period of time, depending on your setting of theBacklight menu option. The backlight remains on atall times when the phone is connected to an optionalcar kit.To specify the length of time for which the backlight isactive, set the Backlight menu option (MENU 8-3);see page xx for further details.External DisplayYour phone has an external display on the cover. It alsoshows Signal strength, Vibrator, and Battery Strengthicons. It indicates that you have an incoming call ormessage, missed calls and alarms you at the specifiedtime when you set an alarm.When you press and hold the one of the volume keyswith the phone closed, the backlight of the externaldisplay illuminates.Service LightThe service light is at the top right corner of yourphone. It flashes to indicate incoming call or message.Also, the service light flashes for a few seconds whenyou turn the phone on.Mute Mode: appears when your phone’smicrophone is off.Roaming: appears when you are out ofyour home area and have registered onto adifferent network, when travelling in othercountries, for example.Vibrator: appears when your phone is inSilent mode or the ringer volume for voicecalls is set to Vibrate. An incoming callwill vibrate the phone rather than ring it.Digital Mode: indicates that your phone is inDigital mode. 1X mode: indicates that your phone is in 1Xmode (what is this???).Analog mode: indicates that your phone isin Analog mode. Battery Strength: shows the level of yourbattery capacity. The more bars you see,the more power the battery has.YYoouurr PPhhoonneeYYoouurr PPhhoonnee

17GGeettttiinngg SSttaarrtteedd16Getting StartedInstalling BatteryYour Samsung phone comes packaged with a partiallycharged, rechargeable Li-ion battery.To install the battery:1. Place the battery on the phone to insert the twotabs at the bottom of the battery into thecorresponding grooves of the phone. To remove the battery:1. If necessary, switch off the phone by holdingdown until the Closing animation appears.2. Push up and hold the catch above the battery andlift the battery away.Charging a BatteryThe travel adapter allows you to charge your phone’sbattery from any AC standard wall outlet. Using thetravel adapter allows you to make a phone call whilethe battery is charging, but this will cause the phoneto charge the battery more slowly.You must fully charge the battery before using thephone for the first time. The travel adapter will fullycharge an “empty” standard battery in approximately 4hours.2. Push the battery down until it snaps into place.Make sure that the battery is properly installedbefore switching the phone on.

19GGeettttiinngg SSttaarrtteedd18GGeettttiinngg SSttaarrtteeddLow Battery IndicatorYou can easily tell if your battery needs to berecharged by checking the Battery Strength icon at the top right corner of your phone’s display. Thepresence of all three bars indicates a full charge, twobars indicates a smaller charge, and one bar indicatesan even smaller charge. No bars (the battery icon isempty) means that your battery need to be charged.When the battery charge level gets low, the batterysensor blinks an empty Battery Strength icon andsounds a beep. If the battery level gets too low, thephone will turn off automatically. Unfortunately, if thishappens, you’ll lose whatever you are doing, includingdropping your call. Watch the Battery Strength iconand make sure your battery is adequately charged.4. When charging is finished (the light turns green), disconnect the adapter from the power outlet and from the phone.To charge the battery:1. With the battery in position in the phone, plug theconnector of the adapter into the jack at the bottomof the phone.2. Connect the adapter to a wall outlet. The batterywill begin charging immediately, and the servicelight will flash and remain red while the BatteryStrength icon animates.The service light indicates the status of the batterybeing charged.• Red: the battery is being charged.• Green: the battery is fully charged.• Yellow: the battery is not plugged in correctly oroperating at a temperature that is too high or toolow. Please check the adapter and/or battery.

21GGeettttiinngg SSttaarrtteedd20GGeettttiinngg SSttaarrtteeddSwitching the Phone On/Off1. Hold down for more than one seconds toswitch the phone on.The service light on the phone flashes, and an alertsounds. When the system locates services, thegreeting message displays along with the currentdate and time.You can now place and receive calls.If the phone is out of service, the No Service iconappears on the display. In this case, you cannotmake and receive calls. Try again later when serviceis available.Note: You can change the LCD display language. Tochange the language, use the Language menuoption (MENU 0-4); for further details, refer to pagexx.2. When you wish to switch the phone off, hold downfor more than two seconds.Your Phone’s ModeStandby ModeStandby is the most basic state of your phone. Thephone goes into Standby mode soon after you turn iton or whenever you briefly press . When yourphone is in Standby mode, you will typically see thegreeting message and current date and time. If youenter a phone number, you can press to dial it orpress to save it in the internal Phonebook. Press at any time to return to Standby mode. Becareful; if you are on a call when you press , youwill return to Standby mode, but it also disconnectsthe call. Press several times or hold it down toreturn to Standby mode without ending the call.The Main Menu can be accessed when you are inStandby mode.WARNING!Do not switch on the phone when the mobile phoneuse is prohibited or when it may cause interferenceor danger.Note: As with any other radio-transmitting device,do not touch the antenna unnecessarily when thephone is switched on. Contact with the antenna ofyour phone affects call quality and may cause thephone to operate at a higher power level thanotherwise needed.10/50am04/05 Fri10:55The image fileis required.

Call FunctionsMaking a CallIn Standby mode, key in the area code and phonenumber and press .Note: If you have set the Auto Retry menu option(MENU 0-3) have been enabled (see page xx),the phone automatically retries to make the callwhen the line is busy or the remote person doesnot answer you.While entering a phone number, press to insert apause or hyphen between the numbers. For furtherinformation about pause dialing, see page xx.Correcting the NumberTo clear ... Then ....The last digit displayed Press .The whole display Hold down formore than one second.Ending a CallWhen you have finished your call, briefly pressor close the folder.If you press , the call time, or length of the calldisplays briefly and the phone returns to Standbymode.2322GGeettttiinngg SSttaarrtteeddTalk ModeYou can place and answer calls only when your phoneis turned on. During a call, the phone is in Talk mode.While you are in Talk mode, pressing gives you alist of options referred to as “In-call Options.” Seepage xx for further information about the options.Power Save ModeYour phone comes with a Power Save feature that willautomatically be activated if your phone is unable tofind a signal after 10 minutes of searching. While thisfeature is active, the phone’s battery charge willconserved. The phone will automatically recheck for asignal periodically. To manually force the phone torecheck for a signal, press any key. A message on thedisplay lets you know when your phone is operating inPower Save Mode.

Prepend DialingThe Prepend option lets you add digits such as areacodes and network feature activation codes to a phonenumber that is in your call log entries. 1. Access the desired phone number in the call log bypressing and scrolling through the call list.You can also access the outgoing, incoming ormissed call logs via the Calls menu of the mainmenu facility. See page xx.2. Press to access the Options menu.3. Press to select Prepend.4. Enter the area code or feature code.5. Press to dial the displayed number.Making a Call from the PhonebookYou can store the frequently-used phone numbers witha name in memory, called the Phonebook. You thensimply recall the number to dial. For furtherinformation about the Phonebook, refer to page xx.24CCaallll FFuunnccttiioonnss25CCaallll FFuunnccttiioonnssRedialing the Last CallTo redial the last call you made, press twicequickly.Your phone stores the last 10 outgoing calls. To recallany of these numbers:1. If there are any characters on the display, press to return to Standby mode.2. Press . The list of the call logs is displayed.3. Use and to scroll through the list untilyou select the required name or number.4. Press to dial the displayed number.Emergency DialingYou can place emergency call from your emergencynumber list even if your phone is locked or all outgoingcalls are restricted. For further information aboutemergency numbers, refer to page xx.

26CCaallll FFuunnccttiioonnss27CCaallll FFuunnccttiioonnssSpeed DialingOnce you have stored phone numbers in thePhonebook memory, you can dial them easily any timeyou want.One-Touch DialMemory locations 001 through 009 are special one-touch locations. You can dial the phone numbersstored in the Phonebook memory from 001 through 009simply by pressing one button. Press and hold the third digit of the memory location number.For example: Location no. 009Press and hold .The number (and name) stored is displayed, thendialed.Two-Touch DialMemory locations 010 through 099 are special two-touch locations.Press the second digit briefly and hold down the thirddigit of the memory location number.For example: Location no. 023Press briefly and hold down .The number (and name) stored is displayed and thendialed.Three-Touch DialMemory locations 100 through 500 are special three-touch locations.Press the first and the second digit briefly, then holddown the third digit of the memory location number .For example: Location no. 123Press and briefly, and holddown .The number (and name) stored is displayed and thedialed.Note : When several numbers are saved in onelocation, only the phone number which is specifiedwith the Speed Dial tag will be automatically dialed.For details, see page xx.Pause DialingWhen you call automated system, like bankingservices, you often need to enter a password oraccount number. Instead of manually entering thenumbers each time, you can store the numbers in yourPhonebook, separated by special characters calledpauses.

29CCaallll FFuunnccttiioonnss28CCaallll FFuunnccttiioonnssStoring Pauses in a Phonebook EntryTo store a number in your Phonebook that containspauses:1. Enter the phone number you want to store, such asthe bank’s teleservice phone number.2. Press . The menu options display.3. Press or to highlight one of the twopause menu options.• P pause: The letter “P” displays, meaning that ahard pause will occur at that point in the callingsequence. • T pause: The letter “T” displays, meaning that atimed, or 2-second pause will occur at that point inthe calling sequence. 4. Press to select an option. 5. Enter digits that need to follow the pause.6. Store the number in your Phonebook as you normallywould by pressing and following the screenprompts. For further information about storing a number, seepage xx.Pause Dialing from a Stored Phonebook Entry1. Dial the number from the Phonebook.2. If you stored the number using “T” pause, simplycall the number form the Phonebook.If you stored the number using “P” pause, wait forthe appropriate prompt for the number, such ascredit card number or bank account number. 3. When prompted, press to send the DTMFnumber that follows your pause.Manual Pause DialingYou can enter pauses manually during the dialingprocess.1. Enter the phone number of the service you want toconnect to, such as a bank’s teleservice phonenumber.2. Press . The pause menu options display.3. Use and to highlight the one of thetwo pause menu options, P pause or T pause.4. Press to select an option. Continue enteringthe number.5. When entering the number is completed, pressto dial the number.

Adjusting the VolumeDuring a call, if you want to adjust the voice volume,use the volume keys on the left side of the phone. Press to increase and to decrease the volume.The illustration shows the volume level. The more barsyour see, the louder the volume is.31CCaallll FFuunnccttiioonnss30CCaallll FFuunnccttiioonnssVoice DialingYou can dial a phone number only by speaking a name.Before using the Voice Dialing feature, you mustprogram your phone to recognize the name andnumber by using the Voice Dial menu. For furtherinformation, see page xx.Note: The voice Dialing feature does not work whenyour phone is in Analog mode.1. To place a call, press and hold or open thephone, depending on the Set Active menu option (MENU 6-1-4). See page xx .2. At the voice prompt, say the name into themicrophone.• If the phone recognizes the name, the phone attempts a connection.• If the phone does not recognize the name, thescreen prompts for the name again.• If the phone is unable to recognize the name aftertwo attempts, the message “Cannot RecognizeName. Please check name” is displayed. Try thecall again later, or check the recorded name. 3. The phone dials the corresponding number.In Standby mode, you can adjust the ring volume forvoice calls by using these keys.

In-call OptionsYour phone provides a number of functions that you canuse during a call. You may not utilize all of thesefunctions at all times. Many of the In-call options arenetwork services. Press during a call to access the following In-call options.Phone Book: allows you to use the Phone Bookmenu.Mute/Quit: allows you to switch your phone’s microphone off, so that the other party cannot hear you. Example: You wish to say something to another personin the room but do not want the other party to hear you.Silent/Quit: does not transmit the key tones. It allowsyou to press keys without hearing annoying key tonesduring a call.Send Tel #: sends your telephone number to the otherparty.My Phone #: shows your phone number.SEND: sends DTMF tones of the currently displayednumber. DTMF (Dual Tone Multi Frequency) tones can beused to control electronic phone services such as bank-by-phone or voice mail. During a call, key in the digitsyou want to send as DTMF tones, for example, the bankaccount number and password. Then, press .32CCaallll FFuunnccttiioonnss33CCaallll FFuunnccttiioonnssAnswering a CallWhen somebody calls you, the phone sounds theringer and shows the animated Phone icon in themiddle of the LCD display.If the caller can be identified, the caller’s phonenumber or name (if stored in your Phonebook) alsoappears. 1. To answer a call press .If the Answer Mode menu (MENU 0-2) is set toBy AnyKey, you can answer a call only by pressingany key except for .2. End the call by pressing or closing the folder.Note: You can answer a call while using thePhonebook or menu features. The current operationwill be interrupted.

34CCaallll FFuunnccttiioonnss35CCaallll FFuunnccttiioonnssUsing Caller IDThis feature tells you who is calling you by displayingthe caller’s number when the phone rings. If a caller’sname and number are stored in your Phonebook, thecorresponding name is also displayed. If you callsomeone who has this feature, your phone number willbe displayed on the their phone.Note: Contact your service provider to set up theCaller ID service.Viewing Missed CallsYour phone keeps a list of calls that you do not answerwhen the phone is on and the caller is identified. Thephone indicates a missed call by displaying a textnotification on the screen. Additionally, if callerinformation is available, the screen displays the phonenumber of the most recent missed call.Press to call the displayed number or tosave the number in Phonebook.Three-Way CallingThis feature enables you to conduct conference callswith two separate parties at the same time. The phonerecords each party into the Outgoing call log. Also, Youare billed airtime for each outgoing call separately. Note: Contact your service provider to activate Three-Way Calling.To place a Three-Way call:1. During a conversation, press . The phoneplaces the other party on hold.2. Enter the phone number for the third party, and thenpress . The phone dials the third party.3. When you are connected to the third party, pressagain to begin your three-way call.If one of the callers not you hangs up, you andremaining caller stay connected. If the caller whoinitiated the three-way call hangs up first, all threeparties are disconnected.

Entering TextWhen using your phone, you will need to enter text atmany times; for example, when storing a name in thePhonebook, creating your personal greeting orscheduling events in your calendar. You can enteralphanumeric characters into your phone by using yourphone’s number keypad.You are provided with the following text input modes.• T9 Word: This mode allows you to enter words withonly one keypress per letter. Each key ona keypad has more than one letter - asingle press on could be J, K or L.The T9 mode automatically comparesyour keypresses to an internal linguisticdatabase to determine the correct word.The T9 mode requires far fewerkeystrokes than the traditional multi-tapmethod, ABC mode.• ABC: This mode allows you to enter letters bypressing the key labeled with the desiredletter once, twice, or three times until theletter appears on the display.• Symbol: This mode allows you to enter specialcharacters.• 123: This mode allows you to enter numbers.Note: The T9 mode supplies an appropriate language database as your setting in the Language menu(MENU 0-4).3736CCaallll FFuunnccttiioonnssCall WaitingCall Waiting lets you receive a second call during aconversation. Your phone notifies you of a waiting callby beeping and displaying “Call Waiting.”Your phone provides the option of turning the CallWaiting feature on and off, if you have subscribed to theservice. Call Waiting is on by default in the phone. If youwant to have a undisturbed conversation, simply turnthe feature for the current call off .Note: Contact your service provider to activate the CallWaiting service.To answer a waiting call:1. To answer the call, press . The phone connectsthe calling party, and places the current party on hold.2. Press again to switch between two parties.Note: If you do not respond to a Call Waitingnotification, the phone will forward the call to voice mailor another number that you set up. Contact your serviceprovider for more information. Call ForwardingThis feature provides the option of forwarding incomingcalls to another phone, even while your phone is off.Activating Call Forwarding does not affect outgoing callsfrom your phone. Contact your service provider toactivate the Call Forwarding feature.

39EEnntteerriinngg TTeexxtt38EEnntteerriinngg TTeexxttT9 ModeTo type a word, press keys labeled with the letters youneed. Remember the following as you are typing.1. Press keys on the phone just once per desired letter.For example, to enter “hello,” press , , , .2. The word you are typing appears on the display. Itmay change with each keypress.3. Type to the end of the word before editing ordeleting any keystrokes.If the word that appears in the display is not theword that you desire, press one or more timesto display alternate word choices for the keys youhave typed. For example, both “of” and “me” havethe key sequence and . The phone willdisplay the most commonly used choice first.4. Complete each word with a space by pressing .Smart PunctuationsPeriod, hyphen and apostrophe are available on .T9 applies rules of grammar to insert the correctpunctuation. Notice that is used twice in this example to display two punctuation marks. l e t ‘ s e a t . Changing Text Input ModeWhen you are in a field that allows characters entry,you should notice the text input mode indicator at thebottom of the display.You can change between T9 Word and ABC to enterwords. To include a symbol or a number between theletters, Symbol and 123 modes are also available. To change to another text input mode:1. Press . The list of the text input modes appears.2. Scroll to the desired mode by pressing or.3. To select the mode highlighted, press .If you want to exit the menu without changing to a new mode, press .You will find the selected text input mode indicatoron the display.

41EEnntteerriinngg TTeexxtt40EEnntteerriinngg TTeexxttABC ModeWhen typing by using the ABC mode, you need topress the key labeled with the required letter:- Once for the first letter- Twice for the second letter- And so on.For example, you can press three times quicklyto display the letter “C”, and two times quicklyto display the letter “K”. In this reason, this method iscalled multi-tap typing.The cursor moves to the right when you press adifferent key. When entering the same letter twice or adifferent letter on the same key, just wait for a fewseconds for the cursor to move right automatically, andthen select the next letter.Refer to the table on next page for the list ofcharacters assigned on each key.Changing CaseYour phone offers three case states; • Abc : initial letter is capitalized• ABC : all letters are capitalized• abc : all letters are lower casePress one or more times to display theappropriate case indicator, and begin typing normally.Including a NumberYou can include a number between letters withoutexiting the T9 input mode. Press and hold thecorresponding number key.Changing CaseYour phone offers three case states: • T9 Word: initial letter is capitalized• T9 WORD: all letters are capitalized• T9 word: all letters are lower casePress one or more times to display theappropriate case indicator, and begin typing normally.Another Usages• To move the cursor left or right through your text,press or .• Press one or more times to clear letters oneby one to the left. Press and hold to erase allletters.

$43EEnntteerriinngg TTeexxtt42EEnntteerriinngg TTeexxttSymbol ModeSymbol mode enables you to enter symbols.Press or to display more symbol sets.Press the number keys corresponding to the desiredsymbols. The phone automatically switches back tothe text input mode used just prior to selecting theSymbol mode.123 Mode123 mode enables you to enter numbers. Press thenumber keys corresponding to the desired digits. Youneed to manually switch to text input mode of yourchoice.Another Usages• Press to insert a space.• To move the cursor left or right through your text,press or .• Press one or more times to clear letters oneby one to the left. Press and hold to erase allletters.AB C2DE F 3GH I 4JK L5MN O 6PQ RS7TU V8WX Y Z 90(Caps Lock mode)List of characters available1.@ , : ? - ; ‘ / ( ) ! # % &*< > _ + = “ \ { } $ [ ] Key Characters in the Order Displayed$
