SCH-A610 SeriesPORTABLEDual-BandTELEPHONEUser GuidePlease read this manual before operating yourphone, and keep it for future reference.

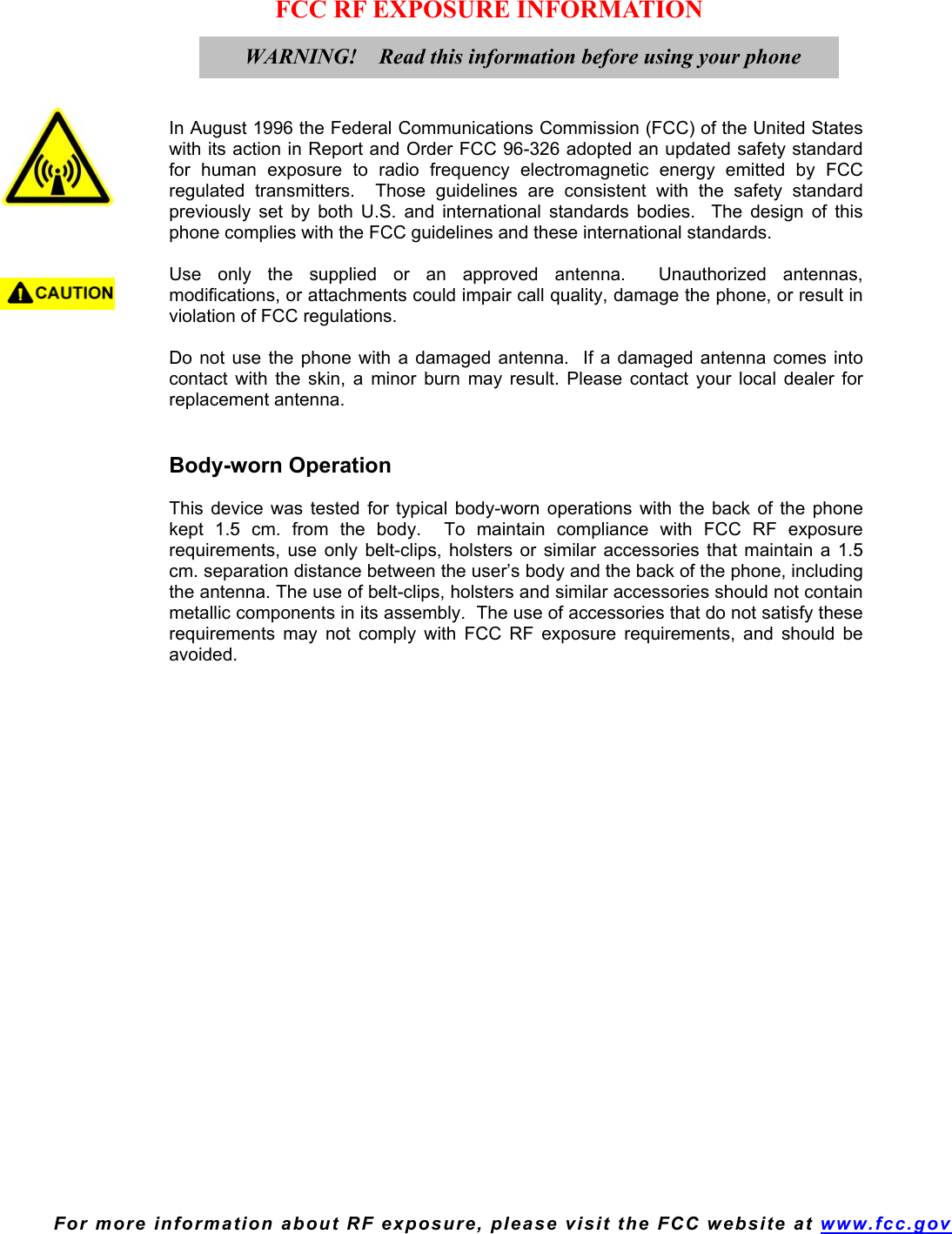

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5cm. separation distance between the user’s body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone
Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Samsung Telecommunications America (STA), Inc.Headquarters:Customer Care Center:1130 E. Arapaho Road1601 E. Plano Parkway, Suite 150Richardson, TX 75081Plano, TX 75074Tel: 972.761.7000Toll Free Tel: 1.888.987.HELP (4357)Fax: 972.761.7001Fax: 972.761.7501Internet Address: http://www.samsungusa.com©2002 Samsung Telecommunications America, Inc. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Samsung Telecommunications America, Inc. is a trademark of Samsung Electronics Corporation, Ltd.Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.English: 2002:11:30. Version 3.0Printed in South Korea
Openwave® is a registered Trademark of Openwave, Inc.RSA® is a registered Trademark RSA Security, Inc.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.Introduction to the SCH-A610 phoneCongratulations on the purchase of your SCH-A610 phone . Using the latest digital technology, your new phone operates on the same basis as other wireless phones while providing superior resonance and tone quality. The SCH-A610 phone is packed with productive features that are easy to use. Here are some of them:• Operates in 1900 MHz digital CDMA, 800 MHz digital CDMA
•Voice Dialing – 20 Locations•User friendly display with dedicated icons for signal strength, service, roaming, messages, vibrator, and battery•Replaceable faceplates•5 Monotone Ring Types, 15 Melody Tones•Distinctive ringer types for voice, message, and alarm calls•Distinctive ringer volumes for voice, message, and alarm calls•Phone Book Memory – 500 Locations•Call Logs – 10 Locations each for outgoing, incoming, and missed calls. These 30 Call Log numbers are all easy to redial.•Internet MiniBrowser•Pause Dialing for tele-services•Fast Ringer Mute during Incoming Call•Alarm clock with programmable alarm•Last number redial – last 10 Numbers•One-touch dialing – 9 Locations•Two-touch dialing – 90 Locations•Three-touch dialing – 401 Location•Easily mute the microphone during conversation•Security features including Call Restriction, Emergency/Secret Number capability, and Lock mode•Fax and Data capability•Selectable English/Spanish user interfaceHow To Use This User GuideThis user guide explains your Samsung SCH-A610 phone operations through easy-to-follow instructions and illustrations.We’ve included some important safety and usage information that you should know before using your phone.If you still have questions, we’ll be happy to answer them. Just call our Samsung Customer Care Center toll-free at 1.888.987.HELP (4357).
17Getting to know your phoneAntennaThe antenna is a device for transmitting and receiving signals. The shape and size of the antenna is determined, in part, by the frequency of the signals that they receive. An antenna makes the call sound clearer when it is fully extended. Use only in the normal position and do not touch the antenna unnecessarily when the phone is active.Backlight featuresYour keypad has user settable backlighting for easy visibility.Clear keyThe key is used to erase/clear numbers or characters that may have been incorrectly entered. Or, you can use it to return to a previous screen. •If you enter an incorrect number or character on the display screen, press once briefly. •To erase all digits or characters from the display screen, press for two seconds. •To back up one menu level, press once briefly. •To return to standby mode from any menu, press for two seconds.End (power on/off) keyThis key is utilized in several ways: •Press and hold to turn on your phone. •Press and hold to turn off your phone. •Press once to disconnect a call, return to standby mode, or cancel any input.Headset connectorThis is where the optional hands-free headset is connected. The headset includes an earbud and microphone in a convenient, lightweight unit so you can talk without using your hands.
18 •Before inserting the hands-free headset connector to your phone, gently pry open the top of the cover to expose the headset connector.LED indicatorThe LED indicator flashes to indicate an incoming call or message. When you have the phone ringer set to off, the LED indicator notifies you of an incoming call or message. •The LED indicator lights momentarily when you power up the phone.Menu keyPress to enter the menu selection. MicrophoneThe microphone is used for conversation and recording.Numeric keypadUse these keys to enter text, numbers, and special characters.OK/Message keyThe key stores information that you enter, and also acts as an “OK” button when pressed. When in standby mode, functions as a Mail Kit menu access key to send messages and review received messages. SpeakerThe speaker is for listening to voice conversations.Send key The key performs several useful functions: •Press once to answer calls. •Enter a number and press once to connect a call. •Press twice in standby mode to redial the last outgoing number.
19NavigationThe Navigation key allows you to locate different menu options by pressing the appropriate arrow.When in standby mode the navigation key also acts as a hot key.Display screenYour phone has two display screens: •The display screen on the front of your phone (the flip top) comprises of two areas; an upper line of stationary icons, and the lower line showing text information or time of day. •The display screen on the inside of your phone comprises of three areas, an upper line of stationary icons, lower line of text information, and a graphic area in the middle.•The top line of icons shown on the liquid crystal display (LCD), appear according to the phone’s operating mode.•The lower area of the LCD displays in-use information.Note: The following illustration of the screen display may not reflect the order in which icons, as well as other information, appear on your phone..Display screen iconsSignal strength: This icon always appears when your phone is on. It shows your current signal strength. More lines indicate more signal strength.
20Service indicator: This icon indicates a call is in progress. When the phone is calling a number, this icon will flash until the call is connected.No service indicator: This icon indicates your phone cannot find a signal because you’re outside a service area. You cannot make or receive calls. Wait a little while for a signal or move into an open area.Note: The no service indicator icon will always appear when you turn on your phone. As soon as service is located, the indicator will disappear.

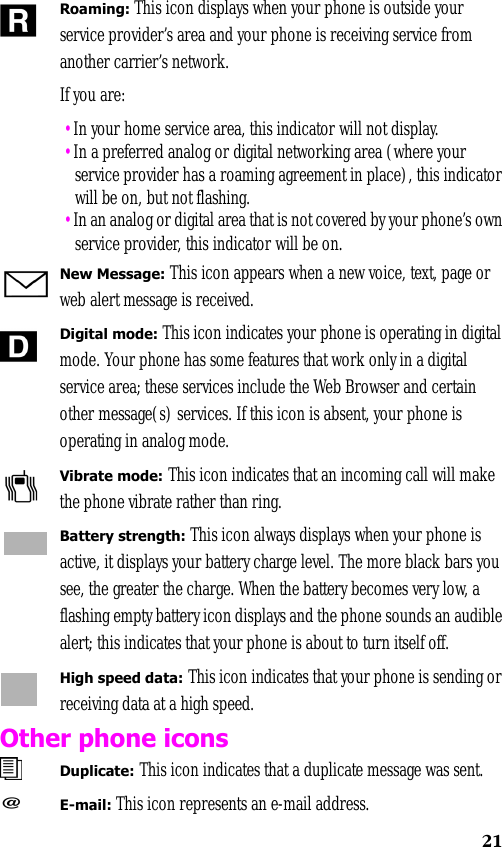

21Roaming: This icon displays when your phone is outside your service provider’s area and your phone is receiving service from another carrier’s network. If you are: •In your home service area, this indicator will not display. •In a preferred analog or digital networking area (where your service provider has a roaming agreement in place), this indicator will be on, but not flashing. •In an analog or digital area that is not covered by your phone’s own service provider, this indicator will be on.New Message: This icon appears when a new voice, text, page or web alert message is received. Digital mode: This icon indicates your phone is operating in digital mode. Your phone has some features that work only in a digital service area; these services include the Web Browser and certain other message(s) services. If this icon is absent, your phone is operating in analog mode.Vibrate mode: This icon indicates that an incoming call will make the phone vibrate rather than ring.Battery strength: This icon always displays when your phone is active, it displays your battery charge level. The more black bars you see, the greater the charge. When the battery becomes very low, a flashing empty battery icon displays and the phone sounds an audible alert; this indicates that your phone is about to turn itself off.High speed data: This icon indicates that your phone is sending or receiving data at a high speed.Other phone iconsDuplicate: This icon indicates that a duplicate message was sent.E-mail: This icon represents an e-mail address.
22Fax: This icon represents a fax number. Filed Message: This icon displays if a message is filed.Home: This icon indicates represents an individual’s home number.Message: This icon displays when outgoing messages are transmitted.Message read: This icon displays when you have read a message.Message received: This icon indicates that an incoming text, voicemail, page or web message has been received.Mobile: This icon represents a mobile phone number.Multi: This icon displays if multi messages are successfully delivered.No label: This icon indicates that no label exists for this entry.Office: This icon represents an office number.Pager: This icon represents a pager number.Send Delivered: This icon displays if a sent message is delivered.Send Failed: This icon displays if a message failed to be sent.Speed dial: This icon displays when the number you wish to call is available using the speed dial feature.Urgent: This icon displays if a message is urgent.Installing the batteryNote: Your phone comes packaged with a partially charged rechargeable standard Li-Ion battery and travel adapter. The phone can be used while the battery is charging, but must be fully charged the first time you use your phone otherwise the battery could be damaged.The battery attaches to the phone very easily: 1. Gently place the bottom end of the battery into the provided slots on the underside of the phone.
232. Press the top end of the battery down (The top end of the battery displays the word Samsung in raised letters.) until you hear it click into place.Removing the batteryTo remove the battery from your phone:1. Turn the phone off (by pressing and holding until the closing animation begins.)2. On the back side of the phone, hold the button down and push the battery toward the bottom edge of the phone. The battery will then lift or fall away from the phone.)Charging the batteryYour phone is powered by a rechargeable standard Li-Ion battery. Only use Samsung-approved adaptors and batteries. These adaptors are designed to maximize battery life. Using other adaptors may invalidate your warranty and may cause damage.When the phone has finished charging it can be disconnected.
24Adaptor outletUse the adaptor outlet to connect your phone to a wireless data device or a hands-free car kit (both sold separately). The adaptor outlet is located at the bottom of the phone. •To charge your battery, plug the travel adaptor that is supplied with your phone into a wall outlet. •Using your thumb and first finger, gently squeeze the two buttons located on either side of the other end of the travel adaptor and insert the adaptor into your phone’s outlet. The yellow arrow on the travel adaptor should be facing upwards and pointing toward the phone. •When you unplug the travel adaptor from your phone, squeeze these same two buttons, and pull gently on the adaptor to disconnect it from the phone.Using the travel adaptorThe travel adaptor allows you to charge your phone’s battery from any 110 volt AC standard wall outlet. Also, using the travel adaptor allows you to make a phone call while the battery is charging. The travel adaptor will fully charge an “empty” standard battery in approximately 4 hours. Follow these steps:1. With the battery in position in the phone, attach the cord from the travel adaptor by plugging it into the adaptor outlet at the bottom of the phone.2. Connect the adaptor to a standard 110 volt AC wall outlet. The battery will begin charging immediately, and the LED (located at the top of your phone) will light and remain red while the battery icon animates, the icon will remain animated, even if the phone is turned off during charging.3. The LED indicates the status of the battery being charged.
25 •Red indicates that the battery is charging. •Green indicates that the battery is fully charged. •Yellow indicates (1) the battery is not seated correctly in the phone, (2) the adaptor is not plugged in correctly, or (3) the battery is inoperable. Please check the adaptor and/or battery. 4. You can make a phone call when the phone is plugged into the travel adaptor. The adaptor will continue to charge the battery even when you are making the call.Note: The battery charges faster when the phone is turned off.Low battery indicatorYou can tell whether or not your battery needs to be recharged by checking the battery indicator (this icon is located in the upper-right corner of the display screen). The presence of all three bars indicate a full charge. No bars (the battery icon is empty) means your battery must be charged.The empty battery iconTwo to three minutes before the battery charge level gets too low to operate the phone, the battery sensor will let you know by blinking an empty battery icon ( ), and sounding a tone. If you continue to operate the phone without charging the battery, the phone will automatically turn off. If this happens, your wireless call will be terminated. However, if you plug into a charging device, you can continue your call. Be sure to monitor the battery strength icon and make certain your battery is adequately charged.

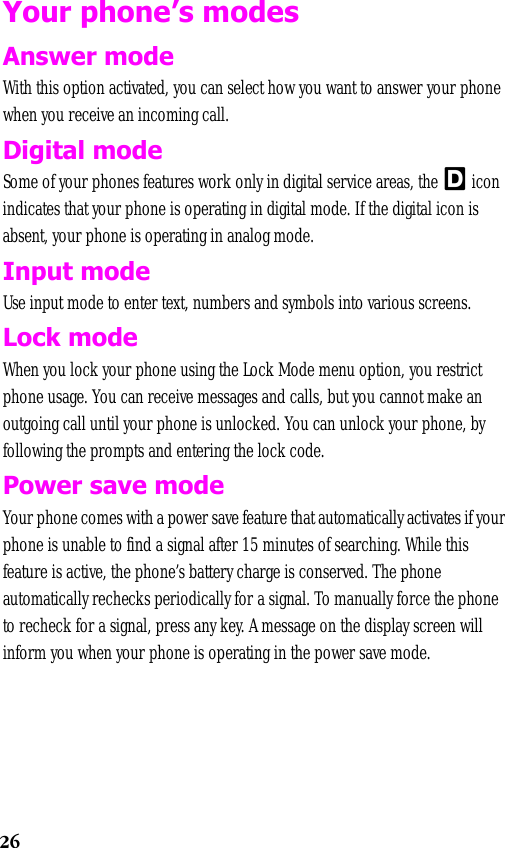

26Your phone’s modesAnswer modeWith this option activated, you can select how you want to answer your phone when you receive an incoming call.Digital modeSome of your phones features work only in digital service areas, the icon indicates that your phone is operating in digital mode. If the digital icon is absent, your phone is operating in analog mode.Input modeUse input mode to enter text, numbers and symbols into various screens.Lock modeWhen you lock your phone using the Lock Mode menu option, you restrict phone usage. You can receive messages and calls, but you cannot make an outgoing call until your phone is unlocked. You can unlock your phone, by following the prompts and entering the lock code.Power save modeYour phone comes with a power save feature that automatically activates if your phone is unable to find a signal after 15 minutes of searching. While this feature is active, the phone’s battery charge is conserved. The phone automatically rechecks periodically for a signal. To manually force the phone to recheck for a signal, press any key. A message on the display screen will inform you when your phone is operating in the power save mode.
27Silent modeThe “Silent Mode” feature allows you to instantaneously silence the ringer when in standby mode. •With the phone in standby mode, press and hold for 2 seconds. “Entering Silent Mode” displays briefly. (The silent mode icon displays on the standby screen.) •To exit from “Silent Mode” press and hold for 2 seconds. The screen prompt “Exit Silent Mode” displays, and your phone automatically reactivates the previous ringer volume setting. (The silent mode icon is removed from the standby screen.)Standby modeStandby mode is the fundamental state of your phone once your phone has found service. Your phone goes into standby mode:1. After you power it on.2. When you press if your phone is on.When in standby mode, you will see:1. The month/date, and time.2. All other active icons.While in standby mode, enter a phone number, and press to call.Press at any time to return to standby mode, but be careful; if you are on a call when you press , you will return to standby mode and disconnect your call. Messages can also be received when in standby mode, the alert tone will sound when a new message is received. The menu is accessed when you are in standby mode by pressing .
28Talk modeYou can place and answer calls only when your phone is turned on. When you are on a call your phone is in Talk mode. Pressing will display a list of the In-Use menu options.Vibrate modeIn standby mode:1. Press the down arrow located on the left side of your phone to adjust the ringer volume to . Your options include vibrate, beep, and off modes.2. When your phone vibrates, press to save. (The vibrate icon appears on the display.)To change the setting:1. Press the down arrow located on the left side of your phone to adjust the ringer volume.2. Press to save. The vibrate icon will be deleted from the display screen.
29Getting StartedGetting serviceYou must contact your service provider and follow their instructions for obtaining service for your phone. We suggest that you read this user guide to fully understand the services that your phone supports.Turning your phone onWhen you are ready to turn your phone on, fully extend the antenna for the clearest reception. Press . Continue to hold this key down for more than one second to power the phone on: Note: Your phone has a built-in antenna. As with any other radio-transmitting device, do not touch the antenna as it affects call quality and can cause the phone to operate at a higher power level than is necessary.The LED indicator momentarily lights, and a power-up alert sounds. The phone begins searching for a network signal. When a signal is found, the date, day, and time appears. Your phone is now ready to place and receive calls. If the phone is outside of your carriers coverage or roaming area the icon displays. If this happens you cannot place or receive calls. You must try later when service becomes available.Turning your phone offTo turn your phone off, press and hold down for more than two seconds. Notice that when the phone is turned off, both the display screen and the backlight remain off.Note: If your phone is on, and is pressed for less than one second, the phone will not power off. This feature prevents your phone from being turned off accidentally.
30Several ways to answer a callWhen you receive a call, the phone will ring and the phone icon displays on your screen. If the caller can be identified, the caller’s phone number, (or name if pre-stored in your Phone Book) displays.There are several ways to answer an incoming call. •Press . •Press any key. •Set the Auto Answer feature.
31List of main and sub menusThis list displays the Main menu structure and mail kit features. It shows the individual sub menus and features assigned to each main menu option.1:Calls 1:Outgoing2:Incoming3:Missed4:Erase Logs Outgoing/Incoming/Missed/All Calls5:Air Time2:Phone Book 1:Find 1:By Name2:By Entry3:By Group1:No Group2:Family3:Friend4:Office5:No Name12:Add3:Rename Group1:No Group2:Family3:Friend4:Office5:No Name14:My Phone#5:Memory1:Dial 000/5002:Voice 000/0203:Message 1:New Messages1:Send To PhoneBook/T9 Word/ABC/Symbol/1232:Message T9 Word/ABC/Symbol/123/canned3:Call Back4:Options Priority/Validity/Send Later/Delivery Ack/Message5:Action SEND:Send Msg/OK:File Msg/CLR:Cancel/END:Quit2:Voice3:Inbox4:Outbox5:Filed Msg6:WebAlert7:Erase Msg1:Voice2:OldInbox3:NewInbox4:Outbox5:Filed6:All Messages
328:Msg Setup1:General1:Scroll Timer 1/2/3/4/5 seconds/Off2:Msg. Reminder Every 2 min/Off/Once3:MessageVolume4:Ringer Type1:Voice Mail2:Page3:Text4:Browser Msg.5: Voice Mail#2:New Message1:Callback #2:Save Message Auto Save/Prompt Save/DoNot Save3:Entry Method T9/Alphabet4:Delivery Ack On/Off5:Canned Msg.0:Yes1:No2:Call me3:Need directions4:Where are you?5:Will call later6:Busy7:On my way8:Will arrive in 15 minutes9:Thank you4:Mobile Web 1:Get In Web2:Prompt5:Planner 1:Today2:View Month3:Jump To Date4:To Do List5:Memo Pad6:Countdown7:Alarm Check8:World Time9:Calculator 6:Display 1:Animation Power On/Power Off/Idle Mode2:Banner3:Color Window4:Backlight Always Off/7 Seconds/15 Seconds/30 Seconds5:Contrast6:Auto Hyphen On/Off7:Dual Clock7:Sounds 1:Ringer Volume1:Calls2:Alarm2:Ringer Type1:Voice Calls2:Alarm
333:Data/Fax In4:Schedule3:Key Beep4:Alerts1:Minute Beep On/Off2:Service On/Off3:Connect On/Off4:Disconnect On/Off5:Fade On/Off6:Roam On/Off8:Voice 1:Voice Dial2:Voice Memo3:Voice Answer9:Games 1:Push Push2:Fly Ribbon3:Spider0:Setup 1:Location2:Network3:Data/Fax data-fax off/fax for next call/fax until powered off/data for next call/data until powered off4:Security5:Call Answer By any key/By send key6:Auto Answer7:Auto Retry8:Language English/Spanish9:Clock Set On/Off1:Main Clock2:Dual Clock0:Version On/OffMail Kit 1:New Messages1:Send To PhoneBook/T9 Word/ABC/Symbol/1232:Message T9 Word/ABC/Symbol/123/canned3:Call Back4:Options Priority/Validity/Send Later/Delivery Ack/Message5:Action SEND:Send Msg/OK:File Msg/CLR:Cancel/END:Quit2:Voice3:Inbox4:Outbox5:Filed Msg6:WebAlert7:Erase Msg1:Voice2:OldInbox3:NewInbox4:Outbox5:Filed6:All Messages8:Msg Setup1:General1:Scroll Timer 1/2/3/4/5 seconds/Off2:Msg. Reminder Every 2 min/Off/Once
343:MessageVolume4:Ringer Type1:Voice Mail2:Page3:Text4:Browser Msg.5: Voice Mail#2:New Message1:Callback #2:Save Message Auto Save/Prompt Save/DoNot Save3:Entry Method T9/Alphabet4:Delivery Ack On/Off5:Canned Msg.0:Yes1:No2:Call me3:Need directions4:Where are you?5:Will call later6:Busy7:On my way8:Will arrive in 15 minutes9:Thank youIn-Use Menu (Can be opened only when on a call)1:Mute/Quit2:Calls Outgoing/Incoming/Missed/Erase Logs/Air Time3:Phone Book Find Name/Add Entry/Find Entry/RelationSrch/Add E-mail4:Silent/Quit5:Send Tel #6:My Phone #7:Version8:Send DTMF
35Using your phone’s menusYour phone offers a range of functions that allow you to tailor the phone to your personal requirements. These functions are arranged in menus and submenus.The menus and submenus can be accessed by using the navigation key or using shortcuts.Accessing menus using the navigation keyMenu options are numbered but can also be accessed by using the navigation key. •Press right to activate Voice Memo. •Press down to activate the Memo Pad. •Press left to activate the Scheduler. •Press up to search your Phone Book by name.Returning to the previous menuWhen using the navigation key you can return to the previous menu at anytime. To do this:•Press to return to the previous menu. •Press to exit the menu without saving the setting.Accessing menus using shortcut numbersAll main menus, menu levels, and menu content items are assigned numbers. All menus and their contents can be accessed using these “Shortcut” numbers. The following steps are a sample exercise to access games.1. In standby mode, press to access the main menu.2. Press for Games.3. Press for Push Push.

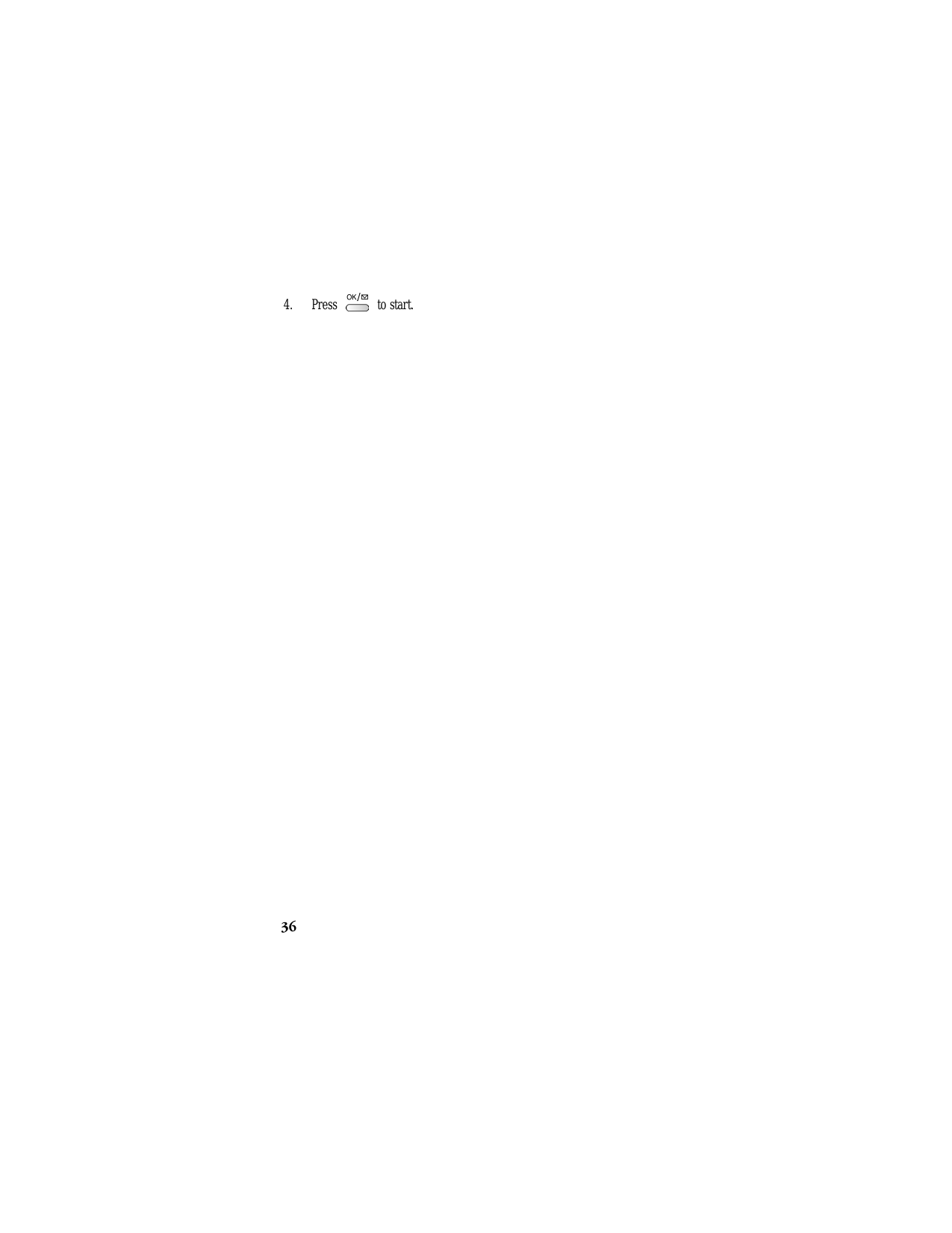

364. Press to start.
37CallsOutgoingTo place a call press to power on your phone. The phone first shows an animated sequence and the icons discussed earlier display, this indicates your phone is on. (No dial tone will be heard). This is called standby mode.1. Enter the phone number you wish to call (up to 32 digits), by pressing the numeric keys. The phone numbers display from left to right.2. Press to place a call to the entered phone number. •A record of the last 10 calls made is stored to the “Outgoing” call log list. Incoming Your phone signals an incoming call or message in the following ways: •An animation message. •The LCD color changes according to your color setting. •The backlight illuminates. •The red LED indicator flashes. •The ringer sounds (unless you have set the ringer to vibrate or off).Incoming call notification continues until one of the following events occurs: •You answer the call. •The calling party ends the call. •The call is sent to voicemail.Your phone provides the following voice call notification features: •Eight ring volume settings including vibrate or off. •Five ring types, and fifteen melody tones. •Name display with Caller ID. (If the caller’s name is programmed into your Phone Book.) •Automatic storage of an incoming call’s information to a call log. (The last 10 calls you answered are stored in an “Incoming” call
38log list and the last 10 calls you missed are stored in a “Missed” call log list).MissedYour phone keeps a list of calls that you did not answer when the phone was active and service available. The phone indicates a missed call by displaying a text notification on the screen. Additionally, if caller information is available, a Missed call entry is created, and the screen displays the phone number of the most recent missed call.Your phone has two convenient options for when you miss a call: •Press to call the displayed number. •Press to clear the “Missed Call” message from the display. •View your Missed calls log.Erase logYou can erase any one of the three call directories (Outgoing, Incoming or Missed), or you can erase all three directories together. To erase all directories:1. In standby mode, press to display the main menu.2. Press for the Calls menu.3. Press for Erase Log. The available options are: •Outgoing •Incoming •Missed •All Calls4. Press highlight All Calls.5. Press to erase all your call directories.6. Press to cancel the action and return to the previous menu.

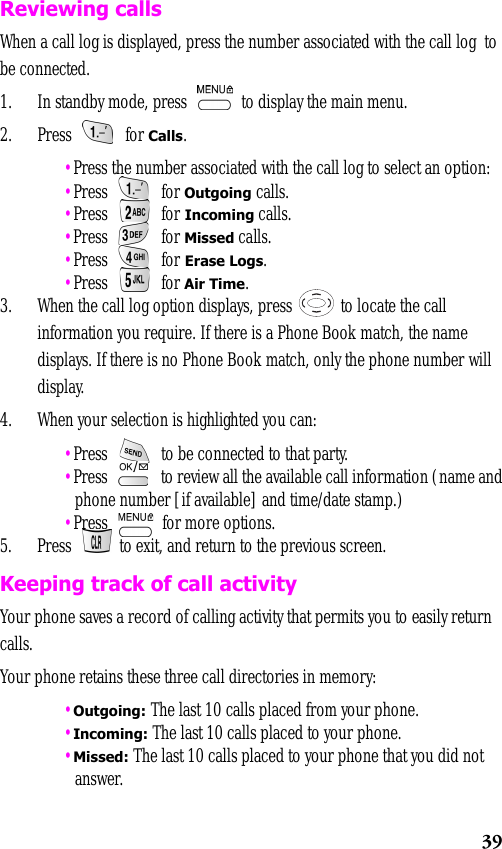

39Reviewing callsWhen a call log is displayed, press the number associated with the call log to be connected.1. In standby mode, press to display the main menu.2. Press for Calls. •Press the number associated with the call log to select an option: •Press for Outgoing calls. •Press for Incoming calls. •Press for Missed calls. •Press for Erase Logs. •Press for Air Time.3. When the call log option displays, press to locate the call information you require. If there is a Phone Book match, the name displays. If there is no Phone Book match, only the phone number will display.4. When your selection is highlighted you can: •Press to be connected to that party. •Press to review all the available call information (name and phone number [if available] and time/date stamp.) •Press for more options.5. Press to exit, and return to the previous screen.Keeping track of call activityYour phone saves a record of calling activity that permits you to easily return calls.Your phone retains these three call directories in memory: •Outgoing: The last 10 calls placed from your phone. •Incoming: The last 10 calls placed to your phone. •Missed: The last 10 calls placed to your phone that you did not answer.
40 •Erase Logs: The last 10 calls you chose to erase from your call log. •Air Time: The talk time spent on your calls.Viewing call logs during a conversation1. Press to display the In-Use menu.2. Press for Calls.3. Press to highlight an option.4. Press to view your option, or press to cancel, and return to the previous screen.Air timeYour phone records (or logs), the amount of air time or talk time used for all calls. You can view this time from standby mode:1. In standby mode, press to display the main menu.2. Press for Calls.3. Press for Air Time.4. Press to highlight an option. The available options are: •Last Call •Total •LifeTime •Erase Total5. Press to open an option, or press to cancel, and return to the previous screen.Last callLast call allows you to review the amount of time spent on the last call you made.1. In standby mode, press to display the main menu.2. Press for Calls.
413. Press for Air Time. 4. Press for Last Call. The amount of time spent on your last call displays.5. Press to return to the previous display screen. TotalTotal air time is the cumulative amount of time the phone has been used since the total air time was last erased. Air time for all incoming and outgoing calls is saved here. This feature is not intended for billing purposes.1. In standby mode, press to display the main menu.2. Press for Calls.3. Press for Air Time.4. Press for Total.The screen displays the total number of calls and the total air time for calls made and received since you last set the Total air time to zero (by using the “Erase Total” option.)5. Press to return to the previous display screen.LifeTimeLifeTime air time is the amount of time the phone has been used since it was first activated. Air time for all incoming and outgoing calls is saved here. This feature is not intended for billing purposes.Note: You cannot erase any information created by this option.1. In standby mode, press to display the main menu.2. Press for Calls.3. Press for Air Time.4. Press for LifeTime.
42The screen displays the total number of calls made from this phone, and the total amount of air time used since this phone was set-up. This information cannot be erased.5. Press to return to the previous display screen.Erase totalIf you choose the Erase Total option, the counter for all air times with the exception of LifeTime, will be set to “zero”. The counter will begin counting the next time you make or receive a call.To erase your total air time:1. In standby mode, press to display the main menu.2. Press for Calls.3. Press for Air Time.4. Press for Erase Total. 5. Press to highlight Yes or No.6. With Yes highlighted, press to erase the total airtime and return to standby mode, or press to cancel the operation and return to the previous display screen.Call waitingYour phone beeps when another call is coming in.To answer this call:1. Press . When connected, ask them to remain on the line or, request to call back later.2. Press and they will be placed on hold.You are now connected to your original call. You can press to alternate between calls.
43Caller I.D.This feature allows you to see who is calling you by displaying the callers number when the phone rings. If the callers name and number are stored in the phone book, the name also displays. You can also block your number from being displayed on another phone by enabling the call block feature. To activate call block:1. Press2. Enter the phone number and press Note: To block your number permanently, contact your service provider.Three way callingTo place a three way call:1. Call the first party, and press . When connected, ask them to remain on the line, press and they will be placed on hold.2. Call the second phone number, and press .3. When the second party answers, press and all parties will be connected.Note: You may need to contact your service carrier to set up Call waiting, Caller I.D., and Three way calling.
44Phone BookYour phone permits you to store up to 500 numbers and names in the Phone Book. Each entry can have up to 7 associated phone numbers and one e-mail address. Each entry can contain up to 32 digits including hard pauses, with an associated name of up to 12 characters. (Name entry is optional). You can even specify the memory location of your choice for each entry. Memory locations can be marked “Secret” preventing the unauthorized from viewing the telephone number.One-Touch, Two-Touch, and Three-Touch Dialing from your Phone Book makes it easy to call a phone number stored in your Phone Book.To access your Phone Book1. Press for the main menu. 2. Press for Phone Book.Use the instructions given in the following subsections to manipulate your Phone Book. Add entryThis menu allows you to add a phone number to your Phone Book.Here are a list of the Phone Book options:•Number: Telephone number.•Name: Name associated to a telephone number.•Entry: The memory location number which is allocated to the name in the list of names and numbers that you created.•Secret: This field allows you to designate a number “secret”.•Category: A “category” label is associated with each phone number. For example: Speed Dial, Home, Mobile, Office, Pager, Fax, and No Label.•Group: A “Group” label is associated to a number. For example: No Group, Friend, Family, Office and No Name1.

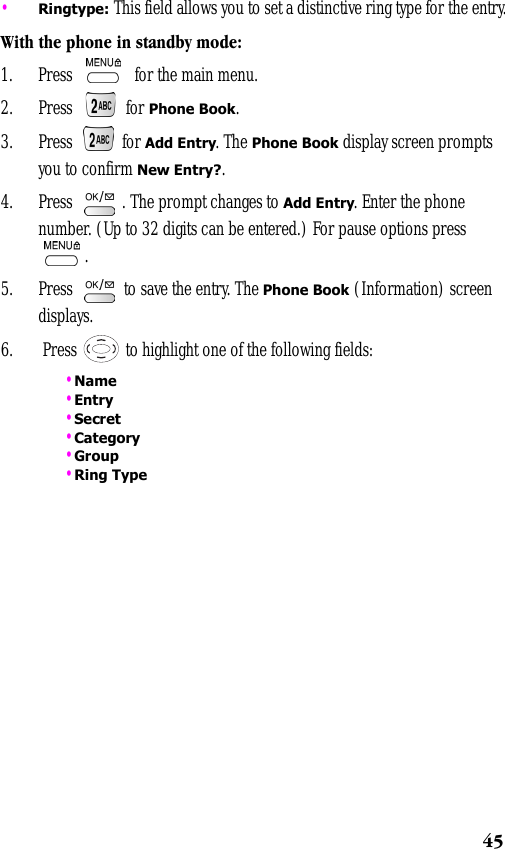

45•Ringtype: This field allows you to set a distinctive ring type for the entry.With the phone in standby mode:1. Press for the main menu. 2. Press for Phone Book.3. Press for Add Entry. The Phone Book display screen prompts you to confirm New Entry?.4. Press . The prompt changes to Add Entry. Enter the phone number. (Up to 32 digits can be entered.) For pause options press .5. Press to save the entry. The Phone Book (Information) screen displays.6. Press to highlight one of the following fields: •Name •Entry •Secret •Category •Group •Ring Type
46Adding a nameTo add a name to the Phone Book:1. At the Phone Book (information) screen, press to highlight Name. 2. Press , the Enter name screen displays. Enter a name.3. Press to save and display the information in the Name field on the Phone Book (information) screen.4. Press again to save your entry.Setting secretThis feature allows you to keep certain numbers in your Phone Book confidential so that others cannot access them.1. From the Phone Book (information) screen, press to highlight Secret.2. Press . Press to highlight the On (secret) or Off (cancel) option. 3. Press to save.4. Press again to save your entry.Note: All Phone Book entries can be made secret. If you access the entry later, you will be prompted to enter your 4-digit user lock code.Adding a group labelTo add a Group label to a number in the Phone Book. 1. From the Phone Book (information) screen, press to highlight Group.2. Press , the Group menu screen displays. The following options display: •No Group •Friend
47 •Family •Office •No Name13. Highlight an option and press to save and display the information in the Group field on the Phone Book (information) screen.4. Press again to save your entry.Editing phone book numbersOnce stored in the Phone Book, an entry can be changed quite easily. To change a Phone Book entry:1. In standby mode, press to display the main menu.2. Press for Phone Book.3. Press for Find Entry.4. Press to highlight the entry requiring editing.5. Press . The existing phone number is highlighted.6. Press and to highlight the Edit option.7. Press . The Phone Book (information) screen displays.Note: If the number is designated as “Secret” you are prompted to enter your 4-digit Lock Code. Once entered, press to locate the Secret option, and press . Use the navigation key to highlight Off and press . The Phone Book (information) screen now displays Secret Off. 8. Press to edit the selected field.9. Press to save your changes.Note: Press until the existing number is deleted. Enter the new number. (You can enter up to 32 digits.)
48Adding and changing a ring typeTo set a distinctive ring type to a Phone Book entry:1. At the Phone Book (information) screen press to highlight RingType.2. Press , the RingType screen displays. Use the navigation key to highlight an option. The options show: Inactive, 5 monotone ringers, and 15 melodies.3. Press to save and display the information in the RingType field on the Phone Book (Information) screen.Overwriting a categoryThe Category field is automatically filled and designated Speed dial when an Entry number is generated by the phone. You may wish to change this phone generated Category label to one of the following: Home, Mobile, Office, Pager, Fax, or No label, with Speed Dial remaining the default option.1. At the Phone Book (information) screen, to highlight Category.2. Press , the Category screen displays. The options are: •Speed dial •Home •Mobile •Office •Pager •Fax •No label3. Press to save and display the new Category label on the Phone Book (information) screen.4. Press again to save your entry.
49Overwriting existing name and number informationYou can overwrite existing information using separate actions in both the name and number fields. Follow these instructions:1. At the Phone Book (information) screen, press the arrow repeatedly to locate and highlight an existing name or number field that needs the information changed. When highlighted, press .2. The name or number will be displayed. To overwrite, hold down , until you clear the existing name or number. Enter new information.3. Press to save. The new information will be displayed.4. Press again to save your entry.Find nameThis option allows you to find a stored name (alphabetically) in the Phone Book and place a call to that name. 1. In standby mode, press to display the main menu.2. Press for Phone Book.3. Press for Find Name. (For quicker access to the entry can also press the key associated with the first character of the name you wish to find.)4. Press to highlight the name.5. Press to select the name. The display screen shows the phone number and E-mail address (if available) associated with the name. 6. Press to place the call. With an entry selected, press to access any of the following options: •Talk: Pressing or calls the number. •Add #: Permits the adding of a phone number.
50 •Edit: Permits editing of the phone number, name, entry number, category, secret number, group, and ring type. •Prepend: Allows you to prepend a number to either a feature code or area code before calling. •Erase: Erases the number. •Name Ring: Permits you to select a unique tone to identify an incoming caller. •E-mail addr: Permits you to add an E-mail address.7. Pressing returns you to the previous screen.Find entryThis option allows you to find a stored entry by location number. 1. In standby mode, press to display the main menu.2. Press for the Phone Book.3. Press for Find. 4. Press to highlight Find Entry.5. Press to select the entry. The entry information is displayed.6. Press to highlight the phone number.7. Press to call the number.Note: If no name is associated with the number, the Name Label shows No Name
51GroupThis option allows you to find a stored entry in a related group. 1. In standby mode, press to display the main menu.2. Press for the Phone Book.3. Press for Group. 4. Press left or right to review the groups.5. Press down to highlight a specific entry.6. Press to select the entry from the group. The entry information is displayed with the phone number highlighted.Note: If the phone number is designated “secret” the number will not display on the standby screen when called.7. Press to call the number, or press to return to the previous display screen

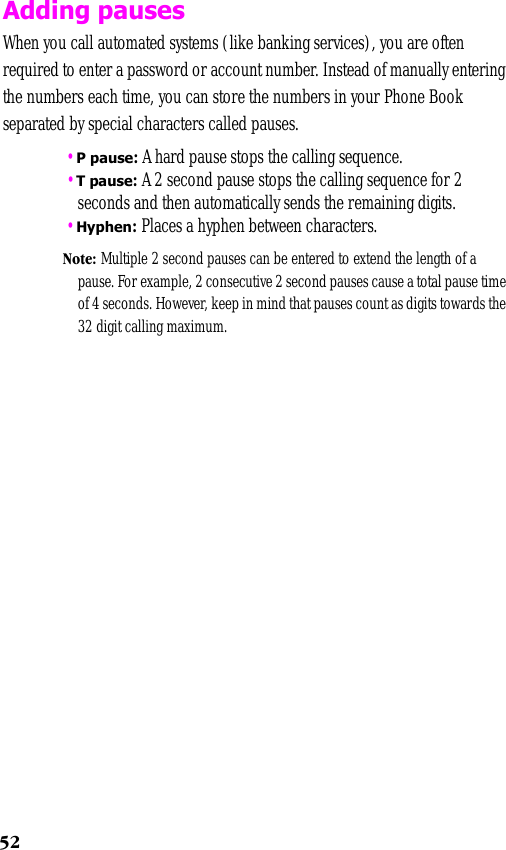

52Adding pausesWhen you call automated systems (like banking services), you are often required to enter a password or account number. Instead of manually entering the numbers each time, you can store the numbers in your Phone Book separated by special characters called pauses. •P pause: A hard pause stops the calling sequence. •T pause: A 2 second pause stops the calling sequence for 2 seconds and then automatically sends the remaining digits. •Hyphen: Places a hyphen between characters.Note: Multiple 2 second pauses can be entered to extend the length of a pause. For example, 2 consecutive 2 second pauses cause a total pause time of 4 seconds. However, keep in mind that pauses count as digits towards the 32 digit calling maximum.
53Storing pauses in a phone book entryTo store a number in your Phone Book that contains pauses.1. Enter the phone number you want to store (such as the bank’s teleservice phone number).2. Press . The pause menu options display. 3. Press to highlight one of the three pause menu options offered.4. Press to select an option. •“P” Pause: The letter “P” displays within the number, meaning that a hard pause will occur at that point in the calling sequence. Enter the digits that need to follow the pause (such as your account number). •“T” pause: The letter “T” displays in the number, meaning that a “Timed” (2 second) pause will occur at that point in the calling sequence. Enter the digits that need to follow the pause (such as your account number). •Hyphen: Places a hyphen between characters.5. When the number and pauses are complete, press to store the number in your Phone Book.
54Pause dialing from a stored entryTo pause dial from the Phone Book:1. If you stored the number using (2 second) “T” pause(s) , simply call the number from the Phone Book. 2. If you stored the number using (hard) “P” pause(s), call the number from the Phone Book and wait for the appropriate prompt from the number you are calling (credit card number, bank account number, etc.).3. Press to call the number.Manual pause callingTo manually call a number with pause(s) without storing to the Phone Book.1. Enter the phone number of the service you want to call (such as a bank’s teleservice phone number). For example, your bank’s teleservice phone number might be an 800 number. Begin by entering the number 1. 2. Press to display the pause Menu options. Press to locate the pause option of choice and press to activate. Continue in this manner until you enter the complete number with pause(s).3. Press to call the number.Note: Storing pauses is convenient if you plan to call the number frequently.Accessing your phone book during a conversation To access your phone book during a conversation:1. Press to display the In-Use menu.2. Press for Phone Book.3. Use your keypad to enter the number associated with the Phone Book menu option to locate the information required.
55Prepending a phone numberThe Prepend option permits you to add prefix numbers such as area codes and network feature activation codes to phone numbers that are already stored in your Phone Book or call log. To Prepend a stored phone number:1. In standby mode, press to display the main menu.2. Press for Phone Book.3. Press for Find Name, or for Find Entry. Note: Find Name searches the Phone Book entries alphabetically, and Find Entry searches the Phone Book entries numerically.4. Press .5. Press to display Menu options. 6. Use the arrows to locate the Prepend option. 7. Press .8. Use the keypad to prepend the number (which cannot be longer than 10 digits.)9. Press to place the call.Erasing individual phone book entriesTo erase an existing entry from either the Find Name or Find Entry option.1. In standby mode, press to display the main menu.2. Press for Phone Book. 3. Press for Find Name or for Find Entry. 4. Press to highlight the information and press .5. Press to display the following menu options: •Talk •Add #

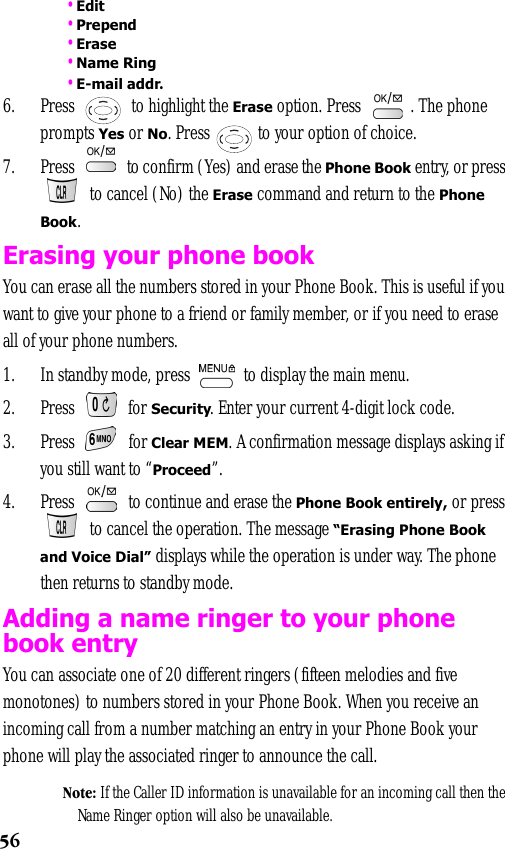

56 •Edit •Prepend •Erase •Name Ring •E-mail addr.6. Press to highlight the Erase option. Press . The phone prompts Yes or No. Press to your option of choice.7. Press to confirm (Yes) and erase the Phone Book entry, or press to cancel (No) the Erase command and return to the Phone Book. Erasing your phone bookYou can erase all the numbers stored in your Phone Book. This is useful if you want to give your phone to a friend or family member, or if you need to erase all of your phone numbers. 1. In standby mode, press to display the main menu.2. Press for Security. Enter your current 4-digit lock code.3. Press for Clear MEM. A confirmation message displays asking if you still want to “Proceed”.4. Press to continue and erase the Phone Book entirely, or press to cancel the operation. The message “Erasing Phone Book and Voice Dial” displays while the operation is under way. The phone then returns to standby mode.Adding a name ringer to your phone book entryYou can associate one of 20 different ringers (fifteen melodies and five monotones) to numbers stored in your Phone Book. When you receive an incoming call from a number matching an entry in your Phone Book your phone will play the associated ringer to announce the call.Note: If the Caller ID information is unavailable for an incoming call then the Name Ringer option will also be unavailable.

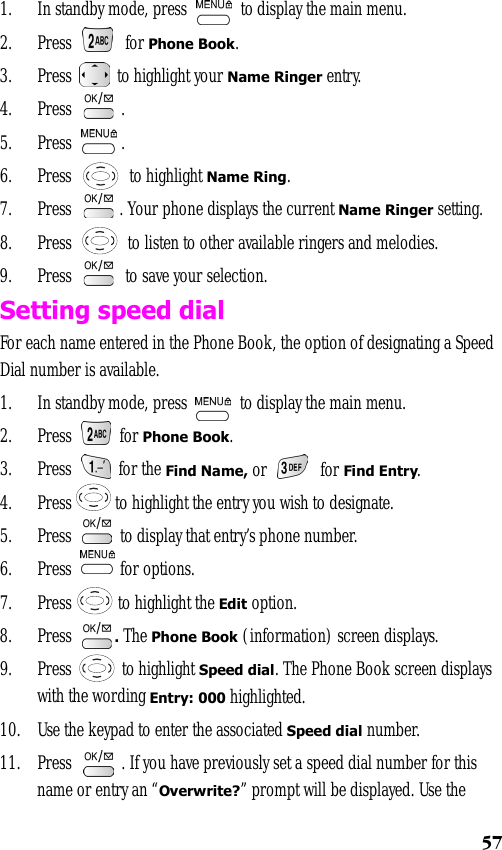

571. In standby mode, press to display the main menu.2. Press for Phone Book.3. Press to highlight your Name Ringer entry.4. Press .5. Press .6. Press to highlight Name Ring.7. Press . Your phone displays the current Name Ringer setting.8. Press to listen to other available ringers and melodies.9. Press to save your selection.Setting speed dialFor each name entered in the Phone Book, the option of designating a Speed Dial number is available.1. In standby mode, press to display the main menu.2. Press for Phone Book.3. Press for the Find Name, or for Find Entry.4. Press to highlight the entry you wish to designate. 5. Press to display that entry’s phone number.6. Press for options.7. Press to highlight the Edit option.8. Press . The Phone Book (information) screen displays.9. Press to highlight Speed dial. The Phone Book screen displays with the wording Entry: 000 highlighted.10. Use the keypad to enter the associated Speed dial number.11. Press . If you have previously set a speed dial number for this name or entry an “Overwrite?” prompt will be displayed. Use the

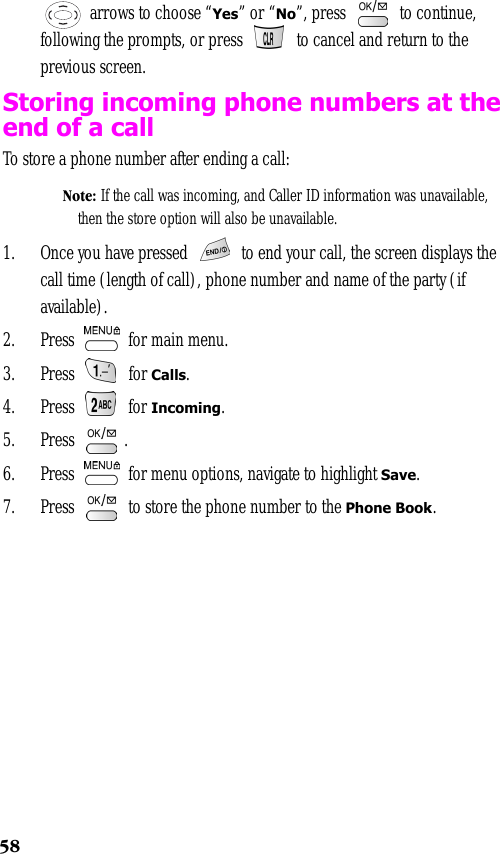

58 arrows to choose “Yes” or “No”, press to continue, following the prompts, or press to cancel and return to the previous screen.Storing incoming phone numbers at the end of a callTo store a phone number after ending a call:Note: If the call was incoming, and Caller ID information was unavailable, then the store option will also be unavailable.1. Once you have pressed to end your call, the screen displays the call time (length of call), phone number and name of the party (if available).2. Press for main menu.3. Press for Calls.4. Press for Incoming.5. Press .6. Press for menu options, navigate to highlight Save.7. Press to store the phone number to the Phone Book.

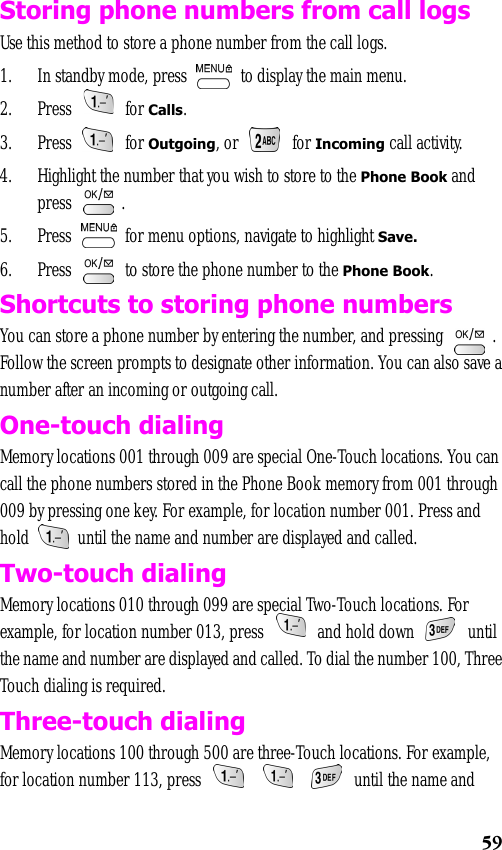

59Storing phone numbers from call logsUse this method to store a phone number from the call logs.1. In standby mode, press to display the main menu.2. Press for Calls.3. Press for Outgoing, or for Incoming call activity.4. Highlight the number that you wish to store to the Phone Book and press .5. Press for menu options, navigate to highlight Save.6. Press to store the phone number to the Phone Book. Shortcuts to storing phone numbersYou can store a phone number by entering the number, and pressing . Follow the screen prompts to designate other information. You can also save a number after an incoming or outgoing call.One-touch dialingMemory locations 001 through 009 are special One-Touch locations. You can call the phone numbers stored in the Phone Book memory from 001 through 009 by pressing one key. For example, for location number 001. Press and hold until the name and number are displayed and called.Two-touch dialingMemory locations 010 through 099 are special Two-Touch locations. For example, for location number 013, press and hold down until the name and number are displayed and called. To dial the number 100, Three Touch dialing is required.Three-touch dialingMemory locations 100 through 500 are three-Touch locations. For example, for location number 113, press until the name and
60number are displayed and called. To dial the number 100, Three Touch dialing is required.Shortcuts to memory dialingSpeed Dialing: From standby mode, enter the entry’s Speed Dial number, and press to call .Navigating to the #: From standby mode, press for main menu, press for Phone Book, press for Find Entry. Use the navigation key to highlight the entry, press to call that entry’s Speed Dial number.My phone #To display your phone’s number:1. In standby mode, press to display the main menu.2. Press for the Display.3. Press for My Phone #. The phone’s number displays.4. You can press to return to the previous menu at any time.MemoryThis features saves voice and dial calls in memory. You can save up to 500 automatic dial in your Phone Book and up to 20 in Voice Dial. •Dial: 000/500 •Voice: 000/020
